Philips DVD956 User Manual
DVD Video player
DVD950/955/956
•
Instructions for use
•
Mode d’emploi
•
Instrucciones de manejo
•
Bedienungsanleitung
•
Gebruiksaanwijzing
•
Istruzioni per l’uso
•
Manual de utilização
Laser safety
This unit employs a laser.Only a qualified service person should remove
the cover or attempt to service this device,due to possible eye injury.
For Customer Use:
Read carefully the information located at the bottom of
your DVD-VIDEO player and enter below the Serial
N°.Retain this information for future reference.
Model N°.DVD-VIDEO
Serial N°.__________________________
CAUTION WARNING LOCATION: INSIDE ON LASER COVERSHIELD
CAUTIONVISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID EXPOSURE TO
BEAM
AD
VARSEL SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE
FOR STRÅLING
AD
VARSEL SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES UNNGÅ
EKSPONERING FOR STRÅLEN
V
ARNING SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD
BETRAKTA EJ STRÅLEN
V
ARO!AVATTAESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER
SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN
V
ORSICHT SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG
GEÖFFNET NICHT DEM STRAHL AUSSETSEN
D
ANGERVISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT EXPOSURE TO BEAM
A
TTENTION RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D’OUVERTURE EXPOSI-
TION DANGEREUSE AU FAISCEAU
LASER
Type Semiconductor laser GaAlAs
Wave lenght 650 nm (DVD)
780 nm (VCD/CD)
Output Power 7 mW (DVD)
10 mW (VCD/CD)
Beam divergence 60 degree.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
2 GENERAL INFORMATION
General information
NEVER MAKE OR CHANGE CONNECTIONS WITH THE
POWER SWITCHED ON.
The DVD-VIDEO player is in conformity with the EMC
directive and low-voltage directive.
CLASS 1
LASER PRODUCT
GENERAL INFORMATION 3
English
English ------------------------------------------------------------------------------------------------------------------------------ 5
Français-------------------------------------------------------------------------------------------------------------------------- 39
Français
Español -------------------------------------------------------------------------------------------------------------------------- 73
Español
Deutsch------------------------------------------------------------------------------------------------------------------------ 107
Deutsch
Nederlands---------------------------------------------------------------------------------------------------------------- 141
Nederlands
Italiano ------------------------------------------------------------------------------------------------------------------------ 175
Italiano
Português ------------------------------------------------------------------------------------------------------------------ 209
Português
4 GENERAL INFORMATION
English
English
Introduction
Functional overview
Front of player ---------------------------------------------------------------------------------------------------------------- 8
Rear of player ------------------------------------------------------------------------------------------------------------------ 9
Display ---------------------------------------------------------------------------------------------------------------------------- 10
Remote control ------------------------------------------------------------------------------------------------------------ 11
On screen display information
Menu bar/Status window ------------------------------------------------------------------------------------------ 12
Status window icons -------------------------------------------------------------------------------------------------- 12
Default screen -------------------------------------------------------------------------------------------------------------- 12
Preparation

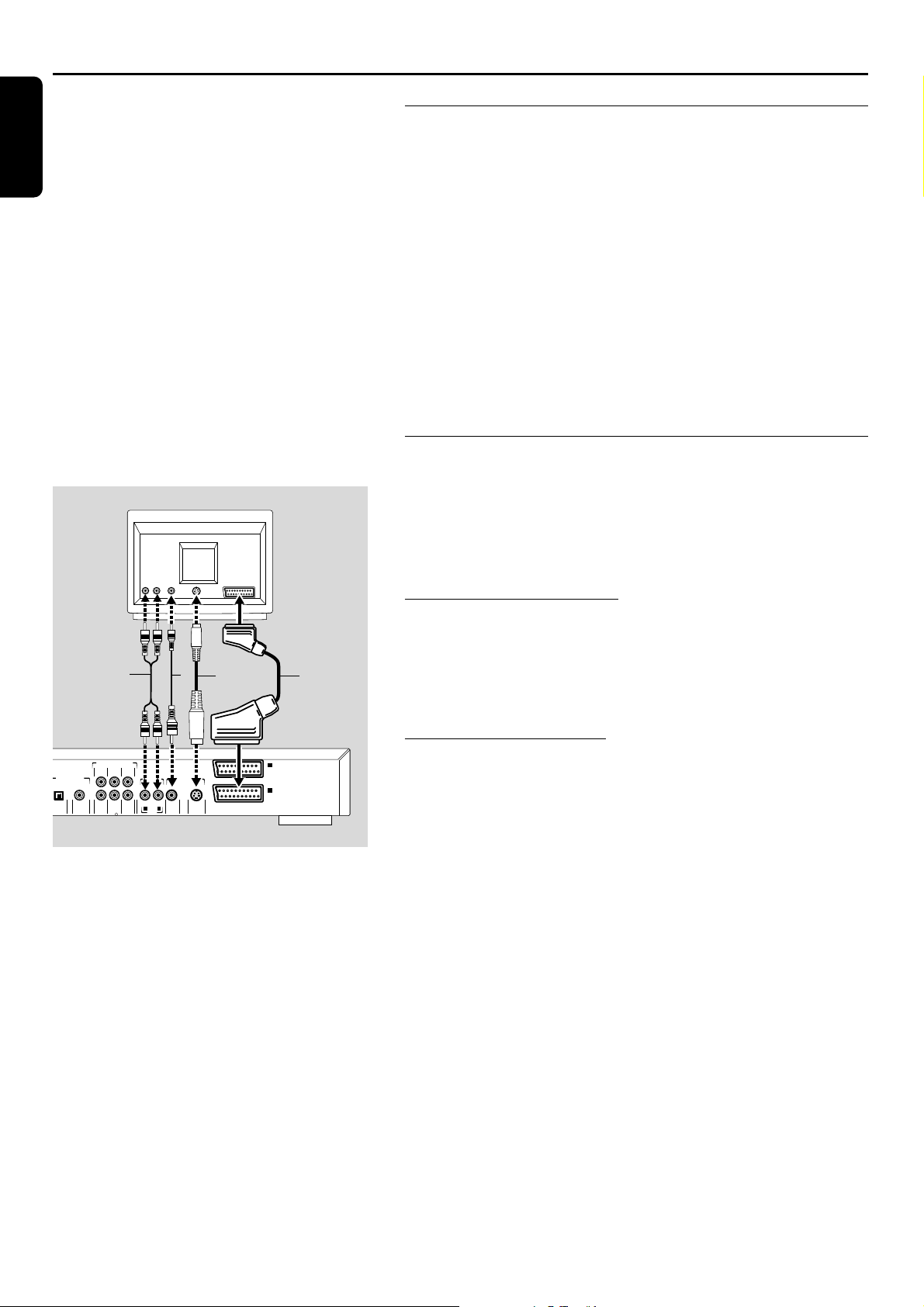

Connections ------------------------------------------------------------------------------------------------------------ 14-16
General explication ------------------------------------------------------------------------------------------------------ 18
Switching on ------------------------------------------------------------------------------------------------------------------ 19
Virgin Mode ------------------------------------------------------------------------------------------------------------------ 19
Personal Preferences -------------------------------------------------------------------------------------------------- 20
Access Control ------------------------------------------------------------------------------------------------------------ 22
Operation
DVD-Video discs and Video CDs ---------------------------------------------------------------------- 25-30

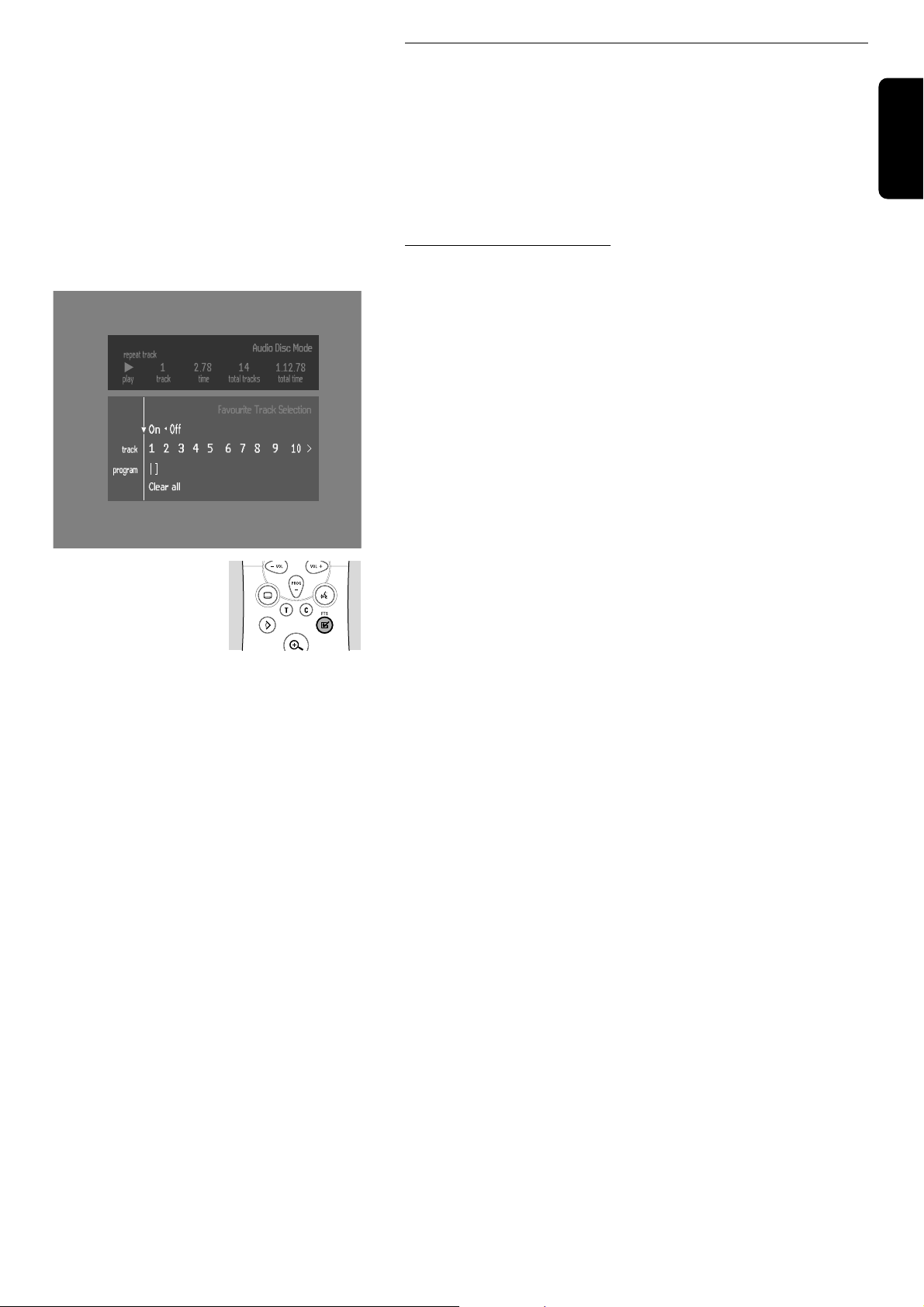

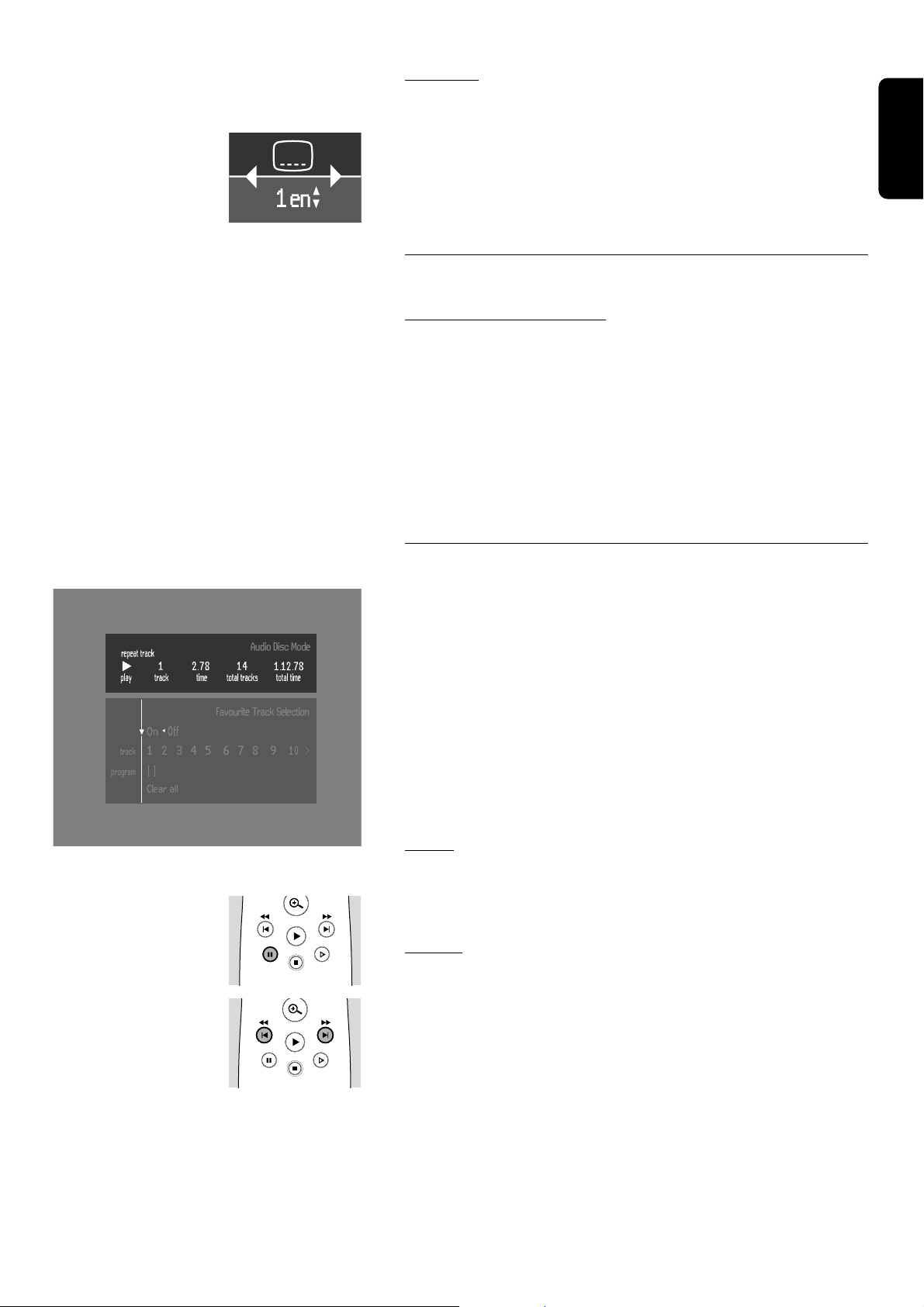

Playing an Audio CD ---------------------------------------------------------------------------------------------- 31-33
Before requesting service ------------------------------------------------------------------------------------------ 34
Appendix ------------------------------------------------------------------------------------------------------------------------ 36
TRUSURROUND,SRS, and symbol are trademarks of SRS Labs,Inc.
TRUSURROUND technology is manufactured under license from SRS
Labs,Inc.
Products with Dolby Digital and Pro Logic:
Manufactured under license from Dolby Laboratories.“Dolby”,“Pro
Logic” and the double-D symbol are trademarks of Dolby Laboratories.
Confidential Unpublished Works.
©1992-1997 Dolby Laboratories,Inc.All rights reserved.
This product incorporates copyright protection technology that is protected by method claims of certain U.S.patents and other intellectual
property rights owned by Macrovision Corporation and other rights
owners.Use of this copyright protection technolog y must be authorized by Macrovision Corporation,and is intented for home and other
limited viewing uses only unless otherwise authorized by Macrovision
Corporation.Reverse engineering or disassembly is prohibited.
CONTENTS 5
Contents
English
Introduction
The entertainment medium for the millenium
Video was never like this before! Perfect digital studio-quality pictures
with truly 3- dimensional digital multichannel audio.Stor y sequences
screened from your own choice of camera angle.
Language barriers broken down by sound tracks in as many as eight languages,plus subtitles - if available on disc - as many as 32.And whether
you watch DVD-Video on wide-screen or regular TV,you always see it
the way it was meant to be.
Digital video
DVD-Video uses state-of-the-art MPEG2 data compression technology
to register an entire movie on a single 5-inch disc.DVD’s variable bitrate
compression,running at up to 9.8 Mbits/second,captures even the most
complex pictures in their original quality.
The crystal-clear digital pictures have a horizontal resolution of over 500
lines,with 720 pixels (picture elements) to each line.This resolution is
more than double that of VHS, superior to Laser Disc, and entirely comparable with digital masters made in recording studios.
DVD-Video discs conform to either the PAL or NTSC video standard.
This dual-standard player can play both types,and presents them in the
best possible way on your multistandard TV screen.
As the universal video system of the future,DVD-Video offers optimal
pictures on any TV screen.
Introduction
Your Philips DVD-Video player is a player for digital video discs conforming to the universal DVD Video standard. With it, you will be able to
enjoy full-length movies with true cinema picture quality,and stereo or
multichannel sound (depending on the disc, and on your playback setup). The unique features of DVD-Video,such as selection of sound track
and subtitle languages,and of different camera angles (again depending
on the disc),are all included.What’s more,Philips Child Lock lets you
decide which discs your children will be able to see.
You will find your player remarkably easy to use,by way of the OnScreen Display and player display,in combination with the remote control.
In addition to DVD-Video discs,you will also be able to play all Video
CDs and audio CDs (including CDR and CDRW).
DVD-Video
You will recognize DVD-Video discs by the logo.
Depending on the material on the disc (a movie, video clips, a drama
series,etc.) these discs may have one or more Titles, and each Title may
have one or more Chapters.To make access easy and convenient,your
player lets you move between Titles, and also between Chapters.
6 INTRODUCTION
DVD-VIDEO DISC
TITLE 1 TITLE 2
CHAPTER 1 CHAPTER 2 CHAPTER 1 CHAPTER 2 CHAPTER 3
English
Video CD
You will recognize Video CDs by the logo.
Depending on the material on the disc (a movie, video clips, a drama
series,etc.) these discs may have one or more tracks, and tracks may
have one or more indexes, as indicated on the disc case.To make access
easy and convenient,your player lets you move between tracks, and
between indexes.
Audio CD
Audio CDs contain music tracks only.
You will recognize CDs by their logo.
You can play them in conventional style through a stereo system,using
the keys on the remote control and/or front panel,or via the TV using
the On Screen Display (OSD).
Unpacking
First check and identify the contents of your DVD-Video player package,
as listed below:
- DVD-Video player
- Remote Control Handset with separately-packed batteries
- 2-core power cord
- Euroconnector cable
- Audio cable
- Video cable
- User Manual
If any item should be damaged or missing,please inform your supplier
without delay.
Keep the packaging materials;you may need them to transport your
player in the future.
Placement
● Place the player on a firm,flat surface.
● Keep away from domestic heating equipment and direct sunlight.
● In a cabinet,allow about 2.5 cm (1 inch) of free space all around the
player for adequate ventilation.
● If the DVD-Video player cannot read CDs/DVDs correctly,use a commonly available cleaning CD/DVD to clean the lens before taking the
DVD-Video player to be repaired.Other cleaning methods may destroy
the lens.Always keep the tray closed to avoid dust on the lens.
● The lense may cloud over when the DVD-Video player is suddenly
moved from cold to warm surroundings. Playing a CD/DVD is not possible then.Leave the DVD-Video player in a warm environment until the
moisture evaporates.
INTRODUCTION 7
VIDEO CD
TRACK 1 TRACK 2
INDEX 1 INDEX 2 INDEX 1 INDEX 2 INDEX 3
AUDIO CD
TRACKS
23 56789101112...41
/
English
Functional overview
Front of player
PHONES
- for connecting headphones
LEVEL
- headphone volume control
9 STOP
- stops video/audio play
; PAUSE
- interrupts video/audio play or steps to the
next picture frame
3 OPEN/CLOSE
- opens/closes the disc tray
Disc loading tray
3D SOUND
- selects stereo,Dolby Surround,
3D Sound or Multichannel sound
S
- selects previous title/chapter/track/index or
beginning current title/chapter/track/index
2 PLAY
- starts video/audio play
T
- selects next title/chapter/track/index
Display
- displays the current status of the player
Standby indicator - lights up red when the player is in Standby mode
- lights up green when the player is operative
STANDBY - switches the player to
Power/Standby mode
8 FUNCTIONAL OVERVIEW
DVD 950 DVD VIDEO CD CD PLAYER
STAND BY
MPEG Multichannel
/
/
3D-SOUND
DIGITAL OUT
PHONES
TITLE
CHAPTER
TRACK
SCAN
SHUFFLE
CD
V
LEVEL
REPEAT-BA
CHAPTER
TIMETRACKTOTAL
TRACKTITLE
OPEN/ CLOSE
PAUSE STOP
MATCH
LIN
E
PLAY
English
Rear of player
Caution: Do not touch the inner pins of rear panel connectors.
Electrostatic discharge may cause permanent damage to the
unit.
Multichannel connections
(For connection to a multichannel receiver)
- center speaker connection
- subwoofer connection
- front speakers connections
- surround speakers connections
TV connections
Video (CVBS)
- for connection to a TV with CVBS video inputs
S-Video (Y/C)
- for connection to a TV with S- Video (Y/C) inputs
TV OUT (TV)
- for connection to a TV with Euroconnector
Euroconnector (AUX)
- for connection to your VCR
Audio connections
Digital audio output connector (optical)
- connection to digital (optical) equipment
Digital audio output connector (coaxial)
- connection to digital (coaxial) equipment
Audio /LR
- connection to an amplifier, receiver or stereo system
Power supply socket
- connection to the mains
FUNCTIONAL OVERVIEW 9
MAINS
DIGITAL AUDIO OUT
PCM/MPEG2/AC3/DTS
OPT OUT
DIG OUT
MULTICHANNEL AUDIO OUT
LEFT CENTER
REAR
RIGHT SUBW.
REAR
LEFT
FRONT
RIGHT
FRONT
STEREO OUT VIDEO OUT
L
R
(CVBS) (Y/C)
VIDEO OUT S-VIDEO OUT
AUDIO
I
AUX-I/O
II
TO TV-I/O
English
Display
Front (left and right) speakers active
Center speaker active
Test tone active
Active audio format
Surround (left and right) speakers active
Subwoofer active
DVD disc inserted
(V)CD disc inserted
Indicates current player function: Play, Pause, Search, etc.
DVD TITLE number
DVD CHAPTER number
VCD/CD TRACK number
TRACK TIME in hours, minutes and seconds
TOTAL TIME in hours,minutes and seconds
REPEAT CHAPTER/TITLE/TRACK active
Remote control active (flashing)
FTS active
SCAN active
REPEA T A-B active
SHUFFLE active
10 FUNCTIONAL OVERVIEW
CD
V
V
CD
TITLE
SCAN
CHAPTER
REPEAT-BA
TRACK
SHUFFLE
CHAPTER
TRACK
CHAPTER
TIMETRACK
TIMETOTAL
TIMETRACKTOT AL
TRACKTITLE
SCAN
REPEAT-BA
SHUFFLE
English
Remote control
FUNCTIONAL OVERVIEW 11
TV MUTE
- DVD-mode:selects Stereo,Dolby
Surround,3D Sound or Multi
Channel reproduction
- TV-mode:mute ON/OFF
DVD/TV switch
- DVD mode/TV mode selector
0-9 numerical key pad
RETURN
- go back to previous menu step
OK
- acknowledge menu selection
Q O
- search backward / previous
chapter or track
R P
- search forward / next chapter or
track
2
- play
;
- pause or still frame /step frame
9
- stop
x
- slow motion
STANDBY
REPEAT
- repeat chapter,track,title, disc
REPEA T A-B
- repeat sequence
SHUFFLE
- playback in random order
SCAN
- playback of the first 10 seconds
of each chapter within a title
(DVD) or the first 10 seconds of
each track on a disc (VCD/CD)
DVD MENU
- select DVD-defined menu
MENU OSD
- (On-Screen Display) on/off
PROG +/-
- DVD mode:up/down cursor
movement
- TV mode: Program up/down
VOL +/-
- DVD mode: left/right cursor
movement
- TV mode: Volume up/down
- subtitle language selector
- audio language selector
T
- select title
C
- select chapter
- activate FTS
- select DVD camera angle
- enlarge video image
English
On screen display information
Menu bar/Status window
V User preference f Slow motion
W Title/Track g Fast motion
X Chapter/Index h Time search
Y Audio language
Z Subtitle language
} Angle
a Zoom
b Colour
c Video FTS
d Sound
e Picture by Picture
Status window icons
The status window displays the current status of the player and is displayed together with the first part of the menu bar, if activated in the
Features menu (see Personal Preferences).
General
Disc type
Tray status
Default screen
The default screen is displayed when the player is in STOP mode.
It may contain a status window (see ‘Status Window’) and a ‘Temporary
Feedback Field’.Giving information concerning prohibited actions,playback modes,available angles,etc .
12 ON SCREEN DISPLAY INFORMATION
Loading...
