Philips DVD 691 User Manual
DVD 736K/931 Chinese IFU 2001.1.22, 1:40 PM1
”«
1
General Information
Since it is usual for DVD movies to be released at
different times in different regions of the world, all
players have region codes and discs can have an
optional region code. If you load a disc of a
different region code to your player, you will see
the region code notice on the screen. The disc
will not playback, and should be unloaded.
3
Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic” and the double-D
symbol are trademarks of Dolby Laboratories.
“DTS” and “DTS Digital Surround” are trademarks
of Digital Theater Systems, Inc.
CAUTION
(WARNING LOCATION: ON THE
BACKPLATE OF SET)
NEVER MAKE OR CHANGE
CONNECTIONS WITH THE POWER
SWITCHED ON.
4
Laser safety
This unit employs a laser. Due to possible eye
injury, only a qualified service person should
remove the cover or attempt to service this
device.
USE OF CONTROLS OR
ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
LASER
Type Semiconductor laser GaAlAs
Wave length 650 nm (DVD)
780 nm (VCD/CD)
Output Power 7 mW (DVD)
10 mW (VCD/CD)
Beam divergence 60 degree
CAUTION
VISIBLE AND INVISIBLE LASER RADIATION
WHEN OPEN AVOID EXPOSURE TO BEAM
For Customer Use:
Read carefully the information located at the
rear panel of your DVD VIDEO player and enter
below the Serial No.Retain this information for
future reference.
Model No. DVD VIDEO
Serial No. __________________________
2
DVD 736K/691 English IFU 2001.1.31, 10:32 AM2
”«
Important Note:
Due to the numerous versions of new CDAudio copy protection or enhanced CD-Audio
protection recently available on certain discs,
Philips is unable to guarantee that this DVD
player is fully compatible with such new discs.
Should you have difficulty playing any such
CD-Audio discs, kindly refer them to your CDAudio disc retailer.
DVD736K IFU for /751 3141 016 19191
Contents
Introduction
Environmental Information .....................................4
Supplied accessories ..............................................4
Safety Information ...................................................4
Symbols Used in this booklet ...............................4
Functional overview
Front panel .................................................................5
Rear panel ..................................................................5
Remote control .......................................................6
Preparation
Basic Connection ..................................................7
Connecting to a TV .............................................7
Connecting to Optional Equipment .....................8
Conecting to a Audio System ..............................8
Inserting batteries into the Remote Control ..9
Using the Remote control ...................................9
NTSC/PAL Conversion .........................................9
Switching On ..........................................................10
Operation
Basic Playback ....................................................10
General Operation ...........................................10
Video control during playback ............................10
Audio control during playback ............................11
Repeat .......................................................................11
Repeat A-B .............................................................11
5 disc Resume .........................................................11
OSD (On-Screen Display) ...........................12
Title Selection .........................................................12
Chapter Selection .................................................12
Time Search ............................................................12
Zoom ......................................................................12
Special DVD Features .....................................12
Playing a title .........................................................12
Playing a chapter ....................................................12
Camera Angle .........................................................12
Changing the audio language ...........................12
Subtitles ....................................................................12
Special VCD & SVCD Features ..................13
Playback Control (PBC) ...................................13
Preview function ...................................................13
Picture CD & MP3 CD Playback
Function introduction.............................................14
Basic playback .........................................................14
Auto playback .........................................................14
Selection playback ................................................14
Preview playback ...................................................14
Playback with multi-angles ...................................14
Playback Speed Control ........................................14
Zoom picture ..........................................................14
KARAOKE
General operation ...............................................15
General setup .......................................................15
Karaoke learning and language learning function
........................................................................................15
Setup menu
Basic operation ..................................................16
General setup menu .......................................16
Disc lock .................................................................16
VFD DIM...................................................................16
Program ..................................................................16
OSD language .........................................................17
Screen saver ............................................................17
Speaker setup page .........................................17
DOWNMIX mode ................................................17
D.R.C .......................................................................17
Center speaker .......................................................18
Surround speaker ..................................................18
Subwoofer speaker ...............................................18
Center delay ...........................................................18
Surround delay ......................................................18
Bass Redirection .....................................................18
Test tone ................................................................19
Pro Logic setup ..................................................19
SPDIF setup ........................................................19
SPDIF OUT setup ..................................................19
LPCM 96K mode ...................................................19
Video Output setup ......................................20
Video output ...........................................................20
TV display ................................................................20
TV type ...................................................................20
Smart Picture ..................................................21
Video Mode ...........................................................21
Personal Picture Setting ......................................21
Preferences setup .............................................22
Audio language .......................................................22
Subtitle language .....................................................22
Disc menu language ...............................................22
Password ..................................................................22
Parental control ......................................................23
Default setup...........................................................23
Smart Navigator ....................................................23
Specifications
Specifications ...........................................................23

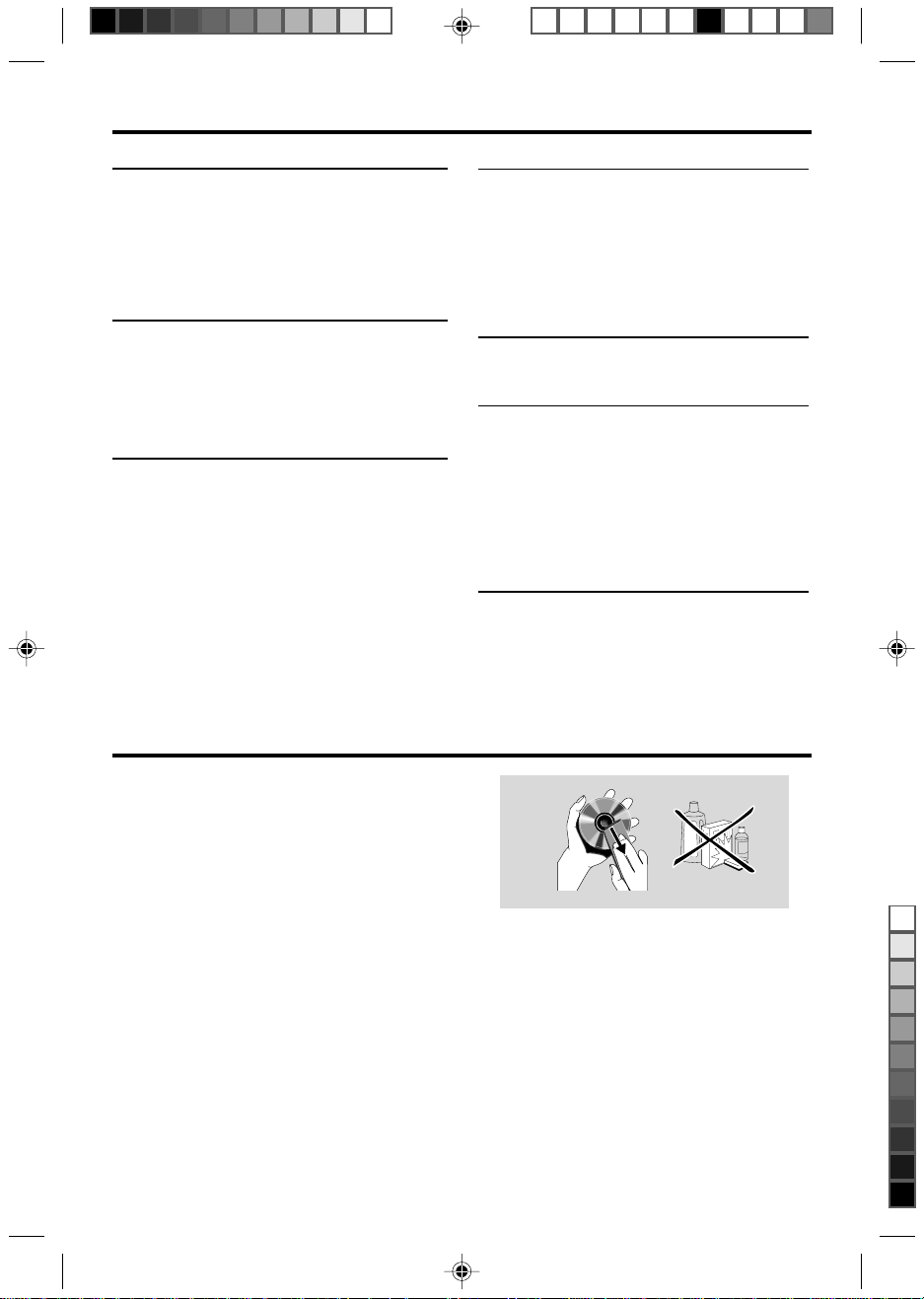

Maintenance
Maintenance ........................................................ 23
Troubleshooting
Troubleshooting ....................................................24
3
DVD 736K/691 English IFU 2001.1.31, 10:32 AM3
”«
DVD736K IFU for /751 3141 016 19191
Introduction
Thank you for purchasing this Philips DVD player.
This Owner’s Manual explains the basic operation
of this DVD player.
Environmental Information
All unnecessary packaging has been omitted. We
have tried to make the packaging easy to separate
into three materials: cardboard (box), polystyrene
foam (buffer) and polyethylene (bags, protective
foam sheet).
Your DVD player consists of materials which can
be recycled and reused if disassembled by a
specialized company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old equipment.
Supplied accessories
– DVD-Video player
– Remote control with Batteries
– Audio cable
– Video cable
– Owner’s Manual
Safety Information
● Before operating the DVD player, check that the
operating voltage indicated on the typeplate is
identical with the voltage of your local power
supply. If not, please consult your dealer.
● Place the DVD player on a flat, hard and stable
surface.
● There must be sufficient room in front of the
player for the drawer to be opened.
● In cabinet, allow about 2.5cm (1 inch) of free
space all around the player for adequate
ventilation.
● Do not expose your player to extreme of
temperature or humidity.
● If the DVD player is brought directly from a cold
to a warm location, or is placed in a very damp
room, moisture may condense on the lens of the
disc unit inside the DVD player. Should this occur,
the DVD player w ould not operate normally.
Leave the power on for about one hour with no
disc in the DVD player until normal playback is
possible.
● The mechanical parts of the set contain selflubricating bearings and must not be oiled or
lubricated.
● When the DVD player is switched to Standby
mode, it is still consuming some power. To
disconnect the system from the power supply
completely, remove the AC power plug from the
wall socket.
Symbols Used in this Booklet
The below symbols appear in some headings and
notes with the following meanings:
Helpful Hints!
●
Some DVD video discs require specific
or allow only limited functions during
playback.
4
DVD 736K/691 English IFU 2001.1.31, 10:32 AM4
”«
DVD736K IFU for /751 3141 016 19191
Functional Overview
Front and Rear Panels
POWER ON/OFF
– switches the player On or Off
SMART PICTURE
– realize the smart picture function
DISPLAY
– shows the current status of the player
Disc T ray
LEVEL 1/2
– MIC volume control 1/2 for karaoke
MIC 1/2
– MIC socket 1/2 for karaoke
AUDIO OUT (Multi-Channel)
– connect to an amplifier or
receiver with multi-channel inputs
AUDIO OUT (Left/Right)
– connect to AUDIO inputs of an
amplifier, receiver or stereo system
B; PLAY/PAUSE
– starts/inter r upts playback
9 STOP
– stops playback
T NEXT
– go to the next title/chapter/track
S PREV
– go to the previous title/chapter/track
/ OPEN/CLOSE
– opens/closes the disc tray
Mains Cord
– connect to power outlet
Video out (Y CB CR)
– connect to a TV with component video
inputs
Video out (CVBS)
– connect to a TV with CVBS inputs
Video out (S-Video)
– connect to a TV with S-Video inputs
Optical & Coaxial output
– connect to a receiver with optical & coaxial inputs
Caution: Do not touch the inner pins of the jacks on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
DVD 736K/691 English IFU 2001.1.31, 10:32 AM5
”«
5
DVD736K IFU for /751 3141 016 19191
Functional Overview
Remote Control
RETURN / TITLE
– go back to previous menu /
show title menu
DISC MENU
– access menu of a DVD disc
/switch PBC on/off for VCD disc
1 2 3 4
– select an item in the menu/
fast forward/backward, slow
forward/backward
OK
– acknowledge menu selection
S
– go to a previous chapter or
track
STOP ( 9 )
– stops playback
PLAY ( B )
– starts playback
PAUSE ( ; )
– pause playback temporarily /
frame-by-frame playback
REPEAT
– repeat chapter, track, title , disc
REPEAT (A-B)
– repeat a specific segment
PREVIEW
– Preview the content of a track
or whole disc
MUTE
– Disable or enable sound output
POWER B
– switches DVD ON or to
standby-on mode
0-9 numerical key pad
– select numbered items in a
menu
DISPLAY
– display information on TV
screen during playback
SYSTEM MENU
– access or remove player’s
system menu
T
– go to next chapter or track
SUBTITLE
– subtitle language selector
/switch off subtitle
ANGLE
– select DVD camera angle
ZOOM
– enlarge video image
AUDIO
– audio language selector
KARAOKE
– display Karaoke menu to set
MIC on or off
KEY
– display Karaoke menu to set
key control
VOCAL
– choose audio channels or
karaoke methods
MODE
– display karaoke menu
Note:
Press digit “1” for about 2 seconds to
OPEN or CLOSE disc tray.
6
DVD 736K/691 English IFU 2001.1.31, 10:32 AM6
”«
DVD736K IFU for /751 3141 016 19191
Preparation
Basic Connections
● Please refer to the instruction books of your TV,
VCR, Stereo System or other devices as
necessary to make the best connections.
● Make one of the following connections,
depending on the capabilities of your existing
equipment.
The following guidelines are options for the best
picture and sound quality available on your DVD
player.
Connecting to a TV
If your TV has a CVBS Video input
connector,
0 Connect the CVBS VIDEO OUT on the DVD
player to the CVBS VIDEO IN (cable supplied).
If your TV has a S-Video input connector,
0 Connect the S-Video OUT on the DVD player to
the S-Video IN (not supplied).
If your TV has a Component video
(Y/CB/CR)input connector,
0 Connect the Y/CB/CR VIDEO OUT on the DVD
player to the corresponding connector on the TV
using the component video cable (not supplied).
DVD 736K/691 English IFU 2001.1.31, 10:32 AM7
”«
Caution: Component video and S-video
can not work at the same time, so you
have to set one of them to be active by the
such way as shown on the chapter [Video
output].
Warning!
– Never make or change connections with
the power switched on.
– Connect the DVD player directly to your
TV, instead of eg. a VCR, to avoid
distortion because DVD video discs are
copy protected.
– Do not connect the DVD player AUDIO
OUT to PHONO IN of your player.
7
DVD736K IFU for /751 3141 016 19191
Preparation
Sound
1 Digital audio connections provide the clearest
sound. Connect one of the DVD player’s
DIGITAL AUDIO OUT (COAXIAL or
OPTICAL) to your amplifier or receiver.
2 If digital connections are not possible, connect
the DVD player’s red and white AUDIO OUT to
your amplifier, receiver, stereo or TV.
Connecting to a Audio System
1 You can also listen to the sound of audio CDs
and DVD video discs by connecting to an
optional stereo systems.
2 Connect the Left and Right AUDIO OUT on the
DVD player to the Left and Right AUDIO IN on
the stereo systems.
Connecting to Optional
Equipment
● A digital component with a built-in MPEG 2,
Dolby Digital™ or DTS decoder allows you to
enjoy the surround sound while producing the
effect of being in a movie theater or a concert
hall.
If your receiver has a Dolb y Digital™,
MPEG 2 or DTS decoder,
Connect to A/V receiver with digital
coaxial or optical cable
● Connect the DIGITAL COAXIAL AUDIO OUT
of the DVD player to the corresponding input on
the receiver using the normal audio or video
cable supplied.
8
DVD 736K/691 English IFU 2001.1.31, 10:32 AM8
”«
Analog connection to a multi-channel A/V
receiver with 6 channels audio in
connectors
● A multi-channel decoder enables playback of
DVDs recorded in multi-channel surround
without the need of optional decoder. Connect
the audio out jacks to the corresponding jacks of
your A/V receiver with six cables. In the SPEAKER
SETUP menu, select DOWNMIX to OFF and
enable the 6CH decode function by the method
introduced on the chapter [ Setup Menu ].
Notes:
– If the audio format of the digital output does
not match the capabilities of your receiver, the
receiver will produce a strong, distorted sound or no
sound at all.
DVD736K IFU for /751 3141 016 19191
Loading...
