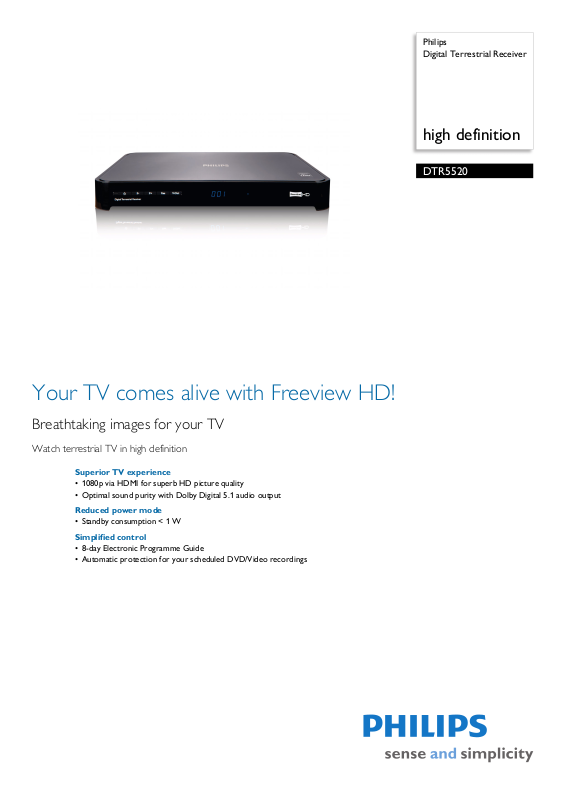

Philips DTR5520 BROCHURE

Philips Digital Terrestrial Receiver

high definition

DTR5520

Your TV comes alive with Freeview HD!

Breathtaking images for your TV

Watch terrestrial TV in high definition

Superior TV experience

• 1080p via HDMI for superb HD picture quality

• Optimal sound purity with Dolby Digital 5.1 audio output

Reduced power mode

• Standby consumption < 1 W

Simplified control

• 8-day Electronic Programme Guide

• Automatic protection for your scheduled DVD/Video recordings

Digital Terrestrial Receiver

MPEG 4 HD

decoder integrated

high definition

DTR5520/05

Specifications

Tuner/Reception/Transmission

• Digital TV: Terrestrial, DVB-T2, DVB-T, MHEG with interaction channel

• Demodulation type: MPEG-2 DVB compliant,

4 DVB compliant, Network: MFN/SFN,

MPEGCOFDM 1K/2K/4K/8K/16K/32K

• Input frequency range: 474 to 850 MHz

• Loop through frequency range: 47-862 MHz

Connectivity

• Terrestrial antenna interface: RF in, IEC 169-2, RF out, (bypass) IEC 169-2, 5 V - 50 mA Antenna

ring

Powe

•Video output — Digital: HDMI

• AUX scart out: Audio L/R, CVBS, PAL, RGB

• Audio Output — Analogue: Audio L/R (cinch)

• Audio Output - Digital: Coaxial (cinch)

• USB: USB 2.0 (software update only)

• Network connections: RJ45

Convenience

• User convenience: Electronic programming guide, Audio Description, Auto resolution adjustment, Auto Power off, Power Switch

• Display Type: 4-digit display

• Ease of Installation: Autoinstall, Autosearch

• Parental control: Child timer, Lock with PIN code

• Signal strength indication

• User Interface: Automatic programme list update,

ple subtitles supp or ted, On Scre en Display on

Multi TV, Software upgrade over the air, TV and Radio mode, Local software update via USB

Video Decoding

• Compression Format: MPEG-2 MP@ML (std definition), MPEG-4 (SD), MPEG-4 (HD)

• Resolution: up to 1920 x 1080 progressive

• Aspect Ratio: 16:9, 4:3 Letterbox

• Copy/content protection: HDCP on HDMI

• Video bitrate: Up to 20 Mbit/s

Audio Decoding

• Compression format: Dolby Digital, Multi-channel down-mixing, MPEG layer I/II, MPEG4 HE-AAC, Dolby Digital Plus

• Sound system: Dolby Digital, Stereo, Mono

Power

• Mains power: 230 V, 50 Hz

• Power consumption: < 6 W

• Standby power consumption: < 1 W

• Off mode power consumption: 0.3 W

Dimensions

• Carton dimensions (WxDxH): 370 x 235 x 70 mm

• Product dimensions (W x H x D):

0 x 37 x 160 mm

•Weight: 0.8 kg

• Weight incl. Packaging: 1.4 kg

Accessories

• Included accessories: Remote Control, 2 x AAA Batteries, HDMI cable, RF antenna cable, Mains Adapter, User Manual, Quick start guide

•

Highlights

1080p resolution on HDMI

With video upscaling to 1080p you'll be able to see even more detail thanks to a sharper, more true-tolife picture. The resulting HD video output signal can be shown on your HD television through an HDMI (High-Definition Multimedia Interface) connection.

8-day Electronic Programme Guide

You want to know what programmes are available today and for the next 7 days so that you can avoid missing your favourite shows by planning your evenings or making pre-scheduled recordings. The data is broadcast by the programme broadcaster, and when this data is available, the product compiles the information and lists it in the TV Guide. Simply enter the menu or press the GUIDE button on the remote control to access the programme guide. The programme guide will provide programme information listings for today and the next 7 days.

Dolby Digital 5.1 output

Because Dolby Digital standards, the world's leading digital multi-channel audio standards, make use of the way the human ear naturally processes sound, you experience superb quality surround sound audio with realistic spatial cues.

Standby consumption < 1 W

The smart power management of the receiver leads to power saving in standby mode. The receiver goes to the standby mode that achieves < 1 W power

nsumption automatically, without your

co intervention.

Issue date 2010-11-17

Version: 2.1.1

12 NC: 8670 000 60398 EAN: 87 12581 52744 0

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
