Title_.fm Page 1 Jeudi, 4. février 2010 1:15 13
DTR 230
DTR 232
www.philips.com/support
For support call 0800 331 60 15
EN Digital Terrestrial Receiver 3
DSR220co.book Page 2 Lundi, 18. janvier 2010 6:23 18
Contents
1 Quick Start Guide 3
1.1 Connecting to a television 3
1.2 Connecting to a television and
recorder 3
2 Introduction 4
2.1 About this user manual 4
2.2 Safety and precautions 4
2.3 Environmental Markings 7
3 Getting Started 8
3.1 Identification of parts 9
3.2 The remote control 9
3.3 Digital Terrestrial Receiver 10
3.4 Power supply 10
3.5 Connecting your Digital Terrestrial
Receiver to other equipment 11
4Operation 13
4.1 Switch-on/switch-off 13
4.2 Initial installation 13
4.3 Ready for watching TV 14
4.4 Change of channel 14
4.5 Volume control 15
4.6 Calling up information banner 15
4.7 Using options 16
4.8 Using teletext 16
4.9 Using channel list 16
4.10 Creating and editing channel list 17

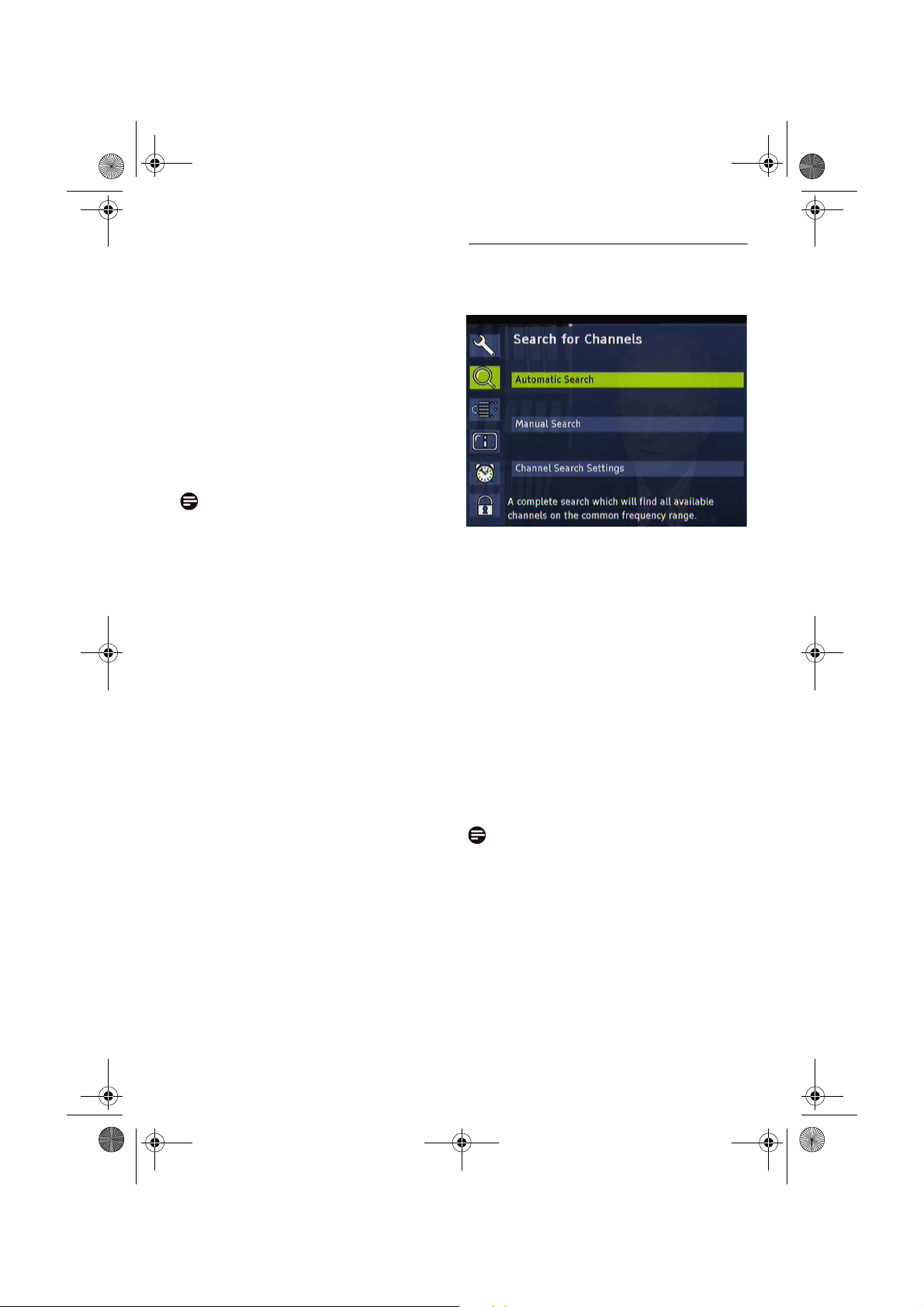

4.11 Extended installation 18
4.12 EPG 19

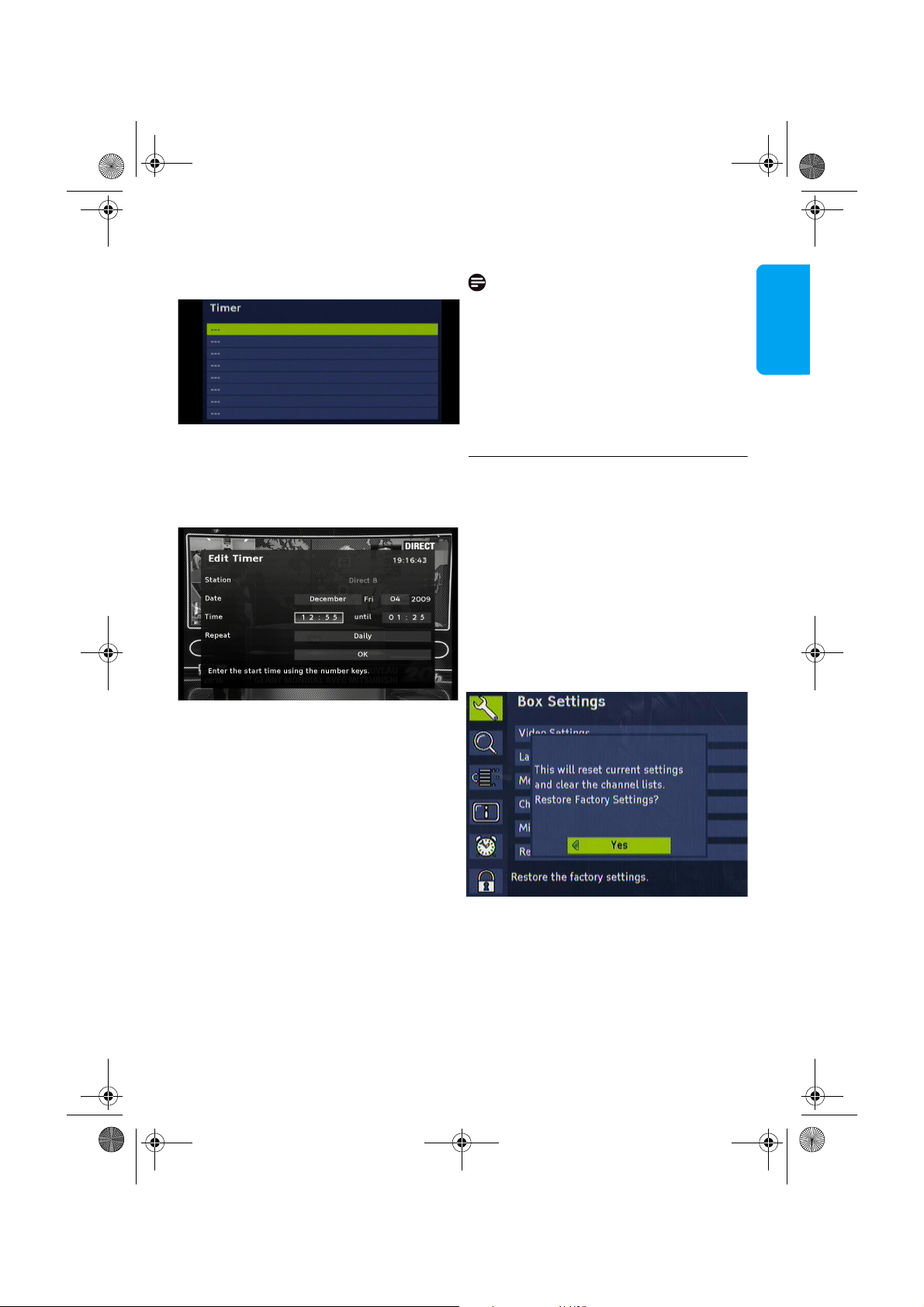

4.13 Timer 20
4.14 Miscellaneous functions 21
4.15 Radio 22

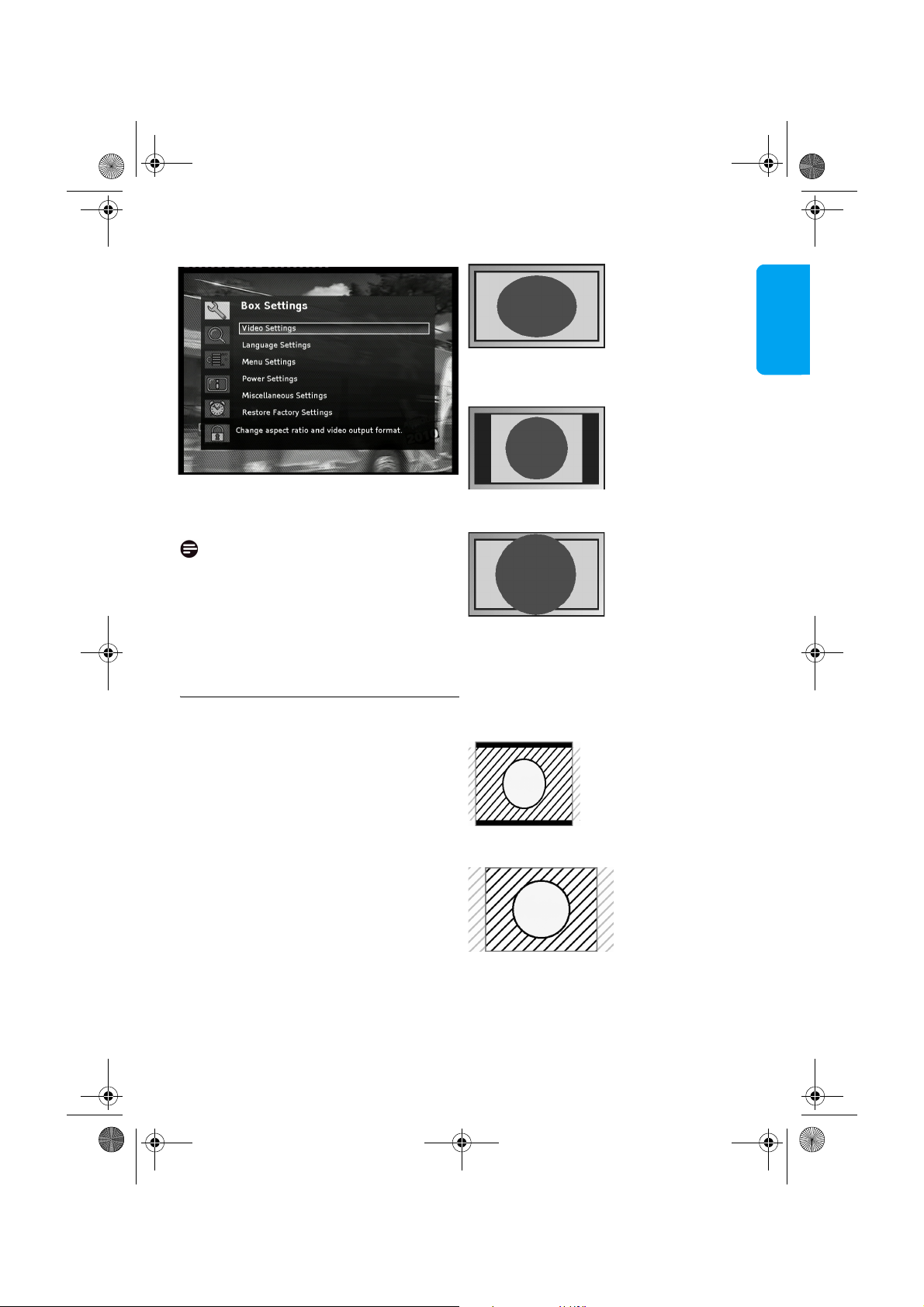

4.16 Settings 22
4.17 Picture settings 23
4.18 Language settings 24
4.19 Menu settings 24

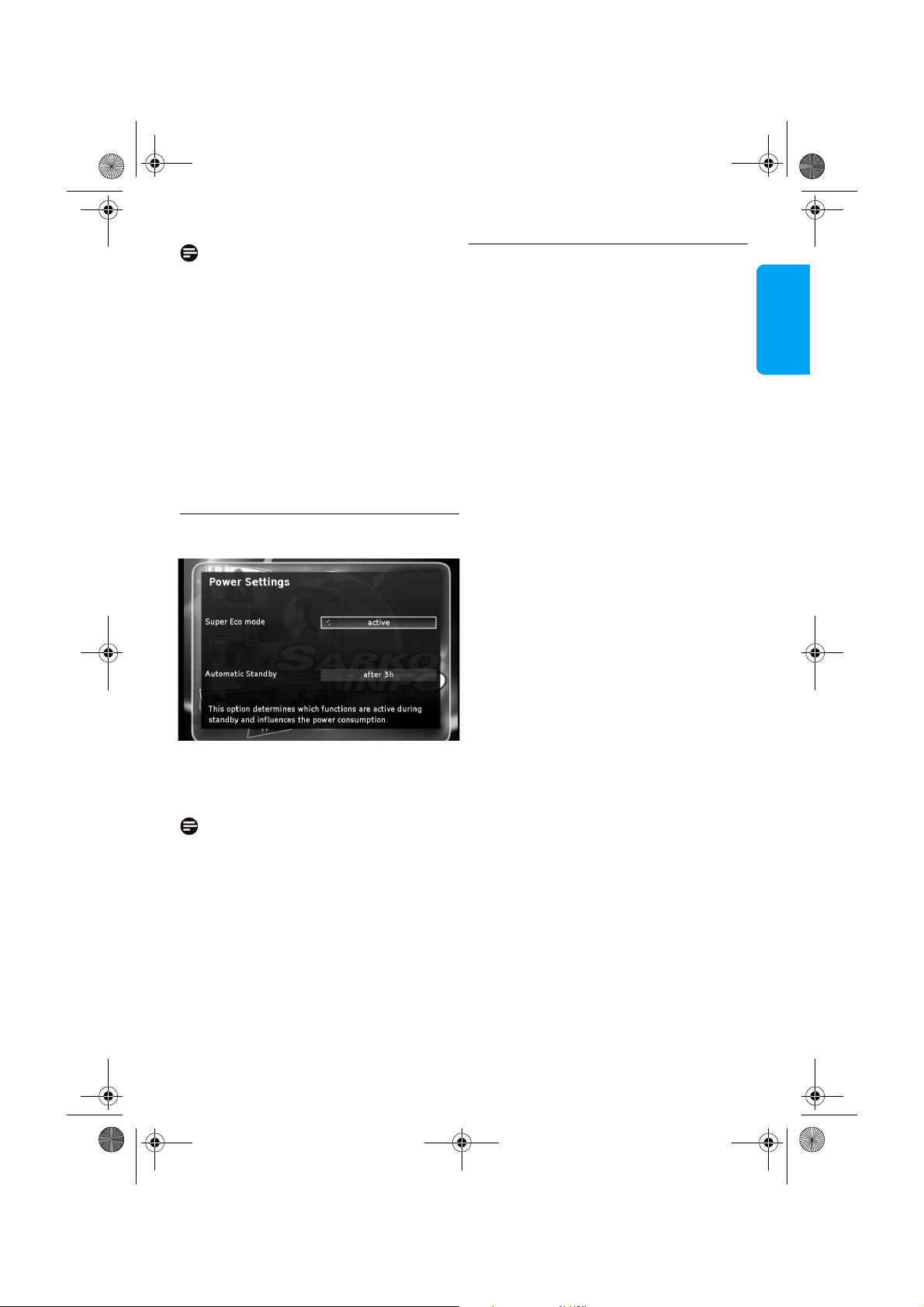

4.20 Power Settings 25
4.21 Miscellaneous Settings 25
4.22 Calling up default settings 25

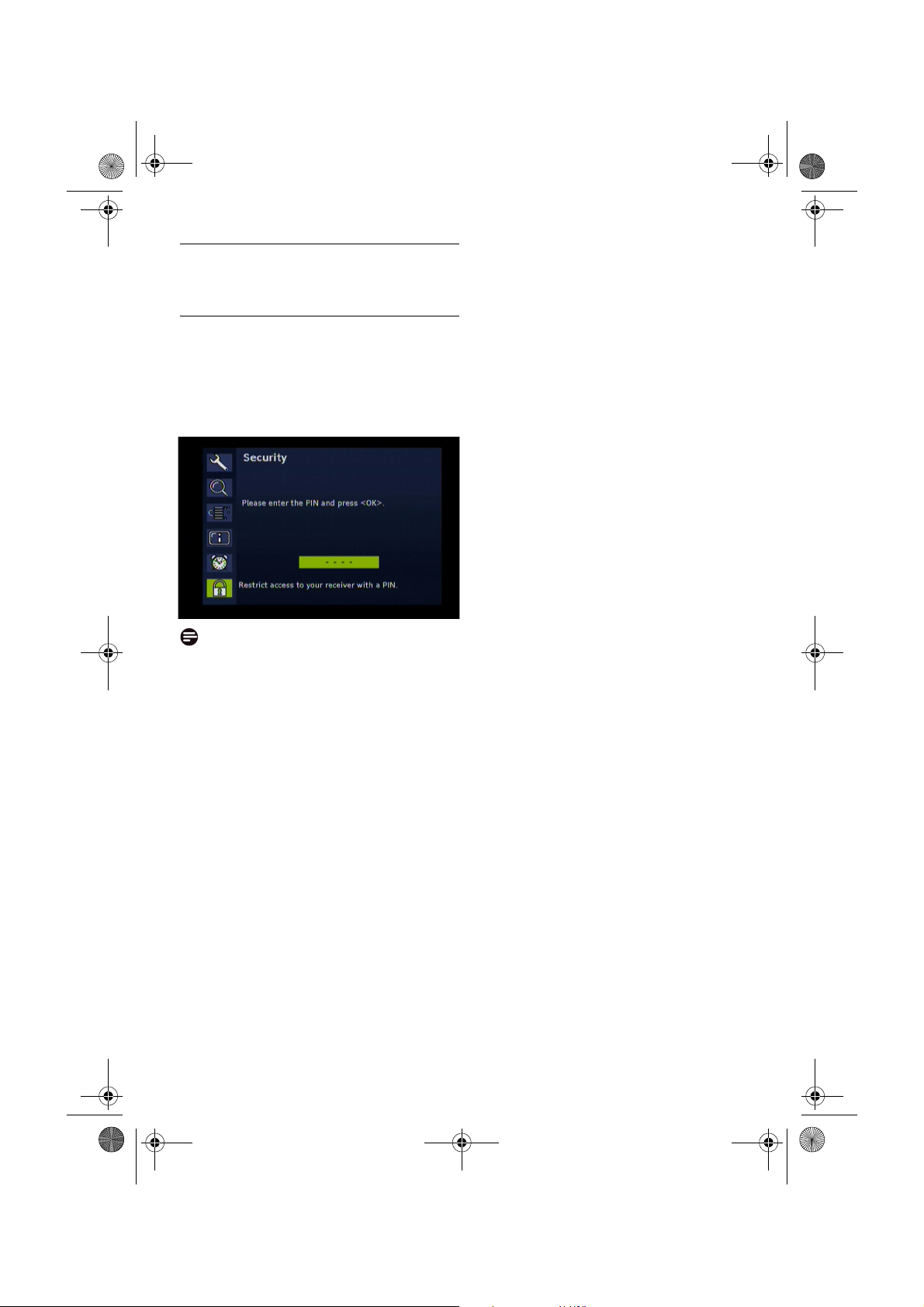

4.23 Security 25
5 Upkeeping 27
5.1 Cleaning 27
5.2 Maintenance 27
5.3 Disposal 27
5.4 Trademarks and partner logos 27
6 Troubleshooting 28
7 Technical Data 30
2 Contents
ENGLISH

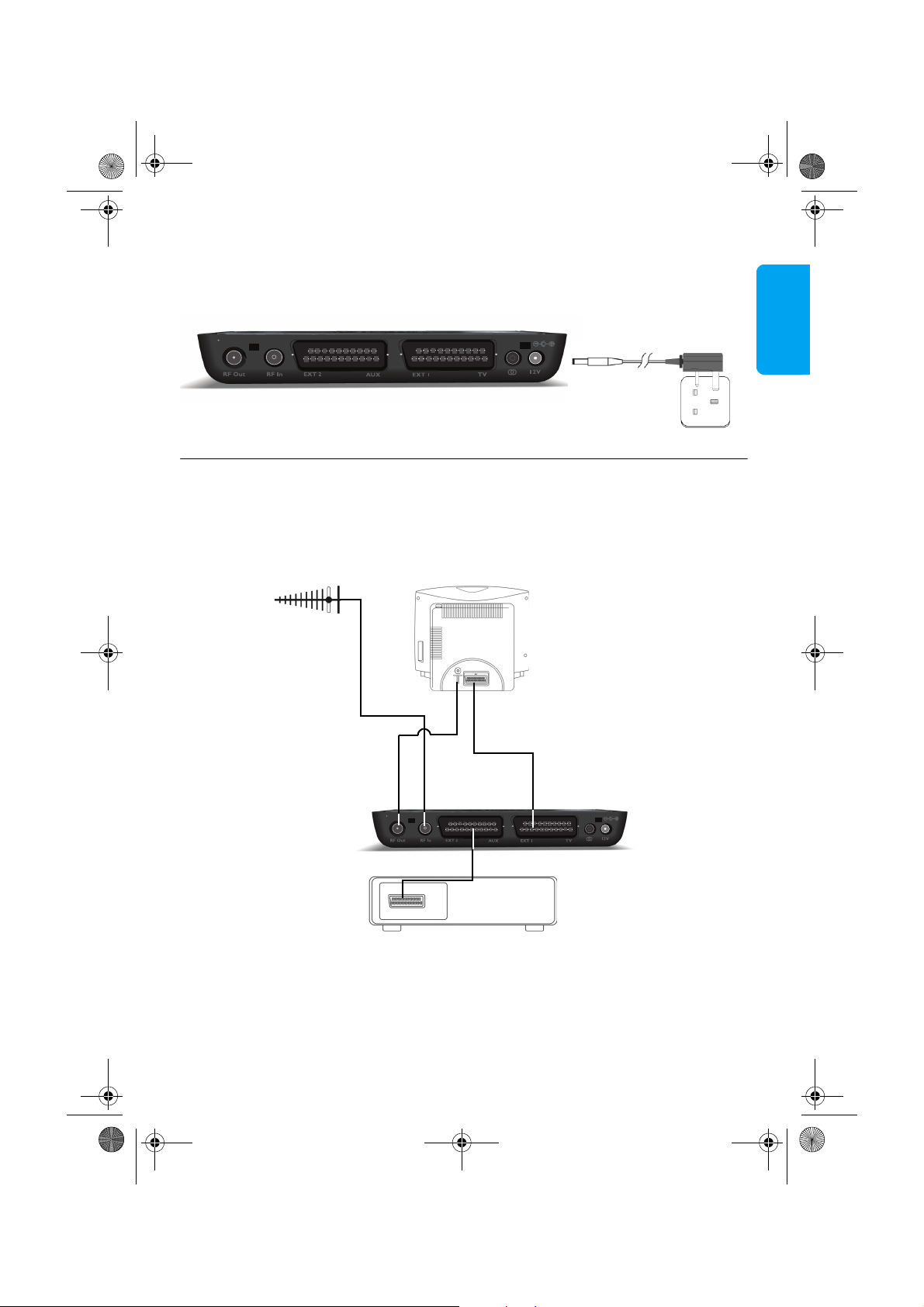

TV set - rear
Receiver
rear panel
UHF aerial
SCART input on TV
SCART cable
(not supplied)
RF In
connector
Mains adapter
(supplied)
12V DC
RF Out
connector
SCART output
to TV
RF cable
(not supplied)
Example VCR set,
rear panel
TV set - rearUHF aerial
SCART input on TV
RF cable
VCR RF In connector
VCR RF Out connector
SCART to VCR
Receiver rear panel
RF Out
connector
RF In
connector
SCART output
to TV
DSR220co.book Page 3 Lundi, 18. janvier 2010 6:23 18
1 Quick Start Guide
1.1 Connecting to a television

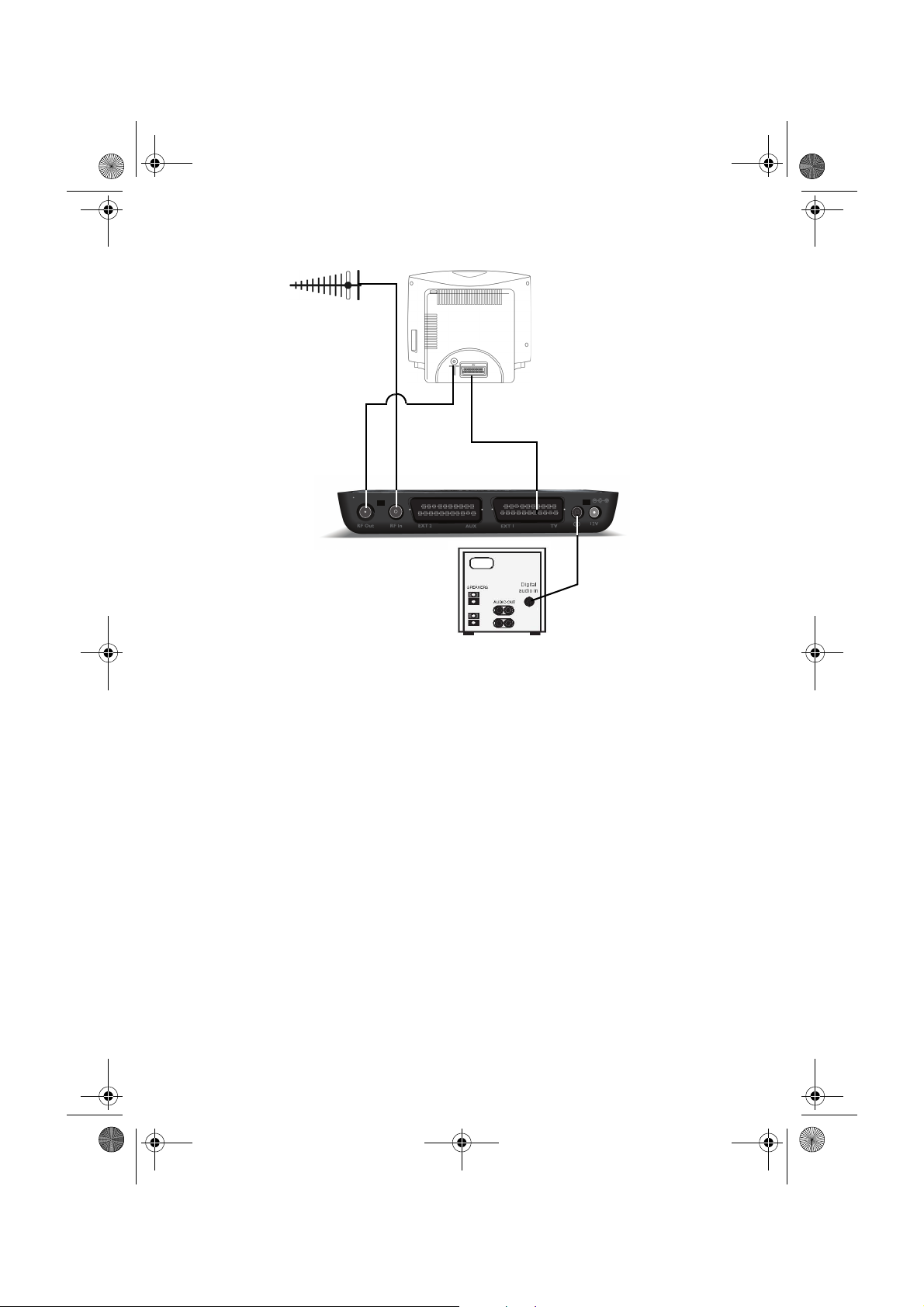

1.2 Connecting to a television and recorder
Quick Start Guide 3
DSR220co.book Page 4 Lundi, 18. janvier 2010 6:23 18
2 Introduction
Thank you for purchasing this product which has been designed and manufactured to give you
many years of trouble-free service.
2.1 About this user manual
This user guide contains all the information you need to know about how to setup and watch
available 'Freeview' channels using your digital terrestrial receiver.
2.2 Safety and precautions
Safety is important
To ensure your safety and the safety of others, please ensure you read the Safety Instructions
before you operate this product.
Note
Keep this information in a safe place for future reference.
Safety warnings
Before you connect and start the receiver, please observe the following points:
• The device is designed for domestic use.
• Only the functions described in these Operating Instructions may be carried out with this
device.
• If possible, keep the Operating Instructions ready at hand near the appliance.
• If you hand the device on to other persons, please also include these Operating Instructions.
Danger caused by electricity
In the interior of the device there are hazardous voltages. Never open the housing or insert objects
through the ventilation openings.
• Only connect the device to a 230 V power outlet installed according to regulations, being
accordingly fused.
• The power outlet has to be easily accessible so that you are able to disconnect the power
plug immediately if necessary.
• Observe that the connector cables are not clamped or squeezed.
• Do not start the device if the device or the connector cables show visible damage, or if the
device has fallen down.
• If an apparent damage occurs (e. g. smoke or similar) during operation, immediately
disconnect the pluggable power supply from the power outlet. In doing so, always take hold
of the plug, never of the cable.
• Power outlets and extension cables may not be over-loaded, otherwise there is fire hazard!
When purchasing the product, enquire for the maximum permissible current consumption.
4 Introduction
ENGLISH
DSR220co.book Page 5 Lundi, 18. janvier 2010 6:23 18
• In order to completely disconnect the device from the power supply, the pluggable power
supply has to be disconnected from the power outlet.
• Have repairs or settings on your receiver carried out by qualified skilled personnel only.
Unauthorised opening and repair attempts will result in loss of warranty. The manufacturer
accepts no liability for accidents of the user if the device is opened. Incorrect wiring of the
connections can result in failures or malfunctions on the device.
• Do not effect modifications on this device.
• Use provided cables and pluggable power supplies only.
• During thunderstorms, devices connected to the mains supply may be damaged. Therefore,
in case of a thunder-storm always disconnect the pluggable power supply from the power
outlet.
• If you are absent for a longer period of time or in case of approaching thunderstorm,
disconnect the receiver from the power supply unit and from the antenna. This also applies
to devices connected to the receiver. Do not touch any part of the digital terrestrial
receiver, power adaptor or antenna cord during thunderstorms.
Danger of electric shock by humidity
• The device may not be exposed to dripping or splashing water. Prevent liquids from entering
into the device. In case of need, immediately disconnect the power plug.
• The device may not be used in damp locations (e. g. bathroom) or rooms with heavy dust
accumulation.
• Objects filled with water, e.g. vases, may not be placed on the device.
Danger of injuries by other causes
• Observe that nobody can trip over the connector cables.
Danger for children
• Never leave children unattended with this device. Children underestimate the danger
associated with electric appliances.
Notes regarding the installation site
• Install device on horizontal surface only.
Do not expose this device to extreme temperatures. Therefore:
• Avoid direct solar radiation and radiator heat;
• Do not obstruct the air ventilation by covering the ventilation openings with objects, like for
example magazines, table cloths, curtains, etc.;
• Leave a minimum clearance of approx. 10cm above and to the sides. The heat may not
accumulate in the device! Otherwise the heat can damage the device, and there is fire hazard!
• The device may not be installed close to inflammable material (e. g. curtains, flammable liquids,
etc.).
Introduction 5
DSR220co.book Page 6 Lundi, 18. janvier 2010 6:23 18
Batteries
• Batteries are to be kept away from children.
• After swallowing a button cell or battery, the person concerned has to consult a doctor
immediately.
• Do not try to reactivate used batteries by heat, charging, or by other means.
• Batteries may not be thrown into the fire, disassembled, or short-circuited.
• Replace the batteries at least one a year to prevent them from leaking.
• Always replace both batteries and use batteries of the same type only (e. g. alkaline cells or zinc/
carbon).
• If you are absent for a longer time, remove the batteries from the RC unit.
Miscellaneous notes
• Do not place open fire sources, like for example burning candles, on the device.
• The antenna that is used has to be grounded.
• Only switch the device on after the connections with the antenna and the SCART cable have
been established.
• The bottom side of the device features the device feet. Because the furniture or floor surfaces
consist of various materials and are treated with various care products, it cannot be completely
ruled out that some of these materials contain components affecting and moistening the feet of
the device. If required, place a non-slip mat underneath the feet.
• Opening the device results in loss of warranty.
This symbol indicates that the adapter is a Class II appliance and does not require a
ground connection.
This symbol indicates that the adapter is for indoor use only.
This symbol indicates that the adapter conforms to CE regulations.
Environment
This set-top box is designed to reduce its impact on the environment and complies with European
Directive 2009/125/EC. This is part of Pace's ongoing commitment to lead the way in
environmental responsibility.
It has a standby mode that needs very little power: Refer to Power settings chapter 4.20 to
choose the most appropriate mode.
6 Introduction
ENGLISH
DSR220co.book Page 7 Lundi, 18. janvier 2010 6:23 18
See the table below and please note that:
• "By using the standby mode you will save energy (and therefore money) and reduce carbon
dioxide emissions that damage the environment.
• "You use the standby button on your remote control to switch between On and Standby modes.
• "There will be an additional delay (few seconds) when you switch on your set-top box from the
standby mode.
• "If you will not be using your set-top box for several days, you can cut its energy consumption to
zero by unplugging the AC/DC adaptor from the mains.
ModeFront panel shows:Typical power
Mode Front panel shows: Typical power
consumption (W)
AC/DC adaptor
Nothing lit up 0
Typical annual
energy use (kWh)
Unplugged
Standby LED is switched on
<0.7
13*
Green
On Nothing lit up <4.7
* Based on set-top box being on for 4.5 hours daily and being in Standby for 19.5 hours.
2.3 Environmental Markings
Your product has been designed and manufactured with high-quality materials and
components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product or his packaging,
it means the product is covered by European Directive 2002/96/EC.
Please inform yourself about the local separate collection system for electronic
products.
Please act according to your local rules and do not dispose of your old products with
your normal household waste. The correct disposal of your old product will help
prevent potential negative consequences for the environment and human health.
The "Material recyclability symbol" affixed on package cardboard and user manual
means these parts are recyclable. So do not dispose of them with your normal
household waste.
The "Material recyclability symbol" affixed on plastic packaging parts means these parts
are recyclable. So do not dispose of them with your normal household waste.
The symbol on the box indicates that the company commercializing this product
contributes financially to the selective disposal of packaging.
Introduction 7
DSR220co.book Page 8 Lundi, 18. janvier 2010 6:23 18
3 Getting Started
Remove your Digital Terrestrial Receiver carefully from the box, and remove the packaging from
each part.
In the box
You will find the following items:
• Digital Terrestrial Receiver
• Remote control (AAA batteries)
• Power supply 230 V AC/50 Hz to 12 V DC
• User Manual (this publication)
If any of these items are damaged or missing, please contact us at 0800 331 60 15.
Please make sure that you have the model number of your receiver, before contacting us. The
label showing the type and serial number is underneath your receiver.
Note
For optimum placement and use of product, ensure that the rear or the product is placed at least
10 cm from the edge of the table or shelf.
Batteries are removable from the remote using common household tools (like a screwdriver…)
The batteries supplied do not contain hazardous substances such as Mercury,
Cadmium or Lead.
However, they must not be disposed of with your household waste but to a local
separate collection system.
8 Getting Started
ENGLISH
Power On/Off (Stand-By)
INFO key
EPG key
EXIT key
Cursor keys
Volume up/down
Number keys
Channel up/down
OK key
Mute key
Colour keys
MENU key
BACK / P<P key
I-II
key
(Audio selection)
TIMER key
TEXT / Pg UP key
LIST/FAV key
RADIO key
Pg DOWN key
Te l e t e x t
DSR220co.book Page 9 Lundi, 18. janvier 2010 6:23 18
3.1 Identification of parts
Remote Control
3.2 The remote control
Using the remote control
To use the remote control, point it towards the front of the receiver.
The remote control will not operate if its path is blocked.
Sunlight or very bright light will decrease the sensitivity of the remote control.
Getting Started 9
Attention
IR receiver / Green LED,
Normal operation - off,
Standby - on
Front view
RF Out
Power supply,
12 V DC
SPDIF
(digital audio out)
Scart output
connector for TV
Scart output/input
connector for VCR
and DVD units
RF In
from antenna
Power cable (1.5 m)
Power connector for connection to
Receiver
Plug the power supply into a
230V AC outlet socket
DSR220co.book Page 10 Lundi, 18. janvier 2010 6:23 18
3.3 Digital Terrestrial Receiver
Rear view
3.4 Power supply
A mains power adaptor has been supplied for powering this equipment. It has an integral cable
terminated in a power connector to plug directly into the 12V connector on the back of the
Digital Terrestrial Receiver.
Plug the cable into the 12V DC connector on the rear panel of the Digital Terrestrial Receiver.
Insert the adaptor body into a suitable mains outlet socket.
10 Getting Started
Loading...
