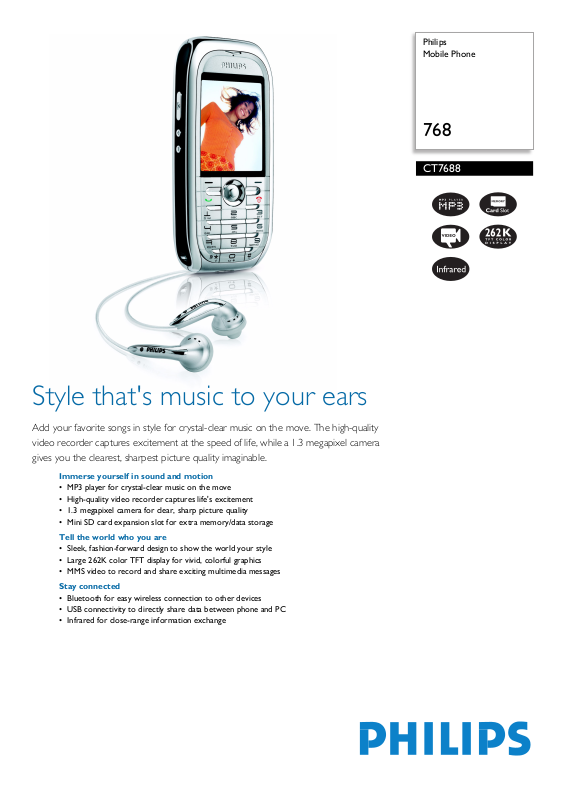

Philips Mobile Phone

768

CT7688

Style that's music to your ears

Add your favorite songs in style for crystal-clear music on the move. The high-quality video recorder captures excitement at the speed of life, while a 1.3 megapixel camera gives you the clearest, sharpest picture quality imaginable.

Immerse yourself in sound and motion

• MP3 player for crystal-clear music on the move

• High-quality video recorder captures life's excitement

• 1.3 megapixel camera for clear, sharp picture quality

• Mini SD card expansion slot for extra memory/data storage

Tell the world who you are

• Sleek, fashion-forward design to show the world your style

• Large 262K color TFT display for vivid, colorful graphics

• MMS video to record and share exciting multimedia messages

Stay connected

• Bluetooth for easy wireless connection to other devices

• USB connectivity to directly share data between phone and PC

• Infrared for close-range information exchange

For preview purpose only

Mobile Phone

768

Technical specifications Product highlights

Dimensions

• Handset dimensions: 101x44x18 mm

• Handset weight: 85 g

• Handset volume: 70 cc

• Handset color: Silver Pebble

• Antenna: Integrated

Picture/Display

• Main Display Technology: TFT

• Main Display Colors: 262K

• Main Display Resolution: 176x220 pixel

• Diagonal screen size (inch): 1.93 inch

• Brightness: 200 cd/m²

• Lines of text: up to 9

Video Capturing

• Image sensor type: CMOS

• Image sensor resolution: 1.3 M pixel

• Video resolution: QCIF, CIF

• Video format: 3GP, H.263

• Frame rate: 30 fps

Video Playback

• Resolution (pxl): 176x144, 352x288

• Compression formats: 3GP, H.263

• Frame rate (fps): 15, 30

• GSM band: 900, 1800, 1900 MHz

• Voice Codec: FR/EFR/AMR/HR

• Messaging: Concatenated SMS (Long SMS), Email, EMS / release 4, MMS,Multimedia Message Service, Predefined messages (SMS,MMS), SMS CB (Cell Broadcast), SMS (Short Message Service), SMS multi-target

• Services: OTA provisioning (WAP,MMS), SIM Toolkit / Release 99, WAP Browser Openwave

6.1, WAP 2.0, DRM (combined delivery)

Convenience

• Buttons and controls: Customized hot key, Camera key, Side keys

• Call Management: Call Cost, Call Counters, Call Forwarding, Call on Hold, Call Time, Call Waiting, Caller ID, Conference Call, Emergency Call, Explicit Call Transfer, Microphone mute, Multi-party call, Received Calls, Missed Calls

• Ease of Navigation: Animated Color Matrix, Active Slider

• Ease of Use: Dedicated Headset plug, Hot Keys, Screen Saver Digital Clock, In-flight mode, Vibra Alert, Softkeys

• Games and applications: Agenda, Alarm Clock, Calculator, Calendar, Euro Converter, Java MIDP 2.0

Still Picture Capturing

• Camera: Integrated

• Image sensor type: CMOS

• Picture resolution: VGA (640x480), QVGA (320x240), QQVGA (120x160), SVGA (800x600), 1.3M

• Picture file format: JPEG

• Digital zoom: continuous upto x8

• Picture quality: Normal, Fine, Superfine

• Preview frame rate: 30 frames/second

Connectivity

• Headset: Via bottom connector

• PC Link: USB 1.1

• Serial connections: USB-Bottom connector cable

• Synchronisation PC organizer: Lotus Notes, MS Outlook

• Wireless connections: Infrared, Bluetooth

Accessories

Sound

• Ringers: MP3 ringer, Polyphonic (64 tones), Voice memo ringer

Audio Capturing

• Voice recording: yes, AMR

Audio Playback

• Audio supported formats: AMR, Midi, MP3, SMAF, AAC

Storage Media

• User memory: 10 MB

• Built-in memory capacity: 32

• Memory Card Types: mini SD card

Network Features

• GPRS (Rx+Tx): Class 10 (4+2), Class B

• Optional accessories: Car cradle, Carry case, Cigarette lighter adapter, Universal car kit, Bluetooth headset, Bluetooth car kit

• Standard Package Includes: Battery, CD ROM (Mobile Phone Tools), Charger, Handset, International Guarantee, SAR information leaflet, USB data cable, User Manual, Deluxe stereo headset, Necklace

Power

• Talk time: up to 4 hrs

• Standby time: up to 300

• Battery capacity: 950 mAh

• Battery Type: Li-ion

• Electrical Enhancements: Back-up battery

• Battery saving manager: Auto switch on/off

• Charging time: approximately 3 hr

•

CT7688/000APMEA

MP3 player

Take crystal-clear music on the move with an MP3 player that allows you to easily transfer music files to your phone's built-in memory.

High-quality video recorder

Capture excitement at the speed of life wherever you go with this intuitively designed, high-quality video recorder with 30 frames-per-second recording capacity that works like a premium camcorder.

1.3 megapixel camera

Ca pt ure your mo st prec io us memorie s w ith the c le arest, sharpest picture quality imaginable through stunning

1.3 megapixel resolution. Press camera side key to take vibrant pictures to use for wallpaper and fotocall, or to send later via MMS.

Mini SD card expansion slot

Store more of the pictures, videos, and music files that matter to you by inserting a mini SD card into the builtin expansion card slot of your phone.

Fashion-forward design

When you want a fashion-forward phone to show the wo rld yo ur sty le, t he sle ek, mo dern d esign and pr emium finish set this phone apart from the ordinary.

Large 262K color TFT display

Put the fun and excitement of the most vivid and colorful graphics and photos right at your fingertips with the large 262K color display that features excellent image quality and response time.

MMS video

MMS video lets you record and share exciting multimedia messages with your friends and family just by attaching a video clip.

Bluetooth

Bluetooth technology allows easy wireless connection to other Bluetooth devices on the go. Enrich your mobile multimedia experience by using your Bluetooth headset, ea si ly and qu ic kly sha ri ng files or synchron iz ing pers on al data to and from your phone.

USB connectivity

Use a standard USB cable to directly and easily transfer pictures, videos, music files, and other data between your phone and PC.

Infrared

Infrared is the simplest wireless technology for information exchange at close range, allowing easy sharing of images, backgrounds, songs, and phonebook contacts with friends and family and enabling wireless access to the internet through your PC.

Date of issue 2006-06-02

Version: 1.0

12 NC: 9961 400 04623

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. © 2006 Koninklijke Philips Electronics N.V. All Rights reserved.
