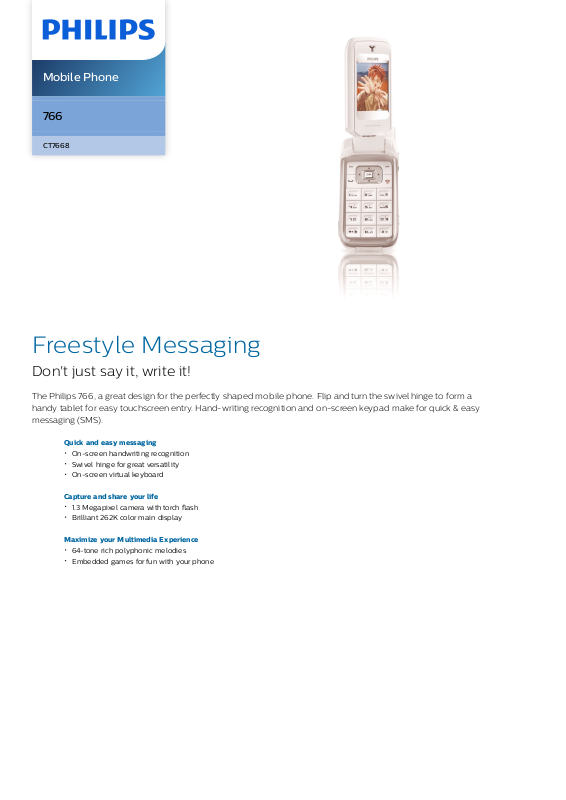

Page 1
Mobile Phone
766
CT7668
Freestyle Messaging
Don't just say it, write it!
The Philips 766, a great design for the perfectly shaped mobile phone. Flip and turn the swivel hinge to form a
handy tablet for easy touchscreen entry. Hand-writing recognition and on-screen keypad make for quick & easy
messaging (SMS).
Quick and easy messaging
On-screen handwriting recognition
Swivel hinge for great versatility
On-screen virtual keyboard
Capture and share your life
1.3 Megapixel camera with torch flash
Brilliant 262K color main display
Maximize your Multimedia Experience
64-tone rich polyphonic melodies
Embedded games for fun with your phone
Page 2
Mobile Phone
CT7668/DWJTA8TW
Highlights
Handwriting recognition
The intuitive and fast way to write text
messages. Simply write on the touch screen as
you would write on a piece of paper to have
the phone convert your handwriting into an
SMS (Short Message Service) text message.
The feature has built-in handwriting
recognition capability i n both Chinese
(traditional and simplified) and Engli sh (Roman
alphabet).
Swivel hinge
The swivel hinge allows you to move between
phone, digital camera, and touch- screen PDA
functions with your clamshell phone. Simply
open the clamshell as you would to make a
phone call, then turn the top panel i n a
counter-clockwise direction, and close the
cover for a digital camera with bright display
used as the view finder (can also be used like
a touch- screen PDA device).
On-screen virtual keyboard
On-screen virtual keyboard allows you to have
a traditional QWERTY keyboard format for text
input instead of using composing letters and
punctuation with the numeric keypad. Just
activate the virtual keyboard and use the stylus
to type.
Megapixel camera & torch flash
Use your 1.3 megapixel camera with built-in
flash to take quality images in SXGA format
(1280 by 960 pixels) even in suboptimal li ght.
Simply press the camera's side key to take
pictures for use as wallpaper or fotocall, or to
send as MMS (Multimedia Messaging Service)
to share with friends and family.
262K color main display
Use the 262K vivid color TFT display to enjoy
high-quality wallpaper, photos, and video
taken with the integrated camera.
64 tone polyphonic melodies
64-tone polyphonic melodies can create
simultaneous tones of different notes using
MIDI format for more natural and realistic
musical results, sounding just like a small
orchestra of different instruments for
outstanding sound effects.
Embedded games
Embedded games use the bright color screen
and keypad to turn your mobile phone into a
game station. Simply go to the dedicated sub-
menu to start playing your favorite game.
Page 3
Mobile Phone
CT7668/DWJTA8TW
Specifications
Dimensions
Handset weight: 102 g
Handset dimensions: 88 x 43.5 x 22.4 mm
(without antenna); 101 x 43.5 x 22.4 mm (with
antenna)
Handset volume: 82 cc
Form Factor: Clam shell
Antenna: external
Handset Color: Brushed Titanium, Reflection
White
Picture/Display
Main Display Technology: TFT
Main Display Colors: 262K
Main Display Resolution: 128x160 pixel
Lines of text : 6 li nes
Sub Display Technology: CSTN
Sub Display Colors: 65536
Sub Display Resolution: 96x64 pixel
Still Picture Capturing
Camera: Integrated
Picture resolution: VGA (640x480), QVGA
(320x240), SXGA (1280x960), 96x64, 128x160
Digital zoom: x2, x4
Picture Mode: Normal, Super fine, Night
mode, Self-timer mode, Fine
Preview frame rate: 15 frames/second
Picture file format: JPEG
Image sensor type: CMOS
Sensitivity: ISO 50-200 auto adjustment, min
5 lux
Special effects preview mode: Negative color,
Blue effect, B&W, Oil, Green effect, Brown
effect, Red effect
Still Picture Playback
Picture compression format: BMP, GIF, JPEG,
PNG
Sound
Ringers: Polyphonic (64 tones)
Audio Playback
Audio supported formats: Midi, SMAF,
iMelody
Storage Media
Built-in memory capacity: 26
User memory: 10 MB
Network Features
Messaging: Concatenated SMS (Long SMS),
EMS / release 4, MMS,Multimedia Message
Service, Predefined messages (SMS,MMS),
SMS CB (Cell Broadcast), SMS (Short Message
Service)
Services: OTA provisioning (WAP,MMS), WAP
1.2.1
GPRS (Rx+Tx): Class 10 (4+2), Class B
Voice Codec: FR/EFR/H R
GSM band: 900, 1800, 1900 MHz
Convenience
Call Management: Call Counters, Call
Forwarding, Call on Hold, Call Time, Call
Waiting, Caller ID, Conference Call,
Emergency Call, Microphone mute, Missed
Calls, Multi-party call, Received Calls
Personal Info Management: Smart
Phonebook, Vcard Exchange
Personalisation/Customization: Fotocall,
Wallpaper
Clock/Version: Analogue, Digital, International
clock
Ease of Use: Blinking Lights, Dedicated
Headset plug, Hands free mode, Hot Keys
Ease of Navigation: Active Flip, Animated
Color Matrix, Active swivel flip (DV/DC), Touch
panel
Buttons and controls: 4-way navigation key
and enter, Customized hot key, Camera key,
Side keys, Power On/Off
Volume control
Games and applications: Agenda, Alarm
Clock, Calculator, Calendar, Lunar Calendar,
Chinese festival reminder, ENG-CHN and
CHN-ENG dictionary, Handwriting recognition
Embedded Games: 6
Connectivity
Headset: Via bottom connector
Serial connections: USB-miniUSB data cable
Modem Capabilities: GPRS, SMS
Synchronisation PC organizer: MS Outlook
Accessories
Standard Package Includes: Battery, CD ROM
(Mobile Phone Tools), Charger, Handset, USB
data cable, Stylus-2 pack
Optional accessories: Deluxe headset
Power
Talk time: 5.5 hours
Standby time: 150 hours
Charging time: 2.5 hours hr
Battery capacity: 770mAh
Battery Type: Li -ion
Electrical Enhancements: Back-up battery
Green Specifications
Chemical composition: Lithium
User manual: Recycled paper
SAR value: 0.66W/KG
© 20 19 Koninklijke Philips N.V.
All Right s reserved.
Specifications are subject to change
without notice. Trademarks are the
property of Koninklijke Philips N.V. or
their respective owners.
Issue date 2019‑10 ‑23
Version: 2.0.3
12 NC: 9961 400 04807
EAN: 87 10895 90399 8
