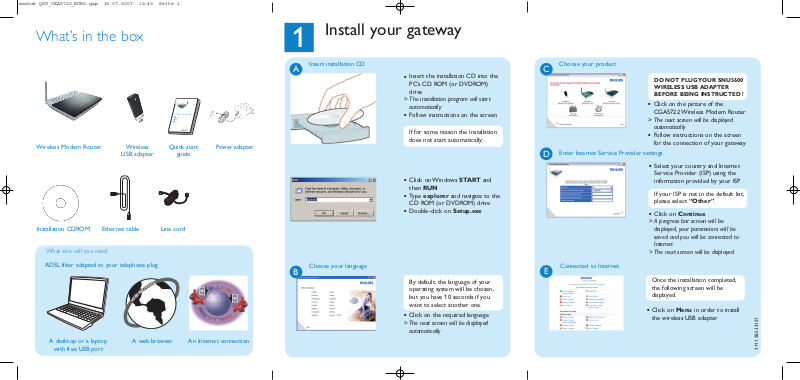

What’s in the box
What else will you need
Wireless Modem Router
Ethernet cable
Quick start
guide
Installation CDROM
A desktop or a laptop
with free USB port
Power adapter
A web browser An Internet connection
Line cord
Wireless
USB adapter
1
Install your gateway
●
Insert the installation CD into the
PC’s CD ROM (or DVDROM)
drive
> The installation program will start
automatically
●
Follow instructions on the screen
Choose your language
B
By default, the language of your
operating system will be chosen,
but you have 10 seconds if you
want to select another one.
●
Click on the required language
> The next screen will be displayed
automatically
Insert installation CD
A
If for some reason the installation
does not start automatically:
●
Click on Windows START and
then RUN
●
Type explorer and navigate to the
CD ROM (or DVDROM) drive
●
Double-click on Setup.exe
Choose your product
C
●
Click on the picture of the
CGA5722 Wireless Modem Router
> The next screen will be displayed
automatically
●
Follow instructions on the screen
for the connection of your gateway
Connected to Internet
E
Enter Internet Service Provider settings
D
●
Select your country and Internet
Service Provider (ISP) using the
information provided by your ISP
Once the installation completed,
the following screen will be
displayed.
●
Click on Menu in order to install
the wireless USB adapter
●
Click on Continue
> A progress bar screen will be
displayed, your parameters will be
saved and you will be connected to
Internet
> The next screen will be displayed
If your ISP is not in the default list,
please select “Other”.
3111 285 33121
DO NOT PLUG YOUR SNU5600
WIRELESS USB ADAPTER
BEFORE BEING INSTRUCTED !
ADSL filter adapted to your telephone plug
master QSG_CKA5720_EURO.qxp 19.07.2007 12:49 Seite 1
Quick start guide
1
Connect
2
Install
Enjoy
3
CKA5720
E
S
W
O
R
B
B
E
W
R
2
Install your wireless USB
adapter
Choose your product
A
●
Click on the picture of the
SNU5600 Wireless USB adapter
> The next screen will be displayed
automatically
Agree software licence
B
> The software end user licence
agreement screen is displayed
●
Read carefully and click on Agree
> The next screen will be displayed
Connect your wireless USB adapter
C
●
Click on Continue
> A progress bar screen will be
displayed and you will be invited to
connect your wireless USB adapter
●
Connect your SNU5600 wireless
USB adapter
> The installation will go on and an
information screen with Encryption
details is displayed
●
Note or print the information by
clicking on the Print button on
the displayed screen.
●
Click on Next> to continue
> A progress bar screen is displayed
> A confirmation of installation screen
is displayed
DO NOT PLUG YOUR SNU5600
WIRELESS USB ADAPTER
BEFORE BEING INSTRUCTED !
Open Internet address
B
●
Enter Internet address
For example: www.philips.com
●
Select GO
3
Enjoy
A
Open Internet browser
Wireless freedom
Enjoy the freedom of wireless networking.Your computer
is now ready for full use anywhere in your home.
Welcome to Philips!
Register your product and get support at
www.philips.com/welcome
Quick Start Guide
1
Install your gateway
2
Install your wireless USB adapter
3
Enjoy
CKA5720
Important information
Microfilters must be plugged in between the wall socket and all devices
connected to your telephone line.This includes extension telephones, ADSL
modem router and Set up box.Absence of a filter may result in a failure to
connect to broadband, interference such as buzzing noises that affect normal
telephone calls, or reduced broadband speed and performance.
master QSG_CKA5720_EURO.qxp 19.07.2007 12:50 Seite 2
R
E
S
W
O
R
B
B
E
W
