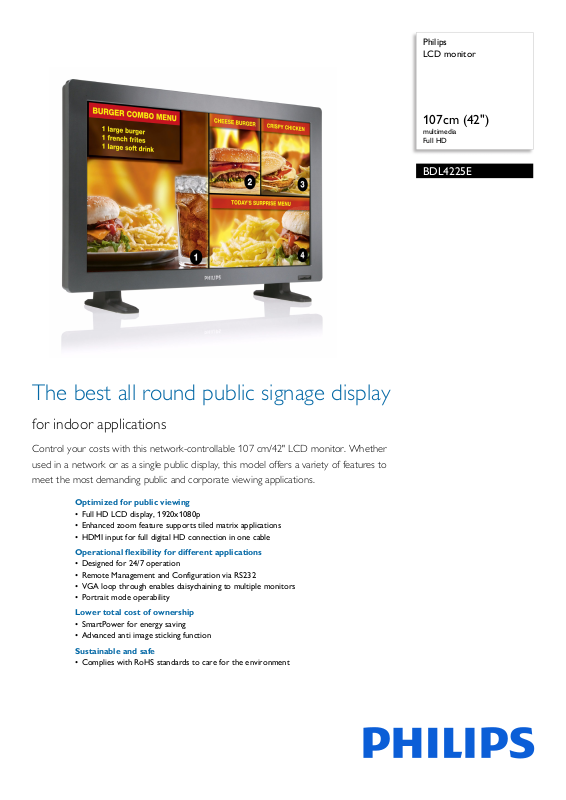

Philips BDL4225E/01 leaflet

Philips
LCD monitor

107cm (42")

multimedia
Full HD

BDL4225E

The best all round public signage display

for indoor applications

Control your costs with this network-controllable 107 cm/42" LCD monitor. Whether
used in a network or as a single public display, this model offers a variety of features to
meet the most demanding public and corporate viewing applications.

Optimized for public viewing

• Full HD LCD display, 1920x1080p

• Enhanced zoom feature supports tiled matrix applications

• HDMI input for full digital HD connection in one cable

Operational flexibility for different applications

• Designed for 24/7 operation

• Remote Management and Configuration via RS232

• VGA loop through enables daisychaining to multiple monitors

• Portrait mode operability

Lower total cost of ownership

• SmartPower for energy saving

• Advanced anti image sticking function

Sustainable and safe

• Complies with RoHS standards to care for the environment

BDL4225E/01

LCD monitor

107cm (42") multimedia, Full HD

Highlights

Full HD LCD display 1920x1080p

This display has a resolution that is referred to
as

Full HD. The state-of-the-art LCD screen
technology has the full high-definition
widescreen resolution of 1080 progressive
lines, each with 1920 pixels. This allows the
best possible picture quality for HD input
signals with up to 1080 lines. It produces
brilliant flicker-free progressive scan pictures
with optimum brightness and superb colors.
This vibrant and sharp image will provide you
with an enhanced viewing experience.

Zoom function for t

The internal zoom function enables easy
im

plementation of a video wall matrix, without
the need for expensive external equipment.
Capable of a vidiwall of 25 displays by dividing
up to 5 displays each horizontally and
vertically.

HDMI input

HDMI makes an uncompressed digital RGB
connection
eliminating conversion to an analog signal, it
delivers an unblemished image. The non­degraded signal reduces flicker and leads to a

from the source to the screen. By

iled matrix

clearer picture. HDMI intelligently
communicates the highest output resolution
with the source device. The HDMI input is fully
backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection.

Designed for 24/7 operation

Because business never sleeps, our signage
disp

lays are designed for 24/7 use. Taking
advantage of superior components to ensure a
higher level of quality, you can count on this
range of models for complete around-the­clock reliability.

Remote Management:: RS232

Remote Management allows the user to
c

ontrol and adjust the displays remotely via the
RS232 protocol. Using CEC commands, you
are able to have full control over all the
displays in your signage network at any time.

Signal loop through

Multiple screen daisy chain effectively
dist

ributes control and visual content from a

single source to an array of monitors in various
locations within a site.

SmartPower

The backlight intensity can be controlled and
p

re-set by the system to reduce the power
consumption by up to 50%, which saves
substantially on energy costs.

Advanced anti image sticking

Static images left on-screen for extended
p

eriods of time may leave a "ghost image" or
image sticking effect on LCD displays.
Although image sticking in LCD displays is not
permanent, you want to prevent this to
happen, especially in locations where content
is shown 24/7.

Compliant with RoHS standards

Philips designs and produces display products
i

n compliance with strict Restriction of
Hazardous Substances (RoHS) standards that
restrict lead and other toxic substances that
can harm the environment.

BDL4225E/01

LCD monitor

107cm (42") multimedia, Full HD

Specifications

Picture/Display

• Diagonal screen size: 42 inch / 107 cm

• Panel resolution: 1920x1080p

• Optimum resolution: 1920 x 1080 @ 60Hz

• Brightness: 500 cd/m²

• Contrast ratio (typical): 1400:1

• Response time (typical): 5 ms

• Aspect ratio: 16:9

• Viewing angle (H / V): 178 / 178 degree

• Pixel pitch: 0.485 x 0.485

• Display colors: 1.06 Billion colors

• Picture enhancement: 3/2 - 2/2 motion pull down,
mbfi

3D Co
Progressive scan, 3D MA deinterlacing, Dynamic
contrast enhancement

lter, Motion compens. deinterlacing,

Supported Display Resolution

• Computer formats

Resolution Refresh rate
640 x 480 60, 67, 72, 75Hz
800 x 600 56, 60, 72, 75Hz
1024 x 768 60Hz
1280 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1366 x 768 60Hz
1440 x 900 60Hz
1600 x 1200 60Hz
1920 x 1080 60Hz
1920 x 1200 60Hz

deo formats

• Vi

Res

olution Refresh rate
480i 60Hz
480p 60Hz
576p 50Hz
576i 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 50, 60Hz

Connectivity

• PC: VGA-in D-Sub 15HD, VGA-out D-Sub 15HD,
DVI-D x1, RS232 D-Sub9, RS232 D-sub9 output,

3.5 mm PC audio input x1

• AV input: HDMI x1, Component (BNC) x1,

mp

osite (RCA) x1, Composite (BNC) x1, S-

Co
video x1, Audio (L/R) x2

• AV output: Composite (BNC) x1, Audio (L/R) x1

Convenience

• Placement: Portrait, Landscape

• Tiled Matrix: 5 x 5

• Picture in picture: PBP, PIP, POP

• Screen saving functions: Pixel shift, Low bright

• Signal Loop Through: RS232, VGA

• Keyboard control: Hidden, Lockable

• Remote control signal: Lockable

• Ease of installation: Carrying Handles

• Energy saving functions: Smart Power

• Picture performance: Advanced color control

• Packaging: Reusable box

• Network controllable: RS232

Dimensions

• Bezel thickness: 2.6 cm / 0.62 inch

•Set dimensions (W x H x D):
x 615 x 129 mm

1022

• Set dimensions in inch (W x H x D):

x 24.2 x 5.1 inch

40.2

• Set dimensions with stand (H x D): 663 x 250 mm

•Set dimensions with st

26.1 x 9.8 inch

• Product weight: 19.8 kg

• Product weight (lb): 43.65 lb

• VESA Mount: 200x200mm, 400x200 mm

and in inch (H x

D):

Operating conditions

• Temperature range (operation): 0 - 40 °C

• Relative humidity: 5 - 90 %

• MTBF: 50.000 hour(s)

Power

• Mains power: 90-264 VAC, 50/60 Hz

• Consumption (On mode): Typ. 132W

Standby power consumption: <1W

•

Sound

• Built-in speakers: 2 x 7 W (8 ohm)

Accessories

• Included accessories: Remote Control, Batteries

for remote control, AC Power Cord, VGA cable,
User manual on CD-ROM, Quick start guide,
Table top stand

• Optional accessories: Fixed wall mount, Flexible

wall mo

unt, C

eiling mount

Miscellaneous

• Bezel: metallic anthracite

• Warranty: Europe/North America: 3 years

• On-Screen Display Languages: English, French,

erman, Italian, Polish, Turkish, Russian, Simplified

G
Chinese

• Regulatory approvals: CE, FCC, Class B, CCC,

HS

Ro

•

Issue date 2017-07-07

Version: 1.0.1

12 NC: 8670 000 77968
EAN: 87 12581 60682 4
