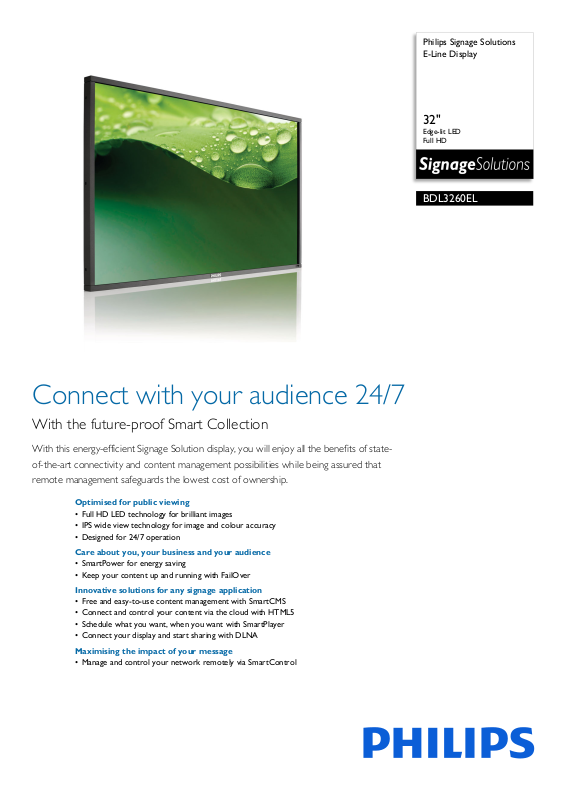

Philips BDL3260EL/00 leaflet

Philips Signage Solutions
E-Line Display

32"

Edge-lit LED
Full HD

BDL3260EL

Connect with your audience 24/7

With the future-proof Smart Collection

With this energy-efficient Signage Solution display, you will enjoy all the benefits of state­of-the-art connectivity and content management possibilities while being assured that
remote management safeguards the lowest cost of ownership.

Optimised for public viewing

• Full HD LED technology for brilliant images

• IPS wide view technology for image and colour accuracy

• Designed for 24/7 operation

Care about you, your business and your audience

• SmartPower for energy saving

• Keep your content up and running with FailOver

Innovative solutions for any signage application

• Free and easy-to-use content management with SmartCMS

• Connect and control your content via the cloud with HTML5

• Schedule what you want, when you want with SmartPlayer

• Connect your display and start sharing with DLNA

Maximising the impact of your message

• Manage and control your network remotely via SmartControl

BDL3260EL/00

E-Line Display

32" Edge-lit LED, Full HD

Highlights

Full HD LED technology

White LED's are solid state devices which light
up

to full, consistent brightness faster saving
start-up time. LED's are free from mercury
content, which allows for eco-friendly
recycling and disposal process. LED's allow for
better dimming control of the LCD backlight,
resulting in a super high contrast ratio. It also
gives superior colour reproduction thanks to
consistent brightness across the screen.

IPS Display Technology

Philips IPS displays uses an advanced
te

chnology, which gives you extra-wide
viewing angles of 178/178 degrees, making it
possible to view the display from almost any
angle — even in portrait mode. IPS displays
give you remarkably crisp images with vivid
colours, particularly suitable for professional
video wall and menu board applications, which
demand colour accuracy and consistent
brightness at all times.

SmartControl

SmartControl lets you remotely control and
manage your network of displays via RJ45 and
RS232C. Easily fine-tune all display settings
including resolution, brightness, contrast and
cloning of your settings over your complete
network.

SmartCMS

Free and easy-to-use content management
system that works exclusively with Philips
Signage Solutions displays to manage your
digital signage content. With SmartCMS you
can create and schedule your own content
over 24 hours every day. Simply create your
ne

twork, design your content and schedule

your playlist, and you are ready to play!

Integrated HTML5 browser

Connect and control your content via the
cloud with the integrated HTML5 browser.
Design your signage content online and
connect it with a display or with your entire
network. Simply plug in a RJ45 Internet cable
for network connection and connect the
display with the dedicated URL address, and
you are ready to play your cloud-based
content.

FailOver

Keeping your content up and running is critical
for dem

anding commercial applications. While
it is unlikely you will face a content disaster,
FailOver provides 24/7 protection with a
revolutionary technology that plays back-up
content on screen in the event of a media

player failure. FailOver automatically kicks in
when the primary input fails. Simply select a
primary input connection and a FailOver
connection and you're ready for instant
protection.

SmartPlayer

Turn your USB into a true cost-effective digital
signage device. Simply save your content
(video, audio, pictures) on your USB and plug
into your display. Create your playlist and
schedule your content via the on-screen menu,
and enjoy your own playlists anytime,
anywhere.

SmartPower

The backlight intensity can be controlled and
p

re-set by the system to reduce the power
consumption by up to 50%, which saves
substantially on energy costs.

Designed for 24/7 operation

Because business never sleeps, our signage
dis

plays are designed for 24/7 use. Taking
advantage of superior components to ensure a
higher level of quality, you can count on this
range of models for complete around-the­clock reliability.

Share and Stream with DLNA

Simply share and stream cont
mobile device or media player to your display
with all DLNA compliant media devices.
Connect each display with an ethernet cable
and manage your content in real time within
your local network. Simply connect your
display and start sharing.

ent from your

BDL3260EL/00

E-Line Display

32" Edge-lit LED, Full HD

Specifications

Picture/Display

• Diagonal screen size: 31.55 inch / 80 cm

• Panel resolution: 1920 x 1080p

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Brightness: 400 cd/m²

• Contrast ratio (typical): 1300:1

• Dynamic contrast ratio: 500,000:1

• Aspect ratio: 16:9

• Response time (typical): 25 ms

• Pixel pitch: 0.36 x 0.36 mm

• Display colours: 16.7 million

• Viewing Angle (H / V): 178 / 178 degree

• Picture enhancement: 3/2 - 2/2 motion pull down,
mbfi

3D Co
MA deinterlacing, Dynamic contrast enhancement

lter, Motion compens. deinterlacing, 3D

Connectivity

• Video input: DisplayPort (1.2), HDMI (x 2), DVI-D,

VGA (Analogue D-Sub), USB, Component (RCA),
Composite (RCA)

• Video output: DisplayPort, DVI-I, VGA (Analogue

)

D-Sub

•

Audio input: 3.5-mm jack, Audio Left/Right (RCA)

• Audio output: Audio Left/Right (RCA), External

eaker

connector

sp

• External control: IR (in/out) 3.5 mm jack, RJ45,

RS232C (in/

out) 2.5 mm jack

Supported Display Resolution

• Computer formats

Resolution Refresh rate
1920 x 1200 60 Hz

20 x 1080 60 Hz

19
1440 x 900 60 Hz
1366 x 768 60 Hz
1360 x 768 60 Hz
1280 x 800 60 Hz
1280 x 768 60 Hz
1024 x 768 60 Hz
800 x 600 56, 60, 72, 75 Hz
640 x 480 60, 67, 72, 75 Hz

deo formats

• Vi

Res

olution Refresh rate
1080p 50, 60 Hz
1080i 50, 60 Hz
720p 50, 60 Hz
576i 50 Hz
576p 50 Hz
480p 60 Hz
480i 60 Hz

Dimensions

• Set dimensions (W x H x D):

750.2 x 444.6 x

• Bezel width: 24.4 mm

• Product weight: 11.4 kg

69

mm

• VESA Mount: 400 x 200 mm

• Smart Insert mount: 100 x 100 mm

Convenience

• Placement: Portrait, Landscape

• Tiled Matrix: Up to 10 x 10

• Keyboard control: Hidden, Lockable

• Signal Loop Through: DVI, VGA, RS232, IR Loop
ro

ugh, DisplayPort

th

• Network controllable: RJ45, RS232, One Wire

• Energy-saving functions: Smart Power

• Ease of installation: Smart Insert, AC Out

• Screen-saving functions: Pixel Shift, Low Bright

• Other convenience: Carrying handles

CEC), HDMI (One Wire)

(HDMI-

Power

• Consumption (On mode): 48.57 W (EnergyStar

6.0 test method)

• Standby power consumption: <0.3 W

• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz

Operating conditions

• Temperature range (operation): 0 ~ 40 °C

• Temperature range (storage): -20 ~ 60 °C

• Relative humidity: 20 ~ 80 %

• Altitude: 0 ~ 3000 m

• MTBF: 60,000 hour(s)

Sound

• Built-in speakers: 2 x 10 W RMS

Multimedia Applications

• USB Playback Audio: AAC, AIF, AIFF, M4A, MP3,

WAV, WMA, ASF, LPCM, M3U, MP4

• USB Playback Picture: BMP, GIF, JPEG, JPG

• USB Playback Video: M2TS, M4V, MK3D, MKV,

MP4, MPEG,

MPG, M

TS, TS, TTS, VOB, WMV

Accessories

• Included accessories: Remote Control, Batteries

for remote control, AC Power Cord, VGA cable,
User manual on CD-ROM, Quick start guide,
RS232 cable

• Stand: BM03241 (Optional)

• Optional accessories: ColourCalibrationKit

460

(CCK

1)

Miscellaneous

• On-Screen Display Languages: English, French,

German, Spanish, Polish, Turkish, Russian, Italian,
Simplified Chinese, Traditional Chinese, Arabic,
Japanese

• Regulatory approvals: CE, FCC, Class B, UL/cUL,

C, C

-Tick, RoHS, GOST, BSMI, CB, J-Moss,

CC
PSE, VCCI

• Warranty: 3-year warranty

•

Issue date 2022-04-21

Version: 3.1.1

12 NC: 8670 001 13717
EAN: 87 12581 71781 0
