Philips 65PFL6902, 50PFL6602, 55PFL6902, 50PFL6902 User Manual

0 (0)

Telev isions

6000 series

65PFL6902 55PFL6902 50PFL6902 50PFL6602

www.philips.com/welcome

EN For further assistance, call the customer support service in your

User manual

ES Manual del usuario

Manuel d’utilisation

country.

• To obtain assistance, contact Philips customer care center; In the U.S.A., Canada, Puerto Rico, or the U.S. Virgin Islands

1 866 202 5960

México D.F. and área metropolitana; 58 87 97 36 Interior de la republica; 01 800 839 19 89

ES Para obtener más información, llame al servicio de soporte al cliente

de su país.

• Para obtener asistencia, comuníquese con centro de atención al cliente de Philips; En los Estados Unidos, en Canadá, Puerto Rico o en las Islas Vírgenes de los Estados Unidos; 1 866 202 5960 México D.F. y área metropolitana; 58 87 97 36 Interior de la republica; 01 800 839 19 89

FR Pour obtenir de l’aide supplémentaire, communiquez avec le centre

de service à la clientèle de votre pays.

• Pour obtenir de l’aide, communiquez avec le centre de service à la clientèle Philips au; Dans le États-Unis, au Canada, à Puerto Rico ou aux Îles Vierges américaines; 1 866 202 5960 México D.F. et área metropolitana; 58 87 97 36 Interior de la republica; 01 800 839 19 89

Contents

2 .English

1 Notice ....................................................................................... 5

2 Getting started ................................................................... 8

Features Included accessories Symbols used in this User manual Unpacking Installing the stands Lifting the TV set Removing cardboard Installing the remote control batteries Remote control Control panel Terminals Connecting Antenna or Cable / Satellite / IPTV set-top box Plugging in the AC power cord Selecting your connection quality Connecting your devices Initial setup

12 12 12 13 14 14 15 15

3 Use your TV ....................................................................... 22

Switching on your TV and putting it in standby mode Adjusting volume Switching channels Watching channels from an external device Access the Home menu Create a list of favorite channels Changing Picture format TV screen information Using options menu USB

22 22 22 23 23 24 24 25

4 Getting more from your TV ...................................... 30

Picture and sound setup TV settings

Picture Sound Features Installation Accessibility

31 31 31

33 34 34 36

Search for channels

Install channels

Channel settings

Channel installation Child lock

8 8 8 9

Change PIN Digital audio language Mono/Stereo

Connect to network

Wireless setting Wired setting

Network settings

Manual network settings Connection test Setting status Home network Wake-on-LAN(DIAL) Net TV Samba interactive TV settings Reset network settings

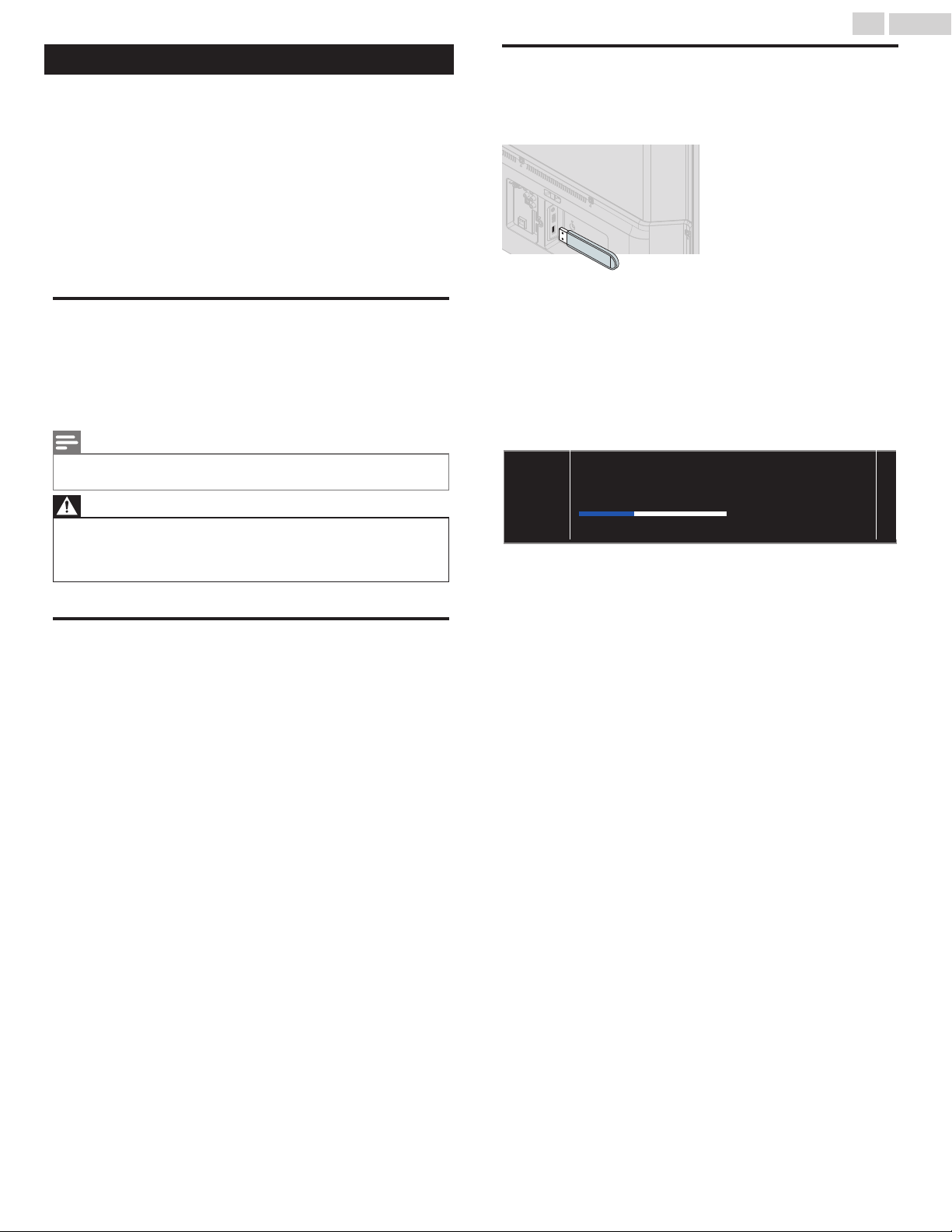

Update software

Preparing for the software upgrade Downloading the software USB upgrade Network updates

Software settings

Software Wireless Screencasting View photos, play music and watch videos using home

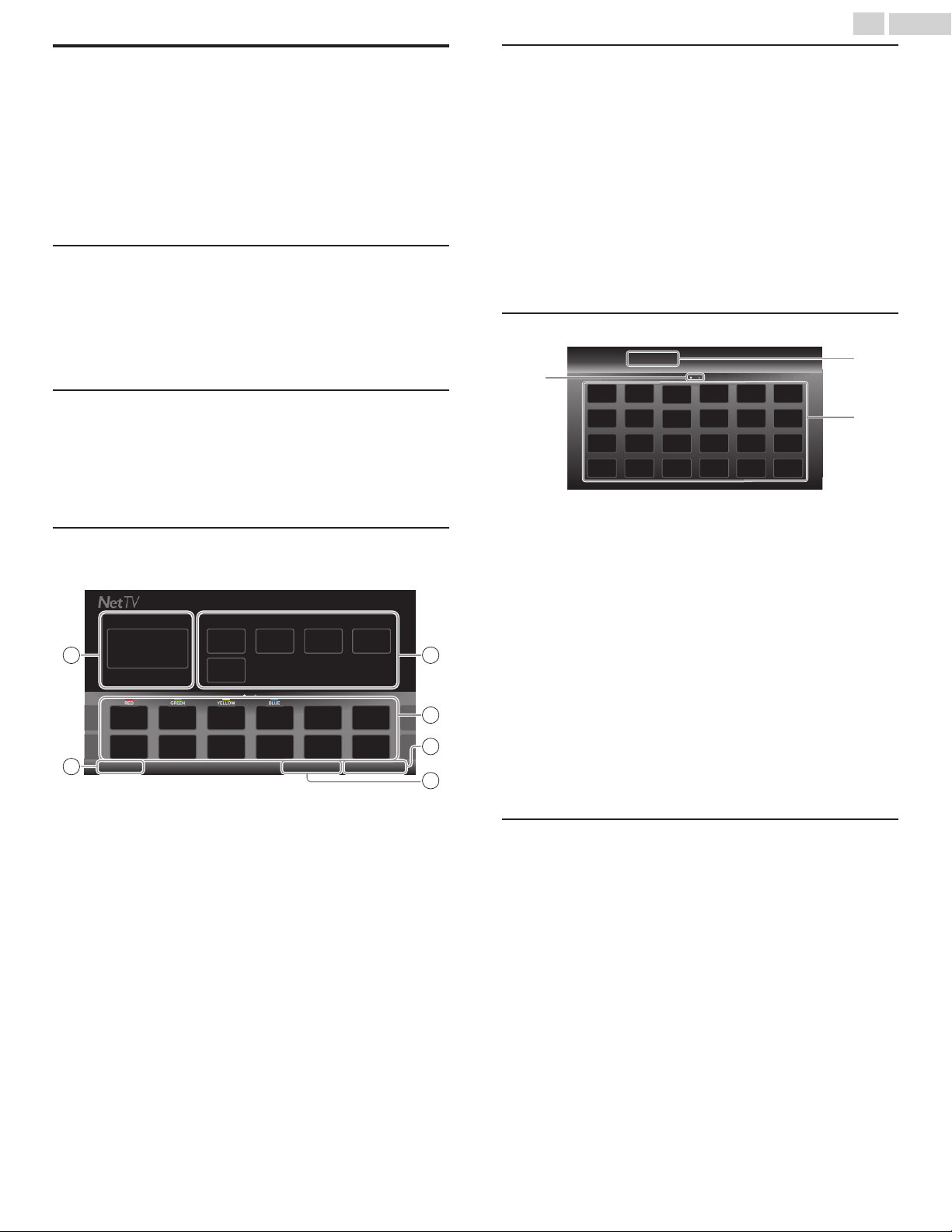

network Net TV Pandora operations

38 38 38 38

39 40 40 40

45 46 46 46 46

5 Useful tips ........................................................................... 53

FAQ Troubleshooting tips

6 Information ........................................................................ 56

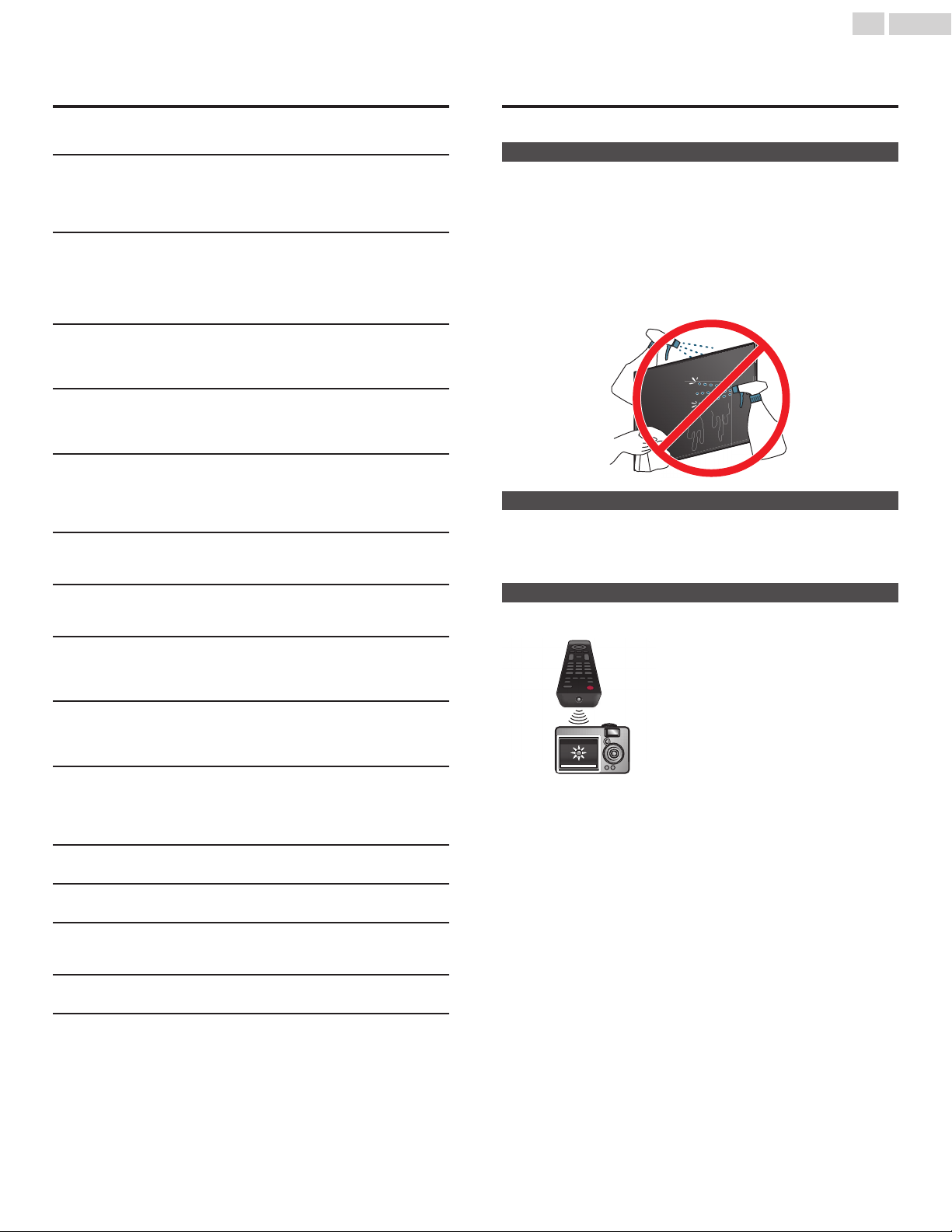

Glossary Maintenance

7 Specifications .................................................................... 57

Displays and illustrations may differ depending on the product you purchase.

•

8 Warranty ............................................................................. 58

License .......................................................................................... end of book

3 .English

to get the most benets from your purchase.

Registering your model with Philips makes you eligible for all of the valuable benefits listed below, so don't miss out. Register Online at www.philips.com/welcome to ensure:

*Product safety notication *Additional benets

By registering your product, you'll receive notication - directly from the manufacturer - in the rare case of a product recall or safety defect.

Registering your product guarantees that you'll receive all of the privileges to which you're entitled, including special money-saving oers.

Know these safety symbols

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear or bottom of the cabinet.

WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.

Apparatus shall not be exposed to dripping or splashing and no objects lled with liquids, such as vases, shall be placed on the apparatus.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert. ATTENTION: Pour éviter les choc électriques,introduire la lame la plus large de la che dans la borne

correspondante de la prise et pousser jusqu’au fond.

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the apparatus’s enclosure that may be of sucient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus.

For fastest support visit us online for chat and self service solutions at www.philips.com/support

CHILD SAFETY:

PROPER TELEVISION PLACEMENT MATTERS

THE CONSUMER ELECTRONICS INDUSTRY CARES

• Manufacturers, retailers and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable.

• As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations. Televisions that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc., may fall over, resulting in injury.

TUNE IN TO SAFETY

• ALWAYS follow the manufacturer’s recommendations for the safe installation of your television.

• ALWAYS read and follow all instructions for proper use of your television.

• NEVER allow children to climb on or play on the television or the furniture on which the television is placed.

• NEVER place the television on furniture that can easily be used as steps, such as a chest of drawers.

• ALWAYS install the television where it cannot be pushed, pulled over or knocked down.

• ALWAYS route cords and cables connected to the television so that they cannot be tripped over, pulled or grabbed.

WALL OR CEILING MOUNT YOUR TELEVISION

• ALWAYS contact your retailer about professional installation if you have any doubts about your ability to safely mount your television.

• ALWAYS use a mount that has been recommended by the television manufacturer and has a safety certication by an independent laboratory (such as UL, CSA, ETL).

• ALWAYS follow all instructions supplied by the television and mount manufacturers.

• ALWAYS make sure that the wall or ceiling where you are mounting the television is appropriate. Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder block construction. If you are unsure, contact a professional installer.

• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount installation.

MOVING AN OLDER TELEVISION TO A NEW PLACE IN YOUR HOME

• Many new television buyers move their older CRT televisions into a secondary room after the purchase of a at-panel television. Special care should be made in the placement of older CRT televisions.

• ALWAYS place your older CRT television on furniture that is sturdy and appropriate for its size and weight.

• NEVER place your older CRT television on a dresser where children may be tempted to use the drawers to climb.

• ALWAYS make sure your older CRT television does not hang over the edge of your furniture.

Important safety instructions

Brand Model # Screw dimension

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions. Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

Do not defeat the safety purpose of the polarized

or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or

10.

pinched particularly at plugs, convenience

Unplug this apparatus during lightning storms or

13.

when unused for long periods of time. Refer all servicing to qualied service personnel.

14.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Note to the CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, species that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Example of antenna grounding as per NEC National Electric Code

GROUND CLAMP

ANTENNA LEAD IN WIRE

receptacles, and the point where they exit from the apparatus.

Only use attachments / accessories specied by

1 1.

the manufacturer. Use only with the cart, stand,

12.

tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination

ELECTRIC SERVICE EQUIPMENT

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

to avoid injury from tip-over.

4 .English

Wall mount bracket kit

65PFL6902 55PFL6902 50PFL6902 50PFL6602

Your TV meets the VESA standard for wall mounting. Consult with your

•

local dealer for a wall mount bracket which is compatible with your TV model. The recommended wall mount bracket kit (sold separately) allows the

•

mounting of the TV on the wall. For detailed information on installing the wall mount, refer to the wall

•

mount Instruction book. P&F USA is not responsible for any damage to the product or injury to

•

yourself or others if you elect to install the TV wall mount bracket or mount the TV onto the bracket on your own. The wall mount bracket must be installed by experts.

•

SANUS F80b M6 x 1.378” (35mm)

P&F USA is not liable for these types of accidents or injuries noted below.

Install the wall mount bracket on a sturdy vertical wall.

•

If installed onto a ceiling or slanted wall, the TV and wall mount bracket

•

may fall which could result in a severe injury. Do not use screws that are longer or shorter than their specified length.

•

If screws too long are used this may cause mechanical or electrical damage inside the TV set. If screws too short are used this may cause the TV set to fall. Do not fasten the screws by excessive force. This may damage the

•

product or cause the product to fall, leading to an injury. For safety reasons use 2 people to mount the TV onto a wall mounting

•

bracket. Do not mount the TV onto the wall mounting bracket while your TV is

•

plugged in or turned on. It may result in an electrical shock injury.

When installing the unit on the wall, allow this much space.

Top

Left and right side

Bottom

: 1 1.8 inches (30cm) : 5.9 inches (15cm) : 3.9 inches (10cm)

5 .English

1 Notice

Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

P&F USA reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. The material in this manual is believed adequate for the intended use of the system. If the product or its individual modules or procedures are used for purposes other than those specified herein, confirmation of their validity and suitability must be obtained. P&F USA warrants that the material itself does not infringe any United States patents. No further warranty is expressed or implied. P&F USA cannot be held responsible neither for any errors in the content of this document nor for any problems as a result of the content in this document. Errors reported to P&F USA will be adapted and published on the P&F USA support website as soon as possible.

Pixel characteristics

This LCD product has a high number of color pixels. Although it has effective pixels of 99.999% or more, black dots or bright points of light (red, green or blue) may appear constantly on the screen. This is a structural property of the display (within common industry standards) and is not a malfunction.

Warranty

No components are user serviceable. Do not open or remove covers to the inside of the product. Repairs may only be done by service centers and official repair shops. Failure to do so shall void any warranty, stated or implied.

Any operation expressly prohibited in this manual, any adjustments or assembly procedures not recommended or authorized in this manual shall void the warranty.

Federal communications commission notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and the receiver.

•

Connect the equipment into an outlet on a circuit different from that to

•

which the receiver is connected. Consult the dealer or an experienced radio or television technician for

•

help.

Declaration of conformity

Trade name Responsible party Model

Address Telephone number

: PHILIPS : P&F USA, Inc. : 65PFL6902, 55PFL6902, 50PFL6902,

50PFL6602

: PO Box 2248, Alpharetta, GA 30023-2248 U.S.A. : 1 866 202 5960

Modifications

This apparatus may generate or use radio frequency energy. Changes or modifications to this apparatus may cause harmful interference.

Any modifications to the apparatus must be approved by P&F USA. The user could lose the authority to operate this apparatus if an

unauthorized change or modification is made.

Cables

Connections to this device must be made with shielded cables with metallic RFI / EMI connector hoods to maintain compliance with FCC Rules and regulations.

Canadian notice

CAN ICES-3 (B)/NMB-3 (B) Analog and digital television receiving apparatus, Canada BETS-7 / NTMR-7.

The following FCC/IC RSS applies to the wireless LAN adapter included in this product.

FCC caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Country code statement

For product available in the USA market, only channel 1a1 1 can be operated. Selection of other channels is not possible.

To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that do not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements and should be avoided.

This device complies with industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

5150-5250 MHz band is restricted to indoor operations only.

High-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

Compliance with IC requirement RSS-210 A9.4.4

Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets is being transmitted. In other words, this device automatically discontinue transmission in case of either absence of information to transmit or operational failure.

6 .English

Positioning the TV

Large screen TVs are heavy. 2 people are required to carry and handle

•

a large screen TV. Make sure to hold the upper and bottom

•

frames of the unit firmly as illustrated. Install the unit in a horizontal and stable

•

position. Do not install the unit in direct sunlight or in a

•

place subject to dust or strong vibration. Depending on the environment, the

•

temperature of this unit may increase slightly. This is not a malfunction.

When installing this unit in a temperate environment, avoid a place with

•

rapid temperature changes.

–Operating temperature: 41°F (5°C) to 104°F (40°C)

This unit should not be used in a tropical environment as it has not been

•

evaluated under such conditions. No objects should be placed directly on or under this unit, especially

•

lighted candles or other flaming objects. Depending on your external devices, noise or disturbance of the picture

•

and / or sound may be generated if the unit is placed too close to them. In this case, please ensure enough space between the external devices and the unit.

Do not insert the AC power cord into the power socket outlet before all

•

the connections are made. Ensure that you always have easy access to the AC power cord and

•

outlet to disconnect the TV from the AC outlet. Before you move the TV, disconnect attached cables to prevent

•

damage to connectors, especially the TV tuner. Be sure to unplug the AC power plug from the AC outlet before moving

•

or carrying the unit. When moving the TV and then setting it down, please be careful not to

•

pinch the AC power cord under the unit. Do not place this unit in an area where it may be exposed to water, oil

•

or grease such as: near a bathtub, basin, kitchen sink, washing tub, swimming pool, kitchen exhaust fan, etc., or in a damp basement.

Regulatory notices

WARNING

If your existing TV is being retained and relocated, the same considerations as above should be applied.

Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

In order to avoid interruption of ventilation, this unit should not be placed in built-in equipment such as a book cabinet, rack, etc., and the vents of this unit should not be covered with anything such as a tablecloth, curtain, newspaper, etc. Make sure that there is enough ventilation space (4inches / 10cm or more) around this unit.

: To prevent injury, this apparatus must be securely attached

to the furniture / wall in accordance with the instructions. Tipping, shaking or rocking the unit may cause injury / death.

: Never place a TV in an unstable location. A TV may fall,

causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

–Using cabinets or stands recommended by the

manufacturer of the TV. –Only using furniture that can safely support the TV. –Ensuring the TV is not overhanging the edge of the

supporting furniture. –Not placing the TV on tall furniture (for example,

cupboards or bookcases) without anchoring both the

furniture and the TV to a suitable support. –Not placing the TV on cloth or other materials that may

be located between the TV and supporting furniture. –Educating the children about the dangers of climbing

on furniture to reach the TV or its controls.

Press  to turn the unit on and go into standby mode. To completely turn off the unit, you must unplug the AC power plug from the AC power outlet. Disconnect the AC power plug to shut the unit off when trouble is found or not in use. The AC plug shall remain readily available.

AC power plug

Never use a gas duster on this TV. The gas trapped inside of this unit may cause ignition and explosion.

Environmental care

The packaging of this product is intended to be recycled. Contact your local authorities for information about how to recycle the packaging.

For product recycling information, please visit - www.recycle.philips.com

End of life directives

Philips pays a lot of attention to produce environmental-friendly products in green focal areas. Your new TV contains materials which can be recycled and reused. At the end of its life, specialized companies can dismantle the discarded TV to concentrate the reusable materials and to minimize the amount of materials to be disposed of. Please ensure you dispose of your old TV according to local regulations.

 Batteries usage

CAUTION

WARNING

Do not mix old and new batteries.

•

Do not mix alkaline, standard (carbon-zinc) or rechargeable (ni-cad,

•

ni-mh,Li-ion, etc.) batteries.

Disposal of used batteries

The batteries included do not contain the heavy metals mercury and cadmium, however in certain localities, disposing batteries with household waste is not permitted. Please ensure you dispose of batteries according to local regulations.

Preparing to move / ship the unit

Please pack the unit properly by following the diagram on the carton (as noted below).

To avoid damage to the screen, do not pack the stand on the same side

•

as the TV screen, refer to the illustration above.

: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

: Batteries (battery pack or battery installed) should not be

exposed to excessive heat such as sunshine, fire or the like.

All other registered and unregistered trademarks are the property of their respective owners.

The terms HDMI and HDMI HighDefinition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Vision, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.

Sonic Emotion and the Sonic Emotion logo symbol are registered trademarks of sonic emotion ag.

Netflix is available in certain countries. Streaming membership required. More information at www.netflix.com.

7 .English

The American Academy of Pediatrics discourages television viewing for children younger than two years of age.

Some features may require an always-on broadband internet connection, firmware update and/or a minimum bandwidth. Internet services vary by location.

P&F USA Inc. / P&F MEXICANA, S.A.de C.V. do not warrant access to the portal or to any of the services, content, software and advertising. P&F USA Inc./P&F MEXICANA, S.A. de C.V. or third party content/ service providers may, in their sole discretion, add or remove access to any specific services, content, software and advertising at any time. Although P&F USA Inc. / P&F MEXICANA, S.A. de C.V. will strive to provide a good selection of services, content or software, P&F USA Inc./ P&F MEXICANA, S.A. de C.V. do not warrant continued access to any specific services, and content or software.

P&F USA Inc. / P&F MEXICANA S.A. de C.V. do not warrant Wireless Screencasting compatibility with all source devices such as smartphones, tablets, laptops, etc. due to large variability in hardware, firmware, drivers, software and implementation of wireless casting applications on these source devices. Although P&F USA Inc. / P&F MEXICANA S.A. de C.V. will strive to enhance compatibility and performance across a range of source devices, P&F USA Inc. / P&F MEXICANA S.A. de C.V. do not warrant compatibility with specific source devices.

VUDU™ is a trademark of VUDU, Inc.

YouTube and the YouTube logo are trademarks of Google Inc.

PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc. Used with permission.

CinemaNow and the CinemaNow logo are trademarks of BestBuy Stores L.P. and BestBuy Canada LTD.

Hotlist, Samba, Samba TV and associated logos are trademarks of Free Stream Media Corp.

CAUTION: READ THIS FIRST

When using a universal remote control to operate this unit.

8 .English

2 Getting started

Features

DTV / Analog TV / CATV

•

You can use your remote control to select channels which are broadcast in digital format and conventional analog format. Also, cable and satellite subscribers can access their TV channels.

Information display

•

You can display on the TV screen the title, contents (DTV only) and other information on the current program.

Autoprogram

•

This unit automatically scans and memorizes channels available in your area, eliminating difficult setup procedures.

Net TV

•

This unit lets you enjoy internet services. Use the remote control to browse the Net TV pages. You can play movies and much more, all from your TV screen.

Child lock

•

This feature allows you to block children’s access to inappropriate programs.

Closed caption decoder

•

Built-in closed caption decoder displays text for closed caption supported programs.

MTS / SAP tuner

•

Audio can be selected from the remote control.

Auto standby

•

If there is no input signal and no operation for 15 minutes, the unit will go into standby mode automatically.

Sleep timer

•

You can set the unit to go into standby mode after a specific amount of time.

Choices for on-screen language

•

Select your on-screen language: English, Spanish or French.

Stereo sound function

•

PLL frequency synthesized tuning

•

Provides free and easy channel selection and lets you tune directly to any channel using the number and decimal point “•” keys on the remote control.

Various adjustments for picture and sound

•

Customizes picture quality suitable for your room and sets your sound preference.

EasyLink via HDMI link

•

EasyLink allows your other HDMI link devices to be controlled by the HDMI cable connected to your TV.

HDMI input

•

HDMI-DVI input

•

If your video device has a DVI output jack, use an HDMI-DVI conversion cable to connect the unit.

Component video input

•

AV input

•

Audio and video input from an external device.

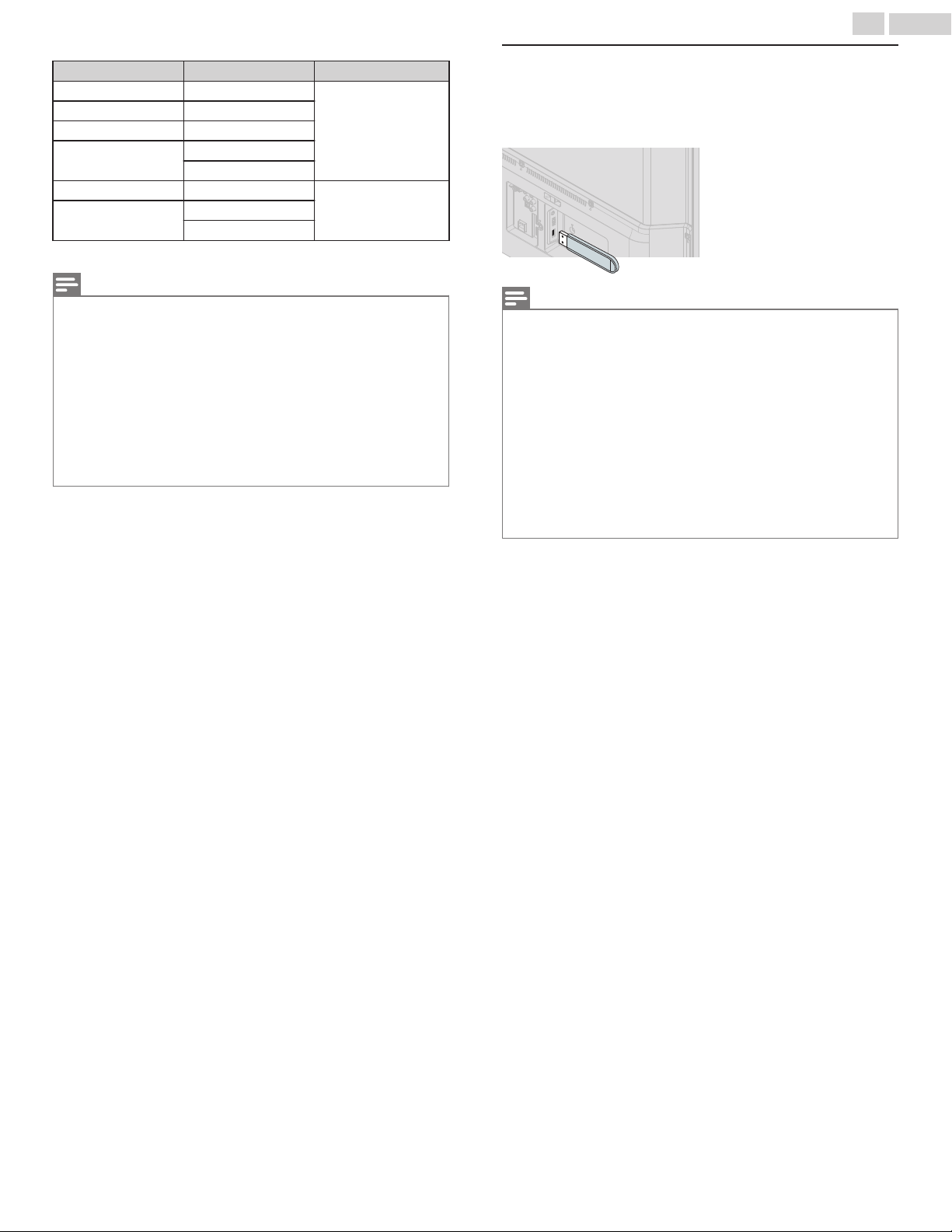

USB terminal

•

The picture, music and video files stored on a USB memory stick can be played back on this unit.

Digital audio output

•

Headphone audio output

•

Headphone 3.5mm stereo jack for personal listening.

Included accessories

Quick start guideUser manual Caution sheet

TV base and Screws

65”(65PFL6902)

55”(55PFL6902) 50”(50PFL6902)

50”(50PFL6602)

Screws packed with this unit.

65PFL6902

55PFL6902 50PFL6902

50PFL6602

Note(s)

If you lose the screws, please purchase the above-mentioned Phillips head screws at your local

•

store. If you need to replace these accessories, please refer to the part name or No. with the illustrations

•

and call our toll free customer support line found on the cover of this User manual.

Make sure the component code on your universal remote control is set to our brand. Refer to

•

the instruction book accompanying your remote control for more details. We do not guarantee 100% interoperability with all universal remote controls.

•

M4 x 0.709”(18mm)

M4 x 0.630”(16mm)

M4 x 0.984”(25mm)

Remote control

and Batteries (AAA, 1.5V x 2)

AAA

SizeQuantityModel

AAA

Symbols used in this User manual

The following is the description for the symbols used in this User manual. Description refers to:

Digital TV operation

Cable / NTSC (Analog) TV operation

If neither symbol appears, the operation is applicable to both.

•

Continued on next page.

Unpacking

It is recommended that two or more people remove the TV set from the box. Be careful not to injure your fingers and keep children away during assembly.

(65PFL6902)

Open the top flaps of the box.

Remove all accessories.

Support the top of the TV set with a hand to prevent the TV from

falling.

Unhinge the retaining tabs and unfold the left and right side of the

bottom packaging.

9 .English

Caution(s)

DO NOT take the TV set out of the box yet.

•

Remove the packing joints from the box.

Remove the outer slipbox with care.

Continued on next page.

10 .English

(55PFL6902, 50PFL6902, 50PFL6602)

Open the top flaps of the box.

Remove all accessories.

Installing the stands

(65PFL6902)

Remove both of the bottom polystyrene foam bases. Carefully tear

the plastic bag until the bottom corner of the TV is exposed.

Support the top of the TV set at all times to prevent the TV from

•

falling.

Caution(s)

Before installing the matching stand, remove the protective cardboard and carefully peel away

•

the film from the area so that it will not get stuck between the unit and the stand.

Lift up one side of the TV approx. 1 inch (2.5 cm) and insert the

matching stand upward until it fits the main unit.

Prepare a table and cover the top of it with a table cloth, blanket or

such to avoid damage to the TV set. Support both sides of the TV set and, move it onto the table.

Carefully lay the TV set, with the screen side down, on the table so

as not to deform or damage Decoration plate of the bottom of the unit.

Fasten the matching stand to the TV with 2 screws (included).

2 screws required

In the same manner as step 2, install the other stand.

Protect the plate with care

Continued on next page.

11 .English

Fasten the other stand to the TV with 2 screws (included).

2 screws required

Both stands should now be securely fastened.

(55PFL6902, 50PFL6902, 50PFL6602)

Remove the tape on the bottom of the TV set and the plastic bag.

Fasten the matching stand to the TV with 2 screws (included). While

fastening the screws, hold the stand to prevent it from falling.

Caution(s)

Before installing the matching stand, remove the protective cardboard and carefully peel away

•

the film from the area so that it will not get stuck between the unit and the stand.

2 screws required

Fasten the other stand to the TV with 2 screws (included). While

fastening the screws, hold the stand to prevent it from falling.

2 screws required

Both stands should now be securely fastened.

Note(s)

A wide open space is recommended for assembly.

•

A Phillips-head screwdriver is required to fasten the stands to the TV set.

•

When attaching the stand, ensure that all screws are tightly fastened. If the stand is not properly

•

attached, it could cause the unit to fall, resulting in injuries as well as damage to the unit. To remove the stand from this unit, unscrew the Phillips-head screws by reversing the

•

procedure. Be careful not to drop the stand when you remove it.

Continued on next page.

Lifting the TV set

Carefully lift the TV set as shown in the illustration and place it onto a stable, level surface.

Removing cardboard

Remove the cardboard attached to the screen. You are now ready to set up and enjoy your Philips TV.

12 .English

Installing the remote control batteries

Slide the battery cover off the back of the remote control.

Insert the two included batteries (AAA, 1.5V). Be sure the + and – ends

of the batteries line up with the markings inside the case.

Slide the cover back into position.

Note(s)

Remove the batteries if not using the remote control for an extended period of time.

•

Continued on next page.

Remote control

t s

b c

d e f

h i



 (POWER)

Turns the TV on from standby or off to standby.

VUDU



Access directly to VUDU.

EasyLink buttons



 /   .

Note(s)

Pause may not work properly on some devices even if they are EasyLink (HDMI CEC)

•

compliant.

YouTube



Access directly to YouTube.

SAP



Selects audio mode (MONO / STEREO / SAP) / audio language.

(Home)

Displays the main menu.

INFO

Displays information about the current program.

Press to decide the command of setting when the Home menu is displayed.

 (NAVIGATION buttons)

Moves the cursor, selects the on-screen menu items.

OPTIONS

Displays a list of menu items applicable to the highlighted object or screen.

SOURCE

Selects connected devices.

CH + / –

Selects a channel.

COLOR buttons

Works as direct access to user specified net apps.

0 - 9 (NUMBER buttons)

(

Used to enter a channel / program number.

• (DOT)

: Searches backward or forward through the disc.

: Starts, pauses or resumes playback.

: Stops the disc playback.

: Use with 0-9 to select digital channels.

For example, to enter 2.1, press

13 .English

PREV.CH

)

 (MUTE)

Turns the sound on and off.

VOL + / –

Adjusts the volume.

BACK

Returns to the previous menu operation.

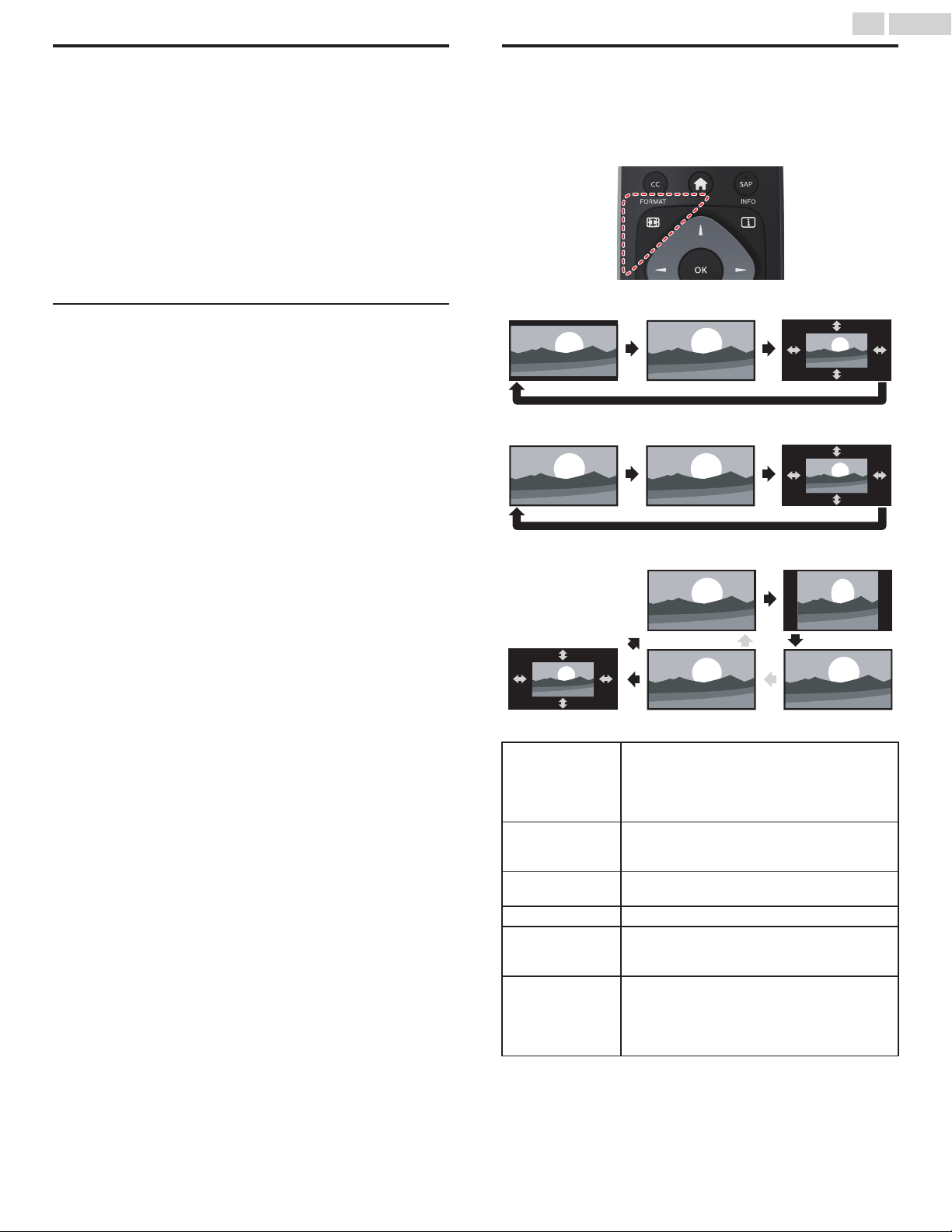

FORMAT

Adjusts the picture size on the TV screen.

Selects closed caption settings (Off, On, CC w/ mute).

NETTV

Access to Net TV menu directly.

NETFLIX

Access directly to Netflix.

: Returns to the previously viewed channel.

Continued on next page.

14 .English

Control panel

cde

Remote control sensor



Receives IR signal from remote control.

CH + / –



Selects a channel. In the menu screen, moves the cursor up (+) / down (–).



(POWER)

Turns the TV on or switches the TV into standby mode.



Opens the main on-screen menu.

SOURCE



Selects connected devices.

VOL + / –

Adjusts the volume. In the menu screen, moves the cursor left (+) / right (–).

VOL +

VOL –

: Volume up : Volume down

Terminals

i j

75 ohm cable / Antenna connection

Signal input from an antenna or cable / satellite set-top boxes.

Analog audio (L/R) input jacks

Connect analog audio signals from;

–HDMI-DVI / Analog audio (L/R) jacks signal –Component video / Analog audio (L/R) jacks signal –Composite video / Analog audio (L/R) jacks signal –PC connection / Analog audio (L/R) jacks signal with stereo mini 3.

5mm plug audio cable on PC

Digital audio output jack

Digital audio (S/PDIF) output to home theaters and other digital audio systems.

Component (Y/Pb/Pr) / Composite video (VIDEO) input jack(s) for

VIDEO

Composite video input (VIDEO) jack is a shared jack with component video input (Y) jack. Green / Yellow color orientation depends on model.

Ethernet port

For internet connection using an Ethernet cable with an RJ-45 connector.

HDMI input jack(s)

Digital audio and video input from high definition digital devices such as DVD / Blu-ray disc players, cable / satellite set-top boxes, PC’s, etc.

* For HDMI 2 only

In addition to normal HDMI and HDMI-DVI functionality, it outputs TV audio to an HDMI-ARC-compliant device, such as a home theater system.

Headphone audio output jack

Headphone 3.5mm stereo jack for personal listening.

USB terminal

(

Data input from USB memory stick only. Do not connect any device to this terminal such as digital camera, keyboard, mouse, etc.

Continued on next page.

OUT

RF cable

Antenna

Cable

Antenna

Set-top box

RF cable

OUT

RF cable

HDMI cable

Set-top box

RF cable

OUT

Component (Y/Pb/Pr)

video cables

OUT

Audio (L/R) cables

Video + Audio(L/R)

cables

15 .English

Connecting Antenna or Cable / Satellite / IPTV set-top box

Be sure your antenna or another device is connected properly before plugging in the AC power cord.

If connecting to an antenna through an RF cable

Any DTV programs that are broadcast in your area can be received for free through an antenna connection.

Cable

Antenna

RF cable

If connecting Cable / Satellite / IPTV set-top box using an RF cable

If the TV is connected to a cable or set-top box via a coaxial connection, set the TV to channel 3/4 or the channel specified by the service provider.

Antenna

RF cable

OUT

If connecting Cable / Satellite / IPTV set-top box using an HDMI cable

If the TV is connected to a cable / satellite set-top box via an HDMI cable, make sure you select the correct source by using SOURCE.

OUT

RF cable

Set-top box

Connecting a Cable / Satellite / IPTV set-top box, Bluray disc / DVD recorder via composite connectors and analog audio

Do not place your recorder too close to the screen because some recorders can be susceptible to harmful interference from the TV.

Satellite

Cable

OUTOUT

Set-top box

RF cable

Video + Audio(L/R)

Note(s)

If you have any question about the DTV’s antenna, visit www.antennaweb.org for further

•

information. Depending on your antenna system, you may need different types of combiners (mixers) or

•

separators (splitters) for HDTV signal. The minimum RF bandpass on these devices is 2,000MHz or 2GHz.

For your safety and to avoid damage to this unit, please unplug the RF coaxial cable from the

•

antenna input jack before moving the unit. If you did use an antenna to receive analog TV, it should also work for DTV reception. Outdoor

•

or attic antennas will be more effective than a set-top box or inside antenna. To turn on your reception source easily between antenna and cable, install an antenna

•

selector. If you are not receiving a signal from your cable service, contact the cable provider.

•

cables

OUT

Video +

Audio(L/R)

cables

OUT

Blu-ray disc / DVD recorder

Cable

OUT

Plugging in the AC power cord

Make sure that the AC power cord must be plugged to an AC outlet after all the necessary connections are made.

HDMI cable

RF cable

OUT

Set-top box

If connecting Cable / Satellite / IPTV set-top box using component video input

If the TV is connected to a cable / satellite set-top box via component video input, make sure you select the correct component video source

by using SOURCE.

Audio (L/R) cables

Component (Y/Pb/Pr)

video cables

OUT

RF cable

Set-top box

Caution(s)

Connect the analog audio signal cables from the external device to the analog audio L/R input

•

jacks. If you have an amplifier, connect the HDMI cable to the HDMI input via your amplifier.

•

Note(s)

Each time you plug in the AC power cord, no operations will be performed for several seconds.

•

This is not a malfunction.

Continued on next page.

Before you connect the AC power cord:

HDMI cable

HDMI-DVI

conversion cable

16 .English

No included cables are used with these connections:

Please purchase the necessary cables at your local store.

•

Be sure other devices are connected properly before plugging in the AC power cord.

Selecting your connection quality

HDMI - Highest quality

Supports high-definition digital signals and gives highest picture and sound quality. Video and audio signals are combined in one cable. You must use HDMI for full high-definition video and to enable EasyLink(HDMI CEC).

Note(s)

Philips HDMI supports HDCP (High-bandwidth Digital Contents Protection). HDCP is a form of

•

digital rights management that protects high-definition content in Blu-ray discs or DVDs. The HDMI-ARC connector on the TV features HDMI-ARC functionality. This allows output of

•

TV audio to an HDMI-ARC-compliant device.

Component (Y Pb Pr) - High quality

Connecting your devices

HDMI digital connection

HDMI connection offers the highest picture quality. HDMI (High-Definition Multimedia Interface) transports high-definition digital video and multi-channel digital audio through a single cable.

Set-top box

HDMI cable

Note(s)

If there are issues with picture/color and/or sound when connecting an external device using

•

the HDMI port, please try switching the HDMI mode. (Refer to HDMI mode  p. 35) Some HDMI cables and devices may not be compatible with the TV due to different HDMI

•

specifications. Use an HDMI cable with the HDMI logo (a certified HDMI cable). High speed HDMI cable is

•

recommended for the better compatibility. The unit accepts 480i / 480p / 720p / 1080i, 1080p, 2160p 24/30/60Hz of video signals, 32kHz/

•

44.1kHz and 48kHz of audio signals. This unit accepts LPCM, AC-3, DD+ audio signal.

•

This unit accepts only signals in compliance with EIA861.

•

Blu-ray disc / DVD player

OUT

HD game console

Supports high-definition analog signals but gives lower picture quality than HDMI. Component (Y/Pb/Pr) video cables combine red / green / blue video cables with red / white audio (L/R) cables. Match the cable colors when you connect to the TV.

Composite - Basic quality

For analog connections. Composite video / Audio analog cable usually combine a yellow video cable with red / white audio (L/R) cables. With this unit, yellow cable must be connected to Y (green) jack on the component video input jacks.

HDMI-DVI connection

This unit can be connected to a device that has a DVI terminal. Use an HDMI-DVI conversion cable for this connection and it requires audio cable for analog audio signal as well.

Cable receiver or set-top box with

the DVI output jack

HDMI-DVI

Note(s)

Some HDMI cables and devices may not be compatible with the TV due to different HDMI

•

specifications. Use an HDMI cable with the HDMI logo (a certified HDMI cable). High speed HDMI cable is

•

recommended for the better compatibility. The unit accepts 480i, 480p, 720p, 1080i, 1080p and 2160p video signals.

•

HDMI-DVI connection requires separate audio connections as well and the audio signals are

•

output as analog (L/R) audio. DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B.

•

HDMI-DVI

conversion cable

Audio (L/R) cables

OUT

Continued on next page.

HDMI cable

HDMI 2 IN only

Blu-ray disc / DVD recorder

Set-top box

OUT

Component (Y/Pb/Pr)

video cables

OUT

Audio (L/R) cables

DVD player

OUT

Video + Audio(L/R) cables

Internet

Network provisioning

equipment

Ethernet cable

17 .English

HDMI-ARC connection

HDMI-ARC allows you to use EasyLink to output TV audio directly to a connected audio device, without the need for an additional digital audio cable.

HDMI 2 IN only

HDMI cable

OUT

Digital home theater

amplier that supports

HDMI-ARC

Note(s)

The HDMI 2 connector is HDMI Audio Return Channel (ARC) compliant. Use it to output digital

•

audio to an HDMI home theater system. Be sure that the device is HDMI CEC and ARC compliant and that the TV is connected to the

•

device using an HDMI cable attached to HDMI-ARC connectors.

Component analog video connection

Component analog video connection offers better picture quality for video devices connected to the unit.

If you connect to the unit’s component video (Y/Pb/Pr) input jacks, connect analog audio cables to the analog audio (L/R) input jacks.

Audio (L/R) cables

OUT

Set-top box

Composite analog video connection

Composite analog video connection offers standard picture quality for video devices connected to the unit.

If you connect to the unit’s component / composite video (Y/VIDEO) input jack (green), connect audio cables to the audio (L/R) input jacks. When the audio is monaural, then only connect to the audio L input jack.

OUT

Video + Audio(L/R) cables

DVD player

Note(s)

With this unit, yellow cable must be connected to Y (green) jack on the component video input

•

jacks. Whenever you connect to the composite video input jack (Y/VIDEO), you must disconnect the

•

component video input jacks (Pb and Pr). If you leave those jacks connected, it may cause an unstable picture.

Connecting the TV to the internet using an Ethernet cable

Internet

Component (Y/Pb/Pr)

Note(s)

The unit accepts 480i, 480p, 720p, 1080i and 1080p of video signals for this connection.

•

video cables

OUT

Blu-ray disc /

Blu-ray disc / DVD recorder

DVD recorder

LAN

Network provisioning

Ethernet cable

Note(s)

Please purchase shielded Ethernet cables at your local store and use them when you connect

•

to network equipment.

After connecting an Ethernet cable, set up necessary network settings. Connect to network 

•

p. 41

Do not insert any cable other than an Ethernet cable to the Ethernet port to avoid damaging

•

the unit. If your telecommunications equipment (modem, etc.) does not have broadband router

•

functions, connect a broadband router. If your telecommunications equipment (modem, etc.) has broadband router functions but there

•

is no vacant port, then add a hub. For a broadband router, use a router which supports 10BASE-T / 100BASE-TX.

•

Do not connect your PC directly to the Ethernet port of this unit.

•

Network provisioning

equipment

Continued on next page.

Broadband router

Internet

OUT

Digital audio optical cable

OUT

HDMI cable

OUT

HDMI-DVI

conversion cable

OUT

Stereo mini 3.5 mm plug audio cable

18 .English

Connecting the TV to the internet using a wireless LAN

Internet

Network provisioning

equipment

LAN

Ethernet cable

Broadband router

Note(s)

After you make the wireless connection, set up the necessary network settings. Connect to

•

network  p. 41

Use a wireless LAN Access Point (AP) (e.g. broadband wireless router) which supports

•

IEEE 802.1 1 a/b/g/n/ac. (n is recommended for stable operation of the wireless network.) This unit does not support Ad-hoc mode.

•

Other radio devices or obstacles may cause interference to the wireless network connection.

•

WLAN

Digital audio output connection

If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital broadcasting sound.

Use a digital audio optical cable to connect the unit to external digital audio devices.

PC connection

HDMI connection

This unit can be connected to your PC that has an HDMI terminal. Use an HDMI cable for this digital connection.

OUT

HDMI cable

HDMI-DVI connection

This unit can be connected to your PC that has a DVI terminal. Use an HDMI-DVI conversion cable for this video digital connection and it requires stereo mini 3.5mm plug audio cable for analog audio signal as well.

HDMI-DVI

conversion cable

Stereo mini 3.5 mm plug audio cable

OUT

Digital audio

Digital audio optical cable

optical cable

Digital home

theater amplier

Continued on next page.

+ 42 hidden pages
