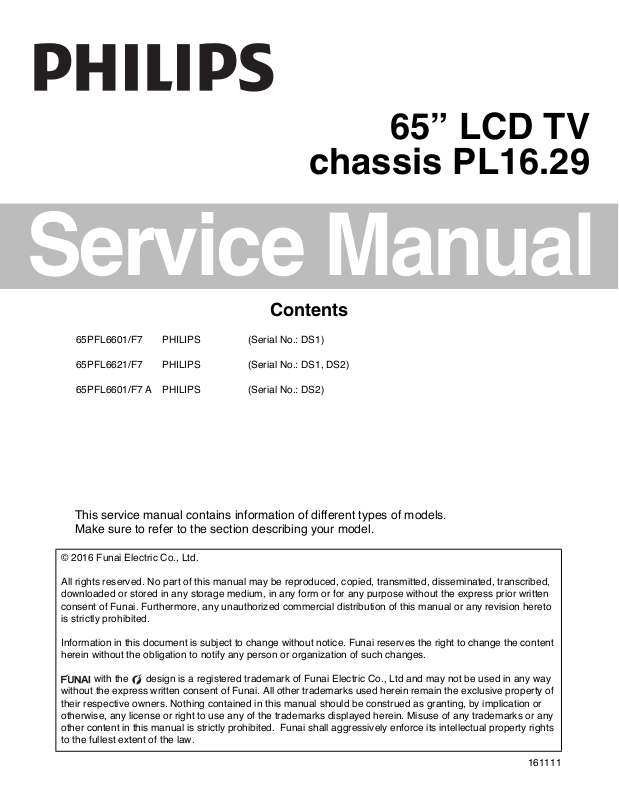

Service Manual
65” LCD TV
chassis PL16.29
Contents
65PFL6601/F7 PHILIPS (Serial No.: DS1)
65PFL6621/F7 PHILIPS (Serial No.: DS1, DS2)
65PFL6601/F7 A PHILIPS (Serial No.: DS2)
This service manual contains information of different types of models.
Make sure to refer to the section describing your model.
© 2016 Funai Electric Co., Ltd.
All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed,
downloaded or stored in any storage medium, in any form or for any purpose without the express prior written
consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto
is strictly prohibited.
Information in this document is subject to change without notice. Funai reserves the right to change the content
herein without the obligation to notify any person or organization of such changes.
with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way
without the express written consent of Funai. All other trademarks used herein remain the exclusive property of
their respective owners. Nothing contained in this manual should be construed as granting, by implication or
otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any
other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights
to the fullest extent of the law.
161111
Page 2
IMPORTANT SAFETY NOTICE
The LCD panel is manufactured to provide many years of useful life.
Occasionally a few non active pixels may appear as a tiny spec of color.
This is not to be considered a defect in the LCD screen.
Proper service and repair is important to the safe, reliable operation of all
P&F Equipment. The service procedures recommended by P&F and
described in this service manual are effective methods of performing
service operations. Some of these service special tools should be used
when and as recommended.
It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk
of personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to
understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE.
P&F could not possibly know, evaluate and advice the service trade of all
conceivable ways in which service might be done or of the possible
hazardous consequences of each way. Consequently, P&F has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a
service procedure or tool which is not recommended by P&F must first use
all precautions thoroughly so that neither his safety nor the safe operation
of the equipment will be jeopardized by the service method selected.
Page 3
TABLE OF CONTENTS
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Electrical Adjustment Instructions [65PFL6601/F7, 65PFL6601/F7 A] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
[65PFL6621/F7] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
How to Initialize the LCD TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Firmware Renewal Mode [65PFL6601/F7, 65PFL6601/F7 A] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
[65PFL6621/F7] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
Schematic Diagrams / CBA and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1
Page 4
SPECIFICATIONS
< TUNER / NTSC >
Description Condition Unit Nominal Limit
1. AFT Pull-In Range --- MHz ±2.3 ±2.1
18
18
18
2. Synchronizing Sens.
TV.ch.4
CA.ch.31
CA.ch.87
dBV
dBV
dBV
< TUNER / ATSC >
Description Condition Unit Nominal Limit
1. Received Freq. Range (-28dBm) --- kHz --- ±100
2. ATSC Dynamic Range (min / max)
ch.4
ch.10
ch.41
dBm
dBm
dBm
---
---
---
< LCD PANEL >
Description Condition Unit Nominal Limit
1. Native Pixel Resolution
2. Brightness (w / filter) ---
3. Viewing Angle
Horizontal
Vertical
Horizontal
Vertical
pixels
pixels
cd/m
°
°
3840
2160
2
600 ---
-89 to 89
-89 to 89
20
20
23
-76/0
-76/0
-76/+4
---
---
---
---
< VIDEO >
Description Condition Unit Nominal Limit
1. Over Scan
2. Color Temperature
3. Resolution (composite video)
Horizontal
Vertical
--x
y
<Measurement condition>
Input signal: HDMI1 Raster (40/80IRE) 1080i@60
Measurement point: Screen center
Measuring instrument:
Aging time: 60min. (Retail MODE / 100IRE Raster HDMI
MODE setting of TV: Shipment setting / Retail MODE
Ambient temperature: 25°C ±5°C
Horizontal
Vertical
%
%
°K 12000
Made of KONICA MINOLTA Luminance meter CA310
1080i@60)
line
line
5
5
0.272
0.278
400
350
5±5
5±5
--±3%
±3%
---
---
< AUDIO >
All items are measured across 8 load at speaker output terminal with L.P.F.
Description Condition Unit Nominal Limit
1.
Audio MAX Output (ATSC 0dBfs)
2. Audio Distortion (NTSC) 500mW: Lch/Rch % 0.5/0.5 2.0/2.0
Lch/Rch W 10.0/10.0 9.0/9.0
1-1 PL16.29-A_SP
Page 5
IMPORTANT SAFETY PRECAUTIONS
Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical
codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally
important to implement the following precautions when a set is being serviced.
Safety Precautions for LCD TV
Circuit
1. Before returning an instrument to the
customer, always make a safety check of the
entire instrument, including, but not limited to, the
following items:
a. Be sure that no built-in protective devices are
defective and have been defeated during
servicing. (1) Protective shields are provided
on this chassis to protect both the technician
and the customer. Correctly replace all missing
protective shields, including any removed for
servicing convenience. (2) When reinstalling
the chassis and/or other assembly in the
cabinet, be sure to put back in place all
protective devices, including but not limited to,
nonmetallic control knobs, insulating
fishpapers, adjustment and compartment
covers/shields, and isolation resistor/capacitor
networks. Do not operate this instrument or
permit it to be operated without all
protective devices correctly installed and
functioning. Servicers who defeat safety
features or fail to perform safety checks
may be liable for any resulting damage.
b. Be sure that there are no cabinet openings
through which an adult or child might be able to
insert their fingers and contact a hazardous
voltage. Such openings include, but are not
limited to, (1) spacing between the Liquid
Crystal Panel and the cabinet mask, (2)
excessively wide cabinet ventilation slots, and
(3) an improperly fitted and/or incorrectly
secured cabinet back cover.
c. Antenna Cold Check - With the instrument AC
plug removed from any AC source, connect an
electrical jumper across the two AC plug
prongs. Place the instrument AC switch in the
on position. Connect one lead of an ohmmeter
to the AC plug prongs tied together and touch
the other ohmmeter lead in turn to each tuner
antenna input exposed terminal screw and, if
applicable, to the coaxial connector. If the
measured resistance is less than 1.0 megohm
or greater than 5.2 megohm, an abnormality
exists that must be corrected before the
instrument is returned to the customer. Repeat
this test with the instrument AC switch in the off
position.
d. Leakage Current Hot Check - With the
instrument completely reassembled, plug the
AC line cord directly into a 120 V AC outlet. (Do
not use an isolation transformer during this
test.) Use a leakage current tester or a
metering system that complies with American
National Standards Institute (ANSI) C101.1
Leakage Current for Appliances and
Underwriters Laboratories (UL) 1410, (50.7).
With the instrument AC switch first in the on
position and then in the off position, measure
from a known earth ground (metal water pipe,
conduit, etc.) to all exposed metal parts of the
instrument (antennas, handle brackets, metal
cabinet, screw heads, metallic overlays, control
shafts, etc.), especially any exposed metal
parts that offer an electrical return path to the
chassis. Any current measured must not
exceed 0.5 milli-ampere. Reverse the
instrument power cord plug in the outlet and
repeat the test.
READING SHOULD
NOT BE ABOVE 0.5 mA
LEAKAGE
DEVICE
BEING
TESTED
TEST ALL EXPOSED
METAL SURFACES
ALSO TEST WITH
PLUG REVERSED
USING AC
ADAPTER PLUG
AS REQUIRED
ANY MEASUREMENTS NOT WITHIN THE
LIMITS SPECIFIED HEREIN INDICATE A
POTENTIAL SHOCK HAZARD THAT MUST
BE ELIMINATED BEFORE RETURNING THE
INSTRUMENT TO THE CUSTOMER OR
BEFORE CONNECTING THE ANTENNA OR
ACCESSORIES.
2. Read and comply with all caution and safety-
related notes on or inside the receiver cabinet, on
the receiver chassis, or on the Liquid Crystal
Panel.
CURRENT
TESTER
+
EARTH
GROUND
_
2-1 LTVN_ISP
Page 6
3. Design Alteration Warning - Do not alter or add
to the mechanical or electrical design of this TV
receiver. Design alterations and additions,
including, but not limited to circuit modifications
and the addition of items such as auxiliary audio
and/or video output connections, might alter the
safety characteristics of this receiver and create a
hazard to the user. Any design alterations or
additions will void the manufacturer's warranty and
may make you, the servicer, responsible for
personal injury or property damage resulting
therefrom.
4. Hot Chassis Warning a. Some TV receiver chassis are electrically
connected directly to one conductor of the AC
power cord and maybe safety-serviced without
an isolation transformer only if the AC power
plug is inserted so that the chassis is
connected to the ground side of the AC power
source. To confirm that the AC power plug is
inserted correctly, with an AC voltmeter,
measure between the chassis and a known
earth ground. If a voltage reading in excess of
1.0 V is obtained, remove and reinsert the AC
power plug in the opposite polarity and again
measure the voltage potential between the
chassis and a known earth ground.
b. Some TV receiver chassis normally have 85V
AC(RMS) between chassis and earth ground
regardless of the AC plug polarity. This chassis
can be safety-serviced only with an isolation
transformer inserted in the power line between
the receiver and the AC power source, for both
personnel and test equipment protection.
c. Some TV receiver chassis have a secondary
ground system in addition to the main chassis
ground. This secondary ground system is not
isolated from the AC power line. The two
ground systems are electrically separated by
insulation material that must not be defeated or
altered.
5. Observe original lead dress. Take extra care to
assure correct lead dress in the following areas: a.
near sharp edges, b. near thermally hot parts-be
sure that leads and components do not touch
thermally hot parts, c. the AC supply, d. high
voltage, and, e. antenna wiring. Always inspect in
all areas for pinched, out of place, or frayed wiring.
Check AC power cord for damage.
6. Components, parts, and/or wiring that appear to
have overheated or are otherwise damaged
should be replaced with components, parts, or
wiring that meet original specifications.
Additionally, determine the cause of overheating
and/or damage and, if necessary, take corrective
action to remove any potential safety hazard.
7. Product Safety Notice - Some electrical and
mechanical parts have special safety-related
characteristics which are often not evident from
visual inspection, nor can the protection they give
necessarily be obtained by replacing them with
components rated for higher voltage, wattage, etc.
Parts that have special safety characteristics are
identified by a # on schematics and in parts lists.
Use of a substitute replacement that does not
have the same safety characteristics as the
recommended replacement part might create
shock, fire, and/or other hazards. The product's
safety is under review continuously and new
instructions are issued whenever appropriate.
Prior to shipment from the factory, our products
are strictly inspected to confirm they comply with
the recognized product safety and electrical codes
of the countries in which they are to be sold.
However, in order to maintain such compliance, it
is equally important to implement the following
precautions when a set is being serviced.
2-2 LTVN_ISP
Page 7
Precautions during Servicing
A. Parts identified by the # symbol are critical for
safety.
Replace only with part number specified.
B. In addition to safety, other parts and assemblies
are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise
blocking capacitors, and noise blocking filters, etc.
C. Use specified internal wiring. Note especially:
1) Wires covered with PVC tubing
2) Double insulated wires
3) High voltage leads
D. Use specified insulating materials for hazardous
live parts. Note especially:
1) Insulation Tape
2) PVC tubing
3) Spacers
4) Insulators for transistors.
E. When replacing AC primary side components
(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before
soldering.
F. Observe that the wires do not contact heat
producing parts (heat sinks, oxide metal film
resistors, fusible resistors, etc.)
G. Check that replaced wires do not contact sharp
edged or pointed parts.
H. When a power cord has been replaced, check that
11~13 lb (5~6 kg) of force in any direction will not
loosen it.
I. Also check areas surrounding repaired locations.
J. Use care that foreign objects (screws, solder
droplets, etc.) do not remain inside the set.
K. When connecting or disconnecting the internal
connectors, first, disconnect the AC plug from the
AC supply outlet.
L. When installing parts or assembling the cabinet
parts, be sure to use the proper screws and
tighten certainly.
2-3 LTVN_ISP
Page 8
Safety Check after Servicing
Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and
wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified
values in order to verify compliance with safety standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d') between
soldered terminals, and between terminals and
surrounding metallic parts. (See Fig. 1)
Table 1: Ratings for selected area
Chassis or Secondary Conductor
Primary Circuit
AC Line Voltage Region
110 to 130 V
Note: This table is unofficial and for reference only. Be
sure to confirm the precise values.
U.S.A. or
Canada
Clearance
Distance (d), (d’)
3.2 mm
(0.126 inches)
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.
Measuring Method: (Power ON)
Insert load Z between B (earth ground, power cord plug
prongs) and exposed accessible parts. Use an AC
voltmeter to measure across both terminals of load Z.
See Fig. 2 and following table.
d' d
Fig. 1
Exposed Accessible Part
Z
AC Voltmeter
(High Impedance)
Earth Ground
B
Power Cord Plug Prongs
Fig. 2
Table 2: Leakage current ratings for selected areas
AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:
110 to 130 V
Note: This table is unofficial and for reference only. Be sure to confirm the precise values.
U.S.A. or
Canada
0.15 F CAP. & 1.5 k
RES. Connected in parallel
2-4 LTVN_ISP
i 0.5 mA rms
Exposed accessible
parts
Page 9
STANDARD NOTES FOR SERVICING
To p Vi ew
Out
In
Bottom View
Input
5
10
Pin 1
Pin 1
Circuit Board Indications
1. The output pin of the 3 pin Regulator ICs is
indicated as shown.
2. For other ICs, pin 1 and every fifth pin are
indicated as shown.
3. The 1st pin of every male connector is indicated
as shown.
Pb (Lead) Free Solder
Pb free mark will be found on PCBs which use Pb
free solder. (Refer to figure.) For PCBs with Pb free
mark, be sure to use Pb free solder. For PCBs
without Pb free mark, use standard solder.
Pb free mark
How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:
1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
Fig. S-1-1
2. Remove the flat pack-IC with tweezers while
applying the hot air.
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
CAUTION:
1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.
2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)
3-1 TVN_SN
Page 10
3. The flat pack-IC on the CBA is affixed with glue, so
Hot-air
Flat Pack-IC
Desoldering
Machine
CBA
Flat Pack-IC
Tweezers
Masking
Ta pe
Fig. S-1-2
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.
With Soldering Iron:
1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
Flat Pack-IC
Desoldering Braid
Soldering Iron
Fig. S-1-3
2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
Sharp
Pin
Fine Tip
Soldering Iron
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Fig. S-1-4
3-2 TVN_SN
Page 11
With Iron Wire:
To Solid
Mounting Point
Soldering Iron
Iron Wire
or
Hot Air Blower
Fig. S-1-5
Fine Tip
Soldering Iron
CBA
Flat Pack-IC
Tweezers
Fig. S-1-6
1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.
4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Note: When using a soldering iron, care must be
taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.
2. Installation
1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.
2. The “ I ” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the
pin 1 on the PCB when positioning for installation.
Then presolder the four corners of the flat pack-IC.
(See Fig. S-1-8.)
3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark.
Fig. S-1-7
Presolder
Flat Pack-IC
CBA
Fig. S-1-8
3-3 TVN_SN
Page 12
Instructions for Handling Semi-
<Incorrect>
CBA
Grounding Band
Conductive Sheet or
Copper Plate
1MΩ
1MΩ
<Correct>
CBA
conductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1 M) that is
properly grounded to remove any static electricity that
may be charged on the body.
2. Ground for Workbench
Be sure to place a conductive sheet or copper plate
with proper grounding (1 M) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.
3-4 TVN_SN
Page 13
CABINET DISASSEMBLY INSTRUCTIONS
Screw Torque Specification
Ref.
No.
L22 GBHS3040
L23 GBJS3060
L25 GCHS3060
L27 GBHS3080
L44 FPJ34080
L45 FPH34100
L52 SBH36120
L59 2EML00035 HEX SCREW A6182UH 4.3±0.9lb·in
L73 GCHP3100
SSK1 2ESA03459
*:For reference
Part
Number
Part Name
SCREW BIND BLACK_NI
+S-TITE M3X4.0
SCREW BIND 3CHROM
+S-TITE M3X6.0
SCREW F-PAN BLACK_NI
+S-TITE M3X6.0
SCREW BIND BLACK_NI
+S-TITE M3X8.0
SEMS-SW PAN 3CHROM +
M4X8.0
SEMS-SW PAN BLACK_NI
+ M4X10.0
SCREW M6X12 M6X12
BIND_NI
SCREW F-PAN BLACK_NI
+P-TITE M3X10.0 3X10
STAND SCREW KIT
A6182UH(SEMS-SW PAN
BLACK_NI + M4X14.0)
Tightening
Torque
4.3±0.9lb·in
6.1lb·in
8.7±0.9lb·in
6.1±0.9lb·in
(approx.
8.7±0.9lb·in)
1. Disassembly Flowchart
This flowchart indicates the disassembly steps for the
cabinet parts and the CBA in order to gain access to
items to be serviced. When reassembling, follow the
steps in reverse order. Bend, route and dress the
cables as they were.
[8] IR Sensor
CBA Unit
[3] Power Supply
CBA Unit
[1] Stand
Assembly L, R
[2] Rear Cabinet
[5] Wall Mount
Bracket L, R
[6] Speaker
[7] Function
CBA Unit
[4] Digital Main
CBA Unit
[9] LED CBA Unit
[10] Leading
Edge Front
2. Disassembly Method
Step/
Loc.
No.
[1]
[2]
[3]
[4]
[5]
*
[6] Speaker D3 --------------- ---
[7]
[8]
[9]
[10]
[11]
(1)
*3: 65PFL6621/F7
Part
Stand
Assembly
L, R
Rear
Cabinet
Power
Supply
CBA Unit
Digital Main
CBA UnitD2W1
Wall Mount
Bracket L,R
Function
CBA UnitD3W1
IR Sensor
CBA UnitD3W1
LED CBA
Unit
Leading
Edge Front
LCD Panel
Assembly
(2)
Fig.
No.
D1 4(S-1) ---
D1
D2
W1
D3 10(S-10) ---
D3W1CN4021, Leading
D3
D3
(3)
Removal Note
11(S-2), 10(S-3),
4(S-4), 4(S-5), 4(S-6),
---
AC Cord Cover
4(S-7), CN101,
CN201, CN301,
---
Separation Sheet
4(S-8), 5(S-9),
CN3103, CN3801,
CN3901, CON3
*3
,
--Jack Holder S, Jack
Holder B
(S-11), CN4001, Knob
Frame, Function
Knob, Hook
CN4052, Hook ---
Edge Cover, Hook
---
(S-12), Light Guide
Panel, Decoration
--Plate, Hook
4(H-1), Speaker
Rubber
(4)
(5)
2
1
[11] LCD Panel
Assembly
4-1 PL16.29-A_DC
Page 14
Note:
(1) Order of steps in procedure. When reassembling,
follow the steps in reverse order. These numbers
are also used as the Identification (location) No. of
parts in figures.
(2) Parts to be removed or installed.
(3) Fig. No. showing procedure of part location
(4) Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
H = Hex Screw, CN = Connector
e.g. 2(S-2) = two Screws of (S-2),
2(L-2) = two Locking Tabs of (L-2)
(5) Refer to the following “Reference Notes in the
Table.”
Important precautions concerning the
LCD Panel Assembly:
1. When you disassemble/re-assemble the LCD
Panel Assembly.
• Do not pull the FFC Cable and Board Cable
forcefully when you re-assemble.
• Be careful not to scratch the display panel when
assembling.
2. When you disassemble/re-assemble the
Function CBA Unit.
• Be careful not to break the hooks. If you pull with too
much force, the hooks may be damaged.
• Be careful not to scratch the display panel when
assembling.
• Make sure the tact switches operate normally after
replacing the Function CBA Unit.
4-2 PL16.29-A_DC
Page 15
(S-1)
(S-1)
(S-6)
(S-4)
(S-5)
(S-5)
(S-3)
(S-3)
(S-3)
(S-3)
(S-3)
(S-3)
(S-3)
(S-4)
(S-2)
(S-2)
(S-2)
(S-2)
(S-2)
(S-2)
AC Cord Cover
(S-2)
[2] Rear Cabinet
[1] Stand Assembly R
[1] Stand Assembly L
Fig. D1
4-3 PL16.29-A_DC
Page 16
[4] Digital Main
CBA Unit
[3] Power Supply CBA Unit
Separation Sheet
(S-8)
Jack Holder B
Jack Holder S
(S-7)
(S-8)
(S-9)
CON3
[65PFL6621/F7]
Fig. D2
4-4 PL16.29-A_DC
Page 17
[9] LED CBA Unit
[6] Speaker
(S-10)
(S-10)
(S-11)
(S-12)
(H-1)
Leading Edge Cover
Light Guide Panel
Decoration Plate
Speaker Rubber
Speaker Rubber
Speaker Rubber
Function Knob*
2
Knob Frame*
2
[7] Function
CBA Unit
*
2
[10] Leading Edge Front
Hook
Hook*
2
[5] Wall Mount
Bracket L, R
Hook
(H-1)
[11] LCD Panel Assembly
*
1
[8] IR Sensor CBA Unit
Fig. D3
*1: Make sure to read all the precautions on page 4-2 when you disassemble/re-assemble
the LCD Panel Assembly.
*2: Make sure to read all the precautions on page 4-2 when you disassemble/re-assemble
the Function CBA Unit.
4-5 PL16.29-A_DC
Page 18

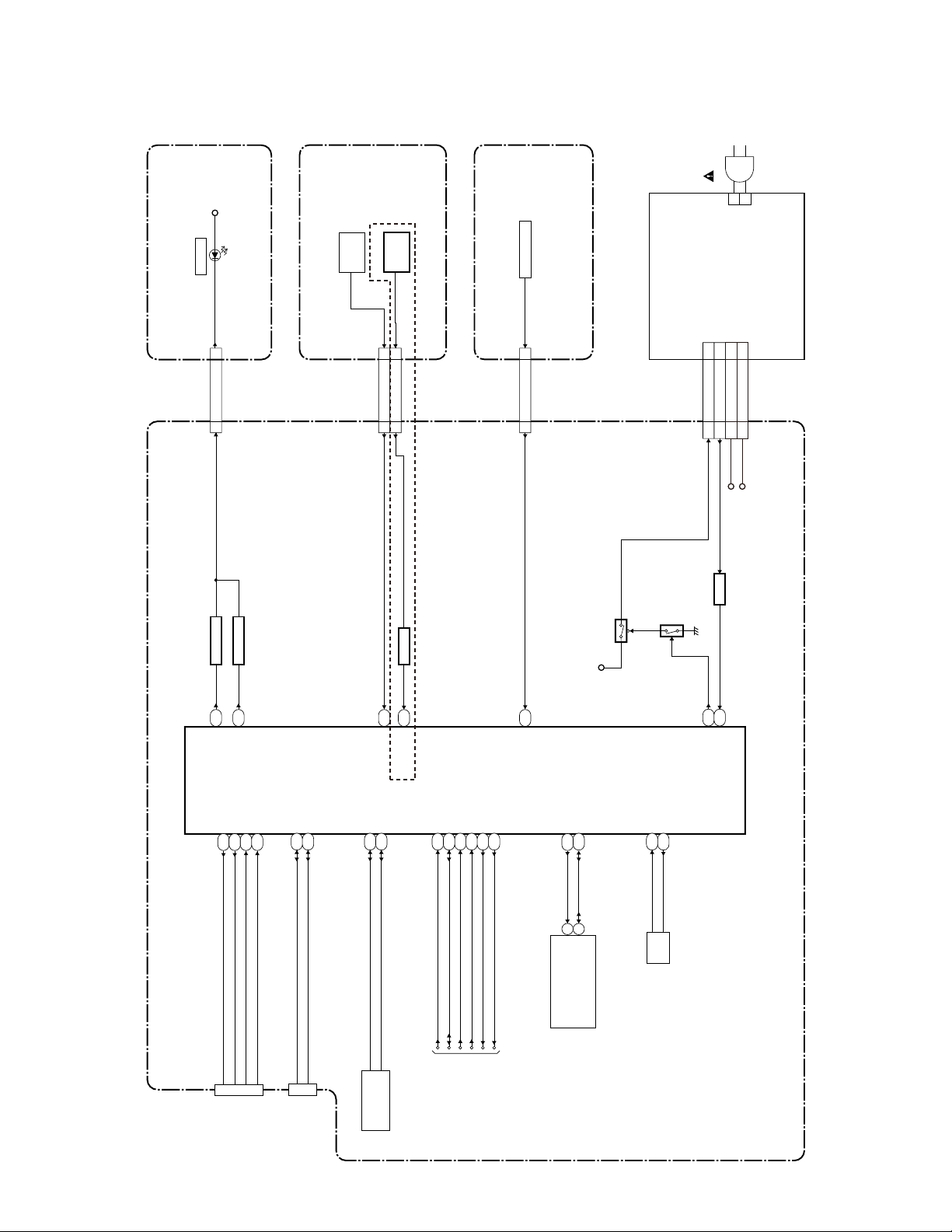

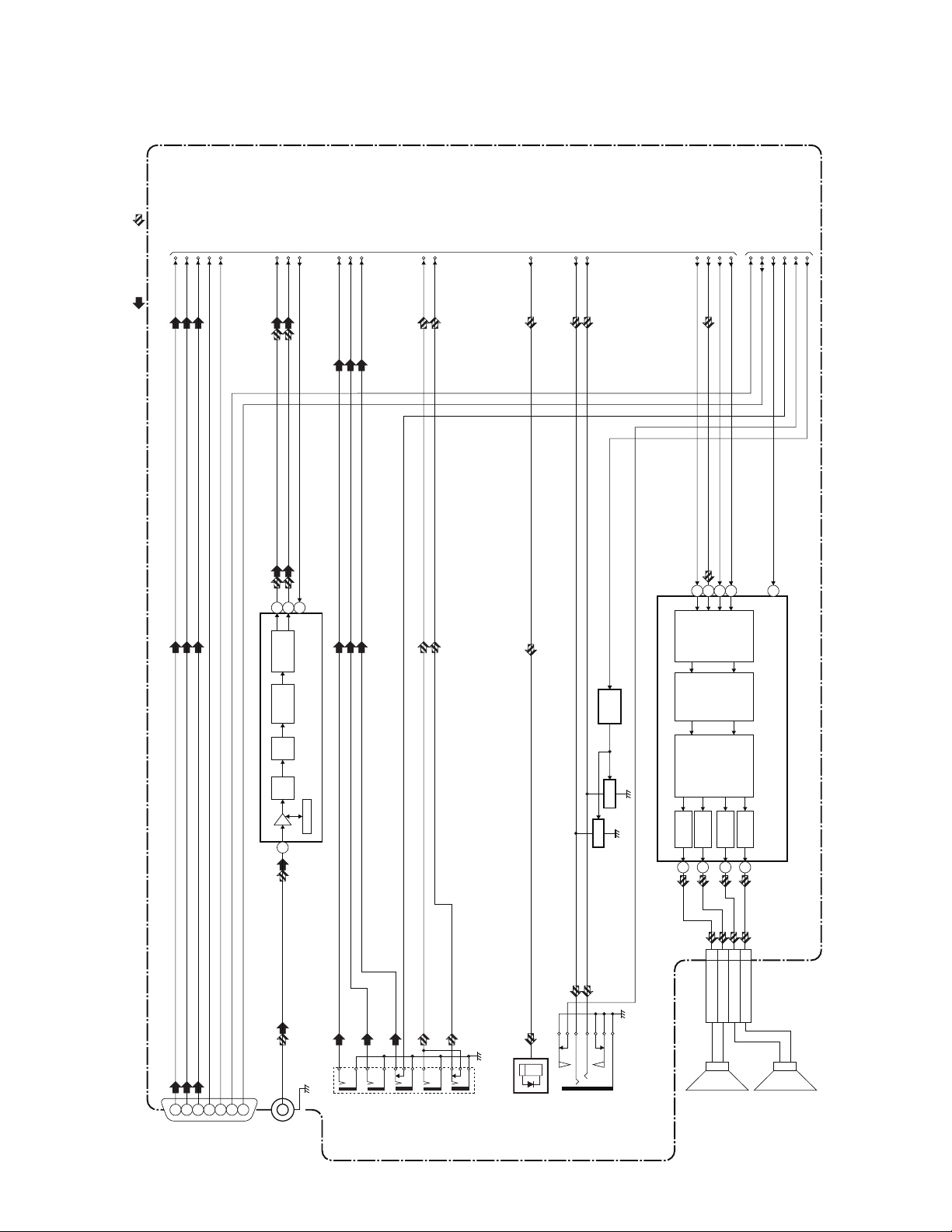

TV Cable Wiring Diagram
To LCD Panel
Assembly
CN101
CN3602
CN201
CN3901
CN4052
CN3801
CN3103
CN4021
CN4001
To AC Cord
To Speaker
Power Supply CBA Unit
Digital Main CBA Unit
Function
CBA Unit
LED CBA Unit
IR Sensor
CBA Unit
CN301
To LCD Panel
Assembly
CON3
[65PFL6621/F7]
Fig. W1
4-6 PL16.29-A_DC
Page 19
ELECTRICAL ADJUSTMENT INSTRUCTIONS
[current]
File code:
Total checksum:
Panel-Option code:
Press "POWER" key to exit.
***-*****_***_*
Push 0 key
**-***-***-***-***-***
***-***-***-***-***
Flicker:
Tuner:
HDMI UART:
Touch Sensor:None /
*****
**
OFF
MAC address:
ESN:
**:**:**:**:**:**
*****************************
Total Watch Time:
User Watch Time
:
System Time:
Lightsensor:
*****:**
*****:**
**:**
*
"*" differs depending on the models.
White Balance
[65PFL6601/F7, 65PFL6601/F7 A]
General Note: “CBA” is abbreviation for
“Circuit Board Assembly.”
Note: Electrical adjustments are required after
replacing circuit components and certain
mechanical parts. It is important to perform
these adjustments only after all repairs and
replacements have been completed.
Also, do not attempt these adjustments unless
the proper equipment is available.
Test Equipment Required
1. Remote control unit
2. Color Analyzer,
CA-310 (KONICA MINOLTA Luminance meter) or
measuring instrument as good as CA-310.
How to set up the service mode:
Service mode:
1. Turn the power on.
2. Press [0], [6], [2], [5], [9], [6] and [INFO] buttons on
the remote control unit in this order. The following
screen appears.
1. Purity Check Mode
This mode cycles through full-screen displays of red,
green, blue, and white to check for non-active pixels.
1. Enter the service mode.
2. Each time the [7] button on the remote control unit
is pressed, the display changes as follows.
Purity Check Mode
White mode
[7] button
[7] button
Black mode
[7] button
White 50% mode
[7] button
Red, Green, Blue mode
[7] button
V-ramp mode
[7] button
White 20% mode
Note:
When entering this mode, the default setting is White mode.
3. To cancel or to exit from the Purity Check Mode,
press [CH RETURN] or [PREV CH] button.
5-1 PL16.29EA
Page 20

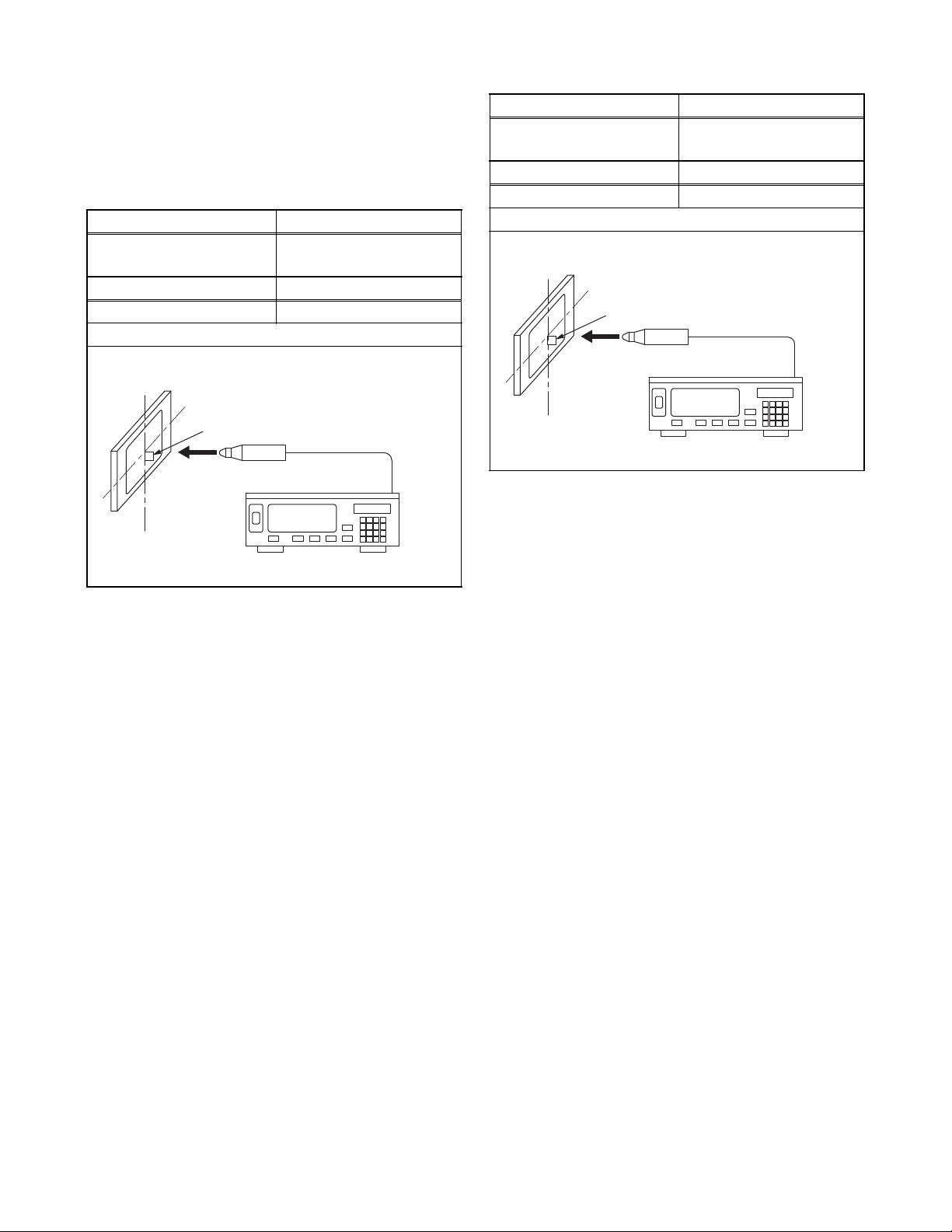

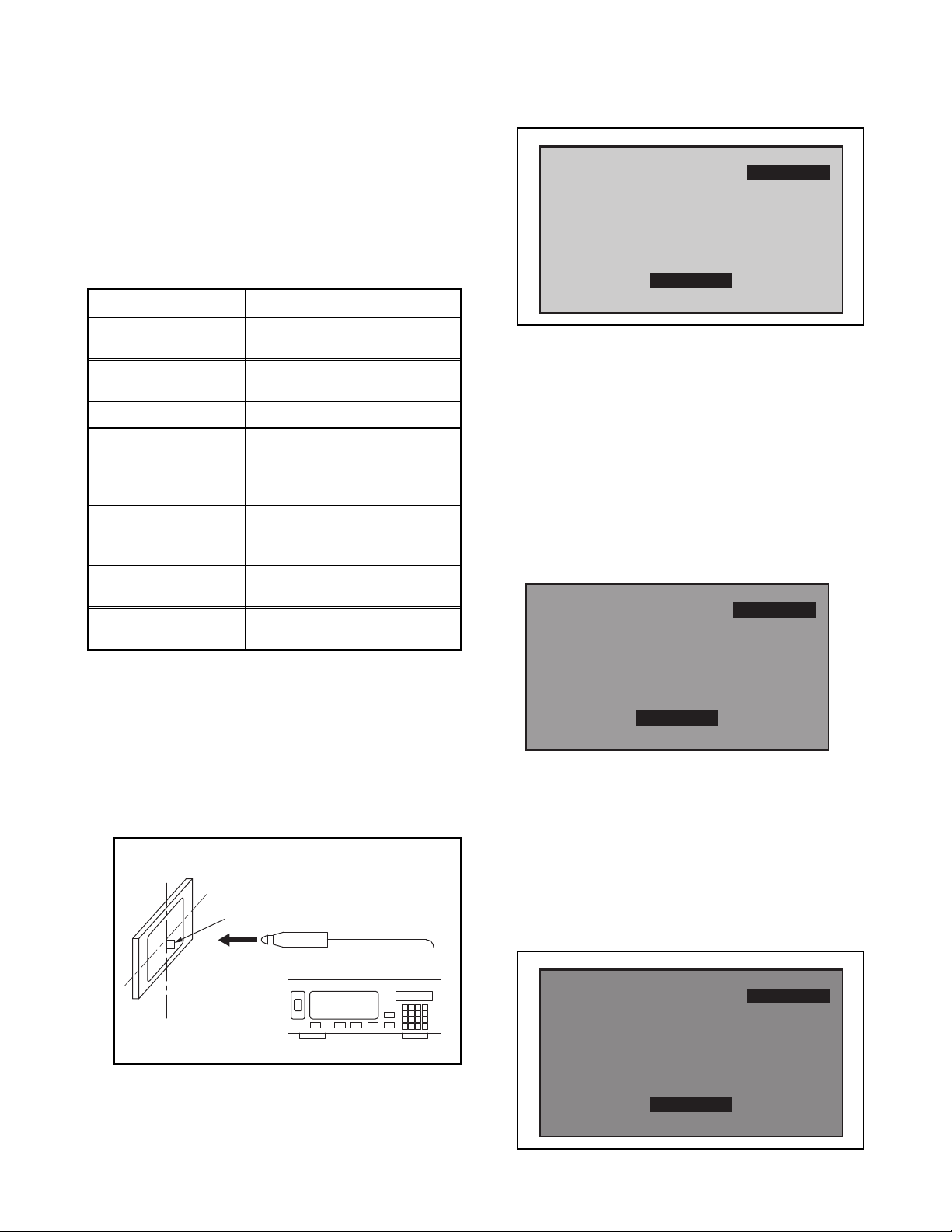

The White Balance Adjustment should be
Color Analyzer
Perpendicularity
To avoid interference from ambient
light, this adjustment should be
performed in a dark room.
performed when replacing the LCD Panel
or Digital Main CBA.
2. White Balance Adjustment
Purpose: To mix red and blue beams correctly for
pure white.
Symptom of Misadjustment: White becomes bluish
or reddish.
ITEM SPECIFICATION
Color temperature
Input Signal
Measurement point Screen center
M. EQ.
Aging time
MODE setting of TV
Ambient
temperature
x= 0.272 ± 0.003
y= 0.278 ± 0.003
Internal pattern
(30/50/80% raster)
CA-310 (KONICA MINOLTA
Luminance meter) or
measuring instrument as
good as CA-310.
60min.
(Retail MODE/100IRE Raster
HDMI 1080i@60)
Shipment setting/
Retail MODE
25°C ± 5°C
6. Press [MENU] button. The internal Raster signal
appears in the screen. (“Internal (Single)” appears
in the upper right of the screen as shown below.)
Internal (Single)
HDB 0
7. Press [CHANNEL UP/DOWN] buttons to adjust
the color temperature becomes 12000°K
(x
=
0.272 / y= 0.278 ± 0.003).
8. Press [1] button to select the “HDR” for High Drive
Red adjustment (“HDR” appears in the screen.)
and press [CHANNEL UP/DOWN] buttons to
adjust the color temperature.
9. If necessary, adjust the “HDB” or “HDR” again
10. Press [6] button to select the “MDB” for Middle
Drive Blue adjustment (“MDB” appears in the
screen.) and press [CHANNEL UP/DOWN]
buttons to adjust the color temperature.
Internal (Single)
1. Operate the unit for more than 30 minutes.
2. Enter the service mode.
3. Press [VOLUME DOWN] button three times on the
remote control unit to select “Drive setting” mode.
“Drive-” appears in the screen.
4. Set the color analyzer at the CHROMA mode and
zero point calibration. Bring the optical receptor
pointing at the center of the LCD-Panel.
Note: The optical receptor must be set
perpendicularly to the LCD Panel surface.
5. Press [3] button to select the “HDB” for High Drive
Blue adjustment. (“HDB” appears in the screen.)
MDB 0
11. Press [4] button to select the “MDR” for Middle
Drive Red adjustment (“MDR” appears in the
screen.) and press [CHANNEL UP/DOWN]
buttons to adjust the color temperature.
12. If necessary, adjust the “MDB” or “MDR” again.
13. Press [9] button to select the “LDB” for Low Drive
Blue adjustment (“LDB” appears in the screen.)
and press [CHANNEL UP/DOWN] buttons to
adjust the color temperature.
Internal (Single)
LDB 0
5-2 PL16.29EA
Page 21
14. Press [7] button to select the “LDR” for Low Drive
Red adjustment (“LDR” appears in the screen.)
and press [CHANNEL UP/DOWN] buttons to
adjust the color temperature.
15. If necessary, adjust the “LDB” or “LDR” again.
16. Press [VOLUME DOWN] button to shift to the
“Debugging Message” mode.
If there is no message under “[WB]” section, this
adjustment completes.
If “Drive settings are NG. Retry again.” is
displayed, repeat above steps from 5. to 15. Then
check “Debugging Message” again. If “Drive
settings are NG. Retry again.” is displayed, replace
the LCD Panel or Digital Main CBA.
17. To cancel or to exit from the White Balance
Adjustment, press [CH RETURN] or [PREV CH]
button.
5-3 PL16.29EA
Page 22
[65PFL6621/F7]
[current]
File code:
Total checksum:
Panel-Option code:
Press "POWER" key to exit.
***-*****_***_*
Push "0" key
**-***-***-***-***-***
***-***-***-***-***
Flicker:
Tuner:
HDMI UART:
Touch Sensor Ver:
*****
****
OFF
------ / -.--.--
MAC address:
ESN:
**:**:**:**:**:**
*****************************
Total Watch Time:
User Watch Time:
System Time:
Lightsensor:
*****:**
*****:**
**:**
**
"*" differs depending on the models.
General Note: “CBA” is abbreviation for
“Circuit Board Assembly.”
Note: Electrical adjustments are required after
replacing circuit components and certain
mechanical parts. It is important to perform
these adjustments only after all repairs and
replacements have been completed.
Also, do not attempt these adjustments unless
the proper equipment is available.
Test Equipment Required
1. Remote control unit
2. Color Analyzer,
CA-310 (KONICA MINOLTA Luminance meter) or
measuring instrument as good as CA-310.
How to set up the service mode:
Service mode:
1. Turn the power on.
2. Press [0], [6], [2], [5], [9], [6] and [INFO] buttons on
the remote control unit in this order. The following
screen appears.
1. Purity Check Mode
This mode cycles through full-screen displays of red,
green, blue, and white to check for non-active pixels.
1. Enter the service mode.
2. Each time the [7] button on the remote control unit
is pressed, the display changes as follows.
Purity Check Mode
White mode
[7] button
[7] button
Black mode
[7] button
White 50% mode
[7] button
Red, Green, Blue mode
[7] button
V-ramp mode
[7] button
White 20% mode
Note:
When entering this mode, the default setting is White mode.
3. To cancel or to exit from the Purity Check Mode,
press [CH RETURN] or [PREV CH] button.
5-4 PL16.29EA
Page 23
The VCOM Adjustment should be
performed when replacing the Digital
Main CBA.
2. VCOM Adjustment
[65PFL6621/F7 (Serial No.:DS1)]
Test Point Adj. Point
Screen
M. EQ. Spec.
Color analyzer See below
To avoid interference from ambient
light, this adjustment should be
performed in a dark room.
Perpendicularity
1. Set the color analyzer at the zero point calibration
and bring the optical receptor pointing at the
center of the LCD-Panel.
Note: The optical receptor must be set
perpendicular to the LCD Panel surface.
2. Turn the power on.
Note: Execute the VCOM adjustment within 2
minutes after you turn the power on.
3. Enter the service mode.
4. Press [2] button to select the VCOM adjustment.
5. Press [4] button to select the VCOM4(AUTO)
adjustment. VCOM4(AUTO) pattern signal (1x1
flicker-Green) appears in the screen.
6. Press [CHANNEL UP/DOWN] buttons on the
remote control unit so that the color analyzer value
becomes minimum.
7. To cancel or to exit from the VCOM Adjustment,
press [CH RETURN] or [PREV CH] button.
[CHANNEL UP/DOWN]
buttons
Figure
Color Analyzer
[65PFL6621/F7 (Serial No.:DS2)]
Test Point Adj. Point
Screen
M. EQ. Spec.
Color analyzer See below
To avoid interference from ambient
light, this adjustment should be
performed in a dark room.
Perpendicularity
1. Set the color analyzer at the zero point calibration
and bring the optical receptor pointing at the
center of the LCD-Panel.
Note: The optical receptor must be set
perpendicular to the LCD Panel surface.
2. Turn the power on.
Note: Execute the VCOM adjustment within 2
minutes after you turn the power on.
3. Enter the service mode.
4. Press [2] button to select the VCOM adjustment.
5. Press [9] button to select the VCOM9(AUTO)
adjustment. VCOM9(AUTO) pattern signal
(Column-inversion flicker) appears in the screen.
6. Press [CHANNEL UP/DOWN] buttons on the
remote control unit so that the color analyzer value
becomes minimum.
7. To cancel or to exit from the VCOM Adjustment,
press [CH RETURN] or [PREV CH] button.
[CHANNEL UP/DOWN]
buttons
Figure
Color Analyzer
5-5 PL16.29EA
Page 24
The White Balance Adjustment should be
Color Analyzer
Perpendicularity
To avoid interference from ambient
light, this adjustment should be
performed in a dark room.
performed when replacing the LCD Panel
or Digital Main CBA.
3. White Balance Adjustment
Purpose: To mix red and blue beams correctly for
pure white.
Symptom of Misadjustment: White becomes bluish
or reddish.
ITEM SPECIFICATION
Color temperature
Input Signal
Measurement point Screen center
M. EQ.
Aging time
MODE setting of TV
Ambient
temperature
x= 0.272 ± 0.005
y= 0.278 ± 0.005
Internal pattern
(30/50/80% raster)
CA-310 (KONICA MINOLTA
Luminance meter) or
measuring instrument as
good as CA-310.
60min.
(Retail MODE/100IRE Raster
HDMI 1080i@60)
Shipment setting/
Retail MODE
25°C ± 5°C
6. Press [MENU] button. The internal Raster signal
appears in the screen. (“Internal (Single)” appears
in the upper right of the screen as shown below.)
Internal (Single)
HDB 0
7. Press [CHANNEL UP/DOWN] buttons to adjust
the color temperature becomes 12000°K
(x
=
0.272 / y= 0.278 ± 0.005).
8. Press [1] button to select the “HDR” for High Drive
Red adjustment (“HDR” appears in the screen.)
and press [CHANNEL UP/DOWN] buttons to
adjust the color temperature.
9. If necessary, adjust the “HDB” or “HDR” again
10. Press [6] button to select the “MDB” for Middle
Drive Blue adjustment (“MDB” appears in the
screen.) and press [CHANNEL UP/DOWN]
buttons to adjust the color temperature.
Internal (Single)
1. Operate the unit for more than 30 minutes.
2. Enter the service mode.
3. Press [VOLUME DOWN] button three times on the
remote control unit to select “Drive setting” mode.
“Drive-” appears in the screen.
4. Set the color analyzer at the CHROMA mode and
zero point calibration. Bring the optical receptor
pointing at the center of the LCD-Panel.
Note: The optical receptor must be set
perpendicularly to the LCD Panel surface.
5. Press [3] button to select the “HDB” for High Drive
Blue adjustment. (“HDB” appears in the screen.)
MDB 0
11. Press [4] button to select the “MDR” for Middle
Drive Red adjustment (“MDR” appears in the
screen.) and press [CHANNEL UP/DOWN]
buttons to adjust the color temperature.
12. If necessary, adjust the “MDB” or “MDR” again.
13. Press [9] button to select the “LDB” for Low Drive
Blue adjustment (“LDB” appears in the screen.)
and press [CHANNEL UP/DOWN] buttons to
adjust the color temperature.
Internal (Single)
LDB 0
5-6 PL16.29EA
Page 25
14. Press [7] button to select the “LDR” for Low Drive
Red adjustment (“LDR” appears in the screen.)
and press [CHANNEL UP/DOWN] buttons to
adjust the color temperature.
15. If necessary, adjust the “LDB” or “LDR” again.
16. Press [VOLUME DOWN] button to shift to the
“Debugging Message” mode.
If there is no message under “[WB]” section, this
adjustment completes.
If “Drive settings are NG. Retry again.” is
displayed, repeat above steps from 5. to 15. Then
check “Debugging Message” again. If “Drive
settings are NG. Retry again.” is displayed, replace
the LCD Panel or Digital Main CBA.
17. To cancel or to exit from the White Balance
Adjustment, press [CH RETURN] or [PREV CH]
button.
5-7 PL16.29EA
Page 26
HOW TO INITIALIZE THE LCD TV
The purpose of initialization is to place the set in a new out of box condition. The customer will be prompted to
select a language and program channels after the set has been initialized.
To put the program back at the factory-default, initialize the LCD TV using the following procedure.
Note: Disconnect any device from the USB Port
before you conduct on this procedure.
1. Turn the power on.
2. Enter the service mode.
- To cancel the service mode, press [ ] button on
the remote control unit.
3. Press [BACK] button to enter the Control Panel
Key Confirmation Menu.
4. Press all buttons on the control panel.
5. Press [INFO] button to proceed with the self check
mode.
6. Make sure to confirm the “INITIALIZED : OK”
appears in the green screen.
7. Unplug the AC Cord and plug it back on again.
6-1 PL16.29INT
Page 27

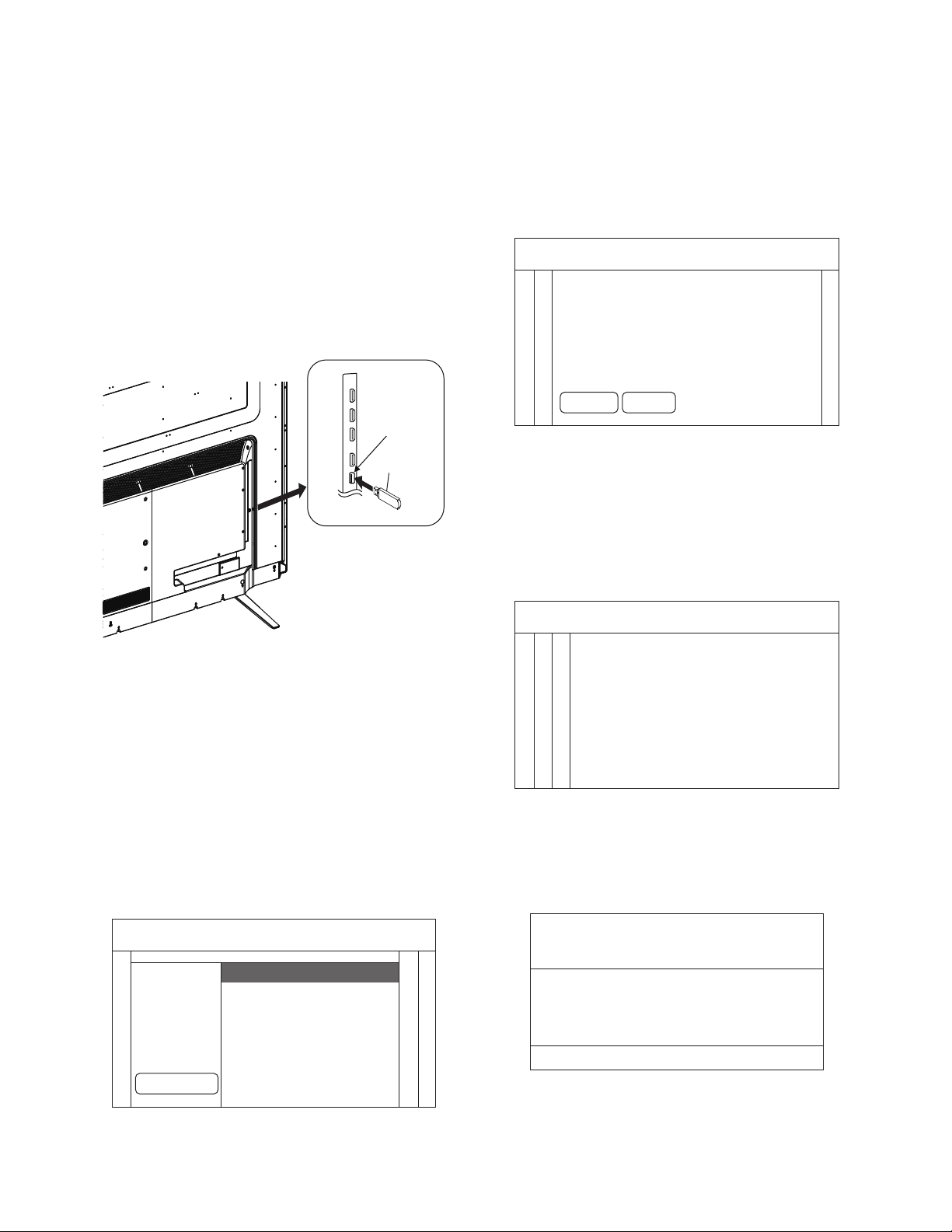

FIRMWARE RENEWAL MODE
"*" differs depending on the models.
Select a file
Software update
Cancel
***-*****_***_*.upg
1324
[65PFL6601/F7, 65PFL6601/F7 A]
Equipment Required
a. USB storage device
b. Remote Control Unit
Firmware Update Procedure
1. Turn the power off and unplug the AC Cord.
2. Insert the USB storage device to the USB port as
shown below.
Rear Cabinet
(example)
USB port
USB storage
device
8. Select the file and press [OK] button.
9. The update will start and the following will appear
in the screen.
"*" differs depending on the models.
Software update
Current Version
New Version
Are you sure you want to update?
1324
No Yes
Note: If the above screen isn’t displayed, repeat
from step 1.
10. Select “Yes” and press the [OK] button to update.
Note: Do not remove the USB storage device or
turn the TV off while update is in progress.
11. When the firmware update is completed, the
following will appear in the screen.
***-*****_***_*
***-*****_***_*
"*" differs depending on the models.
3. Plug the AC Cord and turn the power on.
4. Press the [MENU] button on the remote control
unit.
5. Select “Setup” and press the [OK] button to display
the setup menu.
6. Select “Update software” and press the [OK]
button on the remote control unit.
7. Select “USB” and press the [OK] button on the
remote control unit to enter the update mode.
Update file selection screen appears as follows.
(Files included in the USB storage device are
displayed.)
Note: To cancel the update mode, select “Cancel”
and press the [OK] button.
Software update
Software update is successful.
Please remove the USB storage device and restart the TV set.
1324
Remove the USB storage device from the USB
port.
Turn the power off and turn the power on again.
12. Updating software is started, the following will
appear in the screen.
Software update
Please do NOT unplug your TV during this process.
Doing so may corrupt the system making your TV inoperable.
Update in progress 100%
The update will take about 10 minutes.
13. After finished the updating software, TV set will
automatically reboot
7-1 PL16.29FW
Page 28

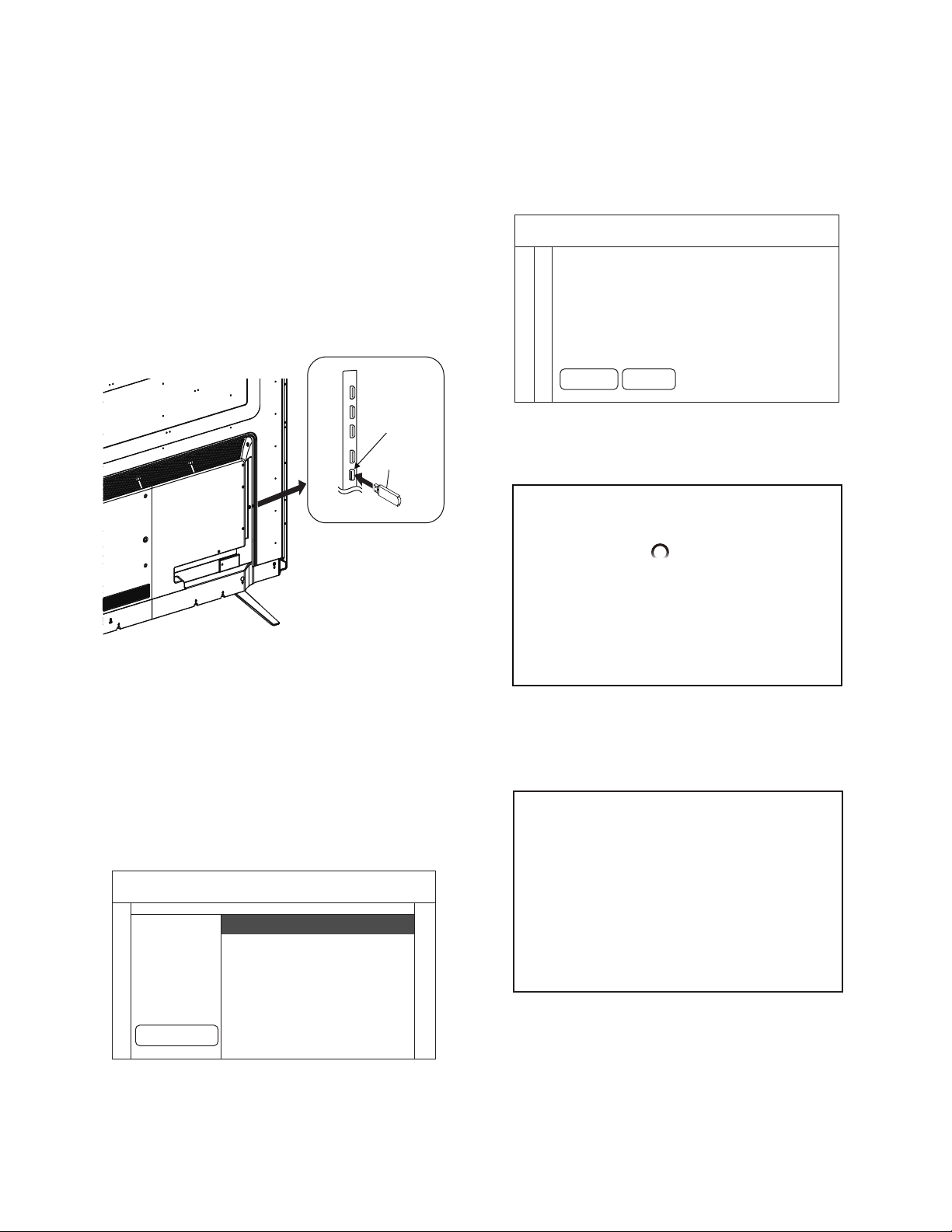

[65PFL6621/F7]
"*" differs depending on the models.
Select a file
Software update
Cancel
***-*****_***_*.upg
132
Equipment Required
a. USB storage device
b. Remote Control Unit
Firmware Update Procedure
1. Turn the power off and unplug the AC Cord.
2. Insert the USB storage device to the USB port as
shown below.
Rear Cabinet
(example)
USB port
USB storage
device
8. The update will start and the following will appear
in the screen.
"*" differs depending on the models.
Software update
Current Version
New Version
Are you sure you want to update?
132
No Yes
Note: If the above screen isn’t displayed, repeat
from step 1.
9. Select “Yes” and press the [OK] button to update.
Update required
Hang on while we fetch the update 100%
***-*****_***_*
***-*****_***_*
3. Plug the AC Cord and turn the power on.
4. Press the [MENU] button on the remote control
unit.
5. Select “Update software” and press the [OK]
button on the remote control unit.
6. Select “USB” and press the [OK] button on the
remote control unit to enter the update mode.
Update file selection screen appears as follows.
(Files included in the USB storage device are
displayed.)
Note: To cancel the update mode, select “Cancel”
7. Select the file and press [OK] button.
and press the [OK] button.
Note: Do not remove the USB storage device or
turn the TV off while update is in progress.
10. When the firmware update is completed, the
following will appear in the screen.
Be right back
‘**********’ needs to reboot to apply an update.
Remove the USB storage device from the USB
port.
TV reboots automatically.
7-2 PL16.26FW
Page 29
11. Updating software is started, the following will
Cast TV 100%
Please do NOT unplug your TV during this process.
Doing so may corrupt the system making your TV inoperable.
appear in the screen.
The update will take about 10 minutes.
12. After finished the updating software, TV set will
automatically reboot
7-3 PL16.26FW
Page 30
TROUBLESHOOTING
[Power Supply Section]
FLOW CHART NO.1
The power cannot be turned on.
Replace the Power Supply CBA Unit.
FLOW CHART NO.2
When the output voltage fluctuates.
Replace the Power Supply CBA Unit.
FLOW CHART NO.3
When buzz sound can be heard in the periphery of power circuit.
Replace the Power Supply CBA Unit.
8-1 PL16.29TR
Page 31
[Video Signal Section]
No
Is the "L" pulse supplied to Pin(5) of CN4052 when the
infrared remote control activated?
Ye s
Is approximately +3.3V voltage supplied to Pin(4) of
CN4052?
No
FLOW CHART NO.2
Check AL+3.3V line and repair it if defective.
Ye s
Replace the Digital Main CBA Unit.
When pressing each buttons, does the Pin(2) voltage
of CN4001 decrease?
The key operation is not functioning.
FLOW CHART NO.1
Ye s
Replace the Digital Main CBA Unit.
Replace the Function CBA Unit.
Replace the IR Sensor CBA Unit or replace the
remote control unit.
No
No operation is possible from the remote control unit. (Operation is possible from the unit.)
Picture does not appear normally.
FLOW CHART NO.3
Power Supply CBA Unit or Digital Main CBA Unit or
LCD Panel Assembly may be defective.
Check and replace these parts.
8-2 PL16.29TR
Page 32
[Audio Signal Section]
SP3801, SP3802 or CL3801 may be defective.
Check and replace these parts.
Audio is not output normally.
FLOW CHART NO.1
Are the audio signals output to Pin(1, 2, 3, 4) of CN3801?
Replace the Power Supply CBA Unit or the Digital
Main CBA Unit.
No
Ye s
8-3 PL16.29TR
Page 33
BLOCK DIAGRAMS
IC3001
IC9001
(MAIN MICRO CONTROLLER)
DIGITAL MAIN CBA UNIT
XOUT
XIN
X3101
24MHz
OSC
TO VIDEO/AUDIO
BLOCK DIAGRAM
COMP-DET
HP-DET
COMP-DET
VGA-SCL
VGA-SCL
VGA-SDA
VGA-SDA
C1
B1
B4
A4
B2
A2
AM4
R5
AL8
AH5
HP-DET
SP-MUTE
SP-MUTE
HP-MUTE
HP-MUTE
Q3107
AL+3.3V
Q3108
E9
AK8
F10
AB5
AK4
CN3702
CN3701
USB2(-)
TD(-)
USB2(+)
USB2(-)
USB2(+)
TD(+)
RD(-)
RD(+)
TD(-)
TD(+)
RD(-)
RD(+)
ETHERNET
JACK
USB JACK
AK10
AM10
CN3101
USB1(-)
USB1(+)
USB1(-)
USB1(+)
WIRELESS
LAN MODULE
CN3602
POWER SUPPLY
CBA UNIT
CN201
P-ON-H2
STB-RESET
KEY-IN1
IND-1
IND-3
REMOTE
P4
D5
R4
TU-SCL
TU-SDA
SCL
SDA
2
3
(DIGITAL/ANALOG TV TUNER)
P-ON-H228 28
KEY-IN122
CN3103
REMOTE75
LED110 3
RESET27 27
Q3105
LED DRIVE
Q3112
LED DRIVE
RESET
IC3105, Q3106
F5
F4
E4
U5
U6
LIGHT-SENS
LIGHT42
Q3104
BUFFER
CN3103
KEY SWITCH
IR SENSOR CBA UNIT
LED CBA UNIT
FUNCTION CBA UNIT
REMOTE
SENSOR
RS4051
P-ON+5V
CN4001
D4022
POWER
CN4052
CN3103 CN4021
LIGHT
SENSOR
IC4051
AC CORD
CN101
1
3
AL+5V
25,26
P-ON+20V
11-18 11-18
25,26
AL+5V
P-ON+20V
[65PFL6601/F7]
1. System Control / Power Supply Block Diagram
9-1
PL16.29BLS
Page 34
DIGITAL
AUDIO OUT
(OPTICAL)
DIGITAL MAIN CBA UNIT
COMP-DET
TO SYSTEM CONTROL
BLOCK DIAGRAM
TO DIGITAL
SIGNAL PROCESS
BLOCK DIAGRAM
JK3707
PC-RGB
-IN
1
2
3
131415
12
VGA-R-IN
VGA-G-IN
VGA-B-IN
VGA-HSYNC
VGA-VSYNC
VGA-SCL
VGA-SDA
VIDEO SIGNAL
AUDIO SIGNAL
AUDIO(L)-IN
AUDIO(R)-IN
JK3705
Q3803
MUTE
AUDIO(L)-IN
AUDIO(R)-IN
HP(R)
HP(L)
SPDIF
COMPONENT
-Y/VIDEO-IN
COMPONENT
-Pb-IN
COMPONENT
-Pr-IN
JK3706
COM-VIDEO-Y/VIDEO-IN
COM-VIDEO-Pr-IN
COM-VIDEO-Pb-IN
HP-DET
HP-MUTE
JK3708
HEADPHONE
JACK
Q3805
Q3804
MUTE
MUTE
DRIVE
IC3801 (AUDIO AMP)
SP-MUTE
SP3802
SPEAKER
R-CH
CN3801
SP3801
SPEAKER
L-CH
MCLK
SD ATA
BCLK
LRCLK
1SP(R)+
2SP(R)-
3SP(L)-
4SP(L)+
7
123
8
13
MUTE
DRIVE
DRIVE
PWM
MODULATOR
23
19
DRIVE
DRIVE
4
X4 OVER
SAMPLING
DIGITAL
FILTER
I2S
INTERFACE
DIF-OUT1
DIF-OUT2
IF-AGC
IC9001
102211
IF-AGC
4
OUTPUT
I/F
DSP
/FILTER
PGA ADC
RF AGC
JK9301
ANT-IN
(DIGITAL/ANALOG TV TUNER)
2. Video/Audio Block Diagram
9-2
PL16.29BLVA
Page 35

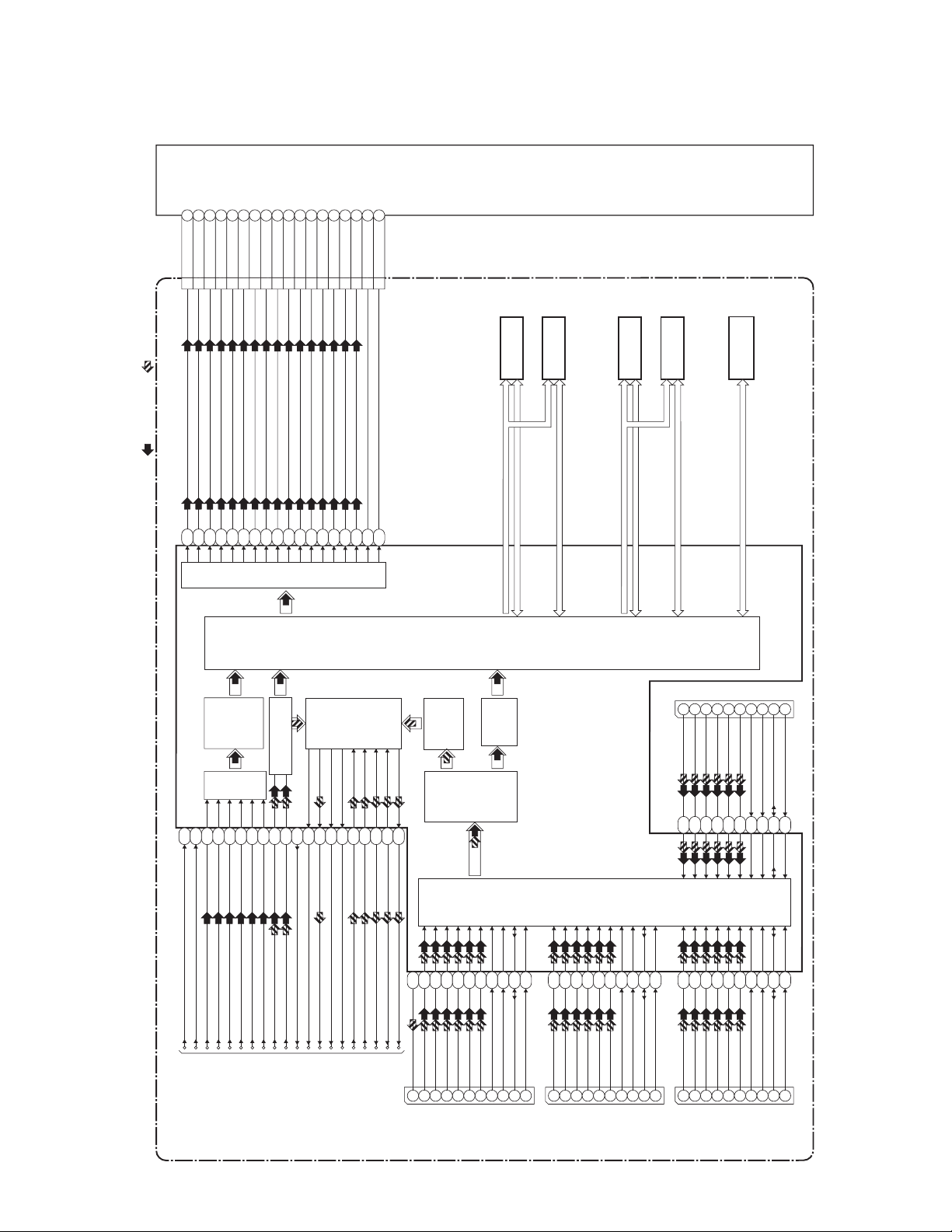

DIGITAL MAIN CBA UNIT
IC3001 (DIGITAL SIGNAL PROCESS)
DIGITAL
SIGNAL
PROCESS
HDMI-IN1
HDMI-IN2
JK3701
DATA0(+)
ARC
ARC-OUT
DATA0(-)
DATA1(+)
DATA1(-)
DATA2(+)
DATA2(-)
HDMI-DATA
HDMI-CLOCK
71494613
101216
15
79461
3
101216
15
JK3702
CLOCK(+)
CLOCK(-)
AUDIO
DECODER
HDMI
I/F
HDMI SW
TO VIDEO/AUDIO
BLOCK DIAGRAM
VIDEO
DECODER
VIDEO SIGNAL
AUDIO SIGNAL
DATA(0-7)
IC3102
(NAND FLASH MEMORY)
NAND-AD(0-7)
A/D
CONVERTER
SW
VGA-R-IN
VGA-G-IN
VGA-B-IN
COM-VIDEO-Y/VIDEO-IN
COM-VIDEO-Pb-IN
COM-VIDEO-Pr-IN
DEMODULATOR
/MPEG DECODER
AUDIO I/F
DIF-OUT2
DIF-OUT1
IF-AGC
IF-AGC
VGA-HSYNC
VGA-VSYNC
VGA-HSYNC
VGA-VSYNC
LVDS
TX
D-MDQL(0-7), D-MDQU(0-7)
C-MDQL(0-7), C-MDQU(0-7)
CD-MA(0-15)
DATA
ADDESS
IC3402
(DDR3 SDRAM)
DATA
ADDESS
IC3401
(DDR3 SDRAM)
B-MDQL(0-7), B-MDQU(0-7)
A-MDQL(0-7), A-MDQU(0-7)
AB-MA(0-15)
DATA
ADDESS
IC3302
(DDR3 SDRAM)
DATA
ADDESS
IC3301
(DDR3 SDRAM)
BCLK
MCLK
SD ATA
LRCLK
SPDIF
AUDIO(L)-IN
AUDIO(R)-IN
HP(L)
HP(R)
DATA0(+)
DATA0(-)
DATA1(+)
DATA1(-)
DATA2(+)
DATA2(-)
HDMI-DATA
HDMI-CLOCK
CLOCK(+)
CLOCK(-)
AA6
AA5
AA2
Y3
Y1
AC2
AB2
AA3
G6
E8
E6
F6
AF6
AE6
AF4
AF5
A5
P3
T3
T2
V2
U1
W2
V3
R2
R1T5R6
M2
L1
N2
M3
P1P2K3
K2
L5
L4
AM2
AL2
AK3
HDMI-IN3
79461
3
101216
15
79461
3
101216
15
JK3703
HDMI-IN4
JK3704
DATA0(+)
DATA0(-)
DATA1(+)
DATA1(-)
DATA2(+)
DATA2(-)
HDMI-DATA
HDMI-CLOCK
CLOCK(+)
CLOCK(-)
DATA0(+)
DATA0(-)
DATA1(+)
DATA1(-)
DATA2(+)
DATA2(-)
HDMI-DATA
HDMI-CLOCK
CLOCK(+)
CLOCK(-)
G3 D3
G2
H3
H2
J1
J2
G1
F3
K5
J4
D2
E3
E2
F1
F2
D1C3H5
H6
AF32
AG31
AG32
AJ32
AJ31
AH30
AH31
AF31
AK31
AK32
AL32
AL30
AK30
AL25
AK24
AL29
AK29
AL31
CN3901
LCD PANEL
ASSEMBLY
242321201817151412
11
98653
2
26
27
RX0(+)
RX0(-)
RX1(+)
RX1(-)
RX2(-)
RX2(+)
RX3(-)
RX3(+)
RX4(-)
RX4(+)
RX5(-)
RX5(+)
RX6(-)
RX6(+)
RX7(-)
LOCKN
RX7(+)
HTPDN
3. Digital Signal Process Block Diagram
9-3
PL16.29BLD
Page 36
SCHEMATIC DIAGRAMS / CBA AND TEST POINTS
Standard Notes
WARNING
Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using
replacement components rated for higher voltage,
wattage, etc. Replacement parts that have these
special safety characteristics are identified in this
manual and its supplements; electrical components
having such features are identified by the mark “#” in
the schematic diagram and the parts list. Before
replacing any of these components, read the parts list
in this manual carefully. The use of substitute
replacement parts that do not have the same safety
characteristics as specified in the parts list may create
shock, fire, or other hazards.
Notes:
1. Do not use the part number shown on these
drawings for ordering. The correct part number is
shown in the parts list, and may be slightly
different or amended since these drawings were
prepared.
2. All resistance values are indicated in ohms
(K = 10
3. Resistor wattages are 1/4W or 1/6W unless
otherwise specified.
4. All capacitance values are indicated in F
(P = 10
5. All voltages are DC voltages unless otherwise
specified.
6.
This schematic diagrams are masterized version
that should cover the entire PL16.29 chassis
models.
Thus some parts in detail illustrated on this
schematic diagrams may vary depend on the
model within the PL16.29 chassis.
Please refer to the parts lists for each models.
7. The Circuit Board layout illustrated on this service
manual is the latest version for this chassis at the
moment of making this service manual.
Depend on the mass production date of each
model, the actual layout of each Board may differ
slightly from this version.
3
, M = 106).
-6
F).
10-1 PL16.29SC
Page 37

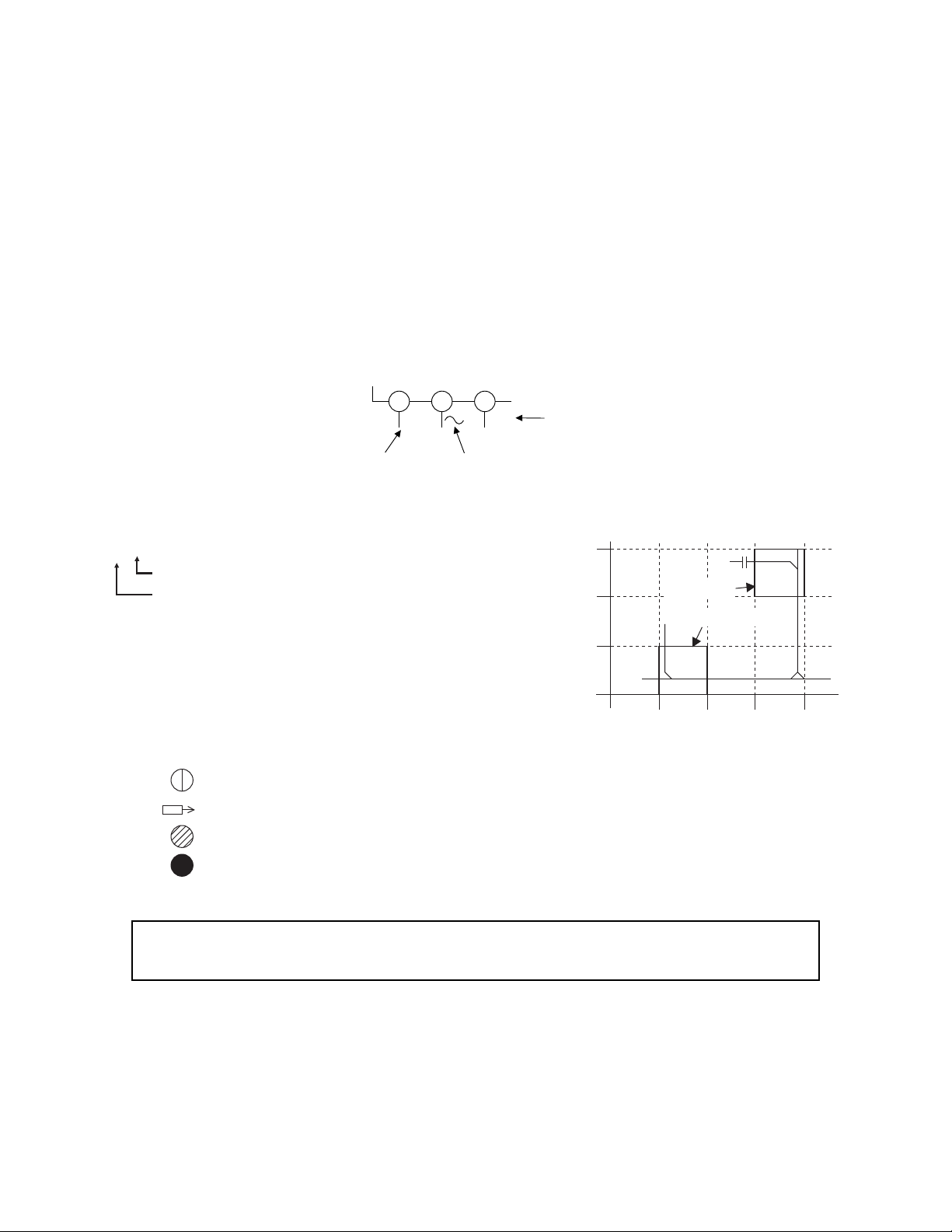

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON
2
3
1
5.0 5.0
Voltage
Indicates that the voltage
is not consistent here.
Power on mode
(Unit: Volt)
1-D3
Distinction Area
Line Number
(1 to 3 digits)
Examples:
1. "1-D3" means that line number "1" goes to the line number
"1" of the area "D3".
2. "1-B1" means that line number "1" goes to the line number
"1" of the area "B1".
3
2
1
ABCD
1-B1
1-D3
AREA D3
AREA B1
: Indicates a test point with a jumper wire across a hole in the PCB.
: Used to indicate a test point with a component lead on foil side.
: Used to indicate a test point with no test pin.
: Used to indicate a test point with a test pin.
THE FOLLOWING PAGES:
1. CAUTION:
CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME
TYPE_A,_V FUSE.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.
2. Note:
1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the
parts list, and may be slightly different or amended since the drawings were prepared.
2. To maintain original function and reliability of repaired units, use only original replacement parts which are
listed with their part numbers in the parts list section of the service manual.
3. Voltage indications on the schematics are as shown below:
Plug the TV power cord into a standard AC outlet.:
4. How to read converged lines
5. Test Point Information
The reference number of parts on Schematic Diagrams/CBA can be retrieved
by application search function.
10-2 PL16.29SC
Page 38

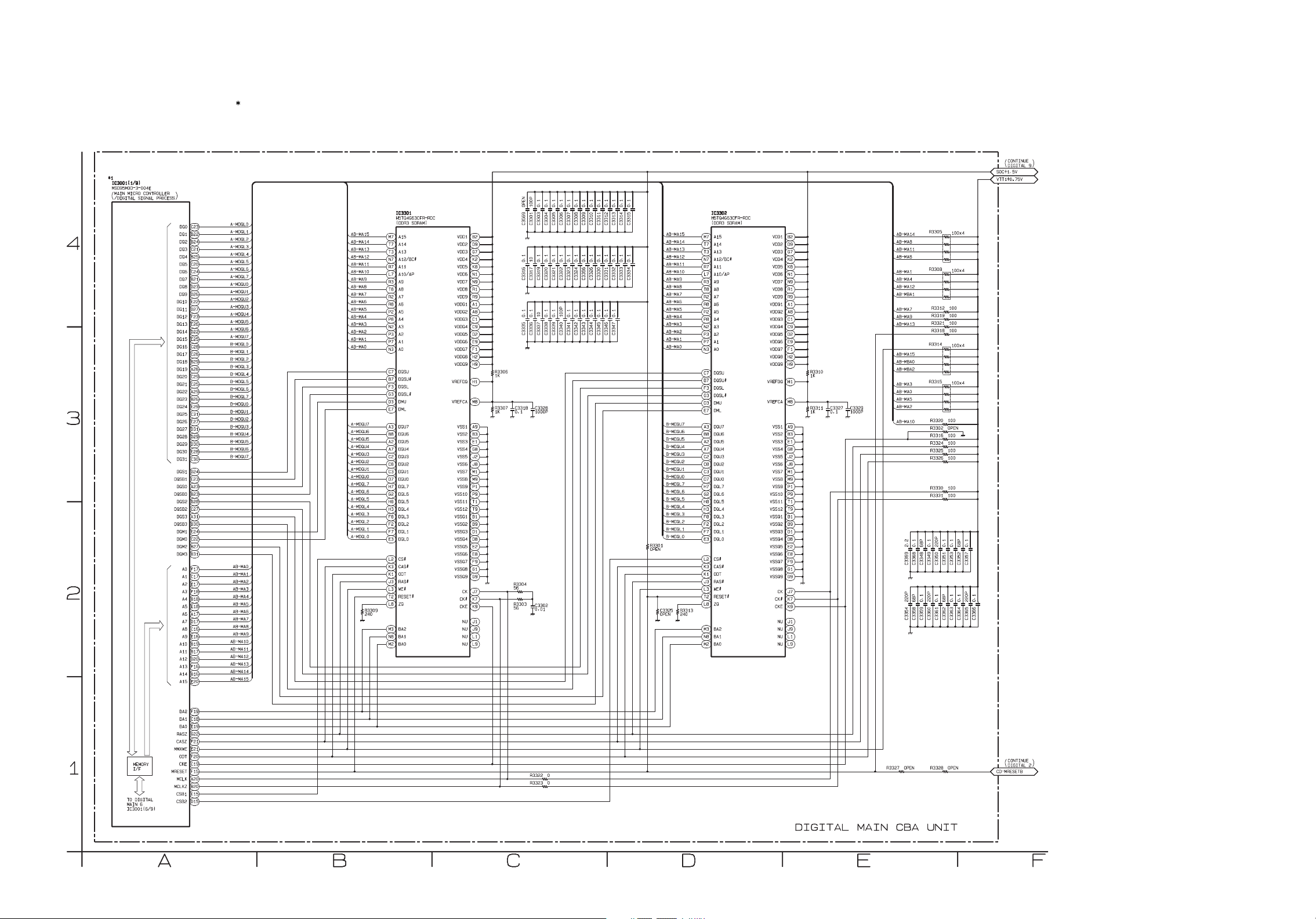

B28
B25
C22
C24
B21
A23
C21
F20
D24
B24
E24
D23
C20
B22
E23
B23
C27
E22
D27
F23
D26
C28
D22
E26
E25
C29
C26
A26
B29
C25
B26
E29
A29
C31
E28
D29
E27
D31
D30
C30
A31
B30
B27
B31
A20
C19
D15
E15
G22
F15
L2 CS#
K1 ODT
F9VSSQ7
G3 DQSL#
F1VDDQ7
J2VSS5
D2VDDQ5
E9VDDQ6
B1VSSQ1
NU J9
C1VDDQ3
K9CKE
NU J1
R1VDD8
H9VDDQ9
B2VDD1
56
R3304
D1VSSQ3
G1VSSQ8
N9VDD7
L1NU
P9VSS10
K8VDD5
CK J7
1K
R3306
M8VREFCA
K7CK#
M1VSS7
B7 DQSU#
R9
VDD9
M9VSS8
D8VSSQ4
E8VSSQ6
A1VDDQ1
C9VDDQ4
G9VSSQ9
T9VSS12
D3 DMU
NU L9
A8VDDQ2
E1VSS3
J8VSS6
E7 DML
A9VSS1
K2VDD4
H2VDDQ8
E2VSSQ5
H1VREFDQ
C7 DQSU
B9VSSQ2
L3 WE#
K3 CAS#
P1VSS9
G7VDD3
G8VSS4
B3VSS2
J3 RAS#
T1VSS11
F3 DQSL
D9VDD2
N1VDD6
DQL3F8
DQU5A2
DQU0D7
DQU3C2
DQL0E3
DQL5H8
DQU7A3
DQL4H3
DQL7H7
DQU4A7
DQL2F2
DQU6B8
DQU1C3
DQU2C8
DQL6G2
DQL1F7
240
R3309
L8 ZQ
B1VSSQ1
J2VSS5
DQU7A3
DQL1F7
DQL3F8
G7
VDD3
D9VDD2
P1VSS9
B7 DQSU#
DQL2F2
D3 DMU
A9VSS1
DQL0E3
E1VSS3
R1VDD8
K3 CAS#
DQL5H8
DQL6G2
CK J7
C9VDDQ4
H2VDDQ8
E9VDDQ6
G3 DQSL#
240
R3313
T1VSS11
DQU4A7
M1VSS7
N9VDD7
C1VDDQ3
DQU3C2
T9VSS12
P9VSS10
B3VSS2
L2 CS#
DQU2C8
F9VSSQ7
D8VSSQ4
A8VDDQ2
E2VSSQ5
L3 WE#
DQL7H7
A1VDDQ1
D2VDDQ5
G8VSS4
K9CKE
C7 DQSU
B2VDD1
DQU0D7
G1VSSQ8
DQU1C3
NU J1
NU J9
K2VDD4
N1VDD6
F3 DQSL
M9VSS8
DQL4H3
K1 ODT
R9VDD9
K8VDD5
NU L9
L8 ZQ
K7CK#
F1VDDQ7
E8VSSQ6
E7 DML
DQU6B8
J8VSS6
H9VDDQ9
D1VSSQ3
J3 RAS#
L1NU
DQU5A2
B9VSSQ2
G9VSSQ9
T2 RESET# T2 RESET#
SOC+1.5V
BA2M3
BA0M2
BA1N8
BA0M2
BA1N8
BA2M3
A1P7
A5P2
A8T8
A3N2
A9R3
A10/APL7
A7R2
A13T3
A11R7
A14T7
A0N3
A12/BC#N7
A2P3
A6R8
A4P8
A15
IC3301
H5TQ4G63CFR-RDC
M7
A14T7
A15
IC3302
H5TQ4G63CFR-RDC
M7
A13T3
A1P7
A2P3
A0N3
A12/BC#N7
A8T8
A4P8
A7R2
A6R8
A9R3
A3N2
A5P2
A11R7
A10/APL7
F17
C17
E17
F18
B18
E18
A17
D17
C16
E16
B19
B17
D20
F16
B16
E20
F19
E19
E21
F21
VTT1+0.75V
1000P
C3328
0.1
C3318
1K
R3307
56
R3303
R3305
100x4
R3308
100x4
0.1
C3327
1000P
C3329
H1VREFDQ
M8VREFCA
1K
R3311
1K
R3310
OPEN
R3301
C18
B20
0.01
C3302
C23
IC3001(1/9)
*1
MSD95M0D-3-004E
R3314
100x4
R3315
100x4
0.1C3306
0.1C3310
0.1C3303
OPENC3569
0.1C3309
0.1C3308
0.1C3312
0.1C3304
0.1C3313
0.1C3305
100PC3301
0.1C3307
0.1C3311
0.1C3315
0.1C3314
0.1C3326
0.1C3356
0.1C3323
0.1C3333
10C3317
0.1C3319
0.1C3324
0.1C3330
0.1C3321
0.1C3332
0.1C3320
0.1C3334
0.1C3331
0.1C3322100PC3340
0.1C3342
0.1C3347
10C3337
0.1C3345
0.1C3346
0.1C3339
0.1C3338
0.1C3343
0.1C3341
0.1C3344
0.1C33160.1C3335
0.1C3336
0.1C3349
68PC3348
0.1C3351
2.2C3369
0.1C3368
220PC3350
0.1C3357
68P
C3352
0.1C3353
68PC3358
220PC3365
0.1C3361
0.1C3359
68PC3362
0.1C3363
0.1C3366
220PC3360
220PC3354
100R3320
0R3323
0R3322
100R3312
100R3319
100R3321
100R3318
100R3316
100R3324
100R3325
100R3326
100R3330
100R3331
OPENR3302
OPEN
C3325
OPENR3328
CD-MRESETB
OPENR3327
0.1C3364
DQM3
DQM1
DQ21
DQ10
DQ12
1
DQ30
CSB2
A
DQ15
D
DQ19
DQ28
DQ5
DQ27
DQS1
DQ26
DQ16
DQ20
E
DQ8
DQ25
RASZ
DQ14
3
B
DQ29
DQ9
CKE
DQM2
DQM0
DQS2
DQ0
DQ23
DQ1
DQ22
DQ17
DQS3
F
MCLK
DQ3
DQ7
DQ4
CSB1
4
2
DQ13
DQ2
DQ6
C
DQ31
ODT
DQ11
DQ18
DQ24
MAIN MICRO CONTROLLER
/DIGITAL SIGNAL PROCESS
MEMORY
I/F
TO DIGITAL
MAIN 6
IC3001(6/9)
DIGITAL MAIN CBA UNIT
DQSB1
DQS0
DQSB0
DQSB3
DQSB2
MRESET
(DDR3 SDRAM)
A-MDQL0
(DDR3 SDRAM)
A0
BA2
BA0
MMXWE
CASZ
CONTINUE
DIGITAL 9
A-MDQL1
A-MDQL2
A-MDQL3
A-MDQL4
A-MDQL5
A-MDQL6
A-MDQL7
A-MDQU0
A-MDQU1
A-MDQU2
A-MDQU3
A-MDQU4
A-MDQU5
A-MDQU6
A-MDQU7
A-MDQL2
A-MDQL3
A-MDQL5
A-MDQL7
A-MDQL0
A-MDQL4
A-MDQL6
A-MDQL1
A-MDQU2
A-MDQU1
A-MDQU7
A-MDQU6
A-MDQU3
A-MDQU5
A-MDQU0
A-MDQU4
B-MDQU0
B-MDQL0
B-MDQL1
B-MDQL2
B-MDQL3
B-MDQL4
B-MDQL5
B-MDQL6
B-MDQL7
B-MDQU1
B-MDQU2
B-MDQU3
B-MDQU4
B-MDQU5
B-MDQU6
B-MDQU7
B-MDQU4
B-MDQL1
B-MDQU7
B-MDQL7
B-MDQL5
B-MDQL2
B-MDQU5
B-MDQL4
B-MDQL0
B-MDQU3
B-MDQU1
B-MDQU0
B-MDQU2
B-MDQU6
B-MDQL3
B-MDQL6
AB-MA14
AB-MA13
AB-MA12
AB-MA11
AB-MA10
AB-MA9
AB-MA8
AB-MA7
AB-MA6
AB-MA4
AB-MA0
AB-MA1
AB-MA5
AB-MA3
AB-MA2
AB-MA15
AB-MA6
AB-MA14
AB-MA8
AB-MA7
AB-MA11
AB-MA0
AB-MA1
AB-MA13
AB-MA5
AB-MA3
AB-MA10
AB-MA15
AB-MA12
AB-MA4
AB-MA2
AB-MA9
AB-MA11
AB-MA3
AB-MA8
AB-MA13
AB-MA9
AB-MA12
AB-MA6
AB-MA0
AB-MA7
AB-MA5
AB-MA10
AB-MA2
AB-MA15
AB-MA14
AB-MA1
AB-MA4
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
BA1
MCLKZ
AB-MA14
AB-MA8
AB-MA11
AB-MA6
AB-MA12
AB-MBA1
AB-MA1
AB-MA4
AB-MA13
AB-MA7
AB-MA9
AB-MA5
AB-MBA0
AB-MA2
AB-MBA2
AB-MA3
AB-MA0
AB-MA15
AB-MA10
CONTINUE
DIGITAL 2
Digital Main 1 Schematic Diagram
1 NOTE:
The order of pins shown in this diagram is different from that of actual IC3001.
IC3001 is divided into nine and shown as IC3001 (1/9) ~ IC3001 (9/9) in this Digital Main Schematic Diagram Section.
10-3
PL16.29SCD1
Page 39

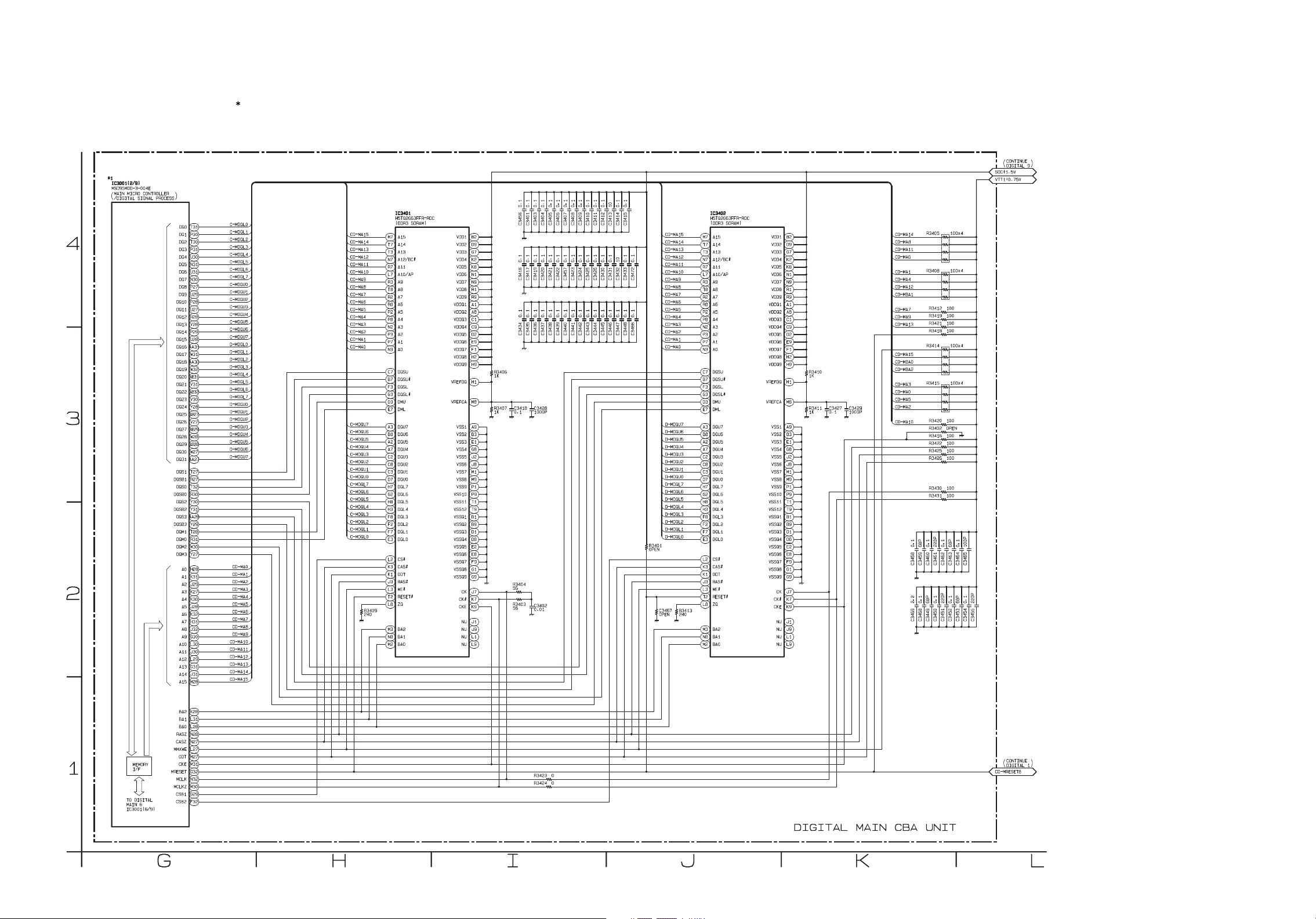

0.1C3408
1000P
C3429
DQU5A2
M8VREFCA
0.1C3438
M1VSS7
B1VSSQ1
A11R7
E7 DML
J28
J30
L28
R9VDD9
H2VDDQ8
DQU4A7
A1VDDQ1
DQL0E3
NU J1
H1VREFDQ
A10/APL7
0.1C3406
0.1C3409
A5P2
J8VSS6
0.1C3415
0.1C3441
DQL3F8
D2VDDQ5
B3VSS2
G9VSSQ9
F9VSSQ7
A8T8
1K
R3411
0.1C3443
K1 ODT
0.1C3423
0.1C3426
L1NU
A14T7
N9VDD7
0.1
C3407
DQU0D7
K7CK#
DQU6B8
U31
T30
R30
AA31
W32
NU J9
AB27
AA27
K8VDD5
M31
A14T7
0.1C3405
E9VDDQ6
DQL2F2
C9VDDQ4
NU J9
E1VSS3
H28
K32
L29
L27
C7 DQSU
BA2M3
A8T8
E7 DML
0.1C3436
0.1C3434
0.1C3420
R3415 100x4
G7VDD3
G8VSS4
T2 RESET#
D8VSSQ4
A4P8
J3 RAS#
P9VSS10
F9VSSQ7
R3408 100x4
L31
A15
IC3402
H5TQ2G63FFR-RDC
M7
C1VDDQ3
0.1C3419
J8VSS6
NU L9
DQU3C2
M1VSS7
C1VDDQ3
G3 DQSL#
A0N3
0.1C3421
0.1C3440
K2VDD4
DQU6B8
G9VSSQ9
R1VDD8
N30
T28
Y31
P29
AA30
W27
AA28
F32
B9VSSQ2
BA0M2
A3N2
H1VREFDQ
A9VSS1
D9VDD2
K9CKE
A7R2
T2 RESET#
T31
IC3001(2/9)
*1
MSD95M0D-3-004E
K31
H31
G31
N27
T1VSS11
K8VDD5
G3 DQSL#
DQU3C2
H9VDDQ9
L8 ZQ
240
R3413
DQL0E3
B7 DQSU#
K9CKE
A12/BC#N7
0.1C3430
0.1C3424
M30
N1VDD6
K3 CAS#
DQU1C3
T9VSS12
A13T3
A9R3
0.1C3446
0.1C3433
L3 WE#
0.1C3457
BA1N8
P1VSS9
C7 DQSU
A6R8
SOC+1.5V
T32
P27
P28
V28
V31
W28
Y29
G29
1K
R3410
L8 ZQ
F3 DQSL
CK J7
A8VDDQ2
F1VDDQ7
T9VSS12
0.1C3456
0.1
C3427
D1VSSQ3
K7CK#
0.1C3439
J29
J32
0.1C3444
J31
VTT1+0.75V
DQL5H8
R9VDD9
NU J1
A2P3
F3 DQSL
10C3432
DQL5H8
DQU2C8
D3 DMU
R3414 100x4
0.1C3410
A10/APL7
B7 DQSU#
B2VDD1
K3 CAS#
A9R3
BA0M2
Y30
0.1C3412
B1VSSQ1
E2VSSQ5
P9VSS10
D9VDD2
A1P7
J3 RAS#
F1VDDQ7
J2VSS5
P31
N31
U27
U28
V30
V27
W30
N28
10C3413
R1VDD8
0.1C3411
DQU7A3
M9VSS8
A6R8
M9VSS8
DQL6G2
K2VDD4
0.1C3403
0.1C3435
K27
G30
M28
DQL6G2
NU L9
0.1C3417
DQL2F2
DQU0D7
A3N2
BA1N8
A7R2
P1VSS9
D1VSSQ3
0.1C3416
0.1C3401
J2VSS5
L3 WE#
B3VSS2
A2P3
L1NU
E8VSSQ6
N1VDD6
0.1C3425
0.1C3437
D2VDDQ5
0.1C3404
T1VSS11
H9VDDQ9
DQL4H3DQL4H3
D8VSSQ4
CK J7
A4P8
H2VDDQ8
U30
M27
P30
R28
AB31
Y28
AB29
Y27
G32
A8VDDQ2
DQL1F7
D3 DMU
G1VSSQ8
A5P2
BA2M3
0.1C3414
M8VREFCA
A13T3 G7VDD3
0.1C3431
G1VSSQ8
K30
L30
K28
DQU7A3
DQL7H7
DQU5A2
L2 CS#
A0N3
OPEN
R3401
DQL3F8
R3405 100x4
0.1C3442
E9VDDQ6
0.1C3422
DQU4A7
K1 ODT
C9VDDQ4
B2VDD1
DQL7H7
E8VSSQ6
A15
IC3401
H5TQ2G63FFR-RDC
M7
E2VSSQ5
E1VSS3
A9VSS1
DQU1C3
A11R7
A1P7
0.1C3445
G8VSS4
R31
T27
R27
U29
W31
AB32
AB28
N32
DQL1F7
L2 CS#
A1VDDQ1
B9VSSQ2
DQU2C8
A12/BC#N7
N9VDD7
1K
R3407
0.1
C3418
1000P
C3428
1K
R3406
0.01
C3402
56
R3404
56
R3403
240
R3409
0.1C3447
0.1C3448
100R3420
0R3424
0R3423
100R3412
100R3419
100R3421
100R3418
100R3416
100R3422
100R3425
100R3426
OPENR3402
100R3430
100R3431
68PC3449
2.2C3469
0.1C3452
0.1C3468
68PC3453
220PC3455
220PC3451
0.1C3454
0.1C3450
0.1C3460
100PC3465
0.1C3458
68PC3459
0.1C3464
220PC3461
68PC3463
0.1C3462
0.1C3466 0.1C3472
OPEN
C3467
CD-MRESETB
DQ22
CD-MA0
A10
CONTINUE
DIGITAL 9
DQ17
CD-MA1
A11
DQS3
CD-MA13
A12
L
CD-MA5
A13
D-MDQU4
MCLK
CD-MA3
A14
D-MDQL1
DQ12
DQ3
CD-MA10
D-MDQU7
A15
1
DQ7
D-MDQL7
CD-MA15
BA1
DQ30
D-MDQL5
DQ4 CD-MA12
MCLKZ
CSB2
D-MDQL2
CSB1
CD-MA4
G
D-MDQU5
4
CD-MA2
CD-MA14
DQ15
D-MDQL4
2
CD-MA9
D-MDQL0
J
CD-MA8
DQ13
D-MDQU3
CD-MA11
CD-MA11
DQ19
D-MDQU1
DQ2
CD-MA3
DQ28
CD-MA6
D-MDQU0
DQ6
CD-MA8
DQ5
CD-MA12
D-MDQU2
DQM1
I
CD-MA13
DQ27
D-MDQU6
CD-MBA1
DQ21
DQ31
C-MDQL2
D-MDQL3
DQS1
CD-MA9
CD-MA1
C-MDQL3
DQ10
ODT
D-MDQL6
CD-MA12
C-MDQL0
CD-MA4
C-MDQL5
DQ11
C-MDQL4
C-MDQL7
DQ26
CD-MA6
CD-MA13
DQ18
C-MDQL6
DQ16
CD-MA0
CD-MA7
DQ24
C-MDQL1
DQ20
CD-MA7
CD-MA9
C-MDQU2
MAIN MICRO CONTROLLER
/DIGITAL SIGNAL PROCESS
K
CD-MA5
CD-MA5
C-MDQU1
MEMORY
I/F
DQ8
CD-MA10
C-MDQU7
CD-MBA0
TO DIGITAL
MAIN 6
IC3001(6/9)
C-MDQU6
DQ25
DIGITAL MAIN CBA UNIT
CD-MA2
CD-MA2
C-MDQU3
DQSB1
RASZ
CD-MA15
CD-MBA2
C-MDQU5
DQM3
DQS0
DQ14
CD-MA14
C-MDQU0
CD-MA3
DQSB0
3
C-MDQU4
CD-MA1
DQSB3
H
CD-MA4
CD-MA0
DQSB2
DQ29
A1
CD-MA15
MRESET
DQ9
A2
(DDR3 SDRAM)
CKE
A3
DQM2
A4
(DDR3 SDRAM)
DQM0
A5
A0
CD-MA6
DQS2
A6
BA2
CD-MA14
DQ0
A7
BA0
CD-MA8
DQ23
A8
CD-MA7
MMXWE
DQ1
A9
CD-MA11
CASZ
C-MDQL0
C-MDQL1
C-MDQL2
C-MDQL3
C-MDQL4
C-MDQL5
C-MDQL6
C-MDQL7
C-MDQU0
C-MDQU1
C-MDQU2
C-MDQU3
C-MDQU4
C-MDQU5
C-MDQU6
C-MDQU7
CD-MA14
CD-MA13
CD-MA12
CD-MA11
CD-MA10
CD-MA9
CD-MA8
CD-MA7
CD-MA6
CD-MA4
CD-MA0
CD-MA1
CD-MA5
CD-MA3
CD-MA2
CD-MA15
D-MDQU0
D-MDQL0
D-MDQL1
D-MDQL2
D-MDQL3
D-MDQL4
D-MDQL5
D-MDQL6
D-MDQL7
D-MDQU1
D-MDQU2
D-MDQU3
D-MDQU4
D-MDQU5
D-MDQU6
D-MDQU7
CD-MA10
CONTINUE
DIGITAL 1
Digital Main 2 Schematic Diagram
1 NOTE:
The order of pins shown in this diagram is different from that of actual IC3001.
IC3001 is divided into nine and shown as IC3001 (1/9) ~ IC3001 (9/9) in this Digital Main Schematic Diagram Section.
10-4
PL16.29SCD2
Page 40
OPEN
C3009
0.1
C3012
OPEN
C3003
0.1
C3002
OPEN
C3005
L3001
OPEN
4.7K
R3007
33P
C3010
10K
R3002
D3002
MM5Z5V6B
D3003
MM5Z5V6B
D3004
MM5Z5V6B
10
C3008
100
R3006
0.1
C3004
47
R3005
0
R3001
4.7K
R3008
47
R3004
0
R3003
0.022
C3001
OPEN
C3006
0.1
C3007
33P
C3011
D3001
MM5Z5V6B
P-ON+3.3V
100
R9001
3SDA
CN3002
1 IF-AGC
4GND
2SCL
123456
7
8
9
10
11
12
1314151618 17
19
20
21
22
23
24
DSP
/FILTER
PGA ADC
RF
AGC
OUTPUT
I/F
IC9001
SI2151
NU
SDA
SCL
IF-AGCNUGND
VDDL
GND
VCC
NU
XTAL-I
XTAL-O
VCC
GND
VCC
NU
RF-REF
RF-IP
GND
GND
NU
OPEN
C9019
1000P
C90081C9009
1P
C9023
1000P
C9010
100
R9005
100
R9004
1P
C9021
1P
C9022
X9001
24MHz
134
2
82P
C9018
C9014
VARISTOR
150P
C9004
L9001
0.27uH
120P
C9002
L9002
0.22uH
180P
C90032PC9015
L9007
5.6nH
1P
C9017
L9004
0.27uH
L9003
0.27uH
1000P
C9006
150P
C9005
L9006
0.27uH
L9005
0.27uH
1K
R9003
0.1
C9007
1000P
C9011
1000P
C9012
0.1
C90131C9016
OPEN
C9020
100
R9002
JK9301
330P
C9001
OPEN
C9024
L3003
2.2uH
AM2
IC3001(3/9)
*1
MSD95M0D-3-004E
R5 TU-SDA
R4 TU-SCL
AK3 IF-AGC
0
L3002
AL2
AK1 NU
AK2 NU
AL7 NU
AM7 NU
AM8 NU
AK7 NU
AL5 NU
AM5 NU
33P
C3014
33P
C3013
OPEN
C9025
CN3001
1 P-ON+3.3V
2GND
3 IF(+)
4 IF(-)
DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER
DEMODULATOR
/MPEG
DECODER
TO DIGITAL
MAIN 6
IC3001(6/9)
TO DIGITAL
MAIN 6
IC3001(6/9)
2
4
3
1
MQONPR
DIGITAL MAIN CBA UNIT
CONTINUE
DIGITAL 9
(NO CONNECTION)
DIGITAL/ANALOG
TV TUNER
ANT-IN
(NO CONNECTION)

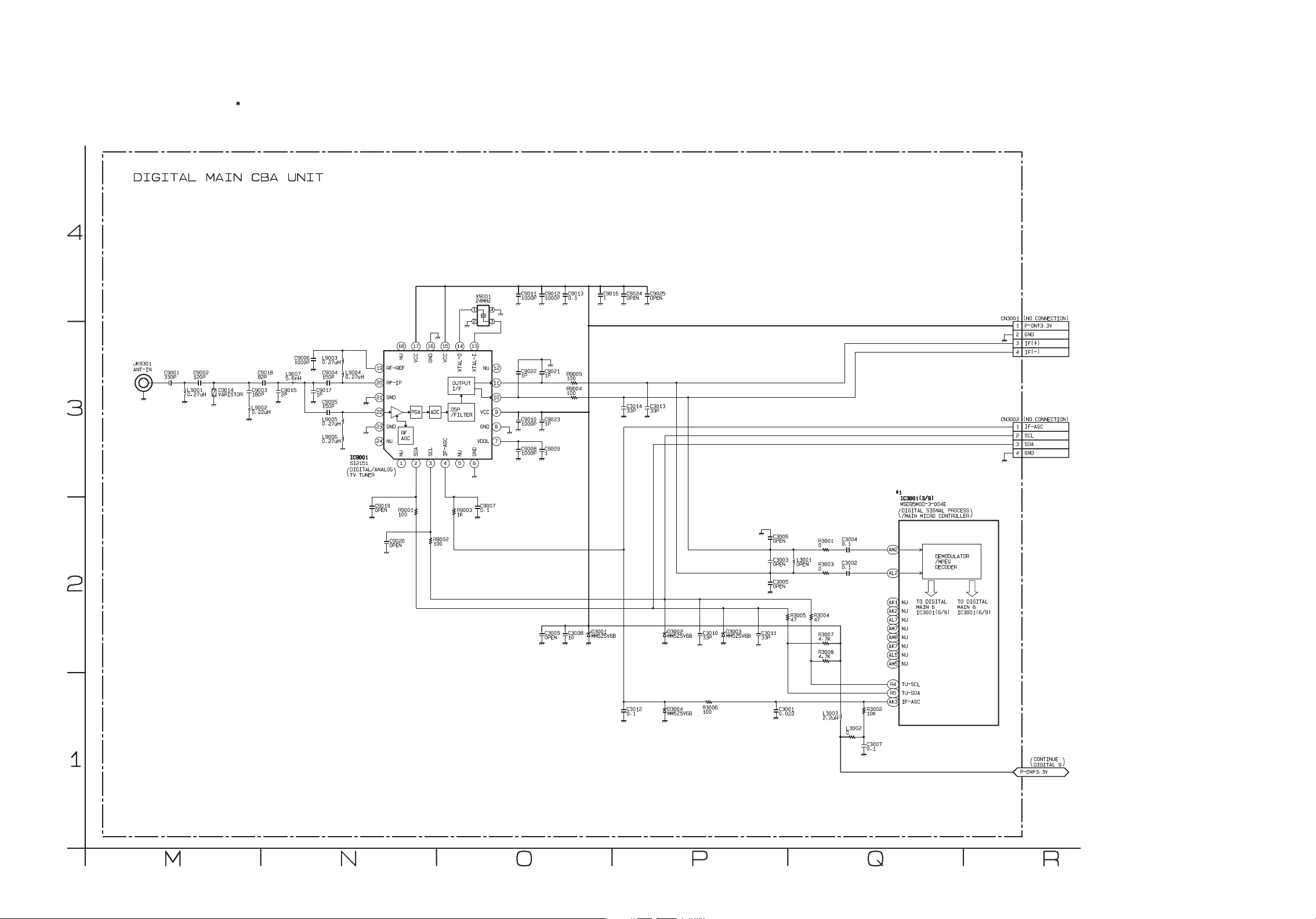

Digital Main 3 Schematic Diagram
1 NOTE:
The order of pins shown in this diagram is different from that of actual IC3001.
IC3001 is divided into nine and shown as IC3001 (1/9) ~ IC3001 (9/9) in this Digital Main Schematic Diagram Section.
10-5
PL16.29SCD3
Page 41
R3125
33x4
AL8 VGA-SCL
A12NAND-AD4
R3126
33x4
1
2
3
4
5
6
7
9
10
8
11
12
13
15
16
14
17
18
19
20
21
30
28
27
42
29
26
25
40
39
24
23
22
41
38
37
36
34
33
35
32
31
43
44
48
45
46
47
IC3102
A8CEZ1
B8CLE
B12NAND-AD5
C6WPZ
A11NAND-AD2
B9RBZ
C12NAND-AD6
A9REZ
C7ALE
B7WEZ
C11NAND-AD3
C9DQS
*ANU
B11NAND-AD1
C8CEZ
C10
IC3001(4/9)
*1
MSD95M0D-3-004E
NAND-AD0
33
R3128
R3123
33x4
R3124
33x4
4.7K
R3127
C3111
1
C3110
1
F8 BACKLIGHT-ADJ
100R3143
N5 PWM-PM
OPEN
R3168
OPEN
R3170
OPEN
R3174
10P
C3121
AD4 LED1
AM4 XIN
HP-DET
X3101
24MHz
1
34
2
10P
C3120
1.2K
R3141
E9 HP-DET
10K
R3173
OPEN
R3171
AK4 XOUT
10K
R3172
10K
R3149
10K
R3167
BACKLIGHT-ADJ
10K
R3169
V4 SPI-DI
1M
R3142
AD5 LED0
AL+3.3V
P-ON+3.3V
39R3147
39R3148
AK8 VGA-SDA
AH28UART1TX
100R3161
100R3160
AH29UART1RX
VGA-SCL
VGA-SDA
UART1TX
UART1RX
SCL1 AJ7 SCL1
AH8 SDA1SDA1
AH5 COMP-DETCOMP-DET
10K
R3175
L6 VID-CPU-0VID-CPU-0
VID-CPU-1 M6 VID-CPU-1
P6 VID-CORE-0VID-CORE-0
P5 VID-CORE-1VID-CORE-1
W5 SPI-CK
V5 SPI-DO
1K
R3162
OPEN
R3223
B13NAND-AD7
0R3212
SPI-DO
SPI-CK
0R3211
0R3213
SPI-DI
1.8KR3214
PWM-PM
BACKLIGHT-ADJ
W
1
T
3
4
2
VSU X
NU
R/B
NU
NU
I/O3
NU
DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER
VCC
NU
NU
NU
CLE
NU
NU
NU
NU
NU
WP
NU
DIGITAL MAIN CBA UNIT
NU
NU
VSS
I/O4
NU
(NAND FLASH MEMORY)
NU
CE
MEMORY
I/F
NU
NAND-AD7
WE I/O2
VCC
I/O0
TO DIGITAL
MAIN 6
IC3001(6/9)
NU
I/O5
NU
NU
RE
NU
NU
I/O6
NU
I/O7
ALE
VSS
NU
NU
NU
NU
I/O1
NU
NAND-AD6
NAND-AD5
NAND-AD4
NAND-AD3
NAND-AD2
NAND-AD1
NAND-AD0
NAND-AD2
NAND-AD0
NAND-AD3
NAND-AD1
NAND-AD4
NAND-AD5
NAND-AD6
NAND-AD7
CONTINUE
DIGITAL 9
*A:A6,B6,AG8~AG21,AG24,AG26,AG27,AH7,
AH9~AH20,AH23~AH27,AJ8,AJ10,AJ11,
AJ13,AJ14,AJ16,AJ17,AJ19,AJ20,AJ23,
AJ25,AJ26,AK15~AK22,AL15~AL22,AM16,
AM17,AM19,AM20,AM22,AM23
CONTINUE
DIGITAL 9
CONTINUE
DIGITAL 10
CONTINUE
DIGITAL 7
CONTINUE
DIGITAL 6
CONTINUE
DIGITAL 7
CONTINUE
DIGITAL 7
H27U4G8F2ETR-BC
The order of pins shown in this diagram is different from that of actual IC3001.
IC3001 is divided into nine and shown as IC3001 (1/9) ~ IC3001 (9/9) in this Digital Main Schematic Diagram Section.
1 NOTE:

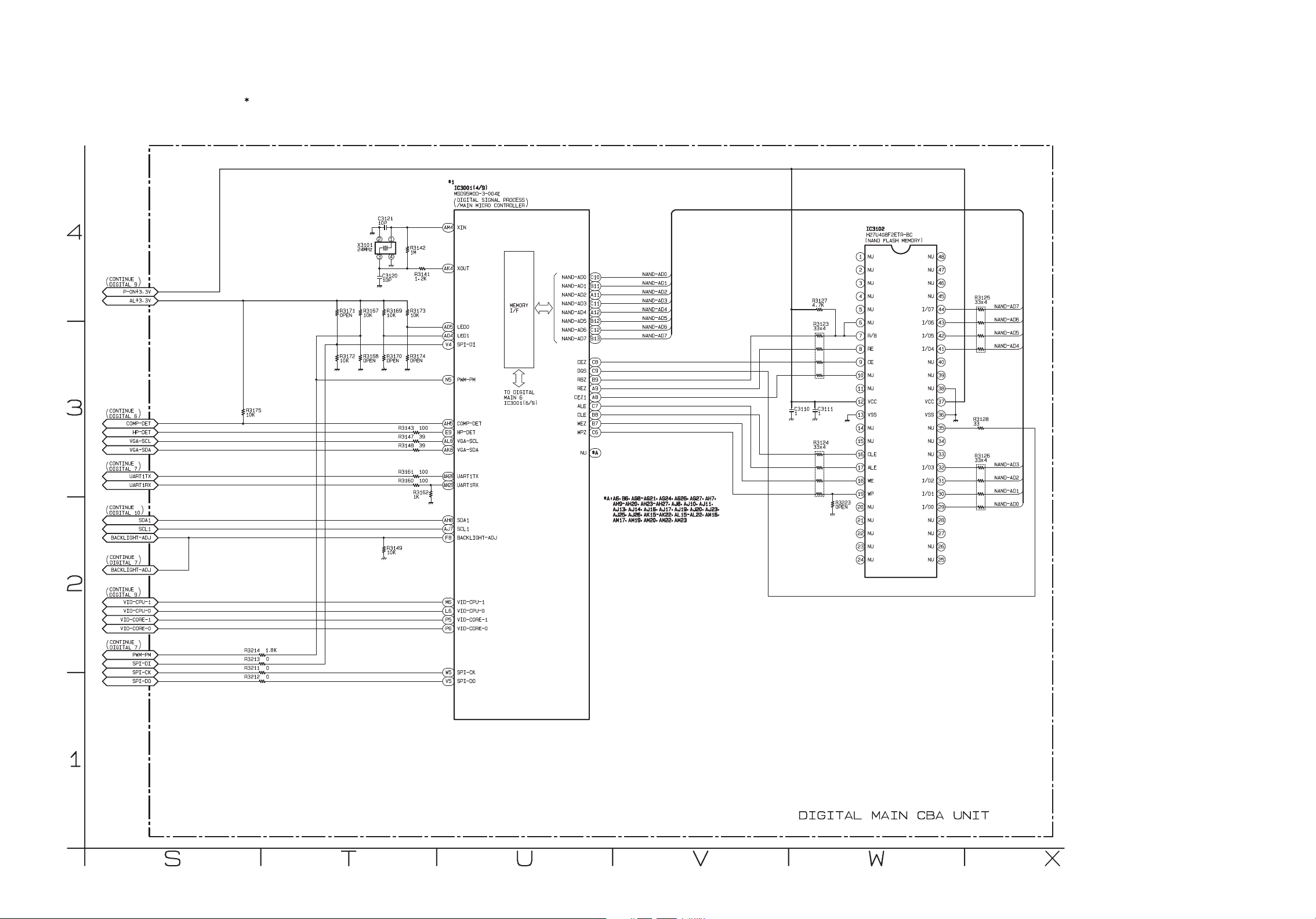

Digital Main 4 Schematic Diagram
10-6
PL16.29SCD4
Page 42
AG28USB0-OCD
F14 USB0-CTL
A4 USB2(-)
B4 USB2(+)
C3104
1
4GND
CN3702
1USB+5V
3USB2(+)
2USB2(-)
C3105
220/6.3V
R3111
10K
100
R3110 0.1
C3103
P-ON+5V
4GND
CN3101
1AL+3.3V
3USB1(+)
2USB1(-)
6GND
5WOWLAN
AK10USB1(+)
F5
IC3001(5/9)
*1
MSD95M0D-3-004E
REMOTE
6 RDT
2 TD(-)
C3703
0.01
1 TD(+)
CN3701
8 GND
C3704
0.01
3NU
5 RD(-)
7NU
4 RD(+)B2RD(+)
B1TD(-)
C1TD(+)
AM10USB1(-)
C3702
1
C3701
1
0R3701
0R3702
7WLAN-RESET
8GND
1
C3106
0R3118
0R3117
100R3165
100R3166
AJ5 WOWLAN
AE5 WLAN-RESET
R3116
OPEN
R3113
OPEN
R3114
10K
R3115
OPEN
AL+3.3V
Y6NU
Y5NU
D4NU
T6NU
F11NU
AJ2NU
AJ6NU
AJ27NU
AH6NU
AG7NU
AG6NU
D14NU
AH4NU
AJ4NU
AJ28MSE
AJ29MPLUS-MODE1
AG29MPLUS-MODE0
OPENR3208
R3209
R3210
AE2AMP-RESET
MSE
MPLUS-MODE1
MPLUS-MODE0
AMP-RESET
R3222
10K
AL10NU
AM11NU
AL13NU
B3NU
AK6NU
AK12NU
AM14NU
AK9NU
AL11NU
C4NU
AL6NU
AK13NU
AL14NU
AM13NU
KEY-IN1 2
GND 9
2SC4081UBTLQ
Q3105
5P-ON+5V
360
R3215
P-ON+5V 8
0
R3206
100
R3134
10K
R3133
6AL+3.3V
U6 LED3
10K
R3140
OPEN
R3129
10LED
OPEN
C3116
4.7K
R3139
OPEN
R3218
10K
R3220
OPEN
R3216
100P
C3117
2SC4081UBTLQ
Q3112
OPEN
R3217
OPEN
Q3111
0
R3144
1
C3113
OPEN
R3137
620
R3221
MM5Z5V6B
D3101
7REMOTE
E4 LIGHT-SENS
27K
R3130
0.1
C3118
33
R3132
4LIGHT
CN3103
1GND
Y4 LED2
10
C3124
3GND
OPEN
C3119
100
R3135
4.7K
R3219
OPEN
C3125
U5 LED1
C3112
33/10V
F4 KEY-IN1
10K
R3131
10
C3126
2SC4081UBTLQ
Q3104
0.1
C3115
C3114
OPEN
0R3138
0
R3109
A2RD(-)
OPEN
R3207
10
R3136
R3112
10K
1
2
34
5
IC3101
AP2151WG-7
VOUT
GND
/FLAG EN
VIN
ZAC
1
4
2
ABYAA
3
AD
DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER
CONTINUE
DIGITAL 9
DIGITAL MAIN CBA UNIT
(USB JACK)
(HIGH SIDE SWITCH)
WIRELESS
LAN MODULE
(ETHERNET JACK)
CONTINUE
DIGITAL 6
CONTINUE
DIGITAL 10
(LED DRIVE)
(LED DRIVE)
(BUFFER)
TO IR SENSOR CBA
UNIT CN4052
TO FUNCTION CBA
UNIT CN4001
TO LED CBA UNIT
CN4021
OPEN
OPEN

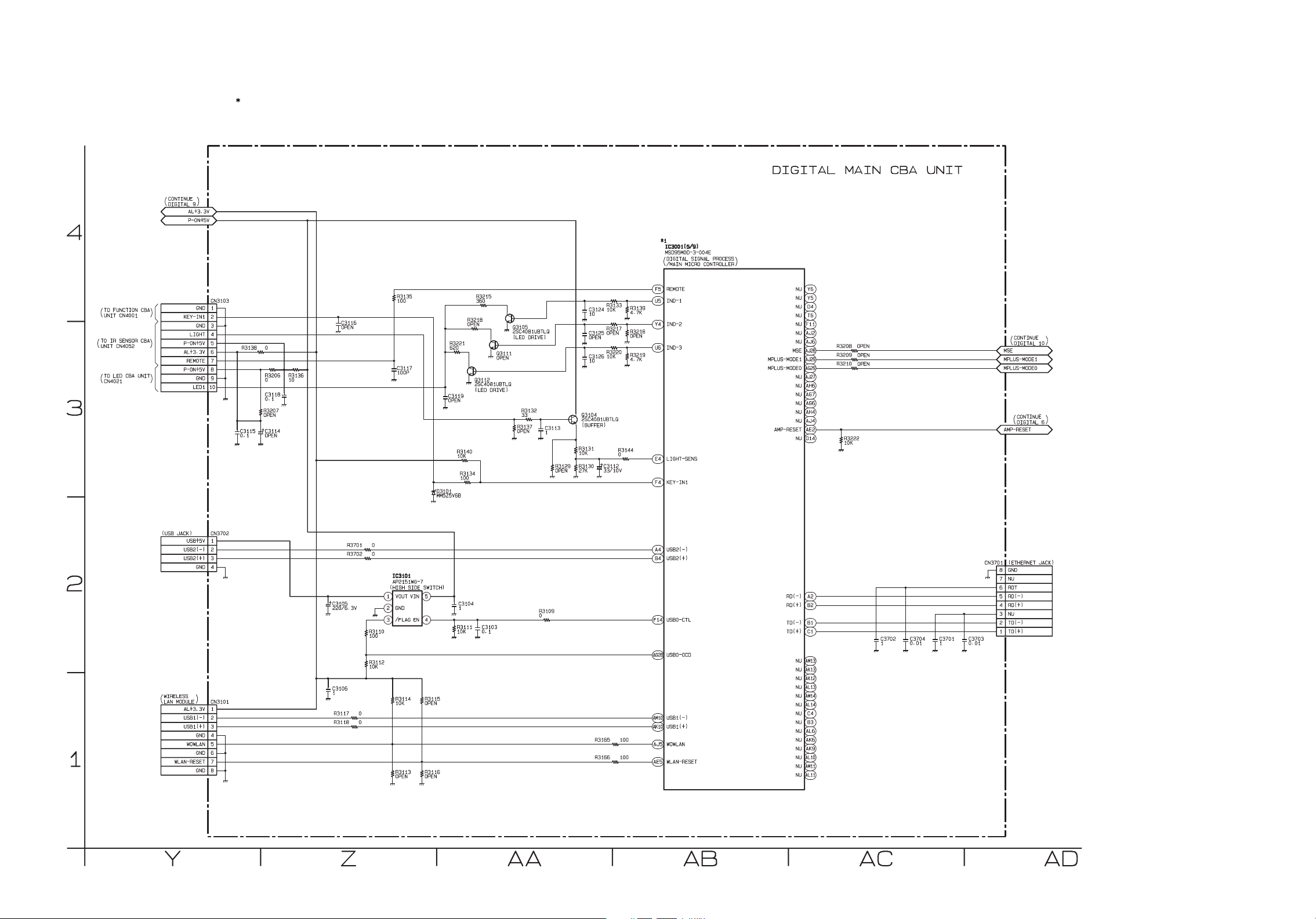

Digital Main 5 Schematic Diagram
1 NOTE:
The order of pins shown in this diagram is different from that of actual IC3001.
IC3001 is divided into nine and shown as IC3001 (1/9) ~ IC3001 (9/9) in this Digital Main Schematic Diagram Section.
10-7
PL16.29SCD5
Page 43
F6
OPEN
R3815
OPEN
Q3802
LCD-P-ON
OPEN
R3814
OPEN
R3807
Q3801
OPEN
OPEN
R3812
E6
P-ON+3.3V
OPEN
R3813
1K
R3816
SP-MUTE
3.3
R3831
OPEN
C3833
220/6.3V
C3829
220
R3823
100
R3822
OPEN
R3820
10K
R3821
2SD2114K
Q3803
10K
R3829
OPEN
R3826
22K
R3827
2SC4081UBTLQ
Q3804
220
R3824
HEADPHONE
JACK
JK3708
3.3
R3830
2SD2114K
Q3805
R3825
10K
220/6.3V
C3830
D3704
OPEN
47KR3711
OPENC3025
0.047C3023
AE6
D3703
OPEN
75
R3022
330P
C3707
0.047C3022
AC6 NU
Y1
0.047C3016
R3011 510
D3710 OPEN
OPEN
C3711
33
R3709
D3702
OPEN
JK3706
AD2 NU
Y3
AC3 NU
AF3 NU
2.2C3030
AB2
100P
C3713
75
R3025
OPEN
C3710
AF6
2.2C3029
D3701
OPEN
47KR3710
12K
R3706
0.047C3020
A5
SPDIF
75
R3026
AH3 NU
D3706 1SS400ST
1
2
3
4
5
14
13
12
11156
7
8
9
10
JK3707
PC-RGB-IN
AA3
COMP-DET
AH2 NU
D3711 OPEN
R3012 510
AA6 VGA-HSYNC
W6 NU
75
R3024
D3705
OPEN
75
R3023
0.047C3019
OPEN
C3714
AD3 NU
AD1 NU
OPEN
C3712
AA5 VGA-VSYNC
AA4 NU
0.047C3018
75
R3021
AG1 NU
D3712
1SS400ST
P-ON+5V
AF4
AF5
F9 NU
HP-MUTE
HP-DET
P-ON+20V
D3808
1SS400ST
OPEN
D3805
OPEN
C3832
OPEN
D3806
OPEN
C3831
OPEN
R3819
10K
R3828
OPEN
D3807
1
C3828
R3028 OPEN
R3016 33
R3013 33
R3015 33
R3017 33
R3019 33
R3020 33
OPEN
C3108
CN3102
1P-ON+5V
3UART0-RX
2UART0-TX
OPEN
C3107
4GND
OPEN
C3109
100R3121
100R3122
R3120
OPEN
R3119
OPEN
10K
R3009
2.4K
R3010
VIN
VCC
GND
JK3705
3
2
1
1
C3705
22P
C3706
10K
R3703
100
R3704
10K
R3708
10K
R3707
330P
C3708
12K
R3705
OPEN
C3709
AC5 NU
AB6 NU
AC4 NU
120P
C3026
75
R3029
AF2NU
AF1NU
AG5NU
AG4NU
C5NU
D8NU
D6NU
B5NU
AG2NU
AG3NU
10C3028
0.1C3027
VGA-SDA
VGA-SCL
L3004
BEAD
0.047C3017
AA1
R3018 68
R3014 68
AC1
0.047C3021
AA2
IC3001(6/9)
*1
MSD95M0D-3-004E
AC2
AB3 NU
AD6 NU
0.047C3024R3027 68
R3834
OPEN
1000PC3851
1000PC3852
G6
E8
R3806 33
R3801 33
R3805 33
R3802 33
E7 NU
F7 NU
1000P
C3816
0.22
C3838
100K
R3890
680P
C3844
4.7
C3823
4.7
C3811
OPEN
C3801
4.7
C3809
100K
R3808
0.22
C3820
5.6
R3804
4 SP(L)+
0
R3809
680P
C3846
4.7
C3812
2 SP(R)-
10
C3805
4.7
C3827
5.6
R3803
0.22
C3837
1
C3803
680P
C3847
OPEN
C3822
L3801
10uH
I2S
I/F
DRIVE DRIVE
DRIVE DRIVE
X4 OVER
SAMPLING
DIGITAL FILTER
PWM
MODULATOR
IC3801
BD28620MUV-E2
1
2
3
4
5PLIMIT
6RSTX
7
MUTEX
8910
VCCP111GND
12
13
14VCCA
15GND
16REGD
17REGG
18
1920
VCCP2
21
GND
222324
ERROR
4.7
C3824
1000P
C3815
0.22
C3819
27K
R3810
0.1
C3807
0.22
C3836
5.6
R3818
0.22
C3817
1
C3808
1000P
C3813
0.22
C3835
L3803
10uH
1
C3804
0.22
C3818
5.6
R3832
3 SP(L)-
4.7
C3825
OPEN
C3802
4.7
C3821
1000P
C3814
1K
R3811
CN3801
1 SP(R)+
680P
C3845
4.7
C3810
L3802
10uH
OPEN
C3834
4.7
C3826
L3804
10uH
SP3801
SPEAKER
L-CH
SP3802
SPEAKER
R-CH
OPEN
D3801
OPEN
D3802
OPEN
D3803
OPEN
D3804
AMP-RESET
OPEN
R3833
D3709 OPEN
D3708 OPEN
D3707 OPEN
0.22
C3841
0.22
C3842
0.22
C3840
0.22
C3839
OPEN
R3817
AL+3.3V
OPEN
C3806
OPENC3717
OPENC3716
OPENC3715
DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER
SW
AUDIO
I/F
TO DIGITAL
MAIN 3
IC3001(3/9)
A/D
CONVERTER
DIGITAL
SIGNAL
PROCESS
TO DIGITAL
MAIN 7
IC3001(7/9)
TO DIGITAL
MAIN 2
IC3001(2/9)
TO DIGITAL
MAIN 1
IC3001(1/9)
TO DIGITAL
MAIN 10
IC3001(9/9)
DIGITAL MAIN CBA UNIT
TO DIGITAL
MAIN 7
IC3001(7/9)
3
2
1
4
AE AF AG AH AI AJ
CONTINUE
DIGITAL 7
CONTINUE
DIGITAL 4
COMPONENT-Y
/VIDEO-IN
COMPONENT
-Pb-IN
AUDIO(L)-IN
COMPONENT
-Pr-IN
AUDIO(R)-IN
CONTINUE
DIGITAL 9
(NO CONNECTION)
TRANS,MODULE
FIBER OPTIC
DIGITAL
AUDIO-OUT
(OPTICAL)
TO DIGITAL
MAIN 3
IC3001(3/9)
TO DIGITAL
MAIN 4
IC3001(4/9)
(MUTE)
(MUTE)
(MUTE DRIVE)
(AUDIO AMP)
CONTINUE
DIGITAL 5

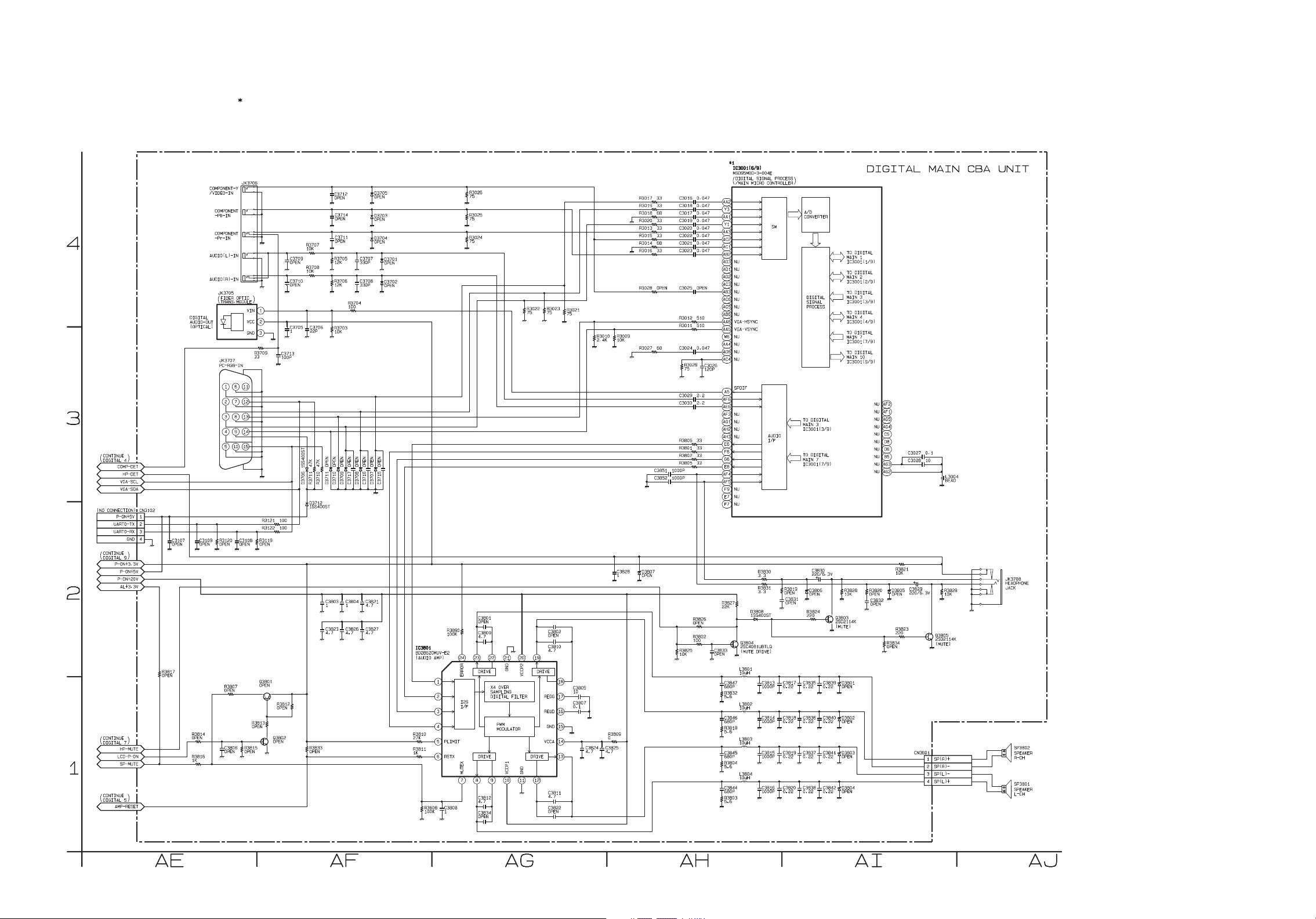

Digital Main 6 Schematic Diagram
1 NOTE:
The order of pins shown in this diagram is different from that of actual IC3001.
IC3001 is divided into nine and shown as IC3001 (1/9) ~ IC3001 (9/9) in this Digital Main Schematic Diagram Section.
10-8
PL16.29SCD6
Page 44
47K
R3543
47K
R3544
33
R3547
100K
R3548
47K
R3524
33
R3527
100K
R3528
47K
R3525
47K
R3505
47K
R3506
100K
R3509
33
R3508
16 HDMI-DATA
12 CLOCK(-)
JK3701
1 DATA2(+)
6 DATA1(-)
3 DATA2(-)
14 ARC
9 DATA0(-)
10 CLOCK(+)
7 DATA0(+)
5 TMDS DATA1 SHIELD
17 GND
18 +5V
13 HDMI-CEC
15 HDMI-CLOCK
19 HOT PLUG DETECT
2 TMDS DATA2 SHIELD
4 DATA1(+)
11 TMDS CLOCK SHIELD
8 TMDS DATA0 SHIELD
16 HDMI-DATA
12 CLOCK(-)
JK3702
1 DATA2(+)
6 DATA1(-)
3 DATA2(-)
14 NU
9 DATA0(-)
10 CLOCK(+)
7 DATA0(+)
5 TMDS DATA1 SHIELD
17 GND
18 +5V
13 HDMI-CEC
15 HDMI-CLOCK
19 HOT PLUG DETECT
2 TMDS DATA2 SHIELD
4 DATA1(+)
11 TMDS CLOCK SHIELD
8 TMDS DATA0 SHIELD
14 NU
17 GND
19 HOT-PLUG-DETECT
15 HDMI-CLOCK
18 +5V
16 HDMI-DATA
2 TMDS DATA2 SHIELD
10 CLOCK(+)
JK3703
1 DATA2(+)
4 DATA1(+)
7 DATA0(+)
5 TMDS DATA1 SHIELD
8 TMDS DATA0 SHIELD
11 TMDS CLOCK SHIELD
3 DATA2(-)
13 HDMI-CEC
6 DATA1(-)
12 CLOCK(-)
9 DATA0(-)
W2
IC3001(7/9)
MSD95M0D-3-004E
*1
V3
V2
U1
T3
T2
R2
R1
OPEN
Q3501
OPEN
R3501
OPEN
R3503
OPEN
R3502
M2
N2
P2
K3
K2
P1
L1
M3
1K
R3523
2SC4081UBTLQ
Q3502
10K
R3521
10K
R3522
G3
H3
J2
G1
F3
J1
G2
H2
1K
R3542
2SC4081UBTLQ
Q3503
10K
R3540
10K
R3541
2SC4081UBTLQ
Q3101
10K
R3101
33K
R3105
OPEN
Q3103
UART1TX
0
R3106
OPEN
R3108
10K
R3102
2SC4081UBTLQ
Q3102
33K
R3103
UART1RX
0
R3104
R6HDMI1-SCL
T5HDMI1-SDA
L4HDMI2-SCL
L5HDMI2-SDA
J4HDMI3-SCL
K5HDMI3-SDA
Y2HDMI1-HPD
M4HDMI2-HPD
H4HDMI3-HPD
M5HDMI2-5V
J5HDMI3-5V
U4HDMI1-5V
AJ1HDMI-UART-CTRL
OPEN
R3107
220P
C3102
220P
C3101
G5 PROTECT1
STB-RESET
F10 SP-MUTE
F12 BACKLIGHT-SW
BACKLIGHT-SW
PROTECT3
SP-MUTE
P-ON+5V
100R3163
P-ON+3.3V
P4 P-ON-H2
D5 STB-RESET
HP-MUTE
100R3146
100R3145
PROTECT1
P-ON-H2
E5 PROTECT3
AB5 HP-MUTE
33R3164
E14 LCD-P-ON
LCD-P-ON
AL+3.3V
LCD-P-ON
OPENR3532
OPENR3533
OPENR3534
OPENR3535
OPENR3536
OPENR3538
OPENR3537
OPENR3539
OPENR3558
OPENR3556
OPENR3552
OPENR3553
OPENR3557
OPENR3551
OPENR3555
OPENR3554
OPENR3520
OPENR3518
OPENR3514
OPENR3515
OPENR3519
OPENR3513
OPENR3517
OPENR3516
33
R3591
OPEN
R3593
D3591
OPEN
Q3591
OPEN
G
DS
V6HDMI-CEC
OPEN
R3594
0
R3592
5.1
R3507
HDMI1-5VDET1
OPEN
R3526
OPEN
R3545
OPEN
R3176
G4 PWR-DETECT
1K
R3153
100K
R3155
390K
R3154
P3ARC-OUT
0R3504 1C3501
6HSYNC
9
BACKLIGHT-SW
CN3104
1GND
7VSYNC
3GND
2SPI-CLK
5GND
4SPI-DI
8SPI-CS
10GND
OPENR3202
D12 SPI-CLK
E13 SPI-DI
OPENR3201
OPENR3203
D9 HSYNC
OPENR3204
E12 VSYNC
D11 SPI-CS
OPENR3205
K6 HDMI4-HPD
J6 HDMI4-5V
C3
E2
H6 HDMI4-SCL
E3
D2
D3
D1
F1
H5 HDMI4-SDA
F2
11PROTECT3
12BACKLIGHT-ADJ(NU)
BACKLIGHT-ADJ
0R3512
0R3531
0R3546
100R3510
100R3511
100R3529
100R3530
100R3549
100R3550
10CLOCK(+)
JK3704
1DATA2(+)
2TMDS DATA2 SHIELD
16HDMI-DATA
12CLOCK(-)
9DATA0(-)
8TMDS DATA0 SHIELD
11TMDS CLOCK SHIELD
13HDMI-CEC
17GND
15HDMI-CLOCK
18+5V
6DATA1(-)
14NU
4DATA1(+)
7DATA0(+)
19HOT PLUG DETECT
3DATA2(-)
5TMDS DATA1 SHIELD
OPENR3573
OPENR3575
OPENR3570
OPENR3571
OPENR3577
0R3567
OPENR3572
OPENR3574
OPENR3576
47K
R3561
47K
R3560
1K
R3562
10K
R3559
100K
R3566
33
R3565
OPEN
R3564
10K
R3563
2SC4081UBTLQ
Q3504
100R3569
100R3568
OPEN
R3156
1
2
3
45
6
7
8
IC3103
OPEN
A0
A1
A2
VSS SDA
SCL
WP
VCC
OPENR3152
OPEN
R3159
E10 SDA3
OPENR3151
E11 SCK3
OPEN
R3157
22K
R3150
OPEN
R3158
C3123
OPEN
1
2
34
5
6
IC3501
NCP380HSNAJAAT1G
IN
GND
EN /FLAG
ILIM
OUT
C3583
1
10K
R3587
C3584
1
3K
R3589
18K
R3588
2SC4081UBTLQ
Q3505
12K
R3584
1000P
C3579
100K
R3583
100K
R3585
C3580
1000P
10KR3586
0.01
C3581
C3582
4700P
SPI-DO
SPI-DI
PWM-PM
SPI-CK
DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER
HDMI
I/F
HDMICONNECTOR-1
HDMICONNECTOR-2
HDMICONNECTOR-3
AK
DIGITAL MAIN CBA UNIT
(SWITCHING)
(SWITCHING)
CONTINUE
DIGITAL 4
2
4
1
3
AL AM AN AO AP
TO DIGITAL
MAIN 6
IC3001(6/9)
VIDEO
DECODER
AUDIO
DECODER
TO DIGITAL
MAIN 6
IC3001(6/9)
(SWITCHING)
(SWITCHING)
CONTINUE
DIGITAL 8
CONTINUE
DIGITAL 9
CONTINUE
DIGITAL 6
CONTINUE
DIGITAL 8
CONTINUE
DIGITAL 4
CONTINUE
DIGITAL 9
CONTINUE
DIGITAL 10
CONTINUE
DIGITAL 4
HDMICONNECTOR-4
(SWITCHING)
(NO CONNECTION)
(SWITCHING)
HIGH SIDE
SWITCH

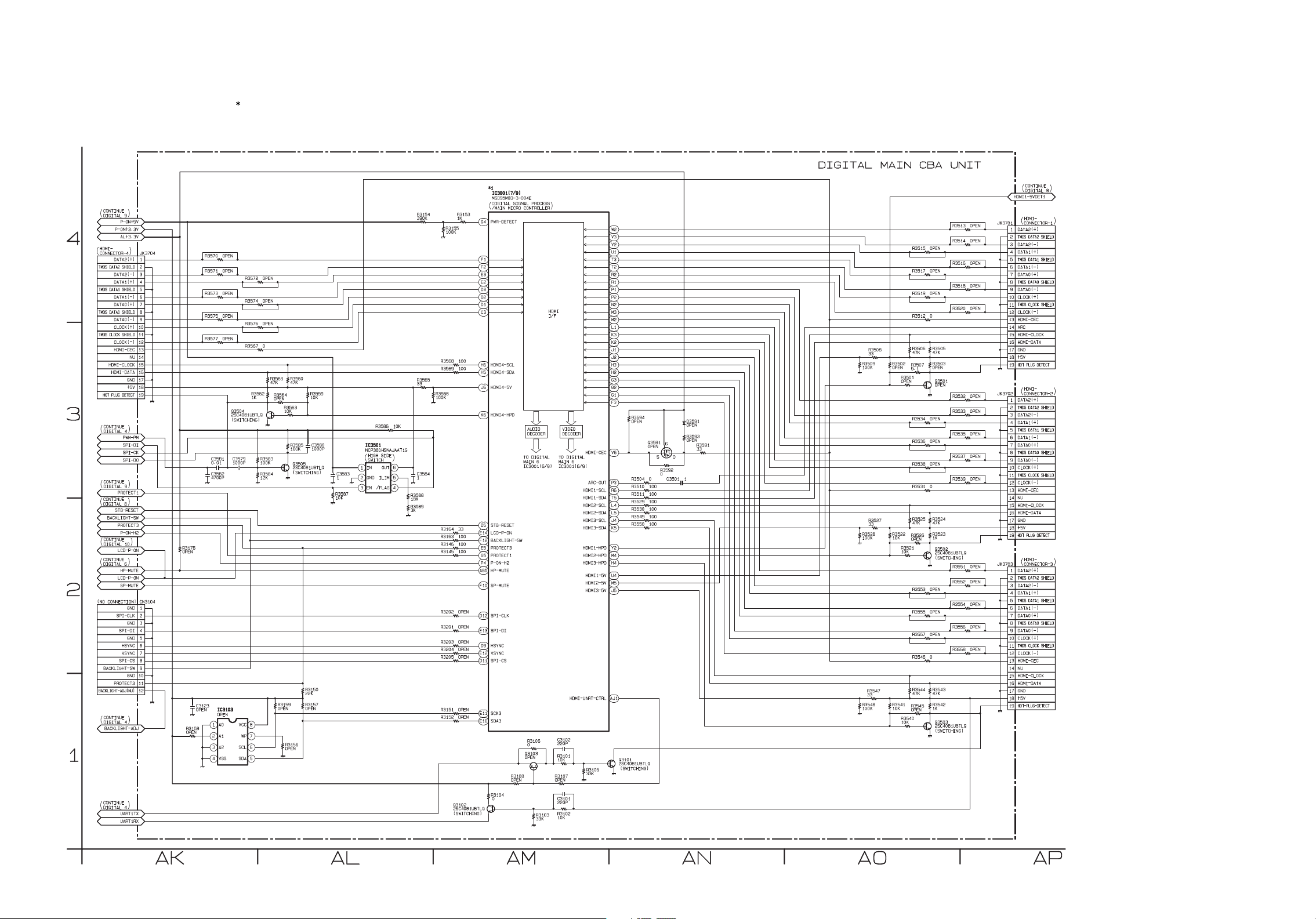

Digital Main 7 Schematic Diagram
1 NOTE:
The order of pins shown in this diagram is different from that of actual IC3001.
IC3001 is divided into nine and shown as IC3001 (1/9) ~ IC3001 (9/9) in this Digital Main Schematic Diagram Section.
10-9
PL16.29SCD7
Page 45

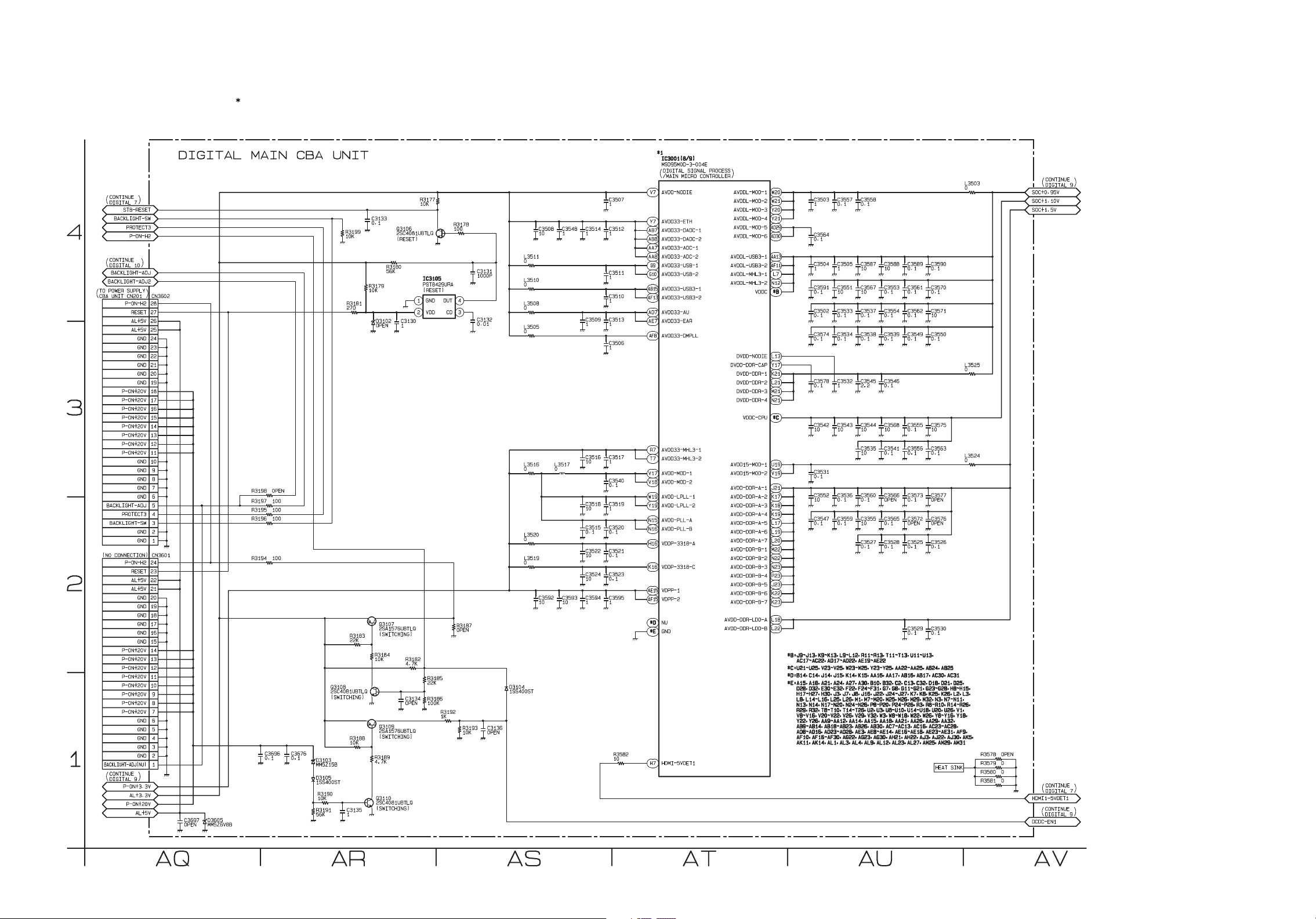

Digital Main 8 Schematic Diagram
8GND
100R3197
PROTECT3
17P-ON+20V
10K
R3184
270
R3181
5BACKLIGHT-ADJ
1000P
C3131
BACKLIGHT-SW
BACKLIGHT-ADJ
R3179
10K
D3102
OPEN
14P-ON+20V
23GND
20GND
15P-ON+20V
CN3602
28P-ON-H2
1GND
100R3195
18P-ON+20V
2SC4081UBTLQ
Q3108
12P-ON+20V
9GND
22GND
STB-RESET
13P-ON+20V
6GND
22K
R3183
27RESET 32
14
IC3105
PST8429URA
CDVDD
GND OUT
25AL+5V
0.01
C3132
56K
R3180
3BACKLIGHT-SW
10GND
11P-ON+20V
1
C3130
4PROTECT3
100R3196
P-ON-H2
2SA1576UBTLQ
Q3107
16P-ON+20V
24GND
19GND
7GND
2SC4081UBTLQ
Q3106
R3178
100
10K
R3177
0.1
C3133
10K
R3199
OPEN
R3187
22K
R3185
4.7K
R3182
2SA1576UBTLQ
Q3109
10K
R3188
4.7K
R3189
OPEN
C3134
100K
R3186
2SC4081UBTLQ
Q3110
1
C3135
10K
R3190
56K
R3191
D3105
1SS400ST
1K
R3192
D3104
1SS400ST
DCDC-EN1
10K
R3193
OPEN
C3136
OPENR3198
BACKLIGHT-ADJ2
1
C3595
VDPP-1AE15
10
C3593
VDPP-2AF15
AVDDL-MOD-3Y20
AVDDL-USB3-2AF11
AVDDL-MOD-2W21
AVDDL-USB3-1AA13
AVDD15-MOD-1U19
AVDDL-MHL3-1 L7
AVDDL-MOD-4Y21
AVDDL-MHL3-2N12
AVDD15-MOD-2V19
SOC+1.5V
AVDDL-MOD-1W20
0.1
C3531
1
C3503
VDDC *B
DVDD-DDR-1 K21
DVDD-DDR-2 L21
DVDD-DDR-3 M21
DVDD-DDR-4 N21
2.2
C3545
0.1
C3546
10
C354410C3568
10
C3575
10
C3543
0.1
C3555
VDDC-CPU *C
10
C3542
10
C3535
0.1
C3541
0.1
C3556
0.1
C3563
AVDD-DDR-A-1J21
AVDD-DDR-A-2K17
AVDD-DDR-A-3K18
AVDD-DDR-A-4K19
AVDD-DDR-B-1M22
AVDD-DDR-A-5L17
AVDD-DDR-A-7L20
AVDD-DDR-A-6L19
AVDD-DDR-B-2N22
AVDD-DDR-B-3N23
AVDD-DDR-B-4P23
AVDD-DDR-B-5J23
AVDD-DDR-B-6K22
AVDD-DDR-B-7K23
AVDD-DDR-LDO-AL18
AVDD-DDR-LDO-BL22
DVDD-DDR-CAPY17
HDMI-5VDET1H7
10
R3582
HDMI1-5VDET1
0.1
C3578
10
C3552
0.1
C3536
OPEN
C3566
0.1
C3560
OPEN
C3577
0.1
C3573
OPEN
C3572
OPEN
C3576
10
C3355
0.1
C3547
0.1
C3565
0.1
C3559
0.1
C3526
0.1
C3525
0.1
C3528
0.1
C3527
0.1
C3529
0.1
C3530
GND*E
SOC+0.95V
SOC+1.10V
0R3581
0R3579
0R3580
OPENR3578
P-ON+3.3V
AL+3.3V
P-ON+20V
D3103
MM5Z15B
L3503
0
L3525
0
L3524
0
0.1
C3557
0.1
C3558
AVDDL-MOD-5AD29
AVDDL-MOD-6AD30
0.1
C3564
1
C3505
1
C3504
0.1
C3589
10
C3588
10
C3587
0.1
C3590
10
C3567
0.1
C3561
10
C3551
0.1
C3553
0.1
C3502
0.1
C3533
0.1
C3537
0.1
C3554
0.1
C356210C3571
0.1
C3534
0.1
C3538
0.1
C3574
0.1
C3549
0.1
C3539
0.1
C3550
DVDD-NODIE L13
1
C3532
10
C3592
1
C3594
AVDD33-USB3-2AF13
L3505
0
AVDD33-USB-2G10
1
C3510
AVDD33-AUAD7
1
C3506
10
C35081C3548
AVDD33-ADC-2AA8
AVDD33-DADC-1AB7
AVDD33-EARAE7
AVDD33-ADC-1AA7
1
C3509
AVDD33-USB-1G9
AVDD33-USB3-1AB15
L3511
0
1
C3513
AVDD33-ETHY7
AVDD33-DMPLLAF8
L3510
0
1
C3511
1
C3512
AVDD33-DADC-2AB8
1
C3514
L3508
0
1
C3507
AVDD33-MHL3-2T7
AVDD33-MHL3-1R7
10
C35161C3517
AVDD-PLL-AN15
0.1
C3520
AVDD-MOD-2V18
L3517
0
0.1
C3515
10
C3518
AVDD-LPLL-2Y19
1
C3519
AVDD-MOD-1V17
AVDD-PLL-BN16
0.1
C3540
L3516
0
AVDD-LPLL-1W19
AVDD-NODIEV7
IC3001(8/9)
*1
MSD95M0D-3-004E
L3520
0
L3519
0
10
C3522
VDDP-3318-AH16
0.1
C3523
0.1
C3521
10
C3524
VDDP-3318-CK16
NU*D
AL+5V
6GND
5GND
9P-ON+20V
21AL+5V
17GND
8P-ON+20V
13P-ON+20V
14P-ON+20V
16GND
4GND
GND 18
1BACKLIGHT-ADJ(NU)
11P-ON+20V
12P-ON+20V
CN3601
24P-ON-H2
23RESET
19GND
7P-ON+20V
22AL+5V
20GND
3GND
10P-ON+20V
15GND
2GND
21GND
2GND
26AL+5V
OPEN
C3697 D3605
MM5Z6V8B
0.1
C3676
0.1
C3696
100
R3194
0.1
C3591
0.1
C3570
AVAUATASARAQ
4
3
1
2
(RESET)
DIGITAL MAIN CBA UNIT
CONTINUE
DIGITAL 10
CONTINUE
DIGITAL 7
(SWITCHING)
(RESET)
(SWITCHING)
DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER
*B:J9~J13,K9~K13,L9~L12,R11~R13,T11~T13,U11~U13,
AC17~AC22,AD17~AD22,AE19~AE22
*C:U21~U25,V23~V25,W23~W25,Y23~Y25,AA22~AA25,AB24,AB25
HEAT SINK
CONTINUE
DIGITAL 7
CONTINUE
DIGITAL 9
CONTINUE
DIGITAL 9
CONTINUE
DIGITAL 9
(SWITCHING)
(SWITCHING)
*D:B14,C14,J14,J15,K14,K15,AA16,AA17,AB16,AB17,AC30,AC31
*E:A15,A18,A21,A24,A27,A30,B10,B32,C2,C13,C32,D18,D21,D25,
D28,D32,E30~E32,F22,F24~F31,G7,G8,G11~G21,G23~G28,H8~H15,
H17~H27,H30,J3,J7,J8,J16,J22,J24~J27,K7,K8,K25,K26,L2,L3,
L8,L14~L16,L25,L26,M1,M7~M20,M25,M26,M29,M32,N3,N7~N11,
N13,N14,N17~N20,N24~N26,P8~P20,P24~P26,R3,R8~R10,R14~R26,
R29,R32,T8~T10,T14~T26,U2,U3,U8~U10,U14~U18,U20,U26,V1,
V8~V16,V20~V22,V26,V29,V32,W3,W8~W18,W22,W26,Y8~Y16,Y18,
Y22,Y26,AA9~AA12,AA14,AA15,AA18,AA21,AA26,AA29,AA32,
AB9~AB14,AB18~AB23,AB26,AB30,AC7~AC13,AC16,AC23~AC28,
AD8~AD16,AD23~AD28,AE3,AE8~AE14,AE16~AE18,AE23~AE31,AF9,
AF10,AF16~AF30,AG22,AG23,AG30,AH21,AH22,AJ3,AJ22,AJ30,AK5,
AK11,AK14,AL1,AL3,AL4,AL9,AL12,AL23,AL27,AM25,AM29,AM31
TO POWER SUPPLY
CBA UNIT CN201
(NO CONNECTION)
1 NOTE:
The order of pins shown in this diagram is different from that of actual IC3001.
IC3001 is divided into nine and shown as IC3001 (1/9) ~ IC3001 (9/9) in this Digital Main Schematic Diagram Section.
10-10
PL16.29SCD8
Page 46

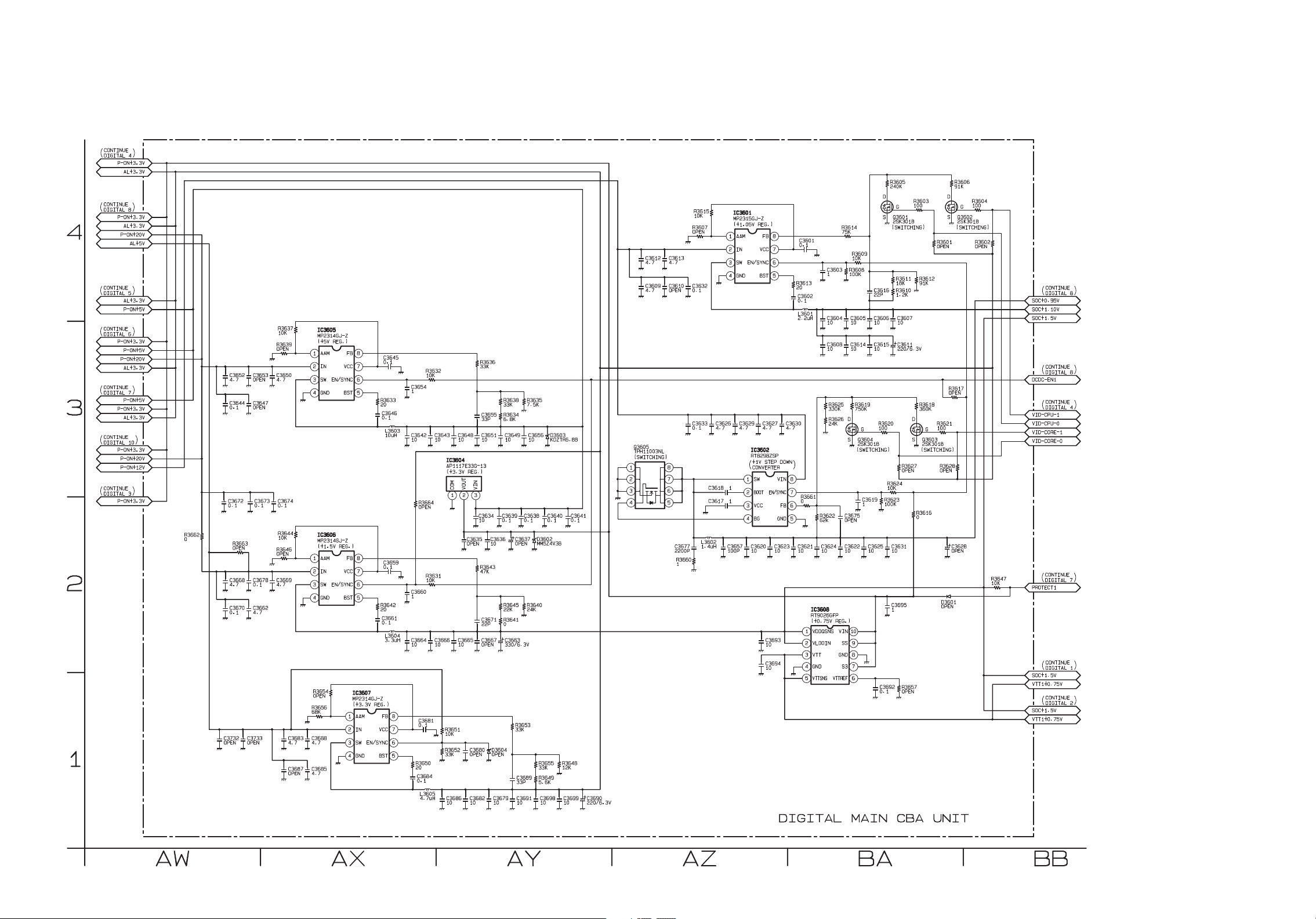

L3603
10uH
10
C3649
33P
C3655
10K
R3637
0.1
C3645
C364210C3643
10
OPEN
R3639
6.8K
R3634
20
R3633
1
2
3
45
6
7
8
IC3605
MP2314GJ-Z
AAM
IN
SW
GND BST
EN/SYNC
VCC
FB
0.1
C3646
7.5K
R3635
C3648
10
33K
R3636
10
C3651
33K
R3638
OPEN
C3653
1
2
3
45
6
7
8
IC3606
MP2314GJ-Z
AAM
IN
SW
GND BST
EN/SYNC
VCC
FB
OPEN
R3646
0.1
C3678
0.1
C3661
22K
R3645
C3664
10
10K
R3644
OPEN
C3667C3665
10
0.1
C3670
0
R3641
4.7
C3662
4.7
C3669
24K
R3640
47K
R3643
L3604
3.3uH
0.1
C3659
20
R3642
C3666
10
C3663
330/6.3V
22P
C3671
4.7
C3683
OPEN
C3687
5.6K
R3649
33P
C3689
68K
R3656
4.7
C3685
C3682
10
10K
R3651
20
R3650
33K
R3655
33K
R3652
0.1
C3681
0.1
C3684
C3686
10
4.7
C3688
C3679
10
1
2
3
45
6
7
8
IC3607
MP2314GJ-Z
AAM
IN
SW
GND BST
EN/SYNC
VCC
FB
12K
R3648
10
C3691
33K
R3653
OPEN
R3654
L3605
4.7uH
P-ON+3.3V
P-ON+20V
4.7
C3652
OPEN
C3647
4.7
C3650
D3603
KDZTR6.8B10
C3656
1
C3654
10K
R3632
10K
R3631
1
C3660
4.7
C3668
OPEN
C3680 D3604
OPEN
P-ON+12V
1
2
3
45
6
7
8
IC3601
MP2315GJ-Z
AAM
IN
SW
GND BST
EN/SYNC
VCC
FB
OPEN
R3607
4.7
C3612
0.1
C3602
0.1
C3632
C3604
10
1
C3603
10
C3607
10K
R3615
C3606
10
4.7
C3609
OPEN
C3610
4.7
C3613
10K
R3609
75K
R3614
L3601
2.2uH
0.1
C3601
20
R3613
C3605
10
100K
R3608
SOC+1.5V
SOC+0.95V
SOC+1.10V
Q3601
2SK3018
G
D
S
240K
R3605
91K
R3606
Q3602
2SK3018
G
D
S
100
R3603
100
R3604
10
C360810C3614 C3611
220/6.3V10
C3615
22P
C3616
1.2K
R3610
18K
R3611
91K
R3612
VID-CPU-1
VID-CPU-0
OPEN
R3602
1
2
3
45
6
7
8
IC3602
RT8298ZSP
SW
BOOT
VCC
BG GND
FB
EN/SYNC
VIN
Q3605
TPH11003NL
1
2
36
7
8
45
1
C3618
1C3617
100K
R3623
1
C3619
10K
R3624
L3602
1.4uH
100P
C365710C362010C362310C3621
62k
R3622
100
R3621
VID-CORE-1
360K
R3618
VID-CORE-0
100
R3620
Q3603
2SK3018
G
D
S
750K
R3619
Q3604
2SK3018
G
D
S
9
6
7
8
1
4
3
2
5
10
IC3608
RT9026GFP
VDDQSNS
GND
SS
VTTREF
S3
GNDVTT
VLDOIN
VTTSNS
VIN
24K
R3626
330K
R3625
4.7
C3626
4.7
C3627
4.7
C3629
4.7
C3630
10
C3694
10
C3693
1
C3695
0.1
C3692
OPEN
R3657
DCDC-EN1
OPEN
R3627
OPEN
R3628
OPEN
R3601
0
R3616
OPEN
R3617
PROTECT1
123
IC3604
AP1117E33G-13
VOUT
VIN
COM
D3602
MM5Z4V3B
OPEN
C363510C3636
OPEN
C3637
10K
R3647
P-ON+5V
AL+3.3V
D3601
OPEN
AL+3.3V
P-ON+3.3V
P-ON+5V
P-ON+5V
P-ON+3.3V
AL+3.3V
P-ON+3.3V
AL+3.3V
P-ON+3.3V
SOC+1.5V
VTT1+0.75V
SOC+1.5V
VTT1+0.75V
0.1
C3644
10
C3634
OPEN
C3732
OPEN
C3733
OPEN
C3675
2200P
C3677
1
R3660
AL+3.3V
C3699
10
C3698
10
C3690
220/6.3V
OPEN
R3664
0.1
C3639
0.1
C3640
0.1
C3638
0.1
C3641
AL+5V
P-ON+3.3V
0
R3662
0.1
C3674
0.1
C3673
0.1
C3672
OPEN
R3663
C3628
OPEN10
C3631
10
C3625
10
C3622
10
C3624
P-ON+20V
P-ON+20V
0.1
C3633
0
R3661
BBBAAZAYAXAW
4
3
1
2
DIGITAL MAIN CBA UNIT
(+5V REG.)
(+1.5V REG.)
(+3.3V REG.)
(+1.05V REG.)
+1V STEP DOWN
CONVERTER
(+0.75V REG.)
(+3.3V REG.)
CONTINUE
DIGITAL 4
CONTINUE
DIGITAL 5
CONTINUE
DIGITAL 6
CONTINUE
DIGITAL 7
CONTINUE
DIGITAL 8
CONTINUE
DIGITAL 10
CONTINUE
DIGITAL 8
CONTINUE
DIGITAL 8
CONTINUE
DIGITAL 4
CONTINUE
DIGITAL 7
CONTINUE
DIGITAL 1
CONTINUE
DIGITAL 2
(SWITCHING) (SWITCHING)
(SWITCHING) (SWITCHING)
(SWITCHING)
CONTINUE
DIGITAL 3
Digital Main 9 Schematic Diagram
10-11
PL16.29SCD9
Page 47

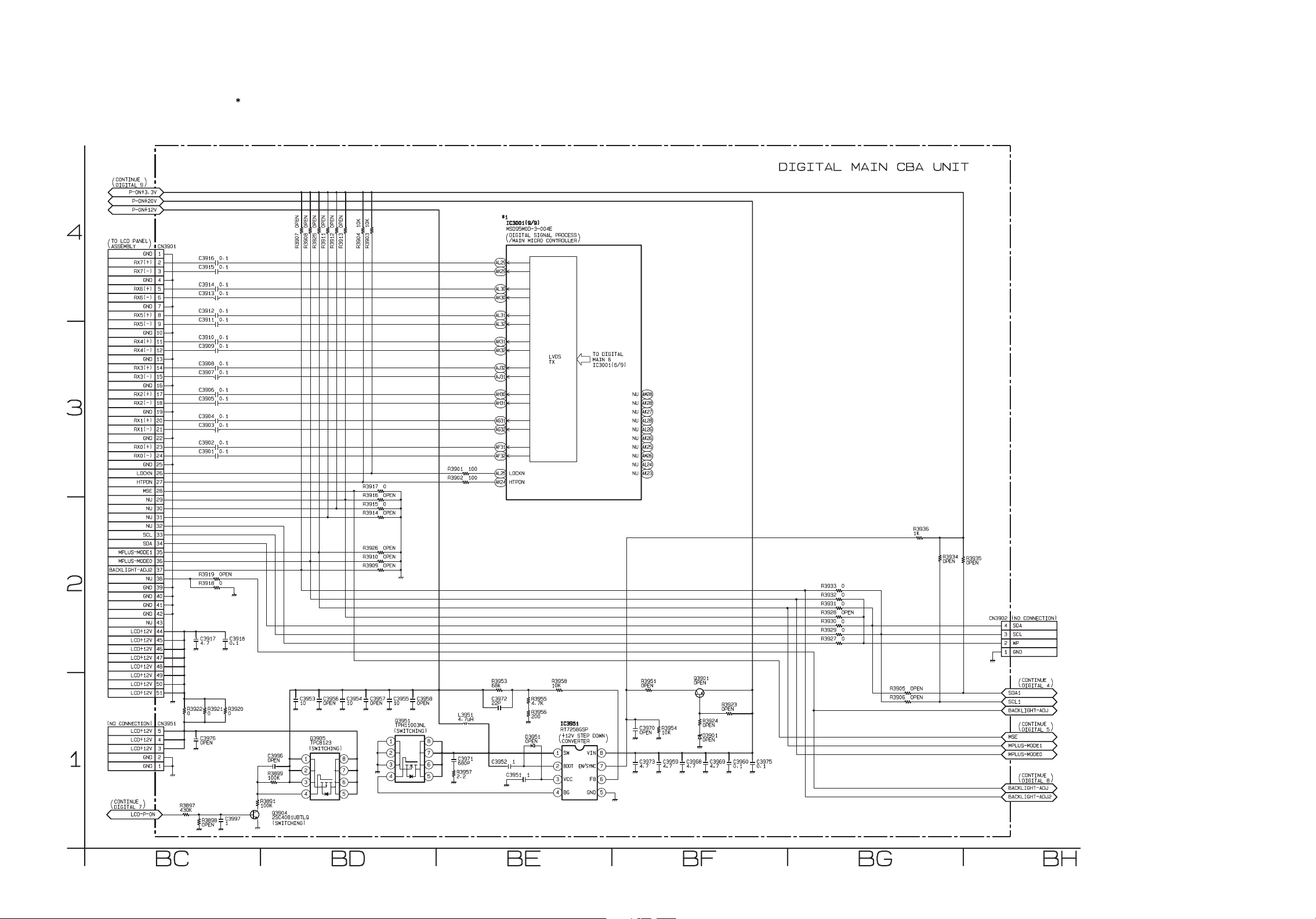

Digital Main 10 Schematic Diagram
28MSE
22GND
10GND
CN3901
1GND
39GND
2RX7(+)
25GND
26LOCKN
13GND
43NU
41GND
19GND
4GND
34SDA
33SCL
44LCD+12V
27HTPDN
42GND
7GND
16GND
3RX7(-)
5RX6(+)
6RX6(-)
8RX5(+)
9RX5(-)
12RX4(-)
11RX4(+)
15RX3(-)
14RX3(+)
17RX2(+)
18RX2(-)
20RX1(+)
21RX1(-)
24RX0(-)
23RX0(+)
29NU
30NU
31NU
32NU
35MPLUS-MODE1
36MPLUS-MODE0
37BACKLIGHT-ADJ2
38NU
40GND
45LCD+12V
46LCD+12V
47LCD+12V
48LCD+12V
49LCD+12V
50LCD+12V
51LCD+12V
3LCD+12V
CN3951
5LCD+12V
4LCD+12V
1GND
2GND
C3908 0.1
C3915 0.1
C3912 0.1
C3903 0.1
C3901 0.1
C3916 0.1
C3902 0.1
C3911 0.1
C3904 0.1
C3914 0.1
C3905 0.1
C3910 0.1
C3906 0.1
C3907 0.1
C3909 0.1
C3913 0.1
AK29
AL30
AK30
AL32
AL31
AK32
AK31
AJ31
AJ32
AH31
AH30
AF31
AF32
AG31
AG32
AL25LOCKN
AK24HTPDN
100R3901
100R3902
P-ON+3.3V
10KR3903
10KR3904
OPEN
R3913
OPENR3912
OPENR3911
OPENR3925
OPENR3907
OPENR3908
0R3917
OPENR3916
R3915
OPENR3926
OPENR3914
OPENR3910
OPENR3909
BACKLIGHT-ADJ2
OPENR3919
0R3918
4.7
C3917
BACKLIGHT-ADJ
MSE
AL29
IC3001(9/9)
*1
MSD95M0D-3-004E
SDA1
MPLUS-MODE1
MPLUS-MODE0
BACKLIGHT-ADJ
SCL1
2WP
1GND
3SCL
CN3902
4SDA
0R3932
0R3933
OPENR3906
OPENR3928
0R3931
OPENR3905
R3929
R3930
R3927
OPEN
R3934
OPEN
R3935
AM28NU
AK28NU
AK27NU
AL28NU
AL26NU
AK26NU
AK25NU
AM26NU
AL24NU
AK23NU
0.1
C3918
OPEN
C3976
0
R3920
0
R3921
0
R3922
Q3951
TPH11003NL
1
2
36
7
8
45
1C3951
1
2
3
45
6
7
8
IC3951
RT7258GSP
SW
BOOT
VCC
BG GND
FB
EN/SYNC
VIN
L3951
4.7uH
1C3952
680P
C3971
2.2
R3957
Q3905
TPC8123
1
2
36
7
8
45
OPEN
C3958
10
C3955
OPEN
C3957
10
C3953
10
C3954
OPEN
C3956
D3951
OPEN
4.7
C3968
0.1
C3975
4.7
C3959
4.7
C3973
0.1
C3960
4.7
C3969
100K
R3891
2SC4081UBTLQ
Q3904
100K
R3899
OPEN
C3996
1
C3997
OPEN
R3898
LCD-P-ON
430K
R3897
P-ON+20V
P-ON+12V
OPEN
C3970
10K
R3954
1K
R3936
OPEN
R3951
OPEN
Q3901
OPEN
R3924
D3901
OPEN
OPEN
R3923
10K
R3958
200
R3956
4.7K
R3955
68k
R3953
22P
C3972
DIGITAL MAIN CBA UNIT
TO LCD PANEL
ASSEMBLY
CONTINUE
DIGITAL 9
CONTINUE
DIGITAL 8
TO DIGITAL
MAIN 6
IC3001(6/9)
DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER
LVDS
TX
CONTINUE
DIGITAL 4
(NO CONNECTION)
BG
1
BD
3
4
2
BFBC BE BH
CONTINUE
DIGITAL 5
(NO CONNECTION)
(SWITCHING)
+12V STEP DOWN
CONVERTER
(SWITCHING)
CONTINUE
DIGITAL 7
(SWITCHING)
0
0
0
0
1 NOTE:
The order of pins shown in this diagram is different from that of actual IC3001.
IC3001 is divided into nine and shown as IC3001 (1/9) ~ IC3001 (9/9) in this Digital Main Schematic Diagram Section.
10-12
PL16.29SCD10
Page 48

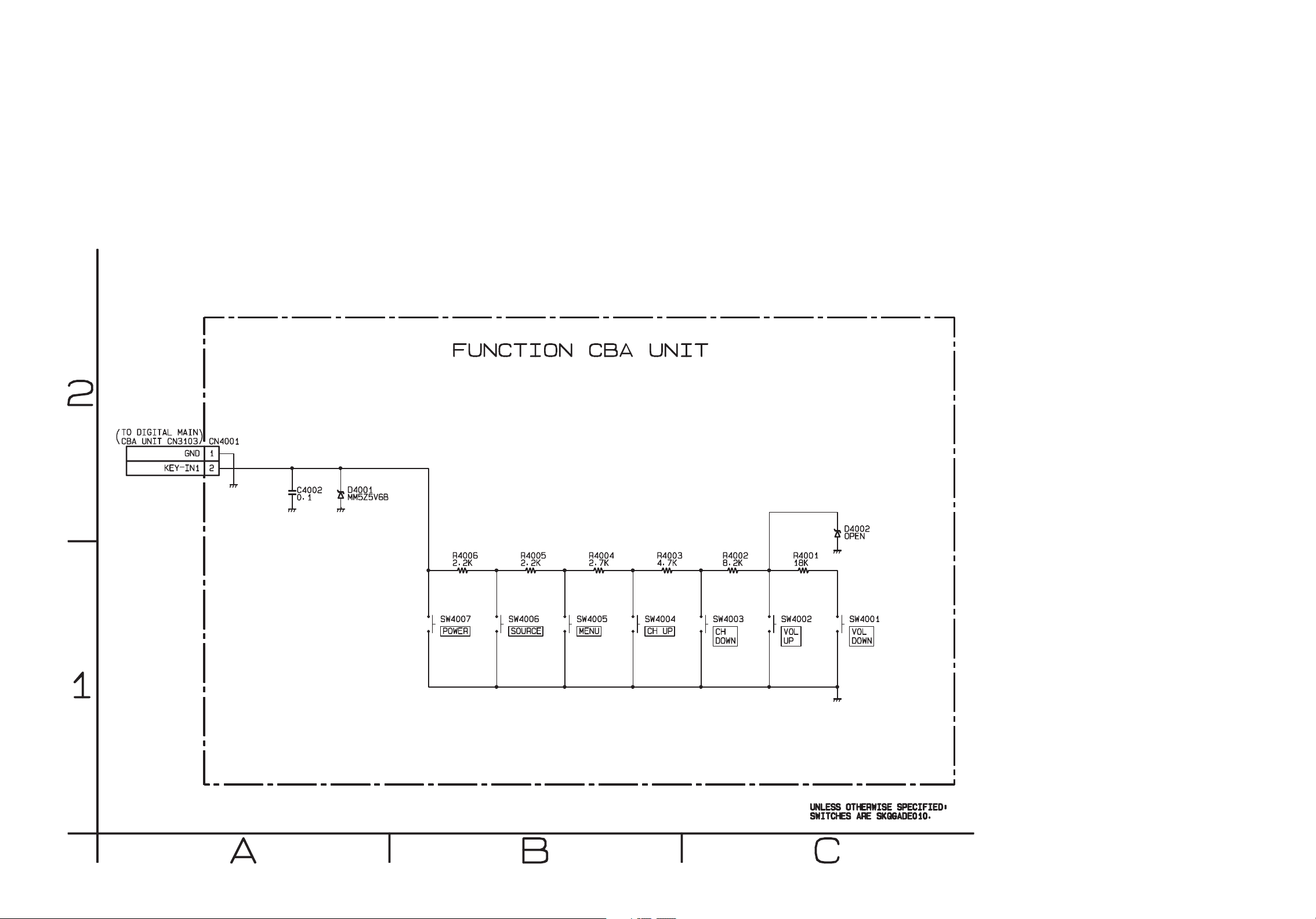

Function Schematic Diagram
4.7K
R4003
8.2K
R4002
2.7K
R4004
18K
R4001
2.2K
R4005
OPEN
D4002
0.1
C4002
MM5Z5V6B
D4001
CN4001
1GND
2KEY-IN1
SW4006 SW4005 SW4004 SW4003 SW4002 SW4001
2.2K
R4006
SW4007
2
1
ABC
FUNCTION CBA UNIT
TO DIGITAL MAIN
CBA UNIT CN3103
CH UP
VOL
DOWN
POWER
UNLESS OTHERWISE SPECIFIED:
SWITCHES ARE SKQGADE010.
CH
DOWN
VOL
UP
MENUSOURCE
10-13
PL16.29SCF
Page 49

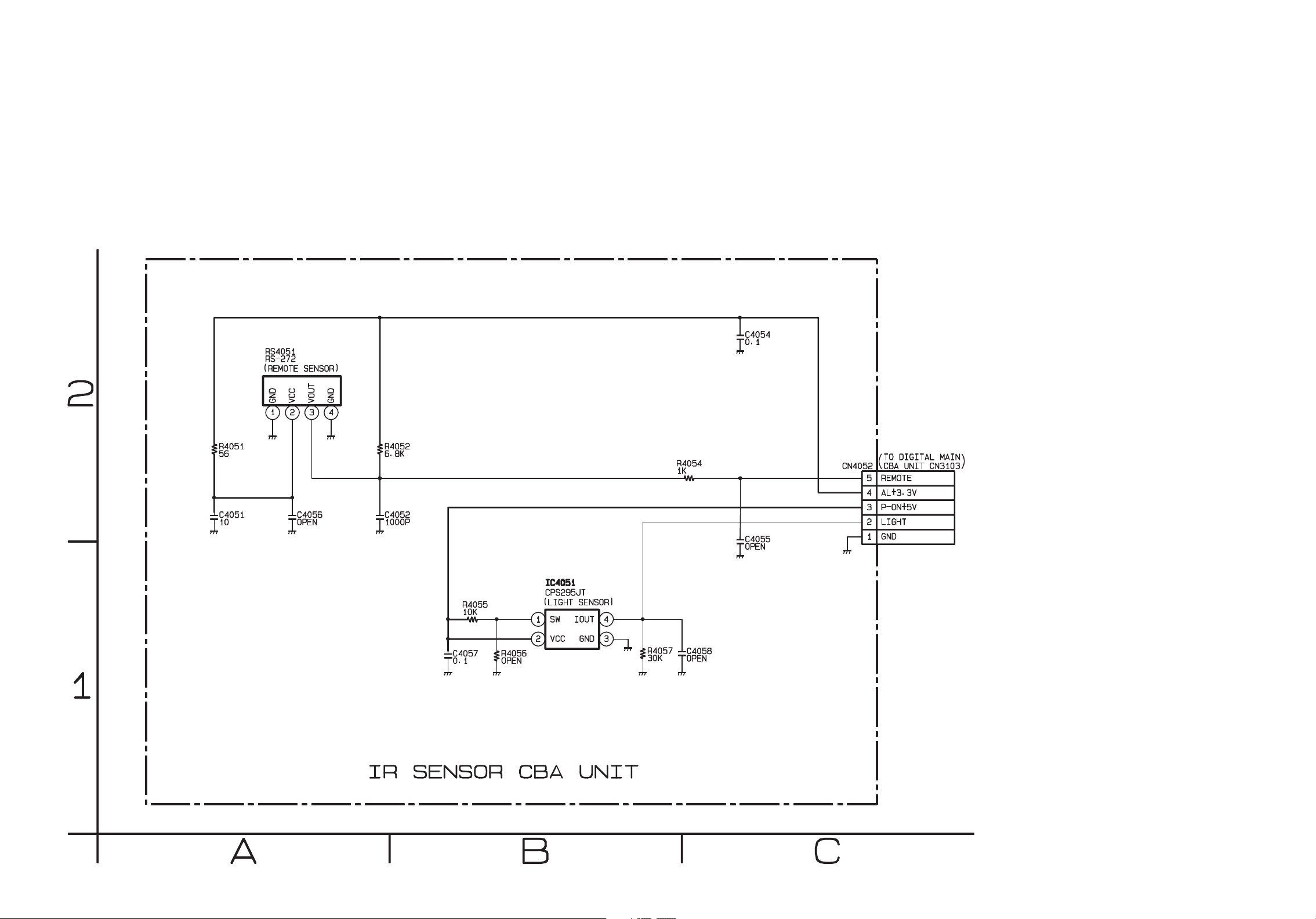

IR Sensor Schematic Diagram
1000P
C4052
OPEN
C4055
OPEN
C4056
10
C4051
R4051
56
R4052
6.8K
0.1
C4054
R4056
OPEN
0.1
C4057
R4057
30K
R4055
10K
CN4052
5 REMOTE
1GND
4 AL+3.3V
3 P-ON+5V
2 LIGHT
R4054
1K
32
14
IC4051
CPS295JT
GNDVCC
SW IOUT
OPEN
C4058
1234
RS4051
RS-272
VCC
VOUT
GND
GND
2
1
ABC
IR SENSOR CBA UNIT
TO DIGITAL MAIN
CBA UNIT CN3103
(LIGHT SENSOR)
(REMOTE SENSOR)
10-14
PL16.29SCIR
Page 50

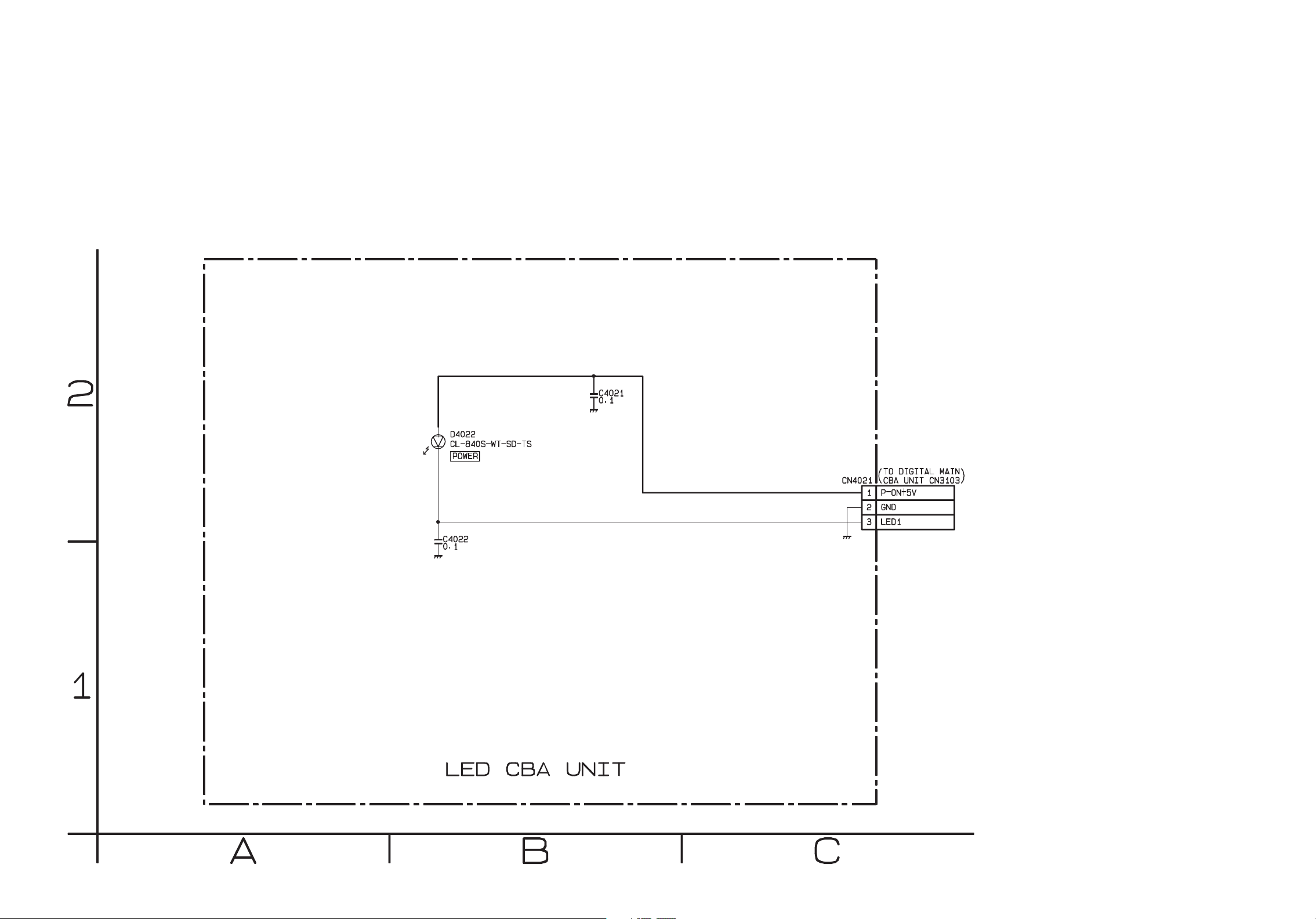

LED Schematic Diagram
D4022
CL-840S-WT-SD-TS
0.1
C4022
3 LED1
2 GND
CN4021
1 P-ON+5V
0.1
C4021
2
1
ABC
POWER
LED CBA UNIT
TO DIGITAL MAIN
CBA UNIT CN3103
10-15
PL16.29SCL
Page 51

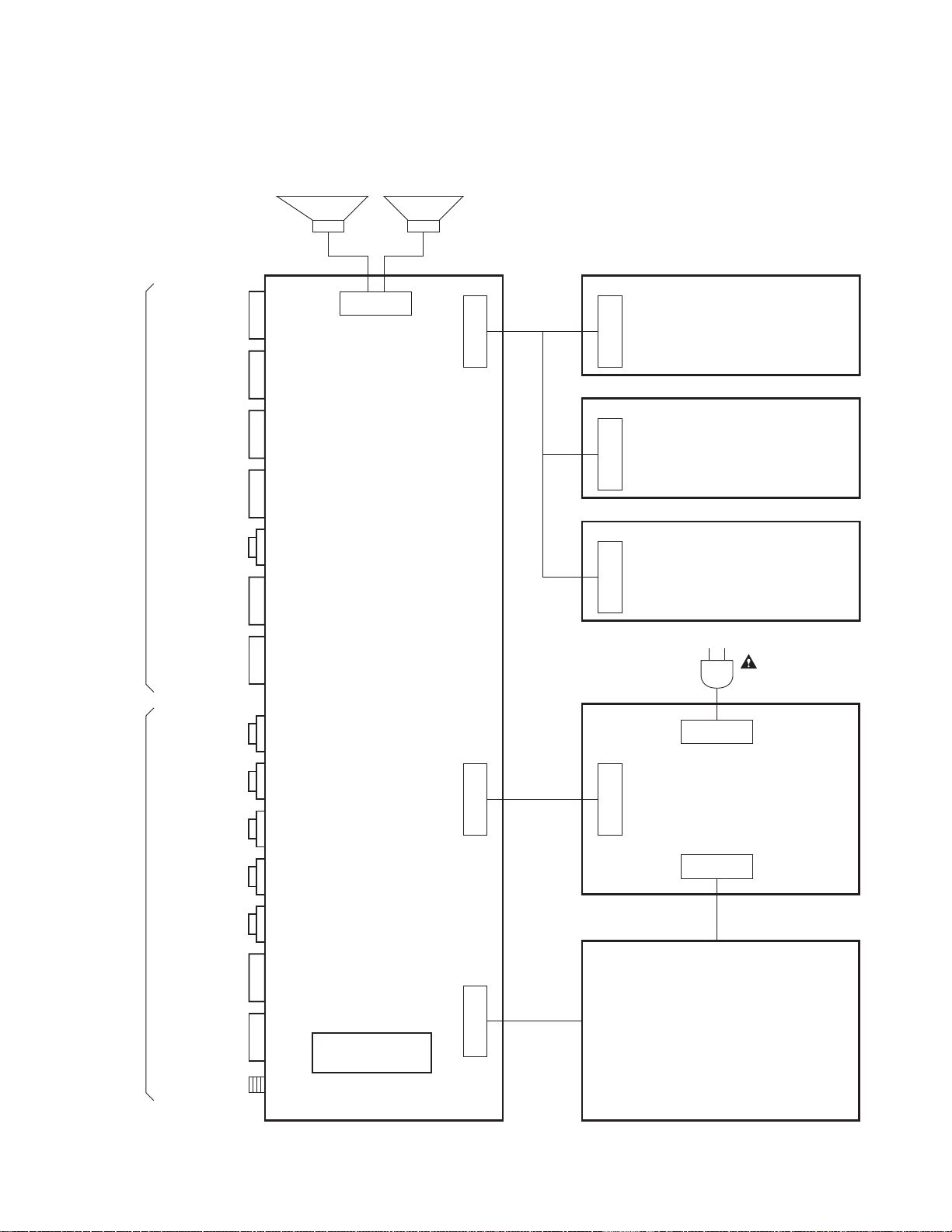

WIRING DIAGRAM
1
51
CN3901
BW
CN101
1
10
CN3103
41
CN3801
112
CN301
CL3801
BOTTOM
SIDE
1
5
CN4052
1
2
CN4001
AC CORD
LC3901
CL3103
1
28
CN3602
1
28
CN201
CL3602
DIGITAL MAIN CBA UNIT
SP3801
SPEAKER
L-CH
SP3802
SPEAKER
R-CH
COMPONENT
-Y/VIDEO-IN
COMPONENT
-Pb-IN
COMPONENT
-Pr-IN
AUDIO(L)-IN
AUDIO(R)-IN
DIGITAL
AUDIO-OUT
(OPTICAL)
HDMICONNECTOR-1
HDMICONNECTOR-3
HDMICONNECTOR-4
HDMICONNECTOR-2
PC-RGB-IN
USB JACK
HEADPHONE
JACK
FUNCTION CBA UNIT
POWER SUPPLY CBA UNIT
LCD PANEL ASSEMBLY
IR SENSOR CBA UNIT
1
3
CN4021
LED CBA UNIT
WIRELESS
LAN MODULE
ETHERNET
JACK
ANT-IN
11-1
PL16.29WI
Page 52
See Electrical Parts List
for parts with this mark.
Power Supply CBA Unit
A17
AC101
IR Sensor CBA Unit
Function CBA Unit
LED CBA Unit
Digital Main CBA Unit
A16
LCD1
S7
B138
L59
L59
L59
L59
L23
L22
L22
A15
SP3801
CL3801
SP3802
L73
L73
L73
SA1
L73
L73
L45
S7
A44
SSK1
L73
L25
L25
L23
L45
L27
L25
L27
L25
L73
A43
SSK1
A19
X6
SA1
L52
L25
L25
L44
A14
A23
A13
LC3901
B16
CL3602
B17-2
L44
L44
B138
B138
L25
A7
A8
CL3103
L23
L73
A36
A20
A5
MB27
B17-1
A3

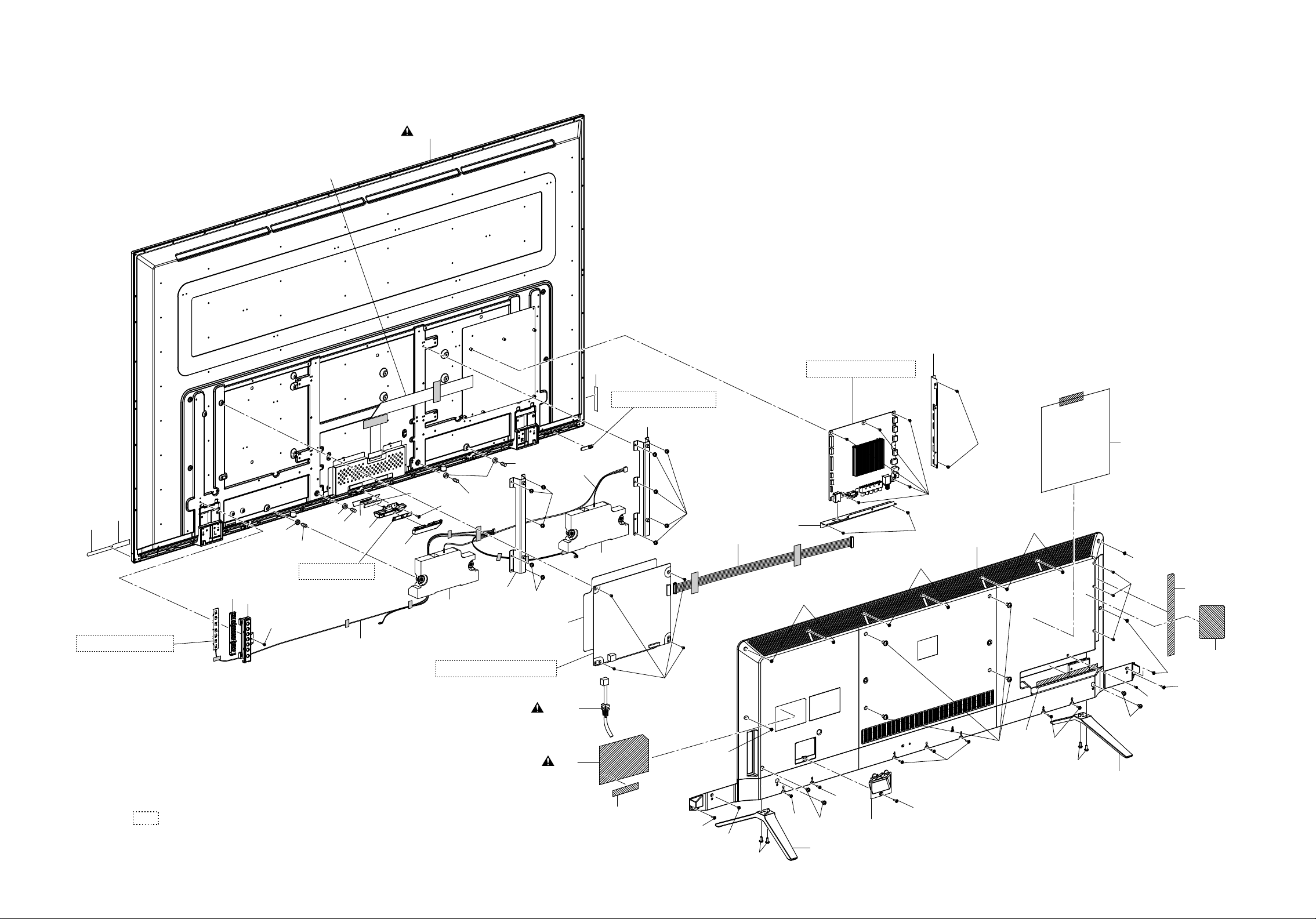

EXPLODED VIEWS
12-1 PL16.29-A_CEX
Page 53

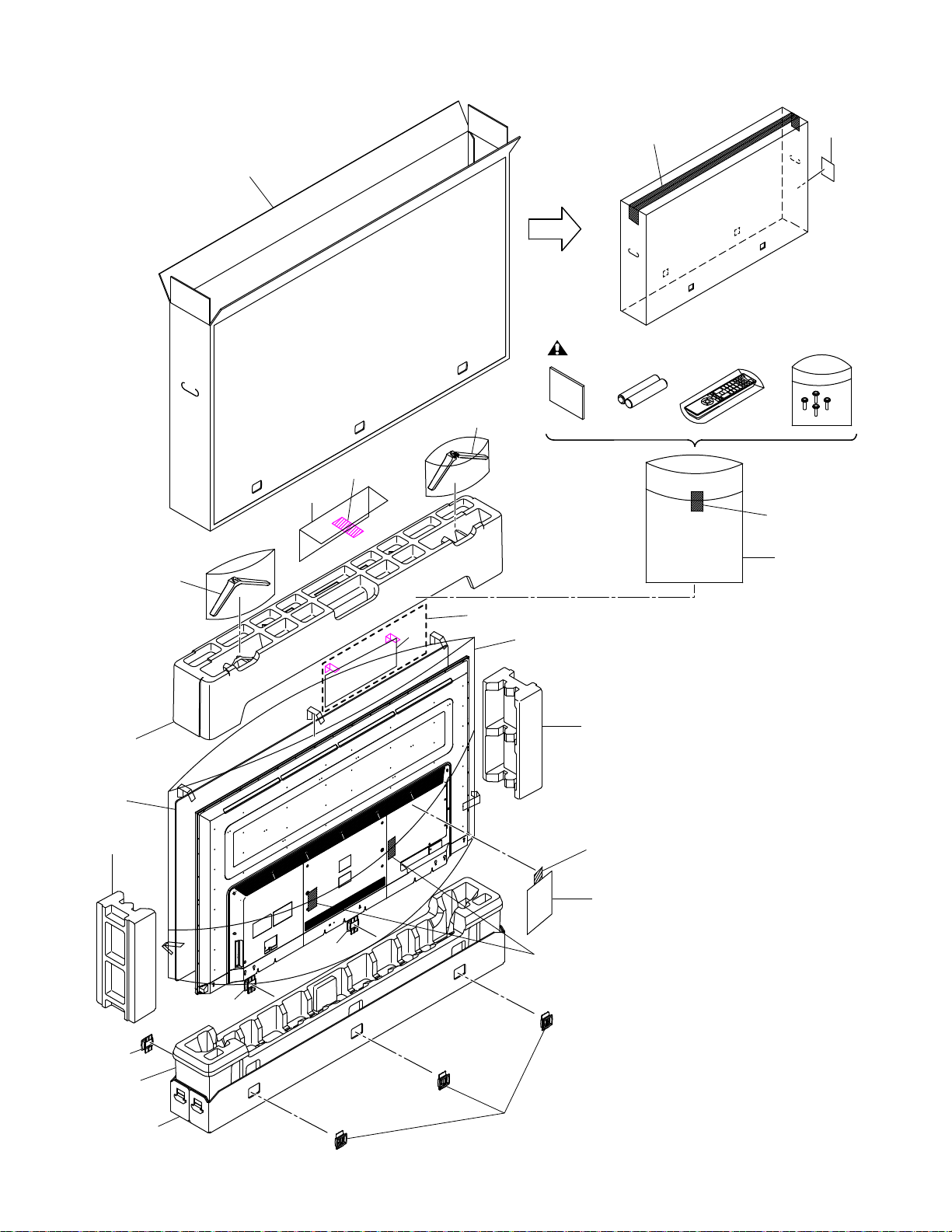

Packing
Packing Tape
Packing Tape
Fixlon Tape
Fixlon Tape
Some Ref. Numbers are
not in sequence.
S16
S16
S3
S10
SSK1
X3
X4
X1
X28
X2
Tape
S2
S4
S1
S7
SA1
S9
S9
X6
SA1
S16
S16
S6
X29
REAR SIDE
REAR SIDE
65PFL6621/F7
12-2 PL16.29-A_PEX
Page 54
PARTS LIST [65PFL6601/F7 (Serial No.: DS1)]
Mechanical Parts
PRODUCT SAFETY NOTE: Products marked with a
# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.
NOTE: Parts that are not assigned part numbers
(---------) are not available.
Ref. No. Description Part No.
A3 REAR CABINET A6182UH 2EMM00907
A3 REAR CABINET A6186UH 2EMM00975
A5 DECORATION PLATE A61R2UH 2EMH00853
A7 FUNCTION KNOB A6182UH 2EMM00912
A8 KNOB FRAME A6182UH 2EMM00911A
A13 JACK HOLDER S A6182UH 2EMS00480
A14 JACK HOLDER B A6182UH 2EMS00481
A15# RATING LABEL A6182UH ----------
A16 LOGO LABEL A61RAUH ----------
A17 ENERGY GUIDE LABEL A6182UH ----------
A19 JACK LABEL S A6182UH 2EMH00974
A20 LEADING EDGE FRONT A6182UH 2EMM00909
A23 AC CODE COVER A6182UH 2EMM00908
A36 LEADING EDGE COVER A6182UH 2EMM00910
A43 JACK LABEL B A6182UH 2EMH00975
A44 HDMI LABEL A511WUH ----------
AC101# AC CORD W/O A GND WIRE UL/CSA/1680/NO/
B16 SEPARATION SHEET A6182UH 2EMH01006
B17-1 WALL MOUNT BRACKET L A6182UH 2EMS00478
B17-2 WALL MOUNT BRACKET R A6182UH 2EMS00479
B138 SPEAKER RUBBER A6182UH 2EMZ00615
CL3103 WIRE ASSEMBLY 10PIN 10PIN/
CL3602 WIRE ASSEMBLY 28PIN 28PIN/580MM WX1A6182C112
CL3801 WIRE ASSEMBLY 4PIN 4PIN/650&70MM WX1A6182C612
L22 SCREW BIND BLACK_NI +S-TITE M3X4.0
L23 SCREW BIND 3CHROM +S-TITE M3X6.0 M3X6
L25 SCREW F-PAN BLACK_NI +S-TITE M3X6.0
L27 SCREW BIND BLACK_NI +S-TITE M3X8.0
L44 SEMS-SW PAN 3CHROM + M4X8.0 M4X8 PAN
L45 SEMS-SW PAN BLACK_NI + M4X10.0 M4X10 +
L52 SCREW M6X12 M6X12 BIND_NI SBH36120
L59 HEX SCREW A6182UH 2EML00035
L73 SCREW F-PAN BLACK_NI +P-TITE M3X10.0
LC3901 WIRE ASSEMBLY 51PIN 117005-51615 WX1A6182P111
MB27 LIGHT GUIDE PANEL A511ZUH 2EMZ00441
SA1 STAND ASSEMBLY LR A6182UH 2EMA00125
SP3801 SPEAKER BOX 8OHM/10W SB0309N09-A DS08070XQ012
SP3802 SPEAKER BOX 8OHM/10W SB0309N09-A DS08070XQ012
BLACK
1080&490&530MM
M3X4 BIND HEAD+BLK
BIND HEAD+
M3X6
M3X8 BIND HEAD+
HEAD +
BLK
3X10 WASHER HEAD+BLD
WAC162ZHN004
WX1A6182C512
GBHS3040
GBJS3060
GCHS3060
GBHS3080
FPJ34080
FPH34100
GCHP3100
Ref. No. Description Part No.
SSK1 STAND SCREW KIT A6182UH(SEMS-SW PAN
BLACK_NI + M4X14.0)
2ESA03459
PACKING
S1 CARTON TOP A6182UH 2EMC01046
S2 CARTON (B) A6182UH 2EMC01047
S3 STYROFOAM TOP A6182UH 2EMC01048
S4 STYROFOAM BOTTOM A6182UH 2EMC01049
S6 SET BAG A4D8AUH 2EMC00493A
S7 SERIAL NO. LABEL A4GF1UT ----------
S9 STYROFOAM SIDE A6182UH 2EMC01050
S10 PROTECTION CARTON A518ZUH 2EMC00854
S16 PACKING JOINT A5GRBUH 2EMC00673
ACCESSORIES
X1 POLYETHYLENE BAG HDPE 180X340XT0.03 1EM435579
X2# OWNERS MANUAL A6182UH 2EMN00475
X3 REMOTE CONTROL UNIT YKF399-001 URMT42JHG005
X4 BATTERY DRY R03(SIZE AAA ) XB00M0RKT001
X6 QUICK START GUIDE A6182UH 2EMN00476
X28 CAUTION SHEET A6182UH 2EMN00477
LCD PANEL ASSEMBLY#
Ref. No. Description Part No.
LCD1# LCD PANEL ASSEMBLY UDULCDECM001
LCD MODULE ----------
2016/11/10 13-1 A6182_CA.fm
Page 55
Electrical Parts
PRODUCT SAFETY NOTE: Products marked with a
# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.
NOTES:
1. Parts that are not assigned part numbers (---------)
are not available.
2. Tolerance of Capacitors and Resistors are noted
with the following symbols.
C.....±0.25% D.....±0.5% F.....±1%
G.....±2% J......±5% K.....±10%
M.....±20% N.....±30% Z.....+80/-20%
DIGITAL MAIN CBA UNIT
Ref. No. Description Part No.
DIGITAL MAIN CBA UNIT A6182MMA-004
CN3101 WIRELESS LAN MODULE AM7221 UWLMDLACM005
IC3001 IC MSD95M0D-3-004E NSAA0RMST008
IC3101 IC USB HIGH-SIDE SW AP2151WG-7/SOT25/5PI NSCA0TDES015
IC3102 IC NAND FLASH 4GB H27U4G8F2ETR-BC NSCA0R0HY050
IC3105 IC RESET PST8429URA/SC-82ABA/ QSCB0T0MM075
IC3601 IC DC-DC CONVERTER MP2315GJ-Z TSOT23-8 NSCA0T09M026
IC3602 IC DCDC CONVERTER RT8298ZSP NSCA0T00B024
IC3604 IC REGULATOR AP1117E33G-13 /3PIN NSCA0TDES017
IC3605 IC DC-DC CONVERTER MP2314GJ-Z TSOT23-8 NSCA0T09M025
IC3606 IC DC-DC CONVERTER MP2314GJ-Z TSOT23-8 NSCA0T09M025
IC3607 IC DC-DC CONVERTER MP2314GJ-Z TSOT23-8 NSCA0T09M025
IC3608 DDR TERMINATION REGULATOR RT9026GFP NSCA0T00B006
IC3801 IC D-CLASS AUDIO POWER AMPLIFI
IC3951 IC DCDC CONVERTER RT7258GSP NSCA0T00B023
IC9001 IC SILICON TUNER SI2151-A10-GMR NSCA0T05S010
IC3301 IC 4GB DDR3 SDRAM H5TQ4G63CFR-RDC NSCA0R0HY048
IC3302 IC 4GB DDR3 SDRAM H5TQ4G63CFR-RDC NSCA0R0HY048
IC3401 IC 2GB DDR3 SDRAM H5TQ2G63FFR-RDC NSCA0R0HY047
IC3402 IC 2GB DDR3 SDRAM H5TQ2G63FFR-RDC NSCA0R0HY047
IC3301 IC 4GB DDR3 SDRAM H5TQ4G63CFR-RDC NSCA0R0HY048
IC3302 IC 4GB DDR3 SDRAM H5TQ4G63CFR-RDC NSCA0R0HY048
IC3401 IC 2GB DDR3 SDRAM H5TQ2G63GFR-RDC NSCA0R0HY049
IC3402 IC 2GB DDR3 SDRAM H5TQ2G63GFR-RDC NSCA0R0HY049
IC3301 IC 4GB DDR3 SDRAM K4B4G1646D-BCMA NSCA0R0SM058
IC3302 IC 4GB DDR3 SDRAM K4B4G1646D-BCMA NSCA0R0SM058
IC3401 IC 2GB DDR3 SDRAM K4B2G1646Q-BCMA NSCA0R0SM057
IC3402 IC 2GB DDR3 SDRAM K4B2G1646Q-BCMA NSCA0R0SM057
BD28620MUV-E2
When you replace one of the below ICs on this
CBA, always replace the IC in accordance with the
3combinations below. Do not mix ICs of different
combination.
or
or
QSCA0T0RM433
MSW ASSEMBLY
Ref. No. Description Part No.
MSW ASSEMBLY A6182MSW-001
Consists of the following
FUNCTION CBA UNIT A6182MSW-001-FN
IR SENSOR CBA UNIT A6182MSW-001-IR
LED CBA UNIT A6182MSW-001-
IC4051 IC LIGHT SENSOR CPS295JT QP1ZCPS295JT
LED
POWER SUPPLY CBA UNIT
Ref. No. Description Part No.
POWER SUPPLY CBA UNIT UPBPSPCVT001
2016/11/10 13-2 A6182_EL.fm
Page 56
PARTS LIST [65PFL6621/F7 (Serial No.: DS1)]
Mechanical Parts
PRODUCT SAFETY NOTE: Products marked with a
# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.
NOTE: Parts that are not assigned part numbers
(---------) are not available.
Different parts from the original model
65PFL6601/F7 (Serial No. : DS1)
Ref. No. Description Part No.
A15# RATING LABEL A618AUH ----------
A16 LOGO LABEL A618AUH ----------
A17 ENERGY GUIDE LABEL A618AUH ----------
S1 CARTON TOP A618AUH 2EMC01051
X2# OWNERS MANUAL A618AUH 2EMN00499
X3 REMOTE CONTROL UNIT YKF399-002 URMT42JHG006
X6 QUICK START GUIDE A618AUH 2EMN00500
X29 SET UP GUIDE(GOOGLE CAST) A61RAUH 2EMN00532
2016/11/10 13-3 A618A_CA.fm
Page 57
Electrical Parts
PRODUCT SAFETY NOTE: Products marked with a
# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.
NOTES:
1. Parts that are not assigned part numbers (---------)
are not available.
2. Tolerance of Capacitors and Resistors are noted
with the following symbols.
C.....±0.25% D.....±0.5% F.....±1%
G.....±2% J......±5% K.....±10%
M.....±20% N.....±30% Z.....+80/-20%
Different parts from the original model
65PFL6601/F7 (Serial No. : DS1)
Ref. No. Description Part No.
DIGITAL MAIN CBA UNIT A618AMMA-003
CN3101 WIRELESS LAN MODULE AMB7220 UWLMDLACM007
IC3102 IC NAND FLASH 8GB TH58NVG3S0HTA00B4H QSCA0R0TS168
IC3501 IC HIGH SIDE SW NCP380HSNAJAAT1G NSCA0T0MT011
IC3605 IC DC-DC CONVERTER MP2315GJ-Z
TSOT23-8
NSCA0T09M026
MSW ASSEMBLY A618AMSW-001
Consists of the following
FUNCTION CBA UNIT A618AMSW-001-FN
IR SENSOR CBA UNIT A618AMSW-001-IR
LED CBA UNIT A618AMSW-001-
IC4051 Not used
LED
2016/11/10 13-4 A618A_EL.fm
Page 58
PARTS LIST [65PFL6621/F7 (Serial No.: DS2)]
Mechanical Parts
PRODUCT SAFETY NOTE: Products marked with a
# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.
NOTE: Parts that are not assigned part numbers
(---------) are not available.
Different parts from the original model
65PFL6621/F7 (Serial No. : DS1)
Ref. No. Description Part No.
A3 REAR CABINET A6186UH 2EMM00975
LC3901 WIRE ASSEMBLY 51PIN SF251-0450AWY00 WX1A6186S111
LCD1# LCD PANEL ASSEMBLY UDULCDECM002
2016/11/10 13-5 A618C_CA.fm
Page 59
Electrical Parts
PRODUCT SAFETY NOTE: Products marked with a
# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.
NOTES:
1. Parts that are not assigned part numbers (---------)
are not available.
2. Tolerance of Capacitors and Resistors are noted
with the following symbols.
C.....±0.25% D.....±0.5% F.....±1%
G.....±2% J......±5% K.....±10%
M.....±20% N.....±30% Z.....+80/-20%
Different parts from the original model
65PFL6621/F7 (Serial No. : DS1)
Ref. No. Description Part No.
DIGITAL MAIN CBA UNIT A618CMMA-003
POWER SUPPLY CBA UNIT UPBPSPCVT002
2016/11/10 13-6 A618C_EL.fm
Page 60
PARTS LIST [65PFL6601/F7 A (Serial No.: DS2)]
Mechanical Parts
PRODUCT SAFETY NOTE: Products marked with a
# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.
NOTE: Parts that are not assigned part numbers
(---------) are not available.
Different parts from the original model
65PFL6621/F7 (Serial No. : DS2)
Ref. No. Description Part No.
A15# RATING LABEL A6186UH ----------
A17 ENERGY GUIDE LABEL A6186UH ----------
S1 CARTON TOP A6186UH 2EMC01146
X2# OWNERS MANUAL A6186UH 2EMN00548
X3 REMOTE CONTROL UNIT YKF399-001 URMT42JHG005
X6 QUICK START GUIDE A6186UH 2EMN00549
X29 Not used
2016/11/10 13-7 A6186_CA.fm
Page 61
Electrical Parts
PRODUCT SAFETY NOTE: Products marked with a
# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.
NOTES:
1. Parts that are not assigned part numbers (---------)
are not available.
2. Tolerance of Capacitors and Resistors are noted
with the following symbols.
C.....±0.25% D.....±0.5% F.....±1%
G.....±2% J......±5% K.....±10%
M.....±20% N.....±30% Z.....+80/-20%
Different parts from the original model
65PFL6621/F7 (Serial No. : DS2)
Ref. No. Description Part No.
DIGITAL MAIN CBA UNIT A6186MMA-002
IC3102 IC NAND FLASH 4GB H27U4G8F2ETR-BC NSCA0R0HY050
IC3501 Not used
IC3605 IC DC-DC CONVERTER MP2314GJ-Z
TSOT23-8
NSCA0T09M025
MSW ASSEMBLY A6186MSW-001
Consists of the following
FUNCTION CBA UNIT A6186MSW-001-FN
IR SENSOR CBA UNIT A6186MSW-001-IR
LED CBA UNIT A6186MSW-001-LED
2016/11/10 13-8 A6186_EL.fm
Page 62
REVISION HISTORY
Chassis PL16.29
• 2016/06/17 65PFL6601/F7 (Serial No.: DS1) First draft added
• 2016/08/23 65PFL6621/F7 (Serial No.: DS1) First draft added
• 2016/09/21 65PFL6621/F7 (Serial No.: DS2) First draft added
• 2016/11/11 65PFL6601/F7 A (Serial No.: DS2) First draft added
14-1 PL16.29REV
Page 63
COMPARISON LIST OF MODEL NAMES
Chassis PL16.29
65PFL6601/F7 (DS1) A6182UH
65PFL6621/F7 (DS1) A618AUH
(DS2) A618CUH
65PFL6601/F7 A (DS2) A6186UH
PL16.29COM
Loading...
