OLED706 Series
User Manual
55OLED706
65OLED706
Register your product and get support at
www.philips.com/TVsupport
Contents
1 Home Screen 4
1.1 Home Screen and Channels
1.2 Apps and Philips TV Collection
1.3 Open the Home Screen
1.4 Home Screen Update
4
4
4
5
2 Setting Up 6
2.1 Read Safety
2.2 TV Stand and Wall Mounting
2.3 Tips on Placement
2.4 Power Cable
2.5 Antenna Cable
6
6
6
6
7
3 Remote Control 8
3.1 Key Overview
3.2 Pair Your Remote Control to TV
3.3 Voice Search
3.4 IR Sensor
3.5 Batteries
3.6 Cleaning
8
9
9
9
10
10
4 Switching On and Off 11
4.1 On or Standby
4.2 Keys on TV
11
11
5 Channels 12
5.1 Install Channels
5.2 Channel Lists
5.3 Channel List sorting
5.4 Watching channels
5.5 Favourite Channels
5.6 Text / Teletext
5.7 Interactive TV
12
12
12
13
15
17
18
6 Channel Installation 20
6.1 Antenna Installation
6.2 Channel List Copy
20
22
7 Connect Devices 24
7.1 About Connections
7.2 Home Theatre System - HTS
7.3 Smartphones and Tablets
7.4 Blu-ray Disc Player
7.5 Bluetooth
7.6 Headphones
7.7 Game Console
7.8 USB Hard Drive
7.9 USB Keyboard
7.10 USB Flash Drive
7.11 Photo Camera
7.12 Camcorder
7.13 Computer
24
24
25
25
25
26
26
26
27
28
28
28
29
8 Connect your Android TV 30
8.1 Network and Internet
8.2 Google Account
30
31
8.3 Philips TV Collection App
32
9 Apps 33
9.1 About Apps
9.2 Google Play
9.3 Start or Stop an App
9.4 Lock Apps
9.5 Manage Apps
9.6 Storage
33
33
34
34
35
35
10 Internet 37
10.1 Start Internet
10.2 Options on Internet
37
37
11 Quick Menu 38
12 Sources 39
12.1 Switch to a device
12.2 Options for a TV Input
12.3 Device Name and Type
12.4 Rescan Connections
39
39
39
39
13 Networks 41
13.1 Network
13.2 Bluetooth
41
41
14 Settings 42
14.1 Picture
14.2 Sound
14.3 Ambilight Settings
14.4 Eco Settings
14.5 General Settings
14.6 Clock, Region, and Language Settings
14.7 Android Settings
14.8 Universal Access Settings
14.9 Lock Settings
42
45
48
49
50
53
54
54
54
15 Videos, Photos and Music 56
15.1 From a Computer or NAS
15.2 Favourites Menu
15.3 Most Popular Menu and Last Played Menu
15.4 From a USB Connection
15.5 Play your Videos
15.6 View your Photos
15.7 Play your Music
56
56
56
56
56
57
59
16 TV Guide 60
16.1 What You Need
16.2 TV Guide Data
16.3 Using the TV Guide
60
60
60
17 Recording and Pause TV 62
17.1 Recording
17.2 Pause TV
62
63
18 Smartphones and Tablets 65
18.1 Philips TV Remote App
18.2 Google Cast
65
65
19 Games 66
2
19.1 What You Need
19.2 Gamepads
19.3 Play a Game From Game Console
66
66
66
20 Ambilight 67
20.1 Ambilight Style
20.2 Ambilight Off
20.3 Ambilight Settings
20.4 Lounge Light Mode
20.5 Sunrise Alarm
20.6 Ambisleep
20.7 Ambilight Extension
67
67
67
67
68
68
69
21 Top Picks 71
21.1 About Top Picks
21.2 Now on TV
21.3 Video on Demand
71
71
71
22 Netflix 73
23 Alexa 74
23.1 About Alexa
23.2 Using Alexa
74
74
24 Software 75
24.1 Update Software
24.2 Software Version
24.3 Automatic Software Update
24.4 View Software Update History
24.5 Open Source Software
24.6 Open Source License
24.7 Announcements
75
75
75
76
76
76
76
25 Specifications 77
25.1 Environmental
25.2 Power
25.3 Operating System
25.4 Reception
25.5 Display Type
25.6 Display Input Resolution
25.7 Connectivity
25.8 Sound
25.9 Multimedia
77
78
78
78
78
78
78
79
79
26 Help and Support 80
26.1 Register your TV
26.2 Using Help
26.3 Troubleshooting
26.4 Online Help
26.5 Support and Repair
80
80
80
84
84
27 Safety and Care 85
27.1 Safety
27.2 Screen Care
85
86
28 Terms of Use 87
28.1 Terms of Use - TV
28.2 Terms of Use - Smart TV
28.3 Terms of Use - Philips TV Collection
87
87
87

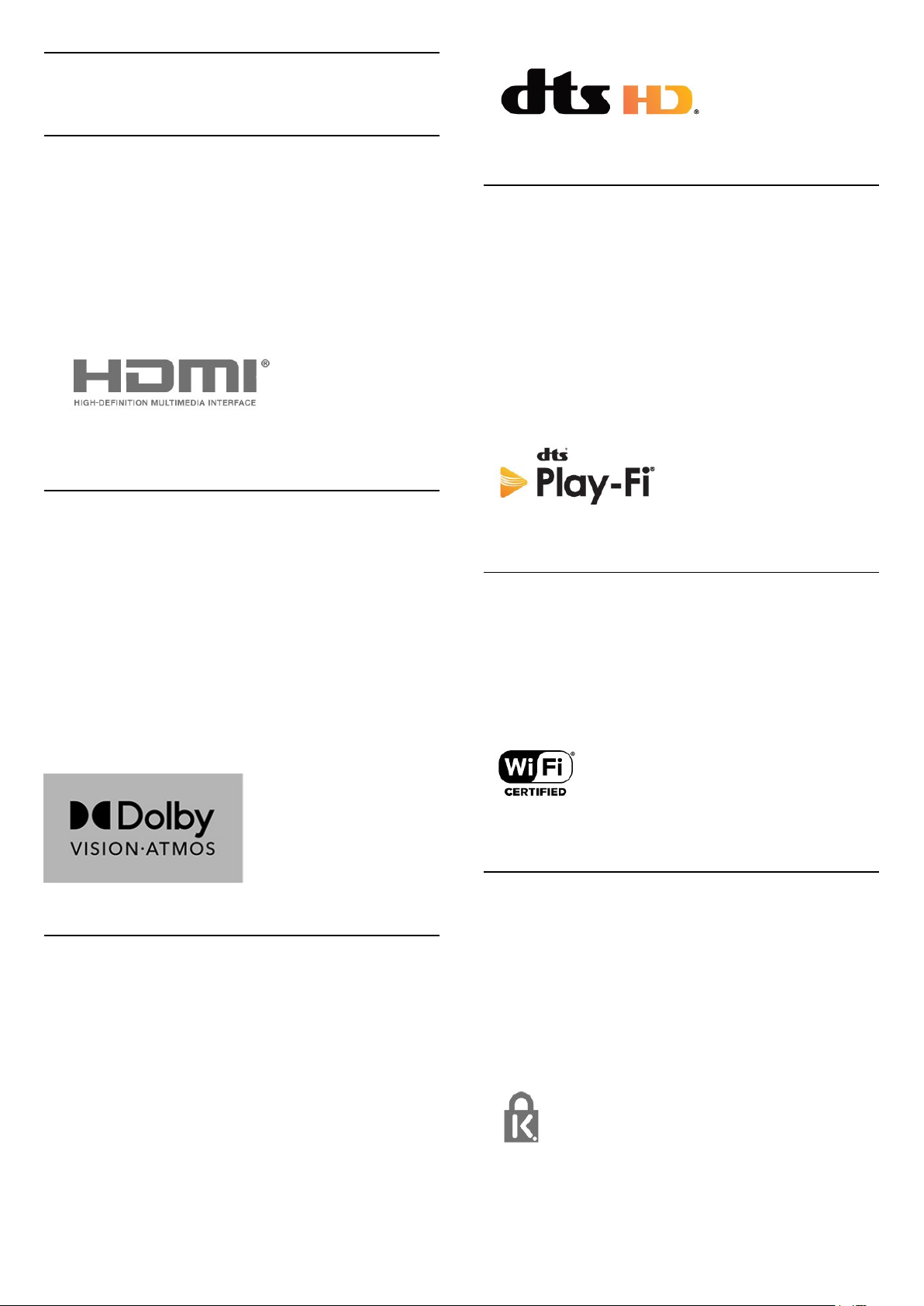

29 Copyrights 88
29.1 HDMI
29.2 Dolby Vision and Dolby Atmos
88
88
29.3 DTS-HD
29.4 DTS Play-Fi
29.5 Wi-Fi Alliance
29.6 Kensington
29.7 Other Trademarks
30 Disclaimer regarding services
88
88
88
88
88
90
and/or software offered by third
parties
Index 91
3
1
Home Screen
1.1
Home Screen and Channels
To enjoy the benefits of your Android TV, connect the
TV to the Internet. Press HOME on your remote
control to get your Android Home screen. Like on
your Android smartphone or tablet, the Home screen
is the centre of your TV. From the Home sreen you
can decide what to watch by browsing entertainment
options from app and live TV.
Your Home has channels to let you discover great
contents from your favourite apps. You can also add
additional channels or find new apps to get more
contents.
The Home screen is organized in channels. Apps may
populate their recommendation (if available)
according to their own choice as an individual
channels in the home screen.
Apps
Your favourite Apps are placed on the first row. This
row contains number of apps pre-installed. The order
of these apps are according to business agreements
with content service providers. In this row you will
also find the Apps, like Philips TV Collection, Watch
TV, TV Guide, Media and others.
Live TV
Live TV channel shows the currently running
programmes from the installed channels.
Play Next channel
You can always know what to watch next from Play
Next channel on the Home screen. Start watching
from where you left off and get notifications about
new episodes in the Play Next channel. Press and
hold Select on a movie or TV show to add it directly
to the Play Next channel.
remove channels from your Home screen.
Accessing settings from Home
You can access All Settings menu via the icon at the
top right corner. You can also find the Frequent
settings menu and common menu items in the Philips
TV Menu, which can be invoked directly from the
remote control.
System bar on Home screen
The System bar on the top of Home screen contains
following features.
- Search button: to trigger Google search with voice
or text input. The search result and its order are
rendered according to business agreements with
content service providers.
- Input source: to launch the input source list and
switch to any of the connected devices.
- Notifications: to provide you the messages about
your Smart TV system.
- Settings: to access all setting menu and adjust the
TV settings.
- Clock: to indicate the system clock.
See also www.support.google.com/androidtv
1.2
Apps and Philips TV Collection
Apps
You can add more apps as favourite from the Apps
page. The Apps page can be opened by clicking the
Apps icon at the left end of the Apps row. The Apps
page contains all installed Apps that come with the
TV and the Apps you install from Philips TV Collection
or Google Play™ Store yourself.
Philips TV Collection
Google Play Movies & TV channel
Rent movies or TV shows on this channel from
Google Play Movies & TV.
Help channel
This channel contains "How to…" tutorial videos to let
you know how to unbox, how to connect external
devices, how to install channel, etc.
YouTube channel
This channel contains your Recommended,
Subscriptions or Trending YouTube videos.
Customize channels
Click the CUSTOMIZE CHANNELS button to add and
All your premium apps are available within the Philips
TV Collection app. Launch it using the banner on
the Apps row. The Philips TV Collection app will also
contain recommendations for new Apps and more.
1.3
Open the Home Screen
To open the Home screen and open an item…
1 - Press HOME.
2 - Select an item and press OK to open or start it.
3 - Press Back continuously or press HOME
can go back to Home screen.
4
When opening the Home screen, the background
application/content playback will stop. You have to
select the application or content from the Home
screen to resume.
1.4
Home Screen Update
You may receive the update notification from Google
and have new version of Home launcher installed.
With the new Home launcher, you will have a new
look and features on TV’s Home screen.
New highlights on your home screen
With multiple tabs like Home, Discover, Apps and
Search, you can discover movies and shows from
your services and popular apps. Sign in to your
Google Account to get personalised
recommendations from your streaming services
based on what you have watched and what interests
you.
New look, new navigation
Decide what to watch next with easy-to-use
navigation. Browse your personalised
recommendations, pick up where you left off, or
quickly find a certain app using the new tab system.
Discover personalised recommendations
Browse shows and movies that you will love on all
your favourite media services. Sign in to your Google
Account to get started.
Get recommendations across Google
Your services are saved to your Google Account so
you can get better recommendations across Google.
5
2
Setting Up
2.1
Read Safety
TV wall mounting should meet safety standards
according to the TVs weight. Also read the safety
precautions before positioning the TV.
TP Vision Europe B.V. bears no responsibility for
improper mounting or any mounting that results in
accident or injury.
Read the safety instructions first before you use the
TV.
To read the instructions, in Help, press the colour
key Keywords and look up Safety Instructions.
2.2
TV Stand and Wall Mounting
TV Stand
You can find the instructions for mounting the TV
stand in the Quick Start Guide that came with the TV.
In case you lost this guide, you can download it from
www.philips.com/TVsupport.
Use the product type number of the TV to look for
the Quick Start Guide to download.
Wall Mounting
Your TV is also prepared for a VESA-compliant wall
mount bracket (sold separately).
Use the following VESA code when purchasing the
wall mount . . .
2.3
Tips on Placement
• Position the TV where light does not shine directly
on the screen.
• Dim lighting conditions in the room for best
Ambilight effect.
• The ideal distance to watch TV is 2 to 5 times its
diagonal screen size. When seated, your eyes should
be level with the centre of the screen.
• When wall mounted, position the TV up to 15 cm
away from the wall.
Note:
Please keep the TV away from dust-producing
sources such as stoves. It is suggested to clean the
dust regularly to avoid getting dust into the TV.
2.4
• 55OLED706
VESA MIS-F 300x300, M6 (min.: 10mm, max.:15mm)
• 65OLED706
VESA MIS-F 300x300, M6 (min.: 10mm, max.:15mm)
Preparation
Make sure that the metal screws, to mount the TV to
the VESA-compliant bracket, go about 10mm deep
inside the threaded bushes of the TV.
Caution
Wall mounting the TV requires special skills and
should only be performed by qualified personnel. The
Power Cable
• Insert the power cable into the POWER connector
on the back of the TV.
• Make sure the power cable is securely inserted in
the connector.
• Make sure that the power plug, in the wall socket, is
accessible at all times.
• When you unplug the power cable, always pull the
plug, never pull the cable.
Although this TV has a very low standby power
consumption, unplug the power cable to save energy
if you do not use the TV for a long period of time.
6
For more information, in Help, press the colour
key Keywords and look up Switching On for
more information on switching the TV on or off.
2.5
Antenna Cable
Insert the antenna plug firmly into
the Antenna socket at the back of the TV.
You can connect your own antenna or an antenna
signal from an antenna distribution system. Use an
IEC Coax 75 Ohm RF antenna connector.
7
3
Remote Control
3.1
Key Overview
Top
Middle
1 - OK key
To confirm a selection or setting. To open the channel
list while watching TV.
1 - Standby / On
To switch the TV on or back to Standby.
2 - VOICE microphone
3 -
To select one of the Ambilight style.
4 -
To launch the Amazon prime video App.
5 -
To open the Netflix App directly. With the TV switched
on or from standby.
• If you have a Netflix membership subscription, you
can enjoy Netflix on this TV. Your TV must be
connected to the Internet.
• To open Netflix, press to open the Netflix
App. You can open Netflix immediately from a TV in
standby.
www.netflix.com
6 - Quick Menu
To open the Quick Menu with typical TV functions.
7 - Philips TV Collection
To launch Philips TV Collection App.
8 - YouTube
To launch the YouTube App.
2 - Back
To switch back to the previous channel you selected.
To return to previous menu.
To go back to the previous App/Internet page.
3 - Playback and Record
• Play , to playback.
• Pause , to pause playback
• Stop , to stop playback
• Rewind , to rewind
• Fast forward , to go fast forward
• Record , to start recording
4 - Colour keys
Direct selection of options. Blue key , opens Help.
5 - Arrow / navigation keys
To navigate up, down, left or right.
6 - HOME
To open the Home menu.
7 - TV Guide / Channel list
To open or close the TV Guide. Long press to open
the channel list.
Bottom
9 - SOURCES / PAIR
• To open or close the Sources menu.
• To pair the remote control to the TV.
10 - Google Assistant™
To launch the Google Assistant™.
8
control starts blinking.
2 - The remote control must be kept close to the TV
(within 1m distance) during pairing in order to ensure
success.
3 - If the TV does not launch the voice control
field when press , pairing was unsuccessful.
4 - It is advisable to wait until the set has fully started
up and launched all background processes before
pairing mode is entered as the toast message
containing further instructions may appear too late,
thereby negatively impacting the pairing procedure.
Pairing or pairing again
If the pairing with the remote control was lost, you
can pair the TV with the remote control again.
1 - - EXIT
To switch back to watch TV or to stop an interactive
TV application.
2 - Volume
Prese + or - to adjust the volume level.
3 - Number keys
To select a channel directly.
4 - AD
To access the Audio Description and toggle to switch
on and off.
5 - Channel
Prese + or - to switch to the next or previous channel
in the channel list. To open the next or previous page
in Text/Teletext.
6 - Mute
To mute the sound or to restore it.
7 - OPTIONS
To open or close the options menu.
3.2
Pair Your Remote Control to TV
This remote control uses both Bluetooth and IR
(infrared) to send its commands to the TV.
• You can use this remote control via IR (infrared) for
most operations.
• To use advanced operation like voice search and
remote control keyboard, you need to pair (link) the
TV with the remote control.
When you start the initial TV installation, the TV
invites you to long press the PAIR key, and by
doing so, the pairing will be done.
Note:
You can simply long press
the PAIR key (approximate for 3 seconds) for
pairing.
Alternatively, go Settings > Wireless and networks
> Remote control > Pair remote control, then follow
the on-screen instructions.
A message appears when the pairing is successful.
Remote Control Software
Settings > Wireless and networks > Remote
control > Remote control info
Once the remote control is paired, you can check the
current remote control software version.
Settings > Wireless and networks > Remote
control > Update remote control software
Check available remote control software for updates.
3.3
Voice Search
You can search for videos, music or anything else on
the Internet by simply using your voice. You can
speak into the microphone on the remote control.
You need to pair the remote control to the TV before
use voice search.
To use Voice...
1 - Press on remote control, the blue light on the
remote control lights up and the search field
opens, the microphone is active.
2 - Speak out what you are looking for with clear
pronunciation. You can speak for 10 seconds before
the microphone switches off. It might take some time
for the results to appear.
3 - In the list of search results, you can select the
item you want.
1 - Once the remote control has entered pairing
mode successfully, the blue LED indicator ring around
the microphone on the front side of the remote
9
3.4
IR Sensor
The TV can receive commands from a remote control
that uses IR (infrared) to send commands. If you use
such a remote control, always make sure you point
the remote control at the infrared sensor on the front
of the TV.
Warning
Do not put any objects in front of IR sensor of the TV,
it may block the IR signal.
3.5
Batteries
If the TV does not react on a key press on the remote
control, the batteries might be empty.
To replace the batteries, open the battery
compartment on the back-bottom of the remote
control.
household cleaners on the remote control.
1 - Slide the battery door in the direction shown by
the arrow.
2 - Replace the old batteries with 2 Alkaline, type
AAA-LR03-1.5V batteries. Make sure the and the
ends of the batteries line up correctly.
3 - Reposition the battery door and slide it back until
it clicks.
Remove the batteries if you are not using the remote
control for a long time.
Safely dispose of your old batteries according to the
end of use directions.
For more information, in Help, select Keywords and
look up End of use.
3.6
Cleaning
Your remote control is treated with a scratch-resistant
coating.
To clean the remote control, use a soft damp cloth.
Never use substances such as alcohol, chemicals or
10
4
4.2
Switching On and Off
4.1
On or Standby
Make sure the TV is connected to the mains AC
power. Connect the supplied power cord to the AC
in connector at the back of the TV. The indicator light
at the bottom of the TV lights up.
Switch on
Press on the remote control to switch the TV
on. Alternatively, press HOME. You can also
press the small joystick key on the back of the TV to
switch the TV on in case you can't find the remote
control or its batteries are empty.
Switch to standby
To switch the TV to standby, press on the remote
control. You can also press the small joystick key on
the back of the TV.
Keys on TV
If you lost the remote control or its batteries are
empty, you can still do some basic TV operations.
To open the basic menu…
1 - With the TV switched on, press the joystick key on
the back of the TV to bring up the basic menu.
2 - Press left or right to select Volume,
Channel or Sources. Select Demo, to start
a demo movie.
3 - Press up or down to adjust the volume or tune to
the next or previous channel. Press up or down to go
through the list of sources, including the tuner
selection. Press the joystick key to start the demo
movie.
4 - The menu will disappear automatically.
To switch the TV on standby, select and press the
joystick key.
In standby mode, the TV is still connected to the
mains power but consumes very little energy.
To switch off the TV completely, disconnect the
power plug.
When disconnecting the power plug, always pull the
power plug, never the cord. Ensure that you have full
access to the power plug, power cord and outlet
socket at all times.
11
5
Open a Channel List
Channels
5.1
Install Channels
For more information, in Help, press the colour
key Keywords and look up Channel, Antenna
Installation or Channel, Installation.
5.2
Channel Lists
About Channel Lists
After a channel installation, all channels appear on
the All channel list. The channels displayed in All
Channel list is listed based on genre*. For example:
Premium, Premium News, Premium Local, Children,
Sport, etc. The Premium genre are top broadcast
channels positioned with market share above 3%.
Channels are shown with their name and logo if this
information is available.
With a channel list selected, press the
arrows (up) or (down) to select a channel,
then press OK to watch the selected channel. You
only tune to the channels in that list when using
or keys.
* Note: The listed by genre function is only apply to
Germany.
Channel icons
After an Automatic Channel Update of the channel
list, newly found channels are marked with
a (star).
If you lock a channel, it will be marked with
a (lock).
Radio stations
If digital broadcasting is available, digital radio
stations are installed during installation. Switch to a
radio channel just like you switch to a TV channel.
This TV can receive digital television standard DVB. TV
may not work properly with some operators of digital
television, non-compliance with requirements of the
standard in full.
Next to the list with all channels, you can select a
filtered list or you can select one of the favourite lists
you created.
To open the current channel list…
1 - Press , to switch to TV.
2 - Press OK to open the current channel list.
3 - Press Back to close the channel list.
To select one of the channel lists…
1 - With a channel list open on screen,
press OPTIONS.
2 - Select Select Channel List and press OK.
3 - In the list menu, select one of the available
channel lists and press OK.
Alternatively, you can select the list name at the top
of the channel list and press OK to open the list
menu.
Search for a Channel
You can search for a channel to find it in a long list of
channels.
To search for a channel…
1 - Press .
2 - Press OK to open the current channel list.
3 - Press OPTIONS.
4 - Select Select Channel List and press OK.
5 - Select Filter Antenna Channels and press OK.
6 - Select Search Channel and press OK to open
a text field. You can use the remote control keyboard
(if available) or the on-screen keyboard to enter text.
7 - Enter a number, a name or part of a name and
select Apply and press OK. The TV will search for
matching channel names in the list you selected.
Search results are listed as a channel list – see the list
name at the top. The search will return the matching
channel name with the result arranged in alphabetical
order. The search results disappear once you select
another channel list or close the list with search
results.
5.3
Channel List sorting
You can do channel list sorting with all channels. You
can set the channel list to show only TV channels or
only Radio stations. For Antenna channels you can
set the list to show the Free-to-Air or the Scrambled
channels.
To set a filter on a list with all channels…
12
1 - Press .
2 - Press OK to open the current channel list.
3 - Press OPTIONS.
4 - Select Select Channel List and press OK.
5 - Select Filter Antenna Channels and press OK.
6 - In the Options menu, select the filter you want
and press OK to activate. The name of the filter
appears as part of the channel list name on top of the
channel list.
7 - Press (left) to go back one step or press to
close the menu.
1 - Press .
2 - Press OK to open the channel list. If necessary
change the channel list.
3 - Select the channel you want to unlock.
4 - Press OPTIONS and select Unlock
Channel and press OK.
5 - Enter your 4 digit PIN code if the TV asks for it.
6 - Press (left) to go back one step or
press Back to close the menu.
If you lock or unlock channels in a channel list, you
only have to enter the PIN code just once until you
close the channel list.
5.4
Watching channels
Tune to a Channel
To start watching TV channels, press . The TV tunes
to the channel you last watched.
Switch Channels
To switch channels, press or .
If you know the channel number, type in the number
with the number keys. Press OK after you entered
the number to switch immediately.
If the information is available from the Internet, the TV
shows the current programme name and details
followed by the next programme name and details.
Previous channel
To switch back to the previously tuned channel,
press Back.
You can also tune to channels from a Channel List.
Lock a Channel
Lock and Unlock a Channel
To prevent children from watching a channel, you can
lock a channel. To watch a locked channel, you must
enter the 4 digit Child Lock PIN code first. You
cannot lock programmes from connected devices.
To lock a channel…
1 - Press .
2 - Press OK to open the channel list. If necessary
change the channel list.
3 - Select the channel you want to lock.
4 - Press OPTIONS and select Lock
Channel and press OK.
5 - Enter your 4 digit PIN code if the TV asks for it. A
locked channel is marked with a (lock).
6 - Press (left) to go back one step or
press Back to close the menu.
To unlock a channel…
For more information, in Help, press the colour
key Keywords and look up Child Lock for more
information.
Parental Rating
To prevent children from watching a programme not
suitable for their age, you can set an age rating.
Digital channels can have their programmes age
rated. When the age rating of a programme is equal to
or higher than the age you have set as age rating for
your child, the programme will be locked. To watch a
locked programme, you must enter the Parental
Rating (only available for certain countries) code first.
To set an age rating…
1 - Select Settings > Child Lock > Parental
Rating and press OK.
2 - Enter a 4-digit Child lock code. If you did not set
a code yet, select Set Code in Child Lock. Enter a
4-digit Child lock code and confirm. Now you can set
an age rating.
3 - Back in Parental Rating, select the age and
press OK.
4 - Press (left) repeatedly if necessary, to close
the menu.
To switch off the parental age rating, select None.
However, in some countries you must set an age
rating.
For some broadcasters/operators, the TV only locks
programmes with a higher rating. The parental age
rating is set for all channels.
(only available for certain countries)
Channel Options
Open Options
While watching a channel, you can set some options.
Depending on the type of channel you are watching
(analogue or digital) or depending on the TV settings
you made, some options are available. For example,
13
the Screen off option is only available for radio
channels. It is suggested to turn off the TV screen for
saving energy and protecting the screen.
To open the options menu…
1 - While watching a channel, press OPTIONS.
2 - Press OPTIONS again to close.
1 - Go to Settings > Region and Language and
press OK.
2 - Select Languages > Primary
Subtitles or Secondary Subtitles.
3 - Select the language you need and press OK.
4 - Press (left) to go back one step or
press Back to close the menu.
Subtitles
Switch On
Digital broadcasts can have subtitles for their
programmes.
To show the subtitles…
Press OPTIONS and select Subtitles.
You can switch subtitles On or Off. Alternatively
you can select Automatic.
Automatic
If language information is part of the digital broadcast
and the broadcasted programme is not in your
language (the language set on TV), the TV can show
subtitles automatically in one of your preferred
subtitle languages. One of these subtitle languages
must also be part of the broadcast.
You can select your preferred subtitle languages
in Subtitle Language.
Subtitles from Text
If you tune to an analogue channel, you need to
make the subtitles available for each channel
manually.
1 - Switch to a channel and press TEXT to open
Text.
2 - Enter the page number for subtitles.
3 - Press TEXT again, to close Text.
Select a Subtitle Language
If none of the preferred subtitle languages are
available, you can select another subtitle language if
available. If no subtitle languages are available, you
cannot select this option.
To select a subtitle language when none of your
preferred languages are available…
1 - Press OPTIONS.
2 - Select Subtitle Language and select one of the
languages as subtitles temporarily.
Audio Language
Preferred Audio Language
A digital broadcast can offer several audio languages
(spoken languages) for a programme. You can set a
preferred primary and secondary audio language. If
audio in one of these languages is available, the TV
will switch to the audio language.
To set the primary and secondary audio language…
1 - Go to Settings > Region and Language and
press OK.
2 - Select Languages > Primary
Audio or Secondary Audio.
3 - Select the language you need and press OK.
4 - Press (left) to go back one step or
press Back to close the menu.
If you select On in the Subtitle menu when watching
this analogue channel, subtitles will be shown if
available.
To know if a channel is analogue or digital, switch to
the channel and open Information in OPTIONS.
Subtitle Language
Preferred Subtitle Languages
A digital broadcast can offer several subtitle
languages for a programme. You can set a preferred
primary and secondary subtitle language. If subtitles
in one of these languages are available, the TV will
show the subtitles you selected.
To set the primary and secondary subtitle language…
Select an Audio Language
If none of the preferred audio languages are
available, you can select another audio language if
available. If no audio languages are available, you
cannot select this option.
To select an audio language when none of your
preferred languages are available…
1 - Press OPTIONS.
2 - Select Audio Language and select one of the
languages as audio temporarily.
14
HbbTV on this Channel
Picture-in-picture
If you want to avoid access to HbbTV pages on a
specific channel, you can block the HbbTV pages for
this channel only.
Switch on HbbTV
Select Settings > General
settings > Advanced > HbbTV settings > HbbTV
> On.
Programme Info
View programme details
To call up the details of the selected programme…
1 - Tune to the channel.
2 - Press OPTIONS, select Programme Info and
press OK.
3 - To close this screen, press OK.
On Programme Info, press the colour
key SCHEDULED to enter the scheduled
recording list, or press the colour
key OVERVIEW to get the channel overview
information.
View programme information from channel list
To call up the programme information from channel
list…
1 - Tune to the channel, press OK or Channel list
to open the channel list.
2 - Press OPTIONS, select Programme Info and
press OK to view general information of the
programme.
3 - To close this screen, press Back to go bck to
channel list.
While watching a TV channel or a video from a
connected HDMI device, you can shrink the video to a
corner and then browse Home screen or apps.
To launch the Picture-in-picture window…
1 - Tune to a TV channel or watch a video from a
connected HDMI device.
2 - Press OPTIONS, select Picture-in-picture, and
press OK.
3 - The channel or video you are watching appears
in a small window, in a corner of the screen chosen
by the system.
4 - You can continue watching TV or video while
using other apps.
5 - On the top row of the Home screen, you can
select Open or Stop to switch back or close the small
screen.
Note:
• Due to regulatory requirements, the "Picture-inpicture" function has been removed for Germany.
• You can only watch a video, e.g. of a TV channel, in
the Picture-in-picture mode. The audio itself will be
mute.
• The Picture-in-picture window will be closed when
you initiate playback of another video content since
there can only be a single playback happening at a
time. Some apps may additionally close the Picturein-picture window on their own in the instances in
which its presence would impede your use of them.
• The “Picture-in-picture” menu option can only be
activated if the Home screen is running in the
background. If you see the option disabled, please go
to the Home screen first.
Reorder Channels
Mono / Stereo
You can switch the sound of an analogue channel to
Mono or Stereo.
To switch to Mono or Stereo…
1 - Tune to an analoge channel.
2 - Press OPTIONS, select Mono/Stereo and
press (right).
3 - Select Mono or Stereo and press OK.
4 - Press (left) to go back one step or
press Back to close the menu.
Only in a Favourites List you can change the
sequence of channels (reorder).
To change the sequence of channels…
1 - Open the Favourites List you want to reorder.
2 - Press OPTIONS, select Reorder
Channels and press OK.
3 - In the Favourites List, select the channel you
want to reorder and press OK.
4 - With the (up) or (down) keys move the
channel where you want it.
5 - Press OK to confirm the new location.
6 - You can reorder channels with the same method
until you close the Favourites List with the Back
key.
15
5.5
Favourite Channels
About Favourite Channels
In a favourite channel list, you can collect the
channels you like.
You can create 4 different lists of favourite channels
for easy channel zapping. You can name each
Favourites List individually. Only in a Favourites List
you can reorder channels.
With a Favourites List selected, press the
arrows (up) or (down) to select a channel,
then press OK to watch the selected channel. You
only tune to the channels in that list when using
or keys.
* Note: Favourite channel list is not available when
installation country is UK and Italy.
Add a Range of Channels
To add a consecutive range of channels to a
Favourites List in one go, you can use Select Range.
To add a range of channels…
1 - Open the Favourites List where you want to add a
range of channels.
2 - Press OPTIONS, select Select Range and
press OK.
3 - In the list at the left select the first channel of the
range you want to add and press OK.
4 - Press (down) to select the last channel of the
range you want to add. The channels are marked at
the left.
5 - Press OK to add this range of channels and
confirm.
You can also start creating a Favourites List from
Select Range.
Create a Favourites List
To create a favourite channels list…
1 - Press , to switch to TV.
2 - Press OK to open the current channel list.
3 - Press OPTIONS.
4 - Select Create Favourites List and press OK.
5 - In the list at the left, select a channel you want as
a favourite and press OK. Channels come in the list at
the right in the order you add them. To undo, select
the channel in the list at the left and
press OK again.
6 - If necessary, you can go on selecting and adding
channels as favourites.
7 - To finish adding channels, press Back.
The TV will ask to rename the Favourites List. You can
use the on-screen keyboard.
1 - Use the on-screen keyboard to delete the
current name and enter a new name.
2 - When done, select Close and press OK.
The TV will switch to the newly created Favourites
List.
You can add a range of channels in one go or start a
Favourites List by duplicating the channel list with all
channels and removing the channels you do not
want.
The channels in the Favourites List are renumbered.
Edit Favourites
To add a consecutive range of channels to a
Favourites List in one go, you can use Edit favourites.
To add a range of channels…
1 - Open the Favourites List where you want to add a
range of channels.
2 - Press OPTIONS, select Edit favourites and
press OK.
3 - In the list at the left select the first channel of the
range you want to add and press OK.
4 - Press (down) to select the last channel of the
range you want to add. The channels are marked at
the right.
5 - Press OK to add this range of channels and
confirm.
You can also start creating a Favourites List from Edit
favourites.
Rename a Favourites List
To rename a Favourites List…
1 - Open the Favourite List you want to rename.
2 - Press OPTIONS, select Rename Favourites
List and press OK.
3 - Use the on-screen keyboard to delete the current
name and enter a new name.
4 - When done, select Close and press OK.
5 - Press Back to close the channel list.
16
Remove a Favourites List
To remove a Favourites List…
5.6
Text / Teletext
1 - Open the Favourites List you want to remove.
2 - Press OPTIONS, select Remove Favourites
List and press OK.
3 - Confirm to remove the list.
4 - Press Back to close the channel list.
Reorder Channels
Only in a Favourites List you can change the
sequence of channels (reorder).
To change the sequence of channels…
1 - Open the Favourites List you want to reorder.
2 - Press OPTIONS, select Reorder
Channels and press OK.
3 - In the Favourites List, select the channel you
want to reorder and press OK.
4 - With the (up) or (down) keys move the
channel where you want it.
5 - Press OK to confirm the new location.
6 - You can reorder channels with the same method
until you close the Favourites List with the Back
key.
Text Pages
To open Text/Teletext press TEXT, while you are
watching TV channels.
To close Text, press TEXT again.
Select a Text page
To select a page . . .
1 - Enter the page number with the number keys.
2 - Use the arrow keys to navigate.
3 - Press a colour key to select a colour-coded
subject at the bottom of the screen.
Text sub-pages
A Text page number can hold several subpages. The
subpage numbers are shown on a bar next to the
main page number.
To select a subpage, press or .
T.O.P. Text pages
Some broadcasters offer T.O.P. Text.
To open T.O.P. Text pages within Text,
press OPTIONS and select T.O.P. Overview.
Search Text
Favourites List on TV Guide
You can link the TV Guide for your Favourite List.
1 - While watching a TV channel, long press >
Select channel List.
2 - Select a Favourites List and press OK.
3 - Press TV GUIDE to open it.
With the TV Guide you can view a list of the current
and scheduled TV programmes of your favourite
channels. Along with your favourite channels, the first
3 most used channels from the broadcasters’ default
list will be appended after your favourite channels for
your preview. You need to add these channels into
your favourite list to enable its operation (refer to "TV
Guide" chapter).
On each page of TV Guide, there is a "Did you know"
grid inserted on your favourite channel list. The "Did
you know"-channel provides useful tips to improve
the way you use your TV.
You can select a word and scan Text for all
occurences of this word.
1 - Open a Text page and press OK.
2 - Select a word or number with the arrow keys.
3 - Press OK again to jump immediately to the next
occurence of this word or number.
4 - Press OK again to jump to the subsequent
occurence.
5 - To stop searching, press (up) until nothing is
selected.
Text from a connected device
Some devices that receive TV channels can also offer
Text.
To open Text from a connected device . . .
1 - Press SOURCES, select the device and
press OK.
2 - While watching a channel on the device,
press OPTIONS, select Show Device Keys and
select the key and press OK.
3 - Press Back to hide the device keys.
4 - To close Text, press Back again.
Digital Text (UK only)
Some digital broadcasters offer dedicated Digital Text
or interactive TV on their digital TV channels. This
includes normal Text using the number, colour and
arrow keys to select and navigate.
To close Digital Text, press Back.
17
* The teletext can only be reached when the channels
are installed directly on the TV’s internal tuner and
the set is on TV mode. If a set-top box is being used,
the teletext will be unavailable via TV. In that case,
the set-top box’s teletext can be used instead.
Text Options
In Text/Teletext, press OPTIONS to select the
following…
• Freeze page / Unfreeze page
To start or stop the automatic rotation of subpages.
• Dual screen / Full screen
To show the TV channel and Text alongside each
other.
• T.O.P. overview
To open T.O.P. Text.
• Enlarge / Normal view
To enlarge the Text page for comfortable reading.
• Reveal
To unhide hidden information on a page.
• Language
To switch the group of characters that Text uses to
display correctly.
• Text 2.5
To activate the Text 2.5 for more colours and better
graphics.
5.7
Interactive TV
About iTV
With interactive TV, some digital broadcasters
combine their normal TV programme with information
or entertainment pages. On some pages, you can
respond to a programme or vote, do online shopping
or pay for a video-on-demand programme.
HbbTV, MHEG, . . .
Broadcasters use various interactive TV systems :
HbbTV (Hybrid Broadcast Broadband TV) or iTV
(Interactive TV - MHEG). Interactive TV is sometimes
referred to as Digital Text or Red button. But each
system is distinct.
Visit the broadcaster's Internet website for more
information.
What You Need
Interactive TV is only available on digital TV channels.
To enjoy the full benefits of Interactive TV, you need
a high-speed (broadband) Internet connection to the
TV.
Text Setup
Text language
Some digital TV broadcasters have several Text
languages available.
To set your primary and secondary Text language . . .
1 - Select Settings > Region and language and
press (right) to enter the menu.
2 - Select Language > Primary Text or Secondary
Text and press OK.
3 - Select your preferred Text languages.
4 - Press (left) repeatedly if necessary, to close
the menu.
Text 2.5
If available, Text 2.5 offers more colours and better
graphics. Text 2.5 is activated as a standard factory
setting.
To switch off Text 2.5…
1 - Press TEXT.
2 - With Text/Teletext open on screen,
press OPTIONS.
3 - Select Text 2.5 > Off and press OK.
4 - Press (left) repeatedly if necessary, to close
the menu.
HbbTV
If a TV channel offers HbbTV pages, you must first
switch on HbbTV in the TV settings to view the pages.
Settings > General
settings > Advanced > HbbTV settings > HbbTV >
On.
Use iTV
Open iTV pages
Most channels that offer HbbTV or iTV invite you to
press the colour key (red) or OK key to open
their interactive programme.
Navigate iTV pages
You can use the arrow and colour keys, the number
keys and the Back key to navigate the iTV pages.
You can use the (Play), (Pause) and (Stop)
keys to watch videos within iTV pages.
Digital Text (UK only)
To open Digital Text, press TEXT. To close,
press Back.
Close iTV pages
Most iTV pages inform you which key to use to close.
To force an iTV page to close, switch to the next TV
18
channel and press Back.
19
6
Channel Installation
6.1
Antenna Installation
Update Channels
Automatic Channel Update
If you receive digital channels, you can set the TV to
automatically update these channels.
Once a day, at 7 AM, the TV updates the channels
and stores new channels. New channels are stored in
the Channels List and are marked with a .
Channels without a signal are removed. The TV must
be in standby to automatically update channels. You
can switch off Automatic Channel Update.
To switch off the automatic update…
1 - Select Settings > Channels > Antenna/Cable
Installation or Antenna Installation and press OK.
2 - Enter your PIN code if necessary.
3 - Select Automatic Channel Update and
press OK.
4 - Select Off and press OK.
5 - Press (left) to go back one step or
press Back to close the menu.
When new channels are found or if channels are
updated or removed, a message is shown at TV start
up. To avoid this message to appear after every
channel update, you can switch it off.
To switch off the message…
1 - Select Settings > Channels > Antenna/Cable
Installation or Antenna Installation and press OK.
2 - Enter your PIN code if necessary.
3 - Select Channel Update Message and press OK.
4 - Select Off and press OK.
5 - Press (left) to go back one step or
press Back to close the menu.
In certain countries, the Automatic channel update is
done while watching TV or on any moment when the
TV is in standby.
Manual Channel Update
You can always start an channel update yourself.
To start a channel update manually…
1 - Select Settings > Channels > Antenna/Cable
Installation or Antenna Installation and press OK.
2 - Enter your PIN code if necessary.
3 - Select Search for Channels and press OK.
4 - Select Start and press OK.
5 - Select Update Digital Channels,
select Next and press OK.
6 - Select Start and press OK to update the digital
channels. This can take a few minutes.
7 - Press (left) to go back one step or
press Back to close the menu.
Reinstall Channels
Reinstall All Channels
You can reinstall all channels and leave all other TV
settings untouched.
If a PIN code is set, you will need to enter this code
before you can reinstall channels.
To reinstall channels…
1 - Select Settings > Channels > Antenna/Cable
Installation or Antenna Installation and press OK.
2 - Enter your PIN code if necessary.
3 - Select Search for Channels and press OK.
4 - Select Start and press OK.
5 - Select Reinstall Channels, select Next and
press OK.
6 - Select the country where you are now and
press OK.
7 - Select Next and press OK.
8 - Select the type of installation you want, Antenna
(DVB-T) or Cable (DVB-C) and press OK.
7 - Select Next and press OK.
10 - Select the type of channels you want, Digital
and Analogue Channels or Only Digital
Channels and press OK.
7 - Select Next and press OK.
12 - Select Start and press OK to update the
digital channels. This can take a few minutes.
13 - Press (left) to go back one step or
press Back to close the menu.
Reinstall TV
You can redo a full TV installation. The TV is
completely reinstalled.
To redo a full TV installation…
1 - Select Settings > General Settings > Reinstall
TV and press OK.
2 - Enter your PIN code if necessary.
3 - Select Yes and press OK to confirm.
4 - The TV will reinstall completely. All settings will
be reset and installed channels will be replaced. The
installation can take a few minutes.
5 - Press (left) to go back one step or
press Back to close the menu.
20
DVB Settings
Reception Quality
Network Frequency Mode
If you intend to use the fast Quick Scan method
in Frequency Scan to search for channels,
select Automatic. The TV will use 1 of the predefined
network frequencies (or HC - homing channel) as
used by most cable operator in your country.
If you received a specific network frequency value to
search for channels, select Manual.
Network Frequency
With the Network Frequency Mode set to Manual,
you can enter the network frequency value received
from your cable operator here. To enter the value, use
the number keys.
Frequency Scan
Select the method of searching for channels. You can
select the faster Quick Scan method and use the
predefined settings used by most cable operator in
your country.
You can check the quality and signal strength of a
digital channel. If you have your own antenna, you
can reposition the antenna to try and improve the
reception.
To check the reception quality of a digital channel…
1 - Tune to the channel.
2 - Select Settings > Channels > Antenna/Cable
Installation or Antenna Installation and press OK.
Enter your PIN code if necessary.
3 - Select Digital: Reception Test and press OK.
4 - Select Search and press OK. The digital
frequency is shown for this channel.
5 - Select Search again and press OK to check the
signal quality of this frequency. The test result is
shown on screen. You can reposition the antenna or
check the connections to possibly improve the
reception.
6 - You can also change the frequency
yourself. Select the frequency number one by one
and use the (up) or (down) keys to change
the value. Select Search and press OK to test the
reception again.
7 - Press (left) repeatedly if necessary, to close
the menu.
If this results in having no channels installed or if
some channels are missing, you can select the
extended Full Scan method. This method will take
more time to search for and install channels.
Frequency Step Size
The TV searches for channels in steps of 8 MHz.
If this results in having no channels installed or if
some channels are missing, you can search in smaller
steps of 1 MHz. Using the 1MHz steps will take more
time to search for and install channels.
Digital Channels
If you know your cable operator is not offering digital
channels, you can skip searching for digital channels.
Analogue Channels
If you know your cable operator is not offering
analogue channels, you can skip searching for
analogue channels.
Manual Installation
Analogue TV channels can be manually installed,
channel by channel.
To install analogue channels manually…
1 - Select Settings > Channels > Antenna/Cable
Installation or Antenna Installation and press OK.
Enter your PIN code if necessary.
2 - Select Analogue: Manual Installation and
press OK.
• System
To set up the TV system, select System.
Select your country or the part of the world where
you are now and press OK.
• Search Channel
To find a channel, select Search Channel and
press OK. You can enter a frequency yourself to find
a channel or let the TV search for a channel.
Press (right) to select Search and press OK to
search for a channel automatically. The found
channel is shown on screen and if the reception is
poor, press Search again. If you want to store the
channel, select Done and press OK.
• Store
You can store the channel on the current channel
number or as a new channel number.
Select Store Current Channel or Store as New
Channel and press OK. The new channel number is
21
shown briefly.
You can redo these steps until you have found all
available analogue TV channels.
6.2
6 - Press (left) repeatedly if necessary, to close
the menu.
Now you can upload the copied channel list onto
another Philips TV.
Channel List Copy
Introduction
Channel List Copy is intended for dealers and expert
users.
With Channel List Copy, you can copy the channels
installed on one TV onto another Philips TV of the
same range. With Channel List Copy, you avoid the
time-consuming channel search by uploading a
predefined channel list on a TV. Use a USB flash drive
of minimum 1 GB.
Conditions
• Both TVs are from the same year range.
• Both TVs have the same hardware type. Check the
hardware type on the TV type plate on the back of
the TV.
• Both TVs have compatible software versions.
Current channel version
To check the current version of the channel list…
1 - Select Settings > Channels, select Channel
List Copy, select Current Version and press OK.
2 - Press OK to close.
Current software version
To check the cuurent version of the TV software…
1 - Select Settings > Update Software and
press (right) to enter the menu.
2 - Select Current Software Info and press OK.
3 - The version, release notes and creation date are
shown. Also, the Netflix ESN Number is shown if
available.
4 - Press (left) repeatedly if necessary, to close
the menu.
Channel List Version
Check the current version of the channel list...
1 - Select Settings > Channels and
press (right) to enter the menu.
2 - Select Channel List Copy and select Current
Version, then press OK.
3 - Press (left) repeatedly if necessary, to close
the menu.
Upload a Channel List to TV
To not Installed TVs
Depending on whether your TV is already installed or
not, you must use a different method to upload a
channel list.
To a TV that is not yet installed
1 - Plug in the power plug to start the installation and
select language and country. You can skip the
channel search. Finish the installation.
2 - Plug in the USB flash drive that holds the channel
list of the other TV.
3 - To start the channel list upload, select Settings
> Channels > Channel List Copy > Copy to TV and
press OK. Enter your PIN code if necessary.
4 - The TV notifies you if the channel list is copied to
the TV successfully. Unplug the USB flash drive.
To Installed TVs
Depending on whether your TV is already installed or
not, you must use a different method to upload a
channel list.
Copy a Channel List
To copy a channel list…
1 - Switch on the TV. This TV should have channels
installed.
2 - Plug in a USB flash drive.
3 - Select Settings > Channels > Channel List
Copy and press OK.
4 - Select Copy to USB and press OK. You might
be asked to enter the Child Lock PIN code to copy the
channel list.
5 - When copying is done, unplug the USB flash
drive.
To an already installed TV
1 - Verify the country setting of the TV. (To verify this
setting, see chapter Reinstall All Channels. Start this
procedure until you reach the country setting.
Press Back to cancel the installation.)
If the country is correct continue with step 2.
If the country is not correct, you need to start a
reinstallation. See chapter Reinstall All Channels and
start the installation. Select the correct country and
skip the channels search. Finish the installation. When
done, continue with step 2.
2 - Plug in the USB flash drive that holds the channel
list of the other TV.
3 - To start the channel list upload, select Settings
> Channels > Channel List Copy > Copy to TV and
22
press OK. Enter your PIN code if necessary.
4 - The TV notifies you if the channel list is copied to
the TV successfully. Unplug the USB flash drive.
23
7
HDMI ARC and eARC
Connect Devices
7.1
About Connections
Connectivity Guide
Always connect a device to the TV with the highest
quality connection available. Also, use good quality
cables to ensure a good transfer of picture and
sound.
When you connect a device, the TV recognizes its
type and gives each device a correct type name. You
can change the type name if you wish. If a correct
type name for a device is set, the TV automatically
switches to the ideal TV settings when you switch to
this device in the Sources menu.
Antenna port
If you have a Set-top box (a digital receiver) or
Recorder, connect the antenna cables to run the
antenna signal through the Set-top box and/or
Recorder first before it enters the TV. In this way, the
antenna and the Set-top box can send possible
additional channels to the Recorder to record.
HDMI ports
All of the HDMI connections on the TV have HDMI
ARC (Audio Return Channel).
If the device, typically a Home Theatre System (HTS),
soundbar or AV receiver, also has the HDMI ARC
connection, connect it to any of the HDMI
connections on this TV. With the HDMI ARC
connection, you do not need to connect the extra
audio cable that sends the sound of the TV picture to
the HTS. The HDMI ARC connection combines both
signals.
You can use any HDMI connection on this TV to
connect the HTS but ARC is only available for 1
device/connection at a time
HDMI eARC (Enhanced Audio Return Channel) is an
advancement over the previous ARC. It covers all ARC
features but with higher bandwidth and speed. eARC
supports high quality audio transmission up to192kHz,
24-bit, uncompressed 5.1 and 7.1, and 32-channel
uncompressed audio.
Note: HDMI eARC is only available on HDMI 2. Use
HDMI cable with Ethernet for eARC. Only 1 eARC
device is available at a time.
HDMI CEC - EasyLink
Connect HDMI CEC-compatible devices to your TV,
you can operate them with the TV remote control.
EasyLink HDMI CEC must be switched on on the TV
and the connected device.
HDMI Quality
An HDMI connection has the best picture and sound
quality. One HDMI cable combines video and audio
signals. Use an HDMI cable for High Definition (HD)
TV signals.
For best signal quality transfer, use a High speed
HDMI cable and do not use an HDMI cable longer
than 5 m.
If a device connected with HDMI is not working
correctly, check if a different HDMI Ultra HD setting
can solve this problem. In Help, press the colour
key Keywords and look up HDMI Ultra HD.
Copy protection
HDMI ports support HDCP 2.2 (High-bandwidth
Digital Content Protection). HDCP is a copy protection
signal that prevents copying content from a DVD disc
or Blu-ray Disc. Also referred to as DRM (Digital
Rights Management).
Switch on EasyLink
Settings > General
settings > EasyLink > EasyLink > On.
Operate HDMI CEC-compatible devices with TV
remote control
Settings > General
settings > EasyLink > EasyLink remote
control > On.
Note:
• EasyLink might not work with devices from other
brands.
• The HDMI CEC functionality has different names on
different brands. Some examples are: Anynet, Aquos
Link, Bravia Theatre Sync, Kuro Link, Simplink and
Viera Link. Not all brands are fully compatible with
EasyLink. Example HDMI CEC branding names are
property of their respective owners.
24
7.2
Home Theatre System - HTS
Problems with HTS sound
Sound with loud noise
Connect with HDMI ARC/eARC
Use an HDMI cable to connect a Home Theatre
System (HTS) to the TV. You can connect a Philips
Soundbar or an HTS with a built-in disc player.
HDMI ARC
All HDMI connections on the TV can offer the Audio
Return Channel (ARC) signal. But once you have
connected the Home Theatre System, the TV can
only send the ARC signal to this HDMI connection.
If your Home Theatre System has an HDMI ARC
connection, you can use any HDMI connection on the
TV to connect. With HDMI ARC, you do not need to
connect the extra audio cable. The HDMI ARC
connection combines both signals.
HDMI eARC
HDMI eARC (Enhanced Audio Return Channel) is an
advancement over the previous ARC. It supports the
latest high-bitrate audio formats up to192kHz, 24-bit,
and uncompressed 5.1 and 7.1, and 32-channel
uncompressed audio. HDMI eARC is only available on
HDMI 2.
Audio to video synchronisation (sync)
If the sound does not match the video on screen, you
can set a delay on most Home Theatre Systems with
a disc player to match the sound with the video.
If you watch a video from a plugged in USB flash drive
or connected computer, the sound from your Home
Theatre System might be distorted. This noise is heard
when the audio or video file has DTS sound but the
Home Theatre System has no DTS sound processing.
You can fix this by setting the Digital Out Format of
the TV to Stereo.
Select Settings
> Sound > Advanced > Digital Out Format .
No sound
If you cannot hear the sound from the TV on your
Home Theatre System, check if you connected the
HDMI cable to an HDMI ARC/eARC connection on
the Home Theatre System. All HDMI connections on
the TV are HDMI ARC connections. HDMI eARC is
only available on HDMI 2.
7.3
Smartphones and Tablets
To connect a smartphone or tablet to the TV, you can
use a wireless connection. For a wireless connection,
on your smartphone or tablet download the Philips
TV Remote App from your favourite app store.
7.4
Connect with HDMI
Use an HDMI cable to connect a Home Theatre
System (HTS) to the TV. You can connect a Philips
Soundbar or an HTS with a built-in disc player.
If the Home Theatre System has no HDMI ARC
connection, add an optical audio cable (Toslink) to
send the sound of the TV picture to the Home Theatre
System.
Audio to video synchronisation (sync)
If the sound does not match the video on screen, you
can set a delay on most Home Theatre Systems with
a disc player to match the sound with the video.
Blu-ray Disc Player
Use a High speed HDMI cable to connect the Bluray Disc player to the TV.
If the Blu-ray Disc player has EasyLink HDMI CEC,
you can operate the player with the TV remote
control.
In Help, press the colour key Keywords and
look up EasyLink HDMI CEC for more information.
7.5
Bluetooth
Pairing a Device
Position the wireless speaker within a distance of 5
meters from the TV. Read the user manual of the
device for specific information on pairing and on
wireless range. Make sure the Bluetooth setting on TV
is switched on.
Once a wireless gamepad is paired, you can use it.
When a wireless speaker is paired, you can select it to
25
play the TV sound. When a device is paired, you do
not need to pair it again unless you remove the
device.
7.6
Headphones
To pair a bluetooth device with the TV…
1 - Switch on the bluetooth device and place it within
range of the TV.
2 - Select Settings > Wireless and Networks and
press (right) to enter the menu.
3 - Select Bluetooth > Search Bluetooth Device,
and press OK.
4 - Select Search and press OK. Follow the
instuctions on screen. You will pair the device with the
TV and the TV will store the connection. You might
need to unpair a paired device first if the maximum
number of paired devices was reached.
5 - Select the type of device and press OK.
6 - Press (left) repeatedly if necessary, to close
the menu.
Select a Device
To select a wireless device…
1 - Select Settings > Wireless and Networks and
press OK.
2 - Select Bluetooth > Search Bluetooth
Device and press OK.
3 - In the list, select the wireless device and
press OK.
4 - Press (left) repeatedly if necessary, to close
the menu.
You can connect a set of headphones to
the connection on the back of the TV. The
connection is a mini-jack 3.5mm. You can adjust the
volume of the headphones separately.
To adjust the volume…
1 - Press Volume , select the headphones icon
by arrows (left) or (right).
2 - Press the arrows (up) or (down) to adjust
the volume.
7.7
Game Console
HDMI
Remove a Device
You can connect or disconnect a wireless Bluetooth
device. You can also remove a wireless Bluetooth
device. If you remove a Bluetooth device, the device
will be unpaired.
To remove or disconnect a wireless device…
1 - Select Settings > Wireless and Networks and
press OK.
2 - Select Bluetooth > Remove Bluetooth
device and press OK.
3 - In the list, select the wireless device and
press OK.
4 - Select Disconnect or Remove and press OK.
5 - Select OK and press OK to confirm.
6 - Press (left) repeatedly if necessary, to close
the menu.
For best quality, connect the game console with a
High speed HDMI cable to the TV.
26
7.8
USB Hard Drive
USB Hard Drive, the content on the former will be lost.
A USB Hard Drive installed on your TV will need
reformatting for use with a computer.
Installation
Before you can pause or record a broadcast, you
must connect and format a USB Hard Drive.
Formatting removes all files from the USB Hard Drive.
1 - Connect the USB Hard Drive to one of
the USB connections on the TV. Do not connect
another USB device to the other USB ports when
formatting.
2 - Switch on the USB Hard Drive and the TV.
3 - When the TV is tuned to a digital TV channel,
press (Pause). Trying to pause will start the
formatting.
Follow the instructions on screen.
When the USB Hard Drive is formatted, leave it
connected permanently.
* Connect the USB Hard Drive with size less than 2TB.
To format a USB Hard Drive…
1 - Connect the USB Hard Drive to one of the USB
connections on the TV. Do not connect another USB
device to the other USB ports when formatting.
2 - Switch on the USB Hard Drive and the TV.
3 - Select Recordings if you want to perform Pause
TV and Recordings, otherwise, select Apps to store
apps. Follow the instructions on screen.
4 - All files and data will be removed after formatting.
5 - When the USB Hard Drive is formatted, leave it
connected permanently.
For more information, in Help, press the colour
key Keywords and look up Pause TV,
Recording, or Apps.
7.9
USB Keyboard
Connect
Warning
The USB Hard Drive is formatted exclusively for this
TV, you cannot use the stored recordings on another
TV or PC. Do not copy or change recording files on
the USB Hard Drive with any PC application. This will
corrupt your recordings. When you format another
USB Hard Drive, the content on the former will be lost.
A USB Hard Drive installed on your TV will need
reformatting for use with a computer.
Formatting
Before you can pause or record a broadcast, or store
apps, you must connect and format a USB Hard
Drive. Formatting removes all files from the USB Hard
Drive.
Connect a USB keyboard (USB-HID type) to enter text
on your TV.
Use one of the USB connections to connect.
Configure
Install the keyboard
To install the USB keyboard, switch on the TV and
connect the USB keyboard to one of
the USB connections on the TV. When the TV
detects the keyboard for the first time, you can select
your keyboard lay-out and test your selection. If you
select a Cyrillic or Greek keyboard layout first, you
can select a secondary Latin keyboard layout.
To change the keyboard layout setting when a layout
was selected…
1 - Select Settings > General Settings and
press (right) to enter the menu.
2 - Select USB Keyboard Settings, and press OK to
start the keyboard setup.
Warning
The USB Hard Drive is formatted exclusively for this
TV, you cannot use the stored recordings on another
TV or PC. Do not copy or change recording files on
the USB Hard Drive with any PC application. This will
corrupt your recordings. When you format another
27
Special Keys
Keys for entering text
• Enter key = OK
• Backspace = delete character before cursor
• Arrow keys = navigate within a text field
• To switch between keyboard layouts, if a secondary
layout is set, press the Ctrl + Spacebar keys
simultaneously.
Keys for apps and Internet pages
• Tab and Shift + Tab = Next and Previous
• Home = scroll to the top of the page
• End = scroll to the bottom of the page
• Page Up = jump one page up
• Page Down = jump one page down
• * = fit the web page to the screen width
connected USB device or flash drive. The TV will
downscale the resolution to Ultra HD if the resolution
of the photo is higher.
For more information on watching or playing content
from a USB flash drive, in Help, press the colour
key Keywords and look up Photos, Videos and
Music.
7.11
Photo Camera
To view photos stored on your digital photo camera,
you can connect the camera directly to the TV.
Use one of the USB connections on the TV to
connect. Switch on the camera after you made the
connection.
7.10
USB Flash Drive
You can view photos or play your music and videos
from a connected USB flash drive.
Insert a USB flash drive in one of
the USB connections on the TV while the TV is
switched on.
The TV detects the flash drive and opens a list
showing its content.
If the contents list does not appear automatically,
press SOURCES and select USB.
If the contents list does not appear automatically,
press SOURCES , and select USB.
Your camera might need to be set to transfer its
content with PTP (Picture Transfer Protocol). Read
the user manual of the digital photo camera.
Ultra HD on USB
You can view photos in Ultra HD resolution from a
connected USB device or flash drive. The TV will
downscale the resolution to Ultra HD if the resolution
of the photo is higher. You cannot play a video with
native resolution higher than Ultra HD on any of the
USB connections.
To stop watching the USB flash drive content,
press EXIT or select another activity.
To remove the USB flash drive safely…
1 - Press HOME .
2 - Select the Notifications icon from the top-right
corner and press OK.
3 - Select your flash drive and press OK.
4 - Select Eject and press OK.
5 - Wait until the eject procedure is finished and then
pull out the flash drive.
Ultra HD on USB
You can view photos in Ultra HD resolution from a
For more information on viewing photos, in Help,
press the colour key Keywords and look
up Photos, Videos and Music.
28
Loading...
