Philips 64PP975199 User Manual
64PP9751

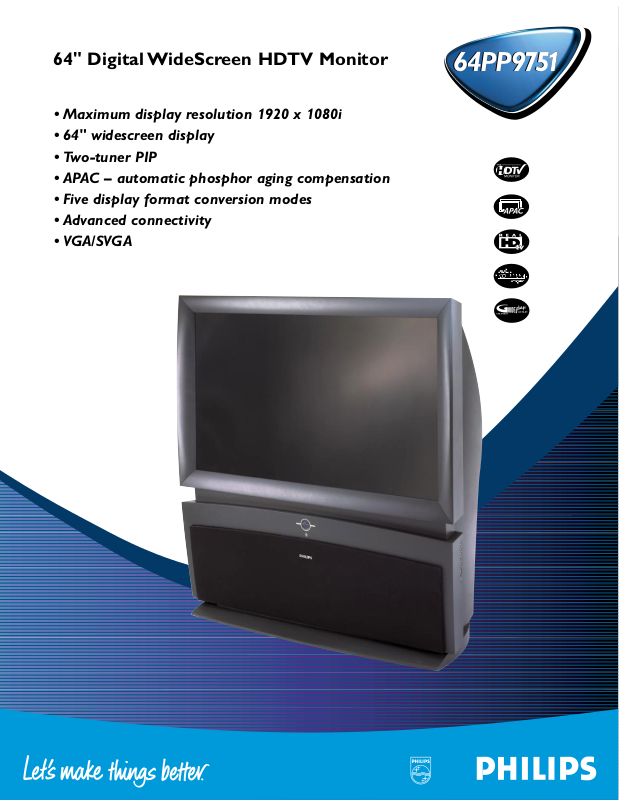

64" Digital WideScreen HDTV Monitor
• Maximum display resolution 1920 x 1080i
• 64" widescreen display
• Two-tuner PIP
• APAC – automatic phosphor aging compensation
• Five display format conversion modes
• Advanced connectivity
• VGA/SVGA
64PP9751
High Definition Digital
A full 1920 x 1080 interlaced image is achieved by combining special display
tubes, lenses, and screen for superior image performance. Philips has
maximized the potential of emerging rear projection display optics to achieve
nothing short of the finest picture possible. Experience it!
64" Widescreen Display with Four Format Conversion Modes
Fill the room with a super-large 64" display.Widescreen 16:9 format provides a
cinematic experience.Widescreen productions may be shown without
compromise to artistic imagery. Panoramic 16:9 image ratio.Video format
conversion modes include 4:3, 16:9, Panoramic 16:9, and Movie Expand 16:9.
Finally, you can see your favorite movies the way they were meant to be seen!
9" CRTs
Utilizing high-resolution phosphors and a tighter beam spot, these monochrome
picture tubes with large diameter lenses offer a sharper picture than ever before.
Now your large screen pictures come alive with radiant color and rich highlights.
Philips PixelMax
™
System
High Definition broadcasting, DVD media and other digital advances enable
amazing improvements in the resolution and quality of television inputs and
demand corresponding advances in display technology. The Philips PixelMax
™
system answers this demand with cutting edge optical technology, including
improved CRTs, three element lenses,first surface mirrors, fine pitched
lenticular screens, and line doubling circuitry.
Philips high performance CRTs now feature an enhanced green phosphor,which
creates deeper, more natural colors and reduces image persistence and flicker.
Four element lenses work in concert with each CRT to improve focus and correct optical errors, removing distortion and creating a crisp picture all the way
to the edge of the screen.The first-surface mirror helps eliminate light refraction, ensuring that more of the television picture is reflected to where it should
be – the viewing screen. The newly designed lenticular screen has nearly onethird finer pitch (.515mm) than traditional screens (.72mm). Finer pitch
improves light diffusion and reduces ambient light interference, resulting in a
superwide 160-degree viewing angle and greatly improved image contrast.The
Genesis line doubler and video processor converts standard-definition interlaced
signals into smooth progressive output,ensuring a clean and stable image. The
chip also transforms video input into the viewing format you choose, whether
widescreen or conventional 4:3.
The television picture we see is only as sharp and brilliant as the optics that
create it, no matter how sophisticated the input source.With 1920 lines of
horizontal resolution, Philips’ cutting edge PixelMax™technology takes high
definition to the max – a truly fantastic 2,000,000 pixels. Don’t miss a single one.
Removable Screen Protector
Remote Control
Pronto
™
This stylish, universal, learning remote controls
virtually all IR devices, learns new commands as
your system expands, and can be customized
according to personal preferences.Featuring a
large LCD backlit touch-screen, the Pronto™gives
you easy access to all key features. (TS1011)
Convenience
Advanced Connectivity
Connections for external sources and home theater equipment provide the ultimate in flexibility. In
addition to separate antenna inputs, connections
include inputs formatted for DVD, high definition
video, left/right audio, sic channel audio, and VGA. A
side jack panel provides easy access for audio or
video input from camcorders or other video equipment.
High Definition Component and RGB Inputs
Supports HD video input for superb color purity,crisp color detail, and reduced
color noise - Includes separate gold-plated phono inputs for Y, Pb, Pr, horizontal
sync and vertical sync plus (S)VGA DB15 Inputs.
Two-Tuner PIP
Enjoy all the benefits of AutoWindow
™
PIP without a VCR.You can tune
to your favorite show with tuner one, for example, while scanning other
channels with tuner two in the PIP window.The A/V inputs are also
available as PIP sources so all functions of standard PIP are still accessible.
GUIDE Plus+
®
GOLD Electronic Program Guide
Hi-tech software that captures and automatically downloads advanced
programming information for all television program listings, plot
descriptions, ratings, artist names, and program length.The featured
channel window displays the current channel or locks in a select
channel. Other features include one touch record, one touch
scheduling, direct tune, sort-by-theme, and news guide.
Automatic Phosphor Aging Compensation – APAC
Non-moving images can be bad for a television screen. If a video image
remains stationary,it can eventually leave a permanent after-image on
the screen.The elevated operating temperature of projection tubes and
the stationary black bars which outline standard 4:3 programming on a
widescreen TV compound this problem. Now, Philips has found a way to
combat this problem through APAC technology. Periodically,APAC
automatically shifts your television picture in very small increments, but
increments large enough to minimize permanent image retention.Think
of it as a screen saver for your TV.
Sound
Center Channel Input
Since it contains vocal and “steering” information, the center channel is
vitally important to overall performance of any large screen in a home
theatre system.With standard clip-on style speaker connectors, our
center channel input simplifies connection of Dolby®Pro Logic surround sound equipment for optimal home theatre enjoyment.
• Subwoofer Output • Auto Leveling
• Two 2" Tweeters • Two 6" Woofers
Audio/Video Jack Panel
UPC: 0 37849 90492 3
Product dimensions: 62.4"W x 63.7"H x 27.6"D
Product weight: 335 lbs.
Carton dimensions: 66.8"W x 65.5"H x 31.8"D
Carton weight: 390 lbs.
Master pack: 1
Carton Contains: 64" WideScreen HDTV Monitor,PRONTO™ Remote Control with
Batteries, Operating Instructions,Warranty Information
Printed in U.S.A.
©2001 Philips Consumer Electronics Co.
A Division of Philips Electronics North America Corp.
200326 KID Design,Philips Consumer Electronics Co.
By using environmentally-friendly materials,Philips Consumer Electronics Company continues to demonstrate our commitment
to a cleaner environment.This paper is made from at least 10% post-recycled stock,and the ink is vegetable based.
AutoWindow,PRONTO, and PixelMax are trademarks of Philip Consumer Electronics Corporation.
INTERNET ADDRESS: http://www.philipsusa.com
Specifications subject to change without notice.
64PP9751
64PP9751
64" Digital WideScreen HDTV Monitor
