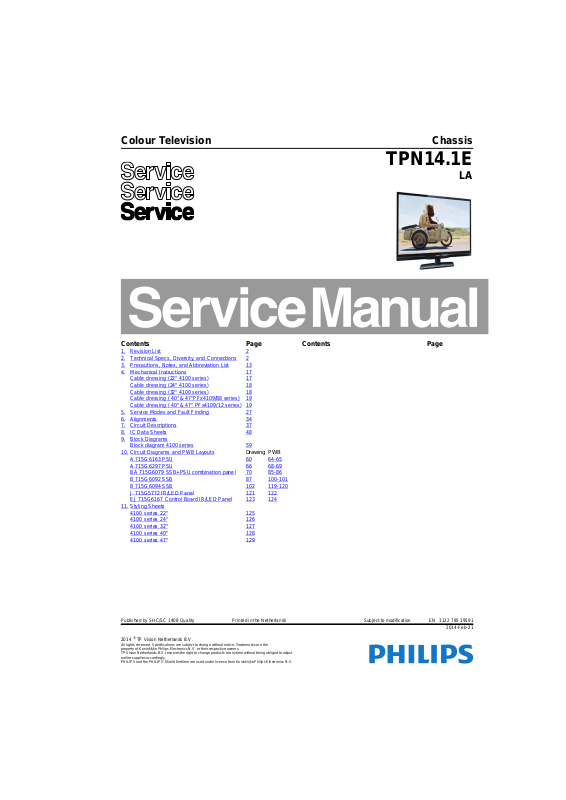

Philips 40PFT4109/60 Schematic

Colour Television Chassis
TPN14.1E
LA

Contents Page Contents Page

1. Revision List 2
2. Technical Specs, Diversity, and Connections 2
3. Precautions, Notes, and Abbreviation List 13
4. Mechanical Instructions 17 Cable dressing (22" 4100 series) 17 Cable dressing (24" 4100 series) 18 Cable dressing (32" 4100 series) 18 Cable dressing ( 40" & 47"PFx4109/88 series) 19 Cable dressing ( 40" & 47" PFx4109/12 series) 19
5. Service Modes and Fault Finding 27
6. Alignments 34
7. Circuit Descriptions 37
8. IC Data Sheets 48
9. Block Diagrams Block diagram 4100 series 59
10. Circuit Diagrams and PWB Layouts Drawing PWB A 715G6163 PSU A 715G6297 PSU 66 68-69 BA 715G6079 SSB+PSU combination panel 70 85-86 B 715G6092 SSB 87 100-101 B 715G6094 SSB 102 119-120 J 715G5772 IR/LED Panel 121 122 EJ 715G6167 Control Board IR/LED Panel 123 124
11. Styling Sheets 4100 series 22" 125 4100 series 24" 126 4100 series 32" 127 4100 series 40" 128 4100 series 47" 129
60 64-65
Published by SHC/SC 1408 Quality Printed in the Netherlands Subject to modification EN 3122 785 19591
2014-Feb-21
2014 ©
TP Vision Netherlands B.V.
All rights reserved. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Phili ps Electronics N.V.
EN 2 TPN14.1E LA1.
Revision List

1. Revision List

Manual xxxx xxx xxxx.0
First release.
Manual xxxx xxx xxxx.1
Chapter 2: Updated table 2.1 Technical Specifications connection 2.7 Connections ( for 40" & 47"PFT4109/12)
and
.
Chapter 4: Added figure 4-5 Cable dressing ( 40" & 47"
PFx4109/12 series).
Chapter 5: Updated table 5-2 Factory mode overview
Chapter 6: Updated tables 6-2 White tone default settings and 6-3 Display code overview
Chapter 7: Updated figure 7-1 Connector overview
Chapter 11: Added styling sheet 11.5 4100 series 47"

2. Technical Specs, Diversity, and Connections

.
.
.
.
Index of this chapter:

2.1 Technical Specifications

2.2 Directions for Use

Notes:
Figures can deviate due to the different set executions.
Specifications are indicative (subject to change).
2.3 Connections ( for 20"/22"/24"PxH4109/88 & 20"/24"PxH4109/60)
2.4 Connections ( for 22"/24"Pxx4109/12)
2.5 Connections ( for 32")
2.6 Connections ( for 40" & 47"PFx4109/88)
2.7 Connections ( for 40" & 47"PFT4109/12)
2.8 Chassis Overview
2.1 Technical Specifications
For on-line product support please use the links in Table 2-1. Here is product information available, as well as getting started, user manuals, frequently asked questions and software & drivers.

Table 2-1 Described Model Numbers and Diversity

24 910 11
Mechanics
CTN
20PHH4109/88 2-1 4-1 4-6 - 4-7 9.1 10.2 - 10.4 10.6 - 11.1 20PHH4109/60 2-1 4-1 4-6 - 4-7 9.1 10.2 - 10.4 10.6 - 11.1 22PFH4109/88 2-1 4-1 4-6 - 4-7 9.1 10.2 - 10.4 10.6 - 11.1 22PFK4109/12 2-6 4-2 4-6 - 4-7 9.1 10.2 - 10.5 10.6 - 11.2 22PFT4109/12 2-6 4-2 4-6 - 4-7 9.1 10.2 - 10.5 10.6 - 11.2 24PHH4109/88 2-1 4-1 4-6 - 4-7 9.1 10.2 - 10.4 10.6 - 11.1 24PHH4109/60 2-1 4-1 4-6 - 4-7 9.1 10.2 - 10.4 10.6 - 11.1 24PHK4109/12 2-6 4-2 4-6 - 4-7 9.1 10.2 - 10.5 10.6 - 11.2 24PHT4109/12 2-6 4-2 4-6 - 4-7 9.1 10.2 - 10.5 10.6 - 11.2 32PHH4109/88 2-11 4-3 4-8 4-10 4-11 9.1 - 10.3 - - 10.7 11.3 32PFH4109/88 2-11 4-3 4-8 4-10 4-11 9.1 - 10.3 - - 10.7 11.3 32PFT4109/12 2-11 4-3 4-8 4-10 4-11 9.1 - 10.3 - - 10.7 11.3 32PHT4109/12 2-11 4-3 4-8 4-10 4-11 9.1 - 10.3 - - 10.7 11.3 32PHH4109/60 2-11 4-3 4-8 4-10 4-11 9.1 - 10.3 - - 10.7 11.3 40PFH4109/88 2-16 4-4 4-12 4-10 4-15 9.1 10.1 - 10.4 - 10.7 11.4 40PFT4109/12 2-21 4-5 4-12 4-10 4-15 9.1 10.1 - 10.5 - 10.7 11.5 47PFH4109/88 2-16 4-4 4-12 4-10 4-15 9.1 10.1 - 10.4 - 10.7 11.4 47PFT4109/12 2-21 4-5 4-12 4-10 4-15 9.1 10.1 - 10.5 - 10.7 11.5
Connection Overview
Wire Dressing
Rear Cover Removal
Speakers Removal
Block Diagrams Schematics
SSB Removal
Block Diagram
Power Supply
SSB + PSU combination panel
SSB
J (IR/LED )
EJ (control board + IR/LED panel)
Styling
2.2 Directions for Use
Directions for use can be downloaded from the following websites:
http://www.philips.com/support http://www.p4c.philips.com
2014-Feb-21
back to
div. table
Technical Specs, Diversity, and Connections
TV ANTENNA
VGA / DVI
AUDIO IN
DIGITAL
AUDIO OUT
(RGB/CVBS)
(Optional)
HDMI 1
ARC
SCART
SERV.U
VGA
19531_001_130923.eps
130923
1
2
3
4
6
5
7
8
10
9
11
Side ConnectorsRear Connectors
1 2 3 4
10000_022_090121.eps
090121
1
6
10
11
5
15
10000_002_090121.eps
090127
10000_017_090121.eps
090428
19
1
18 2

2.3 Connections ( for 20"/22"/24"PxH4109/88 & 20"/24"PxH4109/60)

EN 3TPN14.1E LA 2.

Figure 2-1 Connection overview

Note: The following connector colour abbreviations are used
5 - PC IN:VGA
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

2.3.1 Side Connections

1 - Common Interface
68p- See figure 10-3-12
2 - USB2 2.0
jk
1 -Video Red 0.7 V 2 -Video Green 0.7 V 3 -Video Blue 0.7 V 4-n.c. 5 -Ground Gnd H 6 -Ground Red Gnd H
Figure 2-3 VGA connector
/ 75 W j
PP
/ 75 W j
PP
/ 75 W j
PP
7 -Ground Green Gnd H
Figure 2-2 USB (type A)
1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H
3 - Power Button
Turn on/off the TV.

2.3.2 Rear Connections

8 -Ground Blue Gnd H 9-+5V
+5 V j
DC
10 - Ground Sync Gnd H 11 - Ground Red Gnd H 12 - DDC_SDA DDC data j 13 - H-sync 0 - 5 V j 14 - V-sync 0 - 5 V j 15 - DDC_SCL DDC clock j
6 - HDMI 1: Digital Video - In, Digital Audio with ARC ­In/Out
4 - Audio - In: Left / Right, VGA
Bu -Audio L/R in 0.5 V
RMS
/ 10 kW jq
Figure 2-4 HDMI (type A) connector
1 -D2+ Data channel j 2 -Shield Gnd H
back to
div. table
3 -D2- Data channel j
2014-Feb-21
EN 4 TPN14.1E LA2.
21
20
1
2
10000_001_090121.eps
090121
Technical Specs, Diversity, and Connections
4 -D1+ Data channel j 5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H
7 - Cinch: Digital Audio - Out
BK - Coaxial 0.4 - 0.6V
/ 75 W kq
PP
8 - Service / UART
1 -Ground Gnd H 2 -UART_TX Transmit k 3 -UART_RX Receive j
9 - Head phone (Output)
Bk -Head phone 80 - 600 / 10 mW
ot
10 - EXT1: Video RGB/YC - In, CVBS - In/Out, Audio - In/Out
Figure 2-5 SCART connector
1 -Audio R 0.5 V 2 -Audio R 0.5 V 3 -Audio L 0.5 V 4 -Ground Audio Gnd H
/ 1 k k
RMS
/ 10 k j
RMS
/ 1 k k
RMS
5 -Ground Blue Gnd H 6 -Audio L 0.5 V 7 -Video Blue/C-out 0.7 V
/ 10 k j
RMS
/ 75 jk
PP
8 -Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j 9 -Ground Green Gnd H 10 - n.c. 11 - Video Green 0.7 V
/ 75 j
PP
12 - n.c. 13 - Ground Red Gnd H 14 - Ground P50 Gnd H 15 - Video Red/C 0.7 V 16 - Status/FBL 0 - 0.4 V: INT
/ 75 j
PP
1 - 3 V: EXT / 75 j 17 - Ground Video Gnd H 18 - Ground FBL Gnd H 19 - Video CVBS 1 V 20 - Video CVBS/Y 1 V 21 - Shield Gnd H
/ 75 k
PP
/ 75 j
PP
2014-Feb-21
11 - TV ANTENNA - In
Signal input from an antenna, cable or satellite.
back to
div. table
Technical Specs, Diversity, and Connections
TV ANTENNA
VGA / DVI
SERV.U
AUDIO IN
DIGITAL
AUDIO OUT
SCART
(RGB/CVBS)
HDMI 1
ARC
VGA
SAT
19590_001_140110.eps
140110
1
2
3
4
7
6
5
8
9
11
10
12
Side ConnectorsRear Connectors
1 2 3 4
10000_022_090121.eps
090121
1
6
10
11
5
15
10000_002_090121.eps
090127
10000_017_090121.eps
090428
19
1
18 2

2.4 Connections ( for 22"/24"Pxx4109/12)

EN 5TPN14.1E LA 2.

2.4.1 Side Connections

2.4.2 Rear Connections

Figure 2-6 Connection overview

Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.
1 - Common Interface
68p- See figure 10-3-12
jk
2 - USB2 2.0
Figure 2-7 USB (type A)
1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H
3 - SAT - In
Signal input from an SAT.
4 - Power Button
Turn on/off the TV.
5 - TV ANTENNA - In
Signal input from an antenna, cable or satellite.
back to
div. table
6 - PC IN:VGA
Figure 2-8 VGA connector
1 -Video Red 0.7 V 2 -Video Green 0.7 V 3 -Video Blue 0.7 V
/ 75 W j
PP
/ 75 W j
PP
/ 75 W j
PP
4-n.c. 5 -Ground Gnd H 6 -Ground Red Gnd H 7 -Ground Green Gnd H 8 -Ground Blue Gnd H 9-+5V
+5 V j
DC
10 - Ground Sync Gnd H 11 - Ground Red Gnd H 12 - DDC_SDA DDC data j 13 - H-sync 0 - 5 V j 14 - V-sync 0 - 5 V j 15 - DDC_SCL DDC clock j
7 - Audio - In: Left / Right, VGA
Bu - Audio L/R in 0.5 V
/ 10 kW jq
RMS
8 - HDMI 1: Digital Video - In, Digital Audio with ARC ­In/Out
Figure 2-9 HDMI (type A) connector
2014-Feb-21
EN 6 TPN14.1E LA2.
21
20
1
2
10000_001_090121.eps
090121
Technical Specs, Diversity, and Connections
1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H
9 - Cinch: Digital Audio - Out
BK - Coaxial 0.4 - 0.6V
/ 75 W kq
PP
10 - Head phone (Output)
Bk -Head phone 80 - 600 / 10 mW
ot
11 - Service / UART
1 -Ground Gnd H 2 -UART_TX Transmit k 3 -UART_RX Receive j
12 - EXT1: Video RGB/YC - In, CVBS - In/Out, Audio - In/Out
Figure 2-10 SCART connector
1 -Audio R 0.5 V 2 -Audio R 0.5 V 3 -Audio L 0.5 V 4 -Ground Audio Gnd H
/ 1 k k
RMS
/ 10 k j
RMS
/ 1 k k
RMS
5 -Ground Blue Gnd H 6 -Audio L 0.5 V 7 -Video Blue/C-out 0.7 V
/ 10 k j
RMS
/ 75 jk
PP
8 -Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j 9 -Ground Green Gnd H 10 - n.c. 11 - Video Green 0.7 V
/ 75 j
PP
12 - n.c. 13 - Ground Red Gnd H 14 - Ground P50 Gnd H 15 - Video Red/C 0.7 V 16 - Status/FBL 0 - 0.4 V: INT
/ 75 j
PP
1 - 3 V: EXT / 75 j 17 - Ground Video Gnd H 18 - Ground FBL Gnd H 19 - Video CVBS 1 V 20 - Video CVBS/Y 1 V 21 - Shield Gnd H
/ 75 k
PP
/ 75 j
PP
2014-Feb-21
back to
div. table

2.5 Connections ( for 32")

TV ANTENNA
SERV.U
HDMI 2
SCART (RGB/CVBS)
CI
HDMI 1
ARC
SPDIF OUT
USB
19530_001_130730.eps
130730
1
2
3
4
6
7
5
8
Side ConnectorsSide Connectors
Rear Connectors
1 2 3 4
10000_022_090121.eps
090121
10000_017_090121.eps
090428
19
1
18 2
10000_017_090121.eps
090428
19
1
18 2
Technical Specs, Diversity, and Connections
EN 7TPN14.1E LA 2.

Figure 2-11 Connection overview

Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

2.5.1 Side Connections

1 - Common Interface
68p- See figure 10-3-12
5 - USB2 2.0
jk
1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H
6 - HDMI 1: Digital Video - In, Digital Audio with ARC ­In/Out
Figure 2-12 USB (type A)
6 -D1- Data channel j 7 -D0+ Data channel j 8 -Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H
7 - Cinch: Digital Audio - Out
BK - Coaxial 0.4 - 0.6V

2.5.2 Rear Connections

2 - TV ANTENNA - In
Signal input from an antenna, cable or satellite.
3 - HDMI2 : Digital Video - In, Digital Audio - In/Out
/ 75 kq
PP
Figure 2-13 HDMI (type A) connector
1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5-Shield Gnd H
back to
div. table
Figure 2-14 HDMI (type A) connector
1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j
2014-Feb-21
EN 8 TPN14.1E LA2.
21
20
1
2
10000_001_090121.eps
090121
Technical Specs, Diversity, and Connections
5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - n.c. 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H
4 - Service / UART
1 -Ground Gnd H 2 -UART_TX Transmit k 3 -UART_RX Receive j
8 - EXT1: Video RGB/YC - In, CVBS - In/Out, Audio - In/Out
Figure 2-15 SCART connector
1 -Audio R 0.5 V 2 -Audio R 0.5 V 3 -Audio L 0.5 V 4 -Ground Audio Gnd H
/ 1 k k
RMS
/ 10 k j
RMS
/ 1 k k
RMS
5 -Ground Blue Gnd H 6 -Audio L 0.5 V 7 -Video Blue/C-out 0.7 V 8 -Function Select 0 - 2 V: INT
/ 10 k j
RMS
/ 75 jk
PP
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j 9 -Ground Green Gnd H 10 - n.c. 11 - Video Green 0.7 V 12 - n.c.
/ 75 j
PP
13 - Ground Red Gnd H 14 - Ground P50 Gnd H 15 - Video Red/C 0.7 V
/ 75 j
PP
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 j 17 - Ground Video Gnd H 18 - Ground FBL Gnd H 19 - Video CVBS 1 V 20 - Video CVBS/Y 1 V
/ 75 k
PP
/ 75 j
PP
21 - Shield Gnd H
2014-Feb-21
back to
div. table
Technical Specs, Diversity, and Connections
CI
USB
TV ANTENNA
SERV.U
HDMI 2
HDMI 1
ARC
SCART (RGB/CVBS)
DIGITAL
AUDIO OUT
AUDIO IN
DVI
19530_002_130719.eps
130719
1
2
3
5 4
6
7
8
9
10
Side ConnectorsRear Connectors
1 2 3 4
10000_022_090121.eps
090121
10000_017_090121.eps
090428
19
1
18 2
10000_017_090121.eps
090428
19
1
18 2

2.6 Connections ( for 40" & 47"PFx4109/88)

EN 9TPN14.1E LA 2.

2.6.1 Side Connections

2.6.2 Rear Connections

Figure 2-16 Connection overview

Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.
1 - Common Interface
68p- See figure 10-3-12
jk
2 - USB2 2.0
Figure 2-17 USB (type A)
1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H
3 - Audio - In: Left / Right, VGA
Bu - Audio L/R in 0.5 V
4 - HDMI2 : Digital Video - In, Digital Audio - In/Out
Figure 2-18 HDMI (type A) connector
/ 10 kW jq
RMS
back to
div. table
1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8 -Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - n.c. 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H
5 - HDMI 1: Digital Video - In, Digital Audio with ARC ­In/Out
Figure 2-19 HDMI (type A) connector
1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j
2014-Feb-21
EN 10 TPN14.1E LA2.
21
20
1
2
10000_001_090121.eps
090121
Technical Specs, Diversity, and Connections
8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H
6 - Cinch: Digital Audio - Out
BK - Coaxial 0.4 - 0.6V
/ 75 W kq
PP
7 - Service / UART
1 -Ground Gnd H 2 -UART_TX Transmit k 3 -UART_RX Receive j
8 - Head phone (Output)
Bk -Head phone 80 - 600 / 10 mW
ot
9 - EXT1: Video RGB/YC - In, CVBS - In/Out, Audio - In/Out
Figure 2-20 SCART connector
1 -Audio R 0.5 V 2 -Audio R 0.5 V 3 -Audio L 0.5 V 4 -Ground Audio Gnd H
/ 1 k k
RMS
/ 10 k j
RMS
/ 1 k k
RMS
5 -Ground Blue Gnd H 6 -Audio L 0.5 V 7 -Video Blue/C-out 0.7 V 8 -Function Select 0 - 2 V: INT
/ 10 k j
RMS
/ 75 jk
PP
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j 9 -Ground Green Gnd H 10 - n.c. 11 - Video Green 0.7 V 12 - n.c.
/ 75 j
PP
13 - Ground Red Gnd H 14 - Ground P50 Gnd H 15 - Video Red/C 0.7 V
/ 75 j
PP
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 j 17 - Ground Video Gnd H 18 - Ground FBL Gnd H 19 - Video CVBS 1 V 20 - Video CVBS/Y 1 V
/ 75 k
PP
/ 75 j
PP
21 - Shield Gnd H
2014-Feb-21
10 - TV ANTENNA - In
Signal input from an antenna, cable or satellite.
back to
div. table
Technical Specs, Diversity, and Connections
CI
USB2
TV ANTENNA
SERV.U
HDMI 3
HDMI 2
HDMI 1
ARC
SCART (RGB/CVBS)
DIGITAL
AUDIO OUT
AUDIO IN
DVI
SAT
USB1
19591_001.eps
1
2
3
4
7
8
5
6
9
10
11
13
12
14
Side ConnectorsRear Connectors
1 2 3 4
10000_022_090121.eps
090121
10000_017_090121.eps
090428
19
1
18 2

2.7 Connections ( for 40" & 47"PFT4109/12)

EN 11TPN14.1E LA 2.

Figure 2-21 Connection overview

Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

2.7.1 Side Connections

1 - Common Interface
68p- See figure 10-3-12
2 - USB2 2.0
Figure 2-22 USB (type A)
1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H
3 - SAT - In
Signal input from an SAT.
4 - Power Button
Turn on/off the TV.

2.7.2 Rear Connections

5 - Audio - In: Left / Right, VGA
Bu - Audio L/R in 0.5 V
jk
/ 10 kW jq
RMS
6 - HDMI3 : Digital Video - In, Digital Audio - In/Out
Figure 2-23 HDMI (type A) connector
1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8 -Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - n.c. 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H
7 - HDMI 1: Digital Video - In, Digital Audio - In/Out
See 6 - HDMI3 : Digital Video - In, Digital Audio - In/Out
8 - USB1 2.0
See 2 - USB2 2.0
back to
div. table
9 - HDMI 2 : Digital Video - In, Digital Audio - In/Out
See 6 - HDMI3 : Digital Video - In, Digital Audio - In/Out
2014-Feb-21
EN 12 TPN14.1E LA2.
21
20
1
2
10000_001_090121.eps
090121
Technical Specs, Diversity, and Connections
10 - Cinch: Digital Audio - Out
BK - Coaxial 0.4 - 0.6V
/ 75 W kq
PP
11 - Head phone (Output)
Bk -Head phone 80 - 600 / 10 mW
ot
12 - Service / UART
1 -Ground Gnd H 2 -UART_TX Transmit k 3 -UART_RX Receive j
13 - EXT1: Video RGB/YC - In, CVBS - In/Out, Audio - In/Out
Figure 2-24 SCART connector
1 -Audio R 0.5 V 2 -Audio R 0.5 V 3 -Audio L 0.5 V
/ 1 k k
RMS
/ 10 k j
RMS
/ 1 k k
RMS

2.8 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.
4 -Ground Audio Gnd H 5 -Ground Blue Gnd H 6 -Audio L 0.5 V 7 -Video Blue/C-out 0.7 V 8 -Function Select 0 - 2 V: INT
/ 10 k j
RMS
/ 75 jk
PP
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j 9 -Ground Green Gnd H 10 - n.c. 11 - Video Green 0.7 V 12 - n.c.
/ 75 j
PP
13 - Ground Red Gnd H 14 - Ground P50 Gnd H 15 - Video Red/C 0.7 V
/ 75 j
PP
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 j 17 - Ground Video Gnd H 18 - Ground FBL Gnd H 19 - Video CVBS 1 V 20 - Video CVBS/Y 1 V
/ 75 k
PP
/ 75 j
PP
21 - Shield Gnd H
14 - TV ANTENNA - In
Signal input from an antenna, cable or satellite.
2014-Feb-21
back to
div. table
Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List
3.1 Safety Instructions
Safety regulations require the following during a repair:
Connect the set to the Mains/AC Power via an isolation transformer (> 800 VA).
Replace safety components, indicated by the symbol h, only by components identical to the original ones. Any other component substitution (other than original type) may increase risk of fire or electrical shock hazard.
Safety regulations require that after a repair, the set must be returned in its original condition. Pay in particular attention to the following points:
Route the wire trees correctly and fix them with the mounted cable clamps.
Check the insulation of the Mains/AC Power lead for external damage.
Check the strain relief of the Mains/AC Power cord for proper function.
Check the electrical DC resistance between the Mains/AC Power plug and the secondary side (only for sets that have a Mains/AC Power isolated power supply):
1. Unplug the Mains/AC Power cord and connect a wire
between the two pins of the Mains/AC Power plug.
2. Set the Mains/AC Power switch to the “on” position
(keep the Mains/AC Power cord unplugged!).
3. Measure the resistance value between the pins of the
Mains/AC Power plug and the metal shielding of the tuner or the aerial connection on the set. The reading should be between 4.5 M and 12 M.
4. Switch “off” the set, and remove the wire between the
two pins of the Mains/AC Power plug.
Check the cabinet for defects, to prevent touching of any inner parts by the customer.
3.2 Warnings
All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD w). Careless handling during repair can reduce life drastically. Make sure that, during repair, you are connected with the same potential as the mass of the set by a wristband with resistance. Keep components and tools also at this same potential.
Be careful during measurements in the high voltage section.
Never replace modules or other components while the unit is switched “on”.
When you align the set, use plastic rather than metal tools. This will prevent any short circuits and the danger of a circuit becoming unstable.
3.3 Notes

3.3.1 General

Measure the voltages and waveforms with regard to the chassis (= tuner) ground (H), or hot ground (I), depending on the tested area of circuitry. The voltages and waveforms shown in the diagrams are indicative. Measure them in the Service Default Mode with a colour bar signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and picture carrier at 475.25 MHz for PAL, or 61.25 MHz for NTSC (channel 3).
Where necessary, measure the waveforms and voltages with (D) and without (E) aerial signal. Measure the voltages in the power supply section both in normal operation (G) and in stand-by (F). These values are indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

All resistor values are in ohms, and the value multiplier is often used to indicate the decimal point location (e.g. 2K2 indicates 2.2 k).
Resistor values with no multiplier may be indicated with either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).
All capacitor values are given in micro-farads (10 nano-farads (n 10
Capacitor values may also use the value multiplier as the decimal point indication (e.g. 2p2 indicates 2.2 pF).
An “asterisk” (*) indicates component usage varies. Refer to the diversity tables for the correct values.
The correct component values are listed on the Philips Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction
For more information on how to handle BGA devices, visit this URL: http://www.atyourservice-magazine.com “Magazine”, then go to “Repair downloads”. Here you will find Information on how to deal with BGA-ICs.
BGA Temperature Profiles
For BGA-ICs, you must use the correct temperature-profile. Where applicable and available, this profile is added to the IC Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected by the workshop during a repair:
Use only lead-free soldering tin. If lead-free solder paste is required, please contact the manufacturer of your soldering equipment. In general, use of solder paste within workshops should be avoided because paste is not easy to store and to handle.
Use only adequate solder tools applicable for lead-free soldering tin. The solder tool must be able: – To reach a solder-tip temperature of at least 400°C. – To stabilize the adjusted temperature at the solder-tip. – To exchange solder-tips for different applications.
Adjust your solder tool so that a temperature of around 360°C - 380°C is reached and stabilized at the solder joint. Heating time of the solder-joint should not exceed ~ 4 sec. Avoid temperatures above 400°C, otherwise wear-out of tips will increase drastically and flux-fluid will be destroyed. To avoid wear-out of tips, switch “off” unused equipment or reduce heat.
Mix of lead-free soldering tin/parts with leaded soldering tin/parts is possible but PHILIPS recommends strongly to avoid mixed regimes. If this cannot be avoided, carefully clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website, “Alternative BOM” is referred to as “Design variant”.
The third digit in the serial number (example: AG2B0335000001) indicates the number of the alternative B.O.M. (Bill Of Materials) that has been used for producing the specific TV set. In general, it is possible that the same TV model on the market is produced with e.g. two different types of displays, coming from two different suppliers. This will then
back to
div. table
-9
), or pico-farads (p 10
. Select
EN 13TPN14.1E LA 3.
-6
),
-12
).
2014-Feb-21
EN 14 TPN14.1E LA3.
10000_053_110228.eps
110228
Precautions, Notes, and Abbreviation List
result in sets which have the same CTN (Commercial Type Number; e.g. 28PW9515/12) but which have a different B.O.M. number. By looking at the third digit of the serial number, one can identify which B.O.M. is used for the TV set he is working with. If the third digit of the serial number contains the number “1” (example: AG1B033500001), then the TV set has been manufactured according to B.O.M. number 1. If the third digit is a “2” (example: AG2B0335000001), then the set has been produced according to B.O.M. no. 2. This is important for ordering the correct spare parts! For the third digit, the numbers 1...9 and the characters A...Z can be used, so in total: 9 plus 26= 35 different B.O.M.s can be indicated by the third digit of the serial number.
Identification: The bottom line of a type plate gives a 14-digit serial number. Digits 1 and 2 refer to the production centre (e.g. SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M. code, digit 4 refers to the Service version change code, digits 5 and 6 refer to the production year, and digits 7 and 8 refer to production week (in example below it is 2010 week 10 / 2010 week 17). The 6 last digits contain the serial number.
Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide if the board has to be exchanged or if it should be repaired on component level. If your repair procedure says the board should be exchanged completely, do not solder on the defective board. Otherwise, it cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

It makes sense to avoid exposure to electrical shock.
While some sources are expected to have a possible dangerous impact, others of quite high potential are of limited current and are sometimes held in less regard.
Always respect voltages. While some may not be
dangerous in themselves, they can cause unexpected reactions that are best avoided. Before reaching into a powered TV set, it is best to test the high voltage insulation. It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V
board. 0 = loop through (AUX to TV),
6 = play 16 : 9 format, 12 = play 4 : 3 format
AARA Automatic Aspect Ratio Adaptation:
algorithm that adapts aspect ratio to remove horizontal black bars; keeps the original aspect ratio
ACI Automatic Channel Installation:
algorithm that installs TV channels directly from a cable network by
means of a predefined TXT page ADC Analogue to Digital Converter AFC Automatic Frequency Control: control
signal used to tune to the correct
frequency AGC Automatic Gain Control: algorithm that
controls the video input of the feature
box AM Amplitude Modulation AP Asia Pacific AR Aspect Ratio: 4 by 3 or 16 by 9 ASF Auto Screen Fit: algorithm that adapts
aspect ratio to remove horizontal black
bars without discarding video
information ATSC Advanced Television Systems
Committee, the digital TV standard in
the USA ATV See Auto TV Auto TV A hardware and software control
system that measures picture content,
and adapts image parameters in a
dynamic way AV External Audio Video AVC Audio Video Controller AVIP Audio Video Input Processor B/G Monochrome TV system. Sound
carrier distance is 5.5 MHz BDS Business Display Solutions (iTV) BLR Board-Level Repair BTSC Broadcast Television Standard
Committee. Multiplex FM stereo sound
system, originating from the USA and
used e.g. in LATAM and AP-NTSC
countries B-TXT Blue TeleteXT C Centre channel (audio) CEC Consumer Electronics Control bus:
remote control bus on HDMI
connections CL Constant Level: audio output to
connect with an external amplifier CLR Component Level Repair ComPair Computer aided rePair CP Connected Planet / Copy Protection CSM Customer Service Mode CTI Color Transient Improvement:
manipulates steepness of chroma
transients CVBS Composite Video Blanking and
Synchronization DAC Digital to Analogue Converter DBE Dynamic Bass Enhancement: extra
low frequency amplification DCM Data Communication Module. Also
referred to as System Card or
Smartcard (for iTV). DDC See “E-DDC” D/K Monochrome TV system. Sound
carrier distance is 6.5 MHz DFI Dynamic Frame Insertion DFU Directions For Use: owner's manual DMR Digital Media Reader: card reader DMSD Digital Multi Standard Decoding DNM Digital Natural Motion
2014-Feb-21
back to
div. table
Precautions, Notes, and Abbreviation List
EN 15TPN14.1E LA 3.
DNR Digital Noise Reduction: noise
reduction feature of the set DRAM Dynamic RAM DRM Digital Rights Management DSP Digital Signal Processing DST Dealer Service Tool: special remote
control designed for service
technicians DTCP Digital Transmission Content
Protection; A protocol for protecting
digital audio/video content that is
traversing a high speed serial bus,
such as IEEE-1394 DVB-C Digital Video Broadcast - Cable DVB-T Digital Video Broadcast - Terrestrial DVD Digital Versatile Disc DVI(-d) Digital Visual Interface (d= digital only) E-DDC Enhanced Display Data Channel
(VESA standard for communication
channel and display). Using E-DDC,
the video source can read the EDID
information form the display. EDID Extended Display Identification Data
(VESA standard) EEPROM Electrically Erasable and
Programmable Read Only Memory EMI Electro Magnetic Interference EPG Electronic Program Guide EPLD Erasable Programmable Logic Device EU Europe EXT EXTernal (source), entering the set by
SCART or by cinches (jacks) FDS Full Dual Screen (same as FDW) FDW Full Dual Window (same as FDS) FLASH FLASH memory FM Field Memory or Frequency
Modulation FPGA Field-Programmable Gate Array FTV Flat TeleVision Gb/s Giga bits per second G-TXT Green TeleteXT H H_sync to the module HD High Definition HDD Hard Disk Drive HDCP High-bandwidth Digital Content
Protection: A “key” encoded into the
HDMI/DVI signal that prevents video
data piracy. If a source is HDCP coded
and connected via HDMI/DVI without
the proper HDCP decoding, the
picture is put into a “snow vision” mode
or changed to a low resolution. For
normal content distribution the source
and the display device must be
enabled for HDCP “software key”
decoding. HDMI High Definition Multimedia Interface HP HeadPhone I Monochrome TV system. Sound
2
C Inter IC bus
I
2
I
D Inter IC Data bus
2
S Inter IC Sound bus
I
carrier distance is 6.0 MHz
IF Intermediate Frequency IR Infra Red IRQ Interrupt Request ITU-656 The ITU Radio communication Sector
(ITU-R) is a standards body
subcommittee of the International
Telecommunication Union relating to
radio communication. ITU-656 (a.k.a.
SDI), is a digitized video format used
for broadcast grade video.
Uncompressed digital component or
digital composite signals can be used.
back to
div. table
The SDI signal is self-synchronizing, uses 8 bit or 10 bit data words, and has a maximum data rate of 270 Mbit/s, with a minimum bandwidth of 135 MHz.
iTV Institutional TeleVision; TV sets for
hotels, hospitals etc.
LS Last Status; The settings last chosen
by the customer and read and stored in RAM or in the NVM. They are called at start-up of the set to configure it according to the customer's
preferences LATAM Latin America LCD Liquid Crystal Display LED Light Emitting Diode L/L' Monochrome TV system. Sound
carrier distance is 6.5 MHz. L' is Band
I, L is all bands except for Band I LPL LG.Philips LCD (supplier) LS Loudspeaker LVDS Low Voltage Differential Signalling Mbps Mega bits per second M/N Monochrome TV system. Sound
carrier distance is 4.5 MHz MHEG Part of a set of international standards
related to the presentation of
multimedia information, standardised
by the Multimedia and Hypermedia
Experts Group. It is commonly used as
a language to describe interactive
television services MIPS Microprocessor without Interlocked
Pipeline-Stages; A RISC-based
microprocessor MOP Matrix Output Processor MOSFET Metal Oxide Silicon Field Effect
Transistor, switching device MPEG Motion Pictures Experts Group MPIF Multi Platform InterFace MUTE MUTE Line MTV Mainstream TV: TV-mode with
Consumer TV features enabled (iTV) NC Not Connected NICAM Near Instantaneous Compounded
Audio Multiplexing. This is a digital
sound system, mainly used in Europe. NTC Negative Temperature Coefficient,
non-linear resistor NTSC National Television Standard
Committee. Color system mainly used
in North America and Japan. Color
carrier NTSC M/N= 3.579545 MHz,
NTSC 4.43= 4.433619 MHz (this is a
VCR norm, it is not transmitted off-air) NVM Non-Volatile Memory: IC containing
TV related data such as alignments O/C Open Circuit OSD On Screen Display OAD Over the Air Download. Method of
software upgrade via RF transmission.
Upgrade software is broadcasted in
TS with TV channels. OTC On screen display Teletext and
Control; also called Artistic (SAA5800) P50 Project 50: communication protocol
between TV and peripherals PAL Phase Alternating Line. Color system
mainly used in West Europe (colour
carrier = 4.433619 MHz) and South
America (colour carrier
PAL M = 3.575612 MHz and
PAL N = 3.582056 MHz) PCB Printed Circuit Board (same as “PWB”) PCM Pulse Code Modulation
2014-Feb-21
EN 16 TPN14.1E LA3.
Precautions, Notes, and Abbreviation List
PDP Plasma Display Panel PFC Power Factor Corrector (or
Pre-conditioner) PIP Picture In Picture PLL Phase Locked Loop. Used for e.g.
FST tuning systems. The customer
can give directly the desired frequency POD Point Of Deployment: a removable
CAM module, implementing the CA
system for a host (e.g. a TV-set) POR Power On Reset, signal to reset the uP PSDL Power Supply for Direct view LED
backlight with 2D-dimming PSL Power Supply with integrated LED
drivers PSLS Power Supply with integrated LED
drivers with added Scanning
functionality PTC Positive Temperature Coefficient,
non-linear resistor PWB Printed Wiring Board (same as “PCB”) PWM Pulse Width Modulation QRC Quasi Resonant Converter QTNR Quality Temporal Noise Reduction QVCP Quality Video Composition Processor RAM Random Access Memory RGB Red, Green, and Blue. The primary
color signals for TV. By mixing levels
of R, G, and B, all colors (Y/C) are
reproduced. RC Remote Control RC5 / RC6 Signal protocol from the remote
control receiver RESET RESET signal ROM Read Only Memory RSDS Reduced Swing Differential Signalling
data interface R-TXT Red TeleteXT SAM Service Alignment Mode S/C Short Circuit SCART Syndicat des Constructeurs
d'Appareils Radiorécepteurs et
SCL Serial Clock I
Téléviseurs
SCL-F CLock Signal on Fast I SD Standard Definition SDA Serial Data I SDA-F DAta Signal on Fast I
2
C
2
C bus
2
C
2
C bus SDI Serial Digital Interface, see “ITU-656” SDRAM Synchronous DRAM SECAM SEequence Couleur Avec Mémoire.
Colour system mainly used in France and East Europe. Colour carriers = 4.406250 MHz and
4.250000 MHz SIF Sound Intermediate Frequency SMPS Switched Mode Power Supply SoC System on Chip SOG Sync On Green SOPS Self Oscillating Power Supply SPI Serial Peripheral Interface bus; a
4-wire synchronous serial data link
standard S/PDIF Sony Philips Digital InterFace SRAM Static RAM SRP Service Reference Protocol SSB Small Signal Board SSC Spread Spectrum Clocking, used to
reduce the effects of EMI STB Set Top Box STBY STand-BY SVGA 800 × 600 (4:3) SVHS Super Video Home System SW Software
SWAN Spatial temporal Weighted Averaging
Noise reduction SXGA 1280 × 1024 TFT Thin Film Transistor THD Total Harmonic Distortion TMDS Transmission Minimized Differential
Signalling TS Transport Stream TXT TeleteXT TXT-DW Dual Window with TeleteXT UI User Interface uP Microprocessor UXGA 1600 × 1200 (4:3) V V-sync to the module VESA Video Electronics Standards
Association VGA 640 × 480 (4:3) VL Variable Level out: processed audio
output toward external amplifier VSB Vestigial Side Band; modulation
method WYSIWYR What You See Is What You Record:
record selection that follows main
picture and sound WXGA 1280 × 768 (15:9) XTAL Quartz crystal XGA 1024 × 768 (4:3) Y Luminance signal Y/C Luminance (Y) and Chrominance (C)
signal YPbPr Component video. Luminance and
scaled color difference signals (B-Y
and R-Y) YUV Component video
2014-Feb-21
back to
div. table

4. Mechanical Instructions

19590_100_140107.eps
140107
CN601
CN401
CN9904
CN701
CN408
MAIN POWER SUPPLY
(1054)
A
IR/LED BOARD
(1056)
J
SSB
(1053)
B
ECN701
ECN601
ECN408
ECN401
ECN601
ECN601
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
CN201
CN8101
Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions
4.3 Assembly/Panel Removal ( for 20" & 22" & 24")
4.4 Assembly/Panel Removal ( for 32")
4.5 Assembly/Panel Removal ( for 40" & 47")
4.1 Cable Dressing
Mechanical Instructions
4.6 Set Re-assembly
Notes:
Figures below can deviate slightly from the actual situation, due to the different set executions.
EN 17TPN14.1E LA 4.

Figure 4-1 Cable dressing (22" 4100 series)

back to
div. table
2014-Feb-21
EN 18 TPN14.1E LA4.
19590_101_140109.eps
140109
CN401
CN9904
CN701
CN408
CN601
MAIN POWER SUPPLY
(1054)
A
IR/LED BOARD
(1056)
J
SSB
(1053)
B
ECN701
ECN601
ECN408
ECN601
ECN401
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
CN201
CN8101
19590_102_140109.eps
140109
CN4501
CN601
CN8101
CN4101
Control Board IR/LED penal (1066)
EJ
SSB+PSU combination panel
(1052)
BA
ECN8101
ECN601
ECN601
ECN4101
ECN4501
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
CN201
Mechanical Instructions

Figure 4-2 Cable dressing (24" 4100 series)

2014-Feb-21

Figure 4-3 Cable dressing (32" 4100 series)

back to
div. table
Mechanical Instructions
19590_103_140110.eps
140110
CN401
CN601
CN8501
CN408
CN701
CN9101
SSB
(1053)
B
ECN601
ECN601
ECN408
ECN401
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
MAIN POWER SUPPLY
(1054)
A
ECN701
Control Board IR/LED penal (1066)
CN201
EJ
19591_100.eps
CN401
CN601
CN701
CN9101
CN409
MAIN POWER SUPPLY
(1054)
A
Control Board IR/LED panel
(1066)
EJ
SSB
(1053)
B
ECN701
ECN601
ECN409
ECN401
ECN601
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
CN201
CN8501
EN 19TPN14.1E LA 4.

Figure 4-4 Cable dressing ( 40" & 47"PFx4109/88 series)

Figure 4-5 Cable dressing ( 40" & 47" PFx4109/12 series)

back to
div. table
2014-Feb-21
EN 20 TPN14.1E LA4.
19531_101_130905.eps
130905
3
3
2
1
1
2
3
Mechanical Instructions

4.2 Service Positions

For easy servicing of a TV set, the set should be put face down on a soft flat surface, foam buffers or other specific workshop tools. Ensure that a stable situation is created to perform measurements and alignments. When using foam bars take care that these always support the cabinet and never only the display. Caution: Failure to follow these guidelines can seriously damage the display! Ensure that ESD safe measures are taken.

4.3 Assembly/Panel Removal ( for 20" & 22" & 24")

Instructions below apply to the 22PFH4109/88, but will be similar for 20" & 22" & 24" models.

4.3.1 Rear Cover

Refer to Figure 4-6 Warning: Disconnect the mains power cord before removing the rear cover.
1. Remove fixation screws [1] that secure the base assy, pull out the base assy from the set. Then remove the fixation screws [2] that secure the rear cover. Refer to Figure 4-6 for details.
2. At the indicated areas [3] the cover is secured by clips. Be very careful with releasing those.
3. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.
for details.

4.3.2 Small Signal Board (SSB)

Refer to Figure 4-7 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.
1. Release the clips from the LVDS [1] connector that connect with the SSB. Caution: be careful, as these are very fragile connectors!
2. Unplug all other connectors [2].
3. Remove all the fixation screws [3] from the SSB.
4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket.Refer to
Figure 4-7
2014-Feb-21
for details.
for details.
Figure 4-6 Rear cover removal
back to
div. table
Mechanical Instructions
19531_102_130905.eps
130905
2
1
3
3
3
3

4.4.1 Rear Cover

EN 21TPN14.1E LA 4.
Figure 4-7 SSB removal

4.3.3 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result in damaging the PSU.
1. Gently unplug all connectors from the PSU.
2. Remove all fixation screws from the PSU.
3. The PSU can be taken out of the set now.
Refer to Figure 4-8 Warning: Disconnect the mains power cord before removing the rear cover.
1. Remove fixation screws [1] that secure the base assy, pull out the base assy from the set. Then remove the fixation screws [2], [3] that secure the rear cover. Refer to
Figure 4-8
2. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.
for details.
for details.

4.3.4 Speakers

1. Gently release the tapes that secures the speaker cables.
2. Unplug the speaker connectors from the SSB.
3. Take the speakers out. When defective, replace the both units.

4.3.5 Stand bracket

1. Remove all fixation screws of the bracket.
2. Lift the bracket from the set.

4.3.6 IR/LED panel

1. Remove the stand bracket, as described earlier.
2. Unplug the connector from the IR/LED panel.
3. Gently release the clip that holds the panel and take it out from the bezel.
When defective, replace the whole unit.

4.3.7 LCD Panel

1. Unplug all the connector cables of the boards.
2. Gently take all the speakers out.
3. Lift the subframe with SSB, PSU, IR/LED panel from the LCD panel and put it aside.
Warning:Cause the panels of 20" & 22" & 24" are bolt-on panels, the panel could not release from bezel. When defective, replace the whole unit.

4.4 Assembly/Panel Removal ( for 32")

Instructions below apply to the 32PHH4109/88, but will be similar for other 32Pxx4109 models.
back to
div. table
2014-Feb-21
EN 22 TPN14.1E LA4.
19590_106_140111.eps
140111
1
M4 × 10
M3 × 8
1
1
1
1
2
2
2
2
2
2
2
M3 × 6
3
3
3
19590_107_140111.eps
140111
M3 × 8
1
1
1
Mechanical Instructions
Figure 4-8 Rear cover removal [1]
2014-Feb-21
Figure 4-9 Rear cover removal [2]
back to
div. table
Mechanical Instructions
19590_108_140111.eps
140111
1
1
1
1
19590_109_140111.eps
140111
2
3
1
4
4
4
4
EN 23TPN14.1E LA 4.

4.4.2 Speakers

Refer toFigure 4-9
1. Remove fixation screws [1] that secure the speakers cover, Refer to Figure 4-9
and Figure 4-10 for details.
for details.
2. Gently lift the speakers cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.
3. Remove the fixation screws [1] that secure the speakers. Refer to Figure 4-10
4. Gently take the speakers out.
When defective, replace the whole unit.
for details.

4.4.3 Small Signal Board (SSB) + PSU combination panel

Refer to Figure 4-11 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB + PSU combination panel.
1. Release the clips from the LVDS connector that connect with the SSB + PSU combination panel [1]. Caution: be careful, as these are very fragile connectors!
2. Unplug all other connectors [2] , [3].
3. Remove all the fixation screws from the SSB + PSU combination panel [4].
4. The SSB + PSU combination panel can now be shifted from side connector cover, then lifted and taken out of the I/O bracket. Refer to Figure 4-11
for details.
for details.
Figure 4-10 Speakers removal
Figure 4-11 SSB + PSU combination panel removal
back to
div. table
2014-Feb-21
EN 24 TPN14.1E LA4.
19590_110_140111.eps
14011
1
M4 × 10
M3 × 8
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
M3 × 6
3
3
Mechanical Instructions

4.4.4 Stand bracket

1. Remove all fixation screws of the bracket.
2. Lift the bracket from the set.

4.4.5 Control Board IR/LED Panel

1. Remove the stand bracket, as described earlier.
2. Unplug the connector from the Control Board IR/LED panel.
3. Gently release the clip that holds the panel and take it out from the bezel.
When defective, replace the whole unit.

4.4.6 LCD Panel

1. Unplug all the connector cables of the boards.
2. Gently take all the speakers out.
3. Lift the subframe with SSB + PSU combination panel, Control Board IR/LED panel from the LCD panel and put it aside.
Warning:Cause the panels of 32Pxx4109 are bolt-on panels, the panel could not release from bezel. When defective, replace the whole unit.

4.5 Assembly/Panel Removal ( for 40" & 47")

Instructions below apply to the 40PFH4109/88. but will be similar for other 40" & 47" models.

4.5.1 Rear Cover

Refer to Figure 4-12 Warning: Disconnect the mains power cord before removing the rear cover.
1. Remove fixation screws [1] that secure the base assy, pull out the base assy from the set. Then remove the fixation screws [2], [3]that secure the rear cover. Refer to
Figure 4-12
2. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.
for details.
for details.
2014-Feb-21
Figure 4-12 Rear cover removal [1]
back to
div. table
Mechanical Instructions
19590_111_140111.eps
140111
M3 × 8
1
1
1
1 1
1
1
19590_112_140111.eps
14011
EN 25TPN14.1E LA 4.
Figure 4-13 Rear cover removal [2]
Figure 4-14 Speaker removal
back to
div. table
2014-Feb-21
EN 26 TPN14.1E LA4.
19590_113_140111.eps
140111
2
1
3
3
3
3
Mechanical Instructions

4.5.2 Speakers

Refer to Figure 4-13
1. Remove fixation screws [1] that secure the speakers cover, Refer to Figure 4-13
2. Gently lift the speakers cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.
3. Remove the fixation screws [1] that secure the speakers. Refer to Figure 4-14
4. Gently take the speakers out.
When defective, replace the whole unit.

4.5.3 Small Signal Board (SSB)

Refer to Figure 4-15 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.
1. Release the clips from the LVDS connector that connect with the SSB [1]. Caution: be careful, as these are very fragile connectors!
2. Unplug all other connectors [2].
3. Remove all the fixation screws from the SSB [3].
4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket. Refer to
Figure 4-15
and Figure 4-14 for details.
for details.
for details.
for details.
for details.
2. Unplug the connector from the Control Board IR/LED panel.
3. Gently release the clip that holds the panel and take it out from the bezel.
When defective, replace the whole unit.

4.5.7 LCD Panel

1. Unplug all the connector cables of the boards.
2. Gently take all the speakers out.
3. Lift the subframe with SSB, PSU, Control Board IR/LED panel from the LCD panel and put it aside.
Warning:Cause the panel of 40" & 47" is bolt-on panels, the panel could not release from bezel. When defective, replace the whole unit.

4.6 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse order.
Notes:
While re-assembling, make sure that all cables are placed and connected in their original position. See Figure 4-1
Figure 4-4
Pay special attention not to damage the EMC foams on the SSB shields. Ensure that EMC foams are mounted correctly.
.
to
Figure 4-15 SSB removal

4.5.4 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result in damaging the PSU.
1. Gently unplug all connectors from the PSU.
2. Remove all fixation screws from the PSU.
3. The PSU can be taken out of the set now.

4.5.5 Stand bracket

1. Remove all fixation screws of the bracket.
2. Lift the bracket from the set.

4.5.6 Control Board IR/LED Panel

1. Remove the stand bracket, as described earlier.
2014-Feb-21
back to
div. table
Service Modes and Fault Finding

5. Service Modes and Fault Finding

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Stepwise Start-up
5.4 Service Tools
5.5 Software Upgrading
5.6 The Blinking LED Procedure
5.7 Fault Finding and Repair Tips
5.1 Test Points
As most signals are digital, it will be difficult to measure waveforms with a standard oscilloscope. However, several key ICs are capable of generating test patterns, which can be controlled via ComPair. In this way it is possible to determine which part is defective.
Perform measurements under the following conditions:
Service Default Mode.
Video: Colour bar signal.
Audio: 3 kHz left, 1 kHz right.
5.2 Service Modes
The Service Mode feature is split into five parts:
Service Alignment Mode (SAM).
Factory Mode.
Customer Service Mode (CSM).
Computer Aided Repair Mode (ComPair).
SAM and the Factory mode offer features, which can be used by the Service engineer to repair/align a TV set. Some features are:
Make alignments (e.g. White Tone), reset the error buffer (SAM and Factory Mode).
Display information (“SAM” indication in upper right corner of screen, error buffer, software version, operating hours, options and option codes, sub menus).
The CSM is a Service Mode that can be enabled by the consumer. The CSM displays diagnosis information, which the customer can forward to the dealer or call centre. In CSM mode, “CSM”, is displayed in the top right corner of the screen. The information provided in CSM and the purpose of CSM is to:
Increase the home repair hit rate.
Decrease the number of nuisance calls.
Solved customers’ problem without home visit.
SAM in a decimal value. Every two soft-resets increase the hour by + 1. Stand-by hours are not counted.
Software Identification, Version, and Cluster
The software ID, version, and cluster will be shown in the main menu display of SAM and CSM. The screen will show: “AAAAB-X.YYY”, where:
AAAA is the chassis name: TPN149E x.yy.
B is the region indication: E = Europe, A = AP/China, U = NAFTA, L = LATAM.
X is the main version number: this is updated with a major change of specification (incompatible with the previous software version). Numbering will go from 1 - 99 and AA - ZZ.
- If the main version number changes, the new version number is written in the NVM.
- If the main version number changes, the default settings are loaded.
YYY is the sub version number: this is updated with a minor change (backwards compatible with the previous versions). Numbering will go from 000 - 999.
- If the sub version number changes, the new version number is written in the NVM.
- If the NVM is refreshed, the software identification, version, and cluster will also be written to NVM.
Display Option Code Selection
When after an SSB or display exchange, the display option code is not set properly, it will result in a TV with “no display”. Therefore, it is required to set this display option code after such a repair. To do so, press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in Table 6-3 accepted and stored in NVM, the set will switch to Stand-by, to indicate that the process has been completed. During this algorithm, the NVM-content must be filtered, because several items in the NVM are TV-related and not SSB related (e.g. Model and Prod. S/N). Therefore, “Model” and “Prod. S/N” data is changed into “See Type Plate”. In case a call centre or consumer reads “See Type Plate” in CSM mode.

5.2.2 Service Alignment Mode (SAM)

. When the value is
EN 27TPN14.1E LA 5.

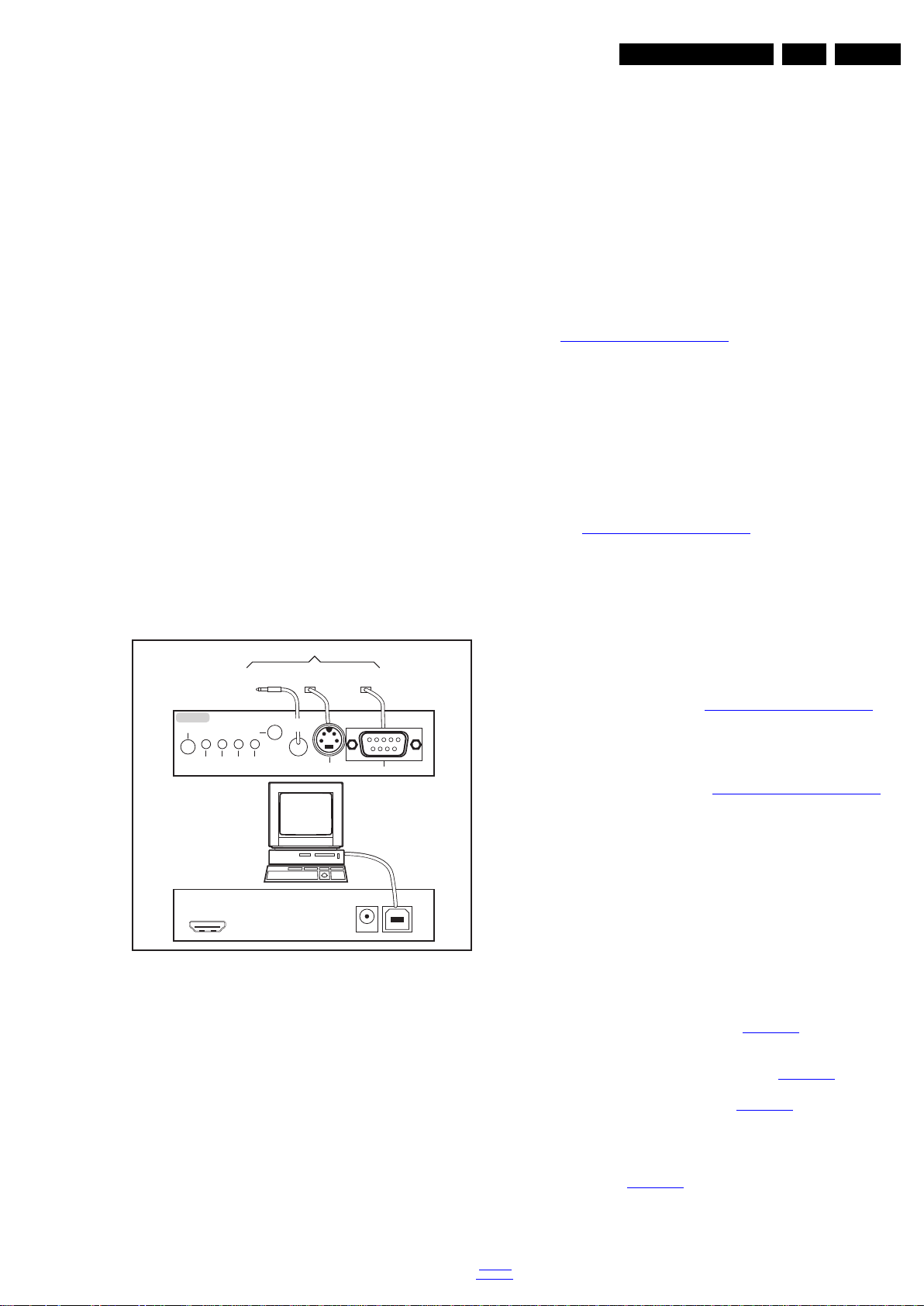

ComPair Mode is used for communication between a computer and a TV on I engineer to quickly diagnose the TV set by reading out error codes, read and write in NVMs, communicate with ICs and the micro processor (PWM, registers, etc.), and by making use of a fault finding database. It will also be possible to up and download the software of the TV set via I ComPair. To do this, ComPair has to be connected to the TV set via the ComPair connector, which will be accessible through the rear of the set (without removing the rear cover).
Note: For the new model range, a new remote control (RC) is used with some renamed buttons. This has an impact on the activation of the Service modes. For instance the old “MENU” button is now called “HOME” (or is indicated by a “house” icon).

5.2.1 General

Next items are applicable to all Service Modes or are general.
Life Timer
During the life time cycle of the TV set, a timer is kept (called “Op. Hour”). It counts the normal operation hours (not the Stand-by hours). The actual value of the timer is displayed in
2
C /UART level and can be used by a Service
2
C with help of
back to
div. table
Purpose
To modify the NVM.
To display/clear the error code buffer.
To perform alignments.
Specifications
Operation hours counter (maximum five digits displayed).
Software version, error codes, and option settings display.
Error buffer clearing.
Option settings.
Software alignments (White Tone).
NVM Editor.
Set screen mode to full screen (all content is visible).
How to Activate SAM
To activate SAM, use one of the following methods:
Press the following key sequence on the remote control transmitter: “062596”, directly followed by the “INFO/OK” button. Do not allow the display to time out between entries while keying the sequence.
Or via ComPair.
After entering SAM, the following items are displayed, with “SAM” in the upper right corner of the screen to indicate that the television is in Service Alignment Mode.
2014-Feb-21
EN 28 TPN14.1E LA5.
Service Modes and Fault Finding
Table 5-1 SAM mode overview
Main Menu Sub-menu 1 Sub-menu 2 Description
System Information Op Hour e.g. 00082 This represents the life timer. The timer counts normal operation hours, but does not
Clear Press [OK] to clean the Error Codes
RGB Align Warm R Gain To align the White Tone. See
Upload to USB Copy Channel List to USB To upload several settings from the TV to an USB stick Download from USB Copy Channel List from USB To download several settings from the USB stick to the TV
immediately
G Gain B Gain
Normal R Gain
G Gain B Gain
Cool R Gain
G Gain B Gain
Store Store the RGB value
count Stand-by hours. Erases the contents of the error buffer. Select this menu item and press the MENU
RIGHT key on the remote control. The content of the error buffer is cleared.
paragraph 6.3 Software Alignments in the Alignments section for a detailed description
How to Navigate
In the SAM menu, select menu items with the UP/DOWN keys on the remote control transmitter. The selected item will be indicated. When not all menu items fit on the screen, use the UP/DOWN keys to display the next/previous menu items.
With the “LEFT/RIGHT” keys, it is possible to: – (De) activate the selected menu item. – (De) activate the selected sub menu. – Change the value of the selected menu item.
When you press the MENU button once while in top level SAM, the set will switch to the normal user menu (with the SAM mode still active in the background).
Press the following key sequence on the remote control transmitter: “062596” directly followed by the “Home/Menu” button to switch to SDM (do not allow the display to time out between entries while keying the sequence).
How to Store SAM Settings
To store the settings changed in SAM mode (except the RGB Align settings), leave the top level SAM menu by using the POWER button on the remote control transmitter or the television set. The mentioned exceptions must be stored separately via the STORE button.
How to Exit SAM
Use one of the following methods:
Switch the set to STANDBY by pressing the mains button on the remote control transmitter or the television set.
Via a standard RC-transmitter, key in “00” sequence.
Note: When the TV is switched “off” by a power interrupt while in SAM, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.3 Contents of the Factory mode:

Purpose
To perform extended alignments.
Specifications
Displaying and or changing Panel ID information.
Displaying and or changing Tuner ID information.
Error buffer clearing.
Various software alignment settings.
Testpattern displaying.
Public Broadcasting Service password Reset.
•etc.
How to Activate the Factory mode
To activate the Factory mode, use the following method:
Press the following key sequence on the remote control transmitter: from the “menu/home” press “1999”, directly followed by the “Back/Return” button. Do not allow the display to time out between entries while keying the sequence.
After entering the Factory mode, the following items are displayed,
Table 5-2 Factory mode overview
Item Item value
0 F/W VERSION Press OK Displays the software versions of the supplier, Flash PQ,
1 Board ID 715G6092 715G6094 715G6079 715G6092 715G6094 Dispaly the Board ID; be careful changing this, it can result i n
2PANEL_ID 1919699Displays and changes the Panel ID with the left and right
3 DB COPY TV to USB P ress OK Press OK Press OK Press OK Press OK DB COPY TV to USB 4 DB READ USB to TV Press OK Press OK Press OK Press OK Press OK DB READ USB to TV 5 CLR_TEMP_R 68 128 128 73 128 Red colour temperature setting 6 CLR_TEMP_G 76 128 128 89 128 Green colour temperature setting 7 CLR_TEMP_B 128 128 128 128 128 Blue colour temperature setting 8 AUTO_COLOR Press OK Press OK Press OK Press OK Press OK PC: any pa ttern that ha s black and white, YPbP r: SMPTE b ar
9ADC_GAIN_R 0360000Red ADC gain 10ADC_GAIN_G 0360000Green ADC gain 11ADC_GAIN_B 0312000Blue ADC gain 12ADC_OFFSET_R 0375000Red ADC offset
2014-Feb-21
Default value
back to
div. table
Description22" 24" 32" 40" 47"
Smart Picture, BL Dimming, Source Meter, the Picture Quality checksum, the Dimming library, the Sour ce me te r libr ary, the Flash AQ, MCU and OAD software versions.
not correct displaying the screen!
cursor; be careful changing this, it can result in not correct displaying the screen!
(colour bar), any timing.
Service Modes and Fault Finding
Default value
Item Item value
13ADC_OFFSET_G 0403000Green ADC offset 14ADC_OFFSET_B 0434000Blue ADC offset 15 VIRGING_MODE off off off on off Use this to return the set to virgin mode. Depends whether the
16 E_Fus e on on on on on E-fuse mode 17 ORT_MODE off off off off off ORT mode 18 AGEING MODE off off off off off Use this for aging a new LCD panel 19AUD_LIMITE_MODE11111Three modes,0: off, 1: adaptive mode, 2: fixed mode 20 AUD_THRESHOLD_BYTE1 100 100 100 100 100 Limit threshold 21 AUD_THRESHOLD_BYTE2 200 200 200 200 200 Limit threshold 22 AUD_THRESHOLD_BYTE3 100 100 100 100 100 Limit threshold 23AUD_GAIN_LINEIN00000Line-in audio gain 24AUD_GAIN_HDMI 00000HDMI audio gain 25AUD_GAIN_ATV 00000Analogue TV audio gain 26 AUD_GAIN_DTV 10 10 0 0 0 Digital TV audio gain 27AUD_GAIN_USB 00000USB audio gain 28TUNER_ID 00000Displays and changes the Tuner ID with the left and right
29 CIPLUS QUERY Press OK Press OK Press OK Press OK Press OK Shows the Validity of the CI+ key and the supplier information 30 CIPLUS UPDATE Press OK Press OK Press OK Press OK Press OK Used to enter a n ew CI+ code into the NVM. This ca n only be
31 CI Key Type Selection ProductKey CI Key Type Selection 32AQ_TABLE_INDEX66888Audio Quality index 33 EDID UPDATE Press OK Press OK Press OK Press OK Press OK Used to enter a new EDID codes into the NVM 34 LVDS SSC Ratio 3% 3% 2% 3% 3% LVDS SSC ratio 35 LVDS SSC Freq 30KHz 30KHz 30KHz 30KHz 30KHz LVDS SSC frequency 36 DDR SSC Ratio 2% 2% 2% 2% 2% DDR SSC ratio 37 DDR SSC Freq 30KHz 30KHz 30KHz 30KHz 30KHz DDR SSC frequency 38 Panel H.Flip on on off on on Flip panel 39 Panel V.Flip on on off on on Flip panel 40 Panel ABSwap off off off off off ABSwap panel 41 Watchdog 5sec 5sec 5sec 5sec 5sec Watchdog 42 Backlight PWM freq.(Hz) 150 150 150 150 150 Backlight PWM frequency 43 Backlight PWM Limit 20 20 20 20 20 Backlight PWM Limit 44 VGA_TxRx_Mode off off off off off VGA_TxRx_Mode 45LVDS Driving 33333LVDS Driving 46 LVDS Format VESA 8bit VESA 8bit VESA 8bit JEIDA 10bit JEIDA 10bit LVDS Format 47 Ziggo Aging Press OK Press OK Press OK Press OK Press OK Ziggo Aging 48 SPDIF On On On On On Enable/Disable SPDIF source 49 Standard PWM Gain 98 98 100 100 100 Standard PWM Gain 50 ECO PWM Gain 100 100 100 100 100 ECO PWM Gain 51 VGA po rt on On off off off Enable/Disable VGA port 52 Zero Detect Enable on On On On On Zero Detect Enable 53 Copy PQ table to TV Press OK Press OK Press OK Press OK Press OK Copy PQ table to TV 54 Headphone on On Off on on Enable/Disable Headphone source 55 EnhancedH/88 - On Off off on EnhancedH/88 56 Joysticker Enable - Off Off off off Joysticker Enable 57 Ambilight Enable - - Off off off Ambilight Enable 58 Lounge Light Enable - - - Off - Lounge Light Enable 59 EXIF_FACTORY Press OK Exits the Factory mode
Description22" 24" 32" 40" 47"
set has been used already.
cursor. Not to be changed when the tuner is r eplaced with t he correct service part.
used when no CI+ code exists in the NVM
EN 29TPN14.1E LA 5.
How to Exit the Factory mode
Use one of the following methods:
Select EXIT_FACTORY from the menu and press the “OK” button.
Note: When the TV is switched “off” by a power interrupt, or normal switch to “stand-by” while in the factory mode, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.4 Customer Service Mode (CSM)

Purpose
The Customer Service Mode shows error codes and information on the TVs operation settings.The call centre can instruct the customer (by telephone) to enter CSM in order to identify the status of the set.This helps the call centre to diagnose problems and failures in the TV set before making a service call. The CSM is a read-only mode; therefore, modifications are not possible in this mode.
back to
div. table
Specifications
Ignore “Service unfriendly modes”.
Line number for every line (to make CSM language independent).
Set the screen mode to full screen (all contents on screen is visible).
After leaving the Customer Service Mode, the original settings are restored.
Possibility to use “CH+” or “CH-” for channel surfing, or enter the specific channel number on the RC.
How to Activate CSM
To activate CSM, press the following key sequence on a standard remote control transmitter: “123654” (do not allow the display to time out between entries while keying the sequence). After entering the Customer Service Mode, the following items are displayed.
Note: Activation of the CSM is only possible if there is no (user) menu on the screen!
2014-Feb-21
EN 30 TPN14.1E LA5.
19080_206_110323.eps
120224
Power Off
Standby Soft Mode
Power On
Semi- Standby
Standby
Switch
Off(Mains Power Plug)
Standby Soft Mode Command Received, previously in Standby
Soft Mode (Power tact switch)
TV Wakeup commands Received (TV Wakeup keys)
Digital background tasks started
Digital background tasks completed
Swith On, previously in
Standby/Semi- Standby (Mains Power Plug)
Standby Soft Mode
Command Received (Power tact
switch)
Switch Off (Mains Power Plug)
Switch Off
(Mains Power Plug)
Swith On, previously in Standby Soft Mode (Mains Power Plug)
Standby commands
Received (RC
Standby key)
Standby Soft Mode
Command Received, previously in Standby Soft Mode (Power tact switch)
TV Wakeup commands Received (TV Wakeup keys)
Switch On, previously in Power On Mode (Power tact switch)
Standby Soft Mode Command Received, (Power tact switch)
Switch Off (Mains Power Plug)
Switch On,previously in TV Operation Mode (Mains Power Plug)
Service Modes and Fault Finding
Contents of CSM
1.1 Set Type This information is very helpful for a helpdesk/workshop as reference for further diagnosis. In this way, it is not necessary for the customer to look at the rear of the TV-set. Note that if an NVM is replaced or is initialized after corruption, this set type has to be re-written to NVM.
1.2 Production code Displays the production code (the serial number) of the TV. Note that if an NVM is replaced or is initialized after corruption, this production code has to be re-written to NVM.
1.3 Installation date Indicates the date of the first installation of the TV. This date is acquired via time extraction.
1.4 SSB Gives an identification of the SSB as stored in NVM. Note that if an NVM is replaced or is initialized after corruption, this identification number has to be re-written to NVM. This identification number is the 12NC number of the SSB.
1.5 Display 12NC NVM read/write.
1.6 PSU 12NC NVM read/write.
2.1 Current Main SW Displays the built-in main software version. In case of field problems related to software, software can be upgraded. As this software is consumer upgradeable, it will also be published on the internet.

5.3 Stepwise Start-up

2.2 Standby SW Displays the built-in stand-by processor software version. Upgrading this software will be possible via USB.
2.3 Panel Code Displays the Display Code number.
3.1 Signal Quality Analog/digital signal strength.
3.2 Child lock Not active / active. This is a combined item for locks. If any lock (channel lock, parental lock) is active, it is indicated as “active”.
3.3 HDCP keys Indicates the validity of the HDMI keys (or HDCP keys). In case these keys are not valid and the customer wants to make use of the HDMI functionality, the SSB has to be replaced.
How to Navigate
By means of the “CURSOR-DOWN/UP” knob (or the scroll wheel) on the RC-transmitter, can be navigated through the menus.
How to Exit CSM
To exit CSM, use one of the following methods.
Press the MENU/HOME button on the remote control transmitter.
Press the POWER button on the remote control transmitter.
Press the POWER button on the television set.
2014-Feb-21

Figure 5-1 Stepwise Start-up

back to
div. table
Loading...
+ 99 hidden pages
