Philips 40PFT6709 Schematic

Colour Television Chassis

TPM14.2A

LA

Contents Page Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 5

4. Mechanical Instructions 9 Cable dressing (40" 6709 series) 9 Cable dressing (50" 6709 series) 10 Cable dressing (50" 8509 series) 10 Cable dressing (58" 8509 series) 11 Cable dressing (65" 6909 series) 11 Cable dressing (65" 8609 series) 12

5. Service Modes and Fault Finding 23

6. Alignments 31

7. Circuit Descriptions 34

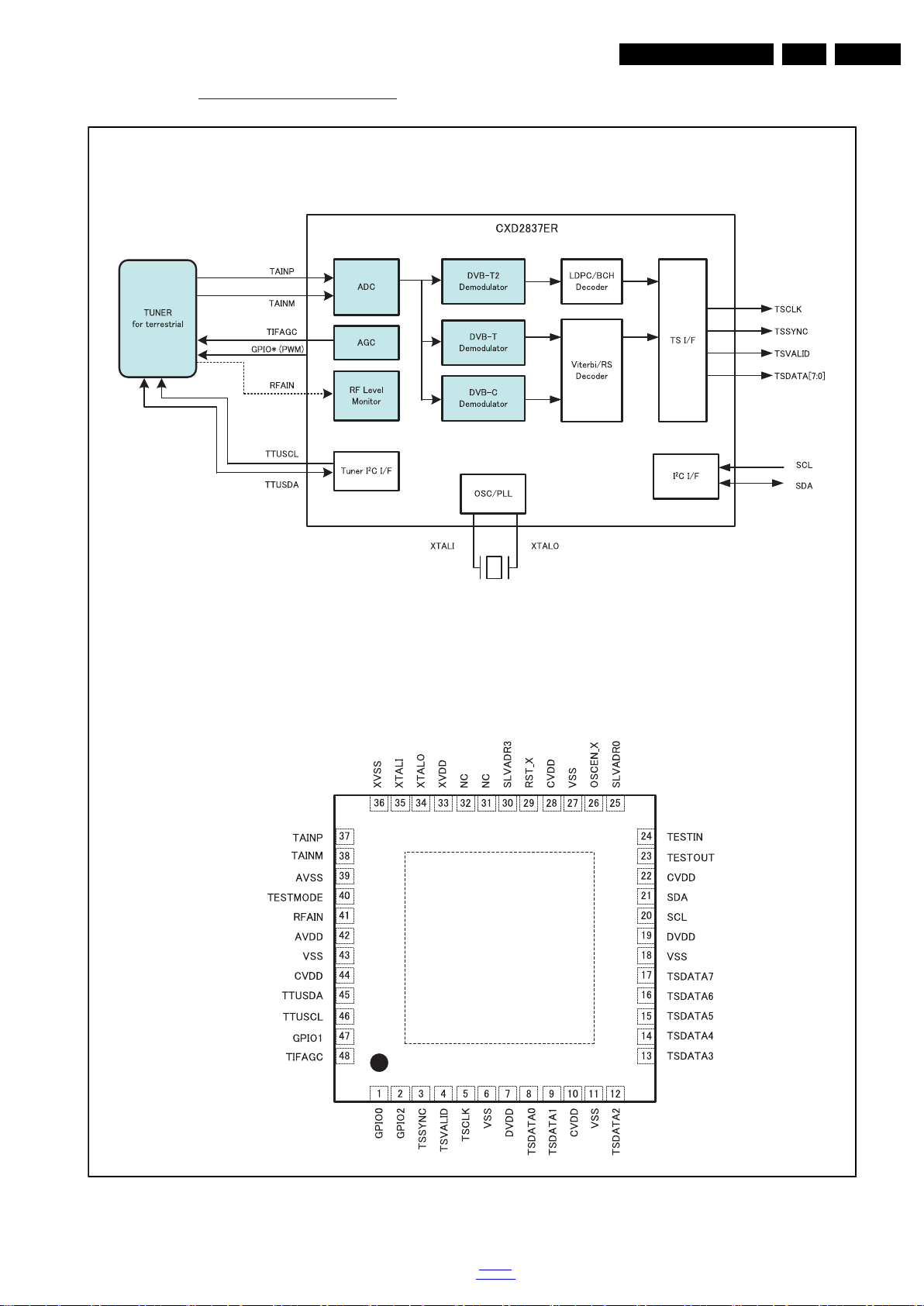

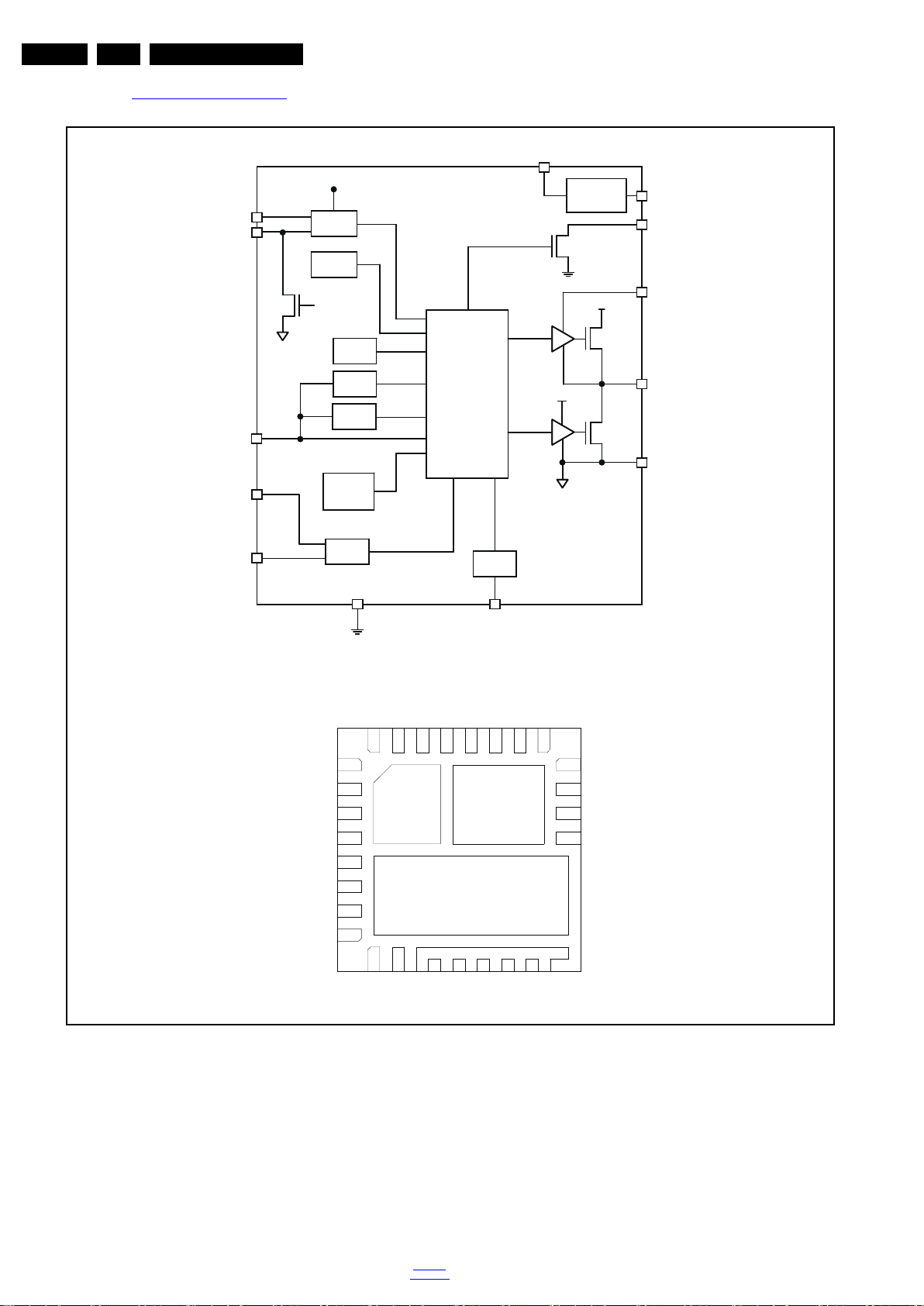

8. IC Data Sheets 40

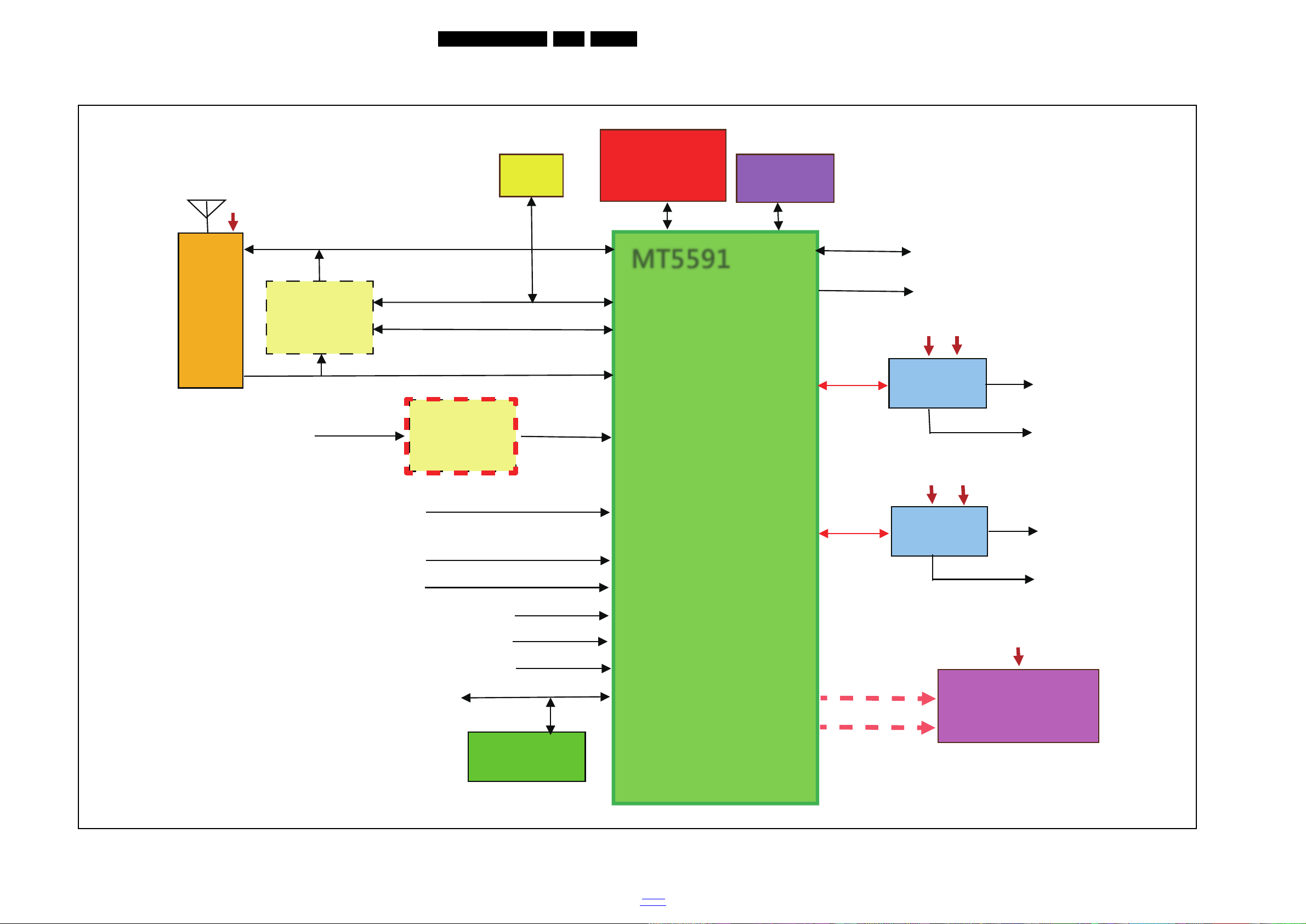

9. Block Diagrams Block diagram 6000 & 8000 series 47

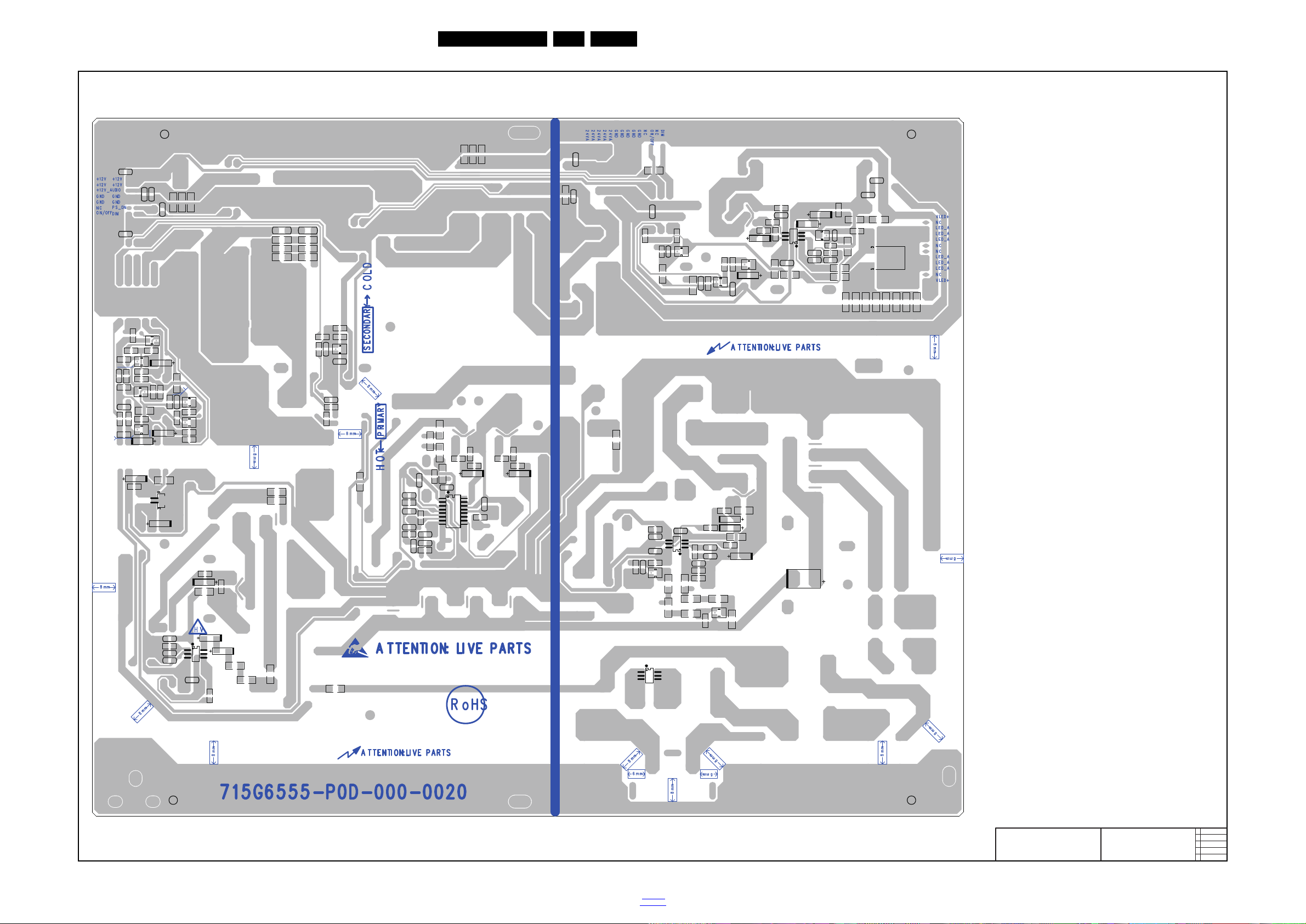

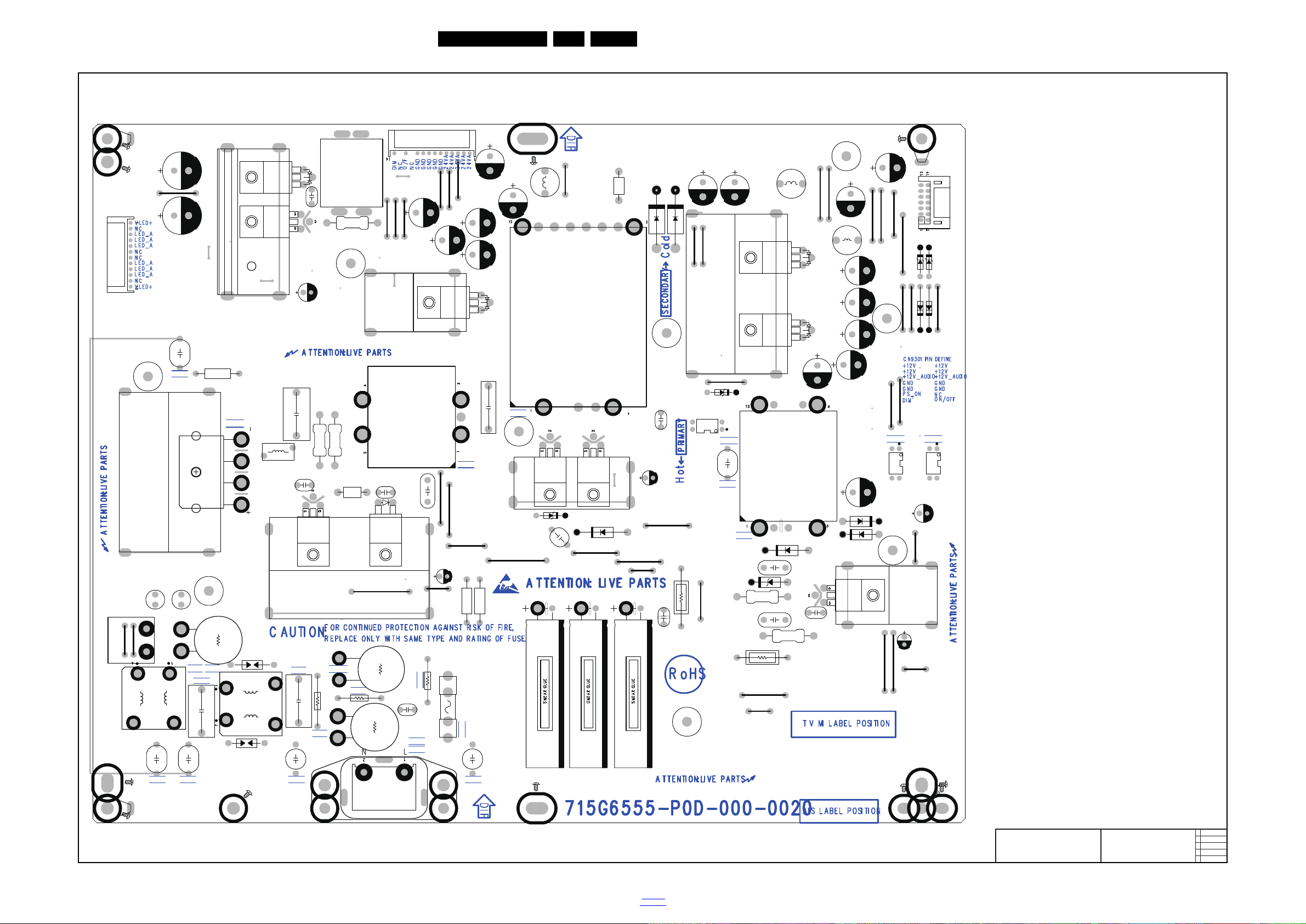

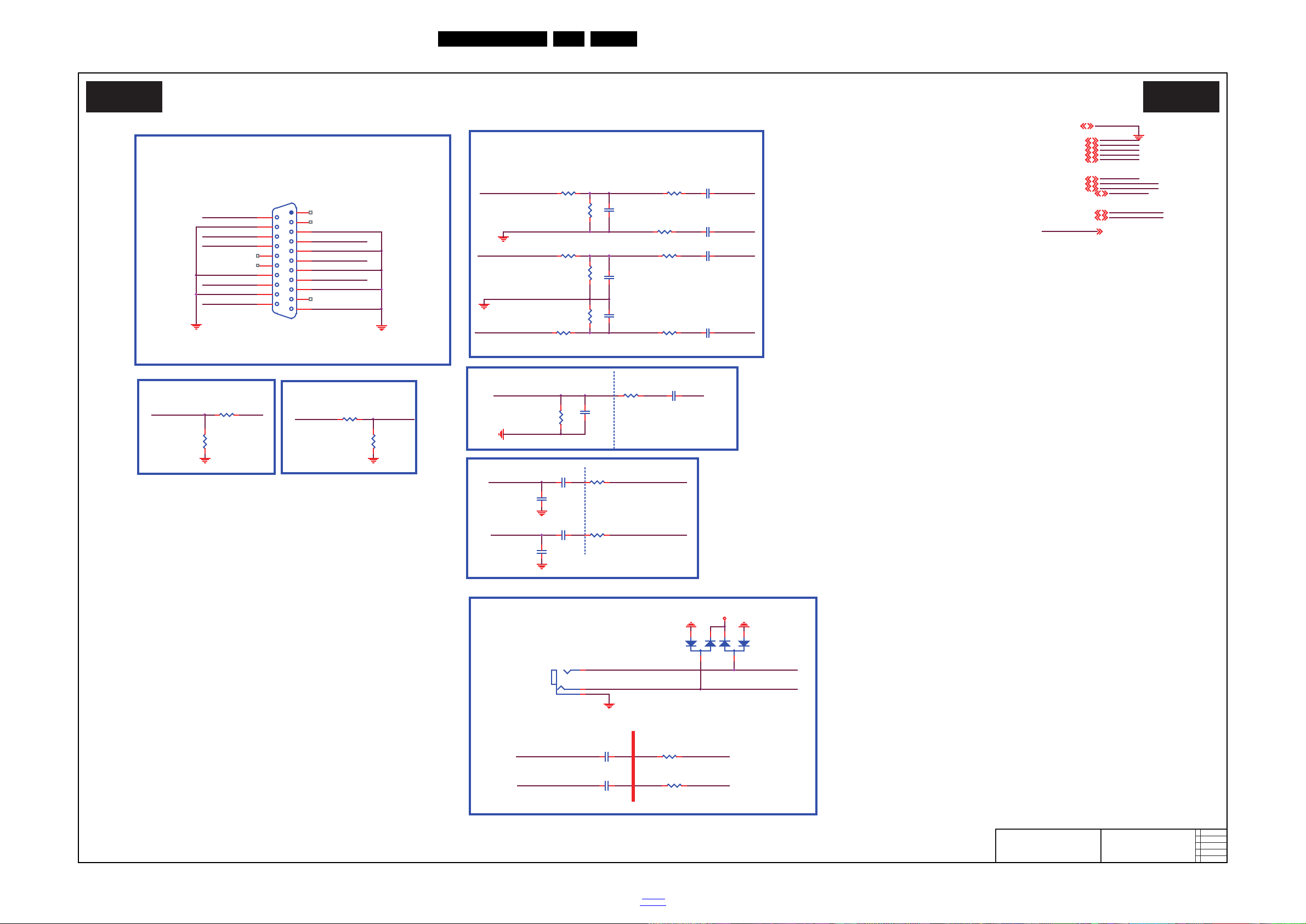

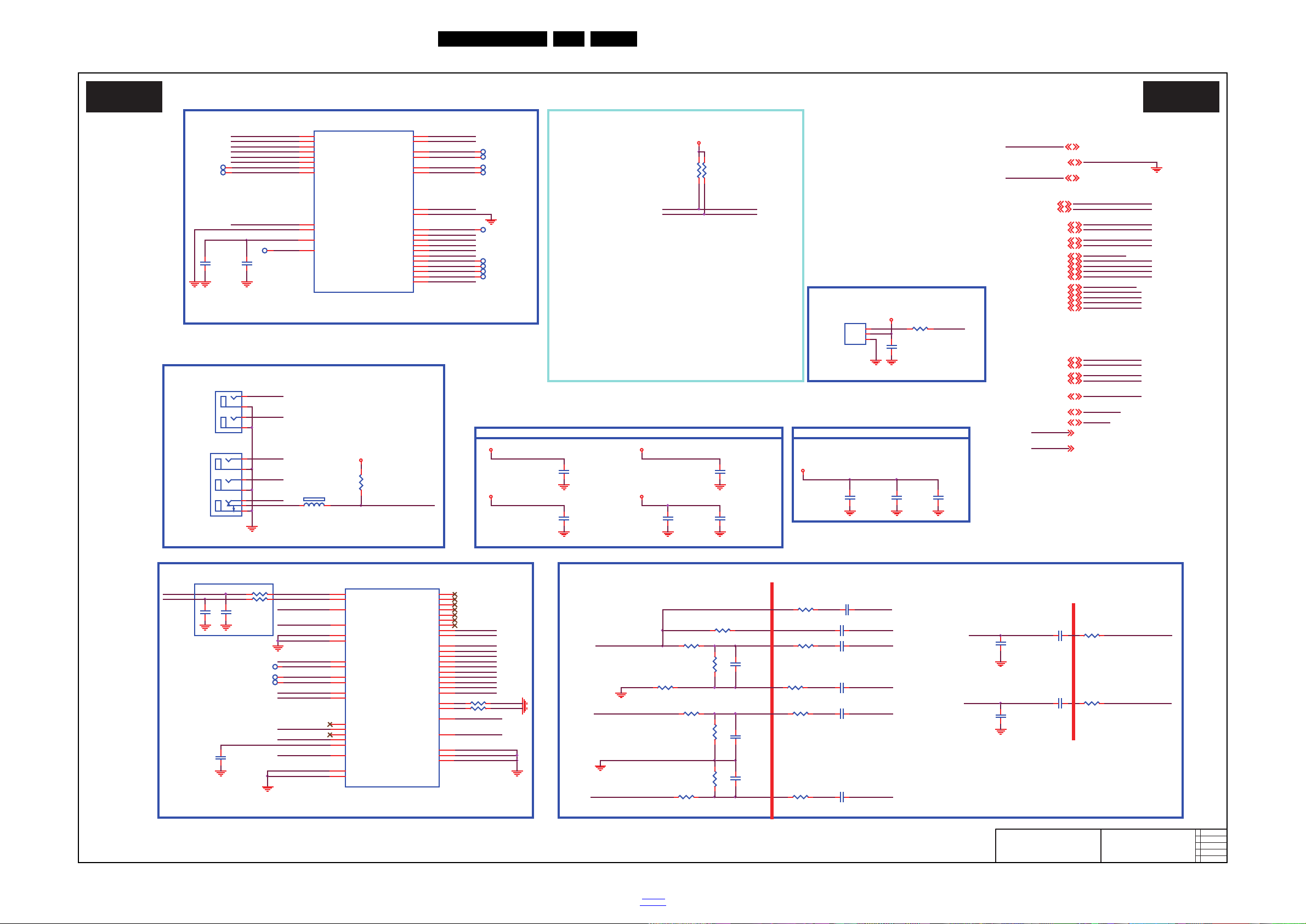

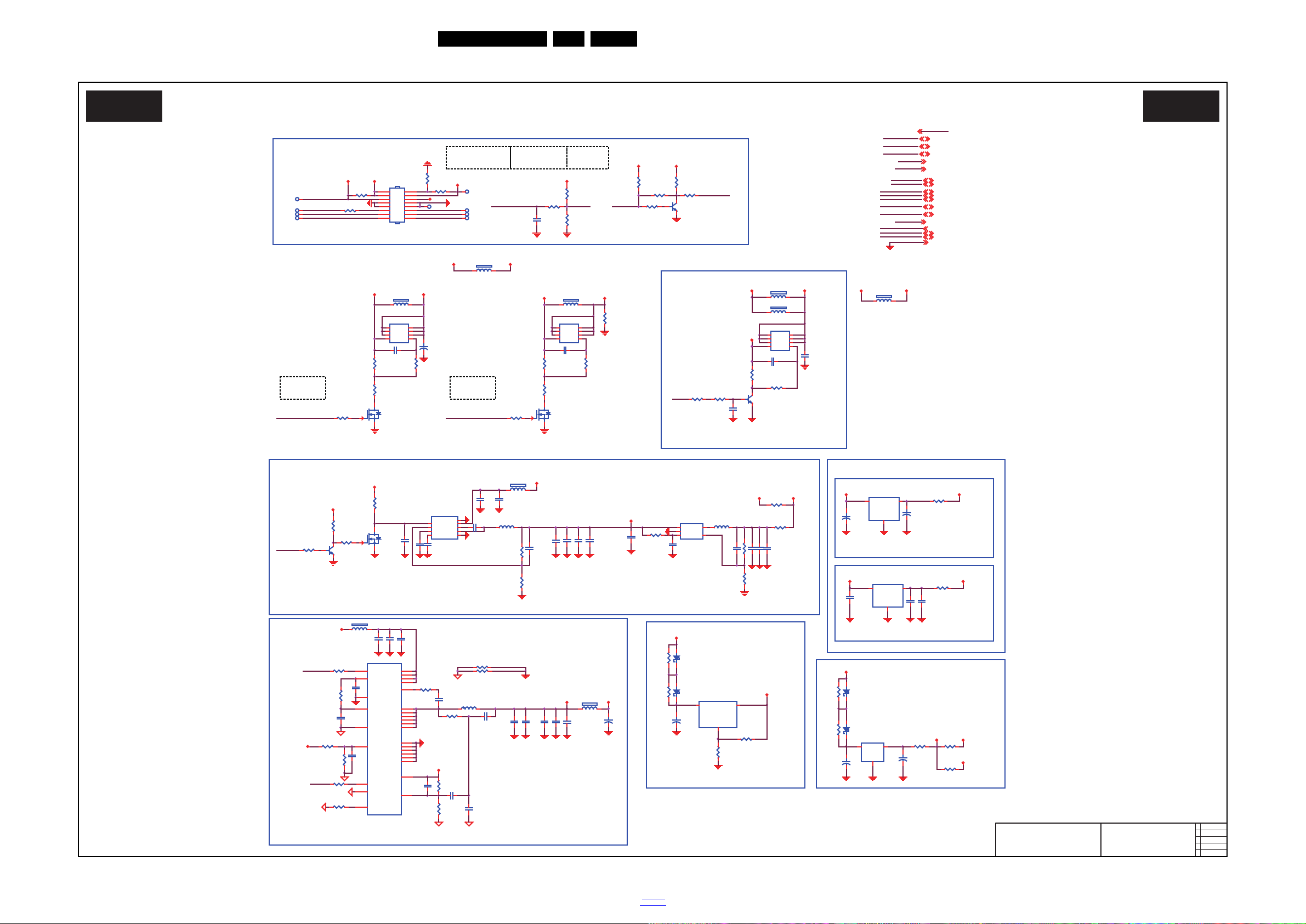

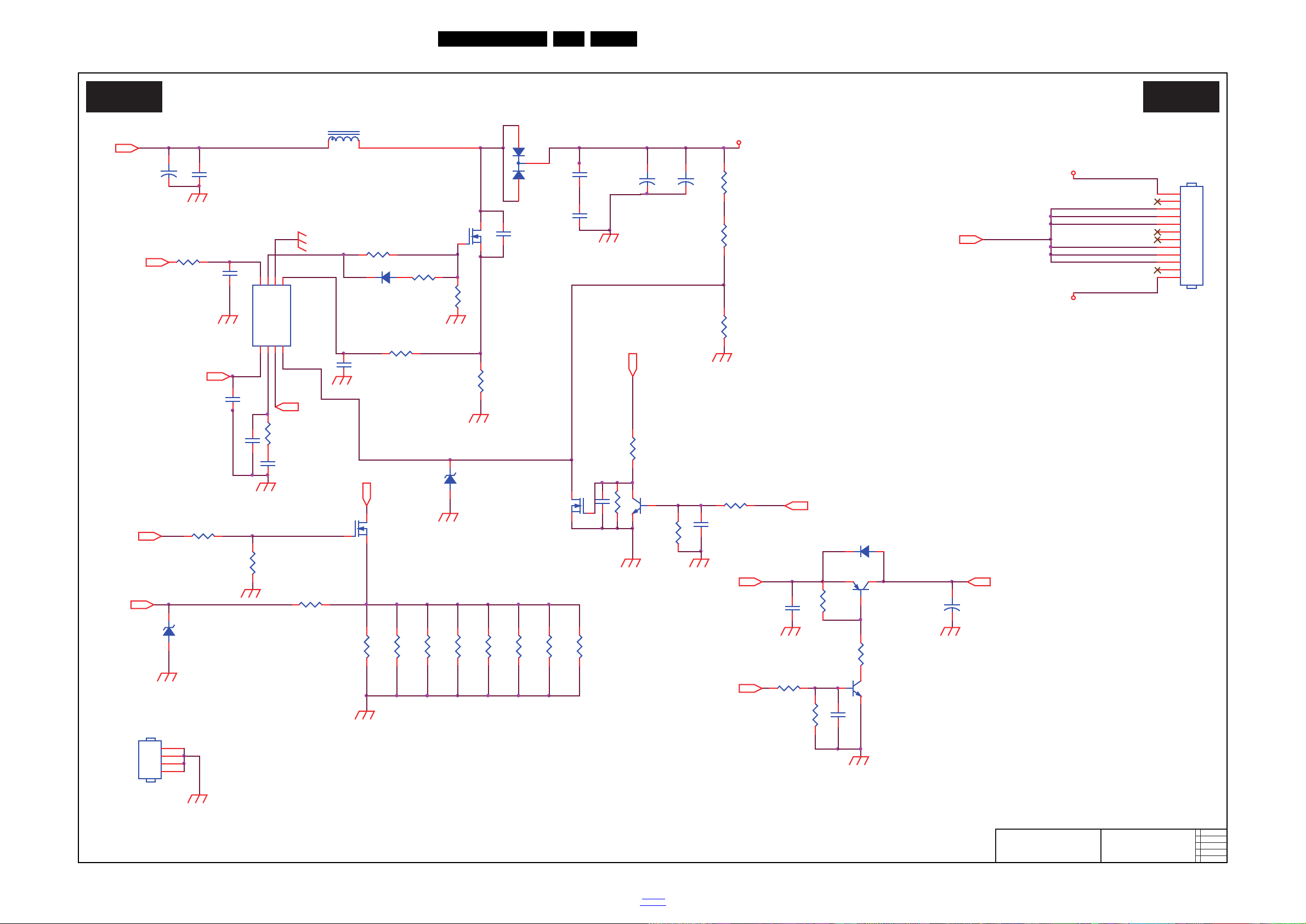

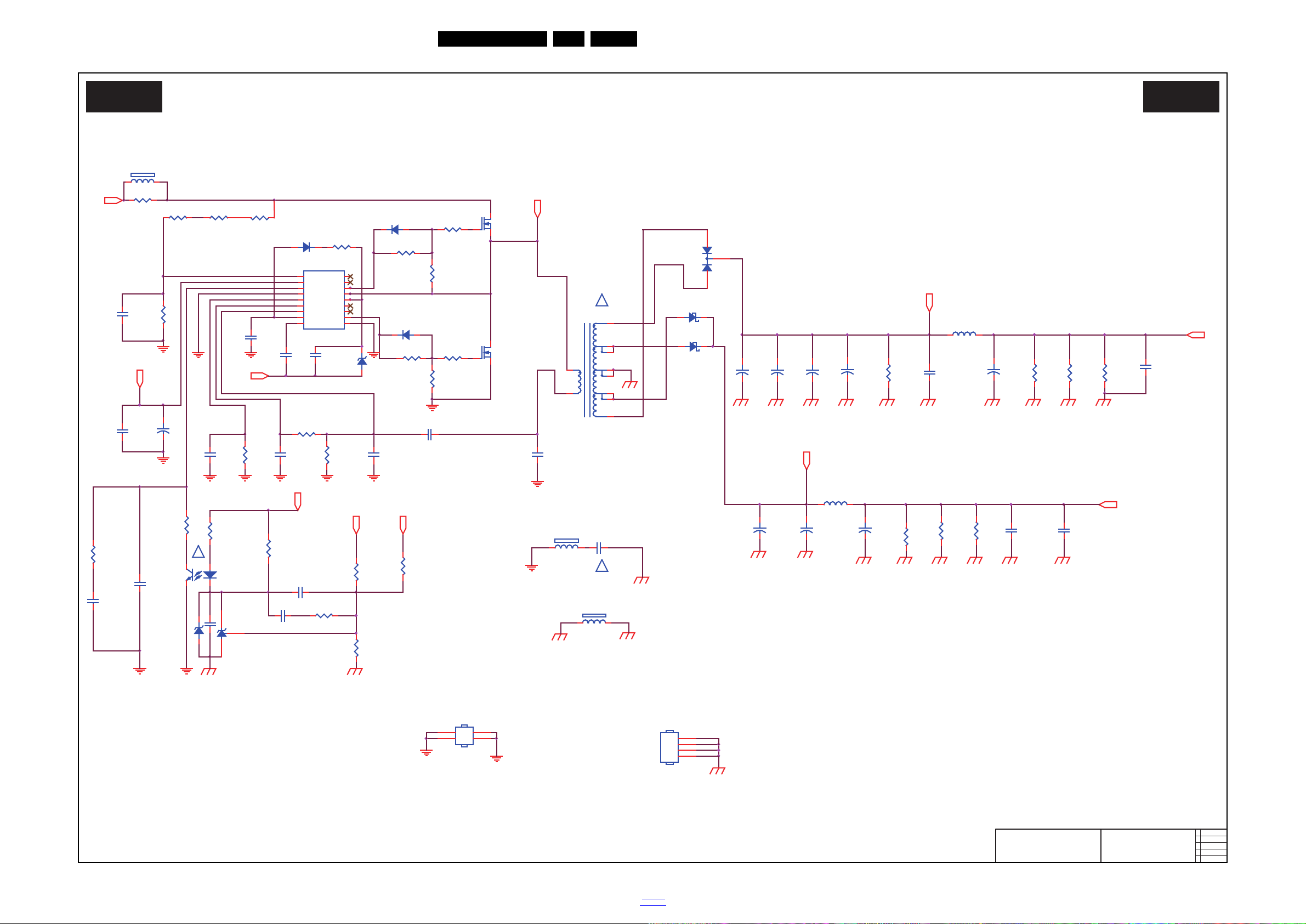

10. Circuit Diagrams and PWB Layouts Drawing PWB A 715G6555 PSU A 715G6887 PSU 53 57-58 A 715G6338 PSU 59 64-65 A 715G6991 PSU 66 71-72 B 715G6842 SSB 73 86-87 J 715G6737 IR/LED Panel 88 89 E 715G6316 Keyboard control panel 90 91

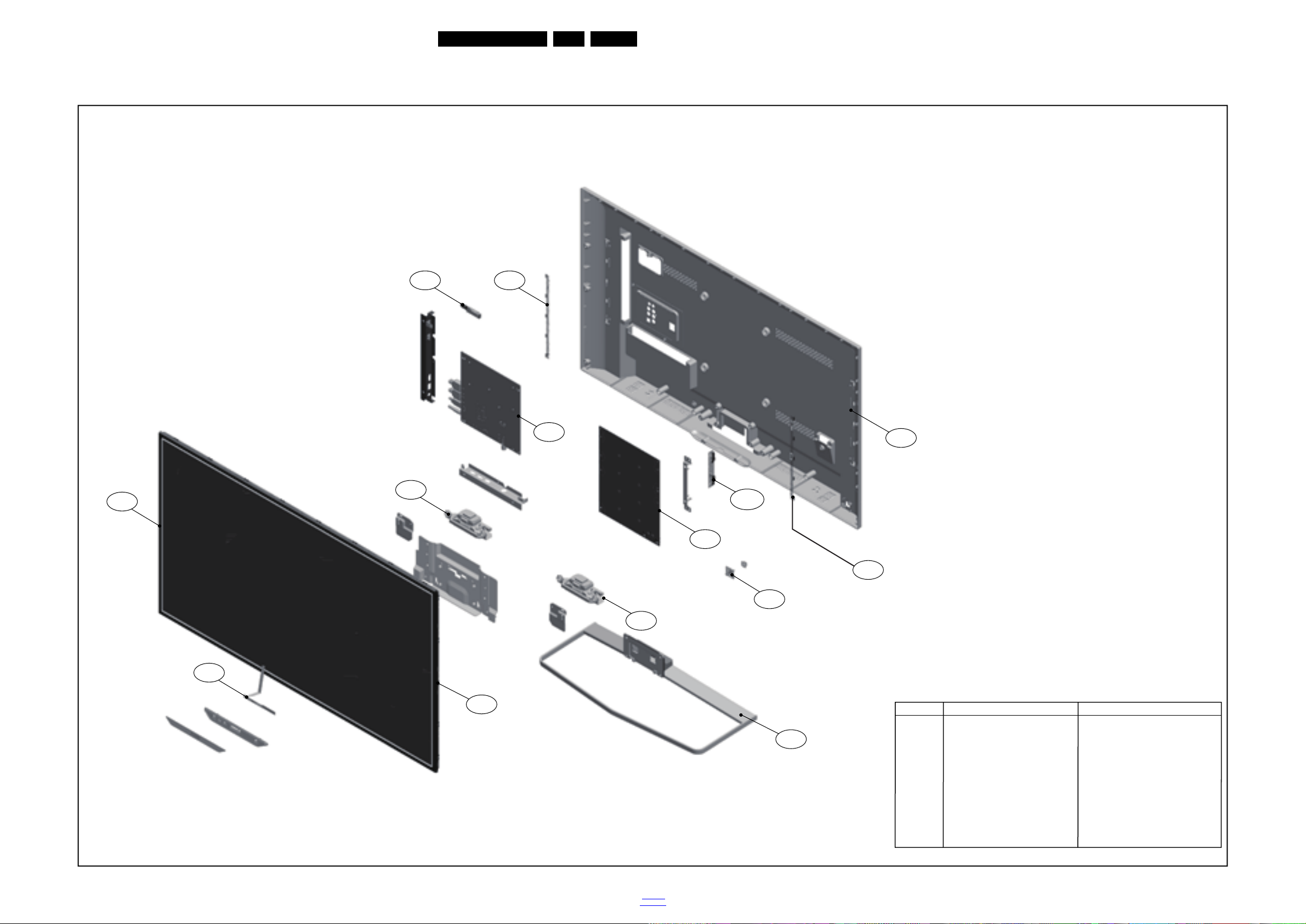

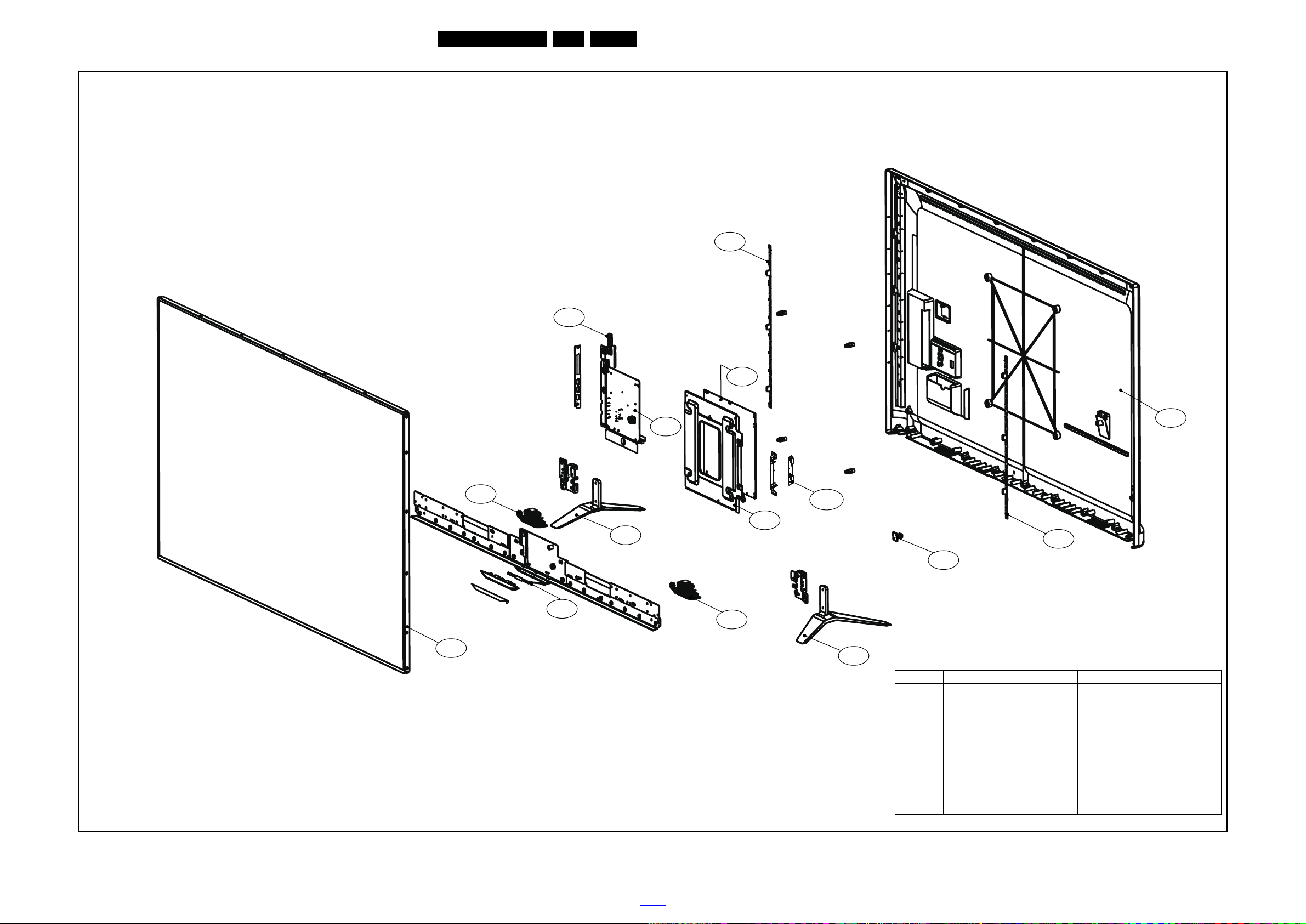

11. Styling Sheets 6700 series 40" 92 6700 series 50" 93 8500 series 50" 94 8500 series 58" 95 6900 series 65" 96 8600 series 65" 97

48 51-52

Published by CQZ/SC 1439 Quality Printed in the Netherlands Subject to modification EN 3122 785 19751

2014-Sep-26

2014 ©

TP Vision Netherlands B.V.

All rights reserved. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Phili ps Electronics N.V.

EN 2 TPM14.2A LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

Manual xxxx xxx xxxx.1

• Chapter 2: Updated table 2.1 Technical Specifications

• Chapter 4: Added figure 4-1 Cable dressing (40" 6709

series), 4-2 Cable dressing (50" 6709 series) and section

4.5 Assembly/Panel Removal ( for 40"/50" 6709 series)

• Chapter 5: Updated table 5-2 Factory mode overview

.

• Chapter 6: Updated tables 6-2 White tone default settings and 6-3 Display code overview

• Chapter 7: Updated figure 7-2 Power Architecture table 7-1 Connector overview

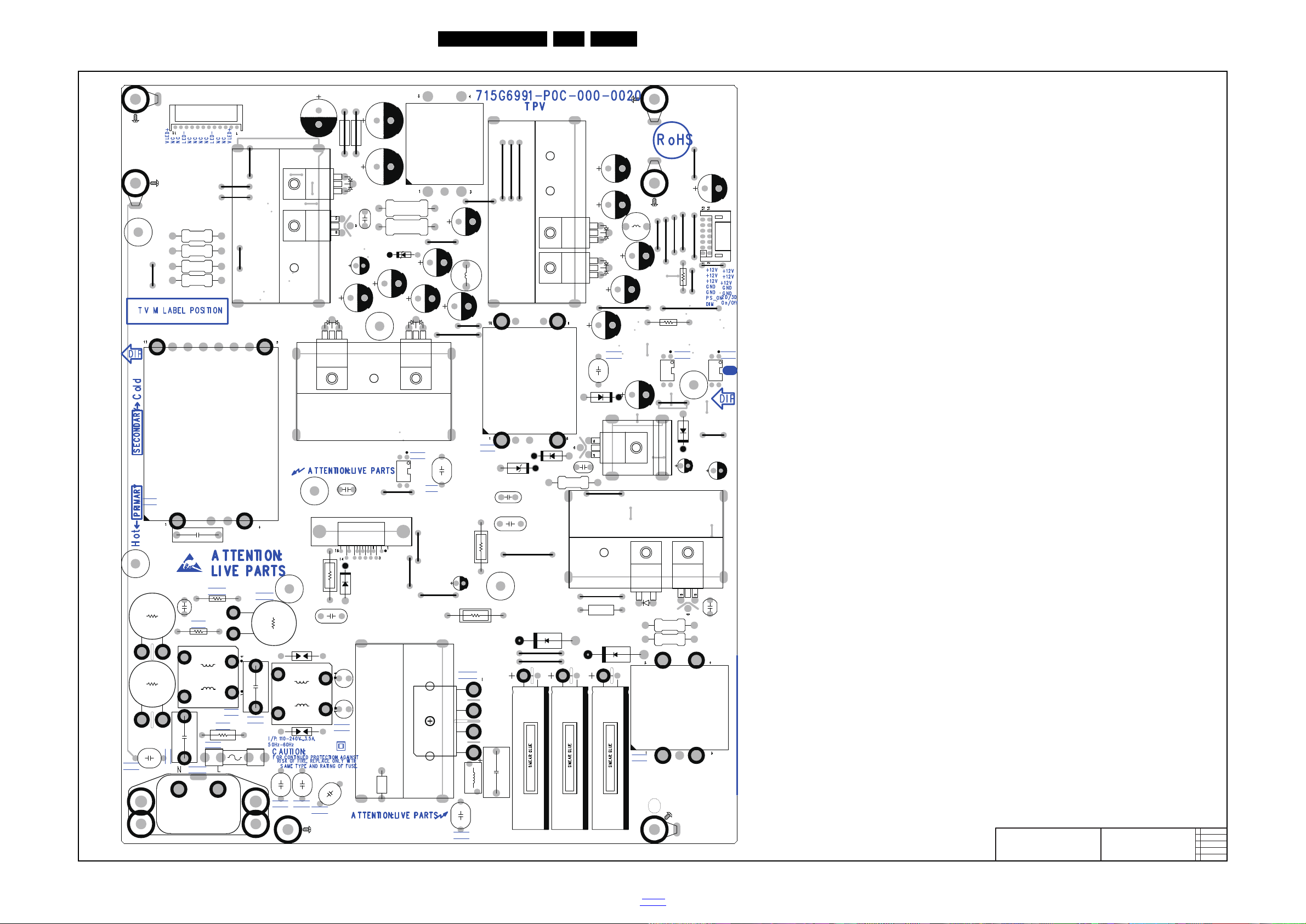

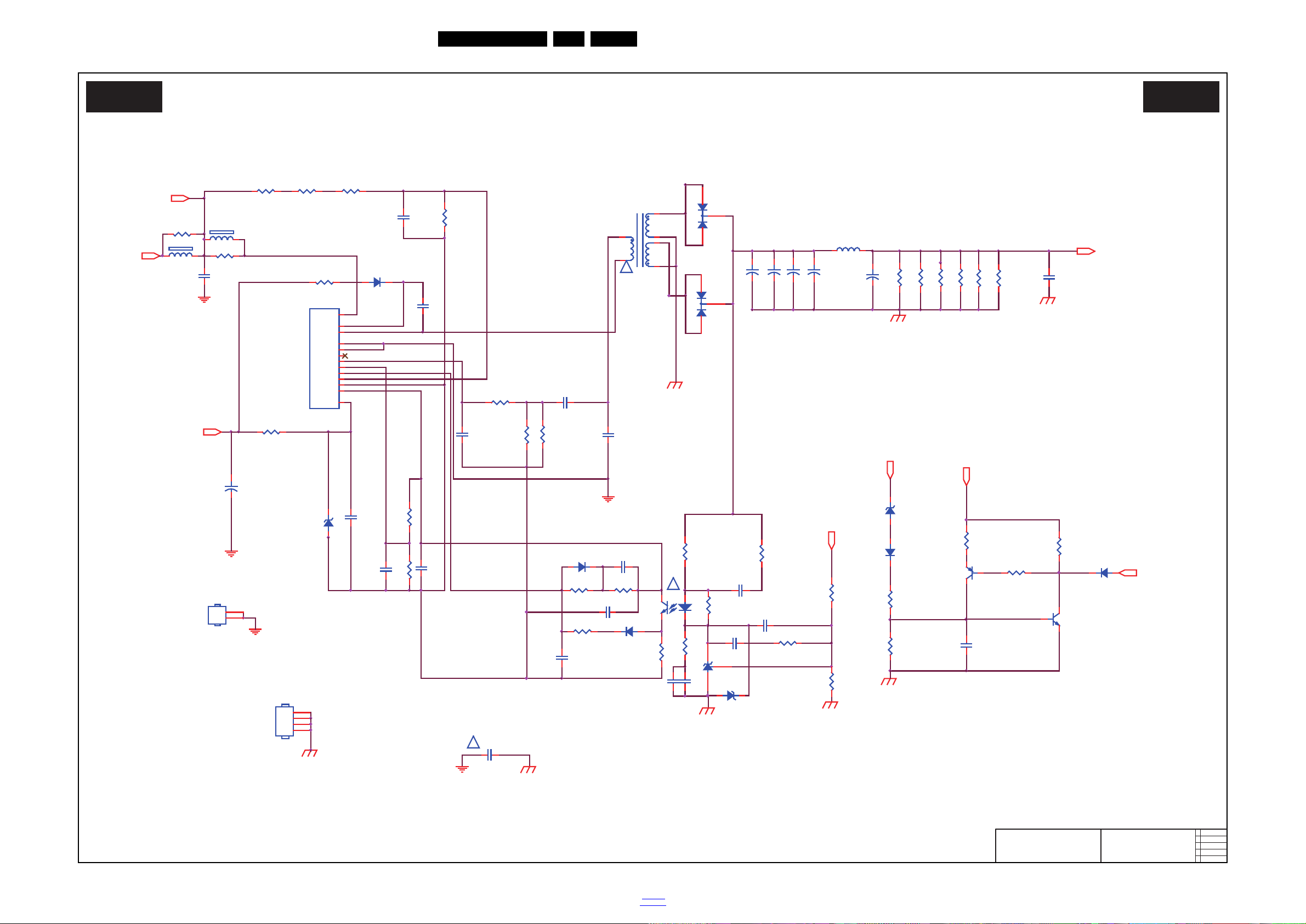

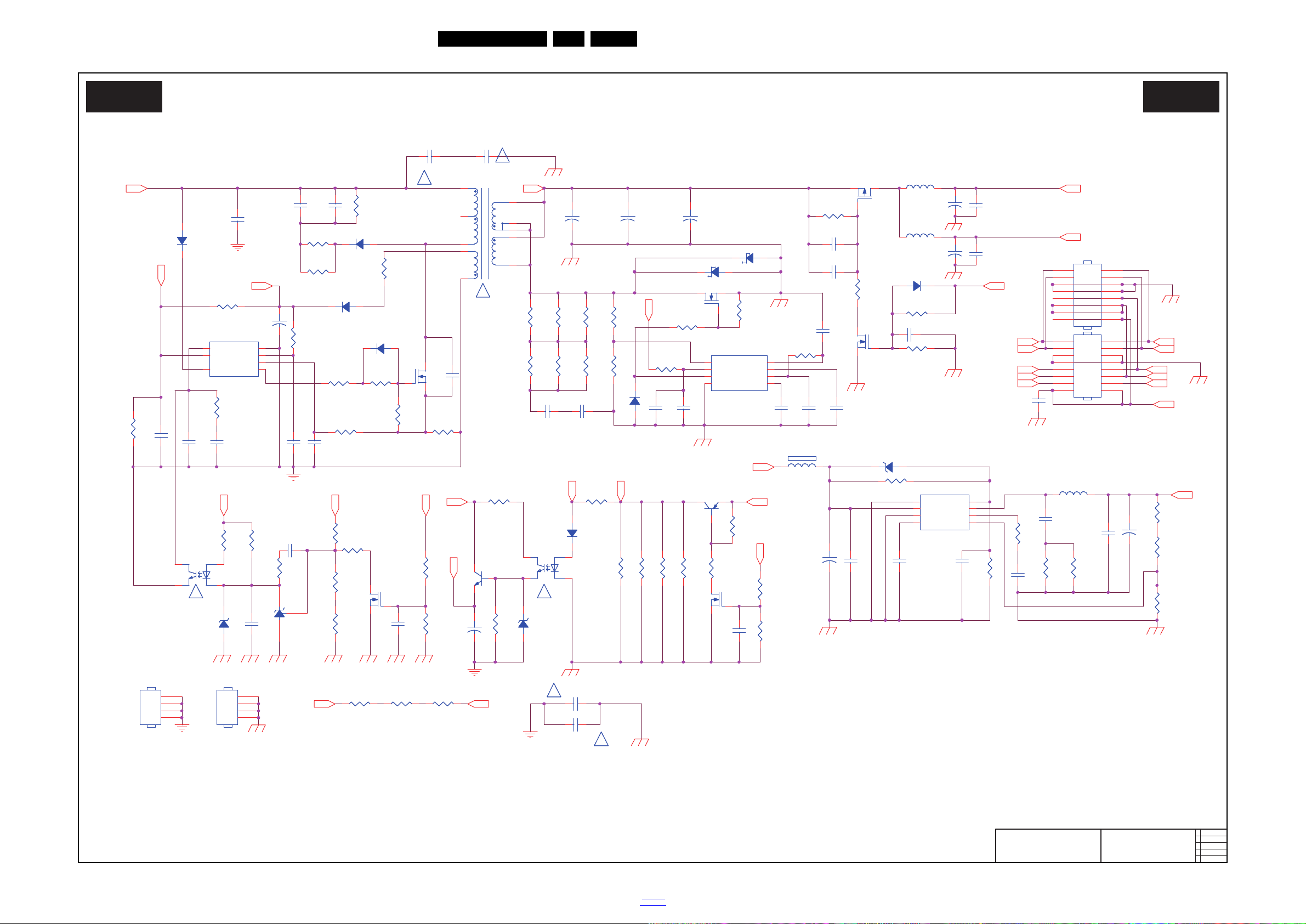

• Chapter 10: Added circuit diagrams 10.3 A 715G6338

PSU and 10.4 A 715G6991 PSU.

• Chapter 11: Added styling sheets 11.1 6700 series 40" and 11.2 6700 series 50"

2. Technical Specs, Diversity, and Connections

.

and

.

Index of this chapter:

• Specifications are indicative (subject to change).

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

2.1 Technical Specifications

For on-line product support please use the links in back to div.

table 2-1. Here is product information available, as well as

getting started, user manuals, frequently asked questions and

Notes:

software & drivers.

• Figures can deviate due to the different set executions.

Table 2-1 Described Model Numbers and Diversity

24 910 11

Mechanics

CTN

40PFT6709/56 2-1 4-1 4-13 4-15 9.1 10.3 10.5 10.6 10.7 11.1 40PFT6709/79 2-1 4-1 4-13 4-15 9.1 10.3 10.5 10.6 10.7 11.1 40PFT6709/98 2-1 4-1 4-13 4-15 9.1 10.3 10.5 10.6 10.7 11.1 40PFT6709S/98 2-1 4-1 4-13 4-15 9.1 10.3 10.5 10.6 10.7 11.1 50PFT6709/56 2-1 4-2 4-13 4-15 9.1 10.4 10.5 10.6 10.7 11.2 50PFT6709/79 2-1 4-2 4-13 4-15 9.1 10.4 10.5 10.6 10.7 11.2 50PFT6709/98 2-1 4-2 4-13 4-15 9.1 10.4 10.5 10.6 10.7 11.2 50PFT6709S/98 2-1 4-2 4-13 4-15 9.1 10.4 10.5 10.6 10.7 11.2 50PUT8509/56 2-1 4-3 4-7 4-9 9.1 10.1 10.5 10.6 10.7 11.3 50PUT8509/79 2-1 4-3 4-7 4-9 9.1 10.1 10.5 10.6 10.7 11.3 50PUT8509/98 2-1 4-3 4-7 4-9 9.1 10.1 10.5 10.6 10.7 11.3 50PUT8509S/98 2-1 4-3 4-7 4-9 9.1 10.1 10.5 10.6 10.7 11.3 58PUT8509/79 2-1 4-4 4-7 4-9 9.1 - 10.5 10.6 10.7 11.4 58PUT8509/98 2-1 4-4 4-7 4-9 9.1 - 10.5 10.6 10.7 11.4 58PUT8509S/98 2-1 4-4 4-7 4-9 9.1 - 10.5 10.6 10.7 11.4 58PUT8509/56 2-1 4-4 4-7 4-9 9.1 - 10.5 10.6 10.7 11.4 65PFT6909/56 2-1 4-5 4-10 4-12 9.1 10.1 10.5 10.6 10.7 11.5 65PFT6909/79 2-1 4-5 4-10 4-12 9.1 10.1 10.5 10.6 10.7 11.5 65PFT6909/98 2-1 4-5 4-10 4-12 9.1 10.1 10.5 10.6 10.7 11.5 65PFT6909S/98 2-1 4-5 4-10 4-12 9.1 10.1 10.5 10.6 10.7 11.5 65PUT8609/56 2-1 4-6 4-10 4-12 9.1 10.2 10.5 10.6 10.7 11.6 65PUT8609/98 2-1 4-6 4-10 4-12 9.1 10.2 10.5 10.6 10.7 11.6 65PUT8609S/98 2-1 4-6 4-10 4-12 9.1 10.2 10.5 10.6 10.7 11.6 65PUT8609/79 2-1 4-6 4-10 4-12 9.1 10.2 10.5 10.6 10.7 11.6

Connection Overview

Wire Dressing

Rear Cover Removal

Block Diagrams Schematics

SSB Removal

Block Diagram

Power Supply

SSB

J (IR/LED)

E (Key board/Leading Edge)

Styling

2.2 Directions for Use

Directions for use can be downloaded from the following websites:

http://www.philips.com/support http://www.p4c.philips.com

2014-Sep-26

back to

div. table

2.3 Connections

HDMI3 ARC

HDMI4 ARC

USB

2

NETWORK

TV ANTENNA

AUDIO IN

USB1

DVI

HDMI 1

ARC

HDMI2

ARC

R L

CVBS/Y Pb

Pr

DIGITAL

AUDIO OUT

SERV.U

19750_001.eps

1

2

3

4

7

8

9

12

10

13

11

Side Connectors

Rear Connectors

6 5

10000_017_090121.eps

090428

19

1

18 2

10000_017_090121.eps

090428

19

1

18 2

1 2 3 4

10000_022_090121.eps

090121

Technical Specs, Diversity, and Connections

EN 3TPM14.2A LA 2.

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

2.3.1 Side Connections

1 - HDMI 4: Digital Video - In, Digital Audio with ARC In/Out

Figure 2-2 HDMI (type A) connector

1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

Figure 2-1 Connection overview

2 - HDMI 3: Digital Video - In, Digital Audio with ARC In/Out

Figure 2-3 HDMI (type A) connector

1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8 -Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

3 - USB2 2.0

Figure 2-4 USB (type A)

back to

div. table

2014-Sep-26

EN 4 TPM14.2A LA2.

10000_025_090121.eps

120320

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H

4 - Head phone (Output)

Bk -Head phone 80 - 600  / 10 mW ot

2.3.2 Rear Connections

5 - Cinch: Digital Audio - Out

BK - Coaxial 0.4 - 0.6V

/ 75  kq

PP

6 - Cinch: Video YPbPr - In, Audio - In

Gn - Video - Y 1 V Bu -Video - Pb 0.7 V Rd -Video - Pr 0.7 V Wh -Audio - L 0.5 V Rd -Audio - R 0.5 V

/ 75 W jq

PP

/ 75  jq

PP

/ 75  jq

PP

/ 10 k jq

RMS

/ 10 k jq

RMS

7 - Audio - In: Left / Right, VGA

Gn - Audio L/R in 0.5 V

/ 10 k jq

RMS

8 - Service / UART

1 -Ground Gnd H 2 -UART_TX Transmit k 3 -UART_RX Receive j

9 - RJ45: Ethernet

4 -Ground Gnd H

12 - HDMI 1: Digital Video - In, Digital Audio with ARC In/Out

Figure 2-7 HDMI (type A) connector

1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8 -Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

Figure 2-5 Ethernet connector

1 -TD+ Transmit signal k 2 -TD- Transmit signal k 3 -RD+ Receive signal j 4 -CT Centre Tap: DC level fixation 5 -CT Centre Tap: DC level fixation 6 -RD- Receive signal j 7 -GND Gnd H 8 -GND Gnd H

10 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

11 - USB1 2.0

Figure 2-6 USB (type A)

1-+5V k 2 -Data (-) jk 3 -Data (+) jk

13 - HDMI 2: Digital Video - In, Digital Audio with ARC In/Out

Figure 2-8 HDMI (type A) connector

1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8 -Shield Gnd H 9 -D0- Data channel

-CLK+ Data channel j

10

j

11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

2.4 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

2014-Sep-26

back to

div. table

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation transformer (> 800 VA).

• Replace safety components, indicated by the symbol h, only by components identical to the original ones. Any other component substitution (other than original type) may increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be returned in its original condition. Pay in particular attention to the following points:

• Route the wire trees correctly and fix them with the mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for external damage.

• Check the strain relief of the Mains/AC Power cord for proper function.

• Check the electrical DC resistance between the Mains/AC Power plug and the secondary side (only for sets that have a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the tuner or the aerial connection on the set. The reading should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD w). Careless handling during repair can reduce life drastically. Make sure that, during repair, you are connected with the same potential as the mass of the set by a wristband with resistance. Keep components and tools also at this same potential.

• Be careful during measurements in the high voltage section.

• Never replace modules or other components while the unit is switched “on”.

• When you align the set, use plastic rather than metal tools. This will prevent any short circuits and the danger of a circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the chassis (= tuner) ground (H), or hot ground (I), depending on the tested area of circuitry. The voltages and waveforms shown in the diagrams are indicative. Measure them in the Service Default Mode with a colour bar signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and picture carrier at 475.25 MHz for PAL, or 61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages with (D) and without (E) aerial signal. Measure the voltages in the power supply section both in normal operation (G) and in stand-by (F). These values are indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is often used to indicate the decimal point location (e.g. 2K2 indicates 2.2 k).

• Resistor values with no multiplier may be indicated with either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10 nano-farads (n 10

• Capacitor values may also use the value multiplier as the decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer to the diversity tables for the correct values.

• The correct component values are listed on the Philips Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this URL: http://www.atyourservice-magazine.com “Magazine”, then go to “Repair downloads”. Here you will find Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile. Where applicable and available, this profile is added to the IC Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is required, please contact the manufacturer of your soldering equipment. In general, use of solder paste within workshops should be avoided because paste is not easy to store and to handle.

• Use only adequate solder tools applicable for lead-free soldering tin. The solder tool must be able: – To reach a solder-tip temperature of at least 400°C. – To stabilize the adjusted temperature at the solder-tip. – To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around 360°C - 380°C is reached and stabilized at the solder joint. Heating time of the solder-joint should not exceed ~ 4 sec. Avoid temperatures above 400°C, otherwise wear-out of tips will increase drastically and flux-fluid will be destroyed. To avoid wear-out of tips, switch “off” unused equipment or reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering tin/parts is possible but PHILIPS recommends strongly to avoid mixed regimes. If this cannot be avoided, carefully clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website, “Alternative BOM” is referred to as “Design variant”.

The third digit in the serial number (example: AG2B0335000001) indicates the number of the alternative B.O.M. (Bill Of Materials) that has been used for producing the specific TV set. In general, it is possible that the same TV model on the market is produced with e.g. two different types of displays, coming from two different suppliers. This will then

back to

div. table

-9

), or pico-farads (p 10

. Select

EN 5TPM14.2A LA 3.

-6

),

-12

).

2014-Sep-26

EN 6 TPM14.2A LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

result in sets which have the same CTN (Commercial Type Number; e.g. 28PW9515/12) but which have a different B.O.M. number. By looking at the third digit of the serial number, one can identify which B.O.M. is used for the TV set he is working with. If the third digit of the serial number contains the number “1” (example: AG1B033500001), then the TV set has been manufactured according to B.O.M. number 1. If the third digit is a “2” (example: AG2B0335000001), then the set has been produced according to B.O.M. no. 2. This is important for ordering the correct spare parts! For the third digit, the numbers 1...9 and the characters A...Z can be used, so in total: 9 plus 26= 35 different B.O.M.s can be indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit serial number. Digits 1 and 2 refer to the production centre (e.g. SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M. code, digit 4 refers to the Service version change code, digits 5 and 6 refer to the production year, and digits 7 and 8 refer to production week (in example below it is 2010 week 10 / 2010 week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide if the board has to be exchanged or if it should be repaired on component level. If your repair procedure says the board should be exchanged completely, do not solder on the defective board. Otherwise, it cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible dangerous impact, others of quite high potential are of limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected reactions that are best avoided. Before reaching into a powered TV set, it is best to test the high voltage insulation. It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),

6 = play 16 : 9 format, 12 = play 4 : 3 format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to remove horizontal black bars; keeps the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels directly from a cable network by

means of a predefined TXT page ADC Analogue to Digital Converter AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box AM Amplitude Modulation AP Asia Pacific AR Aspect Ratio: 4 by 3 or 16 by 9 ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA ATV See Auto TV Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way AV External Audio Video AVC Audio Video Controller AVIP Audio Video Input Processor B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz BDS Business Display Solutions (iTV) BLR Board-Level Repair BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries B-TXT Blue TeleteXT C Centre channel (audio) CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections CL Constant Level: audio output to

connect with an external amplifier CLR Component Level Repair ComPair Computer aided rePair CP Connected Planet / Copy Protection CSM Customer Service Mode CTI Color Transient Improvement:

manipulates steepness of chroma

transients CVBS Composite Video Blanking and

Synchronization DAC Digital to Analogue Converter DBE Dynamic Bass Enhancement: extra

low frequency amplification DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV). DDC See “E-DDC” D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz DFI Dynamic Frame Insertion DFU Directions For Use: owner's manual DMR Digital Media Reader: card reader DMSD Digital Multi Standard Decoding DNM Digital Natural Motion

2014-Sep-26

back to

div. table

Precautions, Notes, and Abbreviation List

EN 7TPM14.2A LA 3.

DNR Digital Noise Reduction: noise

reduction feature of the set DRAM Dynamic RAM DRM Digital Rights Management DSP Digital Signal Processing DST Dealer Service Tool: special remote

control designed for service

technicians DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394 DVB-C Digital Video Broadcast - Cable DVB-T Digital Video Broadcast - Terrestrial DVD Digital Versatile Disc DVI(-d) Digital Visual Interface (d= digital only) E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display. EDID Extended Display Identification Data

(VESA standard) EEPROM Electrically Erasable and

Programmable Read Only Memory EMI Electro Magnetic Interference EPG Electronic Program Guide EPLD Erasable Programmable Logic Device EU Europe EXT EXTernal (source), entering the set by

SCART or by cinches (jacks) FDS Full Dual Screen (same as FDW) FDW Full Dual Window (same as FDS) FLASH FLASH memory FM Field Memory or Frequency

Modulation FPGA Field-Programmable Gate Array FTV Flat TeleVision Gb/s Giga bits per second G-TXT Green TeleteXT H H_sync to the module HD High Definition HDD Hard Disk Drive HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding. HDMI High Definition Multimedia Interface HP HeadPhone I Monochrome TV system. Sound

2

C Inter IC bus

I

2

I

D Inter IC Data bus

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate F requency IR Infra Red IRQ Interrupt Request ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used

for broadcast grade video.

Uncompressed digital component or

digital composite signals can be used.

back to

div. table

The SDI signal is self-synchronizing, uses 8 bit or 10 bit data words, and has a maximum data rate of 270 Mbit/s, with a minimum bandwidth of 135 MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored in RAM or in the NVM. They are called at start-up of the set to configure it according to the customer's

preferences LATAM Latin America LCD Liquid Crystal Display LED Light Emitting Diode L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I LPL LG.Philips LCD (supplier) LS Loudspeaker LVDS Low Voltage Differential Signalling Mbps Mega bits per second M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz MHEG Part of a set of international standards

4. Mechanical Instructions

19750_100.eps

RF4CE Module ASSY (1076)

RF4CE Mod

ule ASS

ule ASSY

ule ASS

CN8101

CN9301

CN700

CN602 CN4250

CN408

CN409

CN401

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN700

ECN409

ECN401

ECN602

ECN4250

ECN401

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

KEYBOARD CONTROL

(1057)

E

CN01

WIFI MODULE

W

WiFi01

IR/LED BOARD

(1056)

J

CN413

CN1404

RF4CE Module ASSY

(1076)

ECN413

AmbiLight

AL

(1063)

AL

AmbiLight

(1062)

ECN1404

EXA05

ECN408

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel Removal ( for 50"/58" 8509 series)

4.4 Assembly/Panel Removal ( for 65" 6909 & 8609 series)

4.5 Assembly/Panel Removal ( for 40"/50" 6709 series)

4.1 Cable Dressing

Mechanical Instructions

4.6 Set Re-assembly

Notes:

• Figures below can deviate slightly from the actual situation, due to the different set executions.

EN 9TPM14.2A LA 4.

Figure 4-1 Cable dressing (40" 6709 series)

back to

div. table

2014-Sep-26

EN 10 TPM14.2A LA4.

19751_101.eps

RF4CE Module ASSY (1076)

ule ASSY

)

CN8601

CN9301

CN700

CN602 CN4250

CN408

CN409

CN401

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN700

ECN409

ECN602

ECN700

ECN401

ECN602

ECN4250

ECN401

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

KEYBOARD CONTROL

(1057)

E

CN01

WIFI MODULE

W

WiFi01

IR/LED BOARD

(1056)

J

CN413

CN1404

RF4CE Module ASSY (1076)

ECN413

AmbiLight

AL

(1063)

AL

AmbiLight

(1062)

ECN1404

EXA05

ECN408

19750_100.eps

RF4CE Module ASSY (1076)

MoMoMoMle u

07

)))

CN9101

CN9301

CN700

CN602 CN4250

CN408

CN401

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN700

ECN408

ECN9101

ECN408

ECN413

ECN401

ECN602

ECN4250

ECN401

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

KEYBOARD CONTROL

(1057)

E

CN01

WIFI MODULE

W

WiFi01

IR/LED BOARD (1056)

J

CN201

CN413

CN1404

ECN1404

AmbiLight

AL

(1063)

AmbiLight

AL

(1063)

LED DRIVER

(1055)

AmbiLight

AL

(1063)

AmbiLight

AL

(1062)

AD

EXA0402

EXA0403

EXA0401

RF4CE Module ASSY (1076)

Mechanical Instructions

Figure 4-2 Cable dressing (50" 6709 series)

2014-Sep-26

Figure 4-3 Cable dressing (50" 8509 series)

back to

div. table

Mechanical Instructions

19750_101.eps

RF4CE Module ASSY (1076)

CN02

CN01

CN700

CN602 CN4250

CN408

CN401

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN700

ECN408

ECN413

ECN401

ECN602

ECN4250

ECN401

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

KEYBOARD CONTROL

(1057)

E

CN01

WIFI MODULE

W

WiFi01

IR/LED BOARD (1056)

J

CN201

CN413

CN1404

ECN1404

EXA0403

EXA0401

AmbiLight

AL

(1070)

AmbiLight

AL

(1070)

AmbiLight

AL

(1062)

AmbiLight

AL

(1063)

AmbiLight

AL

(1062)

EXA0402

EXA0404

LED DRIVER

(1055)

AD

19750_102.eps

RF4CE Module ASSY (1076)

uleulule

u

1

CN9101

CN9301

CN700

CN602 CN4250

CN408

CN409

CN401

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN700

ECN9301

ECN409

ECN408

ECN413

ECN401

ECN602

ECN4250

ECN401

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

KEYBOARD CONTROL

(1057)

E

CN01

WIFI MODULE

W

WiFi01

IR/LED BOARD

(1056)

J

CN413

CN1404

ECN1404

AmbiLight

AL

(1062)

AmbiLight

AL

(1062)

EXA05

LED DRIVER

(1055)

AD

RF4CE Modeul ASSY

(1076)

1C21

ECN1404

EN 11TPM14.2A LA 4.

Figure 4-4 Cable dressing (58" 8509 series)

Figure 4-5 Cable dressing (65" 6909 series)

back to

div. table

2014-Sep-26

EN 12 TPM14.2A LA4.

19750_103.eps

CN700

CN1404 CN413

CN602

CN4250

CN408CN401

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN700

ECN401

ECN413

ECN401

ECN9203

ECN9205

ECN602

ECN408

ECN4250

ECN408

ECN602

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

KEYBOARD CONTROL

(1057)

E

CN01

WIFI MODULE

W

WiFi01

IR/LED BOARD

(1056)

J

AmbiLight

AL

(1062)

AmbiLight

AL

(1062)

AmbiLight

AL

(1062)

AmbiLight

AL

(1062)

AmbiLight

AL

(1063)

AmbiLight

AL

(1070)

AmbiLight

AL

(1063)

RF4CE Modeul ASSY (1076)

1C21

E39501

EXA0401

E39501

EXA0401

CN9203

CN9205

CN9102

LED DRIVER

(1055)

AD

E39501

ECN1404

Mechanical Instructions

2014-Sep-26

Figure 4-6 Cable dressing (65" 8609 series)

back to

div. table

4.2 Service Positions

For easy servicing of a TV set, the set should be put face down on a soft flat surface, foam buffers or other specific workshop tools. Ensure that a stable situation is created to perform measurements and alignments. When using foam bars take care that these always support the cabinet and never only the display. Caution: Failure to follow these guidelines can seriously damage the display! Ensure that ESD safe measures are taken.

4.3 Assembly/Panel Removal ( for 50"/58" 8509 series)

Instructions below apply to the 50PUT8509/98, but will be similar for other 50"/58" 8509 series models.

4.3.1 Rear Cover

Mechanical Instructions

EN 13TPM14.2A LA 4.

Refer to Figure 4-7 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [1] that secure the base assy, pull

out the base assy from the set. Then remove the fixation screws [2], [3] and [4] that secure the rear cover. Refer to

Figure 4-7

2. Gently lift the rear cover from the TV. Make sure that wires

and cables are not damaged while lifting the rear cover from the set.

for details.

back to

div. table

2014-Sep-26

EN 14 TPM14.2A LA4.

19750_107.eps

1

M4 × 10

Q3 × 8

1

2

1

3

33

3

4

M4 × 6

4

M3 × 6

Mechanical Instructions

4.3.2 AmbiLight Panel

Refer to Figure 4-8

1. Gently release the clamps and unplug the connectors [2,3] that secure the ambilight panels. Release the clips from the FFC connector that connect with the AmbiLight control panel [1].

2. Lift the AmbiLight panel from the rear cover. Make sure that wires and flat foils are not damaged while lifting the ambilight panel from the rear cover.

for details.

Figure 4-7 Rear cover removal

2014-Sep-26

back to

div. table

Mechanical Instructions

19750_108.eps

3

1

2

19750_109.eps

2

1

3

4

EN 15TPM14.2A LA 4.

Figure 4-8 Ambilight Panel removal

4.3.3 Small Signal Board (SSB)

Refer to Figure 4-9 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect with the SSB [1]. Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2] and the FFC connectors [3].

3. Remove all the fixation screws from the SSB [4].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-9

for details.

Figure 4-9 SSB removal

4.3.4 Power Supply Unit (PSU)

back to

div. table

Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

2014-Sep-26

EN 16 TPM14.2A LA4.

4.3.5 Speakers

1. Gently release the tapes that secures the speaker cables.

2. Unplug the speaker connectors from the SSB.

3. Take the speakers out. When defective, replace the both units.

4.3.6 Keyboard Control unit

1. Unplug the connector from the keyboard control panel.

2. Gently push inwards the two clips at the PSU side of the unit. Release the unit at the PSU side and turn it away from the PSU. Now push it towards the PSU to release the catches at the other side of the unit. Take it out from the metal bracket.

When defective, replace the whole unit.

4.3.7 Stand bracket

1. Remove all fixation screws of the bracket.

2. Lift the bracket from the set.

4.3.8 IR/LED Board

1. Remove the stand bracket as described earlier.

2. Gently release the clips that hold the board and take it out from the bezel.

3. Unplug both the connectors from the IR/LED board.

When defective, replace the whole unit.

Mechanical Instructions

4.3.9 RF4CE module

1. Unplug the connector from the SSB.

2. Remove fixation screw that secure the RF4CE module, gently remove the module from the set.

When defective, replace the whole unit.

4.3.10 WIFI module

1. Unplug the connector from the SSB.

2. Remove fixation screw that secure the WIFI module, gently remove the module from the set.

When defective, replace the whole unit.

4.3.11 LCD Panel

1. Unplug all the connector cables of the boards.

2. Gently take all the speakers out.

3. Lift the subframe with SSB, PSU, Keyboard, IR/LED board, RF4CE module and WiFi module, panel from the LCD panel and put it aside.

Warning:Cause the panels of 50"/58" 8509 series are bolt-on panels, the panel could not release from bezel. When defective, replace the whole unit.

4.4 Assemb ly/Panel Removal ( for 65" 6909 & 8609 series)

Instructions below apply to the 65PUT8609/98, but will be similar for other 65" 6909 & 8609 series models.

4.4.1 Rear Cover

Refer to Figure 4-10 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [1] that secure the base assy, pull

out the base assy from the set. Then remove the fixation screws [2], [3], [4] and [5] that secure the rear cover. Refer to Figure 4-10

2. Gently lift the rear cover from the TV. Make sure that wires

and cables are not damaged while lifting the rear cover from the set.

2014-Sep-26

for details.

back to

div. table

Mechanical Instructions

19750_104.eps

1

M4 × 18

M4 × 6

1

2

5

4

2

4

2

Q3 × 8

Q3 × 6

1

3

M3 × 8

EN 17TPM14.2A LA 4.

4.4.2 AmbiLight Panel

Refer to Figure 4-11

1. Gently release the clamps and unplug the connectors [2,3] that secure the ambilight panels. Release the clips from the FFC connector that connect with the AmbiLight control panel [1].

2. Lift the AmbiLight panel from the rear cover. Make sure that wires and flat foils are not damaged while lifting the ambilight panel from the rear cover.

for details.

Figure 4-10 Rear cover removal

div. table

back to

2014-Sep-26

EN 18 TPM14.2A LA4.

19750_105.eps

3

1

2

19750_106.eps

2

1

3

4

Mechanical Instructions

4.4.3 Small Signal Board (SSB)

Refer to Figure 4-12 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect with the SSB [1]. Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2] and the FFC connectors [3].

3. Remove all the fixation screws from the SSB [4].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-12

for details.

Figure 4-11 Ambilight Panel removal

Figure 4-12 SSB removal

4.4.4 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

2014-Sep-26

back to

div. table

Mechanical Instructions

EN 19TPM14.2A LA 4.

4.4.5 Speakers

1. Gently release the tapes that secures the speaker cables.

2. Unplug the speaker connectors from the SSB.

3. Take the speakers out. When defective, replace the both units.

4.4.6 Keyboard Control unit

1. Unplug the connector from the keyboard control panel.

2. Gently push inwards the two clips at the PSU side of the unit. Release the unit at the PSU side and turn it away from the PSU. Now push it towards the PSU to release the catches at the other side of the unit. Take it out from the metal bracket.

When defective, replace the whole unit.

4.4.7 Stand bracket

1. Remove all fixation screws of the bracket.

2. Lift the bracket from the set.

4.4.8 IR/LED Panel

1. Remove the stand bracket, as described earlier.

2. Remove fixation screw that secure the deco rear cover and take it out from the deco.

3. Unplug the connector from the IR/LED panel.

4. Gently release the double faced adhesive tape that pasted the panel and take it out from the deco.

When defective, replace the whole unit.

2. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

4.4.9 RF4CE module

1. Unplug the connector from the SSB.

2. Remove fixation screw that secure the RF4CE module, gently remove the module from the set.

When defective, replace the whole unit.

4.4.10 WIFI module

1. Unplug the connector from the SSB.

2. Remove fixation screw that secure the WIFI module, gently remove the module from the set.

When defective, replace the whole unit.

4.4.11 LCD Panel

1. Unplug all the connector cables of the boards.

2. Gently take all the speakers out.

3. Lift the subframe with SSB, PSU, Keyboard, IR/LED board, RF4CE module and WiFi module, panel from the LCD panel and put it aside.

Warning:Cause the panels of 65" 6909 & 8609 series are bolt-on panels, the panel could not release from bezel. When defective, replace the whole unit.

4.5 Assembly/Panel Removal ( for 40"/50" 6709 series)

Instructions below apply to the 40PFT6709/98, but will be similar for other 40"/50" 6709 series models.

4.5.1 Rear Cover

Refer to Figure 4-13 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [1] that secure the base assy, pull

out the base assy from the set. Then remove the fixation screws [2], [3] and [4] that secure the rear cover. Refer to

Figure 4-13

for details.

back to

div. table

2014-Sep-26

EN 20 TPM14.2A LA4.

Mechanical Instructions

2

3

2

4

M4 × 8

1

M3× 6

3

2

Q3 × 8

2

3

4

M3 × 6

2

1

2

1

2

1

4

2

19751_102.eps

4.5.2 AmbiLight Panel

Refer to Figure 4-14

1. Gently release the clamps and unplug the connectors [2, 3] that secure the ambilight panels. Release the clips from the FFC connector that connect with the AmbiLight control panel [1].

2. Lift the AmbiLight panel from the rear cover. Make sure that wires and flat foils are not damaged while lifting the ambilight panel from the rear cover.

for details.

Figure 4-13 Rear cover removal

2014-Sep-26

back to

div. table

Mechanical Instructions

19751_104.eps

3

1

2

19751_105.eps

2

1

3

4

EN 21TPM14.2A LA 4.

4.5.3 Small Signal Board (SSB)

Refer to Figure 4-15 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect with the SSB [1]. Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2] and the FFC connectors [3].

3. Remove all the fixation screws from the SSB [4].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-15

for details.

Figure 4-14 Ambilight Panel removal

Figure 4-15 SSB removal

4.5.4 Power Supply Unit (PSU)

back to

div. table

Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

2014-Sep-26

EN 22 TPM14.2A LA4.

4.5.5 Speakers

1. Gently release the tapes that secures the speaker cables.

2. Unplug the speaker connectors from the SSB.

3. Take the speakers out. When defective, replace the both units.

4.5.6 Keyboard Control unit

1. Unplug the connector from the keyboard control panel.

2. Gently push inwards the two clips at the PSU side of the unit. Release the unit at the PSU side and turn it away from the PSU. Now push it towards the PSU to release the catches at the other side of the unit. Take it out from the metal bracket.

When defective, replace the whole unit.

4.5.7 Stand bracket

1. Remove all fixation screws of the bracket.

2. Lift the bracket from the set.

4.5.8 IR/LED Panel

1. Remove the stand bracket, as described earlier.

2. Remove fixation screw that secure the deco rear cover and take it out from the deco.

3. Unplug the connector from the IR/LED panel.

4. Gently release the double faced adhesive tape that pasted the panel and take it out from the deco.

When defective, replace the whole unit.

Mechanical Instructions

4.5.9 RF4CE module

1. Unplug the connector from the SSB.

2. Remove fixation screw that secure the RF4CE module, gently remove the module from the set.

When defective, replace the whole unit.

4.5.10 WIFI module

1. Unplug the connector from the SSB.

2. Remove fixation screw that secure the WIFI module, gently remove the module from the set.

When defective, replace the whole unit.

4.5.11 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the RF4CE module as described earlier.

7. Remove the WIFI module as described earlier.

8. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.

9. Remove all other metal parts not belonging to the panel.

10. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

4.6 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse order.

Notes:

• While re-assembling, make sure that all cables are placed and connected in their original position. See Figure 4-1

Figure 4-6

• Pay special attention not to damage the EMC foams on the SSB shields. Ensure that EMC foams are mounted correctly.

2014-Sep-26

.

to

back to

div. table

Service Modes and Fault Finding

5. Service Modes and Fault Finding

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Stepwise Start-up

5.4 Service Tools

5.5 Software Upgrading

5.6 Error Codes

5.7 The Blinking LED Procedure

5.8 Fault Finding and Repair Tips

5.1 Test Points

As most signals are digital, it will be difficult to measure waveforms with a standard oscilloscope. However, several key ICs are capable of generating test patterns, which can be controlled via ComPair. In this way it is possible to determine which part is defective.

Perform measurements under the following conditions:

• Service Default Mode.

• Video: Colour bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

The Service Mode feature is split into five parts:

• Service Alignment Mode (SAM).

• Factory Mode.

• Customer Service Mode (CSM).

• Computer Aided Repair Mode (ComPair).

SAM and the Factory mode offer features, which can be used by the Service engineer to repair/align a TV set. Some features are:

• Make alignments (e.g. White Tone), reset the error buffer (SAM and Factory Mode).

• Display information (“SAM” indication in upper right corner of screen, error buffer, software version, operating hours, options and option codes, sub menus).

The CSM is a Service Mode that can be enabled by the consumer. The CSM displays diagnosis information, which the customer can forward to the dealer or call centre. In CSM mode, “CSM”, is displayed in the top right corner of the screen. The information provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solved customers’ problem without home visit.

ComPair Mode is used for communication between a computer and a TV on I engineer to quickly diagnose the TV set by reading out error codes, read and write in NVMs, communicate with ICs and the micro processor (PWM, registers, etc.), and by making use of a fault finding database. It will also be possible to up and download the software of the TV set via I ComPair. To do this, ComPair has to be connected to the TV set via the ComPair connector, which will be accessible through the rear of the set (without removing the rear cover).

Note: For the new model range, a new remote control (RC) is used with some renamed buttons. This has an impact on the activation of the Service modes. For instance the old “MENU” button is now called “HOME” (or is indicated by a “house” icon).

5.2.1 General

Next items are applicable to all Service Modes or are general.

Life Timer

During the life time cycle of the TV set, a timer is kept (called “Op. Hour”). It counts the normal operation hours (not the Stand-by hours). The actual value of the timer is displayed in

2

C /UART level and can be used by a Service

2

C with help of

SAM in a decimal value. Every two soft-resets increase the hour by + 1. Stand-by hours are not counted.

Software Identification, Version, and Cluster

The software ID, version, and cluster will be shown in the main menu display of SAM and CSM. The screen will show: “AAAAB-X.YYY”, where:

• AAAA is the chassis name: QN142A x.yy.

• B is the region indication: E = Europe, A = AP/China, U = NAFTA, L = LATAM.

• X is the main version number: this is updated with a major change of specification (incompatible with the previous software version). Numbering will go from 1 - 99 and AA - ZZ.

- If the main version number changes, the new version number is written in the NVM.

- If the main version number changes, the default settings are loaded.

• YYY is the sub version number: this is updated with a minor change (backwards compatible with the previous versions). Numbering will go from 000 - 999.

- If the sub version number changes, the new version number is written in the NVM.

- If the NVM is refreshed, the software identification, version, and cluster will also be written to NVM.

Display Option Code Selection

When after an SSB or display exchange, the display option code is not set properly, it will result in a TV with “no display”. Therefore, it is required to set this display option code after such a repair. To do so, press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in back to div. table 6-3 is accepted and stored in NVM, the set will switch to Stand-by, to indicate that the process has been completed. During this algorithm, the NVM-content must be filtered, because several items in the NVM are TV-related and not SSB related (e.g. Model and Prod. S/N). Therefore, “Model” and “Prod. S/N” data is changed into “See Type Plate”. In case a call centre or consumer reads “See Type Plate” in CSM mode.

5.2.2 Service Alignment Mode (SAM)

Purpose

• To modify the NVM.

• To display/clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, error codes, and option settings display.

• Error buffer clearing.

• Option settings.

• Software alignments (White Tone).

• NVM Editor.

• Set screen mode to full screen (all content is visible).

How to Activate SAM

To activate SAM, use one of the following methods:

• Press the following key sequence on the remote control transmitter: “062596”, directly followed by the “INFO/OK” button. Do not allow the display to time out between entries while keying the sequence.

• Or via ComPair.

After entering SAM, the following items are displayed, with “SAM” in the upper right corner of the screen to indicate that the television is in Service Alignment Mode.

EN 23TPM14.2A LA 5.

. When the value

back to

div. table

2014-Sep-26

EN 24 TPM14.2A LA5.

Service Modes and Fault Finding

Table 5-1 SAM mode overview

Main Menu Sub-menu 1 Sub-menu 2 Description

System Information Op Hour e.g. 00003 This represents the life timer. The timer counts normal operation hours, but does not

Main SW ID e.g. “TPM1012E 1.027B” See paragraph Software Identification, Version, and Cluster for the software name

ERR e.g. “000 000 000 000 000” Shows all errors detected since the last time the buffer was erased. Five errors

OP1 e.g. “000 224 032 000 038 192 192

OP2 e.g. “159 255 127 061 011003 000

Clear Codes Press [OK] to clean the Error Codes

Options OP#1-OP#8 e.g. “032” Option code Alignments Warm R Gain To align the White Tone. See

NVM editor NVM editor NVM-editor will function as in the past: Address and Value

Upload to USB Channel List To upload several settings from the TV to an USB stick

Download from USB Channel List To download several settings from the USB stick to the TV

Initialize NVM Press [OK] to Initialize NVM

Dealer Options Set Virgin mode Virgin mode: Off Set Virgin mode

RF4CE Clear Press [OK] to clear the RF4CE

immediately

Normal R Gain

Cool R Gain

Store Store the RGB value

Service Data Edit and display the applicable service data by using the displayed key pad

NVM Copy Readable Info EDID Copy

NVM Copy EDID Copy

immediately

Store Press [OK] to store virgin mode

pairing table

015”

000”

G Gain B Gain

immediately

count Stand-by hours.

definition.

possible. Used to read-out the option bytes. See paragraph 6.4 Option Settings in the

Alignments section for a detailed description. Ten codes are possible.

Erases the contents of the error buffer. Select this menu item and press the MENU RIGHT key on the remote control. The content of the error buffer is cleared.

paragraph 6.3 Software Alignments in the Alignments section for a detailed description

field is a decimal value via digit entry

To initialize a (corrupted) NVM. Be careful, this will erase all settings.

Store the virgin mode in the address

Enable to clear the pairing table of Redio Frequency for Consumer Electronics

How to Navigate

• In the SAM menu, select menu items with the UP/DOWN keys on the remote control transmitter. The selected item will be indicated. When not all menu items fit on the screen, use the UP/DOWN keys to display the next/previous menu items.

• With the “LEFT/RIGHT” keys, it is possible to: – (De) activate the selected menu item. – (De) activate the selected sub menu. – Change the value of the selected menu item.

• When you press the MENU button once while in top level SAM, the set will switch to the normal user menu (with the SAM mode still active in the background).

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the “Home/Menu” button to switch to SDM (do not allow the display to time out between entries while keying the sequence).

How to Store SAM Settings

To store the settings changed in SAM mode (except the RGB Align settings), leave the top level SAM menu by using the POWER button on the remote control transmitter or the television set. The mentioned exceptions must be stored separately via the STORE button.

How to Exit SAM

Use one of the following methods:

• Switch the set to STANDBY by pressing the mains button on the remote control transmitter or the television set.

• Via a standard RC-transmitter, key in “00” sequence.

Note: When the TV is switched “off” by a power interrupt while in SAM, the TV will show up in “normal operation mode” as

soon as the power is supplied again. The error buffer will not be cleared.

5.2.3 Contents of the Factory mode:

Purpose

• To perform extended alignments.

Specifications

• Displaying and or changing Panel ID information.

• Displaying and or changing Tuner ID information.

• Error buffer clearing.

• Various software alignment settings.

• Testpattern displaying.

• Public Broadcasting Service password Reset.

•etc.

How to Activate the Factory mode

To activate the Factory mode, use the following method:

• Press the following key sequence on the remote control transmitter: from the “menu/home” press “1999”, directly followed by the “Back/Return” button. Do not allow the display to time out between entries while keying the sequence.

After entering the Factory mode, the following items are displayed,

2014-Sep-26

back to

div. table

Service Modes and Fault Finding

EN 25TPM14.2A LA 5.

Table 5-2 Factory mode overview

Default value

Item Item value

0 F/W VERSION Press OK Displays the software versions of the supplier, Flash PQ, Smart Picture, BL Dimming,

1 PANEL_ID See table 6-3 Display code overview Displays and changes the Panel ID with the left and right cursor; be careful changing this, it can

2 TUNER_ID 3 3 3 3 Displays and changes the Tuner ID with the left and right cursor. Not to be changed when the

3DEMOD_TYPE 2222Choose demod type. 4 ERR Code: xxx xxx xxx xxx

xxx 5 CLEAR ERROR BUFFER Press OK Selecting this clear all current error codes. 6 NVM ADDRESS 0 NVM address 0 to 8191, Use Item 6 to change and 7 to store the data to the correct NVM

7 NVM VALUE 0 Displays the value at the NVM address of item 5 8 NVM STORE Press OK Use this option to save the data of item 6 to NVM address of item 5 9 NVM COPY TV to USB Press OK Use this to store the NVM data to the REPAIR folder of a FAT formatted USB memory stick. The

10 NVM READ USB to TV Press OK Use this to store the NVM data from the USB memory stick to the TV. The TV will save the two

11 RESET_PBS_PWD Press OK Use this to reset the Child Lock 12 DIM_LIB RESET Press OK Reset the Dimming 13 SRC_METER RESET Press OK Reset the Source meter 14 AMBLIGHT RESET Press OK Reset Ambilight 15 ACFG RESET Press OK Reset ACFG 16 CIPLUS QUERY Press OK Shows the Validity of the CI+ key and the supplier information 17 CIPLUS UPDATE Press OK Used to enter a new CI+ code into the NVM. This can only be used when no CI+ code exists in

18 EDID UPDATE Press OK Used to enter a new EDID codes into the NVM 19 SII9679EDID GPIO OFF SII9679EDID 20 TEST PATTERN Press OK With the “left” and “right” keys of the remote control var i ous test patterns can be chosen 21 VIRGIN_MODE Off Use this to return the set to virgin mode. Depends whether the set has been used already. 22 E-Fuse On E-fuse mode 23 ORT_MODE Off On On Off ORT mode 24 VGA_UART_SWITCH Off When switched “on” the VGA port can be used for UART logging. 25 DRMWARNING Off Warning the data rights management 26 AGEING MODE Off Use this for aging a new LCD panel 27 CLR_TEMP_R 255 255 255 235 Red colour temperature setting 28 CLR_TEMP_G 255 255 255 218 Green colour temperature s etting 29 CLR_TEMP_B 255 255 255 255 Red colour temperature setting 30 AUTO_COLOR Press OK PC: any pattern that has black and white, YPbPr: SMPTE bar (colour bar), any timing. 31 ADC_GAIN_R 0 0 0 147 Red ADC gain 32 ADC_GAIN_G 0 0 0 152 Green ADC gain 33 ADC_GAIN_B 0 0 0 141 Blue ADC gain 34 ADC_OFFSET_R 128 128 128 134 Red ADC offset 35 ADC_OFFSET_G 128 128 128 132 Green ADC offset 36 ADC_OFFSET_B 128 128 128 200 Blue ADC offset 37 YPBPR_PHASE InValid Not available for this chassis 38 AUD_GAIN_LINEIN 0 Line-in audio gain 39 AUD_GAIN_HDMI 0 HDMI audio gain 40 AUD_GAIN_ATV 0 Analogue TV audio gain 41 AUD_GAIN_DTV 0 Digital TV audio gain 42 AUD_GAIN_USB 0 USB audio gain 43 AQ_INDEX 21 15 15 19 Audio Quality index 44 AUDIO TEST MODE Off Used for audio testing during production 45 AUDIO CHANNEL TYPE 0.0 Defines the installed speaker system 46 AUDIO SRS Off Audio SRS 47 DUMP PQ FROM TV Press OK Saves the picture quality data to a file “pq.bin” to the root of a FA T formatt ed USB memor y stick 48 LOAD PQ to TV Press OK Loads the picture quality data from a file “pq.bin” in to the TV 49 DUMP AQ FROM TV Press OK Saves the audio quality data to a file “AQ.bin” to the root of a FAT formatted USB memory stick 50 LOAD AQ to TV Press OK Loads the audio quality data from a file “AQ.bin” in to the TV 51 COPY BIN CHL to TV Press OK COPY BIN CHL to TV 52 COPY BIN CHL to USB Press OK COPY BIN CHL to USB 53 FEF CHECK Off FEF Check 54 PANEL FLIP Off Flip panel 55 VGA_SOURCE Off Enable/Disable VGA source 56 HDMI3 On Enable/Disable HDMI3 source

000 000 000 000 000 Values showing the last 5 errors during the last 50 hours of operation, according to table 5-4

Description40" 50" 58" 65"

Source Meter, the Picture Quality checksum, the Dimming library, the Source meter library, the Flash AQ, the MTK, MCU and OAD software versions.

result in not correct displaying the screen!

tuner is replaced with the correct service part.

Error code table

address

TV will write two files in the REPAIR folder of the memory stick. It will create this folder if it does not exist. The items are “Channel list”, “Personal settings”, “Option codes”, “Display-related alignments” and “History list”. In case the download to the USB st ick was not successful “Failure” will appear. In this case, check if the USB stick is connected properly. Now the settings are stored onto the USB stick and can be used to download onto another TV or other SSB. Uploading is of course only possible if the software is running and if a picture is available. This method is created to be able to save the customer’s TV settings and to store them into another SSB.

files which were created in item 8 to the NVM of the set. Use these options when replacing a SSB. When “USB to TV Success” is displayed remove the power and restart the TV

the NVM

back to

div. table

2014-Sep-26

EN 26 TPM14.2A LA5.

Item Item value

57 HDMI4 Off On On On Enable/Disable HDMI4 source 58 USB2 On Enable/Disable USB2 source 59 USB3 Off Enable/Disable USB3 source 60 KEYBOARD CONFIG On Enable/Disable HDMI3 source 61 LIGHT SENEOR TUNING 1 4 4 1 Light sensor 62 LIGHT SENSOR TYPE 0 1 1 0 Light sensor 63 TEMP SENSOR TYPE 3 3 3 3 Tem preture sensor 64 AMBILIGHT_DRIVER 0 2 2 2 Drive the Ambient light 65 AMBILIGHT TYPE 1 13 7 3 The type of Ambient light 66 LED TYPE 2 0 0 2 The type of LED 67 MHP APP Off MHP APP 68 3D 0 3 3 3 3D on/off 69 SMALL SCREEEN Off Small screen 70 BLUETOOTH Off Bluetooth on/off 71 BLUETOOTH_priority Off Bluetooth priority 72 ARC TEST Off ARC Test on/off 73 EXIT_FACTORY Press OK Exits the Factory mode

Service Modes and Fault Finding

Default value

Description40" 50" 58" 65"

How to Exit the Factory mode

Use one of the following methods:

• Select EXIT_FACTORY from the menu and press the “OK” button.

Note: When the TV is switched “off” by a power interrupt, or normal switch to “stand-by” while in the factory mode, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.4 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and information on the TVs operation settings.The call centre can instruct the customer (by telephone) to enter CSM in order to identify the status of the set.This helps the call centre to diagnose problems and failures in the TV set before making a service call. The CSM is a read-only mode; therefore, modifications are not possible in this mode.

Specifications

• Ignore “Service unfriendly modes”.

• Line number for every line (to make CSM language independent).

• Set the screen mode to full screen (all contents on screen is visible).

• After leaving the Customer Service Mode, the original settings are restored.

• Possibility to use “CH+” or “CH-” for channel surfing, or enter the specific channel number on the RC.

How to Activate CSM

To activate CSM, press the following key sequence on a standard remote control transmitter: “123654” (do not allow the display to time out between entries while keying the sequence). After entering the Customer Service Mode, the following items are displayed.

Note: Activation of the CSM is only possible if there is no (user) menu on the screen!

Contents of CSM

• 1.1 Set Type This information is very helpful for a helpdesk/workshop as reference for further diagnosis. In this way, it is not necessary for the customer to look at the rear of the TV-set. Note that if an NVM is replaced or is initialized after corruption, this set type has to be re-written to NVM.

• 1.2 Production code Displays the production code (the serial number) of the TV. Note that if an NVM is replaced or is initialized after corruption, this production code has to be re-written to NVM.

• 1.3 Installation date Indicates the date of the first installation of the TV. This date is acquired via time extraction.

• 1.4a Option Code 1 Gives the option codes of option group 1 as set in SAM.

• 1.4b Option Code 2 Gives the option codes of option group 2 as set in SAM.

• 1.5 SSB Gives an identification of the SSB as stored in NVM. Note that if an NVM is replaced or is initialized after corruption, this identification number has to be re-written to NVM. This identification number is the 12NC number of the SSB.

• 1.6 Display 12NC NVM read/write.

• 1.7 PSU 12NC NVM read/write.

• 1.8 RF4CE 12NC NVM read/write.

• 2.1 Current Main SW Displays the built-in main software version. In case of field problems related to software, software can be upgraded. As this software is consumer upgradeable, it will also be published on the internet.

• 2.2 Standby SW Displays the built-in stand-by processor software version. Upgrading this software will be possible via USB.

• 2.3 Panel Code

• 2.4 B

ootloader ID ID of Bootloader.

Displays the Display Code number.

• 2.5 NVM version Detects and displays NVM version.

• 2.6 Flash ID ID of flash model.

• 2.7 e-UM version eDFU (help) version.

• 2.8 Channel Table Structure Version version of channel table structure.

• 2.9 Error Codes Detects and displays errors.

• 2.10 Sil Drv Version FW version of Sil9679 IC in UHD model.

• 3.1 Signal Quality Analog/digital signal strength.

• 3.2 Child lock Not active / active. This is a combined item for locks. If any lock (channel lock, parental lock) is active, it is indicated as “active”.

• 3.3 HDCP keys Indicates the validity of the HDMI keys (or HDCP keys). In case these keys are not valid and the customer wants to make use of the HDMI functionality, the SSB has to be replaced.

• 3.4 Ethernet MAC address A Media Access Control address (MAC address) is a unique identifier assigned to network interfaces for communications on the physical network segment.

• 3.5 Wireless MAC address Wireless Media Access Control address.

• 3.6 BDS key BDS key for Hotel Mode, this key is only for hotel model.

How to Navigate

By means of the “CURSOR-DOWN/UP” knob (or the scroll wheel) on the RC-transmitter, can be navigated through the menus.

2014-Sep-26

back to

div. table

Service Modes and Fault Finding

19080_206_110323.eps

120224

Power Off

Standby Soft Mode

Power On

Semi- Standby

Standby

Switch

Off(Mains Power Plug)

Standby Soft Mode Command Received, previously in Standby

Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Digital background tasks started

Digital background tasks completed

Swith On, previously in

Standby/Semi- Standby (Mains Power Plug)

Standby Soft Mode

Command Received (Power tact

switch)

Switch Off (Mains Power Plug)

Switch Off

(Mains Power Plug)

Swith On, previously in Standby Soft Mode (Mains Power Plug)

Standby commands

Received (RC

Standby key)

Standby Soft Mode

Command Received, previously in Standby Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Switch On, previously in Power On Mode (Power tact switch)

Standby Soft Mode Command Received, (Power tact switch)

Switch Off (Mains Power Plug)

Switch On,previously in TV Operation Mode (Mains Power Plug)

EN 27TPM14.2A LA 5.

How to Exit CSM

To exit CSM, use one of the following methods.

• Press the MENU/HOME button on the remote control transmitter.

5.3 Stepwise Start-up

• Press the POWER button on the remote control transmitter.

• Press the POWER button on the television set.

Figure 5-1 Stepwise Start-up

back to

div. table

2014-Sep-26

EN 28 TPM14.2A LA5.

Service Modes and Fault Finding

5.4 Service Tools

5.4.1 ComPair

Introduction

ComPair (Computer Aided Repair) is a Service tool for Philips Consumer Electronics products. and offers the following:

1. ComPair helps to quickly get an understanding on how to repair the chassis in a short and effective way.

2. ComPair allows very detailed diagnostics and is therefore capable of accurately indicating problem areas. No knowledge on I because ComPair takes care of this.

3. ComPair speeds up the repair time since it can automatically communicate with the chassis (when the micro processor is working) and all repair information is directly available.

4. ComPair features TV software up possibilities.

Specifications

ComPair consists of a Windows based fault finding program and an interface box between PC and the (defective) product. The ComPair II interface box is connected to the PC via an USB cable. For the TV chassis, the ComPair interface box and the TV communicate via a bi-directional cable via the service connector(s). The ComPair fault finding program is able to determine the problem of the defective television, by a combination of automatic diagnostics and an interactive question/answer procedure.

How to Connect

This is described in the chassis fault finding database in ComPair.

ComPair II

RC in

Optional

Switch

2

C or UART commands is necessary,

TO TV

TO

UART SERVICE

CONNECTOR

2

I

C

RS232 /UART

ComPair II Developed by Philips Brugge

Optional power

5V DC

Power ModeLink/

Activity

HDMI

2

I

C only

UART SERVICE

CONNECTOR

RC out

TO

I2C SERVICE CONNECTOR

Multi

function

PC

5.5 Software Upgrading

5.5.1 Description

It is possible for the user to upgrade the main software via the USB port. This allows replacement of a software image in a stand alone set. A description on how to upgrade the main software can be found in the DFU or on the Philips website.

5.5.2 Introduction

Philips continuously tries to improve its products, and it’s recommend that the TV software is updated when updates are available. Software update files can be obtained from the dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip for Windows or Stufflt for Mac OS).

3. A FAT formatted USB memory stick (preferably empty).

Note:

1. Only FAT/DOS-formatted memory sticks are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support

5.5.3 Check the current TV software version

Before starting the software upgrade procedure, it is advised to check that what the current TV software:

1. Press the “1 2 3 6 5 4” button on the remote control to enter the CSM mode.

2. Use the up/down cursor keys to select “Current Main Software”.

If the current software version of the TV is the same as the latest update file found on http://www.philips.com/support not necessary to update the TV software.

5.5.4 Download the latest software

1. Open the internet page http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the PC.

4. Insert the USB memory stick into one of the USB ports of the PC.

5. Decompress the downloaded ZIP file and copy it to the root directory of the USB flash drive.

5.5.5 Update the TV software

web site.

, it is

.

10000_036_090121.eps

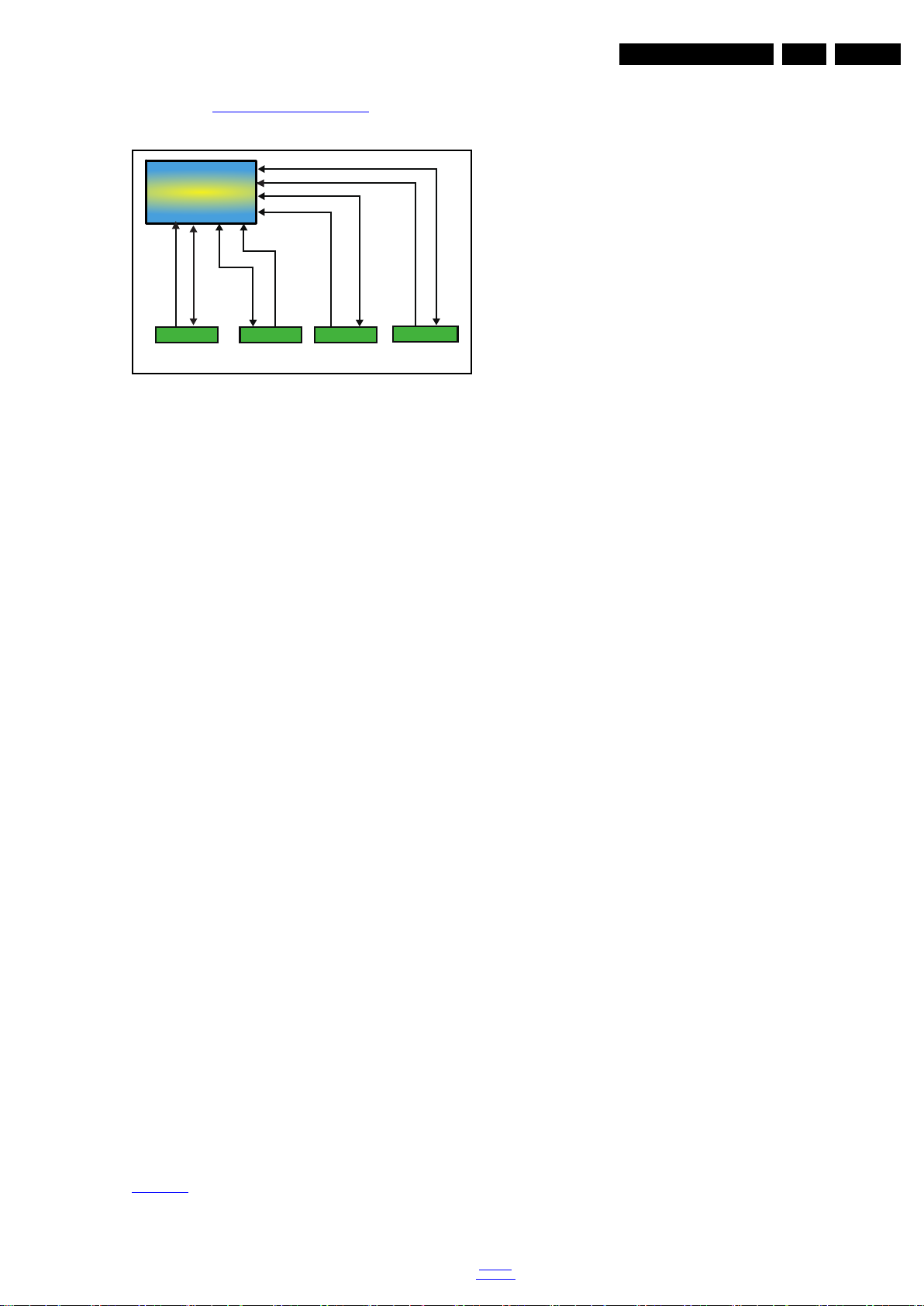

Figure 5-2 ComPair II interface connection

Caution: It is compulsory to connect the TV to the PC as

shown in the picture above (with the ComPair interface in between), as the ComPair interface acts as a level shifter. If one connects the TV directly to the PC (via UART), ICs can be blown!

How to Order

ComPair II order codes:

• ComPair II interface: 3122 785 91020.

• Software is available via the Philips Service web portal.

• ComPair UART interface cable for TPM10.1x xx. (using DB9 to 2mm pitch JST connector): 3122 785 90630.

Note: When you encounter problems, contact your local support desk.

2014-Sep-26

091118

back to

div. table

1. Turn the TV on and wait for it to boot completely.

2. Insert the USB memory stick that contains the software update files in one of the TV’s USB ports.

3. The TV will detect the USB memory stick automatically. Then a window jumps out as Figure 5-3

. Note: If the USB flash drive is not detected after power up, disconnect it and re-insert it.

4. Select [Update] and press OK. See Figure 5-3

.

5. To proceed, In next menu select [Start] and press OK to start software updates. See Figure 5-4

.

6. Upgrading will now begins and the status of the updating progress will be displayed.

7. When the TV software is updated. Remove your USB flash drive, then select [Restart] and press OK to restart the TV.See Figure 5-5

.

Service Modes and Fault Finding

19080_207_110324.eps

110324

19080_208_110324.eps

110324

19080_209_110324.eps

110324

Figure 5-3 Update the TV software [1/3]

Figure 5-4 Update the TV software [2/3]

• FUS_clustername_version.zip: Contains the file downloaded which is needed to upgrade the TV main software and the software download application.

• NVM_clustername_version.zip: Default NVM content. Must be programmed via ComPair.

5.5.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder “repair” is used. When inserting an empty USB memory stick, and downloading data to the stick, the TV will create this folder. When sending data from a USB memory stick to a TV, the intended data must be available in the “repair” folder. Note that when copying EDID data to the TV, all necessary EDID files must be in this folder. Service mode overview for your reference.

Table 5-3 Service mode overview

Service Modes Description

SAM Service alignment mode Factory Mode Used for extended alignments CSM 3-page compact CSM pages. There will be CSM dump to

USB SW upgradeable SW-upgrading of flash memories can be done via USB.

NVM-Editor in SAM NVM-editor will function as in the past: Address and Value

Service Data New Service data in SAM for CTN, Prod. no., 12NC

USB copy/paste in SAM

UART logging There will be printout available in UART. No specifications

Blind SAM RC sequence “062598” + “Menu” + “Panel code” Clear Buffer RC sequence “062599” + “OK” or via SAM

USB-stick upon entering CSM-mode

The main SW can be upgraded via the ZIP file downloaded.

field is a decimal value via digit entry

programming with virtual keyboard Channel list, NVM data, Readable info, EDID

of the printout, per platform provision/definition.

EN 29TPM14.2A LA 5.

Figure 5-5 Update the TV software [3/3]

Note:

• Do not remove the USB flash drive during the software update.

• If a power failure occurs during the update, do not remove the USB flash drive from the TV. The TV will continue the software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV software from the USB portable memory.

5.5.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and instructions on how and when to use it. Only files that are relevant for Service are mentioned here.

• EDID_clustername.zip: Contains the EDID content of the different EDID NVMs. See ComPair for further instructions.

5.6 Error Codes

5.6.1 Introduction

Error codes are required to indicate failures in the TV set. In principle a unique error code is available for every:

• Activated (SW) protection.

• Failing I

• General I The last five errors, stored in the NVM, are shown in the Service menu’s. This is called the error buffer. The error code buffer contains all errors detected since the last time the buffer was erased. The buffer is written from left to right. When an error occurs that is not yet in the error code buffer, it is displayed at the left side and all other errors shift one position to the right. An error will be added to the buffer if this error differs from any error in the buffer. The last found error is displayed on the left. An error with a designated error code never leads to a deadlock situation. It must always be diagnosable (e.g. error buffer via OSD or blinking LED or via ComPair). In case a failure identified by an error code automatically results in other error codes (cause and effect), only the error code of the MAIN failure is displayed.

5.6.2 How to Read the Error Buffer

You can read the error buffer in three ways:

• On screen via the SAM/CSM (if you have a picture).

2

C device.

2

C error.

Example: – ERROR: 000 000 000 000 000: No errors detected – ERROR: 013 000 000 000 000: Error code 13 is the

last and only detected error

– ERROR: 034 013 000 000 000: Error code 13 was

detected first and error code 34 is the last detected (newest) error

back to

div. table

2014-Sep-26

EN 30 TPM14.2A LA5.

Service Modes and Fault Finding

• Via the blinking LED procedure (when you have no picture). See paragraph 5.7 The Blinking LED Procedure

•Via ComPair.

5.6.3 Error codes

In this chassis only “layer 2” error codes are available and point to problems on the SSB. They are triggered by LED blinking when CSM is activated. Only the following layer 2 errors are defined:

Table 5-4 Error code table

Layer-2 error code Defective device

13 General I2C bus error on the SSB 16 +12 V mi ssing or low, PSU defective 27 Channel decoder error on the SSB 34 Tuner I2C bus error on the SSB 35 EEPROM I2C error on SSB, M24C64

5.6.4 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu

• By using the CLEAR command in the Factory mode:

• By using the following key sequence on the remote control transmitter: “062599” directly followed by the OK button.

• If the contents of the error buffer have not changed for 50 hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the mains from the television set, the error buffer is not reset.

5.7 The Blinking LED Procedure

5.8.1 NVM Editor

.

In some cases, it can be convenient if one directly can change the NVM contents. This can be done with the “NVM Editor” in SAM mode. With this option, single bytes can be changed.

Caution:

• Do not change these, without understanding the function of each setting, because incorrect NVM settings may seriously hamper the correct functioning of the TV set!

• Always write down the existing NVM settings, before changing the settings. This will enable you to return to the original settings, if the new settings turn out to be incorrect.

5.8.2 Load Default NVM Values

It is possible to upload the default values to the NVM with ComPair in case the SW is changed, the NVM is replaced with a new (empty) one, or when the NVM content is corrupted. After replacing an EEPROM (or with a defective/no EEPROM), default settings should be used to enable the set to start-up and allow the Service Default Mode and Service Alignment Mode to be accessed.

5.8.3 No Picture

When you have no picture, first make sure you have entered the correct display code. See paragraph 6.4 Option Settings the instructions. See also back to div. table 6-3

.

for

5.8.4 Unstable Picture via HDMI input

Check (via ComPair or factory mode) if HDMI EDID data is properly programmed.

5.7.1 Introduction

The software is capable of identifying different kinds of errors. Because it is possible that more than one error can occur over time, an error buffer is available, which is capable of storing the last five errors that occurred. This is useful if the OSD is not working properly. Errors can also be displayed by the blinking LED procedure. The method is to repeatedly let the front LED pulse with as many pulses as the error code number, followed by a period of

1.5 seconds in which the LED is “off”. Then this sequence is repeated. Example (1): error code 4 will result in four times the sequence LED “on” for 0.25 seconds / LED “off” for 0.25 seconds. After this sequence, the LED will be “off” for 1.5 seconds. Any RC command terminates the sequence. Error code LED blinking is in red color. Example (2): the content of the error buffer is “12 9 6 0 0” After entering SDM, the following occurs.

• 1 long blink of 5 seconds to start the sequence.

• 12 short blinks followed by a pause of 1.5 seconds.

• 9 short blinks followed by a pause of 1.5 seconds.

• 6 short blinks followed by a pause of 1.5 seconds.

• 1 long blink of 1.5 seconds to finish the sequence.

• The sequence starts again with 12 short blinks.

5.8 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options are set.

5.8.5 No Picture via HDMI input

Check if HDCP key is valid. This can be done in CSM.

5.8.6 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Re-flash the software.

5.8.7 Audio Amplifier

The Class D-IC U606 has a powerpad for cooling. When the IC is replaced it must be ensured that the powerpad is very well pushed to the PWB while the solder is still liquid. This is needed to insure that the cooling is guaranteed, otherwise the Class D-IC could break down in short time.

5.8.8 CSM

When CSM is activated and there is a USB memory stick connected to the TV, the software will dump the complete CSM content to the USB memory stick. The file (Csm.txt) will be saved in the root of the USB memory stick.

5.8.9 Loudspeakers

Make sure that the volume is set to minimum during disconnecting the speakers in the ON-state of the TV. The audio amplifier can be damaged by disconnecting the speakers during ON-state of the set!

5.8.10 Display option code

2014-Sep-26

back to

div. table

Attention: In case the SSB is replaced, always check the Panel Code in CSM, even when picture is available. Performance with the incorrect display option code can lead to unwanted side-effects for certain conditions.

6. Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Hardware Alignments

6.3 Software Alignments

6.4 Option Settings

6.5 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following conditions:

• Power supply voltage: 90 - 264 V

• Connect the set to the mains via an isolation transformer with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct ground (e.g. measure audio signals in relation to AUDIO_GND). Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

> 10 MW, Ci < 20 pF.

i

• Use an isolated trimmer/screwdriver to perform alignments.

, 50/ 60 ± 3 Hz.

AC

Alignments

In case you have a colour analyser:

• Measure with a calibrated (phosphor- independent) color analyser (e.g. Minolta CA-210) in the centre of the screen. Consequently, the measurement needs to be done in a dark environment.

• Adjust the correct x, y coordinates (while holding one of the White point registers R, G or B on max. value) by means of decreasing the value of one or two other white points to the correct x, y coordinates (see Table 6-1 White D alignment

values). Tolerance: dx: ± 0.003, dy: ± 0.003.

• Repeat this step for the other colour Temperatures that need to be aligned.

• When finished return to the SAM root menu and press STANDBY on the RC to store the aligned values to the NVM.

Table 6-1 White D alignment values

Value Cool (11000 K) Normal (9000 K) Warm (6500 K)

x 0.276 0.287 0.313 y 0.282 0.296 0.329

EN 31TPM14.2A LA 6.

6.2 Hardware Alignments

Not applicable.

6.3 Software Alignments

Put the set in SAM mode (see Chapter 5. Service Modes and

Fault Finding). The SAM menu will now appear on the screen.

Select RGB Align and go to one of the sub menus. The alignments are explained below. The following items can be aligned:

• White point.

To store the data:

• Press OK on the RC before the cursor is moved to the left.

• Select “Store” and press OK on the RC.

• Switch the set to stand-by mode.

For the next alignments, supply the following test signals via a video generator to the RF input:

• EU/AP-PAL models: a PAL B/G TV-signal with a signal strength of at least 1 mV and a frequency of 475.25 MHz

• US/AP-NTSC models: an NTSC M/N TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

• LATAM models: an NTSC M TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

6.3.1 RGB Alignment

Before alignment, set the picture as follows:

Picture Setting

Dynamic backlight Off Dynamic Contrast Off Color Enhancement Off Picture Format Unscaled Light Sensor Off Brightness 50 Color 0 Contrast 100

White Tone Alignment:

• Activate SAM.

• Select “RGB Align.” and choose a color temperature.

• Use a 100% white screen as input signal and set the following values: – “Red BL Offset” and “Green BL Offset” to “7” (if

present).

– All “White point” values initial to “128”.

If you do not have a colour analyser, you can use the default values. This is the next best solution. The default values are average values coming from production (statistics).

6.3.2 Display Adjustment

You can use the default values. The default values are average values coming from production.

• Enter SAM mode.

• Select a colour temperature (e.g. COOL, NORMAL, or WARM).

• Set the RED, GREEN and BLUE default values according to the values in back to div. table 6-2

.

• When finished press OK on the RC, then press STORE to store the aligned values to the NVM.

• Restore the initial picture settings after the alignments.

Table 6-2 White tone default settings

Picture mode Screen size

Normal (9000K) 40PFT6709/56 240 255 216

40PFT6709/79 243 253 215 40PFT6709/98 242 255 219 40PFT6709S/98 241 251 218 50PFT6709/56 252 195 202 50PFT6709/79 250 194 201 50PFT6709/98 255 195 201 50PFT6709S/98 253 196 200 50PUT8509/56 255 253 252 50PUT8509/79 253 251 250 50PUT8509/98 255 252 251 50PUT8509S/98 252 253 255 58PUT8509/79 252 251 251 58PUT8509/98 255 254 251 58PUT8509S/98 255 253 252 58PUT8509/56 254 252 251 65PFT6909/56 253 233 241 65PFT6909/79 255 232 245 65PFT6909/98 255 231 246 65PFT6909S/98 254 230 246 65PUT8609/56 255 252 235 65PUT8609/98 255 255 237 65PUT8609S/98 253 255 236 65PUT8609/79 252 254 238

Colour temperature

Red Green Blue

back to

div. table

2014-Sep-26

EN 32 TPM14.2A LA6.

Alignments

Colour temperature

Picture mode Screen size

Cool (11000K) 40PFT6709/56 232 250 245

40PFT6709/79 235 252 246 40PFT6709/98 230 255 247 40PFT6709S/98 231 251 248 50PFT6709/56 254 217 242 50PFT6709/79 253 218 241 50PFT6709/98 255 219 243 50PFT6709S/98 251 216 239 50PUT8509/56 255 251 254 50PUT8509/79 251 252 253 50PUT8509/98 253 250 255 50PUT8509S/98 253 255 254 58PUT8509/79 254 253 252 58PUT8509/98 255 252 251 58PUT8509S/98 254 251 251 58PUT8509/56 253 250 250 65PFT6909/56 234 218 255 65PFT6909/79 236 218 255 65PFT6909/98 235 216 253 65PFT6909S/98 234 215 252 65PUT8609/56 222 236 234 65PUT8609/98 221 234 232 65PUT8609S/98 220 233 231 65PUT8609/79 221 233 230

Warm (6500K) 40PFT6709/56 253 255 158

40PFT6709/79 255 251 156 40PFT6709/98 255 255 159 40PFT6709S/98 254 253 157 50PFT6709/56 255 185 131 50PFT6709/79 253 184 132 50PFT6709/98 255 185 133 50PFT6709S/98 252 181 130 50PUT8509/56 253 252 250 50PUT8509/79 252 251 252 50PUT8509/98 255 251 255 50PUT8509S/98 255 252 255 58PUT8509/79 255 255 252 58PUT8509/98 254 253 253 58PUT8509S/98 252 251 250 58PUT8509/56 252 252 251 65PFT6909/56 255 205 175 65PFT6909/79 255 207 177 65PFT6909/98 253 207 176 65PFT6909S/98 255 208 175 65PUT8609/56 254 246 168 65PUT8609/98 255 245 167 65PUT8609S/98 254 247 165 65PUT8609/79 253 246 230

Red Green Blue

This group setting of colour temperature will be applied automatically to the TV / VGA / HDMI / AV sources.

6.4 Option Settings

6.4.1 Introduction

The microprocessor communicates with a large number of I ICs in the set. To ensure good communication and to make digital diagnosis possible, the microprocessor has to know which ICs to address. The presence / absence of these NT72567 ICs is made known by the option codes.

Notes:

• After changing the option(s), save them by pressing the OK button on the RC before the cursor is moved to the left, select STORE and press OK on the RC.

• The new option setting is only active after the TV is switched “off” / “stand-by” and “on” again with the mains switch (the NVM is then read again).

6.4.2 Option Code Overview

Enter SAM mode to check the option codes. they could be edited in the NVM.

6.4.3 Display Code Overview

Press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in back to div. table 6-3

. After resetting

the Display Code, restart the set immediately.

Table 6-3 Display code overview

CTN_ALT BOM# Panel Type Display Code

40PFT6709/56 TPT400LA-K7PE1.N 123 40PFT6709/79 TPT400LA-K7PE1.N 123 40PFT6709/98 TPT400LA-K7PE1.N 123 40PFT6709S/98 T PT400LA-K7PE1.N 123 50PFT6709/56 TPT500J1-K1PS6.N 124 50PFT6709/79 TPT500J1-K1PS6.N 124 50PFT6709/98 TPT500J1-K1PS6.N 124 50PFT6709S/98 TPT500J1-K1PS6.N 124 50PUT8509/56 V500 DK2-KS1 C8 232 50PUT8509/79 V500 DK2-KS1 C8 232 50PUT8509/98 V500 DK2-KS1 C8 232 50PUT8509S/98 V500DK2-KS1 C8 232 58PUT8509/79 V580 DK2-KS1 C8 233 58PUT8509/98 V580 DK2-KS1 C8 233 58PUT8509S/98 V580DK2-KS1 C8 233 58PUT8509/56 V580 DK2-KS1 C8 233 65PFT6909/56 V650HP1-LS6 E8 119 65PFT6909/79 V650HP1-LS6 E8 119 65PFT6909/98 V650HP1-LS6 E8 119 65PFT6909S/98 V650DK1-KS2 B2 119 65PUT8609/56 V650DK1-KS2 B2 234 65PUT8609/98 V650DK1-KS2 B2 234 65PUT8609S/98 V650DK1-KS2 B2 234 65PUT8609/79 V650DK1-KS2 B2 234

6.5 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service repair shop (SSB repair on component level) implies the reset of the NVM on the SSB. A repaired SSB in Service should get the service Set type “00PF0000000000” and Production code “00000000000000”. Also the virgin bit is to be set. To set all this, you can use the ComPair tool or use the “NVM editor” and “Dealer options” items in SAM (do not forget to “store”).

After a repaired SSB has been mounted in the set (set repair on board level), the type number (CTN) and production code of

2

C

the TV has to be set according to the type plate of the set. For this, you can use the NVM editor in SAM. The loading of the CTN and production code can also be done via ComPair (Model number programming).

In case of a display replacement, reset the “Operation hours display” to “0”, or to the operation hours of the replacement display. Remark:

- After the NVM has been replaced, go to SAM and scroll to the <Reload MAC address> (see figure 1*).

- Select the item and press <OK> on the RC.

2014-Sep-26

back to

div. table

6.5.1 Reset of Repaired SSB

Instruction

After NVM replacement, reload MAC address via SAM menu.This ensures the correct MAC address to be available in CSM for future repair actions.

Way of working:

• After the NVM has been replaced, go to SAM and scroll to the <Reload MAC address> .

• Select the item and press <OK> on the RC.

Notes:

• Only applicable to all related models that are “Smart TV level 0”enabled (only YouTube access). For models

without internet connection feature, no action is needed.

• HDCP keys are located in the NVM. If you are loading NVM with the ComPair tool, there is warning message displayed.

New NVM EEPROMs are shipped with pre-loaded HDCP keys.

6.5.2 SSB Identification

SSB’s of this chassis are identified by a “715” code on the SSB. 715Axxxx-Nnn-MMM-OOOO

• 715 main category, Printed Wiring Board

• Axxxx sub category, sequential coding number

• Nnn Version code

• N Development number

• nn Production number

• MMM Mounting variation code

• OOOO Optional variation code

Make sure when replacing an SSB the SSB identification codes match the replacement panel.

Alignments

EN 33TPM14.2A LA 6.

back to

div. table

2014-Sep-26

EN 34 TPM14.2A LA7.

7. Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 DC/DC Converters

7.4 Front-End Analogue and DVB-T, DVB-C, ISDB-T reception

7.5 HDMI

7.6 Video and Audio Processing - MT5591IVDJ

7.7 Ambilight

Notes:

•Only new circuits (circuits that are not published recently) are described.

• Figures can deviate slightly from the actual situation, due to different set executions.

• For a good understanding of the following circuit descriptions, please use the wiring, block (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

you will find a separate drawing for clarification.

) and circuit diagrams (see chapter

).Where necessary,

Circuit Descriptions

7.1 Introduction

The TPM14.2A LA is a new chassis launched in Asia in 2014. The whole range is covered by SCALER MT5591. The major deltas versus its predecessor DVB-TC; DVB-TC/T2, with also multi-media, 3D, Ambilight, WIFI, Smart TV, Light Sensor functionality.

The TPM14.2A LA chassis comes with the following stylings:

• series xxPFT6700

• series xxPFT6900

• series xxPUT8500

• series xxPUT8600

7.1.1 Implementation

Key components of this chassis are:

• SCALER MT5591IVDJ HSBGA-758 TV Processor

• TUNER EUROPE SUT-RE231ZN (DVB-T/C, T2 analogue)

• DEMODULATOR CXD2837ER-T4 VQFN-48

• STA381BWTR 20W VQFN-48 for AUDIO Amplifier

• THGBM5G5A1JBAIR 4GB P-VFBGA153 for EMMC IC

7.1.2 TPM14.2A LA Architecture Overview

For details about the chassis block diagrams refer to Figure 9.1

.

2014-Sep-26

back to

div. table

7.1.3 SSB Cell Layout

19750_200.eps

MT5591

DDR

HDMI

USB

SPDIF

HDMI

T/C TUNER

DC/DC

NETWORK

USB

Headphone

SERVICE CONNECTOR

ANALOG I/O

Circuit Descriptions

EN 35TPM14.2A LA 7.

Figure 7-1 SSB layout cells (top view)

back to

div. table

2014-Sep-26

EN 36 TPM14.2A LA7.

19750_201.eps

Display power

Platform MTK5591

PFC

Platform power

1 power- PCB

LVDS AMP

Low stby power

Ac-input + Mains filter

5V(for 65PUT8609)

BL-ON/OFF

AC IN

CN9901

CN9101 ( FOR 715G6555) CN8101 ( FOR 715G6338) CN8601 ( FOR 715G6991)

CN9205 ( FOR 715G6887)

DIM

12V

CN700

AMP

12V

7.2 Power Supply

Refer to figure Figure 7-2 for the power architecture of this platform.

Circuit Descriptions

Figure 7-2 Power Architecture

2014-Sep-26

back to

div. table

Circuit Descriptions

EN 37TPM14.2A LA 7.

7.2.1 Power Supply Unit

All power supplies are a black box for Service. When defective, a new panel must be ordered and the defective one must be returned, unless the main fuse of the panel is broken. Always replace a defective fuse with one with the correct specifications! This part is available in the regular market. Consult the Philips Service web portal for the order codes of the panels.

Important delta’s with the TPM14.2A LA classis platform are:

• New power architecture for LED backlight

• “Boost”-signal is now a PWM-signal + continuous variable.

The control signals are:

• Stand-by

• Lamp “on/off”

• DIM (PWM) (not for PSDL)

In this manual, no detailed information is available because of design protection issues.

The output voltages to the chassis are:

• +4V7-STANDBY (Stand-by mode only)

• +5V (Stand-by mode only) (for 65PUT8609)

• +12V (on-mode)

• +Vsnd (+12V) (audio power) (on-mode)

• +24V (bolt-on power) (on-mode)

• Output to the display; in case of

- IPB: High voltage to the LCD panel

- PSL and PSLS (LED-driver outputs)

- PSDL (high frequent) AC-current.

7.2.2 Diversity

The diversity in power supply units is mainly determined by the diversity in displays.

The following displays can be distinguished:

• CCFL/EEFL backlight: power panel is conventional IPB

• LED backlight:

- side-view LED without scanning: PSL power panel

- side-view LED with scanning: PSLS power panel

- direct-view LED without 2D-dimming: PSL power panel

- direct-view LED with 2D-dimming: PSDL power panel.

PSL stands for Power Supply with integrated LED-drivers. PSLS stands for a Power Supply with integrated LED-drivers with added Scanning functionality (added microcontroller). PSDL stands for a Power Supply for Direct-view LED backlight

with 2D-dimming.

7.2.3 Connector overview

Table 7-1 Connector overview

Number CN9301 CN8101 CN9301 CN8601 CN9301 CN9101 CN9301 CN9101 CN9102 CN9205

40" 50" 6709 series 50" 8509 series 65" 6900 series 65" 8609 series

Description to SSB to panel to SSB to panel to SSB to panel to SSB to panel to SSB to Adapter Pin1412141214 1414 1414 12

1 DIM VLED+ DIM VLED+ DIM DIM DIM DIM DIM +12V 2 ON/OFF n.c. ON/OFF n.c. ON/OFF n.c. ON/OFF n.c. ON/OFF +12V 3 PS_ON VLED_1 PS_ON LED- PS_ON ON/OFF PS_ON ON/OFF PS_ON +12V 4 2D/3D VLED_1 2D/3D LED- 2D/3D n.c. 2D/3D n.c. 2D/3D +12V 5 GND n.c. GND n.c. GND GND GND GND GND GND 6 GND n.c. GND n.c. GND GND GND GND GND GND 7 GND n.c. GND n.c. GND GND GND GND GND GND 8 GND n.c. GND n.c. GND GND GND GND GND GND 9 +12V_AUDIO VLED_2 +12V LED- +12V_AUDIO GND +12V_AUDIO GND +12V_AUDIO GND 10 +12V_AUDIO VLED_2 +12V LED- +12V_AUDIO +24LED +12V_AUDIO +24LED +12V_AUDIO +24VA 11 +12V n.c. +12V n.c. +12V +24LED +12V +24LED +12V +24VA 12 +12V VLED+ +12V VLED+ +12V +24LED +12V +24LED +12V +24VA 13 +12V - +12V - +12V +24LED +12V +24LED +12V +24VA 14 +12V - +12V - +12V +24LED +12V +24LED +12V +24VA

7.3 DC/DC Converters

The on-board DC/DC converters deliver the following voltages (depending on set execution):

• +5V-STANDBY, permanent voltage for the Stand-by controller, LED/IR receiver and controls

• +12V, input from the power supply for the panel common (active mode)

• +12V, input from the power supply for audio amplifier

• +1V2, from the power supply for the scaler IC MT5591

• +1V5, supply voltage for DDR2 (diagram B03B)

• +3V3, general supply voltage

• +5V, supply voltage for USB and CAM

• +3V3-TUN, supply voltage for tuner

• +5V-USB, input intermediate supply voltage for USB

• +3V3 from the power supply for the scaler IC MT5591

• +12V input from the Power supply for the Ambilight common.

Connector

Figures gives a graphical representation of the DC/DC converters with its current consumptions:

back to

div. table

2014-Sep-26

EN 38 TPM14.2A LA7.

19750_202.eps

P12V

3.3V

AVDD3V3

AVDD1V2

DVD3V3

3V3SB

1.5V

5V_SW

5V_USB

PVDD

FB755

FB754

AMP STA381BWTR

Q754

Q752

U103

U708

U706

Q702

U701

U709

U705

Tuner

MTK5591

USB

U707

DDR

Demond IC

EMMC

Flash IC

12V Audio

12V_AL

MTK5591

5V -STB

U4250

WIFI-VCC

MTK5591

+12V

5VSB

P12V

P ANEL_VCCQ750

IF

IF_AGC

RF_AGC

MT5591

IF_AGC

SUT-RE231ZN

I2C

I

2

C

19750_203.eps

IF

TS DATA

RF_AGC

MT5591

T2 demod

CDX2837ER

IF_AGC

SUT-RE231ZN

I2C

I

2

C

I

2

C

19750_204.eps

Circuit Descriptions

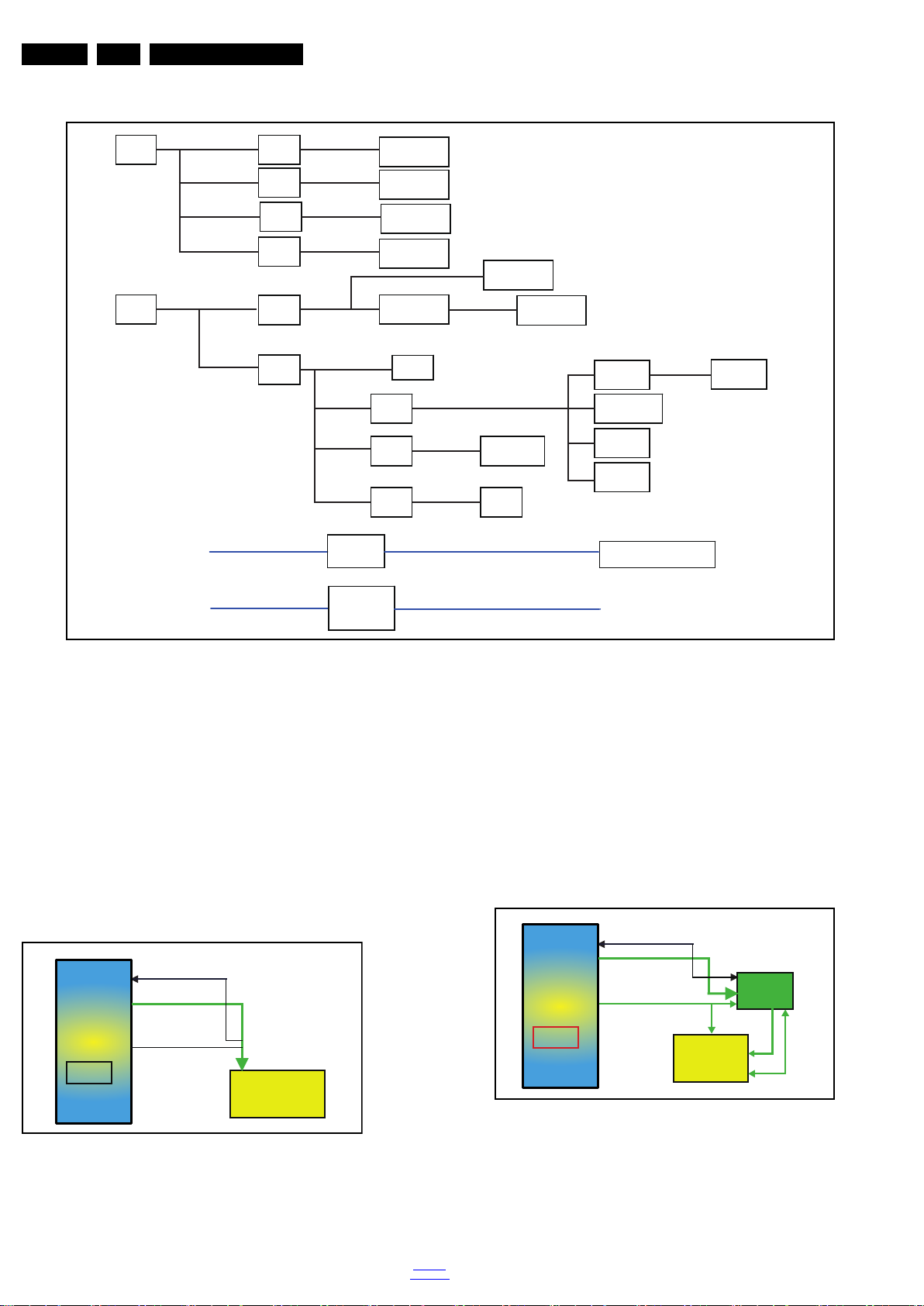

Figure 7-3 DC/DC converters

7.4 Front-End Analogue and DVB-T, DVB-C, ISDB-T reception

7.4.1 Front-END Analogue part

The Front-End for Analogue tuner consist of the following key components:

• TUNER EUROPE SUT- RE231ZN (DVB-T/C, T2

analogue)

• SCALER MT5591IVDJ HSBGA-758 TV Processor

Below find a block diagram of the front-end application for the front-end application for analogue part.

2014-Sep-26

Figure 7-4 Front-End Analogue block diagram

7.4.2 Front-END DVB-T(2) reception DTV part

The Front-End for DVB-T2 DTV part consist of the following key components:

• TUNER EUROPE SUT - RE231ZN(DVB-T/C, T2 analogue)

• SCALER MT5591IVDJ HSBGA-758 TV Processor

• DEMODULATOR CXD2837ER-T4 VQFN-48

Below find a block diagram of the front-end application for DVB-T2 DTV.

Figure 7-5 Front-End DVB-T2 DTV block diagram

back to

div. table

Circuit Descriptions

19750_205.eps

MTK5591

HDMI1

HDMI2

HDMI SIDE

CN501

CN502 CN503

CN504

BRX

RX

I2C

EN 39TPM14.2A LA 7.

7.5 HDMI

Refer to figure 7-6 HDMI input configuration for the application.

Figure 7-6 HDMI input configuration

The following HDMI connector can be used:

• HDMI 1: HDMI input (TV digital interface support HDCP) with digital audio / PC DVI input/ARC

• HDMI 2: HDMI input (TV digital interface support HDCP) with digital audio / PC DVI input

• HDMI side: HDMI input (TV digital interface support HDCP) with digital audio / PC DVI input

• +5V detection mechanism

• Stable clock detection mechanism

• Integrated EDID

•HPD control

• Sync detection

• TMDS output control

•CEC control

• Ambilight will adjust the TV lights around according to the picture changing color and brightness in order to creat a sense of the effect of being personally on the screen

7.6 Video and Audio Processing - MT5591IVDJ

7.7 Ambilight

The MT5591IVDJ is the main audio and video processor (or System-on-Chip) for this platform. It has the following features:

• Multii-standard digital video decoder (MPEG-2, H.264, MPEG-4)

• Integrated DVB-T/DVB-C/DVB-S channel decoder

• Integrated CI+

• 3D graphic support OpenGL ES 2.0

• A multi-standard video decoder

• HDMI 1.4a receiver with 3D support

• 2D/3D converter

• Rich formal audio codec

• True 120Hz/Full HD

• Local dimming (LED backlight)

The MT5591IVDJ combines front-end video processing functions, such as ATSC,DVB-T/T2, DVB-C,DVB-S/S2 channel decoding, MPEG-2/H.264 decoding, analog video decode and HDMI reception, with advanced back-end video picture improvements. High flat panel screen resolutions and refresh rates are supported with formats including 1360 × 768 @ 60Hz and 1920 × 1080 @ 60Hz. The combination of Ethernet, CI+ and H.264 supports new TV experiences with IPTV and VOD. On top of that, the MT5591IVDJ family provides consumers with a true Full-HD 120Hz experience. It intergrates high-quality Full-HD ME/MC technology. Professional error-concealment provides stable, smooth and mosaic-free video quality.

For a functional diagram of the MT5591IVDJ, refer to

Figure 8-1

• The power supply voltage 12V

.

back to

div. table

2014-Sep-26

EN 40 TPM14.2A LA8.

19610_301.eps

Block diagram

MT5591IVDJ

NTSC/

PAL/

SECAM

ATD

TV

Decoder

TS

Demux

Dual C ore ARM CA9

L2 C ache

Video

ADCx4

Video Input

De-

inter lace

ATSC/

DVB-T/

DVB-C

DTD

HDMI Rx

JPEG/MP2/MP4/

DivX/H.264/VC-1/

RM/AVS/VP6/VP8

Decoders

Audio

Input

Audio

Demod

Audio

ADC

SPDIF

In

2D/3D

Grapihc

H.264

Encoder

LVDS/min-LVS/

V-by-One/

EPI

OD, TCON

MJC-FRC

2D/3D Co nverter

Post Processing

DDR3

Controller

OSD

scaler

PIP

Vplane

scaler

Audio DSP

Audio

I/F

Audio DAC

JTAG IrDA

PCR

I2C

RTC UART SDIO

USB2.0 PWM

Ethernet

Watchdog Seri al Flas h

NAND Flash

Ser vo A DC

SPDI F Out, I2S

ADAC L/R x 3

S

Input

Tuner

Input

CVBS/YC

Input

Component

Analog Input

HDMI

Input

SIF

Audio Input

Panel

48/32-bit

DDR3

T8032

Smart

Card

CKGEN

IC Data Sheets

8. IC Data Sheets

This chapter shows the internal block diagrams and pin configurations of ICs that are drawn as “black boxes” in the electrical diagrams (with the exception of “memory” and “logic” ICs).

8.1 Diagram 10-5-2 Peripheral, B02, MT5591IVDJ (IC U4 01-G)

Figure 8-1 Internal block diagram

2014-Sep-26

back to

div. table

IC Data Sheets

19610_302.eps

Pinning Information

MT5591IVDJ

7758 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A ARDQ24 ARDQ30 ARDQM2 ARDQS3 ARCLK1# ARDQ29 ARDQ20 ARDQ10 ARDQS1 ARCLK0# ARDQ13 ARDQ11

B ARDQ19 ARDQ17 ARDQ28

ARDQS3 #

ARCLK1 ARDQ25 ARDQ5 ARDQ8

ARDQS1 #

ARCLK0 ARDQ9 ARDQ0

C ARDQ21

RVREF_ C

ARDQ23 ARDQ26

ARDQS2 #

ARDQM3 ARDQ27 ARDQ18 ARDQ22 ARDQ3 ARDQ14 ARDQ12 DVSS

ARDQS0 #

ARDQM1 ARDQ15 ARDQ2

D BRDQ4 BRDQ6 BRCAS# BRCS# ARDQS2 DVSS ARDQ31 ARA12 ARDQ7 ARDQ1 ARA14 ARDQM0 DDRV ARDQS0 ARBA0 DVSS DDRV E BRDQ2 BRDQ0 BRODT BRBA2 BRA0 ARDQ16 DDRV ARA4 ARA11 ARRAS# ARA3 ARA9 ARA5 F BRDQ11 BRDQ9 BRDQ13 BRA9 DDRV ARBA1 ARA6 ARA8 ARODT ARCSX# ARA13 ARA2

G BRDQ15

BRRESE T

BRA13 BRA2 ARCKE ARA10 ARA1 DDRV ARCAS# ARCS#

ARRESE T

ARA7

H

BRDQS0 #

BRDQS0 BRDQM1 BRA7 DDRV

AVSS33_ MEMPLL

J BRCLK0# BRCLK0 BRA15 BRBA0

K BRDQS1

BRDQS1 #

DDRV BRWE# BRA3 BRA5

L BRDQM0 BRDQ12 DVSS BRRAS# BRA10 BRCKE DDRV VCCK VCCK VCCK VCCK VCCK VCCK VCCK M BRDQ10 BRDQ14 BRA4 BRBA1 DDRV VCCK VCCK DVSS DVSS DVSS DVSS DVSS N BRDQ3 BRDQ7 BRDQ1 BRDQ8 BRA1 DDRV VCCK VCCK DVSS DVSS DVSS DVSS DVSS P BRDQ5 BRA6 BRA8 BRA14 BRA11 BRA12 DDRV VCCK VCCK DVSS DVSS DVSS DVSS DVSS R DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV VCCK VCCK DVSS DVSS DVSS DVSS DVSS

T

REXT_V PLL

BE4P BE4N DDRV DDRV DDRV DDRV

VCC3IO_ C

VCCK VCCK DVSS DVSS DVSS DVSS DVSS

U BE3P BE3N TCON3 TCON4 TCON9 TCON10 VCCK VCCK DVSS DVSS DVSS DVSS DVSS

V BECKP BECKN BE2P BE2N

AVSS33_ LVD S

TCON6 TCON12 TCON5 TCON11 VCCK VCCK DVSS DVSS DVSS DVSS DVSS

W BE1P BE1N TCON2 TCON8 VCCK VCCK DVSS DVSS DVSS DVSS DVSS

Y BE0P BE0N BO4P BO4N

VCC3IO_ B

VCCK VCCK DVSS DVSS DVSS DVSS DVSS

AA BO3P BO3N GPIO50 TCON0 TCON1

VCC3IO_ B

VCCK VCCK DVSS DVSS DVSS DVSS DVSS

AB BOCKP BOCKN BO2P BO2N GPIO54 TCON7 GPIO49 VCCK VCCK DVSS DVSS DVSS DVSS DVSS

AC BO1P BO1N

AVSS33_ LVD S

GPIO55 GPIO53 GPIO52 VCCK VCCK VCCK DVSS DVSS

AVSS33_ COM

AVSS33_ LD

DVSS

AD BO0P BO0N AE4P AE4N GPIO51 VCCK VCCK VCCK VCCK VCCK VCCK

AE AE3P AE3N

AVSS33_ LVD S

VCCK VCCK VCCK VCCK

AVSS33_ USB_P3

AVSS33_ ELDO

POR_BN D

OPCTRL 9

AF AECKP AECKN AE2P AE2N

AVSS12_ LVD S_3

VCCK VCCK VCCK VCCK AOMCLK OSDA1

PHYLED 1

LED_PW M1

OIRI

AG AE1P AE1N VCCK VCCK VCCK VCCK ALIN ASPDIF0 OSCL1 U1RX

LED_PW M0

OPCTRL 3

AH AE0P AE0N AO4P AO4N VCCK VCCK VCCK

AOSDAT A1

AOSDAT A4

OSCL0 OSDA0 U1TX U0RX U0TX

OPCTRL 7

AJ AO3P AO3N VCCK VCCK VCCK

AOSDAT A2

AOLRCK

AOSDAT A0

JTMS JTRST#

PHYLED 0

OPCTRL 2

AK AOCKP AOCKN AO2P AO2N VCCK VCCK VCCK

AOSDAT A3

AOBCK JTCK JTDI

STB_SDA OPCTRL4 AVSS12_

RGB

AL AO1P AO1N VCCK VCCK VCCK OPWM2 JTDO RXVP_1 TXVP_0 STB_SCL OPWRSB

OPCTRL 11

AVSS33_ VGA_ST B

AM AO0P AO0N

AVSS12_ LVD S_2

AVSS12_ LVD S_1

VCCK VCCK VCCK OPWM1 OPWM0

USB_DM _P3

RXVN_1 TXVN_0

OPCTRL10AVDD10_

LDO

AN

AVDD12_ LVD S_1

AVDD12_ LVD S_2

AVDD12_ LVD S_3

AVDD33_ LVD S

VCCK VCCK VCCK

AVDD33_ USB_P3

USB_DP_ P3

REXT

AVDD33_ ETH

AVDD10_ ELDO

AVDD33_ VGA_ST B

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

Figure 8-2 Pin configuration [1/2]

back to

div. table

EN 41TPM14.2A LA 8.

2014-Sep-26

EN 42 TPM14.2A LA8.

19610_303.eps

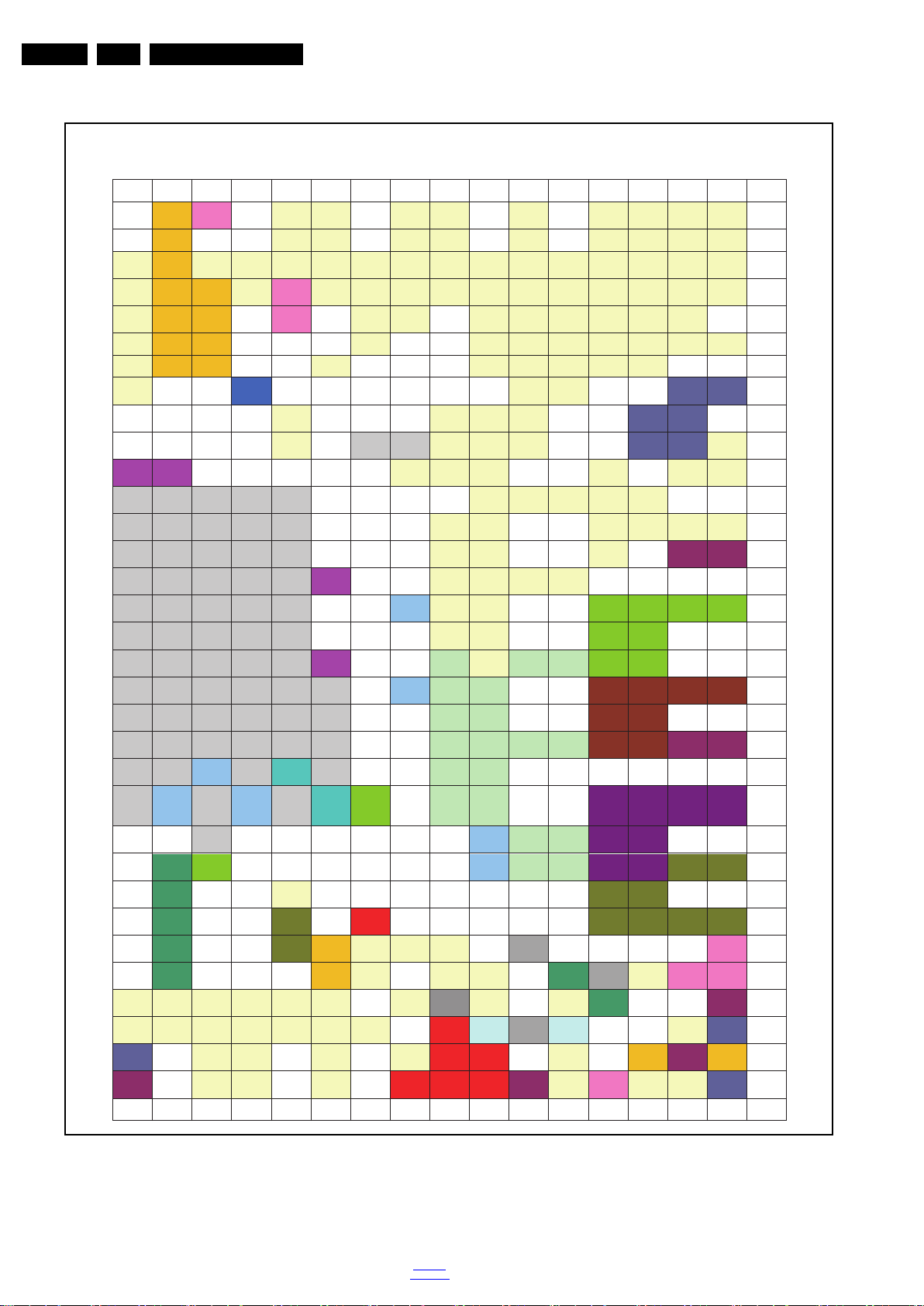

Pinning Information

MT5591IVDJ

18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33

DDRV

AVDD33_ MEMPLL

PDD5 PDD3 POCE0# PA CLE SD_CMD GPIO26 GPIO1 GPIO3 GPIO5 AA

DDRV PDD6 PDD2 POOE# PAALE GPIO42 GPIO0 GPIO2 GPIO6 GPIO25 BB

ARDQ4 DDRV

FSRC_WR EMMC_C

LK

PDD7 PDD4 PDD0 PARB # SD_D3 SD_D1 GPIO47 GPIO28 GPIO4 GPIO7 GPIO12 GPIO24 CC

RVREF_A DDRV DDRV GPIO45

VCC3IO_ A

PDD1 POWE# POCE1# SD_D2 SD_D0 GPIO36 GPIO35 GPIO15 GPIO21 GPIO16 GPIO22 DD

ARDQ6 DDRV DDRV

VCC3IO_ A

SD_CLK GPIO44 GPIO34 GPIO27 GPIO23 GPIO8 GPIO19 GPIO20 EE

ARA0 DDRV DDRV GPIO48 GPIO10 GPIO11 GPIO9 GPIO13 GPIO17 GPIO14 GPIO18 FF

ARBA2 DDRV DDRV GPIO46 GPIO33 GPIO41 GPIO39 GPIO32 GPIO40 GG

ARWE#

AVSS33_ CPUPLL

GPIO37 GPIO30

USB_DP_ P0

USB_DM_ P0

H

MEMTP GPIO31 GPIO38 GPIO29

USB_DM_ P1

USB_DP_ P1

JJ

MEMTN DVSS DV SS

CI_TSDA TA0

SPI_CLE GPIO43

USB_DM_ P2

USB_DP_ P2

AVDD 33_US B_P0P1P2

K

VCCK VCCK DVSS CI_INT IF_AGC

PVR_TSS YNC

SPI_CLK1

SPI_DAT A

SPI_CLK LL

DVSS DVSS DVSS DVSS DVSS

AVSS33_ USB_P1

PVR_TSV AL

RF_AGC

PVR_TSD ATA0

PVR_TSD ATA1

PVR_TSC LK

MM

DVSS DVSS DVSS DVSS DVSS OSDA2 OSCL2

CI_TSSY NC

CI_TSVAL DEMOD_

TSCLK

CI_TSCL K

N

DVSS DVSS DVSS DVSS DVSS

DEMOD_ TSDAT A3

DEMOD_ TSVAL

DEMOD_ RST

AVDD 12_H DMI_3_RX

AVDD 12_H DMI_2_RX

P

DVSS DVSS DVSS DVSS DVSS VCCK

DEMOD_ TSDAT A7

DEMOD_ TSDAT A0

DEMOD_ TSDAT A4

DEMOD_ TSSYNC

RR

DVSS DVSS DVSS DVSS DVSS

AVSS33_ HDMI_RX

DEMOD_ TSDAT A1

DEMOD_ TSDAT A2

HDMI_3_ RX_2

HDMI_3_ RX_2B

HDMI_3_ RX_1

HDMI_3_ RX_1B

T

DVSS DVSS DVSS DVSS DVSS

DEMOD_ TSDAT A6

DEMOD_ TSDAT A5

HDMI_3_ RX_0

HDMI_3_ RX_0B

UU

DVSS DVSS DVSS DVSS DVSS VCCK DVSS

HDMI_CE C

ASPDIF1

HDMI_3_ PWR5V

HDMI_3_ HPD

HDMI_3_ RX_C

HDMI_3_ RX_CB

VV

DVSS DVSS DVSS DVSS DVSS DVSS

AVSS33_ HDMI_RX

HDMI_3_ SDA

HDMI_3_ SCL

HDMI_2_ RX_2

HDMI_2_ RX_2B

HDMI_2_ RX_1

HDMI_2_ RX_1B

W

DVSS DVSS DVSS DVSS DVSS DVSS

HDMI_2_ SDA

HDMI_1_ PWR5V

HDMI_2_ RX_0

HDMI_2_ RX_0B

YY

DVSS DVSS DVSS DVSS DVSS DVSS

HDMI_2_ SCL

HDMI_1_ HPD

HDMI_2_ PWR5V

HDMI_2_ HPD

HDMI_2_ RX_C

HDMI_2_ RX_CB

AVDD 12_H DMI_1_RX

AVDD 12_H DMI_0_RX

AA

DVSS DVSS

AVSS33_ CVBS_1

DVSS

AVSS33_ CVBS_2

DVSS

HDMI_1_ SDA

HDMI_1_ SCL

AAB

DVSS

AVSS33_ VDAC_BG DVSS

AVSS33_ PLLGP

DVSS

AVSS33_ ADAC

AVSS33_ AADC

HDMI_0_ SDA

HDMI_0_ SCL

HDMI_1_ RX_2

HDMI_1_ RX_2B

HDMI_1_ RX_1

HDMI_1_ RX_1B

AC

DVSS

AVSS33_ HDMI_RX

ADIN3_S RV

HDMI_0_ HPD

HDMI_1_ RX_0

HDMI_1_ RX_0B

AAD

OPCTRL6

AVSS33_ VDAC

AVSS33_ HDMI_RX

ADIN2_S RV

HDMI_0_ PWR5V

HDMI_1_ RX_C

HDMI_1_ RX_CB

HDMI_0_ RX_2

HDMI_0_ RX_2B

AE

OPCTRL1

ADIN4_S RV

HDMI_0_ RX_1

HDMI_0_ RX_1B

AAF

OPCTRL8

VGA_SD A

ADIN6_S RV

HDMI_0_ RX_0

HDMI_0_ RX_0B

HDMI_0_ RX_C

HDMI_0_ RX_CB

AG

OPCTRL5 VGA_SCL

ADIN1_S RV

VDACX_ OUT

MPXP CVBS1P

AL2_ADA C

AVDD33_ HDMI

AH

OPCTRL0

ADIN0_S RV

VDACY_ OUT

CVBS_C OM

LOUTN

AL0_ADAC AR2_ADAC AR1_ADAC AVDD33_

AADC

AVDD33_ ADAC

AJ

HSYNC SOG

ORESET# ADIN5_S

RV

PB1P SOY0 CVBS0P CVBS3P LOUTP

AL1_ADAC AR0_ADA

C

AIN3_L_A ADC

AK

VSYNC BP RP COM1 PR1P PB0P PR0P

AVDD33_ PLL

AVSS12_ DEMOD

AVSS33_ DEMOD

AVSS33_XT AL_STB

AIN1_R_A ADC

AIN4_R_A ADC

AL

ADIN7_S RV

GP Y1P COM0 CVBS2P

AVDD33_ CVBS

ADCINP_ DEMOD

XTALO

AIN2_L_A ADC

AIN3_R_A ADC

AIN2_R_A ADC

AM

AVDD12_ RGB

COM SOY1 Y0P

AVDD33_ VIDEO

AVDD33_ DEMOD

ADCINN_ DEMOD

AVDD12_ DEMOD

XTALI

AVDD 33_XT AL_STB

VMID_AA DC

AIN1_L_A ADC

AIN4_L_A ADC

AN

18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33

IC Data Sheets

2014-Sep-26

Figure 8-3 Pin configuration [2/2]

back to

div. table

8.2 Diagram 10-5-5 Speaker/Headphone, B05, STA381BWTR (IC U630)

19240_300_120221.eps

120224

Block diagram

Pinning information

1

2

3

4

5

6

7

8

9

10

11

12

36

35

34

33

32

31

30

29

28

27

26

25

VCC_REG

VSS_REG

OUT2B

GND2

VCC2

OUT2A

OUT1B

VCC1

GND1

OUT1A

VDD_REG

GND_REG

MCLK

AGNDPLL

VREGFILT

TWARNEXT/FFX4B

EAPD/FFX4A

FFX3B

FFX3A

GNDDIG1

VDDDIG1

VDD3V3CHP

CPP

GNDPSUB

13

14

15

16

17

18

19

20

21

22

23

24

48

47

46

45

44

43

42

41

40

39

38

37

F3X_FILT

F3XL

F3XR

LINEINL

LINEINR

LINEHPOUT_L

LINEHPOUT_R

GNDA

SOFTMUTE

VDD3V3

CPVSS

CPM

VDDDIG2

GNDDIG2

TESTMODESASCL

SDA

INTLINE

PWDN

RESET

SDI

LRCKI

BICKI

STA381BW

PWDN

TESTMODE

LRCKI

BICKI

4

Half

Bridges

OUT 1A OUT 1B OUT 2A OUT 2B

FFX3A FFX3B

MCLK

SDI

LINEINL

LINEINR

LINEHPOUT_L LINEHPOUT_R

SDA

SCL

IIC

CPVSS

CPP

FFX4A FFX4B

GND_REG

SOFT_MUTE

2 x GND

2 x VCC

VDD_REG

GNDPSUB

2 x VDDDIG

2 x GNDDIG

VREGFILT

AGNDPLL

VCC_REG

VSS_REG

CPM

2.1 Channel

Audio Processor

STAudioFx

TM

STSpeakerSafe

TM

Parametric E Q

Volume

Bass and Treble

Speaker Compensation

Stereo Widening

SA

RESET

INTLINE

GNDA

Headphone

(2Vrms)

PLL

Negative

Charge

Pump

-3.3V

Control logic

&

Protections

REG_M3

VDD3V3CHP

F3X_FILT

FFX

TM

Modulator

Binary

Ter nary

F3XL F3XR

STA381BW

IC Data Sheets

EN 43TPM14.2A LA 8.

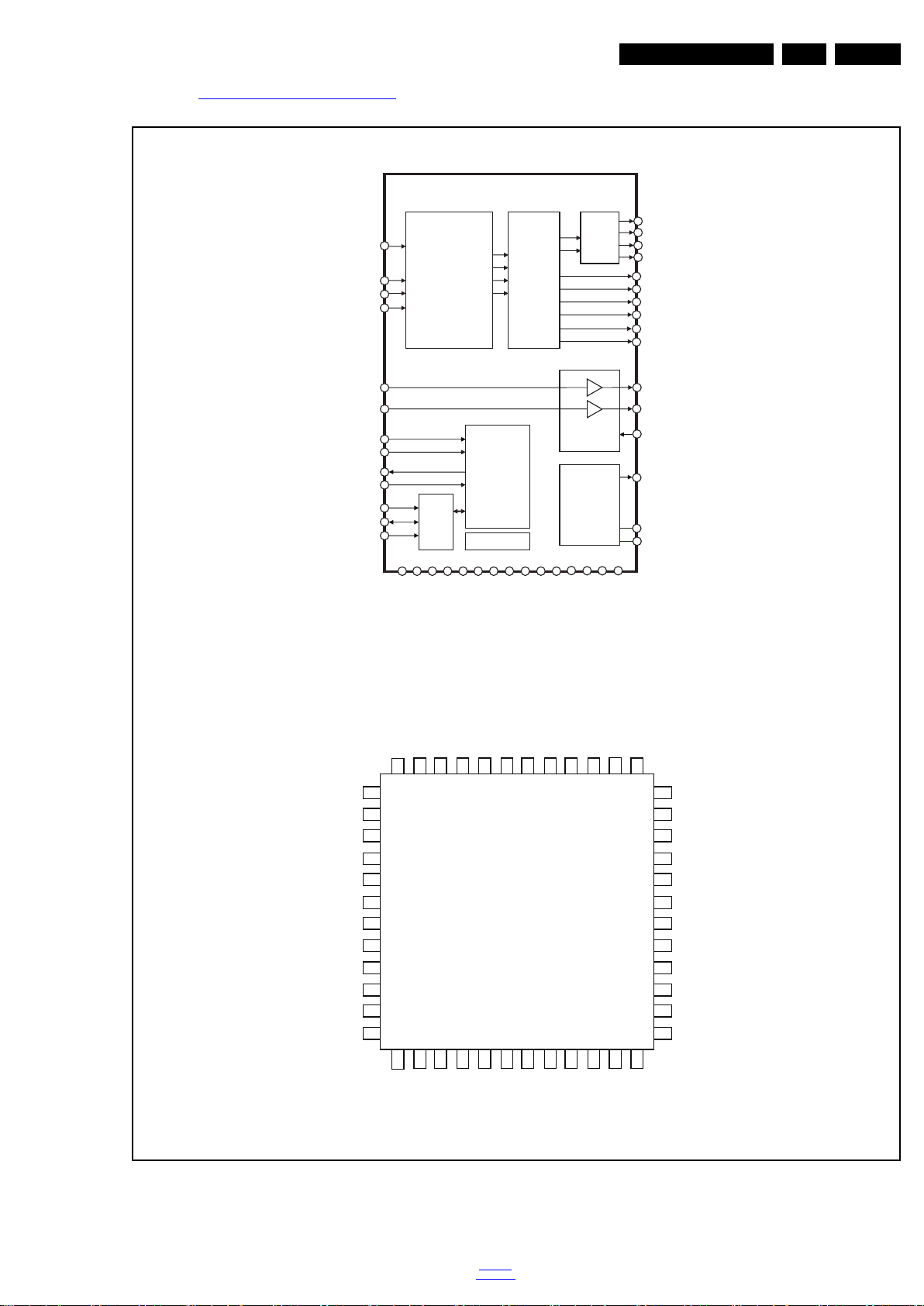

Figure 8-4 Internal block diagram and pin configuration

back to

div. table

2014-Sep-26

EN 44 TPM14.2A LA8.

19616_300.eps

Block diagram

Pinning information

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

ILIM

AGND

V5V

PGND

LX LX LX LX

PGND

LX

PGND

V+ V+ V+ V+

OUT

TON

FB

VCC

EN

BST

PGOOD

NC

AGND

V+

LX

1

2

G5312QN2U

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

ILIM

AGND

V5V

PGND

LX LX LX LX

PGND

LX

PGND

V+ V+ V+ V+

OUT

TON

FB

VCC

EN

BST

PGOOD

NC

AGND

V+

LX

1

2

G5312

PWM

controller

0.75V

Reference

PGOOD

BST

LX

PGND

TON OUT

FB

EN

ILIM

AGND

OCP

POR

On-Time

Off-Time

DISCHG

VCC

OT

OVP

UVP

KV+

5V

LDO

V5V

V+

V5V

V+

DH

DL

Q1

Q2

PWM

controller

0.75V

Reference

PGOOD

BST

LX

PGND

TON OUT

FB

EN

ILIM

AGND

OCP

POR

On-Time

Off-Time

DISCHG

VCC

OT

OVP

UVP

KV+

5V

LDO

V5V

V+

V5V

V+

DH

DL

Q1

Q2

IC Data Sheets

8.3 Diagram 10-5-1 System Power, B01, G5312QN1U (IC U103)

2014-Sep-26

back to

div. table

Figure 8-5 Internal block diagram and pin configuration

8.4 Diagram 10-5-12 DVB T2/C/S2 Tuner, B12, CXD2837ER (IC U104)

19600_305.eps

Block diagram

Pinning information

Exposed-Pad

CXD2837ER

IC Data Sheets

EN 45TPM14.2A LA 8.

Figure 8-6 Internal block diagram and pin configuration

back to

div. table

2014-Sep-26

EN 46 TPM14.2A LA8.

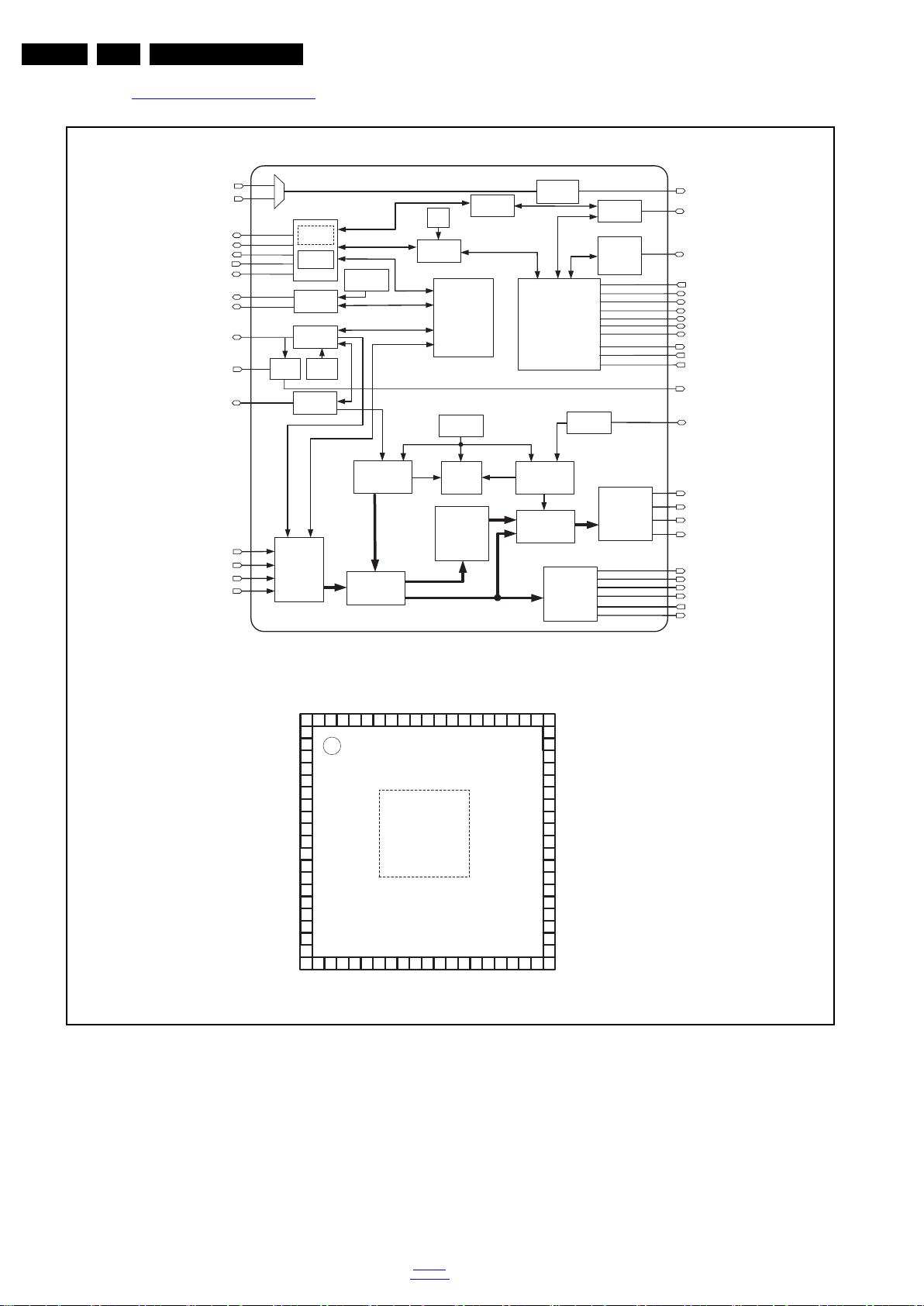

19616_301.eps

Block diagram

Pinning information

1VDD33OUT 2VDD5V_IN 3RPWR5V 4CBUS_HPD 5CoC_GND 6AVDD10_DoC 7RXCN 8RXCP

9AVDD10 10VDD33 11RX0N 12RX0P 13RX1N 14RX1P 15RX2N 16RX2P 17AVDD10 18FVDD10 19VDDIO33

20

INT

21 22 23 24

GPIO0_CI2CA

G

PIO

1

_PSC

T

L

GPIO2

VDD10

28272625

TMODE

NC

373635343332313029

NC

GPIO3

GPIO4

GPIO5

VDDIO33

RESET

N

VDD10

AVDD10_PLL

NC

38

TX_HPD

39 AVDD10_DP

40 TXCN

54 53 52 51 50 49 48 47 46 45 44 43 42 41

HSIC_STB

XTAL_VDD33 TX2P

XTAL_OUT XTAL_IN

HSIC_DAT NC

TX1P TX1N

TX0N

TX0P

TX2N

XTAL_GND

TXCP

55 HSIC_GND

56 VDD12OUT

57

HSIC_VDD33

58

HSIC_VDD10

VDD10

59

SPI_MOSI

SPI_CS1

SPI_CS0

SPI_CLK

60616263

DSCL

LPSBV5V

WAKEUP

NC

MHL_CD

VDD10

CSCL

TDSDA

T

DSCL

VDDIO33

SPI_MISO

DSD

A

64656667686970717273747576

Top View

SiI9679

ePad (GND)

CSDA

SiI9679

Registers,

Configuration,

and Interrupt

Control Registers

Local I2C

RXCP/N

GPIO0_CI2CA

CBUS_HPD

MHL_CD

GPIO1_PSCTL

INT

VDD5V_IN

VCC33OUT

HSIC_DAT HSIC_STB

RX0P/N RX1P/N RX2P/N

DDC_Rx

RPWR5V

RESETN

Video Data

Conversion

Logic

3V3

Regulator

HDMI/

MHL1, 2, 3

Receiver

1V8

Regulator

Rx HDCP

Authentication

Logic

Local I2C

Slave Logic

CBUS Control

Rx DDC

Interface

Data

Tunneling

Tx DDC

Interface

SPI_MISO SPI_MOSI

SPI_CS0

SPI_CLK

SPI Logic

HSIC PHY

DDC_Tx

GPIO2

SPI Slave

SPI Master

TX2P/N TX1P/N TX0P/N TXCP/N

GPIO3

HDCP

Repeater

Logic

Tx HDCP

Encryption

Engine

HDCP

Decryption

Engine

Tx HDCP

Authentication

Logic

HDMI TMDS Transmitter

Audio

Output

Logic

Video Data

Audio Data

WS SCK MCLK

SD0_SPDIF

XTALIN XTALOUT

OTP

(SiI9394

Dongle Only)

CEC_A

CEC

Interface

(SiI9394

Dongle Only)

Clock (CoC)

Data (DoC)

ISP

1V2 Regulator

SPI_CS1

TX_HPD

GPIO4

GPIO5

LPSB

LPSBV

WAKEUP

OSC

MCU

IC Data Sheets

8.5 Diagram 10-5-11 HDMI /Connector, B11, SII9679CNUC (IC U713)

2014-Sep-26

Figure 8-7 Internal block diagram and pin configuration

back to

div. table

9. Block Diagrams

19750_400.eps

8+'

6:'(02'

86%+XEIRU

:L)L0RGXOH

5/ IRU&9,$9

$XGLR$03

7,

190

&

63',)2XW

,5B)3&

,&

<&9%63E3U

+'0,

0LQL-DFNIRU'9,

H00& )ODVK

*%

''5*+]

*E

*E

/9'6 9

9

,6

7XQHU,&

$'3DQHO

)+'8+'

+]+]

'9%7

'(02'

&;'

',)

6SHDNHUV

77&

5)

7XQHU

/*

07

 0&8$50&RUWH[$

 6FDOLQJ

'9%7&'HPRG

'FRPE

$7'EXLOGLQ

 +HDGSKRQH$PS

 %XLOGLQ+'0,VZLWFK

+'0,

03(*$9 GHF RGHU

 9LGHRHQKDQFHPHQW

+

$'&

3+<

/9'67UDQVPLWWHU

 PLQL/9'67UDQVPLWWHU

86%+8%

76

5-

86%

,&

-R\VWLFN

/(''ULYHU

$067 ,

99

9

9.1 Block diagram 6000 & 8000 series

Block Diagrams

EN 47TPN14.1E LA 9.

2014-Jan-24

back to

div.table

Circuit Diagrams and PWB Layouts

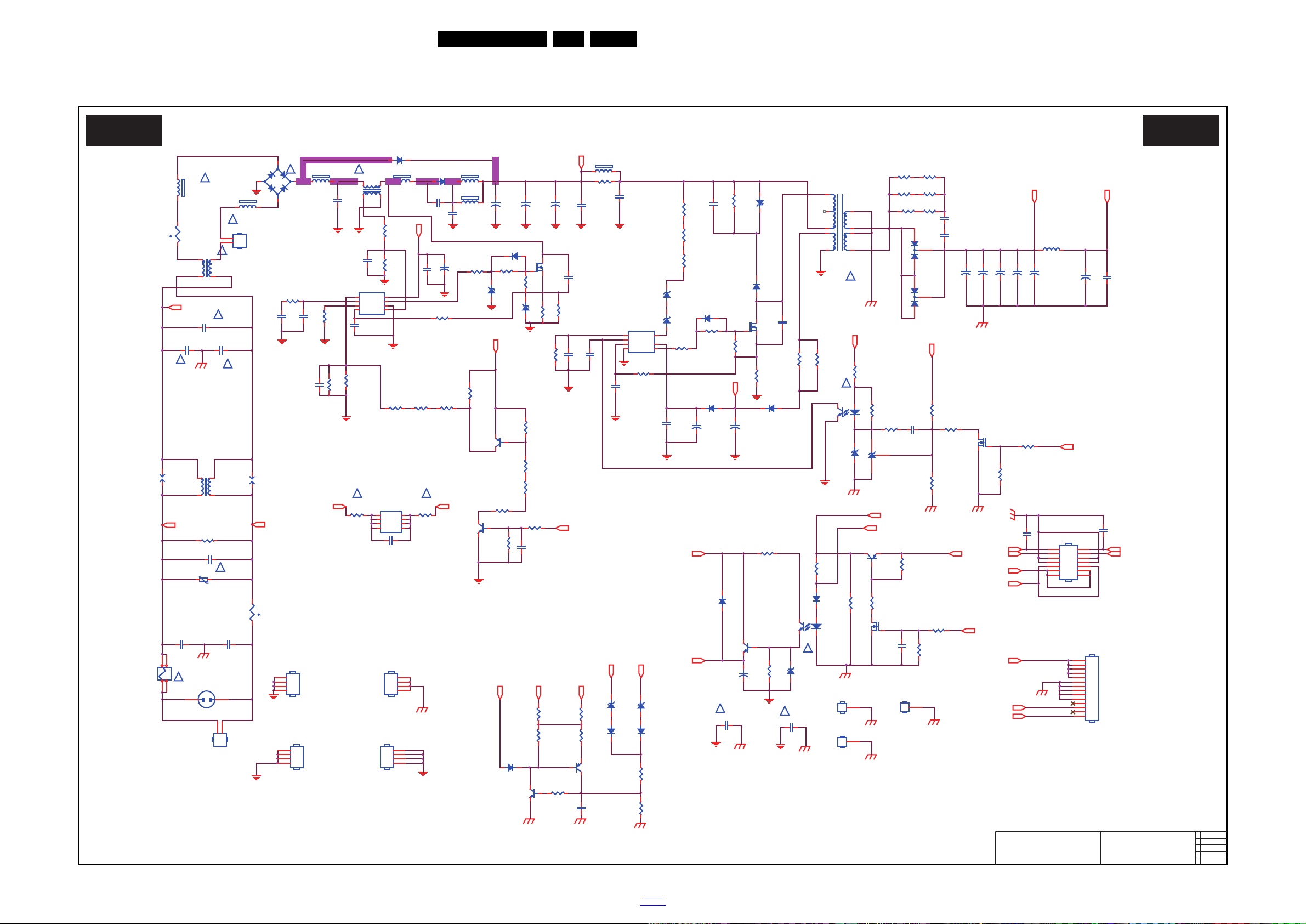

19750_529.eps

A01 A01

Power circuit

715G6555

2014-05-16

!

D9310 FR107

C9956

1NF 250V

!

HS9901

HEAT SINK

1

2

3

4

F9901

FUSE

1 2

3 4

IC9801

LD7591T

INV

1

COMP

2

RAMP

3

CS4ZCD

5

GND

6

OUT

7

VCC

8

D9308

SS1060FL

C9910

470nF 275V

C9911

470nF 275V

GND3

GND

1

+12V

B1+

Q9803

PMBTA45

R9811

NC

Q9802 PBHV9050T

R9817 100KOHM +-5% 1/8W

24VA

VCC_ON

C9144 100N 50V

R9822

5K1 +-5% 1/8W

R9821

20K 1/8W 1%

R9140 1K 1/8W 1%

C9824 100N 50V

Q9103

PMBS3904

D9109 1N4148

ZD9101

GDZJ30B

1 2

R9350 1K 1/8W 1%

R9819 1MOHM +-1% 1/4W

R9351 2K 1/8W 1%

R9818 1MOHM +-1% 1/4W

Q9106 PMBT3906

ZD9102

GDZJ15B

1 2

R9820 1MOHM +-1% 1/4W

R9111

0 OHM +-5% 1/8W

R9139 100 OHM 1%

R9813

1MOHM +-1% 1/4W

R9143

NC

R9814

1MOHM +-1% 1/4W

R9812

1MOHM +-1% 1/4W

D9110 1N4148

D9111

SS1060FL

DV5

R9138

1K 1/8W 1%

+12V_audio

LLC OVP +12V

2D/3D

ON/OFF

PS_ON

CN9301 CONN

2 4 6

8

10 12 14

1

3

5 7

9 11 13

DIM

+12V

+12V_audio

!

R9901 1M 1/2W

!

! !

!

-

+

BD9901

KBJ1008G-FU

2

1

3

4

24VA

t

NR9901

2.5R

12

CN9101

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13 14

VCC_ON

C9330

100P 50V

C9809

0.47UF 50V

D9801

FMNS-1106S

FB9804 BEAD

1 2

R9903

NC/510k 1/2W

C9833

NC/47pF

+

C9803

68UF 450V

+

C9802

68UF 450V

C9171

1.5NF

+

C9801

68UF 450V

ON/OFF

+

C9316

470UF 25V

L9801

240uH

5

43

1

ZD9302 BZT52-B36

1 2

R9902

NC/510k 1/2W

Q9304 PMBT3906

C9309

2N2 500V

D9302

SS1060FL

R9802

10 OHM 1/8W

R9338

10K OHM

R9325

51 OHM 1/4W

IC9342

AS431AN-E1

C9302 NC

Q9301

TK13A65U

Q9302 2N7002K

C9303

2.2NF

R9341 10K 1/8W 1%

C9321

100N 50V

L9301 3UH

IC9341

EL817M(X)

12

43

D9305 FR107

ZD9301 BZT52-B36

1 2

C9310

2N2 500V

R9301

0.1R

+

C9311

470UF 25V

+

C9307 47UF 50V

R9340 10K 1/8W 1%

R9337

1K 1/8W 1%

ZD9304

BZT52-B16

1 2

R9332

6.2K OHM +-1% 1/8W

R9322 51 OHM 1/4W

R9809

2K 1/8W 1%

R9344

2Kohm 1/4W +/-5%

R9303

6.8K 1/4W

R9335 2K 1/8W 1%

R9320

51 OHM 1/4W

R9334 3K9 1/8W 1%

R9306

10R 1/8W 5%

R9343 2K 1/8W 5%

R9310

470R 1%

R9308

0.3R 2W

R9311

2R2 +-5% 1/4W

R9336 2K2 1/8W 5%

+

C9322

22UF 50V

R9323

51 OHM 1/4W

R9345

100K 1/8W 1%

R9307

51 oHM 1% 1/8W

R9342

10K OHM +-5% 1/8W

IC9302

EL817M(X)

12

43

R9339 330K 1% 1/8W

R9330

10K OHM +-5% 1/8W

R9321

51 OHM 1/4W

Q9303 2N7002K

C9304

10N 50V

R9302

6.8K 1/4W

C9301 10NF 1KV

+

C9312

470UF 25V

C9317

100N 50V

C9320 220N 50V

ZD9303

BZT52-B15

1 2

PS_ON

Q9305

BTC4672M3

D9309

SS1060FL

C9306

470P 50V

R9324 51 OHM 1/4W

C9308 100N 50V

+

C9313

470UF 25V+C9314

470UF 25V

R9309 10KOHM

+

C9315

NC

R9805 10K OHM +-5% 1/8W

VCC

DV5

CN905 NC/CONN

1

2

+

C9323

10UF 50V

+12V1

DV5

VCC

+12V1

LLC OVP

IC9301

LD7752B

CT

1

COMP

2

CS

3

GND4OUT

5

VCC

6

HV

8

R9305

NC

VCC_ON

+12V

D9306 FME-220B

1

2

3

R9333 9K53 1%

D9307 FME-220B

1

2

3

BOX

C9305 47nF 50V

!

FB9801 BEAD

1 2

FB9802

BEAD

1 2

ZD9305 NC/P6KE160AA0

12

R9808

20K 1/4W

FB9810 BEAD

1 2

C9909

47pF 250V

C9908 47pF 250V

C9907

220PF 250V

C9906

220PF 250V

R9816 NC

C9810 100P 50V

R9815 19K1 +-1% 1/8W

SG9904

NC/DSPL201M-A21F

R9331 330K 1% 1/8W

C9804

470PF1KV

R9804

0.2R

SG9905

NC/DSPL201M-A21F

FB9904

BEAD

1 2

L9901

12MH

124

3

FB9805

NC/BEAD

1 2

L9902

12MH

124

3

T9301

POWER X'FMR

1

2

3

4

5

6

7

9

10

CN901

SOCKET

1 2

!

t

NR9902

2.5R

12

C9815

1UF 450V

DIM

R9806

27K 1/8W 1%

C9806

100N 50V

C9805

47P 50V

ZD9801

BZT52-B16

1 2

Q9801

TK16A60W

ZD9802

BZT52-B16

1 2

R9807

330 OHM 1/4W

R9803

51 oHM 1% 1/8W

+

C9807

10UF 50V

R9810

10K 1/4W

C9812 NC/47pF

R9801

0.2R

C9814 1N 50V

B1+

FB9903

BEAD

12

IC9999

NC

1

D1

2

D1

3

NC4NC

5

D2

6

D2

7

NC

8

!

HS9301

HEAT SINK (Q9301)

1

2

3

4

C9955

470pF 250V

A

B

C9901 NC

CN9903

NC/CONN

L

1

N

2

R9312

NC/2.7 OHM 1/4W

D9804

SS1060FL

B

A

R9304

6.8K 1/4W

HS9302

HEAT SINK

1 2

3

4

D9802

S8KC

C9331

100P 50V

C9808 47N 50V

GND1

GND

1

D9301 FR107

HS9801

HEAT SINK

1 2

3

4

RV9901

680V

R9313

82K 2W

GND2

GND

1

10. Circuit Diagrams and PWB Layouts

10.1 A 715G6555 PSU

10-1-1 Power circuit

EN 48TPN14.1E LA 10.

2014-Jan-24

back to

div.table

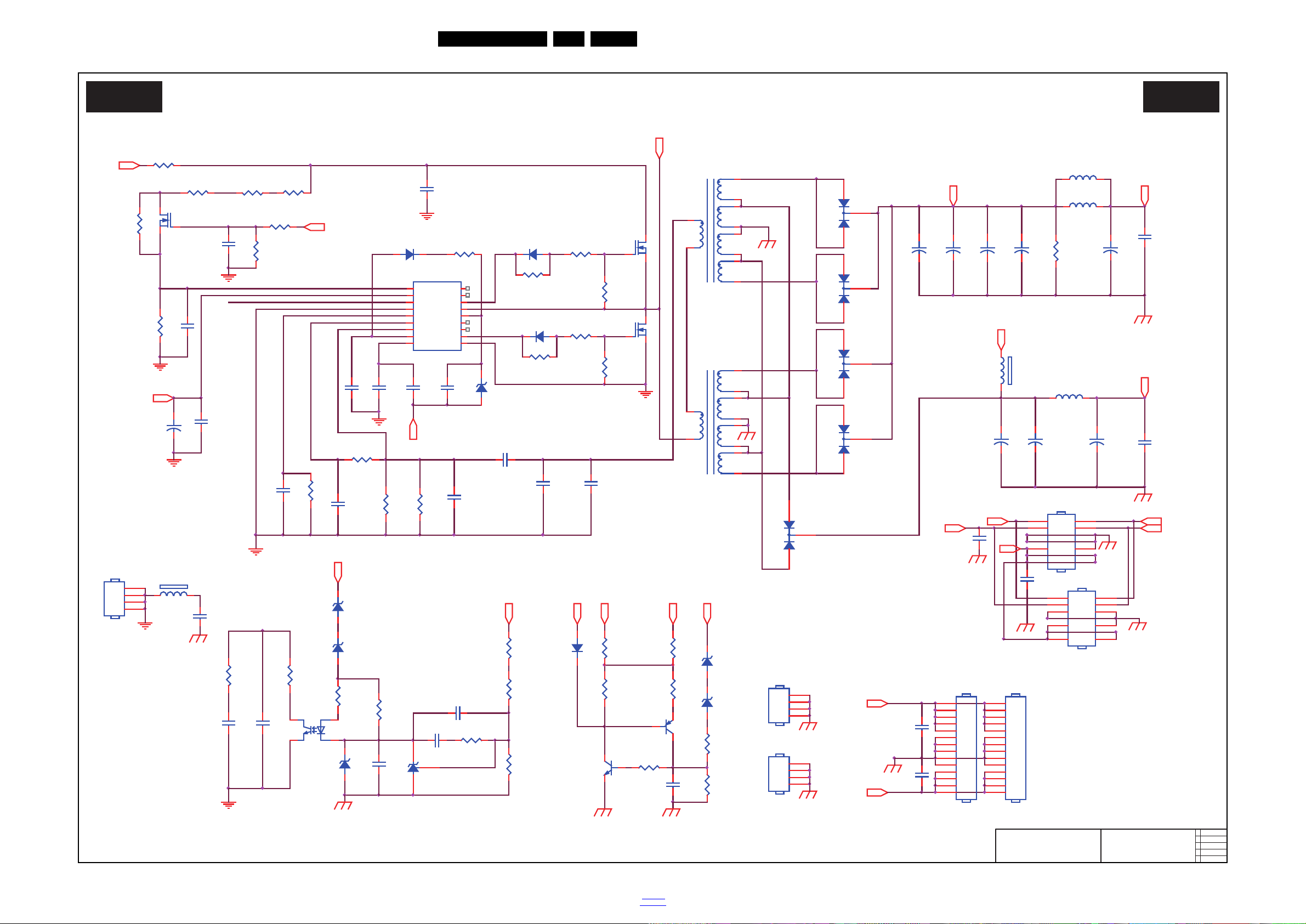

10-1-2 LLC Main Power

19616_501.eps

LLC Main Power

A02 A02

2014-05-16

C

715G6555

LLC Main Power

HS9102

HEAT SINK

3

4

1 2

R9145

20K 1/8W 1%

C9157 22nF

+

C9147 10UF 50V

R9161

19.1KOHM +-1% 1/8W

R9163 2K 1/8W 1%

C9912

470pF 250V

R9180 30KOHM +-1% 1/8W

R9175

1.5K 1/4W

R9171

5.1K 1/4W

C9170 100N 50V

D9117

SR560-MK23-C

1 2

!

C9151 1UF

C9153

1UF

R9151

10R 1/8W 5%

R9141

0.1R

+

C9164 330UF 35V

C9159

10nF

R9149

470OHM +-5% 1/8W

+

C9168 470UF 25V

+

C9163

470UF 25V

+

C9169 470UF 25V

R9172

5.1K 1/4W

R9173

5.1K 1/4W

R9153

10K 1/8W 1%

R9174

5.1K 1/4W

R9156

10K 1/8W 1%

C9152

10PF 3KV

R9176

1.5K 1/4W

R9158

6.2K OHM +-1% 1/8W

R9177

1.5K 1/4W

ZD9104

GDZJ15B

1 2

R9160

1K 1/8W 1%

R9148 NC

24V

ZD9105

GDZJ22B

1 2

R9144

1M5 1/4W 1%

R9146 2K43 1/8W 1%

C9150

2.2UF 25V

IC9106 EL817M(X)

12

43

D9113

SS1060FL

D9112

SS1060FL

L9105

5uH

R9101 200R 1/8W 1%

L9106

5uH

VBoot

B1+

C9156

100PF1KV

C9149 100N 50V

C9155 1N 50V

VBoot

D9115 FMEN-2308

1

2

3

C9165 100N 50V

IC9101

SSC9522S

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

C9154 560P 50V

R9152

47OHM +-5% 1/8W

IC9107

AS431AN-E1

R9154

47OHM +-5% 1/8W

C9146

100N 50V

R9159

3.3K +-5%1/8W

D9114

UF4007

C9145

100N 50V

C9158 NC

C9166

1uF

C9348 100N 50V

C9148

4.7uF 10V

+12V_audio

R9147

470R 1%

+

C9161 330UF 35V

C9349 100N 50V

+

C9174 330UF 35V

+

C9172 330UF 35V

+

C9160 330UF 35V

R9142

1M5 1/4W 1%

R9150

1M5 1/4W 1%

24VA

24V

R9102

10R 1/8W 5%

Q9102 TK10A60D

Q9101 TK10A60D

R9103

10R 1/8W 5%

D9118

SR560-MK23-C

1 2

FB9833

BEAD

1 2

VCC_ON

FB9803

BEAD

1 2

T9101

830uH

1

4

5 6

7

8

9 10

11

12

FB9101

NC/BEAD

1 2

+12V_audio-1

HS9303

HEAT SINK (D9115)

1

2

3

4

+12V_audio

Circuit Diagrams and PWB Layouts

EN 49TPN14.1E LA 10.

2014-Jan-24

back to

div.table

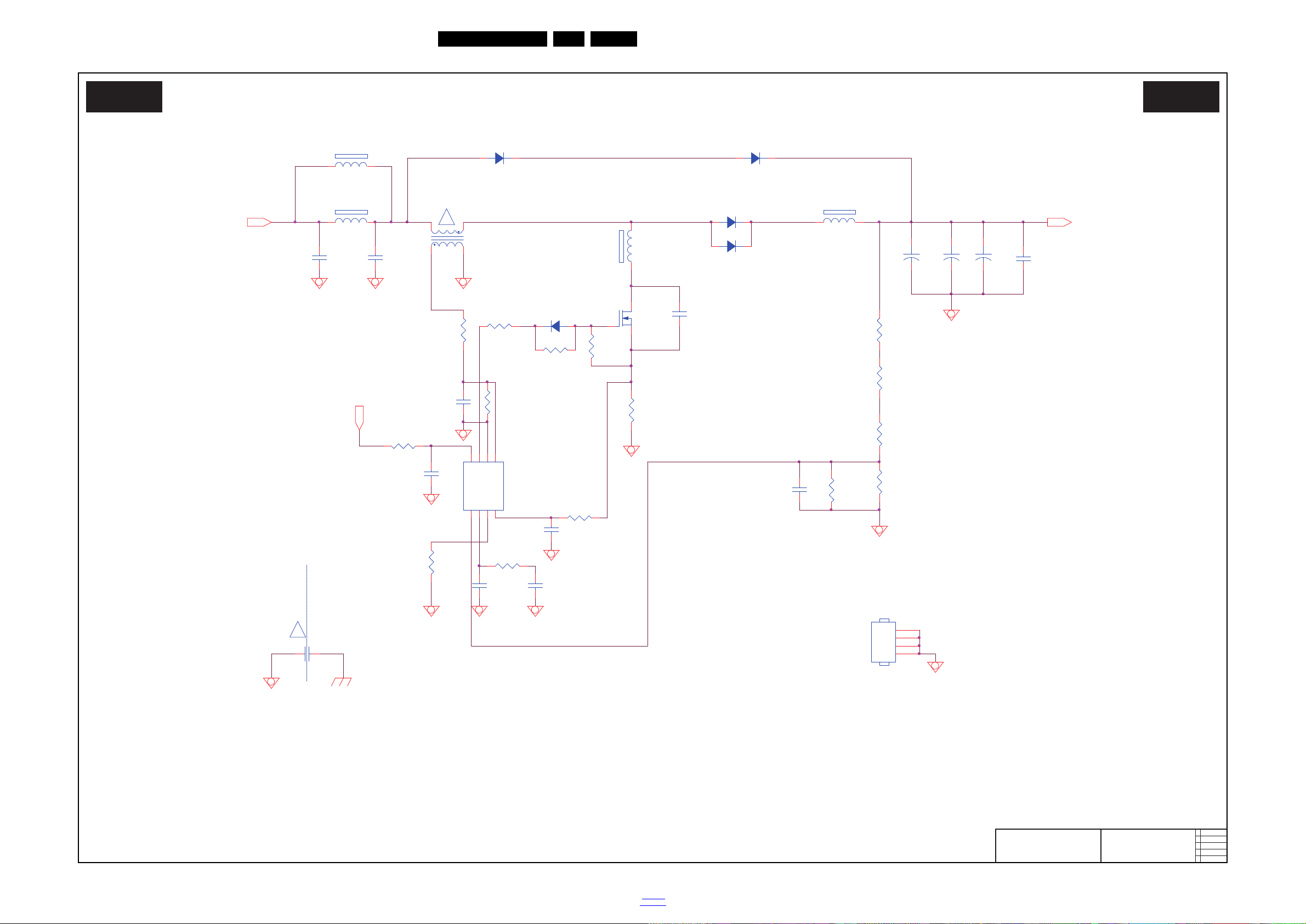

10-1-3 LED Driver

19616_502.eps

LED Driver

A03 A03

2014-05-16

C

715G6555

LED Driver

Q8102 NC/MTBA5N10J3

R8107

NC/0R1 5% 3W

LED_a

C8130

NC/47PF

R8106

NC/10K OHM +-5% 1/8W

D8101 NC/FMWN-2308

1

2

3

+

C8107

NC/82uF 100V

R8123 NC/15K 1/8W 1%

R9119 NC/30K 1/4W

R8127

NC

Q8105 NC/PMBS3904

+

C8101

NC/330UF 35V

Q8101

NC/TK12A10K3

R8114 NC/100R 1%

+

C8118

NC/82uF 100V

Q8104 NC/PMBT3904

R8122

NC/100KOHM +-5% 1/8W

R8120

NC/1.2 OHM

CN8501

CONN

1

2

3

4

5

6

7

8

9

10

11

12

C8103

NC/1uF

C8104 NC/1nF 50V

D8102 NC/1N4148W

D8103 NC/1N4148W

Q8106 NC/PMBS3906

ZD8102

NC/BZT52-B22

1 2

HS9101

NC/HEAT SINK

1 2

3

4

R8112 NC/330K +-1% 1/4W

R8115

NC/1.2 OHM

R8103 NC/10K 1/10W 5%

R8117 NC/27K 1/8W 1%

R8129

NC/1oHM 1% 1/4W

C8113 NC/0.1uF 50V

ZD8101

NC/BZT52-B4V7

1 2

R8108

NC/330R 1/8W 5%

R8125

NC/1.2 OHM

R8105

NC/2R2 +-5% 1/8W

R8113 NC/1K OHM +-5% 1/8W

C8109

NC/470NF 50V

R8111 NC/10K OHM +-5% 1/8W

IC8101

NC/PF

䠗7903BS

DIMOUT1GM2FB3OVP/DIM

4

CS

5

GND

6

OUT

7

VCC

8

R8109 NC/10 OHM 1/4W

Q8103

NC/2N7002 R8110 NC/100R 1%

R8101 NC/10K OHM +-5% 1/8W

R8128

NC/1oHM 1% 1/4W

R8118

NC/1.2 OHM

R8121 NC/51K +-5% 1/8W

R8124 NC/10K 1/10W 5%

C8110 NC/1NF

C8114

NC/1uF

R8104

NC/22OHM +-5% 1/8W

C8106 NC/220nF50V

R8102 NC/47KOHM +-1% 1/8W

+

C8115 NC/22UF 50V

R8126

NC/1.2 OHM

C8112

NC/1nF

R8116 NC/330K +-1% 1/4W

FB

C8105 NC/0.1uF 50V

C8111 NC/100N 50V

DIMOUT

VCC_1

DIMOUT

VCC_1

FB

LED_a

+12V

DIM

ON/OFF

24VA

VLED+

C8108

NC/220nF50V

L8102

NC/33uH

2

1

C8120

NC/100P 50V

Circuit Diagrams and PWB Layouts

EN 50TPN14.1E LA 10.

2014-Jan-24

back to

div.table

10-1-4 Power layout top

19616_503.eps

2014-05-16

C

715G6555

LAYOUT TOP

SU5

SU1

SU7

SU3

SU6

SU4

SU2

SU8

SU9

S1

S2

S3

S4

S5

C9147

C9160

C9161

C9163

C9164

C9168

C9169

C9172

C9174

C9302

C9303

C9311

C9312

C9313

C9314

C9315

C9316

C9801 C9802 C9803

C9807

C9812

C9833

C9901

CN901

CN905

D9115

D9305

D9306

D9307

D9801

F9901

FB9804

HS9102

HS9302

HS9801

HS9901

IC9106

IC9302

IC9341

L9105

L9106

L9301

L9901

L9902

NR9901

NR9902

Q9101Q9102

Q9301

R9313

R9901

ZD9101

ZD9102

ZD9104

HS9301

D9310

J924

D9114

ZD9105

J905

FB9802

FB9801

J912

J913

J903

J901

J909

J914

J917

J916

J922

J921

D9109

D9110

J918

J919

R9141

J902

J915

J934

J928

J927

J920

MH11

MH10

MH9

MH6

MH5 MH8

MH7

MH4

MH2

J929

MH12

MH1

MH3

R9301

R9308

C9322

FB9810

GND1

GND2

GND3

FB9803

T9301

T9101

RV9901

J911

J930

J907

C9157

C9152

BD9901

L9801

CN9101

HS9303

C9323

C9307

R9801

SG9904

SG9905

CN9903

L8102

C8130

CN8501

D8101

C8115

C8101

C8107

C8118

R9902

R9903

R8107

R9804

Q8101

ZD9305

FB9903

FB9904

J904

FB9101

J906

J910

J908

FB9805

J926

J923

J931

J938

J939

J940

J936

C9906

C9907

C9912

C9955

C9908

C9909

C9815

C9910

C9911

C9171

C9156

C9804

C9301

D9301

Q9801

J935

J937

J941

J942

J943

HS9101

CN9301

D9117

D9118

J925

FB9833

Circuit Diagrams and PWB Layouts

EN 51TPN14.1E LA 10.

2014-Jan-24

back to

div.table

19616_504.eps

2014-05-16

C

715G6555

LAYOUT BOTTOM

C9144

C9145

C9146

C9148

C9149

C9150

C9151

C9153

C9154

C9155

C9158

C9159

C9165

C9166

C9170

C9304

C9305

C9306

C9308

C9309C9310

C9317

C9320

C9321

C9348

C9349

C9805

C9806

C9808 C9809

C9810

C9814

C9824

D9111

D9112D9113

D9302

D9308

D9309

D9804

IC9101

IC9342

Q9103

Q9106

Q9302

Q9303

Q9304

Q9305

Q9802

Q9803

R9101

R9102 R9103

R9111

R9140

R9142

R9143

R9144

R9145

R9146

R9148

R9149

R9150

R9151

R9152

R9153

R9154

R9156

R9160

R9161 R9163

R9171

R9172

R9173

R9174

R9175

R9176

R9177

R9180

R9302

R9303

R9304

R9305

R9306

R9307

R9309

R9311

R9312

R8118

R8120

R9320 R9321 R9322 R9323 R9324 R9325

R9330

R9331

R9332

R9334

R9337

R9339

R9340

R9341

R9343

R9344

R9345

R9350 R9351

R9802

R9803

R9805

R9808

R9809

R9810

R9811

R9812R9813

R9814

R9815 R9816

R9817

R9818

R9819 R9820

R9821

R9822

R8125

R8127

ZD9301

ZD9302

ZD9303

ZD9304

ZD9801

ZD9802

R9314

R9310

RJ902

R9807

R9806

RJ901

IC9999

R9336

R9335

R9138

R9139

R9342

R9333

R9338

F1F2

F3F4

IC9801

D9802

IC9301

C8104

C8112

C8103

C8105

C8106

C8108

C8109

C8110

C8111

C8113

C8114

C8120

C9330

C9331

R8103

R8124

R8101

R8102

R8104

R8105

R8106

R8108

R8111

R8113

R8117

R8121

R8122

R8123

R8109

R8112

R8115

R8116

R8126

R8128

R8129

R9119

D8102

D8103

ZD8101

ZD8102

IC8101

Q8104

Q8105

Q8106

Q8103

Q8102

IC9107

R8110

R9147

R9158

R9159

RJ903

RJ904

RJ905

R8114

10-1-5 Power layout bottom

Circuit Diagrams and PWB Layouts

EN 52TPN14.1E LA 10.

2014-Jan-24

back to

div.table

10.2 A 715G6887 PSU

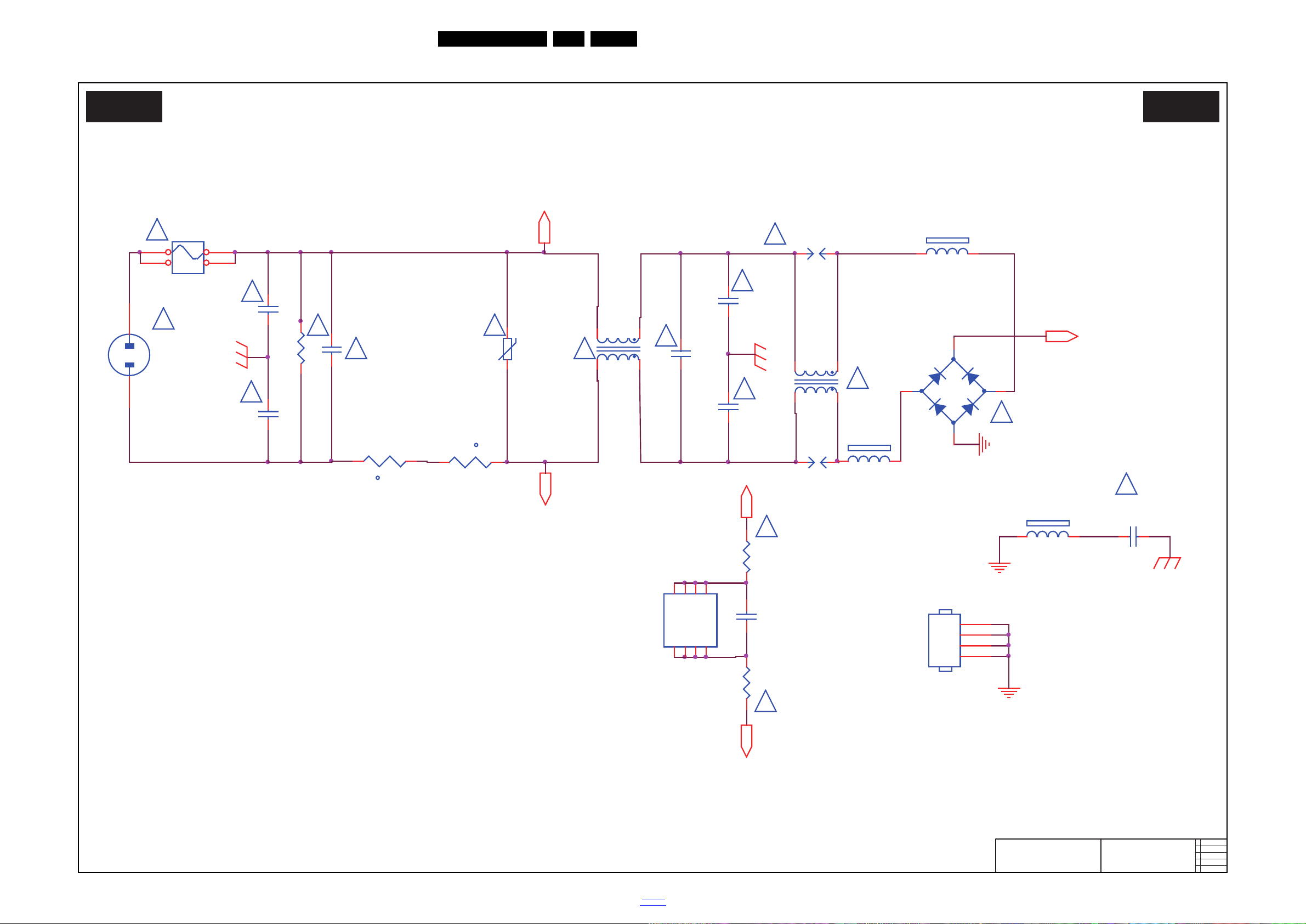

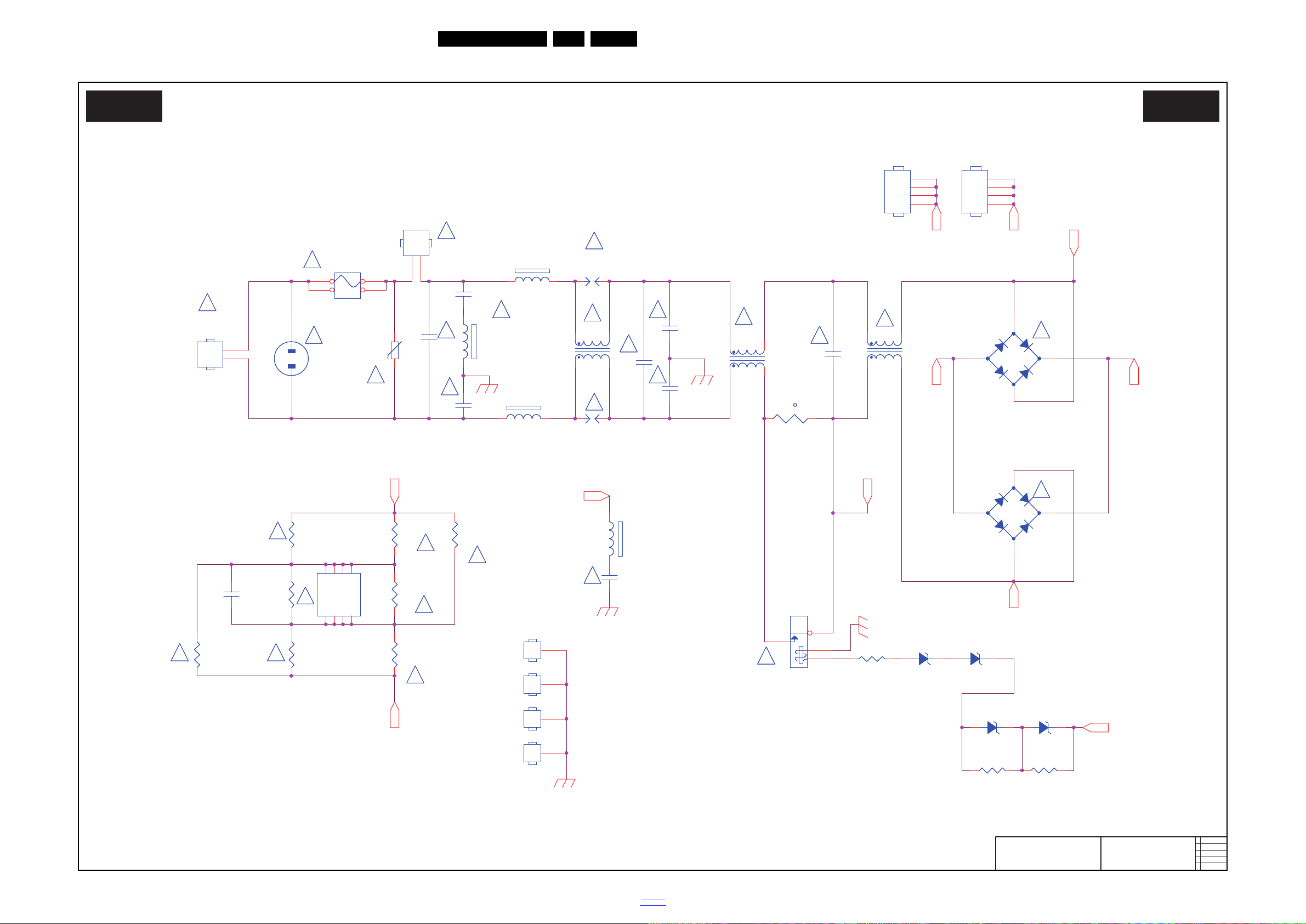

19750_507.eps

AC input

A01 A01

2014-08-02

715G6887

AC input

R-

BO

Vsin

BO

N

R-

N

R-

BI

+24V

FB9904

BEAD

FB9904

BEAD

1

2

R9908 NC

FB9902

BEAD

FB9902

BEAD

1 2

ZD9213

NC

ZD9213

NC

1 2

!!

C9904 47pF K 1K V

GND3 GND

1

ZD9212

BZT52-B4V7

ZD9212

BZT52-B4V7

1 2

C9911

100PF 250V

C9911

100PF 250V

!!

R9298

0R05

R9298

0R05

R9905 NC

!!

C9914

220PF 250V

C9914

220PF 250V

C9915 220PF 250V

!!

GND4 GND

1

!!

RV9901

620V

RV9901

620V

SW9901

HF162F_en_12V

SW9901

HF162F_en_12V

3

4

1 2

GND2 GND

1

HS9901

HEAT SINK

HS9901

HEAT SINK

1 2

3

4

CN9901

AC SOKET

CN9901

AC SOKET

12

!!

C9912

100PF 250V

C9912

100PF 250V

!!

SG9902

NC/DSPL-501N-A21F

SG9902

NC/DSPL-501N-A21F

!!

R9901 510k

C9903

NC

C9903

NC

F9901 FUSE 250V

1 2

3 4

!!

GND1 GND

1

!!

FB9901 BEAD

1 2

IC9901 CAP004DG-TL

NC

1

D1

2

D1

3

NC

4

NC

5

D26D27NC

8

R9906 NC

HS9902

HEAT SINK

HS9902

HEAT SINK

1 2

3

4

C9901

470NF 275V

C9901

470NF 275V

C9902 470NF 275V

!!

CN9902 NC

CN9902

NC

L

1

N

2

R9903 NC

CN9903 NC

1 2

L9902

LINE FILTER 8MH

L9902

LINE FILTER 8MH

1

4

2

3

!!

-

+

BD9901 TS10P06G

-

+

BD9901 TS10P06G

2

1

3

4

!!

SG9901

NC/DSPL-501N-A21F

SG9901

NC/DSPL-501N-A21F

!!

ZD9210

BZT52-B3V6

ZD9210

BZT52-B3V6

1 2

R9299

2OHM1%

R9299

2OHM1%

R9297

NC

R9297

NC

R9907 NC

!!

t

NR9901 NTCR 5R

t

NR9901 NTCR 5R

1 2

!!

-

+

BD9902 BRIDGE 10A 800V

-

+

BD9902 BRIDGE 10A 800V

2

1

3

4

C9913 220PF 250V

L9901

LINE FILTER 8MH

L9901

LINE FILTER 8MH

1

4

2

3

!!

R9904 NC

!!

L9903 LINE FILTER 0.25mH

1

2

4

3

!!

FB9903

BEAD

FB9903

BEAD

12

ZD9211

BZT52-B3V6

ZD9211

BZT52-B3V6

1 2

R9902 510k 5%

10-2-1 AC input

Circuit Diagrams and PWB Layouts

EN 53TPN14.1E LA 10.

2014-Jan-24

back to

div.table

10-2-2 PFC

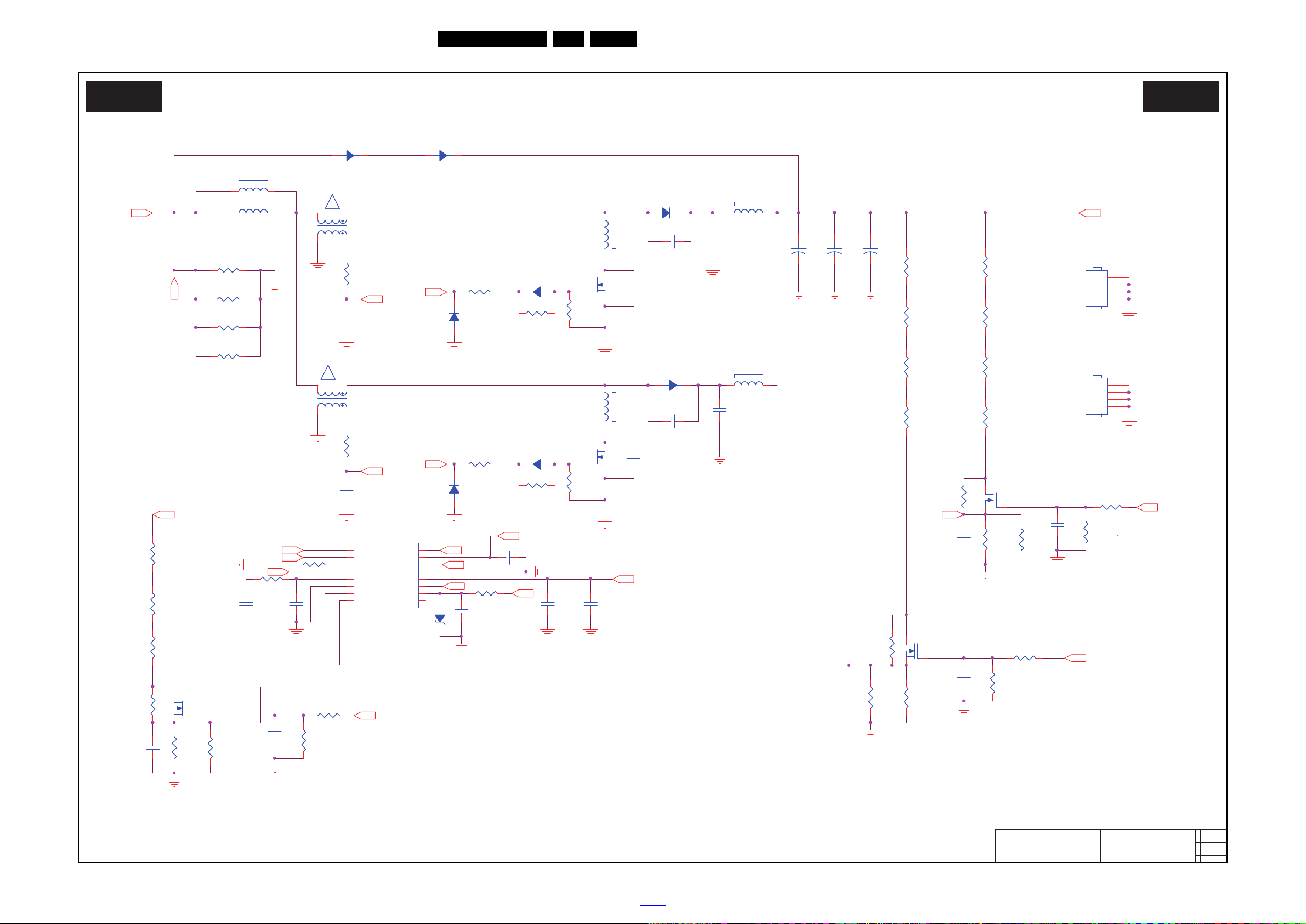

19750_508.eps

PFC

A02 A02

2014-08-02

715G6887

PFC

Vsin

R-

+VCC2

Vbus

GDA

GDB

GDA

ZCDA

ZCDB

ZCDAZCDB

Vref

Vsin

VSENSE

R-

+VCC2

GND

GND GND

GND

Q9802

TK18A60

Q9802

TK18A60

C9818

3.3nF 50V

C9818

3.3nF 50V

C9801 CAP MPP 1UF 5% 450V

D9804 FMNS-1106SD9804 FMNS-1106S

R9807 10K OHM +-5% 1/8W

C9819

100N50V

C9819

100N50V

C9813 220nF50VC9813 220nF50V

C9803 1UF450V

C9810

22pF 50V

C9810

22pF 50V

IC9801

UCC28063DR

IC9801

UCC28063DR

ZCDB

1

VSENSE

2

TSET

3

PHB

4

COMP

5

AGND

6

VINAC

7

HVSEN8PWMCNTL

9

CS

10

GDB

11

VCC

12

PGND

13

GDA

14

VREF

15

ZCDA

16

HS9802 HEATSINK

1 2

3

4

L9801

PFC CHOKE200uH

L9801

PFC CHOKE200uH

3

4

1

6

R9828

2Mohm 1/4W +/-1%

R9828

2Mohm 1/4W +/-1%

D9800 IN5408G-04

R9840

0.024R

R9840

0.024R

R9821 10KOHM

R9837 10KOHM

R9812 1MOHM +-1% 1/4W

D9802 FMNS-1106SD9802 FMNS-1106S

D9806

SS1060FL

D9806

SS1060FL

R9810 1MOHM +-1% 1/4W

FB9800 BEAD

1 2

C9815 330NF50V

C9815

330NF50V

!!

Q9804

STD1NK60T4

Q9804

STD1NK60T4

R9815

16.2K 1%

R9815

16.2K 1%

Q9805 STD1NK60T4

R9829 2Mohm 1/4W +/-1%

R9809 1MOHM +-1% 1/4W

C9807

22pF 50V

C9807

22pF 50V

R9824 2Mohm 1/4W +/-1%

Q9803

STD1NK60T4

Q9803

STD1NK60T4

C9822

1NF50V

C9822

1NF50V

FB9801 BEAD

1 2

C9126

10NF1KV

C9126

10NF1KV

R9839NCR9839

NC

R9801NCR9801 NC

R9819NCR9819

NC

D9807

SS1060FL

D9807

SS1060FL

FB9803 127R

1

2

+

C9804

82uF450V

+

C9804

82uF450V

R9802 1MOHM +-1% 1/4W

Q9801

TK18A60

Q9801

TK18A60

C9809 47PF

R9827

100 OHM1/4W

R9827

100 OHM1/4W

!!

C9802NCC9802 NC

R98361K1/4WR98361K1/4W

R9820 1KR9820 1K

C9820

1NF50V

C9820

1NF50V

C9125

10NF1KV

C9125

10NF1KV

R9835NCR9835

NC

R9825 120KOHMR9825 120KOHM

R9804

16.2K 1%

R9804

16.2K 1%

R9811 1MOHM +-1% 1/4W

R9834

33K 1/8W1%

R9834

33K 1/8W1%

R9822

47K 1/8W1%

R9822

47K 1/8W1%

R9823NCR9823

NC

C9806 47PF

R9813 0R05

R9841

0.024R

R9841

0.024R

L9802

PFC CHOKE200uH

L9802

PFC CHOKE200uH

3

41

6

C9821

100N50V

C9821

100N50V

D9801 IN5408G-04

R9832 10KOHM

HS9801 HEATSINK

1 2

3

4

FB9805 127RFB9805 127R

1 2

R9818 33ohm1/4W +/-5%

C9808NCC9808 NC

FB9802 127R

12

C9817 100N50V

R98311KR98311K

R9817 10K OHM +-5% 1/8W

+

C9805

82uF450V

+

C9805

82uF450V

R9830NCR9830

NC

R9808 33R1%

R9816

10R 1/8W5%

R9816

10R 1/8W5%

R9814 0R05

R9803 1MOHM +-1% 1/4W

R9838

120KOHM +-1%1/8W

R9838

120KOHM +-1%1/8W

R9833

220K OHM 1%

R9833

220K OHM 1%

D9805

SS1060FL

D9805

SS1060FL

R9806

10R 1/8W5%

R9806

10R 1/8W5%

R9805NCR9805 NC

R9826 7K5 1/8W+/-1%

C9811

100N50V

C9811

100N50V

ZD9801

BZT52-B3V6

ZD9801

BZT52-B3V6

1

2

FB9804 127RFB9804 127R

1 2

C9816 10NF50V

+

C9823

82uF450V

+

C9823

82uF450V

C9812

1NF50V

C9812

1NF50V

C9824 100N50V

D9803

SS1060FL

D9803

SS1060FL

Circuit Diagrams and PWB Layouts

EN 54TPN14.1E LA 10.

2014-Jan-24

back to

div.table

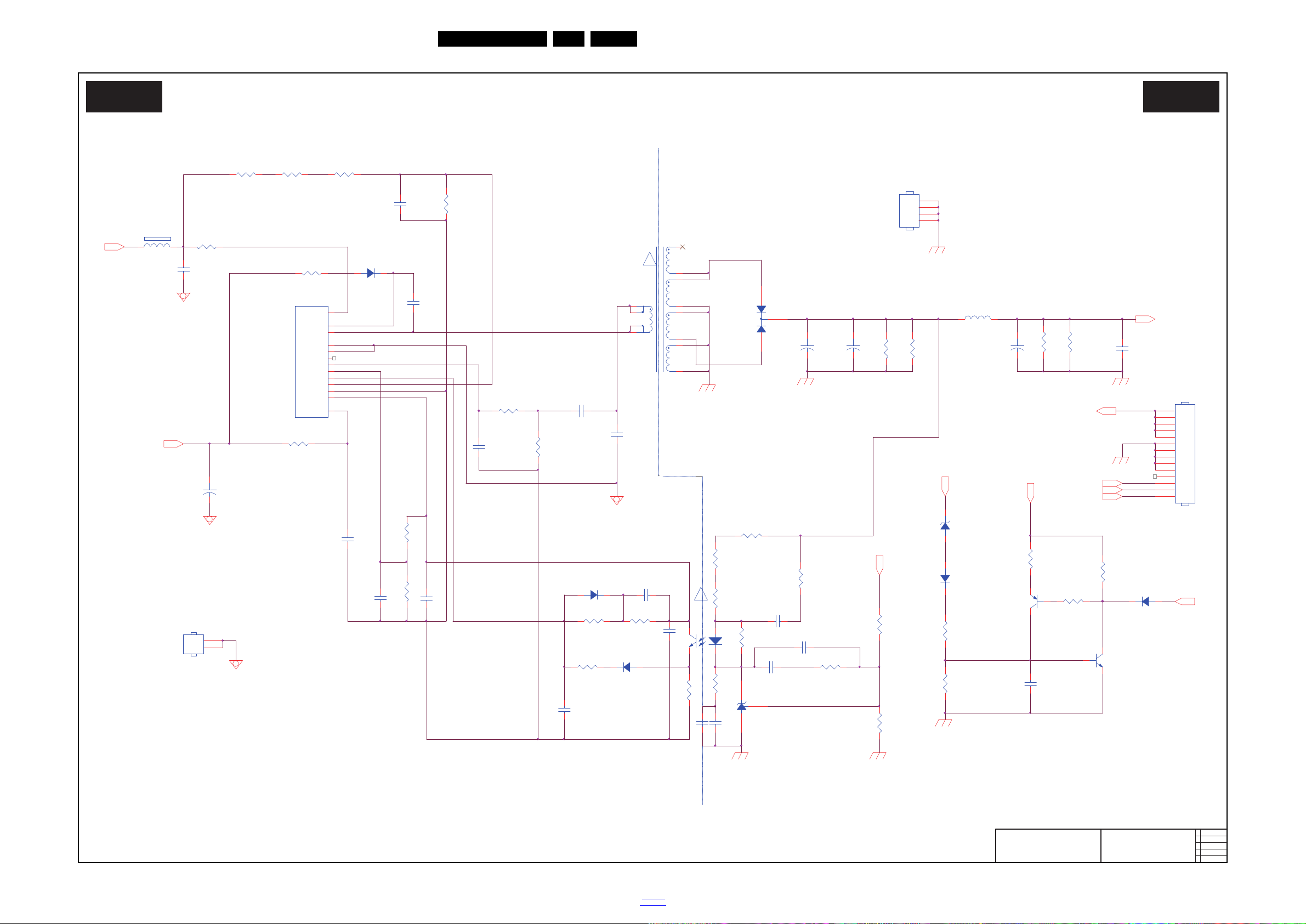

10-2-3 Flyback with Sanken QR

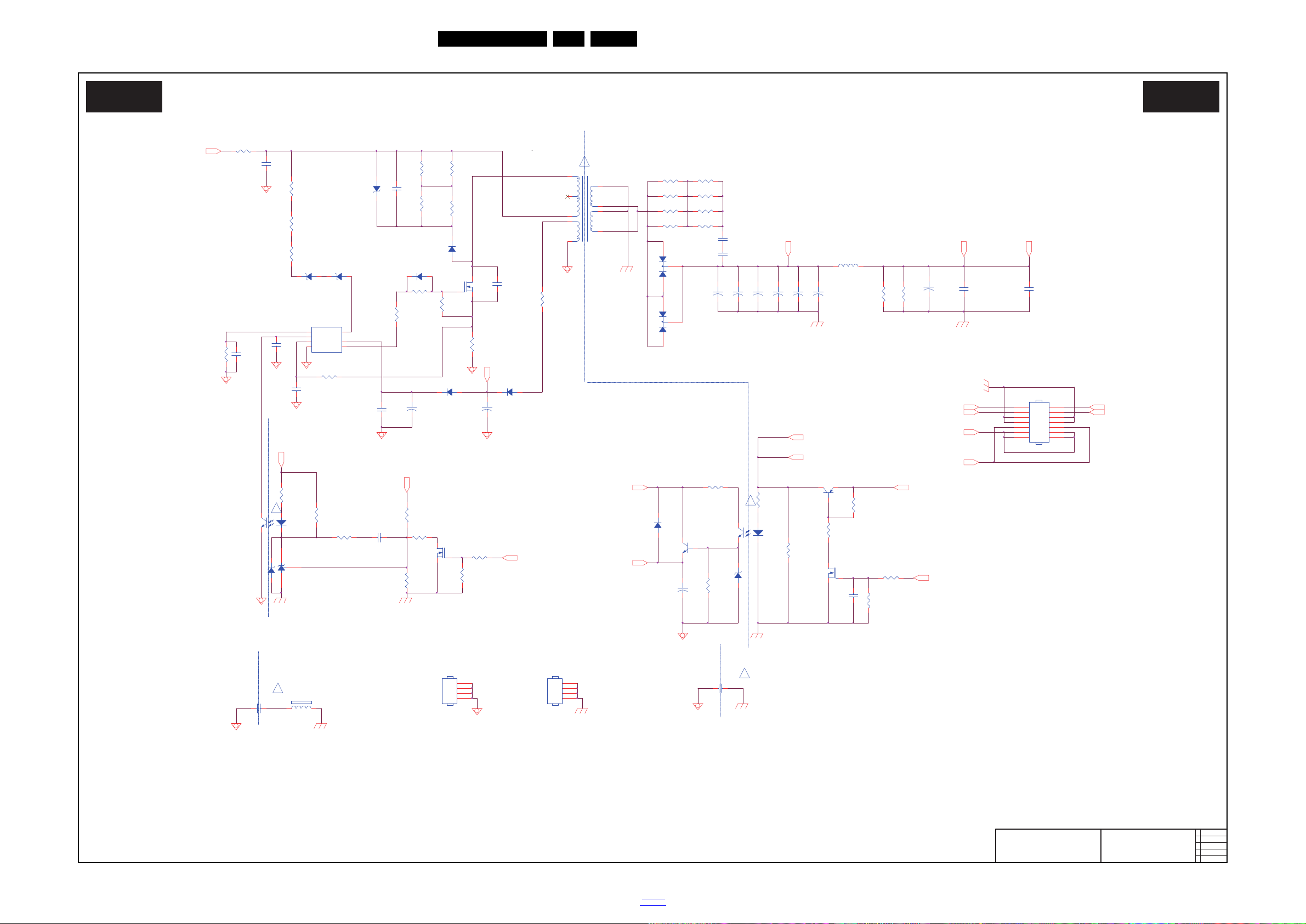

19750_509.eps

Flyback with Sanken QR

A03 A03

2014-08-02

A

715G6887

Flyback with Sanken QR

Vbus

+VCC1

12VS

DV5

12VS

+12V

+12V_A

DV5

12VS

+VCC1

+VCC2

PS_ON

12VS

DV5

LLC_OVP

BR

BI

ON/OFF

3D

DIM

PS_ON

+12V+12V

+12V_A +12V_A

+12V+12V

+5V

12VS

GND

R9304NCR9304

NC

C9302NC C9302NC

!!

+

C9113 470UF 25V

+

C9113 470UF 25V

D9107

SS1060FL

D9107

SS1060FL

C9148NCC9148

NC

C9108 47PF

R9132

27 OHM

R9132

27 OHM

C9307NCC9307

NC

R9123

5.1K 1/4W

R9123

5.1K 1/4W

R9130

330K 1% 1/8W

R9130

330K 1% 1/8W

R9105

10M

R9105

10M

Q9104NCQ9104 NC

R9109

10K 1/8W

R9109

10K 1/8W

L9102 3UH

L9102

3UH

!!

D9108

1N4148W

D9108

1N4148W

C9123

2.2NF

C9123

2.2NF

Q9110

2N7002K

Q9110

2N7002K

R9144

100 OHM 1/4W

R9144

100 OHM 1/4W

C9147

0.1uF 50V

C9147

0.1uF 50V

D9102 SS1060FL

R9160

510K 1% 1/8W

R9160

510K 1% 1/8W

R9107 22R 1%

R91653K R91653K

C9120

1uF

C9120

1uF

R9126

10 OHM 1/4W

R9126

10 OHM 1/4W

R9114

1 OHM 1/4W

R9114

1 OHM 1/4W

R9119

1K5 +-1% 1/8W

R9119

1K5 +-1% 1/8W

HS9101 HEAT SINK

1 2

3

4

IC9101

SSC3S121

IC9101

SSC3S121

FB/OLP

1

BR

2

ST4DRV

5

OCP

6

VCC

7

GND

8

Q9111

AOTF298L

Q9111

AOTF298L

R9302NCR9302

NC

R9143

100K

R9143

100K

+

C9106 1500UF 35V

+

C9106 1500UF 35V

R9118

4.7K 1/8W

R9118

4.7K 1/8W

R9308NCR9308 NC

IC9301NCIC9301

NC

PGND

1

VIN

2

AGND

3

VCC4FB

5

COMP

6

LX

7

EN

8

!!

R9158 10K 1/8W 1%

+

C9115 470UF 25V

+

C9115 470UF 25V

R9113

5.1 OHM 1/4W

R9113

5.1 OHM 1/4W

Q9101

MOSFET TK11A65D

Q9101

MOSFET TK11A65D

R9303NCR9303

NC

C9143 1uF

IC9111

SP6018ES8RGB

IC9111

SP6018ES8RGB

Timing

1

Pred

2

VR

3

Adj

4

GND

5

MOSG-C

6

Vdd

7

SYNC

8

R9307NCR9307 NC

R9133

27 OHM

R9133

27 OHM

R9111

27 OHM

R9111

27 OHM

Q9105

2N7002K

Q9105

2N7002K

C9141

0.1uF 50V

C9141

0.1uF 50V

C9122

0.1uF 50V

C9122

0.1uF 50V

T9101

POWER X'FMR

T9101

POWER X'FMR

1

2

3

4

5

7

6

10

11

12

R9120

9K1 1/8W 1%

R9120

9K1 1/8W 1%

R9142 100KOHM +- 5%

R91643K R91643K

R9103NCR9103 NC

R9305NCR9305

NC

R9128NCR9128 NC

+

C9105 NC

+

C9105 NC

C9114

1uF

C9114

1uF

IC9104

AS431AN-E1

IC9104

AS431AN-E1

C9140 1nF 50V

CN9101 NC

2 4 6

8

10 12 14 16

1

3

5 7 9 11 13 15

D9101 SARS01-V1

D9101

SARS01-V1

!!

D9105

SS1060FL

D9105

SS1060FL

C9919 1NF 250VC9919 1NF 250V

R9104

330R 1/8W 5%

R9104

330R 1/8W 5%

R9102

130K 1/8W 5%

R9102

130K 1/8W 5%

R9101 NWR 0.24R 5%

+

C9107 1500UF 35V

+

C9107 1500UF 35V

R9124

43.2K OHM +/-1%

R9124

43.2K OHM +/-1%

ZD9106

BZT52-B15

ZD9106

BZT52-B15

1 2

R9301 NCR9301 NC

C9104 680P 50V

R9157

10K OHM

R9157

10K OHM

Q9102

BTC4672M3

Q9102

BTC4672M3

D9103

PR1007

D9103

PR1007

R9112

27 OHM

R9112

27 OHM

ZD9109

BZT52-B16

ZD9109

BZT52-B16

1 2

R9145

510K 1% 1/8W

R9145

510K 1% 1/8W

R91663K R91663K

C9308

1uF

C9308

1uF

C9121

0.1uF 50V

C9121

0.1uF 50V

R9122

15KOHM +-5%

R9122

15KOHM +-5%

R9161

2Mohm 1/4W +/-1%

R9161

2Mohm 1/4W +/-1%

ZD9301 NCZD9301 NC

12

IC9102 EL817M(X)

1

23

4

C9144 1uF

+

C9146

10UF 50V

+

C9146

10UF 50V

C9116 1NF

HS9102 HEAT SINK

1 2

3

4

C9149 1uF

FB9301NCFB9301

NC

1 2

D9109 PR1007

L9103NCL9103 NC

R9155 2K 1/4W

Q9109

BTB1424AM3

Q9109

BTB1424AM3

C9917 NCC9917 NC

R9116

160R 1%

R9116

160R 1%

Q9108

2N7002K

Q9108

2N7002K

C9918 1NF 250VC9918 1NF 250V

+

C9103

EC 100UF 50V

+

C9103

EC 100UF 50V

C9136

0805 47P

C9136

0805 47P

R9131

27 OHM

R9131

27 OHM

R9154

100K 1/8W 1%

R9154

100K 1/8W 1%

R9125

4.7R 5% 1/4W

R9125

4.7R 5% 1/4W

+

C9309

NC

+

C9309

NC

C9124

1uF

C9124

1uF

L9101 3UH

R9140

22R 5% 2W

R9140

22R 5% 2W

R9162

2Mohm 1/4W +/-1%

R9162

2Mohm 1/4W +/-1%

R9121

6.2K OHM +-1% 1/8W

R9121

6.2K OHM +-1% 1/8W

R9108

10ohm 1/4W +/-1%

R9108

10ohm 1/4W +/-1%

CN9102 ONN 2.0mm 16P

2

4

6

8

10

12

14

16

1

3

5

7

9

11

13

15

C9119

1uF

C9119

1uF

R9141 82K 5% 2W

C9112

10nF 50V

C9112

10nF 50V

C9117NCC9117

NC

!!

R9115

2K2 1/8W 1%

R9115

2K2 1/8W 1%

R9129

10K OHM

R9129

10K OHM

C9133

0.1uF 50V

C9133

0.1uF 50V

R91563KR9156

3K

!!

C9916 330pF 250VC9916 330pF 250V

D9104 SK510C

12

R9170NCR9170

NC

IC9103

EL817M(X)

IC9103

EL817M(X)

1

23

4

R9117

5.1K 1/4W

R9117

5.1K 1/4W

R9159

100 OHM 1/4W

R9159

100 OHM 1/4W

C9139 1nF 50V

R91533KR9153

3K

C9142

0805 0.1UF

C9142

0805 0.1UF

C9134

100PF 50V

C9134

100PF 50V

+

C9301

NC

+

C9301

NC

C9306NCC9306 NC

R9306NCR9306 NC

C9135

0.1uF 50V

C9135

0.1uF 50V

C9303NCC9303

NC

D9106 SK510C

12

R9110

27 OHM

R9110

27 OHM

C9304NCC9304

NC

C9137

1uF

C9137

1uF

C9305NCC9305

NC

!!

R9163

2Mohm 1/4W +/-1%

R9163

2Mohm 1/4W +/-1%

Circuit Diagrams and PWB Layouts

EN 55TPN14.1E LA 10.

2014-Jan-24

back to

div.table

10-2-4 LLC with Sanken

19750_510.eps

LLC with Sanken

A04 A04

2014-08-02

A

715G6887

LLC with Sanken

ZD9205 BZT52-B15

1 2

ZD9206 BZT52-B15

1 2

C9239

0.1uF 50V

C9242

220NF 50V

R9241

NC

+VCC2

R9242 1KC9244

100N 50V

R9243 10KOHM

Q9206

STD1NK60T4

+

C9204 1500UF 35V

HS9201 HEAT SINK

1 2 3 4

GND

R9244

1K 1/8W 1%

HS9202 HEAT SINK

1 2 3 4

HS9203 HEAT SINK

1 2 3 4

GND

+

C9237 330UF 35V

+

C9236 330UF 35V

T9201

830uH

1

4

5 6

7 8

10

11

12

9

R9207 1.5M 1% 1/4W R9202

1.5M 1% 1/4W

R9203

1.5M 1% 1/4W

+VCC2

FB9202

BEAD

1 2

C9209

5PF

R9221

100R 1/8W 5%

R9235

1Kohm +-1% 1/4W

D9205

SS1060FL

C9225

4.7uF 10V

D9204

1

2

3

D9201 UF4007

R9210

18K 1/8W 1%

+

C9211

22UF 50V

R9217 NC

CN9203 CONN

2 4 6

8 10 12 14

1 3 5 7 9 11 13

C9220

100N 50V

IC9201

SSC9522S

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

R9222

2K43 1/8W 1%

+

C9205

330UF 35V

R9201

0.1R

Q9204

PMBT3906

C9201 1NF

C9232

0.1uF 50V

ZD9202

BZT52-B30

1 2

C9223 NC

R9206 10 OHM

R9236 2Kohm 1/4W +/ -1%

R9225

1K 1/8W 1%

R9216 180R 1%

C9228 330nF

C9226 1uF

R9212 82 OHM

Q9205

PMBS3904

R9234

1K 1/8W 1%

C9218 1NF 50V

C9208

47P 50V

R9229

20K 1/4W

R9204

5.1K 1/4W

C9207

1uF

D9202

FME-220A

1

2

3

R9214

470 OHM 1/8W

IC9204 AS431AN-E1

D9203 SS1060FL

C9219

560PF 50V

C9212

0.1uF 50V

CN9205 CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

C9215 100PF1KV

D9210

FME-220A

1

2

3

R9211 10 OHM

C9231

0.47UF 50V

ZD9201

BZT52-B15

1 2

R9224 2K 1/8W 1%

L9201 3UH

R9215

NC

R9228

5.6K

D9208

SS1060FL

R9227 2Kohm 1/4W +/ -1%

L9202 3UH

D9206

1

2

3

R9205 10 OHM

Q9202

TK13A50D

C9216 22nF

Q9201

TK13A50D

R9223

470 OHM

D9207

1

2

3

R9218

0 OHM +-5% 1/ 8W

C9202

0.1uF 50V

C9210 1uF

R9209 10K 1/8W 1%

R9213 10K 1/8W 1%

R9219 15K4 1/8W 1%

C9206

0.1uF 50V

R9208 82 OHM

CN9201

CONN

2

4

6

8

10

12

14

1

3

5

7

9

11

13

C9217

1UF

VS

Vbus

24VS

VS

DV5LLC_OVP

+24V

24VS+12V

24VS

+12V

GND

CN9202

CONN

1 2 3 4 5 6 7 8

9 10 11 12 13 14

+

C9213 1500UF 35V

+

C9214 1500UF 35V

C9221 1NF 500V

IC9202

EL817M(X)

1

23

4

C9920 NC

+12V

+24VA

C9240

100N 50V

ZD9204

BZT52-B6V2

1 2

24VS

C9243 22nF

ZD9203

BZT52-B6V2

1 2

T9202

830uH

1

4

5 6

7 8

10

11

12

9

+24VA

+

C9238 330UF 35V

L9203 3UH

R9240 NC/ 180R 1%

+

C9203 1500UF 35V

DIM

3D

ON/OFF

+24V

24VS

FB9201

127R

1 2

Circuit Diagrams and PWB Layouts

EN 56TPN14.1E LA 10.

2014-Jan-24

back to

div.table

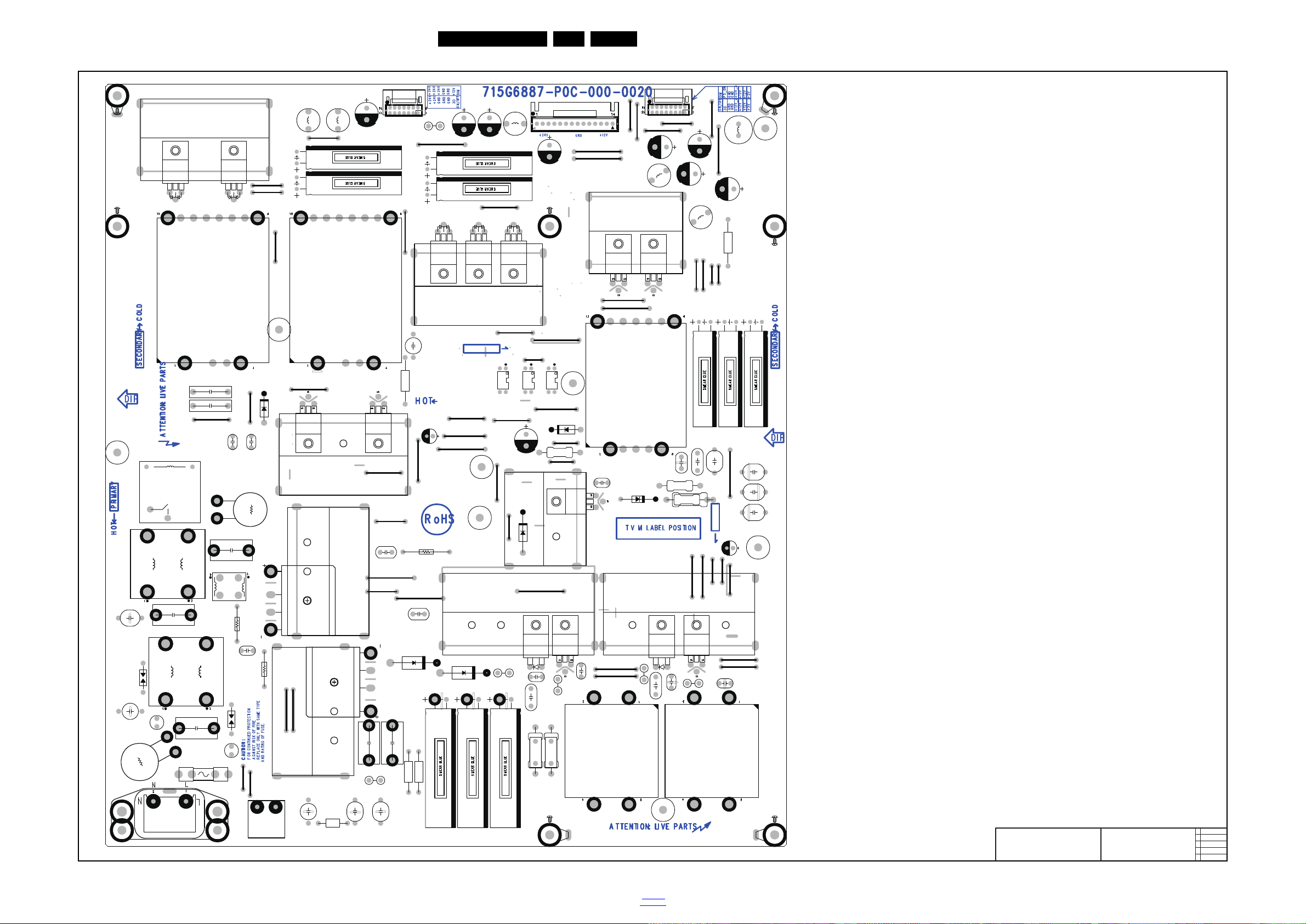

10-2-5 Power layout top

19750_511.eps

2014-06-06

A

715G6887

LAYOUT TOP

C9211

C9802

C9806

C9808

C9809

C9146

C9904

D9103

D9201

IC9102

IC9103

IC9202

R9101

R9140

R9141

T9101

D9800

D9801

J946

J947

J916

J917

J915

J914

J903

J909

J910

J926

J924

J928

J930

J950

J951

J940

J937

J945

J949

J948

J939

J943

J938

J942

J936

J941

J934

J931

J933

J925

J935

J927

J923

J921

J904

J922

J918

J901

J905

J906

J907

J919

J911

J913

T9202T9201

J952

J932

J953

J912

J908

J944

J954

J955

SU5

SU1

SU2

SU3

SU4

J929

J902

J920

SU6

SU7

SU8

C9108

J956

J957

SLT901

SLT903

SLT904

SLT905

SLT902

SLT908

SLT907

SLT909

SLT1

SLT2

SLT3

SLT4

SLT6

SLT5

SLT7

C9103

C9113

C9115

C9116

C9117

C9123

C9201

C9205

C9209

C9215

C9216

C9237

C9236

C9301

C9309

C9801

C9803

C9804 C9823C9805

C9901

C9902

C9911

C9913

C9915

CN9903

CN9902

D9802 D9804

F9901

FB9802

FB9803

FB9901

FB9902

FB9903

FB9904

HS9102

HS9101

L9101

L9102

L9103

L9202L9201

R9805

R9801

R9901

R9902

RV9901

SG9901

SG9902

SW9901

MH1

MH3

MH8

MH7

MH5

MH2

HS9802

HS9203

BD9901

BD9902

D9202D9204

D9206 D9207

HS9801

NR9901

GND3

GND1

GND2

GND4

L9802

CN9201

CN9101

C9238

L9203

HS9901

HS9902

L9903

C9903

D9210

C9203

C9214

C9204

C9213

C9106 C9107C9105

HS9202

HS9201

L9901

L9902

MH6

D9109

FB9801

FB9800

D9101

R9201

C9243

CN9202

C9916

FB9201

R9840

R9841

FB9301

C9912

L9801

Q9101

Q9104Q9111

Q9201Q9202

Q9801 Q9802

CN9901

C9914

C9917

C9125

C9126

FB9804

FB9805

R9170

C9920

C9918

C9919

CN9203

CN9102

CN9205

FB9202

Circuit Diagrams and PWB Layouts

EN 57TPN14.1E LA 10.

2014-Jan-24

back to

div.table

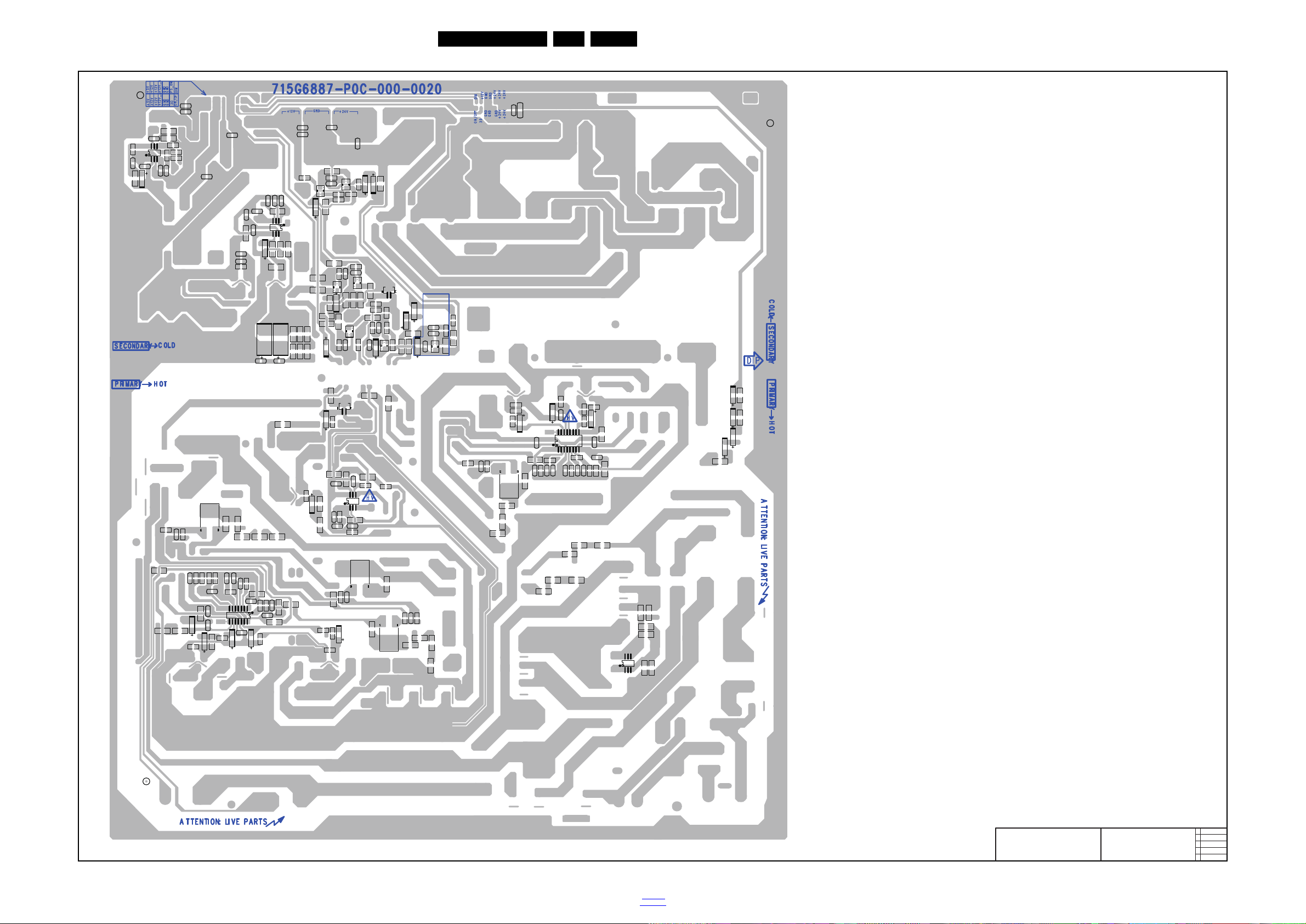

10-2-6 Power layout bottom

19750_512.eps

2014-06-06

A

715G6887

LAYOUT BOTTOM

C9104

C9112

C9114

C9119

C9120

C9121

C9122

C9137

C9133

C9134

C9135

C9136

C9124

C9139C9140

C9141

C9142

C9143

C9144

C9147

C9148

C9149

C9202

C9206

C9207

C9208

C9210

C9212

C9217

C9218

C9219

C9220

C9240

C9223

C9225

C9226

C9228

C9231

C9232

C9302

C9303

C9304

C9305

C9306

C9307

C9308

C9807

C9810

C9811

C9812

C9813

C9815

C9816

C9817C9818

C9819

C9820

C9821

C9822

IC9111

IC9301

IC9801

IC9901

R9102

R9104

R9107R9108

R9109

R9111

R9110

R9112

R9113

R9114

R9115

R9116

R9117

R9118

R9119

R9120

R9121

R9122

R9123

R9124

R9125

R9126

R9128

R9129

R9130

R9133

R9131

R9132

R9142

R9144

R9145

R9153

R9154

R9155

R9156

R9157

R9158

R9159

R9160

R9161

R9162 R9163

R9202

R9203

R9204

R9205

R9206

R9207

R9208

R9209

R9210

R9211R9212

R9213

R9214

R9215

R9216

R9217

R9218

R9219

R9297

R9222

R9223

R9224R9225

R9228

R9229

R9298

R9234

R9235

R9236

R9301

R9302

R9303

R9304 R9305

R9306

R9307

R9308

R9802

R9803

R9806

R9807

R9808

R9809

R9810

R9811

R9812

R9813

R9814

R9816

R9817

R9819

R9820

R9821

R9822

R9823

R9824

R9825

R9826

R9827

R9828

R9829

R9830

R9831

R9832

R9833

R9834

R9835

R9837

R9838

R9839

R9904

R9903

R9905

R9906

R9908

R9907

C9239

C9242

JR903

JR908

JR904

JR902

JR909

JR901

JR906

R9818

R9836

R9164

R9103

JR910

JR907

JR911

R9143

JR912

R9815

JR913

R9227

R9804

C9221

C9244

R9242

R9243

R9244

R9241

C9824

JR905

R9165

R9166

R9221

IC9101

R9240

R9299

JR914

JR915

R9105

JR916

IC9104

IC9204

Q9105

Q9108

Q9110

D9102

D9105

D9107

D9108

D9203

D9205

D9208

D9803

D9805

IC9201

Q9102

Q9803

Q9804

Q9805

ZD9106

ZD9109

ZD9201

ZD9202

ZD9203

ZD9204

ZD9301

ZD9801

SEN1

SEN3

SEN2

Q9109

Q9206

D9806

D9807

ZD9205

ZD9206

ZD9210

ZD9211 ZD9212 ZD9213

Q9204

Q9205

D9106

D9104

Circuit Diagrams and PWB Layouts

EN 58TPN14.1E LA 10.

2014-Jan-24

back to

div.table

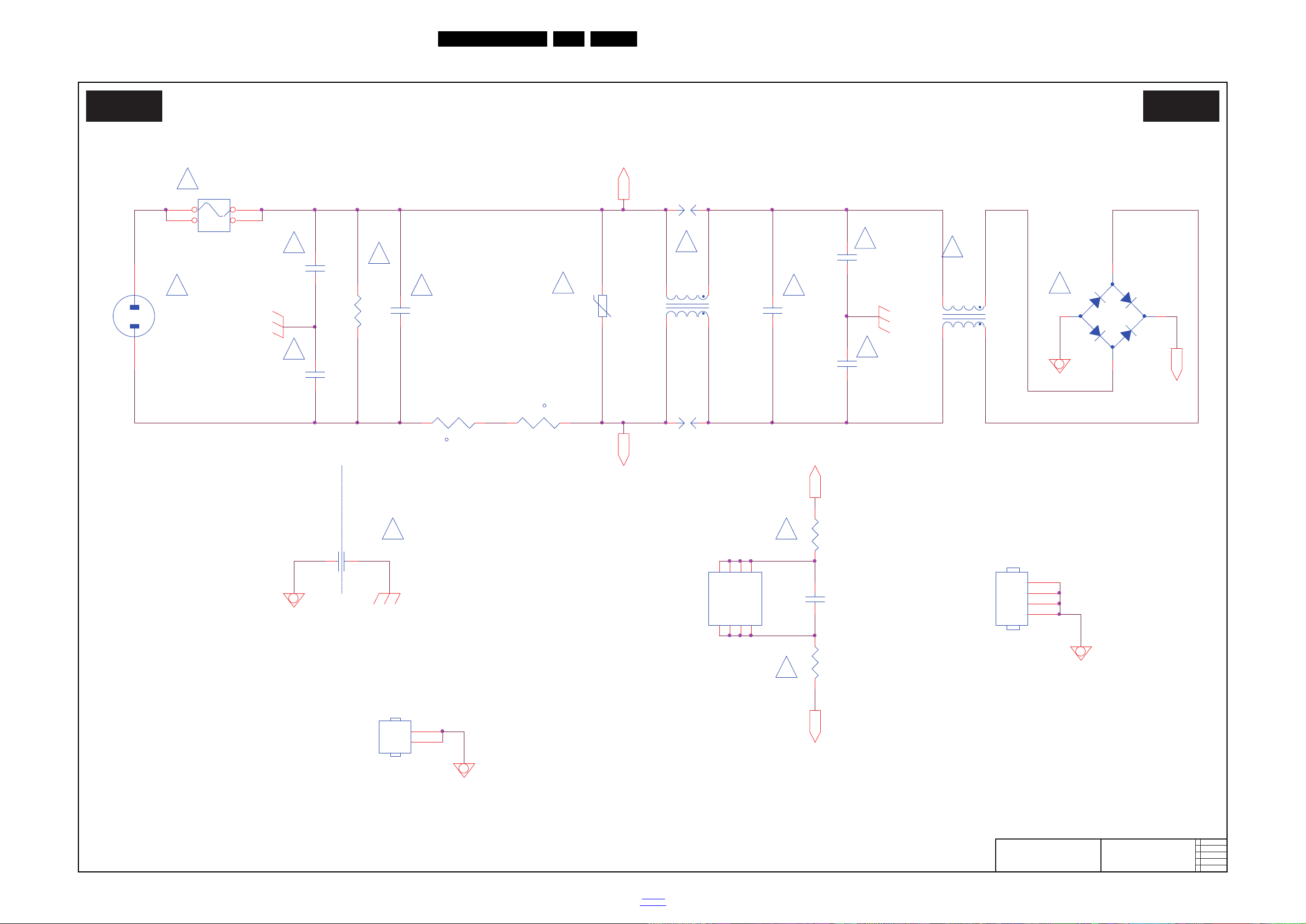

10.3 A 715G6338 PSU

19600_507.eps

AC input

A01 A01

2013-10-18

715G6338

AC input

T5AH/250V

R9902 3.9MOHM +-5% 1/2W

C9903

100PF 250V

C9904

100PF 250V

1 2

HS9902

HEAT SINK

!

SG9901

NC

SG9902

NC

RV9901

680V

1

2

CN9901

SOCKET

COLDHOT

R9901 NC

R9903 NC

!

1 2

3

4

HS9901 HEAT SINK

C9902

100NF 305V

!

1

2

4

3

L9902 12mH

C9901

100NF 305V

1 2 3 4

F9901

FUSE

!

1 2

t

NR9901

2.5R

!

C9907 470pF 250V

C9908

NC

!

1

2

4

3

L9901 12mH

!

12

t

NR9902

2.5R

!

B

Vsin

A

B

!

2

1

3

4

-

+

BD9901

TS10K80-02

NC

1

D1

2

D1

3

NC

4

NC

5

D2

6

D2

7

NC

8

IC9901

NC

C9906

470pF 250V

C9905

470pF 250V

10-3-1 AC input

Circuit Diagrams and PWB Layouts

EN 59TPN14.1E LA 10.

2014-Jan-24

back to

div.table

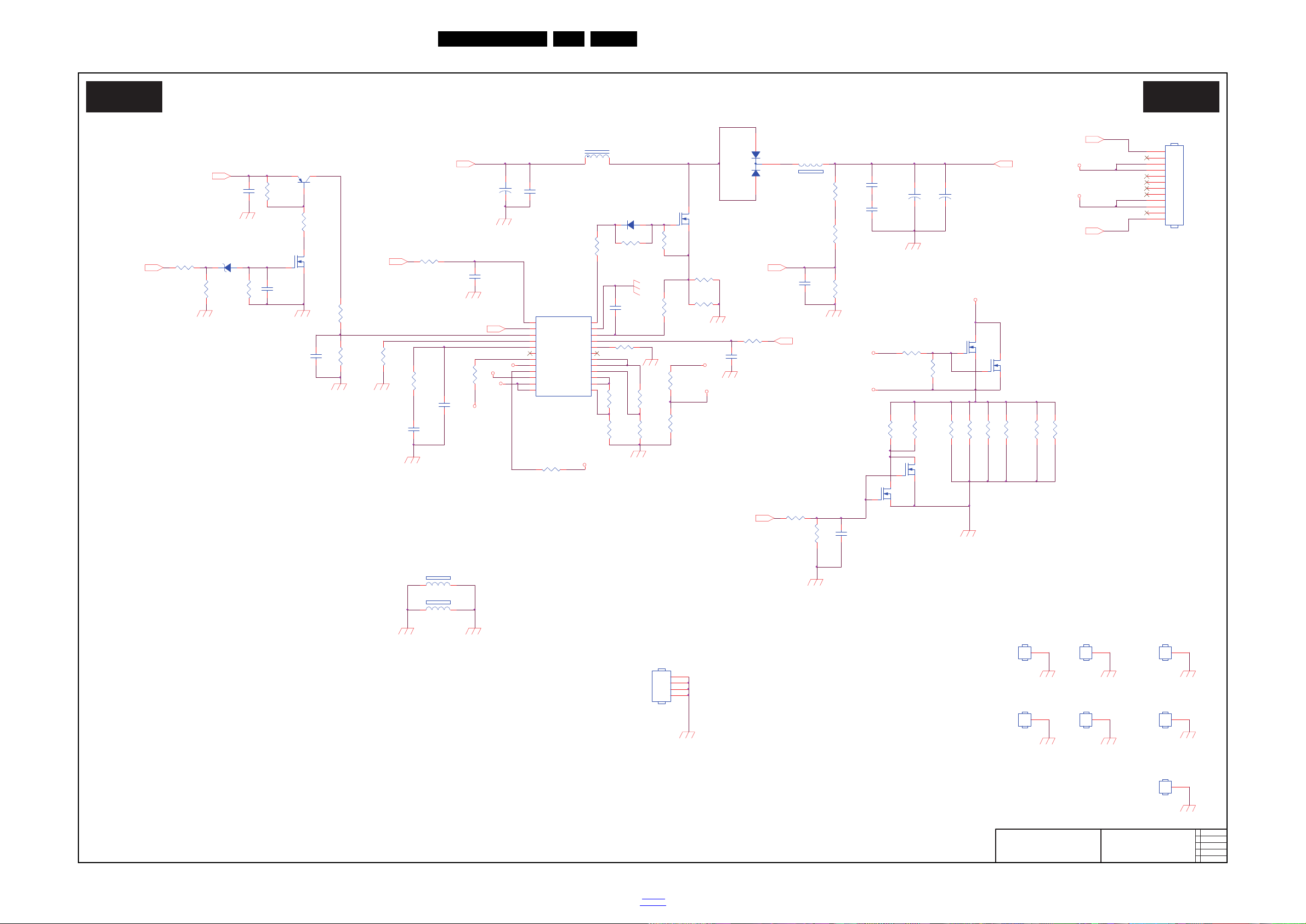

10-3-2 LED Driver

19610_501.eps

LED Driver

A02 A02

2013-10-18

715G6338

LED Driver

VLED+

R8107

510 OHM +-1 % 1/ 8W

R8121

100KOHM +- 1% 1/ 8W

C8107

1N 50V

R8124

100K 1/ 4W

S1

+

C8102

82uF 100V

G1

G2

+

C8103

82uF 100V

G1

R8148

0R051/8W

R8116 0R1 5% 2W

2

1

L8101

33uH

R8155

200K 1/8W

+36V/+24V

C8105

220nF50V

SENSE2

R8111

150K 1/4W +/- 1%

C8109

1UF 50V

C8108 100N 50V

R8106

10K 1/8W 1%

R8102 33 OHM

R8108

330K 1% 1/8W

OVP_L

R8112

150K 1/4W +/- 1%

C8110

100N 50V

R8113

10KOHM +-1% 1/8W

VLED_1

VLED_2

D8102

SS1060FL

R8135

10ohm +/ -1 % 1/8W

C8114

10N 50V

R8101

2.2 OHM 1/8W

C8104

220nF50V

R8103

10K 1% 1/8W

R8149

20K

R8145

0R68 1W 5%

R8104 0R1 5% 2W

R8105

1K 1/8W 1%

R8144

0R68 1W 5%

1 2

FB8103 BEAD

OVP_L

R8143

10K 1/8W 1%

R8142

100KOHM +-5% 1/ 8W

2D/3D

R8138

100K 1/ 8W 1%

C8144

100N 50V

R8136

20K OHM

Q8147 P5002CMG

1

GND806

GND

1

GND807

GND

DIM

1

GND801

GND

1 2

3

4

HS8101

HEAT SINK

R8147

0R68 1W 5%

R8146

0R68 1W 5%

1

GND804

GND

1

GND802

GND

C8131

1N 50V

1

GND805

GND

R8115

1M 1/8W 5%

C8106 100N 50 V

R8156

0R68 1W 5%

Q8143 MTBA5N10J3

Q8145 P5002CMG

R8157

0R68 1W 5%

R8109

100KOHM +-1% 1/8W

R8110

240K 1% 1/8W

Q8149 MTBA5N10J3

R8164 200K OHM

G2

SENSE2

12

FB8101

127R

VLED_1

1 2

3

4 5 6 7

8

9 10 11 12

CN8101

CONN

VLED_1

1 2

FB8102 BEAD

R8160

4.7R 1% R8161

4.7R 1%

R8139

10ohm 1%

C8143 100P 50V

+

C8101

330UF 5 0V

VLED+

VIN

1

OVP

2

EN

3

RT

4

COMP

5

PAR L

6

SENSE1

7

Gate1

8

FB1

9

SENSE2

10

Gate2

11

FB212SENSE3

13

Gate3

14

FB3

15

SENSE4

16

Gate4

17

FB4

18

STAT U S

19

LOSC

20

DIM

21

CS

22

GND

23

DRV

24

IC8101

LD7890GS

12

ZD8101

BZT52-B9V1_R1_00001

1

2

3

D8101 MBRF10100CT

C8132

100N 50 V

+36V/+24V

C8133

1N 50V

R8134

10K 1/4W

R8133 10K OHM +-5% 1/8W

R8137

20K OHM

ON/OFF

Q8101

P3710BTF

Q8102

PMBT3906

Q8103 2N7002K

1

GND803

GND

+12V

R8140

100K 1/ 8W 1%

R8120

240K 1% 1/8W

R8123

240K 1% 1/8W

S1

Circuit Diagrams and PWB Layouts

EN 60TPN14.1E LA 10.

2014-Jan-24

back to

div.table

10-3-3 LLC 36V

19610_502.eps

LLC 36V

A03 A03

2013-10-18

A

715G6338

LLC 36V

COLD

HOT

1 2

ZD9103 BZT52-B43

C9113

1uF

+

C9121

330UF 50V

+

C9122 NC

C9107 470pF 50V

L9102

1.1uH

R9113

91KOHM +-1% 1/8W

C9106 47pF

C9105

22nF

R9104 22K 1/8W 1%

R9137

0 OHM +-5% 1/8W C9109 4N7 50V

R9107

2.2R

C9108

1uF

D9105

UF1010G

C9104 1uF

C9102 100N 50V

R9125 1K 1/8W 1%

C9103

470NF 50V

C9125

100N 50V

R9128

2.4KOHM +-1% 1/8W

R9106 4R7 +-5% 1/ 8W

C9111 33N 50V

IC9103 AS431AN-E1

1

2

4

3

IC9102

PS2561DL1-1

R9126 4K7 1/8W 1%

+36V/+24V

R9123

100KOHM +-1% 1/8W

VCC_ON

R9120 2K4 +/-1% 1/ 8W

1 2

FB9101 BEAD

R9119 11K 1%

R9108

1K 1/8W 1%

C9101 10NF

R9121

12K 5% 1/4W

R9105

0.1R

B+

VCC

1

VREF

3

G

4

OV/U V

5

FB

6

DT/BF

7

IS

8

NC

9

S1

10

S2

11

HB

13

VCCH

14

D

16

IC9101 LCS700LG-TL

R9101

1MOHM +-1% 1/4W

R9124

2.4KOHM +-1% 1/8W

R9114

22KOHM +-1% 1/8W

R9102

1MOHM +-5% 1/2W

R9103

1MOHM +-5% 1/2W

R9127 43R 1%

C9127 1uF

C9128

1uF

1

2

3

D9104

FMEN-2308

C9117

2.2nF 50V

!

D9106

SS1060FL

C9126

2.2nF 50V

+36V/+24V

R9110

8.2K 1/4W

C9116

47nF 50V

R9109 120R 1%

R9111

150KOHM +-1% 1/ 8W

R9112

12K 1/8W

C9110

2.2U F 25V

R9115

3K 1/8W +/-1%

+

C9123

NC

1 2

HS9101

HEAT SINK

+36V/+24V

R9140 1K 1/8W 1%

OVP

+36V/+24V

Q9104 PMBS3904

C9133 100N 50V

Q9103 PMBS3906

R9139 100 OHM 1%

R9136

1K 1/8W 1%

R9138 1K 1/8W 1%

D9110

SS1060FL

D9108

SS1060FL

1 2

5 6

7

8

9

10

11

12

10

9

T9101

210uH

ON/OFF

R9122

12K 5% 1/4W

R9133

12K 5% 1/4 W

R9132

12K 5% 1/4 W

2D/3D

DIM

+12V

D9107

SS1060FL

R9129

2.4KOHM +-1% 1/8W

+

C9120

10UF 50V

1 2

3

4 5 6 7

8

9 10 11 12 13 14

CN9101 CONN

1 2

3

4

HS9109 HEAT SINK

Circuit Diagrams and PWB Layouts

EN 61TPN14.1E LA 10.

2014-Jan-24

back to

div.table

10-3-4 Main Power 12V

19610_503.eps

Main Power 12V

A04 A04

2013-10-18

A

715G6338

Main Power 12V

1 2

3

4

HS9302 HEAT SINK

1

2

ZD9303

NC/P6KE160AA0

1 2

3

4

HS9301 HEAT SINK

Q9332 PMBT3906

HOT

COLD

C9309

2N2 500V

D9301

SS1060FL

R9321

51 OHM 1/4W

R9331

10K OHM +-5% 1/ 8W

IC9342

AS431AN-E1

D9302 FR107

Q9301

TK13A65U

C9306 NC

Q9341

2N7002K

12

ZD9302 BZT52-B30

C9302 1NF

R9334 10K OHM

C9331 100N 50V

L9301 3UH

12

4

3

IC9341

PS2561DL1-1

D9303 FR107

12

ZD9301 BZT52-B30

C9310

2N2 500V

R9306

0.1R

+

C9311

470UF 2 5V

R9342 100K 1/ 8W 1%

!

R9307 100K 1/4W

1

2

3

4

5

6

7

9

10

T9301

POWER X'FMR/380GL32P133H00

+

C9320 47UF 50V

R9348

1K 1/8W 1%

1 2

ZD9340

BZT52-B16

R9333 10K 1/8W 1%

R9318 51 OHM 1/4W

R9345

6.2K OHM +-1% 1/8W

R9303

6.8K 1/4W

+

C9314 330UF25V

R9337

2Kohm 1/4W +/-5%

R9302

6.8K 1/4W

R9346

2Kohm 1/4W +/-5%

R9311

10 OHM

R9344

3.9K 1% 1/8W

R9315

470 OHM 1/4W

R9336 2Kohm 1/4W +/-5%

R9316

2.2 OHM 1/4W

R9314

0.27R

R9308

100K 1/4W

R9347

2.2KOHM +-1% 1/8W

+

C9332

10UF 5 0V

R9338

100K 1/8W 1%

R9312 51 OHM 1/4W

R9335 10K OHM +-5% 1/8W

R9332 330K 1% 1/8W

12

43

IC9331

PS2561DL1-1

C9304 1N 50V

R9341

10K OHM +-5% 1/ 8W

Q9331 2N7002K

R9301

6.8K 1/4W

C9301

10NF

C9315

100N 50V

+

C9312

470UF 25V

R9309 100K 1/4W

R9310 100K 1/4W

C9341 220N 50V

1 2

ZD9330

BZT52-B15

Q9333

BTC4672M3

C9305 470P 50V

D9331

SS1060FL

PS_ON

C9308 100N 50V

R9320 51 OHM 1/ 4W

2D/3D

+

C9313

470UF 25V

R9313 10KOHM

+

C9317

470UF 25V

+

C9318

470UF 25V

DV5

VCC

DV5

+12"V

VCC

ON/OFF

PS_ON

COLDHOT

B+

DIM

HOT COLD

OVP

R9324NCR9325

NC

CT

1

COMP

2

CS

3

GND4OUT

5

VCC

6

HV

8

IC9301

LD7752B

R9305

NC/100KOHM +-5% 1/8W

VCC_ON

+12V

R9326 51 OHM 1/ 4W

R9327 51 OHM 1/4W

1

2

3

D9305 FME-220B

R9343

9.53KOH M +- 1 % 1/ 8W

1 2

FB9301 BEAD

1

2

3

D9306 FME-220B

R9322 51 OHM 1/4W

R9323

51 OHM 1/4W

+

C9307

10UF 50V

D9304 FR107

+

C9321

NC/ 470U F 25V

C9303 47nF 50V

R9319

51 OHM 1/4W

C9328 470pF 250V

!

C9316 1NF 250V

!

+12V_audio

2 4 6

8

10 12 14

1

3

5 7

9 11 13

CN9301 CONN

C9319

100N 50V

Circuit Diagrams and PWB Layouts

EN 62TPN14.1E LA 10.

2014-Jan-24

back to

div.table

10-3-5 PFC

19610_504.eps

PFC

A05 A05

2013-10-18

A

715G6338

PFC

C9808 100PF

Vsin

!

R9815

2.2R

R9809

10K 1/8W

B+

C9803 100N 50V

+

C9812

68uF 450V

D9801 IN5408G-04

D9805 IN5408G-04

1 2

L9802 BEAD

C9815

2.2NF

INV1COMP2RAMP

3

CS

4

ZCD

5

GND

6

OUT7VCC

8

IC9801

LD7591T

C9813 1UF 450V

!

Q9801 TK16A60W

VCC_ON

HOT COLD

D9802

MUR460-28

1 2

L9803 NC

C9814 470pF 250V

R9807

10 OHM 1/8W

R9808

75 OHM 1/8W

C9807 1N 50V

1 2

3

4

HS9801 HEAT SINK

R9813 10K 1/8W

R9810

470 OHM 1/4W

R9805 20K 1/4W

R9811

0.1R

C9801 1UF 450V

D9806

NC/FMNS-1106S

3

1

4

5

L9801

240UH

R9814

NC

C9809

100P 50V

1 2

FB9802 BEAD

R9812

27K 1/8W 1%

C9806 470NF 50V

R9806

3.3KOH M +- 1 % 1/ 8W

+

C9810

68uF 450V

+

C9811

68uF 450V

C9802

47P 50V

C9805

100N 50V

R9802

1MOHM +-1% 1/4W

R9803

1MOHM +-1% 1/4W

R9801

1MOHM +-1% 1/4W

R9804

19K1 +-1% 1/8W

D9803

SS1060FL

1 2

FB9803

BEAD

Circuit Diagrams and PWB Layouts

EN 63TPN14.1E LA 10.

2014-Jan-24

back to

div.table

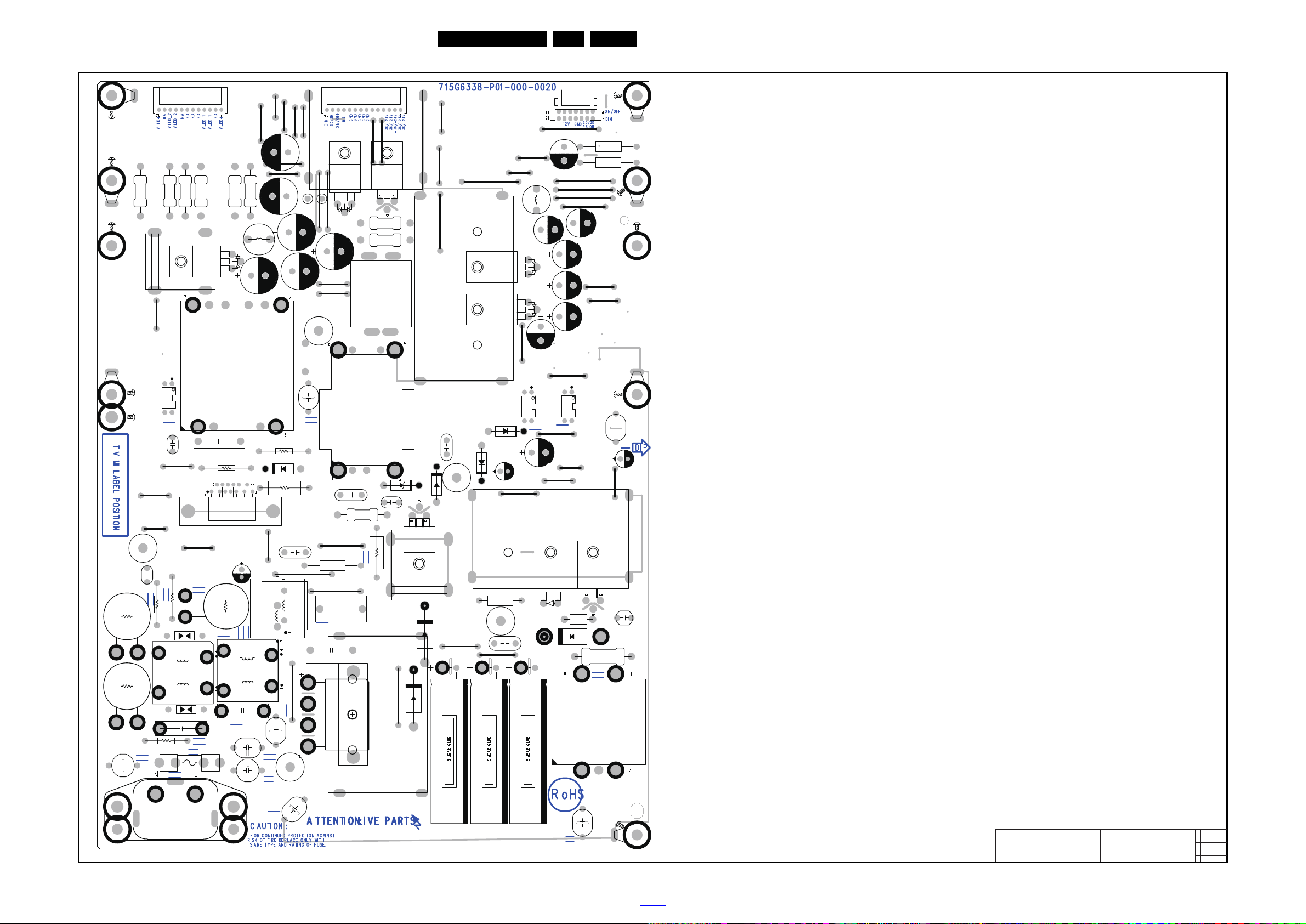

10-3-6 Power layout top

19610_505.eps

2013-10-18

A

715G6338

LAYOUT TOP

C9302

C9332

D9105

D9302

D9303

IC9102

IC9331

IC9341

R8104 R8116

R9314

T9301

ZD9303

J9128

J9120

J9130

J9134

J9143

J9144

J9127

J9124

J9138

J9125

J9129

J9111

J9136

J9122

C9120

C9307

D9304

J9115

J9119

R9103

R9102

J9103

J9104

J9121

J9102

J9137

D9802

D9801

D9805

J9140

J9133

J9145

J9135

J9117

J9109

J9110

J9141

J9107

J9131

J9139

J9118

J9108

J9113

J9114

J9126

J9105

J9123

J9132

J9148

J9142

J9146

SU2

SU5

SU4

SU1

J9147

J9101

SU3

R8144

R8145

R8146

R8147

R8156

R8157

HS1

HS2

HS3

H5

H10

H8

H7

H6

H9

H2

MH12

H11

GND1

BD9901

C8101

C9101

C9106

C9121

C9122

C9123

C9301

C9306

C9311

C9312

C9313

C9314

C9317

C9318

C9810C9811 C9812

C9907

C9908

CN8101

CN9901

D8101

D9104

D9305

D9306

F9901

FB9101

FB9802

HS9101

HS9301

HS9801

HS9901

IC9101

L8101

L9102

L9301

L9801

L9901

L9902

NR9901

NR9902

Q9301

Q9801

R9811

R9901

R9902

R9903

SG9901

SG9902

MH8

MH7

MH6

MH5

MH1

C9105

J9112

HS9109

HS9302

C9320

Q8101

MH4MH9

C8102

C8103

T9101

C9321

D9806

HS8101

MH11

RV9901

HS9902

R9105

R9306

C9814

L9803

FB9803

FB8101

C9328

MH10 MH3

C9316

C9808

C9815

L9802

FB9301

FB8102 FB8103

C9901

C9902

CN9101

C9905

C9906

C9903

C9904

CN9301

GND801

GND802 GND803 GND804

GND805

GND806GND807

C9801

C9813

Circuit Diagrams and PWB Layouts

EN 64TPN14.1E LA 10.

2014-Jan-24

back to

div.table

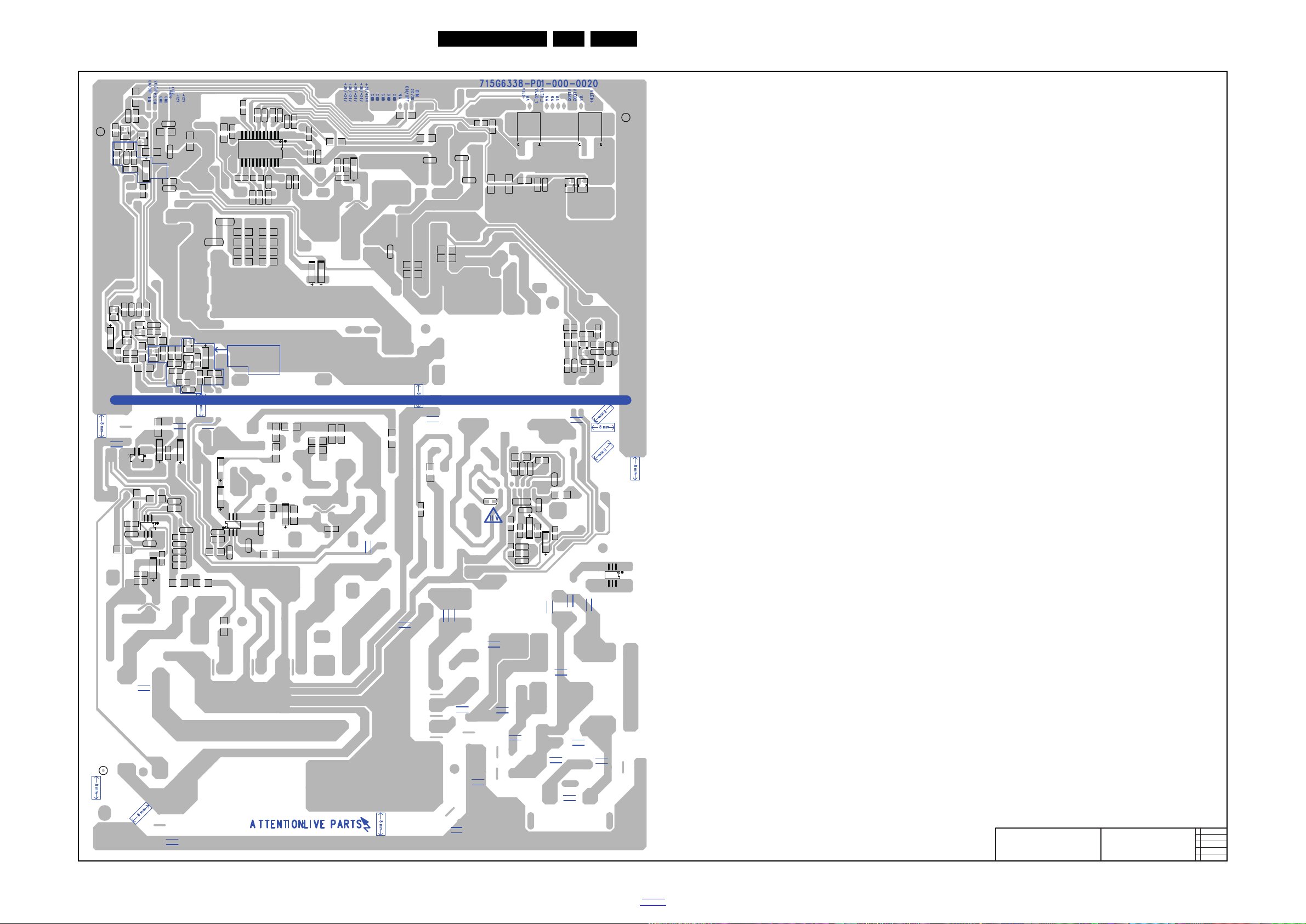

10-3-7 Power layout bottom

19610_506.eps

2013-10-18

A

715G6338

LAYOUT BOTTOM

C8104

C8105

C8106

C8107

C8108

C8109

C8110

C8114

C8131

C8143

C8144

C9102

C9103

C9104

C9108

C9109

C9110

C9111

C9116

C9117

C9125

C9126

C9127

C9128

C9133

C9303

C9304

C9305

C9308

C9309

C9310

C9315

C9319

C9331

C9341

C9802

C9803

C9805

C9806

C9807

C9809

R8102

R8103

R8107

R8108

R8110

R8111

R8112

R8113

R8115

R8133

R8140

R8142

R8148

R8149

R8124

R9104

R9106

R9107

R9108R9109

R9111

R9113

R9119

R9120

R9121 R9122

R9123

R9129

R9125

R9126

R9127

R9137

R9139

R9140

R9301

R9302R9303

R9305

R9307

R9308

R9309

R9310

R9311

R9312

R9313

R9315

R9316

R9318R9319 R9320

R9321

R9324

R9325

R9332

R9333

R9334

R9336

R9337

R9338

R9341

R9344

R9345

R9347

R9348

R9801

R9802R9803

R9804

R9805

R9806

R9807

R9808 R9809

R9810

R9812

R9813

R9814

JR8105

R9342

R8143

SE7

SE5

SE6

R9114

R9128

R9115

R9343

Q8145

Q8147

R8120

R8123

R9124

R9322

R9323

R9815

IC9801

IC9901

R8105

R8155

R8106

R8135

R9101

R9110

C9107

R9112

R9132 R9133

R9136

JR8100

R8109

R8121

R8161

R8160

R9335

R9346

R9138

R9331

R8101

R8164

C8132

C8133

C9113

R8136

R8137

R8138

R8139

Q8102

Q9103

Q9104

Q9332

Q8103

Q9331

Q9341

R8134

JR8102

IC9342

IC9103

Q8143

R9326

R9327

JR8106

JR8101

D8102

D9106

D9107

D9108

D9110

D9301

D9331

D9803

ZD9103

ZD9301ZD9302

ZD9330

ZD9340

IC9301

Q9333

IC8101

ZD8101

Q8149

Circuit Diagrams and PWB Layouts

EN 65TPN14.1E LA 10.

2014-Jan-24

back to

div.table

10.4 A 715G6991 PSU

19750_500.eps

AC input

A01 A01

2014-08-02

715G6991

AC input

R9902 1M 1/ 2W

C9903

220PF 250V

C9904

220PF 250V

SG9901

NC

SG9902

NC

!

RV9901 680V

CN9901

SOCKET

12

R9901 NC / 510k 1/ 2W

R9903 NC / 510k 1/ 2W

!

HS9901

HEAT SIN K

1 2 3 4

C9902

470NF 275V

!

L9902

14mH

1

2

4

3

C9901

470NF 275V

!

F9901

FUSE

1 2 3 4

NC/IC9901

NC

1

D12D1

3

NC

4

NC

5D26D27NC8

!

t

NR9901

2R

1 2

!

C9907

470pF 250V

C9908

NC/47PF

!

C9905 220PF 250V

L9901

14mH

1

2

4

3

!

C9906 220PF 250V

!

t

NR9902

2R

12

!

B

Vsin

A

B

-

+

BD9901

TS10K80-02

2

1

3

4

FB9903

BEAD

1 2

FB9901

BEAD

1 2

FB9902

BEAD

1 2

T5AH/250V

10-4-1 AC input

Circuit Diagrams and PWB Layouts

EN 66TPN14.1E LA 10.

2014-Jan-24

back to

div.table

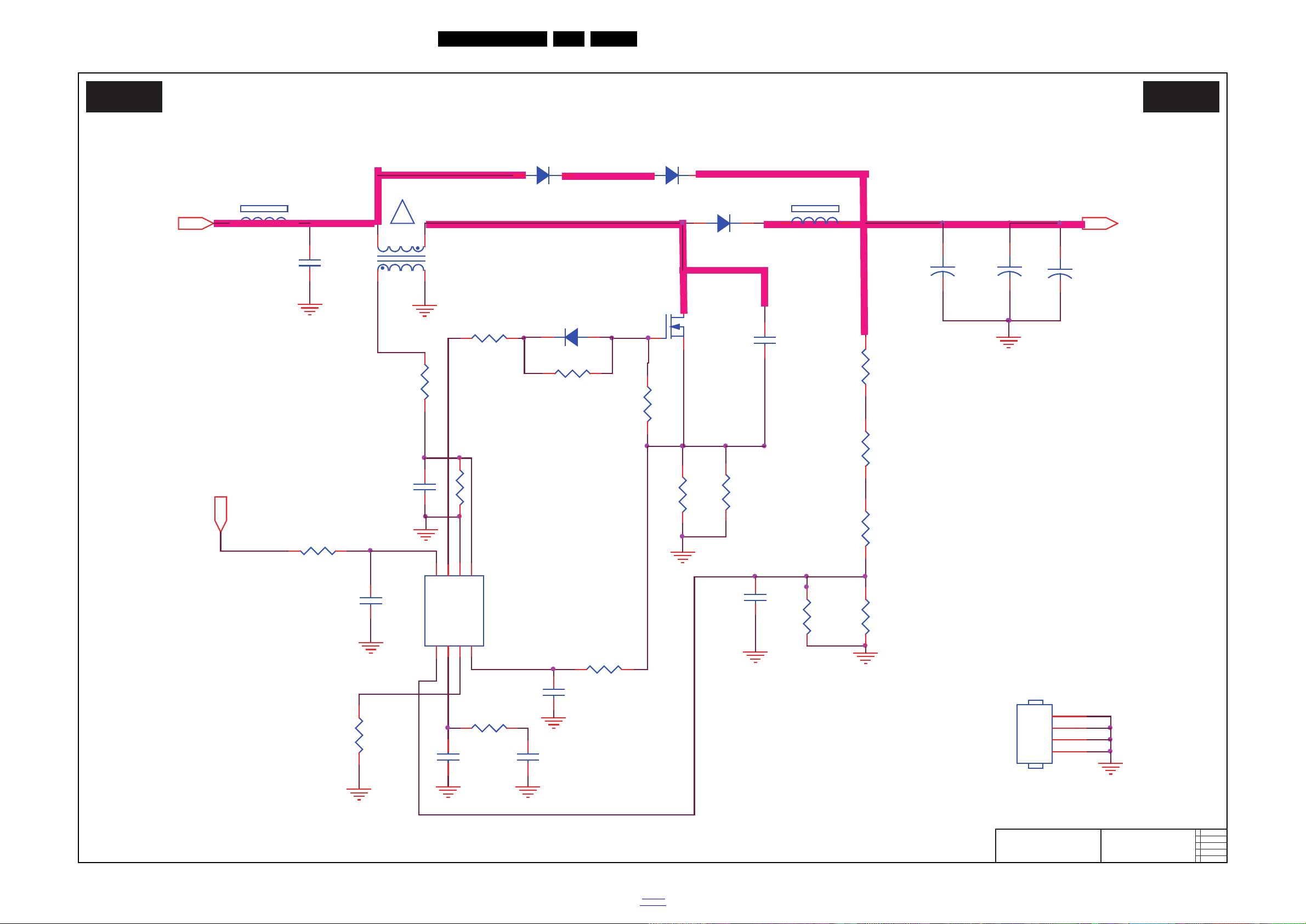

10-4-2 PFC

19750_501.eps

PFC

A02 A02

2014-08-02

715G6991

PFC

Vsin

!

R9815

2.2R

R9809

10K 1/8W

B+

C9803

100N 50V

+

C9812

68uF 450V

FB9801 BEAD

1 2

IC9801

LD7591T

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT7VCC

8

Q9801

TK16A60W

VCC_ON

C9808 100PF

D9804 IN5408G-04

D9802

FMNS-1106S

R9807

10 OHM 1/8W

R9808

51 oHM 1% 1/8W

C9807 1N 50V

HS9801 HEAT SIN K

1 2 3 4

R9813

10K 1/8W

R9810

470 OHM 1/4W

R9805 20K 1/4W

R9811

0.2R

C9801 1UF 450V

R9820

0.2R

L9801

240uH

1

3 4

5

R9814

NC

C9809

100P 50V

FB9802 BEAD

1 2

R9812 27K 1/8W 1%

C9806

0.47U F 50V

+

C9810

68uF 450V

R9806

2.4KOH M +-1% 1/8W

+

C9811

68uF 450V

C9802

47P 50V

D9801 IN5408G-04

C9805

100N 50V

R9802

1M 1/4W 1%

R9803 1M 1/4W 1%

R9801 1M 1/4W 1%

R9804 19K1 +-1% 1/8W

D9803

SS1060FL

Circuit Diagrams and PWB Layouts

EN 67TPN14.1E LA 10.

2014-Jan-24

back to

div.table

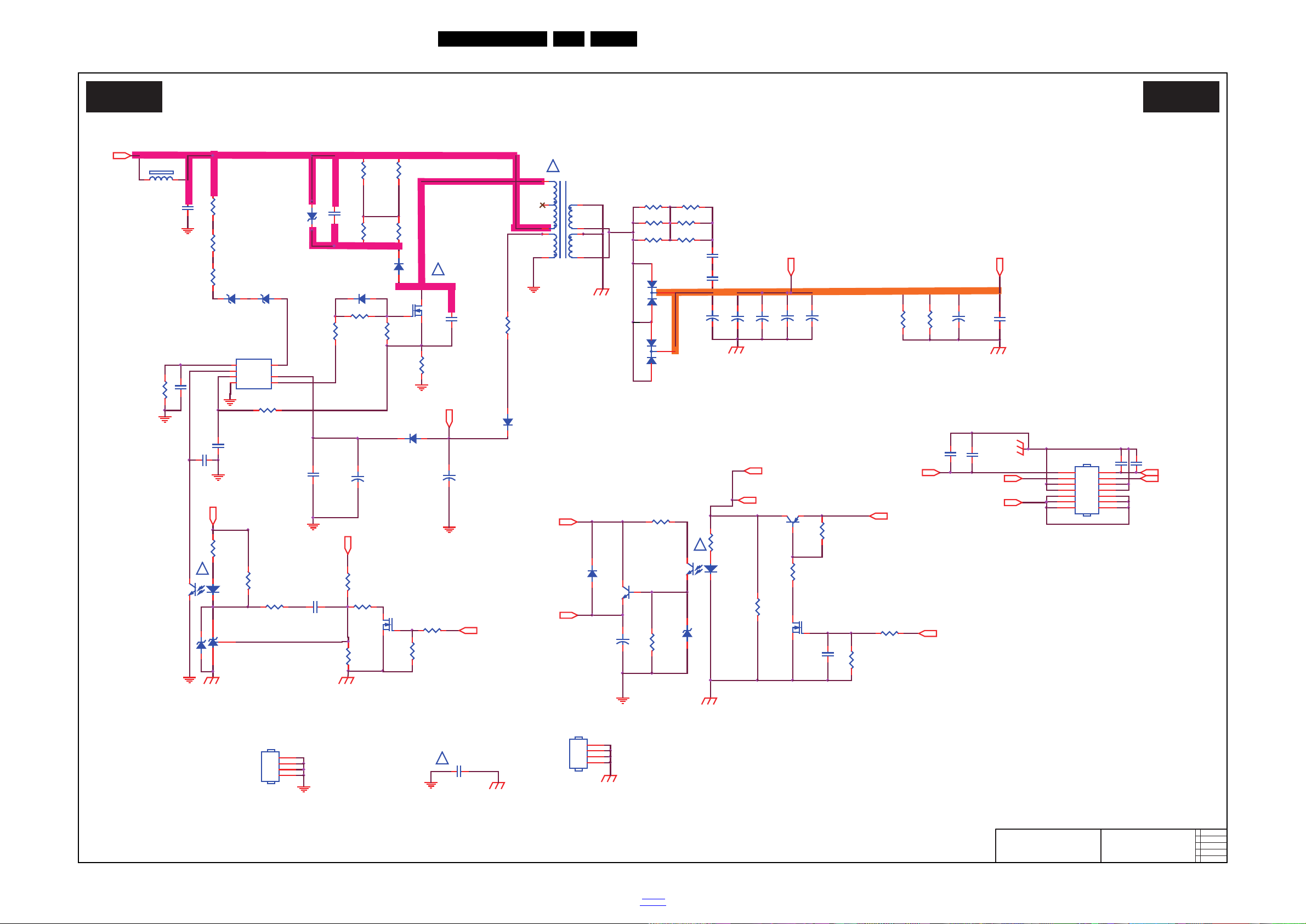

10-4-3 Main Power 12V

19750_502.eps

Main Power 12V

A03 A03

2014-08-02

A

715G6991

Main Power 12V

IC9342

TL431G-AE2-R

HS9302

HEAT SINK

1 2 3 4

!

+

C9320 47UF 50V

HS9301 HEAT SINK

1 2 3 4

Q9332 LMBT3906LT1G

R9322 51 OHM 1/4W

R9323

51 OHM 1/4W

C9309

2N2 500V

D9301

SS1060FL

C9333

100P 50V

R9321

51 OHM 1/4W

R9331

10K 1/6W

D9302 FR107

Q9301

TK13A65U

C9306

NC/47PF

Q9341 NC/2N7002K

ZD9302

BZT52-B30

12

C9302 1NF

R9334 10KOHM

C9331

100N 50V

L9301 3UH

IC9341

EL817M(X)

12

43

ZD9301

BZT52-B30

12

C9310

2N2 500V

R9306 NC/0.1R

+

C9311

470UF 25V

CN9301

CONN

2 4 6 8 10 12 14

1 3 5 7

9 11 13

R9342 NC/ 100K 1/ 8W 1%

R9307

100K 1/4W

+

C9307 10UF 50V

R9348

1K 1/8W 1%

ZD9340

BZT52-B16

1 2

R9333 10K 1/8W 1%

R9318 51 OHM 1/4W

R9345 NC/6.2K OHM +-1% 1/8W

R9303

6.8K 1/4W

+

C9314 330UF25V

R9337

2Kohm 1/4W +/-5%

R9302

6.8K 1/4W

R9346

2Kohm 1/4W +/-5%

R9311

10 OHM 1/8W

R9344 2K49 1/8W 1%

R9315

470 OHM 1/4W

R9336 2Kohm 1/4W +/-5%

R9316

4.7 OHM +-5% 1/4W

R9314

0.27R 2W

R9308

100K 1/4W

R9347

2.2K 1/4W

+

C9332

10UF 50V

R9338

100K 1/8W 1%

R9319

51 OHM 1/4W

R9312 75 OHM +-1% 1/8W

R9335 10K 1/4W

R9332 330K 1% 1/8W

IC9331

EL817M(X)

12

43

R9341

NC/ 10K 1/ 6W

C9304 1N 50V

Q9331 2N7002K

R9301

6.8K 1/4W

C9301

10NF 1KV

C9315

100N 50V

+

C9312

470UF 25V

R9309 100K 1/4W

R9310

100K 1/4W

C9341 220N 50V

ZD9330

BZT52-B15G

1 2

Q9333 BTC4672M3

D9331

SS1060FL

C9305

470P 50V

PS_ON

C9308 100N 50V

R9320 51 OHM 1/4W

2D/3D

+

C9313

470UF 25V

R9313 10KOHM

+

C9317

470UF 25V+C9318

470UF 25V

DV5

VCC

DV5

+12"V

VCC

ON/OFF

PS_ON

B+

DIM

OVP

FB9301

BEAD

1 2

ZD9303

NC/P6KE160AA0

12

R9324NCR9325

NC

IC9301

LD7752B

CT

1

COMP

2

CS

3

GND4OUT

5

VCC

6

HV

8

R9305

NC/ 100KOH M +-5% 1/8W

VCC_ON

+12V

D9305 FME-220B

1

2

3

!

C9330 1NF 250V

R9343

9.53KOHM +-1% 1/8W

D9306 FME-220B

1

2

3

C9303 47nF 50V

D9304 FR107

D9303

FR107

!

C9334 NC/ 470pF 50V

C9335

NC/470pF 50V

C9336

470pF 50V

T9301

POWER X' FMR

1

2

3

4

5

6

7

9

10

Circuit Diagrams and PWB Layouts

EN 68TPN14.1E LA 10.

2014-Jan-24

back to

div.table

10-4-4 LLC 24V

19750_503.eps

LLC 24V

A04 A04

2014-08-02

A

715G6991

LLC 24V

ZD9105

NC/BZT52-B18

1 2

+

C9122

330UF 35V

+

C9121

NC/ 330U F 35V

!

L9102

1.1uH

C9107 470pF 50V

R9113

110KOHM +-1% 1/8W

C9106

47pF

C9105

22nF

R9104 20K 1/8W 1%

C9109 4N7 50V

R9107

2.2R

C9108

1uF

C9104 1uF

D9105 UF1010G

R9125 1K 1/8W 1%

C9102 4N7 50V

C9103 330nF

C9125

100N 50V

C9111 33N 50V

R9106 4R7 +-5% 1/8W

IC9102 EL817M(X)

12

43

R9126 3K3 1/8W 1%

+24V

R9123

18K 1/8W 1%

VCC_ON

FB9101

BEAD

1 2

R9120 2K4 +/-1% 1/8W

R9119 2K 1/8W 1%

R9108

1K 1/8W 1%

C9101 10NF 1KV

R9121

5.1K 1/4W

R9105 NC/0.1R

EMI

B+

IC9101

LCS701LG

VCC

1

VREF

3

G

4

OV/UV

5

FB

6

DT/BF

7

IS

8

NC

9

S1

10

S2

11

HB

13

VCCH

14

D

16

R9101

1M 1/4W 1%

R9124

5.6KOHM +-1% 1/8W

R9114

24K 1/8W 1%

R9102 1M 1/4W 1%

R9103

1M 1/4W 1%

R9127 43R 1%

C9127 1uF

C9128

NC/1uF

D9102

1

2

3

C9118 470pF 250V

C9117

2.2nF 50V

!

D9106

SS1060FL

D9107

SS1060FL

C9126

2.2nF 50V

+24V

R9110

12K 1/4W

C9116 33N 50V

R9109

100R 1/8W 5%

R9111

220K

R9112 33K 1/8W

R9115

3K

C9110

0.47UF 50V

+

C9123

330UF 35V

R9132

NC/ 5. 1K 1/ 4W

R9133

NC/ 5. 1K 1/ 4W

T9101

POWER X' FMR

1

6

5

11

12

4

R9135

NC/5.1K 1/4W

R9134

NC/5.1K 1/4W

R9160 NC/ 130R 1%

B+"

+

C9120 10UF 50V

R9140 1K 1/8W 1%

OVP

+24V

Q9104 LMBT3904LT1G

C9133 100N 50V

ZD9103 BZT52-B30

1 2

Q9103 LMBT3906LT1G

R9139 100 OHM 1%

R9136 1K 1/8W 1%

R9138 1K 1/4W

D9110

SS1060FL

R9137 0 OHM +-5% 1/8W

D9108

SS1060FL

FB9102 BEAD

1 2

R9131 NC/0.1R

ZD9104

BZT52-B24G

1 2

+12V

C9119

1uF

IC9103

TL431G-AE2-R

+

C9129

330UF 35V

HS9101

HEAT SINK

1 2

+

C9130

NC/ 330U F 35V

D9101

1

2

3

HS9102 HEAT SINK

1 2 3 4

R9122

5.1K 1/4W

Circuit Diagrams and PWB Layouts

EN 69TPN14.1E LA 10.

2014-Jan-24

back to

div.table

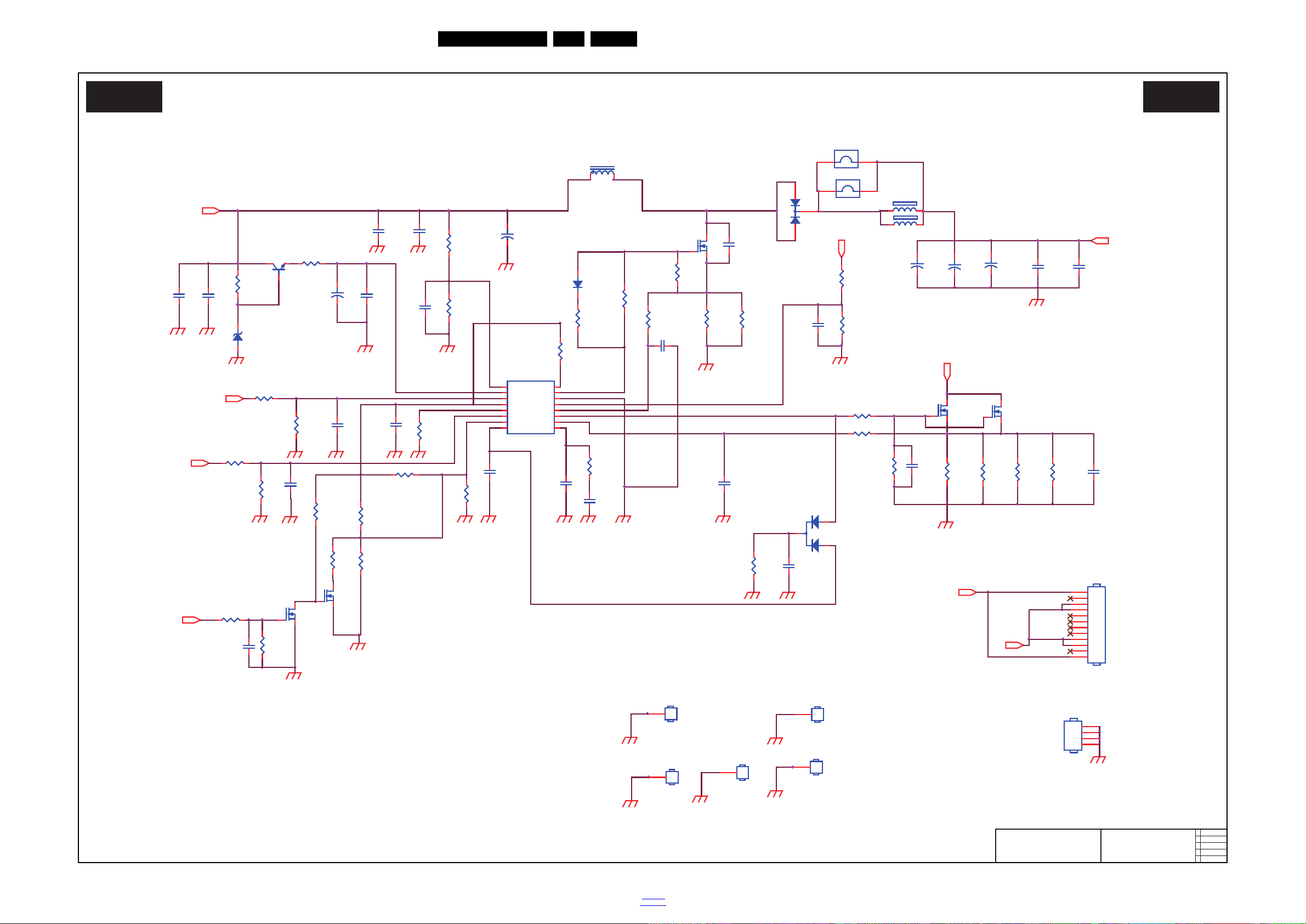

10-4-5 LED Driver for A3D

19750_504.eps

LED Driver for A3D

A05 A05

2014-08-02

A

715G6991

LED Driver for A3D

R8602

0.07R 3W

C8622

100N 50V

C8620 1NF

R8618 100K

R8613

100K 1/8W 1%

R8617 100K

C8618 100NF 250V

C8604 1NF

D8602 SS1060FL

C8626

100N 50V

R8626

10K 1/8W 1%

C8610 470PF 50V

R8612 10K OHM

C8625

1uF

R8621

10K 1/8W 1%

R8623 1K 1/4W

+

C8602

10UF 50V

C8624

10N 50V

+

C8612 100u 100V

Q8603

LMBT3904LT1G

D8603 BAV70

3

1

2

C8621 1NF

+

C8613 100u 100V

C8617 100NF 250V

R8609 12K 1/8W 5%

C8623 1uF

R8624

0.47R 1%

C8615

100N 50V

+

C8614 100u 100V

R8608 56K

C8611 100PF 50V

C8603 1uF

C8609

0.47UF 50V

R8629

100KOHM +-5% 1/8W

R8615

100K 1/8W 1%

R8605

4R7 +-5% 1/8W

IC8601

OZ9902CGN

UVLS

1

VCC

2

ENA

3

VREF

4

RT

5

PWM

6

ADIM

7

TIMER8SSTC MP

9

ISEN

10

PROT

11

ISW

12

OVP

13

GND

14

DRV

15

FAULT

16

R8625

0.36R 1%

R8606 68K 1/8W 1%

CN8601

CONN

1

2

3

4

5

6

7

8

9

10

11

12

R8616 51K 1/8W 1%

C8605

2.2UF 25V

ZD8601 GDJ13B

1 2

R8611

3K3 1/8W 1%

R8620

100KOHM +-5% 1/8W

C8607

2.2UF 25V

R8627

0.36R 1%

+

C8601 330UF 35V

R8614

10K OHM

R8619 20K 1/4W

C8619

100PF 50V

R8604

10R 1/8W 5%

C8608 1N 50V

Q8602 P3710BD

R8628

0.47R 1%

R8622 1K OHM +-5% 1/8W

HS8601

HEAT SINK

1 2 3 4

FB8603

NC/BEAD

1 2

R8601

0.07R 3W

Q8601

AOTF298L

R8603 1Kohm +-1% 1/4W

R8610

10R 1/8W 5%

C8606

100PF 50V

R8607

3.3KOHM +-1% 1/8W

VLED+

LED-

VLED+

+24V

DIM

ON/OFF

LED-

Q8604 NC

Q8605

NC/2N7002K

Q8606

NC/2N7002K

R8634

NC/100K

R8633

NC/100K

R8635

NC/ 10K OH M +-5% 1/8W

R8631

NC/ 120K 1/ 8W 5%

R8632

NC/ 24KOH M +-1% 1/8W

R8630

NC/100K

2D/3D

C8630 NC/1N 50V

L8101

33uH

3

1

FB8604

NC/BEAD

1 2

C8616

NC/47PF

D8601

SBRF3080

1

2

3

GND801

GND

1

GND804

GND

1

J940

JUMPER

1 2

GND803

GND

1

GND805

GND

1

GND806

GND

1

J950

JUMPER

1 2

Circuit Diagrams and PWB Layouts

EN 70TPN14.1E LA 10.

2014-Jan-24

back to

div.table

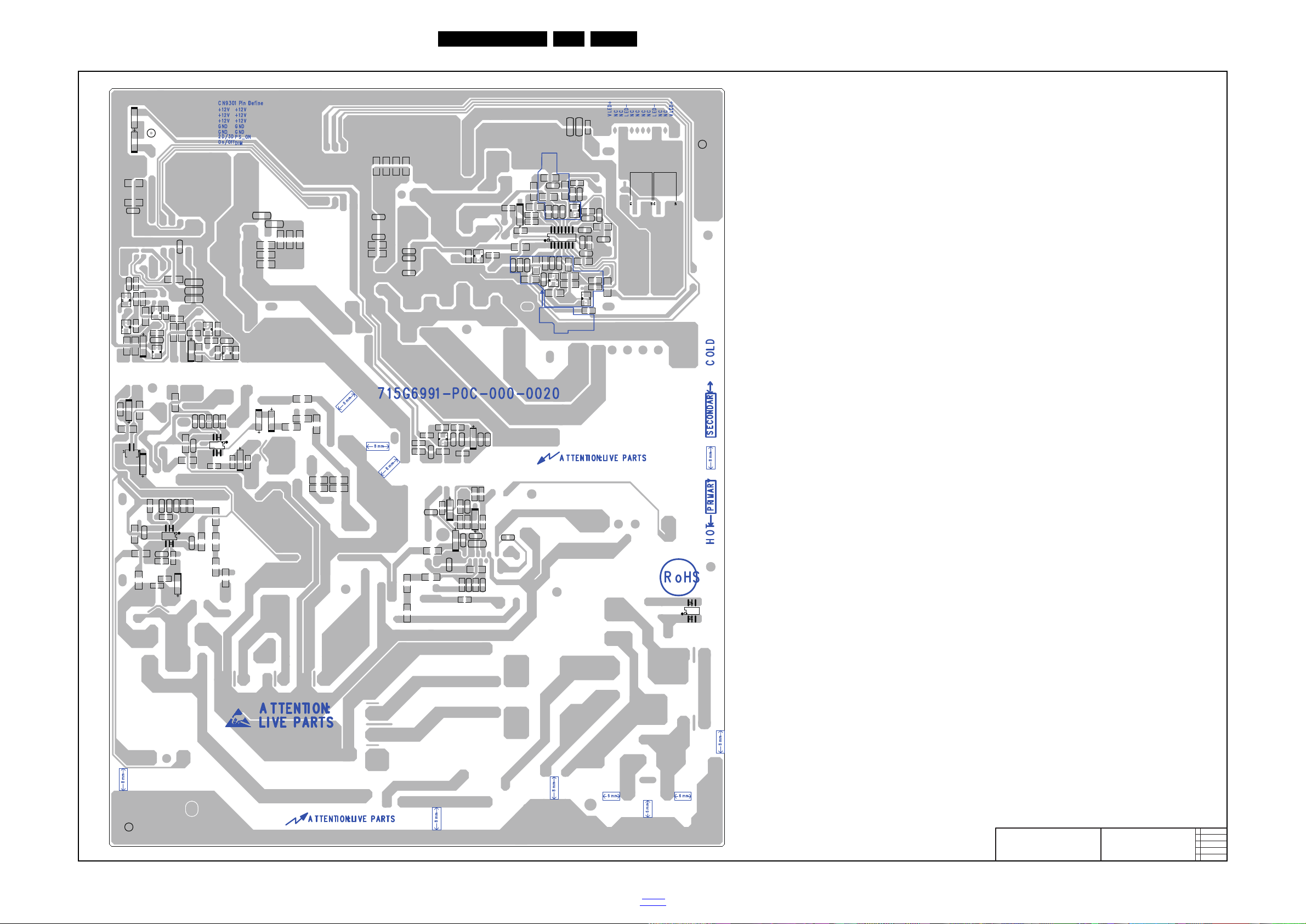

10-4-6 Power layout top

19750_505.eps

2014-06-01

A

715G6991

LAYOUT TOP

C9302

C9332

D9105

D9302

D9303

IC9102

IC9331

IC9341

R8624 R8625

R9314

ZD9303

D9304

J975

J974

J973

J968

J966

R9331

J960

J953

J952

J969

J972

SU6

SU3

SU2

T9101

R9811

R9820

D9801

D9804

J946

J947

J948

R9341

J957

J954

J964

T9301

SU1

SU5

J956

R8627 R8628

SU4

C9306

C8616

SU7

C8602

J962

J965

J971

J970

J967

J942

J941

J961

J944

J945

J943

J949

J958

J959

J955

J951

J950

J940

S2

S3

S4

S1

H1

S5S6

BD9901

C9106

C9311

C9312

C9313

C9314

C9317

C9318

C9810C9811 C9812

C9901

C9902

C9905

C9906

C9907

CN8601

D8601

D9102

D9305

D9306

D9802

FB9101

FB9801

FB9802

HS9101

HS9301

HS9801

HS9901

IC9101

L9102

L9301

L9901

L9902

NR9901

NR9902

MH6

MH5

MH4

MH3

MH1

C9105

HS9102

C9307

D9101

C9120

C9129

C9130

C9320

F9901

HS9302

C8612

C8613

R9105

R9306

RV9901

CN9301

L9801

MH2

C9808

FB9901

FB9902

SG9902

SG9901

C9801

C9330

C9903

C9904

C9118

FB9903

R9131

FB9301

FB9102

C9908

R9901

R9903

CN9901

C8601

C9121

C9122

C9123

L8101

C8614

Q8601

Q9301

Q9801

R9902

C9101

C9301

ZD8601

GND801

GND803 GND804

GND805

GND806

R8601

R8602

HS8601

FB8603

FB8604

Circuit Diagrams and PWB Layouts

EN 71TPN14.1E LA 10.

2014-Jan-24

back to

div.table

10-4-7 Power layout bottom

19750_506.eps

2014-06-01

A

715G6991

LAYOUT BOTTOM

C8604

C8608

C8609

C8611

C8620

C9102

C9103

C9104

C9108

C9109

C9110

C9111

C9116

C9117

C9125

C9126

C9127

C9128

C9133

C9303

C9304

C9305

C9308

C9309

C9310

C9315

C8623

C9331

C9341

C9802

C9803

C9805

C9806

C9807

C9809

IC9801

R8616

R8626

R8613

R9101 R9102

R9103

R9104

R9106

R9107

R9108

R9109

R9111

R9113

R9119 R9120

R9121

R9122

R9123

R9124

R9125

R9126

R9127

R9136

R9137

R9139

R9140

R9301

R9302

R9303

R9305

R9307R9308 R9309R9310

R9313

R9316

R9318

R9319

R9320

R9321

R9324

R9325

R9332R9333

R9335

R9336

R9337

R9338

R9344

R9345

R9348

R9801

R9802 R9803

R9804

R9805

R9806

R9807

R9808

R9809

R9810

R9812

R9813

R9814

R9342

R9138

R9132

R9133

R9134

R9135

R9322

R9323

R9815

RJ8613

RJ8614

R9312

R9311

R9315

R9334

RJ8605

R9343

RJ8610

R9346

R9110

C9107

R9114

R9112

R9115

RJ8612

RJ8609

RJ8611

R8607

R8612

R8631

R8615

F5

F6

F7

R9347

C8619

R8611

C9119

NC/IC9

R9160

R8608

R8620

IC8601

C8603

C8605

C8606

C8607

C8610

C8615

C8621

C8622

C8624

C8625

C8626

C8630

C8617

C8618

R8606

R8610

R8629

R8632

R8635

R8614

R8621

R8622

R8630

R8634

R8633

R8617

R8619

R8623

R8605

R8604

R8603

RJ8604

RJ8602

RJ8601

R8609

RJ8608

R8618

C9334 C9336 C9335

C9333

Q8606

Q9341

Q9331

IC9342

IC9103

Q8605

Q9332

Q9103

Q9104

D8602

D9106

D9107

D9108

D9110

D9301

D9331

D9803

IC9301

Q9333

ZD9103

ZD9301

ZD9302

ZD9330

ZD9340

Q8602

Q8604

ZD9105

Q8603

D8603

ZD9104

Circuit Diagrams and PWB Layouts

EN 72TPN14.1E LA 10.

2014-Jan-24

back to

div.table

10.5 B 715G6842 SSB

19750_513.eps

System Power

B01 B01

2014-08-05

715G6842

System Power

OPWRSB_PWR Normal:High Stand_By:Low

TUNER VCC From +5V_SW

U705 AP1117D33G-13

VIN3VOUT

2

ADJ(GND)

1

+3V3_TUNER+5V_SW

+

C774

100UF 16V

DVDD3V3

+5V_SW

R4022

NC/0R05 1/16W

R737

13K OHM +-1% 1/16W

R739

75K 1/16W 1%

C723

1UF 10% 16V

R4277

0R05

TP710

C702 10UF 10V

C701 10UF 10V

(500KHz)

U706 G5695T11U

VIN

1

GND

2

EN3VFB

4

LX

5

C716 100NF 16V

C746

NC/100NF 16V

R719 45.3K 1%

C747

100NF 16V

R728

10K +-1% 1/16W

L703

2.2uH

R729

100R 1/16W 5%

+

C778

100UF 16V

Q754

SM3201PSQA-TRG

D

1

D

2

D

3

G4S

5

D

6

D

7

D

8

2D/3D_EN

+12V

+

C749

100UF 16V

FB704

120R

1 2

FB712

120R

1 2

C721

100NF 16V

VCCK AVDD1V2

OPWRSB_PWR

C700

NC/10uF 6.3V

R727

NC/22K 1/16W 5%

OPWRSB

R715

10K 1/16W 5%

R701

100R 1/16W 5%

3V3SB

R754

22K 1/10W

R755

10K 1/16W 5%

R756

10K 1/10W 5%

C753

1UF 10% 16V

+5V_SW

R757

5.1KOHM +-5% 1/10W

Main_12V +12V

OPWRSB_PWR

OPWRSB_PWR Normal:High Stand_By:Low

TP703

R707

110R 1/10W 1%

R708

24R 1/10W 1%

U707 AZ1084CS2-ADJTRE1

ADJ/GND

1

OUTPUT(TAB)

2

INPUT

3

DDRV

TP701

DVDD3V3

R4288

NC/0R051/8W

R4289

0R051/8W

+

C775

100UF 16V

+

C780

100UF 16V

R4280

NC/0R051/8W

+12V_Audio

R700

10KOHM +-5% 1/8W

TP705

C768

10UF 10V

R4279

0R051/8W

TP700

INVERTER_ON_OFF: Normal: High Stand_By: Low

R4307

NC/0R05

R412

10K 1/16W 5%

DVDD3V3DVDD 3V3

BL-I-CTRL

R419

4K7 1/16W 5%

R420

NC/4.7K1/16W

Q410 MMBT3904

BRIGHT_ADJ: Normal:Max:+3V3, Min:0V Stand_By:0V

TP702

DC POWER INPUT

OPWRSB: Normal: High Stand_by: Low

+12V_AL 16

+12V_AL

R4278

0R051/8W

AVDD3V3

R4339

2K7 1/16W 5%

AU_12V

C773

10uF 10V

TP704

D701 NC/FB340M

12

R709

0R05 1/4W

+5V_STB5,8,14

+5V_STB

TP706

Main_12V

STB_PWR

Q752

SM3201PSQA-TRG

D

1

D

2

D

3

G4S

5

D

6

D

7

D

8

+

C725

100UF 16V

OPWRSB_PWR

R4298

NC/0R051/8W

DDRV From DVDD3V3

GPIO 212

Q702

SM3201PSQA-TRG

D

1

D

2

D

3

G4S

5

D

6

D

7

D

8

R4297

0R051/8W

R4308

0R05

R4023

0R05 1/16W

FB719

NC/120R 1 2

VCCK

U701 AZ1084CS2-3.3TRG1

VIN3VOUT

2

GND

1

+5V_STB

Q753

2N7002

2D/3D_EN

2D/3D_EN 10,12Main_12V

INVERTER_ON_OFF

C733

10UF 10V

C712

10uF 16V

C767

10uF 16V

R459 150K

C711

1UF 10% 16V

R460

10 OHM

L702

MAPM0630F-1R0M-LF

C789

NC/100N 16V

C714

1UF 10% 16V

R461

1K

R462

100K 1/16W 5%

R465

2.8K 1/10W

3V3SB by +5V_STB or STB_PWR

C4028

100P 50V

C4029

1nF 50V

C4030

10NF 50V

V5V

R464

4K7 1%

TCON

L705

3.3uH 30mOHM

U103 G5312QN1U

TON

24

V5V

3

PGND

4

VCC

26

VN

20

VN

19

VN

18

VN

17

AGND

2

BST

22

LX

5

LX

6

LX

7

LX

8

LX

9

LX

10

PGND

11

PGND

12

PGND

13

PGND

14

PGND

15

PGND

16

OUT

25

FB

27

PGOOD

28

ILIM

1

EN

23

AGND

29

C769

10UF 10V

R466

5K1 1/16W 5%

R467

1.5R

C4025

10UF 10V

R463

6.2K 1%

+12V

V5V

C788

100N 16V

R4276

NC/0R05

VCCK

C718

100NF 16V

U708

TPS54428DDAR

EN

1

VFB

2

VREG5

3

SS4GND

5

SW

6

VBST

7

VIN

8

E-PAD

9

C770

10UF 10V

+12V_AL

Q755

2N7002

AVDD3V3 From +5V_SW

U709 AP1117D33G-13

VIN3VOUT

2

ADJ(GND)

1

C728 10uF 10V

AVDD3V3+5V_SW

Reserve Circuit

R4291

NC/0R051/8W

TP711

FB717

120R

1 2

D702 NC/FB340M

12

3V3SB

R4290

NC/0R051/8W

R417

100R 1/10W 5%

BOOST_PWM

+3V3_TUNER

BRIGHT_ADJ

R702 100R 1/16W 5%

BOOST_PWM

R4074 0R05 1/16W

FB715

NC/120R

1 2

D703 FB340M

12

D704 FB340M

12

4.3V

2.7V

+12V

C731

10UF 10V

C736

10UF 10V

R4075 0R05 1/16W

FB720

NC/120R

1 2

VCCK

Q706

NC/2N7002

CN700

CONN

2 4 6

8

10 12 14 16

1

3

5 7 9 11 13 15

R724

NC/2K 1/16W 5%

(650KHz)

FB710

120R

1 2

Q705 NC/MMBT3904

+5V_STB

R725

NC/10K 1/16W 5%

Main_12V

R723

NC/10K 1/16W 5%

R726

100K 1/16W 5%

C745

8.2NF 50V

C741

10UF 10V

3V3SB

+5V_USB

C709

1UF 10% 16V

Main_12V

C720

10uF 16V

C744 22P 50V

C743

100N 16V

C766 100N 16V

+12V to +5V_STB by OPWRSB

C742

100N 16V

STB_PWR

C737

10UF 10V

DVDD3V3 From +5V_SW

AU_12V

BL-I-CTRL 12

BL-I-CTRL

+

C782

NC/100UF 16V

C779

NC/10uF 10V

R706

36KOHM 1/10W

Q701 BC847C

R704

33K 1/10W 5%

FB718

120R

1 2

C763

10UF 10V

R705

2K7 1/16W 5%

C735

100NF 16V

C764

1UF 10% 16V

+5V_STB +5V_SW

+5V_USB

+12V

+5V_USB6,13

DVDD3V3

+3V3_TUNER

OPWRSB

BRIGHT_ADJ

+5V_STB TO +5V_SW BY VCCK

GND 4,5,6,7,8,9,10,11,12,13,14,15,16

OPWRSB5

DDRV

INVERTER_ON_OFF

DVDD3V3 4,5,6,8,10,12,13,15,16

INVERTER_ON_OFF 10

BRIGHT_ADJ 10

AVDD3V3 5,6,7,10,11,12,14

+3V3_TUNER 15

3V3SB5,6,8,9,10,12,14

VCCK 5,12

+12V 4,8

AVDD1V2 7,10,14,15

+5V_SW 4,6,7,10,14,15

DDRV 11

AVDD3V3

+5V_SW

VCCK

3V3SB

AVDD1V2

FB716

NC/120R

1 2

R758

6K8 1/10W 5%

R761

10K 1/16W 5%

R762

10K 1/10W 5%

C756

1UF 10% 16V

R764

5.1KOHM +-5% 1/10W

AU_12V

OPWRSB_PWR

10-5-1 System Power

Circuit Diagrams and PWB Layouts

EN 73TPN14.1E LA 10.

2014-Jan-24

back to

div.table

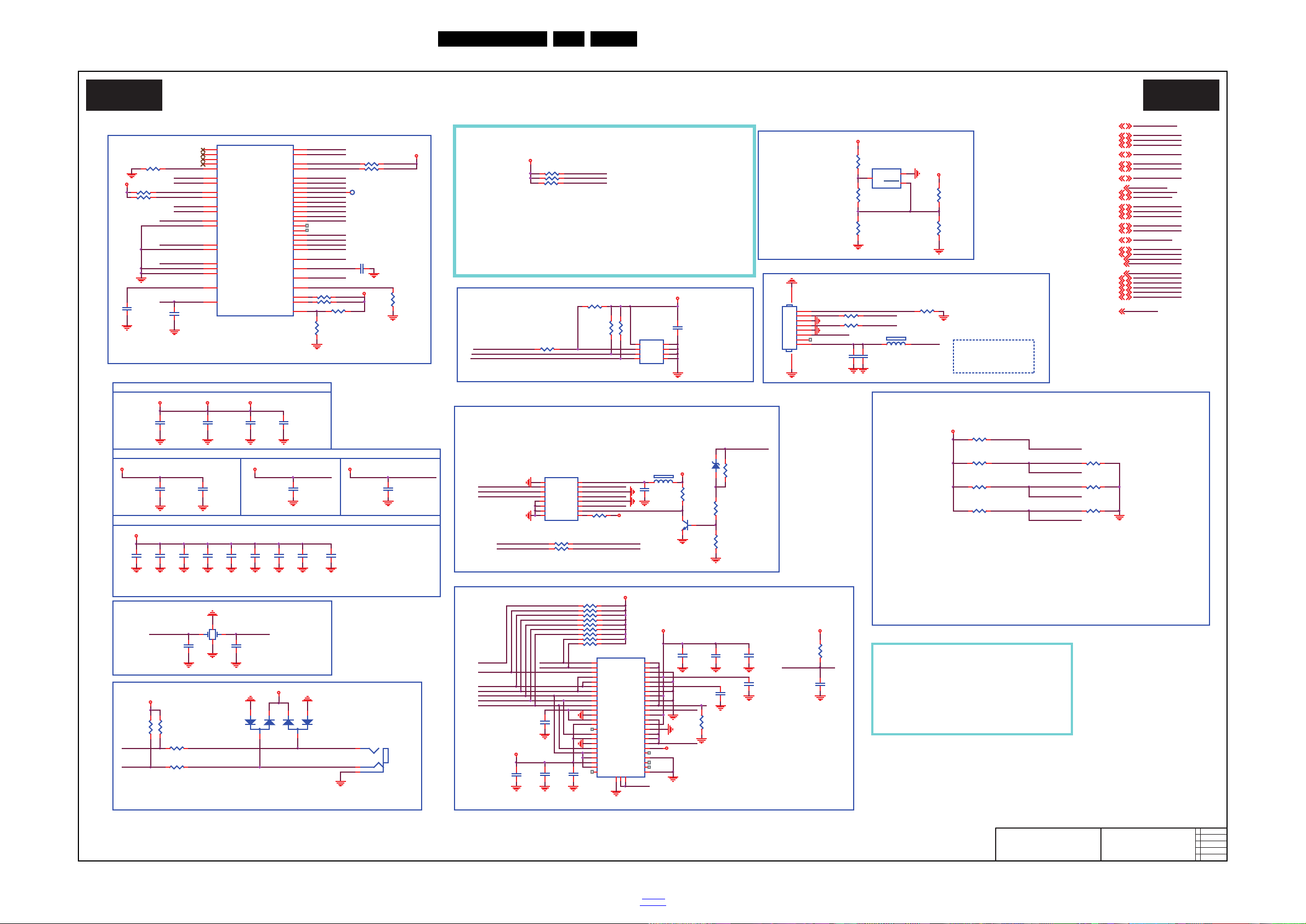

10-5-2 Peripheral

19750_515.eps

Peripheral

B02 B02

2014-08-05

715G6842

Peripheral

3V3SB

U4053

74HCT4052PW

2Y0

1

2Y2

2

2-COM

3

2Y3

4

2Y1

5

INH

6

GND

7

GND8B

9

A

10

1Y3

11

1Y0

12

1-COM

13

1Y1

14

1Y2

15

VCC

16

HDMI_SDA0/TX

RXD_RF4CE

U0TX

R4072 NC/0R05 1/16W

ORESET#

Reset IC

OSDA0

SYS_EEPROM_WP

GND

OSDA0

OSCL0

OPCTRL3

OPWRSB

RESET_RF4CE#

OPCTRL712

OPCTRL7

RESET_RF4CE#

RC66

RC6

RESET_RF4CE#12

3V3SB

PACLE

HDMI_SCL0/RX

TXD_RF4CE

R4057 10K 1/16W 5%

R4061 10K 1/16W 5%

R4028

4K7 1/16W 5%

R4053 10K 1/16W 5%

C4038

100NF 16V

C4045

NC/10UF 10V

R4054 10K 1/16W 5%

R4056 10K 1/16W 5%

EMMC_CLK

R4024

NC/10K 1/16W 5%

U0RX

PDD6

PDD5

PDD4

VDDI

R4060 10K 1/16W 5%

PDD7

DVDD3V3

ZD4000

RLZ9V1B

1 2

DVDD3V3

HDMI0_SCL

EMMC_RST#

eMMC

HDMI_SCL0/RX

HDMI_SDA0/TX

R4050

0R05 1/16W

R4065

40.2K 1/16W 1%

R4066

10K 1/16W 5%

Q4000

MMBT3904

C4046 100N 16V

R4067 10K 1/16W 5%

R4064

60.4K 1%

+5V_STB

EMMC_RST#

C4039

1uF 10V

R4063

NC/0R05 1/16W

DVDD3V3

R4055 10K 1/16W 5%

C4043

100NF 16V

C4044

100NF 16V

R4059 10K 1/16W 5%

FB4000

120R

12

PAALE

OSDA1

C4033

100NF 16V

C4034

10UF 10V

R4062 10K 1/16W 5%

PDD2

C4036

100NF 16V

C4035

10UF 10V

C4037

100NF 16V

R4058 10K 1/16W 5%

PDD3

POWE#

OSDA16,10

OSCL16,10

OSDA1

OSCL1

HDMI0_SDA14

HDMI0_SCL14

HDMI0_SDA

HDMI0_SCL

AVDD33_VGA_STB

TP450 TP

C4004

6.8PF 50V

C4031

4U7 10V

POWE#

R4073 NC/0R05 1/16W

OSCL1

HDMI_SCL0/RX14

HDMI_SCL0/RX

R4033 4K7 1/16W 5%

RXD_RF4CE

3.3V IO Power

I2C Address "A0"

R4035 4K7 1/16W 5% R4036 4K7 1/16W 5%

VCCK

AVDD33_XTAL_STB

LED_PWM06,12 LED_PWM16,12

LED_PWM1

LED_PWM0

SYS_EEPROM_WP

C732

10UF 10V

UART_SEL14

UART_SEL

C4014 NC/47PF 50V

UART_SEL

PARB# POOE# POCE1#

X4000

27MHz

1

2 4

3

DVDD3V3

NAND Flash

EMMC_CLK

RC6

C4005

6.8PF 50V

RC66

D4001

BAV99

3

1

2

C4027

10UF 10V

R4040

18K 1%

C4011 100NF 16V

RF4CE Interface

Core Power

C4022

1UF 10% 16V

U410

NC/AZ809ANSTR-E1

GND

1

RESET

2

Vcc

3

R4029

100R 1/16W 5%

C4008 100NF 16V

C4016

100NF 16V

CN412

PHONE JACK

1

2

3

D4000

BAV99

3

1

2

HDMI0_SDA

C4023

10UF 10V

EMMC_RST#12

EMMC_RST#

U4052

THGBM5G5A1JBAIR

DAT0

A3

DAT1

A4

DAT2

A5

NC

A2

NC

B1

DAT3

B2

DAT4

B3

DAT5

B4

DAT6

B5

DAT7

B6

VDDI

C2

Vssq

C4

Vccq

C6

NC

C1

Vcc

E6

Vss

E7

NC

A7

NC

C3

Vcc

F5

NC

D2

Vss

G5

NC

G10

NC

G3

NC

H5

Vss

H10

NC

J5

Vcc

J10

RSTN

K5

NC

K1

NC

K2

Vss

K8

Vcc

K9

NC

K3

Vccq

M4

CMD

M5

CLK

M6

Vssq

N2

Vccq

N4

Vssq

N5

Vccq

P3

Vssq

P4

Vccq

P5

Vssq

P6

NC

P8

NC

N7

A1 index

D4

NC

A6

NC

D1

NCP2NCN6NC

P7

HDMI0_SDA

C4012 100NF 16V

R4009

4K7 1/16W 5%

U409

CAT24C128WI-GT3

A0

1

A1

2

A2

3

VSS4SDA

5

SCL

6

WP

7

VCC

8

R4027 4K7 1/16W 5%

C4013

10UF 10V

C4006

NC/4.7uF 10V

C4017

100NF 16V

C4015

100NF 16V

R4007

0R05 1/16W

C4010 100NF 16V

R4008

NC/100K 1/16W 5%

R4031

4K7 1/16W 5%

R4001

NC/0R05 1/16W

R4005

4K7 1/16W 5%

E-Fuse

C4024

4U7 10V

RC6

FSRC_WR

AVDD33_XTAL_STB

DVDD3V3

MT5591IVDJ

U401G

JTCK

AK10

JTDI

AK11

JTDO

AL9

JTMS

AJ11

JTRST#

AJ12

OSDA0

AH11

OSCL0

AH10

OSDA1

AF11

OSCL1

AG11

XTALI

AN29

XTALO

AM29

AVDD33_XTAL_STB

AN30

AVSS33_XTAL_STB

AL29

AVDD33_VGA_STB

AN17

AVSS33_VGA_STB

AL17

AVSS33_PLLGP

AC21

AVDD10_LDO

AM17

U0TX

AH15

U0RX

AH14

U1RX

AG13

U1TX

AH13

POWE#

D24

POOE#

B25

POCE1#

D25

POCE0#

A25

PDD7

C22

PDD6

B22

PDD5

A22

PDD4

C23

PDD3

A23

PDD2

B23

PDD1

D23

PDD0

C24

PARB#

C25

PACLE

A26

PAALE

B26

OPWRSB

AL15

ORESET#

AK20

OIRI

AF17

FSRC_WR

C20

STB_SCL

AL14

STB_SDA

AK15

EMMC_CLK

C21

AVDD10_ELDO

AN16

AVSS33_CPUPLL

H21

AVDD33_PLL

AL26

POR_BND

AE14

R4026 4K7 1/16W 5%

RESET_RF4CE# HI : NORMAL LO: RESET ACTIVE

DVDD3V3

3V3SB

R4004 4K7 1/16W 5%

3V3SB

OSDA0

JTRST#

OXTALO

ORESET#

AVDD33_VGA_STB

OXTALI

R4032

4K7 1/16W 5%

POCE1#

PAALE

PACLE

U0TX U0RX

R4011

4K7 1/10W 5%

PDD3 PDD2

POWE# POOE#

PARB#

R4021

12K 1%

PDD5

PDD7 PDD6

PDD4

AVDD10_LDO

AVSS33_VGA_STB

AVSS33_XTAL_STB

OPWRSB

POCE0#

R4030

100R 1/16W 5%

AVDD10_ELDO

OSCL0

AVSS33_PLLGP

AVSS33_CPUPLL

AVDD33_PLL

R4019

10K 1/16W 5%

C4009 100NF 16V

R4006

NC/0R05 1/16W

DVDD3V3

R4038 4K7 1/16W 5%

R4010

4K7 1/10W 5%

R4037 4K7 1/16W 5%

VCCK

DVDD3V3

U0TX

AVDD3V33V3SB3V3SB

DVDD3V3

3V3SB

R4049

0R05 1/16W

FB721

120R

1 2

3V3SB

R4012

NC/0R05 1/16W

3V3SB

Delete revese circuit for HDCP 2.2

3V3SB

C734

10UF 10V

SYS_EEPROM_WP12

OPWRSB3

OSCL08,12,14 OSDA08,12,14

C703

10uF 6.3V

GND3,4,6,7,8,9,10,11,12,13,14,15,16

3V3SB3,6,8,9,10,12,14

OPCTRL312

DVDD3V33,4,6,8,10,12,13,15,16

AVDD3V33,6,7,10,11,12,14

VCCK3,12

+5V_STB3,8,14

+5V_STB

POWE#

OXTALO

27MHz CRYSTAL

OXTALI

Pin7 WP

C738

10UF 10V

OSCL0

HI = > Disable write LO = > Enable Write

SYSTEM EEPROM

VCC3IO_AB

VCC3IO_AB3,4,6,8,10,12,13,15,16

RC6

R4034 4K7 1/16W 5%

AVDD3V3

C739

10UF 10V

R4043 10K 1/16W 5%

VCC3IO_C

HDMI_SDA0/TX14

HDMI_SDA0/TX

C740

10UF 10V

U0RX

UART_SEL14

UART_SEL

C4018 100NF 16V

Analog Power

TXD_RF4CE

HDMI0_SCL

CN413

CONN

1 2

3

4 5 6 7

8

910

VCC3IO_C3,4,6,8,10,12,13,15,16

VCC3IO_C

AVDD33_PLL

R4017

10K 1/16W 5%

R4016

NC/10K 1/16W 5%

R4020

10K 1/16W 5%

R4015

10K 1/16W 5%

R4013

NC/10K 1/16W 5%

R4014

10K 1/16W 5%

LED_PWM0

LED_PWM1

3V3SB

OPCTRL7

STRAPPING

R4018

NC/10K 1/16W 5%

Isolation Res.

OPCTRL3

Circuit Diagrams and PWB Layouts

EN 74TPN14.1E LA 10.

2014-Jan-24

back to

div.table

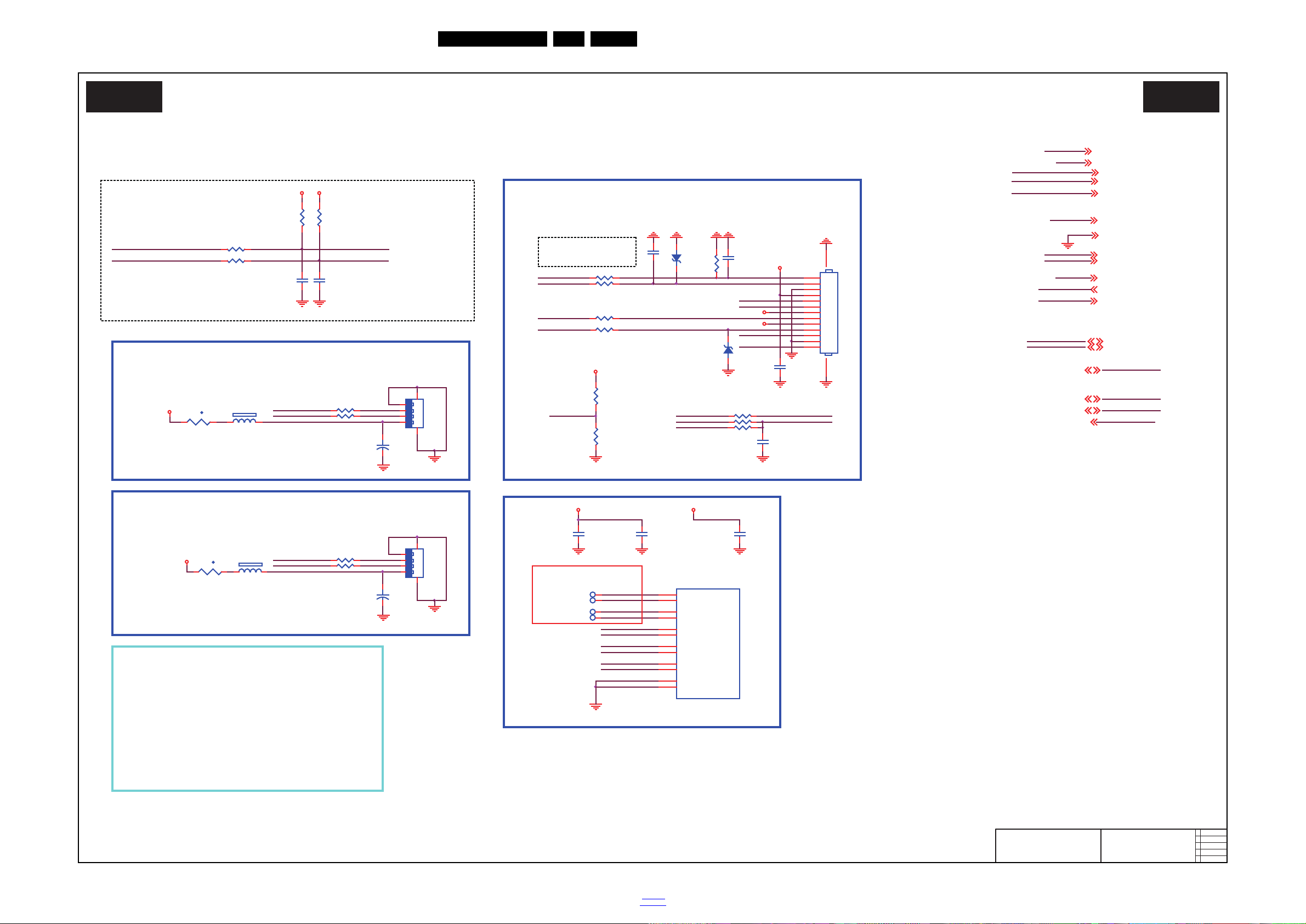

10-5-3 Connector/USB

19750_516.eps

Connector/USB

B03 B03

2014-08-05

715G6842

Connector/USB

KEY_PAD0 12

LED_PWM0 5,12

RC6 5

LED_PWM0

GND 3,4,5,7,8,9,10,11,12,13,14,15,16

Light_Sensor 12

3V3SB 3,5,8,9,10,12,14

DVDD3V33,4,5,8,10,12,13,15,16

AVDD3V33,5,7,10,11,12,14

+5V_SW 3,4,7,10,14,15

Key1KEY_PAD0

TO KEY PAD BOARD

LED_PWM1

Gaming

Gaming10

+5V_SW

+5V_USB 3,13

+5V_USB

AVDD3V3

LS_SDA

3V3SB

L/R_OUT10

L/R_OUT

LS_SDA

LOGO

USB for BT

TP491

ZD4102

NC/MM3Z3V6B

1 2

TP493

CN401

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13

1415

R4121 100OHM

Delete revese circuit for HDCP 2.2

DVDD3V3

+

C4111

100UF 16V

LED_PWM15,12

LED_PWM1

LS_SCL

R4119 100OHM

Key1

+

C4125

100UF 16V

KEY_PAD0

Gaming L/R_OUT

OSDA1

LOGO

ZD4101

NC/MM3Z5V6B

SIDE USB

USB_DP_P2 USB_DM_P2

Light_Sensor

USB_DP_P3 USB_DM_P3

USB_DP_P2 USB_DM_P2

R4299

NC/10K

RC6

R4300

NC/10K

R4118 100OHM

FB4103

120R

1 2

USB_DP_P0 USB_DM_P0

AVDD33_USB_P0P1P2

R4122 100OHM

AVDD33_USB_P3 AVSS33_USB_P1

USB_DP_P1 USB_DM_P1

AVSS33_USB_P3

MT5591IVDJ

U401I

USB_DP_P0

H32

USB_DM_P0

H33

USB_DP_P1

J32

USB_DM_P1

J31

USB_DP_P2

K32

USB_DM_P2

K31

USB_DP_P3

AN10

USB_DM_P3

AM10

AVDD33_USB_P0P1P2

K33

AVSS33_USB_P1

M25

AVSS33_USB_P3

AE11

AVDD33_USB_P3

AN8

LS_SCL

1234

CN4102

USB CONN

1

2

3

4

65

3D-IR-OUT12

3D-IR-OUT

TP494 TP495

USB_DP_P3

USB_DM_P3

USB_DP_P3 12

USB_DM_P3 12

FB4102

120R

1 2

RC6

Light_Sensor

LED_R: Enable(Stand_By): High Disable: Low

LED_PWM0

TO IR/KEY BOARD

OSDA1 5,10

OSCL1 5,10

OSDA1

OSCL1

LED_R

OSCL1

3D-IR-OUT

DOWN USB

USB_DM_P0

USB_DP_P0

t

TH4102 PTCR

1 2

Gaming

R4148 0R05 1/16W R4149 0R05 1/16W

+5V_USB

AVDD33_USB_P0P1P2

C4127

1UF 25V

C4126

100NF 16V

R4117 100OHM

AVDD3V3 AVDD3V3

AVDD33_USB_P3

C4128

100NF 16V

For JTAG USE

1234

CN4101 USB CONN

1

2

3

4

65

R4115

NC/1K 1/16W 5%

+5V_SW

R4116

NC/100OHM

R4114 100OHM

t

TH4101 PTCR

1 2

R4111 0R05 1/16W

C4106

0.1uF 50V

C4117

NC/100N 50V

R4106

100R 1/10W 1%

R4112 0R05 1/16W

R4102

100R 1/10W 1%

C4113

NC/100N 50V

R4101

NC/6.8K 1%

DVDD3V3

C4116

NC/10N 50V

C4115 NC/10uF 6.3V

C4107

NC/0.1uF 50V

R4100

6.8K 1%

3V3SB DVDD3V3

+5V_USB

3V3SB

DVDD3V3

Circuit Diagrams and PWB Layouts

EN 75TPN14.1E LA 10.

2014-Jan-24

back to

div.table

Circuit Diagrams and PWB Layouts

19430_519_130114.eps

130114

Audio/Video IO/SPDIF

B05 B05

2012-12-15

C

715G5713

Audio/Video IO/SPDIF

Y1P

SOY0

ADCINP_DEMOD

ADCINN_DEMOD

IF BPF

VGA_R_IN

SCART1_R_IN SCART1_L_IN

GND

VGA_L_IN

AVDD33_ADAC

AOSDATA0_D

AOMCLK_D

AOBCLK_D

AR0O

AL0O

AOLRCK_D

AVDD33_HPAAVDD33_AADC

Analog Power

YPBPR0_L_IN

R1047

56R 1/16W 1%

MT5580MPOI

U401J

ADCINP_DEMOD

AD19

ADCINN_DEMOD

AE19

IF_AGC

M19

RF_AGC

M20

AVDD12_RGB

AC17

AVSS12_RGB

V13

AVDD33_DEMOD

AE18

AVSS33_DEMOD

V16

AVDD12_DEMOD

AD18

AVSS12_DEMOD

AC18

AVDD33_VIDEO

AD17

AVSS33_VDAC

V14

AVSS33_VDAC_BG

W15

AVSS33_CVBS_1

W17

AVSS33_CVBS_2

Y17

AVSS33_CPUPLL

G15

HSYNC

AC11

VSYNC

AC10

RP

AB13

GP

AE12

BP

AB12

COM

AD12

SOG

AC12

VGA_SCL

AE9

VGA_SDA

AD9

COM1

AD14

PB1P

AE14

PR1P

AC14

Y1P

AB14

SOY1

AC13

COM0

AC16

PB0P

AD16

PR0P

AE16

Y0P

AC15

SOY0

AB15

VDACX_OUT

AA14

VDACY_OUT

Y14

CVBS0P

W16

CVBS1P

AB16

CVBS2P

AA16

CVBS3P

Y16

OSCL2

M21

OSDA2

M22

CVBS_COM

AA15

C605

33pF 50V

R1043 100R 1/16W 5%

MT5580MPOI

U401C

AIN1_L_AADC

AB19

AIN1_R_AADC

AB21

AIN2_L_AADC

AB18

AIN2_R_AADC

AB22

AIN3_L_AADC

AB20

AIN3_R_AADC

AC22

AIN4_L_AADC

AC20

AIN4_R_AADC

AB23

MPXP

W14

AVDD33_AADC

AD22

AVSS33_AADC

Y18

AVDD33_ADAC

AE23

AVSS33_ADAC

W19

AVSS33_CLN

AA18

VMID_AADC

AD23

AL0_ADAC

AE24

AR0_ADAC

AD25

AL1_ADAC

AC24

AR1_ADAC

AE25

AL2_ADAC

AD24

AR2_ADAC

AC25

ALIN

AE6

ASPDIFO0

AB4

AOBCK

AC8

AOLRCK

AD7

AOMCLK

AD8

AOSDATA0

AD6

AOSDATA1

AC7

AVDD33_HPA

AE22

AVSS33_HPA

V17

R1048 100R 1/16W 5%

R1040

18R 1/16W 5%

C619 10NF 50V

C603 100NF 16V

C1034 10NF 50V

R600

240R 1/10W 5%

C1040

10UF 10V

C618

10PF 50V

R1045

56R 1/16W 1%

C620 10NF 50V

R1039 0R05 1/16W

C615 10UF 10V

C600 100NF 16V

C612 100NF 16V

R1073 75 OHM +-5% 1/16W

C601 100NF 16V

C1037

NC/10N 50V

C614 10UF 10V

C613 100NF 16V

C1036 47NF 16V

C1035

10PF 50V

C1033 1.5NF 50V

C617 10NF 50V

R1071 75 OHM +-5% 1/16W

R1050 100R 1/16W 5%

C607 1uF 10V

R1041 100R 1/16W 5%

R1042

18R 1/16W 5%

R604

51OHM 1/16W +/-5%

C606 1uF 10V

C602 100NF 16V

R1113 10R 1/16W 5%

R1088

30Kohm 1/16W +/-5%

R605 10K 1/16W 5%

R1049 100R 1/16W 5%

R601

100R 1/10W 5%

C609

10PF 50V

C622

47PF 50V

C604

100NF 16V

R603

51OHM 1/16W +/-5%

ABC

D

EF

CN112

RCA JACK

3

2

6

5

9

8

1

4

7

10

11 12

C623

47PF 50V

C611 100NF 16V

C610 100NF 16V

C1039

10UF 10V

C608 1uF 10V

C1038

NC/10N 50V

C616 10NF 50V

R1087

30Kohm 1/16W +/-5%

C621

47NF 16V

R1044

18R 1/16W 5%

YPBPR0_R_IN

R1046

56R 1/16W 1%

AVDD3V3

AVDD1V2 AVDD3V3

VGA_R_IN8 VGA_L_IN8

SCART1_L_IN8

GND2,3,4,5,7,8,9,10,11,12,13,14,15

AL0O7

SCART1_R_IN8

AR0O7

AOLRCK_D7

AOBCLK_D7 AOMCLK_D7

Y0P8

AOSDATA0_D7

PB0P8

COM08 PR0P8 VSYNC8

HSYNC8 RP8

SPDIFOUT

BP8

GP8 VGACOM8

SOG8 VGASCL8

VGASDA8 TU_FAT_IN2+14

PR1P

TU_FAT_IN2-14 OSCL212,14

CVBS3P8

OSDA212,14

IF_AGC12,14

AVDD1V2 2,9,12,13,14

SOY08

AVDD3V32,4,5,9,10,11,12,13 ARC13

Analog Power

AVDD12_DEMOD

AVDD12_RGB AVDD33_DEMOD

AVDD33_VIDEO

AVDD1V2

SPDIF_OUT

YPbPrL_INY_IN_1

YPbPrR_IN

SPDIFOUT

PB_IN_1

YPbPr & Audio IN

PR_IN_1

IF_AGC

YPbPrL_IN

---><---|>

YPBPR0_L_IN

YPBPR0_R_INYPbPrR_IN

IF_AGC

PB1P

TU_FAT_IN2+

AVDD3V3

PR_IN_1

PB_IN_1

-------><-------

YPBPR IN

PR1

PB1P

COM1

PR1P

SOY1

Y1PY1

-------><--------------><-------

PB1

Y_IN_1

CVBS1P

Video

TU_FAT_IN2-

---><---|>

SPDIF OUT

AOLRCK_D AOSDATA0_D

AOMCLK_D

AOBCLK_D

AL0O

AVSS33_HPA

AVDD33_HPA

AR0O

SPDIF_OUT

ARC

VGA_R_IN

SCART1_R_IN

SCART1_L_IN

AVDD33_AADC AVSS33_AADC

AVSS33_ADAC

AVDD33_ADAC

VGA_L_IN

VMID_AADC

AVSS33_CLN

ARC

OSDA2

OSCL2

SOG

Y0P COM0

VGASDA

CVBS_COM

PB0P

VGASCL

HSYNC

AVSS33_DEMOD

AVDD12_RGB AVSS12_RGB

VSYNC

AVSS33_VDAC_BG

AVSS33_VDAC

AVDD33_VIDEO

AVSS12_DEMOD

AVDD12_DEMOD

AVDD33_DEMOD

TU_FAT_IN2+

RP

PR0P

AVSS33_CVBS_1 AVSS33_CPUPLL

ADCINP_DEMOD ADCINN_DEMOD

TU_FAT_IN2-

GP

BP

GP

VSYNC

HSYNC

AVSS33_CVBS_2

BP

CVBS3P

VGASDA

VGASCL

VGACOM SOG

RP

VGACOM

COM0

SOY1

Y0P

PR0P

PB0P

SOY0

OSDA2

CVBS1P CVBS3P

OSCL2

Audio

COM1

19750_517.eps

Audio /Video IO/SPDIF

B04 B04

2014-08-05

715G6842

Audio /Video IO/SPDIF

SOY1

Spdif Out

AU_DIN

DVI_R_IN

SCART1_R_IN SCART1_L_IN

GND

DVI_L_IN

AOSDATA0_D

AOMCLK_D

AOBCLK_D

AR0O

AL0O

AOLRCK_D

R615

56R 1/16W 1%

BT_TX

R611 100R 1/16W 5%

R616 100R 1/16W 5%

R608

18R 1/16W 5%

C619 10NF 50V

C603 100NF 16V

C625 10NF 50V

C631

10UF 10V

C618

10PF 50V

R613

56R 1/16W 1%

C620 10NF 50V

R607 0R05 1/16W

C600 100NF 16V

C601 100NF 16V

C628

NC/10N 50V

C627 47NF 16V

C626

10PF 50V

C624 1.5NF 50V

C617 10NF 50V

R618 100R 1/16W 5%

TP614 TP

R609 100R 1/16W 5%

R610

18R 1/16W 5%

C602 100NF 16V

R623 10R 1/16W 5%

R622

30Kohm 1/16W +/-5%

R617 100R 1/16W 5%

C609

10PF 50V

C630

10UF 10V

C608 1uF 10V

C629

NC/10N 50V

R621

30Kohm 1/16W +/-5%

TP603 TP

R612

18R 1/16W 5%

R614

56R 1/16W 1%

AVDD1V2 AVDD3V3

DVI_R_IN9 DVI_L_IN9

SCART1_L_IN9

GND3,4,5,6,8,9,10,11,12,13,14,15,16

AL0O8

SCART1_R_IN9

AR0O8

AOLRCK_D8

AOBCLK_D8 AOMCLK_D8

Y1P9

AOSDATA0_D8

PB1P9

COM19 PR1P9

BT_RX

AR1O AL1O

TU_FAT_IN2+15 TU_FAT_IN2-15

OSCL215

CVBS2P9

OSDA215

IF_AGC_559115

AVDD1V2 3,10,14,15

SOY19

AVDD3V33,5,6,10,11,12,14 ARC14

Analog Power

AVDD12_DEMOD

AVDD12_RGB AVDD33_DEMOD

AVDD33_VIDEO AVDD 33_CVBS

PR_IN_0

AVDD1V2

BT_TX

BT_VCC

SPDIF_OUT

+5V_SW

C613 100NF 16V

R606

33R 1/16W 5%

AR2O AL2O

Analog Power

C612 1uF 10V

C614 10UF 10V

C611 NC/100NF 16V

AVDD33_AADC

AVDD3V3

AVDD33_ADAC

U6003

CONNNECTOR

GND

1

VCC

2

VIN

3

AVSS12_RGB

AVSS33_CVBS_1

PR1P

COM1

Y1P SOY1

AVDD12_RGB

Y0P

PR0P

PB0P

SOY0

PB1P

ADCINP_DEMOD

AVDD33_VIDEO

COM0

AVSS33_DEMOD

TU_FAT_IN2+

IF_AGC_5591

ADCINN_DEMOD

AVSS33_VDAC_BG

AVDD33_DEMOD

AVSS33_CVBS_2

AVSS12_DEMOD

MT5591IVDJ

U401E

ADCINP_DEMOD

AM27

ADCINN_DEMOD

AN27

AVDD33_DEMOD

AN26

AVDD12_DEMOD

AN28

AVSS33_DEMOD

AL28

AVSS12_DEMOD

AL27

IF_AGC

L26

RF_AGC

M28

LOUTN

AJ27

LOUTP

AK27

OSCL2

N27

OSDA2

N26

CVBS3P

AK26

CVBS2P

AM25

CVBS1P

AH26

CVBS0P

AK25

CVBS_COM

AJ26

AVSS33_CVBS_1

AB20

HSYNC

AK18

VSYNC

AL18

RP

AL20

GP

AM20

BP

AL19

COM

AN20

SOG

AK19

VGA_SDA

AG22

VGA_SCL

AH22

COM1

AL21

PB1P

AK22

PR1P

AL22

Y1P

AM21

SOY1

AN21

COM0

AM23

PB0P

AL23

PR0P

AL24

Y0P

AN23

SOY0

AK23

VDACX_OUT

AH24

VDACY_OUT

AJ24

AVDD33_VIDEO

AN25

AVDD12_RGB

AN18

AVSS33_VDAC_BG

AC19

AVSS12_RGB

AK17

AVSS33_VDAC

AE20

AVSS33_CVBS_2

AB22

AVDD33_CVBS

AM26

OSCL2

RF_AGC

5135_REFCLKM 5135_REFCLKP

IF_AGC_5591

TU_FAT_IN2-

AVDD33_CVBS

OSDA2

AVDD12_DEMOD

CVBS2P CVBS0P

CVBS_COM

AVSS33_VDAC

YPbPrL_IN

---><---|>

YPBPR0_L_IN

YPBPR0_R_INYPbPrR_IN

YPbPr_DETECT

YPbPr_DETECT 12

AVDD3V3

TP601 TP

C

B

A

CN600

RCA JACK

1

2

3

4

5

6

7

YPbPrL_IN

Bluetooth interface

PR_IN_0

A

B

CN601

CONN

2 1 4

3

R603

51OHM 1/16W +/-5%

PB_IN_0

Y0

-------><-------

YPBPR IN

PR0

TP608 TP

PB0P

COM0

PR0P

SOY0

Y0P

-------><--------------><-------

PB0

Y_IN_0

CVBS0P

C606 1uF 10V

AOBCLK_D AOLRCK_D AOMCLK_D

C610 100NF 16V

Video

AOSDATA 1

VMID_AADC

MT5591IVDJ

U401D

AVDD33_AADC

AJ32

AVSS33_AADC

AC24

VMID_AADC

AN31

MPXP

AH25

AR0_ADAC

AK30

AL0_ADAC

AJ29

AR1_ADAC

AJ31

AL1_ADAC

AK29

AR2_ADAC

AJ30

AL2_ADAC

AH28

AVSS33_ADAC

AC23

ALIN

AG9

ASPDIF0

AG10

ASPDIF1

V27

AOBCK

AK9

AOLRCK

AJ9

AOMCLK

AF10

AOSDATA4

AH9

AOSDATA3

AK8

AOSDATA2

AJ8

AOSDATA1

AH8

AOSDATA0

AJ10

AVDD33_ADAC

AJ33

AIN1_R_AADC

AL32

AIN1_L_AADC

AN32

AIN2_R_AADC

AM33

AIN2_L_AADC

AM31

AIN3_R_AADC

AM32

AIN3_L_AADC

AK33

AIN4_R_AADC

AL33

AIN4_L_AADC

AN33

AOSDATA 2

AOSDATA 3

AOSDATA 4

SPDIF_OUT

AVDD33_ADAC

AVSS33_AADC

MPXP

ARC

AR0O AL0O

+5V_SW

YPBPR0_R_IN

SCART1_L_IN

SCART1_R_IN

AVDD33_AADC

AVSS33_ADAC

+5V_SW 3,4,6,10,14,15

AOSDATA0_D

DVI_R_IN DVI_L_IN

YPBPR0_L_IN

TP605 TP

TP604 TP

TP600 TP

TP607 TP

TP606 TP

Audio

TP609 TP

3V3SB 3,5,6,8,9,10,12,14

3V3SB

R604

51OHM 1/16W +/-5%

FB4252

120R

1 2

ARC

TP610 TP TP611 TP

C622

47PF 50V

Y_IN_0

R620 75 OHM +-5% 1/16W

C623

47PF 50V

YPbPrR_IN

OSDA2

OSCL2

Y1P

AIN4_L_IN

AIN4_R_IN

R619 75 OHM +-5% 1/16W

COM1 PB1P

TU_FAT_IN2+

PR1P

TU_FAT_IN2-

CVBS2P

C607 1uF 10V

BT_RX

TP602 TP

YPbPr_DETECT

TP612TP

PB_IN_0

BL

G

R

YPbPr & Audio IN

R

W

R4068

4K7 1/16W 5%

TP613TP

R429

10K 1/16W 5%

AVDD3V3

R4071

4K7 1/16W 5%

EN 76TPN14.1E LA 10.

10-5-4 Audio/Video IO/SPDIF

2014-Jan-24

back to

div.table

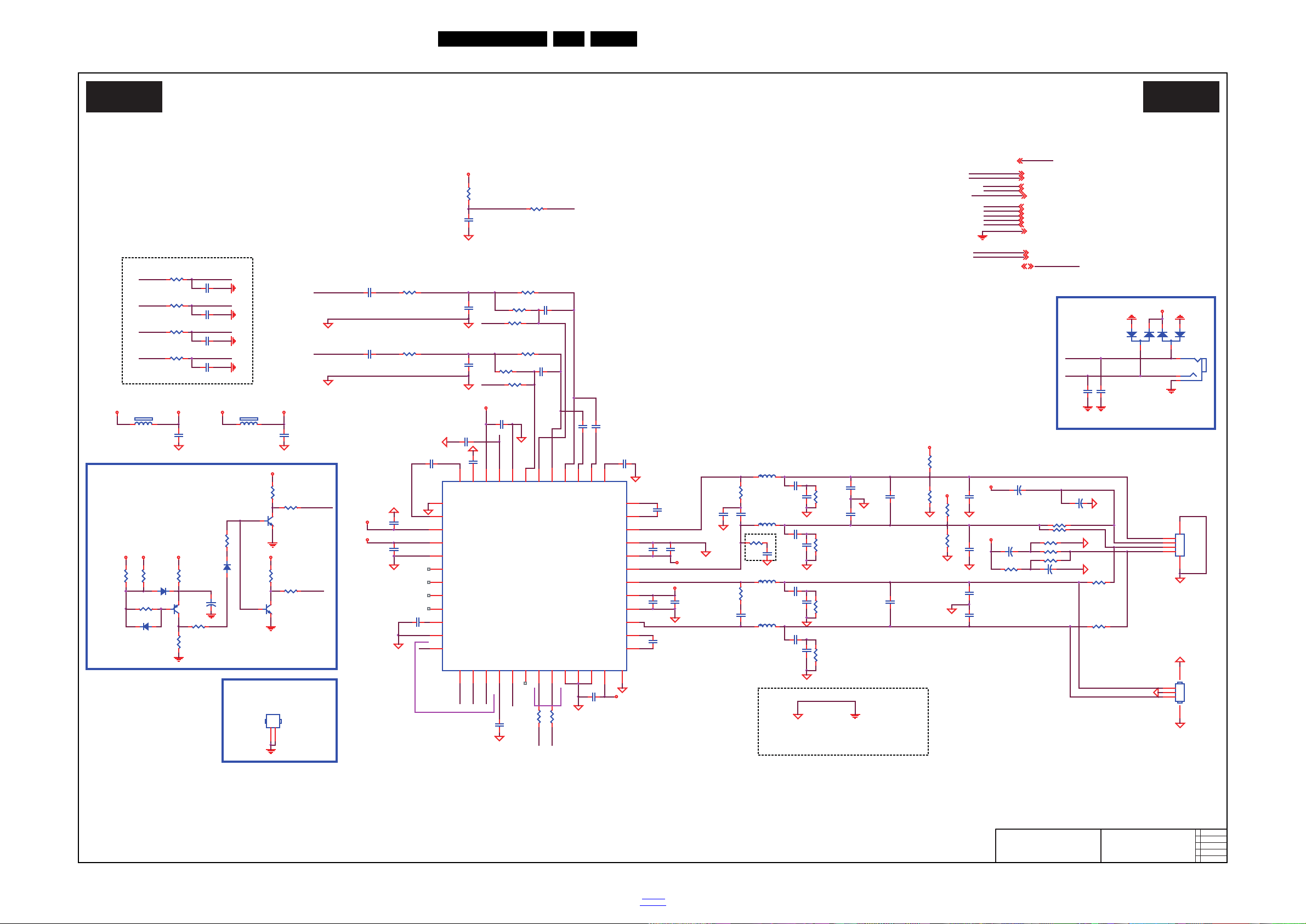

10-5-5 Speaker/Headphone

19750_518.eps

Speaker/Headphone

B05 B05

2014-08-05

715G6842

Speaker/Headphone

+5V_STB3,5,14

+5V_STB

CN604

PHONE JACK

1

2

3

CN631

NC/CONN

1 2

3

45

R638

6.2R 1%

+

C689 NC/100UF 16V

R741

0 OHM +-5% 1/8W

R742

0 OHM +-5% 1/8W

CN602

CONN

1

2

3

4

5 6

D4002

BAV99

3

1

2

R749

NC/0 OHM +-5% 1/8W

C688

NC/680NF 16V

C649

680NF 16V

+

C691

NC/100UF 16V

L631

10UH

CN6004

HEAT SINK

1

2

R645

6.2R 1%

C655

680NF 16V

L632

10UH

D4003

BAV99

3

1

2

R646

6.2R 1%

L633 10UH

R647

6.2R 1%

R4330

NC/22R

+

C692 100UF 16V

3V3SB

DVDD3V3

Heat sink

LRCLKI

LSPK-

R738 NC/0 OHM +-5% 1/8W

RSPK+

C667

NC/330PF 50V

PVDD

C685 0.1uF 25V

DVDD3V3

C633 100NF 16V

C668 1nF 50V

FB633

120R

1 2

C675 68PF 50V

R650

100R 1/16W 5%

R644

10R 1/10W 5%

Q632 BC847C

AOSDATA0_D

C656

1uF 10V

U630

STA381BW

F3X_FILT

13

F3XL

14

LINEINR

17

LINEHPOUT_L

18

LINEHPOUT_R

19

GNDA

20

SOFTMUTE

21

VDD3V3

22

CPVSS

23

CPM

24

GNDPSUB

25

CPP

26

GNDDIG1

29

FFX3A

30

FFX3B

31

EAPD/FFX4B

32

TWARN/FFX4A

33

VREGFILT

34

AGNDPLL

35

BICKI37LRCKI38SDI39RESET40PWDN41INTLINE42SDA43SA45TESTMODE46GNDDIG247VDDDIG2

48

VSS_REG

2

OUT2B

3

GND2

4

VCC2

5

OUT2A

6

OUT1B

7

VCC1

8

GND1

9

OUT1A

10

VDD_REG

11

GND_REG

12

VCC_REG

1

LINEINL

16

F3XR

15

MCLK

36

VDD3V3CHP

27

VDDIG1

28

SCL

44

E-Pad

49

C657 100NF 16V

C661

0.1uF 50V

C670 1uF 10V

R653

4K7 1/16W 5%

C636

NC/33P50V

C660 1uF 10V

HPOUTL

BICKI

C653

2.2UF 10V

R652

10K 1/16W 5%

R657

1K 1/16W 5%

C671 68PF 50V

R662 43K 1/16W

R661

18Kohm 1/16W +/-1%

D631

BAS316

A1K

2

C669 330PF 50V

R641

0R05 1/16W

C640

NC/33P50V

R637

43K 1/16W

C659 1nF 50V

R745

NC/3.4K 1%

C663 1nF 50V

R746

NC/3.4K 1%

C646

1nF 50V

C651 100NF 16V

R670

0R05 1/16W

R639

0R05 1/16W

PVDD

C639

NC/33P50V

C673 1UF 50V

R669

10K 1/16W 5%

C686 0.1uF 25V

R640

22 OHM 1/4W

AOBCLK_D

C682

0.1uF 25V

C641

NC/33P50V

C647

1uF 10V

R654

NC/0R05 1/10W

C681 0.1uF 25V

WSPK+

C679

0.1uF 25V

C662 330PF 50V

C672 1UF 50V

PVDD

D630

BAS316

A

1

K

2

C632

100NF 16V

AR0O

R655 0R05 1/10W

AL0O

C638

0.1uF 50V

R660

100R 1/16W 5%

C683 0.1uF 25V

C654

0.1uF 50V

C677

NC/1UF 10V

R658

100K 1/16W 5%

R642

0R05 1/16W

Q633 BC847C

C650

4.7UF 10% 10V

R643

10R 1/10W 5%

+

C642

220UF 16V

C676

NC/1UF 10V

R651 100R 1/16W 5%

D632

BAS316

A1K

2

C643

0.1uF 50V

R635 16K 1%

Q631

BC857BW

1

23

C645

4.7UF 10% 10V

C658 100NF 16V

C665 1nF 50V

FB631

120R

1 2

R659

NC/4.7K1/16W

C680

0.1uF 25V

R663

18Kohm 1/16W +/-1%

C664 1uF 10V

3V3SB

PVDD

R656

4K7 1/16W 5%

R649

0R05 1/16W

C684

0.1uF 25V

R636 16K 1%

R634 22 OHM 1/4W

C648

330PF 50V

C674 1uF 10V

C637

100NF 16V

C652 330PF 50V

C644 NC/1uF 10V

R648

0R05 1/16W

DVDD3V3

+5V_STB+12V

AUD_V33

AUD_V33HP

PVDD

AUD_V33

PWRDN-HP

AUD_V33HP DVDD3V3

AUD_V33

DVDD3V3

I2SAMP_RESET 12

DVDD3V3

AOLRCK_D 7

AOBCLK_D 7

AOMCLK_D 7

OSCL0 5,12,14

OSDA0 5,12,14

AOSDATA0_D 7

3V3SB 3,5,6,9,10,12,14 DVDD3V33,4,5,6,10,12,13,15,16

GND 3,4,5,6,7,9,10,11,12,13,14,15,16

AL0O 7 AR0O 7

+12V 3,4

PVDD4

HPOUTR

WSPK-

LRCLKI

PWRDN-HP

MCLK

AR0O

AL0O

I2S Input

OUT2A

SDI

I2C

BICKI

PWRDN

+

C690

NC/100UF 16V

OUT1A

OUT1B

OSDA0

PVDD

HPOUTL

For EMI

OUT2B

R743

0 OHM +-5% 1/8W

HPOUTR

Mute CKT

Main Speak CKT

Anti-Pop CKT

AOSDATA0_D

I2SAMP_RESET

R740

NC/0 OHM +-5% 1/8W

Sound R/L CKT

AMP_RESET

AOMCLK_D AOBCLK_D

OSDA0 OSCL0

MCLK

C666 NC/330PF 50V

LSPK+

OSCL0

RSPK-

AOLRCK_D

R736 0 OHM +-5% 1/8W

AMP_RESET

I2SAMP_RESET

R747

NC/3.4K 1%

R748

NC/3.4K 1%

SDI

R744

0 OHM +-5% 1/8W

+12V

AOLRCK_D

AOMCLK_D

R664 NC/22 OHM 1/4W

PWRDN

C687

NC/680NF 16V

L630

10UH

Circuit Diagrams and PWB Layouts

EN 77TPN14.1E LA 10.

2014-Jan-24

back to

div.table

10-5-6 SCART Input

19750_519.eps

SCART Input

B06 B06

2014-08-05

715G6842

SCART Input

CVBS2PSCT1_AV_IN

CVBS IN

Audio Input

FAST BLANKING/SOY

SCART (Full SCART) -- CVBS+SV+RGB

SCART1_L_IN

SCART1_R_IN

SCART_FS1

SOY1

SCT1_FS_IN

DVI_AudioRIN

DVI_L_IN

DVI_R_IN

DVI_AudioLIN

SCT1_G_IN

SCT1_B_IN

SCT1_AV_IN

SCT1_AUL_IN

SCT1_R_IN

SCT1_FB_IN

DVI_AudioLIN

SCT1_AUR_IN

SCT1_AVO_GND

SCT1_FS_IN

DVI 1/2/3/4 Audio Input

SCT1_AV1_GND

DVI_AudioRIN

Function Select

CN151

SCART 21P

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

DVI_L_IN

DVI_R_IN

SCT1_AUL_IN

SCT1_FB_IN

SCT1_AUR_IN

SCART1_R_IN

SCART1_L_IN

R1002

0R05 1/16W

C1000

10PF 50V

R1034

30Kohm 1/16W +/-5%

R1008 100R 1/16W 5%

R1011

100R 1/16W 5%

R1013

75R 1/16W 1%

C1004 10NF 50V

R1006

75 OHM +-5% 1/16W

C1001 10NF 50V

R1001 100R 1/16W 5%

R1014

51K 1/16W 5%

C1006 10NF 50V

R1015

0R05 1/16W

C1002

10PF 50V

R1000

0R05 1/16W

C1025 1uF 10V

R1007

75 OHM +-5% 1/16W

CN104

PHONE JACK

1

2

3

C1013

NC/10N 50V

R1016

30Kohm 1/16W +/-5%

R1018

30Kohm 1/16W +/-5%

D4004

BAV99

3

1

2

D4005

BAV99

3

1

2

R1009 100R 1/16W 5%

C1009

47NF 16V

C1010

47PF 50V

C1011 1uF 10V

R1017

10K 1/16W 5%

C1014

NC/10N 50V

R1012

75 OHM +-5% 1/16W

R1033

30Kohm 1/16W +/-5%

C1003 10NF 50V

R1004

0R05 1/16W

C1012

1uF 10V

C1024 1uF 10V

C1007

10PF 50V

R1003 100R 1/16W 5%

SCT1_R_IN

R1005

75 OHM +-5% 1/16W

SOY17

CVBS2P7

COM17

Y1P7 PB1P7

SCART_FS112

PR1P7

SCT1_G_IN

GND3,4,5,6,7,8,10,11,12,13,14,15,16

-------><-------

SCART IN

DVI_L_IN7

DVI_R_IN7

PR1P

Y1P

PB1P

COM1

-------><--------------><-------

SCART1_R_IN7

SCT1_B_IN

SCART1_L_IN7

SOY1

Y1P COM1 PB1P PR1P

CVBS2P

SCART_FS1

3V3SB

GND

3V3SB 3,5,6,8,10,12,14

3V3SB

Circuit Diagrams and PWB Layouts

EN 78TPN14.1E LA 10.

2014-Jan-24

back to

div.table

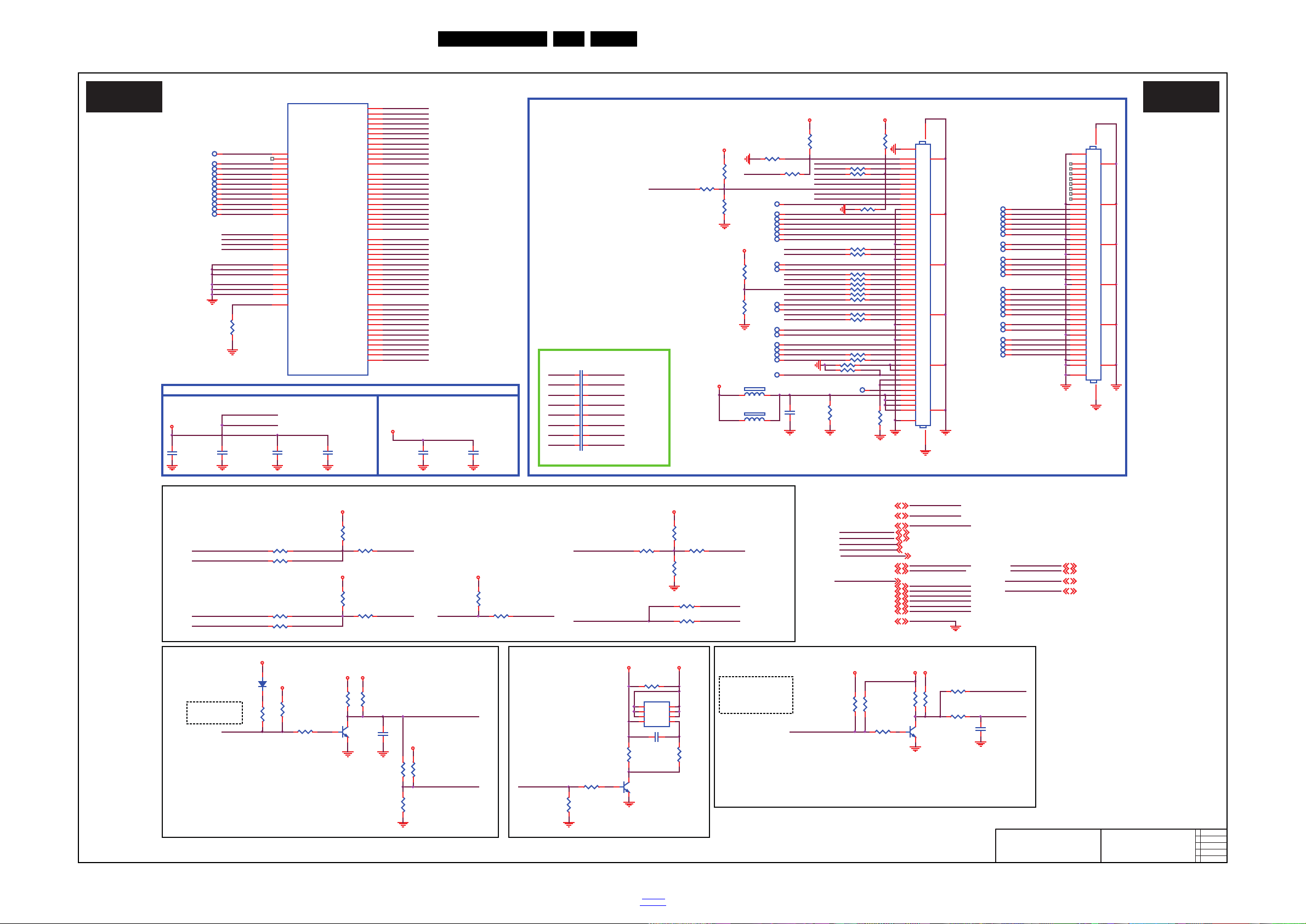

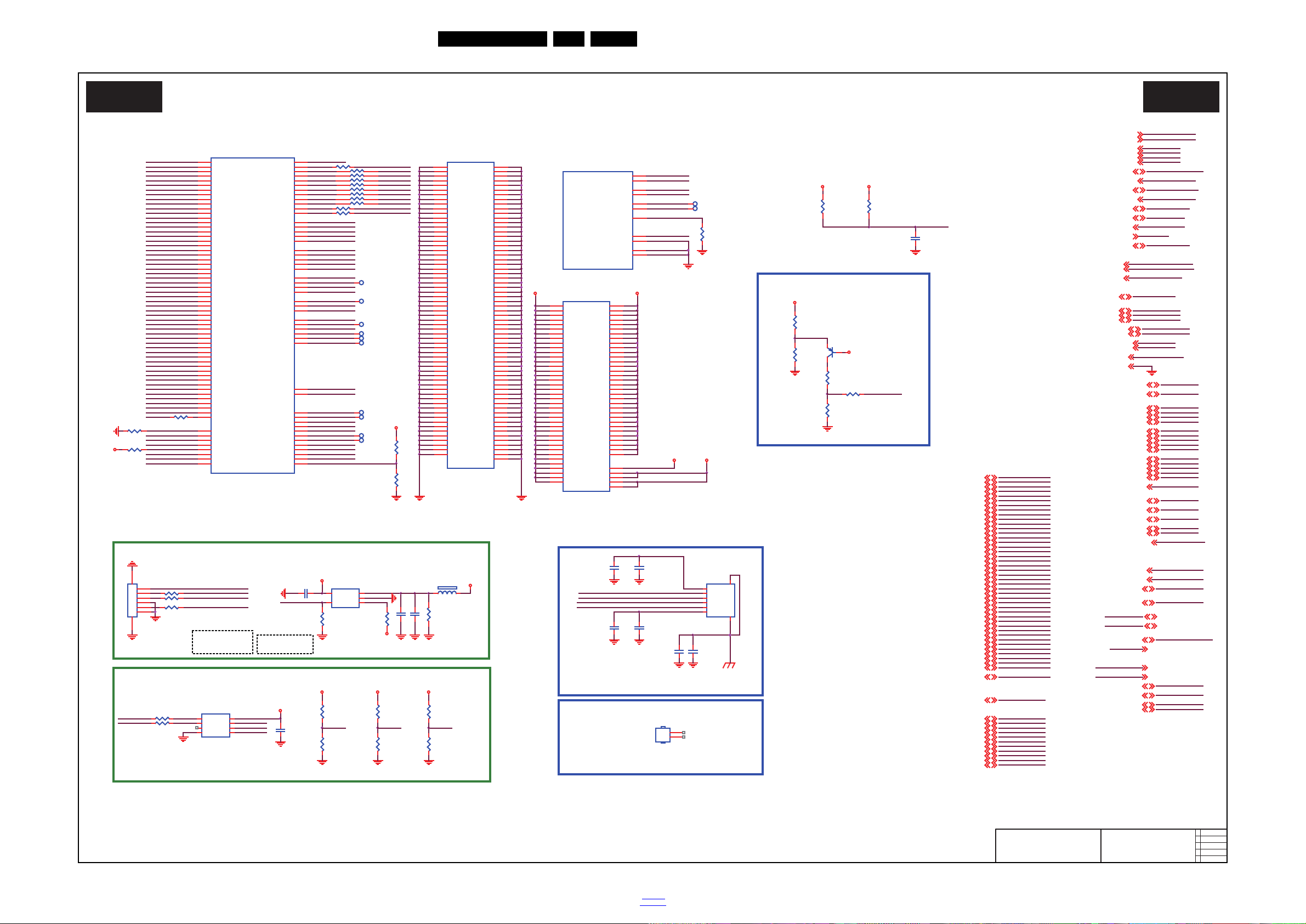

10-5-7 LVDS

19750_520.eps

LVDS

B07 B07

2014-08-05

715G6842

LVDS

R402

1K 1/10W 5%

R405

NC/2KOHM 1/10W

L/R_OUT

TP437TP

C400

NC/10uF 10V

R403

100R 1/10W 5%

R409

4K7 1/16W 5%

R406

1K 1/10W 5%

DVDD3V3

+5V_SW

3V3SB

R4301

3K3 1/16W 5%

PANEL_3V3

R435

0R05 1/16W

LVD S_SEL

BL_ON/OFF 12

BL_DIMMING 12

GND3,4,5,6,7,8,9,11,12,13,14,15,16

L/R_OUT6

3V3SB 3,5,6,8,9,12,14

INVERTER_ON_OFF 3

BRIGHT_ADJ 3

L/R_OUT

AVDD3V33,5,6,7,11,12,14 DVDD3V33,4,5,6,8,12,13,15,16

D633

NC/BAS316

A

1

K

2

AVDD1V23,7,14,15

+5V_SW 3,4,6,7,14,15

OPC

TP438 TP

DVDD3V3

R431

100R 1/10W 5%

PANEL_VCC_ON/OFF

R452 NC/0R05 1/16W

TP439TP

TEMP_SEL0

L/R_OUTPUT

LVD STX_BO3P

LVD STX_BO3N

LVD STX_BOCKP

LVD STX_BOCKN

LVD STX_BO2P

LVD STX_BO2N

LVD STX_BO1P

LVD STX_BO1N

LVD STX_BO0P

LVD STX_BO0N

R401

NC/4.7K1/16W

LVD STX_BE1P

LVD STX_BE0P

LVD STX_BE0N

LVD STX_BE3P

LVD STX_BE2N

LVD STX_BECKP

LVD STX_BECKN

LVD STX_BE2P

PANEL_3V3 SW

LVD STX_BO4P

LVD STX_BE4N LVD STX_BE4P

LVD STX_BE3N

LVD STX_BO4N

R451 0R05 1/16W

TEMP_SEL1

TEMP_SEL_1

TP440 TP

C403 100NF 16V

PANEL_3V3

R436

NC/100R 1/10W 5%

OPC_EN

PANEL_3V3

TP441 TP

Gaming6

Gaming

EXT_PWM-IN

TP465 TP

PCID_EN

TP442 TP

TP454 TP

R457 0R05 1/16W

HDCP-IRQn

L/R_OUTTEMP_SEL1

TP443 TP

TP455 TP

R453 NC/0R05 1/16W

TP456 TP

BL_DIMMING

INVERTER_ON_OFF

BRIGHT_ADJ

BL_ON/OFF

TP444 TP

EXT_PWM-IN

R427 0R05 1/16W

LVD STX_AE0N V5

LVD STX_BE1N

GND

TP445 TP TP446 TP

TP463 TP

TCON6

TP447 TP

TP457 TP

C407 NC/1uF 10V

L/R_OUTPUT12

L/R_OUTPUT

+5V_SW

C409 NC/100NF 16V

TP458 TP

CN408 CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

52

51

53

54

55

56

57

58

59

60 61

R428 0R05 1/16W

LVD STX_AE0P V6

LVD STX_AO0N

TP414 TP TP415 TP

R411

NC/10K 1/8W

PANEL_3V3

TP418 TP

R415

NC/0R05 1/16W

TP419 TP

R414

47K 1/16W 5%

TP420 TP

Panel_12V

TP423 TP

TP421 TP TP422 TP

C402 NC/10uF 16V

TP459 TP

TP401 TP TP403 TP

TP402 TP

V-by-1: 100N LVD S: 0R

TP404 TP

PANEL_3V3

TP405 TP

R418

NC/0R05 1/16W

R413

NC/47K 1/16W 5%

FB401

120R

1 2

FB400

120R

1 2

TP400 TP

B4

B3

LVD STX_AO2N LVD STX_AO2P

B5

LVD STX_AO3P

LVD STX_AO3N

B2

B1

B8

B7

LVD STX_AE1P

LVD STX_AE1N

B6

LVD STX_AECKP

LVD STX_AECKN

LVD STX_AE3N LVD STX_AE3P

DVDD3V3

LVD STX_AO1P

LVD STX_AO1N

LVD STX_AO0P

TP408 TP

LVDS/V-BY-1 OUTPUT

PANEL_VCC

TP409 TP

PANEL_3V3

R416

NC/0R05 1/16W

R410

NC/47K 1/16W 5%

R446

0R05 1/16W

TP460 TP

BL_DIMMING

R441 0R05 1/16W

R445 100R 1/10W 5%

POWER_OK12

POWER_OK

Gaming

DVDD3V3

R421 0R05 1/16W

PANEL_VCC_ON/OFF4,12

PANEL_VCC_ON/OFF

TEMP_SEL_0

TP464 TP

DVDD3V3

GPIO 43

C408

10UF 10V

2D/3D setup

HDMP_IRQn 14

HDCP-IRQn

LVD STX_AO4N V3

PANEL_3V3

AVDD3V3

R4303

3K3 1/16W 5%

R433

100R 1/10W 5%

2D/3D_ENABLE2D/3D_EN

R540

NC/0R05 1/16W

R430

6K8 1/16W 5%

TP461 TP

R771

10K 1/16W 5%

R772

10K

V1

R773

10K 1/16W 5%

C501

1UF 10% 16V

Q758 BC847C

PANEL_3V3DVD D3V3

HDCP-RESETn

REXT_VPLL

POWER_OK

MT5591IVDJ

U401C

TCON0

AA8

TCON1

AA9

TCON2

W6

TCON3

U6

TCON4

U7

TCON5

V8

TCON6

V6

TCON7

AB7

TCON8

W9

TCON9

U8

TCON10

U9

TCON11

V9

TCON12

V7

AVDD12_LVDS_1

AN1

AVDD12_LVDS_2

AN2

AVDD12_LVDS_3

AN3

AVDD33_LVDS

AN4

AVSS12_LVDS_1

AM4

AVSS12_LVDS_2

AM3

AVSS12_LVDS_3

AF5

AVSS33_LVDS

AE5

REXT_VPLL

T1

BE0P

Y1

BE0N

Y2

BE1P

W3

BE1N

W4

BE2P

V3

BE2N

V4

BECKP

V1

BECKN

V2

BE3P

U3

BE3N

U4

BE4P

T3

BE4N

T4

BO0P

AD1

BO0N

AD2

BO1P

AC3

BO1N

AC4

BO2P

AB3

BO2N

AB4

BOCKP

AB1

BOCKN

AB2

BO3P

AA3

BO3N

AA4

BO4P

Y3

BO4N

Y4

AE0P

AH1

AE0N

AH2

AE1P

AG3

AE1N

AG4

AE2P

AF3

AE2N

AF4

AECKP

AF1

AECKN

AF2

AE3P

AE3

AE3N

AE4

AE4P

AD3

AE4N

AD4

AO0P

AM1

AO0N

AM2

AO1P

AL3

AO1N

AL4

AO2P

AK3

AO2N

AK4

AOCKP

AK1

AOCKN

AK2

AO3P

AJ3

AO3N

AJ4

AO4P

AH3

AO4N

AH4

AVSS33_LVDS

AC5

AVSS33_LVDS

V5

AVDD33_LVDS LVD STX_AE1P

LVD STX_BE0N

AVSS12_LVDS_1 AVSS12_LVDS_2 AVSS12_LVSD_3

AVSS33_LVDS

LVD STX_AO3P

LVD STX_AO4N

LVD STX_AO4P

LVD STX_AE0P

LVD STX_AE1N

LVD STX_AO2N

LVD STX_AO2P LVD STX_AOCKP

LVD STX_AOCKN LVD STX_AO3N

LVD STX_AE0N

LVD STX_AE4P

LVD STX_AO0N

LVD STX_AO0P

LVD STX_AO1N

LVD STX_AO1P

LVD STX_AECKN

LVD STX_AECKP

LVD STX_AE3N

LVD STX_AE3P

LVD STX_AE4N

LVD STX_BE0P

LVD STX_BE1N

LVD STX_BE1P

LVD STX_AE2N

LVD STX_AE2P

LVD STX_BOCKP LVD STX_BOCKN

LVD STX_BO3N

LVD STX_BO3P

LVD STX_BO4N

LVD STX_BO4P

LVD STX_BO0P

LVD STX_BO1N

LVD STX_BO1P

LVD STX_BO2N

LVD STX_BO2P

LVD STX_BE3N

LVD STX_BE3P

LVD STX_BE4N

LVD STX_BE4P

LVD STX_BO0N

LVD STX_BE2N

LVD STX_BE2P

LVD STX_BECKN

LVD STX_BECKP

2D/3D_EN3,12

2D/3D_EN

AVDD12_LVDS_1 AVDD12_LVDS_2

AVSS33_LVDS

AVDD12_LVDS_3

AVSS33_LVDS

R440

NC/0R05 1/16W

C405 1uF 10V

TP452 TP

R447

0R05 1/16W

GPIO 87

R456 NC/0R05 1/16W

R438 0R05 1/16W

LVD STX_AE2N V7

R448

NC/47K 1/16W 5%

B1

OPC

OSCL1

R422 0R05 1/16W

LVD STX_AO4P V4 BIT_SEL

R449

NC/0R05 1/16W

C404 100NF 16V

TP462 TP

R450 0R05 1/16W

R443

NC/1K 1/10W 5%

R454 0R05 1/16W

TP424 TP

LVD STX_AE4P

AVDD1V2

2D/3D_ENABLE

TCON11

TP425 TP

BL_DIMMING(PWM for BRIGHT_ADJ): Max: 0V Min: +3V3

R439 0R05 1/16W

LVD STX_AE2P V8

INVERTER_ON_OFF

INVERTER ON/OFF

BRIGHT ADJUST

BRIGHT_ADJ

C410 NC/100NF 16V

C406 1uF 10V

TP426 TP

V2 B2

BL_ON/OFF

BL_ON/OFF: Inverter on: Low Inverter off: High

R424

24K 1%

TCON11

TP427 TP

R423 0R05 1/16W

LVD STX_AOCKN V1

TP428 TP

TP451 TP

R4294

220K 1/16W 5%

GPIO 204

CN409 CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50 51

R442 0R05 1/16W

R455 0R05 1/16W

LVD STX_AE4N

OSDA1

3V3SB

TP429 TP

TCON2

GPIO42

R4295

220K 1/16W 5%

Q4002

SM3201PSQA-TRG

D

1

D

2

D

3

G4S

5

D

6

D

7

D

8

TP430TP

GPIO4212

OSCL1 5,6 OSDA1 5,6

GPIO42

OSCL1 OSDA1

R4304

4K7 1/16W 5%

R434

NC/0R05 1/16W

C411 NC/100NF 16V C412 NC/100NF 16V

V4

B3V3 B4

TCON12

R426

NC/100R 1/10W 5%

TP431TP

PANEL_3V3

R437

NC/4K7 1/16W 5%

TEMP_SEL0

LVD S_SEL12

LVD S_SEL

AVDD12_LVDS_1

TP432TP

AVDD3V3

AVDD1V2

AVDD12_LVDS_3

Analog Power

AVDD12_LVDS_2

AVDD33_LVDS

GPIO 44

R425 0R05 1/16W

LVD STX_AOCKP V2

R444 0R05 1/16W

2D/3D_ENABLE

TP433 TP

R4296

NC/220K 1/16W 5%

TP434TP

HDMP_RESETn 14

HDCP-RESETn

R4302

3K3 1/16W 5%

R432

100R 1/10W 5%

PANEL_3V3

TEMP_SEL_1

TP453 TP

OPC_EN

C413 NC/100NF 16V C414 NC/100NF 16V

V6

B5V5

TP435TP

C416 NC/100NF 16V

V8

B7V7

B6

C415 NC/100NF 16V

B8

TCON3

R458

NC/0R05 1/16W

TEMP_SEL_0

TP436TP

EXT_PWM-IN

Q400 MMBT3904

R404

4K7 1/16W 5%

Q401

MMBT3904

R400

4.7K1/16W

C401

NC/10uF 10V

R407

NC/4K7 1/16W 5%

R408

4.7K1/16W

Circuit Diagrams and PWB Layouts

EN 79TPN14.1E LA 10.

2014-Jan-24

back to

div.table

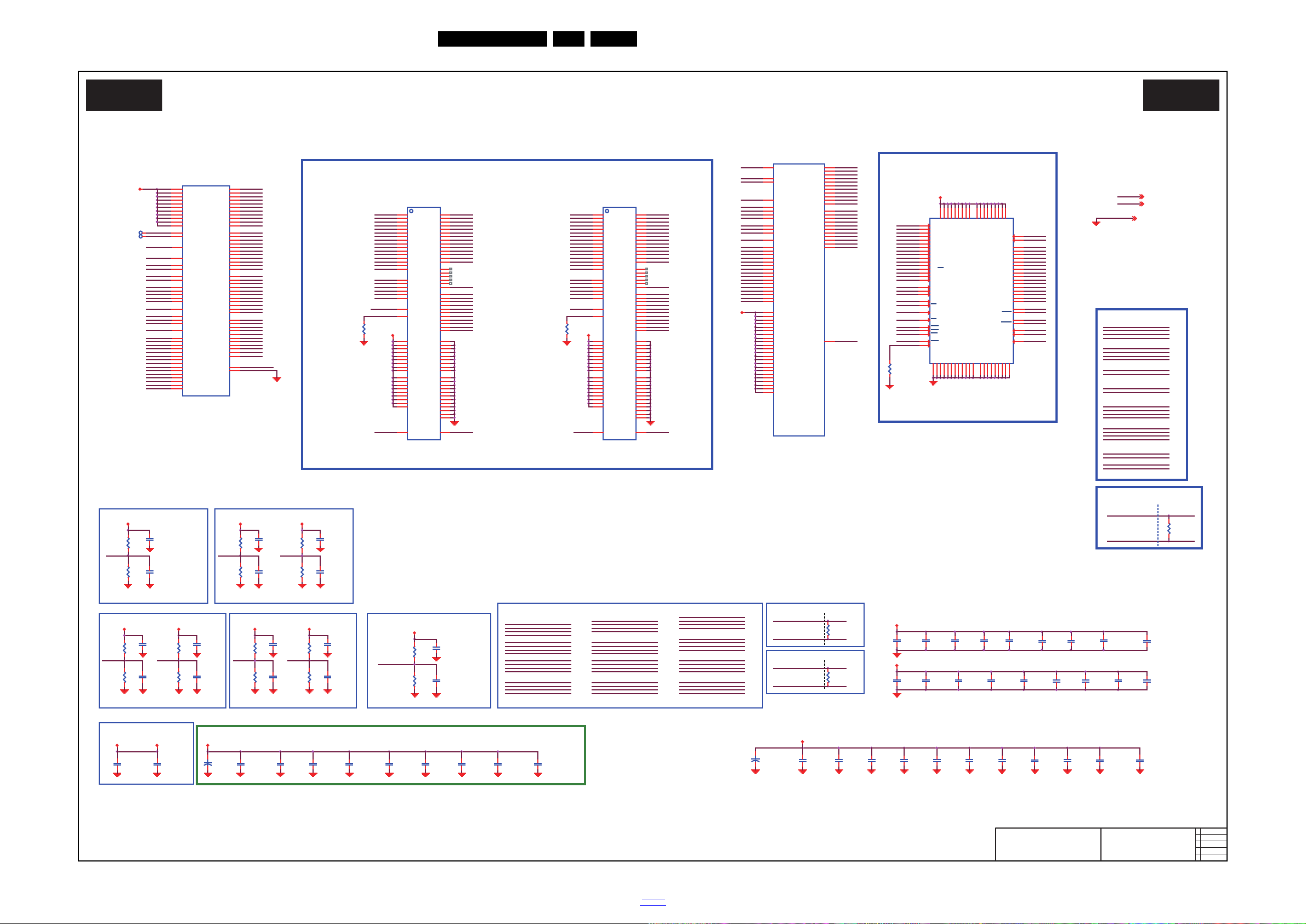

10-5-8 DRAM Interface

19750_521.eps

DRAM Interface

B08 B08

2014-08-05

715G6842

DRAM Interface

R4168

240 OHM +-5% 1/16W

A_RDQS0ARDQS0

A_RDQS0#ARDQS0#

A_RDQ14ARDQ14

A_RDQ8ARDQ8

A_RCLK1ARCLK1

A_RDQS2#ARDQS2#

A_RDQS3#ARDQS3#

A_RCLK1#ARCLK1#

A_RDQ22ARDQ22

A_RDQM3ARDQM3

A_RDQS2ARDQS2

A_RDQS3ARDQS3

A_RDQ18ARDQ18 A_RDQ20ARDQ20

A_RDQ29ARDQ29 A_RDQ27ARDQ27

ARDQM1 A_RDQM1

A_RDQ16ARDQ16

A_RDQ31ARDQ31 A_RDQ25ARDQ25

ARDQ24 A_RDQ24

A_RDQM2ARDQM2

ARDQ26 A_RDQ26

A_RDQ17ARDQ17

A_RCLK0#ARCLK0#

A_RDQ30ARDQ30 A_RDQ12ARDQ12

A_RDQ23ARDQ23 A_RDQ19ARDQ19

C4169 100NF 16V

C4167 100NF 16V

C4168 100NF 16V

C4166

10UF 10V

C4172

100NF 16V

R4156

100R 1/16W 5%

C4193

100NF 16V

C4164 100NF 16V

C4191 100NF 16V

C4163 100NF 16V

ARCLK1_D

ARCLK0_D

ARCLK1#_D

ARCLK0#_D

Differential Clock

R4160

1Kohm 1/16W +/-1%

C4157 100NF 16V

C4179 100NF 16V

C4216

100NF 16V

C4195 100NF 16V

C4207

100NF 16V

C4210 100NF 16V

C4213

100NF 16V

C4211 100NF 16V

C4212 100NF 16V

C4214 100NF 16V

C4185 100NF 16V

R4170

1Kohm 1/16W +/-1%

R4167

240 OHM +-5% 1/16W

C4218

100NF 16V

A_RDQS3#

A_RDQS3

B_RDQS0#

B_RDQS0

U403

NT5CB256M16CP-DI

VDD_0

B2

NC_0

J1

VSS_0

A9

VSSQ_0

B1

UDQS#

B7

VDDQ_0

A1

DQU6

B8

VSSQ_1

B9

UDM

D3

UDQS

C7

VSSQ_2

D1

DQU7

A3

VDDQ_1

A8

DQU1

C3

VDDQ_2

C1

VDDQ_3

C9

DQU0

D7

VDDQ_4

D2

DQU4

A7

VSSQ_3

D8

DQU3

C2

DQU2

C8

VSSQ_4

E2

DQU5

A2

VDD_1

D9

NC_1

J9

VSS_1

B3

VSSQ_5

E8

LDQS#

G3

VDDQ_5

E9

DQL6

G2

VSSQ_6

F9

LDM

E7

LDQS

F3

VSSQ_7

G1

DQL7

H7

VDDQ_6

F1

DQL1

F7

VDDQ_7

H2

DQL0

E3

VDDQ_8

H9

DQL4

H3

VSSQ_8

G9

DQL3

F8

DQL2

F2

BA2

M3

DQL5

H8

VDD_5

N1

VREFDQ

H1

VSS_2

E1

VSS_5

J8

CK

J7

VDD_2

G7

CKE

K9

WE#

L3

RAS#

J3

CK#

K7

ODT

K1

RESET#

T2

BA0

M2

BA1

N8

CAS#

K3

CS#

L2

A10/AP

L7

A1

P7

A2

P3

A0

N3

VDD_3K2VSS_3

G8

A3

N2

A5

P2

A6

R8

A4

P8

A7

R2

A9

R3

A11

R7

A8

T8

VSS_4

J2

VDD_4

K8

A12/BC#

N7

NC_3

L9

ZQ

L8

NC_2

L1

VREFCA

M8

NC_4

M7

A13

T3

A14

T7

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VDD_6

N9

VDD_7

R1

VDD_8

R9

R4155

1Kohm 1/16W +/-1%

R4176

1Kohm 1/16W +/-1%

U402

NT5CB256M16CP-DI

VDD_0

B2

NC_0

J1

VSS_0

A9

VSSQ_0

B1

UDQS#

B7

VDDQ_0

A1

DQU6

B8

VSSQ_1

B9

UDM

D3

UDQS

C7

VSSQ_2

D1

DQU7

A3

VDDQ_1

A8

DQU1

C3

VDDQ_2

C1

VDDQ_3

C9

DQU0

D7

VDDQ_4

D2

DQU4

A7

VSSQ_3

D8

DQU3

C2

DQU2

C8

VSSQ_4

E2

DQU5

A2

VDD_1

D9

NC_1

J9

VSS_1

B3

VSSQ_5

E8

LDQS#

G3

VDDQ_5

E9

DQL6

G2

VSSQ_6

F9

LDM

E7

LDQS

F3

VSSQ_7

G1

DQL7

H7

VDDQ_6

F1

DQL1

F7

VDDQ_7

H2

DQL0

E3

VDDQ_8

H9

DQL4

H3

VSSQ_8

G9

DQL3

F8

DQL2

F2

BA2

M3

DQL5

H8

VDD_5

N1

VREFDQ

H1

VSS_2

E1

VSS_5

J8

CK

J7

VDD_2

G7

CKE

K9

WE#

L3

RAS#

J3

CK#

K7

ODT

K1

RESET#

T2

BA0

M2

BA1

N8

CAS#

K3

CS#

L2

A10/AP

L7

A1

P7

A2

P3

A0

N3

VDD_3K2VSS_3

G8

A3

N2

A5

P2

A6

R8

A4

P8

A7

R2

A9

R3

A11

R7

A8

T8

VSS_4

J2

VDD_4

K8

A12/BC#

N7

NC_3

L9

ZQ

L8

NC_2

L1

VREFCA

M8

NC_4

M7

A13

T3

A14

T7

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VDD_6

N9

VDD_7

R1

VDD_8

R9

C4219 100NF 16V

B_RVREF6

DDR3#3 Ref Volt.

B_RVREF5

B_RCLK0#

BRCLK0_D

R4192

100R 1/16W 5%

Damping and Termination for CLK

B_RCLK0

BRCLK0#_D

C4171 100NF 16V

C4192 100NF 16V

DRAM#3 Bypass Cap

R4177

1Kohm 1/16W +/-1%

C4180 100NF 16V

BRBA1 BRBA2

BRBA0

B_RDQM0

R4175

240 OHM +-5% 1/16W

U404 NT5CB64M16FP-DH

NC = J1,J9,L1,L9

NC_A15

M7

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

G9

A13

T3

A12/BC

N7

A11

R7

A10/AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

BA0

M2

BA1

N8

BA2

M3

CK

J7

CK

K7

CKE

K9

CS

L2

RAS

J3

CAS

K3

WE

L3

ODT

K1

RST

T2

ZQ

L8

LDM

E7

UDM

D3

A14

T7

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

H9

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

DQL7

H7

DQL6

G2

DQL5

H8

DQL4

H3

DQL3

F8

DQL2

F2

DQL1

F7

DQL0

E3

LDQS

F3

LDQS

G3

UDQS

C7

UDQS

B7

VREF_DQ

H1

VREF_CA

M8

BRA1

R4171

1Kohm 1/16W +/-1%

BRA5

BRA4

BRA0

BRA3

BRA2

BRA10

BRA9

BRA8

BRA7

BRA6

B_RDQ4

B_RDQ3

B_RDQ2

B_RDQ1

BRA12

BRA11

B_RDQ9

B_RDQ8

B_RDQ7

B_RDQ6

B_RDQ5

B_RDQ14

B_RDQ13

B_RDQ12

B_RDQ11

B_RDQ10

A_ZQ3

BRRESET

BRA15

B_RDQ15

B_RDQ0

C4222 100NF 16V

BRCAS#

BRCS# BRRAS# BRWE#

BRA14

BRA13

BRCKE

BRODT

B_RVREF5 B_RVREF6

DDRV

DDRVDDRV

BRCLK0#_D

BRCLK0_D

B_RDQM1

[ RESERVE ]

RVREF_C

Main Chip Ref Voltage.

B_RDQ12BRDQ12

B_RDQM1BRDQM1

B_RDQM0BRDQM0

BRDQ7 B_RDQ7 BRDQ1 B_RDQ1

BRDQ8 B_RDQ8 BRDQ14 B_RDQ14

BRDQ6 B_RDQ6

BRDQ5 B_RDQ5 BRDQ3 B_RDQ3

BRDQ10 B_RDQ10

BRDQ2 B_RDQ2

BRDQ15 B_RDQ15

BRDQ0 B_RDQ0

BRDQ9 B_RDQ9

BRDQS0 B_RDQS0

BRDQ11 B_RDQ11

BRDQ13 B_RDQ13

BRDQ4 B_RDQ4

BRDQS1# B_RDQS1#

BRCLK0# B_RCLK0#

BRCLK0 B_RCLK0

BRDQS1 B_RDQS1

BRDQS0# B_RDQS0#

C4220 100NF 16V

DDRV

AVDD3V3 AVDD33_MEMPLL

DDRV

DDRV DDRV DDRVDDRV

AVDD33_MEMPLL

RVREF_A

A_RVREF4A_RVREF1

DDR3#1 Ref Volt.

A_RVREF3

AV3V3_MEMPLL

TP448 TP

DRAM#2 Bypass Cap

B_RDQS1#

B_RDQS1

A_RVREF2

DDR3#2 Ref Volt.

DRAM#1 Bypass Cap

Main Chip Ref Voltage.

GND 3,4,5,6,7,8,9,10,12,13,14,15,16

AVDD3V33,5,6,7,10,12,14

DDRV 3

R4151

1Kohm 1/16W +/-1%

R4150

1Kohm 1/16W +/-1%

DDR3#3-64Mx16-1600MHz

R4166

1Kohm 1/16W +/-1%

R4159

1Kohm 1/16W +/-1%

TP449 TP

C4183

NC/4.7UF 10% 10V

C4221 100NF 16V

C4170 100NF 16V

C4159 100NF 16V

C4174

100NF 16V

C4181 100NF 16V

R4178

1Kohm 1/16W +/-1%

C4178 1UF 10% 16V

C4197 100NF 16V

C4223

100NF 16V

Main Chip DE-CAP.

C4177

10UF 10V

DDRV

AVDD3V3

MT5591IVDJ

U401B

RVREF_C

C2

BRCLK0

J2

BRCLK0#

J1

BRCKE

L6

BRODT

E3

BRRAS#

L4

BRCAS#

D3

BRCS#

D4

BRBA0

J4

BRBA1

M6

BRBA2

E4

BRWE#

K4

BRA14

P4

BRA13

G5

BRA12

P6

BRA11

P5

BRA10

L5

BRA9

F4

BRA8

P3

BRA7

H4

BRA6

P2

BRA5

K6

BRA4

M5

BRA3

K5

BRA2

G6

BRA1

N5

BRA0

E5

BRA15

J3

DDRV

B19

DDRV

C19

DDRV

D19

DDRV

E19

DDRV

F19

DDRV

G19

DDRV

F5

DDRV

H5

DDRV

N8

DDRV

P8

DDRV

E8

DDRV

G11

BRDQM0

L1

BRDQS0

H2

BRDQS0#

H1

BRDQ0

E2

BRDQ1

N3

BRDQ2

E1

BRDQ3

N1

BRDQ4

D1

BRDQ5

P1

BRDQ6

D2

BRDQ7

N2

BRDQM1

H3

BRDQS1

K1

BRDQS1#

K2

BRDQ8

N4

BRDQ9

F2

BRDQ10

M3

BRDQ11

F1

BRDQ12

L2

BRDQ13

F3

BRDQ14

M4

BRDQ15

G3

BRRESET

G4

DDRV

D13

DDRV

D20

DDRV

E20

DDRV

F20

DDRV

G20

DDRV

R7

DDRV

R8

DDRV

T6

DDRV

T5

DDRV

T7

DDRV

T8

C4186 1UF 10% 16V

C4173

100NF 16V

BRBA1 BRBA2

BRBA0

BRWE#

BRRESET

R4152

100R 1/16W 5%

C4206

100NF 16V

DDRV

BRA1

BRA2

BRA14

BRCAS#

BRA12

BRA6

BRA9

BRA10

BRA3

BRA11

BRA13

BRA7

BRA4

BRA8

BRA0

BRA5

BRA15

BRCKE

BRDQM1

BRDQM0 BRDQS0

BRDQS1

DDRV

BRDQ12

BRDQ8

BRDQ13

BRDQS1#

BRDQS0#

BRDQ2

BRDQ9

BRDQ14

BRDQ10 BRDQ11

BRDQ15

BRDQ1

BRDQ4

BRDQ0

BRDQ5 BRDQ6

RVREF_ C

BRDQ7

BRDQ3

BRRAS#

BRODT

BRCLK0 BRCLK0#

BRCS#

C4209

4.7UF 10% 10V

C4224 100NF 16V

+

C4189

100UF 16V

DDRV

ARA3

ARA2

ARA1

ARA7

ARA6

ARA5

ARA4

ARA0

ARA12

ARA11

ARA10

ARA9

ARA8

ARCAS# ARRAS#

ARCSX# ARODT ARWE#

ARCKE

ARA14 ARBA0 ARBA2

ARBA1

ARA13

A_RDQ12

A_RDQ11

A_RDQ10

A_RDQ9

A_RDQ8

A_RDQS1#

A_RDQS1

A_RDQ0

A_RDQ15

A_RDQ14

A_RDQ13

A_RDQ1

A_RDQM1 A_RDQM0

A_RDQS0 A_RDQS0#

A_RDQ6

A_RDQ5

A_RDQ4

A_RDQ3

A_RDQ2

A_RVREF4 A_RVREF3

ARRESET

A_RDQ7

A_RVREF2

ARRESET

A_ZQ2

ARCLK1_D

A_ZQ1

A_RVREF1

ARCKE

ARCLK0#_D

ARCLK0_D

ARCLK1#_D

ARBA0 ARBA1 ARBA2

ARCS# ARODT ARWE#

ARA4

ARA0

ARA3

ARA2

ARA1

ARA13

ARA8

ARA7

ARA6

ARA5

ARRAS#

ARA14

ARA12

ARA11

ARA10

ARA9

ARCAS#

A_RDQ18

A_RDQ17

A_RDQ16

DDR3#1-256Mx16-1600MHz DDR3#2-256Mx16-1600MHz

A_RDQ21

A_RDQ20

A_RDQ19

A_RDQM2

A_RDQ24

A_RDQ23

A_RDQ22

A_RDQ26

A_RDQ25

A_RDQM3

A_RDQ31

A_RDQ30

A_RDQ29

A_RDQ28

A_RDQ27

C4175

100NF 16V

C4182 100NF 16V

R4164

1Kohm 1/16W +/-1%

C4215 100NF 16V

C4162 100NF 16V

C4161 100NF 16V

C4160

10UF 10V

ARBA2

ARCLK0#

ARCLK0

ARCLK1#

ARCLK1

ARRESET

ARA9

ARA5

ARA1

ARA10

ARCKE

ARA2

ARA8

ARA11

ARCAS#

ARA7

ARA12

ARRAS#

ARA4

ARA0

ARA6

ARA13

MRMTP MRMTN

ARCS#

ARODT

MT5591IVDJ

U401A

DDRV

R1

DDRV

R2

DDRV

R3

DDRV

R4

DDRV

R5

DDRV

K3

DDRV

R6

DDRV

L8

DDRV

M8

DDRV

D17

DDRV

A19

MEMTP

J22

MEMTN

K22

RVREF_A

D18

ARCKE

G8

ARCLK1

B5

ARCLK1#

A5

ARCLK0

B14

ARCLK0#

A14

ARODT

F13

ARRAS#

E13

ARCAS#

G13

ARCS#

G15

ARWE#

H18

ARRESET

G16

ARBA0

D15

ARBA1

F9

ARBA2

G18

ARCSX#

F15

ARA14

D11

ARA13

F16

ARA12

D8

ARA11

E11

ARA10

G9

ARA9

E16

ARA8

F11

ARA7

G17

ARA6

F10

ARA5

E17

ARA4

E10

ARA3

E15

ARA2

F17

ARA1

G10

ARA0

F18

ARDQM0

D12

ARDQS0

D14

ARDQS0#

C14

ARDQ0

B17

ARDQ1

D10

ARDQ2

C17

ARDQ3

C10

ARDQ4

C18

ARDQ5

B9

ARDQ6

E18

ARDQ7

D9

ARDQM1

C15

ARDQS1

A13

ARDQS1#

B13

ARDQ8

B11

ARDQ9

B16

ARDQ10

A11

ARDQ11

A17

ARDQ12

C12

ARDQ13

A16

ARDQ14

C11

ARDQ15

C16

ARDQM2

A3

ARDQS2

D5

ARDQS2#

C5

ARDQ16

E7

ARDQ17

B2

ARDQ18

C8

ARDQ19

B1

ARDQ20

A9

ARDQ21

C1

ARDQ22

C9

ARDQ23

C3

ARDQM3

C6

ARDQS3

A4

ARDQS3#

B4

ARDQ24

A1

ARDQ25

B7

ARDQ26

C4

ARDQ27

C7

ARDQ28

B3

ARDQ29

A7

ARDQ30

A2

ARDQ31

D7

AVDD33_MEMPLL

A20

AVSS33_MEMPLL

H9

DDRV

ARA3

ARWE#

RVREF_A

ARCSX# ARA14

ARDQ3

ARDQ21

ARDQ20

ARBA1

ARBA0

ARDQ23

ARDQ31

ARDQ30

ARDQ4

ARDQ22

R4165

1Kohm 1/16W +/-1%

C4155

100NF 16V

ARDQ25

ARDQ7

ARDQ9

ARDQ6

ARDQ5

ARDQM3 ARDQS3

ARDQS2

ARDQ10

ARDQ16

ARDQS1#

ARDQS0#

ARDQS2#

ARDQS3#

ARDQM2

ARDQ0

ARDQS0

ARDQM0

ARDQM1

ARDQ11

ARDQS1

R4161

1Kohm 1/16W +/-1%

ARDQ14

ARDQ13

ARDQ12

AVSS33_MEMPLL

AVDD33_MEMPLL

ARDQ2

ARDQ1

ARDQ17

ARDQ26

ARDQ15

ARDQ27 ARDQ29

ARDQ28

ARDQ18

ARDQ24

ARDQ8

C4156 100NF 16V

ARDQ19

R4162

1Kohm 1/16W +/-1%

A_RDQS2#

A_RDQS2

C4194

100NF 16V

DDRV

C4184 100NF 16V

A_RCLK1

A_RCLK1#

A_RCLK0

A_RCLK0#

C4153 1UF 10% 16V

C4201 100NF 16V

R4163

1Kohm 1/16W +/-1%

C4158 100NF 16V

C4188 100NF 16V

A_RDQS1ARDQS1

A_RDQ21ARDQ21

A_RDQM0ARDQM0 A_RCLK0ARCLK0

ARDQ13 A_RDQ13

ARDQ6 A_RDQ6

A_RDQ28ARDQ28

A_RDQS1#ARDQS1#

ARDQ4 A_RDQ4

ARDQ2 A_RDQ2

ARDQ15 A_RDQ15

ARDQ11 A_RDQ11

A_RDQ3ARDQ3 A_RDQ1ARDQ1

ARDQ0 A_RDQ0

ARDQ9 A_RDQ9

+

C4208

100UF 16V

A_RDQ7ARDQ7

A_RDQ10ARDQ10

A_RDQ5ARDQ5

Circuit Diagrams and PWB Layouts

EN 80TPN14.1E LA 10.

2014-Jan-24

back to

div.table

10-5-9 MII/GPIO/ServAD

19750_522.eps

MII/GPIO/ServAD

B09 B09

2014-08-05

715G6842

MII/GPIO/ServAD

MT5591IVDJ

U401H

GPIO0

B30

GPIO1

A31

GPIO2

B31

GPIO3

A32

GPIO4

C30

GPIO5

A33

GPIO6

B32

GPIO7

C31

GPIO8

E30

GPIO9

F29

GPIO10

F27

GPIO11

F28

GPIO12

C32

GPIO13

F30

GPIO14

F32

GPIO15

D30

GPIO16

D32

GPIO17

F31

GPIO18

F33

GPIO19

E31

GPIO20

E32

GPIO21

D31

GPIO22

D33

GPIO23

E29

GPIO24

C33

GPIO25

B33

GPIO26

A30

GPIO27

E28

GPIO28

C29

GPIO29

J28

GPIO30

H29

GPIO31

J26

GPIO32

G30

GPIO33

G27

GPIO34

E27

GPIO35

D29

GPIO36

D28

GPIO37

H28

GPIO38

J27

GPIO39

G29

OPCTRL0

AJ19

OPCTRL1

AF19

OPCTRL2

AJ17

OPCTRL3

AG17

OPCTRL4

AK16

OPCTRL5

AH19

OPCTRL6

AE19

OPCTRL7

AH17

ADIN0_SRV

AJ23

ADIN1_SRV

AH23

ADIN2_SRV

AE28

ADIN3_SRV

AD28

ADIN4_SRV

AF22

ADIN5_SRV

AK21

ADIN6_SRV

AG24

ADIN7_SRV

AM18

DEMOD_RST

P30

DEMOD_TSCLK

N32

DEMOD_TSDATA0

R27

DEMOD_TSDATA1

T26

DEMOD_TSDATA2

T27

DEMOD_TSDATA3

P26

DEMOD_TSDATA4

R28

DEMOD_TSDATA5

U27

DEMOD_TSDATA6

U26

DEMOD_TSDATA7

R26

DEMOD_TSSYNC

R29

DEMOD_TSVAL

P27

CI_INT

L25

CI_TSCLK

N33

CI_TSDATA0

K26

CI_TSSYNC

N30

CI_TSVAL

N31

PVR_TSCLK

M31

PVR_TSVAL

M27

PVR_TSSYNC

L27

PVR_TSDATA0

M29

PVR_TSDATA1

M30

SPI_CLK1

L30

SPI_CLK

L33

SPI_DATA

L32

SPI_CLE

K27

OPWM2

AL8

OPWM1

AM8

OPWM0

AM9

SD_D0

D27

SD_D1

C27

SD_D2

D26

SD_D3

C26

SD_CMD

A28

SD_CLK

E24

LED_PWM1

AF15

LED_PWM0

AG15

GPIO40

G31

GPIO41

G28

GPIO42

B28

GPIO43

K28

GPIO44

E25

GPIO45

D21

GPIO46

G23

GPIO47

C28

GPIO48

F24

GPIO49

AB8

GPIO50

AA7

GPIO51

AD6

GPIO52

AC8

GPIO53

AC7

GPIO54

AB6

GPIO55

AC6

OPCTRL8

AG19

OPCTRL9

AE17

OPCTRL10

AM16

OPCTRL11

AL16

DIVERSITY Light_Sensor

YPbPr_DETECT

ARC1_EN

POWER_OK

DEMOD_TS1

DEMOD_TS7

DEMOD_TS6

Temp_out

SCART_FS1

SCART_FS0

DEMOD_TS5

DEMOD_TS4

DEMOD_TS0

DEMOD_TS3

DEMOD_TS2

ARC3_EN

CI_OCP

I2SAMP_RESET

LED_PWM1

ARC2_EN

L/R_OUTPUT

CI_PWR_EN

GPIO42

SYS_EEPROM_WP

2D/3D_EN

LVD S_SEL

RESET_RF4CE#

SD_D3

AMBIL_SPI_CLK

SD_D1

AMBIL_SPI_DO

CIGPIO1

CIGPIO7

CIGPIO0

CIGPIO6

OPCTRL3

AVDD33_ETH

CIGPIO5

CIGPIO4

CIGPIO3

CIGPIO9

CIGPIO2

CIGPIO8

R4255

NC/0R05 1/16W

C4254

100NF 16V

CI_OCP13

TUN_LNB

BL_DIMMING BL-I-CTRL

SD_CMD

R4254

0R05 1/16W

DEMOD_TS615

3V3SBAVDD3V3

CI_OCP

CIGPIO17

CIGPIO10

CIGPIO16

DEMOD_RST

BT_PWR_EN

CIGPIO14

CIGPIO13

CIGPIO19

CIGPIO12

CIGPIO18

CIGPIO11

TP471 TP

CI_TSVAL

CI_TSCLK

SPI_CLK1

PVR_TSDATA1

CIGPIO15

2D/3D_EN3,10

2D/3D_EN

PVR_TSSYNC

PVR_TSVAL

PVR_TSCLK

CI_TSDATA0 CI_TSSYNC

12V_DET

CI_INT

SPI_CLE

SPI_CLK SPI_DATA

PVR_TSDATA0

EMMC_RST#

DVDD3V3

R4269

22K 1/16W 1%

BL_ON/OFF

R4305

10K 1/10W 5%

R4306

NC/10K 1/10W 5%

DEMOD_TS515

DVDD3V3

LM75-A2

R4274

100K 1%

BL_ON/OFF

BL_DIMMING

DEMOD_TS715

ARC1_EN14

ARC1_EN

CIGPIO8

CIGPIO1

CIGPIO7

CIGPIO0

CIGPIO6

CIGPIO5

CIGPIO4

CIGPIO3

CIGPIO9

CIGPIO2

CIGPIO12

CIGPIO18

CIGPIO11

CIGPIO17

CIGPIO10

CIGPIO16

CIGPIO30

CIGPIO15

CIGPIO14

CIGPIO13

CIGPIO19

CIGPIO38

CIGPIO31

CIGPIO37

CIGPIO36

CIGPIO29

CIGPIO40

CIGPIO35

CIGPIO34

CIGPIO33

CIGPIO39

CIGPIO32

CIGPIO21

CIGPIO27

CIGPIO20

CIGPIO26

CIGPIO41

CIGPIO25

CIGPIO24

CIGPIO23

CIGPIO22

CIGPIO28

R4253

24K 1%

TP472 TP

CN6007

HEAT SINK

1 2

R4270 47R 1/16W 5%

OPCTRL75

OPCTRL7

DEMOD_TSSYNC15

R4284

NC/10K 1/10W 5%

CI_PWR_EN

R4262

4K7 1/16W 5%

WoWLAN_IRQ

LVD S_SEL 10

LVD S_SEL

DEMOD_TSVALID15

R4256

0R05 1/16W

R4285

10K 1/10W 5%

R4275

10K 1/16W 5%

LED_PWM05,6

BL-I-CTRL 3

BL-I-CTRL

LED_PWM0

PANEL_VCC_ON/OFF

R666

100R 1/16W 5%

R4267

10K 1/10W 5%

R4266

NC/10K 1/10W 5%

3V3SB

OSDA0

I2SAMP_RESET

RESET_RF4CE#

R4271 47R 1/16W 5%

TP473 TP

USB_DM_P36

USB_DP_P3

USB_DM_P3

USB_DP_P36

LM75-A1

C4264

100NF 16V

I2C Thernal Sensor

3V3SB

DVDD3V3

CIGPIO30

Wi-Fi_PWR_EN

R4272 47R 1/16W 5%

AMBIL_SPI_CLK 16

AMBIL_SPI_CLK

VCC3IO_AB3,4,5,6,8,10,13,15,16

VCC3IO_C

VCC3IO_AB

VCC3IO_C3,4,5,6,8,10,13,15,16

PHYLED1 PHYLED0

RP4251

47R

1 2

3

4

8

7 6 5

MT5591IVDJ

U401L

VCCK

L11

VCCK

N12

VCCK

P12

VCCK

AG5

VCCK

AH5

VCCK

AJ5

VCCK

AK5

VCCK

AL5

VCCK

AM5

VCCK

AN5

VCCK

AK6

VCCK

AL6

VCCK

AM6

VCCK

AN6

VCC3IO_C

T9

VCC3IO_B

Y10

VCC3IO_B

AA10

VCC3IO_A

D22

VCC3IO_A

E22

VCCK

M11

VCCK

N11

VCCK

P11

VCCK

R11

VCCK

M12

VCCK

R12

VCCK

L13

VCCK

L14

VCCK

L15

VCCK

AF6

VCCK

AG6

VCCK

AH6

VCCK

AJ6

VCCK

AE7

VCCK

AF7

VCCK

AG7

VCCK

AD8

VCCK

AE8

VCCK

AF8

VCCK

AE9

VCCK

AC10

VCCK

AD10

VCCK

AD11

VCCK

AE10

VCCK

AF9

VCCK

AG8

VCCK

AH7

VCCK

AJ7

VCCK

AK7

VCCK

AL7

VCCK

AM7

VCCK

AN7

VCCK

L16

VCCK

L17

VCCK

L18

VCCK

L19

VCCK

T11

VCCK

U11

VCCK

V11

VCCK

W11

VCCK

Y11

VCCK

AA11

VCCK

AB11

VCCK

AC11

VCCK

V12

VCCK

U12

VCCK

T12

VCCK

W12

VCCK

L12

VCCK

R23

VCCK

V23

VCCK

AD13

VCCK

AD17

VCCK

AD14

VCCK

Y12

VCCK

AB12

VCCK

AA12

VCCK

AC12

VCCK

VCC3IO_ABVCC3IO_C

VCCK

Q634

BC857BW

1

23

LM75-A2

CIGPIO4713

CIGPIO47

TUN_LNB

TUN_LNB4

RP4250

47R

1 2

3

4

8

7 6 5

SCART_FS1

MT5591IVDJ

U401K

DVSS

AC18

DVSS

AB21

DVSS

AB14

DVSS

N13

DVSS

P13

DVSS

R13

DVSS

T13

DVSS

U13

DVSS

V13

DVSS

W13

DVSS

Y13

DVSS

P18

DVSS

N14

DVSS

P14

DVSS

R14

DVSS

T14

DVSS

U14

DVSS

V14

DVSS

W14

DVSS

Y14

DVSS

R18

DVSS

N15

DVSS

P15

DVSS

R15

DVSS

T15

DVSS

U15

DVSS

V15

DVSS

W15

DVSS

Y15

DVSS

AA15

DVSS

AB15

DVSS

T18

DVSS

R16

DVSS

T16

DVSS

U16

DVSS

V16

DVSS

W16

DVSS

Y16

DVSS

AA16

DVSS

AB16

DVSS

R17

DVSS

T17

DVSS

U17

DVSS

V17

DVSS

Y17

DVSS

N16

DVSS

V18

DVSS

Y18

DVSS

P16

DVSS

V19

DVSS

Y19

DVSS

W17

DVSS

AA17

DVSS

AB17

DVSS

N19

DVSS

U18

DVSS

W18

DVSS

AA18

DVSS

AB18

DVSS

N17

DVSS

U19

DVSS

W19

DVSS

P17

DVSS

P19

DVSS

N18

DVSS

U20

DVSS

V20

DVSS

W20

DVSS

Y20

DVSS

AA20

DVSS

R19

DVSS

T19

DVSS

M20

DVSS

N20

DVSS

U21

DVSS

V21

DVSS

W21

DVSS

Y21

DVSS

AA21

DVSS

P20

DVSS

R20

DVSS

T20

DVSS

U22

DVSS

V22

DVSS

W22

DVSS

Y22

DVSS

AA22

DVSS

N21

DVSS

P21

DVSS

R21

DVSS

T21

DVSS

M22

DVSS

N22

DVSS

P22

DVSS

R22

DVSS

T22

DVSS

M21

DVSS

AC17

DVSS

AA19

DVSS

M13

DVSS

M14

DVSS

M15

DVSS

AA13

DVSS

AB13

DVSS

AA14

DVSS

AB19

DVSS

D6

DVSS

L3

DVSS

D16

DVSS

AC14

DVSS

C13

DVSS

M16

DVSS

AC13

DVSS

AC20

DVSS

AC22

DVSS

AD20

DVSS

Y23

DVSS

K24

DVSS

K25

DVSS

L24

DVSS

AA23

DVSS

AB23

DVSS

M17

DVSS

M18

DVSS

M19

DVSS

V24

DVSS

W23

TP482 TP

VCC3IO_A

VCC3IO_B

VCC3IO_C

12V_DET

3D-IR-OUT6

3D-IR-OUT

CN4252

RJ45 CONN

TCT P1

1

TD+ P2

2

TD- P3

3

RD+ P4

4

RD- P5

5

RCT P6

6

TH1

7

TH2

8

C4263

0.1uF 25V

C4260

0.1uF 25V

L/R_OUTPUT10

L/R_OUTPUT

OPCTRL35

CIGPIO2613

OPCTRL7

SYS_EEPROM_WP5

CIGPIO1313

BL_ON/OFF10

BL_DIMMING10

SCART_FS19

PVR_TSDATA113

PVR_TSDATA013

PVR_TSSYNC13

SPI_CLE13

SPI_DATA13

SPI_CLK13

TP468 TP

CI_TSVAL13

CI_INT13

CI_TSCLK13

PVR_TSCLK13

CI_TSDATA013

CI_TSSYNC13

CIGPIO4013

CIGPIO013

PVR_TSVAL13

CIGPIO113

CIGPIO1413

CIGPIO2713 CIGPIO2813

CIGPIO4113

CIGPIO2913

CIGPIO213

CIGPIO1513

CIGPIO3013

CIGPIO313

CIGPIO1713

DEMOD_TSCLK

CIGPIO3113

CIGPIO413

CIGPIO1613

CIGPIO513

CIGPIO1813

CIGPIO613

CIGPIO1913

CIGPIO3213

CIGPIO713

CIGPIO2013

CIGPIO3313 CIGPIO3413

TP484 TP

C4258 10NF 50V

CIGPIO813

CIGPIO2113

CIGPIO3613

CIGPIO2213

SPI_CLK113

C4262

10NF 50V

CIGPIO3513

CIGPIO913 CIGPIO1013

CIGPIO2413

CIGPIO1113

CIGPIO2313

CI_OCP13

CIGPIO3713

CIGPIO2513

CIGPIO3813

DEMOD_RST15

CIGPIO3913

CIGPIO1213

DEMOD_RST

C4259 10NF 50V

OPCTRL75

CI_TSVAL

CI_TSCLK

PVR_TSDATA1

OPCTRL3

PVR_TSSYNC

PVR_TSVAL

PVR_TSCLK

CI_TSDATA0

CI_TSSYNC

CI_INT

SPI_CLE

SPI_CLK SPI_DATA

PVR_TSDATA0

SCART_FS1

CI_OCP

BL_DIMMING

SPI_CLK1

BL_ON/OFF

DEMOD_TSSYNC

SYS_EEPROM_WP

CN4250

CONN

1 2

3

4 5 6

78

C4261

100NF 16V

DEMOD_TSCLK15

GPIO4210

GPIO42

AVDD3V33,5,6,7,10,11,14

GND3,4,5,6,7,8,9,10,11,13,14,15,16

CI_PWR_EN13

PANEL_VCC_ON/OFF4,10

SYS_EEPROM_WP5 SCART_FS19

KEY_PAD06

Light_Sensor

BL_ON/OFF10

BL_DIMMING10

I2SAMP_RESET8

SEPARATE GROUND

RJ45

TXVN

TXVP

SYS_EEPROM_WP

OPCTRL35

RXVP

CIGPIO29

RESET_RF4CE#5

Light_Sensor6

DVDD3V33,4,5,6,8,10,13,15,16

RXVN

BL_ON/OFF10

AMBIL_SPI_DO 16

3V3SB3,5,6,8,9,10,14

AU_12V

OSDA05,8,14

OSCL05,8,14

OSDA0

OSCL0

CIGPIO32

CIGPIO38

CIGPIO31

CIGPIO37

CIGPIO36

CIGPIO41

CIGPIO40

CIGPIO35

CIGPIO34

CIGPIO33

CIGPIO39

DEMOD_TS015

TP486TP

Tem p_o ut

Tem p_o ut16

YPbPr_DETECT 7

YPbPr_DETECT

DVDD3V3

TP483 TP

DVDD3V3

TP474 TP

Wi-Fi Power Control

Wi-Fi_OCPWi-Fi_PWR_EN

Wi-Fi_PWR_EN : Enable : High Disable : Low

POWER_OK

USB_DM_P3

Wi-Fi_OCP : Disable : Low

POWER_OK10

USB_DP_P3

U4250

APL3511CBI-TRG

VOUT

1

GND

2

OCB

3

EN

4

VIN

5

C4251

1UF 10% 16V

R4252

4K7 1/16W 5%

FB4250

120R

1 2

R4251

4K7 1/16W 5%

R4265 10R 1/16W 5%

R4264 10R 1/16W 5%

C4253100NF 16V

C425010UF 10V

R4250

10K 1/16W 5%

3V3SB

Wi-Fi_VCC

MT5591 Heat Sink

WoWLAN_IRQ

DEMOD_TS115

TP481 TP

DEMOD_TS6

DEMOD_TS3

DEMOD_TS2

DEMOD_TS1

DEMOD_TS7

DEMOD_TS4

DEMOD_TS0

DEMOD_TSSYNC DEMOD_TSVALI D

DEMOD_TSCLK

DEMOD_TS5

DEMOD_TSVALID

LED_PWM15,6

LED_PWM1

DEMOD_TS215

EMMC_RST#5

EMMC_RST#

TP487TP

R4268

22K 1/16W 1%

KEY_PAD0

R665 100R 1/16W 5%

LM75-A0

TP470 TP

DEMOD_TS415

R4120 NC/100OHM

3D-IR-OUT

12V drop detect

AVSS33_ELDO

RXVN

TXVN

REXT

AVSS33_COM

MT5591IVDJ

U401J

TXVP_0

AL13

TXVN_0

AM13

RXVN_1

AM12

RXVP_1

AL12

PHYLED1

AF13

PHYLED0

AJ13

REXT

AN12

AVDD33_ETH

AN14

AVSS33_LD

AC16

AVSS33_COM

AC15

AVSS33_ELDO

AE13

TXVP

RXVP

AVDD33_ETH

AVSS33_LD

R4286

NC/10K 1/10W 5%

R4287

10K 1/10W 5%

DVDD3V3

LM75-A1

OSCL0

ARC4_EN14

ARC3_EN14

ARC4_EN

ARC3_EN

ARC2_EN14

ARC2_EN

R4329

15K 1%

AMBIL_SPI_DO

DEMOD_TS315

R4273 0R05 1/16W

CIGPIO21

CIGPIO27

CIGPIO20

CIGPIO26

AVDD3V3

CIGPIO25

CIGPIO24

CIGPIO23

CIGPIO22

CIGPIO28

OPCTRL3

CIGPIO47

OPCTRL7

LED_PWM0

SD_CLK

PANEL_VCC_ON/OFF

BL_ON/OFF

3V3SB

U4251

NC/LM75BDP

SDA

1

SCL

2

OS

3

GND4A2

5

A1

6

A0

7

VCC

8

ARC4_EN

KEY_PAD0

VCCK3,5

VCCK

Circuit Diagrams and PWB Layouts

EN 81TPN14.1E LA 10.

2014-Jan-24

back to

div.table

10-5-10 CI Card

19750_523.eps

CI Card

B10 B10

2014-08-05

715G6842

CI Card

R1085 47R 1/16W 5%

R1118 47R 1/16W 5%

R1065

10K 1/16W 5%

R1067

NC/10K 1/16W 5%

R1122 47R 1/16W 5%

FB1050 120R

1 2

+5V_USB

DVDD3V3

CI_VCC

CI_VCC CI_VCC CI_VCC

CI_VCC

DVDD3V3

CI_VCC

CI_DVDD3V3 CI_VCCCI_DVDD3V3

DVDD3V3

CI_DVDD3V3

CI_VCC

GND3,4,5,6,7,8,9,10,11,12,14,15,16

CI_PWR_EN 12

DVDD3V33,4,5,6,8,10,12,15,16

CI_OCP 12

AVDD3V33,5,6,7,10,11,12,14

AVDD1V2 3,7,10,14,15

+5V_SW 3,4,6,7,10,14,15

DEMOD_TSSYNC12,15 DEMOD_TSCLK12,15

DEMOD_TSVALID12,15

DEMOD_TS012,15 DEMOD_TS212,15

DEMOD_TS112,15

DEMOD_TS412,15

DEMOD_TS312,15

+5V_USB3,6

DEMOD_TS512,15

+5V_USB

DEMOD_TS712,15

DEMOD_TS612,15

DVDD3V3

CI_CD2#

CI 3V3 PWR Cap.

CI_OUT_TSCLKCI_WAIT#CI_CD1# CI_VS1#

CI_IREQ#

CI_CE2#

CI_PWR_EN : Enable : High Disable : Low

CIGPIO27CI_D1

CIGPIO10CI_A10

CIGPIO9CI_A9

CIGPIO8CI_A8

CI_OUT_TSCLK

CIGPIO4CI_A4

CI_OUTDATA3

PVR_TSDATA1CI_WAIT#

SPI_DATACI_IORD#

DEMOD_TS512,15 DEMOD_TS612,15

CI_OUTDATA5

CI_INSYNC

CI_OUTDATA7

DEMOD_TSVALID12,15

DEMOD_TSSYNC12,15

DEMOD_TS712,15

CI_OUTDATA5

CI_CD2#

CI_CE2#

CI_INDATA3 CI_INDATA4

CI_INDATA0

DEMOD_TS012,15

DEMOD_TSCLK12,15

CI_OUTDATA3

CI_VS1#

CI_OUTSYNC

CI_OUTVALID

CI_INDATA2

CI_INVALID

DEMOD_TS112,15

DEMOD_TS1

DEMOD_TS7

DEMOD_TS6

CI_OUTDATA4

CI_OUTDATA7

CI_INSYNC

CI_IOWR#

CI_OUTDATA6

DEMOD_TSSYNC DEMOD_TSVALID

DEMOD_TSCLK

DEMOD_TS3

DEMOD_TS2

CI_INDATA0

CI_REG#

CI_IORD#

CI_CD1#

CI_INDATA4

CIGPIO13CI_A13

CIGPIO12CI_A12

CI_IN_TSCLK

CI_OUTDATA2

DEMOD_TS412,15

DEMOD_TS212,15

DEMOD_TS5

DEMOD_TS4

DEMOD_TS0

CI_INDATA7

CI_INDATA6

CI_INDATA5

CI_INDATA3

CI_INDATA1

CIGPIO32CI_D6

CIGPIO41

CIGPIO6CI_A6

CIGPIO15

CIGPIO14CI_A14

DEMOD_TS312,15

CI_OUT_TSCLK

CI_OUTDATA2

CI_OUTDATA1

CI_OUTDATA0

CI_WAIT#

CI_RESET

CI_OUTDATA6

CI_OUTDATA4

CI_INDATA6

CI_INDATA5

CI_INDATA2

CI_OUTSYNC CI_OUTVALID

CI_OUTDATA0

CI_INDATA7

CI_TSSYNCCI_WE#

CI_TSVALCI_OE#

CI_TSCLKCI_CE1#

CIGPIO5CI_A5

CIGPIO11CI_A11

PVR_TSSYNC

PVR_TSVALCI_VS1#

PVR_TSCLK

CI_TSDATA0

CIGPIO18

CIGPIO17 CIGPIO16

SPI_CLECI_IOWR#

SPI_CLKCI_CD1#

CIGPIO39

CIGPIO37

CIGPIO28CI_D2

CIGPIO7CI_A7

CIGPIO22

SPI_CLK1CI_CD2#

CI_INTCI_REG#

CIGPIO0CI_A0

CIGPIO30CI_D4

CIGPIO33CI_D7

CIGPIO1CI_A1

CIGPIO23

CIGPIO20 CIGPIO21

CIGPIO24

CIGPIO47CI_RESET

CIGPIO34

CIGPIO40

CIGPIO36

CIGPIO2CI_A2

CIGPIO25

CIGPIO31CI_D5

CIGPIO38

CIGPIO29CI_D3

CIGPIO3CI_A3

CI_OCP : Disable : Low

CI Bus Power Control

PCMCIA 5V Slot 10.3mm

CIGPIO4012

CIGPIO012

CIGPIO1312

CIGPIO2612

CIGPIO112

CIGPIO1412

CIGPIO2712

CIGPIO1512

CIGPIO2812

CIGPIO4112

CIGPIO1712

CIGPIO2912

CIGPIO212

CIGPIO1612

CIGPIO3012

CIGPIO312 CIGPIO512

CIGPIO1812

CIGPIO3112

CIGPIO412 CIGPIO612

CIGPIO1912

CIGPIO3212

CIGPIO712

CIGPIO2012

CIGPIO3312

CIGPIO812

CIGPIO2112

CIGPIO3412

CIGPIO912

CIGPIO2212

CIGPIO3612 CIGPIO3712

CIGPIO1012

CIGPIO2412

CIGPIO3512

CIGPIO3812

CIGPIO1112

CIGPIO2312

CIGPIO3912

CIGPIO1212

CIGPIO2512

CIGPIO8

CIGPIO1

CIGPIO7

CIGPIO0

CIGPIO6

CIGPIO5

CIGPIO4

CIGPIO3

CIGPIO9

CIGPIO2

CIGPIO12

CIGPIO18

CIGPIO11

CIGPIO17

CIGPIO10

CIGPIO16

CIGPIO30

CIGPIO15

CIGPIO14

CIGPIO13

CIGPIO19

CIGPIO38

CIGPIO31

CIGPIO37

CIGPIO36

CIGPIO29

CIGPIO40

CIGPIO35

CIGPIO34

CIGPIO33

CIGPIO39

CIGPIO32

CIGPIO21

CIGPIO41

CIGPIO27

CIGPIO20

CIGPIO26

CI_OCP

CIGPIO25

CIGPIO24

CIGPIO23

CIGPIO22

CIGPIO28

CI_OUTDATA1

+5V_SW

OPCTRL35,12

OPCTRL7

SYS_EEPROM_WP5,12

BL_ON/OFF10,12

BL_DIMMING10,12

PVR_TSDATA112

PVR_TSDATA012

PVR_TSSYNC12

SCART_FS19,12

SPI_CLE12

SPI_DATA12

SPI_CLK12

CI_TSVAL12

CI_INT12

CI_TSCLK12

PVR_TSCLK12

CI_TSDATA012

CI_TSSYNC12

PVR_TSVAL12

SPI_CLK112

OPCTRL75,12

CI_TSVAL

CI_TSCLK

PVR_TSDATA1

OPCTRL3

PVR_TSSYNC

PVR_TSVAL

PVR_TSCLK

CI_TSDATA0

CI_TSSYNC

CI_INT

SPI_CLE

SPI_CLK SPI_DATA

PVR_TSDATA0

SCART_FS1

BL_DIMMING

SPI_CLK1

BL_ON/OFF

SYS_EEPROM_WP

DEMOD_TSVALI D

DEMOD_TSSYNC DEMOD_TSCLK

DEMOD_TS7

DEMOD_TS2

DEMOD_TS1

DEMOD_TS0

DEMOD_TS3

DEMOD_TS6

DEMOD_TS5

DEMOD_TS4

CIGPIO26CI_D0

CIGPIO19

AVDD3V3

CI_PWR_EN

AVDD1V2

CI_OCP

CI_OCP12

CI_OCP

CIGPIO35

R1083 47R 1/16W 5%

C105310UF 10V

CI_PWR_EN

R1084 47R 1/16W 5%

R1124 47R 1/16W 5%

R1054

4K7 1/16W 5%

R1072 47R 1/16W 5%

CI_INVALID

CI_OE#

CI_CE1#

CI_A13

CI_D6 CI_D7

CI_A6

CI_A7

CI_D5

CI_A10

PCMCIA

CN159 PCMCIA CARD

A15

20

A16

19

CE1#

7

OE#

9

WE#

15

READY#:IREQ#

16

GND

1

GND

34

D0

30

D1

31

D2

32

D3

2

D4

3

D5

4

D6

5

D7

6

A0

29

A1

28

A2

27

A3

26

A4

25

A5

24

A6

23

A7

22

A8

12

A9

11

A10

8

A11

10

A12

21

A13

13

A14

14

WP#

33

VPP1

18

VCC

17

GND

68

CD2#

67

D10

66

D9

65

D8

64

BVD1#:STSCHG

63

BVD2#:SPKR

62

GND

35

CD1#

36

D11

37

D12

38

D13

39

D14

40

D15

41

CE2#

42

VS1#

43

IORD#

44

IOWR#

45

A17

46

A18

47

A19

48

A20

49

A21

50

VCC

51

VPP2

52

A22

53

A23

54

A24

55

A25

56

VS2#

57

RESET

58

WAIT#

59

INPACK

60

REG#

61

69697070717172

72

CI_IREQ#

CI_A1

CI_A2

CI_A8

CI_A9

CI_A11

CI_A4

CI_A5

CI_D1

CI_D0

CI_A12

CI_D3

CI_A0

CI_D2

CI_A14

CI_A3

CI_WE#

CI_IN_TSCLK

CI_D4

R1069

10K 1/16W 5%

R1080 47R 1/16W 5%

U102

APL3511CBI-TRG

VOUT

1

GND

2

OCB3EN

4

VIN

5

C1080

NC/10PF 50V

C1081

NC/10PF 50V

R1121 47R 1/16W 5% R1070 0R05 1/16W

R1082 47R 1/16W 5%

R1126 47R 1/16W 5%

R1051 100K 1/16W 5%

C1051

1UF 10% 16V

R1053

4K7 1/16W 5%

R1066

10K 1/16W 5%

PVR_TSDATA0CI_IREQ#

R1075 47R 1/16W 5%

R1077 47R 1/16W 5%

C1077 100NF 16V

R1064

10K 1/16W 5%

R1063

10K 1/16W 5%

R1125 47R 1/16W 5%

R1123 47R 1/16W 5%

R1068

10K 1/16W 5%

R1081 47R 1/16W 5%

R1119 47R 1/16W 5%

R1055

10K 1/16W 5%

CIGPIO4712

CIGPIO47

R1086 47R 1/16W 5%

C1078

100NF 16V

R1115 47R 1/16W 5%

C1079

100NF 16V

CI_INDATA1

C1082100NF 16V

R1120 47R 1/16W 5%

+

C1054

NC/100UF 16V

R1127 47R 1/16W 5%

R1104 47R 1/16W 5%

Circuit Diagrams and PWB Layouts

EN 82TPN14.1E LA 10.

2014-Jan-24

back to

div.table

10-5-11 HDMI /Connector

19750_524.eps

HDMI /Connector

B11 B11

2014-08-05

715G6842

HDMI /Connector

HDMI 4 INPUT for HDCP 2.2 (SIDE)

RX3_0-

FB713

120R

1 2

RX3_C+

ZD504

NC/PDZ24B

1 2

R542

910R

R543

75 OHM +-5% 1/16W

R545 100R 1/16W 5%

R546 100R 1/16W 5%

D511

BAS316

A

1

K

2

R547

470K 1/16W 5%

HDMI 3 ESD PROTECTER

FB714

120R

1 2

C511

100NF 16V

+5V_SW-9679

C520

100NF 16V

C707

10uF 6.3V

HPD3

R583

47K 1/16W 5%

PWR5V_1

R584

47K 1/16W 5%

SDA_1

SCL_1

R593

47K 1/16W 5%

R565

NC/0R05 1/16W

R566

NC/4K7 1/16W 5%

R567

0R05 1/16W

HDMI3_SCL

Si9679 Flash

ARC

HDMI3_SDA

ARC3_HDMI

CEC_3

RX3_2-

ARC4_EN

R568

180ohm 1/16W +/-5%

HDMI 1 ESD PROTECTER

C517

1uF 10V

R569

NC/0R05 1/16W

U526

74LVC1G125GV

24

5

1

3

UART_SEL5

UART_SEL

R570

100K 1/16W 5%

R571

82R

AVDD3V3

HDMI3_SCL_SI9679

AVDD3V3

GPIO1_SI9679

+5V_STB

HDMI0_SDA5

HDMI0_SDA

EDID_WC

ARC3_EN12

RX0_2-

RX0_2+

RX0_1-

ARC3_EN

RX0_1+

HDMI 2 INPUT

SPI_MOSI

RX0_C+

RX0_2+ RX0_2-

RX0_C-

RX0_0RX0_1+ RX0_1-

RX0_0+

AVDD12_HDMI_0_RX

U514

NC/AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

RX3_0+

R4333

10K+-5%1/16W

Outut from Si9679

Input from MT5591 or HDMI4

GND

U510

NC/AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

SDA_2

SCL_2

PWR5V_2

CEC_2

PWR5V_2

SDA_2

SCL_2

CEC_2

RX2_2+ RX2_2-

TP514TP

RX2_1+

RX2_2-

RX2_2+

RX2_1-

RX2_1+

RX2_0+

RX2_C-

RX2_C+

RX2_0-

RX2_0+

RX2_1-

RX2_C-

RX2_C+

RX2_0-

RX2_2+

RX1_2+

AVDD3V3

R4334

1K 1/16W

R4331 7.5K 1%

R589

47K 1/16W 5%

R631

0R05 1/16W

PWR5V_3

C785 100NF 16V

R552

NC/0R05 1/16W

U713

SII9679CNUC

AVDD10

17

RXCP

8

RXCN

7

VDD33

10

GPIO0_CI2CA

21

MHL_CD

71

GPIO2

23

RPWR5V

3

CBUS/CBUS_HPD

4

CSDA69CSCL68INT

20

CEC_A/NC

72

NC

26

NC

27

NC

28

NC

29

HPD

38

TDSCL

66

TDSDA

67

XTAL_IN49XTAL_OUT

50

XTAL_VDD33

48

TX2N

46

TX2P

47

TX1N

44

TX1P

45

TX0N

42

TX0P

43

TXCP

41

TXCN

40

HSIC_STB54HSIC_DAT53SPI_CLK60SPI_CS061SPI_MOSI63SPI_MISO

64

TMODE

25

RESETN

34

GPIO1_PSCTL22GPIO3

30

RX0N

11

RX0P

12

RX1N

13

RX1P

14

RX2N

15

RX2P

16

DSDA

76

DSCL

75

e_PAD

77

VDD33OUT

1

VDD5V_IN

2

AVDD10

9

AVDD10_PLL

36

VDD18OUT

37

AVDD10_DoC

6

VDD12OUT

56

AVDD10_DP

39

VDD10

59

VDDIO33

65

VDD10

35

NC

52

GPIO4

31

VDD10

70

FVDD10

18

VDD10

24

VDDIO33

19

HSIC_GND55XTAL_GND

51

HSIC_VDD10

58

SPI_CS1

62

CoC_GND

5

GPIO5

32

VDDIO33

33

LPSBV5V

74

NC/WAKEUP

73

HSIC_VDD33

57

FB722

120R

1 2

C506

100NF 16V

TP510 TP

AVDD3V3-9679

R516 100R 1/16W 5%

C521

100NF 16V

C708

10uF 6.3V

ARC2_HDMI

R513

75 OHM +-5% 1/16W

ZD502

NC/PDZ24B

1 2

CN501HDMI

SHELL1

20

SHELL2

21

D2+

1

D2 Shield

2

D2-

3

D1+

4

D1 Shield

5

D1-

6

D0+

7

D0 Shield

8

D0-

9

CK+

10

CK Shield

11

CK-

12

CE Remote

13

NC

14

DDC CLK

15

DDC DATA

16

GND

17

+5V

18

HP DET

19

SHELL4

23

SHELL3

22

ZD503

NC/PDZ24B

1 2

R511

75 OHM +-5% 1/16W

ZD501

NC/PDZ24B

1 2

R538

0R05 1/16W

R536

NC/4K7 1/16W 5%

R4107

4K7 1/16W 5%

Audio Return Channel (ARC)

RX3_2-_SI9679 RX3_C-_SI9679

ARC disable

HPD1

RX3_1+_SI9679 RX3_1-_SI9679

RX3_0+_SI9679 RX3_0-_SI9679

RX3_C+_SI9679

RX3_2+_SI9679

ARC

ARC enable

L

ARC_EN

H

HDMI3_SDA_SI9679

PWR5V_3

UART_SEL

ARC1_EN

DVDD3V33,4,5,6,8,10,12,13,15,16

DVDD3V3

R523

910R

C513 100NF 16V

ARC4_EN12

ARC4_EN

R522

75 OHM +-5% 1/16W

HDMP_RESETn 10

HDCP-RESETn

R531 100R 1/16W 5%

D505

BAS316

A

1

K

2

R504 100R 1/16W 5%

R526 100R 1/16W 5%

D510

BAS316

A

1

K

2

C504

100NF 16V

D508

BAS316

A

1

K

2

TP511 TP

R530

470K 1/16W 5%

R505 100R 1/16W 5%

R533

180ohm 1/16W +/-5%

R510

910R

R509

470K 1/16W 5%

R537

NC/0R05 1/16W

C508

1uF 10V

U512

74LVC1G125GV

24

5

1

3

R521

470K 1/16W 5%

R534

100K 1/16W 5%

AVDD1V2

+5V_SW-9679

R535

82R

RX3_1-

SCL_0

C525

100NF 16V

C502 100NF 16V

R4335300K

C509

100NF 16V

R517

910R

R515 100R 1/16W 5%

AVDD3V3

HPD0

AVDD1V2

TP512 TP

AVDD1V2

AVDD3V33,5,6,7,10,11,12 AVDD1V23,7,10,15

GND3,4,5,6,7,8,9,10,11,12,13,15,16

ARC1_EN12

+5V_SW3,4,6,7,10,15

ARC7

R581

47K 1/16W 5%

R574

47K 1/16W 5%

HDMI_SDA0/TX

HDMI_SCL0/RX

AVDD3V3

HPD3_EXT

C4273 4.7UF 6.3V

HDCP-IRQn

ARC

+5V_STB-9679

TP513 TP

Q402

MMBT3904

OSCL0

OSDA05,8,12

OSCL05,8,12

OSDA0

R575

47K 1/16W 5%

Q404

MMBT3904

Q405 MMBT3904

3V3SB

R576

47K 1/16W 5%

TP519 TP

Q4003

BC847C

1

3

2

SPI_MISO

C4275

1uF 10V

SI9679_V10

R4342

1.8K 1/16W

C526

100NF 16V

R590

47K 1/16W 5%

SDA_0

SCL_1

CEC_1

PWR5V_1

RX1_1-

RX1_1+

RX1_2-

RX1_2+

PWR5V_1

SDA_1

RX1_2-

RX1_2+

SDA_1

SCL_1

CEC_1

RX1_C+

RX1_0-

RX1_0+

RX1_1-

RX1_1+

RX1_C-

RX1_C+

RX1_0-

RX1_0+

RX1_C-

RX3_1+

HDMI3_SDA

AVDD3V3

SI9679 for HDCP 2.2

C4274 4.7UF 6.3V

C523 100NF 16V

HDMI3 EDID

U511

NC/AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

R4337 1K 1/16W

C527

100NF 16V

C786

100NF 16V

C4272 4.7UF 6.3V

R585

47K 1/16W 5%

PWR5V_2

R586

47K 1/16W 5%

SDA_2

SCL_2

+5V_SW

Q510

AO3414

R506

10K 1/16W 5%

R507

NC/0R05 1/16W

AVDD3V3

+5V_SW

EDID_WC

R630NC/0R05 1/16W

R4344

5K1 1/16W 5%

R4338

10K+-5%1/16W

SPI_MOSI

TP516TP

+5V_STB-9679

CN502HDMI

SHELL1

20

SHELL2

21

D2+

1

D2 Shield

2

D2-

3

D1+

4

D1 Shield

5

D1-

6

D0+

7

D0 Shield

8

D0-

9

CK+

10

CK Shield

11

CK-

12

CE Remote

13

NC

14

DDC CLK

15

DDC DATA

16

GND

17

+5V

18

HP DET

19

SHELL4

23

SHELL3

22

PWR5V_2

C528

100NF 16V

RX3_C-

RX3_2+

R4340

NC/10K+-5%1/16W

R594

47K 1/16W 5%

RX3_2-

RX1_0-

RX1_0+

RX1_1-

RX1_1+

RX1_2-

CEC_1

RX1_C-

RX1_C+

U521

NC/AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

HDMI3_SCL

HDMI1_SCL HDMI1_SDA

C524 100NF 16V

AVDD3V3

3V3SB

CN503

HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

U518

NC/AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

D4007

BAS316

A1K

2

U513

NC/AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

R577

47K 1/16W 5%

EDID_WC: write_enable: High write_disable: Low

Q406

MMBT3904

HPD3_SI9679

Q403 MMBT3904

Q407

MMBT3904

3V3SB

R578

47K 1/16W 5%

HPD2

RX3_C-_SI9679

R591

47K 1/16W 5%

+5V_STB3,5,8

+5V_STB

HPD3_SI9679

R629

0R05 1/16W

R4343

10R 1/16W 5%

R592

47K 1/16W 5%

PWR5V_1

AVDD12_HDMI_0_RX AVDD12_HDMI_1_RX

R595

47K 1/16W 5%

PWR5V_0

Analog Power

AVDD12_HDMI_2_RX AVDD12_HDMI_3_RX

+5V_SW-9679

SPI_CS0

SDA_3

SCL_3

CEC_3

PWR5V_3

RX3_0+

RX3_1-

RX3_1+

RX3_2-

RX3_2+

CEC_0

PWR5V_0

RX3_C-

RX3_C+

RX3_0-

SDA_0

PWR5V_0

SCL_0

RX0_2+

SDA_0

SCL_0

CEC_0

RX0_0-

RX0_0+

RX0_1-

RX0_1+

RX0_2-

RX0_C+

RX0_0-

RX0_0+

RX0_C-

RX0_C+

RX0_C-

RX3_0+

PWR5V_0

U515

NC/AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

U523

NC/AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

HPD3_EXT

AVDD3V3-9679

HDMI0_SCL5

HDMI0_SCL

RX3_2+

R501

NC/0R05 1/16W

C705 10UF 10V

C706 10UF 10V

U710 G5695T11U

VIN

1

GND

2

EN3VFB

4

LX

5

C717 100NF 16V

C748

NC/100NF 16V

C787

100NF 16V

L704

2.2uH

R731

100R 1/16W 5%

R730

10K +-1% 1/16W

R553

NC/0R05 1/16W

AVDD3V3 to SI9679V10

R551

0R05 1/16W

R550

NC/4K7 1/16W 5%

SI9679_V10

ARC

R4336

1K 1/16W

SI9679 DC IN

U517

NC/AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

ARC1_HDMI

ARC2_EN

R554

180ohm 1/16W +/-5%

R555

NC/0R05 1/16W

HDMI2_SCL

C515

1uF 10V

HDMI2_SDA

R556

100K 1/16W 5%

U524

74LVC1G125GV

24

5

1

3

R557

82R

AVDD3V3

R573

47K 1/16W 5%

HDMI3_SCL_SI9679

OSCL0

HDMI 3 INPUT (SIDE)

TP517TP

RX3_1+_SI9679

RX3_1-_SI9679

RX3_0+_SI9679

RX3_0-_SI9679

RX3_C+_SI9679

RX3_2+_SI9679

RX3_2-_SI9679

HDMI 2 ESD PROTECTER

UART_SEL

TP520TP

HDMI 4 ESD PROTECTER

PWR5V_3

AVDD33_HDMI

SDA_3

SCL_3

CEC_3

RX3_0+

RX3_1-

RX3_1+

RX3_2-

RX3_2+

RX3_C-

RX3_C+

RX3_0-

SPI_SCK

AVDD3V3

R4332

33R 1/16W 5%

+5V_SW

HDMI3_SDA

R503 0R05 1/16W R572 0R05 1/16W

R502

0R05 1/16W

R500

0R05 1/16W

CEC_2 CEC_3

CEC_1

CEC_0

HDMI_CEC

HDMI-CEC

HDMI_SDA0/TX5

HDMI_SCL0/RX5

HDMI_SDA0/TX

HDMI_SCL0/RX

HDMI3_SDA_SI9679

R579

47K 1/16W 5%

Q408

MMBT3904

Q409

MMBT3904

3V3SB

R580

47K 1/16W 5%

C519

100NF 16V

HDMI0_SDA

HDMI0_SCL

RX3_C+

U522

NC/AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

HDCP-RESETn

RX3_1-

HPD0

RX3_CARC3_HDMI

R587

47K 1/16W 5%

C704

10uF 6.3V

R588

47K 1/16W 5%

U519

NC/AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

PWR5V_3

SCL_3 SDA_3

SPI_MISO

SPI_CS0

R558

NC/0R05 1/16W

RX1_C+

RX1_2+ RX1_2-

RX1_C-

R560

0R05 1/16W

R559

NC/4K7 1/16W 5%

RX1_1+ RX1_1-

RX1_0+ RX1_0-

ARC

HDMI2_SDA

HDMI2_SCL

HDMI_CEC

HDMI1_SDA

HDMI1_SCL

AVSS33_HDMI_RX

AVSS33_HDMI_RX AVSS33_HDMI_RX

AVDD12_HDMI_2_RX

AVDD12_HDMI_1_RX

ARC2_HDMI

HPD2

AVSS33_HDMI_RX

AVDD33_HDMI

ARC3_EN

HPD1

R562

NC/0R05 1/16W

R561

180ohm 1/16W +/-5%

OSDA0

C516

1uF 10V

U525

74LVC1G125GV

24

5

1

3

U516

NC/AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

R564

82R

R563

100K 1/16W 5%

AVDD3V3

R632 NC/0R05 1/16W

MT5591IVDJ

U401F

HDMI_CEC

V26

HDMI_0_SCL

AC27

HDMI_1_SCL

AB27

HDMI_2_SCL

AA26

HDMI_3_SCL

W27

HDMI_0_SDA

AC26

HDMI_1_SDA

AB26

HDMI_2_SDA

Y26

HDMI_3_SDA

W26

HDMI_0_PWR5V

AE29

HDMI_1_PWR5V

Y27

HDMI_2_PWR5V

AA28

HDMI_3_PWR5V

V28

HDMI_0_HPD

AD29

HDMI_1_HPD

AA27

HDMI_2_HPD

AA29

HDMI_3_HPD

V29

AVDD12_HDMI_1_RX

AA32

AVDD12_HDMI_2_RX

P33

AVDD12_HDMI_3_RX

P32

AVSS33_HDMI_RX

T25

AVSS33_HDMI_RX

W25

AVSS33_HDMI_RX

AD27

HDMI_0_RX_0

AG30

HDMI_0_RX_0B

AG31

HDMI_0_RX_1

AF30

HDMI_0_RX_1B

AF31

HDMI_0_RX_2

AE32

HDMI_0_RX_2B

AE33

HDMI_0_RX_C

AG32

HDMI_0_RX_CB

AG33

HDMI_1_RX_0

AD30

HDMI_1_RX_0B

AD31

HDMI_1_RX_1

AC32

HDMI_1_RX_1B

AC33

HDMI_1_RX_2

AC30

HDMI_1_RX_2B

AC31

HDMI_1_RX_C

AE30

HDMI_1_RX_CB

AE31

HDMI_2_RX_0

Y30

HDMI_2_RX_0B

Y31

HDMI_2_RX_1

W32

HDMI_2_RX_1B

W33

HDMI_2_RX_2

W30

HDMI_2_RX_2B

W31

HDMI_2_RX_C

AA30

HDMI_2_RX_CB

AA31

HDMI_3_RX_0

U30

HDMI_3_RX_0B

U31

HDMI_3_RX_1

T32

HDMI_3_RX_1B

T33

HDMI_3_RX_2

T30

HDMI_3_RX_2B

T31

HDMI_3_RX_C

V30

HDMI_3_RX_CB

V31

AVDD33_HDMI

AH33

AVSS33_HDMI_RX

AE27

AVDD12_HDMI_0_RX

AA33

HPD3_SI9679

from Scaler GPIO

C522 100NF 16V

R4341

1.8K 1/16W

HDMI3_SCL

U712

M24C02-WDW6P

E0

1

E1

2

E2

3

VSS4SDA

5

SCL

6

WC

7

VCC

8

ARC2_EN12

AVDD12_HDMI_3_RX

ARC2_EN

ARC1_EN

R4105

4K7 1/16W 5%

3V3SB 3,5,6,8,9,10,12

3V3SB

TP521TP

from Scaler ARC

HDCP-IRQn

PWR5V_3

HDMP_IRQn 10

SPI_SCK

TP515TP

R582

47K 1/16W 5%

GPIO1_SI9679

RX3_0-

U711

MX25L2006EM1I-12G

CS#

1

SO/SIO1

2

WP#

3

GND4SI/SIO0

5

SCLK

6

HOLD#

7

VCC

8

AVDD3V3

+5V_SW

PWR5V_3

C4271

100N 16V

D4006

BAS316

A1K

2

FB4253

600R/500mA

1 2

HDMI 1 INPUT

RX2_0+

RX2_1-

RX2_1+

RX2_2-

AVDD3V3-9679

CEC_2

RX2_C-

RX2_C+

RX2_0-

RX0_1-

RX0_1+

RX0_2-

RX0_2+

CEC_0

RX0_C-

RX0_C+

RX0_0-

RX0_0+

RX2_C+

RX2_2+ RX2_2-

RX2_C-

ARC1_HDMI

RX2_1+ RX2_1-

RX2_0+ RX2_0-

AVDD3V3

RX3_1+

CN504

HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

Circuit Diagrams and PWB Layouts

EN 83TPN14.1E LA 10.

2014-Jan-24

back to

div.table

10-5-12 DVB T2/C/S2 Tuner

19750_525.eps

D VB T2/C/S2 Tuner

B12 B12

2014-08-05

715G6842

DVB T2/C/S2 Tuner

TS_S2_DQ5

C1320

100NF 16V

DV12_VDDC

IF BPF

TUNER 3V3

+5V_SW

YES

+5V_ANT

C1326

22PF 50V

C1325

22PF 50V

R4281

18R 1/16W 5%

YES

C1330 NC/22NF 25V

R1341/R1339/R1340

TP707

TP

TUNER

GND_Tuner

+3V3_TUNER

NC

TS_S2_CLK

R1337

NC

YES

TC IF

For DVB-S2

SONY SUT- RE231Z

DEMOD_RST

IF_P_TC

X1300

20.5MHz

1243

R1321/C1330/R1348

NC

R1339

0R05 1/16W

TP708

TP

R1352

NC/0R05 1/16W

Function\Items\ Models

TU_FAT_IN2-

C1349

100NF 16V

DV12_VDDC

TS_S2_DQ6

S2

DEMOD_RST12

DEMOD_RST

IF_AGC_T

DIF_OUT_P

DIF_OUT_N

R605

10K 1/16W 5%

C621

47NF 16V

DIF_OUT_P

U104

CXD2839ER

GPIO1

47

TSDATA4

14

TSVALID4TSCLK

5

TSDATA6

16

VSS

18

DSQOUT / TESTOUT

23

RST_X

29

CVDD

28

AVSS

39

SQAIN / NC

32

XVDD

33

XVSS

36

NC / TAINP

37

TTUSDA

45

SIAIN / NC

31

XTALO

34

SCL

20

SDA

21

VSS

43

AVDD

42

NC / RFAIN

41

TESTMODE

40

CVDD

44

TTUSCL

46

TSDATA5

15

DSQIN / TESTIN

24

XTALI

35

NC / TAINM

38

TSDATA7

17

VSS

27

TESTOUT / TIFAGC

48

TSDATA3

13

TSDATA212VSS11CVDD10TSDATA19TSDATA08DVDD7VSS

6

GPIO01GPIO22TSSYNC

3

DVDD

19

CVDD

22

SLVADR0

25

SAGC / OSCEN_X

26

SLVAD R3

30

PAD

49

NC

R1354

47R 1/16W 5%

/T2 AGC

YES

LNB_EN

RF_AGC_S2_TUNER

S model (T/C,T2,S2)

GND_Tuner

QOUTP

NC

DISEQC_OUT

TUNER_LNB

R1325

0R05 1/16W

IOUTP

R1338

0R051/8W

NC

TS_S2_DQ0

YES

QOUTP

R1326

0R05 1/16W

TU_FAT_IN2+

S2_RESET

YES

LG TDSY G380D

DIF_OUT_N

R1348

NC/22K 1/16W 5%

TS_S2_DQ7

R1335

NC/0R05 1/16W

R1336

NC/0R05 1/16W

1K/0402

TU102

SUT-ZE221ZN

LNB

1

+B1(3.3V)

2

IOUT_N

5

SDA

3

SCL

4

IOUT_P

6

GND

7

QOUT_P

8

TH1

11

TH2

12

TH3

13

TH4

14

TH5

15

TH6

16

QOUT_N

9

AGC

10

YES

NC

DEMOD POWER

T model (T/C,T2)

H model (T/C)

C1303

NC/1uF 10V

R1304

4K7 1/16W 5%

FB1305

120R

1 2

t

TH1300 NC/PTCR

1 2

R1355 47R 1/16W 5%

R1312

4K7 1/16W 5%

R1322

0R05 1/16W

R1313

33R 1/10W 5%

C1306 1nF 50V

C1339

18pF 50V

FB1300

120R

1 2

R1305/R1310/C1329/C1328

R1352

OSDA2

C1342

2N2 50V

C1327

100NF 16V

C1302

NC/1uF 10V

NC

+3V3_TUNER

R1302

33R 1/16W 5%

IF_AGC

R1328 NC/47R 1/16W 5%

C1341

100NF 16V

C1304

1uF 10V

C1332

1uF 10V

R1314

10K 1/16W 5%

IOUTP

C1333

NC/100N 16V

R1333

750R

SONY SUT- RE231Z

R1331 1K 1/16W 5%

C1353

22PF 50V

R1327

0R05 1/16W

R1330 1K 1/16W 5%

DVB-TC/T2/S/S2 Demodulator

R1323 0R05 1/16W

R1311NC/4K7 1/16W 5%

R1316

3K3 1/16W 5%

R1353

NC/0R05 1/16W

C1334

NC/100N 16V

C1350

270PF 50V

C1352

22PF 50V

TS_S2_DQ1

U1300

NC/G552B1TA1U

VOUT

1

GND

2

FLAG

3

ON/ON

4

VIN

5

C1340 18pF 50V

1K/0402

IF_N_TC

R1329 NC/47R 1/16W 5%

R1309

100R 1/16W 5%

C1305

1uF 10V

Tuner I2C and Demod

CXD2837

R1300

10K 1/10W 5%

TS BUS to MT5591

R1303

100R 1/16W 5%

R1308

33R 1/16W 5%

R1320

3K3 1/16W 5%

YES

S2_RESET

R1324 0R05 1/16W

R1321

NC/10K 1/16W 5%

+5V_SW

FB1302

120R

1 2

DVDD3V3

DV12_VDDC

AVDD1V2

+5V_SW

NC

+3V3_TUNER

GND_Tuner

DVDD3V3 DV33_VDDIO

GND_Tuner GND_Tuner GND_Tuner

GND_Tuner

C1087

NC/1UF16V

R1094

11K 1/10W 1%

R1093

4K3 1/10W 1%

750/0402

DVDD3V3

C1085

10UF 6.3V X5R +-20%

+3V3_TUNER

GND_Tuner

C1088

10UF 6.3V 20%

TU_FAT_IN2-7

TU_FAT_IN2+7

IF_AGC_55917

U105

NC/G9661

POK

1

VEN

2

VIN

3

VPP4NC

5

VO

6

ADJ

7

GND

8

E-Pad

9

OSCL27

OSDA27

GND3,4,5,6,7,8,9,10,11,12,13,14,16

+3V3_TUNER3

DISEQC_OUT4

TUNER_LNB4

AVDD1V23,7,10,14

DVDD3V33,4,5,6,8,10,12,13,16

DEMOD_TSCLK12

DEMOD_TSVALID12

DEMOD_TSSYNC12

DEMOD_TS212

DEMOD_TS112

DEMOD_TS012

DEMOD_TS512

DEMOD_TS412

DEMOD_TS312

GND_Tuner

DEMOD_TS712

DEMOD_TS612

+5V_SW3,4,6,7,10,14

NC

GND_Tuner

C1328

47PF 50V

C1306/C1339/C1340/R1322 /R1327/X1300/R1300/R1313 /C1350/FB1302/C1088/ FB1300/C1315/C1316/C1320 /C1322/C1323/C1327/C1341/ C1349/R1351/ R1304/R1312/R1302/R1308

C1329

47PF 50V

R1310

100R 1/16W 5%

GND_Tuner

R1305

100R 1/16W 5%

GND_Tuner

DEMOD_TSVALID

DEMOD_TSSYNC DEMOD_TSCLK

S2_SCL

S2_SDA

OSCL2

R1315

4K7 1/16W 5%

R1350

0R05 1/16W

U104

C1356/C1357

R1330/R1331

R1340

0R05 1/16W

GND_Tuner

LG TDSY G380D

750/0402

IF_AGC_5591

OSCL2

OSDA2

C1315 100NF 16V

TU_FAT_IN2-

TU_FAT_IN2+

DVB-TC/T2/S/S2 TUNER & Demodulator CIRCUIT

C1335

100N 16V

DV12_VDDC

AGC

R1333

IF_P_TC

DV33_VDDIO

100/0402

I2C

AGC_SRF_AGC_S2_TUNER

DV33_VDDIO

LNB_LINEDROP

GND_Tuner

R1325/R1326

CXD2839

C4267 47PF 50V

TS_S2_DQ2

TU101

R1335/R1336

Demod IC

TU102 R4281/R4282/C4267/C4268

R1332

NC/47R 1/16W 5%

R1334

NC/47R 1/16W 5%

100/0402

DV33_VDDIO

C1347/C1348/R1354/R1355

XTALI

GND_Tuner

R1351 0R05 1/16WC1323

100NF 16V

150/0402

DEMOD

YES

R1353/R1356

LNB_LINEDROP4

13/18V_SW4

13/18V_SW LNB_LINEDROP

GND_Tuner

S2_RESET: Reset : Low Normal : High

IF_AGC_5591

+3V3_TUN

C1347 100N 16V

DEMOD_TS3TS_S2_DQ3

DEMOD_TS2TS_S2_DQ2

DEMOD_TS1TS_S2_DQ1

DEMOD_TS0TS_S2_DQ0

Enable AGC-S

DEMOD_TS6TS_S2_DQ6

DEMOD_TS5TS_S2_DQ5

DEMOD_TS4TS_S2_DQ4

DEMOD_TS7TS_S2_DQ7

NC

TS_S2_VAL DEMOD_TSVA LID

TS_S2_SYNC DEMOD_TSSYNC TS_S2_CLK DEMOD_TSCLK

C1354

NC/22PF 50V

150/0402

C1302/C1303/C1354/C1355

NC

TS_S2_SYNC

QOUT

TS_S2_DQ3

LNB POWER

+5V_ANT

TC_SCL

C1356 22PF 50V

R1341

0R05 1/16W

C4269

NC/47PF 50V

GND_Tuner

DVDD3V3

DV33_VDDIO

DEMOD_TS3

C1322

100NF 16V

DEMOD_TS7

DEMOD_TS2

DEMOD_TS1

DEMOD_TS0

DEMOD_TS6

DEMOD_TS5

DEMOD_TS4

AGC_S

+3V3_TUN

GND_Tuner

R1314/C1342

TUNER

S2_DEMO_SDA

NC

TUN_SDA

TU101

TDSY-G 380D

Ant.PWR

1

+B1(3.3V)

2

DIF_(N)

5

SDA

3

SCL

4

DIF_(P)

6

IF AGC

7

TH1

8

TH2

9

TH3

10

TH4

11

TH5

12

TH6

13

C1355

NC/22PF 50V

XTALO

394G0DVB00T51G

NC

IOUT

SUT- ZE221Z

R for T/C IF

394G0DVB00T51G

R1328/R1329/R1332/R1334

YES

TS_S2_VAL

U751/Q756/D750/D751/D752 /ZD4103/ZD750/L750/L751 C772/C776/C755/C760/C771 /C757/C758/C759/C754/C761 /R774/R776/R765/R769/ R768/R760/R767/R779 /R4292/R4293/R778/R770

OSDA2 OSCL2

AVDD1V2

C4266

10nF 50V

C1357 22PF 50V

LNB_EN4

LNB_EN

IOUT

TS_S2_DQ4

YES

S2_DEMO_SCL

Disable AGC-S

Demod Circuit

GND_Tuner

TC_SDA

13/18V_SW

XTALI

R1356

NC/0R05 1/16W

TC_SCL

C1316 100NF 16V

DV12_VDDC

IF_AGC_T

R4282

18R 1/16W 5%

DISEQC_OUT

C4268 47PF 50V

GND_Tuner

QOUT

For DVB-TC/T2

RP4250/RP4251/R4270/ R4271/R4272

TUNER_LNB

TUN_SDA

C4270

NC/47PF 50V

T2 IF

CXD2842

IF_N_TC

TUN_SCL

R1337

0R05 1/16W

C1348 100N 16V

TUN_SCL

RESET CIRCUIT

GND_Tuner

TC_SDA

TUNER 5V

Demod contrl signal

K model (T/C,S2)

S2_SCL

+3V3_TUN

S2_SDA

IF_AGC

XTAL

S2 IF

Circuit Diagrams and PWB Layouts

EN 84TPN14.1E LA 10.

2014-Jan-24

back to

div.table

10-5-13 Ambient Light

19750_526.eps

Ambient Light

B13 B13

2014-08-05

715G6842

Ambient Light

AMBIL_SPI_CLK AMBIL_SPI_DO

R1401

100R

+12V_AL

R1403

47R 1/16W 5%

C1405

100P 50V

Temp_out

R1402

47R 1/16W 5%

AMBIL_SPI_CLK

C1400 10UF 16V

FB1402

120R

1 2

C1401 100NF 16V

CN1404 CONN

1 2

3

4 5 6 7

8

9 10 11 12

14 15 16 17 18 19 20 21 22 23 24 25 26

2728

13

C1403

1UF 10% 16V

+12V_AL

DVDD3V3

DVDD3V33,4,5,6,8,10,12,13,15

GND3,4,5,6,7,8,9,10,11,12,13,14,15

AMBIL_SPI_CLK 12 AMBIL_SPI_DO 12

+12V_AL3

Temp_out12

Temp_out

AMBIL_SPI_DO

DVDD3V3

C1404

100P 50V

GND

Circuit Diagrams and PWB Layouts

EN 85TPN14.1E LA 10.

2014-Jan-24

back to

div.table

10-5-14 SSB layout top

19750_527.eps

2014-04-04

715G6842

LAYOUT TOP

C4155

C4156

C4157

C4158

X2

R2

R5

R6

R7

R10

R11

R13

R20

R21

R22

R24

R25

R27

R31

R32

R33

R35

R36

R37

R38

R39

R40

R41

X1

R43

CN1

C4027

C1053

C400

CN503

CN4101

D750

C1051

C4153

C4178

C4183

C1339

C4209

C1340

C4113

C4251

C4106

C638

C643

C653

C654

C661

C700

C714

C4186

C750

C751

C4023

C4013

C402

C401

C4250

C614

C672

C673

Q750

C1054

C4111

C4189

C642

C762

FB1050

FB1300

FB1302

FB1305

FB400 FB401

FB4250

FB631

FB633

R1300

R1313

R402

R403

R405

R406

R4102

R643

R644

R654

R655

R751R752

R753

R411

R700

R634

R640

TH1300

TH4101

U1300

U515

U511 U513

D505

D508

D510

D630

D631

D632

ZD501

ZD502

ZD503

ZD750

U409

U102

U4250

U512

D4000 D4001

Q400

Q401

U410

Q631

X1300

X5

FB1402

C630

C631

C752

C2

C4

C6

C8

Q705

R707

U1

C645

C650

Q706

C4115

X4

X3

C4160

C4166

C4177

C649

C655

C4208

R1000

R1001

R1002

R1003

R1004

R1005

R1006

R1007

R1008

R1009

R1011

R1012

R1013

R1014

R1015

R1016

R1017

R1018

R4033

R4034

R1033

R1034

R1051

R1053

R1054

R1055

R1350

R1351

R1337

R1063

R1064

R1065

R1066

R1067

R1068

R1069

R1070

R1072

R1075

R1077

R1080

R1081

R1082

R1083

R1084

R1086

R1302

R1326

R1348

R1308

R1325

R1311

R1314

R1316

R1352

R1320

R1321

R1322

R1334

R1327

R1329

R1324

R1323

R1355

R610

R400

R4001

R4005

R4006

R4007

R4008

R4009

R4013

R4014

R4015

R4016R4017

R4018

R4019

R4020

R4031

R4032

R404

R407

R408

R409

R4100

R4101

R4299

R4111 R4112

R4115

R414

R415

R416

R418

R4250

R4251

R4252

R4253

R4254 R4255

R4262

R500

R502

R503

R504

R505

R509

R510

R511

R513

R515

R516

R517

R521

R522

R523

R526

R530

R531

R533R534

R535

R536

R537

R538

R603

R604

R635

R636

R637

R639

R641

R642

R648

R649

R650 R651

R652

R653

R656

R657

R658

R659

R660

R661

R662

R663

R701

R715

R727

R750

R437

R613

R608

R609

R621

R622

R1336

R4021

R4040

R605

R1335

R4264

R4265

R759

R1104

R1115

R1331

R1330

R724

R723

R1118

R1119

R725

R726

R4152

R4156

R4192

R4150

R4151

R4155

R4159

R4160

R4161

R4162

R4163

R4164 R4165

R4166

R4168

R4167

R4170

R4171

R4175

R4176

R4177

R4178

R669

R670

C4127

C712

FB704

X4000

C709

R4339

R466

R4337

R4010

R4011

R4266R4267

FB750

FB751

C1400

R1085

R1120 R1121

R1122

R1123

R1124

R1125

R1126

R1127

R4270

R4272

R4271

C4024

C4107

U705

X7

X6

R4030 R4029

FB712

CN1404

FB754 FB755

R1401

R552

U701

R708

ZD751

CN6007

R4012

R1402

R1403

U401

CN409

U402U403

CN408

U708

C1403

C4117

C745

C4006

C4031

C737

C720

C728

FB710

L705

R4035

R4036

R4037

R4038

R4043

R410

R413

R424

R607

R611

R612

R614

R615

R616

R617

R618

R619

R620

R623

R737

R739

U510

U514U516

U517U518 U519

U709

U707

C4218

C669

C4253

C4164

C4171

C1082

C1000

C4008

C4009

C4015 C4016

C1010

C1011C1012 C1013

C1014

C1024

C1025

C1327

C4219

C4220

C4221

C4222

C4223

C4224

C1304

C1305

C1306

C1355

C1315

C1316

C1320

C1322

C1323

C1325

C1326

C1330

C1333

C1334

C1341

C1342

C1350

C1002

C4010

C4011

C4012

C403

C4185

C404

C4116

C4258

C4259

C4260

C4261

C4262

C4263

C502

C504

C506

C508

C509

C4014

C513

C600

C601

C602

C603

C606

C607

C608

C618

C610

C611

C612

C636

C637

C639

C640

C641

C644

C646

C647

C648

C651

C652

C656

C657

C658

C660

C662

C664

C670

C671

C674

C675

C676

C677

C4126

C609

C628

C629

C617

C619

C620

C621

C1401

C4269

C1352C1353

C632

C633

C1077

C4159

C4161

C4162

C4163

C4167

C4168

C4169

C4170

C4172

C4173

C4174

C4175

C4179

C4180

C4181 C4182

C4184

C4188

C4191

C4192

C4193

C4194

C4195

C1079

C4197

C1080

C1081

C4201

C4206

C4207

C4210

C4211

C4212

C4213

C4214

C4215

C4216

C405

C1078

C659

C663

C665

C668

C679

C680

C681C682

C683

C684

C685

C686

C4028

C788

C718

C4030

C766

C1354

C622C623

C4254

C4270

C4004C4005

C1404

C1405

C1001

C1003

C1004

C1006

C1007

C1009

C1348

C4017

C406

C407

C4128

C624

C625

C626

C627

C721

C742

C743

C744

CN604

CN504

C4033

C4036

C4037

C4038

C4039

C4043

C4044

C4264

C511

C515

C516

C517

C613

C735

C723

C764

C4034

C4035

C4045

C763

Q702

C4125

U4052

R4028

R4053

R4054

R4055

R4056

R4057

R4058

R4059

R4060

R4061

R4062

R1356

R4148 R4149

R542

R543

R545

R546

R547

R550

R551

R553

R554

R555

R556R557

R558

R559

R560

R561

R562

R563

R564

R565

R566

R567

R568

R569

R570

R571

R606

R705

R704

R706

TH4102

U521U522 U523

D511

ZD504

U524

U525

U526

CN2

RP4250

RP4251

C767

R572

C666

C667

FB4000

R736

R738

R743

R744

R745

R746

R747

R748

R664

CN412 CN104

C4046

ZD4000

R4063

R4065

R4066

R4067

R4064

C770

C773

C768

C769

C774

Q4000

C778

FB715

FB716

C725

ZD4101

C12

C14

C10

C4022

C1349

C408

C1302

C1303

C1347

R1303

R1309

R1328

R1332

R1354

R1333

CN413

CN4250

C1332

C520

C4266

L750

R1315

R4004

R4026

R4027

R4273

R573

R574

R575

R576

R577

R578

R579

R580

Q402

Q403

Q404 Q405

Q406

Q407

Q408 Q409

C1328

R1304

R779

R1305

R767

R1310

R768

R1339

C1088

C1085

U105

C1356

C1357

C4267

C4268

C1087

C775

R412

R419

R420

R422

R425

R427

R4281

R4282

R1093 R1094

R417

R4278

R4279

R4280

R4276

R4277

Q410

C13

U4053

C753

C756

Q752

Q754

R4022

R755

R761

R754

R756

R757

R758

R762

R764

R4288

R4289

R4290

CN700

U404

R4292 R4293

R4294

R4295

R4296

R4291

ZD4103

R4106

TU102

R429

R507

CN4252

CN631

C1335

R4023

R4297

R4298

CN602

CN501 CN502

CN151

C731

C732

R1338

C501

C733

C734

C738

C739

C740

Q4002

R4300

R4301

R4302

R4303

R434

R540

R581

R582

R583

R584

R585

R586

R587

R588

R771

R773

R431

R432

R433

ZD4102

C689C690

C691

C692

R4114

R4116

R4117

R4118

R4119

R4121

R4122

R430 R772

R435

Q510

R506

CN6004

CN4102

C777

C1329

L630

L631

L632

L633

R765

D752

U6003

D751

C754

C757

C758

C759

C761

C772

C771

C776

C755 C760

L751

R1312

R1340

R1341

R1353

R4304

R760

R763

R766

R769

R774

R775

R776R777

R426

R436

R770

Q756

CN401

Q632

Q633

Q701

Q751

Q758

R421

R423

R428

R438

R439

R4074

R446

U751

R4024

R4025

TU101

C701

R778

C409

C410

C411

C412

C413

C414

C415

C416

Q753

Q755

U706

C716

C746

C747

C702

C779

FB717

FB718

FB719

FB720

R401

R4120

R4329

R4330

R440

R441

R442

R444

R719

R728

R729

R443

R445

C687

C688

R638

R645

R646

R647

R740

R741

R742

R749

R4268

C782

R4256

R4269 R4274

R702

Q634

C783

D4002

D4003

R4275

D4004

D4005

R4049

R4050

R665

R666

R4284

R4285

R4286 R4287

R4305 R4306

U4251

C519

C736

C784

FB4252

R4068

R4071

D701

D702

D703

D704

R447

R448 R449

R450

R451 R452

R453

R709

R454 R455

D633

R456

R457

R4072

R4073

R458

FB4102

FB4103

R4307

R4308

C4018

C703

FB721

L703

C4271

C717

C748

C785

C786

C787

C705

C706

FB4253

R4331

R4332

R4333

R4334

R589

R590 R591

R592

R593

R594

R730

R731

D4006

U710

Q4003

L704

U712

C711

L702

R459

U103

C4029

C789

C4025

R4335

R4336

R4338

R460

R462

R463

R464

R4340

R595

R629

R630

R631

R632

R465

R467

D4007

U711

C741

R461

C708

C4272

C4273

C4274

C521

C522

C523

C524

C704

C707

FB713

FB714

FB722

R4105

R4341

R4342

C525

C526

C527

C528

R4075

R501

C4275

R4107

R4343

R4344

CN600

C749

C780

CN159

U104

U630

U713

CN601

R1342 R1343

R1344 R1345

Circuit Diagrams and PWB Layouts

EN 86TPN14.1E LA 10.

2014-Jan-24

back to

div.table

10-5-15 SSB layout bottom

19750_528.eps

2014-04-04

715G6842

LAYOUT BOTTOM

TP700

TP701

TP702

TP703

TP704

TP705

TP706

TP404

TP405

TP409

TP400

TP403

R3

R4

R8

R9

R12

R15

R16R17

R19

R26

R28

R29

TP401

TP402

TP408

TP448

TP449

TP450

TP468

TP470

TP471

TP472

TP481

TP510

TP511

TP512

TP600

TP601

TP602

TP603

TP604

TP605

TP606

TP607

TP457

TP486

TP487

TP608

TP609

TP610

TP611

TP612

TP613

TP614

TP483

TP452

TP453

TP414

TP415

TP418

TP419

TP420

TP421

TP422

TP423

TP424

TP425

TP426

TP427

TP428

TP429

TP430

TP431

TP432

TP433

TP434

TP435

TP436

TP437

TP438

TP439

TP440

TP441

TP442

TP443

TP444

TP445

TP446

TP447

TP451

TP454

TP455

TP456

TP458

TP459

TP460

TP461

TP484

TP473

TP710

TP711

TP482

TP491

TP493

TP494

TP495

TP707

TP708

TP462

TP474

TP463

TP464

TP465

TP514

TP515

TP516

TP517

TP519

TP513

TP520

TP521

C1

C3

C5

C7

Circuit Diagrams and PWB Layouts

EN 87TPN14.1E LA 10.

2014-Jan-24

back to

div.table

10.6 J 715G6737 IR/LED Panel

19616_526.eps

IR

J J

2014-01-03

B

715G6737

IR

TP2

VPP

TP5

TP1

TP3

DVDD3V3 ICSPDAT ICSPCLK

TP4

WIRELESS_L/R L/R_O VPP

ICSPDAT ICSPCLK L/R_RSV

DVDD3V3

U211

PIC12F510-I/SN

VDD

1

GP5/OSC1/CLKIN

2

GP4/OSC2

3

GP3/MCLR/Vpp4GP2/AN2/T0CKI/C1OUT

5

GP1/AN1/C1IN-/ICSPCLK

6

GP0/AN0/C1IN+/ICSPDAT

7

VSS

8

R241 4K7 1/16W 5%

R242 220R

R243 NC/220R

WIRELESS_L/R

ICSPDAT

Q204

AO3414

R246

10R 1/8W 5%

LED_R

RC6

DVDD3V3 3V3SB

C210

1uF 10V

SSB to IR

Q201 2N7002K

ZD204

NC/MLVG0402

12

C208

1uF 10V

RC6

R223

100R

C207

NC/100P 50V

3V3SB

R222

2K7 1/16W 5%

IR

R228

NC/4K7 1/16W 5%

R225

4K7 1/16W 5%

LED_R

3V3SB

IRLED2

HIR67-21C/L289/TR8

12

R220 2K2 1/16W 5%

LS_SDA

Light Sensor

LS_SCL L/R_RSV

IRLED1

HIR67-21C/L289/TR8

12

LED light

CN201

CONN

1 2

3

4 5 6 7

8

9 10

1112

+5V_SW

L/R_O

LED201

GPTS06033RC3-PB

12

C215

100N16V

DVDD3V3

U202

TSOP75436WTT

GND

1

Vs

2

OUT

3

GND

4

U203

TSL25715FN

GND

3

VDD

1

SCL

2

NC

4

INT

5

SDA

6

DVDD3V3

R20 1K5 1%

R19 1K5 1%

C10

1uF 10V

LS_SDA

R42 NC/0R05 1/16W

R41 0R05 1/16W

LS_SCL

TSL25715

JSA-1126

R41 R42 I2C addr Pin 2 Pin 4

0R

0RNC

NC 0x52

LS_SCL

0x24

SCL

ADRSSCL

NC

3D SHUTTER EMITTER

R245

10R 1/8W 5%

10-6-1 IR

Circuit Diagrams and PWB Layouts

EN 88TPN14.1E LA 10.

2014-Jan-24

back to

div.table

10-6-2 IR/LED board layout

19616_527.eps

2014-01-03

B

715G6737

IR/LED panel

layout top/bottom

R245

R246

C10

C210

C215

LED201

Q204

R19

R20

R220

R241

R242

R243

R41

R42

U202

ZD1

ZD2

H4

IRLED2IRLED1

U203

C207

C208

CN201

R222

R223

R225

R228

U211

ZD204

H5

Q201

CN202

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 89TPN14.1E LA 10.

2014-Jan-24

back to

div.table

Circuit Diagrams and PWB Layouts

19610_545.eps

Key

E E

2013-09-17

1

715G6316

Keyboard control panel

R03

6K8 1/10W 1%

3 4

2

1 6

5

7

8

F5

F3

F1

F4

F2

SW01

SW 6P

KEY1

Menu Right Left Down Up

R04

2K2 1/10W 1%

R01

1K2 1/10W 1%

6-5 short

2-5 short

F1

3-5 short

1-5 short 4-5 short

F2

F3

F4

F5

Direction switch

----><----|

C06

100N 50V

Joystick c irc uit diagram

pin1

0V

0.5V

0.81V

1.65V

2.27V

pin2

No function

pin3

3.3V

C04

NC/100N 50V

pin4

C05

NC/100N 50V

pin5 pin6

----><----|

C01

NC/100N 50V

C02

NC/100N 50V

C03

NC/100N 50V

----><----|

pUretneCDown

----><----|

R02

0R05 1/ 10W

0R

2K2

ResistanceKey function

Center

CH-

CH+ 1K2

VOL+

VOL-

Left

6K8 15K

Right

1 2

34

CN01

CONN

Voltage

R05

15K 1/10W 1%

10.7 E 715G6316 Keyboard control panel

10-7-1 Key

EN 90TPN14.1E LA 10.

2014-Jan-24

back to

div.table

Circuit Diagrams and PWB Layouts

19610_546.eps

2013-09-17

1

715G6316

Keyboard control panel

layout top/bottom

SW2

SW3

SW4

SW5

SW6

SW7

CN01

C01

C02 C03

C04

C05

C06

R01

R02

R03

R04

R05

R1

R2

SW01

Layout Keyboard control panel (top side)

Layout Keyboard control panel (bottom side)

10-7-2 Key board layout

EN 91TPN14.1E LA 10.

2014-Jan-24

back to

div.table

11. Styling Sheets

19751_800.eps

6700 series 40"

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

Pos No. Description Remarks

0030 Bezel 0040 Rear cover 0050 Stand Assembly 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1062 LED Module 1063 LED Module 1076 RF4CE Module Assy 1176 Remote control Not displayed 1184 Speakers WiFi01 WiFi_USB

0040

0050

1063

1053

1054

1184

1057

1050

1076

1184

0030

1056

1062

WiFi01

11.1 6700 series 40"

Styling Sheets

EN 92TPN14.1E LA 11.

2014-Jan-24

back to

div.table

11.2 6700 series 50"

19751_801.eps

6700 series 50"

Pos No. Description Remarks

0030 Bezel 0040 Rear cover 0050 Stand Assembly 0095 V0 SHEET 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1062 LED Module 1063 LED Module 1076 RF4CE Module Assy 1176 Remote control Not displayed 1184 Speakers WiFi01 WiFi_USB

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

0040

1056

0050

1053

0095

1054

1184

1057

1050

1076

0030

1184

1062

1063

WiFi01

Styling Sheets

EN 93TPN14.1E LA 11.

2014-Jan-24

back to

div.table

11.3 8500 series 50"

19750_800.eps

8500 series 50"

Pos No. Description Remarks

0040 Rear cover 0050 Stand Assembly 0095 V0 SHEET 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1062 LED Module 1063 LED Modules 1076 RF4CE Module Assy 1176 Remote control Not displayed 1184 Speakers WiFi01 WiFi_USB

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

0040

1056

1063

0050

1063

1053

0095

1054

1184

1057

1050

1184

1076

1063

1062

WiFi01

Styling Sheets

EN 94TPN14.1E LA 11.

2014-Jan-24

back to

div.table

11.4 8500 series 58"

19750_801.eps

8500 series 58"

Pos No. Description Remarks

0040 Rear cover 0050 Stand Assembly 0095 V0 SHEET 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1062 LED Modules 1063 LED Module 1070 LED Modules 1076 RF4CE Module Assy 1176 Remote control Not displayed 1184 Speakers WiFi01 WiFi_USB

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

0040

1056

1063

1062

0050

1070

1053

0095

1054

1184

1057

1050

1076

1070

1062

WiFi01

Styling Sheets

EN 95TPN14.1E LA 11.

2014-Jan-24

back to

div.table

11.5 6900 series 65"

19750_802.eps

6900 series 65"

Pos No. Description Remarks

0040 Rear cover 0050R Stand Assy-R 0050L Stand Assy-L 0095 V0 SHEET 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1062 LED Modules 1076 RF4CE Module Assy 1176 Remote control Not displayed 1184 Speakers WiFi01 WiFi_USB

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

0050R

0050L

0040

1056

1054

1062

1053

0095

1184

1057

1050

1076

1184

1062

WiFi01

Styling Sheets

EN 96TPN14.1E LA 11.

2014-Jan-24

back to

div.table

11.6 8600 series 65"

19750_803.eps

8600 series 65"

Pos No. Description Remarks

0040 Rear cover 0050R Stand Assy-R 0050L Stand Assy-L 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1062 LED Modules 1063 LED Modules 1070 LED Module 1076 RF4CE Module Assy 1176 Remote control Not displayed 1184 Speakers WiFi01 WiFi_USB

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

0050R

0050L

0040

1056

1054

1062

1053

1057

1050

1076

1184

1062

WiFi01

1063

1070

1063

Styling Sheets

EN 97TPN14.1E LA 11.

2014-Jan-24

back to

div.table
