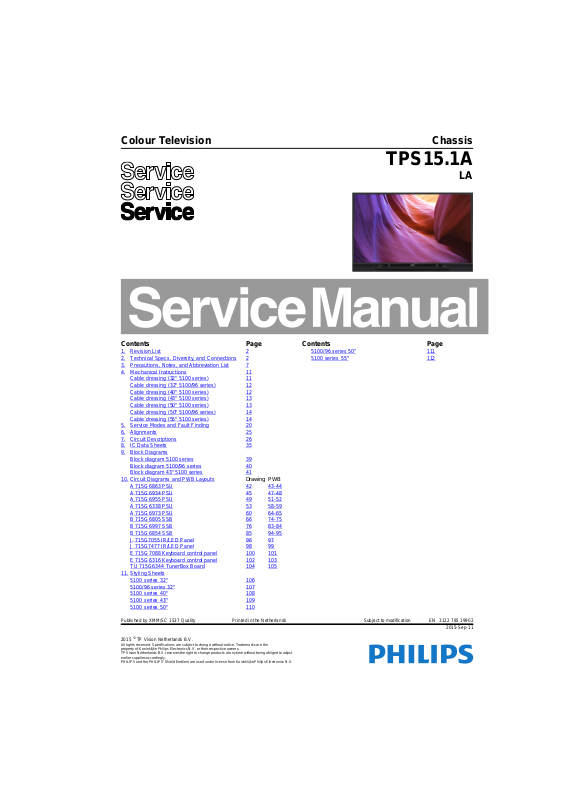

Philips 40PFT5100 Schematic

Colour Television Chassis

TPS15.1A

LA

Contents Page Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 7

4. Mechanical Instructions 11
Cable dressing (32" 5100 series) 11
Cable dressing (32" 5100/96 series) 12
Cable dressing (40" 5100 series) 12
Cable dressing (43" 5100 series) 13
Cable dressing (50" 5100 series) 13
Cable dressing (50" 5100/96 series) 14
Cable dressing (55" 5100 series) 14

5. Service Modes and Fault Finding 20

6. Alignments 25

7. Circuit Descriptions 26

8. IC Data Sheets 35

9. Block Diagrams
Block diagram 5100 series 39
Block diagram 5100/96 series 40
Block diagram 43" 5100 series 41

10. Circuit Diagrams and PWB Layouts Drawing PWB
A 715G6863 PSU
A 715G6934 PSU 45 47-48
A 715G6955 PSU 49 51-52
A 715G6338 PSU 53 58-59
A 715G6973 PSU 60 64-65
B 715G6805 SSB 66 74-75
B 715G6997 SSB 76 83-84
B 715G6854 SSB 85 94-95
J 715G7055 IR/LED Panel 96 97
J 715G7477 IR/LED Panel 98 99
E 715G7088 Keyboard control panel 100 101
E 715G6316 Keyboard control panel 102 103
TU 715G6344 TunerBox Board 104 105

11. Styling Sheets
5100 series 32" 106
5100/96 series 32" 107
5100 series 40" 108
5100 series 43" 109
5100 series 50" 110

42 43-44

5100/96 series 50" 111
5100 series 55" 112

Published by XMM/SC 1537 Quality Printed in the Netherlands Subject to modification EN 3122 785 19902

2015-Sep-11

2015 ©

TP Vision Netherlands B.V.

All rights reserved. Specifications are subject to change without notice. Trademarks are the
property of Koninklijke Philips Electronics N.V. or their respective owners.
TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust
earlier supplies accordingly.
PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Phili ps Electronics N.V.

EN 2 TPS15.1A LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

Manual xxxx xxx xxxx.1

• Chapter 2: Updated table 2.1 Technical Specifications

• Chapter 4: Added figures 4-4 Cable dressing (43" 5100

series) and added Assembly 4.4 Assembly/Panel Removal
(for 43" 5100 series).

• Chapter 5: Updated table 5-1 Factory mode overview

• Chapter 7: Updated table 7-1 Connector overview

.

, added
figure 7-3 SSB layout cells (top view) (43" 5100 series)
updated figure 7-4 Power Architecture (5100 series)

,

added figure7-7 DC/DC converters [3] (43" 5100 series)

.

,

and 7-11 Front-End DVB-T DTV block diagram(43" 5100

series).

• Chapter 8: Added figure 8-4 Internal block diagram and pin

configuration.

• Chapter 9: Added figure 9.3 Block diagram 43" 5100

series.

• Chapter 10: Added circuit diagrams10.3 A 715G6955

PSU, 10.8 B 715G6854 SSB, 10.10 J 715G7477 IR/LED
Panel, 10.12 E 715G6316 Keyboard control panel.

• Chapter 11: Added styling sheets 11.4 5100 series 43"

Manual xxxx xxx xxxx.2

• Chapter 2: Updated table 2.1 Technical Specifications

2. Technical Specs, Diversity, and Connections

.

.

Index of this chapter:

• Specifications are indicative (subject to change).

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

2.5 Chassis Overview

2.1 Technical Specifications

For on-line product support please use the links in back to

div.table 2-1. Here is product information available, as well as

getting started, user manuals, frequently asked questions and

Notes:

software & drivers.

• Figures can deviate due to the different set executions.

Table 2-1 Described Model Numbers and Diversity

24 910 11

Mechanics

CTN

32PHT5100/56 2-1 4-1 4-9 4-10 9.1 10.1 10.6 10.9 10.11 - 11.1
32PHT5100/79 2-1 4-1 4-9 4-10 9.1 10.1 10.6 10.9 10.11 - 11.1
32PHH5100/96 2-7 4-2 4-9 4-10 9.2 10.1 10.7 10.9 10.11 10.13 11.2
32PHT5100/98 2-1 4-1 4-9 4-10 9.1 10.1 10.6 10.9 10.11 - 11.1
32PHT5100S/98 2-1 4-1 4-9 4-10 9.1 10.1 10.6 10.9 10.11 - 11.1
40PFT5100/56 2-1 4-3 4-9 4-10 9.1 10.2 10.6 10.9 10.11 - 11.3
40PFT5100/79 2-1 4-3 4-9 4-10 9.1 10.2 10.6 10.9 10.11 - 11.3
40PFT5100/98 2-1 4-3 4-9 4-10 9.1 10.2 10.6 10.9 10.11 - 11.3
40PFT5100S/98 2-1 4-3 4-9 4-10 9.1 10.2 10.6 10.9 10.11 - 11.3
43PFD5100/30 2-1 4-4 4-13 4-14 9.3 10.3 10.8 10.10 10.12 - 11.4
50PFT5100/56 2-1 4-5 4-9 4-10 9.1 10.4 10.6 10.9 10.11 - 11.5
50PFT5100/79 2-1 4-5 4-9 4-10 9.1 10.4 10.6 10.9 10.11 - 11.5
50PFH5100/96 2-7 4-6 4-9 4-10 9.2 10.4 10.7 10.9 10.11 10.13 11.6
50PFT5100/98 2-1 4-5 4-9 4-10 9.1 10.4 10.6 10.9 10.11 - 11.5
50PFT5100S/98 2-1 4-5 4-9 4-10 9.1 10.4 10.6 10.9 10.11 - 11.5
55PFT5100/56 2-1 4-7 4-9 4-10 9.1 10.5 10.6 10.9 10.11 - 11.7
55PFT5100/79 2-1 4-7 4-9 4-10 9.1 10.5 10.6 10.9 10.11 - 11.7
55PFT5100/98 2-1 4-7 4-9 4-10 9.1 10.5 10.6 10.9 10.11 - 11.7
55PFT5100S/98 2-1 4-7 4-9 4-10 9.1 10.5 10.6 10.9 10.11 - 11.7

Connection Overview

Wire Dressing

Rear Cover Removal

Block
Diagrams Schematics

SSB Removal

Block Diagram

Power Supply

SSB

J (IR/LED)

E (Keyboard/Leading Edge)

TunerBox Board

Styling

2.2 Directions for Use

Directions for use can be downloaded from the following
websites:

http://www.philips.com/support
http://www.p4c.philips.com

2015-Sep-11

back to

div.table

2.3 Connections

ARC / MHL

19900_001.eps

1

2

3

4

5

6

7

8

9

10

10000_017_090121.eps

090428

19

1

18 2

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

EN 3TPS15.1A LA 2.

2.3.1 Side Connections

Figure 2-1 Connection overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1 - HDMI 3: Digital Video - In, Digital Audio - In/Out

Figure 2-2 HDMI (type A) connector

1 -D2+ Data channel j
2-Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5-Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8-Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k

back to

div.table

15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

2 - HDMI 2: Digital Video - In, Digital Audio with MHL ­In/Out

Figure 2-3 HDMI (type A) connector

1 -D2+ Data channel j
2 -Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5 -Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8 -Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j

2015-Sep-11

EN 4 TPS15.1A LA2.

10000_017_090121.eps

090428

19

1

18 2

1 2 3 4

10000_022_090121.eps

090121

1

6

10

11

5

15

10000_002_090121.eps

090127

Technical Specs, Diversity, and Connections

13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

3 - HDMI 1: Digital Video - In, Digital Audio with ARC ­In/Out

Figure 2-4 HDMI (type A) connector

1 -D2+ Data channel j
2-Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5-Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8-Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

9-+5V
10 - Ground Sync Gnd H

+5 V j

DC

11 - Ground Red Gnd H
12 - DDC_SDA DDC data j
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - DDC_SCL DDC clock j

7 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

8 - Cinch: Video YPbPr - In, Audio - In

Gn - Video - Y 1 V
Bu -Video - Pb 0.7 V
Rd -Video - Pr 0.7 V
Wh -Audio - L 0.5 V
Rd -Audio - R 0.5 V

/ 75 W jq

PP

/ 75 W jq

PP

/ 75 W jq

PP

/ 10 kW jq

RMS

/ 10 kW jq

RMS

9 - Cinch: SPDIF - Out

Ye - Coaxial 0.4 - 0.6V

/ 75  kq

PP

10 - Head phone (Output)

Bk -Head phone 80 - 600  / 10 mW ot

4 - USB 2.0

1-+5V k
2 -Data (-) jk
3 -Data (+) jk
4 -Ground Gnd H

2.3.2 Rear Connections

5 - Audio - In: Left / Right, VGA

Gn - Audio L/R in 0.5 V

6 - PC IN:VGA

1 -Video Red 0.7 V
2 -Video Green 0.7 V
3 -Video Blue 0.7 V
4-n.c.
5 -Ground Gnd H
6 -Ground Red Gnd H
7 -Ground Green Gnd H
8 -Ground Blue Gnd H

2015-Sep-11

Figure 2-5 USB (type A)

/ 10 k jq

RMS

Figure 2-6 VGA connector

/ 75 W j

PP

/ 75 W j

PP

/ 75 W j

PP

back to

div.table

Technical Specs, Diversity, and Connections

Audio

2

19900_002.eps

1

2

3

4

5

6

7

8

9

1 2 3 4

10000_022_090121.eps

090121

1

6

10

11

5

15

10000_002_090121.eps

090127

2.4 Conne ctions (for 32"& 50" 5100/96 series)

EN 5TPS15.1A LA 2.

2.4.1 Side Connections

Figure 2-7 Connection overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1 - Head phone (Output)

Bk -Head phone 80 - 600  / 10 mW ot

2 - USB 2.0

Figure 2-8 USB (type A)

1-+5V k
2 -Data (-) jk
3 -Data (+) jk
4 -Ground Gnd H

3 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

4 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

back to

div.table

2.4.2 Rear Connections

5 - Cinch: Video YPbPr - In, Audio - In

Gn -Video - Y 1 V
Bu - Video - Pb 0.7 V
Rd -Video - Pr 0.7 V
Wh -Audio - L 0.5 V
Rd -Audio - R 0.5 V

/ 75 W jq

PP

/ 75 W jq

PP

/ 75 W jq

PP

/ 10 kW jq

RMS

/ 10 kW jq

RMS

6 - PC IN:VGA

Figure 2-9 VGA connector

1 -Video Red 0.7 V
2 -Video Green 0.7 V
3 -Video Blue 0.7 V
4-n.c.
5 -Ground Gnd H
6 -Ground Red Gnd H
7 -Ground Green Gnd H
8 -Ground Blue Gnd H
9-+5V
10 - Ground Sync Gnd H

+5 V j

DC

/ 75 W j

PP

/ 75 W j

PP

/ 75 W j

PP

2015-Sep-11

EN 6 TPS15.1A LA2.

10000_017_090121.eps

090428

19

1

18 2

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

11 - Ground Red Gnd H
12 - DDC_SDA DDC data j
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - DDC_SCL DDC clock j

7 - HDMI 2: Digital Video - In, Digital Audio - In/Out

Figure 2-10 HDMI (type A) connector

1 -D2+ Data channel j
2-Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5-Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8-Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

8 - HDMI 1: Digital Video - In, Digital Audio - In/Out

Figure 2-11 HDMI (type A) connector

1 -D2+ Data channel j
2 -Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5 -Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8 -Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

9 - Audio - In: Left / Right, VGA

Gn - Audio L/R in 0.5 V

/ 10 k jq

RMS

2.5 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

2015-Sep-11

back to

div.table

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation
transformer (> 800 VA).

• Replace safety components, indicated by the symbol h,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:

• Route the wire trees correctly and fix them with the
mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for
external damage.

• Check the strain relief of the Mains/AC Power cord for
proper function.

• Check the electrical DC resistance between the Mains/AC
Power plug and the secondary side (only for sets that have
a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any
inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential.

• Be careful during measurements in the high voltage
section.

• Never replace modules or other components while the unit
is switched “on”.

• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the
Service Default Mode with a colour bar signal and stereo
sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and
picture carrier at 475.25 MHz for PAL, or 61.25 MHz for
NTSC (channel 3).

• Where necessary, measure the waveforms and voltages
with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in stand-by (F). These values are
indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 k).

• Resistor values with no multiplier may be indicated with
either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10
nano-farads (n 10

• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer
to the diversity tables for the correct values.

• The correct component values are listed on the Philips
Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare
Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this
URL: http://www.atyourservice-magazine.com
“Magazine”, then go to “Repair downloads”. Here you will find
Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile.
Where applicable and available, this profile is added to the IC
Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected
by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is
required, please contact the manufacturer of your soldering
equipment. In general, use of solder paste within
workshops should be avoided because paste is not easy to
store and to handle.

• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able:
– To reach a solder-tip temperature of at least 400°C.
– To stabilize the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around
360°C - 380°C is reached and stabilized at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of
tips will increase drastically and flux-fluid will be destroyed.
To avoid wear-out of tips, switch “off” unused equipment or
reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If this cannot be avoided, carefully
clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website,
“Alternative BOM” is referred to as “Design variant”.

The third digit in the serial number (example:
AG2B0335000001) indicates the number of the alternative
B.O.M. (Bill Of Materials) that has been used for producing the
specific TV set. In general, it is possible that the same TV
model on the market is produced with e.g. two different types
of displays, coming from two different suppliers. This will then

back to

div.table

-9

), or pico-farads (p 10

. Select

EN 7TPS15.1A LA 3.

-6

),

-12

).

2015-Sep-11

EN 8 TPS15.1A LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

result in sets which have the same CTN (Commercial Type
Number; e.g. 28PW9515/12) but which have a different B.O.M.
number.
By looking at the third digit of the serial number, one can
identify which B.O.M. is used for the TV set he is working with.
If the third digit of the serial number contains the number “1”
(example: AG1B033500001), then the TV set has been
manufactured according to B.O.M. number 1. If the third digit is
a “2” (example: AG2B0335000001), then the set has been
produced according to B.O.M. no. 2. This is important for
ordering the correct spare parts!
For the third digit, the numbers 1...9 and the characters A...Z
can be used, so in total: 9 plus 26= 35 different B.O.M.s can be
indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit
serial number. Digits 1 and 2 refer to the production centre (e.g.
SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M.
code, digit 4 refers to the Service version change code, digits 5
and 6 refer to the production year, and digits 7 and 8 refer to
production week (in example below it is 2010 week 10 / 2010
week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide
if the board has to be exchanged or if it should be repaired on
component level.
If your repair procedure says the board should be exchanged
completely, do not solder on the defective board. Otherwise, it
cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),

6 = play 16 : 9 format, 12 = play 4 : 3
format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to
remove horizontal black bars; keeps
the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels
directly from a cable network by

means of a predefined TXT page
ADC Analogue to Digital Converter
AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency
AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box
AM Amplitude Modulation
AP Asia Pacific
AR Aspect Ratio: 4 by 3 or 16 by 9
ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information
ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA
ATV See Auto TV
Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way
AV External Audio Video
AVC Audio Video Controller
AVIP Audio Video Input Processor
B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz
BDS Business Display Solutions (iTV)
BLR Board-Level Repair
BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries
B-TXT Blue TeleteXT
C Centre channel (audio)
CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections
CL Constant Level: audio output to

connect with an external amplifier
CLR Component Level Repair
ComPair Computer aided rePair
CP Connected Planet / Copy Protection
CSM Customer Service Mode
CTI Color Transient Improvement:

manipulates steepness of chroma

transients
CVBS Composite Video Blanking and

Synchronization
DAC Digital to Analogue Converter
DBE Dynamic Bass Enhancement: extra

low frequency amplification
DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV).
DDC See “E-DDC”
D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz
DFI Dynamic Frame Insertion
DFU Directions For Use: owner's manual
DMR Digital Media Reader: card reader
DMSD Digital Multi Standard Decoding
DNM Digital Natural Motion

2015-Sep-11

back to

div.table

Precautions, Notes, and Abbreviation List

EN 9TPS15.1A LA 3.

DNR Digital Noise Reduction: noise

reduction feature of the set
DRAM Dynamic RAM
DRM Digital Rights Management
DSP Digital Signal Processing
DST Dealer Service Tool: special remote

control designed for service

technicians
DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394
DVB-C Digital Video Broadcast - Cable
DVB-T Digital Video Broadcast - Terrestrial
DVD Digital Versatile Disc
DVI(-d) Digital Visual Interface (d= digital only)
E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display.
EDID Extended Display Identification Data

(VESA standard)
EEPROM Electrically Erasable and

Programmable Read Only Memory
EMI Electro Magnetic Interference
EPG Electronic Program Guide
EPLD Erasable Programmable Logic Device
EU Europe
EXT EXTernal (source), entering the set by

SCART or by cinches (jacks)
FDS Full Dual Screen (same as FDW)
FDW Full Dual Window (same as FDS)
FLASH FLASH memory
FM Field Memory or Frequency

Modulation
FPGA Field-Programmable Gate Array
FTV Flat TeleVision
Gb/s Giga bits per second
G-TXT Green TeleteXT
H H_sync to the module
HD High Definition
HDD Hard Disk Drive
HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding.
HDMI High Definition Multimedia Interface
HP HeadPhone
I Monochrome TV system. Sound

2

C Inter IC bus

I

2

I

D Inter IC Data bus

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate Frequency
IR Infra Red
IRQ Interrupt Request
ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used

for broadcast grade video.

Uncompressed digital component or

digital composite signals can be used.

back to

div.table

The SDI signal is self-synchronizing,
uses 8 bit or 10 bit data words, and has
a maximum data rate of 270 Mbit/s,
with a minimum bandwidth of 135
MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored
in RAM or in the NVM. They are called
at start-up of the set to configure it
according to the customer's

preferences
LATAM Latin America
LCD Liquid Crystal Display
LED Light Emitting Diode
L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I
LPL LG.Philips LCD (supplier)
LS Loudspeaker
LVDS Low Voltage Differential Signalling
Mbps Mega bits per second
M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz
MHEG Part of a set of international standards

related to the presentation of

multimedia information, standardised

by the Multimedia and Hypermedia

Experts Group. It is commonly used as

a language to describe interactive

television services
MIPS Microprocessor without Interlocked

Pipeline-Stages; A RISC-based

microprocessor
MOP Matrix Output Processor
MOSFET Metal Oxide Silicon Field Effect

Transistor, switching device
MPEG Motion Pictures Experts Group
MPIF Multi Platform InterFace
MUTE MUTE Line
MTV Mainstream TV: TV-mode with

Consumer TV features enabled (iTV)
NC Not Connected
NICAM Near Instantaneous Compounded

Audio Multiplexing. This is a digital

sound system, mainly used in Europe.
NTC Negative Temperature Coefficient,

non-linear resistor
NTSC National Television Standard

Committee. Color system mainly used

in North America and Japan. Color

carrier NTSC M/N= 3.579545 MHz,

NTSC 4.43= 4.433619 MHz (this is a

VCR norm, it is not transmitted off-air)
NVM Non-Volatile Memory: IC containing

TV related data such as alignments
O/C Open Circuit
OSD On Screen Display
OAD Over the Air Download. Method of

software upgrade via RF transmission.

Upgrade software is broadcasted in

TS with TV channels.
OTC On screen display Teletext and

Control; also called Artistic (SAA5800)
P50 Project 50: communication protocol

between TV and peripherals
PAL Phase Alternating Line. Color system

mainly used in West Europe (colour

carrier = 4.433619 MHz) and South

America (colour carrier

PAL M = 3.575612 MHz and

PAL N = 3.582056 MHz)
PCB Printed Circuit Board (same as “PWB”)
PCM Pulse Code Modulation

2015-Sep-11

EN 10 TPS15.1A LA3.

Precautions, Notes, and Abbreviation List

PDP Plasma Display Panel
PFC Power Factor Corrector (or

Pre-conditioner)
PIP Picture In Picture
PLL Phase Locked Loop. Used for e.g.

FST tuning systems. The customer

can give directly the desired frequency
POD Point Of Deployment: a removable

CAM module, implementing the CA

system for a host (e.g. a TV-set)
POR Power On Reset, signal to reset the uP
PSDL Power Supply for Direct view LED

backlight with 2D-dimming
PSL Power Supply with integrated LED

drivers
PSLS Power Supply with integrated LED

drivers with added Scanning

functionality
PTC Positive Temperature Coefficient,

non-linear resistor
PWB Printed Wiring Board (same as “PCB”)
PWM Pulse Width Modulation
QRC Quasi Resonant Converter
QTNR Quality Temporal Noise Reduction
QVCP Quality Video Composition Processor
RAM Random Access Memory
RGB Red, Green, and Blue. The primary

color signals for TV. By mixing levels

of R, G, and B, all colors (Y/C) are

reproduced.
RC Remote Control
RC5 / RC6 Signal protocol from the remote

control receiver
RESET RESET signal
ROM Read Only Memory
RSDS Reduced Swing Differential Signalling

data interface
R-TXT Red TeleteXT
SAM Service Alignment Mode
S/C Short Circuit
SCART Syndicat des Constructeurs

d'Appareils Radiorécepteurs et

SCL Serial Clock I

Téléviseurs

SCL-F CLock Signal on Fast I
SD Standard Definition
SDA Serial Data I
SDA-F DAta Signal on Fast I

2

C

2

C

2

C bus

2

C bus
SDI Serial Digital Interface, see “ITU-656”
SDRAM Synchronous DRAM
SECAM SEequence Couleur Avec Mémoire.

Colour system mainly used in France
and East Europe. Colour
carriers = 4.406250 MHz and

4.250000 MHz
SIF Sound Intermediate Frequency
SMPS Switched Mode Power Supply
SoC System on Chip
SOG Sync On Green
SOPS Self Oscillating Power Supply
SPI Serial Peripheral Interface bus; a

4-wire synchronous serial data link

standard
S/PDIF Sony Philips Digital InterFace
SRAM Static RAM
SRP Service Reference Protocol
SSB Small Signal Board
SSC Spread Spectrum Clocking, used to

reduce the effects of EMI
STB Set Top Box
STBY STand-BY
SVGA 800× 600 (4:3)
SVHS Super Video Home System
SW Software

SWAN Spatial temporal Weighted Averaging

Noise reduction
SXGA 1280 × 1024
TFT Thin Film Transistor
THD Total Harmonic Distortion
TMDS Transmission Minimized Differential

Signalling
TS Transport Stream
TXT TeleteXT
TXT-DW Dual Window with TeleteXT
UI User Interface
uP Microprocessor
UXGA 1600 × 1200 (4:3)
V V-sync to the module
VESA Video Electronics Standards

Association
VGA 640 × 480 (4:3)
VL Variable Level out: processed audio

output toward external amplifier
VSB Vestigial Side Band; modulation

method
WYSIWYR What You See Is What You Record:

record selection that follows main

picture and sound
WXGA 1280 × 768 (15:9)
XTAL Quartz crystal
XGA 1024 × 768 (4:3)
Y Luminance signal
Y/C Luminance (Y) and Chrominance (C)

signal
YPbPr Component video. Luminance and

scaled color difference signals (B-Y

and R-Y)
YUV Component video

2015-Sep-11

back to

div.table

4. Mechanical Instructions

19900_100.eps

CN403

CN701

CN8604

CN9101

CN601

CN401

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN701

ECN401

ECN701

ECN403

ECN401

ECN601

ECN601

ECN601

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

IR/LED BOARD

(1056)

J

ECN401

KEYBOARD CONTROL

(1057)

E

CN01

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel Removal

4.5 Set Re-assembly

4.1 Cable Dressing

Mechanical Instructions

Notes:

• Figures below can deviate slightly from the actual situation,
due to the different set executions.

EN 11TPS15.1A LA 4.

Figure 4-1 Cable dressing (32" 5100 series)

back to

div.table

2015-Sep-11

EN 12 TPS15.1A LA4.

19900_101.eps

CN402

CN701

CN8604

CN9101

CN601

CN401

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN701

ECN401

ECN701

ECN402

ECN401

ECN601

ECN601

ECN601

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

IR/LED BOARD

(1056)

J

ECN401

KEYBOARD CONTROL

(1057)

E

CN01

Tuner Board

(1067)

TU01

19900_102.eps

CN701

CN8601

CN9101

CN601

CN401

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN701

ECN401

ECN701

ECN403

ECN401

ECN601

ECN601

ECN601

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

IR/LED BOARD

(1056)

J

ECN401

KEYBOARD CONTROL

(1057)

E

CN01

CN403

Mechanical Instructions

Figure 4-2 Cable dressing (32" 5100/96 series)

2015-Sep-11

Figure 4-3 Cable dressing (40" 5100 series)

back to

div.table

Mechanical Instructions

19900_103.eps

CN403

CN701

CN8101

CN9301

CN601

CN401

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN701

ECN401

ECN701

ECN403

ECN401

ECN601

ECN601

ECN601

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

IR/LED BOARD

(1056)

J

ECN401

KEYBOARD CONTROL

(1057)

E

CN01

ECN403

EN 13TPS15.1A LA 4.

ECN401

KEYBOARD CONTROL

(1057)

CN8603

CN01

E

MAIN POWER SUPPLY

A

(1054)

ECN601

LOUDSPEAKER

ECN701

CN9101

ECN408

ECN401

(1184)

IR/LED BOARD

J

(1056)

Figure 4-4 Cable dressing (43" 5100 series)

ECN701

ECN601

ECN401

CN701

CN601

CN401

ECN601

LOUDSPEAKER

(1184)

ECN408

CN408

SSB

B

(1053)

19901_100.eps

Figure 4-5 Cable dressing (50" 5100 series)

back to

div.table

2015-Sep-11

EN 14 TPS15.1A LA4.

Mechanical Instructions

ECN701

KEYBOARD CONTROL

(1057)

ECN401

CN01

E

ECN601

LOUDSPEAKER

(1184)

CN8101

MAIN POWER SUPPLY

A

(1054)

CN9301

ECN402

ECN401

IR/LED BOARD

J

(1056)

Figure 4-6 Cable dressing (50" 5100/96 series)

ECN701

ECN601

ECN401

CN401

CN701

ECN402

ECN601

CN402

SSB

B

(1053)

LOUDSPEAKER

CN601

(1184)

Tuner Board

(1067)

TU01

19900_104.eps

2015-Sep-11

ECN401

KEYBOARD CONTROL

(1057)

CN01

E

ECN601

LOUDSPEAKER

(1184)

CN8101

CN9101

ECN701

MAIN POWER SUPPLY

A

(1054)

ECN403

ECN401

IR/LED BOARD

J

(1056)

Figure 4-7 Cable dressing (55" 5100 series)

back to

div.table

ECN601

ECN403

ECN701

CN601

CN701

ECN401

CN401
CN403

SSB

B

(1053)

ECN601

LOUDSPEAKER

(1184)

19900_105.eps

Mechanical Instructions

19900_106.eps

M4 × 18

1

1

1

1

1

EN 15TPS15.1A LA 4.

4.2 Service Positions

For easy servicing of a TV set, the set should be put face down
on a soft flat surface, foam buffers or other specific workshop
tools. Ensure that a stable situation is created to perform
measurements and alignments. When using foam bars take
care that these always support the cabinet and never only the
display. Caution: Failure to follow these guidelines can
seriously damage the display!
Ensure that ESD safe measures are taken.

4.3 Assembly/Panel Removal

Instructions below apply to the 50PFH5100/96, but will be
similar for other 32"/40"/50"/55" model.

4.3.1 Stand

Refer to Figure 4-8

1. Remove the fixation screws [1] that secure the stand. Refer
to Figure 4-8

2. Take the stand out from the set.

for details.

for details.

4.3.2 Rear Cover

Refer to Figure 4-9
Warning: Disconnect the mains power cord before removing
the rear cover.

1. Remove the fixation screws [1] and [2] that secure the rear
cover. Refer to Figure 4-9

2. Lift the rear cover from the TV. Make sure that wires and
cables are not damaged while lifting the rear cover from the
set.

for details.

for details.

Figure 4-8 Stand removal

back to

div.table

2015-Sep-11

EN 16 TPS15.1A LA4.

19900_107.eps

2

M3 × 6

2

M3 × 8

1

1

1

1

1

1 1

1

1

1

1

1

1

1

1

1

1

1

2

19900_108.eps

1

3

3

3 3

2

Mechanical Instructions

4.3.3 Keyboard Control unit

1. Gently release the tapes that secure the keyboard cable.

2. Remove the fixation screws that secure the keyboard
control panel.

3. Gently take the keyboard out.

When defective, replace the whole unit.

4.3.4 Small Signal Board (SSB)

Refer to Figure 4-10
Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result
in damaging the SSB.

1. Release the clips from the LVDS connector [1] that connect
with the SSB.
Caution: be careful, as these are very fragile connectors!
Unplug the cable/flat foils connector.

2. Unplug all other connectors [2].

3. Remove all the fixation screws [3] from the SSB.

4. Take out the SSB with I/O bracket.

5. The SSB can now be shifted away from side connector
cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-10

for details.

for details.

Figure 4-9 Rear cover removal

Figure 4-10 SSB removal

2015-Sep-11

4.3.5 TunerBox Board

1. Gently Unplug Pin connectors from the SSB.

2. Take the TunerBox Board out.

back to

div.table

4.3.6 Power Supply Unit (PSU)

19890_112.eps

2

3

Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result
in damaging the PSU.

1. Unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

4.3.7 Speakers

1. Gently release the tapes that secure the speaker cables.

2. Unplug the speaker connector from the SSB.

3. Take the speakers out.
When defective, replace the both units.

4.3.8 IR board Control Unit

Mechanical Instructions

EN 17TPS15.1A LA 4.

Refer to Figure 4-11

1. Unplug the connector from the SSB.
Caution: be careful, as these are very fragile connectors!

2. Remove all the fixation screws [1] from the IR board control
unit .Refer to Figure 4-11

3. Remove the DECO_LOGO [2], IR board [3] from the
DECO_REAR_COVER. Refer to Figure 4-12

When defective, replace the whole unit.

Figure 4-11 IR board Control Unit removal 1

, Figure 4-12 for details.

for details.

1

1

for details.

19890_111.eps

Figure 4-12 IR board Control Unit removal 2

4.3.9 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the fixations screws that fix the metal clamps to
the front bezel. Take out those clamps.

7. Remove all other metal parts not belonging to the panel.

8. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

4.4 Assembly/Panel Removal (for 43" 5100 series)

Instructions below apply to the 43PFD5100/30.

4.4.1 Rear Cover

Refer to Figure 4-13
Warning: Disconnect the mains power cord before removing
the rear cover.

1. Remove the fixation screws [1] that secure the base
assy,pull out the base assy form the set. Then remove the
fixation screw [2], [3], [4] that secure the rear cover. Refer
to Figure 4-13

2. Gently lift the rear cover from the TV. Make sure that wires
and cables are not damaged while lifting the rear cover
from the set.

for details.

for details.

back to

div.table

2015-Sep-11

EN 18 TPS15.1A LA4.

19901_102.eps

1

3

3

3

2

3

3

Mechanical Instructions

2

2

2

2

2

2

M4 × 12

1

2

2

M3 × 6

2

M3 × 6

3

3

2

2

Q3 × 6

4

2

1

1

2

2

4

1

1

2

2

4

19901_101.eps

Figure 4-13 Rear cover removal (for 43" 5100 series)

4.4.2 Keyboard Control unit

1. Gently release the tapes that secure the keyboard cable.

2. Remove the fixation screws that secure the keyboard
control panel.

3. Gently take the keyboard out.

When defective, replace the whole unit.

4.4.3 Small Signal Board (SSB)

Refer to Figure 4-14
Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result
in damaging the SSB.

1. Release the clips from the LVDS connector [1] that connect
with the SSB.
Caution: be careful, as these are very fragile connectors!
Unplug the cable/flat foils connector.

2. Unplug all other connectors [2].

3. Remove all the fixation screws [3] from the SSB.

4. Take out the SSB with I/O bracket.

5. The SSB can now be shifted away from side connector
cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-14

for details.

for details.

Figure 4-14 SSB removal (for 43" 5100 series)

2015-Sep-11

4.4.4 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result
in damaging the PSU.

1. Unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

back to

div.table

4.4.5 Speakers

1. Gently release the tapes that secure the speaker cables.

2. Unplug the speaker connector from the SSB.

3. Take the speakers out.
When defective, replace the both units.

4.4.6 IR board Control Unit

1. Unplug the connector from the IR/LED board.

2. Gently release the clip that holds the board and take it out
from the DECO_LOGO.

When defective, replace the whole unit.

4.4.7 Stand bracket

1. Remove all fixation screws of the bracket.

2. Lift the bracket from the set.

4.4.8 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the fixations screws that fix the metal clamps to
the front bezel. Take out those clamps.

7. Remove all other metal parts not belonging to the panel.

8. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

Mechanical Instructions

EN 19TPS15.1A LA 4.

4.5 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse
order.

Notes:

• While re-assembling, make sure that all cables are placed
and connected in their original position. See Figure 4-1

Figure 4-7

• Pay special attention not to damage the EMC foams on the
SSB shields. Ensure that EMC foams are mounted
correctly.

.

to

back to

div.table

2015-Sep-11

EN 20 TPS15.1A LA5.

Service Modes and Fault Finding

5. Service Modes and Fault Finding

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Stepwise Start-up

5.4 Software Upgrading

5.5 Fault Finding and Repair Tips

5.1 Test Points

As most signals are digital, it will be difficult to measure
waveforms with a standard oscilloscope.

Perform measurements under the following conditions:

• Service Default Mode.

• Video: Colour bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

The Service Mode feature is split into two parts:

• Factory Mode.

• Customer Service Mode (CSM).

The Factory mode offer features, which can be used by the
Service engineer to repair/align a TV set. Some features are:

• Make alignments (e.g. White Tone), reset the error buffer
(Factory Mode).

The CSM is a Service Mode that can be enabled by the
consumer. The CSM displays diagnosis information, which the
customer can forward to the dealer or call centre. In CSM
mode, “CSM”, is displayed in the top right corner of the screen.
The information provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solved customers’ problem without home visit.

Software Identification, Version, and Cluster

The software ID and version will be shown in the main menu
display of CSM.
The screen will show: “AAAAB-X.YYY”, where:

• AAAA is the chassis name: TPS151A x.yyy.

• B is the region indication: E = Europe, A = AP/China, U =
NAFTA, L = LATAM.

• X is the main version number: this is updated with a major
change of specification (incompatible with the previous
software version). Numbering will go from 1 - 99 and
AA - ZZ.

- If the main version number changes, the new version
number is written in the NVM.

- If the main version number changes, the default settings
are loaded.

• YYY is the sub version number: this is updated with a minor
change (backwards compatible with the previous
versions). Numbering will go from 000 - 999.

- If the sub version number changes, the new version
number is written in the NVM.

- If the NVM is refreshed, the software identification,
version, and cluster will also be written to NVM.

5.2.2 Contents of the Factory mode:

Purpose

• To perform extended alignments.

Specifications

• Displaying and or changing Panel ID information.

• Various software alignment settings.

• Testpattern displaying.

• Public Broadcasting Service password Reset.

•etc.

Note: For the new model range, a new remote control (RC) is
used with some renamed buttons. This has an impact on the
activation of the Service modes. For instance the old “MENU”
button is now called “HOME” (or is indicated by a “house” icon).

5.2.1 General

Next items are applicable to all Service Modes or are general.

Table 5-1 Factory mode overview

Default value

Item Item value

0 Brand PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS Brand name
1 Main-MCU Ver V0.05 V0.05 V1.00 V1.02 V1.04 Main-MCU version
2 Bootloader Ver V0.01 V0.01 V0.01 V0.01 V0.01 Bootloader version
3 Sub-MCU Ver V0.01 V0.01 V0.01 V0.01 V0.01 Sub-MCU version
4 EEPROM Ver V0.01 V0.01 V0.01 V0.01 V0.01 EEPROM version
5 Date Jan 2 2015 Jan 2 2015 Mar 8 2015 Jan 7 2015 Jan 14 2015 Software release date
6 Model Name 32PHT5100 40PFT5100 43PFD5100 50PFT5100 55PFT5100 Model name
7 Scaler MSD8120PBM MSD8120PBM MSD8120PBM MSD8120PBM MSD8120PBM Scaler name
8 Panel Type LVE3150TU3AAEV2P0X LVM400J6PE1AD U2P0 X LVA430HVN01AD22T0X LVA500HVN07ACT2P0X LVG550DUYA1AC92P0X Display Panel model
9Source Display current source
10 Auto Color Press to set Auto color
11 W/B Pattern Off Off Off Off Off W/B Pattern
12 SSC Enable On On On On On SSC enable
13 LVDS Span 20.0KHz 20.0KHz 20.0KHz 20.0KHz 20.0KHz LVDS Span
14 LVDS Step 3.50% 3.50% 3.50% 3.50% 3.50% LVDS Step
15 ADC YPbPr (SD) YPbPr (SD) YPbPr (HD) YPbPr (HD) YPbPr (HD) ADC
16 Gain Display R/G/B value
17 Offset Display R/G/B value
18 Color Temp Cool Cool Cool Cool Co ol Display Color Temp
19 Scaler G ain Display R/G/B value
20 Offset Display R/G/B value
21 Burn In Off Off Off Off Off Burn In

2015-Sep-11

back to

div.table

How to Activate the Factory mode

To activate the Factory mode, use the following method:

• Press the following key sequence on the remote control
transmitter: from the “Menu/Home screen” press “1999”,
directly followed by the “Back” button. Do not allow the
display to time out between entries while keying the
sequence.

After entering the Factory mode, the following items are
displayed, the Default value just for reference.

Description32" 40" 43" 50" 55"

Service Modes and Fault Finding

Default value

Item Item value

22 EEPROM Init EEPROM Init
23 Back LIT Time 00000.0Hrs Hrs 00000.0Hrs Hrs 00000.0Hrs Hrs 00000.0Hrs Hrs 00000.0Hrs Hrs Back LIT time
24 Total Time 00000.0Hrs Hrs 00000.0Hrs Hrs 00000.0Hrs Hrs 00000.0Hrs Hrs 00000.0Hrs Hrs Total time
25 BackLight 100 100 100 100 100 Display backlight value
26 Language English English English English English Language
27 System Reset System Reset
28 Exit Exit factory mode

Default value

Item Item value

0 Brand PHILIPS PHILIPS Brand name
1 Model Name 32PHH5100 50PFH5100 Model name
2 Scaler MSD8120 MSD8120 Scaler name
3 Panel Type TPT315B5-0TU3A TPT500J1-HVN07 Display Panel model
4 FW Ver V1.01 V1.01 FW version
5 Date Feb 16 2015 Feb 16 2015 Software release date
6 Source Display current source
7 Auto Color Press to set Auto Color
8 ADC YPbPr (SD) RGB ADC
9 ADC Gain Display R/G/B value
10 ADC Offset Display R/G/B value
11 W/B Pattern Off Off W/B Pattern
12 Color Temp Cool Cool Display Color Temp
13 Gain Display R/G/B value
14 Offset Display R/G/B value
15 SSC On On SSC
16 LVDS Span 3.50% 3.50% L VDS Span
17 LVDS Step 20.0KHz 20.0KHz LVDS Step
18 Equalizer On On Equalizer
19 Burn In Off Off Burn In
20 EEPROM Init EEPROM Init
21 BackLight 100 100 Display backlight value
22 RS232 Off Off RS232
23 Factory Setting Factory setting
24 System Reset System Reset
25 Exit Exit factory mode

Description32PHH5100/96 50PFH5100/96

EN 21TPS15.1A LA 5.

Description32" 40" 43" 50" 55"

How to Exit the Factory mode

Use one of the following methods:

• Select EXIT_FACTORY from the menu and press the “OK”
button.

Note: When the TV is switched “off” by a power interrupt, or
normal switch to “stand-by” while in the factory mode, the TV
will show up in “normal operation mode” as soon as the power
is supplied again. The error buffer will not be cleared.

5.2.3 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and
information on the TV’s operation settings.The call centre can
instruct the customer (by telephone) to enter CSM in order to
identify the status of the set.This helps the call centre to
diagnose problems and failures in the TV set before making a
service call.
The CSM is a read-only mode; therefore, modifications are not
possible in this mode.

Specifications

• Ignore “Service unfriendly modes”.

• Line number for every
line (to make CSM language independent).

• Set the screen mode to full
screen (all contents on screen is visible).

• After leaving the Customer Service Mode, the original
settings are restored.

• Possibility to use “CH+” or “CH-” for channel surfing, or
enter the specific channel number on the RC.

How to Activate CSM

To activate CSM, press the following key sequence on a
standard remote control transmitter: from the “Menu/Home
screen” press “456987”, directly followed by the “Back” button.
(do not allow the display to time out between entries while
keying the sequence). After entering the Customer Service
Mode, the following items are displayed.

Note: Activation of the CSM is only possible if there is no (user)
menu on the screen!

Contents of CSM

• 1.1 Set Type This information is very helpful for a
helpdesk/workshop as reference for further diagnosis. In
this way, it is not necessary for the customer to look at the
rear of the TV-set. Note that if an NVM is replaced or is
initialized after corruption, this set type has to be re-written
to NVM.

• 1.2 Production code Displays the production
code (the serial number) of the TV. Note that if an NVM is
replaced or is initialized after corruption, this production
code has to be re-written to NVM.

• 1.3 Key (HDCP) Indicates the validity of the HDMI keys (or
HDCP keys). In case these keys are not valid and the
customer wants to make use of the HDMI functionality, the
SSB has to be replaced.

• 1.4 NVM name Detects and displays NVM name.

• 1.5 SW Cluster Name Displays the software cluster name.

• 1.6 Software Version Displays the software version.

• 1.7 RS232 Display RS232.

• 1.8 TV Region Display TV region.

• 1.9 LCD display panel 12NC NVM read/write.

• 2.0 SSB Gives an identification of the SSB as stored in
NVM. Note that if an NVM is replaced or is initialized after
corruption, this identification number has to be re-written to

back to

div.table

2015-Sep-11

EN 22 TPS15.1A LA5.

19080_206_110323.eps

120224

Power Off

Standby
Soft Mode

Power On

Semi-
Standby

Standby

Switch

Off(Mains
Power Plug)

Standby Soft Mode
Command Received,
previously in Standby

Soft Mode (Power tact
switch)

TV Wakeup
commands
Received
(TV Wakeup
keys)

Digital
background
tasks started

Digital
background
tasks completed

Swith On,
previously in

Standby/Semi-
Standby (Mains
Power Plug)

Standby
Soft Mode

Command
Received
(Power tact

switch)

Switch Off (Mains
Power Plug)

Switch Off

(Mains Power
Plug)

Swith On,
previously in
Standby Soft Mode
(Mains Power Plug)

Standby
commands

Received (RC

Standby key)

Standby Soft Mode

Command Received,
previously in Standby
Soft Mode (Power
tact switch)

TV Wakeup
commands
Received
(TV Wakeup
keys)

Switch On, previously
in Power On Mode
(Power tact switch)

Standby Soft Mode
Command Received,
(Power tact switch)

Switch Off (Mains
Power Plug)

Switch On,previously in
TV Operation Mode
(Mains Power Plug)

Service Modes and Fault Finding

NVM. This identification number is the 12NC number of the
SSB.

• 2.1 PSU 12NC NVM read/write.

Contents of CSM (for 32"& 50" 5100/96)

• 1.1 Set Type This information is very helpful for a
helpdesk/workshop as reference for further diagnosis. In
this way, it is not necessary for the customer to look at the
rear of the TV-set. Note that if an NVM is replaced or is
initialized after corruption, this set type has to be re-written
to NVM.

• 1.2 Production code Displays the production
code (the serial number) of the TV. Note that if an NVM is
replaced or is initialized after corruption, this production
code has to be re-written to NVM.

5.3 Stepwise Start-up

• 1.3 Software Version Displays the software version.

• 1.4 PQ Version Displays the PQ version.

• 1.5 AQ Version Displays the AQ version.

• 1.6 HDCP Display the HDCP Key, only show 5 KSV.

• 1.7 Back LIT Time Display the total time of backlight on.

• 1.8 Total Time Display the total time of TV power on.

How to Exit CSM

To exit CSM, use one of the following methods.

• Press the MENU/HOME button on the remote control
transmitter.

• Press the POWER button on the remote control
transmitter.

• Press the POWER button on the television set.

5.4 Software Upgrading

5.4.1 Description

It is possible for the user to upgrade the main software via the
USB port. This allows replacement of a software image in a
stand alone set. A description on how to upgrade the main
software can be found in the DFU or on the Philips website.

2015-Sep-11

Figure 5-1 Stepwise Start-up

5.4.2 Introduction

back to

div.table

Philips continuously tries to improve its products, and it’s
recommend that the TV software is updated when updates are
available. Software update files can be obtained from the
dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip

19452_200_130902.eps

130902

Confirm

No

19452_201_130902.eps

130902

Confirm

No

for Windows or Stufflt for Mac OS).

3. A FAT formatted USB memory stick (preferably empty).

Note:

1. Only FAT/DOS-formatted memory sticks are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support

web site.

5.4.3 Check the current TV software version

Before starting the software upgrade procedure, it is advised to
check that what the current TV software:

1. Press the “Home screen” + “1999” + “Back” button on the
remote control to enter the Factory mode.

2. Use the up/down cursor keys to select “SW Ver”.

If the current software version of the TV is the same as the
latest update file found on http://www.philips.com/support
not necessary to update the TV software.

5.4.4 Download the latest software

1. Open the internet page http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the
PC.

4. Insert the USB memory stick into one of the USB ports of
the PC.

5. Decompress the downloaded ZIP file and copy it to the root
directory of the USB flash drive.

Service Modes and Fault Finding

, it is

.

Figure 5-3 Update the TV software [2/2]

Note:

• Do not remove the USB flash drive during the software
update.

• Do not turn off the power during the software update.

• If a power failure occurs during the update, do not remove
the USB flash drive from the TV. The TV will continue the
software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or
contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV
software from the USB portable memory.

EN 23TPS15.1A LA 5.

5.4.5 Update the TV software

1. Turn the TV on and wait for it to boot completely.

2. Insert the USB memory stick that contains the software
update files in one of the TV’s USB ports.

3. The TV will detect the USB memory stick automatically.
Then a window jumps out as Figure 5-2

.
Note: If the USB flash drive is not detected after power up,
disconnect it and re-insert it. And no change the software
name.

4. Select [Confirm] and press OK to start software updates.
See Figure 5-2

.

5. Upgrading will now begins and the status of the updating
progress will be displayed. See Figure 5-3

6. When the TV software is updated. Remove your USB flash
drive, and the TV will turn on automatically.

5.4.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and
instructions on how and when to use it. Only files that are
relevant for Service are mentioned here.

• EDID_clustername.zip: Contains the EDID content of the
different EDID NVMs. See ComPair for further instructions.

• FUS_clustername_version.zip: Contains the
“autorun.bin” which is needed to upgrade the TV main
software and the software download application.

• NVM_clustername_version.zip: Default NVM content.
Must be programmed via ComPair.

.

5.4.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder
“repair” is used. When inserting an empty USB memory stick,
and downloading data to the stick, the TV will create this folder.
When sending data from a USB memory stick to a TV, the
intended data must be available in the “repair” folder.
Note that when copying EDID data to the TV, all necessary
EDID files must be in this folder.
Service mode overview for your reference.

5.5 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly
with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options
are set.

Figure 5-2 Update the TV software [1/2]

5.5.1 No Picture via HDMI input

Check if HDCP key is valid. This can be done in CSM.

5.5.2 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Re-flash the software.

back to

div.table

2015-Sep-11

EN 24 TPS15.1A LA5.

5.5.3 Audio Amplifier

The Class D-IC U601 has a powerpad for cooling. When the IC
is replaced it must be ensured that the powerpad is very well
pushed to the PWB while the solder is still liquid. This is needed
to insure that the cooling is guaranteed, otherwise the Class
D-IC could break down in short time.

5.5.4 Loudspeakers

Make sure that the volume is set to minimum during
disconnecting the speakers in the ON-state of the TV. The
audio amplifier can be damaged by disconnecting the speakers
during ON-state of the set!

5.5.5 Display option code

Attention: In case the SSB is replaced, always check the Panel
Code in CSM, even when picture is available. Performance
with the incorrect display option code can lead to unwanted
side-effects for certain conditions.

Service Modes and Fault Finding

2015-Sep-11

back to

div.table

6. Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Reset of Repaired SSB

6.1 General Alignmen t Cond it io n s

Perform all electrical adjustments under the following
conditions:

• Power supply voltage: 90 - 264 V

• Connect the set to the mains via an isolation transformer
with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct
ground (e.g. measure audio signals in relation to
AUDIO_GND).
Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

• Use an isolated trimmer/screwdriver to perform
alignments.

> 10 M, Ci < 20 pF.

i

6.2 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service
repair shop (SSB repair on component level) implies the reset
of the NVM on the SSB.

After a repaired SSB has been mounted in the set (set repair
on board level), the type number (CTN) and production code of
the TV has to be set according to the type plate of the set.

, 50/ 60  3 Hz.

AC

Alignments

EN 25TPS15.1A LA 6.

6.2.1 SSB Identification

SSB’s of this chassis are identified by a “715” code on the SSB.
715Axxxx-Nnn-MMM-OOOO

• 715 main category, Printed Wiring Board

• Axxxx sub category, sequential coding number

• Nnn Version code

• N Development number

• nn Production number

• MMM Mounting variation code

• OOOO Optional variation code

Make sure when replacing an SSB the SSB identification codes
match the replacement board.

back to

div.table

2015-Sep-11

EN 26 TPS15.1A LA7.

7. Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 DC/DC Converters

7.4 Front-End Analogue ATV reception and DVB-T reception

7.5 HDMI

7.6 Video and Audio Processing - MSD8120PBM

Notes:

•Only new circuits (circuits that are not published recently)
are described.

• Figures can deviate slightly from the actual situation, due
to different set executions.

• For a good understanding of the following circuit
descriptions, please use the wiring, block (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

you will find a separate drawing for clarification.

) and circuit diagrams (see chapter

).Where necessary,

Circuit Descriptions

7.1 Introduction

The TPS15.1A LA is a new chassis launched in AP in 2015.
The whole range is covered by MSD8120PBM. The major
deltas versus its predecessor support PAL/NTSC/SECAM,
with multi-media, Video out function.

The TPS15.1A LA chassis comes with the following stylings:

• series xxPxT5100xx

• series xxPxH5100xx

• series xxPxD5100xx

7.1.1 Implementation

Key components of this chassis are:

• SCALER MSD8120PBM-V5 EPLQFP-156(for 5100 series)

• SCALER MSD8120PBM EPLQFP-156(for 5100/96 series)

• Silicon Tuner MxL661-AG-R(for 5100 series)

• TUNER - TDSH-T070F(for 5100/96 series)

• DEMODULATOR MSB1241 LQFP-48(for 5100 series)

• DEMODULATOR MSB1238 LQFP-48(for 43’’ 5100 series)

• AUDIO TAS5729MDDCAR 10W TSSOP-48 for Audio Amp

7.1.2 TPS15.1A LA Architecture Overview

For details about the chassis block diagrams refer to chapter

9. Block Diagrams

.

2015-Sep-11

back to

div.table

7.1.3 SSB Cell Layout

19900_200.eps

MSD8120PBM-V5

HDMI

Tuner

Headphone

DC/DC

DC/DC

USB

SPDIF

ANALOG I/O

PC Audio

Analog Input

HDMI

HDMI

DC/DC

DC/DC

DC/DC

DC/DC

DDR

Circuit Descriptions

EN 27TPS15.1A LA 7.

Figure 7-1 SSB layout cells (top view) (32"- 55" 5100 series)

back to

div.table

2015-Sep-11

EN 28 TPS15.1A LA7.

19900_201.eps

MSD8120PBM

HDMI

HDMI

Analog Input

PC Audio

Tuner

USB

Headphone

ANALOG I/O

DC/DC

DDR

Circuit Descriptions

Figure 7-2 SSB layout cells (top view) (32" & 55" 5100/96 series)

2015-Sep-11

back to

div.table

Circuit Descriptions

19901_200.eps

MSD8120PBM-V5

HDMI

Tuner

Headphone

DC/DC

DC/DC

USB

SPDIF

ANALOG I/O

PC Audio

Analog Input

HDMI

HDMI

DC/DC

DDR

DC/DC

DC/DC

DC/DC

EN 29TPS15.1A LA 7.

Figure 7-3 SSB layout cells (top view) (43" 5100 series)

back to

div.table

2015-Sep-11

EN 30 TPS15.1A LA7.

Platform

MSD8120PBM

AUDIO

AMP

LVDS

12V 12V

CN701

AC IN

DIM

BL-ON/OFF

12V

AC input +

Main filter

Display Power

Platfor m p ow er

CN8604

PFC

(for 32'' )

( for 43''/50''/55'')

Lower Stby
Power

CN8601

(for 40'' )

CN8603 (for 43'' )
CN8101

(for 50''/55'' )

1 power-PCB

19900_202.eps

7.2 Power Supply

Refer to figures Figure 7-4 for the power architecture of this
platform.

Circuit Descriptions

Figure 7-4 Power Architecture (5100 series)

7.2.1 Power Supply Unit

All power supplies are a black box for Service. When defective,
a new board must be ordered and defective one must be
returned, unless the main fuse of the board is broken. Always
replace a defective fuse with one with the correct
specifications. This part is available in the regular market.
Consult the Philips Service web portal for the order codes of the
boards.

Important delta’s with the TPS15.1A LA classis platform are:

• New power architecture for LED backlight

• “Boost” signal is now a PWM-signal + continuous variable.

The control signals are:

• Stand-by

• Lamp “on/off”

• DIM (PWM) (not for PSDL)

In this manual, no detailed information is available because of
design protection issues.

The output voltages to the chassis are:

• +12V(on-mode), +8.5V(Stand-by mode only for 40", 43",
50", 55")

2015-Sep-11

• +12V(on-mode/standby-mode) for 32"

• +12V_Audio (on-mode),+8.5V_Audio(Stand-by mode
only) for 40", 43", 50", 55"

• +12V _Audio (on-mode/standby-mode) for 32"

• +16V for 32", +22V for 40", +36V/+24V for 43"/ 50"/ 55"
(bolt-on power) (on-mode)

• Output to the display; in case of

- IPB: High voltage to the LCD panel

- PSL and PSLS (LED-driver outputs)

- PSDL (high frequent) AC-current.

7.2.2 Diversity

back to

div.table

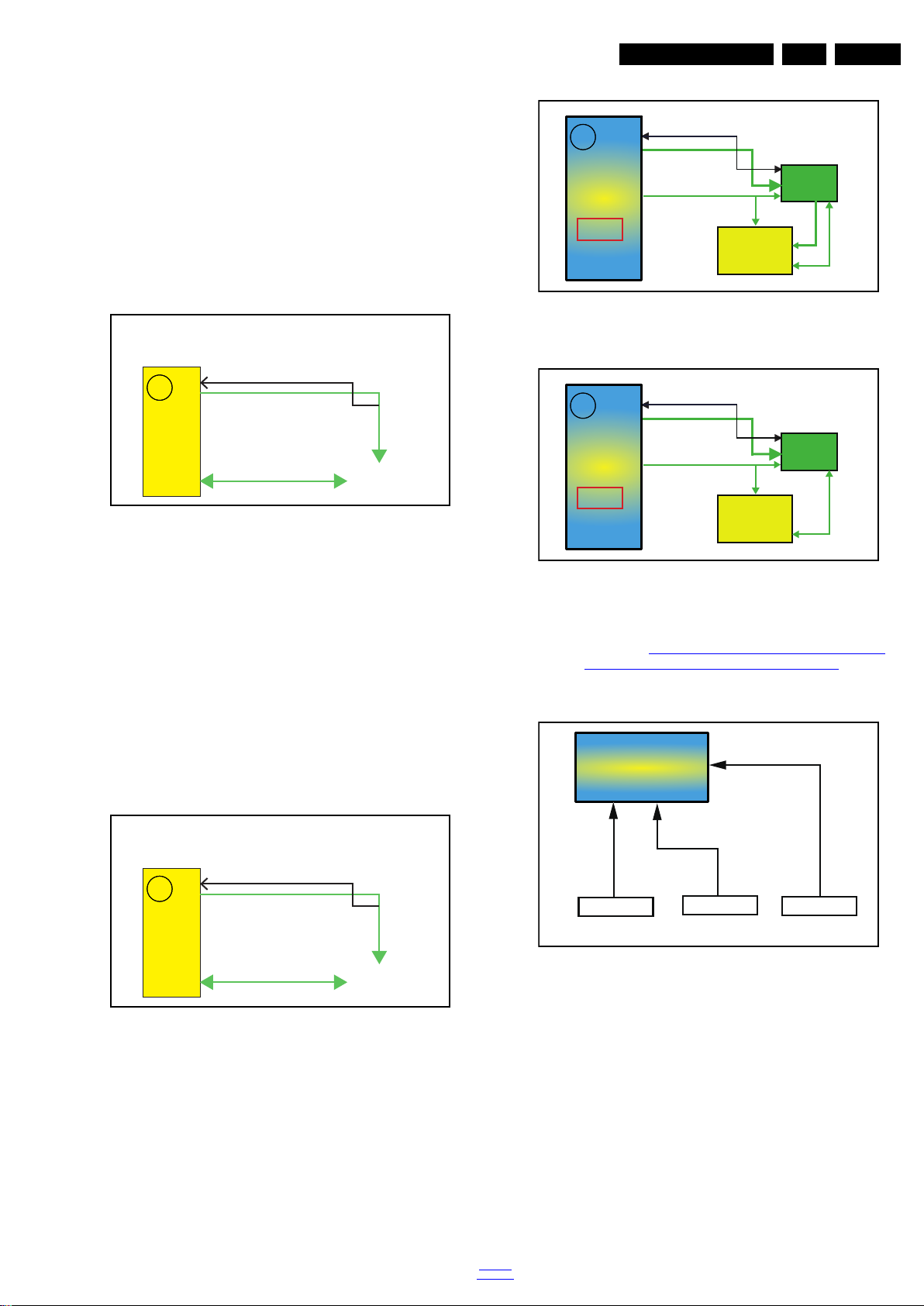

The diversity in power supply units is mainly determined by the
diversity in displays.

The following displays can be distinguished:

• CCFL/EEFL backlight: power board is conventional IPB

• LED backlight:

- side-view LED without scanning: PSL power board

- side-view LED with scanning: PSLS power board

- direct-view LED without 2D-dimming: PSL power board

- direct-view LED with 2D-dimming: PSDL power board.

PSL stands for Power Supply with integrated LED-drivers.
PSLS stands for a Power Supply with integrated LED-drivers
with added Scanning functionality (added microcontroller).
PSDL stands for a Power Supply for Direct-view LED backlight

with 2D-dimming.

7.2.3 Connector overview

19900_203.eps

VDDC

MSD8120

+3V3SB

AVDD_MOD

AVDD_DMPLL

AVDD_DADC

AVDD_AU33

AVDD_MOD

AVDD3P3_VEDIO

5V_SW

AP1117E

VCC3V3DM3V3

DM1V2

DVDD3V3

DDRV

G9141T11U

G5695T11U

AVDD_DDR_CMD

3.3V

AVDD_DDR_DATA

MSB1241

MxL661

3V3T

AO4449

12V

12V

LCD PA NE L T-CON

TAS5729MD

12V

M57 23B

+5VSB

SY8104ADC

VCCK

Table 7-1 Connector overview

Connector

32" 40" 43" 50" 55"
no. CN8604 CN9101 CN8601 CN9101 CN8603 CN9101 CN8101 CN9301 CN8101 CN9101
Descr. to panel to SSB to panel to SSB to panel to SSB to panel to SSB o panel to SSB
Pin 6 16 12 16 12 16 12 16 12 16

1 VLED+ DIM VLED+ DIM +VLED DIM VLED+ DIM +VLED DIM
2 VLED+ ON/OFF n.c. ON/OFF n.c. BL_ON/OFF n.c. ON/OFF n.c. BL_ON/OFF
3 n.c. n.c. VLED - PS_ON - VLED PS_ON/OFF VLED_1 PS_ON - VLED_1 PS_ON

4 n.c. Scan_BL_En VLED - n.c. - VLED A3D VLED_1 2D/3D - VLED_1 3D_ON
5 LED_a GND n.c. GND - VLED GND n.c. GND - VLED_1 GND

6 LED_a GND n.c. GND n.c. GND n.c. GND n.c. GND
7 - GND n.c. GND n.c. GND n.c. GND n.c. GND
8 - GND n.c. GND - VLED GND n.c. GND - VLED_2 GND
9 - +12V_AUDIO VLED - +12V_AUDIO - VLED +12V_A VLED_2 +12V_AUDIO - VLED_2 +12V_AUDIO
10 - +12V_AUDIO VLED - +12V_AUDIO - VLED +12V_A VLED_2 +12V_AUDIO - VLED_2 +12V_AUDIO
11 - +12V n.c. +12V n.c. +12V n.c. +12V n.c. +12V
12 - +12V VLED+ +12V +VLED +12V VLED+ +12V +VLED +12V
13 - +12V - +12V - +12V - +12V - +12V
14 - +12V - +12V - +12V - +12V - +12V
15 - n.c. - +5V - +5.2V - +12V - +3.5V
16-n.c.-+5V-FLAG-+12V-+3.5V

Circuit Descriptions

EN 31TPS15.1A LA 7.

7.3 DC/DC Converters

The on-board DC/DC converters deliver the following voltages
(depending on set execution):

• +5V-STANDBY, permanent voltage for the Stand-by
controller

• +3V3-STANDBY, power supply for LED/IR receiver and
controls

• +12V, input from the power supply for the panel common
(active mode)

• +12V, input from the power supply for the amplifier

• +1V5, supply voltage for DDR

• +3V3, general supply voltage

• +3.3V-TUN, supply voltage for tuner

• +3.3V, supply voltage for Headphone AMP

• +5V-USB, input intermediate supply voltage for USB
Power

• +3V3 from the power supply for the scaler IC
MSD8120PBM

Figures gives a graphical representation of the DC/DC
converters with its current consumptions:

Figure 7-5 DC/DC converters [1] (32"- 55" 5100 series)

back to

div.table

2015-Sep-11

EN 32 TPS15.1A LA7.

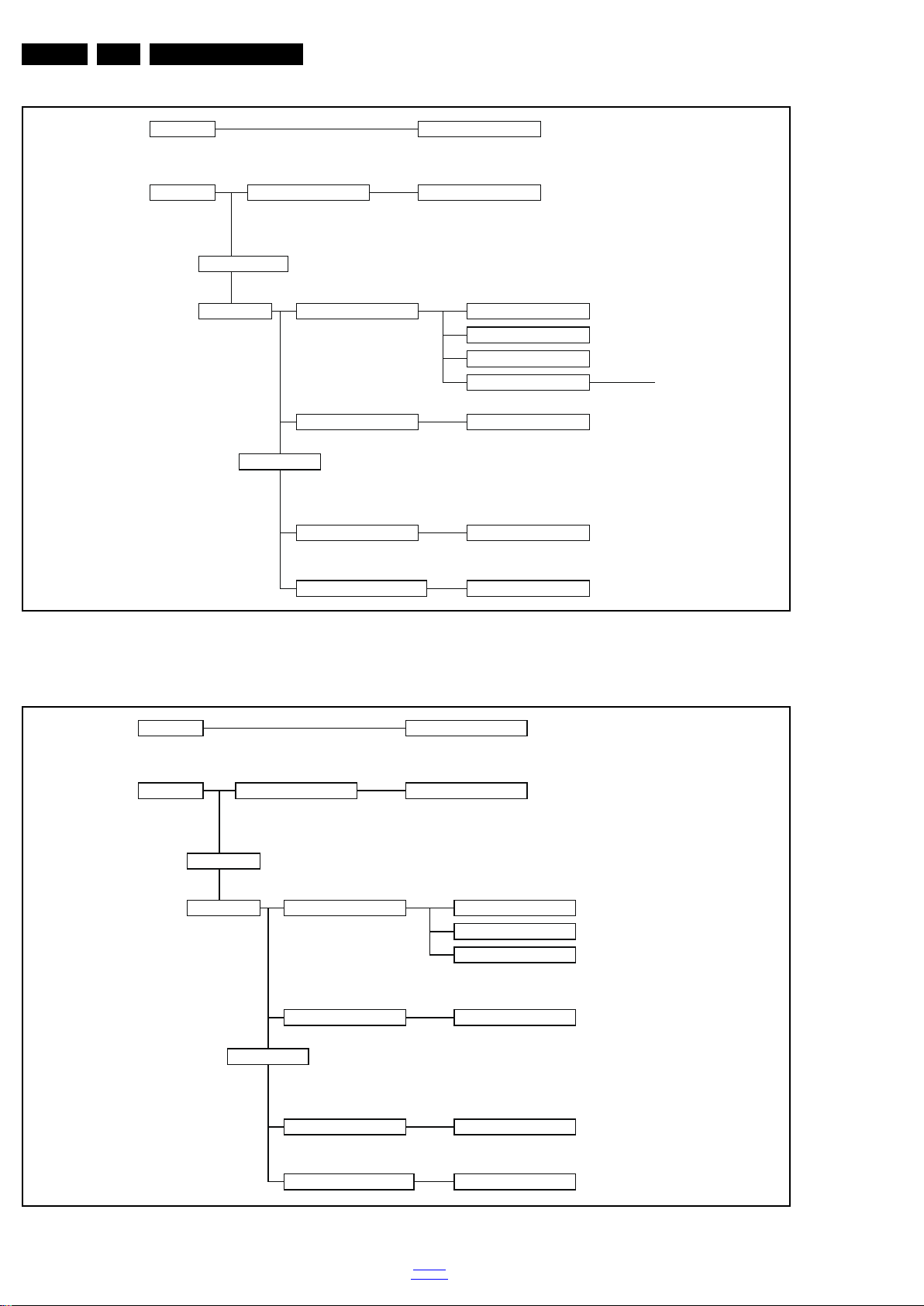

19900_204.eps

U401 MSD8120PBM

U601 TAS5729MD

+3V3TUNER

U401 MSD8120PBM

PANEL LVDS Pow er

Q702 AO3401A

For Audio Amplifier

U403 W25Q64FVSSIG

5V_SW

U703 SY8003ADFC

For M SD8120PBM

Q704 AO3401A

DVDD3V3

For M SD8120PBM

U702 SY8104ADC

+12V

3V3_STB

VCCK

+12V_AUD

U701 AP1117E33L-13-77

For Re set IC

For SPI Flash

TU101 TUNER

DDRV

For M SD8120PBM

U401 MSD8120PBM

Q104 AO3407A

+5VSB

U101 AP1117E33L-13-77

U410 G690H293T73

U706 AZ1084CD- ADJTRG1

For TUNER 3.3V

19901_201.eps

U401 MSD8220LB

U601 STA381

+3V3TUNER

U401 MSD8220LB

PANEL LVDS Pow er

Q702 AO4449-7A

For Audio Amplifier

U403 W25Q32FVSSIG

5V_SW

U705 APW7323

For M SD8220LB-S9

For M SD8220LB-S9

U707 G5655P12U

P12V

3V3_STB

VCCK

P12V_AUD

U701 AP1117E33L-13-77

For Re set IC

For SPI Flash

TU101 TUNER

DDRV

For M SD8220LB-S9

+12V_AUD

U401 MSD8220LB

Q104 AO4449-7A

+5VSB

U102 AP1117E33L-13-77

U405 G690H293T73

U406 AZ1084D-ADJTRE1

For TUNER 3.3V

Circuit Descriptions

Figure 7-6 DC/DC converters [2] (32" & 55" 5100/96 series)

2015-Sep-11

Figure 7-7 DC/DC converters [3] (43" 5100 series)

back to

div.table

7.4 Front-End Analogue ATV reception and DVB-T

MSD8120PBM

I2C

I2C

IF_AGC

IF

IF_AGC

TDSH-T070F

SAWless with ATV mode

19900_205.eps

MSD8120PBM

I2C

I2C

IF_AGC

IF

IF_AGC

TDSH-T070F

SAWless with DTV mode

19900_206.eps

IF

TS DATA

RF_AGC

MSD8120PBM

T demod
MSB1241

IF_AGC

I2C

I

2

C

I

2

C

19900_207.eps

MxL661-AG-R

IF

TS DATA

RF_AGC

MSD8120PBM

T demod
MSB1238

IF_AGC

I2C

I

2

C

I

2

C

19901_202.eps

MxL661-AG-R

19900_208.eps

MSD8120PBM

ARX

CRX

BRX

CN506

HDMI 1

CN507
HDMI 2

CN508
HDMI 3

reception

7.4.1 Front-End Analogue Part

The Front-End for the analogue tuner consist of the following
key components:

• SCALER MSD8120PBM EPLQFP-156(for 5100/96 series)

• TUNER - TDSH-T070F(for 5100/96 series)

Below find a block diagram of the front-end application for
analogue part.

Circuit Descriptions

Figure 7-10 Front-End DVB-T DTV block diagram(5100 series)

EN 33TPS15.1A LA 7.

Figure 7-8 Front-End analogue block diagram(5100/96 series)

7.4.2 Front-End DVB-T reception DTV Part

The Front-End for DVB-T DTV part consist of the following key
components:

• SCALER MSD8120PBM-V5 EPLQFP-156(for 5100 series)

• SCALER MSD8120PBM EPLQFP-156(for 5100/96 series)

• TUNER - TDSH-T070F(for 5100/96 series)

• Silicon Tuner MxL661-AG-R(for 5100 series)

• DEMODULATOR MSB1241 LQFP-48(for 5100 series)

• DEMODULATOR MSB1238 LQFP-48(for 43" 5100 series)

Below find a block diagram of the front-end application for
analogue part.

Figure 7-11 Front-End DVB-T DTV block diagram(43" 5100 series)

7.5 HDMI

Refer to figures 7-12 HDMI input configuration(5100 series)
and 7-13 HDMI input configuration(5100/96 series)
application.

Figure 7-12 HDMI input configuration(5100 series)

for the

Figure 7-9 Front-End DVB-T DTV block diagram(5100/96 series)

back to

div.table

2015-Sep-11

EN 34 TPS15.1A LA7.

19900_209.eps

MSD8120PBM

ARX

BRX

CN506

HDMI 1

CN507
HDMI 2

Figure 7-13 HDMI input configuration(5100/96 series)

The HDMI connector has the following specifications:

• +5V detection mechanism

• Stable clock detection mechanism

• Integrated EDID

• HPD control

• Sync detection

• TMDS output control

Circuit Descriptions

7.6 Video and Audio Processing - MSD8120PBM

The MSD8120PBM is the main audio and video processor (or
System-on-Chip) for this platform. It has the following features:

• Multi-standard digital video decoder (MPEG-2, MPEG-4)

• Digital and Analog TV Front-End Demodulator

• The MStarACE-6 Video Processor

• Embedded Memory for optimized BOM cost

• Home Theater Sound Processor

• High Performance Micro-processor

• Transport-Stream Input for Extended DTV System

• one MHL 2.0 compliant port

• Multiple HDMI 1.4 compliant ports with ARC support

The MSD8120PBM combines front-end video processing
functions, such as NTSC/PAL/SECAM Video Decoder,
MPEG-2/H.264 decode, analog video decode and HDMI
reception, with advanced back-end video picture
improvements. It also includes next generation Motion
Accurate Picture Processing High flat panel screen resolutions
and refresh rates are supported with formats including 1280 ×
720@ 60Hz and 1920 × 1080 @60Hz.The MSD8120PBM is a
highly integrated TV SoC solution for DVB-T/ISDB-T digital
television Platform. MSD8120PBM also supports an ultra low
Power standby mode to meet the latest energy legislative
requirements without additional hardware.

2015-Sep-11

back to

div.table

8. IC Data Sheets

19900_300.eps

Block diagram

Pinning information

24

23

22

21

20

19

18
17

16
15
14
13

7

8

9

10

11

12

1
2

3

4
5

6

LNA_INP
LNA_INN

AS

GND_XTAL

CLK_OUT

XTAL_P

XTAL_N

VDD_1p8

VDD_IO

AGC_1

AGC_2/GPO_3

MxL661

VDD_3p3

RESET_N

VDD_1p8

VDD_1p8

GND_DIG
VDD_1p2

IF_OUTN_1

IF_OUTP_1

IF_OUTP_2/GPO_1

IF_OUTN_2/GPO_2

SDA
SCL

VDD_3p3

Crystal

Reference

I2C

Voltage

Regulator

AGC1

RF

Synth

Gain

Control

IF

Synth

Synth

Calibration

LNA

AGC2

Channel
Filtering

CLK_OUT

IF1 Out

IF2 Out

RF Input

Balun

MxL661

This chapter shows the internal block diagrams and pin
configurations of ICs that are drawn as “black boxes” in the
electrical diagrams (with the exception of “memory” and “logic”
ICs).

8.1 Diagram 10-6-2 Tuner/VGA Input B02, MxL661 (IC U104)

IC Data Sheets

EN 35TPS15.1A LA 8.

back to

div.table

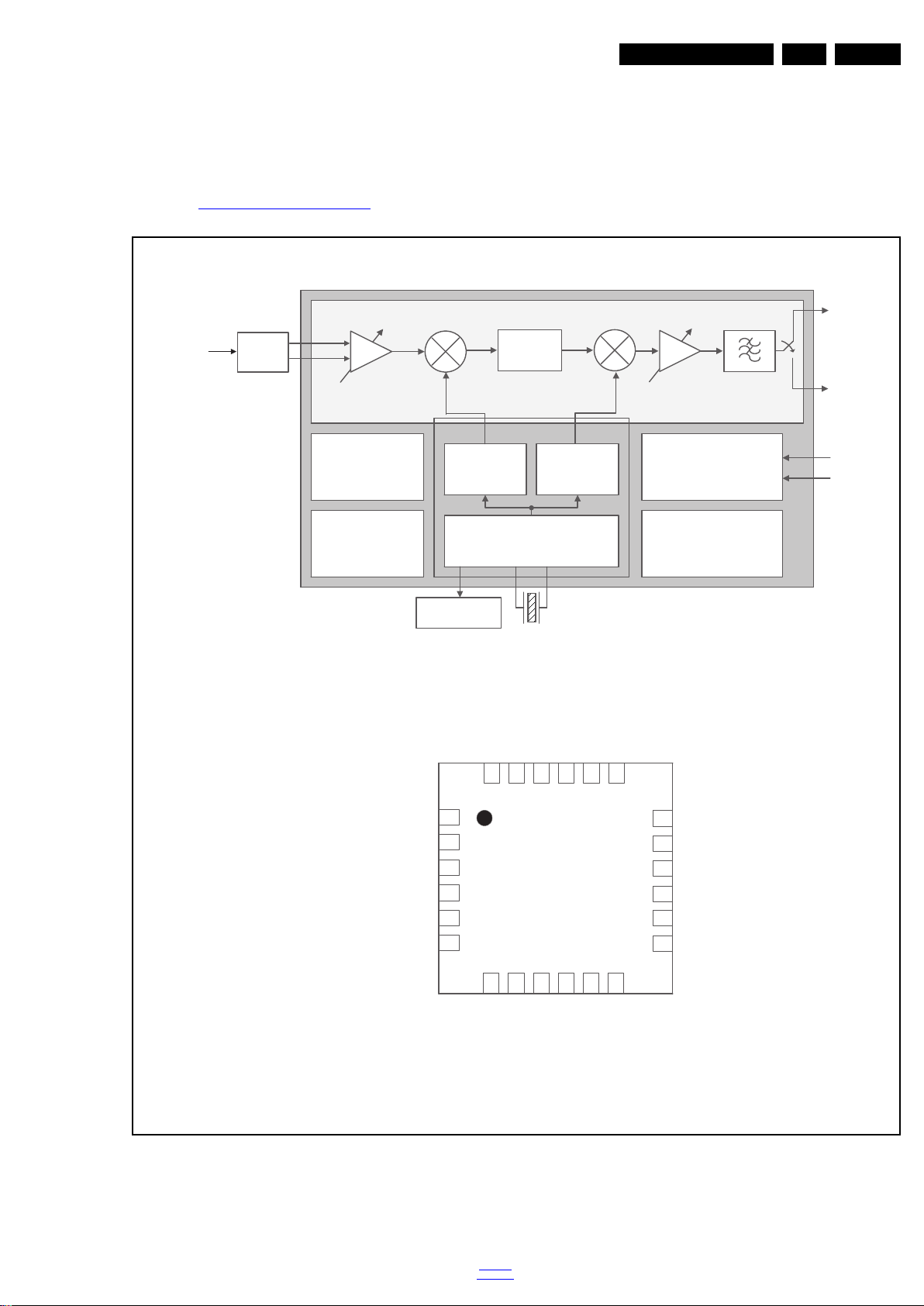

Figure 8-1 Internal block diagram and pin configuration

2015-Sep-11

EN 36 TPS15.1A LA8.

19900_301.eps

Block diagram

Pinning information

TAS5729MDD

TAS5729MDD

C

D

D

IC Data Sheets

8.2 Diagram 10-6-6 Audio Amp/Headphone Output B06, TAS5729MDDCAR (IC U601)

DVDD DRVDD GVDD_REGPVDD

AVDD

Digital Supply Regulator

MCLK
SCLK

LRCLK

SDIN

Serial

Audio

Port

R_INA
R_INB

DR_INx

ADR / SPK_FAULT

ANA_REG1 ANA_REG2 DIG_REG

Analog Supply

Regulators

Digital Audio Processor

Digital Equalizer, Two-Band

AGL, Coarse/Fine Volume

Control, THD Manager, PWM

Level Meter

Stereo HP / Line Driver

DRVDD

­+

DRVSS

DR_OUTx

PGND

SPK_OUTA

BSTRPA

PVDD
TEST1
TEST2

DR_INA
DR_OUTA
DR_OUTB

DR_INB

DRVSS
DR_CN

DR_CP

DRVDD

PLL_GND

PLL_FLTM

PLL_FLTP

ANA_REG1

AVDD

MCLK

OSC_RES

OSC_GND

DIG_REG

1
2

3

4
5
6
7

8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

DRVSSDR_CPDR_CN

Gate Drive

Charge Pump

PWM Power Stage

Open Loop

Digital PWM

Modulator

Clock

Monitoring

Internal Control Registers and State Machines

Gate

Drives

Gate

Drives

Die Temp. Monitor

DR_SDI

48
47
46
45
44
43
42
41
40

39
38
37
36
35
34
33
32

Thermal Pad

31
30

29
28
27
26
25

Regulator

Full Bridge

Power

Stage A

Full Bridge

Power

Stage B

PDNADR / SPK_FAULT

SPK_OUTB
BSTRPB
BSTRPC
SPK_OUTC
PGND
SPK_OUTD
BSTRPD
PVDD
GVDD_REG
DR_SDI
SSTIMER
ANA_REG2
AGND
DGND
DVDD
TEST3
RST
NC

SCL
SDA
SDIN
SCLK

LRCLK
PDN

RST

Over-

Current

Protection

SCL

SDA

SPK_OUTA
SPK_OUTB
SPK_OUT
SPK_OUTD

DR_OUTA
DR_OUTB

2015-Sep-11

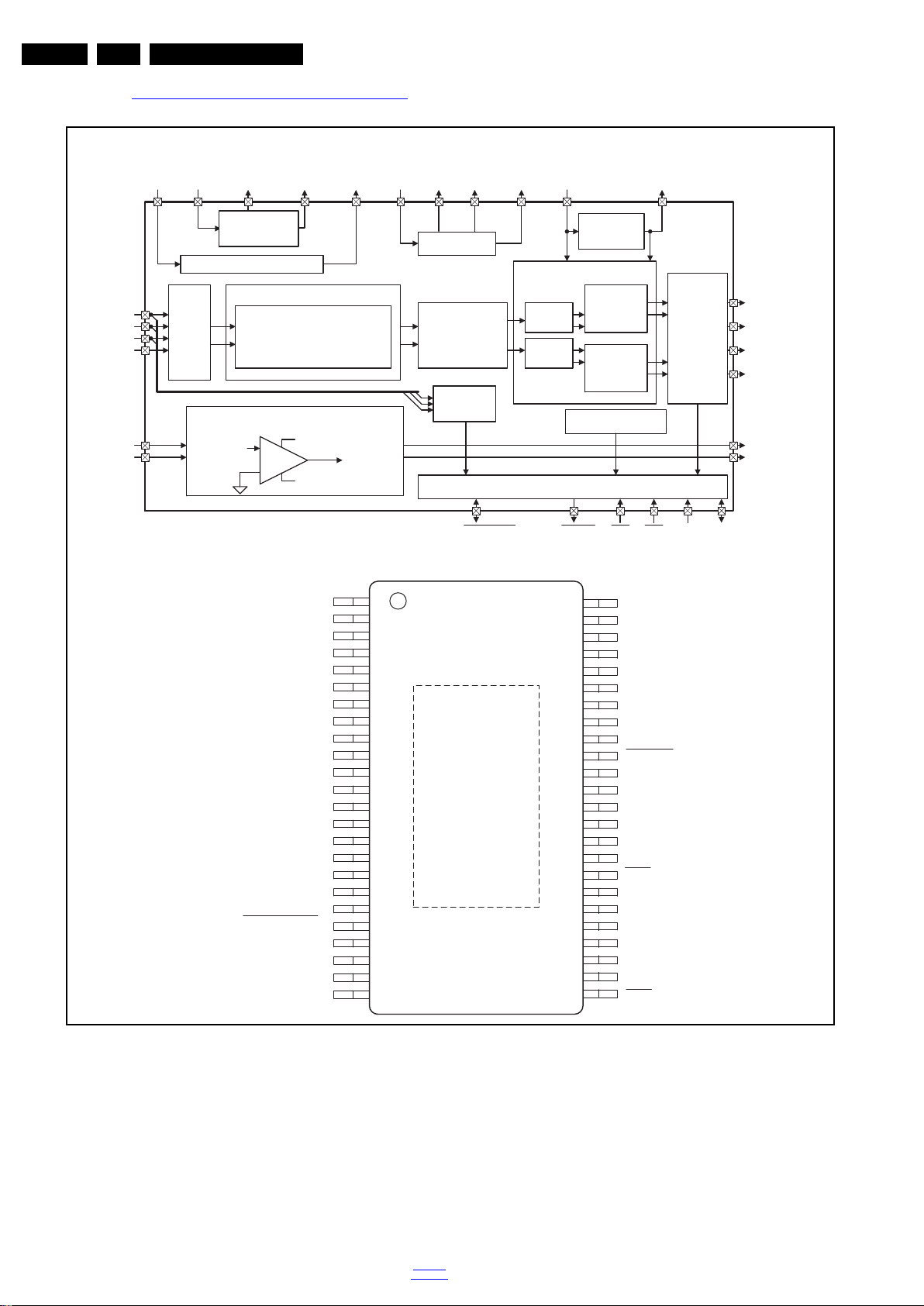

Figure 8-2 Internal block diagram and pin configuration

back to

div.table

8.3 Diagram 10-6-8 Demod DVB-T2 B08, MSB1241 (IC U103)

19900_302.eps

Block diagram

Pinning information

Pi n 1

6
7

8

9

11
12

10

2

1

3

4
5

31
30

29
28

26
25

27

35

36

34
33
32

VDD

GND

RESETZ

VDD33

MSPI _CLK/ SSPI _CSZ

GND

MSPI _DI / SSPI_DO

MSPI _DO/SSPI_DI

MSPI _CSZ/ SSPI_CLK

TS_CLK

TS_D[7]

TS_D[6]

IM

IP

QP

GND

QM

IFAGC

RFAGC

AVDD_MPLL

XTAL_IN

XTAL_OUT

GND

I2CS_SCL

X

XXX

X

X

MSB1241

IC Data Sheets

EN 37TPS15.1A LA 8.

XXXXXXX

MSB1241

XXX

Figure 8-3 Internal block diagram and pin configuration

back to

div.table

2015-Sep-11

EN 38 TPS15.1A LA8.

19901_300.eps

Block diagram

Pinning information

Pin 1

42

43

44

45

47

46

38

39

40

41

18

19

20

21

232422

141315

16

17

6
7

8

9

11
12

10

2

1

3

4
5

31
30

29
28

26
25

27

35

36

34
33
32

48

37

TS_D[5]

TS_D[4]

TS_D[1]

TS_D[3]

TS_D[2]

TS_D[0]

TS_VLD

TS_SYNC

VDD33

GND

VDD

I2CS_SDA

VDD

GND

RESETZ

VDD33

SSPI_CSZ

GND

SSPI_DO

SSPI_DI

SSPI_CLK

TS_CLK

TS_D[7]

TS_D[6]

IM

IP

QP

GND

QM

IFAGC

GPIO

AVDD_MPLL

XTAL_IN

XTAL_OUT

GND

I2CS_SCL

AVDD33_ADC

GND

VDD

SAR_RSSI

AVDD_SAR

GND

GPIO[0]

I2CM_SDA

GND

VDD33

I2CM_SCL

TS_ERR

XXXXXXXXXXX

XXXX

X

MSB1238

IC Data Sheets

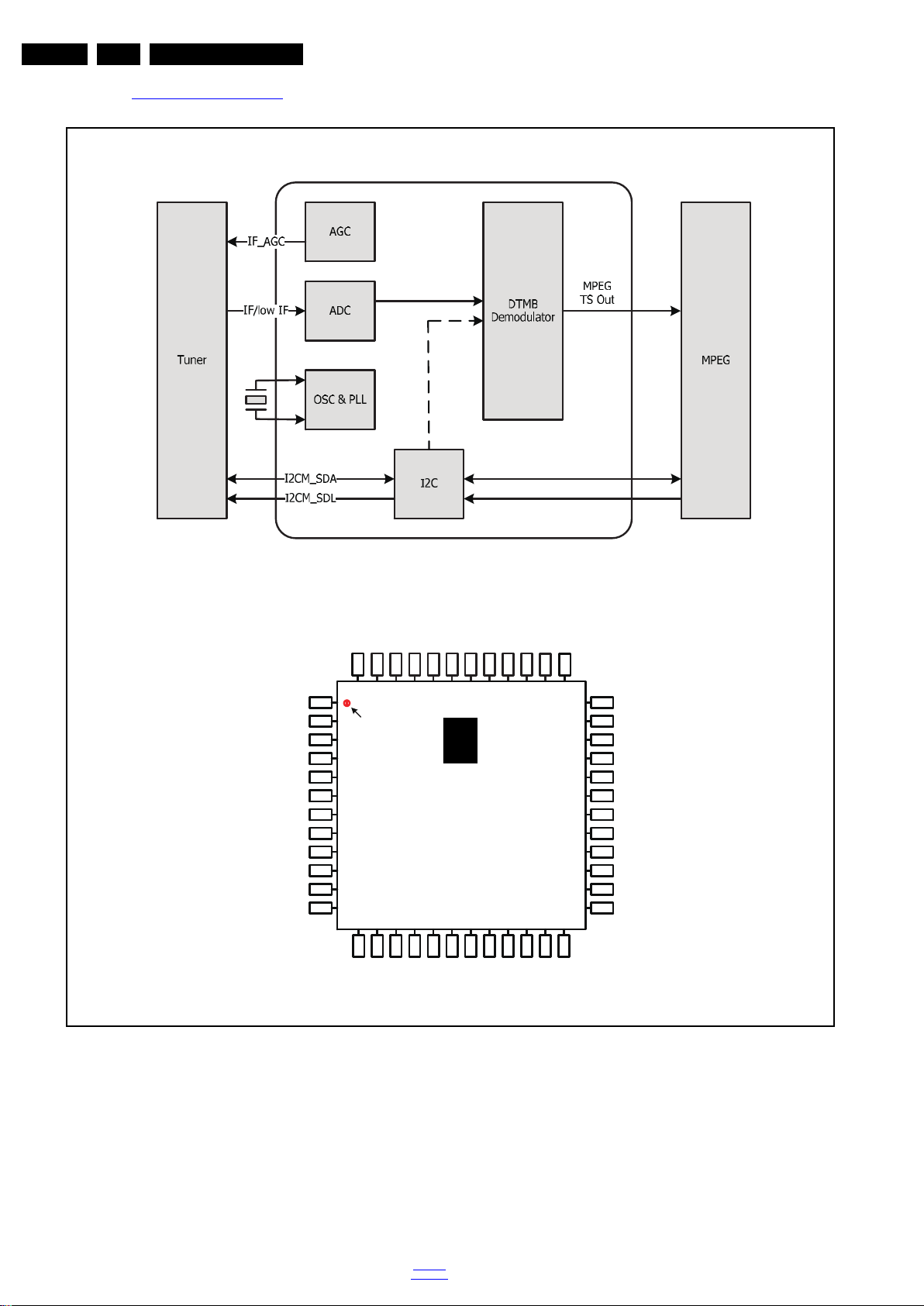

8.4 Diagram 10-8-8 Demod DTMB B08, MSB1238 (IC U103)

MSB1238

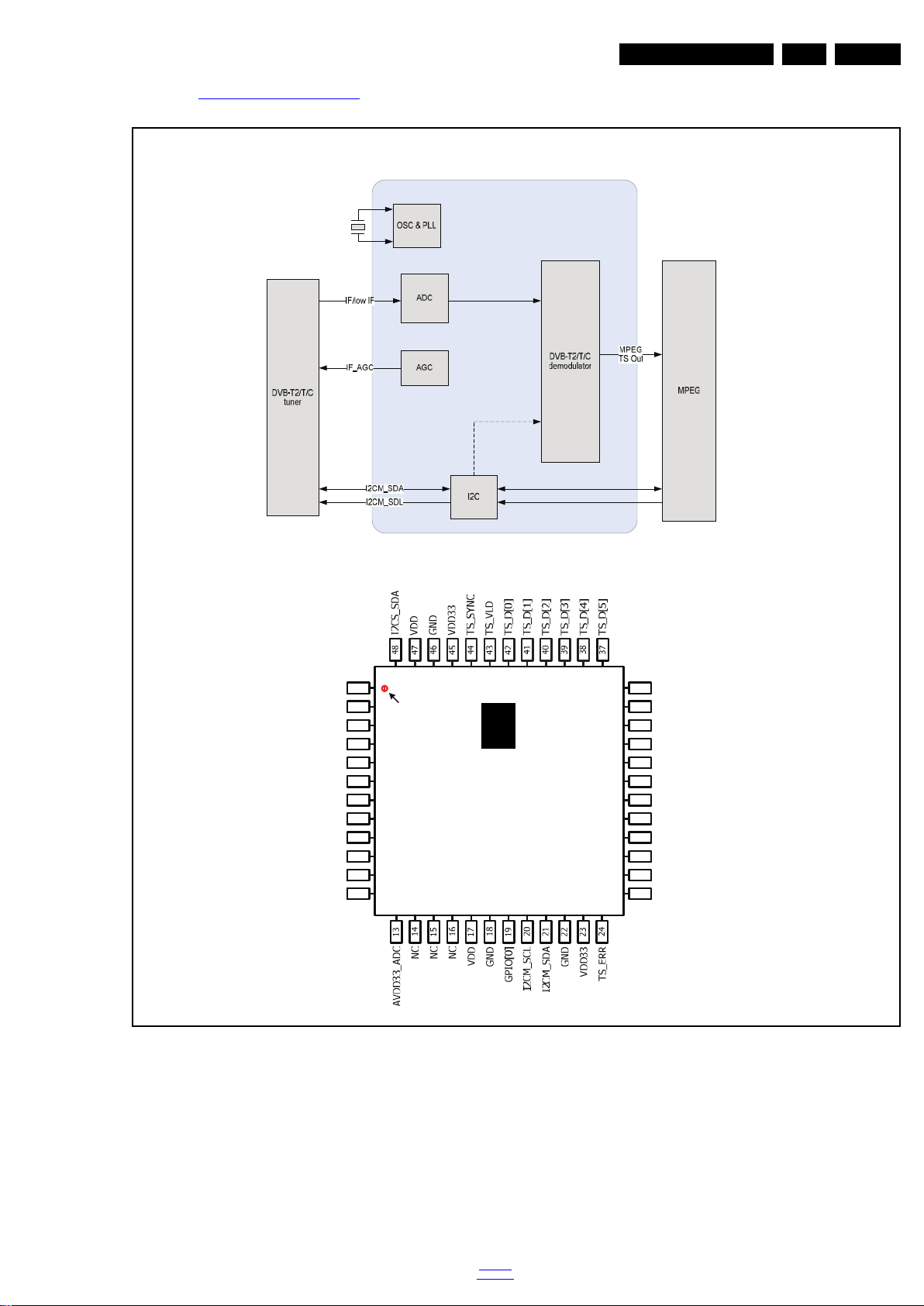

Figure 8-4 Internal block diagram and pin configuration

2015-Sep-11

back to

div.table

9. Block Diagrams

19900_400.eps

Y PBPR/AV I N

D-SUB(PC IN)

SPK X 2

AOUT_L

HDMI

VGA

CVBS1

I2C

LVDS (50/60 Hz)FCN101

LCD PANEL T- CON

SPK R/L

MP3 & JPEG, SW UPDATEUSB(Multimedia)

IF1N

IF1P

IF

AOUT_R

TAS5729MD

HDMIX3

Power DC 12v

I2C

MXL661

U 402
NOR FLASH 32Mb

USB 2.0

MSD8120

Earphone

AUDIO AMP

ATV /DVB-T stream

SPDIF OUT

MSB1241

TS

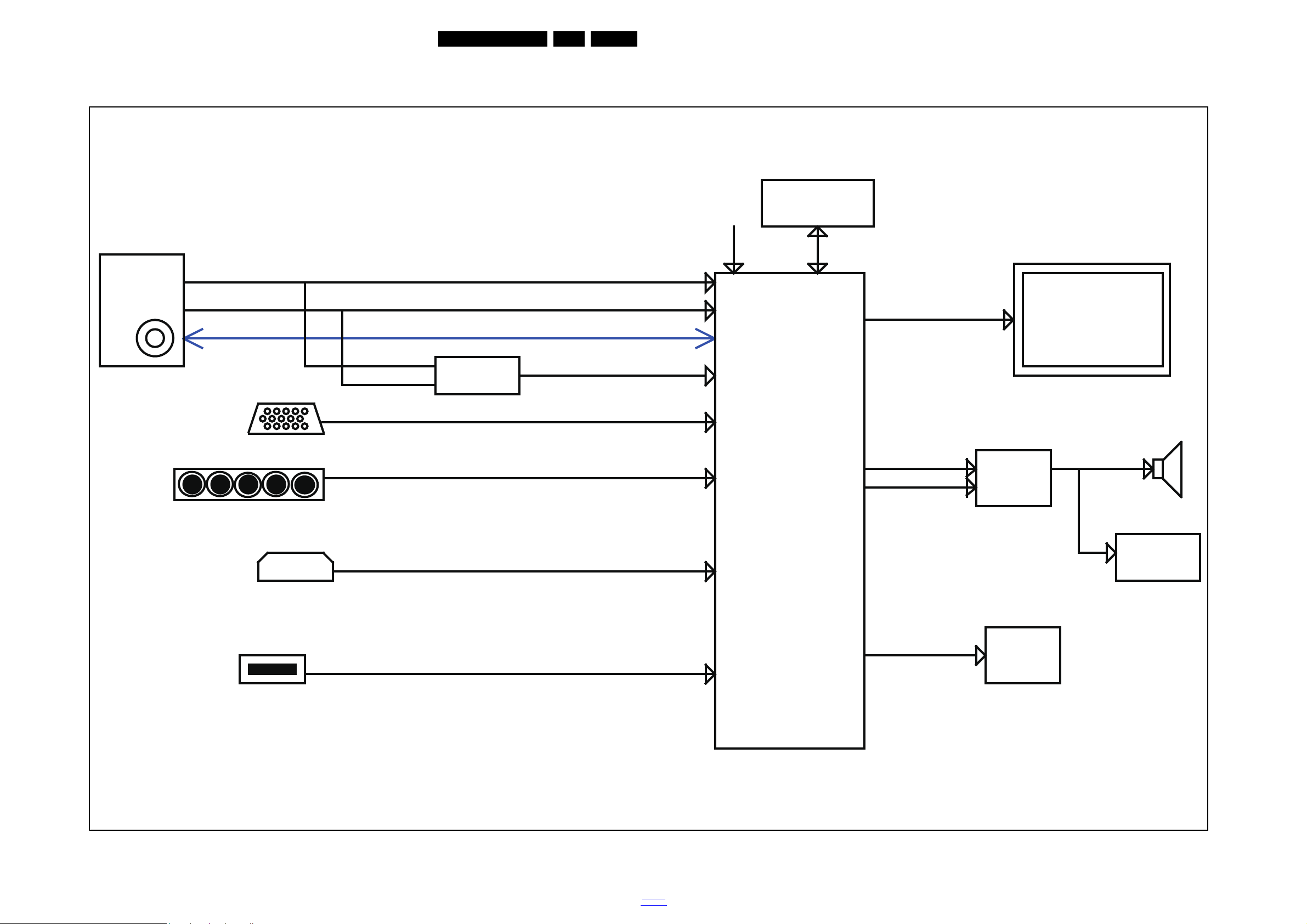

9.1 Block diagram 5100 series

Block Diagrams

EN 39TPS15.1A LA 9.

2015-Sep-11

back to

div.table

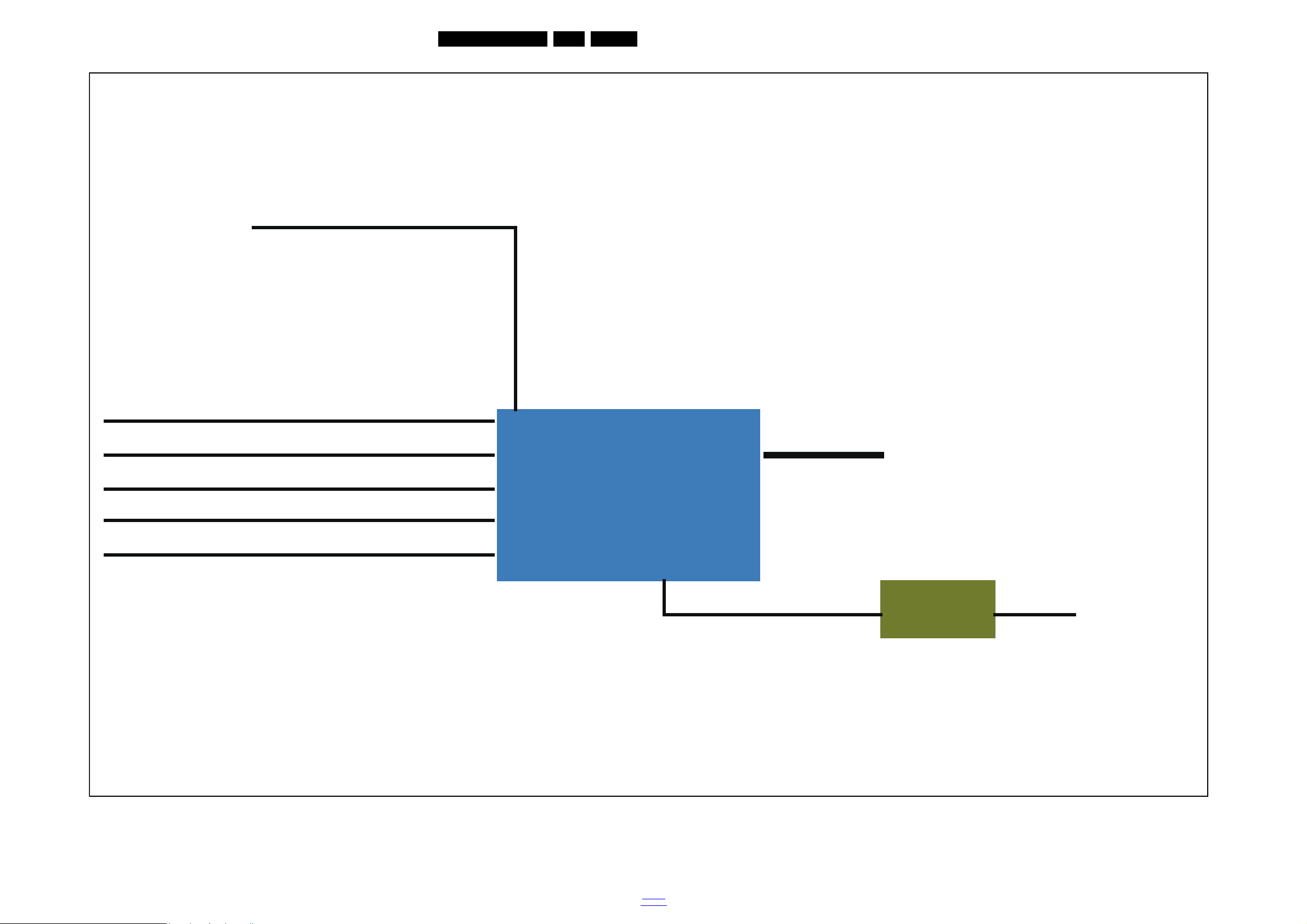

9.2 Block diagram 5100/96 series

19900_401.eps

HDMI1,2

IF+/-

ATV

YPbPr

VGA

MSD8120PBM

USB

TAS5729MD

SPEAKER

LVDS Panel

AV

DTV

Block Diagrams

EN 40TPS15.1A LA 9.

2015-Sep-11

back to

div.table

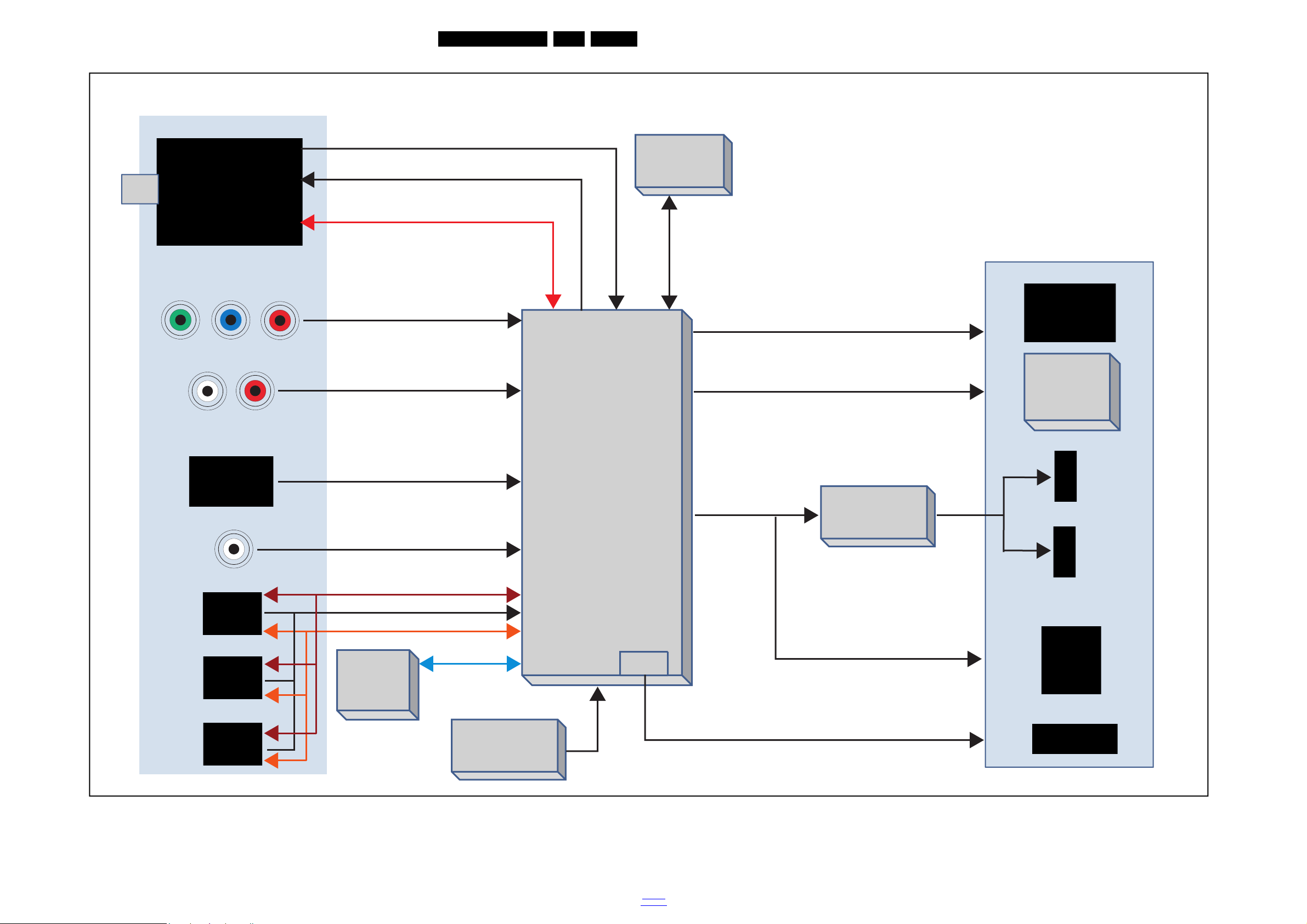

9.3 Block diagram 43" 5100 series

19901_400.eps

MSD8120PBM

EPLQFP-156

X401

CN401

U403
Flash

128Mb

Input

U104

Silicon TunerSilicon Tuner

CN111

CN111

CN101(DB15)

CN102 PC-Audio in

CN506 (Side HDMI1/ARC)

CN507 (Side HDMI2/MHL)

CN508 (Side HDMI3)

DIF_OUT

IF_AGC

SCL_TUNER

SDA_TUNER

YPbPr _IN

YPbPr _R / L_IN

VGA_IN

VGA_AUDIO_R / L_IN

CEC

TDMS

I2C

CN103

CN602
Headphone

CN601

Speaker_L

Speaker_R

USB

HP_R/L

To 60Hz Panel

Audio_SPDIF_OUT

I2S

U601

TAS5729MDDCAR

Output

U401

Crystal-

KEY & IR

24Hz

Connector

SPDIF
CN604

RCA-Optical

Connector

Block Diagrams

EN 41TPS15.1A LA 9.

2015-Sep-11

back to

div.table

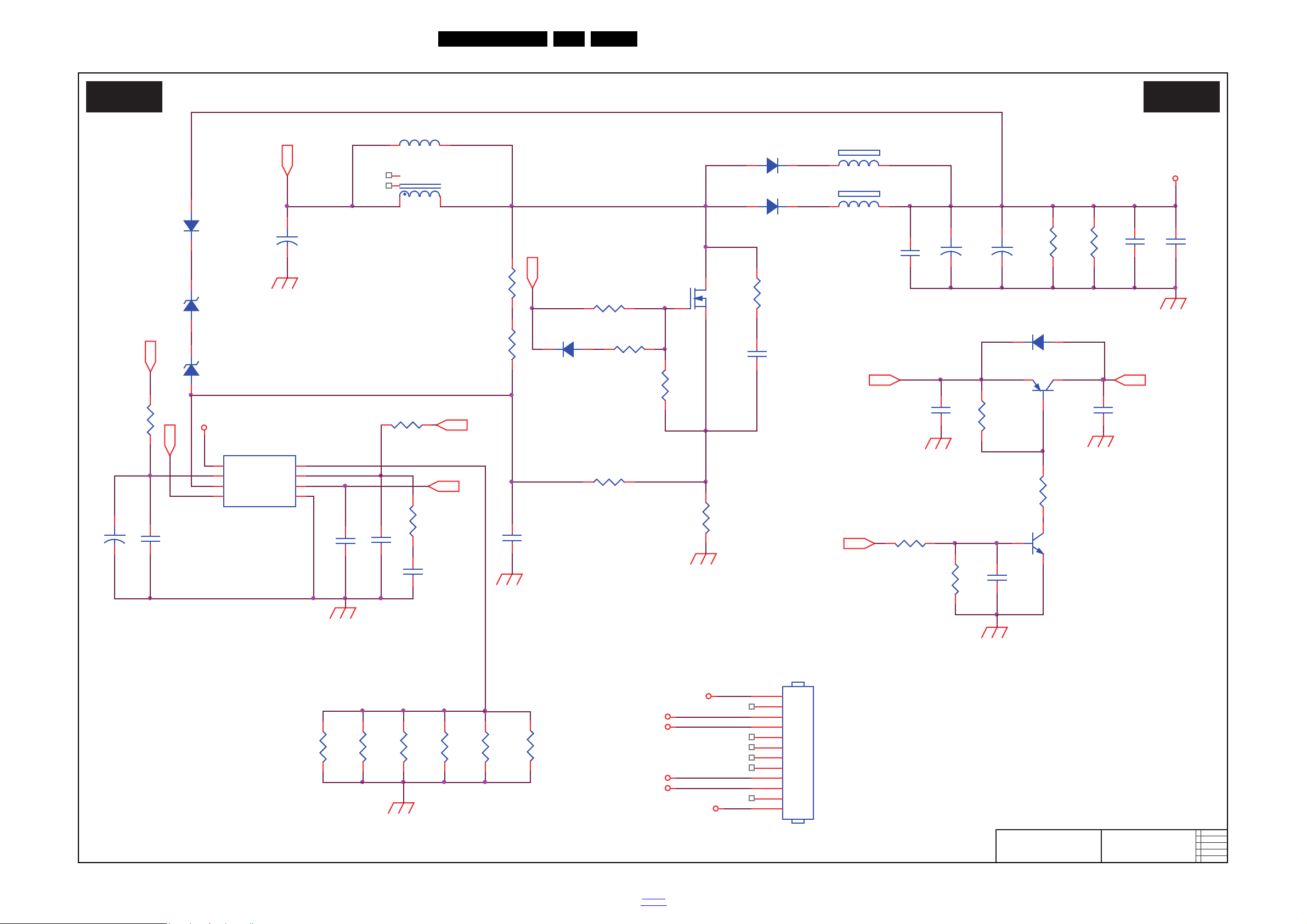

Circuit Diagrams and PWB Layouts

19900_500.eps

Power

A01 A01

2015-03-03

715G6863

Power

+12V

JR901
0R05 1/4W

L9902

23mH

124

3

FB9907
BEAD

12

+16V_AL

CN8603
NC/CONN

1

2

JR902

0R05 1/4W

+

C9802
47UF 450V

OUT

OUT

R9120

22K 1/8W 1%

C9901

0.47uF 305V

R9124
390K 1/8W 1%

R9126
5K1 1/8W 1%

+

C8608

10UF 50V

ZD8101
BZT52-B16G

1 2

ZD8102
BZT52-B16G

1 2

!

+

C9801

56UF 450V

ZD9101

BZT52-B15G

1 2

+

C9106

4.7UF 50V

!

R8615

1K OHM +-5% 1/8W

IC9102

EL817M(X)

12

43

R9138
470 OHM 1/4W

L8601
NC/47U H

T9101

POWER X'FMR

1

2

4

5

6

7

11

10

8

+

C8601

330UF 35V

FB9908
BEAD

12

FB9906

127R

1 2

R9107
82K OHM 1%

R8616

330K 1/8W 5%

D9108
NC/SR204

1 2

D9106

1N4007

!

!

R8612
NC/22K 1%

C8605
NC/100PF 500V

!

R9103

100K 1/8W 1%

R9121

10K OHM +-5% 1/8W

ZD9102
GDZJ22B

1 2

D9109
SB5100-E

1 2

C8613
100N 50V

D9107
SB5100-E

1 2

+12V_AL

LED3

LED2

LED4

D9110
SB5100-E

1

2

C9903
NC/100PF 250V

GND3

NC/GND

1

D8601
SB560-E

1 2

VLED+

VLED+

R9123

10K OHM +-5% 1/8W

C9905

1NF 250V

Q9101
TK8A65D

!

R9109
82K OHM 1%

IC8601

PF7708BS

LED1VCC2CS/OVP3OUT

4

GND

5

DIM

6

GM

7

FB

8

VLED+

LED_aLED_a

D9101
SB5100-E

1 2

D9102
SB5100-E

1 2

T2.5AL/250V

R8607
33K +-1% 1/4W

FB

R8605
33K +-1% 1/4W

Q8602
DTA144WN3/S

R8609

1.2R 1%

R8602

10ohm +/-1% 1/8W

R8606

1.2R 1%

LED1

R8611

1.2R 1%

!

FB

R9903

NC/750K +-5% 1/4W

R8614

1.2R 1%

R9901

NC/750K +-5% 1/4W

R8603
10K 1/8W

R9905

NC/750K +-5% 1/4W

CN8601

NC/CONN

1

2

3

4

5

6

7 8

R9102

3.3M 1%

C9102

2.2NF

R9906

NC/750K +-5% 1/4W

R9907

1M5

R9904

NC/750K +-5% 1/4W

R9902

NC/750K +-5% 1/4W

R9108
82K OHM 1%

+12V_Audio

C9108

100N 50V

C9104

100N 50V

+12V

ON/OFF

DIM

Cold

Hot

Hot

Cold

CN8602
NC/CONN

1

2

3

4 5

D8602

1N4148W

C9906
470pF 250V

R9115

470OHM +-5% 1/8W

L8602
47uH

ZD9103

BZT52-B20

1 2

C8604

100N 50V

R8608

5.6K 1/4W

D9104

1N4148W

+

C8615
220uF 50V

+16V_AL

R9137

1K OHM +-5% 1/8W

C9121

100N 50V

R9110
82K OHM 1%

+

C9103

4.7UF 50V

Scan_BL_EN

IC9103

AS431AN-E1

C9904
47pF 250V

Vcc2

RV9901
680V

+12V_AL

D9105
PR1007

R9101
0R36 5%

R9136
470R 5%

t

NR9901
5R

12

R9104
510K +-1% 1/4W

R9134
510K +-1% 1/4W

R9106
510K +-1% 1/4W

ON/OFF

R9131
0 OHM +-5% 1/8W

+12V

Q8603
2N7002K

D8604
1N4148W

R9125

680R 1/8W 1%

L9901

NC/30MH

124

3

C8612

100N 50V

C8611
100N 50V

C8610
100N 50V

ON/OFF

R9129

30 OHM 1/4W

C9907
470PF 250V

Q8601
AO4486

S1S2S3G

4

D8D7D6D

5

R9116

30 OHM 1/4W

R9130

30 OHM 1/4W

C9113

1NF 500V

C9902 NC/470NF 305V

FB9905
BEAD

1 2

R9119

30 OHM 1/4W

+

C9115

330UF 35V

R911733ohm 1/4W +/-5%

R9118

33ohm 1/4W +/-5%

R9139 33ohm 1/4W +/-5%

Q9102

2N3904

R9140 33ohm 1/4W +/-5%

R9142 33ohm 1/4W +/ -5%

R9141 33ohm 1/4W +/-5%

C8614
100N 50V

CN9101

CONN

2
4
6

8

10
12
14
16

1

3

5
7
9
11
13
15

C9100
150PF

C8609

NC/1NF 630V

+16V_AL

CN8604
CONN

1

2

3

4

5

6

7 8

R9112
100 OHM 1/8W

R9111
22OHM +-5% 1/8W

R9135

3.3M 1%

C8606

10N 50V

IC9101

PF6003AG

GND

1

FB

2

BNO3CS

4

VCC

5

OUT

6

+

C9111

220uF 25V

C9120

100P 50V

C8607

10NF 50V

D9103

1N4148W

R9122
12K 5% 1/4W

C9114
1NF 500V

B+

L9101

3UH

R9113

0 OHM +-5% 1/8W

C9105
220P 50V

+

C9118
470UF 25V

+12V1

R9132

NC/0 OHM +-5% 1/8W

+

C9117

470UF 25V

F9901
250V

+12V1

+

C8602

NC/47UF 100V

R8613

100KOHM +-5% 1/8W

!

C9107
1NF 500V

C8603
470NF 50V

FB9903
BEAD

1 2

CN8605
NC/CONN

1

2

3

4 5

R8601
56R 1/8W 5%

+16V1

HS9101

HEAT SINK

1
2

3

4

+16V1+12V1

!

FB9901
BEAD

1 2

+12V_Audio

C9119
2N2 50V

C9112

220N 50V

CN9901

SOCKET

12

R8604

0.2oHM 1% 1/4W

R9127
NC/100K 1/8W 1%

R9114

3.3M 1%

R9128

1K5 +-1% 1/8W

-

+

BD9901
GBL408-C

2

1

3

4

D8605

1N4148W

R8610

0.2oHM 1% 1/4W

A

R9105

4R7 1/4W 5%

A

Vcc2

!

DIM

C9109

1NF 50V

t

NR9902
5R

12

10. Circuit Diagrams and PWB Layouts

10.1 A 715G6863 PSU

10-1-1 Power

EN 42TPS15.1A LA 10.

2015-Sep-11

back to

div.table

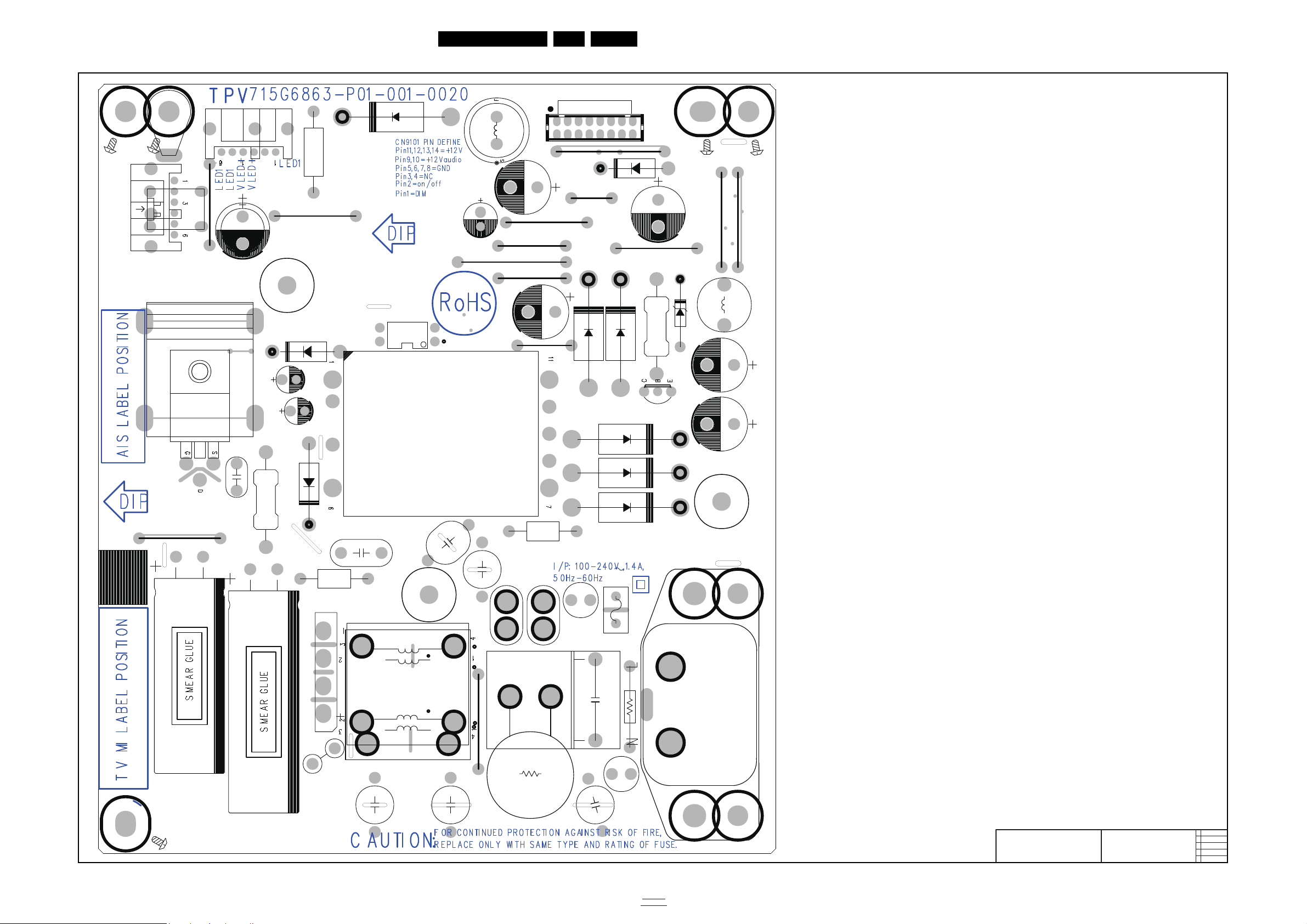

10-1-2 Power layout top

19900_501.eps

2014-06-05

715G6863

LAYOUT TOP

C8608

D9101

D9102

D9107

F9901

IC9102

R9101

D9109

D9108

R9136

SU2

SU1

SU3

CN8603

D9110

D9106

J903

C9802

J901

BD9901

J906

J902

J905

J904

D8601

J908

J911

J907

J912

J914

J913

C8602

T9101

J910

C9801

J909

S6

S7

S3

S4

S5 S8 S9

S10

S11

S12

S13

S15

C9102

C9106

C9111

C9117

C9118

C9901

C9905

C9903

C9904

CN8601

CN8602

D9105

FB9901

HS9101

L9101

MH5

MH1

MH4

Q9102

C9103

C8601

C9115

FB9905

MH3

MH2

FB9906

C9902

L8601

ZD9102

L8602

Q9101

RV9901

CN9101

C9906

C9907

FB9907

FB9908

GND3

L9901
L9902

NR9901

NR9902

C9100

FB9903

CN9901

R9907

C8615

CN8605

CN8604

Circuit Diagrams and PWB Layouts

EN 43TPS15.1A LA 10.

2015-Sep-11

back to

div.table

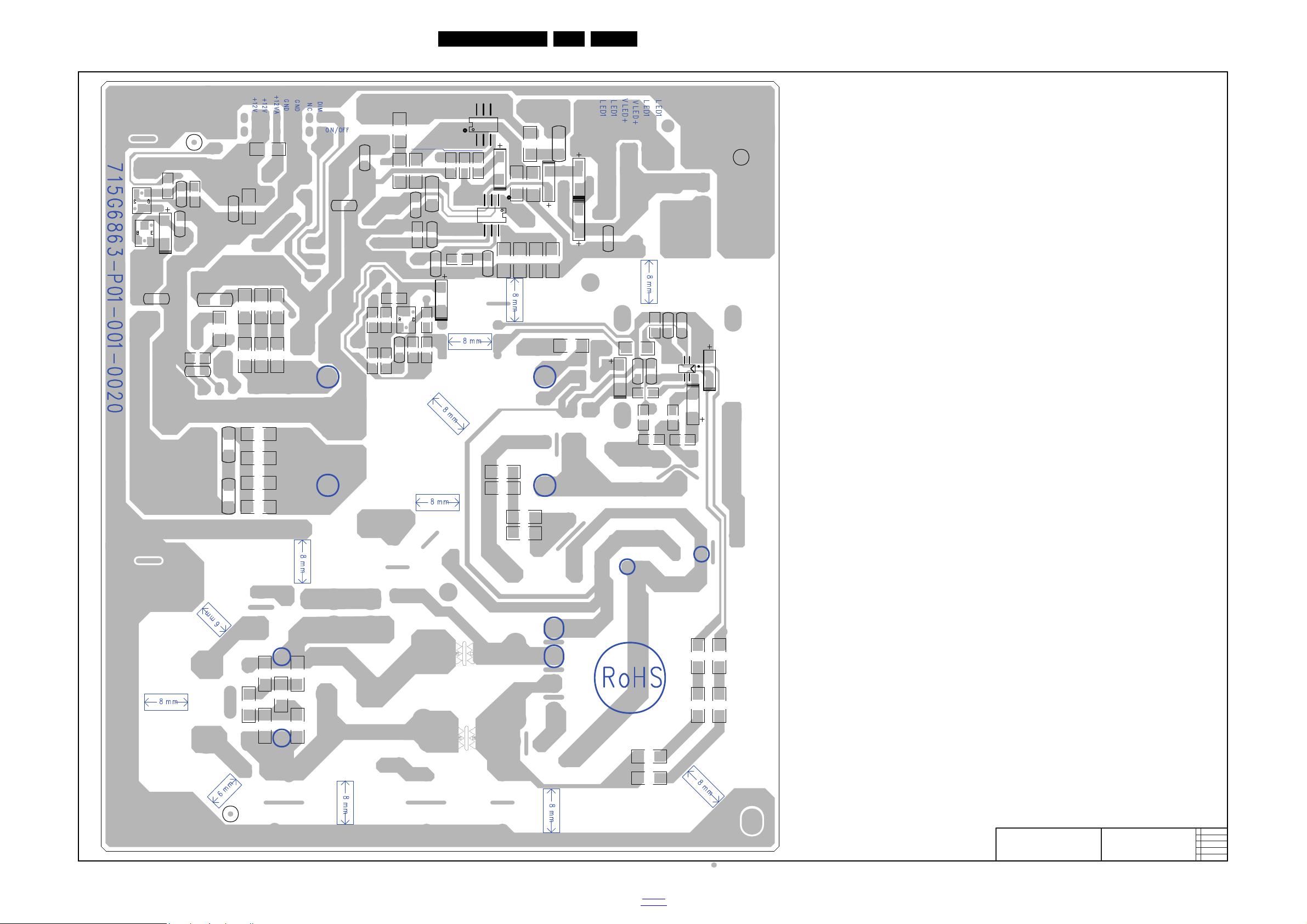

10-1-3 Power layout bottom

19900_502.eps

2014-06-05

715G6863

LAYOUT BOTTOM

C8611

C9104

C9105

C9107

C9112

C9113

C9114

C8606

C9119

C9120

R8601

R8602

R8603

R8604

R8605

R8606

R8607

R8609

R8610

R8611

R9103

R9105

R9107
R9108

R9109

R9110

R9116

R9117

R9118

R9119

R9120

R9122

R9123

R9125

R9126

R9127

R9128

R9129

R9130

R9132

R8613

R9901

R9902

R9903

R9904

R9905

R9906

R9114 R9102

R9104

R9106R9134

R9135

C9121

R9137

R9138

C9109

R9112

R9111

R9131

C8604

C9108

R9121

JR901

SM5

SM6

SM7

R9124

C8605

R8612

C8607

C8609

R8608

R9113

R9115

Q8601

IC8601

R9139

R9140

R9141

R9142

R8614

JR902

C8603

C8610

C8612

R8615

R8616

C8613

C8614

Q8603

IC9103

S2

S1

D8602

D9103

D9104

ZD9101

IC9101

D8604

ZD9103

D8605

ZD8101

ZD8102

Q8602

Circuit Diagrams and PWB Layouts

EN 44TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10.2 A 715G6934 PSU

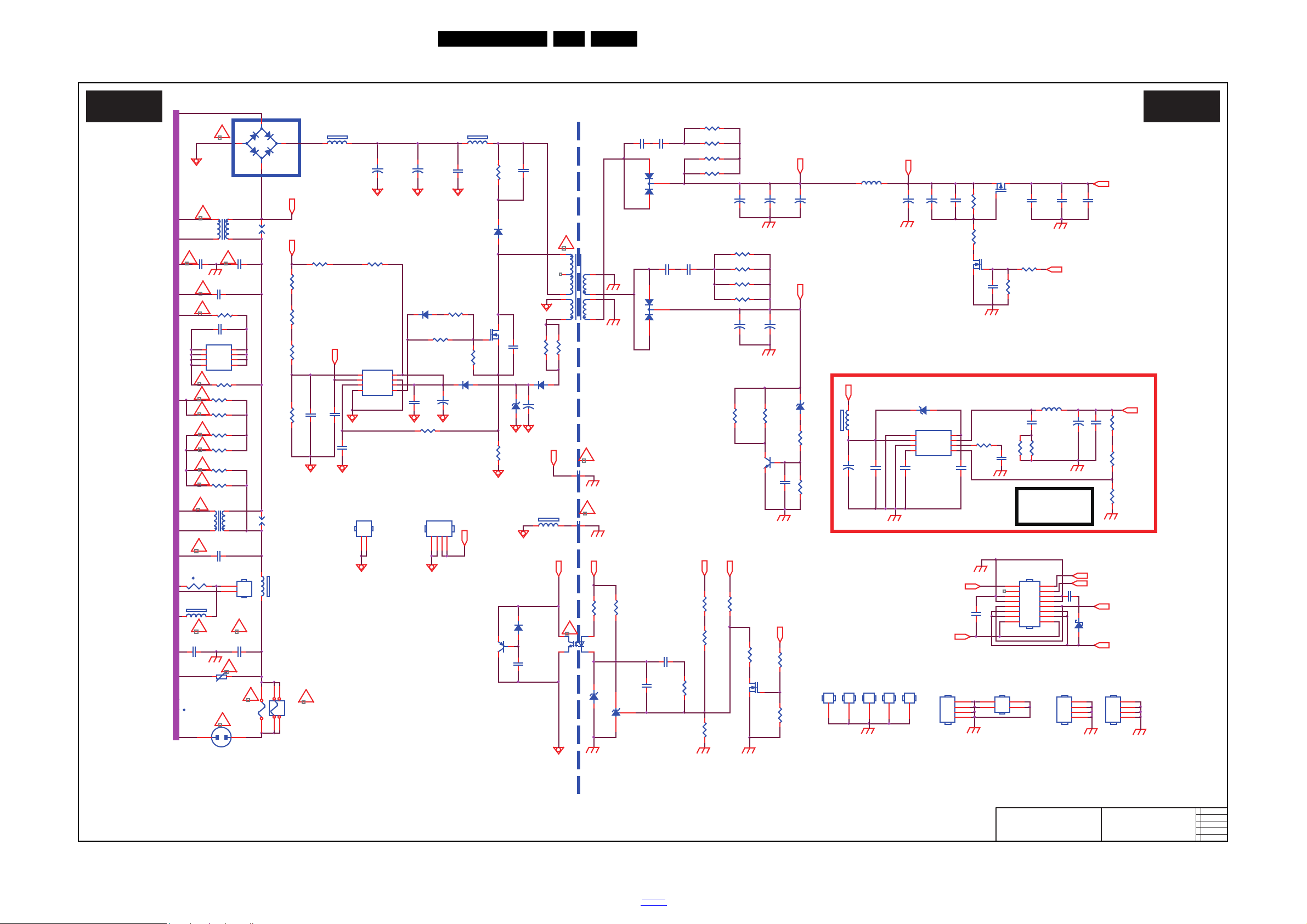

19890_502.eps

Power

A01 A01

2014-06-05

715G6934

Power

C9172
220N 50V

R9107

10K 1/4W

HS9152

NC/HEAT SINK

3

4

1
2

F9902

5A 250V

1 2

3 4

Q9181

NC/AOD 4185

R9125
1K OHM

+

C9802

NC/68UF 450V

DIM

12V Switch
(option)

ON/OFF

FB_1

D9152
SR34

1 2

PS_ON

CN9901
SOCKET

12

R9184

6.8KOHM +-1%

R9108

10 OHM 1/ 4W

!

C9104

2.2NF

R9176
10K 1%

C9158

1uF

+12V'

!

+12V'

R9174
3K9 1/8W 1%

C9159

NC/ 100N 50V

C9902

470nF 275V

R9164
33ohm 1/4W +/-5%

R9187

NC/ 10K OH M +-5%

HS9101
HEAT SINK

123

4

+22V

R9129
330K 1%

+12V1

!

!

!

R9906

510K 1/4W

D9104

SS1060FL

!

+12V_AUDIO

!

C9920

470PF 250V

Q9183
2N7002K

R9126

1K OHM

PS_ON

R9128

1K 1/8W

D9105

NC/1N4148W

C9106

NC/4N7 50V

U9103
AS431AN-E1

R9186

100KOHM +-5% 1/8W

R9101

0.22OHM +-5%

R9185

10K OHM +-5% 1/8W

+

C9154

470UF 25V

FB9901
BEAD

1 2

ZD9101

NC/BZT52-B30

1 2

CN9101

CONN

2
4
6

8

10
12
14
16

1

3

5
7
9
11
13
15

!

!

!

C9103

NC

3.5Vout
R9305=620R
R9306=3.3K

+5V

+5V

U9101
PF6003AHS

BNO

1

FB

2

CS

3

GND4OUT

5

VCC

6

NC

7

VCC

8

!

FB9903
BEAD

12

R9907

NC/390K

-

+

BD9901

KBJ608G-FUC

2

1

3

4

FB9905
BEAD

1 2

C9907

NC/47pF

HS9151
HEAT SINK

1
2

3

4

U9901

NC/CAP004DG-TL

NC

1

D1

2

D1

3

NC4NC

5

D2

6

D2

7

NC

8

T9101

POWER X'FMR

1

2

4

5

6

7

8

10

11

L9901
18MH

1

2

4

3

SG9901

NC/DSPL-501N-A21F

C9155
220N 50V

R9104
22OHM 1/8W

L9902
18MH

1

2

4

3

+12V

C9171

22NF 50V

HS9901

NC/HEAT SINK

1

2

C9157
100N 50V

ZD9301

NC/BZT52-B5V1

12

AC-1

!

SG9902

NC/DSPL-501N-A21F

AC-1

!

t

NR9901

2.5R

12

t

NR9902

2.5R

12

C9110
1NF 50V

R9124
150 OHM 1/4W

R9183

NC/100KOHM

C9105

2.2NF

+

C9151
470UF 25V

R9106
47OHM 1/8W

U9102
EL817M(X)

1

23

4

C9111

100N 50V

R9112

3.3M 1/4W

R9111
2M2 5% 1/2W

R9103

10 OHM 1/ 4W

R9113

3.3M 1/4W

R9173

680R 1/8W 1%

R9114

3.3M 1/4W

HOT COLD

D9102
SS1060FL

R9102
47K 1/4W

3.5V/5V output
(option)

R9163
33ohm 1/4W +/-5%

R9162
33ohm 1/4W +/-5%

R9161

33ohm 1/4W +/-5%

!

+

C9801
82UF 450V

R9105
75K

FB_1

!

R9171

2K OHM

+12V1

+

C9152

470UF 25V

L9101

3UH

!

R9121
150 OHM 1/4W

R9122
150 OHM 1/4W

R9123
150 OHM 1/4W

+12V1

GND1
GND

1

C9912

100PF 250V

D9103
FR107G-A0

C9911

100PF 250V

C9921
470PF 250V

+

C9153
470UF 25V

!

HS-GND

FB9904
BEAD

1 2

!

RV9901
680V

R9127

470 OHM 1/ 4W

!

C9125

100N 50V

+

C9107
22UF 50V

Q9121
BTN5551A3

R9305

NC/ 220R 1%

R9306

NC/2K 1/8W 1%

C9308

NC/2N2 50V

R9302

NC/30 OHM 1/ 4W

C9304

NC/ 100N 50V

+

C9306

NC/ 470U F 25V

+

C9302

NC/470UF 25V

U9301

NC/AOZ3015AI

PGND

1

VIN

2

AGND

3

VCC4FB

5

COMP

6

LX

7

EN

8

R9303

NC/30 OHM 1/4W

C9182

NC/ 100N 50V

R9304

NC/ 10. 5K OH M 1%

C9309

NC/2N2 50V

R9301

NC/ 20K 1/ 4W

C9307

NC/ 220N 50V

L9301

NC/47uH

C9303

NC/ 220N 50V

FB9301

NC/BEAD

1 2

C9914
220PF 250V

C9913
220PF 250V

C9162

1N5 50V

+

C9112

4.7UF 50V

C9161

1N5 50V

D9121
FMXA-2202S

1

2

3

+

C9121
220uF 50V

+

C9122
220uF 50V

!

+22V

CN9902

NC

L

1

N

2

Q9102

NC/LMBT3906LT1G

C9901

470nF 275V

R9181

NC/100KOHM

D9151
FMEN-220A

1

2

3

+

C9160

NC/4.7UF 50V

C9156
100N 50V

ZD9171

BZT52-B15

1 2

HS9121

NC/HEAT SINK

1
2

3

4

R9182

NC/100KOHM

C9301

NC/ 220N 50V

D9101
FR107G-A0

ZD9121
BZT52-B27

1 2

HS-GND

!

Q9101

TK8A65D

Q9182

NC/2N7002K

HS9122
HEAT SINK

1
2

3

4

FB9902
127R

1 2

F9901

NC/5A 250V

R9109
470 OHM 1/4W

!

!

!

+12V

PS_ON

C9109

2N2 50V

R9175

0 OHM +-5% 1/8W

GND3
GND

1

GND2
GND

1

!

GND5

NC

1

R9905

510K 1/4W

GND4

NC

1

R9904

510K 1/4W

R9172

1K5 +-1% 1/8W

R9903

510K 1/4W

C9108
220P 50V

R9902

510K 1/4W

R9901

510K 1/4W

R9110

100K 1/8W 1%

R9908

NC/390K

C9305

NC/ 100N 50V

C9123

1NF 500V

C9124

1NF 500V

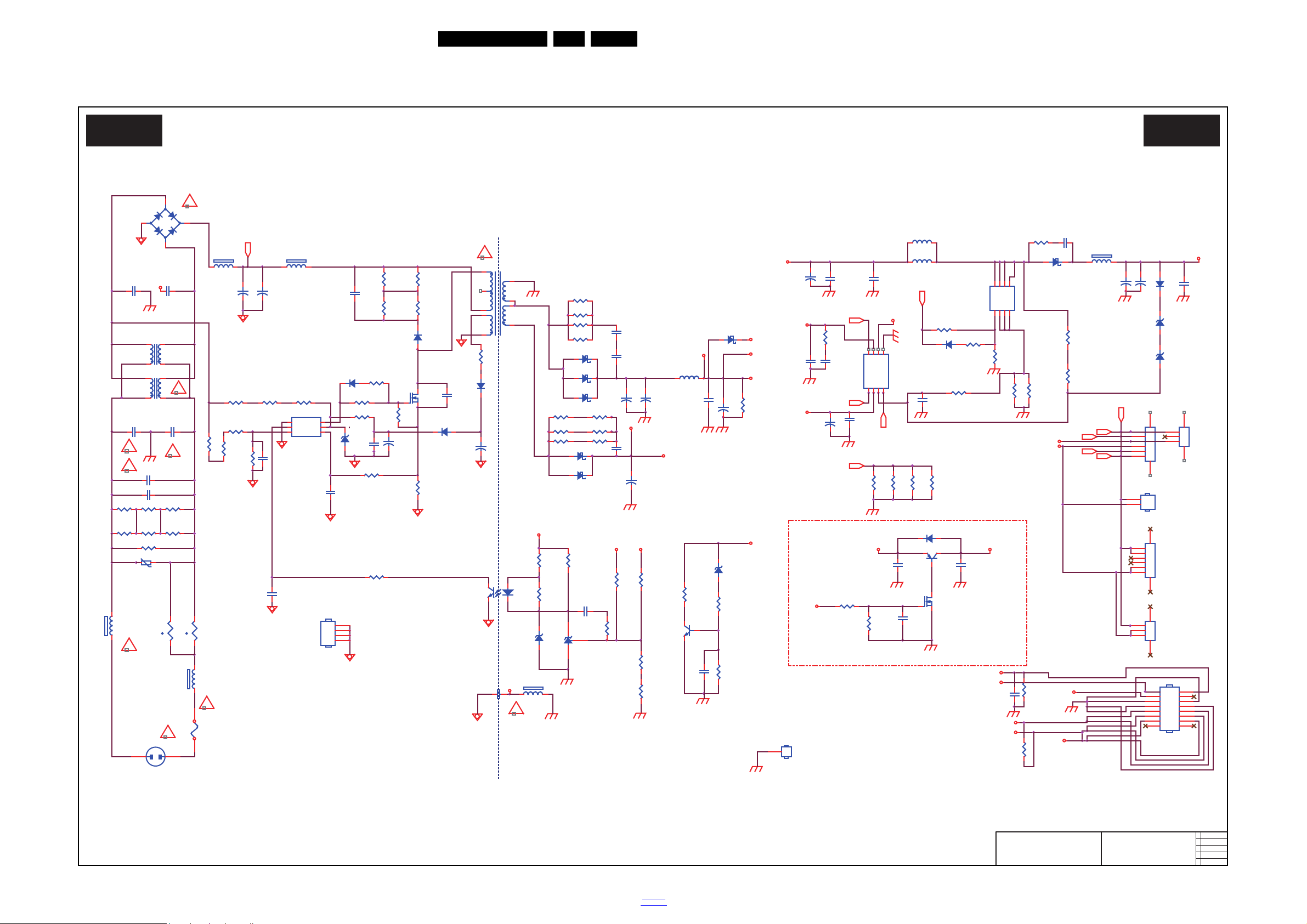

10-2-1 Power

Circuit Diagrams and PWB Layouts

EN 45TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-2-2 LED DRIVER

19890_503.eps

LED DRIVER

A02 A02

2014-06-05

715G6934

LED DRIVER

R8601

0.05R

+

C8603

220uF 50V

R8623

300K 1/8W 5%

R8605

10ohm +/ -1% 1/ 8W

L8602

NC

R8615

1R2 1%

R8612

33K 1/8W 1%

C8605

100N 50V

R8613

1R2 1%

C8612

47N 50V

L8601

33uH

8

1

4

6

R8606

33K 1/8W 1%

R8617

1R2 1%

C8611

22pF 50V

R8603

100K

C8610

1NF 50V

+

C8604

220uF 50V

D8603
SS1060FL

C8609

220P 50V

R8619

10 OHM

C8607
1uF

C8608
220N 50V

R8604

NC

R8616

1R2 1%

R8608

10K 1/8W

R8607

5.1R 1/ 8W

+

C8601
220uF 50V

FB8601
BEAD

1 2

R8614

1R2 1%

C8606
1uF

R8609

10R 1/ 8W 5%

+22V

ON/OFF

OUT

DIM

OUT

VLED+

VLED-

R8618

1R2 1%

ZD8602

NC/BZT52-B22

1 2

FB8602

NC/BEAD

1 2

R8622

10K 1/8W 1%

C8615

100N 50V

Q8602

LMBT3906LT1G

R8620

2K2 1/8W

C8617

100N 50V

+

C8614

NC/22UF 50V

D8605

NC/1N4148

R8621

1K 1/8W 1%

+12V

R8602

NC / 0R 05 1/ 4W

CN8601
CONN

1

2

3

4

5

6

7

8

9

10

11

12

ON/OFF

VCC

C8613
100pF 50V

VCC

C8616

2.2U F 25V

Q8603
LMBT3904LT1G

VLED+

VLED-

VLED+

VLED­VLED-

VLED-

D8604

SS1060FL

D8602

NC/SR506

D8601

SR506

R8610

4K3 1/8W 1%

R8611

33K 1/8W 1%

Q8601

CYS9240

U8601

PF7708AS

LED

1

VCC

2

CS/OVP

3

OUT4GND

5

DIM

6

GM

7

FB

8

ZD8601

NC/BZT52-B22

1 2

Circuit Diagrams and PWB Layouts

EN 46TPS15.1A LA 10.

2015-Sep-11

back to

div.table

19820_538.eps

2014-06-06

715G6934

LAYOUT TOP

C9107

C9103

D9101

D9103

F9901

U9102

J905

J901

J922

J918

J917

J909

J911

J923

J906

H1

H2

J904

C8614

J916

J915

J902

J914

J908

J921

J924

J910

J912

J913

J903

J919

J920

R8601

R9105

R9101

R9125

R9126

J925

T9101

D8601

D8602

D8605

J926

H3

H4

H5

H6

TP2TP3TP4

TP5

TP6

TP7

TP9

TP8

DR1

MH2

MH1

MH7

MH8

MH6

MH5

MH4

MH3

C8603

C8604

C9907

C9104

C9105

C9112

C9151

C9152

C9153

C9154

C9160

C9121

C9122

C8601

C9302

C9306

C9912

C9911

C9913

C9914

C9921

C9920

CN9902

D9151

D9121

FB9301

FB8601

GND1

GND2

GND3

HS9101

HS9151

HS9121

L8601

L8602

L9101

L9301

L9901

L9902

Q9121

R9907

SG9901

SG9902

HS9901

FB9904

FB9902

HS9122

GND4

GND5

R9111

HS9152

RV9901

R9908

CN8601

C9801

C9802

FB8602

CN9101

NR9902

NR9901

FB9903

FB9905

Q9101

BD9901

FB9901

CN9901

F9902

C9901

C9902

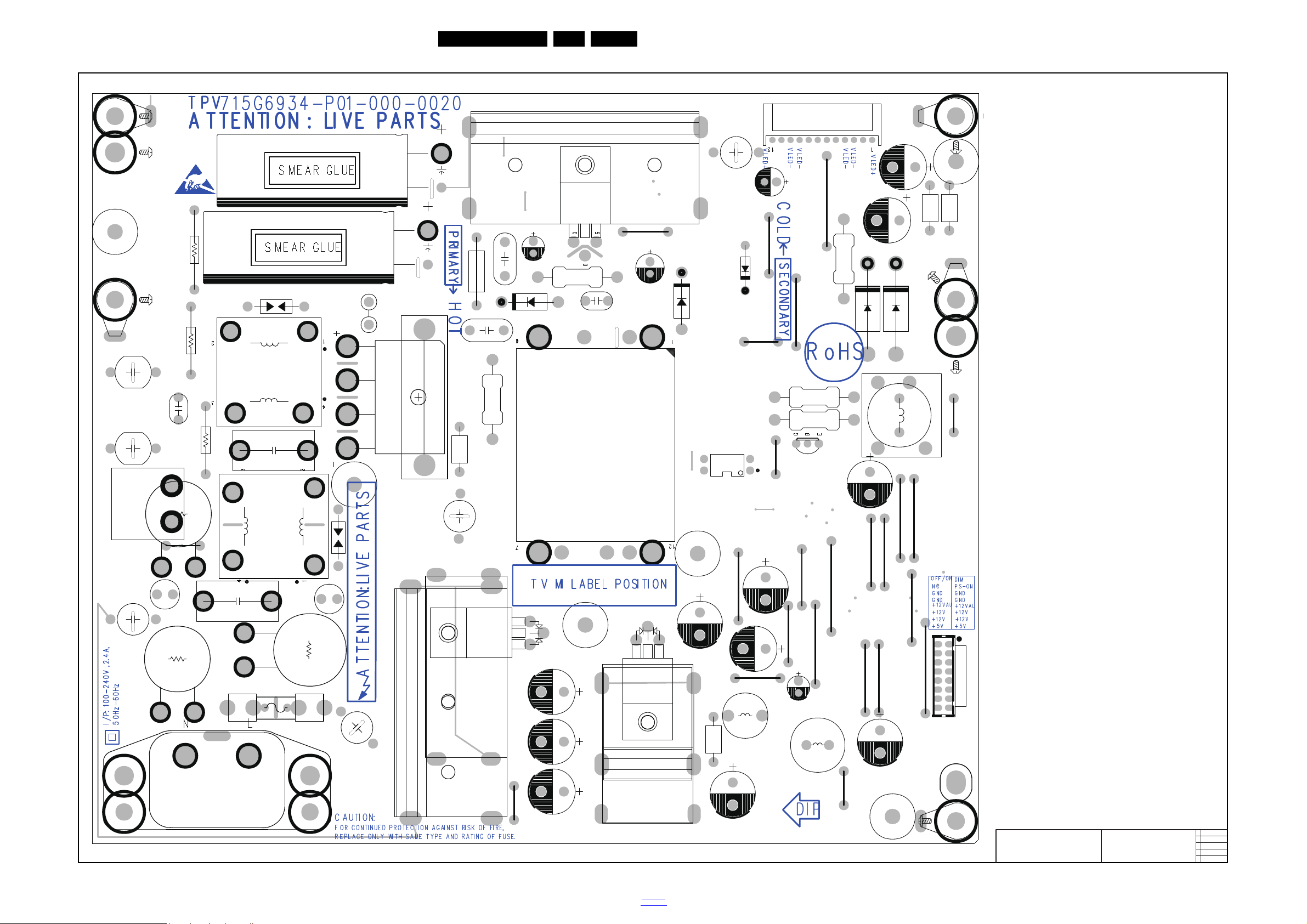

10-2-3 Power layout top

Circuit Diagrams and PWB Layouts

EN 47TPS15.1A LA 10.

2015-Sep-11

back to

div.table

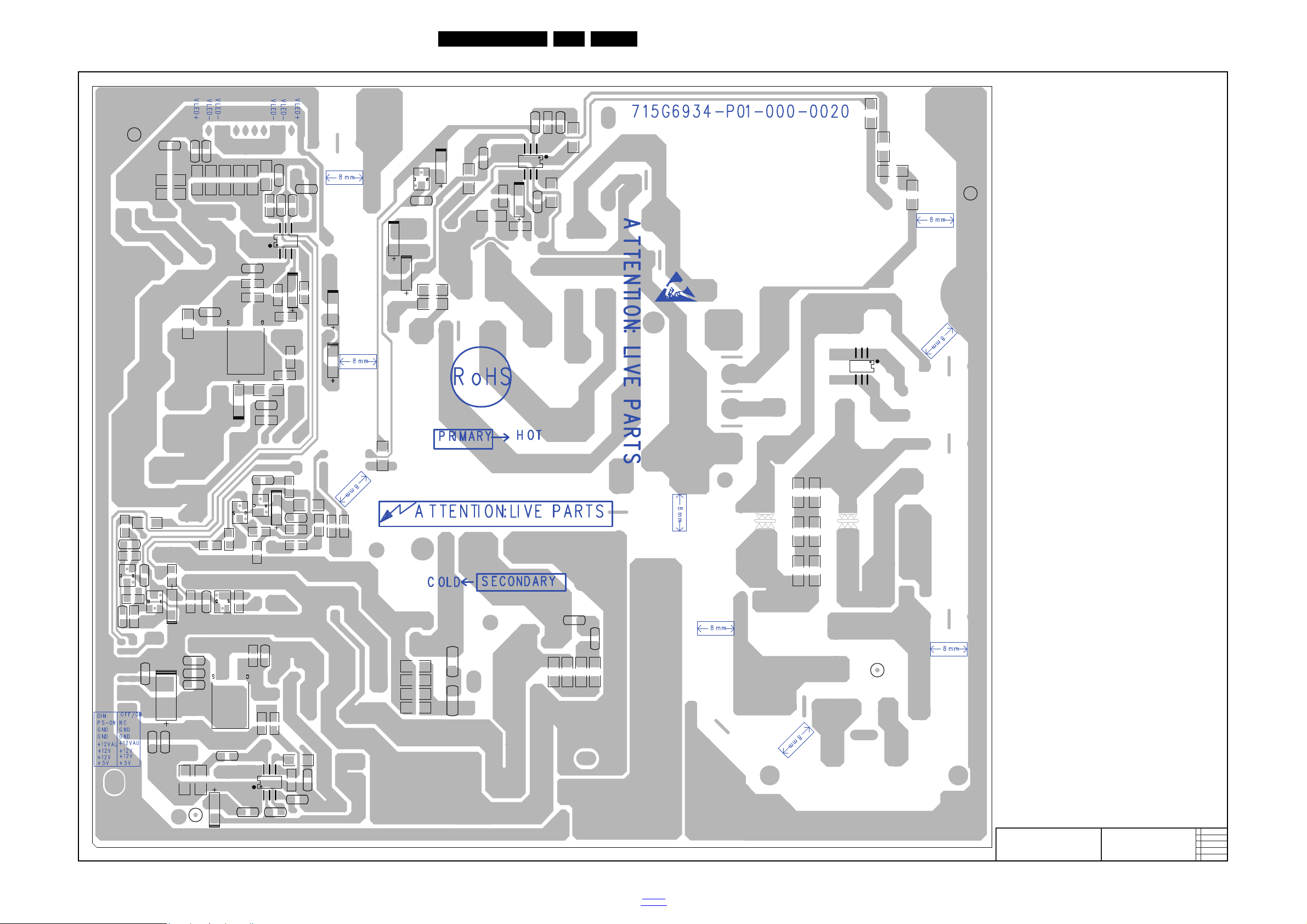

10-2-4 Power layout bottom

19820_539.eps

2014-06-06

715G6934

LAYOUT BOTTOM

SG3

C8611

C8610

C8612

C8608

C8607

C8606

C9106

C9108

C9109

C9110

C9111

C9155

C9161

C9162

C9172

C9171

C9182

C9123C9124

C9125

C9303

C9304

C9305

C9308

C9309

C8609

C9307

R8609

R8605

R8607

R8603
R8604

R8613

R8612

R8606

R8610
R8608

R8614

R8615

R8616

R8617

R9102

R9104

R9106

R9107

R9109

R9103

R9110

R9172

R9174

R9161

R9162

R9163

R9164

R9173

R9171

R9175

R9176

R9181

R9182

R9183

R9184

R9186

R9127

R9128

R9129

R9301

R9302

R9303

R9304

R9305

R9306

R9901

R9902

R9903

R9904

R9905

R9906

U9101

U8601

U9301

R9185

U9901

JR901

JR902

SM2

SM3

SM4

R8611

SM5

C9301

C8613

R8602

R8618

R8619

JR903

R9108

JR904

C9156

C9157

C8615

C8616

C8617

R8620

R8621

R8622

R8623

C8605

C9158

C9159

R9187

R9121
R9122

R9123

R9124

R9112

R9114

R9113

Q9182

Q9183

U9103

SG4

D8603

D9102

D9105

D9152

Q8601

Q9181

ZD9171

D9104

ZD9301

ZD9101

D8604

ZD9121

ZD8601ZD8602

Q9102

Q8602

Q8603

Circuit Diagrams and PWB Layouts

EN 48TPS15.1A LA 10.

2015-Sep-11

back to

div.table

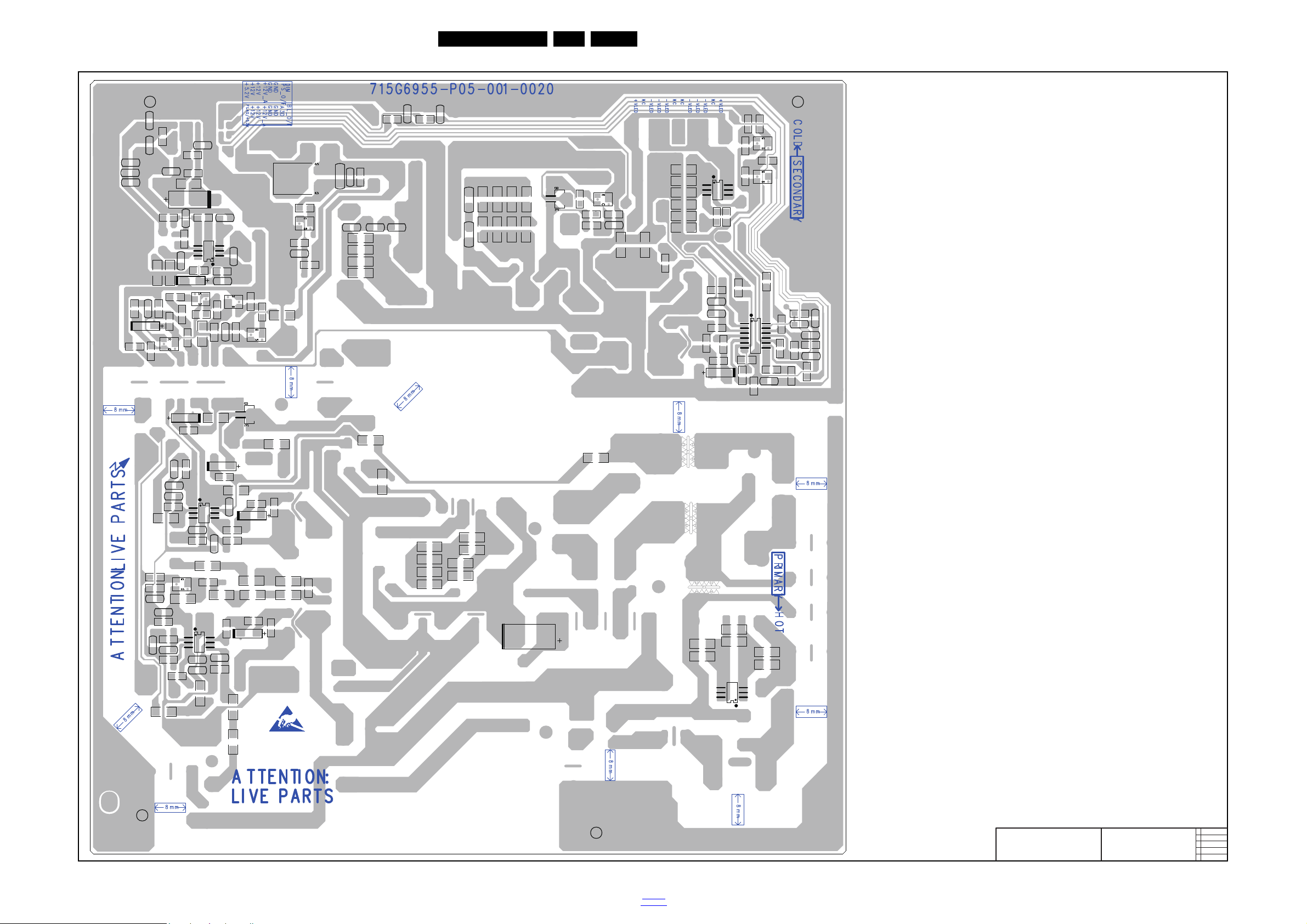

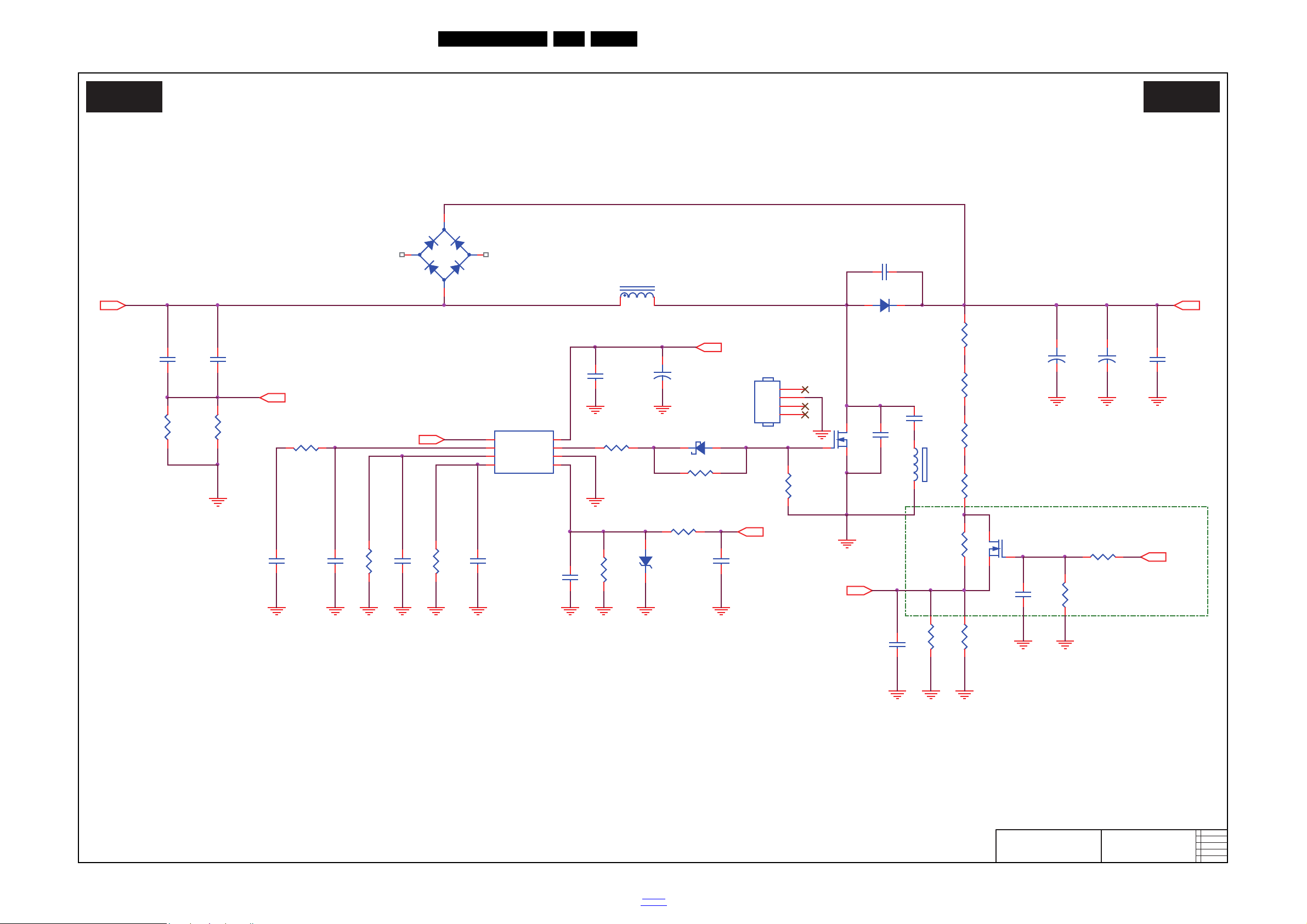

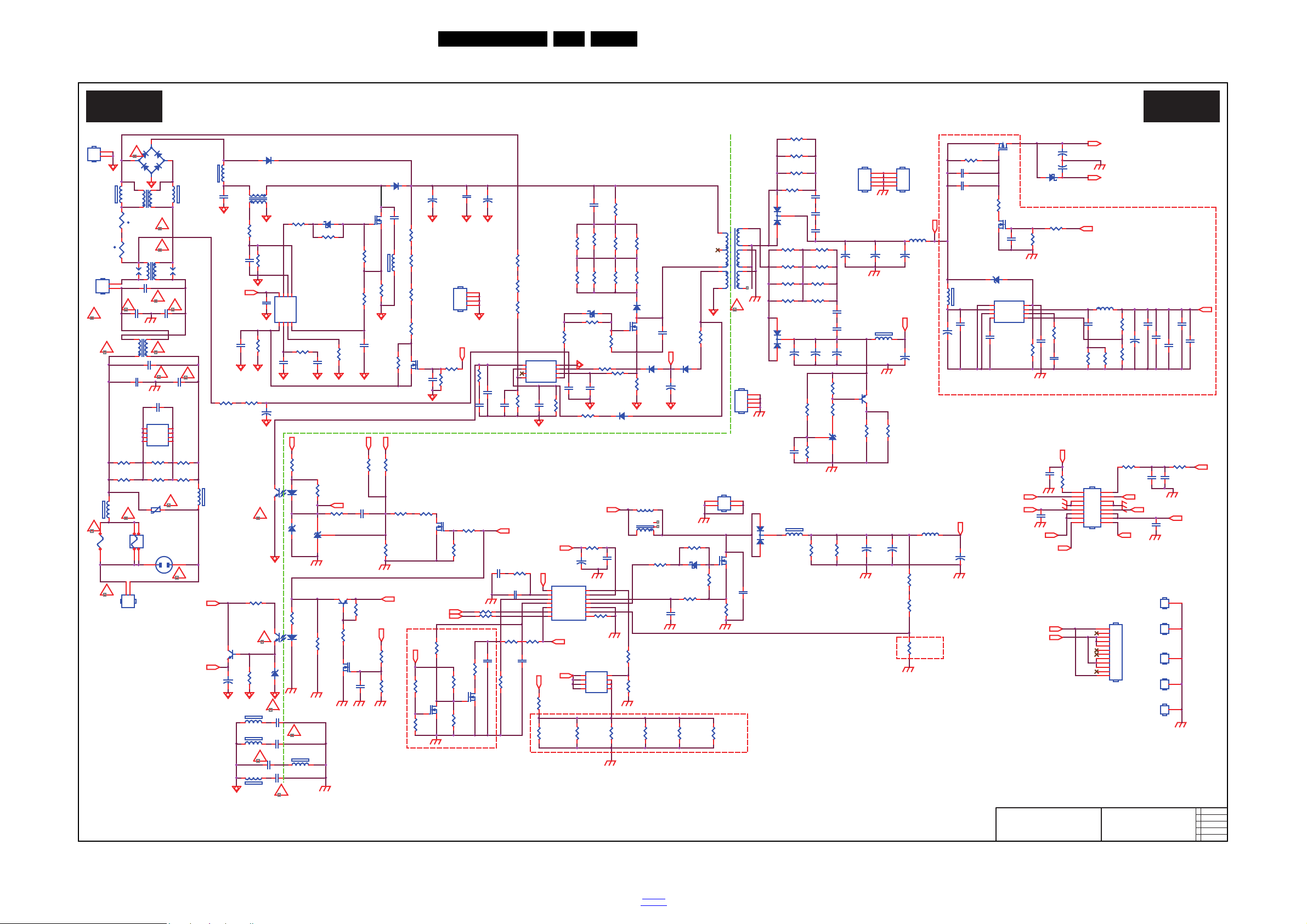

10.3 A 715G6955 PSU

19901_500.eps

AC Input

A01 A01

2015-03-13

715G6955

AC Input

R9106

82 OHM

HS9901
HEAT SINK-N C

1
2

!

C9903
47PF NC

R9129

2.43KOHM +-1% 1/8W

R8622
10K 1/4W-NC

R8621
10K 1/4W-NC

C9914

220PF 250V

R8611

100KOHM NC

C9913
220PF 250V

C9136
2N2 50V NC

C9129

1N 50V NC

R9137

3K 1/8W NC

C9806

0.1uF 50V

FB9101
NC

12

R9161

20R 1/4W N C

C9127

0.1UF 50V N C

L9102
15uH NC

R9140

11K 1% 1/8W_NC

R9139

2K 1/8W 1% NC

+

C9124

470UF 25V NC

C9135
2N2 50V NC

+

C9126

470UF 25V NC

R9120

47 OHM 1/4W

+5.2V

R9158

20R 1/4W NC

U9111

AOZ3015AI NC

PGND

1

VIN

2

AGND

3

VCC4FB

5

COMP

6

LX

7

EN

8

R9141

51K 1/8W NC

C9147

0.1UF 50V N C

-

+

BD9901
TS6K80-02

2

1

3

4

R9128
1K 1/8W

DIM

PS_ON/OFF

BL_ON/OFF

C9115
1N 50V

+12V

+12V

R8629

10K NC

PS_ON/OFF

C9911

47pF 250V

R8602

1.3R 1%

CN9101
CONN

2
4
6

8

10
12
14
16

1

3

5
7
9
11
13
15

R9121

47 OHM 1/4W

+

C9125
47UF 50V

R8632

100KOHM NC

F9902

5A 250V

1 2

3 4

C9143

2N2 50V

!

R8613

100R 1/8W 5%

R8614

0 OHM +-5% 1/8W

C9922

1NF 250V

C9148
1N 50V

D9102

SS1060

12

!

!

!

C9912

47pF 250V

+

C9101

4.7UF 50V

FB9803
JUMP WIRE

1 2

D9803

SS1060

12

!

FB9904

BEAD-NC

12

C9146

2N2 50V

+

C9111

330uF 35V

L9902
12mH

124

3

FB9907

127R-NC

12

C9923
100PF 250V

L9901

8mH

124

3

U9105
TL431G-AE2-R

!

R9156

200K +-1% 1/4W

R8603

1.3R 1%

R8604

1.3R 1%

R8605

1.5R 1/4W

R9138

NC_300 OHM 1%

R8606

1.5R 1/4W

R8607

1.5R 1/4W

R8628

10K 1/8W 1%

C9103

10PF 50V

R9109

24K 1/8W 1%

R9108

47K +-5% 1/8W-NC

C9130

1N 50V

C9120

100N 50V-NC

FB

C9110

330P 50V-NC

R9115

100KOHM

VCC_ON

FB9102
127R

1 2

T9102

POWER X'FMR

1

2

3

4

5 6

7

9

10

12

6

R9169

2Kohm 1/4W +/ -5%

R8630
100R 1/8W 5%

R8631
1K OHM NC

C9144

0.1uF 50V

+

C9114

330UF 35V

U8601

PF7909S

DIMOUT

1

VCC

2

CS

3

OUT

4

GND

5

OVP

6

RT

7

DIM

8

EN

9

FLAG

10

VREF

11

ADIM

12

GM

13

FB

14

U9103
EL817M(X)

12

43

R9907

330K 1/4W

HS9111
HEAT SINK

1
2

3

4

R9904

330K 1/4W

R9908

750K +-5% 1/4W

R9905

750K +-5% 1/4W

R9906

750K +-5% 1/4W

R9903

750K +-5% 1/4W

DV12

FLAG

R8612

1K OHM NC

GND4
GND-NC

1

FB9903

127R

1 2

C9145

0.1uF 50V

R8609
1K 1/8W

D9106

JUMPER

ZD9102

NC

12

HOT COLD

L9100
3UH

R9117
100K

FB9901

NC

1 2

+12V_A

C8606

470P 50V

+12V_A

C9901
470nF 275V

t

NR9900

2.5R-NC

1 2

t

NR9901

2.5R

12

R8610
0 OHM +-5% 1/8W

T5.0AH/250V

C9921
220PF 250V

!

C9804
47P 50V

R9814

5K1 +-5% 1/8W

R9180

100 OHM 1/4W NC

R9806

10K OHM +-5% 1/8W

D9801
MUR460-28

CN9903
CONN-N C

1

2

R9818

18.7K 1/8W 1%

C9808
100P 50V

U9801
LD7591T

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT7VCC

8

C9807
220P 50V

T5.0AL/250V

R9815
130K 1%

Q9801

TK12A60W

VCC_ON

GND5
GND-NC

1

C8604

0.1uF 50V

12V

R9802

10R 1/8W 5%

R9803

33R 1/8W 5%

R9813
10K OHM +-5% 1/8W

R9810

470OHM +-5% 1/8W

R9805
47K 1/4W

R9812

30K 1/8W 1%

C9810

0.47UF 50V

HS8601

HEAT SINK

341

2

SG9901

DSPL-501N-A21F

C8607
47PF

C9809
47N 50V

R9801

0R15 5%

Q8601

TK12A10K3

!

R8608

10K OHM +-5% 1/8W

A3D

C9820
1UF 450V

C8605

100P 50V

R9807
1MOHM +-1% 1/4W

R9809
750K 1%

R9804
1MOHM +-1% 1/4W

C9128

0.1uF 50V

LED current

R8601

0R05

+

C8609

47uF 100V

R8620

1K OHM +-5% 1/8W

R8623

10K OHM +-5% 1/8W

R9811

2K 1/8W 5%

+

C8608

47uF 100V

R8617

0 OHM +-5% 1/8W

FB9905

BEAD-NC

12

PS_ON/OFF

+12V

!

+24VS

L8603
3UH

+

C8610

47uF 100V

+VLED

-VLED

+VLED

-VLED

L8602

33uH_NC

CN8603
CONN

1

2

3

4

5

6

7

8

9

10

11

12

+

C9106

470uF 25V

!

C9139
330P 50V

!

R9110

47 OHM 1/4W

R9155

47 OHM 1/4W

R9134

NC_6.2K OH M +-1% 1/8W

R9153
10K OHM

Q9103

NC_2N7002K

U9101
LD5522

CMP

1

FB

2

NC

3

BNO4OUT

5

CS

6

VCC

7

GND

8

FB9105

BEAD

1 2

!

R9149

NC_100K 1/8W 1%

R9105

10R 1/8W 5%

DIM

C8612

1NF 50V

L9903

0.25mH_N C

124

3

12V

R9148
NC_10K OHM +-5% 1/8W

C9811

0.1uF 50V

R9816
10K OHM

C8611

100N 50V-NC

D8601
MBRF20100CT

1

2

3

C9902

220NF 305V

C9133
1uF

ZD9106

BZT52-B16G

1 2

Q9109
2N7002K

R9119

3.3M 1/4W

R9154
10K 1/4W

R9171

3.3M 1/4W

R9123

3.3M 1/4W

FB9801
BEAD

1 2

C9104

2.2NF

Q9107

MMBT3906

FLAG

R9152
10K OHM

!

!

VCC

+

C9105

470uF 25V

HS9106
HEAT SINK-NC

1
2

3

4

!

R9103

470 OHM 1/4W

+

C9113
330uF 35V

R9102

470 OHM 1/4W

R9157

47 OHM 1/4W

R9163

47 OHM 1/4W

D9103

PG1010R

!

R9160
1K 2W

R9159

3K 1/8W +/-1%

R9144

470 OHM 1/4W

R9104
82K 2W

R9164
1K 2W

HS9105

HEAT SINK_NC

1
2

3

4

D9101
SARS01-V1

R9124
2K 1/8W 1%

CN9901

SOCKET

1 2

R9146

100 OHM 1/4W

R9808

0R05 1/4W

U9104

EL817M(X)

12

43

D9105
FME-220B

1

2

3

R9165
2K 1/8W 5%

R9122

47 OHM 1/4W

R9113

470 OHM 1/4W

D9111

FMXA-2202S

1

2

3

R9114

470 OHM 1/4W

C9131
470pF 1KV

R9118

47 OHM 1/4W

A3D Function

C9119
100PF

R9145

100 OHM 1/4W

R9135
1R 1/8W 5%

FB9906

127R

1 2

R9130
NC

R9166
20K +-5% 1/8W

R9112

3R9 1%

R9107

10K OHM +-5% 1/8W

R9125
5K1 +-5% 1/8W

+

C9112

330uF 35V

R9126

10K 1/8W 1%

C9134
470pF 1KV

R9150

2Kohm 1/4W +/ -5%

GND1
GND-NC

1

R9147

220R 1/8W 5%

R9101
0R18 5%

Q9104
BTB1424AM3

R9167

470 OHM 1/4W

+

C9137

10UF 50V

R9170

10K OHM +-5% 1/8W

R8624

150K 1/8W +/-1%

+

C9107

470uF 25V

+24VS

+24VS12V

VCC_ON

OVP

12V

VCC

C9818

470PF

BL_ON/OFF

Q9101
AOTF11N70

R9151

10K OHM +-5% 1/8W

Q9106

BTC4672M3

C9140

1UF 16V NC

ZD9101

BZT52-B16G

1 2

C9123

1UF 16V NC

C9122

100N 50V NC

C9142

1UF 16V NC

C9138

1UF 16V NC

C9150
1N 50V

R8633

1K OHM NC

5V Function

+5.2V

R9168

330K 1/8W 5%

+

C8601

10UF 50V

+

C9109
100UF 50V

R9136
NC

+12V_A

R9174
1K 1/8W

D9107
SR34H-NC

1 2

Q9105
NC

C9117
NC

L9801

300uH

1

3

5

4

C9116
NC

Q9108
NC

C9121
NC

C9141

2N2 50V

R9142

NC

HS9801
HEAT SINK

1
2

3

4

+

C9108
100UF 50V

R9133
NC

+12V

R9143
NC

R9162

31.6KOHM +-1% 1/8W

Q9802

AO3160-NC

U9900

CAP004DG-TL NC

NC

1

D1

2

D1

3

NC4NC

5

D2

6

D2

7

NC

8

Q8604

2N7002K-NC

R9116
910K 1/4W

C8603

1UF 16V

LED OVP

D9802
S3M 3A

D8603

SS1060_NC

12

!

FB8601
BEAD

1 2

FB9902

NC

12

D9104

IN4148W RHG

R9111

100 OHM 1/4W

Q8605

2N7002K-NC

GND2
GND-NC

1

SG9902
DSPL-501N-A21F

C9920
470PF 250V

R8616

33R 1/8W 5%

CN9902
CONN-N C

1

2

R8627

10K 1/8W 1%

!

R9127

9.53KOHM +-1% 1/8W

R8626

150K+/-1%

!

L8601

33uH

8

1

4

6

R9173
1K 1/8W

A3D

GND3
GND-NC

1

C9132
1NF

R9132

470 OHM 1/4W

R9131

470 OHM 1/4W

Q8603

AO4440

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

!

U9102
TL431G-AE2-R

!

F9901
5A 250V NC

C9149
1N 50V

R8625

30K 1/8W 1%

RV9901
680V

+

C9801
56UF 450V

FB

R8615

10K OHM +-5% 1/8W

+

C9802
56UF 450V

C9118

220nF50V

R8618
270K +-1% 1/8W

R8619
270K +-1% 1/8W

!

10-3-1 AC Input

Circuit Diagrams and PWB Layouts

EN 49TPS15.1A LA 10.

2015-Sep-11

back to

div.table

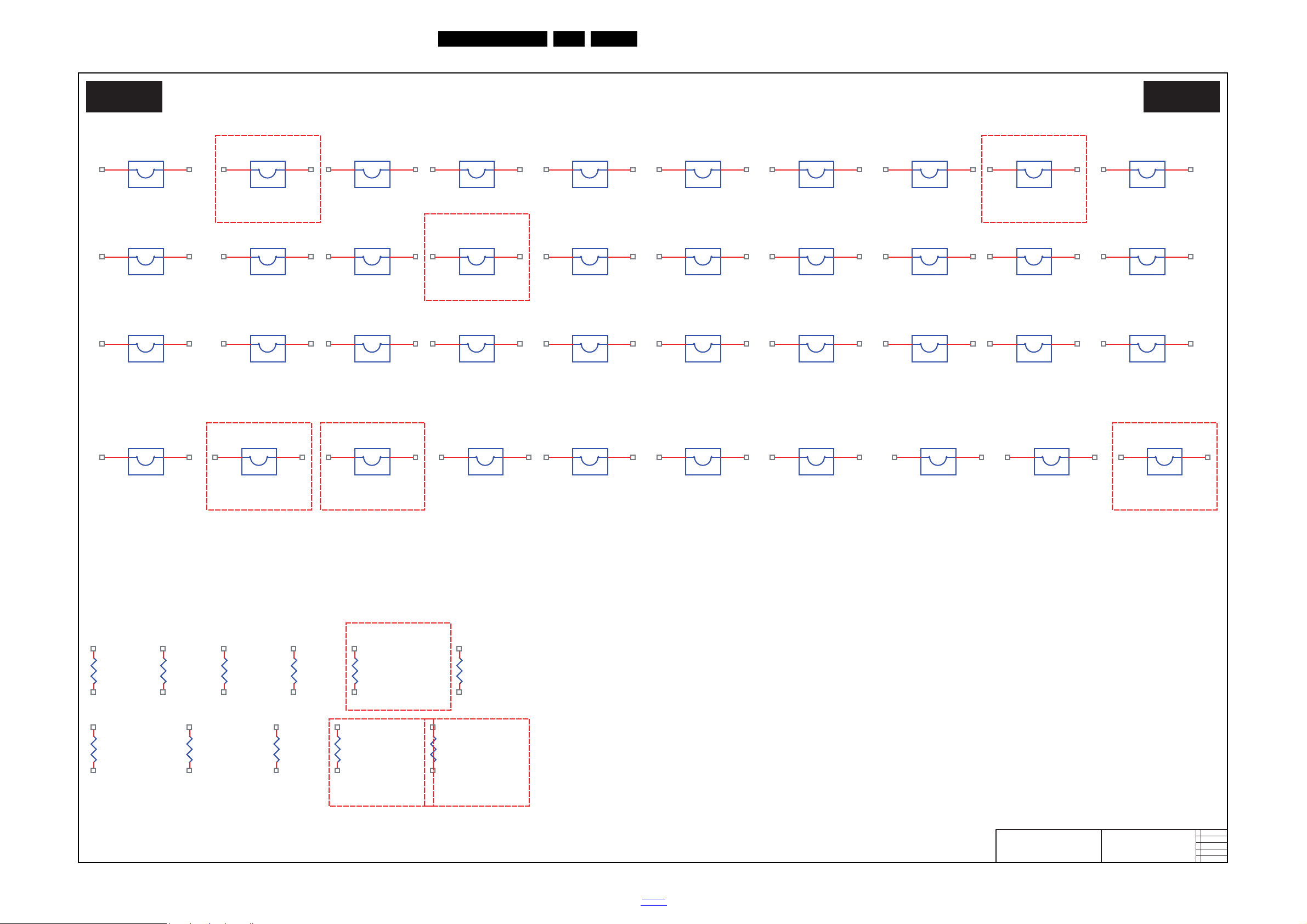

10-3-2 JUMPER

19901_501.eps

JUMPER

A02 A02

2015-03-13

715G6955

JUMPER

RJ911

0 OHM +-5% 1/8W-NC

RJ906
0R05 1/ 4W

RJ908
0 OHM +-5% 1/8W

RJ901
0R05 1/ 4W

RJ902
0R05 1/ 4W

RJ904
0R05 1/ 4W

RJ903
0R05 1/ 4W

RJ910

0 OHM +-5% 1/8W_NC

RJ907
0 OHM +-5% 1/8W

RJ905
0 OHM +-5% 1/8W-NC

RJ909
0R05 1/ 4W

J901

JUMPER

1 2

J902

JUMPER NC

1 2

J903

JUMPER

1 2

J904

JUMPER

1 2

J905

JUMPER

1 2

J906

JUMPER

1 2

J907

JUMPER

1 2

J908

JUMPER

1 2

J909

JUMPER NC

1 2

J910

JUMPER

1 2

J911

JUMPER

1 2

J912

JUMPER

1 2

J913

JUMPER

1 2

J914

JUMPER NC

1 2

J915

JUMPER

1 2

J916

JUMPER

1 2

J917

JUMPER NC

1 2

J918

JUMPER

1 2

J919

JUMPER

1 2

J920

JUMPER

1 2

J921

JUMPER

1 2

J922

JUMPER

1 2

J923

JUMPER

1 2

J924

JUMPER

1 2

J925

JUMPER

1 2

J926

JUMPER

1 2

J927

JUMPER

1 2

J928

JUMPER

1 2

J930

JUMPER

1 2

J929

JUMPER

1 2

J931

JUMPER

1 2

J932

JUMPER NC

1 2

J933

JUMPER NC

1 2

J934

JUMPER

1 2

J935

JUMPER

1 2

J936

JUMPER

1 2

J937

JUMPER

1 2

J938

JUMPER

1 2

J939

JUMPER

1 2

J940

JUMPER NC

1 2

Circuit Diagrams and PWB Layouts

EN 50TPS15.1A LA 10.

2015-Sep-11

back to

div.table

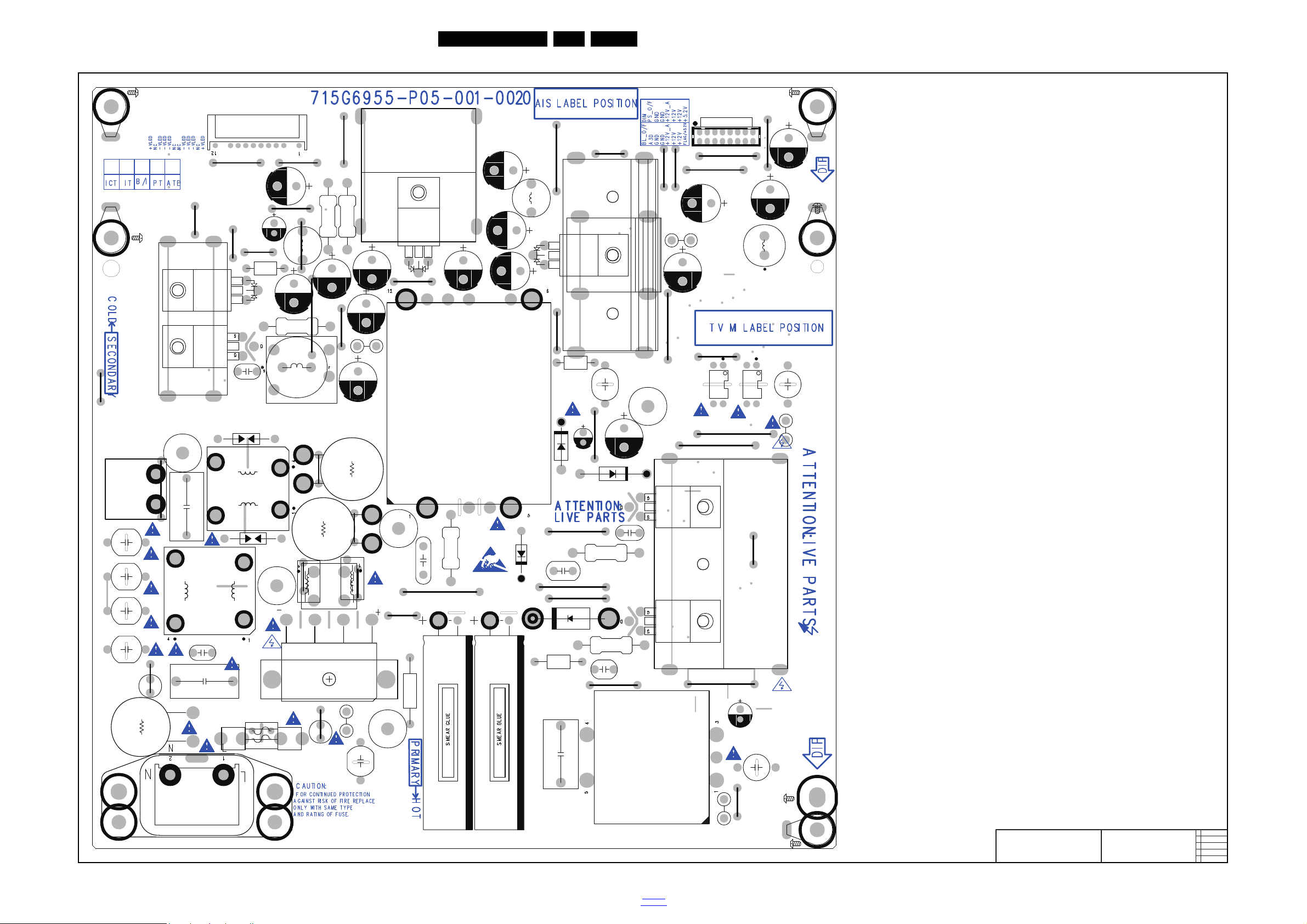

10-3-3 Power layout top

19901_502.eps

2015-02-15

715G6955

LAYOUT TOP

C8607

U9104

U9103

R8601

R9104

R9101

C9137

C9119

C9114

C9107

C9106

R9801

D9103

R9160

R9164

J919

F9901

J930

J926

J901

J936

J927

J928

J924

SU1

SU2

SU3

SU4

SU5

C8601

J925

C9903

J922

D9801

J935

J937

J916

J913

J911

J907

C9101

J912

J904

T9102

J938

J939

J932

J934

J902

J917

J921

J933

J910

J923

J903

C9818

J918

J931

J906

J940

J908

J909

J905

J929

J920

J915

J914

J18

M8

CN2 CN3

CN4

J4 J5

J8

J9J10J11

J12

J6

J7

CN1

J3

M3

C8608

C9113

C9105

C9125

C9108

C9109

C9112

C9126

CN9902

CN9903

L9100

C9820

C9132

BD9901

C9124

C9111

D9111

M4

M9

M10

FB9902

M5

RV9901

L9902

C9902

NR9901

FB9901

C9801

C9802

L8601

D9101

D9105

C8609

HS9901

SG9901

NR9900

HS9801

FB9907

CN8603

L8603

C8610

CN9101

FB9803

HS9106

HS9105

L9801

GND2

FB9101

HS9111

HS8601

D8601

C9901

FB9801

M1

M2

D9106

FB9102

L8602

L9903

SG9902

Q8601

Q9101

Q9801

GND1

F9902

GND3

FB9904

C9911

C9912

FB9905

GND4

GND5

C9913

C9914

C9104

L9901

CN9901

L9102

FB9903

FB8601

FB9105

C9921

C9922

C9923

C9920

FB9906

Circuit Diagrams and PWB Layouts

EN 51TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-3-4 Power layout bottom

19901_503.eps

2015-02-15

715G6955

LAYOUT BOTTOM

C8612

C8603

C9147

C9103

C9115

C9118

C9122

C9123

C9127

C9129

C9135

C9139

C9806

C9809

C9810

C9808

R8617

R8616

R9169

R9170

R8618

R9112

R9107

R9142

R9125

R9128

R9168

R9137

R9139R9140

R9158

R9161

R9802

R9803

R9804

R9806

R9807R9809

R9812

R9813

R9814

R9815

R9818

R9144

R9145

R9103

R9149

R9146

R9136

C9117

R9117

R9124

R9903

R9905

R9906

C9128

C9141

R9130

SEN1

SEN2

SEN3

C9121

R9113

R9114

R9157
R9163

U9801

U9111

C9804

R8604
R8605

R8621

R8622

R9162

R9165

C9136

Q8603

C9134

U9900

C8605

C8606

C9120

C9130

C9143 C9146

C9150

C9133

C9807

C9116

C9131

R8619

R8620

R8612

R8623

R9108

R9109

R9126

R9129

R9133

R9141

R9143

R9159

R9152

R9134

R9148

R8606

R9111

R9102

R9116

R9118

R9155

R9156

R9167

R9150

R9908

U9101

R9135

R9122

R9121

R9120

R9110

R9166

R9151

R9810

R9805

R9123

R9171

R9105

R9106

R9147

R8607

R8602

R9127

R9138

R8615

R8603

R9132

R9131

C8604

R8609

C9811

R8608

R8610

R8611

R8613

R8614

R8624

R8625

R8626

R8627

R8628

R8629

R9811
R9816

R9808

R8630

R9154

C9110

C9138
C9140

C9142

R9115

R9119

R9904
R9907

D9802

R9153

C8611

R8631

R8632

R8633

U9102

U9105

Q8604

Q8605

Q9103

Q9105

Q9109

Q9802

C9144

C9145

RJ912

RJ905

RJ907

RJ908

RJ910

RJ911

RJ901

RJ902

RJ903

RJ904

RJ906

RJ909

C9148

C9149

R9173R9174

SEN4

R9180

J16J15

J14J13

J1J2

Q9108

D9107

U8601

Q9107

D9104

D8603

D9102

D9803

ZD9101

ZD9102

ZD9106

Q9106

Q9104

Circuit Diagrams and PWB Layouts

EN 52TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10.4 A 715G6338 PSU

19900_503.eps

AC Input

A01 A01

2014-05-12

715G6338

AC Input

T5AH/250V

R9902 3.9M

C9903
100PF 250V

C9904

100PF 250V

HS9902

NC/HEAT SINK

1
2

!

SG9901

NC

SG9902

NC

RV9901

680V

CN9901

SOCKET

12

COLDHOT

R9901
NC

R9903
NC

!

!

!

C9902

100NF 305V

!

!

L9902
12mH

1

2

4

3

C9901

100NF 305V

F9901

FUSE

1 2

3 4

!

t

NR9901

2.5R

1 2

!

C9907
NC / 470pF 250V

C9908

NC

!

L9901
12mH

1

2

4

3

!

!

!

t

NR9902

2.5R

12

!

!

B

Vsin

A

A

B

!

!

-

+

BD9901
KBJ1008G-FUC

2

1

3

4

C9905

330pF 250V

IC9901
NC

NC

1

D12D1

3

NC

4

NC

5D26D27

NC

8

C9906

330pF 250V

FB9901
JUMP

1 2

10-4-1 AC Input

Circuit Diagrams and PWB Layouts

EN 53TPS15.1A LA 10.

2015-Sep-11

back to

div.table

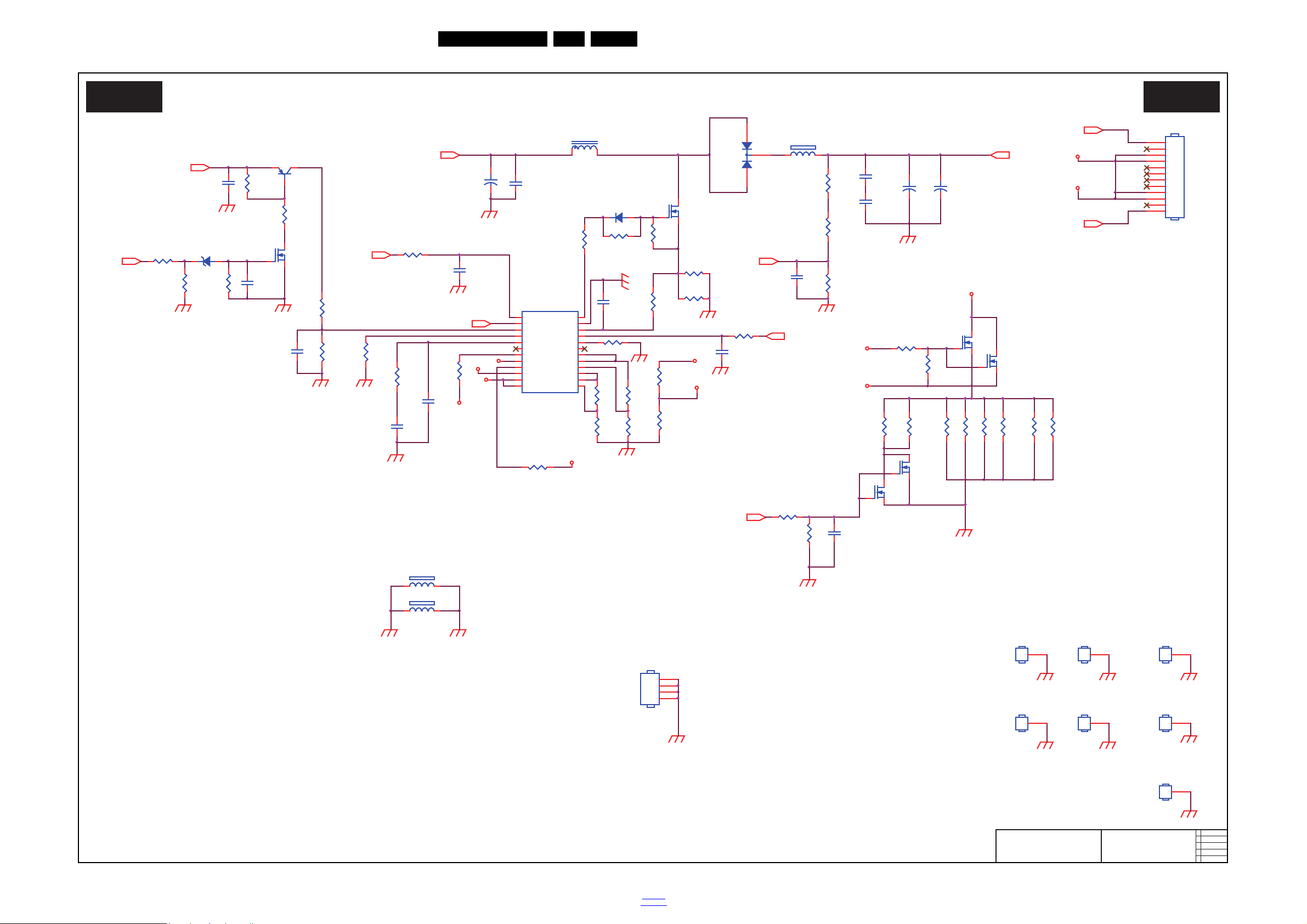

10-4-2 LED Driver

19900_504.eps

LED Driver

A02 A02

2014-05-12

715G6338

LED Driver

VLED+

VLED+

R8107

510 OHM +-1% 1/ 8W

R8121

100KOHM +-1% 1/8W

C8107

1N 50V

R8124

100K 1/4W

S1

+

C8102

82uF 100V

G1

G2

+

C8103

82uF 100V

G1

R8148

0R051/8W

R8116

0.1R 2W

L8101

33uH

2

1

R8155

200K 1/8W

+36V/+24V

C8105

220nF50V

SENSE2

R8111

150K 1/4W +/ -1%

C8109

1UF 50V

C8108
100N 50V

R8106

10K 1/8W 1%

R8102

33 OHM 1/8W

R8108

330K 1% 1/8W

OVP_L

C8110

100N 50V

R8112

150K 1/4W +/ -1%

R8113

10KOHM +-1% 1/8W

VLED_1

VLED_2

D8102

SS1060FL

R8135

10ohm +/-1% 1/ 8W

C8114

10N 50V

R8101

2R2 +-5% 1/8W

R8103

10KOHM +-1% 1/ 8W

C8104

220nF50V

R8149

20K

R8145

NC

R8104

0.1R 2W

R8105

1K 1/8W 1%

FB8103
BEAD

1 2

OVP_L

R8143
NC

R8142

NC

2D/3D

R8138

100KOHM +-5% 1/8W

C8144

NC

R8136

20K 1/8W

Q8147
NC

GND806

NC

1

GND807

NC

1

DIM

GND801

NC

1

HS8101

HEAT SINK

1
2

3

4

R8147

NC

R8146

NC

GND804

NC

1

GND802

NC

1

C8131

1N 50V

GND805

NC

1

R8115

1M 1/8W 5%

Remove R8114&R8150

C8106
100N 50V

Q8143

MTBA5N10J3

Q8145
NC

R8157

NC

R8109

100KOHM +-1% 1/ 8W

R8110

240K 1% 1/8W

Q8149
MTBA5N10J3

R8164

200K 1/8W

FB8101

BEAD

1 2

G2

SENSE2

VLED_1

CN8101
CONN

1
2

3

4
5
6
7

8

9
10
11
12

VLED_1

FB8102
BEAD

1 2

R8160

NC

R8161

NC

R8144

0.75R 1%

R8156

0.75R 1%

R8139

10R 1/8W 5%

C8143
100P 50V

+

C8101

330uF 50V

VLED+

IC8101

LD7890GS

VIN

1

OVP

2

EN

3

RT

4

COMP

5

PARL

6

SENSE1

7

Gate1

8

FB1

9

SENSE2

10

Gate2

11

FB212SENSE3

13

Gate3

14

FB3

15

SENSE4

16

Gate4

17

FB4

18

STATUS

19

LOSC

20

DIM

21

CS

22

GND

23

DRV

24

D8101
SP10150

1

2

3

ZD8101

BZT52-B9V1_R1_00001

12

C8132

100N 50V

+36V/+24V

C8133

1N 50V

R8134

10K 1/4W

R8133

10K OHM +-5% 1/8W

R8137

10KOHM

ON/OFF

Q8102

LMBT3906LT1G

Q8103
2N7002K

GND803

NC

1

+12V

R8140

100KOHM +-5% 1/ 8W

R8120

240K 1% 1/8W

R8123

240K 1% 1/8W

Q8101

MTE65N15FP

S1

Circuit Diagrams and PWB Layouts

EN 54TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-4-3 LLC 36V

19900_505.eps

LLC 36V

A03 A03

2014-05-12

715G6338

LLC 36V

COLD

HOT

ZD9103

BZT52-B43

1 2

R9110

12K 5% 1/4W

C9113

1uF

R9111

220KOHM +-1% 1/8W

+

C9122
NC

+

C9121

330uF 50V

L9102

1.1uH

C9107
470pF 50V

C9106

47pF

C9105

22nF

R9104

22K 1/8W 1%

R9137

0 OHM +-5% 1/8W

C9109
4N7 50V

R9107

2.2R

C9108

1uF

C9104
1uF

D9105
UF1010G

R9125
1K 1/8W 1%

C9102
100N 50V

C9103

470NF 50V

C9125

100N 50V

C9111
33N 50V

R9106

4R7 +-5% 1/8W

R9128

2.4KOHM +-1% 1/8W

IC9102

PC123Y82FZ9F

12

43

IC9103
AS431AN-E1

R9126
4K7 1/8W 1%

+36V/+24V

R9123

82K +-1% 1/8W

VCC_ON

FB9101
BEAD

1 2

R9120

2K4 +/-1% 1/8W

R9119
11K 1%

R9108
1K 1/8W 1%

C9101
10NF

R9121

24K +-1% 1/4W

R9105

0.1R

EMI

B+

IC9101

LCS700LG-TL

VCC

1

VREF

3

G

4

OV/UV

5

FB

6

DT/BF

7

IS

8

NC

9

S1

10

S2

11

HB

13

VCCH

14

D

16

R9101

1MOHM +-1% 1/4W

R9124

2.4KOHM +-1% 1/8W

R9114

22K 1/8W 5%

R9102

1MOHM +-5% 1/4W

R9103

1MOHM +-5% 1/2W

R9127
43R 1%

C9127

1uF

C9128

1uF

D9104

SBL30U100F-C

1

2

3

C9117

2.2nF 50V

!

!

D9106

SS1060FL

C9126

2.2nF 50V

+36V/+24V

C9116

47nF 50V

R9109
120 OHM +-5% 1/8W

R9115

3K

C9110

2.2UF 25V

+

C9123

NC

R9112

24K

HS9101

HEAT SINK

1
2

R9113

82K +-1% 1/8W

EFD38

+36V/+24V

R9140
1K 1/8W 1%

OVP

+36V/+24V

Q9104
LMBT3904LT1G

C9133
100N 50V

Q9103
LMBT3906LT1G

R9139
100 OHM 1%

R9136

1K 1/8W 1%

R9138
1K 1/8W 1%

D9110

SS1060FL

D9108

SS1060FL

T9101

210uH

1
2

5
6

7

8

9

10

11

12

10

9

ON/OFF

R9122

24K +-1% 1/4W

R9133

24K +-1% 1/4W

R9132

24K +-1% 1/4W

2D/3D

DIM

+12V

D9107

SS1060FL

R9129

2.4KOHM +-1% 1/8W

For IC9101.

+

C9120

10UF 50V

C9112/NC
470pF 250V

HOTCOLD

!

CN9101 NC

1
2

3

4
5
6
7

8

9
10
11
12
13
14

HS9109
HEAT SINK

1
2

3

4

Circuit Diagrams and PWB Layouts

EN 55TPS15.1A LA 10.

2015-Sep-11

back to

div.table

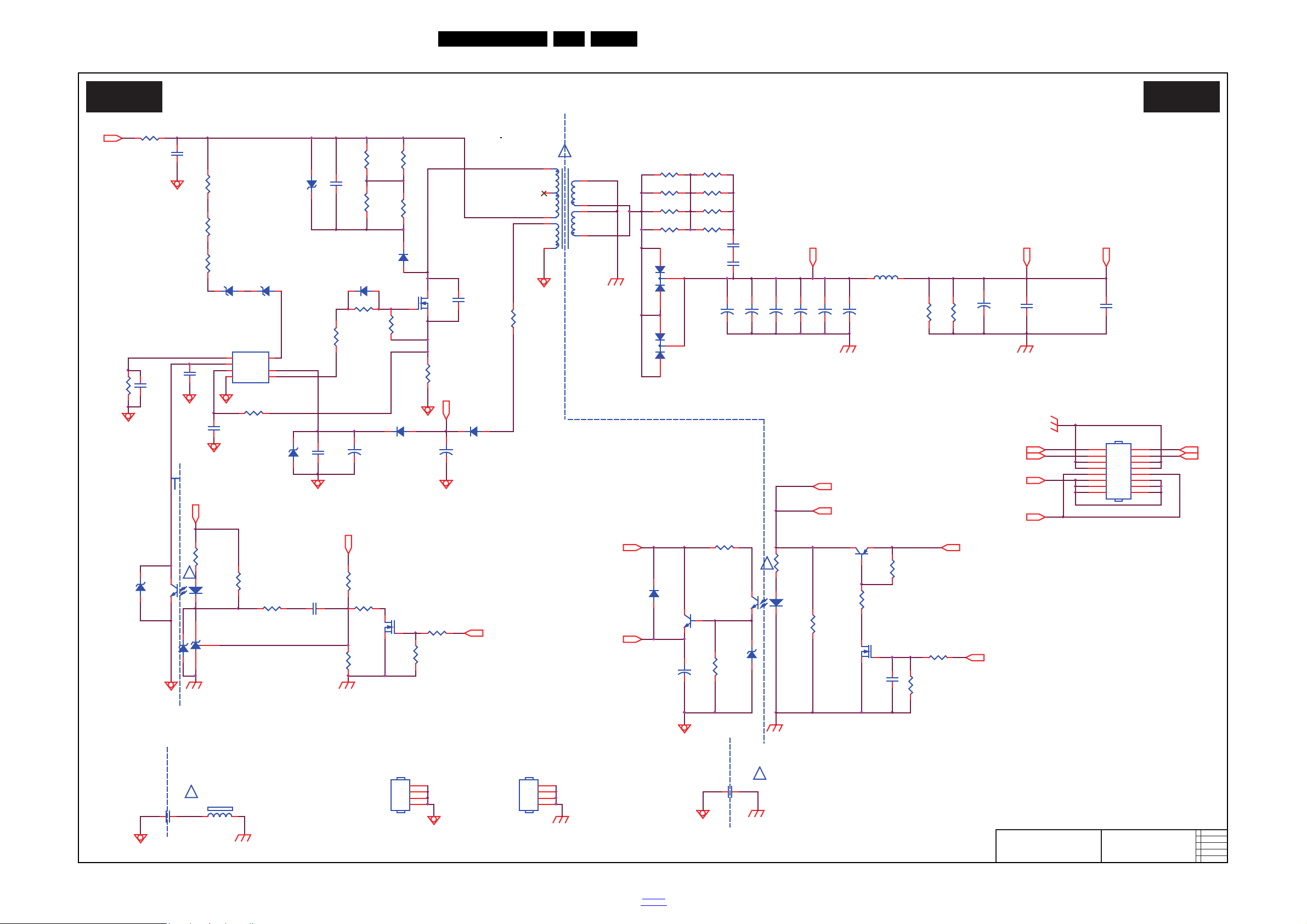

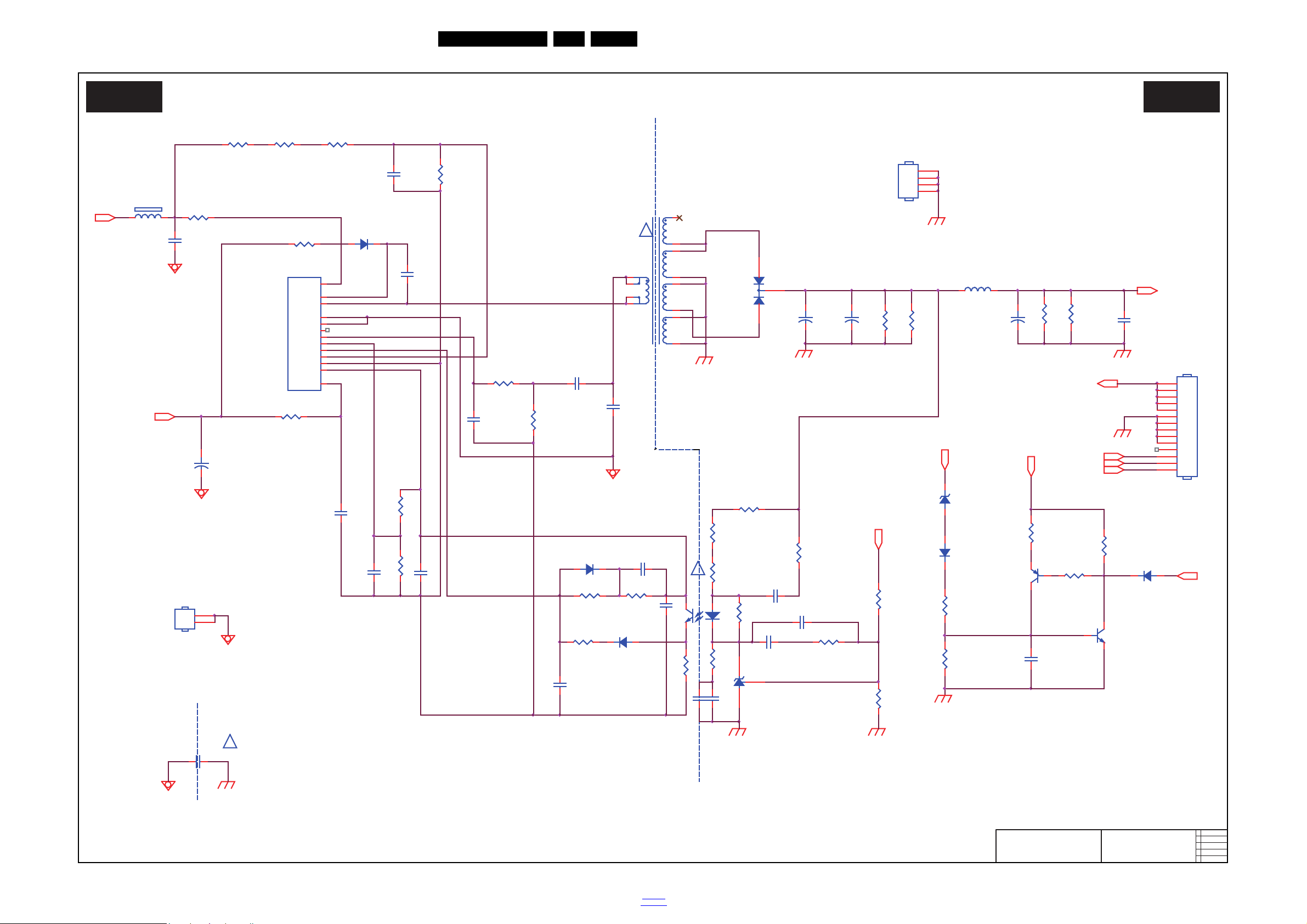

10-4-4 Main Power 12V

19900_506.eps

Main Power 12V

A04 A04

2014-05-12

715G6338

Main Power 12V

HS9302
HEAT SINK

1
2

3

4

ZD9303

NC/P6KE160AA0

12

HS9301
HEAT SINK

1
2

3

4

Q9332
LMBT3906LT1G

HOT

COLD

C9309

2N2 500V

D9301

SS1060FL

R9321

51 OHM 1/4W

R9331

10K OHM +-5% 1/8W

IC9342

AS431AN-E1

D9302
FR107

Q9301

TK13A65U

C9306
NC

Q9341

2N7002K

ZD9302

BZT52-B30

12

C9302
1NF

R9334
10K OHM

C9331

100N 50V

L9301
3UH

IC9341

PC123Y82FZ9F

12

43

D9303
FR107

ZD9301

BZT52-B30

12

C9310

2N2 500V

R9306

0.1R

+

C9311

NC/ 470U F 25V

R9342
100K 1/8W 1%

!

R9307

100K 1/4W

T9301

POWER X'FMR/380GL52P158CP0

1

2

3

4

5

6

7

9

10

+

C9320
47UF 50V

R9348

1K 1/8W 1%

ZD9340

BZT52-B16

1 2

R9333
10K 1/8W 1%

R9318
51 OHM 1/4W

R9345

6.2K OHM +-1% 1/8W

R9303

6.8K 1/4W

+

C9314
330UF25V

R9337

2Kohm 1/4W +/ -5%

R9302

6.8K 1/4W

R9346

2Kohm 1/4W +/ -5%

CN9301

CONN

2
4
6

8

10
12
14
16

1

3

5
7

9
11
13
15

R9311

10 OHM

R9344

3.9KOHM +-1% 1/8W

R9315

470 OHM 1/4W

R9336

2Kohm 1/4W +/ -5%

R9316

2.2 OHM 1/4W

R9314

0R27 5%

R9308

100K 1/4W

R9347

2.2KOHM +-1% 1/8W

+

C9332

10UF 50V

R9338

100K 1/8W 1%

R9312

22 OHM 1/4W

R9335

10K OHM +-5% 1/8W

R9332
330K 1% 1/8W

IC9331

PC123Y82FZ9F

12

43

R9341

10K OHM +-5% 1/8W

C9304

1N 50V

Q9331
2N7002K

R9301

6.8K 1/4W

C9301

10NF

C9315

100N 50V

+

C9312

470UF 25V

R9309
100K 1/4W

R9310

100K 1/4W

C9341
220N 50V

ZD9330

BZT52-B15

1 2

Q9333

BTC4672M3

D9331

SS1060FL

C9305
470P 50V

PS_ON

C9308
100N 50V

R9320
51 OHM 1/4W

2D/3D

+

C9313

470UF 25V

R9313
10KOHM

+

C9317

470UF 25V+C9318

470UF 25V

DV5

VCC

DV5

+12"V

+12"V

VCC

ON/OFF

PS_ON

COLDHOT

B+

DIM

HOTCOLD

HOTCOLD

ZD9341

BZT52-B16

1 2

ZD9342

NC/BZT52-B36

1 2

C9316

470PF 250V

OVP

R9324

NC

R9325
NC

IC9301

LD7752B

CT

1

COMP

2

CS

3

GND4OUT

5

VCC

6

HV

8

R9305

NC/ 100KOH M +-5% 1/ 8W

VCC_ON

+12V

+12V

+12V

EQ30

C9328

330pF 250V

+12V

R9326
51 OHM 1/4W

R9327
51 OHM 1/4W

D9305
FME-210B

1

2

3

R9343

9.53KOHM +-1% 1/8W

FB9301
JUMP

1 2

D9306

FME-210B

1

2

3

R9322
51 OHM 1/4W

R9323

51 OHM 1/4W

+

C9307

10UF 50V

D9304
FR107

+

C9321

NC/ 470U F 25V

C9303
47nF 50V

R9319

51 OHM 1/4W

!

!

!

!

+12V_audio

+12V_audio

C9319

100N 50V

Circuit Diagrams and PWB Layouts

EN 56TPS15.1A LA 10.

2015-Sep-11

div.table

back to

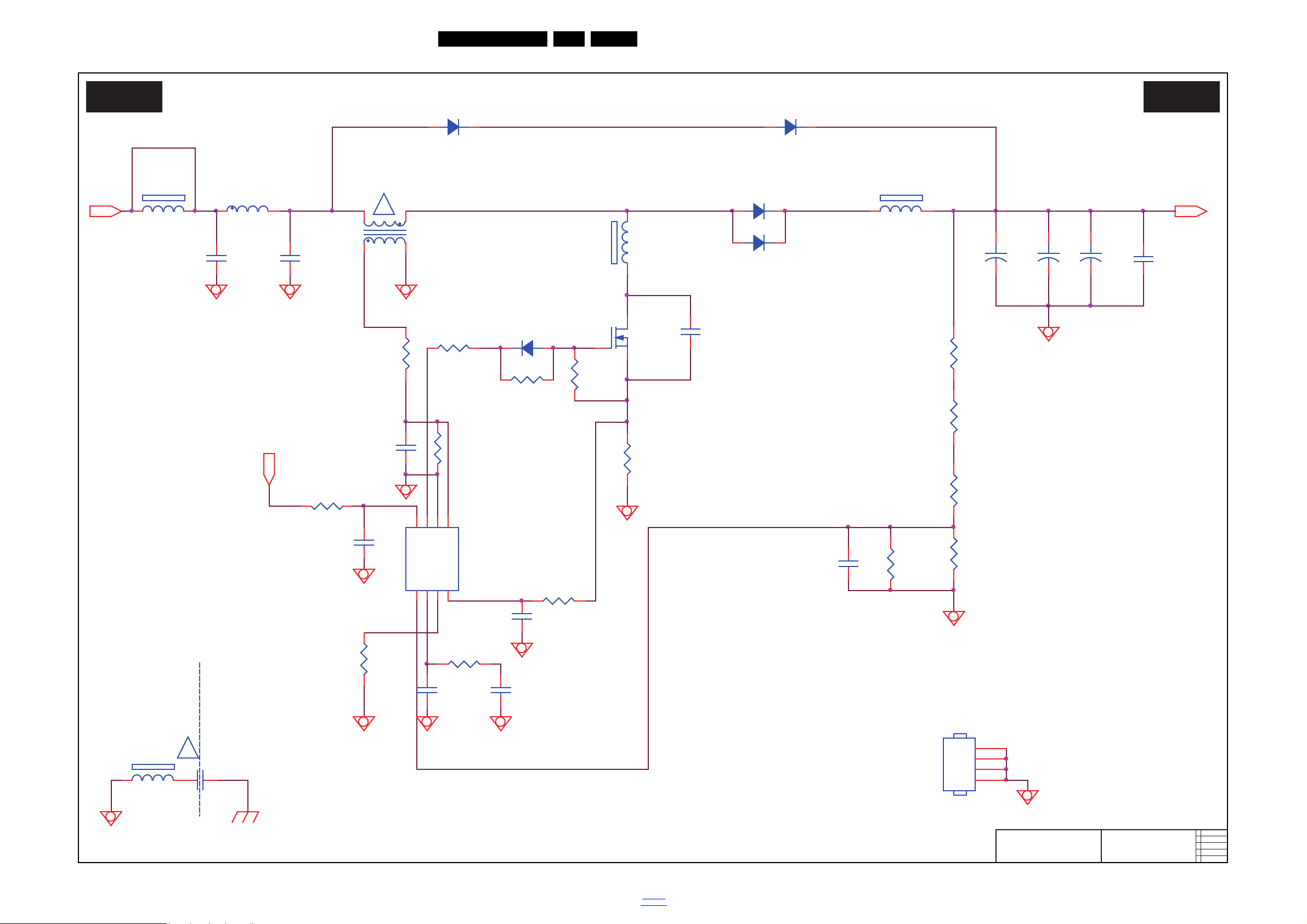

10-4-5 PFC

19900_507.eps

PFC

A05 A05

2014-05-12

715G6338

PFC

C9808

100PF

Vsin

!

R9815

2.2R

R9809

10K 1/8W

B+

C9803

100N 50V

D9801
IN5408G-04

D9805
IN5408G-04

L9802

120uH

FB9801

BEAD

1 2

C9815

2.2NF

IC9801

LD7591T

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT7VCC

8

C9813
1UF 450V

!

Q9801

TK13A60D

VCC_ON

HOTCOLD

D9802

MUR460-28

FB9804

NC

1

2

R9807

10 OHM 1/8W

R9808

75OHM +-5% 1/8W

C9807
1N 50V

HS9801
HEAT SINK

1
2

3

4

R9813

10K 1/8W

R9810

470 OHM 1/4W

R9805
20K 1/4W

R9811

0.1R 3W

C9801
1UF 450V

D9806

NC/FMNS-1106S

C9814

330pF 250V

+

C9810

68UF 450V

L9801

240UH

3

1

4

5

+

C9811

68UF 450V N C

R9814
NC

+

C9812

68UF 450V

C9809
100P 50V

FB9802
BEAD

1 2

R9812

27K 1/8W 1%

C9806
470NF 50V

R9806

3.3KOH M +-1% 1/8W

C9802

47P 50V

C9805

100N 50V

R9802

1MOHM +-1% 1/4W

R9803

1MOHM +-1% 1/4W

R9801

1MOHM +-1% 1/4W

R9804

19K1 +-1% 1/8W

D9803

SS1060FL

FB9803

BEAD

1

2

Circuit Diagrams and PWB Layouts

EN 57TPS15.1A LA 10.

2015-Sep-11

back to

div.table

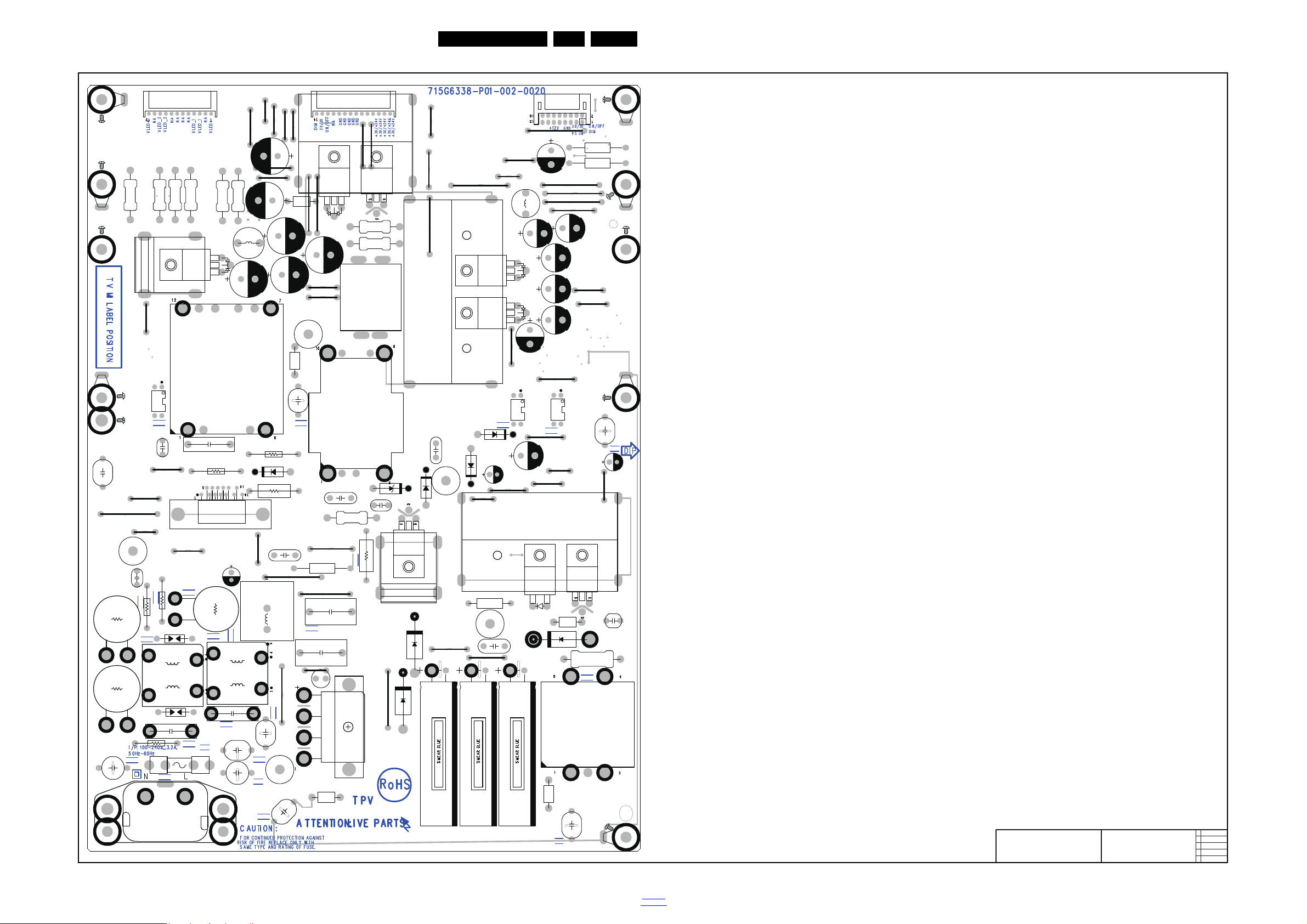

10-4-6 Power layout top

19890_509.eps

2014-06-09

715G6338

LAYOUT TOP

C9302

C9332

D9105

D9302

D9303

IC9102

IC9331

IC9341

R8104
R8116

R9314

T9301

ZD9303

J9128

J9120

J9130

J9134

J9143

J9144

J9127

J9124

J9138

J9125

J9129

J9111

J9136

J9122

C9120

C9307

D9304

J9115

J9119

R9103

R9102

J9103

J9104

J9121

J9102

J9137

D9802

D9801

D9805

J9140

J9133

J9145

J9135

J9117

J9109

J9110

J9141

J9107

J9131

J9139

J9118

J9108

J9113

J9114

J9126

J9105

J9123

J9132

J9148

J9142

J9146

SU2

SU5

SU4

SU1

J9147

J9101

SU3

R8144

R8145

R8146

R8147

R8156

R8157

J9149

J9150

J9151

HS1

HS2

HS3

H5

H10

H8

H7

H6

H9

H2

MH12

H11

GND1

FB2

FB3

FB8

FB9

BD9901

C8101

C9101

C9106

C9121

C9122

C9123

C9301

C9306

C9311

C9312

C9313

C9314

C9317

C9318

C9810

C9811

C9812

C9907

C9908

CN8101

D8101

D9104

D9305

D9306

F9901

FB9101

FB9802

HS9101

HS9301

HS9801

IC9101

L8101

L9102

L9301

L9801

L9901

L9902

NR9901

NR9902

Q9301

Q9801

R9811

R9901

R9902

R9903

SG9901

SG9902

MH8

MH7

MH6

MH5

MH1

C9105

J9112

HS9109

HS9302

C9320

Q8101

MH4

MH9

C8102

C8103

T9101

C9321

D9806

HS8101

MH11

RV9901

HS9902

R9105

R9306

C9814

FB9803

C9328

MH10

MH3

C9316

C9808

C9815

L9802

FB9301

FB8102

FB8103

C9901

C9902

CN9101

C9905

C9906

C9903

C9904

GND801

GND802

GND803

GND804

GND805

GND806

GND807

C9801

C9813

FB8101

FB9901

FB9804

FB9801

C9112

CN9301

CN9901

Circuit Diagrams and PWB Layouts

EN 58TPS15.1A LA 10.

2015-Sep-11

back to

div.table

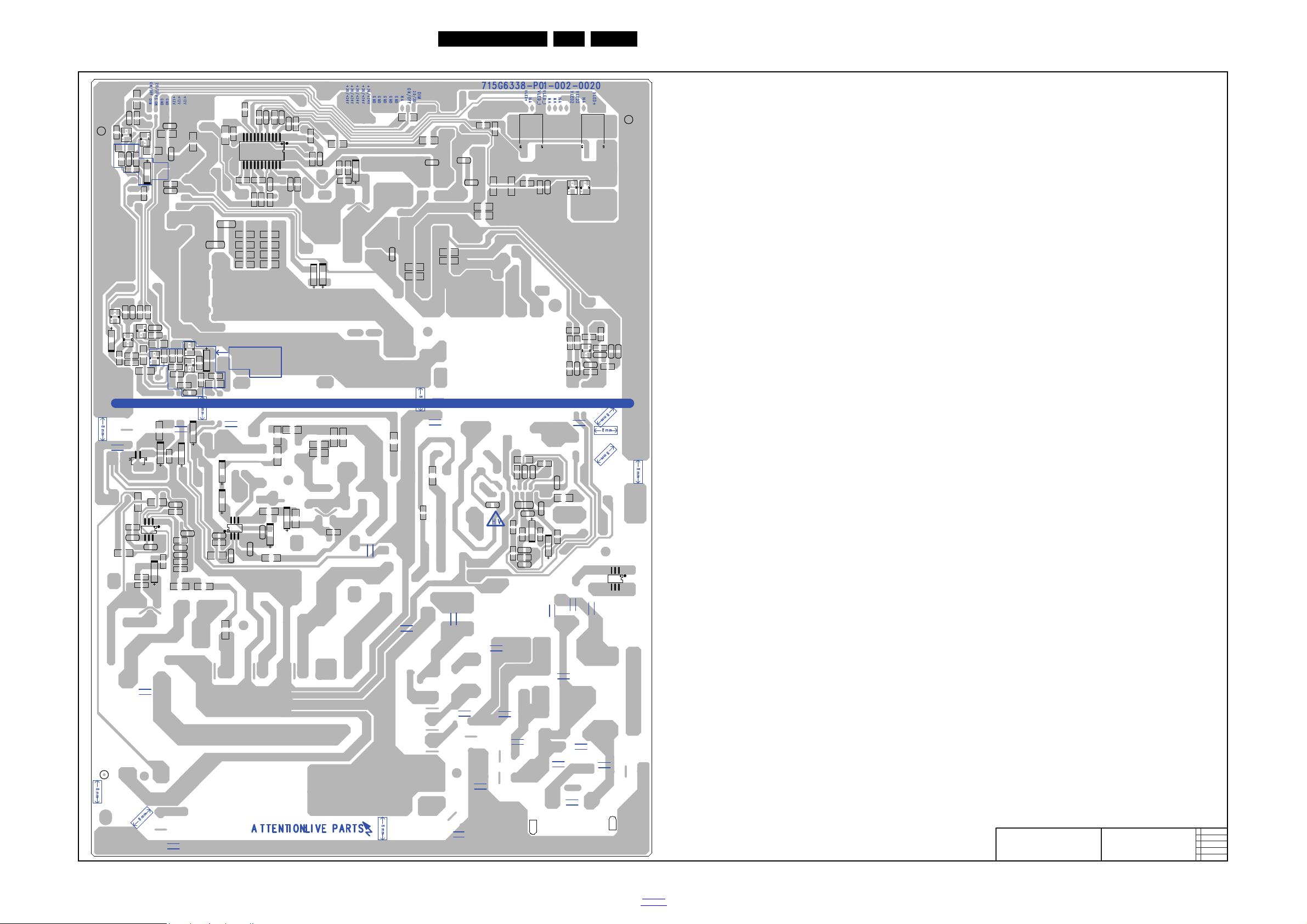

10-4-7 Power layout bottom

19890_510.eps

2014-06-09

715G6338

LAYOUT BOTTOM

C8104

C8105

C8106

C8107

C8108

C8109

C8110

C8114

C8131

C8143

C8144

C9102

C9103

C9104

C9108

C9109

C9110

C9111

C9116

C9117

C9125

C9126

C9127

C9128

C9133

C9303

C9304

C9305

C9308

C9309

C9310

C9315

C9319

C9331

C9341

C9802

C9803

C9805

C9806

C9807

C9809

R8102

R8103

R8107

R8108

R8110

R8111

R8112

R8113

R8115

R8133

R8140

R8142

R8148

R8149

R8124

R9104

R9106

R9107

R9108R9109

R9111

R9113

R9119

R9120

R9121
R9122

R9123

R9129

R9125

R9126

R9127

R9137

R9139

R9140

R9301

R9302R9303

R9305

R9307

R9308

R9309

R9310

R9311

R9312

R9313

R9315

R9316

R9318R9319
R9320

R9321

R9324

R9325

R9332

R9333

R9334

R9336

R9337

R9338

R9341

R9344

R9345

R9347

R9348

R9801

R9802R9803

R9804

R9805

R9806

R9807

R9808
R9809

R9810

R9812

R9813

R9814

JR8105

R9342

R8143

SE7

SE5

SE6

R9114

R9128

R9115

R9343

R8120

R8123

R9124

R9322

R9323

R9815

IC9801

IC9901

R8105

R8155

R8106

R8135

R9101

R9110

C9107

R9112

R9132
R9133

R9136

JR8100

R8109

R8121

R8161

R8160

R9335

R9346

R9138

R9331

R8101

R8164

C8132

C8133

C9113

R8136

R8137

R8138

R8139

R8134

JR8102

Q8143

R9326

R9327

JR8106

JR8101

JR8107
JR8108

Q8145

Q8147

Q8103

Q9331

Q9341

IC9103

IC9342

D8102

D9106

D9107

D9108

D9110

D9301

D9331

D9803

ZD9103

ZD9301ZD9302

ZD9330

ZD9340

IC9301

Q9333

IC8101

ZD8101

Q8149

ZD9341

ZD9342

Q8102

Q9103

Q9104

Q9332

Circuit Diagrams and PWB Layouts

EN 59TPS15.1A LA 10.

2015-Sep-11

back to

div.table

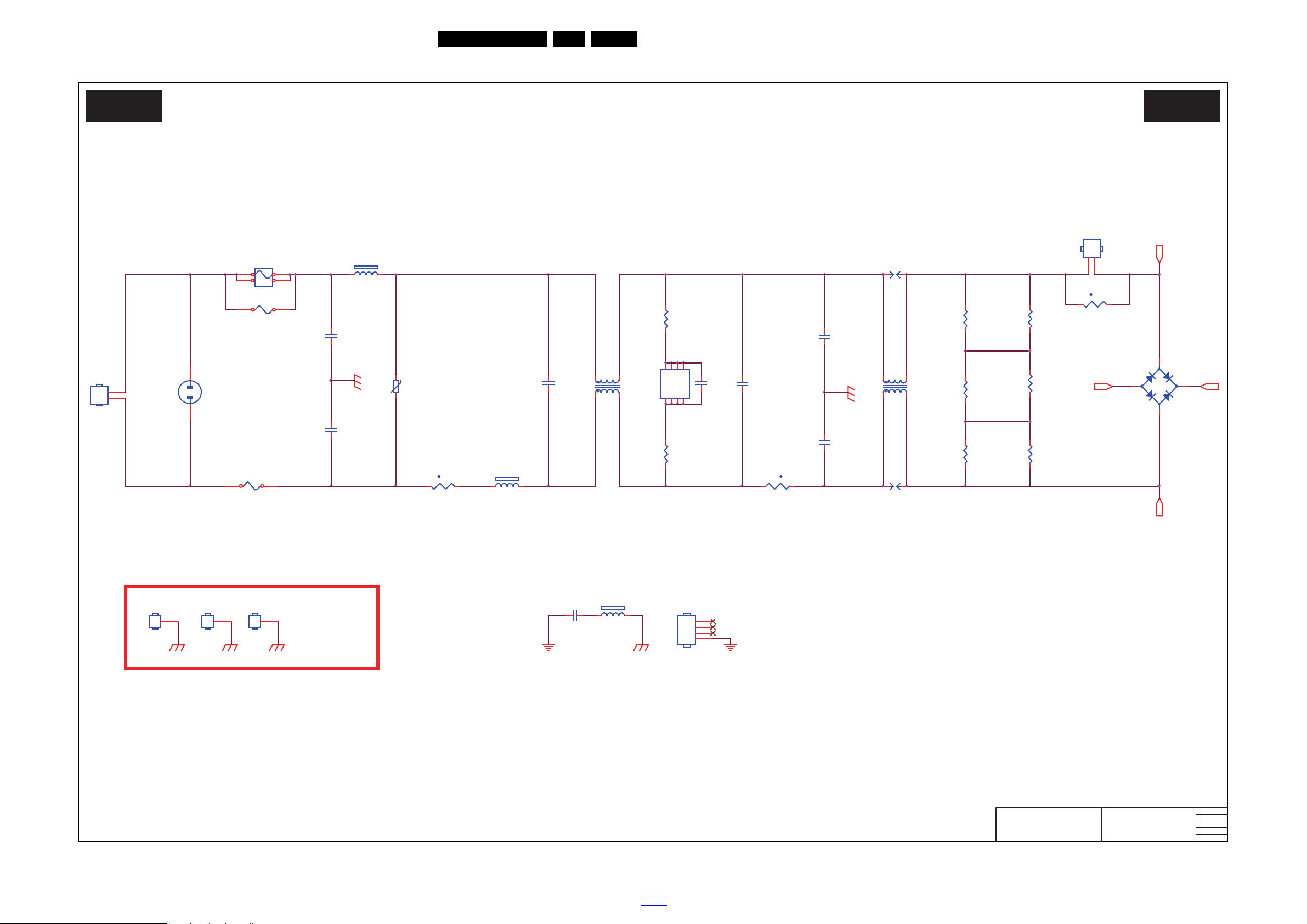

10.5 A 715G6973 PSU

19900_508.eps

AC Input

A01 A01

2015-02-11

715G6973

AC Input

CN9901
NC/CONN

1
2

CN9902
AC SOKET

12

F9901

1 2
3 4

RV9901
680V

FB9902
BEAD

12

FB9901
BEAD

12

C9901

470NF 275V

C9902

470NF 275V

L9901
12mH

1

2

4

3

R-

-

+

BD9901
GBJ1008-FUC

2

1

3

4

BO

C9911
47pF 250V

N

Vsin

C9916

1NF 250V

U9901

CAP004DG-TL

NC

1

D12D1

3

NC

4

NC5D26D27NC

8

C9907
47PF

R9901
510k 1/2W

R9902
510k 1/2W

GND4
GND

1

CN9903
NC / CONN

L1N

2

GND2
GND

1

GND1
GND

1

T5AH/250V

NC

NC

FB9903
BEAD

1 2

C9913

220PF 250V

C9912
47pF 250V

t

NR9903
1R

12

C9914

220PF 250V

t

NR9902
1R

1 2

L9902
12mH

1

2

4

3

SG9901
NC/DSPL-501N-A21F

SG9902

NC/DSPL-501N-A21F

F9902

R9903
NC/ 510K 1/ 4W

R9904
NC/ 510K 1/ 4W

R9905
NC/ 510K 1/ 4W

F9903

R9906
NC/ 510K 1/ 4W

R9907
NC/ 510K 1/ 4W

R9908
NC/ 510K 1/ 4W

t

NR9901
1R

12

HS9901
HEAT SINK

1
2

3

4

10-5-1 AC Input

Circuit Diagrams and PWB Layouts

EN 60TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-5-2 PFC

19900_509.eps

PFC

A02 A02

2015-02-11

715G6973

PFC

-

+

BD9801
KBP208G-C

2

1

3

4

Q9801

TK18A60V

R9816
10K 1/8W 1%

C9815

NC/47PF

D9802
SS1060

12

R9815
33R 1%

C9813

3.3nF 50V

R9813

NC / 24K 1/ 8W 1%

ZD9801

BZT52-B3V6

12

R9817
10K 1/8W 1%

R9812
47R 1%

C9812
47PF 50V

HS9801
HEAT SINK

1
2

3

4

R-

+VCC2

+

C9810
10UF 50V

C9811
100N 50V

C9805

1NF 50V

R9808

16K +-1% 1/8W

R9807
470K 1%

C9807

0.47uF 50V

R9809
27K 1/8W 1%

C9806

1uF

R9810

22K 1/8W 1%

C9808

10N 50V

R9811

33K 1/8W 1%

C9809

10N 50V

R9818

10K 1/8W 1%

C9818
47PF

C9817

100N 50V

FB9904
BEAD

12

L9801
220uH

6

4

C9816
1NF

C9814
47PF

D9801
FMNS-1106S

+

C9801

82uF 450V

+

C9802

82uF 450V

Vbus

R9803
1MOHM +-1% 1/4W

R9805
680K OHM +-1% 1/4W

R9806
100K 1%

R9804
680K OHM +-1% 1/4W

FB_PFC

FB_PFC

+VCC2

U9801
SSC-2005S

FB

1

COMP

2

RT

3

RDLY4CS

5

GND

6

OUT

7

VCC

8

R9819

NC/0R05

Q9802

AO3160

R9814
10R 1/ 8W 5%

Vsin

C9803
1UF 450V

C9804
1UF 450V

R-

R9801

0.1R 3W

R9802

0.1R 3W

Circuit Diagrams and PWB Layouts

EN 61TPS15.1A LA 10.

2015-Sep-11

back to

div.table

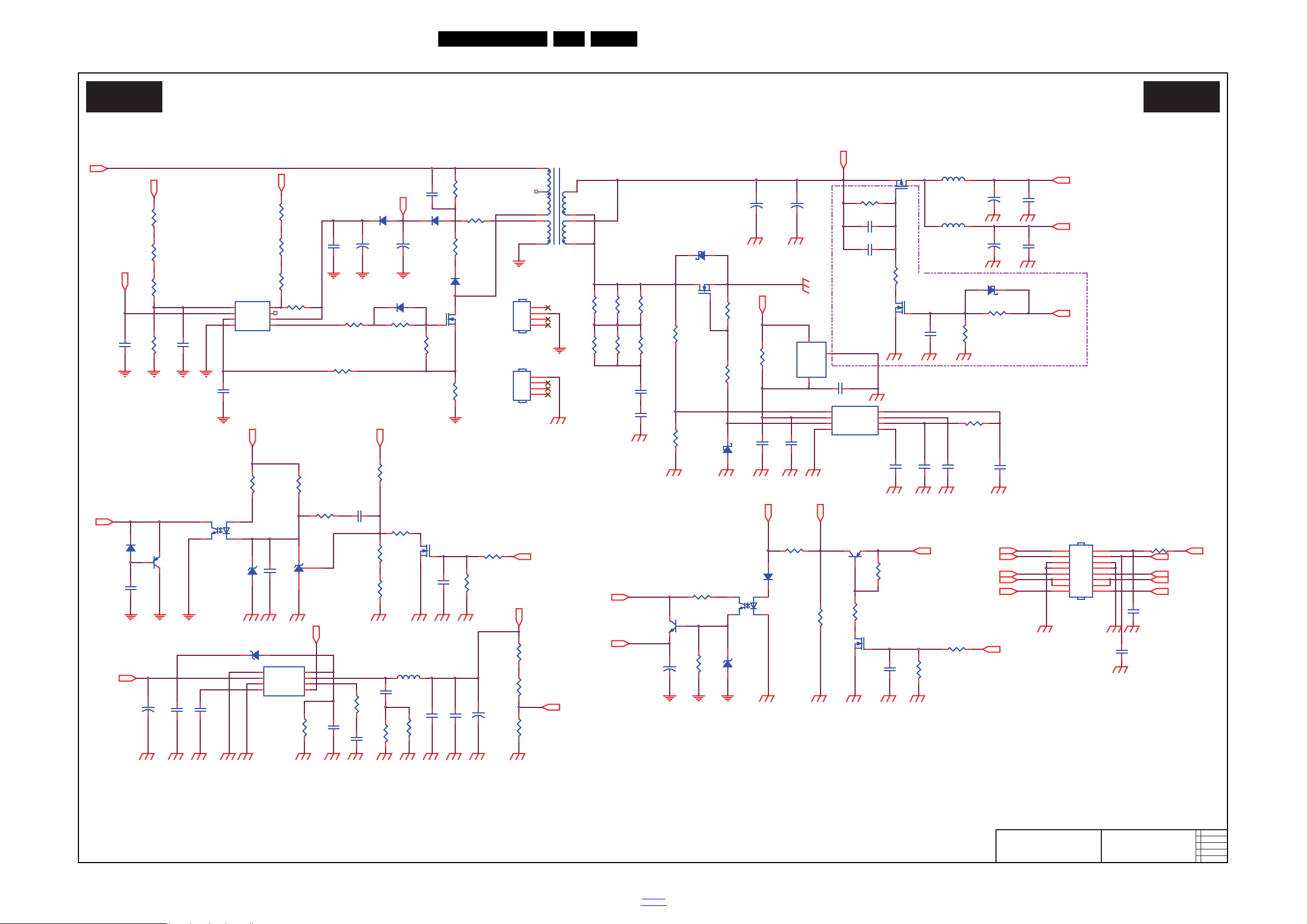

10-5-3 Main power

19900_510.eps

Main power

A03 A03

2015-02-11

715G6973

Main power

C9303

0.1uF 50V

R9122

1K5 +-1% 1/8W

R9109

10K 1/8W 1%

R9146
0R05

12VS

R9123

4.7K 1/8W

C9118

NC/1uF

U9103
AS431AN-E1

+VCC1

R9131

3K

D9108
1N4148

Q9106
BTC4672M3

C9304

1nF 50V

+

C9121
10UF 50V

R9301

3K 1/8W +/-1%

R9124
1K 1/8W 1%

+

C9132

10UF 50V

+3.5V

C9119
220N 50V

C9106

2.2NF

L9301
47uH

+VCC2

NC

+12V

R9126

2K2 1/8W 1%

R9127

1K5 +-1% 1/8W

Q9109

NC/MMBT3906

12VS

R9132

100KOHM +-1% 1/4W

+12V_A

R9125

9K1 1/8W 1%

R9150
22R 5%

DV5

D9107

NC/1N4148W

12VS

R9128

6.2K 1%

Q9105
2N7002K

Q9102
AOTF298L

ZD9105
BZT52-B15

1 2

Vbus

C9120

0.1uF 50V

U9105

SP6018ES8RGB

Timing

1

Pred

2

VR

3

Adj

4

GND

5

MOSG-C

6

Vdd

7

SYNC

8

R9129
10K OHM +-5% 1/8W

R9130

330K 1/8W 5%

C9130

NC/4.7NF 50V

U9106
NC/AS78L12RTR-G1

IN

3

OUT

1

GND

2

D9104
SK810C

12

DV5

C9133
10N 50V

+

C9109

1500UF 35V

+

C9110

1500UF 35V

+

C9105

100UF 50V

R9111
82K 2W

R9302

20K 1/8W 1%

C9305

2.2nF 50V

FB_SB

C9306

2.2nF 50V

D9106

1N4148W

R9133
2K 1/8W 1%

R9303

30 OHM 1/ 4W

R9304

30 OHM 1/ 4W

R9134

10K 1/8W 1%

D9103
FR107G-A0

BO BO

Q9107
MMBT3906

R9135
10K 1/8W 1%

R9136
10K 1/8W 1%

R9118
100K 1/8W 1%

D9101
1N4148W

R9142

10ohm +/-1% 1/8W

Q9103
AOD4185

Q9108
2N7002K

R9106
82 OHM

T9101
POWER X'FMR

1

2

4

5

6

7

8

10

11

C9307

1uF

C9308

1uF

+

C9309

470UF 25V

C9122

0.1uF 50V

R9105

10ohm +/-1% 1/8W

C9112
NC/1uF

C9111
NC/1uF

R9137
100 OHM 1/4W

R9138

510K 1% 1/8W

PS_ON

R9101

0.2R

12VS

R9305
11K 1/8W 1%

DV5LED_OVP

R9306
0R051/8W

Q9104
2N7002K

R9107
1Kohm +-1% 1/4W

R9307
3K 1/8W +/-1%

R9119
100K 1/8W 1%

R9112

27 OHM

R9113

27 OHM

R9114

27 OHM

R9115

27 OHM

C9103
330P 50V

R9116

27 OHM

R9117

27 OHM

C9117

0.1uF 50V

C9104

0.1uF 50V

R9121

510K 1% 1/8W

U9301

AOZ3015AI

PGND

1

VIN

2

AGND

3

VCC4FB

5

COMP

6

LX

7

EN

8

R9120

100 OHM 1%

ZD9103
SS1060

1 2

+3.5V

C9107

2N2 50V

R9110
2R2 +-5% 1/4W

R9139

8.2K 1/4W

R9140

5K1 1/8W 1%

U9101
LD5532

BNO

1

COMP

2

CS

3

GND4OUT

5

VCC

6

NC

7

NC

8

+12V

HS9101
HEAT SINK

1
2

3

4

D9102

FR107G-A0

+12V_A

PS_ON

HS9102
HEAT SINK

1
2

3

4

+3.5V

C9114

1uF

C9116

1uF

Q9101
TK11A65D

FB_SB

DIMBL_ON/OFF

3D_ON

R9141

5K1 1/8W 1%

R9145
0R05 1/4W

CN9101
CONN

2
4
6

8

10
12
14
16

1

3

5
7
9
11
13
15

R9143

4R7 1/4W 5%

C9108

2N2 50V

L9101
3UH

L9102
3UH

C9124

1uF

C9123

1uF

+

C9113

470UF 25V

+

C9115

470UF 25V

U9102
EL817M(X)

1

23

4

C9102

1000pF 50V

D9105

SS1060

1 2

C9101

4N7 50V

C9125

47P 50V

12VS

FB_12V

FB_12V

C9126

0.1uF 50V

+

C9301

470uF 25V

C9127

100PF 50V

12VS

C9128

0.1uF 50V

R9144
47K +-1% 1/4W

+12V

+12V_A

R9104

100K 1/8W 1%

ZD9301
BZT52-B4V7

12

+VCC1

C9131
NC/ 100N 50V

U9104
EL817M(X)

1

23

4

C9302

1uF

C9129
1NF 500V

R9147
330K +-1% 1/4W

R9149

330K +-1% 1/4W

ZD9104

BZT52-B15

1 2

R9148

330K +-1% 1/4W

R9103

3.3M 1/ 4W

R9102

3.3M 1/4W

R9108

3.3M 1/ 4W

Circuit Diagrams and PWB Layouts

EN 62TPS15.1A LA 10.

2015-Sep-11

back to

div.table

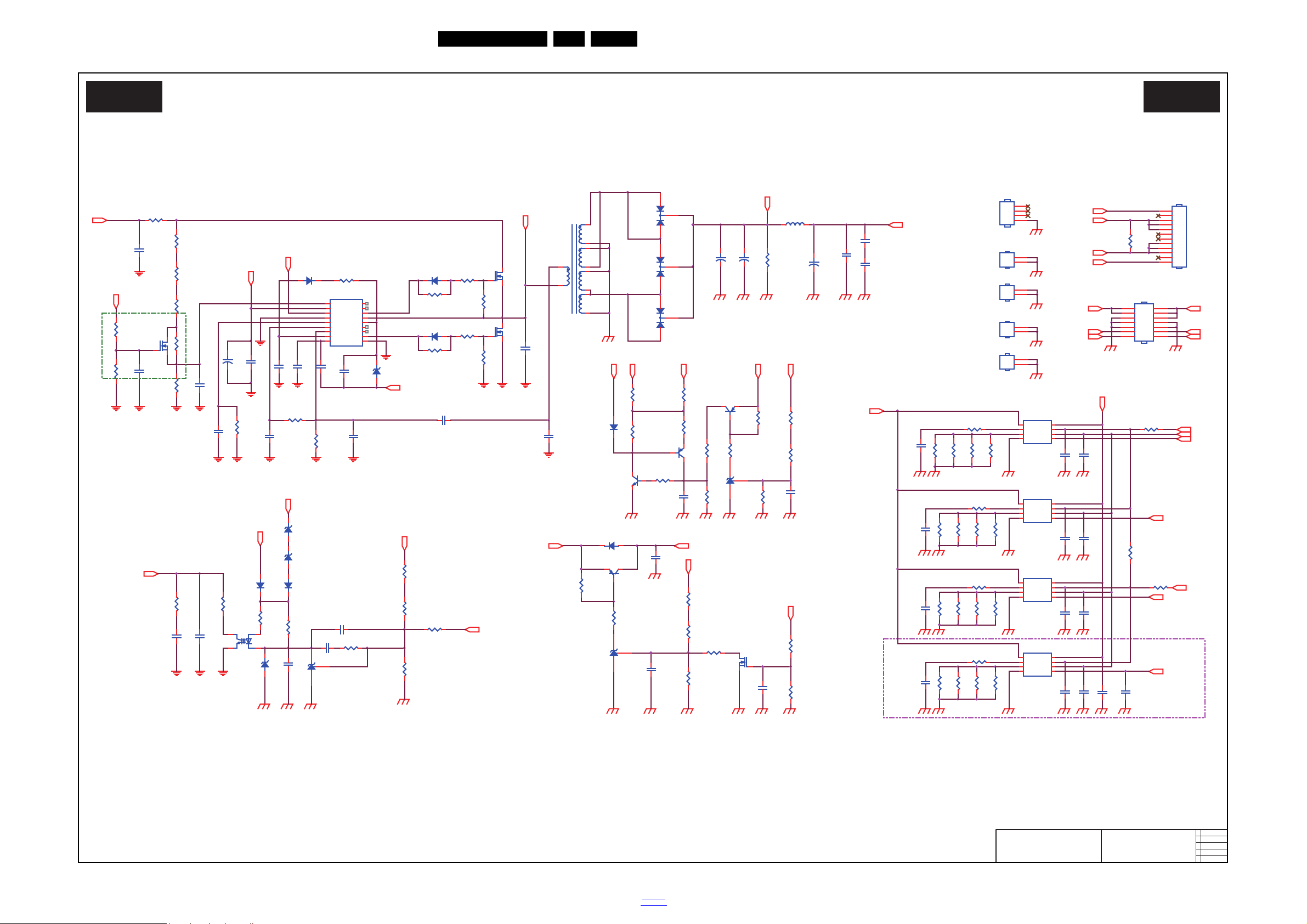

10-5-4 LED Driver

19900_511.eps

LED Driver

A04 A04

2015-02-11

715G6973

LED Driver

R8143

1.5R
R8144

1.5R

+VLED

U8105
TPV101D

DIM

1

EN

2

VCC

3

LED

4

GND

5

ISET

6

GM

7

COMP

8

LED_OVP +12VDV5

U8106
TPV101D

DIM

1

EN

2

VCC

3

LED

4

GND

5

ISET

6

GM

7

COMP

8

D8108

SS1060FL

+VCC2

Q8103
MMBT3904

R8141

1.5R
R8142

1.5R

R8126
0 OHM +-5% 1/8W

R8124
75 KOHM +-1% 1/8W

R8129

NC / 0 OHM +-5% 1/8W

HS8101
HEAT SINK

1
2

3

4

R8127
2K 1/8W 1%

R8130

1K 1/8W 1%

R8146

1.5R

R8128

1K 1/8W 1%

R8145

1.5R

-VLED1

C8105

0.47UF 50V

Q8104

MMBT3906

R8106

NC

R8151
0 OHM +-5% 1/8W

C8136

1uF

+VCC2

R8107

470R 1/8W 1%

C8106
560PF 50V

R8108
180R 1%

-VLED1

-VLED2

-VLED1

-VLED2

C8107
1nF 50V

C8110

1uF

C8125

0.1uF 50V

C8111

47P 50V

+12V

R8159

5K1 1/8W 1%

Q8105
MMBT3906

R8152
0 OHM +-5% 1/8W

R8147

1R 1%

C8137

1uF

R8148

1R 1%

R8131

1K 1/8W 1%

+12V

R8132
5K1 1/8W 1%

U8104
AS431AN-E1

TPV101_VCC

3D_ON

R8160

62K 1/8W 1%

R8133

30K 1/8W 1%

DIM

R8134

4.3K OHM 1%

C8126

0.1uF 50V

BL_ON/OFF

C8133

1uF

C8112

5PF

VLED1

C8109
27NF

VLED1

HS8102
HEAT SINK

1
2

HS8103
HEAT SINK

1
2

ZD8101

BZT52-B15

1 2

D8106

SS1060FL

+12V

VS

D8107

SS1060FL

R8119

4.3K OHM 1%

ZD8103

BZT52-B16

1 2

VLED1

R8149

1.5R
R8150

1.5R

R8153
0 OHM +-5% 1/8W

U8107
TPV101D

DIM

1

EN

2

VCC

3

LED

4

GND

5

ISET

6

GM

7

COMP

8

C8132

1uF

C8131

0.1uF 50V

C8138

1uF

R8154
0 OHM +-5% 1/8W

U8108
TPV101D

DIM

1

EN

2

VCC

3

LED

4

GND

5

ISET

6

GM

7

COMP

8

R8163
10K 1/8W 1%

C8135

1uF

C8113

100PF

C8134

0.1uF 50V

D8101
UF4007

R8164

1K 1/8W 1%

R8109
10ohm +/-1% 1/8W

C8139

1uF

FB_LED

C8141

100PF 50V

D8102
SS1060FL

D8103

SS1060FL

R8110
10ohm +/-1% 1/8W

R8113
10ohm +/-1% 1/8W

ZD8104

BZT52-B30

1 2

R8111
47R 1%

R8114
47R 1%

R8112

10K 1/8W 1%

R8115

10K 1/8W 1%

U8103
AS431AN-E1

C8124

NC/0. 47U F 50V

FB_LED

FB_LLC

FB_LLC

R8120

NC/3K 1/8W 5%

VS

R8166

3K3 1/8W 1%

Q8107

LMBT3906LT1G

1

2 3

+12V

TPV101_VCC

R8165

510 OHM +-1% 1/8W

D8110

1N4148W

TPV101_VCC

U8109
AS431AN-E1

R8172
510K 1% 1/8W

Q8108

2N7002K

C8143

0.47UF 50V

R8171
1 MOHM +-1% 1/8W

C8108
100PF1KV

BL_ON/OFF

DIM

R8167

47K 1/8W 1%

R8155
10K 1/4W

R8168
43K 1/8W 1%

R8169
9K1 1/8W 1%

R8157
10K 1/4W

T8101
POWER X'FMR

1

4

5

6

7

8

9

10

11

12

3D_ON

C8122
NC

C8145
1uF

R8170

47K 1/8W 1%

C8123

0.1uF 50V

C8127

0.1uF 50V

HS8105
HEAT SINK

1
2

HS8104
HEAT SINK

1
2

C8128

1uF

R8125
470K +-5% 1/8W

CN9102
NC/CONN

2
4
6

8

10
12
14

1

3

5
7
9
11
13

C8101
1NF

Vbus

R8101

0.1R

C8144
1uF

D8104
FMX-23S

1

2

3

D8105
FMX-23S

1

2

3

U8101
SSC9522S

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

+VLED

C8129

0.1uF 50V

C8130

1uF

+VLED

Q8101

TK10A50D

+VLED

+VLED

Q8102

TK10A50D

+

C8116

220UF 100V

+

C8117

220UF 100V

R8103

1M5 1/4W 1%

R8104

1M5 1/4W 1%

R8102

1M5 1/4W 1%

R8118
75K

C8140

1NF 500V

D8109
FMX-23S

1

2

3

R8161

NC/0R05

C8142

100N 50V

For Power Saving

Q8106

AO3160

R8162

10K 1/8W 1%

CN8101
CONN

1
2

3

4
5
6
7

8

9
10
11
12

L8101
3UH

R8105

18K 1/8W 1%

+

C8118

39uF 160V

C8102

0.1uF 50V

R8123
100K 1/8W 1%

ZD8102

BZT52-B16

1 2

NC

-VLED2

C8104

0.1uF 50V

R8158

0R05 1/4W

+

C8103

22UF 50V

R8135

1.5R
R8136

1.5R

C8119

1NF 500V

R8156

NC/0 OHM +-5% 1/8W

C8120

0.1uF 50V

C8121

0.1uF 50V

R8139

1.5R
R8140

1.5R

VLED1

R8137

1.5R
R8138

1.5R

U8102
EL817M(X)

1

23

4

R8117

470R 1%

C8115

10N 50V

R8116

2K43 1/8W 1%

R8121

750K 1%

R8122

150K 1/8W +/-1%

VLED1

C8114

4.7uF 10V

Circuit Diagrams and PWB Layouts

EN 63TPS15.1A LA 10.

2015-Sep-11

back to

div.table

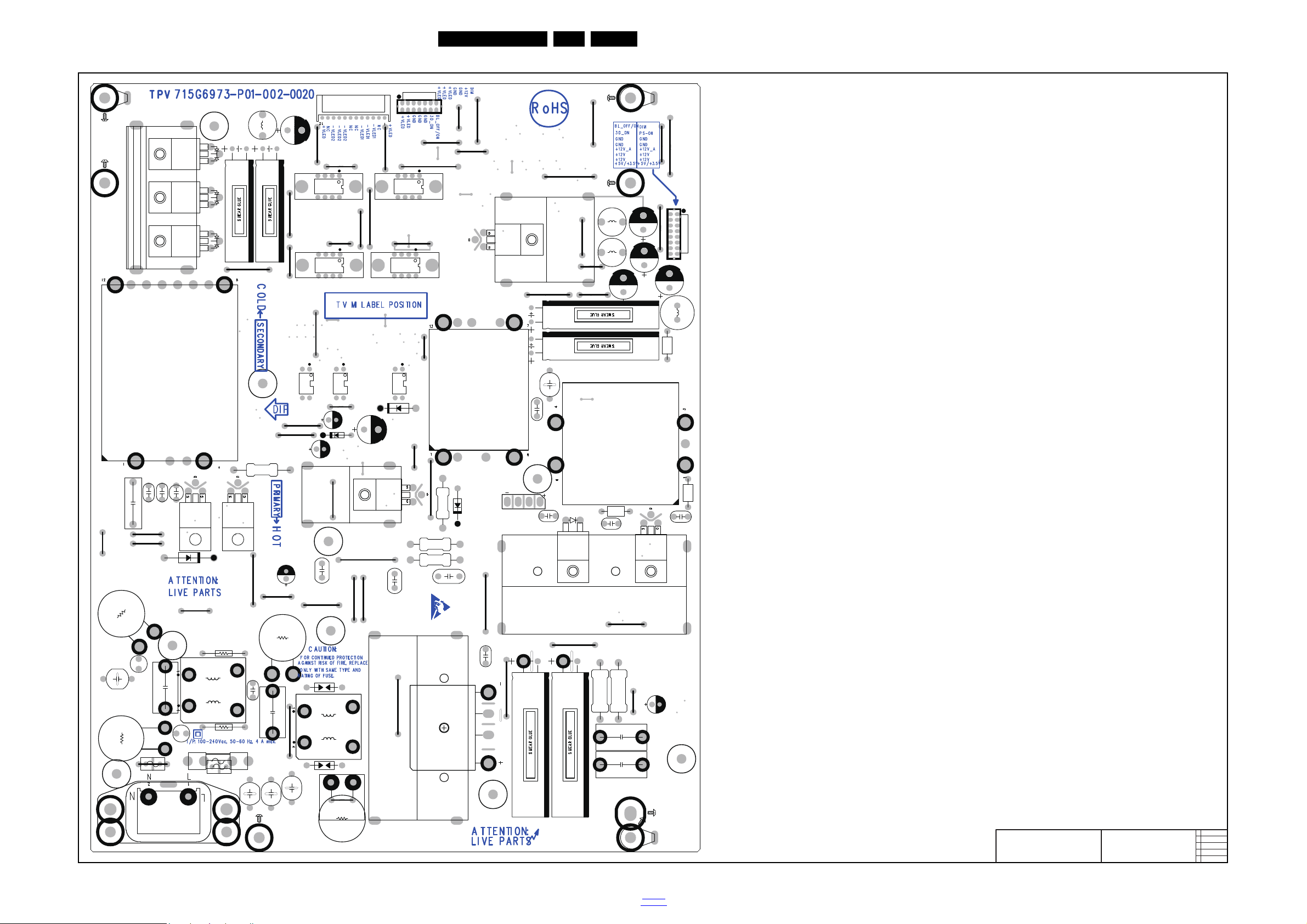

10-5-5 Power layout top

19820_548.eps

2014-12-02

715G6973

LAYOUT TOP

C9121

C8103

C9810

C9814

C9815

C9907

D9102

U8102

U9104

R9111

T8101

J9901

J9902

J9801

J9103

J9105

J9111

J9101

J8105

J8104

J9108

J9802

J8120

J9104

J9116

J9803

J9804

J8101

J9117

J9118

J8107

J9903

J8111

J9114

J9106

J9109

J9115

J9301

F9902

F9903

J9113

C9132

J9107

D9108

R9150

J8114

J8116

J8119

J8122

J8124

J8113

J9112

J9904

J9102

J8123

J8103

J8102

J8117

J8115

J8112

J8108

J8106

J8121

J9805

J9905

C9105

SU2

SU3

SU4

SU9

SU1

SU8

SU7

SU6

SU5

C9818

C9819

C9820

J8109

J9119

C9106

C9109

C9110

C9309

D9103

F9901

R9901

R9902

U9102

C9301

R9101

T9101

DR1

DR2

DE4

DR7

DR6DR5

DR8

DR3

C8112

C8108

C8118

C9113

C9115

C8101

C9802

C9801

C9816

C9803

C9804

C9901

C9902

C9913

CN8101

CN9901

CN9903

D9801

FB9901

FB9902

HS8102

HS8103

U8105

U8106

L8101

L9101

L9102

L9301

R9801

R9802

RV9901

SG9901

SG9902

D8105

D8104

HS8101

HS9901

BD9901

D8101

CN9102

GND1

GND2

GND4

C8116

C8117

MH7

MH2

MH4

MH3

MH1

MH6

MH5

CN9101

C9914

HS9801

HS9101

HS9102

HS8104

HS8105

U8107 U8108

C9916

D8109

NR9901

NR9902

NR9903

L9801

C8109

R8101

CN9902

FB9904

FB9903

BD9801

FB9801

C9911

C9912

C8113

L9901

L9902

Q8102 Q8101

Q9101

Q9102

Q9801

Circuit Diagrams and PWB Layouts

EN 64TPS15.1A LA 10.

2015-Sep-11

back to

div.table

Circuit Diagrams and PWB Layouts

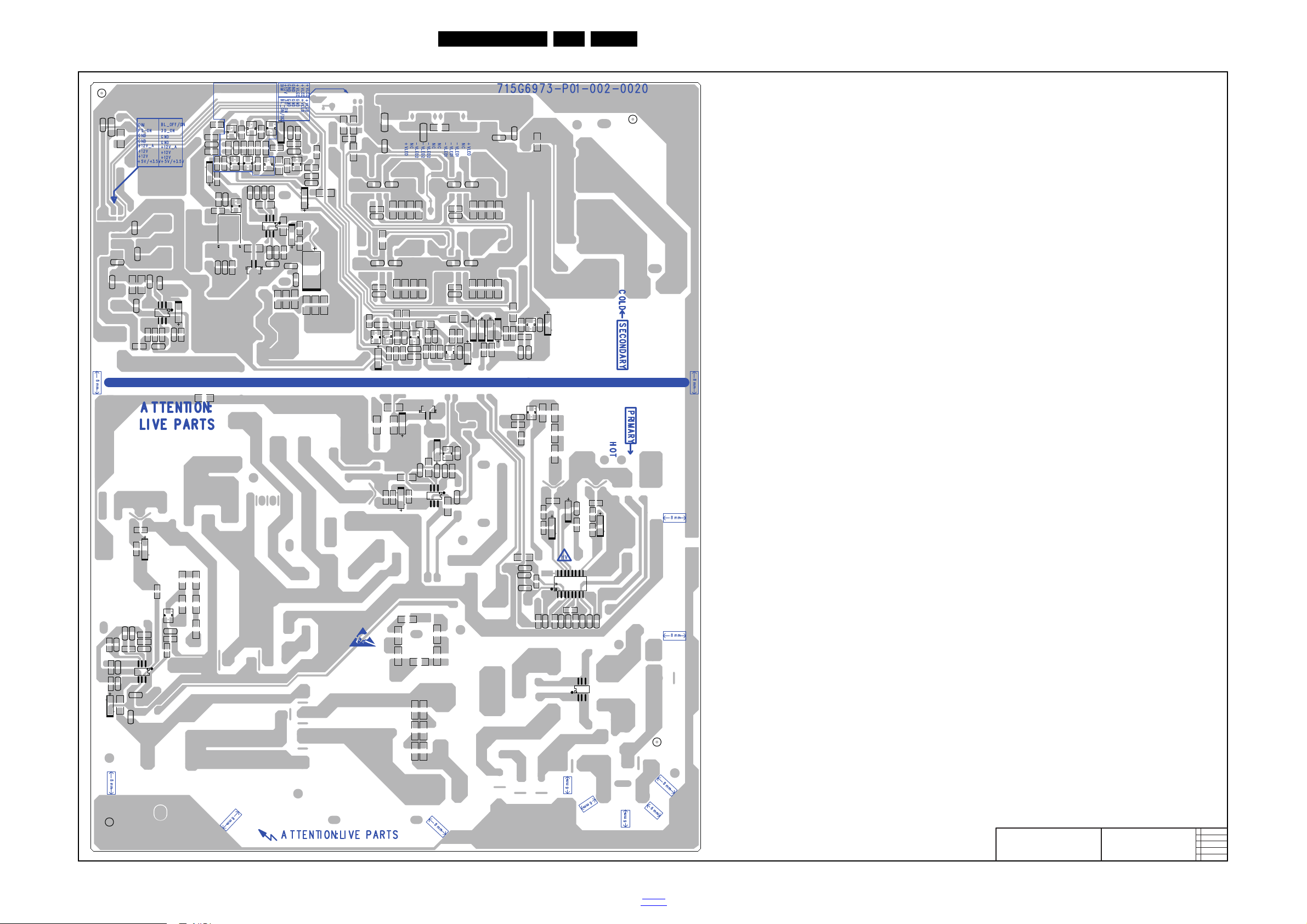

19820_549.eps

2014-12-02

715G6973

LAYOUT BOTTOM

C8102

C8110

C8133

C8104

C8105

C8106

C8107

C8115

C8122

C8114

C8123

C8136

C8127 C8128

C8124

C8141

C8137

C8129 C8130

C8120

C8121

C8140

C8119

C8111

C8125

C8126

C9103

C9101

C9118

C9112

C9111

C9119

C9117

C9124

C9308

C9307

C9305

C9302

C9303

C9304

C9128

C9127

C9126

C9125

C9123

C9306

C9107

C9108

C9104

C9120

C9114

C9116

C9122

C9102

C9809

C9808

C9811

C9813

C9812

C9807

C9806

C9805

U9901

R8103 R8104

R8110

R8102

R8112

R8118

R8105

R8113

R8115

R8107

R8106

R8108

R8117

R8116

R8151

R8125

R8138

R8137

R8135

R8136

R8152

R8139

R8140

R8141

R8142

R8155

R8157

R8156

R8129

R8127

R8130

R8131

R8134

R9146

R9109

R9113

R9114

R9112

R9110

R9126

R9127

R9123

R9122

R9125

R9124

R9139

R9144

R9143

R9130

R9115

R9117

R9116

R9302

R9306

R9301

R9307

R9305

R9118

R9119

R9121

R9303

R9304

R9131

R9136

R9138

R9103R9102

R9108

R9815

R9803

R9814

R9816

R9804

R9808

R9805

R9812

R9813

R9810

R9809

R9811

R9806

R9807

R9908

R9905

R9904

R9907

R9903

R9906

SM9

R9132

R8114

SM12

SM13

U9105

U9801

U9301

R9104

R8111

R9106

JR9101

R8109

R8147

R8148

R8149

R8150

C8139

R8154

R8146

R8145

R8143

R8144

C8138

R8153

C8132C8131C8135C8134

R9140

R9142R9141

R8159

R8133

R8160

R9135

R9133

R9134

R9129

R9145

R8128

JR8101

R9137

JR9102

R8123

R8119

R8120

R8121

R8122

R8158

C8142

C9817

R8162

R8163

R9817

R9818

R8161

R9819

U9101

C9130

R8164

R9147 R9148

R9149

R9107

R9105

C9131

C9129

U8103

U8104

U9103

Q8106

Q9104

Q9105

Q9108

Q9802

R8165

R8166

R8168

R8169

R8172

C8143

C8144

C8145

Q8108

U8109

R8132

R8171

R8167

R8126

R8170

JR9103

JR9104

R9120

R9128

JR9105

R8124

JR8102

JR9106

C9133

SM2

U8101

Q9103

Q9106

Q8103

Q8104

Q8105

Q9107

Q9109

U9106

Q8107

D8102

D8103

D8106

D8107

D8108

D8110

D9101

D9105

D9106

D9107

D9802

ZD8101

ZD8102

ZD8103

ZD8104

ZD9103

ZD9104

ZD9105

ZD9301

ZD9801

D9104

EN 65TPS15.1A LA 10.

10-5-6 Power layout bottom

2015-Sep-11

back to

div.table

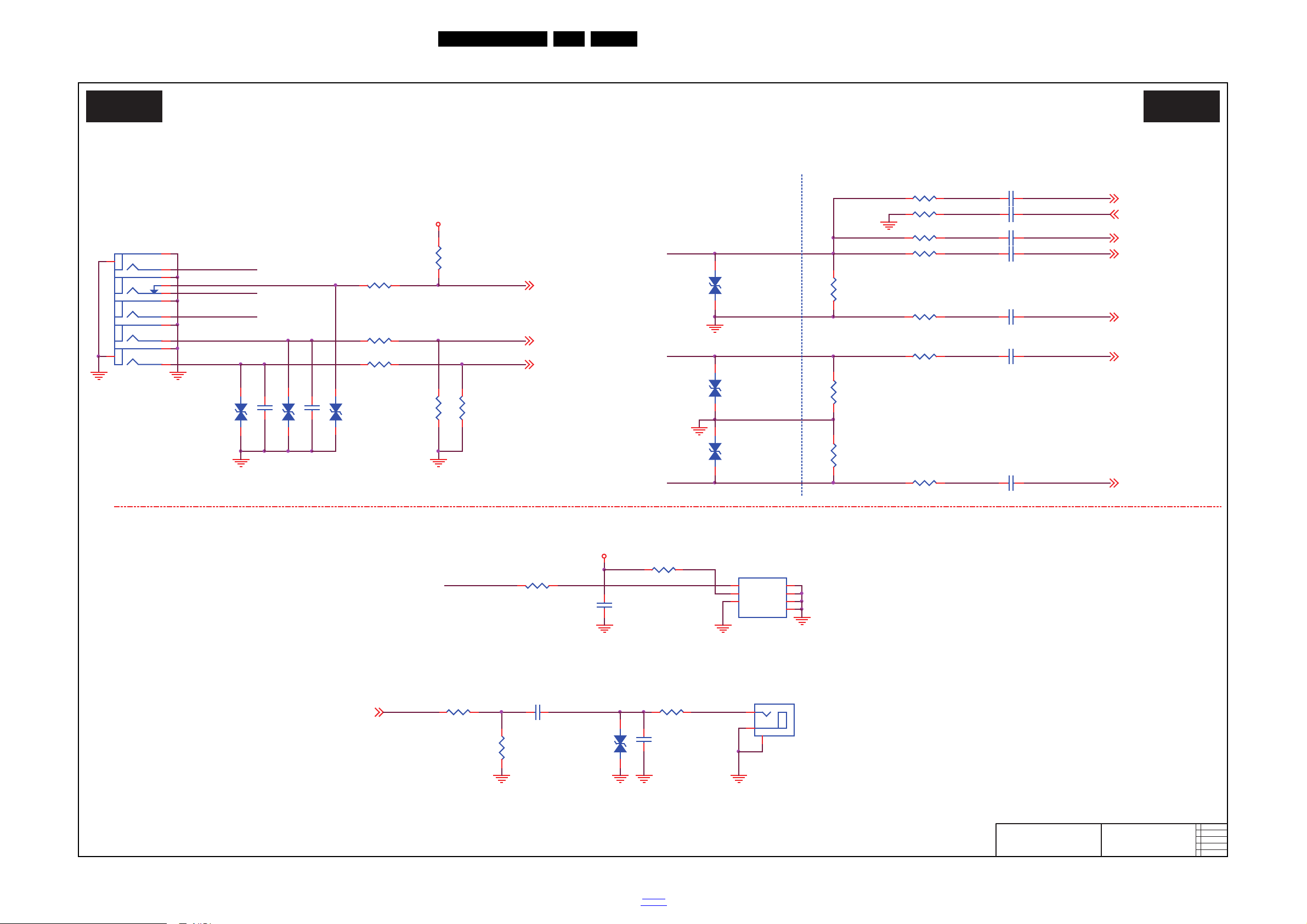

10.6 B 715G6805 SSB

19900_512.eps

AV/YPbPr/SPDIF

B01 B01

2014-12-15

715G6805

AV/YPbPr/SPDIF

Y_IN#1

PB_IN#1

PR_IN#1

YPBPR_L_IN#1

YPBPR_R_IN#1

C157

330pF 50V

PB_DET

YPbPr Video Input share wit h C V BS in Y

SPDIF_OUT

088G 78G155ACL

PB_IN#1 COMP_PB

Y_IN#1

PR_IN#1

COMP_SOY
COMP_Y

COMP_PR

COMP_COM

R106

100R 1/16W 5%

C110

3.3NF 50V

R112

75R 1/ 16W 1%

R116 33R 1/ 16W 5%

R119

100R 1/ 16W 5%

R111 10K

R104 33R 1/ 16W 5%

R102

150OHM +-1% 1/16W

E

A

B

C

D

CN111 RCA JACK

1
2

3

4
6
7

8

9
10

11

12

13

5

R103

180R 1/ 16W 5%

C113

NC

C103 47NF 16V

C108 47NF 16V

C105 47NF 16V

R181
NC

R115

75R 1/ 16W 1%

R107
75R 1/ 16W 1%

R109 10K

R113

12KOHM +-5% 1/16W

R108 68R 1/16W 5%

C104 1nF 50V

C102 47NF 16V

C101

3.3NF 50V

R114

12KOHM +-5% 1/16W

R117

NC

R110 33R 1/ 16W 5%

C114 1UF 10V

R118

180R 1/16W 5%

C107

47NF 16V

C112 47NF 16V

R105 33R 1/ 16W 5%

R101

4K7 1/16W 5%

5V_SW

COMP_PR 6

COMP_Y 6

DVDD3V3

COMP_PB 6

COMP_COM 6

COMP_SOY 6

SPDIF_OUT6

CVBS_VCOM 6

CVBS0P 6

PB_DET 6

COLAY

R182

0R05 1/ 16W

COLAY

CVBS0PAV1_IN
CVBS_VCOM

YPbPr_R_In0 6

YPbPr_L_In0

YPbPr_L_In0 6

YPbPr_R_In0

CN603

NC

VIN

1

VCC

2

GND

3

TH1

4

TH2

5

TH3

6

TH4

7

A

CN604
RCA JACK

2
1

3

ZD102

NC

12

ZD103

NC

12

ZD106
NC

12

SPDIF_OUT

ZD105

NC

12

ZD104

NC

12

ZD101

NC

12

ZD107

NC

12

Coaxial

SPDIF

SPDIF

088G 359 9A JT
088G 359 9B JT

388G078G111ACL

Connected to connector GND

10-6-1 AV/YPbPr/SPDIF

Circuit Diagrams and PWB Layouts

EN 66TPS15.1A LA 10.

2015-Sep-11

back to

div.table

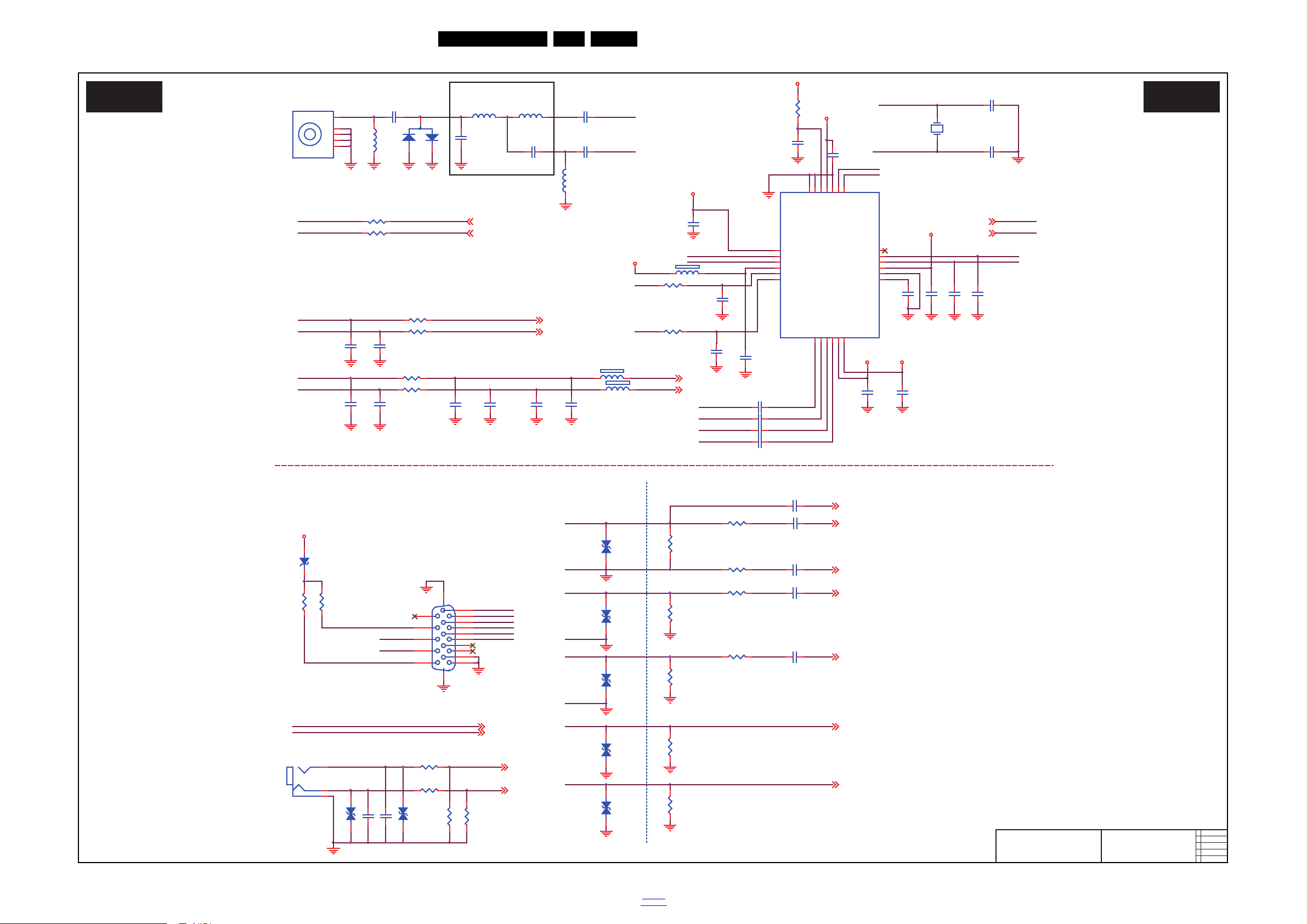

10-6-2 Tuner/VGA Input

19900_513.eps

Tuner/VGA Input

B02 B02

2014-12-15

715G6805

Tuner/VGA Input

C173 4.7NF 50V

R126 100R 1/16W 5%

XTALP

C123

1UF 10V

VDD_1P8

IF_OUTN_1

C171

100N16V

VDD_1P8

RESET

3V3T

FB101 1000OHM

1 2

U104

MxL661-AG-R

VDD_3p3

1

LNA_INP

2

LNA_INN

3

VDD_1p8

4

AGC_2/GPO_3

5

AGC_1

6

IF_OUTP_2/GPO_17IF_OUTN_2/GPO_28IF_OUTP_19IF_OUTN_110VDD_3p311VDD_1p8

12

VDD_1p2

13

GND_DIG

14

VDD_IO

15

SCL

16

SDA

17

CLK_OUT

18

XTAL_N

19

XTAL_P

20

GND_XTAL

21

VDD_1p8

22

RESET_N

23

AS

24

E-PAD

25

R183

510K 1%

C125

100N16V

AGC1

IF_OUTP_1

C168 4.7NF 50V

C166
10N 50V

3V3T

LNA_INN

C144
1UF 10V

C170

100N16V

VGA/UART

VDD_1P8

C135

100N16V

LNA_INP

C167

100N16V

C172

2.2nF 50V

C124
47PF 50V

C127

47PF 50V

3V3T

T_SCL

3V3T

T_SDA

IF_AGC16

AGC1

T_SDA
T_SCL

X102

16MHz

12

GRN_GND

GRN

GRN

VSYNC#

VGASDA

VGAR_IN

RED

HSYNC#

RED_GND

VGASCL

BLU_GND
BLU

GRN_GND

C175

22PF 50V

C174

22PF 50V

VGA_HS

VGA_VS

VGA_GP

HSYNC#

VGA_RP

BLU_GND

BLU

VGA_SOG

RED_GND

RED

VSYNC#

VGA_COM

VGA_BP

FB105

300R

1 2

FB106 300R

1 2

AGC210

AGC2

C164 27PF 50V

C165 27PF 50V

VGA_L_In

VGA_R_In

AGC2

R125 100R 1/16W 5%

C111

100N16V

ZD108

NC

12

ZD109

NC

12

ZD110

NC

12

ZD111

NC

12

VGAL_IN

ZD114

NC

12

VGA

088G353GFF1AXH

R146

12KOHM +-5% 1/16W

R129

33R 1/16W 5%

R140 100R 1/16W 5%

C133

1nF 50V

CN101

CONN

1
7
2

8
3

9
4
10
5

11
12
13
14
15

1716

6

C139

47NF 16V

R131

4K7 1/16W 5%

R149
10K

R133

68R 1/16W 5%

R136

33R 1/16W 5%

R135

75R 1/16W 1%

R144
10K

R147
12KOHM +-5% 1/16W

C137

47NF 16V

R139

75R 1/16W 1%

R130

75R 1/16W 1%

C134

47NF 16V

ZD120
BAT54

13

XTALN

R132
4K7 1/16W 5%

C136

47NF 16V

C142

3.3NF 50V

C143

3.3NF 50V

R142 100R 1/16W 5%

R134

33R 1/16W 5%

R145

10K

R143

10K

+5VSB

M_SCL 6,8,10

M_SDA 6,8,10

VGA_SOG 6

DDCA_DA 6
DDCA_CK 6

VGA_HS 6

VGA_BP 6

VGA_VS 6

VGA_GP 6

VGA_COM 6

VGA_RP 6

VGA_R_In 6

VGA_L_In 6

C121
22PF 50V

C120

22PF 50V

XTALN

R121 120 OHM +-1% 1/16W

XTALP

R123 120 OHM +-1% 1/16W

CN102

CONN

1

2

3

R120 150OHM +-1% 1/16W

IF_OUTP_2

R122 150OHM +-1% 1/16W

C119 4.7NF 50V

C132 4.7NF 50V

IF_OUTN_2

IF_OUTP_2

IF_OUTN_2

QM 10

VGASCL DDCA_CK

QP 10

DDCA_DAVGASDA

LNA_INP

C169
5P6 50V

C115
1nF 50V

L105
27nH

C116
1nF 50V

C147
47PF 50V

C146

47PF 50V

C117
1pF 50V

C159
1nF 50V

L104

8.2NH

L103
27nH

L101

NC

LNA_INN

D102
BAV99

3

1

2

IF_OUTP_1

C129

NC/33PF 50V

FAT_IN+ 6

IF_OUTN_1

FAT_IN- 6

C118

NC/33PF 50V

FCN101

RF CONN 5P

1

2

3

4

5

ZD112

NC

12

XTAL

ZD113

NC

12

MxL661

Circuit Diagrams and PWB Layouts

EN 67TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-6-3 HDMI Inputs

19900_514.eps

HDMI Inputs

B03 B03

2014-12-15

715G6805

HDMI Inputs

HDMI_ARC

ZD518

NC

1 2

HDMI_ARC

C507

4.7UF 10% 10V

HDMI-CEC

HDMIB-RX2N

R558 0R05 1/ 16W

HDMID-CLKP
HDMID-CLKN

EMI
088G340FJ02AAT
088G340FJ02ATE

Spring H=11.2
088G340FJ04AAT
088G340FJ04ATE

Non
088G 34019K AD V
088G 34019K AT
088G 34019K AV

HDMI2/MHL

HDMIB-RX0P
HDMIB-RX0N

MHL_CABLE-D ET 6

HDMI1/ARC

HDMI3

B

HDMI2

D

A

C503

4.7PF 50V

HDMI_CEC

R506

1K 1/16W 5%

R512

4K7 1/16W 5%

R507

10K

HDMID_HPDIN

HDMID_HPDIN 6

HDMID_5V

HDMID_HPD

C508

4.7UF 10% 10V

MHL_CABLE_DET

R559

1K 1/16W 5%

EN_MHL_PWR

Charge

R534

4K7 1/16W 5%

HDMIB_5V

+5VSB

+5VSB

HDMIB_5V

MHL_CABLE_D ET

HDMIA-CLKP

HDMI3/DVI

HDMIA-RX1N

HDMIA_5V

HDMIA-RX0P

ZD514

NC

1 2

HDMIA_SCL

HDMIA-CLKN

R550 33 OH M 1/16W

HDMIA-RX1P

R545

10K

HDMIA-RX2N

R543

10K

HDMIA_HPD

HDMIA_5V

HDMIA-RX2P

R542

1K

HDMIA-RX0N

R544

10K Q505

2N7002K

HDMIA_HPDIN 6

R551 33 OH M 1/16W

HDMI-CEC

HDMIA_HPDIN

HDMIA_SDA

HDMIA_5V

HDMIA_HPD

R552

4.7K 1/16W

CN507 HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

HDMID_SDA

HDMIB_5V

HDMIB-RX1N

HDMIB-RX2P

HDMIB-RX1P

HDMI-CEC

HDMIB-CLKP

HDMI-B-RX0P

HDMIB-CLKN

HDMI-B-RX0N

CN506 HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

HDMIB_SDA

HDMIB_SCL

HDMIB_HPD

U505

APL3511CBI-TRG

VOUT

1

GND

2

OCB3EN

4

VIN

5

R515

NC

HDMIB_5V

C504

NC/1PF 50V

C505

NC/1PF 50V

HDMIB_HPDIN

R511 33R 1/16W 5%

R518300K

R533 33R 1/ 16W 5%

Q501
2N7002K

HDMID-RX2P

HDMI1/ARC

R529

47K 1/16W 5%

HDMID-RX2N

R505
NC

R508

10K

HDMID-RX1P

ZD507

LBAT54CLT1G

1

2

3

C501 1UF 10V

CN508 HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

R503

0R05 1/16W

R510 33R 1/16W 5%

R532 33R 1/ 16W 5%

AVDD5V_MHL

HDMID-RX1N

HDMID-RX2N

HDMID-CLKN

HDMID-RX2P
HDMID-RX1P

R561

10R 1/16W 5%

HDMID-RX0P
HDMID-RX0N
HDMID-CLKP

R517

33R 1/16W 5%

HDMIB-CLKN

HDMIB-RX2P

HDMIB-RX0P
HDMIB-CLKP

HDMIB-RX0N

R501

10K

HDMIB-RX2N
HDMIB-RX1P
HDMIB-RX1N

R530

47K 1/16W 5%

HDMIA-RX2N

HDMIA-RX2P

HDMIA-RX0P

HDMIA-CLKN

HDMIA-CLKP

HDMIA-RX0N

HDMIA-RX1N

HDMIA-RX1P

R514

200R 1/16W 5%

HDMID_5V

HDMID_5V

HDMIB_5V

HDMIB_5V

HDMIB_VCC

+5VSB

HDMI_CEC 6

HDMIB_HPDIN 6

HDMID-RX2P 6

HDMID-RX0P 6

HDMID-RX1N 6

HDMID-RX1P 6

HDMID-RX2N 6

HDMID-CLKN 6

HDMID-CLKP 6

HDMID-RX0N 6

HDMIA-RX0P 6

HDMIA-RX2N 6

HDMIA-RX2P 6

HDMID-RX1N

HDMIA-RX1N 6

HDMIA-RX1P 6

HDMIA-RX0N 6

HDMIB-RX2P 6

HDMIA-CLKN 6

HDMIA-CLKP 6

HDMIB-RX0P 6

HDMIB-RX1P 6
HDMIB-RX1N 6

HDMIB-RX2N 6

HDMIB-CLKP 6
HDMIB-CLKN 6

HDMIB-RX0N 6

HDMIB_SCL 6

HDMID_SDA 6

HDMID_SCL 6

HDMIA_SDA 6

HDMIA_SCL 6

HDMIB_SDA 6

ARC_SPDIF 6

HDMIB_HPD

HDMID_SCL

ZD503

NC

1 2

HDMID_SDA

HDMID_SCL

HDMIB_SDA

HDMIB_SCL

HDMI-CEC

HDMIA_SDA

HDMIA_SCL

ARC_SPDIF

CEC/ARC

HDMID-RX0N

HDMID-RX0P

HDMID_HPD

Circuit Diagrams and PWB Layouts

EN 68TPS15.1A LA 10.

2015-Sep-11

back to

div.table

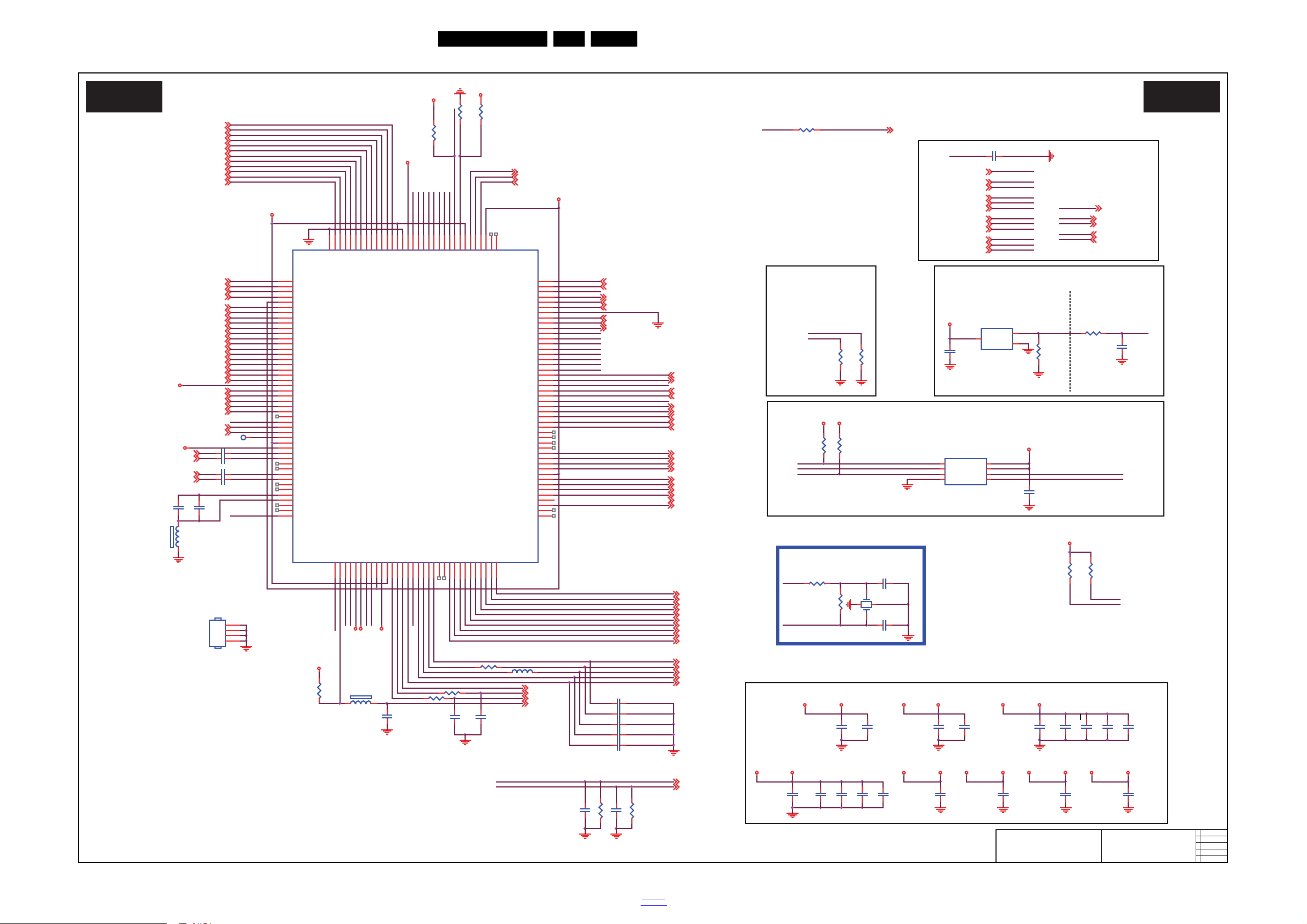

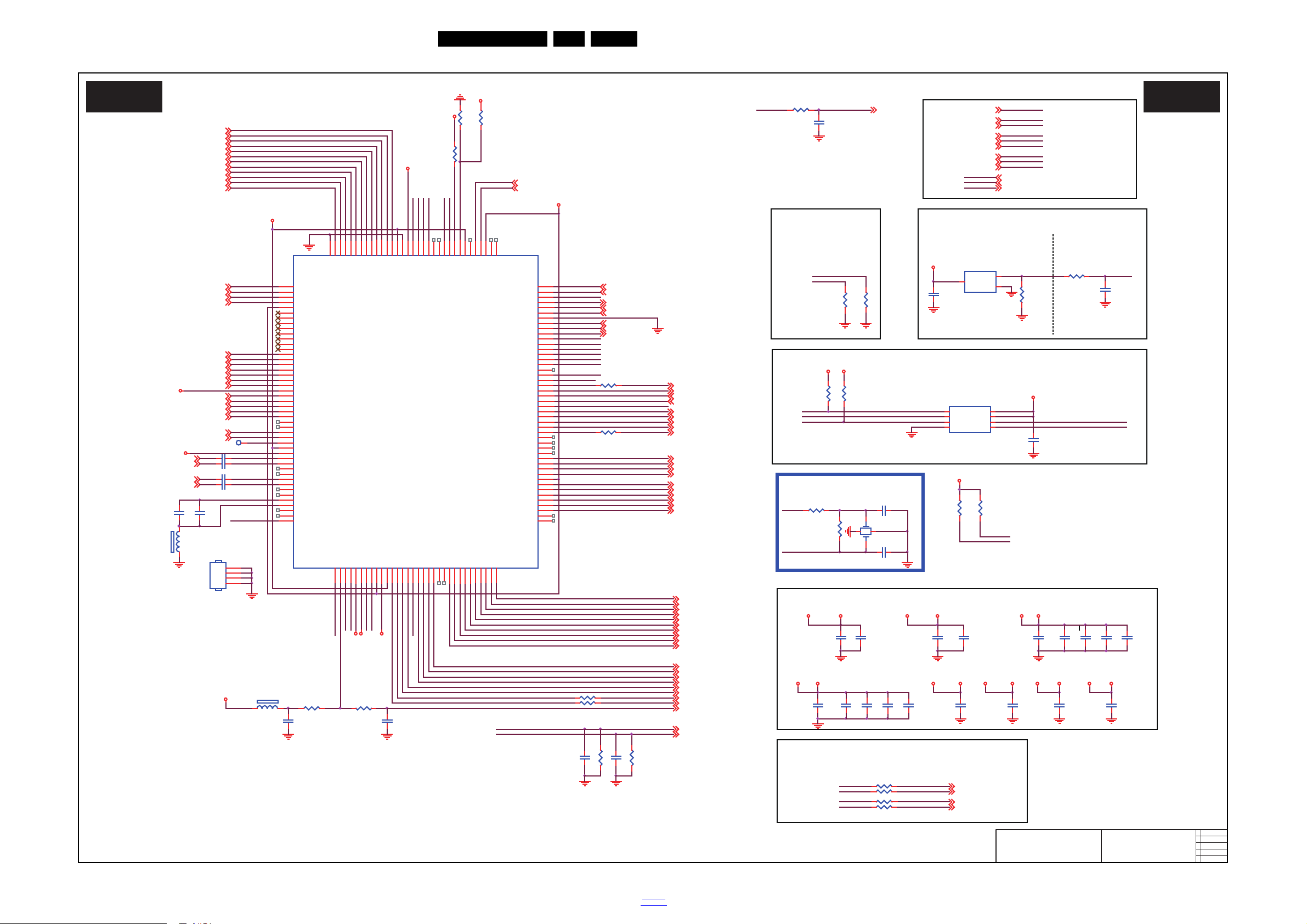

10-6-4 MSD8120_Scaler

19900_515.eps

MSD8120_Scaler

B04 B04

2014-12-15

715G6805

MSD8120_Scaler

HDMID-RX2P

C402
100NF 16V

C423

100NF 16V

R450

4K7 1/16W 5%

R417

4K7 1/16W 5%

HDMID_HPDIN

HDMID_SDA

HDMID_SCL

C404

100NF 16V

R422

100R 1/16W 5%

C418

100NF 16V

BL_DIMMING

OIRI

C417

100NF 16V

HDMIB-RX0P5

SPI_CSN

C427

100NF 16V

RXEC+ 7

RXE3-

C426

100NF 16V

HDMID-RX2N5

Demod_RST10

HDMID-RX1P

RXEC- 7

C429

100NF 16V

HDMID-CLKN5

+3V3SB

RXEC-

HDMID-RX2P5

HDMIB-CLKP

AVDD_DDR_DATADDRV AVDD_DDR_CMD DDRV VDDCVCCK

+3V3SB

AVDD_MOD AVDD_DMPLL AVDD_AU33

+3V3SB+3V3SB +3V3SB

AVDD3P3_VEDIO

+3V3SB

X401

24MHZ

1

2 4

3

3V3T

+3V3SB+3V3SB

HDMI_CEC5

ARC_SPDIF5

HDMIB_SDA5

HDMID_SCL5
HDMID_HPDIN5

HDMID_SDA5

HDMIA_SDA5

HDMIB_SCL5
HDMIB_HPDIN5
HDMIA_SCL5
HDMIA_HPDIN5

PANEL_EN 7

PWR_ON 9
SPDIF_OUT 3

FAT_IN- 4

PANEL_EN

FAT_IN+ 4

RESET (H Reset)

4'h00

AVDD_DADC

B51_NO_EJ

{PWM1, PWM0}

CHIP_CONFIG

TS_D0 10

R404

0R05 OHM

TS_D0

PWR_ON_1

PWR_ON_1 9

PWR_ON_1

C433

100NF 16V

+3V3SB

AVDD_DADC

U401

MSD8120PBM-V5

B_ODD[0]/LVA4+

67

SOGIN1

23

BIN1P

22

GIN1M

25

GIN1P

24

CVBS0

29

CVBS1

28

AUL0

35

GIN0P

17

XOUT54XIN53AVDD3P3_DMPLL

52

AVDD_MOD

5

RIN1P

26

G_ODD[3]/LVA0-

78

GPIO7/GPIO5164B_ODD[1]/LVA4-

68

SPI_DO

111

PWM0

110

GIN0M

18

LVSYNC

95

LHSYNC

94

LDE

93

LCK

92

R_ODD[7]/LVB0-

91

R_ODD[6]/LVB0+

90

AVDD_MOD

87

GPIO2/GPIO4660GPIO3/GPIO4761GPIO5/GPIO4962GPIO6/GPIO50

63

TCON7

99

B_ODD[4]/LVACLK+71B_ODD[5]/LVACLK-72B_ODD[6]/LVA2+73B_ODD[7]/LVA2-74G_ODD[0]/LVA1+

75

G_ODD[6]/LVB3+

81

B_ODD[3]/LVA3-

70

TCON8

98

SPI_DI

112

SPI_CZ

113

SPI_CK

114

SAR0

128

SOGIN0

16

LINEOUTR3

45

LINEOUTL0

46

VRM

43

LINEOUTL3

44

IFAGC48LINEOUTR047VIFP

49

RX1N_B

1

RX1P_B

2

RX2N_B

3

RX2P_B

4

RXCN_A

6

RXCP_A

7

RX0N_A

8

RX0P_A

9

RX1N_A

10

RX1P_A

11

RX2N_A

12

RX2P_A

13

HSYNC0

14

BIN0P

15

RIN0P

19

VSYNC0

20

AVDD3P3_ADC

21

VCOM

30

CVBS_OUT1

31

VDDC

32

AVDD_AU33

33

AUR1

36

AUL1

37

AUR2

38

AUL2

39

AUR3

40

VIFM

50

VDDC57GPIO0/GPIO4458GPIO1/GPIO45

59

VDDIO_CMD

56

GPIO9/GPIO5366B_ODD[2]/LVA3+

69

GPIO8/GPIO52

65

G_ODD[1]/LVA1-76G_ODD[2]/LVA0+

77

G_ODD[4]/LVB4+

79

G_ODD[7]/LVB3-

82

R_ODD[0]/LVBCLK+

83

R_ODD[1]/LVBCLK-

84

G_ODD[5]/LVB4-

80

R_ODD[3]/LVB2-

86

R_ODD[5]/LVB1-

89

R_ODD[4]/LVB1+

88

TCON2

104

TCON1

105

TCON6

100

TCON3

103

TCON5

101

TCON4

102

HOTPLUG_A

108

TCON10

96

DDCA_DA

116

TCON9

97

PWM1

109

TCON0

106

HOTPLUG_C

107

SAR1

129

VSYNC1

27

AUR0

34

VAG

42

AUL3

41

AVDD_MOD

55

R_ODD[2]/LVB2+

85

DDCA_CK

117

TEST

118

CEC

119

IRIN

120

INT

121

DM_P0

123

DP_P0

124

RESET

122

DP_P1

126

AVDD_MOD

127

DM_P1

125

VDDC

144

GND_EFUSE

143

AVDD_5V

142

HOTPLUG_B

141

DDCDB_CL

140

DDCDB_DA

139

MHL_DET

138

DDCDA_DA

137

DDCDA_CL

136

DDCDC_DA

135

DDCDC_CL

134

VDDIO_DATA

133

GND

132

VDDC

131

SAR2

130

RX0P_B

156

RX0N_B

155

RXCP_B

154

RXCN_B

153

RX2P_D

152

RX2N_D

151

RX1P_D

150

RX1N_D

149

RX0P_D

148

RX0N_D

147

RXCP_D

146

RXCN_D

145

E-PAD

157

ARC

115

AVDD3P3_DADC

51

R4020R05 OHM

M_SCL

M_SDA

BRIGHT_ADJ 9

R401

NC/0R05 OHM

AVDD_DDR_DATA

HP_DET

System XTAL

ORESET#

C407 18PF 50V

R428

1M 1/16W

XTALO

C406

22PF 50V

R439

510R 1/16W 5%

AVDD_DDR_DATA

XTALI

SPI_WP
AUDIO_RESET

AUR0
AUL0

C422

10UF 6. 3V 20%

LED_R

TS_CLK_S 10

AMP-AUOUTL0

DDR3 solder R402 R404
DDR2 solder R401

TS_VLD 10

TS_CLK_S

TS_VLD

TS_SYNC 10

C410

10UF 6. 3V 20%

M_SDA 4,8,10

M_SCL 4,8,10

BL_ON/OFF 9

TS_SYNC

PWM1

PWR_ON

AUR2
AUL2

R495
10K

DVDD3V3

C176

22PF 50V

32M 356G223300200A W I NBOND
32M 056G2233 2 WINBOND
32M 056G2233 34 MXIC

64M 056G2233 42

HS401

NC/SHIELD

1

2

3

4

C412

10UF 6. 3V 20%

C414

10UF 6. 3V 20%

C177

22PF 50V

PB_DET 3
HP_DET 8

LED_R 7

AMP-AUOUTR0

AMP-AUOUTL0

C437 100PF 50V

C439 100PF 50V

AMP-AUOUTR

C431

1nF 50V

C409

100NF 16V

R492

200K

C436 82pF 50V

XTALO

XTALI

C408

10UF 10V

AVDD_DMPLL

C435 82pF 50V

C438 82pF 50V

TP

TP1

FB401
60 OHM

1 2

AUVRM

C432

1nF 50V

R493

200K

AMP-AUOUTL

HDMIB_HPDIN

AU_SD 8

AU_WS8

AU_MCK 8

AU_BCK 8

AMP-AUOUTR 8

AMP-AUOUTL 8

AUDIO_RESET 8

AU_SD
AU_BCK
AU_MCK
AU_WS
AUDIO_MUTE

TP

AUVAG

VDDC

SPI FLASH

BL_ON/OFF

GPIO2

AMP-AUOUTR0

AUDIO_MUTE 8

GPIO3

HDMIB_SCL
HDMIB_HPDIN

HDMIB_SDA

C403
100NF 16V

AVDD_MOD

L106 100nH

SPDIF_OUT

RXE2+ 7

RXO3+7

RXE1+

RXO1+ 7

RXE0- 7

RXE2-

RXE0+ 7

RXO2+

RXE2+

RXO1-

RXO2+ 7

RXO1- 7

RXO0+

RXE0­RXE0+

POWER

0603

0603

0603

0603

RXO2-

RXO1+

RXO2- 7

RXO3-7

HDMIB-RX1N5
HDMIB-RX2N5

RXO0-

RXE1-

HDMIB-RX1P
HDMIB-RX2P

RXE1- 7

HDMIB-RX2P5

HDMIB-RX1P5

RXO3+

HDMIB-RX1N
HDMIB-RX2N

RXE2- 7

RXO3-

RXO0- 7

RXE1+ 7

RXO0+ 7

GPIO6

M_SDA

C420 1UF 10V

C419 1UF 10V

C421 1UF 10V

GPIO7

C430 1UF 10V

MHL_CABLE-DET5

AVDD5V_MHL

MHL_CABLE-DET

GPIO8

SPDIF_OUT

PWR_ON

GPIO9

BL_DI MMING BRIGHT_ADJ

R717

1K 1/16W 5%

LED_G 7

LED_G

HDMIA_SCL
HDMIA_HPDIN

HDMIA_SDA

U403

MX25L3206EM2I-12G

CS#

1

SO/SIO1

2

WP#

3

GND4SI/SIO0

5

SCLK

6

HOLD#

7

VCC

8

HDMIB_SCL

HDMIB_SDA

CVBS1

C440
47nF 16V

M_SCL

CVBS1

MHL_CABLE-DET

HDMID_SDA

HDMIA_SDA

HDMID_SCL

HDMIA_SCL

FB107 300R

1 2

DDR2 =>
MSD8120PBN
DDR3 =>
MSD8120PBM

SPI_SDI

SPI_CLK

R710

0R05 OHM

HDMIA-RX1N5

VGA_GP
VGA_RP

HDMIA-CLKN5

HDMIA-RX0P5

VGA_BP

HDMIA-CLKN

C434
22NF 25V

HDMIA-RX0N5

HDMIA-RX2N5

VGA_COM4

HDMIA-CLKP

HDMIA-RX1P
HDMIA-RX2P

VGA_COM

HDMIA-RX0P

VGA_SOG4

VGA_VS

HDMIA-RX0N

HDMIA-RX2N

HDMIA-RX1N

VGA_BP4

VGA_HS4

SPI_SDO

VGA_HS
VGA_SOG

HDMIA-RX2P5

VGA_VS4

HDMIA-CLKP5

VGA_RP4

HDMIA-RX1P5

VGA_GP4

SPI_CSN

IF_AGC1 4

IF_AGC1

RXOC+ 7

RXOC-

RXOC- 7

KEY2 7
KEY1 7

RXOC+

KEY1

KEY2

YPbPr_R_In03
YPbPr_L_In03

VGA_L_In4

VGA_R_In4

COMP_PR3

COMP_Y3

COMP_PB3

COMP_COM3

COMP_PB

COMP_PR

COMP_Y

COMP_SOY

COMP_SOY3

COMP_COM

R711 0R05 OH M

CVBS0P3
CVBS_VCOM3

CVBS_VCOM

CVBS0P

HDMIA_HPDIN

Demod_RST

HDMID-RX0P

R712

0R05 OHM

HDMID-CLKP5

BL_DIMMING

HDMID-CLKP

PWM1

GPIO1

AVDD3P3_VEDIO

SPI_CLK

FAT_IN+
FAT_IN-

HDMID_HPDIN

HDMID-RX0N5

HDMID-RX1N

ARC_SPDIF

USB_DM 7

RXE3+

USB_DP
USB_DM

USB_DP 7

HDMID-RX2N

HDMID-RX0P5

FAT_IN+

HDMIB-RX0P HDMI_CEC

ARC_SPDIF

HDMIB-CLKN5

AVDD_DDR_CMD

SPI_WP

SPI_SDI

GPIO0

C424

100NF 16V

C428

100NF 16V

HDMID-CLKN

HDMIB-CLKP5

R443
4K7 1/16W 5%

C411
1UF 10V

HDMID-RX1N5

R418
10K

DDCA_CK 4

C415

100NF 16V

AVDD_AU33

RXEC+

HDMID-RX0N

ARC_SPDIF 5

DDCA_CK

R427

100K 1/16W 5%

R449

4K7 1/16W 5%

U410
G690H293T73

GND

1

RESET

2

Vcc

3

RXE3+7

SPI_SDO

HDMI_CEC

R442

4K7 1/16W 5%

HDMIB-RX0N5

OIRI 7
HDMI_CEC 5

HDMID-RX1P5

DDCA_DA 4

C413
1UF 10V

RXE3-7

FAT_IN-

HDMIB-CLKN

C425

100NF 16V

IF_AGC

HDMIB-RX0N

C416

4.7UF 6. 3V

DDCA_DA

ORESET#

Circuit Diagrams and PWB Layouts

EN 69TPS15.1A LA 10.

2015-Sep-11

back to

div.table

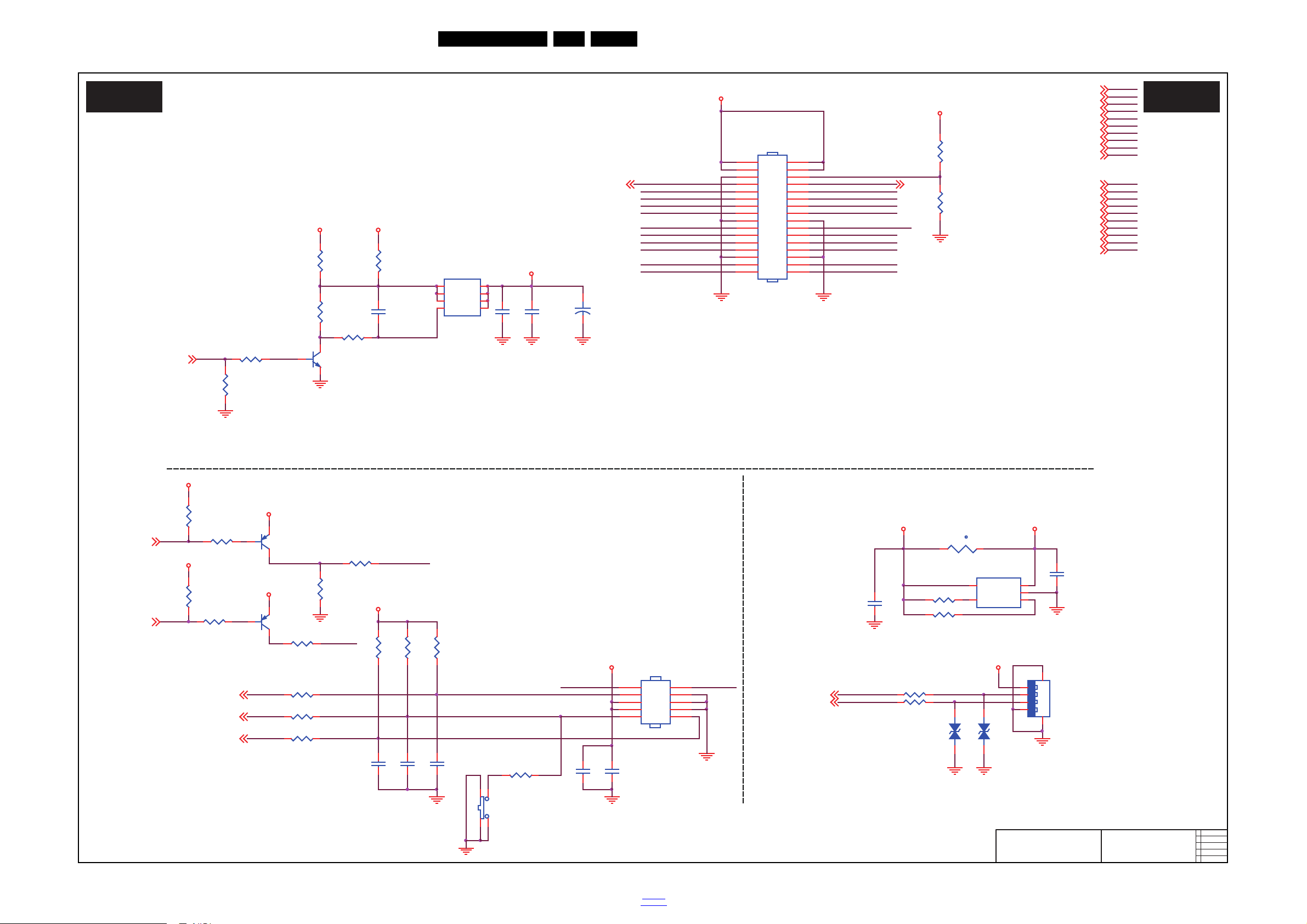

10-6-5 LVDS/USB/KEYPAD

19900_516.eps

LVDS/USB/KEYPAD

B05 B05

2014-12-21

715G6805

LVDS/USB/KEYPAD

SELLVDS

LED_RE

t

TH101

NC

1 2

RXE3-

061G 56A075 LT HF ( master)
061G 56A075 WT HF (2nd)

LED_RE

RXE1-

RXE0­RXE2-

RXE3+

CN401

CONN

2
4
6

8

10

1

3

5
7
9

LED_GE

C152

1UF 10V

C153

100NF 16V

+3V3SB

LED_GE

LVDS Power

IR / KEY BOARD CONN.

H PANEL ON
L PANEL
OFF

USB PORT

RXEC+

LED_G

R179

1K 1/16W 5%

LED_G6

+3V3SB

R177
10K

R180

1K2 OHM

Q104
MMBT3906

+3V3SB

RXE0+
RXE1+
RXE2+

RXEC-

R151

NC_4K7 1/ 16W 5%

R154

NC/ 4K7 1/ 16W 5%

RXOC+

RXO2+

RXO0+
RXO1+

CN403

CONN

2
4
6

8

10
12
14
16
18
20
22
24
26
28

30
32

1

3

5
7

9
11
13
15
17
19
21
23
25
27
29
31

R171

NC/0R05 1/16W

USB 2.0

M_SCL
4,8,10

+5VSB +12V

LED_R

R172

NC

R173

0 OHM +-5% 1/8W

C150

4.7UF 10% 10V

M_SDA

4,8,10

KEY2_IN

KEY1_IN

SW401

NC/SW

123

4

ZD121

NC

12

C158

10UF 16V

C151
1UF 10V

RXO2-6

RXO0-

R168 100R 1/ 16W 5%

Q102
MMBT3904

RXE1-

RXO2-

RXE0+

RXO0+

RXE2-

R150

47K 1/16W 5%

123 4

CN103

USB CONN

1
2

3

4

6 5

RXEC+6

C155

100NF 16V

C148

100NF 16V

RXE2-6

RXE3-6

RXE0-6

R158 5R6 1/16W 5%

R162

3.9K 1%

Q103
MMBT3906

RXO1-6

C145
470NF 16V

RXOC+6

RXOC-

R155

4K7 1/16W 5%

RXO0-6

RXO2+

RXE0-

RXEC-

C154

100NF 16V

RXE1-6

RXOC+

R165

1K 1/16W 5%

R153

150K 1/16W 5%

PANEL_VCC

R159
10K

R163

10K +-1% 1/16W

RXO3-

RXE3-

RXO2+6

RXE2+6

DVDD3V3

RXO1-

RXE3+

R161
10K

R156

10K

RXO3-6

RXO1+6

ZD122

NC

12

R167

1K2 OHM

RXO3+6

RXEC-6

R170 1Kohm 1/16W +/-1%

R169

1Kohm 1/16W +/-1%

RXOC-6

RXE1+

C156
100PF 50V

RXE3+6

RXO0+6

RXE1+6

RXE2+

U109

APL3511CBI-TRG

VOUT

1

GND

2

OCB

3

EN

4

VIN

5

RXE0+6

RXEC+

RXO1+

R157 5R 6 1/ 16W 5%

RXO3+

USB_DM

R164
30K OHM +-1% 1/16W

R160
10K

PANEL_VCC

USB_5V

USB_5V

5V_SW

+3V3SB

+3V3SB

USB_DP6

USB_DM6

+3V3SB

+

C140
100UF 16V

PANEL_EN6

KEY26

KEY16

OIRI6

LED_R6

R174
10K

RXO3-

USB_DP

SW40 1 colay with
CN508

M_SDAM_SCL

Q101

MTP9435BDYAQ8

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

RXO0­RXO2-

RXO1­RXOC-

RXO3+

KEY1

OIRI

KEY1: POWER
KEY2: Vol+/-, CH+/-,
Menu, Input

KEY2

Circuit Diagrams and PWB Layouts

EN 70TPS15.1A LA 10.

2015-Sep-11

back to

div.table

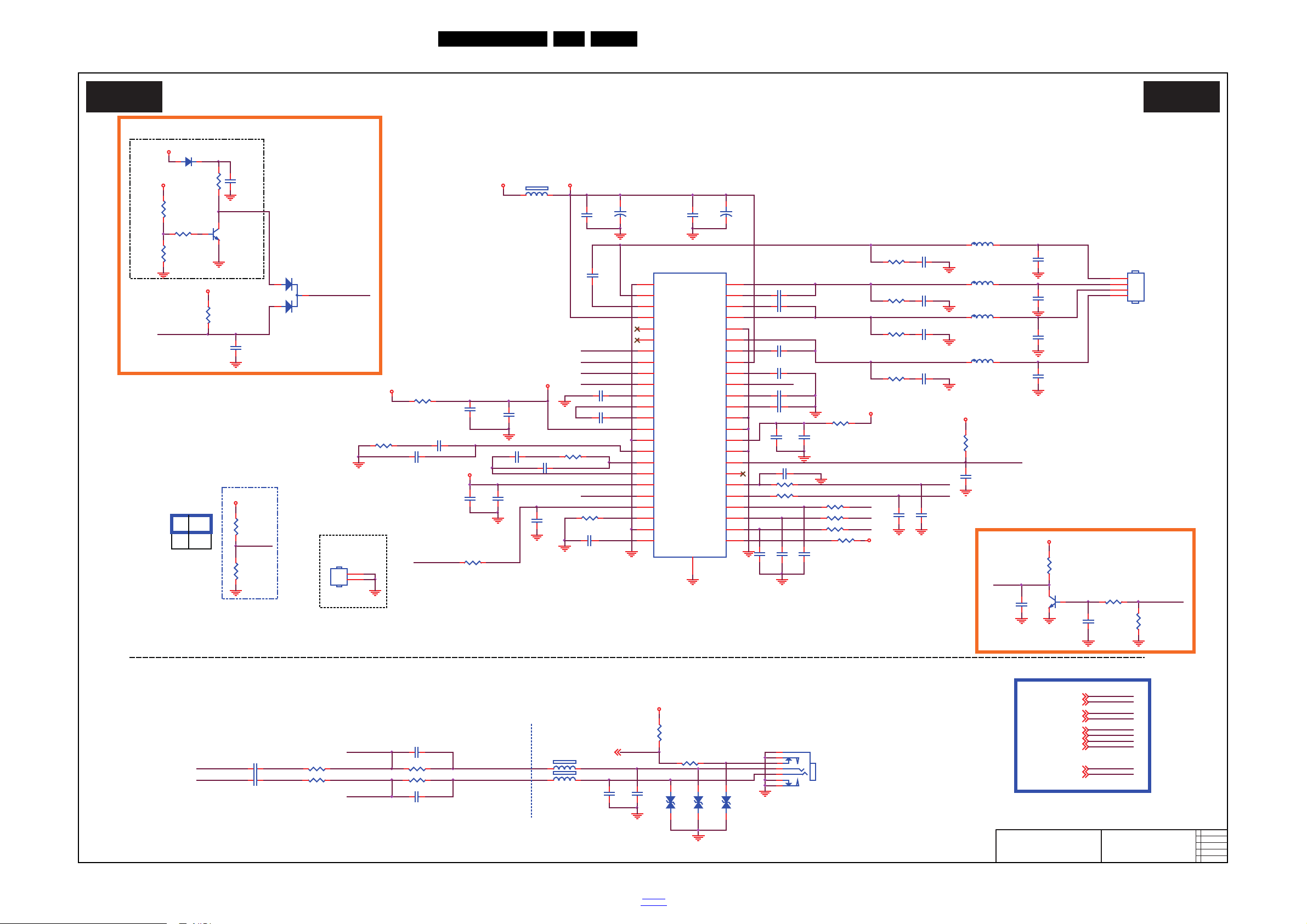

10-6-6 Audio Amp/Headphone Output

19900_517.eps

Audio Amp/Headphone Output

B06 B06

2014-12-15

715G6805

Audio Amp/

Headphone Output

R601

18R 1/10W 1%

R603

18R 1/10W 1%

Q90T0092 1

Heat
Sink
24*9

P90T0066101

R604

18R 1/10W 1%

C615
1UF 10% 16V

C619
1UF 10% 16V

HS601

HEAT SINK

1
2

HPOUT_R

HPOUT_L

C678

10UF 6. 3V 20%

C679

NC/10UF 6.3V 20%

C628
1nF 50V

C643 100PF 50V

C646 100PF 50V

R623

4.7K 1/16W

C637
1UF 10V

HP_MUTE

FB602 0R 05 1/ 16W

ROUT-

C644 2.2U F 10V

HP_DET6

DVDD3V3

HP_DET

C649

100PF 50V

C645 2.2U F 10V

FB604 300R

C650
100PF 50V

FB605 300R

R625 100OHM

R624

10K

AMP-AUOUTL

R626 10K +-1% 1/16W

AMP-AUOUTR

R629 10K +-1% 1/16W

EAR_L
EAR_R

R627 33K 1%
R630 33K 1%

HPIN_L

HPIN_R

AUDIO_MUTE

FB601

120R

12

AUDIO_MUTE6

+12V_AU D

AMP-AUOUTR
AMP-AUOUTL

C623
100N16V

L601 10uH

C621 2.2nF 50V

HP_SD

C617 1UF 25V

R612

33 OHM 1/16W

R614

33 OHM 1/16W

C640

22PF 50V

C604

0.1uF 50V

AMP_POWER

M_SCL4,6,10

M_SDA4,6,10

AUDIO_RESET6

L602 10uH

L603 10uH

AMP_3V3

L604 10uH

C624
1UF 10V

R617

18.2K OHM +-1% 1/16W

C601

0.1uF 50V

AUDIO_RESET

R607

470R 1/16W 1%

AMP_3V3

R+

R602

18R 1/10W 1%

C605

330pF 50V

C630

4.7NF 50V

C629 47nF 16V

C63422PF 50V

C610

330pF 50V

AMP-AUOUTL6

C613

330pF 50V

R632

22 OHM 1/16W

C618

330pF 50V

C638

22PF 50V

C633 4. 7N F 50V

C631 47nF 16V R608 470R 1/16W 1%

R606
10K

AMP_PDN

ADR

C641

22PF 50V

C642

22PF 50V

AMP_3V3

AMP_3V3

AU_MCK

AU_SD6

AU_SD

DVDD3V3

C636
100N16V

AMP-AUOUTR6

AU_BCK6

AU_MCK6

AU_WS6

R631

33 OHM 1/16W

C620 1UF 10V

R618

33 OHM 1/16W

AU_WS

AU_SD

R616

33 OHM 1/16W

C626 1UF 10V

C639 4.7UF 10% 10V

U601

TAS5729MD

GND

1

OUTA

2

BSTA

3

PVDD

4

PWM1

5

PWM2

6

HPIL

7

HPOL

8

HPOR

9

HPIR

10

HPVSS

11

CN

12

AVDD_REG2

37

SSTIMER

38

HP_SD

39

GVDD_REG

40

PVDD

41

BSTD

42

OUTD

43

GND

44

OUTC

45

BSTC

46

BSTB

47

OUTB

48

GND

36

GND

35

TEST

33

DVDD

34

RESET

32

NC

31

SCL

30

SDA

29

SDIN1

28

SCLK

27

LRCLK

26

PDN

25

CP

13

HPVDD

14

GND

15

FLTM

16

FTLP

17

AVDD_REG1

18

AVDD

19

ADR

20

MCLK

21

ROSC

22

GND

23

DVDD_REG

24

E-Pad

49

R619

NC

R621

10K

AMP_3V3

ADR

C635
NC

C622 100N16V

M_SCL

AU_MCK

L-

C627
100N16V

HPIN_L

LOUT+

M_SDA

L+

AU_WS

AU_BCK

C611
1UF 10% 16V

R-

HPOUT_L

AUDIO_RESET

HPIN_R

HPOUT_R

C608
33nF 50V

C609 33nF 50V
C612 33nF 50V

C616 33nF 50V

AMP_3V3

M_SCL
M_SDA

C122

47PF 50V

C128

47PF 50V

R605 10K

HP_SD

I2C A ddress

20121205 ESD

ZD603

NC/MLVG0402

12

Lo

0402

0X54

0402

6ohm 8W

ZD602

NC/MLVG0402

12

ZD601

NC/MLVG0402

12

088G302G7B1ACL

HeadPhone / Audio Output (Side)

HP_MUTE

C680

100N 16V

DVDD3V3

D602

BAS316WS

R646

5.1K 1%

AC OFF

R653
10K

+5VSB

R658

4.7K 1/16W

DC OFF

C664
22UF 10V

Q601

LMBT3904LT1G

+

C603

100UF 35V

AUDIO_MUTE

R642

1K 1/16W 1%

CN602

PHONE J AC K

1
7
6
2

3

4
5

R654

470R 1/16W 5%

A_MUTE

D601

BAV70

3

1

2

5V_SW

Hi

Q603

MMBT3904

AMP_3V3

R620

10K

R622 2.2K 1/16W

0402

0402

0X56

+

C602
100UF 35V

RESET_AMP

CN601

CONN

1

2

3

4

EAR_DET

LOUT-

AU_BCK

ROUT+

C607
1UF 10% 16V

FB603

0R05 1/16W

Circuit Diagrams and PWB Layouts

EN 71TPS15.1A LA 10.

2015-Sep-11

back to

div.table

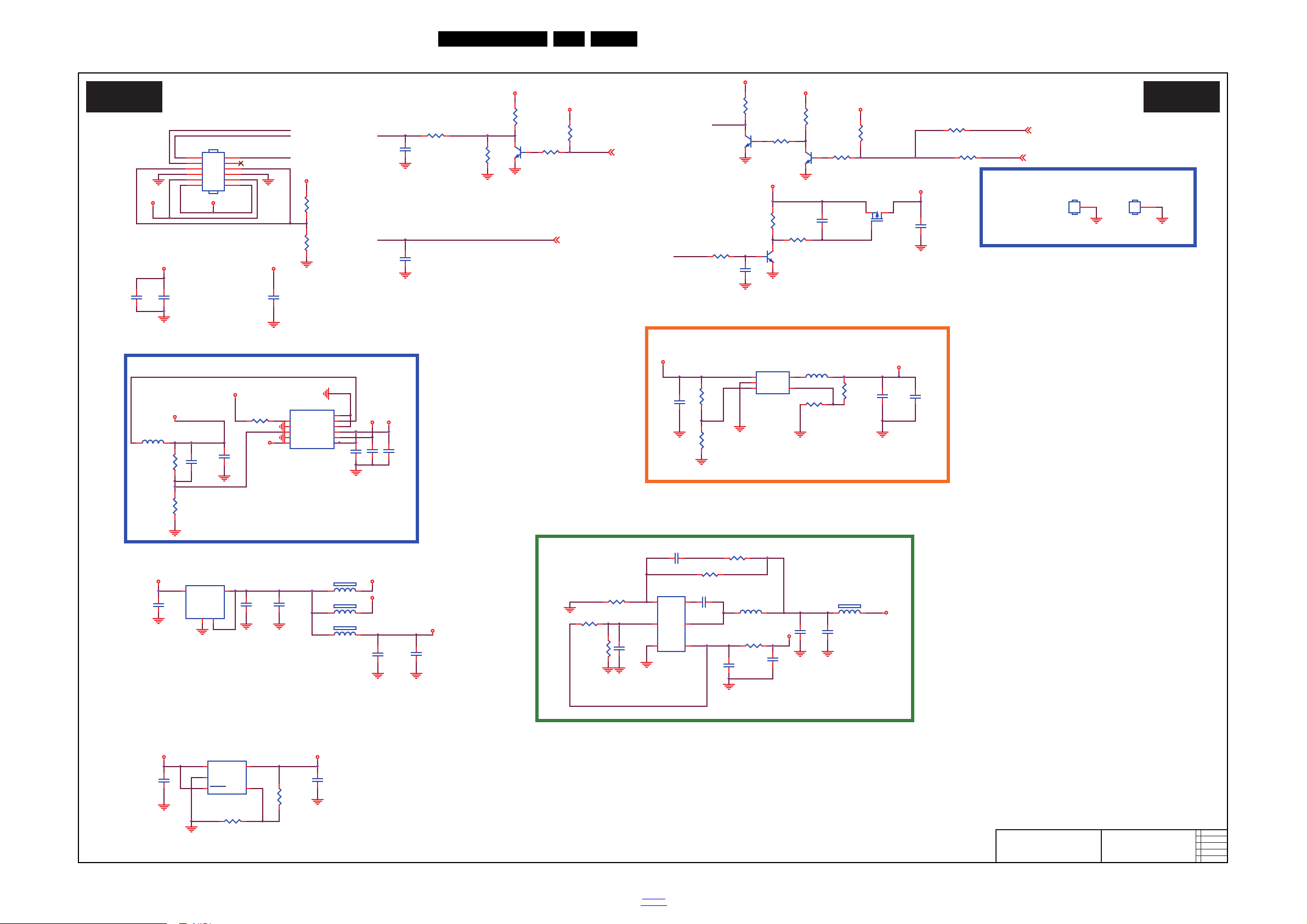

Circuit Diagrams and PWB Layouts

19900_518.eps

System Power

B07 B07

2014-12-15

715G6805

System Power

R707

4K7 1/16W 5%

BRIGHT_ADJ 6

+5VSB

+3V3SB

+12V_AUD +12V

R720

0R05 1/16W

H => POW ER _ ON
L => POWER_OF F

+12V

FB702 120R

1 2

C743

22UF 6. 3V

FB701 120R

1 2

R744

33K 1/16W 1%

DVDD3V3

U706

G5695T11U

VIN

1

GND

2

EN3VFB

4

LX

5

R745
22K 1%

C744
1UF 10V

C745

2.2UF 16V

DRAM Power 1. 5V

R1

R2

DDRV

R708

4K7 1/16W 5%

PS_ON

R166

NC_0R05 OHM

PWR_ON_1 6

PWR_ON_1

FB703 120R

1 2

DM1V2

3V3T

C720
10UF 10V

C706
10UF 6. 3V 20%

C723

1UF 10V

C735
10UF 6. 3V 20%

R743
10K

+5VSB

L706

2.2uH

C747
100NF 16V

GND3

GND

1

GND2

GND

1

+12V

C738
10uF 16V

C746

10UF 6. 3V 20%

FB704

300R

1 2

U701

SY8104ADC

LX

5

FB

1

EN

2

GND3IN

4

BS

6

R725

13.3K 1%

R737

100K 1%

L701

4.7uH

C703

470pF 50V

R738

100K 1%

R714

390K 1%

R713

0R051/8W

C740

100N 50V

R703

1K 1/16W 5%

C739

22UF 10V

+12V_AUD

CN701

CONN

2

4

6

8

10

12

1

3

5

7

9

11

C734
22UF 10V

+5VSB

U703

G9141T11U

IN

1

GND

2

SHDN3SET

4

OUT

5

R175

0R05 OHM

PWR_ON

SOT223 1A/3.3V

DEMOD POWER

U702
AZ1117CH-3.3TRG1

ADJ(GND)

1

VOUT

2

VIN

3

4

4

R1

R2

R740

1.5K +-1% 1/10W

R773

NC/0R05 1/10W

R735
1K 1/16W 5%

+3V3SB

R726

4K7 1/16W 5%

BL_ON/OFF

Q705
MMBT3904

DM3V3

R722

4K7 1/16W 5%

5V_SW

BL_ON_OFF

BL_ON/OFF 6

C726

1UF 10V

PWR_ON 6

C717

4.7UF 10% 10V

R750

18Kohm 1/16W +/-1%

R741

10K +-1% 1/16W

Q706
MMBT3904

VCCK

+5VSB

C725

10UF 6. 3V 20%

C724

2.2UF 16V

+5VSB

R739

0R05 1/16W

L702

2.2uH

U705

M5723B-33F61U

EN1

1

AGND

2

FB1

3

AGND

4

EN25IN2

6

OUT2

7

IN1

8

PGND

9

LX

10

E-PAD

11

C719

NC/ 100N 16V

DM3V3

C715

1UF 10V

+3V3SB

+5VSB

R742

4K7 1/16W 5%

R732

18Kohm 1/16W +/-1%

+3V3SB

R1

R2

BRIGHT_ADJ

R721
100K1/16W

C701
100PF 50V

Q702
AO3401A

C709
10N 50V

C702

1nF 50V

BL_DIM

CORE POWER 1.2V

BL_ON

R774

0R05 1/10W

C705
22UF 16V

PS_ON

5V_SW

R753

4K7 1/16W 5%

C721
100NF 16V

C704
22UF 16V

R705

7K5 1/16W 5%

5V Power for Standby

Back Li g h t On / Off
HI => POWER _OF F
LO => PO W E R _ ON

BL_DIM

BL_ON

PS_ON

5V_SW

MAIN POWER

C711

0.1uF 50V

+5VSB

Q701
MMBT3904

5V_SW

R706

1K 1/16W 5%

C713

100PF 50V

R704

47K 1/16W 5%

R709

4K7 1/16W 5%

C712
1UF 10V

C708

0.1uF 50V

Q703
MMBT3904

R701

100R 1/16W 5%

EN 72TPS15.1A LA 10.

10-6-7 System Power

2015-Sep-11

back to

div.table

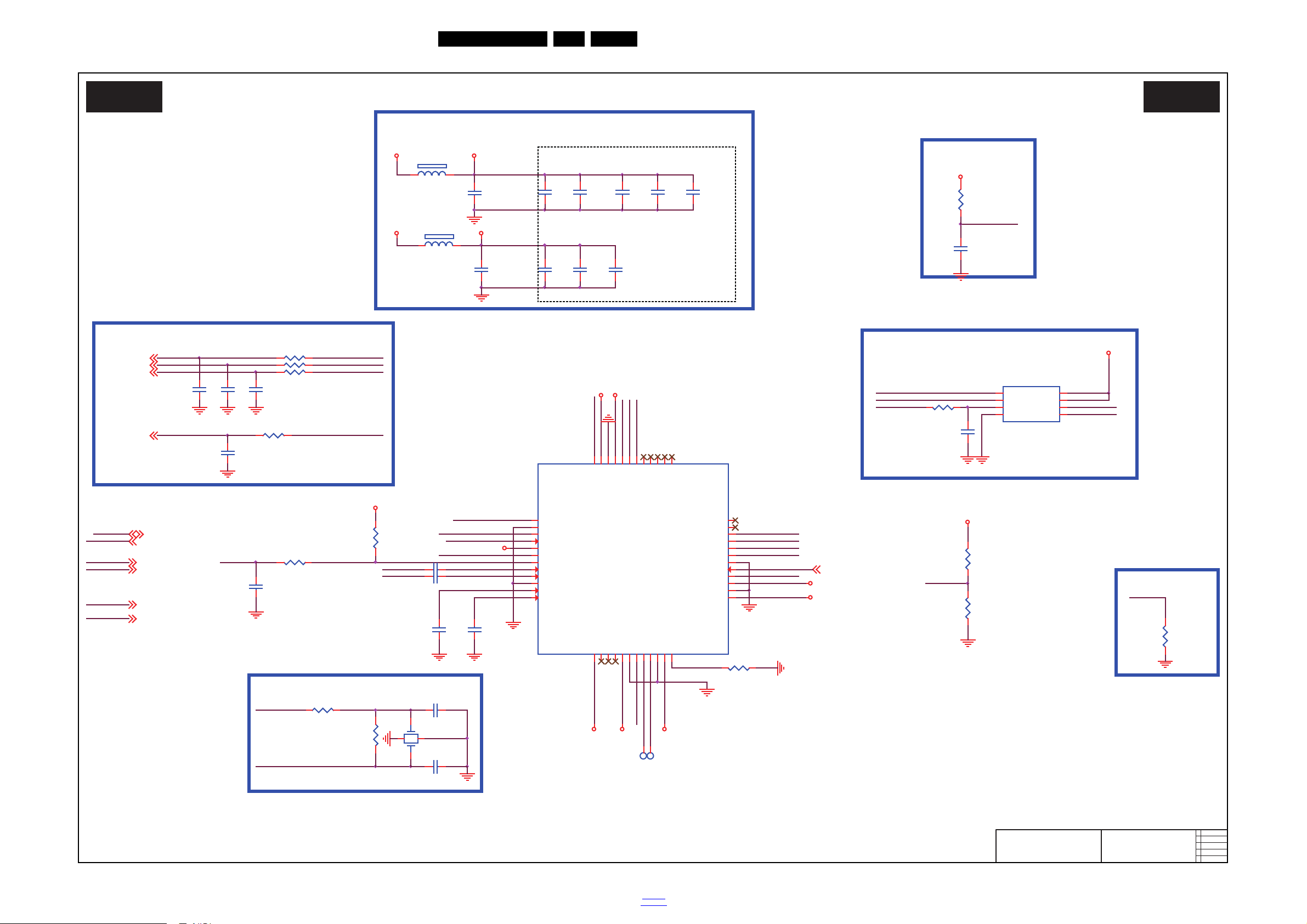

10-6-8 Demod DVB-T2

19900_519.eps

Demod DVB-T2

B08 B08

2014-12-15

715G6805

Demod DVB-T2

AGC2 4

AGC2

X10 1

24MHZ

1

2 4

3

C162

100N 16V

R141

10K

C160

12P 50V

VCC3V3

1.2V

C193
100N 16V

C131
22NF 25V

AGC2

C195

100N 16V

R187 0R05 1/16W

C196
10UF 6. 3V 20%

C188

100N 16V

C194

100N 16V

C130

100N 16V

C126
100N 16V

C191

100N 16V

R124

10K

C190

100N 16V

DM3V3

VCC3V3

C163
100N 16V

MSPI_DO
MSPI_DI

TSCLK
MSPI_CSZ

Demod_RST6

1.2V

VCC3V3

Demod_RST

C185

12P 50V

DATA

C186
12P 50V

WP

Flash

TS_SYNC

Reset

VCC3V3

Demod_RST

R127
10K

POWER

TS_CLK_S TSCLK

TSSYNC

TSVLDTS_VLD

HW_Strap

TSSYNC

TSVLD

SYS_SDA

GPIO_0 TS0

TS0

TP101

TS_D0

M_SCL 4,6,8

M_SDA 4,6,8

C192
10UF 6.3V 20%

1.2V

1.2V

VCC3V3VCC3V3

VCC3V3

C187
12P 50V

R193 47 OH M 1/16W

TS_D06

TS_SYNC6

TS_VLD6

U103

MSB1241

NC16NC15NC

14

MSPI_CSZ/SSPI_CLK

33

GND

46

I2CM_SCL20I2CM_SDA

21

VDD

25

VSS

18

VDD3323TS_ERR

24

VDD

17

RESETZ

29

GND

30

Configure/GPIO0

19

MSPI_CLK/SSPI_CSZ

28

MSPI_DI/SSPI_DO

31

IF_AGC

7

GND

26

VDD33

27

RFAGC/GPIO

6

TS_CLK

34

TS_D[7]

35

TS_D[6]

36

TS_D[5]37TS_D[4]38TS_D[3]39TS_D[2]40TS_D[1]41TS_D[0]42TS_VLD

43

TS_SYNC

44

VDD33

45

GND

22

VDD

47

I2CS_SDA

48

I2CS_SCL

1

GND

2

XTAL_OUT

3

XTAL_IN

4

AVDD33

5

GND

10

MSPI_DO/SSPI_DI

32

QP

8

QM

9

IP

11

IM

12

AVDD33

13

XTAL_IN

TS_CLK_S6

QM
QP

IF_AGC_D

Demod_RST6

IF_AGC_SW

R138

33 OHM 1/16W

MSPI_CLKMSPI_WP
MSPI_DI

MSPI_DO

MSPI_CSZ

C198

100N 16V

VCC3V3

MSPI_CLK

C197
10UF 6.3V 20%

R197

510R 1/16W 5%

GPIO_0

MSPI_WP

R194
10K

R195
10K

XTAL

XTAL_IN

C183

18PF 50V

C184

22PF 50V

R189

NC/1M 1/16W

XTAL_OUT

U102

MX25L2006EM1I-12G

CS#

1

SO/SIO1

2

WP#

3

GND4SI/SIO0

5

SCLK

6

HOLD#

7

VCC

8

R190 47 OHM 1/16W

C199 100N 16V

R196
NC/10K+-5%1/16W

DM1V2

C161 100N 16V

TP102

I2CM_SDA

VCC3V3

FB103

120R

1 2

FB104

120R

1 2

I2CM_SCL

R191 47 OHM 1/16W

SYS_SCL
XTAL_OUT

MSPI_WP

VCC3V3

IM

IP

R192 47 OHM 1/16W

QM 4

SYS_SCL

SYS_SDA

QP 4

QP

QM

Circuit Diagrams and PWB Layouts

EN 73TPS15.1A LA 10.

2015-Sep-11

back to

div.table

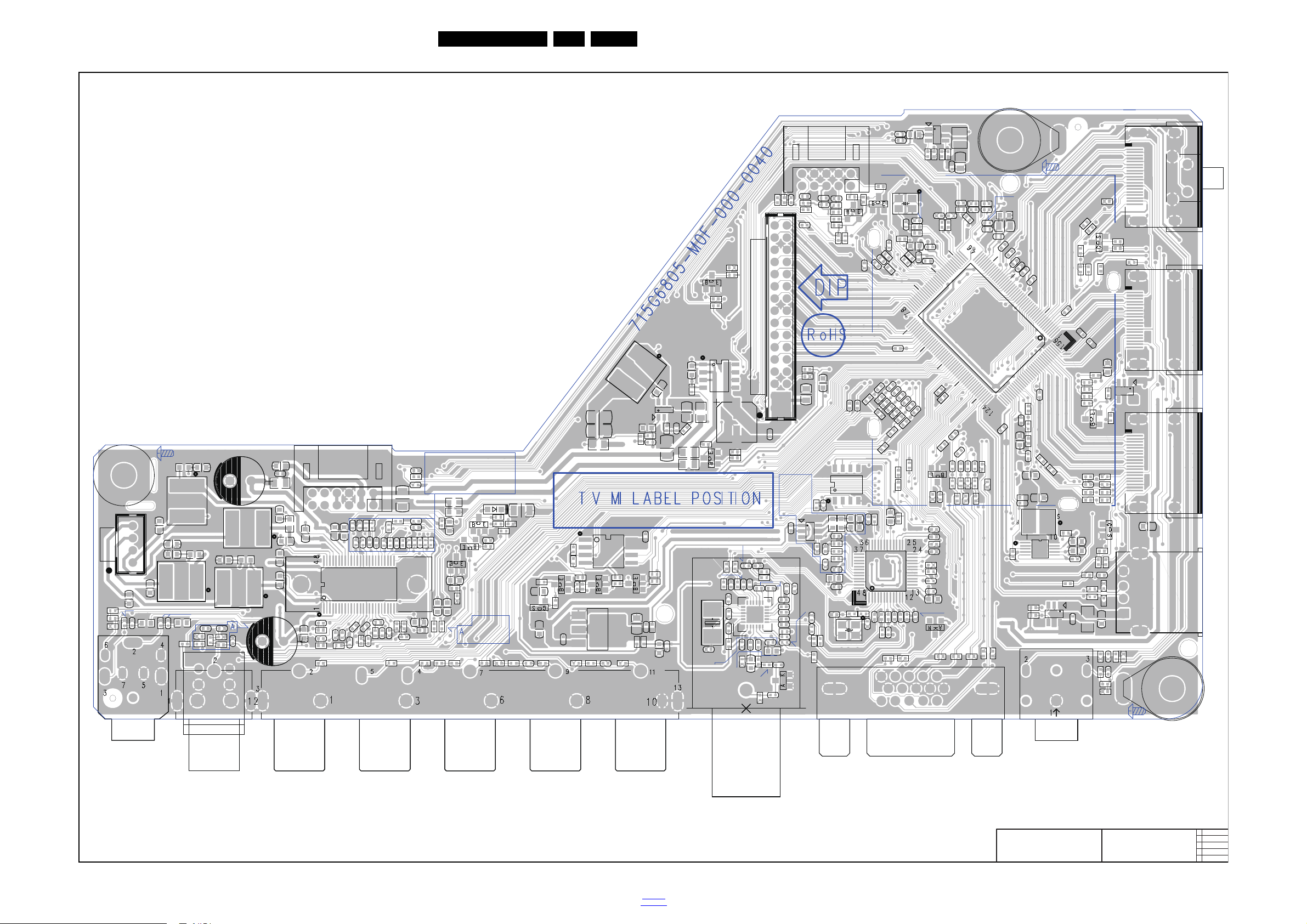

10-6-9 SSB layout top

19900_520.eps

715G6805

LAYOUT TOP

X101

C140

X401

C745

C725

C145

C708

C711

C150

C410

C412

C414

C422

C508

C507

C644

C645

C639

C169

C601

C604

C605

C608 C609

C610

C612

C613

C616

C617

C618

C735

C717

C724

C196

C197

C607

C611

C615

C619

C706

C740

C192

C678

C679

C743

C720

C158

C408

C738

FB401

FB604

FB605

FB101

R774

R773

R601

R602

R603

R604

R725

R740

FB104

FB103

FB601

FB704

TH101

R713

R172

R173

C664

C734

C739

D602

C746

C705

C602

C603

C704

SCREW4

SCREW20

SCREW1-3

SCREW1-4

HS401

SCREW1-1

CN101

CN102

CN103

CN602

Q501

Q505

U109

U410

U505

U702

ZD120

ZD507

U401

Q102

Q103

Q701

Q703

Q705

Q706

Q104

CN604

U601

Q603

Q702

D102

SCREW3

SCREW2

SCREW1

CN701

U705

CN603

FCN101

HS601

L702

L701

U103

U703

U706

X102

GND2

GND3

U701

CN111

L601

L602

L603

L604

Q601

L706

D601

C504

C101

C102

C103

C104

C105

C183

C107

C108

C110

C112

C113

C118

C123

C125

C126

C127

C129

C160

C133

C134

C136

C137

C139

C142C143

C148

C153

C156

C404

C403

C402

C406

C407

C409

C411

C413

C415

C416

C417

C418

C423

C424

C425

C426

C427

C428

C429

C621

C622

C624

C650

C634

C701

C702

C440

C501

C630

C640

C623

C635

C723

C633

C431C432

C185

C154

C155

C721

C433

C503

C636

C643

C114

C151

C152

C419

C420

C421

C430

C641

C164

C649

C620

C627

C712

C434

C505

C638

C642

C626

C629

C631

C646

C111

C198

C135

C144

C167

C172

C159

C115

C116

C166

C168

C170

C171
C173

C726

C131

C157

C187

C130

C713

C124

C161

C162

C163

C184

C186

C188

C190

C191

C193

C194

C195

C199

C719

C628

C715

C637

C165

C703

C709

C680

C744

C747

R163

R101

R102

R103

R104

R105

R106

R107

R108

R109

R110

R111

R112

R113 R114

R115

R116

R117

R140

R142

R129

R130

R131

R132

R133

R134

R135

R136

R139

R143

R144

R145

R146

R147

R149

R150

R151

R153

R154

R155

R156

R157

R158

R159

R160

R161

R162

R165

R167

R168

R169

R170

R180

R417R418

R422

R427

R439

R442

R443

R449

R450

R529

R492

R505

R506

R530

R510
R511

R512

R514

R507

R517

R518

R501
R508

R532
R533

R534

R542

R543

R544

R545

R550

R551

R552

R712

R493

R711

R624
R625

R701

R704

R705

R706 R707

R708

R709

R717

R722

R726

R191

R735

R742

R174

R177

R608

R626

R558

R559

R753

R179

R623

R607

R164

R617

R515

R118

R119

R627

R616

R181

R182

R561

R621

R194

R189

R629

R495

R606

R618

R620

R622

R630

R125

R138

R126

R183

R124

R732

R653

R127

R141

R187

R190

R192

R193

R195

R401

R402 R404

R428

R503

R619

R642

R646

R654

R741

R750

R703

R744

FB602

FB603

R605

R714

R737

R738

R739

R196

R658

R720

R721

R745

U102

L101

L103

L104

L105

FB701

FB702

FB703

U403

ZD101

ZD121

ZD122

ZD102

ZD103

ZD104

ZD105 ZD106

ZD108ZD109 ZD110

ZD111

ZD112ZD113

ZD114

ZD518

ZD503

ZD602

ZD514

ZD107

ZD601

ZD603

U104

SW401

R171

C439

C435

C436

C437

C438

R632

R710

R121
R123

C121

C120

C146

C122

C147

R122

R120

C119
C132

R197

C128

CN506

CN507

CN508

C117

C174C175

CN403

CN601

C176
C177

FB105

FB106

FB107

L106

R612

R614

R631

CN401

Q101

R166

R743

R175

Circuit Diagrams and PWB Layouts

EN 74TPS15.1A LA 10.

2015-Sep-11

back to

div.table

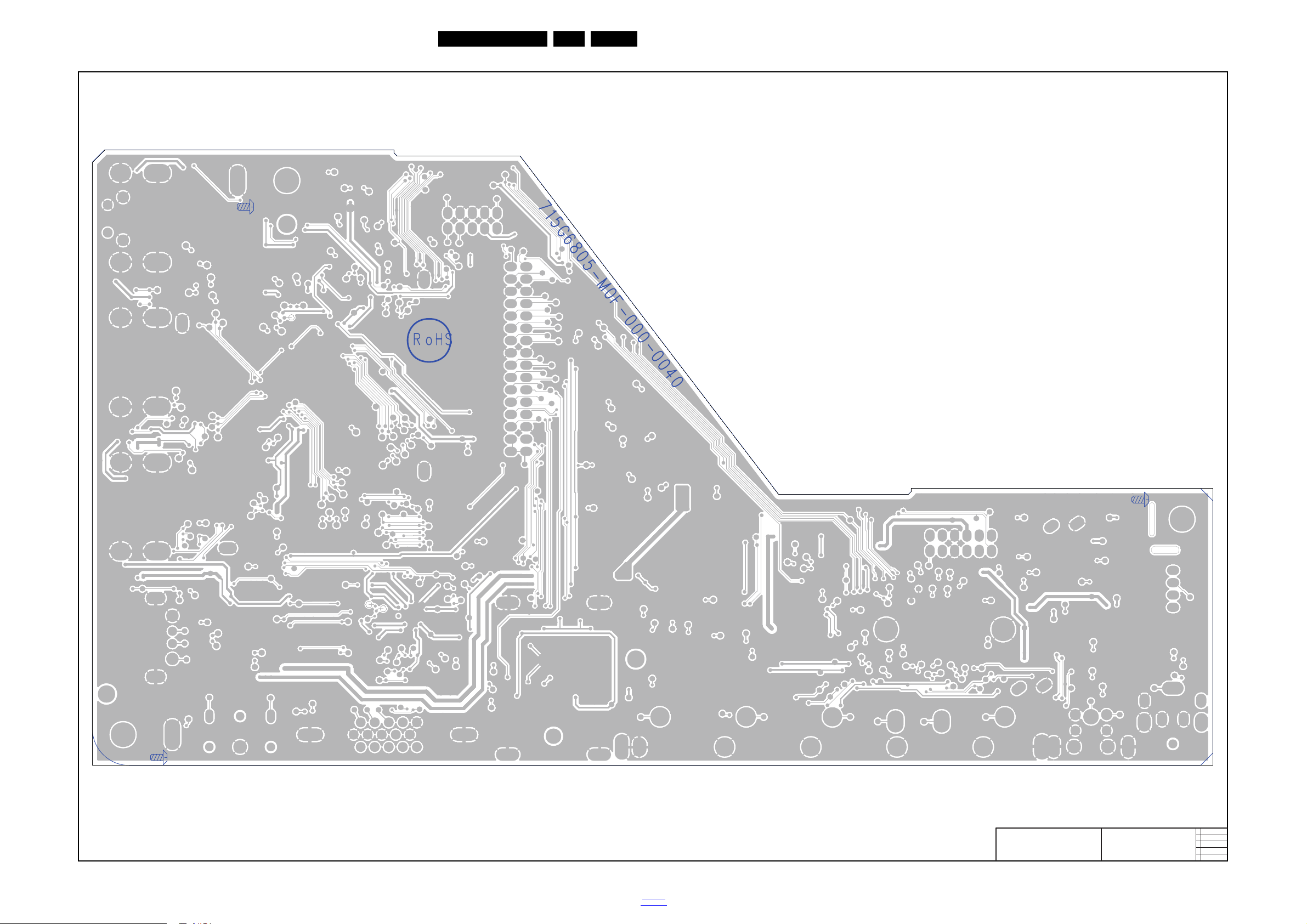

10-6-10 SSB layout bottom

19900_521.eps

715G6805

LAYOUT BOTTOM

TP101

TP102

TP

Circuit Diagrams and PWB Layouts

EN 75TPS15.1A LA 10.

2015-Sep-11

back to

div.table

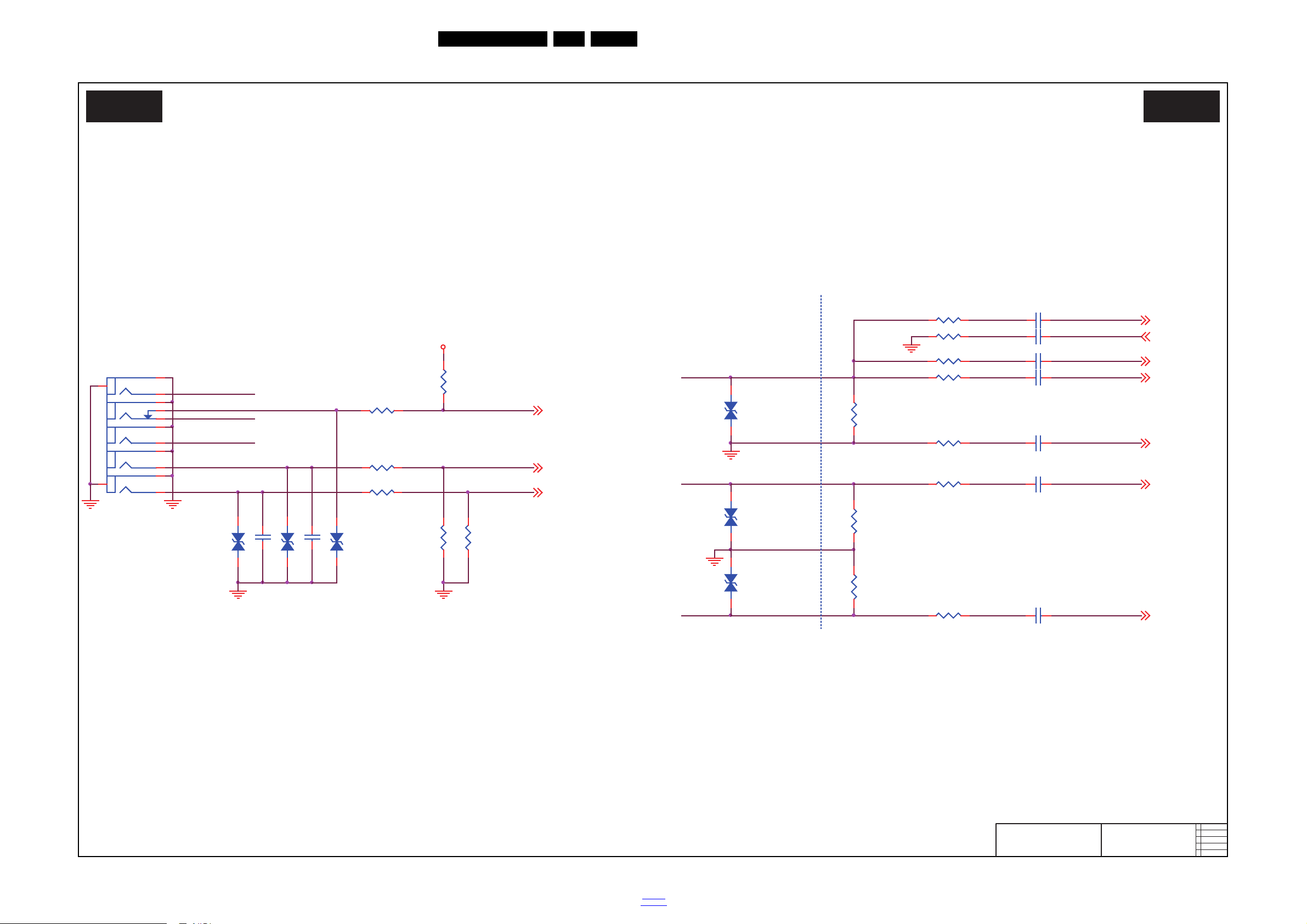

10.7 B 715G6997 SSB

19900_522.eps

AV/YPbPr

B01 B01

2014-11-26

715G6997

AV/YPbPr

Y_IN#1

PB_IN#1

PR_IN#1

YPBPR_L_IN#1

YPBPR_R_IN#1

PB_DET

YPbPr Video Input share with CV B S in Y

088G 78G155ACL

PB_IN#1 COMP_PB

Y_IN#1

PR_IN#1

COMP_SOY
COMP_Y

COMP_PR

COMP_COM

R106 100R 1/16W 5%

C110

3.3NF 50V

R112

75R 1/ 16W 1%

R116 33R 1/ 16W 5%

R111

10K 1/16W 5%

R104 33R 1/ 16W 5%

R102

150OHM 1/16W +/-5%

E

A

B

C

D

CN111 RCA JACK

1
2

3

4
6
7

8

9
10

11

12

13

5

R103

180R 1/ 16W 5%

C103 47N F 16V

C108 47N F 16V

C105 47NF 16V

R115

75R 1/ 16W 1%

R107
75R 1/ 16W 1%

R109

10K 1/16W 5%

R113

12KOHM +-5% 1/16W

R108

68R 1/16W 5%

C104 1nF 50V

C102 47NF 16V

C101 3.3NF 50V

R114

12KOHM +-5% 1/16W

R110

33R 1/ 16W 5%

C107 47NF 16V

C112 47NF 16V

R105 33R 1/16W 5%

R101
4K7 1/16W 5%

COMP_PR (6)

COMP_Y (6)

DVDD3V3

COMP_PB (6)

COMP_COM (6)

COMP_SOY (6)

CVBS_VCOM (6)

CVBS0P (6)

PB_DET (6)

CVBS0PAV1_IN
CVBS_VCOM

YPbPr_R_In0 (6)

YPbPr_L_In0

YPbPr_L_In0 (6)

YPbPr_R_In0

ZD102

NC

12

ZD103

NC

12

ZD106

NC

12

ZD105

NC

12

ZD104
NC

12

ZD101

NC

12

Connected to connector GND

10-7-1 AV/YPbPr

Circuit Diagrams and PWB Layouts

EN 76TPS15.1A LA 10.

2015-Sep-11

back to

div.table

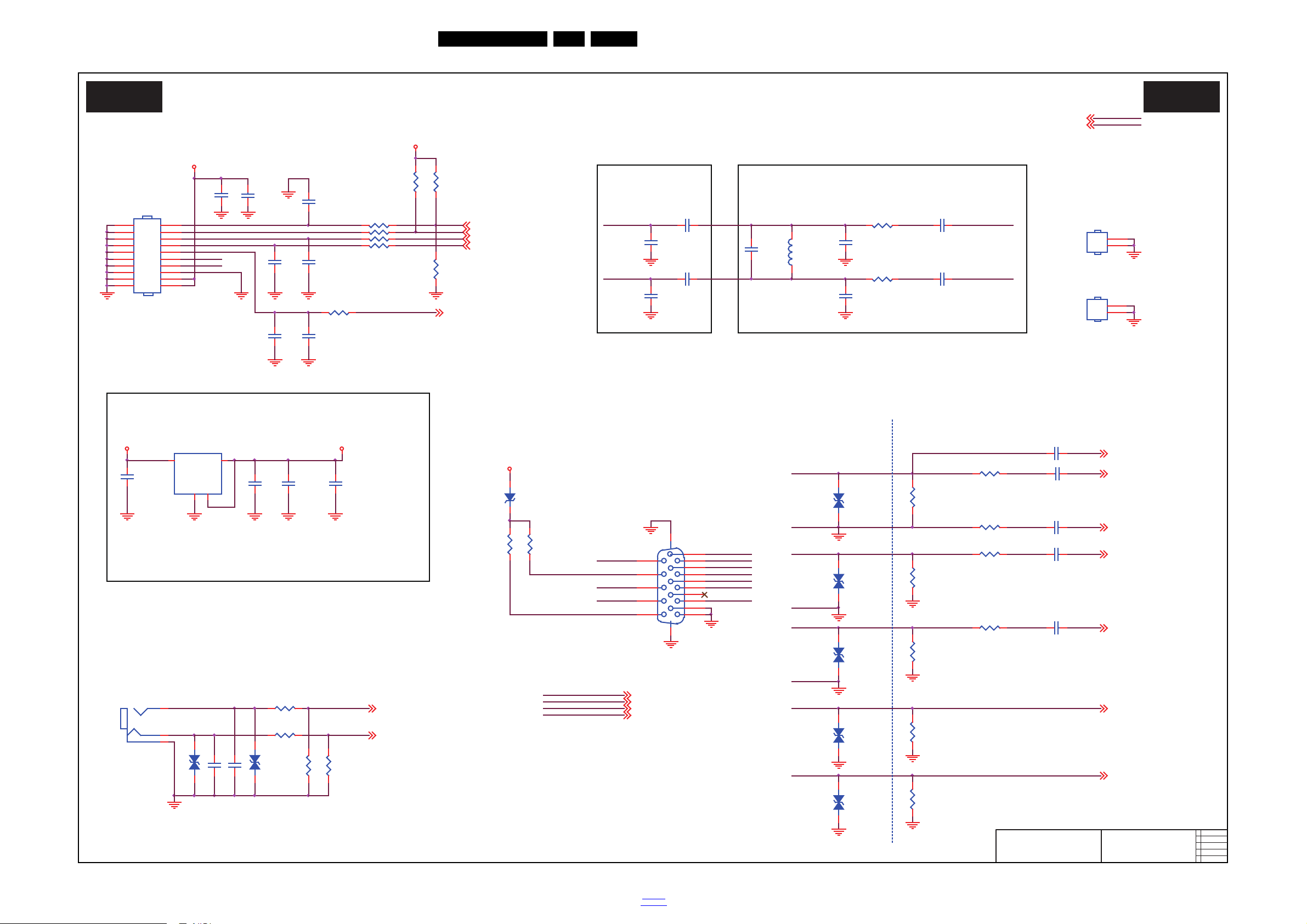

10-7-2 Tuner/VGA Input

19900_523.eps

Tuner/VGA Input

B02 B02

2014-11-26

715G6997

Tuner/VGA Input

VGA/UART

M_SDA (6,7,8)

RF_CTRL (6)

RF_CTRLRF_CTRL

IF_AGC1 (6)

M_SCL (6,7,8)

GRN_GND

GRN

HT_TX

HT_RX

GRNVGASDA

VSYNC#

VGAR_IN

VGASCL

BLUHSYNC#

RED_GND

BLU_GND

RED
GRN_GND

088G353GFF1AXH

HT_TX (6)
HT_RX (6)

HT_RX

HT_TX VGA_HS

VGA_VS

VGA_GP

HSYNC#

VGA_RP

C121
10UF/10V

BLU_GND

BLU

VGA_SOG

RED_GND

RED

VSYNC#

VGA_COM

VGA_BP

Silicon Tuner

VGA

C183
100NF 16V

HS2

BKT_HOLDER

1

2

HS1

BKT_HOLDER

1

2

RF Input
(Side)

X15T897320100000BL

C184

2.2uF/NC

TUN_IF_AGC

CN104

CONN

1

3

5
7
9
11
13
15
17
19

2
4
6

8

10
12
14
16
18
20

R152

0R05 1/16W

R138
47K 1/16W 5%

TUN_IF+
TUN_IF-

TU_RST(6)

FAT_IN-(6)

FAT_IN+(6)

Connected to connector GND

VGA_L_In

VGA_R_In

C138
1UF 10V

TUNER POWER +3V3

ZD108

NC

12

R118 0R05 1/16W

R119 0R05 1/16W

C113

100NF 16V

C114

100NF 16V

L101
NC/0.1UH

C125

NC

C126

NC

ZD109

NC

12

C109

NC/ 120pF 50V

ZD110

NC

12

ZD111

NC

12

VGAL_IN

space/trace/space/trace/space(mil)
12 / 12 / 6 / 12 / 12

IF Trace

ZD114

NC

12

C123
22UF 6. 3V

R146

12KOHM +-5% 1/16W

R129

33R 1/16W 5%

R140

100R 1/16W 5%

C133

1nF 50V

CN101

CONN

1
7
2

8
3

9
4
10
5

11
12
13
14
15

1716

6

C139

47NF 16V

DIF1_OUT1

DIF1_OUT2

C122

100NF 16V

R131

4K7 1/16W 5%

C127

100PF 50V

R149
10K 1/16W 5%

R133

68R 1/16W 5%

R128
470K

R136

33R 1/16W 5%

R135

75R 1/16W 1%

R144
10K 1/16W 5%

C182

100NF 16V

R147
12KOHM +-5% 1/16W

C137

47NF 16V

C128

100NF 16V

CN102
CONN

1

2

3

DIF1_OUT1

U101
AP1117E33L-13-77

ADJ(GND)

1

VOUT

2

VIN

3

4

4

DIF1_OUT2

C189

10PF 50V

R139

75R 1/16W 1%

R130

75R 1/16W 1%

C134

47NF 16V

ZD120
BAT54

13

R132

4K7 1/16W 5%

C136

47NF 16V

C118

NC

C142

3.3NF 50V

C129

NC

C143

3.3NF 50V

R142

100R 1/16W 5%

R141 100R 1/16W 5%

C120
10UF 10V

R134

33R 1/16W 5%

R145

10K 1/16W 5%

C132

10PF 50V

R143

10K 1/16W 5%

C117

100NF 16V

5V_SW

+3V3TUNER

+3V3TUNER

+5VSB

DDCA_DA (6)
DDCA_CK (6)

VGA_SOG (6)

VGA_VS (6)

VGA_HS (6)

VGA_BP (6)

VGA_GP (6)

VGA_RP (6)

VGA_COM (6)

VGA_R_In (6)

VGA_L_In (6)

FAT_IN-

FAT_IN+

+3V3TUNER

R137

10K 1/16W 5%

VGASCL DDCA_CK

DDCA_DAVGASDA

R148

1Kohm 1/16W +/-1%

ZD112

NC

12

ZD113
NC

12

Circuit Diagrams and PWB Layouts

EN 77TPS15.1A LA 10.

2015-Sep-11

back to

div.table

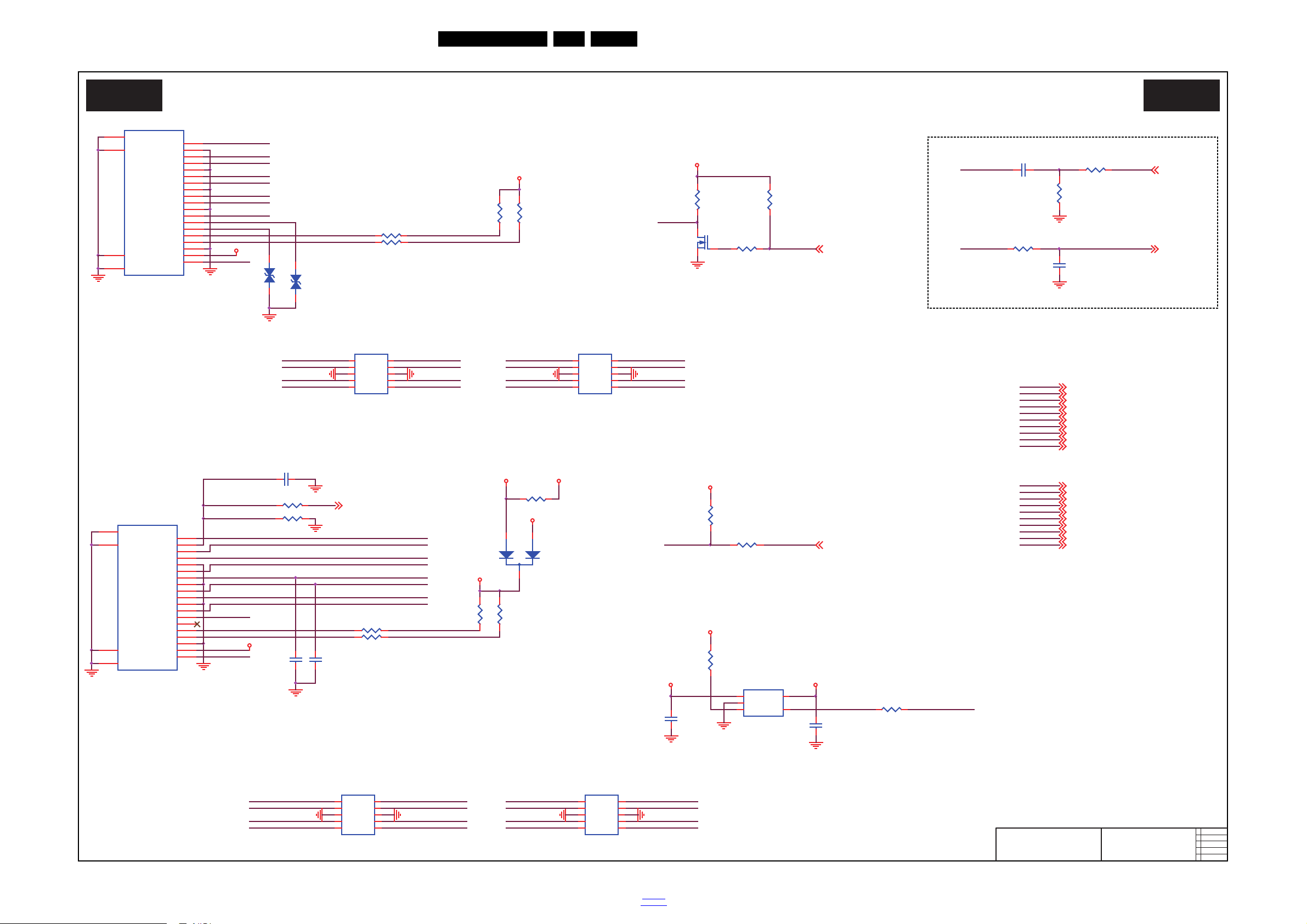

10-7-3 HDMI Inputs

19900_524.eps

HDMI Inputs

B03 B03

2014-11-26

715G6997

HDMI Inputs

HDMID-RX1N

HDMID-RX1P

HDMI_ARC

ZD518

NC

1 2

HDMI_ARC

C507
NC/4.7UF 10% 10V

HDMI-CEC

HDMIB_HPDHDMIB-RX2N

R558 NC / 0R 05 1/ 16W

HDMIB-CLKP
HDMIB-CLKN

HDMID-CLKP
HDMID-CLKN

EMI
088G340FJ02AAT
088G340FJ02ATE

Spring H=11.2
088G340FJ04AAT
088G340FJ04ATE

Non
088G 34019K AD V
088G 34019K AT
088G 34019K AV

HDMI2/MHL

HDMIB-RX0P
HDMIB-RX0N

MHL_CABLE-DET (6)

HDMIB-RX2P
HDMIB-RX2N

HDMIB-CLKN

HDMIB-CLKP

C503

4.7PF 50V

HDMI_CEC

U502

AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

U501

AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

R506

1K 1/16W 5%

R512

4K7 1/16W 5%

R507
10K 1/16W 5%

HDMID_HPDIN

HDMID_HPDIN (6)

HDMID_5V

HDMID_HPD

C508

NC/4.7UF 10% 10V

HDMID-RX0P
HDMID-RX0N

HDMID-RX2P
HDMID-RX2N

MHL_CABLE_DET

R559

NC/1K 1/16W 5%

EN_MHL_PWR

Charge

R534
NC/4K7 1/16W 5%

HDMIB_5V

+5VSB

+5VSB

HDMIB_5V

MHL_CABLE_DET

HDMID-RX0N

HDMID-RX0P

HDMIB-RX1N

HDMIB-RX1P

CN507 HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

HDMID_SDA

HDMIB_5V

HDMIB-RX1N

HDMIB-RX2P

HDMIB-RX1P

HDMI-CEC

HDMIB-CLKP

HDMI-B-RX0P

HDMIB-CLKN

HDMI-B-RX0N

CN506 HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

HDMIB_SDA

HDMIB_SCL

HDMIB_HPD

U505

NC/APL3511CBI-TRG

VOUT

1

GND

2

OCB3EN

4

VIN

5

R515

NC

HDMIB_5V

HDMID-CLKN

HDMID-CLKP

C504

NC/1PF 50V

C502 47nF/NC

C505

NC/1PF 50V

HDMIB_HPDIN

HDMIB-RX1N

HDMIB-RX1P

HDMID-CLKP
HDMID-CLKN

R511 33R 1/16W 5%

R518300K

R533 33R 1/16W 5%

Q501
2N7002K

HDMID-RX2P

HDMI1/ARC

R529

47K 1/16W 5%

HDMID-RX2N

R505

NC

R508
10K 1/16W 5%

HDMID-RX1P

ZD507
LBAT54CLT1G

3

1

2

C501

1UF 10V

R503

0R05 1/16W

R510 33R 1/16W 5%

R532 33R 1/16W 5%

AVDD5V_MHL

HDMID-RX1N

HDMID-RX2N

HDMID-CLKN

HDMID-RX2P
HDMID-RX1P

R561

10R 1/16W 5%

HDMID-RX0P
HDMID-RX0N
HDMID-CLKP

R517

33R 1/16W 5%

HDMIB-CLKN

HDMIB-RX2P

HDMIB-RX0P
HDMIB-CLKP

HDMIB-RX0N

R501

10K 1/16W 5%

HDMIB-RX2N
HDMIB-RX1P
HDMIB-RX1N

R530
47K 1/16W 5%

R514

200R 1/16W 5%

HDMID_5V

HDMID_5V

HDMIB_5V

HDMID-RX2P
HDMID-RX2N

HDMIB_5V

HDMIB_VCC

+5VSB

HDMI_CEC (6)

HDMIB-RX0P
HDMIB-RX0N

HDMIB_HPDIN (6)

HDMID-RX2P (6)

HDMID-RX0P (6)

HDMID-RX1N (6)

HDMID-RX1P (6)

HDMID-RX2N (6)

HDMID-CLKN (6)

HDMID-CLKP (6)

HDMID-RX0N (6)

HDMID-RX1N

HDMIB-RX2P (6)

HDMIB-RX0P (6)

HDMIB-RX1P (6)
HDMIB-RX1N (6)

HDMIB-RX2N (6)

HDMIB-CLKP (6)
HDMIB-CLKN (6)

HDMIB-RX0N (6)

HDMIB_SCL (6)

HDMID_SDA (6)

HDMID_SCL (6)

HDMIB_SDA (6)

ARC_SPDIF (6)

HDMID_SCL

HDMID-RX1P
HDMID-RX1N

ZD503

NC

1 2

HDMID_SDA

HDMID_SCL

HDMIB_SDA

HDMIB_SCL

HDMI-CEC

ARC_SPDIF

CEC/ARC

HDMID-RX0N

HDMIB-RX0N

HDMIB-RX0P

U503

AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

U504

AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

HDMID-RX0P

HDMID_HPD

HDMIB-RX2P
HDMIB-RX2N

Circuit Diagrams and PWB Layouts

EN 78TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-7-4 MSD8120PBM

19900_525.eps

MSD8120PBM

B04 B04

2014-11-26

715G6997

MSD8120PBM

HDMID-RX2P

C402
100NF 16V

C423

100NF 16V

R450

4K7 1/16W 5%

R417

4K7 1/16W 5%

HDMID_HPDIN

HDMID_SDA

Shielding Cover
X85T 804210100000LH

HDMID_SCL

C404

100NF 16V

R422

100R 1/16W 5%

C418

100NF 16V

BL_DIMMING

OIRI

C417

100NF 16V

HDMIB-RX0P(5)

SPI_CSN

C427

100NF 16V

RXEC+ (7)

RXE3-

C426

100NF 16V

HDMID-RX2N(5)

HDMID-RX1P

RXEC- (7)

C429

100NF 16V

HDMID-CLKN(5)

+3V3SB

RXEC-

HDMID-RX2P(5)

HDMIB-CLKP

AVDD_DDR_DATAAVDD_DDR_CMDDDRV VCCK VDDCDDRV

AVDD_DMPLL

AVDD_MOD+3V3SB +3V3SB +3V3SB+3V3SB

AVDD_AU33

+3V3SB

AVDD3P3_VEDIO

X40 1

24MHZ

1

2 4

3

+3V3SB+3V3SB

HDMI_CEC(5)

ARC_SPDIF(5)

HDMIB_SDA(5)

HDMID_SCL(5)
HDMID_HPDIN(5)

HDMID_SDA(5)

HDMIB_SCL(5)
HDMIB_HPDIN(5)

RF_CTRL

PANEL_EN (7)

PWR_ON (9)

FAT_IN- (4)

PANEL_EN

FAT_IN+ (4)

HS401

SHIELD

1

2

3

4

BRIGHT_ADJ

RESET (H Reset)

4'h00

AVDD_DADC

B51_NO_EJ

{PWM1, PWM0}

CHIP_CONFIG

U403

W25Q64FVSSIG

CS#

1

SO/SIO1

2

WP#

3

GND4SI/SIO0

5

SCLK

6

HOLD#

7

VCC

8

DVDD3V3

C433

100NF 16V

+3V3SB

AVDD_DADC

RF_CTRL (4)

R4020R05 OHM

M_SCL

M_SDA

BRIGHT_ADJ (9)

TP1

1

R401NC/0R05 OHM

AVDD_DDR_DATA

HP_DET

ORESET#

R4040R05 OHM

AVDD_DDR_DATA

SPI_WP
AUDIO_RESET

AUR0
AUL0

C422

10UF 6. 3V 20%

U401

MSD8120PBM

B_ODD[0]/LVA4+

67

SOGIN1

23

BIN1P

22

GIN1M

25

GIN1P

24

CVBS0

29

CVBS1

28

AUL0

35

GIN0P

17

XOUT54XIN53AVDD3P3_DMPLL

52

AVDD_MOD

5

RIN1P

26

G_ODD[3]/LVA0-

78

GPIO7/GPIO5164B_ODD[1]/LVA4-

68

SPI_DO

111

PWM0

110

GIN0M

18

LVSYNC

95

LHSYNC

94

LDE

93

LCK

92

R_ODD[7]/LVB0-

91

R_ODD[6]/LVB0+

90

AVDD_MOD

87

GPIO2/GPIO4660GPIO3/GPIO4761GPIO5/GPIO4962GPIO6/GPIO50

63

TCON7

99

B_ODD[4]/LVACLK+71B_ODD[5]/LVACLK-72B_ODD[6]/LVA2+73B_ODD[7]/LVA2-74G_ODD[0]/LVA1+

75

G_ODD[6]/LVB3+

81

B_ODD[3]/LVA3-

70

TCON8

98

SPI_DI

112

SPI_CZ

113

SPI_CK

114

SAR0

128

SOGIN0

16

LINEOUTR3

45

LINEOUTL0

46

VRM

43

LINEOUTL3

44

IFAGC48LINEOUTR047VIFP

49

RX1N_B

1

RX1P_B

2

RX2N_B

3

RX2P_B

4

RXCN_A

6

RXCP_A

7

RX0N_A

8

RX0P_A

9

RX1N_A

10

RX1P_A

11

RX2N_A

12

RX2P_A

13

HSYNC0

14

BIN0P

15

RIN0P

19

VSYNC0

20

AVDD3P3_ADC

21

VCOM

30

CVBS_OUT1

31

VDDC

32

AVDD_AU33

33

AUR1

36

AUL1

37

AUR2

38

AUL2

39

AUR3

40

VIFM

50

VDDC57GPIO0/GPIO4458GPIO1/GPIO45

59

VDDIO_CMD

56

GPIO9/GPIO5366B_ODD[2]/LVA3+

69

GPIO8/GPIO52

65

G_ODD[1]/LVA1-76G_ODD[2]/LVA0+

77

G_ODD[4]/LVB4+

79

G_ODD[7]/LVB3-

82

R_ODD[0]/LVBCLK+

83

R_ODD[1]/LVBCLK-

84

G_ODD[5]/LVB4-

80

R_ODD[3]/LVB2-

86

R_ODD[5]/LVB1-

89

R_ODD[4]/LVB1+

88

TCON2

104

TCON1

105

TCON6

100

TCON3

103

TCON5

101

TCON4

102

HOTPLUG_A

108

TCON10

96

DDCA_DA

116

TCON9

97

PWM1

109

TCON0

106

HOTPLUG_C

107

SAR1

129

VSYNC1

27

AUR0

34

VAG

42

AUL3

41

AVDD_MOD

55

R_ODD[2]/LVB2+

85

DDCA_CK

117

TEST

118

CEC

119

IRIN

120

INT

121

DM_P0

123

DP_P0

124

RESET

122

DP_P1

126

AVDD_MOD

127

DM_P1

125

VDDC

144

GND_EFUSE

143

AVDD_5V

142

HOTPLUG_B

141

DDCDB_CL

140

DDCDB_DA

139

MHL_DET

138

DDCDA_DA

137

DDCDA_CL

136

DDCDC_DA

135

DDCDC_CL

134

GPIO10/GPIO54

133

VDDIO_DATA

132

VDDC

131

SAR2

130

RX0P_B

156

RX0N_B

155

RXCP_B

154

RXCN_B

153

RX2P_D

152

RX2N_D

151

RX1P_D

150

RX1N_D

149

RX0P_D

148

RX0N_D

147

RXCP_D

146

RXCN_D

145

E-PAD

157

ARC

115

AVDD3P3_DADC

51

LED_R

AMP-AUOUTL0

DDR3 solder R402 R404
DDR2 solder R401

M_SCL
M_SDA

C410

10UF 6. 3V 20%

M_SDA (4,7,8)

M_SCL (4,7,8)

BL_ON/OFF (9)

PWM1

PWR_ON

FB402

60 OHM

1 2

AUR2

C401
100NF 16V

R494 0R05 1/16W

AUL2

R412 33R 1/16W 5%

32M 356G223300200 A WI NBOND
32M 056G2233 2 W INBOND
32M 056G2233 34 MXIC

64M 056G2233 42

C412

10UF 6.3V 20%

C414

10UF 6. 3V 20%

PB_DET (3)
HP_DET (8)

LED_R (7)

System XTAL

TU_RST

AMP-AUOUTR0

AMP-AUOUTL0

AU_SD
AU_BCK

AMP-AUOUTR

C431

1nF 50V

C409

100NF 16V

R492
200K

XTALO

XTALI

C408

10UF/10V

AVDD_DMPLL

AU_MCK

FB401

60 OHM

1 2

XTALO

R428

1M 1/16W

R439

0R05 OHM

AUVRM

AU_WS

C407

15PF 50V

C406

15PF 50V

C432

1nF 50V

TU_RST(4)

XTALI

R493

200K

AMP-AUOUTL

HDMIB_HPDIN

AU_SD(8)

AU_WS (8)

AU_MCK (8)

AU_BCK (8)

AMP-AUOUTR (8)

AMP-AUOUTL (8)

AUDIO_RESET (8)

AUVAG

VDDC

SPI FLASH

BL_ON/OFF

GPIO2

AMP-AUOUTR0

AUDIO_MUTE (8)

AUDIO_MUTE

GPIO3

R443

4K3

HDMIB_SCL
HDMIB_HPDIN

HDMIB_SDA

C403
100NF 16V

AVDD_MOD

RXE2+ (7)

RXO3+(7)

RXE1+

RXO1+ (7)

RXE0- (7)

RXE2-

RXE0+ (7)

RXO2+

RXE2+

RXO1-

RXO2+ (7)

RXO1- (7)

RXO0+

RXE0­RXE0+

RXO2-

RXO1+

RXO2- (7)

RXO3-(7)

HDMIB-RX1N(5)
HDMIB-RX2N(5)

RXO0-

RXE1-

HDMIB-RX1P
HDMIB-RX2P

RXE1- (7)

HDMIB-RX2P(5)

HDMIB-RX1P(5)

RXO3+

HDMIB-RX1N
HDMIB-RX2N

RXE2- (7)

RXO3-

RXO0- (7)

RXE1+ (7)

R407 33R 1/16W 5%

GPIO1

GPIO0

R40833R 1/16W 5%

RXO0+ (7)

R405 NC/33R 1/16W 5%
R406 NC/33R 1/16W 5%

GPIO6

C420 1UF 10V

C419 1UF 10V

C421 1UF 10V

GPIO7

C430 1UF 10V

MHL_CABLE-DET(5)

AVDD5V_MHL

MHL_CABLE-DET

GPIO8

HT_RX

HT_TX

LED_G

GPIO9

POWER

BL_DIMMING

R717

1K 1/16W 5%

C722
NC

LED_G (7)

LED_G

HT_TX (4)
HT_RX (4)

HDMIB_SCL

HDMIB_SDA

C434
22N 25V

MHL_CABLE-DET

HDMID_SDA

HDMID_SCL

DDR2 =>
MSD8120PBN
DDR3 =>
MSD8120PBM

SPI_SDI

SPI_CLK

VGA_GP
VGA_RP

VGA_BP

VGA_COM(4)

VGA_COM

VGA_SOG(4)

VGA_VS

VGA_BP(4)

VGA_HS(4)

SPI_SDO

VGA_HS
VGA_SOG

R409

NC/33R 1/16W 5%

VGA_VS(4)

VGA_RP(4)

VGA_GP(4)

TCON0

SPI_CSN

IF_AGC1 (4)

IF_AGC1

RXOC+ (7)

TCON1

RXOC-

RXOC- (7)

KEY2 (7)
KEY1 (7)

RXOC+

KEY1

KEY2

YPbPr_R_In0(3)
YPbPr_L_In0(3)

VGA_L_In(4)

VGA_R_In(4)

FRC_SEL (7)

COMP_PR(3)

COMP_Y(3)

COMP_PB(3)

COMP_COM(3)

COMP_PB

COMP_PR

COMP_Y

COMP_SOY

COMP_SOY(3)

COMP_COM

CVBS0P(3)
CVBS_VCOM(3)

CVBS_VCOM

CVBS0P

M_SCL (4,7,8)

R411 33R 1/16W 5%

TCON1 M_SDA

M_SCL

R410 33R 1/16W 5%

M_SDA (4,7,8)

TCON0

HDMID-RX0P

HDMID-CLKP(5)

BL_DIMMING

HDMID-CLKP

PWM1

R419

10K 1/16W 5%

GPIO1

DVDD3V3

AVDD3P3_VEDIO

HOTEL
MODE

SPI_CLK

FAT_IN+
FAT_IN-

FRC_SEL

HDMID_HPDIN

HDMID-RX0N(5)

HDMID-RX1N

ARC_SPDIF

USB_DM (7)

RXE3+

USB_DP
USB_DM

USB_DP (7)

FRC_SEL

HDMID-RX2N

HDMID-RX0P(5)

FAT_IN+

HDMIB-RX0P

HDMI_CEC
ARC_SPDIF

HDMIB-CLKN(5)

AVDD_DDR_CMD

SPI_WP

SPI_SDI

LED_G (7)

GPIO0

C424

100NF 16V

C428

100NF 16V

HDMID-CLKN

HDMIB-CLKP(5)

C411

100NF 16V

HDMID-RX1N(5)

R418

10K 1/16W 5%

DDCA_CK (4)

C415

100NF 16V

AVDD_AU33

RXEC+

HDMID-RX0N

ARC_SPDIF (5)

DDCA_CK

R427

100K 1/16W 5%

0603

06030603

0603

R449

4K7 1/16W 5%

U410
G690H2 9 3T73

GND

1

RESET

2

Vcc

3

RXE3+(7)

SPI_SDO

HDMI_CEC

R442
4K3

HDMIB-RX0N(5)

OIRI (7)
HDMI_CEC (5)

HDMID-RX1P(5)

DDCA_DA (4)

C413

100NF 16V

RXE3-(7)

FAT_IN-

HDMIB-CLKN

C425

100NF 16V

IF_AGC

HDMIB-RX0N

C416

4.7UF 6.3V

DDCA_DA

ORESET#

Circuit Diagrams and PWB Layouts

EN 79TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-7-5 LVDS/USB/KEYPAD

19900_526.eps

LVDS/USB/KEYPAD

B05 B05

2014-11-26

715G6997

LVDS/USB/KEYPAD

SELLVDS

t

TH101

NC/PTCR

1 2

061G 56A075 LT HF (master)
061G 56A075 WT HF ( 2nd)

LED_RE

RXEC+
RXE3+

RXE1+
RXE2+

RXE0+RXE0+

RXOC+
RXO3+

RXO2+

RXO0+
RXO1+

C152

1UF 10V

C153

100NF 16V

+3V3SB

LED_GE

LVDS Power

IR / KEY BOARD CONN.

H PANEL ON
L PANEL
OFF

USB POR T

LED_G

R179

10K 1/16W 5%

LED_G(6)

+3V3SB

R177

10K 1/16W 5%

R180

10K 1/16W 5%

Q104
MMBT3906

+3V3SB

For

䌱

24" R172 Panel =5V

For ≠ 28" R173 Panel=12V

R117
10K 1/10W

RXEC­RXE3-

RXE2-

RXE1-

RXE0-

RXO0-

RXO3-

RXOC-

RXO2-

RXO1-

PANEL_SEL2

PANEL_SEL3

PANEL_SEL1

USB 2.0

R441

10K 1/16W 5%

R120

0R05 1/16W

R121

NC/0R05 1/16W

R123

NC/0R05 1/16W

R122

0R05 1/16W

+5VSB +12V

PANEL_SEL2

PANEL_SEL1

LED_R

R172

NC

R173

0 OHM +-5% 1/8W

M_SDA(4,6,8)

M_SCL(4,6,8)

C157
22UF 16V

PANEL_SEL3

R124

0R05 1/16W

R125

NC/0R05 1/16W

FRC_SEL(6)

CN402

CONN

2
4
6

8

10
12
14
16
18
20
22
24
26
28

30
32

1

3

5
7

9
11
13
15
17
19
21
23
25
27
29
31

C150
10UF 10V

Q101

AO3407A

R154
NC/4.7K

ZD121

NC

12

C158

10UF 16V

R151
4K7 1/16W 5%

C151

1UF 10V

RXO2-(6)

RXO0-

R168 100R 1/ 16W 5%

Q102
MMBT3904

RXE1-

RXO2-

RXE0+

RXO0+

RXE2-

R150

100K 1/16W 5%

123 4

CN103

USB CONN

1
2

3

4

6 5

RXEC+(6)

C155

100NF 16V

C148

100NF 16V

RXE2-(6)

RXE3-(6)

RXE0-(6)

R158 5R 6 1/ 16W 5%

R162

3.9K 1%

Q103
MMBT3906

RXO1-(6)

C145

470NF 16V

RXOC+(6)

RXOC-

R155 4K7 1/16W 5%

RXO0-(6)

RXO2+

RXE0-

RXEC-

C154

100NF 16V

RXE1-(6)

RXOC+

R165

10K 1/16W 5%

R153

150K 1/16W 5%

PANEL_VCC

R159

10K 1/16W 5%

R163

10K +-1% 1/16W

RXO3-

RXE3-

RXO2+(6)

RXE2+(6)

DVDD3V3

RXO1-

RXE3+

R161
NC/10K 1/16W 5%

R156

10K 1/16W 5%

RXO3-(6)

RXO1+(6)

ZD122
NC

12

R167

10K 1/16W 5%

RXO3+(6)

RXEC-(6)

R170 1Kohm 1/16W +/-1%

R169 1Kohm 1/16W +/-1%

RXOC-(6)

RXE1+

C156
100PF 50V

RXE3+(6)

RXO0+(6)

RXE1+(6)

RXE2+

U109

APL3511CBI-TRG

VOUT

1

GND

2

OCB

3

EN

4

VIN

5

RXE0+(6)

RXEC+

RXO1+

R157 5R6 1/ 16W 5%

RXO3+

USB_DM

R164

30K OHM +-1% 1/16W

C149
NC

R160

10K 1/16W 5%

PANEL_VCC

USB_5V

USB_5V

5V_SW

+3V3SB

+3V3SB

USB_DP(6)

USB_DM(6)

+3V3SB

PANEL_EN(6)

KEY2(6)

KEY1(6)

OIRI(6)

LED_R(6)

USB_DP

R166

NC/150OHM 1/16W +/-5%

LED_R LED_GE

CN401

CONN

2
4
6

8

10

1

3

5
7
9

IR_IN

LED_RE

KEY2_IN

LED_GE

IR_IN
KEY1_INKEY1

OIRI

KEY 1 : PO W E R
KEY2: Vol+/-, CH+/-, Menu, Input

KEY1_IN KEY 2_IN

KEY2

Circuit Diagrams and PWB Layouts

EN 80TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-7-6 Audio Amp/Headphone Output

19900_527.eps

Audio Amp/Headphone Output

B06 B06

2014-11-26

715G6997

Audio Amp/

Headphone Output

Q90T0092 1

Heat Sink
24*9

P90T0066101

HS601

HEAT SINK

1
2

HPOUT_L
HPOUT_R

C637
10UF 6. 3V 20%

C628
10UF 6. 3V 20%

C625
10UF 6. 3V 20%

FB602

0R05 1/10W

C643 100PF 50V

C646 100PF 50V

PD_MUTE

D602

SS1060FL

ROUT-

CN602

CONN

1
7
6
2

3

4
5

C644 2.2UF 10V

HP_DET(6)

DVDD3V3

HP_DET

C649

100PF 50V

C645 2.2UF 10V

FB604 300R

C650
100PF 50V

FB605 300R

R625 100OHM

R624

10K

C647

NC/100N16V

C648

NC/100N 16V

R631 0R05 OH M

AMP-AUOUTL

R626 10K +-1% 1/16W

AMP-AUOUTR

R629 10K +-1% 1/16W

EAR_L
EAR_R

R627 33K 1%
R630 33K 1%

HPIN_L

HPIN_R

R628 0R05 OHM

AUDIO_MUTE

FB601

120R

12

AUDIO_MUTE(6)

+12V_AUD

AMP-AUOUTR
AMP-AUOUTL

C623
100N16V

L601 22uH

R643

10K 1/16W 5%

C621 2.2nF 50V

AUDIO_MUTE

C617 1UF 25V

R612

33 OHM 1/16W

R614

33 OHM 1/16W

M_SCL
M_SDA

C640

22PF 50V

CN601

CONN

1

2

3

4

5 6

R653

1K 1/16W 5%

R646

3KOHM +-5% 1/16W

C604

0.1uF 50V

AMP_POWER

+

C603
100UF 35V

U603
AS431AN-E1

M_SCL(4,6,7)

M_SDA(4,6,7)

AUDIO_RESET(6)

R623
100K 1/16W

PD_MUTE

R649
30K OHM +-1% 1/16W

R620

10K

Q603

MMBT3904

L602 22uH

R622 10K

L603 22uH

AMP_3V3

L604 22uH

AMP_3V3

C624
1UF 10V

R617

18.2K OHM +-1% 1/16W

C601

0.1uF 50V

R607

470R 1/16W 1%

AUDIO_RESET

R610

33 OHM 1/16W

C619
330nF

AMP_3V3

R+

C615
330nF

R601

18R 1%

C605

330pF 50V

C6304.7NF 50V

+

C664
100UF 35V

C629 47nF 16V

C634 22PF 50V

C610

330pF 50V

D603

1N4148WS

R602

18R 1%

AU_MCK

R645

51K 1/16W 5%

AMP-AUOUTL(6)

R603

18R 1%

C613

330pF 50V

R604

18R 1%

C618

330pF 50V

C638
22PF 50V

C633 4.7N F 50V

C631 47nF 16V R608 470R 1/16W 1%

R606

10K

C611
330nF

ADR

AMP_PDN

C641

22PF 50V

C642
22PF 50V

R642

100R 1/16W 5%

+

C602
100UF 35V

AMP_3V3

AMP_3V3

AU_SD(6)

AU_SD

DVDD3V3

C636

100N16V

AMP-AUOUTR(6)

AU_BCK(6)

AU_MCK(6)

AU_WS(6)

C620 1UF 10V

R618

33 OHM 1/16W

AU_WS

AU_SD

R616

33 OHM 1/16W

C626 1UF 10V

C639 4.7UF 10% 10V

FB603

600 OHM

1 2

RESET_AMP

U601

TAS5729MD

GND

1

OUTA

2

BSTA

3

PVDD

4

PWM1

5

PWM2

6

HPIL

7

HPOL

8

HPOR

9

HPIR

10

HPVSS

11

CN

12

AVDD_REG2

37

SSTIMER

38

HP_SD

39

GVDD_REG

40

PVDD

41

BSTD

42

OUTD

43

GND

44

OUTC

45

BSTC

46

BSTB

47

OUTB

48

GND

36

GND

35

TEST

33

DVDD

34

RESET

32

NC

31

SCL

30

SDA

29

SDIN1

28

SCLK

27

LRCLK

26

PDN

25

CP

13

HPVDD

14

GND

15

FLTM

16

FTLP

17

AVDD_REG1

18

AVDD

19

ADR

20

MCLK

21

ROSC

22

GND

23

DVDD_REG

24

E-Pad

49

R619

NC/10K

R621
10K

AMP_3V3

ADR

C635
NC/ 100PF 50V

C622 100N16V

M_SCL

AU_MCK

L-

C627
100N16V

HPIN_L

LOUT+

M_SDA

L+

AU_WS

AU_BCK

C607
330nF

R-

HPOUT_L

AUDIO_RESET

HPIN_R

HPOUT_R

C608
33nF 50V

C609 33nF 50V
C612 33nF 50V

C616 33nF 50V

R654
NC

L+

C665

100NF 16V

I2C Address

R+

20121205 ESD

ZD603

NC

12

Lo

0402

0X54

0402

ZD602

MLVG0402

12

ZD601

MLVG0402

12

088G302G7B1ACL

HeadPhone / Audio Output (Side)

+12V_AUD

+12V+12V_AUD

R-

L-

Hi

0402

0402

0X56

EAR_DET

LOUT-

AU_BCK

ROUT+

POP NOISE (AC OFF)

Circuit Diagrams and PWB Layouts

EN 81TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-7-7 System Power

19900_528.eps

System Power

B07 B07

2014-11-26

715G6997

System Power

R707

4K7 1/16W 5%

BRIGHT_ADJ (6)

+5VSB

+3V3SB

+5VSB +3V3SB

+12V_AUD +12V

+12V

C704
100PF 50V

C705

0.1uF 50V

U701
AP1117E33L-13-77

ADJ(GND)

1

VOUT

2

VIN

3

4

4

Q704

AO3401A

Core Power 1.2V

C713
10uF 16V

FB703

300R

1 2

U702

SY8104ADC

LX

5

FB

1

EN

2

GND3IN

4

BS

6

R725

13.3K 1%

R727 100K 1%

C707

22pF 50V

L702

4.7uH

R734

62K 1/16W 1%

R735

100K 1/16W

R736 0R051/8W

C727

0.1uF 50V

R738 0R 05 1/ 16W

C730
22UF 20% 6. 3V

R708

4K7 1/16W 5%

DRAM Power 1.5V

R773

NC/0 OHM +-5% 1/8W

+5VSB

+5VSB

+12V

+3V3SB

+12V_AUD

CN701

CONN

2

4

6

8

10

12

1

3

5

7

9

11

Standby Power +3V3SB

R733

47K

Q707
MMBT3904

R720
100K 1/16W

R724

4.7K1/16W

R723
10K 1/16W 5%

C726

100NF 16V

12V to 5V

SOT223 3.3V

C721

4.7UF 10% 10V

Q702

AO3401A

+3V3SB

R737
4K7 1/16W 5%

+3V3SB

R726

4K7 1/16W 5%

BL_ON/OFF

R1

R2

Q705
MMBT3904

C715
22uF 10V

R722

4K7 1/16W 5%

5V_SW

R743

8K2 1/16W +/-5%

BL_ON/OFF (6)

PWR_ON (6)

Q706
MMBT3904

R742
4K7 1/16W 5%

+3V3SB

BL_ON_OFF

BRIGHT_ADJ

DVDD3V3

C701
100PF 50V

C702

1nF 50V

+5VSB

BL_DIM

U703SY8003ADFC

NC

5

FB

1

PG

2

IN

3

PGND

4

LX

6

EN

7

SGND

8

PGND

9

R721 100K 1%

R1

R2

BL_ON

R711 100K 1/16W

L703

2.2uH

R73910K

C718
22UF 6. 3V

R715 0R 05 1/ 10W

C720

22UF 6. 3V

VCCK

C73122P 50V

R718 4K7 1%R719 100K 1%

C716
NC/1UF 16V

R728

100K1/16W

+5VSB

C723

10UF 6. 3V 20%

C743

100NF 16V

U706

AZ1084CD-ADJTRG1

VIN3VOUT

2

GND/ADJ

1

C745

10UF 10V

DDRV

5V_SW

R745

24R 1/10W 1%

R744

120R 1/10W 1%

PS_ON

R774
0 OHM +-5% 1/8W

R753

4K7 1/16W 5%

PWR_ON

H => POWER_ON
L => POWER_OF F

C729
22uF 10V

R705

7K5 1/16W 5%

C717
22UF 6. 3V

C744
22UF 6. 3V

PWR_ON

Back Light On / Off
HI => POWER _OF F
LO => POWER_ON

BL_DIM
PS_ON

BL_ON

5V_SW

MAIN POWER

C711

0.1uF 50V

C728
10UF 10V

+5VSB

C706
10UF 10V

C719
100NF 16V

Q701
MMBT3904

R706

4K7 1/16W 5%

PWR_ON

C710

100PF 50V

R702

100R 1/16W 5%

R704

47K 1/16W 5%

R709

4K7 1/16W 5%

C712
1UF 10V

C708

0.1uF 50V

Q703
MMBT3904

R701

100R 1/16W 5%

Circuit Diagrams and PWB Layouts

EN 82TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-7-8 SSB layout top

19900_529.eps

715G6997

LAYOUT TOP

TH101

C718

C715

U703

R744

C744

C120

C121

C728

C730

C716

C713

C625

C628

C637

C721

C723

C727

D603

FB602

FB603

R117

R745

R715

FB703

R735

R711

R728

R736

C729

C123

L101

FB402

C157

X401

C745

C145

C708

C711

C150

C410

C412

C414

C422

C508

C507

C644

C645

C639

C601

C604

C605

C608

C609

C610

C612

C613

C616

C617

C618

C717

C607

C611

C615

C619

C706

C743

C720

C158

C408

FB401

FB604

FB605

R774
R773

R601

R602

R603

R604

R725

FB601

R172

R173

C664

D602

C705

C602

C603

C704

HS401

C132

R142

U401

C424

C418

C425

R408

R559

R560

C502

R558

CN101

ZD109

R151

R126

ZD110

ZD108

ZD120

CN507

R418

Q101

C402

R718

Q102

C148

L703

R441

R623

R409

C719

R719

R168

HS601

C636

R617

CN402

C642

C638

R140

C189

R443

R442

R410

R411

R449

CN401

R180

R167

Q103

Q104

R166

R165

C153

C155

C154

R121

R120

R123

R122

R124

R125

C411

C404

R417

C137

R405

R407

R406

C101

C102

C103

C104

C105

C107

C108

C110

C112

C117

C118

C122

C127

C128

C129

C133

C134

C136

C139

C142

C143

C149

C151

C152

C156

C182

C403

C406

C407

C409

C413

C415

C416

C417

C419

C420

C421

C423

C426

C427

C428

C429

C430

C431

C432

C433

C434

C501

C503

C504

C505

C620

C621
C622

C623

C624

C626

C627

C629

C630

C631

C633

C634

C635

C640
C641

C643

C646

C647

C648

C649

C650

C665

C701

C702

C710

C712

C722

C731

C726

C707

CN102

CN103

CN104

CN111

CN506

CN601

CN602

CN701

HS1

HS2

L601

L602

L603 L604

L702

Q603

Q701

Q703

Q705

Q706

Q707

Q501

Q702

Q704

R101

R102

R103

R104

R105

R106

R107

R108

R109

R110

R111

R112

R113

R114

R115

R116

R129
R130

R131

R132

R133

R134
R135

R136
R139

R143

R144

R145

R146

R147

R149

R150

R171

R153

R154

R155

R156

R157

R158

R159

R160

R161

R162

R163

R164

R169

R170

R177

R179

R401

R402
R404

R422

R427

R428 R439

R450

R492

R493

R494

R501

R503

R505

R506

R507

R508

R510

R511

R512

R514

R515

R517

R518

R529

R530

R532

R533

R534

R561

R606

R607
R608

R610

R612R614

R616

R618

R619

R620

R621

R622

R624

R625

R626

R627R628

R629

R630R631

R642

R643

R645

R646

R649

R653

R654

R701

R702

R704

R705

R706

R707

R708

R709

R717

R722

R726

R739

R737

R742

R743

R753

R734

R720

R723

R724

R733

R148

R721

R727

R738

R137

R138

R152

R419

SCREW1

U1

U2

U101

U701

U109

U505

U410

ZD507

U501

U502

U503

U504

U603

U702

U706

ZD1

ZD2

ZD3

ZD101

ZD102

ZD103

ZD104

ZD105 ZD106

ZD111

ZD112

ZD113

ZD114

ZD121

ZD122

ZD503

ZD518

ZD601

ZD602

ZD603

C109

C113
C114

C125

C126

C138

C183

C184

C401

R118
R119

R128

R141

TP1

R412

U403

U601

Circuit Diagrams and PWB Layouts

EN 83TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-7-9 SSB layout bottom

715G6997

LAYOUT BOTTOM

Circuit Diagrams and PWB Layouts

EN 84TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10.8 B 715G6854 SSB

19901_504.eps

AV/YPbPr/SPDIF

B01 B01

2015-01-30

715G6854

AV/YPbPr/SPDIF

Y_IN#1

PB_IN#1

PR_IN#1

YPBPR_L_IN#1

YPBPR_R_IN#1

C157
330pF 50V

ZD101

NC/AZ5123-01H

12

PB_DET

YPbPr Video Input share wit h C V BS in Y

SPDIF_OUT

ZD104

NC/AZ5123-01H

12

ZD105

NC/AZ5123-01H

12

088G 78G155ACL

ZD107NC/AZ5123-01H

12

ZD102

NC/AZ5123-01H

12

PB_IN#1 COMP_PB

Y_IN#1

PR_IN#1

COMP_SOY
COMP_Y

COMP_PR

COMP_COM

ZD103

NC/AZ5123-01H

1

2

ZD106

NC/AZ5123-01H

2

R106

100R 1/16W 5%

C1103.3NF 50V

R112

75R 1/ 16W 1%

R116 33R 1/16W 5%

R119

100R 1/ 16W 5%

R111

10K 1/16W 5%

R104 33R 1/16W 5%

R102

150OHM 1/16W +/-5%

E

A

B

C

D

CN111 RCA JACK

1
2

3

4
6
7

8

9
10

11

12

13

5

R103

180R 1/ 16W 5%

C113

NC

C103 47NF 16V

C108

47NF 16V

C105 47N F 16V

R181
NC

R115

75R 1/ 16W 1%

R107

75R 1/ 16W 1%

R109 10K 1/16W 5%

R113

12KOHM +-5% 1/16W

R108 68R 1/16W 5%

C104 1nF 50V

C102 47N F 16V

C1013.3NF 50V

R114

12KOHM +-5% 1/16W

R117

NC

R110 33R 1/16W 5%

C114 1U F 10V

R118

180R 1/16W 5%

C107

47NF 16V

C112

47NF 16V

R105 33R 1/16W 5%

R101

4K7 1/16W 5%

5V_SW

COMP_PR 6

COMP_Y 6

DVDD3V3

COMP_PB 6

COMP_COM 6

COMP_SOY 6

SPDIF_OUT6

CVBS_VCOM 6

CVBS0P 6

PB_DET 6

COLAY

R182

0R05 1/ 16W

COLAY

CVBS0PAV1_IN
CVBS_VCOM

YPbPr_R_In0 6

YPbPr_L_In0

YPbPr_L_In0 6

YPbPr_R_In0

CN603

NC

VIN

1

VCC

2

GND

3

TH1

4

TH2

5

TH3

6

TH4

7

A

CN604
RCA JACK

2
1

3

SPDIF_OUT

388G078G111ACL

CN 603 and CN604 Co-Layout

SPDIF

088G 359 9A JT
088G 359 9B JT

Coaxial

SPDIF

Connected to connector GND

1

10-8-1 AV/YPbPr/SPDIF

Circuit Diagrams and PWB Layouts

EN 85TPS15.1A LA 10.

2015-Sep-11

div.table

back to

10-8-2 Tuner/VGA Input

19901_505.eps

Tuner/VGA Input

B02 B02

2015-01-30

715G6854

Tuner/VGA Input

C173 4. 7N F 50V

R126

1K 1/16W 1%

XTALP

ZD113

NC/AZ5123-01H

12

C123

1UF 10V

VDD_1P8

IF_OUTN

C171

100N16V

VDD_1P8

RESET

3V3T

FB101 1000OHM

1 2

U104

MxL661-AG-R

VDD_3p3

1

LNA_INP

2

LNA_INN

3

VDD_1p8

4

AGC_2/GPO_3

5

AGC_1

6

IF_OUTP_2/GPO_17IF_OUTN_2/GPO_28IF_OUTP_19IF_OUTN_110VDD_3p311VDD_1p8

12

VDD_1p2

13

GND_DIG

14

VDD_IO

15

SCL

16

SDA

17

CLK_OUT

18

XTAL_N

19

XTAL_P

20

GND_XTAL

21

VDD_1p8

22

RESET_N

23

AS

24

E-PAD

25

R183

510K 1%

C125

100N16V

IF_OUTP

AGC1

C168 4. 7N F 50V

C166
10N 50V

3V3T

LNA_INN

C144
1UF 10V

C170

100N16V

VGA/UART

VDD_1P8

C135

100N16V

LNA_INP

C167

100N16V

C172

2.2nF 50V

C124
47PF 50V

MxL661

C127

18PF 50V

3V3T

T_SCL

3V3T

T_SDA

IF_AGC16

AGC1

T_SDA
T_SCL

X10 2

16MHz

12

GRN_GND

GRN

GRN

VGAR_IN

VSYNC#

RED

HSYNC#

RED_GND

BLU_GND
BLU

GRN_GND

VGA_HS

VGA_VS

HSYNC#

VSYNC#

VGA_GP

VGA_RP

BLU_GND

BLU

VGA_SOG

RED_GND

RED

VGA_BP

VGA_COM

R122

0R05 1/16W

R123

0R05 1/16W

XTAL

AGC2

C131
100NF 16V

R187 100R

IF_AGC_D 11

VGA_L_In

VGA_R_In

AGC2

R125

1K 1/16W 1%

C111

100N16V

ZD108

AZ5123-01H

12

ZD110

AZ5123-01H

12

ZD111

AZ5123-01H

12

VGAL_IN

ZD114

AZ5123-01H

12

ZD109

AZ5123-01H

12

VGA

R146

12KOHM +-5% 1/16W

R129

33R 1/16W 5%

R140 100R 1/16W 5%

C133

1nF 50V

CN101

CONN

1
7
2

8
3

9
4
10
5

11
12
13
14
15

1716

6

C139
47NF 16V

R131

4K7 1/16W 5%

R149

10K 1/16W 5%

R133

68R 1/16W 5%

R136

33R 1/16W 5%

R135

75R 1/16W 1%

R144

10K 1/16W 5%

R147

12KOHM +-5% 1/16W

C137

47NF 16V

R139

75R 1/16W 1%

R130

75R 1/16W 1%

C134

47NF 16V

ZD120
BAT54

13

XTALN

R132

4K7 1/16W 5%

C136

47NF 16V

C142

3.3NF 50V

C143

3.3NF 50V

R142 100R 1/16W 5%

R134

33R 1/16W 5%

R145

10K 1/16W 5%

R143

10K 1/16W 5%

+5VSB

M_SCL 6,8,10,11

M_SDA 6,8,10,11

VGA_SOG 6

DDCA_DA 6,8
DDCA_CK 6,8

VGA_HS 6

VGA_VS 6

VGA_BP 6

VGA_RP 6

VGA_GP 6

VGA_COM 6

VGA_R_In 6

VGA_L_In 6

XTALN

XTALP

C164

27PF 50V

C165

27PF 50V

Connected to connector GND

CN102

CONN

1

2

3

ZD116

AZ5123-01H

12

VGASCL

ZD115
AZ5123-01H

1 2

VGASDA

VGASCL DDCA_CK

DDCA_DAVGASDA

LNA_INP

C169
5P6 50V

C115
1nF 50V

L105
27nH

C116
1nF 50V

C117
1P 50V

C159
1nF 50V

L104

8.2NH

L103
27nH

L101

NC

LNA_INN

ZD112

NC/AZ5123-01H

12

D102
BAV99

3

1

2

IF_OUTP

C129

NC

FAT_IN+ 6

IF_OUTN

FAT_IN- 6

C118

NC

DIF211

DIF111

IF_OUTN

IF_OUTP

FCN101

RF CONN 5P

1

2

3

4

5

Circuit Diagrams and PWB Layouts

EN 86TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-8-3 HDMI Inputs

19901_506.eps

HDMI Inputs

B03 B03

2015-02-04

715G6854

HDMI Inputs

HDMI_ARC

HDMI_ARC

C507
NC/4.7UF 10% 10V

HDMI-CEC

HDMIB-RX2N

R558 NC / 0R 05 1/ 16W

HDMID-CLKP
HDMID-CLKN

EMI
088G340FJ02AAT
088G340FJ02ATE

Spring H=11.2
088G340FJ04AAT
088G340FJ04ATE

Non
088G 34019K AD V
088G 34019K AT
088G 34019K AV

HDMI2/MHL

HDMIB-RX0P
HDMIB-RX0N

U505

NC/STMPS2171STR

OUT

1

GND

2

FAULT3EN

4

IN

5

MHL_CABLE-DET 6

HDMI1/ARC

HDMI3

B

HDMI2

D

A

C503

4.7PF 50V

HDMI_CEC

ZD503

NC/AZ5123-01H

12

ZD518

NC/AZ5123-01H

12

R506

1K 1/16W 5%

R512

4K7 1/16W 5%

R507

10K 1/16W 5%

HDMID_HPDIN

HDMID_HPDIN 6

HDMID_5V

HDMID_HPD

C508

NC/4.7UF 10% 10V

ZD514

NC/AZ5123-01H

12

FB501

300R

1 2

MHL_CABLE_DET

R559

NC/ 1K 1/ 16W 5%

EN_MHL_PWR

Charge

R534
NC/4K7 1/16W 5%

HDMIB_5V

+5VSB

+5VSB

HDMIB_5V

MHL_CABLE_DET

HDMIA-CLKP

HDMI3/DVI

HDMIA-RX1N

HDMIA_5V

HDMIA-RX0P

HDMIA_SCL

HDMIA-CLKN

R550 /33 OH M 1/16W

HDMIA-RX1P

R545
10K 1/16W 5%

HDMIA-RX2N

R543
10K

HDMIA_HPD

HDMIA_5V

HDMIA-RX2P

R542

1K

HDMIA-RX0N

R544

10K 1/16W 5%

Q505
2N7002K

HDMIA_HPDIN 6

R551 33 OHM 1/16W

HDMI-CEC

HDMIA_HPDIN

HDMIA_SDA

HDMIA_5V

HDMIA_HPD

R552

4.7K 1/16W

CN507 HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

HDMID_SDA

HDMIB-RX1N

HDMIB-RX2P

HDMIB-RX1P

HDMI-CEC

HDMIB-CLKP

HDMI-B-RX0P

HDMIB-CLKN

HDMI-B-RX0N

CN506 HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

HDMIB_SDA

HDMIB_SCL

HDMIB_HPD

R515

NC

HDMIB_5V

C504

NC/1PF 50V

C505

NC/1PF 50V

HDMIB_HPDIN

MHL NC

R511 33R 1/ 16W 5%

R518300K

R533 33R 1/ 16W 5%

Q501
2N7002K

HDMID-RX2P

HDMI1/ARC

R529

47K 1/16W 5%

HDMID-RX2N

R505
NC

R508
10K 1/16W 5%

HDMID-RX1P

D507

LBAT54CLT1G

1

2

3

C501 1UF 10V

CN508 HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

R503

0R05 1/16W

R510 33R 1/ 16W 5%

R532 33R 1/ 16W 5%

AVDD5V_MHL

HDMID-RX1N

HDMID-RX2N

HDMID-CLKN

HDMID-RX2P
HDMID-RX1P

R561

10R 1/16W 5%

HDMID-RX0P
HDMID-RX0N
HDMID-CLKP

R517

33R 1/16W 5%

HDMIB-CLKN

HDMIB-RX2P

HDMIB-RX0P
HDMIB-CLKP

HDMIB-RX0N

R501

10K 1/16W 5%

HDMIB-RX2N
HDMIB-RX1P
HDMIB-RX1N

R530

47K 1/16W 5%

HDMIA-RX2N

HDMIA-RX2P

HDMIA-RX0P

HDMIA-CLKN

HDMIA-CLKP

HDMIA-RX0N

HDMIA-RX1N

HDMIA-RX1P

R514

200R 1/16W 5%

HDMID_5V

HDMID_5V

HDMIB_5V

HDMIB_5V

HDMIB_VCC

+5VSB

HDMI_CEC 6

HDMIB_HPDIN 6

HDMID-RX2P 6

HDMID-RX0P 6

HDMID-RX1N 6

HDMID-RX1P 6

HDMID-RX2N 6

HDMID-CLKN 6

HDMID-CLKP 6

HDMID-RX0N 6

HDMIA-RX0P 6

HDMIA-RX2N 6

HDMIA-RX2P 6

HDMID-RX1N

HDMIA-RX1N 6

HDMIA-RX1P 6

HDMIA-RX0N 6

HDMIB-RX2P 6

HDMIA-CLKN 6

HDMIA-CLKP 6

HDMIB-RX0P 6

HDMIB-RX1P 6
HDMIB-RX1N 6

HDMIB-RX2N 6

HDMIB-CLKP 6
HDMIB-CLKN 6

HDMIB-RX0N 6

HDMIB_SCL 6

HDMID_SDA 6

HDMID_SCL 6

HDMIA_SDA 6

HDMIA_SCL 6

HDMIB_SDA 6

ARC_SPDIF 6

HDMIB_HPD

HDMID_SCL

HDMID_SDA

HDMID_SCL

HDMIB_SDA

HDMIB_SCL

HDMI-CEC

HDMIA_SDA

HDMIA_SCL

ARC_SPDIF

CEC/ARC

HDMID-RX0N

FB502

300R

1 2

HDMID-RX0P

HDMID_HPD

Circuit Diagrams and PWB Layouts

EN 87TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-8-4 MSD8120_Scaler

19901_507.eps

MSD8120_Scaler

B04 B04

2015-02-04

715G6854

MSD8120_Scaler

HDMID-RX2P

C402
100NF 16V

C423

100NF 16V

R450

4K7 1/16W 5%

R417

4K7 1/16W 5%

HDMID_HPDIN

HDMID_SDA

HDMID_SCL

C404

100NF 16V

R422

100R 1/16W 5%

C418

100NF 16V

BL_DIMMING

OIRI

C417

1UF 6.3V

HDMIB-RX0P5

SPI_CSN

C427

100NF 16V

RXEC+ 8,9

RXE3-

C426

100NF 16V

HDMID-RX2N5

Demod_RST11

HDMID-RX1P

RXEC- 8,9

C429

100NF 16V

HDMID-CLKN5

+3V3SB

RXEC-

HDMID-RX2P5

HDMIB-CLKP

AVDD_DDR_DATADDRV AVDD_DDR_CMD DDRV VDDCVCCK

+3V3SB

AVDD_MOD AVDD_DMPLL

+3V3SB

AVDD_AU33

+3V3SB+3V3SB

AVDD3P3_VEDIO

+3V3SB

X401

24MHZ

1

2 4

3

+3V3SB

+3V3SB+3V3SB

HDMI_CEC5

ARC_SPDIF5

HDMIB_SDA5

HDMID_SCL5
HDMID_HPDIN5

HDMID_SDA5

HDMIA_SDA5

HDMIB_SCL5
HDMIB_HPDIN5
HDMIA_SCL5
HDMIA_HPDIN5

PANEL_EN 9

PWR_ON 12
SPDIF_OUT 3

FAT_IN- 4

PANEL_EN

FAT_IN+ 4

Close Scaler

RESET (H Reset)

4'h00

AVDD_DADC

B51_NO_EJ

{PWM1, PWM0}

CHIP_CONFIG

TS_D0 11

TS_D0

C433

100NF 16V

+3V3SB

AVDD_DADC

U401

MSD8120PBM-V5

B_ODD[0]/LVA4+

67

SOGIN1

23

BIN1P

22

GIN1M

25

GIN1P

24

CVBS0

29

CVBS1

28

AUL0

35

GIN0P

17

XOUT54XIN53AVDD3P3_DMPLL

52

AVDD_MOD

5

RIN1P

26

G_ODD[3]/LVA0-

78

GPIO7/GPIO5164B_ODD[1]/LVA4-

68

SPI_DO

111

PWM0

110

GIN0M

18

LVSYNC

95

LHSYNC

94

LDE

93

LCK

92

R_ODD[7]/LVB0-

91

R_ODD[6]/LVB0+

90

AVDD_MOD

87

GPIO2/GPIO4660GPIO3/GPIO4761GPIO5/GPIO4962GPIO6/GPIO50

63

TCON7

99

B_ODD[4]/LVACLK+71B_ODD[5]/LVACLK-72B_ODD[6]/LVA2+73B_ODD[7]/LVA2-74G_ODD[0]/LVA1+

75

G_ODD[6]/LVB3+

81

B_ODD[3]/LVA3-

70

TCON8

98

SPI_DI

112

SPI_CZ

113

SPI_CK

114

SAR0

128

SOGIN0

16

LINEOUTR3

45

LINEOUTL0

46

VRM

43

LINEOUTL3

44

IFAGC48LINEOUTR047VIFP

49

RX1N_B

1

RX1P_B

2

RX2N_B

3

RX2P_B

4

RXCN_A

6

RXCP_A

7

RX0N_A

8

RX0P_A

9

RX1N_A

10

RX1P_A

11

RX2N_A

12

RX2P_A

13

HSYNC0

14

BIN0P

15

RIN0P

19

VSYNC0

20

AVDD3P3_ADC

21

VCOM

30

CVBS_OUT1

31

VDDC

32

AVDD_AU33

33

AUR1

36

AUL1

37

AUR2

38

AUL2

39

AUR3

40

VIFM

50

VDDC57GPIO0/GPIO4458GPIO1/GPIO4559VDDIO_CMD

56

GPIO9/GPIO5366B_ODD[2]/LVA3+

69

GPIO8/GPIO52

65

G_ODD[1]/LVA1-76G_ODD[2]/LVA0+

77

G_ODD[4]/LVB4+

79

G_ODD[7]/LVB3-

82

R_ODD[0]/LVBCLK+

83

R_ODD[1]/LVBCLK-

84

G_ODD[5]/LVB4-

80

R_ODD[3]/LVB2-

86

R_ODD[5]/LVB1-

89

R_ODD[4]/LVB1+

88

TCON2

104

TCON1

105

TCON6

100

TCON3

103

TCON5

101

TCON4

102

HOTPLUG_A

108

TCON10

96

DDCA_DA

116

TCON9

97

PWM1

109

TCON0

106

HOTPLUG_C

107

SAR1

129

VSYNC1

27

AUR0

34

VAG

42

AUL3

41

AVDD_MOD

55

R_ODD[2]/LVB2+

85

DDCA_CK

117

TEST

118

CEC

119

IRIN

120

INT

121

DM_P0

123

DP_P0

124

RESET

122

DP_P1

126

AVDD_MOD

127

DM_P1

125

VDDC

144

GND_EFUSE

143

AVDD_5V

142

HOTPLUG_B

141

DDCDB_CL

140

DDCDB_DA

139

MHL_DET

138

DDCDA_DA

137

DDCDA_CL

136

DDCDC_DA

135

DDCDC_CL

134

VDDIO_DATA

133

GND

132

VDDC

131

SAR2

130

RX0P_B

156

RX0N_B

155

RXCP_B

154

RXCN_B

153

RX2P_D

152

RX2N_D

151

RX1P_D

150

RX1N_D

149

RX0P_D

148

RX0N_D

147

RXCP_D

146

RXCN_D

145

E-PAD

157

ARC

115

AVDD3P3_DADC

51

M_SCL

M_SDA

BRIGHT_ADJ 12

HP_DET

System XTAL

ORESET#

C407

18PF 50V

R428

1M 1/16W

XTALO

C406

18PF 50V

R439

750R 1/16W 5%

AVDD_DDR_DATA

XTALI

SPI_WP
AUDIO_RESET

AUR0
AUL0

C422

10UF 6.3V 20%

LED_R

TS_CLK_S 11

AMP-AUOUTL0

TS_VLD 11

TS_CLK_S

M_SCL

TS_VLD

M_SDA

TS_SYNC 11

C410

10UF 6. 3V 20%

M_SDA 4,8,10,11

M_SCL 4,8,10,11

BL_ON/OFF 12

TS_SYNC

PWM1

PWR_ON

AUR2
AUL2

R495

10K +-1% 1/16W

DVDD3V3

128Mb 356G2233128600 MXIC for HK Model

32Mb 056G2233 2 WINBOND
32Mb 056G2233 34 MX I C

64Mb 056G2233 42

HS401

NC/SHIELD

1

2

3

4

C412

10UF 6. 3V 20%

C414

10UF 6. 3V 20%

PB_DET 3
HP_DET 10

LED_R 7

AMP-AUOUTR0

AMP-AUOUTL0

AU_SD
AU_BCK

AMP-AUOUTR

C431

1nF 50V

C409

100NF 16V

R492

200K

XTALO

XTALI

C408

10UF 10V

AVDD_DMPLL

AU_MCK

FB401
60 OHM

1 2

AUVRM

AU_WS

C432

1nF 50V

R493

200K

AMP-AUOUTL

HDMIB_HPDIN

AU_SD10

AU_WS 10

AU_MCK 10

AU_BCK 10

AMP-AUOUTR 10

AMP-AUOUTL 10

AUDIO_RESET 10

RXO4+

RXO4-

AUVAG

RXO4+ 8,9

RXO4- 8,9

VDDC

SPI FLA SH

BL_ON/OFF

GPIO2

AMP-AUOUTR0

RXE4+ 8,9

RXE4- 8,9

AUDI O_MUTE 10

RXE4­RXE4+

AUDIO_MUTE

GPIO3

HDMIB_SCL
HDMIB_HPDIN

HDMIB_SDA

C403
100NF 16V

FRC_DEBUG 8

AVDD_MOD

SPDIF_OUT

RXE2+ 8,9

RXO3+ 8,9

RXE1+

RXO1+ 8,9

RXE0- 8,9

RXE2-

RXE0+ 8,9

RXO2+

RXE2+

U403

MX25L12835FM2I-10G

CS#

1

SO/SIO1

2

WP#/SIO2

3

GND

4

SI/SIO0

5

SCLK

6

RESET#/SIO3

7

VCC

8

RXO1-

RXO2+ 8,9

RXO1- 8,9

RXO0+

RXE0­RXE0+

POWER

0603

0603

0603

0603

RXO2-

RXO1+

RXO2- 8,9

RXO3- 8,9

HDMIB-RX1N5
HDMIB-RX2N5

RXO0-

RXE1-

HDMIB-RX1P
HDMIB-RX2P

RXE1- 8,9

HDMIB-RX2P5

HDMIB-RX1P5

RXO3+

HDMIB-RX1N
HDMIB-RX2N

RXE2- 8,9

RXO3-

RXO0- 8,9

RXE1+ 8,9

RXO0+ 8,9

GPIO6

C420 1UF 10V

C419 1UF 10V

C421 1UF 10V

GPIO7

C4301UF 10V

MHL_CABLE-DET5

AVDD5V_MHL

MHL_CABLE-DET

GPIO8

SPDIF_OUT

PWR_ON

GPIO9

BL_DI MMING BRIGHT_ADJ

R717

1K 1/16W 5%

LED_G 7

LED_G

HDMIA_SCL
HDMIA_HPDIN

HDMIA_SDA

HDMIB_SCL

HDMIB_SDA

MHL_CABLE-DET

HDMID_SDA

HDMIA_SDA

HDMID_SCL

HDMIA_SCL

FB402
120R

1 2

DDR2 =>
MSD8120PBN
DDR3 =>
MSD8120PBM

SPI_SDI

SPI_CLKSPI_WP

R494

0R05 1/16W

HDMIA-RX1N5

VGA_GP
VGA_RP

HDMIA-CLKN5

HDMIA-RX0P5

VGA_BP

HDMIA-CLKN

C434
100NF 16V

HDMIA-RX0N5

HDMIA-RX2N5

VGA_COM4

HDMIA-CLKP

HDMIA-RX1P
HDMIA-RX2P

VGA_COM

HDMIA-RX0P

VGA_SOG4

VGA_VS

HDMIA-RX0N

HDMIA-RX2N

HDMIA-RX1N

FB403
120R

1 2

VGA_BP4

VGA_HS4

SPI_SDO

VGA_HS
VGA_SOG

HDMIA-RX2P5

VGA_VS4

HDMIA-CLKP5

VGA_RP4

HDMIA-RX1P5

VGA_GP4

SPI_CSN

IF_AGC1 4

IF_AGC1

RXOC+ 8,9

RXOC-

RXOC- 8,9

KEY2 7
KEY1 7

RXOC+

KEY1

KEY2

YPbPr_R_In03
YPbPr_L_In03

VGA_L_In4

VGA_R_In4

COMP_PR3

COMP_Y3

COMP_PB3

COMP_COM3

COMP_PB

COMP_PR

COMP_Y

COMP_SOY

COMP_SOY3

COMP_COM

CVBS0P3
CVBS_VCOM3

CVBS_VCOM

CVBS0P

HDMIA_HPDIN

Demod_RST

HDMID-RX0P

HDMID-CLKP5

BL_DIMMING

HDMID-CLKP

PWM1

GPIO1

AVDD3P3_VEDIO

SPI_CLK

FAT_IN+
FAT_IN-

HDMID_HPDIN

HDMID-RX0N5

HDMID-RX1N

ARC_SPDIF

USB_DM 7

RXE3+

USB_DP
USB_DM

USB_DP 7

HDMID-RX2N

R460

0R05 1/16W

HDMID-RX0P5

FAT_IN+

HDMIB-RX0P HDMI_CEC

ARC_SPDIF

HDMIB-CLKN5

AVDD_DDR_CMD

SPI_SDI

GPIO0

C424

100NF 16V

C428

100NF 16V

HDMID-CLKN

HDMIB-CLKP5

R443

4K7 1/16W 5%

C411

100NF 16V

HDMID-RX1N5

R418

10K 1/16W 5%

DDCA_CK 4,8

FRC_DEBUG

C415

100NF 16V

AVDD_AU33

RXEC+

HDMID-RX0N

ARC_SPDIF 5

DDCA_CK

R427

100K 1/16W 5%

R449

4K7 1/16W 5%

Shielding Cover
X85T 804210100000LH

U410
G690H293T73

GND

1

RESET

2

Vcc

3

RXE3+ 8,9

SPI_SDO

HDMI_CEC

R442

4K7 1/16W 5%

HDMIB-RX0N5

OIRI 7
HDMI_CEC 5

HDMID-RX1P5

DDCA_DA 4,8

C413

100NF 16V

RXE3- 8,9

FAT_IN-

HDMIB-CLKN

C425

100NF 16V

IF_AGC

HDMIB-RX0N

C416

4.7UF 6.3V

DDCA_DA

ORESET#

Circuit Diagrams and PWB Layouts

EN 88TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-8-5 USB/KEYPAD

19901_508.eps

USB/KEYPAD

B05 B05

2015-01-30

715G6854

USB/KEYPAD

KEY26

KEY16

OIRI6

KEY2

OIRI

KEY1

t

TH101

NC

1 2

061G 56A075 LT HF ( master)
061G 56A075 WT HF (2nd)

R170 100R 1/16W 1%

R168 100R 1/ 16W 5%

R169 100R 1/16W 1%

LED_RE

LED_GE

IR / KEY BOARD CONN. USB PORT

KEY2_IN

LED_GE

LED_G

R179

1K 1/16W 5%

LED_G6

+3V3SB

R177

10K 1/16W 5%

R180

1K2 OHM

Q104
MMBT3906

+3V3SB

USB 2.0

LED_R

CN401

CONN

2
4
6

8

10

1

3

5
7
9

C150

4.7U F 10% 10V

C152

1uF 10V

R162

10K +-1% 1/16W

C153

100NF 16V

C155

100NF 16V

+3V3SB

LED_RE

C154

100NF 16V

R163

10K +-1% 1/16W

C156
100PF 50V

+3V3SB

R164
30K OHM +-1% 1/16W

C151

4.7U F 6. 3V

123 4

CN103

USB CONN

1
2

3

4

6 5

R158 5R6 1/ 16W 5%

Q103
MMBT3906

R165

1K 1/16W 5%

R159

10K 1/16W 5%

R161

10K 1/16W 5%

R167

1K2 OHM

U109

APL3511CBI-TRG

VOUT

1

GND

2

OCB

3

EN

4

VIN

5

R157 5R 6 1/ 16W 5%

USB_DM

R160

10K 1/16W 5%

USB_5V

USB_5V

5V_SW+3V3SB

+3V3SB

USB_DP6

USB_DM6

KEY1_IN

LED_R6

USB_DP

ZD122NC/AZ5123-01H

12

ZD121NC/AZ5123-01H

12

SW401

NC/SW

123

4

KEY1: POWER
KEY2: Vol+/-, CH+/-,
Menu, Input

R171 N C / 750R 1%

Circuit Diagrams and PWB Layouts

EN 89TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-8-6 LVDS Output

19901_509.eps

LVDS Output

B06 B06

2015-02-04

715G6854

LVDS Output

RXO4+ RXO4-

C0P

A1M

C4P

BCKP

RXE4+ RXE4-

C1M

C1P

ACKM

C2P

D3M

A4P
A4M

B4M

A3P

B1M

A0P

ACKP

BCKM

A0M

DCKP

C4M

D2P

D0M

RXOC-

RXO1-

RXO3-

RXO2-

RXEC-

RXO0-

RXE3-

RXE0­RXE1­RXE2-

B2M

A2P

B2P

D2M

B3M

DCKM

CCKM

D4P

A1P

C3P

D4M

C2M

B3P

A2M

D3P

B4P

CCKP

D0P

D1M

D1P

B0M

C0M

A3M

LVDS_SEL

B0P

B1P C3M

BITSEL

449.39

A3

7342Q

311GW200C30AAL00HF (V/T)
311GW200C30ABL (R/A)

RXO0-6,8

499.26

RXE2+6,8

A9

DQ5

A6

Trace (mil)

RXO1-6,8

947.97

RXO4-6,8
RXO4+6,8

RXO4­RXO4+

RXE4-

RXE4+6,8
RXE4-6,8

RXE4+

RXO0+6,8

RXO3-

20PX2 R/A 2.0mm
311GW200C40ABL

987.05

307.9

High: Panel Power On
Low : Panel Power Off

513.32

891.96

RXE3-6,8

RXE2-

985.38

CLKZ

R766

0 OHM +-5% 1/8W

891

424.75

674.22

311GW200C40ABL RA
311GW200C40AAL VA

RXO0+

DQM0

RXE3+6,8

RXE1+

DQ7

RXO1+

RXEC-6,8

368.42

BA1

DQM1

448.21

767.09

1238.27

RXE3+

451.37

FFC Connector

7342Q

space/trace/space/trace/space(mil)
8 / 8 / 5 / 8 / 8

435.59

761.1

BA0

409.8

316.03

329.57

FFC CON NECTOR 0.5PICTH 51P
311GF050A51ADJ

RXE0+6,8

RXO2+

RXEC+

A4

DQSB1

700.83

327.11

550.43

486.52

DQSB0

RXE2+

1020.94

840.92

470.56

672.37

WEZ

RXE1+

A2

A8

A13

DQ10

LVDS_CON_DET

DQ8

335.11

RXO2+6,8

862.56

DQ12

1206

DQ1

502.12

A10

CKE

RXO3+

441.84

Trace (mil)

332.75

DQ13

894.6

DQ14

RXO1+

RXO3+

DQ2

BA2

428.61

685.68

RXOC+

RXO1+6,8

364.96

289.48

436.45

A11

CASZ

RXOC-

419.34

937.14

A7

RXE0+

RXEC+

RXOC+

264.11

A12

430.23

270.13

RXO3-6,8

291.62

972.78

311GW200C30ABL RA
311GW200C30AAL VA

351.56DQ15

744.67

DQS0

DQS1 270.76

DQ0

RXE3+

1199.46

RXEC-

Q709

NC/2N7002K

A5

DQ9

518.1

683.75

378.33

FFC CON NECTOR 0.5PICTH 41P
3311GF050A41ADJ

917.47

R765

NC/ 1K 1/ 16W 1%

964.51

RXO1-

0603

601.6

Pin

RXO3+6,8

R764

NC/470R 1/10W 1%

941.56

857.6

PANEL_POWER

RXE0+

373.75

DQ3

297.87

772.55

377.03

142.32

RXO2-

A0

DDR II

CLK

766.1

RXE2-6,8

DDR II

908.62

409.14

Pin

704.3

RXE0-

PANEL_POWER

DQ11

315.93

RASZ

1041.29

411.43

DQ4

RXEC+6,8

458.07

573.88

293.19

RXE1+6,8

ODT

781.79

RXE4­RXE4+

703.84

878.44

702.2

RXO2-6,8

867.73

512Mb 1066MHz (32Mx16) DDRII
356G0615512175 W9751G6KB-18
056G 615108 1 H5PS5162GFR-G7C

414.13

15PX2 R/A 2.0mm
311GW200C30ABL

RXO4­RXO4+

RXE2+

RXOC+6,8

RXE3-

RXO0-

CN409

NC/CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52 53

494.8

226.96

678.86

437.34

RXOC-6,8

424.96

DQ6

RXE1-6,8

RXE0-6,8

897.85

398.98

341.76

436.7

RXE1-

RXO0+

704.87

414.7

432.78

A1

RXO2+

3D_SYNC
3D_FLAG

CN203

NC/CONN

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

PANEL_POWER

+5VSB

A1P

ACKP
A3P

A0M

ACKM

A1M
A2M

A0P

A3M
A4M

R767

NC/0 OHM +-5% 1/8W

A2P

A4P

B4P B4M

B1M

BCKM
B3M

B2M

B0MB0P

B3P

CN204

NC/CONN

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

BCKP

B2P

B1P

C1M

CCKM

C2P

C0MC0P

C3P

C2M

C4P

CCKP

C3M

C1P

C4M

DCKM

D0M

D3M
D4MD4P

D1P D1M

D3P

D2P D2M

D0P

DCKP

CN408

NC/CONN

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

R702

0R05 OHM

C728

NC/ 470N F 16V

RXOC-

RXO3-

RXO2-

RXO0+

RXO0-

RXO3+

RXOC+

RXO2+

RXO1­RXO1+

R154
NC/4.7K

A0M

A2M

B1P

A3P
A3M

C0M

B3M

A0P

C0P

B0M
B1M

B4P

B2M

ACKM

B0P

B2P

BCKM

A1M

BCKP

A4M

B4M

C2P

ACKP

C1M

C1P

A1P

B3P

A4P

A2P

D3P

R151

4.7K 1/16W

C2M

D4M

CCKM

C4P

DCKP

D0M
D1P

C3P

D4P

D0P

D3M

C3M

D2P
D2M

C4M

DCKM

D1M

CCKP

DVDD3V3

LVDS_SEL

D702

BAS316

311GF050A51ADJ

LVDS_CON_DET

BITSEL

LVDS_CON_DET

3D_SYNC

C730

470NF 16V

R251

NC/4.7K1/16W

+

C260

100uF/25V

R733

240R 1/10W 5%

CN205

CONN

1
2

3

4
5
6
7

8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

30
31
32
33
34
35
36
37
38
39

40
41
42
43
44
45
46
47
48
49
50
51

5253

CN206

NC/CONN

1
2

3

4
5
6
7

8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

30
31
32
33
34
35
36
37
38
39

40
41

4243

R246

NC/4.7K1/16W

Q708

AO4449 -7A/-30V

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

R255

0R05 1/16W

C261

47nF 50V

RXEC+

RXE1+

RXE3-

R734

47K 1/10W 5%

R739

10K 1/16W 5%

RXE2+

RXE1-

RXE0-

RXEC-

RXE3+

R254

0R05 1/16W

RXE0+

RXE2-

R245

NC/4.7K1/16W

R723

150K 1/10W 5%

R248
NC/1K 1/4W

R253
NC/4.7K1/16W

R724

3K3 1/16W 5%

R250

NC/4.7K1/16W

Q707
MMBT3904

R252

NC/4.7K1/16W

PANEL_POWER

+12V

PANEL_POWER

VCC3_3

VCC3_3

B1P 8

A2P 8

DCKP 8

PANEL_POWER

A3M 8

D0P 8

B1M 8

ACKM 8

BCKP 8

D1M 8

B4M 8

ACKP 8

C4M 8

C3M 8

A1P 8

D2P 8

A4M 8

B3P 8

A3P 8

B0P 8

D4P 8

D1P 8

B3M 8

D3M 8

C0M 8

C2M 8

BCKM 8

C3P 8

C2P 8

CCKM 8

B2M 8

B0M 8

DCKM 8

D4M 8

D3P 8

A4P 8

D2M 8

C0P 8

C1M 8

B4P 8

C1P 8

A1M 8

C4P 8

CCKP 8

A0P 8
A0M 8

A2M 8

B2P 8

PANEL_EN6

D0M 8

3D_FLAG

Circuit Diagrams and PWB Layouts

EN 90TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-8-7 Audio Amp/Headphone Output

19901_510.eps

Audio Amp/Headphone Output

B07 B07

2015-02-04

715G6854

Audio Amp/

Headphone Output

R601

18R 1/10W 1%

R603

18R 1/10W 1%

Q90T0092 1

Heat
Sink
24*9

P90T0066101

R604

18R 1/10W 1%

C615
330NF 16V

C619
330NF 16V

HS601

HEAT SINK

1
2

HPOUT_R

HPOUT_L

R646

5.1K 1%

R658

4.7K 1/16W

R654

470R 1/16W 5%

C678

10UF 6. 3V 20%

D601

BAV70

3

1

2

D602

BAS316WS

R642

1K 1/16W 1%

C680

100N 16V

C679

NC/10UF 6.3V 20%

R653
10K 1/16W 5%

DVDD3V3

C628
1nF 50V

+5VSB

C643 100PF 50V

C646 100PF 50V

AC OFF

POP NOISE

DC OFF

R623

4.7K 1/16W

C637
1UF 10V

HP_MUTE

FB602 0R05 1/16W

A_MU TE

C664
22uF 10V

ROUT-

C644 2.2U F 10V

HP_DET6

DVDD3V3

HP_DET

C649
100PF 50V

C645 2.2U F 10V

CN602

CONN

1
7
6
2

3

4
5

FB604 300R

C650
100PF 50V

FB605 300R

R625 100OHM

R624

10K

AMP-AUOUTL

R626 10K +-1% 1/16W

AMP-AUOUTR

R629 10K +-1% 1/16W

R627 33K 1%
R630 33K 1%

HPIN_L

HPIN_R

AUDIO_MUTE

FB601

120R

12

AUDIO_MUTE6

+16V_AUD

AMP-AUOUTR
AMP-AUOUTL

C623
100N16V

L601 22uH

C621 2.2nF 50V

HP_SD

C617 1UF 25V

R612

33 OHM 1/16W

R614

33 OHM 1/16W

M_SCL
M_SDA

C640

22PF 50V

CN601

CONN

1

2

3

4

5 6

5V_SW

C604

4.7UF

AMP_POWER

M_SCL4,6,8,11

M_SDA4,6,8,11

AUDIO_RESET6

R620
10K

Q603

MMBT3904

L602 22uH

R622 2.2K 1/16W

L603 22uH

AMP_3V3

L604 22uH

AMP_3V3

C624
1UF 10V

R617

18.2K OHM +-1% 1/16W

C601

4.7UF

AUDIO_RESET

R607

470R 1/16W 1%

AMP_3V3

R+

R602

18R 1/10W 1%

C605

330pF 50V

C630 4.7NF 50V

C629 47nF 16V

C610

330pF 50V

AU_MCK

AMP-AUOUTL6

C613

330pF 50V

C618

330pF 50V

C638
22PF 50V

C633 4. 7N F 50V

C63147nF 16V

R608 470R 1/ 16W 1%

R606

10K

AMP_PDN

ADR

C641

22PF 50V

C642

22PF 50V

AMP_3V3

AMP_3V3

AU_SD6

AU_SD

DVDD3V3

C636
100N16V

AMP-AUOUTR6

AU_BCK6

AU_MCK6

AU_WS6

C620 1UF 10V

R618

33 OHM 1/16W

AU_WS

AU_SD

R616

33 OHM 1/16W

C626 1UF 10V

C639

4.7UF 10% 10V

RESET_AMP

U601

TAS5729MD

GND

1

OUTA

2

BSTA

3

PVDD

4

PWM1

5

PWM2

6

HPIL

7

HPOL

8

HPOR

9

HPIR

10

HPVSS

11

CN

12

AVDD_REG2

37

SSTIMER

38

HP_SD

39

GVDD_REG

40

PVDD

41

BSTD

42

OUTD

43

GND

44

OUTC

45

BSTC

46

BSTB

47

OUTB

48

GND

36

GND

35

TEST

33

DVDD

34

RESET

32

NC

31

SCL

30

SDA

29

SDIN1

28

SCLK

27

LRCLK

26

PDN

25

CP

13

HPVDD

14

GND

15

FLTM

16

FTLP

17

AVDD_REG1

18

AVDD

19

ADR

20

MCLK

21

ROSC

22

GND

23

DVDD_REG

24

E-Pad

49

R619

NC

R621

10K

AMP_3V3

ADR

C635
NC

C622 100N16V

M_SCL

AU_MCK

L-

C627
100N16V

HPIN_L

LOUT+

M_SDA

L+

AU_WS

AU_BCK

C611
330NF 16V

R-

HPOUT_L

AUDIO_RESET

HPIN_R

HPOUT_R

C608
33nF 50V

C609 33nF 50V
C612 33nF 50V

C616 33nF 50V

AMP_3V3

R605

10K

HP_SD

ZD601AZ5123-01H12ZD602AZ5123-01H12ZD603NC/AZ5123-01H

12

L+

I2C A ddress

R+

Lo

0402

0X54

0402

28E 8ohm 5W
24E 16ohm 3W

39E 16ohm 8W
39D 16ohm 8W

AUDIO_MUTE

HP_MUTE

088G302G7B1ACL

HeadPhone / Audio Output (Side)

Q601

LMBT3904LT1G

EAR_L
EAR_R

R-

+

C603

NC/100uF 35V

L-

Hi

0402

0402

0X56

+

C602
220uF 16V

EAR_DET

LOUT-

AU_BCK

ROUT+

C607
330NF 16V

FB603

0R05 1/16W

Circuit Diagrams and PWB Layouts

EN 91TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-8-8 Demod DTMB

19901_511.eps

Demod DTMB

B08 B08

2015-01-30

715G6854

Demod DTMB

IF_AGC_D 4

IF_AGC_D

X101

24MHZ

1

2 4

3

C162

100N 16V

R141

10K+-5%1/16W

C160

NC / 12P 50V

VCC3V3

1.2V

C193

100N 16V

C195

100N 16V

C196

10UF 6. 3V 20%

C188

100N 16V

C194

100N 16V

C130

100N 16V

C126

100N 16V

C191

100N 16V

R124

4K7 1/16W 5%

C190

100N 16V

DM3V3

VCC3V3

C163 100N 16V

MSPI_DO
MSPI_DI

TSCLK
MSPI_CSZ

Demod_RST6

1.2V

VCC3V3

Demod_RST

DATA

H/W Strap

Config

WP

U10 For MSB1233C

Flash

TS_SYNC

POWER

TS_CLK_S TSCLK

TSVLD

TSSYNC

TS_VLD

TSSYNC

TSVLD

SYS_SDA

Configure TS0

TS0

TP101

M_SCL 4,6,8,10

M_SDA 4,6,8,10

I2C slave address:
TS_ERR=0, I2C slave address=0xD2
TS_ERR=1, I2C slave address=0xF2
ዴᯝTS_ERR(PIN24)悬 ✵ , 㯱 认为ୖᢼ
ࡉaddress=0xF2DŽ

C192

1uF 10V

1.2V

1.2V

VCC3V3VCC3V3

VCC3V3

TS_D0

R193 47 OHM 1/16W

TS_D06

TS_SYNC6

TS_VLD6

U103

MSB1238

AVDD3316SAR_RSSI15GND

14

MSPI_CSZ/SSPI_CLK

33

GND

46

I2CM_SCL20I2CM_SDA

21

VDD

25

VSS

18

VDD3323TS_ERR

24

VDD

17

RESETZ

29

GND

30

Configure/GPIO0

19

MSPI_CLK/SSPI_CSZ

28

MSPI_DI/SSPI_DO

31

IF_AGC

7

GND

26

VDD33

27

RFAGC/GPIO

6

TS_CLK

34

TS_D[7]

35

TS_D[6]

36

TS_D[5]37TS_D[4]38TS_D[3]39TS_D[2]40TS_D[1]41TS_D[0]42TS_VLD

43

TS_SYNC

44

VDD33

45

GND

22

VDD

47

I2CS_SDA

48

I2CS_SCL

1

GND

2

XTAL_OUT

3

XTAL_IN

4

AVDD33

5

GND

10

MSPI_DO/SSPI_DI

32

QP

8

QM

9

IP

11

IM

12

AVDD33

13

XTAL_IN

TS_CLK_S6

Demod_RST6

IF_AGC_SW

R138

33 OHM 1/16W

MSPI_CLKMSPI_WP
MSPI_DI

MSPI_DO

MSPI_CSZ

C198

100N 16V

VCC3V3

MSPI_CLK

Conf igure

MSPI_WP

R194

NC/10K+-5%1/16W

R195
10K+-5%1/16W

XTAL

XTAL_IN

C183

18PF 50V

C184

22PF 50V

R189

1M 1/16W

XTAL_OUT

U102

MX25L2006EM1I-12G

CS#

1

SO/SIO1

2

WP#

3

GND4SI/SIO0

5

SCLK

6

HOLD#

7

VCC

8

R190 47 OHM 1/16W

C199

100N 16V

DM1V2

C161

100N 16V

TP102

I2CM_SDA

FB103

120R

1 2

FB104

120R

1 2

I2CM_SCL

R191 47 OHM 1/16W

IF_AGC_D

SYS_SCL
XTAL_OUT

QP

QM

MSPI_WP

IP
IM

VCC3V3

R192 47 OHM 1/16W

DIF2 4

SYS_SCL

SYS_SDA

DIF1 4

IP

IM

Circuit Diagrams and PWB Layouts

EN 92TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-8-9 System Power

19901_512.eps

System Power

B09 B09

2015-01-30

715G6854

System Power

R707
4K7 1/16W 5%

R737
10K

BRIGHT_ADJ 6

+5VSB

+3V3SB

+16V_AUD +16V

ac off

R720

0R05 1/16W

R738

1K 1/16W 5%

H => POWER_ON
L => POWER_OFF

ZD701

PDZ5.1B

1 2

+16V

+16V

FB702 120R

1 2

C704

100PF 50V

C705

0.1uF 50V

C743
22UF 6.3V

FB701120R

1 2

R744
33K 1/16W 1%

DVDD3V3

U706

G5695T11U

VIN

1

GND

2

EN3VFB

4

LX

5

R745

22K 1%

C744

100N 16V

C745

2.2UF

DDRV

16V -> 12V for PANEL

C719

NC/100N 16V

+5VSB

U701

SY8104ADC

LX

5

FB

1

EN

2

GND3IN

4

BS

6

R708

4K7 1/16W 5%

FB705

120R

12

C724

2.2UF

R703

13K 1/10W

+5VSB

R714 100K 1%

L702

2.2uH

L701

4.7uH

C715

1uF 10V

C703

100pF 50V

C738
22UF 10V

C739

22UF 10V

+3V3SB

R750

18Kohm 1/16W +/ -1%

R713

20K OHM 1/16W 1%

C710

10uF 16V

R715 0R051/8W

VCCK

C725

10UF 6.3V 20%

C709

0.1uF 50V

+5VSB

+16V

C717

4.7UF 10% 10V

R736 0R05 1/16W

R751

NC/18Kohm 1/16W +/-1%

FB703 120R

1 2

DM1V2

3V3T

C720

10UF 10V

C723

2.2UF

L707

2.2uH

R719

100K1/16W

C755

NC/1UF16V

R730

NC/330R +-1% 1/10W

U709
NC/AP1117D G-13

VIN3VOUT

2

ADJ(GND)

1

R740

10K +-1% 1/16W

R729

NC/0R05 1/10W

R748

NC/150R 1/10W 1%

1V8_FRCDDR

C737

NC/10uF

C735

10UF 6.3V 20%

R732

17.4K 1%

R1

R2

5V_SW

L706

2.2uH

R743

8K2 1/16W +/-5%

GND1

GND

1

GND3

GND

1

GND2

GND

1

GND4

GND

1

R2

0603

0603

0603

0603

C752
NC/10uF

+16V_AUD

FRC Power system

U708 NC/SY 8003ADFC

NC

5

FB

1

PG

2

IN

3

PGND

4

LX

6

EN

7

SGND

8

PGND

9

R1

0805

0805

VCC3_3

12V TO 5VSB

3V3_FRC

DRAM Power 1.5V

R728
NC/120K 1%

SOT223 1A/3.3V

R746

NC/100K 1/ 16W

R762

NC/10K+-5%1/16W

DEMOD POWER

L704
NC/2.2uH

C756

NC/22UF 6.3V

C736

NC/22UF 6.3V

C732

NC/10UF 10V

5V_SW

1V18_FRC

R1

R2

U703

G5695T11U

VIN

1

GND

2

EN3VFB

4

LX

5

R735

1K 1/16W 5%

+3V3SB

R726

4K7 1/16W 5%

U704

NC/SY8104ADC

LX

5

FB

1

EN

2

GND3IN

4

BS

6

C757

NC/22U F 10V

R775 NC/0R051/8W

BL_ON/OFF

R770

NC/10K 1/ 10W 1%

C748
NC/22UF 10V

+12V

+16V

ac off

C749

NC/10uF 16V

Q705
MMBT3904

5V_SW

L703

NC/4.7uH

R773

NC/36K 1%

R776

NC/40. 2K 1/ 16W 1%

R774

NC/20K OHM 1/16W 1%

R772 NC/ 191K OH M 1% 1/16W

C761

NC/10UF 6.3V X5R +-20%

U707
NC/AZ1117D

VI3VO

2

GND

1

R771 NC/0R05 1/16W

C716

NC/100pF 50V

C760

NC/1UF16V

R722
4K7 1/16W 5%

5V_SW

C746

NC/0.1uF 50V

VCC3_3

R1

BL_ON/OFF 6

C726

1uF 10V

R2

PWR_ON 6

R741
10K +-1% 1/16W

Q706
MMBT3904

DM3V3

R742

4K7 1/16W 5%

+3V3SB

R7800 OHM +-5% 1/8W

BL_ON_OFF

BRIGHT_ADJ

R721
100K1/16W

R731

NC/16K 1%

C701
100PF 50V

Q702

AO3401A

C702
1nF 50V

BL_DIM

BL_ON

C733 NC/22P 50V

CORE POWER 1.2V

C707

NC/0.1uF 50V

U702
AP1117E33L-13-77

ADJ(GND)

1

VOUT

2

VIN

3

4

4

080508050603

0805

FRC 3.3V

PS_ON

VCC3_3

CN701

CONN

2

4

6

8

10

12

1

3

5

7

9

11

5V_SW

R753

4K7 1/16W 5%

PWR_ON

C721

100NF 16V

R727 NC/100K 1%

R705

7K5 1/16W 5%

R710

NC/0 OHM +-5% 1/8W

U705

M5723B-33F61U

EN1

1

AGND

2

FB1

3

AGND

4

EN25IN2

6

OUT2

7

IN1

8

PGND

9

LX

10

E-PAD

11

Back Light On / Off
HI => POWER_OFF
LO => POWER_ON

BL_DIM

C762

NC/10UF 6.3V X5R +-20%

PS_ON

BL_ON

5V_SW

C754
NC/1uF 10V

MA IN P OWER

C711

0.1uF 50V

C708

10UF 6.3V 20%

C706
1UF 25V

+5VSB

Q701
MMBT3904

C731

NC/1UF 10% 16V

5V_SW

R706
4K7 1/16W 5%

R712 40.2K 1/ 16W 1%

PS_ON

C713

100PF 50V

R749

NC/100K 1/16W

R711

36K 1%

R704

47K 1/16W 5%

R709

4K7 1/16W 5%

Q710
LMBT3906LT1G

C712

1UF 10V

Q703
MMBT3904

R701

100R 1/16W 5%

Circuit Diagrams and PWB Layouts

EN 93TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-8-10 SSB layout top

19901_513.eps

715G6854

LAYOUT TOP

X101

X401

X201

C117

C150

C169

C196

C201

C210

C215

C220

C228

C231

C234

C238

C240

C261

C410

C412

C414

C422

C507

C508

C605

C607

C608 C609

C610

C611

C612

C613

C615

C616

C617

C618

C619

C639

C644

C645

C705

C706

C708

C711

C717

C724

C725

C728

C730

C731

C735

C755

C243

C408

C710

C720

C737

C752

C756

FB103

FB104

FB201

FB202

FB204

FB601

FB705

FB101

FB203

FB205

FB206

FB207

FB401

FB604

FB605

R601

R602

R603

R604

R723

R729 R730

R733

R734

R748

R764

R248

TH101

D602

C760

C761

C762

FB402

FB403

R710

R766
R767

D702

U708

C746

C709

C732

C743

C738

C739

C748

C736

C757

R715

R775

C745

C749

R703

R770

ZD701

R780

C678

C679

C723

C601

C604

C664

C602

C603

FB501

FB502

FB503

C707

ICT1

ICT2

HS401

HS1

ICT3

H1

CN101

CN102

CN103

CN602

U109

U505

U702

U401

CN604

U601

U104

SCREW3

SCREW2

SCREW1

CN701

CN601

U705

CN603

FCN101

HS601

L702

L701

U103

U703

X102

GND1

GND2

GND3

D201

CN206

CN205

SW401

CN201

L703

U201

U207

U208

U709

SCREW4

GND4

CN111

C101

C102

C103

C104

C105

C107

C108

C110

C111

C112

C113

C114

C115

C116

C118

C680

C123

C124

C125

C126

C127

C129

C130

C131

C133

C134

C135

C136

C137

C139

C142

C143

C144

C151

C152
C153

C154

C155

C156

C157

C159

C160

C161

C162

C163

C164C165C166

C167

C168

C170

C171

C172

C173

C183

C184

C188

C190

C191

C192

C193

C194

C195

C198

C199

C202

C203

C204

C205

C206

C207

C208

C209

C211

C212

C213

C214

C216

C217

C218

C219

C221

C222

C223

C224

C225

C226

C227

C229

C230

C232

C233

C235

C236

C237

C239

C241C242

C244

C245

C246

C402

C403

C404

C406

C407

C409

C411

C413

C415

C416

C417

C418

C419

C420

C421

C423

C424

C425

C426

C427

C428

C429

C430

C431

C432

C433

C434

C501

C503

C504 C505

C620

C621

C622

C623

C624

C626

C627

C628

C629

C630

C631

C633

C635

C636

C637

C638

C640

C641

C642

C643C646

C649

C650

C701

C702

C704

C712

C713

C715

C719

C721

C726

C744

C733 C754

FB701

FB702

FB703

L101

L103

L104

L105

FB602

FB603

R101

R102

R103

R104

R105

R106

R107

R108

R109

R110

R111

R112

R113 R114

R115

R116

R117

R118

R119

R122

R123

R124

R125

R126

R129

R130

R131

R132

R133

R134

R135

R136

R138

R139

R140

R141

R142

R143

R144

R145

R146

R147

R149

R151

R154

R157

R158

R159

R160

R161

R162

R163

R164

R165

R167

R168

R169

R170

R171

R177

R179

R180

R181

R182

R183

R187

R189

R190

R191
R192

R193

R194

R195

R201

R202

R203

R204

R205

R206R207

R208

R209

R210
R211

R212

R213

R214

R215

R216

R217

R218

R219 R220 R221 R222 R223 R224 R225 R226 R227 R228

R229

R230

R232

R233

R245

R246

R250

R251

R252

R253

R254

R255

R417

R418

R422R427

R428
R439

R442

R443

R449

R450

R460

R492

R493

R494

R495

R501

R503

R505

R506

R507

R508

R510
R511

R512

R514

R515

R517

R518

R529

R530

R532
R533

R534

R542

R543

R544

R545

R550

R551

R552

R558

R559

R561

R606

R607

R608

R612

R614
R616

R617

R618

R619

R620

R621

R622
R623

R624R625

R626

R627

R629

R630

R642

R646

R653

R654

R701

R704R705

R706

R707

R708

R709

R772

R773

R717

R722

R724

R726

R762

R732

R735

R739

R740

R741

R742

R743

R744

R750

R753

R728

R765

R776

Q708

U102

U202

U403

CN401

CN204

CN408

CN203

U707

R702

SEN6

SEN5

SEN7

Q702

D102

ZD120

U410

D507

Q103

Q104

Q603

Q701

Q703

Q705

Q706

Q707

Q501

Q505

Q709

C716

L704

R774

R737

R738

R745

R746

R749

R713

CN409

C703

L706

R711

R712

R714

R720 R721

R727

R731

R736

R771

U706

U701

U704

Q710

L601

L602

L603

L604

Q601

L707

R658

R719

D601

CN508

CN507

CN506

ZD101

ZD102 ZD103 ZD104ZD105 ZD106

ZD107

ZD108

ZD109 ZD110

ZD111

ZD112

ZD113

ZD114

ZD121ZD122

ZD503

ZD514

ZD518

ZD601

ZD602

ZD603

C260

ZD115ZD116

R605

R751

Circuit Diagrams and PWB Layouts

EN 94TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-8-11 SSB layout bottom

19901_514.eps

715G6854

LAYOUT BOTTOM

TP101

TP102

Circuit Diagrams and PWB Layouts

EN 95TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10.9 J 715G7055 IR/LED Panel

19820_550.eps

LED & IR & 3D & Light sensor

J J

2014-09-26

C

715G7055

LED&IR&3D&Light sensor

CN201

CONN

1
2

3

4
5

67

IR

RC6

standby

LED301

CHIP LED RED 19-21B/R6C-BL1M2VY/3T

12

U201

IRM-H336M3/TR2

GND

1

VCC

2

Vout

3

GND

4

3V3SB

C304

1uF 10V

C305

1uF 10V

R202

100R 1/ 10W 5%

R201

10K 1/16W 5%

3V3SB

3V3SB

ZD201

MLVG0402

12

ZD202

NC/MLVG0402

12

LED_R

RC6

R301

1K 1/16W 5%

LED_R

Q301
BC847BW

R302
2K2 1/16W 5%

3V3SB

10-9-1 LED & IR & 3D Light sensor

Circuit Diagrams and PWB Layouts

EN 96TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-9-2 IR/LED board layout

19820_551.eps

715G7055

IR/LED panel

layout top/bottom

R202

ZD202

ZD201

LED301

Q301

R201

R301

R302

U201

ZD203

CN201

C304

C305

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 97TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10.10 J 715G7477 IR/LED Panel

19901_515.eps

IR Board

J J

2014-11-19

715G7477

IR Board

Q001

BC847C

Q002

BC847C

R008

10K

R005

10K

R006

10K

R007

10K

C0202

100N 16V

C0203

100N 16V

C0201

100N 16V

R001

330R 1/ 16W 5%

C0204

100P 50V

VCC_STBY

C0205

4.7uF 10V

R004

47R 1/ 16W 5%

R003

10K

VCC_STBY

IR

R002

330R 1/ 16W 5%

VCC_STBY

LED_R

CN0201

CONN

1
2

3

4
5

67

RED

BLUE

LED001

GPTD1210BRC-D

1

2 3

4

ZD005

NC/MLVG0402

12

ZD006

NC/MLVG0402

12

LED_B

ZD003

NC/MLVG0402

12

ZD004

NC/MLVG0402

12

U001

IRM-H336M3/TR2

GND

1

VCC

2

Vout

3

GND

4

VCC_STB

Blue

Red

10-10-1 IR Board

Circuit Diagrams and PWB Layouts

EN 98TPS15.1A LA 10.

2015-Sep-11

back to

div.table

10-10-2 IR/LED board layout

19901_516.eps

715G7477

IR/LED panel

layout top/bottom

C0205

C0202

C0203

C0204

LED001

Q002

R002

R003

R004

R005

R006

U001

ZD003

ZD004

ZD006

ZD1

ZD2

C0201

CN0201

Q001

R001

R008

R007

ZD005

ZD3

ZD7

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 99TPS15.1A LA 10.

2015-Sep-11

back to

div.table

Circuit Diagrams and PWB Layouts

19850_524.eps

Key

E E

2014-05-28

715G7088

Key

KEY1

Menu
Right
Left
Down
Up

6-5 short

R04

2K2 1/10W 1%

2-5 short

F1

3-5 short

R01

1K2 1/10W 1%

1-5 short
4-5 short

F2
F3

F5

F3

F1

F4

F2

SW01

TACT SW 6P

3 4

2

1 6

5

7

8

F4
F5

R05

15K 1/10W 1%

Direction

R03

6K8 1/10W 1%

switch

----><----|

Joystick circuit diagram

C06

0.1uF 50V

pin1

0V

0.5V

0.81V

1.65V

2.27V

pin2

No function

pin3

3.3V

C04

NC / 100N 50V

pin4 pin5

C05

NC / 100N 50V

pin6

----><----|

C01

NC / 100N 50V

C02

NC / 100N 50V

C03

NC / 100N 50V

----><----|

----><----|

----><----|

Down

Up

Center

CN01

CONN

1
2

34

R02

0R05 1/ 10W

0R

2K2

Key functionResistance

Center

CH+

CH-

1K2

VOL-

VOL+

Left

15K

6K8

Right

Voltage

JOYSTICK

10.11 E 715G7088 Keyboard control panel

10-11-1 Key

EN 100TPS15.1A LA 10.

2015-Sep-11

back to

div.table
