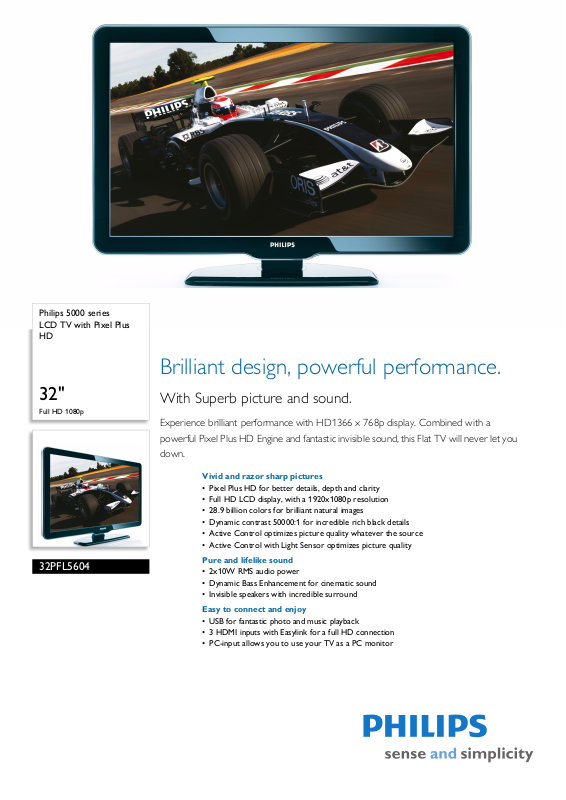

Philips 5000 series
LCD TV with Pixel Plus
HD

Brilliant design, powerful performance.

32"

Full HD 1080p

32PFL5604

With Superb picture and sound.

Experience brilliant performance with HD1366 x 768p display. Combined with a
powerful Pixel Plus HD Engine and fantastic invisible sound, this Flat TV will never let you
down.

Vivid and razor sharp pictures

• Pixel Plus HD for better details, depth and clarity

• Full HD LCD display, with a 1920x1080p resolution

• 28.9 billion colors for brilliant natural images

• Dynamic contrast 50000:1 for incredible rich black details

• Active Control optimizes picture quality whatever the source

• Active Control with Light Sensor optimizes picture quality

Pure and lifelike sound

• 2x10W RMS audio power

• Dynamic Bass Enhancement for cinematic sound

• Invisible speakers with incredible surround

Easy to connect and enjoy

• USB for fantastic photo and music playback

• 3 HDMI inputs with Easylink for a full HD connection

• PC-input allows you to use your TV as a PC monitor

LCD TV with Pixel Plus HD

with

32" Full HD 1080p

Highlights

32PFL5604/60

Pixel Plus HD

Pixel Plus HD is a picture processing
te

chnology that enables viewer to watch
contents that are vivid, natural and real. The
result is a superbly razor sharp pictures with
incredible details and depth from any HD
source.

Full HD LCD display 1920x1080p

The Full HD screen has the widescreen
resolution of 1920 x 1080p. This is the highest
resolution of HD sources for the best possible
picture quality. It is fully future proof as it
supports 1080p signals from all sources,
including the most recent like Blu-ray and

advanced HD game consoles. The signal
processing is extensively upgraded to support
this much higher signal quality and resolution.
It produces brilliant flicker-free progressive
scan pictures with superb brightness and
colors.

28.9 billion colors

Vibrant and natural images from most
advan

ced color processing. The 3 color
channels (RGB) are optimized using 10 bit
resolution, a total processing power of 28.9
billion colors. It produces vibrant colors while
retaining excellent sharpness. The advanced
algorithms detect subtle color shades , skin
tones and processes these to give most natural
colors.

USB for photo & music playback

The USB connector allows access to jpeg
ph

otos and mp3 music of most USB-sticks
(USB memory-class device). Plug the USB into
the slot at the side of the TV and access your

photos or music files. You can easily view and
share your photos and music.

PC input (VGA)

With PC input you can connect your TV to a
c

omputer by a VGA cable and use the TV as a

PC monitor.

Active Control + Light Sensor

Active Control is a unique and intelligent way
o

f optimizing picture quality by measuring and
analyzing the incoming signal to automatically
adjust picture quality settings. Active Control
with Light Sensor uses a sensor to adjust the
picture brightness depending on the room light
conditions.

Invisible speakers

An invisible sound system that blends perfectly
w

ith the design of the cabinet. The Incredible
Surround allows you to experience total
surround with greater depth and width of
sound. It gives a clear and spacious sound stage
complementary to the rich viewing experience.

LCD TV with Pixel Plus HD

32" Full HD 1080p

Specifications

32PFL5604/60

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 50,000:1

• Response time (typical): 6 ms

• Viewing angle: 178º (H) / 178º (V)

• Diagonal screen size: 32 inch / 81 cm

• Display screen type: LCD Full HD W-UXGA Act.
rix

mat

• Panel resolution: 1920x1080p

• Picture enhancement: Pixel Plus HD, 3/2 - 2/2

tion pull down, 3D Combfilter, 3D MA

mo
deinterlacing, Active Control + Light sensor, Color
Enhancement, Color Transient Improvement,
Digital Noise Reduction, Dynamic contrast
enhancement, Luminance Transient Improver,
Progressive Scan, Sharpness Adjustment,
Automatic skin tone correction, 1080p 24/25/
30Hz processing, 1080p 50/60Hz processing

• Screen enhancement: Semi-glare

Supported Display Resolution

• Computer formats

Resolution Refresh rate
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60, 70, 75, 85Hz
1280 x 720 60Hz
1280 x 768 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1440 x 900 60 Hz
1680 x 1050 50Hz, 60Hz
Via HDMI/DVI

t

inpu

deo formats

• Vi

Resolution Refresh rate
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 24, 50, 60Hz
1080p 24, 25, 30, 50, 60Hz

Sound

• Output power (RMS): 2 x 10W

• Sound Enhancement: Auto Volume Leveller,

credible Surround, Smart Sound

In

• Sound System: Nicam Stereo

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Sleep Timer, Wake up Clock, Wake Up
mer

Ti

• Connection Enhancement: Easy link

• Ease of Installation: Auto Program Naming,

matic Channel Install(ACI), Automatic Tuning

Auto
System (ATS), Autostore, Fine Tuning, PLL Digital
Tuning, Plug & Play

• Ease of Use: Auto Volume Leveller (AVL),

phical User Interface, On Screen Display,

Gra
Program List, Settings assistant Wizard, Side
Control

• Picture in Picture: Picture in graphics

• Remote Control: TV

• Remote control type: RCPF02E09B

• Screen Format Adjustments: 4:3, Auto Format,

vie expand 14:9, Movie expand 16:9, Subtitle

Mo
Zoom, Super Zoom, Widescreen

• Teletext: 1000 page Hypertext

• Teletext enhancements: Fast text, Program

rmation Line

info

• Smart mode: Game, Movie, Personal, Energy

aving, Standard, Vivid

s

Multimedia Applications

• Multimedia connections: USB

• Playback Formats: MP3, Slideshow files (.alb), JPEG
ill pictures

St

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: PAL D/K, SECAM D/K

• Video Playback: NTSC, SECAM, PAL

• Tuner bands: Hyperband, S-Channel, UHF, VHF

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in, RGB

• Ext 2 Scart: Audio L/R, CVBS in, S-video in

•Number of Scarts: 2

• Ext 3: YPbPr, Audio L/R in

•Front / Side connections: HDMI

CVBS in, Audio L/R in, Headphone out, USB 2.0

• Audio Output - Digital: Coaxial (cinch)

• Other connections: PC-in VGA + Audio L/R in, S/

PDIF out

(coaxial)

v1.3, S-video in,

•HDMI 1: HDMI v1.3

•HDMI 2: HDMI v1.3

• EasyLink (HDMI-CEC): One touch play, System
o (menu language), EasyLink, Remote control

inf
pass-through, System audio control, System
standby

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: 220-240, 50Hz

• Power consumption: 105 W

• Standby power consumption: 0.15 W

Dimensions

•Set dimensions (W x H x D): 810 x 519 x 95 mm

• Set dimensions with stand (W x H x D):

x 570 x 230 mm

0

81

• Weight incl. Packaging: 15.7 kg

• Product weight: 10.4 kg

• Product weight (+stand): 12.6 kg

•Box dimensions (W x H x D):
40 x 618 x 200 mm

10

• Color cabinet: High gloss b

black cabinet

• VESA wall mount compatible: 200 x 200 mm

lack deco front with

Accessories

• Included Accessories: Tabletop swivel stand,

Power cord, Quick start guide, CD-ROM with
software + manual, User Manual, Warranty
certificate, Remote Control, 2 x AAA Batteries

•

Issue date 2009-08-06

Version: 5.3.4

12 NC: 8670 000 51991
EAN: 87 12581 47946 6
