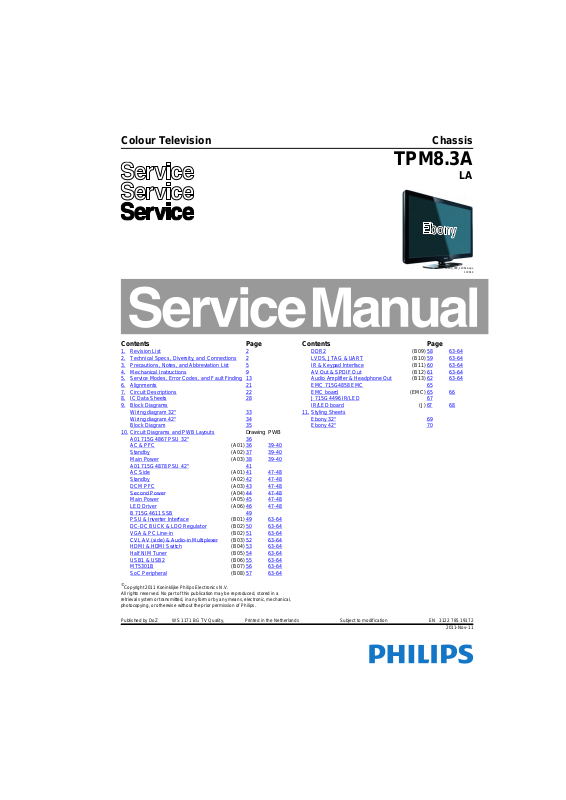

Philips 32PFL5606S-98 Schematic

Colour Television Chassis

19160_000_110614.eps

110614

TPM8.3A

LA

Contents Page Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 5

4. Mechanical Instructions 9

5. Service Modes, Error Codes, and Fault Finding 13

6. Alignments 21

7. Circuit Descriptions 22

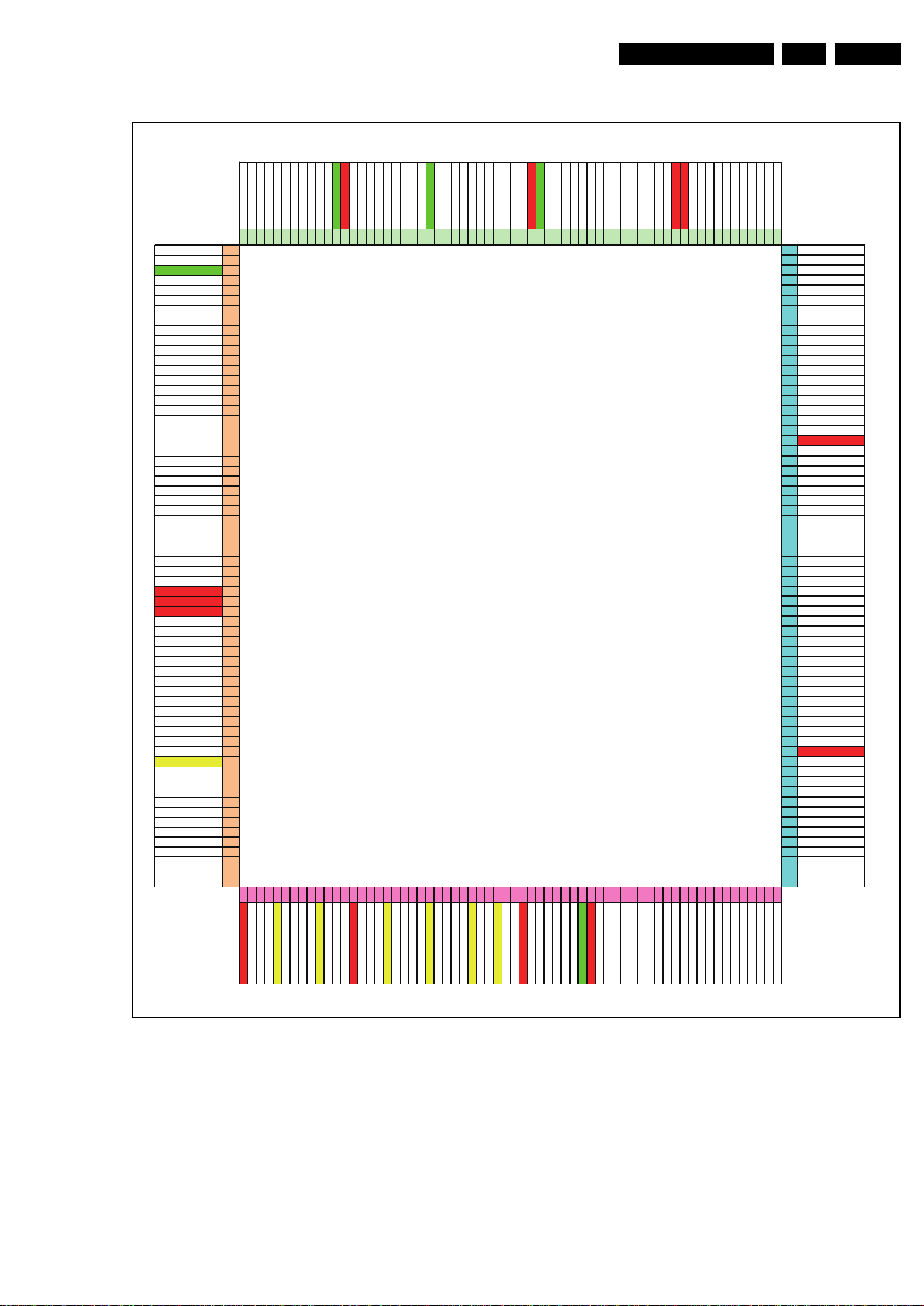

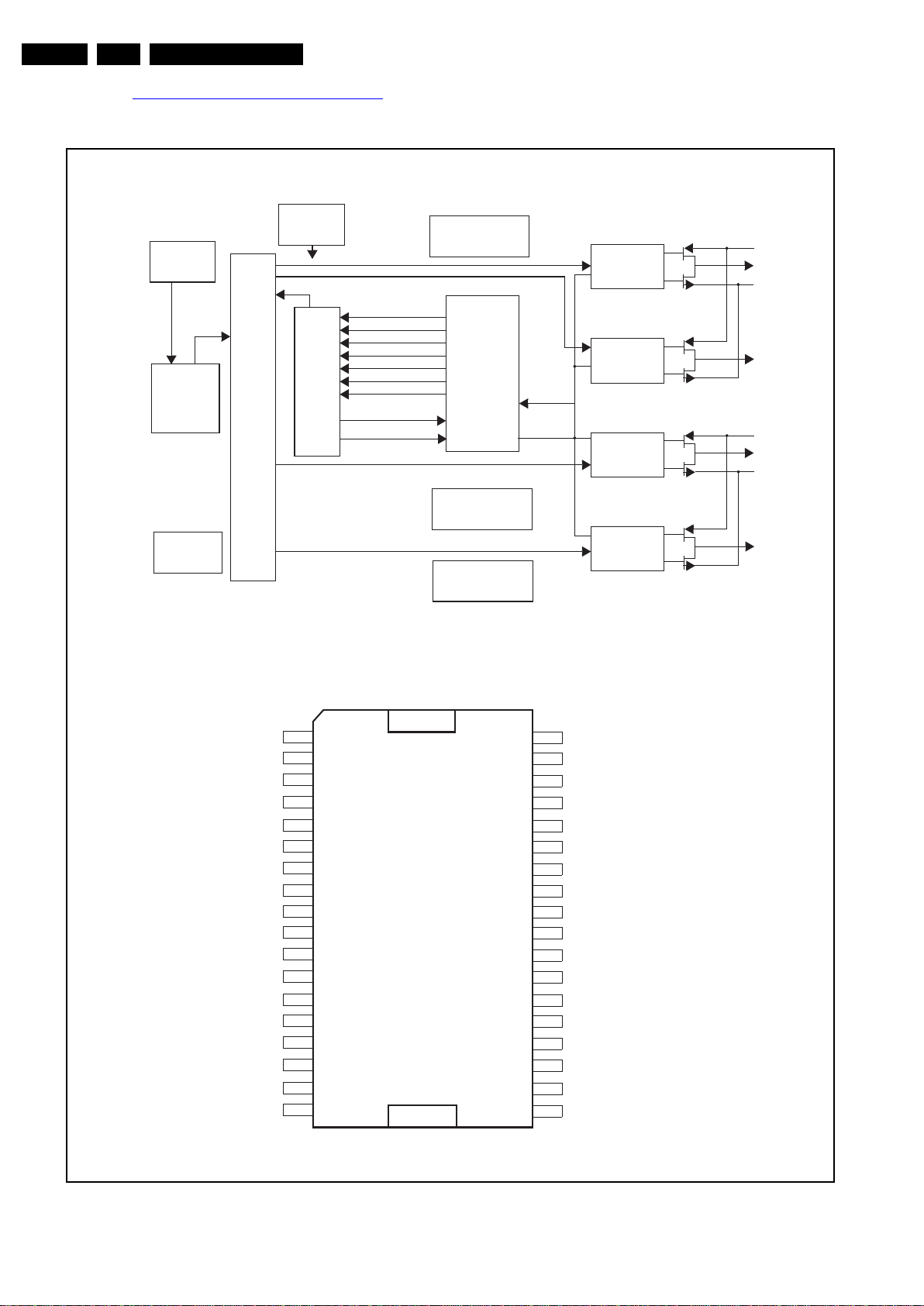

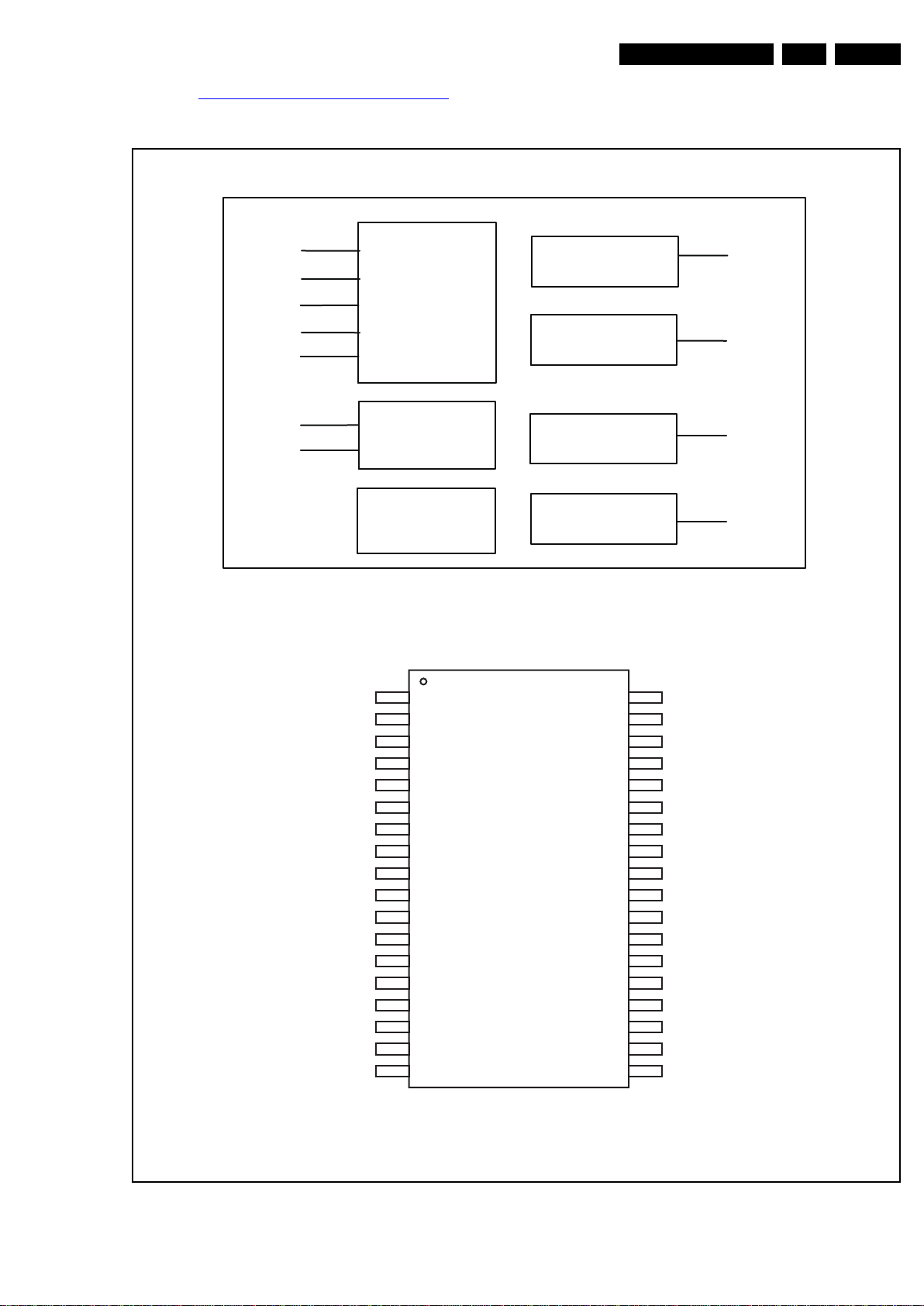

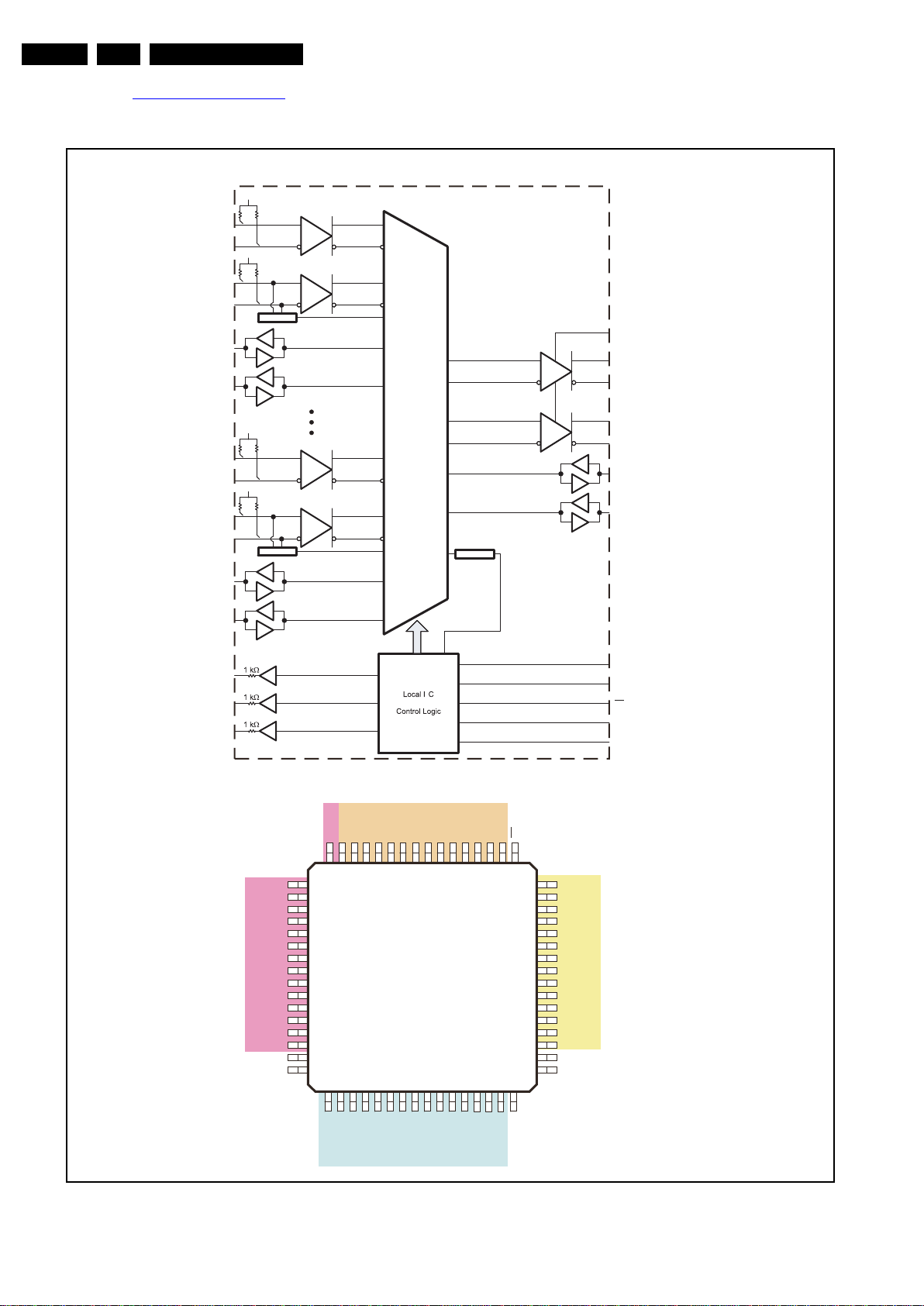

8. IC Data Sheets 28

9. Block Diagrams

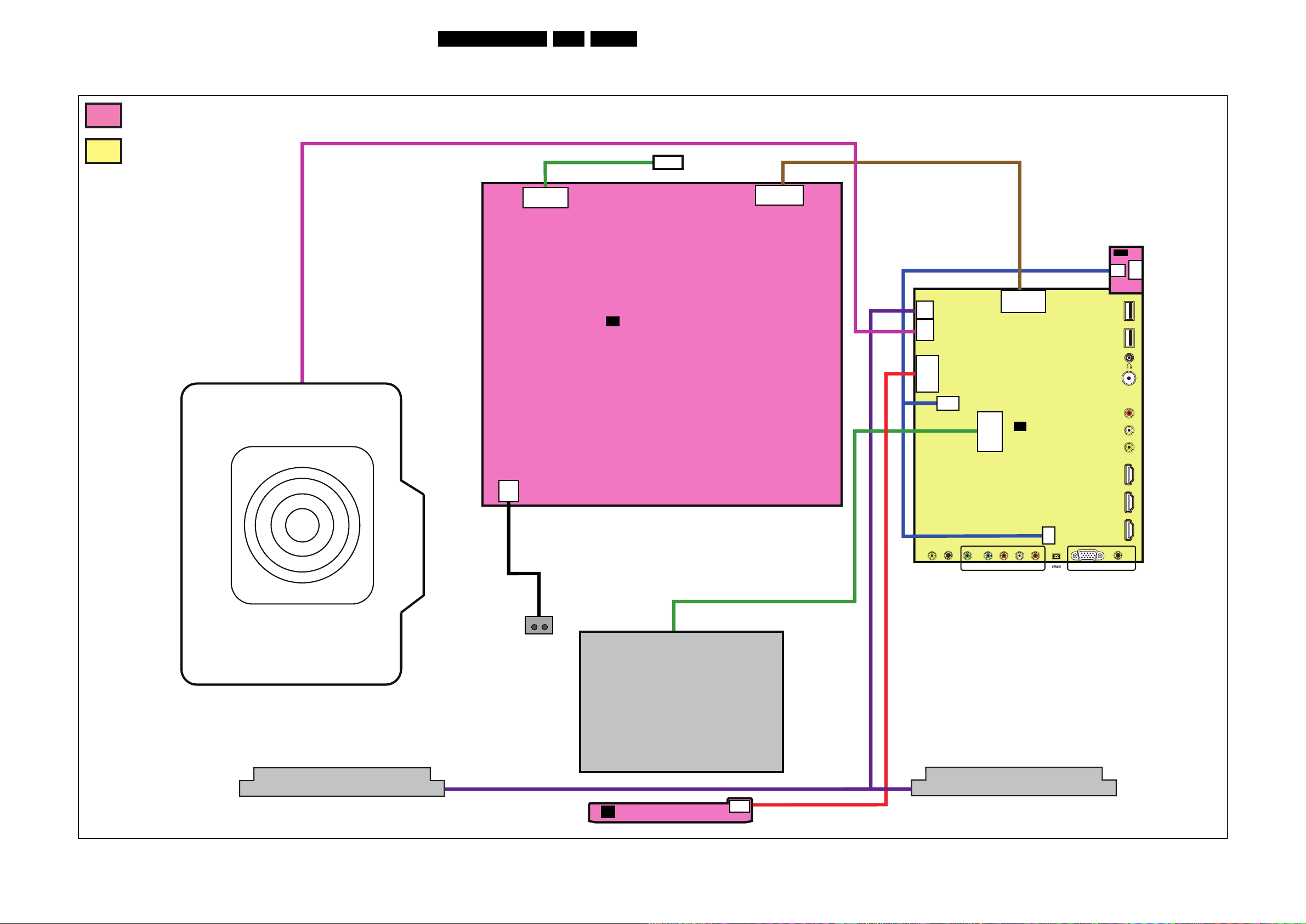

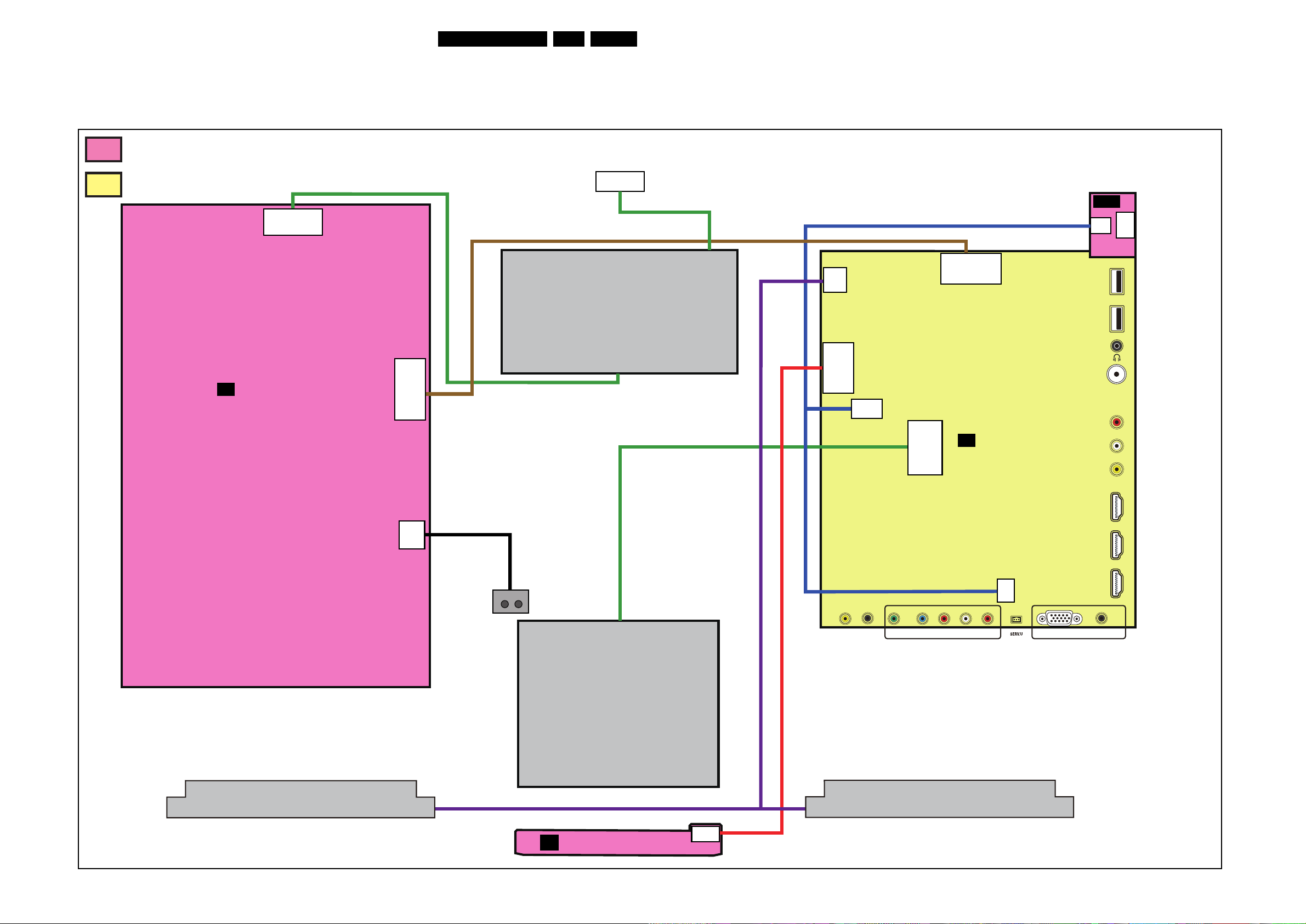

Wiring diagram 32" 33
Wiring diagram 42" 34

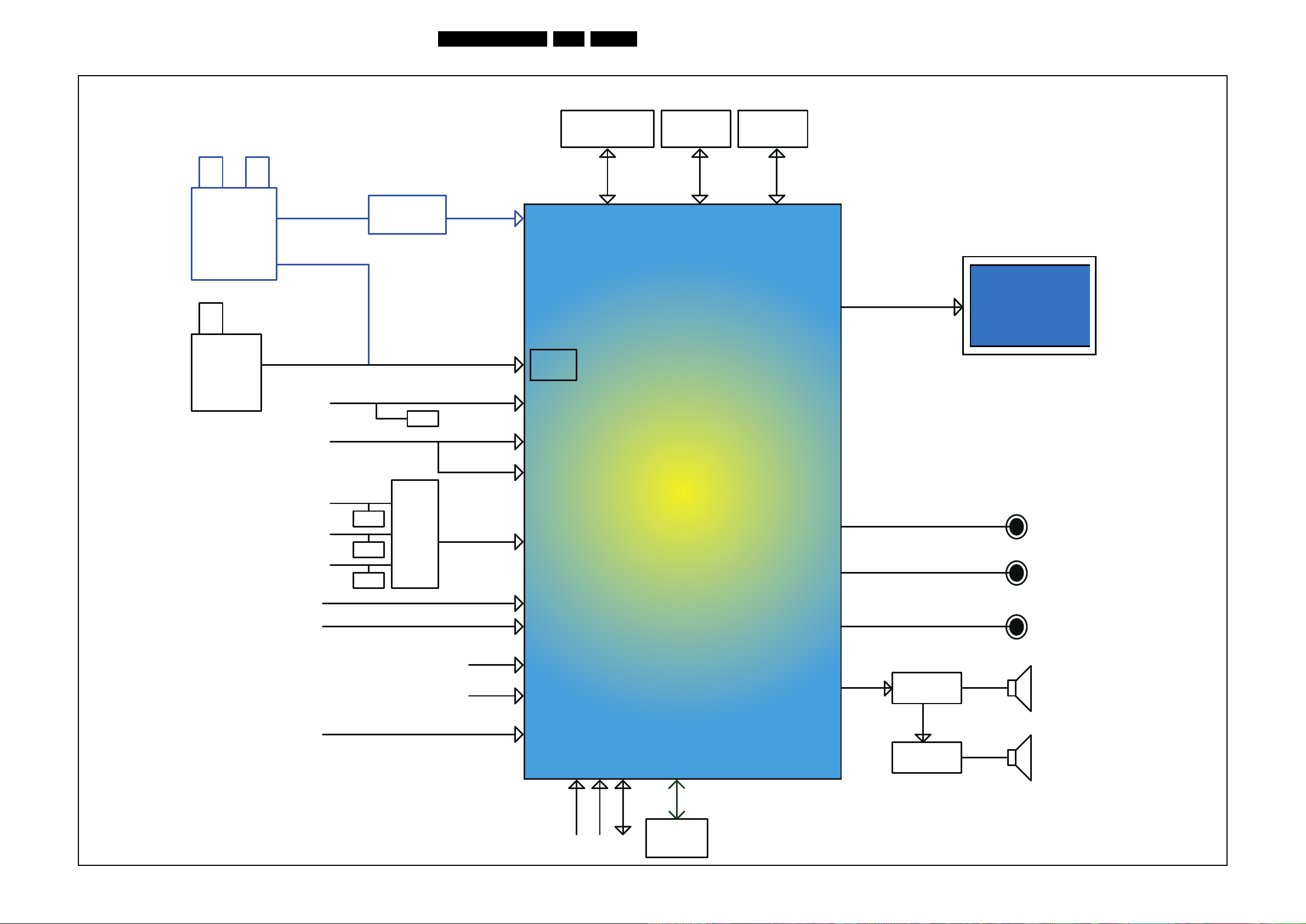

Block Diagram 35

10. Circuit Diagrams and PWB Layouts Drawing PWB

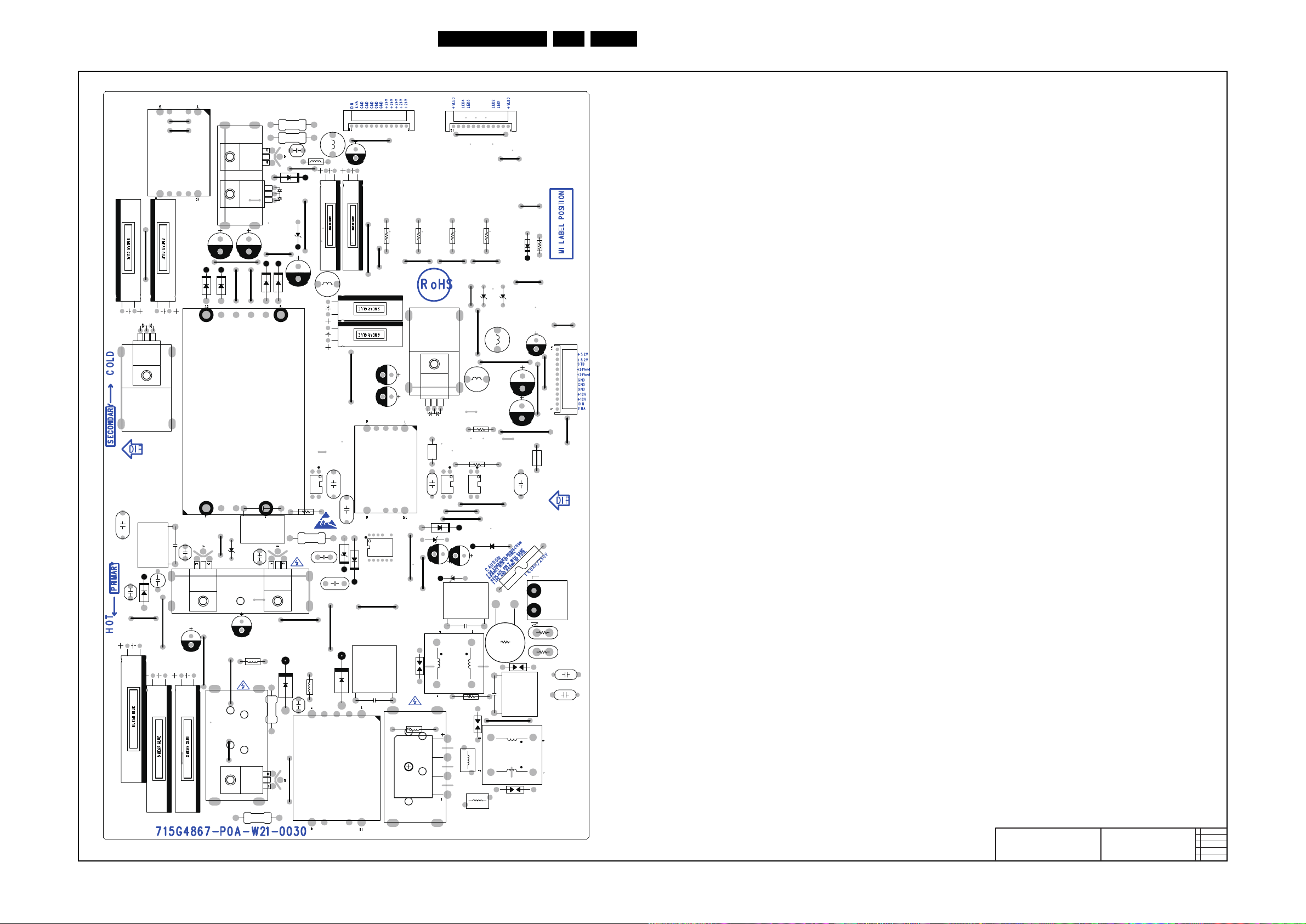

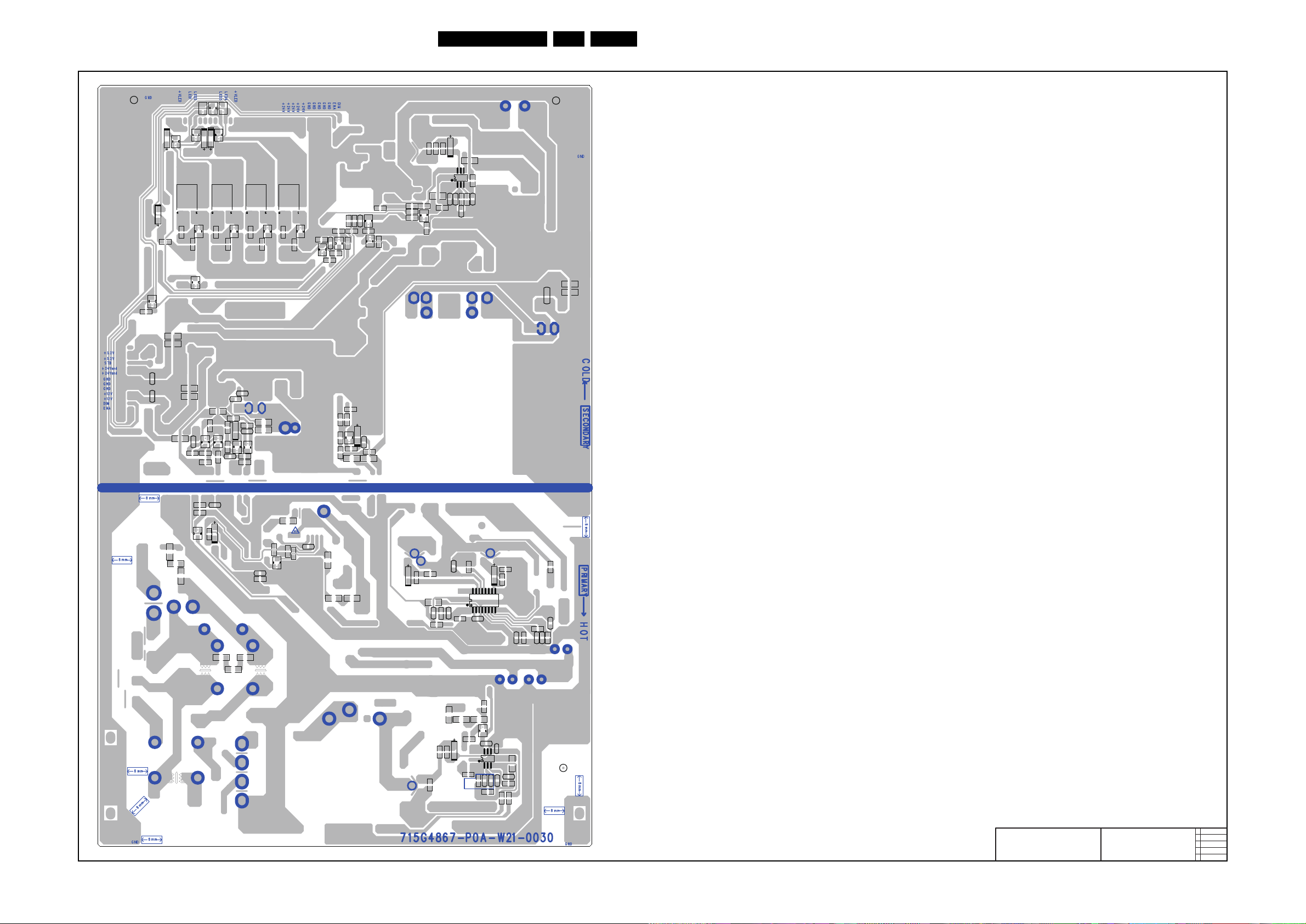

A01 715G4867 PSU 32"

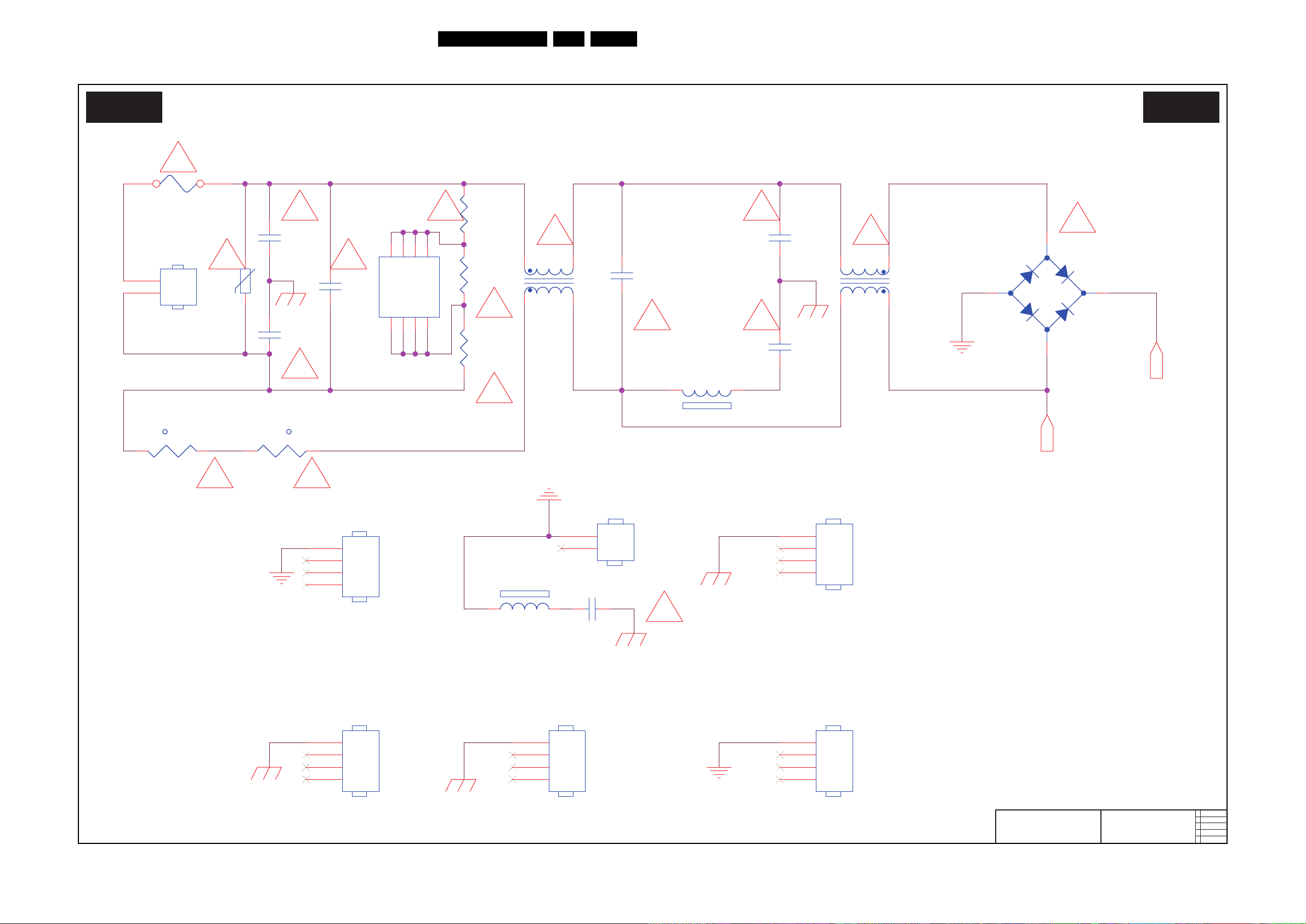

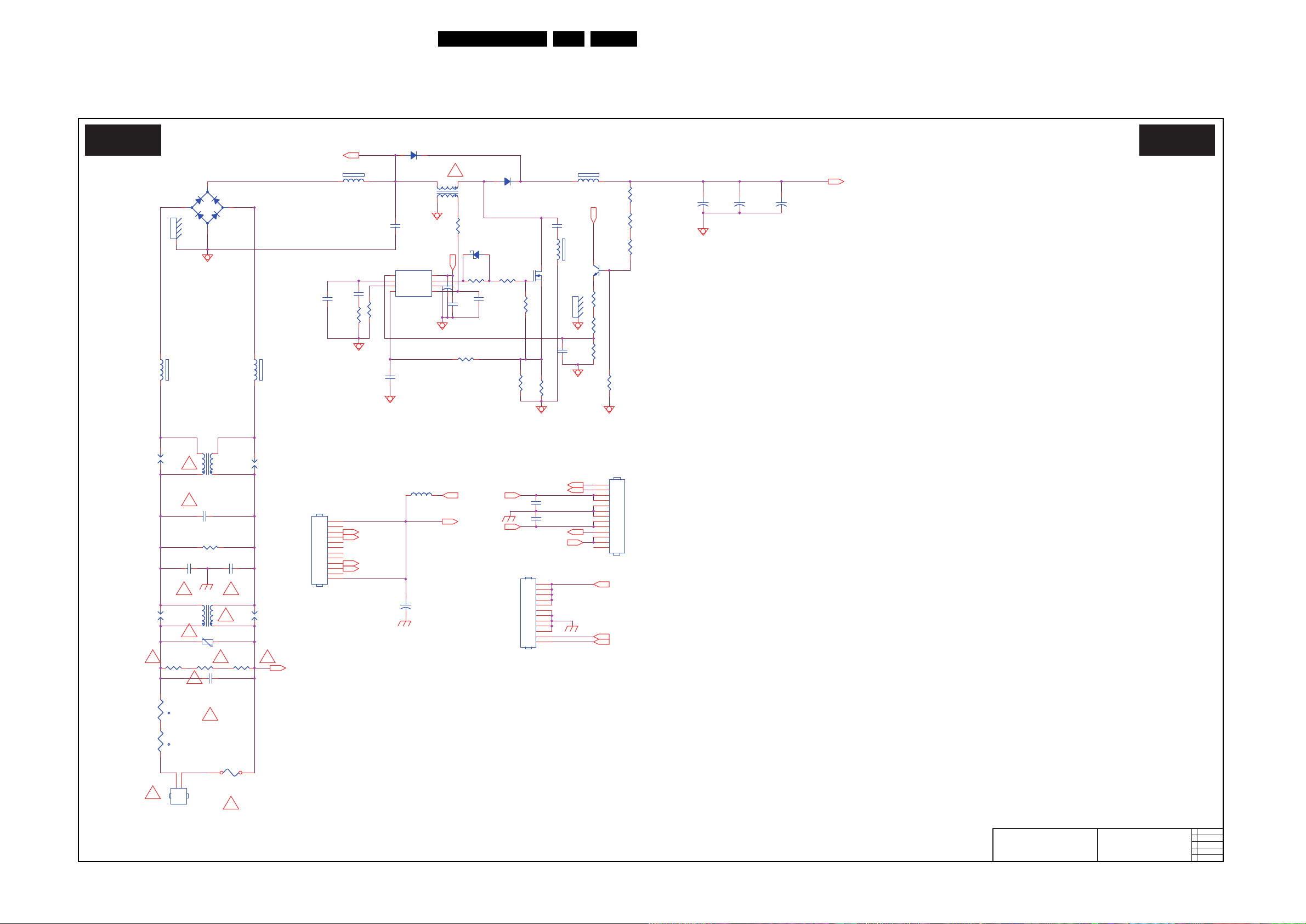

AC & PFC (A01) 36 39-40

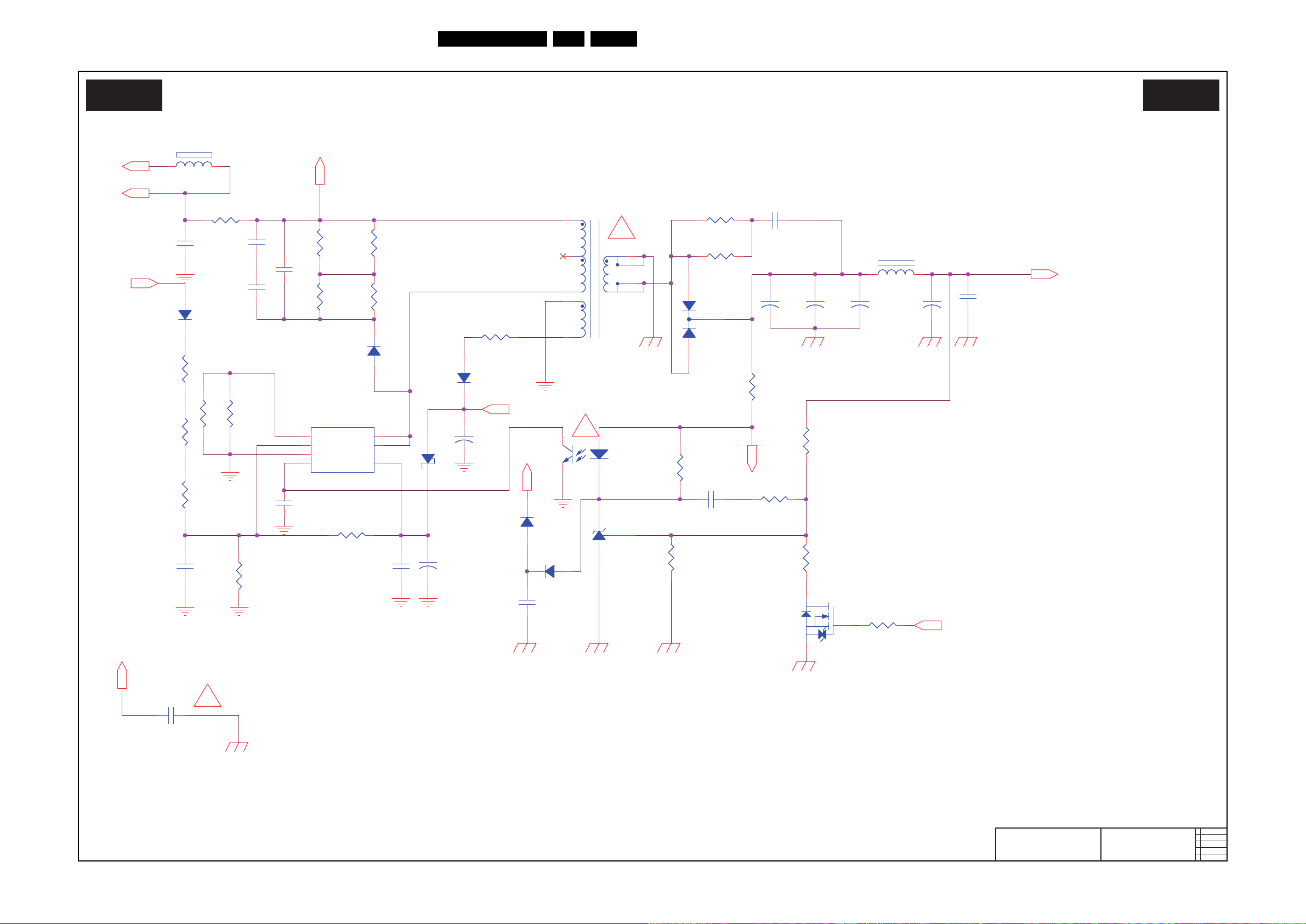

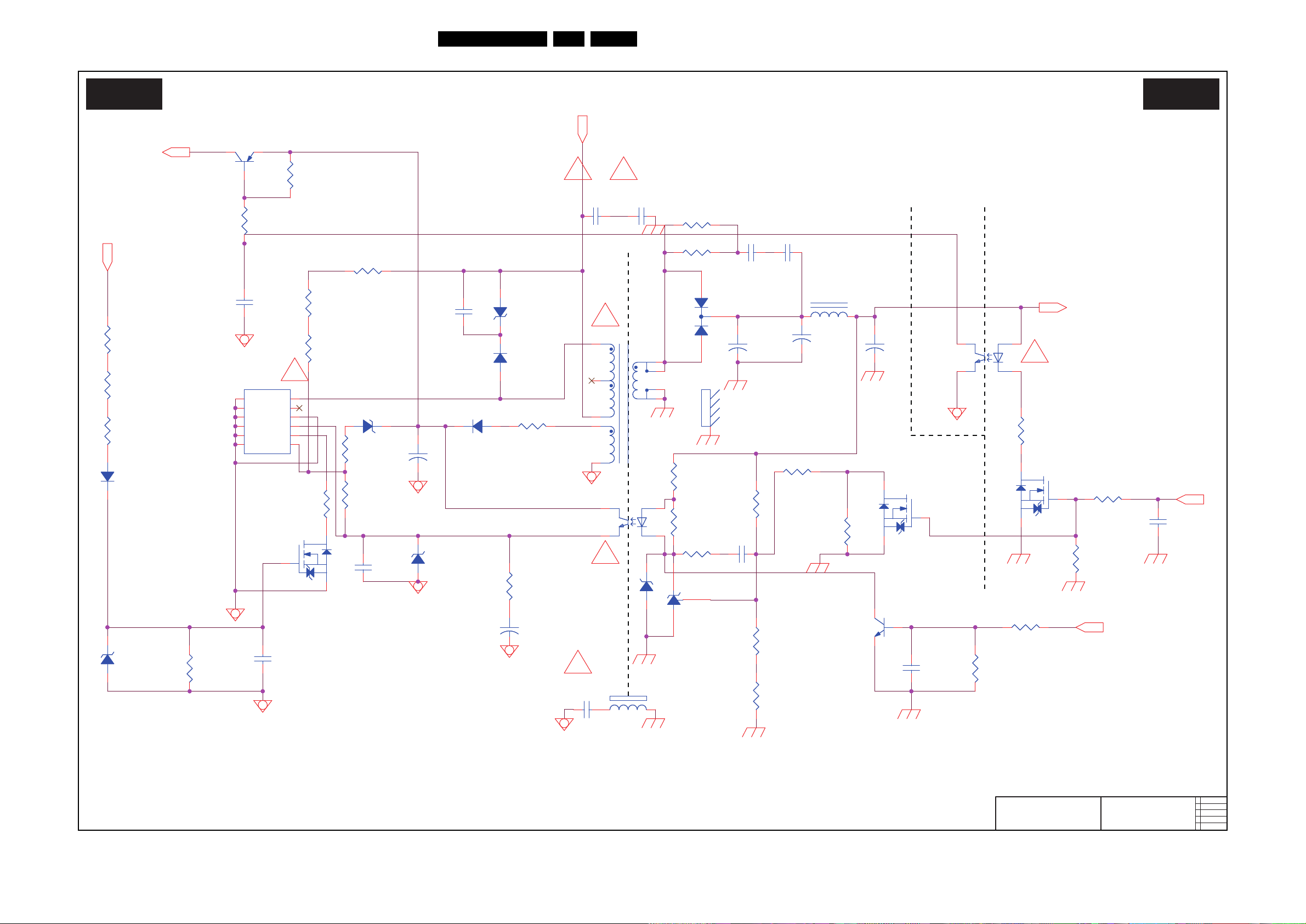

Standby (A02) 37 39-40

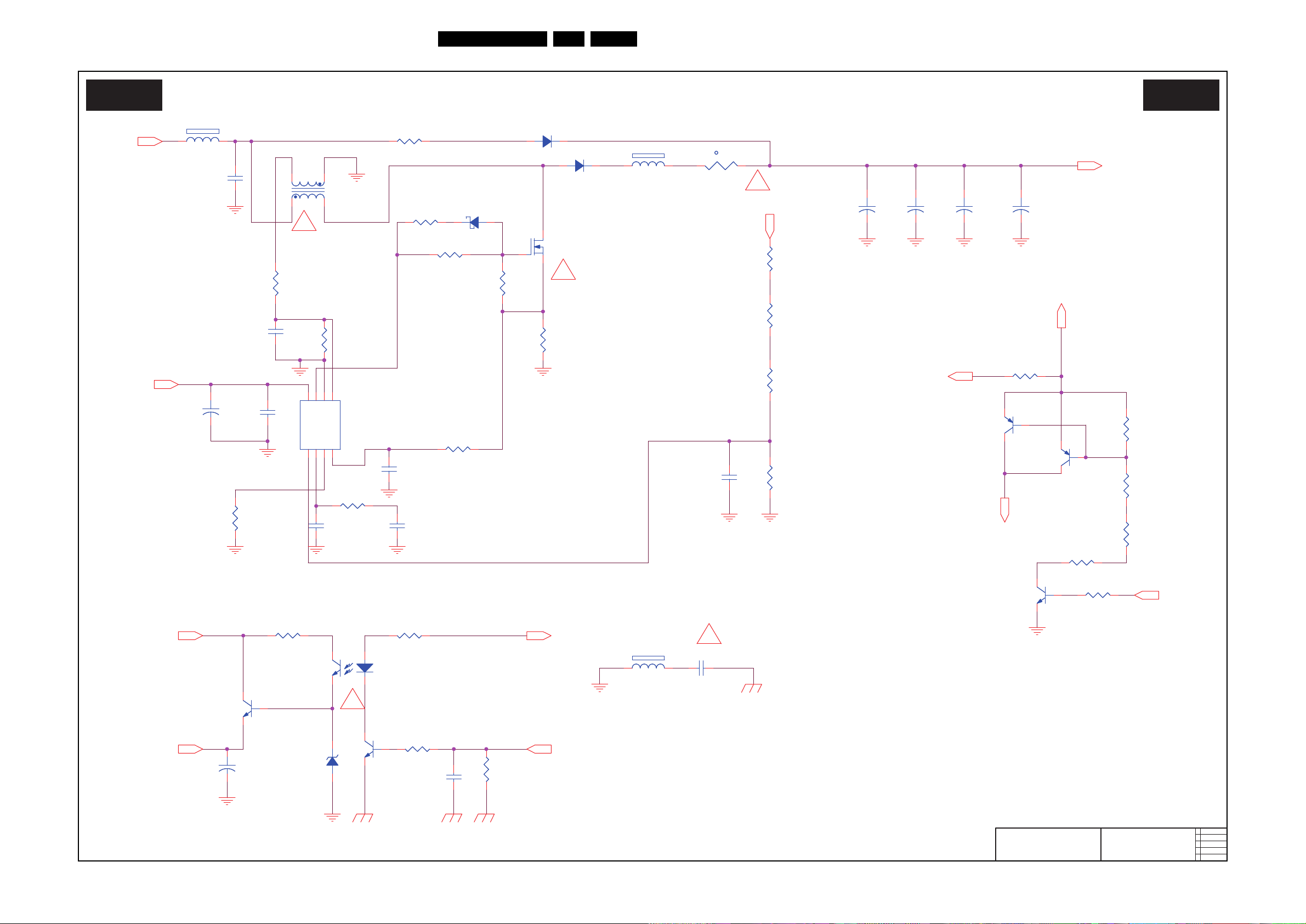

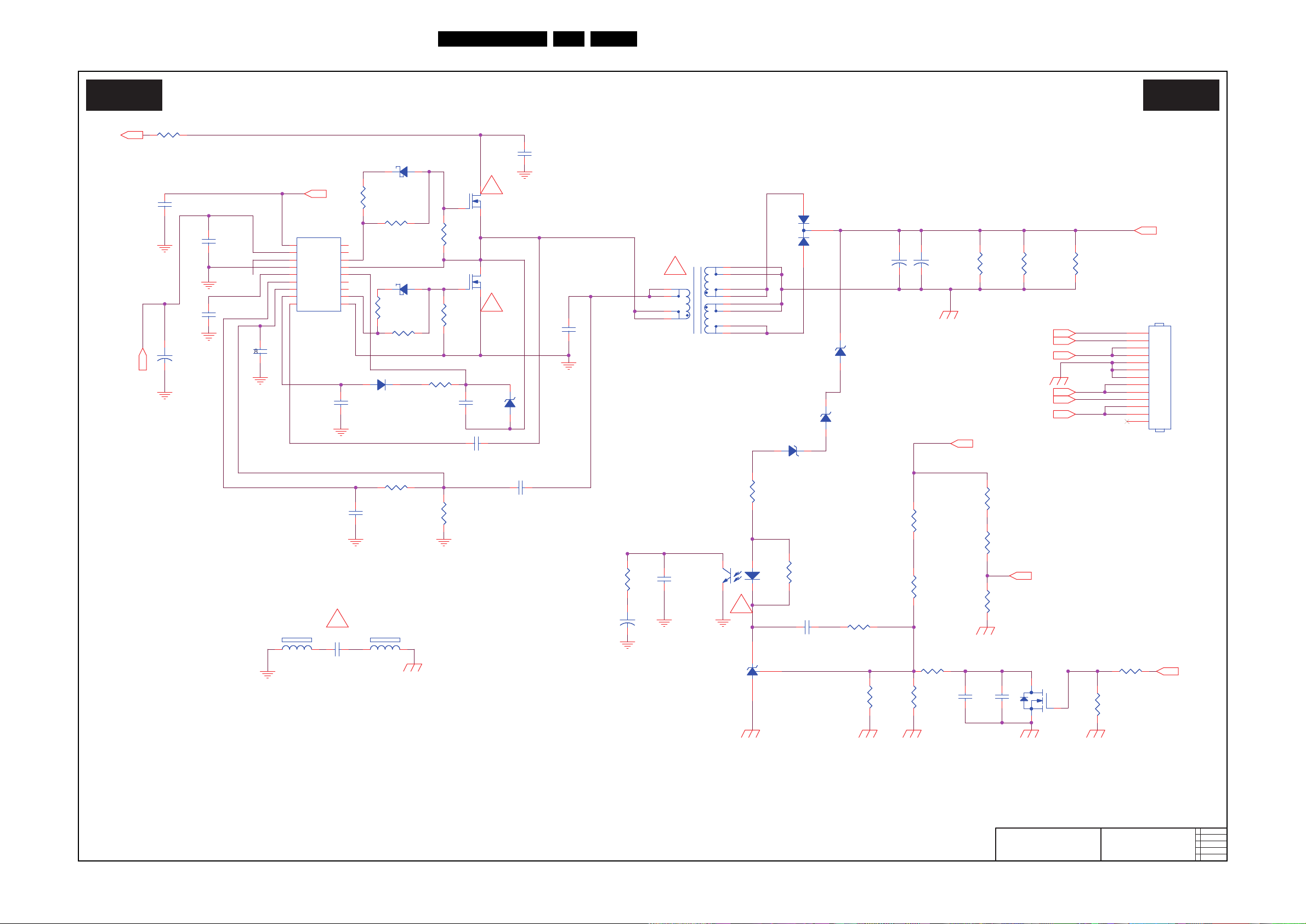

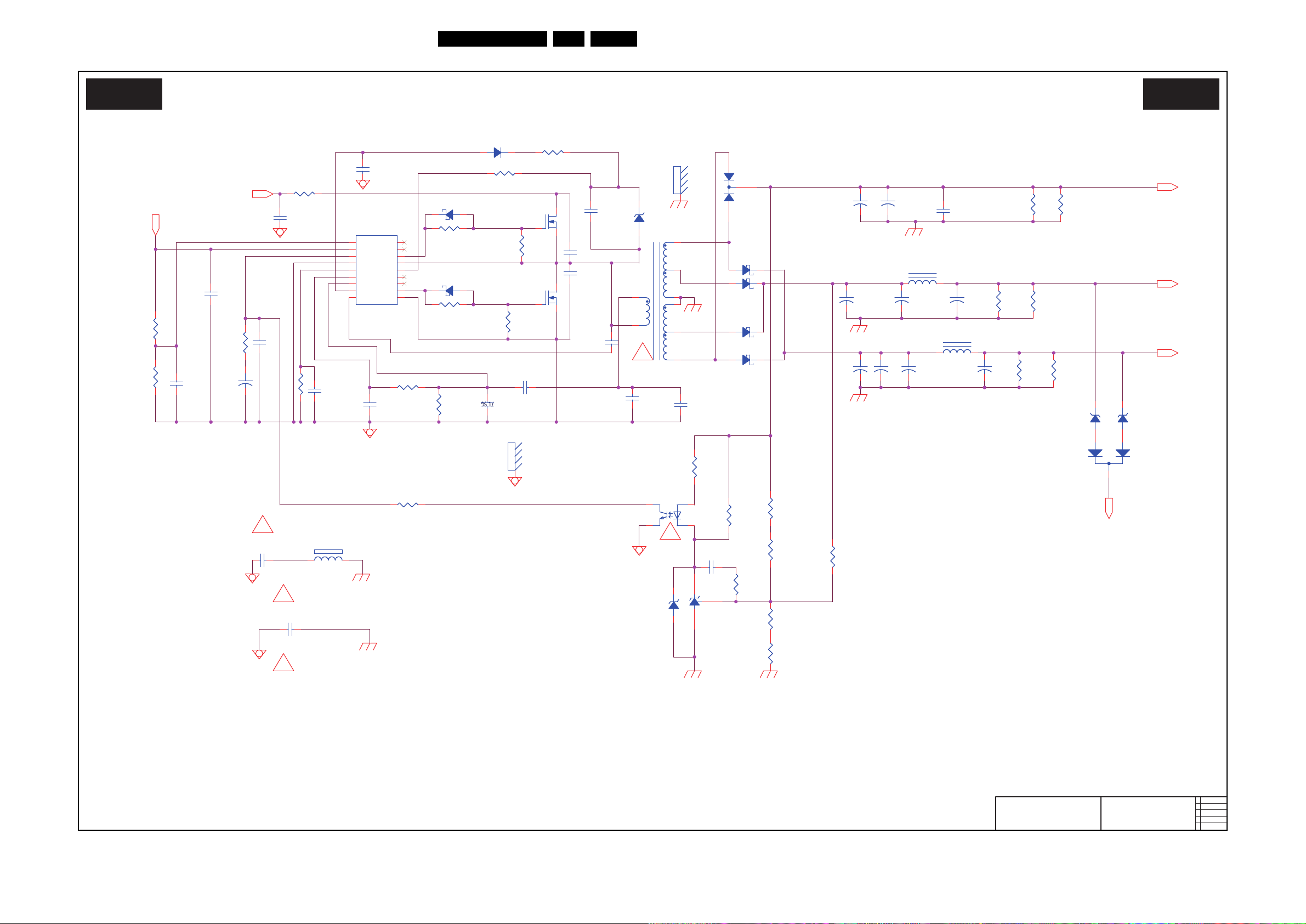

Main Power (A03) 38 39-40

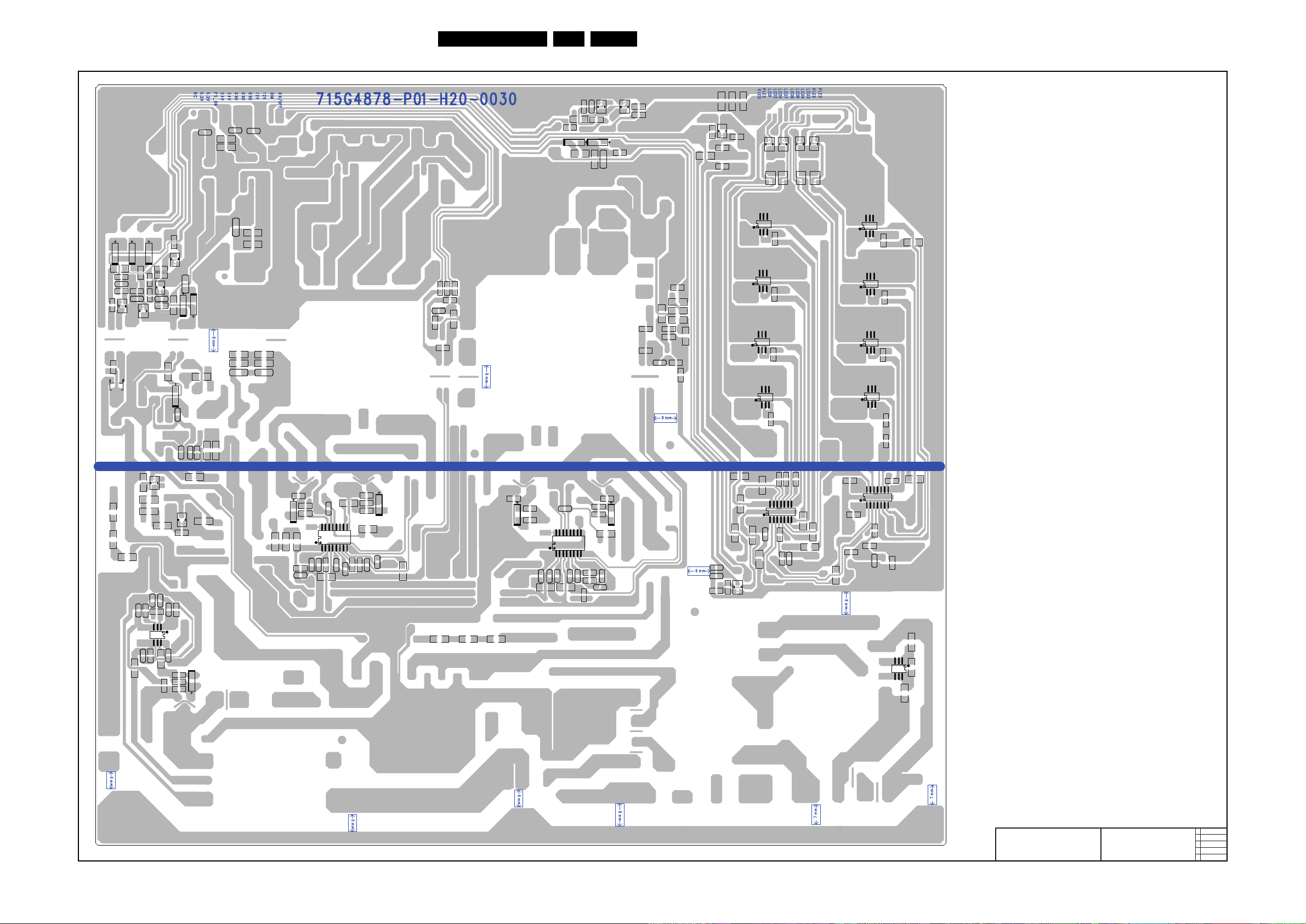

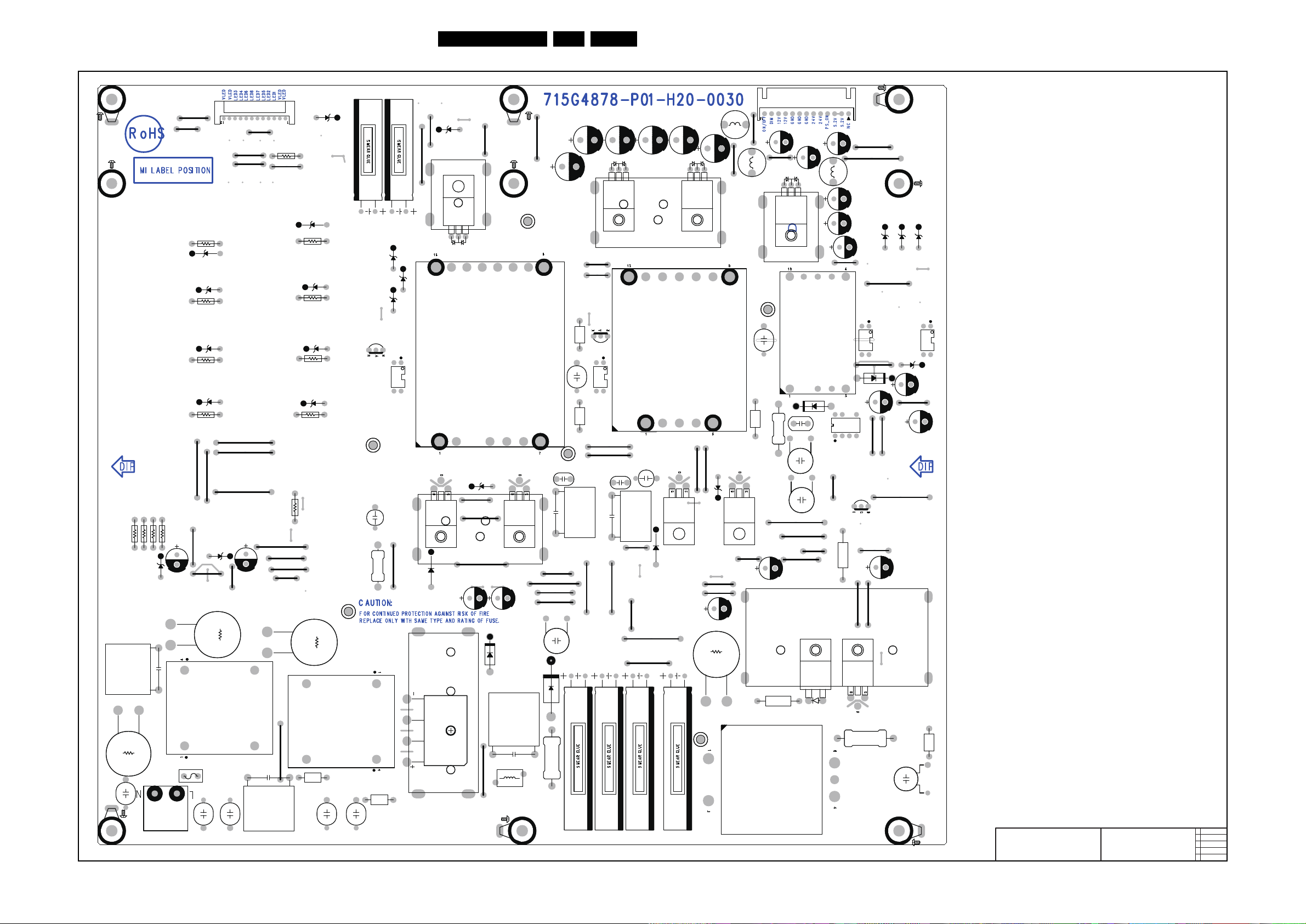

A01 715G4878 PSU 42" 41
AC Side (A01) 41 47-48
Standby (A02) 42 47-48
DCM PFC (A03) 43 47-48
Second Power (A04) 44 47-48
Main Power (A05) 45 47-48

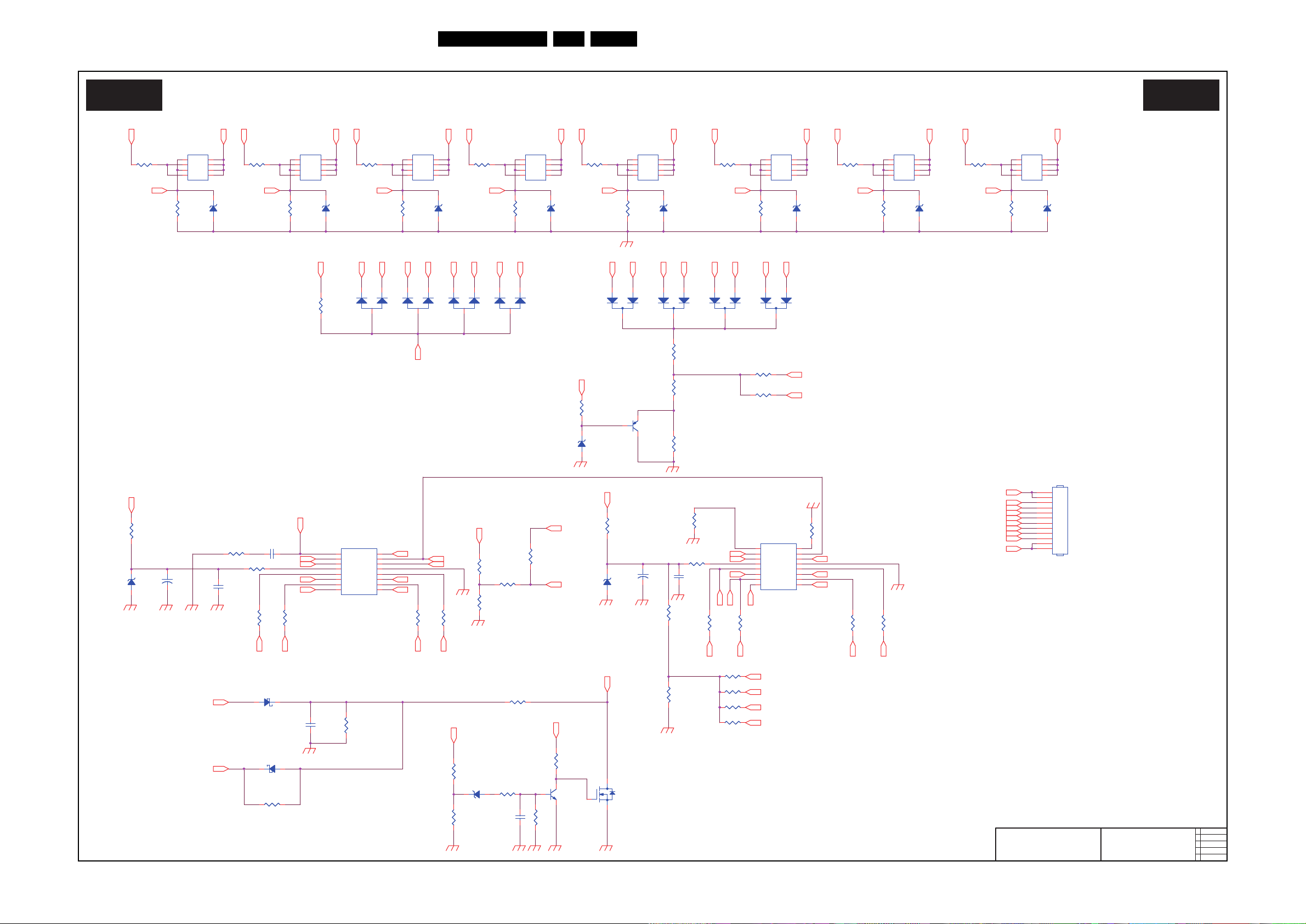

LED Driver (A06) 46 47-48

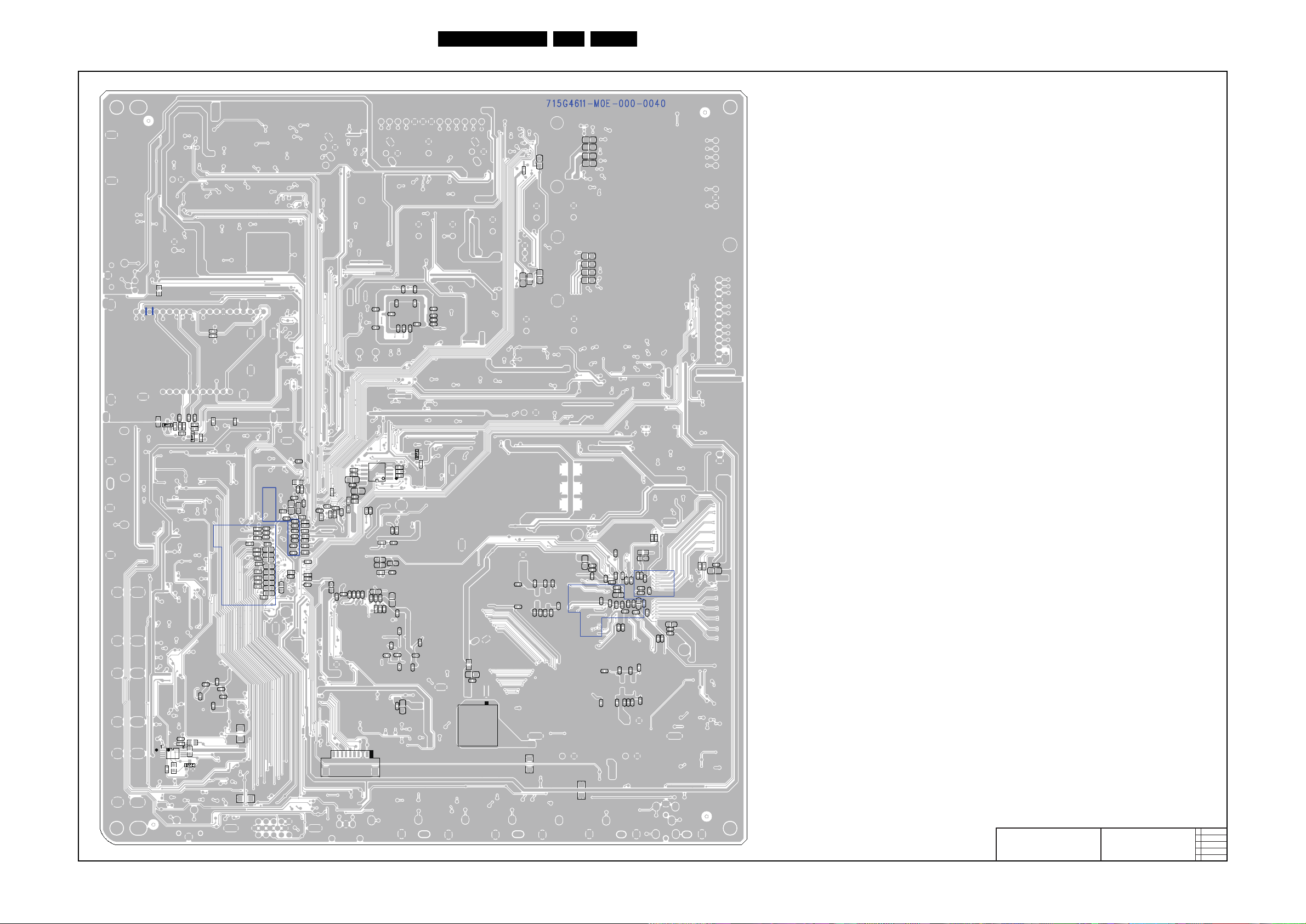

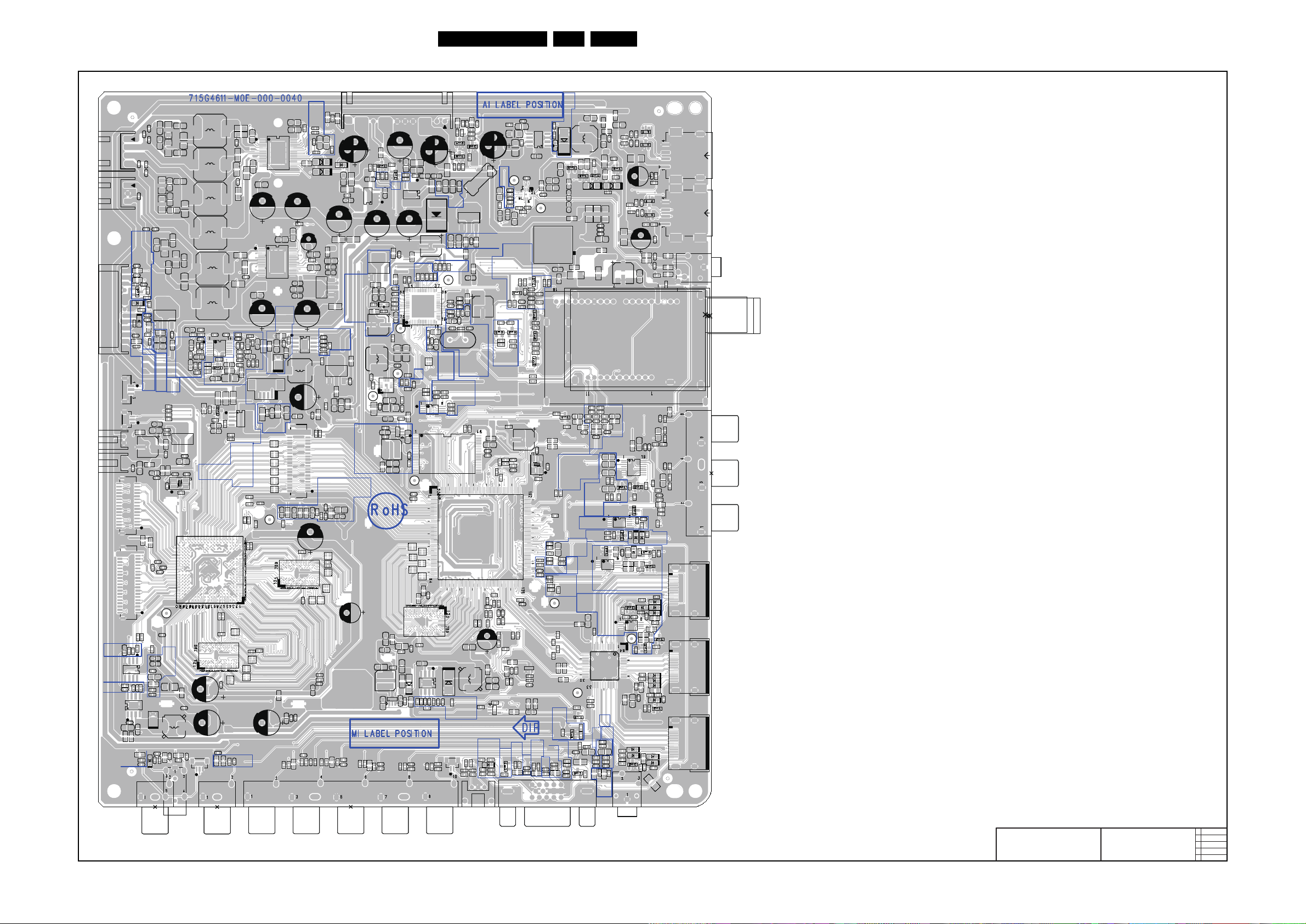

B 715G4611 SSB 49
PSU & Inverter Interface (B01) 49 63-64

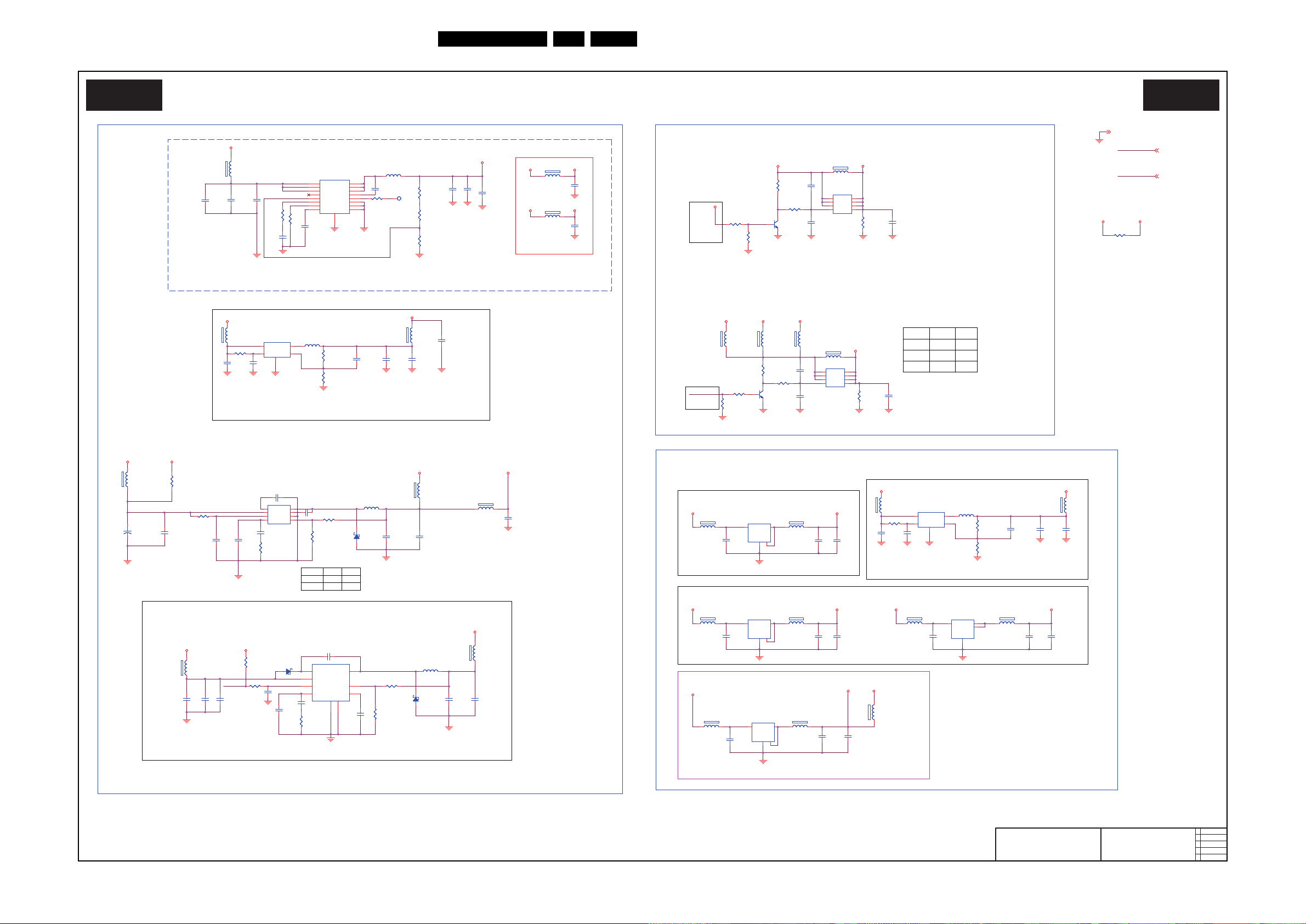

DC-DC BUCK & LDO Regulator (B02) 50 63-64

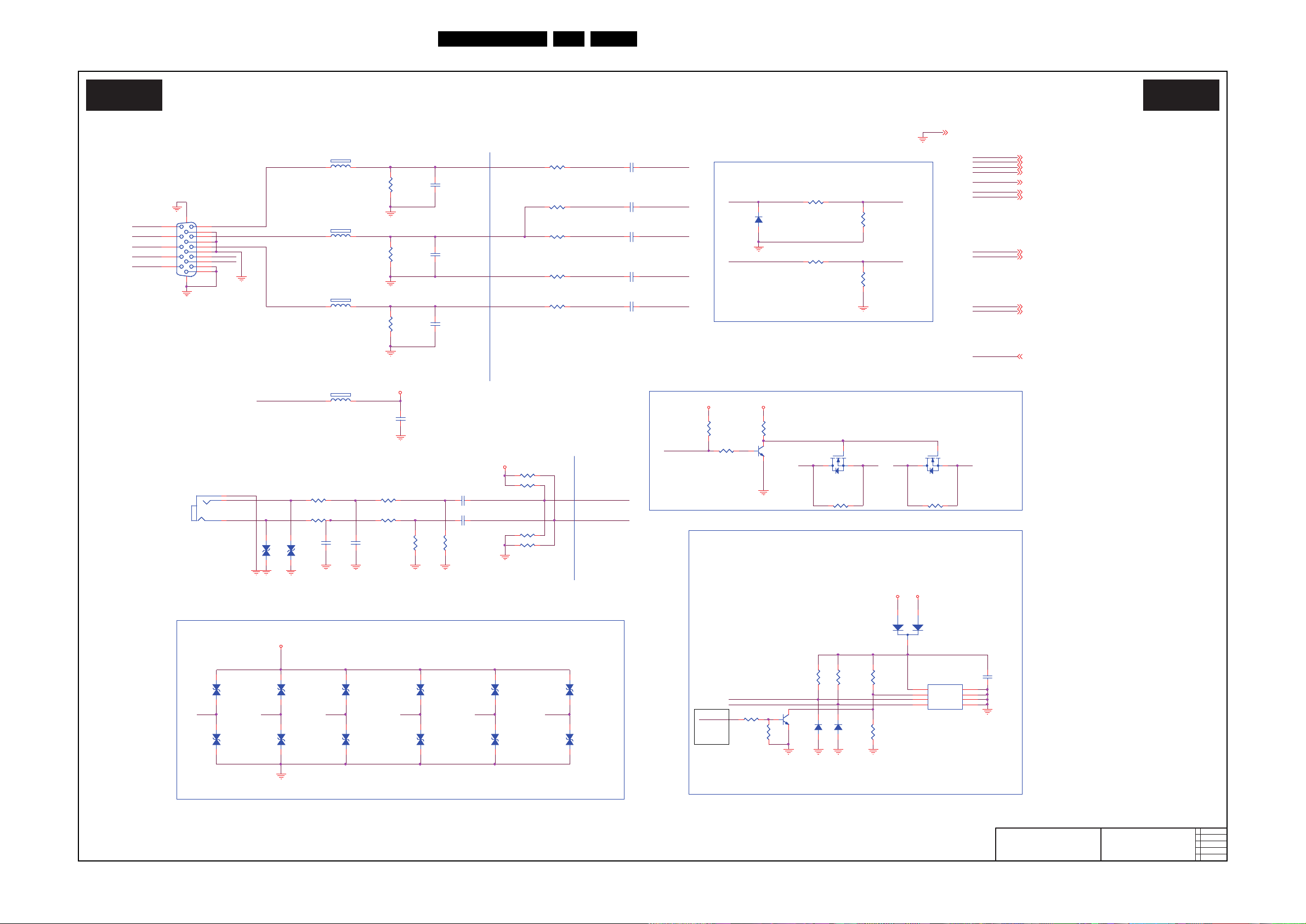

VGA & PC Line-in (B02) 51 63-64
CVI, AV (side) & Audio-in Multiplexer (B03) 52 63-64

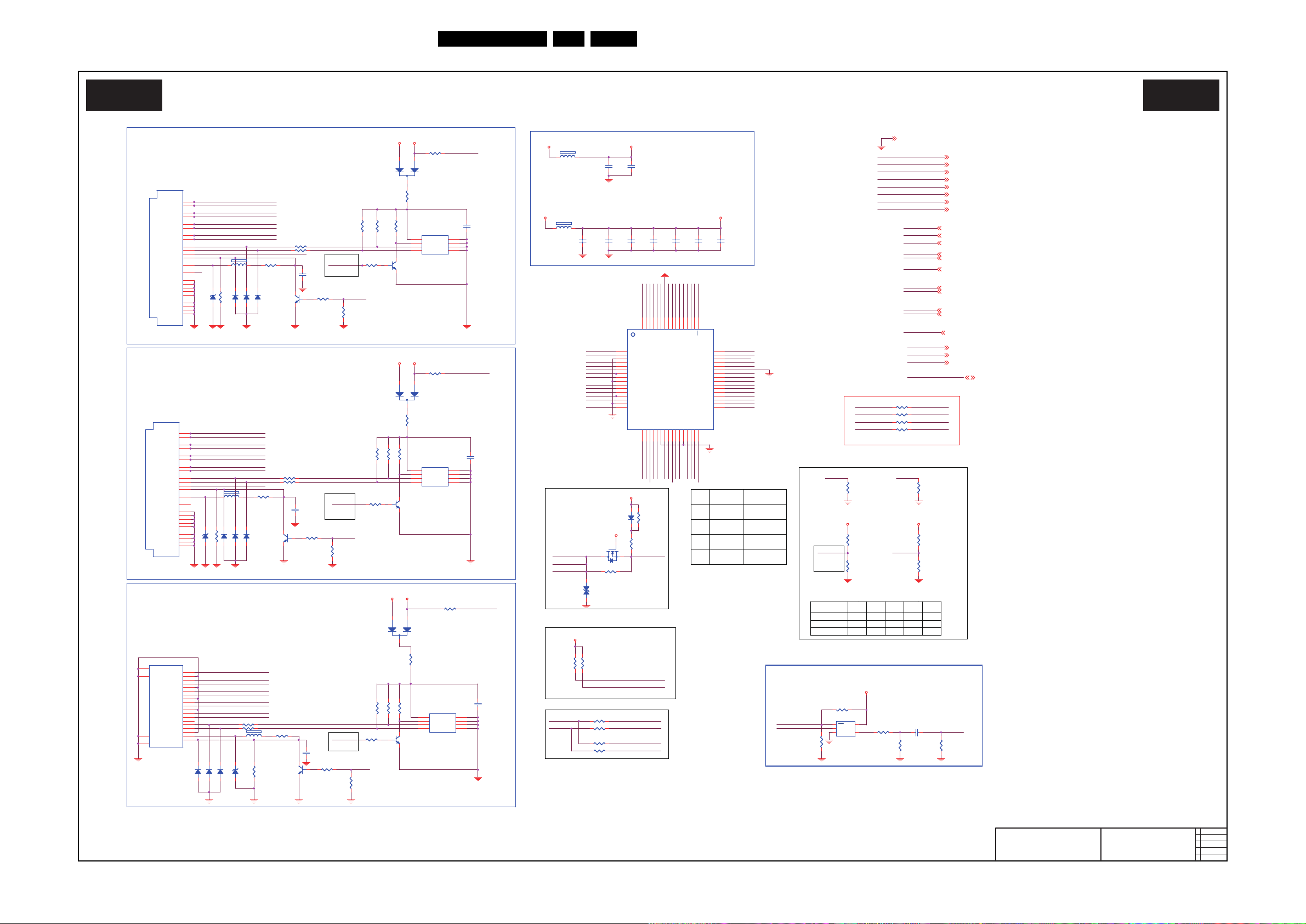

HDMI & HDMI Switch (B04) 53 63-64

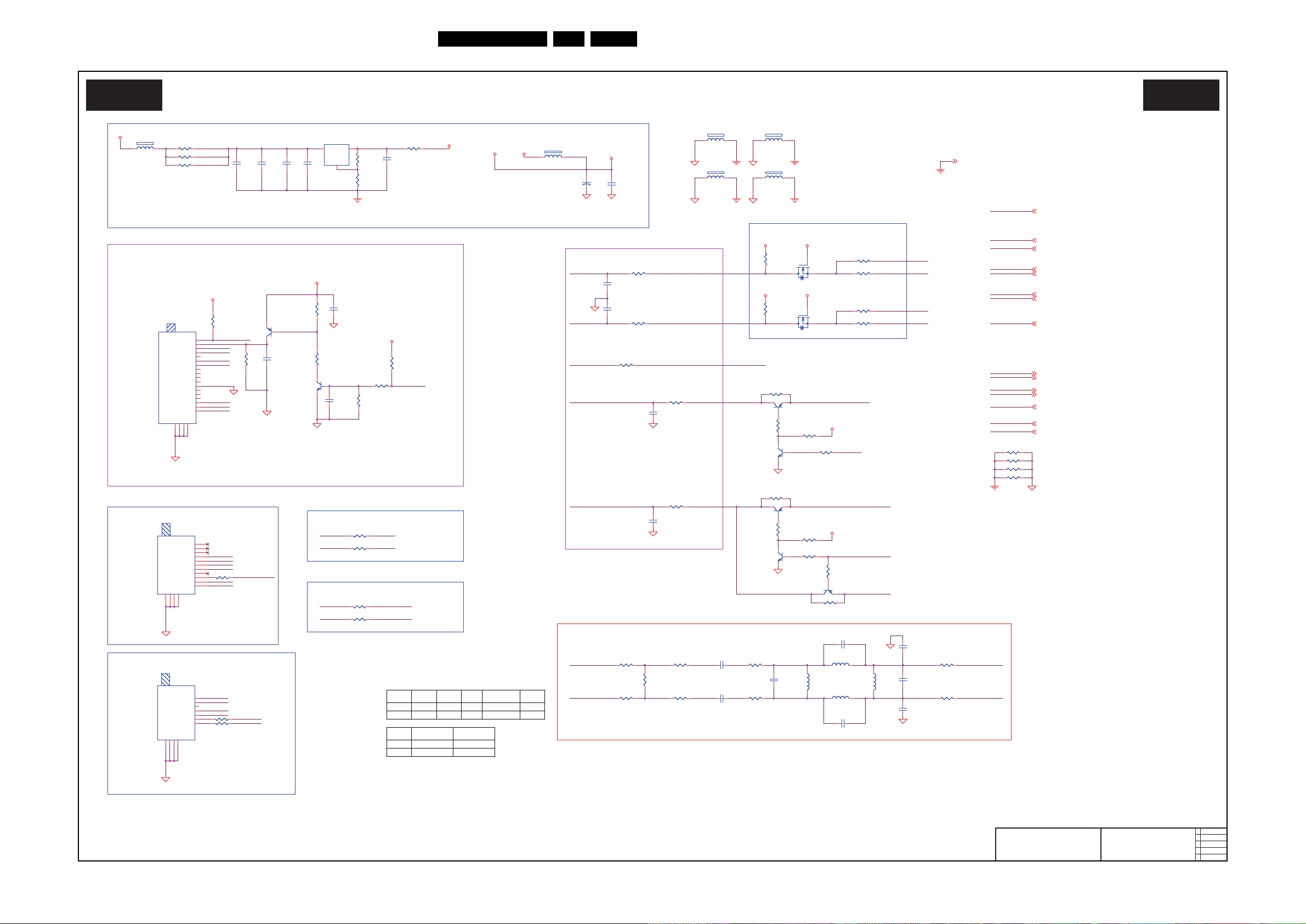

Half NIM Tuner (B05) 54 63-64
USB1 & USB2 (B06) 55 63-64

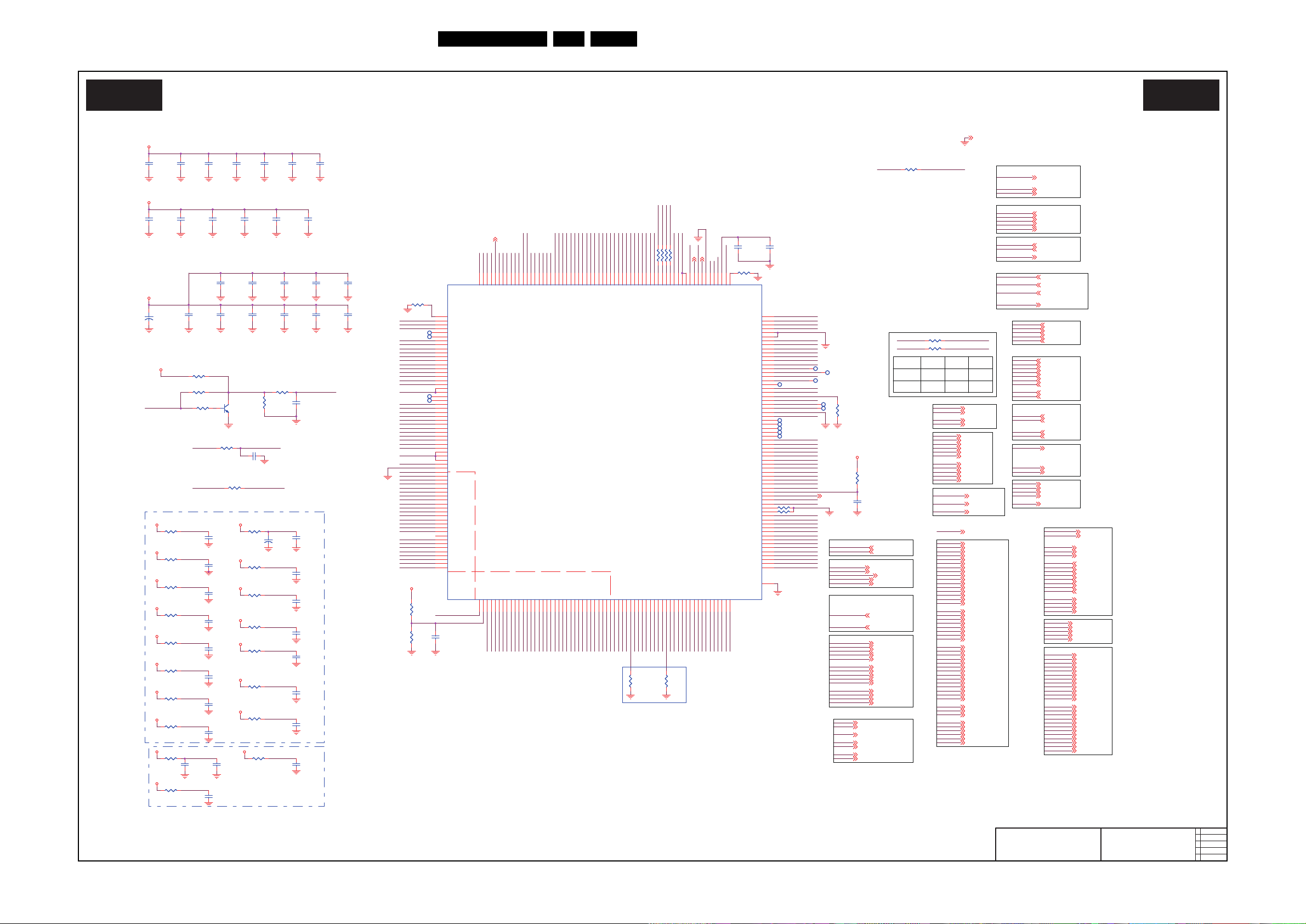

MT5301B (B07) 56 63-64

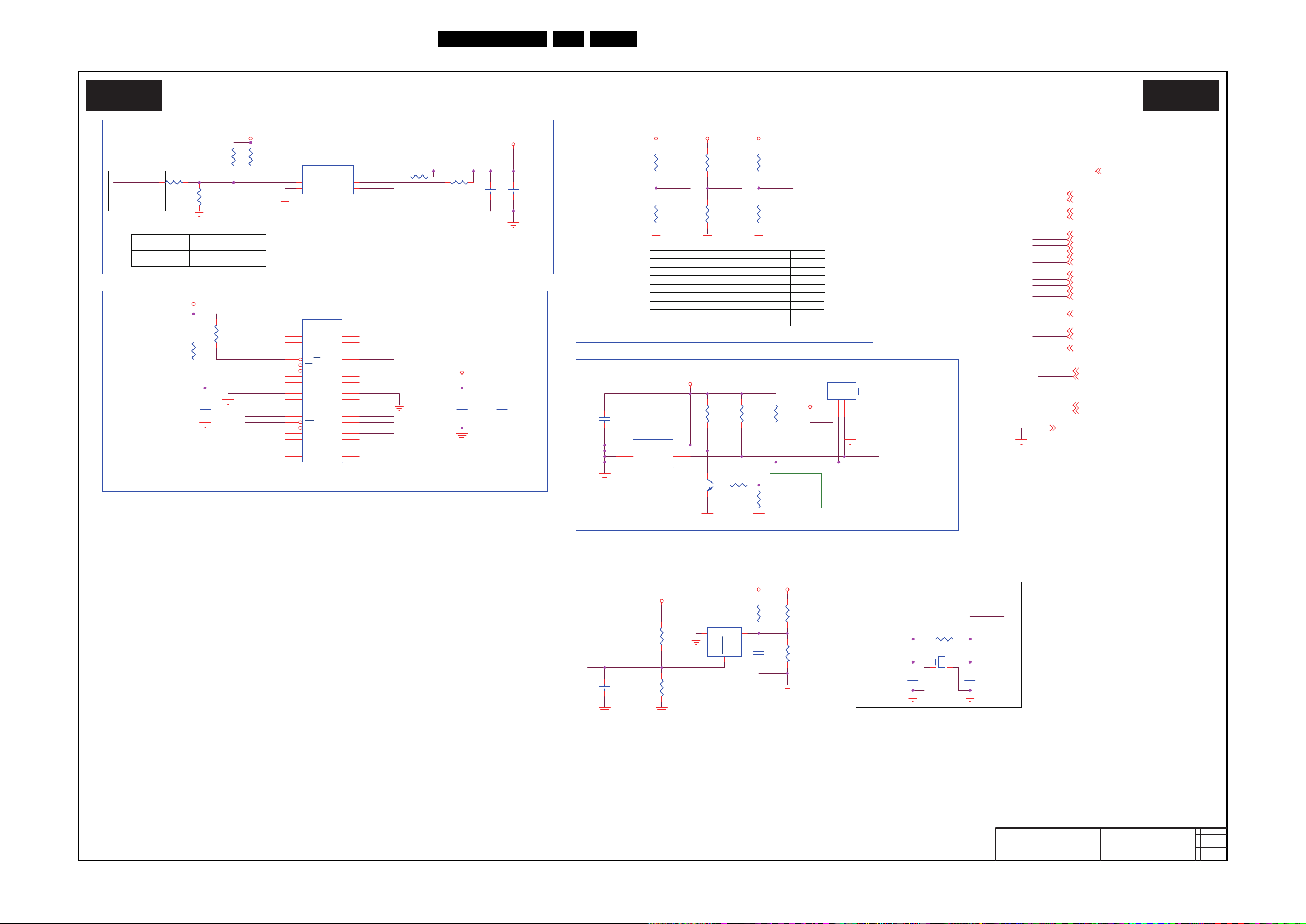

SoC Peripheral (B08)57 63-64

©

Copyright 2011 Koninklijke Philips Electronics N.V.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic, mechanical,
photocopying, or otherwise without the prior permission of Philips.

36

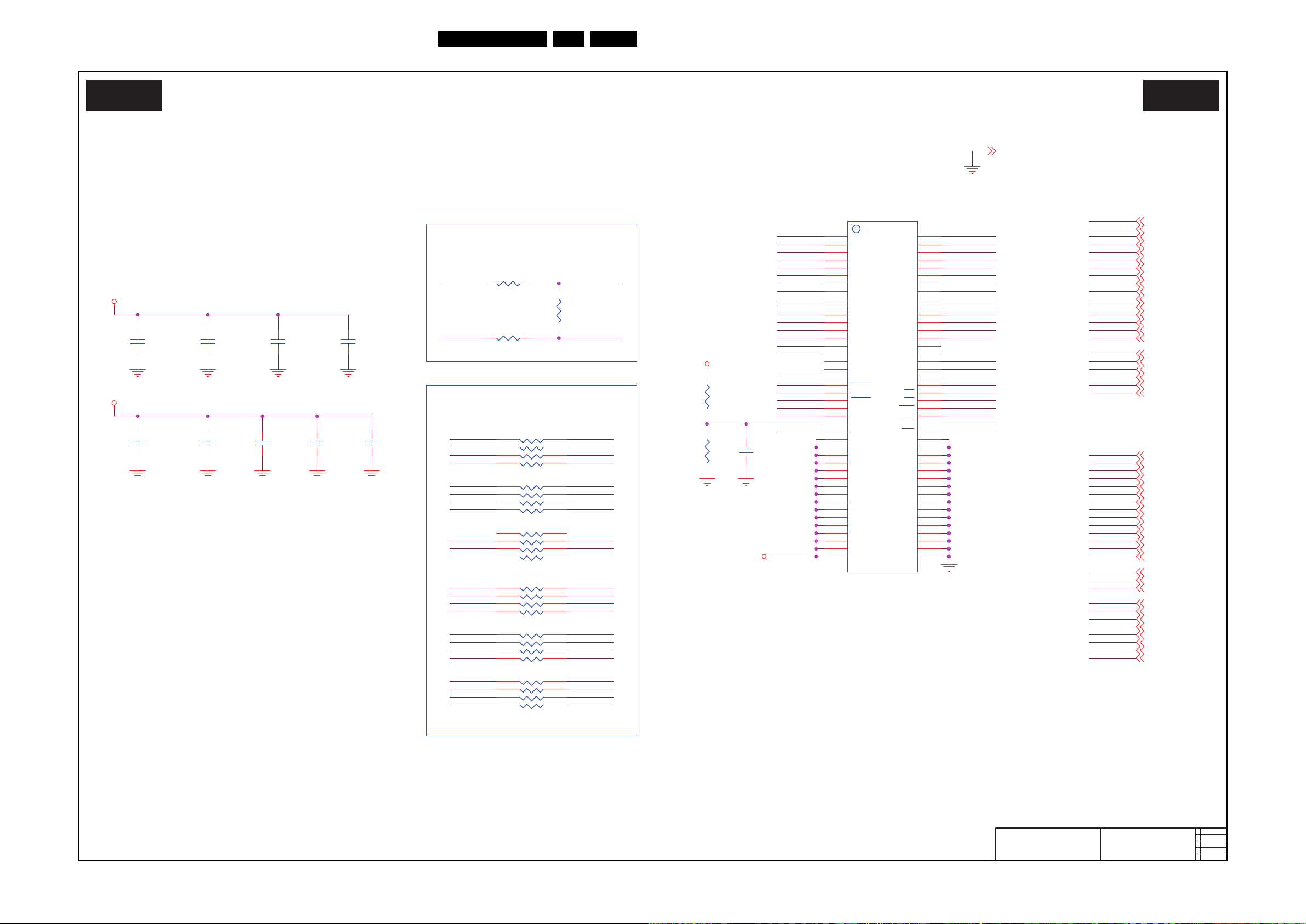

DDR2 (B09) 58 63-64

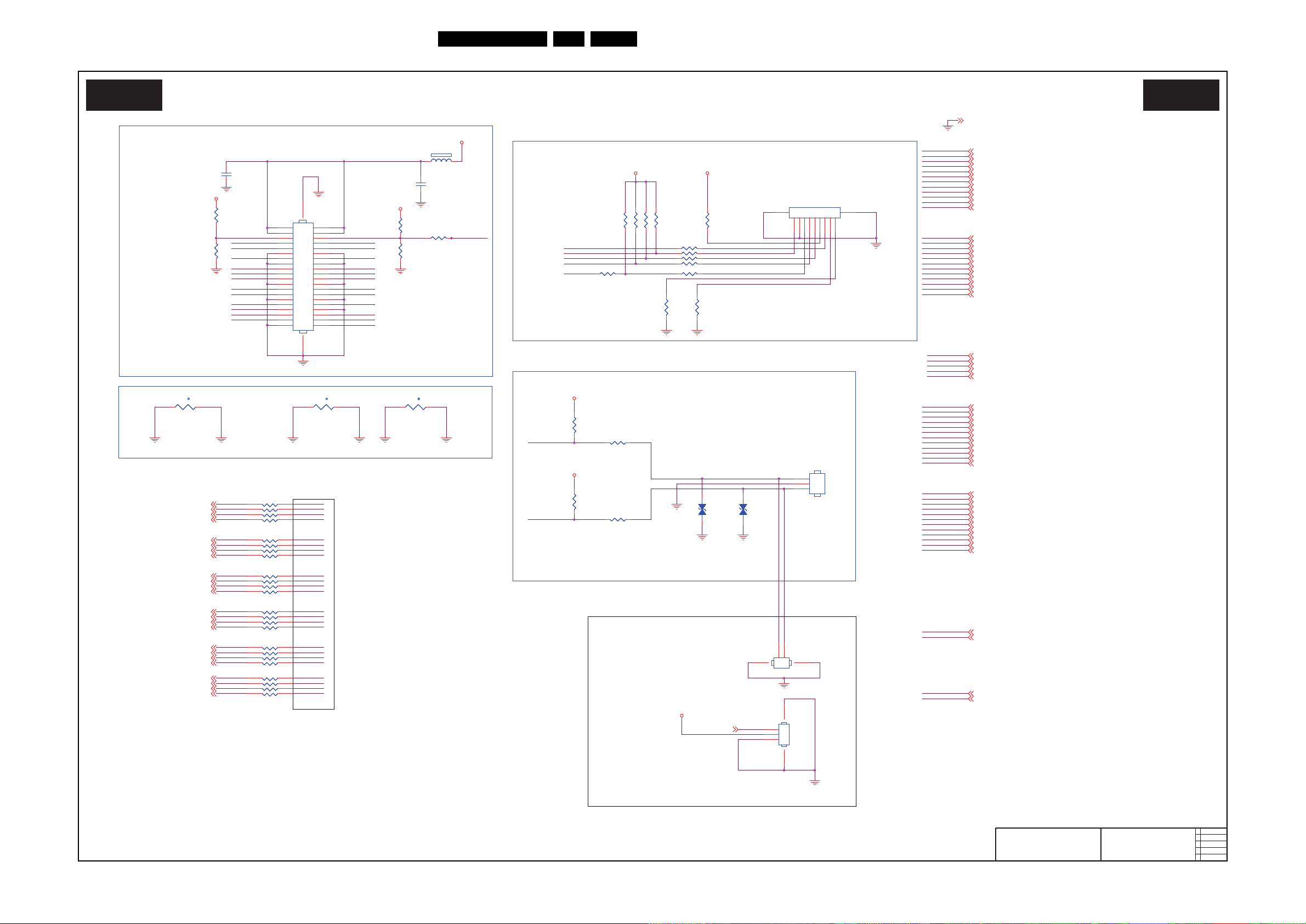

LVDS, JTAG & UART (B10) 59 63-64

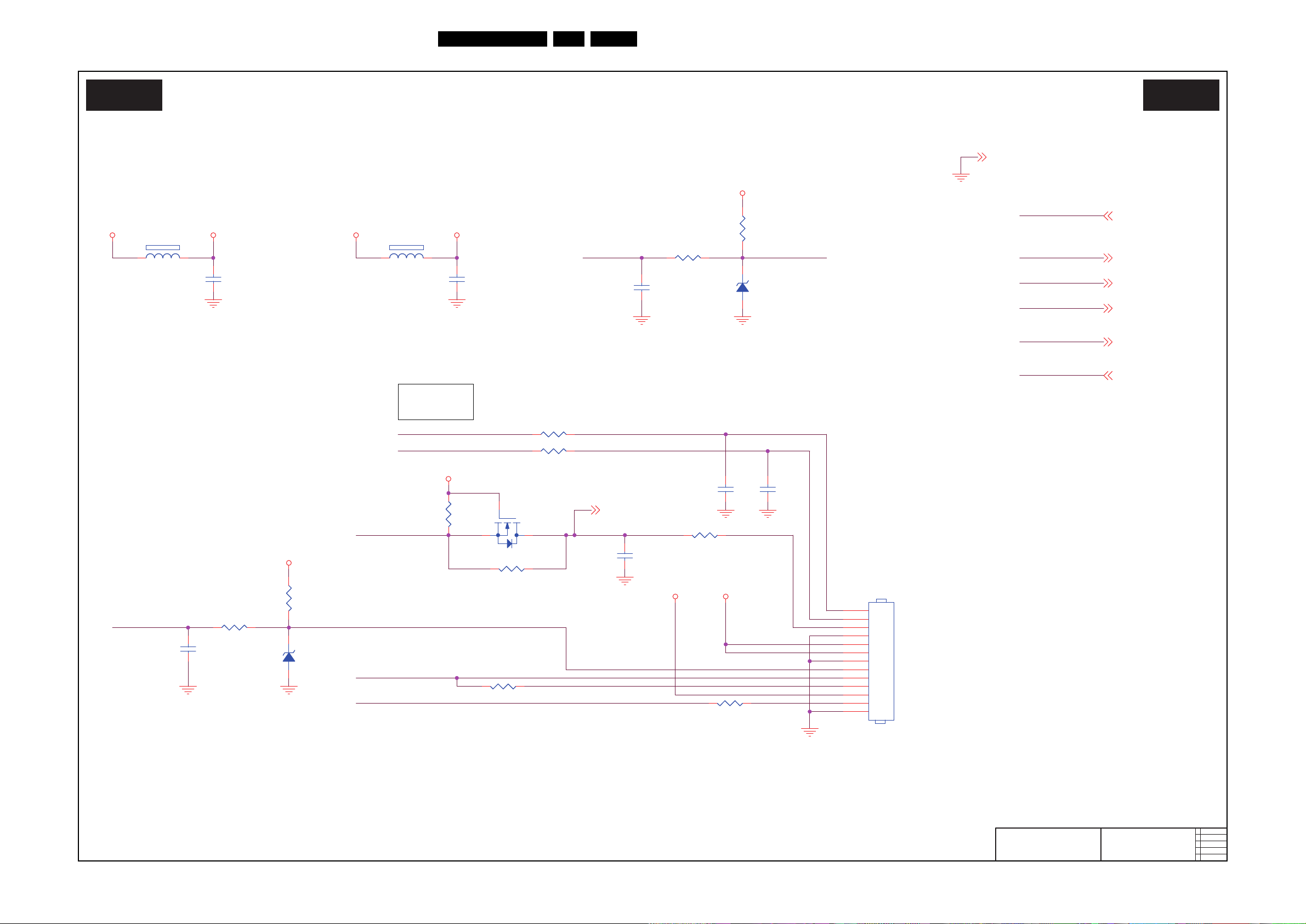

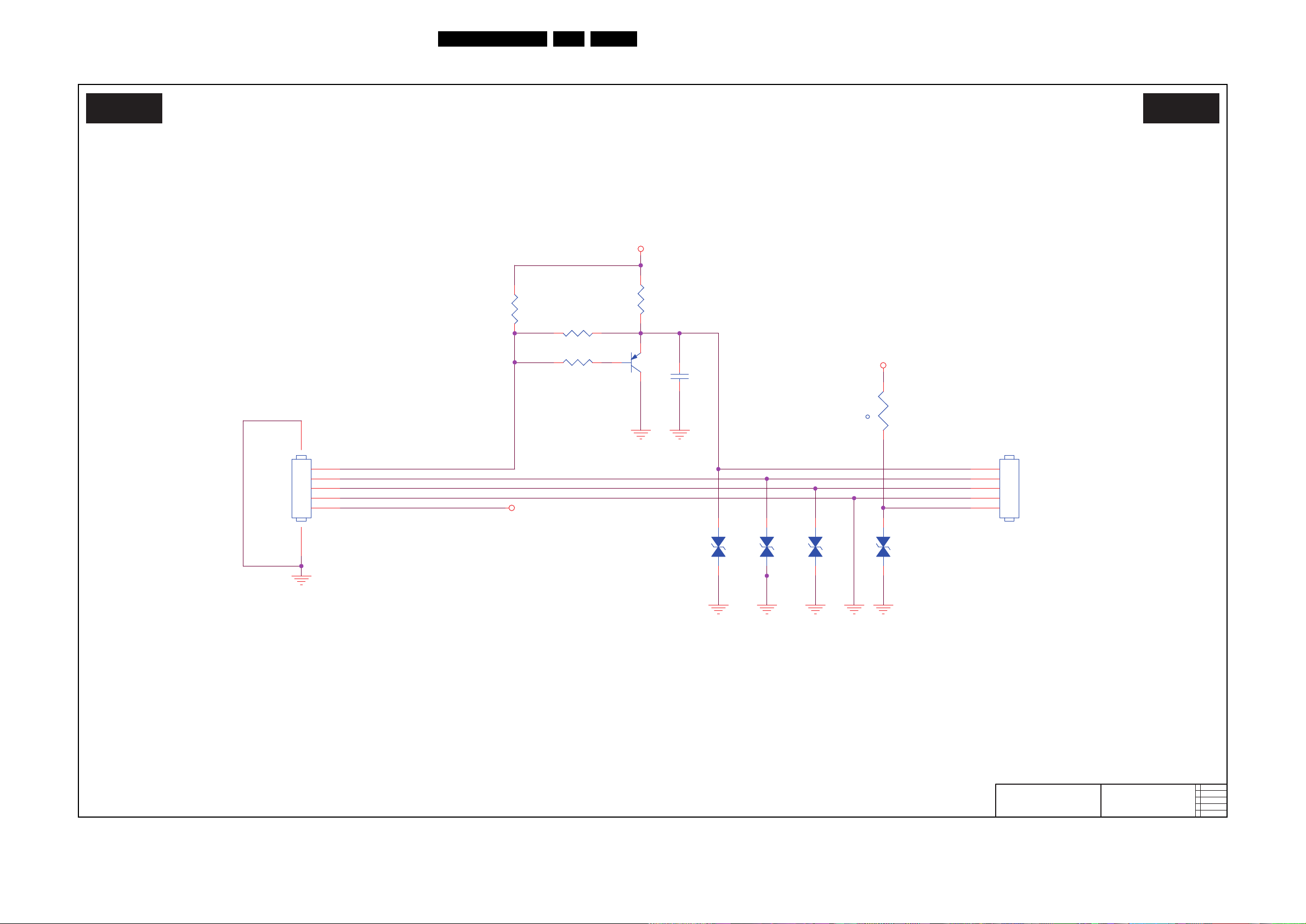

IR & Keypad Interface (B11) 60 63-64

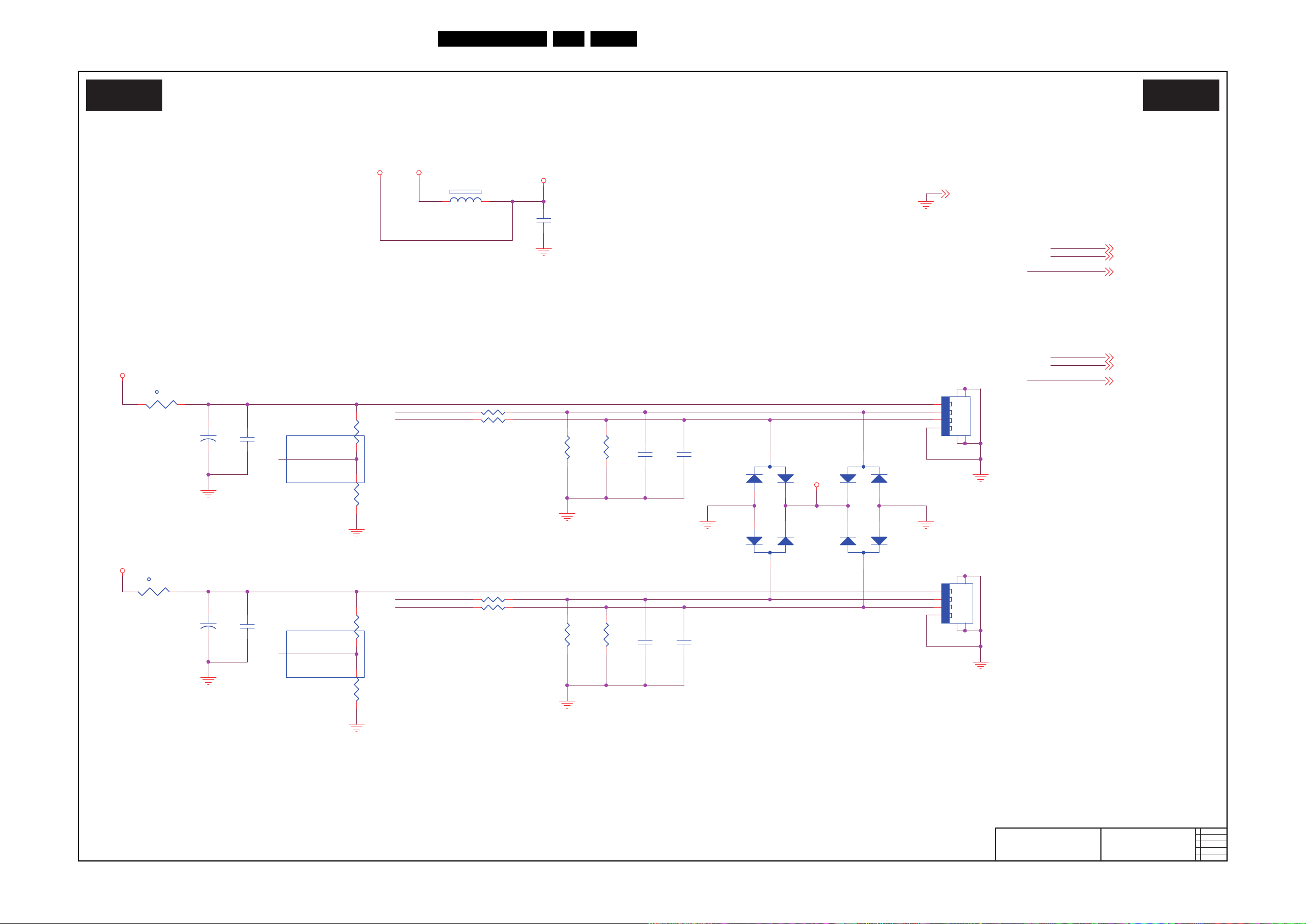

AV Out & SPDIF Out (B12) 61 63-64

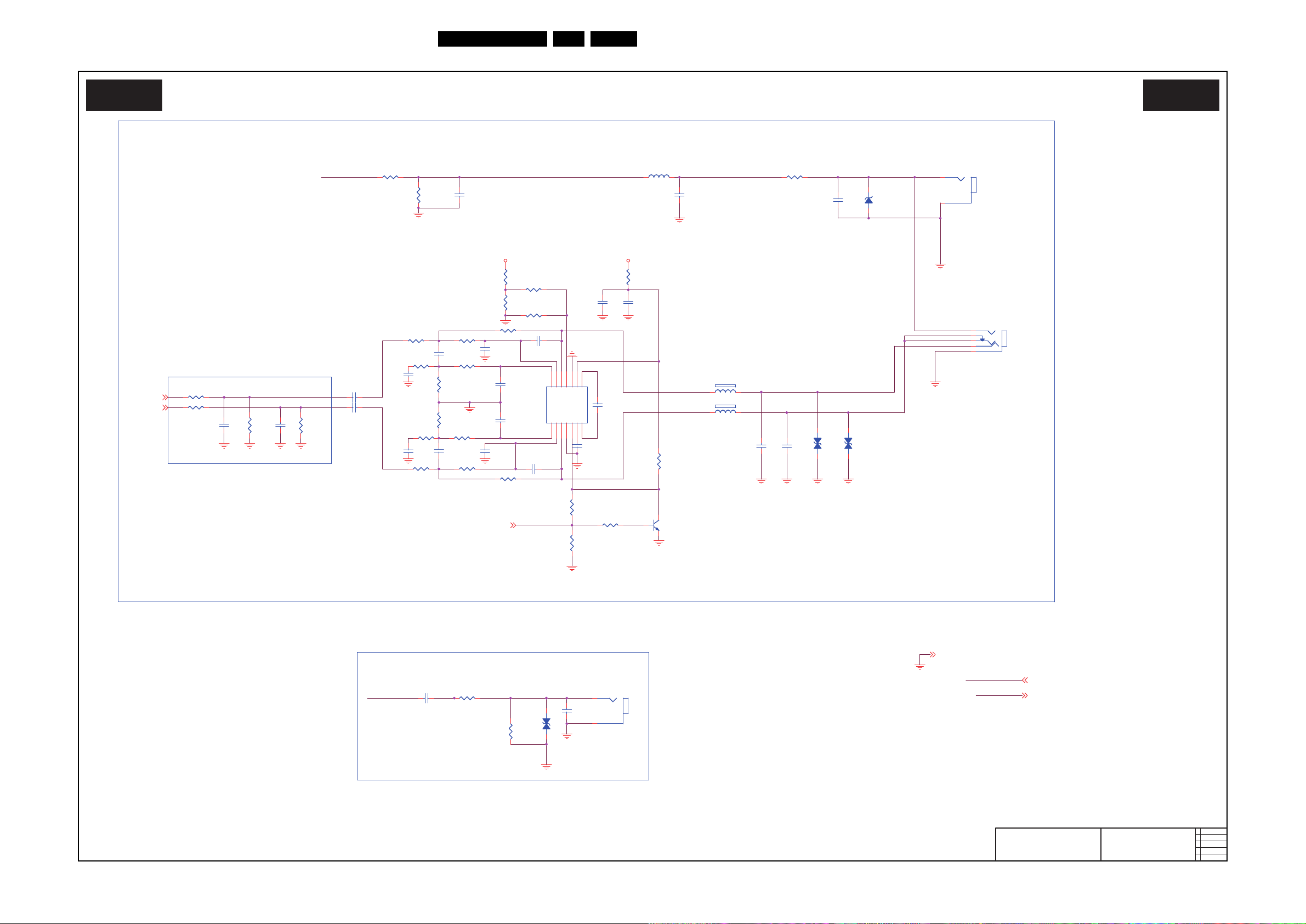

Audio Amplifier & Headphone Out (B13)62 63-64
EMC 715G4858 EMC 65

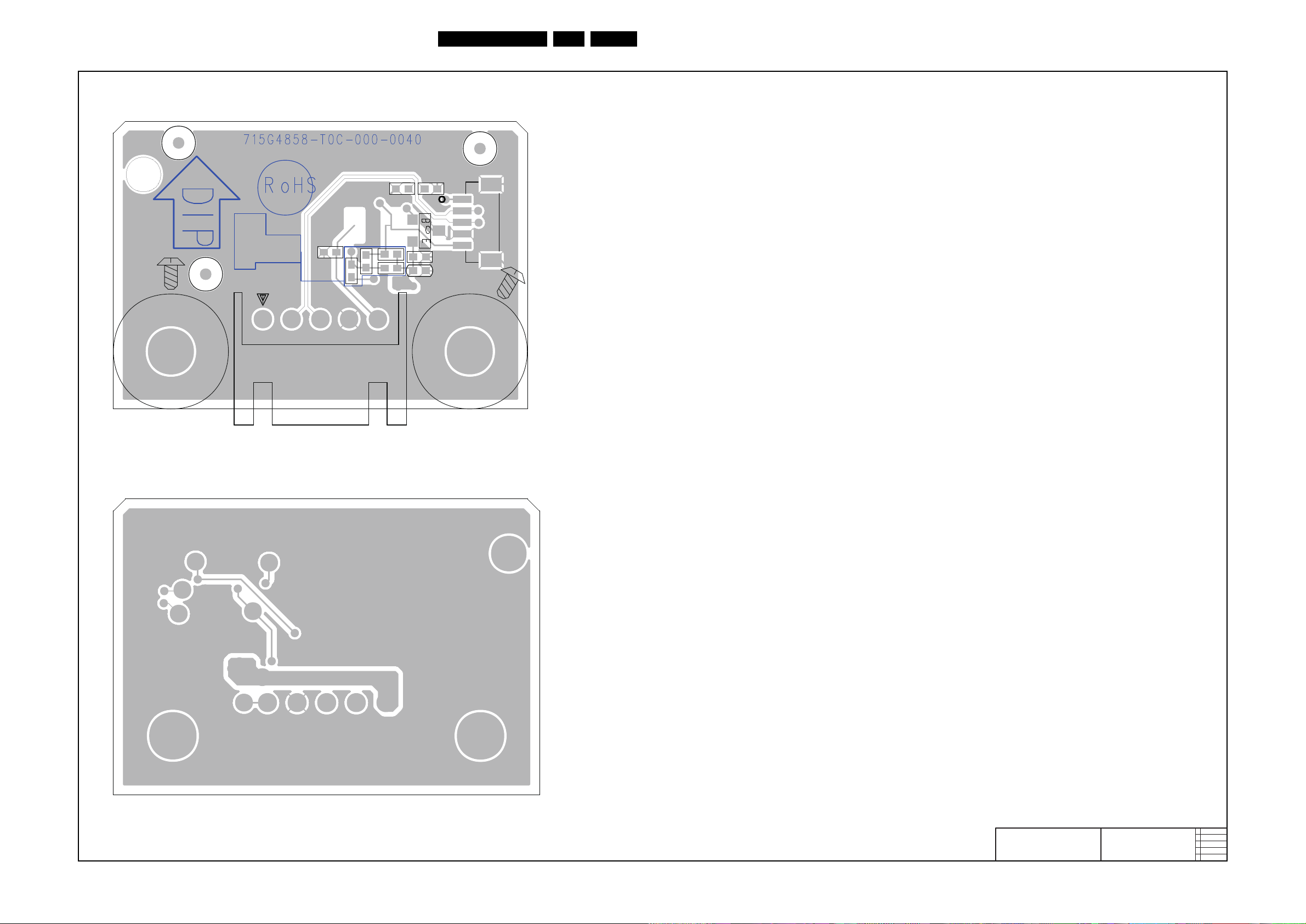

EMC board (EMC)65 66

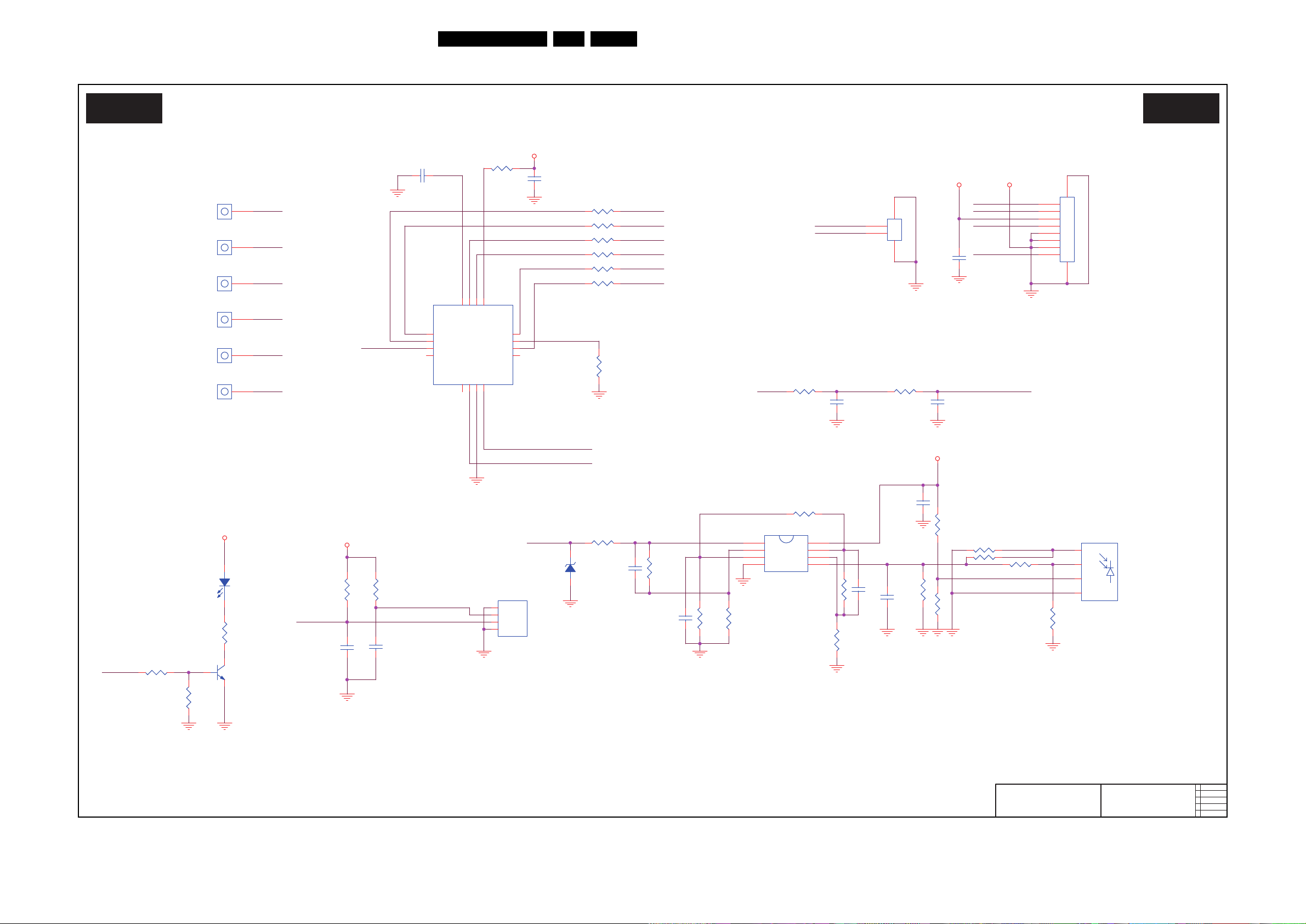

J 715G4496 IR/LED 67

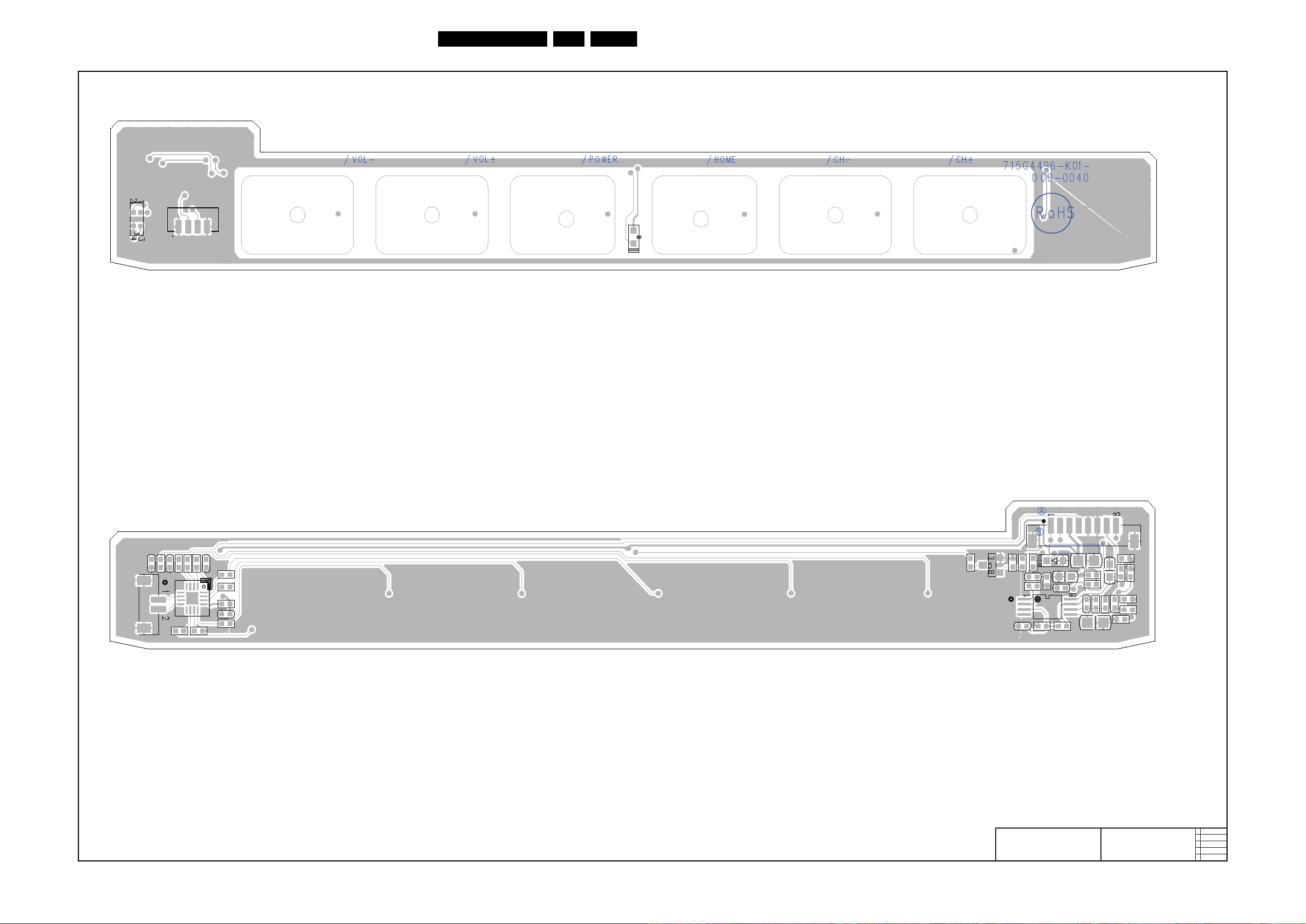

IR/LED board (J) 67 68

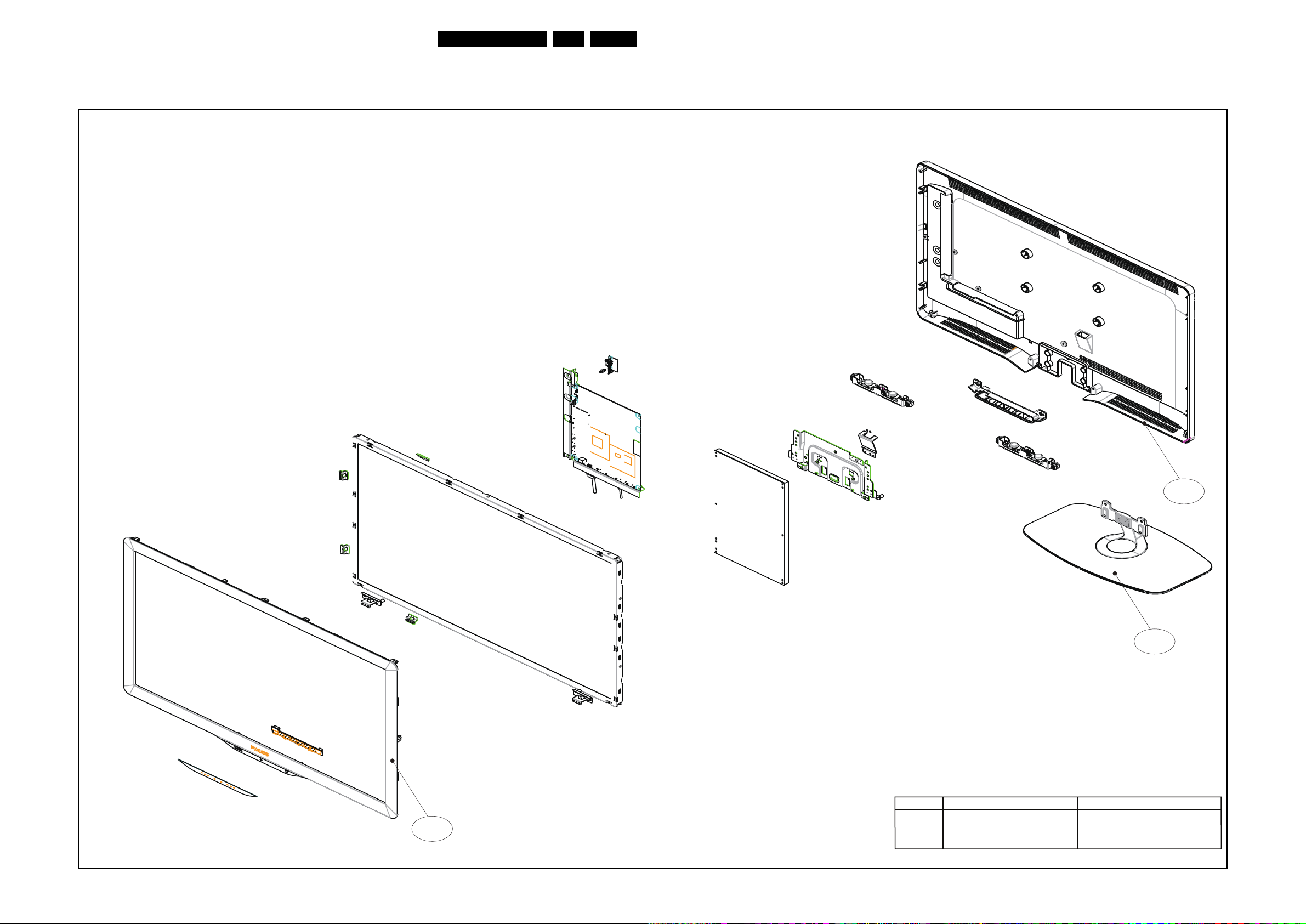

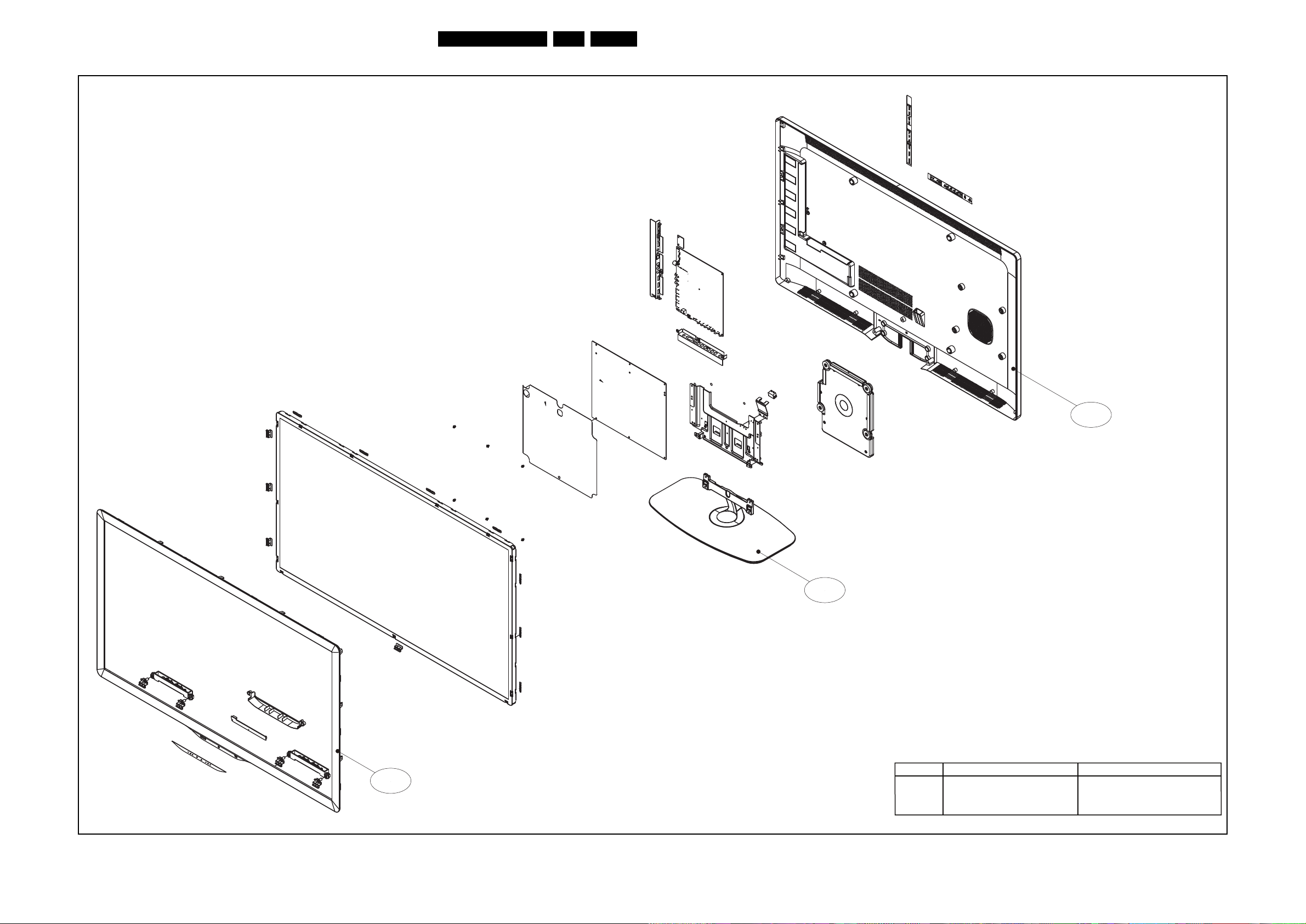

11. Styling Sheets
Ebony 32" 69
Ebony 42" 70

Published by DoZ WS 1171 BG TV Quality, Printed in the Netherlands Subject to modification EN 3122 785 19172

2011-Nov-11

EN 2 TPM8.3A LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

Manual xxxx xxx xxxx.1

• Chapter 7: Updated Figure 7-3 Power Architecture

• Chapter 10: Corrected the drawing EMC board

Manual xxxx xxx xxxx.2

• Chapter 5: Updated the contents 5.4 Service Tools

.

.

• Chapter 7: Updated Figure 7-2 SSB layout cells (top view)

• Chapter 7: Updated Figure 7-3 Power Architecture

2. Technical Specs, Diversity, and Connections

.

.

Index of this chapter:

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

Notes:

• Figures can deviate due to the different set executions.

• Specifications are indicative (subject to change).

2.1 Technical Specifications

For on-line product support please use the links in. Here is
product information available, as well as getting started, user
manuals, frequently asked questions and software & drivers.

Table 2-1 Described Model Numbers:

Model Number Styling Published in

32PFL5606S/98
42PFL5606S/98

Note: The given Model Numbers are subject to change.

Ebony 3122 785 19170
Ebony 3122 785 19170

2.2 Dir ections for Use

Directions for use can be downloaded from the following
websites:

http://www.philips.com/support
http://www.p4c.philips.com

2011-Nov-11

2.3 Connections

19170_001_110629.eps

110721

HDMI

VIDEO

L

R

AV IN

TV

ANTENNA

USB

2

1

1

2

3

PC INCOMPONENT

SPDIFVIDEO OUT

VIDEO
/Y Pb Pr L R

VGA AUDIO

12 13 14

1

2

9 10

11

3

4

5

6

7

8

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

EN 3TPM8.3A LA 2.

2.3.1 Side Connections

Figure 2-1 Connection overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1 - USB1 2.0

Figure 2-2 USB (type A)

1-+5V k
2 -Data (-) jk
3 -Data (+) jk
4 -Ground Gnd H

2 - USB2 2.0

See 1 - USB1 2.0

3 - Head phone (Output)

Bk -Head phone 80 - 600 Ω / 10 mW ot

4 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

5 - Cinch: Video CVBS - In, Audio - In

Ye -Video CVBS 1 V
Rd -Audio R 0.5 V
Wh -Audio L 0.5 V

6 - HDMI1: Digital Video, Digital Audio - In

/ 75 Ω jq

PP

/ 10 kΩ jq

RMS

/ 10 kΩ jq

RMS

Figure 2-3 HDMI (type A) connector

1 -D2+ Data channel j
2 -Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5 -Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8 -Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j

2011-Nov-11

EN 4 TPM8.3A LA2.

1

6

10

11

5

15

10000_002_090121.eps

090127

Technical Specs, Diversity, and Connections

11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

7 - HDMI2: Digital Video, Digital Audio - In

See 6 - HDMI1: Digital Video, Digital Audio - In

8 - HDMI3: Digital Video, Digital Audio - In

See 6 - HDMI1: Digital Video, Digital Audio - In

2.3.2 Rear Connections

9 - Cinch: Video CVBS - Out

Ye - Video CVBS 1 V

/ 75 Ω kq

PP

10 - Cinch: S/PDIF - Out

Bk -Coaxial 0.4 - 0.6V

/ 75 Ω kq

PP

11 - Cinch: Video YPbPr - In, Audio - In

Gn - Video - Y 1 V
Bu - Video - Pb 0.7 V
Rd -Video - Pr 0.7 V
Wh -Audio - L 0.5 V
Rd -Audio - R 0.5 V

/ 75 Ω jq

PP

/ 75 Ω jq

PP

/ 75 Ω jq

PP

/ 10 kΩ jq

RMS

/ 10 kΩ jq

RMS

12 - Service / UART

1 -Ground Gnd H
2 -UART_TX Transmit k
3 -UART_RX Receive j

13 - PC IN:VGA

Figure 2-4 VGA connector

1 -Video Red 0.7 V
2 -Video Green 0.7 V
3 -Video Blue 0.7 V

/ 75 Ω j

PP

/ 75 Ω j

PP

/ 75 Ω j

PP

4-n.c.
5 -Ground Gnd H
6 -Ground Red Gnd H
7 -Ground Green Gnd H
8 -Ground Blue Gnd H
9-+5V

DC

+5 V j
10 - Ground Sync Gnd H
11 - Ground Red Gnd H
12 - DDC_SDA DDC data j
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - DDC_SCL DDC clock j

14 - Audio - In: Left / Right, VGA

Gn - Audio L/R in 0.5 V

/ 10 kΩ jq

RMS

2.4 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

2011-Nov-11

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

EN 5TPM8.3A LA 3.

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation
transformer (> 800 VA).

• Replace safety components, indicated by the symbol h,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:

• Route the wire trees correctly and fix them with the
mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for
external damage.

• Check the strain relief of the Mains/AC Power cord for
proper function.

• Check the electrical DC resistance between the Mains/AC
Power plug and the secondary side (only for sets that have
a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 MΩ and 12 MΩ.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any
inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential.

• Be careful during measurements in the high voltage
section.

• Never replace modules or other components while the unit
is switched “on”.

• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the
Service Default Mode with a colour bar signal and stereo
sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and
picture carrier at 475.25 MHz for PAL, or 61.25 MHz for
NTSC (channel 3).

• Where necessary, measure the waveforms and voltages
with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in stand-by (F). These values are
indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 kΩ).

• Resistor values with no multiplier may be indicated with
either an “E” or an “R” (e.g. 220E or 220R indicates 220 Ω).

• All capacitor values are given in micro-farads (μ=× 10
nano-farads (n =× 10

• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer
to the diversity tables for the correct values.

• The correct component values are listed on the Philips
Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare
Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this
URL: http://www.atyourservice-magazine.com
“Magazine”, then go to “Repair downloads”. Here you will find
Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile.
Where applicable and available, this profile is added to the IC
Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected
by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is
required, please contact the manufacturer of your soldering
equipment. In general, use of solder paste within
workshops should be avoided because paste is not easy to
store and to handle.

• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able:
– To reach a solder-tip temperature of at least 400°C.
– To stabilize the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around
360°C - 380°C is reached and stabilized at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of
tips will increase drastically and flux-fluid will be destroyed.
To avoid wear-out of tips, switch “off” unused equipment or
reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If this cannot be avoided, carefully
clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website,
“Alternative BOM” is referred to as “Design variant”.

-9

), or pico-farads (p =× 10

. Select

2011-Nov-11

-12

-6

),

).

EN 6 TPM8.3A LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

The third digit in the serial number (example:
AG2B0335000001) indicates the number of the alternative
B.O.M. (Bill Of Materials) that has been used for producing the
specific TV set. In general, it is possible that the same TV
model on the market is produced with e.g. two different types
of displays, coming from two different suppliers. This will then
result in sets which have the same CTN (Commercial Type
Number; e.g. 28PW9515/12) but which have a different B.O.M.
number.
By looking at the third digit of the serial number, one can
identify which B.O.M. is used for the TV set he is working with.
If the third digit of the serial number contains the number “1”
(example: AG1B033500001), then the TV set has been
manufactured according to B.O.M. number 1. If the third digit is
a “2” (example: AG2B0335000001), then the set has been
produced according to B.O.M. no. 2. This is important for
ordering the correct spare parts!
For the third digit, the numbers 1...9 and the characters A...Z
can be used, so in total: 9 plus 26= 35 different B.O.M.s can be
indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit
serial number. Digits 1 and 2 refer to the production centre (e.g.
SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M.
code, digit 4 refers to the Service version change code, digits 5
and 6 refer to the production year, and digits 7 and 8 refer to
production week (in example below it is 2010 week 10 / 2010
week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide
if the board has to be exchanged or if it should be repaired on
component level.
If your repair procedure says the board should be exchanged
completely, do not solder on the defective board. Otherwise, it
cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),
6 = play 16 : 9 format, 12 = play 4 : 3
format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to
remove horizontal black bars; keeps
the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels
directly from a cable network by

means of a predefined TXT page
ADC Analogue to Digital Converter
AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency
AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box
AM Amplitude Modulation
AP Asia Pacific
AR Aspect Ratio: 4 by 3 or 16 by 9
ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information
ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA
ATV See Auto TV
Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way
AV External Audio Video
AVC Audio Video Controller
AVIP Audio Video Input Processor
B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz
BDS Business Display Solutions (iTV)
BLR Board-Level Repair
BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries
B-TXT Blue TeleteXT
C Centre channel (audio)
CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections
CL Constant Level: audio output to

connect with an external amplifier
CLR Component Level Repair
ComPair Computer aided rePair
CP Connected Planet / Copy Protection
CSM Customer Service Mode
CTI Color Transient Improvement:

manipulates steepness of chroma

transients
CVBS Composite Video Blanking and

Synchronization
DAC Digital to Analogue Converter
DBE Dynamic Bass Enhancement: extra

low frequency amplification
DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV).
DDC See “E-DDC”
D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz
DFI Dynamic Frame Insertion

2011-Nov-11

Precautions, Notes, and Abbreviation List

EN 7TPM8.3A LA 3.

DFU Directions For Use: owner's manual
DMR Digital Media Reader: card reader
DMSD Digital Multi Standard Decoding
DNM Digital Natural Motion
DNR Digital Noise Reduction: noise

reduction feature of the set
DRAM Dynamic RAM
DRM Digital Rights Management
DSP Digital Signal Processing
DST Dealer Service Tool: special remote

control designed for service

technicians
DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394
DVB-C Digital Video Broadcast - Cable
DVB-T Digital Video Broadcast - Terrestrial
DVD Digital Versatile Disc
DVI(-d) Digital Visual Interface (d= digital only)
E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display.
EDID Extended Display Identification Data

(VESA standard)
EEPROM Electrically Erasable and

Programmable Read Only Memory
EMI Electro Magnetic Interference
EPG Electronic Program Guide
EPLD Erasable Programmable Logic Device
EU Europe
EXT EXTernal (source), entering the set by

SCART or by cinches (jacks)
FDS Full Dual Screen (same as FDW)
FDW Full Dual Window (same as FDS)
FLASH FLASH memory
FM Field Memory or Frequency

Modulation
FPGA Field-Programmable Gate Array
FTV Flat TeleVision
Gb/s Giga bits per second
G-TXT Green TeleteXT
H H_sync to the module
HD High Definition
HDD Hard Disk Drive
HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding.
HDMI High Definition Multimedia Interface
HP HeadPhone
I Monochrome TV system. Sound

2

C Inter IC bus

I

2

D Inter IC Data bus

I

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate Frequency
IR Infra Red
IRQ Interrupt Request
ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used
for broadcast grade video.
Uncompressed digital component or
digital composite signals can be used.
The SDI signal is self-synchronizing,
uses 8 bit or 10 bit data words, and has
a maximum data rate of 270 Mbit/s,
with a minimum bandwidth of 135
MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored
in RAM or in the NVM. They are called
at start-up of the set to configure it
according to the customer's

preferences
LATAM Latin America
LCD Liquid Crystal Display
LED Light Emitting Diode
L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I
LPL LG.Philips LCD (supplier)
LS Loudspeaker
LVDS Low Voltage Differential Signalling
Mbps Mega bits per second
M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz
MHEG Part of a set of international standards

related to the presentation of

multimedia information, standardised

by the Multimedia and Hypermedia

Experts Group. It is commonly used as

a language to describe interactive

television services
MIPS Microprocessor without Interlocked

Pipeline-Stages; A RISC-based

microprocessor
MOP Matrix Output Processor
MOSFET Metal Oxide Silicon Field Effect

Transistor, switching device
MPEG Motion Pictures Experts Group
MPIF Multi Platform InterFace
MUTE MUTE Line
MTV Mainstream TV: TV-mode with

Consumer TV features enabled (iTV)
NC Not Connected
NICAM Near Instantaneous Compounded

Audio Multiplexing. This is a digital

sound system, mainly used in Europe.
NTC Negative Temperature Coefficient,

non-linear resistor
NTSC National Television Standard

Committee. Color system mainly used

in North America and Japan. Color

carrier NTSC M/N= 3.579545 MHz,

NTSC 4.43= 4.433619 MHz (this is a

VCR norm, it is not transmitted off-air)
NVM Non-Volatile Memory: IC containing

TV related data such as alignments
O/C Open Circuit
OSD On Screen Display
OAD Over the Air Download. Method of

software upgrade via RF transmission.

Upgrade software is broadcasted in

TS with TV channels.
OTC On screen display Teletext and

Control; also called Artistic (SAA5800)
P50 Project 50: communication protocol

between TV and peripherals
PAL Phase Alternating Line. Color system

mainly used in West Europe (colour

carrier = 4.433619 MHz) and South

America (colour carrier

2011-Nov-11

EN 8 TPM8.3A LA3.

Precautions, Notes, and Abbreviation List

PAL M = 3.575612 MHz and

PAL N = 3.582056 MHz)
PCB Printed Circuit Board (same as “PWB”)
PCM Pulse Code Modulation
PDP Plasma Display Panel
PFC Power Factor Corrector (or Pre-

conditioner)
PIP Picture In Picture
PLL Phase Locked Loop. Used for e.g.

FST tuning systems. The customer

can give directly the desired frequency
POD Point Of Deployment: a removable

CAM module, implementing the CA

system for a host (e.g. a TV-set)
POR Power On Reset, signal to reset the uP
PSDL Power Supply for Direct view LED

backlight with 2D-dimming
PSL Power Supply with integrated LED

drivers
PSLS Power Supply with integrated LED

drivers with added Scanning

functionality
PTC Positive Temperature Coefficient,

non-linear resistor
PWB Printed Wiring Board (same as “PCB”)
PWM Pulse Width Modulation
QRC Quasi Resonant Converter
QTNR Quality Temporal Noise Reduction
QVCP Quality Video Composition Processor
RAM Random Access Memory
RGB Red, Green, and Blue. The primary

color signals for TV. By mixing levels

of R, G, and B, all colors (Y/C) are

reproduced.
RC Remote Control
RC5 / RC6 Signal protocol from the remote

control receiver
RESET RESET signal
ROM Read Only Memory
RSDS Reduced Swing Differential Signalling

data interface
R-TXT Red TeleteXT
SAM Service Alignment Mode
S/C Short Circuit
SCART Syndicat des Constructeurs

d'Appareils Radiorécepteurs et

Téléviseurs
SCL Serial Clock I
SCL-F CLock Signal on Fast I
SD Standard Definition
SDA Serial Data I
SDA-F DAta Signal on Fast I

2

C

2

C bus

2

C

2

C bus
SDI Serial Digital Interface, see “ITU-656”
SDRAM Synchronous DRAM
SECAM SEequence Couleur Avec Mémoire.

Colour system mainly used in France
and East Europe. Colour
carriers = 4.406250 MHz and

4.250000 MHz
SIF Sound Intermediate Frequency
SMPS Switched Mode Power Supply
SoC System on Chip
SOG Sync On Green
SOPS Self Oscillating Power Supply
SPI Serial Peripheral Interface bus; a 4-

wire synchronous serial data link

standard
S/PDIF Sony Philips Digital InterFace
SRAM Static RAM
SRP Service Reference Protocol
SSB Small Signal Board
SSC Spread Spectrum Clocking, used to

reduce the effects of EMI
STB Set Top Box
STBY STand-BY

SVGA 800 × 600 (4:3)
SVHS Super Video Home System
SW Software
SWAN Spatial temporal Weighted Averaging

Noise reduction
SXGA 1280 × 1024
TFT Thin Film Transistor
THD Total Harmonic Distortion
TMDS Transmission Minimized Differential

Signalling
TS Transport Stream
TXT TeleteXT
TXT-DW Dual Window with TeleteXT
UI User Interface
uP Microprocessor
UXGA 1600 × 1200 (4:3)
V V-sync to the module
VESA Video Electronics Standards

Association
VGA 640 × 480 (4:3)
VL Variable Level out: processed audio

output toward external amplifier
VSB Vestigial Side Band; modulation

method
WYSIWYR What You See Is What You Record:

record selection that follows main

picture and sound
WXGA 1280 × 768 (15:9)
XTAL Quartz crystal
XGA 1024 × 768 (4:3)
Y Luminance signal
Y/C Luminance (Y) and Chrominance (C)

signal
YPbPr Component video. Luminance and

scaled color difference signals (B-Y

and R-Y)
YUV Component video

2011-Nov-11

4. Mechanical Instructions

19170_100_110705.eps

110705

Mechanical Instructions

EN 9TPM8.3A LA 4.

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel Removal

4.4 Set Re-assembly

4.1 Cable Dressing

Notes:

• Figures below can deviate slightly from the actual situation,
due to the different set executions.

Figure 4-1 Cable dressing 32"

2011-Nov-11

EN 10 TPM8.3A LA4.

19170_101_110706.eps

110706

Mechanical Instructions

4.2 Se rvice Positions

For easy servicing of a TV set, the set should be put face down
on a soft flat surface, foam buffers or other specific workshop
tools. Ensure that a stable situation is created to perform
measurements and alignments. When using foam bars take
care that these always support the cabinet and never only the
display. Caution: Failure to follow these guidelines can
seriously damage the display!
Ensure that ESD safe measures are taken.

4.3 Assembly/Panel Removal

Instructions below apply to the 42PFL5606S/98, but will be
similar for other models.

4.3.1 Rear Cover

Refer to Figure 4-3
Warning: Disconnect the mains power cord before removing
the rear cover.

1. Remove the fixation screws [1], [2] and [3] that secure the
rear cover. Refer to Figure 4-3

2. Lift the rear cover from the TV. Make sure that wires and
LVDS cable are not damaged while lifting the rear cover
from the set.

for details.

for details.

Figure 4-2 Cable dressing 42"

2011-Nov-11

Mechanical Instructions

19170_102_110706.eps

110713

1

M4 × 12

3

M3 × 6

3 × 10

2

1

1

1

1

2

2

2

2

2

2

2

2

2

2

2

2

2

3

3

3

19170_103_110706.eps

110713

3

3

3

1

3

2

EN 11TPM8.3A LA 4.

Figure 4-3 Rear cover removal

4.3.2 Small Signal Board (SSB)

Refer to Figure 4-4
Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result
in damaging the SSB.

1. Release the clips from both the LVDS cables/Flat Foils
connectors that connect to the SSB [1].
Caution: be careful, as these are very fragile connectors!

2. Release the clamps and unplug all other connectors [2].

3. Remove all fixation screws [3] from the SSB.

4. Take out of the SSB. Refer to Figure 4-4

for details.

for details.

Figure 4-4 SSB removal

4.3.3 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result
in damaging the PSU.

1. Unplug power connector from the SSB.

2. Unplug all other connectors from the PSU.

3. Remove all fixation screws from the PSU.

4. The PSU can be taken out of the set now.

2011-Nov-11

EN 12 TPM8.3A LA4.

4.3.4 Speakers

1. Unplug speaker connectors from the SSB.

2. Release speaker cables from the clamps.

3. Take the speakers out.
When defective, replace both units.

4.3.5 EMC Board

1. Unplug the connector from the EMC board.

2. Remove all fixation screws from the EMC board.
When defective, replace both units.

4.3.6 IR/LED Board

1. Unplug the connectors from the IR/LED board.

2. Release the clips that hold the board and take it out from
the bezel.

When defective, replace both units.

4.3.7 LCD Panel

1. Release the LVDS connector from the LCD panel.

2. Take out the speakers, as described earlier.

3. Remove the MEMC board as described earlier.

4. Remove the IR/LED board as described earlier.

5. Release all tapes that fit cables to the back side of the LCD
panel.

6. Remove all fixation screws of the sub frames on the sides
of the LCD panel.

7. Lift the sub frames, together with the mounted panels from
the LCD panel and put it aside.

8. Lift the LCD panel from the front bezel.

When defective, replace the whole unit.

Mechanical Instructions

4.4 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse
order.

Notes:

• While re-assembling, make sure that all cables are placed
and connected in their original position. See Figure 4-1

Figure 4-2

• Pay special attention not to damage the EMC foams on the
SSB shields. Ensure that EMC foams are mounted
correctly.

.

and

2011-Nov-11

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

EN 13TPM8.3A LA 5.

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Stepwise Start-up

5.4 Service Tools

5.5 Software Upgrading

5.6 Error Codes

5.7 The Blinking LED Procedure

5.8 Fault Finding and Repair Tips

5.1 Test Points

As most signals are digital, it will be difficult to measure
waveforms with a standard oscilloscope. However, several key
ICs are capable of generating test patterns, which can be
controlled via ComPair. In this way it is possible to determine
which part is defective.

Perform measurements under the following conditions:

• Service Default Mode.

• Video: Colour bar signal.

• Audio: 1kHz left, 400 Hz right.

5.2 Service Modes

The Service Mode feature is split into four parts:

• Service Default Mode (SDM).

• Service Alignment Mode (SAM).

• Customer Service Mode (CSM).

• Computer Aided Repair Mode (ComPair).

Table 5-1 Service mode overview

Service Modes Description

SAM Service alignment mode
SDM Service default Mode
CSM Customer Service Mode, a 3-page compact

USB software
upgradeable

NVM-Editor in
SAM

Service Data New Service data in SAM for CTN, Prod.

USB copy/paste
in SAM

UART logging UART logging is available, however no

Blind SAM Remote control sequence “062598” +

Clear Buffer RC sequence “062599” + “OK” or via SAM

SDM and SAM offer features, which can be used by the Service
engineer to repair/align a TV set. Some features are:

• A pre-defined situation to ensure measurements can be
made under uniform conditions (SDM).

• Activates the blinking LED procedure for error identification
when no picture is available (SDM).

• Make alignments (e.g. White Tone), reset the error buffer
(SAM).

status overview of the set. These pages will
be written to a dump file on a USB memory
stick upon entering CSM-mode

Software upgrading of flash memories
MTK-chips MT5301B can be done via USB.
The main software can be upgraded via
Autorun.upg

NVM-editor provides address and data field
editing

no., and 12NC programming with a virtual
keyboard

Channel list, NVM data, Readable info,
EDID

specification of the output, according to
MTK definition.

“Menu” + “Panel code”

• Display information (“SDM” or “SAM” indication in upper
right corner of screen, error buffer, software version,
operating hours, options and option codes, sub menus).

CSM is a Service Mode that can be enabled by the consumer.
CSM displays diagnosis information, which the customer can
forward to the dealer or call centre. In CSM mode, “CSM”, is
displayed in the top right corner of the screen. The information
provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solve customer problems without home visit.

ComPair Mode is used for communication between a computer
and a TV on I
engineer to quickly diagnose the TV set by reading out error
codes, read and write in NVMs, communicate with ICs and the
μP (PWM, registers, etc.), and by making use of a fault finding
database. It will also be possible to up and download the
software of the TV set via I
ComPair has to be connected to the TV set via the ComPair
connector, which will be accessible through the rear of the set
(without removing the rear cover).

Note: For the new model range, a new remote control (RC) is
used with some renamed buttons. This has an impact on the
activation of the Service modes. For instance the old “MENU”
button is now called “HOME” (or is indicated by a “house” icon).

5.2.1 General

Next items are applicable to all Service Modes or are general.

Life Timer

During the life time cycle of the TV set, a timer is kept (called
“Op. Hour”). It counts the normal operation hours (not the
Stand-by hours). The actual value of the timer is displayed in
SDM and SAM in a decimal value. Every two soft-resets
increase the hour by + 1. Stand-by hours are not counted.

Software Identification, Version, and Cluster

The software ID, version, and cluster will be shown in the main
menu display of SDM, SAM, and CSM.
The screen will show: “AAAAAB X.YY”, where:

• AAAAA is the chassis name.

• B is the region indication: E = Europe, A = AP/China, U =
NAFTA, L = LATAM.

• X is the main version number: this is updated with a major
change of specification (incompatible with the previous
software version). Numbering will go from 01 - 99 and
AA - ZZ.

- If the main version number changes, the new version
number is written in the NVM.

- If the main version number changes, the default settings
are loaded.

• YY is the sub version number: this is updated with a minor
change (backwards compatible with the previous
versions). Numbering will go from 00 - 99.

- If the sub version number changes, the new version
number is written in the NVM.

- If the NVM is fresh, the software identification, version,
and cluster will be written to NVM.

5.2.2 Service Default Mode (SDM)

Purpose

Set the TV in SDM mode in order to be able to create a
predefined setting for measurements to be made. In this
platform, a simplified SDM is introduced (without protection
override and without tuning to a predefined frequency).

2

C /UART level and can be used by a Service

2

C with help of ComPair. To do this,

2011-Nov-11

EN 14 TPM8.3A LA5.

19170_200_110704.eps

110704

19170_201_110704.ep

s

111006

Service Modes, Error Codes, and Fault Finding

Specifications

• Set linear video and audio settings to 50%, but volume to
25%. Stored user settings are not affected.

• All service-unfriendly modes (if present) are disabled, since
they interfere with diagnosing/repairing a set. These
service unfriendly modes are:
– (Sleep) timer.
– Blue mute/Wall paper.
– Auto switch “off” (when there is no “ident” signal).
– Hotel or hospital mode.
– Child lock or parental lock (manual or via V-chip).
– Skipping, blanking of “Not favourite”, “Skipped” or

“Locked” presets/channels.

– Automatic storing of Personal Preset or Last Status

settings.

– Automatic user menu time-out (menu switches back/

OFF automatically.

– Auto Volume levelling (AVL).

How to Activate SDM

To activate SDM, use the following methods:

• Press the following key sequence on the RC transmitter:
“062596”, directly followed by the “MENU” button.
Note: It is possible that, together with the SDM, the main
menu will appear. To switch it “off”, push the “MENU”
button again.

After activating this mode, “SDM” will appear in the upper right
corner of the screen (when a picture is available).

On Screen Menu

After activating SDM, the following items are displayed, with
“SDM” in the upper right corner of the screen to indicate that the
television is in Service Default Mode. Menu items and
explanation:

• xxxxx Operating hours (in decimal).

• AAAAAB X.YY See paragraph Software Identification,
Version, and Cluster for the SW name definition.

• ERR Shows all errors detected since the last time the
buffer was erased in format <xxx> <xxx> <xxx> <xxx>
<xxx> (five errors possible).

• OP Used to read-out the option bytes. Ten
codes (in two rows) are possible.

• Press the following key sequence on the remote control
transmitter: “062596” directly followed by the OK button to
switch to SAM (do not allow the display to time out between
entries while keying the sequence). Remarks: new RC will
not have I+ button, but function still remains.

How to Exit SDM

• Switch the set to Stand-by, by pressing the standby button
on the remote control transmitter or on the television set.

• Via a standard customer RC-transmitter: key
in “00”-sequence.
Note: If the TV is switched “off” by a power interrupt while
in SDM, the TV will show up in the last status of SDM menu
as soon as the power is supplied again. The error buffer will
not be cleared.

5.2.3 Service Alignment Mode (SAM)

Purpose

• To modify the NVM.

• To display/clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, error codes, and option settings display.

• Error buffer clearing.

• Option settings.

• Software alignments (White Tone).

• NVM Editor.

• Set screen mode to full screen (all content is visible).

How to Activate SAM

To activate SAM, use one of the following methods:

• Press the following key sequence on the remote control
transmitter: “695260”, directly followed by the “Info” button.
Do not allow the display to time out between entries while
keying the sequence.

• Or via ComPair.

After entering SAM, the following items are displayed,
with “SAM” in the upper right corner of the screen to indicate
that the television is in Service Alignment Mode.

Figure 5-1 SDM menu

How to Navigate

As this mode is read only, there is not much to navigate. To
switch to other modes, use one of the following methods:

• Command MENU from the user remote will enter the
normal user menu (brightness, contrast, colour, etc...) with
“SDM” OSD remaining, and pressing MENU key again will
return to the last status of SDM again.

• To prevent the OSD from interfering with measurements in
SDM, command “OSD” or “i+” (“STATUS” or “INFO” for
NAFTA and LATAM) from the user remote will toggle the
OSD “on/off” with “SDM” OSD remaining always “on”.

2011-Nov-11

Figure 5-2 Example of SAM

Service Modes, Error Codes, and Fault Finding

EN 15TPM8.3A LA 5.

Table 5-2 SAM mode overview

Main Menu Sub-menu 1 Sub-menu 2 Description

System Information Op Hour This represents the life timer. The timer counts n ormal operation hours, but does no t count

Main SW ID e.g. “TPM82A 1.02” See paragraph Software Identification, Version, and Cluster for the SW name definition.
ERR e.g. “000 000 000 000 000” Shows all errors detected since the last time the buffer was erased. Five errors possible.
OP1 e.g. “012 004 192 002 156 032 007

OP2 e.g. “056 023 000 106 064 000 000

Clear Press [OK] to clean the Error

RGB Align Warm R Gain To align the White Tone. See

NVM editor Address Select and fill the NVM address

Upload to USB Copy Channel List to USB To upload several settings from the TV to an USB stick

Download from USB Copy Channel List from USB To download several settings from the USB stick to the TV

Initialize NVM Press [OK] to Initialize NVM

EDID Write Enable Press [OK] to enable EDID

Service Data Type Number Press [OK] use key pad edit type

Codes immediately

Normal R Gain

Cool R Gain

Store Store the RGB value

Value Select and fill the NVM value
Store Store the value in the address

Copy NVM to USB
Copy Readable Info to USB
Copy Edid to USB

Copy NVM from USB
Copy Readable Info from USB
Copy Edid from USB

immediately

writable immediately

Production Number Press [OK] use key pad edit

12NC SSB Press [OK] use key pad edit SSB

12NC PSU Press [OK] use key pad edit PSU

12NC Display Press [OK] use key pad edit display

026”

122”

G Gain
B Gain

G Gain
B Gain

G Gain
B Gain

number immediately

production number immediately

immediately

immediately

immediately

Stand-by hours.

Option code is hard coded in SW, i t c annot be edited in SAM mode. Only to show in
SAM system information.

Erases the contents of the erro r buffer. S elect this me nu item and press the MEN U RIGHT
key on the remote control. The content of the error buffer is cleared.

paragraph 6.3 Software Alignments in the Alignments section for a detailed description

To initialize a (corrupted) NVM. Be careful, this will erase all settings.

Enable EDID writable

Use Key pad to edit several service data

How to Navigate

• In the SAM menu, select menu items with the UP/DOWN
keys on the remote control transmitter. The selected item
will be indicated. When not all menu items fit on the screen,
use the UP/DOWN keys to display the next/previous menu
items.

• With the “LEFT/RIGHT” keys, it is possible to:
– (De) activate the selected menu item.
– (De) activate the selected sub menu.
– Change the value of the selected menu item.

• When you press the MENU button twice while in top level
SAM, the set will switch to the normal user menu (with the
SAM mode still active in the background). To return to the
SAM menu press the MENU button.

• The “INFO [i+]” key from the user remote will toggle the
OSD “on/off” with “SAM” OSD remaining always “on”.

• Press the following key sequence on the remote control
transmitter: “062596” directly followed by the MENU button
to switch to SDM (do not allow the display to time out
between entries while keying the sequence). Remarks:
new RC will not have I+ button, but function still remain.

How to Store SAM Settings

To store the settings changed in SAM mode (except the
RGB ALIGN settings), leave the top level SAM menu by using
the POWER button on the remote control transmitter or the

television set. The mentioned exceptions must be stored
separately via the STORE button.

How to Exit SAM

Use one of the following methods:

• Switch the set to STANDBY by pressing the mains button
on the remote control transmitter or the television set.

• Via a standard RC-transmitter, key in “00” sequence.

Note: When the TV is switched “off” by a power interrupt while
in SAM, the TV will show up in “normal operation mode” as
soon as the power is supplied again. The error buffer will not be
cleared.

5.2.4 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and
information on the operation settings of the TV. The call centre
can instruct the customer (by telephone) to enter CSM in order
to identify the status of the set.This helps the call centre to
diagnose problems and failures in the TV set before making a
service call.
The CSM is a read-only mode; therefore, modifications are not
possible in this mode.

2011-Nov-11

EN 16 TPM8.3A LA5.

19170_203_110704.eps

111006

19170_204_110704.eps

110704

Service Modes, Error Codes, and Fault Finding

Specifications

• Ignore “Service unfriendly modes”.

• Line number for every line (to make CSM language
independent).

• Set the screen mode to full screen (all contents on screen
is visible).

• After leaving the Customer Service Mode, the original
settings are restored.

• Possibility to use “CH+” or “CH-” for channel surfing, or
enter the specific channel number on the RC.

How to Activate CSM

To activate CSM, press the following key sequence on a
standard remote control transmitter: “123654”
(do not allow the display to time out between entries while
keying the sequence). After entering the Customer Service
Mode, the following items are displayed.

Note: Activation of the CSM is only possible if there is no (user)
menu on the screen!

replaced or is initialized after corruption, this production
code has to be re-written to NVM.

• 1.3 Installation date Indicates the date of the first
installation of the TV. This date is acquired via time
extraction.

• 1.4 Option Code 1 Gives the option codes of option group
1 as set in SAM.

• 1.5 Option Code 2 Gives the option codes of option group
2 as set in SAM.

• 1.6 SSB Gives an identification of the SSB as stored in
NVM. Note that if an NVM is replaced or is initialized after
corruption, this identification number has to be re-written to
NVM. This identification number is the 12NC number of the
SSB.

• 1.7 Display Displays the 12NC of the NVM.

• 1.8 PSU Displays the 12NC of the PSU.

• 2.1 Current Main SW Displays the built-in main software
version. In case of field problems related to software,
software can be upgraded. As this software is consumer
upgradeable, it will also be published on the Internet.

• 2.2 Standby SW Displays the built-in stand-by processor
software version. Upgrading this software will be possible
via USB.

• 2.3 Panel Code Displays the Display Code number.

• 2.4 NVM version Detects and displays NVM version.

• 3.1 Child lock Not active/active. This is a combined item
for locks. If any lock (channel lock, parental lock) is active,
the item shall show “active”.

• 3.2 HDCP keys Indicates if the HDMI keys (or HDCP keys)
are valid or not. In case these keys are not valid and the
customer wants to make use of the HDMI functionality, the
SSB has to be replaced.

19170_202_110704.eps

Figure 5-3 CSM Menu [1/3]

Figure 5-4 CSM Menu [2/3]

Figure 5-5 CSM Menu [3/3]

Contents of CSM

• 1.1 Set Type This information is very helpful for a
helpdesk/workshop as reference for further diagnosis. In
this way, it is not necessary for the customer to look at the
rear of the TV-set. Note that if an NVM is replaced or is
initialized after corruption, this set type has to be re-written
to NVM.

• 1.2 Production code Displays the production
code (the serial number) of the TV. Note that if an NVM is

110704

How to Navigate

By means of the “CURSOR-DOWN/UP” knob (or the scroll
wheel) on the RC-transmitter, can be navigated through the
menus.

w to Exit CSM

Ho

To exit CSM, use one of the following methods.

• Press the MENU/HOME button on the remote control
transmitter.

• Press the POWER button on the remote control
transmitter.

• Press the POWER button on the television set.

5.2.5 Blind SAM Display Option Code Selection

When after an SSB or display exchange, the display option
code is not set properly, it will result in a TV with “no display”.
Therefore, it is required to set this display option code after
such a repair.
To do so, press the following key sequence on a standard RC
transmitter: “062598” directly followed by MENU and “xxx”,
where “xxx” is a 3 digit decimal value of the panel type: see
column “Display Code” in Table 6-2

. When the value is
accepted and stored in NVM, the set will switch to Stand-by, to
indicate that the process has been completed.
During this algorithm, the NVM-content must be filtered,
because several items in the NVM are TV-related and not SSB
related (e.g. Model and Prod. S/N). Therefore, “Model”
and “Prod. S/N” data is changed into “See Type Plate”. In case
a call centre or consumer reads “See Type Plate” in CSM
mode, he needs to look to the side/bottom sticker to identify the
set, for further actions.

2011-Nov-11

5.3 Stepwise Start-up

19080_206_110323.eps

110401

Power Off

Standby
Soft Mode

Power On

Semi-
Standby

Standby

Switch

Off(Mains
Power Plug)

Standby Soft Mode
Command Received,
previously in Standby

Soft Mode (Power tact
switch)

TV Wakeup
commands
Received
(TV Wakeup
keys)

Digital
background
tasks started

Digital
background
tasks completed

Swith On,
previously in

Standby/Semi-
Standby (Mains
Power Plug)

Standby
Soft Mode

Command
Received
(Power tact

switch)

Switch Off (Mains
Power Plug)

Switch Off

(Mains Power
Plug)

Swith On,
previously in
Standby Soft Mode
(Mains Power Plug)

Standby
commands

Received (RC

Standby key)

Standby Soft Mode

Command Received,
previously in Standby
Soft Mode (Power
tact switch)

TV Wakeup
commands
Received
(TV Wakeup
keys)

Switch On, previously
in Power On Mode
(Power tact switch)

Standby Soft Mode
Command Received,
(Power tact switch)

Switch Off (Mains
Power Plug)

Swith On,previously in
TV Operation Mode
(Mains Power Plug)

Service Modes, Error Codes, and Fault Finding

EN 17TPM8.3A LA 5.

Figure 5-6 Stepwise Start-up

2011-Nov-11

EN 18 TPM8.3A LA5.

10000_036_090121.eps

091118

TO

UART SERVICE

CONNECTOR

TO

UART SERVICE

CONNECTOR

TO
I2C SERVICE
CONNECTOR

TO TV

PC

HDMI
I

2

C only

Optional power

5V DC

ComPair II Developed by Philips Brugge

RC out

RC in

Optional

Switch

Power ModeLink/

Activity

I

2

C

ComPair II

Multi

function

RS232 /UART

Service Modes, Error Codes, and Fault Finding

5.4 Service Tools

5.4.1 ComPair

Introduction

ComPair (Computer Aided Repair) is a Service tool for Philips
Consumer Electronics products. and offers the following:

1. ComPair helps to quickly get an understanding on how to
repair the chassis in a short and effective way.

2. ComPair allows very detailed diagnostics and is therefore
capable of accurately indicating problem areas. No
knowledge on I
because ComPair takes care of this.

3. ComPair speeds up the repair time since it can
automatically communicate with the chassis (when the
microprocessor is working) and all repair information is
directly available.

4. ComPair features TV software up possibilities.

Specifications

ComPair consists of a Windows based fault finding program
and an interface box between PC and the (defective) product.
The ComPair II interface box is connected to the PC via an
USB cable. For the TV chassis, the ComPair interface box and
the TV communicate via a bi-directional cable via the service
connector(s).
The ComPair fault finding program is able to determine the
problem of the defective television, by a combination of
automatic diagnostics and an interactive question/answer
procedure.

How to Connect

This is described in the chassis fault finding database in
ComPair.

2

C or UART commands is necessary,

Note: When you encounter problems, contact your local
support desk.

5.5 Software Upgrading

5.5.1 Description

It is possible for the user to upgrade the main software via the
USB port. This allows replacement of a software image in a
stand alone set. A description on how to upgrade the main
software can be found in the DFU or on the Philips website.

5.5.2 Introduction

Philips continuously tries to improve its products, and it’s
recommend that the TV software is updated when updates are
available. Software update files can be obtained from the
dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the Internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip
for Windows or Stufflt for Mac OS).

3. A USB flash drive (preferably empty).

Note:

1. Only FAT/DOS-formatted flash drives are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support

5.5.3 Check the current TV software version

web site.

Figure 5-7 ComPair II interface connection

Caution: It is compulsory to connect the TV to the PC as

shown in the picture above (with the ComPair interface in
between), as the ComPair interface acts as a level shifter. If
one connects the TV directly to the PC (via UART), ICs can be
blown!

How to Order

ComPair II order codes:

• ComPair II interface: 3122 785 91020.

• Software is available via the Philips Service web portal.

• ComPair UART interface cable for TPM8.3x xx.
(using DB9 to 2mm pitch JST connector): 3122 785 90630.

2011-Nov-11

Before starting the software upgrade procedure, it is advised to
check that what the current TV software:

1. Press the “123654” button on the remote control to enter
the CSM mode.

2. Use the up/down cursor keys to select “Current Main
Software”.

If the current software version of the TV is the same as the
latest update file found on http://www.philips.com/support
not necessary to update the TV software.

5.5.4 Download the latest software

1. Point the web browser to http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the
PC.

4. Insert a USB flash drive into one of the USB ports of the
PC.

5. Decompress the downloaded ZIP file and copy the
“autorun.upg” to the root directory of the USB flash drive.

5.5.5 Update the TV software

1. Insert mains power and wait for system to boot completely.

2. Insert the USB flash drive that contains the software
update files.

3. The TV will detect the USB flash drive automatically. Then
a window jumps out as Figure 5-8

.
Note: If the USB flash drive is not detected after power up,
disconnect it and re-insert it.

4. Select [Update] and press OK. See Figure 5-8

5. To proceed, in next menu select [Start] and press OK to
start software updates. See Figure 5-9

.

6. Upgrading will now begins and the status of the updating
progress will be displayed.

7. When the TV software is updated. Remove your USB flash
drive, then select [Restart] and press OK to restart the
TV.See Figure 5-10

.

, it is

.

.

Service Modes, Error Codes, and Fault Finding

19080_207_110324.eps

110324

19080_208_110324.eps

110324

19080_209_110324.eps

110324

Figure 5-8 Update the TV software [1/3]

EN 19TPM8.3A LA 5.

• FUS_clustername_version.zip: Contains the
“autorun.upg” which is needed to upgrade the TV main
software and the software download application.

• NVM_clustername_version.zip: Default NVM content.
Must be programmed via ComPair.

5.5.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder
“repair” is used. When inserting an empty USB memory stick,
and downloading data to the stick, the TV will create this folder.
When sending data from a USB memory stick to a TV, the
intended data must be available in the “repair” folder.
Note that when copying EDID data to the TV, all necessary
EDID files must be in this folder.
While copying to or from the USB “Repair” Folder to TV, the
files need to be named accordingly:

• Channel List: CM_TPM83A_LA_CK.BIN

• EDID 1: HDMI_1_EDID_TPM83A_LA_CK.BIN

• EDID 2: HDMI_2_EDID_TPM83A_LA_CK.BIN

• EDID 3: HDMI_3_EDID_TPM83A_LA_CK.BIN

• VGA_EDID: VAG_EDID_TPM83A_LA_CK.BIN

• NVM: NVM_TPM83A_LA_CK.BIN

For copying EDID data to the TV, all 3 EDID files need to be
available in repair directory.

Figure 5-9 Update the TV software [2/3]

Figure 5-10 Update the TV software [3/3]

Note:

• Do not remove the USB flash drive during the software
update.

• If a power failure occurs during the update, do not remove
the USB flash drive from the TV. The TV will continue the
software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or
contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV
software from the USB portable memory.

5.5.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and
instructions on how and when to use it. Only files that are
relevant for Service are mentioned here.

• EDID_clustername.zip: Contains the EDID content of the
different EDID NVMs. See ComPair for further instructions.

5.6 Error Codes

5.6.1 Introduction

Error codes are required to indicate failures in the TV set. In
principle a unique error code is available for every.

• Activated (SW) protection.

• Failing I

• General I
The last five errors, stored in the NVM, are shown in the
Service menu’s. This is called the error buffer.
The error code buffer contains all errors detected since the last
time the buffer was erased. The buffer is written from left to
right. When an error occurs that is not yet in the error code
buffer, it is displayed at the left side and all other errors shift one
position to the right.
An error will be added to the buffer if this error differs from any
error in the buffer. The last found error is displayed on the left.
An error with a designated error code never leads to a deadlock
situation. It must always be diagnosable
(e.g. error buffer via OSD or blinking LED or via ComPair).
In case a failure identified by an error code automatically
results in other error codes (cause and effect), only the error
code of the MAIN failure is displayed.

Errors code information:

• Error 000: No problem.

• Error 011: I

• Error 012: Tuner error. There is no I

• Error 013: Panel VCC error. This voltage is made in the

5.6.2 How to Read the Error Buffer

You can read the error buffer in three ways:

• On screen via the SAM/SDM/CSM (if you have a picture).

• Via the blinking LED procedure

2

C device.

2

C error.

2

C bus error. When this error occurs, the TV will

not start up due to the blocked bus.

2

C communication

towards the tuner after start-up.

power supply and results in protection in case of absence.

Example:
– ERROR: 0 0 0 0 0: No errors detected.
– ERROR: 6 0 0 0 0: Error code 6 is the last and only

detected error.

– ERROR: 9 6 0 0 0: Error code 6 was detected first and

error code 9 is the last detected (newest) error.

(when you have no picture). See paragraph

5.7 The Blinking LED Procedure

.

2011-Nov-11

EN 20 TPM8.3A LA5.

Service Modes, Error Codes, and Fault Finding

•Via ComPair.

5.6.3 Error codes

Errors code information:

• Error 000: No problem.

• Error 011: I
not start up due to the blocked bus.

• Error 012: Tuner error. There is no I
towards the tuner after start-up.

• Error 013: Panel VCC error. This voltage is made in the
power supply and results in protection in case of absence.

5.6.4 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu.

• By using the following key sequence on the remote control
transmitter: “062599” directly followed by the OK button.

• If the contents of the error buffer have not changed for 50
hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the mains from the
television set, the error buffer is not reset.

2

C bus error. When this error occurs, the TV will

2

C communication

5.7 The Blinking LED Procedure

5.7.1 Introduction

Caution:

• Do not change these, without understanding the function of
each setting, because incorrect NVM settings may
seriously hamper the correct functioning of the TV set!

• Always write down the existing NVM settings, before
changing the settings. This will enable you to return to the
original settings, if the new settings turn out to be incorrect.

5.8.2 Load Default NVM Values

It is possible to upload the default values to the NVM with
ComPair in case the SW is changed, the NVM is replaced with
a new (empty) one, or when the NVM content is corrupted.
After replacing an EEPROM (or with a defective/no EEPROM),
default settings should be used to enable the set to start-up and
allow the Service Default Mode and Service Alignment Mode to
be accessed.

5.8.3 No Picture

When you have no picture, first make sure you have entered
the correct display code. See paragraph 6.4 Option Settings
the instructions. See also Table 6-2

5.8.4 Unstable Picture via HDMI input

Check (via ComPair) if HDMI EDID data is properly
programmed.

.

for

The software is capable of identifying different kinds of errors.
Because it is possible that more than one error can occur over
time, an error buffer is available, which is capable of storing the
last five errors that occurred. This is useful if the OSD is not
working properly.
Errors can also be displayed by the blinking LED procedure.
The method is to repeatedly let the front LED pulse with as
many pulses as the error code number, followed by a period of

1.5 seconds in which the LED is “off”. Then this sequence is
repeated.
Example (1): error code 4 will result in four times the sequence
LED “on” for 0.25 seconds / LED “off” for 0.25 seconds. After
this sequence, the LED will be “off” for 1.5 seconds. Any RC
command terminates the sequence. Error code LED blinking is
in red colour.
Example (2): the content of the error buffer is “12 9 6 0 0” After
entering SDM, the following occurs.

• 1 long blink of 5 seconds to start the sequence.

• 12 short blinks followed by a pause of 1.5 seconds.

• 9 short blinks followed by a pause of 1.5 seconds.

• 6 short blinks followed by a pause of 1.5 seconds.

• 1 long blink of 1.5 seconds to finish the sequence.

• The sequence starts again with 12 short blinks.

5.7.2 Displaying the Entire Error Buffer

Additionally, the entire error buffer is displayed when Service
Mode “SDM” is entered.

5.8 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly
with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options
are set.

5.8.5 No Picture via HDMI input

Check whether the HDCP key is valid. This can be done in
CSM.

5.8.6 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Reflash the software.

5.8.7 CSM

When CSM is activated and there is a USB memory stick
connected to the TV, the software will dump the complete CSM
content to the USB memory stick. The file
(CSM_CTN name_serial no.txt) will be saved in the root of the
USB memory stick.

5.8.8 Loudspeakers

Make sure that the volume is set to minimum during
disconnecting the speakers in the ON-state of the TV. The
audio amplifier can be damaged by disconnecting the speakers
during ON-state of the set!

5.8.9 Display option code

Attention: In case the SSB is replaced, always check the
Display Code in CSM, even when picture is available.
Performance with the incorrect display option code can lead to
unwanted side-effects for certain conditions.

5.8.1 NVM Editor

In some cases, it can be convenient if one directly can change
the NVM contents. This can be done with the “NVM Editor” in
SAM mode. With this option, single bytes can be changed.

2011-Nov-11

6. Alignments

Alignments

EN 21TPM8.3A LA 6.

Index of this chapter:

6.1 General Alignment Conditions

6.2 Hardware Alignments

6.3 Software Alignments

6.4 Option Settings

6.5 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following
conditions:

• Power supply voltage: 195 - 264 V

• Connect the set to the mains via an isolation transformer
with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct
ground (e.g. measure audio signals in relation to
AUDIO_GND).
Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

• Use an isolated trimmer/screwdriver to perform
alignments.

> 10 MΩ, Ci < 20 pF.

i

, 50/ 60 ± 3 Hz.

AC

6.2 Hardware Alignments

Not applicable.

Table 6-1 White tone default settings

Picture mode

Normal
(9000K)

Cool (11000K) 32" 135 128 131

Warm (6500K) 32" 128 100 75

Screen
size

32" 128 113 108
42" 128 125 103

42" 125 128 117

42" 128 111 66

Colour temperature

Red Green Blue

6.4 Option Settings

6.4.1 Introduction

The microprocessor communicates with a large number of I
ICs in the set. To ensure good communication and to make
digital diagnosis possible, the microprocessor has to know
which ICs to address. The presence / absence of these
MT5301B ICs (back-end advanced video picture improvement
IC which offers motion estimation and compensation features
(commercially called HDNM) is made known by the option
codes.

6.4.2 Option Code Overview

2

C

6.3 Software Alignments

Put the set in SAM mode (see Chapter 5. Service Modes, Error

Codes, and Fault Finding). The SAM menu will now appear on

the screen. Select RGB Align and go to one of the sub menus.
The alignments are explained below.
The following items can be aligned:

• White point

To store the data:

• Press OK on the RC before the cursor is moved to the

left

• Select “Store” and press OK on the RC

• Switch the set to stand-by mode.

For the next alignments, supply the following test signals via a
video generator to the RF input:

• EU/AP-PAL models: a PAL B/G TV-signal with a signal
strength of at least 1 mV and a frequency of 475.25 MHz

• US/AP-NTSC models: an NTSC M/N TV-signal with a
signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

• LATAM models: an NTSC M TV-signal with a signal
strength of at least 1 mV and a frequency of 61.25 MHz
(channel 3).

6.3.1 Display adjustment

You can use the default values. The default values are average
values coming from production.

• Enter SAM mode.

• Select a colour temperature (e.g. COOL, NORMAL, or
WARM).

• Set the RED, GREEN and BLUE default values according
to the values in Table 6-1

• When finished press OK on the RC, then press STORE to
store the aligned values to the NVM.

• Restore the initial picture settings after the alignments.

This group setting of colour temperature will be applied
automatically to the TV / VGA / HDMI / AV sources.

.

Enter SAM mode to check the option codes. They can not be
edited in the NVM.

6.4.3 Display Code Overview

Press the following key sequence on a standard RC
transmitter: “062598” directly followed by MENU and “xxx”,
where “xxx” is a 3 digit decimal value of the panel type: see
column “Display Code” in Table 6-2
accepted and stored in NVM, the set will switch to Stand-by, to
indicate that the process has been completed.

Table 6-2 Display code overview

CTN_ALT BOM# Panel Type Display Code

32PFL5606S/98 AUO T315HW07 148
42PFL5606S/98 TPV TPT420H2-LE5 142

. When the value is

6.5 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service
repair shop (SSB repair on component level) implies the reset
of the NVM on the SSB.
A repaired SSB in Service should get the service Set type
“00PF0000000000” and Production code “00000000000000”.
Also the virgin bit (MENU > Setup > TV settings > Reinstall TV
> Start now) is to be set. To set all this, you can use the
ComPair tool or use the “NVM editor” and “Service Data” items
in SAM (do not forget to “store”).

After a repaired SSB has been mounted in the set (set repair
on board level), the type number (CTN) and production code of
the TV has to be set according to the type plate of the set. For
this, you can use the NVM editor in SAM. The loading of the
CTN and production code can also be done via ComPair
(Model number programming).
In case of a display replacement, reset the “Operation hours
display” to “0”, or to the operation hours of the replacement
display.

2011-Nov-11

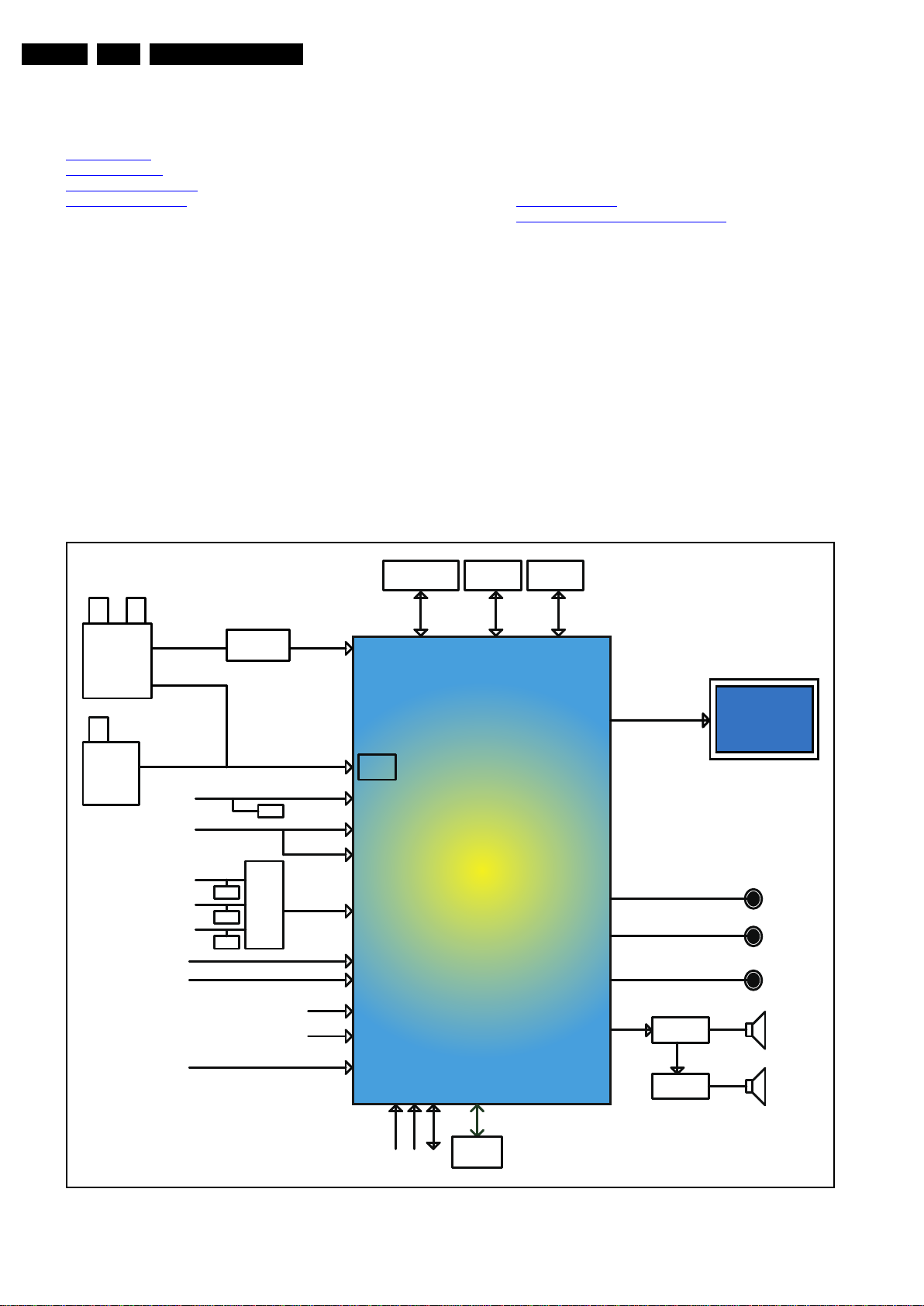

EN 22 TPM8.3A LA7.

19170_205_110704.eps

111006

DDR2 1Gb

I2C

DDC

SPI FLASH

64Mb

NVM
24C32

ATV _RF
TUNER
F86WT-17-E

RCKEY UART

24C02

24C02

AUDIO AMP

STA339BWTR

SPK

Digital Audio Output(COIXIAL)

PC IN

DDC

CVI

VIDEO ( By CVI Y connector)

CVBS

YPbPr

RGB

HDMI1

AUDIO IN (PC)

AUDIO R/L (CVI/CVBS)

24C02

24C02

HDMI2

HDMI3

DDC

DDC

TMDS361
BPAGR

SPDIF

I2S

[RX0 : RX3]

NAND FLASH

256Mb

CVBS/AV Out

WOOFER AMP

STA515W

SPK

USB1 2.0

USB1 2.0

ATV
DEMOD

Analog IF+/-

TS (SERIAL)

HDMI 1.3

ATV + DTV
RF TUNER
TDTK-T052D
( RESERVE)

Analog IF+/-

ATBM8848
( RESERVE)

Demodulator

Analog IF+/-

Side AV IN

H/Phone Out

LVDS (50/60 Hz)

LCD PANEL T-CON

MT5301B

7. Circuit Descriptions

Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 Power Management

7.4 Circuit Description

Notes:

•Only new circuits (circuits that are not published recently)
are described.

7.1 Introduction

The TPM8.3A LA platform uses MT5301B. It contains decoder
and a TV controller offers high integration for advanced
applications. It combines a transport de-multiplexer, a high
definition video decoder, an audio decoder, a dual-link LVDS/
mini-LVDS transmitter, and an NTST/PAL/SECAM TV decoder
with a 3D comb filter (NTSC/PAL).

• Figures can deviate slightly from the actual situation, due
to different set executions.

• For a good understanding of the following circuit
descriptions, please use the wiring, block (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

) and circuit diagrams (see chapter

).Where necessary,

you will find a separate drawing for clarification.

7.1.1 Implementation

Key components of this chassis are:

• MT5301B System-On-Chip (SOC) TV Processor

• F86WT-17-E Tuner (analogue)

• STA515W13TR Head Phone amplifier

• STA339BWTR audio amplifier

• TMDS361BPAGR HDMI switch

7.1.2 TPM8.3A Architecture Overview

2011-Nov-11

Figure 7-1 Architecture of TPM8.3A LA

7.1.3 SSB Cell Layout

19170_206_110705.eps

111111

AUDIO CLASS

SPDIF

Video IN

SPDIF

MT5301B

DDR2

HDMI

AV IN

USB

AV OUT

Component

Analog Input

TUNER

DC/DC

Circuit Descriptions

EN 23TPM8.3A LA 7.

Figure 7-2 SSB layout cells (top view)

2011-Nov-11

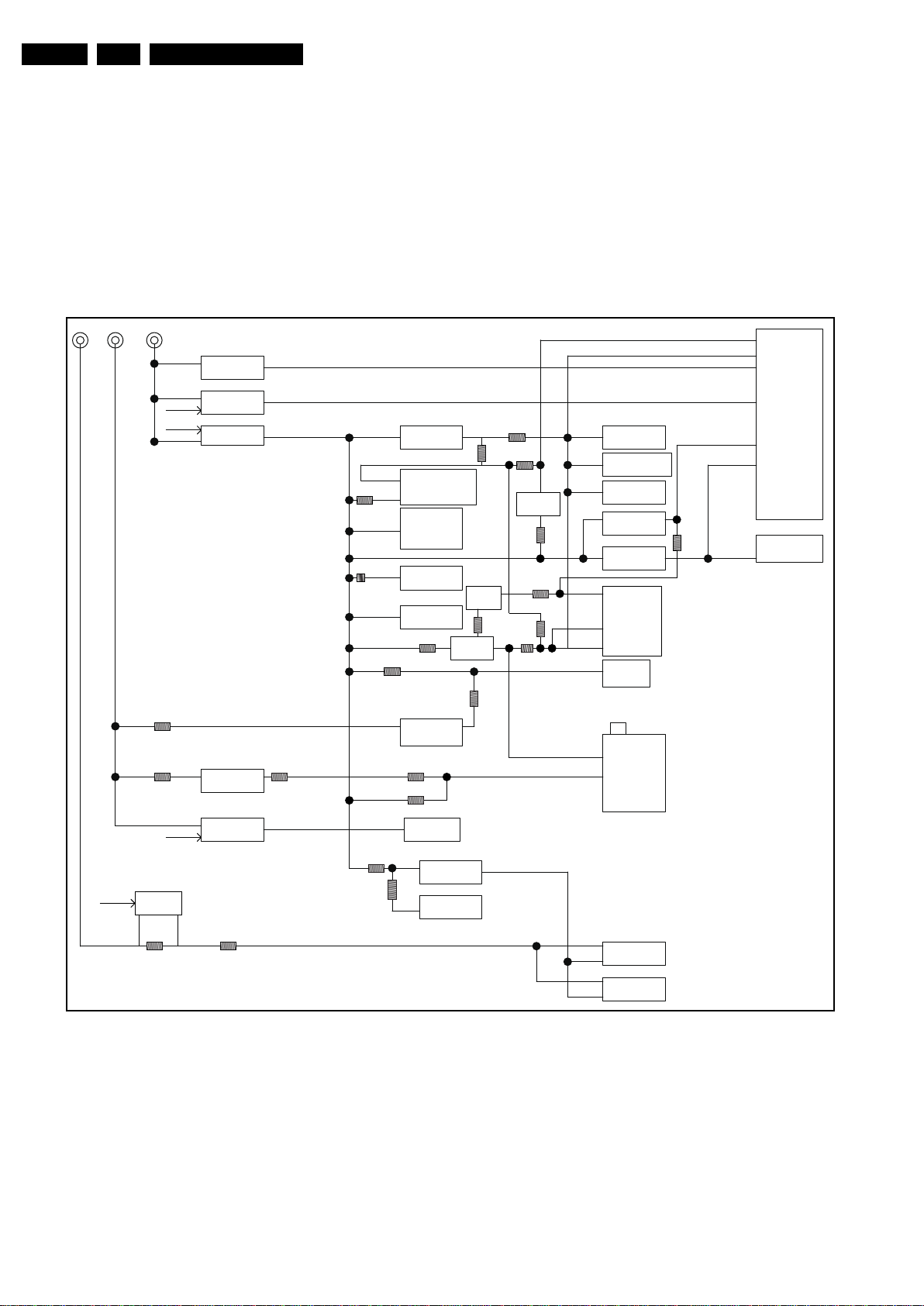

EN 24 TPM8.3A LA7.

19170_207_110704.eps

111107

MAX9728AETC+
U606
HP AMP

STA339BWTR
U602
AUDIO AMP

STA515W
U603
WOOFER AMP

5VSB

VCCK(1.2V)

BUCK (3A)
G5657F12U
U704

OPWRSB

AO4449
Q707

5V_SW

BUCK (3A)
TPS54319RTE
U701

DVDD3V3

BUCK (1.5A)
SC189ASK
U702

DDRV(1.5V)

LDO
G903T63UF
U705

BS3V3BSV5

AO4449
Q709

+12V

LVDS_PWR_EN

LDO
G9084TU3U
U7007

+12V +B_5V

VCCK(1.2V)

NVRAM
CAT24C128YI
U405

NAND FLASH
HY27US08561A-TPCB
U403

Nor flash
MX25L6445
U404 (NC)

USB Connect
CN103
CN104

5VSB

5V_SW

HDMI SW
TMDS361BPAGR
U501

5VDD

5V_SW

Audio in /SW
CD4052
U102

AMUX_5V

EEPROM
CAT24C02YI
U105

Aud_3V3

+24V_AMP

Aud3V3

+24_AMP

LDO
G903T63UF
U607

Aud3V3

5V_SW

PANEL_VCC

60Hz
PANEL CON
CN414

+24V

+12V 5VSB

TUNER

5V_SW

+24_SW

FB603

VCCK (1.2V)

MT5301B

U401

AVDD1V2

ADAC_PWR

DDRV(1V5)

TU101
(ATV)

DDR2
NT5TU64M16DG-BD
1Gb U402

+12V

BUCK (3A)
AOZ1212AI
U703

DVDD3V3

DVDD3V3

DVDD3V3

AVDD3V3

+5V_TUNER

DV33SB

DVDD3V3

ASIC_3V3

De_mod
ATBM8848
U101(NC)

VDD33

+B_5V

V3.3

DV33_TMDS

HDMI EEPROM
M24C02

U502
U505
U506

5V_USB

5V_SW

VUSB_5V

D603

+24

+24_AMP

WS_V5WS_V5

5V_SW

V1.2

3V3_BUCK

G903T63UF
U709 (NC)

G903T63UF
U707

G912T63U
U708(NC)

V3.3

V3.3

VDD1V2

BUCK (1.5A)
SC189ASK
U706

5V_SW

AO4449
Q708

STANDBY

Circuit Descriptions

7.2 Power Supply

7.2.1 Power Supply Unit

Before checking other parts first check whether fuse on the
PSU is not broken. Always replace a defective fuse with one
with the correct specifications! This part is available in the
regular market.
Consult the Philips Service web portal for the order codes of the
boards.

7.3 Power Management

The output voltages to the chassis are:

• +5V-STANDBY (Stand-by mode only)

• +12V (on-mode)

• +24V for audio circuit

7.2.2 Diversity

The diversity in power supply units is mainly determined by the
diversity in screen sizes, but please note to always order the
correct replacement.

2011-Nov-11

Figure 7-3 Power Architecture

The on-board DC/DC converters deliver the following voltages
(depending on set execution):

• +5V-STANDBY, permanent voltage for the Stand-by
controller, LED/IR receiver and controls; connector CN701
pin 11 and 12.

• +12V, input from the power supply for panel and tuner;
connector CN701 pins 3 and 4.

• +24V, input from the power supply for audio (in active
mode); connector CN701 pins 8 and 9.

Circuit Descriptions

19170_208_110705.eps

PWR_OK

BL_CTRL
BRI_ADJ

STANDBY

5VSB

+12V

+24V

DVDD3V3

5V_SW

+12V

H : ON
L : Standby

1
2

3

4
5
6
7

8

9
10
11
12
13

CN701

CONN

CN701

CONN

+

C705

100UF 25V

+

C705

100UF 25V

1 2

FB702

120R/6000mA

FB702

120R/6000mA

C706

10U 10V

C706

10U 10V

R765

NC\1K 1/16W 5%

R765

NC\1K 1/16W 5%

1 2

ZD139

RLZ5.6B
ZD139

RLZ5.6B

1

2

FB701

120R/6000mA

FB701

120R/6000mA

R769

1K2 1/10W 5%
R769

1K2 1/10W 5%

R750
0R05 1/10W

R750
0R05 1/10W

+

C701

100UF 25V

+

C701

100UF 25V

R764
NC\1K 1/16W 5%

R764
NC\1K 1/16W 5%

R701

1.2K 1/16W

R701

1.2K 1/16W

C702

100N 50V

C702

100N 50V

+

C703

100UF 35V

+

C703

100UF 35V

1 2

FB703

120R/6000mA

FB703

120R/6000mA

C704

100N 50V

C704

100N 50V

R712

0R05 1/10W

R712

0R05 1/10W

19170_211_110705.eps

110720

DVDD3V3

C460

100N 16V

DVDD3V3

PDD7
PDD6

R472

4K7 1/16W 5%

PDD5

PACLE

NC23

39

NC1

1

NC2

2

NC3

3

NC4

4

NC5

5

NC26

46

ALE

17

CLE

16

WE

18

NC17

26

NC8

11

WP

19

RY/BY1

7

NC9

14

NC10

15

NC18

27

NC19

28

NC11

20

NC12

21

NC13

22

I/O3

32

NC20

33

VSS2

36

VCC1

12

RE

8

VCC2

37

I/O2

31

I/O1

30

I/O0

29

VSS1

13

NC25

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC24

40

NC14

23

NC1524NC16

25

CE1

9

NC21

34

NC22

35

NC27

47

PRE

38

NC6

6

NC7

10

NC28

48

U403

H27U1G8F2BTR-BC

DVDD3V3

DVDD3V3

PAALE

SMD/0402

SMD/0402

PDD4

POWE# PDD2

PARB#

FLASH_WP#

PDD3
PDD1

POOE#

PDD0

C462

10U 10V

POCE1#

C461

100N 16V

R473

4K7 1/16W 5%

19170_212_110705.eps

110705

123

4

CN402

NC CONN

Q401

PMBS3904

DVDD3V3

R462

4.7K 1%

R463

4.7K 1%

5VSB

R465

10K 1/16W 5%

VSS

4

VCC

8

SDA

5

SCL

6

E0

1

E1

2

E2

3

WC

7

U405

CAT24C128YI

R464 2. 2K 1/ 16W

C454

220N16V

I2C address at A0

OSCL0

MEMOR Y_WP#

R461

10K 1/16W 5%

OSDA0

H: Wr ite
L: Write Protect

19170_213_110705.eps

110705

R471

NC 6K8 1/10W 1%

5VSB

R470
NC 1K 1/ 10W 1%

GND

1

RESET

2

VCC

3

U406

MAX809STRG
R468

100K 1/16W

R467

NC\ 5K1 1/ 16W 5%

3V3SB

R469

0R05 1/16W

C456

100N 16V

C455

NC\ 100N 16V

3V3SB

ORESET#

19170_216_110705.eps

110718

R569

10K 1/16W 5%

R572

82R 1/10W 5%

C511

1UF16V

OE

1

A

2

GND3Y

4

VCC

5

U412

SN74LVC1G125DBVR

SPDIF_OU T

R571

180OHM 1/10W

ARC

R573

100K 1/10W 5%

ARC_ON

DVDD3V3

R570

NC\10K 1/ 16W 5%

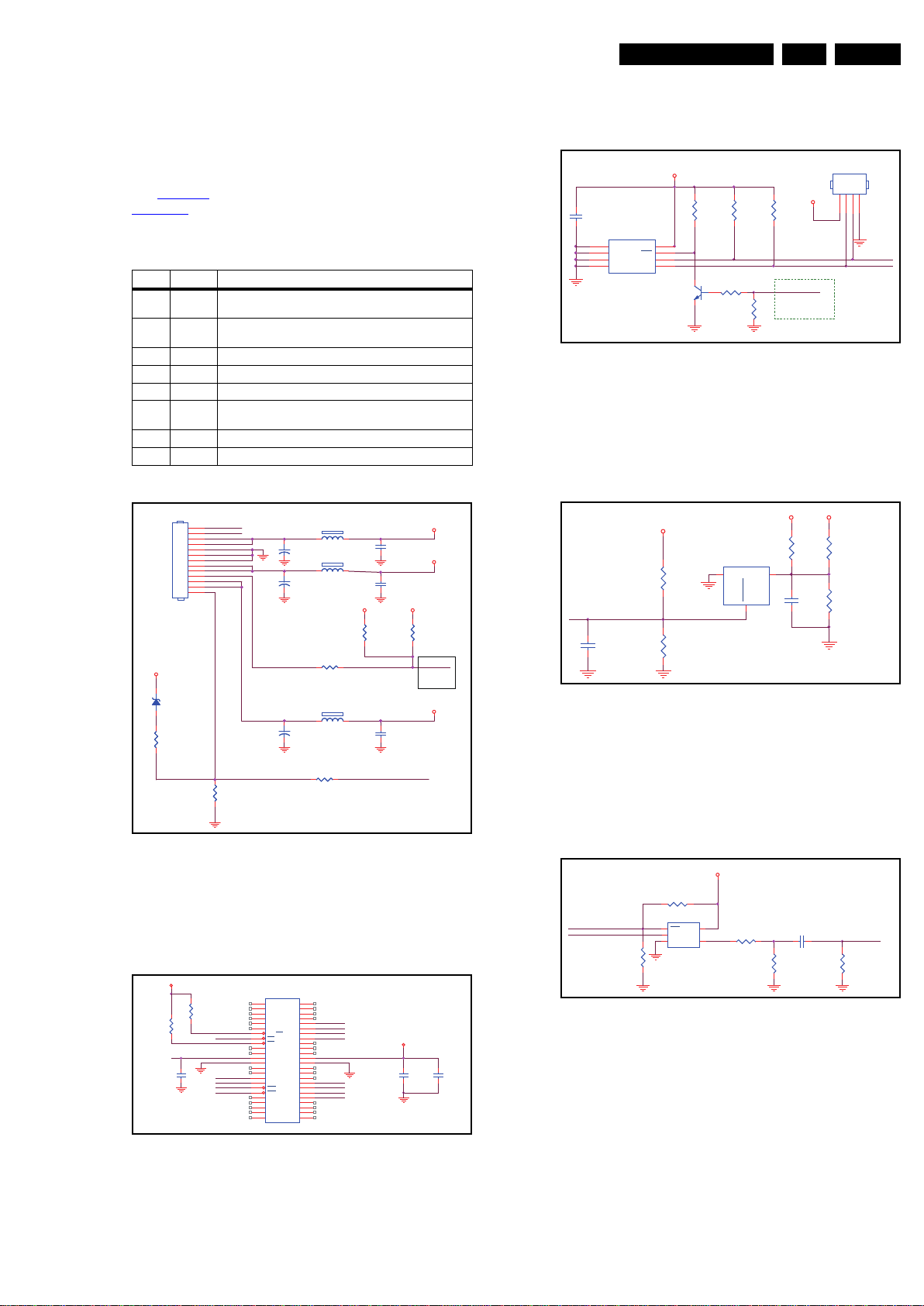

EN 25TPM8.3A LA 7.

7.4 Circuit Description

7.4.1 System power

The main board power is received at connector CN701 from
power board, to receive the power and signals from the PSU.
See Table 7-1

Figure 7-4

Table 7-1 Connector CN701 overview

Item Pin Description

1 1 INVERTER_ON_OFF, Inverter board

2 2 BRIGHT_ADJ, Inverter bright PWM

3 3, 4 +12 V Supply
45, 6, 7Ground
5 8, 9 +24 V Supply
6 10 STANDBY, Standby

7 11, 12 STB_PWR5V, +5VSB Supply
813LED ON

for the correct pining, The shown test points in

.

control (Low: ON, High: OFF)

control (Max.: 0 V, Min.: 3V3)

control (High: Normal, Low: Stand by)

7.4.3 NVM (U405)

The system NVM is a 128 KB IC. It contains all system settings.

Figure 7-6 NVM (U405)

7.4.4 Reset (U406)

When the input voltage for the MT5301B main processor drops
below 2.93 V, a system reset will be enforced by U406.

Figure 7-4 System power

7.4.2 Nand flash Memory (U403)

The set uses a 128 MB NAND flash for software code

Figure 7-5 Nand flash Memory (U403)

Figure 7-7 Reset (U406)

7.4.5 ARC (HDMI)

ARC (audio return channel) supports HDMI A only, if it gets the
ARC command from CEC, then the U412 will be enable and
SPDIF will output via HDMI A pin 14.

Figure 7-8 ARC (HDMI)

2011-Nov-11

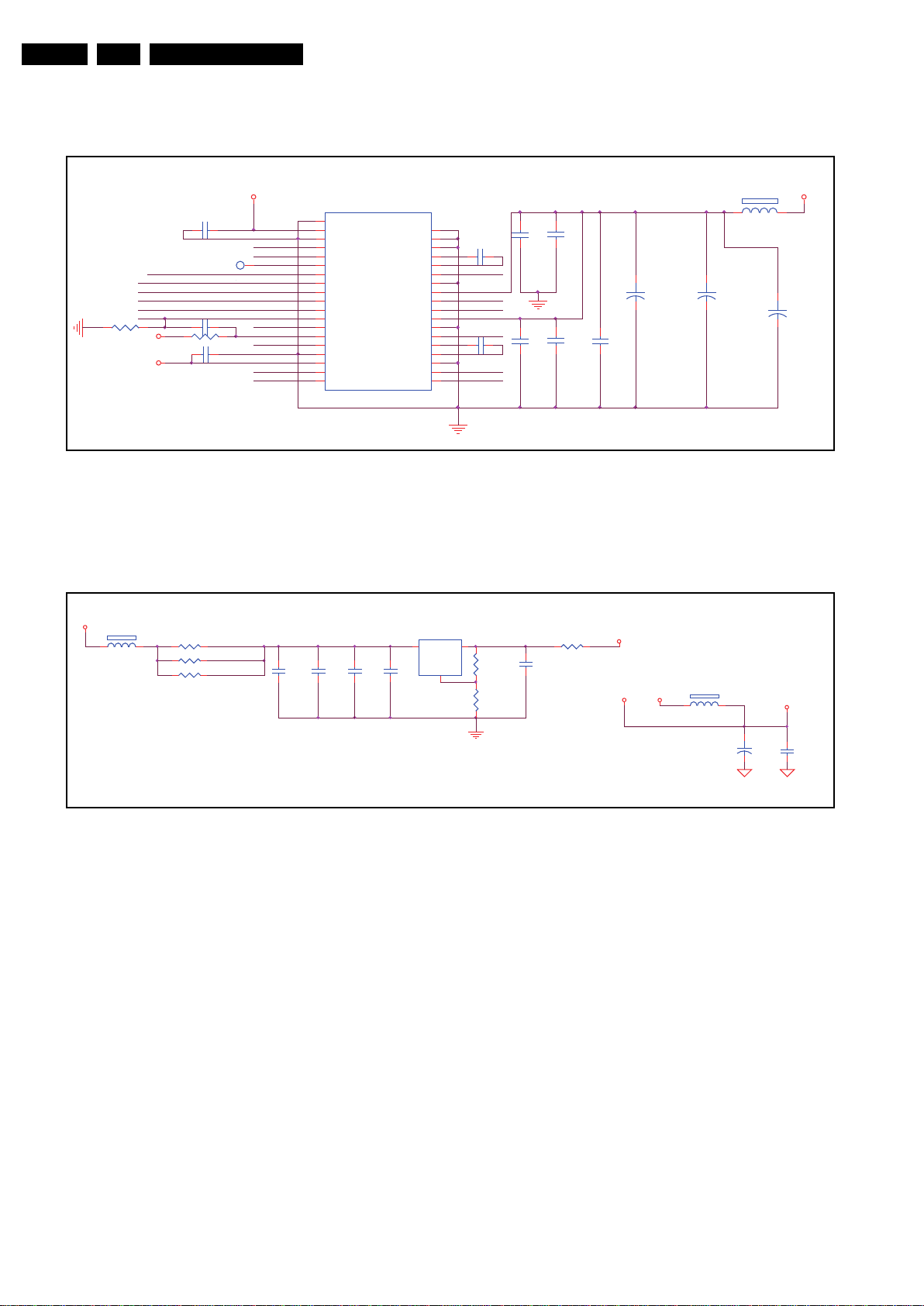

EN 26 TPM8.3A LA7.

19170_214_110705.eps

110705

+

C685

100UF 35V

OUT1A

DDX3A

OUT2B

OUT2A
OUT1B

DDX3B

+

C631

100UF 35V

PLL_FILT

Aud3A3

PWDN

AOLRCK

AOSDATA0

C621

0.1uF 50V

Aud3V3

AOMCLK

A_Reset

AOBCLK

R630

2R2 1/16W 5%

Aud3V3

TP45

TW

C639

0.1uF 50V

EAPD

R629

0R05 1/16W

C645

0.1uF 50V

C644

0.1uF 50V

C642

0.1uF 50V

12

FB609

120R/6000mA

+24V_AMP

C623

0.1uF 50V

C643

0.1uF 50V

C622

0.1uF 50V

+

C630

100UF 35V

GND_SUB

1

SA

2

TEST_MODE

3

VSS

4

VCC_REG

5

OUT2B

6

GND2

7

VCC2

8

OUT2A

9

OUT1B

10

VCC1

11

GND1

12

OUT1A

13

GND_REG

14

VDD

15

CONFIG

16

OUT3B

17

OUT3A

18

EAPD/OUT4B

19

TWARN/OUT4A

20

VDD_DIG

21

GND_DIG

22

PWRDN

23

VDD_PLL

24

FILTER_PLL

25

GND_PLL

26

XTI

27

BICKI

28

LRCKI

29

SDI

30

RESET

31

INT_LINE

32

SDA

33

SCL

34

GND_DIG

35

VDD_DIG

36

Thermal Pad

37

U602

STA339BWTR

C641

1U 50V

C625

1U 50V

PLL_GND

Aud_SCL
Aud_SDA

19170_210_110705.eps

110705

1 2

L1102

NC\22uH

5V_SW

+B_5V

5V_TUNER

C1140

10U 10V

+

C1139
220UF 16V

R1171 15 OHM +-5% 1/4W
R1172 15 OHM +-5% 1/4W

+12V

VIN3VOUT

2

GND

1

U7007

+B_5V

C1163

330N 25V

R1176

0R05 1/4W

5V_TUNER

R1173

1K 1/10W 1%

R1174

3K 1/10W 1%

C1162

100N 16V

C1141

100N 16V

C1144

100N 16V

1 2

FB1102

120R/3000mA

G9084TU3U
TO-263T

C1164

0.1UF50V

R1175 15 OHM +-5% 1/4W

7.4.6 Audio Amplifier (U602)

Circuit Descriptions

The platform use I

2

S to link audio amplifier IC.

7.4.7 Tuner power

G9084TU3U provides the tuner power of approximately 5 V.

Figure 7-9 Audio Amplifier (U602)

2011-Nov-11

Figure 7-10 Tuner power

7.4.8 Audio Mute circuit

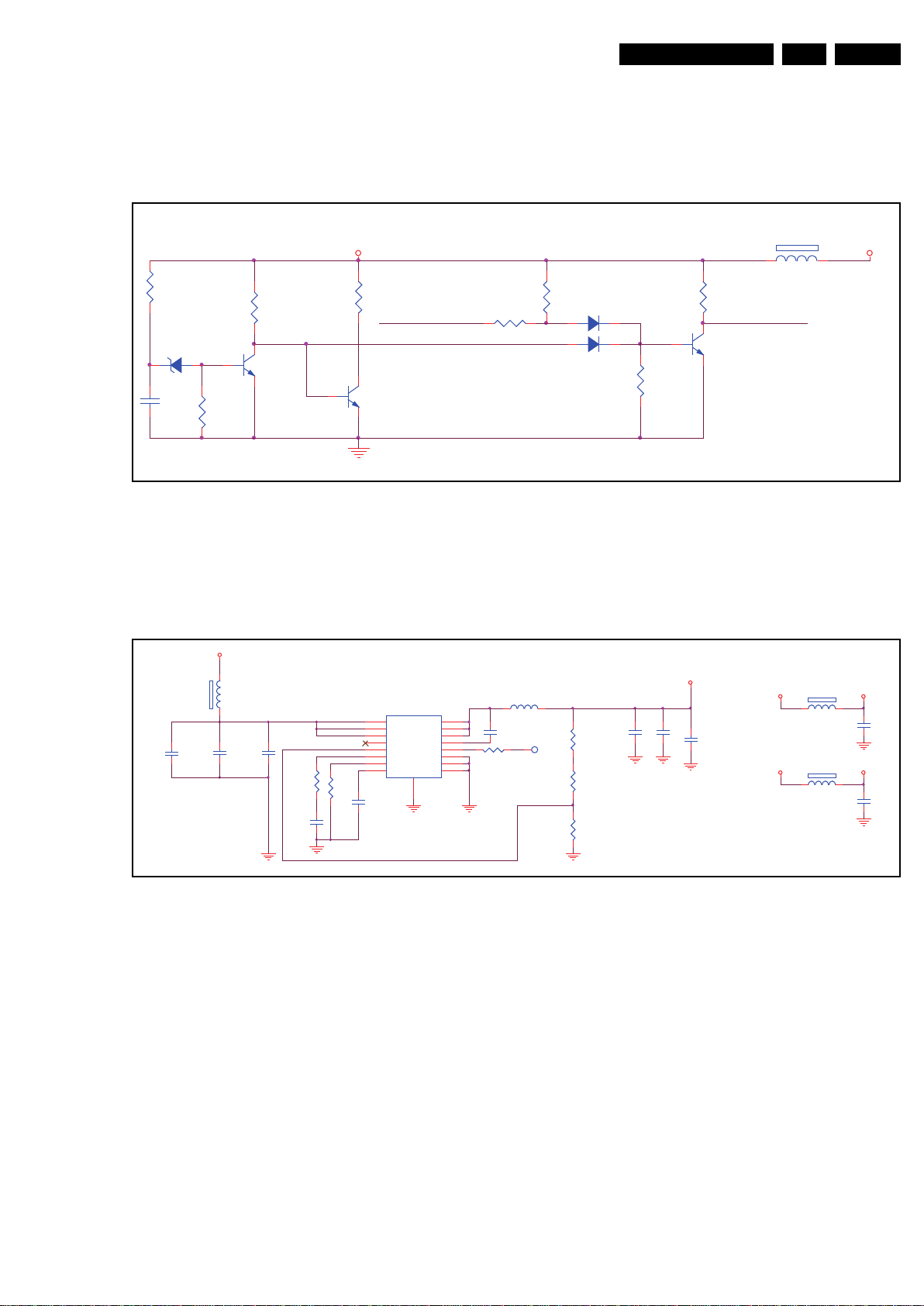

19170_215_110705.eps

110718

5V_SW

12

FB601

120R/6000mA

1

3

2

Q603

NC PDTC114ET

R610

4K7 1/16W 5%

R609

10K 1/16W 5%

R602

NC 10K 1/ 16W 5%

POP_MUTE

D601 LL4148

D602 LL4148

+5V_ON

MUTE_CTL

R608

1.8KOHM 1/10W

R607

100R 1/16W 5%

1

3

ZD601

BZX84C3V6

R603

1.8KOHM 1/10W

C684

10uF 10V

Q602

BC847C

R601

100K 1/10W 5%

R611

470KOHM +-5% 1/10W

Q601

BC847C

19170_209_110705.eps

110705

3V3 Main Power

1 2

FB717

120R/3000mA

C723

1UF 10V

C722

1UF 10V

1 2

FB716

120R/3000mA

3V3_BUCK

DVDD3V3

AVDD3V3

3V3_BUCK

1

2

FB715

120R/6000mA

R729

180K 1%

VIN

1

VIN

2

GND

3

GND

4

AGND

5

VSNS

6

COMP

7

RT/CLK

8

SS

9

PH

10

PH

11

PH

12

BOOT

13

PWRGD

14

EN

15

VIN

16

PwPd

17

U701
TPS54319RTE

C713

3.3nF 50V

R730

300R 1/16W 1%

C720

22uF 10V

R767

100K 1%

C738

0.1UF 16V

L701

1.5UH

TP708

R728

7K5 1/16W 5%

C719

NC/22uF 10V

C721

22uF 10V

R766

33K 1%

R772

100K 1/16W 5%

C799

0.1UF 16V

C717

10uF 10V

C718

100N 16V

C7001

100N 16V

3V3_BUCK

5V_SW

This circuit will provide a “high-to-low” pulse when the +5 V
SSB power line goes low. This will trigger the related audio
mute circuit, preventing the audio circuit making uncontrolled
sounds.

Circuit Descriptions

EN 27TPM8.3A LA 7.

7.4.9 AV33 and DV33 (U701)

The circuit around U701 will provide the main 3.3 V power
supply to the SSB.

7.4.10 Tuner

Figure 7-11 Audio Mute circuit

Figure 7-12 AV33 and DV33 (U701)

The tuner covers as followed:

• VHF LOW BAND: from 49.75 MHz to 144.25 MHz.

• VHF HIGH BAND: from 1526.25 MHz to 448.25 MHz.

• UHF BAND: from 456.25 MHz to 863.25 MHz.

2

I

C bus control of tuner, address selection.

2011-Nov-11

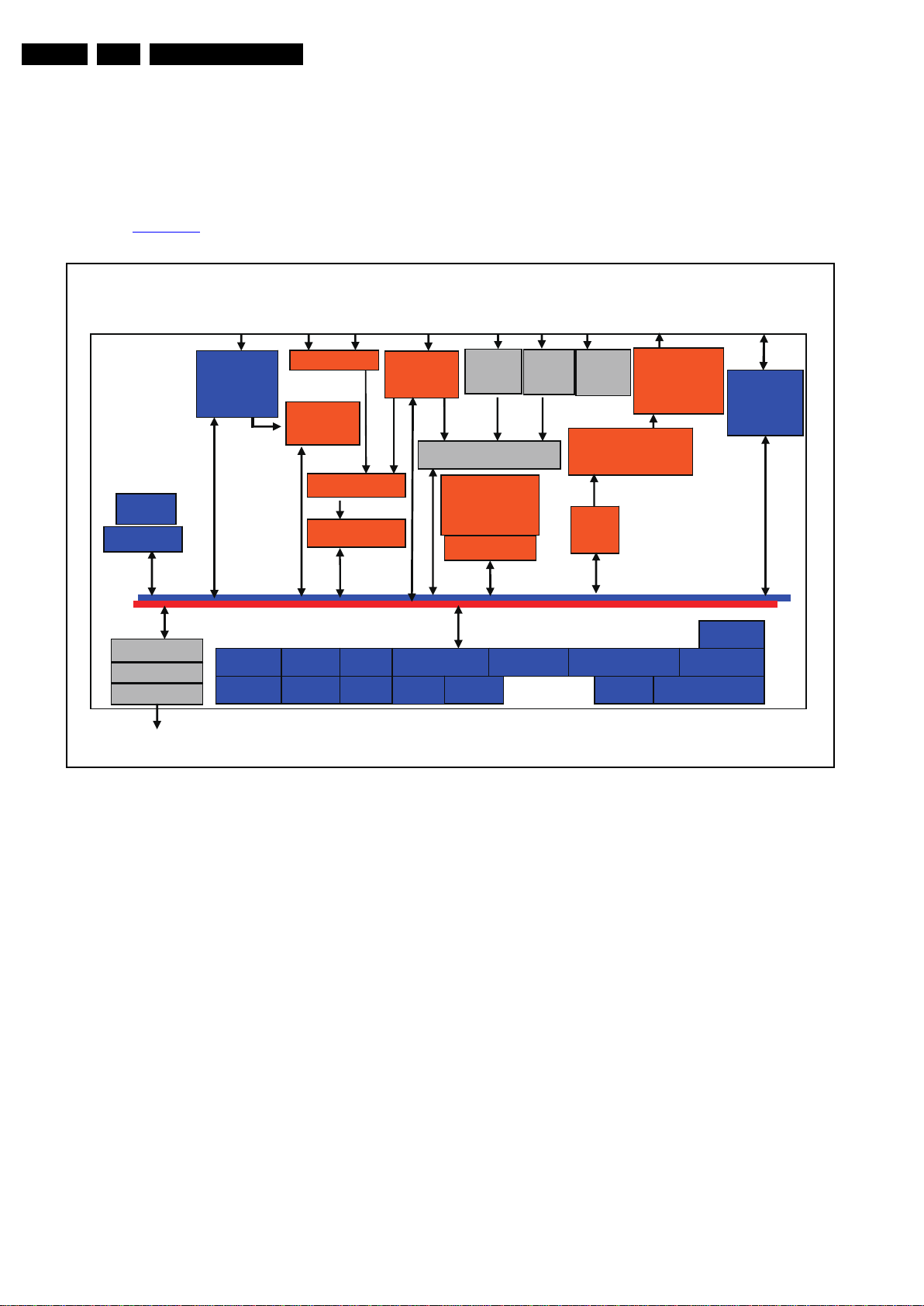

EN 28 TPM8.3A LA8.

19160_300_110622.eps

110623

Block diagram

MT5301BCMU

JPEG/MP2/MP

4/DivX/H.264/V

C-1/RM/AVS

Component

Analog Input

16-bit

DDR2/DDR3

DRAM Bus

JTAG

IO Bus

USB2.0

UART

I 2 C

PWM

IrDA

PCR SDIO

Audio DSP

NTSC/PAL

/ SECAM

ATD

Watchdog

CVBS/

YC Input

Audio I/F

SPDIF Out, I2S

RTC

2-D Graphic

OSD

scaler

VADCx4

TV

Decoder

HDMI In

I/F

LVDS, OD,

mini-LVDS,

TCON

Audio

Input

Mix and Post

Processing

DDR2
DDR3

Controller

BIM

ARM11

HDMI

Rx

Panel

VDO-In

NAND Flash

Audio DAC

CKGEN

Audio

Demo

De-interlace

Audio In

Audio

ADC

Serial Flash Servo ADC

Tuner

In

BScan

SPDIF

In

Tuner

In

IC Data Sheets

8. IC Data Sheets

This chapter shows the internal block diagrams and pin
configurations of ICs that are drawn as “black boxes” in the
electrical diagrams (with the exception of “memory” and “logic”
ICs).

8.1 Diagram MT5301B B08, MT5301B QFP256 (IC U501)

Figure 8-1 Internal block diagram

2011-Nov-11

IC Data Sheets

19160_301_110622.eps

110622

Pinning information

GPIO4

GPIO8

GPIO7

GPIO12

GPIO6

GPIO11

GPIO3

GPIO10

GPIO2

GPIO1

GPIO0

VCC3IO

VCCK

GPIO13

POWE_

PAALE

PACLE

POCE1_

PARB_

POOE_

POCE0_

PDD7

VCC3IO

PDD6

PDD5

PDD4

PDD3

PDD2

PDD1

PDD0

CI_INT

GPIO

GPIO

GPIO

VCCK

VCC3IO

GPIO

GPIO

GPIO

GPIO

OS DA2

OS CL2

GPIO

RF_AGC

IF_A G C

AOLRCK

AOSDATA0

AOMCLK

AOBCK

AOSDATA1

AS PDIF

VCCK

VCCK

AR1_ADAC

AR0_ADAC

AL1_ADAC

AL0_ADAC

AVSS33_DAC

AVDD33_DAC

AVDD33_AADC

AIN0_L_AADC

VMID_AADC

AIN0_R_AADC

LOUTP

256

255

254

253

252

251

250

249

248

247

246

245

244

243

242

241

240

23 9

238

23 7

23 6

23 5

23 4

233

23 2

23 1

23 0

229

228

227

226

225

224

223

222

221

220

219

218

217

216

215

214

213

212

211

210

209

208

207

206

205

204

203

202

201

200

199

198

197

196

195

194

193

FSRC_WR

1 192

AVDD33_XTAL_STB

GPIO14

2 191

XTALI

VCC3IO

3 190

XTALO

AVDD12_VPLL

4 189

AVDD33_DEMOD

AE5P

5 188

AVSS33_DEMOD

AE5N

6 187

AVSS12_DEMOD

AE4P

7 186

AVDD33_IFPGA

AE4N

8 185

ADCINN_DEMOD

AE3P

9 184

ADCINP_DEMOD

AE3N

10 183

AVDD12_DEMOD

AECKP

11 182

AVDD33_CVBS

AECKN

12 181

CVBS0P

AE2P

13 180

CVBS_C

OM

AE2N

14 179

CVBS1P

AE1P

15 178

SY0

AE1N

16 177

SC0

AE0P

17 176

SY1

AE0N

18 175

SC1

AVDD33_LVDSA

19 174

AVDD12_PLL

AVDD33_LVDSA

20 173

VCCK

AO5P

21 172

FS_VDAC

AO5N

22 171

AVDD33_VDAC

AO4P

23 170

VDAC_OUT1

AO4N

24 169

VDAC_OUT2

AO3P

25 168

AVSS12_RGB

AO3N

26 16

7

AVDD12_RGB

AOCKP

27 166

PR0P

AOCKN

28 165

PB0P

AO2P

29 16

4

COM0

AO2N

30 163

Y0P

AO1P

31 162

SOY0

AO1N

32 161

PR1P

AO0P

33 160

PB1P

AO0N

34 159

COM1

VCCK

35 158

Y1P

VCCK

36 157

SOY1

VCCK

37 156

RP

AVDD12_MEMPLL

38 155

COM

AVSS12_MEMPLL

39 154

GP

RODT//RCKE

40 153

SOG

RA8//RA10

41 152

BP

RA13//RBA1

42 151

HSYNC

RA11//RA4

43 150

VSYNC

RA4//RA1

44 149

AVDD33_VGA_STB

RA6//RA6

45 148

AV

DD10_LDO

RA0//RA8

46 147

ADIN4_SRV

RA2//RA11

47 146

ADIN3_SRV

RCAS_//RA12

48 145

ADIN2_SRV

RCS_//RRAS_

49 144

ADIN1_SRV

RRAS_//RCAS_

50 143

ADIN0_SRV

RA9//RWE_

51 142

VC

CK

VCC2IO

52 141

VGA_SCL

RA12//RA0

53 140

VGA_SDA

RA7//RA13

54 139

OPWRSB

RA5//RA9

55 138

OPCTRL1

NC//RRESET_

56 137

OPCTRL0

RA3//RA7

57 136

OIRI

RA

1//RA2

58 135

U0TX

RA10//RA5

59 134

U0RX

RBA1//RA3

60 133

AVDD33_PDM_STB

RBA0//RBA2

61 132

OPCTRL2

RBA2//RBA0

62 131

OPCTRL4

RWE_//RCS_

63 130

OPCTRL3

RCKE//RODT

64 129

OPCTRL5

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

VCCK

RVREF

RDQ4//RDQ4

RDQ3//R D Q 6

VCC2IO

RDQ1//RDQ2

RDQ6//RDQ0

RDQ12//RDQ11

RDQ9//RDQ9

VC
C2IO

RDQ14//RDQ13

RDQ11//RDQ15

RDQM1//RDQM1

VCCK

RDQS0//RDQS 0

RDQS0 _ //RDQ S0_

RDQM0//RDQM0

VCC2IO

RDQS1//RDQS 1

RDQS1_//RDQS 1_

RDQ15//RDQ12

RDQ8//R D Q 1 4

VCC2IO

RDQ10//RDQ10

RDQ13//R D Q 8

RDQ7//RDQ1

RDQ0//RDQ3

VCC2IO

RDQ2//RDQ7

RDQ5//RDQ5

VCC2IO

RCLK0//RCLK0

RCLK0_//RCLK0_

VCCK

JTDO

JTCK

JTMS

JTDI

JTRST_

OPWM0

VCC3IO

VCCK

US B_2P_DM1

US B_2P_DP1

US B_2P_DM0

US B_2P_DP0

AVDD33_USB_2P

US B_2P_VRT

AVDD33_HDMI

RX_CB

RX_C

RX_0B

RX_0

RX_1B

RX_1

RX_2B

RX_2

AVDD12_HDMI

HDMI_CEC

HDMI_SDA

HDMI_

SCL

HDMI_HPD

PWR5V

ORESET_

MT5301BCMU

EN 29TPM8.3A LA 8.

Figure 8-2 Pin configuration

2011-Nov-11

EN 30 TPM8.3A LA8.

19170_300_110704.eps

110704

Block diagram

Pinning information

1
2

3

4
5
6
7

8

9
10
11
12
13
14
15
16
17
18

36
35
34
33
32
31
30

29
28
27
26
25
24
23
22
21
20
19

VDD_DIG
GND_DIG

SCL
SDA

INT_LINE
RESET
SDI
LRCKI
BICKI
XTI
GND_PLL
FILTER_PLL
VDD_PLL
PWRDN
GND_DIG
VDD_DIG

TWARN / OUT4A
EAPD / OUT4B

GND_SUB

SA

TEST_MODE

VSS

VCC_REG

OUT2B

GND2

VCC2
OUT2A
OUT1B

VCC1

GND1

OUT1A

GND_REG

VDD

CONFIG

OUT3B / FFX3B
OUT3A / FFX3A

STA339BW

Protection

current/thermal

Logic

Regulators

Bias

Power
control

FFX

PLL

Volume

control

Channel

1A

Channel

1B

Channel

2A

Channel

2B

I2S

interface

PowerDigital DSP

I2C

STA339BW

IC Data Sheets

8.2 Diagram Audio Amplifier & Headphone Out B14, STA339BWTR (IC U602)

Figure 8-3 Internal block diagram and pin configuration

2011-Nov-11

8.3 Diagram Audio Amplifier & Headphone Out B14, STA515W13TR (IC U603)

19170_301_110704.eps

110705

Block diagram

Pinning information

GND-SUB

OUT2B
OUT2B

V

CC

2B

GND1B

V

CC

1A

GND1A

OUT1A
OUT1A

GND-Reg

V

DD

V

DD

CONFIG

VL

V

SS

V

SS

VCCSign

V

CC

Sign

18

16
17

15

6

5

4

3

2

21

22

31

32

33

35
34

36

20

1

19

N.C.

GND-Clean

OUT1B

V

CC

1B

OUT1B

PWRDN

FAULT
TRI-STATE

9

8

7

28

29

30

OUT2A

TH_WAR

STA515W13TR

7201

GND2B

OUT2A

V

CC

2A

IN1A

IN2B

IN1B

14

12

11

23

25

26

GND2A

IN2A

4231

Logic I/F

and D ecode

LeftA

‰-Bridge

Protection

Circuitry

INL[ 1 :2]

INR[1:2]

PWRDN

OUTPL

FAULT

VL

TRI-STATE

OUTNL

OUTPR

OUTNR

TWARN

Regulators

RightA

‰-Bridge

LeftB

‰- Bridge

RightB

‰- Br i d ge

STA515W13TR

IC Data Sheets

EN 31TPM8.3A LA 8.

Figure 8-4 Internal block diagram and pin configuration

2011-Nov-11

EN 32 TPM8.3A LA8.

19160_304_110622.eps

110622

Block diagram

Pinning information

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

SDA3

SCL3

GND
CLK–_3
CLK+_3

VCC
D0–_3
D0+_3

GND
D1–_3
D1+_3

VCC
D2–_3
D2+_3

GND

VSadj

7 1

8 1

9 1

0 2

2 1

2 2

3 2

4 2

5 2

6 2

7 2

8 2

2 9

0 3

1 3

2 3

S _ + 2 D K N I

2 D K N I S _ –

C C V

N I S _ + 1 D K

N I S _ – 1 D K

N G D

_ + 0 D K N I S

N I S _ – 0 D K

C V C

L C K N I S _ + K

S _ – K L C K N I

G D N

_ L C S K N I S

I S _ A D S K N

S _ D P H K N I

1 S L C S /

48
47
46
45
44
43
42
41
40

39
38
37
36
35
34
33

D2+_1
D2–_1
VCC
D1+_1
D1–_1
GND
D0+_1
D0–_1
VCC
CLK+_1
CLK–_1

SCL1
SDA1

HPD1
I2C_SEL
S2/SDA

4 6

3 6

2 6

1 6

0 6

9 5

8 5

7 5

6 5

5 5

4 5

5 3

2 5

1 5

0 5

9 4

D P H 3

+ 2 D 2 _

2 _ – 2 D

V C C

+ 1 D 2 _

2 _ – 1 D

D N G

+ 0 D 2 _

2 _ – 0 D

V C C

K L C 2 _ +

K L C 2 _ –

2 L C S

S 2 A D

D P H 2

P L

TMDS361B

64-pin TQFP

HPD_SINK

V

cc

R

INT

Clock Detect

R

INT

V

cc

R

INT

TMDSRx

R

INT

V

cc

R

INT

Clock Detect

R

INT

V

cc

R

INT

TMDS Rx

R

INT

Dx+_1

Dx–_1

CLK+_1

CLK–_1

Dx+_3

Dx–_3

CLK+_3

CLK–_3

xx2

Rx

Tx

Rx

Tx

SCL1

SDA1

Rx

Tx

Rx

Tx

SCL3

SDA3

HPD1

HPD2

HPD3

VSadj

Dx+_SINK

Dx–_SINK

CLK+_SINK

CLK–_SINK

TMDS Tx

TMDS Tx

Tx

Rx

Tx

Rx

SDA_SINK

SCL_SINK

S1/SCL

S2/SDA

I2C_SEL

Clock Detect

LP

TMDS Rx

w/AEQ

TMDS Rx

w/AEQ

3:1

MUX

and

2

IC Data Sheets

8.4 Diagram HDMI & HDMI Switch B04, TMDS361BPAGR (IC U501)

2011-Nov-11

Figure 8-5 Internal block diagram and pin configuration

9. Block Diagrams

19170_400_110701.eps

111027

Board Level Repair

Component Level Repair
Only For Authorized W orkshop

WIRING DIAGRAM 32" (Ebony)

HDMI

VIDEO

L

R

AV IN

TV

ANTENNA

USB

2

1

1

2

3

PC INCOMPONENT

SPDIFVIDEO OUT

VIDEO
/Y Pb Pr L R

VGA AUDIO

CN9901

1. N

2. L

AC Input

MAIN POWER SUPPLY

(1054)

A

SSB

(1053 )

B

CN704

1. RC_IR_5V

2. 5VSB

3. GND

CN703

1. U0RX

2. U0TX

J

TO

BACKLIGHT

LCD DISPLAY

(1050)

LCD DISPLAY

(1050)

CN414

40. LVDSVDD

39. LVDSVDD

38. LVDSVDD

37. LVDSVDD

36. SELLVDS

35. ODSEL

......

4. TX_AO0P

3. TX_AO1N

2. GND

1. TX_AO0N

CN7003

5P

CN7001

5P

IR/LED BOARD

(1056)

EMC

CN401

1. LED_RED

2. LED_WGB

3. OIRI

4. GND

5. 3V3SB

6. 3V3SB

7. GND

8. KEY2

9. KEY

10. KEY

11. 5VSB

12. LIT_SENSOR

13. GND

CN602

1. ROUT-

2. ROUT+

3. LOUT-

4. LOUT+

CN701

13. GND

12. 5VSB

11. 5VSB

10. STANDBY

9. +24V

8. +24V

7. GND

6. GND

5. GND

4. +12V

3. +12V

2. BRI_ADJ

1. BL_CTRL

CN9003

12. DIM

11. ENA

10. GND

9. GND

8. GND

7. GND

6. GND

5. +24V

4. +24V

3. +24V

2. +24V

1. +24V

CN9002

13. -

12. +5.2V

11. +5.2V

10. STB

9. +24Vsnd

8. +24Vsnd

7. GND

6. GND

5. GND

4. +12V

3. +12V

2. DIM

1. ENA

LEFT SPEAKER

RIGHT SPEAKER

CN201

8P

9-1 Wiring diagram 32"

Block Diagrams

EN 33TPM8.3A LA 9.

2011-Nov-11

9-2 Wiring diagram 42"

19170_401_110702.eps

111027

Board Level Repair

Component Level Repair
Only For Authorized W orkshop

WIRING DIAGRAM 42" (Ebony)

HDMI

VIDEO

L

R

AV IN

TV

ANTENNA

USB

2

1

1

2

3

PC INCOMPONENT

SPDIFVIDEO OUT

VIDEO
/Y Pb Pr L R

VGA AUDIO

SSB

(1053 )

B

CN703

1. U0RX

2. U0TX

CN414

40. LVDSVDD

39. LVDSVDD

38. LVDSVDD

37. LVDSVDD

36. SELLVDS

35. ODSEL

......

4. TX_AO0P

3. TX_AO1N

2. GND

1. TX_AO0N

CN9101

13. ON/OFF

12. DIM

11. 12V

10. 12V

9. GND

8. GND

7. GND

6. 24V

5. 24V

4. PS_ON

3. 5.2V

2. 5.2V

1. -

CN9901

1. N

2. L

AC Input

MAIN POWER SUPPLY

(1054)

A

J

CN201

8P

LEFT SPEAKER

TO

BACKLIGHT

LCD DISPLAY

(1050)

RIGHT SPEAKER

IR/LED BOARD

(1056)

CN8104

12. VLED

11. VLED

10. LED3

9. LED4

8. LED6

7. LED8

6. LED7

5. LED5

4. LED2

3. LED1

2. VLED

1. VLED

CN401

1. LED_RED

2. LED_WGB

3. OIRI

4. GND

5. 3V3SB

6. 3V3SB

7. GND

8. KEY2

9. KEY

10. KEY

11. 5VSB

12. LIT_SENSOR

13. GND

CN701

13. GND

12. 5VSB

11. 5VSB

10. STANDBY

9. +24V

8. +24V

7. GND

6. GND

5. GND

4. +12V

3. +12V

2. BRI_ADJ

1. BL_CTRL

CN704

1. RC_IR_5V

2. 5VSB

3. GND

CN602

1. ROUT-

2. ROUT+

3. LOUT-

4. LOUT+

CN603

1. OUTA

2. GND

3. OUTB

CN7003

5P

CN7001

5P

EMC

Block Diagrams

EN 34TPM8.3A LA 9.

2011-Nov-11

9-3 Block Diagram

19170_402_110630.eps

111003

DDR2 1 Gb

I2C

DDC

SPI FLASH

64 Mb

NVM
24C32

ATV _RF
TUNER
F86WT-17-E

RCKEY UART

24C02

24C02

AUDIO AMP

STA339BWTR

SPK

Digital Audio Output(COIXIAL)

PC IN

DDC

CVI

VIDEO ( By CVI Y connector)

CVBS

YPbPr

RGB

HDMI1

AUDIO IN (PC)

AUDIO R/L (CVI/CVBS)

24C02

24C02

HDMI2

HDMI3

DDC

DDC

TMDS361
BPAGR

SPDIF

I

2

S

[RX0 : RX3]

NAND FLASH

256 Mb

CVBS/AV Out

WOOFER AMP

STA515W

SPK

USB1 2.0

USB1 2.0

ATV
DEMOD

Analog IF+/-

TS (SERIAL)

HDMI 1.3

ATV + DTV
RF TUNER
TDTK-T052D
( RESERVE)

Analog IF+/-

ATBM8848
( RESERVE)

Demodulator

Analog IF+/-

Side AV IN

H/Phone Out

LVDS (50/60 Hz)

LCD PANEL T-CON

MT5301B

Block Diagrams

EN 35TPM8.3A LA 9.

2011-Nov-11

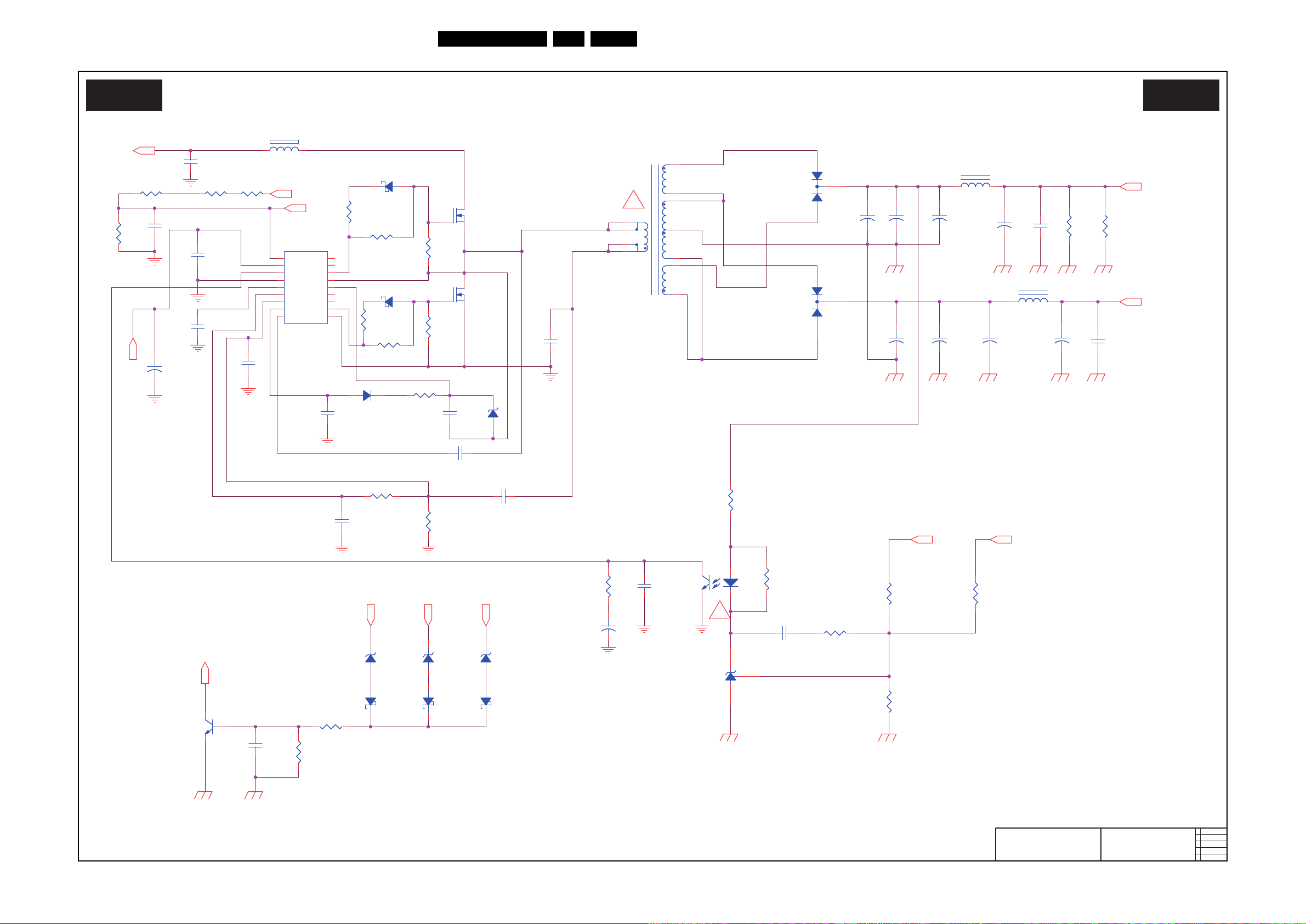

Circuit Diagrams and PWB Layouts

2011-05-26

2

715G4867

AC & PFC

AC & PFC

A01 A01

19170_500_110628.eps

110628

ENA
DIM

+5.2V

STB

+24Vsnd

+12V

B+

VCC

VCC

400V

Vac

+VLED

LED3

+LED

LED2

LED1

LED4

+VLED

ENA
DIM

!

!

!

!

!

!

!

!

!

!

!

!

!

!

ǂ

ǂ

T4. 0AH/250V

12

FB9902
BEAD

FB9902
BEAD

2

HBD9910HBD9910

+

C9805
47UF 450V/NC

+

C9805
47UF 450V/NC

1

2

D9812
RB160M-60TE25

D9812
RB160M-60TE25

12

FB9901
BEAD

FB9901
BEAD

R9900

1MOHM +-5% 1/2W

R9900

1MOHM +-5% 1/2W

R9801

0.15R-NC

R9801

0.15R-NC

R9314
3M3 1%

R9314
3M3 1%

RV9901 VaristorRV9901 Varistor

Q9801
2SK4087LS

Q9801
2SK4087LS

C9814
1N 50V

C9814
1N 50V

SG9906

DSPL201M -A 21F

SG9906

DSPL201M -A 21F

C9224
100N 50V

C9224
100N 50V

R9816

6.8KOHM +-1% 1/8W

R9816

6.8KOHM +-1% 1/8W

R9820
22 OHM 1/8W

R9820
22 OHM 1/8W

R9312
3M3 1%

R9312
3M3 1%

R9818
33K 1/8W 5%

R9818
33K 1/8W 5%

R9814
150K 1/8W +/- 1%

R9814
150K 1/8W +/- 1%

R9903
300K 1/4W/NC

R9903
300K 1/4W/NC

Q9810

BC847C

Q9810

BC847C

R9901
300K 1/4W/NC

R9901
300K 1/4W/NC

+

C9803
47UF 450V

+

C9803
47UF 450V

SG9902

DSPL201M -A21F

SG9902

DSPL201M -A21F

C9812
100PF

C9812
100PF

C9810
47pF 50V

C9810
47pF 50V

R9802

0.15R

R9802

0.15R

D9811
SF38G-34X0

D9811
SF38G-34X0

C9811
470P 50V

C9811
470P 50V

+

C8107

4.7UF 160V

+

C8107

4.7UF 160V

1

243

L9901

12MH

L9901

12MH

C9911

220pF/250V

C9911

220pF/250V

C9813
100N 50V

C9813
100N 50V

12

t

TH9902
SCK 101R55LSY

t

TH9902
SCK 101R55LSY

C9815
330N 25V

C9815
330N 25V

C9816
2U2 16V

C9816
2U2 16V

L

1

N

2

CN9901

CONN

CN9901

CONN

1
2

3

4
5
6
7

8

9
10
11
12
13

CN9002

CONN

CN9002

CONN

D9810

1N5408-11

D9810

1N5408-11

C9902

330NF 305V

C9902

330NF 305V

C9801
680NF

C9801
680NF

1
2

3

4
5
6
7

8

9
10
11
12

CN9003

CONN

CN9003

CONN

R9819
18K 1/8W 5%

R9819
18K 1/8W 5%

1
2

3

4
5
6
7

8

9
10
11
12

CN8001

CONN-NC

C9901
330NF 305V

C9901
330NF 305V

R9815
750 OHM

R9815
750 OHM

12

t

TH9901
SCK 101R55LSY

t

TH9901

SCK 101R55LSY

SG9901

DSPL201M -A21F

SG9901

DSPL201M -A21F

R9811
100R 1/8W 5%

R9811
100R 1/8W 5%

6 5

7 1

L9904
350UH

L9904
350UH

+

C9804
47UF 450V

+

C9804
47UF 450V

INV

1

COMP

2

MOT

3

CS4ZCD

5

GND

6

GAT E

7

VCC

8

IC9801

FAN6961SZ

F9901
UDA -A004(PF )

F9901
UDA -A004(PF )

1

2

FB9810

60R

FB9810

60R

C9225
100N 50V

C9225
100N 50V

R9813
51K +-5% 1/8W

R9813
51K +-5% 1/8W

R9313
3M3 1%

R9313
3M3 1%

R9810
68K +-5% 1/8W

R9810
68K +-5% 1/8W

2

1

3

4

-

+

BD9910

TS6B 06G-02

-

+

BD9910

TS6B 06G-02

+

C9817
10UF 50V

+

C9817
10UF 50V

1

2

FB9811

BF -L25030W-768

FB9811

BF -L25030W-768

1

243

L9902

12MH

L9902

12MH

2

HQ9801HQ9801

R9902
300K 1/4W/NC

R9902
300K 1/4W/NC

R9812

330R 1/8W 5%

R9812

330R 1/8W 5%

L8101

5uH

L8101

5uH

12

FB9812
BF -L25030W-768

FB9812
BF -L25030W-768

C9912

220pF/250V

C9912

220pF/250V

SG9905

DSPL201M -A 21F

SG9905

DSPL201M -A 21F

R9817

6.8KOHM +-1% 1/8W

R9817

6.8KOHM +-1% 1/8W

10. Circuit Diagrams and PWB Layouts

10-1 A01 715G4867 PSU 32"

AC & PFC

EN 36TPM8.3A LA 10.

2011-Nov-11

Standby

19170_501_110628.eps

110628

Standby

A02 A02

2011-05-26

2

715G4867

Standby

+5.2V

STB

Vac

400V

VCC

PROTEC

!

!

!

!

!

HV

!

HOT COLD

HOT COLD

R9308

2.2M 1/4W

R9308

2.2M 1/4W

R9305

6.8 OHM

R9305

6.8 OHM

1 2

ZD9314
MTZJ T-72 24B

ZD9314
MTZJ T-72 24B

IC9310
AS431AN-E1

IC9310
AS431AN-E1

C9300

0.47uF 50V

C9300

0.47uF 50V

+

C9302
470uF 10V

+

C9302
470uF 10V

R9933
10K OHM +-5% 1/8W

R9933
10K OHM +-5% 1/8W

C9313

100N 50V

C9313

100N 50V

C9312
100N 50V

C9312
100N 50V

R9323

47 OHM 1/4W

R9323

47 OHM 1/4W

R9326

0 OHM +-5% 1/8W

R9326

0 OHM +-5% 1/8W

C9925

2.2NF 250V-NC

C9925

2.2NF 250V-NC

1 2

ZD9300

BZX79-C9V1

ZD9300

BZX79-C9V1

R9300

2.2M 1/4W

R9300

2.2M 1/4W

2

HD9301HD9301

1 2

ZD9301
BZT52-B9V1

ZD9301
BZT52-B9V1

R9325

4R7 1/4W 5%

R9325

4R7 1/4W 5%

R9321
12K 1/8W 1%

R9321
12K 1/8W 1%

R9307

2.2M 1/4W

R9307

2.2M 1/4W

C9314

2.2NF

C9314

2.2NF

R9332
10K OHM +-5% 1/8W

R9332
10K OHM +-5% 1/8W

1

23

4

IC9312

EL817M(X)

IC9312

EL817M(X)

+

C9316
100UF 35V

+

C9316
100UF 35V

C9319
100N 50V

C9319
100N 50V

C9921

470pF/250V/NC

C9921

470pF/250V/NC

R9329

3K3 1/8W 5%

R9329

3K3 1/8W 5%

R9317

22K 1/8W 5%

R9317

22K 1/8W 5%

R9322
18K 1/8W 1%

R9322
18K 1/8W 1%

Q9315/NC

RK7002FD5T116-NC

Q9315/NC

RK7002FD5T116-NC

1
2

4
5

6

7

8

9

10

T9301

POWER X'FMR

T9301

POWER X'FMR

R9335
100KOHM +-5% 1/8W

R9335
100KOHM +-5% 1/8W

C9318

2N2 50V

C9318

2N2 50V

R9306
330K 1/4W-NC

R9306
330K 1/4W-NC

R9328

1K5 1/8W 5%

R9328

1K5 1/8W 5%

1

23

4

IC9311

EL817M(X)

IC9311

EL817M(X)

R9324

47 OHM 1/4W

R9324

47 OHM 1/4W

R9302
330K 1/4W-NC

R9302
330K 1/4W-NC

D9310
UF4007

D9310
UF4007

R9331

1K OHM +-5% 1/8W

R9331

1K OHM +-5% 1/8W

C9311

10N 50V

C9311

10N 50V

R9333

0 OHM +-5% 1/8W

R9333

0 OHM +-5% 1/8W

Q9313
RK7002FD5T116

Q9313
RK7002FD5T116

1

2

FB9300

BEAD/NC

FB9300

BEAD/NC

C9315

10N 50V

C9315

10N 50V

C9317

2N2 50V

C9317

2N2 50V

R9934
82K +-5% 1/8W

R9934
82K +-5% 1/8W

+

C9320
22UF 50V

+

C9320
22UF 50V

V

1

X

2

C

3

F

4

NC

5

D

6

S

7

S

8

S

9

S

10

S

11

S

12

IC9301

TOP264VG

IC9301

TOP264VG

L9310

Coil

L9310

Coil

1

2

3

D9301
SRF1060

D9301
SRF1060

R9315
10K OHM +-5% 1/8W

R9315
10K OHM +-5% 1/8W

R9304
430K 5%

R9304
430K 5%

C9920

2.2NF 250V/NC

C9920

2.2NF 250V/NC

R9303

22K 1/8W 1%

R9303

22K 1/8W 1%

+

C9303
470uF 16V

+

C9303
470uF 16V

R9301

330K 1/4W-NC

R9301

330K 1/4W-NC

+

C9301
470uF 10V

+

C9301
470uF 10V

D9303
BAV21

D9303
BAV21

1 2

ZD9311

BZT52-B6V2

ZD9311

BZT52-B6V2

Q9314

BC847C

Q9314

BC847C

R9330
100R 1/6W 5%

R9330
100R 1/6W 5%

R9320

100R 1/6W 5%

R9320

100R 1/6W 5%

R9334
27K 1/8W 1%

R9334
27K 1/8W 1%

12

ZD9312
P6KE120A

ZD9312
P6KE120A

Q9311
MMBT2907A

Q9311
MMBT2907A

D9311

FR103

D9311

FR103

R9319
1K OHM +-5% 1/8W

R9319
1K OHM +-5% 1/8W

Q9312

RK7002FD5T116

Q9312

RK7002FD5T116

Circuit Diagrams and PWB Layouts

EN 37TPM8.3A LA 10.

2011-Nov-11

Main Power

19170_502_110628.eps

110628

Main Power

A03 A03

2011-05-26

2

715G4867

Main Power

VCC

400V

+24V

+12V

+24Vsnd

PROTEC

!

!

!

!

!

R9138
47OHM +-5% 1/8W

R9138
47OHM +-5% 1/8W

+

C9113
1000uF 25V/NC

+

C9113
1000uF 25V/NC

3

1

2

D9115
BAV70

D9115
BAV70

1 2

D9111
SR206

D9111
SR206

R9132

2K43 1/8W 1%

R9132

2K43 1/8W 1%

R9133
1K OHM +-5% 1/8W-NC

R9133
1K OHM +-5% 1/8W-NC

R9135
200OHM +-5% 1/8W

R9135
200OHM +-5% 1/8W

1 2

ZD9132
MTZJ T-72 30B

ZD9132
MTZJ T-72 30B

R9166
2K 1/8W 1%

R9166
2K 1/8W 1%

C9929

1500PF 250V-NC

C9929

1500PF 250V-NC

2

HQ9121/NC

HEAT SINK-NC

HQ9121/NC

HEAT SINK-NC

R9130

12K 1/8W 5%

R9130

12K 1/8W 5%

3

5

7

8

9
10

11

12

T9111

POWER X'FMR

T9111

POWER X'FMR

1 2

D9113
SR210

D9113
SR210

D9130
UF4007

D9130
UF4007

R9143

560 OHM 1/4W

R9143

560 OHM 1/4W

C9134
100N 50V

C9134
100N 50V

R9134
680OHM +-5% 1/8W

R9134
680OHM +-5% 1/8W

1 2

FB9130

BEAD/NC

FB9130

BEAD/NC

1

2

3

4

IC9112

EL817M(X)

IC9112

EL817M(X)

+

C9121
1000UF 50V

+

C9121
1000UF 50V

R9145
100K

R9145
100K

R9167
0 OHM +-5% 1/8W

R9167
0 OHM +-5% 1/8W

C9139

10pF3KV

C9139

10pF3KV

Q9121
2SK4097LS 9.5A/500V

Q9121
2SK4097LS 9.5A/500V

C9146
22NF

C9146
22NF

R9169
22K 1/8W 5%

R9169
22K 1/8W 5%

IC9113
AS431AN-E1

IC9113
AS431AN-E1

C9142
33NF-NC

C9142
33NF-NC

1 2

ZD9131

MTZJ T-72 15B

ZD9131

MTZJ T-72 15B

R9163
22K 1/8W 1%

R9163
22K 1/8W 1%

+

C9118
100UF 50V

+

C9118
100UF 50V

C9927

330PF 250V

C9927

330PF 250V

R9165
0 OHM +-5% 1/8W

R9165
0 OHM +-5% 1/8W

C9138

100PF

C9138

100PF

R9144
100K

R9144
100K

C9130
100N 50V

C9130
100N 50V

12

D9131
SS0520

D9131
SS0520

1

2

D9132
SS0520

D9132
SS0520

C9131
100N 50V

C9131
100N 50V

C9147
1500PF-NC

C9147
1500PF-NC

L9122
Coil

L9122
Coil

R9158
100K

R9158
100K

R9142

0.1 ohm

R9142

0.1 ohm

+

C9133

4.7UF 50V

+

C9133

4.7UF 50V

C9141
1U 25V

C9141
1U 25V

R9188
18K 1/8W 1%

R9188
18K 1/8W 1%

C9140
1U 25V

C9140
1U 25V

1 2

D9114
SR210

D9114
SR210

+

C9114
270UF 25V

+

C9114
270UF 25V

+

C9119
100UF 50V

+

C9119
100UF 50V

R9136
10K OHM +-5% 1/8W

R9136
10K OHM +-5% 1/8W

+

C9145
100UF 50V

+

C9145
100UF 50V

R9148
100K

R9148
100K

1

2

D9112
SR206

D9112
SR206

R9139
10K OHM +-5% 1/8W

R9139
10K OHM +-5% 1/8W

R9140
0 OHM +-5% 1/8W

R9140
0 OHM +-5% 1/8W

1 2

ZD9133
RLZ27B-NC

ZD9133
RLZ27B-NC

+

C9112
1000uF 25V

+

C9112
1000uF 25V

C9143
2N2 500V

C9143
2N2 500V

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

IC9121

SSC9512S-TL

IC9121

SSC9512S-TL

C9137
1N 50V

C9137
1N 50V

1

2

3

D9121
MBRF10100CT

D9121
MBRF10100CT

R9157
100K

R9157
100K

R9137
47OHM +-5% 1/8W

R9137
47OHM +-5% 1/8W

C9136

100P 50V

C9136

100P 50V

R9131

3K 1/8W 5%

R9131

3K 1/8W 5%

R9168
4K7 1/4W +/-5%

R9168
4K7 1/4W +/-5%

C9144
100N 50V

C9144
100N 50V

L9121
Coil

L9121
Coil

R9141
10R 1/8W 5%

R9141
10R 1/8W 5%

C9125
100PF 1KV/NC

C9125
100PF 1KV/NC

Q9122
2SK4097LS 9.5A/500V

Q9122
2SK4097LS 9.5A/500V

+

C9122
1000UF 50V

+

C9122
1000UF 50V

C9124
100PF 1KV/NC

C9124
100PF 1KV/NC

2

HD9121HD9121

R9164

3.3K 1/4W

R9164

3.3K 1/4W

R9149
100K

R9149
100K

+

C9120
100UF 50V

+

C9120
100UF 50V

C9135
1uF 16V

C9135
1uF 16V

1 2

ZD9130
MTZJ T-72 15B

ZD9130
MTZJ T-72 15B

Circuit Diagrams and PWB Layouts

EN 38TPM8.3A LA 10.

2011-Nov-11

Power layout top

19170_503_110629.eps

110629

2011-06-20

1

715G4867

Power

layout top

C9124

C9125

C9139

C9801

C9803

C9804

C9805

C9812

C9817

D9130

D9810

D9811

FB9130

FB9901

FB9902

IC9112

IC9311

IC9312

R9801

TH9901

TH9902

ZD9312

Q9121

Q9122

J9045

J9047

J9040

J9044

HD9121

C8107

C8104

C8105

C8106

C9120

C9114

FB8100

L9121

L9122

L8101

Q8100

D8109

C9301

C9302

C9303

L9310

R9330

R9320

J9034

J9030

R8129

R8126

R8123

R8120

J9002

J9035

J9033

J9024

ZD8104

J9015

J9022

FB9811

J9036

L9901

L9902

HQ9801

CN8001

D9112

D9114

C9133

C9320

C9316

C9112

C9118

C9119

C9145

C9121

C9122

Q9801

BD9910

HQ8100

IC9301

J9046

J9039

J9018

HQ9121

J9025

R9143

R9142

D8100

R8110
R8111

J9014

J9017

J9009

J9001

J9043

J9027

J9023

R8137

ZD9300

C9142

D9113

D9111

J9007

J9021

J9019

J9003

C9147

J9012

J9011

T9301

L8100

C9920

C9925

C9146

HD9301

J9026

J9029

C9138

D9310

J9038

D9311

D9301

D8101

D9121

C9929

HBD9910

J9010J9008J9005

J9016

T9111

J9006

C9921

R9802

J9013

FB9812

J9004

FB9810

J9041

D9303

J9049

J9037

J9028

FB9300

J9032

C9901

C9902

C9314

SG9902

SG9906

SG9901

SG9905

CN9002

CN9003

C9911

C9912

C9113

C9927

RV9901

CN9901

L9904

F9901

ZD9130

ZD9131

ZD9132

R9900

J9042

ZD9314

Circuit Diagrams and PWB Layouts

EN 39TPM8.3A LA 10.

2011-Nov-11

Power layout bottom

19170_504_110629.eps

110629

2011-06-20

1

715G4867

Power

layout bottom

SG9008

SG9004

SG9003

C9130

C9131

C9134

C9135

C9136

C9137

C9140

C9141

C9300

C9311

C9810

C9811

C9813

C9814

C9815

C9816

IC9121

R9130

R9131

R9132

R9133

R9134

R9135

R9136

R9137

R9138

R9139

R9140

R9141

R9300

R9933

R9312

R9313 R9314

R9315
R9317

R9303

R9325

R9934

R9810

R9811

R9812

R9813

R9814

R9817

R9818

R9819

R9820

Q8106

Q8107

Q8108

Q8105

R8104

R8103

R8105

C9144

C9224C9225

C9313

C9315

C9317

C9318

C9143

R9163R9165

R9166

R9167

R9169

R9188

R9319

R9321

R9322

R9328

R9333

R9334

R9329

R9144

R9145

R9148
R9149

R9157

R9158

R9323

R9324

IC8100

IC9801

R8100

JR9001

R9816

FD5

FD6

FD7

R8101

R8102

R8107

R8108

R8109

R8106

R8139

R8140

R8112

R8130

R8114 R8131

R8132

R8138

R8115

R8134

R8135

R8133

R8117

R8113

R9331

R9332

R8118

R8121

R8124

R8127

R9335

R8116

R8119

R8122

R8125

R8128

R9305

C8109

C8108

C8101

C8102

C8103

C8100

C9312

C9319

R8136

R9304

R9301R9302

R9306

R9815

R9901

R9902

R9903

ZD9133

R9326

R9307

R9308

ZD8102

D9131

D9132

D9812

D8102

ZD8100

ZD8101

ZD8103

ZD9311

ZD9301

D8107

D8108

Q8110

Q9312

Q9315

D8103

D8104

D8105

D8106

D9115

Q8101

Q8102

Q8103

Q8104

Q8109

Q9314

Q9810

Q9311

IC8101

IC8102

IC8103

IC8104

IC9113

IC9310

R9164R9168

JR9002

JR9003

JR9004

JR9006

JR9005

Q9313

Circuit Diagrams and PWB Layouts

EN 40TPM8.3A LA 10.

2011-Nov-11

10-2 A01 715G4878 PSU 42"

19170_505_110628.eps

110628

AC Side

A01 A01

2011-03-15

1

715G4878

AC Side

BO

R+

!!

!

!

!

!

!

!

!

!

!

!

!

!

!

!

!

1
2

3

4

HS9301

HEAT SINK (D9102)

HS9301

HEAT SINK (D9102)

NC1D12D13NC

4

NC

5D26D27NC8

IC9901

NC

IC9901

NC

C9913
220PF

C9913
220PF

C9901

470NF 305V

C9901

470NF 305V

1

2

FB9803FB9803

2

1

3

4

-

+

BD9901

TS10B06G-04

-

+

BD9901

TS10B06G-04

1
2

3

4

HS9202

NC

HS9202

NC

L

1

N

2

CN9901

CONN

CN9901

CONN

RV9901

TVR14561KFC4FY

RV9901

TVR14561KFC4FY

1 2

t

NR9902

NTCR

t

NR9902

NTCR

R9902

430K 1/4W

R9902

430K 1/4W

1
2

HS9801

HEAT SINK (Q9801,D9802)
HS9801

HEAT SINK (Q9801,D9802)

1
2

3

4

HS9901

HEAT SINK(BD9901)

HS9901

HEAT SINK(BD9901)

C9911
220PF

C9911
220PF

1

2

4

3

L9901

10MH

L9901

10MH

F9901
FUSE

F9901
FUSE

1

2

FB9903

BEAD

FB9903

BEAD

R9903

430K 1/4W

R9903

430K 1/4W

C9902

470NF 305V

C9902

470NF 305V

1
2

3

4

HS9302

HEAT SINK (D9302)

HS9302

HEAT SINK (D9302)

C9814

1NF 250V

C9814

1NF 250V

1
2

3

4

HS9201

HEAT SINK (D9203,D9205)

HS9201

HEAT SINK (D9203,D9205)

C9914
220PF

C9914
220PF

C9912
220PF

C9912
220PF

1

2

4

3

L9902

10MH

L9902

10MH

1

2

t

NR9901

NTCR

t

NR9901

NTCR

R9901

430K 1/4W

R9901

430K 1/4W

AC Side

Circuit Diagrams and PWB Layouts

EN 41TPM8.3A LA 10.

2011-Nov-11

Standby

19170_506_110629.eps

110629

Standby

A02 A02

2011-03-15

1

715G4878

Standby

BO 5.2V

Protect

VCC

B+

B1+

PS_ON

B2

Protect

B1+

!

!

!

R9318

4.7M OHM +-5% 1/4W

R9318

4.7M OHM +-5% 1/4W

R9315

1K 1/8W
R9315

1K 1/8W

D9304

PR1007

D9304

PR1007

12

D9305

RB160M-60TE25

D9305

RB160M-60TE25

1

2

FB9302

BEAD
FB9302

BEAD

R9305
47 OHM 1/4W

R9305
47 OHM 1/4W

R9321

NC

R9321

NC

R9301

0.1oHM 1W
R9301

0.1oHM 1W

+

C9315

470UF 10V

+

C9315

470UF 10V

1

2

3

D9302

FMW-2156

D9302

FMW-2156

D9307

1N4148W

D9307

1N4148W

R9317

1K OHM +-5% 1/8W

R9317

1K OHM +-5% 1/8W

+

C9310
10UF 50V

+

C9310
10UF 50V

1

2

3

5

6
7

9
10

4

T9301

POWER X'FMR

T9301

POWER X'FMR

C9311
220N 50V

C9311
220N 50V

R9308

3.3 OHM 1/4W

R9308

3.3 OHM 1/4W

C9318
1NF

C9318
1NF

+

C9304

470UF 10V

+

C9304

470UF 10V

R9320
560K 1/8W

R9320
560K 1/8W

+

C9316

470UF 10V

+

C9316

470UF 10V

C9309

3.3nF 50V

C9309

3.3nF 50V

D9306

1N4148W

D9306

1N4148W

+

C9305

470uF 16V

+

C9305

470uF 16V

R9311

2.4 OHM 1/4W
R9311

2.4 OHM 1/4W

C9302

2N2 500V(NC)

C9302

2N2 500V(NC)

S/OCP

1

BR

2

GND

3

FB/OLP

4

VCC

5

D/ST

7

D/ST

8

IC9301

A6069H

IC9301

A6069H

R9309

1.5M 1/4W

R9309

1.5M 1/4W

C9306
100N 50V

C9306
100N 50V

+

C9307
100UF 35V

+

C9307
100UF 35V

C9313
10NF

C9313
10NF

12

43

IC9302

PC123X8YFZOF

IC9302

PC123X8YFZOF

R9310
220 OHM 1/4W

R9310
220 OHM 1/4W

C9303

2N2 500V

C9303

2N2 500V

R9313

1.5M 1/4W

R9313

1.5M 1/4W

R9304
100K 1/4W

R9304
100K 1/4W

C9312
100N 50V

C9312
100N 50V

Q9301

RK7002FD5T116(NC)

Q9301

RK7002FD5T116(NC)

R9307
100K 1/4W

R9307
100K 1/4W

C9314

470pF/250V

C9314

470pF/250V

C9308

100N 50V

C9308

100N 50V

R9314
2K4 1/8W 1%

R9314
2K4 1/8W 1%

IC9303

AS431AN-E1

IC9303

AS431AN-E1

R9322

NC

R9322

NC

R9319

2K2 1/8W 1%

R9319

2K2 1/8W 1%

R9312

2.4 OHM 1/4W

R9312

2.4 OHM 1/4W

R9303
100K 1/4W

R9303
100K 1/4W

C9301

2N2 500V(NC)

C9301

2N2 500V(NC)

D9303
PR1007

D9303
PR1007

R9316

1.5M 1/4W

R9316

1.5M 1/4W

L9301

Coil
L9301

Coil

R9302

47 OHM 1/4W

R9302

47 OHM 1/4W

R9306
100K 1/4W

R9306
100K 1/4W

D9301
1N4007

D9301
1N4007

C9317

1uF 50V

C9317

1uF 50V

Circuit Diagrams and PWB Layouts

EN 42TPM8.3A LA 10.

2011-Nov-11

DCM PFC

19170_507_110629.eps

110629

DCM PFC

A03 A03

2011-03-15

1

715G4878

DCM PFC

B+

R+

VCC1

VCC1

5.2VVCC

PS_ON

BO_DC

BO_DC

VCC1

BO_DC

B2

!

!

!

!

!

R9810
470 OHM 1/8W

R9810
470 OHM 1/8W

R9824

0R05

R9824

0R05

D9801

1N5408-11

D9801

1N5408-11

R9814
10K 1/8W

R9814
10K 1/8W

C9915

220PF

C9915

220PF

Q9805NCQ9805

NC

1

2

D9803

RB160M-60TE25

D9803

RB160M-60TE25

1 2

FB9804

BEAD
FB9804

BEAD

3

4

5

6

L9801

236UH

L9801

236UH

+

C9802

47UF 450V

+

C9802

47UF 450V

R9807
680K OHM +-1% 1/4W

R9807
680K OHM +-1% 1/4W

R9822NCR9822

NC

Q9803
2N3904S-RTK/PS

Q9803
2N3904S-RTK/PS

Q9806NCQ9806

NC

+

C9813

47UF 450V

+

C9813

47UF 450V

+

C9806
10UF 50V

+

C9806
10UF 50V

1

2

FB9802
BEAD

FB9802
BEAD

R9802

51OHM +-5% 1/8W

R9802

51OHM +-5% 1/8W

R9806

10K 1/8W

R9806

10K 1/8W

Q9802
2SD1624T-TD-E

Q9802
2SD1624T-TD-E

Q9801

TK15A60U

Q9801

TK15A60U

12

43

IC9802

PC123X8YFZOF

IC9802

PC123X8YFZOF

C9801

680NF
C9801

680NF

R9804
680K OHM +-1% 1/4W

R9804
680K OHM +-1% 1/4W

C9805

47P 50V

C9805

47P 50V

1 2

ZD9801

MTZJ T-72 16B

ZD9801

MTZJ T-72 16B

R9811
13K 1/8W 1%

R9811
13K 1/8W 1%

R9809
680K OHM +-1% 1/4W

R9809
680K OHM +-1% 1/4W

Q9807NCQ9807

NC

1

2

t

NR9801

NTCR

t

NR9801

NTCR

C9811
470N 25V

C9811
470N 25V

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT7VCC

8

IC9801
LD7591GS

IC9801
LD7591GS

+

C9803

47UF 450V

+

C9803

47UF 450V

R9821NCR9821
NC

R9819NCR9819
NC

1

2

FB9801
BEAD

FB9801
BEAD

C9812
100N 50V

C9812
100N 50V

R9816

10K 1/8W

R9816

10K 1/8W

R9812
36K 1/8W +/-5%

R9812
36K 1/8W +/-5%

R9823NCR9823

NC

R9813

10K 1/8W
R9813

10K 1/8W

D9802
FMN-1106S

D9802
FMN-1106S

C9808
220pF 50V

C9808
220pF 50V

+

C9804

47UF 450V

+

C9804

47UF 450V

C9810
47N 50V

C9810
47N 50V

R9817
27K 1/8W 5%

R9817
27K 1/8W 5%

R9803

51OHM +-5% 1/8W

R9803

51OHM +-5% 1/8W

C9807

100N 50V

C9807

100N 50V

R9818

6.8K 1/8W

R9818

6.8K 1/8W

R9815

1K 1/8W

R9815

1K 1/8W

R9820NCR9820
NC

+

C9815

10UF 50V

+

C9815

10UF 50V

R9805

68K 1/4W

R9805

68K 1/4W

C9809

47P 50V

C9809

47P 50V

R9801

10R

R9801

10R

R9808

0.05R

R9808

0.05R

Circuit Diagrams and PWB Layouts

EN 43TPM8.3A LA 10.

2011-Nov-11

Second Power

19170_508_110629.eps

110629

Second Power

A04 A04

2011-03-15

1

715G4878

Second Power

Protect

VCC1

24V

VLED1

12V

24V 12V

24V 12V

Vsen

B1+

BO_DC

!

!

R9201

5.6K 1/4W

R9201

5.6K 1/4W

C9201
100N 50V

C9201
100N 50V

L9202CoilL9202Coil

C9221
100N 50V

C9221
100N 50V

IC9203

AS431AZTR-E1

IC9203

AS431AZTR-E1

R9214

2Mohm 1/4W +/-1%

R9214

2Mohm 1/4W +/-1%

Q9201
2SK4097LS 9.5A/500V

Q9201
2SK4097LS 9.5A/500V

C9219

100PF 2KV

C9219

100PF 2KV

1 2

ZD9201
MTZJ T-72 15B

ZD9201
MTZJ T-72 15B

C9223

100N 50V

C9223

100N 50V

1 2

ZD9203
MTZJ T-72 18B

ZD9203
MTZJ T-72 18B

+

C9205
270UF 25V

+

C9205
270UF 25V

D9204
EG01A

D9204
EG01A

C9214
1N 50V

C9214
1N 50V

C9212
1U 50V

C9212
1U 50V

R9209
3K 1/8W +/-1%

R9209
3K 1/8W +/-1%

R9208

120R 1/8W 1%

R9208

120R 1/8W 1%

R9226

47OHM +-5% 1/8W

R9226

47OHM +-5% 1/8W

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV

9

COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

IC9201

SSC9512S-TL

IC9201

SSC9512S-TL

R9207

4.7KOHM +-1% 1/8W

R9207

4.7KOHM +-1% 1/8W

12

D9208

RB160M-60TE25

D9208

RB160M-60TE25

R9223
10 OHM 1/8W

R9223
10 OHM 1/8W

R9219

10K 1/8W

R9219

10K 1/8W

1
2

4
5

6

7

8

9
10

11

12

T9201

POWER X'FMR

T9201

POWER X'FMR

12

D9206

RB160M-60TE25

D9206

RB160M-60TE25

R9217
24K 1/8W

R9217
24K 1/8W

C9211

100N 50V

C9211

100N 50V

L9201

Coil

L9201

Coil

R9222

47OHM +-5% 1/8W

R9222

47OHM +-5% 1/8W

C9220
220pF 50V

C9220
220pF 50V

C9215
1U 25V

C9215
1U 25V

C9216
1U 50V

C9216
1U 50V

R9216

2M 1% 1/4W

R9216

2M 1% 1/4W

12

D9207

RB160M-60TE25

D9207

RB160M-60TE25

R9211

5.1KOHM +-1% 1/8W

R9211

5.1KOHM +-1% 1/8W

C9217

10pF3KV

C9217

10pF3KV

1

2

3

D9205

FMW-2156

D9205

FMW-2156

1 2

ZD9202

MTZJ T-72 24B

ZD9202

MTZJ T-72 24B

R9205

7.5 OHM 1/4W

R9205

7.5 OHM 1/4W

R9220
10 OHM 1/8W

R9220
10 OHM 1/8W

R9224

1K 1/8W
R9224

1K 1/8W

R9204

20.5KOHM +-1% 1/8W

R9204

20.5KOHM +-1% 1/8W

C9210
1N 50V

C9210
1N 50V

R9210

24KOHM +-1% 1/8W

R9210

24KOHM +-1% 1/8W

R9206
470 OHM 1/8W

R9206
470 OHM 1/8W

R9212
2K 1/8W

R9212
2K 1/8W

R9202

5.6K 1/4W

R9202

5.6K 1/4W

C9204
100N 50V

C9204
100N 50V

C9213

10NF

C9213

10NF

Q9203
2N3904S-RTK/PS

Q9203
2N3904S-RTK/PS

+

C9222

4.7UF 50V

+

C9222

4.7UF 50V

1

2

3

D9203

FMEN-220A

D9203

FMEN-220A

+

C9224
270UF 25V

+

C9224
270UF 25V

Q9202
2SK4097LS 9.5A/500V

Q9202
2SK4097LS 9.5A/500V

+

C9209
10UF 50V

+

C9209
10UF 50V

+

C9207
100UF 35V

+

C9207
100UF 35V

+

C9206
270UF 25V

+

C9206
270UF 25V

R9203
56K 1/8W +/-1%

R9203
56K 1/8W +/-1%

+

C9202

150UF 35V

+

C9202

150UF 35V

R9225
10K 1/8W

R9225
10K 1/8W

12

D9202

RB160M-60TE25

D9202

RB160M-60TE25

R9221

10K 1/8W

R9221

10K 1/8W

12

D9201

RB160M-60TE25

D9201

RB160M-60TE25

C9218

100N 50V
C9218

100N 50V

1

2

FB9201BEAD FB9201BEAD

+

C9203

150UF 35V

+

C9203

150UF 35V

+

C9208
150UF 25V

+

C9208
150UF 25V

12

43

IC9202

PC123X8YFZOF

IC9202

PC123X8YFZOF

+

C9225
NC

+

C9225
NC

C9119
10NF

C9119
10NF

R9215

2M 1% 1/4W

R9215

2M 1% 1/4W

1 2

ZD9204
MTZJ T-72 30B

ZD9204
MTZJ T-72 30B

Circuit Diagrams and PWB Layouts

EN 44TPM8.3A LA 10.

2011-Nov-11

Main Power

19170_509_110629.eps

110629

Main Power

A05 A05

2011-03-15

1

715G4878

MainPower

VCC1

B+

VLED

VLED

VLED1

5.2V

ON/OFF

12V

24V

DIM

PS_ON

Vsen

COMP1

!

!

!

!

!

add_0220

Q9102
2SK4097LS 9.5A/500V

Q9102
2SK4097LS 9.5A/500V

R9107

34K

R9107

34K

C9108
1N 50V

C9108
1N 50V

+

C9106

120UF 160V

+

C9106

120UF 160V

R9125
10K 1/8W

R9125
10K 1/8W

C9114
220pF 50V

C9114
220pF 50V

R9119

10K 1/8W

R9119

10K 1/8W

R9110
2K 1/8W 1%

R9110
2K 1/8W 1%

R9113

100K(NC)

R9113

100K(NC)

Q9103
2N7002

Q9103
2N7002

R9109

5.1KOHM +-1% 1/8W

R9109

5.1KOHM +-1% 1/8W

R9108

24KOHM +-1% 1/8W

R9108

24KOHM +-1% 1/8W

R9120
10 OHM 1/8W

R9120
10 OHM 1/8W

C9107
22NF

C9107
22NF

R9105

220R 1%

R9105

220R 1%

C9110
1U 50V

C9110
1U 50V

C9121

330nF(NC)

C9121

330nF(NC)

+

C9118
10UF 50V

+

C9118
10UF 50V

Q9101
2SK4097LS 9.5A/500V

Q9101
2SK4097LS 9.5A/500V

1 2

FB9101

BEAD

FB9101

BEAD

R9124
10K 1/8W

R9124
10K 1/8W

R9116
10 OHM 1/8W

R9116
10 OHM 1/8W

1

2

D9101

RB160M-60TE25

D9101

RB160M-60TE25

R9101

30.9K

R9101

30.9K

R9126

39K 1/8W 1%

R9126

39K 1/8W 1%

R9102

7.5 OHM 1/4W

R9102

7.5 OHM 1/4W

R9121

10K 1/8W

R9121

10K 1/8W

C9115
100N 50V

C9115
100N 50V

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

IC9101

SSC9512S-TL

IC9101

SSC9512S-TL

C9103
1N 50V

C9103
1N 50V

R9115
16K9 1/8W 1%

R9115
16K9 1/8W 1%

1 2

ZD9104

MTZJ T-72 15B

ZD9104

MTZJ T-72 15B

C9120

100NF 50V

C9120

100NF 50V

1

2

D9103

RB160M-60TE25

D9103

RB160M-60TE25

R9127

34K

R9127

34K

R9122

47OHM +-5% 1/8W

R9122

47OHM +-5% 1/8W

1

2

3

D9102

FMX-23S

D9102

FMX-23S

R9106
3K 1/8W +/-1%

R9106
3K 1/8W +/-1%

C9111

10pF3KV

C9111

10pF3KV

+

C9116

4.7UF 50V

+

C9116

4.7UF 50V

C9102

470pF/250V

C9102

470pF/250V

C9113

100PF 2KV

C9113

100PF 2KV

1 2

ZD9101

MTZJ T-77 22B

ZD9101

MTZJ T-77 22B

C9104

100N 50V

C9104

100N 50V

R9114

100K(NC)

R9114

100K(NC)

C9105
1U 50V

C9105
1U 50V

1
2

6
7

8

9

10

11

12
13

14
15

T9101

POWER X'FMR

T9101

POWER X'FMR

1 2

ZD9102

MTZJ T-77 22B

ZD9102

MTZJ T-77 22B

C9101
10NF

C9101
10NF

1

2

3

4

5

6

7

8

9

10

11

12

13

CN9101

CONN

CN9101

CONN

IC9103

AS431AZTR-E1

IC9103

AS431AZTR-E1

R9103
470 OHM 1/8W

R9103
470 OHM 1/8W

R9118

47OHM +-5% 1/8W

R9118

47OHM +-5% 1/8W

12

43

IC9102

PC123X8YFZOF

IC9102

PC123X8YFZOF

1

2

ZD9103

MTZJ T-77 22B

ZD9103

MTZJ T-77 22B

+

C9117
120UF 160V

+

C9117
120UF 160V

R9117

30.9K

R9117

30.9K

R9112

100K(NC)

R9112

100K(NC)

R9123

20K 1/8W 1%

R9123

20K 1/8W 1%

R9111

0.1 ohm

R9111

0.1 ohm

R9104

4.7K 1/8W

R9104

4.7K 1/8W

1 2

FB9102

BEAD

FB9102

BEAD

D9104
EG01A

D9104
EG01A

C9112

100N 50V
C9112

100N 50V

C9109
1U 25V

C9109
1U 25V

Circuit Diagrams and PWB Layouts

EN 45TPM8.3A LA 10.

2011-Nov-11

LED Driver

19170_510_110629.eps

110629

LED Driver

A06 A06

2011-03-15

1

715G4878

LED Driver

VLED

G6

LED1 LED3

G5G3

LED3

LED2

LED2 LED4

G1

VFB

LED5LED6

LED8LED3

S4

12V LED1 LED6

S2 S3 S5

LED4 LED5

LED4

LED1

S6

LED2

S1

G4 LED5

G2

S1
S2

VFB

12V

S4

VSET

EN

12V

DIM

VSET

COMP1

DIM

S3

COMP1

S6

S5

LED6

S7

G7

S8

G8

LED7

LED8LED7

LED8 LED7

S7

S8

LED6

LED3

LED5

LED7
LED2

LED1

VLED

LED4

LED8

DIM

ON/OFF

EN

G81

S8

G61

S6

5.2V

VLED

12V

12V

G8

G81

G61

G6

EN

SLB1

SLB2

SLB2

SLB1

G1

G2 G3G4

G5G7

Q8111

PMBS3906

Q8111

PMBS3906

R8146NCR8146
NC

R8141
51OHM +-5% 1/8W

R8141
51OHM +-5% 1/8W

R8150
12R

R8150
12R

R8149

0R05 1/4W

R8149

0R05 1/4W

C8102

100N 50V

C8102

100N 50V

S2

1

G2

2

S1

3

G1

4

D1

5

D1

6

D2

7

D2

8

Q8102

AO4828L

Q8102

AO4828L

R8113

12R 1%

R8113

12R 1%

1 2

ZD8113

MTZJ T-72(NC)

ZD8113

MTZJ T-72(NC)

1 2

ZD8111

MTZJ T-72(NC)

ZD8111

MTZJ T-72(NC)

1 2

D8110

RB160M-60TE25(NC)

D8110

RB160M-60TE25(NC)

R8131NCR8131
NC

R8138
1K 1/8W(NC)

R8138
1K 1/8W(NC)

R8103

5.1R 1%

R8103

5.1R 1%

1 2

ZD8106

MTZJ T-72

ZD8106

MTZJ T-72

1 2

ZD8109

MTZJ T-72(NC)

ZD8109

MTZJ T-72(NC)

R8157
12R 1%

R8157
12R 1%

C8109

10nF 50V(NC)

C8109

10nF 50V(NC)

COMP

1

DIM

2

EN

3

VCC

4

OUT1

5

CS1

6

OUT3

7

CS38CS4

9

OUT4

10

CS2

11

OUT2

12

GND

13

SLP

14

VSET

15

VFB

16

IC8101

PF7004

IC8101

PF7004

+

C8105

10UF 50V

+

C8105

10UF 50V

R8147NCR8147
NC

R8152
12R 1%

R8152
12R 1%

R8143NCR8143
NC

R8118

12R 1%

R8118

12R 1%

1 2

ZD8103

MTZJ T-72

ZD8103

MTZJ T-72

R8107

5.1R 1%

R8107

5.1R 1%

R8101

5.1R 1%

R8101

5.1R 1%

3

2

1

D8109

BAW56

D8109

BAW56

R8132
100K OHM 1/4W

R8132
100K OHM 1/4W

R8121

100K 1/8W

R8121

100K 1/8W

R8115

12R 1%

R8115

12R 1%

+

C8101

10UF 50V

+

C8101

10UF 50V

Q8110
PMBS3904(NC)

Q8110
PMBS3904(NC)

R8112

12R 1%

R8112

12R 1%

R8104

5.1R 1%

R8104

5.1R 1%

3

1

2

D8102

BAV70

D8102

BAV70

R8127

1MOHM +-5% 1/4W

R8127

1MOHM +-5% 1/4W

R8122

0R05OHM1/8W

R8122

0R05OHM1/8W

R8142NCR8142
NC

R8154
12R

R8154
12R

R8148
51OHM +-5% 1/8W

R8148
51OHM +-5% 1/8W

1 2

ZD8108

MTZJ T-72(NC)

ZD8108

MTZJ T-72(NC)

3

1

2

D8103

BAV70

D8103

BAV70

1 2

ZD8114

MTZJ T-72(NC)

ZD8114

MTZJ T-72(NC)

R8134

10K 1/8W

R8134

10K 1/8W

1 2

ZD8112

MTZJ T-72(NC)

ZD8112

MTZJ T-72(NC)

R8156
12R 1%

R8156
12R 1%

R8159

0R05OHM1/8W

R8159

0R05OHM1/8W

R8108

5.1R 1%

R8108

5.1R 1%

3

2

1

D8107

BAW56

D8107

BAW56

C8106

1UF(NC)

C8106

1UF(NC)

R8110

51K 1/4W(NC)

R8110

51K 1/4W(NC)

S2

1

G2

2

S1

3

G1

4

D1

5

D1

6

D2

7

D2

8

Q8104

AO4828L

Q8104

AO4828L

1 2

ZD8110

MTZJ T-72(NC)

ZD8110

MTZJ T-72(NC)

12

ZD8105

MTZJ12B(NC)

ZD8105

MTZJ12B(NC)

R8117

12R 1%

R8117

12R 1%

R8151
12R

R8151
12R

S2

1

G2

2

S1

3

G14D1

5

D1

6

D2

7

D2

8

Q8101

AO4828L

Q8101

AO4828L

3

1

2

D8101

BAV70

D8101

BAV70

R8140

150K 1/8W +/-1%(NC)

R8140

150K 1/8W +/-1%(NC)

R8161
1K 1/8W

R8161
1K 1/8W

R8120
3K 1/8W 5%

R8120
3K 1/8W 5%

R8105

5.1R 1%

R8105

5.1R 1%

C8103
100N 50V

C8103
100N 50V

S2

1

G2

2

S1

3

G14D1

5

D1

6

D2

7

D2

8

Q8103

AO4828L

Q8103

AO4828L

R8114

12R 1%

R8114

12R 1%

R8123
10K 1/4W

R8123
10K 1/4W

1

2

D8111

RB160M-60TE25(NC)

D8111

RB160M-60TE25(NC)

R8124

0R05 1/4W

R8124

0R05 1/4W

R8139
10K 1/8W(NC)

R8139
10K 1/8W(NC)

3

2

1

D8106

BAW56

D8106

BAW56

R8153
12R 1%

R8153
12R 1%

COMP

1

DIM

2

EN

3

VCC

4

OUT1

5

CS1

6

OUT3

7

CS3

8

CS4

9

OUT4

10

CS2

11

OUT2

12

GND

13

SLP

14

VSET

15

VFB

16

IC8102

PF7004

IC8102

PF7004

C8104

0.22uF 50V(NC)

C8104

0.22uF 50V(NC)

R8102

5.1R 1%

R8102

5.1R 1%

1

2

3

4

5

6

7

8

9

10

11

12

CN8104

CONN

CN8104

CONN

R8119

75K +-5% 1/8W

R8119

75K +-5% 1/8W

R8137

36K OHM(NC)

R8137

36K OHM(NC)

R8160
1K 1/8W

R8160
1K 1/8W

R8145NCR8145
NC

R8158
1K OHM +-5% 1/8W(NC)

R8158
1K OHM +-5% 1/8W(NC)

S2

1

G2

2

S1

3

G1

4

D1

5

D1

6

D2

7

D2

8

Q8108

AO4828L

Q8108

AO4828L

S2

1

G2

2

S1

3

G1

4

D1

5

D1

6

D2

7

D2

8

Q8105

AO4828L

Q8105

AO4828L

R8136

100KOHM +-1% 1/4W(NC)

R8136

100KOHM +-1% 1/4W(NC)

R8116

12R 1%

R8116

12R 1%

Q8109
2N7002(NC)

Q8109
2N7002(NC)

R8111

12R 1%

R8111

12R 1%

R8135
10K 1/8W(NC)

R8135
10K 1/8W(NC)

S2

1

G2

2

S1

3

G1

4

D1

5

D1

6

D2

7

D2

8

Q8106

AO4828L

Q8106

AO4828L

R8125

0R05 1/4W

R8125

0R05 1/4W

3

2

1

D8108

BAW56

D8108

BAW56

1 2

ZD8102

MTZJ4.3B

ZD8102

MTZJ4.3B

S2

1

G2

2

S1

3

G14D1

5

D1

6

D2

7

D2

8

Q8107

AO4828L

Q8107

AO4828L

R8126

1.2K 1/8W

R8126

1.2K 1/8W

3

1

2

D8104

BAV70

D8104

BAV70

R8128

10K 1/4W

R8128

10K 1/4W

1 2

ZD8115

MTZJ T-72(NC)

ZD8115

MTZJ T-72(NC)

R8155
12R

R8155
12R

R8106

5.1R 1%

R8106

5.1R 1%

Circuit Diagrams and PWB Layouts

EN 46TPM8.3A LA 10.

2011-Nov-11

19170_511_110629.eps

110629

2011-06-20

1

715G4878

Power

layout top

R1

R2

BD9901

C9101

C9106

C9111

C9113

C9116

C9117

C9202

C9203C9205

C9206

C9207

C9208

C9217

C9219

C9222

C9304

C9307

C9310

C9313

C9801

C9802

C9803

C9804

C9911

C9912

C9913

C9914

D9301

D9303

D9304

D9801

F9901

FB9101 FB9102

FB9801

FB9802

IC9102

IC9103

IC9202

IC9203

IC9301

IC9302

IC9802

L9201

L9202

L9301

R9111

R9301

R9801

R9808

ZD9202

ZD9203

ZD9204

ZD9801

C9224

J962

C9813

C9814

FB9803

J959

HS9302

J951

J923

J924

C9806

J919

D9205

D9203

C9209

J934

C9815

C9118

C9915

D9102

FB9903

J903

J902

J938

J905

FB9302

J960

J912

J911

J906

J916

J917

J901

J931

J927

J949

J955

J956

J937

J941

J925

J920

J921

J926

J953

J963

J932

J928

J961

J958

D9104

D9204

D9802

FB9804

FB9201

HS9301

C8101

R8101

R8102

R8103

R8104

R8105

R8106

R8107

R8108

J907

J909

J930

R8132

C9107

CN8104

Q9806

C9119

C8105

C9315

C9225

ZD8103

ZD8105

ZD8106

ZD8102

ZD9104

ZD9201

R8147

R8143

R8145

R8146

J965

J904

J942

J944

J913

J950

C9213

C9305

J908

J915

J939

J922

J943

J945

D9302

J910

J947

J940

J957

J966

J936

J935

L9902

L9901

J952

J954

J967

J968

ZD9101

ZD9102

ZD9103

SP2

SP1

SP4

SP5

SP3

SP6

GND8

GND7

GND5

GND3

GND2

GND1

C9102

CN9901

CN9101

Q9801

Q9201

Q9202

Q9102

Q9101

C9318

C9316

ZD8109

ZD8110

ZD8111

ZD8112

ZD8114

ZD8115

ZD8108

ZD8113

J918

J969

J933

C9901

C9902

RV9901

NR9801

NR9902

NR9901

L9801

T9201

T9101

J970

T9301

R8127

C9314

GND4

GND6

GND9

J948

J914

HS9801

HS9201

HS9202

HS9901

R1

R2

BD9901

C9101

C9106

C9111

C9113

C9116

C9117

C9202

C9203C9205

C9206

C9207

C9208

C9217

C9219

C9222

C9304

C9307

C9310

C9313

C9801

C9802

C9803

C9804

C9911

C9912

C9913

C9914

D9301

D9303

D9304

D9801

F9901

FB9101 FB9102

FB9801

FB9802

IC9102

IC9103

IC9202

IC9203

IC9301

IC9302

IC9802

L9201

L9202

L9301

R9111

R9301

R9801

R9808

ZD9202

ZD9203

ZD9204

ZD9801

C9224

J962

C9813

C9814

FB9803

J959

HS9302

J951

J923

J924

C9806

J919

D9205

D9203

C9209

J934

C9815

C9118

C9915

D9102

FB9903

J903

J902

J938

J905

FB9302

J960

J912

J911

J906

J916

J917

J901

J931

J927

J949

J955

J956

J937

J941

J925

J920

J921

J926

J953

J963

J932

J928

J961

J958

D9104

D9204

D9802

FB9804

FB9201

HS9301

C8101

R8101

R8102

R8103

R8104

R8105

R8106

R8107

R8108

J907

J909

J930

R8132

C9107

CN8104

Q9806

C9119

C8105

C9315

C9225

ZD8103

ZD8105

ZD8106

ZD8102

ZD9104

ZD9201

R8147

R8143

R8145

R8146

J965

J904

J942

J944

J913

J950

C9213

C9305

J908

J915

J939

J922

J943

J945

D9302

J910

J947

J940

J957

J966

J936

J935

L9902

L9901

J952

J954

J967

J968

ZD9101

ZD9102

ZD9103

SP2

SP1

SP4

SP5

SP3

SP6

GND8

GND7

GND5

GND3

GND2

GND1

C9102

CN9901

CN9101

Q9801

Q9201

Q9202

Q9102

Q9101

C9318

C9316

ZD8109

ZD8110

ZD8111

ZD8112

ZD8114

ZD8115

ZD8108

ZD8113

J918

J969

J933

C9901

C9902

RV9901

NR9801

NR9902

NR9901

L9801

T9201

T9101

J970

T9301

R8127

C9314

GND4

GND6

GND9

J948

J914

HS9801

HS9201

HS9202

HS9901

Power layout top

Circuit Diagrams and PWB Layouts

EN 47TPM8.3A LA 10.

2011-Nov-11

Power layout bottom

19170_505_110629.eps

110629

2011-06-20

1

715G4878

Power

layout bottom

C9204

C8103

C9103

C9104

C9105

C9108

C9110

C9112

C9114

C9115

C9201

C8102

C9210

C9211

C9212

C9214

C9216

C9218

C9220

C9221

C9223

C9301C9302

C9303

C9306

C9308

C9309

C9311

C9312

C9805

C9807

C9808

C9809

C9810

C9811

C9812

D9101

D9103

D9201

D9202

D9206

D9207

D9208

D9305

D9803

IC9201

IC9801

R8111

R8115

R8116

R8112

R8117

R8113

R8114

R8118

R9102

R9103

R9104

R9105

R9106

R9108

R9109

R9110

R9115

R9116

R9118

R9119

R9120

R9121

R9122

R8126

R9201
R9202

R9203

R9204

R9205

R9206

R9207

R9208

R9209

R9210

R9211

R9212

R9214

R9215

R9216

R9217

R9219

R9220

R9221
R9222

R9223

R9224

R9225

R9226

R9302

R9303

R9304

R9305

R9306

R9307

R9308

R9309

R9310

R9311

R9312

R9313

R9314

R9315

R9316

R9317

R9318

R9319

R9320

R9802
R9803

R9804

R9805

R9806

R9807

R9809

R9810

R9811

R9812

R9813

R9814

R9815

R9816

R9817

R9818

R9901

R9902 R9903

Q8101

Q8102

Q8103

Q8104

Q8105

Q8106

Q8107

Q8108

IC9101

IC8101

IC8102

R8121

R8122

R9123

R9124

R9125

JR901

JR902

JR903

JR904

JR907

JR908

JR910JR911

JR912

JR917

JR919

JR918

C9109

C9215

R8135

R8134

JR920

R8123

R8128

C8106

R8142

R9126

R9321

R9322

R9819

R8136

R9820

R9821

R9822

R9823

R9824

D8110D8111

IC9901

R8119

C8109

R8131

R8137

R8138

R8139

R8140

R8141

R8148

JR915

R8120

JR921

D8101

D8102

D8103

D8104

Q8110

Q8111

Q9203

Q9803

Q9805

Q9807

Q8109

Q9103

Q9301

C8104

R8110

C9120

C9317

R8158

R8159

R8149

R9112

R9113

R9114

D9306

D9307

R8125

R8124

C9121

Q9802

R9101

R9107

R9117

R9127

R8152

R8153

R8156

R8157

R8160

R8161

R8150

R8151

R8154

R8155

IC9303

D8106

D8107

D8108

D8109

Circuit Diagrams and PWB Layouts

EN 48TPM8.3A LA 10.

2011-Nov-11

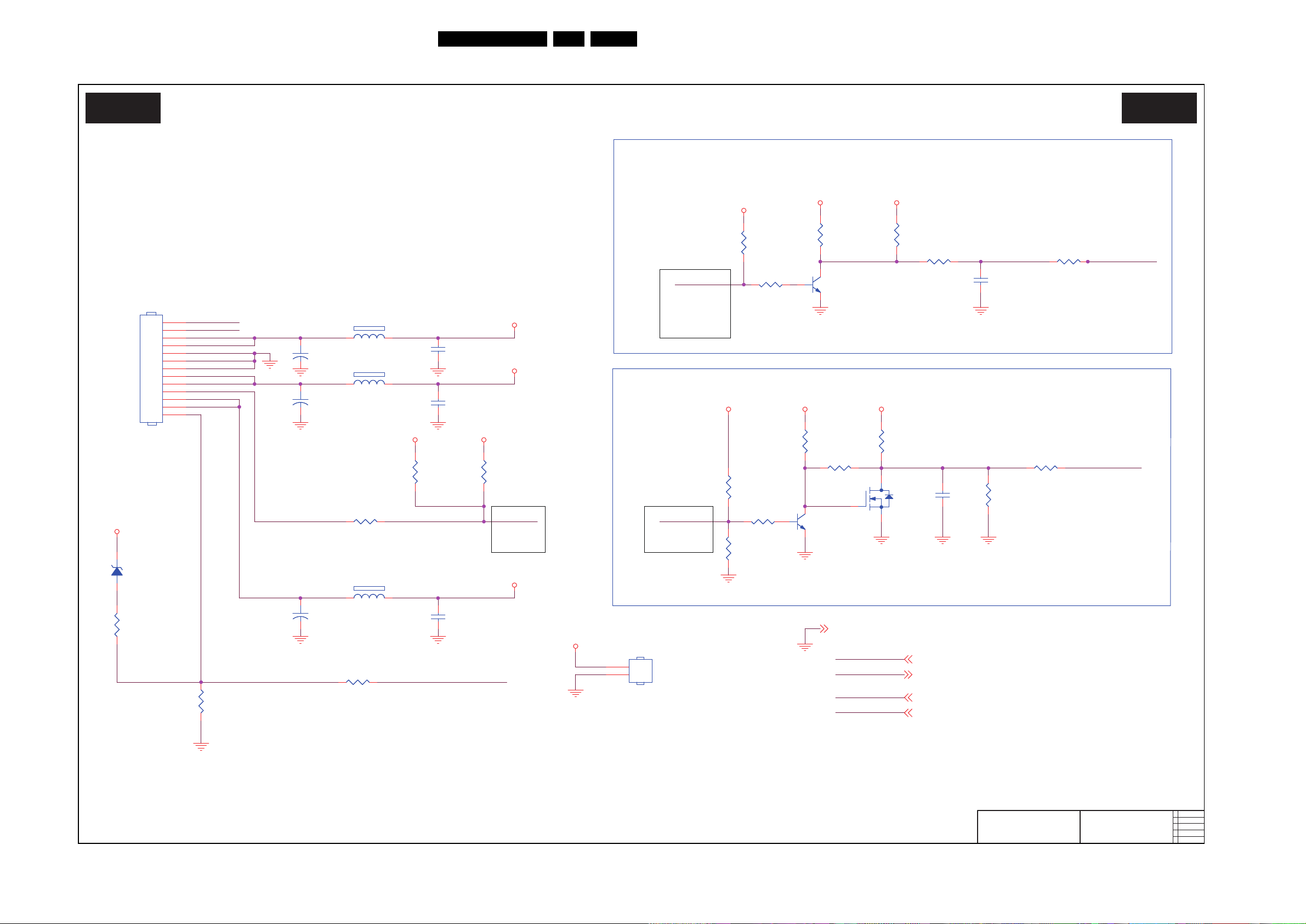

Circuit Diagrams and PWB Layouts

19170_513_110627.eps

110627

PSU & Inverter Interface

B01 B01

2011-03-12

4

715G4611

BL_DIM_PWM
BL_ON/OFF#

STANDBY

PWR_OK

BL_CTRL
BRI_ADJ

STANDBY

PWR_OK

BRI_ADJ

BL_CTRL

BL_ON/OFF#

BL_DIM_PWM

5VSB

+12V

+24V

5V_SW

3V3_BUCK

5VSB

5V_SW

5VSB

DVDD3V3

DVDD3V3

5V_SW

+12V

+12V

BL_DIM_PWM 12
BL_ON/OFF# 12

GND 5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22

STANDBY 12,18

PWR_OK 12

LIPS Interface

H : ON
L : Standby

Brightness Adjust

Backlight On/Off

PWM Control

L : BL_ON
H : BL_OFF

0% : Max Luma
99% : Min Luma

R746

4K7 1/16W 5%

R744
10K 1/16W 5%

R706

2.2K 1/16W

R712

0R05 1/10W

R751
0R05 1/10W

1
2

CN416

NC/CONN

R703

10K 1/16W 5%

R750
0R05 1/10W

Q703

PMBS3904

R765

NC\1K 1/16W 5%

+

C705

100UF 25V

+

R764
NC\1K 1/16W 5%

C702

100N 50V

C707
100N 16V

+

C701

100UF 25V

+

R709
1K 1/16W 5%

C704

100N 50V

1 2

ZD139

RLZ5.6B

R711

47K 1/16W 5%

R702

NC\10K 1/16W 5%

1
2

3

4
5
6
7

8

9
10
11
12
13

CN701

CONN

C706

10U 10V

C708

NC/1UF 10V

R707

10K 1/16W 5%

R707

10K 1/16W 5%

+

C703

100UF 35V

+

R701

1.2K 1/16W

Q701

PMBS3904

R710

0R05 1/16W

Q702

NC\2N7002

1 2

FB703

120R/6000mA

R752
0R05 1/10W

R704
NC\2.2K 1/16W

R705

0R05 1/16W

R769

1K2 1/10W 5%

1

2

FB701

120R/6000mA

R708
NC\2.2K 1/16W

1

2

FB702

120R/6000mA

PSU & Inverter Interface

EN 49TPM8.3A LA 10.

10-3 B 715G4611 SSB

PSU & Inverter Interface

2011-Nov-11

DC-DC BUCK & LDO Regulator

19170_514_110627.eps

110627

DC-DC BUCK & LDO Regulator

B02 B02

2011-03-12

4

715G4611

DC-DC BUCK &

LDO Regulator

OPWRSB

OPWRSB

LVDS_PWR_EN

LVDS_PWR_EN

5V_BUCK

+12V

AVDD3V3

DVDD3V3

3V3_BUCK

3V3_BUCK

5VSB

5V_SW

DDRV

5V_USB

3V3SB

5VSB

5VESD

ADAC_PWR

5V_SW

3V3SB5VSB

V3.3

V1.2

V3.35V_SW

AVDD3V3

5V_SW

AVDD1V2

+12V

5VSB 5V_BUCK

LVDSVDD

VCCK

5VSB

5V_SW

3V3_BUCK

5V_SW

VCCK

+24V_USB

OPWRSB 12

GND 4,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22

LVDS_PWR_EN 12

SoC_AVDD3V3 = 740 mA
HDMI_SW = 120 mA

15K

5V2 12V5
82K 220K

R736

15K

R737

V1 = 0.8 * (1+ 220/15) = 12.5
V2 = 0.8 * (1+ 82/15) = 5.17

= 0.925*(1+2.43/10) = 1.15

Vo = 0.925*(1+R743/R742)

SoC_1V2 = 2250mA

Soc Core Power : 1.15V (3A)

R743 = 2.7K --> 2.43K

12V5 or 5V2 Main Power (3A)

3V3 Main Power :

1V8 or 1V5 DDR Power : DDRV

Vo = 1+ (R732/R733)

DDR2 = 650mA

V1 = 1+ (8.2/10) = 1.82
V2 = 1+ (5.2/10) = 1.52

R732 = 2.7K --> 8.2K
R732 = 2.7K --> 5.2K

USB2.0 = 1000mA

R736 = 220K
R736 = 82K

DDR3 = 900mA

Vo = 0.8 * (1+ R736/R737)

Demod_1V2 = 210mA

Vout=Fixed 1.2V

G903T63UF G912T63U

Demod 3V3 Power : V3.3

Demod_3V3 = 85mA.

Vout=Fixed 3.3V

NC/G903T63UF

Reserved for ADAC_PWR

Vout=Fixed 3.3V

Analog Power : AVDD1V2

SoC_AVDD1V2 = 400 mA

Demod 1V2 Power : V1.2

SoC_3V3_STBC = 30 mA;SoC_X'TAL = 80 mA;

G903T63UF

STBY Power : 3V3SB

Total = 110 mA.

Vout=Fixed 3.3V

Vo = 1+ (R749/R748)
V1 = 1+ (2/10) = 1.2

System Power Control

NC

1V2: ON
0V: STANDBY

NC

NC NC

YES

YES

5V panel 12V panel

FB713

FB712

FB711

L: Off

Panel Logic Power Control

LDO Regulator

Power MOSFET Switch

Vout=0.827x (1+100.3K/33K) = 3.34V for DVDD3V3 & AVDD3V3

R727

10K 1/10W

R766

33K 1%

Q704

PMBS3904

1

2

FB728

120R/3000mA

C710

100N 50V

C753
10U 16V

C724
10U 16V

C750

1UF 10V

1

2

FB732

NC\120R/3000mA

C746 NC\10N 50V

C721

22uF 10V

C762

1UF16V

L702

2.2uH

L702

2.2uH

C760
NC\10U 16V

C757

NC\10U 16V

C732

180pF 50V

C739

1UF 10V

C728
10uF 16V

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

Q709

AO4449 -7A/-30V

C709
NC\470nF 16V

R731

1K 1/16W 5%

C748
10U 16V

C742
10uF 16V

1 2

FB735

NC\120R/3000mA

R734

47K 1/16W 5%

C731

1uF 50V

1 2

FB716

120R/3000mA

1 2

FB725

120R/3000mA

C734

1uF 25V

1 2

FB711

NC\120R/6000mA

1 2

FB712

NC/120R/6000mA

C758
NC\10U 16V

VI3VO

2

GND

1

4

4

U708U708

R728

C745

2.2nF 50V

R737

15K 1%

R743

2.7K 1/16W 1%

C7003

22UF

1 2

FB729

120R/3000mA

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

Q707

AO4449 -7A/-30V

C737
10U 16V

C761
NC\10U 16V

C763
NC\10U 16V

L701

1.5UH
R715

10K 1/16W 5%

C715

NC\220NF 25V

1 2

FB717

120R/3000mA

FB717

1 2

FB727

120R/3000mA

R725
56KOHM 1/16W

LX

1

BST

2

GND

3

FB

4

COMP

5

EN

6

VIN

7

VBIAS

8

U703

AOZ1212AI

VIN

1

VIN

2

GND

3

GND

4

AGND

5

VSNS

6

COMP

7

RT/CLK

8

SS

9

PH

10

PH

11

PH

12

BOOT

13

PWRGD

14

EN

15

VIN

16

PwPd

17

U701
TPS54319RTE

U701
TPS54319RTE

1 2

FB746

120R/3000mA

C765
10U 16V

L703

10uH

C733

1N 50V

C718

100N 16V

R767

100K 1%

R740 4K7 1/16W 5%

R749

2K 1%

VIN3VOUT

2

GND14

4

U709U709

1 2

FB707

NC\120R/6000mA

LX

3

FB

5

SS

8

IN

2

EN

7

COMP

6

NC

1

GND4Thermal Pad

9

U704

G5657F12U

R747

1K 1/16W 5%

C741
10uF 16V

C799

0.1UF 16V

R730

300R 1/16W 1%

C755

10nF50V

+

C729

100UF 25V

+

1 2

FB734

NC\120R/3000mA

1 2

FB723

120R/3000mA

1 2

FB713

120R/6000mA

C754

10nF50V

R735

20K 1/16W

R745

1K 1/16W 5%

C759

NC\1UF 10V

C736
10uF 16V

R772

100K 1/16W 5%

1 2

D702

SX34

C719

NC/22uF 10V

1 2

FB737

120R/3000mA

R729

180K 1%

R713

1K 1/16W 5%

R713

1K 1/16W 5%

C727
10U 16V

1 2

FB715

120R/6000mA

C725

10nF50V

C756

NC\1UF 10V

1 2

FB733

NC\120R/3000mA

1 2

D704

SX34

R717

10K 1/16W 5%

L704

47uH

C751
10U 16V

TP708TP708

R723

10K 1/16W 5%

1 2

FB719

120R/3000mA

C726

10nF50V

C747

100N 16V

56KOHM 1/16W

R726

56KOHM 1/16W

1

2

D703

NC\RB160M-60TE25

R732

8.2K 1%

C767
NC\10U 16V

Q706

PMBS3904

VOUT

4

VIN

1

EN

3

LX

5

GND

2

U702

SC189ASKTRT

R741

12KOHM +-5% 1/16W

R768

NC\0.68 OHM +-5% 2WS

C723

1UF 10V

C735 100N 50V

C714

220NF 25V

R742

10K +-1% 1/16W

VIN3VOUT

2

GND14

4

U705U705

1

2

FB714

NC/120R/6000mA

FB714

1 2

FB726

120R/6000mA

1 2

FB731

NC\120R/3000mA

C764

NC\1UF 10V

C738

0.1UF 16V

C716

100N 50V

C722

1UF 10V

C749
10U 16V

1

2

FB736

NC\120R/3000mA

C766
10U 16V

C720

22uF 10V

1 2

FB721

120R/3000mA

R716

22K 1/16W 5%

C730

1uF 50V

1 2

FB718

120R/3000mA

1K 1/16W 5%

R724

C743

100N 16V

R733

10K +-1% 1/16W

C7002
NC\100N 16V

R748

10K +-1% 1/16W

VIN

3

VOUT

2

GND14

4

U707U707

C744

180pF 50V

C752
10U 16V

C7001

100N 16V

1 2

FB730

120R/3000mA

R714

10K 1/16W 5%

R714

10K 1/16W 5%

L705

2.2uH

R753

10K +-1% 1/16W

R736

82K 1/16W

C717

10uF 10V

C713

3.3nF 50V

VOUT

4

VIN

1

EN

3

LX

5

GND

2

U706

SC189ASKTRT

Circuit Diagrams and PWB Layouts

EN 50TPM8.3A LA 10.

2011-Nov-11

VGA & PC Line-in

19170_515_110627.eps

110627

VGA & PC Line-in

B03 B03

2011-03-02

2

715G4611

VGA & PC Line-in

VGA_R

VGA_B

PC_A U_INR

VGA_G

VGA_L_IN

VGA_R_IN

GP

VGACOM

SOG

RP

BP

PC_S DA

PC_S CL

HS

VS

PC_5 VI

PC_5 VI

VGA_RX

VGA_TX

HSYNC

VSYNCVS

HS

VGA_L_IN

VGA_R_IN

DDC _W P#

GP

SOG

VGACOM

BP

RP

VSYNC

HSYNC

VGA_SDA

VGA_SCL

PC_SDA

PC_SCL

URSW

DDC _W P#

VGA_R VGA_G VGA_B PC _SCL PC _SDA HS

URSW

U0RX U0TX

AMUX_5V

VGA_5V

VGA_5V 5V_SW

5VESD

5V_SW3V3SB

GND 4,5,7,8,9,10 ,11 ,12,13,14 ,15 ,16 ,17 ,18,19,20,21 ,22

VGA_L_IN 7

VGA_R_IN 7

VSYNC 12

HSYNC 12

GP 12

RP 1 2

VGACOM 12

BP 12

VGA_SDA 12

SOG 12

VGA_SCL 12

DDC _W P# 8 ,12

PC Audio-in

Close to Jack

Close to SoC

Close to Jack

Close to SoC

VGA Input

VGA SYNC Slicer

L : WP
H : Write

RX/TX E_SW

R185

10K 1/16W 5%

R169

NC 4K7 1/1 6W 5%

CN102

R171

0R05 1/10W

R172

0R05 1/10W

R174

10K 1/16W 5%

R173

10K 1/16W 5%

R177

470K 1/16W 5%

R178

470K 1/16W 5%

R179

470K 1/16W 5%

R180

470K 1/16W 5%

PhoneJack

1

2

3

R184
NC\2K 1/16W

\1

R160 0R051/16W/

CN101

1
6
2
7

3
8

4
9
5

11
12
13
14
15

10

17

16

C116R159

75R1/16W 1%

U105

CAT2 4C02Y I-GT3

I

A0

1

A1

2

A2

3

GND

4

SDA

5

SCL

6

WP

7

VCC

8

R166 0R05 1/16W/

C118 10N50V

1 2

R167

NC10K 1/16W 5%

R158 68R 1/16W 5%/

R188 1K 1/16W 5%

C117

ZD122

NC\MLVG0402

1

2

ZD123123

1

2

R176

5.1K 1%

R182
NC\2K 1/16W

\1

ZD129

12

ZD125

12

R157

75R1/16W 1%

Q105

PMBS3904

ZD117

12

D103

NC\BA S316

\

A

1

K

2

1 2

ZD130

12

ZD118

NC\MLVG0402

NC\MLVG0402

NC\MLVG0402

NC\MLVG0402

NC\MLVG0402

NC\MLVG0402

NC\MLVG0402

NC\MLVG0402

NC\MLVG0402

NC\MLVG0402

NC\MLVG0402

NC\MLVG0402

1

2

R161 68R 1/16W 5%

R190

NC/1K1/16W

/K/

R189

4K7 1/16W 5%

ZD126

12

R165 0R05 1/16W/

1 2

C136
10U16V

R163

75R1/16W 1%

1%

Q108

NC 2N7002

NC 2N7002

1 2

C115
NC\10P 50V

NC\10P 50V

NC\10P 50V

C140
100N16V

C140
100N16V

C119 1.5nF 50V

D106

NC\BAS316

\

A

1

K

2

R186
10K 1/16W 5%

R168

NC 10 0R 1/16W 5%

/

R187

10K 1/16W 5%

ZD120

12

R162 100R 1/16W 1%

R164 68R 1/16W 5%16

C137
10U16V

ZD121

NC\
MLVG0402

1 2

100R1/16W 5%

R170

ZD119

12

D102

NC\BAS316

A

1

K

2

C139

22P50V

R210

100R1/16W 5%

/

ZD127

12

ZD124

12

C138

22P50V

Q109

Q106

NC BC847C

1

3

2

D101

BAT54C

D101

BAT54C

C13210N50V

ZD128

1

2

C133 10N50V

C135

100N16V

R175

5.1K 1%

C13410N50V

D-SUB 15P

FB108

FB109

FB110

30R/700mA

30R/700mA

30R/700mA

FB107

120R/3000mA

VGA_RX

VGA_TX

Circuit Diagrams and PWB Layouts

EN 51TPM8.3A LA 10.

2011-Nov-11

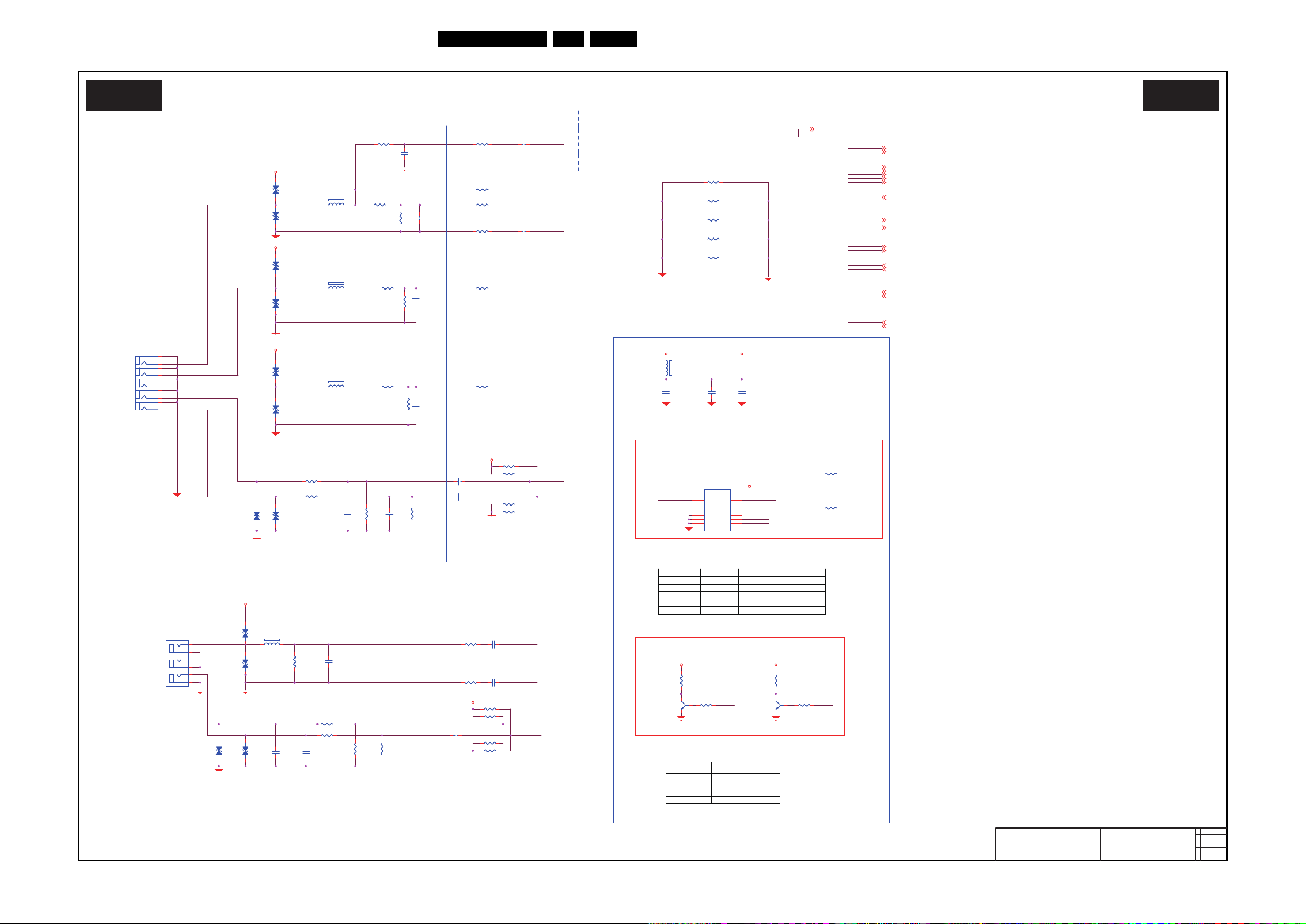

CVI, AV (side) & Audio-in Multiplexer

19170_516_110627.eps

110627

CVI, AV (side) & Audio-in Multiplexer

B04 B04

2011-03-12

4

715G4611

CVI, AV (side) &

Audio-in Multiplexer

AV1_CVBS
CVBS_COM

VGA_R_INCVI_L_IN1

CVI_R_IN1
AUD_ROUT

AIN0_L_AADC

MUX_CTLA
MUX_CTLB

AIN_CTL1

MUX_CTLAMUX_CTLB

AIN_CTL0

AUD_LOUT

AIN0_R_AADC

CVI_R_IN1
CVI_L_IN1

VGA_L_IN

VGA_R_IN

AIN_CTL1

AIN0_L_AADC

AIN0_R_AADC

AIN_CTL0

AV1_R

AV1_CVBS

CVBS_COM

AV1_LIN

AV1_RIN

AV1_L

VGA_L_IN
AV1_LIN AV1_RIN

PB1P

CVBS

CVI1_R_IN

AV2_CVBS

SOY1

PB1P
PR1P

COM1

Y1P

CVI_L_IN1

CVI_R_IN1

AV2_CVBS

PR1

CVI_R_IN1

CVI_L_IN1

Y1

CVI1_L_IN

COM1

PR1P

Y1P

SOY1

PB1

AMUX_5V

AMUX_5V

AMUX_5V

AMUX_5V

5V_SW

5VESD

AMUX_5V

AMUX_5V

5VESD

5VESD

5VESD

AV1_CVBS 12
CVBS_COM 12

CVI_R_IN1
CVI_L_IN1

VGA_R_IN 6
VGA_L_IN 6

AIN_CTL0 12
AIN_CTL1 12

AIN0_R_AADC 12
AIN0_L_AADC 12

AV2_CVBS 12

GND 4,5,6,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22

COM1 12

Y1P 12

SOY1 12

PB1P 12
PR1P 12

CVI_L_IN1

CVI_R_IN1

Audio-in MUX

Audio-in MUX CTRL

AIN_CTL1 AIN_CTL0

CVI & rear AV

(Reserved)

Audio-in MUX Select Table

AV1 (Side)

PC Line-in

00

1

1

11

0

0

Close to SoC

AV Input (Side)

Close to RCA

R/L-in

CVBS-in

X

CTL_ACTL_B

0
0
1
1

0 0x, 0y

1x, 1y1

1 3x, 3y

0 2x, 2y
X None

INHIBIT

0
0
0
0
1

Close to SoC

CVBS

R/L-in

Video-in

Close to RCA

Close to RCA

CVI (Rear)

R212 10K 1/16W 5%R212 10K 1/16W 5%

C112
10U 16V

C112
10U 16V

1

2

FB113 30R/700mAFB113 30R/700mA

R101 0R05 1/10WR101 0R05 1/10W

R232 0R05 1/4WR232 0R05 1/4W

C158
10nF50V

C158
10nF50V

R219 68R 1/16W 5%R219 68R 1/16W 5%

R205 18R 1/16W 5%R205 18R 1/16W 5%

1 2

ZD102

NC\MLVG0402

ZD102

NC\MLVG0402

C104
10U 16V

C104
10U 16V

12

FB101

120R/3000mA

FB101

120R/3000mA

R126

10K 1/16W 5%

R126

10K 1/16W 5%

R218 470K 1/16W 5%R218 470K 1/16W 5%

C102

100N16V

C102

100N16V

1 2

ZD105

NC\MLVG0402

ZD105

NC\MLVG0402

Y2

2

Y0

1

VEE

7

INH

6

CTL_B

9

CTL_A

10

Yout

3

X0

12

X3

11

VSS

8

Y3

4

Xout

13

X1

14

VDD

16

X2

15

Y1

5

U102

CD4052BPW

U102

CD4052BPW

C151
10nF50V

C151
10nF50V

C156

47pF 50V

C156

47pF 50V

1 2

ZD114

NC\MLVG0402

ZD114

NC\MLVG0402

C109

10N 50V

C109

10N 50V

R229 0R05 1/4WR229 0R05 1/4W

C150
10uF 16V

C150
10uF 16V

12

ZD132

NC\MLVG0402

ZD132

NC\MLVG0402

C157
10nF50V

C157
10nF50V

R227 470K 1/16W 5%R227 470K 1/16W 5%

12

ZD133

NC\MLVG0402

ZD133

NC\MLVG0402

R225 18R 1/16W 5%R225 18R 1/16W 5%

R222 10K 1/16W 5%R222 10K 1/16W 5%

1 2

ZD103

NC\MLVG0402

ZD103

NC\MLVG0402

1

2

FB106 120R/3000mAFB106 120R/3000mA

C107

47nF 16V

C107

47nF 16V

C110

10N 50V

C110

10N 50V

C101

10U 10V

C101

10U 10V

R148 68R 1/16W 5%R148 68R 1/16W 5%

C154
10nF50V

C154
10nF50V

R111 470K 1/16W 5%R111 470K 1/16W 5%

R213

68R 1/16W 5%

R213

68R 1/16W 5%

1 2

FB112

30R/700mA

FB112

30R/700mA

R115
10K 1/16W 5%

R115
10K 1/16W 5%

R217 0R05 1/16WR217 0R05 1/16W

C106

NC\220pF 50V

C106

NC\220pF 50V

R106 10K 1/16W 5%R106 10K 1/16W 5%

Q102

PMBS3904

Q102

PMBS3904

R102 0R05 1/10WR102 0R05 1/10W

R231 0R05 1/4WR231 0R05 1/4W

1 2

ZD135

NC\MLVG0402

ZD135

NC\MLVG0402

C159
15PF50V

C159
15PF50V

C152
15PF50V

C152
15PF50V

R107 10K 1/16W 5%R107 10K 1/16W 5%

C111
10U 16V

C111
10U 16V

R112 470K 1/16W 5%R112 470K 1/16W 5%

1 2

ZD115

NC\MLVG0402

ZD115

NC\MLVG0402

R108

5.1K 1%

R108

5.1K 1%

R230 0R05 1/4WR230 0R05 1/4W

R215

56R 1/16W 5%

R215

56R 1/16W 5%

C146

22P 50V

C146

22P 50V

12

ZD136

NC\MLVG0402

ZD136

NC\MLVG0402

R200

5.1K 1%

R200

5.1K 1%

R214

0R05 1/16W

R214

0R05 1/16W

C148
10uF 16V

C148
10uF 16V

R105

0R05 1/16W

R105

0R05 1/16W

R114
10K 1/16W 5%

R114
10K 1/16W 5%

R228 0R05 1/4WR228 0R05 1/4W

C149

1.5nF 50V

C149

1.5nF 50V

R103

75R 1/16W 1%

R103

75R 1/16W 1%

R109

5.1K 1%

R109

5.1K 1%

R226

56R 1/16W 5%

R226

56R 1/16W 5%

C103

100N16V

R223 470K 1/16W 5%R223 470K 1/16W 5%

1 2

ZD104

NC\MLVG0402

ZD104

NC\MLVG0402

C105
10U 16V

C105
10U 16V

1 2

ZD116

NC\MLVG0402

ZD116

NC\MLVG0402

Q101

PMBS3904

Q101

R224 470K 1/16W 5%R224 470K 1/16W 5%

R199 18R 1/16W 5%R199 18R 1/16W 5%

R183

5.1K 1%

R183

5.1K 1%

R104

68R 1/16W 5%

R104

68R 1/16W 5%

R113 470K 1/16W 5%R113 470K 1/16W 5%

1 2

FB111 30R/700mAFB111 30R/700mA

R216

56R

R216

56R

1
2

3

4
5

6
7

8

9
10

E

A

B

C

D

CN702

RCA JACK

E

A

B

C

D

CN702

RCA JACK

2
1
4

3

5

6

A

B

C

CN121

RCA JACK 6P

A

B

C

CN121

RCA JACK 6P

R138 100R 1/16W 5%R138 100R 1/16W 5%

C155

47nF 16V

C155

47nF 16V

R128

10K 1/16W 5%

R128

10K 1/16W 5%

1 2

ZD134

NC\MLVG0402

ZD134

NC\MLVG0402

C153

15PF50V

C153

15PF50V

R110 470K 1/16W 5%R110 470K 1/16W 5%

C108

47nF 16V

C108

47nF 16V

C147

22P 50V

C147

22P 50V

R181 68R 1/16W 5%R181 68R 1/16W 5%

Circuit Diagrams and PWB Layouts

EN 52TPM8.3A LA 10.

2011-Nov-11

HDMI & HDMI Switch

19170_517_110627.eps

110627

HDMI & HDMI Switch

B05 B05

2011-03-12

4

715G4611

HDMI & HDMI Switch

HDMI_CEC

PWR5V_A

HDMI_HPD1

HDMI_SCL

HDMI_SDA

DDC_WP#

HDMI_SDA

RXB_0+

RXC_2-

HDMIB_SDA

DV33_TMDS

RXB_1-

DV33_TMDS

HDMIB_SCL

RXB_1+

RXC_C+

HPD_B

RXC_1+RXB_C-

S1_SCL

S2_SDA

RXB_2+

RXC_C-

RXB_C+ RXC_1-

HDMI_SDA

RXB_2-

HDMIC_SCL

DV33_TMDS

DV33_TMDS

RXA_C+

RXA_1+

RXA_C-

RXA_1-

HDMIA_SCL

HDMIA_SDA

RXA_0+

HPD_A

RXA_2+

HDMI_SCL

DV33_TMDS

DV33_TMDS

HDMIC_SDA

VS_ADJ

HDMI_HPD1

RXC_0+

DV33_TMDS

DV33_TMDS

RX1_1

RX1_CB

RX1_C

RX1_1B

RX1_2B

RX1_2

RXB_0-

RXC_2+

HPD_C

RXC_0-

EQ_I2C_SEL

5VDD_LP#

RX1_0B

RX1_0

HDMI_SCL

DV33_TMDS

5VDD

HDMI_S2

HDMI_S1

OSDA0
OSCL0

EQ_I2C_SEL

HDMI_HPD1

VS_ADJ

OSDA0

OSCL0

S2_SDA

S1_SCL

HDMI_S2

HDMI_S1

HDMI_CEC

CEC_A
CEC_B
CEC_C

5VDD_LP#

RXA_2-

RXA_C-

HD5V_A

CEC_A

SCL_A

RXA_2+

SDA_A

RXA_1+

HPD_A

RXA_1-

RXA_0-

RXA_0+

RXA_C+

RXA_0-

RX1_2

RX1_2B
RX1_1 RX1_1B
RX1_0 RX1_0B
RX1_C

RX1_CB

RX1_CB
RX1_C
RX1_0B
RX1_0
RX1_1B
RX1_1
RX1_2B
RX1_2

ARC

ARC_ON

HDMIA_SDA

HDMIA_SCL

PWR5V_A

DDC_WP#

HDMIB_SCL

RXB_C-

CEC_B

RXB_2+

RXB_1+

HPD_B

RXB_1-

RXB_0+

RXB_C+

RXB_0-

PWR5V_B

DDC_WP#

RXB_2-

HDMIB_SDA

HD5V_B

HDMIC_SCL
HDMIC_SDA

PWR5V_C

DDC_WP#

RXC_2+
RXC_2-

RXC_1+
RXC_1-

RXC_0+
RXC_0-

RXC_C+
RXC_C-

CEC_C

HPD_C

PWR5V_C
DDC_WP#

PWR5V_B

SPDIF_OUT

ARC

ARC_ON

SPDIF_OUT

RXA_2-

HD5V_C

5V_SW 5VDD

AVDD3V3 DV33_TMDS

DV33_TMDS

DV33_TMDS

3V3SB

3V3SB

5VDD

HD5V_A5V_SW

5V_SW HD5V_B

5V_SW HD5V_C

DVDD3V3

M_RX1_CB 12
M_RX1_C 12
M_RX1_0B 12
M_RX1_0 12
M_RX1_1B 12
M_RX1_1 12
M_RX1_2B 12
M_RX1_2 12

HDMI_CEC 12

GND 4,5,6,7,9,10,11,12,13,14,15,16,17,18,19,20,21,22

HDMI_SDA 12
HDMI_SCL 12

HDMI_HPD1 12

PWR5V_A 12

DDC_WP# 6,12

HDMI_S112
HDMI_S212

OSDA0 9,10,12,13,18,20
OSCL0 9,10,12,13,18,20

ARC_ON 12

DDC_WP# 6,12

PWR5V_B 12
PWR5V_C 12

SPDIF_OUT 12,17

H : Write
L : WP

HDMI A EDID EEPROM

<10pF

H : GPIO
L : I2C

HDMI A

TMDS351 TMDS361B

PIN 32

PIN 33

S1

S2 SDA

SCL

PIN 34

PIN 49

EQ H: 10m
EQ L: HDMI 1.3

I2C_SEL H: GPIO
I2C_SEL L: I2C

VDD: HPD/DDC
power supply

LP# H: normal mode
LP# L: low power state

U501

Near HDMI switch (U501)

HDMI B EDID EEPROM

L : WP
H : Write

HDMI B

HDMI C EDID EEPROM

L : WP
H : Write

HDMI C

ARC

NC

4.02k

R513 R511

4.02k

TMDS351

4.7k

TMDS361B

R534

4.7k

0RNC

R510

NC NC0R

0R

IT6633T

NCNC

R532
NC

4.7k

A

1

K

2

D504

BAS316

D504

BAS316

R520

10K 1/10W

R520

10K 1/10W

A

1

K

2

D511NC\BAS316 D511NC\BAS316

R513

4.02K 1%

R513

4.02K 1%

R572

82R 1/10W 5%

R572

82R 1/10W 5%

R569

10K 1/16W 5%

R569

10K 1/16W 5%

R535 100R 1/16W 5%R535 100R 1/16W 5%

A

1

K

2

D502NC\BAS316 D502NC\BAS316

A0

1

A1

2

A2

3

GND

4

SDA

5

SCL

6

WP

7

VCC

8

U502

CAT24C02YI-GT3

U502

CAT24C02YI-GT3

R538

4K7 1/16W 5%

R538

4K7 1/16W 5%

TMDSD0+

7

TMDSD0-

9

TMDSD1+

4

TMDSD1-

6

TMDSD2+

1

TMDSD2-

3

SCL

15

DSHLD1

5

VCC5

18

CSHLD0

11

HPD

19

NC

14

DSHLD0

2

CEC

13

SDA

16

DDC_GND

17

DSHLD2

8

TMDSC+

10

TMDSC-

12

SHLD0

20

SHLD1

21

SHLD2

22

SHLD3

23

CN507

HDMI

CN507

HDMI

R508

27K 1/10W 5%

R508

27K 1/10W 5%

D604

BAT54C

D604

BAT54C

A

1

K

2

D503NC\BAS316 D503NC\BAS316

R548

10K 1/10W

R548

10K 1/10W

R517

4K7 1/10W 5%

R517

4K7 1/10W 5%

Q507

PMBS3904

Q507

PMBS3904

R528
0R05 1/10W

R528
0R05 1/10W

R519

10K 1/10W

R519

10K 1/10W

R507 0R05 1/16WR507 0R05 1/16W

R505 1K 1/16W 5%R505 1K 1/16W 5%

R557 NC\100R 1/16W 1%R557 NC\100R 1/16W 1%

Q501

PMBS3904

Q501

PMBS3904

R546470K 1/16W 5% R546470K 1/16W 5%

A

1

K

2

D513NC\BAS316 D513NC\BAS316

A0

1

A1

2

A2

3

GND4SDA

5

SCL

6

WP

7

VCC

8

U506

CAT24C02YI-GT3

U506

CAT24C02YI-GT3

Q505

PMBS3904

Q505

PMBS3904

A0

1

A1

2

A2

3

GND

4

SDA

5

SCL

6

WP

7

VCC

8

U505

CAT24C02YI-GT3

U505

CAT24C02YI-GT3

R542 100R 1/16W 5%R542 100R 1/16W 5%

R545 1K 1/16W 5%R545 1K 1/16W 5%

R559 NC\100R 1/16W 1%R559 NC\100R 1/16W 1%

R551

1K 1/16W 5%

R551

1K 1/16W 5%

C501

10U 10V

C501

10U 10V

R554

4K7 1/10W 5%

R554

4K7 1/10W 5%

12

ZD502
NC\MLVG0402

ZD502
NC\MLVG0402

A

1

K

2

D512NC\BAS316 D512NC\BAS316

R522 NC 0R05 1/16WR522 NC 0R05 1/16W

SDA3

1

SCL3

2

GND

3

CLK-_3

4

CLK+_3

5

VCC

6

D0-_3

7

D0+_3

8

GND

9

D1-_3

10

D1+_3

11

VCC

12

D2-_3

13

D2+_3

14

GND

15

VSadj

16

D2+_SINK17D2-_SINK18VCC19D1+_SINK20D1-_SINK21GND22D0+_SINK23D0-_SINK24VCC25CLK+_SINK26CLK-_SINK27GND28SCL_SINK29SDA_SINK30HPD_SINK31S1/SCL

32

S2/SDA

33

I2C_SEL

34

HPD1

35

SDA1

36

SCL1

37

CLK-_1

38

CLK+_1

39

VCC

40

D0-_1

41

D0+_1

42

GND

43

D1-_1

44

D1+_1

45

VCC

46

D2-_1

47

D2+_1

48

LP

49

HPD2

50

SDA2

51

SCL2

52

CLK-_2

53

CLK+_2

54

VCC

55

D0-_2

56

D0+_2

57

GND

58

D1-_2

59

D1+_2

60

VCC

61

D2-_2

62

D2+_2

63

HPD3

64

TMDS361BPAGR

U501

TMDS361BPAGR

U501

1

2

FB504 120R/3000mAFB504 120R/3000mA

R549

4K7 1/10W 5%

R549

4K7 1/10W 5%

R570

NC\10K 1/16W 5%

R570

NC\10K 1/16W 5%

R553

10K 1/16W 5%

R553

10K 1/16W 5%

C504
100N 16V

C504
100N 16V

R501 100R 1/16W 5%R501 100R 1/16W 5%

D505

BAT54C

D505

BAT54C

R510

4.7K1/16W

R510

4.7K1/16W

R537 1K 1/16W 5%R537 1K 1/16W 5%

D516

BAT54C

D516

BAT54C

R541 100R 1/16W 5%R541 100R 1/16W 5%

R558 NC\100R 1/16W 1%R558 NC\100R 1/16W 1%

C509
100N 16V

C509
100N 16V

R512

10K 1/10W

R512

10K 1/10W

R516

4K7 1/10W 5%

R516

4K7 1/10W 5%

R534

4.7K1/16W

R534

4.7K1/16W

Q506

PMBS3904

Q506

PMBS3904

C503

10U 10V

C503

10U 10V

C510

100N 16V

C510

100N 16V

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

CN508

HDMI

CN508

HDMI

Q503

PMBS3904

Q503

PMBS3904

R550

4K7 1/10W 5%

R550

4K7 1/10W 5%

R514 1K 1/16W 5%R514 1K 1/16W 5%

C507
100N 16V

C507
100N 16V

12

FB503 120R/3000mAFB503 120R/3000mA

1 2

ZD506NC\BZX384-C5V6 ZD506NC\BZX384-C5V6

C502
100N 16V

C502
100N 16V

R555

4K7 1/10W 5%

R555

4K7 1/10W 5%

A

1

K

2

D501NC\BAS316 D501NC\BAS316

R504470K 1/16W 5% R504470K 1/16W 5%

C516

100N 16V

C516

100N 16V

R503 1K 1/16W 5%R503 1K 1/16W 5%

R533
0R05 1/10W

R533
0R05 1/10W

R536 100R 1/16W 5%R536 100R 1/16W 5%

R547 1K 1/16W 5%R547 1K 1/16W 5%

C506
100N 16V

C506
100N 16V

12

FB505 120R/3000mAFB505 120R/3000mA

R540470K 1/16W 5% R540470K 1/16W 5%

R531 0R05 1/16WR531 0R05 1/16W

R518

1K 1/16W 5%

R518

1K 1/16W 5%

C513

100N 16V

C513

100N 16V

R543 1K 1/16W 5%R543 1K 1/16W 5%

Q502

NC\2N7002

Q502

NC\2N7002

C508
100N 16V

C508
100N 16V

C505
100N 16V

C505
100N 16V

12

FB501

120R/3000mA

FB501

120R/3000mA

R526
0R05 1/10W

R526
0R05 1/10W

R556

1K 1/16W 5%

R556

1K 1/16W 5%

C515

100N 16V

C515

100N 16V

TMDSD0+

7

TMDSD0-

9

TMDSD1+

4

TMDSD1-

6

TMDSD2+

1

TMDSD2-

3

SCL

15

DSHLD1

5

VCC5

18

CSHLD0

11

HPD

19

NC

14

DSHLD0

2

CEC

13

SDA

16

DDC_GND

17

DSHLD2

8

TMDSC+

10

TMDSC-

12

SHLD0

20

SHLD1

21

SHLD2

22

SHLD3

23

CN506

HDMI

CN506

HDMI

A

1

K

2

D514NC\BAS316 D514NC\BAS316

R573

100K 1/10W 5%

R573

100K 1/10W 5%

R552 1K 1/16W 5%R552 1K 1/16W 5%

R571

180OHM 1/10W

R571

180OHM 1/10W

R511

NC 4.7K1/16W

R511

NC 4.7K1/16W

R530 0R05 1/16WR530 0R05 1/16W

R560 NC\100R 1/16W 1%R560 NC\100R 1/16W 1%

R532

NC\10K 1/10W

R532

NC\10K 1/10W

1 2

ZD505NC BZX384-C5V6 ZD505NC BZX384-C5V6

R515

10K 1/10W

R515

10K 1/10W

R544

4K7 1/16W 5%

R544

4K7 1/16W 5%

A

1

K

2

D510NC\BAS316 D510NC\BAS316

R502 100R 1/16W 5%R502 100R 1/16W 5%

1 2

FB502

120R/3000mA

FB502

120R/3000mA

R509

NC\0R05 1/16W

R509

NC\0R05 1/16W

Q508

PMBS3904

Q508

PMBS3904

R506

4K7 1/16W 5%

R506

4K7 1/16W 5%

R521 NC 0R05 1/16WR521 NC 0R05 1/16W

OE

1

A

2

GND

3

Y

4

VCC

5

U412

SN74LVC1G125DBVR

U412

SN74LVC1G125DBVR

A

1

K

2

D515NC\BAS316 D515NC\BAS316

R539 1K 1/16W 5%R539 1K 1/16W 5%

C511

1UF16V

C511

1UF16V

C514

100N 16V

C514

100N 16V

C512

100N 16V

C512

100N 16V

1 2

ZD501NC\BZX384-C5V6 ZD501NC\BZX384-C5V6

Circuit Diagrams and PWB Layouts

EN 53TPM8.3A LA 10.

2011-Nov-11

Half NIM Tuner

19170_518_110627.eps

110627

Half NIM Tuner

B06 B06

2011-03-12

4

715G4611

Half NIM Tuner

OSDA0

OSCL0

IF_AGC_D2T

IF_AGC_S2T

DTMB_DVBC_SW

T2S_TIF-

T2S_TIF+
T2S_TIF-

TU_SCL
TU_SDA

TU_5V_SDA

TU_5V_SCL

+B_5V

TIF+
TIF-

TU_5V_SCL

TU_5V_SDA

+B_5V

IFAGC_T

RFAGC_I

RFIN_CTL

RFAGC_I

TIF+

TIF-

TU_5V_SCL

OSCL0

OSDA0

TU_SCL

TU_SDA

+B_5V

TU_5V_SDA

RFIN_CTL DTMB_DVBC_SW

RFAGC_I

RF_AGC_S2T

BST_CTL#

BPF_IF-

T2S_TIF+BPF_IF+

T2D_TIF+
T2D_TIF-

IF_AGC_SW

IFAGC_T

IF_AGC_D2T

IF_AGC_S2T

RF_AGC_CTL

RF_AGC_S2T

RF_AGC_CTL

TIF-

TIF+ BPF_IF+

BPF_IF-

IFAGC_T

IF_AGC_SW

BST_CTL#

TIF-

TIF+ T2D_TIF+

T2D_TIF-

+B_5V

RFAGC_I

TU_5V_SCL
TU_5V_SDA

TIF­TIF+

V3.3

+B_5V

+B_5V

V3.3

V3.3

+B_5V

+B_5V

5V_SW

5V_TUNER

+B_5V

+B_5V

+12V

5V_TUNER

V3.3

GND 4,5,6,7,8,10,11,12,13,14,15,16,17,18,19,20,21,22

OSDA0 8,10,12,13,18,20

OSCL0 8,10,12,13,18,20

IF_AGC_S2T 12
IF_AGC_D2T 10

DTMB_DVBC_SW12

T2S_TIF+ 12
T2S_TIF- 12

TU_SCL 10
TU_SDA 10

RF_AGC_S2T 12

BST_CTL# 12

T2D_TIF+ 10
T2D_TIF- 10

IF_AGC_SW10
RF_AGC_CTL 10

Tuner _I2C 3.3V to 5V

IF BPF

A Tuner :

GND_AGND

Near Tuner

0R

R1153 &
R1154

R1155 &
R1156

27R 27R

G702D

0R

T032D

460R

C1155 / L1111 R1159 &

R1160

220pF / 100uH 50R100R
NC / NC

Tuner

R1157

NC

NA
ATBM8848

Ext. Demod.

Near Tuner

MT5301B
MT5301D

Scaler IC

For ATV only

G702D
T032D

Tuner

5V_TUNER

G9084TU3U
TO-263T

Vout=1.25(1+R1/R2)

For DTV only

Tuner = 450mA

A Tuner :

R1149

1K 1/16W 5%

R1149

1K 1/16W 5%

R1158

10K 1/16W 5%

R1158

10K 1/16W 5%

C1145

100N16V

C1145

100N16V

R1138

100R 1/16W 5%

R1138

100R 1/16W 5%

L1105

0.12uH

L1105

0.12uH

1

23

Q1109

NC\PMBS3906

Q1109

NC\PMBS3906

R1176

0R05 1/4W

R1176

0R05 1/4W

R1147

NC\0R05 1/16W

R1147

NC\0R05 1/16W

R1150

NC\0R05 1/16W

R1150

NC\0R05 1/16W

C1157

NC\100N 16V

C1157

NC\100N 16V

VCC1

1

RF AGC

2

Tu

3

SCL

4

SDA

5

AIF1

6

AIF2

7

TH18TH29TH310TH4

11

TU103

NC\TAF16-C2I1LH

TU103

NC\TAF16-C2I1LH

C1151

100pF 50V

C1151

100pF 50V

C1164

0.1UF50V

C1164

0.1UF50V

R1167

NC\10K 1/16W 5%

R1167

NC\10K 1/16W 5%

Q1102

2N7002

Q1102

2N7002

R1151

0R05 1/16W

R1151

0R05 1/16W

C1147

47nF 16V

C1147

47nF 16V

C1166
NC\100N 16V

C1166
NC\100N 16V

R1161
0R05 1/10W

R1161
0R05 1/10W

R1166

10K 1/16W 5%

R1166

10K 1/16W 5%

C1154
100pF 50V

C1154
100pF 50V

C1150

100pF 50V

C1150

100pF 50V

1

2

FB1102

120R/3000mA

FB1102

120R/3000mA

C1144

100N 16V

C1144

100N 16V

1

23

Q1104

NC\PMBS3906

Q1104

NC\PMBS3906

Q1105

NC\PMBS3904

Q1105

NC\PMBS3904

R1168

NC\10K 1/16W 5%

R1168

NC\10K 1/16W 5%

R1192

NC\20K 1/16W 5%

R1192

NC\20K 1/16W 5%

C1143

22pF 50V

C1143

22pF 50V

C1158

NC\100N 16V

C1158

NC\100N 16V

C1141

100N 16V

C1141

100N 16V

R1155

33R 1/16W 5%

R1155

33R 1/16W 5%

R1141

0R05 1/16W

R1141

0R05 1/16W

Q1101

NC\PMBS3904

Q1101

NC\PMBS3904

1

23

Q1108

PMBS3906

Q1108

PMBS3906

R1191

100K 1/16W 5%

R1191

100K 1/16W 5%

R1133

0R05 1/16W

R1133

0R05 1/16W

R1189

NC\0R05 1/16W

R1189

NC\0R05 1/16W

R1156

33R 1/16W 5%

R1156

33R 1/16W 5%

R1140

4K7 1/16W 5%

R1140

4K7 1/16W 5%

R1137

NC\4K7 1/16W 5%

R1137

NC\4K7 1/16W 5%

R1160

51R 1/16W 5%

R1160

51R 1/16W 5%

R1184

NC\0R05 1/16W

R1184

NC\0R05 1/16W

R1152

10K 1/16W 5%

R1152

10K 1/16W 5%

C1159
NC\100N 16V

C1159
NC\100N 16V

R1177

NC\100K 1/16W 5%

R1177

NC\100K 1/16W 5%

R1171

15 OHM +-5% 1/4W

R1171

15 OHM +-5% 1/4W

C1165
NC\100N 16V

C1165
NC\100N 16V

N/C

1

N/C

2

N/C

3

RF AGC

4

+B(5V)

5

SDA

6

SCL

7

N/C

8

N/C

9

AIF +

10

AIF -

11

TH112TH213TH314TH4

15

TU102

NC\TDTK-G902D

TU102

NC\TDTK-G902D

R1145

0R05 1/16W

R1145

0R05 1/16W

R1162
0R05 1/10W

R1162
0R05 1/10W

L1103

0U10 H

L1103

0U10 H

R1185

0R05 1/16W

R1185

0R05 1/16W

L1106

0.12uH

L1106

0.12uH

C1142

22pF 50V

C1142

22pF 50V

R1173

1K 1/10W 1%

R1173

1K 1/10W 1%

R1179

NC\4K7 1/16W 5%

R1179

NC\4K7 1/16W 5%

R1188

NC\0R05 1/16W

R1188

NC\0R05 1/16W

R1181

NC\10K 1/16W 5%

R1181

NC\10K 1/16W 5%

C1152

10nF50V

C1152

10nF50V

R1144

NC\0R05 1/16W

R1144

NC\0R05 1/16W

R1174

3K 1/10W 1%

R1174

3K 1/10W 1%

L1104

0.22uH

L1104

0.22uH

R1142

NC\0R05 1/16W

R1142

NC\0R05 1/16W

R1132

0R05 1/16W

R1132

0R05 1/16W

Q1103

2N7002

Q1103

2N7002

R1148

100K 1/16W 5%

R1148

100K 1/16W 5%

R1139

100R 1/16W 5%

R1139

100R 1/16W 5%

N.C

1

N.C

2

Vcc1 supply tuner

3

External RF AGC

4

N.C

5

SCL

6

SDA

7

N.C

8

N.C

9

N.C

10

N.C

11

GND

12

N.C

13

N.C

14

N.C

15

N.C

16

IF 1(N)

17

IF 1(P)

18

TH119TH220TH321TH4

22

TU101

F86WT-2-E

TU101

F86WT-2-E

1

2

3

Q1106

PMBS3906

Q1106

PMBS3906

R1175

15 OHM +-5% 1/4W

R1175

15 OHM +-5% 1/4W

R1130

0R05 1/16W

R1130

0R05 1/16W

R1153

33R 1/16W 5%

R1153

33R 1/16W 5%

1

2

FB744

NC\120R/3000mA

FB744

NC\120R/3000mA

1

2

FB745

NC\120R/3000mA

FB745

NC\120R/3000mA

C1163

330N 25V

C1163

330N 25V

R1143

4K7 1/16W 5%

R1143

4K7 1/16W 5%

C1155
220pF 50V

C1155
220pF 50V

VIN

3

VOUT

2

GND

1

U7007U7007

+

C1139
220UF 16V

+

C1139
220UF 16V

C1162

100N 16V

C1162

100N 16V

R1131

0R05 1/16W

R1131

0R05 1/16W

R1169

NC\10K 1/16W 5%

R1169

NC\10K 1/16W 5%

R1178

NC\4K7 1/16W 5%

R1178

NC\4K7 1/16W 5%

C1140

10U 10V

C1140

10U 10V

1

2

L1102

NC\22uH

L1102

NC\22uH

R1154

33R 1/16W 5%

R1154

33R 1/16W 5%

R1157

68R 1/16W 5%

R1157

68R 1/16W 5%

1

2

FB720

NC\120R/3000mA

FB720

NC\120R/3000mA

R1159

51R 1/16W 5%

R1159

51R 1/16W 5%

R1183

0R05 1/16W

R1183

0R05 1/16W

Q1107

PMBS3904

Q1107

PMBS3904

R1146

NC\0R05 1/16W

R1146

NC\0R05 1/16W

R1186

NC\0R05 1/16W

R1186

NC\0R05 1/16W

C1153

10nF50V

C1153

10nF50V

R1172

15 OHM +-5% 1/4W

R1172

15 OHM +-5% 1/4W

R1136

NC\4K7 1/16W 5%

R1136

NC\4K7 1/16W 5%

1

2

FB724

NC\120R/3000mA

FB724

NC\120R/3000mA

R1187

NC\0R05 1/16W

R1187

NC\0R05 1/16W

Circuit Diagrams and PWB Layouts

EN 54TPM8.3A LA 10.

2011-Nov-11

USB1 & USB2

19170_519_110627.eps

110627

USB1 & USB2

B07 B07

2011-03-12

4

715G4611

USB1 & USB2

USB_DP0

USB_DM0

USB_DP1

USB_DM1

USB_PWR_OCP1

USB_PWR_OCP0

USB_DM0
USB_DP0

USB1_D+

USB_DM1
USB_DP1

USB2_D-

USB1_D-

USB2_D+

USB_PWR_OCP0

USB_PWR_OCP1

VUSB_5V

5V_USB

5V_SW

VUSB_5V

5VESD

VUSB_5V

GND 4,5,6,7,8,9,10,12,13,14,15,16,17,18,19,20,21,22

USB_DM1 12
USB_DP1 12

USB_DM0 12
USB_DP0 12

USB_PWR_OCP0 12

USB_PWR_OCP1 12

USB2

USB1

H: OK
L: O.C.

H: OK
L: O.C.

R308 0R05 1/16WR308 0R05 1/16W

R310

NC\15K 1/16W 5%

R310

NC\15K 1/16W 5%

3

1

2

D302

NC\BAV99

D302

NC\BAV99

C309

NC\4P7 50V

C309

NC\4P7 50V

R309

NC\15K 1/16W 5%

R309

NC\15K 1/16W 5%

3

1

2

D301

NC\BAV99

D301

NC\BAV99

R306

22K

R306

22K

1

2

FB307

NC\120R/3000mA

FB307

NC\120R/3000mA

R305

47K

R305

47K

R304

22K

R304

22K

12

t

TH301 PTCR

t

TH301 PTCR

1
2

3

4

5

7 8

6

CN103

USB CONN

CN103

USB CONN

R307 0R05 1/16WR307 0R05 1/16W

3

1

2

D303

NC\BAV99

D303

NC\BAV99

1
2

3

4

56

78

1234

CN104

USB CONN

1234

CN104

USB CONN

C311
10U 16V

C311
10U 16V

C303

100N 16V

C303

100N 16V

C308

100N 16V

C308

100N 16V

R319

NC\15K 1/16W 5%

R319

NC\15K 1/16W 5%

C305

NC\4P7 50V

C305

NC\4P7 50V

1

2

t

TH302 PTCR

t

TH302 PTCR

+

C306

100uF/16V

+

C306

100uF/16V

C310

NC\4P7 50V

C310

NC\4P7 50V

R311

47K

R311

47K

3

1

2

D304

NC\BAV99

D304

NC\BAV99

R318 0R05 1/16WR318 0R05 1/16W

C304

NC\4P7 50V

C304

NC\4P7 50V

+

C302

100uF/16V

+

C302

100uF/16V

R320

NC\15K 1/16W 5%

R320

NC\15K 1/16W 5%

R317 0R05 1/16WR317 0R05 1/16W

Circuit Diagrams and PWB Layouts

EN 55TPM8.3A LA 10.

2011-Nov-11

MT5301B

19170_520_110627.eps

110627

MT5301B

B08 B08

2011-03-12

4

715G4611

MT5301B

AVDD12_RGB

SOY1

Y1P

COM1

PR1P
PB1P

VDAC_FS

AVDD33_VDAC

GP
SOG

VGACOM

BP

RP

VSYNC

HSYNC

VGA_SCL
VGA_SDA

T2S_TIF+

AVDD33_DEMOD

AVDD33_IFPGA

AVDD12_DEMOD

CVBS_COM

AV1_CVBS

AVDD33_CVBS

AL1O

AVDD33_AADC

TX_AE1P
TX_AE1N
TX_AE0P

TX_AO4P
TX_AO4N
TX_AO3P
TX_AO3N
TX_AOCKP

TX_AO2N
TX_AO1P
TX_AO1N
TX_AO0P
TX_AO0N

TX_AE4P

TX_AE0N

TX_AE4N
TX_AE3P
TX_AE3N
TX_AECKP
TX_AECKN
TX_AE2P
TX_AE2N

USB_VRT

USB_DM0

USB_DP0

USB_DM1

USB_DP1

AVDD33_USB_2P

AVDD12_MEMPLL

AVDD12_HDMI

PWR5V_C

M_RX1_1B

M_RX1_C

M_RX1_CB

M_RX1_0

M_RX1_0B

M_RX1_1

M_RX1_2

M_RX1_2B

HDMI_CEC

HDMI_HPD1

HDMI_SCL

HDMI_SDA

ORESET#

U0RX

U0TX

OPWRSB

OIRI

AVDD12_PLL

AVDD33_XTAL_STB

JTCK

JTDI

JTDO

JTMS

OXTALO

OXTALI

AVDD33_REG_STB

LED_WGB
AIN_CTL1

PWR5V_A

PWR5V_B

AVDD33_PDM_STB

AVDD33_XTAL_STB

AVDD33_REG_STB

SOG

GP

HSYNC
VSYNC
RP

BP
VGACOM

VGA_SCL
VGA_SDA

AV1_CVBS
CVBS_COM

DVDD3V3

VCCK

VCCK

VCCK

VCCK

1_A10
1_A12

1_A9
1_A11
1_A13

RDQS1#

RDQS0#

RDQS0
RDQS1

RDQ1
RDQ2
RDQ3

RDQ7

RDQ6

RDQ5

RDQ0

RDQ4

RDQ15

RDQ14

RDQ9

RDQ13

RDQ8

RDQ12

RDQ11

RDQ10

RDQM1

RDQM0

1_A2

1_CS#

1_A0

1_BA2

1_BA0

1_CKE

1_RAS#

1_BA1

1_A1

1_CAS#

1_ODT

1_WE#

1_A4

1_A3

1_A6

1_A5

1_A8

1_A7

RCLK0
RCLK0#

AIN0_L_AADC

AIN0_R_AADC

DEMOD_TSVALID
DEMOD_TSSYNC
DEMOD_TSDATA0

DEMOD_TSCLK

AVDD12_RGB

AVDD12_DEMOD

AVDD33_CVBS

AVDD33_DEMOD

AVDD33_IFPGA

AVDD33_VDAC

AVDD12_PLL

AVDD33_USB_2P

AVDD12_HDMI

AVDD33_HDMI

AVDD12_VPLL

AVDD12_MEMPLL

AVDD33_DAC

AVDD33_AADC

AVDD33_LVDSTX

SC0

SY1
SC1

DVDD3V3

DVDD3V3

RF_AGC

IF_AGC

PDD0

PDD2

DVDD3V3

PDD3

PDD4

PDD6

PDD7

PDD1

PDD5

DVDD3V3

DEMOD_TSSYNC

DEMOD_TSVALID

DEMOD_TSCLK

DEMOD_TSDATA0

VCCK

VCCK

GPIO_6

SPK_MUTE

PWR_OK

HP_DET#

BL_ON/OFF#

LVDS_PWR_EN

MUTE_CTL

DTMB_DVBC_SW

A_Reset

USB_PWR_OCP1

DDC_WP#

USB_PWR_OCP0

OSDA0

OSCL0

PACLE

PAALE

POCE1#

PARB#

POOE#

POWE#

POCE0#

AOSDATA1

AR1O

IF_AGC_S2T

IF_AGC

AVDD33_DAC

1_ODT

1_A12

1_A13

1_CS#
1_RAS#

1_CKE

1_WE#

1_A9

1_A1
1_BA1

1_A11

1_A10

1_A6

1_A3

1_A0

1_A5

1_A8

1_A2
1_CAS#

1_A7

1_BA0
1_BA2

1_A4

DDRV

DDRV

DDRV

DDRV

DDRV

DDRV

DDRV

RDQS1#

RDQS0#

RDQS0

RDQS1

RDQM1

RDQM0

RCLK0

RCLK0#

RDQ7

RDQ1

RDQ0

RDQ2

RDQ3

RDQ5

RDQ6

RDQ11

RDQ8

RDQ9

RDQ4

RDQ14

RDQ13

RDQ15

RDQ12

RDQ10

VCCK

OPWM0_100HZ

AVDD33_HDMI

MEMORY_WP#

AVDD12_VPLL

JTRST#

AVDD33_LVDSTX

T2S_TIF-

SPDIF_OUT

DEMOD_RESET

TX_AO2N

TX_AE2P

TX_AECKN

TX_AE1N

TX_AO0N

TX_AO3N

TX_AO2P

TX_AE1P

TX_AECKP

TX_AO1N

TX_AO0P

TX_AO4P

TX_AO3P

TX_AOCKP
TX_AOCKN

TX_AE3N

TX_AO1P

TX_AE2N

TX_AE0P
TX_AE0N

TX_AO4N

TX_AE3P

TX_AE4N

TX_AE4P

HDMI_S1

PWR5V_C

HDMI_S2

PWR5V_B

T2S_TIF+
T2S_TIF-

COM1
PR1P

SOY1
Y1P

PB1P

MONITOR_OUT

PWR5V_A

HDMI_CEC

HDMI_HPD1

HDMI_SCL

HDMI_SDA

M_RX1_1B

M_RX1_C

M_RX1_CB

M_RX1_0

M_RX1_0B

M_RX1_1
M_RX1_2

M_RX1_2B

AR1O
AL1O

AOMCLK
AOBCLK
AOLRCK
AOSDATA0

JTRST#

JTCK
JTDI

JTDO
JTMS

TX_AO2P

TX_AOCKN

MONITOR_OUT

VCCK

VCCK

VCCK

LIT_SENSOR

OPWRSB

KEY2

LED_RED_OFF#

DEMOD_RESET

RF_AGC_S2T

BL_DIM_PWMOPWM0_100HZ

BL_DIM_PWM

IF_AGC_S2T

PACLE

PAALE

POCE1#

PARB#
POWE#

PDD0
PDD2

PDD3
PDD4

PDD1

PDD5

POOE#

PDD6
PDD7

POCE0#

SPDIF_OUT

AOSDATA1

VCCK

USB_DP1

USB_DM0
USB_DP0

USB_DM1

AVDD33_PDM_STB

OSDA0
OSCL0

OXTALO

OXTALI

ORESET#

U0TX
U0RX

BST_CTL#

LED_RED_OFF#

OPWRSB
OIRI

AIN0_L_AADC

AIN0_R_AADC

ADC_KEY

VGA_SCL

VGA_SDA

STANDBY

HDMI_S1

HDMI_S2

HP_DET#

DDC_WP#
USB_PWR_OCP0
USB_PWR_OCP1
LVDS_PWR_EN
BL_ON/OFF#

STANDBY
AIN_CTL0
PWR_OK

MUTE_CTL
AIN_CTL1

DTMB_DVBC_SW
MEMORY_WP#

LIT_SENSOR

SPK_MUTE

OPCTRL4

VMID_AADC

BST_CTL#

ARC_ON

DDRV

DVDD3V3

MJC_RST

MJC_RST

AV2_CVBS

AV2_CVBS

AIN_CTL0

A_Reset

OPCTRL5

OPCTRL5

ARC_ON

LED_WGB

ADC_KEY

RF_AGC_S2T

RF_AGC

RVREF5

AOSDATA0

AOMCLK

AOBCLK

AOLRCK

DDRV

VCCK

3V3SB

3V3SB

DDRV

DVDD3V3

AVDD3V3

AVDD3V3

AVDD3V3

AVDD1V2

AVDD1V2

AVDD1V2

AVDD3V3

AVDD3V3

AVDD1V2

AVDD1V2

AVDD1V2

AVDD3V3

AVDD3V3

AVDD3V3

ADAC_PWR

3V3SB

5V_SW

3V3SB

HSYNC 6
VSYNC 6
RP 6
GP 6

SOG 6

VGACOM 6

BP 6

VGA_SDA

VGA_SCL

AV1_CVBS 7
CVBS_COM 7

RDQ0 14
RDQ1 14
RDQ2 14
RDQ3 14
RDQ4 14
RDQ5 14
RDQ6 14
RDQ7 14
RDQ8 14
RDQ9 14
RDQ10 14
RDQ11 14
RDQ12 14
RDQ13 14
RDQ14 14
RDQ15 14

1_A0 14
1_A1 14
1_A2 14
1_A3 14
1_A4 14
1_A5 14
1_A6 14
1_A7 14
1_A8 14
1_A9 14
1_A10 14
1_A11 14
1_A12 14
1_A13 14

1_BA0 14
1_BA1 14
1_BA2 14

RCLK0 14
RCLK0# 14

1_WE# 14
1_ODT 14
1_CAS#14
1_RAS#14
1_CKE 14
1_CS#14

RDQS114
RDQS1# 14

RDQS014
RDQS0# 14

RDQM1 14

RDQM0 14

DEMOD_TSCLK 10
DEMOD_TSVALID 10
DEMOD_TSSYNC 10
DEMOD_TSDATA0 10
DEMOD_RESET 10

TX_AO2P 15

TX_AO3N15

TX_AECKN 15

TX_AE0N 15

TX_AE4P 15

TX_AO0P 15

TX_AE1N 15

TX_AO1N 15

TX_AECKP 15

TX_AE0P 15

TX_AE3N15

TX_AOCKP 15

TX_AO4N 15

TX_AO1P 15

TX_AO3P15

TX_AE2N 15

TX_AE3P15

TX_AO4P 15

TX_AO2N 15

TX_AE1P 15

TX_AOCKN 15

TX_AO0N 15

TX_AE4N 15

TX_AE2P 15

PWR5V_B 8
PWR5V_C 8

HDMI_S1 8
HDMI_S2 8

T2S_TIF+ 9
T2S_TIF- 9

SOY1 7
Y1P 7
COM1 7
PB1P 7
PR1P 7

MONITOR_OUT 17

HDMI_CEC 8
HDMI_SDA 8
HDMI_SCL 8
HDMI_HPD1 8

PWR5V_A 8

M_RX1_CB 8
M_RX1_C 8
M_RX1_0B 8
M_RX1_0 8
M_RX1_1B 8
M_RX1_1 8
M_RX1_2B 8
M_RX1_2 8

AR1O 18
AL1O 18

AOSDATA0 18

AOLRCK 18

AOBCLK 18

AOMCLK 18

JTDO 15
JTCK 15
JTMS 15
JTDI 15
JTRST# 15

BL_DIM_PWM 4
RF_AGC_S2T 9

IF_AGC_S2T 9

POWE# 13

PAALE 13
PACLE 13

POCE1# 13

PARB# 13

PDD5 13

PDD4 13

PDD3 13

PDD2 13

PDD1 13

PDD0 13

POCE0# 13
POOE# 13

PDD7 13

PDD6 13

SPDIF_OUT 8,17

AOSDATA1 13

GND 4,5,6,7,8,9,10,11,13,14,15,16,17,18,19,20,21,22

USB_DM1 11
USB_DP1 11

USB_DM0 11
USB_DP0 11

OXTALI 13
OXTALO 13

U0RX 6,15

U0TX 6,15

ORESET# 13

OSDA0 8,9,10,13,18,20
OSCL0 8,9,10,13,18,20

LED_RED_OFF# 16

OPWRSB5
OIRI 16

ADC_KEY 16

AIN0_L_AADC 7

AIN0_R_AADC 7

HP_DET# 18

DDC_WP# 6,8
USB_PWR_OCP0 11
USB_PWR_OCP1 11
LVDS_PWR_EN 5
BL_ON/OFF# 4

STANDBY 4,18

AIN_CTL0 7

PWR_OK 4

MUTE_CTL 18

AIN_CTL1 7

DTMB_DVBC_SW9
MEMORY_WP# 13

LIT_SENSOR 16

SPK_MUTE 18

OPCTRL4 13

BST_CTL# 9

MJC_RST20

AV2_CVBS 7

A_Reset 18

OPCTRL5 13

ARC_ON 8

LED_WGB 16

AOUTR

17

AOUTL

17

AOUT_EN

17

KEY2 16

DRAM IO Power

E-Fuse

3.3V IO Power

Core Power

Analog Normal Power

VGA

DDR2

Demod TS

Close to MT5301

AV1

AV2

LVDS

Tuner-DIF

CVI1

AV3

HDMI

ADAC

I2S

JTAG

PWM

NAND

NOR

USB1 & 2

Standby Power

System IO

STBY GPIO

AADC

ADC-in & GPIO

Normal GPIO

HDMI_S2

H

HH

HDMI B

L

HDMI A HDMI C

L

L

HDMI_S1

Strapping & GPIO

R436 0R05 1/16WR436 0R05 1/16W

R413

0R05 1/16W

R413

0R05 1/16W

R423 100R 1/16W 5%R423 100R 1/16W 5%

R420

0R05 1/16W

R420

0R05 1/16W

C434

100N16V

C434

100N16V

R412

1.3K 1%

R412

1.3K 1%

C409

100N16V

C409

100N16V

R402

NC\10K 1/16W 5%

R402

NC\10K 1/16W 5%

FSRC_WR

1

VCC3IO

3

GPIO14

2

AVDD12_VPLL

4

AE5P

5

AE5N

6

AE4P

7

AE4N

8

AE3P

9

AE3N

10

AECKP

11

AECKN

12

AE2P

13

AE2N

14

AE1P

15

AE1N

16

AE0P

17

AE0N

18

AVDD33_LVDSA

19

AVDD33_LVDSA

20

AO5P

21

AO5N

22

AO4P

23

AO4N

24

AO3P

25

AO3N

26

AOCKP

27

AOCKN

28

AO2P

29

AO2N

30

AO1P

31

AO1N

32

AO0P

33

AO0N

34

VCCK

35

VCCK

36

VCCK

37

AVDD12_MEMPLL

38

AVSS12_MEMPLL

39

RODT//RCKE

40

RA8//RA10

41

RA13//RBA1

42

RA11//RA4

43

RA4//RA1

44

RA6//RA6

45

RA0//RA8

46

RA2//RA11

47

RCAS_//RA12

48

RCS_//RRAS_

49

RRAS_//RCAS_

50

RA9//RWE_

51

VCC2IO

52

RA12//RA0

53

RA7//RA13

54

RA5//RA9

55

NC//RRESET_

56

RA3//RA7

57

RA1//RA2

58

RA10//RA5

59

RBA1//RA3

60

RBA0//RBA2

61

RBA2//RBA0

62

RWE_//RCS_

63

RCKE//RODT

64

AVDD33_XTAL_STB

192

XTALI

191

XTALO

190

AVDD33_DEMOD

189

AVSS33_DEMOD

188

AVSS12_DEMOD

187

AVDD33_IFPGA

186

ADCINN_DEMOD

185

ADCINP_DEMOD

184

AVDD12_DEMOD

183

AVDD33_CVBS

182

CVBS0P

181

CVBS_COM

180

CVBS1P

179

SY0

178

SC0

177

SY1

176

SC1

175

AVDD12_PLL

174

VCCK

173

FS_VDAC

172

AVDD33_VDAC

171

VDAC_OUT1

170

VDAC_OUT2

169

AVSS12_RGB

168

AVDD12_RGB

167

PR0P

166

PB0P

165

COM0

164

Y0P

163

SOY0

162

PR1P

161

PB1P

160

COM1

159

Y1P

158

SOY1

157

RP

156

COM

155

GP

154

SOG

153

BP

152

HSYNC

151

VSYNC

150

AVDD33_VGA_STB

149

AVDD10_LDO

148

ADIN4_SRV

147

ADIN3_SRV

146

ADIN2_SRV

145

ADIN1_SRV

144

ADIN0_SRV

143

VCCK

142

VGA_SCL

141

VGA_SDA

140

OPWRSB

139

OPCTRL1

138

OPCTRL0

137

OIRI

136

U0TX

135

U0RX

134

AVDD33_PDM_STB

133

OPCTRL2

132

OPCTRL4

131

OPCTRL3

130

OPCTRL5

129

GPIO4

256

GPIO8

255

GPIO7

254

GPIO12

253

GPIO6

252

GPIO11

251

GPIO3

250

GPIO10

249

GPIO2

248

GPIO1

247

GPIO0

246

VCC3IO

245

VCCK

244

GPIO13

243

POWE_

242

PAALE

241

PACLE

240

POCE1_

239

PARB_

238

POOE_

237

POCE0_

236

PDD7

235

VCC3IO

234

PDD6

233

PDD5

232

PDD4

231

PDD3

230

PDD2

229

PDD1

228

PDD0

227

CI_INT

226

SPI_CLE

225

SPI_DATA

224

SPI_CLK

223

VCCK

222

VCC3IO

221

DEMOD_TSDATA0

220

DEMOD_TSSYNC

219

DEMOD_TSVAL

218

DEMOD_TSCLK

217

OSDA2

216

OSCL2

215

DEMOD_RST

214

RF_AGC

213

IF_AGC

212

AOLRCK

211

AOSDATA0

210

AOMCLK

209

AOBCK

208

AOSDATA1

207

ASPDIF

206

VCCK

205

VCCK

204

AR1_ADAC

203

AR0_ADAC

202

AL1_ADAC

201

AL0_ADAC

200

AVSS33_DAC

199

AVDD33_DAC

198

AVDD33_AADC

197

AIN0_L_AADC

196

VMID_AADC

195

AIN0_R_AADC

194

LOUTP

193

VCCK65RVREF66RDQ4//RDQ467RDQ3//RDQ668VCC2IO69RDQ1//RDQ270RDQ6//RDQ071RDQ12//RDQ1172RDQ9//RDQ973VCC2IO74RDQ14//RDQ1375RDQ11//RDQ1576RDQM1//RDQM177VCCK78RDQS0//RDQS079RDQS0_//RDQS0_80RDQM0//RDQM081VCC2IO82RDQS1//RDQS183RDQS1_//RDQS1_84RDQ15//RDQ1285RDQ8//RDQ1486VCC2IO87RDQ10//RDQ1088RDQ13//RDQ889RDQ7//RDQ190RDQ0//RDQ391VCC2IO92RDQ2//RDQ793RDQ5//RDQ594VCC2IO95RCLK0//RCLK096RCLK0_//RCLK0_97VCCK98JTDO99JTCK

100

JTMS

101

JTDI

102

JTRST_

103

OPWM0

104

VCC3IO

105

VCCK

106

USB_2P_DM1

107

USB_2P_DP1

108

USB_2P_DM0

109

USB_2P_DP0

110

AVDD33_USB_2P

111

USB_2P_VRT

112

AVDD33_HDMI

113

RX_CB

114

RX_C

115

RX_0B

116

RX_0

117

RX_1B

118

RX_1

119

RX_2B

120

RX_2

121

AVDD12_HDMI

122

HDMI_CEC

123

HDMI_SDA

124

HDMI_SCL

125

HDMI_HPD

126

PWR5V

127

ORESET_

128

EPAD_GND

257

MT5301B

U401

MT5301B

U401

R466 0R05 1/16WR466 0R05 1/16W

R454 0R05 1/16WR454 0R05 1/16W

C405

100N16V

C405

100N16V

TP37TP37

C436

100N16V

C436

100N16V

R450

0R05 1/16W

R450

0R05 1/16W

R425

10K 1/16W 5%

R425

10K 1/16W 5%

C420

10U 10V

C420

10U 10V

C432

100N16V

C432

100N16V

C447

100N16V

C447

100N16V

R405

0R05 1/16W

R405

0R05 1/16W

R409
10K 1/16W 5%

R409
10K 1/16W 5%

TP35TP35

Q402

NC\PMBS3904

Q402

NC\PMBS3904

C406

100N16V

C406

100N16V

+ C419

100uF/16V

+ C419

100uF/16V

R445

0R05 1/16W

R445

0R05 1/16W

TP24TP24

C424

100N16V

C424

100N16V

R419

0R05 1/16W

R419

0R05 1/16W

C411

100N16V

C411

100N16V

R408

1K 1/16W 1%

R408

1K 1/16W 1%

C427

0.1uF 16V

C427

0.1uF 16V

R489 0R05 1/16WR489 0R05 1/16W

TP23TP23

R416

0R05 1/16W

R416

0R05 1/16W

+

C443
220UF 16V

+

C443
220UF 16V

C403
1uF 16V

C403
1uF 16V

R415

0R05 1/16W

R415

0R05 1/16W

C408

100N16V

C408

100N16V

R422

0R05 1/16W

R422

0R05 1/16W

C422

100N16V

C422

100N16V

R448

0R05 1/16W

R448

0R05 1/16W

R451

0R05 1/16W

R451

0R05 1/16W
C440

100N16V

C440

100N16V

R401

0R05 1/16W

R401

0R05 1/16W

C410

100N16V

C410

100N16V

TP22TP22

C439

100N16V

C439

100N16V

R453

0R05 1/16W

R453

0R05 1/16W

TP32TP32

R406 4K7 1/16W 5%R406 4K7 1/16W 5%

R414

0R05 1/16W

R414

0R05 1/16W

C421

100N16V

C421

100N16V

C413

10U 10V

C413

10U 10V

C425

100N16V

C425

100N16V

R429 10K 1/16W 5%R429 10K 1/16W 5%

C449

100N16V

C449

100N16V

R444

47 OHM 1/16W

R444

47 OHM 1/16W

TP39TP39

C448

100N16V

C448

100N16V

C433

100N16V

C433

100N16V

C414

100N16V

C414

100N16V

C446

100N16V

C446

100N16V

C435

100N16V

C435

100N16V

R447

0R05 1/16W

R447

0R05 1/16W

C402 47nF 16VC402 47nF 16V

C426

0.1uF 16V

C426

0.1uF 16V

R411 10K 1/16W 5%R411 10K 1/16W 5%

TP41TP41

TP27TP27

R449

0R05 1/16W

R449

0R05 1/16W

C418

100N16V

C418

100N16V

R407

1K 1/16W 1%

R407

1K 1/16W 1%

R488 0R05 1/16WR488 0R05 1/16W

C416

100N16V

C416

100N16V

R410

5.1K 1%

R410

5.1K 1%

C451

100N16V

C451

100N16V

C442

100N16V

C442

100N16V

R486
560R 1%

R486
560R 1%

R446

0R05 1/16W

R446

0R05 1/16W

TP40TP40

C430

0.1uF 16V

C430

0.1uF 16V

C444

100N16V

C444

100N16V

C423

100N16V

C423

100N16V

R404 10K 1/16W 5%R404 10K 1/16W 5%

TP33TP33

C431

4.7UF 16V

C431

4.7UF 16V

R418

0R05 1/16W

R418

0R05 1/16W

C445

100N16V

C445

100N16V

C441

10U 10V

C441

10U 10V

R421

0R05 1/16W

R421

0R05 1/16W

C429

0.1uF 16V

C429

0.1uF 16V

C415

100N16V

C415

100N16V

C404

100N16V

C404

100N16V

R403 1K 1/16W 5%R403 1K 1/16W 5%

TP38TP38

R417

0R05 1/16W

R417

0R05 1/16W

C428

0.1uF 16V

C428

0.1uF 16V

C438

100N16V

C438

100N16V

R487

4K3 1/16W 5%

R487

4K3 1/16W 5%

C437

100N16V

C437

100N16V

TP47TP47

TP28TP28

C412

10U 10V

C412

10U 10V

C450

100N16V

C450

100N16V

C417

100N16V

C417

100N16V

C401

47nF 16V

C401

47nF 16V

TP46TP46

C407

100N16V

C407

100N16V

R424 100R 1/16W 5%R424 100R 1/16W 5%

Circuit Diagrams and PWB Layouts

EN 56TPM8.3A LA 10.

2011-Nov-11

SoC Peripheral

19170_521_110628.eps

110720

SoC Peripheral

B09 B09

2011-03-12

4

715G4611

SoC Peripheral

OPCTRL4
OPCTRL5

AOSDATA1

MEMORY_WP#

OXTALO

OXTALI

ORESET#

PACLE

PAALE
POCE1#

PARB#

POOE#

POWE#

PDD0

PDD2

PDD3

PDD4

PDD6

PDD7

PDD1

PDD5

POCE0#

OSDA0
OSCL0

OSCL0

MEMORY_WP#

OXTALO

OXTALI

OPCTRL5

OPCTRL4

AOSDATA1

PDD7
PDD6

PACLE

PDD5

PAALE

PDD4

POWE#

PDD3

FLASH_WP#

PARB#

PDD2

POOE#

PDD1
PDD0

PDD6

PDD7

POOE#

POCE0#

FLASH_WP#

ORESET#

MEMORY_WP#

POCE1#

DVDD3V3

DVDD3V3

OSDA0

DVDD3V3

5VSB

3V3SB

DVDD3V3

3V3SB

DVDD3V3

DVDD3V3

DVDD3V3

DVDD3V3

3V3SB

3V3SB

5VSB

OPCTRL4 12
OPCTRL5 12

AOSDATA1 12

MEMORY_WP# 12

GND 4,5,6,7,8,9,10,11,12,14,15,16,17,18,19,20,21,22

OSDA0 8,9,10,12,18,20
OSCL0 8,9,10,12,18,20

POWE# 12

POCE0# 12

PAALE 12
PACLE 12
POCE1# 12

POOE# 12

PARB# 12

OXTALI 12
OXTALO 12

ORESET# 12

PDD0 12

PDD1 12

PDD2 12

PDD3 12

PDD4 12

PDD5 12

PDD6 12

PDD7 12

NVRAM

I2C address at A0

L: Write Protect

H: Write

STBC CRYSTAL

Reset IC

Close to SoC

Strapping

256Mbit Nand Flash

SMD/0402

SMD/0402

NOR Flash

ATV :8MB MX25L6445B
DTMB: 16MB

H : Write Protect
L : Write Enable

Q401

PMBS3904

Q401

PMBS3904

R457

NC\0R05 1/16W

R457

NC\0R05 1/16W

C460

100N 16V

C460

100N 16V

1
2

3

4

X401

27MHz

X401

27MHz

R472

4K7 1/16W 5%

R472

4K7 1/16W 5%

C454

220N16V

C454

220N16V

C457

27PF 50V

C457

27PF 50V

R476

NC\10K 1/16W 5%

R476

NC\10K 1/16W 5%

R463

4.7K 1%

R463

4.7K 1%

C455

NC\100N 16V

C455

NC\100N 16V

C462

10U 10V

C462

10U 10V

C458

27PF 50V

C458

27PF 50V

R462

4.7K 1%

R462

4.7K 1%

R460
NC\4K7 1/16W 5%

R460
NC\4K7 1/16W 5%

C456

100N 16V

C456

100N 16V

R474

NC\10K 1/16W 5%

R474

NC\10K 1/16W 5%

R458
NC\10K 1/16W

R458
NC\10K 1/16W

CS#

1

SO/SIO1

2

WP#/SIO2

3

GND4SI/SIO0

5

SCLK

6

NC/SIO3

7

VCC

8

U404

NC\MX25L6445EM2I-10G

U404

R480 NC\1M 1/16WR480 NC\1M 1/16W

R467

NC\5K1 1/16W 5%

R467

NC\5K1 1/16W 5%

GND

1

RESET

2

VCC

3

U406
MAX809STRG

U406
MAX809STRG

R461

10K 1/16W 5%

R461

10K 1/16W 5%

R471

NC 6K8 1/10W 1%

R471

NC 6K8 1/10W 1%

C452

NC\10U 10V

C452

NC\10U 10V

R469

0R05 1/16W

R469

0R05 1/16W

R464

2.2K 1/16W

R464

2.2K 1/16W

R456

4K7 1/16W 5%

R456

4K7 1/16W 5%

VSS

4

VCC

8

SDA

5

SCL

6

E0

1

E1

2

E2

3

WC

7

U405

CAT24C128YI

U405

CAT24C128YI

R479

NC\10K 1/16W 5%

R479

NC\10K 1/16W 5%

R459

NC\4K7 1/16W 5%
R459

NC\4K7 1/16W 5%

R465

10K 1/16W 5%

R465

10K 1/16W 5%

123

4

CN402

NC CONN

CN402

NC CONN

NC23

39

NC1

1

NC2

2

NC3

3

NC4

4

NC5

5

NC26

46

ALE

17

CLE

16

WE

18

NC17

26

NC8

11

WP

19

RY/BY1

7

NC9

14

NC10

15

NC18

27

NC19

28

NC11

20

NC12

21

NC13

22

I/O3

32

NC20

33

VSS2

36

VCC1

12

RE

8

VCC2

37

I/O2

31

I/O1

30

I/O0

29

VSS1

13

NC25

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC24

40

NC14

23

NC15

24

NC16

25

CE1

9

NC21

34

NC22

35

NC27

47

PRE

38

NC6

6

NC7

10

NC28

48

U403U403

H27U1G8F2BTR-BC

R455
NC\4K7 1/16W 5%

R455
NC\4K7 1/16W 5%

R477

10K 1/16W 5%

R477

10K 1/16W 5%

C453

NC\100N 16V

C453

NC\100N 16V

R470
NC 1K 1/10W 1%

R470
NC 1K 1/10W 1%

R475

10K 1/16W 5%

R475

10K 1/16W 5%

C461

100N 16V

C461

100N 16V

R473

4K7 1/16W 5%

R473

4K7 1/16W 5%

R478

10K 1/16W 5%

R478

10K 1/16W 5%

R468

100K 1/16W

R468

100K 1/16W

Strapping

OPCTRL5

OPCTRL4 AOSDAT A1

ICE mode + 27M +serial boot

ICE mode + 27M +ROM boot
ICE mode + 54M +serial boot

ICE mode + 54M +ROM boot
OLT mode

Scan mode
CPU model mode
Boundary scan mode

000
001

010
001
100
101

110
111

PAD_POCE0_ pbi_ce0(O) / sf_ce0(O)

pbi_oe0(O) / sf_clk(O)
pbi_data[6](I/O) / sf_out(I/O)
pbi_data[7](I/O) / sf_in(I/O)

PAD_POOE_
PAD_PDD6
PAD_PDD7

Circuit Diagrams and PWB Layouts

EN 57TPM8.3A LA 10.

2011-Nov-11

DDR2

19170_522_110628.eps

110628

DDR2

B10 B10

2011-03-12

4

715G4611

DDR2

1_A10
1_A12

1_A9
1_A11
1_A13

RDQS1#
RDQS0#

RDQS0

RDQS1

RDQ1
RDQ2
RDQ3

RDQ7

RDQ6

RDQ5

RDQ0

RDQ4

RDQ15

RDQ14

RDQ9

RCLK0

RCLK0#

RDQ13

RDQ8

RDQ12

RDQ11

RDQ10

RDQM1
RDQM0

1_A2

1_CS#

1_A0

1_BA2

1_BA0

1_CKE

1_RAS#

1_BA1

1_A1

1_CAS#
1_ODT

1_WE#

1_A4

1_A3

1_A6

1_A5

1_A8

1_A7

B_A8

B_A9

B_A10

B_A7

B_BA0

B_BA1

B_A5

B_A6
B_A4

B_ODT

B_A3

B_A11

B_A0

B_A13

B_WE#

B_A1

B_BA2

B_A12

B_CAS#
B_A2

B_CS#

B_RAS#

B_CKE

CLK0#

CLK0

RCLK0

RCLK0#

RDQ1
RDQ2
RDQ3

RDQ7

RDQ6

RDQ5

RDQ0

RDQ4

RDQ15

RDQ14

RDQ9

RDQ13

RDQ8

RDQ12

RDQ11

RDQ10

RDQS1#

RDQS1
RDQS0

RDQS0#
RDQM1
RDQM0

B_A1
B_A3

B_A2

B_A5
B_A7

B_A6

B_A4

B_A9
B_A11

B_A10

B_A8

B_A13

B_A12

B_A0

B_CAS#
B_ODT
B_RAS#

CLK0
CLK0#

B_WE#

B_BA1

B_BA0
B_BA2

B_CS#

B_CKE

RVREF1

1_RAS#
1_CS#
1_CAS#
1_A2

1_A7
1_A12
1_A9

1_A5

1_A13
1_A8
1_ODT

1_WE#
1_BA2
1_BA0

1_CKE

1_A3

1_BA1
1_A10
1_A1

1_A0
1_A6

1_A11

1_A4

DDRV

DDRV

DDRV

DDRV

1_A7 12

RDQ2 12

1_A8 12

RDQ3 12

1_A9 12

RDQ4 12

GND 4,5,6,7,8,9,10,11,12,13,15,16,17,18,19,20,21,22

1_A10 12

RDQ5 12

1_A11 12

RDQ6 12
RDQ7 12

1_A13 12

RDQ8 12

1_A0 12

1_WE# 12

1_ODT 12

RDQ9 12

1_A12 12

1_CAS#12
1_RAS#12

1_BA1 12

RDQ10 12
RDQ11 12
RDQ12 12
RDQ13 12
RDQ14 12

1_A1 12

RDQ15 12

1_A2 12

RCLK0 12
RCLK0# 12

1_A3 12

RDQS112

1_CS#12

RDQS1# 12

1_A4 12

RDQS012

1_CKE 12

RDQS0# 12

1_BA0 12

1_A5 12

RDQM1 12

RDQ0 12

1_BA2 12

RDQM0 12

1_A6 12

RDQ1 12

Damping for DDR2#1 ADDR/CMD

Damping & Termination for CLK

CAPs Close to DDR2#1

DDR2#1-64Mx16-1066MHz

J1 A1 E1 R1

E9
G7
G9

A9
C7
C9

G1
G3

C1
C3

J9
M9

C469

100N16V

C469

100N16V

C466

100N16V

C466

100N16V

R483

100R 1/16W 5%

R483

100R 1/16W 5%

C470

100N16V

C470

100N16V

1

2

3

4

8

7

6

5

RP401 100 OHM 1/16WRP401 100 OHM 1/16W

R481 0R05 1/16WR481 0R05 1/16W

C467

100N16V

C467

100N16V

R485

1.1KOHM +-1% 1/10W

R485

1.1KOHM +-1% 1/10W

C463

100N16V

C463

100N16V

R484

1.1KOHM +-1% 1/10W

R484

1.1KOHM +-1% 1/10W

C471

100N16V

C471

100N16V

R482 0R05 1/16WR482 0R05 1/16W

C468

100N16V

C468

100N16V

VDD

A1

NC

A2

VSS

A3

VSSQ

A7

UDQS

A8

VDDQ

A9

DQ14

B1

VSSQ

B2

UDM

B3

UDQS

B7

VSSQ

B8

DQ15

B9

VDDQ

C1

DQ9

C2

VDDQ

C3

VDDQ

C7

DQ8

C8

VDDQ

C9

DQ12

D1

VSSQ

D2

DQ11

D3

DQ10

D7

VSSQ

D8

DQ13

D9

VDD

E1

NC

E2

VSS

E3

VSSQ

E7

LDQS

E8

VDDQ

E9

DQ6

F1

VSSQ

F2

LDM

F3

LDQS

F7

VSSQ

F8

DQ7

F9

VDDQ

G1

DQ1

G2

VDDQ

G7

DQ0

G8

VDDQ

G9

DQ4

H1

VSSQ

H2

DQ3

H3

DQ2

H7

VSSQ

H8

DQ5

H9

VDDL

J1

VREF

J2

VSS

J3

VSSDL

J7

CK

J8

VDD

J9

CKE

K2

WE

K3

RAS

K7

CK

K8

ODT

K9

BA2

L1

BA0

L2

BA1

L3

CAS

L7

CS

L8

A10/AP

M2

A1

M3

A2

M7

A0

M8

VDD

M9

VSS

N1

A3

N2

A5

N3

A6

N7

A4

N8

A7

P2

A9

P3

A11

P7

A8

P8

VSS

P9

VDD

R1

A12

R2

NC

R3

NC

R7

NC

R8

VDDQ

G3

U402

W971GG6JB-18

U402

W971GG6JB-18

1

2

3

4

8

7

6

5

RP403 100 OHM 1/16WRP403 100 OHM 1/16W

1

2

3

4

8

7

6

5

RP404 100 OHM 1/16WRP404 100 OHM 1/16W

C465

100N16V

C465

100N16V

1

2

3

4

8

7

6

5

RP405 100 OHM 1/16WRP405 100 OHM 1/16W

1

2

3

4

8

7

6

5

RP406 100 OHM 1/16WRP406 100 OHM 1/16W

1

2

3

4

8

7

6

5

RP402 100 OHM 1/16WRP402 100 OHM 1/16W

C472

100N16V

C472

100N16V

C464

100N16V

C464

100N16V

Circuit Diagrams and PWB Layouts

EN 58TPM8.3A LA 10.

2011-Nov-11

LVDS, JTAG & UART

19170_523_110628.eps

110628

LVDS, JTAG & UART

B11 B11

2011-03-12

4

715G4611

LVDS, JTAG & UART

TX_AE1P
TX_AE1N

TX_AE0P

TX_AO4P
TX_AO4N

TX_AO3P
TX_AO3N

TX_AOCKN

TX_AOCKP

TX_AO2P
TX_AO2N

TX_AO1P
TX_AO1N

TX_AO0P
TX_AO0N

TX_AE0N

TX_AE4P
TX_AE4N

TX_AE3P
TX_AE3N

TX_AECKP
TX_AECKN

TX_AE2P
TX_AE2N

JTRST#

JTCK

JTDI

JTDO

JTMS

TX_AE1P
TX_AE1N

TX_AE0P

TX_AO4P
TX_AO4N

TX_AO3P
TX_AO3N

TX_AOCKN

TX_AOCKP

TX_AO2P
TX_AO2N

TX_AO1P
TX_AO1N

TX_AO0P
TX_AO0N

TX_AE0N

TX_AE4P
TX_AE4N

TX_AE3P
TX_AE3N

TX_AECKP
TX_AECKN

TX_AE2P
TX_AE2N

U0TX

U0RX

Panel_12V_5V

TX_AOCKP

TX_AE1P

TX_AO2P

TX_AO4P

TX_AOCKN

TX_AO3N

TX_AO1N

TX_AE4N

TX_AE2N

TX_AO1P

ODSEL

TX_AO3P

TX_AE2P

TX_AE4P

TX_AE3N

TX_AO0P

TX_AE0P TX_AE0N

TX_AO0N

SELLVDS

TX_AECKP

TX_AECKN

TX_AE3P

TX_AO4N

TX_AE1N

TX_AO2N

JTDO

JTMS

JTDI
JTCK

JTRST#

U0TX

U0RX

OSCL0

OSDA0

M_TX_AO3N

M_TX_AO3P

M_TX_AO4N

M_TX_AO4P

M_TX_AO2N

M_TX_AO2P

M_TX_AOCKN

M_TX_AOCKP

M_TX_AO0N

M_TX_AO0P

M_TX_AO1N

M_TX_AO1P

M_TX_AE4P
M_TX_AE4N
M_TX_AE3P
M_TX_AE3N

M_TX_AE2N

M_TX_AE2P

M_TX_AECKN

M_TX_AECKP

TX_AO4N

TX_AO4P

TX_AO2P

TX_AOCKN

TX_AOCKP

TX_AO3N

TX_AO3P

TX_AE4P

TX_AO0N

TX_AO0P

TX_AO1N

TX_AO1P

TX_AO2N

TX_AECKN

TX_AECKP

TX_AE3N

TX_AE3P

TX_AE4N

TX_AE0P

TX_AE1N

TX_AE1P

TX_AE2N

TX_AE2P

TX_AE0N

M_TX_AE0N

M_TX_AE0P

M_TX_AE1N

M_TX_AE1P

TVTREF#1

JTAG_DBGRQ
JTAG_DBGACK

N54124027

BL_DIM_PWM

LVDSVDD

DVDD3V3

DVDD3V3

DVDD3V3 DVDD3V3

3V3SB

3V3SB

5VSB_2

TX_AE3P12
TX_AE3N12
TX_AE4P 12
TX_AE4N 12

TX_AO3P12
TX_AO3N12
TX_AO4P 12
TX_AO4N 12

TX_AO0P 12
TX_AO0N 12
TX_AO1P 12
TX_AO1N 12
TX_AO2P 12
TX_AO2N 12
TX_AOCKP 12
TX_AOCKN 12

TX_AE0P 12
TX_AE0N 12
TX_AE1P 12
TX_AE1N 12
TX_AE2P 12
TX_AE2N 12
TX_AECKP 12
TX_AECKN 12

JTRST# 12

JTDO 12

JTCK 12

JTMS 12

JTDI 12

GND 4,5,6,7,8,9,10,11,12,13,14,16,17,18,19,20,21,22

TX_AE3P12
TX_AE3N12
TX_AE4P 12
TX_AE4N 12

TX_AO3P12
TX_AO3N12
TX_AO4P 12
TX_AO4N 12

TX_AO0P 12
TX_AO0N 12
TX_AO1P 12
TX_AO1N 12
TX_AO2P 12
TX_AO2N 12
TX_AOCKP 12
TX_AOCKN 12

TX_AE0P 12
TX_AE0N 12
TX_AE1P 12
TX_AE1N 12
TX_AE2P 12
TX_AE2N 12
TX_AECKP 12
TX_AECKN 12

U0TX 6,12

U0RX 6,12

OSCL0 8,9,10,12,13,18,20

OSDA0 8,9,10,12,13,18,20

M_TX_AE4P

22

M_TX_AE4N22
M_TX_AE3P22
M_TX_AE3N22

M_TX_AECKN22

M_TX_AECKP22

M_TX_AE2N22

M_TX_AE2P22

M_TX_AE1P22

M_TX_AE0N22

M_TX_AE0P22

M_TX_AE1N22

M_TX_AO3N22

M_TX_AO3P22

M_TX_AO4N22

M_TX_AO4P22

M_TX_AO2P22

M_TX_AOCKN

22

M_TX_AOCKP22

M_TX_AO2N22

M_TX_AO0P22

M_TX_AO1N22

M_TX_AO1P22

M_TX_AO0N22

RC_IR_5V

FHD 8/10-Bit LVDS Connector >=26"

JTAG (ICE) Debug

UART Debug Tool (STBY)

EMI

R198

NC\0R05 1/16W

R198

NC\0R05 1/16W

1

2

3

4

CN703

CONN

CN703

CONN

12

ZD137

MLVG0402

ZD137

MLVG0402

R153

4K7 1/16W 5%

R153

4K7 1/16W 5%

1 2

TH102

NC\MINISMDC075F-2

t

TH102

NC\MINISMDC075F-2

R152
NC\10K 1/16W 5%

R152
NC\10K 1/16W 5%

R197

NC\0R05 1/16W

R197

NC\0R05 1/16W

R144NC\10K 1/16W 5% R144NC\10K 1/16W 5%

C114

10U 10V

C114

10U 10V

R146NC\10K 1/16W 5% R146NC\10K 1/16W 5%

C113

100N 50V

C113

100N 50V

1 2

TH103

NC\MINISMDC075F-2

t

TH103

NC\MINISMDC075F-2

1

2

3

4

8

7

6

5

RP106

0OHM 1/16W

RP106

0OHM 1/16W

R149
NC\1K 1/16W 5%

R149
NC\1K 1/16W 5%

R142

NC\1K 1/16W 5%

R142

NC\1K 1/16W 5%

R140

1K 1/16W 5%

R140

1K 1/16W 5%

1
2

3

45

CN704

CONN

CN704

CONN

1

2

3

4

8

7

6

5

RP101

0OHM 1/16W

RP101

0OHM 1/16W

R156

100R 1/16W 5%

R156

100R 1/16W 5%

R195

NC\0R05 1/16W

R195

NC\0R05 1/16W

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

41

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

42

CN414

CONN

CN414

CONN

123456789

10 11

CN415
NC\CONN

CN415
NC\CONN

12

ZD138

MLVG0402

ZD138

MLVG0402

1

2

3

4

8

7

6

5

RP105

0OHM 1/16W

RP105

0OHM 1/16W

R141

NC\0R05 1/16W

R141

NC\0R05 1/16W

R154

100R 1/16W 5%

R154

100R 1/16W 5%

R155

4K7 1/16W 5%

R155

4K7 1/16W 5%

1

2

3

4

8

7

6

5

RP103

0OHM 1/16W

RP103

0OHM 1/16W

R147NC\10K 1/16W 5% R147NC\10K 1/16W 5%

1

2

3

CN410

CONN

CN410

CONN

1

2

3

4

8

7

6

5

RP104

0OHM 1/16W

RP104

0OHM 1/16W

R143

0R05 1/16W

R143

0R05 1/16W

R151

NC\10K 1/16W 5%

R151

NC\10K 1/16W 5%

R233

NC\0R05 OHM

R233

NC\0R05 OHM

R150
NC\33R 1/16W 5%

R150
NC\33R 1/16W 5%

R196

NC\0R05 1/16W

R196

NC\0R05 1/16W

1 2

t

TH104

NC\MINISMDC075F-2

t

TH104

NC\MINISMDC075F-2

R145NC\10K 1/16W 5% R145NC\10K 1/16W 5%

R194

NC\0R05 1/16W

R194

NC\0R05 1/16W

1

2

3

4

8

7

6

5

RP102

0OHM 1/16W

RP102

0OHM 1/16W

1

2

FB105

120R/6000mA

FB105

120R/6000mA

Circuit Diagrams and PWB Layouts

EN 59TPM8.3A LA 10.

2011-Nov-11

IR & Keypad Interface

19170_524_110628.eps

110628

IR & Keypad Interface

B12 B12

2011-03-12

4

715G4611

IR & Keypad Interface

LED_RED_OFF#

LED_RED

LED_RED_OFF#

OIRI

OIRI

ADC_KEY KEY

ADC_KEY

KEY

LIT_SENSOR

LED_WGB

LED_WGB

LIT_SENSOR

KEY2

KEY2

3V3SB_2

5VSB_2 3V3SB_2

3V3SB_2

3V3SB_25VSB_2

3V3SB

5VSB

3V3SB_2

LED_RED_OFF# 12

ADC_KEY 12

GND 4,5,6,7,8,9,10,11,12,13,14,15,17,18,19,20,21,22

OIRI 12

LIT_SENSOR 12

LED_WGB 12

KEY2 12

RC_IR_5V

Link to IR/Keypad Bd.

IR Receiver

L : ON

H : OFF

C203

100N 16V

C203

100N 16V

R207 0R05 1/16WR207 0R05 1/16W

1 2

FB202

120R/3000mA

FB202

120R/3000mA

1 2

FB201

120R/3000mA

FB201

120R/3000mA

R201

1MOHM 1/16W +/-5%

R201

1MOHM 1/16W +/-5%

C205

100N 16V

C205

100N 16V

C207

33P 50V

C207

33P 50V

R206

NC\4K7 1/16W 5%

R206

NC\4K7 1/16W 5%

R202

100R 1/16W 5%

R202

100R 1/16W 5%

Q201

NC\2N7002

Q201

NC\2N7002

R203

100R 1/16W 5%

R203

100R 1/16W 5%

C204

100N 16V

C204

100N 16V

C206

100N 16V

C206

100N 16V

1
2

3

4
5
6
7

8

9
10
11
12
13

CN401

CONN

CN401

CONN

C201

100N 16V

C201

100N 16V

1 2

ZD201

NC\BZX384-C5V6

ZD201

NC\BZX384-C5V6

R221 0R05 1/10WR221 0R05 1/10W

R220 0R05 1/10WR220 0R05 1/10W

C202

100N 16V

C202

100N 16V

1 2

ZD202

NC\BZX384-C5V6

ZD202

NC\BZX384-C5V6

R209 NC\0R05 1/16WR209 NC\0R05 1/16W

R211 NC\0R05 1/16WR211 NC\0R05 1/16W

R204
1MOHM 1/16W +/-5%

R204
1MOHM 1/16W +/-5%

R208 0R05 1/16WR208 0R05 1/16W

Circuit Diagrams and PWB Layouts

EN 60TPM8.3A LA 10.

2011-Nov-11

AV Out & SPDIF Out

19170_525_110628.eps

110628

AV Out & SPDIF Out

B13 B13

2011-03-12

4

715G4611

AV Out & SPDIF Out

MONITOR_OUT

MONITOR_OUT

SPDIF_OUT ESPO

SPDIF_OUT

AUD_LOUT

AUD_LOUT

AUD_ROUT AUD_ROUT

3V3_BUCK5V_SW

MONITOR_OUT 12

GND 4,5,6,7,8,9,10,11,12,13,14,15,16,18,19,20,21,22

SPDIF_OUT 8,12

AOUTR

12

AOUTL12

AOUT_EN12

AV_OUT (CVBS +R/L)

CVBS OUT

SPDIF OUT

CLOSE TO DRV603(U413)

C1307

NC\470P 50V

C1307

NC\470P 50V

C1316

NC\1UF16V

C1316

NC\1UF16V

R1324

NC\0R05 OHM

R1324

NC\0R05 OHM

C1319
NC\10N 50V

C1319
NC\10N 50V

C1313 NC\33P 50VC1313 NC\33P 50V

R1307

NC\10K1/16W

R1307

NC\10K1/16W

R1304

NC\22K1/16W

R1304

NC\22K1/16W

R1321 10K1/16W(NC)R1321 10K1/16W(NC)

C1305

NC\1UF16V

C1305

NC\1UF16V

R193 0R05 1/16WR193 0R05 1/16W

R1315 NC\33K 1/16WR1315 NC\33K 1/16W

R1308

NC\10K1/16W

R1308

NC\10K1/16W

R1316

NC\33K 1/16W

R1316

NC\33K 1/16W

1

2

FB1301

NC\30R/700mA

FB1301

NC\30R/700mA

R1314 NC\47K1/16WR1314 NC\47K1/16W

R1305

NC\10K1/16W

R1305

NC\10K1/16W

R1311

NC\33K 1/16W

R1311

NC\33K 1/16W

C605

NC\100P 50V

C605

NC\100P 50V

1

2

4

5

3

CN106

NC\PHONEJACK

CN106

NC\PHONEJACK

C1320
NC\10N 50V

C1320
NC\10N 50V

R1312

NC\33K 1/16W

R1312

NC\33K 1/16W

C1311

NC\33P 50V

C1311

NC\33P 50V

1

2

CN605

RCA JACK

CN605

RCA JACK

C1318

NC\1UF16V

C1318

NC\1UF16V

C1310

NC\33P 50V

C1310

NC\33P 50V

R1319 NC\51K 1/16W 5%R1319 NC\51K 1/16W 5%

1

2

CN122

RCA JACK

CN122

RCA JACK

+INR1-INR

2

OUTL

12

UVP

11

PVDD

9

PVSS6EN5SGND4OUTR

3

+INL

14

CN

7

CP

8

PGND

10

-INL

13

U413

NC\DRV603PWR

U413

NC\DRV603PWR

C141
47pF 50V

C141
47pF 50V

C1306

NC\1UF16V

C1306

NC\1UF16V

R1302 NC\100OHM1/16WR1302 NC\100OHM1/16W

R1313

NC\47K1/16W

R1313

NC\47K1/16W

L101

1.8 uH

L101

1.8 uH

R1310 NC\47K1/16WR1310 NC\47K1/16W

R1325

NC\10K1/16W

R1325

NC\10K1/16W

C1312

33P 50V(NC)

C1312

33P 50V(NC)

R1322

NC\0R05 1/10W

R1322

NC\0R05 1/10W

C1304

NC\1UF16V

C1304

NC\1UF16V

R605 100R 1/10W 5%R605 100R 1/10W 5%

R1317

NC\2K OHM

R1317

NC\2K OHM

R1323

47K1/16W(NC)

R1323

47K1/16W(NC)

C143
NC\47pF 50V

C143
NC\47pF 50V

C1301

NC\2.2nF 50V

C1301

NC\2.2nF 50V

R1318

NC\1.02K 1/10W 1%

R1318

NC\1.02K 1/10W 1%

1 2

FB1302

NC\30R/700mA

FB1302

NC\30R/700mA

C142
47pF 50V

C142
47pF 50V

R192

75R 1/16W 1%

R192

75R 1/16W 1%

R1320

NC\0R05OHM1/16W(NC)

R1320

NC\0R05OHM1/16W(NC)

C1317

NC\10UF 16V

C1317

NC\10UF 16V

1 2

ZD1302

NC\MLVG0402

ZD1302

NC\MLVG0402

R191 0R05 1/16WR191 0R05 1/16W

R1303

NC\22K1/16W

R1303

NC\22K1/16W

R604

240R 1/10W 1%

R604

240R 1/10W 1%

Q1501
NC\BC847C(NC)

Q1501
NC\BC847C(NC)

C1309

NC\33P 50V(NC)

C1309

NC\33P 50V(NC)

1 2

ZD602

NC\MLVG0402

ZD602

NC\MLVG0402

C1314 NC\33P 50VC1314 NC\33P 50V

R1309

NC\47K1/16W

R1309

NC\47K1/16W

1 2

ZD131
NC\UDZSNP5.6B

ZD131
NC\UDZSNP5.6B

1 2

ZD1301

NC\MLVG0402

ZD1301

NC\MLVG0402

C1308

NC\470P 50V

C1308

NC\470P 50V

R1301 NC\100OHM1/16WR1301 NC\100OHM1/16W

C1303 NC\1UF16VC1303 NC\1UF16V

C1302

NC\2.2nF 50V

C1302

NC\2.2nF 50V

C604

100N 16V

C604

100N 16V

C1315

NC\1UF16V

C1315

NC\1UF16V

R1306

NC\10K1/16W

R1306

NC\10K1/16W

Circuit Diagrams and PWB Layouts

EN 61TPM8.3A LA 10.

2011-Nov-11

Audio Amplifier & Headphone Out

19170_526_110628.eps

110628

Audio Amplifier & Headphone Out

B14 B14

2011-03-12

4

715G4611

Audio Amplifier

& Headphone Out

OUT1A

DDX3A

DDX3B

OUT1B

OUT2A

OUT2B

OUTA

ROUT-

TW

EAPD

PLL_FILT
PWDN

AOSDATA0
AOLRCK

A_Reset

AOMCLK

AOBCLK

TW

EAPD

LOUT-

Aud_SDA

OUT2A

OUT2B

OUTB

SPK_MUTE

PLL_FILT

LOUT+

OSCL0

OSDA0

AOBCLK

A_Reset

AL1O

DDX3A

MUTE_CTL

AR1O

DDX3B

OSDA0

PLL_GND

HP_LOUT

HP_ROUT

POP_MUTE

POP_MUTE

MUTE_CTL

AL1O

AR1O

HP_LOUT

EARPDET

HPLOUT

HP_ROUT HPROUT

OUTA

OSCL0

AOSDATA0

Aud_SCL

HP_DET#

HP_DET#

PLL_GND

SPK_MUTE

OUTA

OUTB

PWDN

ROUT+

AOLRCK

OUT1B

OUT1A

POP_MUTE

Aud_SCL
Aud_SDA

A_Reset

OUTB

STANDBY

AOMCLK

5V_SW

Aud3V3

Aud3V3

+24V_AMP

Aud3A3

Aud3V3

Aud3V3

Aud3V3 +24V_AMP

5V_SW

Aud3V3

+24V_SW

+24V

+24V_AMP +5V_ON

OPS_5V

+5V_ON

Aud3V3

Aud3V3

Aud3A3

+24V_USB

A_Reset12

AL1O12

MUTE_CTL12

AR1O12

AOBCLK12

AOSDATA012

AOMCLK12

AOLRCK12

OSDA08,9,10,12,13,20

HP_DET#12

OSCL08,9,10,12,13,20

SPK_MUTE12

GND 4,5,6,7,8,9,10,11,12,13,14,15,16,17,19,20,21,22

STANDBY4,12

Reset (pull-up)

I2S Interface

I2C Interface

Right-angle
type 6.2mm

HeadPhone OUT_Side Direction

I2C Digital SW Connection to PLL filter

Power down (pull-up)

L: Off
H: On

C688

1UF

C688

1UF

+

C635

100UF 35V

+

C635

100UF 35V

12

FB607 600R/200mAFB607 600R/200mA

L606

22uH

L606

22uH

C6790.1uF 50V C6790.1uF 50V

C712

NC\330N 50V

C712

NC\330N 50V

12

FB614

120R/6000mA

FB614

120R/6000mA

C670

0.1uF 50V

C670

0.1uF 50V

12

FB616

120R/6000mA

FB616

120R/6000mA

C645

0.1uF 50V

C645

0.1uF 50V

C659

0.1uF 50V

C659

0.1uF 50V

C678

0.1uF 50V

C678

0.1uF 50V

R616

10K 1/16W 5%

R616

10K 1/16W 5%

PVss

4

C1N

3

OUTL

11

SVss

9

C1P

1

SGND

7

OUTR

10

SHDN

5

PGND

2

IN R

8

VDD

12

IN_L

6

U606

MAX9728AETC+

U606

MAX9728AETC+

VIN3VOUT

2

GND14

4

U607
G903T63UF

U607
G903T63UF

A

1

K

2

D603

S3B

D603

S3B

C669

1nF 100V

C669

1nF 100V

Q705

NC\PMBS3904

Q705

NC\PMBS3904

C617

1UF

C617

1UF

C681

10UF

C681

10UF

C640

0.1uF 50V

C640

0.1uF 50V

C674

0.1uF 50V

C674

0.1uF 50V

C642

0.1uF 50V

C642

0.1uF 50V

GND_SUB

1

SA

2

TEST_MODE

3

VSS

4

VCC_REG

5

OUT2B

6

GND2

7

VCC2

8

OUT2A

9

OUT1B

10

VCC1

11

GND1

12

OUT1A

13

GND_REG

14

VDD

15

CONFIG

16

OUT3B

17

OUT3A

18

EAPD/OUT4B

19

TWARN/OUT4A

20

VDD_DIG

21

GND_DIG

22

PWRDN

23

VDD_PLL

24

FILTER_PLL

25

GND_PLL

26

XTI

27

BICKI

28

LRCKI

29

SDI

30

RESET

31

INT_LINE

32

SDA

33

SCL

34

GND_DIG

35

VDD_DIG

36

Thermal Pad

37

U602

STA339BWTR

U602

STA339BWTR

Q601

BC847C

Q601

BC847C

C676

0.1uF 50V

C676

0.1uF 50V

C619

47pF 50V

C619

47pF 50V

C624

330pF 50V

C624

330pF 50V

C661

0.1uF 50V

C661

0.1uF 50V

C627

1N 50V

C627

1N 50V

C615

1UF 10V

C615

1UF 10V

R629

0R05 1/16W

R629

0R05 1/16W

L603

22uH

L603

22uH

R638 10K 1/16W 5%R638 10K 1/16W 5%

R722
NC\180K

R722
NC\180K

C629 1N 50VC629 1N 50V

C657

0.1uF 50V

C657

0.1uF 50V

TP44TP44

R625

6.2 OHM 1/4W

R625

6.2 OHM 1/4W

R631

22 OHM 1/8W

R631

22 OHM 1/8W

1

2

FB603

120R/6000mA

FB603

120R/6000mA

C639

0.1uF 50V

C639

0.1uF 50V

TP45TP45

C686

NC\22pF 50V

C686

NC\22pF 50V

C646

0.1uF 50V

C646

0.1uF 50V

13

ZD601

BZX84C3V6

ZD601

BZX84C3V6

R602

NC 10K 1/16W 5%

R602

NC 10K 1/16W 5%

C607

1U 25V

C607

1U 25V

C680

10UF

C680

10UF

Q602

BC847C

Q602

BC847C

12

FB615

120R/6000mA

FB615

120R/6000mA

C644

0.1uF 50V

C644

0.1uF 50V

C634

0.1uF 50V

C634

0.1uF 50V

C664

330pF 50V

C664

330pF 50V

C656

0.1uF 50V

C656

0.1uF 50V

C621

0.1uF 50V

C621

0.1uF 50V

C622

0.1uF 50V

C622

0.1uF 50V

R606

10K+-5%1/16W

R606

10K+-5%1/16W

C612

NC/1N8 50V

C612

NC/1N8 50V

R640

10K 1/16W 5%

R640

10K 1/16W 5%

C658

0.1uF 50V

C658

0.1uF 50V

R619

10K 1/16W 5%

R619

10K 1/16W 5%

C641

1U 50V

C641

1U 50V

D605

LL4148

D605

LL4148

C620

0.1uF 50V

C620

0.1uF 50V

R630

2R2 1/16W 5%

R630

2R2 1/16W 5%

R617

10K 1/16W 5%

R617

10K 1/16W 5%

R633

2K2 +-1% 1/16W

R633

2K2 +-1% 1/16W

C683

10UF

C683

10UF

C614

47pF 50V

C614

47pF 50V

12

FB617

120R/6000mA

FB617

120R/6000mA

+

C630

100UF 35V

+

C630

100UF 35V

R601

100K 1/10W 5%

R601

100K 1/10W 5%

D606

LL4148

D606

LL4148

C633

1N 50V

C633

1N 50V

+

C685

100UF 35V

+

C685

100UF 35V

C632

0.1uF 50V

C632

0.1uF 50V

C623

0.1uF 50V

C623

0.1uF 50V

R641

10K 1/16W 5%

R641

10K 1/16W 5%

C610

1U 50V

C610

1U 50V

C649

100N 50V

C649

100N 50V

12

FB601

120R/6000mA

FB601

120R/6000mA

C611

1UF16V

C611

1UF16V

1

2

FB619 600R/200mAFB619 600R/200mA

R624

10K 1/16W 5%

R624

10K 1/16W 5%

R610

4K7 1/16W 5%

R610

4K7 1/16W 5%

C654

680pF 50V

C654

680pF 50V

R637

6.2 OHM 1/4W

R637

6.2 OHM 1/4W

C684

10uF 10V

C684

10uF 10V

12

FB612

120R/6000mA

FB612

120R/6000mA

12

FB609

120R/6000mA

FB609

120R/6000mA

C648

1N 50V

C648

1N 50V

R626

22 OHM 1/8W

R626

22 OHM 1/8W

R720

NC\56KOHM 1/16W

R720

NC\56KOHM 1/16W

C677

0.1uF 50V

C677

0.1uF 50V

R620

10K 1/16W 5%

R620

10K 1/16W 5%

C637

0.1uF 50V

C637

0.1uF 50V

R635

0R05 1/16W

R635

0R05 1/16W

1

2

FB618 600R/200mAFB618 600R/200mA

+

C671

100uF 10V

+

C671

100uF 10V

R603

1.8KOHM 1/10W

R603

1.8KOHM 1/10W

R636

0R05 1/16W

R636

0R05 1/16W

C625

1U 50V

C625

1U 50V

C651

330pF 50V

C651

330pF 50V

C667

100N 50V

C667

100N 50V

L602

22uH

L602

22uH

C647

0.1uF 50V

C647

0.1uF 50V

R627

6.2 OHM 1/4W

R627

6.2 OHM 1/4W

+

C663

100UF 35V

+

C663

100UF 35V

R721

NC\56KOHM 1/16W

R721

NC\56KOHM 1/16W

C650

1N 50V

C650

1N 50V

C618

1UF

C618

1UF

R623

10K 1/16W 5%

R623

10K 1/16W 5%

C666

0.1uF 50V

C666

0.1uF 50V

C606

1UF 10V

C606

1UF 10V

R614 10R 1/16W 5%R614 10R 1/16W 5%

C653

1N 50V

C653

1N 50V

R607

100R 1/16W 5%

R607

100R 1/16W 5%

R642

6.2 OHM 1/4W

R642

6.2 OHM 1/4W

1

2

FB610

120R/3000mA

FB610

120R/3000mA

1 2

FB611

120R/6000mA

FB611

120R/6000mA

+

C638

100UF 35V

+

C638

100UF 35V

C673

1N 50V

C673

1N 50V

12

FB613

120R/6000mA

FB613

120R/6000mA

C672

0.1uF 50V

C672

0.1uF 50V

C643

0.1uF 50V

C643

0.1uF 50V

C665

1N 50V

C665

1N 50V

GND-SUB

1

OUT2B

2

OUT2B

3

VCC2B

4

GND2B

5

GND2A

6

VCC2A

7

OUT2A

8

OUT2A

9

OUT1B

10

OUT1B

11

VCC1B

12

GND1B

13

GND1A

14

VCC1A

15

OUT1A

16

OUT1A

17

NC

18

GND-CLEAN

19

GND-REG

20

VDD

21

VDD

22

VL

23

CONFIG

24

PWRDN

25

TRI-STATE

26

FAULT

27

TH_WAR

28

IN1A

29

IN1B

30

IN2A

31

IN2B

32

VSS

33

VSS

34

VCCSIGN

35

VCCSIGN

36

GND

37

U603

STA515W

U603

STA515W

R612

10K 1/10W 5%

R612

10K 1/10W 5%

C711 NC\330N 50VC711 NC\330N 50V

1
2

3

4

CN602

CONN

CN602

CONN

1

2

3

5

4

CN601

PHONE JACK 5P

CN601

PHONE JACK 5P

C687

1UF

C687

1UF

C660

1U 50V

C660

1U 50V

R634

6.2 OHM 1/4W

R634

6.2 OHM 1/4W

R611

470KOHM +-5% 1/10W

R611

470KOHM +-5% 1/10W

C626

0.1uF 50V

C626

0.1uF 50V

C608

1U 50V

C608

1U 50V

C609

10uF 10V

C609

10uF 10V

+

C662

100UF 35V

+

C662

100UF 35V

R628

1R 1%

R628

1R 1%

+

C631

100UF 35V

+

C631

100UF 35V

R719

NC\10K 1/16W 5%

R719

NC\10K 1/16W 5%

R718

NC\10K 1/16W 5%

R718

NC\10K 1/16W 5%

C668

1N 50V

C668

1N 50V

R639

1.8KOHM 1/10W

R639

1.8KOHM 1/10W

C675

1U 50V

C675

1U 50V

C603

100N 50V

C603

100N 50V

R632

6.2 OHM 1/4W

R632

6.2 OHM 1/4W

D602 LL4148D602 LL4148

1

2

FB608

600R/200mA

FB608

600R/200mA

1

3

2

Q603

NC PDTC114ET

Q603

NC PDTC114ET

1

2

FB606 600R/200mAFB606 600R/200mA

R609

10K 1/16W 5%

R609

10K 1/16W 5%

1

2

FB602

120R/6000mA

FB602

120R/6000mA

R608

1.8KOHM 1/10W

R608

1.8KOHM 1/10W

L604

22uH

L604

22uH

C655

4N7 50V

C655

4N7 50V

D601 LL4148D601 LL4148

R643

22 OHM 1/8W

R643

22 OHM 1/8W

C613

1UF16V

C613

1UF16V

C682

10UF

C682

10UF

L601

22uH

L601

22uH

L605

22uH

L605

22uH

1

2

FB604

120R/3000mA

FB604

120R/3000mA

S1S2S

3G4

D8D7D6D

5

Q708

NC\AO4449 -7A/-30V

Q708

NC\AO4449 -7A/-30V

C636

0.1uF 50V

C636

0.1uF 50V

C628

100N 50V

C628

100N 50V

C616

NC/1N8 50V

C616

NC/1N8 50V

1

2

3

CN603

CONN

CN603

CONN

C652

0.1uF 50V

C652

0.1uF 50V

Circuit Diagrams and PWB Layouts

EN 62TPM8.3A LA 10.

2011-Nov-11

SSB layout top

19170_527_110629.eps

110629

2011-06-20

1

715G4611

SSB

layout top

U401

C682

C683

C775

C781

C727

C728

C766

C765

R101

R102

X401

R484

R485

C4144

C433

C436

C448

C449

C472

C726

C754

C755

C680

C4117

C4119
C4120

C753

C4138

C611

C613

X3

FS4

FS2

FS8

FS6

X4

R1

C722

U403

U402

R733

R732

FDT2

FDT10

C402

C4131

C419

FB719

FB730

R4109

R401

R402

R404

R410

R414

R417

R155

R486

R436

R448

R449

R461

R4104

R4105

R472

R473

R481

R482

R483

R4108

R746

RP401

RP402

RP403

RP404

RP405

RP406

R747

R748

R749

U706

L705

C4132

C4106

R4107

U405

U408

RP4015

RP4013

RP4019

RP4021

RP4014

RP4016

RP4018

RP4020

RP4017

RP4022

C4133

C4136

C4174

C4177

C4180

C4182

C4152

R4100

R4113

R4114

R4116

R4124

R4125

R4126

R4127

R4134

R4141

R409

R4131

R4132

D601D602

D605
D606

CN411

CN409

CN102

CN601

D705

D706

C102

C103

C106

C109

C110

C1105

C1106

C1107

C1114
C1125

C1128 C1129

C1133

C1134

C1137

C1138

C1145

C115

C1150C1151

C1154

C1155

C1157

C1158

C1159

C116

C117

C153

C152

C159

C146

C147

C135

C138C139

C140

C141

C142

C143

C156

C201

C202

C203

C205

C206

C207

C303

C304

C305

C308

C309

C310

C401

C409

C4102

C4107

C4108

C4109

C4134

C4188

C4190

C4192

C4194

C4197

C451

C454

C455

C456

C457

C458

C460

C461

C502

C510

C515

C604

C605

C606

C614

C615

C617

C618

C619

C624

C627

C629

C633

C648

C650

C651

C653

C654

C664

C665

C668

C673

C707

C708

C732

C739

C743

C744

C745

C747

C750

C756

C759

C764

C768

C770
C771

C772

C774

C776

C778

C782

C783

C786

C789

C792

C793

C794

C795

C798

C1102

C1103

C1104

C1127

C113

C1130

C1152C1153

C4101

C4111

C603

C681

C702C704

C709

C710

C714
C715

C716

C725

C734

C735

C746

C762

C769

C787

C797

C101

C104
C105

C111

C112

C114

C1140

C148

C150

C136

C137

C311

C420

C431

C462

C501

C503

C607

C608

C609

C610

C612

C616

C620

C621

C622

C626 C632

C634

C636

C639

C640

C642

C644

C646

C647

C652

C655

C656

C657

C658

C659

C666

C669

C670

C672

C674

C677

C679

C684

C706

C711

C712

C717

C724

C733

C736

C737

C740

C741

C748

C749

C751

C752

C757

C758

C760

C761

C763

C767

C777

C785

C788

C791

C628

C649

C667

C730

C731

RP101

RP102

RP103

RP104

RP105

RP106

RP1101

CN401

CN412

CN701

CN603

CN602

C671

C773

C784

C796

C630

C631

C635

C638

C662

C663

C1101

C1108

C1119

C1139

C443

X1101

FB101

FB113

FB111

FB112

FB106

FB108

FB109

FB110

FB1107

FB1108

FB1109

FB1110

FB1111

FB1112

FB201

FB202

FB307

FB4101

FB4103

FB4104

FB4105

FB4106

FB4107

FB4108

FB4109

FB501

FB502

FB604

FB606
FB607

FB608

FB610

FB704

FB705

FB706

FB716

FB718

FB721

FB722

FB723

FB725

FB727

FB728

FB729

FB731

FB732

FB733

FB734

FB735

FB736

FB737

FB738

FB739

FB740

FB741

FB742

L1101

L1104

FB105

FB601

FB602

FB603

FB609

FB611

FB612

FB613

FB614

FB615

FB616

FB617

FB701

FB702

FB703

FB707

FB711

FB712

FB713

FB714

FB726

L601L602

L603L604

L605L606

L702

L707

L706

L703

LED1101

U101

R103

R106

R107

R108

R109

R111

R1101

R1102

R1103

R1104

R1105

R1106

R1107

R1108

R1109

R110

R1112

R1113

R1114

R1115

R1116

R1117

R1118

R1119

R113

R1120

R1121

R1122

R1123

R1124

R1125

R1126 R1127

R112

R1130

R1132

R1136

R1137

R114

R1140

R1141

R1142

R1143

R1144
R1145

R1146

R1147

R1148

R1149

R115

R1150

R1153R1154

R1155R1156 R1157

R1158

R1159

R199

R1160

R1166

R1183R1185

R1188

R1191

R205

R226

R215

R225

R126

R212

R128

R222

R200

R183

R218

R223

R216

R224

R227

R214

R140

R141

R142

R143

R144

R145

R146

R147

R149

R150

R151

R152

R153

R154

R156

R157

R159

R163

R164

R165

R166

R167

R170

R210

R173 R174

R175

R176

R177

R178

R179

R180

R182

R184

R185

R186

R187

R188

R189

R190

R193

R201

R202

R206

R207

R208

R209

R211

R304R305

R307

R308

R309

R310

R311

R306

R317

R318

R319

R320

R4101

R4102

R4103

R4106

R4112

R4117

R4118

R4119

R412

R4120

R4121

R4122

R4128

R4133

R4137

R423

R424

R444

R451

R462
R463

R465

R467

R468

R469

R474
R475

R476

R477

R480

R501
R502

R503R504

R505

R506

R507

R509

R510

R511

R513

R514

R518

R521
R522

R530
R531

R534

R535

R536

R537
R538

R539

R540

R541
R542

R543

R544

R545

R546

R547

R551

R552

R557

R558

R559

R560

R569

R570

R602

R606

R607

R609

R610

R614

R616

R617

R619

R620

R623

R624

R629

R633

R635
R636

R638

R640

R641

R701

R702

R703

R704

R705

R706

R707

R708
R709

R710

R711

R713

R714

R715

R716

R717

R718

R719

R720

R721

R722

R724

R725

R726

R731

R734

R735

R736

R737

R738

R739

R740

R741

R742

R743

R744

R745

R753

R754

R755

R756

R757

R758

R760

R761

R762
R763

L101

L1103

R1161

R1162

R171

R172

R220

R221

R470

R471

R508

R512

R515

R516

R517

R519

R520

R526

R528

R532

R548

R549
R550

R601

R603

R604

R605

R608

R611

R612

R639

R712

R727

R750

R751

R752

R759

R626

R631

R643

R625 R627

R632 R634

R637

R642

D702

D704

D603

D703

D102

D103

D106

D501

D502
D503

D504

D510

D511
D512

D513

D514

D515

ZD131

ZD201

ZD501

ZD505

ZD506

Q707

Q708

Q709

U411

U703

U704

U710

U711

U607

U705

U707

U708

U709

U712

U702

D301

D302

D303

D304

D101

D505

D516

D604

Q101

Q102

Q105

Q1101

Q1106

Q1107

Q1108

Q501

Q503

Q505

Q506

Q507

Q603

Q701

Q703

Q704

Q705

Q706

ZD601

Q601

Q602

U406

Q1102Q1103

Q201

Q502

Q702

U602

U603

U606

U501

U102

U105

U502

U505

X4101

FDT1

FDT3

C306

C302

R194

R195

R196

R197

R198

FDT4

FDT5

CN414

C1164

C1141

C729

FB1102

R1174

C1144
C1162

C1163

CN402

R1173

R1171

R1172

R1175

U7007

CN106

C1301

C1302

C1309

C1310C1311

C1312

C1313

C1314

C1319

C1320

C1303

C1304

C1305

C1306

C1307

C1308

C1315

C1316

C1318

FB1301

FB1302

R1301

R1302

R1303

R1304

R1305

R1306

R1307

R1308

R1309

R1310

R1311

R1312
R1313

R1314

R1315R1316

R1317

R1319

R1320

R1321

R1323

R1318

R1322

Q1501

U413

FDT6

FDT7

FDT8

FDT9

C1317

C1165

C685

R1177

R1178

R1192

R403

R405

R429

R487

Q1109

Q402

C1166

R1179

R1181

R1324

R203

R204

ZD202

R1184
R1186

C705

C701

C703

CN104

CN702

TU101

C511

ZD102

ZD103

ZD104

ZD105

ZD135

ZD115

ZD134

ZD136

ZD114 ZD116

ZD133

ZD132

ZD117

ZD118

ZD119
ZD120

ZD121

ZD122

ZD123
ZD124

ZD125

ZD126

ZD127

ZD128

ZD129

ZD130

ZD1301ZD1302

ZD502

ZD602

CN506

CN507CN508

U412

CN122

CN605

CN121

ZD137
ZD138

R1325

R168

R169

R4129

R4130

R723

R764

R765

R571

R572

R573

Q106

Q1008

Q1009

FB107

CN103

FB715

L701

C719

C720

C721

U701

C713

C718

C738

C799

C7001

L1102

R728

R729

R730

R766

R767

R772

FB720

FB745

FDT11

FDT12

C4163

C790

L704

TH301

TH302

FB746

L1105

L1106

R1176

CN703

R454

R489

CN413

R228

C512

C513

C514

C687C688

FB503

FB504

FB505

FB618
FB619

R768

CN705

CN416

R769

ZD139

C7003

CN101

CN410

U409

U410

R233

C7004

C7005

C7006

FB708

CN704

Circuit Diagrams and PWB Layouts

EN 63TPM8.3A LA 10.

2011-Nov-11

SSB layout bottom

19170_528_110629.eps

110629

2011-06-21

1

715G4611

SSB

layout bottom

C412

C404

C405

C4160

C4161

C414

C4140
C4141

C4142

C4143

C4145

C4146

C4147

C4148

C4149

C415

C4150

C4151

C432

C434

C435

C437

C438

C439

C440

C442

C444

C445

C446
C447

C450

C4156

C4157

C4158

C441

C4118

C4122

TP25

TP29

TP30

TP31

FS3

FS1

FS7

FS5

C723

C4125

C4159

C4153

C4154

C4155

C4162

FB717

R407

R408

R413

R415

R416

R418

R419

R420

R422

R445

R446

R447

R450

R455

R464

R478

R479

R460

R456

R4136

Q401

C4164

C4166

C4167

C4168

C4169

C4170

C4171

C4172

C4173

C4175

C4178

C4179

C4181

C4183

C4139

C4165

C4176

C107
C108

C1109

C1110

C1111

C1112

C1113

C1115

C1116

C1117

C1118

C1120

C1121

C1122

C1123

C1124

C1126

C1142

C1143

C1147

C155

C406

C407

C408

C410

C4104

C4105

C411

C4112

C4113

C4114

C4115

C4121

C4123

C4124

C4126

C4127

C4128

C4129

C4130

C4135

C4137

C416

C417

C418

C4191

C4199

C421

C422

C423

C424

C425

C453

C204

C463

C464

C465

C466

C467

C468

C469

C470

C471

C504

C505

C506

C507

C508

C509

C516

C780

C118

C119

C149

C151

C154

C157

C158

C132

C133

C134

C403

C4103

C426

C427
C428

C429

C430

C413

C452

C623

C625

C637

C641

C643

C645

C660

C661
C675

C676

C678

C742

C779

FB4102

FB743

R104
R105

R1131

R1133

R1138
R1139

R1151

R1152

R1167

R1168

R1169

R217

R219

R138

R148

R181

R213

R158

R160

R161

R162

R191

R192

R406

R4110

R4111

R4115

R4123

R4135

R421

R453

R457

R458

R459

R553

R556

R630

R533

R554

R555

R628

U404

Q1104

Q1105

Q508

U713

U506

C1136

C1135

CN415

FB724

FB744

R1187

R1189

C686

C7002

R466

R488

R229

R230

R231

R232

R411
R425

C4184

Circuit Diagrams and PWB Layouts

EN 64TPM8.3A LA 10.

2011-Nov-11

10-4 EMC 715G4858 EMC

19170_529_110629.eps

111003

EMC

EMC EMC

2011-03-12

1

715G4858

EMC Board

311GW250B05BBX

RC_IR_OUT
TXD1

ITV_VDD_C

RXD1

ITV_VDD

ITV_VDD

ITV_VDD

R4402

10K 1/16W 5%

CN7001

CONN

1
2

3

4
5

R4401

100R 1/16W 5%

ZD135 NC\MLVG0402

1 2

t

TH4401
8V 0R4

12

ZD137 NC\MLVG0402

1 2

C4401 100N 16V

R4414
0R05OHM1/16W(NC)

ZD138 NC\MLVG0402

1 2

ZD136 NC\MLVG0402

1 2

Q4401

2N3906S-RTK/PS

1

23

CN7003

CONN

1
2

3

4
5

67

R4403

10K 1/16W 5%

EMC board

Circuit Diagrams and PWB Layouts

EN 65TPM8.3A LA 10.

2011-Nov-11

EMC board layout

19170_530_110629.eps

110722

2011-06-21

1

715G4858

EMC board

layout top/bottom

CN1

C4401

CN7003

Q4401

R4401

R4402

R4403
R4414

ZD135

ZD136ZD137

ZD138

R5

R6

R11

R12

CN7001

R13

Layout EMC Board (Top Side)

Layout

EMC

Board (Bottom Side)

Circuit Diagrams and PWB Layouts

EN 66TPM8.3A LA 10.

2011-Nov-11

10-5 J 715G4496 IR/LED

19170_531_110629.eps

111004

IR/LED

J J

2011-01-27

3

715G4496

IR/LED Board

POWER

VOL+

VOL-

CH+

CH-

HOME

-------->< ----|

----><----|

Red

VOL+

POWER

SDA

KEY1

SCL

PWM0

RESET

HOME

CH-

CH+

VOL-

RC6

LED_R

SCL
SDA

RC6
KEY1

LED_R

PWM0

LIGHT_SENSOR

VOL­VOL+
POWER
HOME
CH­CH+

Light_sensor

3V3SB

3V3SB

3V3SB

3V3SB

+5V_SW

+5V_SW

R236 NC/0R05 1/16W

C212

NC 100P 50V

C202

1N50V

Q201
BC847C

C210

10uF 10V

R235

NC 0R05 1/16W

R225

2.2K 1/16W

R213 10K+-5%1/16W

R222

2K7 1/16W 5%

R237 NC 0R05 1/16W

R228

4K3 1/16W 5%

R239

NC 0R05 1/16W

C211

NC 4.7UF 10V

R201 560R 1/16W 5%

U203

NC ALS-PDIC17-55C-TR8

3

1
2
4

GND
OUT
VCC
GND

LED201
LED

12

R224

NC 15K 1/16W 5%

R231

NC 15K 1/16W

CB201

TOUCH PAD 9X15

1

R203 560R 1/16W 5%

R212 10K+-5%1/16W

CN201

CONN

1
2

3

4
5
6
7

8

910

R238

NC/2M OHM 1/16W 5%

R220
1K

CB204

TOUCH PAD 9X15

1

C203

0.47UF 10V

CB202

TOUCH PAD 9X15

1

R202 560R 1/16W 5%

R226 39R 1%

C208

1UF16V

C214

NC 100P 50V

ZD201
NC UDZSNP3.3B

1 2

R204 560R 1/16W 5%

R227

NC 22K

U201

CG7216AM

1
2

34567

8 9

10

11

12

131415

16

P2[5]
P2[1]

P1[7]

P1[5]

P1[3]

P1[1] I2C_SCL

Vss

P1[0] I2C_SDA P1[2]

P1[4]

XRES

P0[4]

Vdd

P0[7]

P0[3]

P0[1]

CB203

TOUCH PAD 9X15

1

R234 NC 100R

U202

TSOP75236W

1
2

3

4

GND
Vs
OUT
GND

R232

NC 18K 1/16W

R229

NC 100K

CB205

TOUCH PAD 9X15

1

R223

100R

U205

NC LM358APWR

1
2

3

4

5

6

7

8

1OUT
1IN­1IN+
VCC- 2IN+

2IN-

2OUT

VCC+

R230

NC 470R

R208 560R 1/16W 5%

C209

NC 1UF16V

R240

NC/0R05 1/16W

C201

100nF 25V

C213

NC 100P 50V

C204

0.47UF 10V

R233

NC 100K

CN202

CONN

1
2

34

C207

NC/100P 50V

R205 560R 1/16W 5%

CB206

TOUCH PAD 9X15

1

R210

0R05 1/16W

IR/LED board

Circuit Diagrams and PWB Layouts

EN 67TPM8.3A LA 10.

2011-Nov-11

IR/LED board layout

19170_532_110629.eps

111004

2011-06-21

1

715G4496

IR/LED board

layout top/bottom

CB205

CB201

CB202 CB203CB204

CB206

U202

LED201

U203

C201

C202

C203

C204

C208

Q201

R201

R202

R203
R204

R208

R213

R205

R212

R220

R225

CN202

R210

CN201

C209

R226

ZD201

C211

C210

R228

C207

R222

R223

R224

C212

C213

C214

R227

R229

R230R231

R232

R233

R234

R235

R236

R237

R238

R239

R240

U205

U201

Layout IR/LED Board (Top Side)

Layout IR/LED Board

(Bottom Side)

Circuit Diagrams and PWB Layouts

EN 68TPM8.3A LA 10.

2011-Nov-11

11. Styling Sheets

19170_800_110702.eps

110702

Ebony 32"

Pos No. Description Remarks

30 BEZEL
40 REAR COVER
50 BASE ASSY
1176 REMOTE CONTROL

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

40

50

30

11-1 Ebony 32"

Styling Sheets

EN 69TPM8.3A LA 11.

2011-Nov-11

19170_801_110702.eps

110702

Ebony 42"

Pos No. Description Remarks

30 BEZEL
40 REAR COVER
50 BASE ASSY
1176 REMOTE CONTROL

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

30

50

40

11-2 Ebony 42"

Styling Sheets

EN 70TPM8.3A LA 11.

2011-Nov-11
