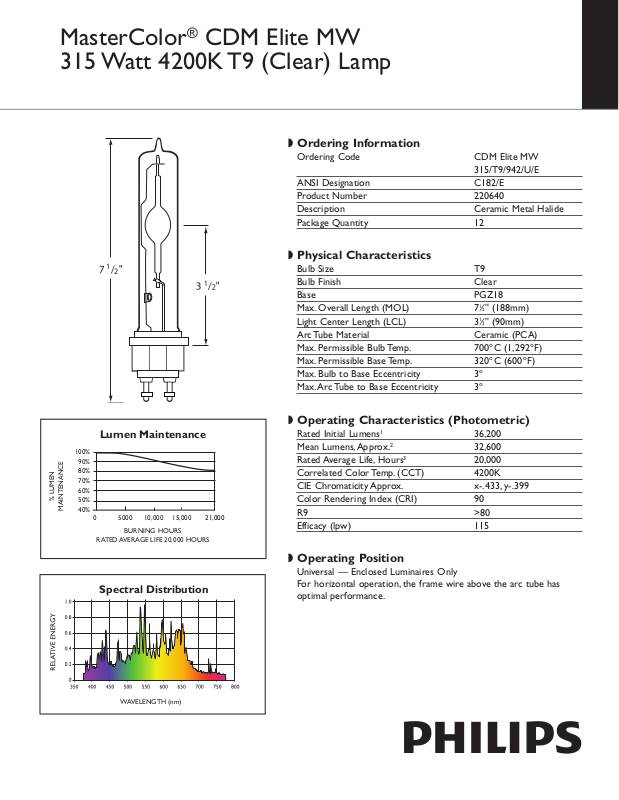

Philips 220640 User Manual

MasterColor®CDM Elite MW

Lumen Maintenance

BURNING HOURS

RATED AVERAGE LIFE 20,000 HOURS

100%

90% 80% 70% 60% 50% 40%

0 5000 10,000 15,000 21,000

% LUMEN

MAINTENANCE

71/

Spectral Distribution

WAVELENGTH (nm)

315 Watt 4200K T9 (Clear) Lamp

◗ Ordering Information

Ordering Code CDM Elite MW

ANSI Designation C182/E Product Number 220640 Description Ceramic Metal Halide Package Quantity 12

◗ Physical Characteristics

Bulb Size T9 Bulb Finish Clear Base PGZ18 Max. Overall Length (MOL) 71⁄2'' (188mm) Light Center Length (LCL) 31⁄2'' (90mm) Arc Tube Material Ceramic (PCA) Max. Permissible Bulb Temp. 700ºC (1,292ºF) Max. Permissible Base Temp. 320ºC (600ºF) Max. Bulb to Base Eccentricity 3º Max.Arc Tube to Base Eccentricity 3º

315/T9/942/U/E

◗ Operating Characteristics (Photometric)

Rated Initial Lumens Mean Lumens, Approx. Rated Average Life, Hours Correlated Color Temp. (CCT) 4200K CIE Chromaticity Approx. x-.433, y-.399 Color Rendering Index (CRI) 90 R9 >80 Efficacy (lpw) 115

36,200 32,600 20,000

◗ Operating Position

Universal — Enclosed Luminaires Only For horizontal operation, the frame wire above the arc tube has optimal performance.

Philips Lighting Company 200 Franklin Square Drive P.O. Box 6800 Somerset, NJ 08875-6800 1-800-555-0050

Division of Philips Electronics North America Corporation

Updated 5/09 TDS-220640

www.philips.com

MasterColor®CDM Elite MW 315 Watt 4200K T9 (Clear) Lamp

Electrical Data (

Lamp Watts (Nominal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315

Lamp Operating Voltage (rms) (Nominal)4. . . . . . . . . . . . 100

Initial Lamp Voltage Range (rms)5. . . . . . . . . . . . . . . . . . . . 85V–115V

Lamp Operating Current (Amps) (rms) (Nominal) . . . . . 3.15

Warm-up Time to 80% of Output . . . . . . . . . . . . . . . . . . . <3 Minutes

Re-strike Time for Hot Lamp . . . . . . . . . . . . . . . . . . . . . . . . 10 Minutes

Ballast Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Electronic, ANSI C182/E

Ballast Open Circuit Voltage (Minimum). . . . . . . . . . . . . . . 260V

Ignition Burst Height (Maximum). . . . . . . . . . . . . . . . . . . . . 4K V

Minimum Operating Temperature . . . . . . . . . . . . . . . . . . . . -20ºC

) Measured at 100 hrs of life in ver tical position.

2) Approximate lumen output at 40% of lamps rated average life.

3) Rated average life is obtained at 50% survival rate. ) Measured at rated lamp watts on a linear reactor or electronic ballast. LPW does not include ballast losses.

5) Measured with the lamp operating at rated watts.

Subject to cha nge without not ice)

Philips Lighting 281 Hillmount Road Markham, Ontario Canada L6C 2S3 1-800-555-0050

A Division of Philips Electronics Ltd.

Warnings, Cautions and Operating Instructions

“WARNING: These lamps can cause serious skin burn and eye inflammation

from short wave ultra-violet radiation if outer envelope of the lamp is broken or punctured. Do not use where people will remain for more than a few minutes unless adequate shielding or other safety precautions are used. Certain lamps that will automatically extinguish when the outer envelope is broken or punctured are commercially available.” This lamp complies with FDA radiation performance standard 21 CFR subchapter J. (USA: 21CFR 1040.30 Canada:SOR/DORS/80-381)

f the outer bulb is broken or punctured, turn off at once and replace the lamp to avoid possible injury from hazardous short wave ultraviolet radiation. Do not scratch the outer bulb or subject it to pressure as this could cause the outer bulb to crack or shatter.A partial vacuum in the outer bulb may cause glass to fly if the envelope is struck.

WARNING: The arc-tube of metal halide lamps are designed to operate under high

pressure and at temperatures up to 1000°C and can unexpectedly rupture due to internal or external factors such as a ballast failure or misapplication. If the arc-tube ruptures for any reason, the outer bulb may break and pieces of extremely hot glass might be discharged into the surrounding environment. If such a rupture were to happen, THERE IS A RISK OF PERSONAL INJURY, PROPERTY

DAMAGE, BURNS AND FIRE.

Certain lamps that will retain all the glass particles should inner arc-tube rupture occur are commercially available from Philips Lighting Company.

RELAMP FIXTURES AT OR BEFORE THE END OF RATED LIFE. Allowing lamps to operate until they fail is not advised and may increase the possibility of inner arc tube rupture.This lamp contains an arc tube with a filling gas containing less Philips Lighting Company, American Corporation.

than 25 nCi of Kr-85 and is distributed by

a division of Philips Electronics North

CAUTION: TO REDUCETHE RISK OF PERSONAL INJURY, PROPERTY

DAMAGE, BURNS AND FIRE RESULTING FROM AN ARC-TUBE RUPTURE THE FOLLOWING LAMP OPERATING INSTRUCTIONS MUST BE FOLLOWED:

Lamp Operating Instructions:

1. Relamp fixtures at or before the end of rated life.Allowing lamps to operate until they fail is not advised and may increase the possibility of inner arc tube rupture.

2. Use only in an enclosed fixture capable of withstanding particles of glass having temperatures up to 1000°C.

3. Before lamp installation/replacement, shut power off and allow lamp and fixture to cool to avoid electrical shock and potential burn hazards.

4. Use only auxiliary equipment meeting Philips and/or ANSI standards. Use within voltage limits recommended by ballast manufacturer.

A. Operate lamp only within specified limits of operation. B. For total supply load refer to ballast manufacturers electrical data. C. All Pulse Start lamps require a socket rated to withstand a 4,000 volt pulse

5. Periodically inspect the outer envelope. Replace any lamps that show scratches, cracks or damage.

6. If a lamp bulb support is used, be sure to insulate the support electrically to avoid possible decomposition of the bulb glass.

7. Protect lamp base, socket and wiring against moisture,corrosive atmospheres and excessive heat.

8. Time should be allowed for lamps to stabilize in color when turned on for the first time.This may require several hours of operation, with more than one start. Lamp color is also subject to change under conditions of excess vibration or shock, and color appearance may vary between individual lamps.

9. Lamps may require 10 minutes to re-light if there is a power interruption.

10. Take care in handling and disposing of lamps. If an arc tube is broken, avoid skin contact with any of the contents or fragments.

11. Use this lamp only in fixtures that contain a Pulse Start metal halide ballast and are

specifically designed for use with Pulse Start metal halide lamps.
