Introduction

Thank you for purchasing this television set.
This handbook has been designed to help you install and operate your TV set.
We would strongly recommend that you read it thoroughly.

Ta b le of Contents

Installation

Presentation of the LCD Television . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Remote control keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4

Installing your television set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Quick installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Program sort . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Manual store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Other settings in the Install menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Operation

Picture settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Sound adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Feature settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

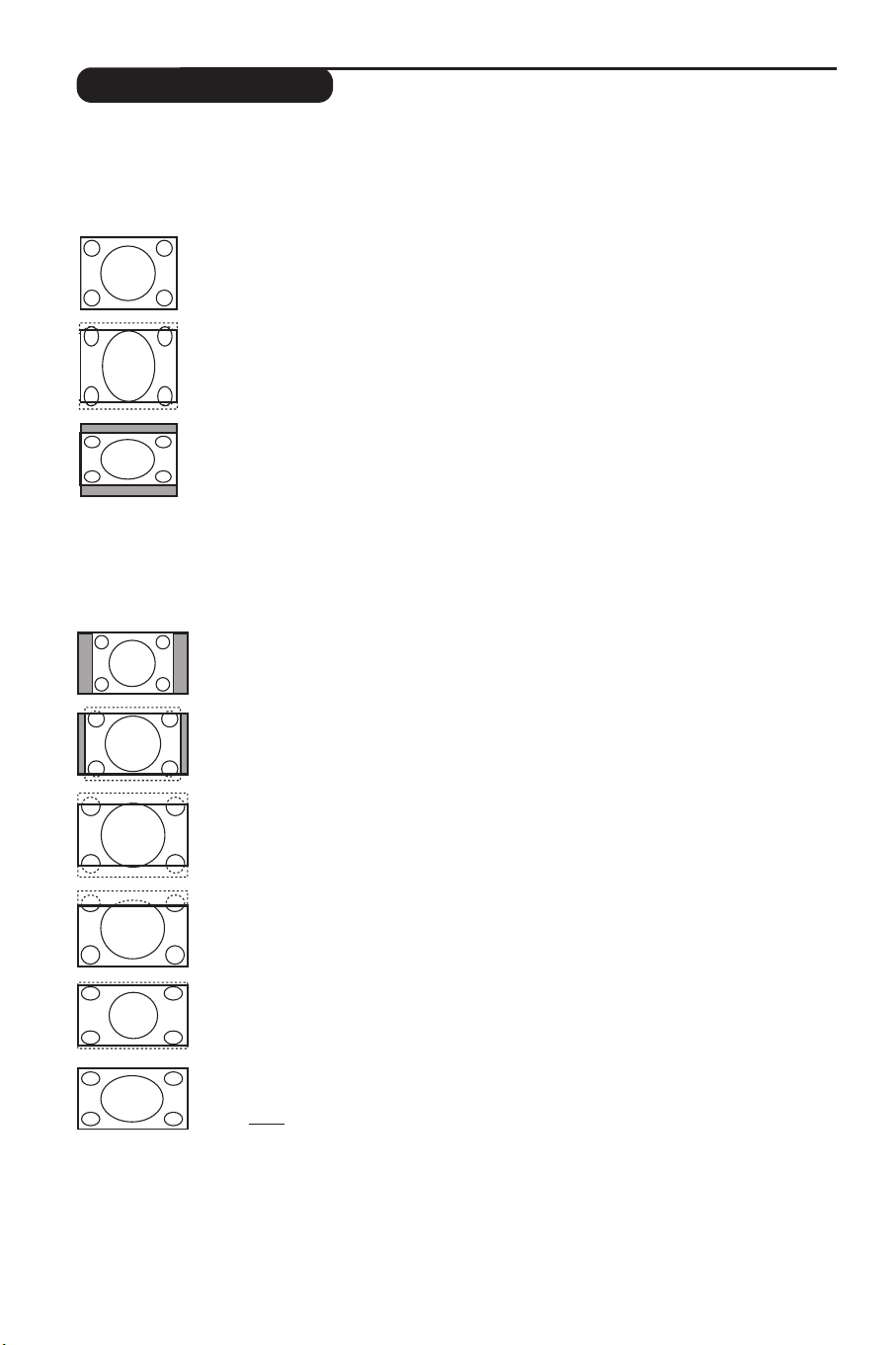

Screen Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Teletext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Using in PC monitor mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Using in HD (High Definition) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Peripherals

Video recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

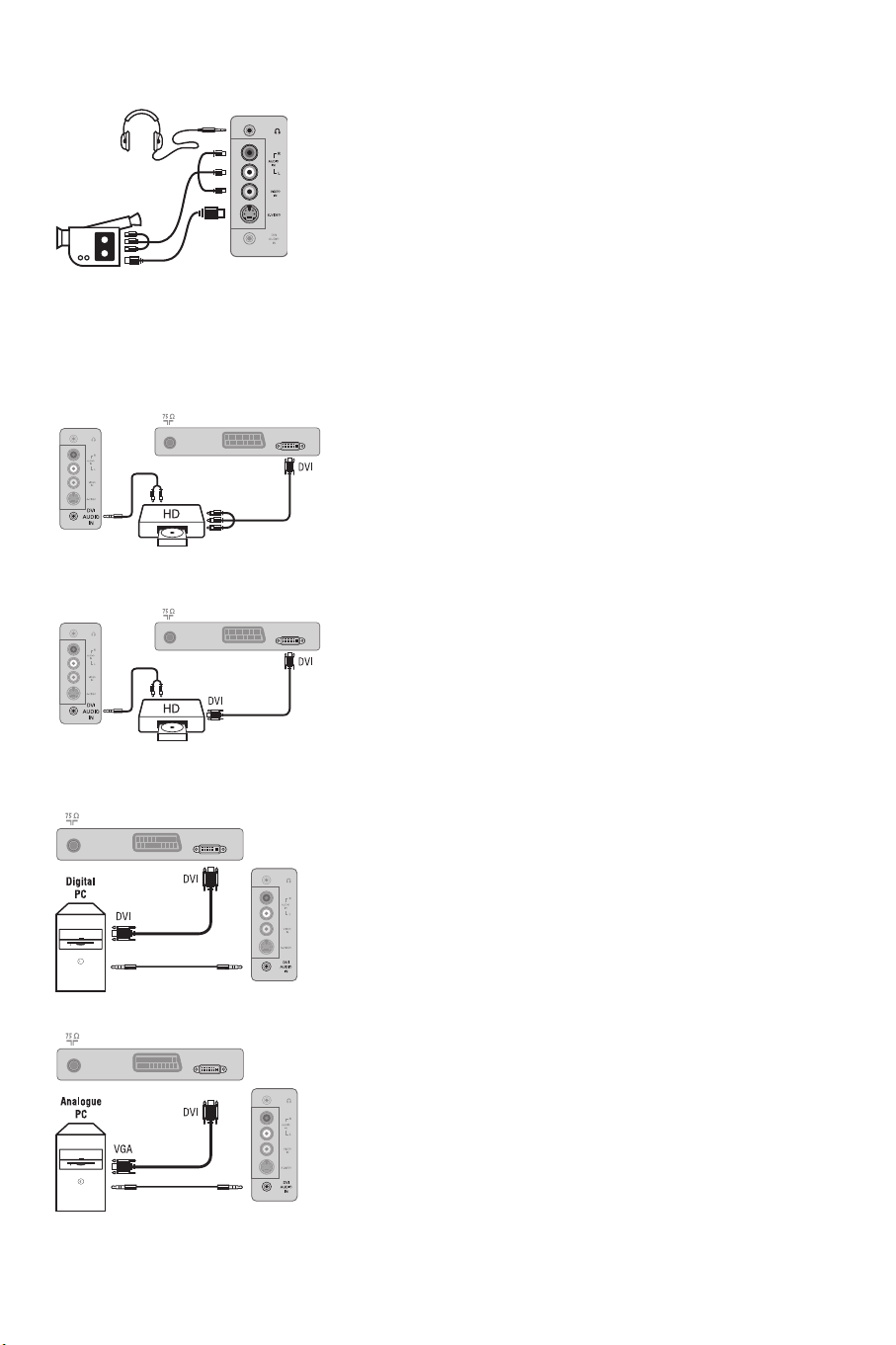

Other equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Side connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

HD equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

English

°

Practical information

Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Recycling

The packaging of this product is intended to be recycled.Apply to the local authorities for
correct disposal.

Disposal of your old product.

Your product is designed and manufactured with high quality materials and components,
which can be recycled and reused.When this crossed-out wheeled bin symbol is attached
to a product it means the product is covered by the European Directive 2002/96/EC.Please
inform yourself about the local separate collection system for electrical and electronic
products.
Please act according to your local rules and do not dispose of your old products with your
normal househols waste.The correct disposal of your old product will help prevent
potential negative consequences for the environment and human health.

1

Presentation of the LCD Television

&

Television keys:

POWER: to switch the TV on or off.

•

•

VOLUME -/+: to adjust sound level.

•

MENU: to access or close menus.

The PROGRAM -/+ keys can be used to select
an adjustment and the VOLUME -/+ keys to
make that adjustment.

•

PROGRAM -/+ (- P +): to select programmes.

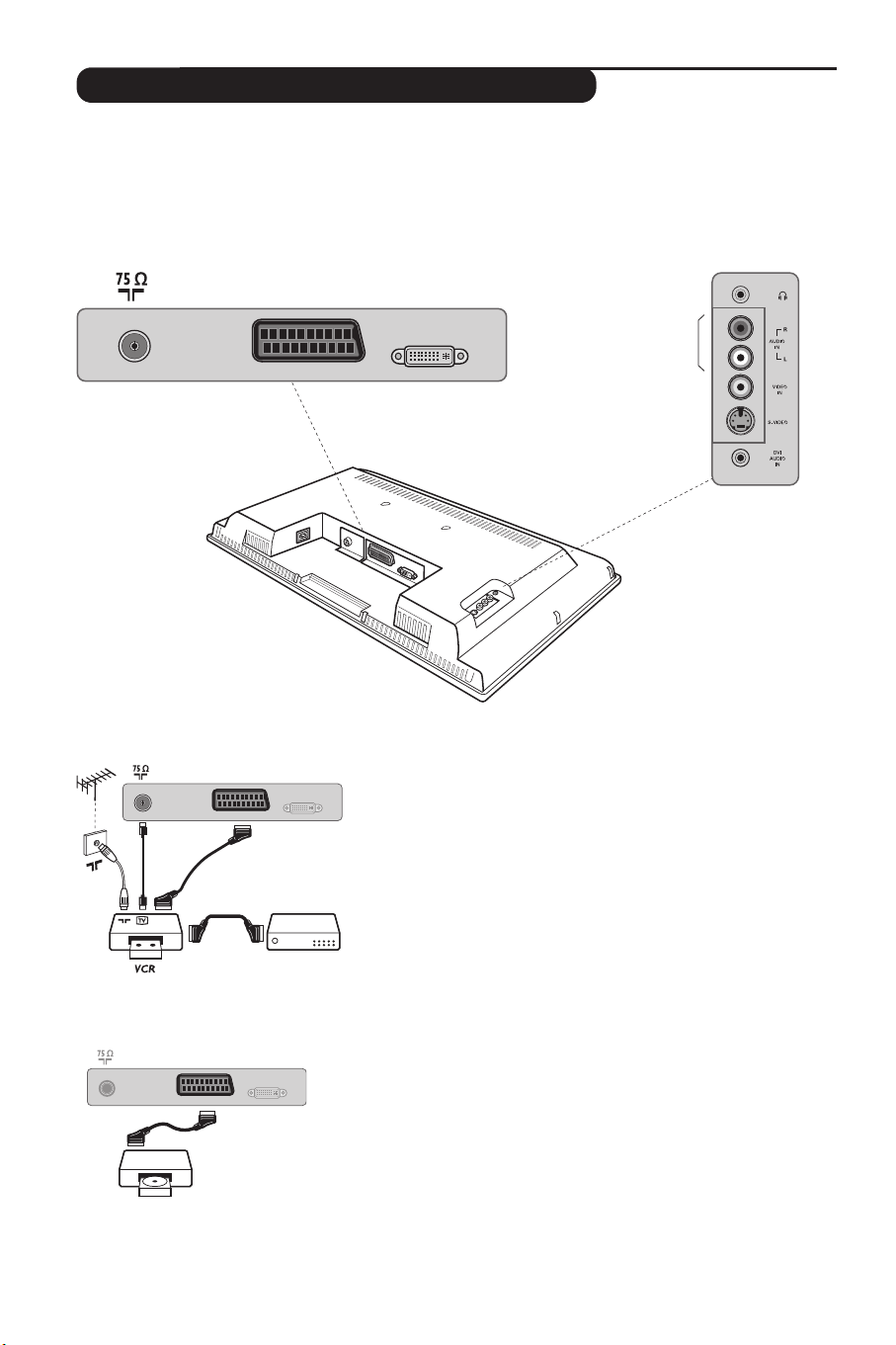

Rear of set :

The main connections are made at the bottom
of the television.

DVI-I InEXT 1

For more details on connections see page 12.

é Power socket
“ TV aerial socket
‘ EXT1 socket
( DVI-I input for connecting a HD (high

definition)* equipment or computer with DVI
output.

§ Side connections

* Depending on version.

Remote control

2

CR 2025

Pull out the plastic insulation sheet from the
battery,this will activate the remote control.
The battery supplied with the appliance does
not contain mercury or nickel cadmium so as to
protect the environment.Please do not discard
your used batteries, but use the recycling
methods available (consult your distributor).

Remote Control Keys for LCD TV Functions

1) . (STANDBY)

To set the TV to standby mode.To switch the TV set on
again, press P –/+, 0 to 9 or AV keys.

2) Sleeptimer

To select the length of time before the set automatically
switches to standby (from 0 to 240 minutes)

3) AV

To display Source List to select TV or peripheral
equipment connected to EXT1, AV/S-VHS, PC or
HD (p. 12).

ÓŸÅ Teletext keys (p.9)

4)

5) Unused key.

6) MENU

To call up or exit the TV menus.

∏ Screen Format (p.8)

7)

8) Cursor (

These 4 keys are used to move around the menus.

9) Volume

To adjust the sound level.

ª m Smart picture and sound

10)

Used to access a series of predefined picture and sound
settings.

The personal position relates to settings selected from the
menus.

Ë Screen information

11)

To display / remove the programme number, the time,
the sound mode and the time remaining on the timer.
Hold down for 5 seconds to permanently display the
programme number on the screen.

<>≤≥)

1)

2)

3)

4)

5)

6)

7)

8)

9)

10)

11)

3

Remote Control Keys for LCD TV Functions

12) ı List of programmes

To display / clear the list of programmes.Use the keys

<> to select a programme and the key ≥ to

(12
(13

(14
(15

(16

(17

(18

(19

display it.

ù Sound mode

13)

Used to force programmes in Stereo and Nicam Stereo
to Mono or,for bilingual programmes, to choose
between Dual I or Dual II.

The Mono indication is red when in forced position.

Q Surround Sound

14)

To activate / deactivate the surround sound effect. In
stereo,this gives the impression that the speakers are
further apart. For models equipped with Virtual Dolby
Surround*, you can experience Dolby Surround Pro
Logic sound effects.

¤ Teletext (p. 9)

15)

[ Mute

16)

To mute or restore the sound.

17) P -/+ Selecting TV programmes

To move up or down a programme.

mode are displayed for a few seconds.

sound

For some TV programmes the title of the programme
appears at the bottom of the screen.

18) 0/9 Numerical keys

For direct access to programmes.For a 2 digit
programme number, the 2
before the dash disappears.

Á Previous programme

19)

To access the previously viewed programme.

nd

digit must be entered

The number and the

* Manufactured under license from Dolby Laboratories.“Dolby”

and the double-D symbols are trademarks of Dolby
Laboratories.

4
