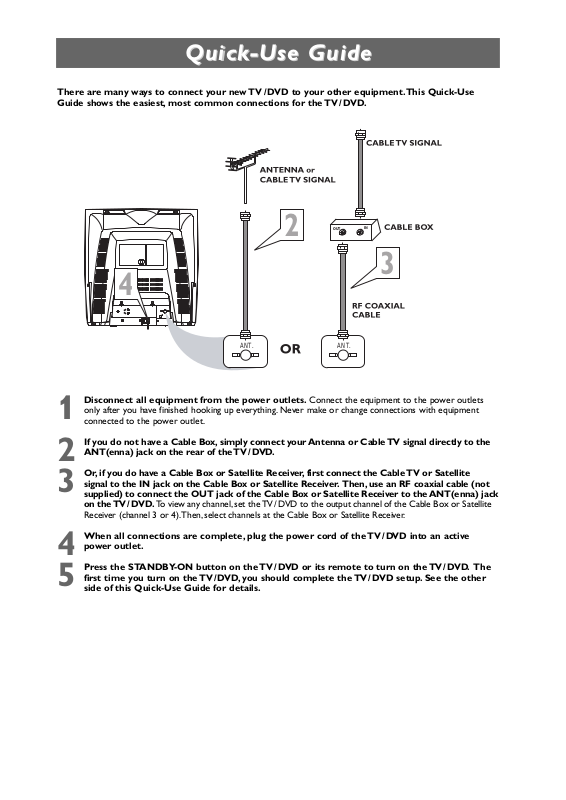

Philips 20MDRF20 Quick start guide

There are many ways to connect your new TV /DVD to your other equipment.This Quick-Use
Guide shows the easiest, most common connections for the TV / DVD.

1

Disconnect all equipment from the power outlets. Connect the equipment to the power outlets
only after you have finished hooking up everything. Never make or change connections with equipment
connected to the power outlet.

2

If you do not have a Cable Box, simply connect your Antenna or Cable TV signal directly to the
ANT(enna) jack on the rear of the TV / DVD.

3

Or, if you do have a Cable Box or Satellite Receiver, first connect the Cable TV or Satellite
signal to the IN jack on the Cable Box or Satellite Receiver. Then, use an RF coaxial cable (not
supplied) to connect the OUT jack of the Cable Box or Satellite Receiver to the ANT(enna) jack
on the TV / DVD. To view any channel, set the TV / DVD to the output channel of the Cable Box or Satellite

Receiver (channel 3 or 4).Then, select channels at the Cable Box or Satellite Receiver.

4

When all connections are complete, plug the power cord of the TV / DVD into an active
power outlet.

5

Press the STANDBY-ON button on the TV / DVD or its remote to turn on the TV/ DVD. The
first time you turn on the TV / DVD, you should complete the TV /DVD setup. See the other
side of this Quick-Use Guide for details.

Quick-Use Guide

Quick-Use Guide

2

OUT

IN

3

4

ANT.ANT.

Playing a Disc

1

Press STANDBY-ON to turn on the TV / DVD.

2

Press OPEN/CLOSE / to open the disc tray.

This will switch the unit to DVD mode automatically.
Put a Disc in the tray with the label facing up and the
shiny side facing down.

3

Press PLAY B to close the tray. Playback may
start automatically. If not, press PLAY B again.

If a DVD Disc menu appears, use the 1 234, ENTER, or
Number buttons to select features or start playback.
Follow the instructions in the menu.

4

To stop playing the Disc, press STOP 9.

20MDRF20 / 8239 210 98371

OEMN02319 TD812HC*****

Setting Up the TV/ DVD the First Time

1

Press STANDBY-ON to turn on the TV / DVD.

2

Press ENTER repeatedly to select English, French,
or Spanish as the language for TV / DVD setup menus.

3

Press 3 or 4 to select AUTO PRESET. Then press
ENTER to set up TV channels. When setup is

complete, the lowest TV channel will appear on the
TV / DVD.

4

To watch TV, press the CH. 3 or 4 buttons to
select memorized channels. Remember, if you are using a
Cable Box or Satellite Receiver, set the TV /DVD to
channel 3 or 4. Change channels at the Cable Box or
Satellite Receiver.

- SET UP-

2 LANGUAGE

[ENGLISH] ESP FRA

AUTOPRESET

Playable Discs

The TV/DVD will play the following Discs.

DVDs must have a Region Code of ALL regions or Region 1.

DVDs must be recorded in the NTSC Color System.

Quick-Use Guide (cont’

Quick-Use Guide (cont’

d)

d)

4

1

2

3

2-3

1

4

ReWritable

Recordable

HEADPHONE

1ALL
