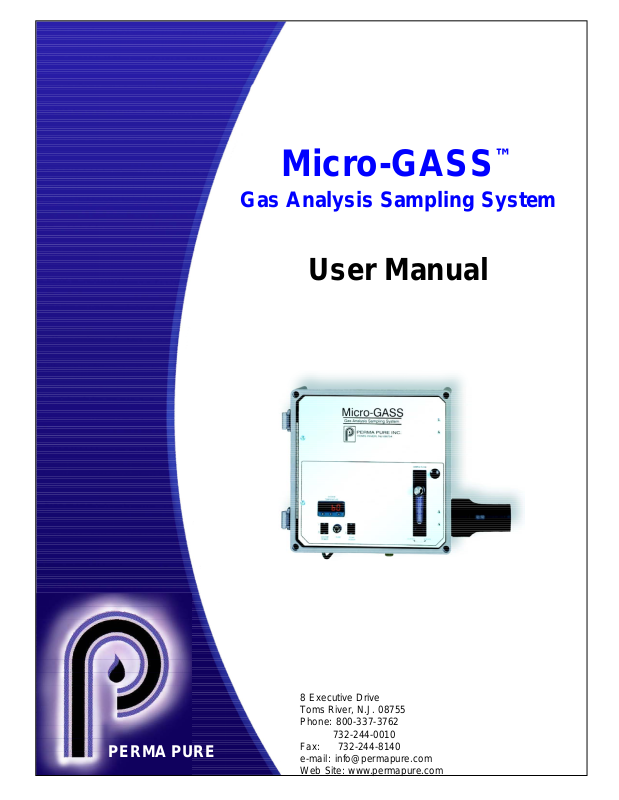

Micro-GASS
Gas Analysis Sampling System
User Manual
PERMA PURE
8 Executive Drive
Toms River, N.J. 08755
Phone: 800-337-3762
732-244-0010
Fax: 732-244-8140
e-mail: info@permapure.com
Web Site: www.permapure.com
TABLE OF CONTENTS
1. Introduction........................................................................................................................................5
2. Micro-GASS Components..................................................................................................................5
2.1 Heated Filter
2.2 Perma Pure Dryer
2.3 Pump
2.4 Dry Sample as Purge Gas
2.5 Temperature Control
a. System Power
b. Pump Power
c. Temperature Control
d. Flow Control
3. Installation.........................................................................................................................................7
3.1 Mounting
3.2 Electrical Connections
3.3 Plumbing
a. Sample Connection
b. Purge Connection
c. Sample Exhaust
d. Calibration Gas Connection
4. Start-Up/Shutdown Procedures..........................................................................................................9
4.1 Start-Up Procedure
4.2 Shutdown Procedure
5. Maintenance....................................................................................................................................10
5.1 Flow Rate
5.2 Coalescing Filter Element
5.3 Dryer Element Replacement
a. Element Removal
b. Element Installation
APPENDIX A - Specifications......................................................................................................................12
APPENDIX B - Micro-GASS System Spare Parts.......................................................................................13
APPENDIX C - CAL 3300 Temperature Controller Configuration................................................................14
Micro-GASS User Manual
2
WARRANTY AND DISCLAIMERS:
Seller warrants that product supplied hereunder shall, at the time of delivery to Buyer, conform to the
published specifications of Seller and be free from defects in material and workmanship under normal use
and service. Seller’s sole obligation and liability under this warranty is limited to the repair or replacement at
its factory, at Seller’s option, of any such product which proves defective within one year after the date of
original shipment from seller’s factory (or for a normal usable lifetime if the product is a disposable or
expendable item) and is found to be defective in material or workmanship by Seller’s inspection.
Buyer agrees that (1) any technical advice, information, suggestions, or recommendations given to Buyer
by Seller or any representative of Seller with respect to the product or the suitability or desirability of the
product for any particular use or application are based solely on the general knowledge of Seller, are
intended for information guidance only, and do not constitute any representation or warranty by Seller that
the product shall in fact be suitable or desirable for any particular use or application; (2) Buyer takes sole
responsibility for the use and applications to which the product is put and Buyer shall conduct all testing
and analysis necessary to validate the use and application to which Buyer puts the product for which Buyer
may recommend the use or application of the product by others; and (3) the characteristics, specifications,
and/or properties of the product may be affected by the processing, treatment, handling, and/or
manufacturing of the product by Buyer or others and Seller takes no responsibility for the nature or
consequence of such operations or as to the suitability of the product for the purposes intended to be used
by Buyer or others after being subjected to such operations.
SELLER MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, OF THE PRODUCT SUPPLIED
HEREUNDER, INCLUDING, WITHOUT LIMITATIONS, IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR PARTICULAR PURPOSE, AND ALL SUCH WARRANTIES ARE HEREBY
EXPRESSLY EXCLUDED. SELLER SHALL HAVE NO LIABILITY FOR LOSS OF PROFITS, OR SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES UNDER ANY CIRCUMSTANCES OR LEGAL THEORY,
WHETHER BASED ON NEGLIGENCE, BREACH OF WARRANTY, STRICT LIABILITY, TORT,
CONTRACT, OR OTHERWISE. SELLER SHALL IN NO EVENT BE LIABLE IN RESPECT OF THIS ORDER AND OR PRODUCT DELIVERED ON ACCOUNT OF THIS ORDER FOR ANY AMOUNT GREATER
THAN THAT PAID TO SELLER ON ACCOUNT OF THIS ORDER.
Micro-GASS User Manual
3
WARNING
Thank you for purchasing sample gas conditioning equipment from Perma Pure LLC. We want your
new sample gas conditioning equipment to operate safely. Anyone who installs or uses this equipment
should read this publication before installing or operating this equipment.
To minimize the risk of potential safety problems, you should follow all applicable local and national
codes that regulate the installation and operation of your equipment. These codes vary from area to
area and usually change with time. It is your responsibility to determine which codes should be followed
and to verify the equipment, installation and operation is in compliance with the latest revision of these
codes.
At a minimum, you should follow all applicable sections of the National Fire Code, National Electrical
Code, and the codes of the National Electrical Manufacturer’s Association (NEMA). There may be local
regulatory or government offices that can also help determine which codes and standards are necessary
for safe installation and operation.
Equipment damage or serious personal injury can result from the failure to follow all applicable codes
and standards. We do not guarantee the products described in this publication are suitable for your
particular application, nor do we assume any responsibility for your system design, installation or operation.
This product should not be operated in any manner that is inconsistent with its intended use.
If you have any questions concerning the installation or operation of this equipment, or you need additional
information, please call us at 1-800-337-3762.
TRADEMARKS
This publication is based on information that was available at the time it was printed. At Perma Pure we
constantly strive to improve our products and services, so we reserve the right to make changes to the
products and/or publications at any time without notice and without any obligation. This publication may
also discuss features that may not be available in certain revisions of the product.
Trademarks
Nafion® and Teflon® are registered trademarks of EI DuPont de Nemours
Copyright 1996-2005, Perma Pure LLC All Rights Reserved
Micro-GASS User Manual
4

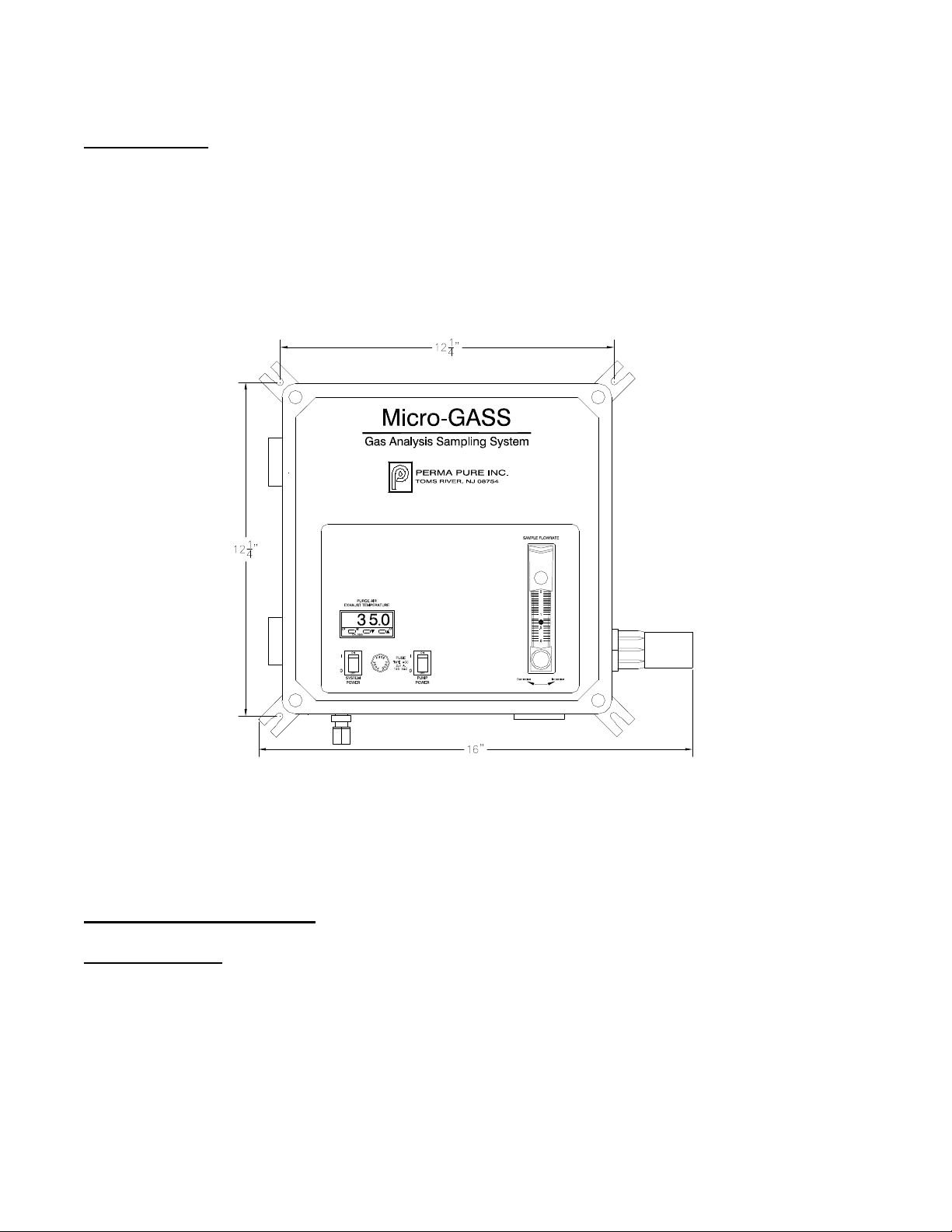

1. Introduction
The Perma Pure Micro-GASS is designed to reduce the humidity of gas samples to 20% to 80% RH, the
optimal humidity for Electrochemical Sensors. The Micro-GASS system will remove particulate matter and
water vapor from a gas stream without removing the compounds being monitored. The system consists of
a heated particulate filter, a partially heated Perma Pure Nafion gas dryer, a sample pump, and controls for
temperature and sample flow, assembled in a 12" x 12" x 7" NEMA3R enclosure.
2. Micro-GASS Components
2.1 Heated Filter
The first step in conditioning the sample is filtering out particulate. The filter is a disposable
1micron “encapsulated micro-fiber” filter element housed in a Kynar filter body for corrosion
resistance. Surrounding the filter body is a heated aluminum shell. The filter is
thermostatically controlled at 95°C to prevent aerosols from forming in the sample stream.
Figure 1
