2. REFLUX METHOD
MD™-Series gas dryers are shell and tube
moisture exchangers that transfer water vapor
between two countercurrent flowing gas
streams. The dryers consist of a Nafion
®
polymer tube surrounded by an outer tube.
Dry purge gas flowing over the exterior surface
of the Nafion tubing continuously extracts
water vapor from the gas stream inside the
tubing. The driving force is the difference in
water concentration on the opposite sides of
the tubing wall. The purge gas then carries
the water vapor away.
INSTALLATION SPECIFICATIONS
When installing MD-Series gas dryers, the
following rules apply:
1. Sample pressure equal to or greater than
purge pressure
2. Sample gas pressure not to exceed 80 psig
3. Temperatures must not exceed 120°C
The most efficient way to set up MD-Series
dryers is to have sample enter through the
Nafion tube (wet sample inlet) and purge gas
flowing countercurrent to the sample (refer to
Figure 1). Purge gas should be instrument
air or other dry gas. If no dry purge air is
available, one of the following methods may
be used.

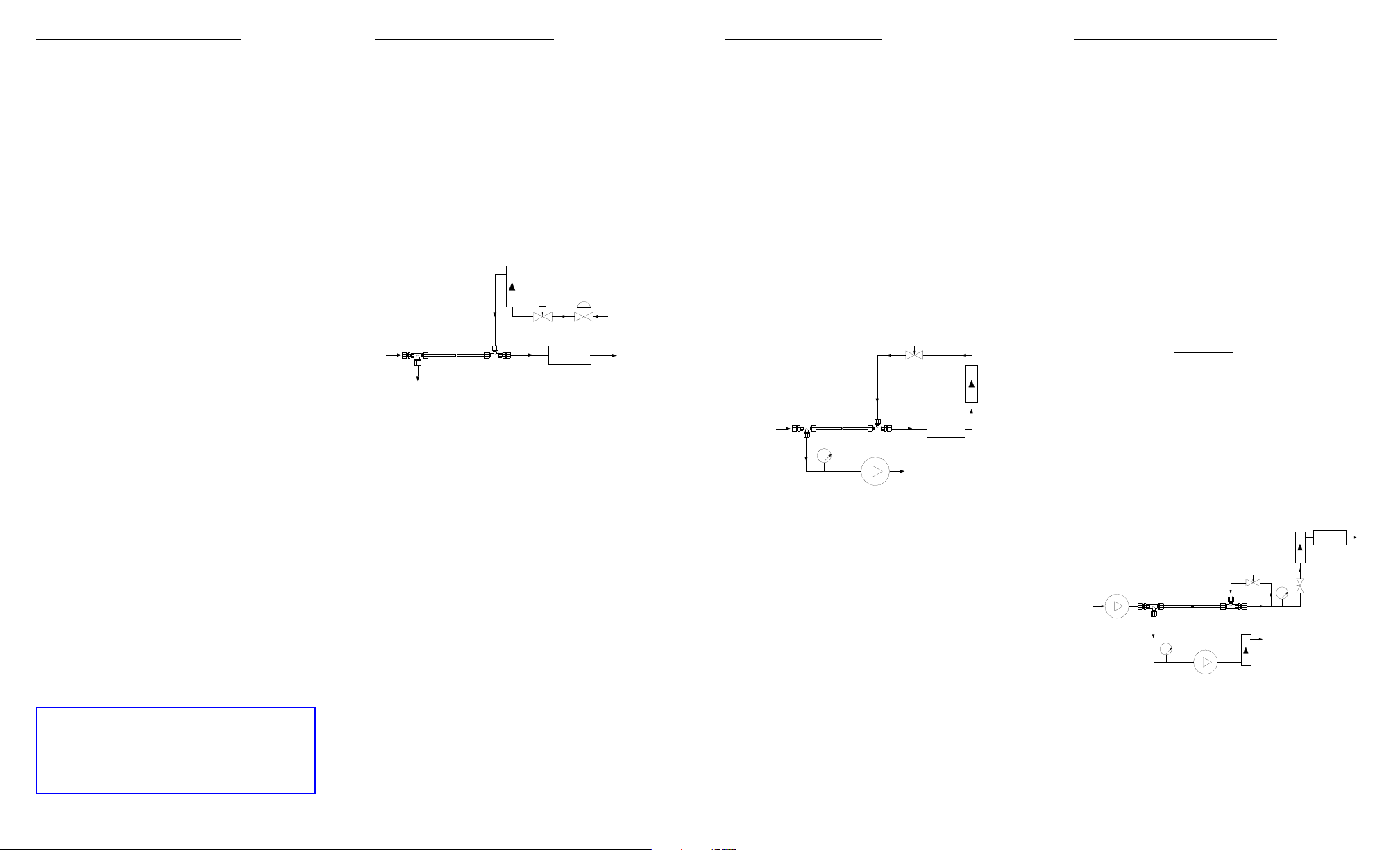

Figure 1 - Typical Setup
The reflux setup, shown in Figure 2, returns
dry sample back to the dryer for use as the
purge after it has gone through the analyzer.
Since this method uses all of the dry sample
as the purge gas, only the sample flow
required for analysis passes through the
dryer. This results in high drying efficiency.
The vacuum on the purge gas should be at
least 15” of Hg, with a higher vacuum
preferable. This vacuum level is necessary to
provide the desired 2:1 purge-to-sample flow
ratio based on the actual volumetric flow.
The split sample method, shown in Figure
3, diverts some of the sample from the main
stream to be used as the purge gas. More
sample passes through the dryer than is
required for the analysis, lowering the
drying efficiency somewhat.
The following equation can be used to
determine the purge flow rate required for
the split sample method. Any units may be
used as long as they are consistent.
NOTE: Pressure units must be in absolute
terms.
Vp = V
s
(Ps/2Pv) - 1
Where:
Vp = Purge flowrate (indicated on flowmeter)
Vs = Sample flowrate (indicated on flowmeter)
Ps = Sample pressure (in absolute units)
Pv = Purge pressure (in absolute units)
4. Purge air of -40°C dew point at a flow rate
of two to three times sample flow
5. Sample and purge air must flow countercurrent to each other
6. If sample dew point is above ambient
temperature, inlet of dryer must be heated
(contact factory for details)
WARNING!
Adjusting end fittings without following the
steps on the back page will cause twisting
of the membrane tubing and void the
warranty.
Figure 2 - Reflux Setup
Figure 3 - Split Sample Setup
TO ROTATE FITTINGS
-10
-5
0
5
10
43210
-15
-20
-25
MD-1 10 DRY ING PE RFORM ANCE
MD-110 -12
MD-110 -24
MD-110 -72
MD-110 -96
MD-110 -144
-50
-40
DEWPOINT ( C)
-30
0 100 200
0
-10
-20
20 40 60 80 120 140 160 180
MD-110 -48
-60
FLOW RATE (CC/MI N.)
DEWPOINT ( C)
MD-0 50 DRY ING PE RFORM ANCE
FLOW RATE (L/MIN. )
MD-050 -12
MD-050 -24
MD-050 -48
MD-050 -72
FLOW RATE (L/MIN. )
DEWPOINT ( C)
MD-070 -144
MD-070 -96
MD-070 -72
MD-070 -48
MD-070 -24
MD-070 -12
-25
-20
-15
0 1 2 3 4
10
5
0
-5
-10
MD-0 70 DRY ING PE RFORM ANCE
PERFORMANCE
Tools Needed:
- Two wrenches- 5/8 and 7/16
- Tweezers
Refer to Figure 4
1. Hold tee fitting with 7/16 wrench and loosen
union fitting with 5/8 wrench (SS dryer
requires 9/16 wrench for both fittings).
2. Remove fitting.
3. Rotate dryer element 10 degrees each way
with tweezers or fingertips.
4. With two wrenches, loosen inside nut
connecting tee fitting to shell tube.
5. Rotate tee fitting to desired location and
tighten into place.
6. Install union into tee fitting while making
sure element is not pushed back out of
o-ring seal. Take caution to ensure
element does not rotate inside shell.
7. Tighten union fitting by hand and then
tighten 1/4 turn with wrench.
TO DISASSEMBLE DRYER
Tools Needed:
- Two wrenches - 5/8 and 7/16
- Pair of lightweight gloves
1. Repeat steps 1-4 for other end.
2. Put on lightweight gloves to protect
membrane tubing
(skin oils can contaminate surface).
3. Gently push one end of element out of
o-ring while pulling other end out of tee
fitting.
4. Gently pull element out of housing from
opposite end.
5. Reverse for reassembly. Element ends
should extend equally from each end of
shell housing before installing union
fittings.
Nafion® is a registered trademark of DuPont
MD™ is a trademark of Perma Pure LLC.
Bulletin# 203
Nut
Union Fitting
O-Ring
Element
Tee Fitting
Inside Nut
Inside Nut
Tee Fitting
Element
O-Ring
Union Fitting
Nut
Figure 4
WARNING!
When connecting sample line to dryer, hold
union fitting with a wrench before tightening the
compression nut. Failure to do so may overtighten the union connector fitting, twist dryer
membrane and damage the dryer.
MD-Series dryer’s performance varies according to
dryer lengths, flowrates and length of Nafion tubes.
Performance Curves
PERMA PURE
MD™ -Series
Gas Dryer
User Manual
