Unpacking

Perma Pure has made every effort to ship you a high quality product that has been thoroughly
inspected and tested. It has been carefully packed to ensure that it arrives at your facility in good
condition. Even though every effort has been made to prevent damage during the transportation
process, damage can occur by the carrier. This is out of control of Perma Pure and is the
responsibility of the carrier to ensure that your equipment arrives intact and undamaged.

 Inspect outside packaging. If there is any visible damage, inform the carrier at the time of

deliver. This inspection is important! Once the package is signed for, responsibility for
any visible damage then transfers to the consignee.

 Unpack your equipment. Visually inspect the outside of your equipment for any damage. If

there is any damage, contact the carrier immediately. Generally, a carrier must be notified

within 24 hours of the delivery to make a hidden damage claim.

Items in the carton include:

(1) Model SDS Drying system

(1) User’s Manual

If any of the above parts are missing or damaged, call the helpline at [phone] ext-145.

Introduction

Thank you for purchasing this product from Perma Pure LLC. This manual has been assembled so
that it can answer all questions regarding operation. Please keep the operators manual near the
equipment for future reference. There may also be optional equipment available that was not
ordered at the time of original purchase, which may be described and/or illustrated in this manual.

If you still have any questions regarding your equipment’s operation, available options or technical
support, please contact your purchasing dealer or contact Perma Pure directly.

Perma Pure LLC Tel: [phone]
P.O. Box 2105 Tel: [phone] (toll free US)
8 Executive Drive Fax: [phone]
Toms River, NJ 08754 e-mail: [e-mail]
website: www.permapure.com

This equipment is to be installed and operated by trained personnel, with sufficient command of
the English language to clearly understand the instructions and safety warnings.

3

COPYRIGHT 2008, ALL RIGHTS RESERVED, Original Instructions

SDS™-Series User’s Manual
Doc. #219: Revision: 000
Page 4 of 12

PERMA PURE LLC

General description

Proven tube-in-shell membrane technology is the basis of the SDS™-Series Drying System, which
selectively removes water vapor from a gas stream. The driving force is the vapor pressure
differential between the sample gas and a purge gas counter-flowed outside the tubing. This
difference drives the reaction, quickly drying the gas stream.

The SDS-Series drying system is designed as an add-on to an existing conditioning system. It can
also be used as the primary gas drying device, provided the sample is non-condensing at ambient
temperature.

Specifications and features

• Sample flow rate:

o 4C-D201 5 lpm maximum
o 4C-D202 10 lpm maximum (single stream)

5 lpm maximum each (dual stream)

• Sample inlet humidity: Non-condensing at room temperature

• Sample outlet humidity: < -15°C dew point at maximum inlet flow and humidity conditions

• Sample inlet pressure: 80 psig maximum

• Sample inlet temperature: 90°C maximum

• Dimensions: 24” x 6” x 6”

• Enclosure: NEMA 12, IP 54, gray powder-coated finish

• Purge air requirements:

o Purge gas pressure: 30-150 psig
o Purge gas humidity: less than -40°C dew point
o Oil-free instrument air or nitrogen recommended

• Connections:

o Sample inlet: ¼” Kynar™ compression fitting
o Sample outlet: ¼” Kynar compression fitting
o Purge air inlet : ¼” female NPT
o Purge air outlet: ¼” female NPT; allows for connection to outside vent

PERMA PURE LLC

SDS™-Series User’s Manual
Doc. #219: Revision: 000
Page 5 of 12

Important safety warnings

Please be sure to review the following basic safety procedures. These procedures
represent the MINIMUM requirements to operate the equipment safely. It is the ultimate
responsibility of the operator to ensure proper safety practices are utilized at the point
of operation.

• This equipment is NOT designed to operate in a wet environment.

•

Condensate is potentially dangerous. NEVER handle drain lines or any other item that

may have come in contact with the gas stream or any hazardous material, without adequate

personal protective equipment. ALWAYS

• Sample gas is potentially dangerous. A leak test is recommended at initial startup and as

often as necessary to maintain a safe working environment around the equipment. The gas
stream exhaust must exit away from all personnel to prevent dangerous exposure.

• NEVER operate the equipment with any part of the enclosure unsecured

doors and covers must be in place and secured prior to operation. Electrical current may be
present behind covers or doors, even if tools are not necessary to access these components.

• NEVER

Repair of this equipment should only be done by properly trained personnel that are familiar
with the potential risks involved with servicing of the equipment.

• NEVER

not bypass this or any other safety device.

• NEVER

been damaged.

• The use of components that have not been purchased through an authorized Perma Pure
dealer or directly from Perma Pure may compromise the safety of the operator. Additionally,
use of non-authorized components may change the operating characteristics of this equipment.
Any changes to the equipment, that modify its operation in any way, are dangerous, and are
strictly prohibited.

• Read the entire operating manual before attempting to set up or operate the equipment.

• Please heed all warning labels that are on the equipment. They are there to remind you of

possible hazardous conditions.

• Verify the integrity of any mechanical and/or electrical connections that are made to the unit.

• Verify that the unit is connected to the proper rated power for the system.

• Verify that the unit is plumbed properly to operate effectively.

attempt service on this equipment without first disconnecting all energy sources.

replace fuses with types other then the sample specification of type and current. Do

operate this equipment if it is visibly damaged or the possibility exists that it may have

assume that any liquid present is hazardous.

. All operated

5

COPYRIGHT 2008, ALL RIGHTS RESERVED, Original Instructions

p

SDS™-Series User’s Manual
Doc. #219: Revision: 000
Page 6 of 12

Installation

Tools and hardware recommended for installation:

PERMA PURE LLC

5/8” wrench

COOLER

PUMP

• (2)

• (1) ¾” wrench

• Teflon tape or pipe thread sealant

• (4) ¼” dia. mounting screws, not included

• Appropriate adaptor to connect to ¼” FNPT air line

Location of SDS system

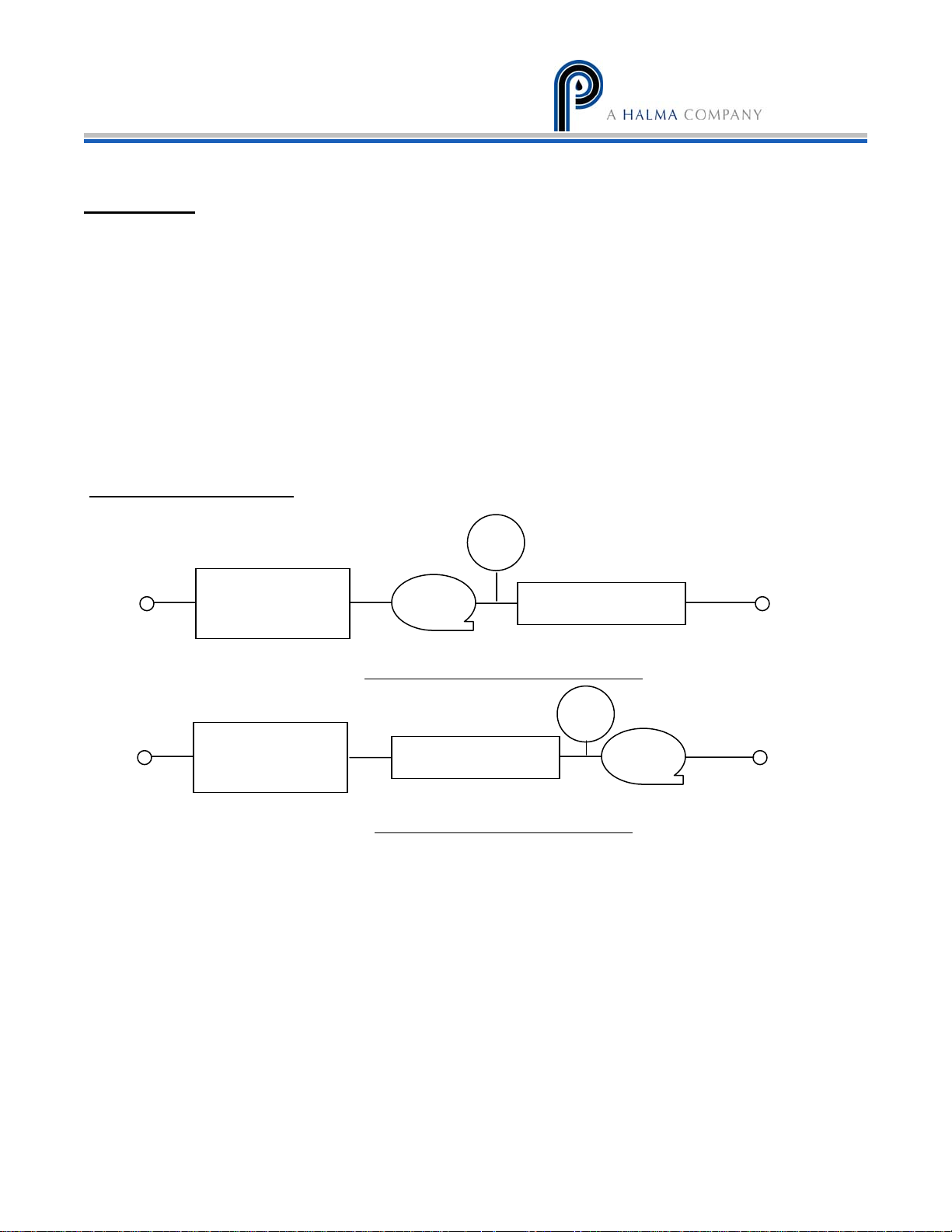

Figure 1 – Pressurized Sample Configuration

COOLER

SDS

Figure 2 – Sample Vacuum Configuration

Pressure limitations are to prevent condensation in the SDS system;

Vacuum limitations are to

revent the collapse of the membrane tubes

P≤20

psig

SDS

P≥-5

psig

PUMP

PERMA PURE LLC

SDS™-Series User’s Manual
Doc. #219: Revision: 000
Page 7 of 12

Mounting

1. Attach system to secure wall using (4) ¼” dia. screws.

2. Refer to figure 3 for mounting dimensions.

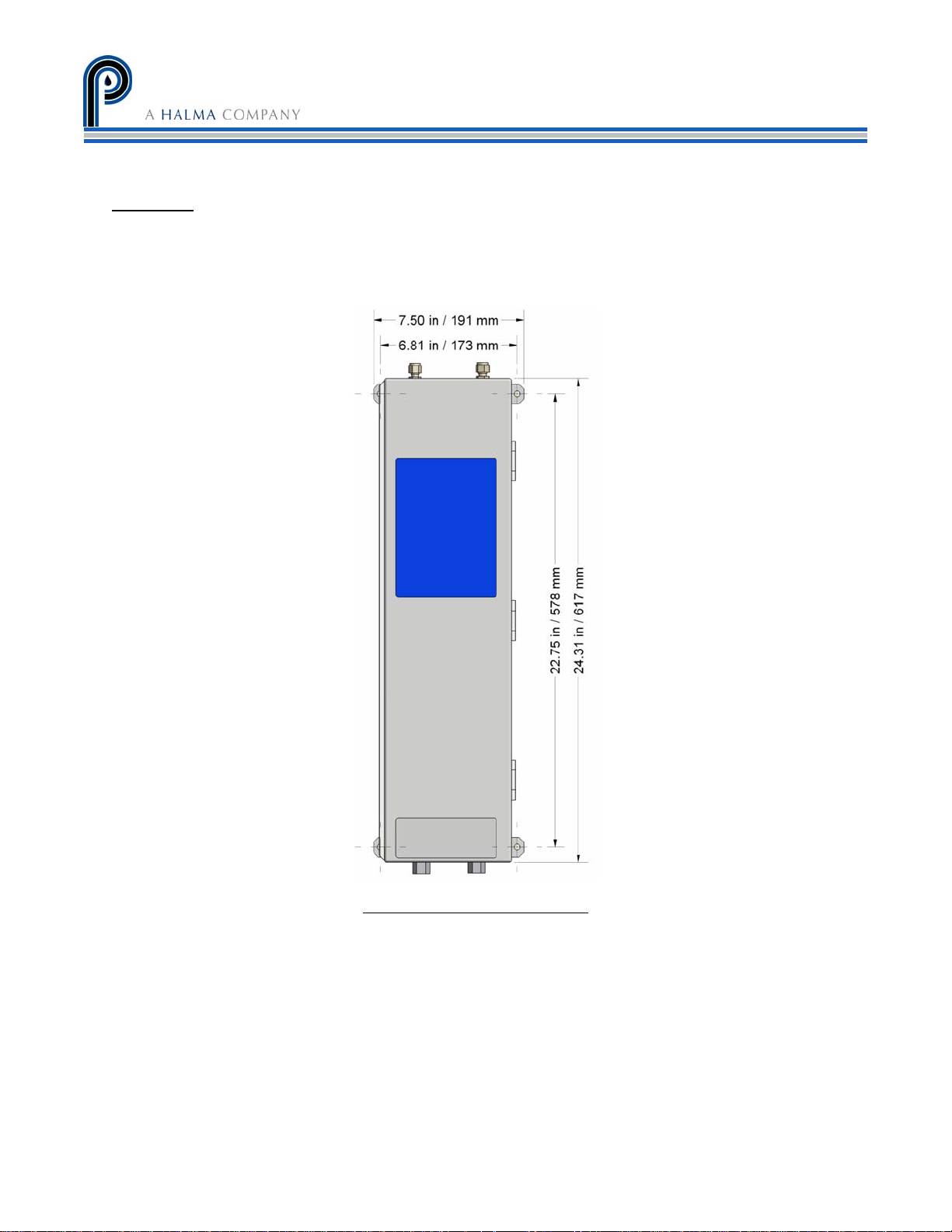

Figure 3 - Mounting Hole Dimension

7

COPYRIGHT 2008, ALL RIGHTS RESERVED, Original Instructions

SDS™-Series User’s Manual
Doc. #219: Revision: 000
Page 8 of 12

PERMA PURE LLC

Sample connections – Model SDS-4C-D201 (Refer to figure 4)

1. Connect the sample supply line to the ¼” tube compression fitting labeled “Sample gas

inlet”.

2. Connect the sample outlet line to the ¼” tube compression fitting labeled “Sample gas

outlet”.

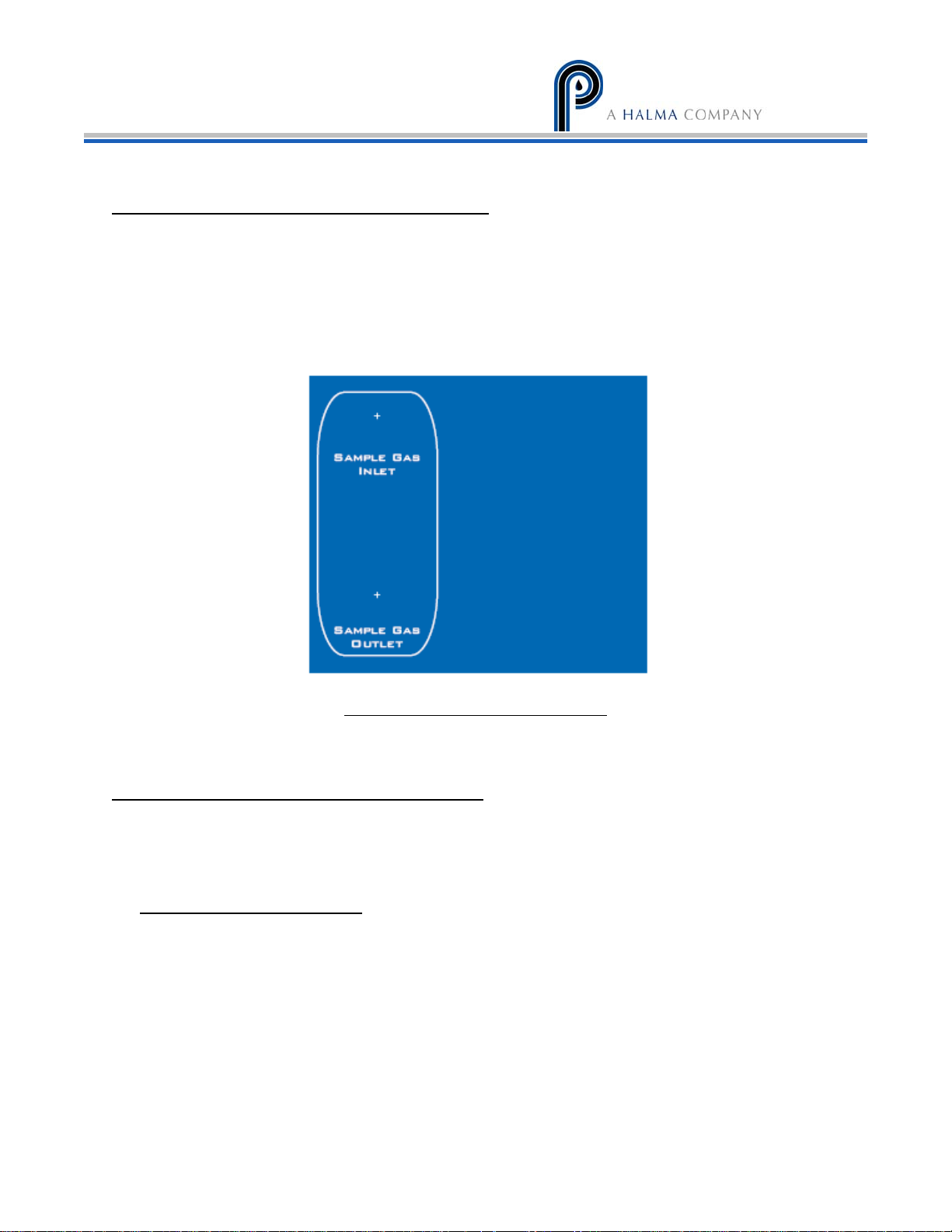

Figure 4 - SDS-D201 Sample Connections

Sample connections – Model SDS-4C-D202

The SDS-Series, Model 4C-D202 can be configured two ways, a high-flow, single stream system

or a dual sample stream.

Single stream application

1. Connect the sample supply line to the ¼” tube compression fitting labeled “Sample gas

inlet”.

2. Connect the sample outlet line to the ¼” tube compression fitting labeled “Sample gas

outlet”.

(Refer to figure 5)

PERMA PURE LLC

SDS™-Series User’s Manual
Doc. #219: Revision: 000
Page 9 of 12

Dual stream application

1. Remove the crossover tube.

2. Connect the sample stream 1 supply line to the ¼” tube compression fitting labeled

“Sample gas inlet”.

3. Connect the sample stream 1 outlet line to the 1/4” tube compression fitting B.

4. Connect the sample stream 2 supply line to fitting A.

5. Connect the sample stream 2 outlet line to fitting labeled “Sample gas outlet”.

(Refer to figure 5)

A

B

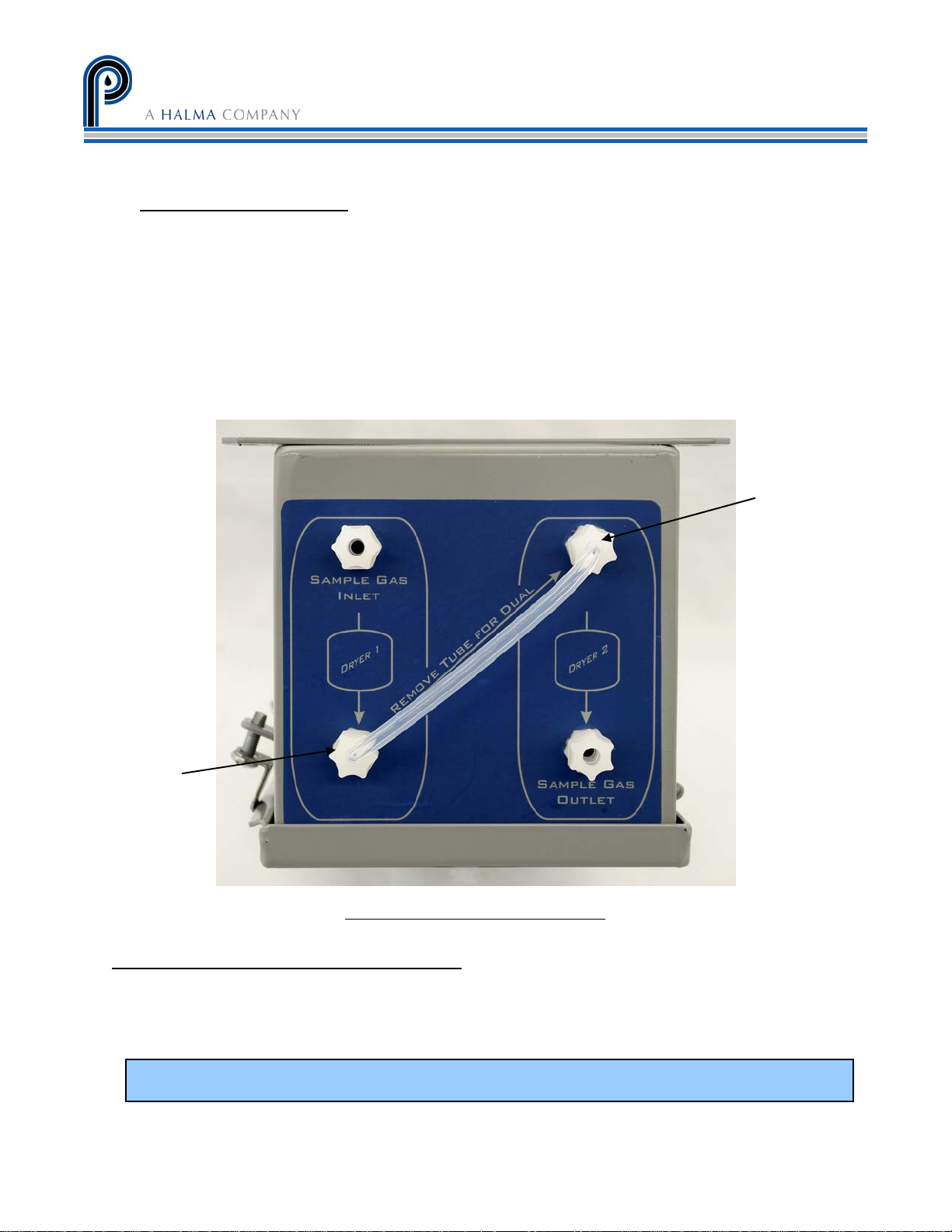

Figure 5– SDS-D202 Sample Connections

Instrument air connections – all models

1. Connect an instrument air line to the ¼” FNPT labeled “Instrument Air Inlet” in figure 6.

NOTE: Instrument air must be oil-free and between 30-150 psig.

9

COPYRIGHT 2008, ALL RIGHTS RESERVED, Original Instructions

SDS™-Series User’s Manual
Doc. #219: Revision: 000
Page 10 of 12

PERMA PURE LLC

2. Optional exhaust connection: To vent the purge gas exhaust to a remote location, connect a

line to the ¼” FNPT fitting labeled “Purge Air Vent”. This is suggested for gas samples that

are toxic, flammable or otherwise hazardous. In case of failure of seal integrity, the sample

will be vented to the remote location. For runs under 10 ft, ¼” OD tube is acceptable. For

runs 10-40 ft,

3/8” OD tube is recommended.

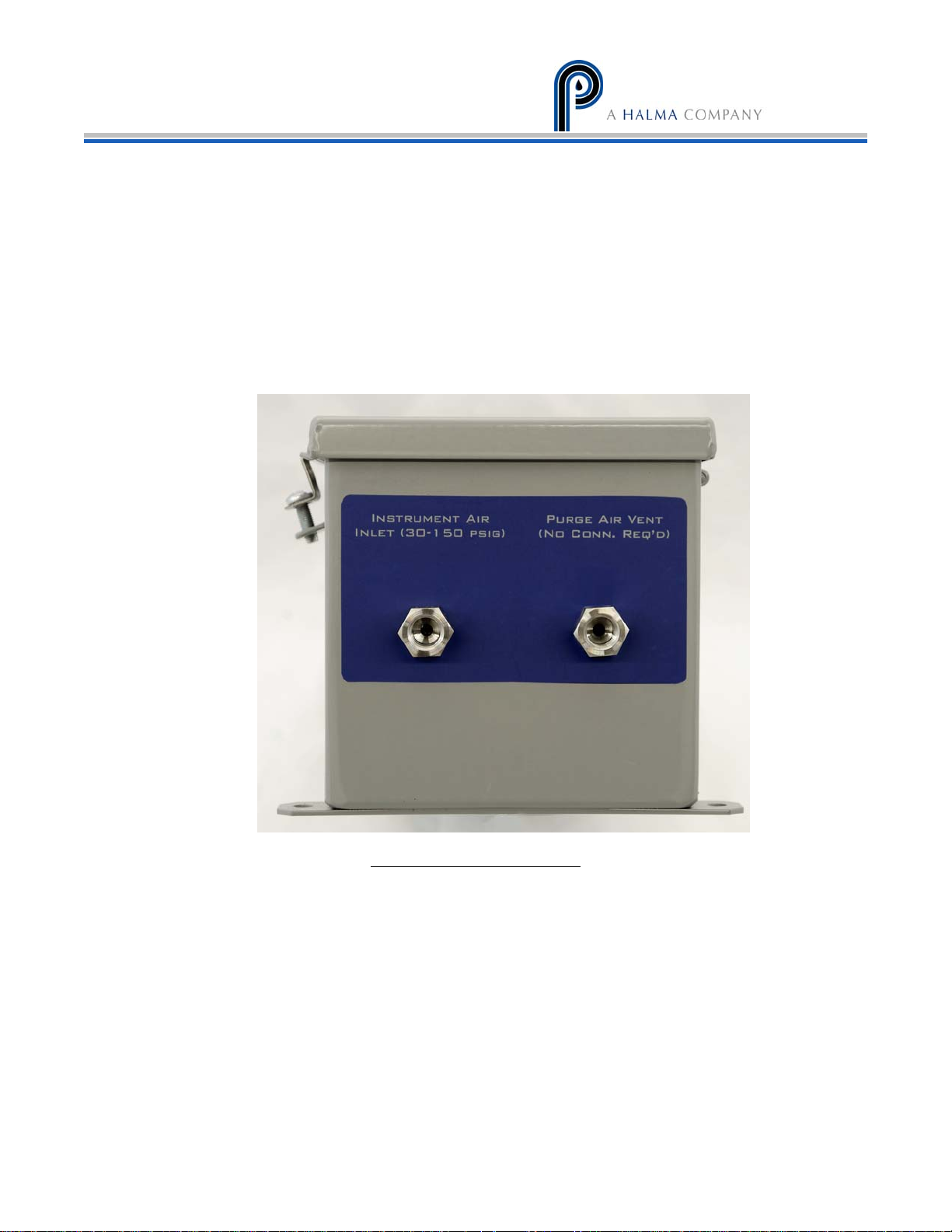

Figure 6 - Purge Gas Connections

Your drying system is ready for use when

 Securely fastened to the wall

 Instrument air is connected and flowing

 Sample inlet and outlet tubing is connected

PERMA PURE LLC

SDS™-Series User’s Manual
Doc. #219: Revision: 000
Page 11 of 12

Troubleshooting guide

The SDS-Series is a very simple component of the sample conditioning system with no electricity,
heat or moving parts to fail. Problems can arise if there is a failure upstream which causes liquid
carryover or a high pressure or vacuum spike in the line. If these issues are suspected, please call
the factory. We have a dedicated technical support and repair department to help in trouble­shooting and replacement parts.

Symptom Diagnostic Fix

No purge flow

Restricted sample flow Bypass the SDS system and

No drying

Check pressure of the
instrument air.

observe any changes.

Check instrument air pressure
and quality.

Check for flow at exhaust
point.

Check inlet for condensation in
sample line.

Supply correct pressure, 30-150
psig.

If the restriction disappears, the
dryers in the SDS have failed and
may need replacement; call
factory at 732-244-0010 ext-145
for assistance.

If no change is observed, check
pump and other flow path
components.

Oil-free instrument air; 30-150
psig.

10-12 lpm for SDS-D201
20-24 lpm for SDS-D202

Call factory at 732-244-0010 ext­145 for instructions on drying out
system.

Replacement parts

3DYK-001 Replacement membrane dryer

3RPA-001 Replacement instrument air regulator

11

COPYRIGHT 2008, ALL RIGHTS RESERVED, Original Instructions

SDS™-Series User’s Manual
Doc. #219: Revision: 000
Page 12 of 12

PERMA PURE LLC

Appendix A: Warranty and disclaimers

Perma Pure LLC

Perma Pure (Seller) warrants that product supplied hereunder shall, at the time of delivery to
Buyer, conform to the published specifications of Seller and be free from defects in material and
workmanship under normal use and service. Seller’s sole obligation and liability under this
warranty is limited to the repair or replacement at its factory, at Seller’s option, of any such
product which proves defective within one year after the date of original shipment from seller’s
factory (or for a normal usable lifetime if the product is a disposable or expendable item) and is
found to be defective in material or workmanship by Seller’s inspection.

Buyer agrees that (1) any technical advice, information, suggestions, or recommendations given to
Buyer by Seller or any representative of Seller with respect to the product or the suitability or
desirability of the product for an particular use or application are based solely on the general
knowledge of Seller, are intended for information guidance only, and do not constitute any
representation or warranty by Seller that the product shall in fact be suitable or desirable for any
particular use or application; (2) Buyer takes sole responsibility for the use and applications to
which the product is put and Buyer shall conduct all testing and analysis necessary to validate the
use and application to which Buyer puts the product for which Buyer may recommend the use or
application of the product by others; and (3) the characteristics, specifications, and/or properties
of the product may be affected by the processing, treatment, handling, and/or manufacturing of
the product by Buyer or others and Seller takes no responsibility for he nature or consequence of
such operations or as to the suitability of the product for the purposes intended to be used by
Buyer or others after being subjected to such operations.

SELLER MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, OF THE PRODUCT SUPPLIED HEREUNDER,
INCLUDING, WITHOUT LIMITATION, IMPLIED WARRAN TI ES OF MERCHANTABILITY AND FITNESS FOR
PARTICULAR PURPOSE, AND ALL SUCH WARRANTIES ARE HEREBY EXPRESSLY EXCLUDED. SELLER
SHALL HAVE NO LIABILITY FOR LOSS OF PROFITS, OR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES UNDER ANY CIRCUMSTANCES OR LEGAL THEORY, WHETHER BASED ON NEGLIGENCE,
BREACH OF WARRANTY, STRICT LIABILITY, TORT, CONTRACT, OR OTHERWISE. SELLER SHALL IN NO
EVENT BE LIABLE IN RESPECT OF THIS ORDER AND OR PRODUCT DELIVERED ON ACCOUNT OF THIS
ORDER FOR ANY AMOUNT GREATER THAN THAT PAID TO SELLER ON ACCOUNT OF THIS ORDER.
