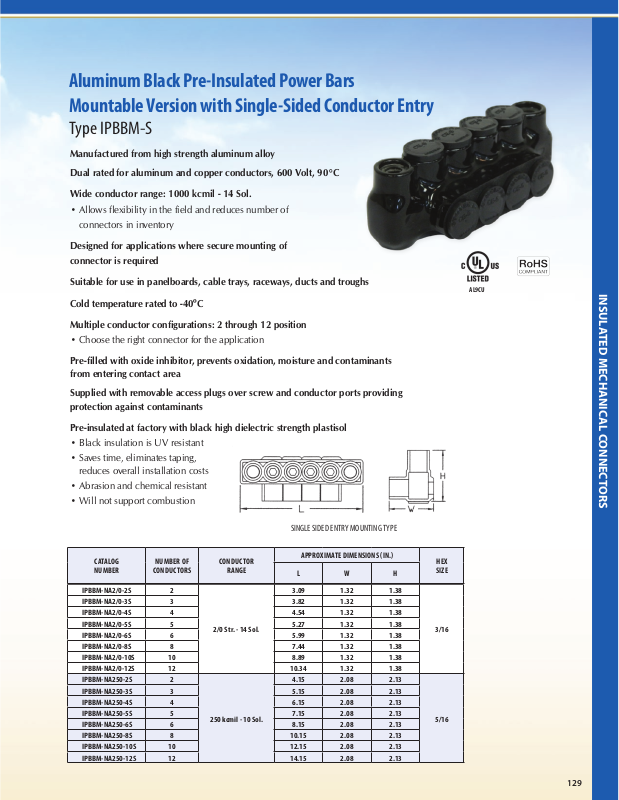

Penn Union IPBBM-S Catalog Page
Aluminum Black Pre-Insulated Power Bars
Mountable Version with Single-Sided Conductor Entry
Type IPBBM-S
Manufactured from high strength aluminum alloy
Dual rated for aluminum and copper conductors, 600 Volt, 90°C
Wide conductor range: 1000 kcmil - 14 Sol.
• Allows flexibility in the field and reduces number of
connectors in inventory
Designed for applications where secure mounting of
connector is required
Suitable for use in panelboards, cable trays, raceways, ducts and troughs
Cold temperature rated to -40ºC
Multiple conductor configurations: 2 through 12 position
• Choose the right connector for the application
Pre-filled with oxide inhibitor, prevents oxidation, moisture and contaminants
from entering contact area
Supplied with removable access plugs over screw and conductor ports providing
protection against contaminants
Pre-insulated at factory with black high dielectric strength plastisol
• Black insulation is UV resistant
• Saves time, eliminates taping,
reduces overall installation costs
• Abrasion and chemical resistant
• Will not support combustion
SINGLE SIDED ENTRY MOUNTING TYPE
CATALOG
NUMBER
IPBBM-NA2/0-2S 2
IPBBM-NA2/0-3S 3 3.82 1.32 1.38
IPBBM-NA2/0-4S 4 4.54 1.32 1.38
IPBBM-NA2/0-5S 5 5.27 1.32 1.38
IPBBM-NA2/0-6S 6 5.99 1.32 1.38
IPBBM-NA2/0-8S 8 7.44 1.32 1.38
IPBBM-NA2/0-10S 10 8.89 1.32 1.38
IPBBM-NA2/0-12S 12 10.34 1.32 1.38
IPBBM-NA250-2S 2
IPBBM-NA250-3S 3 5.15 2.08 2.13
IPBBM-NA250-4S 4 6.15 2.08 2.13
IPBBM-NA250-5S 5 7.15 2.08 2.13
IPBBM-NA250-6S 6 8.15 2.08 2.13
IPBBM-NA250-8S 8 10.15 2.08 2.13
IPBBM-NA250-10S 10 12.15 2.08 2.13
IPBBM-NA250-12S 12 14.15 2.08 2.13
NUMBER OF
CONDUCTORS
CONDUCTOR
RANGE
2/0 Str. - 14 Sol.
250 kcmil - 10 Sol.
APPROXIMATE DIMENSIONS IN.
L W H
3.09 1.32 1.38
4.15 2.08 2.13
HEX
SIZE
3/16
5/16
AL9CU
INSULATED MECHANICAL CONNECTORS
129
INSULATED MECHANICAL
Type IPBBM-S (continued)
SINGLE SIDED ENTRY MOUNTING TYPE
INSULATED MECHANICAL CONNECTORS
CATALOG
NUMBER
IPBBM-NA350-2S 2
IPBBM-NA350-3S 3 5.78 2.32 2.50
IPBBM-NA350-4S 4 6.90 2.32 2.50
IPBBM-NA350-5S 5 8.03 2.32 2.50
IPBBM-NA350-6S 6 9.15 2.32 2.50
IPBBM-NA350-8S 8 11.40 2.32 2.50
IPBBM-NA350-10S 10 13.65 2.32 2.50
IPBBM-NA350-12S 12 15.90 2.32 2.50
IPBBM-NA600-2S 2
IPBBM-NA600-3S 3 6.78 2.38 2.75
IPBBM-NA600-4S 4 8.10 2.38 2.75
IPBBM-NA600-5S 5 9.43 2.38 2.75
IPBBM-NA600-6S 6 10.75 2.38 2.75
IPBBM-NA600-8S 8 13.40 2.38 2.75
IPBBM-NA600-10S 10 16.05 2.38 2.75
IPBBM-NA600-12S 12 18.70 2.38 2.75
IPBBM-NA750-2S 2
IPBBM-NA750-3S 3 7.33 2.75 3.00
IPBBM-NA750-4S 4 8.76 2.75 3.00
IPBBM-NA750-5S 5 10.20 2.75 3.00
IPBBM-NA750-6S 6 11.63 2.75 3.00
IPBBM-NA750-8S 8 14.50 2.75 3.00
IPBBM-NA750-10S 10 17.37 2.75 3.00
IPBBM-NA750-12S 12 20.24 2.75 3.00
IPBBM-NA1000-2S 2
IPBBM-NA1000-3S 3 8.09 3.63 3.25
IPBBM-NA1000-4S 4 9.68 3.63 3.25
IPBBM-NA1000-5S 5 11.27 3.63 3.25
IPBBM-NA1000-6S 6 12.85 3.63 3.25
IPBBM-NA1000-8S 8 16.03 3.63 3.25
IPBBM-NA1000-10S 10 19.21 3.63 3.25
IPBBM-NA1000-12S 12 22.38 3.63 3.25
NUMBER OF
CONDUCTORS
CONDUCTOR
RANGE
350 kcmil - 10 Sol.
600 kcmil - 4 Str.
750 kcmil - 2 Str.
1000 kcmil - 1/0 Str.
APPROXIMATE DIMENSIONS IN.
L W H
4.65 2.32 2.50
5.45 2.38 2.75
5.89 2.75 3.00
6.50 3.63 3.25
HEX
SIZE
5/16
3/8
3/8
1/2
130
