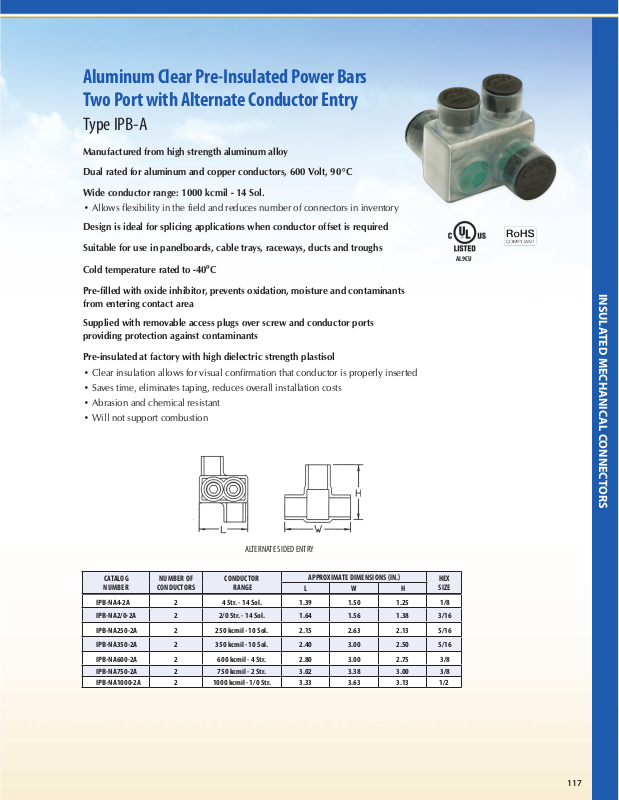

Aluminum Clear Pre-Insulated Power Bars
Two Port with Alternate Conductor Entry
Type IPB-A
Manufactured from high strength aluminum alloy
Dual rated for aluminum and copper conductors, 600 Volt, 90°C
Wide conductor range: 1000 kcmil - 14 Sol.
• Allows flexibility in the field and reduces number of connectors in inventory
Design is ideal for splicing applications when conductor offset is required
Suitable for use in panelboards, cable trays, raceways, ducts and troughs
Cold temperature rated to -40ºC
AL9CU
Pre-filled with oxide inhibitor, prevents oxidation, moisture and contaminants
from entering contact area
Supplied with removable access plugs over screw and conductor ports
providing protection against contaminants
Pre-insulated at factory with high dielectric strength plastisol
• Clear insulation allows for visual confirmation that conductor is properly inserted
• Saves time, eliminates taping, reduces overall installation costs
• Abrasion and chemical resistant
• Will not support combustion

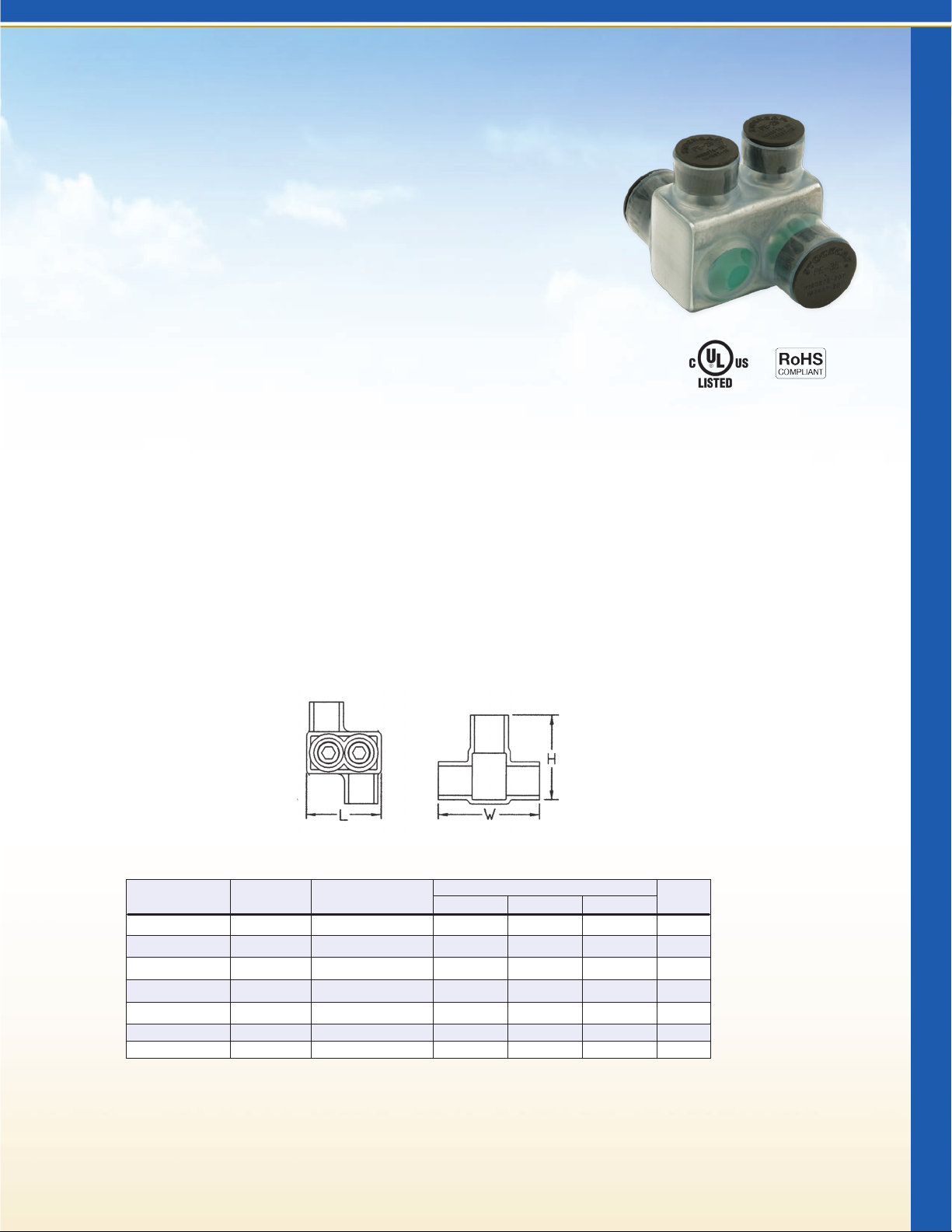

ALTERNATE SIDED ENTRY
CATALOG
NUMBER
IPB-NA4-2A 2 4 Str. - 14 Sol. 1.39 1.50 1.25 1/8
IPB-NA2/0-2A 2 2/0 Str. - 14 Sol. 1.64 1.56 1.38 3/16
IPB-NA250-2A 2 250 kcmil - 10 Sol. 2.15 2.63 2.13 5/16
IPB-NA350-2A 2 350 kcmil - 10 Sol. 2.40 3.00 2.50 5/16
IPB-NA600-2A 2 600 kcmil - 4 Str. 2.80 3.00 2.75 3/8
IPB-NA750-2A 2 750 kcmil - 2 Str. 3.02 3.38 3.00 3/8
IPB-NA1000-2A 2 1000 kcmil - 1/0 Str. 3.33 3.63 3.13 1/2
NUMBER OF
CONDUCTORS
CONDUCTOR
RANGE
APPROXIMATE DIMENSIONS (IN.)
L W H
HEX
SIZE
INSULATED MECHANICAL CONNECTORS
117
