UTILITY / OVERHEAD

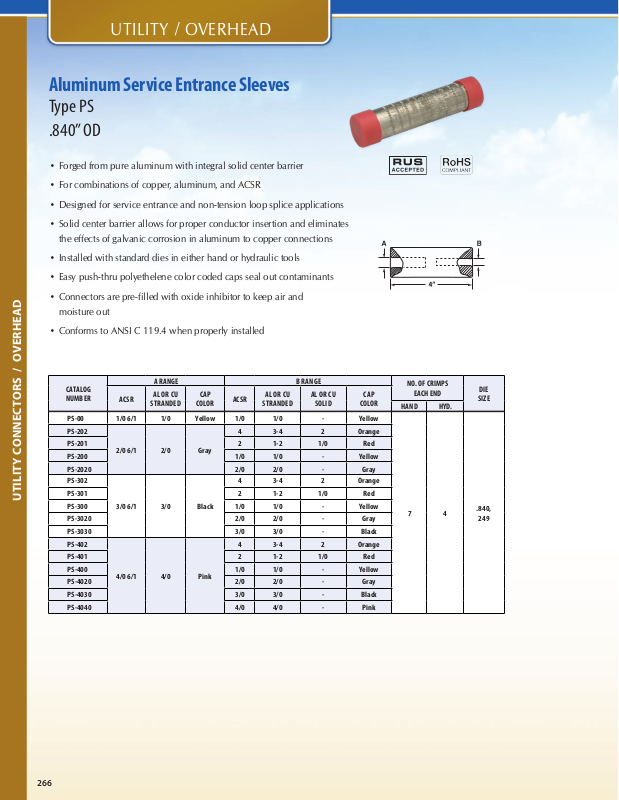

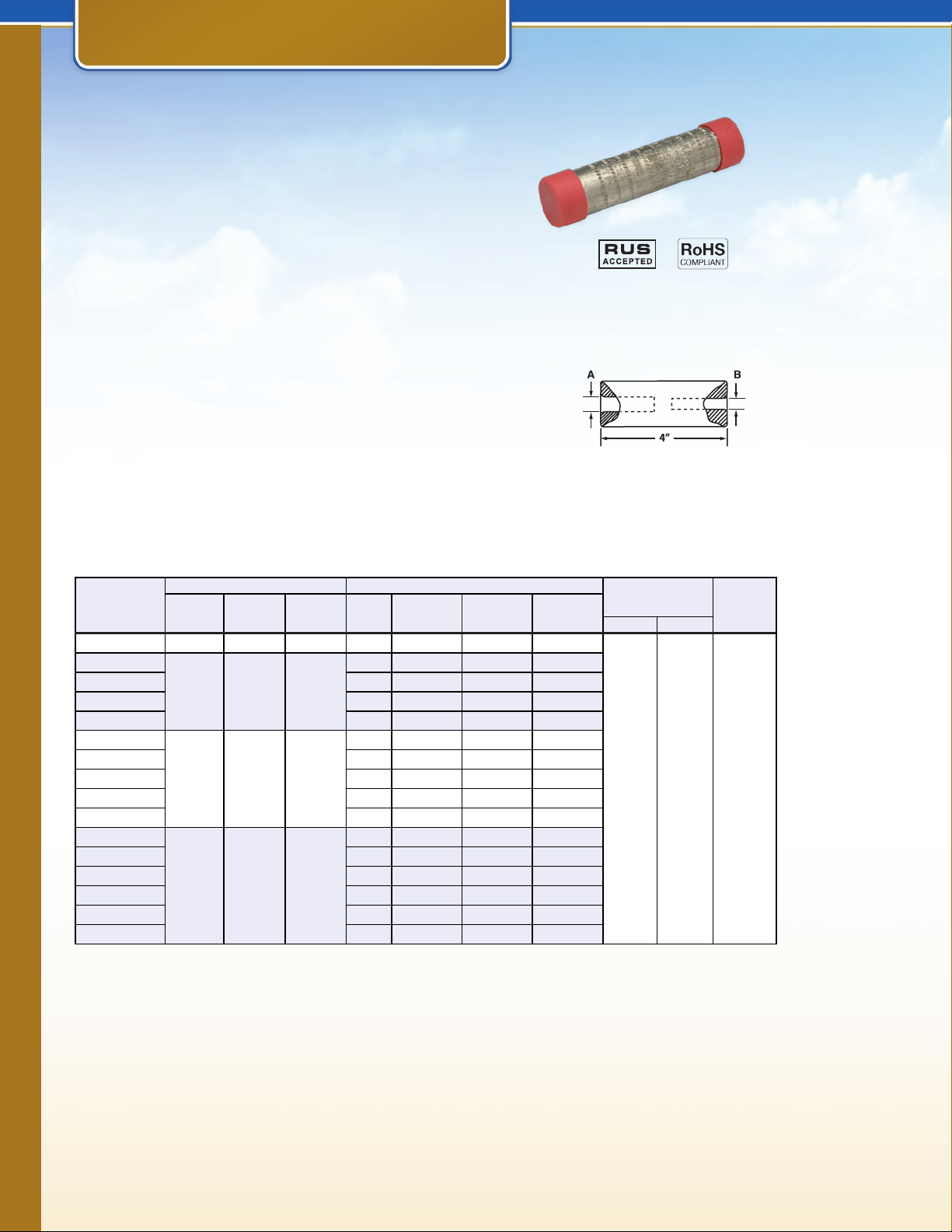

Aluminum Service Entrance Sleeves
Type PS
.840” OD
• Forged from pure aluminum with integral solid center barrier
• For combinations of copper, aluminum, and ACSR
• Designed for service entrance and non-tension loop splice applications
• Solid center barrier allows for proper conductor insertion and eliminates
the effects of galvanic corrosion in aluminum to copper connections
• Installed with standard dies in either hand or hydraulic tools
• Easy push-thru polyethelene color coded caps seal out contaminants
• Connectors are pre-filled with oxide inhibitor to keep air and
moisture out
• Conforms to ANSI C 119.4 when properly installed
CATALOG
NUMBER
UTILITY CONNECTORS / OVERHEAD
ACSR
PS-00 1/0 6/1 1/0 Yellow 1/0 1/0 - Yellow
PS-202
PS-201 2 1-2 1/0 Red
PS-200 1/0 1/0 - Yellow
PS-2020 2/0 2/0 - Gray
PS-302
PS-301 2 1-2 1/0 Red
PS-300 1/0 1/0 - Yellow
PS-3020 2/0 2/0 - Gray
PS-3030 3/0 3/0 - Black
PS-402
PS-401 2 1-2 1/0 Red
PS-400 1/0 1/0 - Yellow
PS-4020 2/0 2/0 - Gray
PS-4030 3/0 3/0 - Black
PS-4040 4/0 4/0 - Pink
2/0 6/1 2/0 Gray
3/0 6/1 3/0 Black
4/0 6/1 4/0 Pink
A RANGE B RANGE
AL OR CU
STRANDED
CAP
COLOR
ACSR
AL OR CU
STRANDED
4 3-4 2 Orange
4 3-4 2 Orange
4 3-4 2 Orange
AL OR CU
SOLID
CAP
COLOR
NO. OF CRIMPS
EACH END
HAND HYD.
7 4
DIE
SIZE
.840,
249
266
