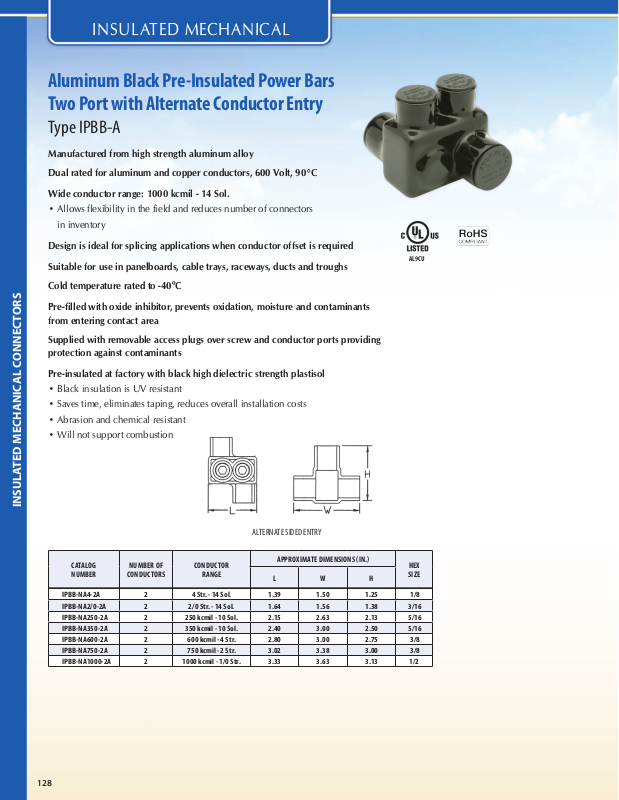

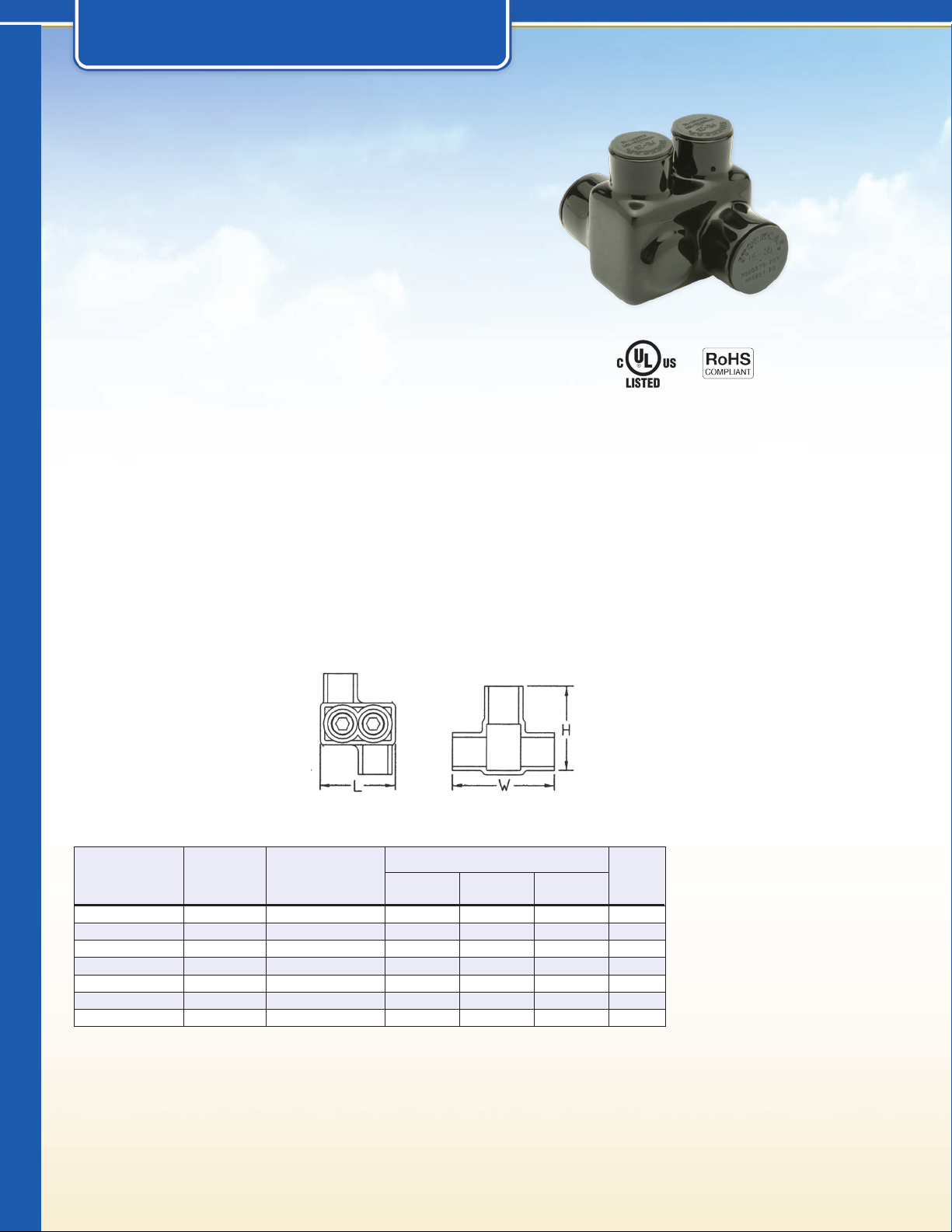

INSULATED MECHANICAL
Aluminum Black Pre-Insulated Power Bars
Two Port with Alternate Conductor Entry
Type IPBB-A
Manufactured from high strength aluminum alloy
Dual rated for aluminum and copper conductors, 600 Volt, 90°C
Wide conductor range: 1000 kcmil - 14 Sol.
• Allows flexibility in the field and reduces number of connectors
in inventory
Design is ideal for splicing applications when conductor offset is required
Suitable for use in panelboards, cable trays, raceways, ducts and troughs
Cold temperature rated to -40ºC
Pre-filled with oxide inhibitor, prevents oxidation, moisture and contaminants
from entering contact area
AL9CU
Supplied with removable access plugs over screw and conductor ports providing
protection against contaminants
Pre-insulated at factory with black high dielectric strength plastisol
• Black insulation is UV resistant
• Saves time, eliminates taping, reduces overall installation costs
• Abrasion and chemical resistant
• Will not support combustion
INSULATED MECHANICAL CONNECTORS
ALTERNATE SIDED ENTRY
CATALOG
NUMBER
IPBB-NA4-2A 2 4 Str. - 14 Sol. 1.39 1.50 1.25 1/8
IPBB-NA2/0-2A 2 2/0 Str. - 14 Sol. 1.64 1.56 1.38 3/16
IPBB-NA250-2A 2 250 kcmil - 10 Sol. 2.15 2.63 2.13 5/16
IPBB-NA350-2A 2 350 kcmil - 10 Sol. 2.40 3.00 2.50 5/16
IPBB-NA600-2A 2 600 kcmil - 4 Str. 2.80 3.00 2.75 3/8
IPBB-NA750-2A 2 750 kcmil - 2 Str. 3.02 3.38 3.00 3/8
IPBB-NA1000-2A 2 1000 kcmil - 1/0 Str. 3.33 3.63 3.13 1/2
NUMBER OF
CONDUCTORS
CONDUCTOR
RANGE
APPROXIMATE DIMENSIONS (IN.)
L W H
HEX
SIZE
128
