Pelco EVO-05LND, EVO-05LMD Specsheet

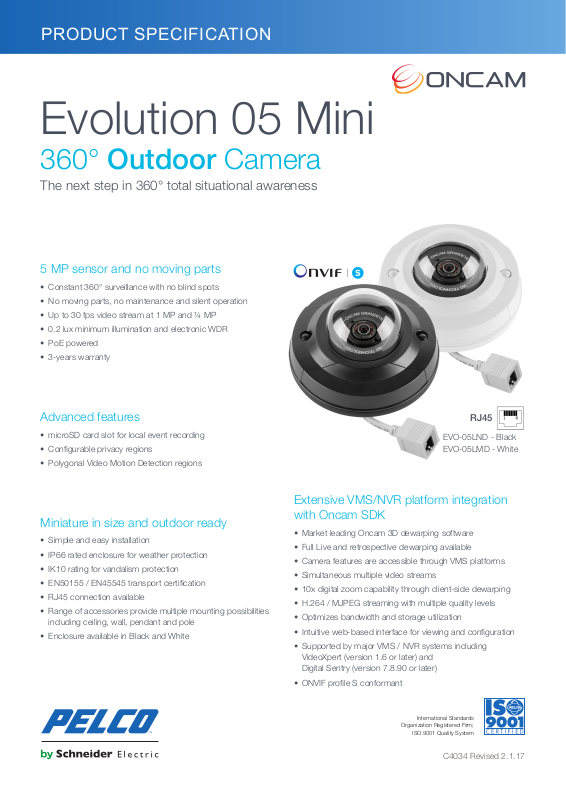

PRODUCT SPECIFICATION

Evolution 05 Mini

360° Outdoor Camera

The next step in 360° total situational awareness

5 MP sensor and no moving parts

• Constant 360° surveillance with no blind spots

• No moving parts, no maintenance and silent operation

• Up to 30 fps video stream at 1 MP and ¼ MP

• 0.2 lux minimum illumination and electronic WDR

• PoE powered

• 3-years warranty

Advanced features

• microSD card slot for local event recording

• Configurable privacy regions

• Polygonal Video Motion Detection regions

Miniature in size and outdoor ready

• Simple and easy installation

• IP66 rated enclosure for weather protection

• IK10 rating for vandalism protection

• EN50155 / EN45545 transport certification

• RJ45 connection available

• Range of accessories provide multiple mounting possibilities
including ceiling, wall, pendant and pole

• Enclosure available in Black and White

RJ45

EVO-05LND - Black
EVO-05LMD - White

Extensive VMS/NVR platform integration
with Oncam SDK

• Market leading Oncam 3D dewarping software

• Full Live and retrospective dewarping available

• Camera features are accessible through VMS platforms

• Simultaneous multiple video streams

• 10x digital zoom capability through client-side dewarping

• H.264 / MJPEG streaming with multiple quality levels

• Optimizes bandwidth and storage utilization

• Intuitive web-based interface for viewing and configuration

• Supported by major VMS / NVR systems including
VideoXpert (version 1.6 or later) and
Digital Sentry (version 7.8.90 or later)

• ONVIF profile S conformant

International Standards

Organization Registered Firm;

ISO 9001 Quality System

C4034 Revised 2.1.17

TECHNICAL SPECIFICATION

Model EVO-05LMD (White)

EVO-05LND (Black)

Connector RJ45

General

Lens Field of View 180º Horizontal, 168º Vertical

Image Sensor 2592 H x 1944 V, 5 MP,

Lens 185° / F2.0

Minimum Illumination 0.2 lux = 50 IRE F/2.0 (6500 K)

Frame Rate 30 fps for 1 MP and ¼ MP resolution

Video Motion Detection 8 configurable regions

Security Configurable password protection

Advanced Event Management Triggered by motion, HTTP event, result configurable,

Networking TCP/IP, HTTP, DHCP, DNS, NTP, FTP, SMTP, RTSP and uPNP

Privacy Regions 10 configurable privacy regions

microSD Card Built-in microSD card slot. Supports cards up to 128 GB capacity. Speed class 10 or higher required

White Balance Range Auto White Balance (Range = approximately 2500 K~8000 K)

1/2.5-inch Sony CMOS Sensor

15 fps for 2 MP resolution

10 fps for 4 MP full resolution

FTP/SMTP upload and local recording

Video

Video Stream 1 Codec H.264 High, Level 5 / MJPEG (streams configurable)

Video Stream 1 Compression Level Multi-levels of compression and frame rate adjustment

Video Stream 1 Pixel Resolution

Video Stream 2 Codec H.264 High, Level 5 / MJPEG (streams configurable)

Video Stream 2 Compression Level Multi-levels of compression and frame rate adjustment

Video Stream 2 Pixel Resolution

Video Stream 3 Codec MJPEG

Video Stream 3 Compression Level Multi-levels of compression and frame rate adjustment

Video Stream 3 Pixel Resolution Fisheye at: ¼ MP (528 x 480)

Maximum Frame Rate 30 fps

Image Control

Image Enhancement Electronic WDR 60dB

PTZ Functionality 10x zoom with Oncam 3D client-side dewarping software

VMS / NVR Support Contact Oncam Sales for the supported VMS / NVR list

Web Browser Compatibility Internet Explorer 9, Edge 25, Firefox 23 and Chrome 29 or above. Plug-in required for full functionality

Unicast Up to 20 simultaneous users depending on the resolution settings

Multicast Supported for H.264 main camera stream

Bit Rate Control Options include Variable Bit Rate Controls, Constant Bit Rate Control and Constant Quality Control

Electrical

Connection Flying lead - RJ45 plug

Network Cable Type CAT5 or better for 100Base-TX

Power Input Power over Ethernet (PoE), IEEE standard 802.3af

Power Consumption (maximum) 4.13 W

Fisheyes at: 4 MP (2144 x 1944), 2 MP (1488 x 1360),

1 MP (1056 x 960), ¼ MP (528 x 480)

Fisheyes at: 4 MP (2144 x 1944), 2 MP (1488 x 1360),

1 MP (1056 x 960), ¼ MP (528 x 480)

Settings: brightness / contrast / saturation / exposure compensation,

compression quality and wall / ceiling / table mount
