PRODUCT SPECIFICATION
camera solutions
Sarix® TI Series Thermal IP Positioning Systems
IP AND ANALOG THERMAL CAMERA WITH INTEGRATED ESPRIT® PAN/TILT
Product Features
• Uncooled, Sun-Safe, Amorphous Silicon Microbolometer
• Long Wave Infrared (LWIR)
• Esprit® Pan/Tilt
• IP and Analog Capability
• 640 x 480 and 384 x 288 Resolution Options
• 17 µm Pixel Size (640 x 480 model)
• 25 µm Pixel Size (384 x 288 model)
• Sensitivity Below NETD <50 mK at f/1.0
• 24 VAC or 120/230 VAC 50/60 Hz Selectable
• H.264 and MJPEG Compression
• Up to 2 Simultaneous Video Streams
• Built-in Analytics
• Variable Speed Pan, 0.1° to 100°/Sec with Proportional Pan
• 360° Continuous Pan Rotation
• Tilt Range of +33° to –83° from Horizontal
• Preset Positioning, Patterns, and Multiple Scan Modes
• Designed for Minimal Maintenance, No Gears to Adjust
Positioning System
The
Sarix® TI Series Thermal IP Positioning System
advanced thermal imaging pan/tilt system designed for easy
integration into any new or existing video security application. The
system is designed to provide detection, recognition, and
identification of people and vehicles in any lighting condition,
including complete darkness. Every
analog outputs in the same package and an integrated
environmentally protected IP66 rated enclosure with Esprit
positioner, which can be controlled using IP or analog systems that
use Coaxitron® or RS-422 Pelco D and Pelco P protocols. Additionally,
when used in an IP system, the
of designed-for-thermal analytics.
At the core of the
microbolometer, long-wavelength infrared (LWIR) camera that
delivers up to 640 x 480 thermal video. These cameras feature an
amorphous silicon detector, which has lower fixed pattern noise and
a more uniform response than vanadium oxide detectors, while still
maintaining high resolution and sensitivity when exposed directly to
the sun during normal daylight hours.
The
Sarix TI Series
at f/1.0. It is capable of multiple display formats, including white hot,
black hot, and color signatures. The
with multiple lens configurations for effective deployment in a wide
range of applications.
Sarix TI Series
provides outstanding sensitivity below 50 mK
Sarix TI Series
Sarix TI Series
Sarix TI Series
features a full suite
is an uncooled, sun-safe
is an
features IP or
®
pan/tilt
is available
The
Sarix TI Series
resolution formats. The camera has an input voltage of 24 VAC or a
selectable power source of 120/230 VAC.
In IP installations, the
video streams. The two streams can be compressed in MJPEG and
H.264 formats across several resolution configurations. The streams
can be configured to a variety of frame rates, bit rates, and group of
pictures (GOP) structures for additional bandwidth administration.
When used in analog installations, the
camera control and limited camera setup using Coaxitron
and Pelco D protocols.
The
Sarix TI Series
from 0.1 to 40 degrees per second in manual pan mode and 0.1 to 20
degrees per second in manual tilt mode. Pan preset and turbo speeds
are 100 degrees per second in wind speeds of 50 mph and 50 degrees
per second in the 90 mph wind-speed profile. Tilt preset speed is 30
degrees per second. The
of continuous pan rotation. The tilt range allows for horizontal
viewing of +33 to –83 degrees. Preset positions have a preset
accuracy of one-quarter degree.
The powder-coated aluminum enclosure makes the
ideal for either indoor or outdoor applications. The system has a
sustained operating temperature range of –40° to 50°C
(–40° to 122°F). A built-in heater/defroster and sun shroud are
standard features on the
is available in 640 x 480 and 384 x 288
Sarix TI Series
provides variable pan and tilt speeds ranging
Sarix TI Series
Sarix TI Series.
can support two simultaneous
Sarix TI Series
is capable of 360 degrees
supports
®
, Pelco P,
Sarix TI Series
International Standards
Organization Registered Firm;
ISO 9001 Quality System
C1317 / PS 4-13-11
Page 2
TECHNICAL SPECIFICATIONS
PELCO ANALYTICS
®
Pelco
Analytics enhance the flexibility and performance of the Sarix
TI Series when used in an IP video system. Pelco Analytics are easy
to configure for alarm notification when used with Endura® or a thirdparty system that supports Pelco's Analytics API system.
The Sarix TI Series includes five user-configurable behaviors. The
camera is capable of running up to three behaviors simultaneously;
although, the number of behaviors is limited to the available
processing power of the camera and the type of analytic being used.
Note:
Available processing power is determined by the settings for
compression standards, resolution, image rate, bit rate, and analytic
configuration. For each behavior, you can create several custom
profiles that contain different camera settings. With these profiles,
you can set up different scenarios for the behavior, which will
automatically detect and trigger alarms when specific activity is
detected.
Pelco Analytics are configured and enabled using a standard Web
browser, and Pelco behaviors are compatible with Endura or a thirdparty system that supports Pelco’s Analytics API system. Multiple
Pelco analytics can be scheduled to work during a certain time or
condition. For example, during the day, a camera can be configured
with Object Counting to count the number of people that enter a
lobby door. At night, the operator can change the profile to Camera
Sabotage to trigger an alarm if a camera is moved or obstructed.
Each suite includes the following behaviors:
ADDITIONAL PRODUCT FEATURES
• Operational in 90 mph Winds, Can Withstand Wind Velocity up to
130 mph
• Pan Preset Speed of 100°/Sec in 50 mph Winds and 50°/Sec in
90 mph Winds
• Variable Scan Speeds (1 to 40°/Sec)
• Multiple Lens Options
• Designed for Maximum Environmental Protection
• Compact, Lightweight Aluminum Construction
• Meets NEMA Type 4X and IP66 Standards
• Complete with Sun Shroud and Heater/Defroster
• Analog Control using Coaxitron, Pelco P, or Pelco D Protocols
•
Adaptive Motion:
then triggers an alarm when the objects enter a user-defined zone or
cross a trip wire. This behavior is primarily used in outdoor environments
with light traffic to reduce the number of false alarms caused by
environmental changes.
•
Camera Sabotage:
alarm is triggered if the lens is obstructed with spray paint, a cloth, or
covered with a lens cap. Any unauthorized repositioning of the camera
also triggers an alarm.
•
Loitering Detection:
defined zone longer than the user-defined time allows. This behavior is
effective in real-time notification of suspicious behavior around ATMs,
stairwells, and school grounds.
•
Object Counting:
or cross a trip wire. This behavior might be used to count the number of
people at a store entrance/exit or inside a store where the traffic is light.
This behavior is based on tracking and does not count people in a
crowded setting.
•
Stopped Vehicle:
than the user-defined time allows. This behavior is ideal for airport
curbside drop-offs, parking enforcement, suspicious parking, traffic lane
breakdowns, and vehicles waiting at gates.
Detects and tracks objects that enter a scene and
Detects contrast changes in the field of view. An
Identifies when people or vehicles remain in a
Counts the number of objects that enter a defined zone
Detects vehicles stopped near a sensitive area longer
WEB INTERFACE
The Sarix TI Series uses a standard Web browser for powerful remote
setup and administration.
Page 3
TECHNICAL SPECIFICATIONS
THERMAL CAMERA/OPTICS
Detector Sun-safe, uncooled microbolometer,
amorphous silicon
Array Format 640 x 480 (VGA) or 384 x 288 (QVGA)
Pixel Size
640 x 480 17 µm
384 x 288 25 µm
Effective Resolution 307,200 (640 x 480); 110,592 (384 x 288)
Spectral Response 7.5 to 13.5 µm, LWIR
Normalization Source Internal shutter (offset only), 0.3 second video
freeze during shutter
Temporal NETD 50 mK at f/1.0 (QVGA)
Display Formats White hot, black hot, and color signatures
LENS
640 x 480
Lens (mm) F-Number (f) Field of View (H/V/D)
35 1.4 18° x 13° x 22°
50 1.7 12° x 9° x 15°
100 2.0 6° x 5° x 8°
384 x 288
14.25 1.3 39° x 29° x 48°
35 1.4 16° x 12° x 19°
50 1.7 11° x 8° x 14°
100 2.0 6° x 4° x 7°
VIDEO
IP/NETWORK
Video Encoding H.264 High, Main, or Base profiles and
Video Streams Up to 2 simultaneous streams; the second
Frame Rate* Up to 30, 25, 24, 15, 12.5, 12, 10, 8, 7.5, 6, 5,
Available Resolutions 640 x 480 and 384 x 288
Supported Protocols TCP/IP, UDP/IP (Unicast, Multicast IGMP),
Users
Unicast Up to 20 simultaneous users depending on
Multicast Unlimited users H.264
Security Access Password protected
Software Interface Web browser view and setup
Pelco System Integration Endura 2.0 (or later) Digital Sentry
ANALOG
Video/Coaxitron Port 75 ohms, unbalanced
Video Modes NTSC or PAL, concurrent with digital
Video Level 1 Vp-p normal, 1.2 Vp-p hot
*Some models are limited to 8.33 ips to comply with US government export
control regulations.
MJPEG
stream is variable based on the setup of the
primary stream
4, 3, 2.5, 2, 1 (dependent upon stream
configuration)
UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, SNMP,
QoS, HTTP, HTTPS, LDAP (client), SSH, SSL,
SMTP, FTP, and 802.1x (EAP)
resolution settings (2 guaranteed streams)
®
4.2
(or later)
streaming video

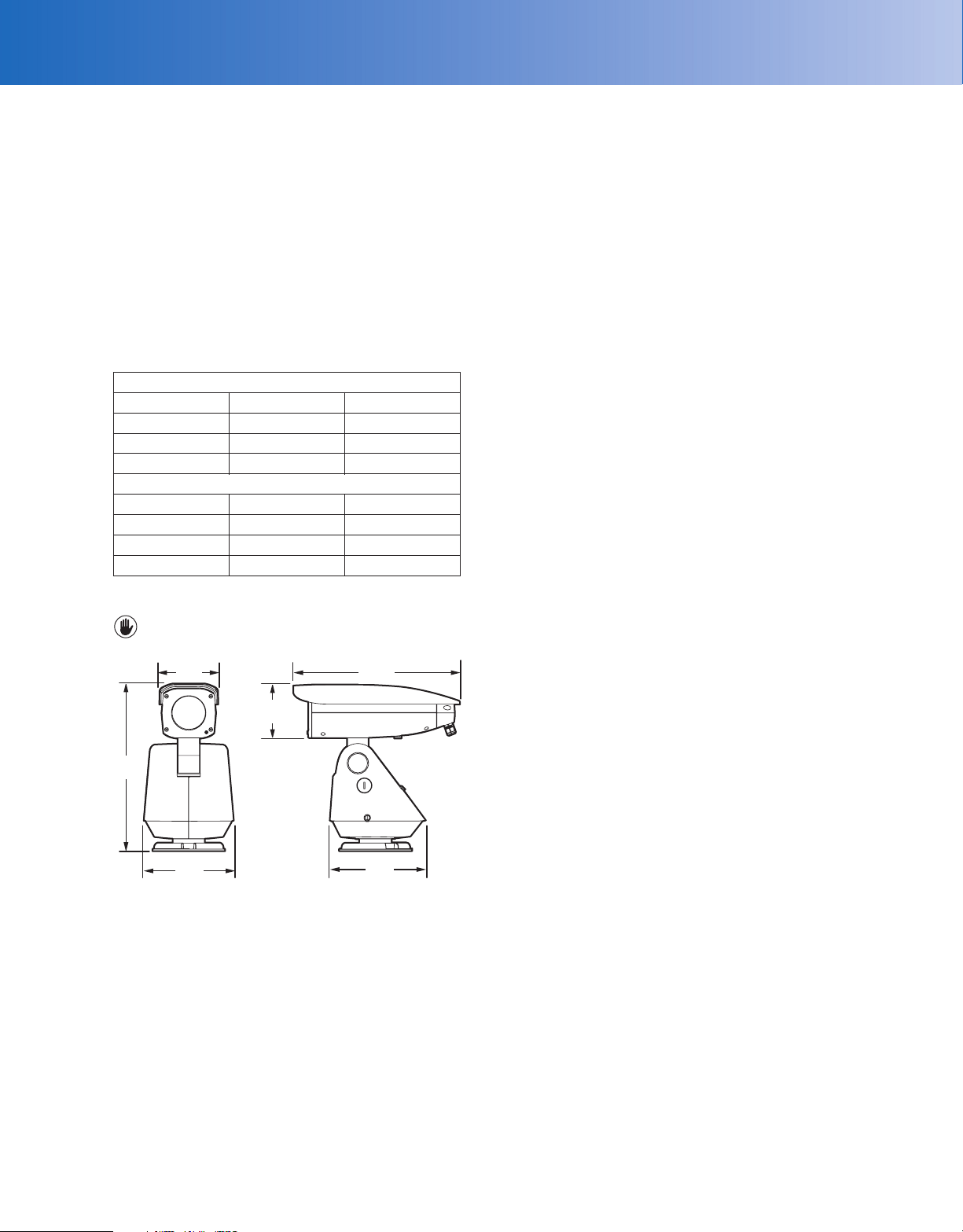

NOTE: VALUES IN PARENTHESES ARE INCHES;
ALL OTHERS ARE CENTIMETERS.
12.57
(4.95)
11.63
(4.58)
36.27
(14.28)
19.71
(7.76)
36.62
(14.42)
20.92
(8.24)
Page 4
TECHNICAL SPECIFICATIONS
RANGE PERFORMANCE*
640 x 480
Detection, Recognition, and Identification
of a Human Target
35 mm
Lens
50 mm
Lens
100 mm
Lens
270 m (885 ft)
130 m (426 ft)
390 m (1,281 ft)
190 m (624 ft)
390 m (1,281 ft)
Detection Recognition Identification
1.1 km (0.7 mi)
790 m (2,592 ft)
384 x 288
Detection, Recognition, and Identification
of a Human Target
14.25 mm
Lens
35 mm
Lens
50 mm
Lens
100 mm
Lens
320 m (1,050 ft)
80 m (264 ft)
40 m (132 ft)
190 m (624 ft)
95 m (312 ft)
270 m (885 ft)
130 m (426 ft)
270 m (885 ft)
760 m (2,493 ft)
540 m (1,773 ft)
1.5 km (1.0 mi)
1.1 km (0.7 mi)
3.1 km (2.0 mi)
2.1 km (1.3 mi)
Detection, Recognition, and Identification
of a Vehicle Target (2.3 m critical dimension)
35 mm
Lens
50 mm
Lens
100 mm
Lens
Detection, Recognition, and Identification
of a Vehicle Target (2.3 m critical dimension)
14.25 mm
Lens
35 mm
Lens
50 mm
Lens
100 mm
Lens
670 m (2,199 ft)
330 m (1,083 ft)
1.0 km (0.6 mi)
480 m (1,575 ft)
1.0 km (0.6 mi)
230 m (756 ft)
115 m (378 ft)
550 m (1,806 ft)
270 m (885 ft)
700 m (2,298 ft)
350 m (1,149 ft)
760 m (2,493 ft)
2.7 km (1.7 mi)
3.8 km (2.4 mi)
1.9 km (1.2 mi)
0.9 km (0.6 mi)
2.2 km (1.4 mi)
2.6 km (1.6 mi)
1.5 km (0.9 mi)
7.6 km (4.7 mi)
5.3 km (3.3 mi)
Detection Recognition Identification
*Range performance can vary based on camera setup, user experience, environmental conditions, and display type used. Calculations are based on 2°C difference,
50 percent probability of target detection, and 0.85/km atmospheric attenuation factor.
Page 5
TECHNICAL SPECIFICATIONS
ELECTRICAL
Ethernet Port Inline RJ-45 for 100Base-TX, auto MDI/MDI-X
Ethernet Cabling Required Cat5 or better for 100Base-TX
Input Power 24/120/230 VAC, 50/60 Hz, switch selectable
for 120/230 VAC
Input Power Range +15%/–20%
Power Consumption Lens Power
14.25, 30, 50 mm 4.0 A, 120 VA (110 W)
100 mm 5.5 A, 160 VA (130 W)
24 VAC Fuse 6.3 A, slow-blow
120/230 VAC Fuse 2 A, slow-blow
Heater Thermostat controlled
Local Storage Micro SD
Alarm Inputs N.O. switch, N.C. switch, or 1 kohm;
supervised
Mechanical Relay Output* Voltage Current Power
60 VDC, 125 VAC 1 A 62.5 VA, 30 W
Solid-State Relay Output* 60 V 600 mA (N/A)
Audio
Maximum Input Level 1 VRMS
Input Impedance 600 ohms, differential
Cable Type unsheilded twisted pair (UTP)
Optional Active
Microphone Power 12 VDC, 10 mA maximum
Serial Control Port 4-wire, RS-422/RS-485 (Pelco D or Pelco P)
Serial Control Cabling Type UTP
MECHANICAL
Pan Movement 360° continuous pan rotation
Vertical Tilt 33° to –79° unobstructed from horizontal
Variable Pan/Tilt Speed Analog Control IP Control
Pan 0.5° to 40°/sec
100°/sec turbo
Tilt 0.5° to 20°/sec 0.1° to 30°/sec
Preset Speeds
Pan 100° per second
Tilt 30° per second
Latching 2 captivated Torx™ screws
Face Plate 4 Torx screws
Cable Entry 2 adjustable 0.5-inch NPT liquid-tight glands
0.1° to 100°/sec
GENERAL
Construction Aluminum
Finish Gray polyester powder coat
Environment Indoor/outdoor
Operating Temperature –40° to 50°C (–40° to 122°F)
Storage Temperature –40° to 60°C (–40° to 140°F)
RECOMMENDED MOUNTS AND ADAPTERS
ECM100 Corner mount adapter for use with EWM wall
EPM Pole mount adapter for use with EWM wall
EA4348 EWM-to-Legacy adapter; use with PP4348
PM2000/PM2010 Pedestal mount with cable feedthrough; for
mount
mount
parapet mount
use with Esprit systems with EPP pedestal
adapter plate
RECOMMENDED POWER SUPPLY
MCS Series Multiple 24 VAC camera power supply, indoor
WCS Series Single/multiple 24 VAC camera power supply,
outdoor
CERTIFICATIONS/RATINGS/PATENTS
• CE, Class A
• FCC, Class A
• UL/cUL Listed
• C-Tick
• Meets NEMA Type 4 and IP66 standards
• Shock and Vibration, Meets NEMA TS 2; IEC613736-8, -9, -10
• Patents
†
As of the date of this publication, these items are pending. Please
consult the factory, our Web site at
recent B.O.S.S.® update for the current status of certifications.
†
†
†
†
†
†
www.pelco.com
†
, or the most
*Assumes maximum operating capacity.
Page 6
TECHNICAL SPECIFICATIONS
MODELS*
640 x 480
Lens Format
35 mm
50 mm
100 mm
384 x 288
Lens Format
14.25 mm
35 mm
50 mm
100 mm
Pedestal Mount
†
Wall Mount
‡
24 VAC 120/230 VAC 24 VAC 120/230 VAC
NTSC ESTI635-2N ESTI635-5N ESTI635-2W ESTI635-5W
PAL ESTI635-2N-X ESTI635-5N-X ESTI635-2W-X ESTI635-5W-X
PAL, 8.33 ips ESTI635-2N-X1 ESTI635-5N-X1 ESTI635-2W-X1 ESTI635-5W-X1
NTSC ESTI650-2N ESTI650-5N ESTI650-2W ESTI650-5W
PAL ESTI650-2N-X ESTI650-5N-X ESTI650-2W-X ESTI650-5W-X
PAL, 8.33 ips ESTI650-2N-X1 ESTI650-5N-X1 ESTI650-2W-X1 ESTI650-5W-X1
NTSC ESTI6100-2N ESTI6100-5N ESTI6100-2W ESTI6100-5W
PAL ESTI6100-2N-X ESTI6100-5N-X ESTI6100-2W-X ESTI6100-5W-X
PAL, 8.33 ips ESTI6100-2N-X1 ESTI6100-5N-X1 ESTI6100-2W-X1 ESTI6100-5W-X1
Pedestal Mount
†
Wall Mount
‡
24 VAC 120/230 VAC 24 VAC 120/230 VAC
NTSC ESTI314-2N ESTI314-5N ESTI314-2W ESTI314-5W
PAL ESTI314-2N-X ESTI314-5N-X ESTI314-2W-X ESTI314-5W-X
PAL, 8.33 ips ESTI314-2N-X1 ESTI314-5N-X1 ESTI314-2W-X1 ESTI314-5W-X1
NTSC ESTI335-2N ESTI335-5N ESTI335-2W ESTI335-5W
PAL ESTI335-2N-X ESTI335-5N-X ESTI335-2W-X ESTI335-5W-X
PAL, 8.33 ips ESTI335-2N-X1 ESTI335-5N-X1 ESTI335-2W-X1 ESTI335-5W-X1
NTSC ESTI350-2N ESTI350-5N ESTI350-2W ESTI350-5W
PAL ESTI350-2N-X ESTI350-5N-X ESTI350-2W-X ESTI350-5W-X
PAL, 8.33 ips ESTI350-2N-X1 ESTI350-5N-X1 ESTI350-2W-X1 ESTI350-5W-X1
NTSC ESTI3100-2N ESTI3100-5N EST3100-2W ESTI3100-5W
PAL ESTI3100-2N-X ESTI3100-5N-X ESTI3100-2W-X ESTI3100-5W-X
PAL, 8.33 ips ESTI3100-2N-X1 ESTI3100-5N-X1 ESTI3100-2W-X1 ESTI3100-5W-X1
*Some models may be subject to US government export control regulations.
†
Pedestal mount models include Esprit EPP pedestal adapter plate. Use with PM2000/PM2010 mount (not supplied) for pedestal application.
‡
Wall mount models include Esprit EWM wall mount. Optional mounting adapters for corner, pole, and parapet applications are available.
Pelco by Schneider Electric
3500 Pelco Way, Clovis, California 93612-5699 United States
USA & Canada
International
www.pelco.com
Tel (800) 289-9100 Fax (800) 289-9150
Tel +1 (559) 292-1981 Fax +1 (559) 348-1120
Pelco, the Pelco logo, and other trademarks associated with Pelco products referred
to in this publication are trademarks of Pelco, Inc. or its affiliates. All other
product names and services are the property of their respective companies.
Product specifications and availability are subject to change without notice.
©Copyright 2011, Pelco, Inc. All rights reserved.
Loading...
