Installation and Assembly Manual:
PRS Series Projector Mount
Models: PRS-1, PRS-1S, PRS-1W
This product is intended for use with UL
Listed products and must be installed by a
L
USC
qualifi ed professional installer.
Features:
• ImageLockTM alignment prevents picture sag or drift
• Exclusive aluminum track quick release
U
©
Maximum UL Load Capacity:
25 lb (11 kg)
1 of 13
Visit the Peerless Web Site at www.peerlessmounts.com
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
For customer care call 1-800-865-2112 or 708-865-8870.
ISSUED: 08-15-07 SHEET #: 055-9188-7 01-18-11
NOTE: Read entire instruction sheet before you start installation and assembly.
WARNING
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call
Peerless customer care at 1-800-865-2112.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic building
construction, and fully understands these instructions.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hardware and components.
• Never exceed the Maximum UL Load Capacity. See page 1.
• If mounting to wood joist ceilings, make sure that mounting screws are anchored into the center of the joist. Use of an
"edge to edge" stud fi nder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws fi rmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal
injury.
• This product was designed and intended to be mounted to the following supporting surfaces checked below with the
hardware included in this product as specifi ed in the installation sheet. To mount this product to an alternative sup-
porting surface, contact Peerless customer care at 1 800 865-2112.
• This product was designed to be installed on the following ceiling construction only;
CEILING CONSTRUCTION ADDITIONAL HARDWARE REQUIRED
x Wood Stud None
x Wood Joist None
x Solid Concrete None
Cinder Block Contact Customer Service (Not Evaluated by UL)
Metal Stud Do not attach except with Peerless accessory kit for metal studs;
Contact Customer Service for Peerless accessory kit for metal studs.
(Not Evaluated by UL)
Brick Contact Customer Service (Not Evaluated by UL)
Other or unsure? Contact Customer Service (Not Evaluated by UL)
Tools Needed for Assembly
• stud fi nder ("edge to edge" stud fi nder is recommended)
• phillips screwdriver
• drill
• 5/16" bit for concrete surface
• 5/32" bit for wood studs
• level
Table of Contents
Parts List............................................................................................................................................................................3
Installation to Extension Columns / Ceiling Plate ..............................................................................................................4
Installation to Wood Joist Ceilings .....................................................................................................................................5
Installation to Concrete Ceilings ........................................................................................................................................6
Installation to Threaded Rods ............................................................................................................................................7
Attaching Adapter Plate to Projector..................................................................................................................................8
Attaching Adapter Plate to Projector Mount.......................................................................................................................9
Cable Management .........................................................................................................................................................10
Projector Alignment .........................................................................................................................................................11
Accessories ...............................................................................................................................................................12, 13
ISSUED: 08-15-07 SHEET #: 055-9188-7 01-18-11
Visit the Peerless Web Site at www.peerlessmounts.com
2 of 13
For customer care call 1-800-865-2112 or 708-865-8870.
Before you start check the parts list to insure all of the parts shown are included.
Parts List
Description Qty. Part # Part # Part #
projector mount assembly 1 055-1963 055-4963 055-2963
A
4 mm security allen wrench 1 560-1718 560-1718 560-1718
B
#10-32 x 3/8" serrated washer head socket pin screw 2 520-1151 520-2151 520-2151
C
#10-32 x 1/4" socket pin screw 1 520-1196 520-2196 520-2196
D
flat washer 2 540-1078 540-1078 540-1078
E
#14 x 2.5 phillips hex head wood screw 2 5S1-015-C03 5S1-015-C04 5S1-015-C04
F
concrete anchor 2 590-0320 590-0320 590-0320
G
connection block
H
A
B
PRS-1 PRS-1S PRS-1W
1
580-1065 580-4065 580-4065
G
C
NOTE: Actual parts may appear slightly different than illustrated.
D
E
H
F
Visit the Peerless Web Site at www.peerlessmounts.com
3 of 13
ISSUED: 08-15-07 SHEET #: 055-9188-7 01-18-11
For customer care call 1-800-865-2112 or 708-865-8870.
Installation to Extension Column / Ceiling Plate
NOTE: Refer to accompanying instructions with ceiling plates (sold separately) for installing these models to
1
ceiling.
Screw projector mount assembly (A) onto extension column as shown in fi gure 1.1.
Tighten swivel stop screw against extension column, fl ush mount tube or reducer using 4 mm security t-wrench
(B) as shown in fi gure 1.2.
NOTE: Swivel stop screw is used to jam against threads of extension column, fl ush mount tube or reducer to
prevent any excess movement of projector mount assembly (A). Do not overtighten screw; overtightening screw
will damage threads making it diffi cult to separate products.
Skip to step 5.
1 1/2" EXTENSION COLUMN
(SOLD SEPARATELY)
(UL LISTED EXT OR AEC SERIES)
A
SWIVEL STOP
SCREW
fi g. 1.1
BACK OF
MOUNT
CMJ 455
(SOLD SEPARATELY)
Visit the Peerless Web Site at www.peerlessmounts.com
4 of 13
fi g. 1.2
ISSUED: 08-15-07 SHEET #: 055-9188-7 01-18-11
For customer care call 1-800-865-2112 or 708-865-8870.

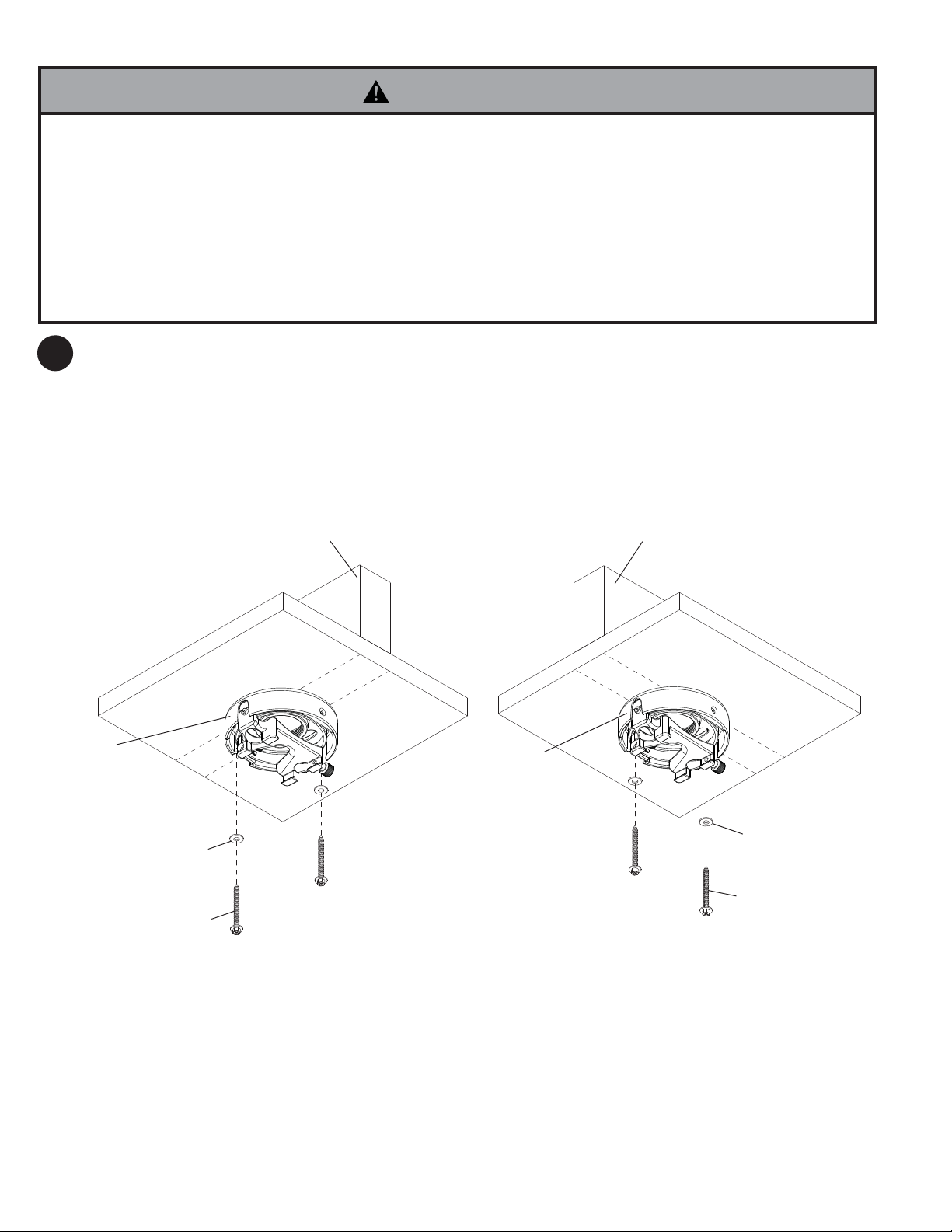

Installation To Wood Joist Ceilings
WARNING
• Installer must verify that the supporting surface will safely support the combined load of the equipment and all
attached hardware and components.
• Tighten wood screws so that projector mount assembly is fi rmly attached, but do not overtighten. Overtightening
can damage the screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud fi nder
is highly recommended.
• Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs. Installers are responsible to provide hardware for other types of mounting situations (not evaluated by UL).
Place projector mount assembly (A) on ceiling as a template and mark the center of the two mounting holes. Make
2
sure that the mounting holes are in the center of the wood joist. Drill two 5/32" (4 mm) dia. holes to a minimum depth
of 2.5" (64 mm). Attach projector mount assembly (A) with two #14 x 2.5" (6 mm x 65 mm) wood screws (F) and two
fl at washers (E) as shown in fi gure 2.1 or fi gure 2.2 depending on joist orientation.
NOTE: Mounting slots on projector mount assembly allow for 30° (±15°) of rotation before fully securing wood
screws.
Tighten wood screws (F) using 3/8" (10 mm) socket wrench or phillips screwdriver until projector mount assembly
(A) is fi rmly attached.
Skip to step 5.
A
E
F
WOOD JOIST
fi g. 2.1
WOOD JOIST
A
E
F
fi g. 2.2
Visit the Peerless Web Site at www.peerlessmounts.com
5 of 13
ISSUED: 08-15-07 SHEET #: 055-9188-7 01-18-11
For customer care call 1-800-865-2112 or 708-865-8870.
Installation to Concrete Ceilings
WARNING
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hardware and components.
Place projector mount assembly (A) on ceiling
3
as a template and mark the center of the two
mounting holes. Drill two 5/16" (8 mm) dia. holes to
a minimum depth of 2.5" (64 mm). Attach projector
mount assembly (A) using two concrete anchors
(G), two fl at washers (E), and two #14 x 2.5" wood
screws (F) as shown.
Note: Mounting slots on projector mount assembly
allow for 30° (±15°) of rotation before fully securing
wood screw.
Tighten wood screws (F) using 3/8" (10 mm) socket
wrench or phillips screwdriver until projector mount
assembly (A) is fi rmly attached.
Skip to step 5.
G
FRONT OF
MOUNT
WARNING
• Tighten wood screws fi rmly, but do not overtighten.
Overtightening can damage the screws, greatly reducing their holding power.
• Never tighten in excess of 80 in • lb (9 N.M.).
WARNING
• Always attach concrete anchors directly to loadbearing concrete.
• Never attach concrete anchors to concrete covered
with plaster, drywall, or other fi nishing material. If
mounting to concrete surfaces covered with a fi nish-
ing surface is unavoidable (not evaluated by UL), the
fi nishing surface must be counterbored as shown below. Be sure concrete anchors do not pull away from
concrete when tightening screws. If plaster/drywall is
thicker than 5/8", custom fasteners must be supplied
by installer (not evaluated by UL).
A
E
F
1
concrete
surface
G
Drill holes and insert anchors (G).
F
A
G
2
Place plate (A) over anchors (G) and secure with screws (F).
INCORRECT CORRECT
concrete
A
plaster/
CUTAWAY VIEW
Visit the Peerless Web Site at www.peerlessmounts.com
dry wall
A
plaster/
dry wall
concrete
6 of 13
3
Tighten all fasteners.
ISSUED: 08-15-07 SHEET #: 055-9188-7 01-18-11
For customer care call 1-800-865-2112 or 708-865-8870.
Installation to Threaded Rod
(Not evaluated by UL - Professional installation only)
Thread two 3/8-16 hex thin nylon-insert locknuts (not included) on two 3/8-16 threaded rods (not included) to the
4
desired height of projector mount assembly. Attach projector mount assembly (A) to the two 3/8-16 threaded rods
using two 3/8-16 hex thin nylon-insert locknuts as shown in fi gure 4.1 or fi gure 4.2.
3/8 -16 THREADED ROD
(NOT INCLUDED)
3/8 -16 HEX THIN
NYLON-INSERT
LOCKNUT
(NOT INCLUDED)
3/8 -16 THREADED ROD
(NOT INCLUDED)
3/8 -16 HEX THIN
NYLON-INSERT
LOCKNUT
(NOT INCLUDED)
fi g. 4.1
A
FRONT OF
MOUNT
3/8 -16 HEX THIN
NYLON-INSERT
LOCKNUT
(NOT INCLUDED)
A
FRONT OF
MOUNT
3/8 -16 HEX THIN
NYLON-INSERT
LOCKNUT
(NOT INCLUDED)
fi g. 4.2
Visit the Peerless Web Site at www.peerlessmounts.com
7 of 13
ISSUED: 08-15-07 SHEET #: 055-9188-7 01-18-11
For customer care call 1-800-865-2112 or 708-865-8870.

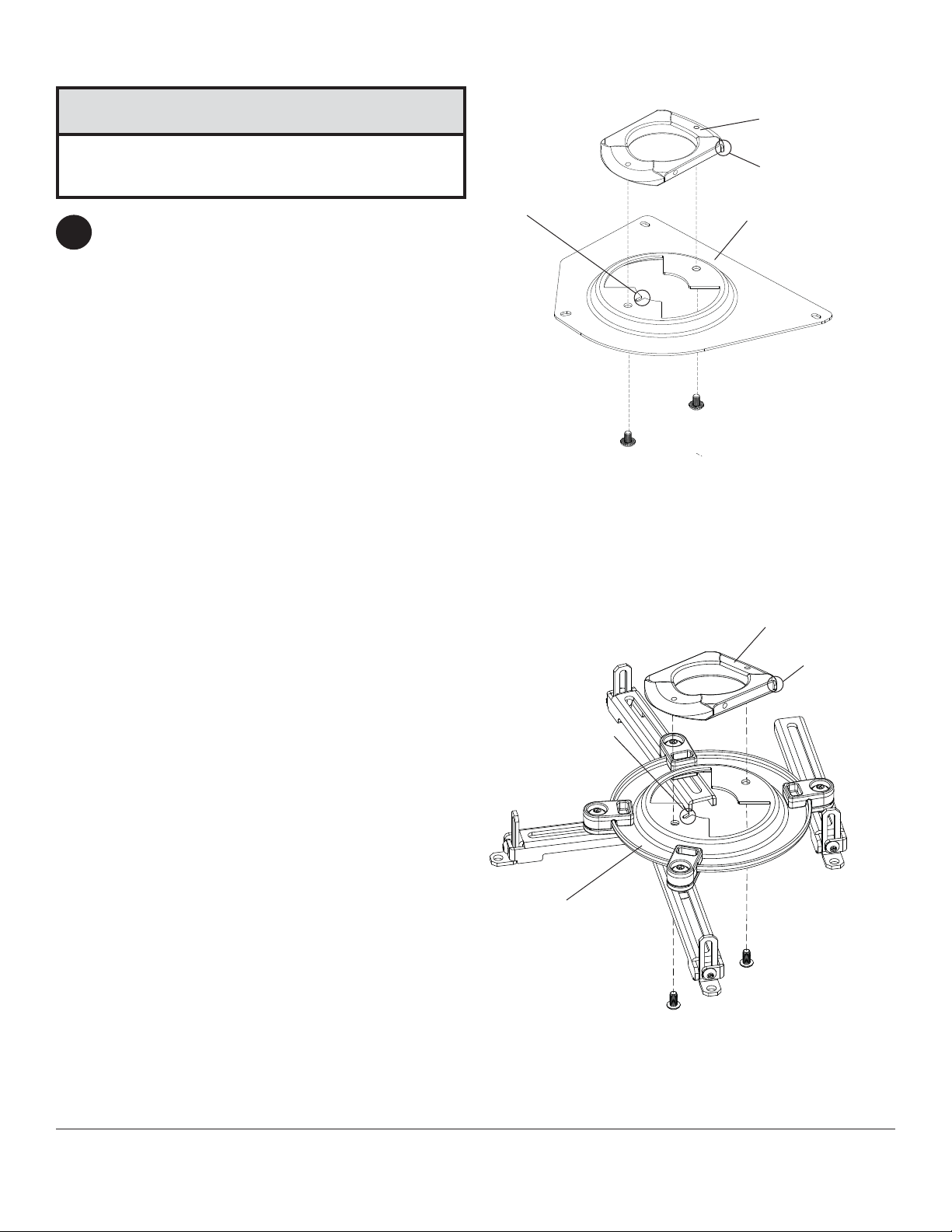

Attaching Adapter Plate to Projector
CAUTION
• It is the responsibility of the installer to ensure that
the projector is properly ventilated.
Installing Dedicated PAP Series Adapter
5
Plate (sold separately)
NOTE: The projector dedicated adapter plate you
are installing may differ in appearance from the
sample illustrated in fi gure 5.1.
Align shoulder of connection block (I) opposite notch
of adapter plate. Attach dedicated adapter plate to
connection block (I) using two #10-32 x 3/8" serrated washer head socket pin screws (C) as shown
in fi gure 5.1.
NOTE: For PAP 35, PAP 40, and PAP 45 adapter
plates, use two #10-32 x 3/4" screws provided with
adapter plate in place of screws (C).
NOTE: Attach dedicated adapter plate to projector
(see PAP instructions) before proceeding to step 6.
NOTCH INDICATES
FRONT OF PROJECTOR
fi g. 5.1
C
H
SHOULDER
DEDICATED
ADAPTER PLATE
(SOLD SEPARATELY)
Installing PAP-UNV Adapter Plate (sold
separately)
Align shoulder on connection block (I) opposite
notch in adapter plate. Attach PAP-UNV adapter
plate to connection block (I) using two #10-32 x
3/8" serrated washer head socket pin screws (C) as
shown in fi gure 5.2.
NOTE: Attach PAP-UNV adapter plate to projector
(see PAP-UNV instructions) before proceeding to
step 6.
NOTCH INDICATES
FRONT OF
PROJECTOR
PAP-UNV
ADAPTER PLATE
(SOLD SEPARATELY)
fi g. 5.2
H
SHOULDER
C
Visit the Peerless Web Site at www.peerlessmounts.com
8 of 13
ISSUED: 08-15-07 SHEET #: 055-9188-7 01-18-11
For customer care call 1-800-865-2112 or 708-865-8870.
Attaching Adapter Plate to Projector (continued)
WARNING
• Always use an assistant or mechanical lifting equipment to safely lift and position the projector.

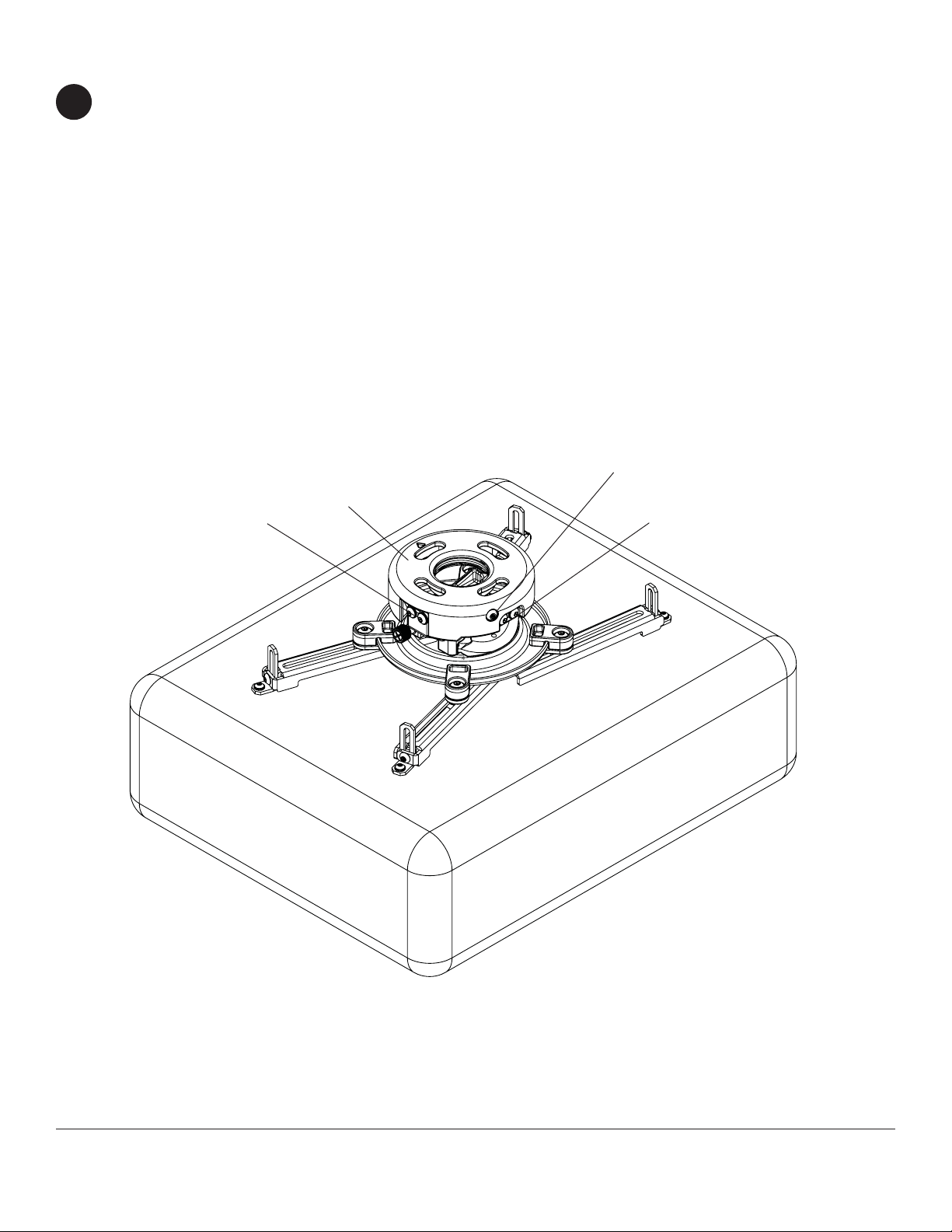

Slide connection block with projector into projector mount assembly (A) as shown. Push in and tighten captive
6
screw to secure projector to projector mount assembly (A).
H
FRONT OF MOUNT
A
CAPTIVE SCREW
IMPORTANT: For security installations, insert one #10-32 x 1/4" socket pin screw (E) through projector mount as-
7
sembly (A) and into connection block as shown. Tighten screw with 4mm security t-wrench (L).
A
E
H
Visit the Peerless Web Site at www.peerlessmounts.com
9 of 13
ISSUED: 08-15-07 SHEET #: 055-9188-7 01-18-11
For customer care call 1-800-865-2112 or 708-865-8870.
Cable Management
To make an opening to route cables through projector
8
mount assembly, adjust projector mount assembly to full
upward tilt position by turning knob for tilt adjustment
as shown in fi gure 8.2. Left or right roll position can be
adjusted if more space is required.
NOTE: Be certain tamper resistant screws are not
engaged before making adjustments (see step 9).
Route cables through top of extension column as shown
in fi gure 8.1 and fi gure 8.2.
NOTE: A method for assisting cables through extension
column may be required (example: string tied to connector to help pull through extension column).
Route cables through projector mount assembly as
shown in fi gure 8.2 and connect to projector.

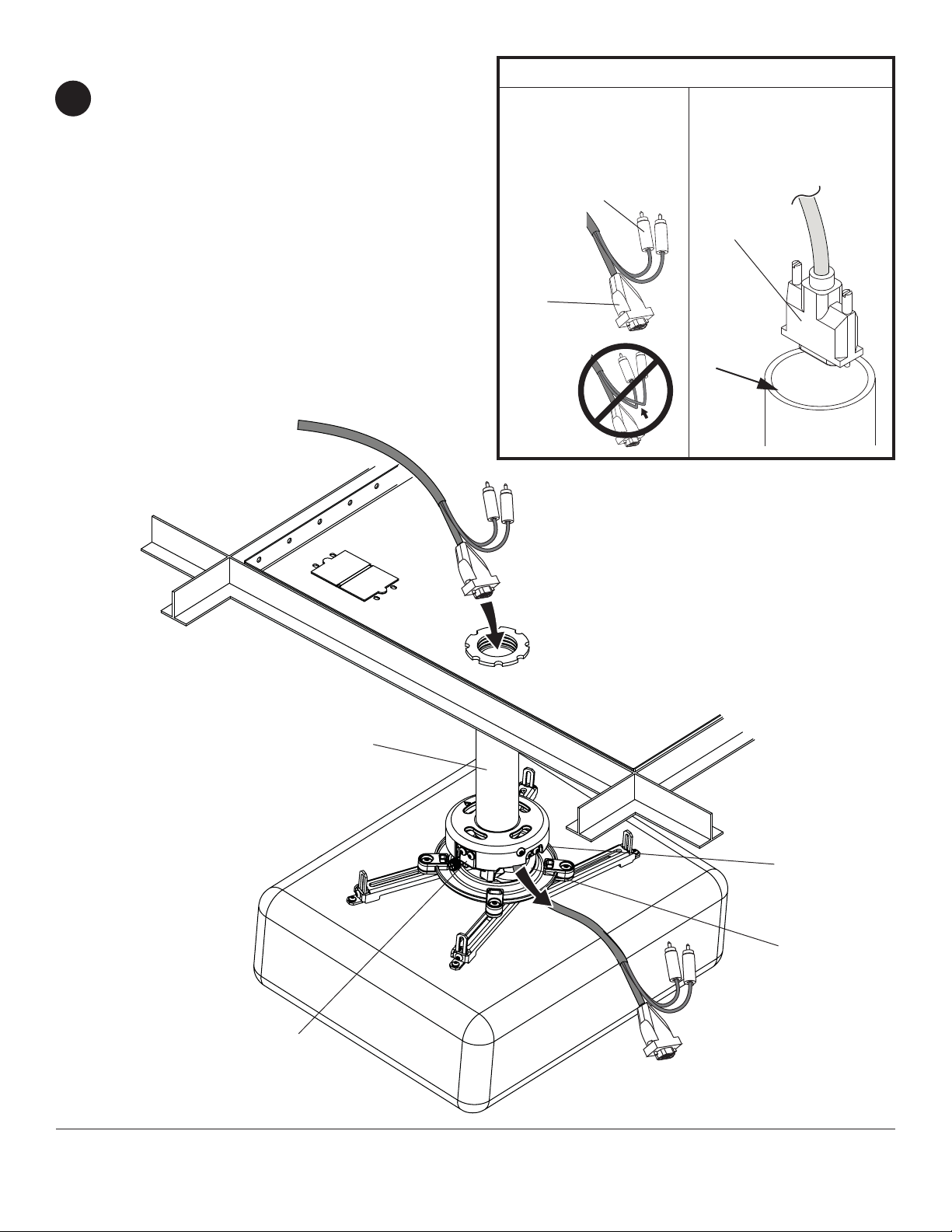

fi g. 8.1
CABLES WITH COMBINATION
OF VGA CONNECTOR
AND RCA PLUGS
BEND WIRES OF RCA
PLUGS IN OPPOSITE
DIRECTION
ROUTE
CONNECTOR
THROUGH
FIRST
DO NOT
CRIMP
WIRES
NOTE: INNER DIAMETER OF
EXTENSION COLUMN MAY NOT
ALLOW PASSAGE FOR ALL
CONNECTOR TYPES.
CABLE
CONNECTOR
INNER
DIAMETER OF
EXTENSION
COLUMN
SCREWS FOR PITCH
ADJUSTMENT
fi g. 8.2
EXTENSION
COLUMN
SCREWS FOR ROLL
ADJUSTMENT
OPENING FOR
ROUTING CABLES
Visit the Peerless Web Site at www.peerlessmounts.com
10 of 13
ISSUED: 08-15-07 SHEET #: 055-9188-7 01-18-11
For customer care call 1-800-865-2112 or 708-865-8870.
Projector Alignment
To adjust yaw (swivel) for wood stud, concrete ceiling, and threaded rod mounting applications: Loosen
9
wood screws (F), or locknuts for threaded rods, until projector mount can be rotated. Rotate mount to desired position and retighten screws or locknuts.
To adjust yaw (swivel) for extension column applications: Loosen screw on projector mount assembly (A) indicated below until projector mount can be rotated. Rotate mount to desired position and retighten screw.
To adjust pitch (forward and backward tilt): Loosen two screws on projector mount assembly (A) indicated below. Tilt mount to desired position and retighten screws.
To adjust roll (side to side tilt): Loosen two screws on projector mount assembly (A) indicated below. Tilt mount
to desired position and retighten screws.
SCREW FOR SWIVEL STOP
A
SCREWS FOR PITCH
ADJUSTMENT
SCREWS FOR ROLL
ADJUSTMENT
Visit the Peerless Web Site at www.peerlessmounts.com
11 of 13
ISSUED: 08-15-07 SHEET #: 055-9188-7 01-18-11
For customer care call 1-800-865-2112 or 708-865-8870.
I-Beam Clamps
M
ODELS
:
ACC 558, ACC 559
M
AX LOAD
:
250 lbs. (113.4 kg.)
C
OLOR
:
Black
• ACC 558 clamps onto 4"-8" I-Beam
• ACC 559 clamps onto 7"-12" I-Beam
Unistrut® Adapter
M
ODEL
: ACC 550
M
AX LOAD
:
250 lbs. (113.4 kg.)
C
OLOR
:
Black
• Designed for use with
1 5/8" x 1 5/8" 12 gauge Unistrut
Accessory Pack for CMJ 455
M
ODEL
: ACC 455*
This pack includes 4 hanger brackets and
4 hanger clamps for additional stability. For
use with model CMJ 455.
Truss Ceiling Adapter
M
ODEL
: ACC 557*
M
AX LOAD
:
250 lbs. (113.4 kg.)
C
OLOR
:
Black
• Attaches to a square, round,
rectangular, or I-Beam truss up to 3" in
diameter
Escutcheon Ring
M
ODEL
: ACC 640
• Covers hole where extension
column passes through ceiling
• Hinged ring wraps around extension column
• Included with CMJ 500
Lightweight Cathedral
Ceiling Plate
M
ODEL
: ACC 912*
M
AX LOAD
:
60 lbs. (27.2 kg.)
C
OLOR
:
Black
• Designed specifically for projectors
• Allows a projector to be mounted
on an angled ceiling
New!
Lightweight Adjustable
Suspended Ceiling Kit
M
ODEL
: CMJ 500
M
AX LOAD
:
60 lbs. (27.2 kg.)
C
OLOR
:
White
• Mounts above 2’ x 4’ or 2’ x 2’ false
ceiling tile
• Includes tie wire supports, flush mount
tube, and offers two knockout panels
for outlet boxes
• Offers unlimited adjustment for
projector placement
New!
Lightweight Suspended Ceiling Kit
M
ODEL
: CMJ 455
M
AX LOAD
:
50 lbs. (22.7 kg.)
C
OLOR
:
White
• Five different projector
mount attachment points
• Includes tie wire supports,
flush mount tube, and
offers two knockout panels
for outlet boxes
• May either replace a 2’ x 2’ false
ceiling tile or mount above an existing
2’ x 2’ or 2’ x 4’ ceiling tile
Anti-Vibration Ceiling Plates
M
ODELS
:
ACC 840*, ACC 845*
M
AX LOAD
:
60 lbs. (27.2 kg.)
C
OLOR
:
Black
• ACC 840 was designed for
a structural ceiling (wood only)
• ACC 845 was designed for
a Unistrut ceiling (1 5/8" x 1 5/8"
12 gauge Unistrut)
• Reduces unwanted vibrations
that may cause internal damage
to the equipment and/or cause the
screen image to vibrate
• Features two cord management
access holes
• Patent pending
Unistrut or Structural
Ceiling Plates
M
ODELS
:
CMJ 300*, CMJ 310*
M
AX LOAD
:
250 lbs. (113.4 kg.)
C
OLOR
:
Black
• CMJ 300 is a 4" x 4" ceiling plate
• CMJ 310 is a 8" x 8" ceiling plate
• Designed for a Unistrut ceiling
(1 5/8" x 1 5/8" 12 gauge Unistrut)
or a solid structural ceiling
(mounting hardware not included)
Unistrut
Ceiling plate
R
R
R
Ceiling Plates
R
= Not UL Listed
Round Ceiling Plate
M
ODEL
:
ACC570(S)(W)
C
OLOR
:
Black, silver or white
MAX L
OAD
:
150 lb (68 kg)
S
HIP WEIGHT
:
1.7 lb (.8 kg)
• Designed for finished or
structural ceilings (wood or
concrete)
• Features a cord management
R
PRS Series Projector Mount Accessories
Visit the Peerless Web Site at www.peerlessmounts.com
12 of 13
ISSUED: 08-15-07 SHEET #: 055-9188-7 01-18-11
For customer care call 1-800-865-2112 or 708-865-8870.
PRS Series Projector Mount Accessories
ALLIGATOR
®
Concrete Anchors
M
ODELS
: ACC 203, 204
• ACC 203 contains 3 anchors
• ACC 204 contains 4 anchors
• Used for attachment to
concrete, concrete block,
or brick
• Used in conjunction with wood
screws (supplied with
projector mount and/or
ceiling plate)
• Expands in length and binds to
the contours of the hole and
the screw
Cord Wrap
M
ODELS
: ACC 852(W)(S)*
C
OLOR
:
Black, White, or Silver
Side-To-Side Adjuster
M
ODEL
: ACC 830*
C
OLOR
:
Black
• Provides 4" of radial
adjustment side to side
• Includes Flush Mount
Tube, EXT 002
Armor Lock
TM
Plus Security Cables
M
ODEL
: ACC 021*
• With 1/4" security cable and fasteners
• Includes adhesive for non-fastener applica
tions
M
ODEL
: ACC 020*
• With security lock
• For use with projectors that have a built-in
security slot
Extension
column
Extension Columns
Security Accessories
Additional Projector
Mount Accessories
Cord Management
Fixed Length 1 1/2"
Extension Columns
C
OLOR
:
Black
R
C
OLOR
:
Black
Adjustable Length 1 1/2"
Extension Columns
MODEL Drop Length Ship Weight
ADJ 006009 8"-11" 4 lbs.
(1.81 kg)
ADJ 012018 14"-20" 4.75 lbs.
(2.15 kg)
ADJ 018024 20"-26" 6.25 lbs.
(2.83 kg)
ADJ 0203 26"-38" 8 lbs.
(3.63 kg)
ADJ 0305 38"-62" 13.5 lbs.
(6.12 kg)
ADJ 0406 50"-74" 16.25 lbs.
(7.37 kg)
ADJ 0507 62"-86" 18.5 lbs.
(8.39 kg)
ADJ 0608 74"-98" 21.75 lbs.
(9.87 kg)
ADJ 0709 86"-110" 24.5 lbs.
(11.11 kg)
ADJ 0810 98"-122" 27 lbs.
(12.25 kg)
ADJ 0911 110"-134" 29 lbs.
(13.15 kg)
ADJ 1012 122"-146" 31 lbs.
(14.06 kg)
R
R
= Not UL Listed
• Includes, four, 2' sections
• Designed to externally route cords along the
outside of an 1/2" extension column
• Sections can be stacked to create longer lengths
or cut to desired length
Extension Column
Stabilizer Kit
M
ODEL
: ACC 050*
C
OLOR
:
Black
• Can be used to reduce
unwanted swaying that may
occur with extension
column installations
• Includes a hose clamp, two
stabilizer column supports,
& hardware for mounting to
wood joists
• For use with extension
columns over 21"
MODEL Drop Length Ship Weight
EXT 006 8"
(20 cm)
2.5 lbs
(1.13 kg)
EXT 018 20"
(51 cm)
5 lbs
(2.27 kg)
EXT 101 14"
(36 cm)
3.5 lbs
(1.59 kg)
EXT 102 26"
(66 cm)
6 lbs
(2.72 kg)
EXT 103 38"
(97 cm)
9.25 lbs
(4.2 kg)
EXT 104 50"
(127cm)
12 lbs
(5.44 kg)
EXT 105 62"
(158 cm)
14.75 lbs
(6.69 kg)
EXT 106 74"
(188 cm)
18 lbs
(8.16 kg)
EXT 107 86"
(219 cm)
20.75 lbs
(9.41 kg)
EXT 108 98"
(249 cm)
23.25 lbs
(10.55 kg)
EXT 109 110"
(279 cm)
26.5 lbs
(12.02 kg)
EXT 110 122"
(310 cm)
29 lbs
(13.15 kg)
Side to side
adjuster
Extension Column
Connector
M
ODEL
: ACC 109*
C
OLOR
:
Black
• Can be used to join two
1-1/2" extension columns to
create a maximum length
of 20’
• Secures to columns with
Armor Lock
TM
Security
screws
Extension Column Connector
with Cord Management
M
ODEL
: ACC800, ACC850(S)
C
OLOR
: ACC800
Black
ACC850
Black or Silver
• 1-1/2" access hole for internal cord
management
• Unit has 1-1/2"-11.5 NPT fitting for
attachment of extension column
• Security screws included
• ACC800: One male and one female
connection to provide internal cord
management between extension
column and mount or ceiling plate
• ACC850: Two female connectors to
join two extension columns to
create maximum length of 20’
ACC850
ACC800
Visit the Peerless Web Site at www.peerlessmounts.com
13 of 13
All other brand and product names are trademarks or registered trademarks of their respective owners.
ISSUED: 08-15-07 SHEET #: 055-9188-7 01-18-11
For customer care call 1-800-865-2112 or 708-865-8870.
© 2008, Peerless Industries, Inc. All rights reserved.
Loading...
