Peerless Industries PF640, PWS211 User Manual

Installation and Assembly:

Paramount™ Universal Flat Wall Mount

for 23" - 46" (58 - 117 cm) *LCD and Flat Panel Plasma Screens

Model: PF640, PWS211/BK

C U© L US

I D :00

0

76

0018

2

Max Load Capacity: 150 lb (68 kg)

Features:

•For fl at panel screens

•Ultra-slim design holds the screen fl at against the wall

•Screen simply hooks onto the wall plate for quick and easy installation

•Includes hardware for installation to wood studs, concrete and cinder block

*NOTE: Most 42" (107 cm) and larger plasma screens may not work with this mount. Use Mount Finder to confi rm compatibility.

ISSUED: 11-09-07 SHEET #: 202-9251-4 04-12-10

NOTE: Read entire instruction sheet before you start installation and assembly.

WARNING

•Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor.

•This product should only be installed by someone of good mechanical aptitude, has experience with basic building construction, and fully understands these instructions.

•Make sure that the supporting surface will safely support the combined load of the equipment and all attached hardware and components.

•Never exceed the Maximum Load Capacity. See page one.

•If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of an "edge to edge" stud fi nder is highly recommended.

•Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

•Tighten screws fi rmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding power.

•This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal injury.

•This product was designed to be installed on the following wall construction only;

WALL CONSTRUCTION		HARDWARE REQUIRED
•	Wood Stud	Included
•	Wood Beam	Included
•	Solid Concrete	Included
•	Cinder Block	Included
•	Metal Stud	Do not attach except with Peerless Metal Stud Accessory Kit - ACC415;
		(not UL evaluated)
•	Brick	Contact Qualifi ed Professional (not UL evaluated)
•	Other or unsure?	Contact Qualifi ed Professional

Tools Needed for Assembly

•stud fi nder ("edge to edge" stud fi nder is recommended)

•phillips screwdriver

•drill

•5/16" (8 mm) bit for concrete and cinder block wall

•5/32" (4 mm) bit for wood stud wall

•level

Table of Contents

Parts List.................................................................................................................................................................................	3
Installation to Double Wood Stud Wall ...................................................................................................................................	4
Installation to Solid Concrete or Cinder Block ........................................................................................................................	5
Installing Adapter Brackets.....................................................................................................................................................	6
Installing Flat Panel Screen to Wall Plate...............................................................................................................................	8

2 of 34

ISSUED: 11-09-07 SHEET #: 202-9251-4 04-12-10

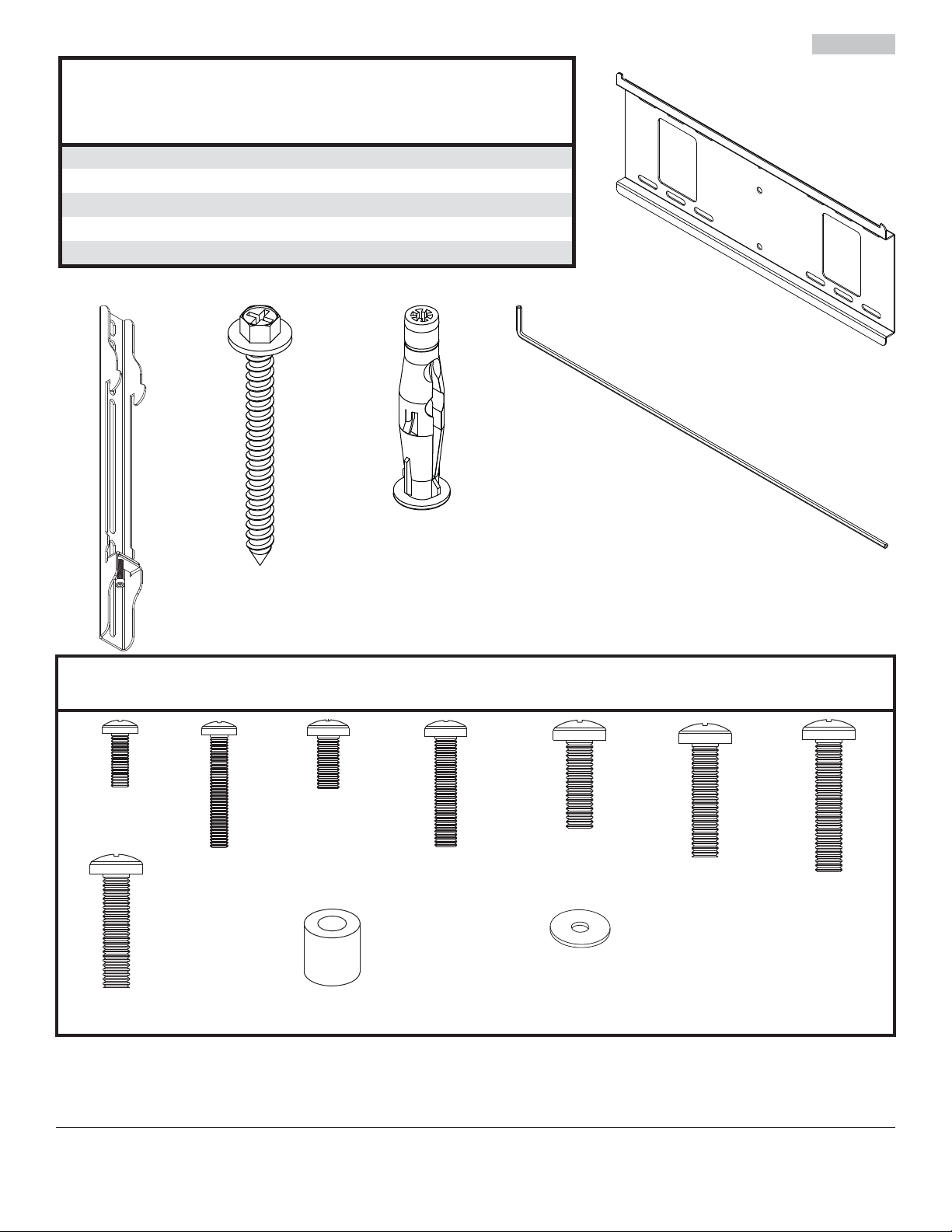

Parts List
Description	Qty. Part Number
AA wall plate	1	200-P1797
BB adapter bracket	2	201-P1515
CC #14 x 2.5" wood screw	4	5S1-015-C03
DD concrete anchor	4	590-0320	AA
EE 4 mm allen wrench	1	560-1129

Parts may appear slightly different than illustrated.

BB

CC

DD

EE

Adapter Bracket Fasteners

	M4 x 12 mm (4)	M5 x 12 mm (4)
	(504-9013)	(520-1027)	M6 x 12 mm (4)
	M4 x 25 mm (4)	M5 x 25 mm (4)	(520-1128)
	(504-1015)	(520-9543)	M6 x 20 mm (4)	M6 x 30 mm (4)
			(520-9402)
				(510-9109)

.5" spacer (4)

(540-1058) .688" washer (4)

(540-1040) M6 x 25 mm (4)

(520-1208)

3 of 34

ISSUED: 11-09-07 SHEET #: 202-9251-4 04-12-10

Installation to Double Wood Stud Wall

WARNING

•Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components.

•Tighten wood screws so that wall plate is fi rmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power.

•Never tighten in excess of 80 in. • lb (9 N.M.).

•Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud fi nder is highly recommended.

•Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs. Installers are responsible to provide hardware for other types of mounting situations (not UL evaluated).

Wall plate (AA) can be mounted to two studs that are 16" (406 mm) apart. Use a stud fi nder to locate the edges of 1 the studs. Use of an edge-to-edge stud fi nder is highly recommended. Based on their edges, draw a vertical line

down each stud’s center. Place wall plate on wall as a template. The top mounting slots should be 2.5" (64 mm) above the desired screen center as shown in fi gure 1.1. Level plate, and mark the center of the four mounting holes. Make sure that the mounting holes are on the stud centerlines. Drill four 5/32" (4 mm) dia. holes 2.5"

(64 mm) deep. Make sure that the wall plate is level, secure it using four #14 x 2.5" wood screws (CC) as shown in fi gure 1.2.

Skip to step 2 on page 6.

STUD

AA

2.5"

(64 mm)

CS

CS = center of screen

fig. 1.1

CC AA

fig. 1.2

4 of 34

ISSUED: 11-09-07 SHEET #: 202-9251-4 04-12-10

Installation to Solid Concrete or Cinder Block

WARNING

•When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" (35 mm) of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1" (25 mm) minimum from the side of the block. Cinder block must meet ASTM C-90 specifi cations. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to avoid breaking out the back of the hole when entering a void or cavity.

•Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.

•Make sure that the wall will safely support four times the combined load of the equipment and all attached hardware and components.

1	Make sure that wall plate (AA) is level, use it as
	a template to mark four mounting holes. The top	1		concrete
				surface
	mounting hole should be 2.5" (64 mm) above the
	desired screen center as shown in fi gure 1.1 on			DD
	page 4. Drill four 5/16" (8 mm) dia. holes to a minimum
	depth of 2.5" (64 mm). Insert anchors (DD) in holes	Drill holes and insert anchors (DD).
	fl ush with wall. Place wall plate over anchors and
	secure with #14 x 63.5 mm screws (CC). Level, then	2	AA
	tighten all fasteners.
	WARNING		CC	DD

•	Tighten screws so that wall plate is fi rmly attached,	Place plate (A) over anchors (DD) and secure with screws (CC).
	but do not overtighten. Overtightening can damage
	screws, greatly reducing their holding power.	3
•	Never tighten in excess of 80 in. • lb (9 N.M.).
•	Always attach concrete expansion anchors directly to
	load-be aring concrete.
•	Never attach concrete expansion anchors to concrete
	covered with plaster, drywall, or other fi nishing mate-
	rial. If mounting to concrete surfaces covered with a	Tighten all fasteners.
	fi nishing surface is unavoidable (not UL evaluated),
	the fi nishing surface must be counterbored as shown	SOLID CONCRETE
	below. Be sure concrete anchors do not pull away
	from concrete when tightening screws. If plaster/dry-
	wall is thicker than 5/8" (16 mm), custom fasteners
	must be supplied by installer (not evaluated by UL).

CUTAWAY VIEW

INCORRECT		CORRECT	DD	CINDER
concrete	wall	concrete		BLOCK
wall	plate		AA
plate
plaster/		plaster/
drywall		drywall

CC

5 of 34

ISSUED: 11-09-07 SHEET #: 202-9251-4 04-12-10

Installing Adapter Brackets

WARNING

•Tighten screws so adapter brackets are fi rmly attached. Do not tighten with excessive force. Overtightening can cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.

•If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly secured, damage may occur to screen or product may fail.

To prevent scratching the screen, set a cloth on a fl at, level surface that will support the weight of the screen. 2 Place screen face side down. If screen has knobs on the back, remove them to allow the adapter brackets to be

attached. Place adapter brackets (BB) on back of screen, align to holes, and center on back of screen as shown below. Attach the adapter brackets to the back of the screen using the appropriate combination of screws, washers and spacers as shown in fi gure 2.1 or 2.2.

NOTE: Top and bottom holes must always be used.

Verify that all holes are properly aligned, and then tighten screws using a phillips screwdriver.

X

BB

CENTER BRACKETS VERTICALLY

ON BACK OF SCREEN

			X
NOTE: "X" dimensions should be equal.

NOTE: For flat back screens proceed to step 2-1. For bump-out or recessed back screen skip to step 2-2.

6 of 34

ISSUED: 11-09-07 SHEET #: 202-9251-4 04-12-10

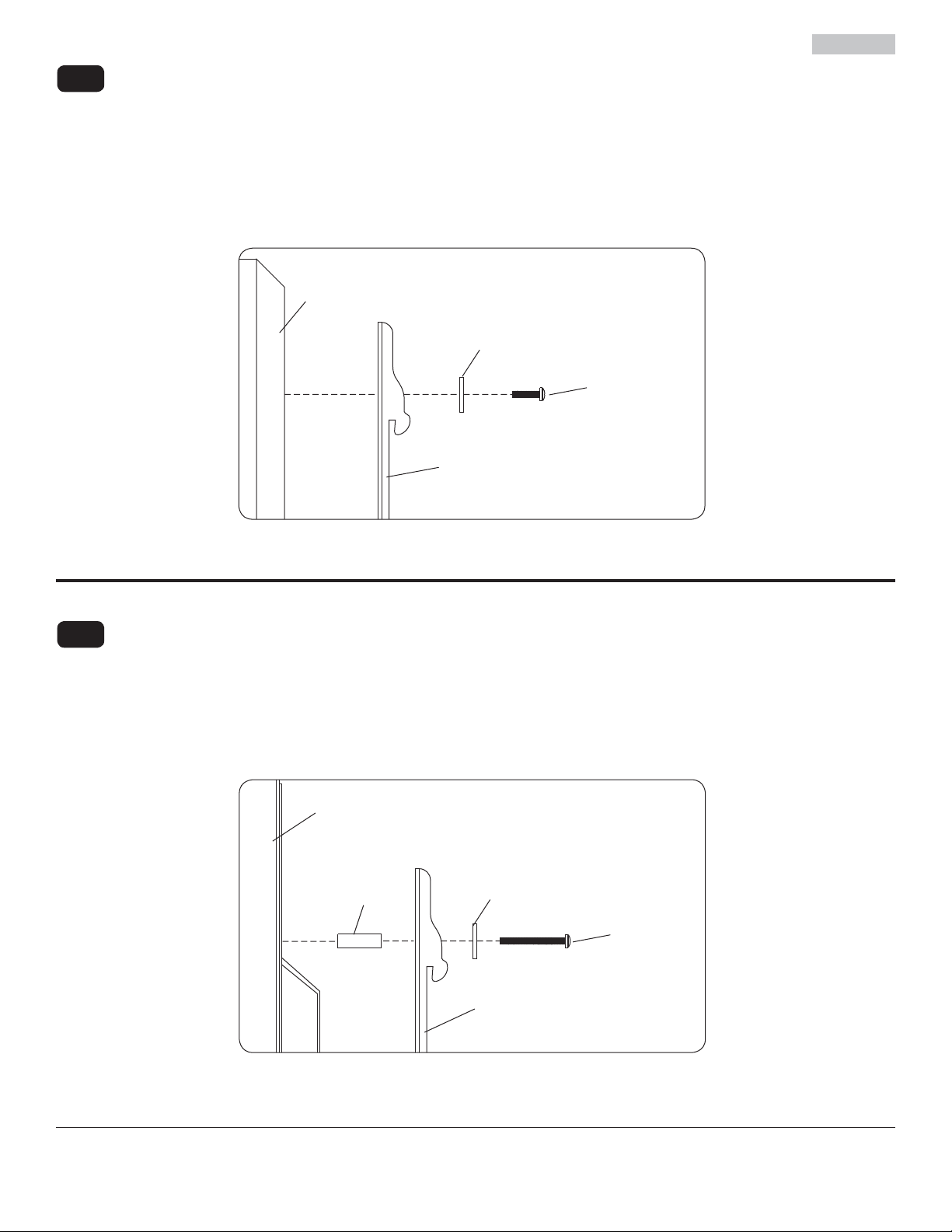

For Flat Back Screen

2-1 Begin with the shortest length screw, hand thread through washer and adapter bracket into screen as shown below. Screw must make at least three full turns into the mounting hole and fi t snug into place. Do not over tighten. If screw cannot make three full turns into the screen, select a longer length screw from the baffl ed fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.

NOTE: Spacers may not be used, depending upon the type of screen.

fig. 2.1

SCREEN

WASHER

SCREW

ADAPTER

BRACKET (BB)

If you have any questions, please call Peerless customer care at 1-800-865-2112.

For Bump-out or Recessed Back Screen

2-2 Begin with longer length screw, hand thread through washer, adapter bracket and spacer in that order into screen as shown below. Screw must make at least three full turns into the mounting hole and fi t snug into place. Do not over tighten. If screw cannot make three full turns into the screen, select a longer length screw from the baffl ed fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.

SCREEN

fig. 2.2

SPACER WASHER

SCREW

ADAPTER

BRACKET (BB)

If you have any questions, please call Peerless customer care at 1-800-865-2112.

7 of 34

ISSUED: 11-09-07 SHEET #: 202-9251-4 04-12-10

Mounting and Removing Flat Panel Screen

WARNING

• Always use an assistant or mechanical lifting equipment to safely lift and position the fl at panel screen.

Hook adapter brackets (BB) onto wall plate (AA). 3 Then slowly swing screen in as shown. Turn safety

screws, using allen wrench (EE), clockwise at least six times to prevent screen from being removed as shown in detail 1 of fi gure 3.1.

Screen can be adjusted horizontally if desired as shown in fi gure 3.2.

NOTE: To lock the screen down, tighten security screws to wall plate as shown in detail 1.

To remove screen from mount, loosen safety/security screws, swing screen away from mount, and lift screen off of mount.

CAUTION

•Do not tighten screws with excessive force. Overtightening can cause damage to mount. Tighten screws to 40 in. • lb (4.5 N.M.) maximum torque.

AA

SECURITY

SCREWS

BB

BB

AA

DETAIL 1

fig. 3.1

fig. 3.2

8 of 34

ISSUED: 11-09-07 SHEET #: 202-9251-4 04-12-10

© 2009, Peerless Industries, Inc. All rights reserved. All other brand and product names are trademarks or registered trademarks of their respective owners.

Peerless Industries, Inc.

3215 W. North Ave. Melrose Park, IL 60160 www.peerlessmounts.com

Instalación y ensamblaje:

Soporte Universal de Pared Plano Paramount™ Para *Pantallas LCD y Pantallas Planas de Plasma de 23" - 46" (58 - 117 cm)

Modelos: PF640, PWS211/BK

Características:

•Para pantallas planas

•El diseño ultra delgado sujeta la pantalla plana contra la pared

•La pantalla simplemente se engancha en la placa de apoyo para una instalación rápida y fácil

•Incluye los herrajes para instalación en montantes de madera, concreto y bloques de hormigón de escorias

*NOTA: Puede que esta montura no funcione con muchas de las pantallas de plasma de 42" (107 mm) ó más. Utilice el verifi cador de monturas (Mount Finder) para confi rmar la compatibilidad.

C	U		US	I	0018
	©	L		000
				D:	762

Capacidad máxima de soportar carga: 150 lb (68 kg)

PUBLICADO: 11-09-07 HOJA #: 202-9251-4 04-12-10

Español

Nota: Lea la hoja de instrucciones completa antes de comenzar la instalación y el ensamblaje.

ADVERTENCIA

•No comience a instalar su producto de Peerless hasta haber leído y entendido las instrucciones y las advertencias contenidas en la Hoja de Instalación. Si tiene alguna pregunta acerca de cualquiera de las instrucciones o las advertencias, por favor, llame a Servicio al Cliente de Peerless al 1-800-865-2112 si está en EE. UU. Si es un cliente internacional, por favor, comuníquese con su distribuidor local.

•Este producto sólo debe ser instalado por una persona que tenga una buena aptitud mecánica, que tenga experiencia en construcción básica de edifi cios y que entienda estas instrucciones en su totalidad.

•Asegúrese de que la superfi cie de apoyo sostendrá, con seguridad, la carga combinada del equipo y todos los fi - jadores y componentes.

•Nunca sobrepase la capacidad máxima de soportar carga. Vea la página 9.

•Si va a instalar el producto en una pared con montantes de madera, asegúrese de que los tornillos de montaje estén anclados en el centro de los montantes. Se recomienda utilizar un localizador de montantes de "borde a borde".

•Siempre cuente con la ayuda de un asistente o utilice un equipo mecánico de izar para levantar y colocar el equipo con más seguridad.

•Apriete los tornillos con fi rmeza, pero no en exceso. Apretarlos en exceso puede dañar los artículos y puede disminuir signifi cativamente su fuerza de fi jación.

•Este producto está diseñado para uso en interiores solamente. Utilizar este producto en exteriores podría causar fallas del producto y lesiones a individuos.

•Este producto fue diseñado para ser instalado en paredes con la siguiente construcción solamente:

CONSTRUCCIÓN DE LA PARED		ACCESORIOS NECESARIOS
•	Montante de madera	Incluido
•	Viga de madera	Incluido
•	Concreto macizo	Incluido
•	Bloque de hormigón de escorias	Incluido
•	Montante de metal	No lo instale excepto con el juego de accesorios de Peerless para
		montantes de metal - ACC415; (no evaluados por UL)
•	Ladrillo	Comuníquese con un profesional califi cado (no evaluados por UL)
•	¿Otra superfi cie o no está seguro?	Comuníquese con un profesional califi cado

Herramientas necesarias para el ensamblaje

•localizador de montantes (se recomienda uno de "borde a borde")

•destornillador phillips

•taladro

•broca de 5/16" (8 mm) para paredes de concreto y de bloque de hormigón de escorias

•broca de 5/32" (4 mm) para paredes con montantes de madera

•nivel

Contenido
Lista de piezas......................................................................................................................................................................	11
Instalación en una pared con montantes de madera dobles...............................................................................................	12
Instalación en una pared de concreto macizo o de bloques de hormigón de escorias.......................................................	13
Instalación de los soportes adaptadores.............................................................................................................................	14
Instalación de la pantalla plana en la placa de apoyo.........................................................................................................	16

10 de 34

PUBLICADO: 11-09-07 HOJA #: 202-9251-3 04-30-09

Español

Lista de piezas
	Descripción	Cant. Nº de pieza
AA	placa de apoyo	1	200-P1797
BB	soporte adaptador	2	201-P1515
CC tornillo para madera Nº14 x 2.5		4	5S1-015-C03	AA
DD	anclajes para concreto	4	590-0320
EE Ilave allen de 4 mm		1	560-1129

Las piezas podrían verse ligeramente diferentes a las ilustradas.

BB

CC

DD

EE

Fijaciones para los soportes adaptadores

	M4 x 12 mm (4)	M5 x 12 mm (4)
	(504-9013)	(520-1027)	M6 x 12 mm (4)
	M4 x 25 mm (4)	M5 x 25 mm (4)	(520-1128)
	(504-1015)	(520-9543)	M6 x 20 mm (4)	M6 x 30 mm (4)
			(520-9402)
				(510-9109)

M6 x 25 mm (4)	.5" espaciador	(4)	.688" arandela (4)
(520-1208)	(540-1058)		(540-1040)

11 de 34

PUBLICADO: 11-09-07 HOJA #: 202-9251-3 04-30-09
