Paradox Magellan MG5050 EN, Spectra SP7000, Magellan MG5000, Spectra SP4000 Installation Manual

Download

MG5000 V4.7 MG5050 V4.7

MG5050 EN V4.96

SP4000 V5.1 SP5500 V4.9 SP6000 V4.9 SP7000 V4.9

Reference & Installation

Table of Contents

Introduction...................................................................... 1

Features.............................................................................................. 1

System Overview................................................................................ 1

Modules Current Consumption List .................................................... 1

Specifications...................................................................................... 2

Installation........................................................................ 3

Location and Mounting ....................................................................... 3

EN 50131 Compliancy ........................................................................ 3

Earth Ground ...................................................................................... 3

AC Power............................................................................................ 3

Backup Battery ................................................................................... 3

MG5000 PCB Layout.......................................................................... 4

MG5050 / MG5050 EN PCB Layout ................................................... 5

SP4000 PCB Layout........................................................................... 6

SP5500 PCB Layout........................................................................... 7

SP6000 PCB Layout........................................................................... 8

SP7000 PCB Layout........................................................................... 9

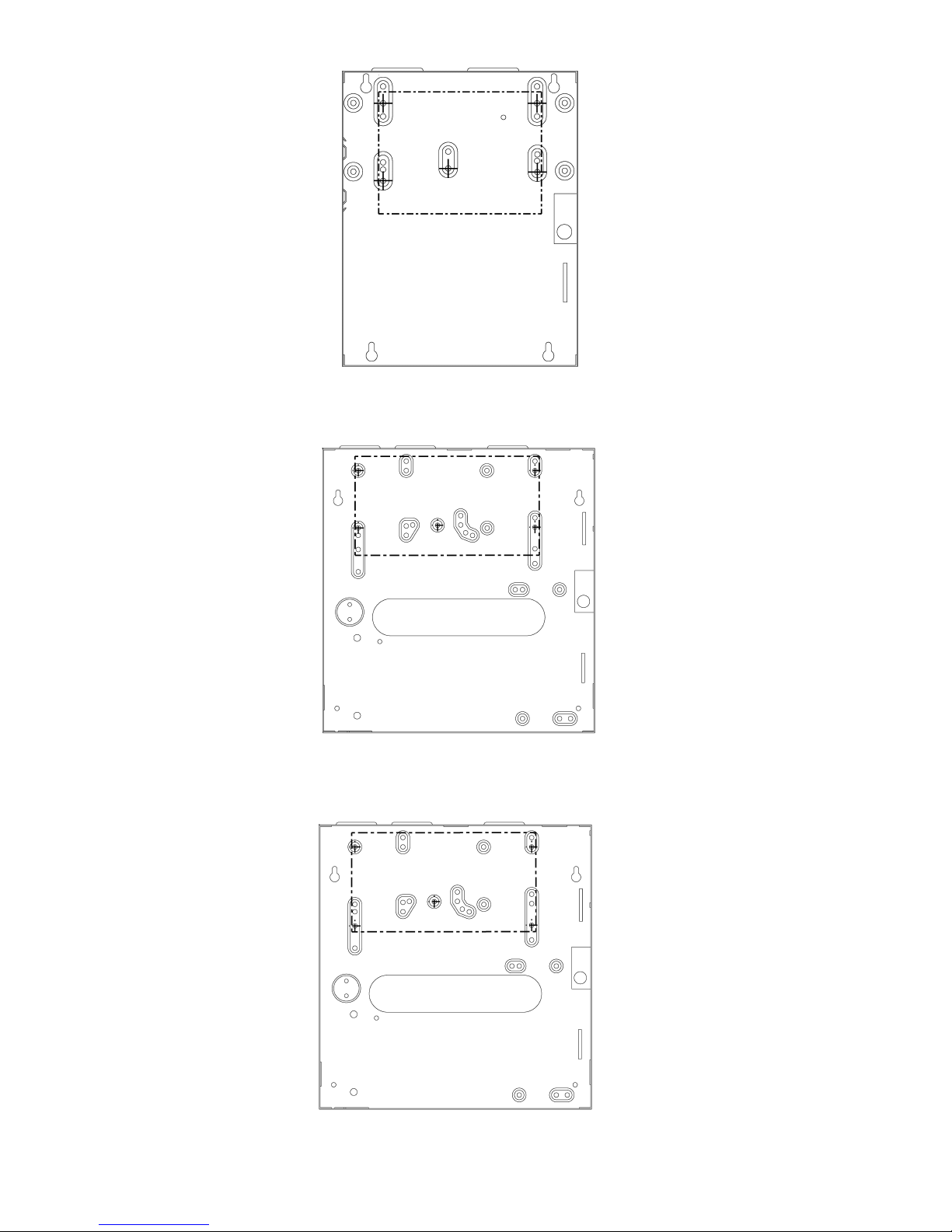

Metal Box Installation........................................................................ 10

Auxiliary Power Terminals ................................................................ 12

Telephone Line Connection .............................................................. 12

Bell Output Connection..................................................................... 12

Programmable Output Connections ................................................. 12

Single Zone Inputs............................................................................ 13

Advanced Technology Zone (ATZ) Connections .............................. 14

Fire Circuits....................................................................................... 15

Programming Methods.................................................. 16

WinLoad Software for Windows........................................................ 16

Programming Using a Keypad .......................................................... 16

Configuring the Keypad Zone Number ............................................. 17

Programming Using A Paradox Memory Key*.................................. 17

LCD Keypad Labels ....................................................... 19

Input Keys......................................................................................... 19

Label Sections .................................................................................. 19

Special Characters and Keypad Letter Assignment ......................... 19

Access Codes ................................................................ 22

Access Code Length......................................................................... 22

Installer Code (Default: 0000 / 000000) ............................................ 22

Maintenance Code (Default: Empty)................................................. 22

System Master Code (Default: 1234 / 123456)................................. 22

User Code Options ........................................................................... 22

Lock Master Code............................................................................. 23

StayD Mode .................................................................... 24

Overview........................................................................................... 24

Entry/Exit Paths ................................................................................ 24

Entry/Exit with a Keypad................................................................... 24

Entry/Exit with a Remote Control...................................................... 24

Window Mode and Re-arm Delay ..................................................... 24

Advanced Settings ............................................................................ 24

Zone Programming........................................................ 25

Zone Definitions................................................................................ 25

Zone Definition Status ...................................................................... 29

Zone Partition Assignment................................................................ 29

Zone Options .................................................................................... 29

EOL Zones........................................................................................ 31

ATZ Zone Doubling........................................................................... 31

Tamper Input on ZX8 ID A (Panel + 1) ............................................. 31

Tamper Input on ZX8 ID B (Panel + 9) ............................................. 31

Tamper Input on ZX8 ID C (Panel + 17) ........................................... 31

ATZ Wiring Options .......................................................................... 31

Zone Input 1 Becomes a 2-wire Smoke Input .................................. 31

Zone Timers ..................................................................................... 31

Keyswitch Programming............................................... 32

Keyswitch Numbering....................................................................... 32

Keyswitch Definitions ....................................................................... 32

Keyswitch Options............................................................................ 32

Wireless Features .......................................................... 33

Wireless Transmitter Programming.................................................. 33

Viewing the Wireless Transmitter Signal Strength ........................... 33

Supervision Options ......................................................................... 33

RF Jamming Supervision ................................................................. 34

Wireless Serial Number Display....................................................... 34

Remote Control Programming.......................................................... 34

Wireless Keypad Assignment........................................................... 35

Viewing the Wireless Keypad Signal Strength ................................. 35

Wireless Keypad Options ................................................................. 35

Wireless Keypad Live Display Mode ................................................ 36

Wireless Repeater Programming ..................................................... 36

Viewing the Repeater’s Signal Strength........................................... 36

Wireless Repeater Options .............................................................. 36

Wireless Options .............................................................................. 37

Arming and Disarming Options.................................... 40

Switch to Stay Arming if no Entry Delay is opened .......................... 40

When Delay Zone is bypassed Follow Zones become Entry Delay 2 40

Regular Arming switches to Force Arming ....................................... 40

Stay Arming switches to Stay Force Arming .................................... 40

Sleep Arming switches to Sleep Force Arming ................................ 40

Restrict Arming on Battery Failure ................................................... 40

Restrict Arming on Tamper Failure .................................................. 40

Restrict Arming on Wireless Supervision Trouble ............................ 41

Arm/Disarm with VDMP3.................................................................. 41

Timed Auto-Arming .......................................................................... 41

No Movement Auto-Arming .............................................................. 41

Auto-Arming Options ........................................................................ 42

One-Touch Arming ........................................................................... 42

One-Touch Bypass Programming .................................................... 42

Exit Delay ......................................................................................... 42

Bell Squawk On Arm/Disarm with Keypad ....................................... 42

Bell Squawk On Arm/Disarm with Remote Control .......................... 42

No Exit Delay When Arming with Remote Control ........................... 42

No Exit Delay Beeps and No Bell Squawk When Stay/Sleep Arming 43

Exit Delay Termination ..................................................................... 43

Fast Exit ........................................................................................... 43

Alarm Options ................................................................ 44

Bell Cut-Off Timer............................................................................. 44

Recycle Alarm .................................................................................. 44

Tamper Recognition ......................................................................... 44

RF Module Supervision .................................................................... 44

Tamper Bypass Options................................................................... 45

Tamper Supervision on the Bus Module .......................................... 45

Keypad Panic Options...................................................................... 45

Panic Lockout Timer......................................................................... 45

Flex-Instant Delay ............................................................................ 45

Reporting and Dialer settings....................................... 46

Zone Reporting Codes ..................................................................... 46

User Reporting Codes...................................................................... 46

Special Arming Report Codes .......................................................... 46

Special Disarming Report Codes ..................................................... 46

Special Alarm Report Codes ............................................................ 46

System Trouble Report Codes ......................................................... 47

Magellan / Spectra SP

System Trouble Restore Report Codes ............................................ 47

System Special Report Codes.......................................................... 47

Clear Reporting Codes ..................................................................... 47

Reset Reporting Codes .................................................................... 48

Monitoring Station Telephone Numbers ........................................... 48

Personal Dialing Numbers ................................................................ 48

Reporting Formats ............................................................................ 48

Dialing Method.................................................................................. 50

Pulse Ratio ....................................................................................... 50

Maximum Dialing Attempts ............................................................... 50

Maximum Dialing Attempts - VDMP3 ............................................... 50

Delay Between Dialing Attempts ...................................................... 50

Switch to Pulse on 5th Attempt......................................................... 50

Alternate Dial Option......................................................................... 50

Force Dial Option.............................................................................. 51

Recent Closing Delay ....................................................................... 51

Auto Test Report............................................................................... 51

Closing Delinquency Delay............................................................... 51

Power Failure Report Delay.............................................................. 52

Report System Disarming................................................................. 52

Zone Restore Report Options........................................................... 52

Telephone Line Monitoring (TLM)..................................................... 52

Pager Reporting Delay ..................................................................... 52

Pager Reporting Message Repetition............................................... 52

Personal Reporting Delay................................................................. 53

Personal Reporting Message Repetition .......................................... 53

Disable Reporting ............................................................................. 53

Programmable Outputs................................................. 54

PGM Activation Event....................................................................... 54

PGM Deactivation Event................................................................... 54

PGM Delay ....................................................................................... 54

PGM Options .................................................................................... 54

PGM Programming ........................................................................... 55

Viewing the PGM Signal Strength .................................................... 55

System Settings............................................................. 56

Version Number Display ................................................................... 56

Push Button Power Reset................................................................. 56

Installer Lock..................................................................................... 56

Keypad Lockout Feature................................................................... 56

Battery Charge Current..................................................................... 56

Partitioning........................................................................................ 56

Confidential Mode............................................................................. 56

Installer Function Keys ..................................................................... 57

Daylight Savings Time ...................................................................... 57

Customized Daylight Saving Programming ...................................... 57

Audible Trouble Warning Except AC Failure .................................... 58

Audible Trouble Warning on AC Failure ........................................... 58

Display Entry Delay on LCD keypad (K32LCD)................................ 58

Display Exit Delay on LCD keypad (K32LCD) .................................. 58

Settings for WinLoad Software .................................... 59

Panel Answer Options ...................................................................... 59

Panel Identifier.................................................................................. 59

PC Password .................................................................................... 59

PC Telephone Number ..................................................................... 59

Call WinLoad Software ..................................................................... 59

Answer WinLoad Software ............................................................... 60

Automatic Event Buffer Transmission............................................... 60

Call Back WinLoad ........................................................................... 60

Connecting to WinLoad .................................................................... 60

User Operation............................................................... 61

Alarm Display.................................................................................... 61

Trouble Display................................................................................. 61

Important Installation Considerations:

• Maximum Peak to peak ripple voltage on AUX is 500 millivolts.

• Low voltage on the battery generated when battery is below 10.7 volts

• Deep discharge protection on the battery operates 7.7 ± 0.3 volts.

• If output voltage drops below 11.3 volts a fault is signal is generated.

Warran ty

For complete warranty information on this product please refer to the Limited Warranty Statement found on our Web site: www.paradox.com/terms. Your use of this Paradox product signifies your acceptance of all warranty terms and conditions.

Limitations of Alarm Systems

It must be understood that while your Paradox alarm system is highly advanced and secure, it does not offer any guaranteed protection against burglary, fire or other emergency (fire and emergency options are only available on certain Paradox models). This is due to a number of reasons, including by not limited to inadequate or improper installation/positioning, sensor limitations, battery performance, wireless signal interruption, inadequate maintenance o r the potential for the system or telephone lines to be compromised or circumvented. As a result, Paradox does not represent that the alarm system will prevent personal injury or property damage, or in all cases provide adequate warning or protection.

Your security system should therefore be considered as one of many tools available to reduce risk and/or damage of burglary, fire or other emergencies, such other tools include but are not limited to insurance coverage, fire prevention and extinguish devices, and sprinkler systems. We also strongly recommend that you regularly maintain your security systems and stay aware of new and improved Paradox products and developments. TBR-21: In order to comply with TBR-21, standard force dialing must be enabled.

UL And ULC Warnings This equipment has the capability of being programmed with features not verified for use in UL installations. To stay within UL and ULC standards, the installer should use the following guidelines when configuring the system:

• All components of the system should be UL listed for the intended application.

• If used for fire detection, the installer should refer to NFPA Standards #72, Chapter 2. In addition, once installation is complete, the local fire authority must be notified of the installation.

• WARNING: This equipment must be installed and maintained by qualified service personnel only

• This equipment must be verified by a qualified technician once every three years.

•All keypads must use an anti-tamper switch.

• Do not bypass fire zones.

• Maximum allowed entry delay is 45 seconds.

• Maximum allowed exit delay is 60 seconds.

• Minimum 4 minutes for bell cut-off time.

• The following features do not comply with UL requirements: Bypass Recall and Auto Trou ble S hutd own.

• Do not connect the primary indicating device to a relay. The installer must use the bell output.

• To comply with UL985, the auxiliary power output should not exceed 200mA.

• Do not connect the zone ground terminal with UL Listed products.

• The metallic enclosure must be grounded to the cold water pipe.

• All outputs are Class 2 or power-limited, except for the battery terminal. The Class 2 and power-limited fire alarm circuits shall be installed using CL3, CL3R, CL3P, or substitute cable permitted by the National Electrical Code, ANSI/NFPA 70.

• EOL resistor part #2011002000

• For UL Installations: Universal UB1640W 16.5VAC min 40VA

• All outputs are rated from 11.3 Vdc to 13.5 Vdc

• 12 Vdc 4 Ah rechargeable acid/lead or gel cell backup battery (YUASA model #NP712 recommended) for residential use. Use a 7 Ah battery to comply with fire requirements.

• Wheelock 46T-12 siren

Paradox, STAY- D Magellan, Spectra, and BabyWare are trademarks or registered trademarks of Paradox Security Systems (Bahamas) Ltd. or its affiliates. Patents 2008/ 10193, 2292187, 2648482, 7965171 RE#39406 ZL200780016140.6 apply together with other. Canadian and international patents may apply. Other patents may be pending. All rights reserved. Specifications may change without prior notice. ©2014 Paradox Security Systems Ltd.

Index ............................................................................... 62

Reference & Installation Manual

1.1 Features

• 32 zones (any of which can be wireless or keypad zones).

• 32 users and 32 remote controls (one per user).

• In-field upgrades: Update the panel’s firmware by connecting it to a PC via a 307USB Interface and then using the Winload software (V2.80 or higher).

• Menu-driven programming for the Installer, Master, and Maintenance codes. This enables you to program the panel through a simple and easy to use interface, without the use of section numbers.

• Multiple telephone numbers for event reporting: Three for the monitoring station, five for personal dialing and one for pager reporting. Up to five persons can now be contacted by the panel in case of alarm.

• Calendar with daylight savings time (enable section [730], option [1] and choose section [731] to put in the Country Code): You can now select 1 out of 18 different country groups each with its own pre-programmed local daylight savings time. You can also customize the daylight saving time by programming sections [732] and [733].

• New Sleep arming method: Similar to Stay arming, Sleep arming allows users to remain in a protected area, but provides a higher level of protection. For example, in a two-story house, the perimeter is protected with Stay arming. With Sleep arming, the perimeter as well as the main floor is protected (motion detectors, etc.), allowing you to roam the second floor and sleeping quarters.

• Connect up to 15 hardwire keypads on the 4-wire communication bus.

• Push button power reset: Convenient reset button saves time when a momentary powerdown is required as opposed to having to physically disconnect the control panel’s power cables. Press and hold the RESET switch for five seconds. The STATUS LED will start flashing. Within 2 seconds of this flashing, press the reset switch again. The panel will reset to default and restart. Also, you can reset all programmable sections to factory default values in section [950].

• Available in 433MHz or 868MHz.

• Supports Memory Key (PMC-4 and PMC5).

• RF jamming supervision (section [700], option [5]): The control panel will report a trouble if the RF signal is being jammed.

• Supports SIA reporting format to central station.

Part 1: Introduction

1.2 System Overview

Module Description Maximum number per system

K32RF 32-Zone Wireless LED Keypad Module 8 K10V/H, K32, K32+,K32LCD,

K32LCD+, K32LX, K35, K636, TM50

ZX8 ZX8SP 8-Zone Expansion Module 3 RPT1 Magellan Wireless Repeater Module 2 VDMP3 Plug-In Voice Dialer 1 IP100 or IP150 IP Internet Module 1 RTX3 Wireless Expansion Module (Spectra SP only) 1 PCS250 or PCS250G GSM/GPRS Communicator Module 1 RX1 Wireless Receiver Module 1 PGM4 4 output Expansion Module 1 HUB2 2-Port HUB and Bus Isolator 1

10 and 32-Zone Hardwired LED and LCD Keypad Module, Touchscreen

1.3 Modules Current Consumption List

Module Current Consumption Module Current Consumption

K10V/H Min. = 44mA / Max. = 72mA K32LX 120mA K32 Min. = 49mA / Max. = 148mA TM50 Standby:100mA / Alarm: 200mA K32 + Min. = 49mA / Max. = 148mA TM50 Standby:100mA / Alarm: 200mA K32LCD Min. = 43mA / Max. = 86mA PCS250 Standby:100mA / Alarm: 450mA K32LCD + Min. = 43mA / Max. = 86mA PCS250 Standby:100mA / Alarm: 450mA K32RF Min. = 48mA / Max. = 130mA PCS250G Standby:100mA / Alarm: 450mA K35 Min. = 30mA / Max. = 70mA RX1 25mA ZX8 Min. = 29mA / Max. = 31mA IP150 100mA RTX3 Min. = 61mA / Max. = 143mA PGM4 Min. = 13mA / Max. = 150mA IP100 Min. = 90mA / Max. = 120mA HUB2 Min. = 24mA / Max. = 50mA VDMP3 Min. = 28mA / Max. = 28mA K636 Min. = 15mA / Max. = 30mA

15 total including ZX8

0 Reference & Installation Manual

1.4 Specifications

MG5000 / MG5050

Power rating 16.5 VAC (50 or 60Hz) minimum 20 VA (40 VA recommended)

Power consumption MG5000: 1.2A(Max.), 85mA (Idle) MG5050: 1.2A(Max.), 95mA (Idle)

Aux. power * 600 mA typical, 700 mA maximum, fuseless shutdown at 1.1A

Battery 12 VDC, 4Ah/7Ah

Battery charging current 350 mA

On-board zones MG5000: 2, MG5050: 5

Bell output ** 1A (fuseless shutdown at 3A)

On-board PGMs MG5000: 2

Dimensions MG5000: 14 x 10.4cm (5.5 x 4.1”)

Weight 18 g

Operating temperature 0°C to 50°C (32°F to 122°F)

Humidity 5% - 90%

* Cannot exceed 200 mA for UL installations ** Cannot exceed 1A for UL installations

SP4000 / SP5500 / SP6000 / SP65 / SP7000

Power rating 16.5Vac (50 or 60Hz) minimum 20VA (40VA recommended)

Power consumption SP4000: 1.2A(Max.), 50mA (Idle), SP5500: 1.2A(Max.), 70mA (Idle), SP65: 1.2A(Max.), 66mA (Idle)

Aux. power SP4000: 450mA, fuseless shutdown at 600mA

Battery 12Vdc, 4Ah/7Ah

Battery charging current SP4000 / SP65: Limited by 1.1A supply current

On-board zones SP4000: 4

Bell output 1A (fuseless shutdown at 3A)

On-board PGMs SP4000: 1

Dimensions SP4000: 14 x 6.6cm (5.5 x 2.6”)

Weight SP4000: 12 g

Operating temperature 0°C to 50°C (32°F to 122°F)

Humidity 5% - 90%

Standards EN 50131-1, EN 50131-3, EN 50131-6 Type A, Security Grade 2

MG5050: 4 (1+/- trigger) All on-board PGMS are 100mA low-current outputs

MG5050: 19 x 10.2cm (7.5 x 4”)

SP6000: 1.7A(Max.), 100mA (Idle), SP7000: 1.7A(Max.), 120mA (Idle)

SP5500 / SP6000 / SP7000: 600mA typical,

SP65: 500mA, fuseless shutdown at 750mA

(AUX consumption - no dedicated battery current limit circuit)

SP5500: 5

SP5500: 2

All on-board PGMS are 100mA low-current outputs

SP5500: 19 x 8.9cm (7.5 x 3.5”) SP6000: 19 x 9cm (7.5 x 3.5”)

SP5500: 16 g SP6000: 20 g

Environmental Class II/ Certification Body: Intertek

700mA maximum, fuseless shutdown at 1.1A

SP5500: 350 mA SP6000 / SP7000: 350 mA / 850 mA

SP6000: 8 SP65: 9 SP7000: 16

SP6000: 2+(2 optional) (all +/- trigger) SP65: 3 (all +/- trigger) SP7000: 4 (all +/- trigger)

SP65: 14 x 6.6cm (5.5 x 2.6”) SP7000: 20.3 x 10.8cm (8 x 4.25”)

All control panel outputs are rated to operate between 10.8Vdc and 12.1Vdc

30hrs backup 60hrs backup Recharge to 80%(@350mA)

7AHr 150mA 50mA 20 hrs.

Magellan / Spectra SP 1

2.1 Location and Mounting

UL Warning:

A 12Vdc / 7Ah battery is required to comply with UL fire requirements.

Caution:

Disconnect battery before replacing the fuse.

Improper connection of the transformer may result in damage to the system.

Rechargeable Battery UL/ULC - 12Vdc / 4Ah or 7Ah

Partial PCB view

Before mounting the cabinet, push the five white nylon mounting studs into the back of the cabinet. Pull all cables into the cabinet and prepare them for connection before mounting the circuit board into the back of the cabinet. Select a centralized installation site on the main floor that isn't easily accessible to intruders and leave at least 5cm (2in) around the panel box to permit adequate ventilation and heat dissipation. The installation site should be dry and close to an AC source, ground connection and telephone line connection. Avoid installation near or in the path of strong RF fields (i.e. neon lights, computers), on or near metal objects, circuit breaker boxes, air conditioners and heater ducts since they may cause interference and reduce sensitivity. Avoid installing the control panel in the basement. IMPORTANT: To comply to EN 50131 requirements, unit must be installed in an

approved tamper enclosure.

Do not cut, bend or alter the antennas and ensure that electrical wires do not cross over the antennae as these may affect the signal reception.

2.2 EN 50131 Compliancy

In order to meet with EN 50131 compliancy you will require the following:

•EN Metal Box

• Tamper Antenna

• Tamper Kit (TK278)

• Firmware version 4.96

2.3 Earth Ground

Connect the zone and dialer ground terminals from the control panel to the metallic enclosure and cold water pipe or grounding rod as per local electrical codes.

For maximum lightning protection, use separate earth grounds for the zone and dialer grounds as shown in the PCB Layouts for each respective panel. For UL installations, the metallic enclosure must be grounded to the cold water pipe.

Part 2: Installation

2.4 AC Power

Do not use any switch-controlled outlets to power the transformer. Connect the transformer as shown in Figure 1 on page 2. Use Table 1 to determine the required transformer.

Transformer: Amseco XP-1620 16VAC 20VA

DC Power Supply rated at: 1.1A 1.5A Auxiliary Supply can provide a maximum of: typ: 600mA, max: 700mA typ: 600mA, max: 700mA

Acceptable Battery Charge Currents 350mA 350mA/700mA

2.5 Backup Battery

To provide power during a power loss, connect a 12Vdc 4Ah rechargeable acid/lead or gel cell backup battery as shown in Figure 1 below. Use a 7Ah battery to comply with UL fire requirements. Connect the backup battery after applying AC power. When installing, verify proper polarity as reversed connections will blow the battery fuse.

2.5.1 Battery Test

If the battery is disconnected or if the battery fuse is blown, a No/Low Battery failure will appear in the keypad’s trouble display (see Trouble Display on page 60). This trouble will also appear if the battery’s capacity is too low or if the voltage drops to 10.5V or lower while the control panel is running on the backup battery. At 8.5V or lower, the panel shuts down and all outputs close.

Table 1: Transformer Requirements Table

(not verified by UL)

Figure 1: AC Power and Backup Battery Connections

UL: Universal UB1640W

16.5VAC 40VA

Do not exceed 200mA for UL installations

2 Reference & Installation Manual

2.6 MG5000 PCB Layout

Refer to Single Zone

Inputs

on page 12

Refer to AC Power

& Backup Battery Connections on page 2.

For the keypad’s zone configurations, refer to the Installer Quick Menu. If EOL is enabled: see section [706] option [2]. Also refer to Single Zone Inputs on page 12.

AUX Power

Refer to transformer requirements on page 2 for Aux. Power Output. To connect additional wiring to auxiliary power, use the red (+) and black (-) keypad connectors. Auxiliary power will shut down if current exceeds 1.1A. If the auxiliary output is overloaded and is shut down, you must disconnect all loads from the output for at least 10 seconds before reconnecting any load back to the auxiliary output.

To provide maximum lightning protection

we strongly recommend having separate

earth connections for the dialer and zone

ground terminals.

To metallic enclosure

Ground clamp

AWG#14 single conductor solid copper wire

Cold water pipe grounding

The "

BELL" output will shutdown if

the current exceeds 3A.

Disconnect telephone line before servicing.

Four pin connector can be used for quick installation of a MG5000 keypad.

Do not cut, bend or alter the antennas and ensure

that electrical wires do not cross over the antennae, as this may affect signal reception.

Paradox Memory Key (PMC-4, PMC5)

Antennas

"RX" & “TX” LED:

Flashes quickly when receiving or transmitting RF signals from wireless devices.

"STATUS" LED:

Flash once every second = Normal Flashes ON 1 second and OFF 1 second = Any trouble Always ON = Panel is using phone line Fast flash 6 seconds after power up = Installer lock enabled

This equipment must be installed and maintained by qualified service personnel only. For UL and C-UL warnings, refer to the UL and C-UL Warnings section at the back of the Reference & Installation Manual.

Used for In-Field Firmware upgrade through a 307USB Direct Connect Interface. See Connecting to WinLoad on page 58 for details.

EBUS and Dialer used for VDMP3 plug-in voice module for voice reporting.

Press and hold the RESET button for five seconds. The STATUS LED will start flashing. Within 2 seconds of this flashing, press the reset switch again. The panel will reset to default and restart.

The sum of the current drawn from the BELL

and AUX must be limited to 1.3A (40VA transformer strongly recommended). Exceeding this limit will overload the panel power supply and lead to complete system shutdown.

Connection for Self-Contained Bell/Siren

Max. amount of keypads = 15 keypads Max. current = 700 mA Max. distance of keypad from panel = 76m (250 feet) Max. total run of wire = 230m (750 feet)

Charge LED:

Charging and Battery test LED

Magellan / Spectra SP 3

2.7 MG5050 / MG5050 EN PCB Layout

Used for In-Field Firmware upgrade through a 307USB Direct Connect Interface. See Connecting to WinLoad on page 58 for details.

Antennas

Do not cut, bend or alter the antennas and ensure that electrical wires do not cross over the antennae, as this may affect signal reception.

Four pin connector can be used for quick installation of a MG5050 keypad.

Refer to AC Power

& Backup Battery Connections on page 2.

Paradox Memory Key (PMC-4, PMC5)

Charge LED:

Charging and battery test LED

Status LED:

• Flash once every second = Normal

• Flashes ON 1 second and OFF 1 second = Any trouble

• Always ON = Panel is using phone line

• Fast flash 6 seconds after power up = Installer lock enabled

"RX" & “TX” LED:

Flashes quickly when receiving or transmitting RF signals from wireless devices.

To metallic enclosure

Ground clamp

AWG#14 single conductor solid copper wire

Cold water pipe grounding

The "BELL" output will shutdown if the current exceeds 3A.

Refer to Single Zone

Inputs

on page 12

Max. amount of keypads = 15 keypads Max. current = 700 mA Max. distance of keypad from panel = 76m (250 feet) Max. total run of wire = 230m (750 feet)

AUX Power

The sum of the current drawn from the BELL and AUX must be limited to 1.3A (40VA transformer strongly recommended). Exceeding this limit will overload the panel power supply and lead to complete system shutdown.

Connection for Self-Contained Bell/Siren

Press and hold the RESET button for five seconds. The STATUS LED will start flashing. Within 2 seconds of this flashing, press the reset switch again. The panel will reset to default and restart.

EBUS and Dialer used for VDMP3 plug-in voice module for voice reporting.

PGM Trigger: This jumper allows you to choose whether the solid state relay PGM (PGM4 only) is grounded (-), or gives out 12V (+).

For the keypad’s zone configurations, refer to the Installer Quick Menu. If EOL is enabled: see section [706] option [2]. Also refer to Single Zone Inputs on page 12.

Disconnect telephone line before servicing.

MG5050 EN 50131 Immunity to Attenuation Test

When performing the attenuation test, replace antenna A with the following:

• For a 433 MHz panel, use an antenna with a length of 10.2 cm (4 in.)

• For a 868 MHz panel, use an antenna with a length of 6.1 cm (2.4 in.) Once the test is complete, reinsert the original antenna (A) in its place, and

connect the wires (not shown) to a zone input programmed for tamper.

Tam,per antenna for EN 50131 compliancy

4 Reference & Installation Manual

2.8 SP4000 PCB Layout

Four pin connector can be used for quick installation of a SP4000 keypad.

Used for In-Field Firmware upgrade through a 307USB Direct Connect Interface. See Connecting to WinLoad on page 59 for details.

Paradox Memory Key (PMC-4, PMC5)

Refer to AC Power

& Backup Battery Connections on page 2.

The "

BELL" output will

shutdown if the current exceeds 3A.

AUX Power

Disconnect telephone line before servicing.

Ground clamp

Cold water pipe ground

For the keypad’s zone configurations, refer to the Installer Quick Menu. If EOL is enabled: see section [706] option [2]. Also refer to Keypad Zone Connections on page 12.

Refer to

Single Zone

Inputs

on page 12

EBUS and Dialer used for VDMP3 plug-in voice module for voice reporting.

To provide maximum lightning protection we strongly recommend having separate earth connections

for the dialer and zone ground

terminals.

Max. amount of keypads = 15 keypads Max. current = 700 mA Max. distance of keypad from panel = 76m (250 feet) Max. total run of wire = 230m (750 feet)

To metallic enclosure

AWG#14 single conductor solid copper wire

Magellan / Spectra SP 5

2.9 SP5500 PCB Layout

Four pin connector can be used for quick installation of a SP5500 keypad.

Used for In-Field Firmware upgrade through a 307USB Direct Connect Interface. See Connecting to WinLoad on page 59 for details.

Paradox Memory Key (PMC-4, PMC5)

Refer to AC Power

& Backup Battery Connections on page 2.

The "

BELL" output will

shutdown if the current exceeds 3A.

AUX Power

Connection for Self-Contained Bell/Siren

To provide maximum lightning protection we strongly recommend

having separate earth connections

for the dialer and zone ground

terminals.

Max. amount of keypads = 15 keypads Max. current = 700 mA Max. distance of keypad from panel = 76m (250 feet) Max. total run of wire = 230m (750 feet)

Disconnect telephone line before servicing.

To metallic enclosure

Ground clamp

AWG#14 single conductor solid copper wire

Cold water pipe grounding

For the keypad’s zone configurations, refer to the Installer Quick Menu. If EOL is enabled: see section [706] option [2]. Also refer to Keypad Zone Connections on page 12.

Refer to

Single Zone

Inputs

on page 12

PGM +/- trigger not supported by the SP5500

Press and hold the RESET button for five seconds. The STATUS LED will start flashing. Within 2 seconds of this flashing, press the reset switch again. The panel will reset to default and restart.

Charge LED:

Charging and battery test LED

Status LED:

• Flash once every second = Normal

• Flashes ON 1 second and OFF 1 second = Any trouble

• Always ON = Panel is using phone line

• Fast flash 6 seconds after power up = Installer lock enabled

EBUS and Dialer used for VDMP3 plug-in voice module for voice reporting.

For the keypad’s zone configurations, refer to the Installer Quick Menu. If EOL is enabled: see section [706] option [2]. Also refer to Single Zone Inputs on page 12.

6 Reference & Installation Manual

2.10 SP6000 PCB Layout

Charge LED:

Charging and battery test LED

Status LED:

• Flash once every second = Normal

• Flashes ON 1 second and OFF 1 second = Any trouble

• Always ON = Panel is using phone line

• Fast flash 6 seconds after power up = Installer lock enabled

Four pin connector can be used for quick installation of a SP6000 keypad.

Used for In-Field Firmware upgrade through a 307USB Direct Connect Interface. See Connecting to WinLoad on page 59 for details.

Paradox Memory Key (PMC-4, PMC5)

Refer to AC Power

& Backup Battery Connections on page 2.

The "

BELL" output will

shutdown if the current exceeds 3A.

AUX Power

Connection for Self-Contained Bell/Siren

To provide maximum lightning

protection we strongly recommend

having separate earth connections

for the dialer and zone ground

terminals.

Max. amount of keypads = 15 keypads Max. current = 700 mA Max. distance of keypad from panel = 76m (250 feet) Max. total run of wire = 230m (750 feet)

Disconnect telephone line before servicing.

To metallic enclosure

Ground clamp

AWG#14 single conductor solid copper wire

Cold water pipe grounding

For the keypad’s zone configurations, refer to the Installer Quick Menu. If EOL is enabled: see section [706] option [2]. Also refer to Keypad Zone Connections on page 12.

Refer to

Single Zone

Inputs

on page 12

PGM Trigger: This jumper allows you to choose whether the solid state relay PGMs are grounded (-), or give out 12V (+).

Press and hold the RESET button for five seconds. The STATUS LED will start flashing. Within 2 seconds of this flashing, press the reset switch again. The panel will reset to default and restart.

When using an SP6000 panel in conjunction with an RTX3, all K32/K32+ K32LCD/K32LCD+ and K10V/H keypads must be versions 2.0 or higher.

EBUS and Dialer used for VDMP3 plug-in voice module for voice reporting.

PGM3,PGM4, and the alarm relay are optional.

Magellan / Spectra SP 7

2.11 SP7000 PCB Layout

Charge LED:

Charging and battery test LED

Status LED:

• Flash once every second = Normal

• Flashes ON 1 second and OFF 1 second = Any trouble

• Always ON = Panel is using phone line

• Fast flash 6 seconds after power up = Installer lock enabled

Four pin connector can be used for quick installation of a SP7000 keypad.

Used for In-Field Firmware upgrade through a 307USB Direct Connect Interface. See Connecting to WinLoad on page 59 for details.

Paradox Memory Key (PMC-4, PMC5)

Refer to AC Power

& Backup Battery Connections on page 2.

The "

BELL" output will

shutdown if the current exceeds 3A.

AUX Power

The sum of the current drawn from the BELL and AUX must be limite d to 1.3A (40VA transformer strongly recommended). Exceeding this limit will overload the panel power supply and lead to complete system shutdown.

Connection for Self-Contained Bell/Siren

To provide maximum lightning

protection we strongly recommend

having separate earth connections

for the dialer and zone ground

terminals.

Max. amount of keypads = 15 keypads Max. current = 700 mA Max. distance of keypad from panel = 76m (250 feet) Max. total run of wire = 230m (750 feet)

Disconnect telephone line before servicing.

To metallic enclosure

Ground clamp

AWG#14 single conductor solid copper wire

Cold water pipe grounding

For the keypad’s zone configurations, refer to the Installer Quick Menu. If EOL is enabled: see section [706] option [2]. Also refer to Keypad Zone Connections on page 12.

Refer to

Single Zone

Inputs

on page 12

PGM Trigger: This jumper allows you to choose whether the solid state relay PGMs are grounded (-), or give out 12V (+).

Upper Inputs = Zones 9 to 16 Lower Inputs = Zones 1 to 8

Press and hold the RESET button for five seconds. The STATUS LED will start flashing. Within 2 seconds of this flashing, press the reset switch again. The panel will reset to default and restart.

EBUS and Dialer used for VDMP3 plug-in voice module for voice reporting.

For the keypad’s zone configurations, refer to the Installer Quick Menu. If EOL is enabled: see section [706] option [2]. Also refer to Keypad Zone Connections on page 12.

8 Reference & Installation Manual

2.12 Metal Box Installation

The crosses and dotted line represent the mounting location. If you need specific dimensions, contact Paradox Distributor Support. For UL recommended installation for the MG5000 only, place the PCB one notch lower than the mounting location.

MG5000 (8x10”) MG5000 (11x11”)

MG5050 / MG5050 (11x11”)

Magellan / Spectra SP 9

SP5500 (8x10”)

SP6000 (11x11”)

SP7000 (11x11”)

10 Reference & Installation Manual

2.13 Auxiliary Power Terminals

The auxiliary power supply terminals can be used to power motion detectors, keypads and other modules or accessories in the security system. A fuseless circuit protects the power supply against current overload and automatically shuts down if the current exceeds 1.1A. If this occurs, the Maximum Auxiliary Current failure will appear in the keypad’s trouble display (see Trouble Display on page 60). Therefore, the combined current consumption of devices connected to the auxiliary power supply should not exceed 700mA. If the auxiliary output is overloaded and is shut down, you must disconnect all loads from the output for at least 10 seconds before reconnecting any load back to the auxiliary output.

2.14 Telephone Line Connection

In order to report system events to the monitoring station, you must connect the incoming telephone company wires into the TIP and RING connections of the control panel and then run the wires from T1 and R1 to the telephone or telephone system as shown in PCB Layouts for each respective panel.

2.15 Bell Output Connection

The BELL+ and BELL- terminals power bells, sirens and other warning devices requiring a steady voltage output during an alarm. The bell output supplies 12Vdc upon alarm and can support one 30-watt or two 20-watt sirens. The bell output uses a fuseless circuit and will automatically shut down if the current exceeds 3A. When this occurs the Maximum Bell Current failure will only appear in the keypad’s trouble display (see Trouble Display on page 60) during an alarm. If the load on the BELL terminals returns to normal, the control panel will re-instate power to the BELL terminals during the next alarm. When connecting sirens, please verify correct polarity. Connect the positive lead to the BELL+ terminal and the negative lead to the BELL- terminal of the control panel as shown in PCB Layouts for each respective panel.

If the BELL output is not being used, the Bell Disconnected failure will remain in the keypad’s trouble display (see Trouble Display on page 60). To avoid this connect a 1K resistor across the BELL terminals.

For connection of a self-contained bell/siren, see PCB Layouts for each respective panel.

2.16 Programmable Output Connections

When a specific event occurs in the system, a PGM can reset smoke detectors, activate strobe lights, open/close garage doors and much more.

2.16.1 PGMs

The control panels include two/four on-board programmable outputs (PGMs). For details on how to program PGMs, see Programmable Outputs on page 53. PGM1 and PGM2 can support up to 150mA. The PGMs are limited by the power source being used. If powered by:

• The

• An external power supply. If using an external power supply, the current consumption cannot exceed 150mA for

AUX terminals. The current consumption of the AUX terminals cannot exceed 700mA. Therefore, whatever

devices are connected to the AUX terminals (i.e. modules and PGMs) cannot exceed 700mA combined. For example, if there are six modules connected to the AUX terminals that are using 600mA and you wish to power the PGM using the

PGM1 and PGM2. If the external power supply’s current consumption limit is less than that of the PGM it is connected to, than the current consumption will not exceed the power supply’s current limit.

UL Note: The AUX terminals cannot exceed 200mA for UL installations.

AUX terminals, the PGM’s current consumption cannot exceed 100mA.

Figure 2: Relay and PGM Connections

Magellan / Spectra SP 11

2.17 Single Zone Inputs

Detection devices such as motion detectors and door contacts are connected to the control panel's zone input terminals. Figure 3 demonstrates single zone input terminal connections recognized by the panel. Once connected, the associated zone's parameters must be defined.

Figure 3: Single Zone Input Connections

12 Reference & Installation Manual

2.18 Advanced Technology Zone (ATZ) Connections

The ATZ feature is a software oriented feature that enables two detection devices to be installed per hardwired input terminal. Each detection device has its own zone, displays its zone status on the keypad and sends its own alarm codes. Fire zones cannot be doubled.

Figure 4: Advanced Technology Zone Connections

Magellan / Spectra SP 13

2.19 Fire Circuits

When a zone is programmed as a fire zone, the zone becomes normally open and requires an EOL resistor. If a line short occurs or if the smoke detector becomes active, whether the system is armed or disarmed, the control panel will generate an alarm. If a trouble occurs on a fire zone, the Fire Loop Trouble will appear in the keypad’s trouble display (see Trouble Display on page 60) and the control panel can transmit the Fire Loop Trouble report, if programmed, in section [866].

Figure 5: Fire Circuits

2.19.1 4-Wire and 2-Wire Installation:

For 4-wire installation, program the Activation Event so that the smoke detectors can be reset by pressing the [CLEAR]

ENTER] keys for three seconds. See Event Group # 6 in the Event Description list in the programming guide.

+ [

For 2-wire smoke detector installation, connect the 2-wire smoke detectors. If a line short occurs or the smoke detector activates, whether the system is disarmed, the control panel will generate an alarm. If the line is open, the “Zone Fault” trouble indication appears on the trouble display and the report code is sent to the monitoring station, if programmed. To reset 2-wire smoke detectors, press the [

CLEAR] + [ENTER] keys for three seconds.

14 Reference & Installation Manual

Part 3: Programming Methods

3.1 WinLoad Software for Windows

Program the control panels remotely or on-site using the WinLoad Software (V2.80 or higher) for Windows®. For more information, contact your local Paradox Distributor or visit our web site at paradox.com. If you are using the WinLoad software, you must program the features (see Settings for WinLoad Software on page 58). Update the panel’s firmware by connecting it to a PC via a 307 Direct Connect Interface and then using the Winload software. (Not investigated by UL).

3.2 Programming Using a Keypad

Use the supplied programming guide to keep track of which sections were programmed and how. We recommend you read the entire manual before you begin programming.

How Do I Enter Programming Mode?

1) Press [ENTER]

2) Enter your [

3) Enter 3-digit [SECTION] you wish to program

4) Enter required [DATA]

3.2.1 Single Digit Data Entry Method (Decimal and Hexadecimal)

INSTALLER CODE] (default: 0000 / 000000) or [MAINTENANCE CODE] (empty by default)

Single Digit Data Entry is used in all sections except those specified in the Feature Select Programming Method (below). After entering Programming Mode as described in the shaded box above, some sections will require that you enter Decimal values from 000 to 255. Other sections will require that you enter Hexadecimal values from 0 to F. The required data will be clearly indicated in this manual as well as in the programming guide. When entering the final digit in a section, the control panel will automatically save and advance to the next section. Except sections 001 to 032, after entering the first three digits the control panel will switch to Feature Select Programming. For phone number programming, press [

ENTER] to save the data.

Table 2: Decimal and Hexadecimal Programming Table

Value or Action

Value 0 / Replace Current Digit

What Do I

Press?

[SLEEP] Erase digit and remain in section Erase digit and remain in

with 0

Values 1 to 9 [1] to [9] Zone 1 to 9 [1] to [9]

A (hex only) [0] Zone 10 [0]

B (hex only) [

OFF] Zone 11 [OFF]

C (hex only) [BYP] Zone 12 [BYP]

D (hex only) [

E (hex only) [

F (hex only)

Exit Without Saving [

Save Data (hex only) [

MEM] Zone 13 [MEM]

TBL] Zone 14 [TBL]

[]

CLEAR] ARM & STAY LED flash ARM & STAY LED flash

ENTER] Advances to the next section Advances to the next section

3.2.2 Feature Select Programming Method

After entering certain sections, eight options will be displayed where each option from [1] to [8] represents a specific feature. Press the key corresponding to the desired option. This means the option is ON. Press the key again to remove the digit, thereby, turning OFF the option. When the options are set, press the [ advance to the next section.

What Do I See?

32-zone LED 10-zone LED

section

Zone 15

ENTER] key to save and

[]

Magellan / Spectra SP 15

3.2.3 Data Display Mode (except K32LCD and K32LCD+)

To access the Data Display Mode, press the [ENTER] key after entering a section and before entering any data. The four LEDs as indicated below will begin to flash indicating that you are in the Data Display Mode.

Each time the

[ENTER] key is pressed, the keypad will display the next digit in the current section and will continue through

all the following sections one digit at a time without changing the programmed values. Not available for sections using the Multiple Feature Select Method. Press the

[CLEAR] key at any time to exit the Data Display Mode.

In the Data Display Mode you can view the programmed contents of each section one digit at a time.

Figure 6: Data Display Mode

3.3 Configuring the Keypad Zone Number

How Do I Configure The Keypad?

Press [ENTER] Enter your [INSTALLER CODE] (default: 0000 / 000000) or [MAINTENANCE CODE] (empty by default) Press [] and hold for three seconds Enter the desired zone number key (K32/K32+, K32LCD/K32LCD+: 2-digit entry 01 to 32, K10V/H: 1-digit entry 1 to 0(10))

ENTER] to save and exit programming mode

Press [ Press [CLEAR] to erase data without saving Press [CLEAR]+[CLEAR] to exit programming mode without saving

PLEASE NOTE: After five minutes, the keypad exits programming mode.

3.4 Programming Using A Paradox Memory Key*

Copy the sections of one control panel into the Paradox Memory Key (PMC-4/PMC5). Then copy the contents of the Memory Key into as many control panels as needed. Each panel is programmed in less than 3 seconds.

Download to DESTINATION Control Panel or module

1) Remove AC and battery power from the control panel.

2) Place the Memory Key on the serial connector labeled is to receive the contents of the Memory Key.

3) Reapply AC and battery power.

4) In Installer Programming Mode, enter section [970], the keypad emits a confirmation beep.

5) When the keypad emits a second confirmation beep, remove the Memory Key.

Copy to Memory Key from SOURCE Control Panel or module

1) Remove AC and battery power from the control panel.

2) Place Memory Key on the serial connector labeled MEMORY KEY of the Control Panel that you want to copy. Make sure the write protect jumper of the Memory Key is on.

3) Reapply AC and battery power.

4) In Installer Programming Mode, enter section [975]. The keypad emits a confirmation beep.

5) After the keypad emits a second confirmation beep, remove the Memory Key. Remove the Memory Key’s jumper if you do not wish to accidentally overwrite its contents.

* Not investigated by UL

MEMORY KEY of the Control Panel that

16 Reference & Installation Manual

Figure 7: Paradox Memory Key

Insert Paradox Memory Key onto the ‘MEMKEY’ connector.

Partial view of control panel

Prevents overwriting content of key.

Connection to module or panel.

Blue LED flashes only during transfer between the key and the PC.

Connection to USB Com Port.

Copy and download content of the key.

Lock Switch

Magellan / Spectra SP 17
