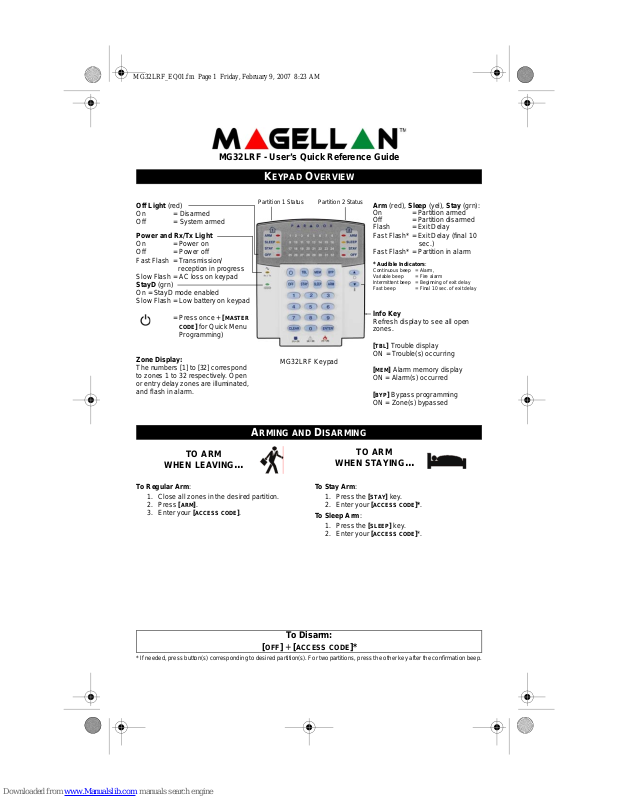

MG32LRF - User’s Quick Reference Guide

KEYPAD OVERVIEW

Off Light (red)

On = Disarmed
Off = System armed

Power and Rx/Tx Light

On = Power on
Off = Power off
Fast Flash = Transmission/

Slow Flash = AC loss on keypad
StayD (grn)
On = StayD mode enabled
Slow Flash = Low battery on keypad

Zone Display:

The numbers [1] to [32] correspond
to zones 1 to 32 respectively. Open
or entry delay zones are illuminated,
and flash in alarm.

reception in progress

= Press once + [
CODE] for Quick Menu
Programming)

MASTER

TO ARM

WHEN LEAVING...

To Regular Arm:

1. Close all zones in the desired partition.

2. Press [

3. Enter your [

ARM].

ACCESS CODE].

Partition 1 St atus Part itio n 2 Status

MG32LRF Keypad

ARMING AND DISARMING

TO ARM

WHEN STAYING...

To Stay Arm:

1. Press the [

2. Enter your [

To Sleep Arm:

1. Press the [

2. Enter your [

Arm (red), Sleep (yel), Stay (grn):
On = Partition armed
Off = Partition disarmed
Flash = Exit Delay
Fast Flash* = Exit Delay (final 10

Fast Flash* = Partition in alarm

* Audible Indicators:

Continuous beep = Alarm,
Variable beep = Fire alarm
Intermittent beep = Beginning of exit delay
Fast beep = Final 10 sec. of exit delay

lnfo Key

Refresh display to see all open
zones.

[TBL] Trouble display
ON = Trouble(s) occurring

MEM] Alarm memory display

[

ON = Alarm(s) occurred

BYP] Bypass programming

[

ON = Zone(s) bypassed

STAY] key.

ACCESS CODE]*.

SLEEP] key.

ACCESS CODE]*.

sec.)

* If needed, press button(s) corres ponding to desired pa rtition(s). For two part itions, press t he other key after the confirmation beep.

To Disarm:

[

OFF] + [ACCESS CODE]*

MG32LRF_EQ01.fm Page 2 Friday, February 9, 2007 8:23 AM

PANIC ALARMS

To send a silent or audible alarm to your
Security Company, press and hold one of the
button combinations listed for 3 seconds.

Panic Alarm Type Button Combinations

Police
Medical
Fire

Press [1] & [3]
Press [4] & [6]
Press [7] & [9]

TROUBLE DISPLAY

When a trouble condition occurs, the [
will illuminate.

1. Press the [

TBL] key. The key will flash

and number(s) corresponding to the
trouble(s) will illuminate.

2. Read the corresponding explanation of
the trouble from the trouble list in the
MG5000 User Guide. If no repair
instructions are given, call your security
company for repairs.

3. Press the [

CLEAR] key to exit.

TBL] key

BYPASS PROGRAMMING

Bypassed zones remained unarmed when the
partition is armed.

1. Press the [BYP] key.

2. Enter your [

3. The corresponding LED of all open
zones will illuminate. Select the zone(s)
you want to bypass by entering the two­digit zone number (i.e. zone 3 = 03). The
corresponding zone LED will flash.

4. Press the [

ACCESS CODE]*.

ENTER] key to save and exit.

\

ALARM MEMORY DISPLAY

To view the alarms that occurred during the
last armed period:

1. Disarm the system.

2. Press the [MEM] key.

3. The corresponding zone numbers that
were in alarm the last time the system
was armed will illuminate.

4. Press the [

CLEAR] key to exit.

KEYPAD SETTINGS

To mute the keypad:

Press and hold the [
seconds to enable or disable Keypad
Muting.

To modify the backlight:

1. Press and hold the [
onds.

2. The [

MEM] key will illuminate.

3. Press the [

S] key to set the desired

backlight level.

4. Press [

CLEAR] or [ENTER] to exit.

CLEAR] key for 6

S] key for 3 sec-
