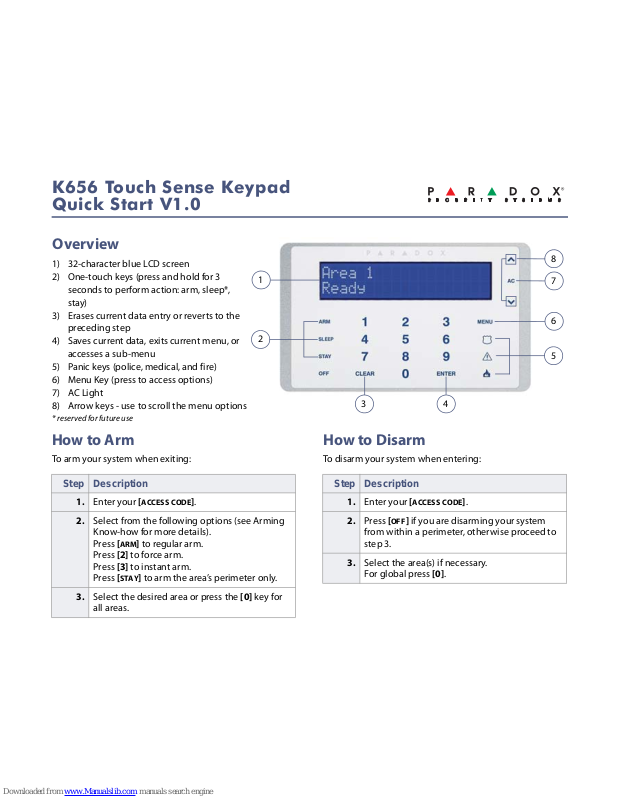

Paradox K656 Quick Start Manual

K656 Touch Sense Keypad
Quick Start V1.0

How to Arm

To arm your system when exiting:

How to Disarm

To disarm your system when entering:

1

2

3 4

5

6

8

7

Overview

1) 32-character blue LCD screen

2) One-touch keys (press and hold for 3
seconds to perform action: arm, sleep*,
stay)

3) Erases current data entry or reverts to the
preceding step

4) Saves current data, exits current menu, or
accesses a sub-menu

5) Panic keys (police, medical, and fire)

6) Menu Key (press to access options)

7) AC Light

8) Arrow keys - use to scroll the menu options

* reserved for future use

Step Description

1. Enter your [ACCESS CODE].

2. Select from the following options (see Arming

Know-how for more details).
Press [

ARM] to regular arm.

Press [2] to force arm.
Press [3] to instant arm.
Press [

STAY] to arm the area’s perimeter only.

3. Select the desired area or press the [0] key for

all areas.

Step Description

1. Enter your [ACCESS CODE].

2. Press [OFF ] if you are disarming your system

from within a perimeter, otherwise proceed to
step 3.

3. Select the area(s) if necessary.
For global press [0].

K656-EQ00 03/2010 Printed in Canada PARADOX.COM

Alarm Memory Display

To view the alarms that occurred during the last armed
period:

How to Bypass Zones

When a zone is bypassed, it remains unarmed once the
corresponding area is armed:

Panic Keys

To send a silent or audible alarm to your security company,
press and hold one of the panic keys for three seconds.

.

Arming Know-how

The following table provides a description of the different
types of arm levels.

Step Description

1. Press [MENU].

2. Press [4]. All zones that were breached during

the last armed period will be displayed. Use the
up and down arrow keys to view zones.

3. Press [CLEAR] to exit.

Step Description

1. Press [MENU].

2. Press [3] to bypass zone.

3. Enter your [ACCESS CODE] if required.

4. Press [1] to select the zone.

5. Use the up and down arrow keys to scroll
through the zones and then press [

ENTER] for

the desired zone.

6. Press [CLEAR] to exit.

Panic Key Description

Police

Medical

Fire

Arming Type Description

Regular

Arming

Arms the entire area when all zones are
closed.

Force

Arming

Arms the entire area without waiting for
all zones to close.

Stay

Arming

Arms the area’s perimeter only, allowing
you to remain in the protected area.

Disarming Disarms the entire area, regardless if

zones are open or closed.

© 2010 Paradox Security Systems Ltd. All rights reserved. Specifications may change without prior notice.
For complete patent, trademark, certification, and warranty information, please visit www.paradox.com.
