LEG PRESS ADAPTER KIT
FOR CM3 GYM SYSTEM
WARNING:
Read and follow all directions
for each step to insure proper
assembly of this product.
CLASS H
PAR T # 7358001
REV . A
USER’S GUIDE
1
Version: CM3-LP5A-101
Revision: 11/18/02
j
TABLE OF CONTENTS
Safety Statement.............2
General Notes..................3
Tools Required................3
Parts list..........................4
Assembly Instructions.....4-13
Insert-Registration Card
IMPORTANT SAFETY INFORMATION
THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF
EQUIPMENT. TO MINIMIZE RISK FOLLOW THESE RULES!
1. Before using, read all the warnings and instructions
on the use of this machine. Use only for intended
exercise. DO NOT modify the machine.
2. Obtain a medical exam before beginning any
exercise program.
3. Keep body and clothing free of all moving objects.
4. Inspect the machine before use. DO NOT use it if it
appears damaged. DO NOT attempt to fix a broken or
ammed machine. Notify your authorized ParaBody
dealer before use and have repairs made by an
authorized service technician.
6. Never pin the weights or prop plate into an elevated
position. DO NOT use the machine if found in this
condition. DO NOT attempt to fix. Notify your
authorized ParaBody dealer.
7. Inspect cables and their connections before using
machine. Pay particular attention to the cable ends.
DO NOT attempt to fix. Notify your authorized
ParaBody dealer before use and have repairs made by
an authorized service technician.
8. Make sure all spring loaded pull pins are fully
engaged in the adjustment position and fully tighten
thumbscrew before use.
5. Be certain that weight pin is completely inserted.
Use only the pin provided by the manufacturer. If
unsure, call your authorized ParaBody dealer.
9. Children must not be allowed near this machine.
Supervise teenagers.
.
NOTE: In a continual effort to improve our products, specifications are subject to change
2002 Life Fitness, a division of Brunswick Corporation. All rights reserved.
©
ParaBody is a trademark of Brunswick Corporation
www.parabody.com
2
IMPORTANT NOTES
Please note:
* Thank you for purchasing the ParaBody CM3-LP5A-101 LEG PRESS ADAPTER KIT .
Please read these instructions thoroughly and keep them for future reference. This product
must be assembled on a flat, level surface to assure its proper function.
* This product must be assembled on a flat, level surface to assure its proper function. DO NOT
securely tighten any frame connections until the entire frame has been assembled, unless
otherwise stated.
T ools Required for Assembly
* 9/16” wrench
* Ratchet with 9/16” socket
* Adjustable wrench
* T ape measure
Bolt Length Ruler
NOTE: BOL T LENGTH IS MEASURED FROM THE UNDERSIDE OF THE HEAD OF THE BOLT.
BOLT LENGTH
BOL T LENGTH RULER:
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
3
6
PARTS LIST
KEY
1
2
3
4
5
6
7
8
ACU04-1451
ACU04-1172
ACU13-0142
ACU13-0141
ACU06-0024
ACU06-0362
ACUDC1250100020B
ACUDB2E03811000B
PART #
DESCRIPTION
LEG PRESS ADAPTOR
PULLEY BRACKET
WEIGHT ST ACK CABLE
LEG PRESS CABLE
3-1/2” PULLEY
2” COVER CAP
3/8” WASHER
3/8” LOCKNUT
NOTE: The LEG PRESS ATTACHMENT (LP5) must be assembled before
connecting it to the PARABODY CM3 GYM SYSTEM
QTY
1
1
1
1
6
1
10
13
KEY
9
10
11
12
13
14
15
16
PART #
ACUDA1E03813416NB
ACUDA1E03823416NB
ACUDA1E03840016NB
ACUDAE03843416NB
ACU08-0085
ACU08-0076
ACU08-0079
ACU02-0055
3/8 X 1-3/4” BOLT
3/8 X 2-3/4” BOLT
3/8 X 4-3/4” BOL T
STEP SP ACER 19/32’ LG
STEP SP ACER 1-19/32’ LG
STEP SP ACER 1-11/16’ LG
DESCRIPTION
3/8 X 4” BOLT
CABLE L CLIP
QTY
4
3
2
4
2
2
2
1
DISCARD!
WEIGHT ST ACK
CABLE
FIGURE 1
STEP 1:
• Remove the WEIGHT STACK CABLE as shown in FIGURE 1. Discard the cable.
4
FIGURE 2
2
3/8 X 1-3/4” 9
5
8
3
STEP 2:
• Screw the long threaded end of the new WEIGHT STACK CABLE (3) into the end of the WEIGHT PLATE SHAFT. See
FIGURE 2.
• Route the WEIGHT STACK CABLE (3) around the pulley in the BOOM PLATES as shown in FIGURE 2. (NOTE: Make sure
the cable runs in the grooves of the pulleys.)
• Assemble one 3-1/2” PULLEY (5) to the PULLEY BRACKET (2) using one 3/8 X 1-3/4” BOLT (9) and one 3/8” LOCK NUT
(8) (Note: Loop the WEIGHT STACK CABLE around the PULLEY prior to assembling the PULLEY BRACKET.)
• Screw the short threaded end of the WEIGHT STACK CABLE (3) into the end of the PULLEY BRACKET (2). See FIGURE 2.
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
5
6
4
2
FIGURE 3
STEP 3:
• Screw the threaded end of LEG PRESS CABLE (4) to the PULLEY BRACKET (2) as shown in FIGURE 3.
6
1
6
FIGURE 4
STEP 4:

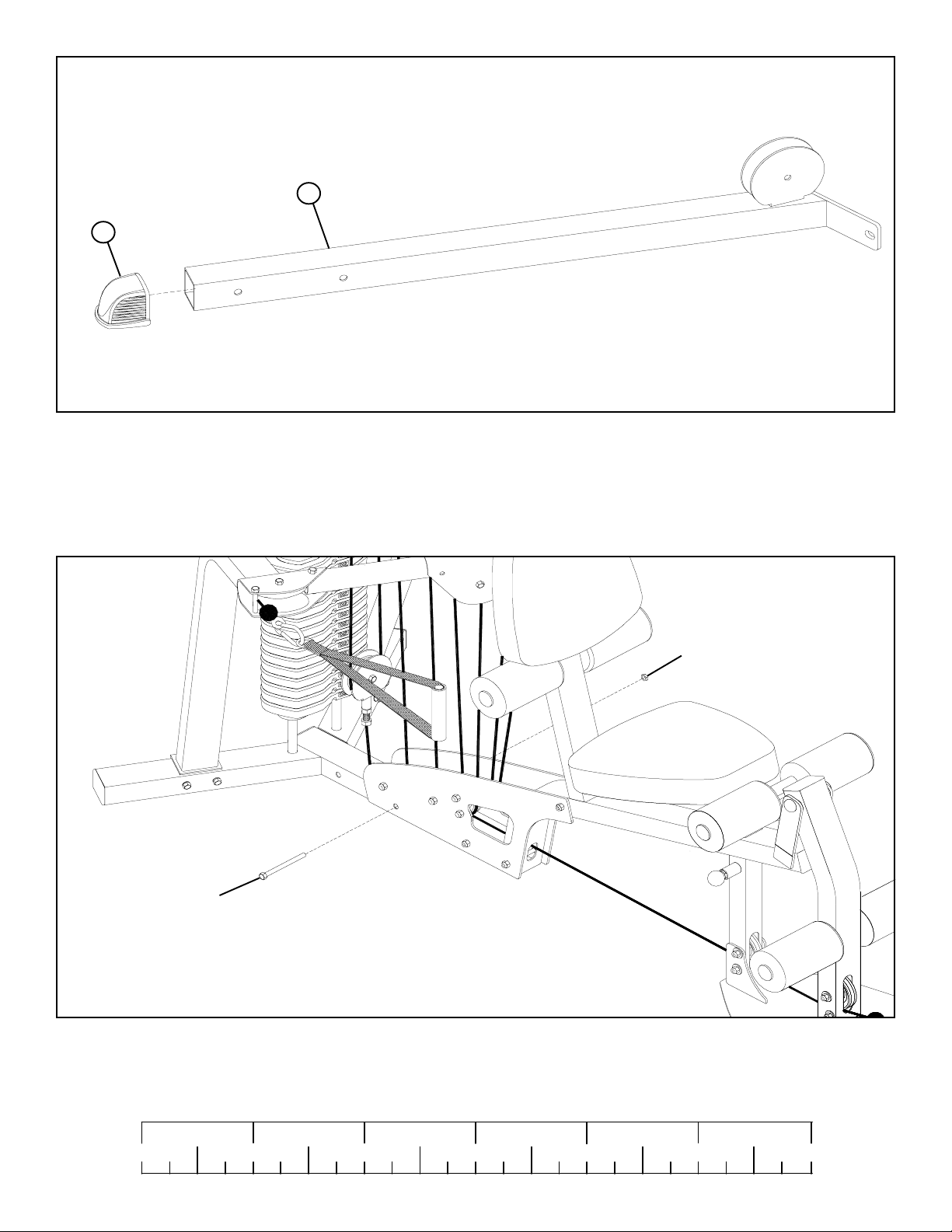

• If not already installed, slide one 2” SQ. COVER CAP (6) over the FRONT LEG (1) as shown in FIGURE 4.
3/8” LOCKNUT
3/8 X 3-3/4” BOLT
FIGURE 5
STEP 5:
• Remove the 3/8 X 3-3/4” BOLT and 3/8” LOCK NUT from the BASE PLATE as shown in FIGURE 5. Discard the 3/8 X 3-3/4”
BOL T.
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
7
6
11 3/8 X 4”
1
7
8
FIGURE 6
STEP 6:
• SECURELY assemble the LEG PRESS ADAPTOR (1) to the CM3 Gym System using two 3/8 X 4” BOLTS (11), five 3/8”
WASHERS (7), one previously removed 3/8” LOCK NUT and one 3/8” LOCK NUT (8) as shown in FIGURE 6.
8
5
4
1
FIGURE 7
STEP 7:
• Carefully route the LEG PRESS CABLE (4) around one 3-1/2” PULLEY (5) and SECURELY assemble the 3-1/2” PULLEY (5)
to the LEG PRESS ADAPTOR (1) using one 3/8 X 1-3/4” BOLT (9) and one 3/8” LOCK NUT (8). See FIGURE 7.
8
9 3/8 X 1-3/4”
1
8
7
10 3/8 X 2-3/4”
FIGURE 8
STEP 8:

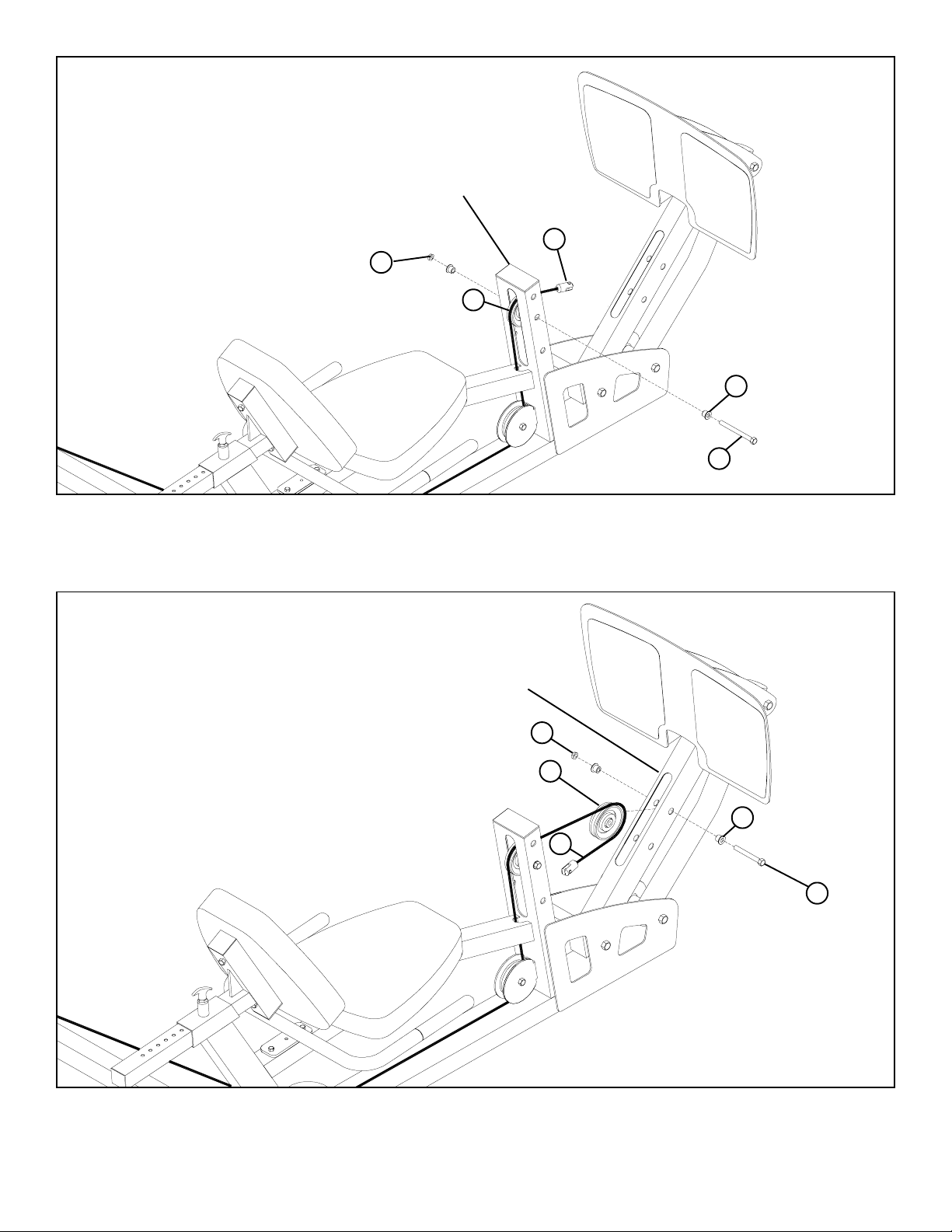

• SECURELY attach the LP5 LEG PRESS to the LEG PRESS ADAPTOR (1) using two 3/8” X 2-3/4” BOLTS (10), two 3/8”
WASHERS (7), and two 3/8” LOCK NUTS (8). See FIGURE 8.
FIGURE 9
SEA T FRAME
8
BRACKET
5
16
7
STEP 9:
• Carefully route the LEG PRESS CABLE (4) around one 3-1/2” PULLEY (5) and SECURELY assemble the 3-1/2” PULLEY (5) to
the BRACKET (from the 100 LEG PRESS ) using one 3/8 X 1-3/4” BOLT (9), one 3/8” WASHER (7), one CABLE CLIP (16) and
one 3/8” LOCK NUT (8) as shown in FIGURE 9. Make sure the CABLE is in the grooves of all the pulleys.
9
9 3/8 X 1-3/4”
4
SEA T FRAME
3/8” L0CK NUT
8
7
STEP 10:
• SECURELY attach the BRACKET (from LP5 LEG PRESS) to the SEA T FRAME using two 3/8” X 4-3/4” BOL TS (12), two 3/8”
W ASHERS (7), and two 3/8” LOCK NUTS (8). See FIGURE 10.
FIGURE 11
BRACKET
8
3/8 X 4-3/4”
12
4
5
FIGURE 10
3/8 X 1-3/4” 9
SEA T FRAME
STEP 11:
• Carefully route the LEG PRESS CABLE (4) around one 3-1/2” PULLEY (5) and SECURELY assemble the 3-1/2” PULLEY (5) to
the bracket on the SEAT FRAME using one 3/8 X 1-3/4” BOLT (9) and one 3/8” LOCK NUT (8) as shown in FIGURE 11 . Make
sure the CABLE is in the grooves of all the pulleys.
1/2 1/2 1/2 1/2 1/2 1/2
0
1
2
345
10
6
FIGURE 12
SEA T FRAME
4
3/8” LOCK NUT
STEP 12:
• Carefully route the LEG PRESS CABLE (4) around one 3-1/2” PULLEY (5) and SECURELY assemble the 3-1/2” PULLEY (5) to
the SEAT FRAME using one 3/8 X 4-3/4” BOLT (12), two STEP SPACERS 1-19/32 (14), and one 3/8” LOCK NUT (8) as shown in
FIGURE 12. Make sure the CABLE is in the grooves of all the pulleys.
8
5
14
3/8 X 4-3/4” 12
FIGURE 13
MAIN ARM
8
5
13
4
3/8 X 2-3/4” 10
STEP 13:
• Carefully route the LEG PRESS CABLE (4) around one 3-1/2” PULLEY (5) and SECURELY assemble the 3-1/2” PULLEY (5)
to the MAIN ARM using one 3/8 X 2-3/4” BOLT (10), two STEP SP ACERS 19/32”(13) and one 3/8” LOCK NUT (8) as shown in
FIGURE 13. Make sure the CABLE is in the grooves of all the pulleys.
11
FIGURE 14
SEA T FRAME
3/8” LOCK NUT
STEP 14:
• SECURELY assemble the swivel end of the LEG PRESS CABLE (4) to the SEA T FRAME using one 3/8 X 4-3/4” BOL T (12), two STEP
SP ACERS 1-11/16”(15) and one 3/8”LOCK NUT (8).
(NOTE: SECURELY tighten, then back nut off 1/4 turn)
8
4
15
3/8 X 4-3/4” 12
CABLE ROUTING DIAGRAM
12
ADJUST!
ADJUST!
ADJUST!
ADJUST!
FIGURE 15
STEP 15:
• To set the correct amount of tension in the cables, push the HEAD PLATE down, insert the WEIGHT SELECTOR PIN and perform
several repititions at the leg press station.This will relax the cable system and prevent the HEAD PLATE from lifting up.
• If further CABLE ADJUSTMENT is needed, reference the CM3 GYM SYSTEM assembly instructions.
THIS CONCLUDES THE ASSEMBLY OF THE CM3-LP5A-101 LEG PRESS ADAPTER KIT
