Model No.
TX-P65VT20B
Operating Instructions
Plasma Television
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only.
“B” model no. suffix denotes UK model.
English U.K. Standard
TQB0E2027
Features
■3D technology -
|
Viewing 3D images on the Full HD panel |
|
You can enjoy viewing 3D images on this TV by wearing the 3D Eyewear. |
|
■FULL HD 3D |
|
FULL HD 3D is the technology for viewing 3D images on the Full HD panel. |
|
You can experience the ultimate of 3D images with realistic ambience and powerful depth. |
|
■RealD 3D |
|
This TV and 3D Eyewear use the 3D technology of RealD. RealD is one of the inventors in 3D technology. |
|
■freesat HD tuner built-in |
|
Receives freesat - free digital satellite broadcasts in the UK |
|
This TV has a built-in freesat HD tuner. |
|
freesat is a free digital TV service which broadcasts via satellite so you can receive TV, radio, interactive TV, and HD TV with |
|
crystal clear reception. |
|
You can enjoy sharp pictures, vivid colours, multi-channel sound, and various services with the interactive content. |
|
■DVB-T / DVB-T2 tuner built-in |
|
Receives DVB (Digital Video Broadcasting) digital terrestrial broadcasts |
|
DVB-T2 is an advanced digital terrestrial system for more efficient transmission. |
|
Available DVB-T2 broadcasts will be tuned automatically when you perform DVB Auto Setup. |
|
■GUIDE Plus+ (p. 21) |
|
This TV supports Gemstar-TV Guide sent from the GUIDE Plus+ system. |
|
■Sharp pictures and clear sound with HDMI connection (p. 104) |
|
Enjoy high definition digital picture and high quality sound by using an HDMI cable. |
|
●This TV supports HDMI (Version 1.4 with 3D, Content Type, Audio Return Channel), Deep Colour, x.v.Colour™. |
|
■Using USB devices |
|
Enjoy recording and playback the digital TV programmes to the USB HDD. (p. 70 and p. 79) |
|
Enjoy the photo, video and music in the USB Flash Memory on Media Player. (p. 74) |
|
Wireless LAN Adaptor for the network connection. (p. 6 and p. 13) |
|
Entering characters with the USB Keyboard in VIERA CAST. (p. 91) |
|
■Timer Programming (p. 22 and p. 58) |
|
Timer Programming enables you to use functions such as programme reminder and programme recording to the external |
|
recorder / registered USB HDD. |
|
■VIERA IMAGE VIEWER - SD Card viewer in Media Player (p. 74 - 78) |
|
Enjoy your photos or videos recorded on an SD Card on the TV screen. |
|
■SDXC Card |
|
This TV supports SDXC Card. SDXC is the latest standard of SD Card and a higher storage capacity card. |
|
■AVCHD |
|
It is possible to play moving pictures recorded on an SD Card or a USB Flash Memory in AVCHD format. |
|
AVCHD is a high definition video recording format. (p. 74) |
|
■DivX |
|
Offers good compatibility when going from PC to TV, etc. for easy enjoyment of moving pictures. DivX is a video codec that |
|
was developed by DivX, Inc. (p. 103) |
|
■DLNA |
|
DLNA is a standard that makes digital electronics easier and more convenient to use on a home network. For example, you |
|
can enjoy watching photos and videos stored in the PC connected to your home network by accessing from the TV. (p. 88) |
|
■VIERA CAST - Enjoy great web entertainment (p. 91) |
|
Enjoy the internet contents on the TV such as photos, videos, weather, video communication (ex. Skype™), etc. through an |
|
easy-to-use web interface that is built into the TV. |
|
■Link up and control the connected equipment with “Q-Link” and “VIERA Link” (p. 92 - 99) |
|
Q-Link and VIERA Link provide easy recording and playback, creation of a home theatre without complicated settings, etc. |
|
■VIERA TOOLS - Display special feature icons for easy accessibility (p. 36) |
|
Special features (such as VIERA Link, Media Player and DLNA operations) can be accessed easily by using the VIERA |
|
TOOLS button. |
|
■CONEQ (p. 39) |
|
CONEQ is a technology to transduce the sound from speakers. You can enjoy sophisticated sound true to the original one. |
|
Digital Switchover for Terrestrial broadcasts |
|
Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by TV region. |
|
If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk |
|
Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV channels and |
|
some Digital TV channels will be missing. |
|
You will need to retune your TV each time this happens to recover your digital channels. Analogue channels are |
|
permanently turned off, it will not be possible to recover them. |
|
●To retune your TV “Auto Setup” in “DVB Tuning Menu”-DVB mode (p. 47) |
|
Users of cable or satellite boxes should still retune the TV to continue to receive Freeview channels via their |
|
aerial. (Your Analogue channel for viewing Cable or Satellite services will change to a new position.) |
2 |
●Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some |
cases, despite good reception of analogue channels. |
■FULL HD
This TV uses a high definition panel to produce high definition pictures close to their original resolution.
■HD TV 1080p
This TV supports high definition TV signals.
■Dolby Digital Plus decoder
It is possible to decode Dolby Digital Plus audio track (multi-channel sound) and output as a Dolby Digital multi-channel sound signal from the DIGITAL AUDIO OUT terminal.
■Owner ID (p. 63)
Owner ID is an anti-theft function. Entering the PIN number and owner’s personal information will help the Police to determine the owner in the case of theft.
■Supports Audio Description signal (p. 17 and p. 39) Audio Description (when broadcast) adds an additional soundtrack to describe events on screen (narration) and aids understanding and enjoyment, particularly for visually-impaired viewers.
You can switch Audio Description service Auto or Off, and adjust the volume of the description soundtrack independently of the main volume.
Neo PDP
Realizes high picture quality and energy efficient panel.
Intelligent Frame Creation
This increases the frame count and removes juddering movements, for smooth and flicker-less motion images with high resolution.
INFINITE BLACK PRO
A wide contrast ratio will deliver pictures with a deep, rich black level and a brighter white level for greater image depth.
THX Certified Display
Faithfully reproduces the image quality of THX movies that the filmmakers intended.
24p Smooth Film
This item is displayed instead of “Intelligent Frame Creation” when 24p signal input, and produces smoother playback of 24p source movies.
WiFi Ready
Using the Wireless LAN Adaptor (supplied) lets you connect to the network anywhere in the house over a wireless network.
digital tick
The digital tick logo indicates that a digital tuner
is built-in.
Freeview HD
Freeview HD is the way to enjoy high definition digital TV for free.
■Do not display a still picture for a long time
This causes the image to remain on the plasma screen (“image retention”).
This is not considered a malfunction and is not covered by the warranty.
Typical still images
●Channel number and other logos ●Image displayed in 4:3 mode ●Video game
●Computer image
To prevent image retention, contrast is lowered automatically after a few minutes if no signals are sent or no operations are performed. (p. 107)
■Keep the TV away from these types of equipment
●Electronic equipment
Do not place video equipment too close to the TV, electromagnetic interference may distort pictures / sound.
●Equipment with an infrared sensor
This TV emits infrared rays which may interfere with the operation of other equipment.
Contents
Be Sure to Read
●Safety Precautions (Warning / Caution) ················· 4
Quick Start Guide
●Accessories / Options ·······························6
●Identifying Controls ···································8
●Basic Connection ····································10
●Auto Setup ··············································12
Enjoy your TV!
Basic Features
●Watching TV ························································· 16
●Using TV Guide ···················································· 20
●Viewing Teletext···················································· 25
●Watching External inputs······································ 28
●Viewing 3D images··············································· 30
●How to Use VIERA TOOLS ·································· 36
●How to Use Menu Functions ································ 37
Advanced Features
●Retuning from Setup Menu ·································· 46
●Tuning and Editing Channels ······························· 48
●Shipping Condition ··············································· 57
●Timer Programming·············································· 58
●Child Lock····························································· 60
●Input Labels·························································· 62
●Owner ID ······························································ 63
●Using Common Interface······································ 64
●Updating the TV Software ···································· 65
●Multi Window ························································ 66
●Displaying PC Screen on TV································ 67
●Advanced Picture Settings ··································· 68
●USB HDD Recording············································ 70
●Using Media Player ·············································· 74
●Using Network Services ······································· 82 (DLNA / VIERA CAST / freesat)
●Link Functions ····················································· 92 (Q-Link / VIERA Link)
●External Equipment ············································ 100
FAQs, etc.
●Technical Information ········································· 102
●FAQs ·································································· 107
●On screen messages ··········································111
●Maintenance························································114
●Glossary ······························································115
●Licence ································································116
●Index····································································117
●Specifications ······················································118
Start Quick
Guide
Basic
Advanced
.etc FAQs,
3
Safety Precautions
Warning
■Mains plug and lead
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
●This TV is designed to operate on AC 220-240 V, 50 / 60 Hz.
●Insert the mains plug fully into the socket outlet. ●Ensure that the mains plug is easily accessible. ●Remove the mains plug when cleaning the TV.
●Do not touch the mains plug with a wet hand.
●Do not damage the mains lead.
• Do not place a heavy object on the lead.
• Do not place the lead near a high temperature object.
If you detect anything unusual, immediately switch off the mains supply switch and remove the mains plug.
• Do not pull on the lead.
Hold onto the mains plug
body when disconnecting the plug.
• Do not move the TV with the lead plugged into a socket outlet.
•Do not twist the lead, bend it excessively or stretch it.
•Do not use a damaged mains plug or socket outlet.
•Ensure the TV does not crush the mains lead.
●Do not use any mains lead other than that provided with this TV.
●Ensure the earth pin on the mains plug is securely connected to prevent electrical shock.
•An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.
IMPORTANT: THE MOULDED MAINS PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 10 amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark ASA or the BSI mark on the body of the fuse.
If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained.
A replacement fuse cover may be purchased from your local dealer.
Do not cut off the mains plug.
Do not use any other type of mains lead except the one supplied with this TV.
The supplied mains lead and moulded plug are designed to be used with this TV to avoid interference and for your safety.
If the socket outlet in your home is not suitable, get it changed by a qualified electrician. If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.
WARNING: – THIS TV MUST BE EARTHED.
How to replace the fuse.
Open the fuse compartment with a screwdriver and replace the fuse.
4
Warning
■Take care
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
●Do not remove covers and never modify the TV yourself as live parts are accessible when they are removed. There are no user serviceable parts inside.
●Do not expose the TV to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.
●Do not expose the TV to direct sunlight and other sources of heat. To prevent fire never place any type of candle or naked flame on top or near the TV.
●Do not place the TV on sloped or unstable surfaces.
●Do not insert foreign objects into the TV through the air vents.
●Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to perform the setup or installation of approved wall-hanging brackets.
●Do not apply strong force or impact to the display panel.
To prevent the spread of fire, keep candles or other open flames away from this product at all times
■Small object
This product contains possibly dangerous parts that can be breathed in or swallowed by young
children accidentally.
●Keep the dangerous parts out of reach of young children.
●Do not allow children to handle SD Card. As with any small object, the SD Card could be swallowed by young children. Please remove SD Card immediately after use and store out of reach of young children.
Caution
■Ventilation |
|
|
|
Allow sufficient space around the TV in order to help prevent excessive |
Minimum distance |
|
|
heat, which could lead to early failure of some electronic components. |
10 |
|
|
●Ventilation should not be impeded by covering the |
10 |
10 |
7 |
ventilation openings with items such as newspapers, |
|||
tablecloths and curtains. |
|
|
|
●Whether you are using the pedestal or not, always ensure the vents in the |
|
|
|
bottom of the TV are not blocked and there is sufficient space to enable |
|
|
(cm) |
adequate ventilation. |
|
|
■Moving the TV
Before moving the TV, disconnect all cables.
●The TV is heavy. Move the TV with at least two people. Support as shown to avoid injury by the TV tipping or falling. ●Transport only in upright position. Transporting the TV with its display panel facing upward or downward may cause damage to the internal circuitry.
■When not in use for a long time
This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet.
●Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.
■Excessive volume
Do not expose your ears to excessive volume from the headphones. Irreversible damage can be caused.
5
Accessories / Options
Standard accessories Check that you have the accessories and items shown
□Remote Control |
□Batteries for the |
□Clamper |
□Mains Lead |
||
●N2QAYB000489 |
Remote Control (2) |
●TMME289 |
|
●K2CT3YY00021 |
|
|
●R6 |
p. 10 |
|
p. 10 |
|
|
p. 8 |
|
|
|
|
□Wireless LAN Adaptor |
□Pedestal |

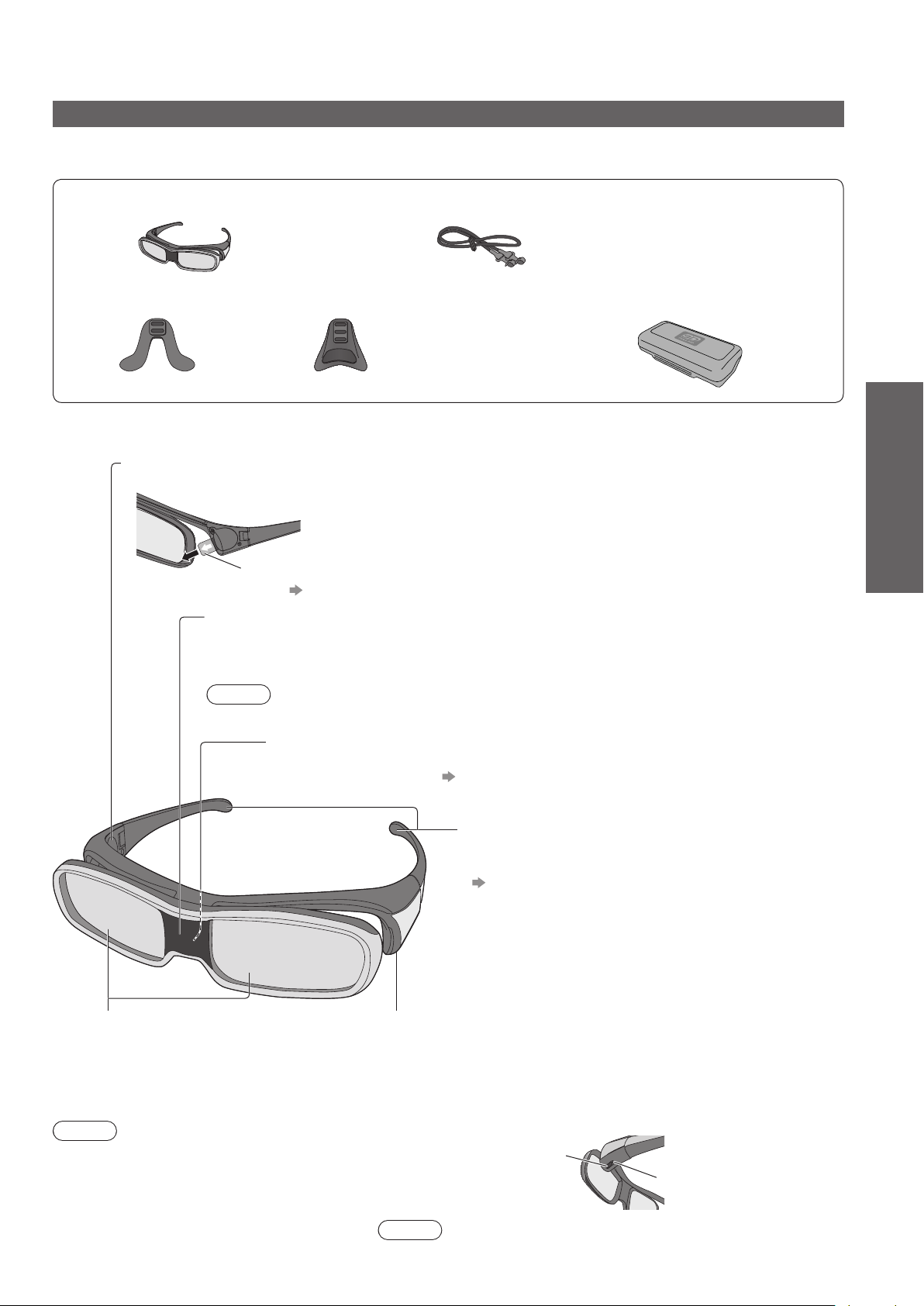

□3D Eyewear set (2) |
|
□Ferrite core (2) |
|
and Extension cable |
●TBLX0194 |
●TY-EW3D10E |
|
|
●J0KG00000014 |
●C5ZZZ0000049 |
●TXFBL01LCUB |
p. 31 |
|
|
p. 101 |
●K2KYYYY00064 |
●TBLA3773 (2) |
|
|
|
|
p. 13 and p. 83 |
p. 7 |
|
|
|
|
|
|
□Screwdriver |
|
|
Use the Ferrite cores |
|
|
|
|
to comply with the |
|
|
|
for replacing the battery |
) EMC standard. |
||
□Operating Instructions |
|
(of the 3D Eyewear |
|
||
|
●+ (#0) |
|
|
|
|
□Product Registration Leaflet |
p. 32 |
|
|
|
●Accessories may not be placed all together. Take care not to throw them away unintentionally.
Optional accessories |
Please contact your nearest Panasonic dealer to purchase the recommended |
|
optional accessories. For additional details, please refer to the manual of the |
□3D Eyewear set |
optional accessories. |
|
|
●TY-EW3D10E |
●If you need additional pairs of 3D Eyewear, please purchase them from your |
|
|
|
Panasonic dealer. |
□Communication Camera |
Caution |
●TY-CC10W |
|
|
●This camera can be used on VIERA CAST (p. 91). |
|
●Please also read the manual of the camera. |
|
●Depending on the area, this optional accessory may not be available. |
For details, consult your local Panasonic dealer.
□Wall-hanging bracket
●TY-WK6P1RW
Rear of the TV |
|
Screw for fixing the TV onto the wall-hanging bracket |
|
|
|
|
|
(not supplied with the TV) |
684 mm |
|
Depth of screw: |
|
300 mm |
minimum 14 mm, maximum 30 mm |
|
|
|
|
|
Diameter: M8 |
Holes for wall-hanging |
(View from the side) |
bracket installation
Warning
●Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of personal injury and product damage. In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licenced contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty.
●Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to prevent the TV from falling off.
●Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage which will void your warranty.
●Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.
●To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use for an extended period of time.
6
Attaching the pedestal
To help avoid risk of damage or injury by the TV tipping or falling, please follow the warnings and cautions below:
Warning
●Do not disassemble or modify the pedestal.
Caution
●Do not use with any other TVs or displays.
●Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your nearest Panasonic dealer immediately.
●During setup, make sure that all screws are securely tightened.
●Ensure that the TV does not suffer any impact during installation of the pedestal. ●Ensure that children do not climb onto the pedestal.
●Install or remove the TV from the pedestal with at least two people.
Assembly screw (6) |
Assembly screw (4) |
Pole (2) |
Base |
(silver) |
(black) |
●TBLA3773 |
●TBLX0194 |
●THEL074 |
●XYN6+F25FJK |
|
|
M5 × 30 |
M6 × 25 |
|
|
■Assembling the pedestal |
|
|
|
Use the six assembly screws to fasten the poles |
|
A |
|
to the base securely. |
|
|
|
●Use the allen wrench |
to tighten the screws. |
|
|
●Make sure that the screws are securely tightened. |
|
|
|
●Forcing the assembly screws the wrong way will strip |
C |
|
|
the threads. |
|
|
|
Allen wrench
●TKKX5116
E
C Front
D
■Securing the TV
Use the assembly screws to fasten securely.
●Make sure that the screws are securely tightened. B ●Carry out the work on a horizontal and level surface.
Arrow mark
Options / Accessories● StartGuideQuick
Hole for pedestal installation
D
(View from the bottom)
7
Identifying Controls
Remote Control
■Installing / removing remote’s batteries
1 |
Pull |
2 |
Close |
|
open |
|
|
|
|
|
|
Hook |
|
|
Note the correct |
|
|
|
polarity (+ or -) |
Caution
●Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control. ●Do not mix old and new batteries.
●Do not mix different battery types (such as alkaline and manganese batteries). ●Do not use rechargeable (Ni-Cd) batteries.
●Do not burn or break up batteries.
Batteries must not be exposed to excessive heat such as sunshine, fire, etc. ●Do not disassemble or modify the remote control.
Media Player (p. 74)
●Switches to SD Card and USB device viewing / listening mode
Standby On / Off switch
●Switches TV On or Off standby
Main Menu (p. 37)
●Press to access the Picture, Sound and Setup Menus
Aspect (p. 18)
Channel / Programme Information (p. 17)
●Displays channel and programme information
VIERA Link Menu (p. 96)
●Accesses VIERA Link Menu
OK
●Confirms selections and choices ●Press after entering channel position by
using numeric buttons to change a channel quickly
Option Menu (p. 19)
●Easy optional setting for viewing, sound, etc.
Coloured buttons (red-green-yellow-blue)
●Used for the selection, navigation and operation of various functions
Teletext (p. 25)
●Switches to teletext mode / interactive services
Subtitles (p. 18)
●Displays subtitles
Numeric buttons
●Changes channel and teletext pages ●Sets characters
●When in Standby mode, switches TV On (Press for about 1 second)
Sound Mute
●Switches sound mute On or Off
Volume Up / Down
|
SD CARD |
|
|
INPUT |
||
|
|
|
|
TV |
AV |
|
MENU ASPECT |
|
|
|
DIRECT TV REC |
||
|
|
|
|
|
|
EXIT |
|
|
RA |
T |
|
|
|
|
|
O |
|
|
||
|
IE |
|
OL |
|
||
|
V |
|
|
|
S |
|
|
k |
|
|
|
|
G |
|
in |
|
|
|
|
U |
A |
L |
|
|
|
|
I |
|
|
|
|
|
D |
|
R |
|
|
|
|
|
|
E |
|
|
|
|
|
E |
I |
|
|
|
|
|
|
V |
|
|
|
|
|
|
OPTION |
|
|
|
|
BACK/ |
|
|
|
|
|
RETURN |
||
TEXT STTL INDEX HOLD |
||||||
|
|
|
abc |
|
def |
|
|
ghi |
|
jkl |
|
mno |
|
|
pqrs |
|
tuv |
|
wxyz |
LAST VIEW
REC PROGRAMME
DVD/VCR TV
TV
Input mode selection
●TV - switches freesat / DVB / Analogue / Other Sat. mode (p. 16)
●AV - switches to AV input mode from Input Selection list (p. 28)
Direct TV Recording (p. 94 and p. 96)
●Records programme immediately in DVD Recorder / VCR with Q-Link or VIERA Link connection
VIERA CAST (p. 91)
●Displays VIERA CAST home screen
Exit
●Returns to the normal viewing screen
VIERA TOOLS (p. 36)
●Easily accesses special features such as VIERA Link, Media Player and DLNA operations
TV Guide (p. 20)
●Displays TV Guide
Cursor buttons
●Makes selections and adjustments
Return
●Returns to the previous menu / page
Hold
●Freeze / unfreeze picture (p. 17) ●Holds the current teletext page (teletext
mode) (p. 26)
Index (p. 27)
●Returns to the teletext index page (teletext mode)
Last view (p. 19)
●Switches to previously viewed channel or input mode
Channel Up / Down
●Selects channel in sequence
Connected equipment operations
(p. 29, 72 and p. 98)
8
|
|
|
|
|
|
|
|
|
TV |
|
|
|
|
|
|
|
|
|
|
|
Remote control signal receiver |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
●Do not place any objects between the TV remote control signal |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
receiver and remote control. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
C.A.T.S. (Contrast Automatic Tracking System) sensor |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
●Senses brightness to adjust picture quality when “C.A.T.S.” |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
in the Picture Menu is set to “On” (p. 38) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power and Timer LED |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
●Red: Standby |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Infrared transmitter for 3D Eyewear |
Green: On |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Orange: Timer Programming On |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
●Do not place any objects between the |
Orange (flash): Recording of Timer Programming, |
|||||||
|
|
|
|
|
|
|
|
|
CI slot (p. 64) |
|
|
|
|
transmitter and 3D Eyewear. |
Direct TV Recording or |
|||||||
|
|
|
|
|
|
|
|
|
USB 1 / 2 ports (p. 13, 70, 74 and p. 83) |
One Touch Recording |
||||||||||||
|
|
|
|
|
|
|
|
|
is in progress |
|||||||||||||
|
|
|
1 |
|
|
|
|
|||||||||||||||
|
|
|
2 |
|
|
|
|
Function select |
|
|
|
|
|
Red with |
||||||||
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
F |
|
●Volume / Contrast / Brightness / Colour / Sharpness / |
orange flash: Standby with Timer Programming |
||||||||||||||||
Common Interface |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
Tint (NTSC signal) / Bass (“Music” or “Speech” mode in the |
On, Direct TV Recording or |
||||||||||||
|
|
|
|
|
|
|
|
|
Sound Menu) / Treble (“Music” or “Speech” mode in the |
One Touch Recording |
||||||||||||
|
|
|
|
|
|
|
|
|
Sound Menu) / Balance / Auto Setup (p. 46 and p. 47) |
●The LED blinks when the TV receives a command |
||||||||||||
|
|
|
|
|
|
|
|
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
from the remote control. |
|
|
|
TV |
|
Changes the input mode |
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
AV |
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
For changing TV channel up or down. |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
SD Card slot |
(p. 74) |
When a function is selected by the F button, press to increase or |
|||||||||||
|
|
|
|
|
|
|
|
|
decrease the setting of the selected function. |
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
When in Standby mode, press either button for about 1 second to |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
HDMI4 terminal (p. 101) |
switch the TV On. |
|
|||||||||||
|
|
|
HDMI 4 |
|
|
|||||||||||||||||
|
|
|
|
Headphones jack (p. 101) |
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
V |
|
AV 3 |
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
L |
|
|
|
|
|
|
|
AV3 terminals (p. 101) |
|
|
|
|
|
|
||||||||
R |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Mains power On / Off switch
●Use to switch mains power On / Off.
If the TV was switched off whilst in Standby mode, using the Mains Power On / Off switch, then it will be in Standby mode when switched back on using the same switch.
Using the On Screen Displays
Many features available on this TV can be accessed via the On Screen Display menu.
■How to use remote control
MENU |
Open the main menu |
|
Move the cursor / select the menu item
Access the menu / store settings after adjustments have been made or options have been set
EXIT |
Exit the menu system and return to the |
|
normal viewing screen |
|
Move the cursor / adjust levels / select from |
|
a range of options |
BACK/ |
|
RETURN |
Return to the previous menu |
|
■ON SCREEN HELP Instructions box - Operation guide
Example (Owner ID):
Owner ID |
|
|
|
Please enter new PIN |
|
|
|
PIN |
* |
* * * |
|
EXIT |
9 |
PIN entry |
|
0 |
Operation guide will help you. |
||
RETURN |
|
|
|
|
|
|
■Auto power standby function
●The TV will automatically go to Standby mode in the following conditions:
•no signal is received and no operation is performed for 30 minutes in Analogue TV mode
•“Off Timer” is active in the Setup Menu (p. 19)
•no operation is performed for the period selected in “Auto Standby” (p. 42)
●This function does not affect the recording of Timer Programming, Direct TV Recording and One Touch Recording.
Controls Identifying● StartGuideQuick
9
Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet first.
There are some restrictions on placement for viewing 3D images. For details p. 30 and p. 33
Example 1
Connecting dish or aerial
TV only
Rear of the TV
AC 220-240 V
50 / 60 Hz
Mains lead (supplied)
■Clamper
Attach the clamper
hole
Insert the clamper in a hole
●To remove from the TV:
snaps
Keep pushing both side snaps
Bundle the cables
hooks
Set the tip in the hooks
●To loosen:
knob |
Keep pushing |
the knob |
●The freesat channel uses Astra 2 at 28.2° East, and Eurobird 1 at 28.5° East satellites. To ensure your satellite dish is correctly installed please consult your freesat registered dealer.
Satellite dish
●For freesat or other satellite broadcasts
Satellite cable
■Mains Lead
|
Make sure that |
Push until both side |
the mains lead is |
tabs click |
securely fixed. |
●To remove from the TV:
tabs
Press both tabs and pull on mains connector to release
Terrestrial
aerial
●For digital terrestrial and analogue broadcasts
Aerial input terminal
|
COMPONENT |
|
|
1 |
RF cable |
|
|
|
|
|
|
HDMI |
|
AUDIO |
AUDIO |
Y |
|
|
|
|
OUT |
IN |
|
|
|
|
|
DIGITAL |
|
|
|
|
|
|
AUDIO |
|
|
|
|
HDMI 2 |
|
OUT |
|
|
|
|
|
|
|
|
|
|
|
(ARC) |
|
PC L |
L |
PB |
|
|
|
|
|
|
|
|
|
HDMI |
|
R |
R |
PR |
RGB |
RGB |
3 |
|
VIDEO |
AV1 SVIDEOVIDEO AV2 |
|
|
|||
|
|
|
|
|
●Do not bundle the Satellite cable, RF cable and mains lead together (could cause distorted image). ●Fix cables with clampers as necessary.
10 ●When using the optional accessory, follow the option’s assembly manual to fix cables.
Example 2 |
|
Example 3 |
Connecting DVD Recorder / VCR |
|
Connecting DVD Recorder / VCR |
and Player |
|
and Cable TV box |
TV, DVD Recorder / VCR and Player |
|
TV, DVD Recorder / VCR and Cable |
|
Rear of the TV |
Terrestrial |
Rear of the TV |
Terrestrial |
|
aerial |
|
aerial |
AC 220-240 V |
RF cable |
50 / 60 Hz |
Mains lead |
|
|
Aerial input |
|||
(supplied) |
|
|
||||
|
|
terminal |
||||
|
|
|
|
|
||
|
COMPONENT |
|
|
HDMI |
||
AUDIO |
AUDIO |
|
|
|
1 |
|
Y |
|
|
|
|||
OUT |
IN |
|
|
|
|
|
DIGITAL |
|
|
|
|
|
|
AUDIO |
|
|
|
|
HDMI 2 |
|
OUT |
|
|
|
|
||
|
|
|
|
|
(ARC) |
|
PC L |
L |
PB |
|
|
|
|
|
|
|
|
|
HDMI |
|
R |
R |
PR |
RGB |
RGB |
3 |
|
VIDEO |
AV1 SVIDEOVIDEO AV2 |
|||||
|
|
|
|
|
|
|
|
|
|
Fully wired HDMI |
Fully wired |
|||
|
|||||
|
compliant cable |
SCART cable |
|||
|
|
|
|
|
RF cable |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HDMI AV
Player / |
DVD Recorder |
3D-compatible player |
or VCR |
RF OUT
RF IN
AC 220-240 V
50 / 60 Hz
Aerial input terminal
Mains lead
(supplied) Fully wired HDMI compliant cable
|
COMPONENT |
|
|
HDMI |
|
AUDIO |
AUDIO |
|
|
|
1 |
Y |
|
|
|
||
OUT |
IN |
|
|
|
|
DIGITAL |
|
|
|
|
|
AUDIO |
|
|
|
|
HDMI 2 |
OUT |
|
|
|
|
|
|
|
|
|
|
(ARC) |
PC L |
L |
PB |
|
|
|
|
|
|
|
|
HDMI |
R |
R |
PR |
RGB |
RGB |
3 |
VIDEO |
AV1 SVIDEOVIDEO AV2 |
|
|||
|
|
|
|
Fully wired |
RF |
SCART cable |
cable |
AV 2 AV 1 HDMI
HDMI TV/AV Recorder/AV DVD Recorder or VCR
Cable
Cable TV box
RF OUT
RF OUT |
RF cable |
RF IN |
RF cable
RF IN
Note
●To watch 3D contents |
p. 30 |
●Connect to the TV’s AV2 for a DVD Recorder / VCR supporting Q-Link (p. 94). |
|
●Connect to the TV’s AV1 for a Cable TV box. |
|
●For HDMI-compatible equipment, it is possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) |
|
by using HDMI |
. 100). |
●Network connection |
p. 13 and p. 83 |
●Q-Link connection p. |
|
●VIERA Link connection |
p. 92 and p. 93 |
●Please also read the manual of the equipment being connected.
Connection Basic● StartGuideQuick
11
Auto Setup
Search and store TV channels automatically.
●These steps are not necessary if the setup has been completed by your local dealer.
●Please complete connections (p. 10 and p. 11) and settings (if necessary) of the connected equipment before starting Auto Setup. For details of settings for the connected equipment, read the appropriate manual.
1
EXIT
BACK/
RETURN
|
abc |
def |
ghi |
jkl |
mno |
pqrs |
tuv |
wxyz |
2
TV
Plug the TV into mains socket and switch On
(Takes a few seconds to be displayed)
freesat Auto Setup
Searching |
|
|
|
|
|
Signal Quality |
0 |
|
|
10 |
|
Signal Strength |
0 |
|
|
10 |
|
TV Channels Found |
|
8 |
|
|
|
Radio Channels Found |
|
2 |
|
|
|
Data Channels Found |
|
1 |
|
|
|
|
Channels found, creating channel list |
|
Auto Setup - DVB and Analogue
DVB Scan |
|
CH 21 |
|
|
68 |
Analogue Scan |
|
CH 21 |
|
|
68 |
This will take about 6 minutes. |
|
|
|
|
|
CH |
|
Channel Name |
|
Type |
Quality |
62 |
CBBC Channel |
|
|
Free TV |
10 |
62 |
BBC Radio Wales |
|
Free TV |
10 |
|
62 |
E4 |
|
|
Free TV |
10 |
62 |
Cartoon Nwk |
|
|
Free TV |
10 |
29 |
|
|
|
Analogue |
- |
33 |
BBC1 |
|
|
Analogue |
- |
Free TV: 8 |
Pay TV: 0 |
Radio: 0 |
Data: 0 |
Analogue: 2 |
|
|
|
Searching |
|
|
|
●If the red LED shows on the TV, press the Standby On / Off switch on the remote control for at least 1 second to turn the TV On.
Auto Setup will start to search for TV channels and store them in the numbered order as specified by the broadcasters.
●If “freesat Auto Setup” cannot be done completely
“FAQs” (p. 107)
(freesat tuning)
●Actual number of channels may differ due to channel duplication.
(DVB and Analogue tuning)
Sending Preset Data
Please wait!
0%
Remote control unavailable
If Q-Link, or similar technology (p. 94), 100% compatible recorder with analogue tuner
is connected, analogue channel setting is automatically downloaded to the recorder. (Digital channel setting is not downloaded.) ●If downloading has failed, you can download
later through the Setup Menu. “Q-Link Download” (p. 40)
Enter your postcode
Enter Postcode for local channels including space |
|
|
|
|
●Your postcode is required to receive local |
|||||||||||||||||
|
|
|
|
|||||||||||||||||||
Postcode |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
services and sort the channel order. |
|||||||
U |
V |
W |
X |
Y |
Z |
G |
0 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
R |
S |
T |
|
Please ensure to include a space when |
|
A |
B |
C |
D |
E |
F |
H |
I |
J |
K |
L |
M |
N |
O |
P |
Q |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
entering your postcode. |
|
|
|
|
|
|
|||||||||||||||||
|
4 |
5 |
6 |
|
|
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
2 |
3 |
|
|
●If you skip this step, the default postcode |
|
|
.!:# |
abc |
def |
|
||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ghi |
0 |
mno |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
jkl |
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7 |
8 |
9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
pqrs |
tuv |
wxyz |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(central London) will be set. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
■How to enter the postcode |
||||||||||||||||||||||
|
Set characters one by one |
|
||||||||||||||||||||
|
|
|
|
|
|
|
|
select |
|
|
●You can set characters by using numeric |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
buttons. |
|
|
|
|
|
|
|
|
set |
|
|
|
|
|
“Characters table for numeric buttons” |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(p. 103) |
Exit to go to next step
green
(continued to the next page)
12
3 |
Setup the wireless LAN connection |
Setup the wireless LAN connection to enable the network service functions (p. 82). |
|
(If you do not wish to use wireless LAN connection or the network service functions, skip this step.) |
|
|
●To setup the wireless LAN connection, use the Wireless LAN Adaptor (supplied). For the information |
about the Wireless LAN Adaptor “Wireless LAN Adaptor” (p. 15)
●Confirm the encryption key, settings and positions of your access point before starting setup. For details, read the manual of the access point.
●Please note that this TV does not support wireless public access points. ●To use a LAN cable instead of the Wireless LAN Adaptor p. 85
Start wireless LAN connection setup? |
|
Yes |
No |
Please connect the wireless LAN adaptor (DY-WL10) to a USB terminal.
connect the Wireless LAN Adaptor to the USB 1 or 2 port
Internet environment
Access point
select “Yes” access
Wireless LAN Adaptor (optional accessory)
You can setup the wireless LAN connection later “Network Setup” (p. 86)
●To skip this step |
EXIT |
or select “No” |
Wireless LAN connection setup starts
Connection Type |
|
|
|
|
|
Select the connection type |
●If your access point supports WPS |
|||||
|
Please select network connection type. |
|
|
access |
||||||||
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
(Push button), then select this option. |
||
|
|
|
WPS(Push button) |
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
Search for access point |
|
|
|
||||||
■WPS(Push button) |
|
|
select |
If not, select “Search for access point”. |
||||||||
|
|
Press the WPS button on the access point until the light flashes. |
|
|||||||||
|
|
WPS(Push button) |
|
|
|
|
|
|
||||
|
|
1) Please press the ‘WPS’ button on the access |
|
|
And then, press the OK button to connect the Wireless LAN Adaptor and |
|||||||
|
|
point until its light flashes. |
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
||||
|
|
2) When the light is flashing select ‘Connect’ on |
|
|
the access point. |
|
|
|
||||
|
|
TV. |
|
|
|
|
|
|
|
|
|
|
|
|
If you are unsure, please check the instruction |
|
|
●Ensure that your access point supports WPS for this setup. |
|||||||
|
|
manual of the access point. |
|
|
|
|
|
●WPS: Wi-Fi Protected Setup™ |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
Connect |
|
|
|
||||||
■Search for access point |
|
|
|
|||||||||
|
|
Access points found automatically are listed. |
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
Select your desired access point |
|
|
|
|
|
Available Access Points |
|
|
|
|
|
|
|
|
||
|
|
No. |
SSID |
Wireless type Encrypt Reception |
|
|
●To search access points again |
|
||||
|
|
1 |
Access Point A |
11n(2.4GHz) |
|
|
|
|
access |
|
||
|
|
2 |
Access Point B |
11n(5GHz) |
|
|
|
yellow |
||||
|
|
3 |
Access Point C |
11n(5GHz) |
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
select |
●For the information of the |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
highlighted access point |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
: Encrypted access point |
●To set manually (p. 87) |
red |
|
Access the encryption key input mode
●If the selected access point is not encrypted, the confirmation screen will be displayed. It is recommended to select the encrypted access point.
Enter the encryption key of the access point
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
O |
P |
Q |
R |
S |
T |
|||
U |
V |
W |
X |
Y |
Z |
|
0 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
! |
|
: |
|
# |
|
a |
b |
c |
d |
e |
f |
g |
h |
i |
j |
k |
l |
m |
n |
o |
p |
q |
r |
s |
t |
|||
u |
v |
w |
x |
y |
z |
( |
) |
+ |
- |
. |
* |
_ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
1 |
2 |
3 |
||||||||||||||
|
|
|
|
|
|
|
.!:# |
|
abc |
|
def |
|||||||||||
|
|
|
|
|
|
|
4 |
|
5 |
|
6 |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ghi |
|
|
jkl |
|
mno |
|
|
|
|
|
|
|
7 |
|
8 |
|
9 |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
pqrs |
|
tuv |
|
wxyz |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 |
|
|
Access Point Settings
Encryption key is set to:-
XXXXXXXX
Select ‘Yes’ to confirm.
Select ‘No’ to change.
Yes |
No |
Set characters one by one |
Store |
select |
BACK/ |
|
RETURN |
set
●You can set characters by using numeric buttons.
“Characters table for numeric buttons” (p. 103) Select “Yes”
select
set
●To re-enter the encryption key, select “No”.
●If the connection has failed, check the encryption key, settings and positions of your access point. And then, follow the on screen instructions.
●If connection to the access point is successful, we recommend you perform the “Connection Test” to confirm connection to the internet has been made. The “Connection Test” can be found in the Network Setup menu (p. 86).
Exit to go to the next step |
(continued to the next page) |
|
Setup Auto● StartGuideQuick
13
Auto Setup
Input Owner ID
4 |
Owner ID |
|
|
|
|
|
Please enter new PIN |
|
|
|
|
|
|
|
|
|
|
|
|
PIN |
* |
* * * |
|
Please enter your own choice of PIN number, name, etc. to help the police to crack crime.
●Make a note of the PIN number in case you forget it. The PIN number cannot be reset.
●You can input or change the Owner ID later. “Owner ID” (p. 63)
●To skip this step |
EXIT |
|
●This step will be skipped in the Auto Setup after “Shipping Condition” (p. 57) is performed.
■How to input Owner ID
Enter the PIN number (4 digits)
Owner ID |
|
|
abc |
def |
Please enter new PIN |
|
|
|
|
PIN |
* * * * |
ghi |
jkl |
mno |
|
|
|
||
|
|
pqrs |
tuv |
wxyz |
●Enter the PIN number twice at first setting.
Enter your name, house number, and postcode, in that order
Select the item (NAME / HOUSE NO / POSTCODE)
Owner ID-Data Entry |
|
PIN |
NAME
HOUSE NO
POSTCODE
Set characters one by one
User input
NAME
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
O |
P |
Q |
R |
S |
T |
|||
U |
V |
W |
X |
Y |
Z |
|
0 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
! |
|
: |
|
# |
|
a |
b |
c |
d |
e |
f |
g |
h |
i |
j |
k |
l |
m |
n |
o |
p |
q |
r |
s |
t |
|||
u |
v |
w |
x |
y |
z |
( |
) |
+ |
- |
. |
* |
_ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
1 |
2 |
3 |
||||||||||||||
|
|
|
|
|
|
|
.!:# |
|
abc |
|
def |
|||||||||||
|
|
|
|
|
|
|
4 |
|
5 |
|
6 |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ghi |
|
|
jkl |
|
mno |
|
|
|
|
|
|
|
7 |
|
8 |
|
9 |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
pqrs |
|
tuv |
|
wxyz |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Return to select other items
Exit to go to next step
EXIT
access select
select
set
BACK/
RETURN
●You can set characters by using numeric buttons.
“Characters table for numeric buttons” (p. 103)
●Select the next item and repeat the operations.
(continued to the next page)
14
5 Select “Home”
Select “Home” viewing environment (highlight “Home” in yellow) to use in your home environment.
Please select your viewing environment.
Home |
Shop |
select |
set
Auto Setup is now complete and your TV is ready for viewing.
●To check channel list at-a-glance
“Using TV Guide” (p. 20) ●To edit or hide (skip) channels
“Tuning and Editing Channels” (p. 48 - 53) ●If tuning has failed, check the connection of the
Satellite cable, RF cable, and then, follow the on screen instructions.
Note
■“Shop” viewing environment (for shop display only)
“Shop” viewing environment is the demonstration mode to explain main features of this TV.
Select “Home” viewing environment to use in your home environment.
●You can return to viewing environment selection screen at the stage of Shop confirmation screen and Automatic Demo Off / On selection screen.
Return to viewing environment selection screen
Shop
You have selected shop mode
Automatic Demo |
|
Off |
On |
Select “Home”
Please select your viewing environment.
Home |
Shop |
BACK/
RETURN
select set
Auto Setup is complete
●To change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition.
“Shipping Condition” (p. 57)
●If tuning has failed or to retune all channels |
Setup” (p. 46 and p. 47) |
|
●If you wish to tune in |
satellite channels |
“Auto Setup” in “Other Sat. Tuning Menu” (p. 55) |
●To re-initialise all settings |
“Shipping Condition” (p. 57) |
●If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On with Mains power On / Off switch.
■Wireless LAN Adaptor
Caution
Be aware of the following limits before using the Wireless LAN Adaptor (DY-WL10).
●To use the Wireless LAN Adaptor, an access point needs to be obtained.
●It is recommended to use the Wireless LAN Adaptor with the supplied extension cable.
●Do not use the Wireless LAN Adaptor to connect to any wireless network (SSID ) for which you do not have usage rights. Such networks may be listed as a result of searches. However, using them may be regarded as illegal access.
SSID is a name for identifying a particular wireless network for transmission.
●Do not subject the Wireless LAN Adaptor to high temperatures, direct sunlight or moisture. ●Do not bend, or subject the Wireless LAN Adaptor to strong impacts.
●Do not disassemble or alter the Wireless LAN Adaptor in any way.
●Do not attempt to install the Wireless LAN Adaptor in any incompatible device. ●Do not remove the Wireless LAN Adaptor from the TV’s USB port during operations. ●Data transmitted and received over radio waves may be intercepted and monitored.
●To avoid malfunctions caused by radio wave interface, keep the TV away from the devices such as other wireless LAN devices, microwaves and the devices that use 2.4 GHz and 5 GHz signals when using the Wireless LAN Adaptor.
●When noises occur due to the static electricity, etc., the TV might stop operating for the protection of the devices. In this case, turn the TV Off with Mains power On / Off switch, then turn it On again.
●Additional information for Wireless LAN Adaptor and access point may be on the following web site. (English only)
http://panasonic.jp/support/global/cs/tv/
If you connect the Wireless LAN Adaptor later on, the confirmation screen will be displayed for the setup.
●To setup the Wireless LAN connection p. 86 and p. 87
Wireless LAN adaptor connection
Wireless LAN adaptor connected, do you want to set it up?
No - Exit
Current network type : Wireless
Yes |
No |
Setup Auto● StartGuideQuick
15
Watching TV
INPUT TV
MENU ASPECT N
EXIT
OPTION
1 |
Turn power on |
|
(Press for about 1 second) |
|
|
|
●Mains power On / Off switch should be On. (p. 9) |
|
2 |
Select the mode (freesat, DVB, Analogue or |
|
Other Sat.) |
watch |
|
|
TV Selection |
TV
select
Displayed if Other Satellite channels are tuned (p. 55)
●Also possible by pressing the TV button repeatedly on the remote control or side panel of the TV. (p. 9)
STTL HOLD
|
abc |
def |
ghi |
jkl |
mno |
pqrs |
tuv |
wxyz |
103 ITV Wales |
19:35 |
freesat Channel List |
Coronation Street |
|
For info press |
19:30 - 20:00 |
Now |
Information banner appears whenever you select a channel
●For details p. 17
Select a channel
LAST VIEW |
3 |
up |
|
|
|
|
|
or |
|
abc |
def |
||
|
|
|
ghi |
jkl |
mno |
|
|
|
down |
|
pqrs |
tuv |
wxyz |
Volume
TV
Note
●To watch pay-TV
“Using Common Interface” (p. 64)
■Select a channel using Information banner (p. 17)
freesat channel position numbers run in the ranges 100 - 999 and 0100 - 0999.
●To select a three-digit channel position number, e.g. 133
def |
def |
●To select a four-digit channel position number, e.g. 0246
abc |
ghi |
mno |
DVB and Other Sat. channel position numbers run from 1 onwards.
Analogue channel position numbers run in the ranges 0 - 99.
●To select a two or three-digit channel position number, e.g. 39
def |
wxyz |
It is possible to confirm the channel name and programme information by using the Information banner before changing channels.
Display Information banner if it is not displayed
While the banner is displayed, select the channel
select channel
watch
●Possible to set display timeout in “Banner Display Timeout” (p. 41).
■Select a channel using TV Guide (p. 20)
It is possible to confirm the channel and programme information by using the TV Guide (EPG) before changing channels.
Display
TV Guide
G
U
I
D
E
Select a current |
Select “View” |
|
programme or channel |
(DVB mode) |
|
select |
Eastender |
select |
|
||
|
19:3020:00 |
|
|
|
|
|
View |
Timer Programming |
access |
|
watch |
|
●To use Timer Programming p. 22 |
16
■Other useful functions
Hold
Freeze / unfreeze picture |
HOLD |
|
Display Information banner
Display Information banner
●Also appears when changing a channel
Same programme available as HD broadcast ●For details, display the extra information
|
|
|
Channel position |
|
Channel type |
|
|
|
|
|
|
||||||
TV mode |
|
and name |
|
if it is HDTV, Radio |
|
|
|
|
|
|
|||||||
|
|
|
|
Example (freesat): |
|
(or Data channel |
|
|
) |
|
Current time |
||||||
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
103 ITV Wales |
|
|
|
|
|
|
|
|
freesat Channel List |
|
|||
|
|
|
|
|
|
Radio |
|
19:35 |
|
|
|||||||
Programme |
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
Coronation Street |
|
|
|
|
|
|
Also in |
|
|||||||
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
19:30 - 20:00 |
|
|
|
|
Now |
|
|
|
For info press |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
Mute |
Encrypted |
|
|
AD |
|
STTL TEXT Multi Audio 45 |
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Programme Start / Progress time indicator of the selected programme
Finish time
Features available / Message meanings
“All DVB Channels” or “Favourites1-4” (p. 51)
|
●To switch |
blue |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
Example (DVB): |
|
|
|
|
|
|
|
|||
|
D 103 ITV Wales |
Radio |
19:35 |
|
All DVB |
Channels |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
Coronation Street |
|
Also in |
Select favourites |
||||||
|
19:30 - 20:00 |
|
|
Now |
|
|
For info press |
|||
|
Mute |
Encrypted |
AD |
STTL TEXT |
Multi Audio |
45 |
|
|||
Example (Analogue): |
|
|
|
|
|
|
|
|||
|
A 3 ITV |
|
|
Radio |
19:35 |
All Analogue Channels |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
itv1 |
|
|
|
|
|
|
|
|
|
|
CH23 |
|
|
|
|
|
For info press |
|||
|
|
|
|
|
|
|||||
|
Mute |
Encrypted |
AD |
Subtitles TEXT |
NICAM |
45 |
|
|||
|
|
|
|
|
|
|
|
|
|
|
Channel number
“All Other Sat. Channels” or “Favourites1-4” (p. 56) |
||||||||||
●To switch |
blue |
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
||
Example (Other Sat.): |
|
|
|
|
|
|
||||
|
S 103 ITV Wales |
Radio |
19:35 |
All Other Sat. Channels |
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
Coronation Street |
|
|
Select favourites |
|
|||||
|
19:30 - 20:00 |
|
|
|
Now |
|
For info press |
|
||
|
Mute |
Encrypted |
|
STTL TEXT Multi Audio 45 |
|
●To confirm another tuned channel name
Mute
Sound mute On
Bad signal
Poor TV signal quality
Encrypted
Scrambled programme
AD
Audio Description service available
●This function can aid visually-impaired viewers by adding an additional audio track to describe events on-screen.
●For settings p. 39
STTL
Subtitle service available
TEXT
Teletext service available
Multi Audio
Multiple audio available
Stereo, Mono, NICAM
Audio mode
1 - 90
Off Timer remaining time ●For settings p. 19
●To watch the channel listed in the banner
EXIT
●To hide
●Information on the next programme (freesat, DVB, Other sat.)
●Extra information (press again to hide the banner) (freesat, DVB, Other sat.)
●“AD”, “STTL”, “TEXT”, “Multi Audio” indications are displayed as available on particular programmes, but may not be available for all individual programmes being broadcast.
Display the extra information to confirm availability of these functions.
Example:
|
|
103 ITV Wales |
19:35 |
freesat Channel List |
|
||
|
Coronation Street |
|
Exit info |
|
|||
|
19:30 - 20:00 |
|
Now |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[AD]
AD
Basic
TV Watching●
17
Watching TV
■Other useful functions
Display subtitles
●Subtitles may not be displayed properly in 3D images.
■freesat, DVB or Other Sat. mode
|
Display / hide subtitles (if available) |
STTL |
|
|
●To change the language for DVB (if available) |
|
|
|
“Preferred Subtitles” (p. 41) |
|
|
|
|
|
|
■Analogue mode |
|
|
|
|
Display subtitles |
STTL |
|
|
●To hide subtitles |
EXIT |
|
|
|
|
Note
●This is the same as switching to Analogue teletext service and selecting “P888” (subtitle service). (p. 27) ●You cannot change the channel when this function is active.
Aspect
Change the aspect ratio (image size) |
ASPECT |
|
Enjoy viewing the image at its optimum size and aspect.
Programmes usually contain an Aspect Control Signal (Widescreen signal, etc.), and the TV will choose the aspect ratio automatically according to the Aspect Control Signal (p. 102).
■If you would like to change the aspect ratio manually
Display Aspect Selection list |
While the list is displayed, select the mode |
|
ASPECT |
Aspect Selection |
|
|
Auto |
store |
|
16:9 |
|
|
4:3 |
|
|
14:9 |
|
|
Zoom1 |
|
|
Zoom2 |
|
|
Zoom3 |
|
|
Select |
|
|
Change EXIT |
select |
|
RETURN |
Aspect Selection list
●To change the mode using the ASPECT button only
ASPECT (Press repeatedly until you reach the desired mode)
Auto
16:9
14:9
4:3
The best ratio is chosen and the image expanded to fill the screen.
For details p. 102
|
Zoom1 |
|
Directly displays the image at 16:9 |
|
Displays a 16:9 letterbox or 4:3 image |
without distortion (anamorphic). |
|
without distortion. |
|
|
|
|
Zoom2 |
|
Displays the image at the standard 14:9 |
|
Displays a 16:9 letterbox (anamorphic) |
without distortion. |
|
image full-screen without distortion. |
|
|
|
|
Zoom3 |
|
Displays the image at the standard 4:3 |
|
Displays a 2.35:1 letterbox (anamorphic) |
without distortion. |
|
image full-screen without distortion. |
|
|
At 16:9, displays the image at its maximum |
|
|
(with slight enlargement). |
Note
●Aspect is fixed to “16:9” when “Viewing Mode” is set to “Game” in the Picture Menu. ●Only “16:9” and “4:3” are available in PC input mode.
●Not available in teletext service and 3D images.
●Aspect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.
18
■Other useful functions
Display the selectable settings for the current status
Check or change the current |
OPTION |
status instantly |
●To change |
|
change |
|
select |
Multi Audio / AD (freesat mode)
Allows you to select between alternative language or Audio Description for sound tracks (if available) ●Set Audio Description “Auto” in the Sound Menu
(p. 39) to select the audio description sound track. In freesat mode, Audio Description cannot be controlled separately from the audio description sound track.
●This setting is not memorized and it will return to the default setting once you exit the current programme.
Multi Audio (DVB or Other Sat. mode)
Allows you to select between alternative language for sound tracks (if available)
●This setting is not memorized and it will return to the default setting once you exit the current programme.
Monaural Audio (DVB mode)
Allows you to select stereo / monaural (if available) ●This setting is not memorized and it will return to the
default setting once you exit the current programme.
Subtitle Language
(freesat, DVB or Other Sat. mode)
Allows you to select the language in which subtitles should appear (if available)
●This setting is not memorized and it will return to the default setting once you exit the current programme.
NICAM (Analogue mode)
Switches NICAM sound (if available)
Sound Menu (p. 39)
Volume Correction
Adjusts volume of individual channel or input mode
Audio Description (DVB mode)
Set to “Auto” if the programme has Audio Description service, then you will hear an additional audio track to describe events on screen
●To adjust the volume for Audio Description “Audio Description Menu” (p. 39)
Safely remove USB
Takes this operation to remove the connected USB device safely from the TV
Last view
Switch to previously viewed |
●Press again to return to the present view. |
channel or input mode easily |
LAST VIEW |
|
Note
●Switching channel is not available while the recording of Timer Programming, Direct TV Recording or One Touch Recording is in progress.
●Watching less than 10 sec. is not regarded as the previously viewed channel or input mode.
Off Timer
Turn the TV off automatically after a fixed period

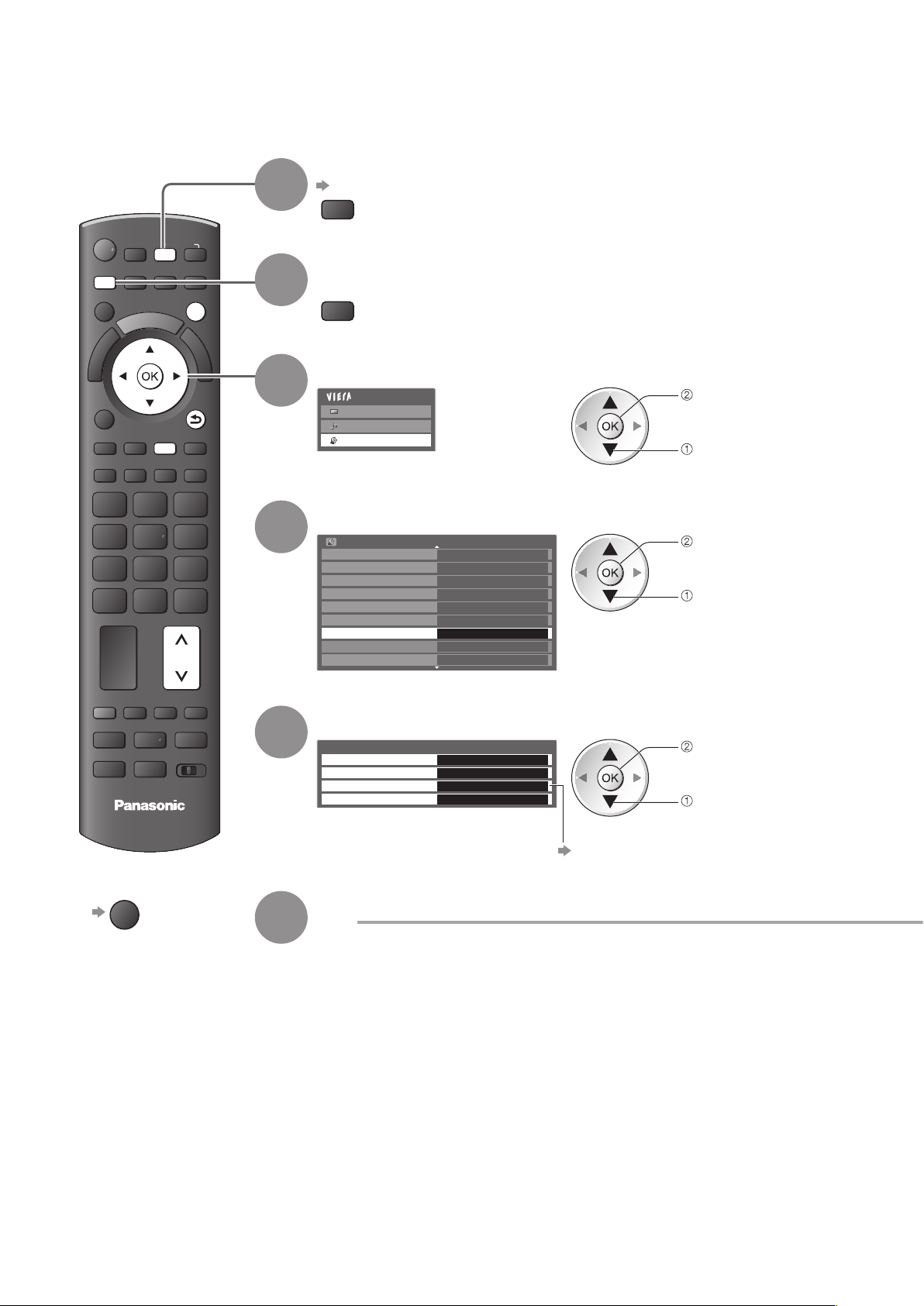

Display the menu |
Select “Setup” |
access |
MENU |
Main Menu |
|
|
Picture |
|
|
Sound |
|
|
Setup |
select |
|
|
(Off / 15 / 30 / 45 / 60 / 75 / 90 minutes) Select “Off Timer” and set the time
Setup Menu |
|
1/2 |
3D Settings |
|
|
Timer Programming |
|
set |
Off Timer |
Off |
|
USB HDD Setup |
|
select |
Link Settings |
|
|
Child Lock |
|
|
freesat Tuning Menu |
|
|
Other Sat. Tuning Menu |
|
|
Display Settings |
|
|
●To cancel Set to “Off” or turn the TV off.
●To display the remaining time Information banner (p. 17)
Note
●When the remaining time is within 3 minutes, the remaining time will flash on the screen.
Basic
TV Watching●
19
Using TV Guide
TV Guide―Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters).
●When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before the TV Guide is completely shown.
INPUT
TV AV
ASPECT MENU N DIRECT TV REC
EXIT
OPTION |
BACK/ |
RETURN |
|
TEXT |
STTL INDEX HOLD |
1
2
3
freesat mode
Select freesat |
|
TV |
||||
p. 16 |
|
|
|
|
||
Display the Channel |
U |
|||||
Genre selection list |
G |
|||||
E |
||||||
|
|
|
|
I |
||
|
|
|
|
D |
||
Select the genre and view TV Guide |
||||||
Example: |
|
|
|
|
||
Channel Genre Selection |
|
|
|
select |
||
|
|
|
|
|||
All Channels |
|
Special Interest |
|
|
|
|
Entertainment |
|
|
Radio |
|
|
|
News & Sport |
|
|
Shopping |
|
|
|
Movies |
|
|
Gaming & Dating |
|
|
|
Lifestyle |
|
|
Interactive |
|
|
|
Music |
|
|
Regional |
|
|
view |
Children |
|
|
Favourites |
|
|
|
|
|
|
|
|
|
|
Example: |
|
Programme Current date and time |
|
|||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
●There might be some |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TV Guide |
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Wed 28 Oct 2009 10:46 |
|
||||||||||||
|
|
TV Guide date |
|
|
|
Wed 28 Oct |
|
|
|
|
|
|
|
Search |
|
|
All Channels |
programmes displayed as |
||||||||||||||
|
|
1 BBC ONE |
|
|
|
|
|
|
|
|
|
|
|
|
Also in |
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
greyed-out in TV Guide. |
||||||||||||
|
|
TV Guide time |
|
20:00 - 20:30 DIY SOS : We open in the Battersbys |
|
|
|
|
|
|
|
|||||||||||||||||||||
|
|
|
|
|
|
|
Time: 19:30 |
20:00 |
|
|
|
|
20:30 |
|
21:00 |
|
21:30 |
|
These are the Off-Air |
|
||||||||||||
|
|
|
|
|
|
|
|
D 101 BBC ONE |
Eastender |
DIY SOS |
The Bill |
|
Red Cap |
|
|
|
||||||||||||||||
|
|
|
|
|
|
|
|
D 102 BBC 2W |
Hot Wars |
|
|
|
|
|
Holiday Program |
|
|
|
Drama |
programmes (non-running |
||||||||||||
|
|
|
|
|
|
|
|
D 103 BBC NEWS |
Emmerdal. |
Coronation Street |
The Bill |
Cinema |
||||||||||||||||||||
|
|
|
|
|
|
|
|
D 104 BBCi |
10 O’ clock News |
BBC |
Pepsi Char. |
Good bye |
|
|
||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
programmes). |
|
|||||||||||||||||||||
■To return to TV |
|
|
|
|
|
|
D 105 BBC THRE |
Panorama |
Spring watch |
|
|
Coast |
|
|
|
|||||||||||||||||
|
|
|
|
|
|
D 106 BBC FOUR |
I’m A Celebrity |
|
|
|
|
|
Pop Idol |
News |
Shop |
|
||||||||||||||||
Channel position |
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||
|
D |
107 BBC Radio |
Rugby |
15 To 1 |
|
|
The Bill |
Sports |
|
|
|
|
|
|
||||||||||||||||||
|
|
and name |
|
|
|
|
|
Select channel |
|
|
|
|
|
Info |
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
EXIT |
|
|
|
|
|
|
|
|
Page up |
|
|
|
|
|
|
|||||||
EXIT |
G |
|
|
|
|
|
|
|
|
|
|
|
|
Select programme |
GUIDE RETURN |
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
View / Timer Prog. RETURN |
|
|
|
|
|
Page down |
|
|
|
|
|
|
|||||||||||||
U |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
or |
I |
|
|
|
|
|
|
|
|
|
-24 hours |
|
+24 hours |
Search |
|
|
|
Channel Genre |
|
|
|
|
|
|
||||||||
D |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Some programmes may also be broadcast in HD |
|
|||||||||||||||||||||||
|
E |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||
■To watch the programme |
|
|
●You can select HD or SD broadcast before viewing or setting Timer Programming. |
|||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
●If a programme exists in both HD and SD |
||||||||||||||||||||
Select a current |
|
|
Select “View” |
|
|
|
|
|
|
|
||||||||||||||||||||||
programme or channel |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
broadcasts, the “View Options” screen will |
||||||||||
|
select |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
be displayed to select HD or SD broadcast. |
||||||||||
|
|
|
|
Eastender |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
19:3020:00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
select |
|
|
|
|
View Options |
|
|
|
watch |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
access |
|
|
|
View |
Timer Programming |
|
|
|
|
|
|
watch |
|
|
DIY SOS |
|
|
|
|
|
|
||||||||||
|
|
|
●To use Timer Programming |
|
|
101 |
BBC ONE |
19:30-20:00 Wed 28 Oct 2009 |
|
|
|
|
|
|||||||||||||||||||
|
|
|
|
|
119 |
BBC HD |
19:30-20:00 Wed 28 Oct 2009 |
|
|
|
|
select |
||||||||||||||||||||
|
|
|
|
p. 22 |
|
|
|
|
|
|
||||||||||||||||||||||
■To view a channel list |
|
|
|
■To the previous day |
||||||||||||||||||||||||||||
|
|
|
|
|
|
|
(Channel Genre list) |
|
|
|
|
|
||||||||||||||||||||
|
|
Channel Genre |
|
|
|
|
|
|
|
|||||||||||||||||||||||
|
|
All Channels |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
of the selected genre |
|
|
|
|
|
|
|
|
|
|
|
|
select genre |
|
|
|
|
red |
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
All Channels |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||
blue |
|
|
Entertainment |
|
|
|
|
|
|
|
view |
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
News & Sport |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
. |
|
|
|
|
|
●To list favourite channels p. 49 |
|
|
|
|
|
|
|||||||||||||||||
|
|
|
Favourites |
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||
■To search |
|
|
|
|
|
|
|
(Search list) |
|
|
|
|
|
|
|
|
|
■To the next day |
|
|||||||||||||
|
|
|
Search |
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||
programme types |
|
|
|
|
|
|
|
|
|
|
|
|
|
select type |
|
|
|
green |
|
|||||||||||||
|
Search Titles... |
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||
and view a channel |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
Movie |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
list of the searched |
|
|
|
|
|
|
|
|
|
view |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
News and Factual |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
programmes |
|
Entertainment |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
Sport |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
yellow |
|
|
Children’s . |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
■To search |
|
(Search list) |
Search |
||
programme titles |
|
select |
and view a list |
Movie |
|
|
Search Titles... |
|
of the searched |
|
“Search |
News and Factual |
||
programmes |
|
Titles...” |
Entertainment |
||
|
access |
|
Sport |
||
yellow |
Children’s . |
|
. |
|
|
|
. |
|
|
. |
|
Set characters one by one Search (maximum: 19 characters)
select
green
set
You can set characters by using numeric buttons.
“Characters table for numeric buttons” (p. 103)
20 |
●All the programme titles including the word you set will be listed. |
●Searching without any characters will list all programmes including current programmes. |
DVB or Analogue mode
●This TV supports the GUIDE Plus+ system.
●The Gemstar branding partner will supply the rating informations in the programme information and the recommended group in the Search list.
●DVB and Analogue channels are displayed on the same TV Guide screen. “D” means DVB channel and “A” means Analogue channel. There will be no programme listings for Analogue channels.
|
|
|
TV |
AV |
1 |
Select DVB or Analogue |
|
|||
|
|
|
p. 16 |
|
|
|
||||
|
|
|
|
INPUT |
|
|
|
|
|
|
ASPECT MENU |
|
|
N |
DIRECT TV REC |
|
TV |
|
|
|
|
|
|
|
|
|
EXIT |
|
|
|
|
|
|
|
T |
|
|
|
|
|
|
|
|
|
RA O |
|
|
|
|
|
|
|
||
IE |
|
OL |
|
|
|
|
|
|
||
V |
|
|
|
S |
|
2 |
View TV Guide |
|
|
|
|
|
|
|
|
U |
|
|
|||
|
|
|
|
|
G |
|
|
|
Current date and time |
Logo of the |
|
|
|
|
|
E |
|
G |
|
||
|
|
|
|
|
I |
|
|
|
|
|
|
|
|
|
|
D |
|
|
Example: |
TV Guide date Programme |
Gemstar branding partner |
|
|
|
|
|
|
|
D |
|||
|
|
|
|
|
|
|
U |
|
|
|
OPTION |
BACK/ |
RETURN |
|
TEXT |
STTL INDEX HOLD |
■To return to TV
EXIT |
|
U |
|
or |
G |
|
I |
|
|
|
D |
|
|
E |
E
TV Guide time
Advertisement
D: DVB
A: Analogue
TV Guide
Wed 28 Oct 2009 |
|
|
Wed 28 Oct |
|
Search |
|
All Channels |
10:46 |
1 BBC ONE |
|
|
|
Also in |
||
|
|
|
|
||||
|
20:00 - 20:30 DIY SOS : We open in the Battersbys |
|
|
||||
|
|
|
Time: |
19:30 |
20:00 |
20:30 |
21:00 |
|
D |
1 |
BBC ONE |
Eastender |
DIY SOS |
Holiday News |
|
|
D |
7 |
BBC THREE |
Hot Wars |
|
Holiday Program |
|
|
D |
14 |
E4 |
Emmerdal. |
Coronation Street |
The Bill |
D |
70 |
BBC FOUR |
10 O’ clock News BBC |
Pepsi Char. |
Good bye |
|
D |
72 |
BBC 2W |
Panorama |
Spring watch |
|
Coast |
D |
105 |
BBCi |
I’m A Celebrity |
Pop Idol |
News |
|
D |
719 |
BBC Radi |
Rugby |
15 To 1 |
|
Sports |
Select channel |
|
Info |
|
|
||
|
|
EXIT |
|
|
Page up |
|
|
|
|
GUIDE RETURN |
|
||
Timer Programming |
|
Select programme |
|
Page down |
||
|
RETURN |
|
OPTION Select Advert |
|
||
-24 hours |
|
+24 hours |
|
Search |
|
Category |
Channel position and name
Some programmes may also be broadcast in HD ●You can select HD or
SD broadcast before viewing or setting Timer Programming.
■To watch the programme
Select a current |
Select “View” |
|
programme or channel |
(DVB mode) |
|
select |
Eastender |
select |
|
19:3020:00 |
|
|
|
|
access |
View |
Timer Programming |
|
watch |
|
|
●To use Timer Programming p. 22 |
●If a programme exists in both HD and SD broadcasts, the “View Options” screen will be displayed to select HD or SD broadcast. (DVB mode)
|
|
|
|
|
|
|
watch |
|
DIY SOS |
|
View Options |
||||
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
101 |
BBC ONE |
19:30-20:00 Wed 28 Oct 2009 |
|
|
|
|
|
119 |
BBC HD |
19:30-20:00 Wed 28 Oct 2009 |
|
|
|
select |
|
|
|
|
|
|
|
■To view a channel list of the selected category
blue
■To search programme types and view a channel list of the searched programmes
(DVB mode)
yellow
■To search programme titles and view a list of the searched programmes
(DVB mode)
yellow
All Channels |
(Category list) |
■To the previous day |
|||
Category |
|
||||
|
|
|
Only Analogue |
(DVB mode) |
|
|
|
||||
All Channels |
|
channels are listed |
|
||
All DVB Channels |
|
red |
|||
All Analogue Channels |
|
|
select |
||
|
|
|
|||
Free DVB Channels |
|
|
|
||
|
|
category |
|
||
TV/Data DVB Channels |
|
|
|
||
Favourites1 |
|
|
view |
|
|
Favourites2 |
|
|
|
|
|
|
|
|
|
|
|
Favourites3 |
|
|
|
●To list favourite channels p. 51 |
|
|
|
|
|||
Favourites4 |
|
|
|
||
|
(Search list) |
■To the next day |
|||
|
|||||
Search |
|||||
|
|
|
|
select type |
(DVB mode) |
Search Titles... |
|
|
|||
|
|
|
|
||
Movie |
|
|
view |
green |
|
News and Factual |
|
|
|||
|
|
|
|||
Entertainment |
|
|
|
|
|
Sport |
|
|
|
|
|
Children’s . |
|
|
|
|
|
. |
|
|
|
|
|
. |
|
|
|
|
|
|
(Search list) |
Set characters one by one Search |
|||
Search |
|||||
|
|
|
|
|
(maximum: 19 characters) |
Search Titles... |
|
|
select |
select |
|
Movie |
|
|
|||
|
|
“Search |
green |
||
News and Factual |
|
|
|||
|
|
Titles...” |
|||
|
|
|
set |
||
Entertainment |
|
|
|||
|
|
|
access |
|
|
Sport |
|
|
You can set characters by using numeric |
||
Children’s . |
|
|
|
||
. |
|
|
|
|
buttons. |
. |
|
|
|
|
“Characters table for numeric buttons” (p. 103) |
. |
|
|
|
|
●All the programme titles including the word you set will be listed.
●Searching without any characters will list all programmes including current programmes.
Basic
Guide TV Using●
21
Using TV Guide
■Other useful functions
Timer Programming (freesat or DVB mode)
Timer Programming can remind you to watch a programme or record one on an external recorder or |
||||||||||||||||||
a USB HDD. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Select the |
Select the function |
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
||||||||
forthcoming |
(Ext Rec., USB HDD Rec. or Reminder) |
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|||||||||||
programme |
Timer Programming |
|
Wed 28 Oct 2009 10:46 |
store |
|
|
|
|
|
|
|
|
||||||
Function |
No. |
Channel Name |
|
Date |
Start |
End |
|
|
|
|
|
|
|
|
||||
select |
|
Ext Rec. |
D 1 |
BBC ONE |
|
Wed 28 Oct |
20:00 |
20:30 |
|
LED will turn to orange if |
LED |
|||||||
|
|
|
|
DIY SOS |
Guide |
|
(30 min.) |
select |
||||||||||
|
--- |
--- |
|
|
--/-- |
--:-- |
--:-- |
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
(--- min.) |
|
|
|
|
||||||
|
|
--- |
--- |
|
|
--/-- |
--:-- |
--:-- |
Timer Programming is set. |
|
|
|
|
|||||
|
|
|
|
|
|
|
|
(--- min.) |
|
|
|
|
|
|||||
set |
|
--- |
--- |
|
|
--/-- |
--:-- |
--:-- |
|
|
|
|
|
|||||
|
|
|
|
|
|
|
(--- min.) |
|
(Orange LED will flash if the recording |
|||||||||
|
--- |
--- |
|
|
--/-- |
--:-- |
--:-- |
|
||||||||||
|
|
|
|
|
|
|
|
(--- min.) |
|
|||||||||
|
|
|
|
(Timer Programming screen) |
|
of Timer Programming is in progress.) |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ext Rec. / |
: to record the programme to the external recorder (Ext Rec.) or the |
||
USB HDD Rec. USB HDD (USB HDD Rec.) |
|||
|
|
|
When the start time comes, the channel will be switched automatically |
|
|
|
|
|
|
|
and the video and audio signals will be output. 2 mins. before the starting |
|
|
|
time, a reminder message appears if you are watching TV. |
Reminder |
: to remind you to watch the programme |
||
|
|
|
When you are watching TV, a reminder message appears 2 mins. before |
|
|
|
the start time. Press the OK button to switch to the programmed channel. |
■To check / change / cancel a timer programming event “Timer Programming” (p. 59)
■To return to TV Guide |
BACK/ |
RETURN |
|
|
■If you select a current programme
A confirmation screen asking whether you wish to watch or record the programme will appear. Select “Timer Programming” and set “Ext Rec.” or “USB HDD Rec.” to record from the time you finish programming the timer event setting.
Eastender
19:3020:00 |
|
select |
|
|
|
View |
Timer Programming |
access |
|
|
■If a programme exists in both HD and SD broadcasts
The “Timer Options” screen will be displayed to select HD or SD broadcast.
Timer Options
DIY SOS
101 |
BBC ONE |
19:30-20:00 |
Wed 28 Oct 2009 |
119 |
BBC HD |
19:30-20:00 |
Wed 28 Oct 2009 |
set |
|
|
|
|
|
|
|
|
Timer Programming |
|
Wed 28 Oct 2009 10:46 |
||||||
|
Function |
No. |
Channel Name |
|
Date |
Start |
End |
|
|
|
Ext Rec. |
D 1 |
BBC ONE |
|
Wed 28 Oct |
20:00 |
20:30 |
select |
|
|
|
DIY SOS |
Guide |
|
(30 |
min.) |
--- |
--- |
|
|
--/-- |
(--- |
min.) |
||
|
|
|
--:-- |
--:-- |
||||
|
|
|
|
|
|
|
|
|
|
--- |
--- |
|
|
--/-- |
--:-- |
--:-- |
|
|
|
|
|
|
|
|
(--- |
min.) |
|
--- |
--- |
|
|
--/-- |
--:-- |
--:-- |
|
|
|
|
|
|
|
|
(--- |
min.) |
|
--- |
--- |
|
|
--/-- |
--:-- |
--:-- |
|
|
|
|
|
|
|
|
(--- |
min.) |
(Timer Programming screen) “” will be displayed if HD broadcast is set.
Note
●This function is not available in Analogue mode. ●Timer Programming can store up to 15 events.
●Timer Programming reminder messages will remain displayed until one of the following occurs:
•You press the OK button to view the programme or the EXIT button to cancel the reminder.
•The timer programming event that the reminder is set for ends.
●No other channel can be selected while the recording of Timer Programming is in progress.
●When recording programmes, be sure to make the proper settings on the recorder connected to the TV. If a compatible recorder with Q-Link or similar technologies is connected to the TV (p. 94) and the “Link
Settings” (p. 40) are completed, no setting of the recorder is required. Also read the manual of the recorder. ●When recording programmes to the USB HDD, be sure to register the USB HDD and enable it for recording in
the “USB HDD Setup” (p. 70).
22
Guide link programming (Timer Programming from the TV Guide signal)
Guide link programming is Timer Programming which is controlled by information from the TV Guide; if programme start and end times are changed by the broadcaster, the timer programming event will follow the change.
A Split Programme programming is a Guide link programming which is interrupted by one or more other programmes.
Note that Guide link programming (including Split Programme programming) only works reliably if correct information is received from broadcasters.
Timer Programming |
|
Wed 28 Oct 2009 10:46 |
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Function |
|
No. |
Channel Name |
|
|
Date |
Start |
End |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ext Rec. |
D |
1 |
BBC ONE |
|
|
Wed 28 Oct |
20:00 |
20:30 |
|
|
|
|
|
|
|
DIY SOS |
Guide |
|
|
(30 |
min.) |
|
|
|
|
Reminder |
D |
14 |
E4 |
|
|
Wed 28 Oct |
21:00 |
22:30 |
|
|
|
|
|
|
|
The Bill |
Guide |
|
|
(90 |
min.) |
|
|
|
|
Ext Rec. |
|
72 |
BBC 2W |
|
|
Wed 28 Oct |
22:45 |
23:00 |
|
|
|
|
|
|
|
<TIMER> |
|
|
|
(15 |
min.) |
|
|
|
|
Ext Rec. |
D |
1 |
BBC ONE |
|
|
Thu 29 Oct |
10:30 |
11:30 |
|
|
|
|
|
|
|
Red Cap |
S/P |
|
(60 |
min.) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
--- |
|
--- |
|
|
|
--/-- |
--:-- |
--:-- |
|
|
|
|
|
|
|
|
|
|
|
|
(--- |
min.) |
|
|
(Timer Programming screen)
“Guide” is displayed if the timer is set from the TV Guide
(Guide link programming)
“S/P” is displayed if the timer is set from the TV Guide and the programme is a Split Programme
“” or “” will be displayed in the TV Guide if Timer Programming is set as the Guide link programming.
TV Guide
Wed 28 Oct 2009 |
|
|
Wed 28 Oct |
|
Search |
|
All Channels |
10:46 |
1 BBC ONE |
|
|
|
|
||
|
|
|
|
|
|||
|
20:00 - 20:30 DIY SOS : We open in the Battersbys |
|
|
||||
|
|
|
Time: |
19:30 |
20:00 |
20:30 |
21:00 |
|
D |
1 |
BBC ONE |
Eastender |
DIY SOS |
Holiday News |
|
|
D |
7 |
BBC THREE |
Hot Wars |
|
Holiday Program |
D |
14 |
E4 |
Emmerdal. |
Coronation Street |
The Bill |
|
|
|
|
|
|
|
|
D |
70 |
BBC FOUR |
10 O’ clock News BBC |
Pepsi Char. |
Good bye |
|
|
|
|
|
|
|
|
D |
72 |
BBC 2W |
Panorama |
Spring watch |
|
Coast |
D |
105 |
BBCi |
I’m A Celebrity |
|
Pop Idol |
News |
D |
719 |
BBC Radi |
Rugby |
15 To 1 |
|
Sports |
Note
●If you edit the start time or end time of a Guide link programming event by more than 10 minutes, it will no longer follow the broadcaster’s changes to the start or end time. The start and end times will become fixed.
●Whilst making the Split Programme programming event for Ext Rec. or USB HDD Rec., you cannot record any channels between the interrupted programmes.
●The Split Programme programming event for Reminder will be cleared by pressing the OK button once to view. ●The Split Programme programming event for Reminder will switch to the programmed channel by pressing
the OK button even if it is between the interrupted programmes.
●The Split Programme programming does not work if the separated parts are broadcast on different channels.
View details of the programme (freesat or DVB mode)
Select the programme |
View details |
|
|
|
|
|
|
|
|
|
|
|
|
10:46 |
|
Wed 28 Oct 2009 |
TV Guide |
|
|
||||||||
|
|
|
Wed 28 Oct 2009 |
|
|
|
|
|
|
|
|
|
|
select |
|
|
|
|
DIY SOS |
|
|
|
|
|
|
|
|
|
|
|
|
BBC ONE |
|
|
|
|
|
|
|
||
|
|
|
|
20:00 - 20:30, 30 min. |
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
Details |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
EXIT |
Return to list |
||||||
|
|
|
Timer Programming |
|
RETURN |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
●Press again to return to TV Guide.
View advertisement (DVB or Analogue mode)
Enter your postcode when using this function for the first time “Postcode” in “GUIDE Plus+ Settings” (p. 42)
If you have already entered your postcode in “Auto Setup” - when first using the TV (p. 12), you do not have to enter it again.
If you enter an incorrect postcode for your area, or no postcode is entered, advertisements may not be displayed correctly.
Display advertisement information
OPTION
Basic
Guide TV Using●
●To display the latest advertisement, you will need to update the information.
To update the information continuously, the TV must be left in Standby mode at night.
■To change advertisements
■To return to TV Guide |
OPTION |
BACK/ |
or RETURN |
Note
●Some advertisements are for future programmes.
In this case it is possible to use the Guide link programming function (above).
●The advertisements displayed on the TV Guide are sent from the GUIDE Plus+ system so that they cannot
be deleted manually or will not be lost even when the TV is turned Off with Mains power On / Off switch.
23
Using TV Guide
Other Sat. mode
In Other Sat. mode, TV Guide is not available. In stead, Channel List will appear.
●To tune in Other Sat. Channels p. 55
1 |
Select Other Sat.
p. 16
TV
INPUT
TV
NDIRECT TV REC EXIT
2
Display the Channel List
G
U
I
D
E
All Other Sat. Channels
2freesatHome
3freesatSSU
4Brit Shorts
5HINRG LOWNRG
6WELL Class
7GROOVE
8-
DVD/VCR TV
3 |
Select the channel |
|
watch |
||
|
||
|
select |
TV
■To return to TV
EXIT
or
G
U I D E
24
Viewing Teletext
You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)
●The availability of teletext services for a programme is indicated by “TEXT” in the information banner.
D 1 BBC ONE Wales |
20:35 |
All DVB Channels |
Coronation Street |
|
Select favourites |
19:30 - 20:00 |
Now |
For info press |
|
TEXT |
Information banner (p. 17)
Displayed if programme has teletext service
Digital teletext (MHEG)
Digital teletext services
Digital teletext services differ greatly from analogue teletext.
When you switch to a digital teletext service, the images you see can contain graphics and text, laid out and controlled in a manner decided by the broadcaster.
|
|
1 |
Select freesat or DVB |
|
|
|
p. 16 |
●freesat and DVB programmes have digital teletext services |
|
|
INPUT |
TV |
||
|
TV |
|
|
(MHEG). |
ASPECT |
N |
DIRECT TV REC |
|
|
|
|
2 |
Switch to Teletext |
|
|
|
TEXT |
17:51 28 Feb |
|
|
|
|
||
OPTION |
|
BACK/ |
|
|
|
RETURN |
|
|
|
|
|
3 |
How to use |
|
TEXT |
|
In all cases, it is possible to navigate the pages using buttons on the |
||
|
|
|
remote control, but because the commands available must apply to all |
|
|
abc |
def |
manufacturers of digital equipment, some on screen commands may |
|
|
not correspond exactly to the remote control buttons. |
|||
|
|
|
||
ghi |
jkl |
mno |
For example: |
|
pqrs |
tuv |
wxyz |
●When “select” or “go” is displayed |
●When “◄”, “►”, “▲”, “▼” symbol is displayed
●When “back key” is displayed |
BACK/ |
RETURN |
|
|
REC PROGRAMME
DVD/VCR TV
TV
●When the key words are displayed on colour |
|
|
red green yellow blue |
●When options with numbers are displayed |
|
abc |
def |
ghi |
jkl |
mno |
|
|
pqrs |
tuv |
wxyz |
■To return to TV |
TEXT |
|
Note
●As soon as you switch to a digital channel with links to a teletext service, software is downloaded in the background to enable the teletext function. This means that when switching to a digital channel, you should wait for approximately 5 seconds before pressing the TEXT button - this will allow the software to download. If you press the TEXT button before download is complete, it will be ignored and you will have to press the TEXT button again when the download is complete.
●While navigating digital teletext, you will find there is a short delay when moving between pages while the page downloads. There is often a prompt shown somewhere on the page (for example “Loading”) to let you know that this is happening.
Basic
Teletext Viewing● Guide TV Using●
25
Viewing Teletext
Analogue teletext
Analogue teletext services
Analogue teletext services are the text information provided by the broadcasters. The features may vary depending on the broadcasters.
What is FASTEXT mode?
In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.
What is List mode?
In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 27)
■To change mode “Teletext” in the Setup Menu (p. 41)
INPUT
TV AV
ASPECTMENU |
N |
DIRECT TV REC |
EXIT
OPTION |
|
BACK/ |
|
RETURN |
|
TEXT STTL INDEX HOLD |
||
|
abc |
def |
ghi |
jkl |
mno |
pqrs |
tuv |
wxyz |
1 |
Select Analogue or Other Sat. |
|
|
|
|
|
||||||||||||||||
p. 16 |
|
●Other Sat. programmes are digital broadcasts. The operations |
||||||||||||||||||||
|
TV |
|
|
|||||||||||||||||||
|
|
|
|
of the teletext services, however, are equal to Analogue teletext |
||||||||||||||||||
|
|
|
|
service. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
2 |
Switch to Teletext |
|
|
|
|
Sub page number |
|
|
|
|
|
|||||||||||
TEXT |
|
●Displays the |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
Current |
|
|
<< 01 02 03 04 05 06 07 |
|
>> |
|
|
|
|
||||||||||||
|
|
|
|
index page |
|
|
|
|
|
|
|
17:51 28 Feb |
|
|
Time / date |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
(content varies |
page |
|
|
TELETEXT |
|
|
|
|
|
|||||||||
|
|
|
|
number |
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
depending on the |
|
|
|
|
INFORMATION |
|
|
|
||||||||||
|
|
|
|
broadcasters) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
Select the page |
|
|
|
|
Colour |
|
bar |
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
abc |
def |
|
|
|
up |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ghi |
jkl |
mno |
|
|
|
or |
red green yellow |
blue |
||||||||||||||
|
|
|
|
or |
||||||||||||||||||
|
pqrs |
tuv |
wxyz |
|
|
|
down |
(Corresponds to the colour bar) |
||||||||||||||
|
|
|
|
|
|
|
||||||||||||||||
|
|
|
|
|
MENU |
|
|
|
|
As the blue bar is displayed |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
■To adjust contrast |
(press twice) |
|
|
|
|
|
|
|
|
|
|
|
|
|
EXIT
■To return to TV
Reveal hidden data
Reveal hidden words e.g. quiz page answers
MENU |
●To rehide red |
red |
FULL / TOP / BOTTOM
(TOP) |
(BOTTOM) |
Normal (FULL) |
MENU green
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(Expand the TOP half) |
|
|
|
(Expand the BOTTOM half) |
|
|
|
|
|
|
|
|
|
HOLD
Stop automatic updating
(If you wish to hold the current page without updating)
HOLD |
●To resume |
HOLD |
|
|
26
INDEX
Return to the main index page
INDEX
Subtitles
View a favourite page stored
STTL |
|
●Factory setting is “P888” (subtitle service) on the blue button (List mode). |
|||||||||||||||||||
View in multi window |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
Watch TV and Teletext in two windows at once |
|
|
|
|
|
|
|
|
|
|
|||||||||||
TEXT |
|
|
|
|
|
|
●Operations can be made only in Teletext screen. |
||||||||||||||
|
|
|
|
|
|||||||||||||||||
|
|
|
|
|
|
|
●Each time pressed: Teletext |
|
|
|
TV and Teletext |
||||||||||
|
|
|
|
|
|
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TV |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Store frequently viewed pages |
|
|
|
|
|
|
|
|
|
|
|||||||||||
Store frequently viewed pages in the colour bar |
|
|
|
|
|
|
|
|
|
(List mode only) |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
●If you wish to use Subtitles, |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
As page is |
|
|
|
press |
|
|
|
|
|
|
|
|
|
|
|
do not change number on |
|||||
Corresponding |
and |
|
|
|
|
|
|
|
|
|
|
|
blue button. |
||||||||
displayed |
hold |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
coloured button |
|
|
|
|
|
|
|
|
The number changes to white. |
|||||||||||
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|||||||||||||
■To change stored pages |
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
Enter new page number |
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
abc |
def |
press |
|
|
|
|
|
||||||||||
Coloured button |
|
ghi |
jkl |
mno |
and |
|
|
|
|
|
|||||||||||
you want to change |
|
pqrs |
tuv |
wxyz |
hold |
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
View sub page
View sub page (Only when teletext is more than one page)
|
|
|
|
|
|
Appears at top of |
|
|
|
|
|
|
|
|
|
|
|
|
|
the screen |
|
|
|
|
|
|
|
■To view specific sub page |
|
Enter the |
||||
MENU |
|
|||||
|
4-digit number |
|||||
blue |
|
|
|
example: P6 |
||
|
|
|
||||
|
|
|
|
|||
|
|
|
|
|
|
|
mno
●Sub pages:
The number of sub pages varies depending on the broadcasters (up to 79 pages). It may take some time for searching, during which time you can watch TV.
Watch TV while waiting for update
View the TV picture while searching for a teletext page
Teletext automatically updates itself when new information becomes available.
Changes to TV screen temporarily
P108 |
Appears when |
|
MENU |
updating is |
|
yellow |
completed |
yellow |
|
||
(You cannot change the channel.) |
|
Basic
Teletext Viewing●
●The news page provides a function that indicates arrival of latest news (“News Flash”).
27
Watching External inputs
Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the AV input.
●To connect the equipmentp. 11 and p. 100
The Remote Control is capable of operating some functions of selected external equipment.
INPUT
TV AV
1 |
Turn the TV on |
■When connecting with SCART as example 2 or 3 (p. 11) |
|
Receives input signals automatically when playback starts |
|
|
●Input signals are automatically identified by the SCART (pin 8) terminal. |
●This function is also available for HDMI connections (p. 100).
■If input mode is not switched automatically
Perform and
●Check the setup of the equipment.
abc def
ghi |
jkl |
mno |
2 |
DisplayAV |
the Input select menu |
3 |
Select the input mode connected to the equipment |
|
Input Selection |
select |
|
AV1 |
||
|
AV2/S |
|
AV3 |
|
|
COMPONENT |
watch |
|
PC |
||
|
HDMI1
HDMI2
HDMI3
HDMI4
TV
Media Server
pqrs |
tuv |
wxyz |
|
●You can also select the input using the AV button on the remote |
|
|
|||
|
|
|
|
control or the side panel of the TV. |
|
|
|
|
Press the button repeatedly until the desired input is selected. |
|
|
|
|
●You cannot select “Media Server” using the AV button on the side panel of |
|
|
|
|
the TV. |
|
|
|
|
●In order to switch between AV2 and AV2S, move the indicator by pressing |
|
|
|
|
left and right cursor button. |
REC |
PROGRAMME |
|
●You can label or skip each input mode “Input Labels” (p. 62) |
|
|
|
|
|
Skipped inputs will not be displayed when the AV button is pressed. |
|
DVD/VCR |
TV |
4 |
View |
Displays the selected mode
TV
|
|
|
|
■ return to TV |
Note |
||
●If the external equipment has an aspect adjustment function, set it to “16:9”. |
|||
TV |
●For details, see the manual of the equipment or ask your local dealer. |
28
Screen display
Terminal |
AV1 |
AV2 |
AV3 |
COMPONENT |
PC |
HDMI1 |
HDMI2 |
HDMI3 |
HDMI4 |
|
|
||||||||||
Manual input |
AV1 |
AV2 |
|
|
|
|
|
|
|
|
default setting |
AV2-S-Video AV3 |
COMPONENT |
PC |
HDMI1 |
HDMI2 |
HDMI3 |
HDMI4 |
|||
|
||||||||||
(in “Input Labels”) |
AV1-RGB |
AV2-RGB |
|
|
|
|
|
|
|
|
Auto input |
|
EC/AV2 |
|
|
|
EC/HDMI1 |
EC/HDMI2 |
EC/HDMI3 |
EC/HDMI4 |
|
EC/AV1 |
|
|
|
●Applicable for |
●Applicable |
●Applicable |
●Applicable |
|||
EC mode or |
EC/AV2-S-Video |
― |
― |
― |
||||||
(VIERA Link ) |
EC/AV1-RGB |
EC/AV2-RGB |
|
|
|
EC mode and |
for |
for |
for |
|
|
|
|
|
VIERA Link |
VIERA Link |
VIERA Link |
VIERA Link |
●If the above information is permanently displayed on the top left of the screen, press the button to clear.
Operating the equipment with the TV remote control
The Panasonic equipment connected to the TV can be directly operated with the below buttons of this TV remote control.
Selection Switch for operating the connected equipment
|
Select “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player |
|
theatre, Blu-ray Disc theatre or VCR |
DVD/VCR TV |
“How to change the code for the type of the equipment” (see below) |
Select “TV” to use USB HDD Recording, Media Player or VIERA Link “USB HDD Recording” (p. 72)
“Media Player” (p. 78) “VIERA Link Control” (p. 98)
Standby
Set to Standby mode / Turn on
Play
Playback videocassette / DVD / video content
Stop
Stop the operations
Rewind / Skip / Search
VCR: Rewind, view the picture rapidly in reverse DVD / video content:Skip to the previous track or title
(not available for the operation of USB HDD Recording) Press and hold to search backward
Fast-forward / Skip / Search
VCR: Fast-forward, view the picture rapidly forward DVD / video content:Skip to the next track or title
(not available for the operation of USB HDD Recording) Press and hold to search forward
Pause
Pause / Resume
DVD: Press and hold to play at slow speed
PROGRAMME |
Channel Up / Down |
Select channel
REC Record
Start recording
■How to change the code for the type of the equipment
Each type of the Panasonic equipment has its own remote control code. Please change the code according to the equipment you want to operate.
Set the position to “DVD/VCR” DVD/VCRTV
Press and hold during the following operations
Enter the appropriate code, |
|
abc |
def |
|
pqrs |
tuv |
wxyz |
Press |
|
|
ghi |
jkl |
mno |
|
see table below |
|
|
|
|
Type of the equipment |
|
|
|
Code |
DVD Recorder, DVD Player |
|
|
70 (default) |
|
Player theatre, Blu-ray Disc theatre |
|
71 |
||
VCR |
|
|
|
72 |
Note
Basic
inputs External Watching●
●Confirm if the remote control works correctly after changing the code. ●The codes may be reset to default values if batteries are replaced.
●Some operations may not be possible on some equipment models. |
29 |
|
|
Viewing 3D images |
|
|
To view 3D contents or programmes in 3D effect (3 Dimensional) you must wear the supplied 3D |
|
|
Eyewear. |
|
|
This TV supports “Frame Sequential 1”, “Side by Side 2” and “Top and Bottom 3” 3D formats. |
|
|
1: The 3D format that the images for the left and right eyes are recorded with the high definition quality and alternately played |
|
|
back |
|
|
2, 3: Other available 3D formats |
|
|

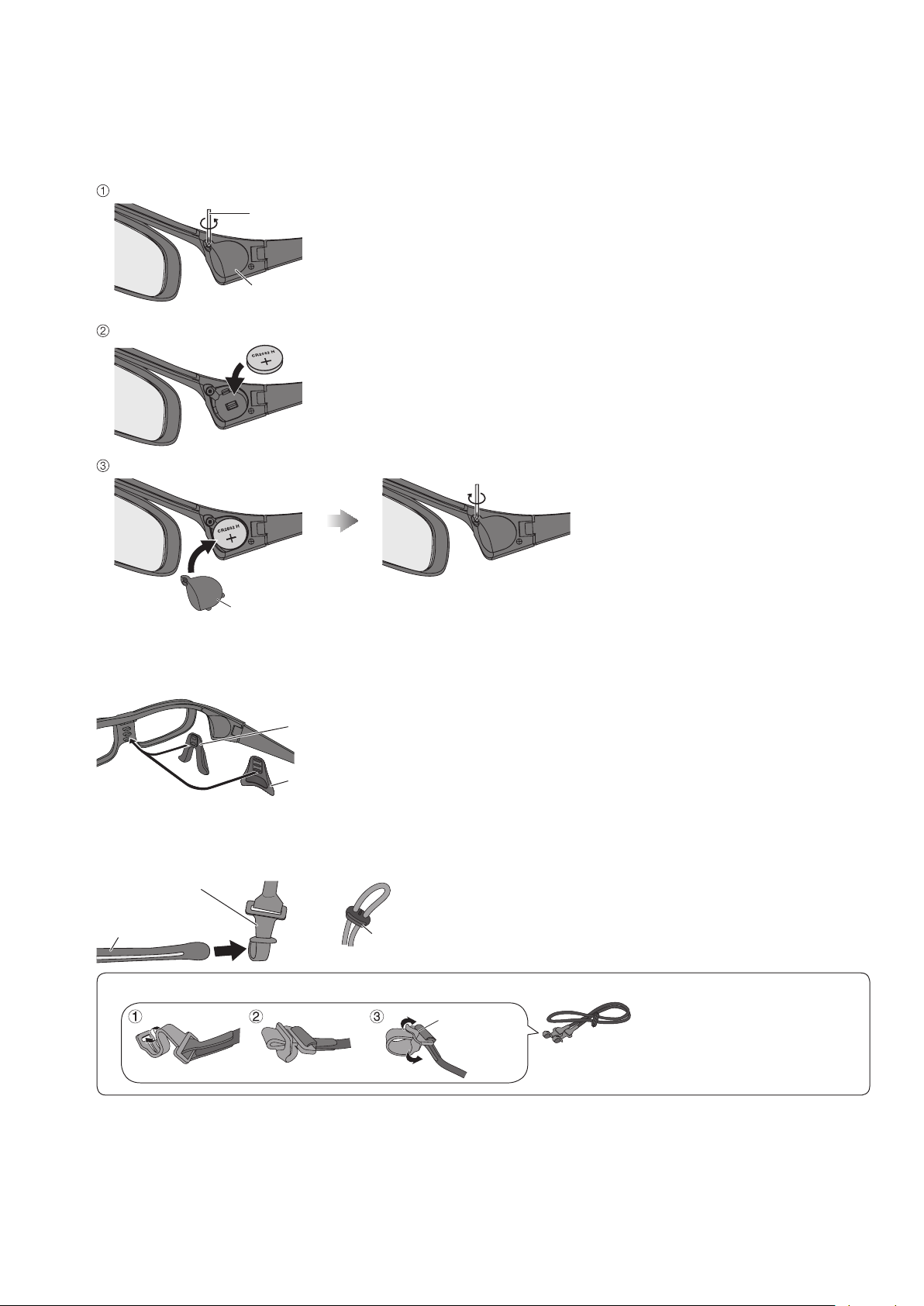

●How to use the 3D Eyewear |
p. 31 and p. 32 |
|
●How to view the 3D images |
p. 33 |
|
To enjoy 3D images safely and comfortably, please read these instructions fully. |
|
|
Warning |
|
|
■Take care |
|
|
To help avoid risk of fire, damage, injury or discomfort, please follow the warnings below: |
|
|
●Do not disassemble or modify the 3D Eyewear. |
|
|
●Incorrect replacement of battery may cause the danger of explosion, leakage and corrosion of battery. |
|
|
●Battery must not be exposed to excessive heat such as sunshine, fire, etc. |
|
|
●Pay special attention when children are using the 3D Eyewear. |
|
|
The 3D Eyewear should not be used by children younger than 5 - 6 years old, as a guideline. |
|
|
All children must be fully supervised by parents or guardians to ensure their safety and health while using the |
|
|
3D Eyewear. |
|
|
●Do not use the 3D Eyewear if you have a history of over-sensitivity to light, heart problems, or have any other |
|
|
existing medical conditions. |
|
|
■Small object |
|
|
The 3D Eyewear contains possibly dangerous parts that can be breathed in or swallowed by young |
|
|
children accidentally. |
|
|
●Keep the small parts (battery and support band, etc.) out of reach of young children. |
|
|
Caution |
|
|
■Placement and conditions for viewing 3D images |
|
|
●Do not use the 3D Eyewear near the devices or objects that emit infrared (ex. remote control, fireplace, stove, |
|
|
etc.), as this may cause the 3D Eyewear to mis-operate. |
|
|
●Do not use devices (such as mobile phones or personal transceivers) that emit strong electromagnetic waves |
|
|
near the 3D Eyewear as this may cause the 3D Eyewear to malfunction. |
|
|
●Do not use the 3D Eyewear at a distance less than the recommended distance. |
|
|
The recommended viewing distance is 3 times of image height (2.4 m or more). |
|
|
When the top and bottom area of the screen is blackened, such as movies, view the screen at a distance |
|
|
3 times further than the height of the actual image. (That makes the distance closer than above recommended |
|
|
figure.) |
|
|
●Do not use the 3D Eyewear in the condition of high temperature. |
|
|
■Handling the 3D Eyewear |
|
|
●Do not drop, exert pressure on, or step on the 3D Eyewear. |
|
|
●Be careful of the tips of the frame when putting on the 3D Eyewear. |
|
|
●Be careful not to trap a finger in the hinge section of the 3D Eyewear. |
|
|
●Do not use the 3D Eyewear if it is physically damaged. |
|
|
●The 3D Eyewear must only be worn when viewing 3D content. |
|
|
■Viewing 3D Content |
|
|
●Ensure no breakable objects are nearby to avoid any accidental damage or injury. |
|
|
●Be careful not to strike the TV screen or other people unintentionally. When using the 3D Eyewear the distance |
|
|
between the user and screen can be misjudged. |
|
|
●Remove the 3D Eyewear before moving around to avoid falling or accidental injury. |
|
|
■If having eyestrain or discomfort, etc. |
|
|
●Stop using the 3D Eyewear immediately, if you feel tired, are not feeling well or experience any discomfort. |
|
|
●Stop using the 3D Eyewear if you can clearly see double images when viewing 3D content. |
|
|
●After viewing 3D contents or playing 3D games, take a short break to readjust your senses. |
|
|
■Stopping the usage of the 3D Eyewear |
|
|
●Stop using the 3D Eyewear immediately if a malfunction or fault occurs, or if you experience any redness, pain, |
|
|
or skin irritation around the nose or temples. |
|
|
●In rare cases, the materials used in the 3D Eyewear may cause an allergic reaction. |
|
|
Note |
|
|
●Do not use the 3D Eyewear as sunglasses. |
|
|
●The 3D Eyewear will not work correctly if worn upside down or back-to-front. |
|
|
●If you suffer from any eyesight problems (short / far-sighted, astigmatism, eyesight differences in left and right), |
|
|
please ensure to correct your vision before using the 3D Eyewear. |
|
|
●If you do not look toward the TV screen for a while when viewing 3D images, the 3D Eyewear may be turned off |
|
|
automatically. |
|
30 |
●3D effects may be perceived differently depending on the person. |
|
●Always store the 3D Eyewear in the case provided when not in use. |
