Panasonic TX-P50C3 E/J, TX-PR50C3 Schematic

Download

Page 1

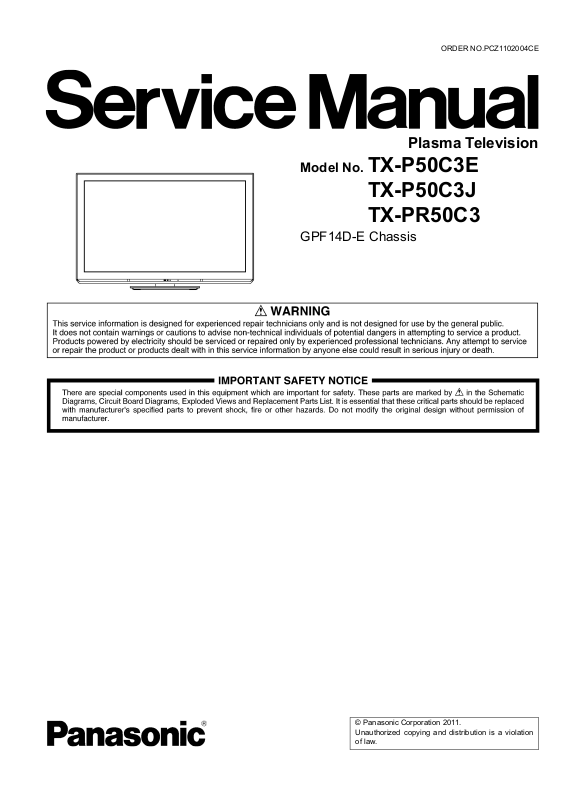

ORDER NO.PCZ1102004CE

Plasma Television

Model No. TX-P50C3E

TX-P50C3J TX-PR50C3

GPF14D-E Chassis

Page 2

PAG E PAG E

1 Safety Precautions -----------------------------------------------3

1.1. General Guidelines ----------------------------------------3

1.2. Touch-Current Check--------------------------------------3

2Warning--------------------------------------------------------------4

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices ----------4

2.2. About lead free solder (PbF) ----------------------------5

3 Service Navigation------------------------------------------------6

3.1. PCB Layout --------------------------------------------------6

3.2. Applicable signals ------------------------------------------7

4 Specifications ------------------------------------------------------8 5 Technical Descriptions---------------------------------------- 10

5.1. Specification of KEY for CI Plus, DTCP-IP and One-to-One ------------------------------------------------ 10

6 Service Mode ----------------------------------------------------- 11

6.1. How to enter into Service Mode ---------------------- 11

6.2. Option - Mirror--------------------------------------------- 13

6.3. Service tool mode ---------------------------------------- 13

6.4. Hotel mode------------------------------------------------- 14

6.5. Data Copy by SD Card --------------------------------- 15

7 Troubleshooting Guide---------------------------------------- 18

7.1. Check of the IIC bus lines------------------------------ 18

7.2. Power LED Blinking timing chart --------------------- 19

7.3. No Power--------------------------------------------------- 19

7.4. No Picture -------------------------------------------------- 20

7.5. Local screen failure -------------------------------------- 21

8 Disassembly and Assembly Instructions --------------- 22

8.1. Remove the Rear cover -------------------------------- 22

8.2. Remove the AC inlet ------------------------------------ 22

8.3. Remove the P-Board ------------------------------------ 22

8.4. Remove the Side terminal cover --------------------- 22

8.5. Remove the Tuner unit --------------------------------- 22

8.6. Remove the A-Board ------------------------------------ 23

8.7. Remove the Speakers ---------------------------------- 23

8.8. Remove the SN-Board---------------------------------- 23

8.9. Remove the SS-Board ---------------------------------- 23

8.10. Remove the Stand bracket and the Hanger metals ------------------------------------------------------24

8.11. Remove the C1-Board ---------------------------------- 24

8.12. Remove the C2-Board ---------------------------------- 24

8.13. Remove the Plasma panel section from the Cabinet assy----------------------------------------------- 25

8.14. Remove the Glass holders ---------------------------- 25

8.15. Remove the K-Board ------------------------------------ 25

8.16. Replace the Plasma panel ----------------------------- 26

9 Measurements and Adjustments -------------------------- 27

9.1. Adjustment ------------------------------------------------- 27

10 Block Diagram --------------------------------------------------- 35

10.1. Main Block Diagram ------------------------------------- 35

10.2. Block (1/4) Diagram ------------------------------------- 36

10.3. Block (2/4) Diagram ------------------------------------- 37

10.4. Block (3/4) Diagram ------------------------------------- 38

10.5. Block (4/4) Diagram ------------------------------------- 39

11 Wiring Connection Diagram --------------------------------- 41

11.1. Caution statement.--------------------------------------- 41

11.2. Wiring (1) --------------------------------------------------- 41

11.3. Wiring (2) --------------------------------------------------- 42

11.4. Wiring (3) --------------------------------------------------- 43

11.5. Wiring (4) -------------------------------------------------- 44

12 Schematic Diagram 13 Printed Circuit Board 14 Exploded View

Page 3

1 Safety Precautions

1.1. General Guidelines

1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.

2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.

3. When conducting repairs and servicing, do not twist the Fasten connectors but plug them straight in or unplug them straight out.

4. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

5. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

6. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

1.2. Touch-Current Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1.

3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reserve the AC plug in the AC outlet and repeat each of the above measure.

6. The potential at any point (TOUCH CURRENT) expressed as voltage U

For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak);

For d. c.: U

Note:

The limit value of U

mA d. c. The limit value U

7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer.

= 1.0 V,

= 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and 2.0

= 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz.

and U2, does not exceed the following values:

Figure 1

Page 4

2Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device).

Page 5

2.2. About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.

Caution

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C). If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the opposite side. (see figure below)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

Page 6

3 Service Navigation

3.1. PCB Layout

Board Name Function Board Name Function

P Power Supply

Non serviceable. P-Board should be exchanged for service.

A Main AV input, processing SS Sustain Drive K Remote receiver, Power LED, C.A.T.S sensor

C1 Data Driver (Lower Right) C2 Data Driver (Lower Left) SN Scan Drive

Page 7

3.2. Applicable signals

COMPONENT (Y, PB, PR), HDMI

* Mark: Applicable input signal

Signal name COMPONENT HDMI 525 (480) / 60i, 60p * * 625 (576) / 50i, 50p * * 750 (720) / 60p, 50p * * 1,125 (1,080) / 60i, 50i * * 1,125 (1,080) / 60p, 50p, 24p *

PC (from HDMI terminal)

Applicable input signal for PC is basically compatible to HDMI standard timing.

Signal name Horizontal frequency (kHz) Vertical frequency (Hz) 640 × 480 @60 Hz 31.47 60.00 750 (720) / 60p 45.00 60.00 1,125 (1,080) / 60p 67.50 60.00

Note

• Signals other than above may not be displayed properly.

• The above signals are reformatted for optimal viewing on your display.

• PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient clarity.

Page 8

4 Specifications

Power Source AC 220-240 V, 50 / 60 Hz Power Consumption

Rated Power Consumption 200 W (E/J), 240 W (R) On mode Average Power Consumption (E/J) Standby Power Consumption 0.40 W

Display panel

Aspect Ratio 16:9 Visible screen size 127 cm (diagonal)

Number of pixels 786,432 (1,024 (W) × 768 (H)) [3,072 × 768 dots]

Sound

Speaker (160 mm × 40 mm) × 2, 6 Ω Audio Output 20 W (10 W + 10 W) Headphones M3 (3.5 mm) stereo mini Jack × 1

Receiving Systems / Band name (E/J) PAL B, G, H, I, SECAM B, G, SECAM L, L’

Receiving Systems / Band name (R) PAL D, K, SECAM D, K

Aerial input VHF / UHF Operating Conditions

Connection Terminals

AV1 (SCART) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link) AV2 input VIDEO: RCA PIN Type × 1 1.0 V [p-p] (75 Ω)

COMPONENT input Y: 1.0 V [p-p] (including synchronization)

HDMI 1 / 2 input TYPE A Connectors

Card slot SD CARD slot × 1

DIGITAL AUDIO OUT PCM / Dolby Digital / DTS, Fiber optic

Dimensions (W × H × D) 1,212 mm × 782 mm × 324 mm (With Pedestal)

Mass 34.0 kg Net (With Pedestal)

123 W (based on IEC 62087 Ed.2 measurement method)

15.00 W (With monitor out recording)

1,105 mm (W) × 622 mm (H)

VHF E2 - E12 VHF H1 - H2 (ITALY) VHF A - H (ITALY) UHF E21 - E69 CATV (S01 - S05) CATV S1 - S10 (M1 - M10) CATV S11 - S20 (U1 - U10) CATV S21 - S41 (Hyperband)

PAL D, K, SECAM D, K

VHF R1 - R2 VHF R3 - R5 VHF R6 - R12 UHF E21 - E69

PAL 525/60 Playback of NTSC tape from some PAL Video recorders (VCR) M.NTSC Playback from M. NTSC Video recorders (VCR) NTSC (AV input only) Playback from NTSC Video recorders (VCR) DVB-T Digital terrestrial services (MPEG2 and MPEG4-AVC(H.264)) DVB-C Digital cable services (MPEG2 and MPEG4-AVC(H.264))

• Check the latest information on the available services at the following website. (English only) http://panasonic.jp/support/global/cs/tv/

VHF R1 - R2 VHF R3 - R5 VHF R6 - R12 UHF E21 - E69

(MPEG2 and MPEG4-AVC(H.264))

DVB-C Digital cable services (MPEG2 and MPEG4-AVC(H.264))

• Check the latest information on the available services at the following website. (English only) http://panasonic.jp/support/global/cs/tv/

Temperature: 0 °C- 35 °C Humidity: 20 % - 80 % RH (non-condensing)

AUDIO L-R: RCA PIN Type × 2 0.5 V [rms]

, PR: ±0.35 V [p-p]

HDMI1 : HDMI (Version 1.3 with Deep Colour, x.v.Colour™) HDMI2 : HDMI (Version 1.4 with Audio Return Channel), Deep Colour,

x.v.Colour™

• This TV supports [HDAVI Control 5] function.

Common Interface slot × 1

1,212 mm × 747 mm × 93 mm (TV only)

30.5 kg Net (TV only)

Page 9

Note

• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

• This equipment complies with the EMC standards listed below. EN55013, EN61000-3-2, EN61000-3-3, EN55020

Page 10

5 Technical Descriptions

5.1. Specification of KEY for CI Plus, DTCP-IP and One-to-One

5.1.1. General information:

1. EEPROM (IC8902) for spare parts has the seed of KEY for each.

2. The final KEY data will be generated by Peaks IC (IC8000) when SELF CHECK was done and are stored in both Peaks IC (IC8000) and EEPROM (IC8902). Three KEY are not generated for all models. The necessary KEY are only generated and stored depend on the feature of models.

5.1.2. Replacement of ICs:

When Peaks IC (IC8000) is replaced, EEPROM (IC8902) should be also replaced with new one the same time. When EEPROM (IC8902) is replaced, Peaks IC (IC8000) is not necessary to be replaced the same time. After the replacement of IC, SELF CHECK should be done to generate the final KEY data. How to SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds. TV will be forced to the factory shipment setting after this SELF CHECK.

5.1.3. Model and Keys:

Model No. Keys

One-to-One

(For USB Rec.) TX-P50C3E None Yes None TX-P50C3J None Yes None TX-PR50C3 None None None

CI Plus DTCP-IP

Page 11

6 Service Mode

6.1. How to enter into Service Mode

6.1.1. Purpose

After exchange parts, check and adjust the contents of adjustment mode.

While pressing [VOLUME ( - )] button of the main unit, press [0] button of the remote control three times within 2 seconds.

6.1.2. Key command

[1] button...Main items Selection in forward direction [2] button...Main items Selection in reverse direction [3] button...Sub items Selection in forward direction [4] button...Sub items Selection in reverse direction [RED] button...All Sub items Selection in forward direction [GREEN] button...All Sub items Selection in reverse direction [VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )

6.1.3. How to exit

Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

Page 12

6.1.4. Contents of adjustment mode

• Value is shown as a hexadecimal number.

• Preset value differs depending on models.

• After entering the adjustment mode, take note of the value in each item before starting adjustment.

Main item Sub item Sample Data Remark

ADJUST CONTRAST 1EE

COLOR 36 TINT 00 SUB-BRT 800 H-POS 0 H-AMP 0 V-POS 0 V-AMP 0

WB-ADJ R-CUT 80

G-CUT 80 B-CUT 80 R-DRV FF G-DRV E9 B-DRV 91 ALL-CUT 80 ALL-DRV FF

OPTION Panel-Type 50HD Factory Preset

Boot ROM STBY-SET 00 EMERGENCY ON Y/C Delay 0 OPT 1 *1 OPT 2 11101110 OPT 3 00000001 OPT 4 *2 EDID-CLK MID MIRROR 00 (See Option-Mirror)

AMR-SELECT OFF VSUS LOW See Vsus selection AGING ALL WHITE Built-in test patterns can be

ALL BLUE WITH WHITE OUTSIDE FRAME

ALL GREEN

ALL RED

LOW STEP WHITE

LOW STEP BLUE

LOW STEP GREEN

LOW STEP RED

WHITE DIAGONAL STRIPE

RED DIAGONAL STRIPE

GREEN DIAGONAL STRIPE

BLUE DIAGONAL STRIPE

A-ZONE & B-ZONE

1% WINDOW

COLOR BAR

9 POINTS BRIGHT MEASURE

2 DOT OUTSIDE FRAME

ALL BLUE

DOUBLE FIXED 1% WINDOW

VERTICAL LINE SCROLL

ON/OFF OR WHITE

R/G/B/W ROTATION

HALF FIXED ALL WHITE

ALL WHITE WITH COUNT DISPLAY SRV-TOOL See Service tool mode

displayed.

Destination TX-P50C3E/J TX-PR50C3

Check sum d295 d214 *1 OPT1 00000100 10000100 *2 OPT4 00010000 00000000

Page 13

6.2. Option - Mirror

Picture can be reversed left and right or up and down. 00 : Default (Normal picture is displayed) 01 : Picture is reversed left and right. 02 : Picture is reversed up and down.

Hint : If the defective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection of this mirror, the possible cause is in A-board.

6.3. Service tool mode

6.3.1. How to access

1. Select [SRV-TOOL] in Service Mode.

2. Press [OK] button on the remote control.

6.3.2. Display of SOS History

SOS History (Number of LED blinking) indication. From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment. This indication will be cleared by [Self-check indication and forced to factory shipment setting].

6.3.3. POWER ON Time, On/Off

Note : To display TIME/COUNT menu, highlight position, then press MUTE for 3 sec. Time : Cumulative power on time, indicated hour : minute by decimal On/Off : Number of On/Off switching by decimal Note : This indication will not be cleared by either of the self-checks or any other command.

6.3.4. Exit

1. Disconnect the AC cord from wall outlet or switch off the power with [ Power ] button on the main unit.

Page 14

6.4. Hotel mode

1. Purpose Restrict a function for hotels.

2. Access command to the Hotel mode setup menu In order to display the Hotel mode setup menu: While pressing [VOLUME (-)] button of the main unit, press [AV] button of the remote control three times within 2 seconds.

Then, the Hotel mode setup menu is displayed.

3. To exit the Hotel mode setup menu Disconnect AC power cord from wall outlet.

4. Explain the Hotel mode setup menu

Item Function Hotel Mode Select hotel mode On/Off Initial INPUT Select input signal modes.

Set the input, when each time power is switched on. Selection : Off/Analogue/DVB-C/DVB-T/AV1/AV2/COMPONENT/HDMI1/HDMI2

• Off: give priority to a last memory. However, Euro model is compulsorily set to TV.

• AVnS/AVnC: only Euro model selectable

Initial POS Select programme number.

Selection : Off/0 to 99

• Off: give priority to a last memory

Initial VOL level Adjust the volume when each time power is

switched on. Selection/Range : Off/0 to 100

• Off: give priority to a last memory

Maximum VOL level

Button lock Select local key conditions.

Remote lock Select remote control key conditions.

Private Information Select private information for VIERA Cast is Keep

Adjust maximum volume. Range : 0 to 100

Selection : Off/SETUP/MENU/ALL

• Off: altogether valid

• SETUP: only F-key is invalid (Tuning guide (menu) can not be selected.)

• MENU: only F-key is invalid (only Volume/Mute can be selected.)

• ALL: altogether invalid.

Selection : Off/SETUP/MENU

• Off: altogether valid

• SETUP: only Setup menu is invalid

• MENU: Picture/Sound/Setup menu are invalid

or Reset if Hotel mode is set to [On] when TV power on. Selection : Keep/Reset

• Keep: private information for VIERA Cast is keep

• Reset: private information for VIERA Cast is reset

Page 15

6.5. Data Copy by SD Card

6.5.1. Purpose

(a) Board replacement (Copy the data when exchanging A-board):

When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board.

(b) Hotel (Copy the data when installing a number of units in hotel or any facility):

When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and then copy to other TVs.

6.5.2. Preparation

Make pwd file as startup file for (a) or (b) in a empty SD card.

1. Insert a empty SD card to your PC.

2. Right-click a blank area in a SD card window, point to New, and then click text document. A new file is created by default (New Text Document.txt).

3. Right-click the new text document that you just created and select rename, and then change the name and extension of the file to the following file name for (a) or (b) and press ENTER.

File name:

(a) For Board replacement : boardreplace.pwd (b) For Hotel : hotel.pwd

Note:

Please make only one file to prevent the operation error.

No any other file should not be in SD card.

Page 16

6.5.3. Data copy from TV set to SD Card

1. Turn on the TV set.

2. Insert SD card with a startup file (pwd file) to SD slot. On-screen Display will be appeared according to the startup file automatically.

3. Input a following password for (a) or (b) by using remote control.

(a) For Board replacement : 2770

(b) For Hotel : 4850 Data will be copied from TV set to SD card. It takes around 2 to 6 minutes maximum for copying.

4. After the completion of copying to SD card, remove SD card from TV set.

5. Turn off the TV set.

Note:

Following new folder will be created in SD card for data from TV set.

(a) For Board replacement : user_setup (b) For Hotel : hotel

Page 17

6.5.4. Data copy from SD Card to TV set

1. Turn on the TV set.

2. Insert SD card with Data to SD slot. On-screen Display will be appeared according to the Data folder automatically.

3. Input a following password for (a) or (b) by using remote control.

(a) For Board replacement : 2771 (b) For Hotel : 4851

Data will be copied from SD card to TV set.

4. After the completion of copying to SD card, remove SD card from TV set.

(a) For Board replacement : Data will be deleted after copying (Limited one copy). (b) For Hotel : Data will not be deleted and can be used for other TVs.

5. Turn off the TV set.

Note:

1. Depending on the failure of boards, function of Data copy for board replacement does not work.

2. This function can be effective among the same model numbers.

Page 18

7 Troubleshooting Guide

Use the self-check function to test the unit.

1. Checking the IIC bus lines

2. Power LED Blinking timing

7.1. Check of the IIC bus lines

7.1.1. How to access

7.1.1.1. Self-check indication only:

Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

7.1.1.2. Self-check indication and forced to factory shipment setting:

Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds.

7.1.2. Screen display

7.1.3. Check Point

Confirm the following parts if NG was displayed.

DISPLAY Check Ref. No. Description Check P.C.B. TUN TU4801 TUNER A-Board STBY IC8000 PEAKS-sLD2 (STM) A-Board MEM1 IC8902 PEAKS EEPROM A-Board MEM2 IC8901 STM EEPROM A-Board AVSW IC3001 AUDIO/VIDEO SW A-Board PD5 IC9300 PD5L A-Board TEMP IC2001 TEMP SENSOR A-Board ID A-Board

7.1.4. Exit

Disconnect the AC cord from wall outlet or switch off the power with [ Power ] button on the main unit.

Page 19

7.2. Power LED Blinking timing chart

1. Subject Information of LED Flashing timing chart.

2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.

Blinking Times Contents Check point

1 Panel information SOS

PD5 Start SOS 3 P+ 3.3V SOS A-Board 4 Power SOS P-Board 5 P+ 5V SOS A-Board 6 Driver SOS1

(SN/SS Energy recovery circuit)

(A-SN FPC DET) 7 Driver SOS2

(SN Connector DET)

(SN Scan and Logic IC) 8 Driver SOS3

(SS FPC DET) 9 Discharge Control SOS A-Board

10 Sub 5V SOS

Sub 3.3V SOS

BE (sLD) SOS

Tuner power SOS

12 Sound SOS A-Board

13 Emergency SOS A-Board

SN-Board SS-Board

A-SN FPC

SN-Board

SS-Board

SS FPC

A-Board SN-Board SS-Board

P-Board

Speaker

7.3. No Power

First check point There are following 2 states of No Power indication by power LED.

1. No lit

2. Red is lit then turns red blinking a few seconds later. (See 7.2.)

Page 20

7.4. No Picture

Page 21

7.5. Local screen failure

Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area.

Fig-1

Page 22

8 Disassembly and Assembly Instructions

8.1. Remove the Rear cover

1. See PCB Layout (Section 3)

8.2. Remove the AC inlet

Caution:

To remove P.C.B. wait 1 minute after power was off for discharge from electrolysis capacitors.

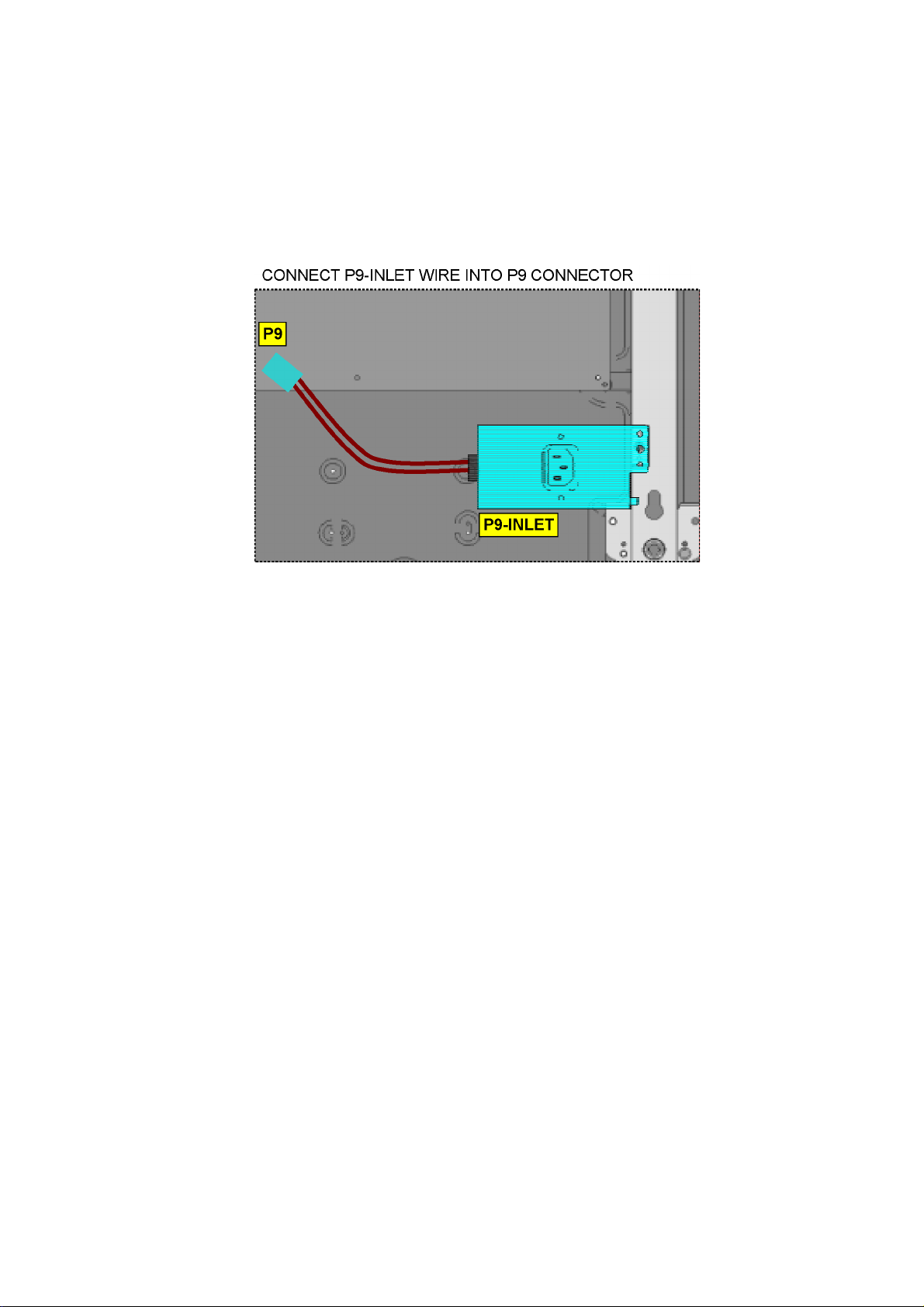

1. Disconnect the connector (P9).

2. Remove the screw (×1 ) and remove the AC inlet.

8.3. Remove the P-Board

Caution:

To remove P.C.B. wait 1 minute after power was off for discharge from electrolysis capacitors.

1. Disconnect the connectors (P2, P6, P9, P11, P34 and P35).

2. Remove the screws (×5 ) and remove the P-Board.

8.4. Remove the Side terminal cover

1. Remove the screws (×2 ).

2. Remove the Side terminal cover.

8.5. Remove the Tuner unit

1. Remove the Side terminal cover. (See section 8.4.)

2. Unlock the cable clampers to free the cable.

3. Disconnect the connectors (A1, A6, A11 and A35).

4. Disconnect the flexible cables (A23, A33 and A34).

5. Remove the screws (×3 ) and remove the Tuner unit.

Page 23

8.6. Remove the A-Board

1. Remove the Tuner unit. (See section 8.5.)

2. Remove the screws (×2 ) and remove the A-Board.

8.8. Remove the SN-Board

1. Disconnect the flexible cables (SN21, SN22, SN23, SN24, SN25 and SN26) connected to the SN-Board.

2. Disconnect the connectors (SN2 and SN3).

3. Disconnect the flexible cable (SN20).

4. Remove the screws (×6 ) and remove the SN-Board.

8.7. Remove the Speakers

1. Unlock the cable clampers to free the cable.

2. Disconnect the Speaker terminal.

3. Remove the screws (×2 each) and remove the Speakers (L, R).

8.9. Remove the SS-Board

1. Remove the Tuner unit. (See section 8.5.)

2. Disconnect the connectors (SS3 and SS11).

3. Disconnect the flexible cables (SS23, SS52 and SS55).

4. Remove the screws (×3 ) and remove the SS-Board.

Page 24

8.10. Remove the Stand bracket and the Hanger metals

1. Remove the Plasma panel section from the servicing stand and lay on a flat surface such as a table (covered by a soft cloth) with the Plasma panel surface facing downward.

2. Unlock the cable clampers to free the cable.

3. Remove the AC inlet. (See section 8.2.)

4. Remove the Stand bracket fastening screws (×5 ) and remove the Stand bracket.

5. Remove the Hanger metals (L, R) fastening screws (×2

each) and remove the Hanger metals (L, R).

8.11. Remove the C1-Board

1. Remove the Hanger metal R and the Stand bracket. (See section 8.10.)

2. Remove the Flexible cable holder fastening screws (×8

3. Disconnect the flexible cables (CB1, CB2, CB3 and CB4).

4. Disconnect the flexible cables (C10 and C11).

5. Remove the screws (×4 ) and remove the C1-Board.

8.12. Remove the C2-Board

1. Remove the Tuner unit. (See section 8.5.)

2. Remove the Hanger metal L and the Stand bracket. (See section 8.10.)

3. Remove the Flexible cable holder fastening screws (×8

4. Disconnect the flexible cables (CB5, CB6, CB7 and CB8).

5. Disconnect the flexible cables (C20, C21 and C23).

6. Disconnect the connector (C25).

7. Remove the screws (×4 ) and remove the C2-Board.

Page 25

8.13. Remove the Plasma panel section from the Cabinet assy

1. Remove the Plasma panel fastening screws (×4 ) and remove the Cabinet assy.

2. For leaving the Cabinet assy from the Plasma panel, pull the bottom of the Cabinet assy forward, lift, and remove.

8.14. Remove the Glass holders

1. Remove the Cabinet assy. (See section 8.13.)

2. Remove the screws (×7 ).

3. Remove the Glass holder top.

4. Remove the screws (×7 ).

5. Remove the Glass holder bottom.

6. Remove the screws (×4 ).

7. Remove the Glass holder side (L, R).

8.15. Remove the K-Board

1. Remove the Glass holder bottom. (See section 8.14.)

2. Remove the claw (×1 ).

3. Disconnect the connector (K1) and Remove the K-Board from LED Panel.

Page 26

8.16. Replace the Plasma panel

Caution:

A new Plasma panel itself without Hanger metals is fragile. To avoid the damage to new Plasma panel, carry a new Plasma panel taking hold of the Hanger metals after assembling the Hanger metals and the Stand bracket.

1. Place a carton box packed a new Plasma panel on the flat surface of the work bench.

2. Open a box and without taking a new Plasma panel; Attach the C1-Board and the C2-Board, connect the flexible cables from the Plasma panel to the C1-Board and the C2-Board, and fit the Flexible cable holders.

3. Attach the Hanger metals and the Stand bracket to the new Plasma panel.

4. Place the Plasma panel on the servicing stand taking hold of the Hanger metals.

5. Attach the Cabinet assy and each P.C.Board and so on, to the new Plasma panel.

*When fitting the Cabinet assy, be careful not to allow any debris, dust or handling residue to remain between the Front glass and Plasma panel.

Page 27

9 Measurements and Adjustments

9.1. Adjustment

9.1.1. Vsus selection

Caution:

When Plasma panel or A-board is replaced, Vsus should be set to LOW or HIGH.

Procedure

1. Go into main item [VSUS] in Service Mode. LOW or HIGH will be displayed.

2. Press [OK] button to go to TEST stage. White pattern without On-Screen Display will be displayed during TEST and CONF stage. Press [5] button to display the On-Screen Display.

3. Press [VOL (-)] button to set to LOW.

4. In LOW setting

a. If no several dead pixel is visible remarkably in white pattern, press [3] button to go to CONF stage. b. If the several dead pixels are visible remarkably in white pattern, Set to HIGH by press [VOL (+)] button. Press [3] button

to go to CONF stage if the symptom is improved.

5. Press [OK] button in CONF stage to store LOW or HIGH.

6. Exit Service Mode by pressing [Power] button.

Page 28

9.1.2. Sub-Contrast adjustment

Name of measuring instrument Connection Remarks RF generator Base Band signal generator HD signal generator

Steps Remarks Connect IIC cable (bus controller-cable) after banner OSD appear. And after SRQ-L, begin an adjustment 2 seconds later.

Adjustment of TV (RF system)

Note:

In adjustment, you must setting to modulation of signal at 90%.

1. Receive a RF PAL 100% Full White or Split Colour bar shown as below.

2. Goes into service mode.

3. Push a [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ CONTRAST ].

Note:

Sub-contrast adjustment is unadjusted for AV/ HD input. But, when needing the adjustment chosen manually, please refer to [ alternative method ].

Adjustment

1. The colour key yellow button of remote control is pushed.

2. The OSD character of sub-contrast becomes red. (Inside under automatic adjustment)

3. The OSD character of sub-contrast returns to black. When [NG] is displayed, adjustment failure.

4. End.

Steps Remarks

Another procedure

Connect IIC cable (bus controller-cable) after banner OSD appear. And after SRQ-L, begin an adjustment 2 seconds later.

Adjustment of AV system

1. PAL 100% Full White or Split Colour bar receive AV1(or AV2), shown as below.

2. Goes into service mode.

3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ Contrast ].

Adjustment

1. The colour key yellow button of remote control is pushed.

2. The OSD character of sub-contrast becomes red. (Inside under automatic adjustment)

3. The OSD character of sub-contrast returns to black. When [NG] is displayed, adjustment failure.

4. End.

Page 29

Steps Remarks

Another procedure

Connect IIC cable (bus controller-cable) after banner OSD appear. And after SRQ-L, begin an adjustment 2 seconds later.

Adjustment of HD system

1. At 1080i 100% Full White or Split colour bar receive component signal, as shown below.

2. Goes into service mode.

3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ Contrast ].

Adjustment

1. The colour key yellow button of remote control is pushed.

2. The OSD character of sub-contrast becomes red. (Inside under automatic adjustment)

3. The OSD character of sub-contrast returns to black. When [NG] is displayed, adjustment failure.

4. End.

Page 30

9.1.3. White balance adjustment

The adjusting method is different according to the PEAKS EEPROM version.

[copy adjustment] : Peaks EEPROM ver.1.00[Differential and copy adjustment] : Peaks EEPROM ver.1.01-

Name of measuring instrument Connection Remarks W/ B pattern Color analyzer (Minolta CA-100 or equivalent)

Steps Remarks

[copy adjustment] Connect IIC cable (bus controller-cable) after banner OSD appear. And after SRQ-L, begin an adjustment 2 seconds later.

• Make sure the front panel to be used on the final set is fitted.

• Make sure a color signal is not being shown before adjustment.

• Put the color analyzer where there is little colour variation.

Note:

Copy Adjustment method in service mode. When you push [OK] key in each item, Adjustment data is copied between HD data and SD data.

1. Enter the service mode. Please receive the Aanalog-RF. Or, please select CVBS/YUV/HDMI. (No inputting is possible.). (Forbid Analog-RF with no signal.)

2. A number key [1] or [2] are operated and [WB-ADJ] is displayed. Check that the color temp is [COOL].

3. A number key [0] is operated and select [METHOD 01].

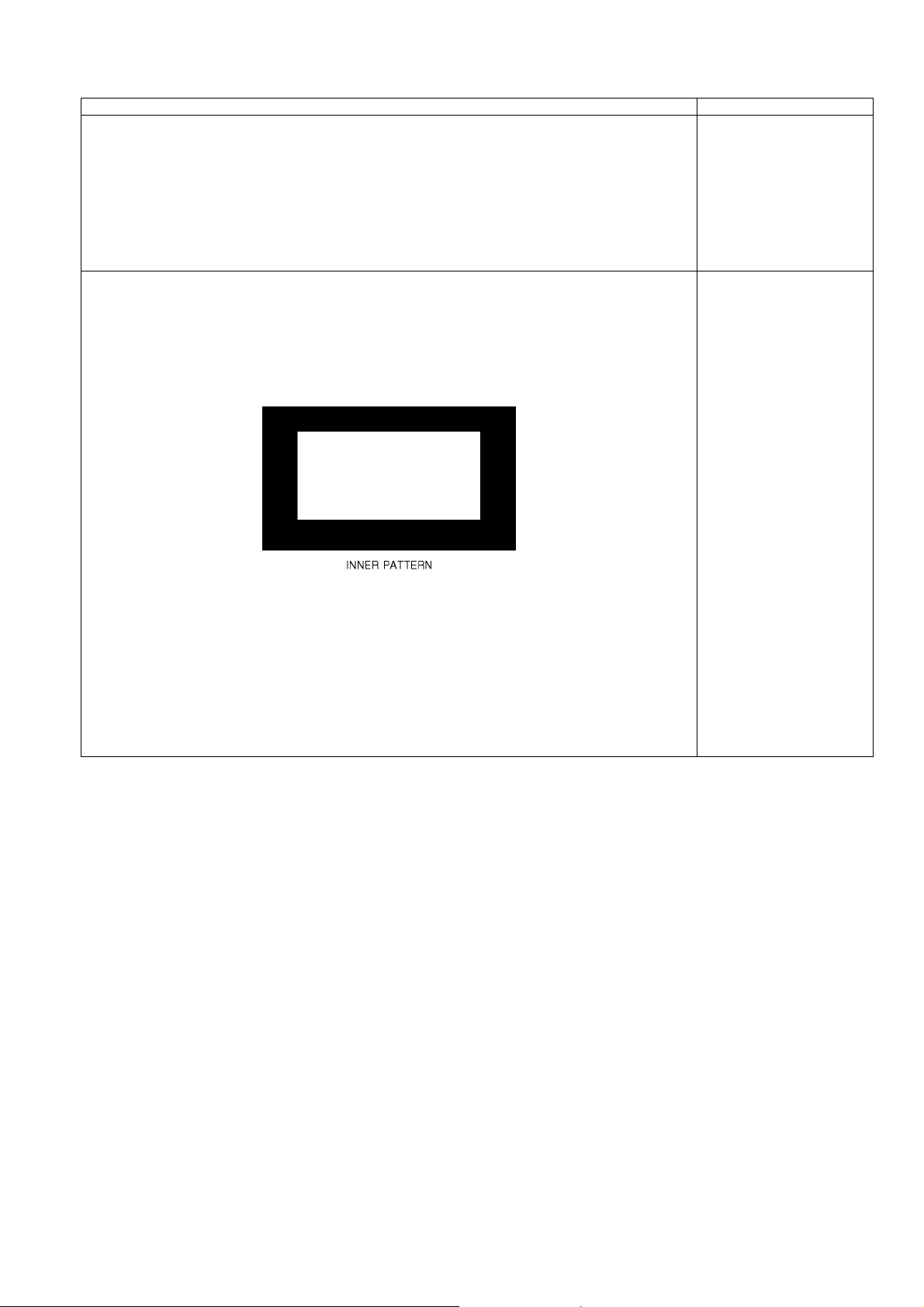

4. A number key [5] is operated and [INNER PATTERN] is displayed.

Panel surface

Picture menu : Dynamic ASPECT : 16:9

Condition is same at alternative method too.

METHOD=01 copy adjustments

5. Select [G-CUTOFF] item, using the number-key [3] or [4], and set to [80], using the volume-key [+] or [-]. Also, [B-CUTOFF] and [R-CUTOFF] set to [80].

6. Set [G-DRIVE] at [D0].

7. Touch the signal receiver of color analyzer to the INNER PATTERN center, and adjust B drive and R drive so x, y become the [COLOR TEMP COOL] in the below table1.

8. All RGB drive increase so that the maximum drive value of RGB may become [FF]. ([ALL-DRIVE] set to [FF].)

9. Set color temp to [NORMAL] using [7] key.

10. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [80].

11. Set [G-DRIVE] at [D0].

12. Adjust B-DRIVE and R-DRIVE so the INNER PATTERN x, y become the [COLOR TEMP NORMAL] in the below table1.

13. All RGB drive increase so that the maximum drive value of RGB may become [FF]. ([ALL-DRIVE] set to [FF].)

14. Set color temp to [WARM] using [7] key.

15. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [80].

16. Set [G-DRIVE] at [D0].

17. Adjust B-DRIVE and R-DRIVE so the INNER PATTERN x, y become the [COLOR TEMP WARM] in the below table1.

18. All RGB drive increase so that the maximum drive value of RGB may become [FF]. ([ALL-DRIVE] set to [FF].)

19. Confirm [METHOD=01].

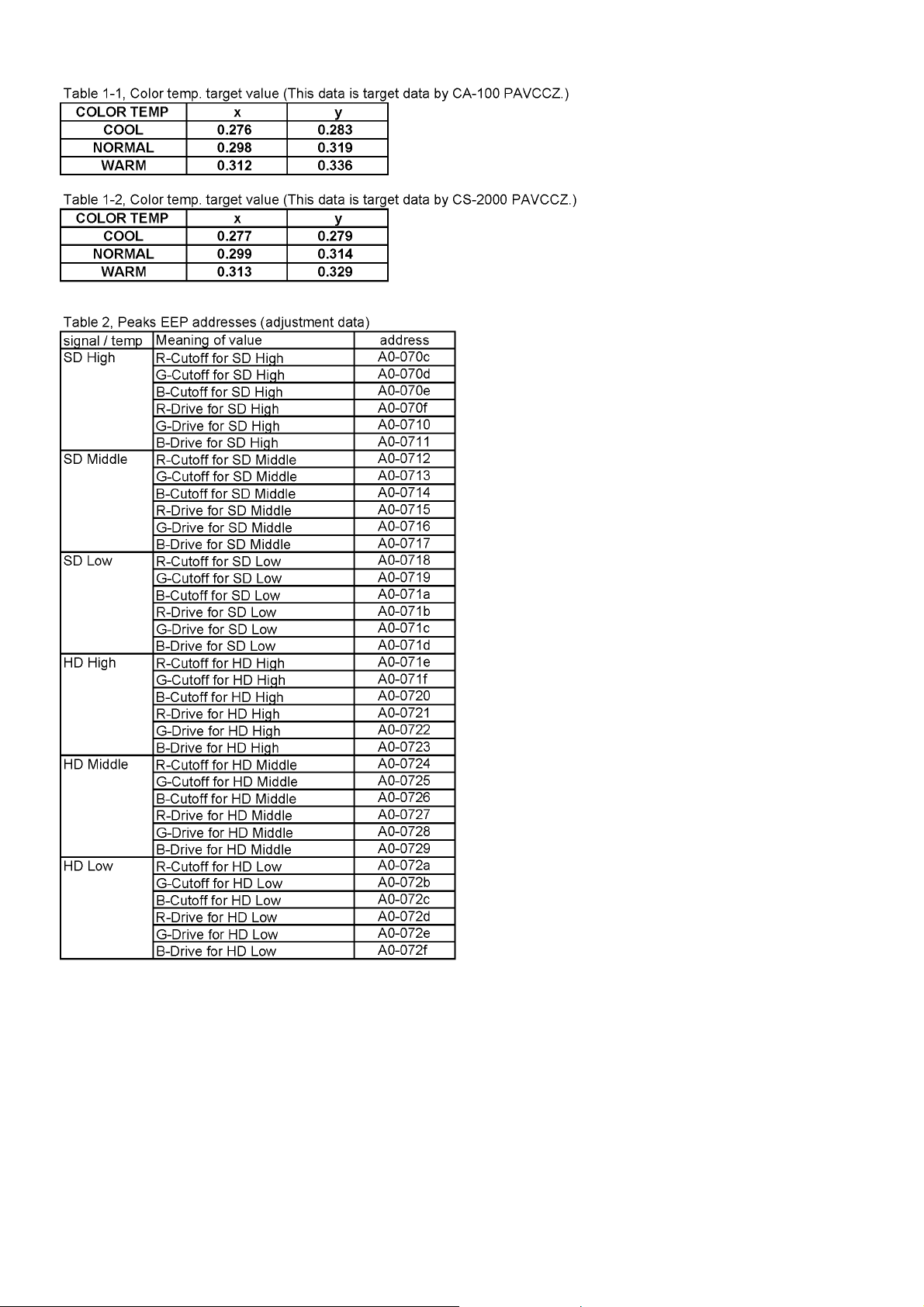

Please refer table2-3 to address.

Asking matter to execute white balance difference adjustment. Please feed back the DAC value in the adjusted each color temperature in an internal pattern.

Page 31

Steps Remarks

[Differential and copy adjustment]

Execute adjustment for color temp. [NORMAL], and set data for color temp. [COOL], [WARM] by data shift WB of HD (or PAL) copies the adjustment data from an adjusted format side.

Note:

The adjustment does only color temp. [NORMAL]. A adjustment value difference from [NORMAL] is written to EEPROM as for [COOL] and [WARM] by operating a [OK] key. As for WB of HD (or RF), the adjustment data from an adjusted format side is copied simultaneously. Text color of the adjusted value changes into red → black at the same time too.

1. Enter the service mode. Please receive the Aanalog-RF. Or, please select CVBS/YUV/HDMI. (No inputting is possible.). (Forbid Analog-RF with no signal.)

2. A number key [1] and [2] are operated and [WB-ADJ] is displayed. Check that the color temp is [NORMAL].

3. A number key [0] is operated and select [METHOD 03].

4. A number key [5] is operated and [INNER PATTERN] is displayed.

METHOD=03 Differential and copy adjustment

5. Select [G-CUTOFF] item, using the number-key [3] or [4], and set to [80], using the volume-key [+] or [-]. Also, [B-CUTOFF] and [R-CUTOFF] set to [80].

6. Set [G-DRIVE] at [D0].

7. Touch the signal receiver of color analyzer to the INNER PATTERN center, and adjust B drive and R drive so x, y become the [COLOR TEMP NORMAL] in the table 1.

8. All RGB drive increase so that the maximum drive value of RGB may become [FF]. ([ALL-DRIVE] set to [FF].)

9. A number key [0] is operated and select [METHOD=01].

Please refer table2-3 to address.

Page 32

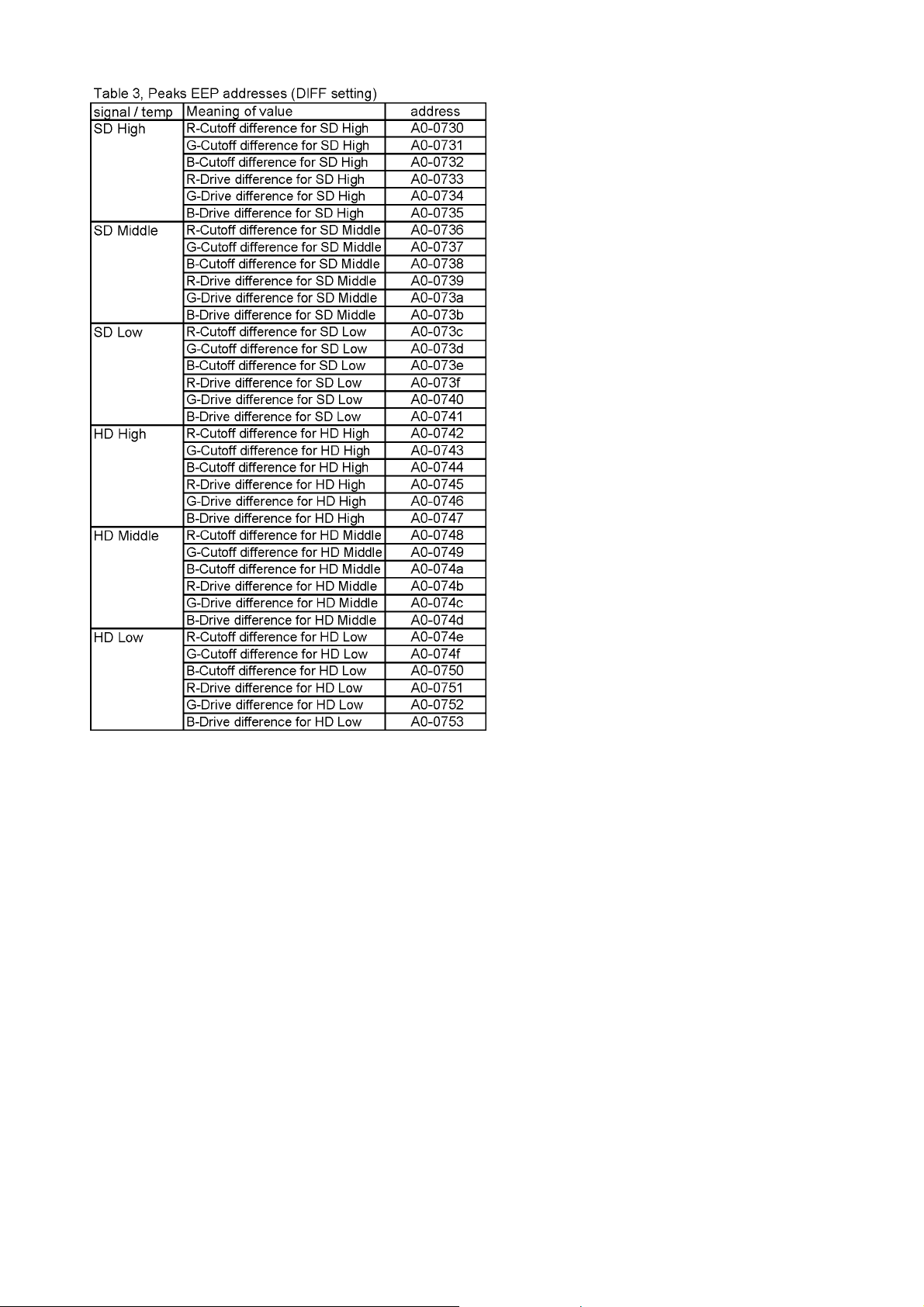

323334

Page 33

Page 34

Page 35

10 Block Diagram

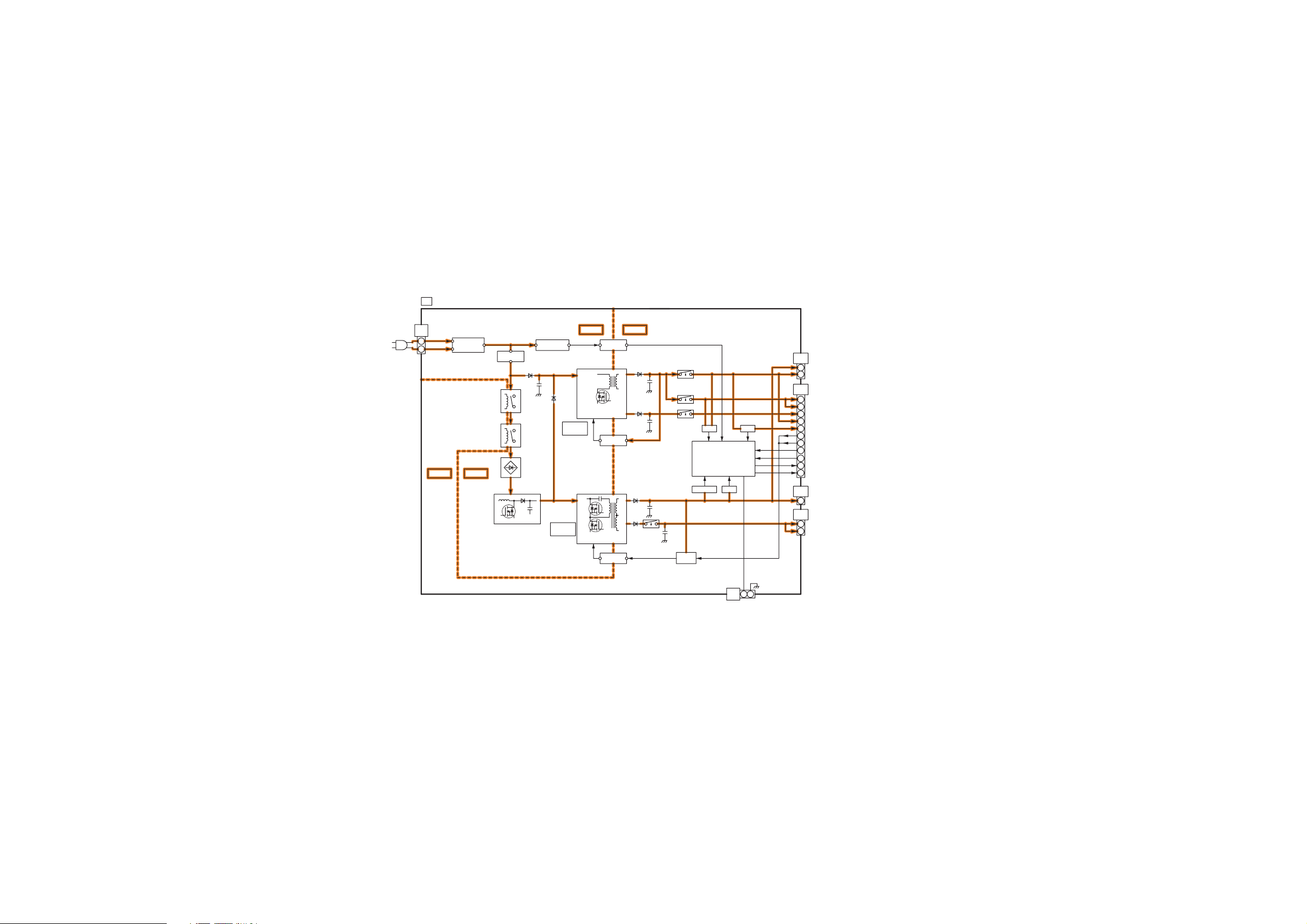

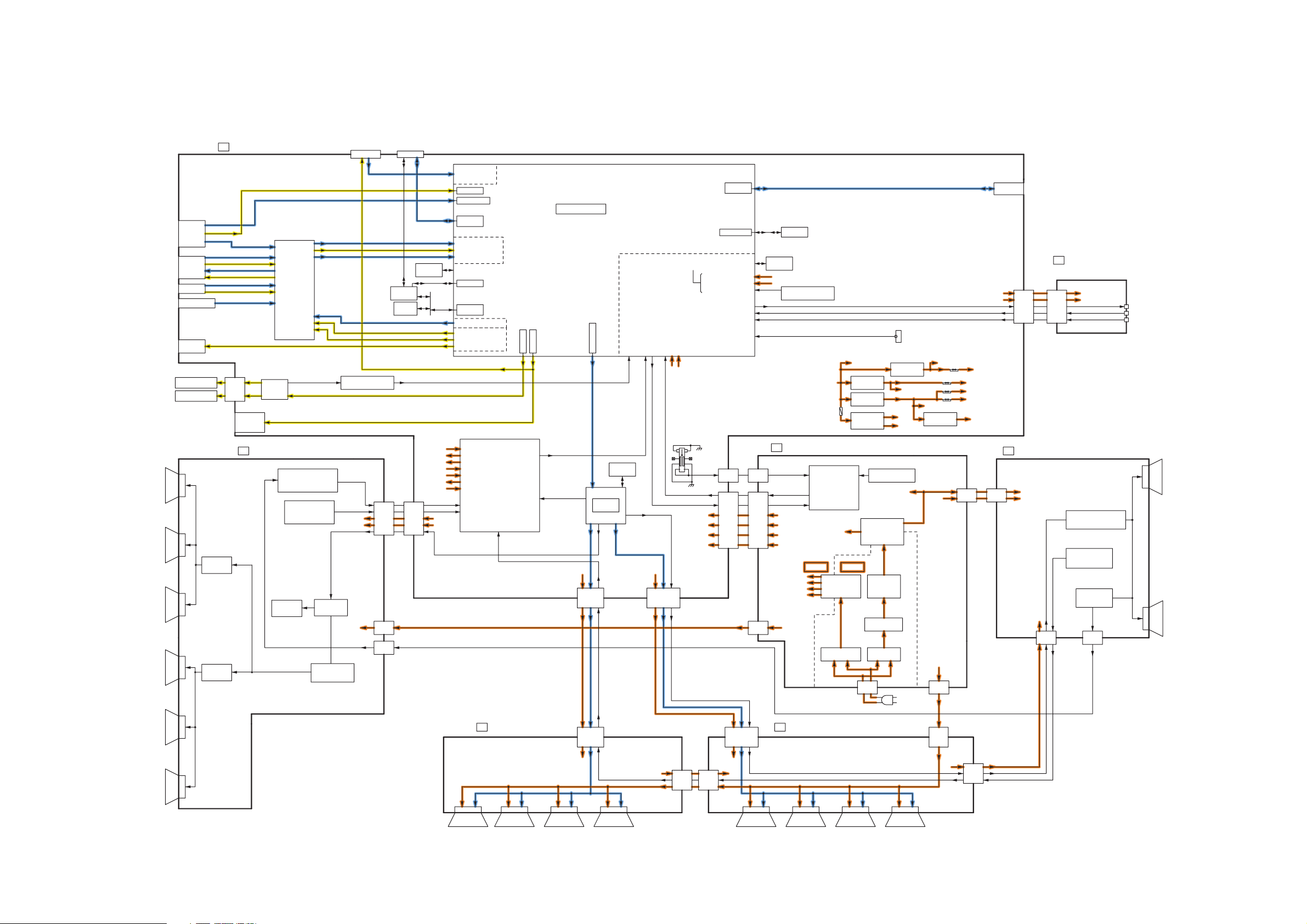

10.1. Main Block Diagram

MAIN AV INPUT,PROCESSING

IFD_OUT

SIF_OUT

TUNER

V/R/G/B

L/R

V OUT

AV1

L/R OUT

L/R

AV2

COMPONENT

HEAD_ PHONE

SPEAKER(L)

SPEAKER(R)

HP L/R

SCAN DRIVER

Y/PB/PR

A11

DIGITAL

AUDIO

OUT

AUDIO

AMP

SCAN DRIVE

BUFFER

AV SW

SN-BOARD ENERGY RECOVERY SOS DETECT

(LED:6TIMES)

SN-BOARD FLOATING PART SOS DETECT

(LED:7TIMES)

CONTROL PULSE

VSCAN GEN.

VAD GEN.

L/R

RGB_CVBS

SOS6_SC1

SOS7_SC2

SCAN CONTROL

HDMI1,2

TMDS DATA

ARC

(HDMI2)

SOUND SOS DET

(LED:12TIMES)

P+5V

P+15V

VSUS

MID

SN20

SN2

SN3

CI SLOT

CI BUFFER

NAND FLASH

A23

Parallel_ TS(CI)

PEAKS EEPROM

CI DATA

CPU BUS

DVB_CVBS

LO1_L/R

LO2_L/R

HP_L/R

STB5V

STB1.2V

STB3.3V

SUB5V

SUB9V

P+3.3V

SOS6_SC1

SOS7_SC2

F15V

P+5V

P+15V

SCAN CONTROL

HDMI I/F RECEIVER

SIF I/F

TUNER I/F

TS I/F

Y/PR/PB

L/R

CI I/F

CPU BUS I/F

VDAC

VIDEO OUT

LO1_L/R

LO2_L/R

HP_L/R

DIGITAL AUDIO OUT

SOS6_SC1

SOS7_SC2

AV IN

AUDIO OUT

ARC (HDMI2)

PWM

ANALOG-ASIC

(LED:9TIMES)

(LED:6TIMES)

(LED:7TIMES)

SOS8_SS

(LED:8TIMES)

DATA DRIVER (RIGHT)

PWM

SOS_DCC

Vda

VIDEO DATA

IECOUT

PEAKS-sLD2

P+3.3V

LVDS I/F

LVDS DATA

VIDEO

DATA

A33

VIDEO DATA

C11

VIDEO DATA

PD5L

SOS8_SS

PANEL SOS

SPI FLASH

VIDEO DATA

STM

(LED:12TIMES)

SOUND_SOS

SUSTAIN CONTROL

PANEL_MAIN_ON

PANEL_SOS

P+5V

(LED:10TIMES)

(LED:3TIMES)

(LED:5TIMES)

(LED:4TIMES)

SOS4_PS

P+5V_DET

P+3.3V_DET

P+5V

P+3.3V

PUSH

PANEL_MAIN_ON

SOUND15V

A34

SUSTAIN CONTROL

VIDEO DATA

P+5V

P+3.3V P+3.3V

TUNER_POWER_SOS

POWER SWITCH

MAIN_SW1

SOS4_PS

STB5V

P+15V

F15V

MID

C20C10

SD CARD I/F

DDR3 I/F

SUB5V_SENSE

SUB3.3V_SENSE

LED_R/G

REMOTE_IN

C.A.T.S_SENSOR

KEYSCAN1

A35

C21

P+5V

P34

DDR3

STM EEPROM

SUB5V

SUB3.3V

TUNER_POWER_SOS

(LED:10TIMES)

POWER SUPPLY

MAIN SW1

STB5V

P+15V

F15V

SOUND15V

STB5V

SOUND15V

VSUS

DATA DRIVER (LEFT)

F15V

P+15V

F15V

DCDCIN

POWER MICOM

PS SOS4 (LED:4TIMES)

ON/OFF CONTROL

Vda

STANDBY VOLTAGE CONVERTER

RECTIFIER

F15V

DCDC

SUB5V

DCDC

SUB3.3V

DCDC SUB1.5V SUB1.2V

HOTCOLD

SUSTAIN CONTROL

SOS8_SS

Vda

VIDEO DATA

P-BOARD SOS DETECT

MAIN CONVERTER

POWER FACTOR CONTROL

RECTIFIER

RELAY

SUB1.5V

SUB1.2V

KEY SWITCH

DCDC

P+1.2V

SUB5V

VSUS

AC CORD

SUB3.3V

SUB1.8V

P+15V

SD CARD DATA

PD1.2V

DCDC

VSUS

Vda

P35

C25

Vda

P+5V

SD CARD

POWER LED

REMOTE RECEIVER C.A.T.S. SENSOR

VSUS GEN. VE GEN. ENERGY RECOVERY

SS-BOARD SOS DETECT

(LED:8TIMES)

SOS8_SS

SUB3.3V

STB3.3V

ENERGY RECOVERY COIL

MID

SS3

LED_R/G

REMOTE_RECEIVER

C.A.T.S_SENSOR

SUB3.3V

STB3.3V

P+1.2V

P+5V

VDDSD 18V33V

P+3.3V

SUB1.8V

P11

SS11

SUSTAIN DRIVE

VSUS

P+15V

SUSTAIN CONTROL

P+5V

SS23

C23

DATA DRIVER

Page 36

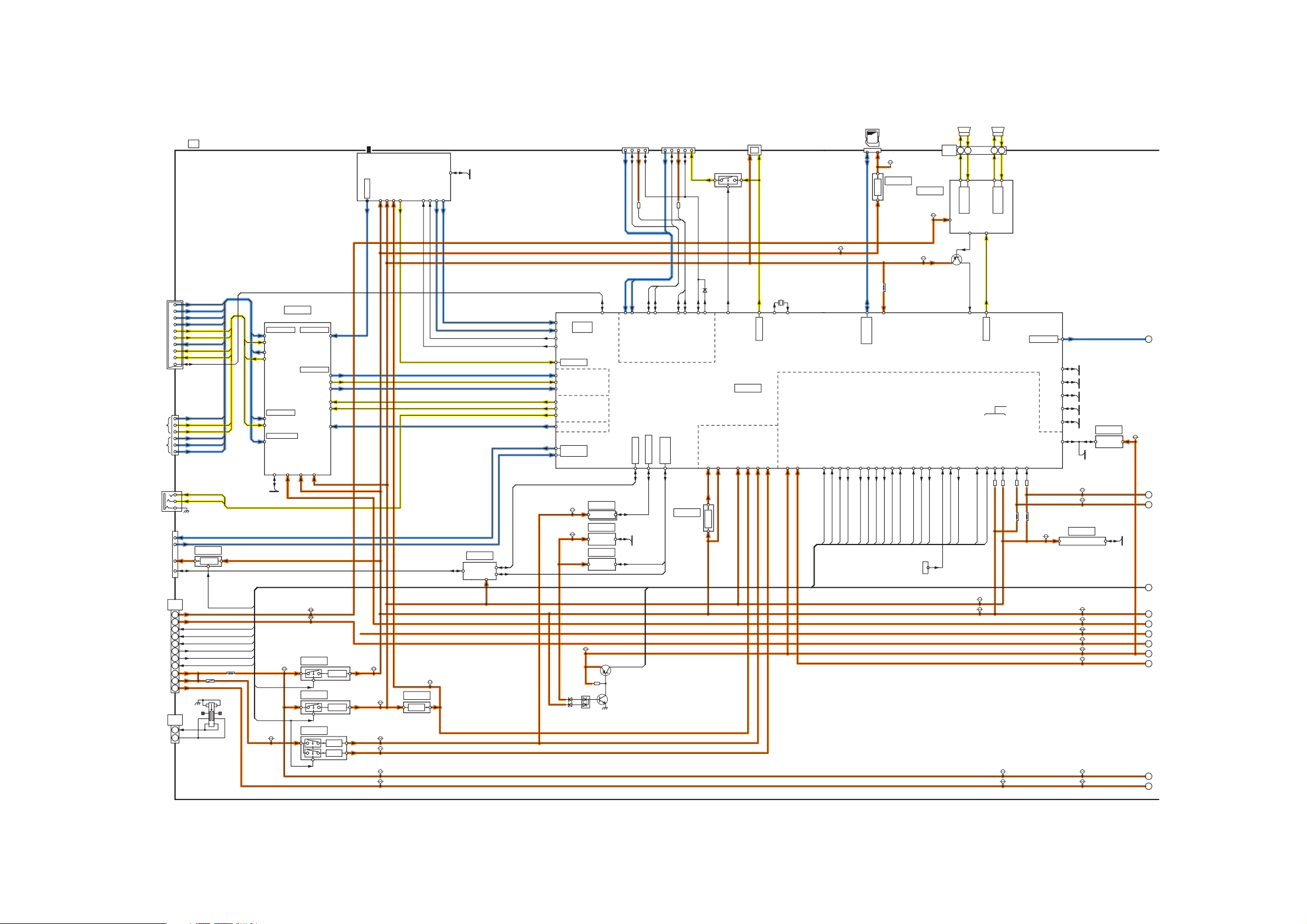

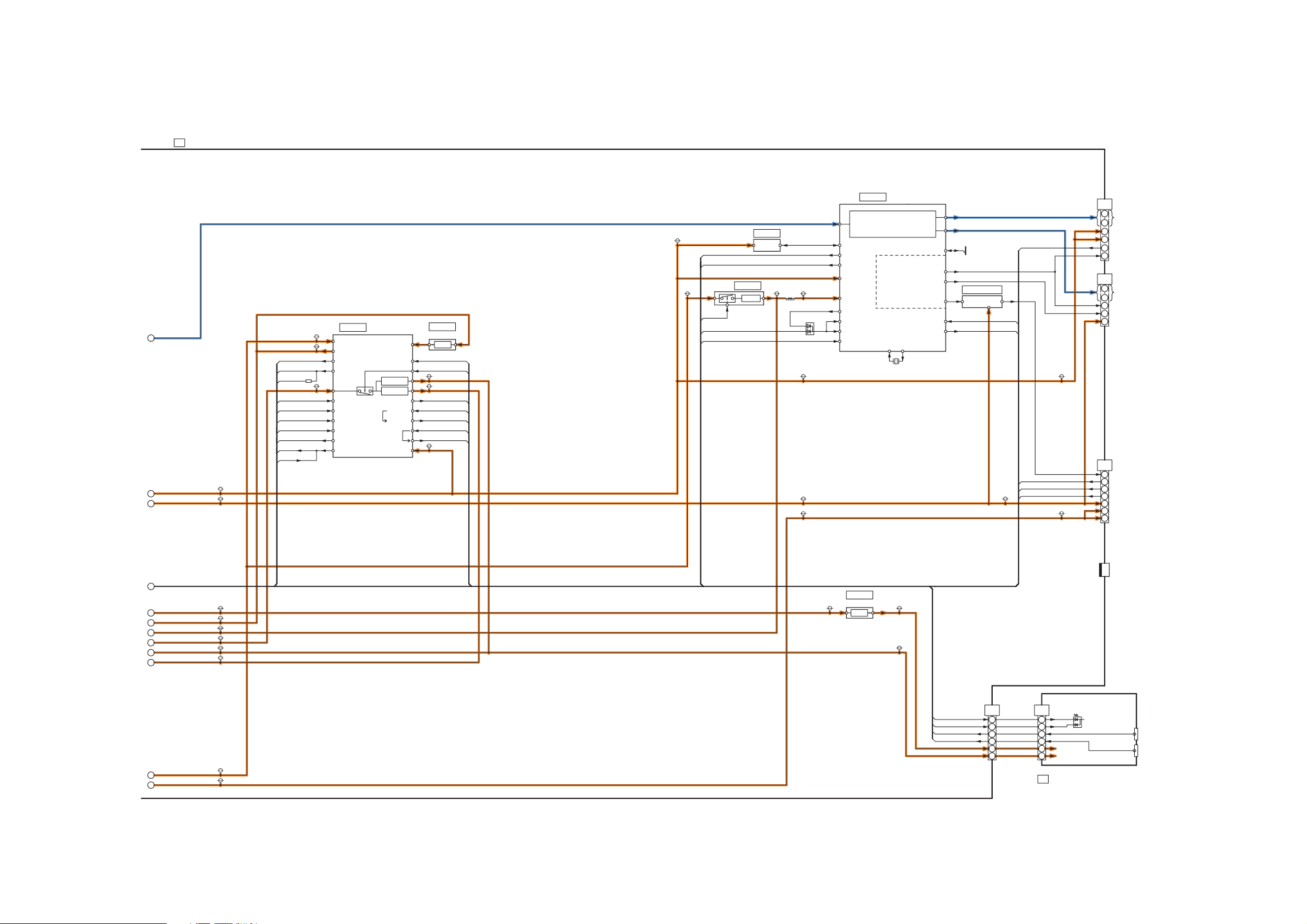

10.2. Block (1/4) Diagram

JK1002A

JK1001B

COMPONENT

JK1051A

HEADPHONE

SOUND15V

PANEL_MAIN_ON

STB5V_SW_ON

TUNER_SUB_ON

MAIN_SW_1

MAIN_SW_2

AV1

AV2

JK1052

CI SLOT

STB5V

SOS4_PS

P+15V

P_S1

P_S0

F15V

P34 A35

MAIN AV INPUT,PROCESSING

AV1_VIN

AV1_RED

AV1_GREEN

AV1_BLUE

AV1_LIN

AV1_RIN

AV1_VOUT

AV1_LOUT

AV1_ROUT

AV1_QLINK

LIN

RIN

HP_L

HP_R

Parallel_TS(CI_IN)

Parallel_TS(CI_OUT)

IC8404

CI_5V

PA2011

SW2000

POWER SWITCH

CI_POWER_ON

PANEL_MAIN_ON

SOS4_PS

STB5V_SW_ON

TUNER_SUB_ON

VJ2005

PUSH

P_S1

P_S0

V/R/G/B

L/R

VOUT

L/ROUT

L/R

COMPONENT

Y/PB/PR

IIC3

DCDCEN2

DCDCEN

DCDCIN

AV1

AV2

F15V

IC3001

AV SW

SOUND15V

STB5V

TUNER

RF_CVBS

DVB_CVBS

5V9V 3.3V

IC8701

IC8707

IC8100

MAIN

Y/PR/PB

LO1_L/R

LO2_L/R

15V

L(+)

L(-)

L_OUT

SPEAKER

SOS

SPEAKER_R

R(+)

SPEAKER

PWM

R(-)

R_OUT

ANT IN

VIDEO

TU4801

TUNER

3.3V

1.8V

SIF_OUT

FE_XRST

IF_AGC

IFD_OUT2

IFD_OUT1

DMD_ IIC0

JK1020

HDMI IN 1

TMDS DATA

CLOCK

+5V

DDC_IIC0

HDMI_CEC

HDMI_

5VDET0

JK1021

HDMI IN 2

TMDS DATA

CLOCK

DDC_IIC1

+5V

ARC

HDMI_CEC

HDMI_

5VDET1

Q4512

D1006

DIGITAL

AUDIO

OUT

AUDIO OUT

DIGITAL

SUB5V

+3.3V

SD DATA:4bit

JK1053

SD CARD

SD3.3V

IC8604

SD3.3V

IC4900

AUDIO AMP

SOUND15V

SUB3.3V

SPEAKER_L

A11

Q5172

SD CARD

TUNER_SUB_ON

PD5_XRSTSYS

TUNER_SUB_ON

SDVOLC

VOL.UP/CH.UP

VOL.DN/CH.DN

I/F

SDVOLC

R_LED_ON

KEY SWITCH

VJ8701

VDDSD1.8V3.3V

C.A.T.S_SENSOR

G_LED_ON

REMOTE_IN

G_LED_ON

C.A.T.S

TV AV

REMOTE_IN

PANEL_SOS

SW2001 SW2002 SW2003 SW2004 SW2005

PANEL_MAIN_ON

CI_POWER_ON

PANEL_MAIN_ON

KEYSCAN1

POWER_DET

KEYSCAN1

SW_OFF_DET

POWER_DET

SUB3.3V

SOUND_SOS

SW_OFF_DET

SUB5V

PWM

(LED:12TIMES)

SOS4_PS

SUB5V_SENSE

TUNER_POWER_SOS

(LED:4TIMES)

SOS4_PS

TUNER_POWER_SOS

F15V

P+15V

(LED:10TIMES)

P+5V_DET

SUB3.3V_SENSE

(LED:5TIMES)

R9918

LVDS I/F

P+3.3V_DET

(LED:3TIMES)

R9917

SUB3.3V

IIC0

IIC1

IIC3

DMD_ IIC0

SBI0 SBO0

STM IIC

LVDS DATA

P+3.3V

P+5V

IC2001

TEMP SENSOR

SUB5V

SUB9V

PD1.2V

STB5V

STB3.3VSTB3.3V

STB1.2V

F15V

P+15V

IIC0

IIC1

IIC3

DMD_ IIC0

SBI0 SBO0

STM IIC

IC8901

STM EEPROM

STB3.3V

IIC3

X8300

24.576MHz

IECOUT

SUB1.5V

AXO

SUB1.2V

AXI

STB3.3V

STM

STB1.2V

XRST

XRSTSTM

DRVRST

PD5_XRSTSYS

IFD2

TUNER I/F

IFD1

IF_AGC

FE_XRST

SIF I/F

Y/PR/PB

AV IN

L/R

RGB_CVBS

DVB_CVBS

L/R

LO1_L/R

LO2_L/R

HP_L/R

VDAC

TS I/F

SUB1.5V

AUDIO OUT

VIDEO OUT

CI DATA

IC8201

DDR3

IC8902

SUB3.3V

PEAKS EEPROM

D5171

SUB3.3V

D5172

Q5170

D5170

IC8900

NAND FLASH

SUB5V

SUB3.3V

+3.3V

SUB1.5V SUB1.2V

+1.5V

+1.2V

IC8403

CI BUFFER

SUB5V

+5V

SUB3.3V

SUB1.5V

SUB1.2V

F15V

P+15V

SUB1.8V

IC8702

+1.8V

SUB5V

QLINK1

TUNER_ POWER_SOS

Q5171

OVERVOLTAGE DETECTION

RX0

RX1

DDC_IIC0

DDC_IIC1

HDMI_5VDET1

HDMI_5VDET0

PULL_ON

HDMI_CEC

HDMI_CEC_

ARC_OFF

HDMI I/F

IC8000

PEAKS-sLD2

VCC

CI I/F

CPU BUS

I/F

IIC1

CPU BUS

DDR3 I/F

IC8706

HDMI3.3V

SUB5V

AVDDH

SUB3.3V

SUB1.8V

Page 37

10.3. Block (2/4) Diagram

MAIN AV INPUT,PROCESSING

LVDS DATA

P+3.3V

P+5V

SUB9V

DCDCEN

DCDCEN2

XRST

STB5V

SOS6_SC1

SOS7_SC2

SOS8_SS

SOS_DCC

POWER_DET

SW_OFF_DET

F15V

IC5000

DTV15V

SUB9V

DCDC_CTL

DTV_RST

SOS6_SC1 (LED:6TIMES) SOS7_SC2

(LED:7TIMES)

SOS8_SS

(LED:8TIMES)

SOS_DCC

(LED:9TIMES)

PANEL_SOS

POWER_DET

ANALOG-ASIC

SD_UHS

STB+3.3V

STB+1.2V

STBRST

DRVRST_ IN

DRVRST_ OUT

UHZ

BUFF_EN

SUB5V

IC5002

ASIC 5V

+5V

SDVOLC

STB5V_SW_ON

STB3.3V

STB1.2V

XRSTSTM

DRVRST

PDP_DRVRST

SC_UHZ

P+3.3V

IC9300

PD5L

LVDS DATA

IC9800

+1.2V

IC9304

SPI FLASH

PD1.2V

R9915

SI/SO

P+1.2V

D9806

P+3.3V

P+5V

P+15V

P+3.3V

P_S0

P_S1

F15V

DCDCEN

PD5_XRSTSYS

PDP_DRVRST

D_UHZPANEL_SOS

PLASMA AI CPG H/V Sync Control Sub Filed Processor

FLASH I/F

P_S0

P_S1

3.3V

1.2V

OFF_FLAG

XRST

XRSTSYS

PDP_DRVRST

DISCHARGE CONTROL

DATA DRIVER CONTROL

SUSTAIN CONTROL

SCAN CONTROL

SOS_DCC

X0 X1

X9300

VIDEO DATA

IIC0

SOS8_SS

IC9400,01

SCAN DATA BUFFER

UHZ

D_UHZ

SOS_DCC

P+5V

SC_UHZ

SOS6_SC1

SOS7_SC2

P+3.3V

P+15V

A33

C11

VIDEO DATA

P+3.3V

SOS8_SS

DATA DRIVER CONTROL

A34

C21

VIDEO DATA

DATA DRIVER CONTROL

SUSTAIN CONTROL

P+5V

SN20

A23

SCAN CONTROL

UHZ

SOS6_SC1

SOS7_SC2

P+5V

P+15V

CN0100

IIC0 IIC1 STM_IIC

POWER LED

REMOTE RECEIVER C.A.T.S. SENSOR

SBO0/SBI0

D2820

SUB5V

SUB9V

PD1.2V

STB5V

STB3.3V

STB1.2V

F15V

P+15V

SUB5V

IC5251

SUB_AI3.3V

+3.3V

SUB_AI3.3V

STB3.3V

R_LED_ON

C.A.T.S

REMOTE_IN

G_LED_ONG_LED_ON

R_LED_ON

C.A.T.S

REMOTE_IN

SUB_AI3.3V

STB3.3V

FOR FACTORY USE

SN2810

C.A.T.S SENSOR

RM2810

REMOTE RECEIVER

Page 38

10.4. Block (3/4) Diagram

POWER SUPPLY

AC CORD

COLD HOT

Fuse (Live) (Neutral)

Relay for prevention of inrush current

Relay for AC input cutting

FILTER

POWER FACTOR CONTROL

COLDHOT

AC Vin Detection

OCP/OVP LATCH

STANDBY VOLTAGE CONVERTER

MAIN CONVERTER

PHOTO COUPLER

T101

T501

FEED BACK

SS11

FET SW

Drop IC

UVP

OCP

POWER MICOM

OVP/UVP/OCP Latch

SW ON/OFF

UVP

OVP/UVP

ERROR DET

P34

P11

Vsus

P+15V

F15V

STB5V

SOUND15V

P+15V

P_S1

P_S0

PANEL_MAIN_ON

TUNER_SUB_ON

SOS4_PS

STB5V_SW_ON

Vsus

P35

Vda

SN2

C25

A35

Page 39

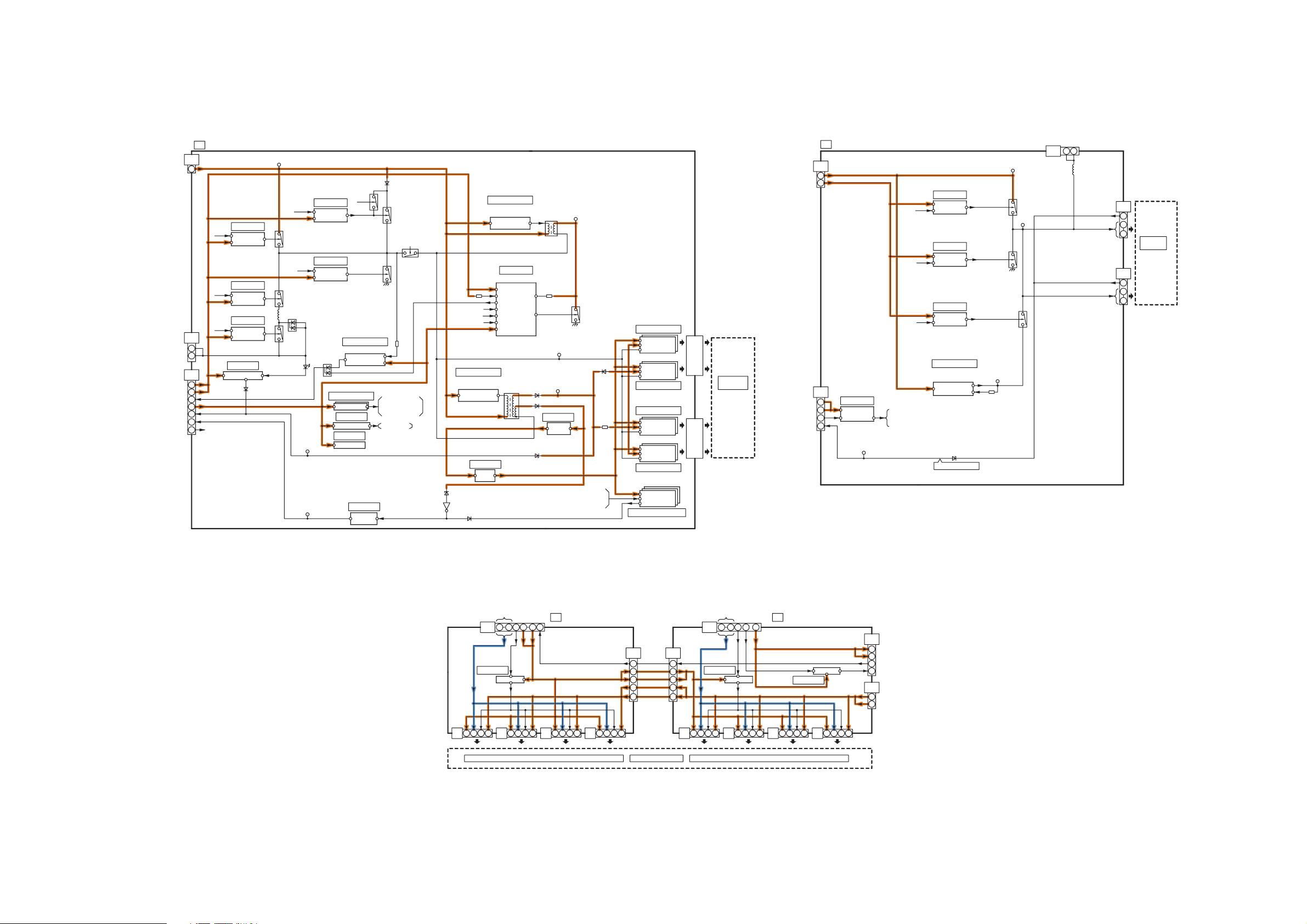

10.5. Block (4/4) Diagram

SCAN CONTROL

SS3

A23

P+15V

P+5V

SOS6

SOS7

Vsus

UHZ

SUSTAIN DRIVE

P11

P+15V

C23

SOS8_SS

Vsus

P+5V

SS 11

UMH

MAIN H

IC16131

BUFFER

Q16001 Q16003

TPVSUS

TPSS1

IC16132

UML

BUFFER

MAIN L

Q16022 Q16023

IC16191

UEH

BUFFER

IC16304,12

PC16192

IPD CIRCUIT

IC16241

BUFFER

TPSOS8

(LED:8 TIMES)

UMH UML UEH

VE GEN.

SHUNT REG

D16282

FPC PROTECTOR

TPVE

Q16101 Q16102

SCAN DRIVE

MID

TPVSUS

Q16401 Q16402

Q16441

D16461

Q16451

D16583 LED(G)

(LED:6 TIMES)

(LED:7 TIMES)

CPH1

CML

TPSOS6

TPSOS7

IC16684

BUFFER

IC16521

BUFFER

SUSTAIN L

D16493

Q16607

VOL

IC16490,91

VOL ERROR DET

IC16561,62

BUFFER

IC16563

INVERTER

IC16564

CERS

Q16421 Q16422 Q16423

IC16471

SHUNT REG

D16618

CML CMH CSH CSL

CRC1

Q16601

CIS CPH1 CERS CEL

CRC2

CIS

Q16621 Q16622

SEPA

IC16784,85

PC16897

IPD CIRCUIT

VAD GEN. SHUNT REG

VFG

IC16921

IGBT CONTROL

CRC1

CRC2

CEL

VFG

IC16786,87

PC16723

IPD CIRCUIT

VSCN GEN.

F15V

D16791

SHUNT REG

IC16724

D16473

+5V

SCNR_PRO

SIU OC1 OC2 CLK

Q16471

T16472

D16713 D16714

D16728

D16825

T16471

IC16795

Q16661

TPVFG

TPSN1

F15V

TPVAD

VSCN-F

5V_F

SIU OC1 OC2 CLK

IC14901-02

SCAN

DRIVER

SCAN

DRIVER

IC14903-04

IC14951-52

Vfo

SCAN

DRIVER

SCAN

DRIVER

SN21 SN22 SN23

SN24 SN25 SN26

PLASMA PANEL

PANEL SCAN ELECTRODE

SUSTAIN CONTROL

IC14953-54

LOGIC IC

IC14961,62,63

SN2

IC16501

CMH

BUFFER

SUSTAIN H

IC16502

CSH

BUFFER

RECOVERY H

IC16522

CSL

SCAN CONTROL

BUFFER

RECOVERY L

IC16581

ERROR DET

D16822

SN3

MID

SN 20

SN3

SS3

L16011

SS 52

PLASMA PANEL

PANEL SUSTAIN ELECTRODE

SS 55

CB1

A33

C11

IC17101

CB2

VIDEO DATA

BUFFER

P+3.3V

CONTROL DATA

DATA DRIVER

DATA DRIVER (RIGHT)

SOS8_SS

CB3

CB4

C10

SOS8_SS

P+3.3V

Vda

PLASMA PANEL

VIDEO DATA

A34

C21

CONTROL DATA

SUSTAIN CONTROL

C20

CB5

IC17201

BUFFER

CB6

P+5V

CB7

DATA DRIVER (LEFT)

IC17202

CB8

BUFFER

SS23

C23

P+5V

SOS8_SS

SUSTAIN CONTROL

P35

C25

Vda

DATA DRIVER

Page 40

Page 41

11 Wiring Connection Diagram

11.1. Caution statement.

Caution:

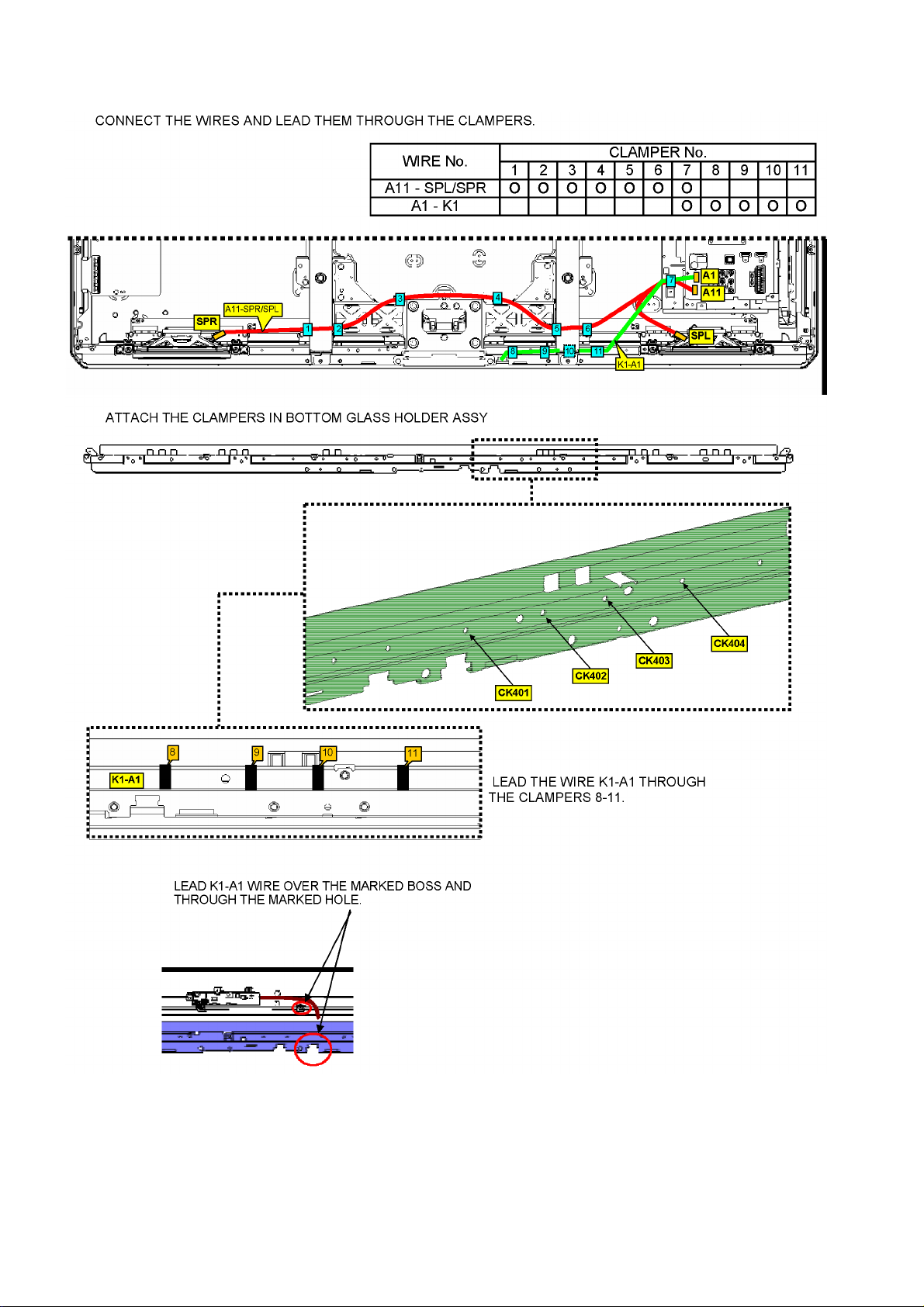

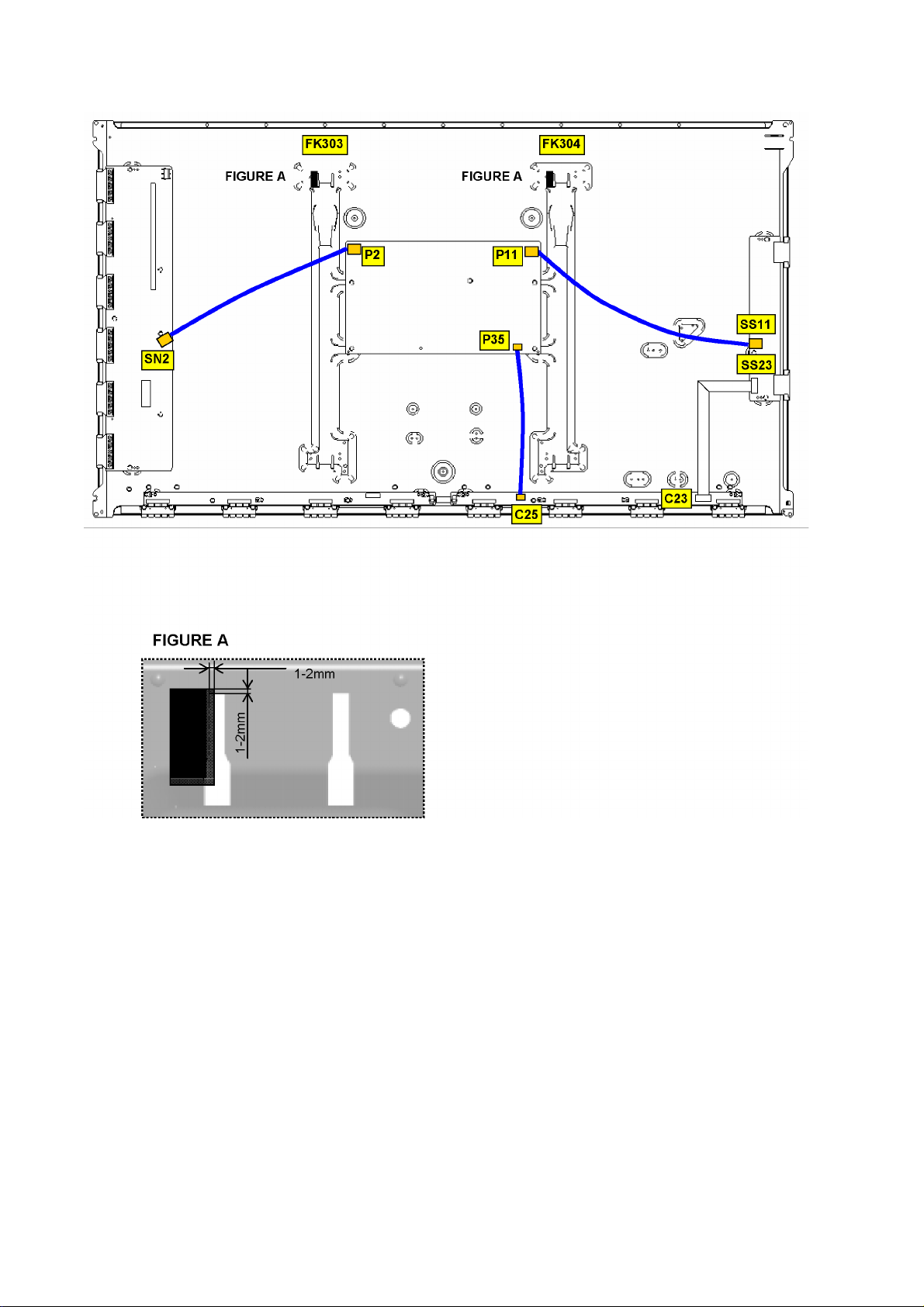

Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull.

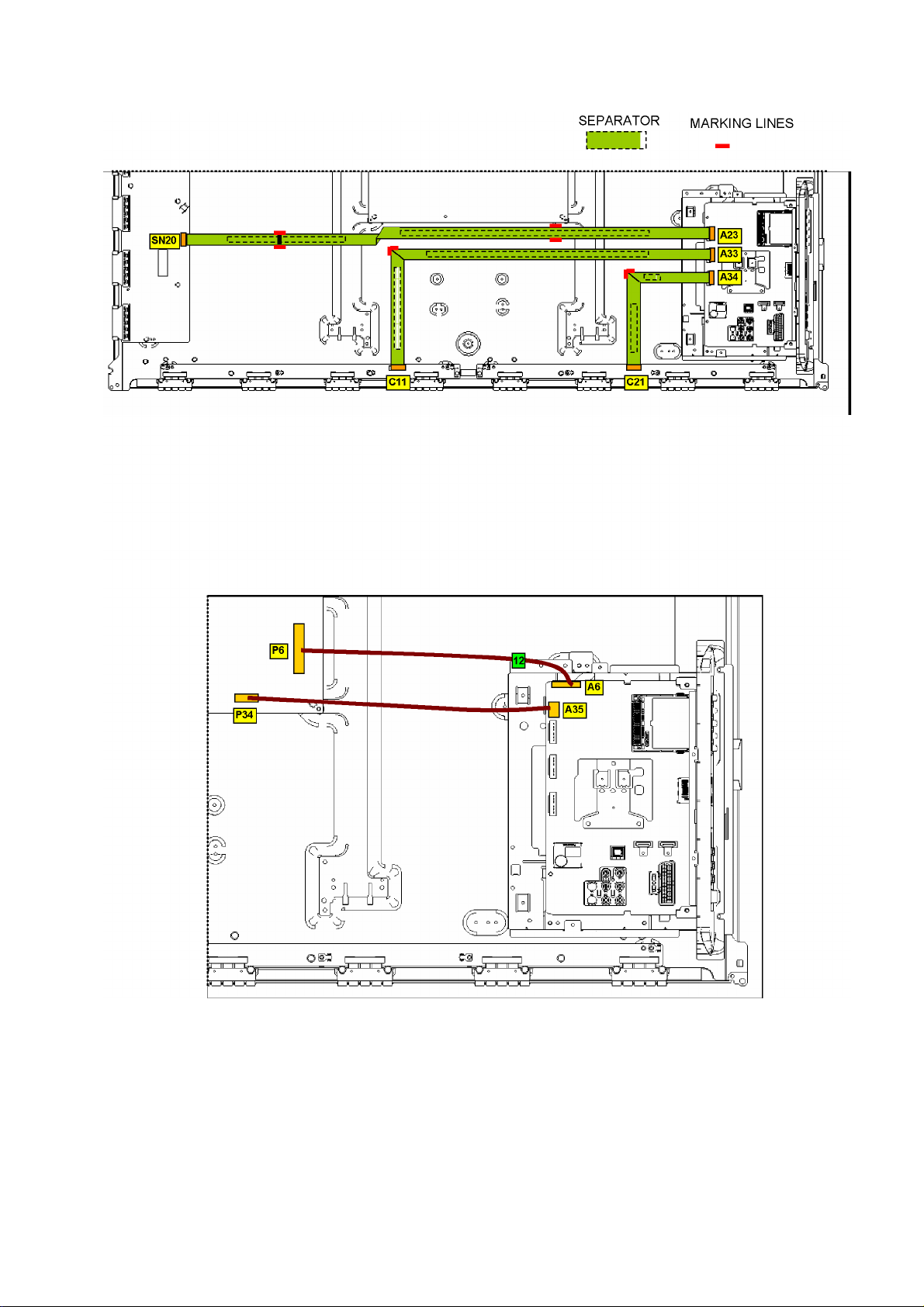

11.2. Wiring (1)

Page 42

11.3. Wiring (2)

Page 43

11.4. Wiring (3)

Page 44

11.5. Wiring (4)

Page 45

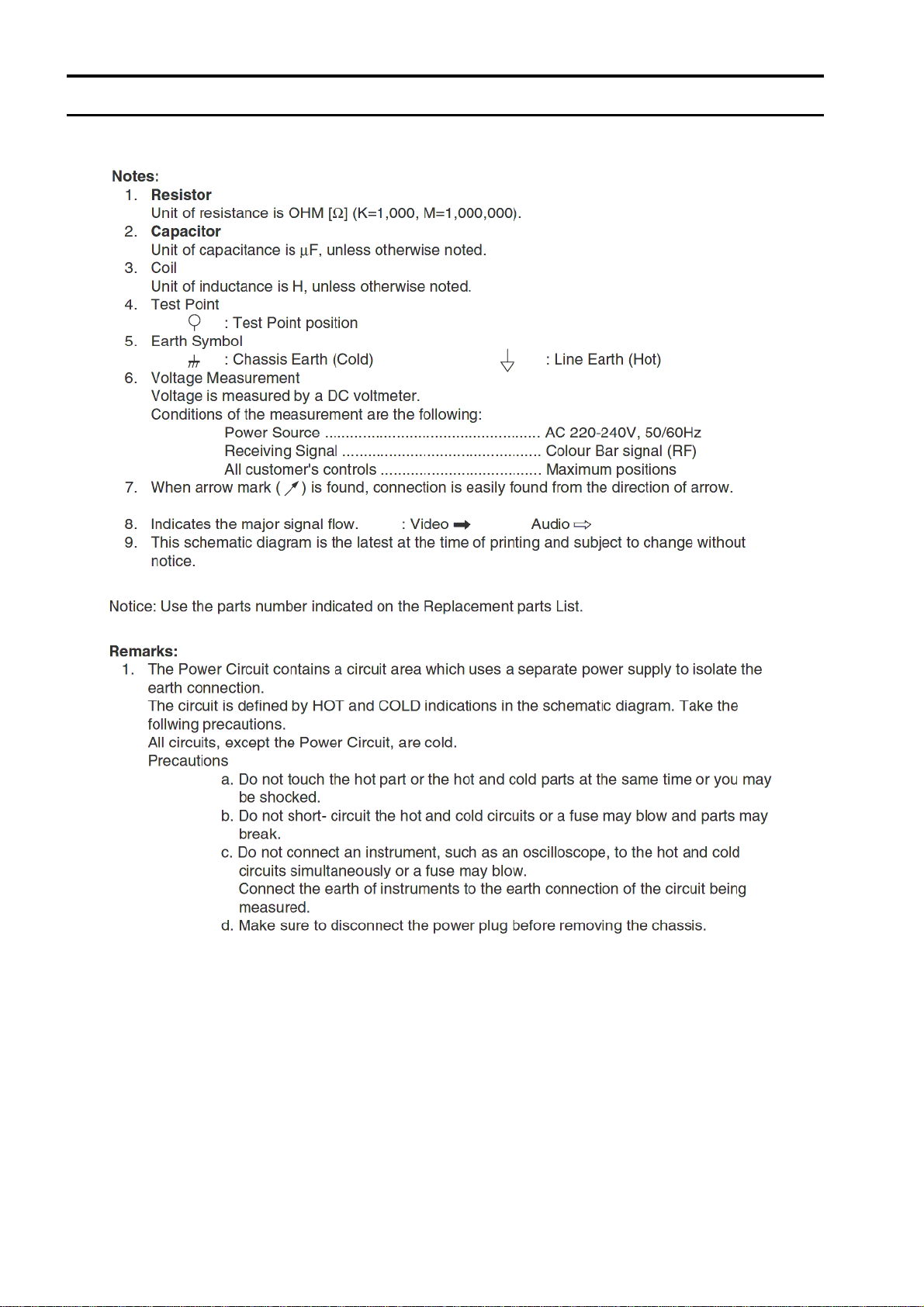

Model No. : TX-P50C3E/J, PR50C3 Schematic Diagram Note

S-1

Page 46

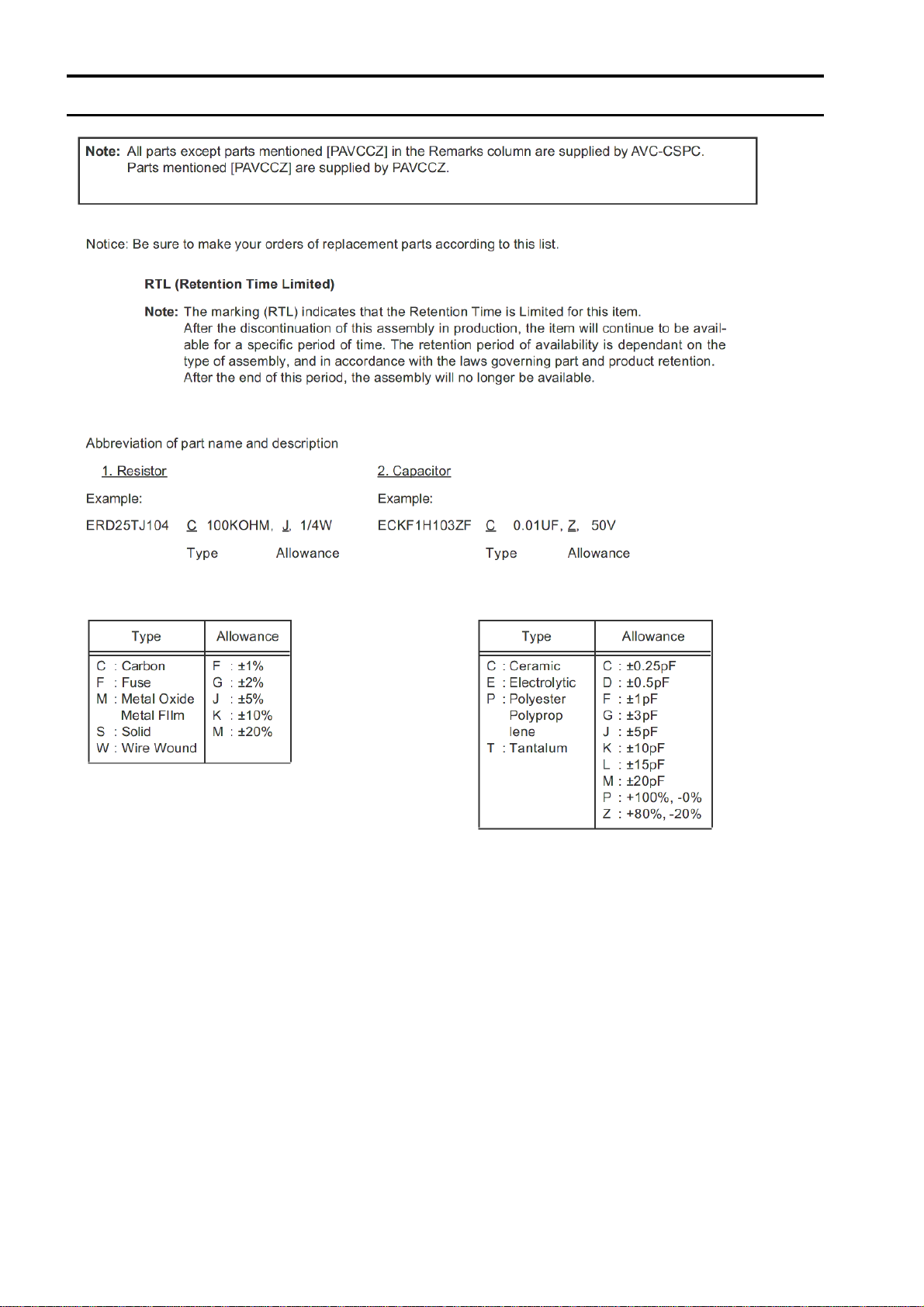

Model No. : TX-P50C3E/J, PR50C3 Replacement Parts List Note

S-2

Page 47

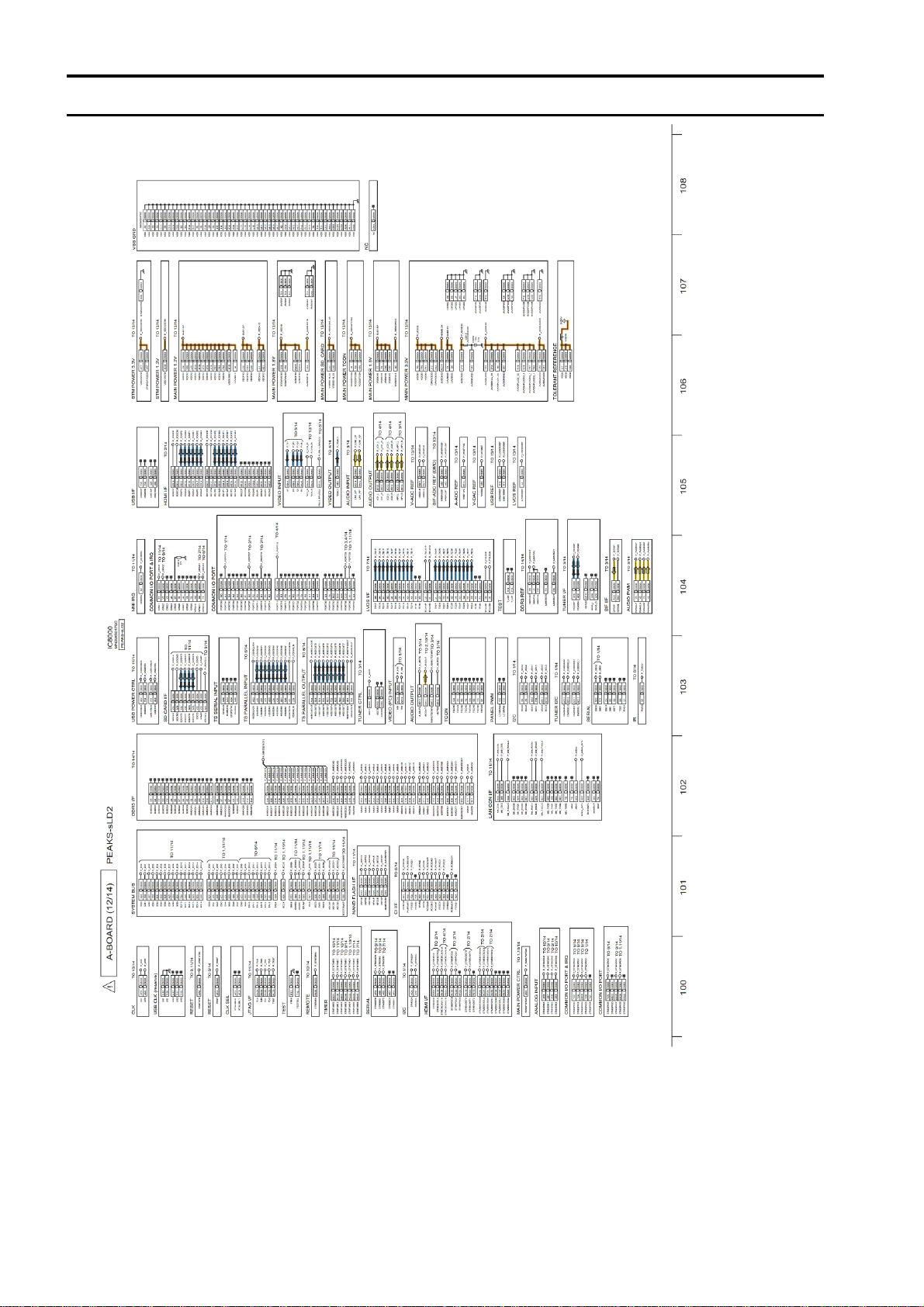

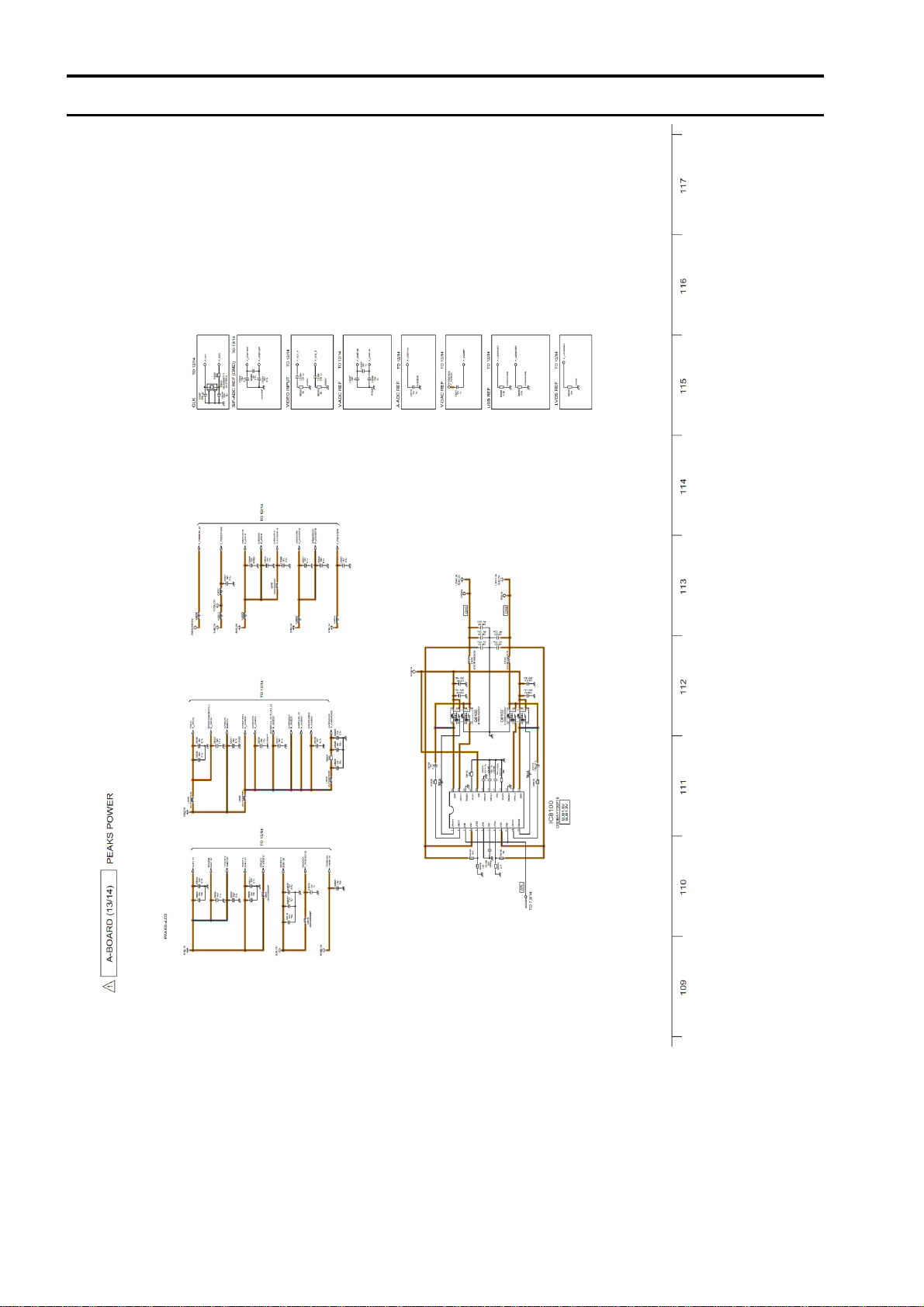

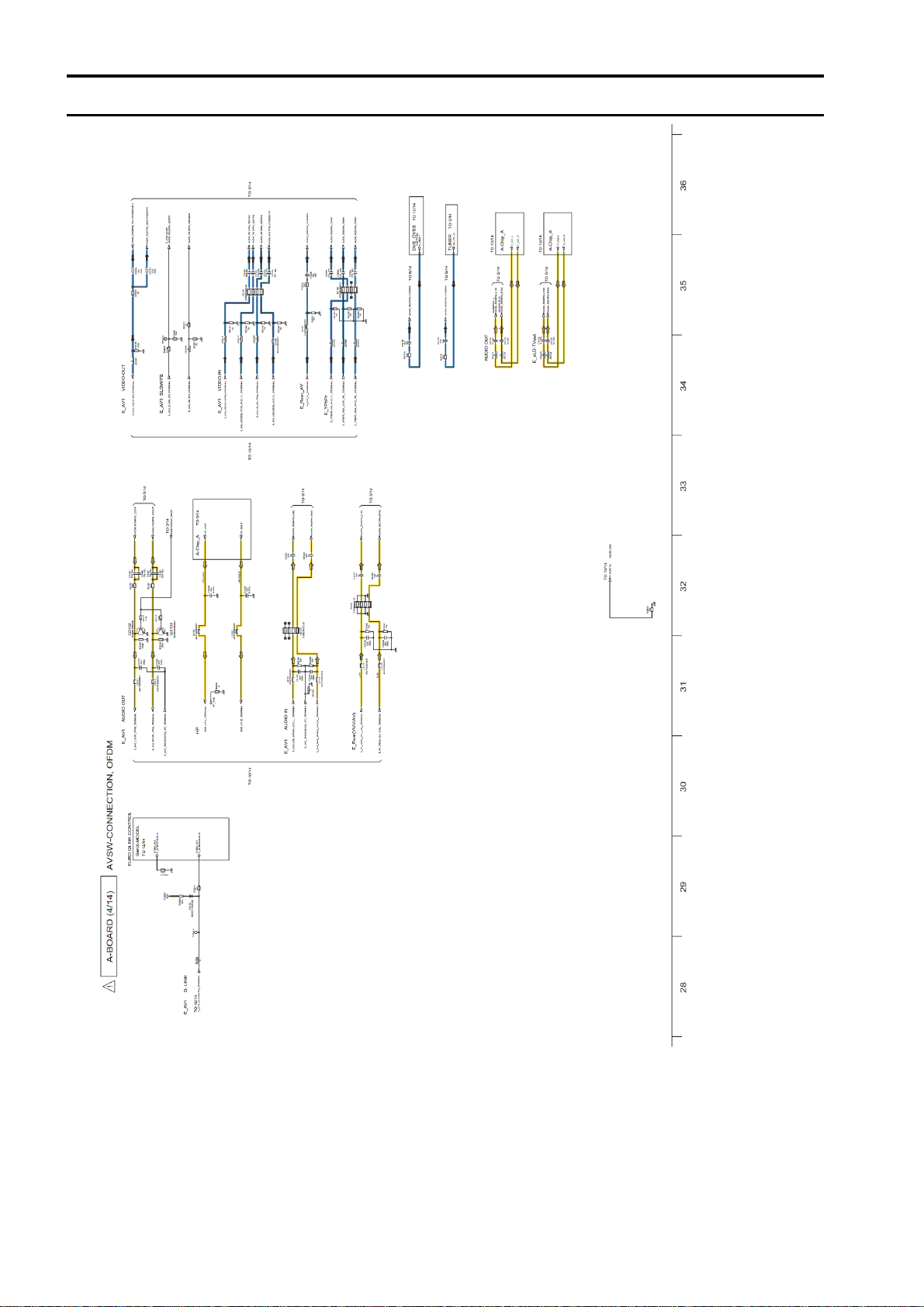

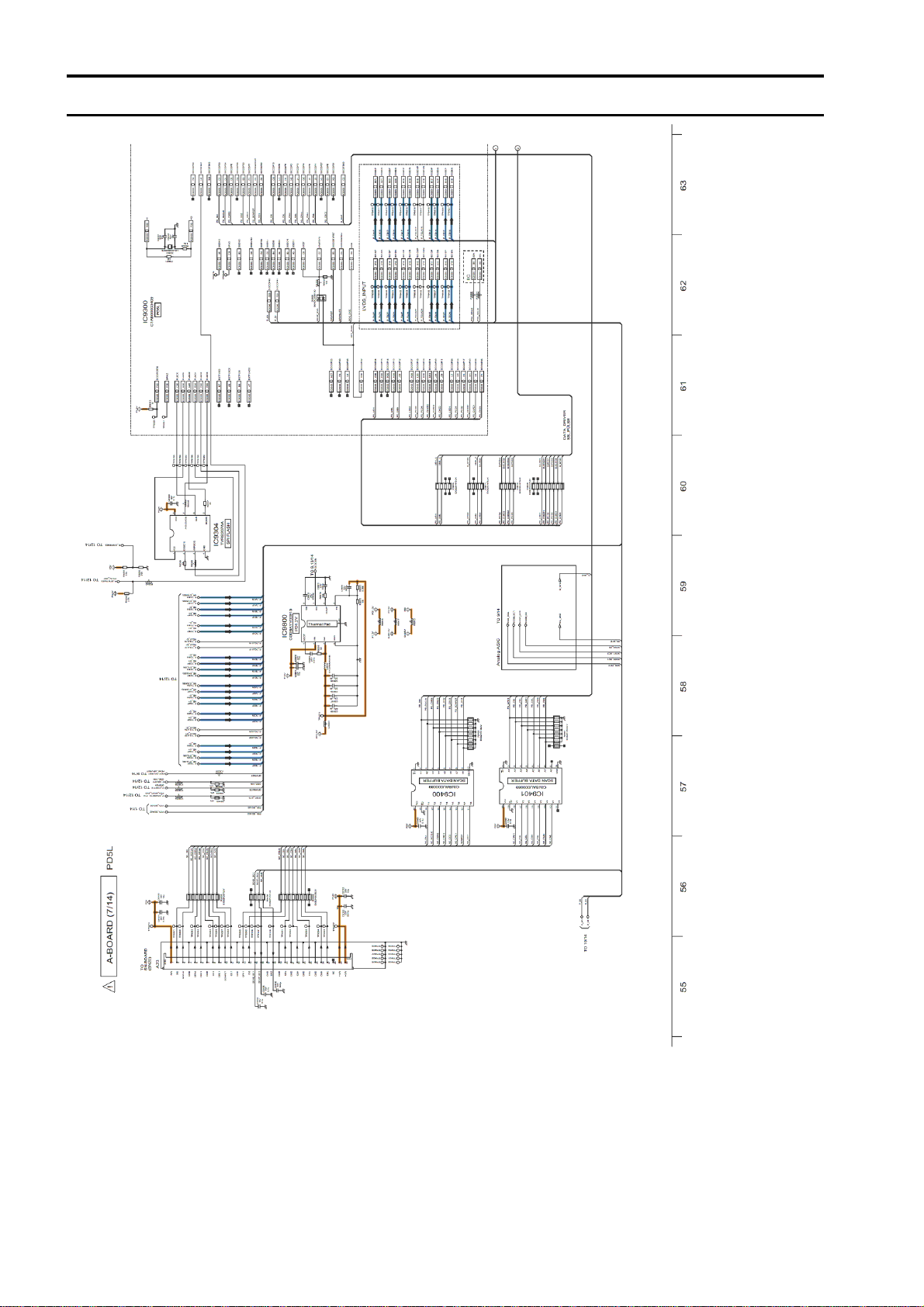

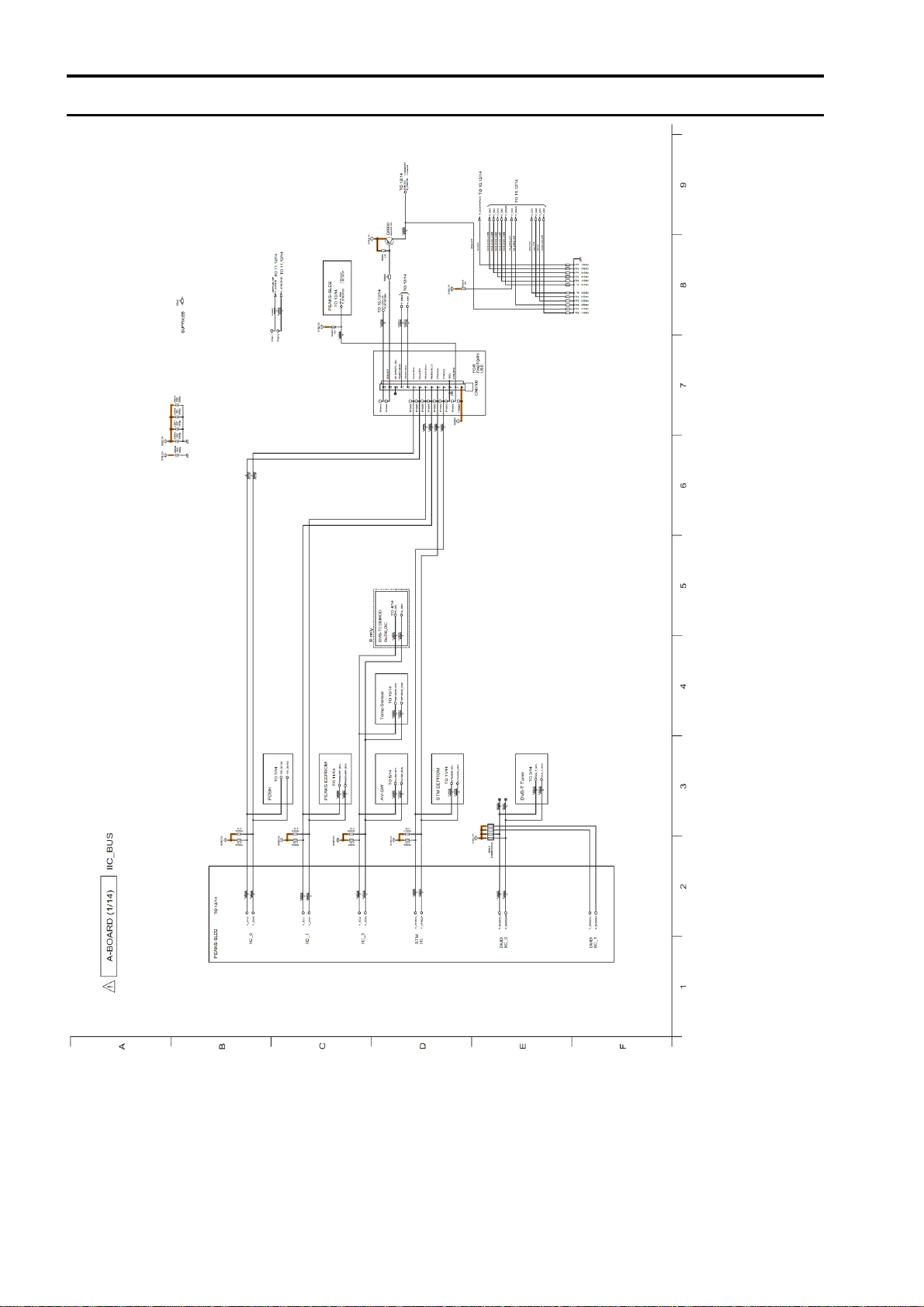

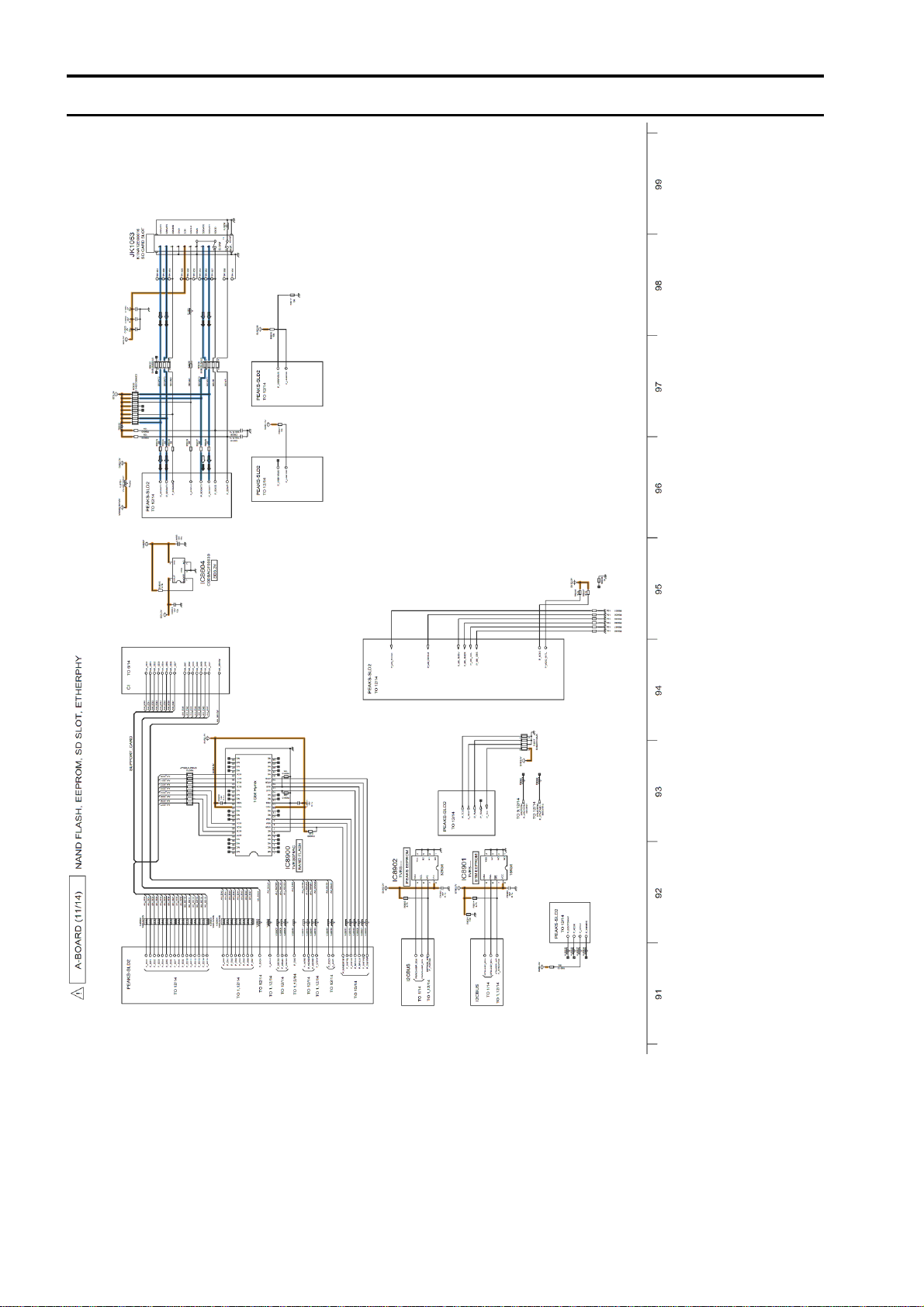

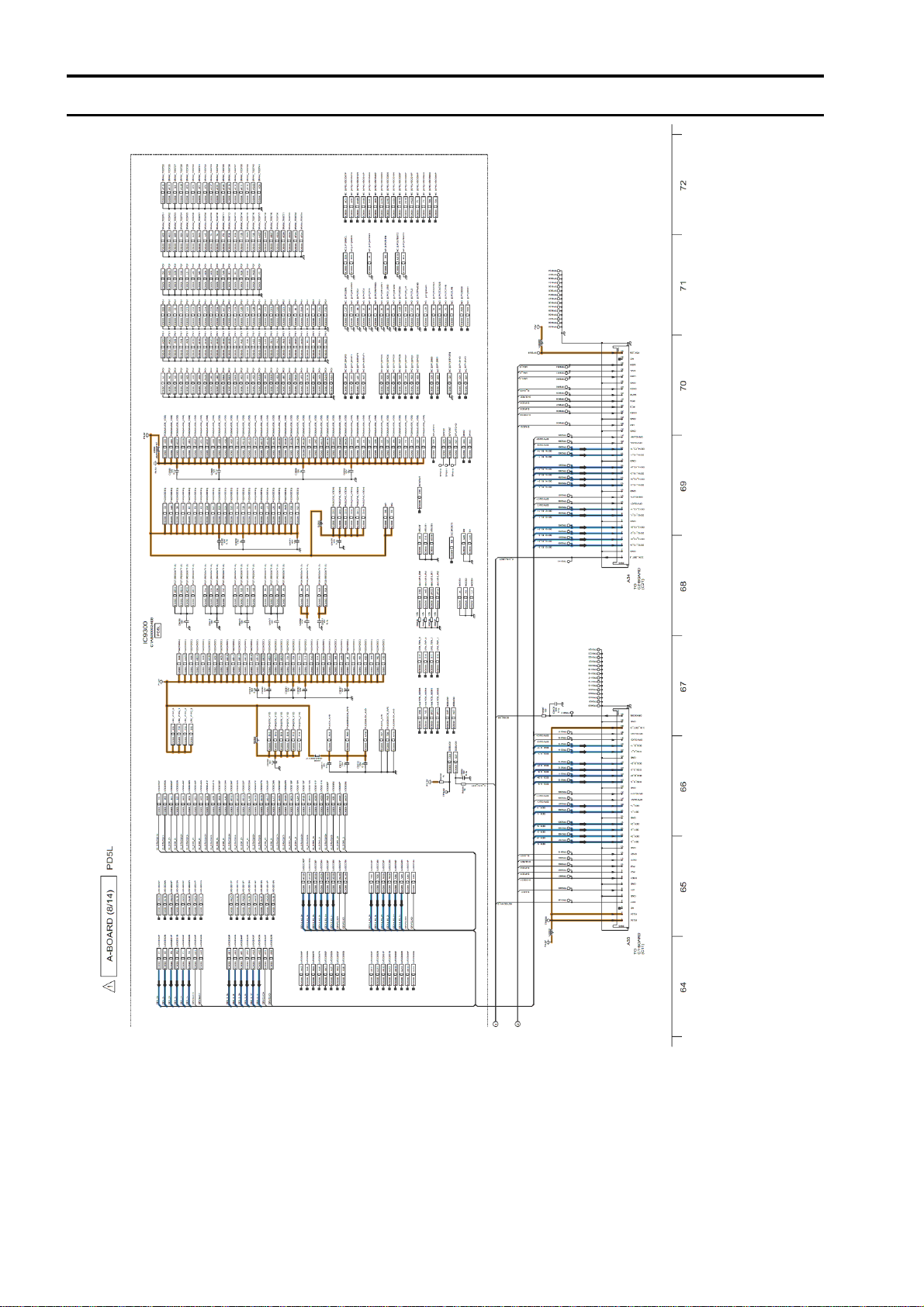

Model No. : TX-P50C3E/J, PR50C3 A-Board (1/14)

S-3

Page 48

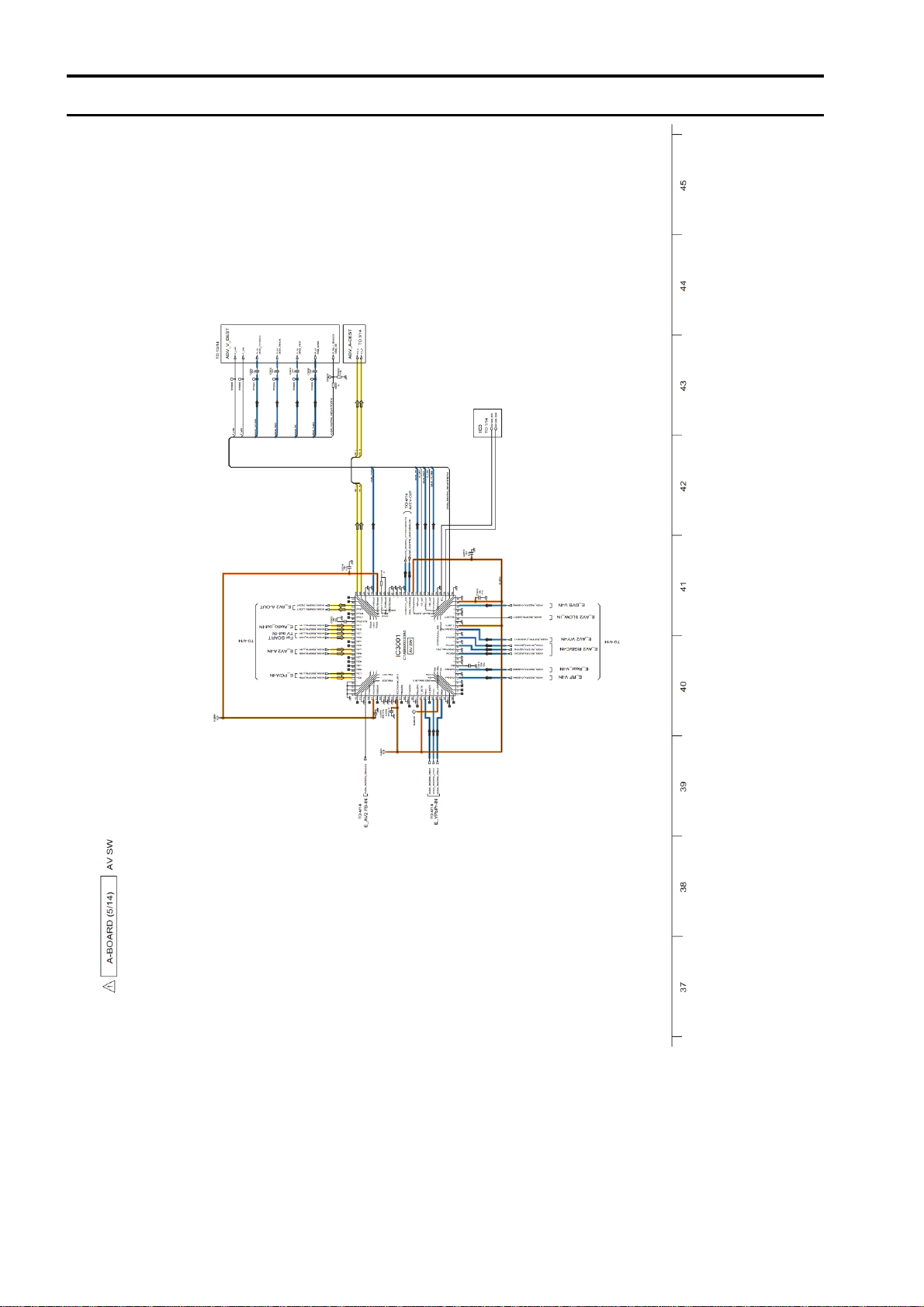

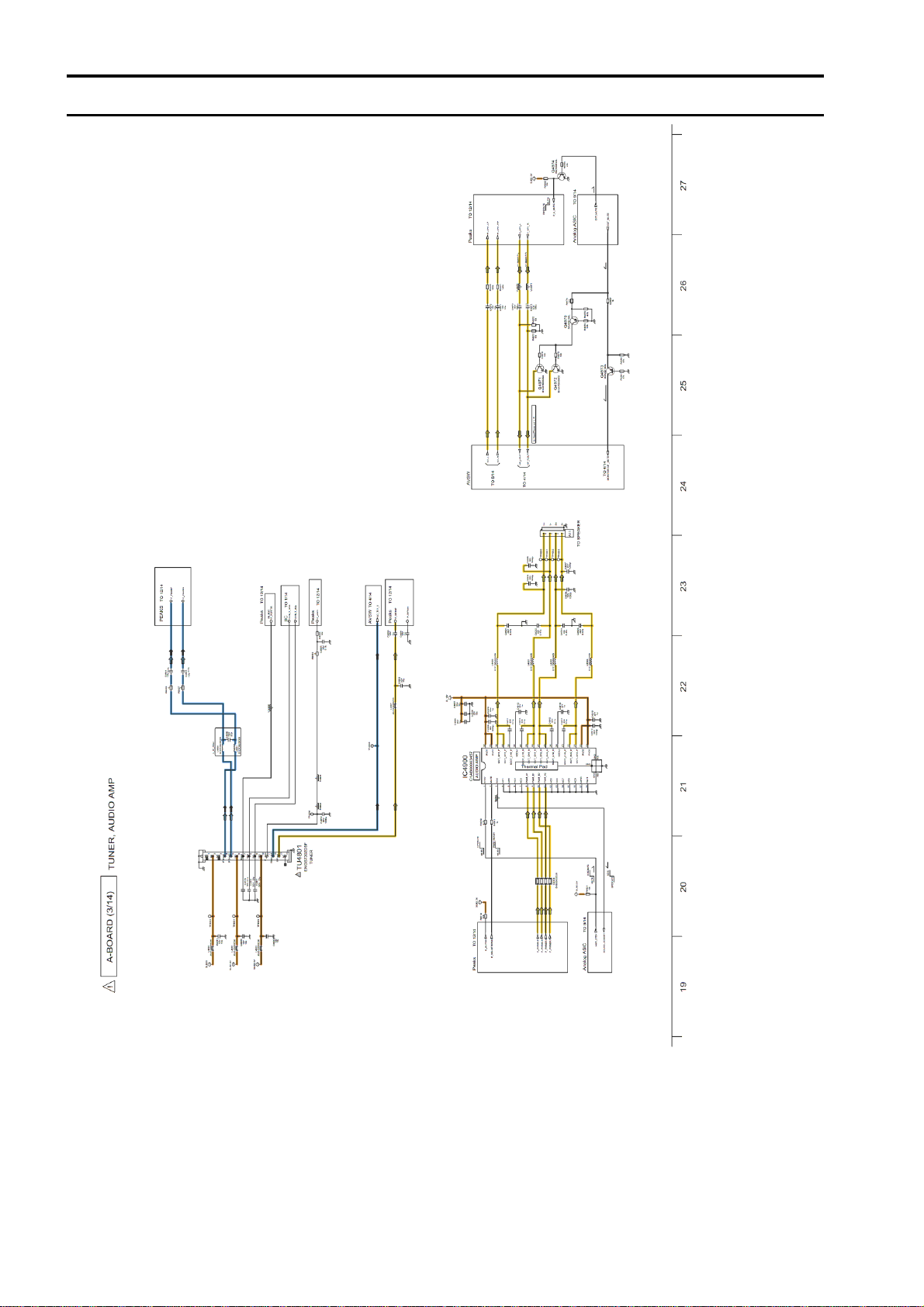

Model No. : TX-P50C3E/J, PR50C3 A-Board (2/14)

S-4

Page 49

Model No. : TX-P50C3E/J, PR50C3 A-Board (3/14)

S-5

Page 50

Model No. : TX-P50C3E/J, PR50C3 A-Board (4/14)

S-6

Page 51

Model No. : TX-P50C3E/J, PR50C3 A-Board (5/14)

S-7

Page 52

Model No. : TX-P50C3E/J, PR50C3 A-Board (6/14)

S-8

Page 53

Model No. : TX-P50C3E/J, PR50C3 A-Board (7/14)

S-9

Page 54

Model No. : TX-P50C3E/J, PR50C3 A-Board (8/14)

S-10

Page 55

Model No. : TX-P50C3E/J, PR50C3 A-Board (9/14)

S-11

Page 56

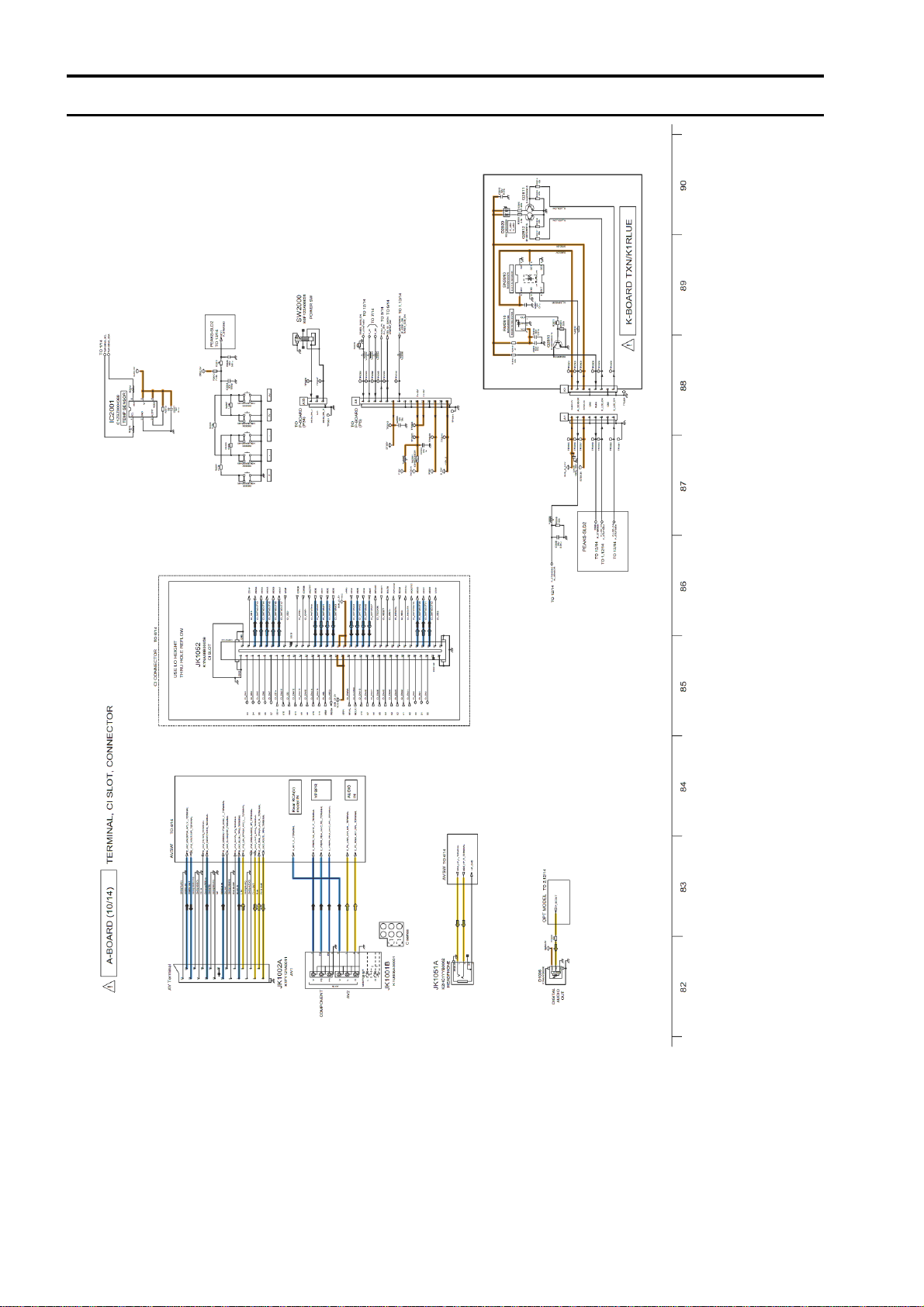

Model No. : TX-P50C3E/J, PR50C3 A-Board (10/14) and K-Board

S-12

Page 57

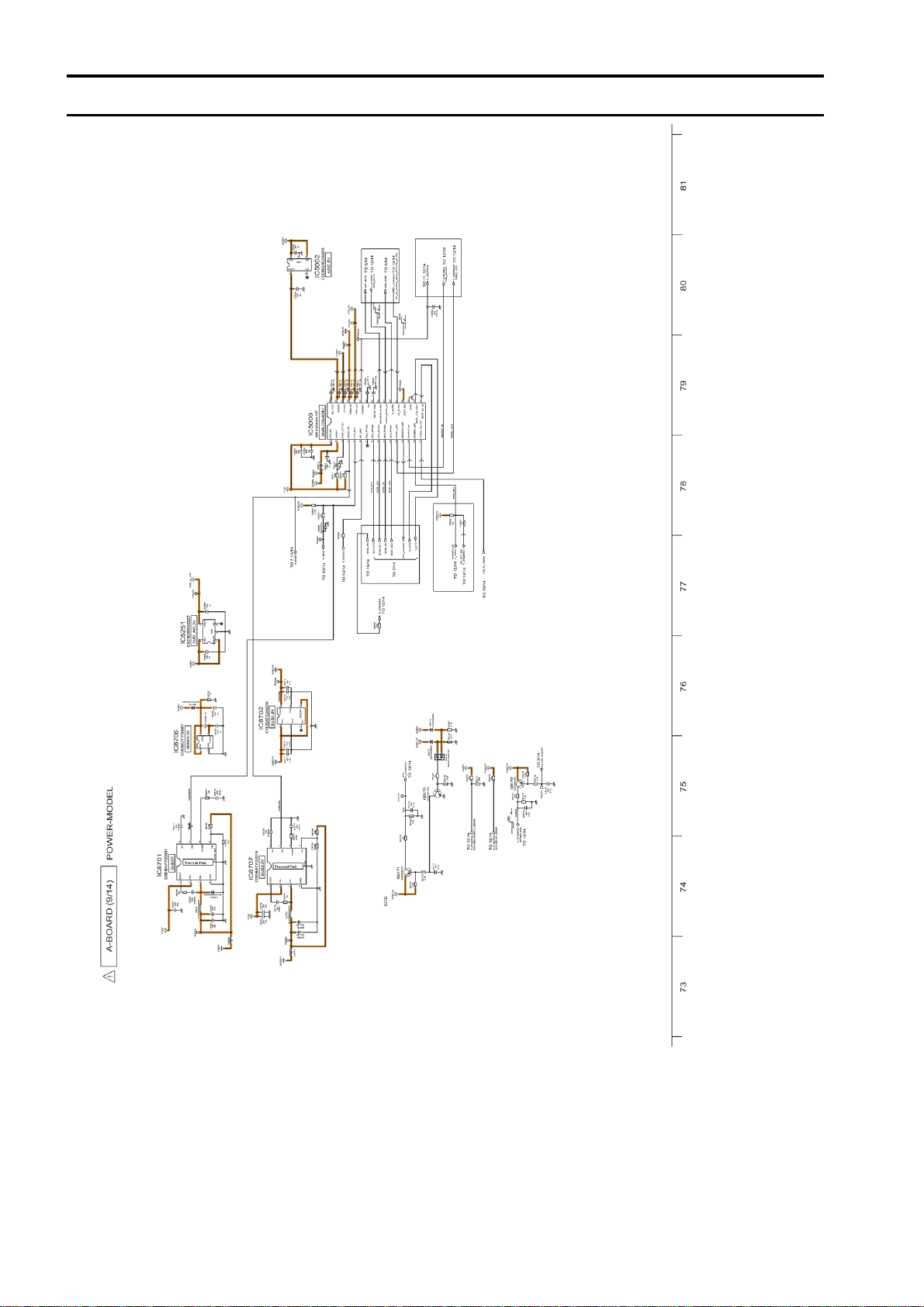

Model No. : TX-P50C3E/J, PR50C3 A-Board (11/14)

S-13

Page 58

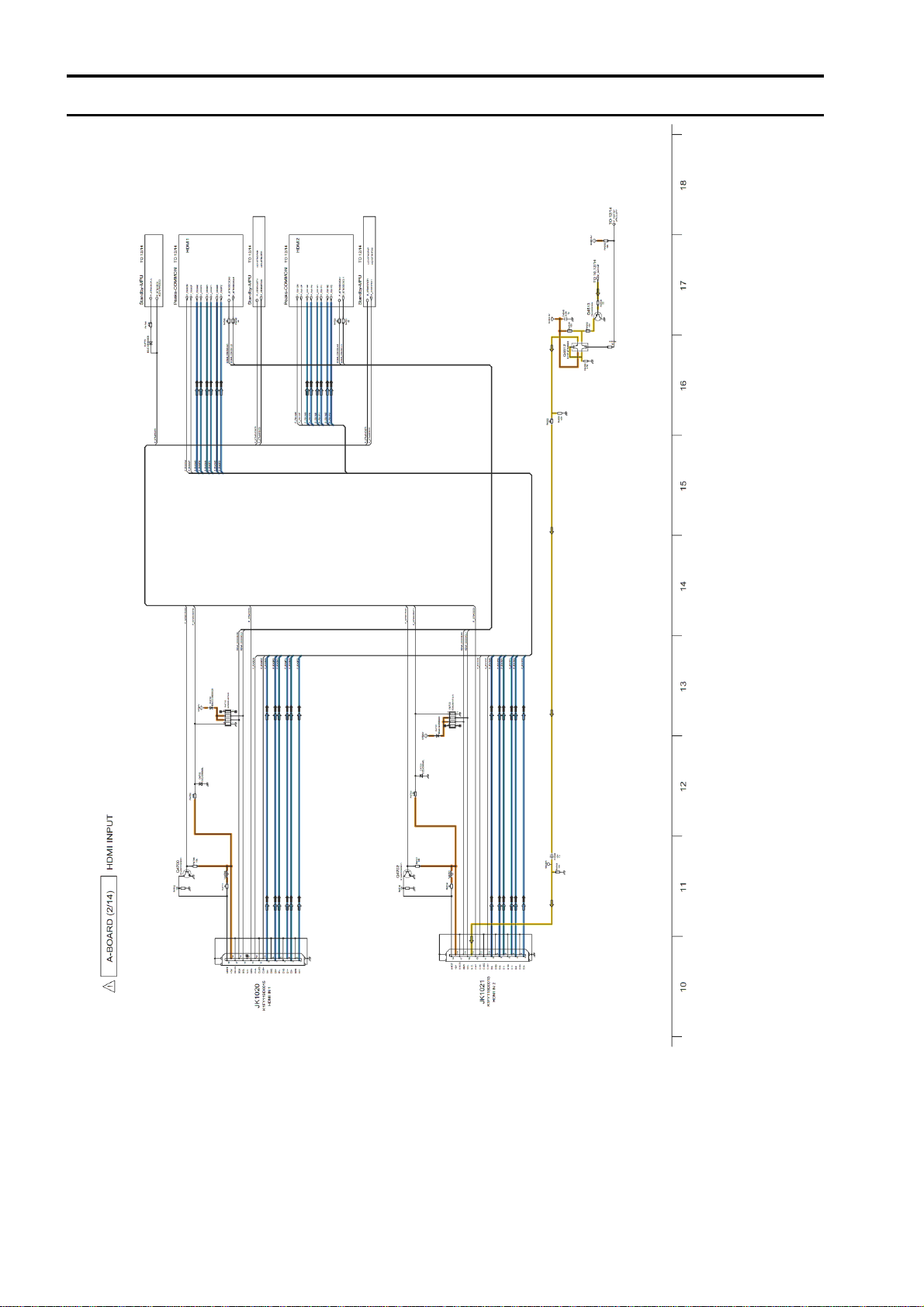

Model No. : TX-P50C3E/J, PR50C3 A-Board (12/14)

S-14

Page 59

Model No. : TX-P50C3E/J, PR50C3 A-Board (13/14)

S-15

Page 60

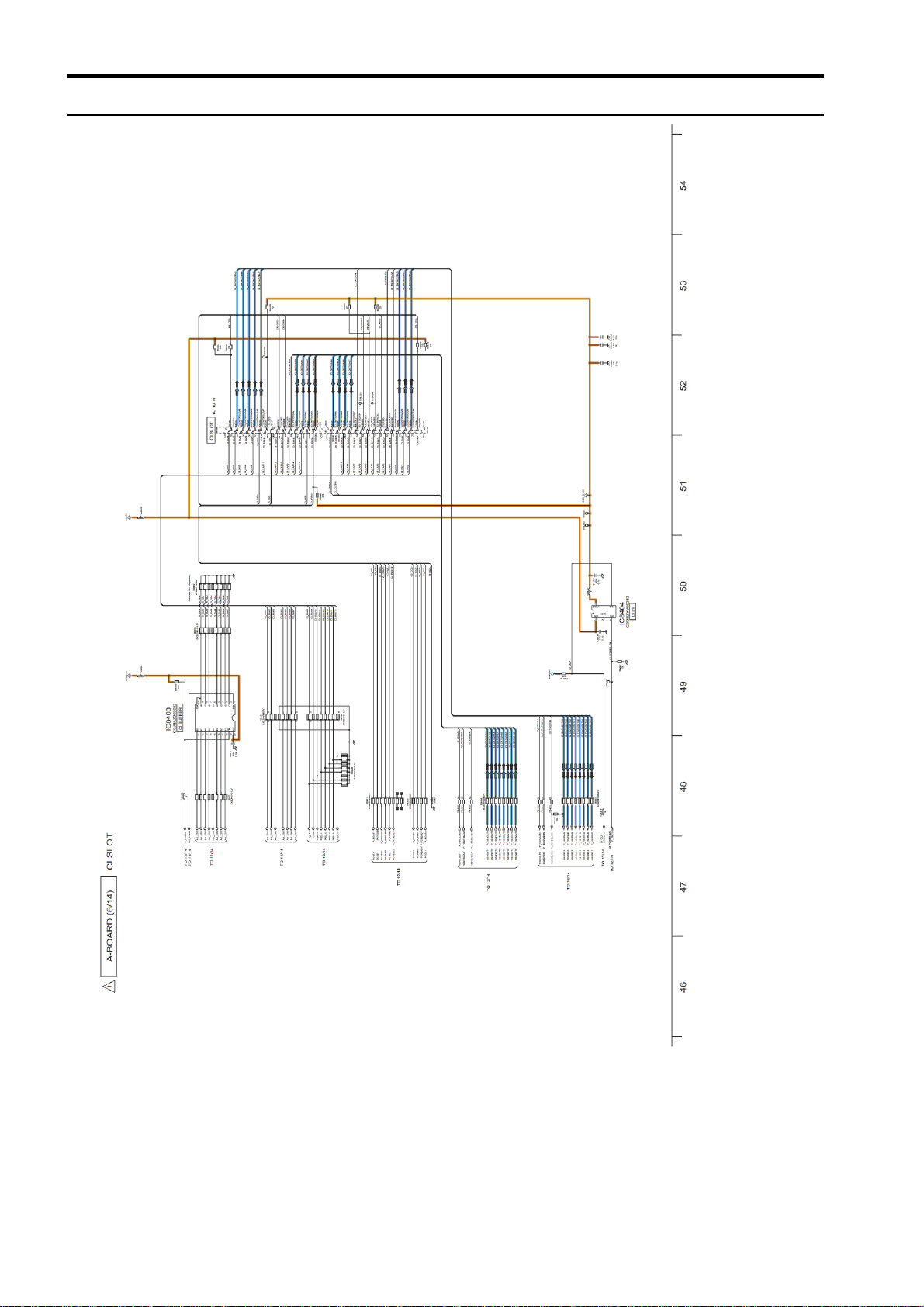

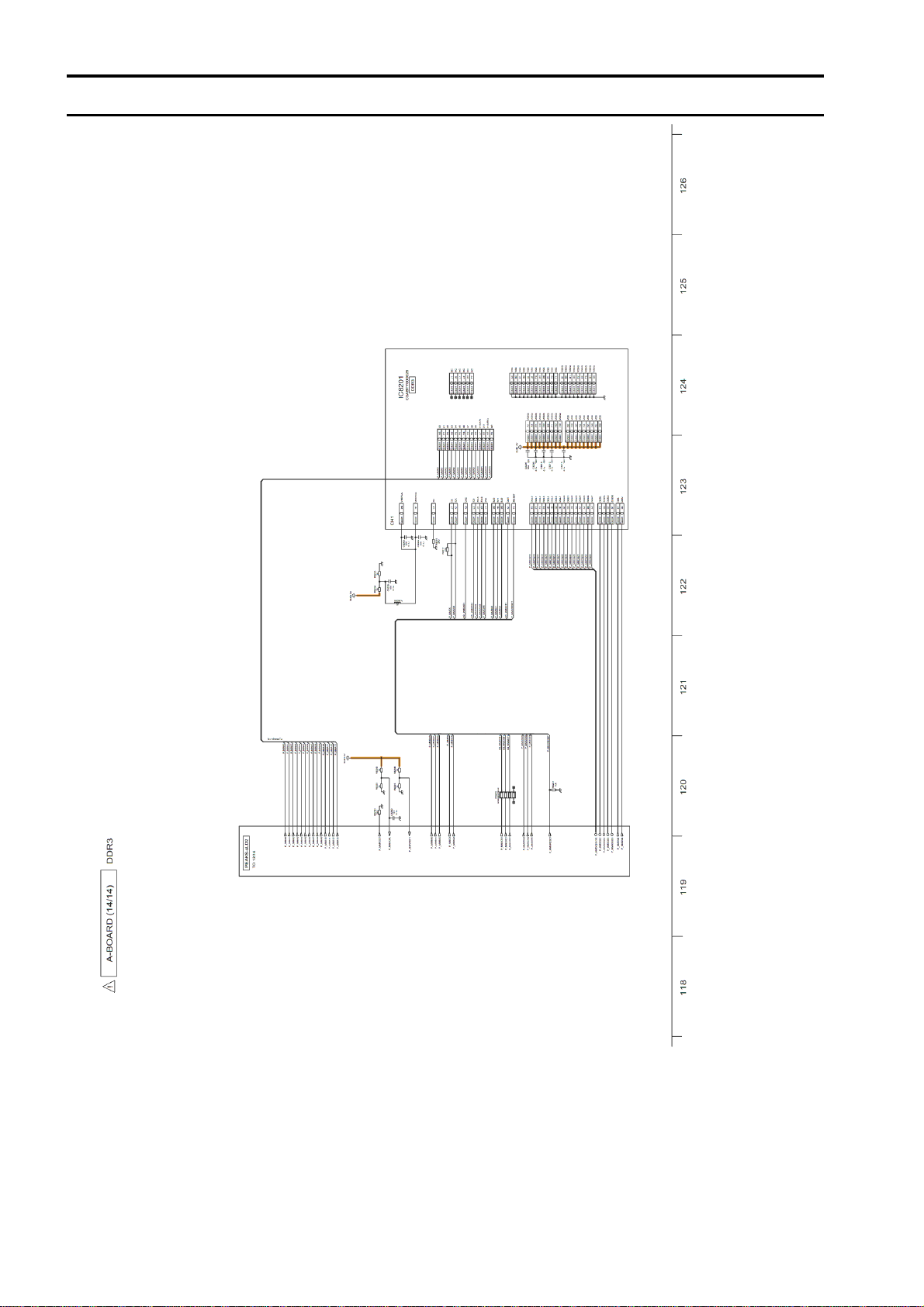

Model No. : TX-P50C3E/J, PR50C3 A-Board (14/14)

S-16

Page 61

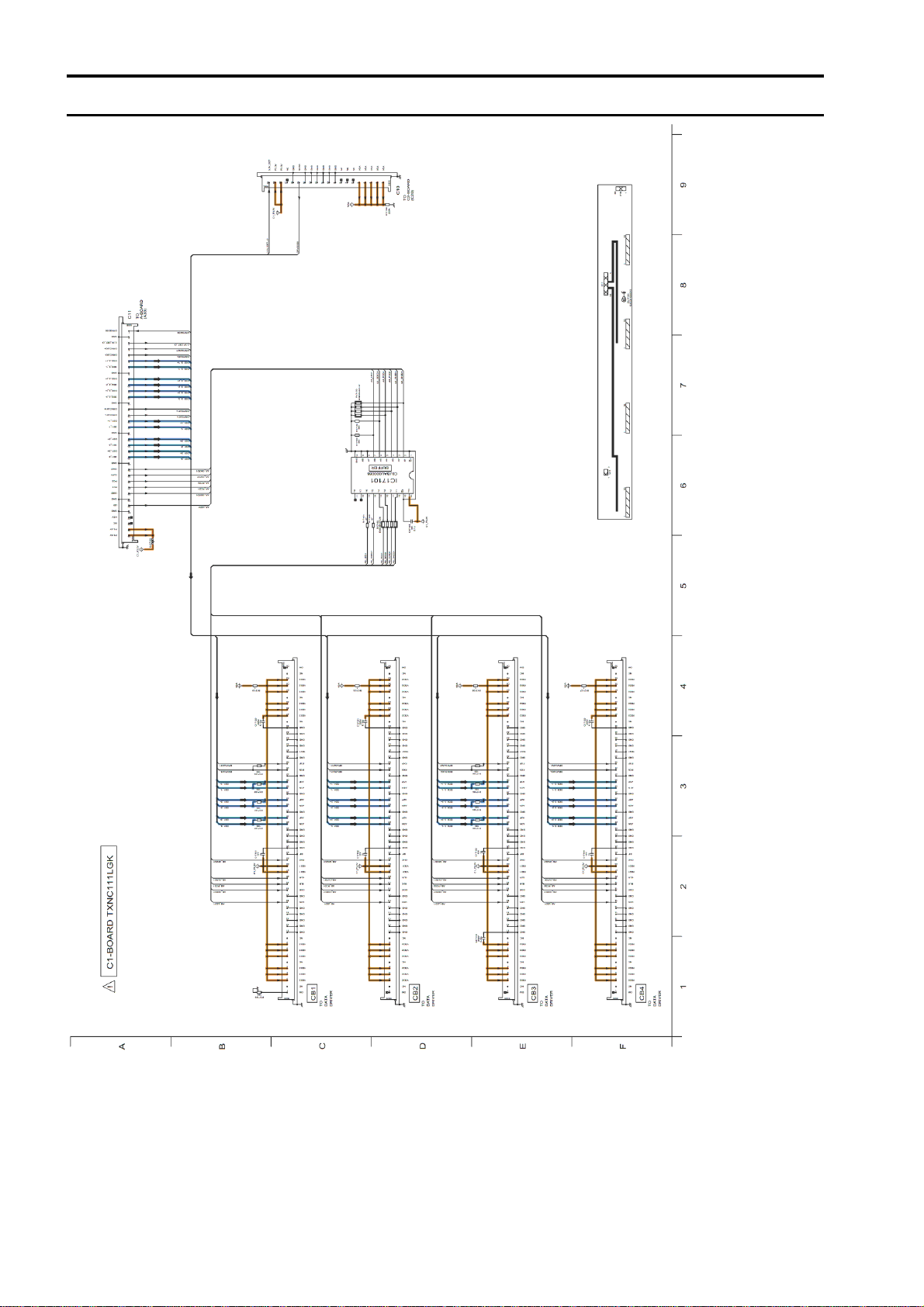

Model No. : TX-P50C3E/J, PR50C3 C1-Board

S-17

Page 62

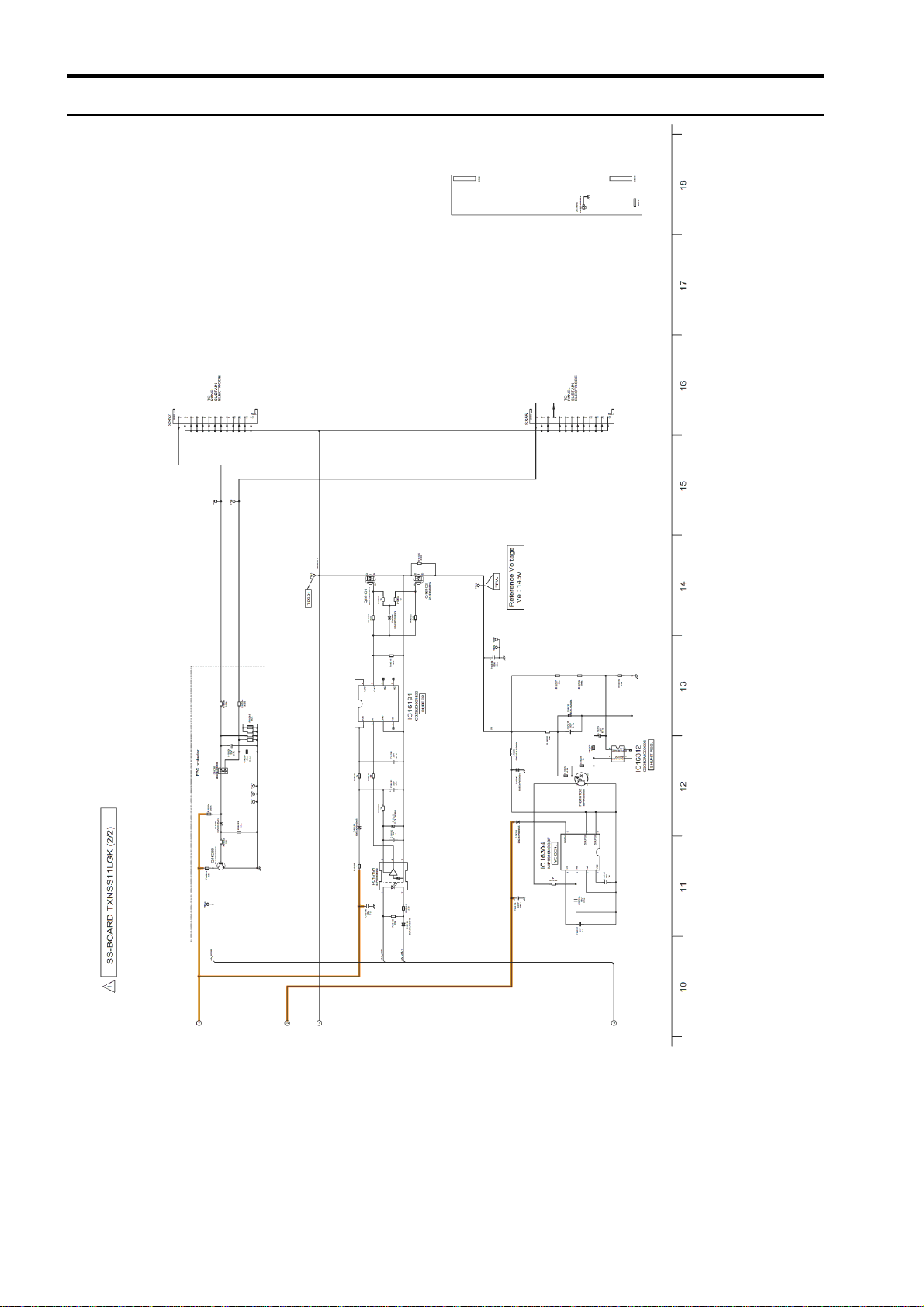

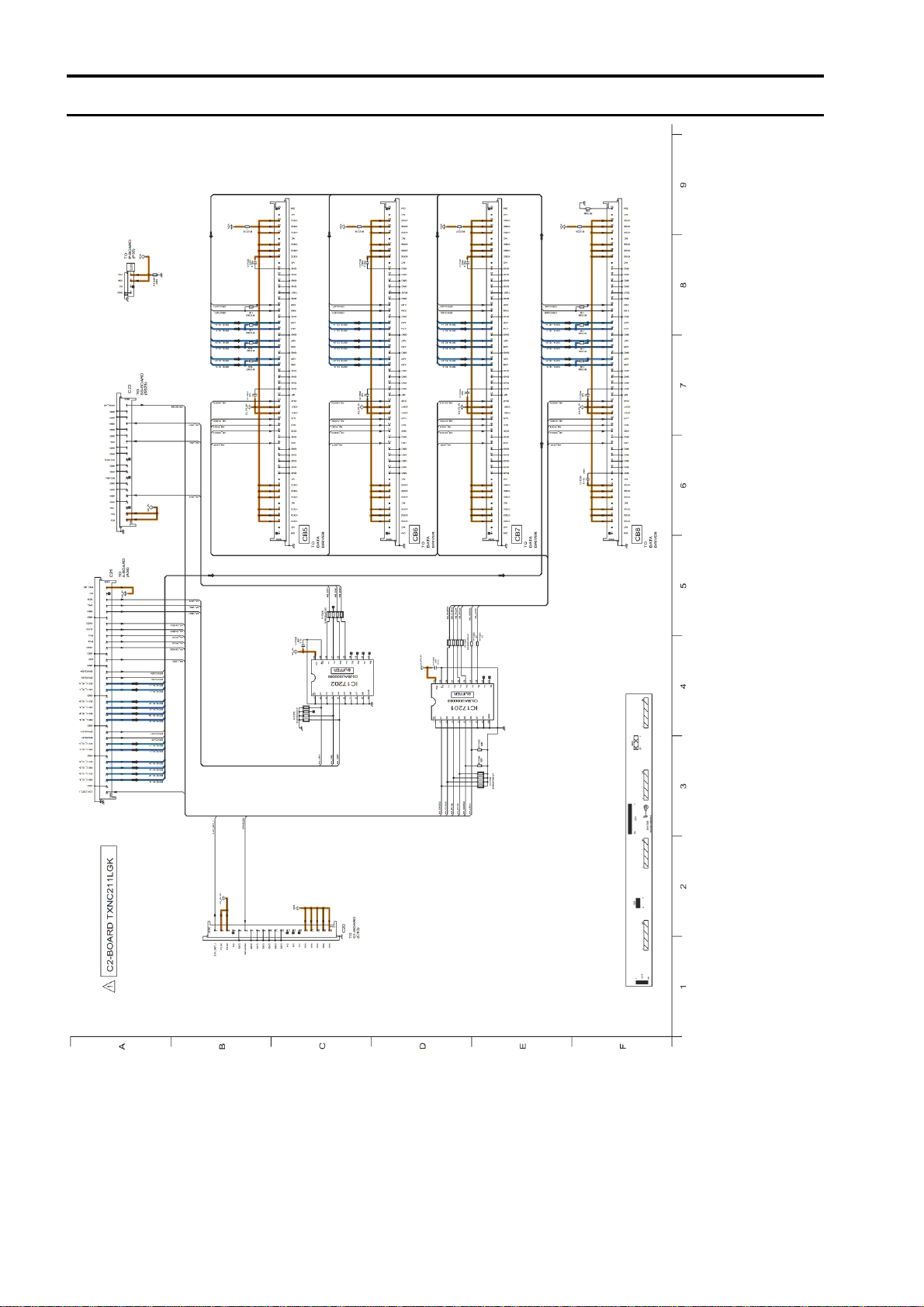

Model No. : TX-P50C3E/J, PR50C3 C2-Board

S-18

Page 63

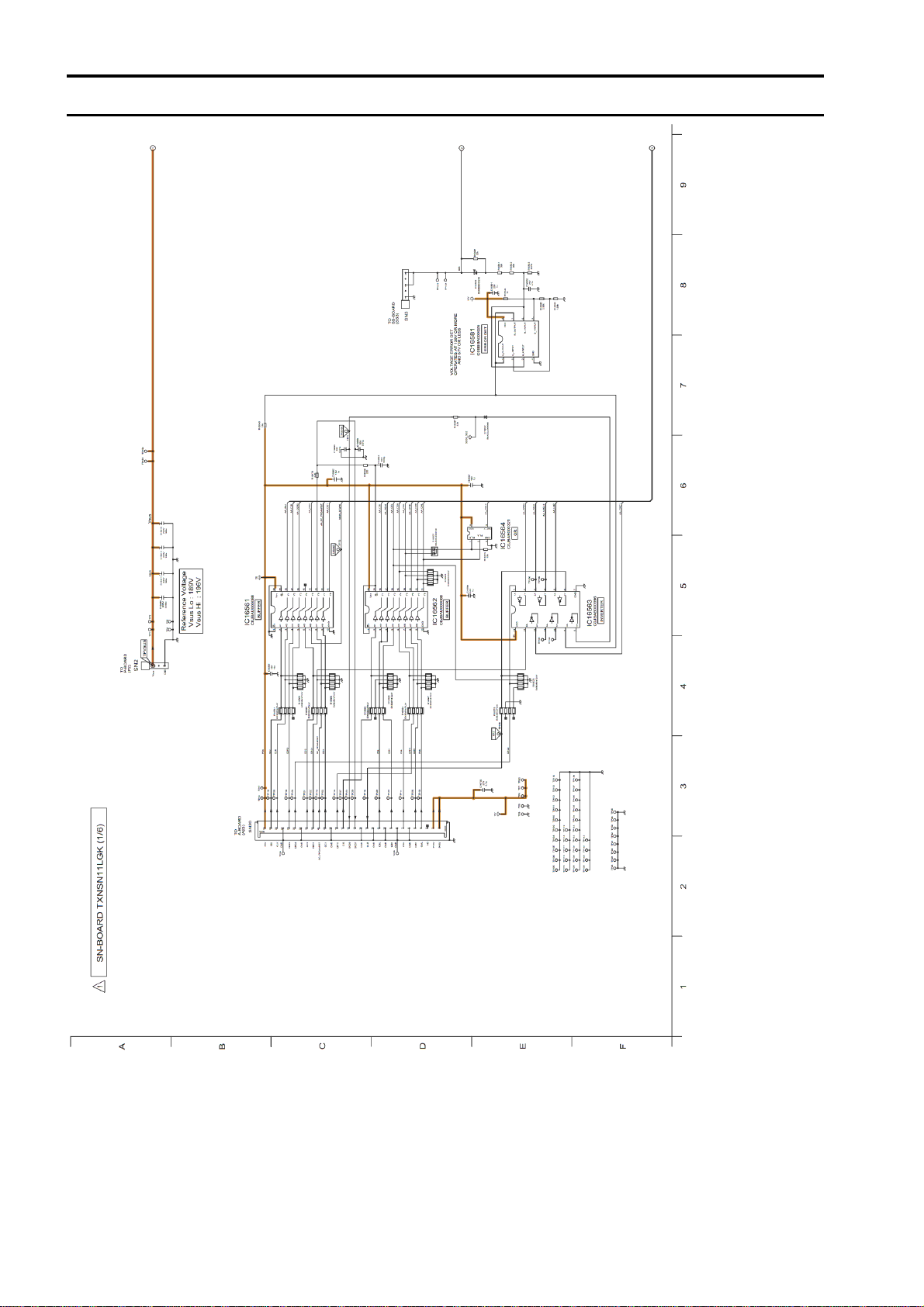

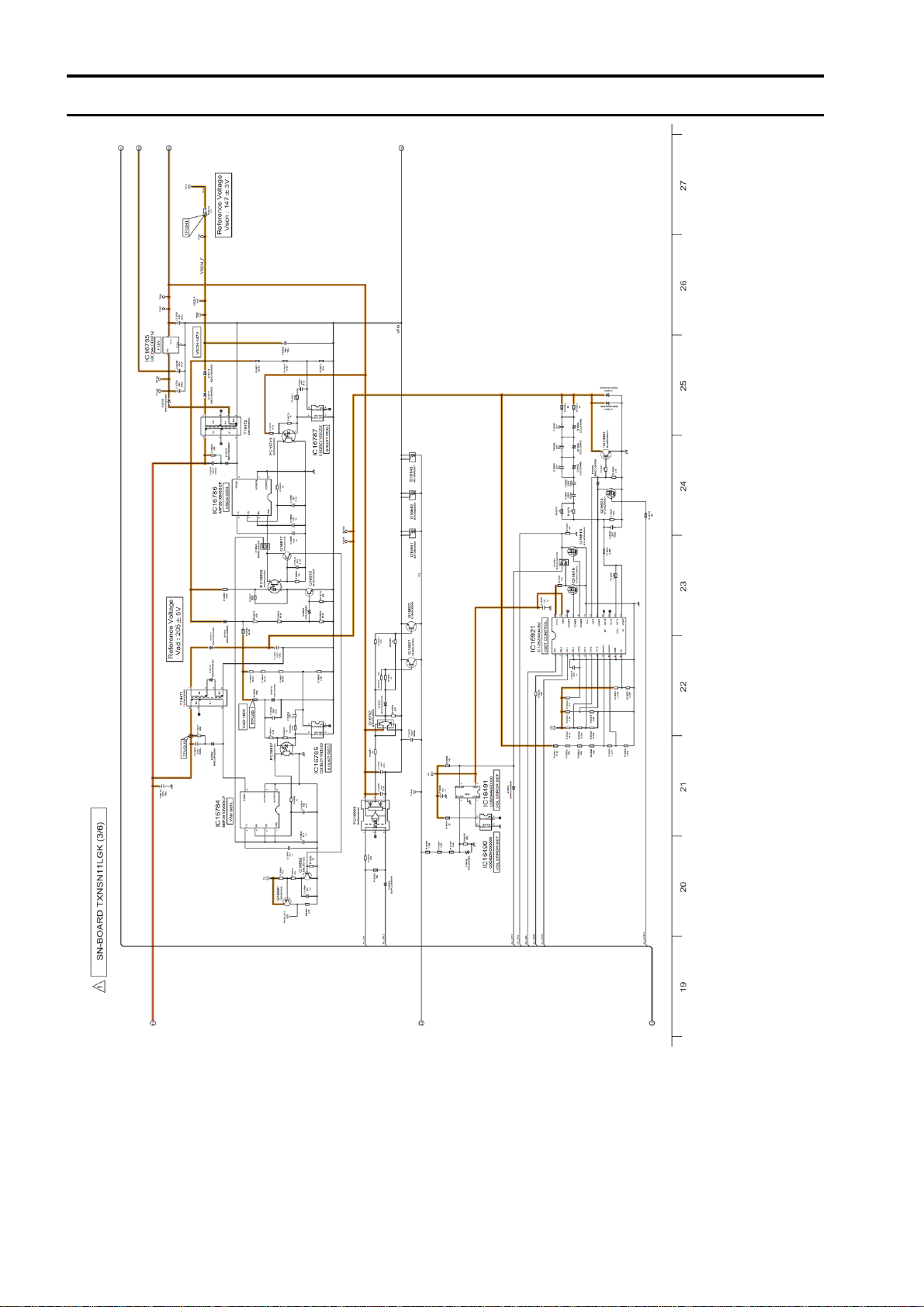

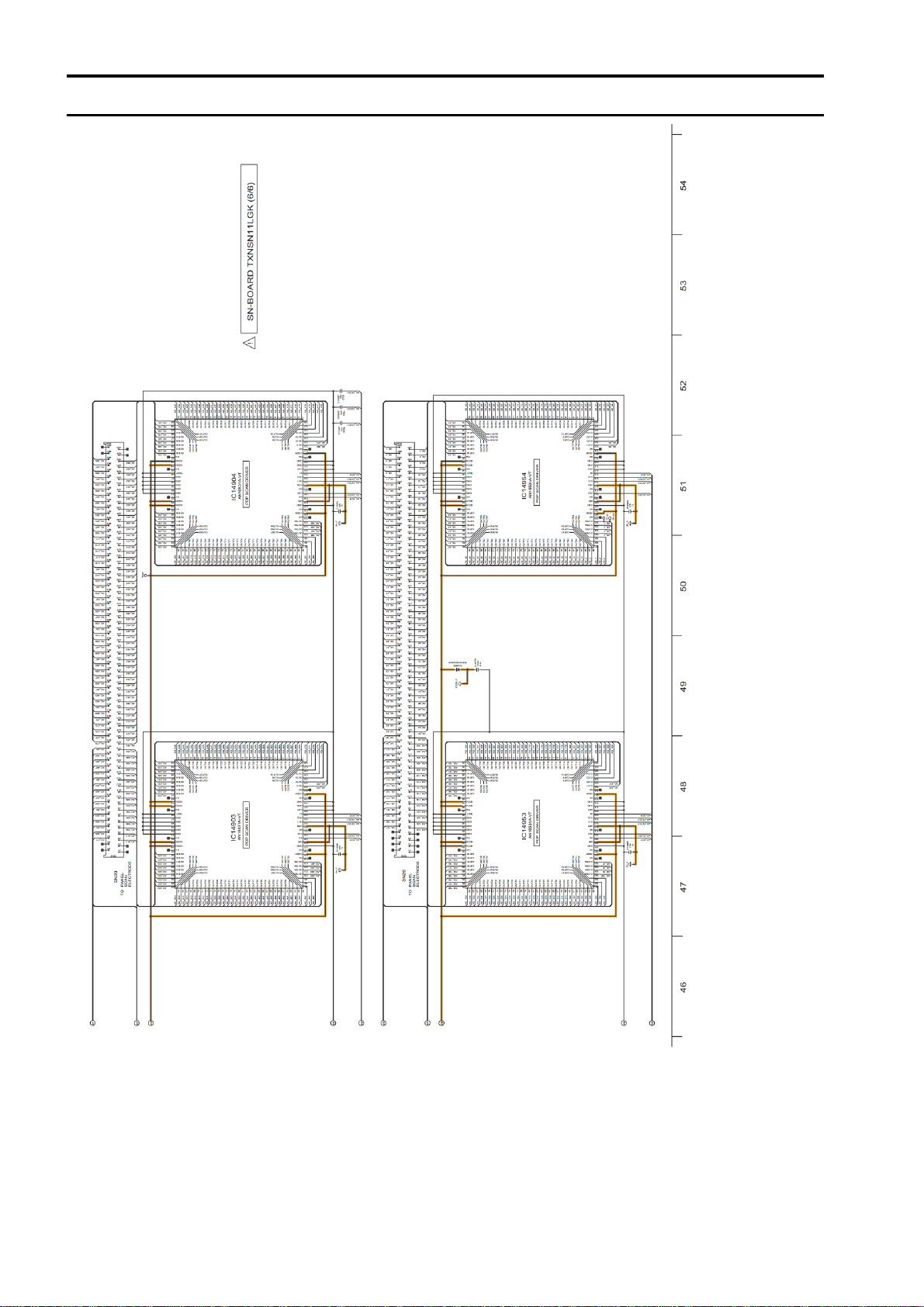

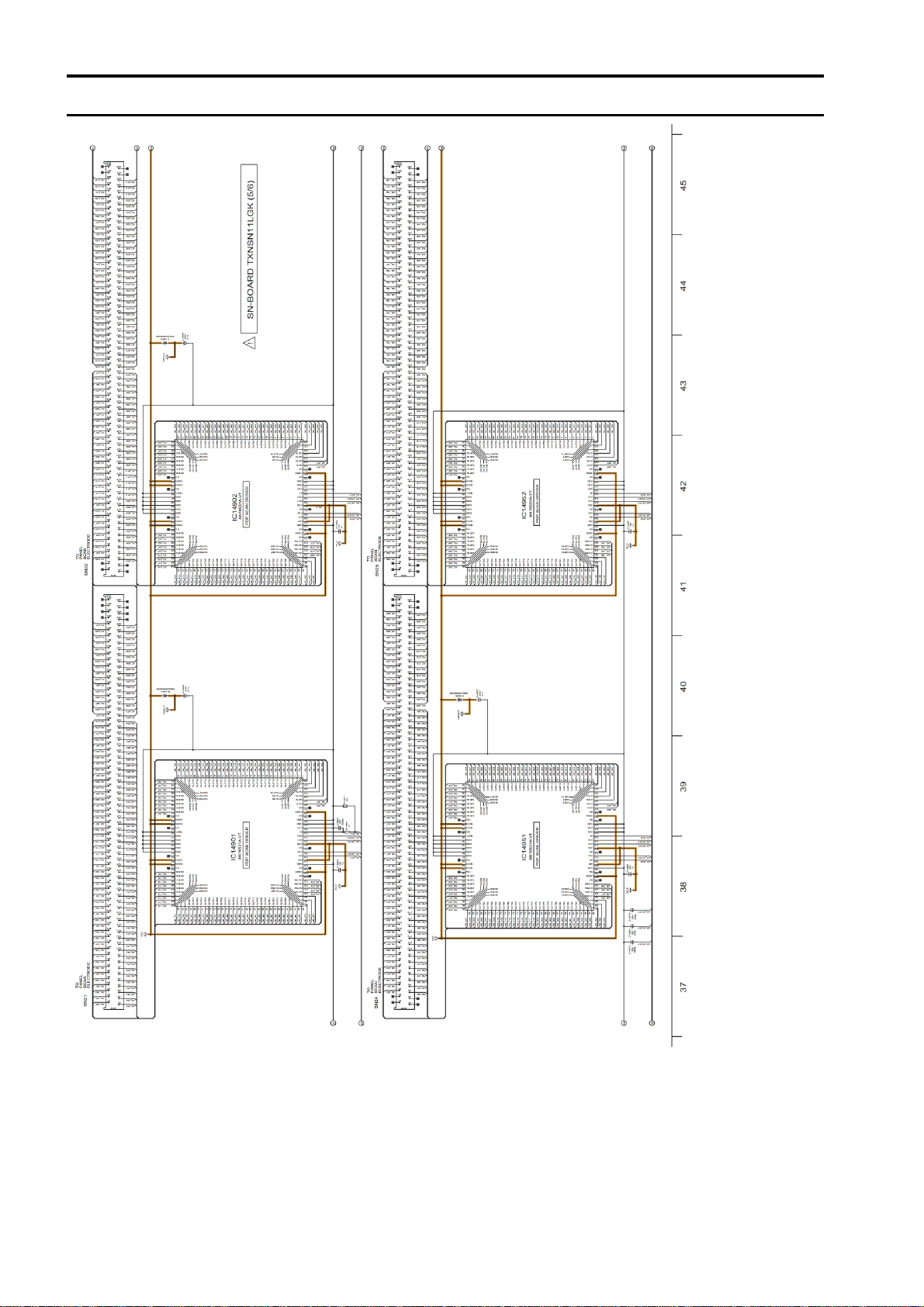

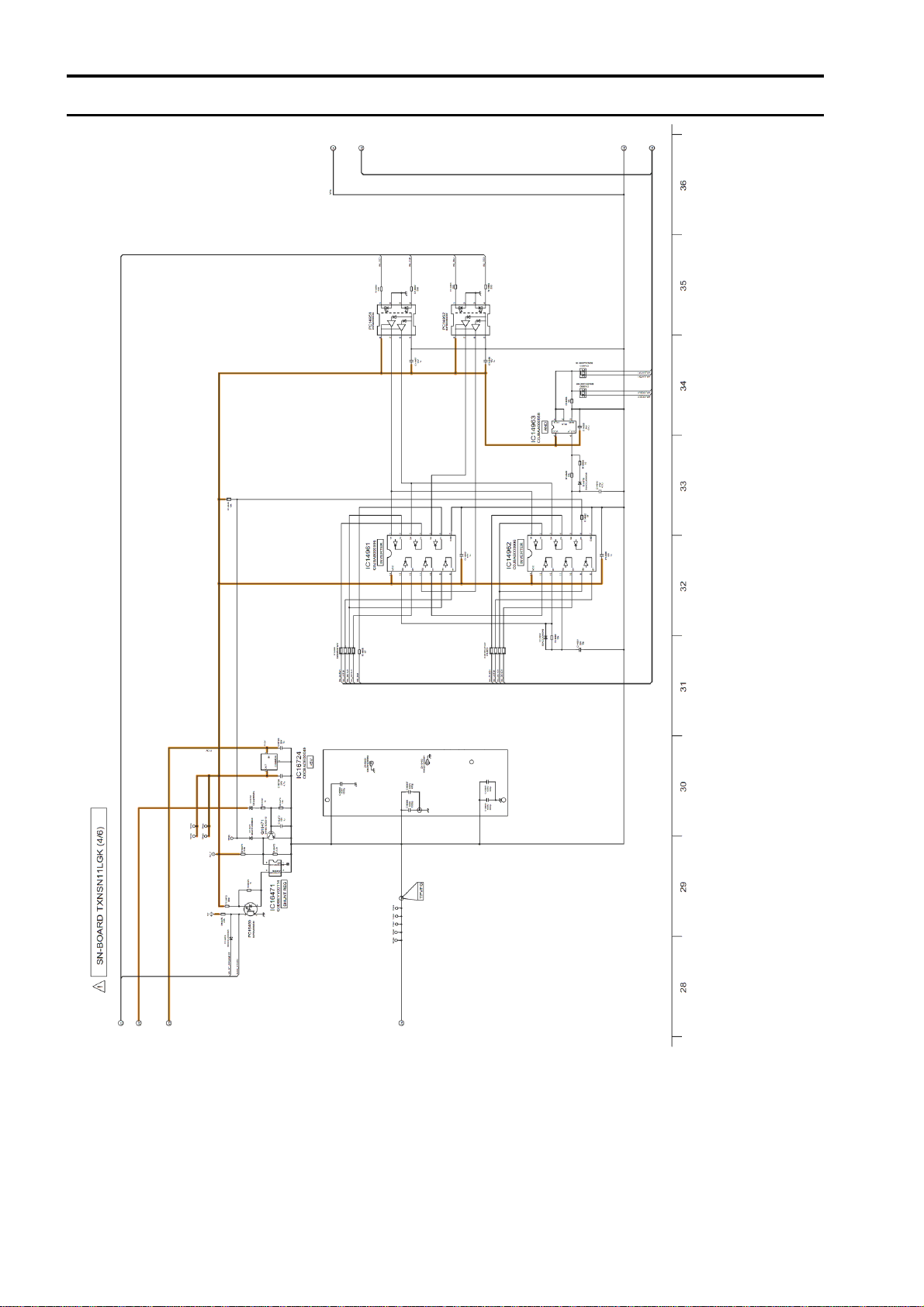

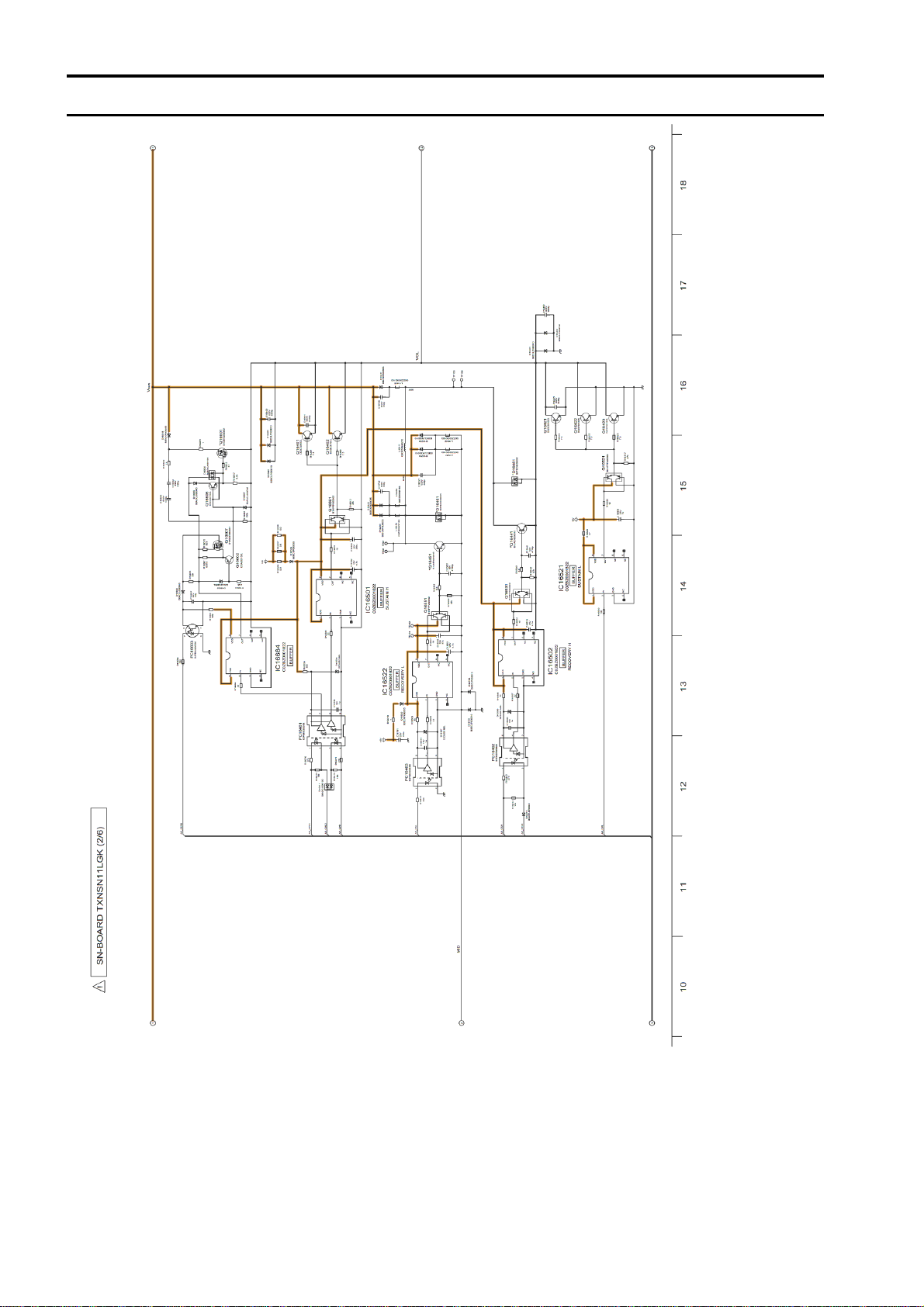

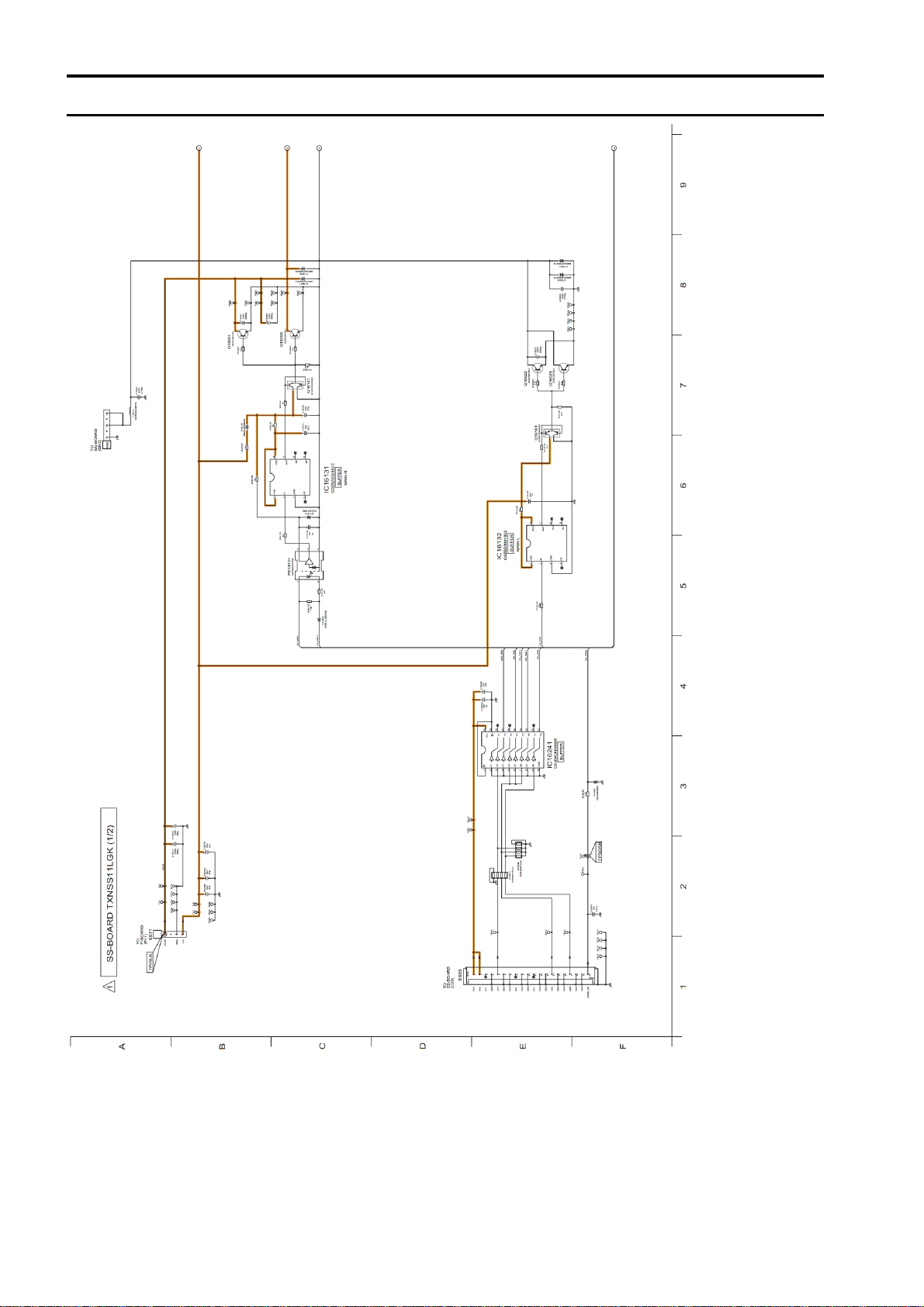

Model No. : TX-P50C3E/J, PR50C3 SN-Board (1/6)

S-19

Page 64

Model No. : TX-P50C3E/J, PR50C3 SN-Board (2/6)

S-20

Page 65

Model No. : TX-P50C3E/J, PR50C3 SN-Board (3/6)

S-21

Page 66

Model No. : TX-P50C3E/J, PR50C3 SN-Board (4/6)

S-22

Page 67

Model No. : TX-P50C3E/J, PR50C3 SN-Board (5/6)

S-23

Page 68

Model No. : TX-P50C3E/J, PR50C3 SN-Board (6/6)

S-24

Page 69

Model No. : TX-P50C3E/J, PR50C3 SS-Board (1/2)

S-25

Page 70

Model No. : TX-P50C3E/J, PR50C3 SS-Board (2/2)

S-26

Page 71

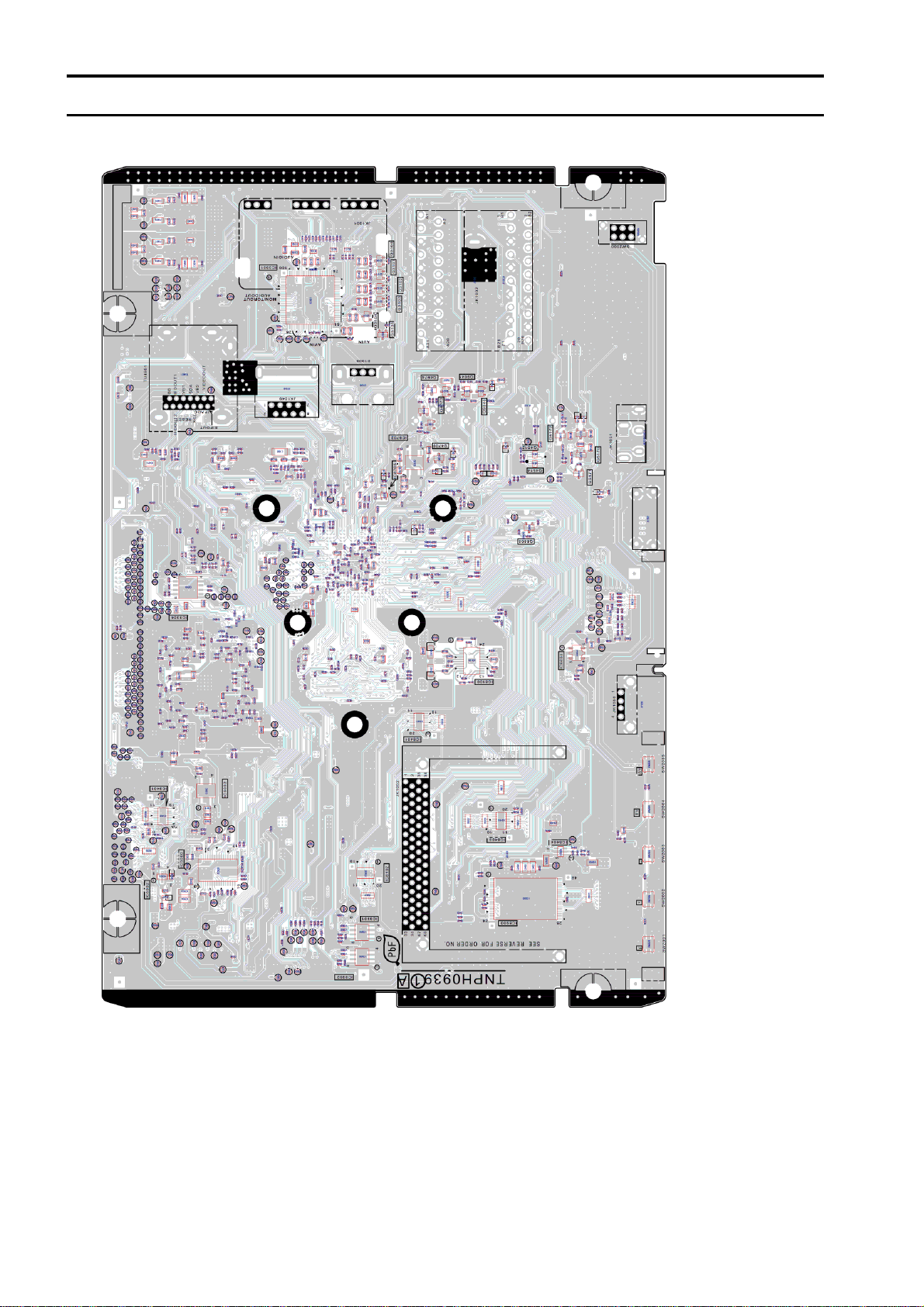

Model No. : TX-P50C3E/J, PR50C3 A-Board (Foil side)

S-27

Page 72

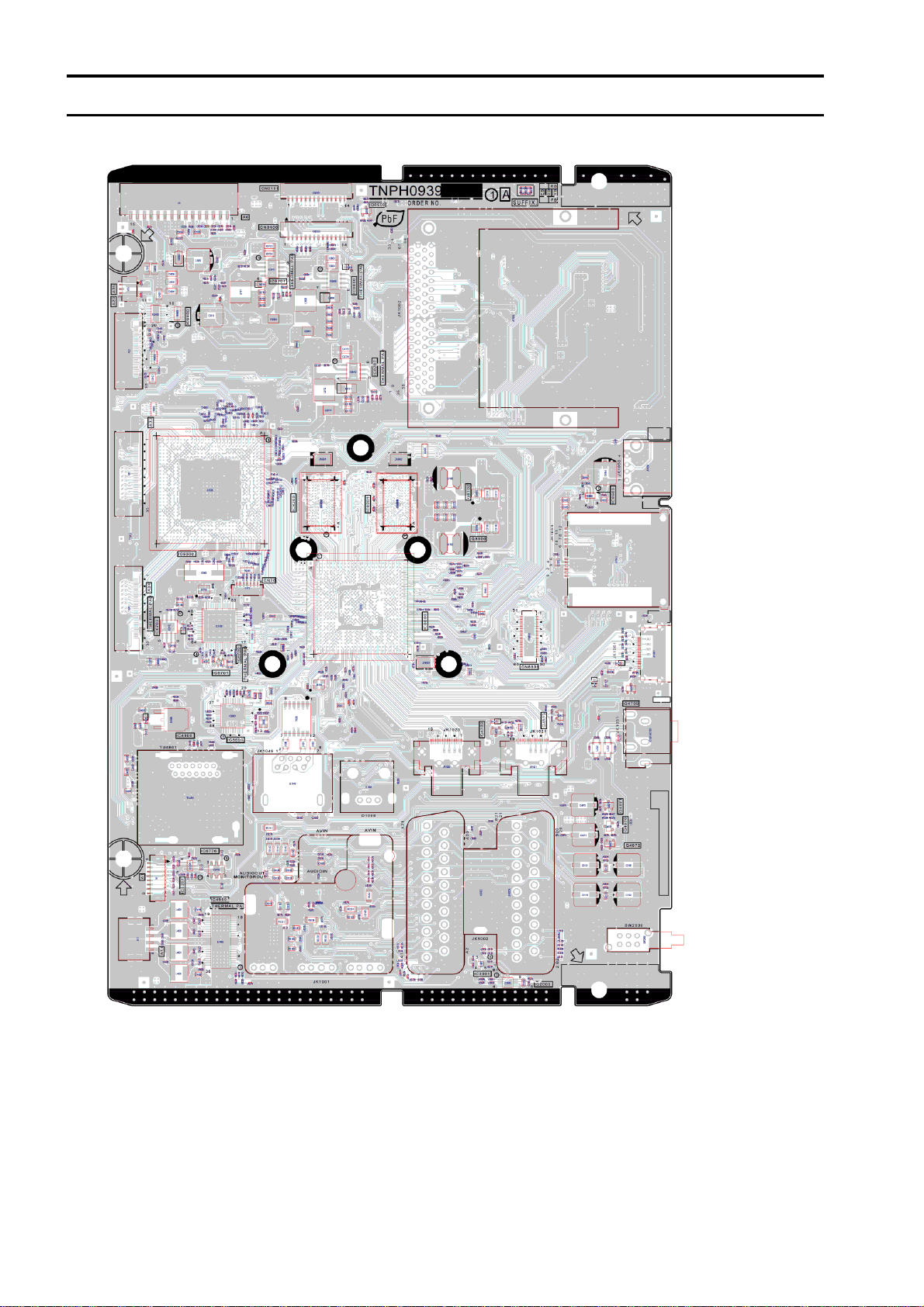

Model No. : TX-P50C3E/J, PR50C3 A-Board (Component side)

S-28

Page 73

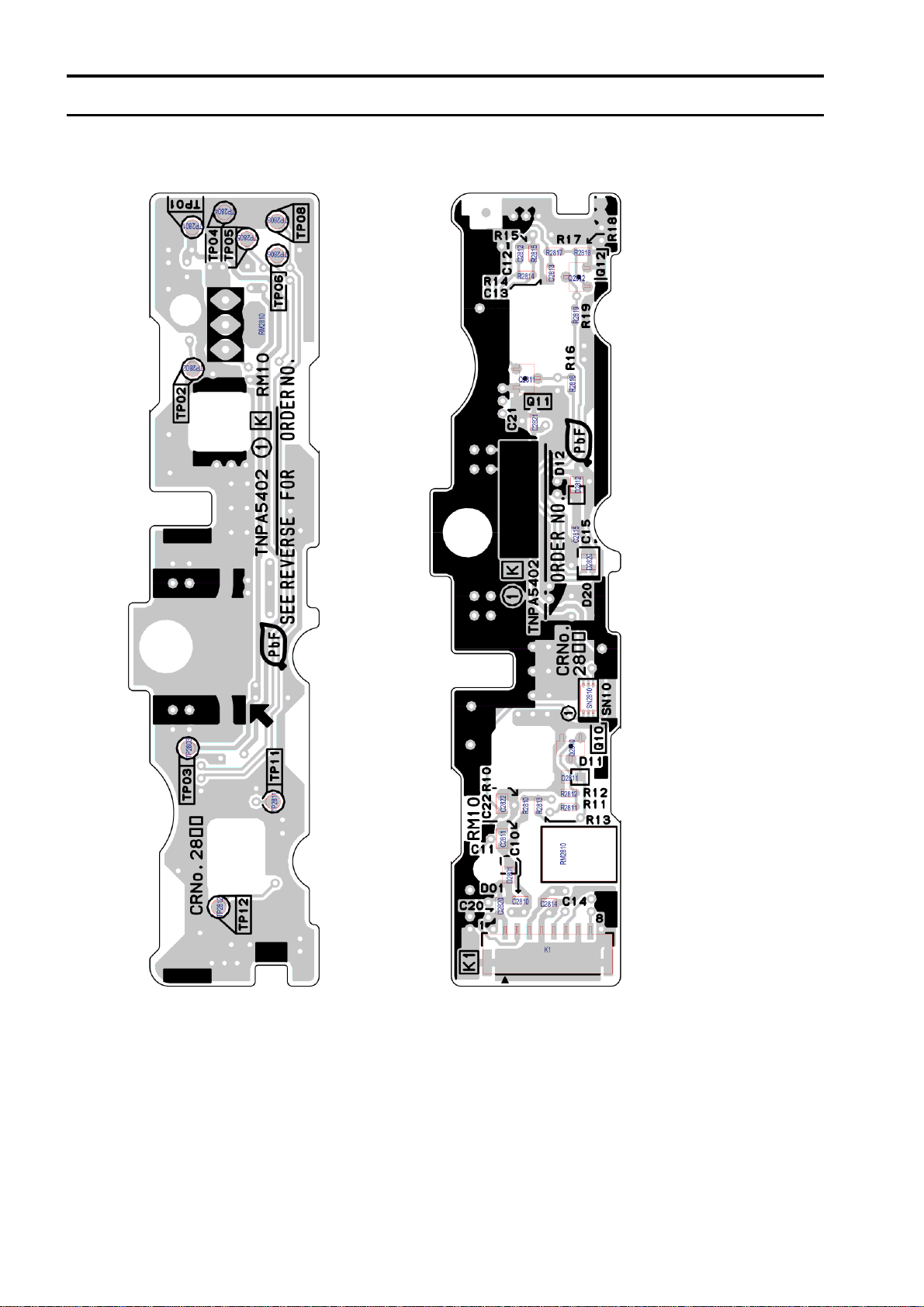

Model No. : TX-P50C3E/J, PR50C3 K-Board

S-29

Page 74

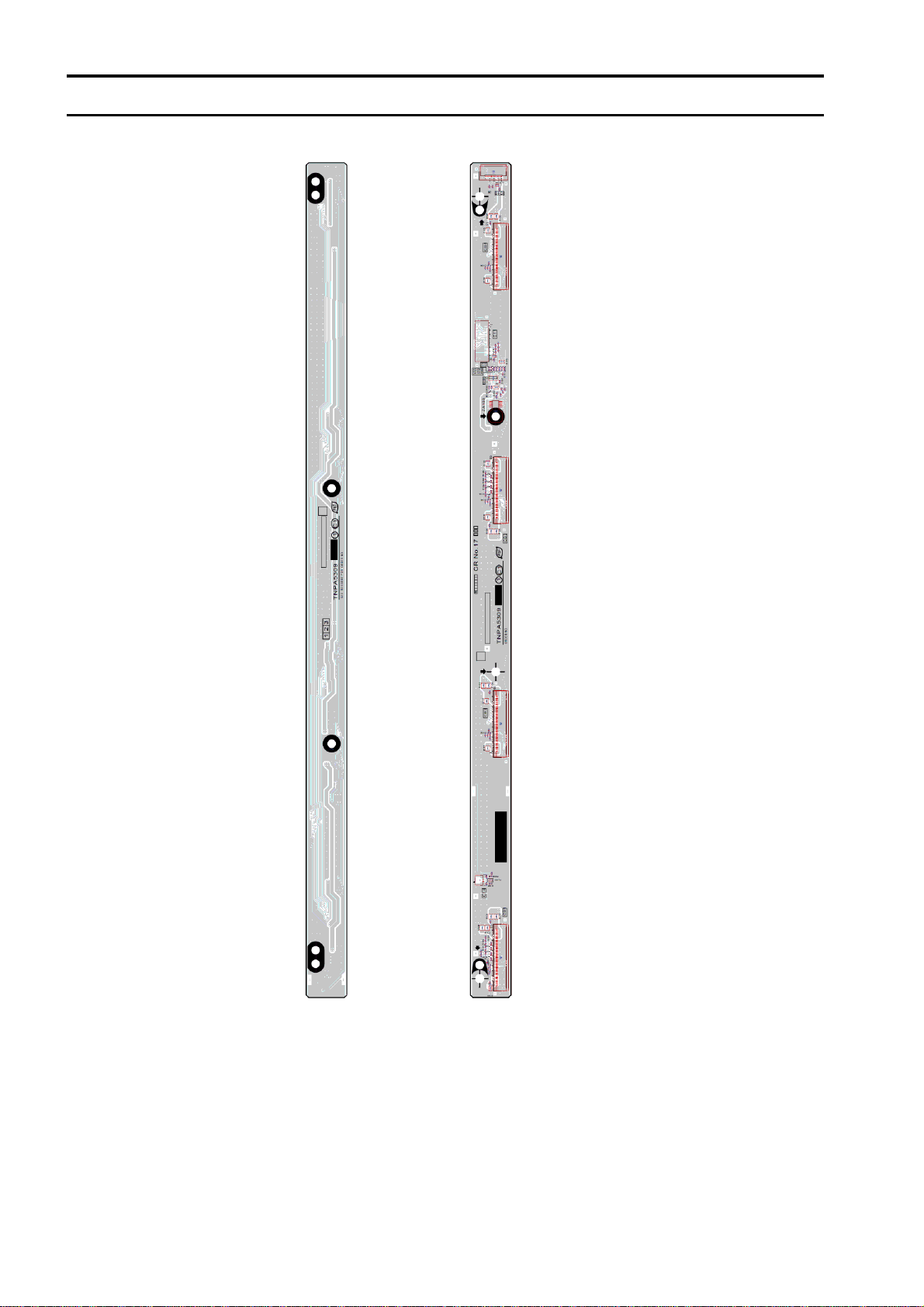

Model No. : TX-P50C3E/J, PR50C3 C1-Board

S-30

Page 75

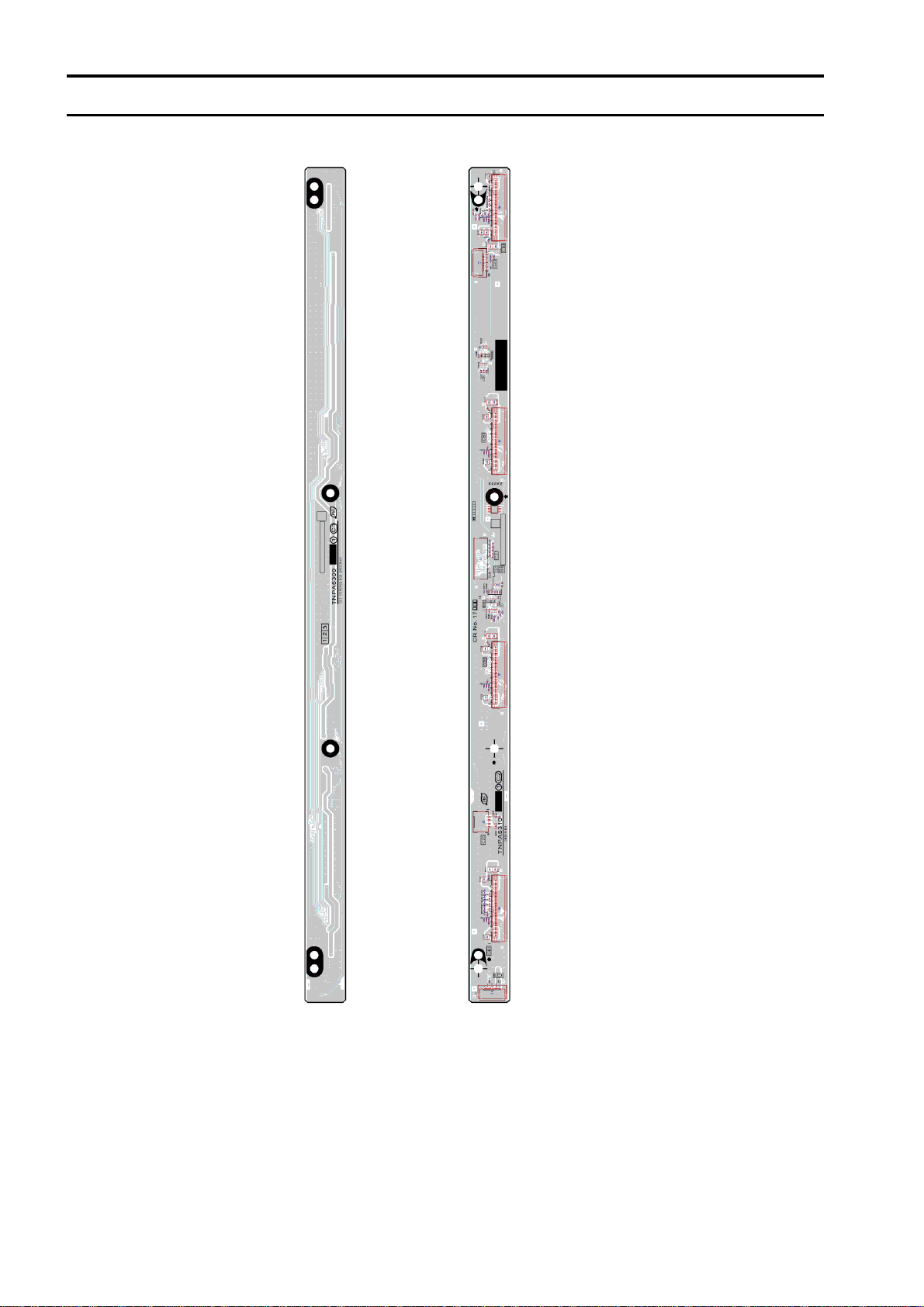

Model No. : TX-P50C3E/J, PR50C3 C2-Board

S-31

Page 76

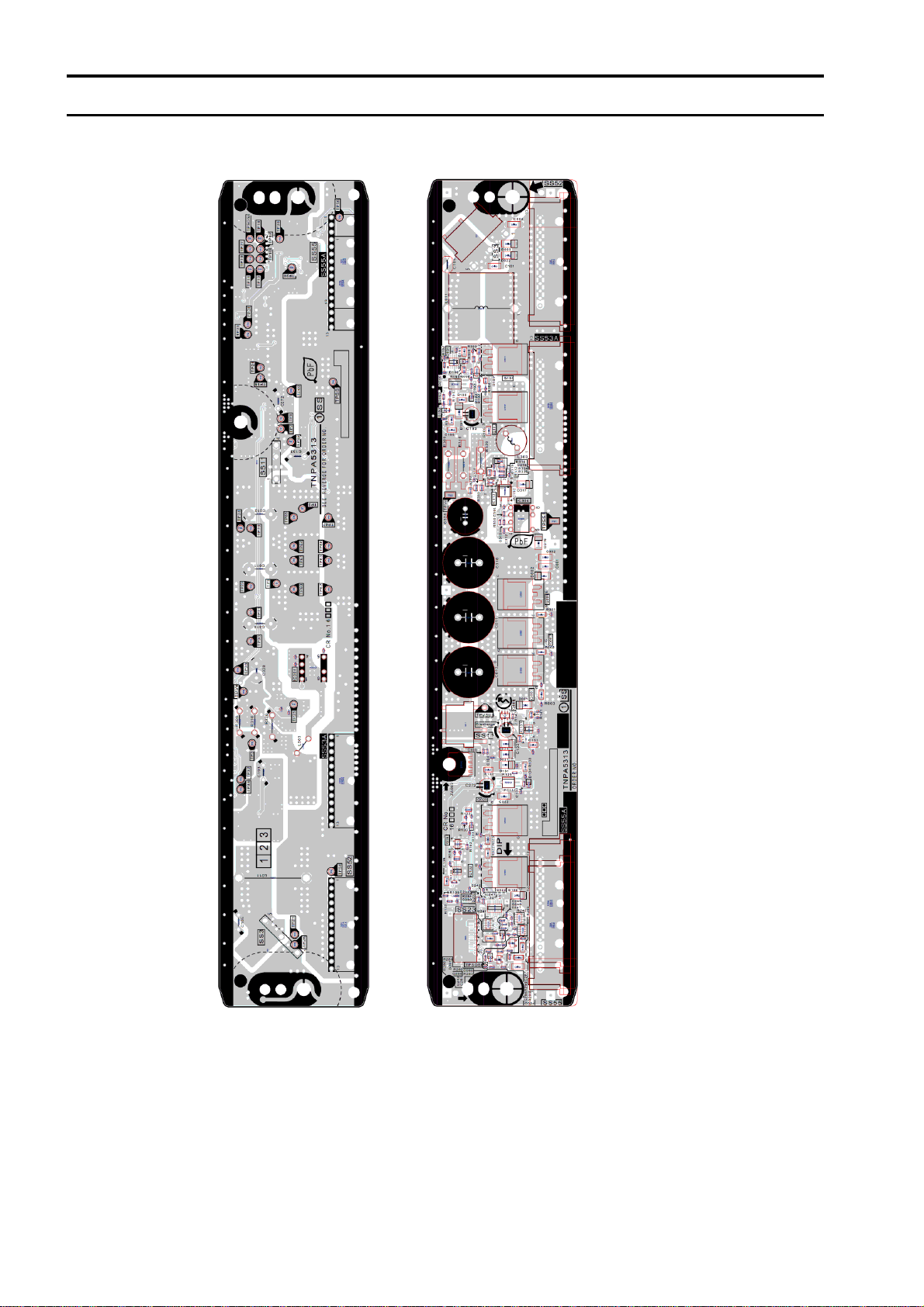

Model No. : TX-P50C3E/J, PR50C3 SN-Board (Foil side)

S-32

Page 77

Model No. : TX-P50C3E/J, PR50C3 SN-Board (Component side)

S-33

Page 78

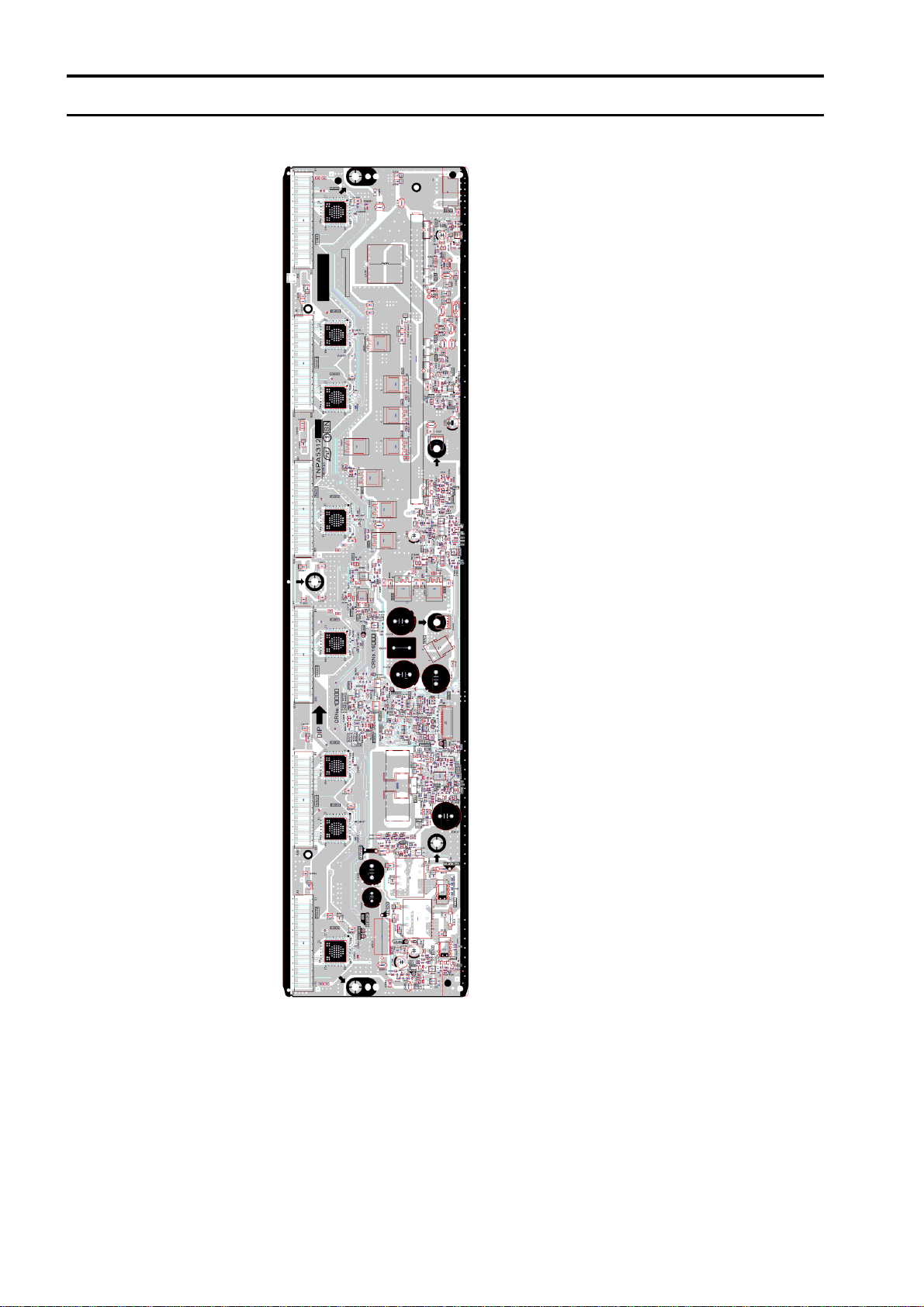

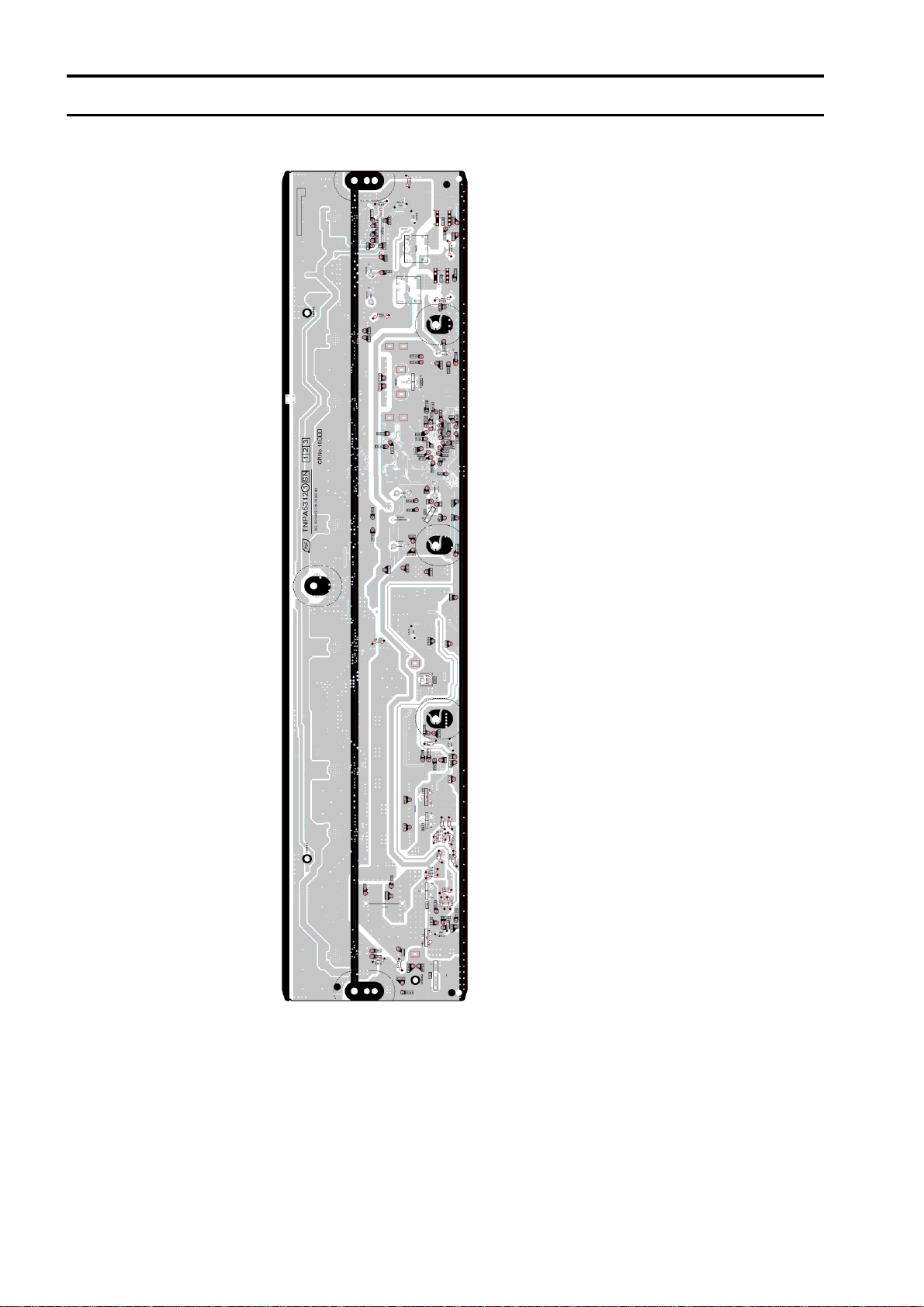

Model No. : TX-P50C3E/J, PR50C3 SS-Board

S-34

Page 79

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-35

Safety

Ref.

No.

PCB N0AE5JK00007 CIRCUIT BOARD P 1 PAVCCZ

PCB A-P50C3E CIRCUIT BOARD A 1 (RTL)PAVCCZ P50C3E

PCB A-P50C3J CIRCUIT BOARD A 1 (RTL)PAVCCZ P50C3J

PCB A-PR50C3 CIRCUIT BOARD A 1 (RTL)PAVCCZ PR50C3

PCB TXN/K1RLUE CIRCUIT BOARD K 1 (RTL)PAVCCZ

PCB TXNC111LGK CIRCUIT BOARD C1 1 (RTL)PAVCCZ

PCB TXNC211LGK CIRCUIT BOARD C2 1 (RTL)PAVCCZ

PCB TXNSN11LGK CIRCUIT BOARD SN 1 (RTL)PAVCCZ

PCB TXNSS11LGK CIRCUIT BOARD SS 1 (RTL)PAVCCZ

A1 K1KY08AA0719 8P CONNECTOR 1

A6 K1KY15B00006 15P CONNECTOR 1 PAVCCZ

A11 K1KY04B00013 4P CONNECTOR 1 PAVCCZ

A23 K1MY30BA0345 30P CONNECTOR 1

A33 K1MY35BA0345 35P CONNECTOR 1

A34 K1MY35BA0345 35P CONNECTOR 1

A35 K1KY03AA0719 3P CONNECTOR 1

C0059 F1G1H1020008 C 1000PF 50V 1

C0071 F1G1H1020008 C 1000PF 50V 1

C0072 F1G1H1020008 C 1000PF 50V 1

C0074 F1G1H1020008 C 1000PF 50V 1

C0075 F1G1H1020008 C 1000PF 50V 1

C1050 F1G1C104A077 C 0.1UF 16V 1

C1051 F1J0G2260001 C 22 UF 4 V 1

C1053 F1J0G2260001 C 22 UF 4 V 1

C2003 F1J1A106A087 C 10UF, 10V 1

C2004 F1J1E105A231 C 1 UF 25V 1

C2006 F1G1E1030005 C 0.01UF 25V 1

C2008 F1J1H102A721 C 1000pF, 50V 1

C2009 F1G1E1030005 C 0.01UF 25V 1

C2014 F1G1C104A077 C 0.1UF 16V 1

C2026 F1G1H1020008 C 1000PF 50V 1

C2027 F1G1C104A077 C 0.1UF 16V 1

C2810 ECJ1VB1H103K C 0.01UF, 50V 1

C2811 F1J1A106A087 C 10UF, 10V 1

C2815 ECJ1VB1H103K C 0.01UF, 50V 1

C2821 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C3001 F1G1A105A047 C 1UF 10V 1

C3002 F1G1A105A047 C 1UF 10V 1

C3003 F1G1C104A077 C 0.1UF 16V 1

C3004 F1G1C104A077 C 0.1UF 16V 1

C3005 F1G1A105A047 C 1UF 10V 1

C3006 F1G1A105A047 C 1UF 10V 1

C3011 F1J1A106A043 C 10UF, 10V 1

C3016 F1G1C104A077 C 0.1UF 16V 1

C3018 F1G1C104A077 C 0.1UF 16V 1

C3019 F1G1C104A077 C 0.1UF 16V 1

C3020 F1J1A106A043 C 10UF, 10V 1

C3028 F1J1A106A087 C 10UF, 10V 1

C3084 F1J1A106A043 C 10UF, 10V 1

C3085 F1J1A106A043 C 10UF, 10V 1

C3086 F1J1A106A043 C 10UF, 10V 1

C3108 F1G1E333A091 C 0.033UF 25V 1

C3109 F1G1E333A091 C 0.033UF 25V 1

C3120 F2H1A101A040 E 100UF, 10V 1 PAVCCZ

C3121 F2H1A101A040 E 100UF, 10V 1 PAVCCZ

C3124 F1J1A106A043 C 10UF, 10V 1

C3130 F1J1A106A043 C 10UF, 10V 1

C3131 F1J1A106A043 C 10UF, 10V 1

C3132 F1J1A106A043 C 10UF, 10V 1

C3135 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ

Part No. Part Name & Description Q'ty Remarks

Page 80

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-36

Safety

Ref.

No.

C3136 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ

C3139 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ

C3140 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ

C3145 F1J1A106A043 C 10UF, 10V 1

C3146 F1J1A106A043 C 10UF, 10V 1

C3147 F1J1A106A043 C 10UF, 10V 1

C3148 F1J1A106A043 C 10UF, 10V 1

C3151 F1G1A105A047 C 1UF 10V 1

C3152 F1G1A105A047 C 1UF 10V 1

C3155 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ

C3156 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ

C3157 F1G1A105A047 C 1UF 10V 1

C3158 F1G1A105A047 C 1UF 10V 1

C3172 F1G1A105A047 C 1UF 10V 1

C3173 F1G1A105A047 C 1UF 10V 1

C3174 F1G1A105A047 C 1UF 10V 1

C3175 F1G1A105A047 C 1UF 10V 1

C3178 F1J1A106A043 C 10UF, 10V 1

C3179 F1J1A106A043 C 10UF, 10V 1

C4546 ECJ1VB0J105K C 1UF, 6.3V 1

C4548 F1G1A105A047 C 1UF 10V 1

C4800 F1G1A105A047 C 1UF 10V 1

C4801 F1G1A105A047 C 1UF 10V 1

C4802 F1G1H220A565 C 22PF, 50V 1

C4803 F1G1C104A077 C 0.1UF 16V 1

C4804 F1G1C104A077 C 0.1UF 16V 1

C4805 F1G1C104A077 C 0.1UF 16V 1

C4807 F1J1A106A043 C 10UF, 10V 1

C4809 F1J1A106A043 C 10UF, 10V 1

C4811 F1J1A106A043 C 10UF, 10V 1

C4812 F1G1H1020008 C 1000PF 50V 1

C4816 F1G1C104A077 C 0.1UF 16V 1

C4817 F1G1H330A565 C 33PF, 50V 1

C4818 F1G1H330A565 C 33PF, 50V 1

C4898 F1G1H220A565 C 22PF, 50V 1

C4907 F1K1E106A136 C 10UF, 25V 1

C4908 F1G1H1020008 C 1000PF 50V 1

C4909 F1J1E105A231 C 1 UF 25V 1

C4911 F1H1H104A970 C 0.1UF, , 50V 1

C4912 F1J1E105A231 C 1 UF 25V 1

C4913 F1H1H104A970 C 0.1UF, , 50V 1

C4914 F1J1E105A231 C 1 UF 25V 1

C4915 F1H1H104A970 C 0.1UF, , 50V 1

C4917 F1H1H104A970 C 0.1UF, , 50V 1

C4918 F1J1E105A231 C 1 UF 25V 1

C4919 F1G1H1020008 C 1000PF 50V 1

C4921 F1J1E4740001 C 0.47UF, 25V 1 PAVCCZ

C4922 F1J1E4740001 C 0.47UF, 25V 1 PAVCCZ

C4924 F1J1E4740001 C 0.47UF, 25V 1 PAVCCZ

C4925 F1J1E4740001 C 0.47UF, 25V 1 PAVCCZ

C4934 F1G1H1020008 C 1000PF 50V 1

C4935 F1G1H1020008 C 1000PF 50V 1

C4936 F1G1H1020008 C 1000PF 50V 1

C4937 F1G1H1020008 C 1000PF 50V 1

C4938 F1K1E106A136 C 10UF, 25V 1

C4939 F1K1E106A136 C 10UF, 25V 1

C4970 F1J1A106A087 C 10UF, 10V 1

C4971 F1J1A106A087 C 10UF, 10V 1

C4972 F2H1A101A040 E 100 UF, 10V 1 PAVCCZ

C4973 F2H1A101A040 E 100 UF, 10V 1 PAVCCZ

C5000 F1G1E1030005 C 0.01UF 25V 1

C5002 F1J1E105A231 C 1 UF 25V 1

Part No. Part Name & Description Q'ty Remarks

Page 81

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-37

Safety

Ref.

No.

C5003 F1H1C105A145 C 1 uF 16 V 1

C5012 EEEHB1C101UP C 100PF, J, 16V 1

C5013 ECJ1VB1A105K C 1UF, 10V 1

C5014 ECJ1VB1A105K C 1UF, 10V 1

C5015 ECJ1VB1A105K C 1UF, 10V 1

C5016 ECJ1VB1A105K C 1UF, 10V 1

C5017 ECJ1VB1A105K C 1UF, 10V 1

C5018 F1G1C104A077 C 0.1UF 16V 1

C5020 F1G1E1030005 C 0.01UF 25V 1

C5023 F1K1E106A136 C 10UF, 25V 1

C5031 ECJ1VB1A105K C 1UF, 10V 1

C5032 ECJ1VB1A105K C 1UF, 10V 1

C5170 F1G1C104A077 C 0.1UF 16V 1

C5171 F1G1C104A077 C 0.1UF 16V 1

C5173 F1G1C104A077 C 0.1UF 16V 1

C5174 F1G1C104A077 C 0.1UF 16V 1

C5255 ECJ1VB1A105K C 1UF, 10V 1

C5256 ECJ1VB1A105K C 1UF, 10V 1

C8001 F1J1A106A087 C 10UF, 10V 1

C8004 F1G1C104A077 C 0.1UF 16V 1

C8005 F1G1C104A077 C 0.1UF 16V 1

C8006 F1G1C104A077 C 0.1UF 16V 1

C8009 F1J1A106A087 C 10UF, 10V 1

C8011 F1G1C104A077 C 0.1UF 16V 1

C8014 F1G1A105A047 C 1UF 10V 1

C8015 F1G1A105A047 C 1UF 10V 1

C8016 F1G1C104A077 C 0.1UF 16V 1

C8019 F1J1A106A087 C 10UF, 10V 1

C8023 F1G1C104A077 C 0.1UF 16V 1

C8024 F1J1A106A087 C 10UF, 10V 1

C8025 F1J1A106A087 C 10UF, 10V 1

C8026 F1J0G2260001 C 22 UF 4 V 1

C8028 F1G1C104A077 C 0.1UF 16V 1

C8029 F1G1C104A077 C 0.1UF 16V 1

C8031 F1G1C104A077 C 0.1UF 16V 1

C8034 F1G1C104A077 C 0.1UF 16V 1

C8035 F1G1C104A077 C 0.1UF 16V 1

C8037 F1J1A106A087 C 10UF, 10V 1

C8041 F1G1C104A077 C 0.1UF 16V 1

C8042 F1J1A106A087 C 10UF, 10V 1

C8044 F1G1C104A077 C 0.1UF 16V 1

C8046 F1G1C104A077 C 0.1UF 16V 1

C8047 F1G1C104A077 C 0.1UF 16V 1

C8050 F1G1C104A077 C 0.1UF 16V 1

C8051 F1G1C104A077 C 0.1UF 16V 1

C8053 F1G1C104A077 C 0.1UF 16V 1

C8054 F1G1C104A077 C 0.1UF 16V 1

C8055 F1G1H1020008 C 1000PF 50V 1

C8100 F1G1E682A123 C 6800 pF 25 V 1

C8102 F1J1A475A087 C 4.7UF, 10V 1

C8104 F1H1C105A145 C 1 uF 16 V 1

C8106 F1G1C223A081 C 0.022UF, 16V 1

C8108 F1G1C104A077 C 0.1UF 16V 1

C8110 F1G1C104A077 C 0.1UF 16V 1

C8112 F1K1E106A136 C 10UF, 25V 1

C8114 F1K1E106A136 C 10UF, 25V 1

C8116 F1K1E106A136 C 10UF, 25V 1

C8118 F1K1E106A136 C 10UF, 25V 1

C8120 F1J0G2260001 C 22 UF 4 V 1

C8122 F1J0G2260001 C 22 UF 4 V 1

C8124 F1J0G2260001 C 22 UF 4 V 1

C8126 F1J0G2260001 C 22 UF 4 V 1

Part No. Part Name & Description Q'ty Remarks

Page 82

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-38

Safety

Ref.

No.

C8128 F1J0G2260001 C 22 UF 4 V 1

C8200 F1G1C104A077 C 0.1UF 16V 1

C8205 F1G1C104A077 C 0.1UF 16V 1

C8206 F1G1C104A077 C 0.1UF 16V 1

C8207 F1J1A106A087 C 10UF, 10V 1

C8208 F1G1C104A077 C 0.1UF 16V 1

C8210 F1G1C104A077 C 0.1UF 16V 1

C8212 F1G1C104A077 C 0.1UF 16V 1

C8215 F1G1C104A077 C 0.1UF 16V 1

C8225 F1G1C104A077 C 0.1UF 16V 1

C8300 F1G1H6R0A732 C 6.0PF, 50V 1 PAVCCZ

C8301 F1G1H7R0A732 C 7PF, 50V 1

C8302 F1G1C104A077 C 0.1UF 16V 1

C8303 F1G1C104A077 C 0.1UF 16V 1

C8304 F1G1C104A077 C 0.1UF 16V 1

C8305 F1G1A105A047 C 1UF 10V 1

C8306 F1G1A105A047 C 1UF 10V 1

C8307 F1G1A105A047 C 1UF 10V 1

C8308 F1G1A105A047 C 1UF 10V 1

C8309 F1G1A105A047 C 1UF 10V 1

C8310 F1G1A105A047 C 1UF 10V 1

C8311 F1G1A105A047 C 1UF 10V 1

C8401 F1G1C104A077 C 0.1UF 16V 1

C8402 F1K0J226A049 C 22UF, 6.3V 1 PAVCCZ

C8403 F1K0J226A049 C 22UF, 6.3V 1 PAVCCZ

C8406 F1G1C104A077 C 0.1UF 16V 1

C8407 F1G1C104A077 C 0.1UF 16V 1

C8411 F1G1C104A077 C 0.1UF 16V 1

C8619 F1G1C104A077 C 0.1UF 16V 1

C8620 F1G1C104A077 C 0.1UF 16V 1

C8653 F1J1A106A043 C 10UF, 10V 1

C8655 F1J1A106A043 C 10UF, 10V 1

C8707 F1G1C223A081 C 0.022UF, 16V 1

C8708 F1J1A106A043 C 10UF, 10V 1

C8709 F1J1A106A043 C 10UF, 10V 1

C8711 F1G1A333A032 C0.033UF, 10V 1

C8712 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ

C8714 F1J1A475A087 C 4.7UF, 10V 1

C8715 F1J1A106A087 C 10UF, 10V 1

C8716 F1G1C104A077 C 0.1UF 16V 1

C8717 F1G1C104A077 C 0.1UF 16V 1

C8724 F1K1E106A136 C 10UF, 25V 1

C8764 ECJ1VB1A105K C 1UF, 10V 1

C8765 ECJ1VB1A105K C 1UF, 10V 1

C8773 F1K1E106A136 C 10UF, 25V 1

C8774 F1K1E106A136 C 10UF, 25V 1

C8775 F1G1C223A081 C 0.022UF, 16V 1

C8776 F1G1E1030005 C 0.01UF 25V 1

C8777 F1G1E1030005 C 0.01UF 25V 1

C8779 F1J0G2260001 C 22 UF 4 V 1

C8780 F1J0G2260001 C 22 UF 4 V 1

C8900 F1G1C104A077 C 0.1UF 16V 1

C8901 F1G1C104A077 C 0.1UF 16V 1

C8902 F1G1C104A077 C 0.1UF 16V 1

C8903 F1G1C104A077 C 0.1UF 16V 1

C9097 F1J0G2260001 C 22 UF 4 V 1

C9098 F1J0G2260001 C 22 UF 4 V 1

C9099 F1G1C104A077 C 0.1UF 16V 1

C9100 F1J1A106A087 C 10UF, 10V 1

C9101 F1G1E1030005 C 0.01UF 25V 1

C9102 F1K1E106A136 C 10UF, 25V 1

C9103 F1G1E1030005 C 0.01UF 25V 1

Part No. Part Name & Description Q'ty Remarks

Page 83

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-39

Safety

Ref.

No.

C9104 F1G1C104A077 C 0.1UF 16V 1

C9105 F1G1C104A077 C 0.1UF 16V 1

C9106 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ

C9108 F1G1C104A077 C 0.1UF 16V 1

C9300 F1G1C104A077 C 0.1UF 16V 1

C9301 F1G1H150A565 C 15PF, 50V 1

C9302 F1G1H180A565 C 18PF, 50V 1

C9308 F1G1C104A077 C 0.1UF 16V 1

C9311 F1G1C104A077 C 0.1UF 16V 1

C9312 F1J1A106A087 C 10UF, 10V 1

C9313 F1G1C104A077 C 0.1UF 16V 1

C9328 F1G1C104A077 C 0.1UF 16V 1

C9330 F1G1A105A047 C 1UF 10V 1

C9331 F1G1A105A047 C 1UF 10V 1

C9332 F1G1A105A047 C 1UF 10V 1

C9337 F1J1A106A087 C 10UF, 10V 1

C9347 F1G1A105A047 C 1UF 10V 1

C9351 F1G1C104A077 C 0.1UF 16V 1

C9352 F1G1A105A047 C 1UF 10V 1

C9362 F1G1C104A077 C 0.1UF 16V 1

C9366 F1G1A105A047 C 1UF 10V 1

C9371 F1J1A106A087 C 10UF, 10V 1

C9375 F1G1C104A077 C 0.1UF 16V 1

C9380 F1G1C104A077 C 0.1UF 16V 1

C9389 F1G1A105A047 C 1UF 10V 1

C9392 F1J1A106A087 C 10UF, 10V 1

C9400 F1G1C104A077 C 0.1UF 16V 1

C9401 F1G1C104A077 C 0.1UF 16V 1

C9404 F1G1C104A077 C 0.1UF 16V 1

C9409 F1G1A105A047 C 1UF 10V 1

C9411 F1G1A105A047 C 1UF 10V 1

C9413 F1G1A105A047 C 1UF 10V 1

C9800 F1G1E1030005 C 0.01UF 25V 1

C9801 F1G1E1030005 C 0.01UF 25V 1

C9803 F1G1E472A086 C 4700pF 25V 1

C9804 F1K1E106A136 C 10UF, 25V 1

C9805 F1K1E106A136 C 10UF, 25V 1

C9825 F1J0G2260001 C 22 UF 4 V 1

C9826 F1J0G2260001 C 22 UF 4 V 1

C9854 F1G1H1020008 C 1000PF 50V 1

CN0100 K1KA14A00248 14P CONNECTOR 1

D1006 K7AAAY000006 PHOTO LINK 1

D2820 B3AGB0000065 LED 1 PAVCCZ

D3130 B0ACCJ000048 DIODE 1

D4703 DZ2J056M0L ZENER DIODE 1

D4704 B0JCCD000020 DIODE 1 PAVCCZ

D4720 DZ2J056M0L ZENER DIODE 1

D4721 B0JCCD000020 DIODE 1 PAVCCZ

D4773 B0JCCE000008 DIODE 1

D5170 B0ADCJ000100 DIODE 1

D5171 DZ2J068M0L ZENER DIODE 1

D5172 DZ2J068M0L ZENER DIODE 1

D8716 B0ACCJ000048 DIODE 1

D8720 B0JCMD000066 ZENER DIODE 1

D9806 B0ADCJ000100 DIODE 1

IC2001 C1ZBZ0004368 IC 1 PAVCCZ

IC3001 C1AB00003384 IC 1 PAVCCZ

IC4900 C1AB00003457 IC 1 PAVCCZ

IC5000 AN34044A-VF IC 1 PAVCCZ

Part No. Part Name & Description Q'ty Remarks

Page 84

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-40

Safety

Ref.

No.

IC5002 C0DBGHC00003 IC 1

IC5251 C0CBCBC00227 IC 1

IC8000 MN2WS0175C IC 1 PAVCCZ

IC8100 C0DBAYY00715 IC 1

IC8201 C3ABTY000025 IC 1

IC8403 C0JBAZ003032 IC 1 PAVCCZ

IC8404 C0DBZYY00382 IC 1 PAVCCZ

IC8604 C0DBAGF00030 IC 1

IC8701 C0DBAYY00931 IC 1 PAVCCZ

IC8702 C0DBAFG00029 IC 1 PAVCCZ

IC8706 C0DBGYY00887 IC 1

IC8707 C0DBAYY00915 IC 1 PAVCCZ

IC8900 TVRS074AC IC 1 PAVCCZ

IC8901 TVRS---- IC 1

IC8902 TVRS---- IC 1

IC9300 C1AB00003409 IC 1 PAVCCZ

IC9304 TVRS207AA IC 1 PAVCCZ

IC9400 C0JBAU000089 IC 1 PAVCCZ

IC9401 C0JBAU000089 IC 1 PAVCCZ

IC9800 C0DBAYY00915 IC 1 PAVCCZ

JK1001B K1U608A00001 JACK 1 PAVCCZ

JK1002A K1FY121A0011 CONNECTOR 1 PAVCCZ

JK1020 K1FY119D0015 CONNECTOR 1 PAVCCZ

JK1021 K1FY119D0015 CONNECTOR 1 PAVCCZ

JK1051A K2HC1YYB0062 JACK 1 PAVCCZ

JK1052 K1NA68B00059 68P CONNECTOR 1 PAVCCZ

JK1053 K1NA12E00016 12P CONNECTOR 1

K1 K1KA08B00270 8P CONNECTOR 1

L3102 J0JYC0000331 CHIP INDUCTOR 1

L3103 J0JYC0000331 CHIP INDUCTOR 1

L3108 J0JCC0000287 CHIP INDUCTOR 1

L3111 J0JYC0000331 CHIP INDUCTOR 1

L3112 J0JYC0000331 CHIP INDUCTOR 1

L3113 J0JYC0000331 CHIP INDUCTOR 1

L3116 J0JYC0000331 CHIP INDUCTOR 1

L3117 J0JYC0000331 CHIP INDUCTOR 1

L3118 J0JYC0000331 CHIP INDUCTOR 1

L3121 J0JCC0000287 CHIP INDUCTOR 1

L4800 G1CR39J00009 INDUCTION COIL 1

L4801 G1CR39J00009 INDUCTION COIL 1

L4802 J0JGC0000020 CHIP INDUCTOR 1

L4803 J0JGC0000020 CHIP INDUCTOR 1

L4804 J0JGC0000020 CHIP INDUCTOR 1

L4807 J0JCC0000278 CHIP INDUCTOR 1

L4900 G1C150MA0426 INDUCTION COIL 1 PAVCCZ

L4901 G1C150MA0426 INDUCTION COIL 1 PAVCCZ

L4902 G1C150MA0426 INDUCTION COIL 1 PAVCCZ

L4903 G1C150MA0426 INDUCTION COIL 1 PAVCCZ

L8003 J0JCC0000287 CHIP INDUCTOR 1

L8005 J0JHC0000045 CHIP INDUCTOR 1

L8006 J0JHC0000045 CHIP INDUCTOR 1

L8007 J0JHC0000045 CHIP INDUCTOR 1

L8009 J0JKC0000021 CHIP INDUCTOR 1

L8015 J0JCC0000287 CHIP INDUCTOR 1

L8016 J0JCC0000287 CHIP INDUCTOR 1

L8100 G1C4R7MA0416 INDUCTION COIL 1 PAVCCZ

L8102 G1C3R3MA0425 INDUCTION COIL 1 PAVCCZ

L8701 G1C6R8MA0445 INDUCTION COIL 1 PAVCCZ

L8702 G1C6R8MA0445 INDUCTION COIL 1 PAVCCZ

Part No. Part Name & Description Q'ty Remarks

Page 85

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-41

Safety

Ref.

No.

L9302 J0JHC0000117 CHIP INDUCTOR 1

L9303 J0JHC0000117 CHIP INDUCTOR 1

L9800 G1C6R8MA0445 INDUCTION COIL 1 PAVCCZ

PA2011 K5H5022A0031 FUSE 1

Q0900 DSA200100L TRANSISTOR 1

Q2810 B1ABCE000015 TRANSISTOR 1

Q2811 B1ABCE000015 TRANSISTOR 1

Q2812 B1ABCE000015 TRANSISTOR 1

Q3102 B1ABCF000231 TRANSISTOR 1

Q3103 B1ABCF000231 TRANSISTOR 1

Q4513 DSA200100L TRANSISTOR 1

Q4514 B1HFCEA00001 TRANSISTOR 1 PAVCCZ

Q4700 B1ABCF000231 TRANSISTOR 1

Q4702 B1ABCF000231 TRANSISTOR 1

Q4970 DSA200100L TRANSISTOR 1

Q4971 B1AAFB000002 TRANSISTOR 1

Q4972 B1AAFB000002 TRANSISTOR 1

Q4973 DSA2001S0L TRANSISTOR 1

Q4974 DSC2001S0L TRANSISTOR 1

Q5170 DSC2001S0L TRANSISTOR 1

Q5171 DSA200100L TRANSISTOR 1

Q5172 DSA200100L TRANSISTOR 1

Q8100 B1MBEDA00027 FET 1 PAVCCZ

Q8102 B1MBEDA00027 FET 1 PAVCCZ

R003 D0GBR00J0004 M 0 OHM J 1/10W 1

R0800 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R0902 D0GA473JA015 M 47KOHM, J,1/16W 1

R0903 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R0904 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R0905 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R0906 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R0907 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R0908 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R0909 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R0910 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R0911 EXB28V222J M 2.2 OHM 1/32 W 1

R0951 D0GA473JA015 M 47KOHM, J,1/16W 1

R0952 D0GA102JA023 M1KOHM, J.1/16 W 1

R1009 D0GA101JA015 M 100 OHM, J,1/16W 1

R2003 D0GA473JA015 M 47KOHM, J,1/16W 1

R2004 D1BA1432A014 M14.3KOHM,J.1/16 W 1 PAVCCZ

R2005 D1BA6651A014 M6.65KOHM,J.1/16 W 1 PAVCCZ

R2006 D1BA7151A014 M7.15KOHM,J.1/16 W 1

R2007 ERJ2RKF1741 M 1.74KOHM, F 1/16 W 1

R2008 D0GA184JA023 M 180KOHM J.1/16W 1

R2010 D1BA7151A014 M7.15KOHM,J.1/16 W 1

R2011 D0GA102JA023 M1KOHM, J.1/16 W 1

R2013 D0GA103JA015 M 10KOHM,J,1/16W 1

R2810 D0GB470JA065 M 47 OHM,J,1/10W 1 PAVCCZ

R2811 D0GB104JA065 M 100KOHM J 1/10W 1

R2812 D0GB224JA065 M 220KOHM,J,1/10W 1 PAVCCZ

R2813 D0GB223JA065 M 22KOHM,J,1/10W 1 PAVCCZ

R2814 D0GB103JA065 M 10K OHM J 1/10W 1 PAVCCZ

R2815 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCCZ

R2816 D0GA473JA015 M 47KOHM, J,1/16W 1

R2816 D1BB1621A055 M1.62KOHM,J.1/10W 1

R2817 D0GB223JA065 M 22KOHM,J,1/10W 1 PAVCCZ

R2818 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCCZ

R2819 D1BB4301A055 M4.30KOHM,J.1/10W 1

Part No. Part Name & Description Q'ty Remarks

Page 86

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-42

Safety

Ref.

No.

R3001 D0GA102JA023 M1KOHM, J.1/16 W 1

R3002 D0GA122JA023 M 1.2KOHM, J,1/16W 1

R3014 D0GA221JA023 M220 OHM, J.1/16 W 1

R3121 EXB28V221J M220 OHM 1/32 W 1

R3129 D0GA104JA023 M100KOHM, J.1/16 W 1

R3137 D1BD75R0A066 M 75.0 OHM,J.1/8 W 1 PAVCCZ

R3141 D1BF75R0A011 M 75.0 OHM, 1/4W 1 PAVCCZ

R3142 D1BF75R0A011 M 75.0 OHM, 1/4W 1 PAVCCZ

R3143 D1BF75R0A011 M 75.0 OHM, 1/4W 1 PAVCCZ

R3147 D1BF75R0A011 M 75.0 OHM, 1/4W 1 PAVCCZ

R3148 D0GAR00J0005 M 0 OHM, 1/16W 1

R3157 EXB28V221J M220 OHM 1/32 W 1

R3163 D0GA104JA023 M100KOHM, J.1/16 W 1

R3164 D0GA104JA023 M100KOHM, J.1/16 W 1

R3167 D0GA333JA023 M 33KOHM,J,1/16W 1

R3168 D0GA333JA023 M 33KOHM,J,1/16W 1

R3171 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R3172 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R3173 EXB28V221J M220 OHM 1/32 W 1

R3174 D0GA221JA023 M220 OHM, J.1/16 W 1

R3175 D0GA221JA023 M220 OHM, J.1/16 W 1

R3179 D0GA331JA023 M 330 OHM, J,1/16W 1

R3180 D0GA331JA023 M 330 OHM, J,1/16W 1

R3181 D1BD75R0A066 M 75.0 OHM,J.1/8 W 1 PAVCCZ

R3182 D1BD75R0A066 M 75.0 OHM,J.1/8 W 1 PAVCCZ

R3183 D1BD75R0A066 M 75.0 OHM,J.1/8 W 1 PAVCCZ

R3186 D0GA333JA023 M 33KOHM,J,1/16W 1

R3187 D0GA333JA023 M 33KOHM,J,1/16W 1

R3192 EXB28V820JX M 82 OHM 1/32 W 1

R3202 D1BF75R0A011 M 75.0 OHM, 1/4W 1 PAVCCZ

R3204 D1BA2152A014 M21.5KOHM,J.1/16 W 1 PAVCCZ

R3206 D1BA1302A014 M 13KOHM,J.1/16 W 1

R3208 D0GA273JA023 M 27K OHM J ,1/16W 1

R3211 D0GA220JA023 M22 OHM, J.1/16 W 1

R3212 D0GA680JA023 M 68 OHM, J,1/16W 1

R3213 D0GA473JA015 M 47KOHM, J,1/16W 1

R3221 D1BF75R0A011 M 75.0 OHM, 1/4W 1 PAVCCZ

R3293 D0GBR00J0004 M 0 OHM J 1/10W 1

R4548 D0GA220JA023 M22 OHM, J.1/16 W 1

R4549 D0GA151JA023 M 150 OHM, J,1/16W 1

R4550 D0GA151JA023 M 150 OHM, J,1/16W 1

R4551 D0GA151JA023 M 150 OHM, J,1/16W 1

R4552 D0GA560JA023 M 56 OHM, J,1/16W 1

R4554 D0GA102JA023 M1KOHM, J.1/16 W 1

R4556 D0GA103JA015 M 10KOHM,J,1/16W 1

R4560 D0GA473JA015 M 47KOHM, J,1/16W 1

R4563 D0GA103JA015 M 10KOHM,J,1/16W 1

R4702 D0GA103JA015 M 10KOHM,J,1/16W 1

R4708 D0GA103JA015 M 10KOHM,J,1/16W 1

R4709 D0GA103JA015 M 10KOHM,J,1/16W 1

R4710 EXB28V473JX M 47KOHM 1/32 W 1

R4711 D0GA102JA023 M1KOHM, J.1/16 W 1

R4715 D0GA103JA015 M 10KOHM,J,1/16W 1

R4721 D0GA103JA015 M 10KOHM,J,1/16W 1

R4722 D0GA103JA015 M 10KOHM,J,1/16W 1

R4723 EXB28V473JX M 47KOHM 1/32 W 1

R4724 D0GA102JA023 M1KOHM, J.1/16 W 1

R4748 D0GA680JA023 M 68 OHM, J,1/16W 1

R4749 D0GA680JA023 M 68 OHM, J,1/16W 1

R4750 D0GA680JA023 M 68 OHM, J,1/16W 1

R4751 D0GA680JA023 M 68 OHM, J,1/16W 1

R4798 D0GA273JA023 M 27K OHM J ,1/16W 1

Part No. Part Name & Description Q'ty Remarks

Page 87

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-43

Safety

Ref.

No.

R4800 D0GA103JA015 M 10KOHM,J,1/16W 1

R4910 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R4911 D0GA102JA023 M1KOHM, J.1/16 W 1

R4913 D0GA103JA015 M 10KOHM,J,1/16W 1

R4914 EXB28V220J M 22 OHM 1/32 W 1

R4921 D0GA103JA015 M 10KOHM,J,1/16W 1

R4970 D1BB1403A055 M 140KOHM,J.1/10W 1

R4971 D1BB1403A055 M 140KOHM,J.1/10W 1

R4972 D0GA103JA015 M 10KOHM,J,1/16W 1

R4973 D0GA103JA015 M 10KOHM,J,1/16W 1

R4974 D0GA101JA015 M 100 OHM, J,1/16W 1

R4975 D0GA473JA015 M 47KOHM, J,1/16W 1

R4976 D0GA103JA015 M 10KOHM,J,1/16W 1

R4978 D0GA101JA015 M 100 OHM, J,1/16W 1

R4979 D0GA101JA015 M 100 OHM, J,1/16W 1

R4980 D0GA473JA015 M 47KOHM, J,1/16W 1

R4981 D0GA473JA015 M 47KOHM, J,1/16W 1

R4984 D0GA473JA015 M 47KOHM, J,1/16W 1

R4985 D0GA103JA015 M 10KOHM,J,1/16W 1

R4987 D0GF102JA048 M 1.0 KOHM,J,1/3W 1 PAVCCZ

R5000 D0GA102JA023 M1KOHM, J.1/16 W 1

R5001 D0GA473JA015 M 47KOHM, J,1/16W 1

R5009 D0GA103JA015 M 10KOHM,J,1/16W 1

R5010 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R5011 D0GA104JA023 M100KOHM, J.1/16 W 1

R5012 D0GA223JA023 M 22K OHM J 1/16W 1

R5013 D0GA103JA015 M 10KOHM,J,1/16W 1

R5070 D0GA101JA015 M 100 OHM, J,1/16W 1

R5170 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R5171 D0GA683JA023 M 68KOHM, J,1/16W 1

R5172 D0GA473JA015 M 47KOHM, J,1/16W 1

R5173 D0GA103JA015 M 10KOHM,J,1/16W 1

R5175 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R5176 D0GA392JA023 M 3.9KOHM, J,1/16W 1

R5177 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R5178 D0GA332JA023 M 3.3KOHM, J,1/16W 1

R5179 D0GA102JA023 M1KOHM, J.1/16 W 1

R5180 D0GA103JA015 M 10KOHM,J,1/16W 1

R5181 D0GB221JA065 M 220 OHM J 1/10W 1

R5182 D0GD104JA052 M 100KOHM,J,1/4W 1 PAVCCZ

R5183 D0GD102JA052 M 1.0KOHM,J,1/4W 1 PAVCCZ

R5184 D0GD472JA052 M 4.7KOHM,J,1/4W 1 PAVCCZ

R5185 D0GD472JA052 M 4.7KOHM,J,1/4W 1 PAVCCZ

R6927 D0GAR00J0005 M 0 OHM, 1/16W 1

R6928 D0GAR00J0005 M 0 OHM, 1/16W 1

R6953 D0GAR00J0005 M 0 OHM, 1/16W 1

R8001 D0GA331JA023 M 330 OHM, J,1/16W 1

R8100 D1BB1301A087 M 1.3KOHM,J.1/10W 1 PAVCCZ

R8102 D1BB2101A087 M 2.1KOHM,J.1/10W 1

R8104 D1BB8200A087 M 820 OHM,J.1/10W 1

R8106 D1BB2001A087 M 2KOHM,J.1/10W 1

R8108 D0GB100JA065 M 10 OHM J 1/10W 1

R8110 D0GB100JA065 M 10 OHM J 1/10W 1

R8114 D0GA243JA023 M 24K OHM J 0.063W 1 PAVCCZ

R8118 D0GA183JA023 M 18K OHM J.1/16W 1

R8200 D1BA2400A014 M 240 OHM,J.1/16 W 1

R8203 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8205 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8206 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8208 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8217 D0GA111JA023 M 110 OHM, J.1/16W 1

R8219 D1BA2400A014 M 240 OHM,J.1/16 W 1

Part No. Part Name & Description Q'ty Remarks

Page 88

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-44

Safety

Ref.

No.

R8221 D0GA103JA015 M 10KOHM,J,1/16W 1

R8223 EXB28V330J M 33 OHM 1/32 W 1

R8224 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8225 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8301 D0GA681JA023 M680 OHM, J,1/16W 1

R8302 D0GA360JA023 M 36 OHM, J,1/16W 1 PAVCCZ

R8303 D0GA360JA023 M 36 OHM, J,1/16W 1 PAVCCZ

R8304 D1BA6201A014 M 6.2KOHM,J.1/16 W 1

R8305 D1BA6201A014 M 6.2KOHM,J.1/16 W 1

R8306 D0GA243JA023 M 24K OHM J 0.063W 1 PAVCCZ

R8400 D0GA680JA023 M 68 OHM, J,1/16W 1

R8401 D0GA680JA023 M 68 OHM, J,1/16W 1

R8402 D0GA680JA023 M 68 OHM, J,1/16W 1

R8403 D0GA680JA023 M 68 OHM, J,1/16W 1

R8404 D0GA680JA023 M 68 OHM, J,1/16W 1

R8405 D0GA680JA023 M 68 OHM, J,1/16W 1

R8406 EXB2HV680J M 68 OHM 1/16 W 1

R8407 EXB2HV680J M 68 OHM 1/16 W 1

R8408 EXB2HV680J M 68 OHM 1/16 W 1

R8409 EXB28V680JX M 68 OHM 1/32 W 1

R8410 EXB2HV680J M 68 OHM 1/16 W 1

R8411 EXB2HV680J M 68 OHM 1/16 W 1

R8418 D0GA103JA015 M 10KOHM,J,1/16W 1

R8421 EXB2HV101J M 100 OHM 1/16 W 1

R8424 D0GA223JA023 M 22K OHM J 1/16W 1

R8425 D0GA223JA023 M 22K OHM J 1/16W 1

R8426 D0GA473JA015 M 47KOHM, J,1/16W 1

R8427 D0GA473JA015 M 47KOHM, J,1/16W 1

R8429 D0GA103JA015 M 10KOHM,J,1/16W 1

R8433 D0GA103JA015 M 10KOHM,J,1/16W 1

R8434 D0GA103JA015 M 10KOHM,J,1/16W 1

R8435 D0GA223JA023 M 22K OHM J 1/16W 1

R8436 EXB2HV101J M 100 OHM 1/16 W 1

R8437 EXB2HV473JV M 47 kOHM 1/16 W 1

R8438 EXB2HV103JV M 10 kOHM 1/16 W 1

R8440 D0GA103JA015 M 10KOHM,J,1/16W 1

R8441 D0GA103JA015 M 10KOHM,J,1/16W 1

R8442 D0GA103JA015 M 10KOHM,J,1/16W 1

R8606 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R8607 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R8608 D0GA102JA023 M1KOHM, J.1/16 W 1

R8616 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R8617 D0GA103JA015 M 10KOHM,J,1/16W 1

R8618 D0GA103JA015 M 10KOHM,J,1/16W 1

R8621 D0GA103JA015 M 10KOHM,J,1/16W 1

R8624 D0GA560JA023 M 56 OHM, J,1/16W 1

R8625 D0GA560JA023 M 56 OHM, J,1/16W 1

R8626 D0GA560JA023 M 56 OHM, J,1/16W 1

R8627 D0GA560JA023 M 56 OHM, J,1/16W 1

R8628 D0GA560JA023 M 56 OHM, J,1/16W 1

R8629 D0GA560JA023 M 56 OHM, J,1/16W 1

R8630 D1HG1038A002 NETWORK RESISTER 1

R8632 EXB28V560JX M 56 OHM 1/32 W 1

R8634 EXB28V560JX M 56 OHM 1/32 W 1

R8636 D0GA220JA023 M22 OHM, J.1/16 W 1

R8639 D0GA103JA015 M 10KOHM,J,1/16W 1

R8640 D0GA103JA015 M 10KOHM,J,1/16W 1

R8646 D0GA103JA015 M 10KOHM,J,1/16W 1

R8647 D0GA103JA015 M 10KOHM,J,1/16W 1

R8648 D0GA103JA015 M 10KOHM,J,1/16W 1

R8649 D0GA103JA015 M 10KOHM,J,1/16W 1

R8650 D0GA103JA015 M 10KOHM,J,1/16W 1

Part No. Part Name & Description Q'ty Remarks

Page 89

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-45

Safety

Ref.

No.

R8651 D0GA103JA015 M 10KOHM,J,1/16W 1

R8652 EXB28V103JX M 10KOHM 1/32 W 1

R8704 D1BB5362A055 M53.6KOHM,J.1/10W 1 PAVCCZ

R8705 D1BB1002A055 M 10KOHM,J.1/10W 1

R8706 D0GA390JA023 M 39 OHM, J,1/16W 1 PAVCCZ

R8707 D1BB1002A055 M 10KOHM,J.1/10W 1

R8755 D0GA102JA023 M1KOHM, J.1/16 W 1

R8756 D0GB390JA065 M 39 OHM,J,1/10W 1 PAVCCZ

R8757 D1BB4301A055 M4.30KOHM,J.1/10W 1

R8758 D1BB2402A055 M 24KOHM,J.1/10W 1

R8759 D1BB6041A055 M 6.04KOHM,J.1/10W 1

R8811 D0GA103JA015 M 10KOHM,J,1/16W 1

R8813 D0GA103JA015 M 10KOHM,J,1/16W 1

R8815 D0GA103JA015 M 10KOHM,J,1/16W 1

R8816 D0GA102JA023 M1KOHM, J.1/16 W 1

R8817 D0GA103JA015 M 10KOHM,J,1/16W 1

R8818 D0GA103JA015 M 10KOHM,J,1/16W 1

R8819 D0GA103JA015 M 10KOHM,J,1/16W 1

R8820 D0GA103JA015 M 10KOHM,J,1/16W 1

R8821 D0GA103JA015 M 10KOHM,J,1/16W 1

R8822 D0GA103JA015 M 10KOHM,J,1/16W 1

R8823 D0GA102JA023 M1KOHM, J.1/16 W 1

R8824 D0GA103JA015 M 10KOHM,J,1/16W 1

R8825 D0GA103JA015 M 10KOHM,J,1/16W 1

R8830 D0GA103JA015 M 10KOHM,J,1/16W 1

R8909 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R8910 D0GA103JA015 M 10KOHM,J,1/16W 1

R8914 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R8915 D0GA103JA015 M 10KOHM,J,1/16W 1

R8916 D0GA103JA015 M 10KOHM,J,1/16W 1

R8917 EXB28V103JX M 10KOHM 1/32 W 1

R8921 D0GA103JA015 M 10KOHM,J,1/16W 1

R8972 EXB2HV680J M 68 OHM 1/16 W 1

R9005 D0GB390JA065 M 39 OHM,J,1/10W 1 PAVCCZ

R9035 D0GA103JA015 M 10KOHM,J,1/16W 1

R9105 D0GA473JA015 M 47KOHM, J,1/16W 1

R9198 EXB28V101JX M 100 OHM 1/32 W 1

R9203 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R9205 D0GA333JA023 M 33KOHM,J,1/16W 1

R9206 D0GA563JA023 M 56KOHM, J,0.063W 1 PAVCCZ

R9208 EXB2HV470JV M 47 OHM 1/16 W 1

R9209 EXB2HV470JV M 47 OHM 1/16 W 1

R9307 D0GA330JA023 M 33 OHM, J,1/16W 1

R9308 D0GA330JA023 M 33 OHM, J,1/16W 1

R9320 D0GA122JA023 M 1.2KOHM, J,1/16W 1

R9321 D0GA105JA023 M 1M OHM, J,1/16W 1

R9323 D0GA102JA023 M1KOHM, J.1/16 W 1

R9324 D0GB162JA065 M 1.6KOHM J 1/10W 1 PAVCCZ

R9325 D0GB162JA065 M 1.6KOHM J 1/10W 1 PAVCCZ

R9326 D0GB162JA065 M 1.6KOHM J 1/10W 1 PAVCCZ

R9327 D0GB162JA065 M 1.6KOHM J 1/10W 1 PAVCCZ

R9329 D0GA102JA023 M1KOHM, J.1/16 W 1

R9330 D0GA102JA023 M1KOHM, J.1/16 W 1

R9400 EXB2HV103JV M 10 kOHM 1/16 W 1

R9401 EXB2HV103JV M 10 kOHM 1/16 W 1

R9503 D0GA473JA015 M 47KOHM, J,1/16W 1

R9599 D0GA473JA015 M 47KOHM, J,1/16W 1

R9608 EXB2HV470JV M 47 OHM 1/16 W 1

R9609 EXB28V470JX M 47 OHM 1/32 W 1

R9610 EXB28V470JX M 47 OHM 1/32 W 1

R9611 EXB28V470JX M 47 OHM 1/32 W 1

R9872 D1BB1502A055 M 15KOHM, J.1/10W 1

Part No. Part Name & Description Q'ty Remarks

Page 90

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-46

Safety

Ref.

No.

R9873 D1BB8061A087 M8.06 KOHM,J.1/10W 1 PAVCCZ

R9875 D1BB1002A087 M 10KOHM,J.1/10W 1

R9907 D0GA101JA015 M 100 OHM, J,1/16W 1

RM2810 B3RAD0000168 REMOTE SENSOR 1

SN2810 B3JB00000078 IC 1

SW2000 K0F122A00031 SWITCH 1

SW2001 K0H1BA000445 SWITCH 1

SW2002 K0H1BA000445 SWITCH 1

SW2003 K0H1BA000445 SWITCH 1

SW2004 K0H1BA000445 SWITCH 1

SW2005 K0H1BA000445 SWITCH 1

TU4801 ENGS7302D5F TUNER 1 PAVCCZ

X8300 H0J245500113 CRYSTAL 1 PAVCCZ

X9300 H0J200500076 CRYSTAL 1

C10 K1MY20BA0345 20P CONNECTOR 1

C11 K1MY35BA0345 35P CONNECTOR 1

C20 K1MY20BA0345 20P CONNECTOR 1

C21 K1MY35BA0345 35P CONNECTOR 1

C23 K1MY20BA0345 20P CONNECTOR 1

C25 K1KY04B00013 4P CONNECTOR 1 PAVCCZ

C14901 F1G1H1020008 C 1000PF 50V 1

C14902 F1H1C105A145 C 1 uF 16 V 1

C14906 F1H1C105A145 C 1 uF 16 V 1

C14908 F1H1C105A145 C 1 uF 16 V 1

C14912 F1H1C105A145 C 1 uF 16 V 1

C14926 F1H1H104A970 C 0.1UF, , 50V 1

C14928 F1L2E104A028 C 0.10UF, 250V 1

C14931 F1G1H1020008 C 1000PF 50V 1

C14934 F1L2E104A028 C 0.10UF, 250V 1

C14936 F1G1H221A541 C 220PF, 50V 1

C14937 F1G1H221A541 C 220PF, 50V 1

C14943 F1K1E475A134 C 4.7UF 25V 1

C14950 F1G1H221A541 C 220PF, 50V 1

C14952 F1H1C105A145 C 1 uF 16 V 1

C14957 F1H1C105A145 C 1 uF 16 V 1

C14958 F1H1C105A145 C 1 uF 16 V 1

C14963 F1H1C105A145 C 1 uF 16 V 1

C14970 F1G1H221A541 C 220PF, 50V 1

C14973 F1G1H1020008 C 1000PF 50V 1

C14975 F1L2E104A028 C 0.10UF, 250V 1

C14979 F1L2E104A028 C 0.10UF, 250V 1

C14987 F1H1C105A145 C 1 uF 16 V 1

C14988 F1H1C105A145 C 1 uF 16 V 1

C14991 F1G1H100A565 C 10PF 50V 1

C14992 F1H1C105A145 C 1 uF 16 V 1

C14993 F1H1C105A145 C 1 uF 16 V 1

C16001 F1L2J222A022 C 2200PF, 630V 1

C16002 F1L2J562A022 C 5600PF, 630V 1

C16004 F1L2J272A022 C 2700PF, 630V 1

C16011 F2A2T181A018 E 180UF, 220V 1 PAVCCZ

C16012 F2A2T181A018 E 180UF, 220V 1 PAVCCZ

C16022 F1L2J562A022 C 5600PF, 630V 1

C16024 F1L2J272A022 C 2700PF, 630V 1

C16103 F1H1E470A130 C 47PF, 25V 1

C16104 F1H1E470A130 C 47PF, 25V 1

C16131 F1K1E475A134 C 4.7UF 25V 1

Part No. Part Name & Description Q'ty Remarks

Page 91

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-47

Safety

Ref.

No.

C16132 F1H1C105A145 C 1 uF 16 V 1

C16133 F2A1E470B725 E 47UF, 25V 1 PAVCCZ

C16135 F1K1E105A029 C 1UF, 25V 1

C16191 F1K1E475A134 C 4.7UF 25V 1

C16192 F1H1C105A145 C 1 uF 16 V 1

C16193 F2A1E470B725 E 47UF, 25V 1 PAVCCZ

C16195 F1K1E105A029 C 1UF, 25V 1

C16242 F1H1C105A145 C 1 uF 16 V 1

C16243 ECJ1VB1H103K C 0.01UF, 50V 1

C16244 F1J1A106A087 C 10UF, 10V 1

C16272 F2A1E470B725 E 47UF, 25V 1 PAVCCZ

C16286 F1H1H104A970 C 0.1UF, , 50V 1

C16287 F1H1H104A970 C 0.1UF, , 50V 1

C16310 F2A2T181A018 E 180UF, 220V 1 PAVCCZ

C16315 ECJ1VB1A105K C 1UF, 10V 1

C16316 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C16317 ECJ1VB1A105K C 1UF, 10V 1

C16318 F1J1H104A717 C 0.1UF, 50V 1

C16319 F1J1H104A717 C 0.1UF, 50V 1

C16328 F2A2C1010028 E 100UF, 160V 1 PAVCCZ

C16400 F1E2J222A002 C 2200PF, 630V 1

C16401 F1L2J222A022 C 2200PF, 630V 1

C16402 F1L2J222A022 C 2200PF, 630V 1

C16411 F2A2T181A018 E 180UF, 220V 1 PAVCCZ

C16412 F2A2T181A018 E 180UF, 220V 1 PAVCCZ

C16413 F2A2T181A018 E 180UF, 220V 1 PAVCCZ

C16414 F2A2T181A018 E 180UF, 220V 1 PAVCCZ

C16421 F1L2J332A022 C 3300PF, 630V 1

C16422 F1L2J1020001 C 1000PF, 630V 1

C16441 ECJ1VB1H472K C 4700PF, 50V 1

C16451 ECJ1VB1H472K C 4700PF, 50V 1

C16472 ECJ1VB1A105K C 1UF, 10V 1

C16490 F1H1C105A145 C 1 uF 16 V 1

C16502 F1K1E475A134 C 4.7UF 25V 1

C16503 F2A1E221B726 E 220UF, 25V 1 PAVCCZ

C16505 F1K1E105A029 C 1UF, 25V 1

C16506 F1H1C105A145 C 1 uF 16 V 1

C16531 F1K1E475A134 C 4.7UF 25V 1

C16534 F1H1C105A145 C 1 uF 16 V 1

C16541 F1H1C105A145 C 1 uF 16 V 1

C16542 F2A1E470B725 E 47UF, 25V 1 PAVCCZ

C16551 F1K1E475A134 C 4.7UF 25V 1

C16561 F1J1A106A087 C 10UF, 10V 1

C16562 F1H1C105A145 C 1 uF 16 V 1

C16564 F1H1C105A145 C 1 uF 16 V 1

C16565 ECJ1VB1H103K C 0.01UF, 50V 1

C16566 ECJ1VB1H103K C 0.01UF, 50V 1

C16567 F1H1C105A145 C 1 uF 16 V 1

C16581 F1K1E105A029 C 1UF, 25V 1

C16582 F1K1E475A134 C 4.7UF 25V 1

C16593 ECJ1XC1H102J C 1000PF, J, 50V 1

C16602 F1H1H2200008 C 22PF, 50V 1

C16603 F1K2J102A014 C 1000PF, 630V 1

C16604 F1K2J102A014 C 1000PF, 630V 1

C16661 F1K2J102A038 C 1000PF, 630V 1

C16662 F1K2J102A038 C 1000PF, 630V 1

C16664 ECJ1XC1H820J C 82PF, J, 50V 1

C16665 ECJ1XC1H820J C 82PF, J, 50V 1

C16666 ECJ1XC1H820J C 82PF, J, 50V 1

C16668 F1H1H821A831 C 820 PF, 50V 1 PAVCCZ

C16685 F1H1H104A970 C 0.1UF, , 50V 1

C16723 F1K1E105A029 C 1UF, 25V 1

Part No. Part Name & Description Q'ty Remarks

Page 92

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-48

Safety

Ref.

No.

C16724 F1K1E475A134 C 4.7UF 25V 1

C16727 F1E2J331A002 C 330PF, 630V 1

C16729 F1E2J331A002 C 330PF, 630V 1

C16730 F1E2J331A002 C 330PF, 630V 1

C16733 F1E2J332A002 C 3300PF, 630V 1

C16753 F1K1E475A134 C 4.7UF 25V 1

C16770 F1H1C105A145 C 1 uF 16 V 1

C16791 F2A1E221B726 E 220UF, 25V 1 PAVCCZ

C16792 F1K1E475A134 C 4.7UF 25V 1

C16793 F2A1E221B726 E 220UF, 25V 1 PAVCCZ

C16795 F2A1E221B726 E 220UF, 25V 1 PAVCCZ

C16796 F1K1E475A134 C 4.7UF 25V 1

C16813 F2A2T1210001 E 120UF, 220V 1 PAVCCZ

C16833 F1K2J222A014 C 2200PF ,630V 1

C16834 F1K2J222A014 C 2200PF ,630V 1

C16842 F2A2C1010028 E 100UF, 160V 1 PAVCCZ

C16843 ECJ1VB1A105K C 1UF, 10V 1

C16844 F1J1H104A717 C 0.1UF, 50V 1

C16854 F1J1H104A717 C 0.1UF, 50V 1

C16856 ECJ1VB1A105K C 1UF, 10V 1

C16858 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C16859 F1J1H104A717 C 0.1UF, 50V 1

C16860 ECJ1VB1A105K C 1UF, 10V 1

C16861 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C16862 ECJ1VB1A105K C 1UF, 10V 1

C16863 F1J1H104A717 C 0.1UF, 50V 1

C16865 F1H1C105A145 C 1 uF 16 V 1

C16891 F1K1E105A029 C 1UF, 25V 1

C16903 F1L2J1520001 C 1500PF, 630V 1

C16904 F1L2J681A038 C 680PF, 630V 1 PAVCCZ

C16905 F1E2J221A002 C 220PF, 630V 1

C16906 F1L2J1520001 C 1500PF, 630V 1

C16907 F1L2J4710001 C 470PF, 630V 1

C17101 ECJ1VB1A105K C 1UF, 10V 1

C17102 ECJ1VB1A105K C 1UF, 10V 1

C17103 ECJ1VB1A105K C 1UF, 10V 1

C17104 ECJ1VB1A105K C 1UF, 10V 1

C17105 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C17118 F1L2E154A028 C 0.15UF, 250V 1

C17120 F1L2E154A028 C 0.15UF, 250V 1

C17121 F1L2E154A028 C 0.15UF, 250V 1

C17123 F1L2E154A028 C 0.15UF, 250V 1

C17201 ECJ1VB1A105K C 1UF, 10V 1

C17202 ECJ1VB1A105K C 1UF, 10V 1

C17203 ECJ1VB1A105K C 1UF, 10V 1

C17204 ECJ1VB1A105K C 1UF, 10V 1

C17205 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C17206 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C17223 F1L2E154A028 C 0.15UF, 250V 1

C17224 F1L2E154A028 C 0.15UF, 250V 1

C17226 F1L2E154A028 C 0.15UF, 250V 1

C17227 F1L2E154A028 C 0.15UF, 250V 1

CB1 K1MY55B00001 55P CONNECTOR 1

CB2 K1MY55B00001 55P CONNECTOR 1

CB3 K1MY55B00001 55P CONNECTOR 1

CB4 K1MY55B00001 55P CONNECTOR 1

CB5 K1MY55B00001 55P CONNECTOR 1

CB6 K1MY55B00001 55P CONNECTOR 1

CB7 K1MY55B00001 55P CONNECTOR 1

CB8 K1MY55B00001 55P CONNECTOR 1

Part No. Part Name & Description Q'ty Remarks

Page 93

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-49

Safety

Ref.

No.

D14904 B0ECKM000046 DIODE 1

D14905 B0ECKM000046 DIODE 1

D14909 B0ADCJ000100 DIODE 1

D14910 B0ADCJ000100 DIODE 1

D14955 B0ECKM000046 DIODE 1

D14956 B0ECKM000046 DIODE 1

D14962 B0ACCJ000048 DIODE 1

D14976 B0ACCJ000048 DIODE 1

D16001 B0ECLP000010 DIODE 1 PAVCCZ

D16002 B0ECLP000010 DIODE 1 PAVCCZ

D16021 B0ECLP000010 DIODE 1 PAVCCZ

D16024 B0ECLP000010 DIODE 1 PAVCCZ

D16101 B0JCME000093 DIODE 1

D16131 B0ECKP000055 DIODE 1

D16133 B0ACCJ000048 DIODE 1

D16134 DZ2J051M0L ZENER DIODE 1

D16191 B0ECKP000055 DIODE 1

D16192 B0ACCJ000048 DIODE 1

D16193 DZ2J051M0L ZENER DIODE 1

D16281 DZ2J051M0L ZENER DIODE 1

D16282 DZ2J068M0L ZENER DIODE 1

D16285 B0ADEJ000035 ZENER DIODE 1

D16315 DZ2J150M0L ZENER DIODE 1

D16316 B0ECKP000055 DIODE 1

D16317 B0ECHR000004 DIODE 1 PAVCCZ

D16401 B0ECLP000010 DIODE 1 PAVCCZ

D16402 B0ECLP000010 DIODE 1 PAVCCZ

D16407 B0JCME000093 DIODE 1

D16411 B0ADCJ000100 DIODE 1

D16413 B0ACCJ000048 DIODE 1

D16421 B0ECLP000010 DIODE 1 PAVCCZ

D16422 B0ECLP000010 DIODE 1 PAVCCZ

D16431 B0ECKP000055 DIODE 1

D16432 B0ECKP000055 DIODE 1

D16433 B0ECKP000055 DIODE 1

D16461 B0FBCN000005 DIODE 1

D16473 B0ACCJ000048 DIODE 1

D16474 B0ACCJ000048 DIODE 1

D16481 B0FBCN000005 DIODE 1

D16491 B0ACCJ000048 DIODE 1

D16492 DZ2J047M0L ZENER DIODE 1

D16493 B0ADCJ000100 DIODE 1

D16506 DZ2J051M0L ZENER DIODE 1

D16507 DZ2J051M0L ZENER DIODE 1

D16534 DZ2J051M0L ZENER DIODE 1

D16536 B0ECKP000055 DIODE 1

D16537 B0ADCJ000100 DIODE 1

D16583 B3ABB0000210 LED 1

D16602 DZ2J043M0L ZENER DIODE 1

D16603 B0ACCJ000048 DIODE 1

D16604 B0ADCJ000100 DIODE 1

D16605 B0ACCJ000048 DIODE 1

D16607 B0ACCJ000048 DIODE 1

D16618 B0ECKP000055 DIODE 1

D16620 B0ECKP000055 DIODE 1

D16641 B0FCBN000001 DIODE 1 PAVCCZ

D16642 B0FCBN000001 DIODE 1 PAVCCZ

D16643 B0FCBN000001 DIODE 1 PAVCCZ

D16662 DZ2J330M0L ZENER DIODE 1

D16663 DZ2J330M0L ZENER DIODE 1

D16664 DZ2J330M0L ZENER DIODE 1

D16669 B0ACCJ000048 DIODE 1

Part No. Part Name & Description Q'ty Remarks

Page 94

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-50

Safety

Ref.

No.

D16673 B0ECHS000002 DIODE 1 PAVCCZ

D16674 B0ECHS000002 DIODE 1 PAVCCZ

D16685 B0ACCJ000048 DIODE 1

D16710 DZ2J15000L ZENER DIODE 1

D16711 B0ECHR000004 DIODE 1 PAVCCZ

D16712 B0ECHR000004 DIODE 1 PAVCCZ

D16713 B0ECHS000002 DIODE 1 PAVCCZ

D16714 B0ECHS000002 DIODE 1 PAVCCZ

D16720 B0ECHR000004 DIODE 1 PAVCCZ

D16722 B0ECLP000010 DIODE 1 PAVCCZ

D16723 B0ECLP000010 DIODE 1 PAVCCZ

D16725 B0ECLP000010 DIODE 1 PAVCCZ

D16726 B0ECLP000010 DIODE 1 PAVCCZ

D16728 B0ECKP000055 DIODE 1

D16791 DZ2J240M0L ZENER DIODE 1

D16822 B0ACCJ000048 DIODE 1

D16823 B0ADCJ000100 DIODE 1

D16824 B0ACCJ000048 DIODE 1

D16825 DZ2J330M0L ZENER DIODE 1

D16833 B0ECHR000004 DIODE 1 PAVCCZ

IC14901 AN16531A-VT IC 1 PAVCCZ

IC14902 AN16531A-VT IC 1 PAVCCZ

IC14903 AN16531A-VT IC 1 PAVCCZ

IC14904 AN16531A-VT IC 1 PAVCCZ

IC14951 AN16531A-VT IC 1 PAVCCZ

IC14952 AN16531A-VT IC 1 PAVCCZ

IC14953 AN16531A-VT IC 1 PAVCCZ

IC14954 AN16531A-VT IC 1 PAVCCZ

IC14961 C0JBAB000996 IC 1 PAVCCZ

IC14962 C0JBAB000996 IC 1 PAVCCZ

IC14963 C0JBAA000558 IC 1 PAVCCZ

IC16131 C0ZBZ0001822 IC 1 PAVCCZ

IC16132 C0ZBZ0001822 IC 1 PAVCCZ

IC16191 C0ZBZ0001822 IC 1 PAVCCZ

IC16241 C0JBAU000088 IC 1

IC16304 MIP3910MSSCF IC 1

IC16312 C0DBZMC00006 IC 1

IC16471 C0DBEYY00114 IC 1

IC16490 C0DBZMC00006 IC 1

IC16491 C0BBAA000008 LINEAR IC 1

IC16501 C0ZBZ0001822 IC 1 PAVCCZ

IC16502 C0ZBZ0001822 IC 1 PAVCCZ

IC16521 C0ZBZ0001822 IC 1 PAVCCZ

IC16522 C0ZBZ0001822 IC 1 PAVCCZ

IC16561 C0JBAU000088 IC 1

IC16562 C0JBAU000088 IC 1

IC16563 C0JBAB000996 IC 1 PAVCCZ

IC16564 C0JBAE000321 IC 1

IC16581 C0BBBA000024 IC 1

IC16684 C0ZBZ0001822 IC 1 PAVCCZ

IC16724 C0CBADE00049 IC 1

IC16784 MIP3910MSSCF IC 1

IC16785 C0DBZYY00352 IC 1

IC16786 MIP3910MSSCF IC 1

IC16787 C0DBZYY00352 IC 1

IC16795 C0CBALC00012 IC 1

IC16921 C1ZBZ0004292 IC 1 PAVCCZ

IC17101 C0JBAU000088 IC 1

IC17201 C0JBAU000088 IC 1

IC17202 C0JBAU000089 IC 1 PAVCCZ

Part No. Part Name & Description Q'ty Remarks

Page 95

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-51

Safety

Ref.

No.

L16011 G0CR56KA0215 INDUCTOR 1 PAVCCZ

L16303 G0C471MA0049 PEAKING COIL 1

L16411 G0CR56KA0215 INDUCTOR 1 PAVCCZ

L16451 G0ZZ00002183 PEAKING COIL 1

L16452 G0ZZ00002183 PEAKING COIL 1

L16453 G0ZZ00002183 PEAKING COIL 1

L16454 G0ZZ00002183 PEAKING COIL 1

L16455 G0ZZ00002183 PEAKING COIL 1

PC14951 B3PBE0000059 IC 1 PAVCCZ

PC14952 B3PBE0000059 IC 1 PAVCCZ

PC16131 B3PBE0000060 IC 1 PAVCCZ

PC16191 B3PBE0000060 IC 1 PAVCCZ

PC16192 B3PBA0000580 IC 1 PAVCCZ

PC16461 B3PBE0000058 IC 1 PAVCCZ

PC16462 B3PBE0000060 IC 1 PAVCCZ

PC16463 B3PBE0000060 IC 1 PAVCCZ

PC16480 B3PBA0000580 IC 1 PAVCCZ

PC16603 B3PBA0000580 IC 1 PAVCCZ

PC16685 B3PBA0000496 IC 1

PC16723 B3PBA0000580 IC 1 PAVCCZ

PC16896 B3PBA0000580 IC 1 PAVCCZ

PC16897 B3PBA0000580 IC 1 PAVCCZ

Q16001 DG3C3010CL TRANSISTOR 1 PAVCCZ

Q16003 DG3C3010CL TRANSISTOR 1 PAVCCZ

Q16022 DG3C3010CL TRANSISTOR 1 PAVCCZ

Q16023 DG3C3010CL TRANSISTOR 1 PAVCCZ

Q16101 B1CFRM000015 FET 1

Q16102 B1CFRM000015 FET 1

Q16141 B1HFPFA00002 TRANSISTOR 1

Q16161 B1HFPFA00002 TRANSISTOR 1

Q16280 B1ABCE000015 TRANSISTOR 1

Q16401 DG3C3010CL TRANSISTOR 1 PAVCCZ

Q16402 DG3C3010CL TRANSISTOR 1 PAVCCZ

Q16421 DG3C3010CL TRANSISTOR 1 PAVCCZ

Q16422 DG3C3010CL TRANSISTOR 1 PAVCCZ

Q16423 DG3C3010CL TRANSISTOR 1 PAVCCZ

Q16441 B1JAEN000015 TRANSISTOR 1 PAVCCZ

Q16451 B1JAEN000015 TRANSISTOR 1 PAVCCZ

Q16471 B1ABCE000015 TRANSISTOR 1

Q16501 B1HFPFA00002 TRANSISTOR 1

Q16521 B1HFPFA00002 TRANSISTOR 1

Q16531 B1HFPFA00002 TRANSISTOR 1

Q16551 B1HFPFA00002 TRANSISTOR 1

Q16601 B1CERQ000061 FET 1

Q16602 DSA2001S0L TRANSISTOR 1

Q16606 DSC2001S0L TRANSISTOR 1

Q16607 B1CBGD000001 FET 1

Q16621 B1JBDN000004 TRANSISTOR 1 PAVCCZ

Q16622 B1JBDN000004 TRANSISTOR 1 PAVCCZ

Q16661 B1JAER000014 TRANSISTOR 1 PAVCCZ

Q16762 B1HFPFA00002 TRANSISTOR 1

Q16815 B1ABCN000007 TRANSISTOR 1

Q16817 DSC2001Q0L TRANSISTOR 1

Q16818 B1CBGD000001 FET 1

Q16819 B1CBGD000001 FET 1

Part No. Part Name & Description Q'ty Remarks

Page 96

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-52

Safety

Ref.

No.

Q16820 B1CBGD000001 FET 1

Q16891 DSA2001S0L TRANSISTOR 1

Q16892 DSC2001Q0L TRANSISTOR 1

R14349 D0GB103JA065 M 10K OHM J 1/10W 1 PAVCCZ

R14901 D0GD100JA052 M 10 OHM,J,1/4W 1

R14911 D0GB103JA065 M 10K OHM J 1/10W 1 PAVCCZ

R14943 D0GD470JA052 M 47 OHM,J,1/8W 1 PAVCCZ

R14944 D0GD100JA052 M 10 OHM,J,1/4W 1

R14949 D0GD203JA052 M 20KOHM,J,1/4W 1 PAVCCZ

R14950 D0GB103JA065 M 10K OHM J 1/10W 1 PAVCCZ

R14958 D0GB470JA065 M 47 OHM,J,1/10W 1 PAVCCZ

R14960 EXB38V470J M 47 OHM 1/16 W 1

R14961 D0GD331JA052 M 330 OHM,J,1/4W 1 PAVCCZ

R14962 D0GD331JA052 M 330 OHM,J,1/4W 1 PAVCCZ

R14963 D0GD331JA052 M 330 OHM,J,1/4W 1 PAVCCZ

R14965 D0GD331JA052 M 330 OHM,J,1/4W 1 PAVCCZ

R14975 EXB38V470J M 47 OHM 1/16 W 1

R14989 D1BD1502A044 M 15KOHM,J.1/8 W 1

R16001 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1

R16003 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1

R16022 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1

R16023 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1

R16101 D0GD221JA059 M 220 OHM,J,1/4W 1

R16102 D0GD221JA059 M 220 OHM,J,1/4W 1

R16103 D0GD100JA059 M 10 OHM,J,1/4W 1

R16104 D0GD100JA059 M 10 OHM,J,1/4W 1

R16105 D0GF474JA048 M 470KOHM,J,1/3W 1 PAVCCZ

R16116 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCCZ

R16130 D0GB103JA065 M 10K OHM J 1/10W 1 PAVCCZ

R16131 D0GB220JA065 M 22 OHM J 1/10W 1 PAVCCZ

R16132 D0GB101JA065 M 100 OHM,J,1/10W 1 PAVCCZ

R16133 D1BD2700A044 M 270 OHM,J.1/8 W 1

R16134 D0GD750JA059 M 75 OHM,J,1/4W 1

R16135 D0GB4R7JA065 M 4.7 OHM J 1/10W 1 PAVCCZ

R16137 D0GF1R0JA047 M 1 OHM,J,1/3W 1

R16138 D0GF102JA048 M 1.0 KOHM,J,1/3W 1 PAVCCZ

R16141 D0GD100JA059 M 10 OHM,J,1/4W 1

R16143 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCCZ

R16161 D0GD100JA059 M 10 OHM,J,1/4W 1

R16163 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCCZ

R16191 D1BD2700A044 M 270 OHM,J.1/8 W 1

R16192 D0GB103JA065 M 10K OHM J 1/10W 1 PAVCCZ

R16193 D0GD750JA052 M 75 OHM,J,1/4W 1 PAVCCZ

R16195 D0GF1R0JA047 M 1 OHM,J,1/3W 1

R16196 D0GF102JA048 M 1.0 KOHM,J,1/3W 1 PAVCCZ

R16197 D0GB220JA065 M 22 OHM J 1/10W 1 PAVCCZ

R16241 EXB38V470J M 47 OHM 1/16 W 1

R16242 EXB38V472JV M 4.7 kOHM 1/16 W 1

R16280 D0GB222JA065 M 2.2KOHM,J,1/10W 1 PAVCCZ

R16281 D0GB103JA065 M 10K OHM J 1/10W 1 PAVCCZ

R16282 D0GD221JA052 M 220 OHM,J 1/4W 1 PAVCCZ

R16283 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCCZ

R16284 D0GB224JA065 M 220KOHM,J,1/10W 1 PAVCCZ

R16285 EXB38V823J M 82 kOHM 1/16 W 1 PAVCCZ

R16289 D0GF334JA047 M 330KOHMJ,1/3W 1

R16290 D0GF334JA047 M 330KOHMJ,1/3W 1

R16307 D1BD6802A077 M68.0KOHM,D.1/10W 1 PAVCCZ

R16318 D1BD6982A077 M69.8KOHM,D.1/10W 1 PAVCCZ

R16319 D1BD2401A077 M 2.4KOHM,D.1/10W 1 PAVCCZ

R16320 ERG1SJ683 M 68KOHM, J, 1W 1

R16330 D0GB102JA065 M 1KOHM,J,1/10W 1

Part No. Part Name & Description Q'ty Remarks

Page 97

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-53

Safety

Ref.

No.

R16332 D0GB474JA065 M 470KOHM,J,1/10W 1 PAVCCZ

R16334 D0GB472JA065 M 4.7KOHM, J,1/10W 1

R16335 D0GB102JA065 M 1KOHM,J,1/10W 1

R16401 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1

R16402 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1

R16411 D1BD2700A044 M 270 OHM,J.1/8 W 1

R16412 D1BD2700A044 M 270 OHM,J.1/8 W 1

R16413 D0GB331JA065 M330 OHM J 1/10W 1 PAVCCZ

R16414 D0GB103JA065 M 10K OHM J 1/10W 1 PAVCCZ

R16416 D0GB103JA065 M 10K OHM J 1/10W 1 PAVCCZ

R16421 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1

R16422 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1

R16423 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1

R16441 D0GF5R6JA047 M 5.6 OHM,J, 1/3W 1

R16451 D0GF5R6JA047 M 5.6 OHM,J, 1/3W 1

R16471 D0GB392JA065 M 3.9KOHM,J,1/10W 1 PAVCCZ

R16472 D0GB222JA065 M 2.2KOHM,J,1/10W 1 PAVCCZ

R16473 D0GD561JA052 M 560 OHM,J,1/4W 1 PAVCCZ

R16474 D0GB102JA065 M 1KOHM,J,1/10W 1

R16475 D0GB472JA065 M 4.7KOHM, J,1/10W 1

R16476 D0GB222JA065 M 2.2KOHM,J,1/10W 1 PAVCCZ

R16479 D0GD103JA052 M 10KOHM,J,1/4W 1 PAVCCZ

R16490 D1BD1203A077 M 120KOHM,D.1/10W 1 PAVCCZ

R16491 D1BD1203A077 M 120KOHM,D.1/10W 1 PAVCCZ

R16492 D1BD1203A077 M 120KOHM,D.1/10W 1 PAVCCZ

R16493 D1BD2002A077 M 20KOHM,D.1/10W 1 PAVCCZ

R16494 D1BB2001A055 M 2KOHM,J.1/10W 1

R16497 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCCZ

R16498 D0GB103JA065 M 10K OHM J 1/10W 1 PAVCCZ

R16501 D0GB220JA065 M 22 OHM J 1/10W 1 PAVCCZ

R16503 D0GD100JA059 M 10 OHM,J,1/4W 1

R16505 D0GF102JA048 M 1.0 KOHM,J,1/3W 1 PAVCCZ

R16506 D0GD100JA059 M 10 OHM,J,1/4W 1

R16507 D0GB220JA065 M 22 OHM J 1/10W 1 PAVCCZ

R16508 D0GB220JA065 M 22 OHM J 1/10W 1 PAVCCZ

R16509 D0GF102JA048 M 1.0 KOHM,J,1/3W 1 PAVCCZ

R16512 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCCZ

R16515 D0D52R2KA005 M 2.2 OHM,J,5W 1 PAVCCZ

R16517 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCCZ

R16522 D0GF101JA048 M 100 OHM,J,1/3W 1 PAVCCZ

R16525 D0GB4R7JA065 M 4.7 OHM J 1/10W 1 PAVCCZ

R16531 D0GD100JA059 M 10 OHM,J,1/4W 1

R16532 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCCZ

R16534 D0GF561JA047 M 560 OHM,J, 1/3W 1 PAVCCZ

R16536 D0GF5R6JA047 M 5.6 OHM,J, 1/3W 1

R16537 D0GF5R6JA047 M 5.6 OHM,J, 1/3W 1

R16538 D0GF5R6JA047 M 5.6 OHM,J, 1/3W 1

R16541 D0GF393JA047 M 39 KOHM,J, 1/3W 1 PAVCCZ

R16542 D0GF393JA047 M 39 KOHM,J, 1/3W 1 PAVCCZ

R16543 D1BD6811A044 M6.81KOHM,J.1/8 W 1

R16544 D1BB1001A055 M 1KOHM,J. 1/10W 1

R16545 D0GB103JA065 M 10K OHM J 1/10W 1 PAVCCZ

R16551 D0GD100JA059 M 10 OHM,J,1/4W 1

R16552 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCCZ

R16561 EXB38V470J M 47 OHM 1/16 W 1

R16562 EXB38V470J M 47 OHM 1/16 W 1

R16563 EXB38V470J M 47 OHM 1/16 W 1

R16564 EXB38V470J M 47 OHM 1/16 W 1

R16565 EXB38V472JV M 4.7 kOHM 1/16 W 1

R16566 EXB38V472JV M 4.7 kOHM 1/16 W 1

R16567 EXB38V472JV M 4.7 kOHM 1/16 W 1

R16568 EXB38V472JV M 4.7 kOHM 1/16 W 1

Part No. Part Name & Description Q'ty Remarks

Page 98

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-54

Safety

Ref.

No.

R16570 EXB38V472JV M 4.7 kOHM 1/16 W 1

R16573 D0GB103JA065 M 10K OHM J 1/10W 1 PAVCCZ

R16579 EXB38V470J M 47 OHM 1/16 W 1

R16581 D0GB223JA065 M 22KOHM,J,1/10W 1 PAVCCZ

R16586 D1BB3921A055 M3.92KOHM, 1/10W 1 PAVCCZ

R16587 D0GB222JA065 M 2.2KOHM,J,1/10W 1 PAVCCZ

R16590 D0GB221JA065 M 220 OHM J 1/10W 1

R16591 EXB38V472JV M 4.7 kOHM 1/16 W 1

R16593 D1BB1581A055 M 1.58KOHM 1/10W 1

R16601 D0GF1R0JA047 M 1 OHM,J,1/3W 1

R16604 D0GD331JA052 M 330 OHM,J,1/4W 1 PAVCCZ

R16607 D1BB4871A055 M4.87KOHM,J.1/10W 1 PAVCCZ

R16609 D0GF102JA047 M 1.0 KOHM,J,1/3W 1

R16610 D0GB104JA065 M 100KOHM J 1/10W 1

R16612 D0GD470JA059 M 47 OHM,J,1/4W 1

R16615 D1BB8250A055 M 825 OHM, 1/10W 1 PAVCCZ

R16617 D0GD222JA052 M 2.2KOHM,J,1/4W 1 PAVCCZ

R16619 D0GF1R0JA047 M 1 OHM,J,1/3W 1

R16621 D0GD221JA052 M 220 OHM,J 1/4W 1 PAVCCZ

R16622 D0GD221JA052 M 220 OHM,J 1/4W 1 PAVCCZ

R16631 D0GB103JA065 M 10K OHM J 1/10W 1 PAVCCZ

R16633 D0GD223JA052 M 22KOHM,J,1/4W 1 PAVCCZ

R16634 D0GD222JA052 M 2.2KOHM,J,1/4W 1 PAVCCZ

R16658 D1BD9091A077 M 9.09KOHM,D.1/10W 1 PAVCCZ

R16661 D0GD100JA059 M 10 OHM,J,1/4W 1

R16662 D1BB1002A087 M 10KOHM,J.1/10W 1

R16663 D1BD9091A077 M 9.09KOHM,D.1/10W 1 PAVCCZ

R16664 D0GF202JA047 M 2KOHM,J,1/3W 1

R16665 D0GD222JA052 M 2.2KOHM,J,1/4W 1 PAVCCZ

R16666 D1BB1003A087 M100KOHM,D 1/10W 1 PAVCCZ

R16674 D0GF202JA047 M 2KOHM,J,1/3W 1

R16675 D0GB103JA065 M 10K OHM J 1/10W 1 PAVCCZ

R16676 D1BD2700A044 M 270 OHM,J.1/8 W 1

R16677 D0GF202JA047 M 2KOHM,J,1/3W 1

R16678 D0GF202JA047 M 2KOHM,J,1/3W 1

R16681 D0GD100JA059 M 10 OHM,J,1/4W 1

R16682 D0GD100JA059 M 10 OHM,J,1/4W 1

R16684 D0GB220JA065 M 22 OHM J 1/10W 1 PAVCCZ

R16685 D1BD1500A044 M 150 OHM,J.1/8 W 1

R16686 D0GB103JA065 M 10K OHM J 1/10W 1 PAVCCZ

R16761 D0GD100JA059 M 10 OHM,J,1/4W 1

R16763 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCCZ

R16772 D0GB472JA065 M 4.7KOHM, J,1/10W 1

R16773 D0GD102JA052 M 1.0KOHM,J,1/4W 1 PAVCCZ

R16776 D0GD470JA052 M 47 OHM,J,1/8W 1 PAVCCZ

R16786 D1BD5492A044 M54.9KOHM,F.1/8W 1 PAVCCZ

R16791 D0GB102JA065 M 1KOHM,J,1/10W 1

R16815 D0GB103JA065 M 10K OHM J 1/10W 1 PAVCCZ

R16822 D1BD8202A044 M 82KOHM,J.1/8 W 1

R16823 D1BD6982A044 M69.8KOHM,F.1/8W 1 PAVCCZ

R16824 D1BD3652A044 M36.5KOHM,F.1/8W 1 PAVCCZ

R16825 D0GD154JA059 M 150KOHM,J,1/4W 1

R16826 D0GB103JA065 M 10K OHM J 1/10W 1 PAVCCZ

R16829 D0GB102JA065 M 1KOHM,J,1/10W 1

R16831 D1BD6812A077 M68.1KOHM,D.1/10W 1 PAVCCZ

R16832 D1BD7152A077 M71.5K0OHM,D.1/10W 1 PAVCCZ

R16833 ERG1SJ683 M 68KOHM, J, 1W 1

R16834 ERG1SJ683 M 68KOHM, J, 1W 1

R16838 ERG1FJS104D M 100KOHM, J, 1W 1

R16841 D0GB472JA065 M 4.7KOHM, J,1/10W 1

R16842 D0GD102JA052 M 1.0KOHM,J,1/4W 1 PAVCCZ

R16844 ERA6YEB242 M 2.4KOHM, B 1/10W 1

Part No. Part Name & Description Q'ty Remarks

Page 99

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-55

Safety

Ref.

No.

R16845 D1BD6982A077 M69.8KOHM,D.1/10W 1 PAVCCZ

R16846 D1BD6042A077 M60.4KOHM,D.1/10W 1 PAVCCZ

R16847 D1BD6492A077 M64.9KOHM,D.1/10W 1 PAVCCZ

R16851 D0GB474JA065 M 470KOHM,J,1/10W 1 PAVCCZ

R16852 D0GB474JA065 M 470KOHM,J,1/10W 1 PAVCCZ

R16856 D0GB102JA065 M 1KOHM,J,1/10W 1

R16873 ERA6YEB242 M 2.4KOHM, B 1/10W 1

R16891 D1BF5762A058 M 57.6KOHM, 1/4W 1 PAVCCZ

R16892 D1BF5902A058 M 59KOHM, 1/4W 1 PAVCCZ

R16893 D1BF5902A058 M 59KOHM, 1/4W 1 PAVCCZ

R16894 D1BB1211A087 M1.12KOHM,D1/10W 1 PAVCCZ

R16895 D1BB7871A087 M7.87KOHM,J.1/10W 1 PAVCCZ

R16896 D1BF5902A058 M 59KOHM, 1/4W 1 PAVCCZ

R16897 D1BB3922A055 M39.2KOHM, 1/10W 1 PAVCCZ

R16898 D1BB5231A055 M5.23KOHM,J.1/10W 1 PAVCCZ

R16899 D1BB5231A055 M5.23KOHM,J.1/10W 1 PAVCCZ

R16900 D1BB1182A055 M11.8KOHM, 1/10W 1 PAVCCZ

R16901 D1BB2801A055 M2.8KOHM, 1/10W 1 PAVCCZ

R16902 D0GB6R2JA065 M 6.2 OHM J 1/10W 1 PAVCCZ

R16921 D1BB2152A055 M 21.5KOHM, 1/10W 1 PAVCCZ

R16922 D1BB9531A055 M9.53KOHM,J.1/10W 1

R16937 D0GB184JA065 M 180KOHM J 1/10W 1 PAVCCZ

R16939 D0GD102JA052 M 1.0KOHM,J,1/4W 1 PAVCCZ

R16940 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCCZ

R16941 D0GB472JA065 M 4.7KOHM, J,1/10W 1

R16942 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCCZ

R16945 D0GB471JA065 M 470 OHM,J,1/10W 1 PAVCCZ

R17101 D0GB101JA065 M 100 OHM,J,1/10W 1 PAVCCZ

R17102 D0GB101JA065 M 100 OHM,J,1/10W 1 PAVCCZ

R17103 D0GB101JA065 M 100 OHM,J,1/10W 1 PAVCCZ

R17104 D0GB101JA065 M 100 OHM,J,1/10W 1 PAVCCZ

R17105 D0GB101JA065 M 100 OHM,J,1/10W 1 PAVCCZ

R17106 D0GB101JA065 M 100 OHM,J,1/10W 1 PAVCCZ

R17107 D0GB101JA065 M 100 OHM,J,1/10W 1 PAVCCZ

R17108 D0GB101JA065 M 100 OHM,J,1/10W 1 PAVCCZ

R17131 D0GZ1R0JA020 M 1 OHM, J,1/2W 1

R17133 D0GZ1R0JA020 M 1 OHM, J,1/2W 1

R17135 D0GZ1R0JA020 M 1 OHM, J,1/2W 1

R17137 D0GZ1R0JA020 M 1 OHM, J,1/2W 1

R17161 D0GB470JA065 M 47 OHM,J,1/10W 1 PAVCCZ

R17162 D0GB470JA065 M 47 OHM,J,1/10W 1 PAVCCZ

R17163 D0GB681JA065 M 680 OHM,J,1/10W 1 PAVCCZ

R17164 D0GB681JA065 M 680 OHM,J,1/10W 1 PAVCCZ

R17169 EXB38V470J M 47 OHM 1/16 W 1

R17170 EXB38V681J M 680 OHM 1/16 W 1

R17198 D0GD224JA052 M 220KOHM,J,1/4W 1 PAVCCZ

R17199 D0GF151JA047 M 150 OHM,J, 1/3W 1

R17201 D0GB101JA065 M 100 OHM,J,1/10W 1 PAVCCZ

R17202 D0GB101JA065 M 100 OHM,J,1/10W 1 PAVCCZ

R17203 D0GB101JA065 M 100 OHM,J,1/10W 1 PAVCCZ

R17204 D0GB101JA065 M 100 OHM,J,1/10W 1 PAVCCZ

R17205 D0GB101JA065 M 100 OHM,J,1/10W 1 PAVCCZ

R17206 D0GB101JA065 M 100 OHM,J,1/10W 1 PAVCCZ

R17207 D0GB101JA065 M 100 OHM,J,1/10W 1 PAVCCZ

R17208 D0GB101JA065 M 100 OHM,J,1/10W 1 PAVCCZ

R17213 D0GZ1R0JA020 M 1 OHM, J,1/2W 1

R17215 D0GZ1R0JA020 M 1 OHM, J,1/2W 1

R17227 D0GZ1R0JA020 M 1 OHM, J,1/2W 1

R17229 D0GZ1R0JA020 M 1 OHM, J,1/2W 1

R17261 D0GB470JA065 M 47 OHM,J,1/10W 1 PAVCCZ

R17262 D0GB470JA065 M 47 OHM,J,1/10W 1 PAVCCZ

R17263 D0GB681JA065 M 680 OHM,J,1/10W 1 PAVCCZ

Part No. Part Name & Description Q'ty Remarks

Page 100

Model No. : TX-P50C3E/J, PR50C3 Parts List

S-56

Safety

Ref.

No.

R17264 D0GB681JA065 M 680 OHM,J,1/10W 1 PAVCCZ

R17267 EXB38V470J M 47 OHM 1/16 W 1

R17268 EXB38V470J M 47 OHM 1/16 W 1

R17269 EXB38V681J M 680 OHM 1/16 W 1

R17270 EXB38V681J M 680 OHM 1/16 W 1

R17298 D0GD224JA052 M 220KOHM,J,1/4W 1 PAVCCZ

R17299 D0GF151JA047 M 150 OHM,J, 1/3W 1

SN2 K1KY02B00012 2P CONNECTOR 1

SN3 K1KY03BA0236 3P CONNECTOR 1

SN20 K1MY30BA0345 30P CONNECTOR 1

SN21 K1MND6BA0264 6P CONNECTOR 1

SN22 K1MND6BA0264 6P CONNECTOR 1

SN23 K1MND6BA0264 6P CONNECTOR 1

SN24 K1MND6BA0264 6P CONNECTOR 1

SN25 K1MND6BA0264 6P CONNECTOR 1

SN26 K1MND6BA0264 6P CONNECTOR 1

SS3 K1KY03BA0236 3P CONNECTOR 1

SS11 K1KY03B00006 3P CONNECTOR 1

SS23 K1MY20BA0345 20P CONNECTOR 1

SS52 K1MY13BA0376 13P CONNECTOR 1

SS55 K1MY13BA0376 13P CONNECTOR 1

T16471 G4DYA0000253 SWITCHING TRANS 1 PAVCCZ

T16472 G4DYA0000252 SWITCHING TRANS 1 PAVCCZ

ZA16002 K4AZ01D00004 TERMINAL 1

ZA16402 K4AZ01D00004 TERMINAL 1

ZA16403 K4AZ01D00004 TERMINAL 1

ZA17103 K4CD01000013 AV TERMINAL 1

ZA17203 K4CD01000013 AV TERMINAL 1

Part No. Part Name & Description Q'ty Remarks

Panasonic TX-P50C3 E/J, TX-PR50C3 Schematic

ORDER NO.PCZ1102004CE

Plasma Television

TABLE OF CONTENTS

1 Safety Precautions

1.1. General Guidelines

1.2. Touch-Current Check

2Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices

2.2. About lead free solder (PbF)

3 Service Navigation

3.1. PCB Layout

3.2. Applicable signals

4 Specifications

5 Technical Descriptions

5.1. Specification of KEY for CI Plus, DTCP-IP and One-to-One

5.1.1. General information:

5.1.2. Replacement of ICs:

5.1.3. Model and Keys:

6 Service Mode

6.1. How to enter into Service Mode

6.1.1. Purpose

6.1.2. Key command

6.1.3. How to exit

6.1.4. Contents of adjustment mode

6.2. Option - Mirror

6.3. Service tool mode

6.3.1. How to access

6.3.2. Display of SOS History

6.3.3. POWER ON Time, On/Off

6.3.4. Exit

6.4. Hotel mode

6.5. Data Copy by SD Card

6.5.1. Purpose

6.5.2. Preparation

6.5.3. Data copy from TV set to SD Card

6.5.4. Data copy from SD Card to TV set

7 Troubleshooting Guide

7.1. Check of the IIC bus lines

7.1.1. How to access

7.1.1.1. Self-check indication only:

7.1.1.2. Self-check indication and forced to factory shipment setting:

7.1.2. Screen display

7.1.3. Check Point

7.1.4. Exit

7.2. Power LED Blinking timing chart

7.3. No Power

7.4. No Picture

7.5. Local screen failure

8 Disassembly and Assembly Instructions

8.1. Remove the Rear cover

8.2. Remove the AC inlet

8.3. Remove the P-Board

8.4. Remove the Side terminal cover

8.5. Remove the Tuner unit

8.6. Remove the A-Board

8.8. Remove the SN-Board

8.7. Remove the Speakers

8.9. Remove the SS-Board

8.10. Remove the Stand bracket and the Hanger metals

8.11. Remove the C1-Board

8.12. Remove the C2-Board

8.14. Remove the Glass holders

8.15. Remove the K-Board

8.16. Replace the Plasma panel

9 Measurements and Adjustments

9.1. Adjustment

9.1.1. Vsus selection

9.1.2. Sub-Contrast adjustment

9.1.3. White balance adjustment

10 Block Diagram

10.1. Main Block Diagram

10.2. Block (1/4) Diagram

10.3. Block (2/4) Diagram

10.4. Block (3/4) Diagram

10.5. Block (4/4) Diagram

11 Wiring Connection Diagram

11.1. Caution statement.

11.2. Wiring (1)

11.3. Wiring (2)
