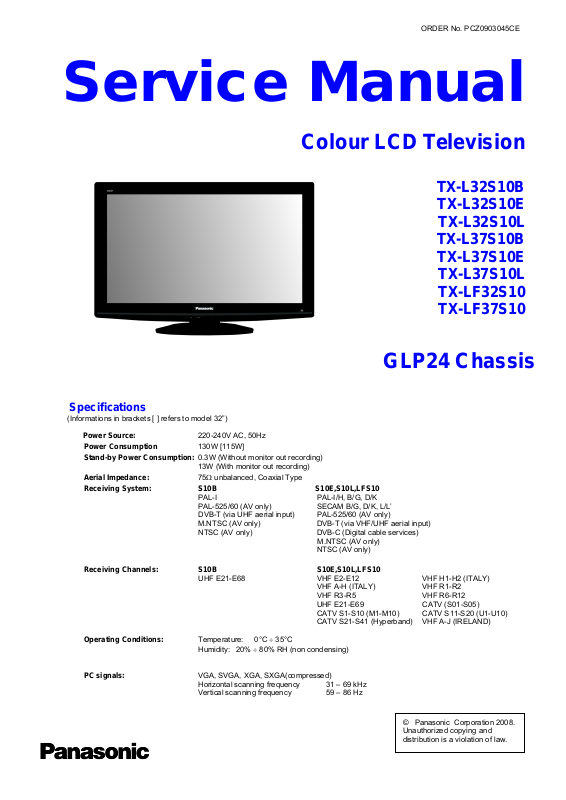

Panasonic TX-L32S10, TXL37S10 Schematic

ORDER No. PCZ0903045CE

Service Manual

Colour LCD Television

TX-L32S10B

TX-L32S10E

TX-L32S10L

TX-L37S10B

TX-L37S10E

TX-L37S10L TX-LF32S10 TX-LF37S10

Specifications

(Informations in brackets [ ] refers to model 32”)

Power Source: 220-240V AC, 50Hz

Power Consumption 130W [115W]

Stand-by Power Consumption: 0.3W (Without monitor out recording)

13W (With monitor out recording)

Aerial Impedance: 75Ω unbalanced, Coaxial Type Receiving System: S10B S10E,S10L,LFS10

PAL-I PAL-I/H, B/G, D/K

PAL-525/60 (AV only) SECAM B/G, D/K, L/L’ DVB-T (via UHF aerial input) PAL-525/60 (AV only) M.NTSC (AV only) DVB-T (via VHF/UHF aerial input) NTSC (AV only) DVB-C (Digital cable services) M.NTSC (AV only) NTSC (AV only)

Receiving Channels: S10B S10E,S10L,LFS10

UHF E21-E68 VHF E2-E12 VHF H1-H2 (ITALY)

VHF A-H (ITALY) VHF R1-R2 VHF R3-R5 VHF R6-R12 UHF E21-E69 CATV (S01-S05) CATV S1-S10 (M1-M10) CATV S11-S20 (U1-U10) CATV S21-S41 (Hyperband) VHF A-J (IRELAND)

Operating Conditions: Temperature: 0°C ÷ 35°C

Humidity: 20% ÷ 80% RH (non condensing)

PC signals: VGA, SVGA, XGA, SXGA(compressed)

Horizontal scanning frequency 31 – 69 kHz Vertical scanning frequency 59 – 86 Hz

GLP24 Chassis

and

Intermediate Frequency:

Video/Audio S10B S10E,S10L,LFS10

Video 38,9MHz 38,9MHz, 33,9MHz

Audio 32.90MHz 33,4MHz (B/G), 33,16MHz (A2)

32.35MHz(NICAM) 33,05MHz (NICAM B/G, D/K, L’) 32,4MHz (D/K), 32,66MHz (CZ STEREO) 40,4MHz (L’), 39,75MHz (L’ NICAM)

32,90 I, 32.35MHz (NICAM) Colour 34,47MHz 34,47MHz (PAL) 34,5MHz, 34,65MHz (SECAM) 38,3MHz, 38,15MHz (SECAM L’)

Terminals: AV1 IN Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 10kΩ

RGB (21 pin) 0,7V p-p 75Ω

AV1 OUT Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 1kΩ

AV2 IN Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 10kΩ RGB (21 pin) 0,7V p-p 75Ωč S-video IN (21-pin) Y: 1V p-p 75Ω C:0,3V p-p 75Ω

AV2 OUT Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 1kΩ

AV3 IN S-Video IN (4-pin) Y: 1V p-p 75Ω

C:0,286V p-p 75Ω

Audio (RCAx2) 500mV rms 10kΩ (used for HDMI3 AUDIO)

Video (RCAx1) 1V p-p 75Ω

HDMI1, HDMI2, HDMI3 Type A Connector

COMPONENT Video (RCAx3) Y:1V p-p 75Ω (including synchronization)

Pb, Pr: ±0,35V p-p 75Ω AUDIO IN Audio (RCAx2) 500mV rms 10kΩ (used for HDMI1, COMPONENT-AUDIO)

AUDIO OUT Audio (RCAx2) 500mV rms 1kΩ (high Impedance) DIGITAL AUDIO OUT PCM / Dolby Digital / DTS , Fiber optic CARD SLOT SD CARD slot ×1 PC HIGH-DENSITY D_SUB 15PIN R,G,B: 700mV p-p 75Ω

HD,VD:TTL Level 2-5V p-p (high impedance)

LCD screen: L5EDD9T00009 [L5EDD8T00004]

1920 x 1080 XGA, 16:9 Visible Diagonal 940mm [800mm]

Audio Output: 20W (2x10W), 10% THD Headphones: 3,5mm (M3), 8Ω Impedance Accessories supplied : Remote Control 2 x R6 (UM3) Batteries Dimensions:

Height: Width: Depth:

Including TV stand 620mm 915mm 287mm

[551mm] [798mm] [217mm]

TV set only 577mm 915mm 97mm [511mm] [798mm] [93mm]

Net weight: Including TV stand 16.5kg [13.0kg]

TV set only 14.5kg [11.5kg]

Specifications are subject to change without notice. Weights and dimensions shown are approximate.

Warning

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potencial dangers in attempting to service a product. Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products deal within this service information by anyone else could result in serious injury or death.

2

Safety Precautions

Ω

General Guide Lines

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overhe ated or damaged by the short circuit.

2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly

installed.

3. After servicing, make the following touch current checks to prevent the customer from being exposed to shock hazards.

4. Always ensure panel TKP0E16001 is correctly replaced before returning to customer (see Fig.1).

Touch-Current Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Fig. 2.

3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential acr oss the measuring network.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reserve the AC plug in the AC outlet and repeat each of the above measure.

6. The potential at any point (TOUCH CURRENT) expressed as voltage U1 and U2, does not exceed the following values: For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak); For d. c.: U1 = 1.0 V, Note: The limit value of U2 = 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and

2.0 mA d. c. The limit value U1 = 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz.

7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment shoul d be repaired and rechecked before it is returned to the customer.

COLD WATER PIPE (EARTH GROUND)

TO APPLIANCES EXPOSED

METAL PARTS Resistance values in ohms (Ω) V: Voltmetr or oscilloscope

(r.m.s. or peak reading)

NOTE – Appropriate measures should be taken to obtain the correct value in case of non-sinusoidal waveforms

Fig. 1

Measuring network for TOUCH CURRENTS

C

R

=1500Ω

S

R0=500Ω

Input resistance: ≥ 1M Input capacitance: ≤ 200pF Frequency range: 15Hz to 1MHz and d.c.respectively

Fig. 2

=0.22μF

S

U

10k

1

0.022μF

V

U2 (V)

4

Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge build up or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)" can generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by cond uctive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. Caution Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as th e brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device).

There are special components used in this equipment which are important for safety. These parts are marked by in schematic diagrams, exploded views and replacement parts list. It is essential that these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire, or other hazards. Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

5

About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d suggest the use of Pb free solder as well, although Pb solder may be used. PCBs manufactured using lead free solder will have the PbF within a leaf Symbol

stamped on the back of PCB.

Caution

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40°C)

higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

• Pb free solder will tend to splash when heated too high (a bout 1100 °F or 600 °C).

If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

• After applying PbF solder to double layered boards, please check the component side for excess solder which may

flow onto the opposite side. (see Fig.3)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used. (see Fig.4)

Fig.3

Fig.4

6

Applicable Signals

Component (Y, Pb, Pr), HDMI

525 (480) / 60i * * 525 (480) / 60p * *

625 (576) / 50i * * 625 (576) / 50p * * 750 (720) / 60p * * 750 (720) / 50p * * 1,125 (1,080) / 60i * * 1,125 (1,080) / 50i * * 1,125 (1,080) / 60p * 1,125 (1,080) / 50p * 1,125 (1,080) / 24p *

Applicable input signal for PC is basically compatible to VESA standard timing.

Signal name COMPONENT HDMI

PC (from D-sub 15P)

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

640 × 400 @70 Hz 640 × 480 @60 Hz 640 × 480 @75 Hz 800 × 600 @60 Hz 800 × 600 @75 Hz 800 × 600 @85 Hz 852 × 480 @60Hz 1,024 × 768 @60Hz 1,024 × 768 @70Hz 1,024 × 768 @75Hz 1,024 × 768 @85Hz 1,280 × 768 @60Hz 1,280 × 1,024 @60Hz 1,366 × 768 @60Hz Macintosh 13“ (640 × 480) Macintosh 16“ (832 × 624) Macintosh 21“ (1,152 × 870)

PC (from HDMI terminal)

Applicable input signal for PC is basically compatible to HDMI standard timing.

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

640 × 480 @60 Hz 750 (720) / 60p 45.00 60.00 1,125 (1,080) / 60p 67.50 60.00

Note:

• Signals other than above may not be displayed properly.

• The above signals are reformatted for optimal viewing on your display.

• PC signal is magnified or compressed for displa y, so that it may not be possible to show fine detail

with sufficient clarity.

31.47 70.07

31.47 59.94

37.50 75.00

37.88 60.32

46.88 75.00

53.67 85.06

31.44 59.89

48.36 60.00

56.48 70.07

60.02 75.03

68.68 85.00

47.70 60.00

63.98 60.02

48.39 60.04

35.00 66.67

49.73 74.55

68.68 75.06

31.47 60.00

7

Service Hints

How to remove the backcover

Remove the 19 fixing screws. (see Fig.5)

SCREWS

How to remove the Pedestal assembly

Lay the main unit face down. (see Fig.6)

Remove the 4 fixing screws and the pedestal assembly. (see Fig.7)

Fig.5

Fig.6

Fig.7

SCREWS

8

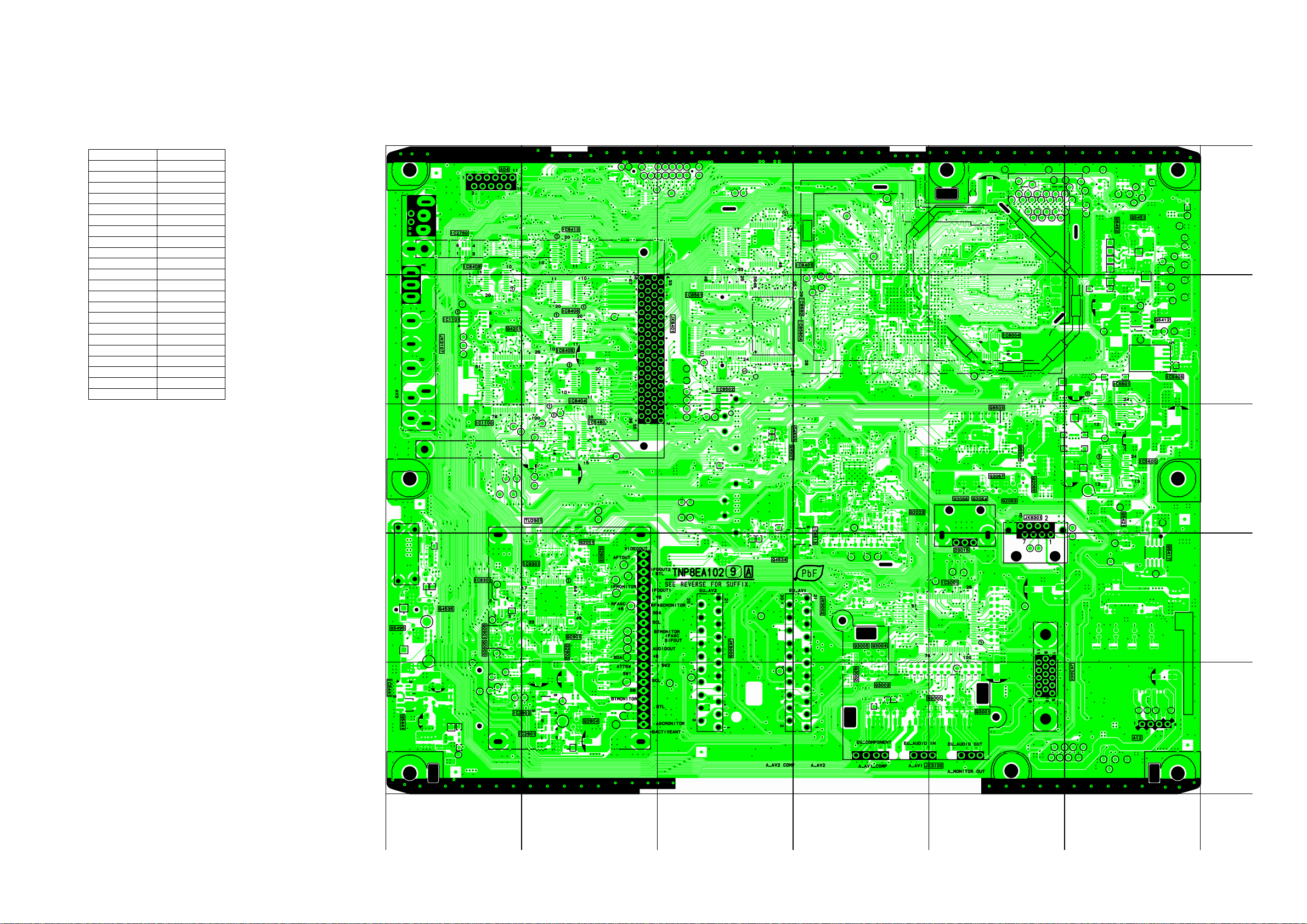

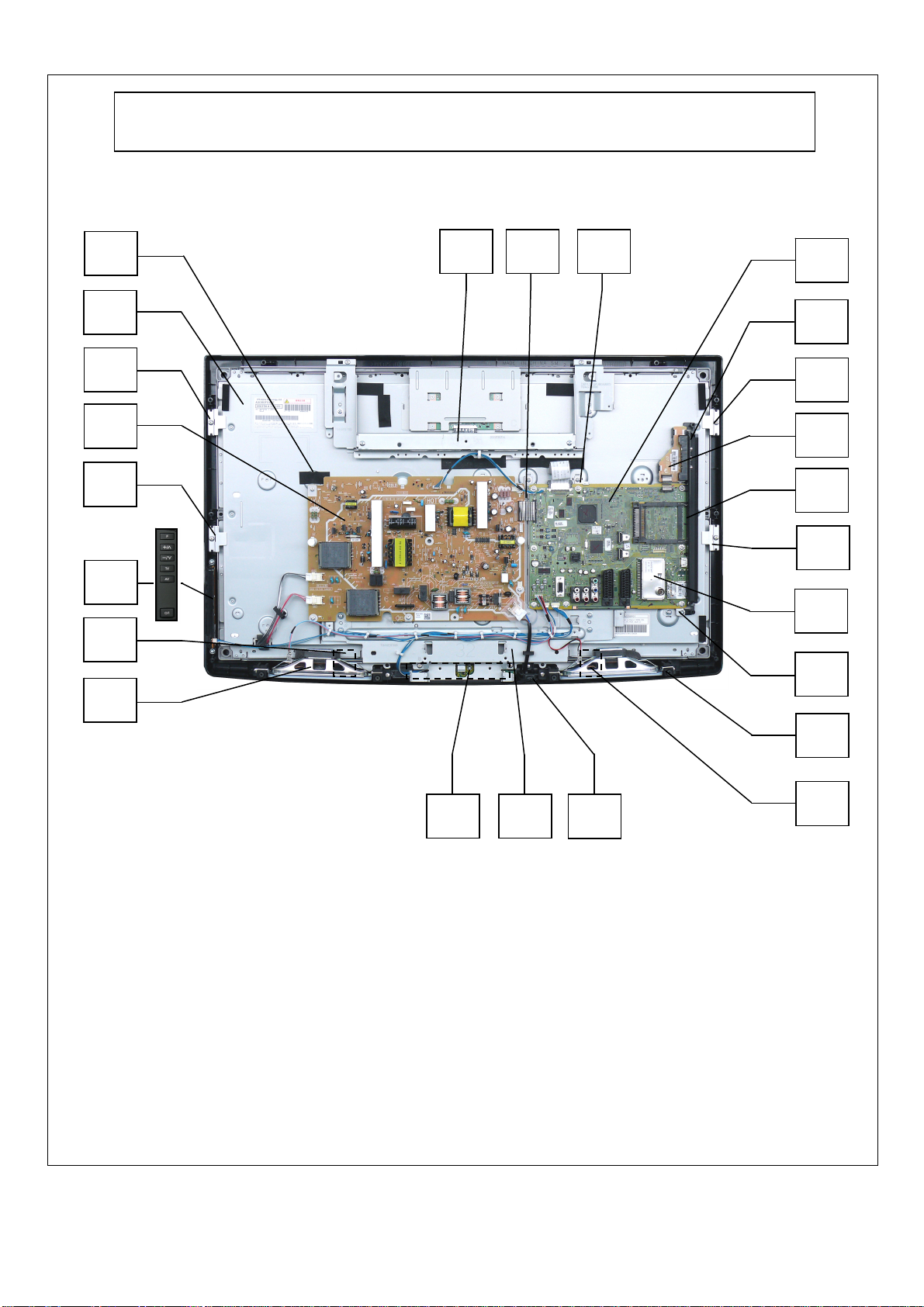

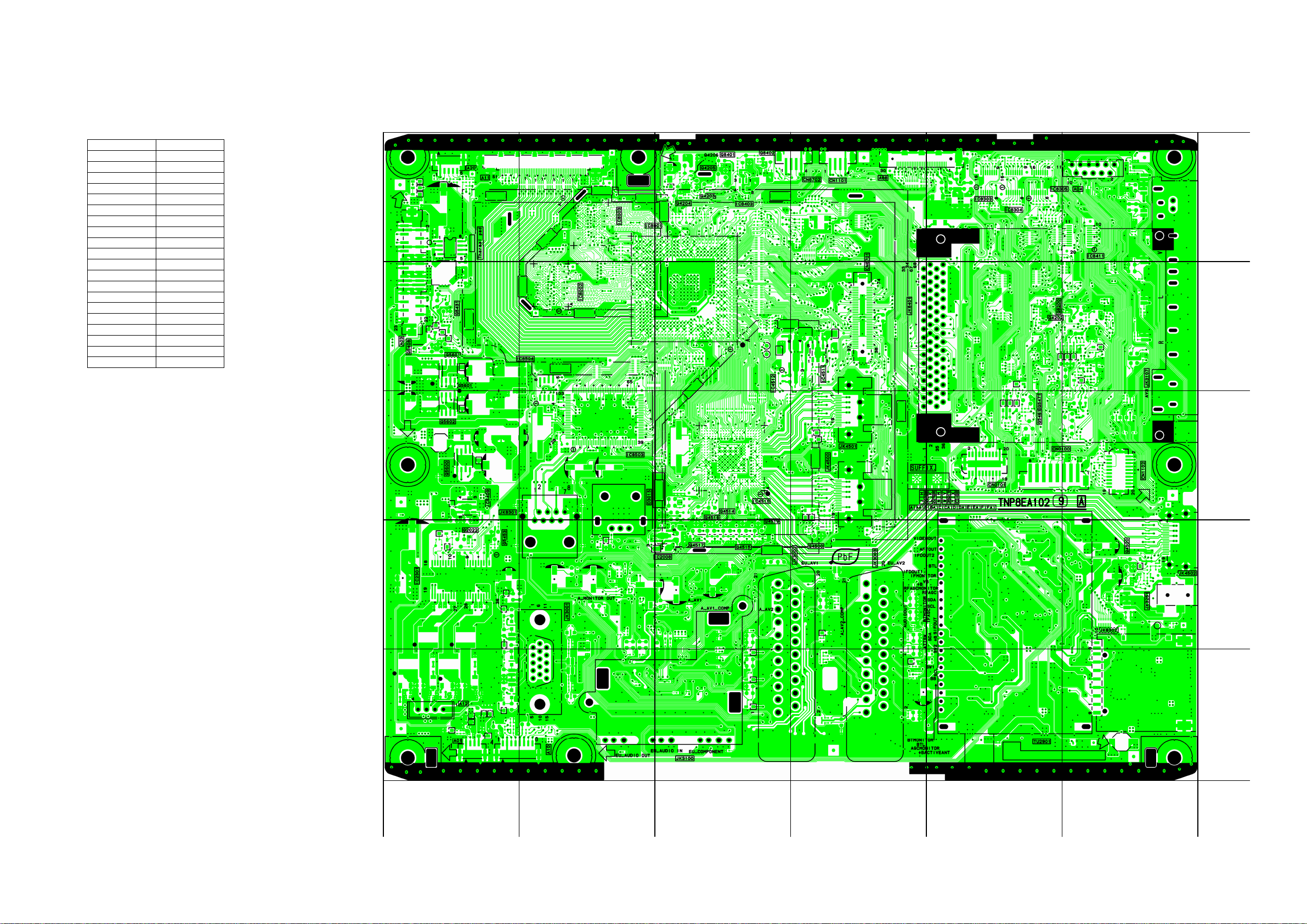

Chassis Board Layout

A11A12A03A01A

A

V

POWER UNIT

V-BOARD

Board Name Function

A-Board Tuner, PC, AVSW,Peaks-AVC,HDMI,CI Slot, Global

Core, GENX, AV Terminal, SD Slot, Speaker out, ADV

Power Unit Power Supply, Main Input

V-Board Remote Receiver, Bats, R/G LED G-Board Side AV Connector

Location of Lead Wiring

To find the Part Number of required wire in Replacement Parts List click on the wire name in red box.

A11-PAN A20-P4

G-BOARD

A-BOARD

P4

20

G04

A04

S01

P6

P5

P1

10

CN0100

TU2901

SP

10

SP

A01-S01

A12-SP

A10-V10

9

Setting Inspection

Voltage Confirmation

Confirm the following voltages:

A board

5VS TP2765 5.6V +/- 0.25V SUB_ TNR_6V TP2770 5.6V +/- 0.25V GND TP2781 0 TV_SOS TP5481 0

INVERTER_SOS TP2761 0 P17V TP2777 17V + / - 1V SUB_F_12V TP2782 12V +/- 1V INV_ON TP2759 2,85V +/- 2%

TP No.

Voltage

10

Self Check

Self-check is used to automatically check the bus lines and hexadecimal code of the TV set. To enter Self-Check mode, keep

pressing the down (-/v) button on the TV set and press the STATUS button on the remote control. To exit Self Check,

switch off the TV set at the power button.

TX-L32S10L

TX-L32S10B

TX-L32S10E

TX-L37S10B

TX-L37S10E

32FHD

ADV O.K. ADAV O.K. TUN O.K. GENX O.K. MEM1 O.K. MEM2 O.K. AVSW O.K. OFDM O.K. TEMP O.K. VIF O.K.

32FHD

ADV O.K. ADAV O.K. TUN O.K. GENX O.K. MEM1 O.K. MEM2 O.K. AVSW O.K. OFDM O.K. TEMP O.K. VIF O.K.

32FHD

ADV O.K. ADAV O.K. TUN O.K. GENX O.K. MEM1 O.K. MEM2 O.K. AVSW O.K. OFDM O.K. TEMP O.K. VIF O.K.

37FHD

ADV O.K. ADAV O.K. TUN O.K. GENX O.K. MEM1 O.K. MEM2 O.K. AVSW O.K. OFDM O.K. TEMP O.K. VIF O.K.

37FHD

ADV O.K. ADAV O.K. TUN O.K. GENX O.K. MEM1 O.K. MEM2 O.K. AVSW O.K. OFDM O.K. TEMP O.K. VIF O.K.

Panasonic 2009LCD

Self Check Complete

PEAKS-SOFT 1.206 PEAKS-EEP 01.01.0013 GenX-SOFT 1.00.00 GenX-EEP 1.03.36 GenX-ROMCORR 1.00.00

Panasonic 2009LCD

Self Check Complete

PEAKS-SOFT 1.206 PEAKS-EEP 01.00.0017 GenX-SOFT 1.00.00 GenX-EEP 1.03.36 GenX-ROMCORR 1.00.00

Panasonic 2009LCD

Self Check Complete

PEAKS-SOFT 1.206 PEAKS-EEP 01.00.0003 GenX-SOFT 1.00.00 GenX-EEP 1.03.36 GenX-ROMCORR 1.00.00

Panasonic 2009LCD

Self Check Complete

PEAKS-SOFT 1.206 PEAKS-EEP 01.00.0016 GenX-SOFT 1.00.00 GenX-EEP 1.03.36 GenX-ROMCORR 1.00.00

Panasonic 2009LCD

Self Check Complete

PEAKS-SOFT 1.206 PEAKS-EEP 01.00.0002 GenX-SOFT 1.00.00 GenX-EEP 1.03.36 GenX-ROMCORR 1.00.00

11

SUM

MODEL ID

EDID

SUM

MODEL ID

EDID

SUM

MODEL ID

EDID

SUM

MODEL ID

EDID

SUM

MODEL ID

EDID

7997

06

030b3100 00000004

22 1b0bfb--

7993

06

03043100 00000004

22 1b0bfb--

798D

06

03113100 00000004

22 1b0bfb--

7992

06

03043100 00000010

22 1b0bfb--

798C

06

03113100 00000010

22 1b0bfb--

TX-L37S10L

TX-LF32S10

TX-LF37S10

37FHD

ADV O.K. ADAV O.K. TUN O.K. GENX O.K. MEM1 O.K. MEM2 O.K. AVSW O.K. OFDM O.K. TEMP O.K. VIF O.K.

32FHD

ADV O.K. ADAV O.K. TUN O.K. GENX O.K. MEM1 O.K. MEM2 O.K. AVSW O.K. OFDM O.K. TEMP O.K. VIF O.K.

37FHD

ADV O.K. ADAV O.K. TUN O.K. GENX O.K. MEM1 O.K. MEM2 O.K. AVSW O.K. OFDM O.K. TEMP O.K. VIF O.K.

Panasonic 2009LCD

Self Check Complete

PEAKS-SOFT 1.206 PEAKS-EEP 01.01.0012 GenX-SOFT 1.00.00 GenX-EEP 1.03.36 GenX-ROMCORR 1.00.00

anasonic 2009LCD

Self Check Complete

PEAKS-SOFT 1.206 PEAKS-EEP 01.00.0003 GenX-SOFT 1.00.00 GenX-EEP 1.03.36 GenX-ROMCORR 1.00.00

Panasonic 2009LCD

Self Check Complete

PEAKS-SOFT 1.206 PEAKS-EEP 01.01.0002 GenX-SOFT 1.00.00 GenX-EEP 1.03.36 GenX-ROMCORR 1.00.00

SUM

MODEL ID

EDID

SUM

MODEL ID

EDID

SUM

MODEL ID

EDID

7996

06

030B3100 00000010

22 1b0bfb--

798D

06

031C3100 00000004

22 1b0bfb--

798C

06

031C3100

00000010

22 1b0bfb--

Display Ref. No. Description P.C.B.

ADV IC4510 A/D CONVERTER A-Board

ADAV IC4510 A/D CONVERTER A-Board

TUN TU2901 TUNER A-Board GENX IC1100 MICROPROCESSOR A-Board MEM1 IC1101 EEPROM (GENX) A-Board MEM2 IC8601 EEPROM (PEAKS AVC) A-Board

AVSW IC3001 AUDIO VIDEO SWITCH A-Board

COFDM IC8301 COFDM DEMODULATOR A-Board

TEMP IC2750 TEMP SENSOR A-Board

VIF TU2901 TUNER A-Board

If the CCU ports have been checked and found to be incorrect or not located then " - - " will appear in place of "O.K.".

12

Power LED blinking timing chart

1. Subject Information of LED Flashing timing chart.

2. Contents When abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by number of blinking of the Power LED on the front panel of the unit.

Blinking

times

Once

1 INVERTER_SOS

2 FAN_SOS A BOARD

3 SOS

4

Blinking timing Contents Check point

4 sec

Light

No Light

LCD PANEL

A BOARD

SUB_F_12V A BOARD

5 MAIN9V A BOARD

6 SUB5V

7 SUB3.3V A BOARD

8 MAIN3.3V A BOARD

9 SOUND_SOS A BOARD

13 EMERGENCY SOS A BOARD

A BOARD V BOARD

13

Service Mode Function

MPU controls the functions switching for each IICs through IIC bus in this chassis. The following setting and adjustment can be adjusted by remote control in Service Menu

How to enter SERVICE

While pressing (-/v) button on TV unit, press on the remote control for 3 times within 2 seconds.

Note:

To exit from Service mode, press the exit button on remote control.

0

14

SERVICE

A

SERVICE ADJUST WB-ADJ OPTION SRV-TOOL

Peaks SOFT 1.206 OPTION 1 1c Peaks EEP 01.00.0013 OPTION 2 ef LSI DATA 0.00.00 OPTION 3 01 STBY SOFT 1.00.00 Model ID 06 STBY EEP 1.03.36 030b3100 STBY ROMCOR 1.00.00 00000004 RB Cnt 000 INV Cnt 0000

1

ADJUST DYNAMIC CONTRAST YMAX

1,2:MAIN SELECT 3,4:SUB SELECT 9 :PICTURE MENU SELECT YELLOW:AUTO ADJUST VOL:ADJUST OK :WRITE

1

WB-ADJ DYNAMIC R-GAIN

COLOR TEMP NORMAL

1,2:MAIN SELECT 3,4:SUB SELECT 7 :COLOR TEMP SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

1

OPTION DYNAMIC Boot

1,2:MAIN SELECT 3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST

1

SRV-TOOL DYNAMIC

000

FF

ROM

00

2

ADJUST DYNAMIC

3

COLOR

1,2:MAIN SELECT

4

3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

2

WB-ADJ DYNAMIC G-GAIN

3

COLOR TEMP NORMAL

1,2:MAIN SELECT 3,4:SUB SELECT

4

7 :COLOR TEMP SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

2

OPTION DYNAMIC STBY-SET

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 9 :PICTURE MENU SELECT OK :POWER OFF

2

3A

FF

00

DJUST DYNAMIC

3

TINT

1,2:MAIN SELECT

4

3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

WB-ADJ DYNAMIC B-GAIN

3

COLOR TEMP NORMAL

1,2:MAIN SELECT 3,4:SUB SELECT

4

7 :COLOR TEMP SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

OPTION DYNAMIC Emergency

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST

Key Command

• Press the 3/4 button to change the adjustment values or function.

• Press the 1/2 button to step up/down through the functions and adjustments

• Press the numerical button VOLUME (+/-) to change option item.

• Press the OK button after each adjustment has been made to store the required values.

ON

00

E6

ADJUST DYNAMIC

3

SUB-BRT

1,2:MAIN SELECT

4

3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

WB-ADJ DYNAMIC R-CENT

3

COLOR TEMP NORMAL

1,2:MAIN SELECT 3,4:SUB SELECT

4

7 :COLOR TEMP SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

OPTION DYNAMIC Y/C Delay

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

800

7F

DJUST DYNAMIC

3

BACKLIGHT

1,2:MAIN SELECT

4

3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

WB-ADJ DYNAMIC G-CENT

3

COLOR TEMP NORMAL

1,2:MAIN SELECT 3,4:SUB SELECT 7 :COLOR TEMP SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

OPTION DYNAMIC OPT 1

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 5,6:BIT SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

4E6

80

00011100

DJUST DYNAMIC

H-POS

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

WB-ADJ DYNAMIC B-CENT

3

COLOR TEMP NORMAL

1,2:MAIN SELECT 3,4:SUB SELECT

4 4

7 :COLOR TEMP SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

OPTION DYNAMIC OPT 2

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 5,6:BIT SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

11101111

7B

DJUST DYNAMIC

0

H-AMP

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

OPTION DYNAMIC OPT 3

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 5,6:BIT SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

0

00000001

ADJUST DYNAMIC V-POS

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

DJUST DYNAMIC

0

V-AMP

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

0

1,2:MAIN SELECT 9 :PICTURE MENU SELECT OK :ENTER

15

Option Bytes Description

OPTION1

b0 ATP Search Speed Slow (1) / Fast (0) b1 TXT Ch Refresh On (1) / Off (0) b2 ID-1 On (1) / Off (0) b3 Macrovision Auto-Judge On (1) / Off (0) b4 Surround enable low bit (*1) On (1) / Off (0) b5 Surround enable low bit (*1) On (1) / Off (0) b6 Pre Emphasis On (1) / Off (0) b7 TINT_COMPONENT_HDMI On (1) / Off (0)

OPTION2

b0 Adjust lgain enable On (1) / Off (0) b1 A2 BC enable (5.5) On (1) / Off (0) b2 A2 DK1 enable (6.26) On (1) / Off (0) b3 A2 DK3 enable (5.742) On (1) / Off (0) b4 NICAM scan On (1) / Off (0) b5 NICAM enable (5.5) On (1) / Off (0) b6 NICAM enable (6.0) On (1) / Off (0) b7 NICAM enable (6.5) On (1) / Off (0)

OPTION3

b0 NICAM priority (ASIA/M.E) On (1) / Off (0) b1 NICAM priority (K/UK) On (1) / Off (0) b2 NICAM priority (China) On (1) / Off (0) b3 NICAM priority (NZ/INDN) On (1) / Off (0) b4 NICAM priority (AUS) On (1) / Off (0) b5 NICAM priority (E.Europe) On (1) / Off (0) b6 NICAM priority (Special) On (1) / Off (0) b7 SASO mute Not use

OPTION4

b0 All country DVB-S enable On (1) / Off (0) b1 All country DVB-C enable On (1) / Off (0)

16

Adjustment Method

Sub-Contrast/White Balance Adjustment

Instrument Name Connect to Remarks

1. Remote controller

2. LCD WB meter (Minolta CS-1000A equivalent)

3. Comunication jig

4. Computer for external control

Procedure Remarks

Subcontrast adjustment

1. Receive PAL colour bar (100% white) RF signal.

2. Enter “Contrast” adj. In SERVICE mode.

3. Start adjusting by using Yellow Key.

4. If the adjustment finished normally, the letter of Contrast will change from red to black

White Balance adjustment

1. Procedure basically performs checking using the production software and make automatic adjustment using external computer.

2. It adjusts in the mode of : Colour balance Normal as follows.

Viewing Mode Dynamic

S10B/L S10E,LFS10

WHITE Normal WHITE Normal x: 0,2860 ± 0,010 x: 0,2820 ± 0,010 y: 0,3130 ± 0,010 y: 0,3020 ± 0,010

GRAY Normal GRAY Normal x: 0,2840 ± 0,010 x: 0,2840 ± 0,010 y: 0,3140 ± 0,010 y: 0,3120 ± 0,010

Correlation can be also taken by CA-210 or equivalent

Let the panel standfor more than 3 hours at more than 20 °C. Basically perform adjustment in the ambient environment of room temperature more than 20 °C. The aging time is more than20 min at above room temperature.

Applied signal

100% full colour bar 0,7V p-p white peak

87.5% modulation

100% WHITE

50% GRAY

17

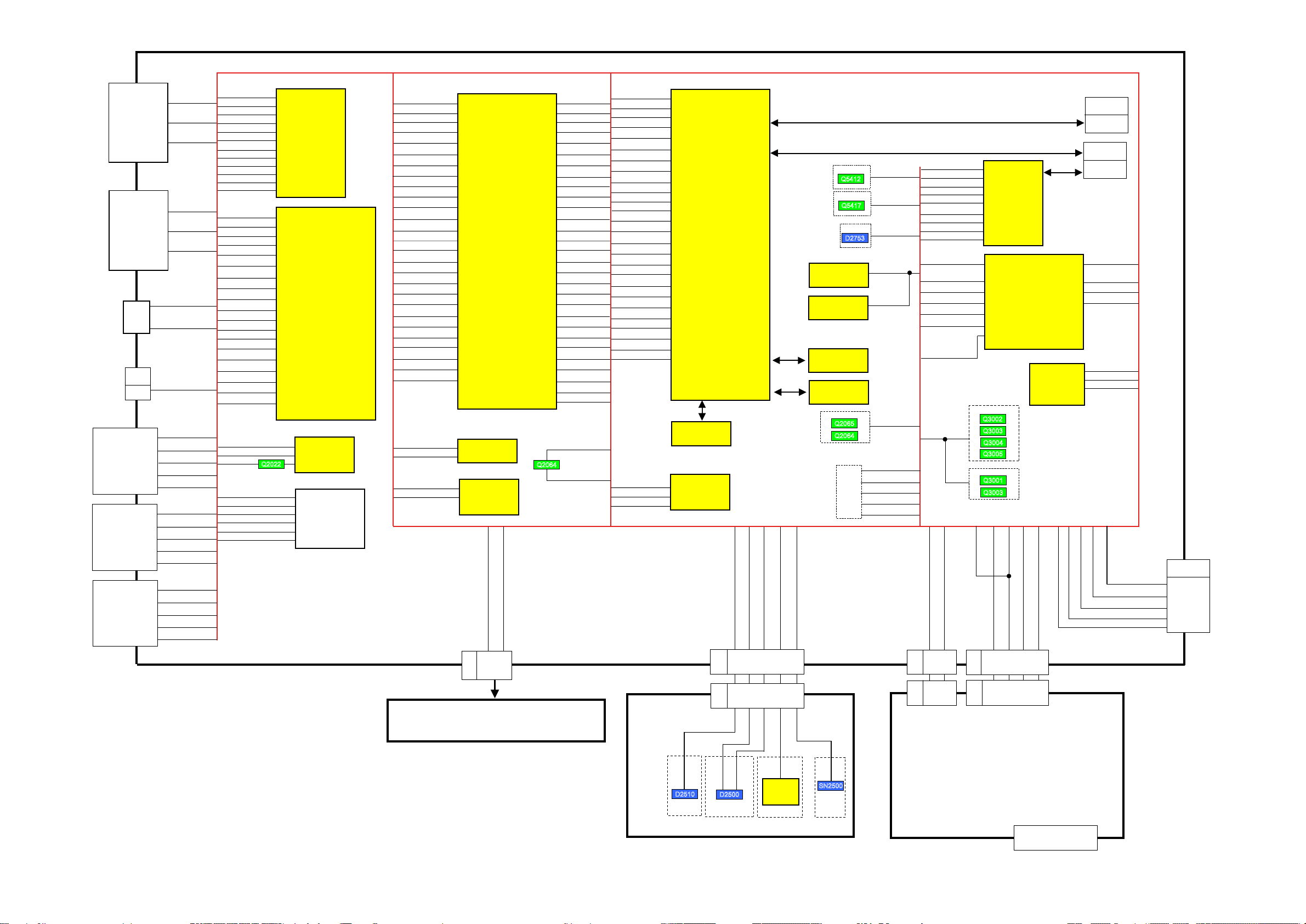

Wiring Diagram

LCD PANEL

HDMI 3

HDMI 1

JK4501 JK4502

HDMI 2

JK4500

JK8401

CI SLOT

YPBPR

JK3100

SD CARD

JK8302

SERVICE

CN0100

TUNER

TU2901

A-BOARD

MAIN INPUT

A11

A20

A03

A10

P6

P4

P2

V10

P5

P1

POWER UNIT

V-BOARD

PC

KEY

SP L/R

JK3001

A01

A12

JK3002

AV1

JK3003

AV2

D3015

OPT

A04

18

G04

G-BOARD

JK3700

AV3

Video & Stereo Audio Block Diagram

IC3001

AV-SWITCH

[C1AB00002855]

AV1_V 20

AV1_VOUT 19

AV1_RED 15

AV1_GREEN 11

AV1_BLUE 7

JK3002

JK3003

Y,PB,PR

AUDIO IN/OUT,

PC INPUT

AV1_L 6

AV1_LOUT 3

AV1_R 2

AV1 21PIN SCART

AV1_ROUT 1

AV2_V 20

AV2_VOUT 19

AV2_RED/C 15

AV2_GREEN 11

AV2_BLUE 7

AV2_L 6

AV2_LOUT 3

AV2_R 2

AV2 21PIN SCART

AV2_ROUT 1

Y

PB

PR

L

R

JK3100

L

R

1

2

3

JK3001

Y

PB

PR

PC L IN

PC R IN

RCA AUDIOOUT L

RCA AUDIOOUT R

PC R

PC G

PC B

79 CVBS IN6 44 CVBS/Y+C OUT

43 SAGCVBS OUT3

91 R3 89 G3

87 B3

62 L3IN 56 L1OUT 63 R3IN 55 R1OUT

19 G1/Y IN 23 CVBS IN2

38 Y/Y+CVBSOUT4 37 SAGCVBSOUT4

11 R2/C IN 21 B1/C IN 13 G2/Y IN

15 B2/ C IN 64 L4 IN

54 L4 OUT 65 R IN 53 R2 OUT

95 CY IN1

93 PB IN1

97 PR IN1

70 L IN 71 R IN

52 L OUT 51 R OUT

3 R IN

1 G IN

99 B IN

R6 IN

69 L6 IN

68

AV4 R

AV4 L

AV4 V

83 Y IN4

81 CVBS IN5

AV4 Y

85 C IN4

AV4 C

CVBSin4 5

AV R 49

AV L 50

TV R 60

TV L 61

AUDIOOUT R 59

AUDIOOUT L 58

CVBSin 17

31

33

35

46

DVB CVBS

MAIN Y/CVBS

MAIN PB/C

MAIN PR

RGB CVBS

AV R

AV L

TV R

TV L

AUDIOOUT R

AUDIOOUT L

HP L

HP R

OPT_SPDIF

SOY

MAIN RF SIGNAL CVBS

A14

A12

A13

B10

A15

A21

B21

C22

C23

D22

D23

M20 SPDIF_OUT

H22 HPOUT1L

H23 HPOUT1R

IC4510

ADV

[C1AB00003045]

AUDIO VIDEO DECODER

DIGITAL VIDEO OUT

N23

PWM WO L+

5

IC2301

[C1AB00002875]

MAIN AUDIO AMPLIFIER

SP L-

SP L+

N22

M23

PWM WO R+

PWM WO L-

12

7

253034

SP R+

SIF IN2

A17

SIF IN1

A18

AUX INL

B22

AUX INR

A22

M22

PWM WO R-

14

21

SP R-

RX

8

DVB CVBS

DDR2 800MHz

IC8002

IC8003

HDMI1

HDMI3

HDMI2

D12

E25,B25,C25,D25

FL4201

FL4203

F25,E26,B26

C26,D26,F26,

FL4202

IC8580

[TVRQ370AE]

NOR FLASH

IC8001- AVC

[MN2WS0059]

IIC 3

IIC

IC1100

GenX8

[MNZSFH9GP8L]

IC8301

[C1AB00003049]

TS SERIAL

BUS I/F

SD CARD I/F

57 58

2

SD CARD DATA

IC1101

[C3EBFC000042] EEPROM GenX8

JK4501 JK4500

HDMI1HDMI2

MAIN RF SIGNAL CVBS

SIF

AM

IFD1

IFD2

IFAGC

JK4502

HDMI3

TUNER

TU2901

ENG37E18KF

21

11

10

12

17

19

CI SLOT

JK8401

SD SLOT

JK8302

HDMI TERMINAL

RX0-

RX0+

RX1-

RX1+

RX2-

RX2+

RXCLK-

RXCLK+

RX3-

RX3+

2 4 6 8 10 3 1

A04

OPT

D3015

1 2 3 4

A12

20 19 17 16 14 13 11 10 8 7

A11

DIGITAL AUDIO OUT

R

L

V

JK3700

G-BOARD

Y

C

L

R

AV4 R

AV4 L

AV4 V

AV4 Y

AV4 C

HP L OUT

HP R OUT

2 4 6 8 10 3 1

G04

L-

L+

SP L

R-

R+

SP R

LCD PANEL

19

Power Supply Block Diagram

A-BOARD (EXCHANGE UNIT)

IC1101

GenX EEPROM

IC1100

GenX8

Microprocessor

24,39,62,64,68,88

IC3001

AUDIO VIDEO SWITCH

4,6,18,22,24,36,82,86

45,80

IC2301

SP AMP

19,20, 35,36

IC8502

EEPROM

IC2750

TEMP

SENSOR

IC5480

PEAKS_RESET

11,24

IC4510

AUDIO VIDEO DECODER

ADV7470BBCZ-5

HDMI TERMINAL

JK4500

HDMI 2

JK4501

HDMI 1

JK4502

HDMI 3

TU2901

TUNER

5,16

8

5,4

12

19

16

13

12

3

STB3.3V

SUB5V

SUB9V

MAIN_SND_17V

SUB3.3V

STB3.3V

SUB_F_12V

SUB5V

5VS

STB5V

STB3.3V

TVDD_3.3V

CVDD_1.8V

DVDD_1.8V

DVDDIO_3.3V

VAVDD_1.8V

AAVDD_3.3V

PVDD_1.8V

5V

TUNER5V

BT30V

(12,24,36,40,41,51,60)

5VCARD

1.2V

AAVDD_3.3V

DVDDIO_3.3V

PVDD_1.8V

VAVDD_1.8V

CVDD_1.8V

DVDD_1.8V

1.2V

(A1,E1,M9,J9,R1,J1,A9,C1,C3,

C7,C9,E9,G1,G3,G7,G9)

(A1,E1,M9,J9,R1,A9,C1,C3,

C7,C9,E9,G1,G3,G7,G9,J1

IC8301

COFDM

Demodulator

(4,15,27,39,45,48)

5

IC8001-AVC

PROCESSOR

MN2WS0059

IC8002

MEMORY

IC8003

MEMORY

1.2V

IC8403

5

Vout

IC8302

Vout

IC2008

5

Vout

IC4511

5

Vout

IC4513

5 Vout

IC4512

Vout

IC8302

5

Vout

REG

SUB_F_12V

4

Vin

1

Vin

4

Vin

SUB_F_12V

P17V

SUB_F_12V

5VS

SUB_TNR_6V

SUB3.3V

24V

P17V

SUB_TNR_6V

5VS

SUB_F_12V

SUB3.3V

PNL12V

A03

8,9

12,13

20,22

23

16,17,

19

JK8302

4

A11

28,29 30,31

POWER SUPPLY

SD CARD

TO LCD PANEL

IC8409

BUFFER

SUB3.3V

SUB1.2V

SUB1.8V

1.8V_DDR I/F

SUB3.3V

IC8302

5

Vout

REG

1

Vin

SUB3.3V

1Vin

SUB5V

IC8410

BUFFER

IC8411

BUFFER

IC8404

BUFFER

IC8405

BUFFER

IC8408

BUFFER

IC8580

NOR FLASH

20

37,47

SUB3.3V

SUB5V

SUB3.3V

SUB1.2V

SUB1.8V

IC5441

Vdd

Peaks-LITE 2 POWER

IC5600

10

Power Peaks

Vout

IC5601

4

Power Peaks

11

IC8004

Clock Gen

5,13,15

IC8401

C1AB00002913

17,33,2

1

20 Vin

20

49

SUB_F_12V

SUB3.3V

SUB9V

SUB5V

PNL12V

MAIN_SND_17V

SUB9V

SUB5V

TUNER5V

3

5

Vout

Q5412

Q5417

IC5409

REG

IC5405

REG

IC2902

REG TUN

D3015

OPT

JK8401

5VCARD

1

Vin

4

Vin

SUB3.3V

SUB5V

STB5V

17,18,

51,52

CN0100

4

CI SLOT

SERVICE

4

Vin

4

Vin

SUB5V

SUB3.3V

V-BOARD

SUB5V

61

Vin

SUB3.3V

SUB5V

STB3.3V

1

SUB3.3V

A1

9

5

V1

SUB5V

8

STB3.3V

4

STB3.3V

SN2500

D2510

D2500

RM2500

20

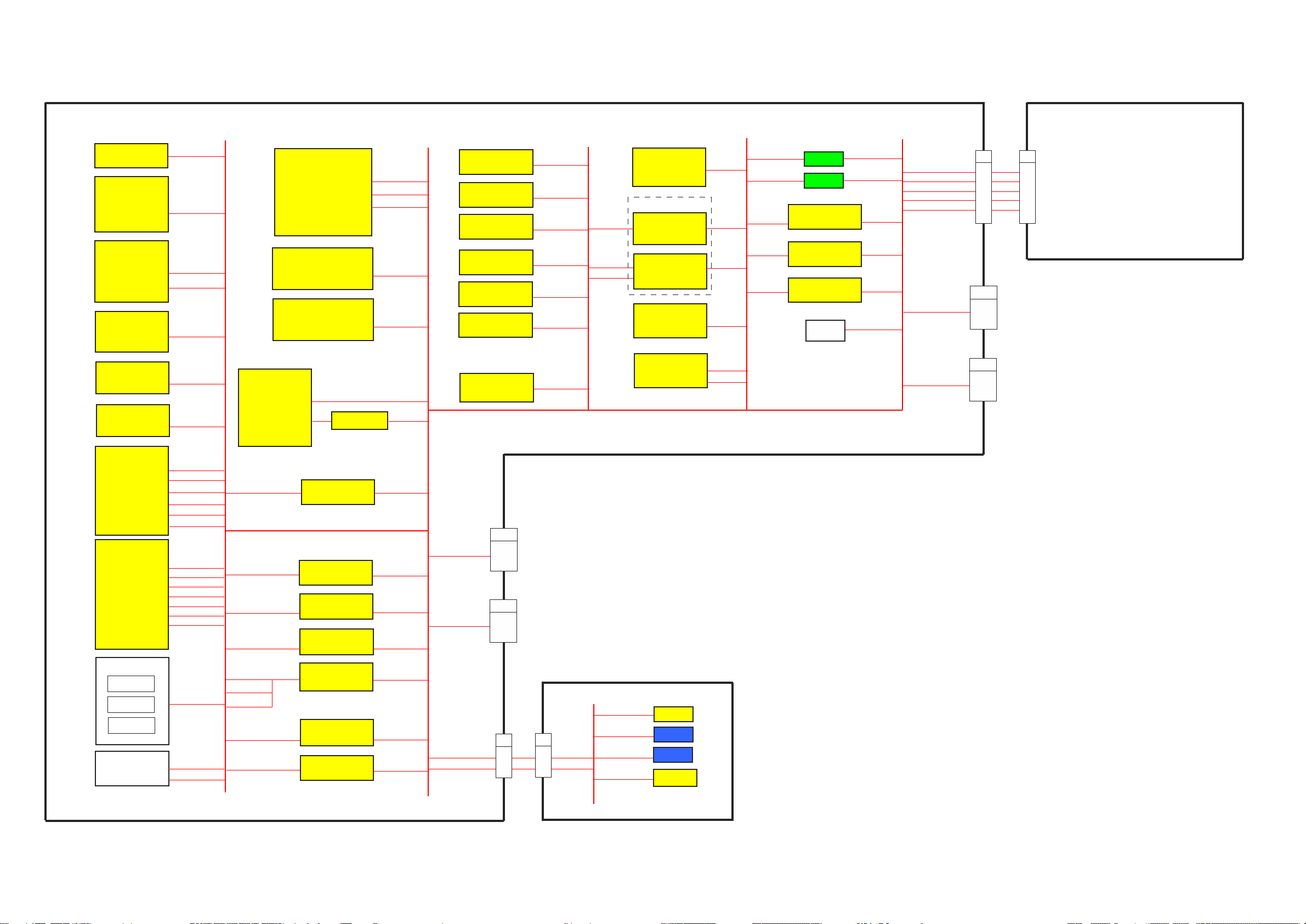

Control Block Diagram

HDMI1

JK4501

HDMI2

JK4500

HDMI3

JK4502

AV1_Q_LINK 10

JK3002

AV1 21PIN SCART

AV2_Q_LINK 10

JK3003

AV2 21PIN SCART

JK3001

A01

KEY SCAN

13 HDMI_CEC

15 SCL

16 SDA

18 +5V

19 HPD1

13 HDMI_CEC

15 SCL

16 SDA

18 +5V

19 HPD2

13 HDMI_CEC

15 SCL

16 SDA

18 +5V

19 HPD3

AV1_SLOW 8

AV1_FB 16

AV2_SLOW 8

AV2_FB 16

13

PC

14

2

S2DET2

QLINK2

FBIN/01

S2DET1

QLINK1

FBIN/02

HDMI_CEC

DDCD_SCL

DDCD_SDA

HDMI_5V_DET1

HPD1

HDMI_CEC

DDCB_SCL

DDCB_SDA

HDMI_5V_DET2

HPD2

HDMI_CEC

DDCC_SCL

DDCC_SDA

HDMI_5V_DET3

HPD3

HDIN

VDIN

KEY1

HDIN

S2DET2 S2DET1

FBOUT

AV-SW_SDA

AV-SW_SCL

HSIN

VSIN

FBIN/01

FBIN/02

ADV_XRST

VDIN

FBOUT

PWM_READY

ADAV_SCL

ADAV_SDA

ADV_SCL

ADV_SDA

AUDIO_XRST

ADV_XRST

VSIN

HSIN

DDCA_SCL

DDCA_SDA

DDCB_SCL

DDCB_SDA

DDCC_SCL

DDCC_SDA

DDCD_SCL

DDCD_SDA

TEST1

AMP_MUTE PWM_READY

SOUND_SOS

IFAGC

TUNER_SCL TUNER_SDA

IFD1 IFD2

RF_AFT1

Q2022

2 14 20 27,94 28

29

[C1AB00002855]

32 34 76 78 96 100

D11 T23

V20

V21 AA14

AA13

M21

AA22

D12

D13

G4

F4

H4 J4

P4

R4

T4

U4

A7

1

12

IC3001

AVSW

IC4510

[C1AB00003045]

IC2301

3

[C1AB00002875]

AUDIO AMP

16

9

6 17 19

20

ADV

TU2901

HPD0

HPD1

HPD2

PANEL_AGW

R_LED_ON

G_LED_ON

HDMI_5V_DET0

STBY_LED_ON

DDCSDA1

DDCSCL1

HDMI_5V_DET1

DDCSDA2

DDCSCL2

SB02

SBI2

MAIN3.3V_SENSE

GENX_SDA0

GENX_SCL0

HDMI_5V_DET2

SRQ_GENX

SOUND_SOS

G_SOS

TV_MAIN_ON

PANEL_STBY_ON

INVERTER_ON

G-RMIN

INVERTER_SOS

TMP-SENS_SCL

TMP-SENS_SDA

GENX-EEP_SCL

GENX-EEP_SDA

1

2

3 4

5

6

7

9

12

13

14

15

16

17 18

19

20

21

23

26,71

27

28

29 30

31

32

34

1

IC2750

6

TEMP SEN

5

IC1101

[C3EBFC000042]

6

GENX EEPROM

A11

IC1100

[MNZSFH9GP83]

GENX

G PANEL AGW

G SOURCE XRST/PANEL TEST ON

2 4

35

36

37

38

43

44

46

47

52

53

54

55

56

57

58

83

84

85

87

90

92

93

94,95

96

97

100

72

49

50

Q2064

MONITOR OUT MUTE

SUB3.3V_SENSE

MAIN9V_SENSE

DTV9V_SENSE

SUB5V_SENSE

AUDIO_XRST

ADV_XRST

PANEL_TEST_ON

HQ_XRST

TV_SUB_ON

SP_HP_MUTE

MON_MUTE

DTV_XRST

SD_BOOT_STS

SW_OFF_DET

DTV_VOUTENB

HPD3

AI SENSOR

KEY1

RF_AFT1

PANEL_LED_ON

QLINK2

QLINK1

HDMI_CEC

DDCSDA3

DDCSCL3

HDMI_5V_DET3

G-NRST

GENX_SDA1

GENX_SCL1

AMPMUTE

IS1CLK

SCL0

SDA0

SCL1

SDA1

SCL2

SDA2

SCL3

SDA3

XIRQ3

XRST

SMTCLK0

VI2CLK2

VIN

CK33IN

VC27

CK74

CK27A

SW OFF DET

VOUTENB

PWM2

PWM1

G SD BOOT STS

FE XRST

SBI2

SB02

LITE2 SDA

LITE2 SCL

VI2CLK2

AF8

T2

T3

T6

U1

AK7

AH8

AE4

XECS3

V1

D25

AJ11

N26

AH28

N26

M29

P25

T5

M30

AK12

AH12

M28

P5

C25

E25

5 6

7

N1

IC8580

NOR FLASH

IC8001-AVC

[MN2WS0059]

IC8502

EEPROM

8 7 6 3 4

A10

IRD LED

R_LED_ON

REMOTE

G_LED_ON

DATA

AI

PANEL 12V

SOUND VCC

IC5601

DC/DC

IC5600

DC/DC

IC8003

DDR SDRAM

IC8002

DDR SDRAM

HP_MUTE

Q2065

Q2064

Q5412

Q5417

INV LED

D2753

SOS

PANEL_STBY_ON

TV_MAIN_ON

PANEL_LED_ON

DCDC_CTL1

1,8

8

MAIN3.3V_SENSE

MAIN9V_SENSE

SUB5V_SENSE

SUB3.3V_SENSE

DTV9V_SENSE

HP_MUTE

IFAGC

FE0_XIRQ

FE_XRST FE1_SCL

FE1_SDA

FE-OUT_SDA

FE-OUT_SCL

IFD1

IFD2

AMON MUTE

G-PANEL-STBY-ON

PEAKS RST

INVERTER_ON

AMP MUTE

AUDIO MUTE

G SW OFF DET

MONITOROUT_MUTE

TV_SUB_ON

TV_MAIN_ON

A03

2 5 6

IC8301

25

[C1AB00003049]

26

COM DEM

63 64

57 58

5

3

1

2

DC/DC, Peaks reset

4

6

8

AV1/2 OUT MUTE

Q3002

Q3003

Q3004

Q3005

AUDIO OUT

Q3001

Q3003

INVERTER ON

INV_ADIM

G_ECO_ON/INVERTER ON

2 3 4 5

A20

IC5480

[C1ZBZ0003986]

IC8004

[C0ZBZ0001567]

CLOCK GEN

INV_PWM

G_PANEL_ALARM/INV_SOS

18

22

27

9

4 7 9

JK8302

SD SLOT

JK8401

CI SLOT

STBY RST

LCD TV SUB ON

G SOS

DCDC CTL1

CLK74

SRQ_GENX

ADJ-GENX_SCL

ADJ-GENX_SDA

SCL3

SDA3

VC27

CK27

CN0100

2

4

5

6

7

SERVICE

LCD PANEL

V-BOARD

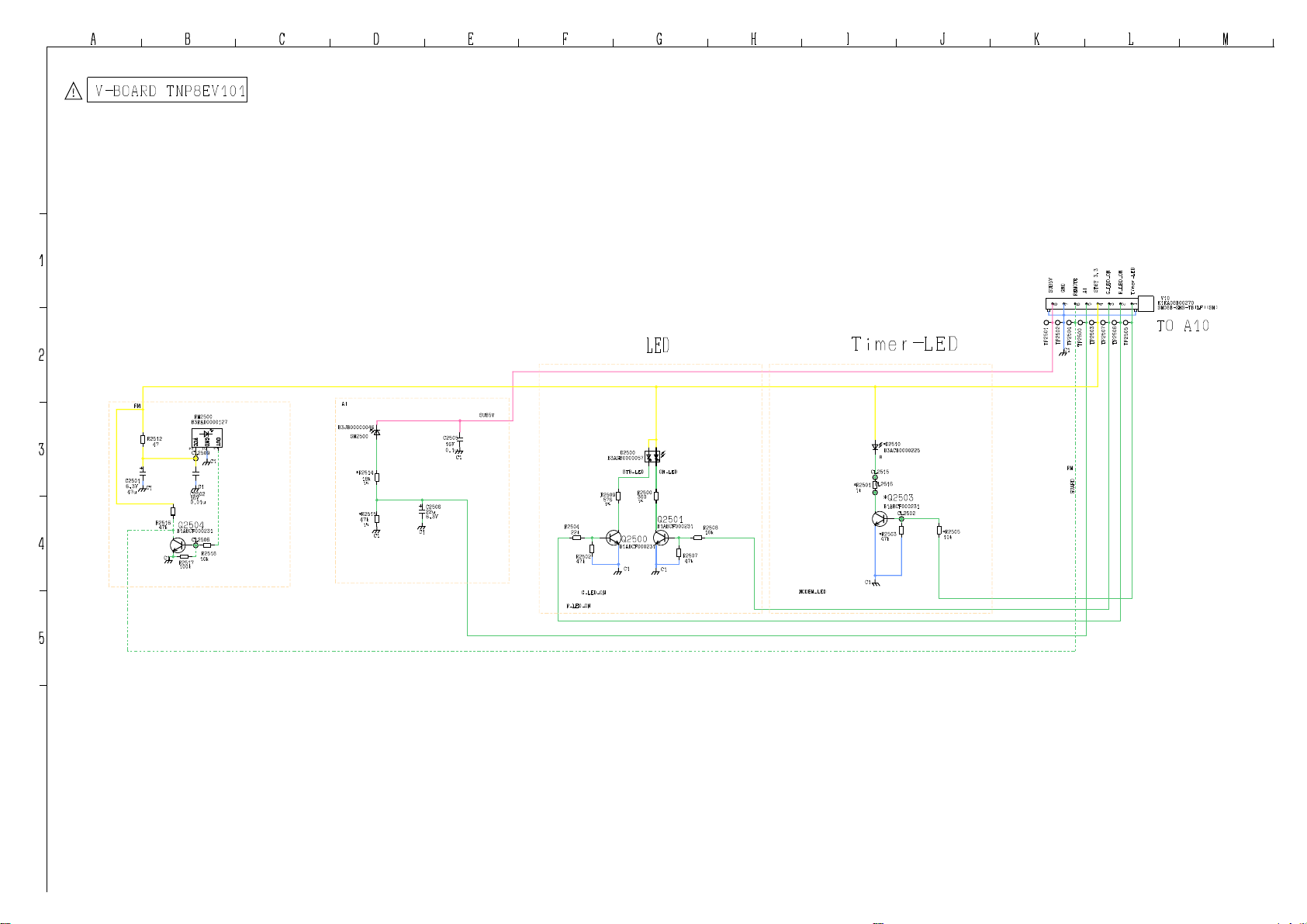

D2510

TIMER LED

21

1 2 3 6 5

V10

TIMER LED

D2500

LED

G_LED_ON

R_LED_ON

RM2500

LED RECEIVER

REMOTE

RM

P2

AI

P5

P UNIT

SN2500

AI

TO LCD PANEL

Parts Location

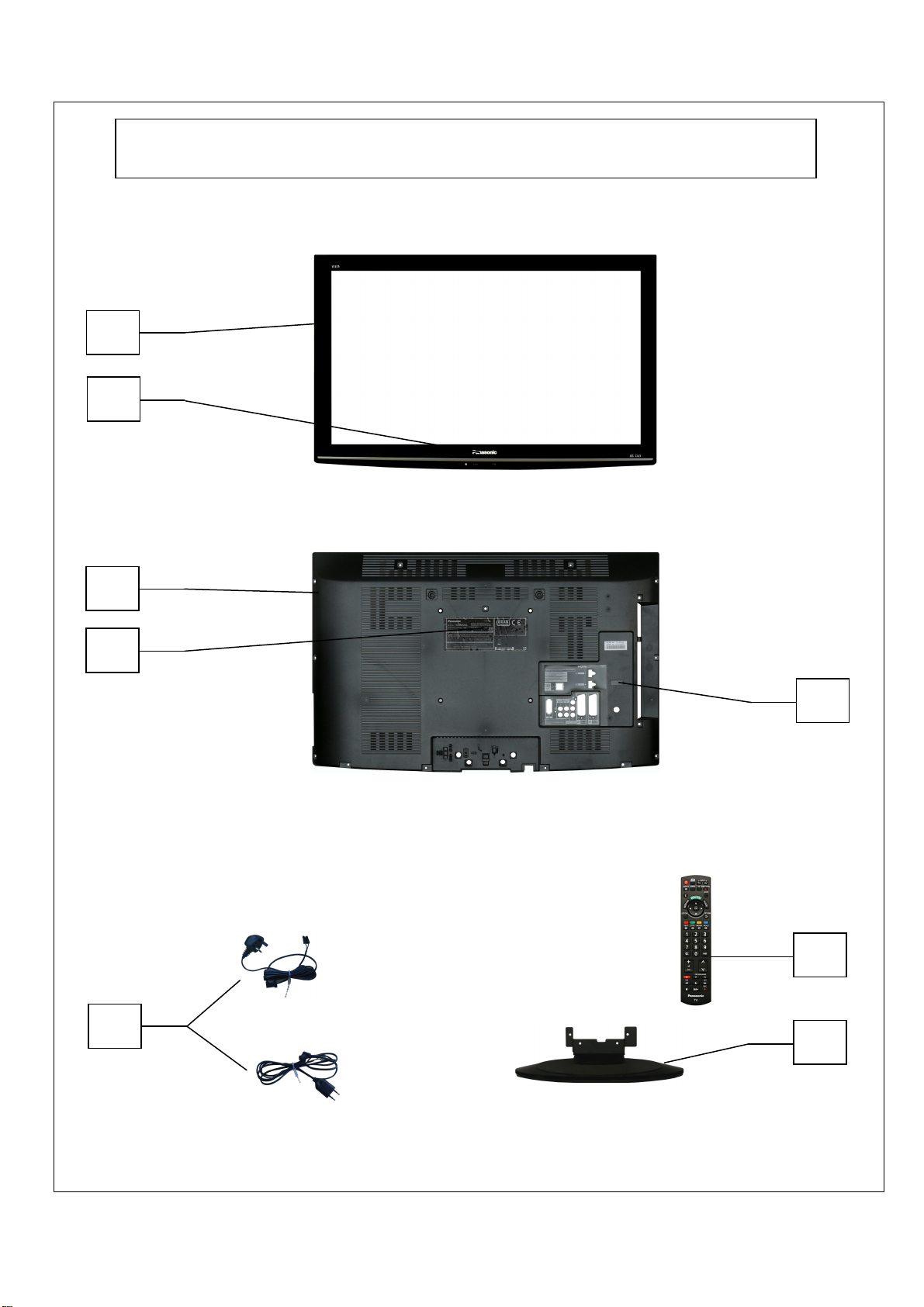

The numbers on the exploded view below refer to the exploded view section of the Replacement Parts List.

21

6

20

24

19

(UK)

(CONTINENTAL)

NOTE:

7

4

26

22

The numbers on the exploded view below refer to the exploded view section of the Replacement Parts List.

NOTE:

14

23

10

25

10

3

11

1

27

12 14

18

17

10

16

5

10

2

13

15

22

9

11

8

23

Replacement Parts List

Components Identified by mark have special characteristics important for safety.

In case of ordering these spare parts, please always add the complete Model-Type number to your order.

RTL (Retention Time Limited)

Note:

* When replacing any of these components, use only manufacturers specified parts.

The marking (RTL) indicates that the Retention Time is Limited for this item. After the discontinuation of this assembly in production, the item will continue to be available for a specific period of time. The retention period of availability is dependent on the type of assembly, and in accordance with the laws governing part and product retention. After the end of this period, the assembly will no longer be available.

Important Safety Notice

X

The marking (X) indicates that board should be exchanged for service.

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

COMMON PARTS

EXPLODED VIEW

SPEAKER UNIT 1 EAS16S12A

TUNER 2 ENG37E18KF

CONTROL PANEL ASSY 3 K0RB00600006

REMOTE CONTROL 4 N2QAYB000328

CI COVER LABEL 5 TBM0E1467

PANASONIC BADGE 6 TBMA293

CONNECTOR COVER 7 TKP0E16001

AC CORD BRACKET 8 TKP0E39001

SPEAKER BRACKET 9 TKP0E39101

MASK BRACKET SIDE 10 TKZ0EA5003

MASK BRACKET BOTTOM 11 TKZ0EA5011

A-PCB MTG METAL R 12 TKZG5043

A-PCB MTG METAL L 13 TKZG5044

A-PCB MTG METAL S 14 TKZG5052

V P.C.B. 15 TNP8EV101AA

G P.C.B. 16 TNPA4850AB

SIDE AV BRACKET 17 TTP0E0092

MISCELLANEOUS COMPONENTS

BATTERY . R6DB/2P

REAR AV LABEL_BOTTOM. TBM0E9018-1

SCREW. THTD020J

IR/LED WINDOW . TKP0E38601

IR/LED RIB . TKP0E38701

FELT . TMK0EA040

AC CORD BARRIER . TMK0EX015

TAB-RELEASE CABLE. TMM8E18048

POLYBAG_PEDESTAL . TPE0E9004

CLEANING CLOTH . TPEX020

CLEANING CLOTH ASSY. TXFPE01RLTB

SCREW . XTB4+15JFJK

SCREW . XTB4+8JFJ

SCREW . XTV3+8JFJK

SCREW . XTW3+10TFJ

SCREW . XYM4+C10FJK

SCREW . XYN4+F6FJ

I.C.s

MICRO_GENX IC1100 MNZSFH9GP83

EEPROM GENX IC1101 24GLP24GENX

REGULATOR IC2008 C0DBGYY00578

AUDIO AMPLIFIER IC2301 C1AB00002875

IC IC2750 C1ZBZ0003577

RTL

REGULATOR IC2902 C0DBGYY00281

AUDIO VIDEO SWITCHIC3001 C1AB00002855

A/D VIDEO DECODERIC4510 C1AB00003045

REGULATOR IC4511 C0DBGYY00578

REGULATOR IC4512 C0CBCAG00039

REGULATOR IC4513 C0DBGYY00618

IC REGULATOR IC5405 C0DBEYG00002

REGULATOR IC5409 C0DBEHE00005

REGULATOR IC5441 C0DBAJB00004

DC/DC CONVERTER IC5480 C1ZBZ0003986

DC/DC CONVERTER IC5600 C0DBAYY00480

DC/DC CONVERTER IC5601 C0DBAYY00480

PEAKS AVC IC8001 MN2WS0059

DDR SDRAM IC8002 C3ABTG000007

DDR SDRAM IC8003 C3ABTG000007

CLOCK GENERATOR IC8004 C0ZBZ0001567

COMBINED DEMODULATORIC8301 C1AB00003049

REGULATOR IC8302 C0DBFYY00028

LEVEL SHIFTER IC8401 C1AB00002913

IC SWITCH IC8403 C0ZBZ0001584

BUS BUFFER IC8404 C0JBAZ002692

BUS BUFFER IC8405 C0JBAZ002692

BUFFER IC8408 C0JBAU000025

BUFFER IC8409 C0JBAZ002811

BUFFER IC8410 C0JBAU000025

BUFFER IC8411 C0JBAU000025

PEAKS-AVC_FLASH MEMORYIC8580 TVRQ370AE

LED RECEIVER RM2500 B3RAD0000127

PHOTO IC DIODE SN2500 B3JB00000046

FUSES

MICRO CHIP FUSE PA4201 ERBSE2R50U

FUSE PA5420 ERBSE5R00U

MICRO CHIP FUSE PA5430 ERBSE2R50U

MICRO CHIP FUSE PA5601 ERBSE2R50U

DIODES

VARISTOR D1002 EZJZ0V120JA

VARISTOR D1003 EZJZ0V120JA

ESD SUPPRESSOR D1004 EZAEG2A50AX

ESD SUPPRESSOR D1005 EZAEG2A50AX

ESD SUPPRESSOR D1006 EZAEG2A50AX

ESD SUPPRESSOR D1007 EZAEG2A50AX

DIODE MA704ATX D1107 MA3X704A0L

DIODE D1112 MA2J72800L

DIODE D2014 MA2J11100L

DIODE D2017 MA2J11100L

LED D2500 B3AGB0000057

DIODE D2510 B3ACB0000225

VARISTOR D2752 EZJZ0V120JA

24

5407 M

A2J11100L

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

LED D2753 B3AEB0000131

DIODE D2760 MAZ81400ML

DIODE D2779 MA22F2000L

DIODE D3013 MAZ81400ML

DIODE D3014 MAZ81400ML

DIODE MA704ATX D3048 MA3X704A0L

DIODE MA704ATX D3339 MA3X704A0L

DIODE D4202 MA2J11100L

ESD SUPPRESSOR D4503 EZAEG2A50AX

ESD SUPPRESSOR D4505 EZAEG2A50AX

ESD SUPPRESSOR D4507 EZAEG2A50AX

ESD SUPPRESSOR D4509 EZAEG2A50AX

ESD SUPPRESSOR D4511 EZAEG2A50AX

ESD SUPPRESSOR D4512 EZAEG2A50AX

DIODE D4513 B0BC5R6A0275

ESD SUPPRESSOR D4516 EZAEG2A50AX

ESD SUPPRESSOR D4517 EZAEG2A50AX

ESD SUPPRESSOR D4518 EZAEG2A50AX

ESD SUPPRESSOR D4520 EZAEG2A50AX

ESD SUPPRESSOR D4521 EZAEG2A50AX

ESD SUPPRESSOR D4523 EZAEG2A50AX

DIODE D4525 MA2J11100L

DIODE D4526 MA2J11100L

DIODE D4541 MA2J11100L

DIODE D4542 MA2J11100L

ESD SUPPRESSOR D4573 EZAEG2A50AX

ESD SUPPRESSOR D4574 EZAEG2A50AX

DIODE D4575 MA2J11100L

DIODE D4576 B0HCMM000014

DIODE D4577 B0HCMM000014

DIODE D4583 B0HCMM000014

ESD SUPPRESSOR D4587 EZAEG2A50AX

ESD SUPPRESSOR D4588 EZAEG2A50AX

ESD SUPPRESSOR D4589 EZAEG2A50AX

ESD SUPPRESSOR D4590 EZAEG2A50AX

ESD SUPPRESSOR D4591 EZAEG2A50AX

ESD SUPPRESSOR D4592 EZAEG2A50AX

ESD SUPPRESSOR D4593 EZAEG2A50AX

ESD SUPPRESSOR D4594 EZAEG2A50AX

ESD SUPPRESSOR D4595 EZAEG2A50AX

ESD SUPPRESSOR D4596 EZAEG2A50AX

ESD SUPPRESSOR D4597 EZAEG2A50AX

ESD SUPPRESSOR D4598 EZAEG2A50AX

ESD SUPPRESSOR D4599 EZAEG2A50AX

ESD SUPPRESSOR D4600 EZAEG2A50AX

ESD SUPPRESSOR D4601 EZAEG2A50AX

ESD SUPPRESSOR D4602 EZAEG2A50AX

DIODE D4611 B0BC5R6A0275

DIODE D4615 MA2J11100L

DIODE D4617 B0BC5R6A0275

DIODE D

DIODE D5414 MA2J11100L

DIODE D5441 MA3X78900L

ZENER DIODE D5442 B0BC03900015

DIODE D5473 MA2J11100L

DIODE D5474 MA2J11100L

DIODE D5480 MA2J11100L

DIODE D5481 MAZ81800ML

DIODE D5482 MA2J11100L

ZENER DIODE D5483 MAZ81100ML

DIODE D5484 MA2J11100L

ZENER DIODE D5485 MAZ82400ML

DIODE D5486 MA2J11100L

ZENER DIODE D5612 MAZ80470ML

DIODE D5613 MA2J11100L

ZENER DIODE D5618 MAZ80470ML

DIODE D5619 MA2J11100L

ZENER DIODE D5626 MAZ80470ML

TRANSISTORS

COILS

DIODE D5627 MA2J11100L

TRANSISTOR Q2001 B1ABCF000231

TRANSISTOR Q2022 B1ADCE000022

TRANSISTOR Q2063 2SD0601ASL

TRANSISTOR Q2064 2SD0601ASL

TRANSISTOR Q2065 2SB0709ASL

TRANSISTOR Q2500 B1ABCF000231

TRANSISTOR Q2501 B1ABCF000231

TRANSISTOR Q2503 B1ABCF000231

TRANSISTOR Q2504 B1ABCF000231

TRANSISTOR Q3000 B1ABCF000231

TRANSISTOR Q3001 B1ABCF000231

TRANSISTOR Q3002 B1ABCF000231

TRANSISTOR Q3003 B1ABCF000231

TRANSISTOR Q3004 B1ABCF000231

TRANSISTOR Q3005 B1ABCF000231

TRANSISTOR Q4201 2SD0601A0L

TRANSISTOR Q4202 2SB0709A0L

TRANSISTOR Q4203 2SD0601A0L

TRANSISTOR Q4204 2SC39380QL

TRANSISTOR Q4205 2SD0601A0L

TRANSISTOR Q4206 2SC39380QL

TRANSISTOR Q4207 2SD0601A0L

TRANSISTOR Q4500 B1ABCF000231

TRANSISTOR Q4501 B1ABCF000231

TRANSISTOR Q4514 2SB0709ASL

TRANSISTOR Q4515 2SB0709ASL

TRANSISTOR Q4516 2SB0709ASL

TRANSISTOR Q4517 2SB0709ASL

TRANSISTOR Q4519 2SB0709ASL

TRANSISTOR Q4520 B1ABCF000231

TRANSISTOR Q4533 B1ABCF000231

TRANSISTOR Q4534 B1ABCF000231

TRANSISTOR Q4535 B1ABCF000231

TRANSISTOR Q4807 2SD0601A0L

TRANSISTOR Q5407 2SC584500L

TRANSISTOR Q5408 2SC584500L

TRANSISTOR Q5412 B1CHRE000005

TRANSISTOR Q5417 B1CHRE000005

TRANSISTOR Q5421 2SC584500L

TRANSISTOR Q5431 2SC584500L

TRANSISTOR Q5441 B1CFNG000001

TRANSISTOR Q5453 2SD0601A0L

TRANSISTOR Q5461 B1ADCE000022

TRANSISTOR Q5495 2SC584500L

TRANSISTOR Q5600 B1MBDDA00003

TRANSISTOR Q5601 B1MBDDA00003

TRANSISTOR Q5602 B1MBDDA00003

TRANSISTOR Q8200 2SD0601A0L

TRANSISTOR Q8401 2SD0601A0L

TRANSISTOR Q8402 2SD0601A0L

CHIP INDUCTOR L1100 J0JYC0000068

COIL L2001 G1C150KA0038

COIL L2010 G1C220MA0291

COIL L2012 G1C220MA0291

COIL L2014 G1C220MA0291

COIL L2016 G1C220MA0291

CHIP INDUCTOR L2018 J0JHC0000042

CHIP INDUCTOR L2032 J0JYC0000068

COIL L2750 J0JYC0000065

COIL L2751 J0JYC0000065

COIL L2752 J0JYC0000065

COIL L2754 J0JYC0000065

COIL L2755 J0JYC0000065

COIL L2756 J0JYC0000065

25

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

CHIP INDUCTOR L2901 J0JCC0000278

CHIP INDUCTOR L2902 J0JCC0000269

CHIP INDUCTOR L2904 J0JCC0000269

CHIP INDUCTOR L2907 J0JCC0000063

CHIP INDUCTOR L2908 J0JCC0000063

COIL L3002 J0JCC0000287

COIL L3003 J0JCC0000287

COIL L3004 J0JCC0000287

COIL L3005 J0JCC0000287

COIL L3006 J0JCC0000287

COIL L3007 J0JCC0000287

COIL L3008 J0JCC0000287

COIL L3009 J0JCC0000287

COIL L3010 J0JCC0000287

COIL L3011 J0JCC0000287

COIL L3014 J0JCC0000287

COIL L3015 J0JCC0000287

COIL L3017 J0JCC0000287

COIL L3018 J0JCC0000287

COIL L3026 J0JCC0000287

COIL L3027 J0JCC0000287

COIL L3028 J0JCC0000287

INDUCTOR L3700 J0JCC0000100

INDUCTOR L3701 J0JCC0000100

INDUCTOR L3702 J0JCC0000364

INDUCTOR L3703 J0JCC0000364

CHIP INDUCTOR L4201 J0JYC0000068

COIL L4208 G1C100MA0072

COIL BLM18PG121SN1DL4210 J0JHC0000045

CHIP INDUCTOR L4502 J0JYC0000068

CHIP INDUCTOR L4503 J0JYC0000068

CHIP INDUCTOR L4504 J0JYC0000068

CHIP INDUCTOR L4505 J0JYC0000068

CHIP INDUCTOR L4506 J0JYC0000068

CHIP INDUCTOR L4507 J0JYC0000068

CHIP INDUCTOR L4511 J0JYC0000068

CHIP INDUCTOR L4512 J0JCC0000059

CHIP INDUCTOR L4513 J0JCC0000059

CHIP INDUCTOR L4514 J0JYC0000068

CHIP INDUCTOR L4515 J0JYC0000068

CHIP INDUCTOR L4516 J0JYC0000068

CHIP INDUCTOR L4517 J0JYC0000068

CHIP INDUCTOR L4518 J0JYC0000068

CHIP INDUCTOR L4519 J0JYC0000068

CHIP INDUCTOR L4521 J0JYC0000068

CHIP INDUCTOR L4522 J0JYC0000068

CHIP INDUCTOR L4523 J0JYC0000068

COIL BLM18PG121SN1DL5430 J0JHC0000045

COIL L5443 G1C470MA0077

COIL L5444 G1C100MA0072

CHIP INDUCTOR L5480 J0JYC0000068

CHI

P INDUCT

COIL L5600 G1C2R2Z00007

COIL L5601 G1C3R3Z00004

COIL L5602 G1C4R7Z00014

COIL L5604 G1C100MA0203

COIL BLM18PG121SN1DL5605 J0JHC0000045

COIL L5608 G1C100MA0077

COIL BLM18PG121SN1DL8001 J0JHC0000045

COIL BLM18PG121SN1DL8002 J0JHC0000045

COIL BLM18PG121SN1DL8003 J0JHC0000045

COIL BLM18PG121SN1DL8004 J0JHC0000045

COIL BLM18PG121SN1DL8005 J0JHC0000045

COIL BLM18PG121SN1DL8007 J0JHC0000045

COIL BLM18PG121SN1DL8008 J0JHC0000045

COIL BLM18PG121SN1DL8009 J0JHC0000045

COIL BLM18PG121SN1DL8010 J0JHC0000045

COIL BLM18PG121SN1DL8011 J0JHC0000045

OR L5481 J0JYC0000068

FILTERS

CRYSTALS

RESISTORS

ERJ2GEJ331X .063W 5% 330 Ω

COIL BLM18PG121SN1DL8012 J0JHC0000045

COIL BLM18PG121SN1DL8013 J0JHC0000045

COIL BLM18PG121SN1DL8301 J0JHC0000045

INDUCTOR L8303 G1CR15JA0020

COIL BLM18PG121SN1DL8304 J0JHC0000045

COIL BLM18PG121SN1DL8501 J0JHC0000045

COIL BLM21PG600SN1DL8580 J0JHC0000075

FILTER FL4201 EXC28CE201U

FILTER FL4202 EXC28CE201U

FILTER FL4203 EXC28CE201U

FILTER FL4204 EXC28CE201U

FILTER FL4205 EXC28CE201U

FILTER FL4206 EXC28CE201U

CRYSTAL X1100 H0J100500035

CRYSTAL X2010 H0J245500089

CRYSTAL X8001 H0J270500120

CRYSTAL X8301 H0J300500027

SMDJS1000 ERJ2GE0R00X .063W - 0 Ω

SMDJS2500 ERJ2GE0R00X .063W - 0 Ω

SMDL8052 ERJ2GE0R00X .063W - 0 Ω

SMDR0180 ERJ2GEJ101X .063W 5% 100 Ω

SMDR0900 ERJ2GEJ680X .063W 5% 68 Ω

SMDR0901 EXB28V680JX .031W 5% 68 Ω

SMDR0902 ERJ2GEJ103X .063W 5% 10K Ω

SMDR0905 ERJ2GEJ103X .063W 5% 10K Ω

SMDR0906 ERJ2GEJ103X .063W 5% 10K Ω

SMDR0907 ERJ2GEJ103X .063W 5% 10K Ω

SMDR0909 ERJ2GEJ220X .063W 5% 22 Ω

SMDR0910 ERJ2GEJ220X .063W 5% 22 Ω

SMDR0911 ERJ2GEJ220X .063W 5% 22 Ω

SMDR0912 ERJ2GEJ220X .063W 5% 22 Ω

SMDR0913 ERJ2GEJ220X .063W 5% 22 Ω

SMDR0914 ERJ2GEJ220X .063W 5% 22 Ω

SMDR0915 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR0916 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR0917 ERJ2GEJ220X .063W 5% 22 Ω

SMDR0918 ERJ2GEJ220X .063W 5% 22 Ω

SMDR0919 ERJ2GEJ220X .063W 5% 22 Ω

SMDR0920 ERJ2GEJ220X .063W 5% 22 Ω

SMDR0927 ERJ2GE0R00X .063W - 0 Ω

SMDR0928 ERJ2GE0R00X .063W - 0 Ω

SMDR0929 ERJ2GEJ220X .063W 5% 22 Ω

SMDR0930 ERJ2GEJ220X .063W 5% 22 Ω

SMDR0933 ERJ2GE0R00X .063W - 0 Ω

SMDR0934 ERJ2GE0R00X .063W - 0 Ω

SMDR0935 ERJ2GEJ220X .063W 5% 22 Ω

SMDR0936 ERJ2GEJ220X .063W 5% 22 Ω

SMDR0937 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR0938 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR0939 ERJ2GE0R00X .063W - 0 Ω

SMDR0940 ERJ2GE0R00X .063W - 0 Ω

SM

DR0941

SMDR0942 ERJ2GEJ331X .063W 5% 330 Ω

SMDR0945 ERJ2GEJ220X .063W 5% 22 Ω

SMDR0946 ERJ2GEJ220X .063W 5% 22 Ω

SMDR0947 ERJ2GEJ680X .063W 5% 68 Ω

SMDR0948 ERJ2GEJ680X .063W 5% 68 Ω

SMDR0949 ERJ2GEJ680X .063W 5% 68 Ω

SMDR0950 ERJ2GEJ680X .063W 5% 68 Ω

SMDR0951 ERJ2GEJ680X .063W 5% 68 Ω

SMDR0952 ERJ2GEJ680X .063W 5% 68 Ω

SMDR0953 ERJ2GEJ680X .063W 5% 68 Ω

SMDR0954 ERJ2GEJ680X .063W 5% 68 Ω

SMDR0955 ERJ2GEJ472X .063W 5% 4K7 Ω

26

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR0956 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR0957 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR0958 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR0959 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR0960 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR0961 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR0962 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR0963 ERJ2GEJ103X .063W 5% 10K Ω

SMDR1146 ERJ2GEJ102X .063W 5% 1K Ω

SMDR1153 ERJ2GEJ471X .063W 5% 470 Ω

SMDR1163 ERJ2GEJ105X .063W 5% 1M Ω

SMDR1173 ERJ2GEJ331X .063W 5% 330 Ω

SMDR1179 ERJ2GE0R00X .063W - 0 Ω

SMDR1181 ERJ2GE0R00X .063W - 0 Ω

SMDR1182 ERJ2GEJ273X .063W 5% 27K Ω

SMDR1197 ERJ2GE0R00X .063W - 0 Ω

SMDR1203 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1209 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR1221 D1BB7151A055 0.1W 1% 7K15 Ω

SMDR1224 ERJ2GEJ103X .063W 5% 10K Ω

SMDR1225 ERJ2GEJ103X .063W 5% 10K Ω

SMDR1236 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1237 ERJ2GEJ102X .063W 5% 1K Ω

SMDR1243 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1255 ERJ2GEJ102X .063W 5% 1K Ω

SMDR1400 ERJ2GEJ103X .063W 5% 10K Ω

SMDR1401 ERJ2GEJ104X .063W 5% 100K Ω

SMDR1402 ERJ2GEJ683X .063W 5% 68K Ω

SMDR1403 ERJ2GEJ333X .063W 5% 33K Ω

SMDR1404 ERJ2GEJ683X .063W 5% 68K Ω

SMDR1405 ERJ2GEJ223X .063W 5% 22K Ω

SMDR1406 ERJ2GEJ683X .063W 5% 68K Ω

SMDR1407 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1409 ERJ2GEJ473X .063W 5% 47K Ω

ERJ2GEJ103X .063W 5% 10K Ω

SM

DR1410

SMDR1411 ERJ2GEJ104X .063W 5% 100K Ω

SMDR1422 ERJ2GEJ182X .063W 5% 1K8 Ω

SMDR2002 ERJ2GEJ102X .063W 5% 1K Ω

SMDR2003 ERJ2GEJ105X .063W 5% 1M Ω

SMDR2006 ERJ2GEJ471X .063W 5% 470 Ω

SMDR2007 ERJ2GEJ221X .063W 5% 220 Ω

SMDR2008 ERJ2GEJ471X .063W 5% 470 Ω

SMDR2015 ERJ2GEJ103X .063W 5% 10K Ω

SMDR2016 ERJ2GEJ103X .063W 5% 10K Ω

SMDR2017 ERJ2GEJ103X .063W 5% 10K Ω

SMDR2018 ERJ2GEJ103X .063W 5% 10K Ω

SMDR2019 D1BB2002A055 0.1W 1% 20K Ω

SMDR2020 D1BB2001A055 0.1W 1% 2K Ω

SMDR2023 ERJ2GEJ103X .063W 5% 10K Ω

SMDR2032 ERJ2GE0R00X .063W - 0 Ω

SMDR2047 D1BB2802A055 0.1W 1% 28K Ω

SMDR2048 D1BB2802A055 0.1W 1% 28K Ω

SMDR2050 D1BB2802A055 0.1W 1% 28K Ω

SMDR2051 D1BB2802A055 0.1W 1% 28K Ω

SMDR2063 ERJ2GE0R00X .063W - 0 Ω

SMDR2064 ERJ2GE0R00X .063W - 0 Ω

SMDR2092 ERJ2GEJ103X .063W 5% 10K Ω

SMDR2093 ERJ2GEJ103X .063W 5% 10K Ω

SMDR2110 ERJ2GEJ101X .063W 5% 100 Ω

SMDR2111 ERJ2GEJ101X .063W 5% 100 Ω

SMDR2114 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR2115 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR2118 ERJ2GEJ471X .063W 5% 470 Ω

SMDR2119 ERJ2GEJ105X .063W 5% 1M Ω

SMDR2120 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2121 ERJ8GEYJ3R3V 0.25W 5% 3R3 Ω

SMDR2122 ERJ2GEJ102X .063W 5% 1K Ω

SMDR2123 ERJ8GEYJ3R3V 0.25W 5% 3R3 Ω

2759 E

SM

ERJ2GEJ103X .063W 5% 10K Ω

RJ2GEJ101X .063W 5% 100 Ω

ERJ2GEJ101X .063W 5% 100 Ω

DR2124

SMDR2125 ERJ8GEYJ3R3V 0.25W 5% 3R3 Ω

SMDR2127 ERJ8GEYJ3R3V 0.25W 5% 3R3 Ω

SMDR2129 ERJ2GEJ100X .063W 5% 10 Ω

SMDR2132 ERJ2GEJ471X .063W 5% 470 Ω

SMDR2137 ERJ2GEJ100X .063W 5% 10 Ω

SMDR2141 ERJ2GEJ102X .063W 5% 1K Ω

SMDR2142 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR2172 ERJ2GEJ680X .063W 5% 68 Ω

SMDR2190 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR2316 EXB28V220JX .031W 5% 22 Ω

SMDR2325 ERJ2GE0R00X .063W - 0 Ω

SMDR2500 ERJ2RKF3000X .063W 1% 300 Ω

SMDR2501 ERJ2GEJ102X .063W 5% 1K Ω

SMDR2502 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2503 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2504 ERJ2GEJ223X .063W 5% 22K Ω

SMDR2505 ERJ2GEJ103X .063W 5% 10K Ω

SMDR2507 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2508 ERJ2GEJ103X .063W 5% 10K Ω

SMDR2509 ERJ2RKF5760X .063W 1% 576 Ω

SMDR2512 ERJ2GEJ470X .063W 5% 47 Ω

SMDR2514 ERJ2RKF1802X .063W 1% 18K Ω

SMDR2515 ERJ2RKF4702X .063W 1% 47K Ω

SMDR2516 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2517 ERJ2GEJ104X .063W 5% 100K Ω

SMDR2518 ERJ2GEJ103X .063W 5% 10K Ω

SMDR2751 D0GDR00Z0002 .125W - 0 Ω

SMDR2752 D0GDR00Z0002 .125W - 0 Ω

SMDR2755 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2756 ERJ2GEJ101X .063W 5% 100 Ω

SMDR2757 ERJ2GEJ101X .063W 5% 100 Ω

SMDR2758 ERJ2GEJ101X .063W 5% 100 Ω

SMDR

SMDR2760 ERJ2GEJ101X .063W 5% 100 Ω

SMDR2761 ERJ2GEJ101X .063W 5% 100 Ω

SMDR2762 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR2763 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2764 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2765 D0GDR00Z0002 .125W - 0 Ω

SMDR2774 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2777 ERJ2GEJ103X .063W 5% 10K Ω

SMDR2778 ERJ2GEJ103X .063W 5% 10K Ω

SMDR2779 ERJ3GEYJ751V 0.1W 5% 750 Ω

SMDR2780 ERJ3GEYJ751V 0.1W 5% 750 Ω

SMDR2903 D0GBR00Z0002 0.1W - 0 Ω

SMDR2905 ERJ2GE0R00X .063W - 0 Ω

SMDR2909 ERJ2GE0R00X .063W - 0 Ω

SMDR2915 ERJ2GEJ221X .063W 5% 220 Ω

SMDR2918 ERJ2GEJ101X .063W 5% 100 Ω

SMDR2927 ERJ2GE0R00X .063W - 0 Ω

SMDR2930 ERJ2GEJ153X .063W 5% 15K Ω

SMDR2931 D0GBR00Z0002 0.1W - 0 Ω

SMDR2941 ERJ2GE0R00X .063W - 0 Ω

SMDR2942 ERJ2GE0R00X .063W - 0 Ω

SMDR3000 ERJ2GEJ473X .063W 5% 47K Ω

SMDR3001 ERJ2GEJ473X .063W 5% 47K Ω

SMDR3002 ERJ2GEJ473X .063W 5% 47K Ω

SMDR3003 ERJ2GEJ473X .063W 5% 47K Ω

SMDR3004 ERJ2GEJ473X .063W 5% 47K Ω

SMDR3005 ERJ2GEJ473X .063W 5% 47K Ω

SMDR3006 ERJ2GEJ104X .063W 5% 100K Ω

SMDR3007 ERJ2GEJ104X .063W 5% 100K Ω

SMDR3008 ERJ2GEJ101X .063W 5% 100 Ω

SMDR3009 ERJ2GEJ101X .063W 5% 100 Ω

SMDR3010 ERJ2GEJ104X .063W 5% 100K Ω

SMDR3011 ERJ2GEJ104X .063W 5% 100K Ω

SM

DR3012

27

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR3013 ERJ2GEJ101X .063W 5% 100 Ω

SMDR3019 ERJ2GEJ101X .063W 5% 100 Ω

SMDR3021 ERJ2GEJ101X .063W 5% 100 Ω

SMDR3024 ERJ2GEJ104X .063W 5% 100K Ω

SMDR3025 ERJ2GEJ104X .063W 5% 100K Ω

SMDR3028 ERJ2GEJ331X .063W 5% 330 Ω

SMDR3029 ERJ2GEJ331X .063W 5% 330 Ω

SMDR3033 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3034 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3037 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3038 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3041 ERJ2GEJ331X .063W 5% 330 Ω

SMDR3042 ERJ2GEJ331X .063W 5% 330 Ω

SMDR3043 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3045 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3047 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3048 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3049 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3050 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3051 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3052 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3056 ERJ2GE0R00X .063W - 0 Ω

SMDR3057 ERJ2GE0R00X .063W - 0 Ω

SMDR3058 ERJ2GE0R00X .063W - 0 Ω

SMDR3072 D1BD1500A044 .125W 1% 150 Ω

SMDR3073 D1BD1500A044 .125W 1% 150 Ω

SMDR3074 D1BD1500A044 .125W 1% 150 Ω

SMDR3075 D1BD1500A044 .125W 1% 150 Ω

SMDR3076 D1BD1500A044 .125W 1% 150 Ω

SMDR3077 D1BD1500A044 .125W 1% 150 Ω

SMDR3079 D1BD1500A044 .125W 1% 150 Ω

SMDR3081 D1BD1500A044 .125W 1% 150 Ω

SMDR3082 D1BD1500A044 .125W 1% 150 Ω

SMDR3083 D1BD1500A044 .125W 1% 150 Ω

ERJ6ENF75R0 .125W 1% 75 Ω

SM

DR3084

SMDR3085 ERJ6ENF75R0 .125W 1% 75 Ω

SMDR3086 ERJ6ENF75R0 .125W 1% 75 Ω

SMDR3087 D1BD1500A044 .125W 1% 150 Ω

SMDR3089 ERJ2GEJ680X .063W 5% 68 Ω

SMDR3091 ERJ2RKF2152X .063W 1% 21K5 Ω

SMDR3092 ERJ2RKF2152X .063W 1% 21K5 Ω

SMDR3094 ERJ2RKF1302X .063W 1% 13K Ω

SMDR3097 D1BD1500A044 .125W 1% 150 Ω

SMDR3098 D1BD1500A044 .125W 1% 150 Ω

SMDR3100 ERJ2GEJ104X .063W 5% 100K Ω

SMDR3102 D1BD1500A044 .125W 1% 150 Ω

SMDR3104 D1BD1500A044 .125W 1% 150 Ω

SMDR3106 ERJ2GEJ273X .063W 5% 27K Ω

SMDR3108 ERJ2GEJ273X .063W 5% 27K Ω

SMDR3112 ERJ2GE0R00X .063W - 0 Ω

SMDR3113 ERJ2GE0R00X .063W - 0 Ω

SMDR3115 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3116 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3117 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3118 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3119 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3120 ERJ2GEJ331X .063W 5% 330 Ω

SMDR3121 ERJ6ENF75R0 .125W 1% 75 Ω

SMDR3123 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3128 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3132 ERJ2GEJ820X .063W 5% 82 Ω

SMDR3133 ERJ2GEJ820X .063W 5% 82 Ω

SMDR3134 ERJ2GEJ820X .063W 5% 82 Ω

SMDR3135 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3136 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3137 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3138 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3139 ERJ2GEJ221X .063W 5% 220 Ω

3233 E

SM

ERJ2GEJ221X .063W 5% 220 Ω

RJ2GE0R00X .063W - 0 Ω

ERJ2GEJ102X .063W 5% 1K Ω

DR3140

SMDR3143 ERJ2GEJ680X .063W 5% 68 Ω

SMDR3146 ERJ2GEJ331X .063W 5% 330 Ω

SMDR3150 ERJ2GEJ680X .063W 5% 68 Ω

SMDR3153 ERJ2GEJ680X .063W 5% 68 Ω

SMDR3167 ERJ6ENF75R0 .125W 1% 75 Ω

SMDR3169 ERJ2GEJ104X .063W 5% 100K Ω

SMDR3172 ERJ6ENF75R0 .125W 1% 75 Ω

SMDR3174 ERJ2GEJ104X .063W 5% 100K Ω

SMDR3182 ERJ2RKF1302X .063W 1% 13K Ω

SMDR3186 D1BD1500A044 .125W 1% 150 Ω

SMDR3187 D1BD1500A044 .125W 1% 150 Ω

SMDR3188 D1BD1500A044 .125W 1% 150 Ω

SMDR3189 ERJ2GEJ680X .063W 5% 68 Ω

SMDR3190 ERJ2GEJ680X .063W 5% 68 Ω

SMDR3191 ERJ2GEJ680X .063W 5% 68 Ω

SMDR3193 D1BD1500A044 .125W 1% 150 Ω

SMDR3198 D1BD1500A044 .125W 1% 150 Ω

SMDR3204 D1BD1500A044 .125W 1% 150 Ω

SMDR3205 D1BD1500A044 .125W 1% 150 Ω

SMDR3206 ERJ2GEJ220X .063W 5% 22 Ω

SMDR3207 ERJ2GEJ220X .063W 5% 22 Ω

SMDR3212 D1BD1500A044 .125W 1% 150 Ω

SMDR3213 D1BD1500A044 .125W 1% 150 Ω

SMDR3222 ERJ2GE0R00X .063W - 0 Ω

SMDR3223 ERJ2GEJ680X .063W 5% 68 Ω

SMDR3224 ERJ2GE0R00X .063W - 0 Ω

SMDR3225 ERJ2GEJ680X .063W 5% 68 Ω

SMDR3226 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR3227 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR3230 ERJ6ENF75R0 .125W 1% 75 Ω

SMDR3231 ERJ2GE0R00X .063W - 0 Ω

SMDR3232 ERJ6ENF75R0 .125W 1% 75 Ω

SMDR

SMDR3234 ERJ6ENF75R0 .125W 1% 75 Ω

SMDR3235 ERJ2GE0R00X .063W - 0 Ω

SMDR3236 ERJ2GEJ680X .063W 5% 68 Ω

SMDR3237 ERJ2GEJ680X .063W 5% 68 Ω

SMDR3240 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3245 ERJ2GEJ221X .063W 5% 220 Ω

SMDR3256 D0GDR00Z0002 .125W - 0 Ω

SMDR3281 ERJ2GE0R00X .063W - 0 Ω

SMDR3282 ERJ2GE0R00X .063W - 0 Ω

SMDR3283 ERJ2GE0R00X .063W - 0 Ω

SMDR3284 ERJ2GE0R00X .063W - 0 Ω

S.M.CARBR3700 ERJ6GEYJ393 0.1W 5% 39K Ω

S.M.CARBR3701 ERJ6GEYJ393 0.1W 5% 39K Ω

S.M.CARBR3702 ERJ6GEYJ184 0.1W 5% 180K Ω

S.M.CARBR3703 ERJ6GEYJ184 0.1W 5% 180K Ω

SMDR4277 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4284 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4285 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4286 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4294 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4300 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4305 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4306 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4309 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4310 ERJ2GEJ102X .063W 5% 1K Ω

SMDR4311 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4312 ERJ2GEJ302X .063W 5% 3K Ω

SMDR4315 ERJ2GEJ102X .063W 5% 1K Ω

SMDR4316 ERJ2GEJ102X .063W 5% 1K Ω

SMDR4317 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4318 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4319 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4320 ERJ2GEJ103X .063W 5% 10K Ω

SM

DR4321

28

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR4322 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4323 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4324 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4326 D1BD4871A044 .125W 1% 4K87 Ω

SMDR4327 ERJ2GEJ274X .063W 5% 270K Ω

SMDR4328 ERJ2GEJ102X .063W 5% 1K Ω

SMDR4329 ERJ2RKF3901X .063W 1% 3K9 Ω

SMDR4330 ERJ2GEJ100X .063W 5% 10 Ω

SMDR4331 ERJ2GE0R00X .063W - 0 Ω

SMDR4334 ERJ2GE0R00X .063W - 0 Ω

SMDR4335 ERJ2GE0R00X .063W - 0 Ω

SMDR4336 ERJ2GE0R00X .063W - 0 Ω

SMDR4337 ERJ2GE0R00X .063W - 0 Ω

SMDR4338 ERJ2GE0R00X .063W - 0 Ω

SMDR4352 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4357 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4359 ERJ2GE0R00X .063W - 0 Ω

SMDR4360 ERJ2GE0R00X .063W - 0 Ω

SMDR4367 ERJ2GE0R00X .063W - 0 Ω

SMDR4500 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4501 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4502 ERJ2GEJ330X .063W 5% 33 Ω

SMDR4503 ERJ2GEJ330X .063W 5% 33 Ω

SMDR4504 ERJ2GEJ102X .063W 5% 1K Ω

SMDR4505 ERJ2GEJ102X .063W 5% 1K Ω

SMDR4506 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4507 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4524 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4525 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4528 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4529 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4530 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4531 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4532 ERJ2GEJ473X .063W 5% 47K Ω

ERJ2GEJ473X .063W 5% 47K Ω

SM

DR4533

SMDR4534 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4538 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4539 ERJ2GE0R00X .063W - 0 Ω

SMDR4540 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4541 ERJ2GE0R00X .063W - 0 Ω

SMDR4542 ERJ2GE0R00X .063W - 0 Ω

SMDR4543 ERJ2GE0R00X .063W - 0 Ω

SMDR4546 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4552 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4587 D1BB60400001 0.1W 1% 604 Ω

SMDR4588 D1BB8060A055 0.1W 1% 806 Ω

SMDR4589 D1BB8060A055 0.1W 1% 806 Ω

SMDR4592 D1BB8060A055 0.1W 1% 806 Ω

SMDR4593 D1BB2201A055 0.1W 1% 2K2 Ω

S.M.CARBR4596 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR4597 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR4598 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR4601 ERJ6GEYJ102 0.1W 5% 1K Ω

SMDR4604 ERJ2GE0R00X .063W - 0 Ω

SMDR4605 D1BB2201A055 0.1W 1% 2K2 Ω

SMDR4607 ERJ2GE0R00X .063W - 0 Ω

S.M.CARBR4608 ERJ6GEYJ102 0.1W 5% 1K Ω

SMDR4609 ERJ2GEJ122X .063W 5% 1K2 Ω

SMDR4613 ERJ2GE0R00X .063W - 0 Ω

SMDR4614 ERJ2GE0R00X .063W - 0 Ω

SMDR4615 ERJ2GE0R00X .063W - 0 Ω

SMDR4616 ERJ2GE0R00X .063W - 0 Ω

SMDR4620 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4622 ERJ2GEJ102X .063W 5% 1K Ω

SMDR4623 ERJ2GE0R00X .063W - 0 Ω

SMDR4624 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4626 D1BB2200A055 0.1W 1% 220 Ω

SMDR4627 D1BB2200A055 0.1W 1% 220 Ω

4733 E

SM

D1BB4990A055 0.1W 1% 499 Ω

RJ2GEJ103X .063W 5% 10K Ω

ERJ2GEJ473X .063W 5% 47K Ω

DR4631

SMDR4634 D1BB2200A055 0.1W 1% 220 Ω

SMDR4635 EXB28V680JX .031W 5% 68 Ω

SMDR4636 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4637 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4638 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4639 EXB28V680JX .031W 5% 68 Ω

SMDR4640 EXB28V680JX .031W 5% 68 Ω

SMDR4641 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4642 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4645 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4646 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4648 EXB28V330JX .031W 5% 33 Ω

SMDR4649 EXB28V680JX .031W 5% 68 Ω

SMDR4650 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4651 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4652 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4656 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR4664 D1BB60400001 0.1W 1% 604 Ω

SMDR4665 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4666 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4672 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4674 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4677 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4678 EXB28V680JX .031W 5% 68 Ω

SMDR4679 EXB28V680JX .031W 5% 68 Ω

SMDR4698 ERJ2GEJ104X .063W 5% 100K Ω

SMDR4699 ERJ2GEJ104X .063W 5% 100K Ω

SMDR4700 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4707 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4728 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4729 ERJ2GEJ330X .063W 5% 33 Ω

SMDR4732 ERJ2GEJ473X .063W 5% 47K Ω

SMDR

SMDR4734 ERJ2GEJ102X .063W 5% 1K Ω

SMDR4735 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4736 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4738 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4739 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4740 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4742 ERJ2GE0R00X .063W - 0 Ω

SMDR4743 ERJ2GE0R00X .063W - 0 Ω

SMDR4799 EXB28V680JX .031W 5% 68 Ω

SMDR4862 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4863 ERJ2GEJ103X .063W 5% 10K Ω

SMDR5407 ERJ2GEJ103X .063W 5% 10K Ω

SMDR5408 ERJ2GEJ473X .063W 5% 47K Ω

SMDR5409 ERJ2GEJ103X .063W 5% 10K Ω

SMDR5410 ERJ2GEJ103X .063W 5% 10K Ω

SMDR5411 ERJ2RKF5361X .063W 1% 5K36 Ω

SMDR5412 ERJ2RKF1501X .063W 1% 1K5 Ω

SMDR5414 ERJ2RKF6342X .063W 1% 63K4 Ω

SMDR5415 ERJ2RKF1002X .063W 1% 10K Ω

SMDR5421 ERJ2GEJ103X .063W 5% 10K Ω

SMDR5422 ERJ2GEJ473X .063W 5% 47K Ω

SMDR5423 ERJ2GEJ563X .063W 5% 56K Ω

SMDR5424 ERJ2GEJ223X .063W 5% 22K Ω

SMDR5425 ERJ2GEJ103X .063W 5% 10K Ω

SMDR5431 ERJ2GEJ103X .063W 5% 10K Ω

SMDR5432 ERJ2GEJ473X .063W 5% 47K Ω

SMDR5433 ERJ2GEJ333X .063W 5% 33K Ω

SMDR5434 ERJ2GEJ223X .063W 5% 22K Ω

SMDR5435 ERJ12YJ471U 0.5W 5% 470 Ω

SMDR5441 ERJ6ENF8202V .125W 1% 82K Ω

SMDR5442 D1BD1602A044 .125W 1% 16K Ω

S.M.CARBR5443 ERJ6GEY0R00 0.1W - 0 Ω

SMDR5449 ERJ2GE0R00X .063W - 0 Ω

SM

DR5461

29

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR5462 ERJ2GEJ274X .063W 5% 270K Ω

SMDR5463 ERJ2GEJ105X .063W 5% 1M Ω

SMDR5469 ERJ2GEJ203X .063W 5% 20K Ω

SMDR5470 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR5474 ERJ2GE0R00X .063W - 0 Ω

SMDR5475 ERJ2GEJ103X .063W 5% 10K Ω

SMDR5476 ERJ2GEJ153X .063W 5% 15K Ω

SMDR5479 ERJ2GE0R00X .063W - 0 Ω

SMDR5480 ERJ2GEJ473X .063W 5% 47K Ω

SMDR5481 ERJ2GEJ101X .063W 5% 100 Ω

SMDR5482 ERJ2GEJ470X .063W 5% 47 Ω

SMDR5483 ERJ2GEJ563X .063W 5% 56K Ω

SMDR5484 ERJ2GEJ203X .063W 5% 20K Ω

SMDR5485 ERJ2GEJ101X .063W 5% 100 Ω

SMDR5486 ERJ2GEJ103X .063W 5% 10K Ω

SMDR5487 ERJ2GEJ473X .063W 5% 47K Ω

SMDR5488 ERJ2GEJ183X .063W 5% 18K Ω

SMDR5489 ERJ2GEJ333X .063W 5% 33K Ω

SMDR5490 ERJ2GEJ472X .063W 5% 4K7 Ω

S.M.CARBR5491 ERJ6GEYJ331 0.1W 5% 330 Ω

SMDR5492 ERJ2GEJ680X .063W 5% 68 Ω

SMDR5493 ERJ2GEJ223X .063W 5% 22K Ω

SMDR5494 ERJ2GEJ683X .063W 5% 68K Ω

SMDR5495 ERJ2GEJ103X .063W 5% 10K Ω

SMDR5496 ERJ2GEJ473X .063W 5% 47K Ω

SMDR5497 ERJ2GEJ473X .063W 5% 47K Ω

SMDR5498 ERJ2GE0R00X .063W - 0 Ω

SMDR5499 ERJ2GEJ102X .063W 5% 1K Ω

SMDR5603 D1BB2402A055 0.1W 1% 24K Ω

SMDR5604 D1BB4752A055 0.1W 1% 47K5 Ω

CHIP RESR5605 D1BB2702A055 0.1W 1% 27K Ω

SMDR5610 ERJ2GEJ5R6X .063W 5% 5R6 Ω

SMDR5620 ERJ2GEJ680X .063W 5% 68 Ω

CHIP RESR5629 D1BB2702A055 0.1W 1% 27K Ω

D1BB2402A055 0.1W 1% 24K Ω

SM

DR5630

SMDR5631 D1BB5102A055 0.1W 1% 51K Ω

SMDR5632 D1BB3002A055 0.1W 1% 30K Ω

SMDR5633 D1BB1602A055 0.1W 1% 16K Ω

SMDR5634 D1BB2002A055 0.1W 1% 20K Ω

SMDR5635 ERJ2GEJ5R6X .063W 5% 5R6 Ω

SMDR8004 D1BB2402A055 0.1W 1% 24K Ω

SMDR8005 D1BB1002A055 0.1W 1% 10K Ω

SMDR8006 D1BB2402A055 0.1W 1% 24K Ω

SMDR8007 D0GBR00Z0002 0.1W - 0 Ω

SMDR8026 ERJ2GE0R00X .063W - 0 Ω

SMDR8027 ERJ2GE0R00X .063W - 0 Ω

SMDR8030 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8031 ERJ2RKF1001X .063W 1% 1K Ω

SMDR8032 ERJ2RKF1001X .063W 1% 1K Ω

SMDR8056 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8057 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8058 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8059 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8060 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8061 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8062 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8063 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8064 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8065 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8066 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8067 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8068 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8069 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8070 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8071 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8072 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8073 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8074 ERJ2GEJ221X .063W 5% 220 Ω

8317 E

SM

ERJ2GEJ470X .063W 5% 47 Ω

RJ2GE0R00X .063W - 0 Ω

ERJ2GEJ223X .063W 5% 22K Ω

DR8075

SMDR8076 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8077 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8078 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8081 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8082 ERJ2RKF75R0X .063W 1% 75 Ω

SMDR8083 ERJ2GEJ301X .063W 5% 300 Ω

SMDR8086 ERJ2GEJ104X .063W 5% 100K Ω

SMDR8091 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8093 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8096 ERJ2GEJ820X .063W 5% 82 Ω

SMDR8097 ERJ2GEJ221X .063W 5% 220 Ω

SMDR8100 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8101 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8109 ERJ2GEJ222X .063W 5% 2K2 Ω

S.M.CARBR8214 ERJ8GEY0R00 .125W - 0 Ω

SMDR8244 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8245 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8272 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8301 EXB2HV680JV .063W 5% 68 Ω

SMDR8303 ERJ2GE0R00X .063W - 0 Ω

SMDR8304 ERJ2GE0R00X .063W - 0 Ω

SMDR8305 ERJ2GEJ102X .063W 5% 1K Ω

SMDR8306 ERJ2GE0R00X .063W - 0 Ω

SMDR8307 ERJ2GE0R00X .063W - 0 Ω

SMDR8308 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8310 ERJ2GE0R00X .063W - 0 Ω

SMDR8311 ERJ2GE0R00X .063W - 0 Ω

SMDR8312 ERJ2GEJ102X .063W 5% 1K Ω

SMDR8313 ERJ2GEJ225X .063W 5% 2M2 Ω

SMDR8314 ERJ2GE0R00X .063W - 0 Ω

SMDR8315 ERJ2GE0R00X .063W - 0 Ω

SMDR8316 ERJ2GE0R00X .063W - 0 Ω

SMDR

SMDR8319 ERJ2GE0R00X .063W - 0 Ω

SMDR8321 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8322 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR8323 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR8324 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR8325 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8326 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8327 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8328 ERJ2GEJ103X .063W 5% 10K Ω

S.M.CARBR8330 ERJ8GEY0R00 .125W - 0 Ω

SMDR8332 EXB2HV101JV .063W 5% 100 Ω

SMDR8333 EXB2HV101JV .063W 5% 100 Ω

SMDR8335 EXB2HV680JV .063W 5% 68 Ω

SMDR8336 EXB2HV680JV .063W 5% 68 Ω

SMDR8337 EXB28V680JX .031W 5% 68 Ω

SMDR8338 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8339 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8340 ERJ2GE0R00X .063W - 0 Ω

SMDR8345 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8347 ERJ2GE0R00X .063W - 0 Ω

SMDR8353 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8354 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8356 ERJ2GE0R00X .063W - 0 Ω

SMDR8392 ERJ2GE0R00X .063W - 0 Ω

SMDR8395 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8404 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8405 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8406 D0GFR10JA020 0.25W 5% R1 Ω

SMDR8407 ERJ2GEJ473X .063W 5% 47K Ω

SMDR8410 ERJ2GEJ223X .063W 5% 22K Ω

SMDR8411 ERJ2GEJ223X .063W 5% 22K Ω

SMDR8412 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8415 ERJ2GEJ222X .063W 5% 2K2 Ω

SM

DR8416

30

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR8417 ERJ2GEJ104X .063W 5% 100K Ω

SMDR8418 ERJ2GEJ681X .063W 5% 680 Ω

SMDR8421 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8422 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8423 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8424 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8425 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8426 EXB2HV680JV .063W 5% 68 Ω

SMDR8428 EXB2HV680JV .063W 5% 68 Ω

SMDR8430 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8431 ERJ2GEJ151X .063W 5% 150 Ω

SMDR8432 ERJ2GEJ151X .063W 5% 150 Ω

SMDR8433 ERJ2GEJ223X .063W 5% 22K Ω

SMDR8434 ERJ2GEJ473X .063W 5% 47K Ω

SMDR8435 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8436 ERJ2GEJ103X .063W 5% 10K Ω

CHIP RESR8437 EXB2HV104JV .063W 5% 100K Ω

SMDR8438 ERJ2GEJ104X .063W 5% 100K Ω

SMDR8439 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8440 ERJ2GEJ104X .063W 5% 100K Ω

SMDR8441 EXB2HV680JV .063W 5% 68 Ω

SMDR8442 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8445 ERJ2GEJ104X .063W 5% 100K Ω

SMDR8446 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8449 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8450 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8453 EXB2HV680JV .063W 5% 68 Ω

SMDR8454 EXB28V151JX .031W 5% 150 Ω

SMDR8455 EXB2HV680JV .063W 5% 68 Ω

SMDR8456 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8457 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8458 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8459 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8460 ERJ2GEJ680X .063W 5% 68 Ω

ERJ2GEJ680X .063W 5% 68 Ω

SM

DR8461

SMDR8463 EXB28V151JX .031W 5% 150 Ω

SMDR8464 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8465 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8466 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8467 EXB28V151JX .031W 5% 150 Ω

SMDR8468 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8469 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8470 EXB28V151JX .031W 5% 150 Ω

SMDR8471 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8476 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8477 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8479 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8487 EXB28V680JX .031W 5% 68 Ω

SMDR8488 EXB28V680JX .031W 5% 68 Ω

SMDR8489 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8491 ERJ2GEJ223X .063W 5% 22K Ω

SMDR8493 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8494 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR8496 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR8501 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8502 ERJ2GEJ331X .063W 5% 330 Ω

SMDR8503 ERJ2GEJ331X .063W 5% 330 Ω

SMDR8504 ERJ2GEJ331X .063W 5% 330 Ω

SMDR8506 ERJ2GEJ331X .063W 5% 330 Ω

SMDR8508 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8510 D1BB1600A055 0.1W 1% 160 Ω

SMDR8511 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR8512 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR8514 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8515 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR8516 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR8517 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8520 ERJ2GEJ103X .063W 5% 10K Ω

8630 E

SM

ERJ2GEJ680X .063W 5% 68 Ω

RJ2GEJ103X .063W 5% 10K Ω

EXB2HV680JV .063W 5% 68 Ω

DR8558

SMDR8575 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8576 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8577 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8578 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8581 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8598 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8599 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8600 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8601 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8602 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8603 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8604 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8605 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8606 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8607 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8608 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8609 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8610 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8611 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8612 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8613 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8614 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8615 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8616 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8617 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8618 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8619 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8620 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8626 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8627 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8628 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8629 ERJ2GEJ103X .063W 5% 10K Ω

SMDR

SMDR8634 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8635 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8638 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8639 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8640 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8641 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8642 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8644 ERJ2GE0R00X .063W - 0 Ω

SMDR8645 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8646 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8647 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8652 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8653 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8654 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8658 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8660 ERJ2GE0R00X .063W - 0 Ω

SMDR8661 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8663 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8665 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR8666 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8667 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8670 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR8671 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR8672 EXB2HV680JV .063W 5% 68 Ω

SMDR8673 EXB2HV680JV .063W 5% 68 Ω

SMDR8674 EXB2HV103JV .063W 5% 10K Ω

SMDR8675 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR8677 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8678 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR8679 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR8680 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR8681 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR8683 ERJ2GEJ680X .063W 5% 68 Ω

SM

DR8688

31

ERJ2GEJ103X .063W 5% 10K Ω

CAPACITORS

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR8689 EXB2HV680JV .063W 5% 68 Ω

SMDR8690 EXB2HV680JV .063W 5% 68 Ω

SMDR8691 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8692 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8696 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8697 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR8703 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8712 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8715 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8716 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8718 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8719 EXB28V103JX .031W 5% 10K Ω

SMDR8722 EXB28V103JX .031W 5% 10K Ω

SMDR8723 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8724 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8725 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8726 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8729 ERJ2GEJ121X .063W 5% 120 Ω

SMDR8730 ERJ2GEJ121X .063W 5% 120 Ω

SMDR8732 ERJ2GEJ121X .063W 5% 120 Ω

SMDR8733 ERJ2GEJ121X .063W 5% 120 Ω

SMDR8734 ERJ2GEJ121X .063W 5% 120 Ω

SMDR8735 ERJ2GEJ121X .063W 5% 120 Ω

SMDR8736 ERJ2GEJ121X .063W 5% 120 Ω

SMDR8738 ERJ2GEJ121X .063W 5% 120 Ω

SMDR8739 ERJ2GEJ121X .063W 5% 120 Ω

SMDR8740 ERJ2GEJ121X .063W 5% 120 Ω

SMDR8742 EXB2HV121JV .063W 5% 120 Ω

SMDR8745 EXB2HV121JV .063W 5% 120 Ω

SMDR8746 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8747 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8750 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8751 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8765 ERJ2GEJ103X .063W 5% 10K Ω

SM

DR8767

SMDR8768 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8770 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8802 ERJ2GE0R00X .063W - 0 Ω

SMDR8803 ERJ2GEJ330X .063W 5% 33 Ω

SMDR8804 ERJ2GEJ330X .063W 5% 33 Ω

SMDR8805 ERJ2GEJ330X .063W 5% 33 Ω

SMDR8806 ERJ2GEJ330X .063W 5% 33 Ω

SMDR8807 ERJ2GEJ330X .063W 5% 33 Ω

SMDR8808 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8855 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8856 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8857 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8858 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8859 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8860 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8862 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8864 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8898 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8899 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8954 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8959 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8960 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8963 ERJ2GEJ103X .063W 5% 10K Ω

S.M.CAPC1009 F1G1A105A047 10V 1000nF

S.M.CAPC1040 F1G1H102A730 50V 1nF

S.M.CAPC1041 F1G1H102A730 50V 1nF

S.M.CAPC1043 F1G1H102A730 50V 1nF

S.M.CAPC1044 F1G1H102A730 50V 1nF

S.M.CAPC1045 F1G1H102A730 50V 1nF

S.M.CAPC1047 F1G1H102A730 50V 1nF

S.M.CAPC1050 F1G1H102A730 50V 1nF

C2117 F1G1C104A116 16V 100nF

S.M.CAPC1051 F1G1H102A730 50V 1nF

S.M.CAPC1052 F1G1H102A730 50V 1nF

S.M.CAPC1053 F1G1H102A730 50V 1nF

S.M.CAPC1102 F1J1A106A043 10V 10µF

S.M.CAPC1103 F1G1C104A116 16V 100nF

S.M.CAPC1104 F1G1C104A116 16V 100nF

S.M.CAPC1105 F1H1A1050032 10V 1000nF

S.M.CAPC1106 F1H1H330A971 50V 33pF

S.M.CAPC1107 F1G1H220A731 50V 22pF

S.M.CAPC1108 F1G1C104A116 16V 100nF

S.M.CAPC1109 F1H1A1050032 10V 1000nF

S.M.CAPC1111 F1H1A1050032 10V 1000nF

S.M.CAPC1112 F1G1C104A116 16V 100nF

S.M.CAPC1114 F1G1C104A116 16V 100nF

S.M.CAPC1117 F1G1C104A116 16V 100nF

S.M.CAPC1122 F1G1E103A123 25V 10nF

S.M.CAPC1123 F1H1A1050032 10V 1000nF

S.M.CAPC2023 F1G1C104A116 16V 100nF

S.M.CAPC2049 F1G1C104A116 16V 100nF

S.M.CAPC2050 F1G1C104A116 16V 100nF

S.M.CAPC2055 F1G1H120A731 50V 12pF

S.M.CAPC2056 F1G1H180A731 50V 18pF

S.M.CAPC2058 F1G1C104A116 16V 100nF

S.M.CAPC2059 F1J1A106A043 10V 10µF

S.M.CAPC2091 F1G1H470A731 50V 47pF

S.M.CAPC2092 F1G1H220A731 50V 22pF

S.M.CAPC2096 F1G1C104A116 16V 100nF

ELECTC2098 EEEHB0J221UP 6.3V 220µF

ELECTC2099 EEEHB0J221UP 6.3V 220µF

S.M.CAPC2102 F1G1C104A116 16V 100nF

S.M.CAPC2105 F1G1C104A116 16V 100nF

S.M.CAPC2106 F1G1C104A116 16V 100nF

S.M.CAPC2107 F1J1A106A043 10V 10µF

S.M.CAPC2108 F1J1A106A043 10V 10µF

S.M.CAPC2109 F1G1C104A116 16V 100nF

S.M.CAPC2110 F1G1C104A116 16V 100nF

S.M.CAPC2111 F1J1A475A039 10V 4.7µF

S.M.CAPC2112 F1J1A106A043 10V 10µF

S.M.CAPC2113 F1J1A106A043 10V 10µF

S.M.CAPC2114 F1G1C104A116 16V 100nF

S.M.CAPC2115 F1G1C104A116 16V 100nF

S.M.CAP

S.

CAPC2118 F1J1A475A039 10V 4.7µF

M.

S.M.CAPC2120 F1G1H560A731 50V 56pF

S.M.CAPC2121 F1G1H560A731 50V 56pF

S.M.CAPC2122 F1G1C103A116 16V 10nF

S.M.CAPC2123 F1G1C103A116 16V 10nF

S.M.CAPC2124 F1G1C104A116 16V 100nF

S.M.CAPC2125 F1G1C103A116 16V 10nF

S.M.CAPC2127 F1G1C103A116 16V 10nF

S.M.CAPC2128 F1G1C103A116 16V 10nF

S.M.CAPC2129 F1G1C103A116 16V 10nF

S.M.CAPC2135 F1G1C103A116 16V 10nF

S.M.CAPC2136 F1G1C103A116 16V 10nF

S.M.CAPC2137 F1J1A106A043 10V 10µF

S.M.CAPC2192 F1J1A106A043 10V 10µF

S.M.CAPC2216 F1G1C104A116 16V 100nF

S.M.CAPC2244 F1G1C104A116 16V 100nF

S.M.CAPC2245 F1G1H102A730 50V 1nF

S.M.CAPC2251 F1J1A106A043 10V 10µF

S.M.CAPC2261 F1J1A106A043 10V 10µF

S.M.CAPC2262 F1J1A106A043 10V 10µF

S.M.CAPC2263 F1J1A106A043 10V 10µF

S.M.CAPC2264 F1J1A106A043 10V 10µF

S.M.CAPC2301 F1G1C104A116 16V 100nF

S.M.CAPC2302 F1G1C104A116 16V 100nF

S.M.CAPC2303 F1J1E105A171 25V 1µF

S.M.CAPC2305 F1J1E105A171 25V 1µF

32

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

S.M.CAPC2309 F1J1E105A171 25V 1µF

S.M.CAPC2313 F1H1A1050032 10V 1000nF

S.M.CAPC2317 F1H1H104A970 50V 100nF

S.M.CAPC2319 F1H1H104A970 50V 100nF

S.M.CAPC2321 F1H1H104A970 50V 100nF

S.M.CAPC2323 F1H1H104A970 50V 100nF

S.M.CAPC2325 F1J1H474A757 50V 470nF

S.M.CAPC2331 F1J1H474A757 50V 470nF

S.M.CAPC2333 F1H1E104A129 25V 100nF

S.M.CAPC2335 F1H1E104A129 25V 100nF

S.M.CAPC2337 F1H1H223A970 50V 22nF

S.M.CAPC2339 F1H1H223A970 50V 22nF

S.M.CAPC2341 F1H1E104A129 25V 100nF

S.M.CAPC2343 F1H1E104A129 25V 100nF

S.M.CAPC2345 F1H1H223A970 50V 22nF

S.M.CAPC2347 F1H1H223A970 50V 22nF

S.M.CAPC2353 F1G1H102A730 50V 1nF

S.M.CAPC2359 F1G1H102A730 50V 1nF

ELECTC2361 F2G1E4710007 25V 470µF

S.M.CAPC2362 F1K1E106A136 25V 10µF

S.M.CAPC2375 F1H1H223A970 50V 22nF

S.M.CAPC2377 F1H1H223A970 50V 22nF

S.M.CAPC2379 F1H1H223A970 50V 22nF

S.M.CAPC2381 F1H1H223A970 50V 22nF

S.M.CAPC2383 F1G1H102A730 50V 1nF

S.M.CAPC2385 F1G1H102A730 50V 1nF

S.M.CAPC2387 F1G1H102A730 50V 1nF

S.M.CAPC2389 F1G1H102A730 50V 1nF

S.M.CAPC2390 F1J1E105A171 25V 1µF

ELECTC2501 F2G0J470A019 6.3V 47µF

S.M.CAPC2502 F1G1C103A116 16V 10nF

S.M.CAPC2505 F1H1C104A143 16V 100nF

ELECTC2506 F2G0J220A019 6.3V 22µF

S.M.CAPC2750 F1G1C104A116 16V 100nF

S.M.CAPC2751 F1G1H102A730 50V 1nF

S.M.CAPC2752 F1G1H102A730 50V 1nF

S.M.CAPC2753 F1G1H102A730 50V 1nF

S.M.CAPC2754 F1G1H102A730 50V 1nF

S.M.CAPC2755 F1G1H102A730 50V 1nF

S.M.CAPC2756 F1G1H102A730 50V 1nF

S.M.CAPC2757 F1G1H102A730 50V 1nF

S.M.CAPC2758 F1H1E104A129 25V 100nF

S.M.CAPC2759 F1G1C104A116 16V 100nF

S.M.CAPC2760 F1K1C1060004 16V 10µF

S.M.CAPC2761 F1G1C104A116 16V 100nF

S.M.CAPC2763 F1G1H102A730 50V 1nF

S.M.CAPC2766 F1G1C104A116 16V 100nF

S.M.CAPC2767 F1G1C104A116 16V 100nF

S.M.CAPC2780 F1G1H101A731 50V 100pF

S.M.CAPC2902 F1H1H222A970 50V 2.2nF

S.M.CAPC2906 F1H1C104A143 16V 100nF

S.

M.

CAPC2907 F1H1C104A143 16V 100nF

S.M.CAPC2908 F1G1C104A116 16V 100nF

S.M.CAPC2909 F1H1A1050032 10V 1000nF

ELECTC2912 F2H0J1010009 6.3V 100µF

S.M.CAPC2914 F1H1H104A970 50V 100nF

S.M.CAPC2916 F1H1C104A143 16V 100nF

S.M.CAPC2920 F1H1H103A970 50V 10nF

S.M.CAPC2922 F1H1C104A143 16V 100nF

S.M.CAPC2923 F1H1C104A143 16V 100nF

S.M.CAPC2927 F1H1H100A971 50V 10pF

S.M.CAPC2928 F1H1H100A971 50V 10pF

S.M.CAPC2929 F1G1H102A730 50V 1nF

S.M.CAPC2937 F1G1H103A735 50V 10nF

S.M.CAPC2942 F1H1H102A970 50V 1nF

S.M.CAPC2943 F1H1H102A970 50V 1nF

S.M.CAPC3002 F1G1H561A730 50V 560pF

S.M.CAPC3003 F1G1H561A730 50V 560pF

3070 F1J1A

106A043 10V 10µF

S.M.CAPC3004 F1G1H561A730 50V 560pF

S.M.CAPC3005 F1G1H561A730 50V 560pF

S.M.CAPC3007 F1G1H561A730 50V 560pF

S.M.CAPC3008 F1G1H561A730 50V 560pF

S.M.CAPC3009 F1G1H561A730 50V 560pF

S.M.CAPC3010 F1G1H561A730 50V 560pF

S.M.CAPC3011 F1G1H561A730 50V 560pF

S.M.CAPC3012 F1G1H561A730 50V 560pF

S.M.CAPC3013 F1G1H561A730 50V 560pF

S.M.CAPC3014 F1G1H561A730 50V 560pF

S.M.CAPC3018 F1J1A106A043 10V 10µF

S.M.CAPC3019 F1J1A106A043 10V 10µF

S.M.CAPC3020 F1J1A106A043 10V 10µF

S.M.CAPC3021 F1J1A106A043 10V 10µF

S.M.CAPC3022 F1H1A1050032 10V 1000nF

S.M.CAPC3023 F1G1C104A116 16V 100nF

S.M.CAPC3024 F1H1A1050032 10V 1000nF

S.M.CAPC3025 F1H1A1050032 10V 1000nF

S.M.CAPC3026 F1H1A1050032 10V 1000nF

S.M.CAPC3027 F1J1A106A043 10V 10µF

S.M.CAPC3028 F1J1A106A043 10V 10µF

S.M.CAPC3029 F1J1A106A043 10V 10µF

S.M.CAPC3030 F1J1A106A043 10V 10µF

S.M.CAPC3039 F1H1A1050032 10V 1000nF

S.M.CAPC3041 F1H1A1050032 10V 1000nF

S.M.CAPC3043 F1H1A1050032 10V 1000nF

S.M.CAPC3044 F1H1A1050032 10V 1000nF

S.M.CAPC3046 F1H1A1050032 10V 1000nF

S.M.CAPC3047 F1H1A1050032 10V 1000nF

S.M.CAPC3048 F1H1A1050032 10V 1000nF

S.M.CAPC3049 F1H1A1050032 10V 1000nF

S.M.CAPC3064 F1G1H102A730 50V 1nF

S.M.CAPC3065 F1G1H102A730 50V 1nF

S.M.CAPC

S.M.CAPC3071 F1J1A106A043 10V 10µF

S.M.CAPC3072 F1G1C104A116 16V 100nF

S.M.CAPC3073 F1J1A106A043 10V 10µF

S.M.CAPC3074 F1J1A106A043 10V 10µF

S.M.CAPC3075 F1H1A1050032 10V 1000nF

S.M.CAPC3077 F1G1C104A116 16V 100nF

S.M.CAPC3078 F1J1A106A043 10V 10µF

S.M.CAPC3083 F1J1A106A043 10V 10µF

S.M.CAPC3084 F1J1A106A043 10V 10µF

S.M.CAPC3085 F1J1A106A043 10V 10µF

S.M.CAPC3086 F1J1A106A043 10V 10µF

S.M.CAPC3087 F1J1A106A043 10V 10µF

S.M.CAPC3088 F1J1A106A043 10V 10µF

S.M.CAPC3089 F1J1A106A043 10V 10µF

S.M.CAPC3090 F1J1A106A043 10V 10µF

S.M.CAPC3091 F1J1A106A043 10V 10µF

S.M.CAPC3092 F1J1A106A043 10V 10µF

ELECTC3095 F2G1A101A019 10V 100µF

ELECTC3097 F2G1A101A019 10V 100µF

ELECTC3102 F2G1A101A019 10V 100µF

ELECTC3103 F2G1A101A019 10V 100µF

S.M.CAPC3107 F1J1A106A043 10V 10µF

S.M.CAPC3108 F1J1A106A043 10V 10µF

S.M.CAPC3109 F1J1A106A043 10V 10µF

S.M.CAPC3114 F1J1A106A043 10V 10µF

S.M.CAPC3115 F1J1A106A043 10V 10µF

S.M.CAPC3116 F1J1A106A043 10V 10µF

S.M.CAPC3117 F1J1A106A043 10V 10µF

S.M.CAPC3139 F1G1C104A116 16V 100nF

S.M.CAPC3140 F1G1C104A116 16V 100nF

S.M.CAPC3141 F1G1C104A116 16V 100nF

S.M.CAPC3143 F1G1C104A116 16V 100nF

S.M.CAPC3144 F1J1A106A043 10V 10µF

S.M.CAPC3145 F1G1C104A116 16V 100nF

33

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

S.M.CAPC3146 F1J1A106A043 10V 10µF

S.M.CAPC3147 F1J1A106A043 10V 10µF

S.M.CAPC3260 F1G1H561A730 50V 560pF

S.M.CAPC3261 F1G1H561A730 50V 560pF

S.M.CAPC3262 F1G1H561A730 50V 560pF

S.M.CAPC3263 F1G1H561A730 50V 560pF

S.M.CAPC3701 F1H1H102A970 50V 1nF

S.M.CAPC3703 F1H1H102A970 50V 1nF

S.M.CAPC3704 F1H1H392A970 50V 3900nF

S.M.CAPC3706 F1H1H392A970 50V 3900nF

S.M.CAPC4239 F1J1A106A043 10V 10µF

S.M.CAPC4240 F1J1A106A043 10V 10µF

ELECTC4241 F2G0J220A019 6.3V 22µF

S.M.CAPC4243 F1G1C104A116 16V 100nF

S.M.CAPC4250 F1H1H103A970 50V 10nF

S.M.CAPC4251 F1H1H103A970 50V 10nF

ELECTC4252 F2G1C470A022 16V 47µF

S.M.CAPC4500 F1G1C104A116 16V 100nF

S.M.CAPC4501 F1G1C104A116 16V 100nF

S.M.CAPC4502 F1G1C104A116 16V 100nF

S.M.CAPC4503 F1G1C104A116 16V 100nF

S.M.CAPC4533 F1G1H680A731 50V 68pF

S.M.CAPC4534 F1G1C104A116 16V 100nF

S.M.CAPC4535 F1G1C104A116 16V 100nF

S.M.CAPC4537 F1G1C104A116 16V 100nF

S.M.CAPC4547 F1G1C104A116 16V 100nF

S.M.CAPC4548 F1G1C104A116 16V 100nF

S.M.CAPC4549 F1G1C104A116 16V 100nF

S.M.CAPC4550 F1G1C104A116 16V 100nF

S.M.CAPC4551 F1G1C104A116 16V 100nF

S.M.CAPC4552 F1G1C104A116 16V 100nF

S.M.CAPC4553 F1G1H102A730 50V 1nF

ELECTC4554 F2G1C470A022 16V 47µF

S.M.CAPC4555 F1J1A106A043 10V 10µF

S.M.CAPC4567 F1G1C104A116 16V 100nF

S.M.CAPC4574 F1G1C104A116 16V 100nF

S.M.CAPC4575 F1G1C104A116 16V 100nF

S.M.CAPC4580 F1G1C104A116 16V 100nF

S.M.CAPC4585 F1G1C104A116 16V 100nF

S.M.CAPC4595 F1G1C104A116 16V 100nF

S.M.CAPC4598 F1J1A106A043 10V 10µF

S.M.CAPC4599 F1J1A106A043 10V 10µF

S.M.CAPC4600 F1G1C104A116 16V 100nF

S.M.CAPC4601 F1J1A106A043 10V 10µF

S.M.CAPC4602 F1G1C104A116 16V 100nF

S.M.CAPC4603 F1J1A475A039 10V 4.7µF

S.M.CAPC4605 F1J1A475A039 10V 4.7µF

S.M.CAPC4606 F1J1A475A039 10V 4.7µF

S.M.CAPC4607 F1J1A475A039 10V 4.7µF

S.M.CAPC4608 F1G1C104A116 16V 100nF

S.M.CAPC4613 F1H0J1050012 6.3V 1000nF

S.

M.

CAPC4616 F1J1A475A039 10V 4.7µF

S.M.CAPC4617 F1J1A475A039 10V 4.7µF

S.M.CAPC4624 F1G1C104A116 16V 100nF

S.M.CAPC4625 F1G1C104A116 16V 100nF

S.M.CAPC4626 F1G1C104A116 16V 100nF

S.M.CAPC4628 F1G1C104A116 16V 100nF

S.M.CAPC4629 F1G1C104A116 16V 100nF

S.M.CAPC4630 F1G1C104A116 16V 100nF

S.M.CAPC4631 F1J1A106A043 10V 10µF

S.M.CAPC4632 F1G1C104A116 16V 100nF

S.M.CAPC4633 F1J1A106A043 10V 10µF

S.M.CAPC4634 F1G1C104A116 16V 100nF

S.M.CAPC4635 F1J1A106A043 10V 10µF

S.M.CAPC4636 F1G1C104A116 16V 100nF

S.M.CAPC4637 F1G1C104A116 16V 100nF

S.M.CAPC4638 F1G1C104A116 16V 100nF

S.M.CAPC4640 F1G1C104A116 16V 100nF

5612 F1K

1C1060004 16V 10µF

S.M.CAPC4642 F1G1C104A116 16V 100nF

S.M.CAPC4643 F1G1C104A116 16V 100nF

S.M.CAPC4644 F1G1C104A116 16V 100nF

S.M.CAPC4645 F1G1C104A116 16V 100nF

S.M.CAPC4702 F1G1C104A116 16V 100nF

S.M.CAPC4703 F1G1C104A116 16V 100nF

S.M.CAPC5408 F1J1A106A043 10V 10µF

S.M.CAPC5410 F1J1E105A171 25V 1µF

S.M.CAPC5414 F1J1E105A171 25V 1µF

S.M.CAPC5415 F1J1E105A171 25V 1µF

S.M.CAPC5421 F1J1A106A043 10V 10µF

S.M.CAPC5431 F1J1E105A171 25V 1µF

ELECTC5441 F2G1C100A022 16V 10µF

ELECTC5443 F2G1V100A020 35V 10µF

S.M.CAPC5444 F1H1H102A970 50V 1nF

S.M.CAPC5464 F1H1A1050032 10V 1000nF

S.M.CAPC5480 F1G1C103A116 16V 10nF

S.M.CAPC5481 F1H1A1050032 10V 1000nF

S.M.CAPC5483 F1J1A106A043 10V 10µF

S.M.CAPC5486 F1G1C473A081 16V 47nF

S.M.CAPC5487 F1H1C105A008 16V 1000nF

S.M.CAPC5488 F1G1C473A081 16V 47nF

S.M.CAPC5489 F1J1A106A043 10V 10µF

S.M.CAPC5492 F1G1C104A116 16V 100nF

S.M.CAPC5493 F1H1A1050032 10V 1000nF

S.M.CAPC5494 F1H1C105A145 16V 1000nF

ELECTC5602 F2H0J1010009 6.3V 100µF

S.M.CAPC5603 F1G1C104A116 16V 100nF

S.M.CAPC5604 ECJ0EB1E682K 25V 6.8nF

S.M.CAPC5605 F1J1A475A039 10V 4.7µF

S.M.CAPC5606 F1H1C105A145 16V 1000nF

S.M.CAPC5607 F1G1H221A459 50V 220pF

S.M.CAPC5611 F1K1C1060004 16V 10µF

S.M.CAPC

S.M.CAPC5615 F1K1C1060004 16V 10µF

S.M.CAPC5616 F1G1C273A081 16V 27nF

S.M.CAPC5618 F1K1C1060004 16V 10µF

S.M.CAPC5619 F1K1C1060004 16V 10µF

S.M.CAPC5620 F1H1C104A143 16V 100nF

S.M.CAPC5621 F1G1E103A123 25V 10nF

S.M.CAPC5622 F1J1A475A039 10V 4.7µF

S.M.CAPC5623 F1G1H221A459 50V 220pF

S.M.CAPC5624 F1G1H471A730 50V 470pF

S.M.CAPC5626 F1G1C104A116 16V 100nF

S.M.CAPC5627 F1G1C104A116 16V 100nF

ELECTC5628 ECGRL0E680ER 2.5V 68µF

ELECTC5629 ECGRL0E680ER 2.5V 68µF

ELECTC5631 F2G1C470A022 16V 47µF

S.M.CAPC5632 F1H1C105A145 16V 1000nF

S.M.CAPC5636 F1G1C104A116 16V 100nF

S.M.CAPC5637 F1G1C104A116 16V 100nF

S.M.CAPC5638 F1G1C104A116 16V 100nF

S.M.CAPC5639 F1G1C104A116 16V 100nF

S.M.CAPC5640 F1G1C104A116 16V 100nF

S.M.CAPC5641 F1G1C104A116 16V 100nF

S.M.CAPC5642 F1K1C1060004 16V 10µF

S.M.CAPC5643 F1H1C104A143 16V 100nF

S.M.CAPC5644 F1H1C105A145 16V 1000nF

S.M.CAPC8003 F1H0J1050012 6.3V 1000nF

S.M.CAPC8005 F1H0J1050012 6.3V 1000nF

S.M.CAPC8006 F1G1C104A116 16V 100nF

S.M.CAPC8007 F1G1C104A116 16V 100nF

S.M.CAPC8008 F1G1C104A116 16V 100nF

S.M.CAPC8009 F1J1A106A043 10V 10µF

S.M.CAPC8010 F1J1A106A043 10V 10µF

S.M.CAPC8011 F1G1C104A116 16V 100nF

S.M.CAPC8012 F1G1C104A116 16V 100nF

S.M.CAPC8013 F1G1C104A116 16V 100nF

34

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

S.M.CAPC8014 F1G1C104A116 16V 100nF

S.M.CAPC8015 F1H0J1050012 6.3V 1000nF

S.M.CAPC8016 F1H0J1050012 6.3V 1000nF

S.M.CAPC8017 F1J1A106A043 10V 10µF

S.M.CAPC8018 F1G1C104A116 16V 100nF

S.M.CAPC8019 F1G1C104A116 16V 100nF

S.M.CAPC8020 F1G1C104A116 16V 100nF

S.M.CAPC8021 F1G1C104A116 16V 100nF

S.M.CAPC8022 F1H0J1050012 6.3V 1000nF

S.M.CAPC8023 F1J1A106A043 10V 10µF

S.M.CAPC8024 F1J1A106A043 10V 10µF

S.M.CAPC8025 F1G1C104A116 16V 100nF

S.M.CAPC8026 F1G1C104A116 16V 100nF

S.M.CAPC8027 F1G1C104A116 16V 100nF

S.M.CAPC8028 F1G1C104A116 16V 100nF

S.M.CAPC8029 F1G1C104A116 16V 100nF

S.M.CAPC8030 F1H0J1050012 6.3V 1000nF

S.M.CAPC8031 F1H0J1050012 6.3V 1000nF

S.M.CAPC8032 F1J1A106A043 10V 10µF

S.M.CAPC8033 F1G1C104A116 16V 100nF

S.M.CAPC8034 F1G1C104A116 16V 100nF

S.M.CAPC8035 F1J1A106A043 10V 10µF

S.M.CAPC8036 F1J1A106A043 10V 10µF

S.M.CAPC8037 F1G1C104A116 16V 100nF

S.M.CAPC8038 F1G1C104A116 16V 100nF

S.M.CAPC8039 F1G1C104A116 16V 100nF

S.M.CAPC8040 F1G1C104A116 16V 100nF

S.M.CAPC8041 F1G1C104A116 16V 100nF

ELECTC8042 ECGRL0G680ER 4V 68µF

S.M.CAPC8043 F1G1C104A116 16V 100nF

S.M.CAPC8044 F1G1C104A116 16V 100nF

S.M.CAPC8045 F1G1C104A116 16V 100nF

S.M.CAPC8046 F1G1C104A116 16V 100nF

S.M.CAPC8047 F1G1C104A116 16V 100nF

S.M.CAPC8048 F1G1C104A116 16V 100nF

S.M.CAPC8049 F1G1C104A116 16V 100nF

S.M.CAPC8050 F1G1C104A116 16V 100nF

S.M.CAPC8051 F1G1C104A116 16V 100nF

S.M.CAPC8052 F1H0J1050012 6.3V 1000nF

S.M.CAPC8053 F1G1C103A116 16V 10nF

S.M.CAPC8054 F1G1H120A731 50V 12pF

S.M.CAPC8055 F1G1HR50A577 50V 0.5pF

S.M.CAPC8056 F1G1C104A116 16V 100nF

S.M.CAPC8057 F1G1C104A116 16V 100nF

S.M.CAPC8058 F1J1A106A043 10V 10µF

S.M.CAPC8063 F1H0J1050012 6.3V 1000nF

S.M.CAPC8064 F1H0J1050012 6.3V 1000nF

S.M.CAPC8065 F1G1C104A116 16V 100nF

S.M.CAPC8067 F1G1C104A116 16V 100nF

S.M.CAPC8069 F1G1H102A730 50V 1nF

S.M.CAPC8070 F1G1C104A116 16V 100nF

S.

M.

CAPC8071 F1G1C104A116 16V 100nF

S.M.CAPC8072 F1G1C104A116 16V 100nF

S.M.CAPC8073 F1G1C104A116 16V 100nF

S.M.CAPC8074 F1G1C104A116 16V 100nF

S.M.CAPC8075 F1J1A106A043 10V 10µF

S.M.CAPC8076 F1G1C104A116 16V 100nF

S.M.CAPC8077 F1G1C104A116 16V 100nF

S.M.CAPC8078 F1G1C104A116 16V 100nF

S.M.CAPC8079 F1G1C104A116 16V 100nF

S.M.CAPC8080 F1G1C104A116 16V 100nF

S.M.CAPC8081 F1G1C104A116 16V 100nF

S.M.CAPC8082 F1G1H102A730 50V 1nF

S.M.CAPC8083 F1G1C104A116 16V 100nF

S.M.CAPC8084 F1G1H102A730 50V 1nF

S.M.CAPC8085 F1G1C104A116 16V 100nF

S.M.CAPC8086 F1G1C104A116 16V 100nF

S.M.CAPC8087 F1G1C104A116 16V 100nF

8332 F1G1C

104A116 16V 100nF

S.M.CAPC8088 F1G1C104A116 16V 100nF

S.M.CAPC8089 F1G1C104A116 16V 100nF

S.M.CAPC8090 F1G1C104A116 16V 100nF

S.M.CAPC8092 F1G1C104A116 16V 100nF

S.M.CAPC8093 F1G1C104A116 16V 100nF

S.M.CAPC8094 F1G1C104A116 16V 100nF

S.M.CAPC8095 F1G1C104A116 16V 100nF

S.M.CAPC8096 F1G1C104A116 16V 100nF

S.M.CAPC8097 F1G1C104A116 16V 100nF

S.M.CAPC8098 F1G1C104A116 16V 100nF

S.M.CAPC8099 F1G1C104A116 16V 100nF

S.M.CAPC8100 F1G1C104A116 16V 100nF

S.M.CAPC8101 F1G1C104A116 16V 100nF

S.M.CAPC8102 F1G1C104A116 16V 100nF

S.M.CAPC8201 F1G1C104A116 16V 100nF

S.M.CAPC8202 F1G1C104A116 16V 100nF

S.M.CAPC8306 F1G1A4740003 10V 470nF

S.M.CAPC8307 F1G1C104A116 16V 100nF

S.M.CAPC8309 F1G1C104A116 16V 100nF

S.M.CAPC8311 F1G1H120A731 50V 12pF

S.M.CAPC8312 F1G1H120A731 50V 12pF

S.M.CAPC8313 F1G1C104A116 16V 100nF

S.M.CAPC8314 F1G1C104A116 16V 100nF

S.M.CAPC8316 F1G1C271A117 16V 270pF

S.M.CAPC8317 F1G1C271A117 16V 270pF

S.M.CAPC8319 F1G1C104A116 16V 100nF

S.M.CAPC8320 F1G1C104A116 16V 100nF

S.M.CAPC8321 F1G1C104A116 16V 100nF

S.M.CAPC8327 F1H1A225A051 10V 2200nF

S.M.CAPC8328 F1H1A1050032 10V 1000nF

S.M.CAPC8329 F1G1C104A116 16V 100nF

S.M.CAPC8330 F1G1C104A116 16V 100nF

S.M.CAPC8331 F1G1C104A116 16V 100nF

S.M.CAPC

S.M.CAPC8333 F1G1C104A116 16V 100nF

S.M.CAPC8334 F1G1C104A116 16V 100nF

S.M.CAPC8335 F1G1C104A116 16V 100nF

S.M.CAPC8336 F1G1C104A116 16V 100nF

S.M.CAPC8340 F1G1C104A116 16V 100nF

S.M.CAPC8343 F1G1C104A116 16V 100nF

S.M.CAPC8344 F1G1C104A116 16V 100nF

S.M.CAPC8345 F1G1C104A116 16V 100nF

S.M.CAPC8346 F1G1C104A116 16V 100nF

S.M.CAPC8405 F1G1C104A116 16V 100nF

S.M.CAPC8408 F1G1C104A116 16V 100nF

S.M.CAPC8409 F1G1C104A116 16V 100nF

S.M.CAPC8410 F1G1C104A116 16V 100nF

ELECTC8411 F2G1A101A019 10V 100µF

S.M.CAPC8412 F1G1C104A116 16V 100nF

S.M.CAPC8413 F1G1C104A116 16V 100nF

S.M.CAPC8414 F1G1C104A116 16V 100nF

S.M.CAPC8415 F1G1C104A116 16V 100nF

S.M.CAPC8416 F1G1E103A123 25V 10nF

S.M.CAPC8417 F1G1E103A123 25V 10nF

S.M.CAPC8418 F1G1C104A116 16V 100nF

S.M.CAPC8508 F1G1C103A116 16V 10nF

S.M.CAPC8510 F1J1A106A043 10V 10µF

ELECTC8532 F2G1C470A022 16V 47µF

S.M.CAPC8533 F1G1C104A116 16V 100nF

S.M.CAPC8535 F1G1C103A116 16V 10nF

S.M.CAPC8544 F1J0G2260001 4V 22µF

S.M.CAPC8580 F1G1C104A116 16V 100nF

S.M.CAPC8581 F1G1C104A116 16V 100nF

S.M.CAPC8582 F1G1C104A116 16V 100nF

S.M.CAPC8583 F1G1C104A116 16V 100nF

S.M.CAPC8584 F1G1C104A116 16V 100nF

S.M.CAPC8619 F1G1H102A730 50V 1nF

S.M.CAPC8800 F1G1H102A730 50V 1nF

35

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

TERMI NALS AND LI NKS

4P CONNECTOR A01 K1KA04B00273

23P CONNECTOR A03 K1KY23AA0607

11P CONNECTOR A04 K1KB11AA0032

8P CONNECTOR A10 K1KA08B00270

51P CONNECTOR A11 K1KB51B00003

4P CONNECTOR A12 K1KA04AA0190

5P CONNECTOR A20 K1KA05A00466

WIRE A20-P4 TXJA20PDD-1

8P CONNECTOR CN0100 K1KA08AA0714

OPT TERMINAL D3015 K7AAAY000005

11P CONNECTOR G04 K1KA11A00124

PC TERMINAL JK3001 K1FY315A0003

SCART TERMINAL JK3002 K1FB121A0017

SCART TERMINAL JK3003 K1FB121A0017

YUV TERMINAL_AUDO I/OJK3100 K2HA7YYA0003

AV3 TERMINAL JK3700 K4AK16B00001

HDMI CONNECTOR JK4500 K1FY119D0006

HDMI CONNECTOR JK4501 K1FY119D0006

HDMI CONNECTOR JK4502 K1FY119E0005

SD SLOT JK8302 K1NA09E00080

CI SLOT JK8401 K1NA68B00053

8P CONNECTOR V10 K1KA08B00270

DIFFERENCES FOR MODEL TX--L32S10B

EXPLODED VIEW

A P.C.B. 18 A-L32S10B

AC CORD 19 K2CT2YY00026

BACK COVER ASSY 20 TTU0E0518-4

CABINET ASSY 21 TTY0E0443

LCD BOTTOM MTG 22 TUA0E6300

LCD PANEL 23 L5EDD8T00004

MODEL LABEL 24 TBM0E1804

P UNIT 25 N0AC3FJ00001

PEDESTAL ASSY 26 TBLA0408

VESA METAL ASSY 27 TXFKZ010PJB

X

MISCELLANEOUS COMPONENTS

REAR AV LABEL_TOP. TBM0E9033

FELT (0.9X50X19) . TMK0E150

BOTTOM CUSHION BOTCUS TPD0E2068

CARTON CARTON TPC0E55101A

SUPPORT MOLD A CK311 TMMX246

SUPPORT MOLD A CK313 TMMX246

TOP CUSHION TOPCUS TPD0E1085

INSTRUCTION BOOKS

ENGLISH . TQB0E0783

I.C.s

EEPROM PEAKS-AVC IC8502 X24CL32S10B

RESISTORS

SMDJS1014 ERJ2GE0R00X .063W - 0 Ω

TERMI NALS AND LI NKS

WIRE A01-S01 TXJA01PDD-2

WIRE A10-V10 TXJA10PDD-2

LVDS WIRE A11-PAN K1PY51Y00019

WIRE A12-SP TXJA12PDD-1

DIFFERENCES FOR MODEL TX--L32S10E

EXPLODED VIEW

A P.C.B. 18 A-L32S10E

AC CORD 19 K2CQ2YY00030

BACK COVER ASSY 20 TTU0E0518-4

CABINET ASSY 21 TTY0E0443

LCD BOTTOM MTG 22 TUA0E6300

X

RTL

LCD PANEL 23 L5EDD8T00004

MODEL LABEL 24 TBM0E1783

P UNIT 25 N0AC3FJ00001

PEDESTAL ASSY 26 TBLA0408

VESA METAL ASSY 27 TXFKZ010PJB

MISCELLANEOUS COMPONENTS

REAR AV LABEL_TOP. TBM0E9016

BOTTOM CUSHION BOTCUS TPD0E2068

CARTON CARTON TPC0E55101A

SUPPORT MOLD A CK311 TMMX246

SUPPORT MOLD A CK313 TMMX246

TOP CUSHION TOPCUS TPD0E1085

INSTRUCTION BOOKS

GERMAN . TQB0E0780A

DUTCH . TQB0E0780B

ITALIAN . TQB0E0780C

FRENCH . TQB0E0780D

SPANISH . TQB0E0780E

SWEDISH . TQB0E0780F

NORWEGIAN . TQB0E0780G

FINNISH . TQB0E0780H

LITHUANIAN . TQB0E0780I

PORTUGUESE . TQB0E0780J

DANISH . TQB0E0780K

BULGARIAN . TQB0E0780M

ROMANIAN . TQB0E0780N

LATVIAN . TQB0E0780O

POLISH . TQB0E0780P

HUNGARIAN . TQB0E0780Q

CZECH . TQB0E0780R

GREEK . TQB0E0780S

TURKISH . TQB0E0780T

ENGLISH . TQB0E0780U

CROATIAN . TQB0E0780V

SLOVAKIAN . TQB0E0780W

CD ROM . TQB0E0780X

ESTONIAN . TQB0E0780Z

I.C.s

EEPROM PEAKS-AVC IC8502 X24CL32S10E

TERMI NALS AND LI NKS

WIRE A01-S01 TXJA01PDD-2

WIRE A10-V10 TXJA10PDD-2

LVDS WIRE A11-PAN K1PY51Y00019

WIRE A12-SP TXJA12PDD-1

DIFFERENCES FOR MODEL TX--L32S10L

EXPLODED VIEW

A P.C.B. 18 A-L32S10L

AC CORD 19 K2CT2YY00026

BACK COVER ASSY 20 TTU0E0518-4

CABINET ASSY 21 TTY0E0443

LCD BOTTOM MTG 22 TUA0E6300

LCD PANEL 23 L5EDD8T00004

MODEL LABEL 24 TBM0E1788

P UNIT 25 N0AC3FJ00001

PEDESTAL ASSY 26 TBLA0408

VESA METAL ASSY 27 TXFKZ010PJB

MISCELLANEOUS COMPONENTS

REAR AV LABEL_TOP. TBM0E9034

FELT (0.9X50X19) . TMK0E150

BOTTOM CUSHION BOTCUS TPD0E2068

CARTON CARTON TPC0E55101A

SUPPORT MOLD A CK311 TMMX246

SUPPORT MOLD A CK313 TMMX246

TOP CUSHION TOPCUS TPD0E1085

X

RTL

36

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

INSTRUCTION BOOKS

ENGLISH . TQB0E0778

I.C.s

EEPROM PEAKS-AVC IC8502 X24CL32S10L

TERMI NALS AND LI NKS

WIRE A01-S01 TXJA01PDD-2

WIRE A10-V10 TXJA10PDD-2

LVDS WIRE A11-PAN K1PY51Y00019

WIRE A12-SP TXJA12PDD-1

DIFFERENCES FOR MODEL TX--L37S10B

EXPLODED VIEW

A P.C.B. 18 A-L37S10B

AC CORD 19 K2CT2YY00025

BACK COVER ASSY 20 TTU0E0519-2

CABINET ASSY 21 TTY0E0434

LCD BOTTOM MTG 22 TUA0E6100

LCD PANEL 23 L5EDD9T00009

MODEL LABEL 24 TBM0E1803

P UNIT 25 N0AC3FJ00002

PEDESTAL ASSY 26 TBLA0412

VESA METAL ASSY 27 TXFKZ010PSC

X

MISCELLANEOUS COMPONENTS

REAR AV LABEL_TOP. TBM0E9033

FELT . TMK0E118

FELT (0.9X50X19) . TMK0E150

SCREW . XTS4+12GFN

BOTTOM CUSHION BOTCUS TPD0E2069

CARTON CARTON TPC0E55201A

SUPPORT MOLD C CK312 TMME344

SUPPORT MOLD C CK313 TMME344

SUPPORT MOLD A CK316 TMMX246

SUPPORT MOLD A CK318 TMMX246

TOP CUSHION TOPCUS TPD0E1086

INSTRUCTION BOOKS

ENGLISH . TQB0E0783

I.C.s

EEPROM PEAKS-AVC IC8502 X24CL37S10B

RESISTORS

SMDJS1014 ERJ2GE0R00X .063W - 0 Ω

TERMI NALS AND LI NKS

WIRE A01-S01 TXJA01PCD-2

WIRE A10-V10 TXJA10PCD-2

LVDS WIRE A11-PAN K1PY51Y00021

WIRE A12-SP TXJA12PCD-1

DIFFERENCES FOR MODEL TX--L37S10E

EXPLODED VIEW

A P.C.B. 18 A-L37S10E

AC CORD 19 K2CQ2YY00029

BACK COVER ASSY 20 TTU0E0519-2

CABINET ASSY 21 TTY0E0434

LCD BOTTOM MTG 22 TUA0E6100

LCD PANEL 23 L5EDD9T00009

MODEL LABEL 24 TBM0E1782

P UNIT 25 N0AC3FJ00002

PEDESTAL ASSY 26 TBLA0412

VESA METAL ASSY 27 TXFKZ010PSC

MISCELLANEOUS COMPONENTS

REAR AV LABEL_TOP. TBM0E9016

FELT . TMK0E118

SCREW . XTS4+12GFN

X

RTL

BOTTOM CUSHION BOTCUS TPD0E2069

CARTON CARTON TPC0E55201A

SUPPORT MOLD C CK312 TMME344

SUPPORT MOLD C CK313 TMME344

SUPPORT MOLD A CK316 TMMX246

SUPPORT MOLD A CK318 TMMX246

TOP CUSHION TOPCUS TPD0E1086

INSTRUCTION BOOKS

GERMAN . TQB0E0780A

DUTCH . TQB0E0780B

ITALIAN . TQB0E0780C

FRENCH . TQB0E0780D

SPANISH . TQB0E0780E

SWEDISH . TQB0E0780F

NORWEGIAN . TQB0E0780G

FINNISH . TQB0E0780H

LITHUANIAN . TQB0E0780I

PORTUGUESE . TQB0E0780J

DANISH . TQB0E0780K

BULGARIAN . TQB0E0780M

ROMANIAN . TQB0E0780N

LATVIAN . TQB0E0780O

POLISH . TQB0E0780P

HUNGARIAN . TQB0E0780Q

CZECH . TQB0E0780R

GREEK . TQB0E0780S

TURKISH . TQB0E0780T

ENGLISH . TQB0E0780U

CROATIAN . TQB0E0780V

SLOVAKIAN . TQB0E0780W

CD ROM . TQB0E0780X

ESTONIAN . TQB0E0780Z

I.C.s

EEPROM PEAKS-AVC IC8502 X24CL37S10E

TERMI NALS AND LI NKS

WIRE A01-S01 TXJA01PCD-2

WIRE A10-V10 TXJA10PCD-2

LVDS WIRE A11-PAN K1PY51Y00021

WIRE A12-SP TXJA12PCD-1

DIFFERENCES FOR MODEL TX--L37S10L

EXPLODED VIEW

A P.C.B. 18 A-L37S10L

AC CORD 19 K2CT2YY00025

BACK COVER ASSY 20 TTU0E0519-2

CABINET ASSY 21 TTY0E0434

LCD BOTTOM MTG 22 TUA0E6100

LCD PANEL 23 L5EDD9T00009

MODEL LABEL 24 TBM0E1787

P UNIT 25 N0AC3FJ00002

PEDESTAL ASSY 26 TBLA0412

VESA METAL ASSY 27 TXFKZ010PSC

MISCELLANEOUS COMPONENTS

REAR AV LABEL_TOP. TBM0E9034

FELT . TMK0E118

FELT (0.9X50X19) . TMK0E150

SCREW . XTS4+12GFN

BOTTOM CUSHION BOTCUS TPD0E2069

CARTON CARTON TPC0E55201A

SUPPORT MOLD C CK312 TMME344

SUPPORT MOLD C CK313 TMME344

SUPPORT MOLD A CK316 TMMX246

SUPPORT MOLD A CK318 TMMX246

TOP CUSHION TOPCUS TPD0E1086

X

RTL

37

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

INSTRUCTION BOOKS

ENGLISH . TQB0E0778

I.C.s

EEPROM PEAKS-AVC IC8502 X24CL37S10L

TERMI NALS AND LI NKS

WIRE A01-S01 TXJA01PCD-2

WIRE A10-V10 TXJA10PCD-2

LVDS WIRE A11-PAN K1PY51Y00021

WIRE A12-SP TXJA12PCD-1

DIFFERENCES FOR MODEL TX--LF32S10

EXPLODED VIEW

A P.C.B. 18 A-LF32S10

AC CORD 19 K2CQ2YY00030

BACK COVER ASSY 20 TTU0E0518-4

CABINET ASSY 21 TTY0E0443

LCD BOTTOM MTG 22 TUA0E6300

LCD PANEL 23 L5EDD8T00004

MODEL LABEL 24 TBM0E1692

P UNIT 25 N0AC3FJ00001

PEDESTAL ASSY 26 TBLA0408

VESA METAL ASSY 27 TXFKZ010PJB

MISCELLANEOUS COMPONENTS

REAR AV LABEL_TOP. TBM0E9016

BOTTOM CUSHION BOTCUS TPD0E2068

CARTON CARTON TPC0E55101A

SUPPORT MOLD A CK311 TMMX246

SUPPORT MOLD A CK313 TMMX246

TOP CUSHION TOPCUS TPD0E1085

INSTRUCTION BOOKS

FRENCH . TQB0E0767D

ENGLISH . TQB0E0767U

I.C.s

EEPROM PEAKS-AVC IC8502 X24CLF32S10

TERMI NALS AND LI NKS

WIRE A01-S01 TXJA01PDD-2

WIRE A10-V10 TXJA10PDD-2

LVDS WIRE A11-PAN K1PY51Y00019

WIRE A12-SP TXJA12PDD-1

X

INSTRUCTION BOOKS

FRENCH . TQB0E0767D

ENGLISH . TQB0E0767U

I.C.s

EEPROM PEAKS-AVC IC8502 X24CLF37S10

TERMI NALS AND LI NKS

WIRE A01-S01 TXJA01PCD-2

WIRE A10-V10 TXJA10PCD-2

LVDS WIRE A11-PAN K1PY51Y00021

WIRE A12-SP TXJA12PCD-1

RTL

DIFFERENCES FOR MODEL TX--LF37S10

EXPLODED VIEW

A P.C.B. 18 A-LF37S10

AC CORD 19 K2CQ2YY00029

BACK COVER ASSY 20 TTU0E0519-2

CABINET ASSY 21 TTY0E0434

LCD BOTTOM MTG 22 TUA0E6100

LCD PANEL 23 L5EDD9T00009

MODEL LABEL 24 TBM0E1691

P UNIT 25 N0AC3FJ00002

PEDESTAL ASSY 26 TBLA0412

VESA METAL ASSY 27 TXFKZ010PSC

MISCELLANEOUS COMPONENTS

REAR AV LABEL_TOP. TBM0E9016

FELT . TMK0E118

SCREW . XTS4+12GFN

BOTTOM CUSHION BOTCUS TPD0E2069

CARTON CARTON TPC0E55201A

SUPPORT MOLD C CK312 TMME344

SUPPORT MOLD C CK313 TMME344

SUPPORT MOLD A CK316 TMMX246

SUPPORT MOLD A CK318 TMMX246

TOP CUSHION TOPCUS TPD0E1086

X

RTL

38

Schematic Diagrams

NOTE

1. RESISTOR All resistors are carbon ¼W resistor, unless marked otherwise. Unit of resistance is OHM (Ω) (k=1,000, M=1,000,000)

2. CAPACITORS All capacitors are ceramic 50V unless marked otherwise. Unit of capacitance is μF unless otherwise stated.

3. COIL Unit of inductance is μH, unless otherwise stated.

4. TEST POINT Test Point Position

5. EARTH SYMBOL Chassis Earth (Cold) Line Earth (Hot)

6. VOLTAGE MEASUREMENT Voltage is measured by a D.C. voltmeter. Measurement conditions are as follows: Power source 220V-240V AC, 50Hz Receiving Signal Colour Bar signal (RF) All customer controls Maximum position

7. Indicates the Video signal path Indicates the Audio signal path

These schematic diagrams are the latest at time of printing and are subject to change without notice.

REMARKS

a. Do not touch the hot part, or the hot and cold parts at the same time, as you are liable to a shock hazard. b. Do not short circuit the hot and cold circuits as electrical components may be damaged.

c. Do not connect an instrument, such as an oscilloscope, to the hot and cold circuits simultaneously as this may cause

fuse failure. Connect the earth of the instruments to the earth connection of the circuit being measured.

d. Make sure to disconnect the power plug before removing the chassis.

NOTE

1. The Power Supply Circuit contains a circuit area, which uses a separate power supply to isolate the earth connection.

The circuit is defined by HOT and COLD indications i n the schematic diagr am. All circuits, except the Power Circuit, are COLD.

Components identified by mark have special characteristics important for safety. When replacing any of these components, use only manufacturers' specified parts.

IMPORTANT SAFETY NOTICE

39

A B C D E F G H I J K L M N O P Q

A-BOARD TNP8EA102 (1/19)

I

1

10

100k

R8086

L8052

POD,CI I/F

XECS6 XEXDMK0 XEXDMR0

SMTSEL1 SMTCMD1 SMTRST0 SMTD0 SMTCMD0 SMTSEL0

COMMON PORT .etc

CH1PSYNC

CH1CLK

AUDCLK

SMTCLK0

CH1DATA

VI2HSYNC VI2VSYNC

VI2CLK

IS0CLK IS0VAL

IS0PSYNC

IS0DATA

XECS7

VI1P20 VI1P1 VI2ENB VI2P20

VI2P11 VI2P10 IS1CLK

IS1DATA

RMCO CH1VAL VI2P21

NAND IF

NFALE NFCLE XNFWP XNFCE XNFRE XNFWE

NANDRYBY

C8052

6.3V C8053

1u

0.01u 16V

C

R8091

0

IC8001 AH2 XECS6 IC8001 AE5 XEXDMK0 IC8001 AF4 XEXDMR0

IC8001 AE11 SMTSEL1 IC8001 AK10 SMTCMD1 IC8001 AF12 SMTRST0 IC8001 AF11 SMTD0 IC8001 AK11 SMTCMD0 IC8001 AE12 SMTSEL0

IC8001 AH12 CH1PSYNC IC8001 AK12 CH1CLK

IC8001 M28 AUDCLK

IC8001 AJ11 SMTCLK0

IC8001 AJ12 CH1DATA

IC8001 L3 VI2HSYNC IC8001 L6 VI2VSYNC

IC8001 M1 VI2CLK

IC8001 AJ5 IS0CLK IC8001 AH7 IS0VAL IC8001 AK5 IS0PSYNC IC8001 AJ6 IS0DATA

IC8001 AH3 XECS7

IC8001 K3 VI1P20 IC8001 K5 VI1P1 IC8001 L1 VI2ENB IC8001 P3 VI2P20

IC8001 L5 VI2P11 IC8001 L2 VI2P10 IC8001 AF8 IS1CLK IC8001 AJ7 IS1DATA IC8001 T5 RMCO IC8001 AE13 CH1VAL IC8001 P5 VI2P21

IC8001 AK4 NFALE IC8001 AH6 NFCLE IC8001 AJ1 XNFWP IC8001 AG4 XNFCE IC8001 AF5 XNFRE IC8001 AJ2 XNFWE IC8001 AG7 NANDRYBY

IC8004

C0ZBZ0001567

C8054

1

X1

2

S0

3

S1

4

VIN

5

VDD1

6

GND1

C

47

7

CLK1

74.25MHz

8

CLK2 25MHz

C

AK8130B-E2

X8001

H0J270500120

12p 50V

C

PWM1 PWM2

PORT0[0]

PORT5[4]

PORT5[7]

PORT6[4] PORT6[5]

PORT6[7]

PORT7[3] PORT7[4] PORT7[5] PORT7[6]

PORT14[2]

PORT15[4] PORT15[5] PORT15[6] PORT15[7]

PORT16[1] PORT16[2] PORT16[3] PORT16[4]

PORT16[5] PORT16[6] PORT16[7]

C8055

33.3MHz

REFOUT

SUB3.3V

SUB_XO_3.3V

L8005

J0JHC0000045

C8058 10V

10u

0.5p 50V

16

X2

15

VDD3

14

S2

13

VDD2

12

GND2

11

CLK4

10

CLK3

24MHz

9

27MHz

C

C8057

16V

0.1u

C

C8056 16V

0.1u

C

R8096

82

R8093

47

C

C8018

0.1u 16V

C8019

0.1u 16V

C8020

0.1u 16V

C8021

0.1u 16V

C8022

1u

6.3V

C8023

10u

10V

C8024

10u

10V

FOR ADV7470

AUDIO IF

IECOUT0

L8002

NET0108400

C

L8010

J0JHC0000045

C8076

0.1u 16V

VI1ENB

VI1CKOUT

VI1CLK2

VI1CLK VI1VSYNC VI1HSYNC

VI1P22

VI1P23

VI1P24

VI1P25

VI1P26

VI1P4

VI1P5

VI1P6

VI1P7

VI1P27

VI1P8

VI1P9

VI1P28

VI1P29

VI1P12

VI1P13

VI1P14

VI1P15

VI1P16

VI1P17

VI1P18

VI1P19

VI1P2

VI1P3

VI1P0 VI1P21 VI1P10 VI1P11

DAUDIO

SRCK0

DMIX0

LRCK0

SUB1.2V

J0JHC0000045

IC8001 AE17 VDD12 IC8001 AF17 VDD12 IC8001 AG17 VDD12 IC8001 AH17 VDD12 IC8001 AJ17 VDD12

IC8001 IC8001 R12 VDD12 IC8001 T12 VDD12 IC8001 U12 VDD12 IC8001 U13 VDD12 IC8001 U14 VDD12 IC8001 U15 VDD12 IC8001 V12 VDD12 IC8001 V13 VDD12 IC8001 V14 VDD12 IC8001 V15 VDD12 IC8001 W12 VDD12 IC8001 W13 VDD12 IC8001 W14 VDD12 IC8001 W15 VDD12

SUB1.2V

IC8001 M19 LVVDD12 C8075

10u 10V

C

IC8001 H1 VI1ENB IC8001 A5 VI1CKOUT IC8001 J2 VI1CLK2 IC8001 C6 VI1CLK IC8001 G1 VI1VSYNC IC8001 H2 VI1HSYNC

IC8001 A6 VI1P22 IC8001 B6 VI1P23 IC8001 B5 VI1P24 IC8001 C5 VI1P25 IC8001 A4 VI1P26 IC8001 E6 VI1P4 IC8001 B4 VI1P5 IC8001 C2 VI1P6 IC8001 C1 VI1P7 IC8001 D3 VI1P27 IC8001 D2 VI1P8 IC8001 E3 VI1P9 IC8001 D1 VI1P28 IC8001 E2 VI1P29 IC8001 E1 VI1P12 IC8001 F3 VI1P13 IC8001 F2 VI1P14 IC8001 H5 VI1P15 IC8001 H6 VI1P16 IC8001 F1 VI1P17 IC8001 G3 VI1P18 IC8001 H3 VI1P19 IC8001 A7 VI1P2 IC8001 B7 VI1P3 IC8001 K6 VI1P0 IC8001 K1 VI1P21 IC8001 K2 VI1P10 IC8001 J1 VI1P11

IC8001 E12 DAUDIO

IC8001 B12 SRCK0

IC8001 A12 DMIX0

IC8001 F12 LRCK0 IC8001 F8 IECOUT0 IC8001 C12 DACCK0

AK17 VDD12

VI1P0

VI1P1

VI1P10 VI1P11

VI1VSYNC VI1HSYNC VI1P21 VI1P20

C8006

0.1u 16V

C8009

10u

C

10V

IC8001 A29 LVVSS IC8001 A30 LVVSS IC8001 C28 LVVSS IC8001 D27 LVVSS IC8001 D28 LVVSS IC8001 E27 LVVSS IC8001 E28 LVVSS IC8001 F26 LVVSS IC8001 F27 LVVSS IC8001 F28 LVVSS IC8001 G26 LVVSS IC8001 G27 LVVSS IC8001 G28 LVVSS IC8001 H26 LVVSS IC8001 H27 LVVSS IC8001 H28 LVVSS IC8001 J26 LVVSS IC8001 J27 LVVSS IC8001 J28 LVVSS IC8001 K26 LVVSS IC8001 K27 LVVSS IC8001 K28 LVVSS IC8001 L26 LVVSS IC8001 L27 LVVSS IC8001 L28 LVVSS

PCI BUS I/F

PCRST

PCIDSELA

PCCLKO0

PCCXBE0 PCCXBE1 PCCXBE2 PCCXBE3

PCAD0 PCAD1 PCAD2 PCAD3 PCAD4 PCAD5 PCAD6 PCAD7 PCAD8

PCAD9 PCAD10 PCAD11 PCAD12 PCAD13 PCAD14 PCAD15 PCAD16 PCAD17 PCAD18 PCAD19 PCAD20 PCAD21 PCAD22 PCAD23 PCAD24 PCAD25 PCAD26 PCAD27 PCAD28 PCAD29 PCAD30 PCAD31

PCXSERR PCXPERR PCXSTOP

PCXFRAME

PCXTRDY PCXIRDY

PCDEVSEL

PCPAR

PCIRQ0

PCBRQ0

PCBGT0

IC8001 P19 VDDA IC8001 V19 VDDA IC8001 W17 VDDA

VDD3.3V

0

R8007

IC8001 E16 PCRST

IC8001 B16 PCIDSELA

IC8001 C17 PCCLKO0

IC8001 F17 PCCXBE0 IC8001 B17 PCCXBE1 IC8001 E17 PCCXBE2 IC8001 A17 PCCXBE3

IC8001 A25 PCAD0 IC8001 E24 PCAD1 IC8001 C24 PCAD2 IC8001 B24 PCAD3 IC8001 F23 PCAD4 IC8001 A24 PCAD5 IC8001 C23 PCAD6 IC8001 B23 PCAD7 IC8001 E23 PCAD8 IC8001 A23 PCAD9 IC8001 F22 PCAD10 IC8001 C22 PCAD11 IC8001 B22 PCAD12 IC8001 A22 PCAD13 IC8001 E22 PCAD14 IC8001 C21 PCAD15 IC8001 F21 PCAD16 IC8001 B21 PCAD17 IC8001 E21 PCAD18 IC8001 A21 PCAD19 IC8001 F20 PCAD20 IC8001 C20 PCAD21 IC8001 E20 PCAD22 IC8001 B20 PCAD23 IC8001 A20 PCAD24 IC8001 C19 PCAD25 IC8001 B19 PCAD26 IC8001 F19 PCAD27 IC8001 A19 PCAD28 IC8001 E19 PCAD29 IC8001 B18 PCAD30 IC8001 F18 PCAD31

IC8001 F15 PCXSERR IC8001 B15 PCXPERR IC8001 C15 PCXSTOP IC8001 A15 PCXFRAME IC8001 A14 PCXTRDY IC8001 E15 PCXIRDY IC8001 C16 PCDEVSEL IC8001 A16 PCPAR

IC8001 F16 PCIRQ0

IC8001 E18 PCBRQ0

IC8001 A18 PCBGT0

L8004

NET0108374

C8007

0.1u 16V

C8008

0.1u 16V

C8010

10u

10V

C

C8034

C8033

0.1u

C

16V

SUB1.2V

J0JHC0000045

IC8001 R19 VDDR IC8001 U19 VDDR IC8001 V17 VDDR IC8001 W18 VDDR IC8001 AE18 VDDR IC8001 AF18 VDDR IC8001 AG18 VDDR IC8001 AH18 VDDR IC8001 AJ18 VDDR IC8001 AK18 VDDR

IC8001 A9 DAAVSS1 IC8001 E9 DAAVDD1

0.1u 16V

LVDS I/F

IC8001 B27 TA1N

TA1N

IC8001 A27 TA1P

2

3

TA1P TB1N TB1P TC1N TC1P TCLK1N TCLK1P TD1N TD1P TE1N TE1P

TA2N TA2P TB2N TB2P TC2N TC2P TCLK2N TCLK2P TD2N TD2P TE2N TE2P

IC8001 B28 TB1N IC8001 A28 TB1P IC8001 B29 TC1N IC8001 B30 TC1P IC8001 C29 TCLK1N IC8001 C30 TCLK1P IC8001 D29 TD1N IC8001 D30 TD1P IC8001 E29 TE1N IC8001 E30 TE1P

IC8001 F29 TA2N IC8001 F30 TA2P IC8001 G29 TB2N IC8001 G30 TB2P IC8001 H29 TC2N IC8001 H30 TC2P IC8001 J29 TCLK2N IC8001 J30 TCLK2P IC8001 K29 TD2N IC8001 K30 TD2P IC8001 L29 TE2N IC8001 L30 TE2P

4

USB I/F

SUB1.2V

L8011

J0JHC0000045

5

SUB3.3V

L8012

J0JHC0000045

L8013

J0JHC0000045

6

C8083

0.1u

C8067

0.1u

C8081

0.1u 16V

C

16V

C8084

1000p

50V

C C

C8069 1000p

50V

CC

C8082

1000p

50V

CC

XO

IC8001 F14 VDDUSB

IC8001 E14 VSSUSB

IC8001 F11 VDDAUSB

IC8001 E11 VSSAUSB

IC8001 C11 VDDPUSB

IC8001 D11 VSSPUSB

IC8001 B13 XO IC8001 A13 XI

IC8001 A10 USBDP IC8001 B10 USBDN

IC8001 A11 USBATEST IC8001 B11 USBRREF

7

SUB3.3V

L8009

J0JHC0000045

C8072

0.1u 16V

C8073

8

9

0.1u 16V

C8074

0.1u 16V

SUB3.3V

L8008

J0JHC0000045

C8070

0.1u 16V

C

C8071

0.1u

C

IC8001 T18 DPAVDD

IC8001 V2 M1A1AVDD IC8001 U6 M1A1AVSS

IC8001 M25 V2AVDD IC8001 N25 V2AVSS

IC8001 G25 LVVDD33 IC8001 H25 LVVDD33 IC8001 J25 LVVDD33 IC8001 K25 LVVDD33 IC8001 L25 LVVDD33

C8085

0.1u 16V

16V

C

LOSD OUT--> PIO

IC8001 M30 VOUTENB

VOUTENB

IC8001 E4 VI2P1

VI2P1

IC8001 C4 VI2P0

VI2P0

VI1CVBS0 VI1CVBS1 VI1CVBS2 VI1CVBS3

LCSCK LCSID ADIN ADCCK DSRCK VI2P5 SLRCK VI2P6

VI2P2 VI2P3

VI2P7 VI2P8 VI2P9

IC8001 D5 VI1CK208F IC8001 D6 VI1CK204F IC8001 F7 VI1CVBS0 IC8001 E7 VI1CVBS1 IC8001 C7 VI1CVBS2 IC8001 E8 VI1CVBS3 IC8001 B14 LCSCK IC8001 C14 LCSID IC8001 E13 ADIN IC8001 D13 ADCCK IC8001 F13 DSRCK IC8001 G5 VI2P5 IC8001 D14 SLRCK IC8001 J5 VI2P6

IC8001 F5 VI2P2 IC8001 F4 VI2P3

IC8001 J6 VI2P7 IC8001 G2 VI2P8 IC8001 J3 VI2P9

VI1CK208F VI1CK204F

IIC I/F

SCL2 SDA2 SCL3 SDA3

SD CARD I/F

SDCLK SDCD SDCMD SDDAT0 SDDAT1 SDDAT2 SDDAT3 SDWP

JTAG

TMS TRST TCK TDO TDI

1.8V_DDRI/F

C8011

0.1u 16V

C8012

0.1u 16V

C8013

0.1u 16V

C8014

0.1u 16V

C8015

1u

6.3V

C8016

1u

6.3V

C8017

10u

10V

C8077

0.1u

16V

C8078

0.1u

16V

C8079

0.1u C8080

16V

0.1u

16V

C

SCL0 SDA0 SCL1 SDA1 SBT2 SBT0 XECS5 XECS3

SUB1.8V

L8003

J0JHC0000045

IC8001 P27 VDDIO IC8001 P30 VDDIO IC8001 T25 VDDIO IC8001 T27 VDDIO IC8001 U28 VDDIO IC8001 V29 VDDIO IC8001 W25 VDDIO IC8001 Y29 VDDIO IC8001 AA28 VDDIO IC8001 AB26 VDDIO IC8001 AB27 VDDIOCK IC8001 AC30 VDDIO IC8001 AD28 VDDIO IC8001 AE25 VDDIO IC8001 AF23 VDDIO IC8001 AF26 VDDIO IC8001 AF29 VDDIO IC8001 AG22 VDDIO IC8001 AG25 VDDIOCK IC8001 AG27 VDDIO IC8001 AH21 VDDIO IC8001 AH26 VDDIO IC8001 AJ20 VDDIO IC8001 AJ25 VDDIO IC8001 AK24 VDDIO IC8001 AK30 VDDIO

IC8001 T2 SCL0 IC8001 T3 SDA0 IC8001 T6 SCL1 IC8001 U1 SDA1 IC8001 AK7 SBT2 IC8001 AH8 SBT0 IC8001 AE4 XECS5 IC8001 AH1 XECS3

IC8001 AK16 SDCLK IC8001 AF15 SDCD IC8001 AH16 SDCMD IC8001 AE15 SDDAT0 IC8001 AK15 SDDAT1 IC8001 AF16 SDDAT2 IC8001 AE16 SDDAT3 IC8001 AJ15 SDWP

IC8001 W1 TMS IC8001 W2 TRST IC8001 V5 TCK IC8001 W3 TDO IC8001 V6 TDI

IC8001 C27 TSTAIO IC8001 U18 DTCPOUT IC8001 M26 V2TCPOUT IC8001 V3 M1A1TCPOUT

LOSDOUT0 LOSDOUT1 LOSDOUT2 LOSDOUT3 LOSDOUT4 LOSDOUT5 LOSDOUT6 LOSDOUT7 LOSDOUT8 LOSDOUT9 LOSDOUT10 LOSDOUT11 LOSDOUT12 LOSDOUT13 LOSDOUT14

LOSDOUT15

LOSDOUT_CLK_O LOSDOUT_H_O

LOSDOUT_V_I LOSDOUT_CLK_I LOSDOUT_H_I

SERIAL I/F

IS1PSYNC

IS1VAL

SBI0 SBO0

SBI2 SBO2

IC8001 F24 SBI0 IC8001 B25 SBO0

IC8001 AK6 IS1VAL IC8001 AG8 IS1PSYNC

IC8001 C25 SBI2 IC8001 E25 SBO2

TP8406 TP8405

Analog Video I/F

VDD3.3V

L8007 J0JHC0000045

MVDACO1 MVDACO2

C8005

6.3V

1%

R8005

1u

IC8001 E10 MVDACO1 IC8001 D9 MVDACO2

R8004 24k

1%

10k

C8003

C

6.3V 1u

R8006

24k

C

IC8001 B9 VVREF IC8001 F10 MVIREF

1%

IC8001 C9 VCOMP

CH,IS IF

IC8001 AK14 CH0CLK

CH0CLK

IC8001 AE14 CH0VAL

CH0VAL

IC8001 AH14 CH0PSYNC

CH0PSYNC

IC8001 AJ14 CH0DATA

CH0DATA

IC8001 AJ8 XRTS0

XRTS0

IC8001 AE9 XDTR0

XDTR0

IC8001 AK8 XDSR0

XDSR0

IC8001 AF9 XDCD0

XDCD0

IC8001 AH9 XCTS0

XCTS0

IC8001 AE10 XRI0

XRI0

IC8001 AJ9 TXD0

TXD0

IC8001 AK9 RXD0

RXD0

IC8001 AH10 SMTCLK1

SMTCLK1

IC8001 AJ10 SMTD1

SMTD1

IC8001 AF10 SMTRST1

SMTRST1

MN2WS0059

IC8001

A1 VSS IC8001 A2 VSS IC8001 A3 VSS IC8001 A8 VSS IC8001 AA4 VSS IC8001 AA27 VSS IC8001 AB4 VSS IC8001 AB29 VSS

C

IC8001 AC25 VSS IC8001 AC28 VSS IC8001 AD27 VSS IC8001 AE6 VSS IC8001 AE7 VSS IC8001 AE19 VSS IC8001 AE22 VSS IC8001 AE26 VSS IC8001 AE29 VSS IC8001 AF6 VSS IC8001 AF13 VSS IC8001 AF14 VSS IC8001 AF19 VSS IC8001 AF21 VSS IC8001 AF25 VSS IC8001 AF27 VSS IC8001 AG5 VSS IC8001 AG9 VSS IC8001 AG10 VSS IC8001 AG13 VSS IC8001 AG14 VSS

IC8001 AG20 VSS IC8001 AG24 VSS IC8001 AG29 VSS IC8001 AH4 VSS IC8001 AH11 VSS IC8001 AH13 VSS IC8001 AH15 VSS IC8001 AH19 VSS IC8001 AH23 VSS IC8001 AH27 VSS IC8001 AH30 VSS IC8001 AJ3 VSS IC8001 AJ29 VSS IC8001 AK1 VSS IC8001 AK2 VSS IC8001 AJ13 VSS IC8001 AJ16 VSS IC8001 AJ19 VSS IC8001 AJ22 VSS

SUB3.3V

L8001

VDD3.3V

J0JHC0000045

C8025

0.1u 16V

C8026

0.1u 16V

C8027

0.1u 16V

C8028

0.1u 16V

C8029

0.1u

16V

C8030

1u

6.3V

C8031

1u

6.3V

C8032

10u 10V

C8063

1u

6.3V

C8064

1u

6.3V

C8065

0.1u

16V

C

IC8001 A26 VDD33 IC8001 AC4 VDD33 IC8001 AD4 VDD33 IC8001 AE8 VDD33 IC8001 AF7 VDD33 IC8001 AG6 VDD33 IC8001 AG11 VDD33 IC8001 AG12 VDD33 IC8001 AG15 VDD33 IC8001 AG16 VDD33 IC8001 AH5 VDD33 IC8001 AJ4 VDD33 IC8001 AK3 VDD33 IC8001 B26 VDD33 IC8001 C26 VDD33 IC8001 D7 VDD33 IC8001 D8 VDD33 IC8001 D15 VDD33 IC8001 D16 VDD33

IC8001 D19 VDD33 IC8001 D20 VDD33 IC8001 D23 VDD33 IC8001 D24 VDD33 IC8001 D26 VDD33 IC8001 F25 VDD33 IC8001 G4 VDD33 IC8001 H4 VDD33 IC8001 M4 VDD33 IC8001 L4 VDD33 IC8001 R4 VDD33 IC8001 T4 VDD33 IC8001 W4 VDD33 IC8001 Y4 VDD33 IC8001 E26 VDD33

CPU BUS I/F

EA08 EA09 EA10 EA11 EA12 EA13 EA14 EA15 EA16 EA17 EA18 EA19 EA20 EA21 EA22 EA23 EA24 EA25

IC8001 AJ26 VSS IC8001 AK13 VSS IC8001 AK19 VSS IC8001 AK25 VSS IC8001 AK28 VSS IC8001 B1 VSS IC8001 B2 VSS IC8001 B3 VSS IC8001 B8 VSS IC8001 C3 VSS IC8001 C8 VSS IC8001 C10 VSS IC8001 C13 VSS IC8001 C18 VSS IC8001 D4 VSS IC8001 D10 VSS IC8001 D12 VSS IC8001 D17 VSS IC8001 D18 VSS IC8001 D21 VSS IC8001 D22 VSS IC8001 E5 VSS IC8001 F6 VSS IC8001 F9 VSS IC8001 G7 VSS IC8001 J4 VSS IC8001 K4 VSS IC8001 M5 VSS IC8001 M12 VSS IC8001 M13 VSS IC8001 M14 VSS IC8001 M15 VSS IC8001 M16 VSS IC8001 M17 VSS IC8001 M18 VSS IC8001 M27 VSS IC8001 N4 VSS IC8001 N12 VSS IC8001 N13 VSS IC8001 N14 VSS IC8001 N15 VSS IC8001 N16 VSS IC8001 N17 VSS IC8001 N18 VSS IC8001 N19 VSS IC8001 N29 VSS IC8001 P4 VSS IC8001 P12 VSS IC8001 P13 VSS

EA0 EA1 EA2 EA3 EA4 EA5 EA6 EA7

VI2P12 VI2P13 VI2P14 VI2P15 VI2P16 VI2P17 VI2P18 VI2P19 VI2P22 VI2P23 VI2P24 VI2P25 VI2P26 VI2P27 VI2P28 VI2P29 VI2P4

VI2CLK2

XRST

IC8001 Y1 EA0 IC8001 W6 EA1 IC8001 W5 EA2 IC8001 Y2 EA3 IC8001 Y5 EA4 IC8001 Y3 EA5 IC8001 AA1 EA6 IC8001 AA2 EA7

IC8001 M3 VI2P12 IC8001 M6 VI2P13 IC8001 M2 VI2P14 IC8001 N5 VI2P15 IC8001 N6 VI2P16 IC8001 N3 VI2P17 IC8001 P6 VI2P18 IC8001 N2 VI2P19 IC8001 P2 VI2P22 IC8001 R6 VI2P23 IC8001 P1 VI2P24 IC8001 R3 VI2P25 IC8001 R2 VI2P26 IC8001 R5 VI2P27 IC8001 R1 VI2P28 IC8001 T1 VI2P29 IC8001 G6 VI2P4 IC8001 N1 VI2CLK2

IC8001 D25 XRST

IC8001 P14 VSS IC8001 P15 VSS IC8001 P16 VSS IC8001 P17 VSS IC8001 P18 VSS IC8001 R13 VSS IC8001 R14 VSS IC8001 R15 VSS IC8001 R16 VSS IC8001 R17 VSS IC8001 R18 VSS IC8001 R26 VSS IC8001 R28 VSS IC8001 T13 VSS IC8001 T14 VSS IC8001 T15 VSS IC8001 T16 VSS IC8001 T17 VSS IC8001 T19 VSS IC8001 T29 VSS IC8001 U4 VSS IC8001 U16 VSS IC8001 U17 VSS IC8001 U26 VSS IC8001 V4 VSS IC8001 V16 VSS IC8001 V18 VSS IC8001 V27 VSS IC8001 W16 VSS IC8001 W19 VSSIC8001 AG19 VSS IC8001 W28 VSS IC8001 W30 VSS IC8001 Y26 VSS

IC8001 AH29 FPENF

BOOTSWAP

XECS0 XECS1 XECS2 XECS4

XEWE0 XEWE1

XNMIRQ

XIRQ1 XIRQ2 XIRQ3

ED0 ED1 ED2 ED3 ED4 ED5 ED6 ED7 ED8 ED9 ED10 ED11 ED12 ED13 ED14 ED15

ECLK

ERXW

ESZ0 ESZ1

XERE

XEDK

IC8001 Y6 ED0 IC8001 AA3 ED1 IC8001 AB1 ED2 IC8001 AA5 ED3 IC8001 AB2 ED4 IC8001 AB3 ED5 IC8001 AC1 ED6 IC8001 AA6 ED7 IC8001 AB5 ED8 IC8001 AB6 ED9 IC8001 AC2 ED10 IC8001 AD1 ED11 IC8001 AC3 ED12 IC8001 AD2 ED13 IC8001 AE1 ED14 IC8001 AE2 ED15

IC8001 AF1 ECLK

IC8001 AD5 XECS0 IC8001 AG2 XECS1 IC8001 AD6 XECS2 IC8001 AG3 XECS4

IC8001 AF2 ERXW

IC8001 AE3 XEWE0 IC8001 AF3 XEWE1

IC8001 AD3 ESZ0 IC8001 AG1 ESZ1

IC8001 AC5 XERE

IC8001 AC6 XEDK

IC8001 AG28 BOOTSWAP

IC8001 U2 XNMIRQ IC8001 U5 XIRQ1 IC8001 U3 XIRQ2 IC8001 V1 XIRQ3

CLOCK GEN

IC8001AH28CK33IN IC8001N26VC27 IC8001M29CK74 IC8001P25CK27A

11

12

40

R S T U V W X Y Z AA AB AC AD AE AF AG AH AI

I

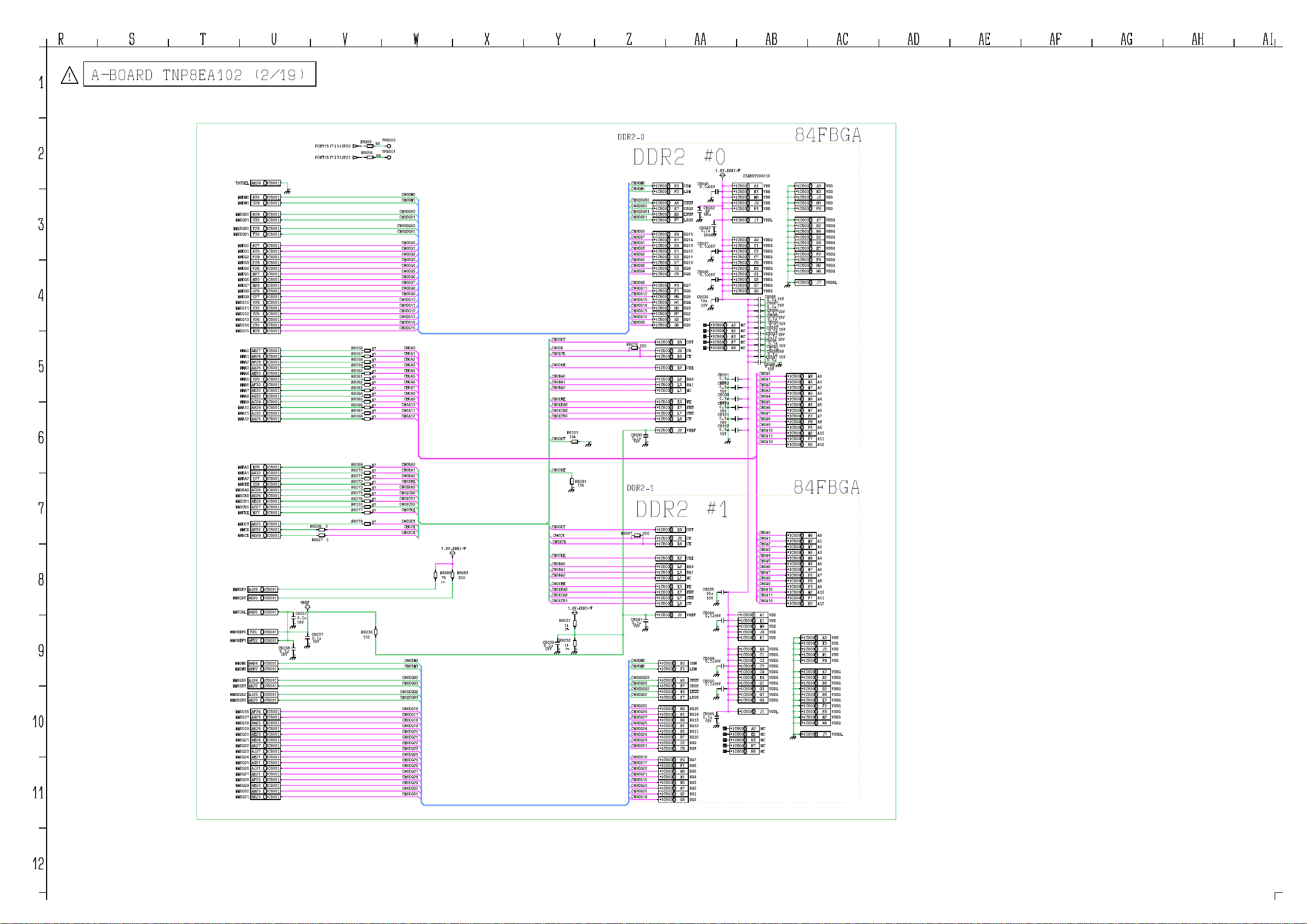

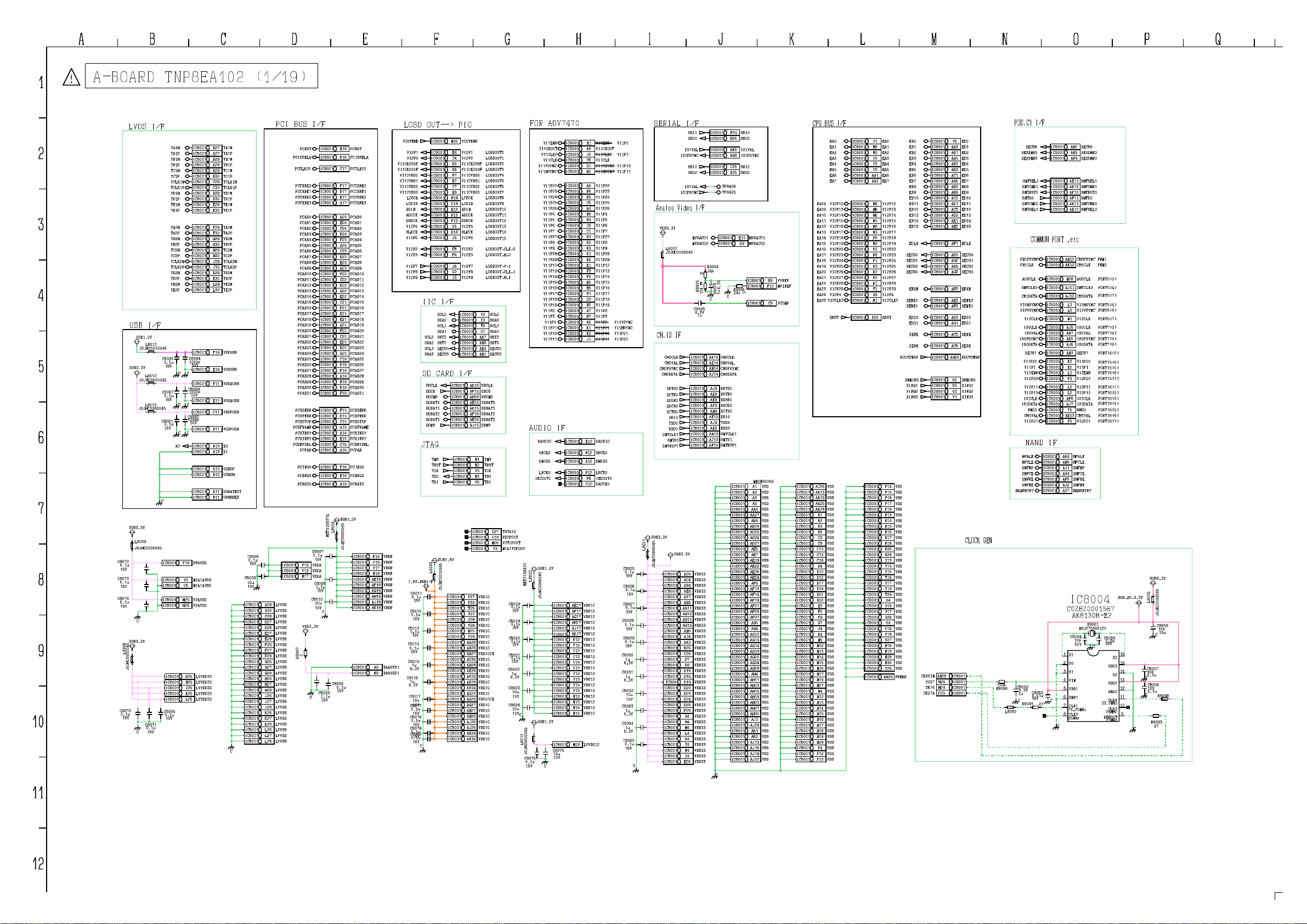

A-BOARD TNP8EA102 (2/19)

1

TP8000

R8960

VI2P20

PORT15[7]

VI2P21

2

IC8001AK29TSTSEL

IC8001R30MMDM0 IC8001U29MMDM1

IC8001R29MMDQS0 IC8001U30MMDQS1

3

4

5

IC8001T28MMXDQS0 IC8001T30MMXDQS1

IC8001R27MMDQ0 IC8001R25MMDQ1 IC8001P29MMDQ2 IC8001P28MMDQ3 IC8001P26MMDQ4 IC8001N27MMDQ5 IC8001N30MMDQ6 IC8001N28MMDQ7 IC8001U25MMDQ8 IC8001U27MMDQ9 IC8001V28MMDQ10 IC8001V30MMDQ11 IC8001V25MMDQ12 IC8001V26MMDQ13 IC8001Y30MMDQ14 IC8001W29MMDQ15

IC8001AE27MMA0 IC8001AB28MMA1 IC8001AF28MMA2 IC8001AA26MMA3 IC8001AE30MMA4 IC8001Y25MMA5 IC8001AF30MMA6 IC8001AB30MMA7 IC8001AG30MMA8 IC8001AC29MMA9 IC8001AA29MMA10 IC8001AJ30MMA11 IC8001AA25MMA12

PORT16[7]

C

6

68

TP8001

R8959

68

CH0DM0 CH0DM1

CH0DQS0 CH0DQS1

CH0XDQS0 CH0XDQS1

CH0DQ0 CH0DQ1 CH0DQ2 CH0DQ3 CH0DQ4 CH0DQ5 CH0DQ6 CH0DQ7 CH0DQ8

CH0DQ9 CH0DQ10 CH0DQ11 CH0DQ12 CH0DQ13 CH0DQ14 CH0DQ15

CH0ODT

R8056 R8057 R8058 R8059 R8060 R8061 R8062 R8063 R8064 R8065 R8066 R8067 R8068

47

CH0A0 CH0A1 CH0A2

47

CH0A3

47

CH0A4

47

CH0A5

47

CH0A6

47

CH0A7

47

CH0A8

47

CH0A9

47

CH0A10

47

CH0A11

47

CH0A12

47

CH0CK CH0XCK

CH0CKE

CH0BA0 CH0BA1 CH0BA2

CH0XWE CH0XRAS CH0XCAS CH0XCS0

CH0ODT

R8101

10k

DDR2_0

DDR2 #0

CH0DM0

*IC8002 B3 UDM

CH0DM1

*IC8002 F3 LDM

CH0XDQS0

*IC8002 A8 UDQS

CH0DQS0

*IC8002 B7 UDQS

CH0XDQS1

*IC8002 E8 LDQS

CH0DQS1

*IC8002 F7 LDQS

CH0DQ5

*IC8002 B9 DQ15

CH0DQ7

*IC8002 B1 DQ14

CH0DQ1

*IC8002 D9 DQ13

CH0DQ3

*IC8002 D1 DQ12

CH0DQ2

*IC8002 D3 DQ11

CH0DQ0

*IC8002 D7 DQ10

CH0DQ6

*IC8002 C2 DQ9

CH0DQ4

*IC8002 C8 DQ8

CH0DQ8

*IC8002 F9 DQ7

CH0DQ11

*IC8002 F1 DQ6

CH0DQ12

*IC8002 H9 DQ5

CH0DQ15

*IC8002 H1 DQ4

CH0DQ14

*IC8002 H3 DQ3

CH0DQ13

*IC8002 H7 DQ2

CH0DQ10

*IC8002 G2 DQ1

CH0DQ9

*IC8002 G8 DQ0

*IC8002 K9 ODT

R8074

220

*IC8002 J8 CK *IC8002 K8 CK

*IC8002 K2 CKE

*IC8002 L2 BA0 *IC8002 L3 BA1 *IC8002 L1 NC

*IC8002 K3 WE *IC8002 K7 RAS *IC8002 L7 CAS *IC8002 L8 CS

*IC8002 J2 VREF

C8040

0.1u

C

16V

C

C8046

16V

0.1u

+

C8042

4V

68u

C

C8043

0.1u 16V

C8047

16V

0.1u

C8048

16V

0.1u

C8036

10u 10V

1.8V_DDRI/F

*IC8002 *IC8002 E1 VDD *IC8002 M9 VDD

C

*IC8002 J9 VDD *IC8002 R1 VDD

*IC8002 J1 VDDL

C

*IC8002 A9 VDDQ *IC8002 C1 VDDQ *IC8002 C3 VDDQ *IC8002 C7 VDDQ

C

*IC8002 C9 VDDQ *IC8002 E9 VDDQ *IC8002 G1 VDDQ *IC8002 G3 VDDQ *IC8002 G7 VDDQ

C

*IC8002 G9 VDDQ

C

*IC8002 A2 NC *IC8002 E2 NC *IC8002 R3 NC *IC8002 R7 NC *IC8002 R8 NC

C8201

0.1u 16V

C8202

0.1u 16V

C8099

0.1u 16V

C8100

0.1u 16V

C8101

0.1u 16V

C8102

0.1u 16V

C

C3ABSY000014

A1 VDD

CH0A0 CH0A1 CH0A2 CH0A3 CH0A4 CH0A5 CH0A6 CH0A7 CH0A8 CH0A9 CH0A10 CH0A11 CH0A12

C8086

0.1u C8087

0.1u C8088

0.1u

C8089

0.1u C8090

0.1u

C8092

0.1u

C8093

0.1u

C8094

0.1u

C8095

0.1u

C8096

0.1u

C8097

0.1u

C8098

0.1u 16V

84FBGA

*IC8002 A3 VSS *IC8002 E3 VSS *IC8002 J3 VSS *IC8002 N1 VSS *IC8002 P9 VSS

*IC8002 A7 VSSQ *IC8002 B2 VSSQ *IC8002 B8 VSSQ *IC8002 D2 VSSQ *IC8002 D8 VSSQ *IC8002 E7 VSSQ *IC8002 F2 VSSQ *IC8002 F8 VSSQ *IC8002 H2 VSSQ *IC8002 H8 VSSQ

*IC8002 J7 VSSDL

C

16V

16V 16V

16V 16V 16V 16V

16V

C

*IC8002 M8 A0 *IC8002 M3 A1 *IC8002 M7 A2 *IC8002 N2 A3 *IC8002 N8 A4 *IC8002 N3 A5 *IC8002 N7 A6 *IC8002 P2 A7 *IC8002 P8 A8 *IC8002 P3 A9 *IC8002 M2 A10 *IC8002 P7 A11 *IC8002 R2 A12

10

11

IC8001W26MMBA0 IC8001AA30MMBA1 IC8001Y27MMBA2 IC8001Y28MMXWE IC8001AC26MMXRAS IC8001AD26MMXCAS IC8001AE28MMXCS1 IC8001AC27MMXCS0

7

8

9

IC8001W27MMCKE

IC8001AB25MMODT IC8001AD30MMCK IC8001AD29MMXCK

IC8001AJ28MMRDRV

IC8001AD25MMRODT

IC8001AG26MMVCAL

IC8001T26MMVREF0

IC8001AF22MMVREF1

IC8001AH24MMDM2 IC8001AH22MMDM3

IC8001AJ24MMDQS2 IC8001AK22MMDQS3

IC8001AJ23MMXDQS2 IC8001AK23MMXDQS3

IC8001AF24MMDQ16 IC8001AG23MMDQ17 IC8001AH25MMDQ18 IC8001AK26MMDQ19 IC8001AE23MMDQ20 IC8001AE24MMDQ21 IC8001AK27MMDQ22 IC8001AJ27MMDQ23 IC8001AE21MMDQ24 IC8001AG21MMDQ25 IC8001AJ21MMDQ26 IC8001AK21MMDQ27 IC8001AF20MMDQ28 IC8001AE20MMDQ29 IC8001AH20MMDQ30 IC8001AK20MMDQ31

R8026

R8027

VREF

C8051

0.1u 16V

C

C8037

0.1u 16V

C

C8038

0.1u 16V

C

R8069 R8070 R8071 R8072 R8073 R8075 R8076 R8100 R8077

R8078

0

R8030

100

CH0BA0

47

CH0BA1

47

CH0BA2

47

CH0XWE

47

CH0XRAS

47

CH0XCAS

47

CH0XCS1

47

CH0XCS0

47

CH0CKE

47

CH0ODT

47

CH0CK

CH0XCK

CH0DM2 CH0DM3

CH0DQS2 CH0DQS3

CH0XDQS2 CH0XDQS3

CH0DQ16 CH0DQ17 CH0DQ18 CH0DQ19 CH0DQ20 CH0DQ21 CH0DQ22 CH0DQ23 CH0DQ24 CH0DQ25 CH0DQ26 CH0DQ27 CH0DQ28 CH0DQ29 CH0DQ30 CH0DQ31

1.8V_DDRI/F

R8082

75

1%

R8083

300

CH0CKE

R8081

10k

C

DDR2_1

84FBGA

DDR2 #1

CH0ODT

CH0CK

CH0XCK

CH0CKE

CH0BA0 CH0BA1 CH0BA2

CH0XWE CH0XRAS CH0XCAS CH0XCS1

1.8V_DDRI/F

R8031

1k

1%

R8032

C8039

1k

0.1u 16V

1%

C

R8097

C8041

0.1u 16V

CH0DM3 CH0DM2

CH0XDQS3 CH0DQS3 CH0XDQS2 CH0DQS2

CH0DQ30 CH0DQ28 CH0DQ27 CH0DQ25 CH0DQ24 CH0DQ26 CH0DQ29 CH0DQ31

CH0DQ18 CH0DQ17 CH0DQ22 CH0DQ21 CH0DQ16 CH0DQ23 CH0DQ20 CH0DQ19

*IC8003 K9 ODT

220

*IC8003 J8 CK *IC8003 K8 CK

*IC8003 K2 CKE

*IC8003 L2 BA0 *IC8003 L3 BA1 *IC8003 L1 NC

*IC8003 K3 WE *IC8003 K7 RAS *IC8003 L7 CAS *IC8003 L8 CS

*IC8003 J2 VREF

C

*IC8003 B3 UDM *IC8003 F3 LDM

*IC8003 A8 UDQS *IC8003 B7 UDQS *IC8003 E8 LDQS *IC8003 F7 LDQS

*IC8003 B9 DQ15 *IC8003 B1 DQ14 *IC8003 D9 DQ13 *IC8003 D1 DQ12 *IC8003 D3 DQ11 *IC8003 D7 DQ10 *IC8003 C2 DQ9 *IC8003 C8 DQ8

*IC8003 F9 DQ7 *IC8003 F1 DQ6 *IC8003 H9 DQ5 *IC8003 H1 DQ4 *IC8003 H3 DQ3 *IC8003 H7 DQ2 *IC8003 G2 DQ1 *IC8003 G8 DQ0

CH0A0

*IC8003 M8 A0

CH0A1

*IC8003 M3 A1

CH0A2

*IC8003 M7 A2

CH0A3

*IC8003 N2 A3

CH0A4

*IC8003 N8 A4

CH0A5

*IC8003 N3 A5

CH0A6

*IC8003 N7 A6

CH0A7

*IC8003 P2 A7

CH0A8

*IC8003 P8 A8

CH0A9

*IC8003 P3 A9

*IC8003 A1 VDD *IC8003 E1 VDD *IC8003 M9 VDD *IC8003 J9 VDD *IC8003 R1 VDD

*IC8003 A9 VDDQ *IC8003 C1 VDDQ *IC8003 C3 VDDQ *IC8003 C7 VDDQ *IC8003 C9 VDDQ *IC8003 E9 VDDQ *IC8003 G1 VDDQ *IC8003 G3 VDDQ *IC8003 G7 VDDQ *IC8003 G9 VDDQ

*IC8003 J1 VDDL

*IC8003 A2 NC *IC8003 E2 NC *IC8003 R3 NC *IC8003 R7 NC *IC8003 R8 NC

CH0A10 CH0A11 CH0A12

*IC8003 M2 A10 *IC8003 P7 A11 *IC8003 R2 A12

*IC8003 A3 VSS *IC8003 E3 VSS *IC8003 J3 VSS *IC8003 N1 VSS *IC8003 P9 VSS

*IC8003 A7 VSSQ *IC8003 B2 VSSQ *IC8003 B8 VSSQ *IC8003 D2 VSSQ *IC8003 D8 VSSQ *IC8003 E7 VSSQ *IC8003 F2 VSSQ *IC8003 F8 VSSQ *IC8003 H2 VSSQ *IC8003 H8 VSSQ

*IC8003 J7 VSSDL

C

C8035

10u 10V

C

C8044

16V

0.1u

C

C8049

16V

0.1u

C

C8050

16V

0.1u

C

C8045

0.1u 16V

C

12

41

A B C D E F G H I J K L M N O P Q

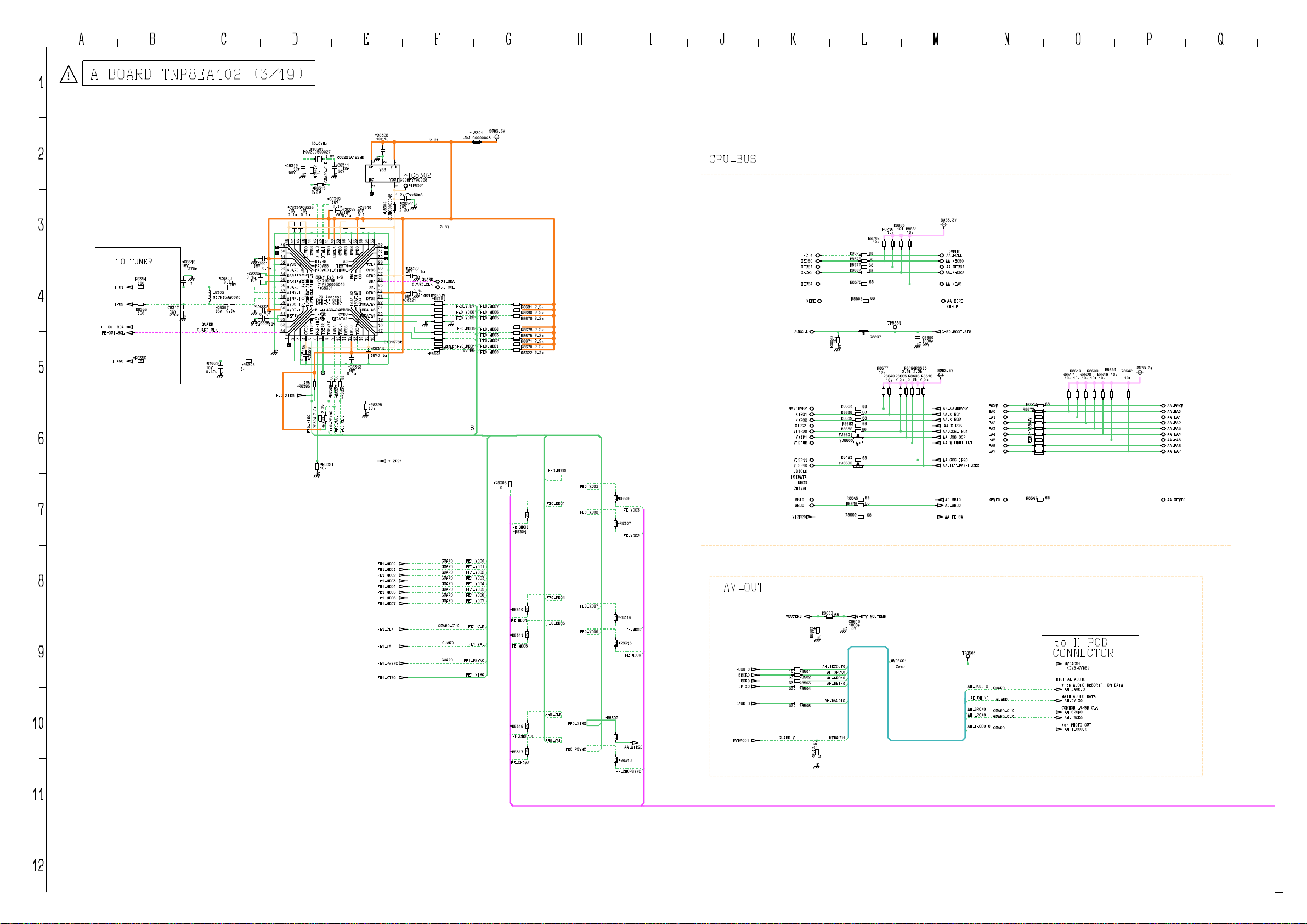

A-BOARD TNP8EA102 (3/19)

I

1

SUB3.3V

*C8328

30.0MHz

*X8301

H0J300500027

1.0V

2.2M

*R8313

*R8312

XC6221A122MR

*C8311

50V

1k

GUARD_CLK

*C8319

16V

0.1u *C8335

C

0.1u

2

*C8312

50V

*C8334

16V

0.1u

12p

C C

*C8333

16V

0.1u

10V 1u

C

2

3

VIN

CE

12p

16V

*C8340

0.1u

VSS

VOUT

NC

4

1.2V/Typ50mA

*L8304

J0JHC0000045

1

*IC8302

C0DBFYY00028

5

*C8327 10V

2.2u

3.3V

*TP8301

C

3

49

XVSS

XTALI43XTALO

C

FE0_XIRQ

52

AVSS_Q

53

GUARD_Q

54

DAREFP

55

DAREFM

56

GUARD_I

57

AINM_I

58

AINP_I

59

AVSS_I

60

AVDD_I

61

REFIN

62

1

2

*R8395

DIVDD

DIVSS PADVSS PADVDD

SONY DVB-T/C

CXD1978R C1AB00003049

AINP_Q50AINM_Q51AVDD_Q

*IC8301

I2C Address DVB-T: 0xD8 DVB-C: 0xDC

REFOUT63TUNERDAT64TUNERCLK

RF_IFAGC_Q_GPIO1 IFAGC_I CVSS

CVDD5INTRPTN6RESETN7TSERR_GPIO28TSSYNC9TSVALID10TSCLK11DVSS12DVDD13TSDATA0

3

4

16V

*C8329

0.1u

10k

2.2k

R8324

R8323

FE0_XIRQ

TO TUNER

R8354

150

IFD1

4

IFD2

R8353

150

FE-OUT_SDA FE-OUT_SCL

*R8356

IFAGC

0

5

*C8316 16V

270p

*C8309

C

L8303 G1CR15JA0020

C8317

16V 270p

*C8307

16V

C

GUARD

GUARD_CLK

*C8306 10V

0.47u C

C *C8331 16V

0.1u

*C8330

0.1u 16V

*C8332

0.1u

C

16V

0.1u

C *C8336

16V0.1u

*R8305 1k

XVDD

TESTMODE

TSDATA1

68

*R8326

FE0_PSYNC

OSCEN

TRSTN

CVSS CVDD

68

*R8327

FE0_VAL

68

*R8325

FE0_CLK

TSDATA218TSDATA319TSDATA4

*C8313

16V

0.1u

DVDD37DVSS38CVSS39CVDD

TSDATA7 TSDATA6 TSDATA5

30 29

TCLK CVSS CVDD

TDO31TDI32TMS

SDA

SCL DVDD DVSS

14

15

*C8314

16V0.1u

*R8328 10k

C

*C8320

28

16V

CXD1978R

*C8321

0.1u C

GUARD

GUARD_CLK

0.1u C

EXB2HV680JV

16V

*R8301

C

*R8308

27 26 25 24 23 22 21 20

17

16

33

34

35A036

40

41

42

44

45

46

47

48

6

*R8321 10k

C

VI2P21

7

*L8301

J0JHC0000045

CPU_BUS

3.3V

R8575 R8576 R8577 R8667

R8578

R8508

10k

R8898

C

R8653

R8638 R8639

R8683

R8652

S

VJ8601 VJ8600

S

R8493

S

VJ8602

R8645

R8646

R8692

FE_SDA FE_SCL

68

ECLK XECS0 XECS1 XECS2

XECS4

NANDRYBY

IS1DATA

VI2P20

AUDCLK

XIRQ3

VI1P20

VI2ENB

VI2P11 VI2P10 IS1CLK

CH1VAL

SBI0 SBO0

XERE

XIRQ1 XIRQ2

VI1P1

RMCO

FE0_MDO7

FE0_MDO6

FE0_MDO5

C

FE0_MDO4

FE0_MDO4 FE0_MDO3 FE0_MDO2

FE0_MDO1

GUARD

FE0_MDO1

GUARD

FE0_MDO0

2.2k

R8681

2.2k

R8680

2.2k

R8679

2.2k

R8678

2.2k

R8675

2.2k

R8671

2.2k

R8670

2.2k

R8322

TS

FE0_MDO0

*R8303

0

FE_MDO1 *R8304

FE0_MDO1

FE0_MDO3

FE0_MDO2

0

*R8306

FE_MDO3

*R8307

0

FE_MDO2

R8663

10k

R8661

R8716

10k

R8746

10k

68 68 68 68

68

S

R8897

68 68 68 68 68

68

68 68

68

10k

TP8851

R8677

R8494

2.2k

10k

R8665

R8640

2.2k

10k

SUB3.3V

50MHz

AA_ECLK

AA_XECS0

AA_XECS1

AA_XECS2

AA_XEAS

AA_XERE

XNFCE

G-SD_BOOT_STS

C8800 1000p

C

50V

R8515

SUB3.3V

2.2k R8516

R8496

2.2k

68

AB_NANDRYBY AA_XIRQ1 AA_XIRQ2

AA_XIRQ3 AA_GC6_IRQ1 AA_USB_OCP AA_W_HDMI_INT

AA_GC6_IRQ0 AA_INT_PANEL_CEC

AD_SBI0 AD_SBO0

AA_FE_SW

ERXW EA0 EA1 EA2 EA3 EA4 EA5 EA6 EA7

XEWE0

R8672

R8514

R8647

EXB2HV680JV

68

R8609

R8619

R8517

10k

R8618

R8620

10k

SUB3.3V

R8654

R8642

10k

AA_ERXW AA_EA0 AA_EA1 AA_EA2 AA_EA3 AA_EA4 AA_EA5 AA_EA6 AA_EA7

AA_XEWE0

10

11

12

GUARD_CLK

GUARD

FE1_MDO0GUARD FE1_MDO1GUARD FE1_MDO2GUARD FE1_MDO3GUARD FE1_MDO4GUARD FE1_MDO5GUARD FE1_MDO6GUARD FE1_MDO7GUARD

FE1_CLK

FE1_VAL

FE1_PSYNC

FE1_XIRQ

*R8310

FE_MDO4

*R8311

FE_MDO5

*R8316

FE_CH0CLK

*R8317

FE_CH0VAL

FE0_MDO4

FE0_MDO5

FE0_XIRQ

FE0_PSYNC

FE0_MDO7

FE0_MDO6

*R8392

*R8314

0

*R8315

0

*R8319

FE_CH0PSYNC

FE_MDO7

FE_MDO6

AA_XIRQ2

0

FE0_CLK

0

FE0_VAL

0

AV_OUT

IECOUT0

SRCK0 LRCK0 DMIX0

DAUDIO

MVDACO1

VOUTENB

GUARD_V MVDACO1

R8608

10k

R8963

C

100 330 330 330

330

AH_IECOUT0

R8501

AH_SRCK0

R8502

AH_LRCK0

R8503

AH_DMIX0

R8504

AH_DAUDIO

R8506

160

R8510

1%

C

68

G-DTV_VOUTENB

C8619 1000p

50V

C

to H-PCB CONNECTOR

MVDACO1

iDVB_CVBS j

DIGITAL AUDIO

with AUDIO DESCRIPTION DATA

AH_DAUDIO

MAIN AUDIO DATA

AH_DMIX0

COMMON LR/SR CLK

AH_SRCK0 AH_LRCK0

for PHOTO OUT

AH_IECOUT0

MVDACO1

TP8501

Comp.

AH_DAUDIO

GUARD

AH_DMIX0

GUARD

AH_SRCK0

GUARD_CLK

AH_LRCK0

GUARD_CLK

AH_IECOUT0

GUARD

FE1_MDO0 FE1_MDO1 FE1_MDO2

8

9

FE1_MDO3 FE1_MDO4 FE1_MDO5 FE1_MDO6 FE1_MDO7

FE1_CLK

FE1_VAL

FE1_PSYNC

FE1_XIRQ

42

R S T U V W X Y Z AA AB AC AD AE AF AG AH AI

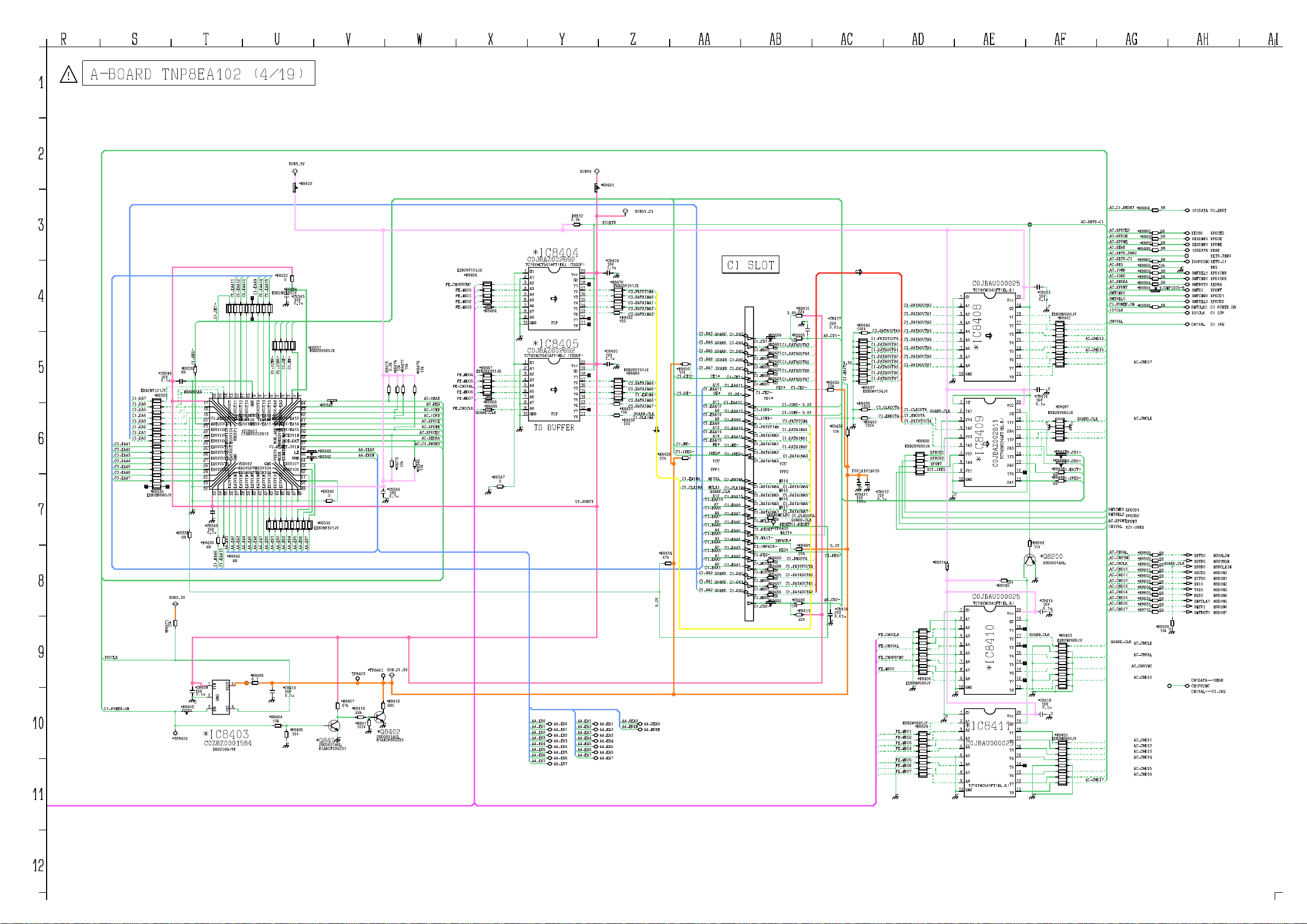

A-BOARD TNP8EA102 (4/19)

I

1

10

11

2

3

CI_EAA9

CI_EAA10

CI_EAA11

CI_CE1-

13

14

15

16

NCE5VOUT

CI_RESET_5VOUT NREG5VOUT ED5VIO2 ED5VIO1

VDD5V1

ED5VIO0

ED5VIO419ED5VIO3 EA5VOUT1 EA5VOUT2 EA5VOUT3

EA5VOUT631EA5VOUT732GND EA5VOUT4 EA5VOUT5

EA3VIN137EA3VIN238EA3VIN339EA3VIN440EA3VIN541EA3VIN642EA3VIN743ED3VIO044ED3VIO145ED3VIO2

33

34

35

36

C

16V

0.1u

68

AA_EA2

AA_EA1

*R8442

68

CI_EAA8

CI_EAA13

CI_EAA12

10

NOE5V/EA10

ED5VIO7

EA5VOUT1011EA5VOUT1212EA5VOUT11

ED5VIO6

NWE5V/EA11

ED5VIO5

*IC8401 C1AB00002913

VDD5V2 EA5VOUT8 EA5VOUT13

AA_EA4

AA_EA3

AA_EA5

GND

9

ED3VIO4 ED3VIO3

AA_EA6

4

*R8338

*R8339

68

BD8365KV

68

CI_REG-

C

*R8439

17 18

20 21 22 23 24 25 26 27 28 29 30

*C8345

5

6

CI_EAA1 CI_EAA2 CI_EAA3 CI_EAA4 CI_EAA5 CI_EAA6 CI_EAA7

CI_DA7 CI_DA6 CI_DA5 CI_DA4 CI_DA3 CI_DA2 CI_DA1 CI_DA0

EXB2HV101JV

*R8335

EXB2HV680JV

*R8333

*C8344

16V

0.1u

7

8

SUB3.3V

10k

*R8471

9

IS1CLK

CI_POWER_ON

*TP8404

*R8403

S

1

*C8408

16V

0.1u

2

C

3

*IC8403

C0ZBZ0001584

BD2214G-TR

*R8406

0.1

5

VIN

VOUT

GND

4

EN

/OC

EA5VOUT9

VDDADR

CI_EAA14

8

GND

AA_EA7

*R8330

EXB2HV680JV

CI_EAA15

CI_IOWR-

CI_IORD-

5

6

NIORD3V/EA13

EA5VOUT157EA5VOUT14

NIOWR5V/EA8

NOE3V/EA14 NWE3V/EA15

NOE_ADR

NREG3VIN

CI_RESET_3VIN

VDD3V50MODE51ED3VIO5

AA_ED0

AA_ED1

AA_ED2

C

*R8404

10k

SUB3.3V

0

*R8336

*C8343

C

CI_WE-

CI_OE-

3

4

NIORD5V/EA9

NCE3VIN NOE_DAT

NIOWR3V/EA12

RNW ED3VIO7 ED3VIO6

46

AA_ED4

AA_ED3

*C8410

16V

0.1u

*R8405

10k

C

SUB5V

*R8402

P

*IC8404

C0JBAZ002692

0

TC74VHCT541AFT(EKJ (TSSOP)

1

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

TOP

*IC8405

C0JBAZ002692

TC74VHCT541AFT(EKJ (TSSOP)

1

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

TOP

C

TS BUFFER

AA_ED0 AA_ED1 AA_ED2 AA_ED3 AA_ED4 AA_ED5 AA_ED6 AA_ED7

EXB28V151JX

*R8454

FE_CH0PSYNC

FE_MDO0

10k

AC_XEAB

AC_IOWR AC_IORD

AC_REG

FE_MDO1 FE_MDO2 FE_MDO3

FE_MDO4

FE_MDO5

FE_CH0VAL

FE_MDO6

FE_MDO7

FE_CH0CLK

*R8464

*R8467

EXB28V151JX

*R8468

*R8469

GUARD_CLK

68

*R8347

C

16V

0.1u

*R8337

EXB28V680JX

10k

2.2k

10k

R8415

*R8477

*R8476

*R8479

1

2

LE

47

AA_ED5

64 63 62 61 60 59 58 57 56 55 54 53 52

49 48

AA_ED6

AA_ED7

S

*R8346

*R8343 *R8342

*R8340

*R8332

EXB2HV101JV

*Q8401

2SD0601A0L B1ABCF000231

S

AC_XPDOE AC_XPDWE

AC_XPDCE2

AC_XEDBA

*C8346

C

SUB_CI_5V

*R8418

680

C

AC_CI_RESET

10k

*R8272

10k

*R8345

16V

0.1u

AA_XEAS AA_ERXW

0

*TP8401

TP8403

*R8407

47k

*R8416

22k

*R8417

100k

C

*Q8402

C

2SD0601A0L B1ABCF000231

R8512

2.2k

Vcc

G2 Y1 Y2 Y3 Y4 Y5 Y6 Y7 Y8

5V_SUBCI

AA_EA1 AA_EA2 AA_EA3 AA_EA4 AA_EA5 AA_EA6 AA_EA7

*R8401

P

SUB5V_CI

XCIETS

*C8409

16V

0.1u

20 19 18 17 16 15 14 13 12 11

AA_EA1 AA_EA2 AA_EA3 AA_EA4 AA_EA5 AA_EA6 AA_EA7

*C8405

16V

0.1u

*R8470

EXB28V151JX

C

*R8432 150

C

*R8431

150

*R8430

CI_PKTSTINA CI_DATAINA0 CI_DATAINA1 CI_DATAINA2 CI_DATAINA3

EXB28V151JX

*R8463

CI_DATAINA4 CI_DATAINA5

CI_DATAINA6 CI_DATAINA7

100

AA_XEAS AA_ERXW

CI_ENINA

GUARD_CLK CI_CLKINA

AA_XEAS AA_ERXW

*R8433

*R8434

5.0V

*R8450

10k

CI_CE1-

CI_OE-

CI_WE-

CI_IREQ-

22k

CI_ENINA

CI_CLKINA

47k

CI_DA3

CI_DA4

CI_DA5

CI_DA6

CI_DA7

CI_DA0

CI_DA1

CI_DA2

CI_EAA11

CI_EAA12

CI_EAA10

CI_EAA9

CI_EAA14

CI_EAA15

CI_EAA13

CI_EAA8

CI_EAA7

CI_EAA6

CI_EAA5

CI_EAA4

CI_EAA3

CI_EAA2

CI_EAA1

CE1#

IREQ#

VPP1

MIVAL

MCLKI

GUARD_CLK

GUARD

A10

OE#

A11

A9

A8

A13

A14

WE#

VCC

A12

A7

A6

A5

A4

A3

A2

A1

A0

GUARD

CI SLOT

CI_DA3

CI_DA4

CI_DA5

GUARD

CI_DA6

GUARD

CI_DA7

CI_CE1-

CI_EAA11

CI_OE-

CI_EAA12

CI_EAA10

CI_EAA9

CI_EAA14

CI_EAA15

CI_WE-

CI_IREQ-

CI_ENINA

CI_CLKINA

CI_EAA13

CI_EAA8

CI_EAA7

CI_EAA6

CI_EAA5

CI_EAA4

CI_EAA3

CI_EAA2

CI_EAA1

CI_DA0

CI_DA1

CI_DA2

CI_CD1-

CI_MDO3

CI_MDO4

CI_MDO5

CI_MDO6

CI_MDO7

CI_CE2-

CI_IORD-

CI_IOWR-

CI_PKTSTINA

CI_DATAINA0

CI_DATAINA1

CI_DATAINA2

CI_DATAINA3

CI_DATAINA4

CI_DATAINA5

CI_DATAINA6

CI_DATAINA7

CI_MCLKO

CI_RESET

CI_WAIT-

CI_INPACK-

CI_REG-

CI_MOVAL

CI_MOSTRT

CI_MDO0

CI_MDO1

CI_MDO2

CI_CD2-

VS1#

*R8460

*R8409

*R8461

*R8421

*R8422

*R8423

*R8424

*R8459

*R8458

*R8425

*R8457

*R8456

*R8462

S

68

*TP8402

INPACK#

68

S

3.8V

CI_DATAOUTA3

CI_DATAOUTA4

CI_DATAOUTA5

CI_DATAOUTA6

CI_DATAOUTA7

CE2#

CI_IORD- 5.0V

CI_IOWR- 5.0V

CI_PKTSTINA

CI_DATAINA0

CI_DATAINA1

CI_DATAINA2

CI_DATAINA3

VCC

VPP2

MDI4

CI_DATAINA4

MDI5

CI_DATAINA5

MDI6

CI_DATAINA6

MDI7

CI_DATAINA7

MCLKO

RESET

WAIT#

REG#

CI_ENOUTA

CI_PKTSTOUTA

CI_DATAOUTA0

CI_DATAOUTA1

CI_DATAOUTA2

*R8410

*R8465 10k

CI_CE2-

CI_CLKOUTA GUARD_CLK CI_RESET

*R8491

*R8466 10k

*R8411

C0JBAU000025

TC74VHC541FT(EL,K)

1

0

C

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

C

1

1G

2

1A1

3

2Y4

4

1A2

5

2Y3

6

1A3

7

2Y2

8

1A4

9

2Y1

10

GND

C

1

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

C

1

G1

2

A1

*IC8411

3

A2

4

A3

C0JBAU000025

5

A4

6

A5

7

A6

8

A7

9

A8

TC74VHC541FT(EL,K)

10

GND

C

*IC8408

*IC8409

C0JBAZ002811

*R8245

C0JBAU000025

TC74VHC541FT(EL,K)

*IC8410

TC74VHC244FT(EL,K)

CI_DATAOUTA3

CI_PKTSTOUTA CI_DATAOUTA0 CI_DATAOUTA1

CI_DATAOUTA2 CI_DATAOUTA4 CI_DATAOUTA5 CI_DATAOUTA6 CI_DATAOUTA7

CI_CLKOUTA

CI_ENOUTA

*C8412

16V

0.1u

FE_CH0CLK

FE_CH0VAL

FE_CH0PSYNC

FE_MDO0

FE_MDO1 FE_MDO2 FE_MDO3 FE_MDO4

FE_MDO5 FE_MDO6 FE_MDO7

C

CI_DATAOUTA0

CI_DATAOUTA1

CI_DATAOUTA2

CI_DATAOUTA3

CI_DATAOUTA4

CI_DATAOUTA5

CI_DATAOUTA6

CI_DATAOUTA7

CI_CLKOUTA CI_ENOUTA CI_PKTSTOUTA

EXB28V680JX

EXB2HV680JV

GUARD_CLK

*R8488

XPDCD1 XPDCD2 XPDWT

XCI_IREQ

*R8214

*R8426

C

*R8428

22k

*C8417

C

25V

*R8445

0.01u

*R8435

10k

CI_REG-

AS_CD2-

*R8436

5.0V

100k

3.3V

CI_WAIT-

*R8437

EXB2HV104JV

*R8438

100k

*R8440

C

100k

10k

F2G1A101A019

+

CCC

*C8411

10V 100u

*C8416 25V

0.01u

C

AS_CD1-

22k

*C8413

16V

20

0.1u

Vcc

19

G2

Y1

Y2

Y3

Y4

Y5

Y6

Y7

Y8

VCC

2G

1Y1

2A4

1Y2

2A3

1Y3

2A2

1Y4

2A1

10k

Vcc

G2

Y1

Y2

Y3

Y4

Y5

Y6

Y7

Y8

Vcc

G2

Y1

Y2

Y3

Y4

Y5

Y6

Y7

Y8

C

18

17

16

15

14

13

12

11

20

19

18

17

16

15

14

13

12

11

20

19

18

17

16

15

14

13

12

11

20

19

18

17

16

15

14

13

12

11

*C8414

*R8244

10k

GUARD_CLK

C

16V

0.1u

*Q8200

C

*C8415

*C8418

16V

0.1u

C

EXB28V680JX

C

*R8446

*R8449

2SD0601A0L

16V

0.1u C

C

EXB2HV680JV

*R8441

*R8487

*R8447

S

*R8448

S

68

*R8453

EXB2HV680JV

*R8455

EXB2HV680JV

AS_CD1-

AS_CD2-

CI_WAIT-

CI_IREQ-

C

AC_XETS_CI

GUARD_CLK

AC_CHDI3

AC_CHDI5

AC_CHDI7

AC_CI_RESET

AC_XPDCE2 AC_XPDOE AC_XPDWE AC_XEAB AC_XETS_THRU AC_XETS_CI AC_REG AC_IOWR AC_IORD AC_XEDBA AC_XPDWT SMTCMD0 SMTSEL0 CI_POWER_ON IS1CLK

CH1VAL

SMTCMD0 SMTSEL0

AC_XPDWT CH1VAL

AC_CHVAL AC_CHSYNC AC_CHCLK AC_CHDI0 AC_CHDI1 AC_CHDI2 AC_CHDI3 AC_CHDI4 AC_CHDI5 AC_CHDI6 AC_CHDI7

GUARD_CLK

XPDCD1 XPDCD2 XPDWT XCI_IREQ

*R8864

*R8860

*R8489

*R8862 *R8855 *R8859 *R8858

*R8954 *R8854

*R8899

AC_CHDI7

AC_CHCLK

*R8598 *R8599 *R8600 *R8601 *R8602 *R8603 *R8604 *R8605 *R8634 *R8635 *R8712

AC_CHCLK

AC_CHVAL

AC_CHSYNC

AC_CHDI0

AC_CHDI1 AC_CHDI2 AC_CHDI3 AC_CHDI4

AC_CHDI5 AC_CHDI6

*R8856

*R8857

68

68 68

68

10k

68 68 68

S

VJUMP1005-S

68

68 68 68 68 68 68 68 68 68 68 68

*R8520

10k

GUARD_CLK

C

IS1DATA

XECS6 XEXDMK0 XEXDMR0 IS0DATA

IS0PSYNC

SMTSEL1 SMTCMD1 SMTRST0 SMTD0 SMTCMD0 SMTSEL0 SMTCLK0 IS1CLK

CH1VAL

XRTS0 XDTR0 XDSR0 XDCD0 XCTS0 XRI0 TXD0 RXD0 SMTCLK1 SMTD1 SMTRST1

CH1DATA-->XEAB CH1PSYNC CH1VAL-->CI_IRQ

CI_XRST

XPDCE2 XPDOE XPDWE XEAB XETS_THRU XETS_CI REG XPDIOWR XPDIORD XEDBA XPDWT XPDCD1 XPDCD2 CI POWER ON CI OCP

CI IRQ

HSVALIN HSSYNIN HSBCLKIN HSDIN0 HSDIN1 HSDIN2 HSDIN3 HSDIN4 HSDIN5 HSDIN6 HSDIN7

12

43

A B C D E F G H I J K L M N O P Q

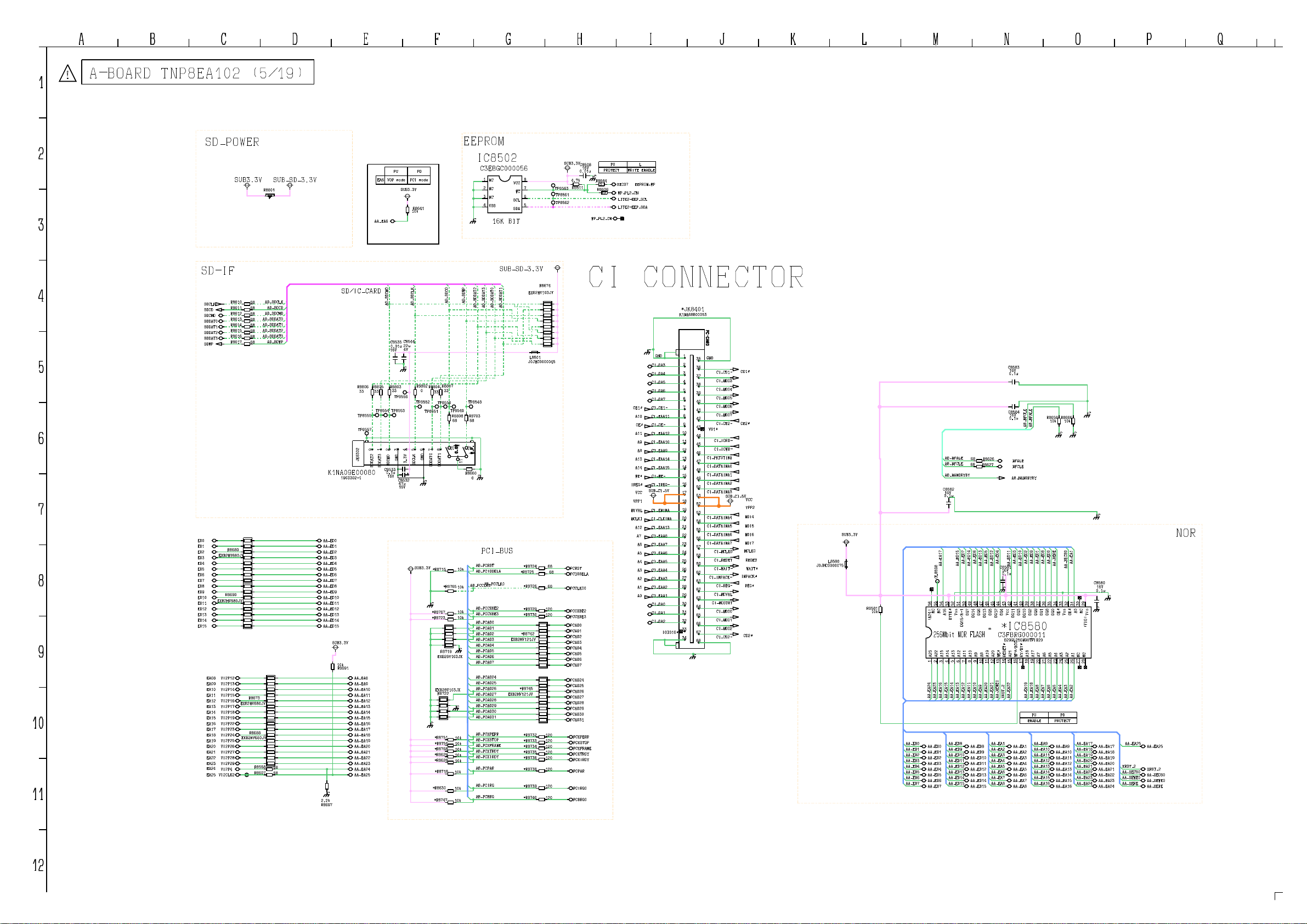

A-BOARD TNP8EA102 (5/19)

I

1

10

11

33

TP8550

8

SDDAT0

SDDAT1

*R8715

R8719

EXB28V103JX

R8722

*R8751

*R8750 *R8768 *R8629 *R8628

*R8718

*R8630

*R8747

R8807

33

*R8765

AD_SDCD

TP8549

R8808

68

101112

D.SW

10k

10k 10k

C

10k 10k 10k 10k 10k

10k

EEPROM

IC8502

C3EBGC000056

1

2

3

4

C

AD_SDWP

AD_SDDAT3

AD_SDDAT2

TP8548TP8552

R8703

68

W.P.

R8660

C

0

PCI_BUS

AB_PCRST AB_PCIDSELA

AB_PCCLK0

AB_PCCXBE2 AB_PCCXBE3

AB_PCAD0 AB_PCAD1 AB_PCAD2 AB_PCAD3 AB_PCAD4 AB_PCAD5 AB_PCAD6 AB_PCAD7

AB_PCAD24 AB_PCAD25 AB_PCAD26 AB_PCAD27 AB_PCAD28 AB_PCAD29 AB_PCAD30 AB_PCAD31

AB_PCXPERR AB_PCXSTOP AB_PCXFRAME AB_PCXTRDY AB_PCXIRDY

AB_PCPAR

AB_PCIRQ

AB_PCBRQ

NC

VSS

16K BIT

SUB_SD_3.3V

AD_SDDAT0

AD_SDDAT1

VCC

WC

SCL

SDA

EXB2HV121JV

*R8725

*R8742

*R8745

8

7

6

5

EXB2HV103JV

L8501

J0JHC0000045

*R8724

*R8726

*R8729 *R8730

*R8732 *R8733 *R8734 *R8735 *R8736

*R8738

*R8739

*R8740

SUB3.3V

C8508

16V

PROTECT

0.01u C

4.7k

R8644

0

R8511

TP8563

TP8561

TP8562

R8674

68

120 120

120 120 120 120 120

120

R8606

68

WP_PL2_CN

CI CONNECTOR

PCRST PCIDSELA

PCCLKO0

PCCXBE2 PCCXBE3

PCAD0 PCAD1 PCAD2 PCAD3 PCAD4 PCAD5 PCAD6 PCAD7

PCAD24 PCAD25 PCAD26 PCAD27 PCAD28 PCAD29 PCAD30 PCAD31

PCXPERR PCXSTOP PCXFRAME PCXTRDY PCXIRDY

PCPAR

PCIRQ0

PCBRQ0

PU

WRITE ENABLE

XECS7

WP_PL2_CN

LITE2-EEP_SCL

LITE2-EEP_SDA

CE1#

IREQ#

VPP1

MIVAL

MCLKI

L

EEPROM_WP

A10

OE#

A11

A9

A8

A13

A14

WE#

VCC

A12

A7

A6

A5

A4

A3

A2

A1

A0

C

CI_DA3

CI_DA4

CI_DA5

CI_DA6

CI_DA7

CI_CE1-

CI_EAA11

CI_OE-

CI_EAA12

CI_EAA10

CI_EAA9

CI_EAA14

CI_EAA15

CI_WE-

CI_IREQ-

SUB_CI_5V

CI_ENINA

CI_CLKINA

CI_EAA13

CI_EAA8

CI_EAA7

CI_EAA6

CI_EAA5

CI_EAA4

CI_EAA3

CI_EAA2

CI_EAA1

CI_DA0

CI_DA1

CI_DA2

*JK8401

K1NA68B00053

PC-CARD

1

GND

IOIS16#

GND

35

2

36

3

37

4

38

5

39

6

40

7

41

8

42

9

43

10

44

11

45

12

46

CI_PKTSTINA

13

47

CI_DATAINA0

14

48

CI_DATAINA1

15

49

CI_DATAINA2

16

50

CI_DATAINA3

17

51

18

52

19

53

CI_DATAINA4

20

54

CI_DATAINA5

21

55

CI_DATAINA6

22

56

CI_DATAINA7

23

57

24

58

25

59

26

60

27

61

28

62

29

63

30

64

31

65

32

66

33

67

34

68

C

CI_CD1-

CI_MDO3

CI_MDO4

CI_MDO5

CI_MDO6

CI_MDO7

CI_CE2-

VS1#

CI_IORD-

CI_IOWR-

CI_MCLKO

CI_RESET

CI_WAIT-

CI_INPACK-

CI_REG-

CI_MOVAL

CI_MOSTRT

CI_MDO0

CI_MDO1

CI_MDO2

CI_CD2-

SUB_CI_5V

CD1#

CE2#

MCLKO

INPACK#

CD2#

AB_NFALE

68

AB_NFCLE

68

AB_NANDRYBY

C8582

16V

VCC

VPP2

MDI4

MDI5

MDI6

MDI7

RESET

WAIT#

REG#

J0JHC0000075

SUB3.3V

L8580

R8581

10k

0.1u

AA_ED7AA_EA12

AA_ED14

AA_ED15

AA_EA17

CL8598

49

50

51

52

53

54

55NC56

NC

(A24)

DQ7

Vss

A16

DQ14

BYTE#

DQ15/A-1

256Mbit NOR FLASH

A232A223A154A145A136A127A118A109A910A811A1912A2013WE#14RESET#15A2116WP#/ACC17RY/BY#18A1819A1720A721A622A523A424A325A226A127NC28NC

1

AA_EA11

AA_EA14

AA_EA15

AA_EA23

AA_EA16

AA_EA13

AA_EA24

AA_ED0 AA_ED1 AA_ED2 AA_ED3 AA_ED4 AA_ED5 AA_ED6 AA_ED7

AA_ED8

AA_ED9

AA_ED10AA_ED2

AA_ED10

AA_ED11

AA_ED12

AA_ED13

AA_ED14

AA_ED15

AA_ED15 AA_EA8

AA_ED0 AA_ED1

AA_ED3 AA_ED4 AA_ED5 AA_ED6 AA_ED7

C8583 16V

0.1u

C8584

16V

0.1u

R8626

NFALE

R8627

NFCLE

AB_NANDRYBY

AA_ED6

AA_ED4

AA_ED5

AA_ED13

AA_ED12

AA_ED11

C8581

16V

0.1u

C

42

43

45

46

47

48

Vcc44DQ4

DQ5

DQ6

DQ12

DQ13

<

*IC8580

C3FBRG000011

S29GL256N90TFIR20

AA_EA9

AA_EA20

AA_XEWE0

AA_EA22

XRST_2

AA_EA21

AA_EA10

AA_EA1

AA_EA2

AA_EA3

AA_EA4

AA_EA5 XRST_2

AA_EA5

AA_EA6

AA_EA7

AA_EA8

AB_NFALE

AB_NFCLE

AA_ED3

AA_ED2

AA_ED10

40

41

DQ3

DQ10

DQ11

AA_EA19

PU

ENABLE PROTECT

AA_ED9

AA_EA18

AA_EA9 AA_EA10 AA_EA11 AA_EA12 AA_EA13 AA_EA14 AA_EA15 AA_EA16

AA_ED1

AA_EA8

AA_ED8

AA_EA7

R8658

10k

AA_ED0

AA_EA6

AA_XERE

AA_EA5

AA_EA9 AA_EA10 AA_EA11 AA_EA12 AA_EA13 AA_EA14 AA_EA15 AA_EA16

C

R8666

10k

C

AA_EA1

AA_XECS0

C8580

29

30NC31A032

Vio

CE#33Vss34OE#35DQ036DQ837DQ138DQ939DQ2

(VIO)

AA_EA3

AA_EA4

AA_EA2

PD

AA_EA17 AA_EA18 AA_EA19 AA_EA20 AA_EA21 AA_EA22 AA_EA23 AA_EA24

C

16V

0.1u

C

AA_EA17 AA_EA18 AA_EA19 AA_EA20 AA_EA21 AA_EA22 AA_EA23 AA_EA24

NOR

C

AA_EA25

XRST_2

AA_XECS0

AA_XEWE0

AA_XERE

SD_POWER

2

PDPU

AA_EA6

VOP mode PCI modeEA6

SUB3.3V

R8641

10k

SUB3.3V

SUB_SD_3.3V

R8801

P

3

SD-IF

4

SDCLK SDCD SDCMD SDDAT0 SDDAT1 SDDAT2 SDDAT3 SDWP

R8610 R8611 R8612 R8613 R8614 R8615 R8616 R8617

AD_SDCLK

68

AD_SDCD

68

AD_SDCMD

68

AD_SDDAT0

68

AD_SDDAT1

68

AD_SDDAT2

68

AD_SDDAT3

68

AD_SDWP

68

5

6

SD/IC_CARD

K1NA09E00080

1903302-1

R8806

33

TP8555

TP8557

JK8302

9

R8805

33

SDDAT2

TP8554

AD_SDCLK

AD_SDCMD

C8544

C8535

22u

0.01u 4V

16V

C

R8802

R8803

0

33

TP8556

TP8553

1234567

SDCMD

SDDAT3

C8533

0.1u 16V

GND

3.3V SDCLK

+

C8532 47u

16V

R8804

TP8551

C

7

ED0 ED1

R8689

ED2

EXB2HV680JV

ED3 ED4 ED5 ED6

8

ED7 ED8 ED9

R8690

ED10

EXB2HV680JV

ED11 ED12 ED13 ED14 ED15

9

VI2P12

EA08

VI2P13

EA09

VI2P14

EA10

VI2P15

EA11 EA12 EA13 EA14 EA15 EA16 EA17 EA18 EA19 EA20 EA21 EA22 EA23 EA24

EA25

VI2P16 VI2P17 VI2P18 VI2P19 VI2P22 VI2P23 VI2P24 VI2P25 VI2P26 VI2P27 VI2P28 VI2P29 VI2P4

VI2CLK2

R8673

EXB2HV680JV

R8688

EXB2HV680JV

R8558

68

R8607

68

2.2k R8697

AA_ED0 AA_ED1 AA_ED2 AA_ED3 AA_ED4 AA_ED5 AA_ED6 AA_ED7 AA_ED8 AA_ED9 AA_ED10 AA_ED11 AA_ED12 AA_ED13 AA_ED14 AA_ED15

SUB3.3V

C

*R8767 *R8723

SUB3.3V

10k R8691

AA_EA8 AA_EA9 AA_EA10 AA_EA11 AA_EA12 AA_EA13 AA_EA14 AA_EA15 AA_EA16 AA_EA17 AA_EA18 AA_EA19 AA_EA20 AA_EA21 AA_EA22 AA_EA23 AA_EA24 AA_EA25

C

12

44

10

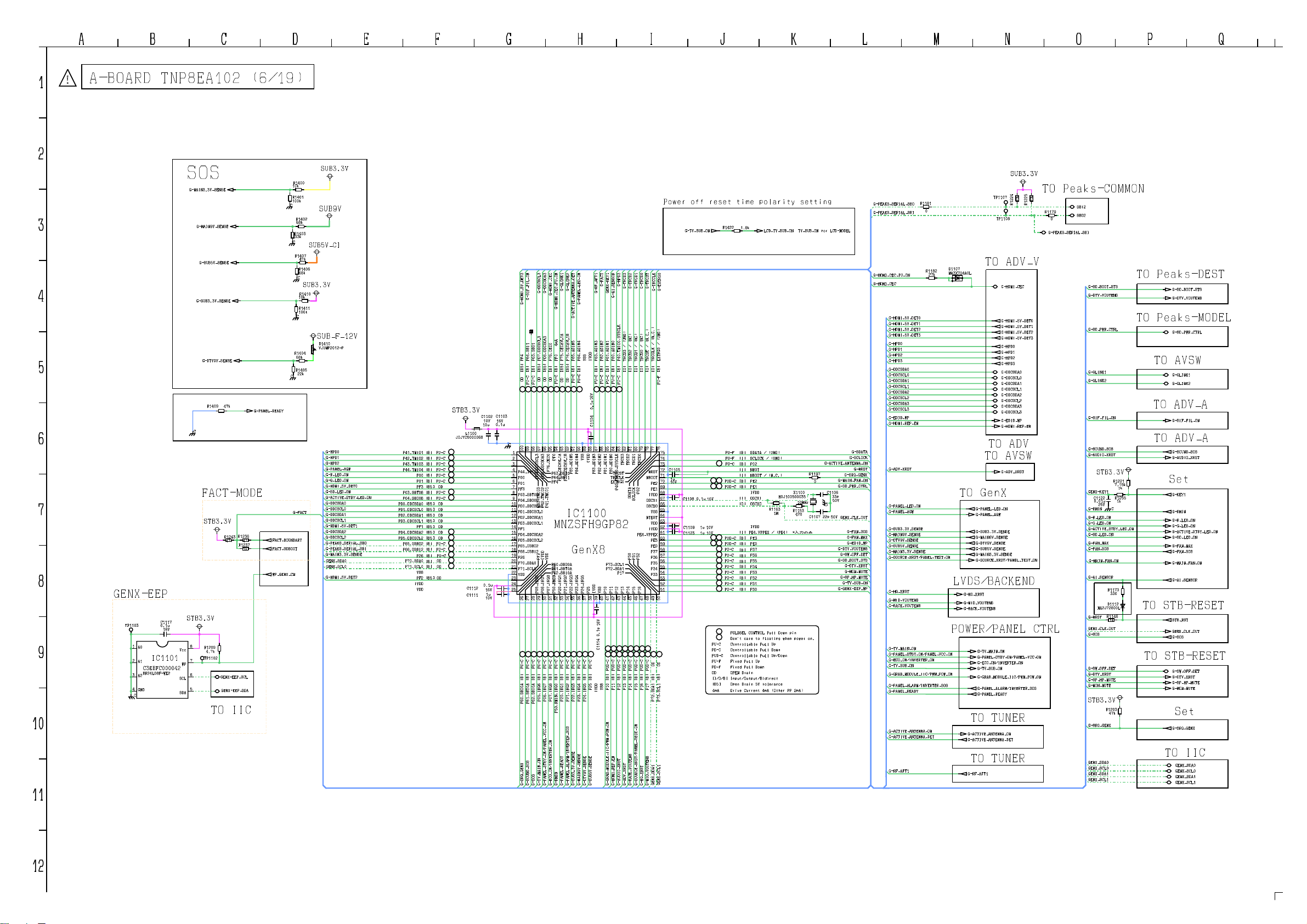

A-BOARD TNP8EA102 (6/19)

I

11

A B C D E F G H I J K L M N O P Q

1

2

C

R1400

10k

R1401 100k

C

G-FACT

R1402 68k

R1403 33k

R1407

47k

R1406 68k C

R1410

10k

R1411 100k

C

R1404

68k

R1405

22k

SUB5V_CI

SUB3.3V

SUB9V

SUB_F_12V

D1410 VJUMP2012-P

P

G-HPD0 G-HPD1 G-HPD2 G-PANEL_AGW G-R_LED_ON G-G_LED_ON G-HDMI_5V_DET0 G-SD_LED_ON G-ACTIVE_STBY_LED_ON G-DDCSDA0 G-DDCSCL0 G-DDCSDA1 G-DDCSCL1 G-HDMI_5V_DET1 G-DDCSDA2 G-DDCSCL2 G-PEAKS_SERIAL_SBO G-PEAKS_SERIAL_SBI G-MAIN3.3V_SENSE

GENX_SDA0 GENX_SCL0

G-HDMI_5V_DET2

P41.TMIO1 P42.TMIO2 P43,TMIO3 P44,TMIO4

P03,SBT0B

P04,SBO0B PD0,DDCSDA0 PD1,DDCSCL0 PD2,DDCSDA1 PD3,DDCSCL1

PD4,DDCSDA2 PD5,DDCSCL2

P65,USBO2

P66,USBI2

P70,SDA0 P71,SCL0

Power off reset time polarity setting

G-TV_SUB_ON

G-HPD3

G-RF_AFT1

G-PANEL_LED_ON

G-ACTIVE_ANTENNA_DET

P85,ADIN5

P83,ADIN3

IVDD

VSS

P84,ADIN4

[B]

PU-C

16V

0.1u

C1104

88

89

90

VSS

IVDD

P84_ADIN491P85_ADIN5

16V

0.1u

C1114

PU-C

[B]

P25

IVDD

P22,IRQ3

P23,IRQ4

P24,IRQ5

G-FACT

GENX-KEY1

P82,ADIN2

P81,ADIN1

[B]

PU-C

P73_SCL1 P72_SDA1

PUD-C

[B]

P10

VSS

G-QLINK2

G-QLINK1

G-DDCSCL3

G-DDCSDA3

G-HDMI_CEC

G-SIF_FIL_ON

G-HDMI_5V_DET3

PF4

[B5]

OD

STB3.3V

J0JYC0000068

PU-C

[B] [B]

PU-C

[B]

PU-C

[B]

PU-C

P00

PU-C

[B] [B]

P01

PU-C

[B5]

PF3

[B]

PU-C PU-C

[B] [B5]

OD OD

[B5]

OD

[B5] [B5]

OD

PF1

[B5]

OD

[B5]

OD

[B5]

OD [B]

[B]

PU-C

[B]

PU-C

P26

[B]

OD

[B]

OD

[B] VSS PF2

OD

[B5]

IVDD

VDD

C1103

C1102

10V

16V

0.1u

10u

L1100

C

100

1

4

P44_TMIO4

5

P00

6

P01

7

PF3

8

P03_SBT0B

9

P04_SBO0B

10

PD0_DDCSDA0

11

PD1_DDCSCL0

12

PD2_DDCSDA1

13

PD3_DDCSCL1

14

PF1

15

PD4_DDCSDA2

16

PD5_DDCSCL2

17

P65_USBO2

18

P66_USBI2

19

P26

20

P70_SDA0

21

P71_SCL0

22

VSS

23

0.1u

C1112

16V

1u

C1111

10V

26

PU-C

[B]

P60,SBO0A

G-HDMI_CEC_PU_ON

4mA

P63,SBO1

PD7,DDCSCL3

P76,CEC0

P64,SBI1

[B]

PU-C

99

[B5]

[B]

OD

PU-C

97

98

PD7_DDCSCL3

PD6,DDCSDA3

[B]OD[B5]

[B5]

OD

95

96

P76_CEC0

P63_SBO1

PD6_DDCSDA3

P64_SBI1 PF4

P41_TMIO12P42_TMIO23P43_TMIO3

PF0

[B]

PU-C

94

PF0

P75_CECAVL1A

P75,CECAVL1A

P74,CECAVL1B

[B5]

OD

92

93

P74_CECAVL1B

IC1100

MNZSFH9GP82

GenX8

PF224IVDD25VDD

P60_SBO0A P61_SBT0A P62_SBI0A

P05_IRQ630P06_IRQ731P07_IRQ832P50_RMIN_IRQ033P20_IRQ134P21_IRQ235P22_IRQ336P23_IRQ437P24_IRQ538P2539IVDD40VSS41P1042P1143P1244P1345P1446P1547P16

27

28

29

PU-C

[B]

P07,IRQ8

P05,IRQ6

P20,IRQ1

P21,IRQ2

P06,IRQ7

P61,SBT0A

P62,SBI0A

P50,RMIN,IRQ0

G-AI_SENSOR

P40,TMIO0,SYSCLK

P80,ADIN0

[B]

PU-C

83

84

P80_ADIN085P81_ADIN186P82_ADIN287P83_ADIN3

TRCST TRCCLK EXTRG0

P40_TMIO0_SYSCLK

P17

PUD-C

[B]

P12

P11

G-TRCD2

G-TRCD1

G-TRCD3

TRCD2 / (NC)

TRCD3 / (UND)

TRCD1 / (NC)

[O]

SDATA

SCLOCK

PE4_VPPEX

P3052P3153P32

PUD-C

[B]

P15

P13 PUD-C

P14

G-TRCD0

TRCD0 / (NC)

[O]

79

TRCD080TRCD181TRCD282TRCD3

NBOOT

P02

OSCXI OSCXO

NTEST

PUD-C

[B]

P16

G-TRCST

G-TRCCLK

G-EXTRG0

EXTRG0 / (UND)

TRCST / (N.C.)

TRCCLK / (N.C.)

[O]

[B]

[O]

PU-F

76

77

78

75 74 73 72

NRST

71 70

PE2

69

PE1

68

IVDD

67 66 65

VSS

64 63

VDD

62

IVDD

61 60

PE3

59

PE0

58

P37

57

P36

56

P35

55

P34

54

P33

51

48

49

50

OD

PUD-C

[B]

P17

P72,SDA1

P73,SCL1

C1105

1u 10V

C1108

C1109 1u 10V C1123 1u 10V

0.1u

16V

PU-C PD-C PUD-C PU-F PD-F OD [I/O/B] [B5]

4mA

R1422

1.8k LCD_TV_SUB_ON

PU-F

SDATA / (UND)

[B] [I]

PU-F

SCLOCK / (UND) P02

[B]

PU-C

[I]

NRST NBOOT / (N.C.)

[I] [B]

PE2

PUD-C

PE1

PUD-C

[B]

IVDD OSCXI

[I]

OSCXO

[O]

R1163

IVDD

[I]

PE4,VPPEX / (PE4) *

PE3

PUD-C

[B]

PUD-C

PE0

PU-C

P37

[B]

PU-C

P36

[B]

P35

PU-C

[B] [B]

PU-C

P34

[B]

PU-C

P33

[B]

P32

PU-C PU-C

[B]

P31

PU-C

[B]

P30

PULDSEL CONTROL Pull Down pin Don't care to floating when power on. Controllable Pull Up Controllable Pull Down Controllable Pull Up/Down Fixed Pull Up Fixed Pull Down OPEN Drain Input/Output/Bidirect Open Drain 5V tolerance

Drive Current 4mA (Other PP 2mA)

H0J100500035

1M

TV_SUB_ON for LCD-MODEL

R1197

0

X1100

10MHz

R1153

470

C1107

G-ACTIVE_ANTENNA_ON

G-SRQ_GENX G-MAIN_FAN_ON G-SD_PWR_CTRL

C1106

33p 50V

C

22p

50V

GENX_CLK_OUT

G-DTV_VOUTENB

G-SW_OFF_DET

G-SD_BOOT_STS

G-DTV_XRST G-MON_MUTE

G-SP_HP_MUTE

G-TV_SUB_ON

G-GENX-EEP_WP

G-SDATA

G-SCLOCK

G-FAN_SOS G-FAN_MAX

G-NRST

G-PEAKS_SERIAL_SBO

G-PEAKS_SERIAL_SBI

G-HDMI_CEC_PU_ON

G-HDMI_CEC

G-HDMI_5V_DET0 G-HDMI_5V_DET1 G-HDMI_5V_DET2 G-HDMI_5V_DET3

G-HPD0 G-HPD1 G-HPD2 G-HPD3

G-DDCSDA0 G-DDCSCL0 G-DDCSDA1 G-DDCSCL1 G-DDCSDA2 G-DDCSCL2 G-DDCSDA3 G-DDCSCL3

G-EDID_WP G-HDMI_REP_EN

G-ADV_XRST

G-PANEL_LED_ON G-PANEL_AGW

G-SUB3.3V_SENSE G-MAIN9V_SENSE G-DTV9V_SENSE G-SUB5V_SENSE G-MAIN3.3V_SENSE G-SOURCE_XRST/PANEL_TEST_ON

G-HQ_XRST

G-MID_VOUTENB G-BACK_VOUTENB

G-TV_MAIN_ON G-PANEL_STBY_ON/PANEL_VCC_ON G-ECO_ON/INVERTER_ON G-TV_SUB_ON

G-GRAB_MODULE_IIC/PWM_POW_ON

G-PANEL_ALARM/INVERTER_SOS G-PANEL_READY

G-ACTIVE_ANTENNA_ON G-ACTIVE_ANTENNA_DET

R1181

0

D1107

R1182

MA3X704A0L

27k

TO GenX

LVDS/BACKEND

POWER/PANEL CTRL

G-PANEL_LED_ON G-PANEL_AGW

G-SUB3.3V_SENSE G-MAIN9V_SENSE G-DTV9V_SENSE G-SUB5V_SENSE G-MAIN3.3V_SENSE G-SOURCE_XRST/PANEL_TEST_ON

G-HQ_XRST

G-MID_VOUTENB G-BACK_VOUTENB

TO TUNER

G-ACTIVE_ANTENNA_ON G-ACTIVE_ANTENNA_DET

SOS

G-MAIN3.3V_SENSE

3

4

5

6

7

8

GENX-EEP

1

A0

2

A1

3

A2

4

GND

C

C1117

0.1u

IC1101

C3EBFC000042

BR24L08F-WE2

TP1103

9

G-MAIN9V_SENSE

G-SUB5V_SENSE

G-SUB3.3V_SENSE

G-DTV9V_SENSE

R1409

47k

G-PANEL_READY

C

FACT-MODE

STB3.3V

R1236

R1243

47k

R1237

FACT_BOUNDARY

47k

FACT_SDBOOT

1k

WP_GENX_CN

STB3.3V

16V

8

R1209

Vcc

4.7k

TP1102

7

WP

6

SCL

SDA

GENX-EEP_SCL

5

GENX-EEP_SDA

TO IIC

TO TUNER

G-SOUND_SOS

G-SRQ_GENX

G-SOS

G-PANEL_STBY_ON/PANEL_VCC_ON

G-PANEL_READY

G-TV_MAIN_ON

G-PANEL_ALARM/INVERTER_SOS

G-RMIN

G-ECO_ON/INVERTER_ON

G-SUB3.3V_SENSE

G-DTV9V_SENSE

G-SUB5V_SENSE

G-MAIN9V_SENSE

G-GRAB_MODULE_IIC/PWM_POW_ON

G-HDMI_REP_EN

G-BACK_VOUTENB

G-ADV_XRST

G-HQ_XRST

G-AUDIO_XRST

G-SOURCE_XRST/PANEL_TEST_ON

GENX_SDA1

GENX_SCL1

G-MID_VOUTENB

G-RF_AFT1

SUB3.3V

TP1107

R1224

TP1108

TO ADV_V

G-HDMI_CEC

G-HDMI_5V_DET0 G-HDMI_5V_DET1 G-HDMI_5V_DET2 G-HDMI_5V_DET3

G-HPD0 G-HPD1 G-HPD2 G-HPD3

G-DDCSDA0 G-DDCSCL0 G-DDCSDA1 G-DDCSCL1 G-DDCSDA2 G-DDCSCL2 G-DDCSDA3 G-DDCSCL3

G-EDID_WP G-HDMI_REP_EN

TO ADV

TO AVSW

G-ADV_XRST

G-TV_MAIN_ON G-PANEL_STBY_ON/PANEL_VCC_ON G-ECO_ON/INVERTER_ON G-TV_SUB_ON

G-GRAB_MODULE_IIC/PWM_POW_ON

G-PANEL_ALARM/INVERTER_SOS G-PANEL_READY

TO Peaks-COMMON

10k

R1225

R1179

0

G-PEAKS_SERIAL_SBI

SBI2

SBO2

G-SD_BOOT_STS

G-DTV_VOUTENB

G-SD_PWR_CTRL

G-QLINK1

G-QLINK2

G-SIF_FIL_ON

G-SOUND_SOS G-AUDIO_XRST

GENX-KEY1

G-RMIN

G-R_LED_ON G-G_LED_ON G-ACTIVE_STBY_LED_ON G-SD_LED_ON

G-FAN_MAXG-EDID_WP G-FAN_SOS

G-MAIN_FAN_ON

G-AI_SENSOR

G-NRST

GENX_CLK_OUT G-SOS

G-SW_OFF_DET G-DTV_XRST G-SP_HP_MUTE G-MON_MUTE

STB3.3V

G-SRQ_GENX

GENX_SDA0 GENX_SCL0 GENX_SDA1 GENX_SCL1

STB3.3V

C1122

0.01u 25V

MA2J72800L

TO Peaks-DEST

TO Peaks-MODEL

R1221

7.15k

1%

R1255

1k

C

R1173

330

D1112

R1146

1k

R1203

47k

G-SD_BOOT_STS

G-DTV_VOUTENB

G-SD_PWR_CTRL

TO AVSW

G-QLINK1

G-QLINK2

TO ADV_A

G-SIF_FIL_ON

TO ADV_A

G-SOUND_SOS G-AUDIO_XRST

Set

G-KEY1

G-RMIN

G-R_LED_ON G-G_LED_ON G-ACTIVE_STBY_LED_ON G-SD_LED_ON

G-FAN_MAX G-FAN_SOS

G-MAIN_FAN_ON

G-AI_SENSOR

TO STB-RESET

STB_RST

GENX_CLK_OUT G-SOS

TO STB-RESET

G-SW_OFF_DET G-DTV_XRST G-SP_HP_MUTE G-MON_MUTE

Set

G-SRQ_GENX

TO IIC

GENX_SDA0 GENX_SCL0 GENX_SDA1 GENX_SCL1

12

45

A B C D E F G H I J K L M N O P Q

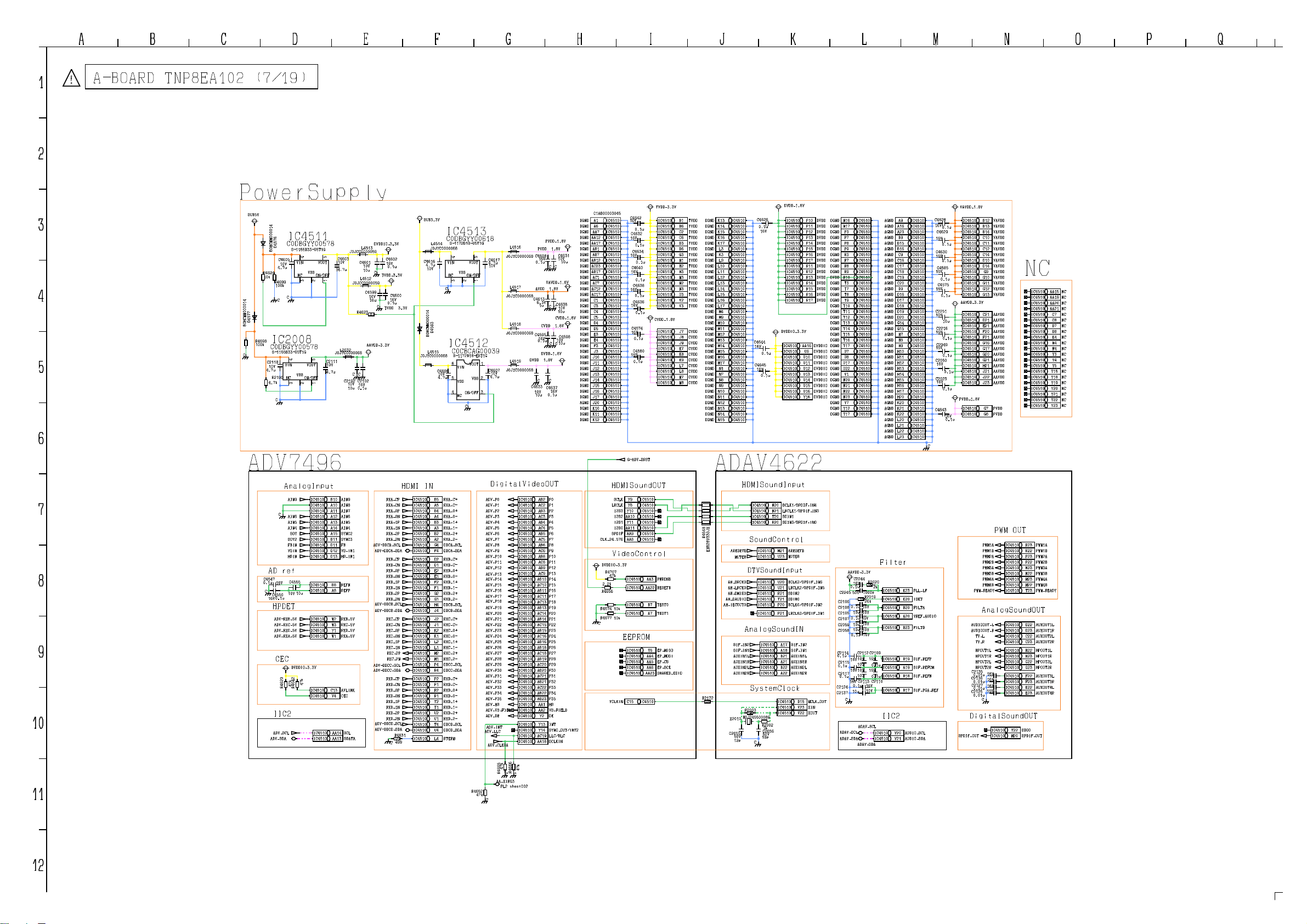

A-BOARD TNP8EA102 (7/19)

I

1

2

10

PowerSupply

SUB5V

3

IC4511

C0DBGYY00578

D4576

S-1155B33-U5T1G

B0HCMM000014

C4605

10V

4.7u

R4624 10k

R4699

100k

C

D4577

B0HCMM000014

R4698 100k

C

IC2008

C0DBGYY00578

S-1155B33-U5T1G

C2118

VIN

10V

4.7u

R2190

NC

4.7k

C

4

3

4

C

5

4

VIN

NC

3

VSS

2

VOUT

ON/OFF

C4603 10V

VOUT

4.7u

VSS

ON/OFF

1

2

L2032

J0JYC0000068

5

C2111 10V

4.7u

1

J0JCC0000059

C2192

10V 10u

L4513

C4601

10V 10u

L4512

J0JCC0000059

R4623

CC

C2102

16V

0.1u

C4599

10V

10u

0

AAVDD_3.3V

DVDDIO_3.3V

C

TVDD_3.3V

C

C4602 16V

0.1u

C4600 16V

0.1u

TVDD 3.3V

SUB3.3V

L4514

J0JYC0000068

C4616

4.7u 10V

B0HCMM000014

L4515

J0JYC0000068

C

D4583

C4606

10V

4.7u

IC4513

C0DBGYY00618

S-1172B18-U5T1G

4

VOUT

VIN

VSS

ON/OFF

NC

2

3

IC4512

C0CBCAG00039

S-1172B18-E6T1G

6

VOUT

VIN

5

VSS

4

ON/OFF

NC

C

C4608

0.1u

AVDD 1.8V

C4613

6.3V

C4595

DVDD 1.8V

C

C4633

10V

10u

PVDD_1.8V

PVDD 1.8V

16V

VAVDD_1.8V

1u

CVDD 1.8V

16V

0.1u

DVDD_1.8V

C4637

C4631

10V

10u

C

C4635

C

10V

10u

CVDD_1.8V

C4598

10V

10u

CC

C

16V

0.1u

L4516

J0JYC0000068

5

C4617

4.7u 10V

1

L4517

J0JYC0000068

L4518

J0JYC0000068

L4519

1

J0JYC0000068

C4607

10V

4.7u

2

3

C1AB00003045

IC4510

A1DGND

IC4510A6DGND IC4510AA7DGND IC4510AA12DGND IC4510AA17DGND IC4510AB1DGND IC4510AB7DGND IC4510AB12DGND IC4510AC23DGND IC4510AB17DGND IC4510AC1DGND IC4510L12DGND IC4510AC7DGND IC4510AC12DGND IC4510AC17DGND IC4510C1DGND IC4510C3DGND IC4510C4DGND IC4510C5DGND IC4510D4DGND IC4510D5DGND IC4510E3DGND IC4510E4DGND IC4510F3DGND IC4510J3DGND IC4510J10DGND IC4510J11DGND IC4510J12DGND IC4510J13DGND IC4510J14DGND IC4510J15DGND IC4510J16DGND IC4510J17DGND IC4510J20AGND IC4510K10DGND IC4510K11DGND IC4510K12DGND

TVDD_3.3V

C4642

IC4510 B1 TVDD

16V

IC4510 B6 TVDD

0.1u IC4510 C2 TVDD

C4632

IC4510 C6 TVDD

16V

IC4510 D3 TVDD

0.1u IC4510 D6 TVDD

C4634

IC4510 G3 TVDD

16V

IC4510 H1 TVDD

0.1u IC4510 H2 TVDD

C4640

IC4510 H3 TVDD

16V

IC4510 M3 TVDD

0.1u IC4510 N2 TVDD

C4638

IC4510 N3 TVDD

16V

IC4510 U3 TVDD

0.1u IC4510 V2 TVDD

C4636

16V

IC4510 V3 TVDD

0.1u

CVDD_1.8V

C4574

IC4510 J7 CVDD

16V

IC4510 J8 CVDD

0.1u IC4510 J9 CVDD

IC4510 K7 CVDD

C4580

IC4510 K8 CVDD

16V

IC4510 K9 CVDD

0.1u IC4510 L7 CVDD

IC4510 L8 CVDD IC4510 M7 CVDD IC4510 M8 CVDD IC4510 J23 AAVDD

IC4510K13DGND IC4510K14DGND IC4510K15DGND IC4510K16DGND IC4510K17DGND IC4510L3DGND IC4510K3DGND IC4510L9DGND IC4510L10DGND IC4510L11DGND

IC4510L13DGND IC4510L14DGND IC4510L15DGND IC4510L16DGND IC4510L17DGND IC4510M4DGND IC4510M9DGND IC4510M10DGND IC4510M11DGND IC4510M12DGND IC4510M13DGND IC4510M14DGND IC4510M15DGND IC4510M16DGND IC4510M17DGND IC4510N1DGND IC4510N7DGND IC4510N8DGND IC4510N9DGND IC4510N10DGND IC4510N11DGND IC4510N12DGND IC4510N13DGND IC4510N14DGND IC4510N15DGND

6

ADV7496

G-ADV_XRST

DigitalVideoOUT

IC4510 AB2 P0

ADV_P0

IC4510 AC2 P1

ADV_P1

IC4510 AB3 P2

ADV_P2

IC4510 AC3 P3

ADV_P3

IC4510 AB4 P4

ADV_P4

IC4510 AC4 P5

ADV_P5

IC4510 AB5 P6

ADV_P6

IC4510 AC5 P7

ADV_P7

IC4510 AB6 P8

ADV_P8

IC4510 AC6 P9

ADV_P9

IC4510 AB8 P10

ADV_P10

IC4510 AC8 P11

ADV_P11

IC4510 AB9 P12

ADV_P12

IC4510 AC9 P13

ADV_P13

IC4510 AB10 P14

ADV_P14

IC4510 AC10 P15

ADV_P15

IC4510 AB11 P16

ADV_P16

IC4510 AC11 P17

ADV_P17 ADV_P18

IC4510 AC13 P18 IC4510 AB13 P19

ADV_P19

IC4510 AC14 P20

ADV_P20

IC4510 AB14 P21

ADV_P21

IC4510 AC15 P22

ADV_P22

IC4510 AB15 P23

ADV_P23

IC4510 AC16 P24

ADV_P24 TV_L

IC4510 AB16 P25

ADV_P25

IC4510 AB18 P26

ADV_P26

IC4510 AC18 P27

ADV_P27

IC4510 AB19 P28

ADV_P28

IC4510 AC20 P29

ADV_P29

IC4510 AB20 P30

ADV_P30

IC4510 AC21 P31

ADV_P31

IC4510 AB21 P32

ADV_P32

IC4510 AC22 P33

ADV_P33

IC4510 AB22 P34

ADV_P34

IC4510 AB23 P35

ADV_P35

IC4510 AA1 HS

ADV_HS

IC4510 AA2 VS_FIELD

ADV_VS_FIELD

IC4510 Y2 DE

ADV_DE

IC4510 Y13 INT

ADV_INT

ADV_CLKOA

IC4510 Y14 SYNC_OUT/INT2 IC4510 AC19 LLC/BLC IC4510 AA18 DCLKIN

ADV_LLC

ADV-DDCA_SCL

ADV-DDCA_SDA

ADV-DDCB_SCL

ADV-DDCB_SDA

ADV-DDCC_SCL ADV-DDCC_SDA

ADV-DDCD_SCL ADV-DDCD_SDA

RXA_CP RXA_CN RXA_0P RXA_0N RXA_1P RXA_1N RXA_2P RXA_2N

RXB_CP RXB_CN RXB_0P RXB_0N RXB_1P RXB_1N RXB_2P RXB_2N

RXC_CP RXC_CN RXC_0P RXC_0N RXC_1P RXC_1N RXC_2P RXC_2N

RXD_CP RXD_CN RXD_0P RXD_0N RXD_1P RXD_1N RXD_2P RXD_2N

R4631

C

HDMI IN

IC4510 B5 RXA_C+ IC4510 A5 RXA_CIC4510 B4 RXA_0+ IC4510 A4 RXA_0IC4510 B3 RXA_1+ IC4510 A3 RXA_1IC4510 B2 RXA_2+ IC4510 A2 RXA_2IC4510 G4 DDCA_SCL IC4510 F4 DDCA_SDA

IC4510 D2 RXB_C+ IC4510 D1 RXB_CIC4510 E2 RXB_0+ IC4510 E1 RXB_0IC4510 F2 RXB_1+ IC4510 F1 RXB_1IC4510 G2 RXB_2+ IC4510 G1 RXB_2IC4510 H4 DDCB_SCL IC4510 J4 DDCB_SDA

IC4510 J2 RXC_C+ IC4510 J1 RXC_CIC4510 K2 RXC_0+ IC4510 K1 RXC_0IC4510 L2 RXC_1+ IC4510 L1 RXC_1IC4510 M2 RXC_2+ IC4510 M1 RXC_2IC4510 P4 DDCC_SCL IC4510 R4 DDCC_SDA

IC4510 P2 RXD_C+ IC4510 P1 RXD_CIC4510 R2 RXD_0+ IC4510 R1 RXD_0IC4510 T2 RXD_1+ IC4510 T1 RXD_1IC4510 U2 RXD_2+ IC4510 U1 RXD_2IC4510 T4 DDCD_SCL IC4510 U4 DDCD_SDA

1%

IC4510 L4 RTERM

499

AD ref

C4547

0.1u

C

16V

AnalogInput

AIN9

C

AIN6 AIN5 AIN4

SOY2 FBIN VSIN HSIN

16V

C4550

0.1u

IC4510 B10 AIN9 IC4510 A10 AIN8 IC4510 A11 AIN7 IC4510 A12 AIN6 IC4510 A13 AIN5 IC4510Y11I2S1 IC4510 A14 AIN4 IC4510 A15 SYNC2

SOY

IC4510 B11 SYNC3 IC4510 D11 FB IC4510 D12 VS_IN1 IC4510 D13 HS_IN1

C4555

IC4510 B8 REFN IC4510 A8 REFP

10u

10V

7

8

HPDET

R4620

DVDDIO_3.3V

47k

R4642

47k

IC4510 W2 RXB_5V IC4510 W3 RXC_5V IC4510 Y1 RXD_5V IC4510 W1 RXA_5V

IC4510 C13 AVLINK IC4510 V4 CEC

ADV-RXB_5V ADV_RXC_5V ADV_RXD_5V ADV_RXA_5V

9

CEC

IIC2

ADV_SCL

ADV_SDA

IC4510 AA14 SCL IC4510 AA13 SDATA

HDMISoundOUT

VideoControl

DVDDIO_3.3V

R4707

47k

2.2k

R4656

R4674

10k

R4677

10k

C

IC4510Y9SCLK IC4510Y8LRCLK IC4510Y10I2S3 IC4510AA10I2S2

IC4510AA11I2S0 IC4510AA9SPDIF IC4510AA8CLK_24.576

IC4510 AA3 PWRDNB

IC4510 AA22 RESETB

IC4510 B7 TEST0

IC4510 A7 TEST1

EEPROM

IC4510 Y6 EP_MISO IC4510 AA4 EP_MOSI IC4510 AA5 EP_CS IC4510 AA6 EP_SCK IC4510 AA23 SHARED_EDID

IC4510C15VCLKIN

ADAV4622

HDMISoundInput

R2172

R4648

EXB28V330JX

68

ARESETB

AH_SRCK0 AH_LRCK0 AH_DMIX0

AH_DAUDIO

AH_IECOUT0

X2010

C2055

MUTEB

SIF_IN2 SIF_IN1 AUXIN1L AUXIN1R AUXIN2L AUXIN2R

50V 12p

SoundControl

DTVSoundInput

AnalogSoundIN

SystemClock

R2003

1M

H0J245500089

DVDD_1.8V

C4626

IC4510 P10 DVDD IC4510 P11 DVDD

0.1u 16V

IC4510 P12 DVDD IC4510 P13 DVDD IC4510 P14 DVDD IC4510 P15 DVDD IC4510 P16 DVDD IC4510 P17 DVDD IC4510 R11 DVDD IC4510 R12 DVDD IC4510 R13 DVDD IC4510 R14 DVDD IC4510 R15 DVDD IC4510 R16 DVDD IC4510 R17 DVDD

DVDDIO_3.3V

C4644

IC4510 AA16 DVDDIO

16V

IC4510 U9 DVDDIO

0.1u IC4510 U10 DVDDIO

IC4510 U11 DVDDIO

C4645

IC4510 U12 DVDDIO

16V

IC4510 U13 DVDDIO

0.1u IC4510 U14 DVDDIO

IC4510 U15 DVDDIO IC4510 U16 DVDDIO IC4510 Y16 DVDDIO

IC4510 N20 BCLK1/SPDIF_IN4 IC4510 N21 LRCLK1/SPDIF_IN3 IC4510 T20 SDIN1 IC4510 R20 SDIN3/SPDIF_IN0

IC4510 M21 ARESETB IC4510 U23 MUTEB

IC4510 U20 BCLK2/SPDIF_IN6 IC4510 U21 LRCLK2/SPDIF_IN5 IC4510 R21 SDIN2 IC4510 T21 SDIN0 IC4510 P20 BCLK0/SPDIF_IN2

IC4510 P21 LRCLK0/SPDIF_IN1

IC4510 A17 SIF_IN2 IC4510 A18 SIF_IN1 IC4510 B21 AUXIN1L IC4510 A21 AUXIN1R IC4510 B22 AUXIN2L IC4510 A22 AUXIN2R

IC4510 D15 MCLK_OUT IC4510 V23 XIN IC4510 V22 XOUT

R2002

1k C2056 50V 18p

C

IC4510N16DGND IC4510N17DGND IC4510P3DGND IC4510P7DGND IC4510P8DGND IC4510P9DGND IC4510R3DGND IC4510R7DGND IC4510R8DGND IC4510R9DGND IC4510R10DVDD IC4510T3DGND IC4510T7DGND IC4510T8DGND IC4510T9DGND IC4510T10DGND IC4510T11DGND IC4510T12DGND IC4510T13DGND IC4510T14DGND IC4510T15DGND IC4510T16DGND IC4510T17DGND IC4510U7DGND IC4510U8DGND IC4510U17DGND IC4510U22DGND IC4510V1DGND IC4510W20DGND IC4510W21DGND IC4510W22DGND IC4510W23DGND IC4510Y7DGND IC4510Y12DGND IC4510Y17DGND

AAVDD_3.3V

C2244

16V

0.1u

C2245 1000p

50V

C2106

0.1u

C2108

10u

C2105

0.1u

C2107

10u

C2059

10u

C2058

0.1u

C2114

C2112

0.1u 10V

16V

C2115

10u

0.1u 10V

16V

C2117

10u

0.1u 16V

0.1u

C2124

10u

C2137

C

ADAV_SCL

ADAV_SDA

R2020

1%

2k

R2019

1%

20k

16V

10V

16V

10V

10V 16V

C2109 16V

0.1u

16V

0.1u

C2113

C2110 16V 10V

ADAV_SCL

IC4510 V20 AUDIO_SCL IC4510 V21 AUDIO_SDA

IC4510A9AGND IC4510A16AGND IC4510A23AGND IC4510B9AGND IC4510B15AGND IC4510B16AGND IC4510C9AGND IC4510C16AGND IC4510C17AGND IC4510C18AGND IC4510C19AGND IC4510C20AGND IC4510D9AGND IC4510D16AGND IC4510D17AGND IC4510D18AGND IC4510D19AGND IC4510D20AGND IC4510G14AGND IC4510G15AGND IC4510H7AGND IC4510H8AGND IC4510H9AGND IC4510H10AGND IC4510H11AGND IC4510H12AGND IC4510H13AGND IC4510H14AGND IC4510H15AGND IC4510H16AGND IC4510H17AGND IC4510H20AGND IC4510K20AGND IC4510K21AGND IC4510K22AGND IC4510L20AGND IC4510L21AGND IC4510L22AGND IC4510L23AGND

Filter

IC4510 K23 PLL_LF

IC4510 E20 ISET

IC4510 B20 FILTA

IC4510 A20 VREF_AUDIO

IC4510 B23 FILTD

IC4510 B19 SIF_REFP

IC4510 A19 SIF_REFCM

IC4510 B18 SIF_REFN

IC4510 B17 SIF_PGA_REF

IIC2

VAVDD_1.8V

C4628

IC4510 B12 VAVDD

16V

IC4510 B13 VAVDD

0.1u IC4510 B14 VAVDD

C4629

IC4510 C10 VAVDD

16V

IC4510 C11 VAVDD

0.1u IC4510 C12 VAVDD

C4630

IC4510 C14 VAVDD

16V

IC4510 D10 VAVDD

0.1u IC4510 D14 VAVDD

C4585

16V

IC4510 G9 VAVDD IC4510 G10 VAVDD

0.1u IC4510 G11 VAVDD

C4575

IC4510 G12 VAVDD

16V

IC4510 G13 VAVDD

0.1u

AAVDD_3.3V

C2251

IC4510 C21 AAVDD

10V

IC4510 D21 AAVDD

10u

IC4510 E21 AAVDD

C2216

IC4510 F20 AAVDD

16V

IC4510 F21 AAVDD

0.1u IC4510 G16 AAVDD

C2049

16V

IC4510 G17 AAVDD IC4510 G20 AAVDD

0.1u IC4510 G21 AAVDD

C2050

16V

IC4510 H21 AAVDD IC4510 J21 AAVDD

0.1u IC4510 J22 AAVDD

C2023

16V

0.1u

PVDD_1.8V

IC4510 G7 PVDD

C4643

IC4510 G8 PVDD

16V

0.1u

C

NC

IC4510 AA15 NC IC4510 AA19 NC IC4510 AA20 NC IC4510 AA21 NC IC4510 C7 NC IC4510 C8 NC IC4510 D7 NC IC4510 D8 NC IC4510 K4 NC IC4510 N4 NC IC4510 W4 NC IC4510 Y3 NC IC4510 Y4 NC IC4510 Y5 NC IC4510 Y15 NC IC4510 Y18 NC IC4510 Y19 NC IC4510 Y20 NC IC4510 Y21 NC IC4510 Y22 NC IC4510 Y23 NC

PWM OUT

IC4510 R23 PWM1A

PWM1A

IC4510 R22 PWM1B

PWM1B

IC4510 P23 PWM2A

PWM2A

IC4510 P22 PWM2B

PWM2B

IC4510 N23 PWM3A

PWM3A

IC4510 N22 PWM3B

PWM3B

IC4510 M23 PWM4A

PWM4A

IC4510 M22 PWM4B

PWM4B

IC4510 T23 PWM_READY

PWM_READY

AnalogSoundOUT

0.01u

TV_R

HPOUT1L HPOUT1R HPOUT2L HPOUT2R

16V 16V

C

IC4510 D22 AUXOUT1L IC4510 D23 AUXOUT1R IC4510 C22 AUXOUT2L IC4510 C23 AUXOUT2R

IC4510 H22 HPOUT1L IC4510 H23 HPOUT1R IC4510 G22 HPOUT2L IC4510 G23 HPOUT2R

IC4510 F22 AUXOUT3L IC4510 F23 AUXOUT3R IC4510 E22 AUXOUT4L IC4510 E23 AUXOUT4R

AUDIOOUT_L AUDIOOUT_R

C2135

C2136

C2127

C2125

DigitalSoundOUT

IC4510 T22 SDO0 IC4510 M20 SPDIF_OUT

SPDIF_OUT

11

12

47k

R4666

R4665

C

AA_XIRQ3

PL2 sheet002

R4652

47k

C

46

10

I

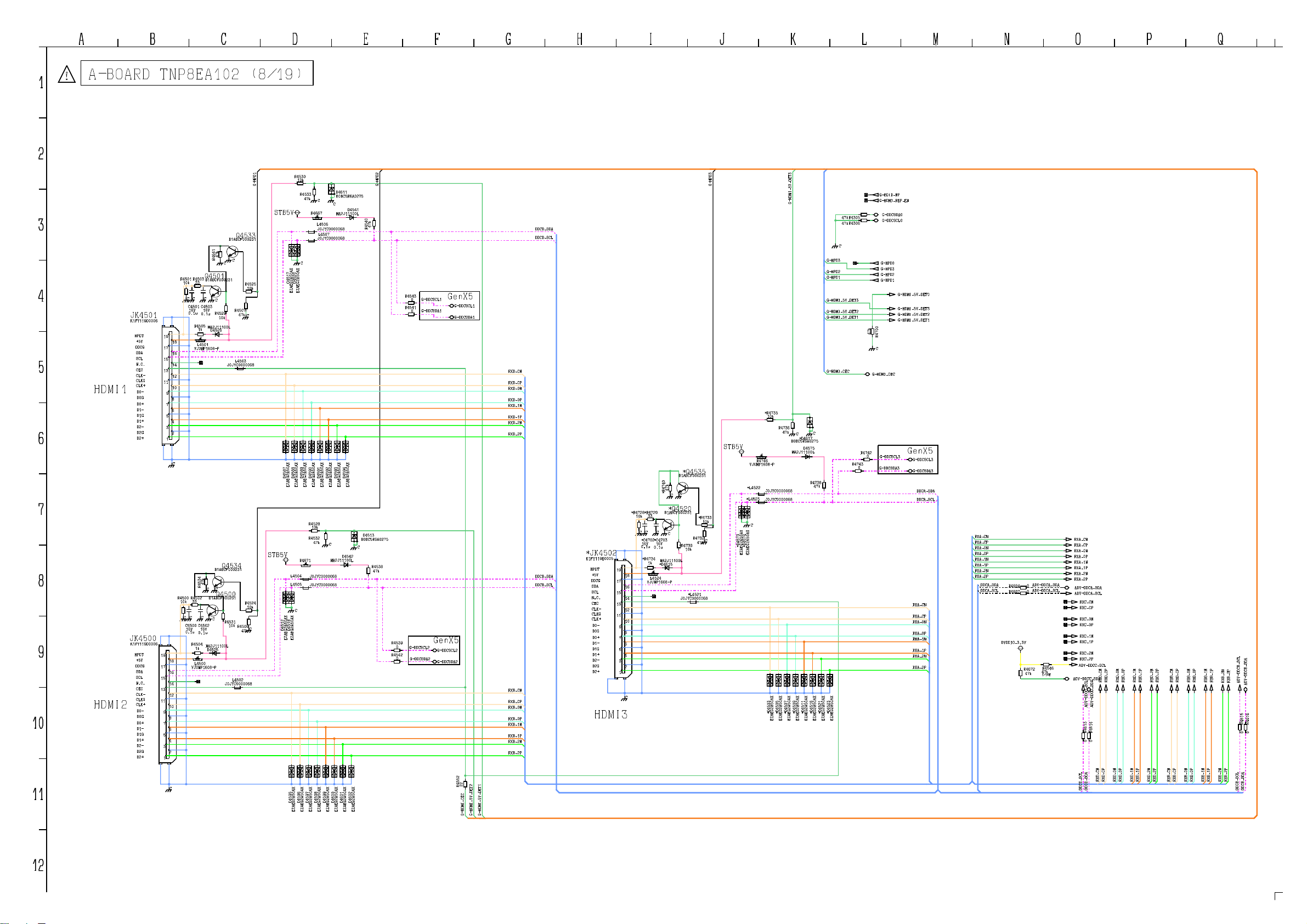

A-BOARD TNP8EA102 (8/19)

A B C D E F G H I J K L M N O P Q

1

2

R4530

STB5V

D4587

EZAEG2A50AX

D4512

EZAEG2A50AX

D4517

D4520

EZAEG2A50AX

D4588

L4504

L4505

C

D4518

EZAEG2A50AX

10k

R4533

47k

C

EZAEG2A50AX

D4589

EZAEG2A50AX

R4671

P

C

R4667

P

L4506

J0JYC0000068

L4507

J0JYC0000068

D4590

EZAEG2A50AX

R4528

10k

R4532

47k

J0JYC0000068

D4591

EZAEG2A50AX

D4611

C

D4592

EZAEG2A50AX

C

MA2J11100L

B0BC5R6A0275

D4541

MA2J11100L

D4593

D4594

EZAEG2A50AX

D4542

D4513

B0BC5R6A0275

C

G-HPD2

47k

R4540

R4543

0

R4541

0

R4538

47k

R4539

0

G-DDCSCL2

R4542

0

G-DDCSDA2

G-DDCSCL1

G-DDCSDA1

GenX5

G-DDCSCL2

G-DDCSDA2

GenX5

G-DDCSCL1

G-DDCSDA1

RXD_CN

RXD_CP RXD_0N

RXD_0P RXD_1N

RXD_1P RXD_2N

RXD_2P

RXB_CN

RXB_CP RXB_0N

RXB_0P RXB_1N

RXB_1P RXB_2N

RXB_2P

DDCD_SDA

DDCD_SCL

DDCB_SDA

DDCB_SCL

*JK4502

K1FY119E0005

HPDT +5V DDCG SDA SCL N.C. CEC CLKCLKG CLK+

D0D0G

D0+ D1D1G D1+ D2D2G D2+

HDMI3

B1ABCF000231

47k

*R4740

C C

*R4728

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

C

*Q4520

B1ABCF000231

*R4729

33

10k

C

*C4702

*C4703

16V

0.1u

1k

P

L4524

VJUMP1608-P

MA2J11100L

*D4615

*R4739

0.1u

*R4734

*Q4535

10k

*L4521

J0JYC0000068

G-HPD3

G-HDMI_5V_DET3

47k 47k

C

G-HPD3

G-HPD2 G-HPD1

G-HDMI_5V_DET3

G-HDMI_5V_DET2 G-HDMI_5V_DET1

G-HDMI_CEC

*R4735

10k

R4736

47k

C

*D4617

STB5V

R4746

VJUMP1608-P

*L4522

*L4523

*R4733

10k

R4732

C

47k

*D4573

EZAEG2A50AX

C

*D4574

EZAEG2A50AX

P

J0JYC0000068

*D4503

*D4505

EZAEG2A50AX

B0BC5R6A0275

MA2J11100L

*D4507

EZAEG2A50AX

*D4509

EZAEG2A50AX

D4575

*D4511

EZAEG2A50AX

R4738

47k

*D4516

EZAEG2A50AX

*D4521

EZAEG2A50AX

*D4523

EZAEG2A50AX

G-EDID_WP G-HDMI_REP_EN

R4305 R4306

G-DDCSDA0 G-DDCSCL0

G-HPD0 G-HPD3 G-HPD2 G-HPD1

G-HDMI_5V_DET0

G-HDMI_5V_DET3 G-HDMI_5V_DET2 G-HDMI_5V_DET1

47k

R4700

C

G-HDMI_CEC

G-DDCSCL3

G-DDCSDA3

GenX5

G-DDCSCL3

G-DDCSDA3

DDCA_SDA

DDCA_SCL

RXA_CN

RXA_CP RXA_0N

RXA_0P RXA_1NRXA_1N

RXA_1P RXA_2N

RXA_2P

RXA_CN RXA_CP RXA_0N RXA_0P RXA_1N RXA_1P RXA_2N RXA_2P

DDCA_SDA DDCA_SCL

R4604 R4607

DVDDIO_3.3V

R4672

47k

ADV-DDCA_SDA

0

ADV-DDCA_SCL

0

RXA_CN RXA_CP RXA_0N RXA_0P RXA_1N RXA_1P RXA_2N RXA_2P

ADV-DDCA_SDA ADV-DDCA_SCL

RXC_CN RXC_CP

RXC_0N RXC_0P

RXC_1N RXC_1P

RXC_2N RXC_2P

R4546

47k

1/16W

ADV-DDCC_SCL

ADV-DDCC_SDA

ADV-DDCD_SCL

ADV-DDCD_SDA

R4613

R4614

0

RXD_CN

RXD_CP

RXD_0N

RXD_0P

RXD_1N

RXD_1P

RXD_2N

RXD_2P

RXB_CN

RXB_CP

RXB_0N

RXB_0P

RXB_1N

RXB_1P

RXB_2N

RXB_2P

ADV-DDCB_SCL

ADV-DDCB_SDA

R4615

R4616

0

R4742

0

R4743

0

G-HPD1

3

R4501

R4503

33

10k

C

4

JK4501

K1FY119D0006

HPDT

+5V DDCG SDA SCL N.C.

5

HDMI1

6

CEC CLKCLKG CLK+

D0D0G

D0+ D1D1G D1+ D2D2G D2+

C

C4501

C4503

16V

0.1u

R4505

1k

19

17

15

13

11

9

7

5

3

1

P

18

L4501

VJUMP1608-P

16

14

12

10

8

6

4

2

C

R4641

Q4501

B1ABCF000231

C

R4529

MA2J11100L

D4526

47k

10k

B1ABCF000231

C

J0JYC0000068

C

R4507

Q4533

47k

L4503

R4525

10k

C

7

Q4534

B1ABCF000231

8

JK4500

K1FY119D0006

HPDT

9

HDMI2

19 +5V DDCG SDA SCL N.C. CEC CLKCLKG CLK+

D0D0G

D0+ D1D1G D1+ D2D2G D2+

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

47k

R4534

CC

C

C4500 16V

0.1u

R4502

33

C

R4504

1k

P

L4500

VJUMP1608-P

C4502

0.1u

C

16V

MA2J11100L

Q4500

B1ABCF000231

C

D4525

R4531

10k

L4502

J0JYC0000068

R4524

10k

R4506

C

47k

R4500

10k

11

12

RXD_0N

RXD_CN

RXD_0P

22

C

D4598

D4595

EZAEG2A50AX

D4596

EZAEG2A50AX

D4597

EZAEG2A50AX

D4599

EZAEG2A50AX

D4600

EZAEG2A50AX

D4601

EZAEG2A50AX

D4602

EZAEG2A50AX

R4552

G-HDMI_CEC

G-HDMI_5V_DET2

G-HDMI_5V_DET1

DDCD_SCL

DDCD_SDA

RXD_CP

RXD_1N

RXD_1P

RXD_2N

RXD_2P

RXB_CN

RXB_CP

RXB_0N

RXB_0P

RXB_1N

RXB_1P

RXB_2N

RXB_2P

DDCB_SCL

DDCB_SDA

47

R S T U V W X Y Z AA AB AC AD AE AF AG AH AI

I

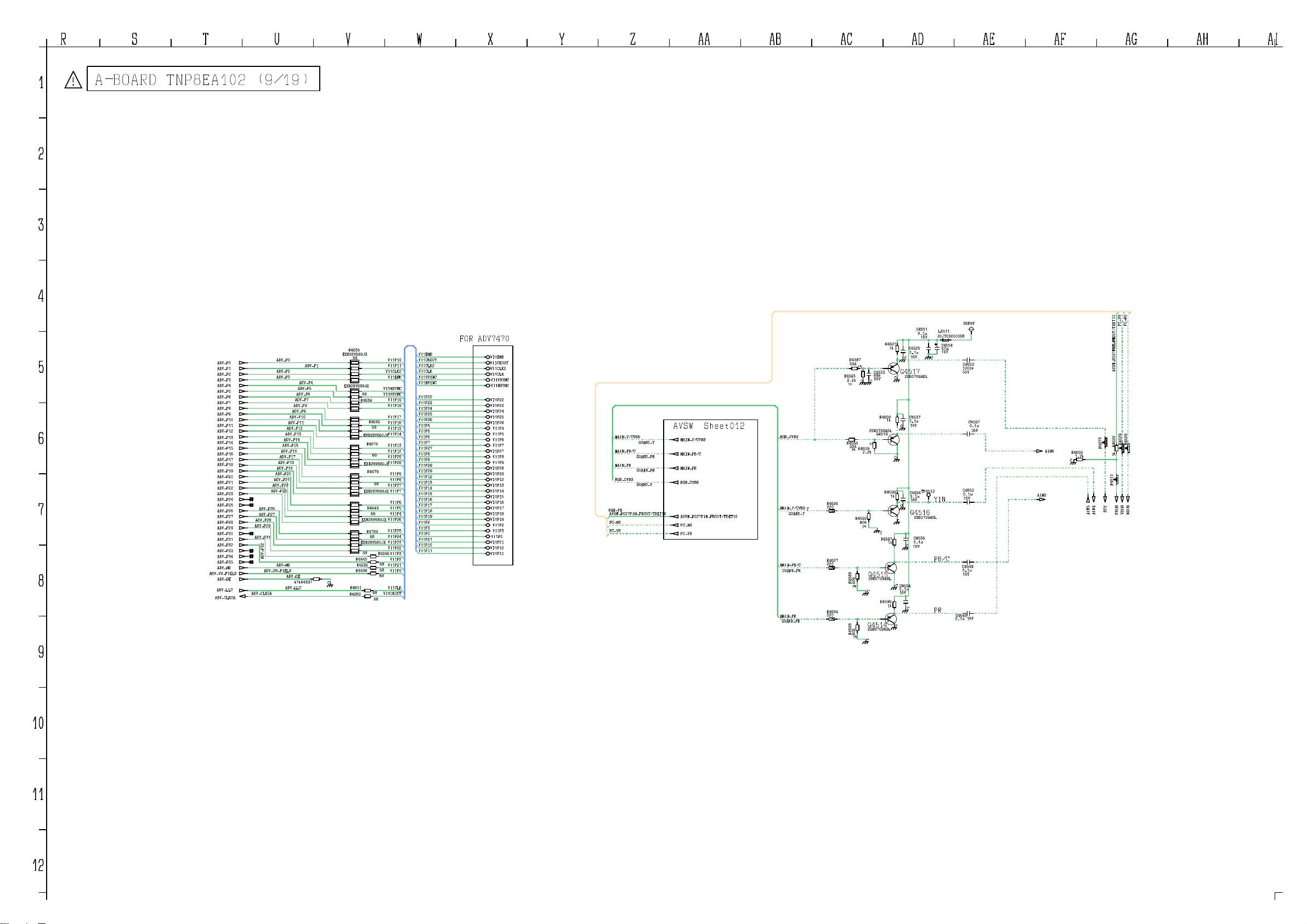

A-BOARD TNP8EA102 (9/19)

1

2

3

4

L4511

J0JYC0000068

+

C4554 47u 16V

YIN

PB/C

PR

SUB9V

C4553 1000p 50V

C4567

0.1u 16V

AIN9

R4609

1.2k

C

C4552

0.1u 16V

C4549

0.1u 16V

C4548

16V

0.1u

AIN6

AIN5

C4551

0.1u

R4635

FOR ADV7470

EXB28V680JX

68

EXB28V680JX

C

R4650

R4651

R4639

EXB28V680JX

R4645 R4636 R4638

68

R4640

EXB28V680JX

R4678

EXB28V680JX

R4679

EXB28V680JX

R4649

R4799

68

VI1HSYNC VI1VSYNC

68

R4646

68 68 68

68

VI1CKOUT

68

ADV_P28 ADV_P29

ADV_P31

ADV_CLKOA

ADV_P26 ADV_P27

ADV_P32

ADV_VS_FIELD

ADV_P21

ADV_P22

ADV_P23

ADV_P0

ADV_P2 ADV_P3

ADV_P19

ADV_P20

ADV_HS

ADV_P16

ADV_P17

ADV_P18

ADV_P13

ADV_P14

ADV_P15

ADV_LLC

ADV_P12

ADV_DE

ADV_P10

ADV_P11

ADV_P9

ADV_P8

47k

ADV_P6

ADV_P7

ADV_P4

ADV_P5

ADV_P1

R4637

ADV_P0

5

6

7

8

ADV_P1 ADV_P2 ADV_P3 ADV_P4 ADV_P5 ADV_P6 ADV_P7 ADV_P8 ADV_P9 ADV_P10 ADV_P11 ADV_P12

ADV_P13 ADV_P14 ADV_P15 ADV_P16 ADV_P17 ADV_P18

ADV_P19 ADV_P20 ADV_P21 ADV_P22 ADV_P23 ADV_P24 ADV_P25 ADV_P26 ADV_P27 ADV_P28 ADV_P29 ADV_P30 ADV_P31 ADV_P32 ADV_P33 ADV_P34 ADV_P35 ADV_HS

ADV_VS_FIELD

ADV_DE

ADV_LLC

ADV_CLKOA

VI1P10 VI1P11

VI1CLK2

VI1ENB

VI1P19 VI1P18

VI1P17 VI1P16 VI1P15 VI1P14

VI1P13 VI1P12 VI1P29 VI1P28

VI1P27

VI1P26

VI1P25 VI1P24 VI1P23 VI1P22

VI1P21

VI1CLK

VI1ENB VI1CKOUT VI1CLK2 VI1CLK VI1VSYNC VI1HSYNC

VI1P22 VI1P23 VI1P24 VI1P25 VI1P26 VI1P4 VI1P5 VI1P6 VI1P7 VI1P27 VI1P8 VI1P9 VI1P28 VI1P29

VI1P9

VI1P12

VI1P8

VI1P13 VI1P14

VI1P7

VI1P15 VI1P16

VI1P6

VI1P17

VI1P5

VI1P18

VI1P4

VI1P19 VI1P2 VI1P3 VI1P0 VI1P21 VI1P10 VI1P11

VI1P3 VI1P2

VI1P0

VI1ENB VI1CKOUT VI1CLK2 VI1CLK VI1VSYNC VI1HSYNC

VI1P22 VI1P23 VI1P24 VI1P25 VI1P26

VI1P4 VI1P5 VI1P6 VI1P7

VI1P27

VI1P8

VI1P9 VI1P28 VI1P29 VI1P12 VI1P13 VI1P14 VI1P15 VI1P16 VI1P17 VI1P18 VI1P19

VI1P2

VI1P3 VI1P0 VI1P21 VI1P10 VI1P11

MAIN_Y/CVBS

GUARD_Y

MAIN_PB/C

GUARD_PB

MAIN_PR

GUARD_PR

RGB_CVBS

GUARD_V

RGB_FB

AVSW_R027PIN_FBOUT/TDET10

PC_HS

PC_VS

AVSW Sheet012

MAIN_Y/CVBS

MAIN_PB/C

MAIN_PR

RGB_CVBS

AVSW_R027PIN_FBOUT/TDET10

PC_HS

PC_VS

RGB_CVBS

MAIN_Y/CVBS

GUARD_Y

MAIN_PB/C

GUARD_PB

MAIN_PR

GUARD_PR

R4587 604

R4593

2.2k

1%

R4664

604

1%

R4626 220

Y

1%

R4627 220

1%

R4589

1%

R4634 220

1%

R4588

1%

R4601

1%

C4533 68p 50V

C

R4608

1k

2SB0709ASL

Q4519

1%

R4605

2.2k

R4598

R4592

806

1%

C

R4597

1k

Q4515

2SB0709ASL

806

C

R4596

1k

Q4514

2SB0709ASL

806

C

16V

1k

C4625

0.1u 16V

C

Q4517

2SB0709ASL

C

C4537

0.1u 16V

C

TP4512

C4624

1k

0.1u 16V

C

Q4516

2SB0709ASL

C

C4535

0.1u

C

16V

C

C4534

0.1u 16V

C

S

R4673

SOY

AIN4

PC_HS

PC_VS

RGB_FB

AVSW_R027PIN_FBOUT/TDET10

R4628

R4629

R4622

S

1k

S

R4610

HSIN

VSIN

FBIN

9

10

11

12

48

A B C D E F G H I J K L M N O P Q

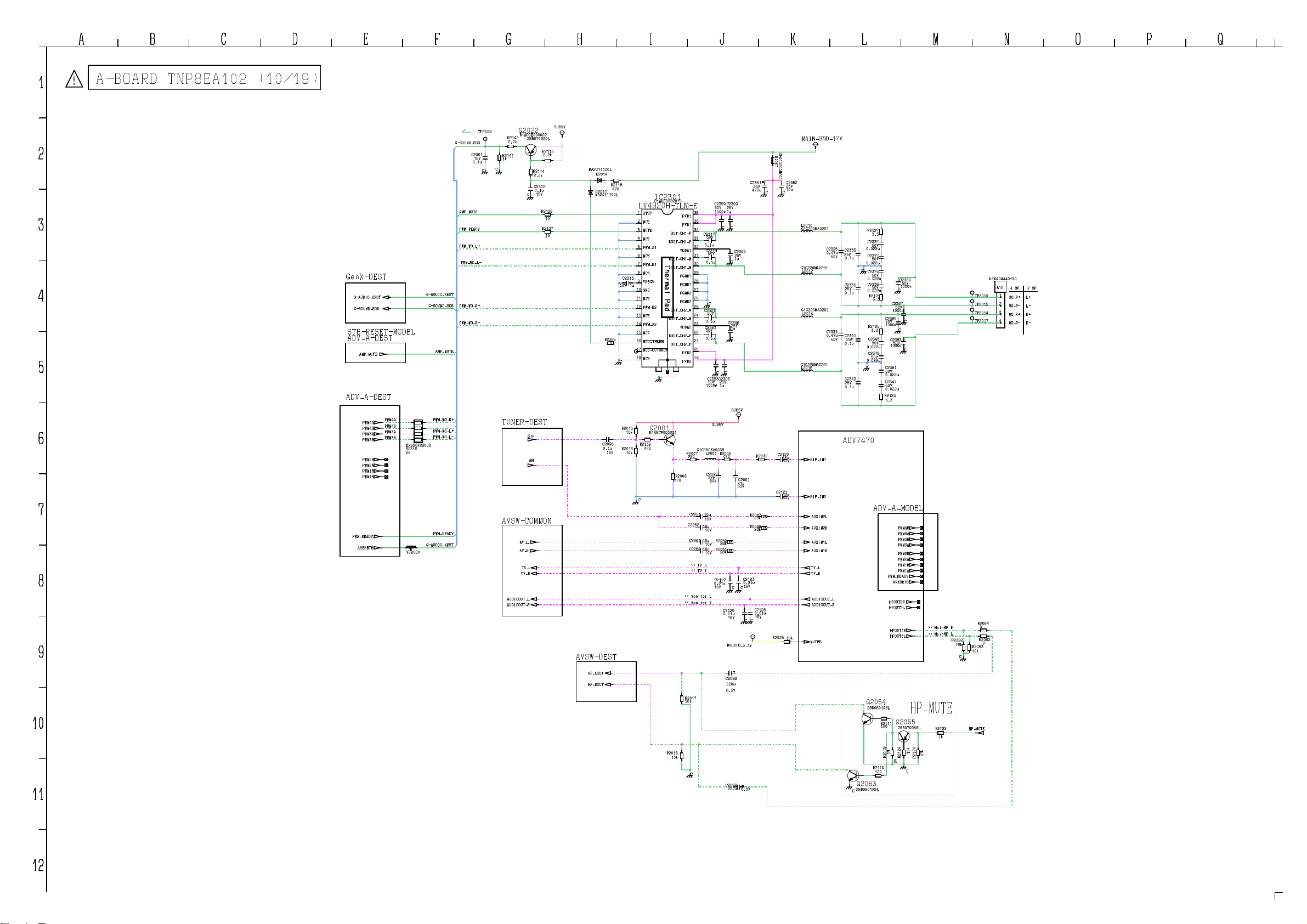

A-BOARD TNP8EA102 (10/19)

I

1

10

11

TV_L TV_R

2SB0709A0L

R2114

2.2k

C2302

0.1u

C

SIF

AM

SUB9V

MAIN_SND_17V

R2115

2.2k

MA2J11100L

D2014

R2118

470

16V

R2129

10

R2137

10

D2017 MA2J11100L

C2096

0.1u

IC2301

C1AB00002875

LV4920H-TLM-E

1

STBY

2

NC1

3

MUTE

NC2

PWM_A1

NC3

PWM_B1

NC4

VREG5

GND

NC5

PWM_B2

NC6

PWM_A2

NC7

NOD_THERM

NOD_OUTSHDN

NC8

R2132

470

C

Q2001

B1ABCF000231

OUT_CH1_P

BOOT_CH1_P

VDDA1

BOOT_CH1_N

Thermal Pad

OUT_CH1_N

PGND1

PGND2

OUT_CH2_N

BOOT_CH2_N

VDDA2

BOOT_CH2_P

OUT_CH2_P

R2008

470

4

5

6

7

8

C2313

9

10V

1u

10

11

12

13

14

15

R2325

16

0

17

18

C

R2015

10k

R2016

16V

10k

C

PVD1

PVD2

R2007

220

C2261

C2262

C2263 10u

C2264 10u

<< TV L << TV R

<< Monitor L

<< Monitor R

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

G1C150KA0038

C2359

C2309

50V

25V

1000p

1u

C

C2317

50V

0.1u C2319

C2305

50V

25V 1u

C

0.1u

C

C2321

50V

0.1u

C2390

25V

C2323

1u

50V

0.1u

C

C2353

C2303

50V

25V

1000p

1u

SUB5V

L2001

R2006

470

C2092

22p

C2091

50V

47p 50V

10u 10V

10u

10V

R2050

1%

28k

10V

R2051

1%

28k

10V

C2123

C2122

0.01u

0.01u 16V

16V

C

C2129

0.01u 16V

DVDDIO_3.3V

AVSW-DEST

HP_LOUT

HP_ROUT

R2017 10k

R2018

10k

C

+

C2098 220u

6.3V

C2099

220u

6.3V

L2018

J0JHC0000042

+

C2361

470u

C2362 25V

25V

10u

CC

L2010 G1C220MA0291

G1C220MA0291

L2012

G1C220MA0291

L2014

G1C220MA0291 L2016

C2325

0.47u 50V

C2331

0.47u 50V

R2127

3.3

C2337

50V

0.022u

C2333

25V

C2377

0.1u

50V

0.022u

C

C2375

50V

0.022u

C2389

C2339

C2335 25V

0.022u

0.1u R2121

R2125

C2341

C2345

25V

0.1u

0.022u

C2379

0.022u

C

C2343 25V

0.1u

50V

1000p

50V

C

3.3 C2387

50V

1000p

C2385

C

50V 1000p

C

3.3

C2383

50V

1000p

C

50V

C2381 50V

0.022u

C2347 50V

0.022u

R2123

3.3

TP2010

TP2012

TP2014

TP2017

K1KA04AA0190

A12

1

2

3

4

4 SPR+2 SP

SQ_R+

SQ_R-

WO_R+

WO_R-L+R-

L-

ADV7470

C2120

R2032

56p

0

C2121

R2047

1%

28k

R2048

1%

28k

C2128

0.01u 16V

C

R2023

+

SIF_IN1

50V

56p

SIF_IN2

50V

C

Q2063

2SD0601ASL

ADV_A_MODEL

PWM_READY

HPOUT2R HPOUT2L

Q2064

2SD0601ASL

R2111

100

1M

R2119

R2110

100

PWM4B PWM4A PWM3B PWM3A

PWM2B PWM2A PWM1B PWM1A

ARESETB

HPOUT1R HPOUT1L

HP_MUTE

Q2065

2SB0709ASL

10k

R2124

0V

C

R2064

>> MainHP R

>> MainHP L

R2122

1k

47k

R2120

0

R2063

R2092

0

10k

R2093

10k

C

HP_MUTE

AUXIN2L

AUXIN2R

AUXIN1L

AUXIN1R

TV_L TV_R

AUDIOOUT_L AUDIOOUT_R

10k

MUTEB

TP2008

G-SOUND_SOS

AMP_MUTE

PWM_READY

PWM_WO_L+

PWM_WO_L-

C2301

16V

0.1u

C

2

3

Q2022

B1ADCE000022

R2142

2.2k

R2141

1k

C

GenX-DEST

4

G-AUDIO_XRST

G-SOUND_SOS

STB-RESET-MODEL ADV_A-DEST

AMP_MUTE

G-AUDIO_XRST

G-SOUND_SOS

AMP_MUTE

PWM_WO_R+

PWM_WO_R-

5

ADV_A-DEST

PWM4A PWM_WO_R+

PWM4A

PWM4B

PWM3A

PWM3B

6

PWM3B

PWM2B PWM2A PWM1B PWM1A

7

PWM_READY

ARESETB

EXB28V220JX R2316 22

S

VJ2000

PWM_WO_R-

PWM_WO_L+ PWM_WO_L-

PWM_READY

G-AUDIO_XRST

TUNER-DEST

AVSW-COMMON

AV_L

AV_R

8

AUDIOOUT_L AUDIOOUT_R

9

12

49

A B C D E F G H I J K L M N O P Q

I

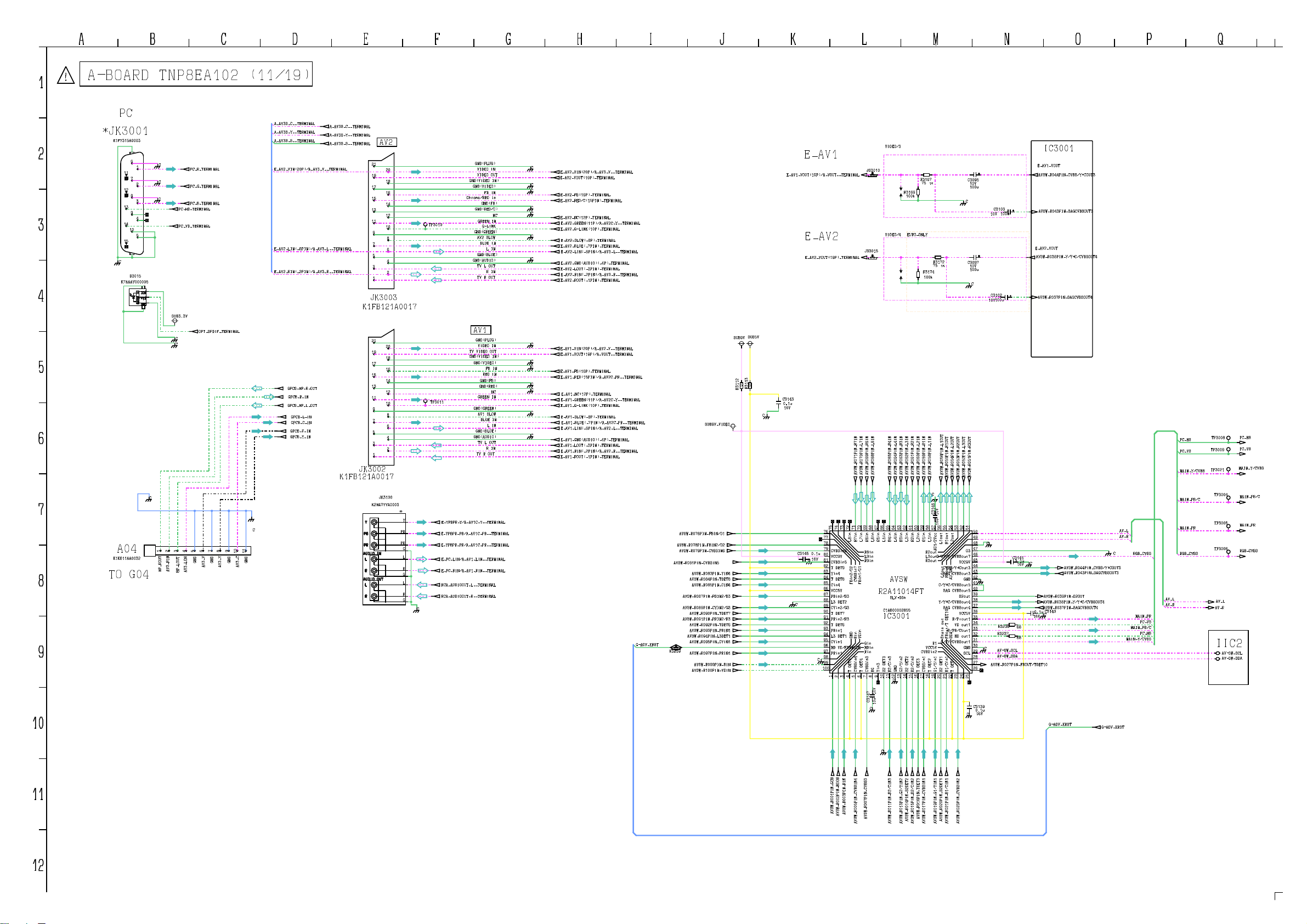

A-BOARD TNP8EA102 (11/19)

1

10

PC

*JK3001

K1FY315A0003

2

3

4

11

12

13

14

15

C

K7AAAY000005

6

C

1

7

2

8

3

9

4

10

5

D3015

VCC

Vin

GND

DRIVE IC

PC_R_TERMINAL

C

PC_G_TERMINAL

C

PC_B_TERMINAL

PC_HD_TERMINAL

PC_VD_TERMINAL

SUB3.3V

OPT_SPDIF_TERMINAL

C C

5

6

C

7

A04

K1KB11AA0032

8

TO G04

123456789

HP_ROUT

AV3_RIN

HP_LOUT

AV3_LIN

GND

AV3_V

10

GND

AV3_C

AV3_Y

9

C

11

GND

A_AV3S_C__TERMINAL

A_AV3S_Y__TERMINAL

A_AV3S_S__TERMINAL

E_AV2_VIN(20P)/A_AV3_V__TERMINAL

E_AV2_LIN(_6PIN)/A_AV3_L__TERMINAL

E_AV2_RIN(_2PIN)/A_AV3_R__TERMINAL

GPCB_HP_R_OUT

GPCB_R_IN

GPCB_HP_L_OUT

GPCB_L_IN GPCB_C_IN

GPCB_V_IN GPCB_Y_IN

A_AV3S_C__TERMINAL

A_AV3S_Y__TERMINAL

A_AV3S_S__TERMINAL

K1FB121A0017

AV2

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

JK3003

K1FB121A0017

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

JK3002

JK3100

K2HA7YYA0003

Y

PB

PR

AUDIO IN

L

R

AUDIO OUT

L

R

JS3010

JS3015

AVSW_R070PIN_L7IN

AVSW_R069PIN_R6IN

AVSW_R071PIN_R7IN

R8in L9in R9in

CVBSin7

FBin1/O1

FBin2/O2

GND99Bin

VDin

Gin HDin Rin

C3147

VIDEO/3

S

AVSW_R068PIN_L6IN

R2A11014FT

C1AB00002855

IC3001

10V

10u

C

R3169

100k

EURO_ONLYVIDEO/4

AVSW_R065PIN_R4IN

AVSW_R062PIN_L3IN

AVSW_R064PIN_L4IN

AVSW_R063PIN_R3IN

AVSW

SLV:90h

C

R3167

75

1%

R3172 75

R3174

100k

AVSW_R060PIN_L2IN

AVSW_R059PIN_R1IN

AVSW_R061PIN_R2IN

AVSW_R058PIN_L1IN

C

58

L1in59R1in60L2in61R2in62L3in63R3in64L4in65R4in66L5in67R5in68L6in69R6in70L7in71R7in72L8in

R2out L3out R3out

R1

VCC5V

CVBSin2

1%

AVSW_R056PIN_L1OUT

AVSW_R055PIN_R1OUT

C3146

10V

10u

57

AU1/2Vcc

G/CY/Y/CVBSout7

CVBS/Y+Cout3 SAG CVBSout3

R4out50L4out

C/Y+C/CVBSout5

SAG CVBSout5

Y/Y+C/CVBSout4

SAG CVBSout4

B/PB/Cout1

State out27FBout/T DET1028SDA

G/CY/CVBSout1

C3095

10V 100u

C

C3097

10V 100u

C

AVSW_R051PIN_R3OUT

AVSW_R052PIN_L3OUT

AVSW_R053PIN_R2OUT

AVSW_R054PIN_L2OUT

52

53

54

51

L2out55R1out56L1out

O3

VCC9V

AU_GND

GND

S2out

VCC5V

R/Prout1

VD out1

HD out1

GND SCL

23

24

25

C

+

10V

49 48

C 47 46 45 44 43 42

C

41 40 39 38 37 36 35 34 33 32 31 30

C

29

26

C3139

0.1u 16V

C3103

100u

10V

C3102

100u

R3236

R3237

AV-SW_SCL AV-SW_SDA

AVSW_R027PIN_FBOUT/TDET10

GND(PLUG)

VIDEO IN VIDEO OUT

GND(VIDEO IN)

GND(VIDEO)

FB IN

Chroma/RED in

GND(FB)

GND(RED/C)

NC

TP3010

TP3011

<

Y

PB

PR

G

L

R G

L

R G

E_YPBPR_Y/A_AV1C_Y__TERMINAL

E_YPBPR_PB/A_AV1C_PB__TERMINAL

E_YPBPR_PR/A_AV1C_PR__TERMINAL

E_PC_LIN/A_AV1_LIN__TERMINAL

E_PC_RIN/A_AV1_RIN__TERMINAL

RCA_AUDIOOUT_L__TERMINAL

RCA_AUDIOOUT_R__TERMINAL

C

GREEN IN

Q-LINK

GND(GREEN)

AV2 SLOW

BLUE IN

GND(BLUE)

GND(AUDIO)

TV L OUT

TV R OUT

AV1

GND(PLUG)

VIDEO IN TV VIDEO OUT GND(VIDEO IN)

GND(VIDEO)

GND(FB)

GND(RED)

GREEN IN

GND(GREEN)

AV1 SLOW

BLUE IN

GND(BLUE)

GND(AUDIO)

TV L OUT

TV R OUT

RED IN

L IN

R IN

FB IN

NC

L IN

R IN

C

C C

C

C C

C

E_AV2_VIN(20P)/A_AV3_V__TERMINAL E_AV2_VOUT(19P)_TERMINAL

E_AV2_FB(16P)_TERMINAL E_AV2_RED/C(15PIN)_TERMINAL

E_AV2_NC(12P)_TERMINAL

E_AV2_GREEN(11P)/A_AV2C_Y__TERMINAL E_AV2_Q-LINK(10P)_TERMINAL

E_AV2_SLOW(_8P)_TERMINAL E_AV2_BLUE(_7PIN)_TERMINAL E_AV2_LIN(_6PIN)/A_AV3_L__TERMINAL

E_AV2_GND(AUDIO)(_4P)_TERMINAL E_AV2_LOUT(_3PIN)_TERMINAL E_AV2_RIN(_2PIN)/A_AV3_R__TERMINAL E_AV2_ROUT(_1PIN)_TERMINAL

E_AV1_VIN(20P)/A_AV2_V__TERMINAL E_AV1_VOUT(19P)/A_VOUT__TERMINAL

E_AV1_FB(16P)_TERMINAL

E_AV1_RED(15PIN)/A_AV2C_PR__TERMINAL

E_AV1_NC(12P)_TERMINAL E_AV1_GREEN(11P)/A_AV2C_Y__TERMINAL E_AV1_Q-LINK(10P)_TERMINAL

E_AV1_SLOW(_8P)_TERMINAL E_AV1_BLUE(_7PIN)/A_AV2C_PR__TERMINAL E_AV1_LIN(_6PIN)/A_AV2_L__TERMINAL

E_AV1_GND(AUDIO)(_4P)_TERMINAL E_AV1_LOUT(_3PIN)_TERMINAL E_AV1_RIN(_2PIN)/A_AV2_R__TERMINAL E_AV1_ROUT(_1PIN)_TERMINAL

G-ADV_XRST

AVSW_R076PIN_FBIN/O1

AVSW_R078PIN_FBIN2/O2

AVSW_R079PIN_CVBSIN6

AVSW_R081PIN_CVBSIN5

AVSW_R087PIN_PBIN2/B3

AVSW_R089PIN_CYIN2/G3

AVSW_R091PIN_PRIN2/R3

AVSW_R094PIN_L3DET1

S

R3239

SUB9V_VIDEO

AVSW_R083PIN_YIN4

AVSW_R084PIN_TDET8

AVSW_R085PIN_CIN4

AVSW_R090PIN_TDET7

AVSW_R092PIN_TDET6 AVSW_R093PIN_PBIN1

AVSW_R095PIN_CYIN1

AVSW_R097PIN_PRIN1

AVSW_R099PIN_BIN

AVSW_R100PIN_VDIN

SUB5V

SUB9V

0

R3113

R3112

C

E_AV1

E_AV1_VOUT(19P)/A_VOUT__TERMINAL

E_AV2

E_AV2_VOUT(19P)_TERMINAL

C3143

0.1u 16V

76 77 78 79

C3145

0.1u

80

16V

81

C

82 83 84 85 86 87 88

C

89 90 91 92 93 94 95 96 97 98

C

100

73

74

75

CVBSin6 VCC9V CVBSin5 T DET9 Yin4 T DET8 Cin4 VCC5V PBin2/B3 L3 DET2 CYin2/G3 T DET7 PRin2/R3 T DET6 PBin1 L3 DET1 CYin1 HD VD/FBKMUTE PRin1

T DET55CVBSin46T DET47CVBSin38BG9Yin310S2 DET311R2/Cin312GND13G2/Yin214S2 DET215B2/Cin216T DET317CVBSin118T DET219G1/Yin120S2 DET121B1/Cin122T DET1

1

2

3

4

+

C3141

0.1u 16V

68

IC3001

E_AV1_VOUT

AVSW_R044PIN_CVBS/Y+COUT3

AVSW_R043PIN_SAGCVBSOUT3

E_AV2_VOUT

AVSW_R038PIN_Y/Y+C/CVBSOUT4

AVSW_R037PIN_SAGCVBSOUT4

C

AVSW_R039PIN_S2OUT

AVSW_R038PIN_Y/Y+C/CVBSOUT4

AVSW_R037PIN_SAGCVBSOUT4

C3140

0.1u C

16V

G-ADV_XRST

AVSW_R044PIN_CVBS/Y+COUT3 AVSW_R043PIN_SAGCVBSOUT3

G-ADV_XRST

PC_HS

PC_VS

MAIN_Y/CVBS

MAIN_PB/C

AV_L AV_R

C

RGB_CVBS

MAIN_PR

PC_VS

MAIN_PB/C

PC_HS

MAIN_Y/CVBS

MAIN_PR

RGB_CVBS

AV_L AV_R

TP3009

TP3021

TP3004

TP3005

TP3006

AV_L

AV_R

IIC2

AV-SW_SCL AV-SW_SDA

PC_VS

MAIN_Y/CVBS

MAIN_PB/C

MAIN_PR

RGB_CVBS

PC_HS

TP3008

11

12

50

AVSW_R001PIN_GIN

AVSW_R003PIN_RIN

AVSW_R002PIN_HDIN

C

AVSW_R007PIN_CVBS3

AVSW_R005PIN_CVBSIN4

AVSW_R014PIN_S2DET2

AVSW_R013PIN_G2/YIN2

AVSW_R011PIN_R2/CIN3

AVSW_R015PIN_B2/CIN2

AVSW_R016PIN_TDET3

AVSW_R017PIN_CVBSIN1

AVSW_R019PIN_G1/YIN1

AVSW_R020PIN_S2DET1

AVSW_R021PIN_B1/CIN1

AVSW_R023PIN_CVBSIN2

R S T U V W X Y Z AA AB AC AD AE AF AG AH AI

I

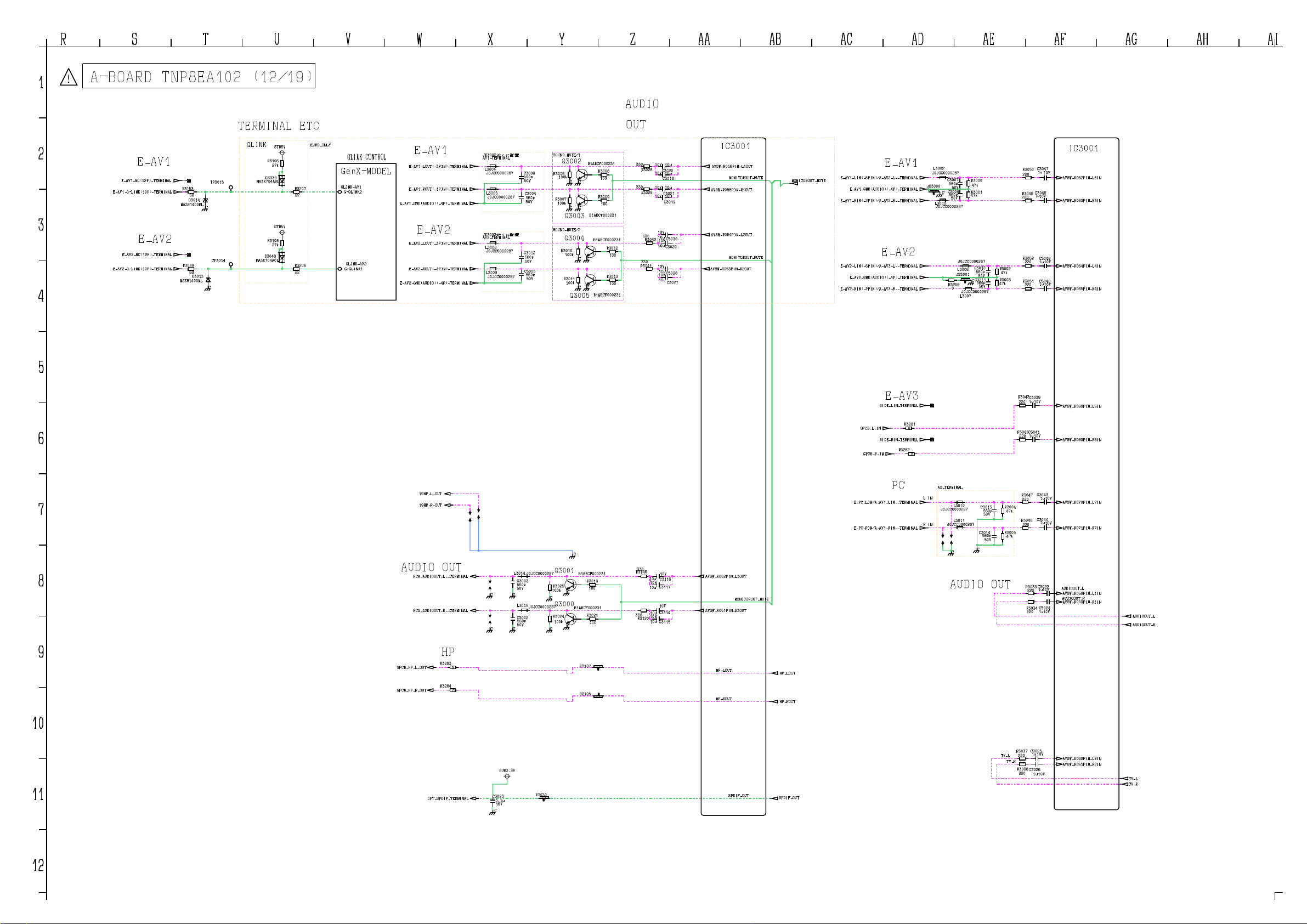

A-BOARD TNP8EA102 (12/19)

1

AUDIO

R3008

100

R3009

100

B1ABCF000231

OUT

IC3001

330

10u

10V

R3028

C3020

10u

10V

C3018

330

10u

10V

R3029

C3021

10u

10V

C3019

10V

330

10u

C3030

R3042

10V

10u

R3012

100

R3013

100

C3029

330

R3041

10V

10u

C3028

10V 10u

C3027

AVSW_R056PIN_L1OUT

MONITOROUT_MUTE

AVSW_R055PIN_R1OUT

AVSW_R054PIN_L2OUT

MONITOROUT_MUTE

E_AV1_LIN(_6PIN)/A_AV2_L__TERMINAL

E_AV1_RIN(_2PIN)/A_AV2_R__TERMINAL

E_AV2_LIN(_6PIN)/A_AV3_L__TERMINAL

E_AV2_GND(AUDIO)(_4P)_TERMINAL

E_AV2_RIN(_2PIN)/A_AV3_R__TERMINAL

E_AV1

E_AV2

L3002

J0JCC0000287

JS3000

S

C

L3003

J0JCC0000287

C3007

C3008

560p

R3256

50V

L3006

JS3001

0

J0JCC0000287

S

J0JCC0000287

L3007

R3050

R3000

47k

R3001 47k

C3010

560p

50V

C3011

C

560p

50V

220

R3049 220

R3052

220

R3002

47k

R3003

R3051

47k

220

IC3001

C3047 1u

10V

AVSW_R062PIN_L3IN

C3046 1u

10V

AVSW_R063PIN_R3IN

C3049

10V

1u

AVSW_R064PIN_L4IN

C3048 1u

10V

AVSW_R065PIN_R4IN

TERMINAL ETC

QLINK

STB5V

2

E_AV1

E_AV1_NC(12P)_TERMINAL

E_AV1_Q-LINK(10P)_TERMINAL

R3153

MAZ81400ML

TP3015

68

D3014

C

3

E_AV2

E_AV2_NC(12P)_TERMINAL

E_AV2_Q-LINK(10P)_TERMINAL AVSW_R053PIN_R2OUT

R3089

MAZ81400ML

TP3014

68

D3013

C

MA3X704A0L

R3106

27k

D3339

STB5V

R3108

27k

D3048

4

EURO_ONLY

QLINK CONTROL

GenX-MODEL

R3207

22

R3206

22

QLINK_AV1

G-QLINK2

QLINK_AV2

G-QLINK1

E_AV1

E_AV1_LOUT(_3PIN)_TERMINAL

E_AV1_ROUT(_1PIN)_TERMINAL E_AV1_GND(AUDIO)(_4P)_TERMINAL

E_AV1_GND(AUDIO)(_4P)_TERMINAL

E_AV2

E_AV2_LOUT(_3PIN)_TERMINAL

E_AV2_ROUT(_1PIN)_TERMINAL

E_AV2_GND(AUDIO)(_4P)_TERMINAL

JK3002 z u AV1_TERMINAL

L3004

J0JCC0000287

L3005

J0JCC0000287

JK3003 z u AV2_TERMINAL

L3008

J0JCC0000287

L3009

J0JCC0000287

SOUND_MUTE/1

Q3002

C3009

R3006 560p 50V

C3004

560p

R3007

50V

SOUND_MUTE/2

B1ABCF000231

100k

C

100k

C

B1ABCF000231

Q3003

Q3004

C3012

560p 50V

C3005

560p

50V

R3010

100k

C

R3011

100k

C

Q3005

5

R3043

E_AV3

SIDE_LIN_TERMINAL

R3281

SIDE_RIN_TERMINAL

R3282

0

GPCB_L_IN

6

GPCB_R_IN

C3039 1u

10V

220

R3045

C3041

1u

220

AVSW_R068PIN_L6IN

10V

AVSW_R069PIN_R6IN

10

11

L IN

R IN

AO_TERMINAL

L3010

J0JCC0000287

L3011

J0JCC0000287

C

AUDIO OUT

C3043

R3047

10V

1u

220

R3004

C3013

560p

47k

50V

C3014

560p

50V

C

R3048

220

R3005

47k

R3033

220

R3034

220

R3037

220

TV_L

TV_R

R3038

C3026

220

AVSW_R070PIN_L7IN

C3044

1u

10V

AVSW_R071PIN_R7IN

C3022

AUDIOOUT_L

1u

10V

AVSW_R058PIN_L1IN

AUDIOOUT_R

AVSW_R059PIN_R1IN

C3024 1u

10V

C3025

1u

10V

AVSW_R060PIN_L2IN AVSW_R061PIN_R2IN

1u

10V

AUDIOOUT_L

AUDIOOUT_R

TV_L TV_R

19HP_L_OUT

19HP_R_OUT

E_PC_LIN/A_AV1_LIN__TERMINAL

PC

7

E_PC_RIN/A_AV1_RIN__TERMINAL

C

AUDIO OUT

RCA_AUDIOOUT_L__TERMINAL

8

RCA_AUDIOOUT_R__TERMINAL

9

GPCB_HP_L_OUT

GPCB_HP_R_OUT

HP

R3283

R3284

OPT_SPDIF_TERMINAL

0

L3014

C3003 560p 50V

C

L3015

C3002 560p 50V

C

SUB3.3V

C3023

0.1u 16V

C

J0JCC0000287

R3030

Q3001

B1ABCF000231

Q3000

100k

C

B1ABCF000231

R3107

R3105

R3019

100

R3021

100

S

R3025

100k

C

R3024

C

S

330

R3146

10V

10u

C3116

10V

C3117

10u

10V

C3114

10u

330

10V

R3120

10u

C3115

AVSW_R052PIN_L3OUT

AVSW_R051PIN_R3OUT

HP_LOUT

HP_ROUT

MONITOROUT_MUTE

SPDIF_OUT

HP_LOUT

HP_ROUT

SPDIF_OUT

12

51

AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ

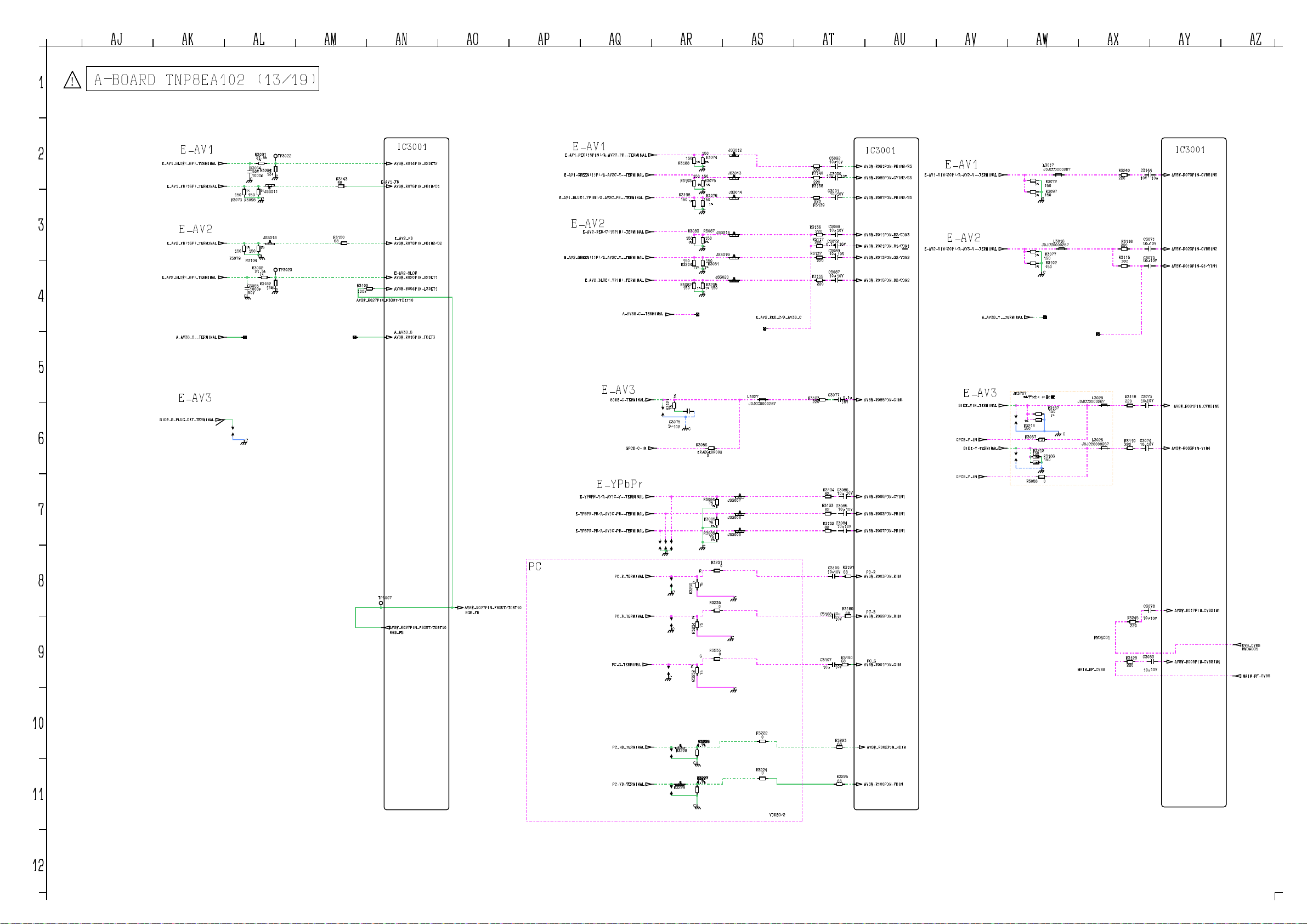

A-BOARD TNP8EA102 (13/19)

I

1

E_AV1_FB

IC3001

AVSW_R014PIN_S2DET2

AVSW_R076PIN_FBIN/O1

E_AV2_FB AVSW_R078PIN_FBIN2/O2

E_AV2_SLOW AVSW_R020PIN_S2DET1

AVSW_R094PIN_L3DET1

A_AV3S_S AVSW_R016PIN_TDET3

2

3

E_AV1

E_AV1_SLOW(_8P)_TERMINAL

E_AV1_FB(16P)_TERMINAL

E_AV2

E_AV2_FB(16P)_TERMINAL

E_AV2_SLOW(_8P)_TERMINAL

4

A_AV3S_S__TERMINAL

R3091

TP3022

21.5k

1%

C3064

R3094

1%

50V

13k

1000p

C

S

1%

JS3011

150

C

R3098

R3073

JS3018

S

1%

150

C

R3079

R3104

R3092

TP3023

21.5k

1%

R3182

C3065

13k

1%

1000p

C

50V

C

R3143

68

R3150

68

R3100

100k

AVSW_R027PIN_FBOUT/TDET10

E_AV1

E_AV1_RED(15PIN)/A_AV2C_PR__TERMINAL

E_AV1_GREEN(11P)/A_AV2C_Y__TERMINAL

E_AV1_BLUE(_7PIN)/A_AV2C_PR__TERMINAL

E_AV2

E_AV2_RED/C(15PIN)_TERMINAL

E_AV2_GREEN(11P)/A_AV2C_Y__TERMINAL

E_AV2_BLUE(_7PIN)_TERMINAL

A_AV3S_C__TERMINAL

JS3012

S

150

R3074

150

1%

R3188

C

JS3013

150

R3193

1%

R3198

150

1%

R3083

150

1%

150

R3204

1%

R3082

1%

150

S

R3075

1%

C

JS3014

S

R3076

150

1%

C

S

R3087

JS3016

150

1%

C

S

JS3019

150

R3081

1%

C

S

JS3020

R3205

1%

150

C

E_AV2_RED_C/A_AV3S_C

C3092 10u

220

R3140

C3090

10u

220

R3138

C3091

10u

220

R3139

C3088

R3136

10u

220

R3117

C3072

220

0.1u

C3089

R3137

10u

220

C3087 10u

R3135

220

IC3001

10V

16V

10V

AVSW_R091PIN_PRIN2/R3

AVSW_R089PIN_CYIN2/G3

AVSW_R087PIN_PBIN2/B3

AVSW_R011PIN_R2/CIN3

AVSW_R021PIN_B1/CIN1

AVSW_R013PIN_G2/YIN2

AVSW_R015PIN_B2/CIN2

E_AV1

E_AV1_VIN(20P)/A_AV2_V__TERMINAL

E_AV2

E_AV2_VIN(20P)/A_AV3_V__TERMINAL

A_AV3S_Y__TERMINAL

1%

L3017 J0JCC0000287

R3072

150

R3097

150

C

L3018

J0JCC0000287

R3077

150

R3102 150

C

C3144

R3240

10V

220

R3116 220

R3115

220

IC3001

AVSW_R079PIN_CVBSIN6

10u

C3071

10V

10u

AVSW_R023PIN_CVBSIN2

C3070

10V

10u

AVSW_R019PIN_G1/YIN1

5

E_AV3

SIDE_S_PLUG_DET_TERMINAL

6

C

SIDE_C_TERMINAL

GPCB_C_IN

1%

75

R3121

C3075

1u

10V

C

R3056

ERJ2GE0R00X

0

E_YPbPr

E_YPBPR_Y/A_AV1C_Y__TERMINAL

7

PC

E_YPBPR_PB/A_AV1C_PB__TERMINAL

E_YPBPR_PR/A_AV1C_PR__TERMINAL

C

PC_R_TERMINAL

8

TP3007

AVSW_R027PIN_FBOUT/TDET10 RGB_FB

9

AVSW_R027PIN_FBOUT/TDET10

RGB_FB

PC_B_TERMINAL

PC_G_TERMINAL

C

R3084

75

1%

R3085

75

1%

R3086

75

1%

C

R3231

R

1%

75

C

R3230

R3235

1%

75

C

R3234

R3233

G

1%

75

R3232

L3027

J0JCC0000287

S

JS3007

S

JS3008

S

JS3009

0

C

0

C

0

C

C3077

R3123

0.1u

220

R3134

82

R3133

82

R3132

82

C3109

10u

C3108

C3107

10u

AVSW_R085PIN_CIN4

16V

C3086

10V

10u

AVSW_R095PIN_CYIN1

C3085

10u

10V

AVSW_R093PIN_PBIN1

C3084

10u

10V

AVSW_R097PIN_PRIN1

R3191

10V

68

PC_R

AVSW_R003PIN_RIN

R3189

PC_B

68

10u

AVSW_R099PIN_BIN

10V

R3190 68

PC_G

AVSW_R001PIN_GIN

10V

E_AV3

SIDE_VIN_TERMINAL

GPCB_V_IN

SIDE_Y_TERMINAL

GPCB_Y_IN

JK3707

[ q z u

1%

R3213 150

R3057

0

R3212 150

1%

C

R3058

L3028

J0JCC0000287

R3187 150

1%

C

L3026

J0JCC0000287

R3186 150

0

MVDACO1

MAIN_RF_CVBS

10V

10u

220

C3074

R3119

10u

220

R3245

220

R3128

220

AVSW_R081PIN_CVBSIN5

10V

AVSW_R083PIN_YIN4

C3078

AVSW_R017PIN_CVBSIN1

10u

10V

DVB_CVBS

C3083

AVSW_R005PIN_CVBSIN4

10V

10u

MVDACO1

MAIN_RF_CVBS

C3073

R3118

10

11

12

PC_HD_TERMINAL

PC_VD_TERMINAL

52

R3222

R3226

S

4.7k

R3228

C

R3227

S

4.7k

R3229

C

0

R3224

0

VIDEO/2

R3223

68

AVSW_R002PIN_HDIN

R3225 68

AVSW_R100PIN_VDIN

A B C D E F G H I J K L M N O P Q

I

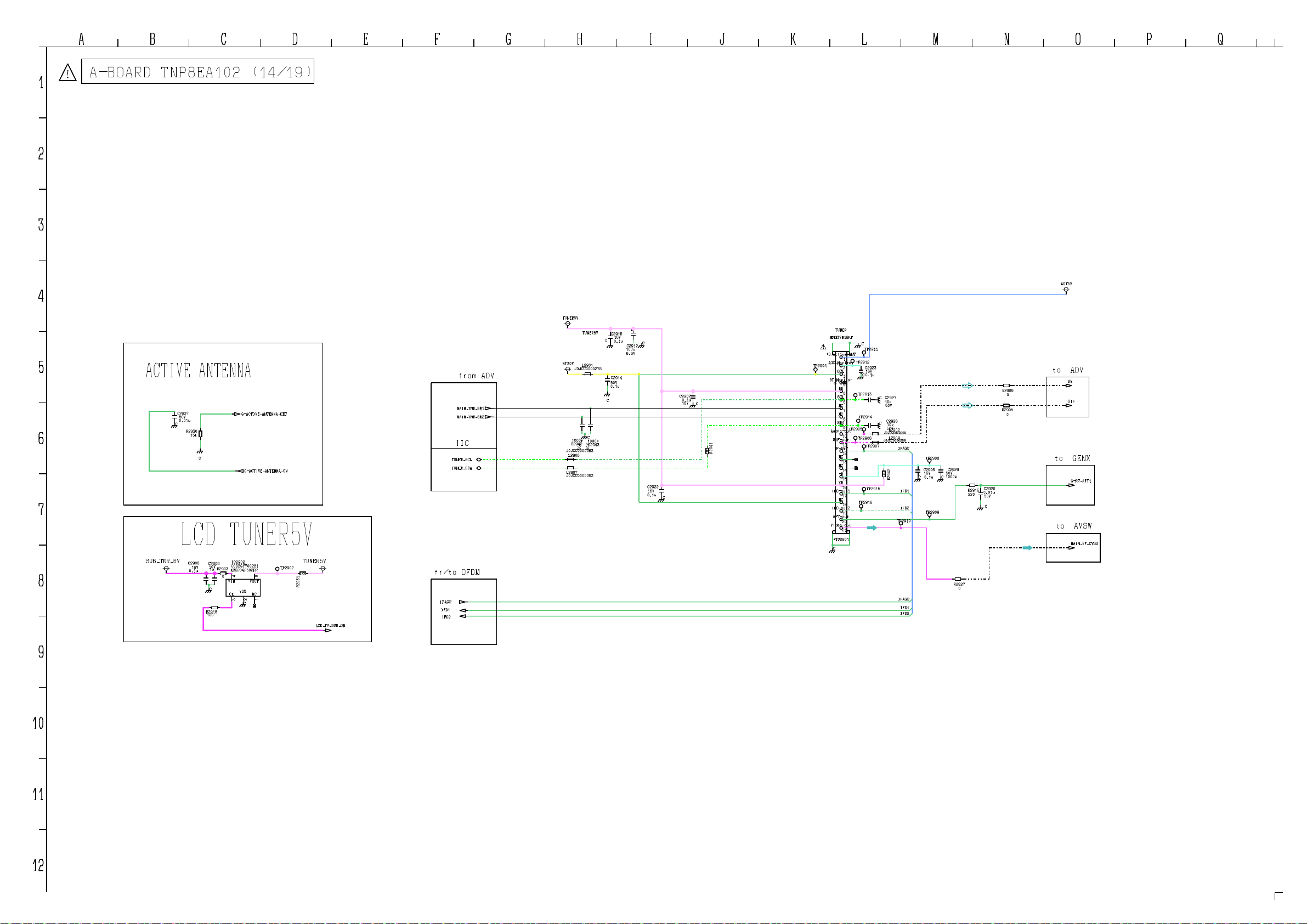

A-BOARD TNP8EA102 (14/19)

1

2

3

ACT5V

4

TUNER5V

5

6

ACTIVE ANTENNA

C2937

50V

0.01u

C

R2930

15k

C

G-ACTIVE_ANTENNA_DET

G-ACTIVE_ANTENNA_ON

from ADV

MAIN_TNR_SW1

MAIN_TNR_SW2

IIC

TUNER_SCL

TUNER_SDA

BT30V

J0JCC0000063

L2908

L2907 J0JCC0000063

J0JCC0000278

1000p

C2942

L2901

C 1000p C2943

50V

7

LCD TUNER5V

SUB_TNR_6V

C2908

16V

0.1u

8

IC2902

C2909

C0DBGYY00281

10V

R2903

1u

XC6204F502PR

5

4

0

VOUT

VIN

C

VSS

CE

1NC2

3

R2918 100

C

TP2902

TUNER5V

R2931

0

LCD_TV_SUB_ON

fr/to OFDM

IFAGC

IFD1

IFD2

+

C2916

16V

C

0.1u C

C2912 100u

6.3V

C2914 50V

0.1u

C

C2907

0.1u 16V

C

0

R2941

C2922 16V

0.1u C

TP2904

S

+B_active_ANT

TUNER

ENG37E18KF

AGC_Monitor

BTL

BT_Monitor

<

BB

SCL

NC

SDA

Audio-out

SIF-out

IF-AGC

NC

+B

VB

IFD-out1

NC

IFD-out2

AFT-out

Video-out

*TU2901

C

TP2911

1

TP2912

2

C2923 16V

0.1u

C

3

4

5

TP2913

C

C2927

TP2914

TP2906

TP2916

TP2907

TP2915

C

10p

50V

C2928

10p 50V

L2902

J0JCC0000269

L2904

J0JCC0000269

0

R2942

IFAGC

TP2910

IFAGC

TP2908

C2929

C2906

50V

16V

1000p

C

0.1u

IFD1

IFD2

TP2909

IFD1 IFD2

R2915 220

R2927

0

6

7

8

9

TP2905

10

11

12

13

14

15

16

17

18

19

20

21

R2909

0

R2905

0

C2920

0.01u 50V

C

to ADV

AM

SIF

to GENX

G-RF_AFT1

to AVSW

MAIN_RF_CVBS

10

11

12

9

53

A B C D E F G H I J K L M N O P Q

I

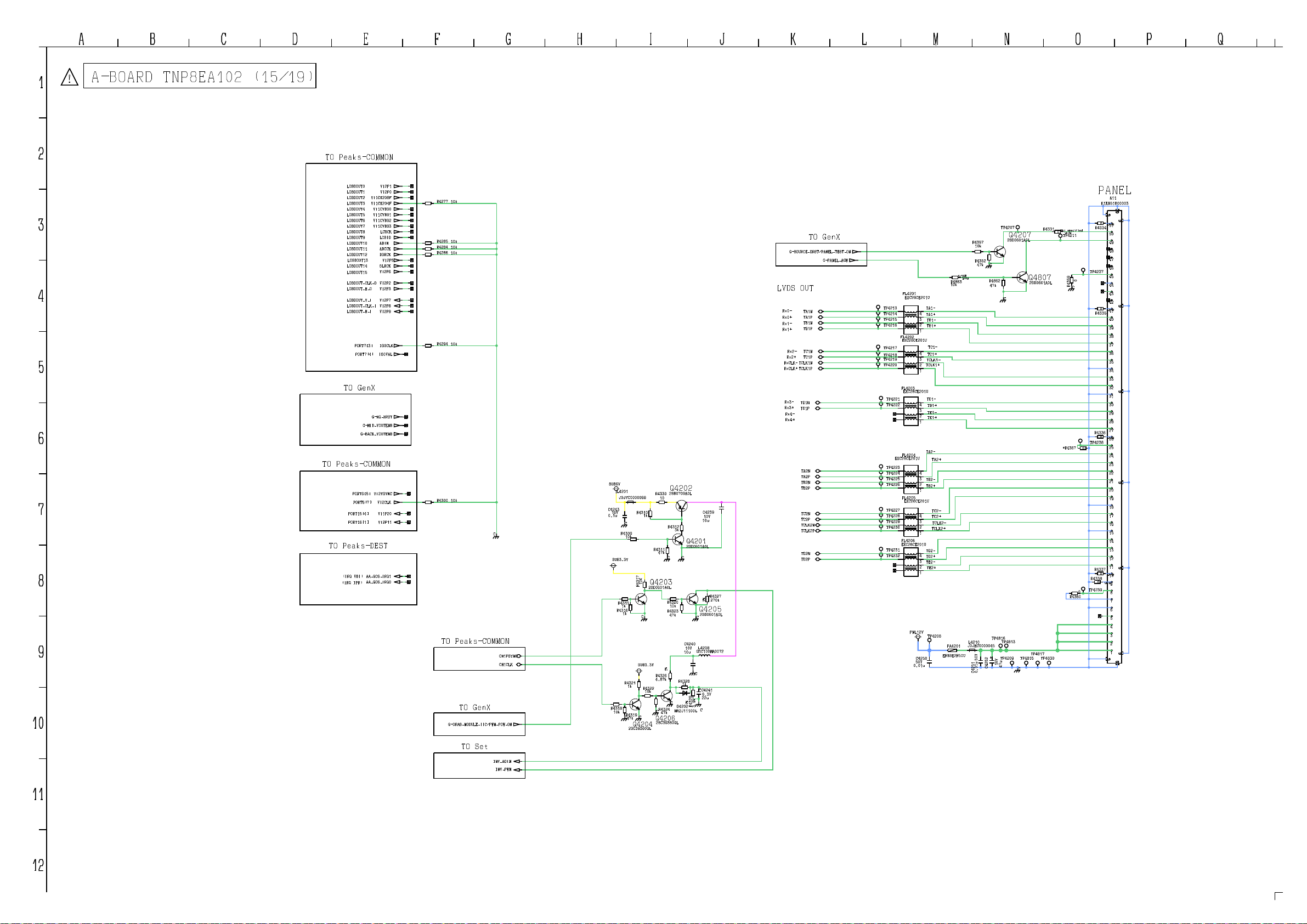

A-BOARD TNP8EA102 (15/19)

1

10

2

3

4

5

6

7

8

9

TO Peaks-COMMON

LOSDOUT0 LOSDOUT1 LOSDOUT2 LOSDOUT3 LOSDOUT4 LOSDOUT5 LOSDOUT6 LOSDOUT7 LOSDOUT8 LOSDOUT9 LOSDOUT10 LOSDOUT11 LOSDOUT12 LOSDOUT13 LOSDOUT14

LOSDOUT15

LOSDOUT_CLK_O LOSDOUT_H_O

LOSDOUT_V_I LOSDOUT_CLK_I LOSDOUT_H_I

PORT7[3]

PORT7[4]

TO GenX

G-MID_VOUTENB

G-BACK_VOUTENB

TO Peaks-COMMON

PORT6[5]

PORT6[7]

PORT15[4]

PORT16[1]

TO Peaks-DEST

(IRQ VBI)

(IRQ IPR)

VI1CK208F VI1CK204F

VI1CVBS0 VI1CVBS1 VI1CVBS2 VI1CVBS3

G-HQ_XRST

VI2VSYNC

AA_GC6_IRQ1 AA_GC6_IRQ0

IS0VAL

VI2CLK

VI1P20

VI2P11

VI2P1 VI2P0

LCSCK LCSID ADIN ADCCK DSRCK

SLRCK VI2P6

VI2P2 VI2P3

VI2P7 VI2P8 VI2P9

IS0CLK

PANEL

R4277

10k

TP4207

Q4207

2SD0601A0L

C

47k

R4862

47k

C

TP4816

TP4813

+

TP4209

50V

16V

47u

C4252

0.01u

R4285

10k

R4284

10k

R4286

VI2P5

10k

R4294

10k

R4300

10k

TO Peaks-COMMON

TO GenX

G-GRAB_MODULE_IIC/PWM_POW_ON

SUB9V

L4201

J0JYC0000068

C4243

16V

R4310

0.1u

C

R4318

SUB3.3V

10k

R4309

10k

R4315

1k

R4316

1k

R4321

1k

R4319

C

47k

Q4204

2SC39380QL

C

CH1PSYNC

CH1CLK

R4317

SUB3.3V

C

10k

C

R4322

1k

10k

R4330

R4311

Q4203

2SD0601A0L

R4326

4.87k

C

Q4206

2SC39380QL

Q4202

2SB0709A0L

10

C4239

10V

C

MA2J11100L

10u

3k

Q4201

2SD0601A0L

CC

*R4327

5%

270k

Q4205

2SD0601A0L

C

C4240

L4208

10V

G1C100MA0072

10u

C

R4328

1k

+

C4241

6.3V 22u

1%

R4329

3.9k

D4202

C

R4312

47k

R4320

10k

R4323

47k

1%

R4324

47k

G-SOURCE_XRST/PANEL_TEST_ON

LVDS OUT

Rx0-

Rx0+

Rx1Rx1+

Rx2Rx2+

TCLK1N

RxCLK-

TCLK1P

RxCLK+

Rx3-

TD1N

Rx3+

TD1P Rx4Rx4+

TA2N

TA2P

TB2N

TB2P

TC2N

TC2P

TCLK2N

TCLK2P

TD2N

TD2P

TO GenX

TA1N TA1P TB1N TB1P

TC1N TC1P

G-PANEL_AGW

TP4213 TP4214 TP4215 TP4216

TP4217

TP4218 TP4219

TP4220

TP4221 TP4222

TP4223 TP4224 TP4225 TP4226

TP4227 TP4228 TP4229 TP4230

TP4231 TP4232

FL4201

FL4202

EXC28CE201U

FL4203

EXC28CE201U

FL4204

EXC28CE201U

FL4205

EXC28CE201U

FL4206 EXC28CE201U

EXC28CE201U

PNL12V

0.01u

R4357

10k

R4352

1/16W

1.0 x 0.5

R4863 10k

TA1-

4

TA1+

3

TB1-

2

TB1+

1

TC1-

4

TC1+

3

TCLK1-

TCLK1+

2 1

TD1-

4

TD1+

3

TE1-

2

TE1+

1

TA2-

TA2+

4 3

TB2-

2

TB2+

1

TC2-

4

TC2+

3

TCLK2-

2

TCLK2+

1

TD2-

4

TD2+

3

TE2-

2

TE2+

1

TP4208

C4250 50V

PA4201

ERBSE2R50U

L4210

J0JHC0000045

C4251

R4331

Not specified

0

1.0 x 0.5

TP4211

Q4807

2SD0601A0L

TP4817

TP4815

TP4830

C

*R4367

0

R4359

C

R4360

A11

K1KB51B00003

G

GG

GGGGGG

0

1.0 x 0.5

51

R4334

50

49

48

47

46

TP4237

45

44

43

42

0

1.0 x 0.5

41

R4335

40

39

38

37

36

35

34

33

32

31

30

29

28

27

R4336

0

1.0 x 0.5

26

TP4238

25

0

24

23

22

21

20

19

18

17

16

15

14

13

12

11

R4337

0

1.0 x 0.5

10

R4338

0

1.0 x 0.5

9

TP4239

0

8

7

6

5

4

3

2

1

G

11

12

TO Set

INV_ADIM

INV_PWM

54

A B C D E F G H I J K L M N O P Q

I

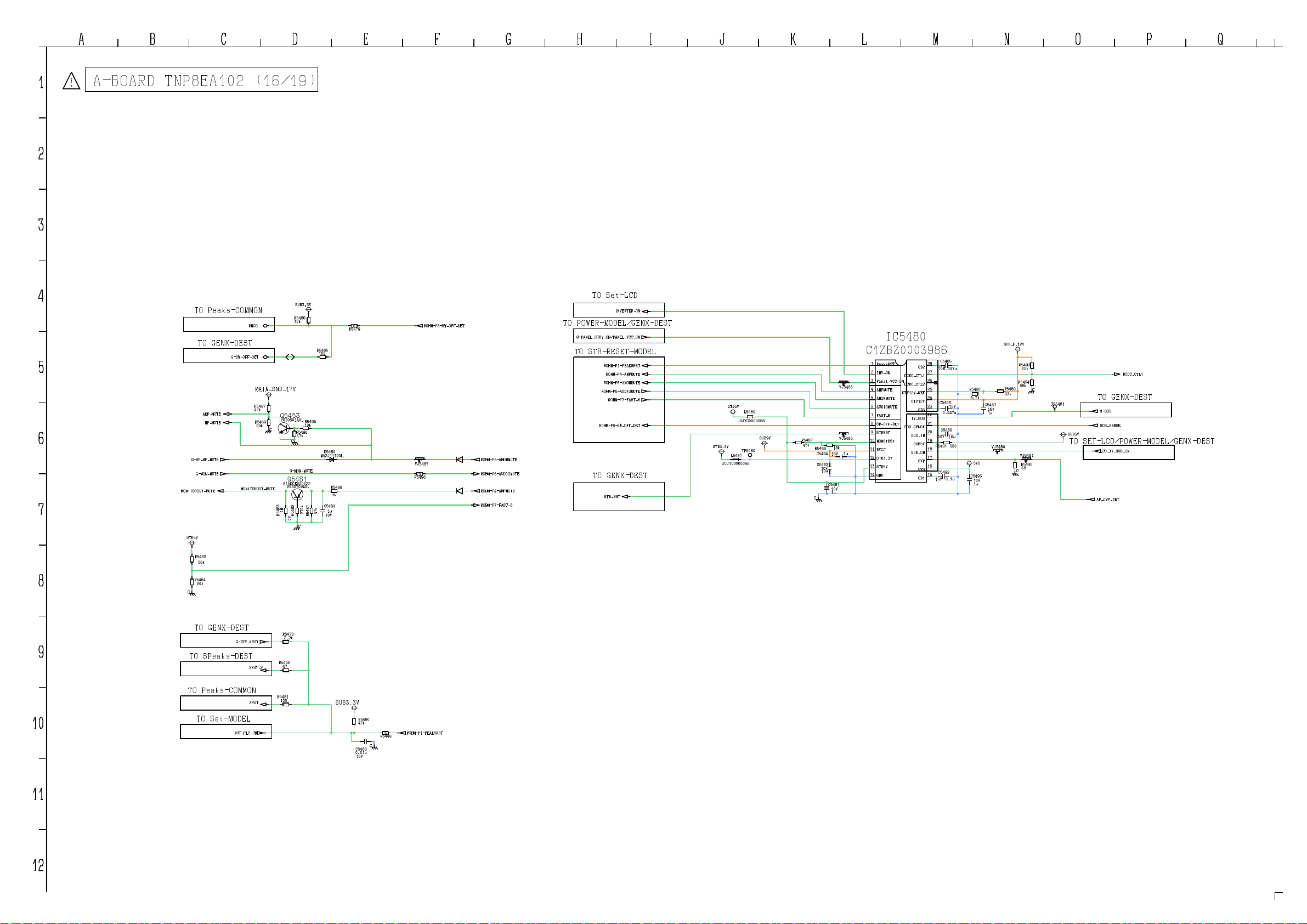

A-BOARD TNP8EA102 (16/19)

1

2

3

4

TO Peaks-COMMON

RMCO

TO GENX-DEST

G-SW_OFF_DET

SUB3.3V

R5486 10k

0

R5479

R5485

100

ROHM-P8-SW_OFF_DET

5

MAIN_SND_17V

R5497

AMP_MUTE

HP_MUTE

6

G-SP_HP_MUTE

G-MON_MUTE

MONITOROUT_MUTE

7

STB5V

R5483

56k

R5484

8

20k

C

47k

R5469

20k

MONITOROUT_MUTE

Q5453

2SD0601A0L

R5495

B1ADCE000022

1M

R5463

C

G-MON_MUTE

Q5461

2SB0709ASL

R5462

0V

10k

R5496 47k

D5480

MA2J11100L

R5499

1k

C5464

1u

270k

47k

R5461

10V

C

VJ5487

R5498

0

ROHM-P5-AMONMUTE

ROHM-P6-AUDIOMUTE

ROHM-P4-AMPMUTE

ROHM-P7-FAST_B

C

TO Set-LCD

INVERTER_ON

TO POWER-MODEL/GENX-DEST

G-PANEL_STBY_ON/PANEL_VCC_ON

TO STB-RESET-MODEL

ROHM-P1-PEAKSRST

ROHM-P5-AMONMUTE

ROHM-P6-AUDIOMUTE

ROHM-P7-FAST_B

ROHM-P8-SW_OFF_DET

TO GENX-DEST

STB_RST

STB3.3V

STB5V

L5481

J0JYC0000068

L5480

J0JYC0000068

TP5480

IC5480

C1ZBZ0003986

1

PeaksRST

2

INV_ON

DCDC_CTL1

3

4

5

6

7

8

9

10

11

12

13

14

Panal_VCC_ON

AMPMUTE

AMONMUTE

AUDIOMUTE

FAST_B

SW_OFF_DET

STBRST

MONSTB5V

BVCC

STB3.3V

STB5V

GND

DCDC_CTL2

DTV12V_REF

SOS_SENSE

S

VJ5486

SUB9V

R5487

47k

S

VJ5485

18k

R5488

1u

C5494

16V

C5483

10V 10u

C5481

10V 1u

C

DTV12V

TV_SOS

SOS_IN

SUB5V

SUB_ON

C5486

28

CD2

16V

0.047u

27

26

25

24

23

CD3

22

21

20

19

R5491 330

18

17

OVP

16

5VS

15

CD1

16V

R5490

4.7k

C5488

16V

0.047u

C5489

10V

10u

C5492

C5493

0.1u

SUB_F_12V

R5493

22k

R5494

68k

R5489

C

33k

C5487

16V

1u

VJ5480

S

5VS

10V 1u

C

VJ5481

R5492

TP5481

SUB5V

TO SET-LCD/POWER-MODEL/GENX-DEST

SS

68

DCDC_CTL1ROHM-P4-AMPMUTE

TO GENX-DEST

G-SOS

SOS_SENSE

LCD_TV_SUB_ON

AP_OVP_DET

10

11

12

TO GENX-DEST

G-DTV_XRST

9

TO SPeaks-DEST

XRST_2

TO Peaks-COMMON

XRST

TO Set-MODEL

RST_PL2_CN

R5470

2.2k

R5482

47

R5481

100

SUB3.3V

R5480 47k

C

C5480

0.01u 16V

ROHM-P1-PEAKSRST

0

R5449

55

A B C D E F G H I J K L M N O P Q

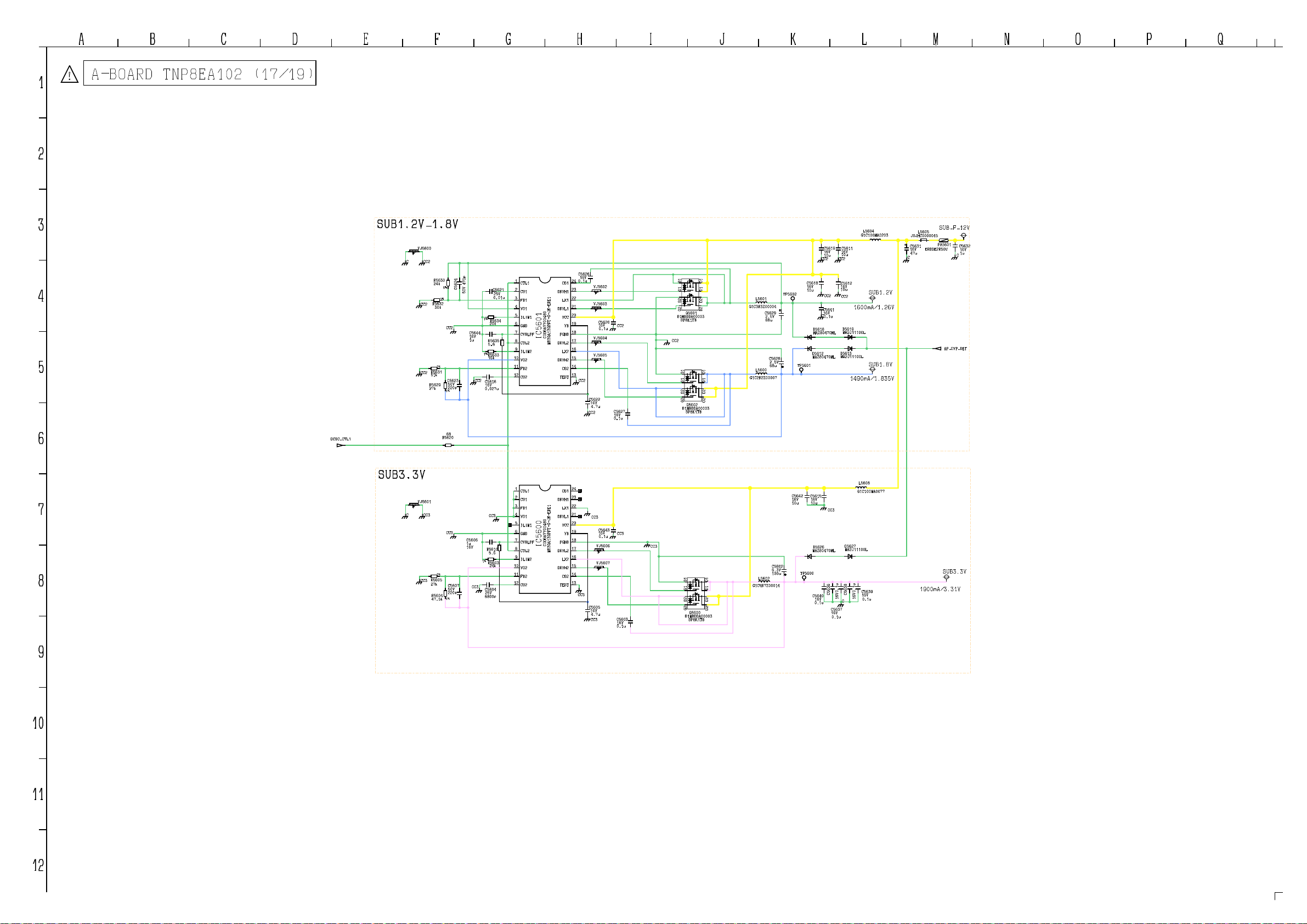

A-BOARD TNP8EA102 (17/19)

I

1

2

3

4

5

6

DCDC_CTL1

7

8

SUB1.2V_1.8V

VJ5600

P

C

CC2

R5629 27k

SUB3.3V

VJ5601

P

C

CC3

L5604

G1C100MA0203

C5619

C5611 16V

16V

10u

CC2

C5626

R5630

470p

24k

1%

C5624

50V

1%

R5632

30k

CC2

C5644 16V 1u

1%

R5631 51k

1%

R5605 27k

R5604

47.5k

CC2

C5623

50V 220p

1%

68

R5620

CC3

C5606 1u 16V

1%

C5607

CC3

50V 220p

1%

C5616

16V

0.027u

C5604

25V

6800p

1

CTL1

2

C5621

CS1

25V

0.01u

3

FB1

4

VO1

5

ILIM1

R5634

6

20k

GND

7

CVBLPF

C0DBAYY00480

IC5601

8

R5635

CTL2

5.6 9

R5633

R5610

R5603

ILIM2

10

16k

VO2

11

FB2

12

CS2

1

CTL1

2

CS1

3

FB1

4

CC3

VO1

5

ILIM1

6

GND

7

CVBLPF

C0DBAYY00480

IC5600

8

CTL2

5.6 9

ILIM2

10

24k

VO2

11

FB2

12

CS2

24

CB1

23

DRVH1

22

LX1

21

DRVL1

20

VCC

19

VB

18

PGND

17

MB39A139PFT-G-JN-ERE1

DRVL2

16

LX2

15

DRVH2

14

CB2

13

TEST

24

CB1

23

DRVH1

22

LX1

21

DRVL1

20

VCC

19

VB

18

PGND

17

MB39A139PFT-G-JN-ERE1

DRVL2

16

LX2

15

DRVH2

14

CB2

13

TEST

16V

0.1u VJ5602

P

VJ5603

P

C5620 16V

CC2

0.1u

VJ5604

P

VJ5605

P

CC2

C5622

10V

4.7u C5627

CC2

16V

0.1u

CC3

C5643 16V

CC3

0.1u

VJ5606

P

VJ5607

P

CC3

C5605

10V

4.7u

C5603

CC3

16V

0.1u

S1G1S2G2

L5601

D2 D2 D1 D1

Q5601

B1MBDDA00003

SP8K1TB

CC2

S1G1S2G2

D2 D2 D1 D1

Q5602

B1MBDDA00003

SP8K1TB

CC3

S1G1S2G2

D2 D2 D1 D1

Q5600

B1MBDDA00003

SP8K1TB

G1C3R3Z00004

L5600

G1C2R2Z00007

L5602

G1C4R7Z00014

C5629

2.5V 68u

C5628

2.5V 68u

C5602

6.3V 100u

C5618 16V 10u

TP5602

+

TP5601

+

D5618 MAZ80470ML

D5612

MAZ80470ML

C5612 16V 10u

CC2

D5619 MA2J11100L

D5613 MA2J11100L

SUB1.2V

1600mA/1.26V

SUB1.8V

CC2

C5641 16V

C

0.1u

1490mA/1.835V

L5608

C5642

C5615 16V

16V

10u

D5626 MAZ80470ML

TP5600

+

C5640

16V

0.1u

G1C100MA0077

CC3

D5627 MA2J11100L

0.1u16V

C5639

C5638

C5636

16V

0.1u

C

C5637 16V

0.1u

+

L5605

J0JHC0000045

C5631 16V

47u

C

SUB_F_12V

PA5601

ERBSE2R50U

1900mA/3.31V

AP_OVP_DET

SUB3.3V

C5632

16V 1u

C

10

11

12

9

56

A B C D E F G H I J K L M N O P Q

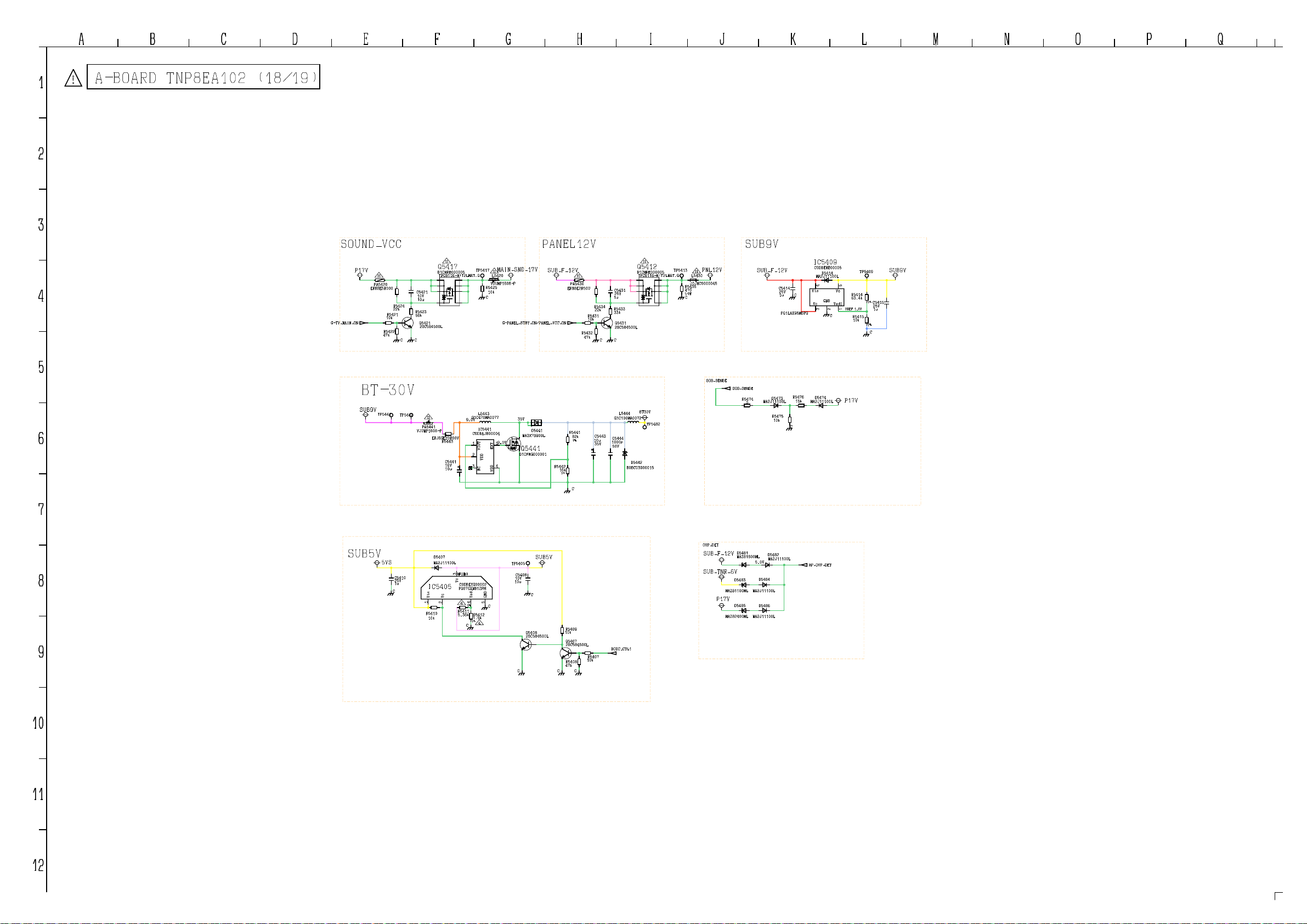

A-BOARD TNP8EA102 (18/19)

I

1

2

3

SUB9VSOUND_VCC PANEL12V

PQ1LAX95MSPQ

IC5409

C0DBEHE00005

D5414

MA2J11100L

5

4

Vo

Vin

C

Vc

R5414

63.4k

GND

Vadj

1

2

3

VREF 1.0V

C

R5415 10k

TP5409

SUB9V

1%

C5415 25V 1u

1%

C

C5421

R5423 56k

C

10V 10u

Q5421

2SC584500L

Q5417

B1CHRE000005

TPC8116-H(T2LMAT,Q

P17V

PA5420

ERBSE5R00U

4

G-TV_MAIN_ON

R5424 22k

R5421 10k

R5422 47k

C C

TP5417

R5425

10k

C

MAIN_SND_17V

L5420

P

VJUMP1608-P

G-PANEL_STBY_ON/PANEL_VCC_ON

SUB_F_12V

PA5430

ERBSE2R50U

R5434

22k

R5431 10k

R5432

47k

C5431

25V

1u

R5433 33k

Q5431 2SC584500L

C

Q5412

B1CHRE000005

TPC8116-H(T2LMAT,Q

TP5413

J0JHC0000045 R5435 470

1/2W

C

PNL12V

L5430

SUB_F_12V

C5414 25V 1u

5

BT-30V

SUB9V

TP5441

TP5442

P

PA5441

VJUMP1608-P

0

ERJ6GEY0R00V

6

R5443

C5441 16V 10u

L5443

G1C470MA0077

9.0V

IC5441

C0DBAJB00004

1

VOUT

2

VDD

+

3

NC

35V

D5441

MA3X78900L

9.0V

5

EXT

Q5441

B1CFNG000001

4

VSS

R5441

C5443

82k

1%

10u

35V

+

R5442

16k

1%

C

L5444

G1C100MA0072

C5444 1000p 50V

D5442

B0BC03900015

BT30V

TP5482

SOS_SENSE

R5476

D5473

R5474

MA2J11100L

0

R5475

10k

D5474

15k

MA2J11100L

C

P17V

7

OVP_DET

SUB5V

8

5VS

C5410 25V 1u

C

9

IC5405

Vin2Vc

1

R5410

10k

D5407 MA2J11100L

3

(FIN)

Vo

C0DBEYG00002

PQ070XNB1ZPH

R5411

5.36k

Vadj5GND

4

1%

C

SUB5V

TP5405

C5408 10V

10u

C

R5412

1.5k

R5409

10k

Q5407 2SC584500L

R5408 47k

C

DCDC_CTL1

R5407

10k

C

Q5408 2SC584500L

SUB_F_12V

SUB_TNR_6V

P17V

D5483

MAZ81100ML

D5485

MAZ82400ML

D5481 MAZ81800ML

5.0V

D5484

MA2J11100L

D5486

MA2J11100L

D5482 MA2J11100L

AP_OVP_DET

10

11

12

57

A B C D E F G H I J K L M N O P Q

A-BOARD TNP8EA102 (19/19)

I

1

2

IRD_LED

TMP-SENS_SCL

STB5V

R0180

100

TO V10

K1KA08B00270

SM08B-GHS-TB(LF)(SN)

SUB5V

GND

REMOTE

AI

STB3.3V

G_LED

R_LED

EZAEG2A50AX

EZJZ0V120JA

D1002

D1003

A10

1

2

3

to V

4

5

6

7

8

9

C

C1ZBZ0003577

MM3285ANRE(R59-A232)

1

SCL

2

GND

IC2750

C

3

A1

C

EZAEG2A50AX

D1007

C

D1005

D1006

D1004

SDA

VDD

TP2750

TP2751

TP2752

TP2753

TP2754

TP2755

TP2756

TP2757

A0

TP0101

TP0102

TP0104

TP0105

TP0106

TP0107

J0JYC0000065

D0GDR00Z0002

J0JYC0000065

R2774

47k

SUB5V

50V

100p

STB3.3V

4

G-G_LED_ON

G-R_LED_ON

16V

C2750

0.1u

C

G-SD_PWR_CTRL

OPEN

G-RMIN

G-AI_SENSOR

G-ACTIVE_STBY_LED_ON

G-PANEL_LED_ON

PEAKS_SCL0 PEAKS_SDA0

PEAKS_SCL1 PEAKS_SDA1

PEAKS_SCL2 PEAKS_SDA2

PEAKS_SCL3 PEAKS_SDA3

ADJ-GENX_SCL ADJ_GENX_SDA

INV LED

SUB9V

TP2786

750

*R2779

*R2780

*D2753

B3AEB0000131

R2778

10k

R2777

10k

PEAKS_SCL0 PEAKS_SDA0

PEAKS_SCL1

PEAKS_SDA1

PEAKS_SCL2 PEAKS_SDA2

PEAKS_SCL3 PEAKS_SDA3

ADJ-GENX_SCL ADJ_GENX_SDA

C

*Q5495

2SC584500L

To KEY CONTROL

K1KA04B00273

SM04B-GHS-TB(LF)(SN)

STB_5V

5VS

KEYSCAN

GND

4

3

2

1

A01

C

G-FAN_SOS

D2779

MA22F2000L

TP2774

TP2773

TP2771

C2761 C

16V

C

1000p

TP2775

D2752

EZJZ0V120JA

C

C2763

50V

D2760

MAZ81400ML

C

L2756 J0JYC0000065

C2757

1000p

50V

STB5V

5VS

G-KEY1

R2765

0

to INV

K1KA05A00466

BM05B-GHS-TBT(LF)(SN)

to INV

TP2807

A20

R2755

47k

C

/LG

1

2

3

4

5

C

TP2758

R2758

TP2760

TP2808

TP2759

R2759

100

R2760

100

R2761

100

TO P2

150601123K3

K1KY23AA0607

TP2769

220 n s MAIN_ON/AUTO NC

TV_SUB_ON

100

R2762

2.2k

TP2761

GND

RELAY

GND

24V

GND

17V

GND

DTV12V

GND

DTV12V

TUNER6V

GND

TUNER6V

5VS

INVERTER_ON

INV_ADIM

INV_PWM

DTV12V P17V

TP2781

TP2766

A03

1

2

3

R2757

4

R2756

5

6

7

TP2768

8

9

10

11

12

13

14

15

TP2764

16

17

18

19

20

C2759

21

16V

0.1u

22

23

C

G-ECO_ON/INVERTER_ON

R2763 47k

C

TP2763

100

C2765 25V

TP2770

TP2778

TP2780

TP2779

TP2762

G-TV_MAIN_ON

TP2767

LCD_TV_SUB_ON

P24V

0.1u TP2776

TP2777

25V

C2758

0.1u

TP2782

SUB_F_12V

C2760 16V

10u

P17V

SUB_TNR_6V

TP2765

5VS

C2766

0.1u 16V

STB3.3V

R2764 47k

G-PANEL_ALARM/INVERTER_SOS

R2751

D0GDR00Z0002

0

C2751 1000p

50V

C

6

TMP-SENS_SDA

5

SUB3.3V

4

0.1u

C2767

16V

C

K1KA08AA0714

TP0103

CN0100

1

2

3

4

5

6

7

8

C

C2780

L2750 J0JYC0000065

L2751

C2752 1000p

R2752

50V

0

C2753

1000p

L2752

50V C2754 1000p

L2755 J0JYC0000065

50V C2755 1000p

L2754 J0JYC0000065

50V C2756 1000p

50V

C

TO SERVICE

STB5V

SRQ

GND

(GenX4 Loarder/E2PROM)

GenX4_SCL

(GenX4 Loarder/E2PROM)GenX4_SDA

LITE2_SCL3

(Lite2 E2PROM)

LITE2_SDA3(Lite2 E2PROM)

NC

3

4

5

6

7

G-SRQ_GENX

ADJ-GENX_SCL

ADJ_GENX_SDA

PEAKS_SCL3

PEAKS_SDA3

8

9

10

11

12

58

59

60

Conductor Views

A-BOARD TNP8EA102 - TOP

IC’S

IC2008 3B Q4515 3B IC2301 1B Q4516 3C IC4510 3C Q4517 3B IC4511 4D Q4519 3B IC4512 3D Q4520 6B IC5409 1C Q5407 1D IC8001 3E Q5408 1D IC8002 2D Q5431 1D IC8003 2E Q5453 1B IC8403 3E Q5461 5C IC8411 6E Q5600 1C Q5601 1D

TRAN’S

Q2022 1B Q8200 5D Q4202 5D Q8401 3E Q4203 3E Q8402 3E Q4204 3E Q4205 3E Q4206 3E D3015 2C Q4500 4B

Q4514 3C

Q5602 1C

DIODE’S

1 2 3 4 5 6

E

D

C

B

A

61

A-BOARD TNP8EA102 - BOTTOM

TRAN’S IC’S

Q2001 5B IC1100 6C Q2063 2C IC1101 6D Q2064 2C IC2750 6E Q2065 2C IC2902 5A Q3000 2A IC3001 2B Q3001 2A IC4513 3B Q3002 3A IC5405 1D Q3003 3A IC5441 6B Q3004 3B IC5480 5C Q3005 3B IC5600 1C Q4201 6D IC5601 1D Q4207 1E IC8004 2D Q4501 4C IC8301 5B Q4533 4C IC8302 6B Q4534 4B IC8401 4E Q4535 6B IC8404 5D Q4807 1E IC8405 5D Q5412 1D IC8408 5D Q5417 1B IC8409 6E Q5421 1C IC8410 5E Q5441 6A IC8502 4D Q5495 6B IC8580 3D

E

D

C

B

A

62

12 3456

-

IC’S

RM2500 1A

TRAN’S

Q2500 2A Q2501 2A Q2503 2A Q2504 1A

DIODE’S

D2500 1A D2510 2A

-

A

1

2

63

Panasonic TX-L32S10, TXL37S10 Schematic

Specifications

CONTENTS

Safety Precautions

Applicable Signals

Service Hints

Setting Inspection

Self Check

Power LED blinking timing chart

Service Mode Function

SERVICE

Option Bytes Description

Adjustment Method

Wiring Diagram

Parts Location

Replacement Parts List

Conductor Views
