Panasonic TXL37D28ES, TXL37D28EW, TXL32D28ES, TXL32D28EP, TXL32D28EW Operating Instructions

Operating Instructions

LCD Television

Model No.

TX-L32D28EP
TX-L32D28ES
TX-L32D28EW
TX-L37D28ES
TX-L37D28EW

Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer
for assistance.

English

TQB0E0928U

Experience an amazing level of
multimedia excitement

Enjoy rich multimedia

VCR

Amplifier with

Speaker system

DVD Recorder

DVD Player

USB HDD

Notice for DVB functions

This TV is designed to meet the standards (current as of August, 2009) of DVB-T
(MPEG2 and MPEG4-AVC
MPEG4-AVC
digital satellite services.
Consult your local dealer for availability of DVB-T or DVB-S services in your area.
Consult your cable service provider for availability of DVB-C services with this TV.

This TV may not work correctly with the signal which does not meet the standards of

●

DVB-T, DVB-C or DVB-S.
Not all the features are available depending on the country, area, broadcaster, service

●

provider and satellite.
Not all CI modules work properly with this TV. Consult your service provider about the

●

available CI module.
This TV may not work correctly with CI module that is not approved by the service provider.

●

Additional fees may be charged depending on the service provider.●
The compatibility with future DVB services is not guaranteed.●
Check the latest information on the available services at the following website. (English only)

●

http://panasonic.jp/support/global/cs/tv/

(H.264)) digital cable services and DVB-S (MPEG2 and MPEG4-AVC(H.264))

(H.264)) digital terrestrial services, DVB-C (MPEG2 and

2

SD Card

Contents

Be Sure to Read

Safety Precautions (Warning / Caution) ● ················· 4
Notes ● ······································································ 5
Maintenance ● ··························································· 5

Quick Start Guide

Accessories / Options ● ·······························6

●

Identifying Controls

●

Basic Connection

●

Auto Setup

··············································12

···································8

···································· 10

Quick Start Guide

Camcorder

Personal
computer

Set top box

The recording and playback of content on this or any
other device may require permission from the owner of the
copyright or other such rights in that content. Panasonic has
no authority to and does not grant you that permission and
explicitly disclaims any right, ability or intention to obtain
such permission on your behalf. It is your responsibility to
ensure that your use of this or any other device complies
with applicable copyright legislation in your country. Please
refer to that legislation for more information on the relevant
laws and regulations involved or contact the owner of the
rights in the content you wish to record or playback.

This product is licensed under the AVC patent portfolio
license for the personal and non-commercial use of a
consumer to (i) encode video in compliance with the AVC
Standard (“AVC Video”) and/or (ii) decode AVC Video that
was encoded by a consumer engaged in a personal and
non-commercial activity and/or was obtained from a video
provider licensed to provide AVC Video. No license is
granted or shall be implied for any other use.
Additional information may be obtained from MPEG LA, LLC.
See http://www.mpegla.com.

Enjoy your TV!

Basic Features

Watching TV ● ························································· 16
Using TV Guide ● ···················································· 20
V

iewing Teletext ● ····················································
Watching External inputs ● ······································ 24
How to Use VIERA
How to Use Menu Functions ● ································ 27

TOOLS ● ·································· 26

Advanced Features

Retuning from Setup Menu ● ·································· 34
Tuning and Editing Channels (DVB) ● ·····················
Tuning and Editing Channels (Analogue) ● ············· 42
T

imer Programming ● ·············································· 44
Child Lock ● ····························································· 46
Input Labels ● ·························································· 47
Using Common Interface ● ······································ 48
Shipping Condition ● ··············································· 49
Updating the
Displaying PC Screen on
Advanced Picture Settings ● ··································· 52
USB HDD Recording ● ············································ 54
Using Media Player ● ·············································· 58
Using Network Services ● ······································· 66

(DLNA
Link Functions ● ······················································ 76

(Q-Link / VIERA
External Equipment ● ·············································· 84

TV Software ● ···································· 50

TV ● ································ 51

/ VIERA CAST)

Link)

FAQs, etc.

Technical Information ● ··········································· 86
FAQs ● ···································································· 91
Licence ● ································································· 94
Specifications ● ······················································· 94

22

38

Basic AdvancedQuick Start Guide

Basic

Advanced

FAQs, etc.

3

Safety Precautions

Warning

Handling the mains plug and lead

Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause ●
fire.)
Ensure that the mains plug is easily accessible.●
Do not touch the mains plug with a wet hand. This may cause electrical shock.●
Do not damage the mains lead, damaged lead may cause fire or electrical shock.●

Do not move the TV with the lead plugged into a socket outlet.•
Do not place a heavy object on the lead or place the lead near a high temperature object.•
Do not twist the lead, bend it excessively or stretch it.•
Do not pull on the lead. Hold onto the mains plug body when disconnecting the plug.•
Do not use a damaged mains plug or socket outlet.•
Ensure the TV does not crush the mains lead.•

If you find any
abnormality,
remove the mains plug
immediately!

Power source / Installation

This TV is designed for:●

AC 220-240 V, 50 / 60 Hz•
Table-top use•

Do not remove covers and
NEVER modify the TV yourself

High voltage components may cause serious ●
electrical shock, do not remove the rear cover as
live parts are accessible when it is removed.
There are no user serviceable parts inside. ●
Have the TV checked, adjusted or repaired at your ●
local Panasonic dealer.

Do not expose to rain or
excessive moisture

To prevent damage which might result in electric ●
shock or fire, do not expose this TV to rain or
excessive moisture.
This TV must not be exposed to dripping or splashing

●

water and objects filled with liquid, such as vases,
must not be placed on top of or above the TV.

AC 220-240 V
50 / 60 Hz

Do not place foreign objects
inside the TV

Do not allow any objects to drop into the TV through ●
the air vents as fire or electric shock may result.

Do not place the TV on
unstable surfaces

The TV may fall or tip over. ●

Use only original dedicated
stand / mounting equipment

Using an unapproved stand or other fixtures may ●
make the TV unstable, risking injury. Be sure to ask
your local Panasonic dealer to perform the setup or
installation.
Use approved stands / wall-hanging brackets (p. 6).●

4

Do not expose the TV to direct
sunlight and other sources of heat

Avoid exposing the TV to direct sunlight and other ●
sources of heat.

To prevent the spread of
fire, keep candles or other
open flames away from
this product at all times

Do not allow children to handle
SD Card or dangerous parts

As with any small object, the SD Card could be ●
swallowed by young children. Please remove
SD Card immediately after use and store out of
reach of children.
This product contains possibly dangerous parts that ●
can be breathed in or swallowed by young children
accidentally. Keep these parts out of reach of young
children.

When cleaning the TV, remove the mains plug■

Cleaning an energized TV may cause electric shock.●

Remove the mains plug from the wall socket when the TV is not in use for a ■
prolonged period of time

This TV will still consume some power even in the Off mode, as long as the mains plug is still connected.●

Do not block the rear air vents■

Adequate ventilation is essential to prevent failure of electronic components.●
Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table ●
cloths and curtains.
We recommend that a gap of at least 10 cm is left all

●

around this TV even when placed inside a cabinet or
between shelves.
When using the stand, keep the space between the ●
bottom of the TV and the surface where the TV is set.
If stand is not used, ensure the vents in the bottom of ●
the TV are not blocked.

Do not apply strong force or impact to the display panel ■

This may cause damage resulting in injury. ●

Do not expose your ears to excessive volume from the headphones■

Irreversible damage can be caused.●

Notes

Caution

Minimum distance

10

10

10

10

(cm)

Auto power standby function■

The TV will automatically go to Standby mode in the following conditions: ●

no signal is received and no operation is performed for 30 minutes in Analogue TV mode•
“Off Timer” is active in the Setup Menu (p. 19)•
no operation is performed for the period selected in “Auto Standby” (p. 33)•

Keep the TV away from these types of equipment■

Electronic equipment

●

In particular, do not place video equipment near the TV. (Electromagnetic interference may distort images / sound.)
Equipment with an infrared sensor●
This TV also emits infrared rays. (This may affect operation of other equipment.)

Transport only in upright position■

Maintenance

First, remove the mains plug from the socket outlet.

Display panel, Cabinet, Stand

Regular care:
Gently wipe the surface of the display panel, cabinet, or stand by using a soft cloth to clean the dirt or fingerprints.
For stubborn dirt:
Dampen a soft cloth with clean water or diluted neutral detergent (1 part detergent to 100 parts water). Then wring
the cloth and wipe the surface. Finally, wipe away all the moisture.

Caution

Do not use a hard cloth or rub the surface too hard. This may cause scratches on the surface. ●
Take care not to subject the TV’s surfaces to water or detergent. A liquid inside the TV could lead to product ●
failure.
Take care not to subject the surfaces to insect repellent, solvent, thinner, or other volatile substances. This may ●
degrade surface quality or cause peeling of the paint.
The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch ●
the surface with your fingernail or other hard objects.
Do not allow the cabinet and stand to make contact with a rubber or PVC substance for a long time. This may ●
degrade surface quality.

Mains plug

Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.

5

Accessories / Options

Standard accessories Check that you have the accessories and items shown

Remote Control □

N2QAYB000504●

Operating Instructions □
Pan European Guarantee Card □

This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by ●
young children accidentally. Keep these parts out of reach of young children.

Batteries for the □

Remote Control (2)

R6 ●
p. 8

Stand □

p. 7

Optional accessories

Please contact your nearest Panasonic dealer to purchase the recommended
optional accessories. For additional details, please refer to the manual of the
optional accessories.

Wireless LAN Adaptor □

DY-WL10E-K●

Caution

To use the Wireless LAN Adaptor, an access point needs to be obtained.●
It is recommended to use the Wireless LAN Adaptor with the extension cable.●
To avoid malfunctions caused by radio wave interface, keep the TV away from ●
the devices such as other wireless LAN devices, microwaves and the devices
that use 2.4 GHz and 5 GHz signals when using the Wireless LAN Adaptor.
Depending on the area, this optional accessory may not be available.●
Additional information for Wireless LAN Adaptor and access point may be on ●
the following web site. (English only)
http://panasonic.jp/support/global/cs/tv/

Communication Camera □

TY-CC10W●

Caution

This camera can be used on VIERA CAST (p. 75).●
Please also read the manual of the camera.●
Depending on the area, this optional accessory may not be available. ●
For details, consult your local Panasonic dealer.

Wall-hanging bracket □

TY-WK3L2RW●

The angle of wall-hanging
bracket can be adjusted in
“zero tilting (vertical)” and
“5-degree tilting” for this TV.

: 100mm ( TX-L32D28EP/TX-L32D28ES/

: 200mm ( TX-L37D28ES/TX-L37D28EW)

Rear of the TV

200 mm

Holes for wall-hanging
bracket installation

TX-L32D28EW)

Screw for fixing the TV onto the wall-hanging
bracket (not supplied with the TV)

Depth of screw:
minimum : 8 mm

: 10 mm

maximum : 12 mm

(View from the side)

Warning

Failure to use a Panasonic bracket or choosing to mount the unit yourself will be done at the risk of the ●
consumer. Always be sure to ask a qualified technician to carry out set up. Incorrect fitting may cause
equipment to fall, resulting in injury and product damage. Any damage resulting from not having a
professional installer mount your unit will void your warranty.
When any optional accessories or wall hanging brackets are used, always ensure that the instructions ●
provided are followed fully.
Do not mount the unit directly below ceiling lights (such as spotlights or halogen lights) which typically give ●
off high heat. Doing so may warp or damage plastic cabinet parts.
Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes ●
in the wall before hanging bracket.
To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.●

(TX-L32D28EP /
TX-L32D28ES /
TX-L32D28EW)

(TX-L37D28ES /
TX-L37D28EW)

6

Attaching the stand

Warning

Do not disassemble or modify the stand.

●

Otherwise the TV may fall over and become damaged, and personal injury may result.

Caution

Do not use any other TV and displays.

Otherwise the TV may fall over and become damaged, and personal injury may result. ●

Do not use the stand if it becomes warped or physically damaged.

If you use the stand while it is physically damaged, personal injury may result. Contact your nearest Panasonic ●
dealer immediately.

During set-up, make sure that all screws are securely tightened.

If insufficient care is taken to ensure screws are properly tightened during assembly, the stand will not be strong ●
enough to support the TV, and it might fall over and become damaged, and personal injury may result.

Ensure that the TV does not fall over.

If the TV is knocked or children climb onto the stand with the TV installed, the TV may fall over and personal ●
injury may result.

Two or more people are required to install and remove the TV.

If two or more people are not present, the TV may be dropped, and personal injury may result. ●

Quick Start Guide

Do not tilt the TV by
placing something
between the stand and the
floor. TV may fall over and
become damaged, and
personal injury may result.

Assembly screw (4)■ Stand■

M4 × 12

Securing the TV■

Use the assembly screws to fasten
securely.

Make sure that the screws are ●
securely tightened.
Carry out the work on a horizontal and ●
level surface.
Depending on the length of the screw ●
driver you use, it is difficult to tighten
the two screws at the bottom. Make
sure all screws are securely tightened.

Stand is very heavy.
Please handle with
both hands as shown
in image.

TBLX0186 (TX-L32D28EP, TX-L32D28ES, TX-L32D28EW)●
TBLX0187 (TX-L37D28ES, TX-L37D28EW)●

Accessories / Options ●

To prevent from falling, please
secure the TV to the wall by using
strong string or wire.

●

Put the strong string or wire through
the hole on the bottom rear of the TV
as shown in the illustration.

Foam mat or thick soft cloth

7

Identifying Controls

Remote Control

Installing / removing remote’s batteries■

Pull

1

Hook

open

2

Note the correct
polarity (+ or -)

Caution

Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.●
Do not mix old and new batteries.●
Do not mix different battery types (such as alkaline and manganese batteries).●
Do not use rechargeable (Ni-Cd) batteries.●
Do not burn or breakup batteries.●
Batteries must not be exposed to excessive heat such as sunshine, fire or the like.
Do not disassemble or modify the remote control.●

Media Player (p. 58)

Switches to SD Card and USB device

●

viewing / listening mode

Standby On / Off switch

Switches TV On or Off standby●

Main Menu (p. 27)

Press to access Picture, Sound and

●

Setup Menus

Aspect (p. 18)

Changes aspect ratio from Aspect Selection

●

list
Also possible by pressing this button

●

repeatedly until you reach the desired aspect

Channel / Programme Information

Displays channel and programme

●

information

VIERA Link Menu (p. 80)

Accesses VIERA Link Menu

●

OK

Confirms selections and choices●
Press after selecting channel positions ●
to quickly change channel
Displays the Channel List

●

Option Menu (p. 19)

Easy optional setting for viewing, sound, etc.

●

Coloured buttons

Used for the selection, navigation and ●
operation of various functions

Teletext (p. 22)

Switches to teletext mode

●

Subtitles (p. 18)

Displays subtitles

●

Numeric buttons

Changes channel and teletext pages●
Sets characters●
When in Standby mode, switches TV On ●
(Press for about 1 second)

Sound Mute

Switches sound mute On or Off●

Volume Up / Down

(p. 17)

MENU

n

i

L

A

R

E

I

V

OPTION

TEXT

SD CARD

ASPECT

k

ghi

R

E

I

V

STTL

REC

A

INPUT

AVTV

DIRECT TV REC

EXIT

T

O

O

L

S

G

U

I

D

BACK/

RETURN

INDEX HOLD

abc def

jkl

mno

tuvpqrs

wxyz

LAST VIEW

PROGRAMME

DVD/VCR

TV

E

Close

Input mode selection

TV - switches DVB-S / DVB-C / DVB-T / ●

Analogue mode (p. 16)

AV - switches to AV input mode from Input

●

Selection list (p. 24)

Direct TV Recording (p. 78 and p. 80)

Records programme immediately in

●

DVD Recorder / VCR with Q-Link or
VIERA Link connection

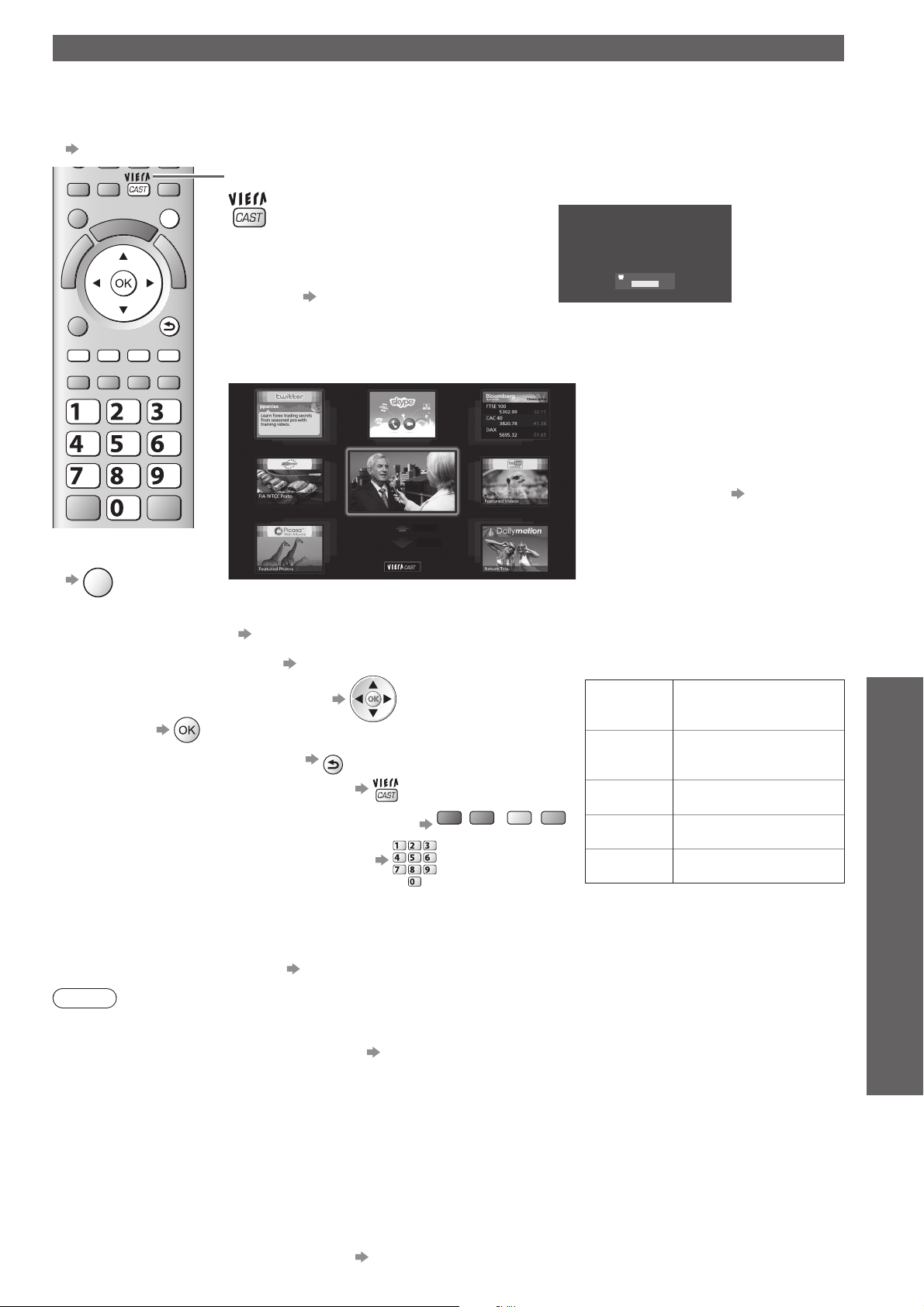

VIERA CAST (p. 75)

Displays VIERA CAST home screen

●

Exit

Returns to the normal viewing screen●

VIERA TOOLS (p. 26)

Displays some special feature icons and

●

accesses easily

TV Guide (p. 20)

Displays TV Guide

●

Cursor buttons

Makes selections and adjustments●

Return

Returns to the previous menu / page●

Hold

Freeze / unfreeze picture (p. 17)●
Holds the current teletext page (teletext ●

mode) (p. 22)

Index (p. 23)

Returns to the teletext index page

●

(teletext mode)

Last view (p. 19)

Switches to previously viewed channel or

●

input mode

Channel Up / Down

Selects channel in sequence●

Connected equipment operations

(p. 25, 56 and p. 82)

8

TV

TV

USB 2 port
(p. 14, 54, 58
and p. 67)

CI slot

48)

(p.

SD Card slot

58)

(p.

HDMI4 terminal

85)

(p.

Function select

Volume / Contrast / Brightness / Colour / ●
Sharpness / Tint (NTSC signal) / Bass (“Music”
or “Speech” mode in the Sound Menu) / Treble

F

(“Music” or “Speech” mode in the Sound Menu)
/ Balance / Auto Setup (p. 34, 36 and p. 37)

Increases or decreases the channel
position by one. When a function is already

TV

displayed, press to increase or decrease
the selected function.
When in Standby mode, switches TV On

AV

(Press for about 1 second).

Changes the input mode

Mains power On / Off switch

Switch On to turn on the TV or turn the TV to ●
Standby mode by the remote control

Power and Timer LED

Standby: red●
On: green
Timer Programming On: orange
Recording of Timer Programming, Direct TV Recording or One
Touch Recording is in progress: orange (flash)
Standby with Timer Programming On, Direct TV Recording One
Touch Recording: red with orange flash
When using the remote control, indicates the TV has received a

●

command.

Quick Start Guide

Identifying Controls ●

C.A.T.S. (Contrast Automatic Tracking System) sensor

AV3 terminals

85)

(p.

Headphones jack

85)

(p.

Senses brightness to adjust picture quality when “Eco Mode” in the ●
Picture Menu is set to “On” (p. 28)

Remote control signal receiver

Do not place any objects between the TV remote control signal ●
receiver and remote control.

Using the On Screen Displays

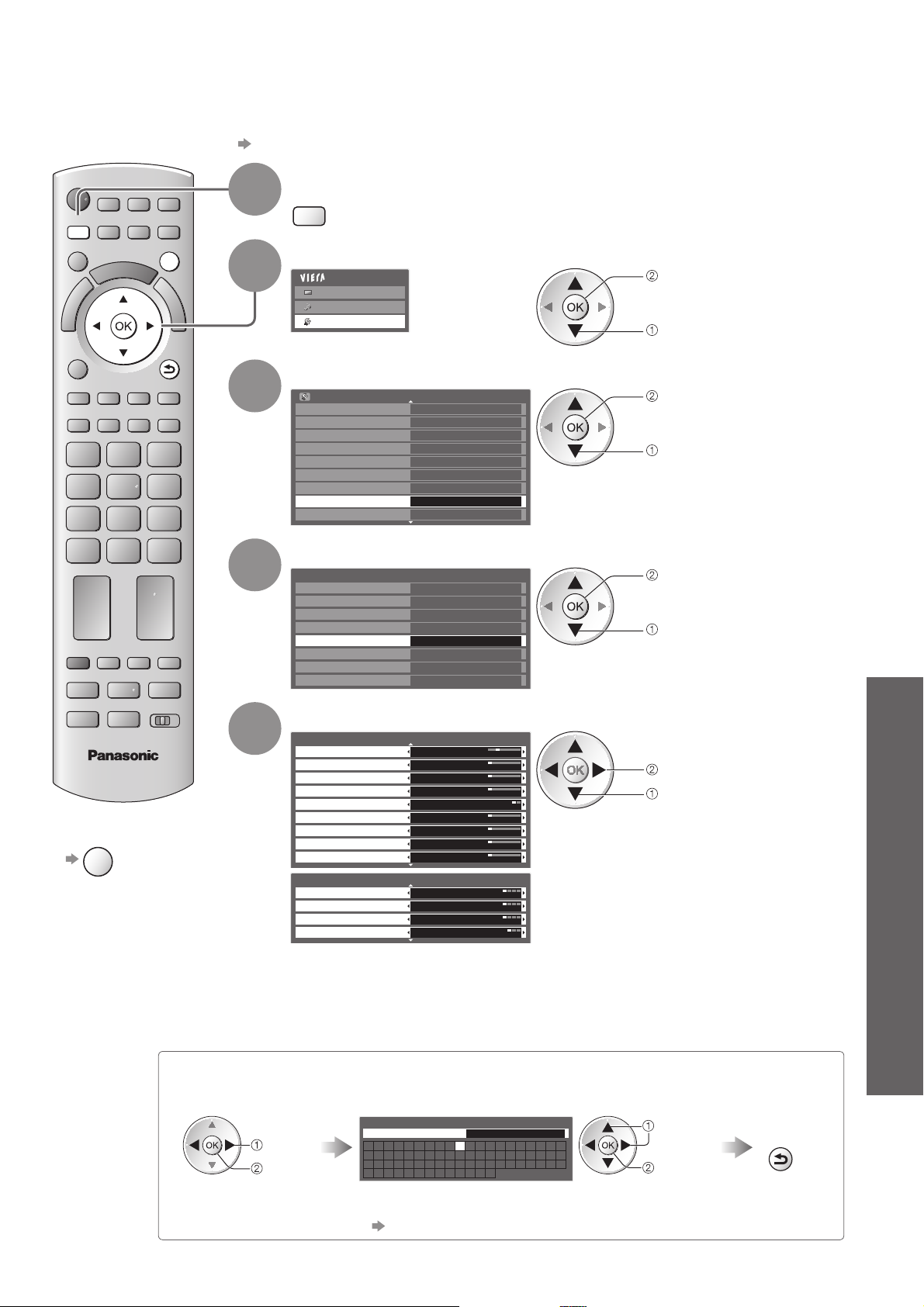

Many features available on this TV can be accessed via the On Screen Display menu.

How to use remote control

■

Move the cursor / select the menu item

Access the menu / store settings after
adjustments have been made or options
have been set

MENU

Open the main menu

ON SCREEN HELP Instructions box - Operation guide■

Example (Sound Menu):

Sound Menu

Mode Music

Bass
Treble
Balance
Headphone Volume

Volume Correction
Speaker Distance to Wall Over 30cm
MPX

Select

EXIT
Change
RETURN

OffSurround

Stereo

Page up

Page down

RETURN

EXIT

1/2

0
0
0

11

0

Operation guide will help you.

Move the cursor / adjust levels / select from
a range of options

BACK/

Return to the previous menu

Exit the menu system and return to the
normal viewing screen

9

Basic Connection

External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any
leads.

Example 1
Connecting dish or aerial

TV only

AC 220-240 V
50 / 60 Hz

Clamper■

Bundle the cables

hooks

To loosen:

●

Mains lead

Set the tip

in the hooks

To ensure your satellite dish is correctly installed, please consult your local dealer.●
Also please consult the received satellite broadcasting companies for details.●
Selectable satellites and dish alignment to tune DVB-S channels ● p. 35

Rear of the TV

For digital satellite ●
broadcasts

Satellite cable

For digital cable, digital terrestrial ●

and analogue broadcasts

Satellite

dish

Terrestrial

aerial

Cable

Keep pushing

knob

To remove from the TV

Attach the clamper:

●

Insert the clamper
in a hole

●

Do not bundle the Satellite cable, RF cable and
mains lead together (could cause distorted image).
Fix cables with clampers as necessary.●
When using the optional accessory, follow the ●
option’s assembly manual to fix cables.

the knob

snaps

Keep pushing

both side snaps

hole

RF cable

10

Example 2
Connecting DVD Recorder / VCR

Example 3
Connecting DVD Recorder / VCR
and Set top box

TV, DVD Recorder or VCR

Rear of the TV

AC 220-240 V
50 / 60 Hz

Mains lead Mains lead

Cable

Terrestrial

aerial

TV, DVD Recorder / VCR and Set top box

Rear of the TV

AC 220-240 V
50 / 60 Hz

RF cable

Terrestrial

aerial

Quick Start Guide

Basic Connection ●

Fully wired
SCART cable

RF cable

RF OUT

DVD Recorder or VCR

RF IN

RF cable

Set top box

Note

Connect to the TV’s AV1 / AV2 for a DVD Recorder / VCR supporting Q-Link (p. 78).●
For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by ●
using HDMI cable (p. 84).

● p. 14 and p. 67

Network connection
Q-Link connection ● p. 76
VIERA Link connection

● p. 76 and p. 77

●

Please also read the manual of the equipment being connected.

Fully wired

SCART cable

Fully wired HDMI
compliant cable

Fully wired
SCART cable

Cable

RF cable

DVD Recorder
or VCR

RF OUT

RF IN

11

Auto Setup

Search and store TV channels automatically.

These steps are not necessary if the setup has been completed by your local dealer.●
Please complete connections (p. 10 and p. 11) and settings (if necessary) of the connected equipment before ●
starting Auto Setup. For details of settings for the connected equipment, read the manual of the equipment.

Plug the TV into mains socket and switch On

(Takes a few seconds to be displayed)

Select the language

Menüsprache

Deutsch Dansk Polski Srpski

English Svenska čeština Hrvatski

Français Norsk Magyar Slovenščina

Italiano Suomi Slovenčina Latviešu

Español Türkçe Български eesti keel

Português

Nederlands

Еλληνικά Românǎ Lietuvių

Select your country

Country

Germany Denmark Poland

Austria Sweden Czech
France Norway Hungary

Italy Finland Slovakia

Spain Luxembourg Slovenia

Portugal

Switzerland

Malta

Andorra

Belgium Estonia

Netherlands Lithuania

Turkey
Greece

Others

Depending on the country you select, you ●
may be required to select the Region. In
this case, select your region.

select

set

select

set

EXIT

BACK/

RETURN

1

2

3

ghi

abc def

jkl

tuvpqrs

TV

mno

wxyz

4

5

Select the mode you want to tune

TV Signal Selection

DVB-S

DVB-C

D

DVB-T

D

HD

DVB-T support for HD services

A

Analogue

Start Auto Setup

: tune (the mode will be tuned and

searched for the available channels)

: skip tuning

“DVB-C” may not appear depending on the ●
country you select (p. 95).

tune / skip tuning

select

Select “Start Auto Setup”

TV Signal Selection

DVB-S

DVB-C

D

DVB-T

D

HD

DVB-T support for HD services

A

Analogue

Start Auto Setup

Auto Setup starts

Auto Setup will start to search for TV ●
channels and store them.
The stored channels and sorted channel
order vary depending on the country, area,
broadcasting system and conditions of
signal reception.

access

select

12

(continued to the next page)

Auto Setup varies depending on the country you select.

DVB-S Search Mode

●

Search Mode

All Channels Free Channels

select mode
set

DVB-S Satellite Search●

DVB-S Auto Setup

Satellite

Analogue Scan 21 68
Progress

Analogue Scan 68

This will take up to 40 minutes.

Satellite

Astra 19.2°E
Hot Bird 13°E

Checking LNB2

0% 100%

Press EXIT to skip Satellite installation

Searching Satellite

DVB-S Auto Setup●

DVB-S Auto Setup

Satellite

Analogue Scan 21 68
Progress

Analogue Scan 68

This will take about 30 minutes.

No. Channel Name Type Quality

372 CBBC Channel Free TV 10
372 BBC Radio Wales Free TV 10
372 E4 Free TV 10

Free TV: 3 Pay TV: 0 Radio: 0

Checking LNB1

0% 100%

Searching

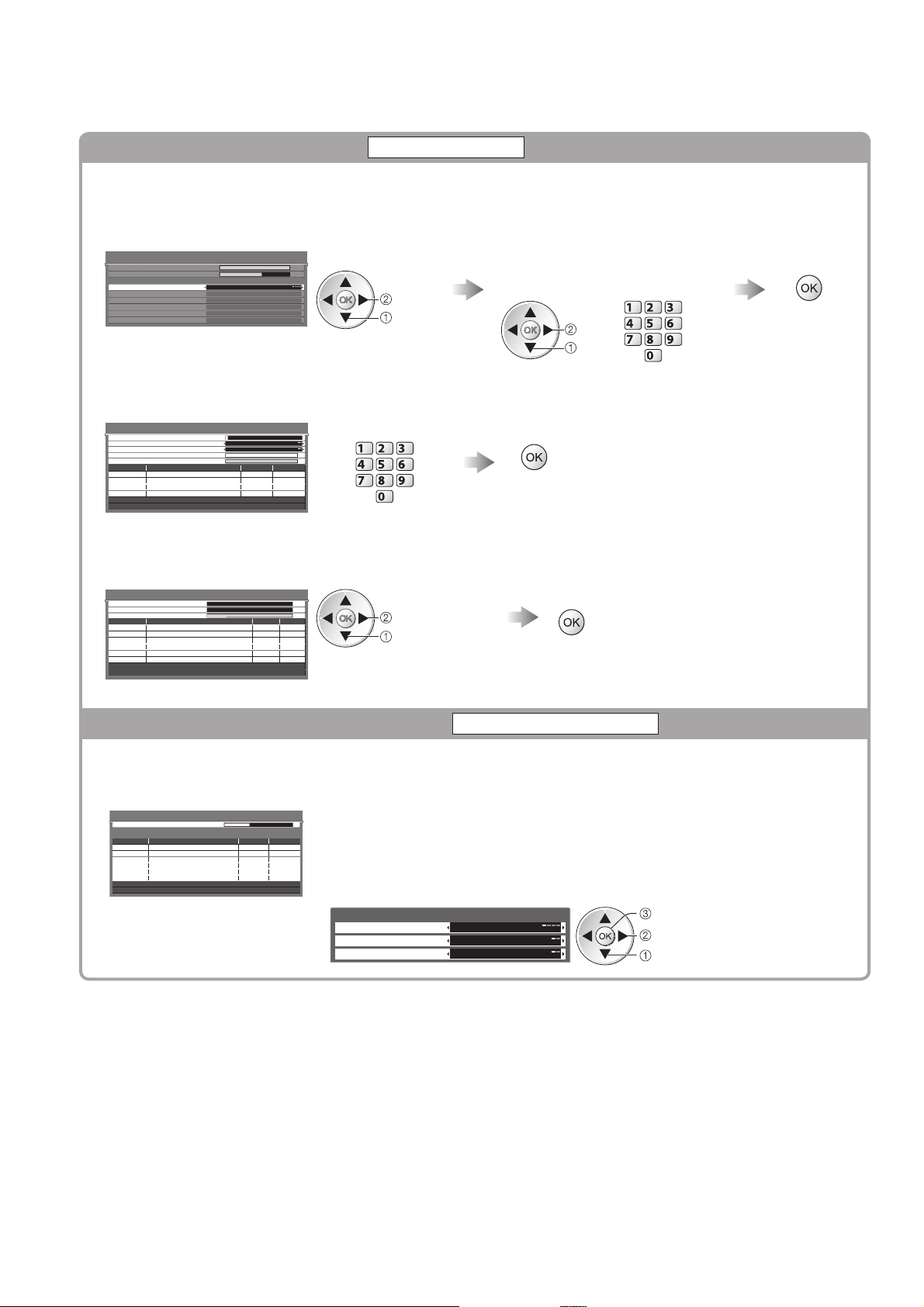

DVB-C Network Settings●
Enter the Home Frequency and Network ID specified by your cable provider.
And then, select “Start Auto Setup”.

DVB-C Network Settings

Frequency
Network ID 41001

Start Auto Setup

362 MHz

enter the frequency and network ID

abc def

Depending on the country you select, “Auto” is displayed

jkl

ghi

mno

and you do not have to enter them.

tuvpqrs

wxyz

In this case, Home Frequency and Network ID will be set
automatically.

access

Quick Start Guide

Auto Setup ●

DVB-C Auto Setup●

DVB-C Auto Setup

Progress

This will take about 3 minutes.

No.

1 CBBC Channel
2 BBC Radio Wales
3E4

Free TV: 3 Pay TV: 0 Radio: 0

Channel Name

Searching

0% 100%

Type Quality

Free TV 10
Free TV 10
Free TV 10

DVB-T Auto Setup●

DVB-T Auto Setup

Progress CH 5 69

This will take about 3 minutes.

CH Channel Name Type Quality

62 CBBC Channel Free TV 10
62 BBC Radio Wales Free TV 10

62 E4 Free TV 10
62 Cartoon Nwk Free TV 10

Free TV: 4

Pay TV: 0 Radio: 0

Searching

Analogue Auto Setup●

Analogue Auto Setup

Scan

This will take about 3 minutes.

CH Channel Name

CH 29
CH 33 BBC1

Analogue: 2

Sending Preset Data

Please wait!

0% 100%

Remote control unavailable

CH 2 CC 1 4178

Searching

select “Start Auto Setup”

Depending on the country you select, the channel selection screen
will be displayed after DVB-T Auto Setup if multiple channels have the
same logical channel number. Select your preferred channel or exit the
screen for automatic selections.

If Q-Link, VIERA Link or similar technology (p. 78 and p. 79) ●
compatible recorder is connected, channel, language, country / region
settings are automatically downloaded to the recorder.
If downloading has failed, you can download later by the menu item.●

“Download” (p. 30)

(continued to the next page)

13

Auto Setup

Setup the wireless LAN connection

6

Setup the wireless LAN connection to enable the network service functions (p. 66).
(If you do not wish to use wireless LAN connection or the network service functions, skip this step.)

To setup the wireless LAN connection, the Wireless LAN Adaptor (optional accessory) is required. For ●

the information about the Wireless LAN Adaptor “Optional accessories” (p. 6)

Confirm the encryption key, settings and positions of your access point before starting setup. For details,

●

read the manual of the access point.

Start wireless LAN connection setup?

Yes No

Please connect the wireless LAN adaptor (DY-WL10) to a
USB terminal.

You can setup the
wireless LAN connection later

“Network Setup” (p. 70)

To skip this step ●

EXIT

or select “No”

Wireless LAN connection setup starts

Connection Type

Please select netwok connection type.

WPS(Push button)

Search for access point

Select the connection type

connect the Wireless LAN Adaptor to the USB 1 or 2 port

Internet

environment

Wireless LAN Adaptor
(optional accessory)

Access point

select “Yes”

access

access

select

WPS(Push button)■

WPS(Push button)

1) Please press the ‘WPS’ buttton on the access
point until its light flashes.

2) When light is flashing select ‘Connect’ on TV.

If you are unsure, please check the instruction
manual of the access point.

Connect

Press the WPS button on the access point until the light flashes.
And then, press the OK button to connect the Wireless LAN Adaptor and
the access point.

Ensure that your access point supports WPS for this setup.●
WPS: Wi-Fi Protected Setup●

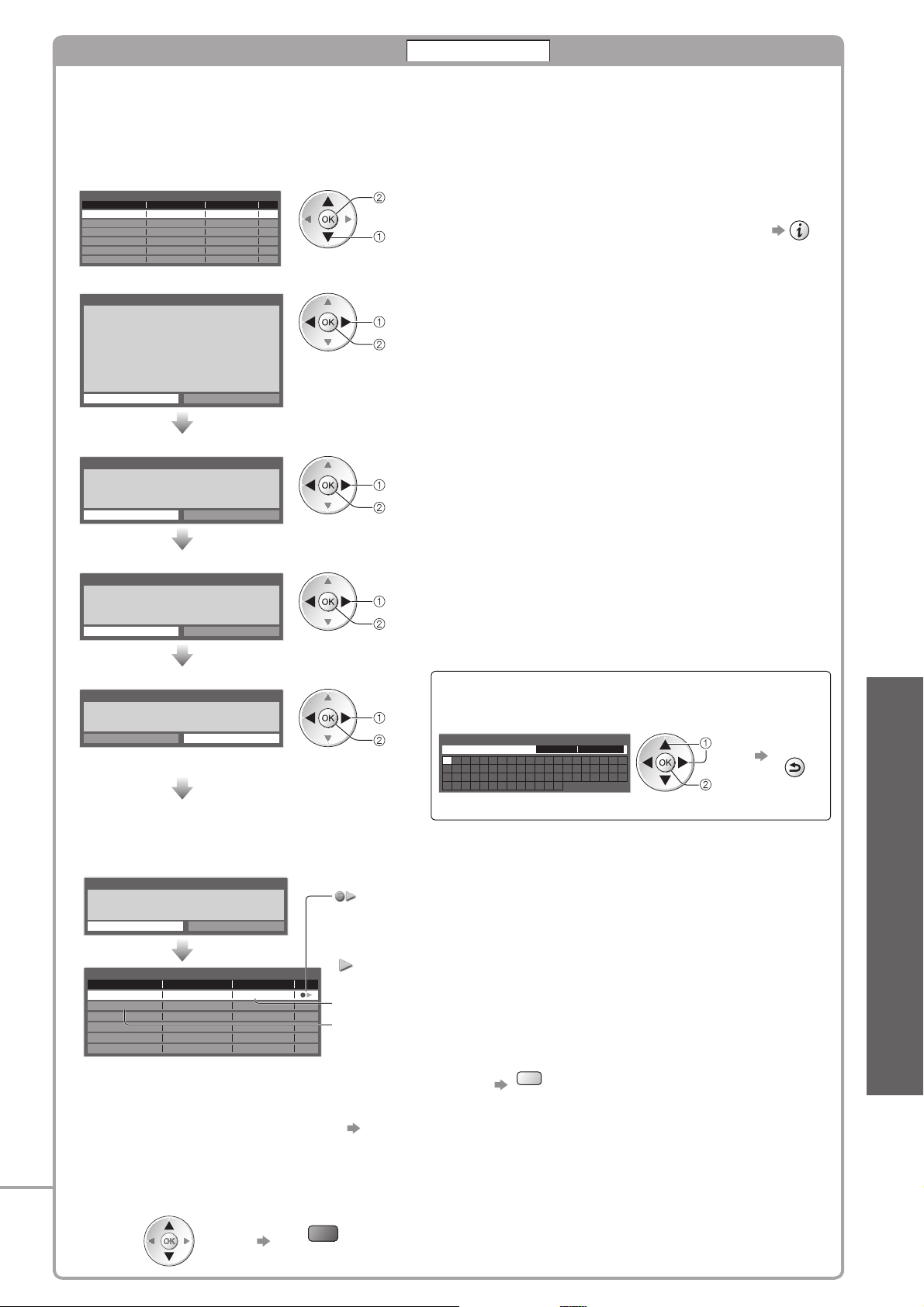

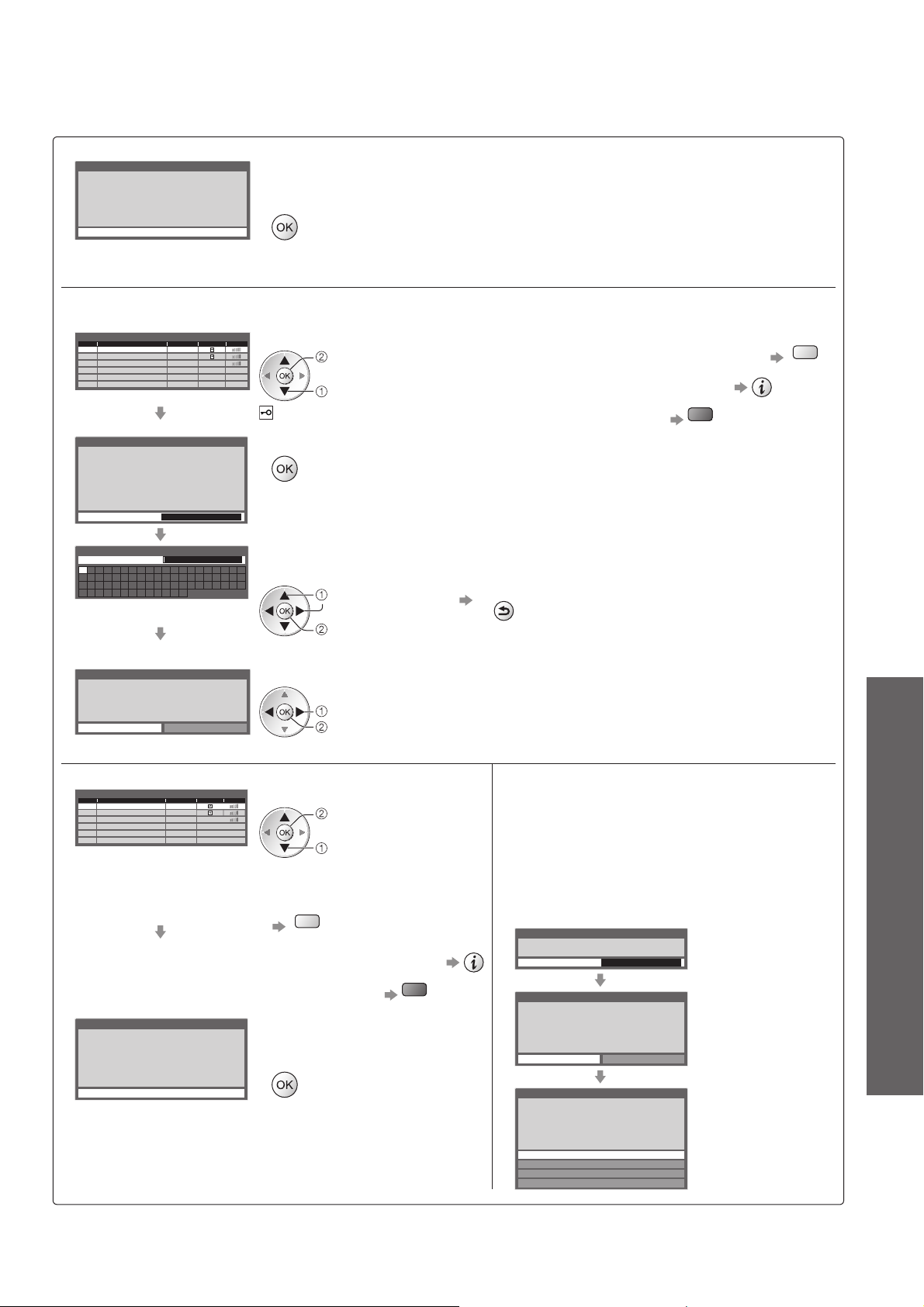

Search for access point■

Access points found automatically are listed.

Available Access Points

SSIDNo. Wireless type Encrypt Reception

Access Point A 11n(2.4GHz)

1

Access Point B

2

Access Point C 11n(5GHz)

3

Encryption Key Setting

Connection will be made with the following settings:­SSID : Access Point A
Authentication type : WPA-PSK
Encryption type : TKIP

Please input the encryption key.

Encryption key

Access Point Settings

Encryption key

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

11n(5GHz)

O P Q R S T
7 8 9 ! : #
o p q r s t

Select your desired access point

access

select

: Encrypted access point

Access the encryption key input mode

If the selected access point is not encrypted, the confirmation screen will ●
be displayed. It is recommended to select the encrypted access point.

Enter the encryption key of the access point
Set characters one by one Store

select

●

To search access points again
For the information of the ●

highlighted access point
To set manually (p. 71) ●

BACK/

RETURN

red

yellow

14

You can set characters by using numeric buttons.●

Access Point Settings

Encryption key is set to:­XXXXXXXX

Select ‘Yes’ to confirm.
Select ‘No’ to change.

Yes No

Select “Yes”

To re-enter the encryption key, select “No”.●

If the connection has failed, check the encryption key, settings and positions of your access point. And ●

then, follow the on screen instructions.

Exit to go to the next step

set

select
set

(continued to the next page)

7

Select “Home”

Select “Home” viewing environment to use in your home environment.

Please select your viewing environment.

Home Shop

select

set

Auto Setup is now complete and
your TV is ready for viewing.

To check channel list at-a-glance ●

“Using TV Guide” (p. 20)

To edit or hide (skip) channels ●

“Tuning and Editing Channels” (p. 38 - 43)

If tuning has failed, check the connection of the ●
Satellite cable, RF cable, and then, follow the on
screen instructions.

“Shop” viewing environment ■
(for shop display only)

“Shop” viewing environment is the demonstration
mode to explain main features of this TV.

Select “Home” viewing environment to use in
your home environment.

You can return to viewing environment selection

●

screen at the stage of Shop confirmation screen
and Automatic Demo Off / On selection screen.

Return to viewing environment selection

screen

Shop

You have selected shop mode

Automatic Demo

Off On

Select “Home”

Please select your viewing environment.

Home Shop

Auto Setup is complete

To change viewing environment later on, you ●
will need to initialise all settings by accessing
Shipping Condition.

“Shipping Condition” (p. 49)

BACK/

RETURN

select
set

Quick Start Guide

Auto Setup ●

Note

If tuning has failed or to retune all channels ● “Auto Setup” (p. 34 - 37)
To add the available TV mode later ● “Add TV Signal” (p. 31 and p. 32)
To initialise all settings ● “Shipping Condition” (p. 49)
To use a LAN cable instead of the Wireless LAN Adaptor ● p. 69
If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On ●
with Mains power On / Off switch.

If you connect the Wireless LAN Adaptor later on, the confirmation screen will be displayed for the setup.

To setup the Wireless LAN connection ● p. 70 and p. 71

Wireless LAN adaptor connection

Wireless LAN adaptor connected, do you want to
set it up?
No - Exit

Current network type : Wireless

Yes No

15

Watching TV

Turn power on

(Press for about 1 second)

Select the mode

TV

The selectable modes vary depending on the stored channels (p. 12).●
If “TV Selection” menu is not displayed, press the TV button to switch the ●

mode.

MENU

OPTION

ASPECT

INPUT

TV

EXIT

G

U

1

2

I

D

E

Mains power On / Off switch should be On. (p. 9)●

TV Selection

DVB-S

DVB-C

DVB-T

Analogue

access

select

STTL

ghi

HOLD

abc def

jkl

mno

1 BBC ONE WALES

Coronation Street
20:00 - 20:55

All DVB-T Channels

20:35

Change category

For info press

Now

Information banner appears whenever you select a
channel

For details ● p. 17

Also possible to select the mode pressing the TV button repeatedly on the ●

tuvpqrs

wxyz

LAST VIEW

3

Volume

Note

To watch pay-TV ●

“Using Common Interface”

(p. 48)

remote control or side panel of the TV. (p. 9)

Select a channel

To select from the Channel List■

up

or

down

All DVB-T Channels Sorting 123...

6
7
8

1

2
3
4

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Cartoon Nwk
BBC Radio Wales
BBC Radio Cymru

BBC ONE Wales

BBC THREE
BBCi
CBBC Channel

To change the category ●
To sort channel names in alphabetical order ●

To select a more than two-digit channel ●
position number, e.g. 399

Select a channel using Information banner ■ (p. 17)

Possible to confirm the channel name and programme before changing channels.

Display Information banner if it is
not displayed

While the banner is displayed,
select the channel

select channel

wxyz

wxyz

def

select channel

watch

red

blue

16

Possible to set display timeout in ●
“Banner Display Timeout” (p. 32).

Select a channel using TV Guide ■ (p. 20)

Possible to confirm the TV Guide (EPG) before changing channels.

Display
TV Guide

G

U

I

D

E

The postcode entry or update ●
may be required depending on
the country you select (p. 12).
Follow the on screen instructions.

Select the current
programme or channel

select

access

watch

Select “View”
(DVB mode)

Das Erste
19:30- 20:00

View

Timer Programming

To use Timer Programming ● p. 21

select

watch

Other useful functions

■

Hold

Freeze / unfreeze picture

Display Information banner

Display Information banner

Also appears when changing a channel●

Channel position and name

Example (DVB):

1 ZDF

Programme

Programme
Start / Finish time

Example (Analogue):

3 ITV

itv1
CH23

Encrypted

Channel number

To confirm another tuned ●

channel name

Coronation Street
20:00 - 20:55

Progress time indicator of the selected programme

Radio

19:35

SubtitlesAD

All Analogue Channels

HOLD

Channel type (Radio, Data, HDTV, etc.)

Encrypted Dolby D +

Features available / Message meanings

For info press

Stereo 45

Category

To change the category ●

Current time

20:35Radio

Now

Sound mute On

Bad signal

Poor TV signal quality

Encrypted

Scrambled programme

blue

All DVB-T Channels

Change category

For info press

45

Basic

Watching TV ●

To watch the channel listed in the banner ●

Information on the next programme ●

(DVB)

EXIT

●

To hide

Extra information ●

(DVB) (press again to hide the banner)

●

To set display timeout

“Banner Display Timeout” (p. 32)

Dolby D +, Dolby D

Dolby Digital Plus or Dolby Digital audio track

Subtitle service available

Teletext service available

Multiple audio available

Multiple video available

Multiple audio and video available

Stereo, Mono

Audio mode

1 - 90

Off Timer remaining time

● p. 19

For settings

17

Watching TV

Display subtitles

Display / hide subtitles (if available)

To change the language for DVB (if available)●

STTL

“Preferred Subtitles” (p. 32)

Note

If you press the STTL button in Analogue mode, it switches to teletext service and calls up a favourite page ●
(p. 23). Press the EXIT button to return to TV mode.

Aspect

Change the aspect ratio (image size)

Enjoy viewing the image at its optimum size and aspect.
Normally programmes have the Aspect Control Signal (Widescreen signal, etc.), and the TV will choose the
aspect ratio automatically according to the Aspect Control Signal (p. 86).

If you would like to change the aspect ratio manually■

Display Aspect Selection list While the list is displayed, select the mode

ASPECT

To change the mode using the ASPECT button only ●

ASPECT

Aspect Selection list

(Press repeatedly until you reach the desired mode)

Aspect Selection

Auto

16:9
14:9
Just
4:3
4:3 Full
Zoom1
Zoom2
Zoom3

Select

Change

EXIT

RETURN

store

select

ASPECT

Auto

The best ratio is chosen and the image expanded to fill the screen.
For details

16:9 4:3 Full

p. 86

Directly displays the image at 16:9
without distortion (anamorphic).

14:9 Zoom1

Displays the image at the standard 14:9
without distortion.

Just Zoom2

Displays a 4:3 image full-screen.
Stretching is only noticeable at the left and
right edges.

4:3 Zoom3

Displays the image at the standard 4:3
without distortion.

Note

Aspect is fixed to “16:9” when “Viewing Mode” is set to “Game” in the Picture Menu.●
Only “16:9” and “4:3” are available in PC input mode.●
Not available in teletext service.●
Aspect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.●

Displays a 4:3 image enlarged
horizontally to fit the screen.

HD signal only

●

Displays a 16:9 letterbox or 4:3 image
without distortion.

Displays a 16:9 letterbox (anamorphic)
image full-screen without distortion.

Displays a 2.35:1 letterbox (anamorphic)
image full-screen without distortion.
At 16:9, displays the image at its maximum
(with slight enlargement).

18

Display the selectable settings for the current status

Check or change the current

OPTION

status instantly

Multi Video (DVB mode)

Allows you to select the image (if available)

This setting is not memorized and it will return to the ●

default setting once you exit the current programme.

Multi Audio (DVB mode)
Allows you to select between alternative language for
sound tracks (if available)

This setting is not memorized and it will return to the ●

default setting once you exit the current programme.

Dual Audio (DVB mode)
Allows you to select stereo / monaural (if available)

Sub Channel (DVB mode)
Allows you to select the multifeed programme - sub
channel (if available)

Subtitle Language (DVB mode)
Allows you to select the language in which subtitles
should appear (if available)

To change ●

change
select

Teletext Character Set

Sets the teletext language

Setup Menu (p. 32)

Teletext Language (DVB mode)
Allows you to select between alternative language for
teletext (if available)

MPX (Analogue mode)
Selects multiplex sound mode (if available)

Sound Menu (p. 29)

Volume Correction

Adjusts volume of individual channel or input mode

USB Remove Safely

Takes this operation to remove the connected USB ●
device safely from the TV.

Basic

Last view

Switch to previously viewed
channel or input mode easily

Note

Switching channel is not available while the recording of Timer Programming, Direct TV Recording or ●

One Touch Recording is in progress.

Watching less than 10 sec. is not regarded as the previously viewed channel or input mode.●

LAST VIEW

Press again to return to the present view.●

Off Timer

Turn the TV to Standby mode automatically after a fixed period

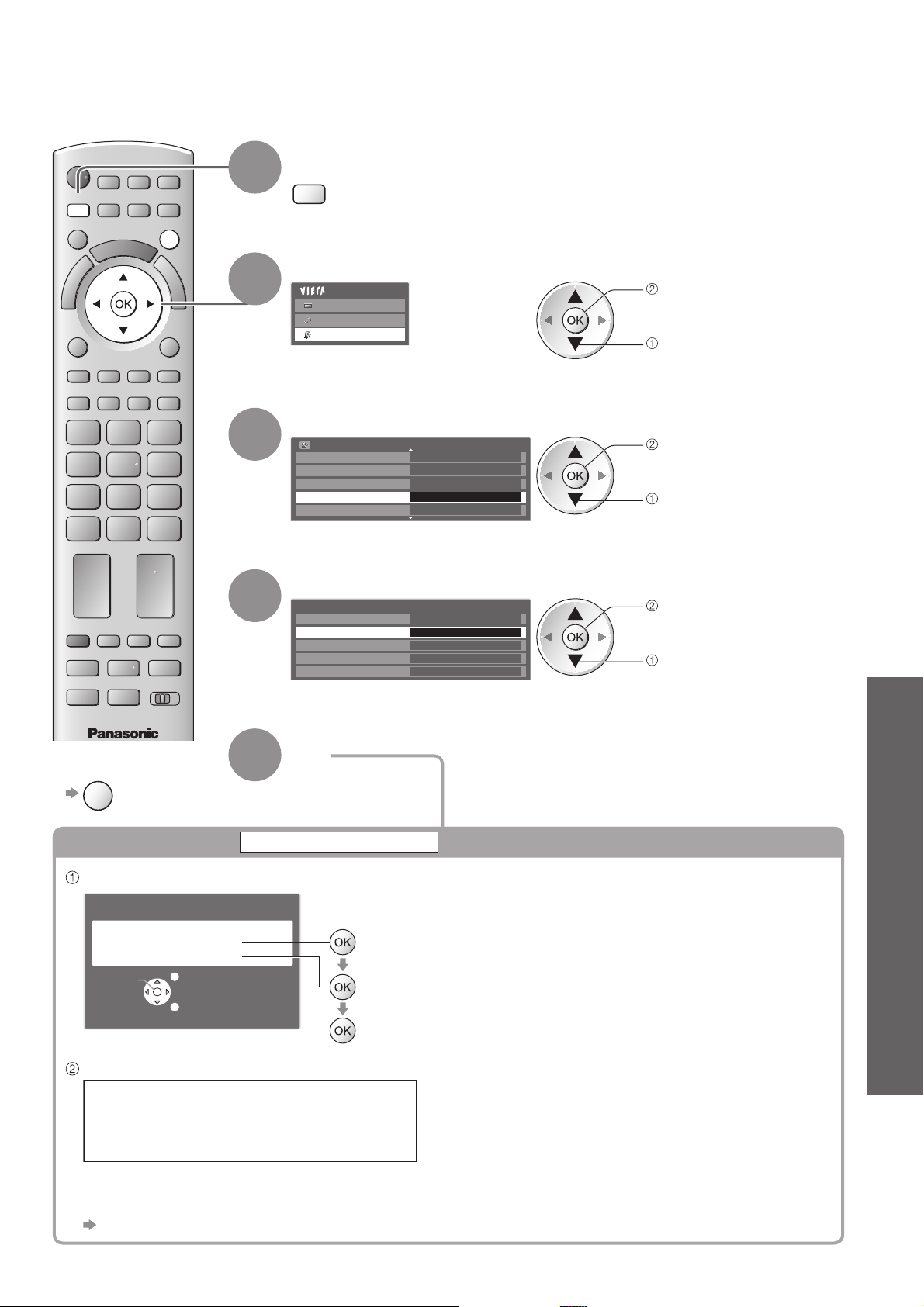

Display the menu Select “Setup” Select “Off Timer” and set the time

MENU

Main Menu


Sound

Setup

access

select

To cancel ● Set to “Off” or turn the TV off.
To display the remaining time● Information banner (p. 17)

Note

When the remaining time is within 3 minutes, the remaining time will flash on the screen.●

Setup Menu

Timer Programming

Off Timer Off

USB HDD Setup
Link Settings
Child Lock
DVB-T Tuning Menu
Language
Display Settings
Common Interface

1/2

Watching TV ●

set
select

19

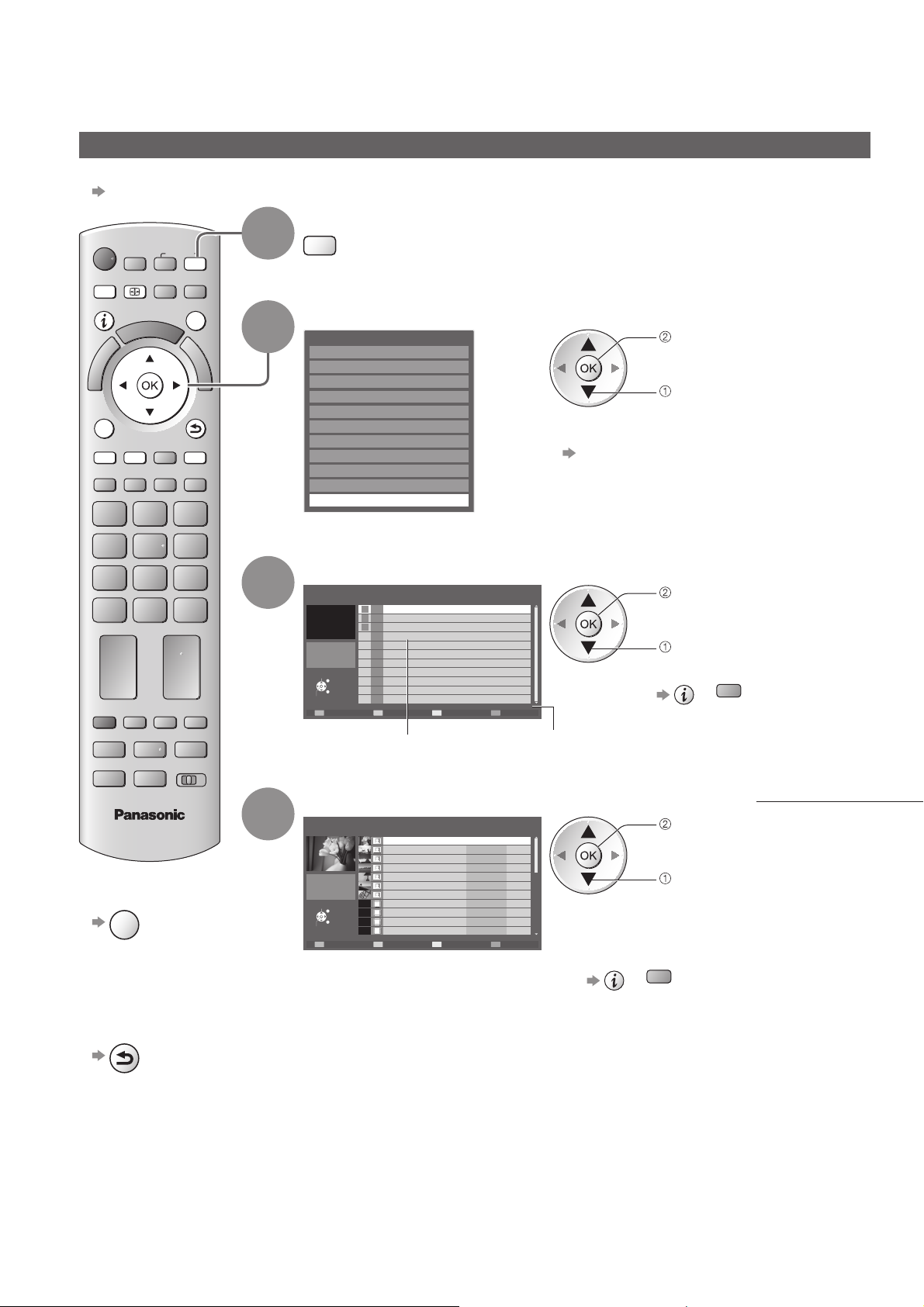

Using TV Guide

TV Guide - Electronic Programme Guide (EPG) provides an on screen listing of the programmes
currently broadcast and the forthcoming broadcasts over the next seven days (depending on the
broadcasters).

This function varies depending on the country you select (p. 12).●
The postcode entry or update may be required to use the GUIDE Plus+ system depending on the country you ●
select. “View advertisement” (p. 21)
DVB-T and Analogue channels are displayed on the same TV Guide screen. “D” means DVB-T channel and “A” ●
means Analogue channel. There will be no programme listings for Analogue channels.
When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time ●
before the TV Guide is completely shown.

OPTION

To return to TV ■

EXIT

INPUT

TV

EXIT

G

U

I

D

E

BACK/

RETURN

Select the mode

1

p. 16

TV

View TV Guide

2

TV Guide
time

Example:

Wed 28.10.2009
10:46

Timer Programming

-24 hours +24 hours Prog.Type Category

Advertisement

G

U

I

D

E

To change the layout (Landscape / Portrait) ●
view “Landscape” to see many channels
view “Portrait” to see one channel at a time

Current date and time

TV Guide date

TV Guide: Landscape

Wed 28.10.2009

1 BBC ONE
20:00 - 20:30 DIY SOS : We open in the Battersbys

1

D

7

D

14

D

70

D

72

D

105

D

719

D Rugby 15 To 1 The Bill

Select channel

19:30 20:00 20:30 21:00

Time:

Das Erste DIY SOS The Bill Red Cap

BBC ONE
BBC THREE

Hot Wars Holiday Program

E4 Emmerdal. Coronation Street The Bill

BBC FOUR 10 O’ clock News BBC Pepsi Char. Good bye

BBC 2W Panorama Spring watch Coast

BBCi I’ m A Celebrity Pop Idol News

BBC Radi

EXIT
Select programme
RETURN

Programme

All Types All Channels

Info

GUIDE

Change display mode

OPTION

Select Advert

Landscape (Displays by channel)

Channel position and name

To watch the programme■

Select the current
programme or channel

select

access

Example:

TV Guide: Portrait

Wed 28.10.2009

D 1 BBC ONE D

19:30-20:00

Das Erste

20:00-20:30

DIY SOS

20:30-21:00

The Bill

21:00-22:00

Red Cap

22:00-23:00

Live junction

23:00-23:30

POP 100

23:30-00:00

Rugby

EXIT
Select channel
RETURN

+24 hours Prog.Type Category

Page up

Page down

Wed 28.10.2009
10:46

Timer Programming

Select programme

Select “View”
(DVB mode)

Das Erste
19:30- 20:00

View

Timer Programming

To use Timer Programming ● p. 21

G

U

I

D

E

D: DVB-T
A: Analogue

All Types All Channels

7 BBC THREE

D 14 E4 D 70 BBC FOUR

Info

GUIDE

Change display mode

OPTION

Select Advert

Portrait (Displays by time)

select

watch

Page up

Page down

20

Depending on ■
the country you
select, you can
select the TV
Guide type

“Default Guide” in

“Display Settings”

(p. 32)
If you select “Channel
List”, the channel
list will appear when
the GUIDE button is
pressed.

All DVB-T Channels Sorting 123...

Cartoon Nwk

6

BBC Radio Wales

7

BBC Radio Cymru

8

BBC ONE Wales

1

BBC THREE

2

BBCi

3

CBBC Channel

4

(Channel list)

select

channel

watch

To the previous day ■

(DVB mode)

red

To view a ■
channel list of the
selected type

(DVB mode)

yellow

To view a ■
channel list of the
selected category

blue

Prog.Type

All Types

All Types

Movie

News

All Channels

All DVB-T Channels

All Analogue Channels

Free TV

Pay TV

HDTV

Free Radio

Pay Radio

Favourites1

Favourites2

Favourites3

Favourites4

.
.
.
.
.

Category

All Channels

To the next day ■

(DVB mode)

green

(Type list)

select type

view

(Category list)

Only Analogue channels are listed

select category

view

To list favourite channels ● p. 39

Other useful functions

■

View details of the programme (DVB mode)

Select the programme View details

select

Wed 28.10.2009
10:46

Timer Programming

TV Guide: Landscape

Wed 28.10.2009
DIY SOS
BBC ONE
20:00 - 20:30, 30 min.

EXIT

RETURN

Return to list

Details

Press again to return ●
to TV Guide.

Timer Programming (DVB mode)

Timer Programming is a timer to remind watching or record the programme to the external recorder
or the USB HDD.

Select the
forthcoming
programme

select

set

To check / change / cancel a timer programming event■ “Timer Programming” (p. 45)

To return to TV Guide ■

Select the function
(Ext Rec., USB HDD Rec. or Reminder)

Timer Programming Wed 28.10.2009 10:46

Channel NameFunction No.

1D BBC ONE

Ext Rec.

<TIMER>

--- --/-- --:-- --:--

---

---

---

---

--- --/-- --:-- --:--

---

--- --/-- --:-- --:--

(Timer Programming screen)

Ext Rec. /
USB HDD Rec.

Date Start End

Wed 28.10.2009 20:00 20:30

(30 min.)

(--- min.)

--/-- --:-- --:--

--/-- --:-- --:-­(--- min.)

(--- min.)

(--- min.)

: to record the programme to the external recorder (Ext Rec.) or the

USB HDD (USB HDD Rec.)
When the start time comes, the channel will be switched automatically
and the video and audio signals will be output. 2 mins. before the starting
time, a reminder message appears if you are watching TV.

Reminder : to remind watching the programme

When you are watching TV, a reminder message appears 2 mins. before
the start time. Press the OK button to switch to the programmed channel.

BACK/

RETURN

store

select

LED will turn to orange if
Timer Programming is set.
(Orange LED will flash if the recording
of Timer Programming is in progress.)

LED

Basic

If you select the current programme■

A confirmation screen whether you wish to watch or record it will appear.
Select “Timer Programming” and set “Ext Rec.” or “USB HDD Rec.” to
record from the time you finish the timer programming event setting.

Das Erste
19:30- 20:00

View

Timer Programming

select
access

Note

This function is not available in Analogue mode.●
Timer Programming only works reliably if correct time information is received via the signal from the

●

broadcaster or service provider.

No other channel can be selected while the recording of Timer Programming is in progress.●
When recording programmes to the external recorder, be sure to make the proper settings on the recorder ●

connected to the TV.
If a compatible recorder with Q-Link, VIERA Link or similar technologies is connected to the TV (p. 78 and
p. 79) and the “Link Settings” (p. 30) are completed, no setting of the recorder is required. Also read the
manual of the recorder.

When recording programmes to the USB HDD, be sure to register the USB HDD and enable it for recording in ●

the “USB HDD Setup” (p. 54).

View advertisement

Depending on the country you select, this TV supports the GUIDE Plus+ system in DVB-T or
Analogue mode

The postcode entry or update is required. Follow the on screen instructions.

Also possible to setup manually from the Setup Menu ●

“Update” / “Postcode” in “GUIDE Plus+ Settings” (p. 33)

Enter your postcode when using this function for the first time. If you enter an incorrect postcode for your ●

area, or no postcode is entered, advertisements may not be displayed correctly.

Display advertisement information

OPTION

To display the latest advertisement ●

“Update” in “GUIDE Plus+ Settings” (p. 33)

Using TV Guide ●

To change advertisements■ To return to TV Guide■

Note

To update the information continuously, the TV must be left in Standby mode at night.●

OPTION

or

BACK/

RETURN

21

Viewing Teletext

Teletext services are the text information provided by the broadcasters.
The features may vary depending on the broadcasters.

What is FLOF (FASTEXT) mode?

In FLOF mode, four differently coloured subjects are situated at the bottom of the screen. To access more
information about one of these subjects, press the appropriately coloured button. This facility enables fast access to
information on the subjects shown.

What is TOP mode? (in case of TOP text broadcasting)

TOP is a particular improvement of the standard teletext service that results in an easier search and effective guide.

Fast overview of the teletext information available●
Easy to use step-by-step selection of the topical subject●
Page status information at the bottom of the screen●

Available page up / down

To select among subject blocks

To select next subject within the subject block
(After the last subject, it moves to the next subject block.)

What is List mode?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these
numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 23)

To change mode■ “Teletext” in the Setup Menu (p. 32)

MENU

EXIT

1

red

green

blue

Switch to Teletext

TEXT

Displays the ●
index page
(content varies
depending on the
broadcasters)

yellow

Current
page
number

Sub page number

<< 01 02 03 04 05 06 07 >>

17:51 28 Feb

TELETEXT

INFORMATION

Time / date

Select the page

TEXT STTL

ghi

INDEX HOLD

abc def

jkl

mno

tuvpqrs

wxyz

2

abc def

jkl

ghi

mno

tuvpqrs

wxyz

To adjust contrast ■

To return to TV ■

Reveal hidden data

Reveal hidden words e.g. quiz page answers

MENU

red

To rehide ●

FULL / TOP / BOTTOM

MENU

green

Colour bar

up

green

or

down

MENU

red

or

(Corresponds to the colour bar)

yellow blue

As the blue bar is displayed

(press three times)

EXIT

red

(TOP) (BOTTOM) Normal (FULL)

22

(Expand the TOP half) (Expand the BOTTOM half)

HOLD

Stop automatic updating

(If you wish to hold the current page without updating)

HOLD

To resume ●

HOLD

INDEX

Return to the main index page

INDEX

Call up a favourite page

View a favourite page stored

STTL

Call up the page stored on the blue button (List mode).●
Factory setting is “P103”.●

View in multi window

Watch TV and Teletext in two windows at once

MENU

(press twice)

Operations can be made only in Teletext screen.●

Select Picture and text On or Off

Store frequently viewed pages

Store frequently viewed pages in the colour bar

As page is
displayed

To change stored pages■

Coloured button
you want to
change

Corresponding
coloured button

Enter new page number

press
and
hold

The number changes to white.

abc def

jkl

ghi

mno

tuvpqrs

wxyz

press
and
hold

View sub page

View sub page (Only when teletext is more than one page)

Appears at top of
the screen

To view specific sub page■

Enter the

MENU

blue

Sub pages: ●

The number of sub pages varies depending on the broadcasters (up to 79 pages).
It may take some time for searching, during which time you can watch TV.

4-digit number

example: P6

mno

(List mode only)

Basic

Viewing Teletext ●

Watch TV while waiting for update

View the TV picture while searching for a teletext page

Teletext automatically updates itself when new information becomes available.

MENU

The news page provides a function that indicates arrival of latest news (“News Flash”).●

yellow

Changes to TV screen temporarily

P108

(You cannot change the channel.)

Appears when
updating is
completed

View the updated page

yellow

23

Watching External inputs

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the input.

To connect the equipment ● p. 10, 11 and p. 84

The Remote Control is capable of operating some functions of selected external equipment.

Turn the TV on

When connecting with SCART as example 2 or 3 ■ (p. 11)

Receives input signals automatically when playback starts

Input signals are automatically identified by the SCART (pin 8) terminal.●
This function is also available for HDMI connections (p. 84).●

If input mode is not switched automatically■

Perform and

Check the setup of the equipment.●

Display the Input select menu

AV

Select the input mode connected to the equipment

Input Selection

AV1

AV2/S

AV3
COMPONENT
PC
HDMI1
HDMI2
HDMI3
HDMI4
TV
Media Server

You can also select the input using the AV button on the remote control or the ●
side panel of the TV.
Press the button repeatedly until the desired input is selected.

●

You cannot select “Media Server” using the AV button on the side panel of the
TV.

●

In order to switch between AV2 and AV2S, move the indicator by pressing left
and right cursor button.
You can label or skip each input mode ● “Input Labels” (p. 47)
Skipped inputs will not be displayed when the AV button is pressed.

select

watch

ghi

REC

INPUT

AVTV

abc def

jkl

mno

tuvpqrs

wxyz

PROGRAMME

1

2

3

24

DVD/VCR

TV

View

4

TV

To return to TV ■

TV

Note

If the external equipment has an aspect adjustment function, set to “16:9”.●
For details, see the manual of the equipment or ask your local dealer.●

Displays the selected mode

Operating the equipment with the TV remote control

The equipment connected to the TV can be directly operated with the below buttons of this TV
remote control.

Selection Switch for operating the connected equipment

Select “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player
theatre, Blu-ray Disc theatre or VCR

DVD/VCR

How to change the code for the type of the equipment

■

Each type of the Panasonic equipment has its own remote control code.
Please change the code according to the equipment you want to operate.

Set the position to “DVD/VCR”

TV

PROGRAMME

REC

“How to change the code for the type of the equipment” (see below)

Select “TV” to use USB HDD Recording, Media Player or VIERA Link

“USB HDD Recording” (p. 56)
“Media Player” (p. 62)
“VIERA Link Control” (p. 82)

Standby

Set to Standby mode / Turn on

Play

Playback videocassette / DVD / video content

Stop

Stop the operations

Rewind / Skip / Search

VCR: Rewind, view the picture rapidly in reverse
DVD / video content: Skip to the previous track or title

(not available for the operation of USB HDD Recording)
Press and hold to search backward

Fast-forward / Skip / Search

VCR: Fast-forward, view the picture rapidly forward
DVD / video content: Skip to the next track or title

(not available for the operation of USB HDD Recording)
Press and hold to search forward

Pause

Pause / Resume
DVD: Press and hold to play at slow speed

Channel Up / Down

Select channel

Record

Start recording

DVD/VCR

TV

Basic

Watching External inputs ●

Press and hold during the following operations

abc def

jkl

ghi

Enter the appropriate code,
see table below

Type of the equipment Code

DVD Recorder, DVD Player 70 (default)

Player theatre, Blu-ray Disc theatre 71

VCR 72

mno

tuvpqrs

wxyz

Press

Note

Confirm if the remote control works correctly after changing the code.●
The codes may be reset to default values if batteries are replaced.●
Some operations may not be possible on some equipment models.●

25

How to Use VIERA TOOLS

You can access some special features easily by using the VIERA TOOLS function.

Display icons of the feature

T

O

A

1

EXIT

T

O

A

O

R

L

E

S

I

V

2

3

O

R

L

E

S

I

V

Select a feature

VIERA Link Control

Follow the operations of each feature

VIERA Link Control● “VIERA Link Control” (p. 82)

select

access

TV

To return to TV

■

EXIT

or

V

When two or more compatible equipment are connected, a selection screen
will be displayed.
Please select the correct description and access.

● “Photo mode” (p. 60)


When two or more available devices are connected, a selection screen will be
displayed.
Please select the correct description and access.

● “Video mode” (p. 62)

Video

When two or more available devices are connected, a selection screen will be

T

O

A

O

R

L

E

S

I

displayed.
Please select the correct description and access.

● “Music mode” (p. 65)

Music

When two or more available devices are connected, a selection screen will be
displayed.
Please select the correct description and access.

26

● “VIERA CAST™” (p. 75)

VIERA CAST

Media Server● “Using DLNA® features” (p. 72)

Note

If the selected feature is not available, the demonstration to explain how to use it ●
can be displayed. Press the OK button to view the demonstration after selecting the
unavailable feature.

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions.

Display the menu

Displays the functions that can be set ●
(varies according to the input signal)

1/2

60

0

30

5

0
Warm
Off
Off

(example: Picture Menu)

access

select

select

MENU

EXIT

BACK/

RETURN

1

2

3

MENU

Select the menu

Main Menu


Sound

Setup

(example: Picture Menu)

Select the item

Picture Menu

Viewing Mode Dynamic

Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance
Vivid Colour
Eco Mode

TV

To return to TV ■
at any time

EXIT

To return to ■
the previous
screen

BACK/

RETURN

Adjust or select

4

Choose from among ■
alternatives

Colour Balance

Adjust using the slide bar■

Sharpness 5

Go to the next screen■

Child Lock Access

Picture Menu

Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance
Vivid Colour

Warm
Off
OffEco Mode

(example: Picture Menu)

Number and positions of alternatives

Normal

Changed

Moved

Basic

1/2

60

0

30

5

0

To reset the settings

■

To reset the picture settings only●

“Reset to Defaults” in the

Picture Menu (p. 28)

To reset the sound settings only●

“Reset to Defaults” in the

Sound Menu (p. 30)

To initialise all settings●

“Shipping Condition” in the

Setup Menu (p. 33)

change

store or access

( Required by

some functions)

How to Use VIERA TOOLS ●

How to Use Menu Functions ●

To change ■
menu pages

up

down

Displays the next screen

Enter characters by free input menu■

You can enter names or numbers freely for some items.

User input

Name

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

O P Q R S T
7 8 9 ! : #
o p q r s t

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 88)

Set characters one by one Store

select

set

BACK/

RETURN

27

How to Use Menu Functions

Menu list■

Menu

Viewing Mode

Contrast, Brightness,


Colour, Sharpness

Tint

Item Adjustments / Configurations (alternatives)

Basic picture mode (Dynamic / Normal / Cinema / True Cinema / Game / Photo /
Professional1 / Professional2)

In each Viewing Mode and input, Contrast, Brightness, Colour, Sharpness, Tint, Colour
Balance, Vivid Colour, Eco Mode, P-NR and 3D-COMB can be adjusted and stored to
suit your particular viewing requirement.

Set for each input signal.

●

Dynamic : Provides enhanced picture contrast and sharpness when viewing in a

Normal : Recommended for viewing under normal ambient room lighting

Cinema : For watching movies in a darkened room with the improved performance

True Cinema: Precisely reproduces the original quality of the image without any revision.
Game : Fast response signal specifically to provide suitable images for playing

Photo :

Professional
1 / 2

Increases or decreases the levels of these options according to your personal preference

With an NTSC signal source connected to the TV, the picture hue can be adjusted to
suit your taste

For NTSC signal reception only

●

bright room.

conditions.

of contrast, black and colour reproduction

games

Not valid on TV mode

●

A continuous record of time spent using Game mode can be displayed ●
in the top right of the screen.

“Playing Time Display” (p. 32)

Set “Reversal Film” to “On” to provide the suitable image quality for photos

For HDMI input, Media Player and Network service operations●

: Allows you to set the professional picture settings in “Advanced Settings”,

“Lock Settings” and “Copy Adjustment”

p. 52

This mode is available only when “Advance(isfccc)” in the Setup Menu

●

is set to “On”.
Not valid on VIERA CAST

●

If the certified professional dealer sets these modes, “Professional1” ●
and “Professional2” may be displayed as “isf Day” and “isf Night”.

Colour Balance

Vivid Colour

Reversal Film

Eco Mode

P-NR

3D-COMB

Panel

Allows you to set the overall colour tone of the picture (Cool / Normal / Warm)

Not valid when “Viewing Mode” is set to “True Cinema”, “Professional1” or

●

“Professional2“.

Automatically adjusts colours to vivid ones (Off / On)

Not valid on PC signal.

●

Not valid when “Viewing Mode” is set to “Professional1” or “Professional2“.●

Provides the picture effect such as the reversal film (Off / On)

This function is available when “Viewing Mode” is set to “Photo”.

●

Automatic Brightness Control function
Adjusts picture settings automatically dependent on ambient lighting conditions (Off / On)

Picture Noise Reduction
Automatically reduces unwanted picture noise and flicker noise in the contoured parts of
a picture (Off / Min / Mid / Max)

Not valid on PC signal.

●

Makes still or slow moving pictures look more vivid (Off / On)

Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen.

●

Set to “On” to display sharper and more accurate colours.
For PAL or NTSC signal reception only

●

Not valid on RGB, S-Video, Component, PC, HDMI and Media Player●

Turns the screen off when you select “Off” (Off / On)

The sound is active even if the screen turns off.

●

Press any buttons to turn the screen on.●
This function is effective in reducing power consumption when listening to a sound ●
without watching the TV screen.

28

Reset to Defaults

Press the OK button to reset the present Picture Viewing Mode of the selected input to
the default settings

Menu

Mode

Item Adjustments / Configurations (alternatives)

Selects the basic sound mode (Music / Speech / User)

The selected mode affects all input signals.

●

Music: Improves sound quality for watching music videos, etc.
Speech: Improves sound quality for watching news, drama, etc.

In Music and Speech modes, you can adjust “Bass” and “Treble” settings, and those

●

settings will be stored for each mode.

User: Adjusts the sounds manually by using the equalizer to suit your favourite sound quality.

For the User mode, “Equalizer” will appear on the Sound Menu instead of “Bass” and ●
“Treble”. Select the “Equalizer” and adjust the frequency. “Equalizer” (below)

Bass

Treble

Equalizer

Balance

Headphone Volume

Sound

Surround

Volume Correction

Increases or decreases level to enhance or minimise lower, deeper sound output

Increases or decreases level to enhance or minimise sharper, higher sound output

Adjusts the frequency level to suit your favourite sound quality

This function is available when “Mode” is set to “User”.

●

Select the frequency and change the frequency level by using the cursor button.●
If you want to enhance the bass sound, raise the level of the lower frequency. If you ●
want to enhance the treble sound, raise the level of the higher frequency.
To reset the levels of each frequency to the default settings, select the “Reset to

●

Defaults” by using cursor button, and then press the OK button.

Adjusts volume level of right and left speakers

Adjusts the volume of the headphones

Surround sound settings (Off / V-Audio / V-Audio Surround / V-Audio ProSurround)
V-Audio: Provides a dynamic enhancer of width to simulate improved spatial

V-Audio Surround: Provides a dynamic enhancer of width and depth to simulate

V-Audio ProSurround

Adjusts the volume of individual channel or input mode

effects

improved spatial effects

: Provides a more progressive enhancer and reverberation to

simulate improved spatial effects.

Basic

How to Use Menu Functions ●

Speaker Distance to
Wall

MPX

Audio Preference

A different menu will be displayed when “Advance(isfccc)” in the Setup Menu is set to “On” or in the mode of PC ●
input, Media Player or Network service operations. (p. 51 - 53, 59 - 65 and p. 74)
Only available items can be selected.●

Adjusts the low frequency sound (Over 30cm / Up to 30cm)

If the back space between the TV and wall is over 30 cm, “Over 30cm” is recommended.

●

If the back space between the TV and wall is within 30 cm, “Up to 30cm” is recommended.

●

Selects multiplex sound mode (if available)

Normally: Stereo

●

Stereo signal cannot be received: Mono●
M1 / M2: Available while mono signal is transmitted●
Analogue mode only●

Selects the initial setting for audio tracks (Auto / MPEG)
Auto : Automatically selects the audio tracks if programme has more than two tracks.

The priority is given in the following order - Dolby Digital Plus, HE-AAC,
Dolby Digital, MPEG.

MPEG : The priority is given to MPEG as long as the programme contains MPEG audio.

Dolby Digital Plus and Dolby Digital are the methods of coding digital signals developed by

●

Dolby Laboratories. Apart from stereo (2ch) audio, these signals can be multi-channel audio.
HE-AAC is a perceptual coding method used to compress digital audio for efficient ●
storage and transmission.
MPEG is an audio compression method that compresses audio to the smaller size

●

without any considerable loss of audio quality.
Dolby Digital Plus and HE-AAC are the technologies for HD (High definition) programmes.

●

DVB mode only●

29

How to Use Menu Functions

Menu

Sound

Item Adjustments / Configurations (alternatives)

SPDIF Selection

MPEG Optical Level

HDMI1 / 2 / 3 / 4 Input

SPDIF Delay

Reset to Defaults

Timer Programming

SPDIF : A standard audio transfer file format
Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT terminal

(Auto / PCM)

Auto : Dolby Digital Plus and Dolby Digital are output as Dolby Digital Bitstream.

HE-AAC (48 kHz) 5.1ch is output as DTS.
MPEG is output as PCM.

PCM : Digital output signal is fixed to PCM.

For DVB mode, Network video contents (p. 73) or Video mode (p. 62)

●

Adjusts the audio level of MPEG output from DIGITAL AUDIO OUT terminal as the initial
setting (0 / -2 / -4 / -6 / -8 / -10 / -12dB)

Normally, MPEG sound is larger comparing with the other types of audio track.

●

DVB mode only●

Select to fit the input signal (Digital / Analogue) (p. 89)
Digital : HDMI cable connection
Analogue : HDMI-DVI adapter cable connection

HDMI input mode only

●

Adjusts the delay time of the sound output from DIGITAL AUDIO OUT terminal if the
sound does not synchronize the image

DVB mode only

●

Press the OK button to reset the present Sound Mode, Balance, Headphone Volume
and Surround to the default settings

Sets a timer to remind watching or record forthcoming programmes (p. 44)

DVB mode only

●

Off Timer

USB HDD Setup

VIERA Link

HDMI Content
Type

Q-Link

Setup

Link Settings

AV1 / AV2 out

Power on Link

Power off Link

Standby Power
Save

Sets the time the TV automatically goes to Standby mode
(Off / 15 / 30 / 45 / 60 / 75 / 90 minutes) (p. 19)

Register the connected USB HDD and makes the settings for the recording (p. 54)

Sets to use VIERA Link functions (Off / On) (p. 79)

Adjusts the picture settings according to the content type signal from the connected
equipment via HDMI cable (Off / Auto)

This function is available if the connected equipment supports HDMI Content Type.

●

The content type information will be displayed for several seconds when this function ●
works.

Selects which AV terminal is to be used for data communication between this TV and a
compatible recorder (AV1 / AV2) (p. 78)

Select the connected terminal to the recorder even it is not compatible with Q-Link.

●

Chooses the signal to be transmitted from the TV to Q-Link

(TV / AV1 / AV2 / AV3 / Monitor)

Monitor: Image displayed on screen

●

Component, PC and HDMI signals cannot be outputted.●

Sets to use Power on Link function (Off / On) (p. 78 and p. 79)

Sets to use Power off Link function (Off / On) (p. 78 and p. 79)

Controls the power consumption in Standby mode of the connected equipment to
reduce the consumption (Off / On) (p. 80)

This function is available when “VIERA Link” is set to “On” and “Power off Link” is set

●

to “On”.

30

Intelligent Auto
Standby

Download

Child Lock

Makes non-watched or non-used connected equipment go into Standby mode to
reduce the power consumption (Off / On (With reminder) / On (No reminder)) (p. 80)

This function is available when “VIERA Link” is set to “On”.

●

Downloads channel, language, country / region settings to a Q-Link or VIERA Link
compatible equipment connected to the TV

DVB-S and DVB-C channel settings cannot be downloaded.

●

Locks a channel / AV input to prevent access to it (p. 46)

Menu

Item Adjustments / Configurations (alternatives)

Favourites Edit

Channel List

Auto Setup

Manual Tuning

DVB-S Tuning Menu

Update Channel List
New Channel

Message
Signal Condition

Antenna System

LNB Configuration

Add TV Signal

Favourites Edit

Channel List

Auto Setup

DVB-C Tuning Menu

Manual Tuning

Setup

Update Channel List

Favourite Network

New Channel
Message

Signal Condition

Attenuator

Add TV Signal

Favourites Edit

Channel List

Auto Setup

DVB-T Tuning Menu

Manual Tuning

Update Channel List

Favourite Network

New Channel
Message

Signal Condition

Add TV Signal

A different menu will be displayed when “Advance(isfccc)” in the Setup Menu is set to “On” or in the mode of PC ●
input, Media Player or Network service operations. (p. 51 - 53, 59 - 65 and p. 74)
Only available items can be selected.●

Creates list of favourite DVB-S channels (p. 39)

Skips the unwanted DVB-S channels or edits DVB-S channels (p. 39)

Automatically sets the DVB-S channels received in the area (p. 34)

Sets the DVB-S channels manually (p. 40)

Updates DVB-S Channel List while keeping your settings (p. 40)

Selects whether to give a notification message when a new DVB-S channel is found
(Off / On) (p. 41)

Checks the DVB-S signal condition (p. 41)

Sets the antenna system to use plural LNBs for receiving several satellites
(One LNB / MiniDiSEqC / DiSEqC1.0 / Single Cable) (p. 35)

This TV supports DiSEqC Version 1.0.

●

Selects the satellite for each LNB (p. 35)

Adds the TV mode

This function is available if you skip any modes to tune in “Auto Setup” for first

●

using the TV.
To operate, refer to the “Auto Setup” operations for first using the TV (p. 12 and

●

p. 13).

Creates list of favourite DVB-C channels (p. 39)

Skips the unwanted DVB-C channels or edits DVB-C channels (p. 39)

Automatically sets the DVB-C channels supplied (p. 36)

Sets the DVB-C channels manually (p. 40)

Updates DVB-C Channel List while keeping your settings (p. 40)

Selects your favourite network for each broadcasters (only available in some
countries)

Selects whether to give a notification message when a new DVB-C channel is found
(Off / On) (p. 41)

Checks the DVB-C signal condition (p. 41)

Automatically reduces the DVB-C signal to avoid the interference (Off / On) (p. 41)

Adds the TV mode

This function is available if you skip any modes to tune in “Auto Setup” for first

●

using the TV.
To operate, refer to the “Auto Setup” operations for first using the TV (p. 12 and

●

p. 13).

Creates list of favourite DVB-T channels (p. 39)

Skips the unwanted DVB-T channels or edits DVB-T channels (p. 39)

Automatically sets the DVB-T channels received in the area (p. 37)

Sets the DVB-T channels manually (p. 40)

Updates DVB-T Channel List while keeping your settings (p. 40)

Selects your favourite network for each broadcasters (only available in some
countries)

Selects whether to give a notification message when a new DVB-T channel is found
(Off / On) (p. 41)

Checks the DVB-T signal condition (p. 41)

Adds the TV mode

This function is available if you skip any modes to tune in “Auto Setup” for first

●

using the TV.
To operate, refer to the “Auto Setup” operations for first using the TV (p. 12 and

●

p. 13).

Basic

How to Use Menu Functions ●

31

How to Use Menu Functions

Menu

Item Adjustments / Configurations (alternatives)

Analogue Tuning Menu

Channel List

Auto Setup

Manual Tuning

Add TV Signal

OSD Language

Language

Preferred Audio 1 / 2

Preferred Subtitles
1 / 2

Preferred Teletext

Skips the unwanted Analogue channels or edits Analogue channels (p. 43)

Automatically sets the Analogue channels received in the area (p. 37)

Sets the Analogue channels manually (p. 43)

Adds the TV mode

This function is available if you skip any modes to tune in “Auto Setup” for first

●

using the TV.
To operate, refer to the “Auto Setup” operations for first using the TV (p. 12 and

●

p. 13).

Changes language for on screen displays

Selects the first and second preferred language for DVB multi audio (depending on
the broadcaster)

Selects the first and second preferred language for DVB subtitles (depending on the
broadcaster)

To display subtitles

● p. 18

Selects the preferred language for DVB teletext service (depending on the broadcaster)

Preferred Subtitle
Type

Setup

Teletext

Teletext Character
Set

Display Settings

Default Guide

Input Labels

Banner Display
Timeout

Playing Time Display

Selects the preferred subtitle type (Standard / Hard of Hearing)

“Hard of Hearing” provides aids in understanding and enjoyment with DVB

●

subtitles (depending on the broadcaster).
“Preferred Subtitles 1 / 2” in “Language” are given priority.

●

Teletext display mode (TOP (FLOF) / List) (p. 22)

Selects teletext language (West / East1 / East2)

West: English, French, German, Greek, Italian, Spanish, Swedish, Turkish, etc.

●

East1: Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc.●
East2: Czech, Hungarian, Lettish, Polish, Rumanian, etc.●

Selects the default TV Guide type when the GUIDE button is pressed

(TV Guide / Channel List)

TV Guide : Electronic Programme Guide (EPG) is available.

● p. 20

Channel List : EPG is not available and the channel list will appear instead of it.

Labels or skips each input terminal (p. 47)

Sets how long the Information banner (p. 17) stays on screen

(0 (No display) / 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 seconds)

Set to “On” to display a continuous record of time spent using Game mode
every 30 mins (Off / On)

This function is available when “Game” is selected in “Viewing Mode” (p. 28).

●

To use EPG

32

Radio Mode

Common Interface

Network Setup

DivX® VOD

Sets the timer for turning off the screen automatically when a radio channel is selected

(Off / 5 / 10 / 15 / 20 seconds)

The sound is active even if the screen turns off.

●

Press any buttons to turn the screen on.●
This function is effective in reducing power consumption when listening to a radio ●
channel.

Uses include to watch pay-TV (p. 48)

Sets the network setting to use in your network environment (p. 68)

Displays DivX VOD registration code (p. 87)

Menu

Item Adjustments / Configurations (alternatives)

Advance(isfccc)

USB Keyboard

System Menu

Layout

Shipping Condition

Enables the advanced picture settings (Off / On)

Set to “On” to enable the mode of “Professional1” and “Professional2” in

●

“Viewing Mode”.
Set to “On” to display the advanced items in the Picture Menu - “Advanced

●

Settings”, “Lock Settings” and “Copy Adjustment”. “Copy Adjustment” will be
displayed when “Viewing Mode” is set to “Professional1” or “Professional2”.
“isfccc” is the picture setting for the certified professional dealer. For details,

●

consult your local dealer.

Selects the language that your USB Keyboard supports

Use a USB Keyboard to enter characters in VIERA CAST (p. 75).

●

Characters may not be displayed correctly on the TV screen depending on the ●
connected keyboard or the keyboard layout setting.

Resets all settings, for example, when moving house (p. 49)

System Update

Software Licence

System Information

AV Colour System

GUIDE Plus+

Settings

Update

Postcode
System

Information

Intelligent Frame

Setup

Creation

24p Smooth Film

Other Settings

Super Resolution

Auto Standby

Power Save

16:9 Overscan

Time Zone

DVI Input Setting

A different menu will be displayed when “Advance(isfccc)” in the Setup Menu is set to “On” or in the mode of PC ●
input, Media Player or Network service operations. (p. 51 - 53, 59 - 65 and p. 74)
Only available items can be selected.●

Downloads new software to TV (p. 50)

Displays the software licence information

Displays the system information of this TV

Selects optional colour system based on video signals in AV mode

(Auto / PAL / SECAM / M.NTSC / NTSC)

Performs the update of the GUIDE Plus+ schedule and advertising informations for
the GUIDE Plus+ system (p. 21)

Sets your postcode to display advertisements in the GUIDE Plus+ system (p. 21)

Displays the system information of the GUIDE Plus+ system

Automatically compensates the picture frame rate and removes juddering
movements to make the images smooth and clear (Off / Mid / Max)

This function is not available for selection (default to “Off”) when “Viewing Mode”

●

is set to “Game” or in the mode of PC input, photo or Network service operations.

Automatically compensates the picture frame rate to make the 24p source movie
images smooth (Off / Mid / Max)

This is available only for 24p signal input and displayed instead of

●

“Intelligent Frame Creation”.
This function is not available for selection (default to “Off”) when “Viewing Mode”

●

is set to “Game” or in the mode of PC input, photo or Network service operations.

Enhances the picture resolution to make the image sharper (Off / Mid / Max)

This function is available for SD (Standard definition) signal.

●

As for HD (High definition) signal, this function is available when aspect mode is ●
set to 16:9 (16:9 Overscan is set to “On”), 4:3 Full or Zoom.
Not valid on PC, VIERA CAST and Media Player

●

Sets the time the TV automatically goes to Standby mode when no operation is
performed for the selected times (Off / 2 / 4 hours)

Starting Timer Programming automatically does not affect this function.

●

Automatic input switching with the connected equipment affects this function and ●
time-count will be reset.
The notification message will appear 3 minutes before going to Standby mode.

●

Reduces brightness of picture to economise on power consumption (Off / On)

Selects the screen area displaying the image (Off / On)
On : Enlarged the image to hide the edge of the image.
Off : Displayed the image in the original size.

Set to “On” if noise is generated on the edge of the screen.

●

This function is available when aspect is set to Auto (16:9 signal only) or 16:9.●
This function can be memorized separately for SD (Standard definition) and HD ●
(High definition) signals.

Adjusts the time data

The time data will be corrected based on GMT.

●

Set to “Auto” to adjust the time automatically according to your area.●

Changes the black level in the image for HDMI input mode with DVI input signal
manually (Normal / Full)

When the DVI input signal from the external equipment, especially from PC, is

●

displayed, the black level may not be suitable. In this case, select “Full”.
The black level for HDMI input signal will be adjusted automatically.

●

For HDMI input mode with DVI input signal only●

Basic

How to Use Menu Functions ●

33

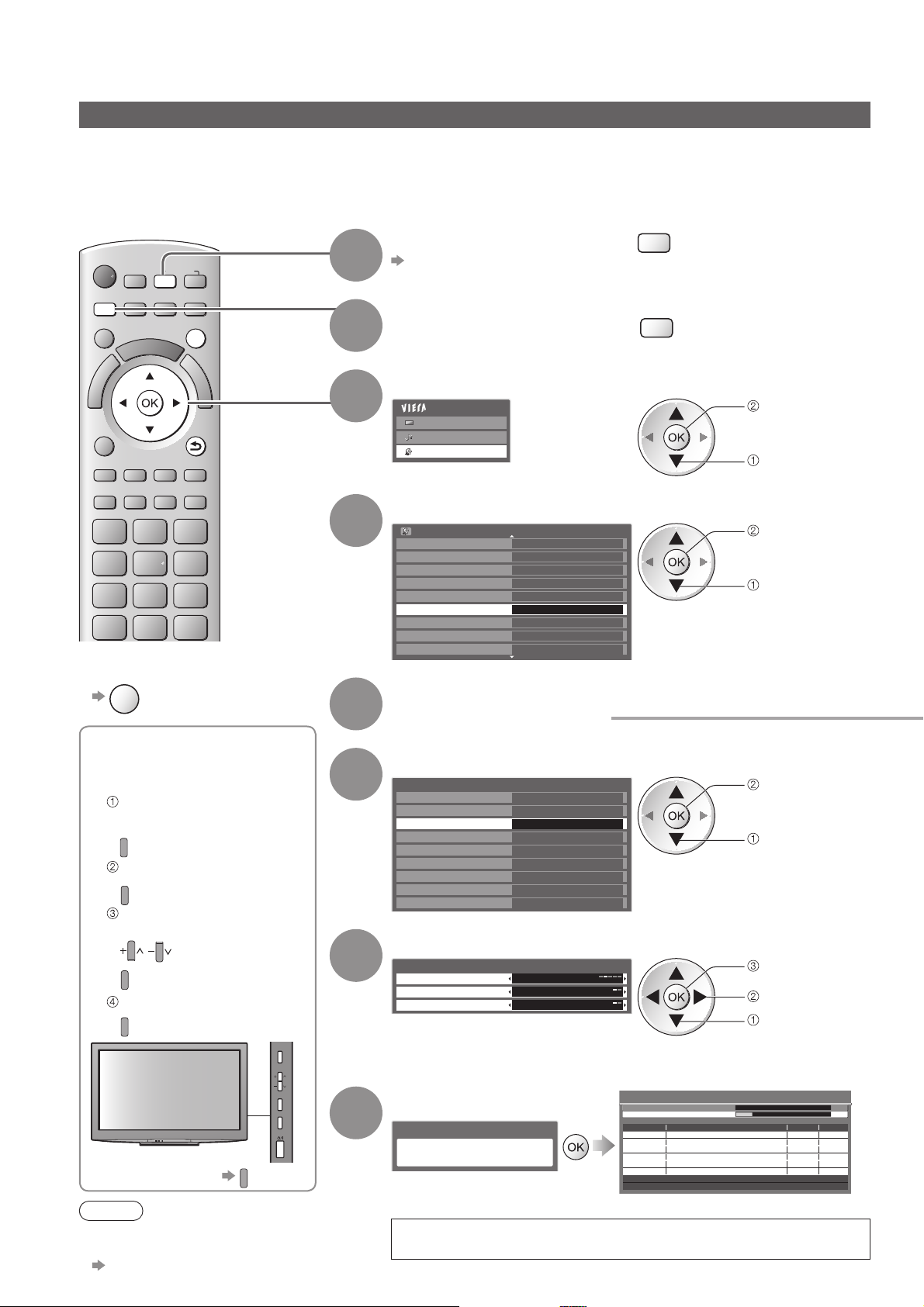

Retuning from Setup Menu

DVB-S channels

Automatically retune all the DVB-S channels received in the area.

●

This function is available if DVB-S channel tuning is already performed.
Only DVB-S channels are retuned.●
All the previous tuning settings are erased.●
If a Child Lock PIN number (p. 46) has been set, it must be entered.●

INPUT

TV

MENU

EXIT

BACK/

RETURN

To return to TV■

EXIT

For Auto Setup, using ■
the buttons on the side
panel of the TV (p. 9)

Press repeatedly until

“Auto Setup” appears

F

Access “Auto Setup”

TV

Set the satellite, search

mode and scan mode

(select the item)

TV (set)

Start “Auto Setup”

AV

F

1

2

3

4

5

6

7

Select DVB-S

TV

p. 16

Display the menu

MENU

Select “Setup”

Main Menu


Sound

Setup

access

select

Select “DVB-S Tuning Menu”

Setup Menu

Timer Programming
Off Timer Off
USB HDD Setup
Link Settings
Child Lock

DVB-S Tuning Menu

Language
Display Settings
Common Interface

Access

1/2

access

select

Set “Antenna System” and
“LNB Configuration”

Select “Auto Setup”

DVB-S Tuning Menu

Favourites Edit
Channel List

Auto Setup

Manual Tuning
Update Channel List
New Channel Message
Signal Condition
Antenna System DiSEqC1.0
LNB Configuration

Access

On

access

select

Set the satellite, search mode and scan mode

DVB-S Auto Setup Settings

Satellite Astra 19.2° E
Search Mode Free Channels
Scan Mode Quick

Full: scans the whole frequency range
Quick: scans the suitable frequency for the selected satellite

store

set

select

34

To return to TV ●

Note

If tuning has not been done ●
completely

“Manual Tuning” (p. 40)

TV

AV

8

F

Start Auto Setup

DVB-S Auto Setup

All DVB-S tuning data will be erased

DVB-S Auto Setup

Satellite

Analogue Scan 21 68
Progress

Analogue Scan 68

This will take about 40 minutes.

No. Channel Name Type Quality

372 CBBC Channel Free TV 10
372 BBC Radio Wales Free TV 10
372 E4 Free TV 10

Free TV: 3 Pay TV: 0 Radio: 0

Astra 19.2° E

0% 100%

Searching

Settings are made automatically

When the operation is completed, the channel at the lowest
position will be displayed.

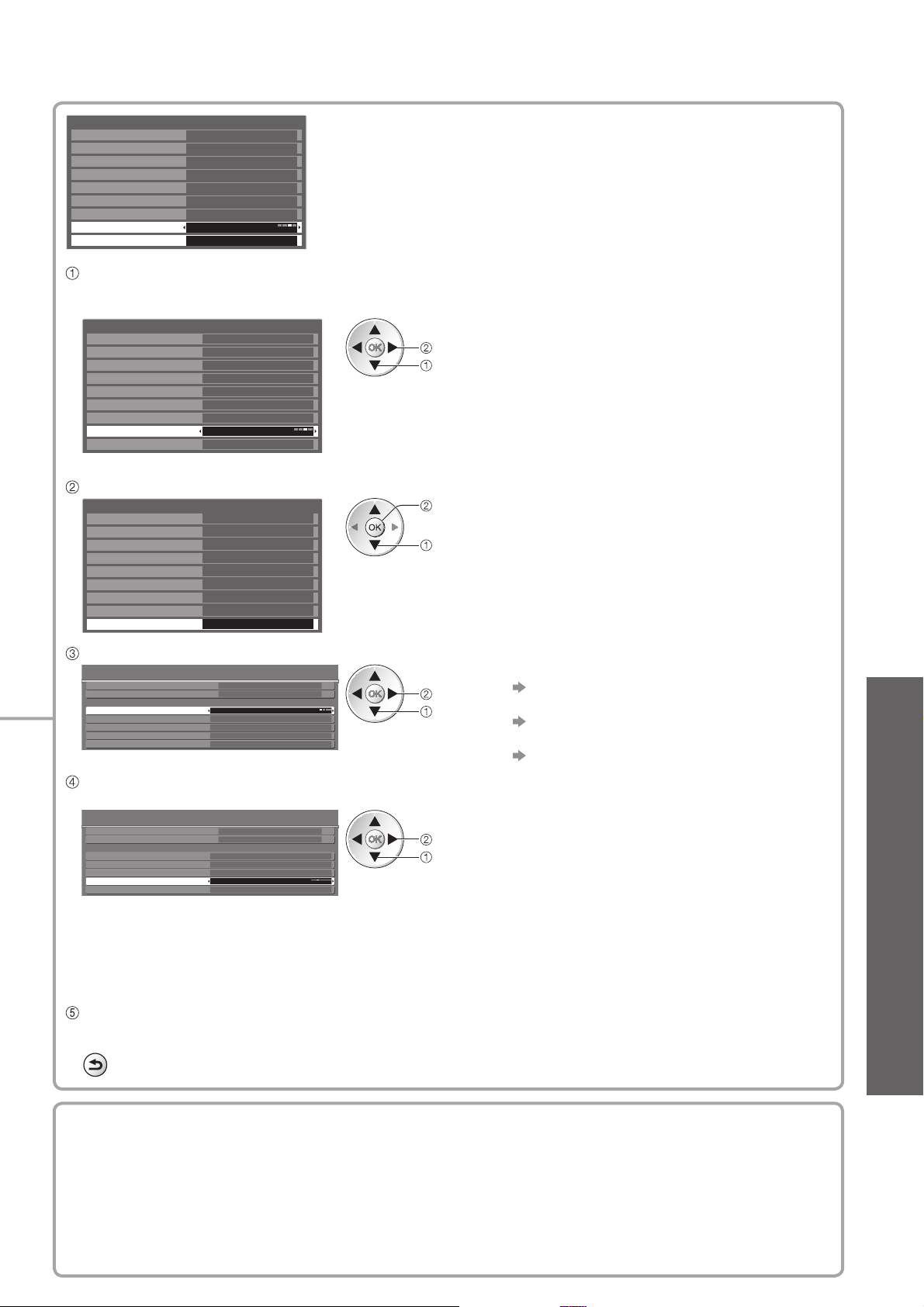

DVB-S Tuning Menu

Favourites Edit
Channel List
Auto Setup
Manual Tuning
Update Channel List
New Channel Message On
Signal Condition

Antenna System DiSEqC1.0
LNB Configuration Access

Select “Antenna System” and set

You can receive several satellites if you have DiSEqC control antenna system.

This TV supports DiSEqC Version 1.0.●

DVB-S Tuning Menu

Favourites Edit
Channel List
Auto Setup
Manual Tuning
Update Channel List
New Channel Message On
Signal Condition

Antenna System DiSEqC1.0

LNB Configuration

set
select

One LNB

compatible with single LNB

MiniDiSEqC

up to 2 LNBs can be controlled

DiSEqC1.0

up to 4 LNBs can be controlled

Single Cable

When using the Single Cable router, up to 8 user
bands are available.

Select “LNB Configuration”

DVB-S Tuning Menu

Favourites Edit
Channel List
Auto Setup
Manual Tuning
Update Channel List
New Channel Message On
Signal Condition
Antenna System DiSEqC1.0

LNB Configuration Access

access

select

Retuning from Setup Menu ●

Select “LNB” and set one of the LNBs

LNB Configuration

Signal Quality
Signal Strength 0 10

Analogue Scan 68

LNB

Analogue Scan 21 68

LNB Low Band Frequency
LNB High Band Frequency

Analogue Scan 21

Satellite
Test Transponder Frequency

Analogue Scan 21

010

AA
9750 MHz
10600 MHz
No Satellite
10700 MHz

Select “Satellite” and set

Set the connected satellite for the selected LNB.

LNB Configuration

Signal Quality
Signal Strength 0 10

Analogue Scan 68

LNB

Analogue Scan 21 68

LNB Low Band Frequency
LNB High Band Frequency

Analogue Scan 21
Satellite

Test Transponder Frequency

Analogue Scan 21

010

AA
9750 MHz
10600 MHz
Astra 19.2° E
10744 MHz

Store

BACK/

RETURN

set
select

set
select

If you set to “One LNB”●

not selectable

If you set to “MiniDiSEqC” or “Single Cable”●

select between LNB AA and AB

If you set to “DiSEqC1.0”●

select between LNB AA, AB, BA and BB

Select “No Satellite” if you do not know the ●
connected satellite (available satellite will be
searched in Auto Setup).
Select “User defined” to set “Test Transponder ●
Frequency” manually.
If you set to “Single Cable”, additional settings ●
are required. Set “User Band”, “User Band
Frequency” and “PIN” (depending on the
Single Cable router you use).
For details, read the manual of the Single
Cable router.

Advanced

Selectable satellites and dish alignment to tune DVB-S channels:■

Turksat at 42° East•
Hellas at 39° East•
Astra at 28.2° East•
Arabsat at 26° East•
Astra at 23.5° East•
Astra at 19.2° East•

To ensure your satellite dish is correctly installed, please consult your local dealer.●
Also please consult the received satellite broadcasting companies for details.●

Eutelsat at 16° East•
Hot Bird at 13° East•
Eutelsat at 10° East•
Eurobird at 9° East•
Eutelsat at 7° East•
Sirius at 5° East•

Thor at 0.8° West / Intelsat at 1° West•
Amos at 4° West•
Atl. Bird at 5° West•
Atl. Bird at 7° West•
Atl. Bird at 8° West•
Hispasat at 30° West•

35

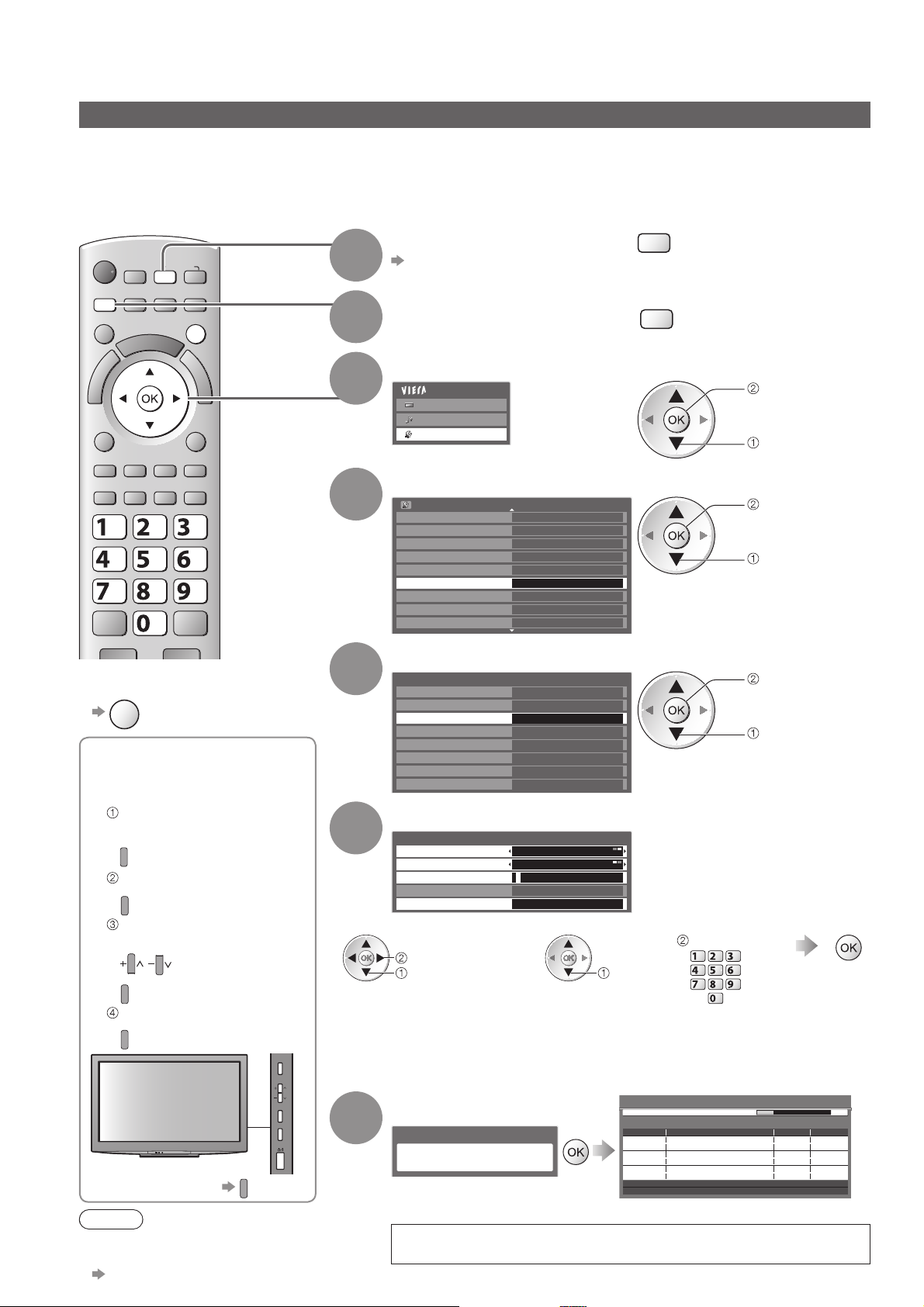

Retuning from Setup Menu

DVB-C channels

Automatically retune all the DVB-C channels supplied.

●

This function is available if DVB-C channel tuning is already performed.
Only DVB-C channels are retuned.●
All the previous tuning settings are erased.●
If a Child Lock PIN number (p. 46) has been set, it must be entered.●

36

INPUT

TV

MENU

EXIT

abc def

jkl

ghi

mno

tuvpqrs

wxyz

To return to TV■

EXIT

For Auto Setup, using ■
the buttons on the side
panel of the TV (p. 9)

Press repeatedly until

“Auto Setup” appears

F

Access “Auto Setup”

TV

Set the search mode

and scan mode

(select the item)

TV (set)

Start “Auto Setup”

AV

F

To return to TV ●

Note

If tuning has not been done ●
completely

“Manual Tuning” (p. 40)

TV

MENU

1

Select DVB-C

p. 16

Display the menu

2

Select “Setup”

3

Main Menu


Sound

Setup

Select “DVB-C Tuning Menu”

4

Setup Menu

Timer Programming
Off Timer Off
USB HDD Setup
Link Settings
Child Lock

DVB-C Tuning Menu

Language
Display Settings
Common Interface

Access

1/2

Select “Auto Setup”

5

DVB-C Tuning Menu

Favourites Edit
Channel List

Auto Setup

Manual Tuning
Update Channel List
New Channel Message
Signal Condition
Attenuator Off

Access

On

Set the Auto Setup settings

6

Search mode, Scan mode

● Frequency, Network ID● Store

Full: scans the whole

F

TV

AV

Quick: scans the suitable

7

DVB-C Auto Setup Settings

Search Mode Free Channels
Scan Mode
Frequency

Symbol Rate

Network ID 41001

set
select select

frequency range

frequency in your
country

Quick

362 MHz

Auto

Enter the Home Frequency and Network ID
specified by your cable provider.
Depending on the country you select, “Auto”
is displayed and you do not have to enter
them.

Start Auto Setup

DVB-C Auto Setup

All DVB-C tuning data will be erased

When the operation is completed, the channel at the lowest
position will be displayed.

Normally set Symbol Rate ●
“Auto”.

enter

ghi

DVB-C Auto Setup

Progress

This will take about 3 minutes.

No.

1 CBBC Channel
2 BBC Radio Wales
3E4

Free TV: 3 Pay TV: 0 Radio: 0

Channel Name

Settings are made automatically

access

select

access

select

access

select

abc def

jkl

mno

tuvpqrs

wxyz

0% 100%

Searching

Type Quality

Free TV 10
Free TV 10
Free TV 10

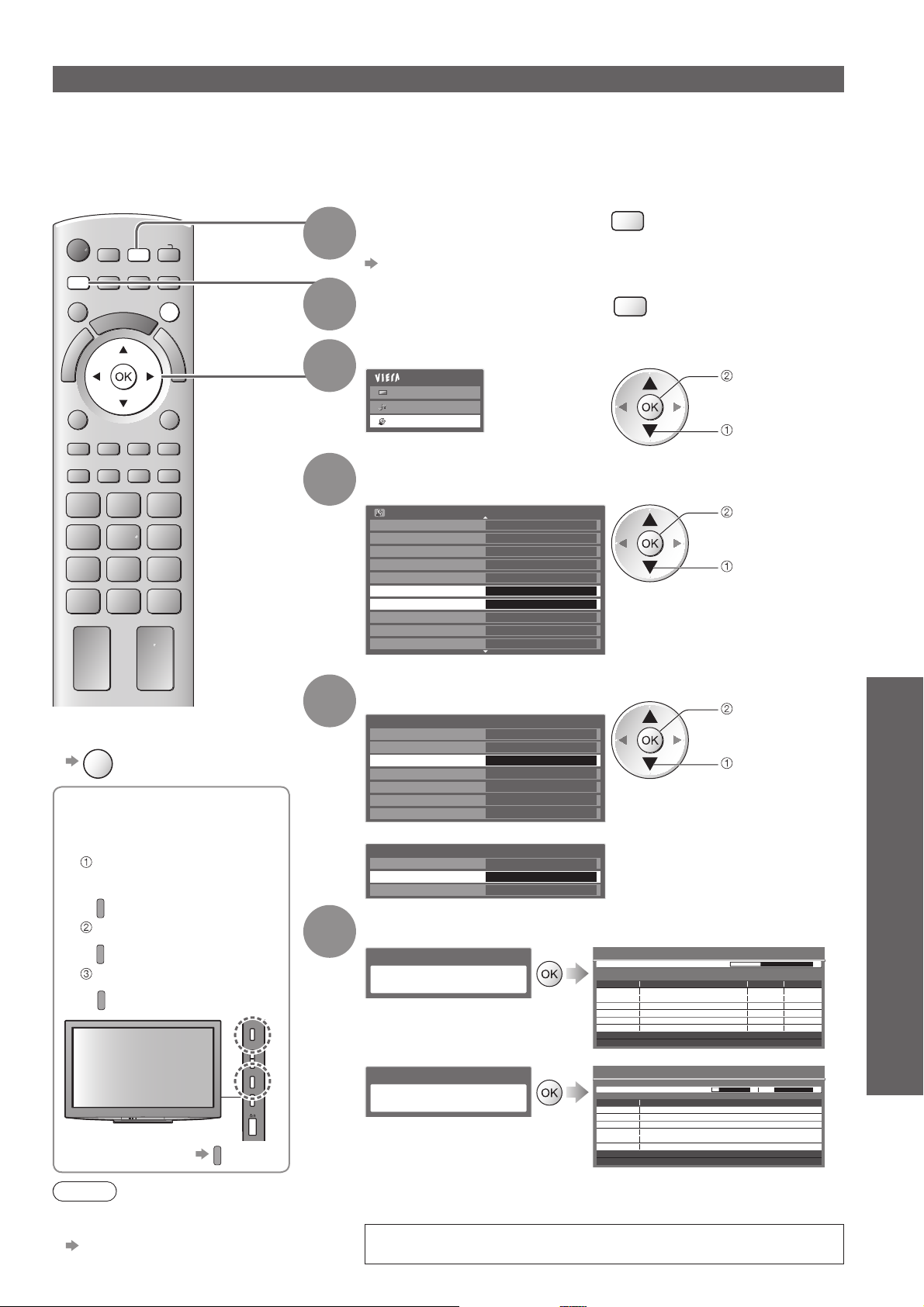

DVB-T or Analogue channels

Automatically retune all DVB-T or Analogue channels received in the area.

Auto Setup is available if channel tuning is already performed.●
Only DVB-T channels are retuned in DVB-T mode.●
Only Analogue channels are retuned in Analogue mode.●
All the previous tuning settings are erased.●
If a Child Lock PIN number (p. 46) has been set, it must be entered.●

MENU

TV

INPUT

EXIT

1

2
3

4

Select DVB-T or

TV

Analogue

p. 16

Display the menu

MENU

Select “Setup”

Main Menu


Sound

Setup

Select “DVB-T Tuning Menu” or
“Analogue Tuning Menu”

Setup Menu

Timer Programming
Off Timer Off
USB HDD Setup
Link Settings
Child Lock

DVB-T Tuning Menu
Analogue Tuning Menu

Language
Display Settings
Common Interface

Access
Access

1/2

“DVB-T Tuning Menu” is ●
available in DVB-T mode only.
“Analogue Tuning Menu” is ●
available in Analogue mode
only.

access

select

access

select

Retuning from Setup Menu ●

To return to TV■

EXIT

For Auto Setup, using ■
the buttons on the side
panel of the TV (p. 9)

Press repeatedly until

“Auto Setup” appears

F

Access “Auto Setup”

TV

Start “Auto Setup”

TV

F

To return to TV ●

Note

If tuning has not been done ●
completely

“Manual Tuning”

(p. 40 and p. 43)

Select “Auto Setup”

5

DVB-T:

DVB-T Tuning Menu

Favourites Edit
Channel List

Auto Setup

Manual Tuning
Update Channel List
New Channel Message On
Signal Condition

Analogue:

Analogue Tuning Menu

Channel List

Auto Setup

Manual Tuning

Access

Access

access

select

Advanced

Start Auto Setup

6

F

TV

AV

DVB-T:

DVB-T Auto Setup

All DVB-T tuning data will be erased

Analogue:

Analogue Auto Setup

All analogue tuning data will be erased

DVB-T Auto Setup

Progress CH 5 69

This will take about 3 minutes.

CH Channel Name Type Quality

62 CBBC Channel Free TV 10
62 BBC Radio Wales Free TV 10
62 E4 Free TV 10
62 Cartoon Nwk Free TV 10

Free TV: 4

Analogue Auto Setup

Scan

This will take about 3 minutes.

CH Channel Name

CH 29
CH 33 BBC1

Analogue: 2

Pay TV: 0 Radio: 0

Searching

CH 2 CC 1 4178

Searching

Settings are made automatically

The channel, language, country / region settings are downloaded to

●

a Q-Link or VIERA Link compatible equipment connected to the TV.

When the operation is completed, the channel at channel
position “1” will be displayed.

37

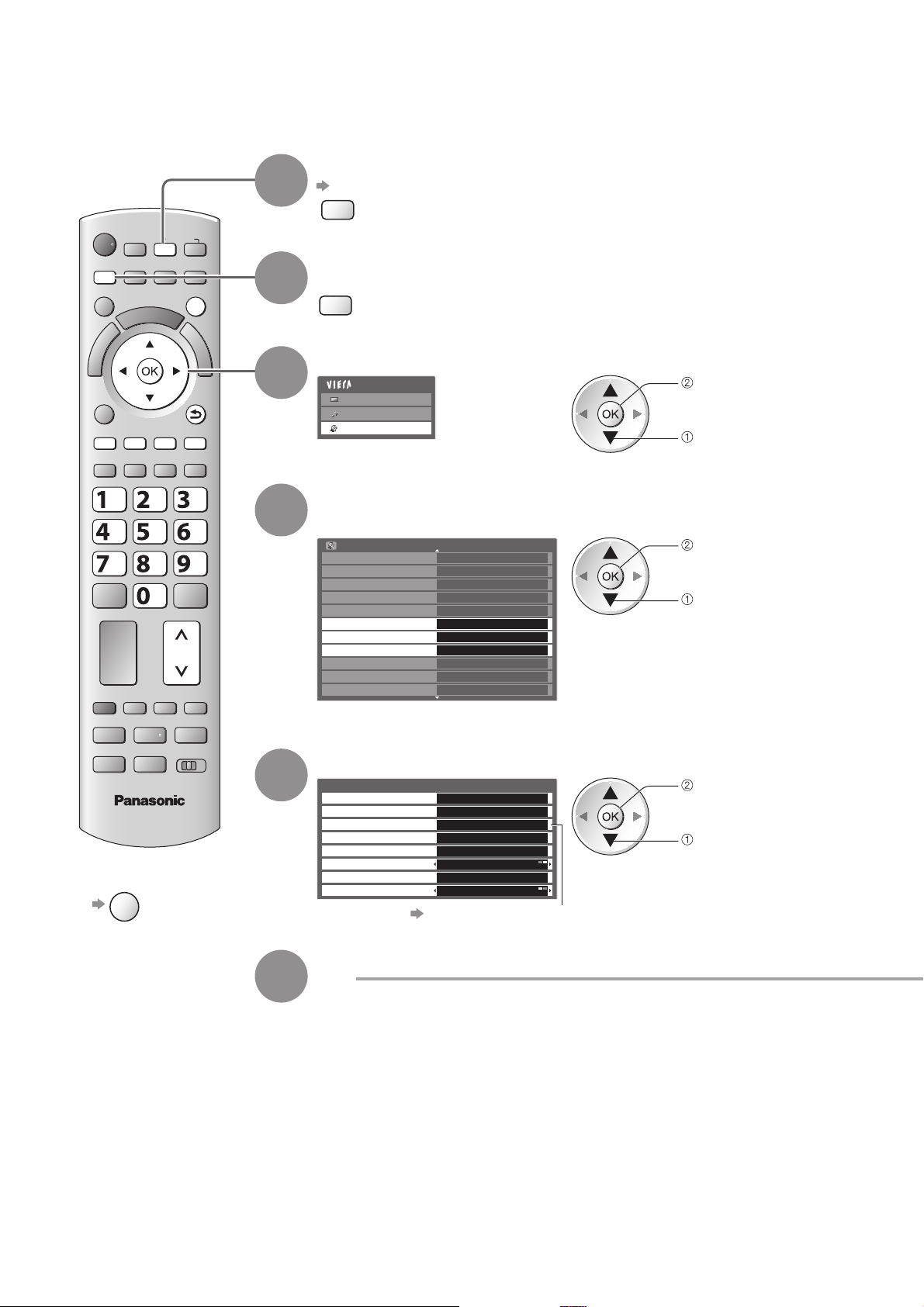

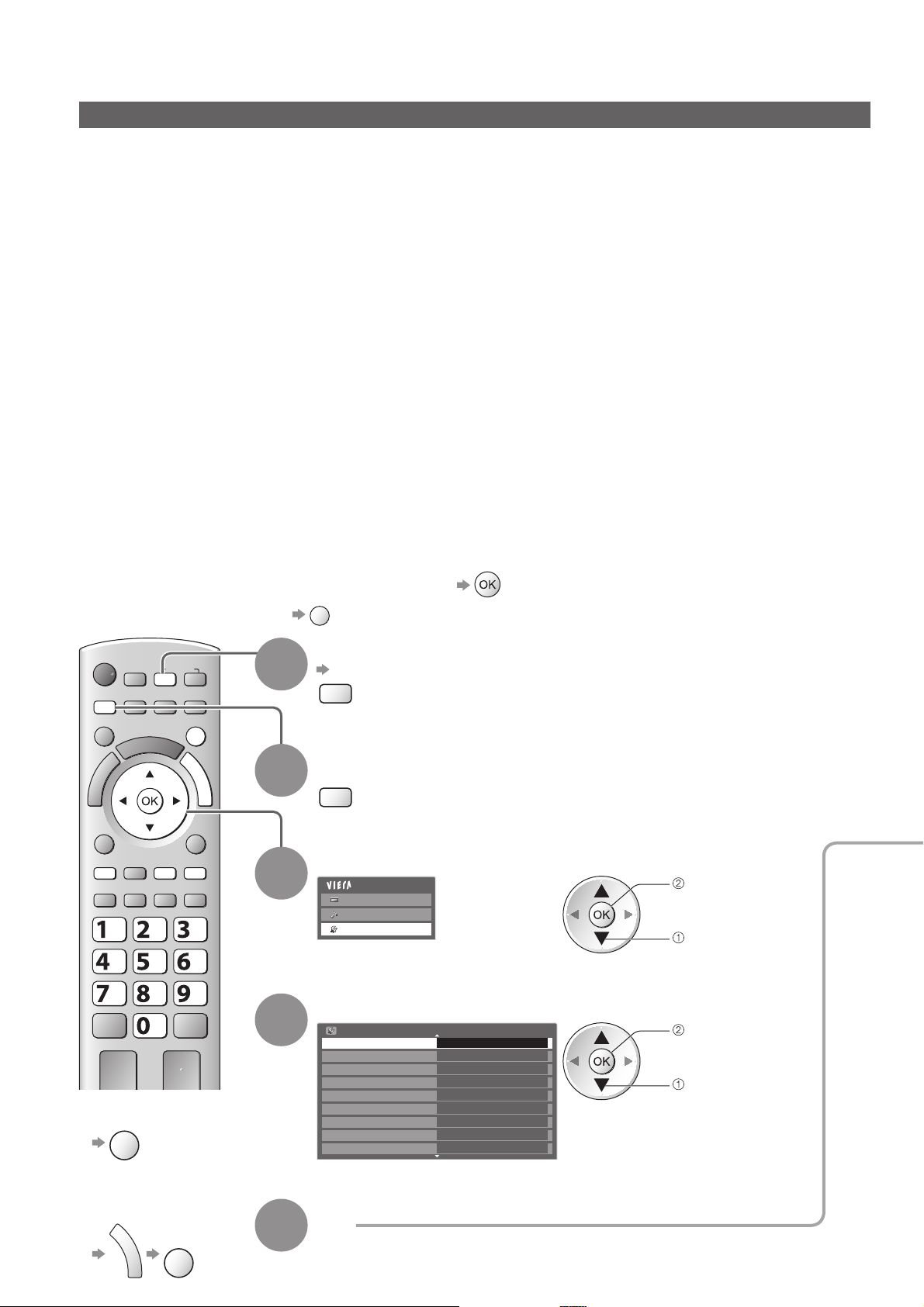

Tuning and Editing Channels

(DVB)

You can retune channels or make your favourite channel lists, skip unwanted channels, etc.

Select DVB-S, DVB-C or DVB-T

p. 16

TV

Display the menu

MENU

Select “Setup”

Main Menu


Sound

Setup

access

select

MENU

INPUT

TV

EXIT

BACK/

RETURN

1

2

3

abc def

jkl

ghi

tuvpqrs

TV

To return to TV

■

EXIT

mno

wxyz

4

5

Select “DVB-S Tuning Menu”, “DVB-C Tuning Menu”
or “DVB-T Tuning Menu”

Setup Menu

Timer Programming
Off Timer Off
USB HDD Setup
Link Settings
Child Lock

DVB-C Tuning Menu
DVB-T Tuning Menu

Language
Display Settings
Common Interface

AccessDVB-S Tuning Menu
Access
Access

1/2

“DVB-S Tuning Menu” is available in ●
DVB-S mode only.
“DVB-C Tuning Menu” is available in ●
DVB-C mode only.

●

“DVB-T Tuning Menu” is available in
DVB-T mode only.

access

select

Select one of the following functions

DVB-C Tuning Menu

Favourites Edit Access
Channel List
Auto Setup
Manual Tuning
Update Channel List
New Channel Message
Signal Condition
Attenuator Off

Auto Setup ● “Retuning from Setup Menu” (p. 34 - 37)

Access
Access
Access
Access
On
Access

The function items vary depending on ●
the country you select (p. 12).

access

select

38

6

Set

List favourite DVB channels

Favourites Edit

Create your favourite channel lists from various broadcasters (up to 4: Favourites1 to 4).
The DVB Favourites lists are available from “Category” in the Information banner (p. 17) and the TV Guide (p. 20).

Select a channel to list

DVB-C Favourites Editor Sorting 123...

All DVB-C Channels

BBC One Wales

1

BBC THREE7

E414

CBBC Channel70

Cartoon Nwk72

BBCi105

BBC Radio Wales719

BBC Radio Cymru720

Favourites1

select

Encrypted channel

To sort channel names in alphabetical order ●

To display other Favourites ●

To change the category ●

green

red

blue

Add it to the Favourites list

DVB-C Favourites Editor Sorting 123...

All DVB-C Channels

BBC One Wales1 BBC One Wales1

BBC THREE7

E414

CBBC Channel70

Cartoon Nwk72

BBCi105

BBC Radio Wales719

BBC Radio Cymru720

Favourites1

A channel is added

To add continuous block of channels to the list at once ●

yellow

Make the block

To edit Favourites list■

●

To delete the channel

Select the field of Favourites to edit and:

To delete all channels●

yellow

Tuning and Editing Channels ●

To name the Favourites●

red

Set characters one by one Store

User input

Name

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

O P Q R S T
7 8 9 ! : #
o p q r s t

select

set

BACK/

RETURN

(maximum: ten characters)
You can set characters by using numeric buttons.

“Characters table for numeric buttons” (p. 88)

To move the channel

●

green

Select the new position or

abc def

jkl

ghi

tuvpqrs

Store

mno

wxyz

green

Store

BACK/

RETURN

Skip unwanted DVB channels, Edit DVB Channels

You can hide unwanted DVB channels.
The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and reveal / hide

All DVB-C Channels Sorting 123...

CBBC Channel

70

Cartoon Nwk

72

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

BBC ONE Wales

1

BBC THREE

7

reveal / hide

select

: reveal
: hide (skip)

Channel List

●

To reveal all channels

yellow

(DVB)

Advanced

To edit channels■

You can also edit each channel in Channel List.

To change the category

●

To swap the channel position

●

(if available)

To move the channel position ●
(if available)

To sort channel names in alphabetical order●

red

green

green

Enter the new position number

Select the new position or

blue

Channel position

1 ZDF

Coronation Street
19:30 - 20:00

abc def

jkl

ghi

mno

tuvpqrs

wxyz

abc def

jkl

ghi

tuvpqrs

mno

wxyz

Now

Store

green

Store

green

19:35

All DVB-T Channels

Change category

For info press

39

Tuning and Editing Channels

(DVB)

Set DVB channel manually

Manual Tuning

Normally use “Auto Setup” or “Update Channel List” to retune DVB channels.
If tuning has not been done completely or for adjusting the direction of the aerial or dish, use this function.

All channels found will be added to the Channel List.●

DVB-S:

DVB-S Manual Tuning

Signal Quality 0 10

Analogue Scan 21 68

Signal Strength 010

Satellite

Transponder Frequency
Symbol Rate
Polarisation
Modulation
Service ID

Astra 19.2° E
10847 MHz
Auto
Horizontal
Auto
Auto

Please consult the received satellite ●
broadcasting companies for the setting.

DVB-C:

DVB-C Manual Tuning

Frequency
Symbol Rate
Service ID
Signal Quality 0 10
Signal Strength 0 10

No. Channel Name Type New

Free TV: 0

Pay TV: 0 Radio: 0

Stopped

474,00 MHz

Auto
Auto

Set the satellite Set “Transponder Frequency”,

“Symbol Rate”, “Polarisation”,

set
select

“Modulation” and “Service ID”

abc def

jkl

ghi

set
select

mno

tuvpqrs

wxyz

Enter the frequency Search

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Search

Normally set Symbol Rate and Service ID to “Auto”.●

DVB-T:

DVB-T Manual Tuning

Frequency
Signal Quality 0 10

Analogue Scan 21 68
Signal Strength 0 10

No. Channel Name Type New

474,00 MHz[CH21]

adjust frequency
select channel

Search

Free TV: 0 Pay TV: 0 Radio: 0 Data: 0

Stopped

Set where the level of “Signal Quality” becomes the maximum.●

Update DVB channel automatically

Update Channel List

You can add new channels, delete removed channels, update channel name and position automatically to
Channel List.

DVB-T Update Channel List

Progress CH 5 69

This will take about 3 minutes.

CH Channel Name Type Quality

Free TV: 0

Pay TV: 0 Radio: 0

Searching

Channel List is updated while keeping your settings in Favourites Edit, ●
Channel List, Child Lock, etc.

To update DVB-S channels, the satellite, search mode and scan mode

●

settings are required before updating.

DVB-S Update Channel List Settings

Satellite Astra 19.2° E
Search Mode
Scan Mode

Free Channels
Quick

store

set

select

40

Display a notification message

New Channel Message

Selects whether to give a notification message when a new DVB channel is found. (Off / On)

New channels found!

Press OK to update channel list.

Press EXIT to ignore.

Selecting OK will perform “Update Channel List”.●

Check DVB signal

Signal Condition

Selects a channel and checks the DVB signal condition.

To change the channel

●

DVB-S:

DVB-S Signal Condition

Channel Name 1 BBC 1 East (W)

Signal Quality
Signal Strength
Bit Error Rate 0.00E+00
Satellite
Parameter 10847MHz, H, 22000kS/s

DVB-C:

DVB-C Signal Condition

Channel Name 70 CBBC Channel

Signal Quality
Signal Strength
Bit Error Rate 0.00E+00
Network Name
Parameter 802,00 MHz, 64 QAM, 6940 kS/s

DVB-T:

DVB-T Signal Condition

Channel Name 70 CBBC Channel

Signal Quality
Signal Strength
Bit Error Rate 0.00E+00
Network Name
Parameter [CH62] 802,00 MHz

010
010

Astra 19.2° E

010
010

Wenvoe

010
010

Wenvoe

Tuning and Editing Channels ●

(DVB)

A good Signal Strength is not an indication of suitable
signal for DVB reception. Please use the Signal Quality
indicator as follows:

Signal Quality:

Green bar ● Good
Yellow bar ● Poor
Red bar ● Bad (Check the Terrestrial aerial, cable or

Satellite dish)

Reduce the DVB-C signal

Attenuator

If the DVB-C signal is too strong, the interference may occur. In this case set to “On” to reduce the signal
automatically.

This function is available only for DVB-C signal.●

Advanced

41

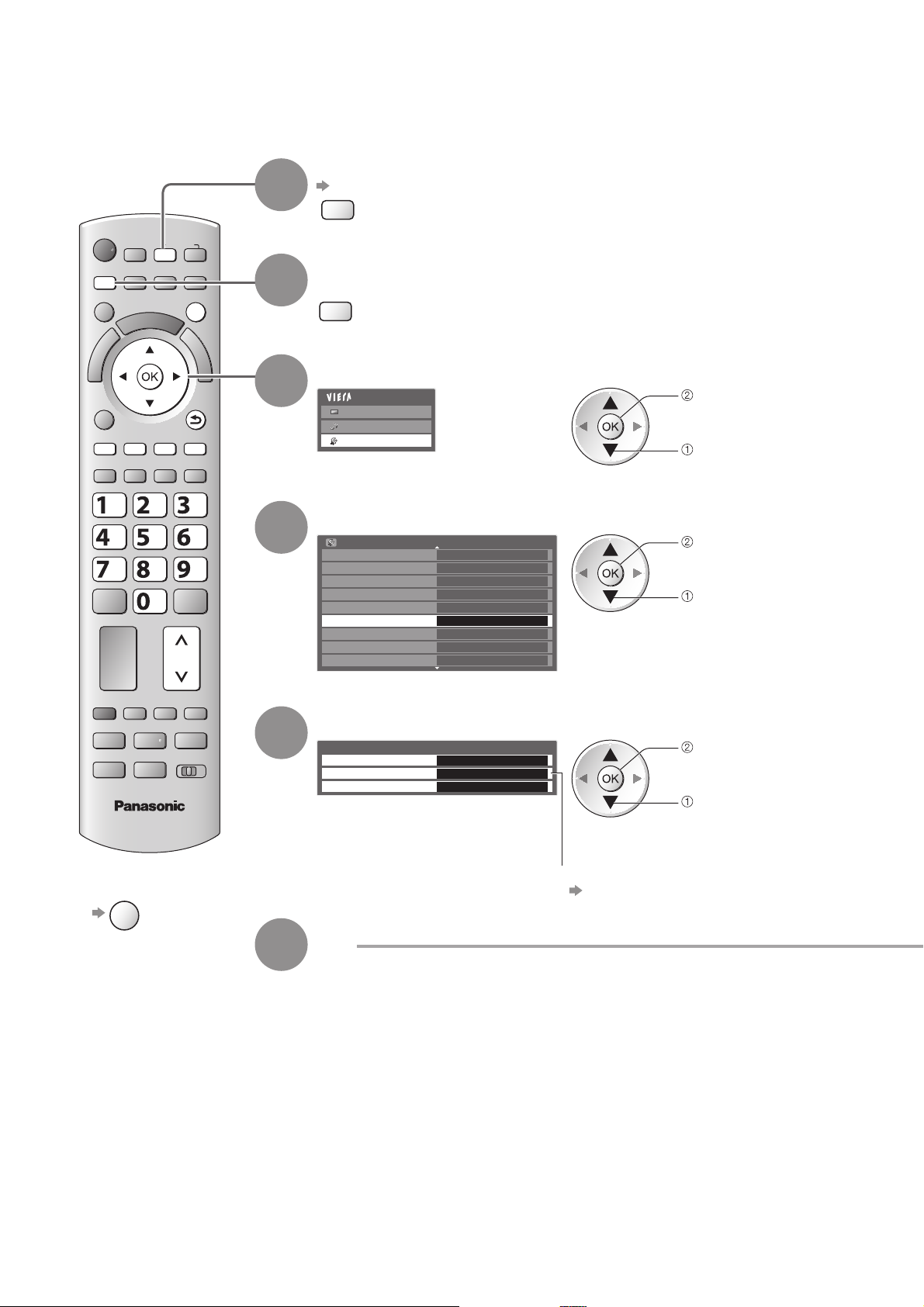

Tuning and Editing Channels

(Analogue)

You can retune channels or skip unwanted channels, edit channels etc.

Select Analogue

p. 16

TV

Display the menu

MENU

Select “Setup”

Main Menu


Sound

Setup

access

select

MENU

INPUT

TV

EXIT

BACK/

RETURN

1

2

3

To return to TV■

ghi

EXIT

abc def

jkl

tuvpqrs

TV

mno

wxyz

4

5

6

Select “Analogue Tuning Menu”

Setup Menu

Timer Programming
Off Timer Off
USB HDD Setup
Link Settings
Child Lock

Analogue Tuning Menu

Language
Display Settings
Common Interface

Access

1/2

Select one of the following functions

Analogue Tuning Menu

Channel List Access
Auto Setup Access
Manual Tuning Access

The function items vary depending on the ●
country you select (p. 12).

Auto Setup ●

“Retuning from Setup Menu” (p. 37)

Set

access

select

access

select

42

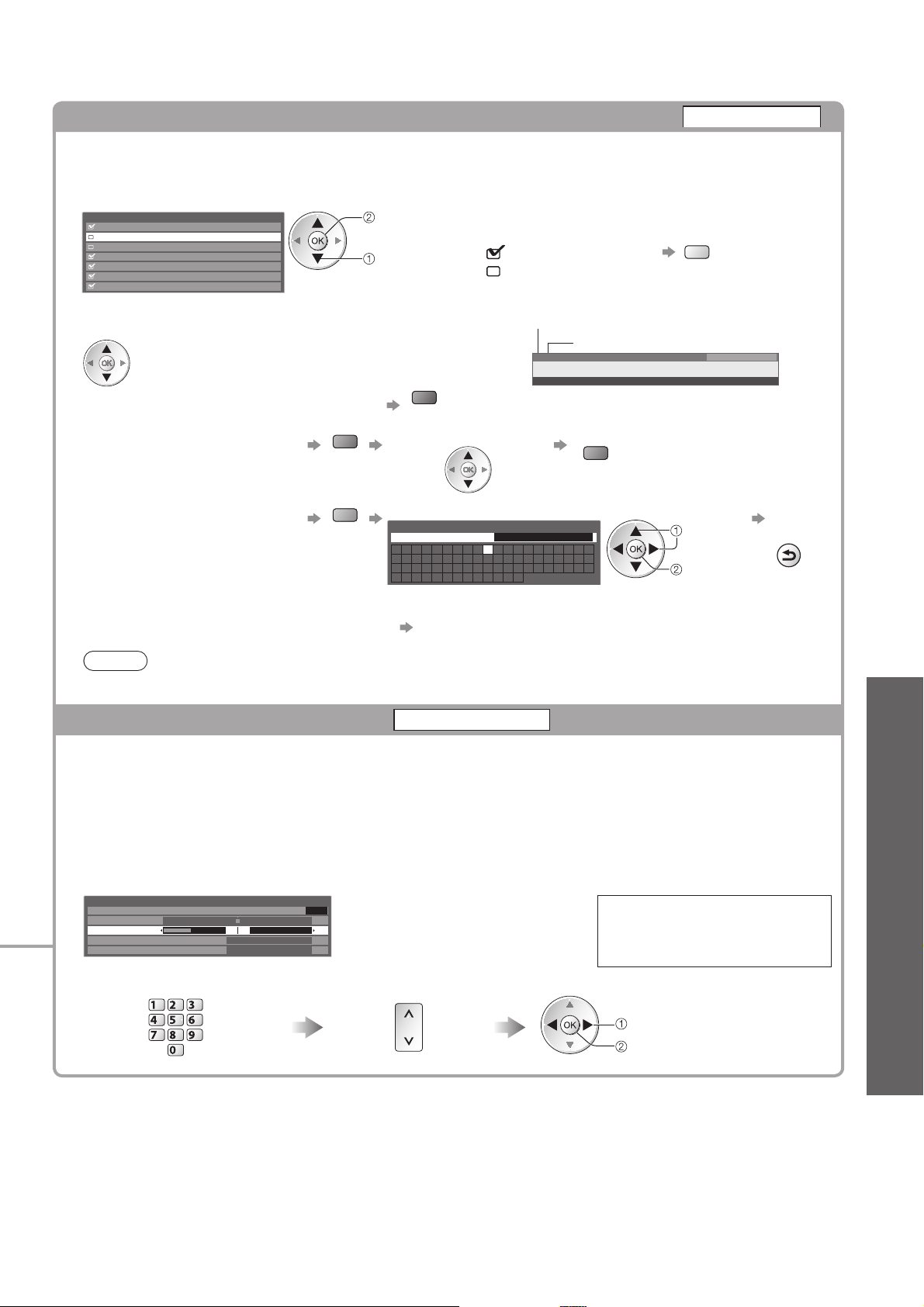

Skip unwanted Analogue channels, Edit Analogue channels

Channel List

You can hide unwanted Analogue channels.
The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and reveal / hide

Analogue Channel List

BBC1

1

*****

2

*****

3
4
5
6
7

reveal / hide

select

: reveal
: hide (skip)

●

To reveal all channels

yellow

To edit channels■

You can also edit each channel in Channel List.

Select a channel to edit and:

To retune each channel (Manual Tuning)●

To move the channel position

●

To rename the channel name●

green

blue

Select the new position Store

Set characters one by one Store

Edit channel name

(see below)

red

Name

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6

a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

Channel position

Channel name

3 ITV

itv
CH23

Mute Encrypted

green

O P Q R S T
7 8 9 ! : #
o p q r s t

Radio

23:35

SubtitlesAD TXT

select

set

All Analogue Channels

For info press

(maximum: five characters)

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 88)

Note

If a VCR is connected only with the RF cable, edit “VCR”.●

Set Analogue channel manually

Manual Tuning

Fine Tuning■

Use to make small adjustments to the tuning of an individual programme (affected by weather conditions,
etc.)

Manual Tuning■

Set Analogue channel manually after Auto Setup.

Set Sound System and Colour System, and then perform this function.

●

Normally set Colour System “Auto”.
If a VCR is connected only with the RF cable, select channel position “0”.●

Analogue Manual Tuning

1 BBC1 CH33
Fine Tuning

Manual Tuning

Sound System
Colour System

SC1
Auto

412781

Select the channel position Select the channel Search and store

abc def

jkl

ghi

mno

tuvpqrs

wxyz

SC1: PAL B, G, H / SECAM B, G
SC2: PAL I
SC3: PAL D, K / SECAM D, K
F: SECAM L, L’

search

store

45Multi Audio

RETURN

Tuning and Editing Channels ●

BACK/

(Analogue)

Advanced

43

Timer Programming

Timer Programming from Menu

The Timer Programming menu allows you to choose programmes that you wish to remind watching
or record to the external recorder or the USB HDD. At the correct time, the TV will tune to the correct
channel even if the TV is in Standby mode.
TV Guide may also be used to set timer programming event

This function is not available in Analogue mode.●
Timer Programming can store up to 15 events.●
Timer Programming only works reliably if correct time information is received via the signal from the broadcaster ●
or service provider.
For recording using Timer Programming, the TV must be either On or in standby. For reminders to be displayed, ●
the TV must be On.
No other channel can be selected while the recording of Timer Programming is in progress.●
It may not be possible to record an encrypted programme (which is copy-protected).●
When recording programmes to the external recorder, be sure to make the proper settings on the recorder ●
connected to the TV.
If a compatible recorder with Q-Link, VIERA Link or similar technologies is connected to the TV (p. 78 and p. 79)
and the “Link Settings” (p. 30) are completed, no setting of the recorder is required. Also read the manual of the
recorder.
If the recorder is not compatible with Q-Link, VIERA Link or similar technologies, set “Q-Link” in the Setup Menu ●
(p. 30) to the connected terminal (AV1 or AV2), and make timer programming of the recorder. For preparations of
a recorder, read the manual of the recorder.
When recording programmes to the USB HDD, be sure to register the USB HDD and enable it for recording in the ●
“USB HDD Setup” (p. 54).
Recordings are always in standard definition composite video via SCART, even if the original programme is in ●
high definition.
2 mins. before the starting time, a reminder message appears if you are watching TV.●

To remove the message and start the programming •

EXIT

To cancel the programming •

(p. 21).

MENU

To return to TV■

ghi

EXIT

INPUT

TV

EXIT

G

U

abc def

jkl

mno

tuvpqrs

wxyz

Select the mode you want to set

1

p. 16

TV

Display the menu

I

D

E

2

MENU

Select “Setup”

3

Main Menu


Sound

Setup

access

select

Select “Timer Programming”

4

Setup Menu

Timer Programming

Off Timer Off
USB HDD Setup
Link Settings
Child Lock
DVB-C Tuning Menu
Language
Display Settings
Common Interface

Access

1/2

access

select

44

To unlock the tuner ■
(stop recording)

G

U

EXIT

I

D

E

5

Set

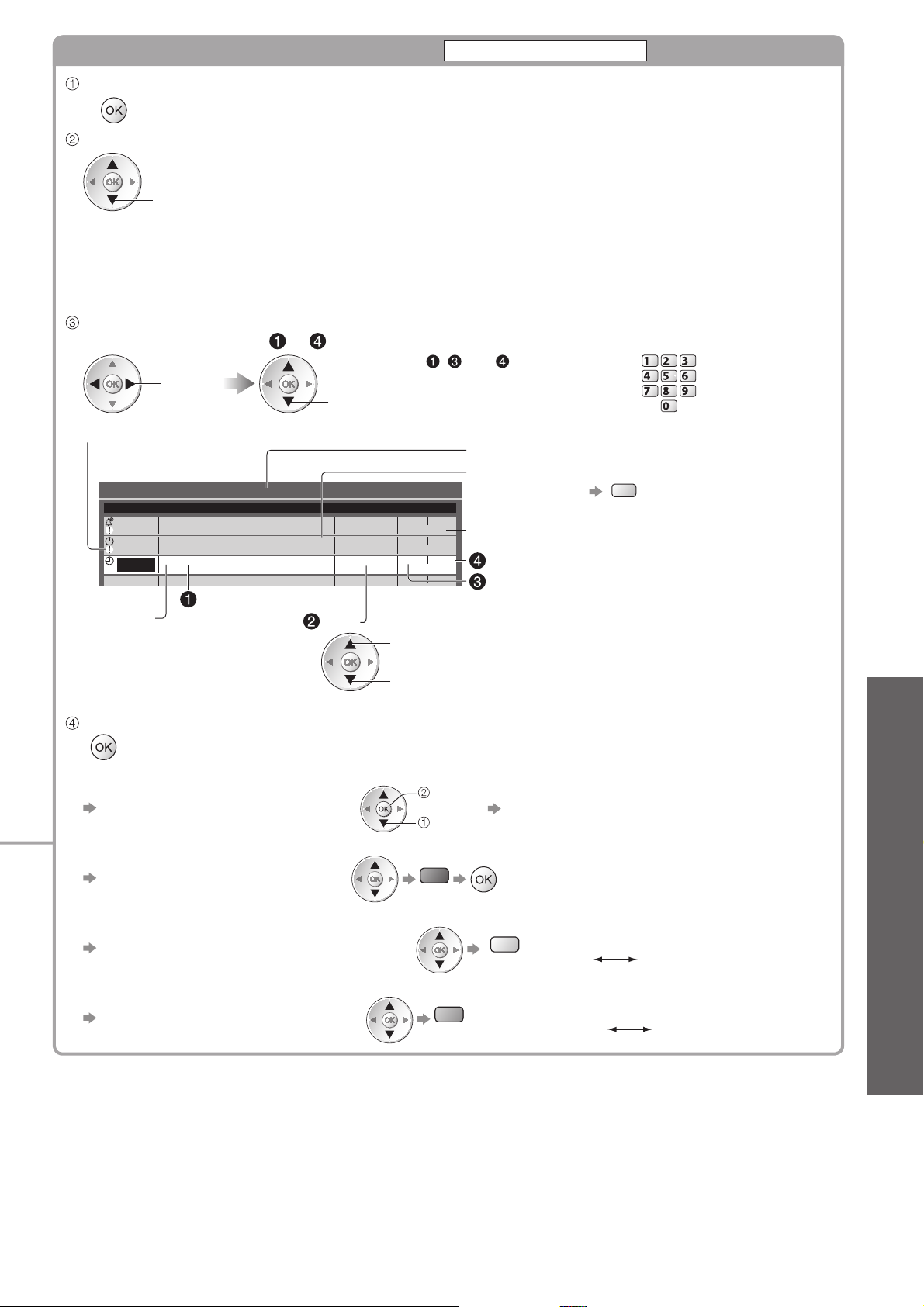

Set timer programming event details

Timer Programming

Start making the settings

Select the function (Ext Rec., USB HDD Rec. or Reminder)

Ext Rec. /
USB HDD Rec.

select

Reminder : to remind watching the programme

: to record the programme to the external recorder (Ext Rec.) or the

USB HDD (USB HDD Rec.)
When the start time comes, the channel will be switched automatically
and the video and audio signals will be output. 2 mins. before the
starting time, a reminder message appears if you are watching TV.

When you are watching TV, a reminder message appears 2 mins.
before the start time.
Press the OK button to switch to the programmed channel.

Set the channel, date and time (repeat the operations as below)

Set items in the order of

to .

● , and can also be

select
the item

set

Displayed if the timer programming events are overlapped

Timer Programming USB HDD Remaining Capacity 500GB (50%) Wed 28.10.2009 10:46

Function Channel Name

Reminder

Ext Rec.

Ext Rec.

No.

CITV1

---

---

7D BBC7

<TIMER>

1D BBC1

<TIMER>

3

<TIMER>

Date Start End

Wed 28.10.2009 17:00 18:30

Wed 28.10.2009 18:00 20:00

STTL

Thu 29.10.2009

--/-- --:-- --:--

Channel number

S: DVB-S
C: DVB-C
D: DVB-T

●

You cannot change the
mode within the menu.

Date

Store

entered with numeric buttons.

Information of the USB HDD (if available)
Records with subtitles (if available)

To indicate this ●

(90 min.)

(120 min.)

21:30 22:30

(60 min.)

Duration (automatic display)

Ending time
Starting time

one day ahead

daily or weekly
(press repeatedly)

●

Daily Sun-Sat: Sunday to Saturday
Daily Mon-Sat: Monday to Saturday●
Daily Mon-Fri: Monday to Friday●
Weekly Sat/Fri/Thu/Wed/Tue/Mon/Sun:●
Same time on the same day every week

ghi

( press again to

yellow

remove subtitles)

abc def

jkl

tuvpqrs

mno

wxyz

Timer Programming ●

To change a timer programming event■

access

Select the programme to be changed

select

Correct as necessary

(as above)

To cancel a timer programming event■

Select the programme to be deleted

red

To record with subtitles ■ (if available)

Select the programme to record with subtitles

yellow

Each time pressed:●
auto off

To cancel a timer programming event temporarily■

●

Select the programme to be cancelled

blue

Check that the LED is orange. If not, timer programmes are not active or not stored.●
Timer Programming reminder messages will remain displayed until one of the following occurs:●

You press the OK button to view the programme or the EXIT button to cancel the reminder.•
The timer programming event that the reminder is set for ends.•

●

“!” identifies that any timer programming events have overlapped. “Ext Rec.” and “USB HDD Rec.” are given
priority over “Reminder”. As for the overlapped two or more “Ext Rec.” / “USB HDD Rec.”, the first timer
programming event starts and finishes as programmed. The next timer programming event can then start.

●

The recording of Timer Programming will automatically change to the programmed channel 10 seconds before
the start time.

●

To stop recording the timer programming event directly prior to the start time, it may be necessary to stop the
recorder manually.
The recording of Timer Programming will be performed even if the TV is in REW LIVE TV recording (p. 57) and

●

Pause Live TV recording (p. 81). In this case, these recordings will be cancelled.

Each time pressed:
cancel stop cancelling

Advanced

45

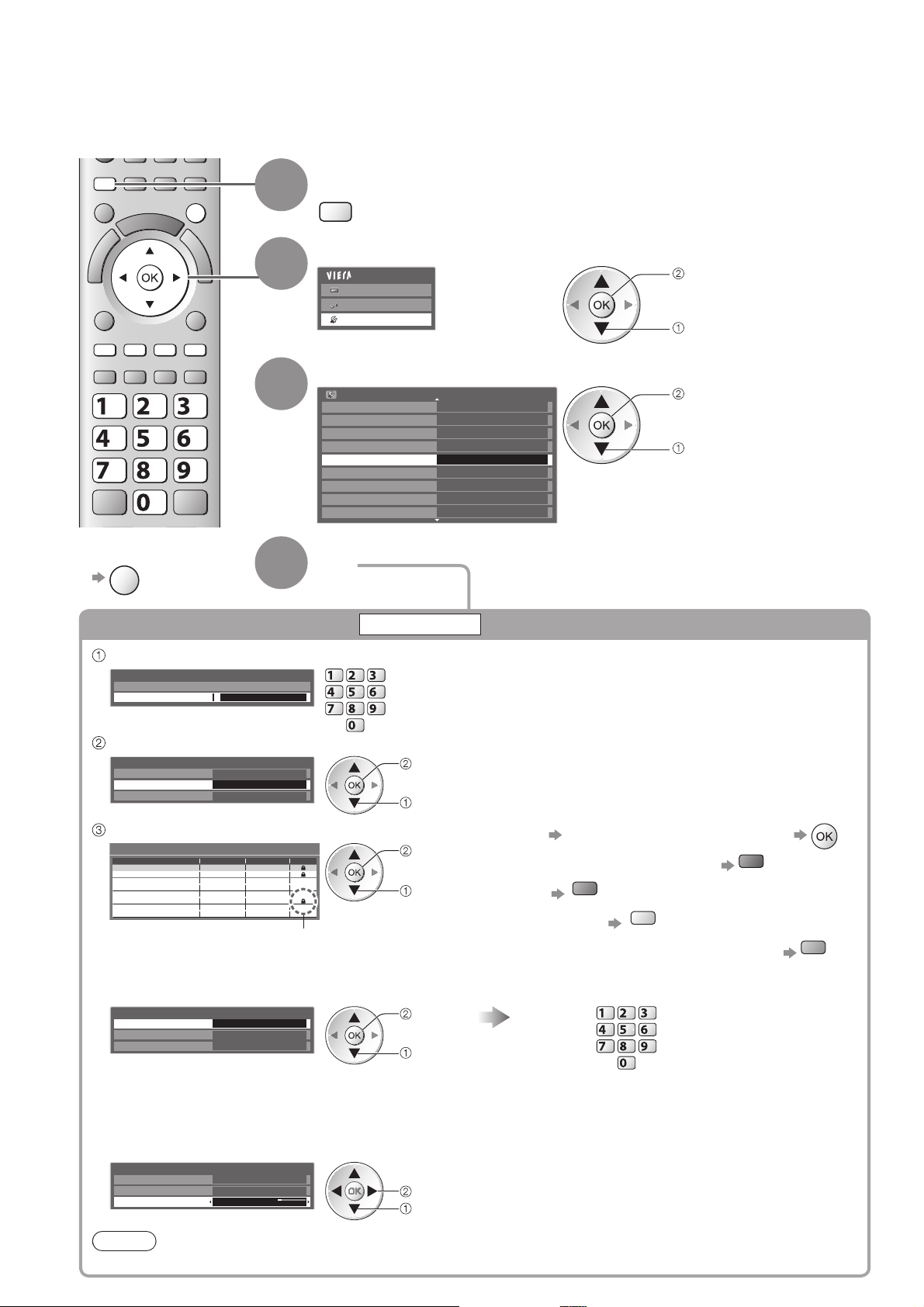

Child Lock

You can lock specific channels / AV input terminals and control who watches them.
When the locked channel / input is selected, a message appears; by entering the PIN number, you can
watch it.

MENU

ghi

EXIT

abc def

jkl

mno

tuvpqrs

wxyz

1

2

3

Display the menu

MENU

Select “Setup”

Main Menu


Sound

Setup

Select “Child Lock”

Setup Menu

Timer Programming
Off Timer Off
USB HDD Setup
Link Settings

Child Lock

DVB-C Tuning Menu
Language
Display Settings
Common Interface

Access

1/2

access

select

access

select

To return to TV■

EXIT

4

Control channel audience

Set

Child Lock

Enter the PIN number (4 digits)

Child Lock-PIN Entry

Please enter new PIN

PIN * * * *

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Enter the PIN number twice at first setting.●
Make a note of the PIN number in case you forget it.●
“0000” may be stored as the default PIN number which ●
depends on the country you select (p. 12).

Select “Child Lock List”

Child Lock

Change PIN

Child Lock List

Parental Rating

Access
No Limit

Select the channel / input to be locked

Child Lock List - TV and AV

Name Input LockType

BBC 1 Wales DVB-C FreeTV

101

BBC THREE DVB-T LockFreeTV

7

E4 DVB-T LockFreeTV

14

VCR Analogue LockAnalogue

BBC1 Analogue LockAnalogue

1

***** Analogue LockAnalogue

2

AV1 External LockAV
AV2/ S

External LockAV

Appears when the channel / input is locked

Sorting 123...

access

select

lock

select

To cancel ● Select the locked channel / input
To jump to the top of the next input ●
To lock all ●
To cancel all locks ●

green

yellow

To sort channel names in alphabetical order ●

To change the PIN number■

Select “Change PIN” Enter a new PIN number twice

Child Lock

Change PIN Access

Child Lock List
Parental Rating No Limit

access

select

abc def

jkl

ghi

mno

tuvpqrs

wxyz

red

blue

46

To set Parental Rating■

The availability of this function depends on the country you select (p. 12).●

If the DVB programme has the rated information for over the selected age, you have to enter the PIN number
to watch (depending on the broadcaster).

Select “Parental Rating” and set an age for the restriction of programmes.

Child Lock

Change PIN
Child Lock List

Parental Rating No Limit

set
select

Note

Setting “Shipping Condition” (p. 49) erases the PIN number and all settings.●

Input Labels

For easier identification and selection of the input mode, you can label each input mode or skip terminal
that is not connected to any equipment.

To select the input mode ● p. 24

Display the menu

MENU

Select “Setup”

Main Menu


Sound

Setup

Select “Display Settings”

Setup Menu

Timer Programming
Off Timer Off
USB HDD Setup
Link Settings
Child Lock
DVB-C Tuning Menu
Language

Display Settings

Common Interface

Access

1/2

access

select

access

select

MENU

EXIT

BACK/

RETURN

1

2

3

To return to TV■

EXIT

TV

4

5

Select “Input Labels”

Display Settings

Preferred Subtitle Type Standard
Teletext
Teletext Character Set
Default Guide TV Guide

Input Labels

Banner Display Timeout
Playing Time Display
Radio Mode

TOP
West

Access
3 seconds
On
Off

access

select

Select a input terminal and set

Input Labels

AV1 DVD
AV2/S
AV3
COMPONENT
PC PC
HDMI1
HDMI2
HDMI3
HDMI4 HDMI4

Input Labels

DVB-S DVB-S
DVB-C DVB-C
DVB-T DVB-T
Analogue Analogue

AV2/S
AV3
COMPONENT

HDMI1
HDMI2
HDMI3

The labels you set will be displayed in “Input Selection” menu (p. 24),
“TV Selection” menu (p. 16) or banner.

If “Skip” is selected, you cannot select the mode.●

1/2

set

select

2/2

Input Labels ●

Child Lock ●

Advanced

User input■

You can name each input mode freely.

Select “User input” Set characters one by one Store

select

access

User input

Name

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

O P Q R S T

7 8 9 ! : #
o p q r s t

(maximum: ten characters)

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 88)

select

set

BACK/

RETURN

47

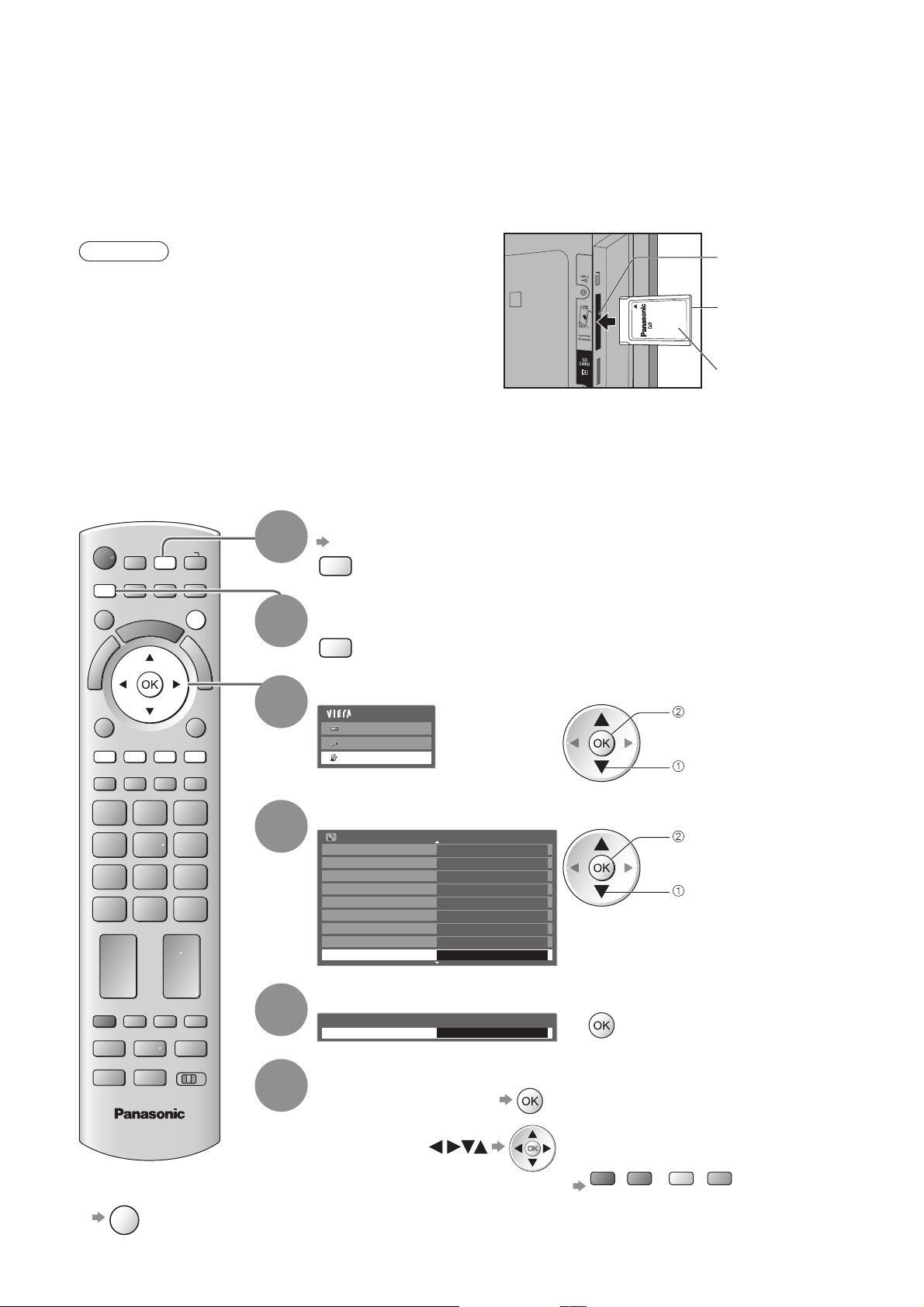

Using Common Interface

The Common Interface Module menu provides access to software contained on Common Interface (CI)
Modules.

This function may not be available in some countries or regions.●

Although CI module may enable you to view some services, this TV does not guarantee all services
(e.g. pay-TV).
Please use only the approved CI module by the broadcaster.
Consult your local Panasonic dealer or broadcasters for more information and conditions of the services.

Caution

Turn Off Mains power On / Off switch whenever inserting ●
or removing the CI module.
If a view card and a card reader come as a set, first insert ●
the card reader, then insert the view card into the card
reader.
Insert the module in the correct direction.●

Insert the CI module (optional)

The features that appear on screen are dependent on the contents of the selected CI module.●
Normally pay-TV channels will appear. Follow the on screen operation guide.●
If pay-TV channel does not appear, perform below.
For more details, see the manual of the CI module, or check with the broadcaster.●

Select DVB-S, DVB-C or DVB-T

p. 16

TV

Display the menu

MENU

MENU

INPUT

TV

1

EXIT

2

Select “Setup”

3

Main Menu


Sound

Setup

Side of the TV

CI slot

Remove the cover before

●

using CI slot.

Insert or remove
straightly and completely

CI module

access

select

To return to TV■

EXIT

TV

4

5

6

Select “Common Interface”

Setup Menu

Timer Programming
Off Timer Off
USB HDD Setup
Link Settings
Child Lock
DVB-C Tuning Menu
Language
Display Settings

Common Interface

1/2

Access

access

select

Access Common Interface

Common Interface

Slot 1:

Module inserted

Follow the on screen operation guide

For example: select, go

Coloured characters

On screen operation guide may not correspond to the remote control ●
buttons.

red

green

yellow blue

48

Shipping Condition

Resets the TV to its original condition, i.e. no channels tuned in.
All settings other than “USB HDD registration” are reset (channels, picture, sound settings, etc.).

Display the menu

1

MENU

EXIT

2

3

MENU

Select “Setup”

Main Menu


Sound

Setup

Select “System Menu”

Setup Menu

Network Setup
DivX® VOD
Advance(isfccc)

System Menu

Other Settings

Off
Access

2/2

access

select

access

select

Using Common Interface ●

Shipping Condition ●

4

To return to TV

■

EXIT

Restore Settings

Check the message and initialise

Shipping Condition

All tuning data will be erased

Confirm

Are you sure?
Are you sure?

EXIT

RETURN

5

Shipping Condition

Select “Shipping Condition”

System Menu

USB Keyboard Layout English(UK)

Shipping Condition Access

System Update
Software Licence
System Information

Set

(confirm)

(confirm)

(start Shipping Condition)

access

select

Advanced

Follow the on screen instructions

Reset to Factory Shipping Condition

Completed.

Please switch off TV.

“Auto Setup” will automatically start when Mains power On / Off switch is next turned On. (p. 12)●

To retune TV channels only, e.g. after moving house■

“Retuning from Setup Menu” (p. 34 - 37)

49

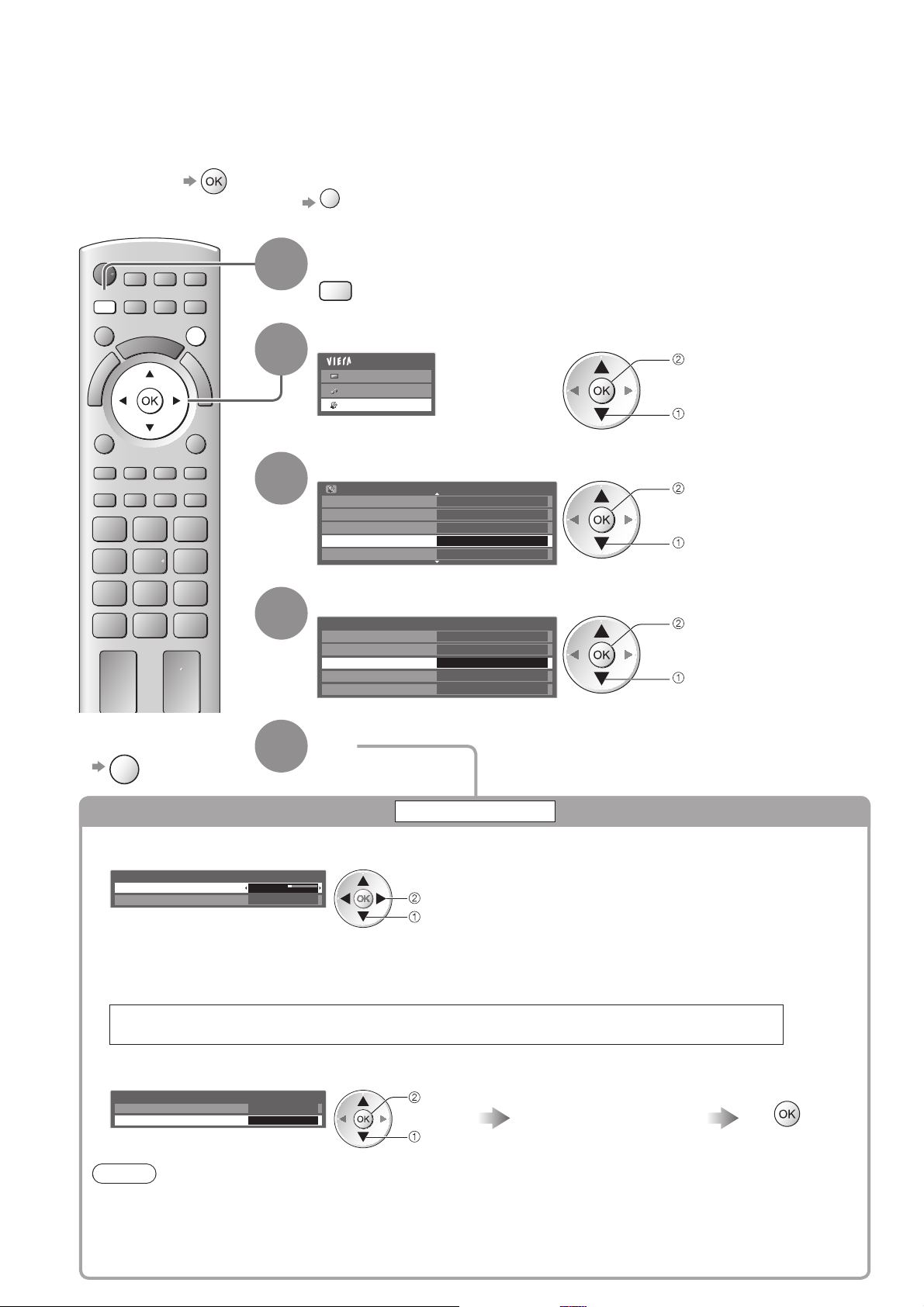

Updating the TV Software

From time to time, a new version of software may become available for download to enhance the
performance or operations of the TV.
If there is an update available, a notification banner is displayed when the channel has the update
information.

To download ●
If you choose not to download ●

You can update any new software automatically or update manually.

1

MENU

EXIT

2

3

EXIT

Display the menu

MENU

Select “Setup”

Main Menu


Sound

Setup

Select “System Menu”

Setup Menu

Network Setup
DivX® VOD
Advance(isfccc)

System Menu

Other Settings

Off
Access

2/2

access

select

access

select

Select “System Update”

4

■

To return to TV

EXIT

Update TV’s software system

5

System Menu

USB Keyboard Layout English(UK)
Shipping Condition

AccessSystem Update
Software Licence
System Information

Set

System Update

To update automatically■

Select “Auto Update Search in Standby”

System Update

Auto Update Search in Standby

System Update Search Now

If System Update is performed, the software will be updated (it may change TV functions).
If you do not wish to do so, set “Auto Update Search in Standby” to “Off”.

Off

set
select

Every time you set, the TV automatically performs a ●
search in standby and downloads an update, if any
software updates are available.
The automatic updating is performed under the ●
following conditions:

Standby (TV turned Off with the remote control)•
Recording of Timer Programming, Direct TV •
Recording or One Touch Recording is not in progress.

access

select

50

To update immediately■

Select “System Update Search Now” Download

System Update

Auto Update Search in Standby

System Update Search Now Access

Off

access

select

Searches for an update
(for several mins.) and
displays a corresponding
message if any

Note

Download may take for about 60 mins.●
During software download and update, DO NOT switch Off the TV.●
The message might be the notification beforehand. In this case, the schedule information (the date that the ●
new version can be used) will appear. You can set the reservation for update. The update will not start when
the TV is set to Off.

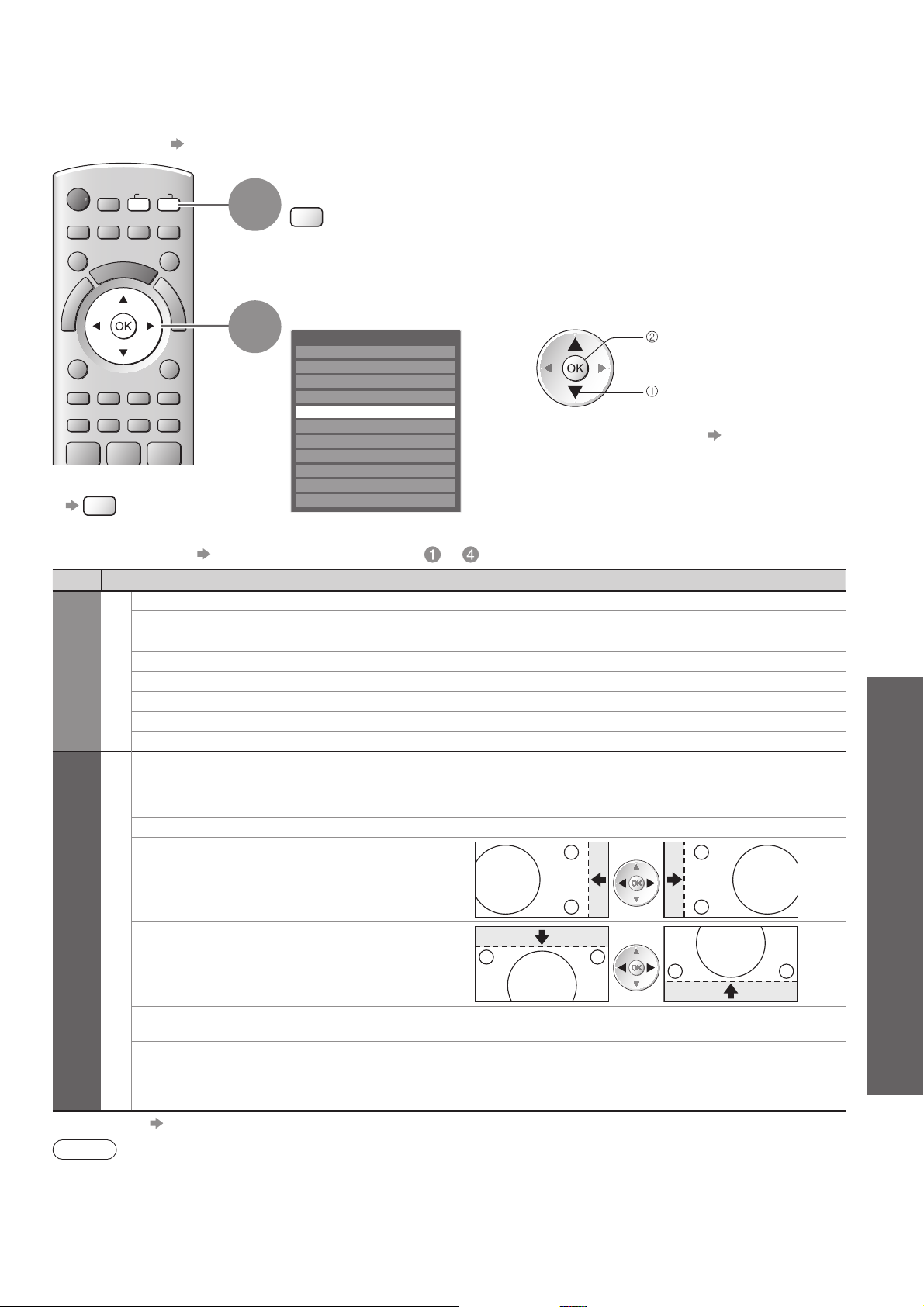

Displaying PC Screen on TV

The screen of the PC connected to the TV can be displayed on the TV.
You can also listen to PC sound with the audio cable connected.

To connect PC ● p. 84

INPUT

AVTV

1

Select the external input

AV

Select “PC”

2

To return to TV■

TV

Input Selection

AV1
AV2/S
AV3
COMPONENT

PC

HDMI1
HDMI2
HDMI3
HDMI4
TV
Media Server

Corresponding signals ● p. 90
If “H-freq.” or “V-freq.” is shown in red, ●
the signals may not be supported.

PC menu setting■

To make settings ● “How to Use Menu Functions” to (p. 27)

Menu Item Adjustments / Configurations (options)

Advanced Settings

R-Gain


G-Gain
B-Gain
R-Cutoff
G-Cutoff
B-Cutoff
Gamma
Reset to Defaults

Input Resolution

Clock

Adjusts the white balance of bright red area
Adjusts the white balance of bright green area
Adjusts the white balance of bright blue area
Adjusts the white balance of dark red area
Adjusts the white balance of dark green area
Adjusts the white balance of dark blue area
Switches the gamma curve (1.8 / 2.0 / 2.2 / 2.4 / 2.6)
Press the OK button to reset to the default Advanced Settings
Switches to a wide view

VGA (640 × 480 pixels), WVGA (852 × 480 pixels),

●

XGA (1,024 × 768 pixels), WXGA (1,280 × 768 pixels, 1,366 × 768 pixels)
Options change depending on signals

●

Set to the minimum level if noise occurs
Adjusts horizontal position

access

select

Displaying PC Screen on TV ●

Updating the TV Software ●

Advanced

H-pos

PC Setup

Setup

V-pos

Clock Phase

Sync

Reset to Defaults

Other items ● p. 28 - 33

Note

For HDMI-compatible PC, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by using ●
HDMI cable (p. 89).

Adjusts vertical position

Eliminates flicker and distortion

Adjust after Clock adjustment

● Set to the minimum level if noise occurs●

Chooses another synchronous signal if the image is distorted (H & V / On Green)

H & V : by the horizontal and vertical signals from your PC

●

On Green : by the green signal from your PC (if available)

Press the OK button to reset to the default PC Setup settings

51

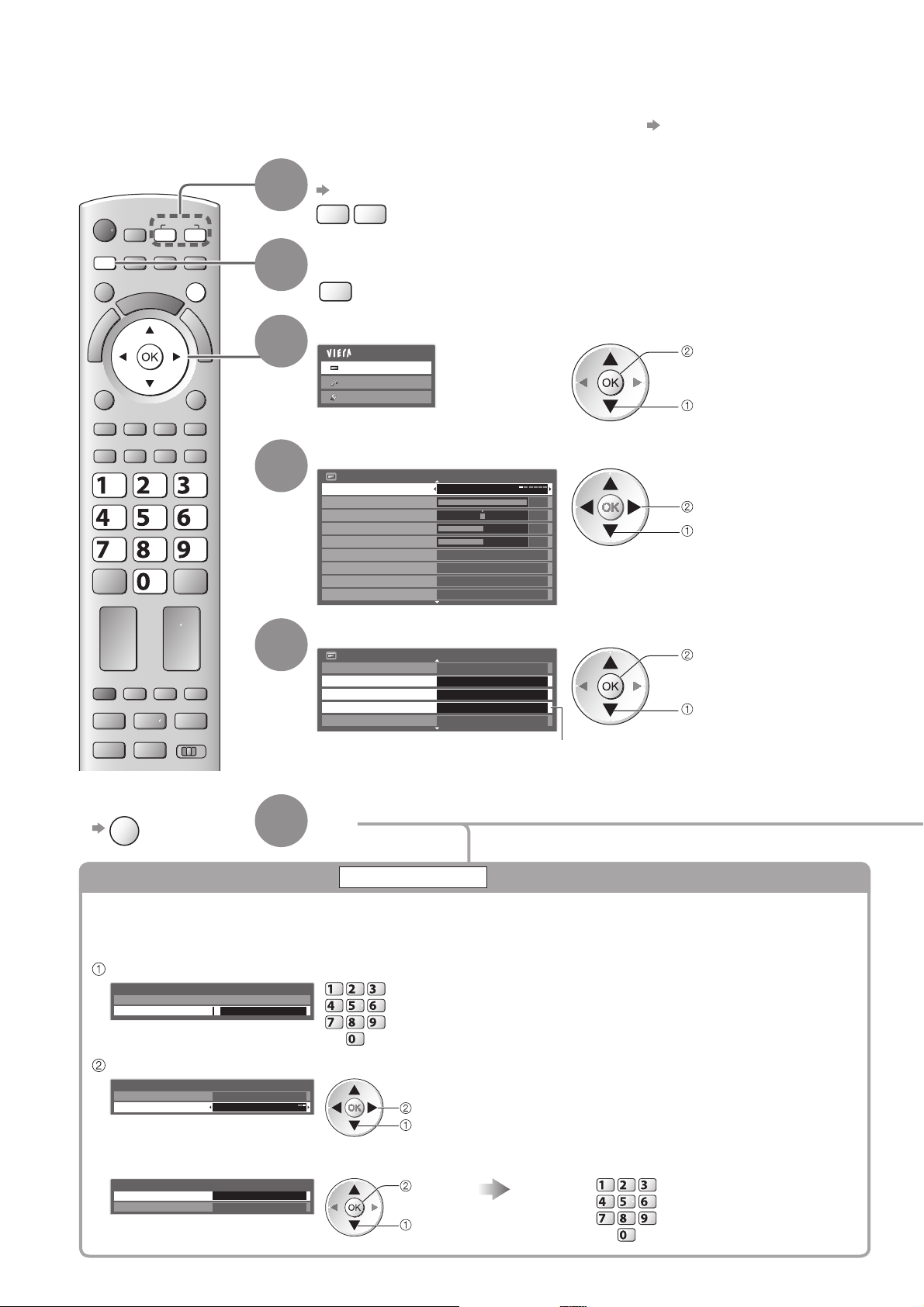

Advanced Picture Settings

You can adjust and setup the detailed picture settings for each input and Viewing Mode.

To use this function completely, set “Advance(isfccc)” to “On” in the Setup Menu. ● p. 33
For PC input mode, some functions are available without setting “Advance(isfccc)”.●

Select the input mode to adjust and setup

p. 16 and p. 24

TV AV

Display the menu

MENU

Select “Picture”

Main Menu


Sound

Setup

access

select

Select “Viewing Mode” and set the mode

Picture Menu

Viewing Mode Dynamic

Contrast
Brightness
Colour
Sharpness
Colour Balance
Vivid Colour
Eco Mode
P-NR

Warm

Off

Off

Off

1/2

60

0

30

5

set

select

MENU

ghi

INPUT

AVTV

EXIT

abc def

jkl

mno

tuvpqrs

wxyz

1

2

3

4

Select one of the following functions

5

Picture Menu

Panel On

Advanced Settings
Lock Settings
Copy Adjustment

Reset to Defaults

Access

Access

Access

Reset

2/2

“Copy Adjustment” is available when ●
“Viewing Mode” in the Picture Menu is set

To return to TV■

to “Professional1” or “Professional2”.

EXIT

6

Lock the picture setting

Set

Lock Settings

Advanced Settings can be locked for each Viewing Mode and input.
Additionally, Contrast, Brightness, Colour, Sharpness, Tint and Reset to Defaults in the Picture Menu can be
locked for “Professional1” and “Professional2”.

Enter the PIN number (4 digits)

Lock Settings-PIN Entry

Please enter new PIN

PIN * * * *

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Enter the PIN number twice at first setting.●
Make a note of the PIN number in case you forget it.●

Select “Adjustment Lock” and set to “On”

Lock Settings

Change PIN

Adjustment Lock On

set
select

access

select

52

To change the PIN number■

Select “Change PIN” Enter a new PIN number twice

Lock Settings

Change PIN Access

Adjustment Lock On

access

select

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Adjust the detailed picture settings

Advanced Settings

To make settings ● “How to Use Menu Functions” to (p. 27)

Advanced Settings

R-Gain
G-Gain
B-Gain
R-Cutoff
G-Cutoff
B-Cutoff
Gamma
Reset to Defaults

2.2
Reset

Menu Item Adjustments / Configurations (alternatives)

Advanced Settings

R-Gain
G-Gain


B-Gain
R-Cutoff
G-Cutoff
B-Cutoff
Gamma
Reset to Defaults

Adjusts the white balance of bright red area
Adjusts the white balance of bright green area
Adjusts the white balance of bright blue area
Adjusts the white balance of dark red area
Adjusts the white balance of dark green area
Adjusts the white balance of dark blue area
Switches the gamma curve (1.8 / 2.0 / 2.2 / 2.4 / 2.6)
Press the OK button to reset to the default Advanced Settings

For the mode of “Professional1” or “Professional2” in “Viewing Mode”■

White Balance● Colour Management● Gamma●

Advanced Settings

White Balance
Colour Management
Gamma Access

Access
Access

White Balance

R-Gain
G-Gain
B-Gain
R-Cutoff
G-Cutoff
B-Cutoff
Reset to Defaults Reset

Colour Management

R-Hue
G-Hue
B-Hue
R-Saturation
G-Saturation
B-Saturation
Reset to Defaults Reset

Gamma

Gamma
Reset to Defaults Reset

Advanced Picture Settings ●

2.2

Menu Item Adjustments / Configurations (alternatives)

R-Gain

White Balance

G-Gain
B-Gain
R-Cutoff
G-Cutoff

Advanced Settings


B-Cutoff
Reset to Defaults

Colour Management

R-Hue
G-Hue
B-Hue
R-Saturation
G-Saturation
B-Saturation
Reset to Defaults

Gamma

Gamma

Reset to Defaults

Copy the settings to the other input

Adjusts the white balance of bright red area
Adjusts the white balance of bright green area
Adjusts the white balance of bright blue area
Adjusts the white balance of dark red area
Adjusts the white balance of dark green area
Adjusts the white balance of dark blue area
Press the OK button to reset to the default White Balance

Adjusts the picture hue of red area

Adjusts the picture hue of green area

Adjusts the picture hue of blue area

Adjusts the saturation of red area

Adjusts the saturation of green area

Adjusts the saturation of blue area

Press the OK button to reset to the default Colour Management

Switches the gamma curve (1.8 / 2.0 / 2.2 / 2.4 / 2.6)

Press the OK button to reset to the default Gamma

Copy Adjustment

You can copy the selected “Professional1” or “Professional2” settings to that of the other input.
The settings of Contrast, Brightness, Colour, Sharpness, Tint and Advanced Settings will be copied.

Select the destination to copy to

Copy Adjustment

Destination All

select

copy

You cannot copy to the locked mode.●

Advanced

53

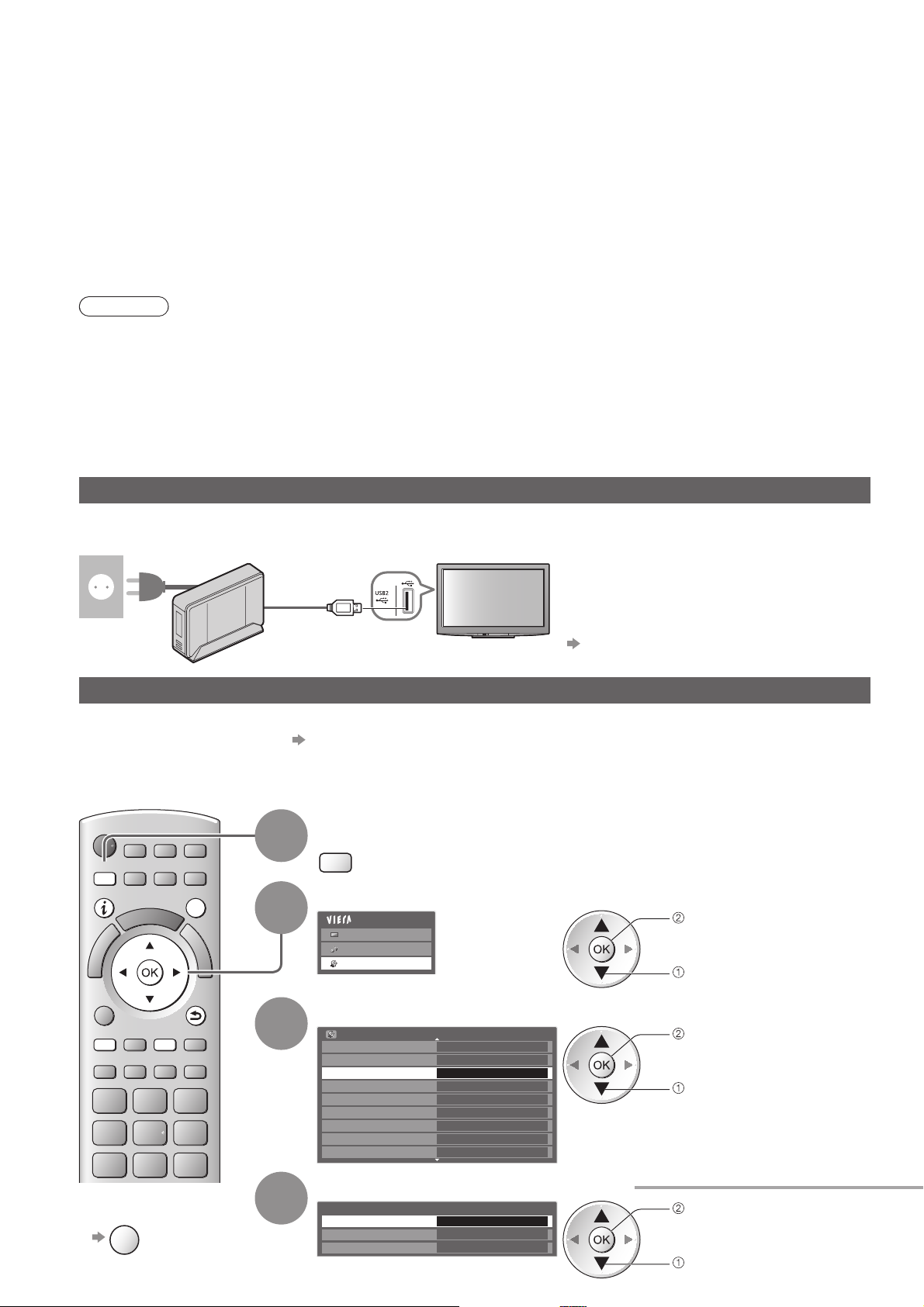

USB HDD Recording

You can record the digital TV programmes to the connected USB HDD and enjoy playing back in various
ways.

Analogue TV programme cannot be recorded to the USB HDD.●
The data broadcasting (MHEG, etc.), radio broadcasting and the periods without any signal will not be recorded.●
Not all the programmes can be recorded depending on the broadcaster and service provider.●
This TV supports USB HDD with capacity from 160 GB up to 2 TB.●
If the remaining capacity of the USB HDD is run out, the recording cannot be done.●
Regarding the performance, not all USB HDDs are guaranteed.●
Check the USB HDDs that have been tested for the performance with this TV at the following website. (English
only)
http://panasonic.jp/support/global/cs/tv/

Caution

Register the USB HDD with this TV in order to use it for recording. Please note that USB HDD will be formatted ●
and all data (including the data from your PC, etc.) in it will be erased when you register it.

●

In order to use the USB HDD with your PC after you use it with this TV for recording, format the drive on your PC.
To format, refer to the manual of the PC. Please note that all data in the USB HDD will be erased when it is
formatted.
The data recorded to the USB HDD with this TV can only be played back on this TV. You cannot playback its ●
contents with another TV (including the TV of the same model number) or any PCs.
If your TV is repaired due to a malfunction, the registered USB HDD may not be available with your repaired TV. ●
Register this USB HDD again to use it with your repaired TV. (All data in it will be erased.)

USB HDD connection

Connect the USB HDD to the USB 1 or 2 port.

●

socket outlet

USB

cable

USB HDD

Be sure to connect the USB HDD to the
socket outlet.
Do not turn off or disconnect the USB HDD ●
during operation. It may cause malfunction
of the drive or damage the recorded data.
To remove the USB HDD safely from the TV ●

p. 55 and p. 59

Setting for USB HDD

Register and setup the USB HDD with this TV in order to use it for recording. Connect the USB HDD
before starting this settings.

Before the settings, be sure to turn on the USB HDD.●
You cannot change the settings for the USB HDD while recording is in progress.●
Please note that USB HDD will be formatted and all data in it will be erased when you register it.●

MENU

EXIT

BACK/

RETURN

“USB HDD connection” (above)

Display the menu

1

MENU

Select “Setup”

2

Main Menu


Sound

Setup

Select “USB HDD Setup”

3

Setup Menu

Timer Programming
Off Timer

USB HDD Setup

Link Settings
Child Lock
DVB-C Tuning Menu
Language
Display Settings
Common Interface

Off

Access

1/2

access

select

access

select

54

To return to TV■

EXIT

4

Select “Device Setup” and set

USB HDD Setup

Device Setup

One Touch Recording
REW LIVE TV Off

Access

180 minutes

access

select

Register and setup the USB HDD

Device Setup

All the USB devices recognized as a mass storage device will be listed. You can only register
USB HDDs.

Up to 8 USB HDDs can be registered with this TV. However you can only choose one USB HDD for recording ●

at a time.

Some USB HDD may not be registered.

●

Select the USB HDD for recording and start registration / setup

USB HDD Device Setup

Yes

Yes

ProductConnect Name

USB Drive A

USB Flash Disk

Caution of USB HDD recording and playing back●

USB HDD Registration

The data recorded to the USB HDD with this TV can only

be played back on this TV.

You cannot playback it with other TV (including the TV

of the same model number) or any PCs.

If your TV is repaired due to a malfunction, the

registered USB HDD may not be available with your

repaired TV.

Continue?

Yes No

Confirmation of USB HDD registration●

USB HDD Registration

To use this device for recording,

it must be registered first.

Continue?

Yes No

access

select

select “Yes”

set

select “Yes”

set

For the information of the highlighted device ●

USB HDD Recording ●

Confirmation of USB HDD format●

USB HDD Registration

This device will be formatted and

Yes No

Confirmation of USB HDD name●

USB HDD Registration

Yes No

all contents deleted.

Are you sure?

Name : USB HDD 1

Edit name?

select “Yes”

set

The name for the registered USB HDD is created
automatically. If you want to edit the name, select “Yes”.

select

set

Set characters one by one Store

USB HDD

Name USB HDD 1

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6

a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

O P Q R S T
7 8 9 ! : #
o p q r s t

You can set characters by using numeric buttons.●

Confirmation to enable USB HDD for recording●

If the registered USB HDD for recording already exists, this confirmation screen
will be displayed to switch to enable this USB HDD for recording.

USB HDD Registration

Do you want to enable this

device now for recording?

Yes No

: The USB HDD is registered and available for recording / playing

back if the connection status is “Yes”.
Only one registered USB HDD on the list can be available for
recording.

USB HDD Device Setup

Yes

Yes

ProductConnect Name

USB Drive A

USB Flash Disk

USB HDD 1

: The USB HDD is registered and available for playing back if the

connection status is “Yes”.
Name is displayed if the registration is completed
Connection status (Yes: connected / No: not connected)

To remove the USB HDD safely from the TV, ensure the status is
“No” before removing.

To change the status

●

yellow

You can also remove the USB HDD safely from Media Player ●

“Remove the USB devices safely” (p. 59)

To unregister the registered USB HDD■

Once you unregister the USB HDD, it will not be possible to playback any of the recorded content on any ●
TV.
Select the USB HDD Unregister

select

set

BACK/

RETURN

Advanced

red

The confirmation screen will be displayed twice. ●

Select “Yes” to unregister.

55

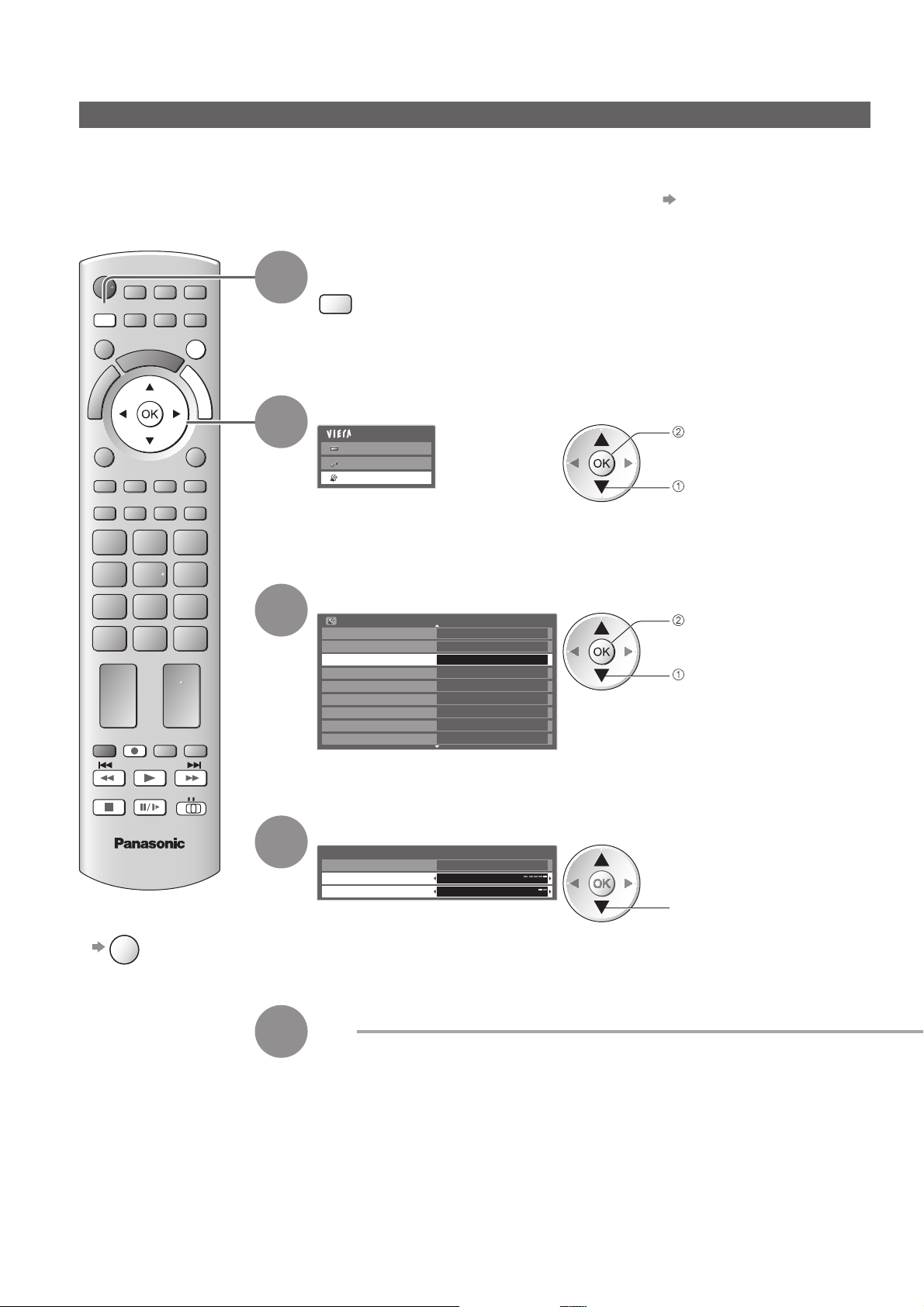

USB HDD Recording

Recording the TV programme to USB HDD

You can record the current programme immediately by using “One Touch Recording”.
You can also record the current programme constantly for the selected period by using “REW LIVE TV”
so that you can go back or pause the current programme.

Ensure the connection, registration and setup are completed before start recording ● p. 54 and p. 55
Ensure not to connect or disconnect any USB devices during USB HDD recording. Otherwise the recording may ●
not work properly.

Display the menu

MENU

Select “Setup”

Main Menu


Sound

Setup

access

select

MENU

EXIT

G

U

1

I

D

E

2

To return to TV■

EXIT

REC

DVD/VCR

TV

TV

3

4

5

Select “USB HDD Setup”

Setup Menu

Timer Programming
Off Timer

USB HDD Setup

Link Settings
Child Lock
DVB-C Tuning Menu
Language
Display Settings
Common Interface

1/2

Off
Access

access

select

Select “One Touch Recording” or “REW LIVE TV”

USB HDD Setup

Device Setup

One Touch Recording
REW LIVE TV Off

180 minutes

select

Set

56

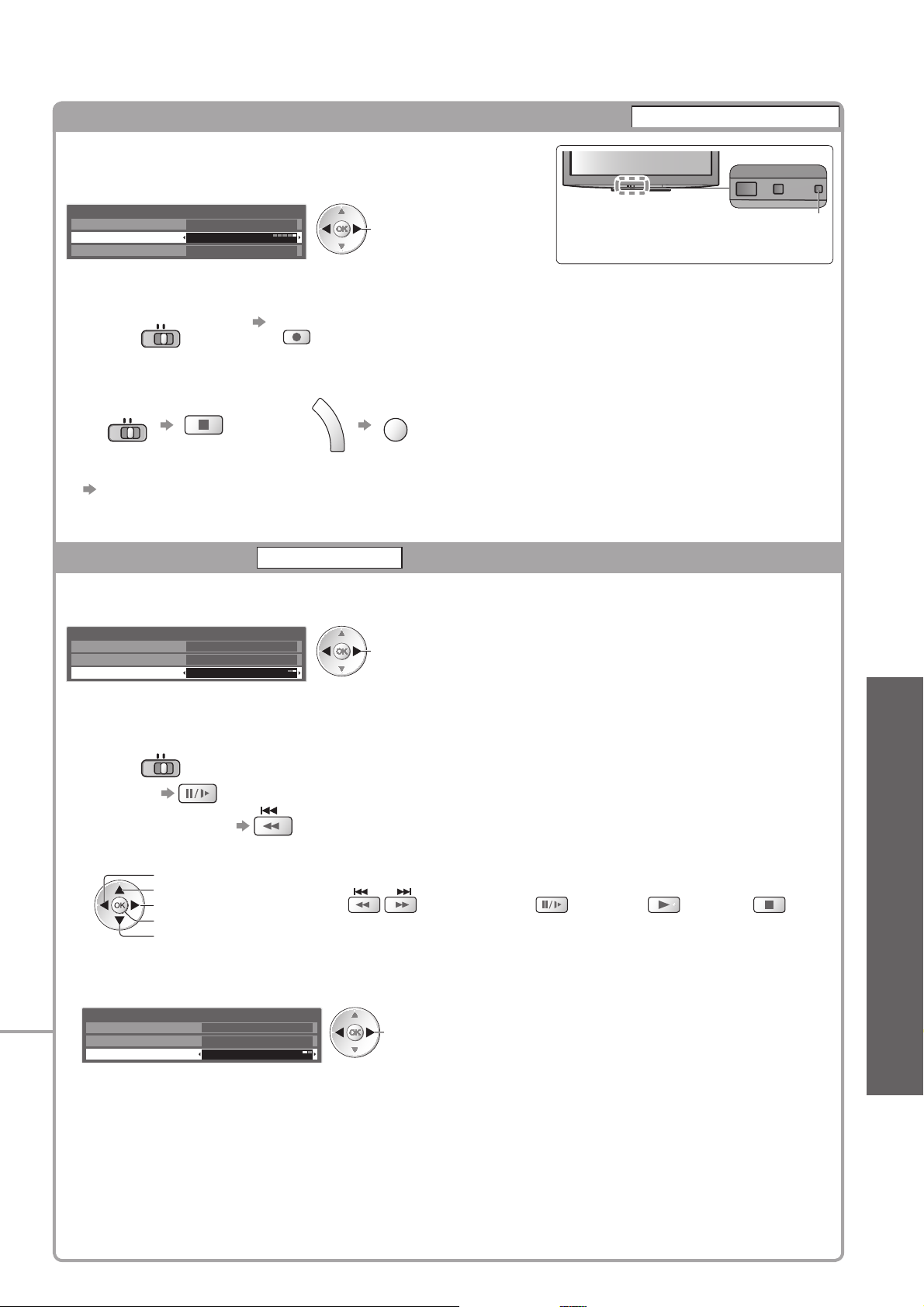

One touch direct TV recording - What you see is What you record

Recording the current programme in the USB HDD immediately.

Select the maximum recording time
(30 / 60 / 90 / 120 / 180 minutes)

USB HDD Setup

Device Setup

One Touch Recording

REW LIVE TV Off

180 minutes

To start One Touch Recording■

Set the position to “TV” Start

DVD/VCR

TV

REC

No other channel can be selected while the recording is in progress.●

To stop recording on the way■

DVD/VCR

TV

or

G

U

select

LED will turn to orange (flash) while
One Touch Recording is in progress.

I

D

E

EXIT

One Touch Recording

LED

To playback or delete the recorded contents■

“Using Media Player” (p. 63) or “Video” in VIERA TOOLS (p. 26)
Even if One Touch Recording is in progress, you can playback all the contents. ●
However, the recording may not work properly while playback.

Record constantly

REW LIVE TV

Recording the current programme constantly.

Select “On” to start REW LIVE TV

USB HDD Setup

Device Setup
One Touch Recording

REW LIVE TV On

180 minutes

select

When you select “On”, the recording will start automatically.●

To operate the REW LIVE TV■

Set the position to “TV”

DVD/VCR

TV

To pause ●

To search backward ● (press and hold)

After pausing or searching backward, the following buttons are available to operate.●

search backward
pause
search forward
playback
stop (stops the current
operation and goes
back to live TV)

search backward / forward pause / playback playback stop

(press and hold)

stops the current
operation and
goes back to

(

live TV

To stop the REW LIVE TV■

USB HDD Setup

Device Setup
One Touch Recording

REW LIVE TV Off

REW LIVE TV will be stopped and the recorded content deleted automatically in the following conditions:

●

180 minutes

(Even if REW LIVE TV stops for the following conditions, as long as the setting is “On”, the new recording
will start automatically in a condition that makes the recording available.)

selected other channels•
selected locked channel•
selected invalid channel•
no TV signal•
when the other recording starts•
when the TV is turned off or standby•

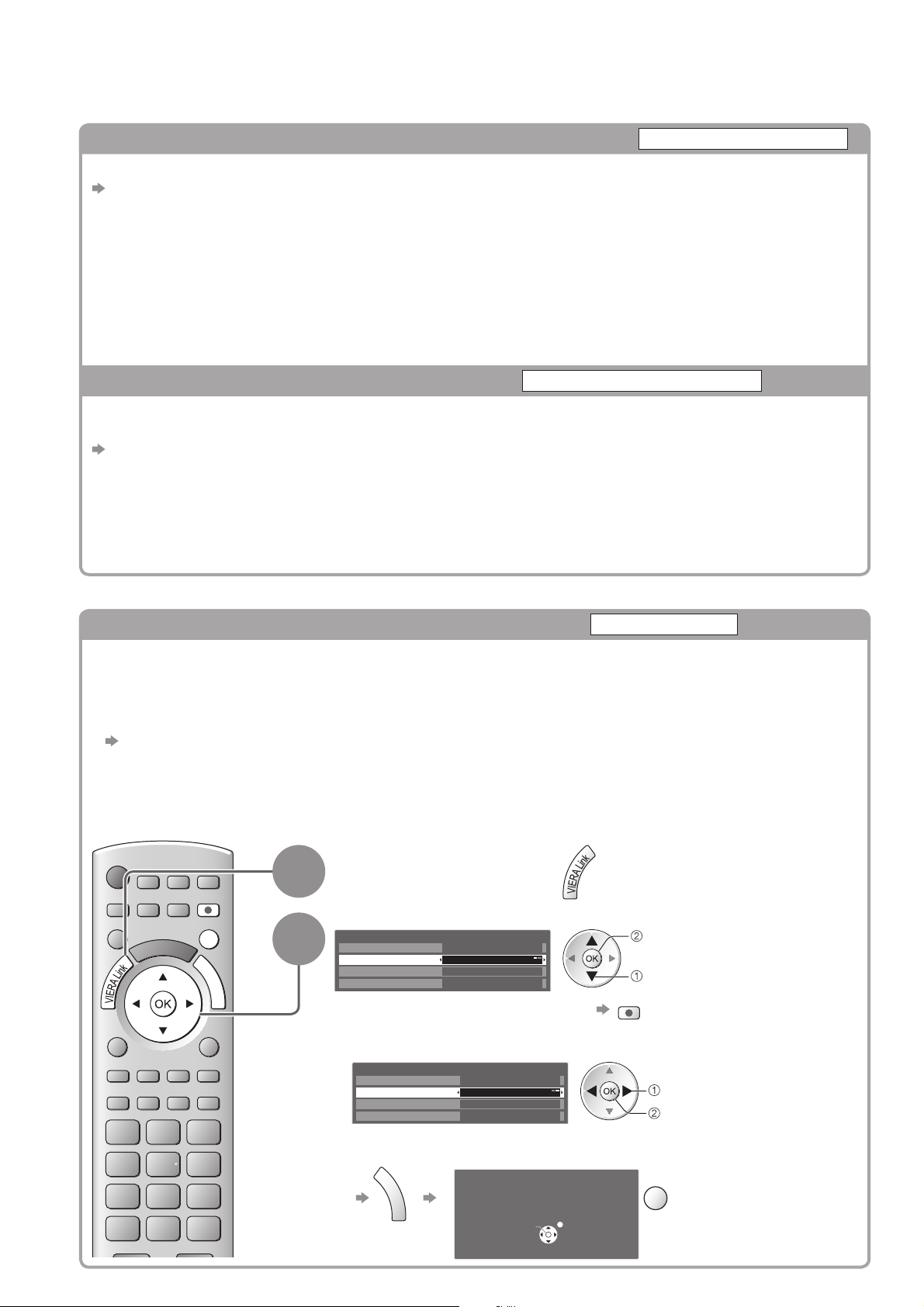

select “Off”

If you stop the REW LIVE TV, the recorded content for the REW LIVE ●
TV will be deleted.

USB HDD Recording ●

Advanced

)

57

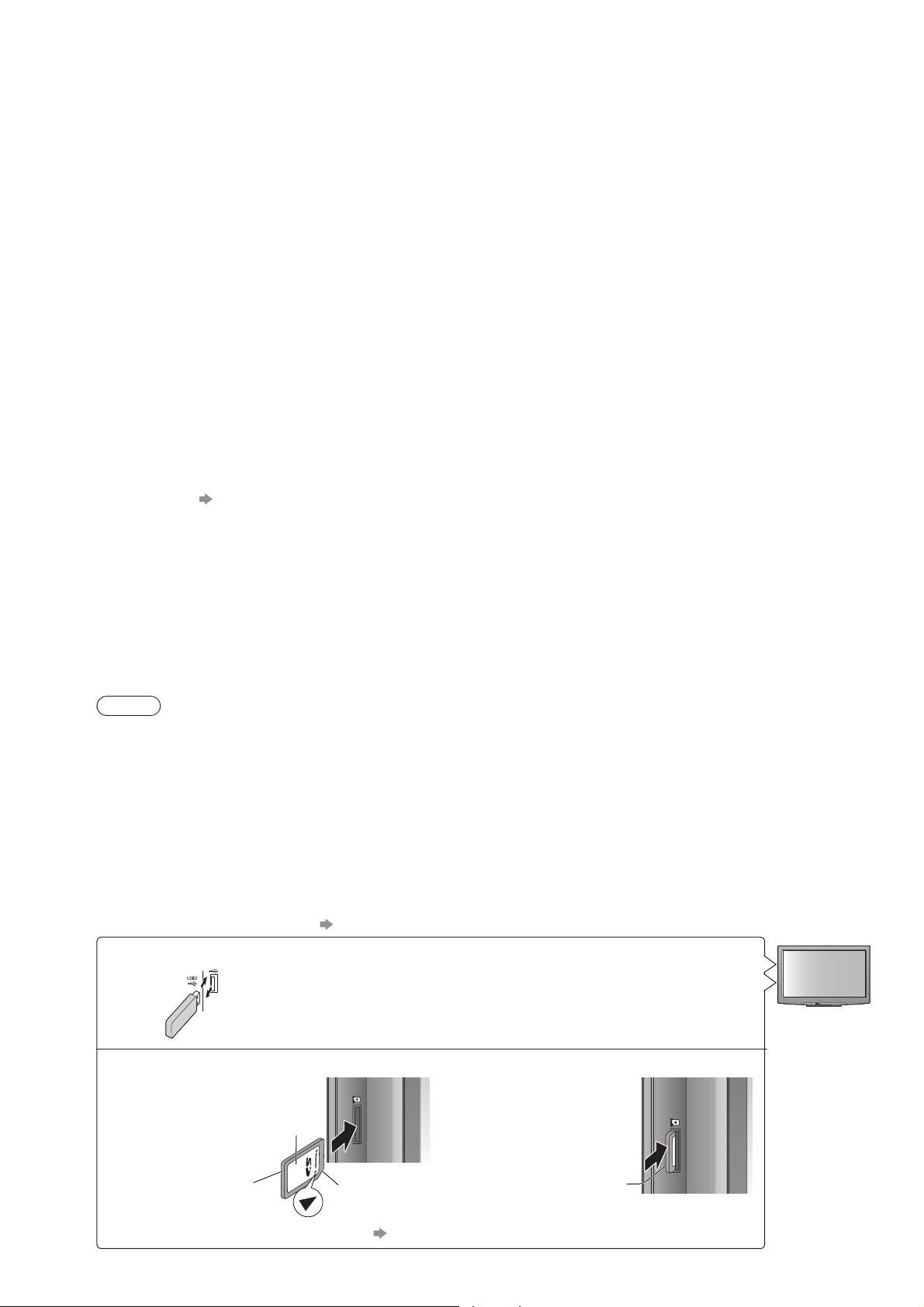

Using Media Player

Media Player allows you to enjoy photo, video or music recorded on an SD Card and a USB Flash
Memory, and recorded contents on the registered USB HDD.
VIERA IMAGE VIEWER is the function of the easy viewing for photos or videos recorded on an SD Card
on the TV screen by simply inserting into the SD Card slot.

Photo mode : Still pictures recorded by digital cameras will be displayed.
Video mode : (For SD Card or USB Flash Memory) Moving pictures recorded by digital video cameras will be

played back.
(For registered USB HDD) TV programmes recorded in USB HDD registered to this TV will be played
back.

Music mode : Digital music data will be played back.

During the operation, audio signal is output from AV1, AV2, AUDIO OUT and DIGITAL AUDIO OUT terminals. ●
But no video signals are output. AV1 and AV2 can output audio signal if “AV1 / AV2 out” is set to “Monitor” in the
Setup Menu (p. 30).
“Date” shows the date on which the recording was made by the recording equipment. The file without record of ●
the date is shown “**/**/****”.

Data format for SD Card / USB Flash Memory browsing■

Photo : Still images recorded with digital still cameras compatible with JPEG files of DCF●

Data format - Baseline JPEG (Sub-sampling 4:4:4, 4:2:2 or 4:2:0)
Image resolution - 8 × 8 to 30,719 × 17,279 pixels

Video : SD-Video Standard Ver. 1.2 [MPEG-2 (PS format)] and AVCHD Standard compatible files with an audio ●

format that is either MPEG-1/Layer-2 format or Dolby Digital format
(A modified data with a PC may not be displayed correctly.)
DivX p. 87

Music : Data format - MP3 and AAC (Copy-protected files cannot be played back.)●
SD Card format : SDXC Card - exFAT●

SDHC Card / SD Card - FAT16 or FAT32

Compliant card type (maximum capacity): SDXC Card (64 GB), SDHC Card (32 GB), SD Card (2 GB), ●
miniSD Card (2 GB) (requiring miniSD adapter)
If miniSD Card is used, insert / remove it together with the adapter.●
Check the latest information on the card type at the following website. (English only)●
http://panasonic.jp/support/global/cs/tv/
USB Flash Memory format : FAT16, FAT32 or exFAT●

∗

DCF (Design rule for camera file system): Unified standard established by Japan Electronics and Information Technology Industries Association (JEITA).

(A USB HDD formatted by PC is not supported in Media Player.)

Note

Format the device with the recording equipment.●
The picture may not appear correctly on this TV depending on the recording equipment used.●
Display may take some time when there are many files and folders.●
This function cannot display Motion JPEG and still image not JPEG formatted (i.e. TIFF, BMP).●
A data modified with a PC may not be displayed.●
Images imported from a PC must be compatible with EXIF (Exchangeable Image File) 2.0, 2.1, and 2.2.●
Partly degraded files might be displayed at a reduced resolution.●
The folder and file names may be different depending on the digital camera or digital video camera used.●
Do not use two-byte characters or other special codes.●
The device may become unusable with this TV if the file or folder names are changed.●

∗

and EXIF standards

58

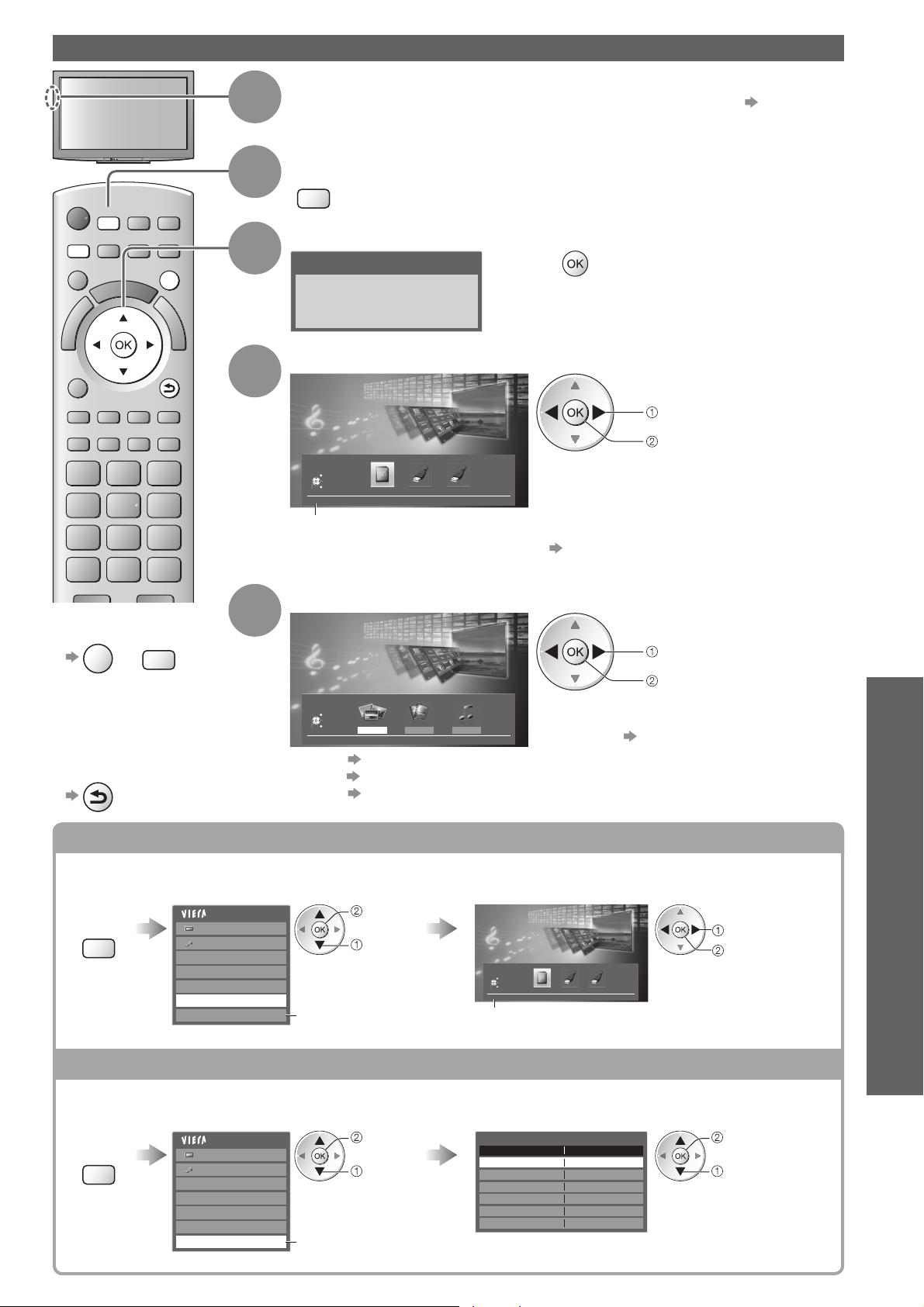

To insert or remove the SD Card / USB Flash Memory ■

For the USB HDD Connection ● p. 54

USB Flash Memory

Insert or remove straightly and completely.●
Before removing the USB Flash Memory, ensure to perform ●
“Remove the USB device safely” (p. 59)

SD Card

To insert the SD Card●

Gently insert the
SD Card label surface
facing front.

Push until a

click is heard

For more information of the SD Card ● p. 86

Label
surface

Cutout

To remove the SD Card●

Push the centre of the card

MENU

SD CARD

EXIT

1

2

3

Starting Media Player

Insert the SD Card or USB Flash Memory

For registered USB HDD, ensure the connection status is “Yes”. ● p. 55

Switch to Media Player

SD CARD

Start Media Player

Media Player

Signal output from all AV terminals will be

disabled during Media Player view.

Press OK to proceed.

Press EXIT to return to TV viewing.

When SD Card is inserted, switching will be done automatically.●

To return to TV■

EXIT

SD CARD

or

To return to ■
the previous
screen

BACK/

RETURN

BACK/

RETURN

4

5

Select the icon you want to access to

Media Player

select

access

Drive Select

EXIT

Select

RETURN

Access

SD Card

selected device name

If two or more devices are not connected, ●
this step will be skipped.
For the registered USB HDD, all the USB

●

HDD of which the connection status is
“Yes” is available.

“Register and setup the USB HDD”

(p. 55)

Select the content

Media Player

select

access

Contents Select

EXIT

Select

RETURN

Access

SD Card

● “Photo mode” (p. 60)


Photo Video Music

Video ● “Video mode” (p. 62)
Music ● “Music mode” (p. 65)

For registered USB HDD, this step will be ●
skipped and recorded contents list will be
displayed.

p. 63

Using Media Player ●

Change the device

You can change to the other device directly in the same mode if two or more devices are connected.
Display

the menu

MENU

Select “Drive Select” Select the icon you want to access to

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

Drive Select

USB Remove Safely

access

select

Appears if the USB device
is connected to the TV.

Media Player

Drive Select

EXIT

Select

RETURN

Access

SD Card

selected device name

select
access

Remove the USB devices safely

Before remove the USB devices, please take the following steps in order to protect the devices.
Display

the menu

MENU

Select “USB Remove Safely”

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

Drive Select

USB Remove Safely

Appears if the USB device
is connected to the TV.

access

select

Select the USB Flash Memory or USB HDD to remove

USB Remove Safely

USB Flash Disk

NameProduct

set

select

Advanced

59

Using Media Player

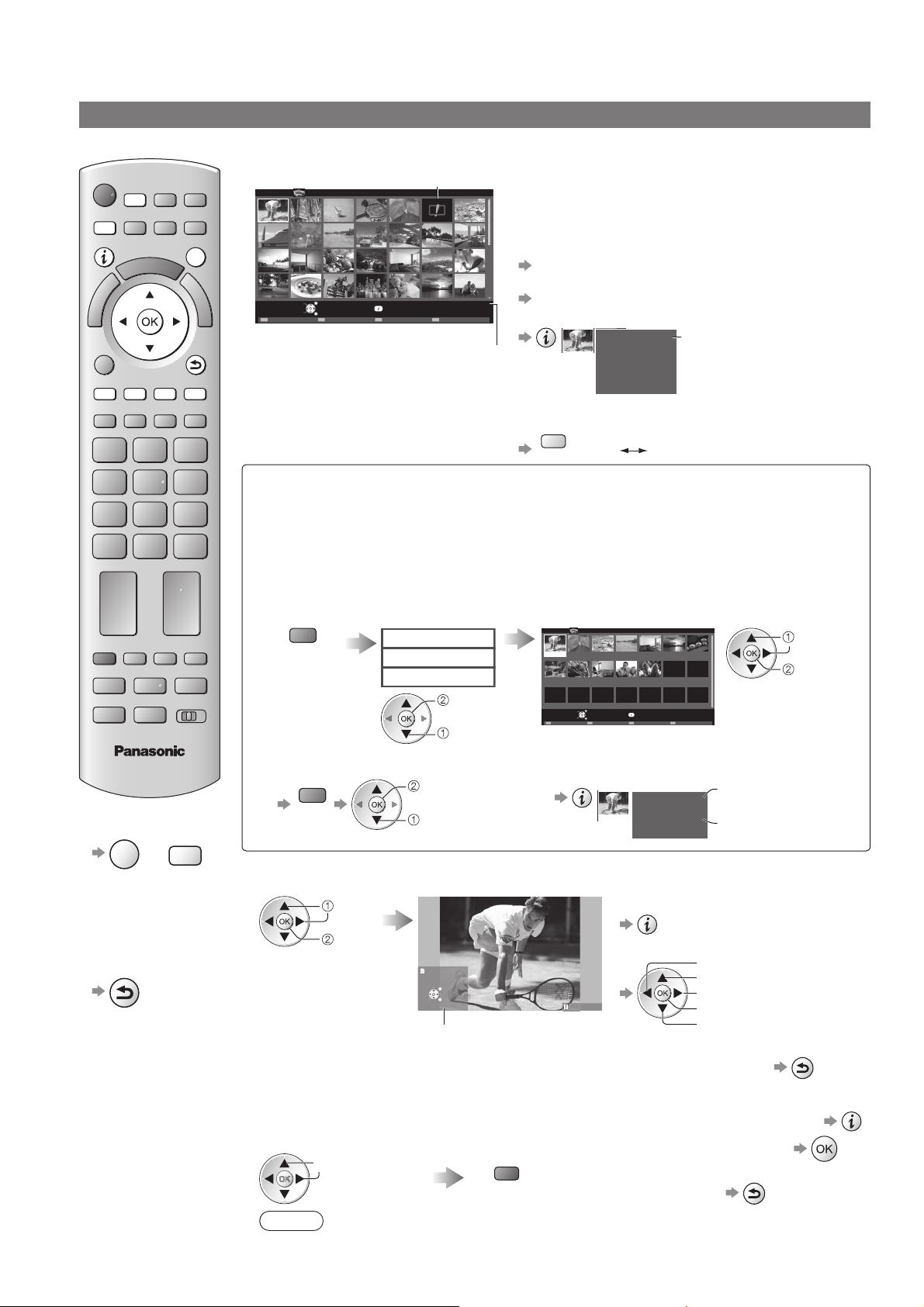

Photo mode

Photo mode will read all “.jpg” extension files in the SD Card or USB Flash Memory.

Error display

SD CARD

MENU

TV

To return to TV■

EXIT

SD CARD

or

To return to ■
the previous
screen

BACK/

RETURN

EXIT

BACK/

RETURN

Media Player Photo All photos

View

EXIT

Select

RETURN

Slideshow Contents SelectChange Size

View Select

(Thumbnail - All photos)

To sort by folder, recorded date or recorded month■

Folder view : Displays the thumbnail grouped by folder

Sort by Date : Displays the thumbnail grouped by the same date

Sort by Month : Displays the thumbnail grouped by the same month

Display the
view selection

green

To return to the thumbnail ●
of all photos

green

Single view■ - Displayed one at a time

Select the file from the thumbnail of photos to be viewed

select

access

Slideshow■ - Slideshow will be completed within the thumbnail from which it was started.

Select the file from the
thumbnail of photos
for the first view

select

(images that could not be loaded, etc.)

The thumbnail of all the photos in the SD Card or
USB Flash Memory will be displayed.

●

You can also access Photo mode directly by using
VIERA TOOLS.

“How to Use VIERA TOOLS” (p. 26)

To change the back ground music

●

Info

SD Card

“Photo Setup” (p. 61)

To display the information of the highlighted photo ●

selected device name

To change the number of photos on a thumbnail ●
screen at a time

yellow

The files which are not into a folder will be collected to the folder named “/”.●

The group of the photos without recorded date is shown as “Unknown”.●

The group of the photos without recorded date is shown as “Unknown”.●

Select the
sort type

Folder view

Sort by Date

Sort by Month

Select one of the sorted group to display the
thumbnail of the selected group

Media Player Photo

23/10/2009 25/10/2009 01/11/2009 05/11/2009 10/11/2009 22/11/2009 23/11/2009

24/11/2009 01/12/2009 03/12/2009 20/12/2009 22/12/2009

access

select

Slideshow Contents Select

access

select

“All photos”

Single view

Rotate

EXIT
Select
RETURN

Slideshow

Operation guide

(Single view)

Start
Slideshow

red

File name


Date

23/10/2009

Pixel

1600X1200

(7 × 4 10 × 6)

Access

EXIT

Select

RETURN

View Select

Info

To display the information of the ●
highlighted group

23/10/2009

Folder name

Number of files

To display / hide the operation guide ●

To operate Single view●

Single view

To return to thumbnail ●

To display / hide the operation guide ●
To pause (return to Single view) ●

To return to thumbnail ●

1/48

file number /
total file number

Sort by Date

SD Card

group number /

1/12

23/10/2009

total group number

folder name,

3

date or month

To the previous photo
Rotate 90˚ (anti-clockwise)
To the next photo
Slideshow
Rotate 90˚ (clockwise)

RETURN

BACK/

select

thumbnail

of the
selected
group

BACK/

RETURN

60

Note

Picture quality may become lower depending on the slideshow settings.●
Picture setting may not work depending on the slideshow settings.●

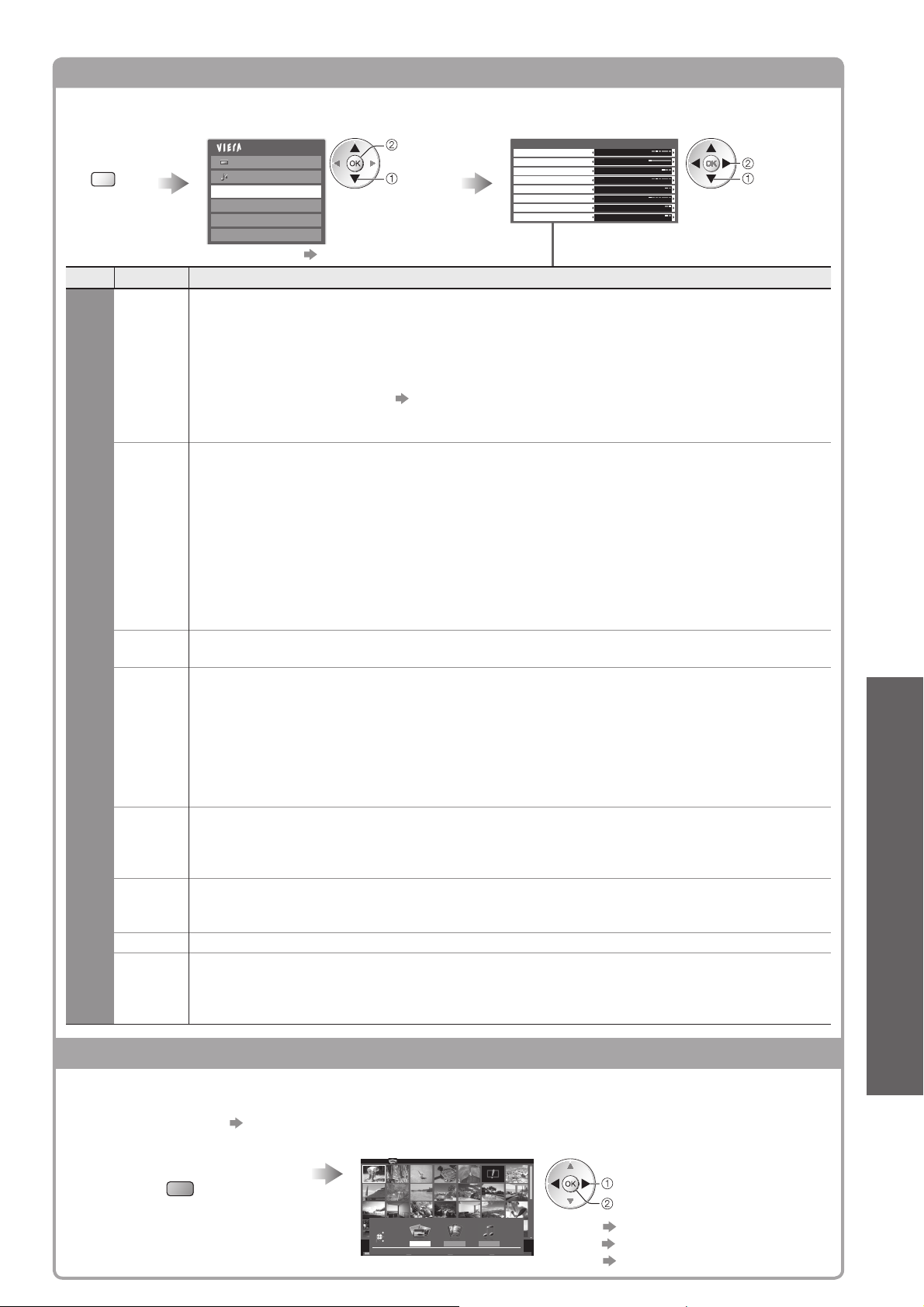

Photo Setup

Setup the settings for Photo mode.

Display
the menu

MENU

Menu Item Adjustments / Configurations (alternatives)

Back
Ground
Music

Frame

Photo Setup

Colour
Effect

Transition
Effect

Screen
Mode

Interval

Repeat Slideshow repeat (Off / On)

Burst
Playback

Select “Photo Setup” Select the items and set

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

Drive Select

access

select

Photo Setup Menu

Back Ground Music Type1
Frame Off
Colour Effect
Transition Effect
Screen Mode
Interval 5 seconds
Repeat On
Burst Playback Off

Off
Fade
Normal

Other items ● p. 28 - 30, 59, 64 and p. 65

Selects the back ground music during the Photo mode

(Off / Type1 / Type2 / Type3 / Auto / User)

●

Type1, Type2 and Type3 are the fixed music each installed in this TV.

Auto : Music data stored in the root folder of the SD Card will be played back randomly.

●

If there is no available music data, no sound will be produced.

User :

Music data in the current device registered by yourself in Music mode will be played back.

To register the music ● “Set background music for Photo mode” (p. 65)
If no music has been registered or the registered music device are removed, no ●
sound will be produced.

Selects the indication frame of the slideshow

(Off / Multi / Collage / Drift (+ calendar) / Drift / Gallery (+ calendar) / Gallery / Cinema)

Multi : 9 division display like tiled design
Collage : A photo is displayed at random position and random scale.
Drift (+ calendar) / Drift : Photos are displayed like flow images.

●

You can select to display the calendar or not. The month of
calendar is turned by pressing up or down cursor button.

Gallery (+ calendar) / Gallery : The various size of photos in the frame are displayed.

●

You can select to display the calendar or not. The month of
calendar is turned by pressing up or down cursor button.

Cinema : Photos are displayed like old films (sepia tone)
Selects the colour effect of photos on Single view and Slideshow (Off / Sepia / Gray scale)

●

This function is not available when “Frame” is set to “Drift”, “Gallery” or “Cinema”.

Selects the transition effect for switching the photo during the slideshow

(Off / Fade / Slide / Dissolve / Motion / Random)

Fade : The next photo fades in gradually.
Slide : The next photo slides and appears from the left side.
Dissolve : The photo is replaced by an indefinite block unit.
Motion : The photo is replaced with enlarged, reduced, moved up or moved down.
Random : Each transition is selected at random.

This function is available when “Frame” is set to “Off”.●

Selects whether enlarged or normal viewing on Single view and Slideshow (Normal / Zoom)

This function is not available when “Frame” is set to “Collage”, “Drift”, “Gallery” or “Cinema”.

●

This function is not available when “Transition Effect” is set to “Motion”.●
Depending on the photo size, the photo may not be enlarged.●

Selects slideshow interval (5 / 10 / 15 / 30 / 60 / 90 / 120 seconds)

This function is not available when “Frame” is set to “Drift”, “Gallery” or “Cinema”.●

This function is not available when “Transition Effect” is set to “Motion”.●

Selects whether the continuous shots are displayed in rapid interval during the slideshow

(Off / On)

This function is not available when “Frame” is set to “Drift”, “Gallery” or “Cinema”.●

This function is not available when “Transition Effect” is set to “Motion”.●

set
select

Using Media Player ●

Advanced

Change the contents

You can switch to the other mode of Media Player from the thumbnail.

The mode can be switched in the current device.●
To change the device ● “Change the device” (p. 59)

While the thumbnail is displayed,
display the contents selection

blue

Select the contents

Media Player Photo All photos

Contents Select

EXIT

Select

RETURN

View

EXIT

Photo Video Music

Access

Select

RETURN

SD Card

Slideshow Contents SelectChange Size

View Select

Info

Photo ● “Photo mode” (p. 60)

SD Card

● “Video mode” (p. 62)

Video
Music ● “Music mode” (p. 65)

select
access

61

A

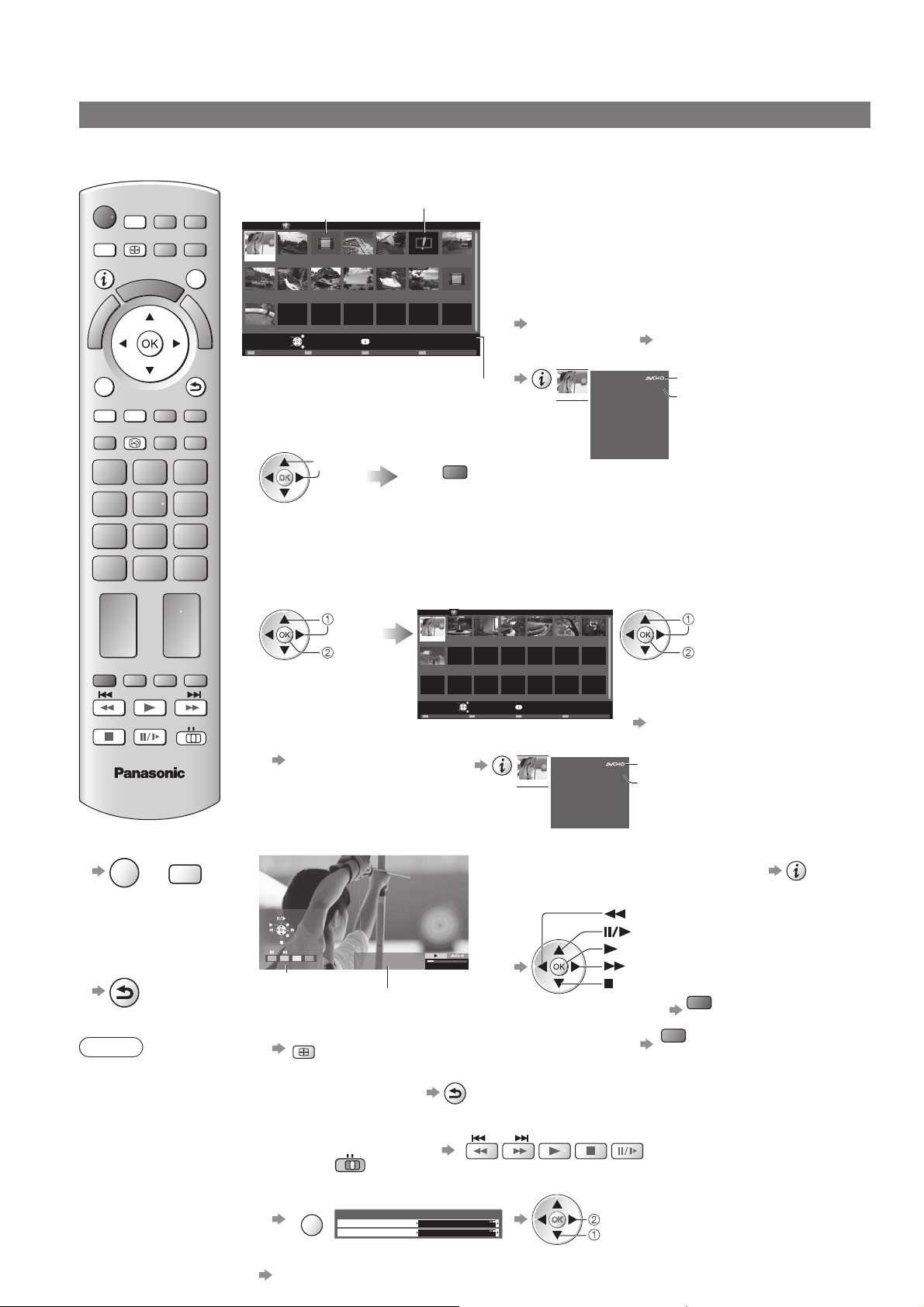

Using Media Player

Video mode

For SD Card or USB Flash Memory

Video mode supports AVCHD, MPEG2 and DivX® file formats.

Error display
(images that could not be loaded, etc.)

The thumbnail of video titles in the SD Card or USB
Flash Memory will be displayed.
The preview will start when the title is highlighted if it
supports a preview.

●

You can also access Video mode directly by using
VIERA TOOLS

SD Card

“How to Use VIERA TOOLS” (p. 26)

● “Video Setup” (p. 64)

To off the preview
To display the information of the highlighted title●

Trip1

red

DivX contents cannot be played back from Title view. Select DivX ●
folder and press the OK button to display DivX files, and then
select one of the file to be played back.

Media Player Video

Trip1_1 Trip1_2 Trip1_3 Trip1_4 Trip1_5 Trip1_6 Trip1_7

Trip1_8

Play

EXIT

Select

RETURN

Info

(Thumbnail - Scene view)

Title view > Trip1

Contents Select

To display the information of the highlighted scene●

Scene

Trip1

Date & Time

19/02/2009 11:21

Duration

To display / hide the operation guide ●
and information banner
To operate the playback●

Trip1
19/02/2009 11:21

00:02.05 / 00:15.39

(Playback)

To the previous scene ●

To the next scene ●

BACK/

RETURN

SD CARD

ASPECT

MENU

EXIT

DVD/VCR

BACK/

RETURN

TV

OPTION

STTL

TV

To return to TV■

EXIT

SD CARD

or

To return to the ■
previous screen

BACK/

RETURN

Note

The structure of ●
titles and scenes
may vary depending
on the digital video
camera used.

Film icon will be displayed
if the file does not support
thumbnail view.

Media Player Video Title view

Trip1 Trip2 Trip3 Trip4 Trip5 Room Nature1

Nature2 Nature3 Nature4 Nature5 Nature6 2009_4 2009_7

2009_9

Access

EXIT

Select

Play Contents Select

RETURN

Info

(Thumbnail - Title view)

selected device name

Playback from Title view■

Playback of the selected title will start.

Select the title Start playback

select

Playback from the selected scene in the title (AVCHD or MPEG2)■

Playback will start from the selected scene to the end of the title.

Select the title Select the scene to start playback

select

access

To repeat playback

●

“Video Setup” (p. 64)

How to operate in the playback■

EXIT

RETURN

Title
Date & Time

Operation guide

To change aspect ●
(only for the 4:3 video content)

SPECT

To return to thumbnail ●
You can also use the following buttons. (p. 25)●

Set the position to “TV”

DVD/VCR

Information banner

TV

file format

Title

Date & Time

Number of scenes

Duration

1/15

Trip1

19/02/2009 11:21

00h15m39s

title number /
total title number

8

select

playback

The preview will start when the scene
is highlighted if it supports a preview.

SD Card

To off the preview ●

“Video Setup” (p. 64)

file format

1/8

scene number / total scene number

Trip1_1

00h04m12s

Rewind

Pause / Playback

Playback

Fast forward

Stop

red

green

62

To confirm or change the current status (if available)●

Example:

OPTION

Option Menu

Multi Audio Audio1
DivX Subtitle Subtitle1

To change the content in the current device■

“Change the contents” (p. 61)

change
select

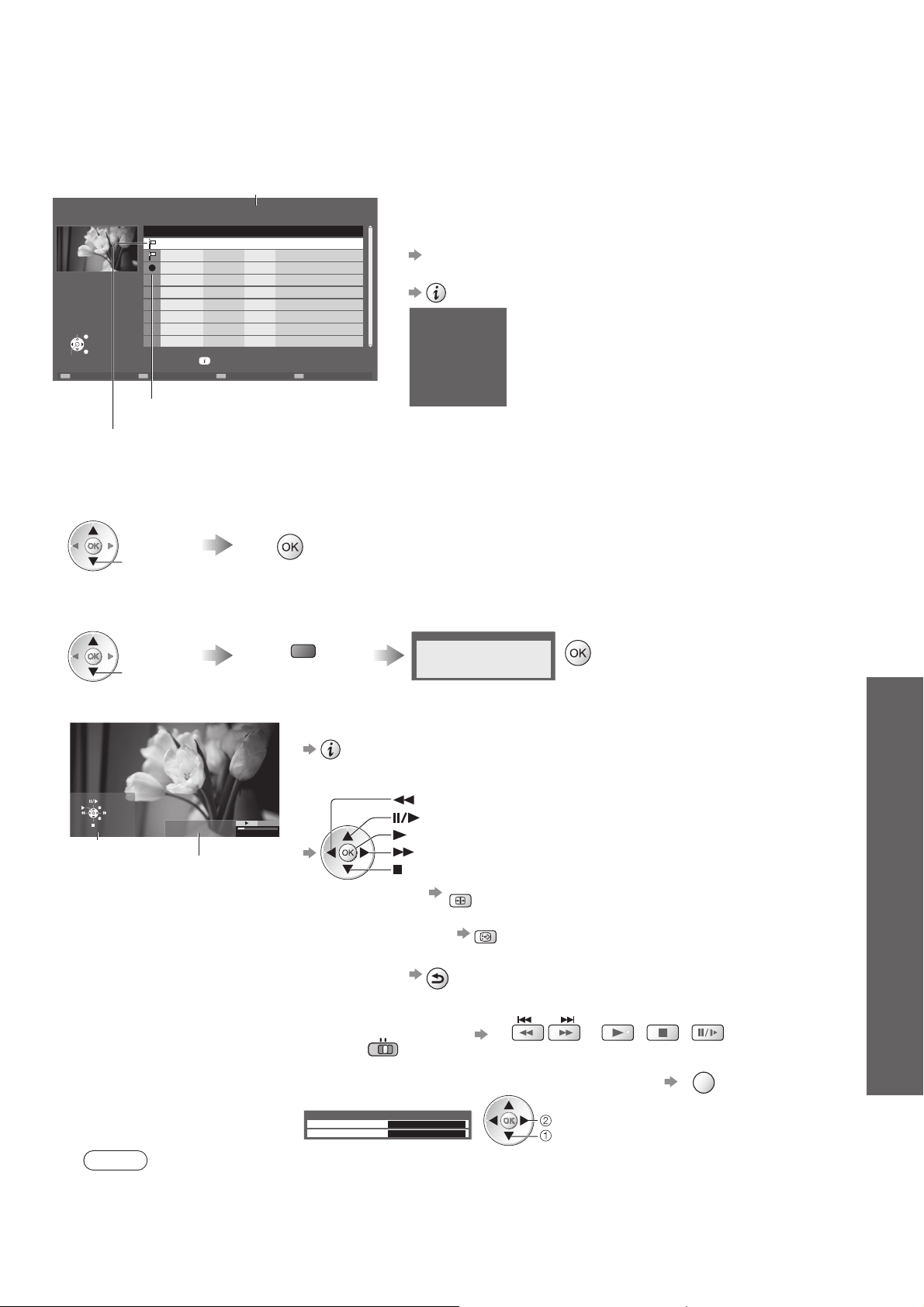

For registered USB HDD

Remaining capacity of the HDD

This value may not be accurate depending on the condition.●

Media Player USB HDD recordings Remaining Capacity 500GB (50%)

TitleDate

Wed 28/10

Sun 10/01

Fri 15/01

Time

12:00

13:30

13:50

Das Erste

News

Cinema

Channel

BBC 1

ITV

BBC 2

Contents list of the registered USB HDD will be displayed.

You can also access the contents list directry by using ●
VIERA TOOLS.

“How to use VIERA TOOLS” (p. 26)

To display the information of the highlighted content ●

Select

Play

Delete

EXIT

RETURN

Info

USB HDD 1

Channel :

DVB-T, BBC 1

Title :

Das Erste

Date & Time :

Wed 28/10/2009 12:00

Duration :

00:20

Content under recording

You can playback this content even if under recording.●

Content not played back

Once you playback the content, this icon will disappear.●

Playback the content from the list■

Select the content Start playback

select

Delete the selected content■

Select the content Delete the content Confirm

select

red

Delete

How to operate in the playback■

To display / hide the operation guide and information banner ●

To operate the playback●

EXIT

RETURN

Operation guide

Title

Das Erste

Date & Time

28/10/2009 12:00

00:02.05 / 00:15.39

(Playback)

Information banner

To change aspect ●

Rewind

Pause / Playback

Playback

Fast forward

Stop

DVB-T, BBC 1

Das Erste

Wed 28/10/2009 12:00

00:20

ASPECT

Using Media Player ●

Advanced

Note

Depending on the recorded programmes, some playback operations may not work properly.●

BACK/

RETURN

STTL

To display the subtitle ●
(if available)

To return to list ●
You can also use the following buttons. (p. 25)●

Set the position to “TV”

DVD/VCR

TV

(press and hold)

To confirm or change the current status (if available) ●

Example:

Option Menu

Multi Audio eng
Dual Audio eng

change
select

OPTION

63

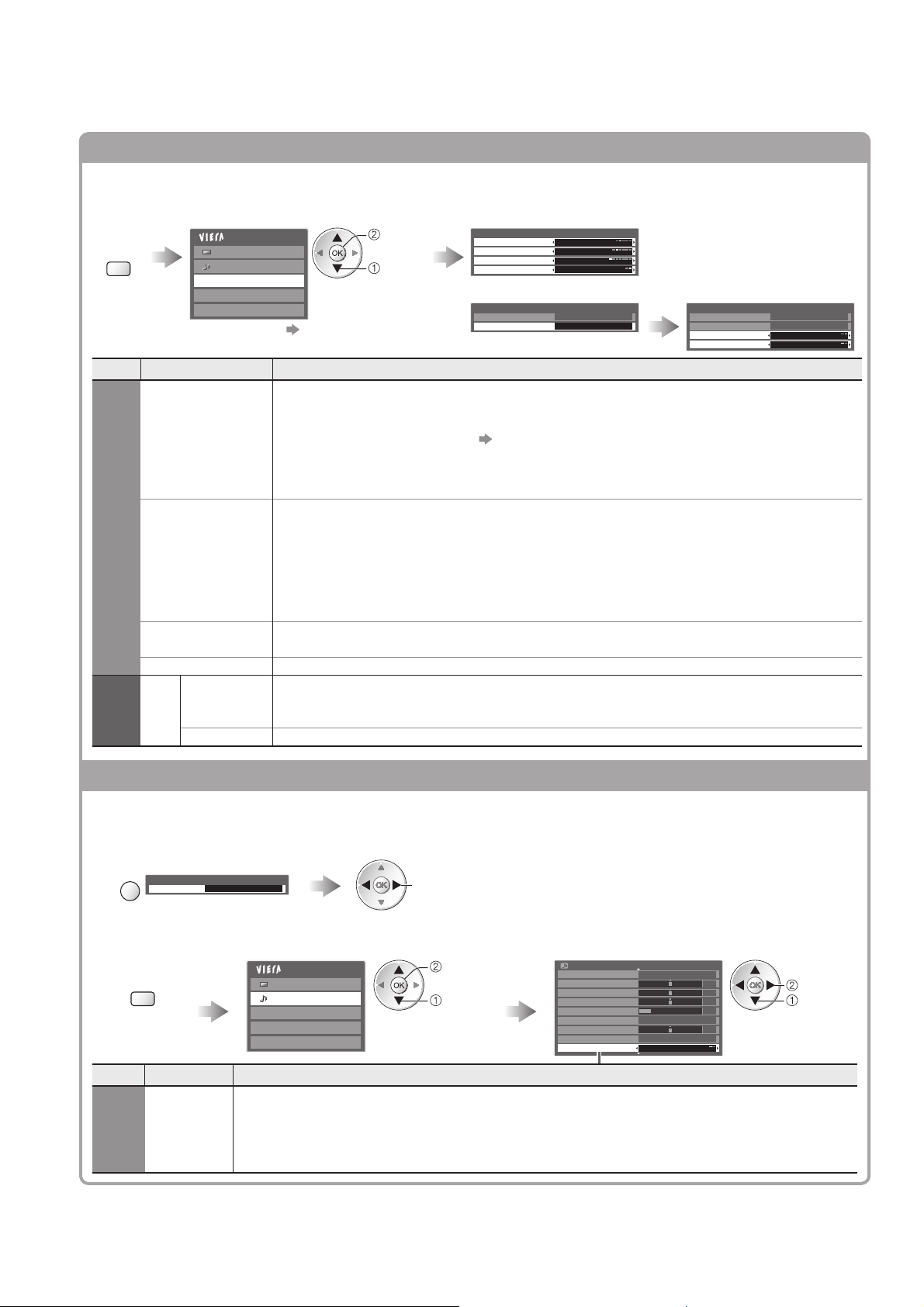

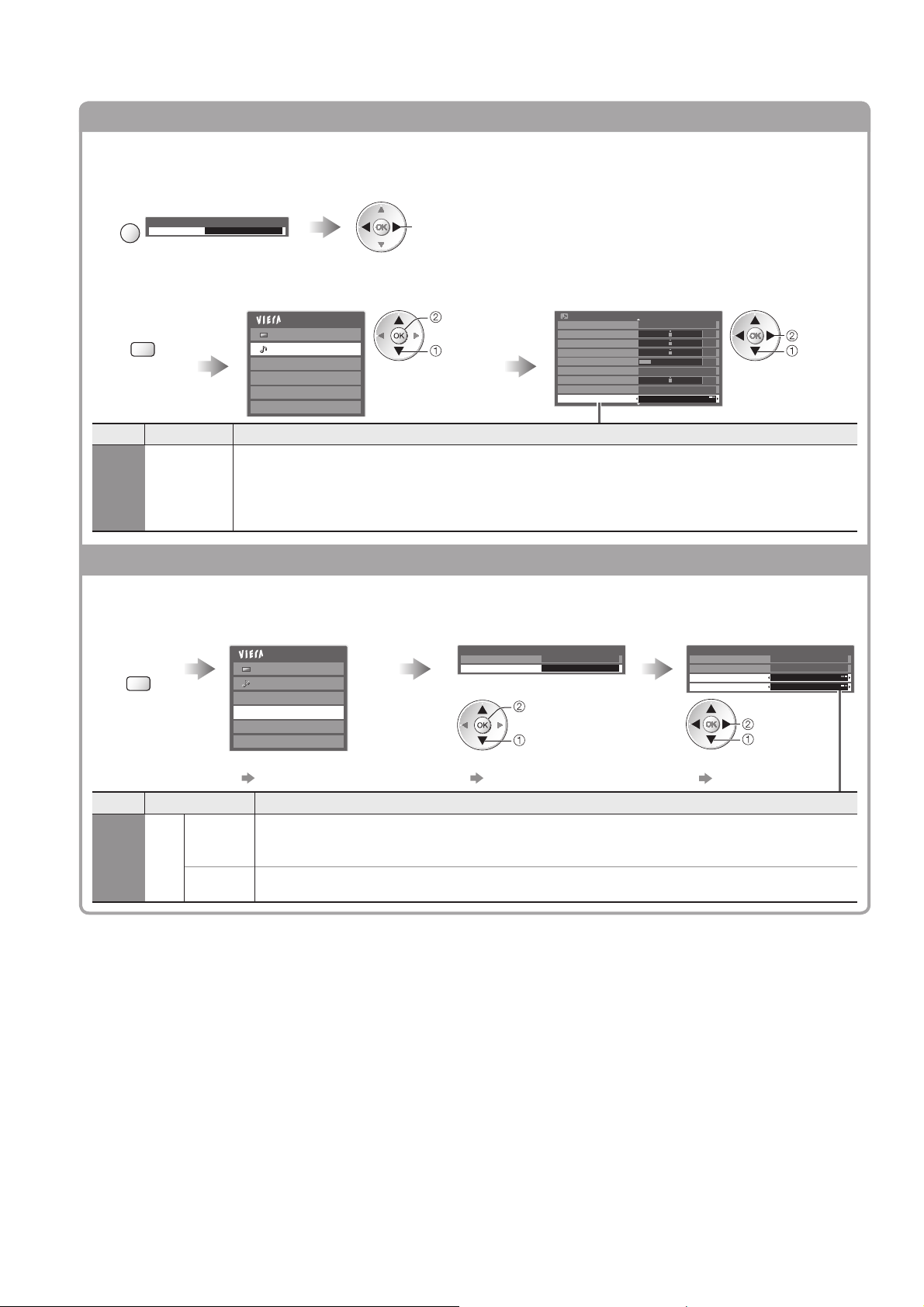

Using Media Player

Sound Settings

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT terminal.

■ (during playback)

To confirm or change the current sound status

Display the Option menu Change the sound (if the video has multiple audio signals)

Example:

OPTION

Option Menu

Multi Audio Stereo

(current sound status)

Audio output settings■

Display
the menu

MENU

Menu Item Adjustments / Configurations (alternatives)

Sound

SPDIF
Selection

Select “Sound” Select “SPDIF Selection” and set

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

Drive Select

SPDIF : A standard audio transfer file format
Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT terminal

(Auto / PCM)

Auto: Dolby Digital is output as Dolby Digital Bitstream. MPEG is output as PCM.
PCM

: Digital output signal is fixed to PCM.

change

access

select

It may take several seconds to change the sound.●

Sound Menu

Mode Music
Bass
Treble
Balance
Headphone Volume

Volume Correction
Speaker Distance to Wall Over 30cm

SPDIF Selection

OffSurround

Auto

1/2

0
0
0

11

0

set
select

Video Setup

Setup the settings for Video mode.

These settings are not available for the registered USB HDD.●
Display

the menu

MENU

Menu Item Adjustments / Configurations (alternatives)

Setup

Settings

Video

Other

Select “Video Setup” Select “Other Settings” Select the items and set

Video Setup Menu

Display Settings

Other Settings Access

access

select

Display Settings ●

p. 32

●

Video
Preview

Repeat

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

Drive Select

Other items

p. 28 - 30, 59, 61 and p. 65

Sets to start the preview of the title or scene in the thumbnail screen (Off / On)

Image may not be displayed for an instant in the thumbnail screen. Set the preview ●
“Off” to resolve this.

Playback repeat within the title (Off / On)

●

Only the selected file will be repeated for DivX contents.

Other Settings

Intelligent Frame Creation Max
16:9 Overscan On

Video Preview On
Repeat Off

set
select

Other items ●

p. 33

64

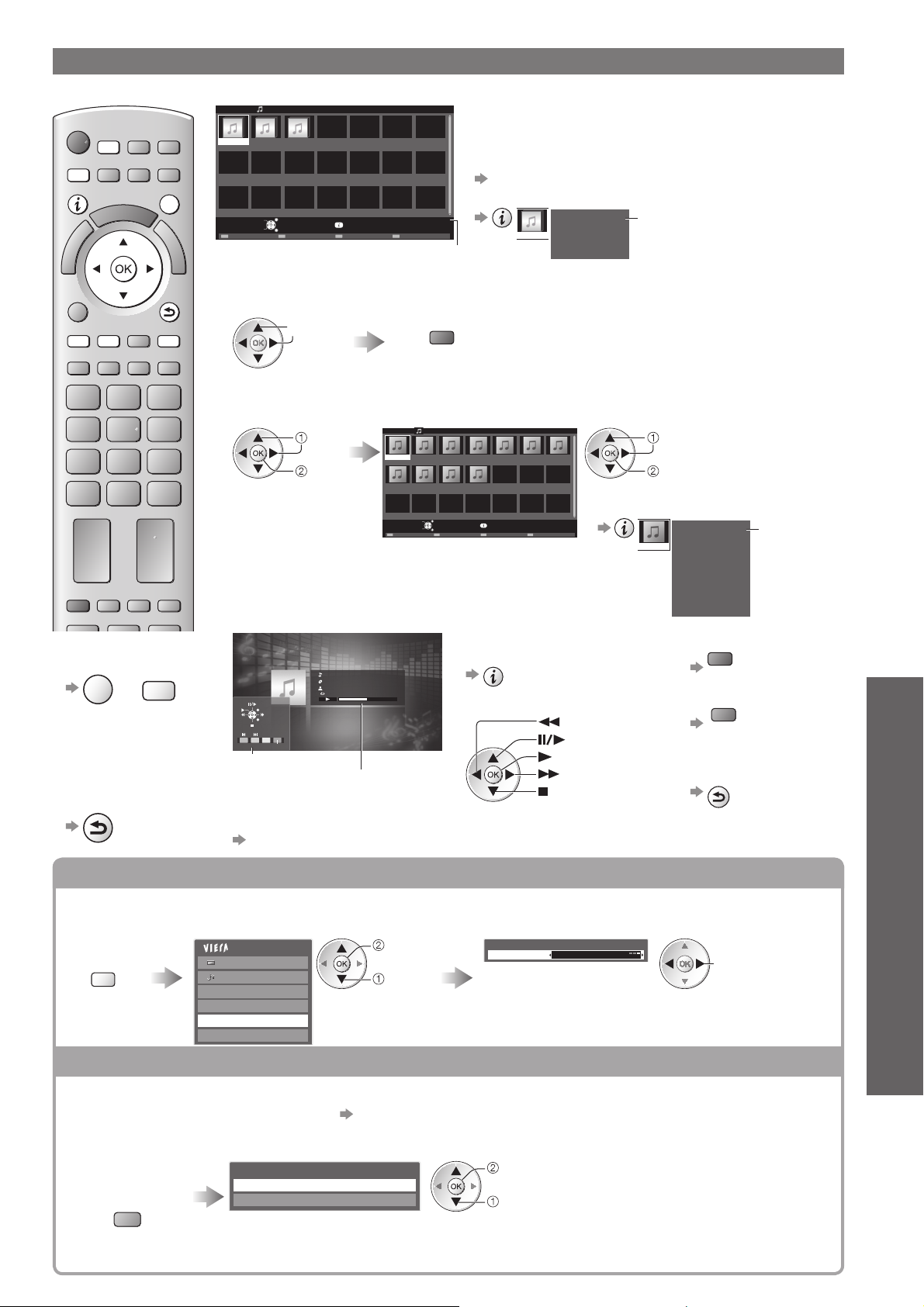

Music mode supports MP3 and AAC file format.

Media Player Music

SD CARD

MENU

EXIT

My Music_1 My Music_2 My Music_3

Access

EXIT

Select

RETURN

Info

selected device name

Playback from Folder view■

BACK/

RETURN

Playback all the files in the selected folder will start.

Select the folder Start playback

select

Playback from File view■

Playback of the selected file will start.

Select the folder Select the file to start playback

select

access

How to operate in the playback■

To return to TV■

EXIT

SD CARD

or

EXIT

RETURN

My Song_9

My Favourite
My Music_1

1

00:02.43 / 00:05.44

To return to ■

the previous
screen

BACK/

RETURN

USER BGM

Operation guide (Playback)

information banner

To change the content in the current device■

“Change the contents” (p. 61)

Music mode

Folder view

The thumbnail of music folders in the SD Card or USB
Flash Memory will be displayed.

You can also access Music mode directly by using ●
VIERA TOOLS

“How to use “VIERA TOOLS” (p. 26)

To display the information of the highlighted title●

SD Card

Contents SelectPlay Folder

red

Media Player Music Folder view > My Music_1

My Song_1 My Song_2 My Song_3 My Song_4 My Song_5 My Song_6 My Song_7

My Song_8 My Song_9 My Song_10 My Song_11

Play

EXIT

Select

RETURN

My Music_1

Info

Contents Select

To display / hide the operation ●
guide and information banner

To operate the playback●

Stop

Folder name

Number of files

1/3

My Music_1

11

To display the information of the ●
highlighted title

SD Card

Rewind

Playback

Fast forward

Pause / Playback

folder number /
total folder number

select

playback

Title

Album

Artist

Track No.

Duration

My Song_1

My Music_1

My Favorite

00h03m29s

My Song_1

To the previous track ●

red

To the next track ●

green

To return to thumbnail ●

BACK/

RETURN

1/11

file number /
total file number

1

Using Media Player ●

Advanced

Music Setup

Setup the setting for Music mode.

Display
the menu

MENU

Select “Music Setup” Set

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

Drive Select

access

select

Music Setup Menu

Repeat One

Folder : Playback repeat within the selected folder
One : Playback repeat of the selected one file

Set background music for Photo mode

You can register your favourite music as background music for Photo mode.

Select “User” in “Back Ground Music” ● “Photo Setup” (p. 61)
If you remove the device in which the registered music is stored, the setting of “User” will be reset.●

While playing
music, display the
selection screen

blue

Select “File” or “Folder” and set

Register Slideshow BGM?

File

Folder

set

select

File : The current music will be

registered as back ground music.

Folder : All the music in the current folder

will be registered as back ground
music.

set

65

Using Network Services

(DLNA / VIERA CAST)

DLNA

This TV is a DLNA Certified™ product.
DLNA (Digital Living Network Alliance) is a standard that makes DLNA Certified digital electronics easier
and more convenient to use on a home network. To learn more, visit www.dlna.org.
It allows you to share photos and videos stored in the DLNA Certified media server (for example, PC with
windows 7 installed, DIGA Recorder etc.) connected to your home network, and enjoy watching them on
the TV screen.

Applicable data format

■

Photo : JPEG (Sub-sampling 4:4:4, 4:2:2 or 4:2:0)

Video : MPEG-2 (PS format and TS format)

Media server■

Ensure the connected equipment has a DLNA Certified media server.
To use the PC, install the server software on the PC for obtaining a media server.
Store photos or videos into the media server, and then you can watch them on the TV.
“TwonkyMedia server 5.1.x” and “Windows 7” are the server software that has been tested for the performance
with this TV (current as of January, 2010).
For installing, read the manual of the server software.

By connecting a DLNA compatible DIGA Recorder to your home network, you can enjoy and control it as one of
the media servers.

Network connection■

Network setup■

DLNA operations■

®

Image resolution - 8 × 8 to 30,719 × 17,279 pixels

MOTION JPEG and Progressive JPEG are not supported.

●

AVCHD and DivX files are not supported by DLNA, but can be played by Media Player (p. 62).

●

Music files are not supported by DLNA, but MP3 and AAC files can be played back by Media Player (p. 65).●

The DLNA control function of Windows 7 is not supported with this TV.●
When a server software for the media server is installed on the PC, the data may be at risk of being accessed ●
by other people. Please take care of the settings and connections under the network circumstances at the
office, hotel or even at home when not using a router.

For details, read the manual of the DIGA Recorder.●

Example 1 or Example 2 in “Network connections” (p. 67)

p. 68 - 71

p. 72 - 74

66

VIERA CAST™

VIERA CAST is a gateway to the internet services unique to Panasonic.
By connecting the TV to the internet environment, VIERA CAST allows you to enjoy internet content on
the TV screen such as photos, videos, weather, etc. from VIERA CAST home screen.
You can access VIERA CAST home screen directly by pressing the VIERA CAST button on the remote
control.

Network connection

■

Example 1 or Example 3 in “Network connections” (p. 67)

Network setup■

p. 68 - 71

VIERA CAST operations■

p. 75

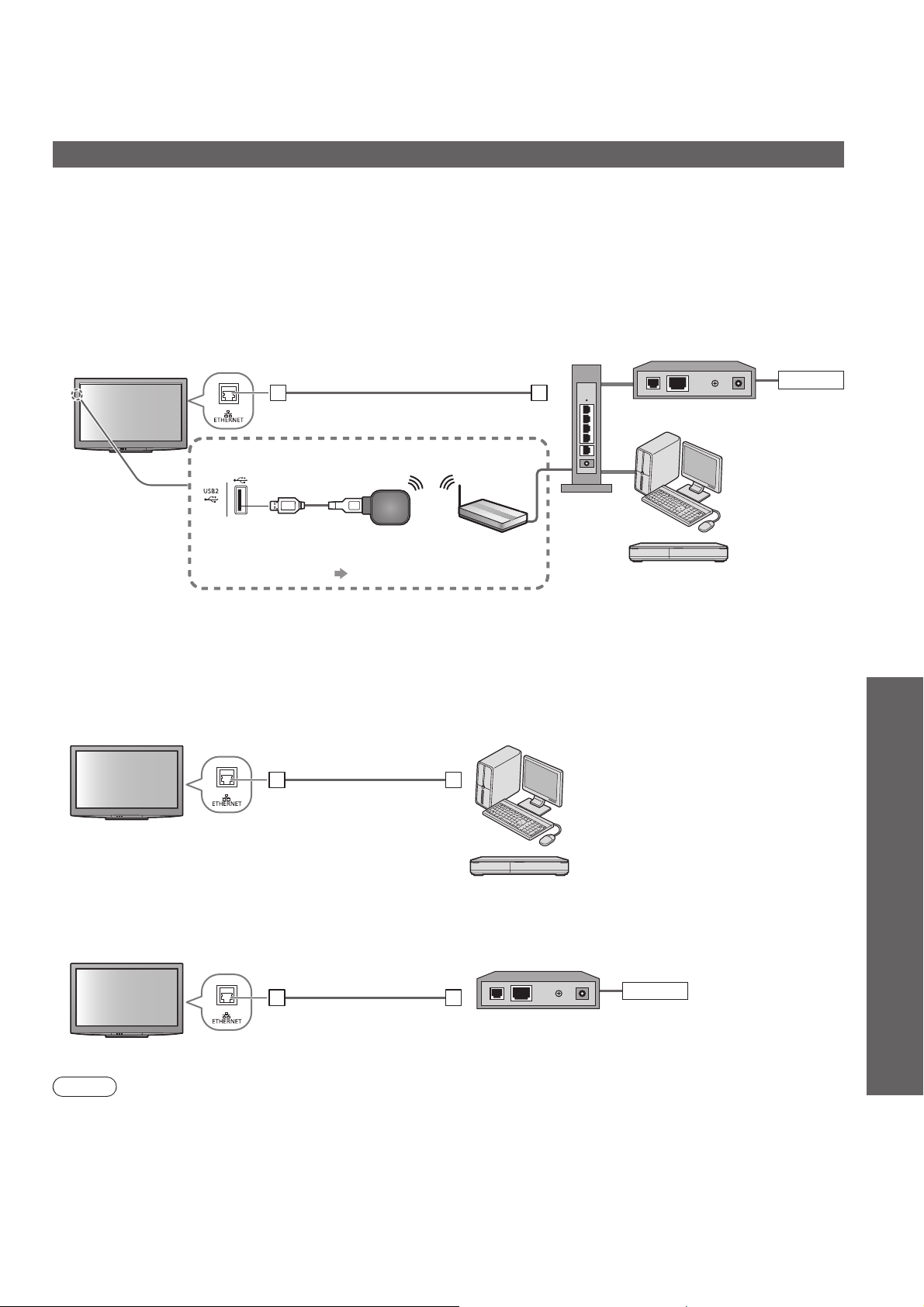

Network connections

To use only DLNA features, you can operate the features without Broadband network environment.
To use VIERA CAST features, you need a Broadband network environment.

If you do not have a Broadband network services, please consult your retailer for assistance.●
Confirm the terms and conditions of the contracts with your Internet Service Provider (ISP) or telecommunications ●
company.
Set up and connect any equipment required for the network environment.●
Required speed (effective): at least 1.5 Mbps for SD and 6 Mbps for HD picture quality, respectively.●
Read the manual of the network equipment, too.●

Example 1■

Internet

LAN cable (Shielded)

Modem

Wireless LAN connection■

Hub, Router

You can connect to the network by using
a Wireless LAN Adaptor : DY-WL10E-K
(optional accessory p. 6) and an access point.

Ensure to use a LAN straight cable for this connection.●
If your modem has no broadband router functions, use a broadband router.●
If your modem has broadband router functions but there are no vacant ports, use a hub.●
Ensure that the Broadband routers and hubs are compatible with 10BASE-T / 100BASE-TX.●
If you use the equipment compatible only with 100BASE-TX, category 5 LAN cables are required.●

Access point

Example 2■

You can connect the TV and the equipment directly to use DLNA features.

LAN cable (Shielded)

Ensure to use a LAN cross cable for this connection.●

or

DLNA Certified
media server
(for example, PC,
DIGA Recorder, etc.)

DLNA Certified
media server
(for example, PC,
DIGA Recorder, etc.)

Using Network Services ●

(DLNA / VIERA CAST)

Advanced

Example 3■

You can connect the TV and the telecommunication equipment directly to use VIERA CAST features.

LAN cable (Shielded)

Modem

Internet

Note

Depending on the ISP or telecommunications company, the required equipment and the internet connection ●
procedure are different. Ensure that you use the network equipment that are authorized by your ISP and
telecommunications company.
You cannot make settings for the network equipment on this TV. You may be required to make settings on your ●
computer.
Depending on the terms and conditions of the contracts with your ISP or telecommunications company, additional ●
fees may be charged or multiple connections to the internet may be impossible.
Please contact your ISP or telecommunications company if you require further assistance regarding the network ●
equipment.

67

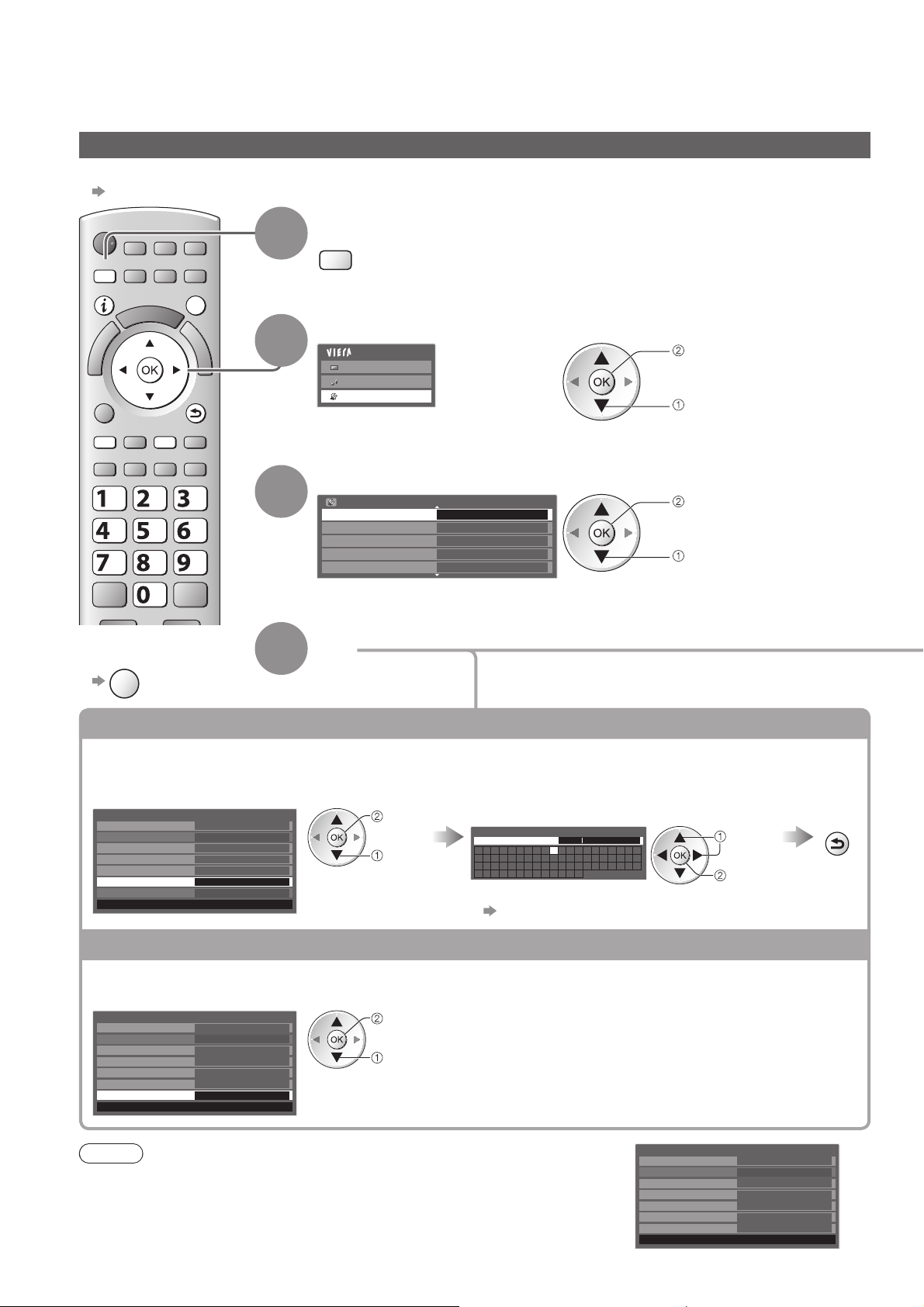

Using Network Services

(DLNA / VIERA CAST)

Network Setup

Ensure the connections are completed before starting Network Setup.●

“Network connections” (p. 67)

Display the menu

MENU

Select “Setup”

Main Menu


Sound

Setup

Select “Network Setup”

Setup Menu

AccessNetwork Setup

DivX® VOD

OffAdvance(isfccc)
System Menu
Other Settings

2/2

access

select

access

select

MENU

ghi

EXIT

RETURN

abc def

jkl

mno

tuvpqrs

wxyz

1

2

BACK/

3

To return to TV■

EXIT

4

Set

Edit the name of this TV

You can set your favourite name for this TV. This name will be used to display the name of this TV on the
screen of the other DLNA compatible equipment.

Select “VIERA Name” Edit the name

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings
Proxy Settings
Connection Test

VIERA Name VIERA

Software Update
MAC Address ab-cd-ef-gh-ij-kl

---

access

select

Set characters one by one

VIERA Name

Name VIERA

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

O P Q R S T

7 8 9 ! : #
o p q r s t

select

set

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 88)

Update TV’s software

Accesses the specific web site to update TV’s software and search if any software updates are available.

Select “Software Update”

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings
Proxy Settings
Connection Test
VIERA Name

Software Update

MAC Address ab-cd-ef-gh-ij-kl

---

VIERA
Access

Follow the on screen instructions●

access

select

Store

BACK/

RETURN

68

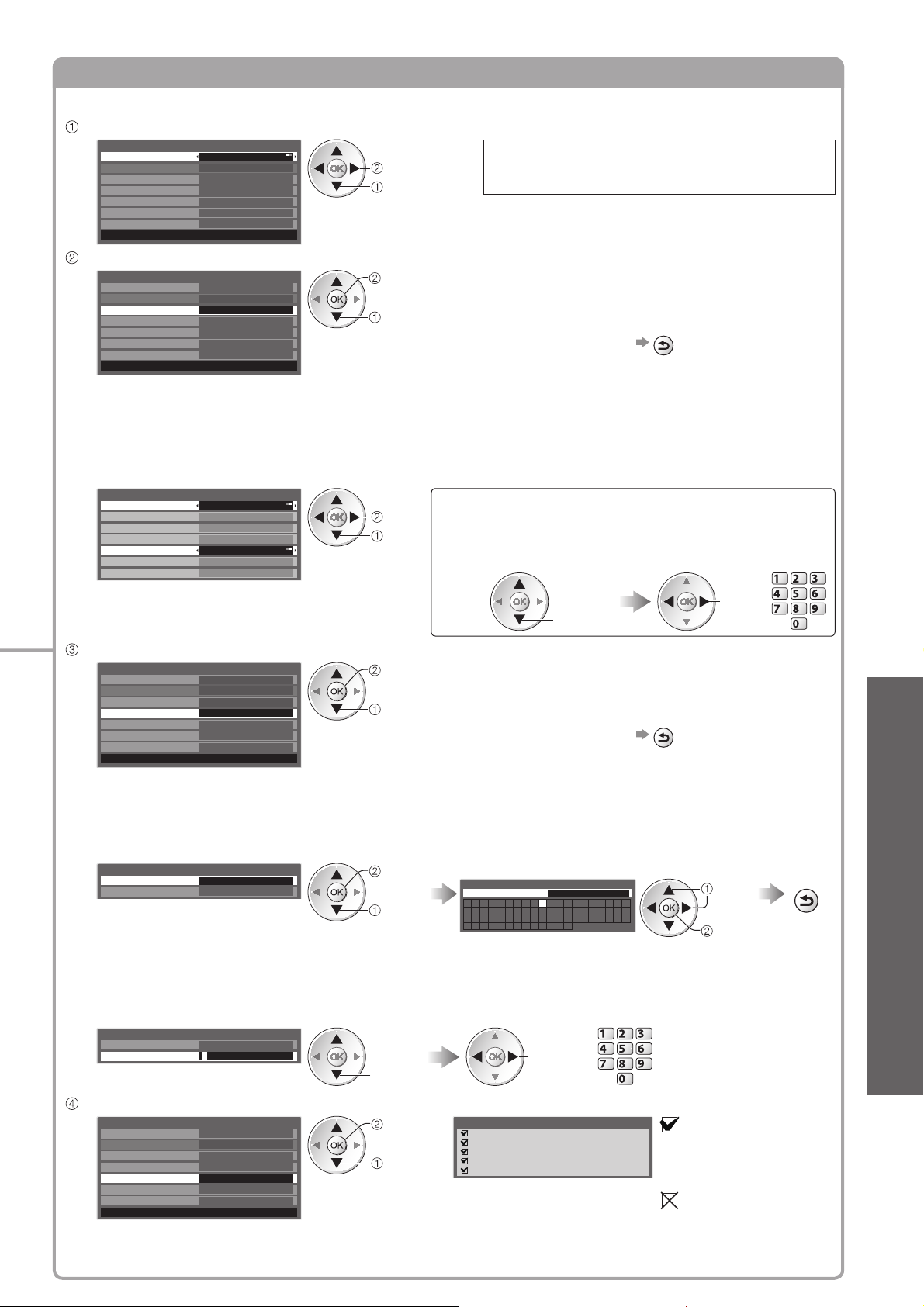

Note

MAC Address

MAC address is a unique address that identifies hardware in the network. ●
(for information only)

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings
Proxy Settings
Connection Test
VIERA Name VIERA
Software Update
MAC Address ab-cd-ef-gh-ij-kl

---

Network settings for the LAN Cable connection

This setting is for the network connection by using the LAN cable.

Select “Network Type” and set to “Wired”

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings
Proxy Settings
Connection Test
VIERA Name VIERA
Software Update
MAC Address ab-cd-ef-gh-ij-kl

---

set
select

Select “IP/DNS Settings” and set the items

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings

Proxy Settings
Connection Test
VIERA Name VIERA
Software Update
MAC Address ab-cd-ef-gh-ij-kl

---

Access

After settings, return to “Network Setup” screen

access

select

Acquire IP Address■
Acquire DNS Address■

Sets IP Address, Subnet Mask, Gateway, Primary DNS and Secondary DNS.
For most users, the recommended method of connection to your network is by using Auto feature.

Select “Acquire IP Address” and then set to “Auto”
Select “Acquire DNS Address” and then set to “Auto”

IP/DNS Settings

Acquire IP Address

IP Address
Subnet Mask
Gateway . . .

Acquire DNS Address Auto

Primary DNS . . .
Secondary DNS . . .

Auto
. . .
. . .

The available settings are ●
displayed automatically.

set
select

Manual settings

If you wish to set these functions manually, select “Manual”.
Select “IP Address”, “Subnet

Mask”, “Gateway”, “Primary
DNS” or “Secondary DNS”

If you make the network connection like
“Example2” (p. 67), you do not have to set
“Acquire DNS Address”, “Proxy” and “Proxy Port”.

BACK/

RETURN

Move the cursor and
enter the number

select

move

Using Network Services ●

(DLNA / VIERA CAST)

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Select “Proxy Settings” and set the items

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings

Proxy Settings

Connection Test
VIERA Name VIERA
Software Update
MAC Address ab-cd-ef-gh-ij-kl

---

Access

After settings, return to “Network Setup” screen

access

select

BACK/

RETURN

Proxy■

Sets Proxy address.

This is the address of the relay server that is connected to the target server instead of the browser and ●
sends data to the browser. Setting is required if specified by the provider.

Select “Proxy” Enter the address Store

Proxy Settings

Proxy

Proxy Port 0

access

select

Set characters one by one

Proxy

Host

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

O P Q R S T

7 8 9 ! : #
o p q r s t

You can set characters by using numeric buttons.●

select

set

Proxy Port■

Sets Proxy port number.

This number is also specified by the provider with the Proxy address.●

Select “Proxy Port” Move the cursor and enter the number

Proxy Settings

Proxy

Proxy Port 0

move

select

abc def

jkl

ghi

mno

tuvpqrs

wxyz

BACK/

RETURN

Advanced

Select “Connection Test” and access to test

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings
Proxy Settings

Connection Test

VIERA Name VIERA
Software Update
MAC Address ab-cd-ef-gh-ij-kl

---

Access

Performs automatic testing of the network
connection for the TV. (It takes a while to test.)

access

select

Connection Test

Check network cable connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection.

succeeded

:

The test is successful
and the TV is
connected to the
network.

failed

:

Check the settings
and connections,
and then perform this
function again.

69

Using Network Services

(DLNA / VIERA CAST)

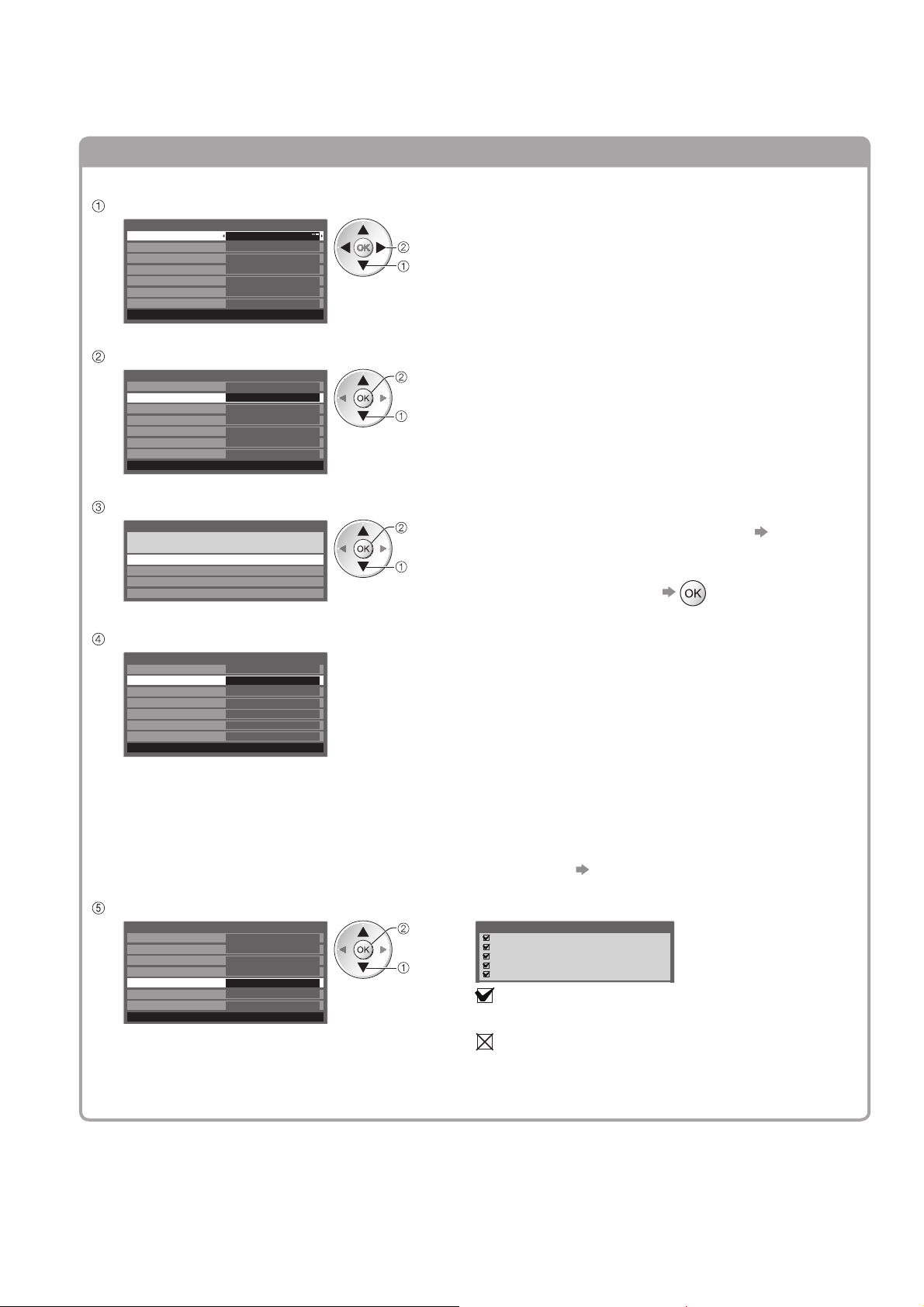

Network settings for the Wireless LAN connection

This setting is for the network connection by using Wireless LAN Adaptor. (Wireless LAN connection)

Select “Network Type” and set to “Wireless”

Network Setup

Network Type Wireless

Access Point Settings
IP/DNS Settings
Proxy Settings
Connection Test
VIERA Name VIERA
Software Update
MAC Address ab-cd-ef-gh-ij-kl

Select “Access Point Settings”

Network Setup

Network Type Wireless

Access Point Settings

IP/DNS Settings
Proxy Settings
Connection Test
VIERA Name VIERA
Software Update
MAC Address ab-cd-ef-gh-ij-kl

Select the connection type and set

Connection Type

Please select network connection type.

No settings

No settings

WPS(Push button)

WPS(PIN)

Search for access point

Manual

set
select

access

select

access

For details of each connection type ● p. 71

select

After settings, return to “Network Setup” screen

Confirm the connection status of “Access Point Settings”

Network Setup

Network Type Wireless

Access Point Settings

IP/DNS Settings
Proxy Settings
Connection Test
VIERA Name VIERA
Software Update
MAC Address ab-cd-ef-gh-ij-kl

Connected

- - - : “Wired” is selected in “Network Type”.
No adaptor : Wireless LAN Adaptor is not connected.
No settings : Setting for connecting to the access point has not been set.
Connecting... : Connecting to the access point in progress.
Connected : Wireless LAN connection to the access point succeeded

To display the current access point settings, press the OK

●

button.
To change the settings, select “No” on this screen.
Some access points do not allow access to the internet. ●
Perform “Connection Test” (below) to check if internet

connection is available.
USB
overcurrent : Overcurrent error

Select “Connection Test” and access to test

Network Setup

Network Type Wireless
Access Point Settings
IP/DNS Settings
Proxy Settings

Connection Test

VIERA Name VIERA
Software Update
MAC Address ab-cd-ef-gh-ij-kl

Connected

Access

access

select

Performs automatic testing of the network
connection for the TV. (It takes a while to test.)

Connection Test

Check access point connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection.

succeeded

:

The test is successful and the TV is connected to the
network.

failed

:

Check the settings and connections, and then perform
this function again.
If you continue to have difficulty, please contact your
internet service provider.

p. 93

70

WPS(Push button)■

WPS(Push button)

1) Please press the ‘WPS’ buttton on the access
point until its light flashes.

2) When light is flashing select ‘Connect’ on TV.

If you are unsure, please check the instruction
manual of the access point.

Connect

Press the WPS button on the access point until the light flashes.
And then, press the OK button to connect the Wireless LAN Adaptor and the
access point.

Ensure that your access point supports WPS for this setup.●
WPS: Wi-Fi Protected Setup●

Search for access point■

Access points found automatically are listed.

Available Access Points

SSIDNo. Wireless type Encrypt Reception

Access Point A 11n(2.4GHz)

1

Access Point B

2

Access Point C 11n(5GHz)

3

Encryption Key Setting

Connection will be made with the following settings:­SSID : Access Point A
Authentication type : WPA-PSK
Encryption type : TKIP

Please input the encryption key.

Encryption key

11n(5GHz)

Select your desired access point

access

select

: Encrypted access point

Access the encryption key input mode

If the selected access point is not encrypted, the confirmation screen will be ●
displayed. It is recommended to select the encrypted access point.

●

To search access points again
For the information of the ●

highlighted access point
To set manually ●

red

yellow

Using Network Services ●

(DLNA / VIERA CAST)

Access Point Settings

Encryption key

A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

Access Point Settings

Encryption key is set to:­XXXXXXXX

Select ‘Yes’ to confirm.
Select ‘No’ to change.

Yes No

WPS(PIN)■

Available Access Points

SSIDNo. Wireless type Encrypt Reception

Access Point A 11n(2.4GHz)

1

Access Point B

2

Access Point C 11n(5GHz)

3

WPS(PIN)

Please register the following PIN codes on the
access point.

PIN code : 12345678

Select ‘Connect’ after entering and saving
settings on the access point.

Connect

11n(5GHz)

O P Q R S T
7 8 9 ! : #
o p q r s t

Enter the encryption key of the access point
Set characters one by one Store

select

set

BACK/

RETURN

You can set characters by using numeric buttons.●

Select “Yes”

select
confirm

To re-enter the encryption key, select “No”.●

Manual■

Select your desired access point

access

select

Ensure that your access point ●
supports WPS for this setup.
To search access points again

●

yellow

For the information of the ●
highlighted access point

To set manually ●

red

Enter the PIN code to the
access point, and then select
“Connect”

You can setup SSID, authentication type,
encryption type, and encryption key manually.
Follow the on screen instructions and set
manually.

When you use 11n (5GHz) for the wireless ●
system between the Wireless LAN Adaptor
and access point, please select “AES” for
the encryption type.

Access Point Settings

Please input the SSID.

SSID XXXXXXX

SSID Setting

SSID is set to:­XXXXXXX

Select ‘Yes’ to confirm.
Select ‘No’ to change.

Authentication Type Settings

Connection will be made with the following settings:­SSID : XXXXXXX

Please select the authentication type.

Advanced

Yes No

WPA2-PSK

WPA-PSK

Shared key

Open

71

Using Network Services

(DLNA / VIERA CAST)

Using DLNA® features

Ensure the preparation of media server, network connections and network settings are completed.●

“Media server” (p. 66), “Network connections” (p. 67), “Network Setup” (p. 68 - 71)

Display the Input select menu

MENU

OPTION

ASPECT

INPUT

AV

EXIT

BACK/

RETURN

1

2

AV

Select “Media Server”

Input Selection

AV1
AV2/S
AV3
COMPONENT
PC
HDMI1
HDMI2
HDMI3
HDMI4
TV

Media Server

access

select

You can also access directly by using ●
VIERA TOOLS

“How to Use VIERA TOOLS” (p. 26)

TV

To return to TV■

EXIT

To return to ■
the previous
screen

BACK/

RETURN

3

4

Select one of the media servers you want to access

Media Server

A

SERVER1

5

SERVER2

g

SERVER3
DIGA

Select

EXIT

RETURN

Access

Available media servers

Info

(Media server list)

To display the information of the highlighted ●
media server or

4

Total listed number

access

select

blue

Select the file (photo or video) to be viewed

Media Server

SERVER1

P000102 2008-10-05 09:54
P000135 2008-11-20 13:18
P000180 2008-12-07 11:31
P000214 2008-12-10 15:20

Pixel

3648x2736

Format

Select

EXIT

RETURN

View

Slideshow Info

P000251 2008-12-19 12:39
P000276 2008-12-25 14:06
P000293 2009-01-06 13:52

JPEG

M10025 2009-01-12 15:56
M10042 2009-01-20 10:08
M10054 2009-01-28 14:48
M10078 2009-02-09 19:58

28

(File list)

Depending on the conditions of media ●
server, you may need to select the folder
before selecting the file.
To display the information of the highlighted ●

file or

access

select

blue

72

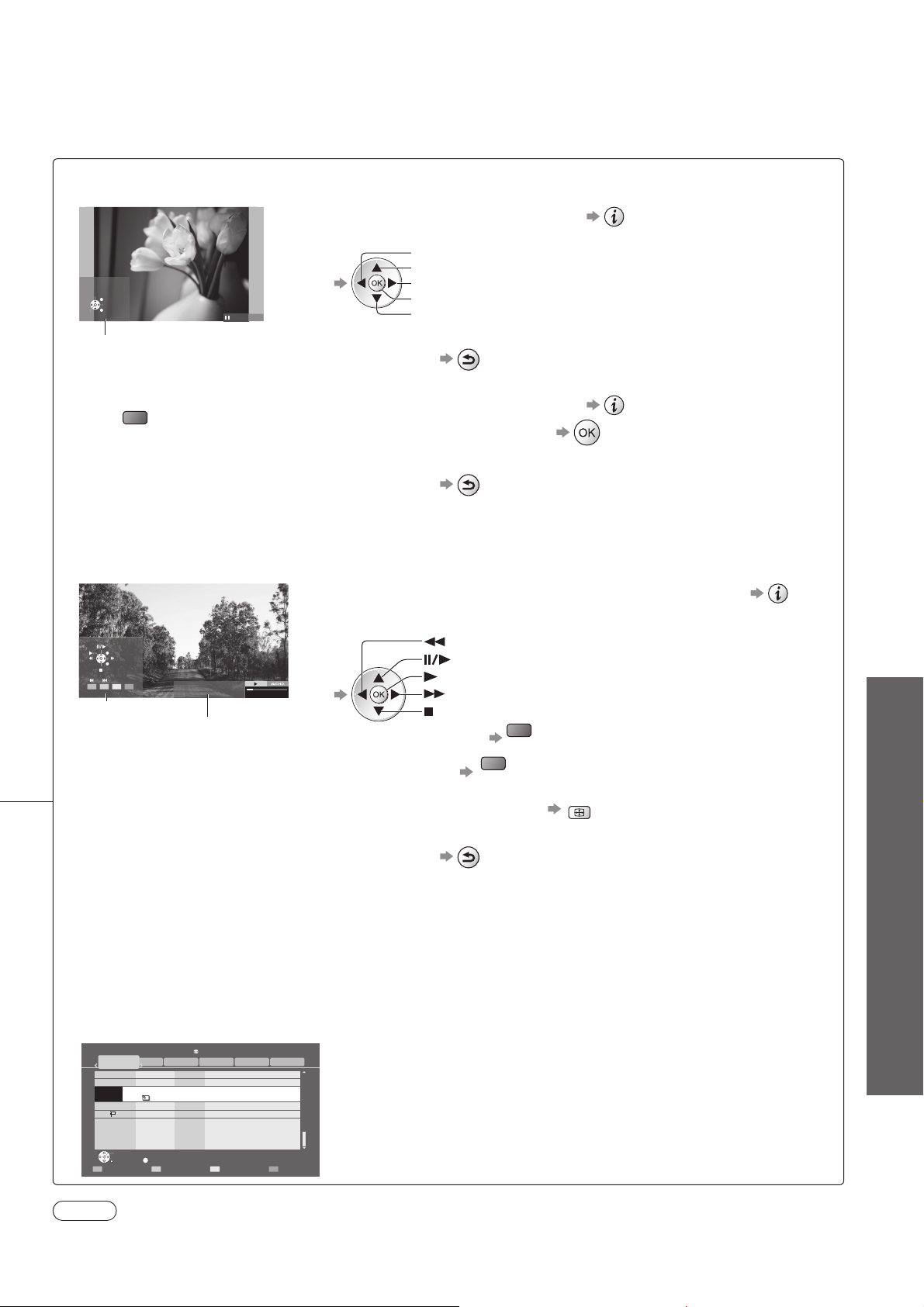

For photo file

Single view■ - Displayed one at a time

To display / hide the operation guide ●
To operate Single view●

To the previous photo

Single view

Rotate

EXIT
Select
RETURN

Slideshow

Operation guide

Single view

(Single view)

Rotate 90˚ (anti-clockwise)
To the next photo
Slideshow
Rotate 90˚ (clockwise)

BACK/

RETURN

To return to list ●

Slideshow■ - Slideshow will be started from the selected photo file and completed within the list.

Start Slideshow

red

●

To display / hide the operation guide
To pause (return to Single view) ●

BACK/

RETURN

To return to list ●

For video file

Playback ■ - Playback will start.

To display / hide the operation guide and information banner ●
To operate the playback●

EXIT

RETURN

Operation guide

Title

Trip1

Date & Time

19/02/2009 11:21

00:02.05 / 00:15.39

(Playback)

Information banner

To the previous scene ●

Rewind

Pause / Playback

Playback

Fast forward

Stop

red

Using Network Services ●

(DLNA / VIERA CAST)

To the next scene ●
To change aspect ●

green

ASPECT

(only for the 4:3 video content)

BACK/

RETURN

To return to list ●

For DIGA Recorder

Control the DIGA Recorder■

The screen of the DIGA Recorder will be displayed. You can control the functions of the DIGA Recorder with
this TV remote control according to the operation guide.

●

Before operating, register this TV on the DIGA Recorder.
For details, read the manual of the DIGA Recorder.●

Example:

DIRECT NAVIGATOR (Grouped Titles)

All

OK
RETURN

Note

You may select and playback the music file.●
Non-playable files are also listed but cannot be selected.●
Turn the TV off, and then on again when changing or reconnecting the network connection.●

Liberty TV FR Journal Télévisé / Météo

AV1

Bibel TV Bibel TV das Gespräch

WDR Aachen

WDR Wuppertal

OPTION

HDD

19.08(Wed)

19.08(Wed)

19.08(Wed) Start Time 11:01 Titles 27

18.08(Tue)

18.08(Tue)

WDR aktuell

WDR aktuell

Time Remaining 36:17 (DR)

Video (AVCHD)SportsSocial/EconomyMovieNot Viewed

Page 005/005

Delete TitleSelect

Advanced

73

Using Network Services

(DLNA / VIERA CAST)

Photo Setup (for photo contents) and Video Setup (for video contents)

Setup the settings for Photo and Video file operations.

Display
the
menu

MENU

Menu Item Adjustments / Configurations (alternatives)

Photo Setup

Setup

Video

Select “Photo Setup” or
“Video Setup”

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

access

select

Other items ● p. 28 - 33 and p. 65

Selects the back ground music while photo (Off / Type1 / Type2 / Type3 / User)

Type1, Type2 and Type3 are the fixed music each installed in this TV.

●

Back Ground
Music

User : Music data registered by yourself in Music mode will be played back.

● “Set background music for Photo mode” (p. 65)

To register the music
Only available music files can be registered.●
If no music has been registered or you change to the other media server, no ●
sound will be produced.

Selects the transition effect for switching the photo during the slideshow

(Off / Fade / Slide / Dissolve / Motion / Random)

Fade : The next photo fades in gradually.

Transition Effect

Slide : The next photo slides and appears from the left side.
Dissolve : The photo is replaced by an indefinite block unit.
Motion : The photo is replaced with enlarged, reduced, moved up or moved down.
Random : Each transition is selected at random.

Interval

Repeat Slideshow repeat (Off / On)

Settings

Other

Video
Preview

Selects slideshow interval (5 / 10 / 15 / 30 / 60 / 90 / 120 seconds)

This function is not available when “Transition Effect” is set to “Motion”.

●

Sets to start the preview of the title or scene in the thumbnail screen (Off / On)

Image may not be displayed for an instant in the thumbnail screen. Set the ●
preview “Off” to resolve this.

Repeat Playback repeat within the title (Off / On)

Select the items and set

Photo Setup Menu

Back Ground Music Type1
Transition Effect Fade
Interval 5 seconds
Repeat On

Select “Other Settings” Select the items and set

Video Setup Menu

Display Settings

Other Settings Access

Other Settings

Intelligent Frame Creation Max
16:9 Overscan On

Video Preview On
Repeat Off

Sound Settings (for video contents)

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT terminal.

■ (during playback)

To confirm or change the current sound status

Display the Option menu Change the sound (if the video has multiple audio signals)

Example:

OPTION

Option Menu

Multi Audio Stereo

(current sound status)

Audio output settings■

Display
the menu

MENU

Menu Item Adjustments / Configurations (alternatives)

Sound

SPDIF
Selection

Select “Sound” Select “SPDIF Selection” and set

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

SPDIF : A standard audio transfer file format
Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT terminal

(Auto / PCM)

Auto: Dolby Digital is output as Dolby Digital Bitstream. MPEG is output as PCM.
PCM

: Digital output signal is fixed to PCM.

change

access

select

It may take several seconds to change the sound.●

Sound Menu

Mode Music
Bass
Treble
Balance
Headphone Volume

Volume Correction
Speaker Distance to Wall Over 30cm

SPDIF Selection

OffSurround

Auto

1/2

0
0
0

11

0

set
select

74

VIERA CAST™

You can access a selection of internet services from VIERA CAST home screen. For example, YouTube,
Picasa Web Albums (current as of March, 2010).

VIERA CAST requires a broadband internet connection. Dial-up internet connections cannot be used.●
Ensure the network connections and network settings are completed.●

“Network connections” (p. 67), “Network Setup” (p. 68 - 71)

Access VIERA CAST

EXIT

RETURN

abc def

BACK/

Depending on the usage conditions, ●
it may take a while to read all the
data.

You can also access VIERA CAST ●
by using VIERA TOOLS

“How to Use VIERA TOOLS”

(p. 26)

Example:

Example:

Welcome to VIERA CAST™

VIERA CAST™ home screen is subject to change without notice.

The services through VIERA CAST™ are operated by their respective service providers, and service may

be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no

warranty for the content or the continuity of the services.

All features of websites or content of the service may not be available.

Don’t show this message again

ENTER

Some content may be inappropriate for some viewers.

Some content may only be available for specific countries and may be presented in specific languages.

Messages might be displayed before ●
VIERA CAST home screen.
Please read these instructions carefully
and follow the on screen instructions.

ghi

jkl

mno

Video communication ●

(ex. Skype™) requires an exclusive

tuvpqrs

wxyz

Communication Camera TY-CC10W
(optional accessory p. 6).
For details, read the manual of the

MORE

To return to TV■

BACK

Communication Camera.

EXIT

VIERA CAST home screen

How to operate VIERA CAST ■ (current as of March, 2010)

To go to the next level ● Select “MORE”

● Select “BACK”

To back to the previous level

To move the cursor / select the item

●

To access ●
To return to the previous screen ●

BACK/

RETURN

To return to VIERA CAST home screen ●

When the key words are displayed on colour bar ●

When options with numbers are displayed ●

red green yellow blue

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Setup menu●
(Items in the “Setup” may change

without notice.)

Customize
HomeScreen

My Account

Lock

Beep

Notices

Changes the position
of each services on
VIERA CAST home screen

Confirms or removes the
account information of the TV
you entered on VIERA CAST

Sets to restrict access to
some services

Sets beep sound On or Off
when operating VIERA CAST

Displays the information of
VIERA CAST

USB Keyboard■

You can input characters on VIERA CAST screen by using the USB Keyboard connected to the USB port.

●

You cannot use two or more keyboards simultaneously.

●

The USB Keyboard which requires the driver is not supported.

●

To change the language type

“USB Keyboard Layout” (p. 33)

Using Network Services ●

(DLNA / VIERA CAST)

Advanced

Note

Be sure to update the software when a software update notice is displayed on the TV screen. If the software is ●
not updated, you will not be able to use VIERA CAST.
You can update the software later manually

●

VIERA CAST™ home screen is subject to change without notice.
The services through VIERA CAST™ are operated by their respective service providers, and service may be ●
discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the
content or the continuity of the services.

●

All features of websites or content of the service may not be available.
Some content may be inappropriate for some viewers.●
Some content may only be available for specific countries and may be presented in specific languages.●
Depending on the connection environment, the internet connection may be slow or may not be successful.●
During the operation, audio signal is output from AV1, AV2, AUDIO OUT and DIGITAL AUDIO OUT terminals. ●
But no video signals are output. AV1 and AV2 can output audio signal if “AV1 / AV2 out” is set to “Monitor” in the
Setup Menu (p. 30).
You can set to restrict using VIERA CAST

● “Child Lock” (p. 46)

●

Turn the TV off, and then on again when changing or reconnecting the network connection.

“Software Update” in the Network Setup Menu (p. 68)

75

Q-Link

Link Functions

Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p. 78)
VIERA Link (HDAVI Control™) connects the TV and the equipment with VIERA Link function, and
enables easy control, convenient recording, playback, energy saving, creating home theatre, etc.,
without complicated setting. (p. 79 - 83)
You can use Q-Link and VIERA Link functions together.

This TV supports “HDAVI Control 5” function. But available features are depending on the connected equipment’s ●
version of HDAVI Control. Please refer to the manual of the equipment to confirm the version.
VIERA Link features may be available even with other manufacturers’ equipment supporting HDMI CEC.●

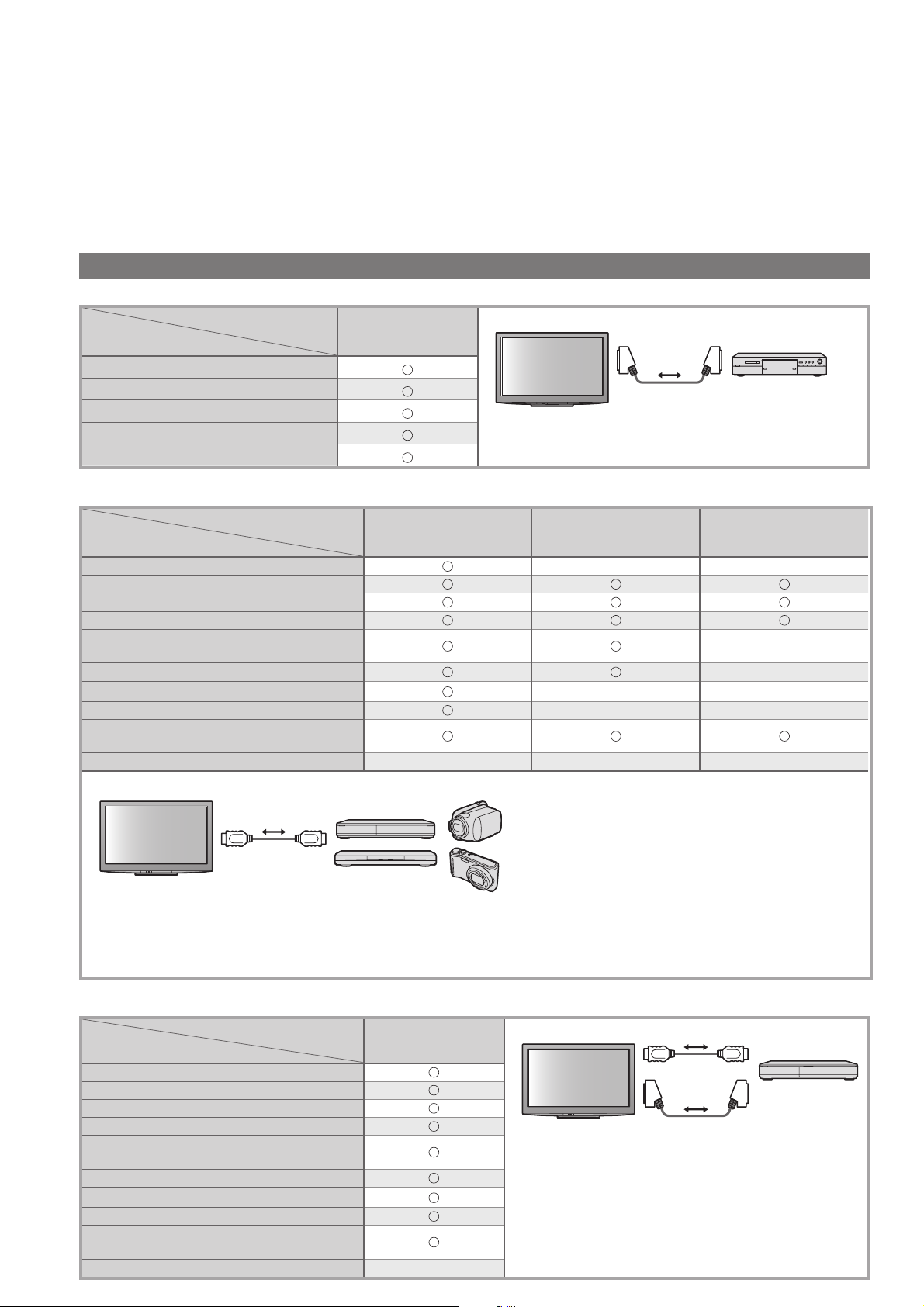

Summary of Q-Link and VIERA Link features

Q-Link (SCART connection only)■

Connected equipment

Features

Preset download

Easy playback

Power on link

Power off link

Direct TV Recording

VIERA Link (HDMI connection only)■

Connected equipment

Features

Preset download
Easy playback
Power on link
Power off link
Reduce unnecessary power consumption

in standby
Auto standby for unnecessary equipment
Pause Live TV programme
Direct TV Recording
Control the menu of the connected

equipment by VIERA remote control
Speaker control

Connection

DVD Recorder / VCR

with Q-Link function

DIGA Recorder with

VIERA Link function

–––

(

VIERA Link

)

Connection

SCART cable

DVD Recorder / VCR
with Q-Link function

Use fully wired SCART cable.●
Connect the DVD Recorder / VCR supporting Q-Link ●
to the TV’s AV1 or AV2 terminal via a SCART cable.

DVD Player /

Blu-ray Disc Player with

2

∗

3

∗

3

∗

2

∗

4

∗

2

∗

1

∗

VIERA Link function

––

3

∗

3

∗

––
––

1

∗

HD Video Camera /

LUMIX Camera with

VIERA Link function

–

–

1

∗

76

HDMI cable

Use fully wired HDMI compliant cable.●
Connect the equipment supporting VIERA Link to the TV’s HDMI1, HDMI2, HDMI3 or HDMI4 terminal via an ●
HDMI cable.
About HDMI cable for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of the ●
equipment.

VIERA Link (HDMI and SCART connections)■

Connected equipment

Features
Preset download
Easy playback
Power on link
Power off link
Reduce unnecessary power consumption

in standby
Auto standby for unnecessary equipment
Pause Live TV programme
Direct TV Recording
Control the menu of the connected

equipment by VIERA remote control
Speaker control

DIGA Recorder with
VIERA Link function

3

∗

3

∗

2

∗

4

∗

2

∗

1

∗

–

DIGA Recorder / DVD Player / Blu-ray Disc Player /
HD Video Camera / LUMIX Camera
with VIERA Link function

Connection

HDMI cable

DIGA Recorder
with VIERA Link

SCART cable

function

Use fully wired HDMI compliant cable.●
Connect the equipment supporting VIERA Link ●
to the TV’s HDMI1, HDMI2, HDMI3 or HDMI4
terminal via an HDMI cable.
Use fully wired SCART cable.●
Connect the equipment supporting VIERA Link to ●
the TV’s AV1 or AV2 terminal via a SCART cable.

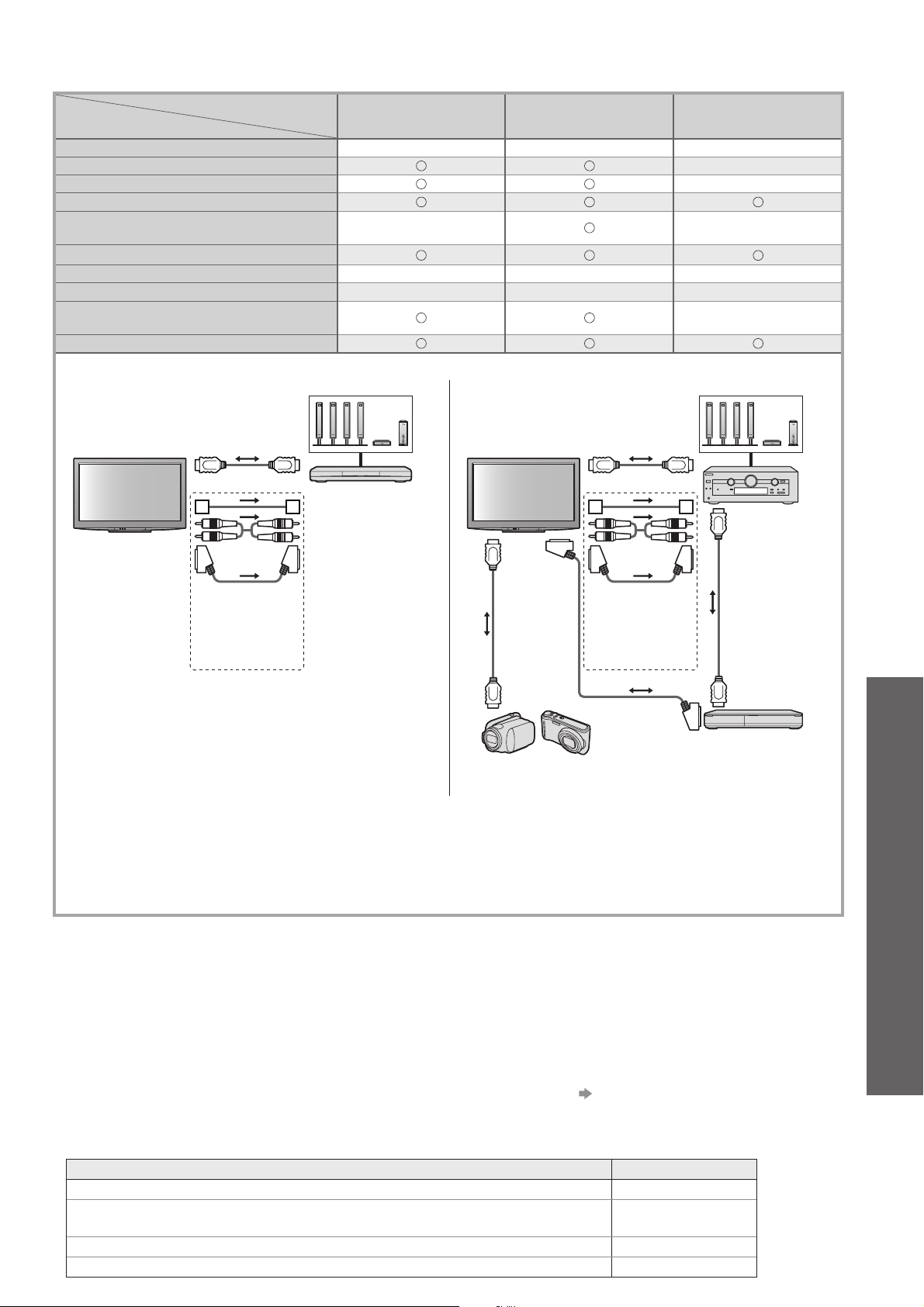

VIERA Link (HDMI and Audio out connections)■

Connected equipment

Features
Preset download
Easy playback
Power on link
Power off link
Reduce unnecessary power consumption

in standby
Auto standby for unnecessary equipment
Pause Live TV programme –––
Direct TV Recording –––
Control the menu of the connected

equipment by VIERA remote control
Speaker control

Connection

To use Player theatre / ●

Speaker system

Blu- ray Disc theatre:

Player theatre with

VIERA Link function

–––

5

∗

–

3

∗

6

∗

1

∗

To use Amplifier:●

Blu-ray Disc theatre with

VIERA Link function

5

∗

3

∗

3

∗

6

∗

1

∗

Amplifier with

VIERA Link function

–
–

–

3

∗

–

Speaker system

HDMI cable

Optical digital

audio cable

or

RCA cable

or

SCART cable

Use fully wired HDMI compliant cable.●

Player theatre /
Blu-ray Disc theatre
with VIERA Link
function

7

∗

HDMI
cable

HD Video Camera /
LUMIX Camera with
VIERA Link function

Connect the equipment supporting VIERA Link to the TV’s HDMI2, HDMI3 or HDMI4 terminal via an HDMI ●
cable.
Use fully wired SCART cable.●
If you use a SCART cable for audio output, connect the equipment supporting VIERA Link to the TV’s AV1 or ●
AV2 terminal and set “AV1 / AV2 out” to “Monitor” in the Setup Menu (p. 28).
Use any one of the optical digital audio cable, RCA cable and SCART cable for audio output from the TV.●

HDMI cable

Optical digital

audio cable

or

RCA cable

or

SCART cable

SCART cable

Amplifier with
VIERA Link
function

HDMI
cable

7

∗

DIGA Recorder with
VIERA Link function

(Q-Link / VIERA Link)

Link Functions ●

Advanced

∗

1: Available with the equipment which has “HDAVI Control 2 or later” function.

∗

2: Available with the equipment which has “HDAVI Control 3 or later” function.

∗

3: Available with the equipment which has “HDAVI Control 4 or later” function.

∗

4: Available with DIGA Recorder which has HDD.

∗

5: while playingback a disc

∗

6: except for watching a disc

∗

7: If the connected equipment has “HDAVI Control 5” function, you do not have to use this audio cable (Optical

digital audio cable, RCA cable or SCART cable). In this case, connect the equipment to the TV’s HDMI2
terminal via an HDMI cable.

VIERA Link Control of compatible equipment ■ (VIERA Link Control p. 82)

Table below displays maximum number of compatible equipment that can be controlled by VIERA Link Control. ●
This includes connections to equipment already connected to the TV.
For example, DIGA Recorder connected to Amplifier which is connected to the TV via an HDMI cable.

Type of the equipment Maximum number
Recorder (DIGA Recorder, etc.) 3
Player (DVD Player, Blu-ray Disc Player, HD Video Camera, LUMIX Camera,

Digital Camera, Player theatre, Blu-ray Disc theatre, etc.)
Audio system (Player theatre, Blu-ray Disc theatre, Amplifier, etc.) 1
Tuner (Set top box, etc.) 4

3

77

Q-Link

Link Functions

Q-Link

Preparations■

Connect the DVD Recorder / VCR with the following logos:●
“Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC”, “Easy Link”, “Megalogic” or “SMARTLINK”
Q-Link connection ● p. 76
Use fully wired SCART cable.●
Set up the DVD Recorder / VCR. Read the manual of the recorder.●
Q-Link terminal setup in the Setup Menu ● “Q-Link” (p. 30), “AV1 / AV2 out” (p. 30)
Download preset - channel, language, country / region settings ● “Preset download” (see below)

Features available■

Preset download

Channel, language, country / region settings can be downloaded to the recorder.

DVB-S and DVB-C channel settings cannot be downloaded.●
To download settings ● “Download” (p. 30) or “Auto Setup” (p. 37) or “Auto Setup” - when first using the TV

(p. 12 and p. 13)

Direct TV Recording - What you see is What you record

Recording the current programme in DVD Recorder / VCR immediately.

Available conditions:●

Current mode Using tuner How to record

DIRECT TV REC

EXIT

G

U

I

D

E

DIRECT TV REC

Analogue

DVB TV TV monitor out
AV
( watching recorder’s tuner)
AV
( watching recorder’s external input)
AV
( watching TV’s external input)

When Direct TV Recording is performed, the recorder is automatically ●
turned on if it is in Standby mode.
Changing channel or turning off the TV is available while the recorder is ●
recording from its own tuner.
Changing channel is not available while the recorder is recording from ●
the TV tuner.

(

VIERA Link

TV TV monitor out

Recorder Recorder’s tuner

Recorder Recorder’s tuner

–

– TV monitor out

)

Recorder’s

external input

78

To stop recording ■

Unlock the tuner

G

U

I

D

E

Press EXIT to unlock and stop recording

Tuner Locked

Continue

Unlock

EXIT

Power on link and Easy playback

Set Power on Link “On” in the Setup Menu to use this function “Power on Link” (p. 30)

When DVD Recorder / VCR starts playback or direct navigator / function menu for the equipment
are activated, the TV is turned on and input mode is switched automatically so that you can view the
content. (Only when the TV is in Standby mode.)

Power off link

Set Power off Link “On” in the Setup Menu to use this function “Power off Link” (p. 30)

When TV is set to Standby mode, the recorder is also automatically set to Standby. (Only when the
videocassette or disc is not active.)

This function will work even if the TV enters Standby mode automatically by auto power standby function.●

“DATA LOGIC” (a trademark of Metz Corporation)•
“Easy Link” (a trademark of Philips Corporation)•

Note

Some recorders are not applicable. Read the manual of the recorder.●

“Megalogic” (a trademark of Grundig Corporation)•
“SMARTLINK” (a trademark of Sony Corporation)•

VIERA Link “ Control™”

∗Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function.
This TV supports “HDAVI Control 5” function.
Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with
HDMI and SCART cables allow you to interface them automatically (p. 76 and p. 77).
These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.

Some functions are not available depending on the equipment’s version of HDAVI Control. Please confirm the ●
connected equipment’s version of HDAVI Control.
VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard ●
known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added.
As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.
Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function. ●
About applicable Panasonic equipment, consult your local Panasonic dealer.●

Preparations■

Connect the equipment supporting VIERA Link.●
VIERA Link connection ● p. 76 and p. 77
Use fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilized. ●
Recommended Panasonic’s HDMI cable part number:

RP-CDHS15 (1.5 m)• RP-CDHS30 (3.0 m)• RP-CDHS50 (5.0 m)•

Use fully wired SCART cable.●
Set up the connected equipment. Read the manual of the equipment.●
For optimal recording, the settings of the recorder may need to be changed. For details, read the manual of the ●
recorder.
Download preset - channel, language, country / region settings ● “Preset download” (see below)
Set VIERA Link On in the Setup Menu ● “VIERA Link” (p. 30)
Set up the TV●

After connection, turn the equipment on and then switch the TV on.

Select the input mode to HDMI1, HDMI2, HDMI3 or HDMI4 (p. 24), and make sure that an image is
displayed correctly.

This setup should be done each time when the following conditions occur:

for the first time•
when adding or reconnecting equipment•
when changing setup•

∗

(Q-Link / VIERA Link)

Link Functions ●

Features available■

Preset download

Channel, language, country / region settings can be downloaded to the recorder.

DVB-S and DVB-C channel settings cannot be downloaded.●
To download settings ● “Download” (p. 30) or “Auto Setup” (p. 37) or “Auto Setup” - when first using the TV

(p. 12 and p. 13)

Easy playback

Automatic Input switching - When the connected equipment is operated, input mode is switched
automatically. When it is stopped operating, input mode is returned.

Power on link

Set Power on Link “On” in the Setup Menu to use this function “Power on Link” (p. 30)

When the connected equipment starts playback or direct navigator / function menu for the equipment
are activated, the TV is automatically turned on. (Only when the TV is in Standby mode.)

Power off link

Set Power off Link “On” in the Setup Menu to use this function “Power off Link” (p. 30)

When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.

This function will work even if the TV enters Standby mode automatically by auto power standby function.●

Advanced

79

Link Functions

Features available■

Q-Link

(

VIERA Link

)

Reduce unnecessary power consumption in standby

Standby Power Save

Set Standby Power Save “On” in the Setup Menu to use this function

“Standby Power Save” (p. 30)

The power consumption in Standby mode of the connected equipment is controlled higher or lower in
synchronization with the TV On / Off state to reduce the consumption.
When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the power
consumption in Standby mode of the connected equipment is automatically minimized.
When the TV is turned on, the connected equipment is still in Standby mode, but the power consumption is
increased to make startup time early.

This function is effective if the connected equipment can change the power consumption in Standby mode ●
and is set to higher consumption.
This function will work when “Power off Link” is set to “On”.●

Auto standby for unnecessary equipment

Intelligent Auto Standby

Set Intelligent Auto Standby “On (With reminder)” or “On (No reminder)” in the Setup Menu to
use this function

“Intelligent Auto Standby” (p. 30)

When the TV is On, non-watched or non-used connected equipment goes into Standby mode automatically
to reduce the power consumption. For example, when the input mode is switched from HDMI, when Speaker
Selection is changed to “TV” (except for watching a disc).

If you select “On (With reminder)”, the on screen message will be displayed to be noticed before working this ●
function.
This function may not work properly depending on the connected equipment. If required, set to “Off”.●

Features available ■ (Using VIERA Link Menu)

Direct TV Recording - What you see is What you record

Direct TV Rec

Recording the current programme in DIGA Recorder immediately.

If you connect a variety of recorders including other manufacturers’ recorders at the same time, please ●
connect DIGA Recorder to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2
for two recorders, in this case connect DIGA Recorder to HDMI1.
If you cannot operate, check the settings and the equipment ●

“Summary of Q-Link and VIERA Link features” (p. 76 and p. 77), “Preparations” (p. 79)

If you wish to record the programme which DIGA Recorder does not support, SCART connection is required

●

and the programme is recorded by Q-Link function (p. 78).
Depending on the programme, SCART connection may be required to record.●
Changing channel or turning off the TV is available while the recorder is recording from its own tuner.●
Changing channel is not available while the recorder is recording from the TV tuner.●

Display “VIERA Link Menu”

1

DIRECT TV REC

EXIT

G

U

I

2

D

E

Select “Direct TV Rec” and start recording

VIERA Link Menu

Pause Live TV Start

Direct TV Rec

VIERA Link Control
Speaker Selection

You can also start recording directly ●

Start
Recorder
Home Cinema

start

select

DIRECT TV REC

To stop recording■

Select “Stop” in “Direct TV Rec” and access

VIERA Link Menu

Pause Live TV Start

Direct TV Rec

VIERA Link Control
Speaker Selection

You can also stop recording directly.●

Unlock the tuner

G

U

I

D

E

Stop
Recorder
Home Cinema

Press EXIT to unlock and stop recording

Tuner Locked

Continue

Unlock

EXIT

select

stop

80

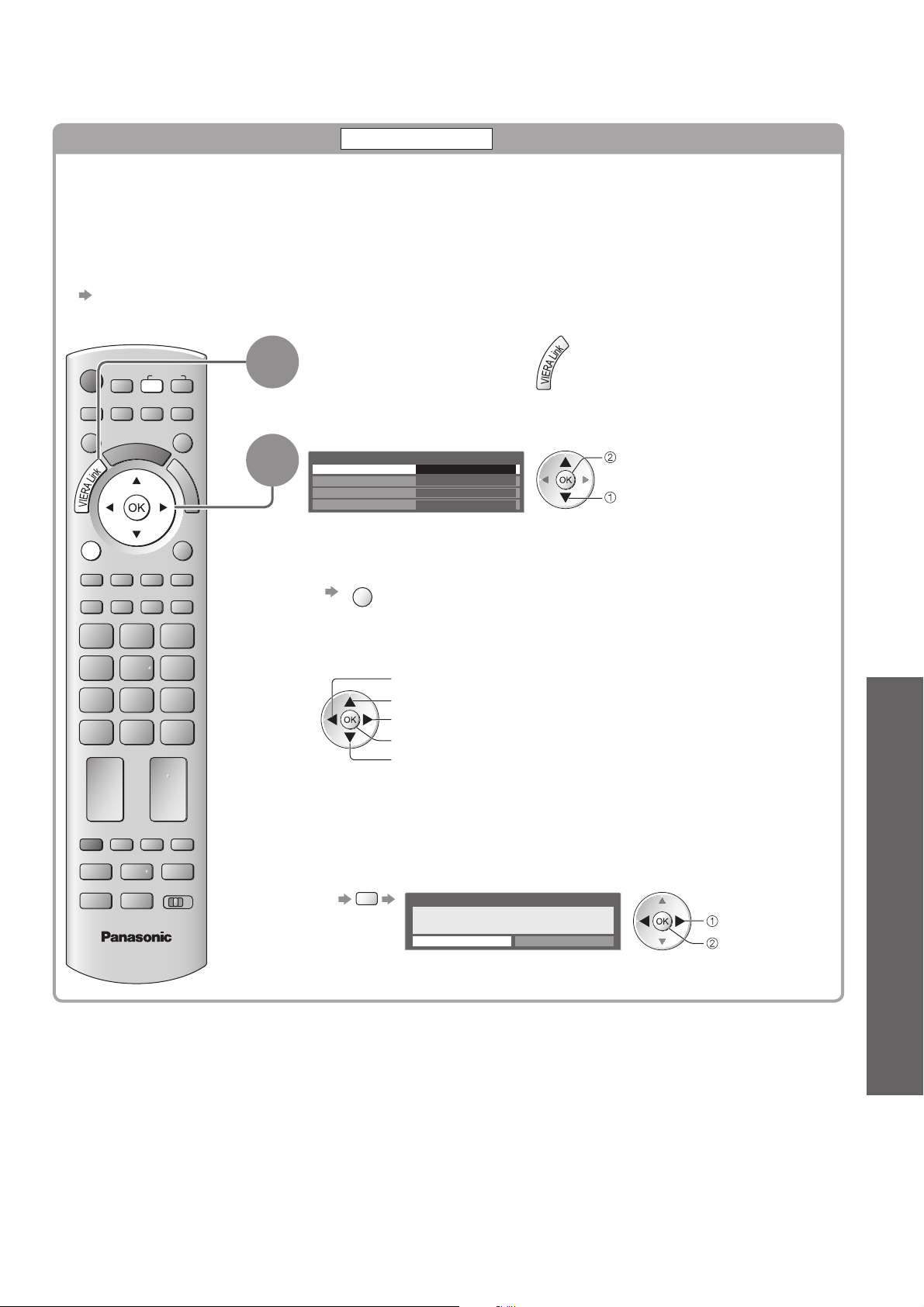

Features available ■ (Using VIERA Link Menu)

Pause Live TV programme

Pause Live TV

You can pause the live TV programme and resume later.
Live TV programme will be recorded on HDD of the connected DIGA Recorder.

This function is available with DIGA Recorder which has HDD.●
If you connect a variety of recorders including other manufacturers’ recorders at the same time, please ●

connect DIGA Recorder which has HDD to the TV’s lower HDMI terminal number. For example, if you use
HDMI1 and HDMI2 for two recorders, in this case connect DIGA Recorder which has HDD to HDMI1.

If you cannot operate, check the settings and the equipment ●

“Summary of Q-Link and VIERA Link features” (p. 76 and p. 77), “Preparations” (p. 79)

Access and pause the live TV programme

Display “VIERA Link Menu”

INPUT

TV

1

Select “Pause Live TV” and pause

pause

select

OPTION

2

VIERA Link Menu

Pause Live TV Start

Direct TV Rec
VIERA Link Control
Speaker Selection

Start
Recorder
Home Cinema

The TV picture will be paused.

Live TV programme is recorded on HDD from where it was paused.●
If the paused TV picture disappears after a few minutes●

OPTION

Follow the operation guide to operate Pause Live TV function.

●

(the paused picture will be restored)

(Q-Link / VIERA Link)

Link Functions ●

TV

To operate Pause Live TV■

search backward
pause
search forward
playback
stop

If you stop playback, the recorded programme ●
will be deleted from HDD.

Operations may be different ●
depending on the recorder. In this
case, follow the operation guide or
read the manual of the recorder.

To return to Live TV ■

(stop playback of Pause Live TV / cancel pause)

Select “Yes”

TV

If you stop playback or cancel pause, the recorded programme will be ●
deleted from HDD.

Pause Live TV

Yes

Stop Pause Live TV?

No

Advanced

select

stop

81

82

Q-Link

Link Functions

Features available ■ (Using VIERA Link Menu)

Control the menu of the connected equipment by VIERA remote control

VIERA Link Control

You can control some functions of the connected equipment with this TV remote control (point the
remote control at the TV’s signal receiver).

If you cannot operate, check the settings and the equipment ●

“Summary of Q-Link and VIERA Link features” (p. 76 and p. 77), “Preparations” (p. 79)

For details of the operations for the connected equipment, read the manual of the equipment.●

Access and operate the menu of the equipment

Display “VIERA Link Menu”

(

VIERA Link

)

1

Select “VIERA Link Control”

VIERA Link Menu

Pause Live TV Start
Direct TV Rec

VIERA Link Control

Speaker Selection

Start
Recorder
Home Cinema

select

Select the equipment you want to access

The type of the connected equipment is displayed.
Select the type of the equipment and access.

VIERA Link Menu

Pause Live TV Start
Direct TV Rec

VIERA Link Control

Speaker Selection

Recorder / Player / Home Cinema / Video Camera / LUMIX /
Digital Camera / Other

Start
Recorder
Home Cinema

select

access

You can also access directly by using VIERA TOOLS ●

“How to Use VIERA TOOLS” (p. 26)

The displayed item may vary depending on the connected ●
equipment.
“Home Cinema” means Player theatre, Blu-ray Disc theatre or ●
Recorder theatre.
“Other” means Tuner set top box.●

The menu of the accessed equipment

(Input mode will be changed automatically)

Operate the menu of the equipment

Available VIERA remote control buttons:
(depending on the connected equipment)

Set the position to “TV”

DVD/VCR

TV

EXIT

Follow the operation guide

To display the operation guide ●
If other manufacturers’ equipment is

OPTION

G

U

I

D
E

BACK/

RETURN

accessed, Setup / Contents Selection

TEXT

STTL

abc def

jkl

ghi

mno

tuvpqrs

wxyz

menu may be displayed.
When the key words are displayed on ●

colour bar

red green yellow blue

Note

Some operations may not be available ●

REC

PROGRAMME

DVD/VCR

TV

depending on the equipment. In this case
use its own remote control to operate the
equipment.

OPTION

If multiple recorders or ■
players are connected

VIERA Link Menu

Pause Live TV Start
Direct TV Rec

VIERA Link Control

Speaker Selection

Start
Recorder2
Home Cinema

Recorder1-3 / Player1-3

The number is given from
the TV’s lower HDMI terminal
number connected to the same
type equipment. For example,
two recorders to HDMI2
and HDMI3, in this case the
recorder connected to HDMI2
is displayed as “Recorder1”,
and the recorder connected
to HDMI3 is displayed as
“Recorder2”.

If you access ■
non-VIERA Link equipment

VIERA Link Menu

Pause Live TV Start
Direct TV Rec

VIERA Link Control

Speaker Selection

Start
Recorder
Home Cinema

The type of the connected
equipment is displayed.
You can access the menu
of the equipment. But you
cannot operate it. Use its own
remote control to operate the
equipment.

2

3

4

Features available ■ (Using VIERA Link Menu)

Speaker control

You can control the theatre speaker with this TV remote control (point the remote control at the TV’s
signal receiver).

If you cannot operate, check the settings and the equipment ●

“Summary of Q-Link and VIERA Link features” (p. 76 and p. 77), “Preparations” (p. 79)

Access and control the speaker volume

Speaker Selection

Display “VIERA Link Menu”

1

Select “Speaker Selection”

VIERA Link Menu

2

3

Pause Live TV Start
Direct TV Rec
VIERA Link Control

Speaker Selection

Set to “Home Cinema” or “TV”

Start
Recorder
Home Cinema

select

set

(Q-Link / VIERA Link)

Link Functions ●

TV

Home Cinema■

Player theatre, Blu-ray Disc theatre or Amplifier will be

automatically turned on if it is in Standby mode and the sound is
from theatre speakers connected to the equipment.

Volume up / down ●

Mute ●

The sound of TV speakers is mute.●
When the equipment is turned off, TV speakers will be active.●

TV■

TV speakers are active.

Note

If you wish to enjoy the multi-channel sound (e.g. Dolby Digital 5.1ch) via an ●
Amplifier, connect with HDMI cable and Optical digital audio cable (p. 77), and
then select “Home Cinema”. If your Amplifier has “HDAVI Control 5” function, you
can connect only with HDMI cable. In this case, connect your Amplifier to the TV’s
HDMI2 terminal.
To enjoy the sound from the DIGA Recorder in multi-channel sound, connect an
HDMI cable from the DIGA Recorder to the Amplifier (p. 77).

Advanced

Note

These functions may not work properly depending on the connected equipment.●
Image or sound may not be available for the first few seconds when Input mode is switched.●
Easy playback may be available by using the remote control for Player theatre, Blu-ray Disc theatre or Amplifier. ●
Read the manual of the equipment.
“HDAVI Control 5” is the newest standard (current as of December, 2009) for HDAVI Control compatible ●
equipment. This standard is compatible with conventional HDAVI equipment.
To confirm this TV’s version of HDAVI Control ● “System Information” (p. 33)

83

External Equipment

These diagrams show our recommendations for connection of your TV to various pieces of equipment.
For other connections, consult the instructions for each piece of equipment, the table below, and the
specifications (p. 95).

Satellite dish

To enjoy the sound from the external
equipment in multi-channel sound
(e.g. Dolby Digital 5.1ch), connect the
equipment to the amplifier.
For the connections, read the manuals
of the equipment and amplifier.

To listen with speakers

Optical digital

or

audio cable

RCA cable

Amplifier with
speaker system

PC

Computer

Conversion adapter
(if necessary)

To watch DVDs

HDMI equipment

“HDMI connection” (p. 89)

DVD Recorder

(Viewing)

(Listening)

(Listening)

Satellite cable

Fully wired HDMI
compliant cable

Terrestrial
aerial

Fully wired

SCART cable

DVD Player

Types of connectable equipment to each terminal■

Recording / Playback
(equipment)

To record / playback videocassettes / DVDs
(VCR / DVD Recorder)

To watch DVDs (DVD Player)
To watch camcorder images (Video camera)
To watch cable broadcasts (Set top box)
To play games (Game equipment)
To use amplifier with speaker system
To use Network services
USB HDD Recording
Q-Link

Terminal

(Viewing)

To record /

playback

DVD Recorder / VCR

AV1 AV2 AV3

Side panel

(

of the TV

or

RF
cable

)

84

VIERA Link

Direct TV Recording

: Recommended Connection

∗

1 : applicable if your amplifier has ARC (Audio Return Channel) function

(with HDMI) (with HDMI)

Rear of the TV

USB devices

To watch

cable broadcasts

Fully wired HDMI
compliant cable

Fully wired SCART cable

Cable

Set top box

Camcorder /

Game equipment

USB cable

(Viewing)

(Listening)

LAN cable (Shielded)

HDMI 4

AV 3

V

L

R

Hub or
Router

Camcorder /

HDMI equipment

Fully wired HDMI
compliant cable

Network

Internet

Modem

External Equipment ●

Headphones

COMPONENT AUDIO OUT DIGITAL AUDIO OUT ETHERNET

(M3 stereo mini plug)

To adjust volume●

“Headphone Volume” in the

Sound Menu (p. 29)

USB

12341 2

1

∗

Advanced

85

Technical Information

Auto Aspect

The optimum size and aspect can be chosen automatically, and you can enjoy finer images. (p. 18)

Aspect Control Signal■

“WIDE” will appear in the top left of the screen if a Widescreen signal (WSS) or a Control signal through SCART /
HDMI terminal is found.
The aspect will switch to the appropriate 16:9 or 14:9 widescreen ratio.
This function will work in any aspect mode.

Aspect Control Signal

Input terminal Input signal format

Satellite DVB-S

Cable
RF

AV1 (Composite)
AV2 (Composite or S-Video)
AV3

COMPONENT

HDMI1
HDMI2
HDMI3
HDMI4

DVB-C
DVB-T
PAL B, G, H, I
PAL D, K
SECAM B, G
SECAM L, L’
SECAM D, K
PAL 525/60 6.5 MHz –
PAL 525/60 6.0 MHz –
PAL 525/60 5.5 MHz –
M.NTSC 6.5 MHz –
M.NTSC 6.0 MHz –
M.NTSC 5.5 MHz –
PAL
SECAM
PAL 525/60 –
M.NTSC –
NTSC –
525 (480) / 60i –
525 (480) / 60p –
625 (576) / 50i
625 (576) / 50p
750 (720) / 60p –
750 (720) / 50p –
1,125 (1,080) / 60i –
1,125 (1,080) / 50i –
525 (480) / 60i –
525 (480) / 60p –
625 (576) / 50i –
625 (576) / 50p –
750 (720) / 60p –
750 (720) / 50p –
1,125 (1,080) / 60i –
1,125 (1,080) / 50i –
1,125 (1,080) / 60p –
1,125 (1,080) / 50p –
1,125 (1,080) / 24p –

Auto mode■

Auto mode determines the best aspect ratio to fill the screen. It does this using a four step process (WSS,
Control signal through SCART / HDMI terminal, Letterbox detection, or Justify to fill the screen) to determine.
This process may take several minutes, depending on the darkness of the image.
Letterbox detection: If black bands at the top and bottom of the screen are detected, Auto mode chooses the
best ratio and expands the image to fill the screen.
If no aspect signals are detected, Auto mode enhances the image for optimum viewing pleasure.

Note

The ratio varies depending on the programme, etc. If the ratio is out of the standard 16:9, black bands at the top ●
and bottom of the screen may appear.
If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the ●
tracking of the VCR. Read the manual of the VCR.

Widescreen signal
(WSS)

Control signal
through SCART (pin8) / HDMI terminal

86

SD Card

Use an SD Card which meets SD standards. If not, it may cause the TV to malfunction.●
Do not remove the card while the TV is accessing data (this can damage card or TV).●
Do not touch the pins on the back of the card.●
Do not subject the card to a high pressure or impact.●
Insert the card in the correct direction (otherwise, card may be damaged).●
Electrical interference, static electricity, or erroneous operation may damage the data or ●
card.
Back up the recorded data at regular intervals in case of deteriorated or damaged data

●

or erratic operation of the TV. (Panasonic is not liable for any deterioration or damage of
recorded data.)

2.1 mm

32 mm

24 mm

DivX

ABOUT DIVX VIDEO:

®

DivX

is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video.

Visit www.divx.com for more information and software tools to convert your files into DivX video.

DivX video file■

DivX Certified to play DivX video up to HD 1080p, including premium content.
Extension - “.divx” or “.avi”
Image resolution - Up to 1,920 × 1,080 pixels

Video

Number of stream: Up to 1•
Codec: DIV3, DIV4, DIVX, DX50, DIV6•
FPS (Frame Per Second): Up to 60 fps•

Audio

Number of stream: Up to 8•
Format: MP3, MPEG, AC3•
Multi channel: AC3 is possible. MPEG multi is 2 ch conversion.•

GMC (Global Motion Compensation) is not supported.●

Subtitle text file of DivX■

Subtitles format - MicroDVD, SubRip, TMPlayer

The DivX video file and subtitles text file are inside the same folder, and the file names are the same except for ●
the file extensions.
If there are more than one subtitles text files inside the same folder, they are displayed in the following order of ●
priority: “.srt”, “.sub”, “.txt”.
To confirm or change the current subtitle status while playing DivX content, press the OPTION button to ●
display Option Menu.
Depending on the methods used to create the file or the state of recording, only parts of the subtitles may be ●
displayed, or the subtitles may not be displayed at all.

Note

Depending on how you make SD Card or USB Flash Memory, files and folders may not be displayed in the order ●
you numbered.
Depending on the software you use to create DivX files, the files may not play.●
Depending on how you create the files and the structure of folders, the files and folders may not be displayed.●
When there are many files and folders, operation may take time to complete or some files may not be displayed ●
or playable.

ABOUT DIVX VIDEO-ON-DEMAND:
This DivX Certified
To generate the registration code, locate the DivX VOD section in the Setup Menu. Go to vod.divx.com with this
code to complete the registration process and learn more about DivX VOD.

®

device must be registered in order to play DivX Video-on-Demand (VOD) content.

To show DivX VOD registration code■

“DivX® VOD” in the Setup Menu (p. 32)
If you want to generate the new registration code, you have to deregister the present registration code.

●

After playing DivX VOD content once, the confirmation screen to deregister will be displayed in “DivX® VOD”
in the Setup Menu. If you press the OK button on the confirmation screen, the deregistration code will be
generated and you will not be able to play any contents that you purchased using the present registration
code.
You will obtain the new registration code by pressing the OK button on the deregistration code screen.
If you purchase DivX VOD content using a registration code different from this TV’s code, you will not be able

●

to play this content. (“Your device is not authorized to play this DivX protected video.” is displayed.)

Regarding DivX content that can only be played a set number of times■

Some DivX VOD content can only be played a set number of times.
When you play this content, the remaining number of plays is displayed. You cannot play this content when the
number of remaining plays is zero. (“This DivX rental has expired.” is displayed.)

When playing this content, the number of remaining plays is reduced by one in the following conditions:●

If you exit the current application.•
If you play the other content.•
If you go to the next or previous content.•

Technical Information ●

FAQs, etc.

87

Technical Information

Characters table for numeric buttons

You can enter characters by using numeric buttons for free input items.
Press the numeric button repeatedly until you reach the desired character.

abc def

jkl

ghi

tuvpqrs

Characters table:

Numeric
buttons

The character is set automatically if you leave for one second.●
You can also set the character by pressing the OK button or ●

mno

other numeric buttons within one second.

wxyz

The number of

times to press

1234567891011

.1! :#+-*_()

abc

def

ghi

jkl

mno

pqrs

tuv

wxyz

abc2ABC

def3DEF

gh i4GHI

jkl5JKL

mn o 6MNO

pqr s7PQRS

tuv8TUV

wxy z 9WXYZ

Space 0

User input

Name

A B C D E F G H I J K L M N

U V W X Y Z 0 1 2 3 4 5 6

a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _

O P Q R S T

7 8 9 ! : #
o p q r s t

SCART and HDMI terminal information

AV1 ■ SCART terminal

(RGB, VIDEO, Q-Link)

Suitable inputs for AV1 include RGB (Red / Green / Blue).

Socket Earth 21
CVBS out (video) 19
CVBS earth 17
Red in 15
Red earth 13
Green in 11
Green earth 9
Blue in 7
Blue earth 5
Audio out (L) 3
Audio out (R) 1

20 CVBS in (video)
18 RGB status earth
16 Status RGB
14 Earth
12 -­10 Q-Link data
8 Status CVBS
6 Audio in (L)
4 Audio earth
2 Audio in (R)

AV2 ■ SCART terminal

(RGB, VIDEO, S-VIDEO, Q-Link)

AV2 - Pins 15 and 20 are dependent on AV2 S-VHS / VIDEO
switching.

Socket Earth 21
CVBS out (video) 19
CVBS earth 17
Red in, S.C. - in 15
Red earth 13
Green in 11
Green earth 9
Blue in 7
Blue earth 5
Audio out (L) 3
Audio out (R) 1

20 CVBS in (video)
18 RGB status earth
16 Status RGB
14 Earth
12 -­10 Q-Link data
8 Status CVBS
6 Audio in (L)
4 Audio earth
2 Audio in (R)

HDMI ■ terminal

Hot Plug Detect 19
DDC/CEC Ground 17
SCL 15
CEC 13
TMDS Clock Shield 11
TMDS Data0− 9
TMDS Data0+ 7
TMDS Data1 Shield 5
TMDS Data2− 3
TMDS Data2+ 1

18 +5V Power
16 SDA
14 Reserved

(in cable but N.C. on device)
12 TMDS Clock−
10 TMDS Clock+
8 TMDS Data0 Shield
6 TMDS Data1−
4 TMDS Data1+
2 TMDS Data2 Shield

88

HDMI connection

HDMI (high-definition multimedia interface) is the world’s first complete digital consumer AV interface complying
with a non-compression standard.
HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the
equipment.
HDMI-compatible equipment
game equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.
About connections, see “External Equipment” (p. 84).

Applicable HDMI features■

Input audio signal : 2ch Linear PCM (sampling frequencies - 48 kHz, 44.1 kHz, 32 kHz)●
Input video signal : 480i, 480p, 576i, 576p, 720p, 1080i and 1080p●

Input PC signal : ● “Input signal that can be displayed” (p. 90)

VIERA Link (HDAVI Control 5) : ● “VIERA Link” (p. 79)
Content Type●
Deep Colour●
Audio Return Channel●

DVI connection■

If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable
When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal (HDMI1 / 2 / 3:
use COMPONENT-AUDIO terminals / HDMI4: use AV3 audio terminals).

Note

Audio settings can be made on the “HDMI1 / 2 / 3 / 4 Input” in the Sound Menu. (p. 30)●
If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.●
These HDMI connectors are “type A”.●
These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright ●
protection.
An equipment having no digital output terminal may be connected to the input terminal of either “COMPONENT”,

●

“S-VIDEO”, or “VIDEO” to receive analogue signals.
This TV incorporates HDMI™ technology. ●

(∗1)

with an HDMI or DVI output terminal, such as a DVD player, a set top box or a

“Input signal that can be displayed” (p. 90)

Match the output setting of the digital equipment.

Match the output setting of the PC.

(∗3)

(HDMI2 terminal only)

(∗1): The HDMI logo is displayed on HDMI-compliant equipment.
(∗2): Enquire at your local digital equipment retailer shop.
(∗3): Audio Return Channel (ARC) is a function to be able to

send digital sound signals via an HDMI cable.

(∗2)

.

PC connection

A PC may be connected to this TV so that the PC screen is displayed and sound is heard from the TV.

PC signals that can be inputted: Horizontal scanning frequency 31 to 69 kHz; vertical scanning frequency ●
59 to 86 Hz (more than 1,024 signal lines could result in incorrect display of the image).
A PC adapter is not necessary for the DOS/V-compliant D-sub 15-pin connector.●

Note

Some PC models cannot be connected to this TV.●
When using PC, set the colour display quality of PC to the highest position.●
For details of the applicable PC signals●

“Input signal that can be displayed” (p. 90)

Max. display resolution●

1,440 × 1,080 pixels

Aspect

D-sub 15-pin connector signal●

4:3

16:9

1,920 × 1,080 pixels

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

R GND (Ground) NC (not connected)

G GND (Ground) NC (not connected)

B GND (Ground) HD

NC (not connected) NC (not connected) VD

GND (Ground) GND (Ground) NC (not connected)

Technical Information ●

FAQs, etc.

89

Technical Information

USB connection

It is recommended to connect the USB HDD or USB Flash Memory directly to the TV’s USB ports.●
Some USB devices or USB HUB may not be used with this TV.●
You cannot connect any devices by using USB card reader.●

The combination of USB devices that have been tested for each TV’s USB port.■

Combination of USB port 1 + port 2 (and vice versa):

USB HDD + USB Flash Memory•
USB HDD + Wireless LAN Adaptor•
USB HDD + USB Keyboard•
USB Flash Memory + Wireless LAN Adaptor•
USB Flash Memory + USB Keyboard•
Wireless LAN Adaptor + USB Keyboard•

Note

Additional information for USB devices may be on the following web site. (English only)●
http://panasonic.jp/support/global/cs/tv/

Input signal that can be displayed

COMPONENT (Y, PB, PR), HDMI

∗ Mark: Applicable input signal

Signal name COMPONENT HDMI

525 (480) / 60i
525 (480) / 60p
625 (576) / 50i
625 (576) / 50p
750 (720) / 60p
750 (720) / 50p
1,125 (1,080) / 60i
1,125 (1,080) / 50i
1,125 (1,080) / 60p
1,125 (1,080) / 50p
1,125 (1,080) / 24p

∗∗
∗∗
∗∗
∗∗
∗∗
∗∗
∗∗
∗∗

∗
∗
∗

PC (from D-sub 15P) Applicable input signal for PC is basically compatible to VESA standard timing.

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

640 × 400 @70 Hz 31.47 70.07
640 × 480 @60 Hz 31.47 59.94
640 × 480 @75 Hz 37.50 75.00
800 × 600 @60 Hz 37.88 60.32
800 × 600 @75 Hz 46.88 75.00
800 × 600 @85 Hz 53.67 85.06
852 × 480 @60 Hz 31.44 59.89
1,024 × 768 @60 Hz 48.36 60.00
1,024 × 768 @70 Hz 56.48 70.07
1,024 × 768 @75 Hz 60.02 75.03
1,024 × 768 @85 Hz 68.68 85.00
1,280 × 768 @60 Hz 47.70 60.00
1,280 × 1,024 @60 Hz 63.98 60.02
1,366 × 768 @60 Hz 48.39 60.04
Macintosh13” (640 × 480) 35.00 66.67
Macintosh16” (832 × 624) 49.73 74.55
Macintosh21” (1,152 × 870) 68.68 75.06

PC (from HDMI terminal) Applicable input signal for PC is basically compatible to HDMI standard timing.

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

640 × 480 @60 Hz 31.47 60.00
750 (720) / 60p
1,125 (1,080) / 60p 67.50 60.00

Note

Signals other than above may not be displayed properly.●
The above signals are reformatted for optimal viewing on your display.●
PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient ●
clarity.

45.00 60.00

90

FAQs

Before requesting service or assistance, please follow these simple guides to resolve the problem.
If the problem still persists, please contact your local Panasonic dealer for assistance.

Block noise, frozen or
disappearing image occurs
in DVB mode / White spots
or shadow image (ghosting)
occurs in Analogue mode /
Some channels cannot be
tuned

Keep the space between the TV and RF cable.●
Check the position, direction and connection of ●

the aerial or dish.

Check “Signal Condition” (p. 41). If “Signal ●

Quality” is displayed in red, the DVB signal is
weak.

Weather conditions will affect signal reception ●

(heavy rain, snow, etc.), in particular in poor
reception areas. Even during good weather,
the high pressure can cause poor reception of
some channels.

Due to the digital reception technologies ●

involved, quality of the digital signals may be
relatively low in some cases, despite good
reception of analogue channels.

Turn the TV off with the Mains power On / Off ●

switch, and then on again.

If problem persists, consult your local dealer or ●

service provider for the availability of services.

DVB-S Auto Setup cannot
be done completely

Check connections and dish alignment. (p. 35)●
If the problem persists, consult your local dealer.

●

Neither image nor sound is
produced

Is the TV in AV mode?●
Check the correct AV input mode is selected.●
Check the mains lead is plugged into the ●

socket outlet.

Has the TV been turned On?●
Check the Picture Menu (p. 28) and volume.●
Check all required cables and connections are ●

firmly in place.

Auto aspect

Auto aspect is designed to provide you with the ●

best ratio to fill the screen. (p. 86)

Press the ASPECT button if you would like to

●

change the aspect ratio manually (p. 18).

S-Video / black and white

Check that the output of the external equipment

●

matches the input of the TV. If the output of the
external equipment is set to S-Video, the TV
must also be set to S-Video (p. 24).

No programmes shown on TV
Guide

Check the digital transmitter.●
Adjust the direction of the aerial or dish to another ●
transmitter installed nearby.
Check the analogue broadcast.●
If the image quality is poor, check the aerial and consult
your local dealer.

Input mode, i.e. EC/AV1 remains
on the screen

Press the ● button to clear these.
Press again to redisplay.

Q-Link function does not work

Confirm SCART cable and connection. ●
Also set “AV1 / AV2 out” in the Setup Menu (p. 30).

“VIERA Link” function does
not work and an error message
appears

Confirm the connection. (p. 76 and p. 77)●
Turn the connected equipment on and then switch the ●
TV on. (p. 79)

Recording does not start
immediately

Check the settings of the recorder. For details, read the ●
manual of the recorder.

There may be red spots, blue
spots, green spots and black
spots on the screen

This is a characteristic of liquid crystal panels and is ●
not a problem. The liquid crystal panel is built with very
high precision technology giving you fine picture details.
Occasionally, a few non-active pixels may appear on
the screen as a fixed point of red, green, blue or black.
Please note this does not affect the performance of
your LCD.

Frequently Asked Questions ●

Technical Information ●

FAQs, etc.

91

FAQs

Problem Actions

Chaotic image, noisy

Set “P-NR” in the Picture Menu (to remove noise). (p. 28)●
Check nearby electrical products ●
(car, motorcycle, fluorescent lamp).

No image can be displayed

Screen

Blurry or distorted image

(no sound or low volume)

Unusual image is displayed

No sound is produced

Sound

Is “Contrast”, “Brightness” or “Colour” in the Picture Menu set to the ●
minimum? (p. 28)

Reset channels. (p. 34 - 37)●

Turn the TV Off with Mains power On / Off switch, then turn it On ●
again.
If the problem persists, perform “Shipping Condition” (p. 49).

●

Is “Sound mute” active? (p. 8)●
Is the volume set to the minimum?●

92

Sound level is low or
sound is distorted

Sound is unusual

HDMI

Pictures from external
equipment are unusual
when the equipment is
connected via HDMI

Sound signal reception may be deteriorated.●
Set “MPX” (p. 29) in the Sound Menu to “Mono”. (Analogue only)●

Set the sound setting of the connected equipment to “2ch L.PCM”.●
Check the “HDMI1 / 2 / 3 / 4 Input” setting in the Sound Menu. ●
(p. 30)
If digital sound connection has a problem, select analogue sound

●

connection. (p. 89)

Check the HDMI cable is connected properly. (p. 84)●
Turn the TV and equipment Off, then turn them On again.●
Check an input signal from the equipment. (p. 90)●
Use an equipment compliant with EIA/CEA-861/861B.●

Problem Actions

Cannot connect to the network

Network

Check the LAN cable or Wireless LAN Adaptor is connected ●
properly. (p. 67)
Check the connections and settings. (p. 67 - 71)

●

Check the network equipment and network environment.●
The router may not be set to issue IP address automatically. If the ●
network administrator prefers to allocate an IP address, set an IP
address manually. (p. 69)
The router may be using MAC address filtering (security setting).

●

Confirm the MAC Address of this TV (p. 68) and set the router to be
able to use it.
If the problem persists, consult your Internet Service Provider or

●

telecommunications company.

Cannot select the file during
DLNA operations

Cannot operate VIERA CAST

The TV does not switch On

The TV goes into
“Standby mode”

The remote control does not work
or is intermittent

Other

Is media server of the connected equipment prepared? (p. 66)●
Check applicable data format. (p. 66)●

Check the connections and settings. (p. 67 - 71)●
The server or connected line might be busy now.●

Check the mains lead is plugged into the socket outlet.●

Off Timer function is activated.●
The TV enters “Standby mode” about 30 mins. after analogue ●
broadcasting ends.

Are the batteries installed correctly? (p. 8)●
Has the TV been switched On?●
The batteries may be running low. Replace them.●
Point the remote control directly at the front of the TV (within about ●
7 m and a 30 degree angle of the front of the TV).
Situate the TV away from sunshine or other sources of bright light

●

not to shine on the TV’s remote control signal receiver.

Frequently Asked Questions ●

Parts of the TV become hot

The LCD panel moves slightly
when it is pushed with a finger
Clattered sound might be heard

Overcurrent error message
appears

An error message appears

Even when the temperature of parts of the front, top and rear ●
panels has risen, these temperature rises will not pose any
problems in terms of performance or quality.

There is some flexibility around the panel to prevent damage to the ●
panel.
The panel might move slightly when it is pushed with a finger, and

●

clattered sound might be heard. This is not a malfunction.

The connected USB device might cause this error. Remove the ●
device and turn the TV Off with Mains power On / Off switch, then
turn it On again.
Check if foreign objects are inside the USB port.

●

Follow the message’s instructions.●
If the problem persists, contact your local Panasonic dealer or the ●
authorized Service Centre.

FAQs, etc.

93

Licence

Even if no special notation has been made of company or product trademarks, these trademarks have been fully
respected.

●

DVB and the DVB logos are trademarks of the DVB Project.
DiSEqC™ is a trademark of EUTELSAT.●
VGA is a trademark of International Business Machines Corporation.●
Macintosh is a registered trademark of Apple Inc., USA.●
S-VGA is a registered trademark of the Video Electronics Standard Association. ●
SDXC Logo is a trademark of SD-3C, LLC.●
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of ●

HDMI Licensing LLC in the United States and other countries.

●

HDAVI Control™ is a trademark of Panasonic Corporation.
“AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony Corporation.●
Manufactured under license from Dolby Laboratories.●

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

●

Manufactured under license under U.S. Patent #: 5,451,942 & other U.S. and worldwide patents issued &
pending. DTS and the Symbol are registered trademarks and DTS Digital Out and the DTS logos are trademarks
of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

●

GUIDE Plus+ is (1) a registered trademark or trademark of, (2) manufactured under license from and (3) subject
of various international patents and patent applications owned by, or licensed to, Gemstar-TV Guide International,
Inc. and/or its related affiliates.

●

VIERA CAST™ is a trademark of Panasonic Corporation.

®

DLNA●
Digital Living Network Alliance.

●

Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries.
DivX●

●

YouTube and Picasa are trademarks of Google, Inc.
Skype™ is a trademark of Skype Limited.●

, the DLNA Logo and DLNA CERTIFIED™ are trademarks, service marks, or certification marks of the

®

is a registered trademark of DivX, Inc., and is used under license.

Specifications

TX-L32D28EP
TX-L32D28ES

TX-L32D28EW

Power Source AC 220-240 V
Rated Power Consumption 136 W 147 W

Standby Power Consumption

Display

panel

Aspect Ratio 16:9

Visible screen size

Number of pixels 2,073,600 (1,920 (W) × 1,080 (H))

With Stand 795 mm × 536 mm × 201 mm 917 mm × 605 mm × 291 mm

Dimensions
(W × H × D)

Mass

TV only

0.30 W

36.00 W (With monitor out recording)

80 cm (diagonal)
698 mm (W) × 393 mm (H)

795 mm × 521 mm × 77 mm
(With speaker part)
795 mm × 521 mm × 45 mm
(Without speaker part)

17.0 k

12.0 k

, 50 / 60 Hz

Net (With Stand)
Net (TV only)

94 cm (diagonal)
819 mm (W) × 460 mm (H)

917 mm × 590 mm × 77 mm
(With speaker part)
917 mm × 590 mm × 45 mm
(Without speaker part)

20.0 k

14.5 k

TX-L37D28ES

TX-L37D28EW

Net (With Stand)
Net (TV only)

94

Specifications

Sound

Speaker 140 mm × 35 mm × 2 pcs, 8
Audio Output 20 W (10 W + 10 W), 10% THD
Headphones M3 (3.5 mm) stereo mini Jack × 1

VGA, SVGA, WVGA, XGA

PC signals

Receiving Systems /
Band name

Satellite dish input Female F-type 75
Aerial input VHF / UHF

Operating Conditions

Connection Terminals

AV1 (SCART terminal) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link)
AV2 (SCART terminal) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, S-Video in, Q-Link)

AV3

COMPONENT

Others

Output

VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 Ω)
AUDIO L - R

VIDEO

AUDIO L - R

HDMI
1 / 2 / 3 / 4

PC

Card slot

ETHERNET
USB 1 / 2 USB2.0 DC 5 V, Max 500 mA
AUDIO L - R
DIGITAL

AUDIO OUT

SXGA, WXGA ······ (compressed)
Horizontal scanning frequency 31 - 69 kHz
Vertical scanning frequency 59 - 86 Hz

PAL B, G, H, I, SECAM B, G, SECAM L, L’

VHF E2 - E12 VHF H1 - H2 (ITALY)
VHF A - H (ITALY) UHF E21 - E69
CATV (S01 - S05) CATV S1 - S10 (M1 - M10)
CATV S11 - S20 (U1 - U10) CATV S21 - S41 (Hyperband)

PAL D, K, SECAM D, K

VHF R1 - R2 VHF R3 - R5
VHF R6 - R12 UHF E21 - E69

PAL 525/60 Playback of NTSC tape from some PAL Video re cord ers (VCR)
M.NTSC Playback from M.NTSC Video recorders (VCR)
NTSC (AV input only) Playback from NTSC Video recorders (VCR)
DVB-T Digital terrestrial services (MPEG2 and MPEG4-AVC
DVB-C Digital cable services (MPEG2 and MPEG4-AVC

DVB-S / S2 Digital satellite services (MPEG2 and MPEG4-AVC

Check the latest information on the available services at the following website. (English only)

●

http://panasonic.jp/support/global/cs/tv/

Ω

Temperature : 0 °C - 35 °C
Humidity : 20 % - 80 % RH (non-condensing)

RCA PIN Type × 2 0.5 V[rms]

Y 1.0 V[p-p] (including synchronization)
P

B, PR ±0.35 V[p-p]

RCA PIN Type × 2 0.5 V[rms]
TYPE A Connectors

HDMI1 / 3 / 4 : HDMI (Version 1.4 with Content Type), Deep Colour
HDMI2 : HDMI (Version 1.4 with Content Type, Audio Return Channel), Deep Colour

This TV supports “HDAVI Control 5” function.

●

HIGH-DENSITY D-SUB 15PIN R,G,B/0.7 V[p-p] (75 Ω)
HD, VD/TTL Level 2.0 - 5.0 V[p-p] (high impedance)

SD Card slot × 1
Common Interface slot (complies with CI Plus) × 1

RJ45, IEEE802.3 10BASE-T / 100BASE-TX

RCA PIN Type × 2 0.5 V[rms] (high impedance)

PCM / Dolby Digital / DTS, Fiber optic

Ω

Countries that DVB-C is available: Germany, Switzerland, Denmark,
Sweden, Norway, Finland, Netherlands

Receiver frequency range
LNB Power and Polarisation - Vertical: +13 V

22 kHz Tone - Frequency: 22 kHz ± 2 kHz
Amplitude: 0.6 V ± 0.2 V
Symbol Rate - Max. 30 MS/s
FEC Mode - 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Demodulation - QPSK, 8PSK
DiSEqC - Version 1.0

For

● available USB devices p. 90

- 950 MHz to 2,150 MHz

Horizontal: +18 V
Current: Max. 500 mA

(overload protection)

Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.●
This equipment complies with the EMC standards listed below. ●
EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024

(H.264))

(H.264))

(H.264))

Specifications ●

Licence ●

FAQs, etc.

95

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products
and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products
and used batteries, please take them to applicable collection points, in accordance with your national legislation and the
Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential
negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your
waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or
dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the
Directive for the chemical involved.

GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE
FOR THE ACCURACY OF THE PROGRAM SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+
SYSTEM. IN NO EVENT SHALL GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/OR ITS RELATED AFFILIATES
BE LIABLE FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS, OR INDIRECT,
SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY
INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM.

Declaration of Conformity (DoC)

If you want to get a copy of the original DoC of this TV, please visit the following website:
http://www.doc.panasonic.de

Authorized Representative:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany

Customer’s Record

The model number and serial number of this product may be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of
your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Web Site : http://panasonic.net

© Panasonic Corporation 2010

http://www.europe.guideplus.com/

M0310-0

Printed in Czech Republic
