Panasonic TXL32C20B Operating Instructions
Operating Instructions
LCD Television
Model No.
TX-L32C20B
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
“B” model no. suffix denotes UK model.
English
U.K. Standard
Features
DVB-T tuner built-in
Receives DVB (Digital Video Broadcasting) digital terrestrial broadcasts
Easily select the programme or set Timer Programming by using TV Guide. (p. 18 - 20)
Instantly call up favourite channels with Favourites Edit. (p. 37)
GUIDE Plus+ (p. 18)
This TV supports Gemstar-TV Guide sent from the GUIDE Plus+ system.
Sharp pictures and clear sound with HDMI connection (p. 64)
Enjoy high definition digital picture and high quality sound by using an HDMI cable.
This TV incorporates HDMI (Version 1.4 with Audio Return Channel) technology.
VIERA IMAGE VIEWER - Media Player (p. 48 - 51)
Enjoy your photos or videos recorded on an SD Card on the TV screen.
SDXC Card
This TV supports SDXC Card. SDXC is the latest standard of SD Card and a higher storage capacity card.
AVCHD
It is possible to play moving pictures recorded on an SD Card in AVCHD format.
AVCHD is a high definition video recording format. (p. 50)
Dolby Digital decoder
It is possible to decode Dolby Digital audio track (multi-channel sound) and output as a Dolby Digital
multi-channel sound signal from the DIGITAL AUDIO OUT terminal.
Link up and control the connected equipment with “Q-Link” and “VIERA Link” (p. 52 - 59)
Q-Link and VIERA Link provide easy recording and playback, creation of a home theatre without complicated
settings, etc.
VIERA TOOLS - Display special feature icons for easy accessibility (p. 26)
Special features (such as VIERA Link and Media Player) can be accessed easily by using the VIERA TOOLS
button.
Owner ID (p. 45)
Owner ID is an anti-theft function. Entering the PIN number and owner’s personal information will help the
Police to determine the owner in the case of theft.
Supports Audio Description signal (p. 15 and p. 29)
Audio Description (when broadcast) adds an additional soundtrack to describe events on screen (narration) and
aids understanding and enjoyment, particularly for visually-impaired viewers.
You can switch Audio Description service Auto or Off, and adjust the volume of the description soundtrack
independently of the main volume.
2
Digital Switchover for Terrestrial broadcasts
Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by
TV region.
If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk
Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV
channels and some Digital TV channels will be missing.
You will need to retune your TV each time this happens to recover your digital channels. Analogue
channels are permanently turned off, it will not be possible to recover them.
To retune your TV
“Auto Setup” in “DVB Tuning Menu”-DVB mode (p. 34)
Users of cable or satellite boxes should still retune the TV to continue to receive Freeview channels
via their aerial. (Your Analogue channel for viewing Cable or Satellite services will change to a new
position.)
Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some
cases, despite good reception of analogue channels.
Wide Viewing Angle
This LCD panel offers 178-degree viewing angle.
This delivers beautiful images regardless of the
viewing angle.
IPS panel
This TV uses IPS (In Plane Switching)
panel.
Provides suitable images for playing games
Selecting “Game” in Viewing Mode provides fast
resp
onse to the input signal and you can enjoy
pla
ying games.
V-Audio
Utilises Panasonic’s advanced digital
amplification technology. (p. 28)
digital tick
The digital tick logo indicates that a digital
tuner is built-in.
(p. 28)
Contents
Be Sure to Read
Safety Precautions (Warning / Caution) ················· 4
Quick Start Guide
Accessories / Options ·······························6
Identifying Controls
Basic Connection
Auto Setup
··············································12
Enjoy your TV!
Basic Features
Watching TV ························································· 14

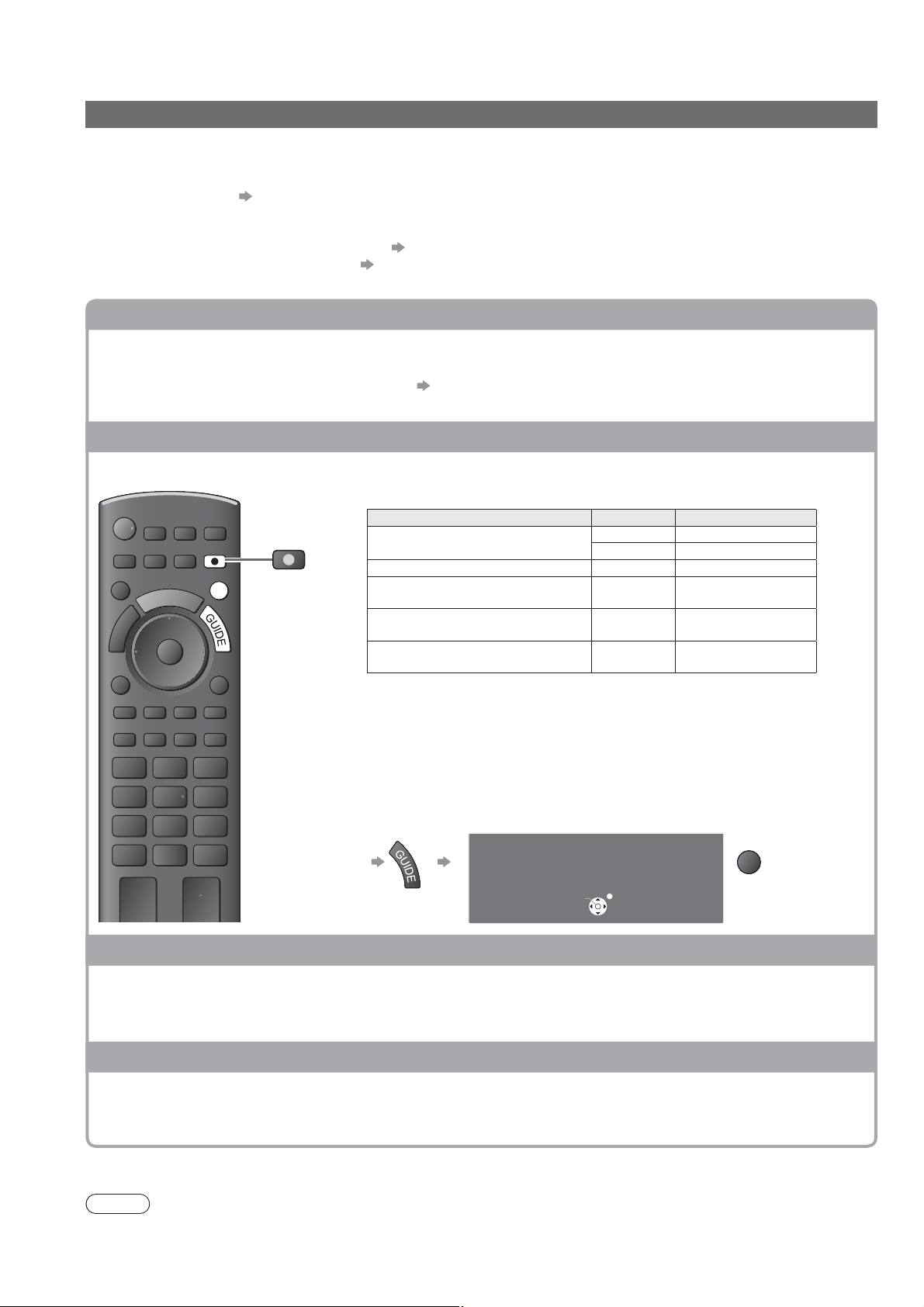

Using TV Guide
···················································· 18
Viewing Teletext ···················································· 21

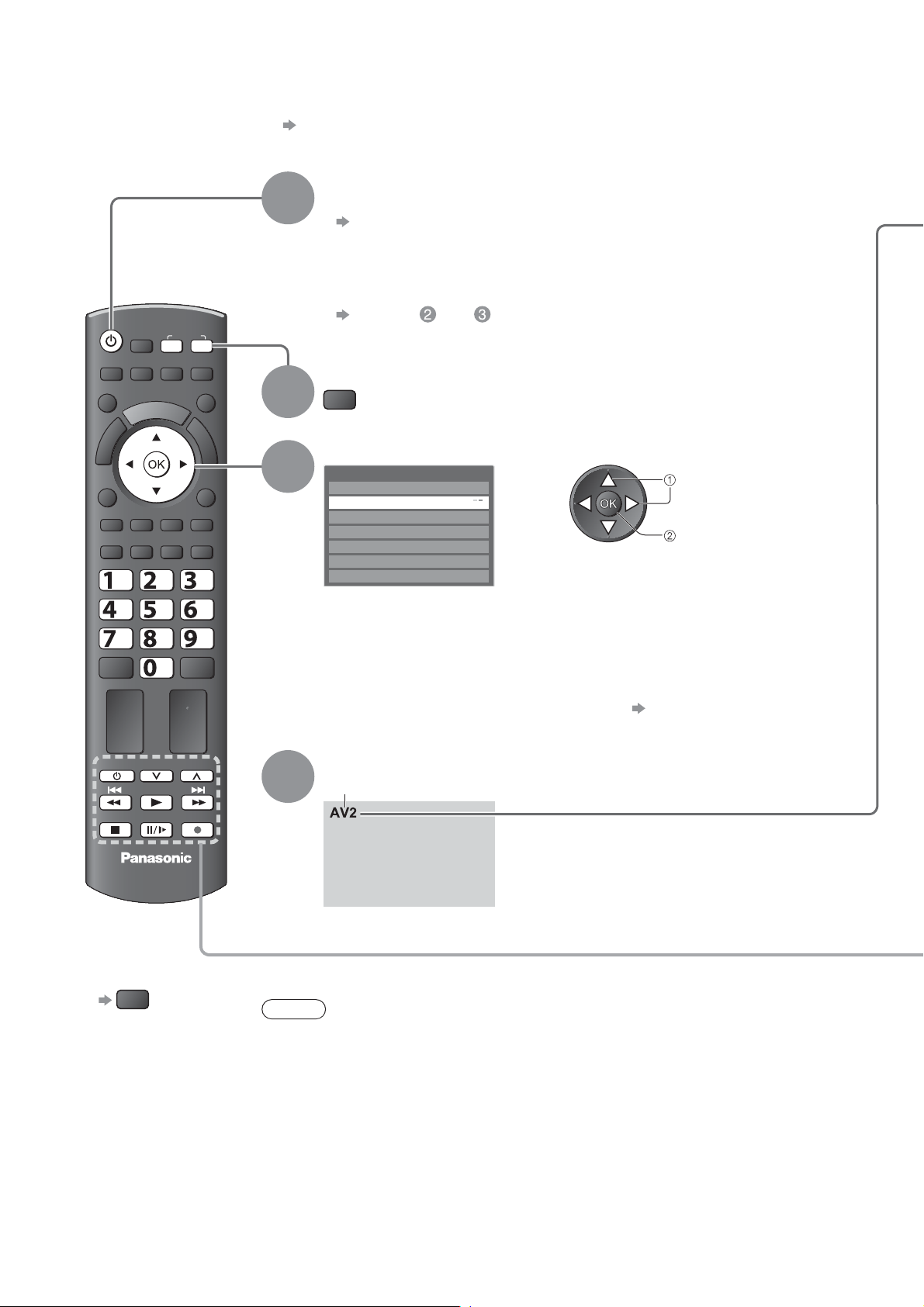

Watching External inputs ······································ 24

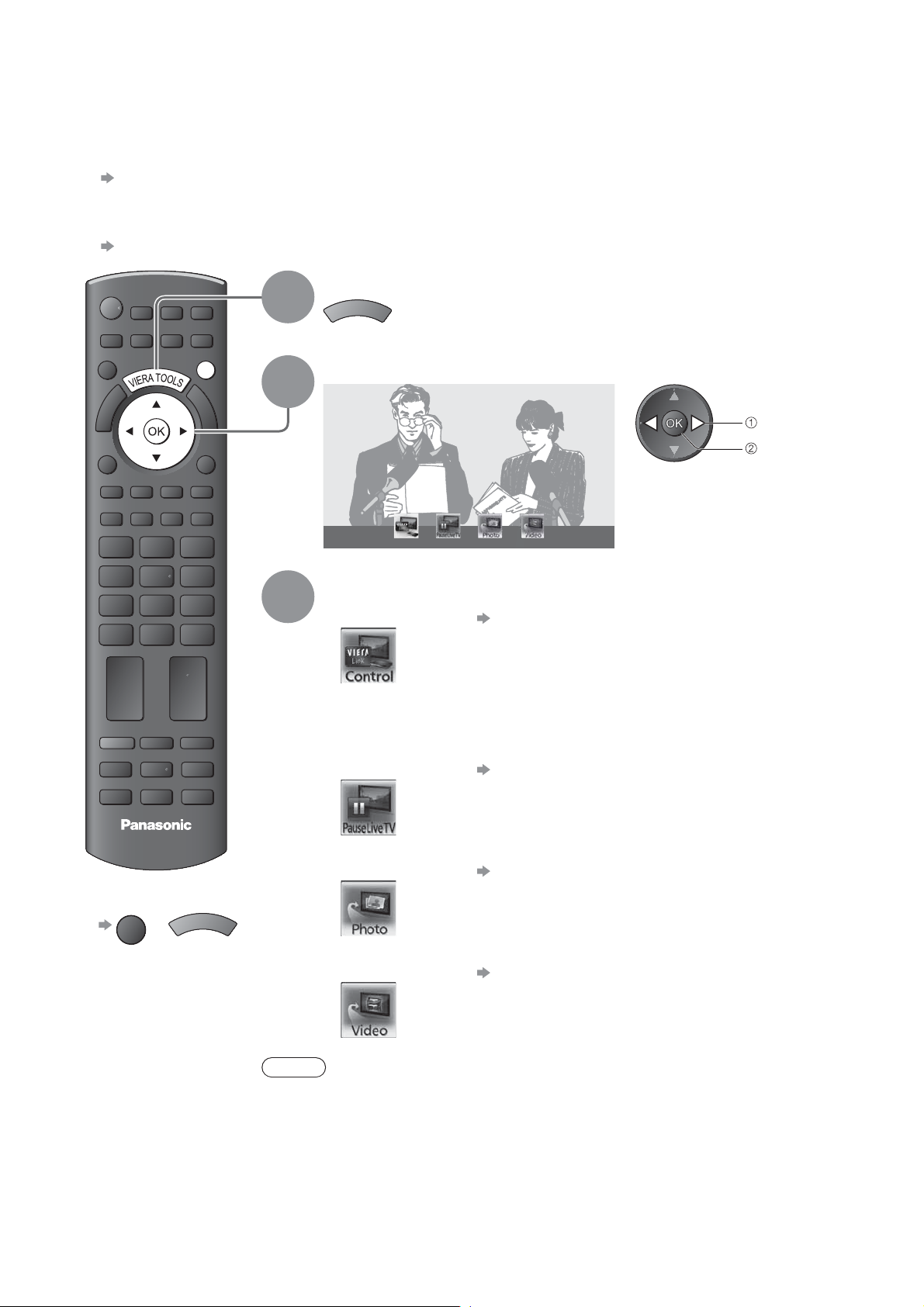

How to Use VIERA TOOLS ·································· 26

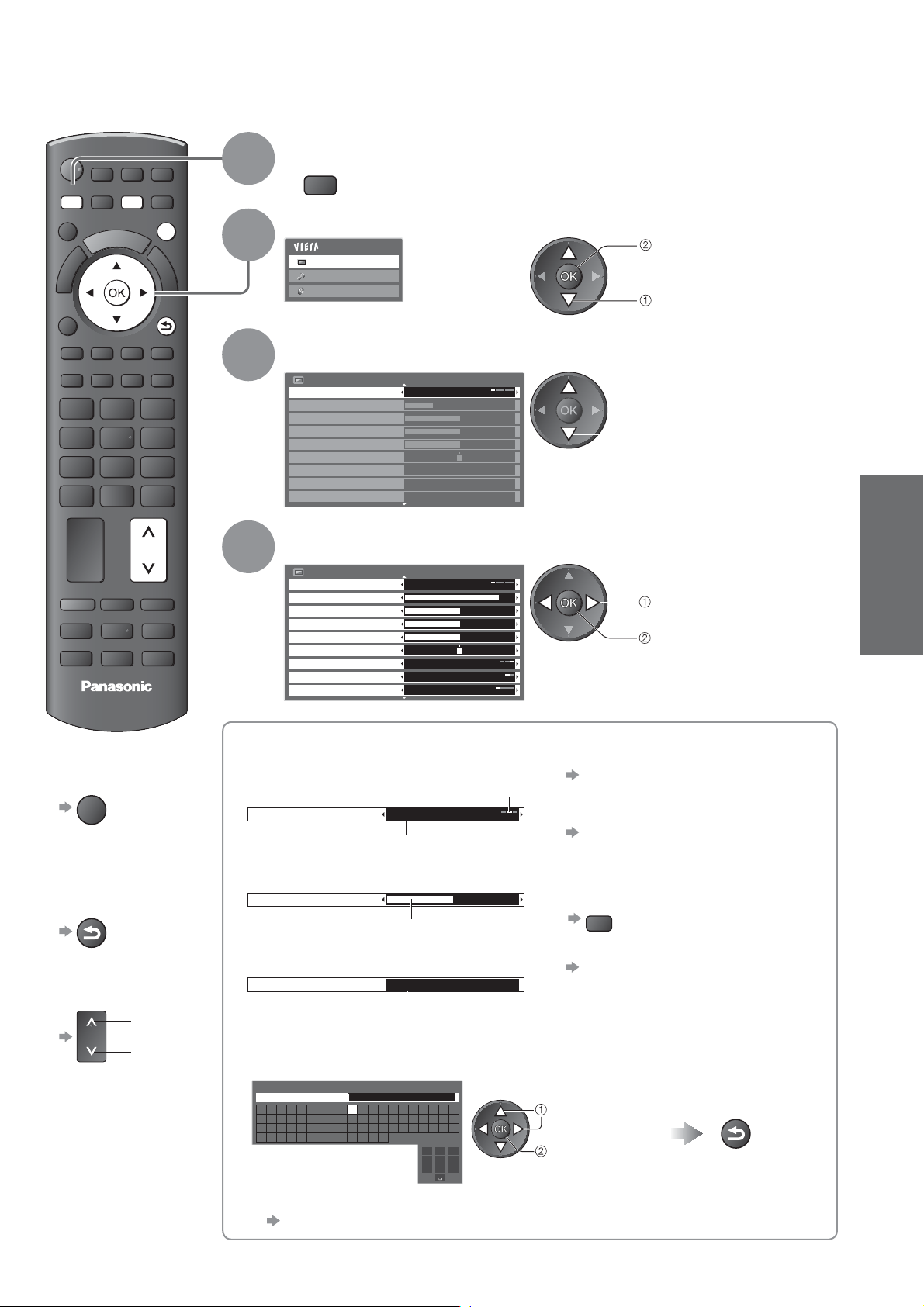

How to Use Menu Functions
································ 27
···································8
···································· 10
Quick Start
Quick Start Guide
Guide
Basic
Basic Advanced FAQs, etc.
Freeview
Freeview is the way to enjoy digital TV for free.
Turn your living room into a
home theatre!
Enjoy rich multi-media
SD Card
Camcorder
Satellite receiver
DVD Recorder
Amplifier with
Speaker system
VCR
DVD player
Advanced Features
Retuning from Setup Menu ·································· 34
Tuning and Editing Channels ······························· 36
Timer Programming
·············································· 40
Child Lock ····························································· 42
Input Labels ·························································· 43
Shipping Condition ··············································· 44
Owner ID
······························································ 45
Using Common Interface ······································ 46
Updating the TV Software ···································· 47

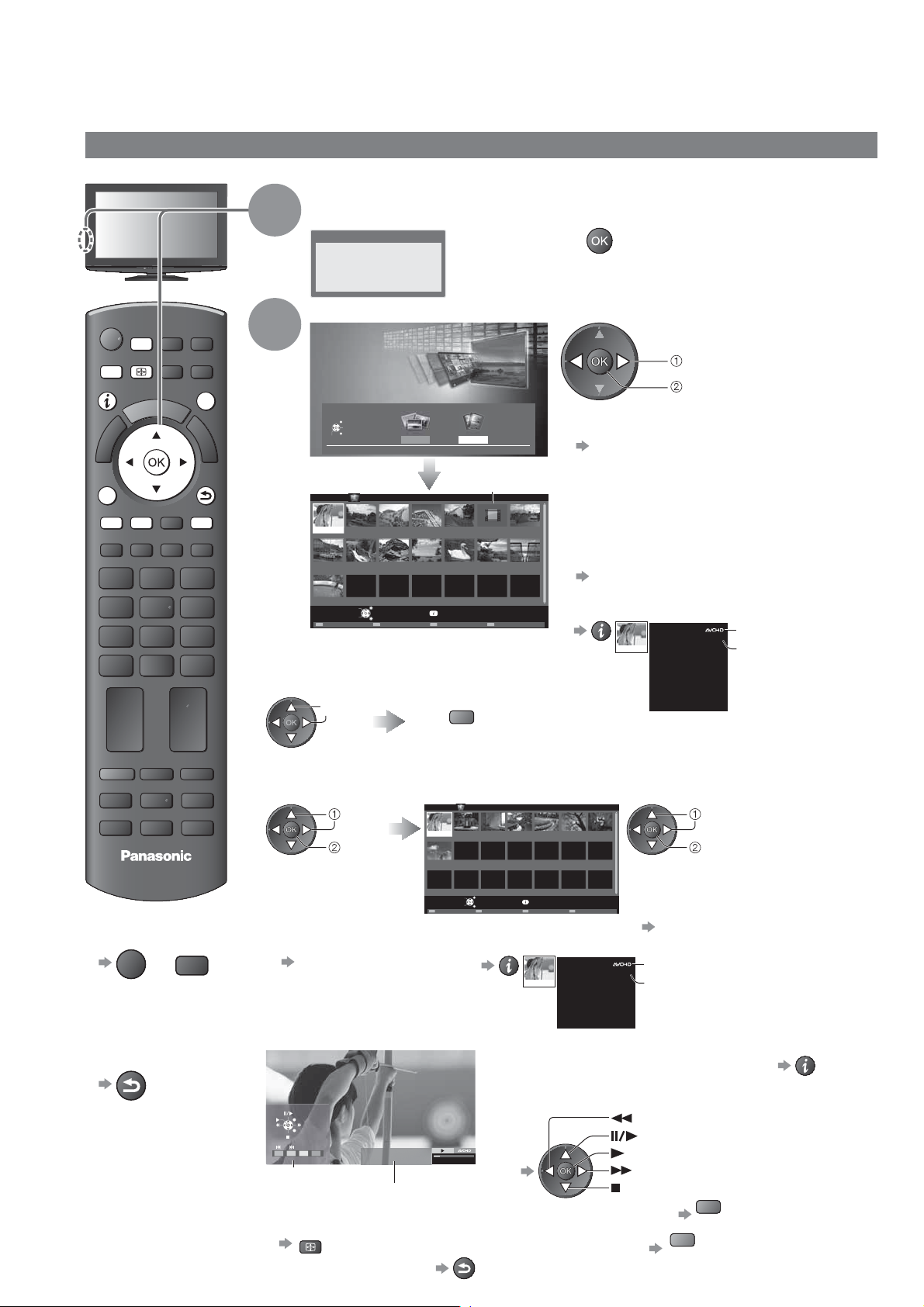

Using Media Player ·············································· 48

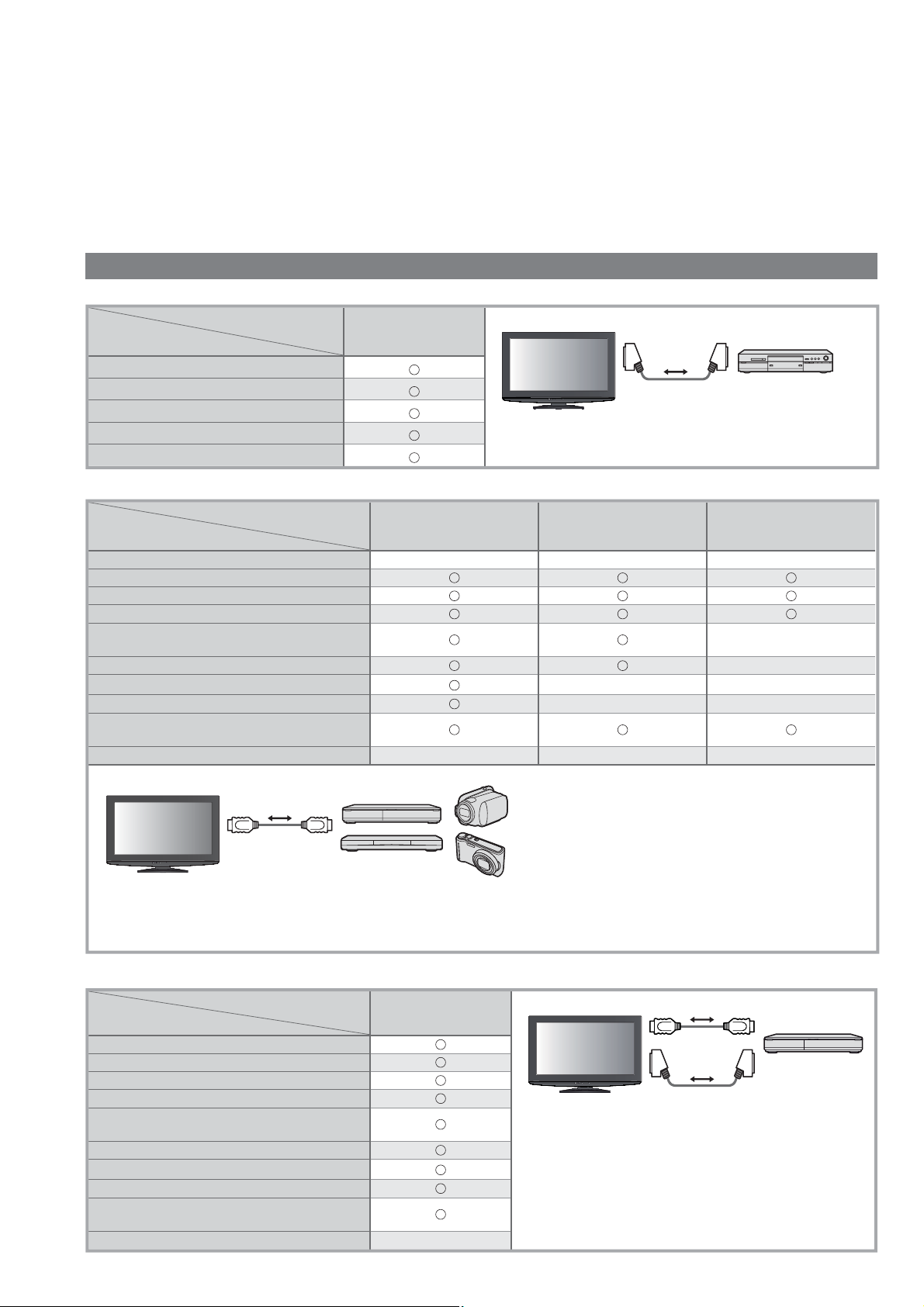

Link Functions ····················································· 52
(Q-Link / VIERA Link)

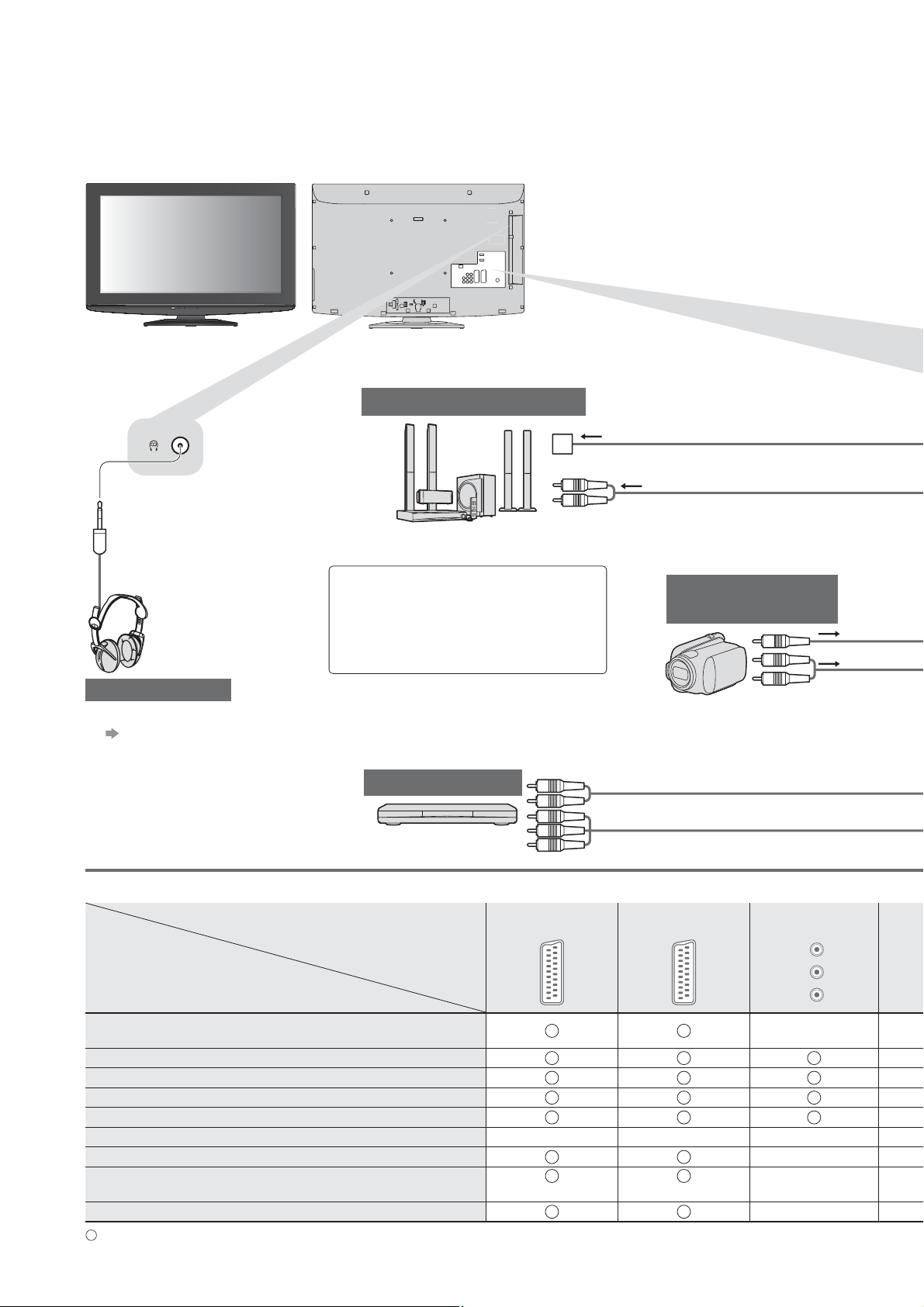

External Equipment ·············································· 60
FAQs, etc.

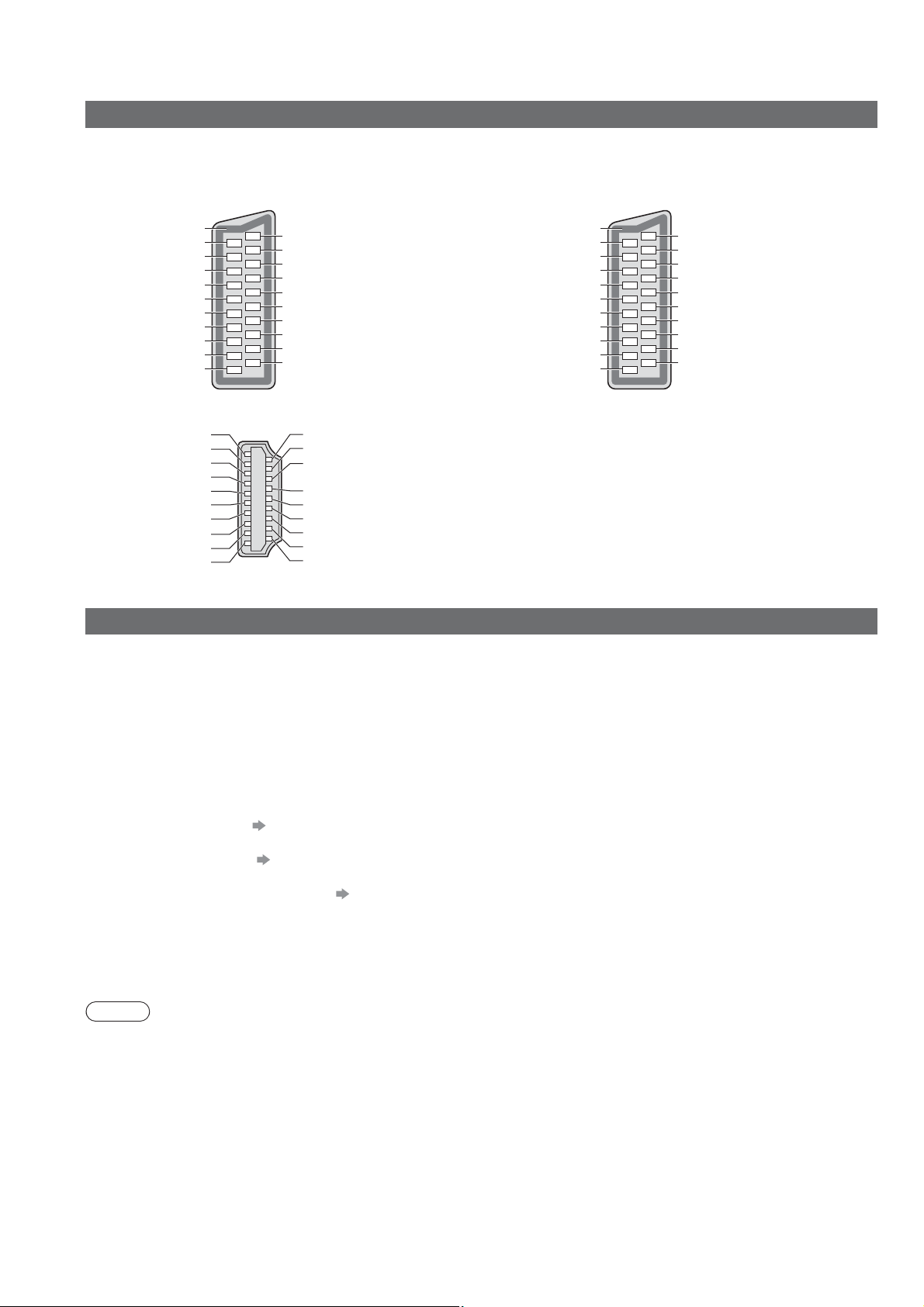

Technical Information ··········································· 62
FAQs ···································································· 66
On screen messages
··········································· 68
Glossary ······························································· 69
Maintenance ························································· 70
Licence ································································· 70
Index
····································································· 70
Specifications ······················································· 71
Advanced
FAQs, etc.
3
Safety Precautions
Warning
Mains plug and lead
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
This TV is designed to operate on AC 220-240 V,
50 Hz.
Insert the mains plug fully into the socket outlet.
Ensure that the mains plug is easily accessible.
Remove the mains plug when cleaning the TV.
Do not touch the mains plug with a wet hand.
Do not damage the mains lead.
Do not place a heavy •
object on the lead.
Do not place the lead •
near a high temperature
object.
Do not pull on the lead. •
Hold onto the mains plug
body when disconnecting
the plug.
Do not move the TV with the lead plugged into a •
socket outlet.
Do not twist the lead, bend it excessively or •
stretch it.
Do not use a damaged mains plug or socket outlet.•
Ensure the TV does not crush the mains lead.•
AC 220-240 V
50 Hz
If you detect anything unusual,
immediately switch off the mains supply
switch and remove the mains plug.
IMPORTANT: THE MOULDED MAINS PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is fitted
in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5
amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark
If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained.
A replacement fuse cover may be purchased from your local dealer.
If the fitted moulded mains plug is unsuitable for the socket outlet in your home, then the fuse shall be
removed and the mains plug cut off and disposed of safety. There is a danger of severe electrical shock
if the cut off mains plug is inserted into any 13 amp socket.
If a new mains plug is to be fitted, please observe the wiring code as shown below.
If in any doubt, please consult a qualified electrician.
IMPORTANT: – The wires in this mains lead are coloured in accordance with the following code: –
Blue: Neutral Brown: Live
As the colours of the wire in the mains lead of this appliance may not correspond with
the coloured markings identifying the terminals in your mains plug, proceed as follows.
The wire which is coloured BLUE must be connected to the terminal in the mains plug
which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal in the mains plug which
is marked with the letter L or coloured RED.
Under no circumstances should either of these wires be connected to the Earth terminal of the
three pin mains plug, marked with the letter E or the earth symbol
How to replace the fuse
For plug type shown in example 1:
Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit
securely into the mains plug (see example 1).
For plug type shown in example 2:
Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse,
then press the fuse cover down securely (see example 2).
or the BSI mark on the body of the fuse.
ASA
Example 1
.
Example 2
4
Warning
Take care
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
Do not remove covers and never modify the TV yourself as live parts are accessible when they are
removed. There are no user serviceable parts inside.
Do not expose the TV to rain or excessive moisture. This TV must not be exposed
to dripping or splashing water and objects filled with liquid, such as vases, must
not be placed on top of or above the TV.
Do not expose the TV to direct sunlight and other sources of heat. To prevent fire
never place any type of candle or naked flame on top or near the TV.
Do not place the TV on sloped or unstable surfaces.
Do not insert foreign objects into the TV through the air vents.
Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to
perform the setup or installation of approved wall-hanging brackets.
Do not apply strong force or impact to the display panel.
To prevent the spread of fire, keep candles or other open
flames away from this product at all times
Small object
This product contains possibly dangerous parts that can be breathed in or swallowed by young
children accidentally.
Keep the dangerous parts out of reach of young children.
Do not allow children to handle SD Card. As with any small object, the SD Card could be
swallowed by young children. Please remove SD Card immediately after use and store out of
reach of young children.
Caution
Ventilation
Allow sufficient space around the TV in order to help prevent excessive
heat, which could lead to early failure of some electronic components.
Ventilation should not be impeded by covering the
ventilation openings with items such as newspapers,
tablecloths and curtains.
Whether you are using the pedestal or not, always ensure the vents in the
bottom of the TV are not blocked and there is sufficient space to enable
adequate ventilation.
Moving the TV
Before moving the TV, disconnect all cables.
Transport only in upright position.
When not in use for a long time
This TV will still consume some power even in the Off mode, as long as the mains plug is still
connected to a live socket outlet.
Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.
Excessive volume
Do not expose your ears to excessive volume from the headphones.
Irreversible damage can be caused.
Minimum distance
10
10
10
10
(cm)
5
Accessories / Options
Standard accessories Check that you have the accessories and items shown
INPUT
SD CARD
Remote Control
N2QAYB000487
TV AV
DIRECT TV REC
MENU
N
ASPECT
EXIT
OPTION
RETURN
STTL
INDEX HOLD
TEXT
abc def
jkl
ghi
mno
tuvpqrs
wxyz
LAST VIEW
PROGRAMME
REC
TV
Batteries for the
Remote Control (2)
R6 (UM3)
Operating Instructions
Product Registration Leaflet
Pedestal (TX-L32C20B)
TBL0E0108
TBL0E0122
Assembly screw
for Pedestal (4)
XYN4+F12FJK
p. 7
Optional accessories
Wall-hanging bracket
TY-WK3L2RW
Please contact your nearest Panasonic dealer to purchase the
recommended wall-hanging bracket. For additional details, please
refer to the wall-hanging bracket installation manual.
Screw for fixing the TV onto the
Rear of the TV
200 mm
200 mm
wall-hanging bracket
(not supplied with the TV)
Depth of screw:
minimum 9 mm, maximum 12 mm
Diameter: M6
Holes for wall-hanging
bracket installation
(View from the side)
Warning
Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself has the risk of personal
injury and product damage. In order to maintain the unit’s performance and safety, be sure to ask your dealer
or a licenced contractor to secure the wall-hanging brackets. Any damage caused by installing without a
qualified installer will void your warranty.
Carefully read the instructions accompanying optional accessories, and be sure to take steps to prevent the
TV from falling off.
Handle the TV carefully during installation since subjecting it to impact or other forces may cause product
damage which will void your warranty.
Do not mount the unit directly below ceiling lights (such as spotlights or halogen lights) which typically give off
high heat. Doing so may warp or damage plastic cabinet parts.
Take care when fixing wall brackets to the wall. Wall mounted equipment must not be grounded by metal
within the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.
To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use for an extended
period of time.
6
Installing / removing remote’s batteries
Pull
1
Hook
Caution
open
2
Note the correct
polarity (+ or -)
Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.
Do not mix old and new batteries.
R
eplace only with same or equivalent type. Do not mix different battery types (such as alkaline and manganese batteries).
Do not use rechargeable (Ni-Cd) batteries.
Do not burn or break up batteries.
Batteries must not be exposed to excessive heat such as sunshine, fire, etc.
Make sure you dispose of batteries correctly.
Ensure batteries are replaced correctly, there is danger of explosion and fire if battery is reversed.
Do not disassemble or modify the remote control.
Close
Attaching the pedestal
To help avoid risk of damage or injury by the TV tipping or falling, please follow the warnings and
cautions below:
Warning
Do not disassemble or modify the pedestal.
Caution
Do not use with any other TVs or displays.
Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your nearest
Panasonic dealer immediately.
During setup, make sure that all screws are securely tightened.
Ensure that the TV does not suffer any impact during installation of the pedestal.
Ensure that children do not climb onto the pedestal.
Install or remove the TV from the pedestal with at least two people.
Quick Start Guide
Assembly screw (4)
XSS4+16FNK
Assembly screw (4)
XYN4+F12FJK
Assembling the pedestal
Use the four assembly screws to fasten the bracket
to the base securely.
Forcing the assembly screws the wrong way will
strip the threads.
Make sure that the screws are securely tightened.
Securing the TV
Use only the supplied assembly screws to fasten
the pedestal securely to the TV.
Make sure that the screws are securely tightened.
Carry out the work on a horizontal and level surface.
Foam mat or thick soft cloth
Bracket (1)
TUX0E197
A
C
Front
Base (1)
D
B
TBL0E0108
Accessories / Options
B
7
Identifying Controls
Remote Control
Media Player (p. 48)
Switches to SD Card viewing mode
(VIERA IMAGE VIEWER)
Standby On / Off switch
Switches TV On or Off standby
Main Menu (p. 27)
Press to access the Picture, Sound and
Setup Menus
Aspect (p. 16)
Channel / Programme Information
Displays channel and programme
information
VIERA Link Menu (p. 56)
Accesses VIERA Link Menu
OK
Confirms selections and choices
Press after entering channel position
by using numeric buttons to change a
channel quickly
Option Menu (p. 17)
Easy setting for viewing and
sound options
Coloured buttons
(red-green-yellow-blue)
Used for the selection, navigation and
operation of various functions
Teletext (p. 21)
Switches to teletext mode
Subtitles (p. 15)
Displays subtitles
Numeric buttons
Changes channel and teletext pages
Sets characters
When in Standby mode, switches TV On
(Press for about 1 second)
(p. 15)
SD CARD
MENUNASPECT
OPTION
TEXT
STTL
ghi
INPUT
TV AV
DIRECT TV REC
EXIT
RETURN
INDEX HOLD
abc def
jkl
tuvpqrs
PROGRAMME
mno
wxyz
LAST VIEW
Input mode selection
TV - switches between DVB and
Analogue modes (p. 14)
AV - switches to AV input mode from Input
Selection list (p. 24)
Direct TV Recording (p. 54 and p. 56)
Records programme immediately in
DVD Recorder / VCR with Q-Link or
VIERA Link connection
Normalise (p. 27)
Resets picture and sound settings to their
default levels
Exit
Returns to the normal viewing screen
VIERA TOOLS (p. 26)
Easily accesses special features such as
VIERA Link and Media Player
TV Guide (p. 18)
Displays TV Guide
Cursor buttons
Makes selections and adjustments
Return
Returns to the previous menu / page
Hold
Freeze / unfreeze picture (p. 15)
Holds the current teletext page (teletext
mode) (p. 22)
Index (p. 23)
Returns to the teletext index page
(teletext mode)
Last view (p. 17)
Switches to previously viewed channel or
input mode
Channel Up / Down
Selects channel in sequence
8
Sound Mute
Switches sound mute On or Off
Volume Up / Down
TV
REC
Connected equipment operations
(p. 25 and p. 58)
TV
Function select
Volume / Contrast / Brightness / Colour / Sharpness /
Tint (NTSC signal) / Bass (“Music” or “Speech” mode in the
Sound Menu) / Treble (“Music” or “Speech” mode in the
Sound Menu) / Balance / Auto Setup (p. 34 and p. 35)
Increases or decreases the channel position by one.
When a function is already displayed, press to increase
or decrease the selected function. When in Standby
mode, switches TV On (Press for about 1 second).
Changes the input mode
Quick Start Guide
SD Card slot
(p. 48)
CI Slot
(p. 46)
Headphones
jack (p. 60)
Mains power On / Off switch
Switch On to turn on the TV or turn
•
the TV to standby mode by the remote control
Power and Timer LED
Red : Standby
Green: On
Orange: Timer Programming On
Orange (flash): Ext Rec. of Timer Programming or Direct TV Recording in progress
Red with orange flash: Standby with Timer Programming On or Direct TV Recording
The LED blinks when the TV receives a command from the remote control.
Remote control signal receiver
Do not place any objects between the TV remote control signal receiver and remote control.
•
Auto power standby function
The TV will automatically go to Standby mode in the following conditions:
no signal is received and no operation is performed for 30 minutes in Analogue TV mode•
“Off Timer” is active in the Setup Menu (p. 17)•
no operation is performed for the period selected in “Auto Standby” (p. 30)•
This function does not affect Ext Rec. of Timer Programming and Direct TV Recording.
Identifying Controls
Using the On Screen Displays
Many features available on this TV can be accessed via the On Screen Display menu.
How to use remote control
MENU
Open the main menu
Move the cursor / select the menu item
Access the menu / store settings after adjustments
have been made or options have been set
ON SCREEN HELP Instructions box - Operation guide
(example: Owner ID)
Owner ID
Please enter new PIN
PIN * * * *
EXIT
RETURN
0 9
PIN entry
Operation guide will help you.
EXIT
RETURN
Exit the menu system and return to
the normal viewing screen
Move the cursor / adjust levels /
select from a range of options
Return to the previous menu
9
Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
Example 1
Connecting aerial
Example 2
Connecting DVD Recorder / VCR
TV only TV, DVD Recorder or VCR
Rear of the TV Rear of the TV
AC 220-240 V
50 Hz
Mains lead
COMPONENT
Y
V
3
P
B
LRL
P
R
R
AUDIO
AUDIO
OUT
IN
1
2
Terrestrial
RF cable
aerial
3
R
AUDIO
OUT
COMPONENT
Y
V
P
B
LRL
P
R
AUDIO
IN
1
Mains lead
2
Terrestrial
aerial
AC 220-240 V
50 Hz
Aerial
input terminal
Note
Connect to the TV”s AV2 for a DVD Recorder / VCR supporting Q-Link (p. 54).
Connect to the TV”s AV1 for a Satellite Receiver.
For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2) by using HDMI cable
(p. 60 and p. 61).
Q-Link connection p. 52
VIERA Link connection p. 52 and p. 53
Please also read the manual of the equipment being connected.
Fully wired
SCART cable
DVD Recorder or VCR
Aerial
input terminal
RF OUT
RF IN
RF cable
RF cable
10
Example 3
Connecting DVD Recorder / VCR and Satellite receiver
TV, DVD Recorder / VCR and Satellite receiver
Rear of the TV
Quick Start Guide
3
R
AUDIO
OUT
DIGITAL
AUDIO
OUT
COMPONENT
V
LRL
AUDIO
IN
AC 220-240 V
50 Hz
Terrestrial
aerial
Mains lead
Basic Connection
2
(ARC)
(ARC)
Y
P
B
P
R
1
2
Aerial
input terminal
RF cable
Fully wired HDMI
compliant cable
Fully wired
SCART cable
DVD Recorder or VCR
Fully wired
SCART cable
Satellite receiver
RF OUT
RF IN
RF OUT
RF IN
RF IN
RF cable
RF cable
RF cable
11
Auto Setup
Search and store TV channels automatically.
These steps are not necessary if the setup has been completed by your local dealer.
Please complete connections (p. 10 and p. 11) and settings (if necessary) of the connected equipment before
starting Auto Setup. For details of settings for the connected equipment, read the appropriate manual.
Plug the TV into mains socket and switch On
1
(Takes a few seconds to be displayed)
If the red LED shows on the TV, press the
Standby On / Off switch on the remote
control for at least 1 second to turn the TV
On.
Auto Setup - DVB and Analogue
DVB Scan CH 21 68
Analogue Scan
This will take about 6 minutes.
CH Channel Name Type Quality
62
CBBC Channel Free TV 10
62 BBC Radio Wales Free TV 10
62 E4 Free TV 10
62 Cartoon Nwk Free TV 10
29 Analogue
BBC1 Analogue
33
Free TV: 8 Pay TV: 0 Radio: 0 Data: 0 Analogue: 2
CH 21 68
Searching
Auto Setup will start to search for TV
channels and store them in the numbered
order as specified by the broadcasters.
-
-
Actual number of channels may differ due
to channel duplication.
ASPECT
OPTION
TEXT STTL
ghi
INPUT
TV AV
DIRECT TV REC
N
EXIT
RETURN
INDEX HOLD
abc def
jkl
mno
tuvpqrs
wxyz
PROGRAMME
2
3
Sending Preset Data
Please wait!
0% 100%
Remote control unavailable
Input Owner ID
Owner ID
Please enter new PIN
PIN * * * *
Select “Home”
Please select your viewing environment.
Home Shop
If Q-Link, or similar technology (p. 52),
compatible recorder with analogue tuner
is connected, analogue channel setting is
automatically downloaded to the recorder.
(Digital channel setting is not downloaded.)
If downloading has failed, you can download
later through the Setup Menu.
“Q-Link Download” (p. 29)
Please enter your own choice of PIN number,
name, etc. (p. 13) to help the police to crack
crime.
Make a note of the PIN number in case you
forget it. The PIN number cannot be reset.
You can input or change the Owner ID later.
“Owner ID” (p. 45)
To skip this step
EXIT
This step will be skipped in the Auto
Setup after “Shipping Condition” (p. 44) is
performed.
select
set
Select “Home” viewing environment (highlight
“Home” in yellow) to use in your home
environment.
12
TV
Auto Setup is now complete and your TV is ready for viewing.
To check channel list at-a-glance
“Using TV Guide” (p. 18)
To edit or hide (skip) channels
“Tuning and Editing Channels” (p. 36 - 39)
If tuning has failed, check the connection of
the RF cable, and then, follow the on screen
instructions.

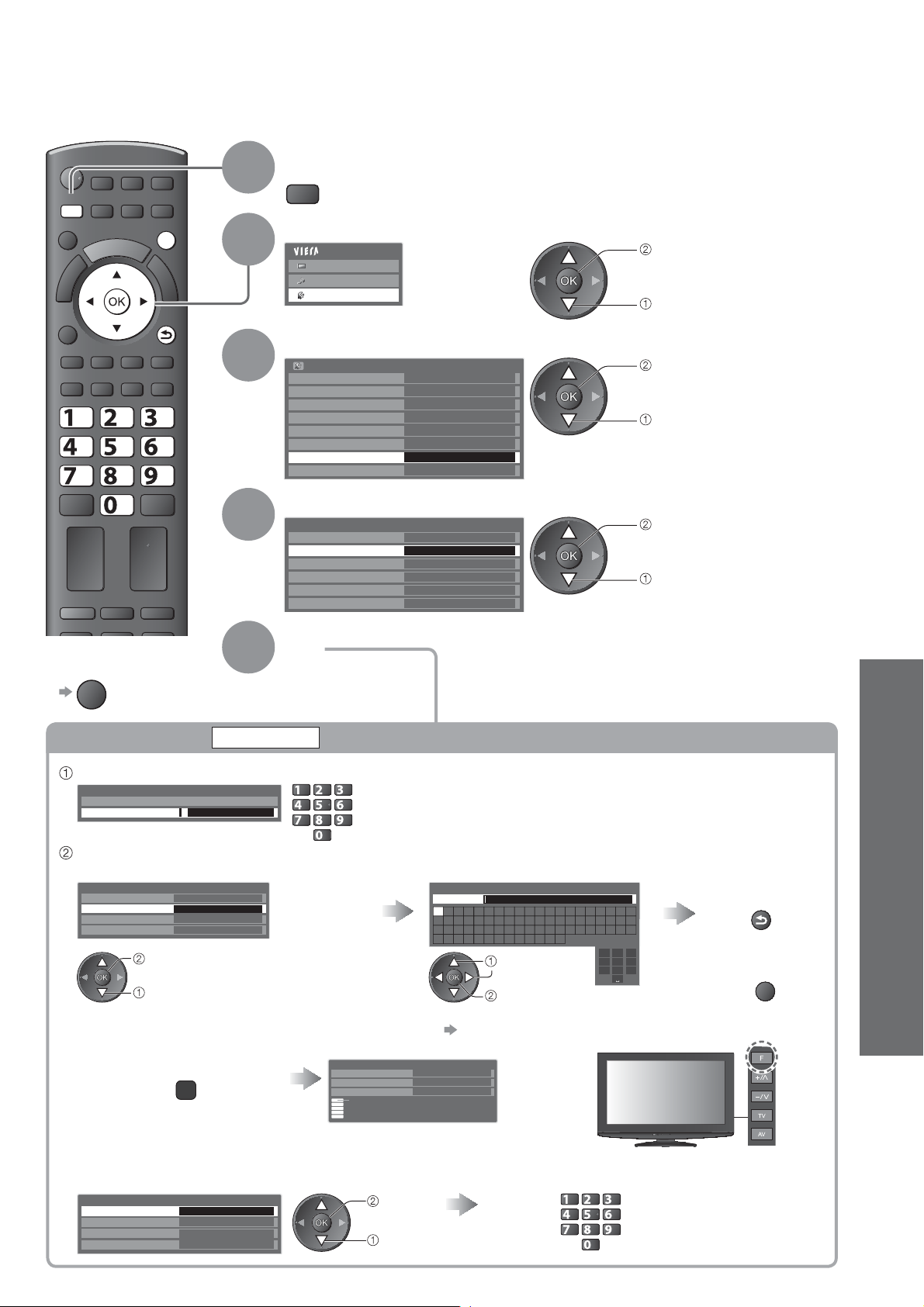

How to input Owner ID
Enter the PIN number (4 digits)
Owner ID
Please enter new PIN
PIN * * * *
abc def
jkl
ghi
mno
tuvpqrs
wxyz
Enter the PIN number twice at first setting.
Enter your name, house number, and postcode, in that order
Select the item (NAME / HOUSE NO / POSTCODE)
Owner ID-Data Entry
PIN
NAME
HOUSE NO
POSTCODE
access
select
Set characters one by one
User input
NAME
A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _
O P Q R S T
7 8 9 ! : #
o p q r s t
1
.!:#2abc3def
4
ghi5jkl6mno
7
pqrs8tuv9wxyz
Return to select other items
select
set
0
RETURN
You can set characters by using numeric
buttons.

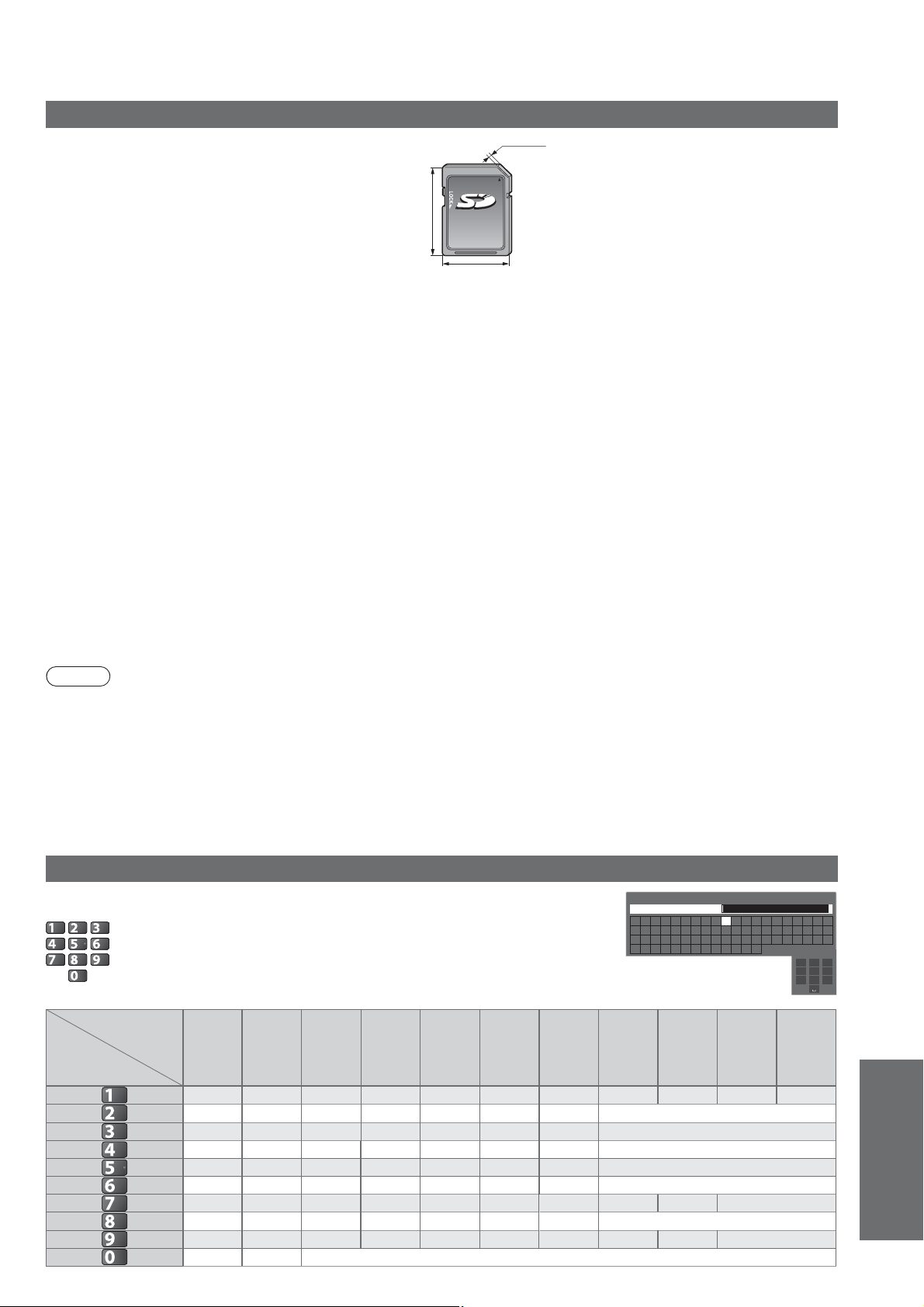

“Characters table for numeric buttons” (p. 63)
Select the next item and repeat the operations.
Exit to go to next step
EXIT
Quick Start Guide
Auto Setup
“Shop” viewing environment (for shop display only)
“Shop” viewing environment is the demonstration mode to explain main features of this TV.
Select “Home” viewing environment to use in your home environment.
You can return to viewing environment selection screen at the stage of Shop confirmation screen and
Automatic Demo Off / On selection screen.
Return to viewing environment selection screen
Shop
You have selected shop mode
Automatic Demo
Off On
RETURN
Select “Home”
Please select your viewing environment.
Home Shop
select
set
Auto Setup is complete
To change viewing environment later on, you will need to initialise all settings by accessing
Shipping Condition.
“Shipping Condition” (p. 44)
Note
If tuning has failed or to retune all channels “Auto Setup” (p. 34 and p. 35)
To re-initialise all settings “Shipping Condition” (p. 44)
If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On
with Mains power On / Off switch.
13
Watching TV
Turn power on
(Press for about 1 second)
Select DVB or Analogue
TV
MENU
ASPECT
INPUT
AV
TV
DIRECT TV REC
N
EXIT
1
2
Mains power On / Off switch should be On. (p. 8)
Also possible by pressing the TV button on the side panel of the
TV. (p. 9)
INDEX
HOLD
abc def
jkl
mno
tuvpqrs
wxyz
LAST VIEW
RETURN
Volume
OPTION
TEXT
STTL
ghi
PROGRAMME
TV
Note
To watch pay-TV
“Using Common Interface”
(p. 46)
3
1 BBC ONE WALES
Coronation Street
19:30 - 20:00
All DVB Channels
19:35
For info press
Now
Select a channel
up
down
or
ghi
Information banner appears
whenever you select a channel
For details
p. 15
abc def
jkl
tuvpqrs
mno
wxyz
DVB channel position numbers run from
1 onwards.
Analogue channel position numbers run in
the ranges 0 - 99.
To select a two or three-digit channel
position number, e.g. 399
wxyz
def
wxyz
14
Select a channel using Information banner (p. 15)
It is possible to confirm the channel name and programme information by using the Information banner before changing
channels.
Display Information banner if it is
not displayed
While the banner is displayed,
select the channel
select channel
watch
Possible to set display timeout in
“Banner Display Timeout” (p. 30).
Select a channel using TV Guide (p. 18)
It is possible to confirm the channel and programme information by using the TV Guide (EPG) before changing channels.
Display
TV Guide
Select a current
programme or channel
select
access
Select “View”
(DVB mode)
Eastender
19:30- 20:00
View
Timer Programming
To use Timer Programming p. 19
select
watch
Other useful functions
Hold
Freeze / unfreeze picture
Display Information banner
Display Information banner
Also appears when changing a channel
Channel position and name
Example (DVB):
1 BBC ONE Wales
Programme
Programme Start /
Finish time
Example (Analogue):
3 ITV
itv1
CH23
Mute
Encrypted
Channel number
To confirm another tuned
channel name
To watch the channel listed in the banner
Information on the next programme
(DVB)
EXIT
To hide
Extra information
(DVB)
To set display timeout
“Banner Display Timeout” (p. 30)
Coronation Street
19:30 - 20:00
Mute
Progress time indicator of the selected programme
All Analogue Channels
Radio
19:35
SubtitlesAD
(press again to hide the
banner)
Encrypted
For info press
NICAMTEXT 45
HOLD
“All DVB Channels” or “Favourites1-4” (p. 37)
Channel type
(if it is Radio or Data channel)
Current time
19:35Radio
Now
STTLAD TEXT Multi Audio 45
Features available / Message meanings
Mute
Sound mute On
Bad signal
Poor TV signal quality
Encrypted
Scrambled programme
AD
Audio Description service available
This function can aid visually-impaired viewers by
adding an additional audio track to describe events
on screen.
For settings
p. 29
STTL
Subtitle service available
TEXT
Teletext service available
Multi Audio
Multiple audio available
Stereo, Mono, NICAM
Audio mode
1 - 90
Off Timer remaining time
For settings
p. 17
To switch
blue
All DVB Channels
Select favourites
For info press
Basic
Watching TV
“AD”, “STTL”, “TEXT”, “Multi Audio” indications are displayed as
available on particular programmes, but may not be available for all
individual programmes being broadcast.
Display the extra information to confirm availability of these
functions.
Example:
1 BBC ONE Wales
Coronation Street
19:30 - 20:00
[AD]
Now
All DVB Channels
19:35
Select favourites
Exit info
AD
15
Watching TV
Other useful functions
Display subtitles
DVB mode
Display / hide subtitles (if available)
To change the language for DVB (if available)
“Preferred Subtitles” (p. 30)
Analogue mode
Display subtitles
To hide subtitles
Note
This is the same as switching to Analogue teletext service and selecting “P888” (subtitle service). (p. 23)
You cannot change the channel when this function is active.
Aspect
EXIT
STTL
STTL
Change the aspect ratio (image size)
ASPECT
Enjoy viewing the image at its optimum size and aspect.
Programmes usually contain an Aspect Control Signal (Widescreen signal, etc.), and the TV will choose the
aspect ratio automatically according to the Aspect Control Signal (p. 62).
If you would like to change the aspect ratio manually
Display Aspect Selection list While the list is displayed, select the mode
ASPECT
Aspect Selection list
To change the mode using the ASPECT button only
ASPECT
(Press repeatedly until you reach the desired mode)
Auto
16:9 Zoom1
The best ratio is chosen and the image expanded to fill the screen.
For details
Directly displays the image at 16:9
without distortion (anamorphic).
Aspect Selection
Auto
16:9
14:9
4:3
Zoom1
Zoom2
Zoom3
Select
Change
EXIT
RETURN
p. 62
store
select
Displays a 16:9 letterbox or 4:3 image
without distortion.
16
14:9 Zoom2
Displays the image at the standard 14:9
without distortion.
4:3 Zoom3
Displays the image at the standard 4:3
without distortion.
Note
Aspect is fixed to “16:9” when “Viewing Mode” is set to “Game” in the Picture Menu.
Not available when the subtitle function is active.
Not available in teletext service.
Aspect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.
Displays a 16:9 letterbox (anamorphic)
image full-screen without distortion.
Displays a 2.35:1 letterbox (anamorphic)
image full-screen without distortion.
At 16:9, displays the image at its maximum
(with slight enlargement).
Other useful functions
Display the selectable settings for the current programme
Check or change the current
OPTION
programme status instantly
Multi Audio (DVB mode)
Allows you to select between alternative language
for sound tracks (if available)
This setting is not memorized and it will return to the
default setting once you exit the current programme.
Monaural Audio (DVB mode)
Allows you to select stereo / monaural (if available)
Subtitle Language (DVB mode)
Allows you to select the language in which subtitles
should appear (if available)
Note
Also possible to change the settings in Menu list (p. 28 - 30).
Last view
Switch to previously viewed
channel or input mode easily
LAST VIEW
To change
change
select
NICAM (Analogue mode)
Switches NICAM sound (if available)
Sound Menu (p. 29)
Volume Correction
Adjusts volume of individual channel or input mode
Audio Description (DVB mode)
Set to “Auto” if the programme has Audio Description
service, then you will hear an additional audio track to
describe events on screen
To adjust the volume for Audio Description
“Audio Description Menu” (p. 29)
Press again to return to the present view.
Basic
Note
Switching channel is not available while Ext Rec. of Timer Programming or Direct TV Recording is in progress.
Watching less than 10 sec. is not regarded as the previously viewed channel or input mode.
Off Timer
Turn the TV off automatically after a fixed period (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)
Display the menu Select “Setup” Select “Off Timer” and set the time
MENU
Sound
Setup
Main Menu
access
select
To cancel Set to “Off” or turn the TV off.
To display the remaining time
Information banner (p. 15)
Note
When the remaining time is within 3 minutes, the remaining time will flash on the screen.
Setup Menu
Timer Programming
Off Timer Off
Link Settings
Child Lock
DVB Tuning Menu
Display Settings
System Menu
Other Settings
Watching TV
set
select
17
Using TV Guide
TV GuideElectronic Programme Guide (EPG) provides an on screen listing of the programmes
currently broadcast and the forthcoming broadcasts over the next seven days (depending on the
broadcasters).
This TV supports the GUIDE Plus+ system.
The Gemstar branding partner will supply the rating informations in the programme information and the
recommended group in the Search list.
DVB and Analogue channels are displayed on the same TV Guide screen. “D” means DVB channel and “A”
means Analogue channel. There will be no programme listings for Analogue channels.
When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time
before the TV Guide is completely shown.
Select DVB or Analogue
ASPECT
OPTION
TEXT STTL
MENU
INPUT
AV
TV
DIRECT TV REC
N
EXIT
RETURN
INDEX HOLD
1
2
TV
View TV Guide
Example:
Wed 28 Oct 2009
10:46
TV Guide time
Advertisement
D: DVB
A: Analogue
Timer Programming
-24 hours +24 hours Search Category
Current date and time
TV Guide date
Wed 28 Oct
1 BBC ONE
20:00 - 20:30 DIY SOS : We open in the Battersbys
D
1
D
7
D
14
D
70
D
72
105
D
719
D Rugby 15 To 1 Sports
Select channel
19:30
Time: 20:00 20:30 21:00
Eastender
BBC ONE
BBC THREE
Hot Wars Holiday Program
E4
Emmerdal. Coronation Street The Bill
BBC FOUR
10 O’ clock News BBC Pepsi Char. Good bye
BBC 2W
Panorama Spring watch Coast
BBCi
I’m A Celebrity Pop Idol News
BBC Radi
EXIT
Select programme
RETURN
Programme
TV Guide
Search All Channels
DIY SOS Holiday News
Info
GUIDE
RETURN
OPTION
Select Advert
Logo of the
Gemstar branding partner
Channel position
Page up
Page down
and name
To return to TV
EXIT
or
To view a
channel list of the
selected category
blue
To search
programme types
and view a channel
list of the searched
programmes
(DVB mode)
yellow
To watch the programme
Select a current
programme or channel
select
access
Category
All Channels
All Channels
All DVB Channels
All Analogue Channels
Free DVB Channels
TV/Data DVB Channels
Favourites1
Favourites2
Favourites3
Favourites4
Search
Search Titles...
Movie
News and Factual
Entertainment
Sport
Children’s
.
.
.
(Category list)
Only Analogue channels
are listed
(Search list)
Select “View”
(DVB mode)
Eastender
19:30- 20:00
View
Timer Programming
To use Timer Programming p. 19
select category
view
To list favourite channels p. 39
select type
view
select
watch
To the previous day
(DVB mode)
red
To the next day
(DVB mode)
green
18
To search
programme titles
and view a list
of the searched
programmes
(DVB mode)
yellow
All the programme titles including the word you set will be listed.
Searching without any characters will list all programmes including current programmes.
Search
Search Titles...
Movie
News and Factual
Entertainment
Sport
Children’s
.
.
.
.
(Search list)
select
“Search Titles...”
access
Set characters one by one
Search
(maximum: 19 characters)
select
set
You can set characters by using
numeric buttons.
“Characters table for numeric
buttons” (p. 63)
green
Other useful functions
Timer Programming (DVB mode)
Timer Programming can remind you to watch a programme or record one on an external recorder.
Select the
forthcoming
programme
select
set
To check / change / cancel a timer programming event “Timer Programming” (p. 41)
To return to TV Guide
Select the function
(Reminder or Ext Rec.)
Timer Programming Wed 28 Oct 2009 10:46
Ext Rec.
Channel NameFunction No.
1D BBC ONE
DIY SOS
--- --/-- --:-- --:--
---
---
---
---
--- --/-- --:-- --:--
---
--- --/-- --:-- --:--
Date Start End
Wed 28 Oct 20:0 0 20 :30
Guide
Guide
--/-- --:-- --:--
--/-- --:-- --:--
(30 min.)
(--- min.)
(--- min.)
(--- min.)
(--- min.)
(Timer Programming screen)
Ext Rec. : to record the programme to the recorder
When the start time comes, the channel will be switched automatically and
the video and audio signals will be output. 2 mins. before the starting time,
a reminder message appears if you are watching TV.
Reminder
: to remind you to watch the programme
When you are watching TV, a reminder message appears 2 mins. before
the start time. Press the OK button to switch to the programmed channel.
RETURN
store
select
LED will turn to orange if
Timer Programming is set.
(Orange LED will flash if Ext Rec. of
Timer Programming is in progress.)
LED
If you select a current programme
A confirmation screen asking whether you wish to watch or record the programme will appear.
Select “Timer Programming” and set “Ext Rec.” to record from the time
you finish programming the timer event setting.
Eastender
19:30- 20:00
View
Timer Programming
select
access
Note
This function is not available in Analogue mode.
Timer Programming can store up to 15 events.
Timer Programming reminder messages will remain displayed until one of the following occurs:
You press the OK button to view the programme or the EXIT button to cancel the reminder.•
The timer programming event that the reminder is set for ends.•
No other channel can be selected while Ext Rec. of Timer Programming is in progress.
When recording programmes, be sure to make the proper settings on the recorder connected to the TV.
If a compatible recorder with Q-Link or similar technologies is connected to the TV (p. 54) and the “Link
Settings” (p. 29) are completed, no setting of the recorder is required. Also read the manual of the recorder.
Guide link programming (Timer Programming from the TV Guide signal)
Guide link programming is Timer Programming which is controlled by information from the TV Guide; if
programme start and end times are changed by the broadcaster, the timer programming event will follow the
change.
A Split Programme programming is a Guide link programming which is interrupted by one or more other
programmes.
Note that Guide link programming (including Split Programme programming) only works reliably if correct
information is received from broadcasters.
Timer Programming
Function Channel Name
Ext Rec.
Reminder
Ext Rec.
Ext Rec.
---
No.
1D Wed 28 Oct 20:00 20:30
BBC ONE
DIY SOS
14DE4
The Bill
72D BBC 2W
<TIMER>
D BBC ONE
1
Red Cap
---
Wed 28 Oct 2009 10:46
Date Start End
Guide
Guide
Wed 28 Oct 21:00 22:30
Guide
Wed 28 Oct 22:45 23:00
Thu 29 Oct 10 :30 11:30
S/P
(30 min.)
(90 min.)
(15 min.)
(60 min.)
--/-- --:-- --:-(--- min.)
(Timer Programming screen)
“Guide” is displayed if
the timer is set from the
TV Guide
(Guide link programming)
“S/P” is displayed if the timer
is set from the TV Guide
and the programme is a
Split Programme
“ ” or “ ” will be displayed in the TV Guide if Timer
Programming is set as the Guide link programming.
Wed 28 Oct 2009
10:46
Wed 28 Oct
1 BBC ONE
20:00 - 20:30 DIY SOS : We open in the Battersbys
D
1
BBC ONE
BBC THREE
D
7
E4
D
14
BBC FOUR
D
70
BBC 2W
D
72
105
BBCi
D
719
BBC Radi
D Rugby 15 To 1 Sports
TV Guide
Search All Channels
Time:
19:30 20:00 20:30 21:00
Eastender DIY SOS Holiday News
Hot Wars Holiday Program
Emmerdal. Coronation Street The Bill
10 O’ clock News BBC Pepsi Char. Good bye
Panorama Spring watch Coast
I’m A Celebrity Pop Idol News
Basic
Using TV Guide
Note
If you edit the start time or end time of a Guide link programming event by more than 10 minutes, it will no
longer follow the broadcaster’s changes to the start or end time. The start and end times will become fixed.
Whilst making the Split Programme programming event for Ext Rec., you cannot record any channels
between the interrupted programmes.
The Split Programme programming event for Reminder will be cleared by pressing the OK button once to
view.
The Split Programme programming event for Reminder will switch to the programmed channel by pressing
the OK button even if it is between the interrupted programmes.
The Split Programme programming does not work if the separated parts are broadcast on different channels.
19
Using TV Guide
Other useful functions
View details of the programme (DVB mode)
Wed 28 Oct 2009
DIY SOS
BBC ONE
20:00 - 20:30, 30 min.
EXIT
RETURN
TV Guide
Details
Return to list
Select the programme View details
select
Wed 28 Oct 2009
10:46
Timer Programming
Press again to return to TV Guide.
View advertisement
Enter your postcode when using this function for the first time
“Postcode” in “GUIDE Plus+ Settings” (p. 30)
If you have already entered your postcode in “Auto Setup” - when first using the TV (p. 12), you do not have to
enter it again.
If you enter an incorrect postcode for your area, or no postcode is entered, advertisements may not be
displayed correctly.
Display advertisement information
OPTION
To display the latest advertisement, you will need to update the information.
To update the information continuously, the TV must be left in Standby mode at night.
To change advertisements
To return to TV Guide
OPTION
or
RETURN
Note
Some advertisements are for future programmes.
In this case it is possible to use the Guide link programming function (p. 19).
The advertisements displayed on the TV Guide are sent from the GUIDE Plus+ system so that they cannot
be deleted manually or will not be lost even when the TV is turned Off with Mains power On / Off switch.
20
Viewing Teletext
You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)
The availability of teletext services for a programme is indicated by “TEXT” in the information banner.
1 BBC ONE Wales
Coronation Street
19:30 - 20:00
All DVB Channels
19:35
Select favourites
TEXT
For info press
Now
Information banner (p. 15)
Displayed if programme has teletext service
Digital teletext (MHEG)
Digital teletext services
Digital teletext services differ greatly from analogue teletext.
When you switch to a digital teletext service, the images you see can contain graphics and text, laid out and
controlled in a manner decided by the broadcaster.
Select DVB
DVB programmes have digital teletext services (MHEG).
17:51 28 Feb
ASPECT
OPTION
TEXT
ghi
MENU
STTL
INPUT
AV
TV
DIRECT TV REC
N
EXIT
INDEX HOLD
abc def
jkl
mno
tuvpqrs
wxyz
1
2
3
TV
Switch to Teletext
TEXT
How to use
In all cases, it is possible to navigate the pages using buttons on the
remote control, but because the commands available must apply to all
manufacturers of digital equipment, some on screen commands may
not correspond exactly to the remote control buttons.
For example:
When “select” or “go” is displayed
When “”, “”, “”, “” symbol is displayed
Basic
Viewing Teletext
Using TV Guide
PROGRAMME
TV
When the key words are displayed on colour bar
When options with numbers are displayed
TEXT
red green yellow blue
abc def
jkl
ghi
mno
tuvpqrs
wxyz
To return to TV
Note
As soon as you switch to a digital channel with links to a teletext service,
software is downloaded in the background to enable the teletext function.
This means that when switching to a digital channel, you should wait for
approximately 5 seconds before pressing the TEXT button - this will allow
the software to download. If you press the TEXT button before download is
complete, it will be ignored and you will have to press the TEXT button again
when the download is complete.
While navigating digital teletext, you will find there is a short delay when
moving between pages while the page downloads. There is often a prompt
shown somewhere on the page (for example “Loading”) to let you know that
this is happening.
21
Viewing Teletext
Analogue teletext
Analogue teletext services
Analogue teletext services are the text information provided by the broadcasters.
The features may vary depending on the broadcasters.
What is FASTEXT mode?
In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more
information about one of these subjects, press the appropriately coloured button. This facility enables fast access to
information on the subjects shown.
What is List mode?
In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these
numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 23)
To change mode “Teletext” in the Setup Menu (p. 30)
ASPECT
MENU
OPTION
TEXT
ghi
STTL
INPUT
AV
TV
DIRECT TV REC
N
EXIT
RETURN
INDEX HOLD
abc def
jkl
mno
tuvpqrs
wxyz
1
2
3
Select Analogue
TV
Switch to Teletext
TEXT
Displays the
index page
(content varies
depending on the
broadcasters)
Select the page
abc def
jkl
ghi
mno
tuvpqrs
To adjust contrast
To return to TV
or
wxyz
EXIT
up
down
MENU
(press twice)
Current
page
number
or
Sub page number
<< 01 02 03 04 05 06 07 >>
17:51 28 Feb
TELETEXT
INFORMATION
Colour bar
green
red
(Corresponds to the colour bar)
As the blue bar is displayed
yellow blue
Time / date
22

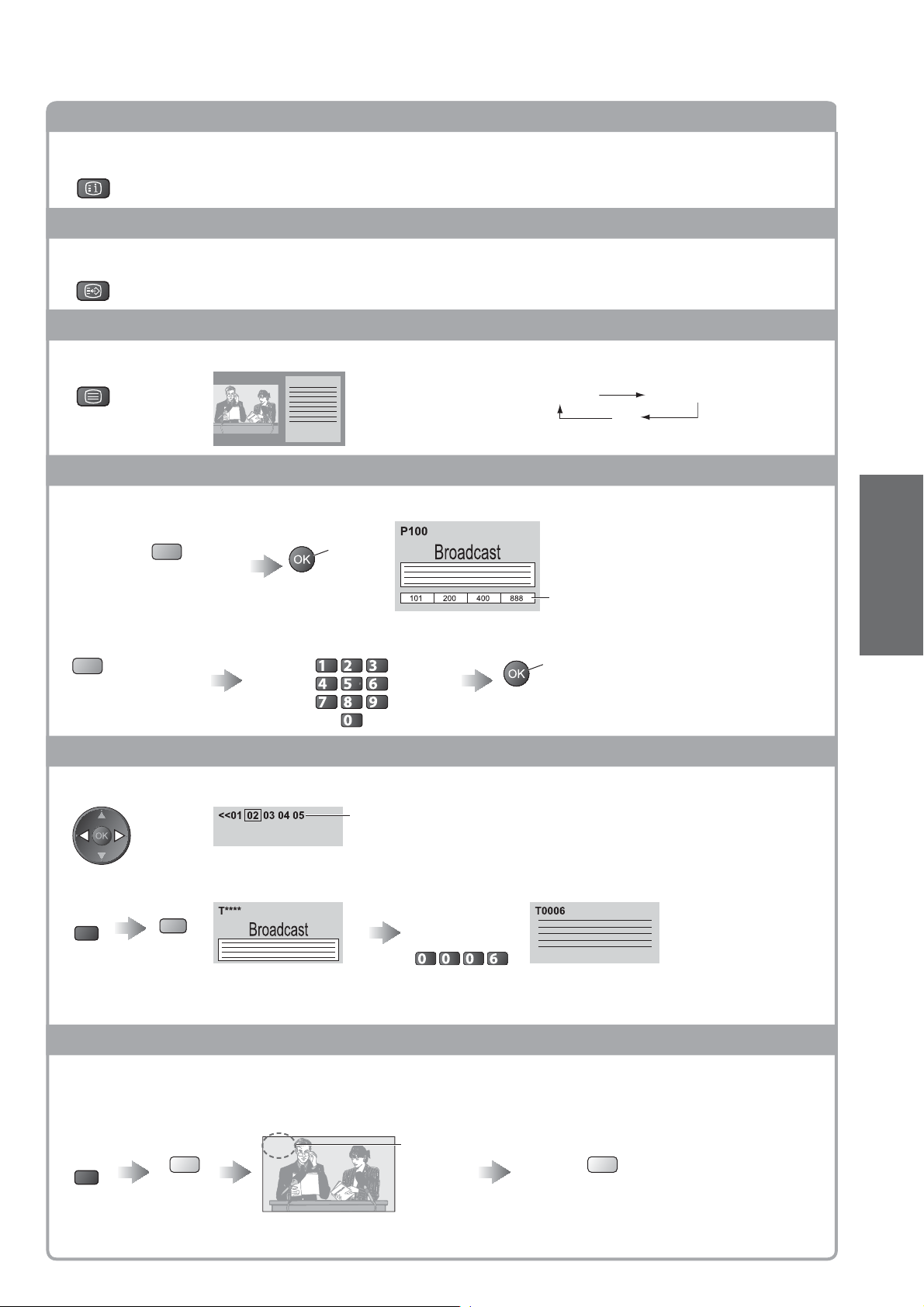

Reveal hidden data
Reveal hidden words e.g. quiz page answers
MENU
red
To rehide
red
FULL / TOP / BOTTOM
(TOP) (BOTTOM) Normal (FULL)
MENU
green
(Expand the TOP half) (Expand the BOTTOM half)
HOLD
Stop automatic updating
(If you wish to hold the current page without updating)
HOLD
To resume
HOLD
Loading...
