Panasonic TH-L32EM5D Schematic

ORDER NO. PAVCI1207039CE

LED TV

Model No. TH-L32EM5D

Chassis: KM18

Destination: INDIA

TABLE OF CONTENTS

1 Safety Precautions ----------------------------------------------- 3

1.1. General Guidelines---------------------------------------- 3

1.1.1. Leakage Current Cold Check ---------------------- 3

1.1.2. Leakage Current Hot Check (See Figure

1.) --------------------------------------------------------- 3

2 Warning-------------------------------------------------------------- 4

2.1. Prevention of Electrostatic Discharge (ESD)
to Electrostatically Sensitive (ES) Devices---------- 4

2.2. About lead free solder (PbF)---------------------------- 5

3 Service Navigation ----------------------------------------------- 6

3.1. Service Hint ------------------------------------------------- 6

4 Specifications ----------------------------------------------------- 7
5 Service Mode ------------------------------------------------------ 9

5.1. How to enter into Service Mode ----------------------- 9

5.1.1. Contents of adjustment mode --------------------- 9

5.1.2. How to exit---------------------------------------------- 9

5.2. SRV-TOOL -------------------------------------------------10

5.2.1. How to access ----------------------------------------10

5.2.2. Display of SOS History -----------------------------10

5.2.3. POWER ON TIME/COUNT -----------------------10

PAG E PAG E

5.2.4. Exit ------------------------------------------------------ 10

5.2.5. Self Check Mode ------------------------------------ 11

5.2.6. Self Check (Device) -------------------------------- 11

5.2.7. Hotel Mode Adjustment ---------------------------- 11

5.2.8. Hotel Mode-------------------------------------------- 11

6 Troubleshooting Guide --------------------------------------- 12

6.1. Check of the IIC bus lines------------------------------ 12

6.1.1. How to access --------------------------------------- 12

6.1.2. Exit ------------------------------------------------------ 12

6.1.3. Screen display --------------------------------------- 12

6.2. Power LED Blinking timing chart --------------------- 13

6.3. No Power--------------------------------------------------- 13

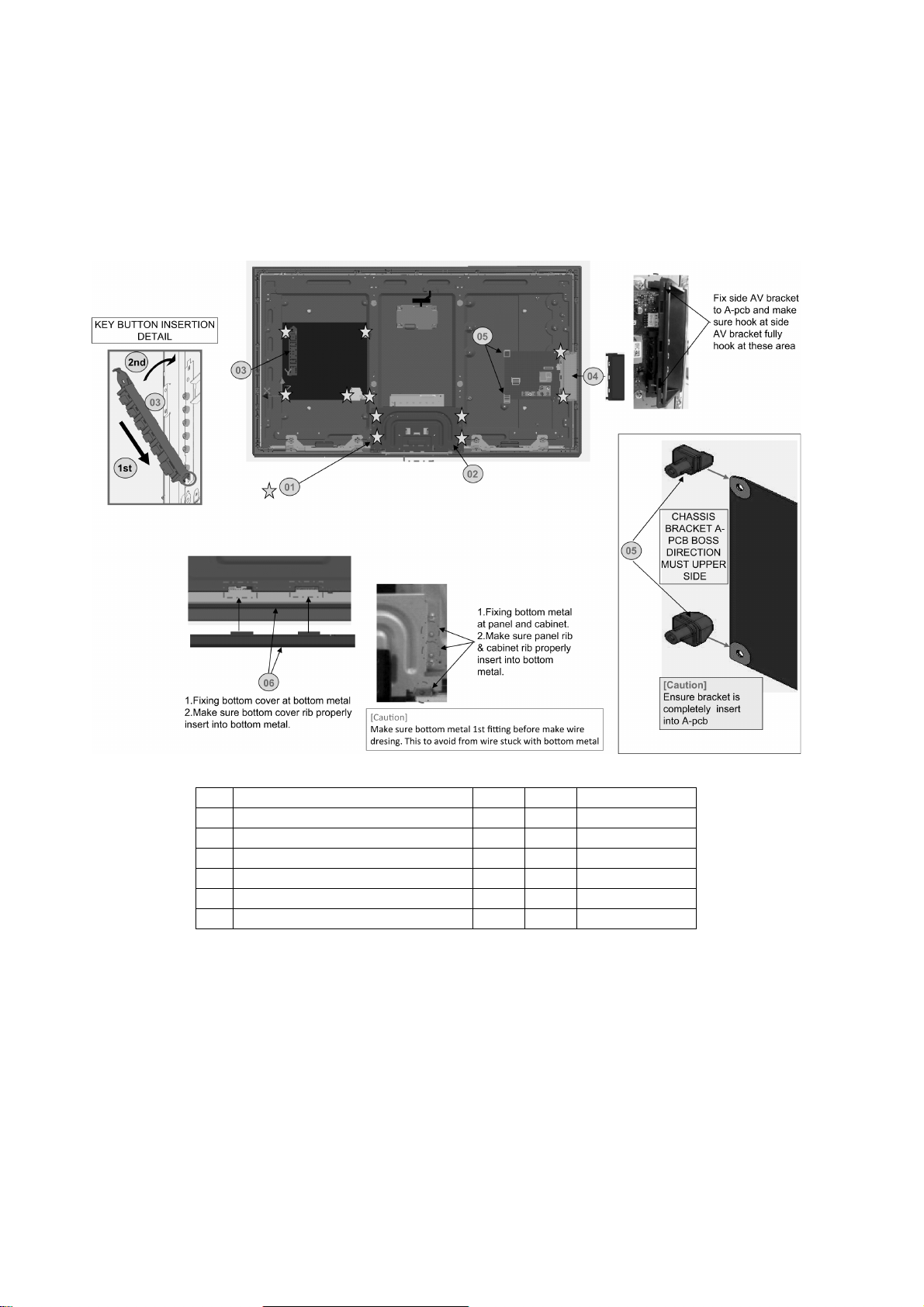

7 Disassembly and Assembly Instructions--------------- 14

7.1. SP Bracket and Metal Bottom ------------------------ 14

7.2. LED Panel Assy ------------------------------------------ 15

7.3. Barrier LCD ------------------------------------------------ 17

7.4. Fixing P Board and A Board ------------------------- 18

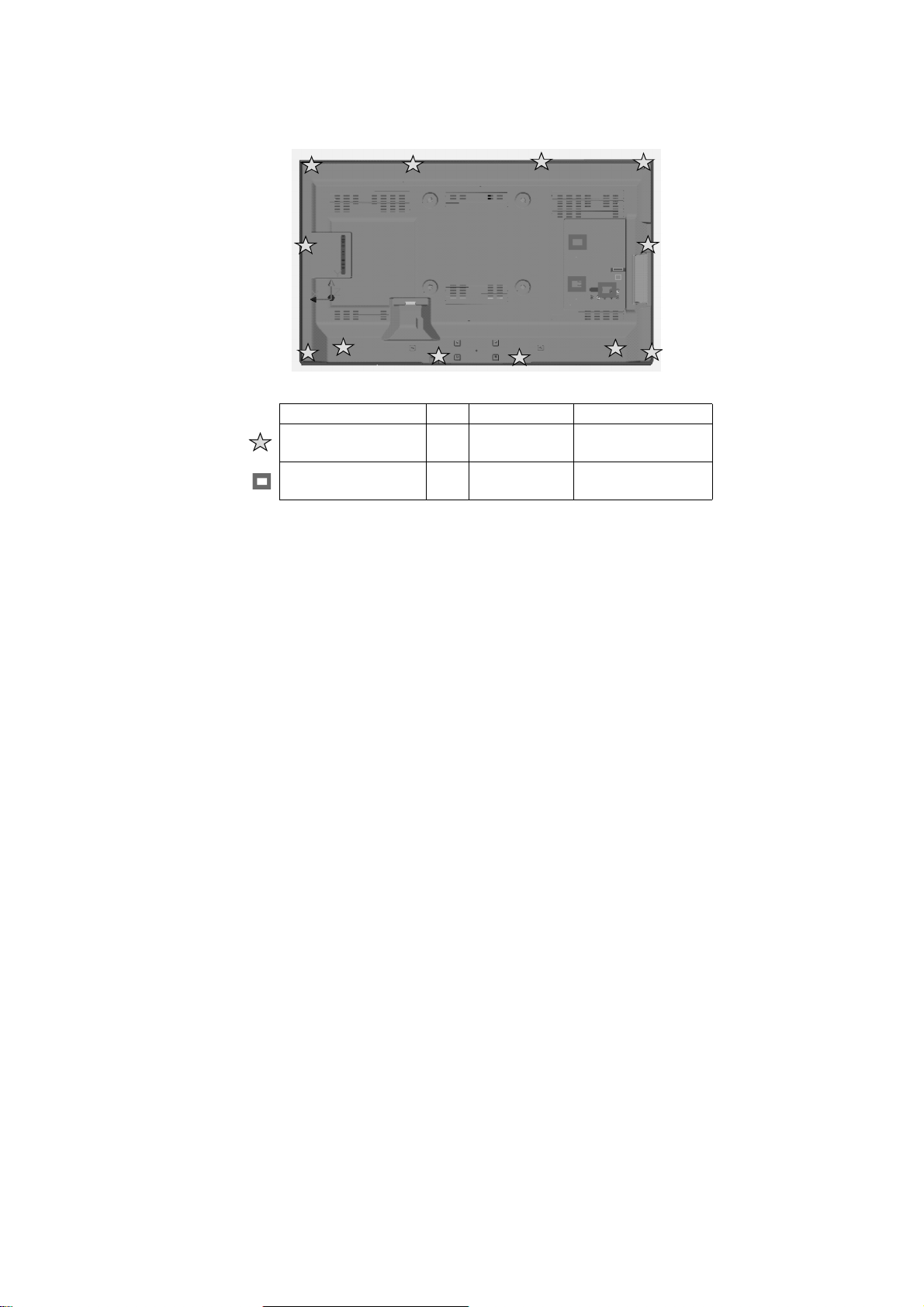

7.5. Back Cover Screw --------------------------------------- 19

8 Measurements and Adjustments -------------------------- 20

8.1. Voltage chart of A-board ------------------------------- 20

© Panasonic Corporation 2012. Unauthorized
copying and distribution is a violation of law.

TH-L32EM5D

8.2. Voltage chart of P-board-------------------------------- 20

9 Block Diagram --------------------------------------------------- 21

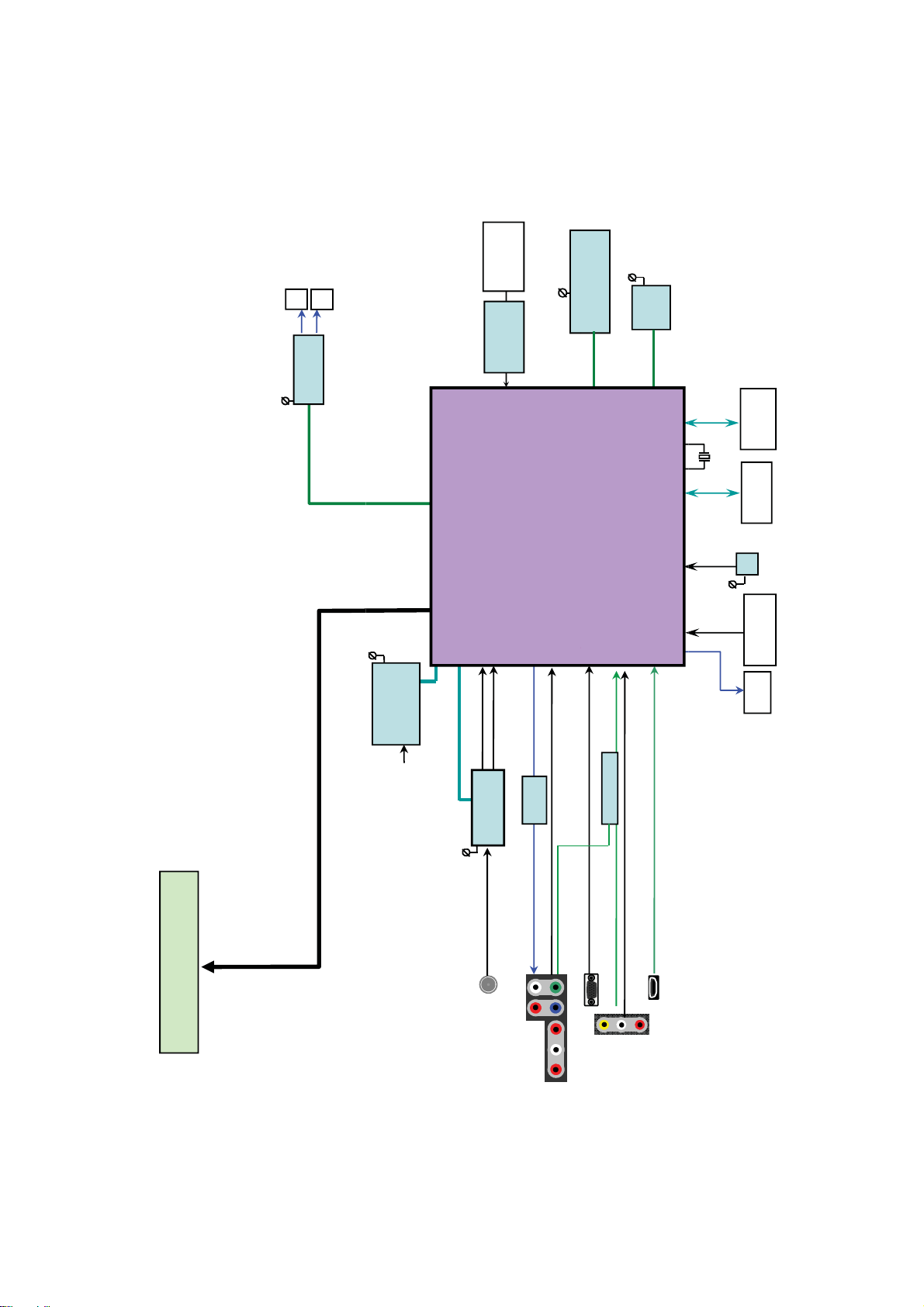

9.1. Main Block Diagram ------------------------------------- 21

10 Wiring Connection Diagram --------------------------------- 22

10.1. Wire Dressing --------------------------------------------- 22

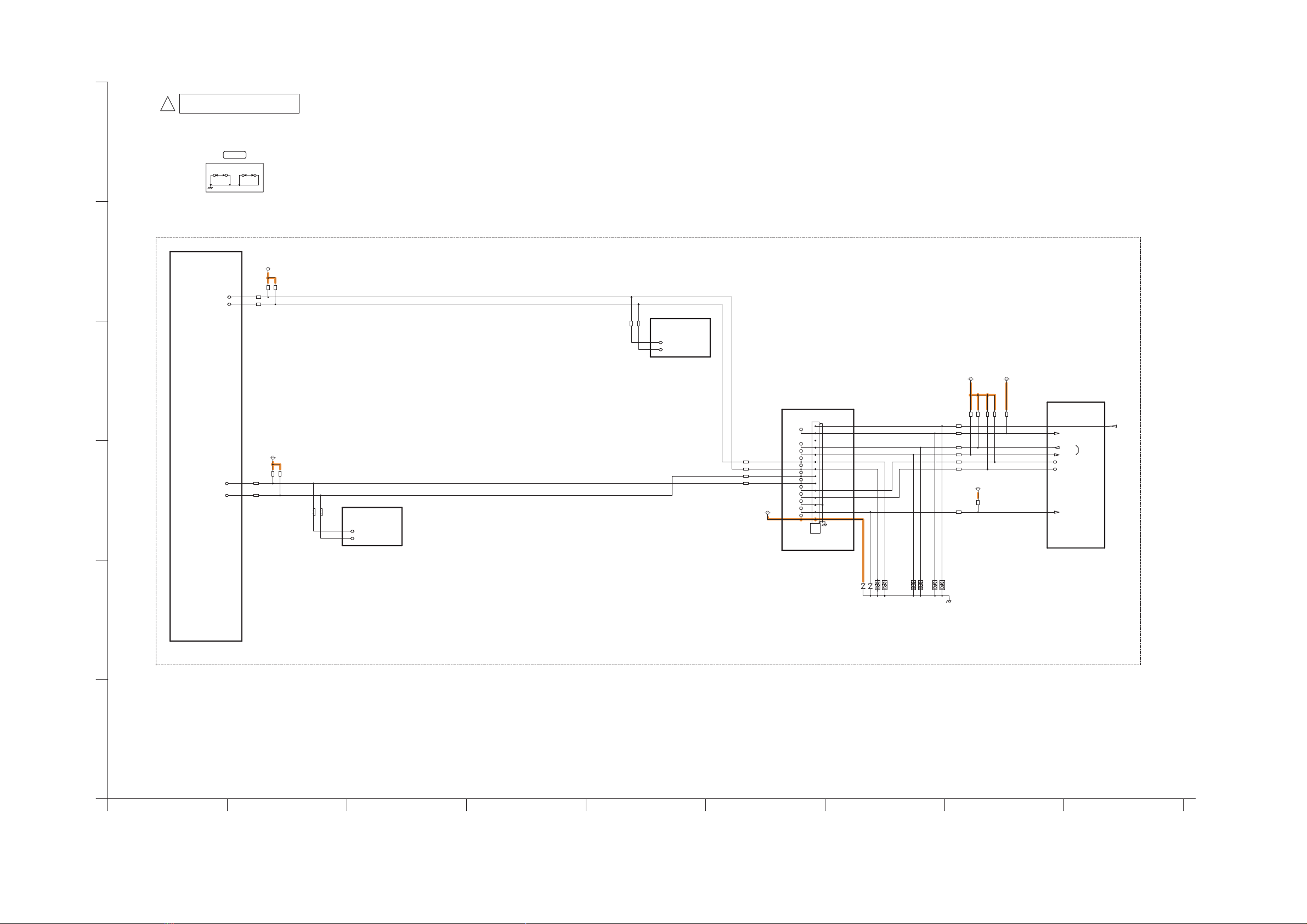

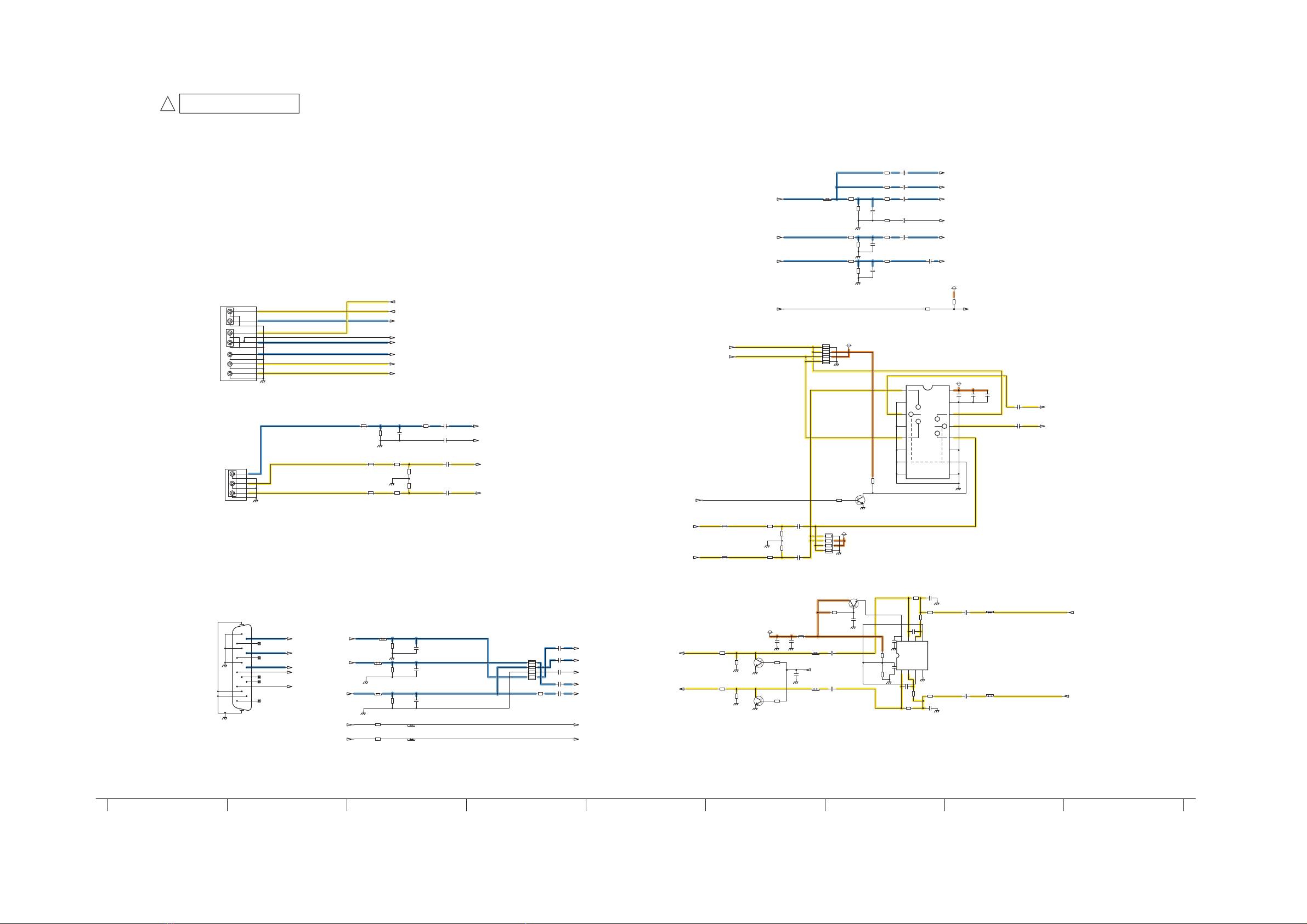

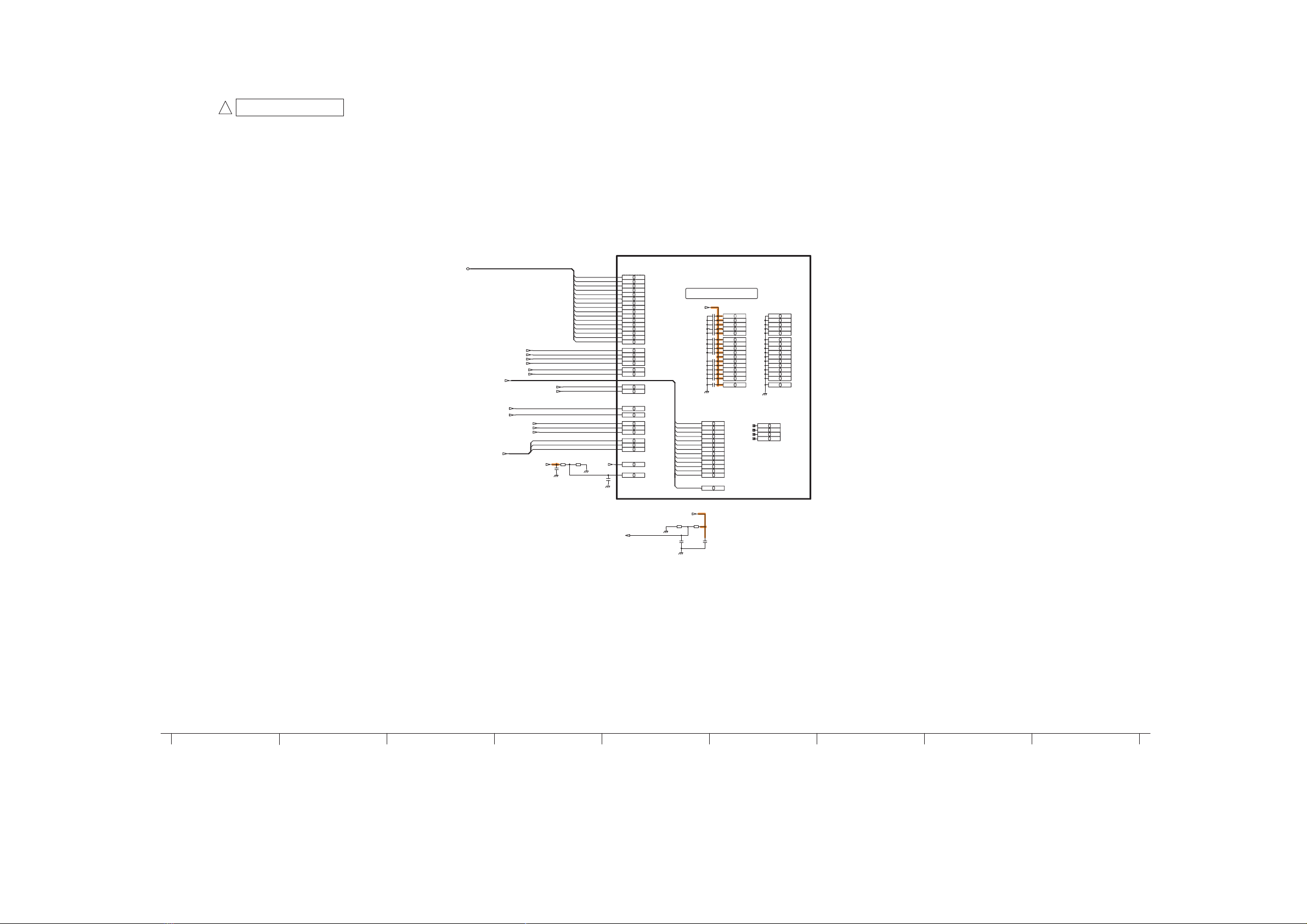

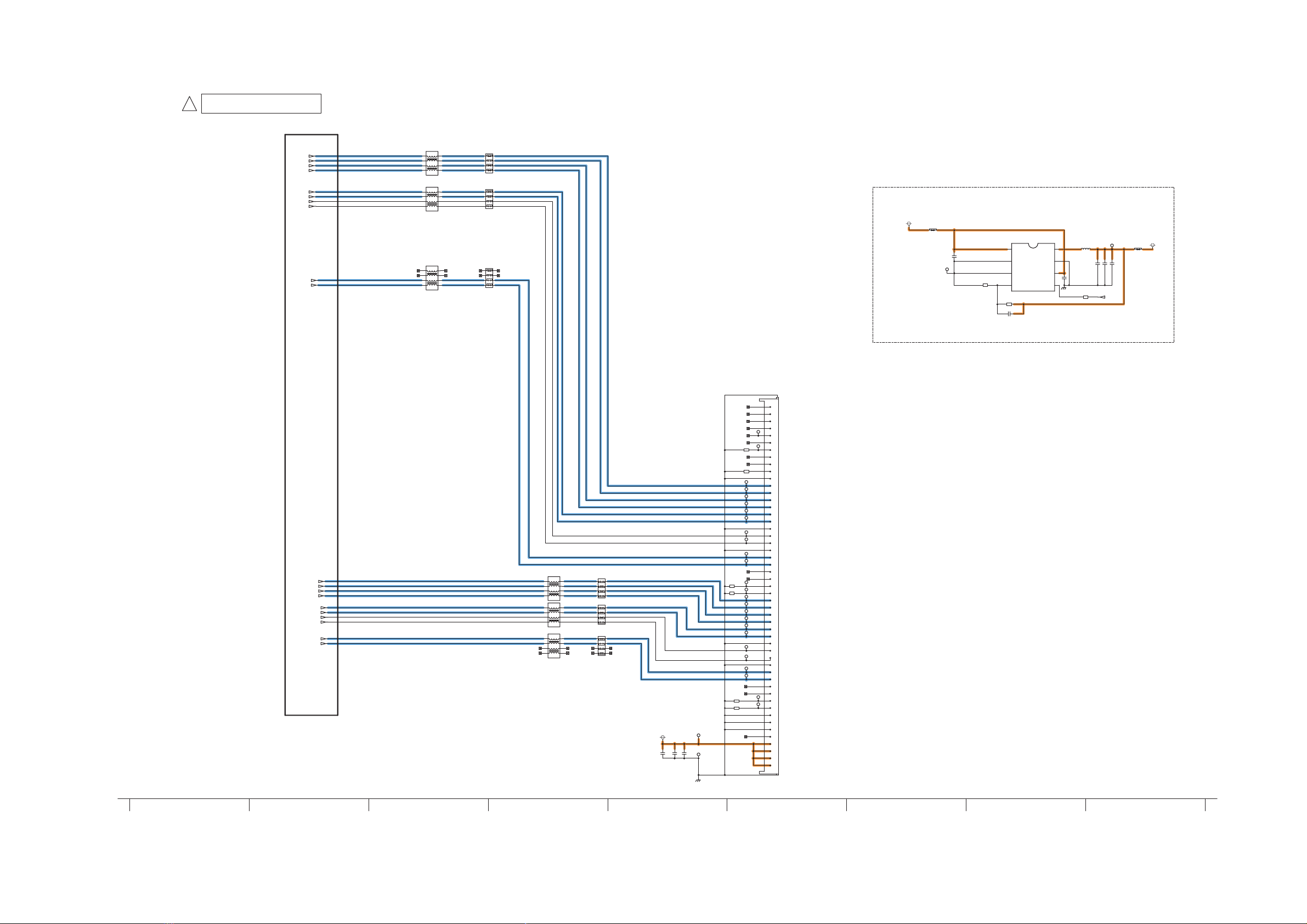

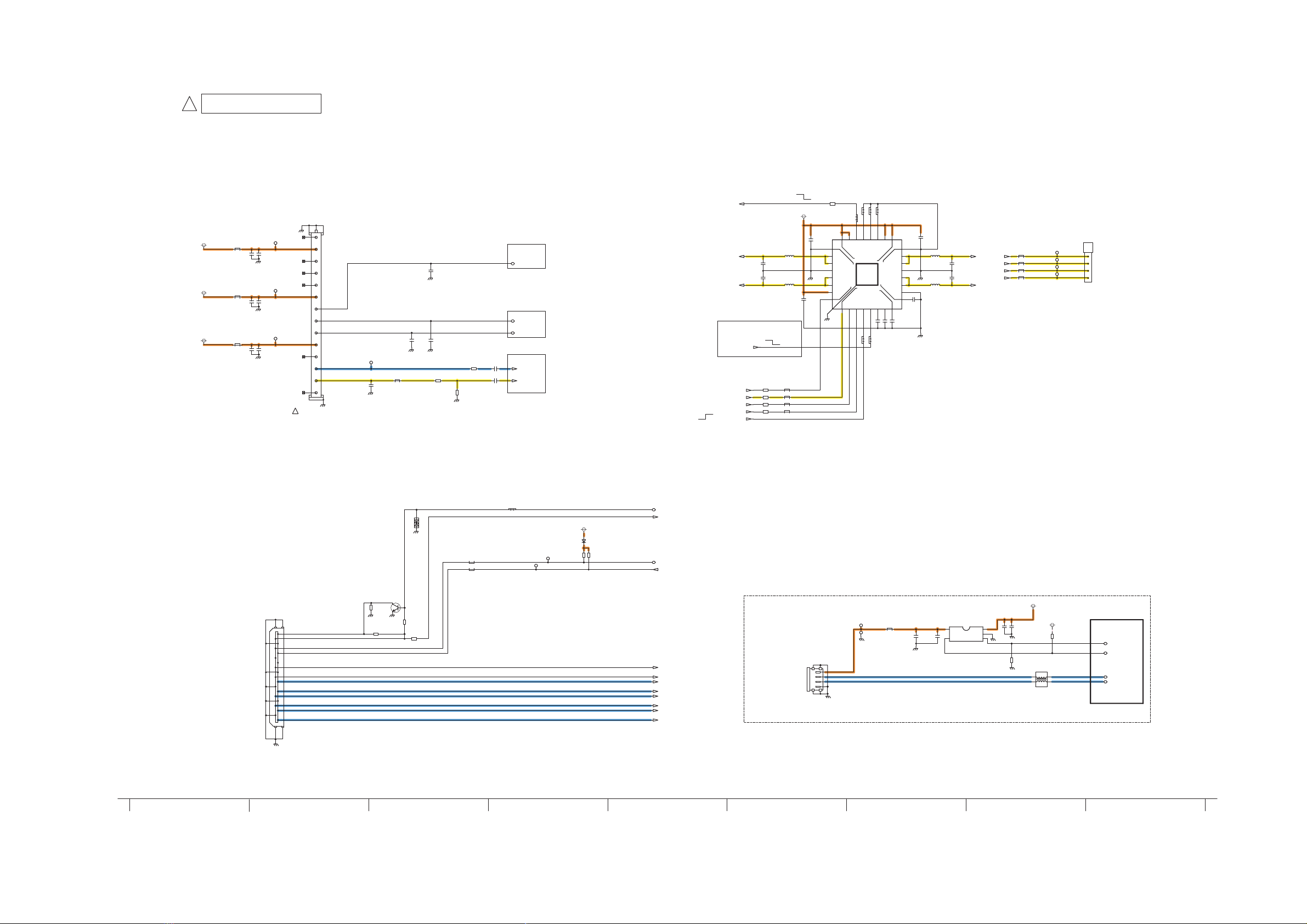

11 Schematic Diagram--------------------------------------------- 23

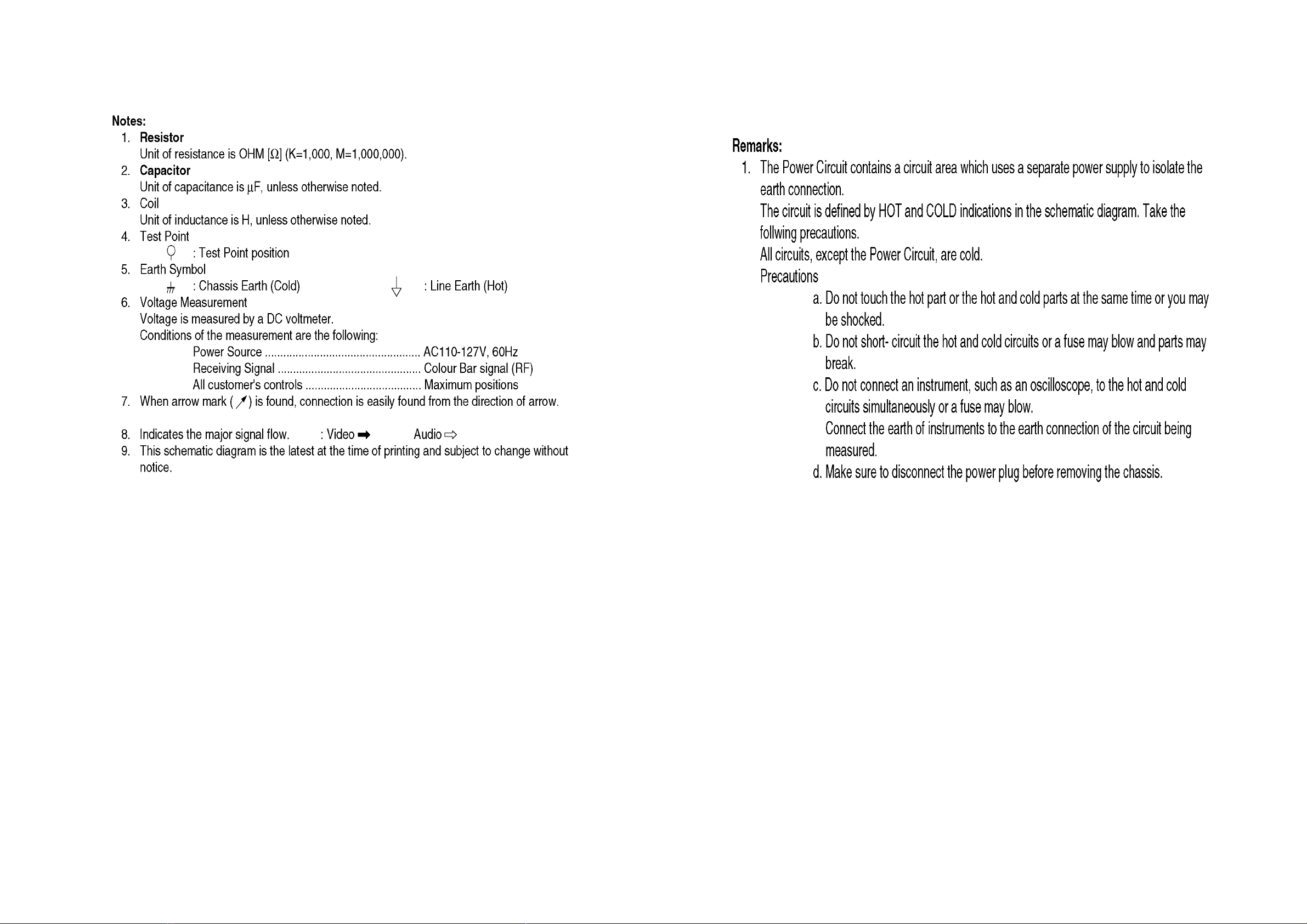

11.1. Schematic Diagram Notes ----------------------------- 23

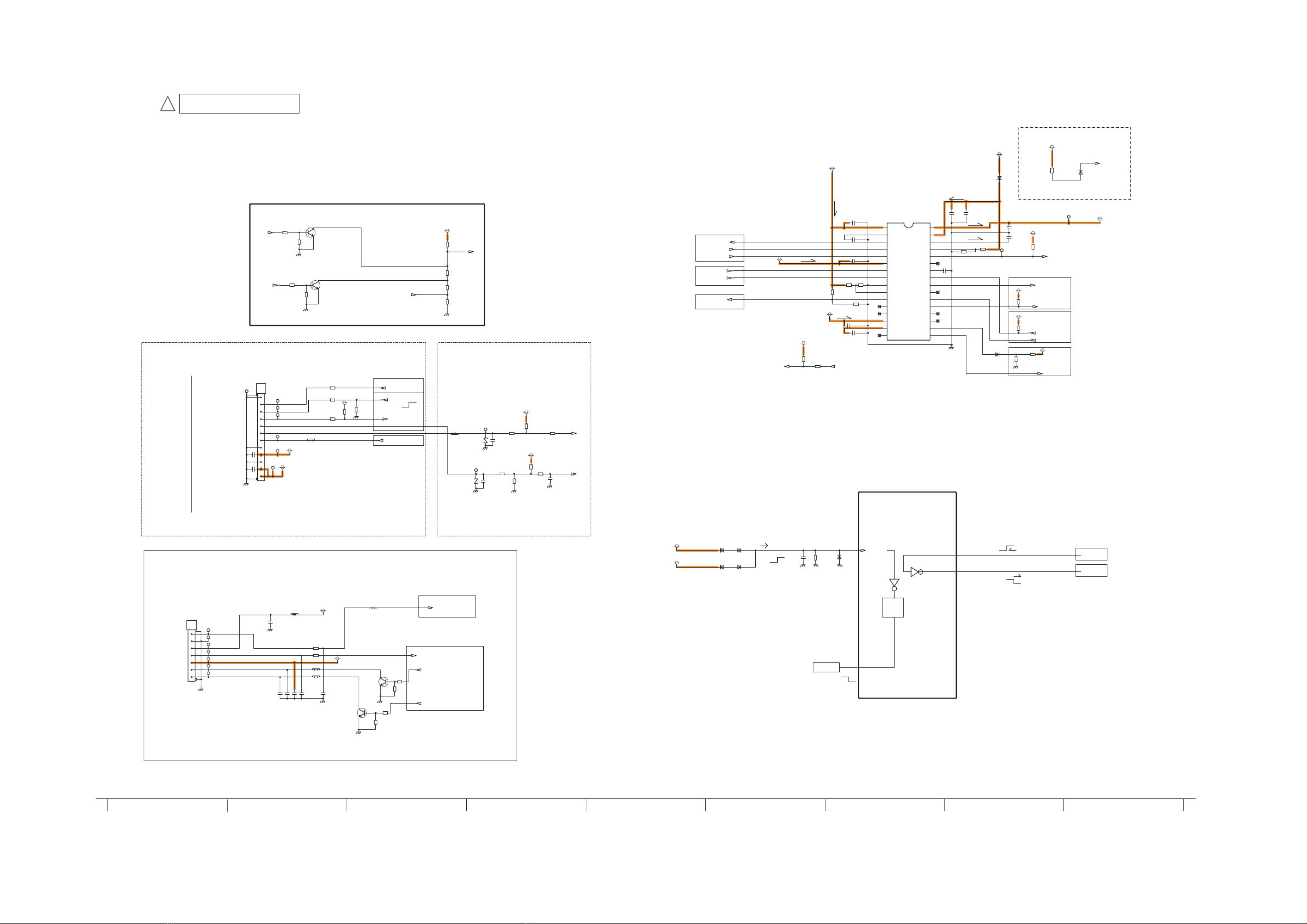

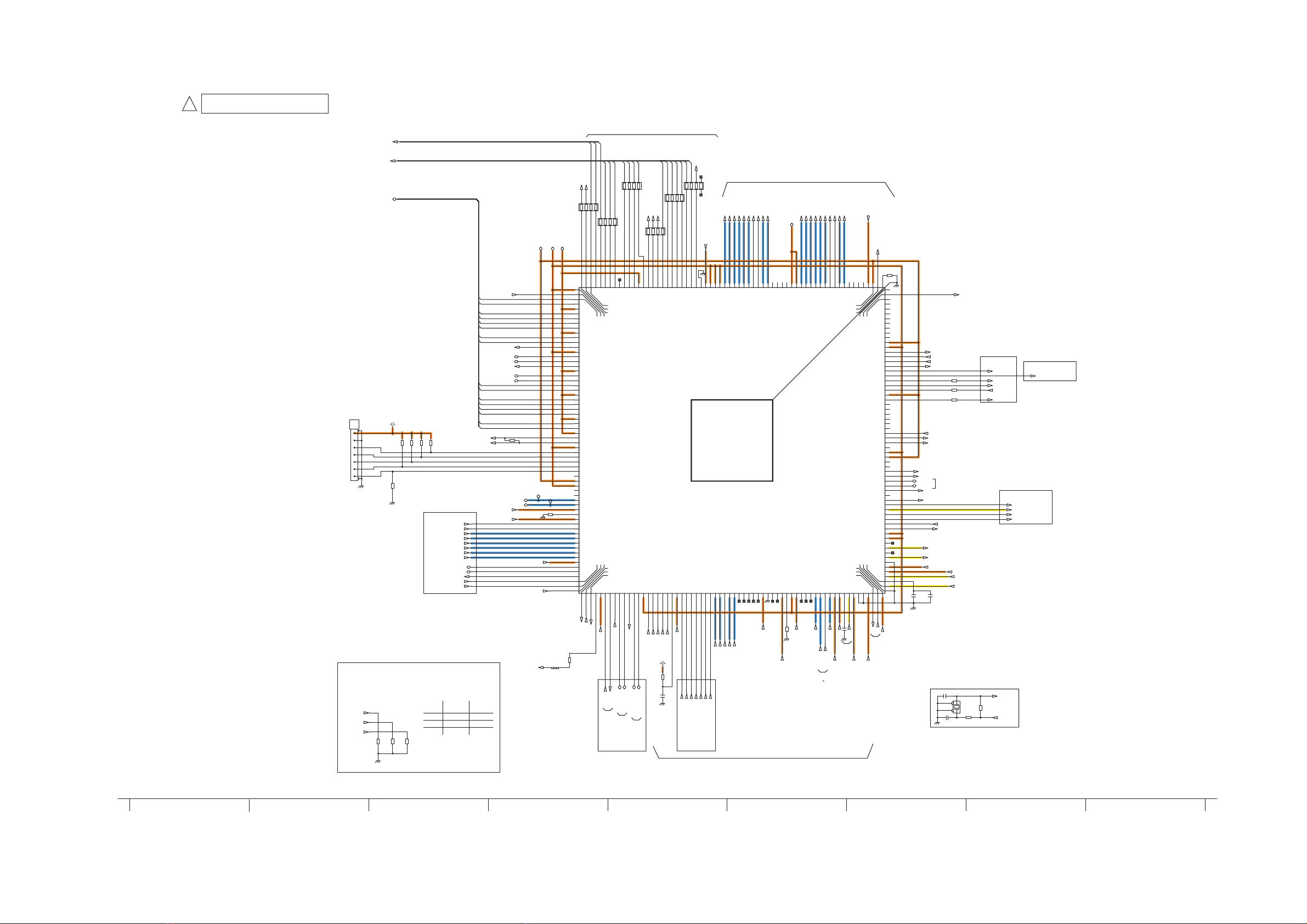

11.2. A-Board (1/10) Schematic Diagram ----------------- 24

11.3. A-Board (2/10) Schematic Diagram ----------------- 25

11.4. A-Board (3/10) Schematic Diagram ----------------- 26

11.5. A-Board (4/10) Schematic Diagram ----------------- 27

11.6. A-Board (5/10) Schematic Diagram ----------------- 28

11.7. A-Board (6/10) Schematic Diagram ----------------- 29

11.8. A-Board (7/10) Schematic Diagram ----------------- 30

11.9. A-Board (8/10) Schematic Diagram ----------------- 31

11.10. A-Board (9/10) Schematic Diagram ----------------- 32

11.11. A-Board (10/10) Schematic Diagram --------------- 33

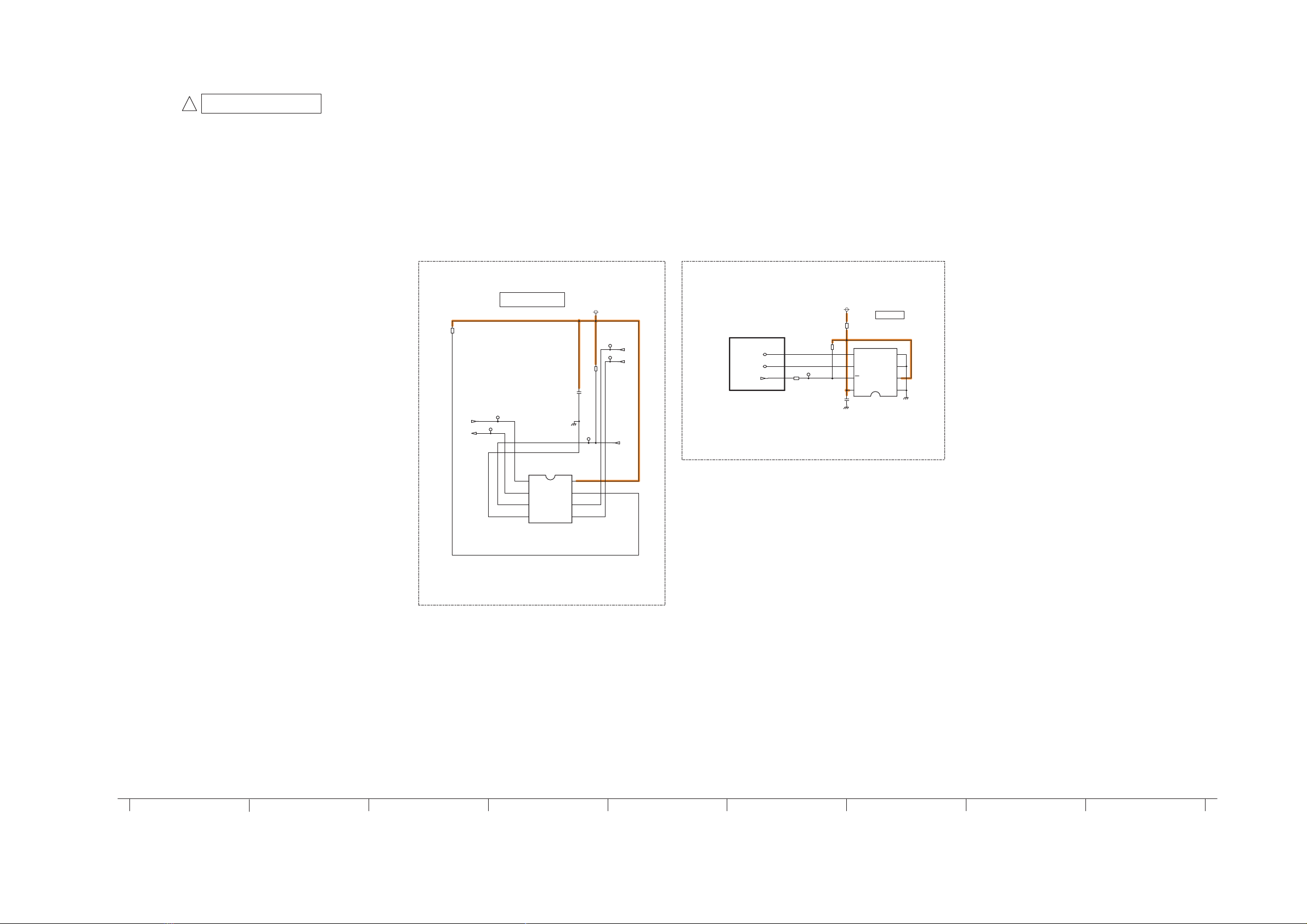

11.12. K-Board Schematic Diagram -------------------------- 34

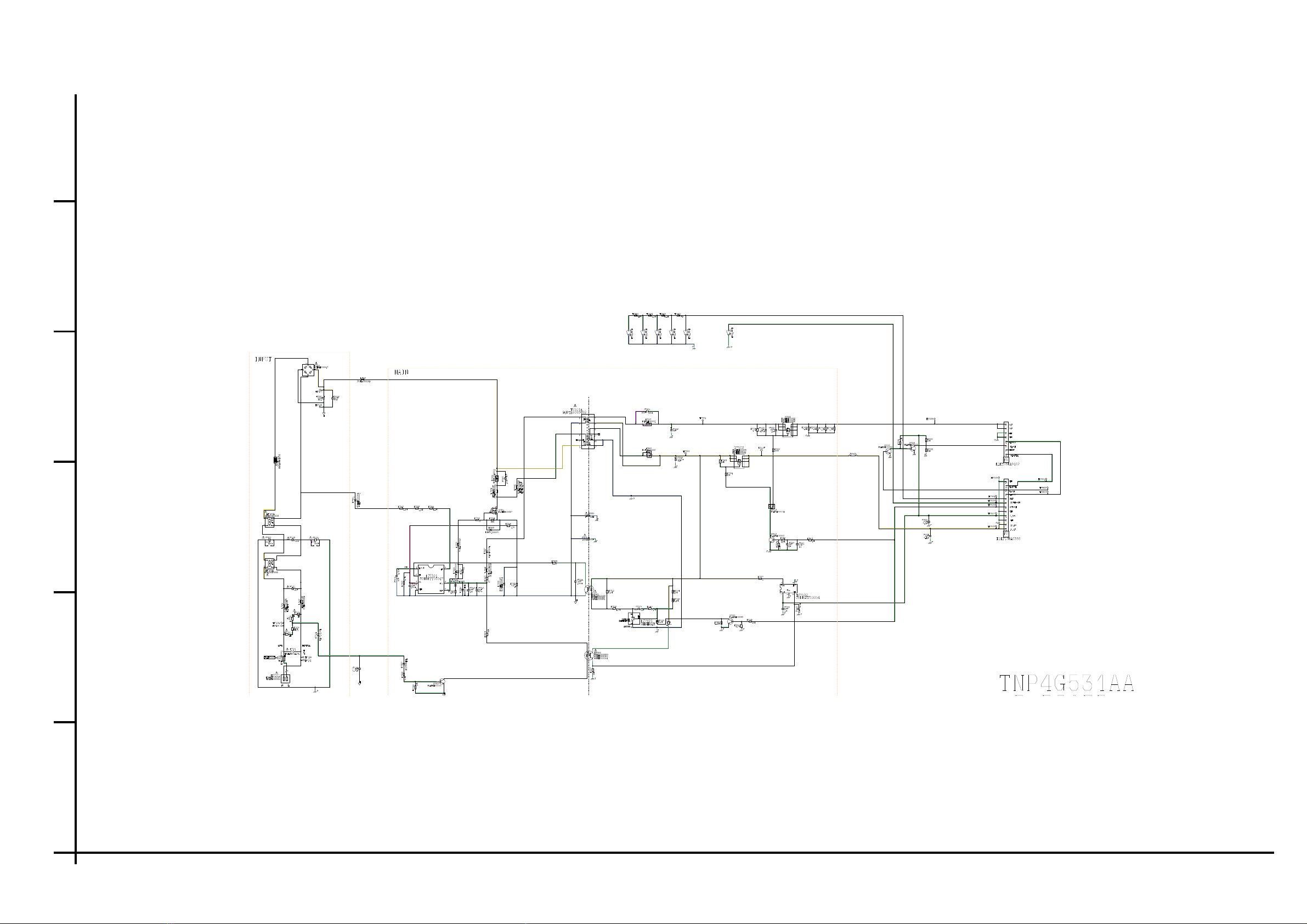

11.13. P-Board Schematic Diagram -------------------------- 35

12 Printed Circuit Board ------------------------------------------ 36

12.1. A-BOARD -------------------------------------------------- 36

12.2. K-BOARD -------------------------------------------------- 38

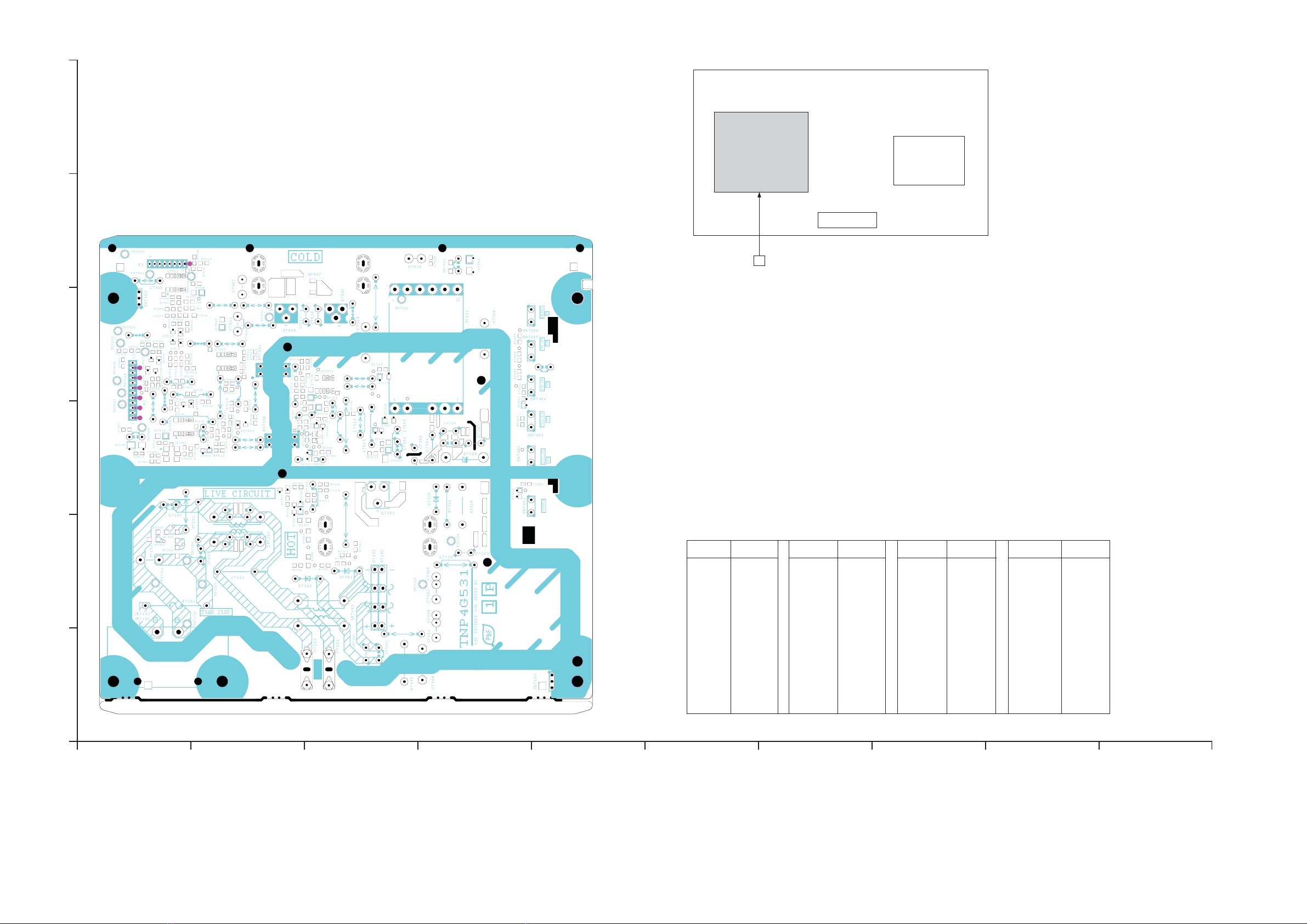

12.3. P-BOARD -------------------------------------------------- 39

13 Exploded View and Replacement Parts List -----------41

13.1. Exploded View and Mechanical Replacement
Parts List --------------------------------------------------- 41

13.2. Electrical Replacement Parts List -------------------- 41

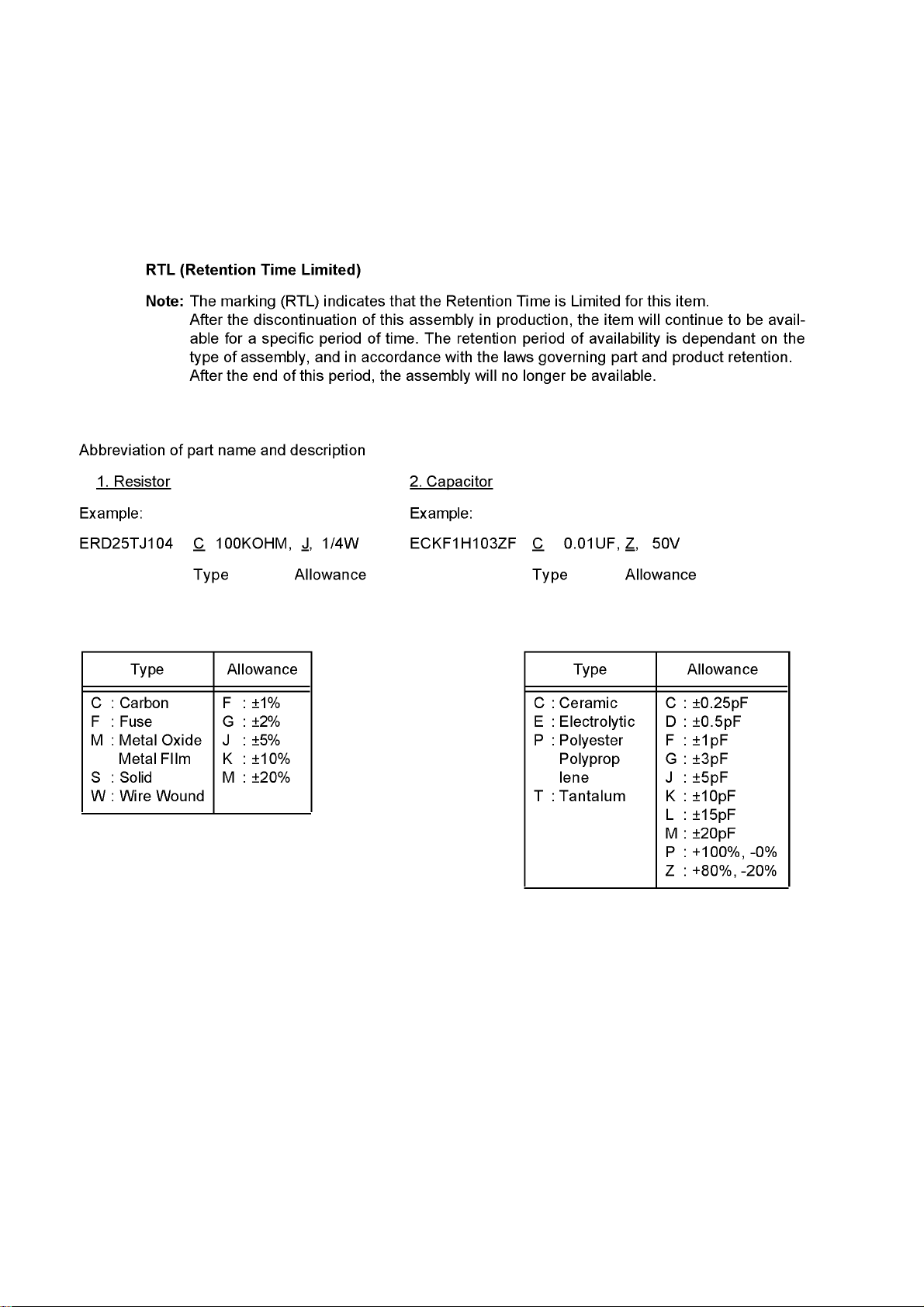

13.2.1. Replacement Parts List Notes ------------------- 41

13.2.2. Electrical Replacement Parts List ---------------42

2

TH-L32EM5D

1 Safety Precautions

1.1. General Guidelines

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.

2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.

3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

4. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.

5. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the
wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.

6. When conducting repairs and servicing, do not twist the Faston connectors but plug them straight in or unplug them straight
out.

1.1.1. Leakage Current Cold Check

1. Unplug the AC cord and connect a jumper between the
two prongs on the plug.

2. Measure the resistance value, with an ohmmeter,
between the jumpered AC plug and each exposed
metallic cabinet part on the equipment such as
screwheads, connectors, control shafts, etc. When the
exposed metallic part has a return path to the chassis, the
reading should be 100 Mohm and over.
When the exposed metal does not have a return path to
the chassis, the reading must be .

1.1.2. Leakage Current Hot Check (See
Figure 1.)

1. Plug the AC cord directly into the AC outlet. Do not use
an isolation transformer for this check.

2. Connect a 1.5kohm, 10 watts resistor, in parallel with a

0.15μF capacitors, between each exposed metallic part
on the set and a good earth ground such as a water pipe,
as shown in Figure 1.

3. Use an AC voltmeter, with 1000 ohms/volt or more
sensitivity, to measure the potential across the resistor.

4. Check each exposed metallic part, and measure the
voltage at each point.

5. Reverse the AC plug in the AC outlet and repeat each of
the above measurements.

6. The potential at any point should not exceed 0.75 volts
RMS. A leakage current tester (Simpson Model 229 or
equivalent) may be used to make the hot checks, leakage
current must not exceed 1/2 milliamp. In case a
measurement is outside of the limits specified, there is a
possibility of a shock hazard, and the equipment should
be repaired and rechecked before it is returned to the
customer.

Figure 1

3

TH-L32EM5D

2Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically
Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage
caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can
generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or
comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the
brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD)
sufficient to damage an ES device).

4

TH-L32EM5D

2.2. About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d
suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.

Caution

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please
use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb
solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the
opposite side. (see figure below)

5

TH-L32EM5D

3 Service Navigation

3.1. Service Hint

Board Name Main Device Remarks

A BOARD TUN, EEP, SPI, MTK IC, AUDIO SELECTOR IC Repairable

P BOARD Power Supply, Power Switch, Keyscan Repairable

K BOARD Remote, LED, Luminance Sensor Repairable

6

4 Specifications

Power Source AC AUTO 110 - 240 V, 50 / 60 Hz
Power Consumption

Power Rating 65 W
Standby Condition 0.3 W

Display panel

Panel system TFT LCD Module with LED Backlight
Visible screen size (diagonal) 80 cm / 32 inches
Number of pixels 2,073,600 (1,920 (W) × 1080 (H))

Sound

Speaker (90 mm × 25 mm) × 2 pcs, 8 Ω

Audio Output 10 W (5 W + 5 W), 10% THD
Aerial - Rear VHF / UHF
Operating Conditions Temperature : 0°C - 40°C

Humidity : 20 % - 80 % RH (non-condensing)

Connection Terminals

AV1 Input AUDIO L-R RCA PIN Type × 2 0.5 V [rms]

VIDEO RCA PIN Type × 1 1.0 V [p-p] (75 Ω)
COMPONENT Y 1.0 V [p-p] (including synchronization)

P

, PR/C

B/CB

AV2 Input AUDIO L-R RCA PIN Type × 2 0.5 V [rms]

VIDEO RCA PIN Type × 1 1.0 V [p-p] (75 Ω)
Audio Output AUDIO L-R RCA PIN Type × 2 0.5 V [rms]
HDMI Input TYPE A Connectors
PC HIGH-DENSITY D-SUB 15 PIN

R, G, B: 0.7 V [p-p] (75 Ω)
HD, VD: TTL Level 2.0 - 5.0 V [p-p] (high impedance)

• Applicable input signals:
VGA, SVGA, WVGA, XGA
SXGA, WXGA ······(compressed)
Horizontal scanning frequency 31 - 69 kHz
Vertical scanning frequency 59 - 86 Hz

USB

Dimensions (W × H × D) 764 mm × 518 mm × 196 mm (With Pedestal)

Mass 9.0 kg Net (With Pedestal)

Receiving Channels

VHF BAND 2 - 12 (PAL / SECAM B, K1)

UHF BAND 21 - 69 (PAL G, H, I / SECAM G, K, K1)

28 - 69 (PAL B AUST.)
13 - 57 (PAL D, K)
13 - 62 (NTSC M Japan)
14 - 69 (NTSC M USA)

CATV S1 - S20 (OSCAR)

1 - 125 (USA CATV)

C13 - C49 (JAPAN)

S21 - S41 (HYPER)

Z1 - Z37 (CHINA)

Receiving Systems / Band name 17 SYSTEMS FUNCTIONS

USB 2.0 TYPE A Connectors
DC 5 V, Max. 500 mA

764 mm × 473 mm × 60 mm (TV only)

8.0 kg Net (TV only)

0 - 12 (PAL B AUST.)

1 - 9 (PAL B N.Z.)
1 - 12 (PAL / SECAM D)
1 - 12 (NTSC M Japan)
2 - 13 (NTSC M USA)

5A, 9A (AUST.)

1 PAL B, G, H
2PAL I
3PAL D, K
4 SECAM B, G
5 SECAM D, K
6 SECAM K1
7

NTSC M (NTSC 3.58 / 4.5 MHz)

R

±0.35 V[p-p]

× 1

Reception of broadcast transmissions and

Playback from Video Cassette Tape

Recorders

TH-L32EM5D

7

TH-L32EM5D

8 NTSC 4.43 / 5.5 MHz

9 NTSC 4.43 / 6.0 MHz
10 NTSC 4.43 / 6.5 MHz
11 NTSC 3.58 / 5.5 MHz
12 NTSC 3.58 / 6.0 MHz
13 NTSC 3.58 / 6.5 MHz
14 SECAM I
15 PAL 60 Hz / 5.5 MHz
16 PAL 60 Hz / 6.0 MHz
17 PAL 60 Hz / 6.5 MHz

Playback from Special VCR’s or DVD

Playback from Special Disc Players and

Special VCR’s or DVD

Note

• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

8

TH-L32EM5D

5 Service Mode

5.1. How to enter into Service Mode

While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds.

5.1.1. Contents of adjustment mode

• Value is shown as a hexadecimal number.

• Preset value differs depending on models.

• After entering the adjustment mode, take note of the value in each item before starting adjustment.

Main item Sub item Sample Data

ADJUST CONTRAST 000

COLOR 59

TINT FE

SUB-BRT 800

BACKLGT 20D

B-Y-G 40

R-Y-A 0

VCOM 189

WB-ADJ R-GAIN 75

G-GAIN 80

B-GAIN 65

R-CENT 80

G-CENT 80

B-CENT 9B

OPTION Boot ROM

STBY-SET 00

EMERGENCY ON

CLK MODE 00

CLOCK FC7

EDID-CLK HIGH

SRV-TOOL 00

5.1.2. How to exit

Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

9

TH-L32EM5D

5.2. SRV-TOOL

5.2.1. How to access

1. Select [SRV-TOOL] in Service Mode.

2. Press [OK] button on the remote control.

5.2.2. Display of SOS History

SOS History (Number of LED blinking ) indication.
From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment.
This indication except 2nd and 1st occurrence after shipment will be cleared by [Self-check indication and forced to factory
shipment setting].

5.2.3. POWER ON TIME/COUNT

Note : To display TIME/COUNT menu, highlight position, then press MUTE for 3sec.
Time : Cumulative power on time, indicated hour : minute by decimal
Count : Number of ON times by decimal
Note : This indication will not be cleared by either of the self-checks or any other command.

5.2.4. Exit

1. Disconnect the AC cord from wall outlet.

10

5.2.5. Self Check Mode

1. Press the ‘MENU’ button (on the remote control) and the ‘VOL DOWN’ button on the LCD panel.

2. Press ON/OFF button on the panel to Exit.

TH-L32EM5D

5.2.6. Self Check (Device)

Item

TUN yes

MEM yes

EEPROM yes

SOFT yes

MODEL ID yes

NOTE: After self check,the following process need to follow.

5.2.7. Hotel Mode Adjustment

1. Press the ‘VOLUME DOWN’ button on the TV panel and simultaneously press the INPUT button on the remote control 3
times to enter Hotel Mode.

2. Set Hotel mode ‘on/off’, then press ‘EXIT’ to come out.

5.2.8. Hotel Mode

1. Purpose
Restrict a function for hotels.

2. Access command to the Hotel mode setup menu.
In order to display the Hotel mode setup menu, please
enter the following command (within 2 second).
[TV] : Vol [Down] + [REMOTE] : INPUT (3 times).

Then, the Hotel mode setup menu is displayed.

3. To exit the Hotel mode setup menu
Disconnect AC power cord from wall outlet.

4. Explain the Hotel mode setup menu

Item Function

Mode Select hotel mode off/on

Input Select input signal modes.

Set the input, when each time power is switched
on.
Selection :

-/RF/HDMI1/HDMI2/HDMI3/Component/
Video/PC

• Off: give priority to a last memory.

Channel Select channel when input signal is RF.

Set the channel, each time power is switched
on.
Selection :
Any channel number or [-].
[-] means the channel when turns off.

Volume Adjust the volume when each time power is

switched on.
Range :
0 to 100

Vol. Max Adjust maximum volume.

Range :
0 to 100

OSD Ctrl Restrict the OSD.

Selection :
OFF/PATTERN1

• OFF: No restriction

• PATTERN1: restriction

FP Ctrl Select front key conditions.

Selection :
OFF/PATTERN1/ALL

• OFF: altogether valid.

• PATTERN1: only input key is valid.

• ALL: altogether invalid.

Pow Ctrl Select POWER-ON/OFF condition when AC

power cord is disconnected and then connected.
OFF: The same condition when AC power
cord is disconnected.
ON: Forced power ON condition.

11

TH-L32EM5D

6 Troubleshooting Guide

Use the self-check function to test the unit.

1. Checking the IIC bus lines

2. Power LED Blinking timing

6.1. Check of the IIC bus lines

6.1.1. How to access

Self-check indication only:
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control
for more than 3 seconds.
Self-check indication and forced to factory shipment setting:
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote
control for more than 3 seconds.

6.1.2. Exit

Disconnect the AC cord from wall outlet.

6.1.3. Screen display

12

TH-L32EM5D

6.2. Power LED Blinking timing chart

1. Subject
Information of LED Flashing timing chart.

2. Contents
When an abnormality occurs, the protection circuit will operate and reset the unit to stand by mode. During this time, the
defective block can be identified by the number of blinking times of the Power LED on the front panel of the unit as follow:

No Name Factor R_LED Blink PCB Name

A-Board

1 BL_SOS SOS from PANEL inverter 1

TV_SOS

2

3 SOUND_SOS SOS from audio AMP 9 A-Board

TCON power down 3

P-Board

LCD Panel

A-Board

TCON-Board

6.3. No Power

First check point
There are following 2 states of No Power indication by power LED.

1. No lit

2. Red is lit then turns red blinking a few seconds later. (See 6.2.)

13

TH-L32EM5D

7 Disassembly and Assembly Instructions

7.1. SP Bracket and Metal Bottom

1. Fix Sp. Bracket to cabinet with screw (Fig. A).

2. Stick sponge to Sp. Unit (Fig. B).

3. Fix Speaker assy (L&R) to cabinet (Fig. B).

No Description Qty UOM Remarks

01 SPEAKER ASSY 1 PC

02 - SPEAKER UNIT 2 PC

03 - SPONGE 4 PC

04 SP BRACKET 4 PC

05 SCREW (SP BRKT PANEL) 4 PC 60 ± 10 N·cm

14

7.2. LED Panel Assy

1. Assy Led panel assy, Led panel bracket assy and V-board to Cabinet complete assy (Fig. A).

2. Fix LCD panel to Cabinet assy.

TH-L32EM5D

15

TH-L32EM5D

No Description Qty UOM

01 LED PANEL ASSY 1 PC

02 LED PANEL BRACKET ASS'Y 1 PC

03 LCD PANEL 1 PC

04 CABINET COMPLETE ASS'Y 1 PC

16
