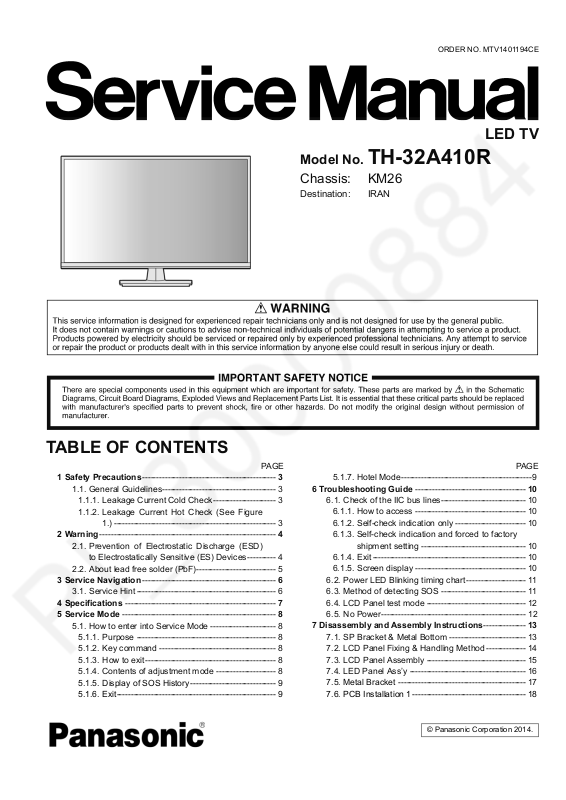

ORDER NO. MTV1401194CE
Model No. TH-32A410R
Chassis: KM26
Destination: IRAN
LED TV
TABLE OF CONTENTS
1 Safety Precautions ----------------------------------------------- 3
1.1. General Guidelines---------------------------------------- 3
1.1.1. Leakage Current Cold Check ---------------------- 3
1.1.2. Leakage Current Hot Check (See Figure
1.) --------------------------------------------------------- 3
2 Warning-------------------------------------------------------------- 4
2.1. Prevention of Electrostatic Discharge (ESD)
to Electrostatically Sensitive (ES) Devices---------- 4
2.2. About lead free solder (PbF)---------------------------- 5
3 Service Navigation ----------------------------------------------- 6
3.1. Service Hint ------------------------------------------------- 6
4 Specifications ----------------------------------------------------- 7
5 Service Mode ------------------------------------------------------ 8
5.1. How to enter into Service Mode ----------------------- 8
5.1.1. Purpose ------------------------------------------------- 8
5.1.2. Key command ----------------------------------------- 8
5.1.3. How to exit---------------------------------------------- 8
5.1.4. Contents of adjustment mode --------------------- 8
5.1.5. Display of SOS History ------------------------------ 9
5.1.6. Exit-------------------------------------------------------- 9
PAG E PAG E
5.1.7. Hotel Mode----------------------------------------------9
6 Troubleshooting Guide --------------------------------------- 10
6.1. Check of the IIC bus lines------------------------------ 10
6.1.1. How to access --------------------------------------- 10
6.1.2. Self-check indication only ------------------------- 10
6.1.3. Self-check indication and forced to factory
shipment setting ------------------------------------- 10
6.1.4. Exit ------------------------------------------------------ 10
6.1.5. Screen display --------------------------------------- 10
6.2. Power LED Blinking timing chart --------------------- 11
6.3. Method of detecting SOS ------------------------------ 11
6.4. LCD Panel test mode ----------------------------------- 12
6.5. No Power--------------------------------------------------- 12
7 Disassembly and Assembly Instructions--------------- 13
7.1. SP Bracket & Metal Bottom --------------------------- 13
7.2. LCD Panel Fixing & Handling Method -------------- 14
7.3. LCD Panel Assembly ----------------------------------- 15
7.4. LED Panel Ass’y ----------------------------------------- 16
7.5. Metal Bracket --------------------------------------------- 17
7.6. PCB Installation 1 ---------------------------------------- 18
© Panasonic Corporation 2014.
Page 2
TH-32A410R
7.7. PCB Installation 2 ---------------------------------------- 19
7.8. Screw Fixing 1 --------------------------------------------20
7.9. Screw Fixing 2 --------------------------------------------21
7.10. Pedestal Ass’y --------------------------------------------22
7.11. Vesa Metal (BC) ------------------------------------------ 23
7.12. Back Cover Installation ---------------------------------24
8 Measurements and Adjustments -------------------------- 25

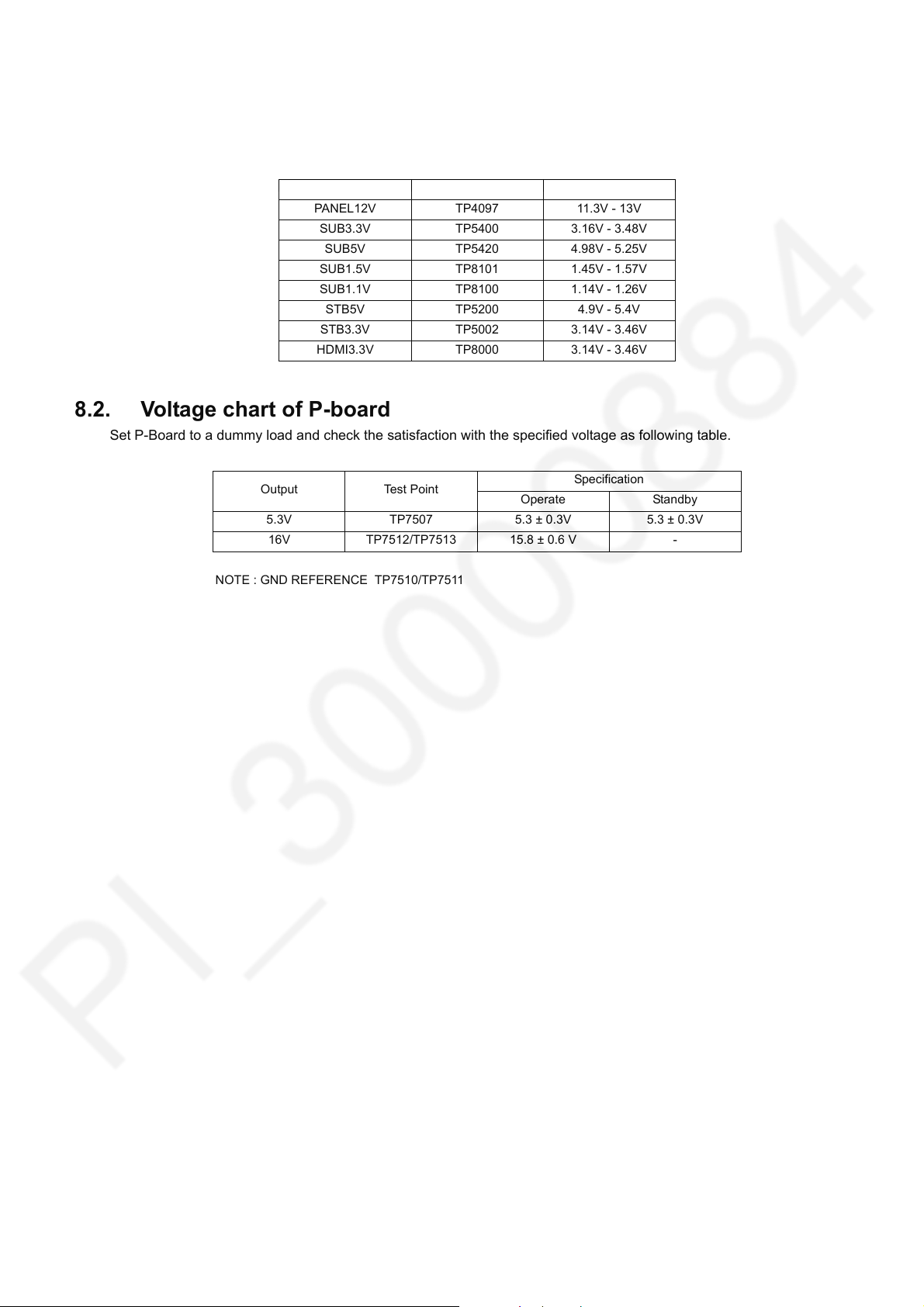

8.1. Voltage chart of A-board-------------------------------- 25
8.2. Voltage chart of P-board-------------------------------- 25
9 Block Diagram --------------------------------------------------- 26
9.1. Main Block Diagram ------------------------------------- 26
10 Wiring Connection Diagram --------------------------------- 27
10.1. Wire Dressing --------------------------------------------- 27
11 Schematic Diagram--------------------------------------------- 28
12 Printed Circuit Board ------------------------------------------ 48
13 Exploded View and Replacement Parts List -----------53
2
Page 3
TH-32A410R
1 Safety Precautions
1.1. General Guidelines
1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.
2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.
4. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.
5. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the
wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.
6. When conducting repairs and servicing, do not twist the Faston connectors but plug them straight in or unplug them straight
out.
1.1.1. Leakage Current Cold Check
1. Unplug the AC cord and connect a jumper between the
two prongs on the plug.
2. Measure the resistance value, with an ohmmeter,
between the jumpered AC plug and each exposed
metallic cabinet part on the equipment such as
screwheads, connectors, control shafts, etc. When the
exposed metallic part has a return path to the chassis, the
reading should be 100 Mohm and over.
When the exposed metal does not have a return path to
the chassis, the reading must be .
1.1.2. Leakage Current Hot Check (See Figure 1.)
1. Plug the AC cord directly into the AC outlet. Do not use
an isolation transformer for this check.
2. Connect a 1.5kohm, 10 watts resistor, in parallel with a
0.15F capacitors, between each exposed metallic part
on the set and a good earth ground such as a water pipe,
as shown in Figure 1.
3. Use an AC voltmeter, with 1000 ohms/volt or more
sensitivity, to measure the potential across the resistor.
4. Check each exposed metallic part, and measure the
voltage at each point.
5. Reverse the AC plug in the AC outlet and repeat each of
the above measurements.
6. The potential at any point should not exceed 0.75 volts
RMS. A leakage current tester (Simpson Model 229 or
equivalent) may be used to make the hot checks, leakage
current must not exceed 1/2 milliamp. In case a
measurement is outside of the limits specified, there is a
possibility of a shock hazard, and the equipment should
be repaired and rechecked before it is returned to the
customer.
Figure 1
3
Page 4
TH-32A410R
2Warning
2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage
caused by electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can
generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or
comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the
brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD)
sufficient to damage an ES device).
4
Page 5
TH-32A410R
2.2. About lead free solder (PbF)
Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.
This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d
suggest the use of Pb free solder as well, although Pb solder may be used.
PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.
Caution
• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please
use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).
• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb
solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.
• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the
opposite side. (see figure below)
5
Page 6
TH-32A410R
3 Service Navigation
3.1. Service Hint
Board Main Device Remarks
A (4 IN 1) TUN, EEP,SPI Flash, Realteck Soc, Power Switch, Power Supply, Keyscan, LED Driver IC Repairable
K Remote Sensor, LED, Luminence Sensor Repairable
6
Page 7
4 Specifications
Dimensions (W H D) 734 mm 502 mm 184 mm (With Pedestal)
734 mm 437 mm 69 mm (TV only)
Mass
Power source AC Single 220-240 V, 50 / 60 Hz
Rated power consumption 56 W
Standby power consumption 0.30 W
Visible screen size (diagonal) 80 cm
Display resolution 1,366 (W) 768 (H)
Panel LED backlight Liquid Crystal Display
Sound
Speaker output 20 W (10 W + 10 W)
Connection terminals
AV I N VI DE O RCA PIN Type 1 1.0 V[p-p] (75 )
(COMPONENT / VIDEO) AUDIO L - R RCA PIN Type 2 0.5 V[rms]
HDMI 1 / 2 input TYPE A Connectors
USB Port DC 5 V, Max. 500 mA [Hi-Speed USB (USB 2.0)]
DIGITAL AUDIO OUT PCM / Dolby Digital / DTS, Fibre optic
AUDIO OUT AUDIO L - R RCA PIN Type 2 0.5 V[rms]
Receiving systems / Band name 17 SYSTEMS FUNCTION
Receiving channels (Analogue TV)
VHF BAND 2 - 12 (PAL / SECAM B, K1)
UHF BAND 21 - 69 (PAL G, H, I / SECAM G, K, K1)
CATV S1 - S20 (OSCAR)
Aerial input VHF / UHF
Operating Conditions Temperature : 0 °C - 40 °C
Note
• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
6.0 Net (With Pedestal)
5.5 Net (TV only)
Y 1.0 V [p-p] (including synchronisation)
P
, PR/C
B/CB
HDMI1: Content Type
HDMI2: Content Type, Audio Return Channel
• This TV supports ‘HDAVI Control 5’ function.
Digital TV 7 MHz VHF / 8 MHz UHF free-to-air TV broadcast reception
28 - 69 (PAL B AUST.)
13 - 57 (PAL D, K)
13 - 62 (NTSC M Japan)
14 - 69 (NTSC M USA)
1 - 125 (USA CATV)
C13 - C49 (JAPAN)
S21 - S41 (HYPER)
Z1 - Z37 (CHINA)
±0.35 V[p-p]
R
1
PAL B, G, H
2PAL I
3PAL D, K
4 SECAM B, G
5SECAM D, K
6 SECAM K1
7
NTSC M (NTSC 3.58 / 4.5 MHz)
8 NTSC 4.43 / 5.5 MHz
9 NTSC 4.43 / 6.0 MHz
10 NTSC 4.43 / 6.5 MHz
11 NTSC 3.58 / 5.5 MHz
12 NTSC 3.58 / 6.0 MHz
13 NTSC 3.58 / 6.5 MHz
14 SECAM I
15 PAL 60 Hz / 5.5 MHz
16 PAL 60 Hz / 6.0 MHz
17 PAL 60 Hz / 6.5 MHz
0 - 12 (PAL B AUST.)
1 - 9 (PAL B N.Z.)
1 - 12 (PAL / SECAM D)
1 - 12 (NTSC M Japan)
2 - 13 (NTSC M USA)
5A, 9A (AUST.)
Reception of broadcast transmissions and
Playback from Video Cassette Tape Recorders
Playback from Special VCR’s or DVD
Playback from Special Disc Players and
Special VCR’s or DVD (via AV input only)
TH-32A410R
7
Page 8
TH-32A410R
5 Service Mode
5.1. How to enter into Service Mode
5.1.1. Purpose
After exchange parts, check and adjust the contents of adjustment mode.
While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds.
5.1.2. Key command
[1] button...Main items Selection in forward direction
[2] button...Main items Selection in reverse direction
[3] button...Sub items Selection in forward direction
[4] button...Sub items Selection in reverse direction
[VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )
5.1.3. How to exit
Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.
5.1.4. Contents of adjustment mode
• Value is shown as a hexadecimal number.
• Preset value differs depending on models.
• After entering the adjustment mode, take note of the value in each item before starting adjustment.
Main item Sub item Sample Data
ADJUST H POS
H AMP
V POS
V AMP
V COM
WB-ADJ R-GAIN 8D
G-GAIN AE
B-GAIN FF
R-CENT 6C
G-RENT 80
B-CENT A0
OPTION Boot upgrade NO
STBY-SET 00
EMERGENCY ON
CLK MODE 00
CLOCK FC7
Y/C DELAY DYNAMIC
OPT 1 00000000
OPT 2 11100110
OPT 3 00001001
OPT 4 00000000
EDID-CLK HIGH
8
Page 9
TH-32A410R
5.1.5. Display of SOS History
SOS History (Number of LED blinking) indication.
From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment.
This indication except 2nd and 1st occurrence after shipment will be cleared by [Self-check indication and forced to factory
shipment setting].
5.1.6. Exit
1. Disconnect the AC cord from wall outlet.
5.1.7. Hotel Mode
1. Purpose
Restrict a function for hotels.
2. Access command to the Hotel mode setup menu.
In order to display the Hotel mode setup menu:
While pressing [VOLUME (-)] button of the main unit,
press [AV] button of the remote control three times within
2 seconds.
Then, the Hotel mode setup menu is displayed.
3. To exit the Hotel mode setup menu
Disconnect AC power cord from wall outlet.
4. Explain the Hotel mode setup menu
Item Function
Hotel Mode Select hotel mode On/Off
Initial INPUT Select input signal modes.
Set the input, when each time power is switched on.
Selection :
Off,Analogue,DVB-C,DVB-T,AV1,AV2,HDMI1,
HDMI2
• Off: give priority to a last memory. However, Euro
model is compulsorily set to TV.
Initial POS Select programme number.
Selection :
Off/0 to 99
• Off: give priority to a last memory.
Initial VOL LEVEL Adjust the volume when each time power is switched
on.
Selection Range :
Off/0 to 100
• Off: give priority to a last memory.
Maximum Vol Level Adjust maximum volume.
Range :
0 to 100
Button Lock Select local key conditions.
Selection :
Off/SETUP/MENU/ALL
• OFF: altogether valid
• SETUP: only F-key is invalid
(Tuning guide (menu) can not be selected.)
• MENU: only F-key is invalid
(only Volume/Mute can be selected.)
• ALL: altogether invalid.
Remote Lock Select remote control key conditions.
Selection :
Off/SETUP/MENU
• OFF: altogether valid.
• SETUP: only Setup menu is invalid.
• MENU: Picture/Sound/Setup menu are invalid.
Hotel Mode USB Basically after user already setup the hotel mode
according to their criteria, what they need to do is
• insert USB (while in hotel mode)
• choose ‘Copy TV to USB’ to copy the setting into
the USB (a file will be created to store the hotel
mode setting in the USB)
• switch ‘OFF’ the unit
• pull out USB from unit
To copy the hotel mode setting from USB.
• enter hotel mode
•insert USB
• choose ‘Copy USB to TV’
• follow instruction as shown on the units
• once finish, switch ‘OFF; the unit
• pull out USB from unit
Private Information Select private information for VIERA Cast is Keep or
Reset if Hotel mode is set to [On] when TV power on
Selection :
Keep/Reset
• Keep: private information for VIERA Cast is keep
• Reset: private information for VIERA Cast is
reset
9
Page 10
TH-32A410R
6 Troubleshooting Guide
Use the self-check function to test the unit.
1. Checking the IIC bus lines
2. Power LED Blinking timing
6.1. Check of the IIC bus lines
6.1.1. How to access
6.1.2. Self-check indication only
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control
for more than 3 seconds.
6.1.3. Self-check indication and forced to factory shipment setting
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote
control for more than 3 seconds.
6.1.4. Exit
Disconnect the AC cord from wall outlet.
6.1.5. Screen display
10
Page 11
6.2. Power LED Blinking timing chart
1. Subject
Information of LED Flashing timing chart.
2. Contents
When an abnormality occurs, the protection circuit will operate and reset the unit to stand by mode. During this time, the
defective block can be identified by the number of blinking times of the Power LED on the front panel of the unit as follow:
Priority SOS detection LED Blink
1 BL_SOS 1
2 SUB_3.3V 7
3 SOUND_SOS 9
4SOS 8
5 GCX/FRC_SOS 10
6 BE(sLD8/PRO4) SOS 12
7 Emergency SOS 13
8IROM-SOS 3
6.3. Method of detecting SOS
1. BL_SOS
Detection beginning after one second pass from ‘BL_ON’=ON
TH-32A410R
2. TV_SOS
Detection beginning after one second pass from ‘AMP_SHUTDOWN’=ON
3. SOUND_SOS
Detection beginning ‘AMP_SHUTDOWN’=ON
11
Page 12
TH-32A410R
6.4. LCD Panel test mode
Purpose:
To find the possible failure point where in LCD Panel or Printed Circuit Board when the abnormal picture is displayed.
How to Enter:
While pressing [VOLUME ( - )] button of the main unit, press [OPTION] button of the remote control three times within 2
seconds.
How to Exit:
Disconnect AC plug from wall outlet.
How to confirm:
If the abnormal picture is displayed, go into LCD Panel test mode to display the several test patterns.
And then, judge by the following method.
Still abnormal picture is displayed: The cause must be in LCD Panel.
Normal picture is displayed: The cause must be in A board.
Remarks:
The test pattern is created by the circuit in LCD Panel.
In LCD Panel test mode, this test pattern is displayed unaffected by signal processing for RF or input signal.
If the normal picture is displayed, LCD Panel must be okay and the cause of failure must be in A board.
6.5. No Power
First check point
There are following 2 states of No Power indication by power LED.
1. No lit
2. Red is lit then turns red blinking a few seconds later. (See 6.2.)
12
Page 13
7 Disassembly and Assembly Instructions
7.1. SP Bracket & Metal Bottom
Fix speaker left & right.
TH-32A410R
No Description Qty UOM
01 SPEAKER UNIT 2 PC
02 SPEAKER BRACKET 4 PC
03 SP SPONGE 4 PC
13
Page 14
TH-32A410R
7.2. LCD Panel Fixing & Handling Method
1. Place down the cabinet as shown below.
2. Fix LCD panel into the cabinet by taking below precautions.
Other general precautions
1. Do not press panel surface to avoid blue spot on the panel display.
2. Do not use hard cloth or rub the surface too hard. This may cause scratches on the surface.
3. Take care not to subject the TV’s surface to water or detergent. Any liquid (including pets urine) if enters the product could
lead to TV failure.
4. Take care not to subject the surface to insect repellent, solvent, thiner or other voiltile substances. This may degrade surface
quality or cause peeling of the paint.
5. The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch with your
fingernail or other hard objects.
14
Page 15
7.3. LCD Panel Assembly
Install Barrier on Panel.
TH-32A410R
No Description Qty UOM
01 LCD PANEL 1 PC
02 BARRIER 1 PC
15
Page 16
TH-32A410R
7.4. LED Panel Ass’y
1. Fix K PCB to LED PANEL CASE.
2. Fix wire A10 to K PCB.
3. Fix LED panel to LED PANEL CASE.
4. Fix LED PANEL ASSY to cabinet.
No Description Qty UOM
01 LED PANEL 1 PC
02 LED PANEL CASE 1 PC
16
Page 17
7.5. Metal Bracket
1. Install Vesa Metal 2pc on panel.
2. Install Pedestal Metal Bracket.
TH-32A410R
No Description Qty UOM
01 VESA METAL 2 PC
02 PEDESTAL METAL BRACKET 2 PC
17
Page 18
TH-32A410R
7.6. PCB Installation 1
1. Install PCB and fix it with screws.
2. Install Side AV Bracket and fix it with screws.
No PartNo Description Qty UOM
01 TKP5ZA47101 SIDE AV BRACKET 1 PC
02 TES5ZA003-1 GROUND SPRING 1 PC
18
Page 19
7.7. PCB Installation 2
1. Install PCB and fix it with screws.
2. Install Side AV Bracket and fix it with screws.
TH-32A410R
No Description Qty UOM
01 SIDE AV BRACKET 1 PC
19
Page 20
TH-32A410R
7.8. Screw Fixing 1
Fix all screw follow below picture.
No Part No Description Qty UOM Remarks
01 THEJ036J SCREW 15 PC 6 ± 1 Kgf.cm
20
Page 21
7.9. Screw Fixing 2
Fix all screw follow below picture.
TH-32A410R
No Description Qty UOM Remarks
01 SCREW 15 PC 6 ± 1 Kgf.cm
21
Page 22
TH-32A410R

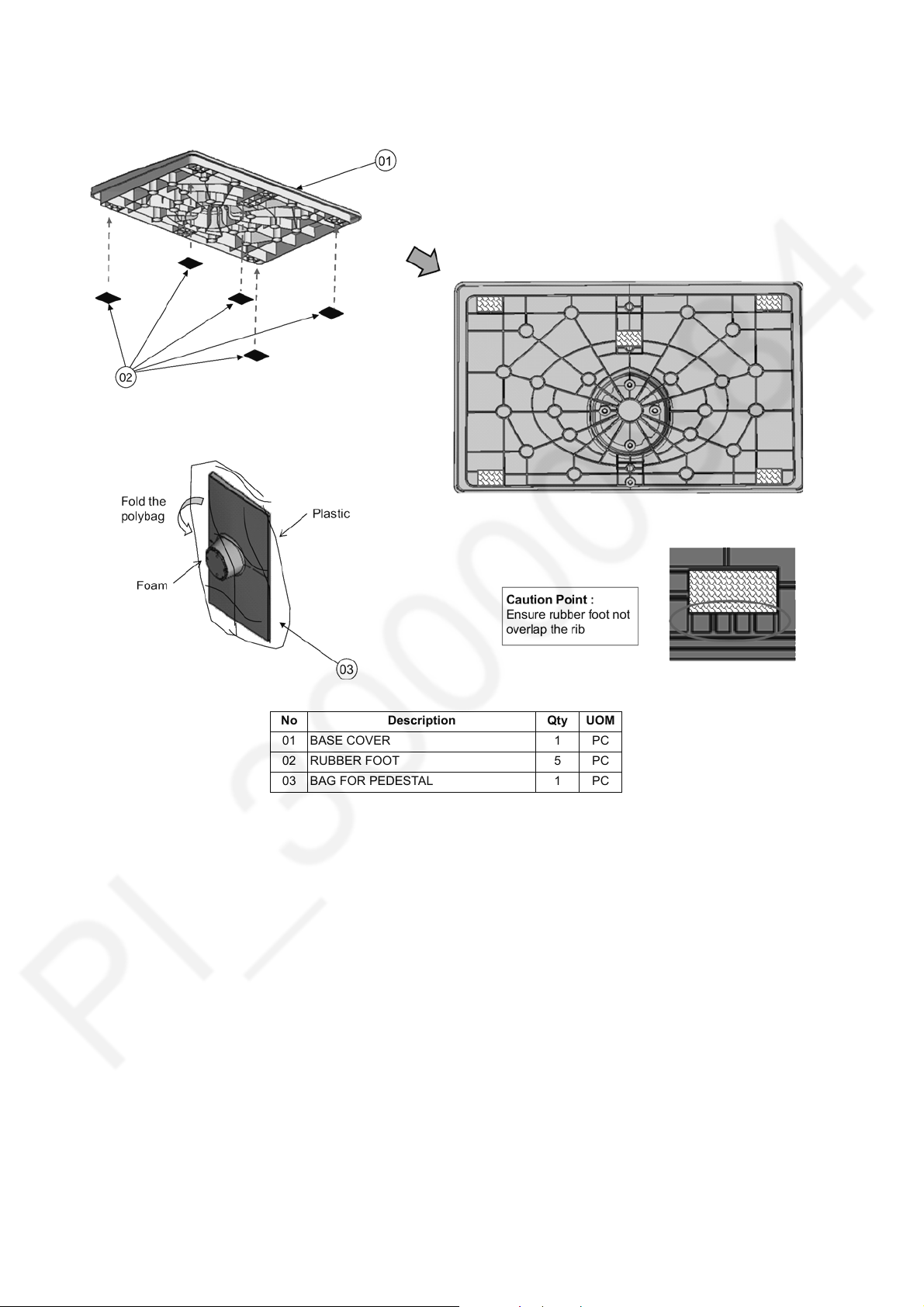

7.10. Pedestal Ass’y
Fix rubber foot 5 pc at Pedestal cover.
No Description Qty UOM
01 BASE COVER 1 PC
02 RUBBER FOOT 5 PC
03 BAG FOR PEDESTAL 1 PC
22
Page 23

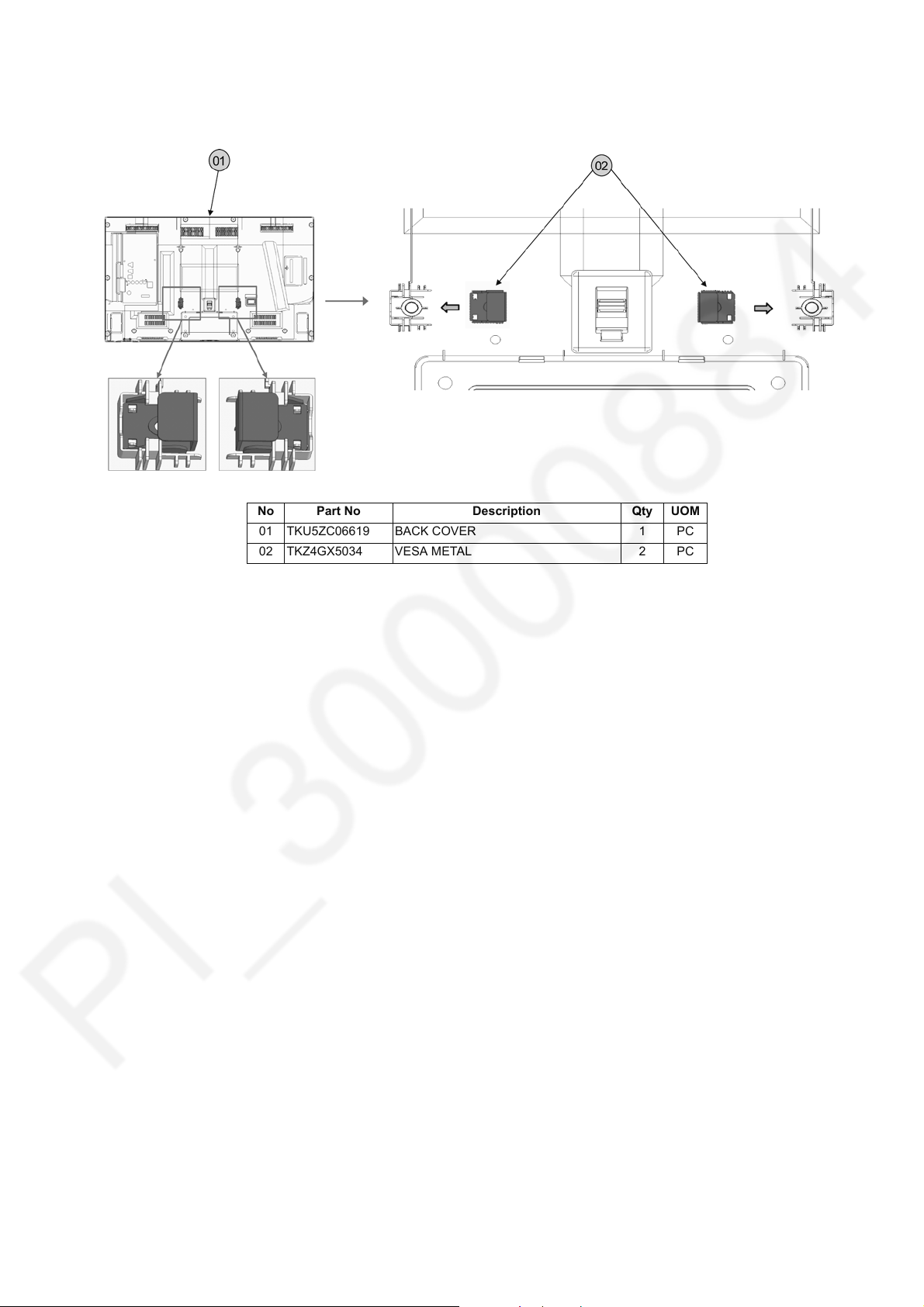

7.11. Vesa Metal (BC)
Install vesa metal 2 pc into back cover.
TH-32A410R
No Part No Description Qty UOM
01 TKU5ZC06619 BACK COVER 1 PC
02 TKZ4GX5034 VESA METAL 2 PC
23
Page 24
TH-32A410R
7.12. Back Cover Installation

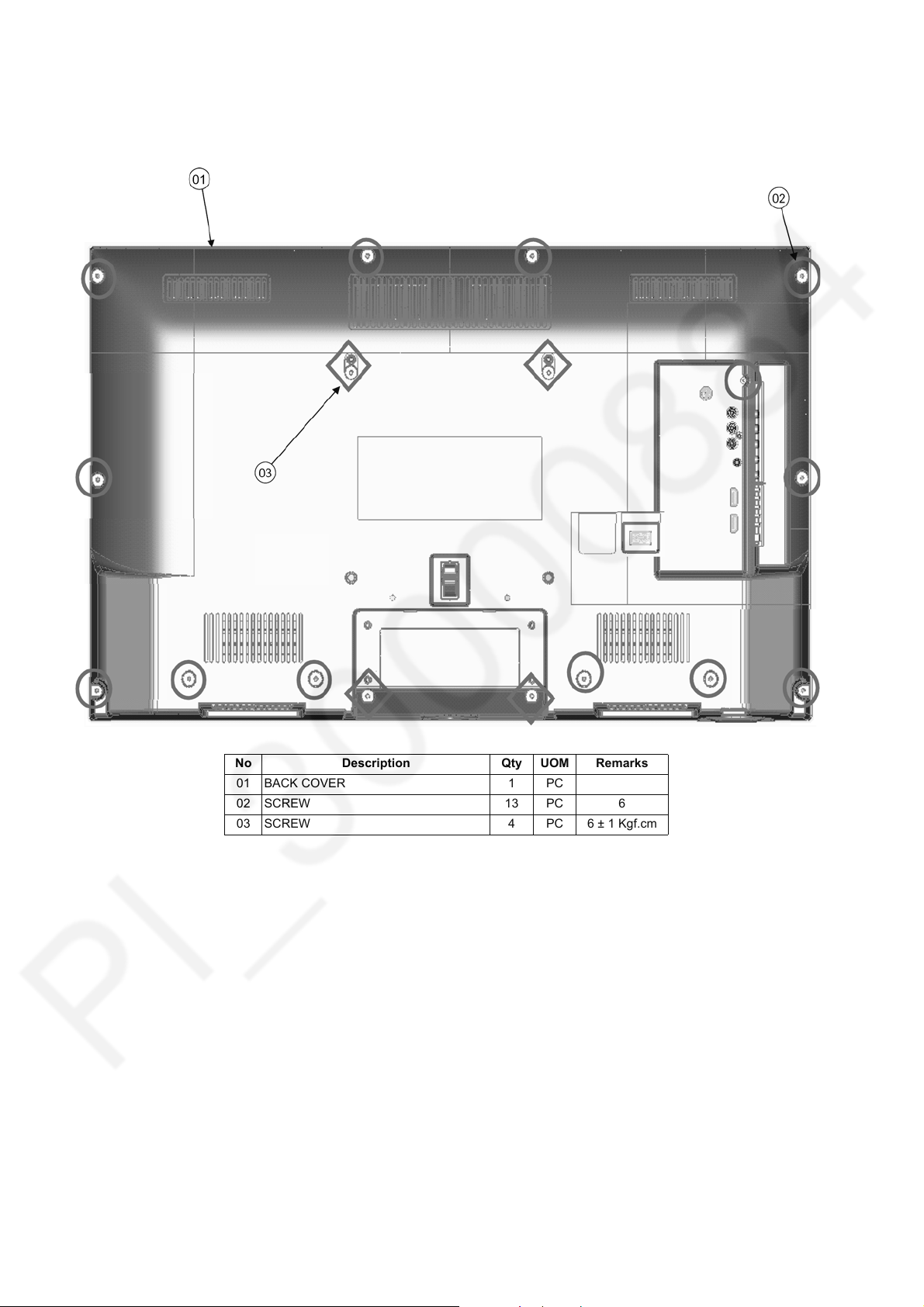

1. Install Back cover.
2. Fix screws.
No Description Qty UOM Remarks
01 BACK COVER 1 PC
02 SCREW 13 PC 6
03 SCREW 4 PC 6 ± 1 Kgf.cm
24
Page 25
8 Measurements and Adjustments
8.1. Voltage chart of A-board
Set A-Board to a dummy set and check the satisfaction with the specified voltage as following table.
Power Supply Name Measurement Point Specification
PANEL12V TP4097 11.3V - 13V
SUB3.3V TP5400 3.16V - 3.48V
SUB5V TP5420 4.98V - 5.25V
SUB1.5V TP8101 1.45V - 1.57V
SUB1.1V TP8100 1.14V - 1.26V
STB5V TP5200 4.9V - 5.4V
STB3.3V TP5002 3.14V - 3.46V
HDMI3.3V TP8000 3.14V - 3.46V
8.2. Voltage chart of P-board
Set P-Board to a dummy load and check the satisfaction with the specified voltage as following table.
TH-32A410R
Output Test Point
5.3V TP7507 5.3 ± 0.3V 5.3 ± 0.3V
16V TP7512/TP7513 15.8 ± 0.6 V -
NOTE : GND REFERENCE TP7510/TP7511
Specification
Operate Standby
25
Page 26
TH-32A410R
Panel
S5/ S3.3
S3.3
NAND
Flash
1G
XNFCE,XNFW
P
NFCLE,NFAL E
XNFWE,XNFR
E
NANDRYBY
NFD[7:0]
Support
Card
DTV_XRST
CPU BUS
BOOTSWAP
XRST
XRSTSTM
XERWE0
XERWE0
XECS1
ERXW
ES0
ES1
ES2
ED[䋷
]
AAR/DATA
CTRL
ED[7:0]
PCOE
PCWE
PCIORD
PCIOWR
PCRESET
PCCE1
PCWAIT
PCCD1
PCCD2
PCREADY
CI-IF
DMD
P-IIC2 (For DMD only)
ADC
DTV Decoder
SIF Decoder
IPR INS
Analog V ideo
Processor
Video
Format
Processor
VIF Decoder
I2S
SW
AMP
PWM
SPDIF
SW
A-Chip
CLK
GEN
A-D Chip
Internal BUS
IIC
DMD-IIC0
DMD-IIC1
Trans Port Decoder
CPUBUS
NAND-IF
Peaks
sLD8A
STB3.3
IIC
STM-IIC
Serial
STM-Serial0
STM-Serial1
25MHz
STM
USB
S5
USB
Power SW
USB2VBUS >
< USB2OC
S5
S5
USB Memor y
USB-IF
᧤3port᧥
< KEY1
POWER KEY
CONTROL PANEL KEY
Cross Stream Switch
D-Chip
IIC
P-IIC0
P-IIC1
Serial
P-Serial 0
P-Serial 1
P-UART0
P-UART2
DMD IIC
DMD_IIC0
DMD_IIC1
DSP
HDMI
Rx
MUX
x3
LVDS-Tx
mini-LVDS-Tx
DDR-IF
S1.5
DDR3+(133 3)
x16
Tcon
(+FRC:B70/BL70)
Back Light
INVERTER
or
LED Driver
BL_ON >
BL_SOS <
S12
Peaks
DCDC
䋨VM䋩
S1.1
S1.5
S3.3
STB3.3
STB_XRST
< TV_SOS
AMP/HP MUTE
MONITOROUT MUTE
S12/S5STB5/5VS
Ana log
AS IC
AN34043A
OVP
SOS
Safety
Circuit
< MON_MUTE
< SP_HP_MUTE
STB3.3V/1.2V_REG
STB5V Reset IC (STM)
S9V_REG
S12V Reset IC (Peaks)
Audio MUTE
OCP/OVP/TV-SOS
HP_MUTE,EXT_MUTE
UHS-I_REG
TV_SOS
PWM
3.3/1.8
UHS-1
REG
S9-REG
S9
(SD-Data-VCC)
< (SDVOLC)
DCDC_EN
DTV_XRST >
SW_OFF_DET >
XRST
POWER_DET
PWM >
PWMA
PWM >
< KEY3
LVDS
HD : (DATA 4pairs / CLK 1pair) singl e8bit
FHD: (DATA 4pairs / CLK 1pair) dual8bit
DDR3
AIO
VIO
V-SW
A-SW
LAN
ETHER
PHY
SD-IF
JTAG
JTAG
DDR3+(1333)
x16
S1.5
AFB
S12
DC
DC
S
W
Peaks
DCDC
SOUND_VCC
AMP
LIN1, RIN1
Optical OUT
OPT
DDC* > STM, Peaks
HPD* < STM
HDMI_5V_DET* > STM
HDMI1
DDC* > STM, Peaks
HPD* < STM
HDMI_5V_DET* > STM
HDMI2
Rx*
Rx*
IECOUT
Y1,Pb1,Pr1
HS1BCLKIN
HS1SYNCIN
HS1VALIN
HS1DIN0
HS1DIN1
HS1DIN2
HS1DIN3
HS1DIN4
HS1DIN5
HS1DIN6
HS1DIN7
HS1DIN8
TS-IN
S3.3 / TU1.8
Terrestrial(1)
or
Terestllial/cable(2)
IF_AGC1
1stLow_IF䇮 IFAGC
Terrestrial
DMD_IIC0
Low-IF2
< FE_XRST䋾
Demod.
DCDC
1.2V
S3.3
cable
IF_AGC2
Low-IF1
2ndLow_IF,IFAGC
CXD2840/2837
< FE_XRST䋾
DMD_IIC1 (IIC2)
S3.3
HK/CHINA: DTMB
Colombia/Vietnum: T2
ALRCKO
ASDOUT0
ABCKO
ASMCK
ARCOUT
V1
AV2(SI DE) INPUT 䋨 CVBS)
Lin3,Rin3
●
●●
USB
S5
USB
Power SW
USB1VBUS >
< USB1OC
S5
S5
SD CARD
●●
Lout2,Rout2
Only for study
USB1DP/N
USB2DP/N
S5
USB
Power SW
USB0VBUS >
< USB0OD
S5
S5
USB0DP/N
WiFi Module
B7/B70: 1G+1G
(Brazil 2G+2G)
BL7/BL70: 2G+4G
PANEL_TEST_ON
SCL0/SDA0(B70/BL70)
B/B70: 1G
(Brazil: 2G)
BL model: 4G

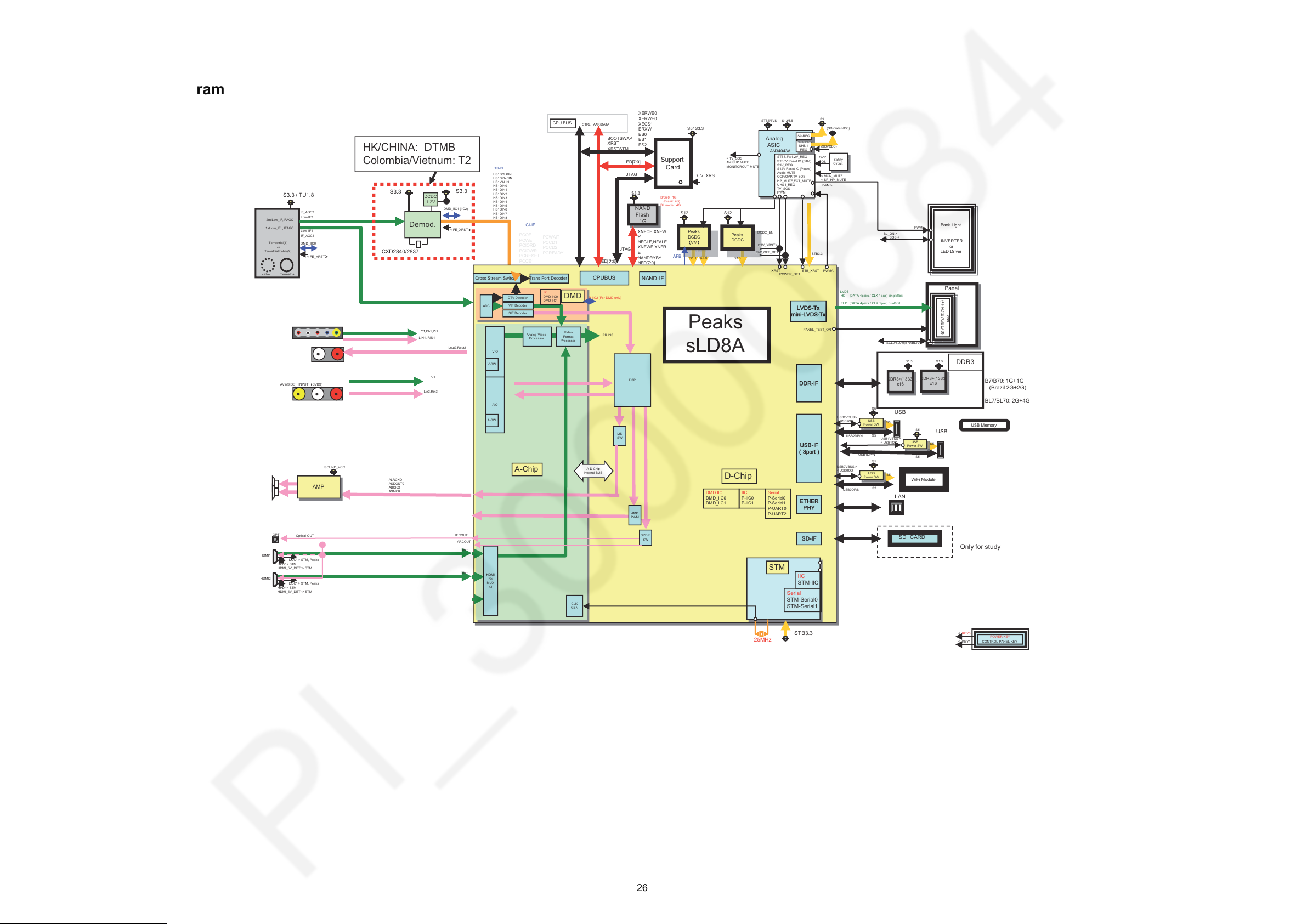

9 Block Diagram
9.1. Main Block Diagram
26
Page 27
10 Wiring Connection Diagram
10.1. Wire Dressing

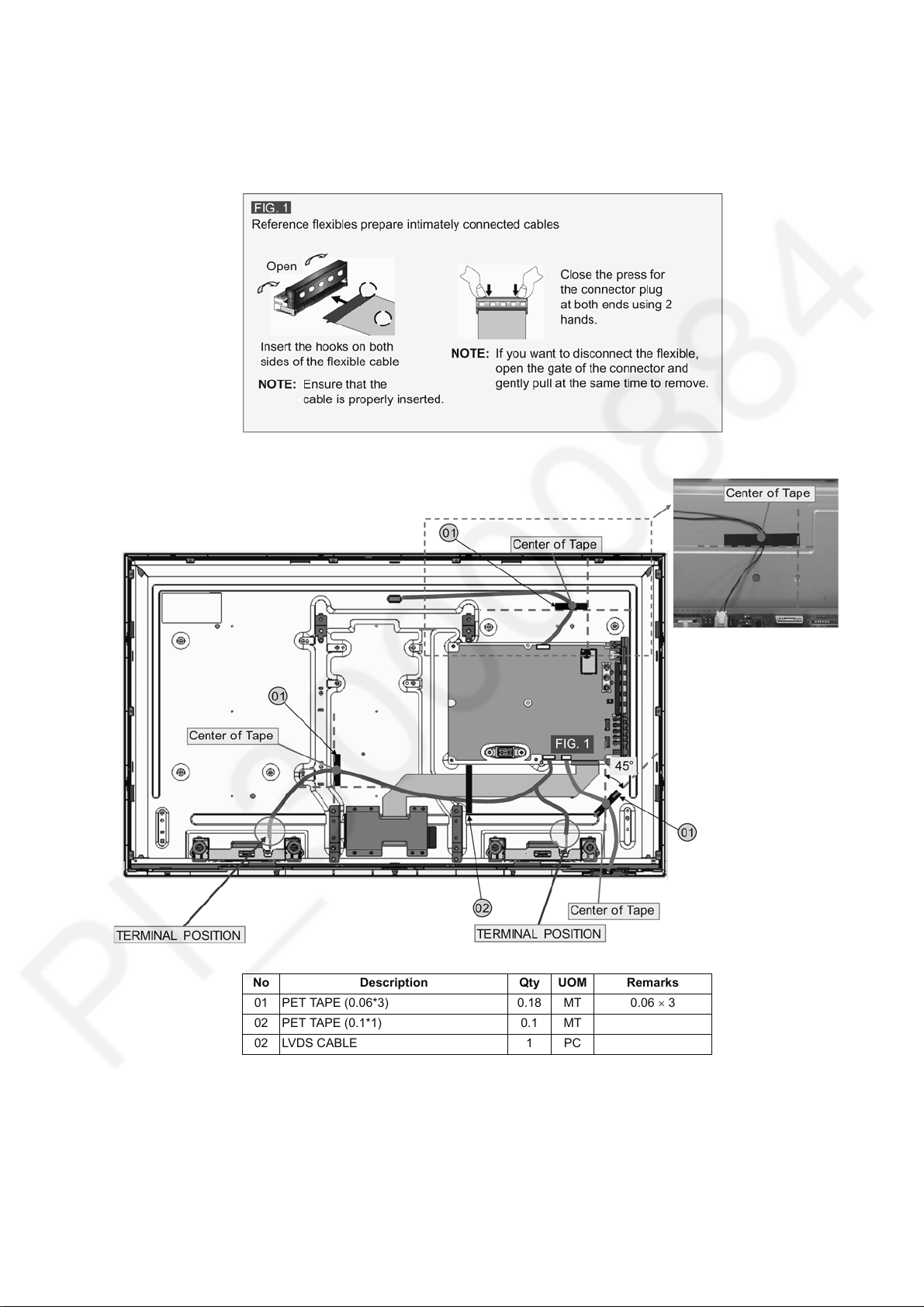

Do wire dressing follow below spec:
TH-32A410R
No Description Qty UOM Remarks
01 PET TAPE (0.06*3) 0.18 MT 0.06 3
02 PET TAPE (0.1*1) 0.1 MT
02 LVDS CABLE 1 PC
27
Page 28
TH-32A410R

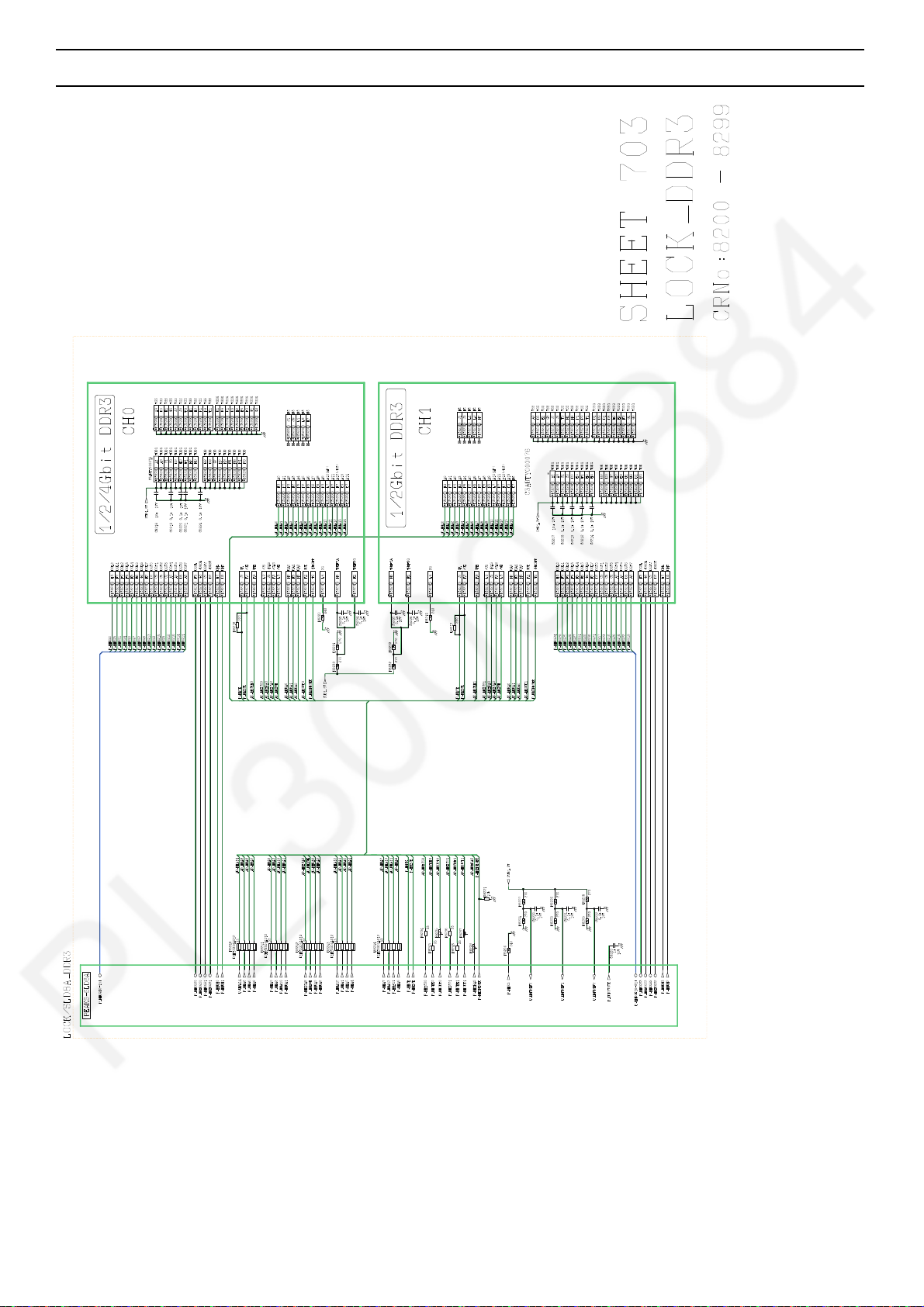

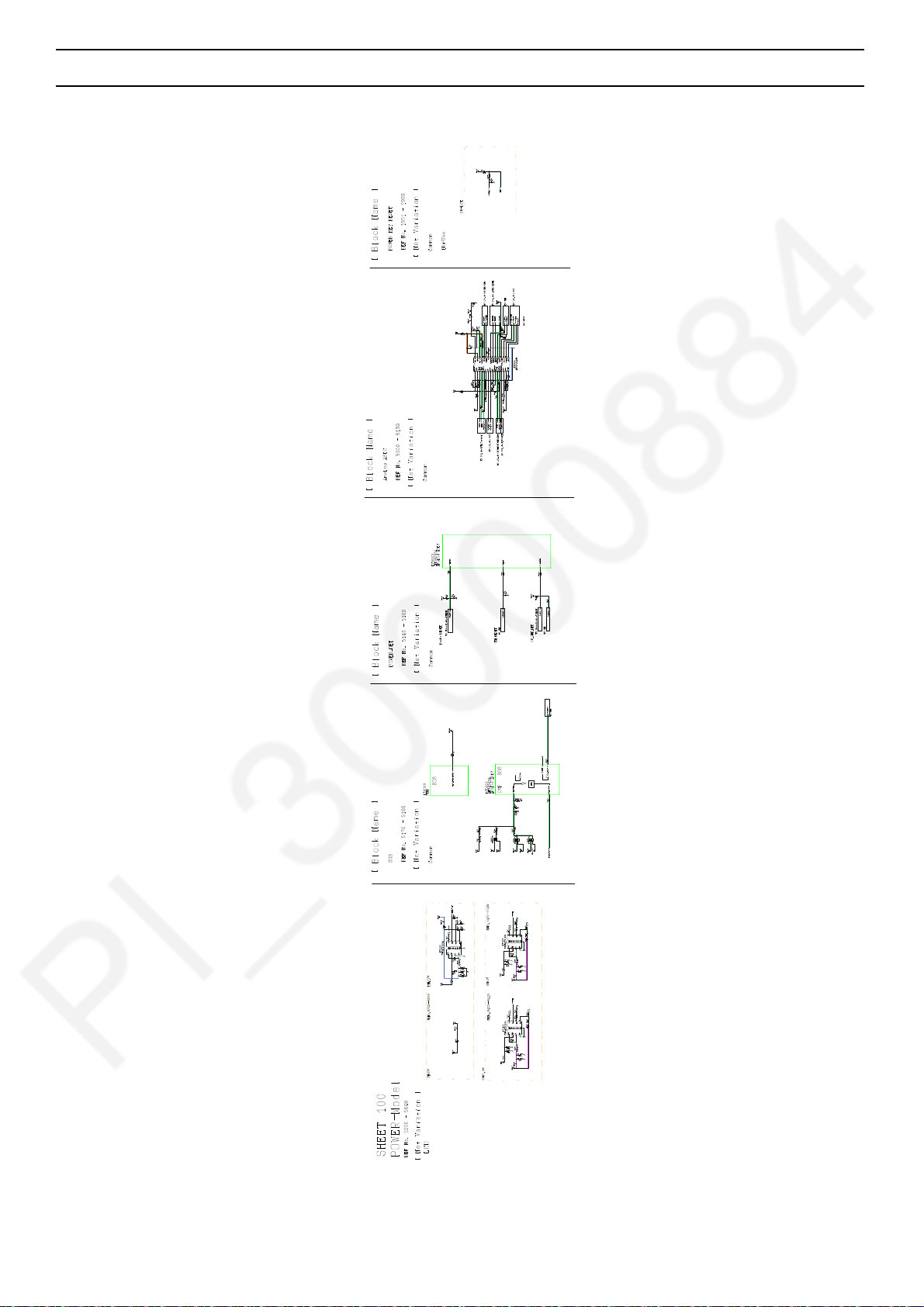

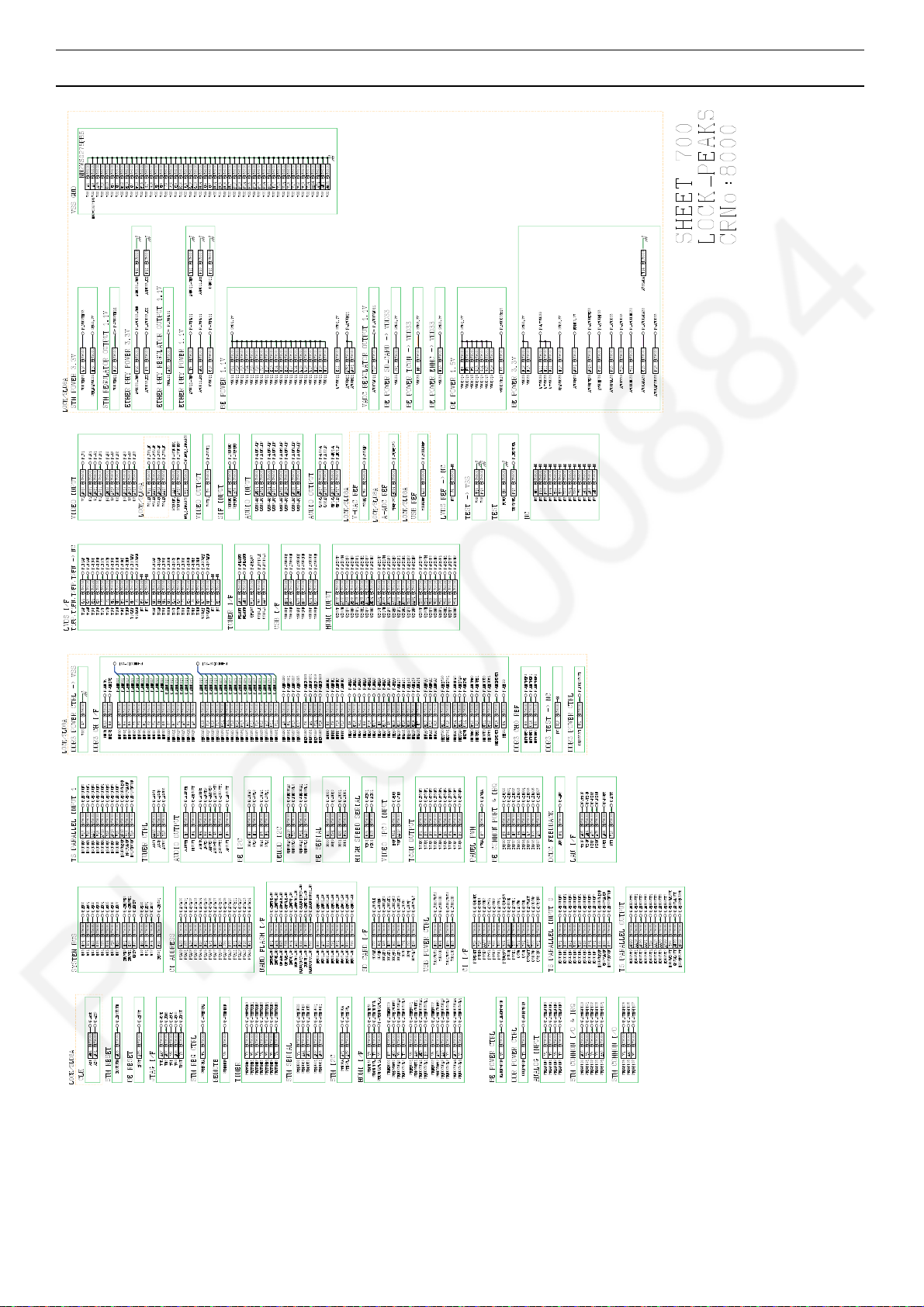

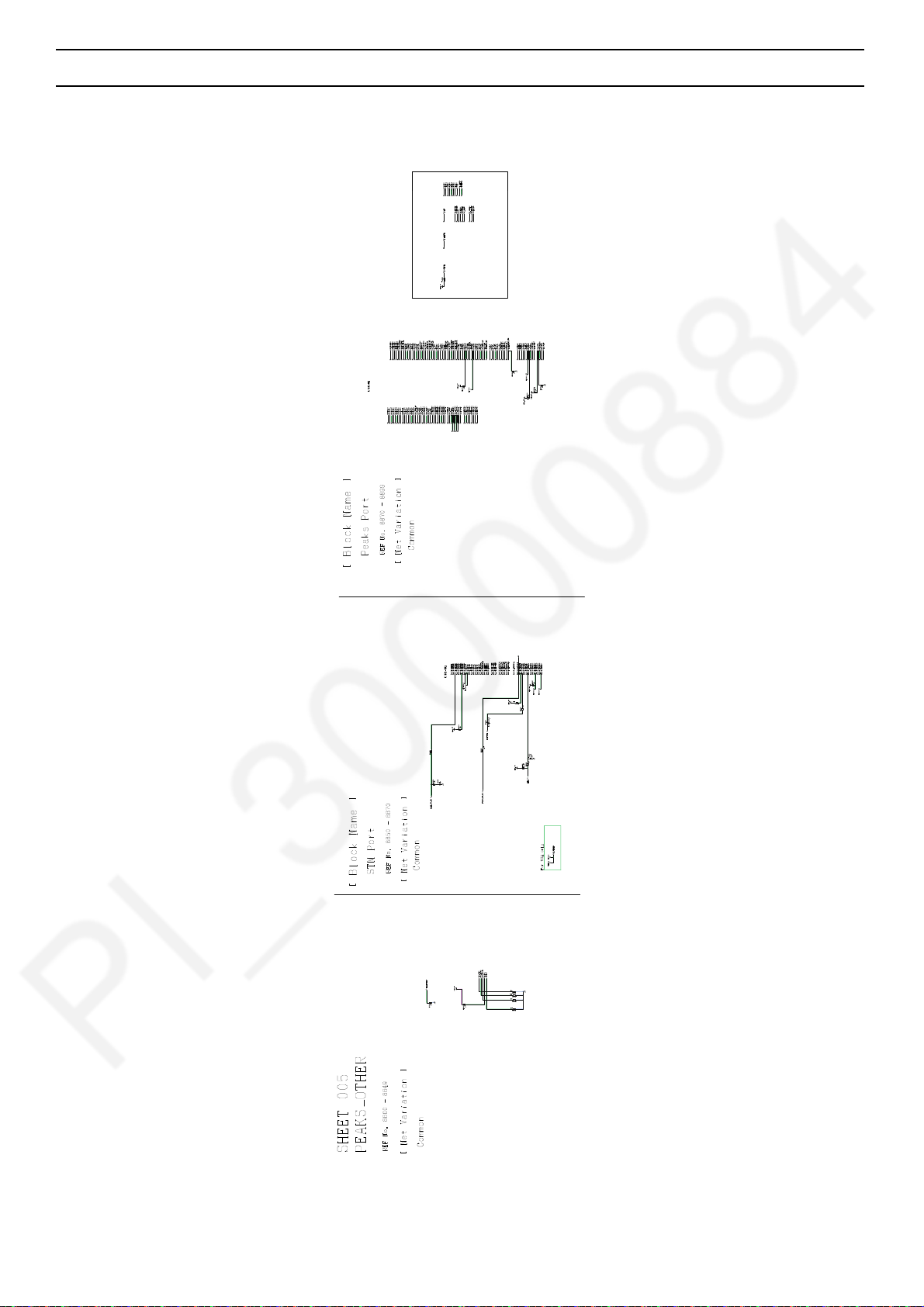

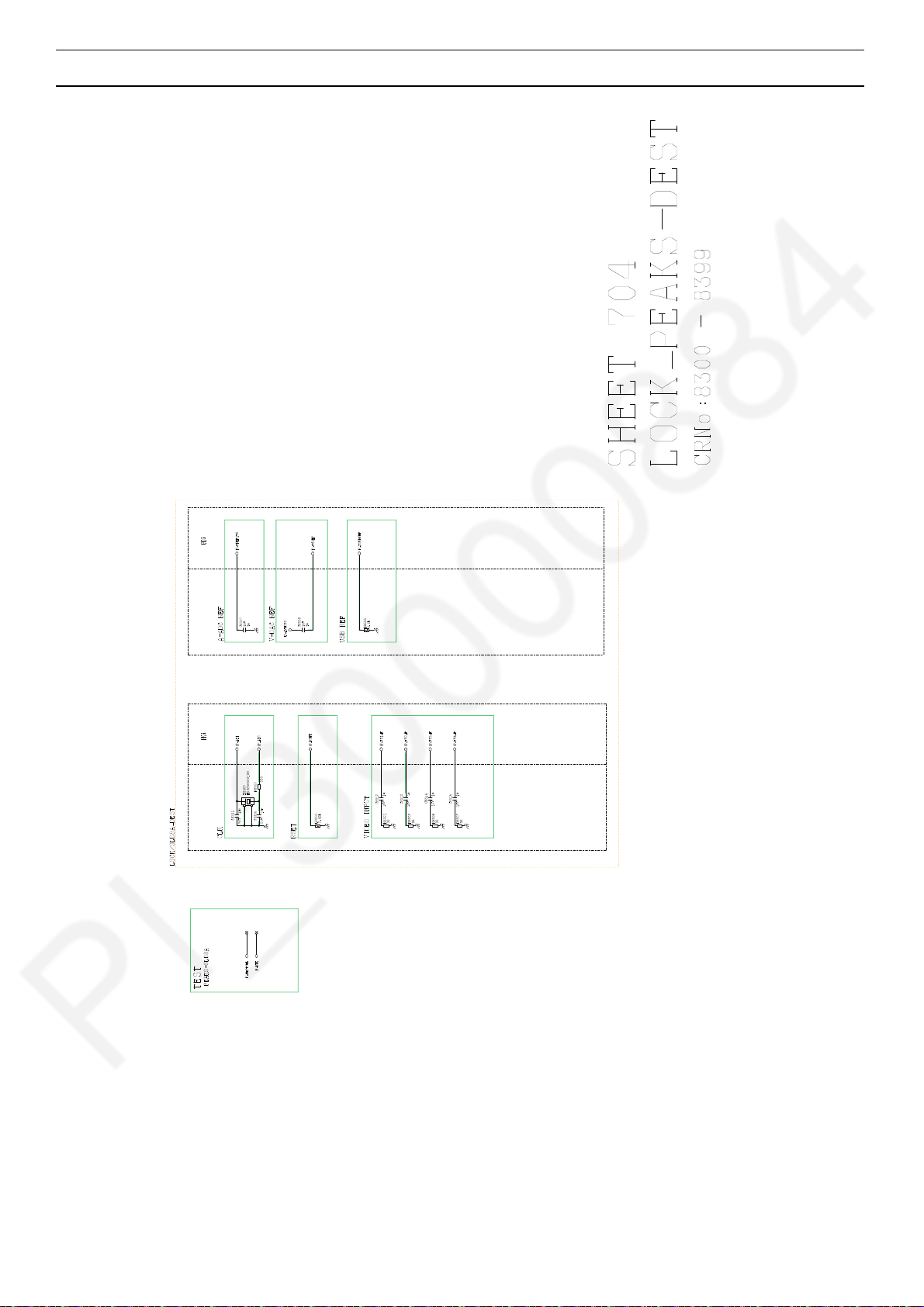

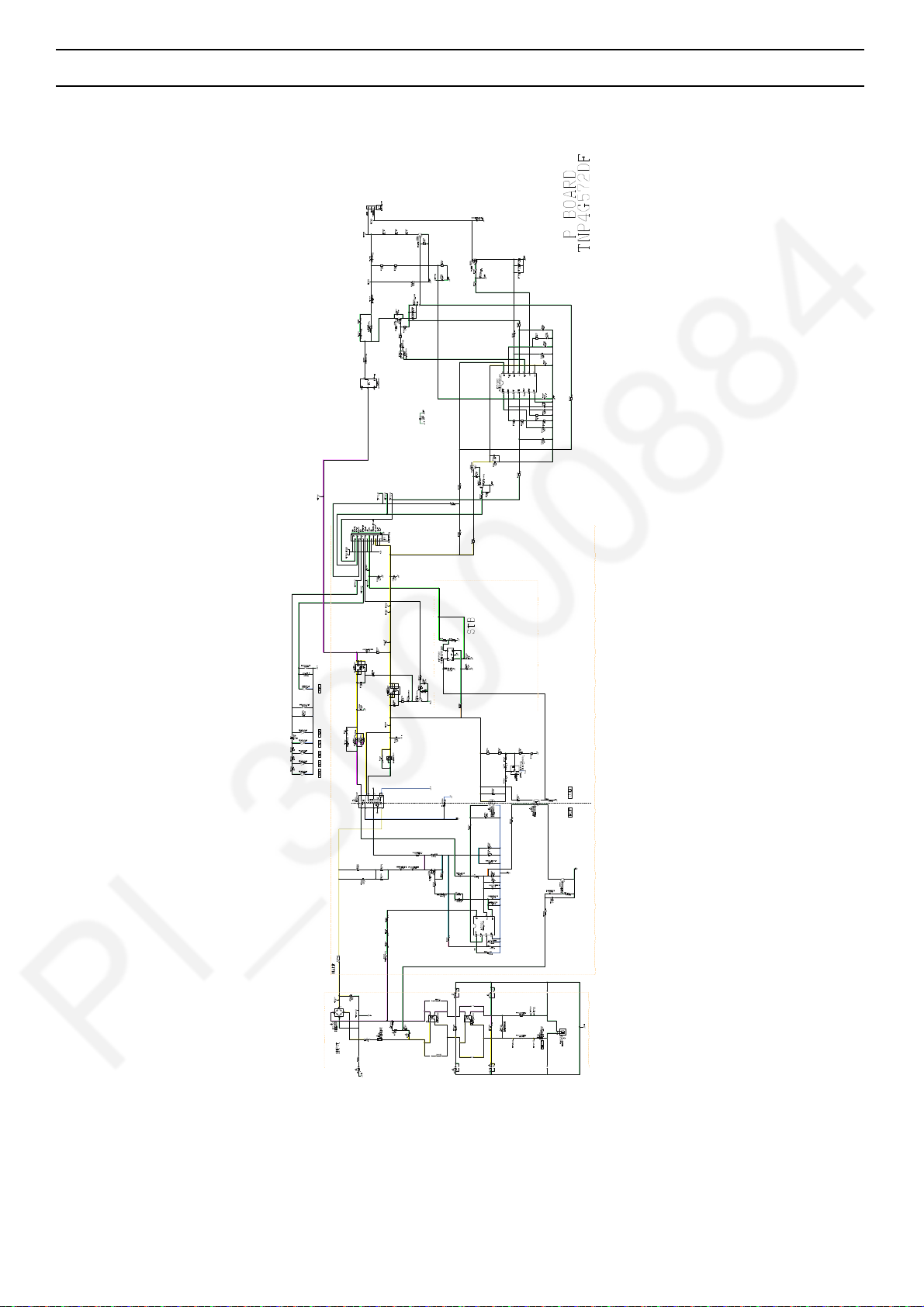

11 Schematic Diagram

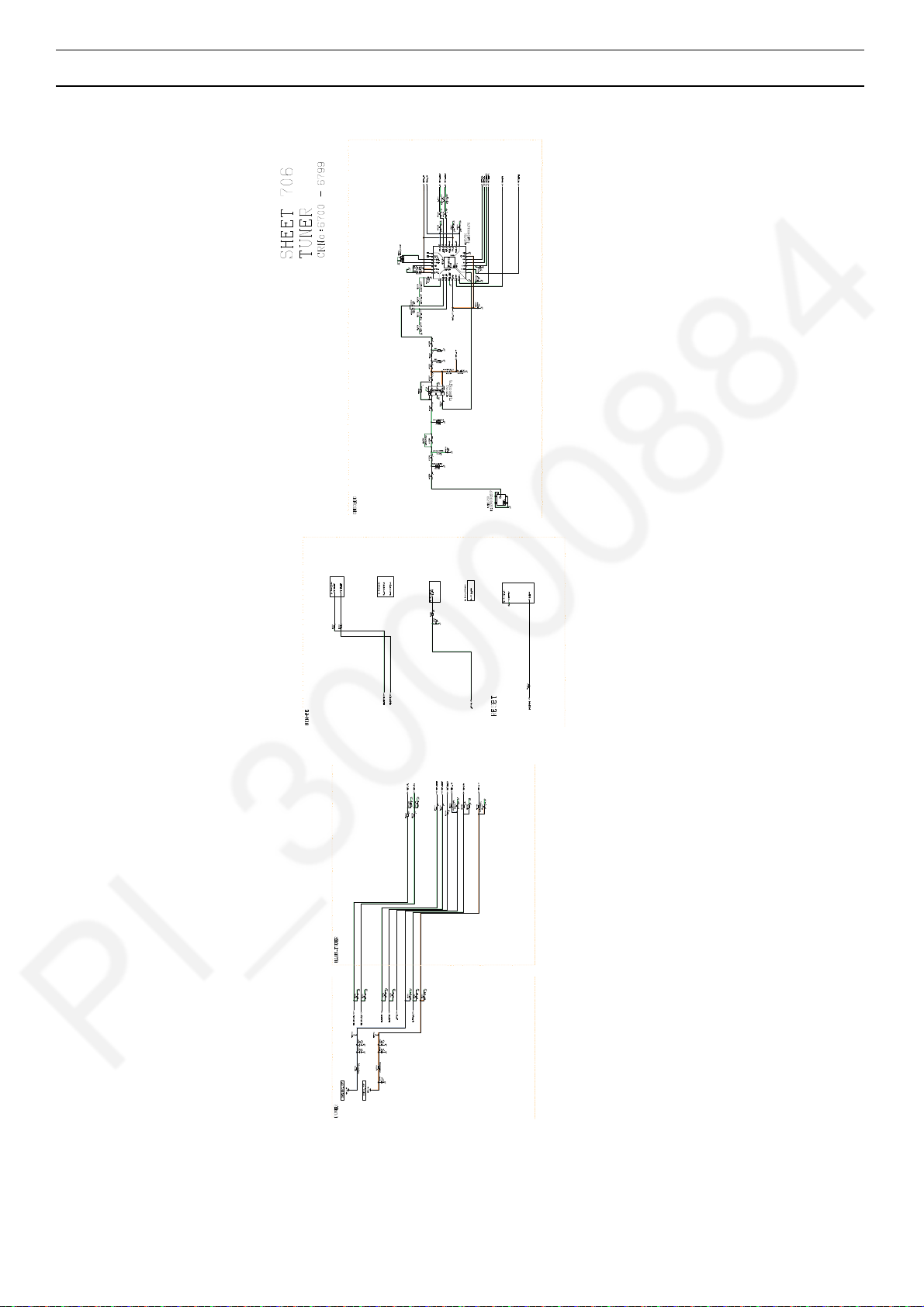

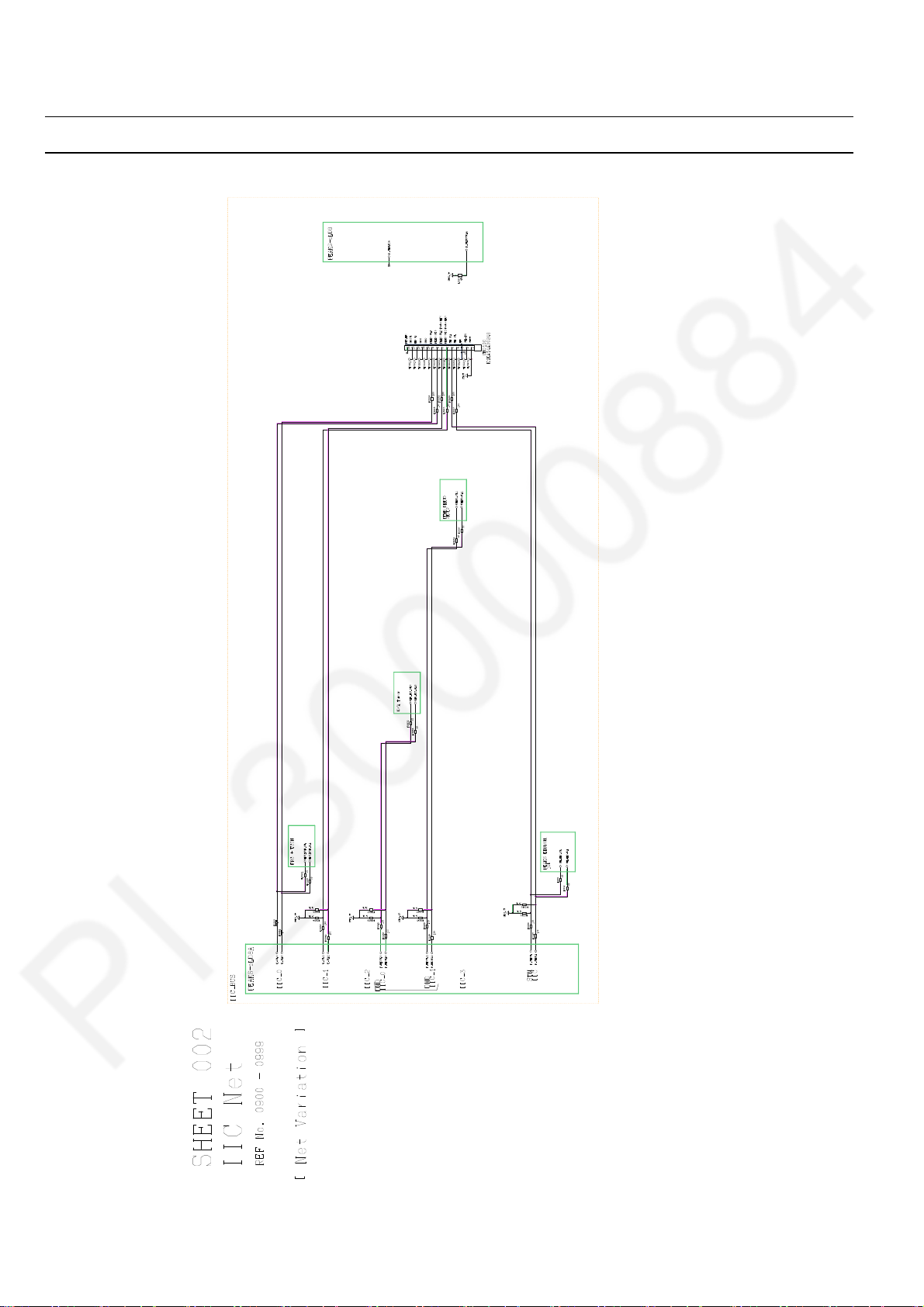

Model No. : TH-32A410R A-Board (1/18)
28
Page 29

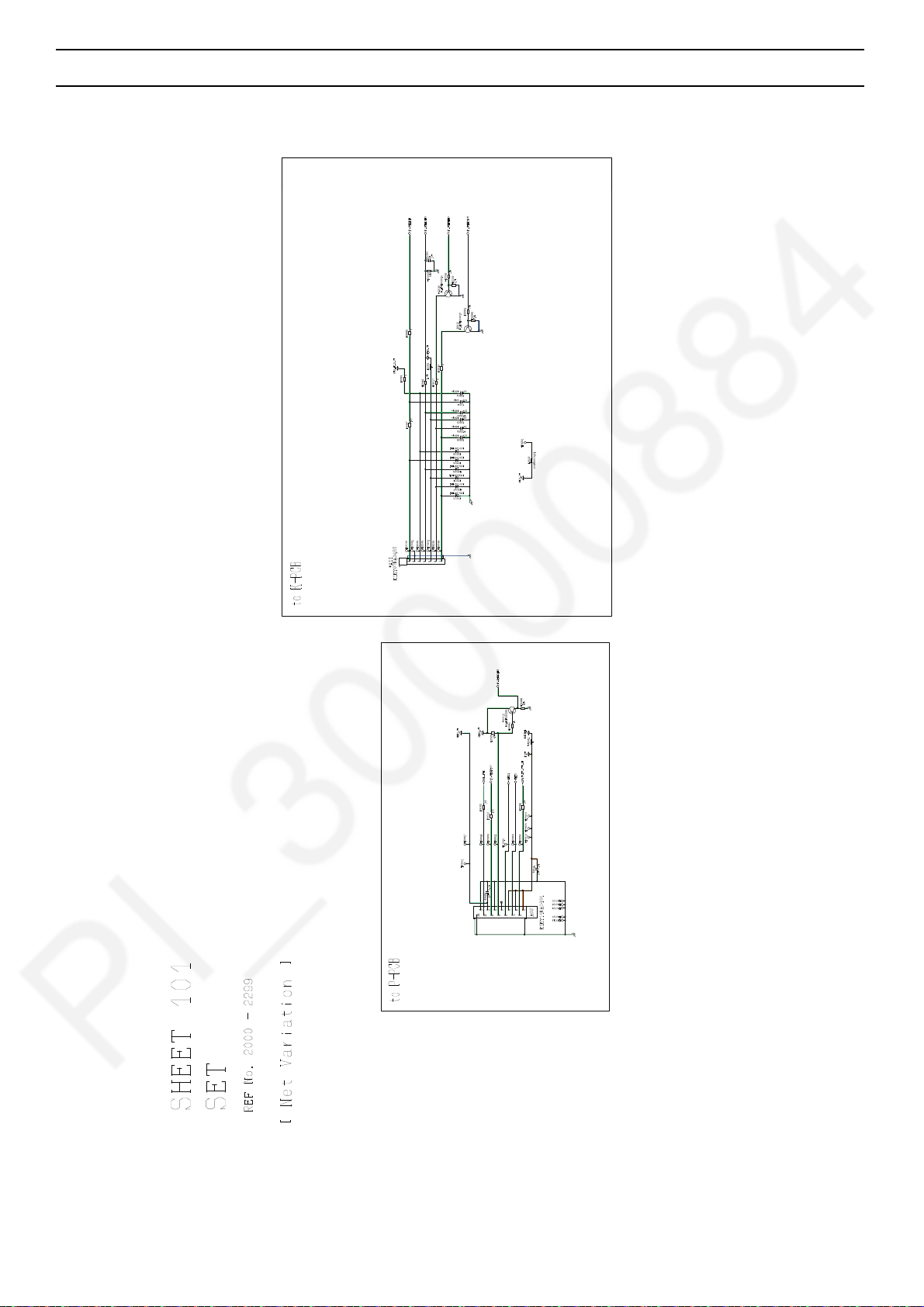

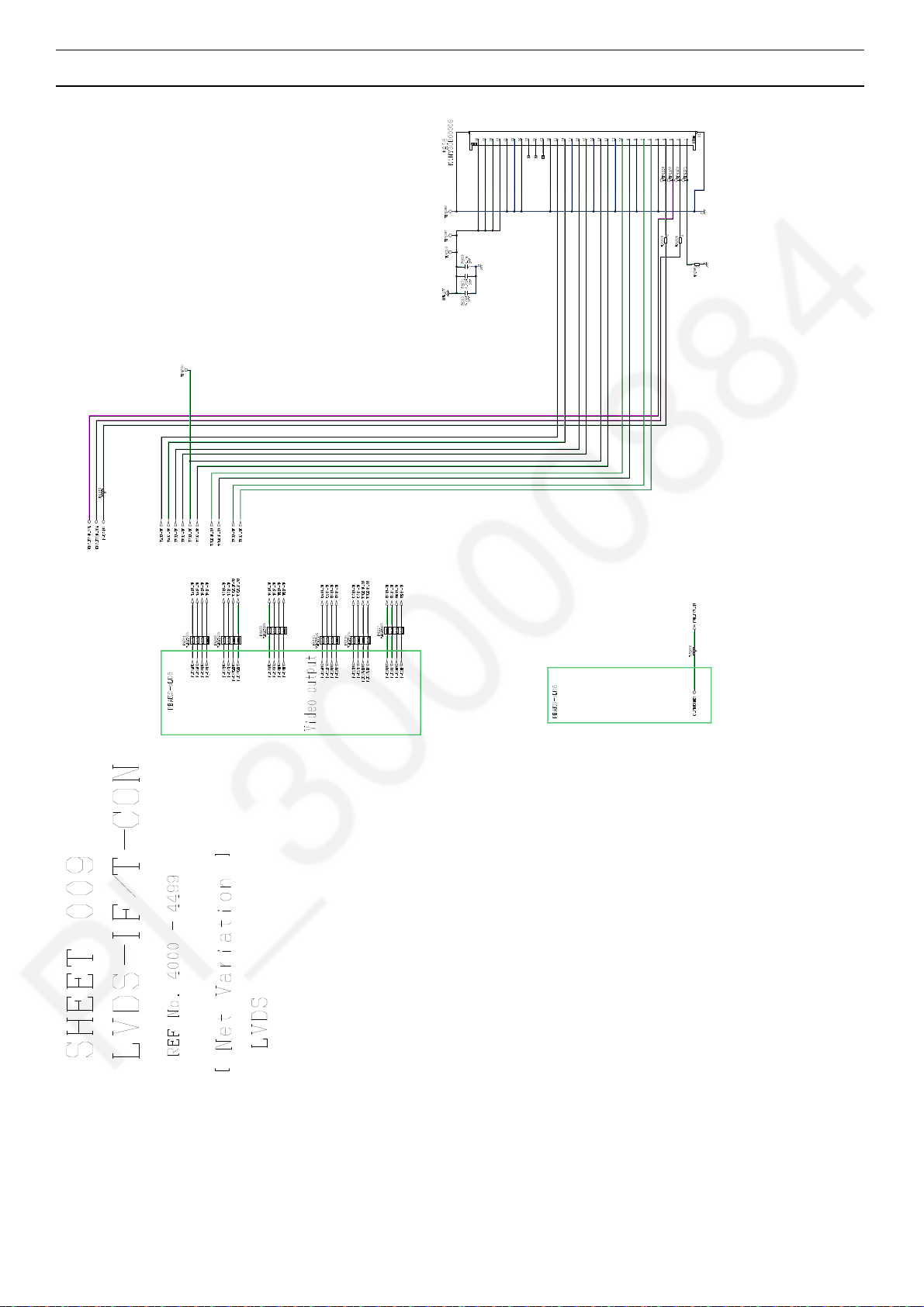

Model No. : TH-32A410R A-Board (2/18)
Page 30
Model No. : TH-32A410R A-Board (3/18)
Page 31
Model No. : TH-32A410R A-Board (4/18)
Page 32

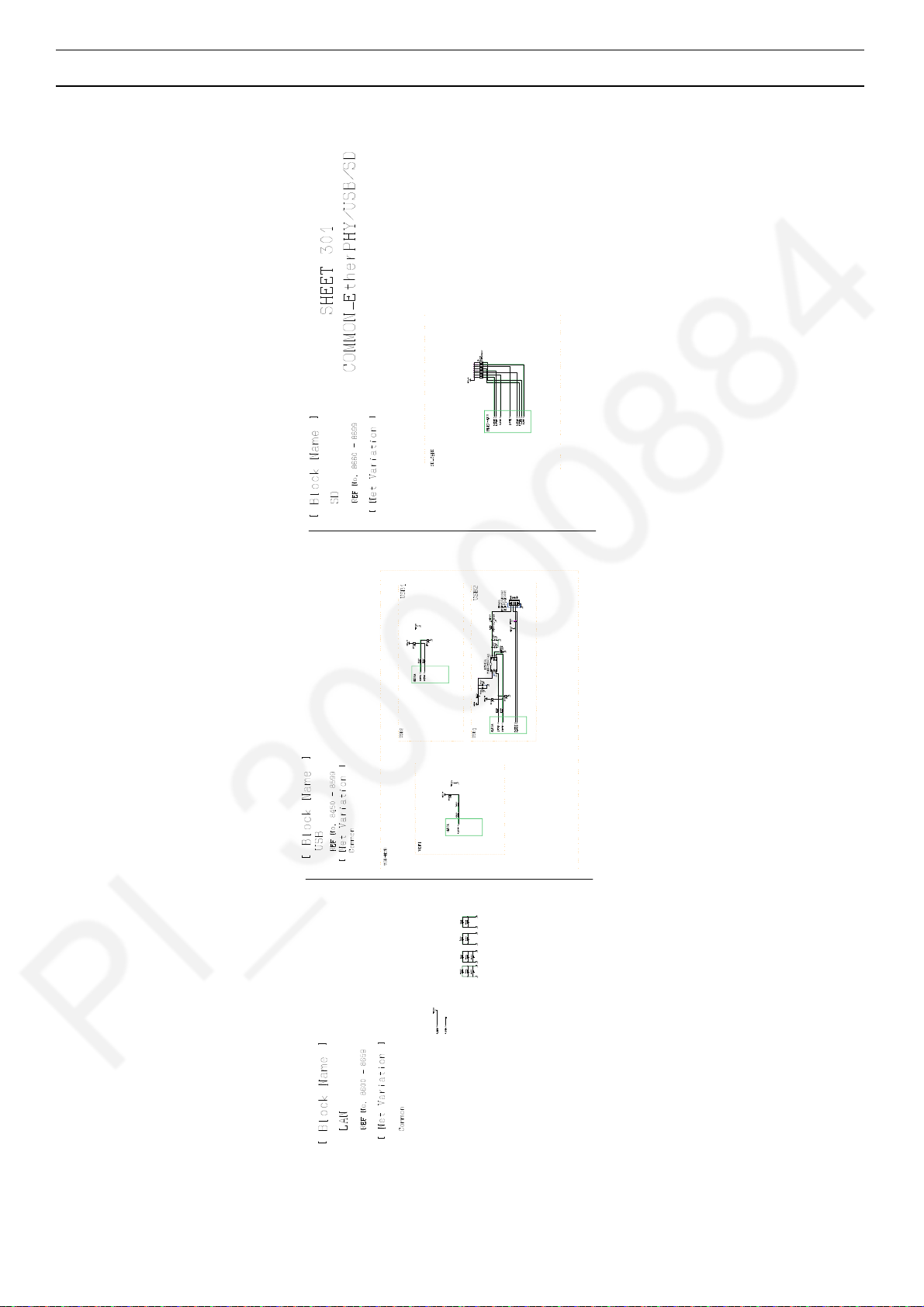

Model No. : TH-32A410R A-Board (5/18)
Page 33
Model No. : TH-32A410R A-Board (6/18)
Page 34
Model No. : TH-32A410R A-Board (7/18)
Page 35
Model No. : TH-32A410R A-Board (8/18)
Page 36

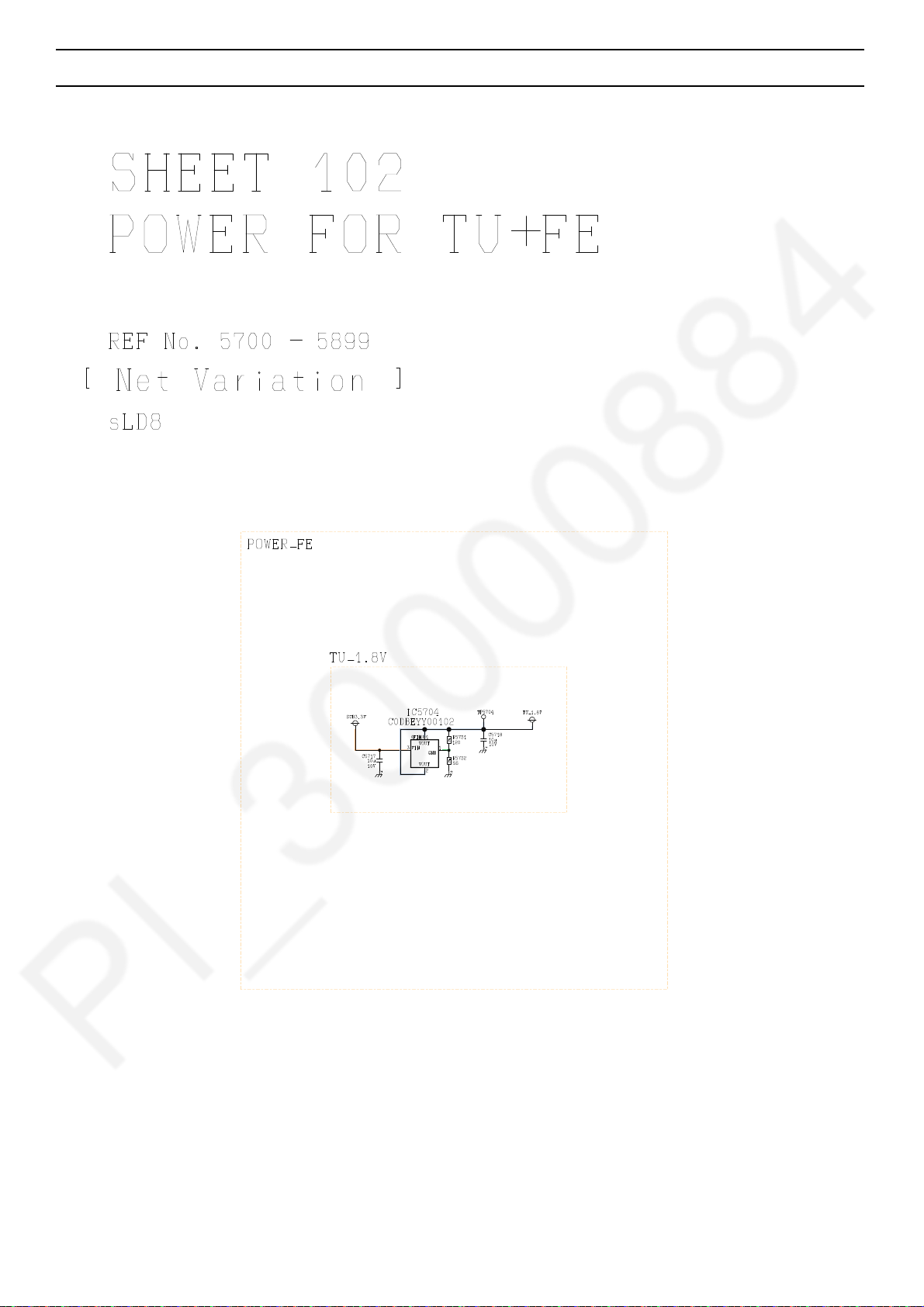

Model No. : TH-32A410R A-Board (9/18)
Page 37

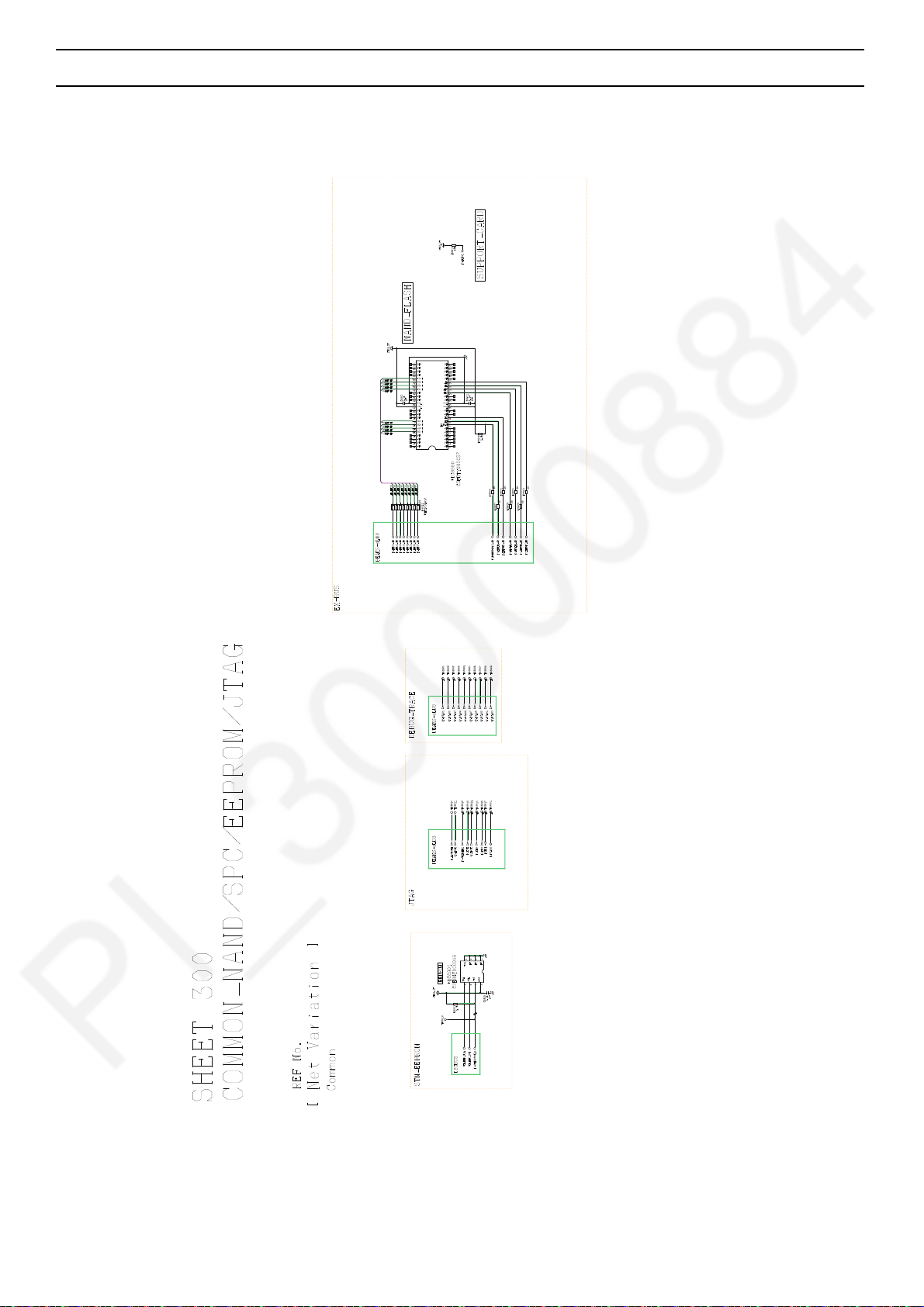

Model No. : TH-32A410R A-Board (10/18)
Page 38
Model No. : TH-32A410R A-Board (11/18)
Page 39

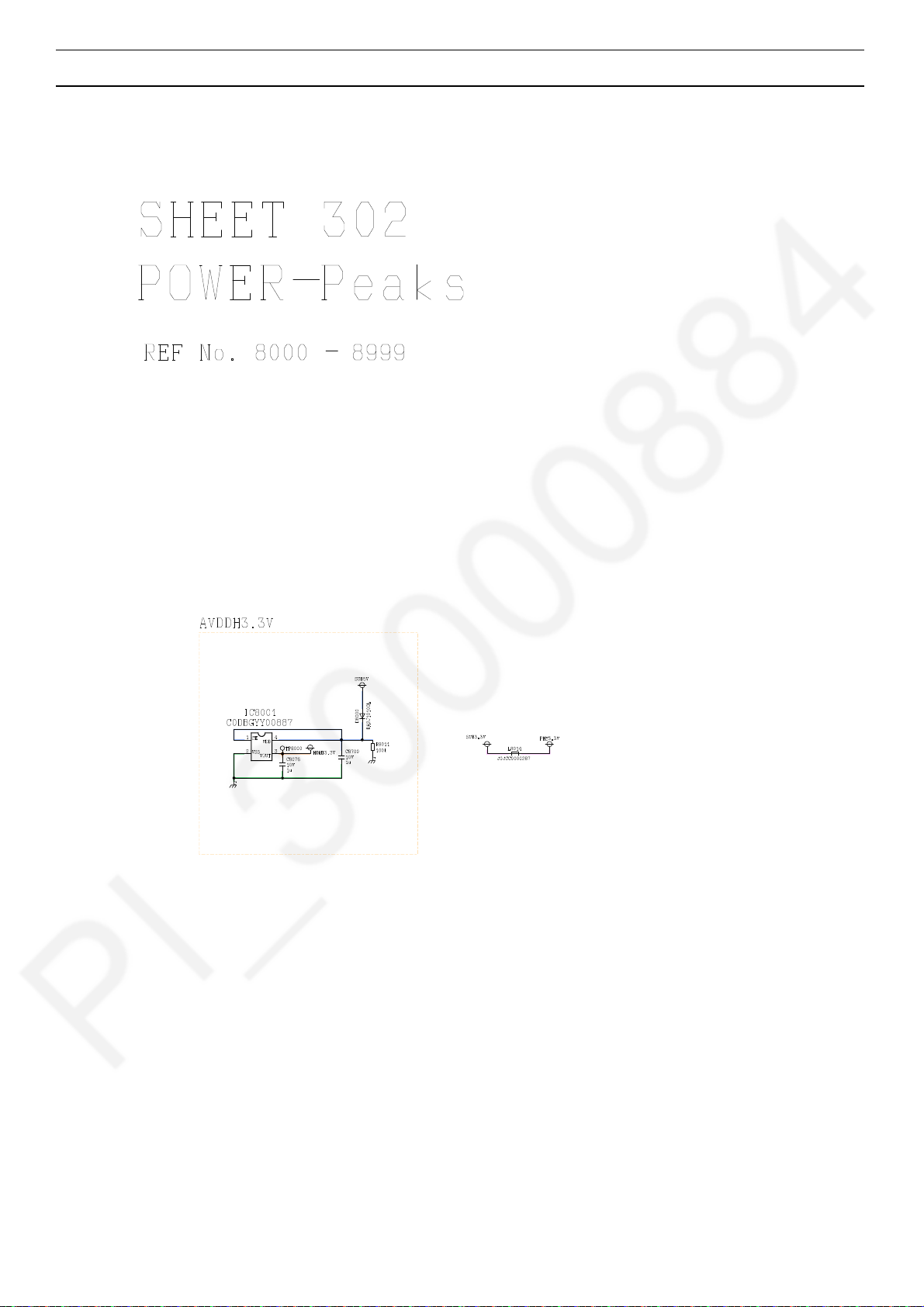

Model No. : TH-32A410R A-Board (12/18)
Page 40
Model No. : TH-32A410R A-Board (13/18)
Page 41
Model No. : TH-32A410R A-Board (14/18)
Page 42

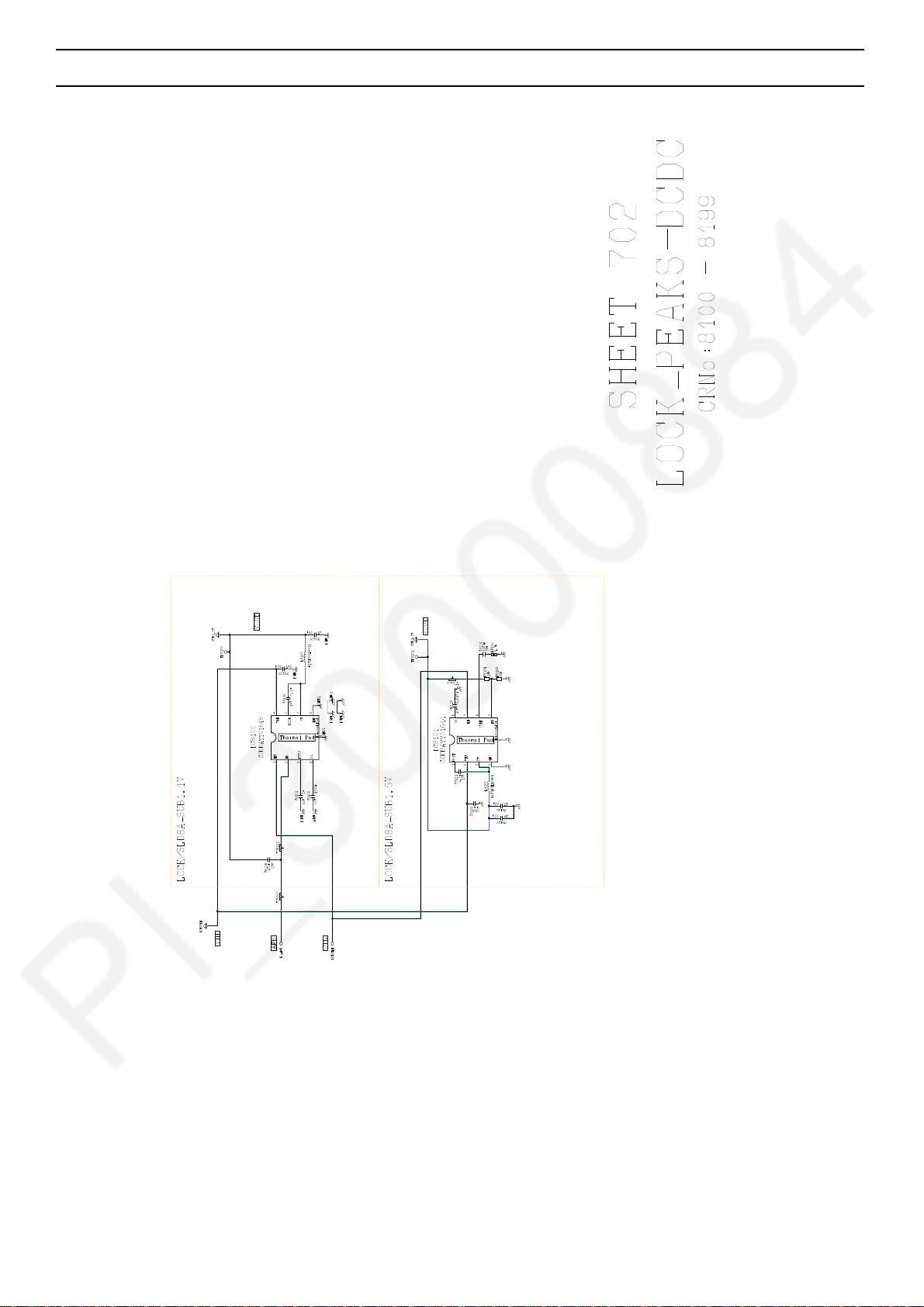

Model No. : TH-32A410R A-Board (15/18)
Page 43
Model No. : TH-32A410R A-Board (16/18)
Page 44
Model No. : TH-32A410R A-Board (17/18)
Page 45
Model No. : TH-32A410R A-Board (18/18)
Page 46

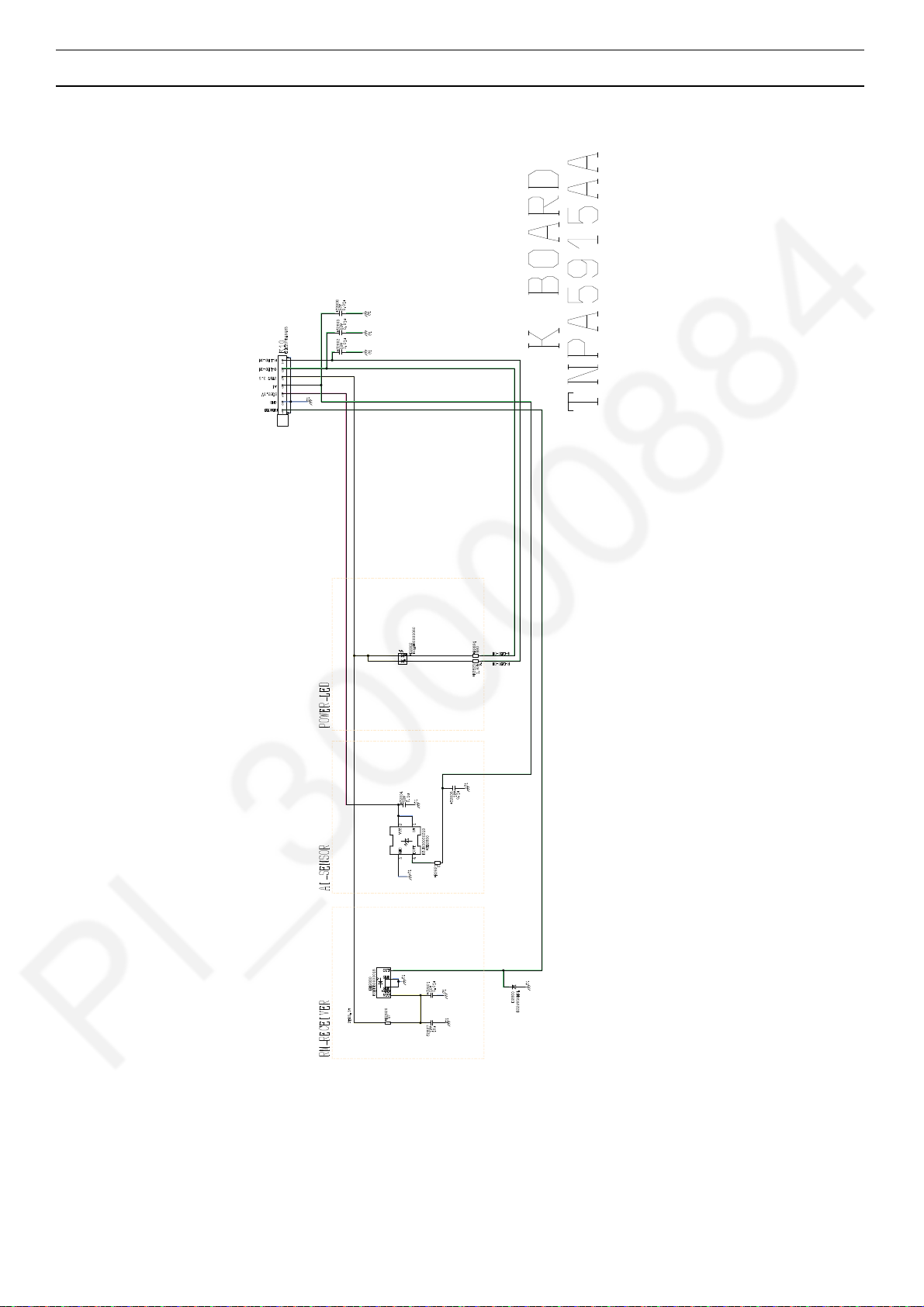

Model No. : TH-32A410R K-Board
Page 47
Model No. : TH-32A410R P-Board
Page 48
TH-32A410R
12 Printed Circuit Board

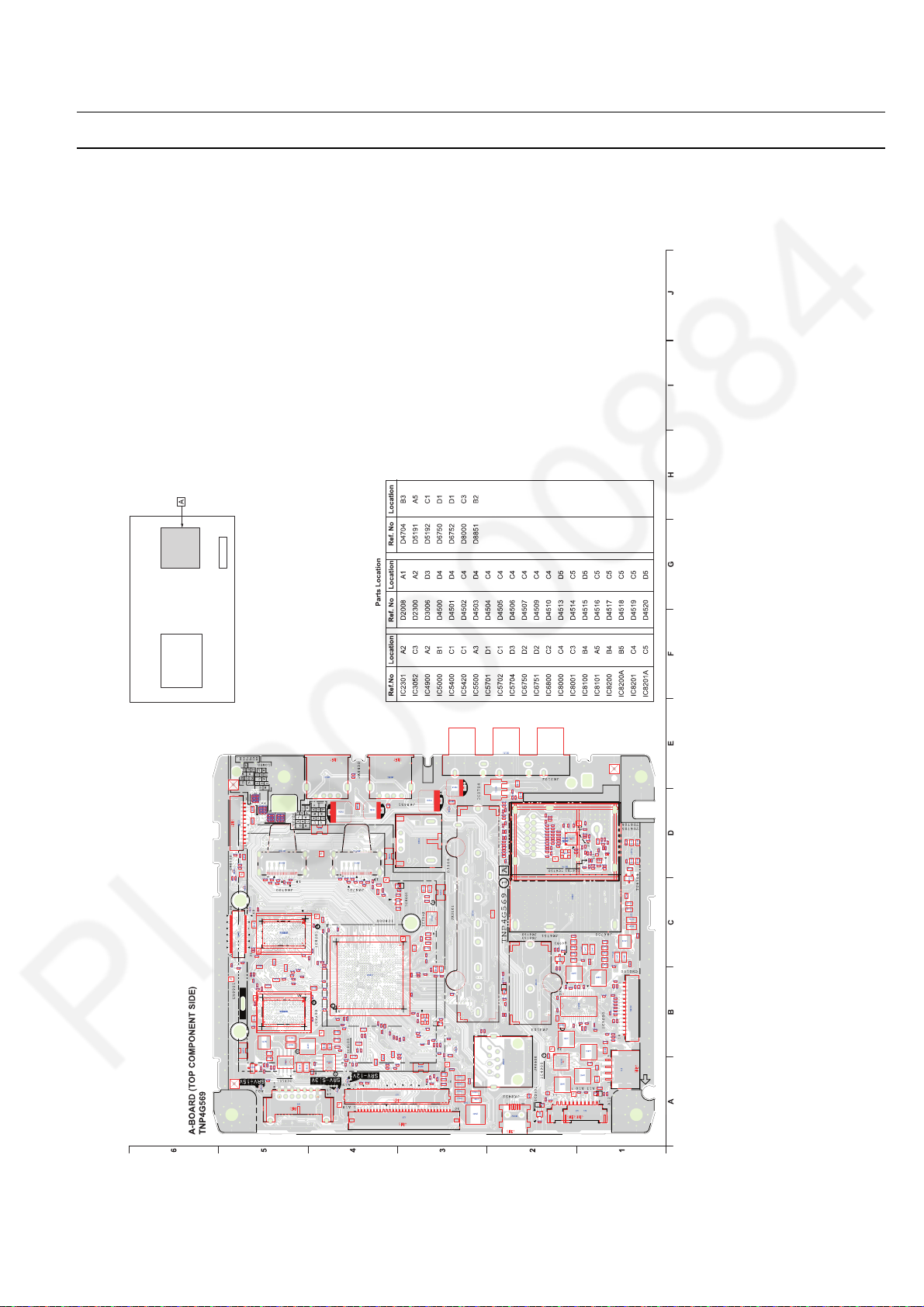

Model No. : TH-32A410R A-Board (Top Component Side)
48
Page 49

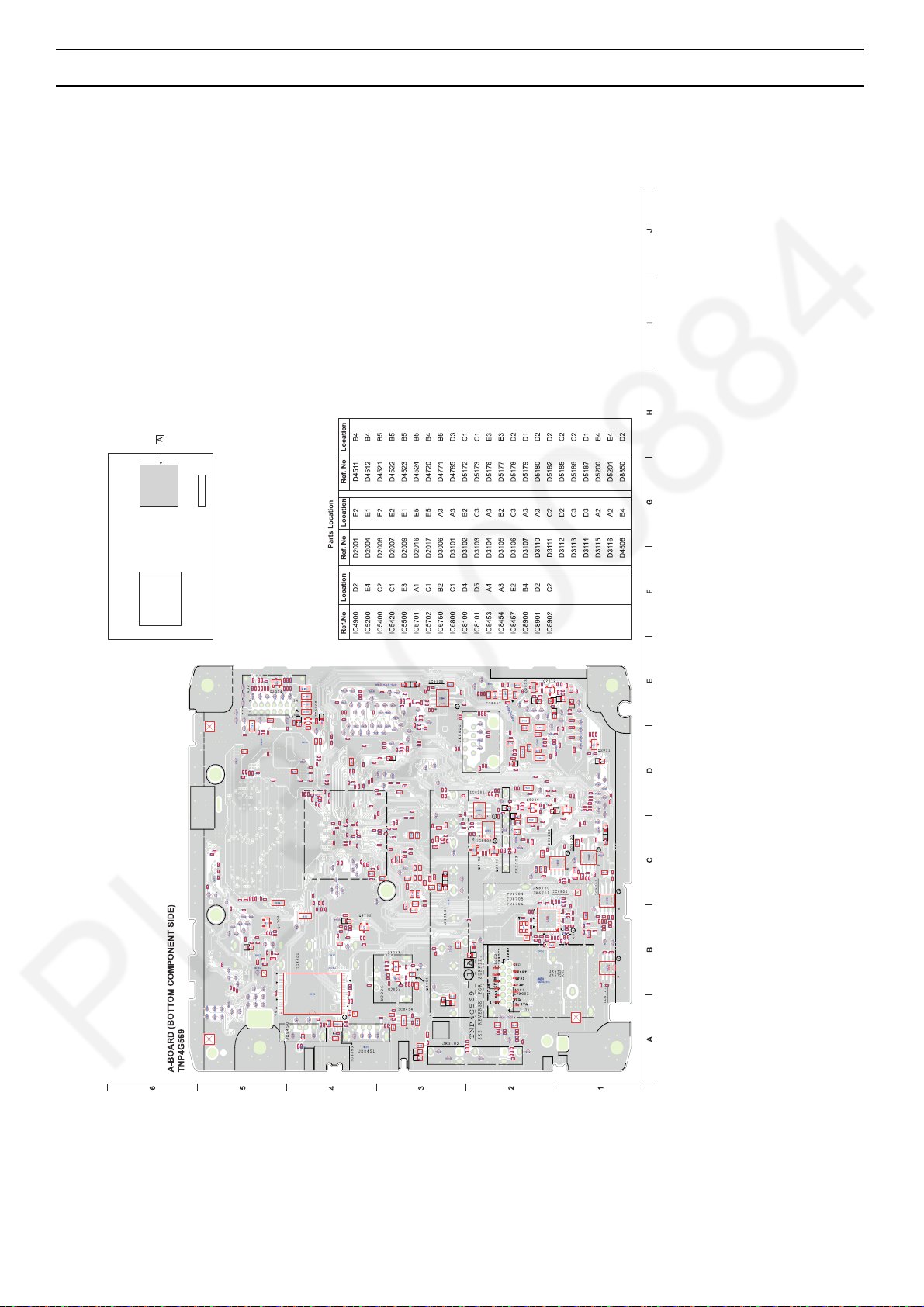

Model No. : TH-32A410R A-Board (Bottom Component Side)
Page 50

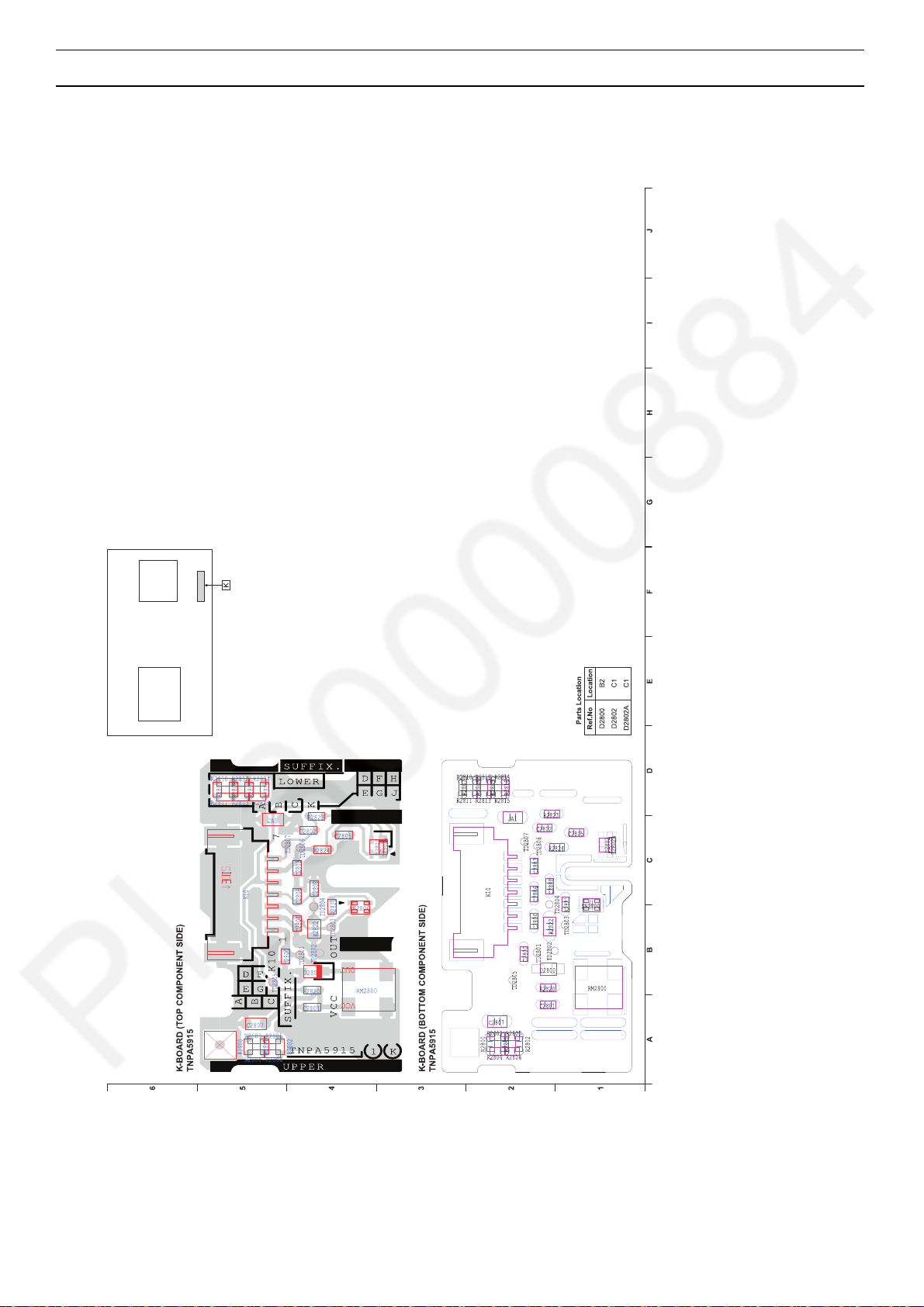

Model No. : TH-32A410R K-Board
Page 51

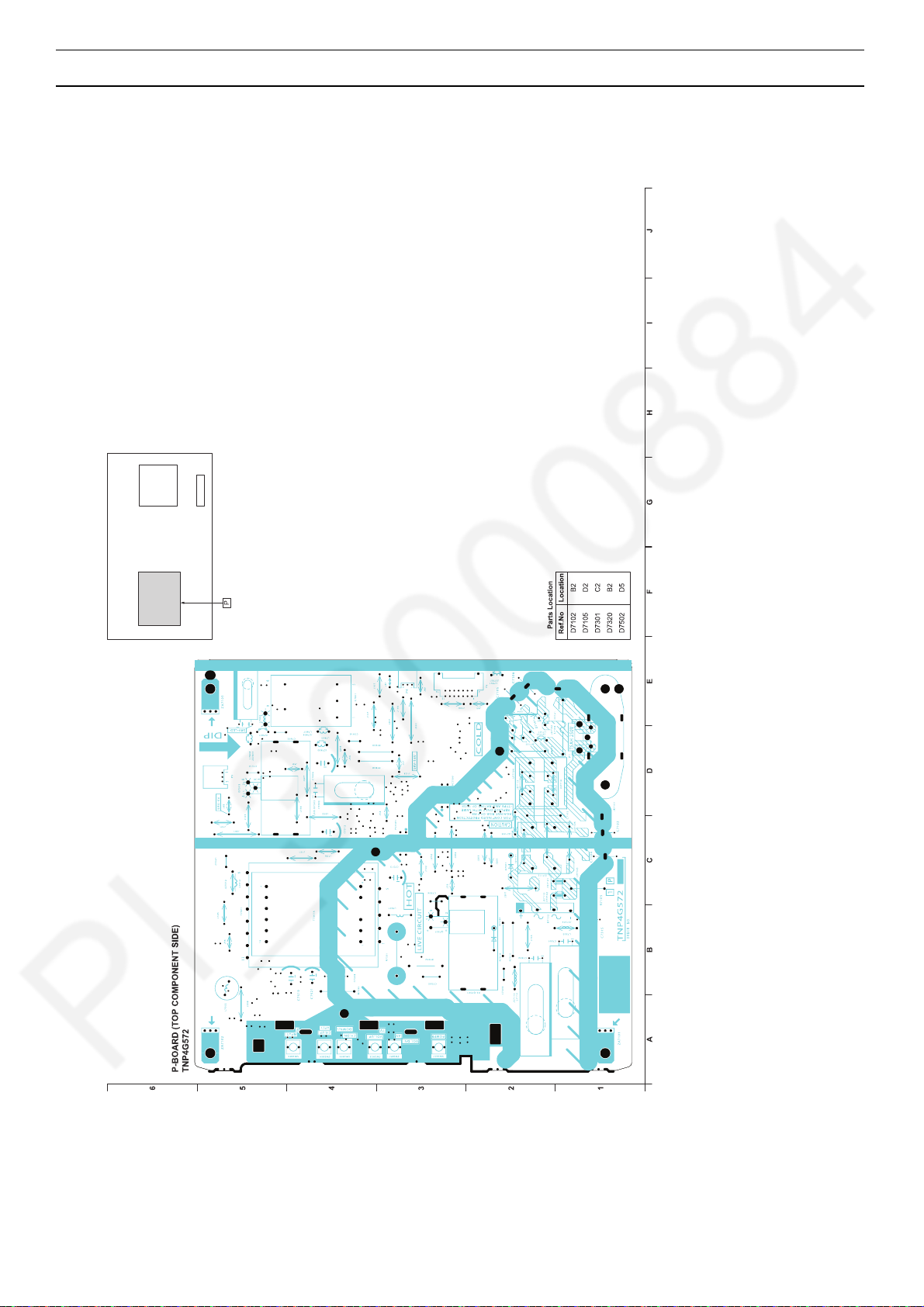

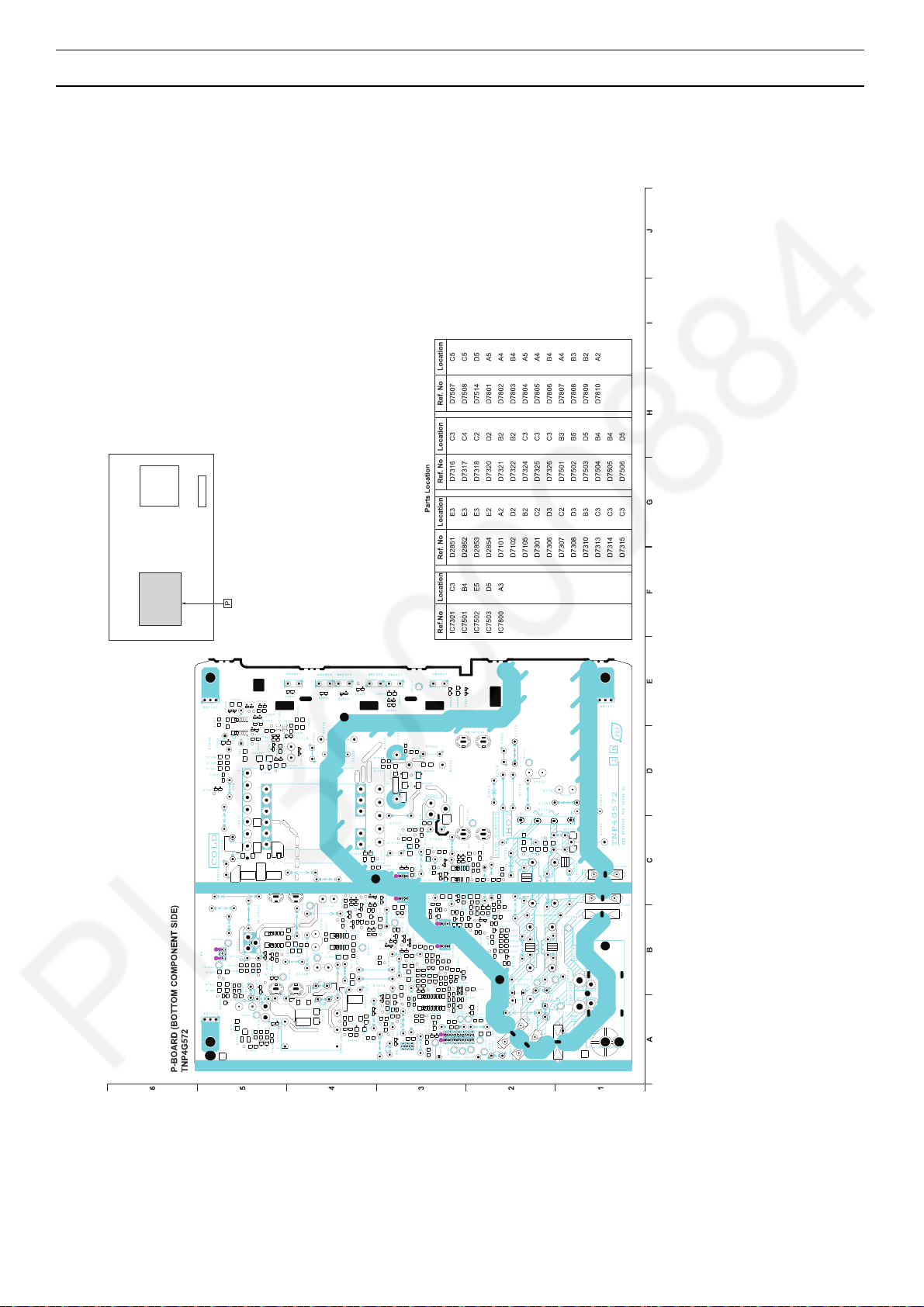

Model No. : TH-32A410R P-Board (Top Component Side)
Page 52
Model No. : TH-32A410R P-Board (Bottom Component Side)
Page 53
13 Exploded View and Replacement Parts List

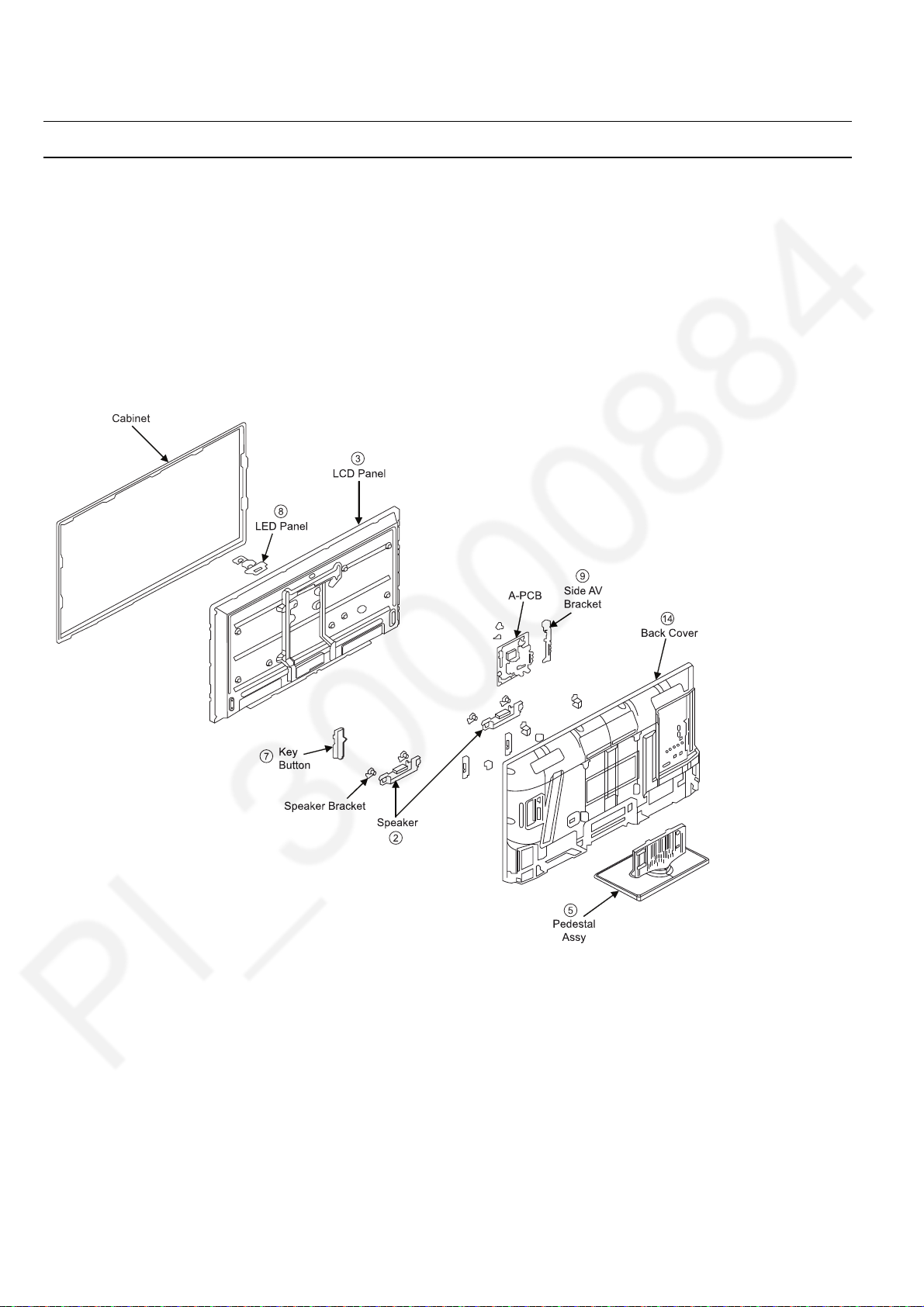

Model No. : TH-32A410R Parts Location
TH-32A410R
53
Page 54

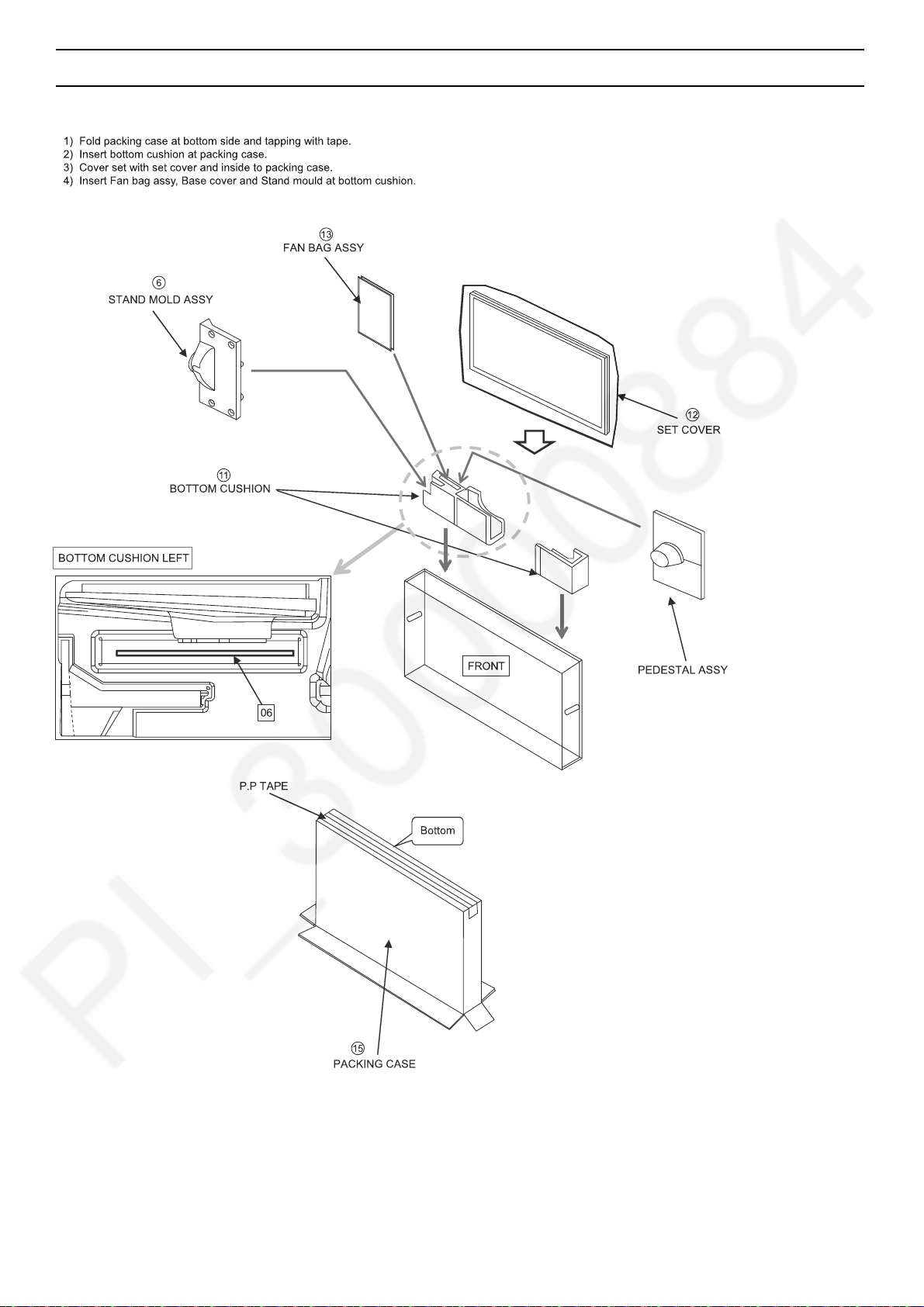

Model No. : TH-32A410R Packing Exploded View 1
Page 55

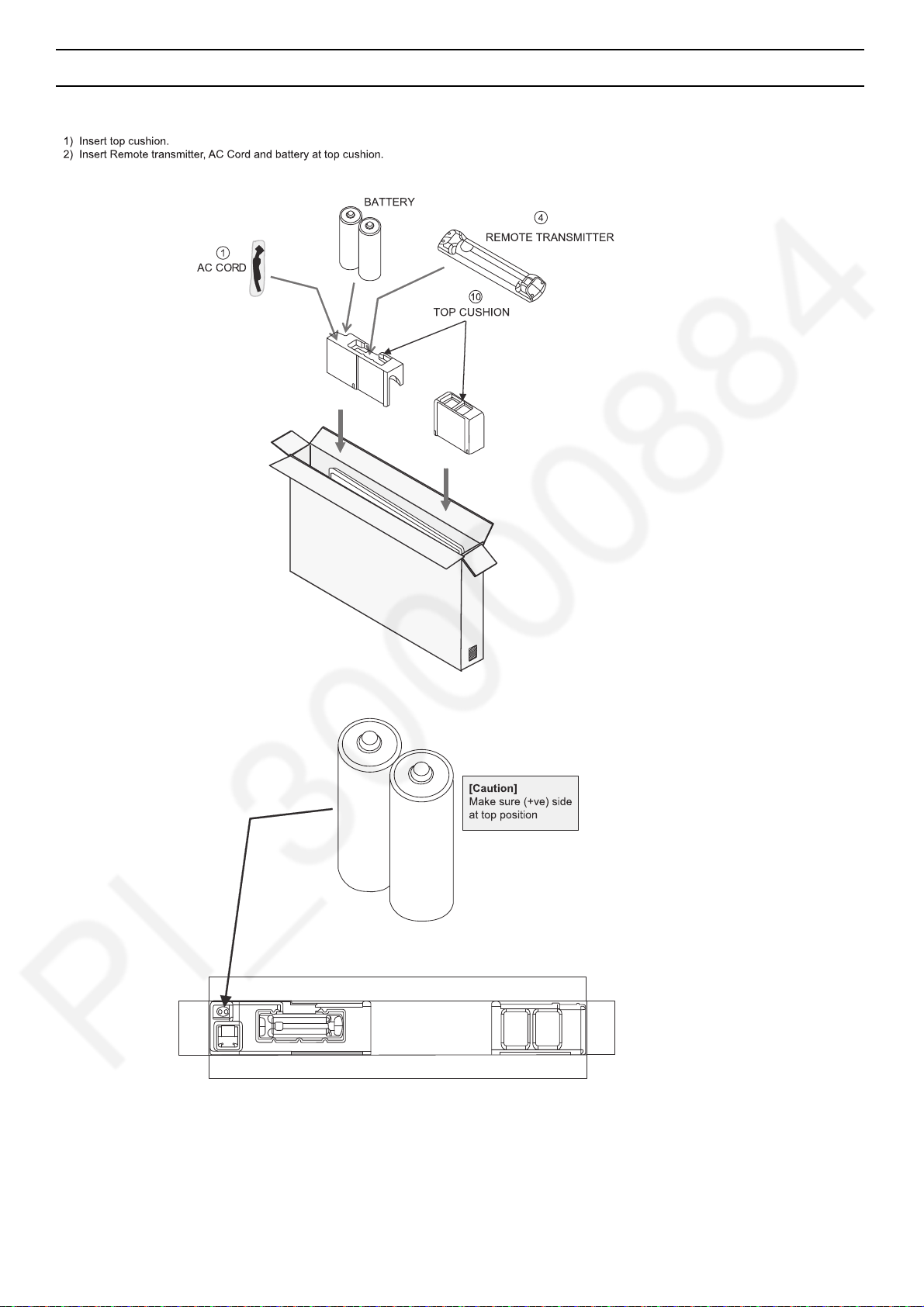

Model No. : TH-32A410R Packing Exploded View 2
Page 56

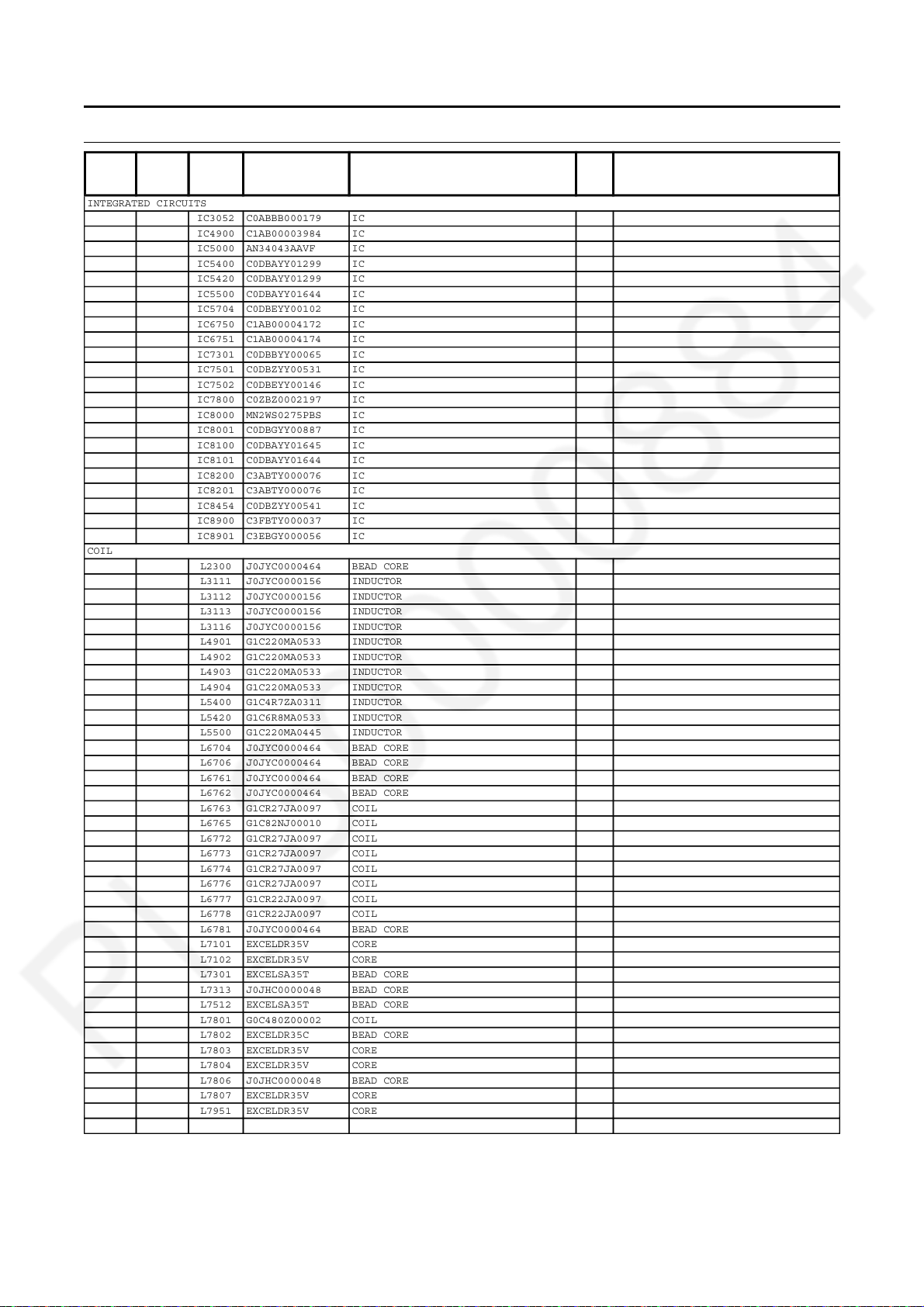

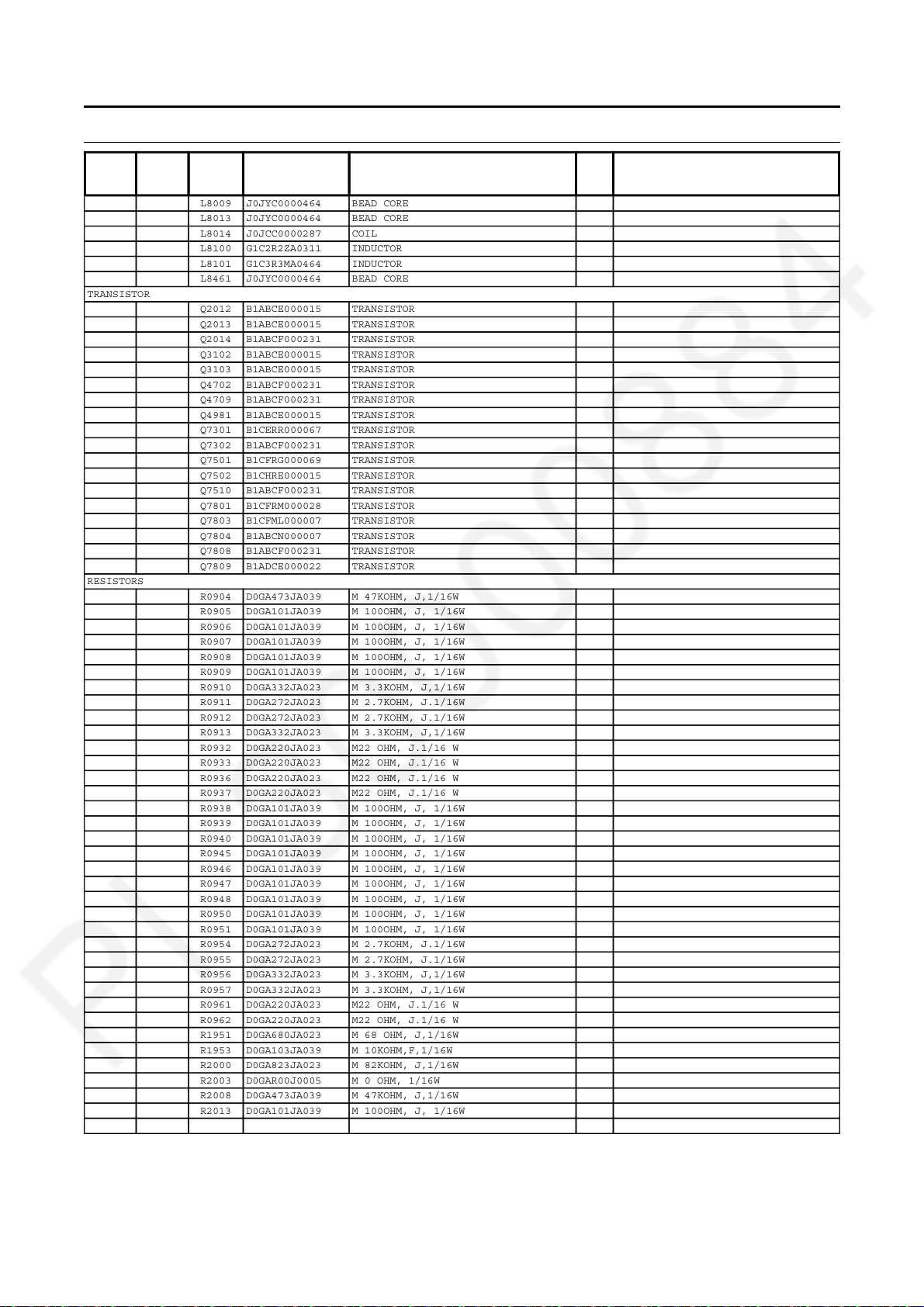

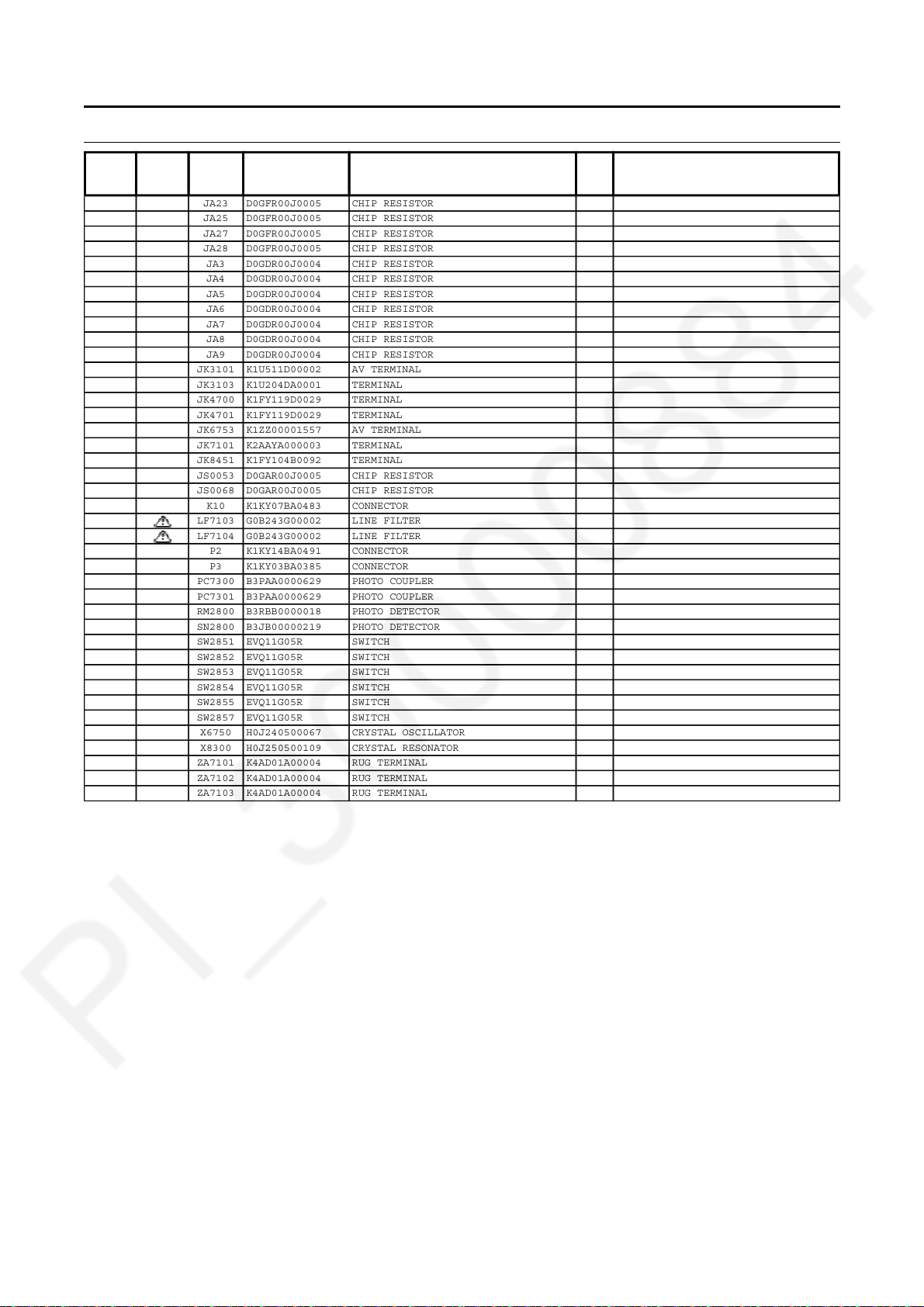

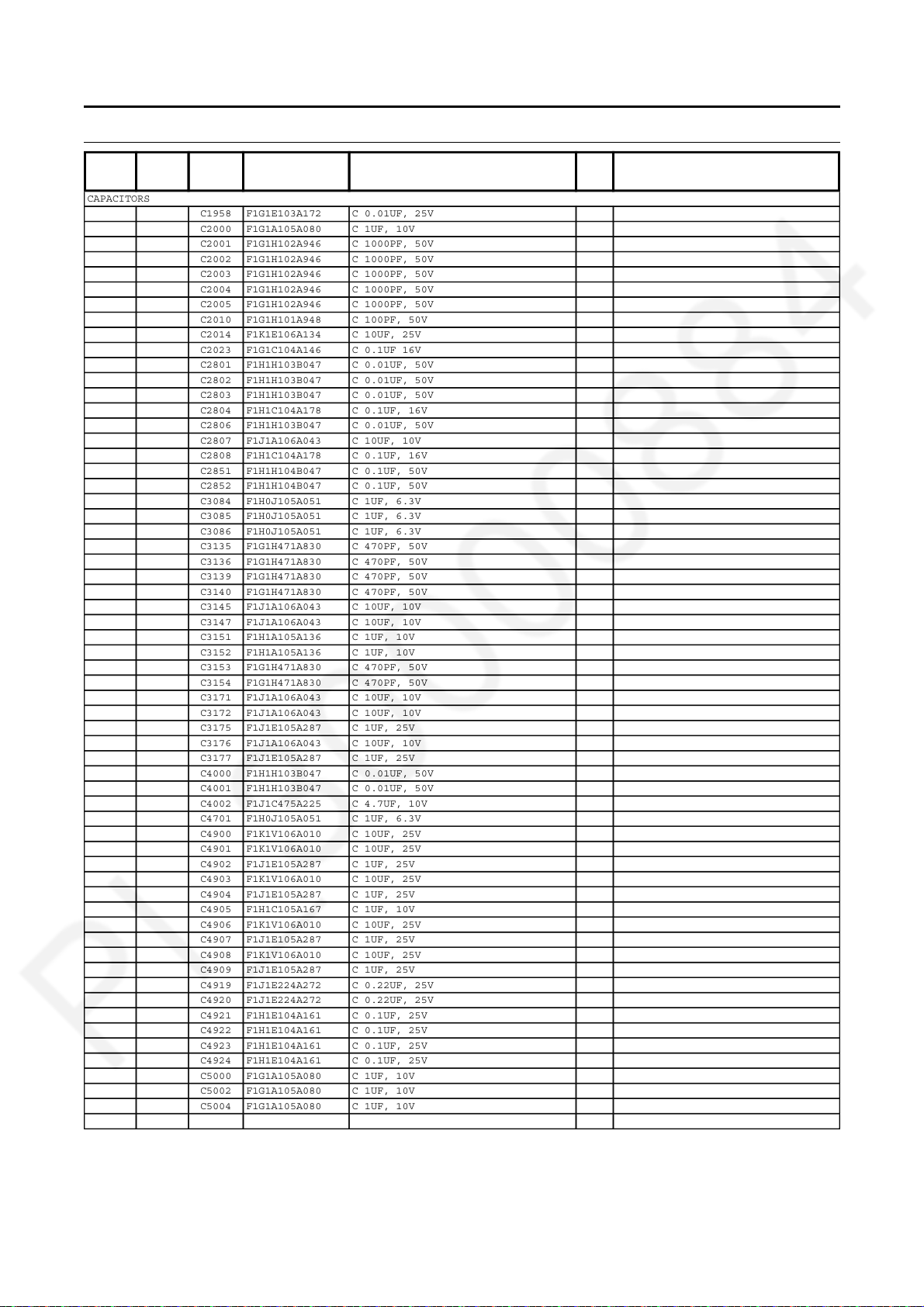

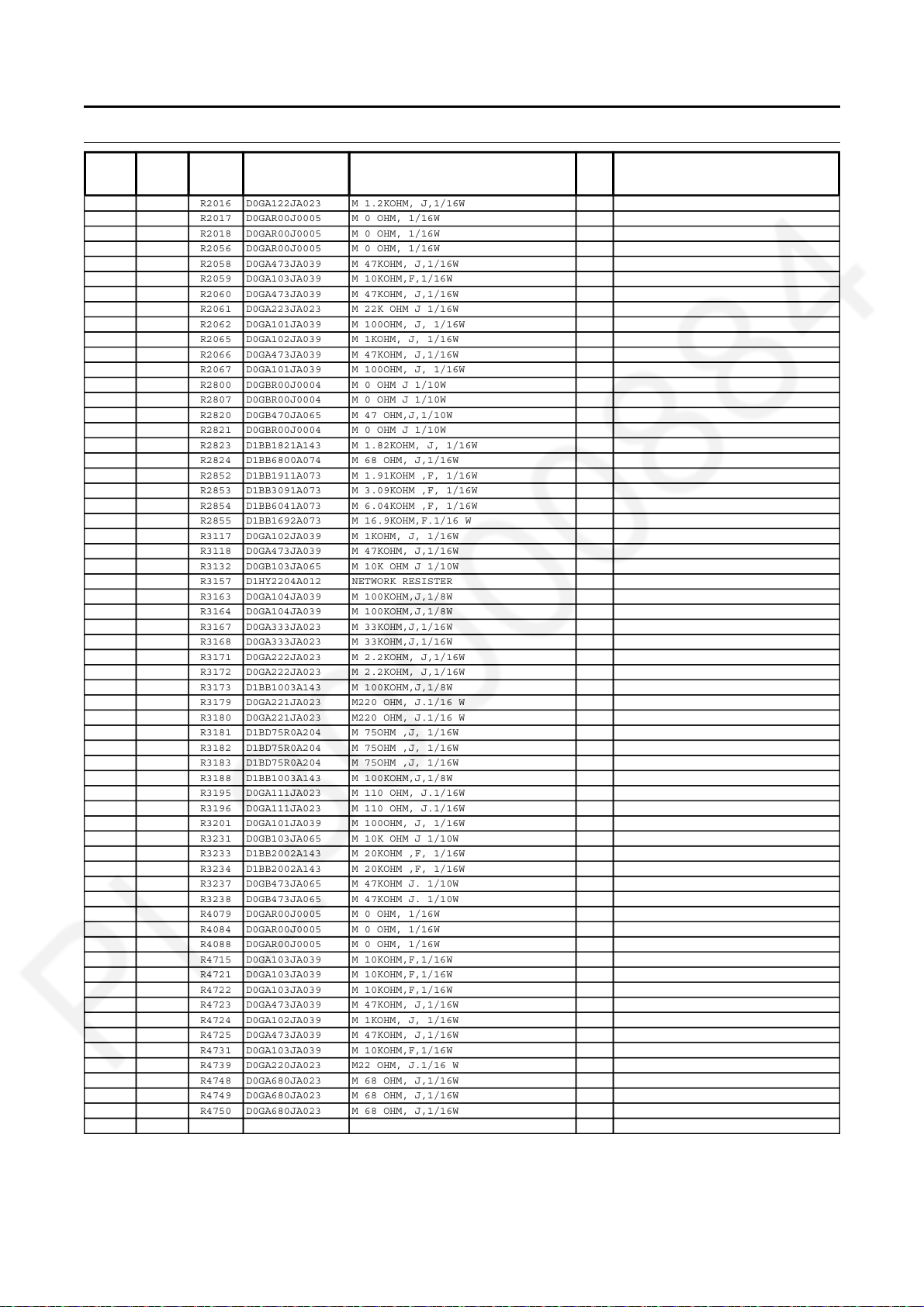

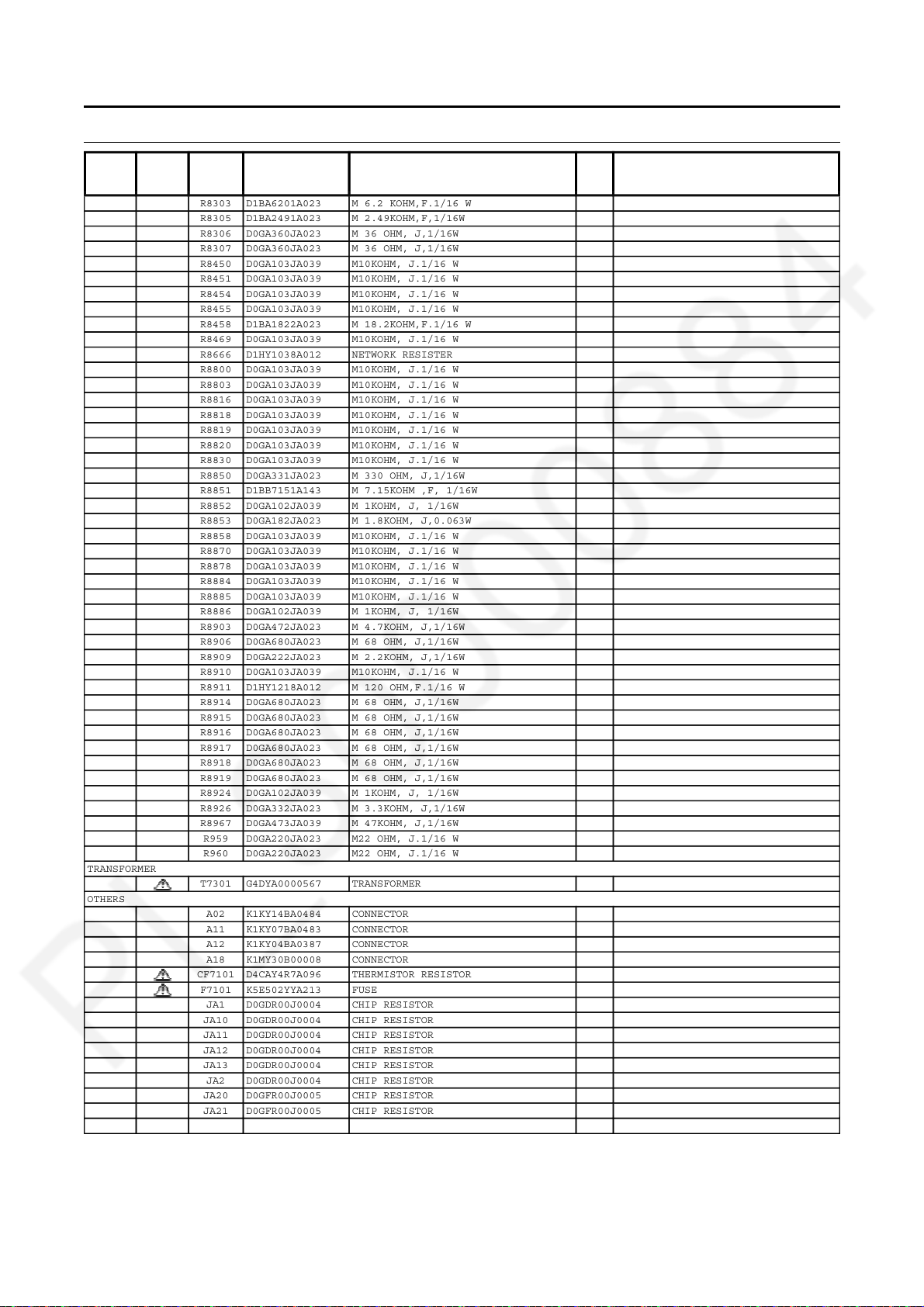

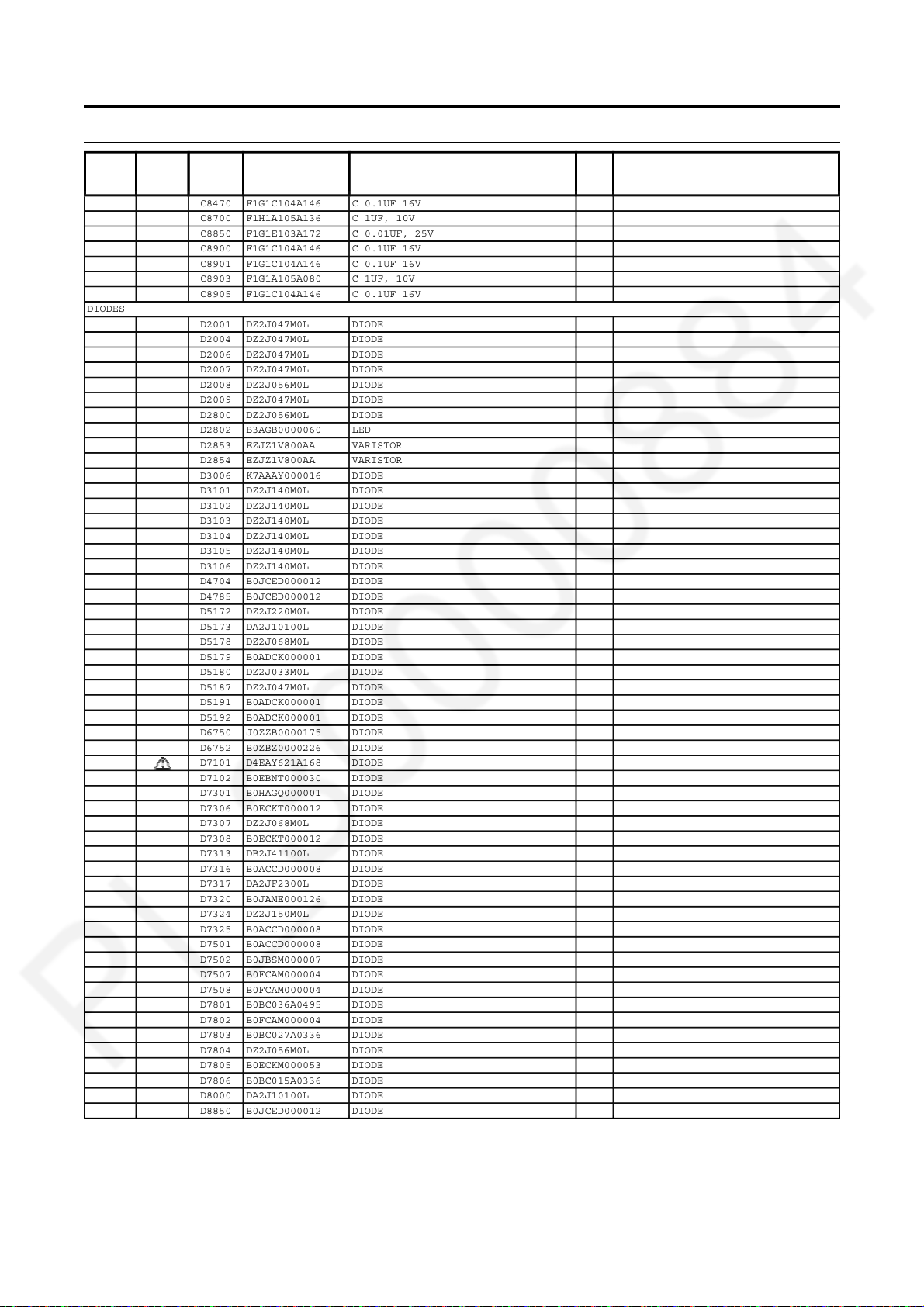

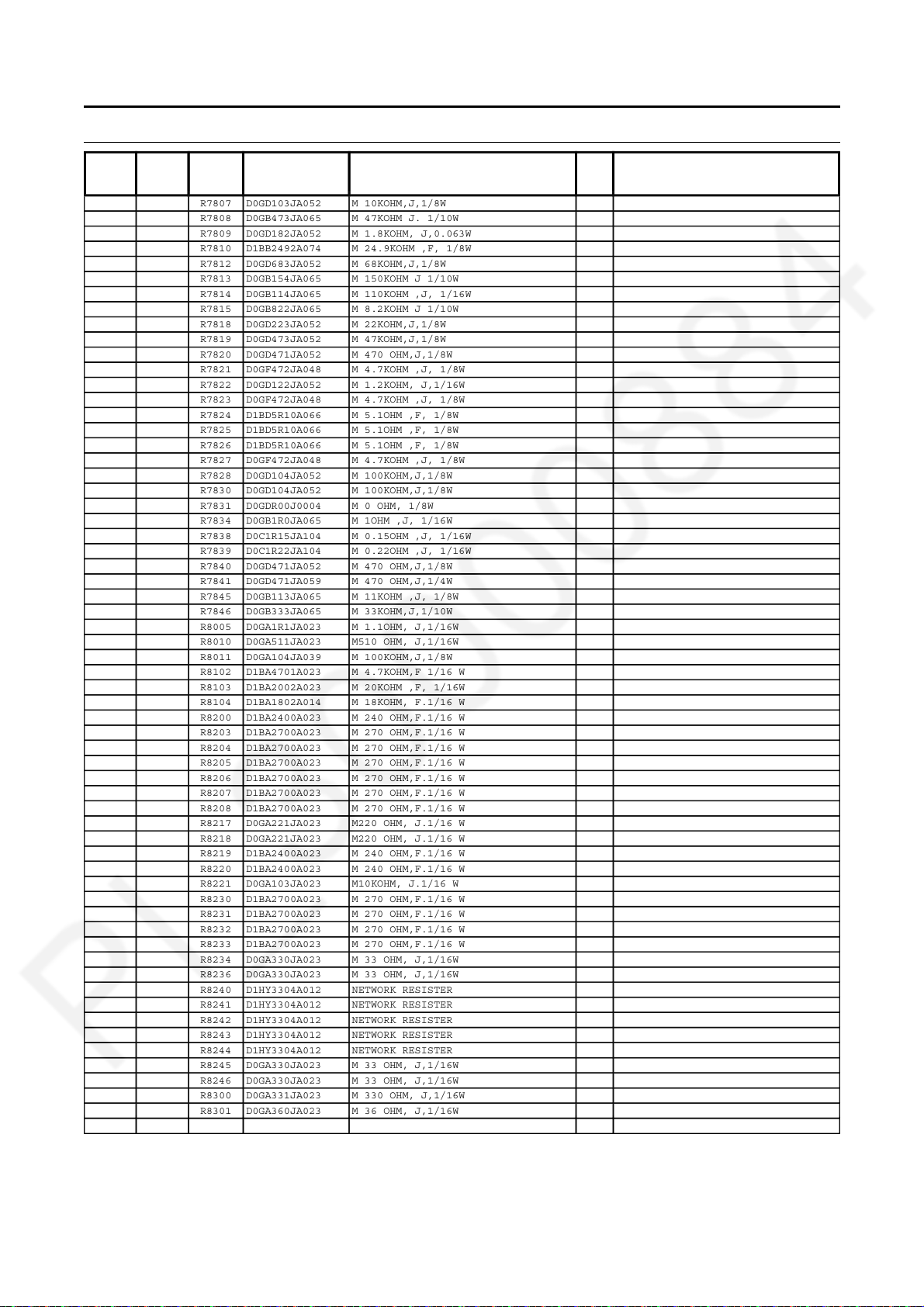

Model No. : TH-32A410R Parts List
Change Safety
CAPACITORS
Ref.
No.
C1958 F1G1E103A172 C 0.01UF, 25V
C2000 F1G1A105A080 C 1UF, 10V
C2001 F1G1H102A946 C 1000PF, 50V
C2002 F1G1H102A946 C 1000PF, 50V
C2003 F1G1H102A946 C 1000PF, 50V
C2004 F1G1H102A946 C 1000PF, 50V
C2005 F1G1H102A946 C 1000PF, 50V
C2010 F1G1H101A948 C 100PF, 50V
C2014 F1K1E106A134 C 10UF, 25V
C2023 F1G1C104A146 C 0.1UF 16V
C2801 F1H1H103B047 C 0.01UF, 50V
C2802 F1H1H103B047 C 0.01UF, 50V
C2803 F1H1H103B047 C 0.01UF, 50V
C2804 F1H1C104A178 C 0.1UF, 16V
C2806 F1H1H103B047 C 0.01UF, 50V
C2807 F1J1A106A043 C 10UF, 10V
C2808 F1H1C104A178 C 0.1UF, 16V
C2851 F1H1H104B047 C 0.1UF, 50V
C2852 F1H1H104B047 C 0.1UF, 50V
C3084 F1H0J105A051 C 1UF, 6.3V
C3085 F1H0J105A051 C 1UF, 6.3V
C3086 F1H0J105A051 C 1UF, 6.3V
C3135 F1G1H471A830 C 470PF, 50V
C3136 F1G1H471A830 C 470PF, 50V
C3139 F1G1H471A830 C 470PF, 50V
C3140 F1G1H471A830 C 470PF, 50V
C3145 F1J1A106A043 C 10UF, 10V
C3147 F1J1A106A043 C 10UF, 10V
C3151 F1H1A105A136 C 1UF, 10V
C3152 F1H1A105A136 C 1UF, 10V
C3153 F1G1H471A830 C 470PF, 50V
C3154 F1G1H471A830 C 470PF, 50V
C3171 F1J1A106A043 C 10UF, 10V
C3172 F1J1A106A043 C 10UF, 10V
C3175 F1J1E105A287 C 1UF, 25V
C3176 F1J1A106A043 C 10UF, 10V
C3177 F1J1E105A287 C 1UF, 25V
C4000 F1H1H103B047 C 0.01UF, 50V
C4001 F1H1H103B047 C 0.01UF, 50V
C4002 F1J1C475A225 C 4.7UF, 10V
C4701 F1H0J105A051 C 1UF, 6.3V
C4900 F1K1V106A010 C 10UF, 25V
C4901 F1K1V106A010 C 10UF, 25V
C4902 F1J1E105A287 C 1UF, 25V
C4903 F1K1V106A010 C 10UF, 25V
C4904 F1J1E105A287 C 1UF, 25V
C4905 F1H1C105A167 C 1UF, 10V
C4906 F1K1V106A010 C 10UF, 25V
C4907 F1J1E105A287 C 1UF, 25V
C4908 F1K1V106A010 C 10UF, 25V
C4909 F1J1E105A287 C 1UF, 25V
C4919 F1J1E224A272 C 0.22UF, 25V
C4920 F1J1E224A272 C 0.22UF, 25V
C4921 F1H1E104A161 C 0.1UF, 25V
C4922 F1H1E104A161 C 0.1UF, 25V
C4923 F1H1E104A161 C 0.1UF, 25V
C4924 F1H1E104A161 C 0.1UF, 25V
C5000 F1G1A105A080 C 1UF, 10V
C5002 F1G1A105A080 C 1UF, 10V
C5004 F1G1A105A080 C 1UF, 10V
C5006 F1J1E105A287 C 1UF, 25V
Part No. Part Name & Description Q'ty Remarks
Page 57

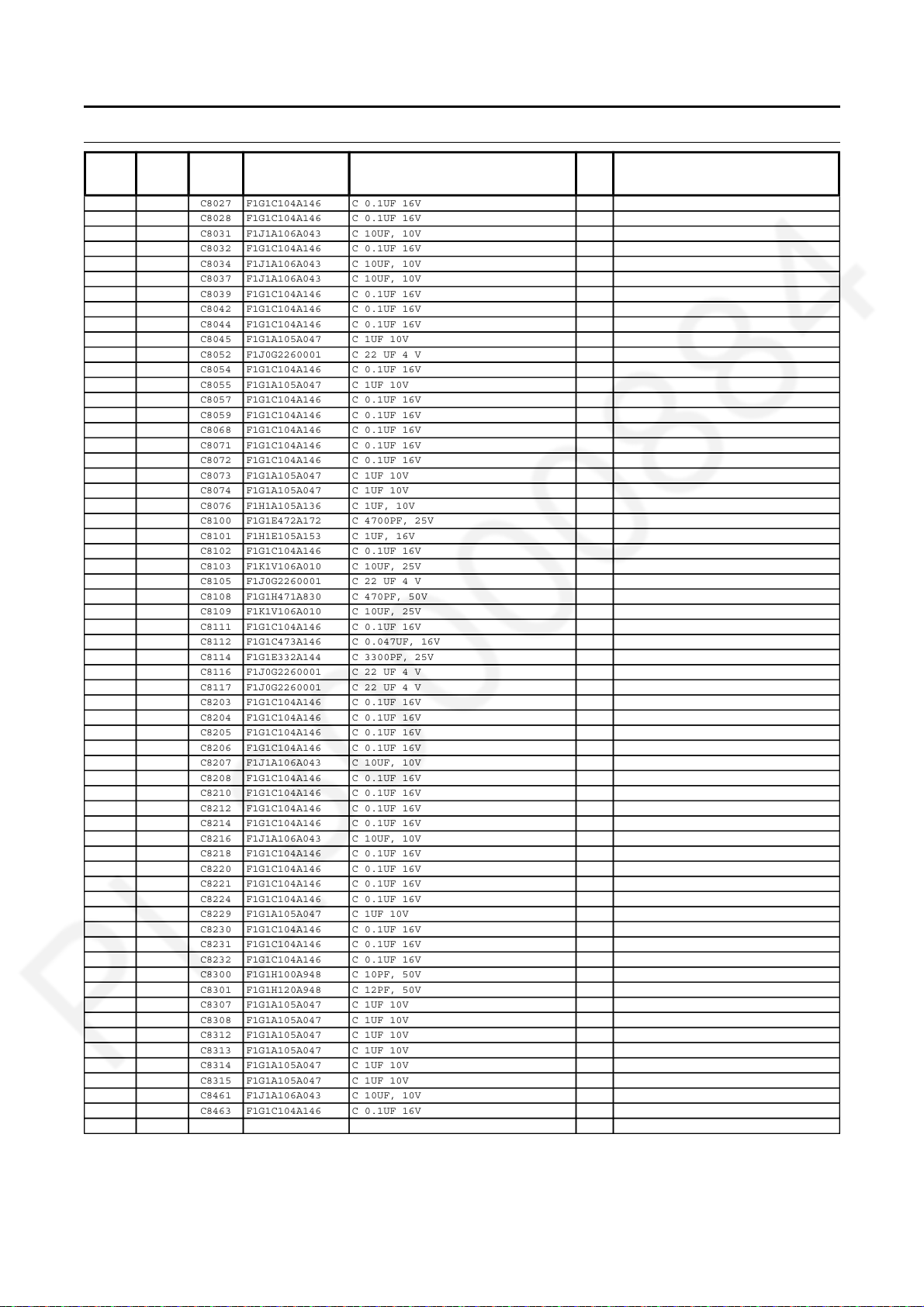

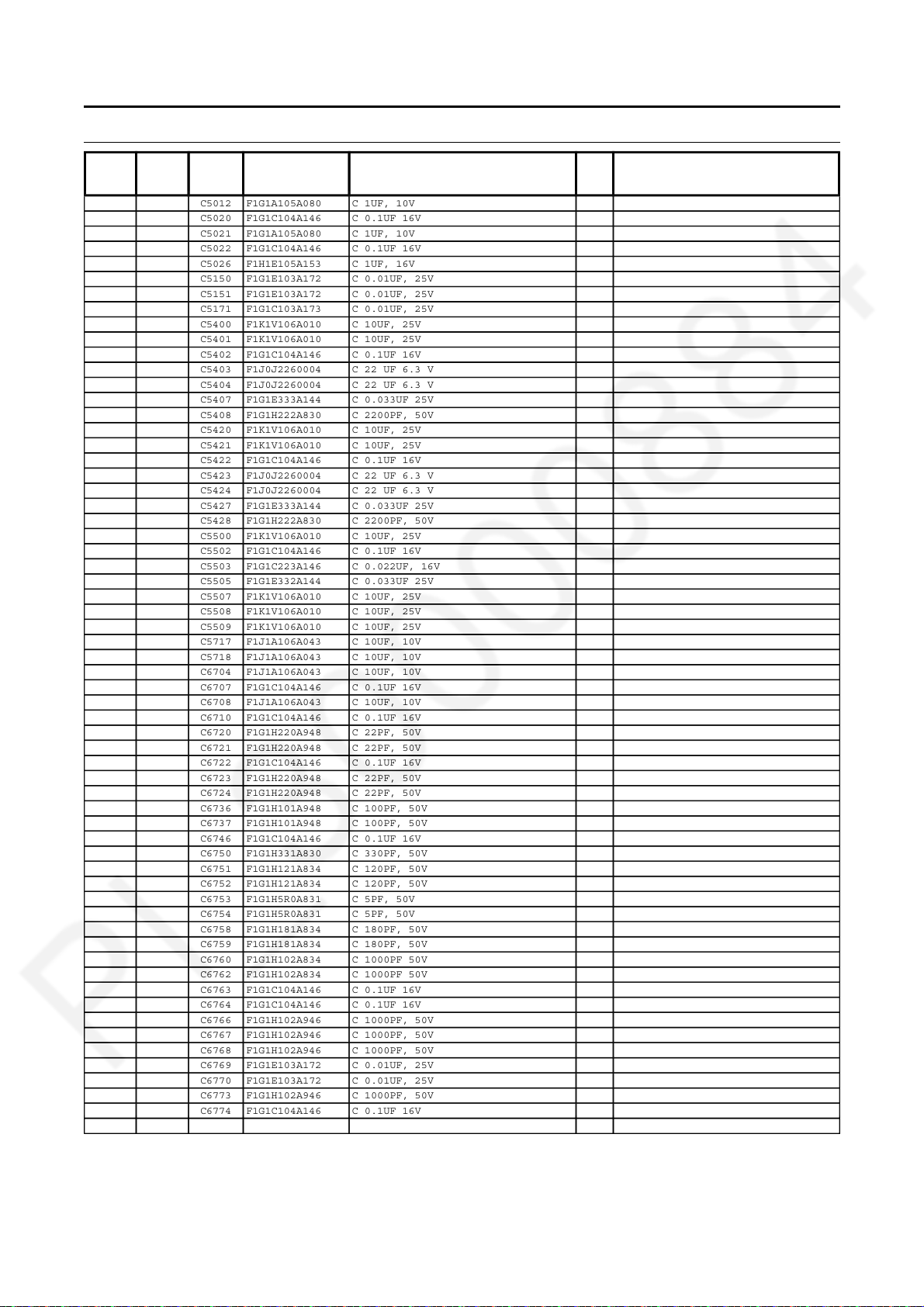

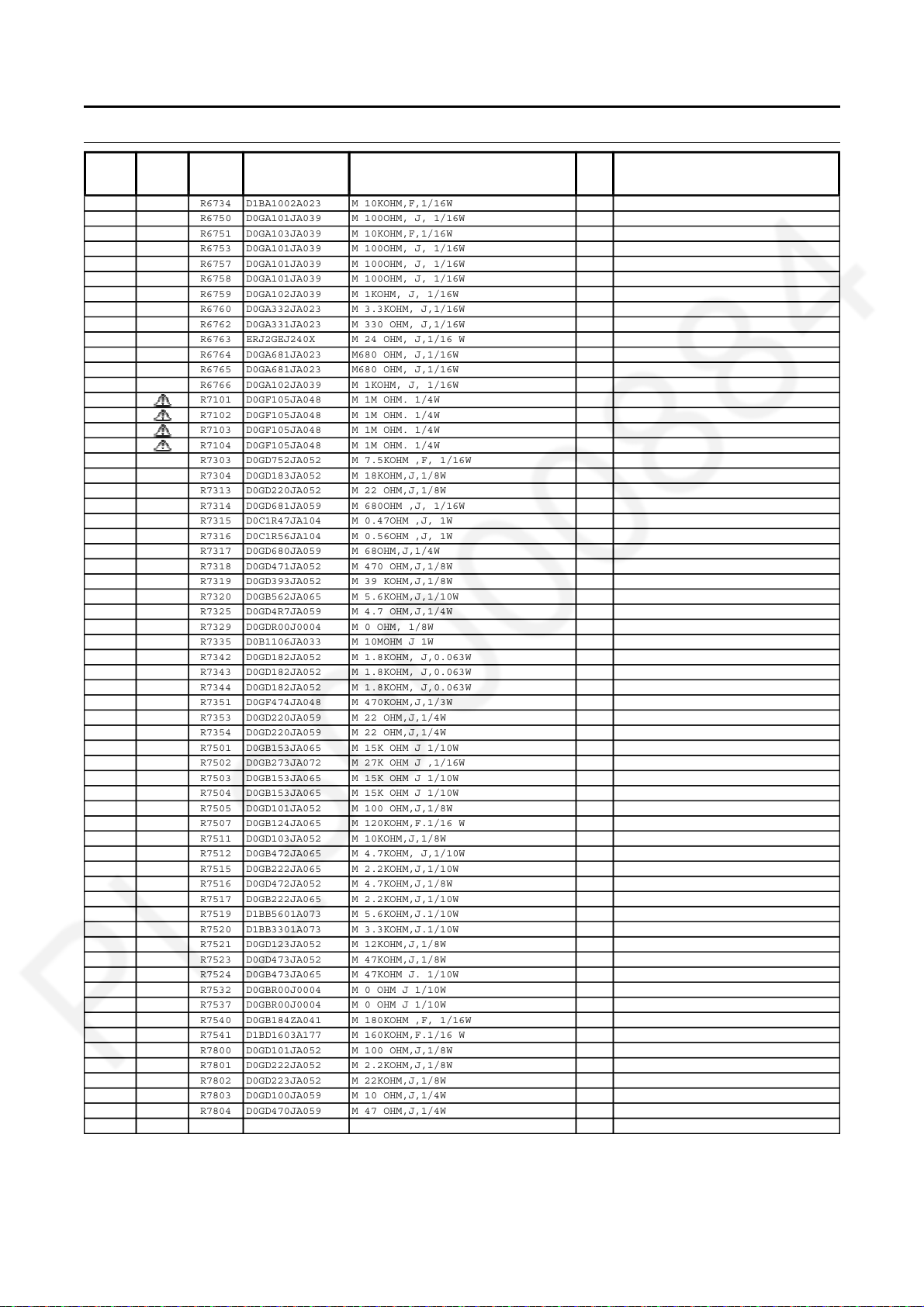

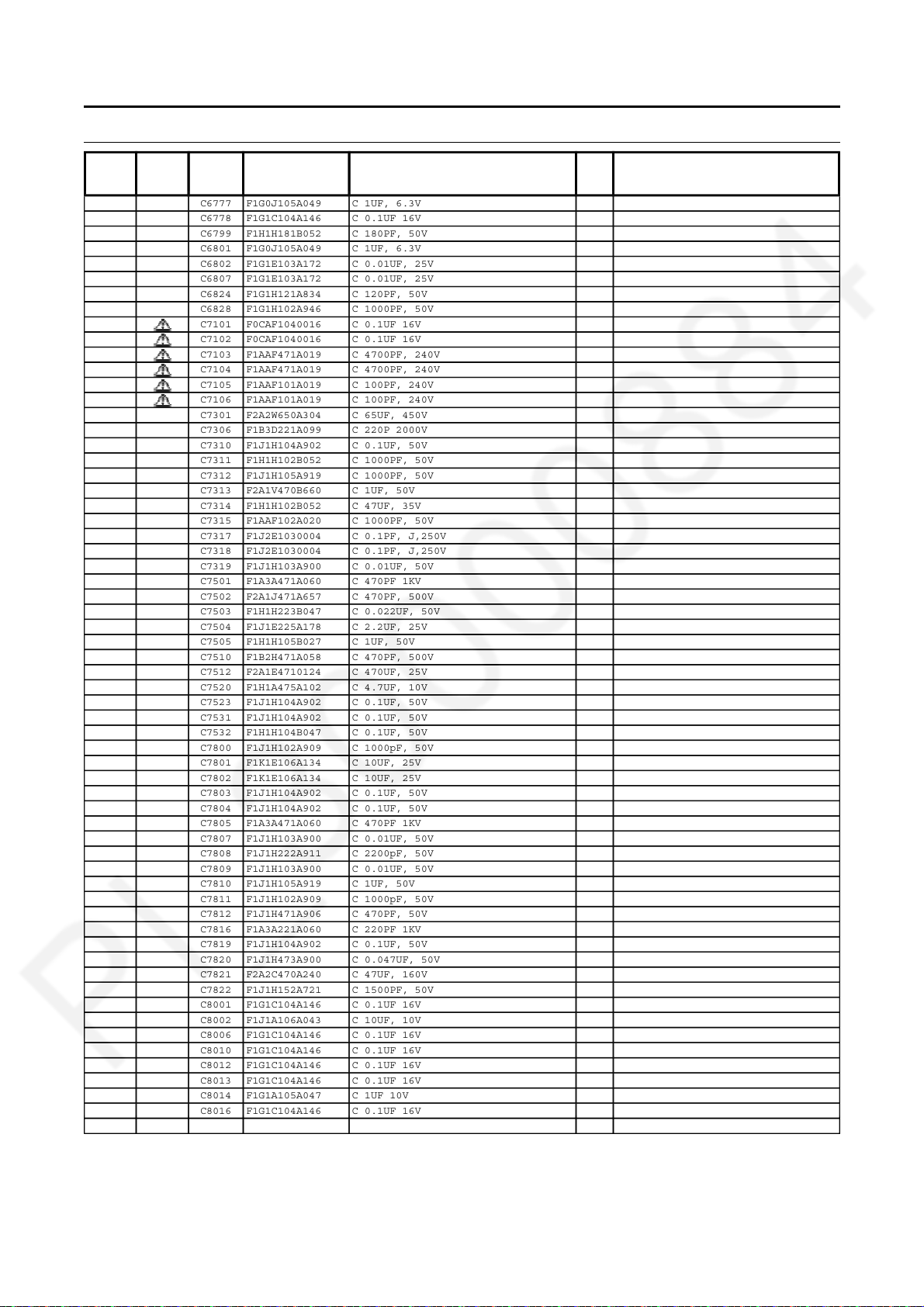

Model No. : TH-32A410R Parts List
Change Safety
Ref.
No.
C5012 F1G1A105A080 C 1UF, 10V
C5020 F1G1C104A146 C 0.1UF 16V
C5021 F1G1A105A080 C 1UF, 10V
C5022 F1G1C104A146 C 0.1UF 16V
C5026 F1H1E105A153 C 1UF, 16V
C5150 F1G1E103A172 C 0.01UF, 25V
C5151 F1G1E103A172 C 0.01UF, 25V
C5171 F1G1C103A173 C 0.01UF, 25V
C5400 F1K1V106A010 C 10UF, 25V
C5401 F1K1V106A010 C 10UF, 25V
C5402 F1G1C104A146 C 0.1UF 16V
C5403 F1J0J2260004 C 22 UF 6.3 V
C5404 F1J0J2260004 C 22 UF 6.3 V
C5407 F1G1E333A144 C 0.033UF 25V
C5408 F1G1H222A830 C 2200PF, 50V
C5420 F1K1V106A010 C 10UF, 25V
C5421 F1K1V106A010 C 10UF, 25V
C5422 F1G1C104A146 C 0.1UF 16V
C5423 F1J0J2260004 C 22 UF 6.3 V
C5424 F1J0J2260004 C 22 UF 6.3 V
C5427 F1G1E333A144 C 0.033UF 25V
C5428 F1G1H222A830 C 2200PF, 50V
C5500 F1K1V106A010 C 10UF, 25V
C5502 F1G1C104A146 C 0.1UF 16V
C5503 F1G1C223A146 C 0.022UF, 16V
C5505 F1G1E332A144 C 0.033UF 25V
C5507 F1K1V106A010 C 10UF, 25V
C5508 F1K1V106A010 C 10UF, 25V
C5509 F1K1V106A010 C 10UF, 25V
C5717 F1J1A106A043 C 10UF, 10V
C5718 F1J1A106A043 C 10UF, 10V
C6704 F1J1A106A043 C 10UF, 10V
C6707 F1G1C104A146 C 0.1UF 16V
C6708 F1J1A106A043 C 10UF, 10V
C6710 F1G1C104A146 C 0.1UF 16V
C6720 F1G1H220A948 C 22PF, 50V
C6721 F1G1H220A948 C 22PF, 50V
C6722 F1G1C104A146 C 0.1UF 16V
C6723 F1G1H220A948 C 22PF, 50V
C6724 F1G1H220A948 C 22PF, 50V
C6736 F1G1H101A948 C 100PF, 50V
C6737 F1G1H101A948 C 100PF, 50V
C6746 F1G1C104A146 C 0.1UF 16V
C6750 F1G1H331A830 C 330PF, 50V
C6751 F1G1H121A834 C 120PF, 50V
C6752 F1G1H121A834 C 120PF, 50V
C6753 F1G1H5R0A831 C 5PF, 50V
C6754 F1G1H5R0A831 C 5PF, 50V
C6758 F1G1H181A834 C 180PF, 50V
C6759 F1G1H181A834 C 180PF, 50V
C6760 F1G1H102A834 C 1000PF 50V
C6762 F1G1H102A834 C 1000PF 50V
C6763 F1G1C104A146 C 0.1UF 16V
C6764 F1G1C104A146 C 0.1UF 16V
C6766 F1G1H102A946 C 1000PF, 50V
C6767 F1G1H102A946 C 1000PF, 50V
C6768 F1G1H102A946 C 1000PF, 50V
C6769 F1G1E103A172 C 0.01UF, 25V
C6770 F1G1E103A172 C 0.01UF, 25V
C6773 F1G1H102A946 C 1000PF, 50V
C6774 F1G1C104A146 C 0.1UF 16V
C6775 F1G1C104A146 C 0.1UF 16V
Part No. Part Name & Description Q'ty Remarks
Page 58
Model No. : TH-32A410R Parts List
Change Safety
Ref.
No.
C6777 F1G0J105A049 C 1UF, 6.3V
C6778 F1G1C104A146 C 0.1UF 16V
C6799 F1H1H181B052 C 180PF, 50V
C6801 F1G0J105A049 C 1UF, 6.3V
C6802 F1G1E103A172 C 0.01UF, 25V
C6807 F1G1E103A172 C 0.01UF, 25V
C6824 F1G1H121A834 C 120PF, 50V
C6828 F1G1H102A946 C 1000PF, 50V
C7101 F0CAF1040016 C 0.1UF 16V
C7102 F0CAF1040016 C 0.1UF 16V
C7103 F1AAF471A019 C 4700PF, 240V
C7104 F1AAF471A019 C 4700PF, 240V
C7105 F1AAF101A019 C 100PF, 240V
C7106 F1AAF101A019 C 100PF, 240V
C7301 F2A2W650A304 C 65UF, 450V
C7306 F1B3D221A099 C 220P 2000V
C7310 F1J1H104A902 C 0.1UF, 50V
C7311 F1H1H102B052 C 1000PF, 50V
C7312 F1J1H105A919 C 1000PF, 50V
C7313 F2A1V470B660 C 1UF, 50V
C7314 F1H1H102B052 C 47UF, 35V
C7315 F1AAF102A020 C 1000PF, 50V
C7317 F1J2E1030004 C 0.1PF, J,250V
C7318 F1J2E1030004 C 0.1PF, J,250V
C7319 F1J1H103A900 C 0.01UF, 50V
C7501 F1A3A471A060 C 470PF 1KV
C7502 F2A1J471A657 C 470PF, 500V
C7503 F1H1H223B047 C 0.022UF, 50V
C7504 F1J1E225A178 C 2.2UF, 25V
C7505 F1H1H105B027 C 1UF, 50V
C7510 F1B2H471A058 C 470PF, 500V
C7512 F2A1E4710124 C 470UF, 25V
C7520 F1H1A475A102 C 4.7UF, 10V
C7523 F1J1H104A902 C 0.1UF, 50V
C7531 F1J1H104A902 C 0.1UF, 50V
C7532 F1H1H104B047 C 0.1UF, 50V
C7800 F1J1H102A909 C 1000pF, 50V
C7801 F1K1E106A134 C 10UF, 25V
C7802 F1K1E106A134 C 10UF, 25V
C7803 F1J1H104A902 C 0.1UF, 50V
C7804 F1J1H104A902 C 0.1UF, 50V
C7805 F1A3A471A060 C 470PF 1KV
C7807 F1J1H103A900 C 0.01UF, 50V
C7808 F1J1H222A911 C 2200pF, 50V
C7809 F1J1H103A900 C 0.01UF, 50V
C7810 F1J1H105A919 C 1UF, 50V
C7811 F1J1H102A909 C 1000pF, 50V
C7812 F1J1H471A906 C 470PF, 50V
C7816 F1A3A221A060 C 220PF 1KV
C7819 F1J1H104A902 C 0.1UF, 50V
C7820 F1J1H473A900 C 0.047UF, 50V
C7821 F2A2C470A240 C 47UF, 160V
C7822 F1J1H152A721 C 1500PF, 50V
C8001 F1G1C104A146 C 0.1UF 16V
C8002 F1J1A106A043 C 10UF, 10V
C8006 F1G1C104A146 C 0.1UF 16V
C8010 F1G1C104A146 C 0.1UF 16V
C8012 F1G1C104A146 C 0.1UF 16V
C8013 F1G1C104A146 C 0.1UF 16V
C8014 F1G1A105A047 C 1UF 10V
C8016 F1G1C104A146 C 0.1UF 16V
C8018 F1G1A105A047 C 1UF 10V
Part No. Part Name & Description Q'ty Remarks
Page 59
Model No. : TH-32A410R Parts List
Change Safety
Ref.
No.
C8027 F1G1C104A146 C 0.1UF 16V
C8028 F1G1C104A146 C 0.1UF 16V
C8031 F1J1A106A043 C 10UF, 10V
C8032 F1G1C104A146 C 0.1UF 16V
C8034 F1J1A106A043 C 10UF, 10V
C8037 F1J1A106A043 C 10UF, 10V
C8039 F1G1C104A146 C 0.1UF 16V
C8042 F1G1C104A146 C 0.1UF 16V
C8044 F1G1C104A146 C 0.1UF 16V
C8045 F1G1A105A047 C 1UF 10V
C8052 F1J0G2260001 C 22 UF 4 V
C8054 F1G1C104A146 C 0.1UF 16V
C8055 F1G1A105A047 C 1UF 10V
C8057 F1G1C104A146 C 0.1UF 16V
C8059 F1G1C104A146 C 0.1UF 16V
C8068 F1G1C104A146 C 0.1UF 16V
C8071 F1G1C104A146 C 0.1UF 16V
C8072 F1G1C104A146 C 0.1UF 16V
C8073 F1G1A105A047 C 1UF 10V
C8074 F1G1A105A047 C 1UF 10V
C8076 F1H1A105A136 C 1UF, 10V
C8100 F1G1E472A172 C 4700PF, 25V
C8101 F1H1E105A153 C 1UF, 16V
C8102 F1G1C104A146 C 0.1UF 16V
C8103 F1K1V106A010 C 10UF, 25V
C8105 F1J0G2260001 C 22 UF 4 V
C8108 F1G1H471A830 C 470PF, 50V
C8109 F1K1V106A010 C 10UF, 25V
C8111 F1G1C104A146 C 0.1UF 16V
C8112 F1G1C473A146 C 0.047UF, 16V
C8114 F1G1E332A144 C 3300PF, 25V
C8116 F1J0G2260001 C 22 UF 4 V
C8117 F1J0G2260001 C 22 UF 4 V
C8203 F1G1C104A146 C 0.1UF 16V
C8204 F1G1C104A146 C 0.1UF 16V
C8205 F1G1C104A146 C 0.1UF 16V
C8206 F1G1C104A146 C 0.1UF 16V
C8207 F1J1A106A043 C 10UF, 10V
C8208 F1G1C104A146 C 0.1UF 16V
C8210 F1G1C104A146 C 0.1UF 16V
C8212 F1G1C104A146 C 0.1UF 16V
C8214 F1G1C104A146 C 0.1UF 16V
C8216 F1J1A106A043 C 10UF, 10V
C8218 F1G1C104A146 C 0.1UF 16V
C8220 F1G1C104A146 C 0.1UF 16V
C8221 F1G1C104A146 C 0.1UF 16V
C8224 F1G1C104A146 C 0.1UF 16V
C8229 F1G1A105A047 C 1UF 10V
C8230 F1G1C104A146 C 0.1UF 16V
C8231 F1G1C104A146 C 0.1UF 16V
C8232 F1G1C104A146 C 0.1UF 16V
C8300 F1G1H100A948 C 10PF, 50V
C8301 F1G1H120A948 C 12PF, 50V
C8307 F1G1A105A047 C 1UF 10V
C8308 F1G1A105A047 C 1UF 10V
C8312 F1G1A105A047 C 1UF 10V
C8313 F1G1A105A047 C 1UF 10V
C8314 F1G1A105A047 C 1UF 10V
C8315 F1G1A105A047 C 1UF 10V
C8461 F1J1A106A043 C 10UF, 10V
C8463 F1G1C104A146 C 0.1UF 16V
C8467 F1J1A106A043 C 10UF, 10V
Part No. Part Name & Description Q'ty Remarks
Page 60
Model No. : TH-32A410R Parts List
Change Safety
DIODES
Ref.
No.
C8470 F1G1C104A146 C 0.1UF 16V
C8700 F1H1A105A136 C 1UF, 10V
C8850 F1G1E103A172 C 0.01UF, 25V
C8900 F1G1C104A146 C 0.1UF 16V
C8901 F1G1C104A146 C 0.1UF 16V
C8903 F1G1A105A080 C 1UF, 10V
C8905 F1G1C104A146 C 0.1UF 16V
D2001 DZ2J047M0L DIODE
D2004 DZ2J047M0L DIODE
D2006 DZ2J047M0L DIODE
D2007 DZ2J047M0L DIODE
D2008 DZ2J056M0L DIODE
D2009 DZ2J047M0L DIODE
D2800 DZ2J056M0L DIODE
D2802 B3AGB0000060 LED
D2853 EZJZ1V800AA VARISTOR
D2854 EZJZ1V800AA VARISTOR
D3006 K7AAAY000016 DIODE
D3101 DZ2J140M0L DIODE
D3102 DZ2J140M0L DIODE
D3103 DZ2J140M0L DIODE
D3104 DZ2J140M0L DIODE
D3105 DZ2J140M0L DIODE
D3106 DZ2J140M0L DIODE
D4704 B0JCED000012 DIODE
D4785 B0JCED000012 DIODE
D5172 DZ2J220M0L DIODE
D5173 DA2J10100L DIODE
D5178 DZ2J068M0L DIODE
D5179 B0ADCK000001 DIODE
D5180 DZ2J033M0L DIODE
D5187 DZ2J047M0L DIODE
D5191 B0ADCK000001 DIODE
D5192 B0ADCK000001 DIODE
D6750 J0ZZB0000175 DIODE
D6752 B0ZBZ0000226 DIODE
D7101 D4EAY621A168 DIODE
D7102 B0EBNT000030 DIODE
D7301 B0HAGQ000001 DIODE
D7306 B0ECKT000012 DIODE
D7307 DZ2J068M0L DIODE
D7308 B0ECKT000012 DIODE
D7313 DB2J41100L DIODE
D7316 B0ACCD000008 DIODE
D7317 DA2JF2300L DIODE
D7320 B0JAME000126 DIODE
D7324 DZ2J150M0L DIODE
D7325 B0ACCD000008 DIODE
D7501 B0ACCD000008 DIODE
D7502 B0JBSM000007 DIODE
D7507 B0FCAM000004 DIODE
D7508 B0FCAM000004 DIODE
D7801 B0BC036A0495 DIODE
D7802 B0FCAM000004 DIODE
D7803 B0BC027A0336 DIODE
D7804 DZ2J056M0L DIODE
D7805 B0ECKM000053 DIODE
D7806 B0BC015A0336 DIODE
D8000 DA2J10100L DIODE
D8850 B0JCED000012 DIODE
Part No. Part Name & Description Q'ty Remarks
Page 61
Model No. : TH-32A410R Parts List
Change Safety
INTEGRATED CIRCUITS
COIL
Ref.
No.
IC3052 C0ABBB000179 IC
IC4900 C1AB00003984 IC
IC5000 AN34043AAVF IC
IC5400 C0DBAYY01299 IC
IC5420 C0DBAYY01299 IC
IC5500 C0DBAYY01644 IC
IC5704 C0DBEYY00102 IC
IC6750 C1AB00004172 IC
IC6751 C1AB00004174 IC
IC7301 C0DBBYY00065 IC
IC7501 C0DBZYY00531 IC
IC7502 C0DBEYY00146 IC
IC7800 C0ZBZ0002197 IC
IC8000 MN2WS0275PBS IC
IC8001 C0DBGYY00887 IC
IC8100 C0DBAYY01645 IC
IC8101 C0DBAYY01644 IC
IC8200 C3ABTY000076 IC
IC8201 C3ABTY000076 IC
IC8454 C0DBZYY00541 IC
IC8900 C3FBTY000037 IC
IC8901 C3EBGY000056 IC
L2300 J0JYC0000464 BEAD CORE
L3111 J0JYC0000156 INDUCTOR
L3112 J0JYC0000156 INDUCTOR
L3113 J0JYC0000156 INDUCTOR
L3116 J0JYC0000156 INDUCTOR
L4901 G1C220MA0533 INDUCTOR
L4902 G1C220MA0533 INDUCTOR
L4903 G1C220MA0533 INDUCTOR
L4904 G1C220MA0533 INDUCTOR
L5400 G1C4R7ZA0311 INDUCTOR
L5420 G1C6R8MA0533 INDUCTOR
L5500 G1C220MA0445 INDUCTOR
L6704 J0JYC0000464 BEAD CORE
L6706 J0JYC0000464 BEAD CORE
L6761 J0JYC0000464 BEAD CORE
L6762 J0JYC0000464 BEAD CORE
L6763 G1CR27JA0097 COIL
L6765 G1C82NJ00010 COIL
L6772 G1CR27JA0097 COIL
L6773 G1CR27JA0097 COIL
L6774 G1CR27JA0097 COIL
L6776 G1CR27JA0097 COIL
L6777 G1CR22JA0097 COIL
L6778 G1CR22JA0097 COIL
L6781 J0JYC0000464 BEAD CORE
L7101 EXCELDR35V CORE
L7102 EXCELDR35V CORE
L7301 EXCELSA35T BEAD CORE
L7313 J0JHC0000048 BEAD CORE
L7512 EXCELSA35T BEAD CORE
L7801 G0C480Z00002 COIL
L7802 EXCELDR35C BEAD CORE
L7803 EXCELDR35V CORE
L7804 EXCELDR35V CORE
L7806 J0JHC0000048 BEAD CORE
L7807 EXCELDR35V CORE
L7951 EXCELDR35V CORE
L8001 J0JCC0000287 COIL
Part No. Part Name & Description Q'ty Remarks
Page 62
Model No. : TH-32A410R Parts List
Change Safety
TRANSISTOR
RESISTORS
Ref.
No.
L8009 J0JYC0000464 BEAD CORE
L8013 J0JYC0000464 BEAD CORE
L8014 J0JCC0000287 COIL
L8100 G1C2R2ZA0311 INDUCTOR
L8101 G1C3R3MA0464 INDUCTOR
L8461 J0JYC0000464 BEAD CORE
Q2012 B1ABCE000015 TRANSISTOR
Q2013 B1ABCE000015 TRANSISTOR
Q2014 B1ABCF000231 TRANSISTOR
Q3102 B1ABCE000015 TRANSISTOR
Q3103 B1ABCE000015 TRANSISTOR
Q4702 B1ABCF000231 TRANSISTOR
Q4709 B1ABCF000231 TRANSISTOR
Q4981 B1ABCE000015 TRANSISTOR
Q7301 B1CERR000067 TRANSISTOR
Q7302 B1ABCF000231 TRANSISTOR
Q7501 B1CFRG000069 TRANSISTOR
Q7502 B1CHRE000015 TRANSISTOR
Q7510 B1ABCF000231 TRANSISTOR
Q7801 B1CFRM000028 TRANSISTOR
Q7803 B1CFML000007 TRANSISTOR
Q7804 B1ABCN000007 TRANSISTOR
Q7808 B1ABCF000231 TRANSISTOR
Q7809 B1ADCE000022 TRANSISTOR
R0904 D0GA473JA039 M 47KOHM, J,1/16W
R0905 D0GA101JA039 M 100OHM, J, 1/16W
R0906 D0GA101JA039 M 100OHM, J, 1/16W
R0907 D0GA101JA039 M 100OHM, J, 1/16W
R0908 D0GA101JA039 M 100OHM, J, 1/16W
R0909 D0GA101JA039 M 100OHM, J, 1/16W
R0910 D0GA332JA023 M 3.3KOHM, J,1/16W
R0911 D0GA272JA023 M 2.7KOHM, J.1/16W
R0912 D0GA272JA023 M 2.7KOHM, J.1/16W
R0913 D0GA332JA023 M 3.3KOHM, J,1/16W
R0932 D0GA220JA023 M22 OHM, J.1/16 W
R0933 D0GA220JA023 M22 OHM, J.1/16 W
R0936 D0GA220JA023 M22 OHM, J.1/16 W
R0937 D0GA220JA023 M22 OHM, J.1/16 W
R0938 D0GA101JA039 M 100OHM, J, 1/16W
R0939 D0GA101JA039 M 100OHM, J, 1/16W
R0940 D0GA101JA039 M 100OHM, J, 1/16W
R0945 D0GA101JA039 M 100OHM, J, 1/16W
R0946 D0GA101JA039 M 100OHM, J, 1/16W
R0947 D0GA101JA039 M 100OHM, J, 1/16W
R0948 D0GA101JA039 M 100OHM, J, 1/16W
R0950 D0GA101JA039 M 100OHM, J, 1/16W
R0951 D0GA101JA039 M 100OHM, J, 1/16W
R0954 D0GA272JA023 M 2.7KOHM, J.1/16W
R0955 D0GA272JA023 M 2.7KOHM, J.1/16W
R0956 D0GA332JA023 M 3.3KOHM, J,1/16W
R0957 D0GA332JA023 M 3.3KOHM, J,1/16W
R0961 D0GA220JA023 M22 OHM, J.1/16 W
R0962 D0GA220JA023 M22 OHM, J.1/16 W
R1951 D0GA680JA023 M 68 OHM, J,1/16W
R1953 D0GA103JA039 M 10KOHM,F,1/16W
R2000 D0GA823JA023 M 82KOHM, J,1/16W
R2003 D0GAR00J0005 M 0 OHM, 1/16W
R2008 D0GA473JA039 M 47KOHM, J,1/16W
R2013 D0GA101JA039 M 100OHM, J, 1/16W
R2014 D0GA101JA039 M 100OHM, J, 1/16W
Part No. Part Name & Description Q'ty Remarks
Page 63
Model No. : TH-32A410R Parts List
Change Safety
Ref.
No.
R2016 D0GA122JA023 M 1.2KOHM, J,1/16W
R2017 D0GAR00J0005 M 0 OHM, 1/16W
R2018 D0GAR00J0005 M 0 OHM, 1/16W
R2056 D0GAR00J0005 M 0 OHM, 1/16W
R2058 D0GA473JA039 M 47KOHM, J,1/16W
R2059 D0GA103JA039 M 10KOHM,F,1/16W
R2060 D0GA473JA039 M 47KOHM, J,1/16W
R2061 D0GA223JA023 M 22K OHM J 1/16W
R2062 D0GA101JA039 M 100OHM, J, 1/16W
R2065 D0GA102JA039 M 1KOHM, J, 1/16W
R2066 D0GA473JA039 M 47KOHM, J,1/16W
R2067 D0GA101JA039 M 100OHM, J, 1/16W
R2800 D0GBR00J0004 M 0 OHM J 1/10W
R2807 D0GBR00J0004 M 0 OHM J 1/10W
R2820 D0GB470JA065 M 47 OHM,J,1/10W
R2821 D0GBR00J0004 M 0 OHM J 1/10W
R2823 D1BB1821A143 M 1.82KOHM, J, 1/16W
R2824 D1BB6800A074 M 68 OHM, J,1/16W
R2852 D1BB1911A073 M 1.91KOHM ,F, 1/16W
R2853 D1BB3091A073 M 3.09KOHM ,F, 1/16W
R2854 D1BB6041A073 M 6.04KOHM ,F, 1/16W
R2855 D1BB1692A073 M 16.9KOHM,F.1/16 W
R3117 D0GA102JA039 M 1KOHM, J, 1/16W
R3118 D0GA473JA039 M 47KOHM, J,1/16W
R3132 D0GB103JA065 M 10K OHM J 1/10W
R3157 D1HY2204A012 NETWORK RESISTER
R3163 D0GA104JA039 M 100KOHM,J,1/8W
R3164 D0GA104JA039 M 100KOHM,J,1/8W
R3167 D0GA333JA023 M 33KOHM,J,1/16W
R3168 D0GA333JA023 M 33KOHM,J,1/16W
R3171 D0GA222JA023 M 2.2KOHM, J,1/16W
R3172 D0GA222JA023 M 2.2KOHM, J,1/16W
R3173 D1BB1003A143 M 100KOHM,J,1/8W
R3179 D0GA221JA023 M220 OHM, J.1/16 W
R3180 D0GA221JA023 M220 OHM, J.1/16 W
R3181 D1BD75R0A204 M 75OHM ,J, 1/16W
R3182 D1BD75R0A204 M 75OHM ,J, 1/16W
R3183 D1BD75R0A204 M 75OHM ,J, 1/16W
R3188 D1BB1003A143 M 100KOHM,J,1/8W
R3195 D0GA111JA023 M 110 OHM, J.1/16W
R3196 D0GA111JA023 M 110 OHM, J.1/16W
R3201 D0GA101JA039 M 100OHM, J, 1/16W
R3231 D0GB103JA065 M 10K OHM J 1/10W
R3233 D1BB2002A143 M 20KOHM ,F, 1/16W
R3234 D1BB2002A143 M 20KOHM ,F, 1/16W
R3237 D0GB473JA065 M 47KOHM J. 1/10W
R3238 D0GB473JA065 M 47KOHM J. 1/10W
R4079 D0GAR00J0005 M 0 OHM, 1/16W
R4084 D0GAR00J0005 M 0 OHM, 1/16W
R4088 D0GAR00J0005 M 0 OHM, 1/16W
R4715 D0GA103JA039 M 10KOHM,F,1/16W
R4721 D0GA103JA039 M 10KOHM,F,1/16W
R4722 D0GA103JA039 M 10KOHM,F,1/16W
R4723 D0GA473JA039 M 47KOHM, J,1/16W
R4724 D0GA102JA039 M 1KOHM, J, 1/16W
R4725 D0GA473JA039 M 47KOHM, J,1/16W
R4731 D0GA103JA039 M 10KOHM,F,1/16W
R4739 D0GA220JA023 M22 OHM, J.1/16 W
R4748 D0GA680JA023 M 68 OHM, J,1/16W
R4749 D0GA680JA023 M 68 OHM, J,1/16W
R4750 D0GA680JA023 M 68 OHM, J,1/16W
R4751 D0GA680JA023 M 68 OHM, J,1/16W
Part No. Part Name & Description Q'ty Remarks

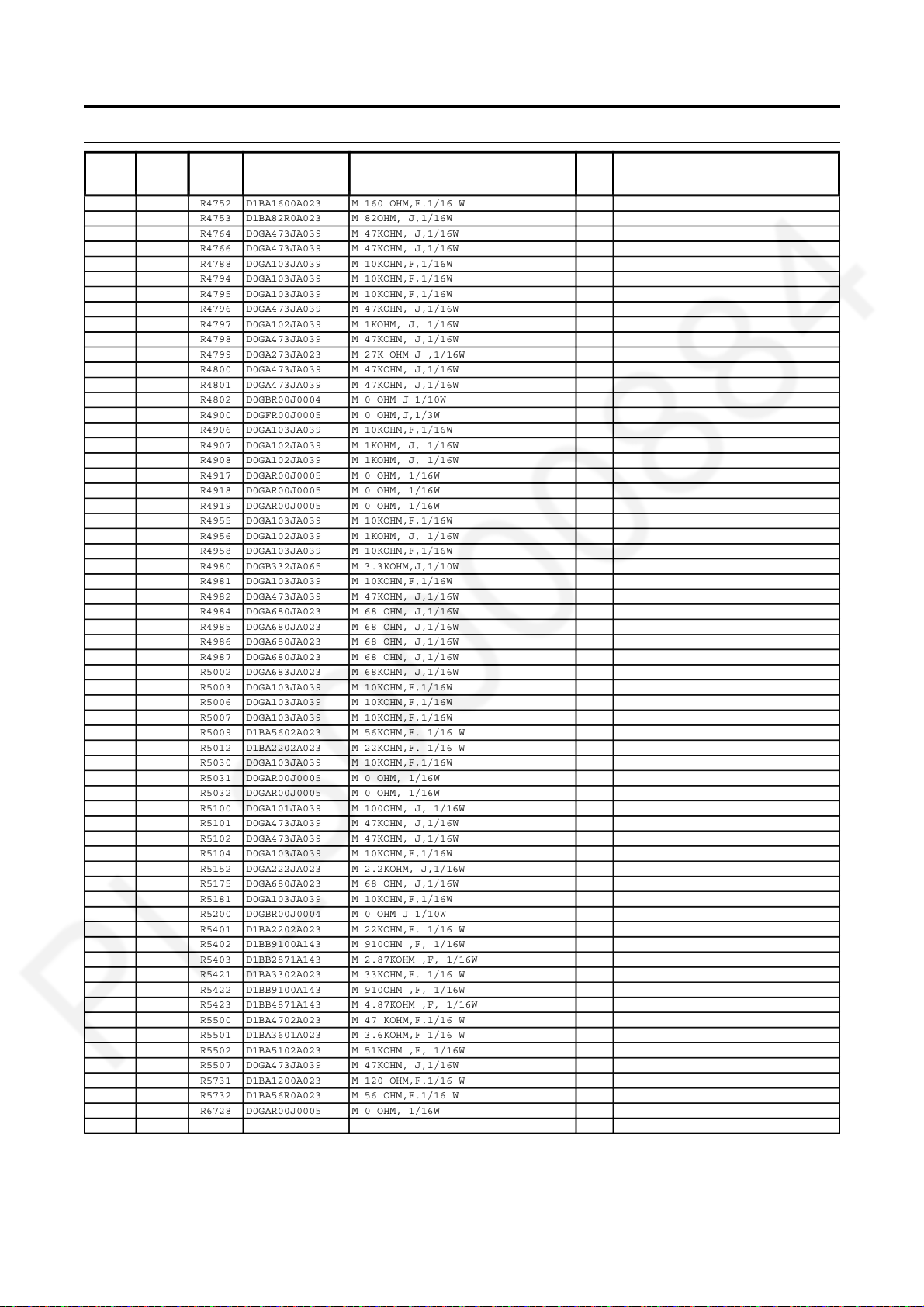

Page 64
Model No. : TH-32A410R Parts List
Change Safety
Ref.
No.
R4752 D1BA1600A023 M 160 OHM,F.1/16 W
R4753 D1BA82R0A023 M 82OHM, J,1/16W
R4764 D0GA473JA039 M 47KOHM, J,1/16W
R4766 D0GA473JA039 M 47KOHM, J,1/16W
R4788 D0GA103JA039 M 10KOHM,F,1/16W
R4794 D0GA103JA039 M 10KOHM,F,1/16W
R4795 D0GA103JA039 M 10KOHM,F,1/16W
R4796 D0GA473JA039 M 47KOHM, J,1/16W
R4797 D0GA102JA039 M 1KOHM, J, 1/16W
R4798 D0GA473JA039 M 47KOHM, J,1/16W
R4799 D0GA273JA023 M 27K OHM J ,1/16W
R4800 D0GA473JA039 M 47KOHM, J,1/16W
R4801 D0GA473JA039 M 47KOHM, J,1/16W
R4802 D0GBR00J0004 M 0 OHM J 1/10W
R4900 D0GFR00J0005 M 0 OHM,J,1/3W
R4906 D0GA103JA039 M 10KOHM,F,1/16W
R4907 D0GA102JA039 M 1KOHM, J, 1/16W
R4908 D0GA102JA039 M 1KOHM, J, 1/16W
R4917 D0GAR00J0005 M 0 OHM, 1/16W
R4918 D0GAR00J0005 M 0 OHM, 1/16W
R4919 D0GAR00J0005 M 0 OHM, 1/16W
R4955 D0GA103JA039 M 10KOHM,F,1/16W
R4956 D0GA102JA039 M 1KOHM, J, 1/16W
R4958 D0GA103JA039 M 10KOHM,F,1/16W
R4980 D0GB332JA065 M 3.3KOHM,J,1/10W
R4981 D0GA103JA039 M 10KOHM,F,1/16W
R4982 D0GA473JA039 M 47KOHM, J,1/16W
R4984 D0GA680JA023 M 68 OHM, J,1/16W
R4985 D0GA680JA023 M 68 OHM, J,1/16W
R4986 D0GA680JA023 M 68 OHM, J,1/16W
R4987 D0GA680JA023 M 68 OHM, J,1/16W
R5002 D0GA683JA023 M 68KOHM, J,1/16W
R5003 D0GA103JA039 M 10KOHM,F,1/16W
R5006 D0GA103JA039 M 10KOHM,F,1/16W
R5007 D0GA103JA039 M 10KOHM,F,1/16W
R5009 D1BA5602A023 M 56KOHM,F. 1/16 W
R5012 D1BA2202A023 M 22KOHM,F. 1/16 W
R5030 D0GA103JA039 M 10KOHM,F,1/16W
R5031 D0GAR00J0005 M 0 OHM, 1/16W
R5032 D0GAR00J0005 M 0 OHM, 1/16W
R5100 D0GA101JA039 M 100OHM, J, 1/16W
R5101 D0GA473JA039 M 47KOHM, J,1/16W
R5102 D0GA473JA039 M 47KOHM, J,1/16W
R5104 D0GA103JA039 M 10KOHM,F,1/16W
R5152 D0GA222JA023 M 2.2KOHM, J,1/16W
R5175 D0GA680JA023 M 68 OHM, J,1/16W
R5181 D0GA103JA039 M 10KOHM,F,1/16W
R5200 D0GBR00J0004 M 0 OHM J 1/10W
R5401 D1BA2202A023 M 22KOHM,F. 1/16 W
R5402 D1BB9100A143 M 910OHM ,F, 1/16W
R5403 D1BB2871A143 M 2.87KOHM ,F, 1/16W
R5421 D1BA3302A023 M 33KOHM,F. 1/16 W
R5422 D1BB9100A143 M 910OHM ,F, 1/16W
R5423 D1BB4871A143 M 4.87KOHM ,F, 1/16W
R5500 D1BA4702A023 M 47 KOHM,F.1/16 W
R5501 D1BA3601A023 M 3.6KOHM,F 1/16 W
R5502 D1BA5102A023 M 51KOHM ,F, 1/16W
R5507 D0GA473JA039 M 47KOHM, J,1/16W
R5731 D1BA1200A023 M 120 OHM,F.1/16 W
R5732 D1BA56R0A023 M 56 OHM,F.1/16 W
R6728 D0GAR00J0005 M 0 OHM, 1/16W
R6729 D0GAR00J0005 M 0 OHM, 1/16W
Part No. Part Name & Description Q'ty Remarks
Page 65
Model No. : TH-32A410R Parts List
Change Safety
Ref.
No.
R6734 D1BA1002A023 M 10KOHM,F,1/16W
R6750 D0GA101JA039 M 100OHM, J, 1/16W
R6751 D0GA103JA039 M 10KOHM,F,1/16W
R6753 D0GA101JA039 M 100OHM, J, 1/16W
R6757 D0GA101JA039 M 100OHM, J, 1/16W
R6758 D0GA101JA039 M 100OHM, J, 1/16W
R6759 D0GA102JA039 M 1KOHM, J, 1/16W
R6760 D0GA332JA023 M 3.3KOHM, J,1/16W
R6762 D0GA331JA023 M 330 OHM, J,1/16W
R6763 ERJ2GEJ240X M 24 OHM, J,1/16 W
R6764 D0GA681JA023 M680 OHM, J,1/16W
R6765 D0GA681JA023 M680 OHM, J,1/16W
R6766 D0GA102JA039 M 1KOHM, J, 1/16W
R7101 D0GF105JA048 M 1M OHM. 1/4W
R7102 D0GF105JA048 M 1M OHM. 1/4W
R7103 D0GF105JA048 M 1M OHM. 1/4W
R7104 D0GF105JA048 M 1M OHM. 1/4W
R7303 D0GD752JA052 M 7.5KOHM ,F, 1/16W
R7304 D0GD183JA052 M 18KOHM,J,1/8W
R7313 D0GD220JA052 M 22 OHM,J,1/8W
R7314 D0GD681JA059 M 680OHM ,J, 1/16W
R7315 D0C1R47JA104 M 0.47OHM ,J, 1W
R7316 D0C1R56JA104 M 0.56OHM ,J, 1W
R7317 D0GD680JA059 M 68OHM,J,1/4W
R7318 D0GD471JA052 M 470 OHM,J,1/8W
R7319 D0GD393JA052 M 39 KOHM,J,1/8W
R7320 D0GB562JA065 M 5.6KOHM,J,1/10W
R7325 D0GD4R7JA059 M 4.7 OHM,J,1/4W
R7329 D0GDR00J0004 M 0 OHM, 1/8W
R7335 D0B1106JA033 M 10MOHM J 1W
R7342 D0GD182JA052 M 1.8KOHM, J,0.063W
R7343 D0GD182JA052 M 1.8KOHM, J,0.063W
R7344 D0GD182JA052 M 1.8KOHM, J,0.063W
R7351 D0GF474JA048 M 470KOHM,J,1/3W
R7353 D0GD220JA059 M 22 OHM,J,1/4W
R7354 D0GD220JA059 M 22 OHM,J,1/4W
R7501 D0GB153JA065 M 15K OHM J 1/10W
R7502 D0GB273JA072 M 27K OHM J ,1/16W
R7503 D0GB153JA065 M 15K OHM J 1/10W
R7504 D0GB153JA065 M 15K OHM J 1/10W
R7505 D0GD101JA052 M 100 OHM,J,1/8W
R7507 D0GB124JA065 M 120KOHM,F.1/16 W
R7511 D0GD103JA052 M 10KOHM,J,1/8W
R7512 D0GB472JA065 M 4.7KOHM, J,1/10W
R7515 D0GB222JA065 M 2.2KOHM,J,1/10W
R7516 D0GD472JA052 M 4.7KOHM,J,1/8W
R7517 D0GB222JA065 M 2.2KOHM,J,1/10W
R7519 D1BB5601A073 M 5.6KOHM,J.1/10W
R7520 D1BB3301A073 M 3.3KOHM,J.1/10W
R7521 D0GD123JA052 M 12KOHM,J,1/8W
R7523 D0GD473JA052 M 47KOHM,J,1/8W
R7524 D0GB473JA065 M 47KOHM J. 1/10W
R7532 D0GBR00J0004 M 0 OHM J 1/10W
R7537 D0GBR00J0004 M 0 OHM J 1/10W
R7540 D0GB184ZA041 M 180KOHM ,F, 1/16W
R7541 D1BD1603A177 M 160KOHM,F.1/16 W
R7800 D0GD101JA052 M 100 OHM,J,1/8W
R7801 D0GD222JA052 M 2.2KOHM,J,1/8W
R7802 D0GD223JA052 M 22KOHM,J,1/8W
R7803 D0GD100JA059 M 10 OHM,J,1/4W
R7804 D0GD470JA059 M 47 OHM,J,1/4W
R7806 D0GD102JA052 M 1.0KOHM,J,1/8W
Part No. Part Name & Description Q'ty Remarks
Page 66
Model No. : TH-32A410R Parts List
Change Safety
Ref.
No.
R7807 D0GD103JA052 M 10KOHM,J,1/8W
R7808 D0GB473JA065 M 47KOHM J. 1/10W
R7809 D0GD182JA052 M 1.8KOHM, J,0.063W
R7810 D1BB2492A074 M 24.9KOHM ,F, 1/8W
R7812 D0GD683JA052 M 68KOHM,J,1/8W
R7813 D0GB154JA065 M 150KOHM J 1/10W
R7814 D0GB114JA065 M 110KOHM ,J, 1/16W
R7815 D0GB822JA065 M 8.2KOHM J 1/10W
R7818 D0GD223JA052 M 22KOHM,J,1/8W
R7819 D0GD473JA052 M 47KOHM,J,1/8W
R7820 D0GD471JA052 M 470 OHM,J,1/8W
R7821 D0GF472JA048 M 4.7KOHM ,J, 1/8W
R7822 D0GD122JA052 M 1.2KOHM, J,1/16W
R7823 D0GF472JA048 M 4.7KOHM ,J, 1/8W
R7824 D1BD5R10A066 M 5.1OHM ,F, 1/8W
R7825 D1BD5R10A066 M 5.1OHM ,F, 1/8W
R7826 D1BD5R10A066 M 5.1OHM ,F, 1/8W
R7827 D0GF472JA048 M 4.7KOHM ,J, 1/8W
R7828 D0GD104JA052 M 100KOHM,J,1/8W
R7830 D0GD104JA052 M 100KOHM,J,1/8W
R7831 D0GDR00J0004 M 0 OHM, 1/8W
R7834 D0GB1R0JA065 M 1OHM ,J, 1/16W
R7838 D0C1R15JA104 M 0.15OHM ,J, 1/16W
R7839 D0C1R22JA104 M 0.22OHM ,J, 1/16W
R7840 D0GD471JA052 M 470 OHM,J,1/8W
R7841 D0GD471JA059 M 470 OHM,J,1/4W
R7845 D0GB113JA065 M 11KOHM ,J, 1/8W
R7846 D0GB333JA065 M 33KOHM,J,1/10W
R8005 D0GA1R1JA023 M 1.1OHM, J,1/16W
R8010 D0GA511JA023 M510 OHM, J,1/16W
R8011 D0GA104JA039 M 100KOHM,J,1/8W
R8102 D1BA4701A023 M 4.7KOHM,F 1/16 W
R8103 D1BA2002A023 M 20KOHM ,F, 1/16W
R8104 D1BA1802A014 M 18KOHM, F.1/16 W
R8200 D1BA2400A023 M 240 OHM,F.1/16 W
R8203 D1BA2700A023 M 270 OHM,F.1/16 W
R8204 D1BA2700A023 M 270 OHM,F.1/16 W
R8205 D1BA2700A023 M 270 OHM,F.1/16 W
R8206 D1BA2700A023 M 270 OHM,F.1/16 W
R8207 D1BA2700A023 M 270 OHM,F.1/16 W
R8208 D1BA2700A023 M 270 OHM,F.1/16 W
R8217 D0GA221JA023 M220 OHM, J.1/16 W
R8218 D0GA221JA023 M220 OHM, J.1/16 W
R8219 D1BA2400A023 M 240 OHM,F.1/16 W
R8220 D1BA2400A023 M 240 OHM,F.1/16 W
R8221 D0GA103JA023 M10KOHM, J.1/16 W
R8230 D1BA2700A023 M 270 OHM,F.1/16 W
R8231 D1BA2700A023 M 270 OHM,F.1/16 W
R8232 D1BA2700A023 M 270 OHM,F.1/16 W
R8233 D1BA2700A023 M 270 OHM,F.1/16 W
R8234 D0GA330JA023 M 33 OHM, J,1/16W
R8236 D0GA330JA023 M 33 OHM, J,1/16W
R8240 D1HY3304A012 NETWORK RESISTER
R8241 D1HY3304A012 NETWORK RESISTER
R8242 D1HY3304A012 NETWORK RESISTER
R8243 D1HY3304A012 NETWORK RESISTER
R8244 D1HY3304A012 NETWORK RESISTER
R8245 D0GA330JA023 M 33 OHM, J,1/16W
R8246 D0GA330JA023 M 33 OHM, J,1/16W
R8300 D0GA331JA023 M 330 OHM, J,1/16W
R8301 D0GA360JA023 M 36 OHM, J,1/16W
R8302 D0GA360JA023 M 36 OHM, J,1/16W
Part No. Part Name & Description Q'ty Remarks
Page 67
Model No. : TH-32A410R Parts List
Change Safety
TRANSFORMER
OTHERS
Ref.
No.
R8303 D1BA6201A023 M 6.2 KOHM,F.1/16 W
R8305 D1BA2491A023 M 2.49KOHM,F,1/16W
R8306 D0GA360JA023 M 36 OHM, J,1/16W
R8307 D0GA360JA023 M 36 OHM, J,1/16W
R8450 D0GA103JA039 M10KOHM, J.1/16 W
R8451 D0GA103JA039 M10KOHM, J.1/16 W
R8454 D0GA103JA039 M10KOHM, J.1/16 W
R8455 D0GA103JA039 M10KOHM, J.1/16 W
R8458 D1BA1822A023 M 18.2KOHM,F.1/16 W
R8469 D0GA103JA039 M10KOHM, J.1/16 W
R8666 D1HY1038A012 NETWORK RESISTER
R8800 D0GA103JA039 M10KOHM, J.1/16 W
R8803 D0GA103JA039 M10KOHM, J.1/16 W
R8816 D0GA103JA039 M10KOHM, J.1/16 W
R8818 D0GA103JA039 M10KOHM, J.1/16 W
R8819 D0GA103JA039 M10KOHM, J.1/16 W
R8820 D0GA103JA039 M10KOHM, J.1/16 W
R8830 D0GA103JA039 M10KOHM, J.1/16 W
R8850 D0GA331JA023 M 330 OHM, J,1/16W
R8851 D1BB7151A143 M 7.15KOHM ,F, 1/16W
R8852 D0GA102JA039 M 1KOHM, J, 1/16W
R8853 D0GA182JA023 M 1.8KOHM, J,0.063W
R8858 D0GA103JA039 M10KOHM, J.1/16 W
R8870 D0GA103JA039 M10KOHM, J.1/16 W
R8878 D0GA103JA039 M10KOHM, J.1/16 W
R8884 D0GA103JA039 M10KOHM, J.1/16 W
R8885 D0GA103JA039 M10KOHM, J.1/16 W
R8886 D0GA102JA039 M 1KOHM, J, 1/16W
R8903 D0GA472JA023 M 4.7KOHM, J,1/16W
R8906 D0GA680JA023 M 68 OHM, J,1/16W
R8909 D0GA222JA023 M 2.2KOHM, J,1/16W
R8910 D0GA103JA039 M10KOHM, J.1/16 W
R8911 D1HY1218A012 M 120 OHM,F.1/16 W
R8914 D0GA680JA023 M 68 OHM, J,1/16W
R8915 D0GA680JA023 M 68 OHM, J,1/16W
R8916 D0GA680JA023 M 68 OHM, J,1/16W
R8917 D0GA680JA023 M 68 OHM, J,1/16W
R8918 D0GA680JA023 M 68 OHM, J,1/16W
R8919 D0GA680JA023 M 68 OHM, J,1/16W
R8924 D0GA102JA039 M 1KOHM, J, 1/16W
R8926 D0GA332JA023 M 3.3KOHM, J,1/16W
R8967 D0GA473JA039 M 47KOHM, J,1/16W
R959 D0GA220JA023 M22 OHM, J.1/16 W
R960 D0GA220JA023 M22 OHM, J.1/16 W
T7301 G4DYA0000567 TRANSFORMER
A02 K1KY14BA0484 CONNECTOR
A11 K1KY07BA0483 CONNECTOR
A12 K1KY04BA0387 CONNECTOR
A18 K1MY30B00008 CONNECTOR
CF7101 D4CAY4R7A096 THERMISTOR RESISTOR
F7101 K5E502YYA213 FUSE
JA1 D0GDR00J0004 CHIP RESISTOR
JA10 D0GDR00J0004 CHIP RESISTOR
JA11 D0GDR00J0004 CHIP RESISTOR
JA12 D0GDR00J0004 CHIP RESISTOR
JA13 D0GDR00J0004 CHIP RESISTOR
JA2 D0GDR00J0004 CHIP RESISTOR
JA20 D0GFR00J0005 CHIP RESISTOR
JA21 D0GFR00J0005 CHIP RESISTOR
JA22 D0GFR00J0005 CHIP RESISTOR
Part No. Part Name & Description Q'ty Remarks
Page 68
Model No. : TH-32A410R Parts List
Change Safety
Ref.
No.
JA23 D0GFR00J0005 CHIP RESISTOR
JA25 D0GFR00J0005 CHIP RESISTOR
JA27 D0GFR00J0005 CHIP RESISTOR
JA28 D0GFR00J0005 CHIP RESISTOR
JA3 D0GDR00J0004 CHIP RESISTOR
JA4 D0GDR00J0004 CHIP RESISTOR
JA5 D0GDR00J0004 CHIP RESISTOR
JA6 D0GDR00J0004 CHIP RESISTOR
JA7 D0GDR00J0004 CHIP RESISTOR
JA8 D0GDR00J0004 CHIP RESISTOR
JA9 D0GDR00J0004 CHIP RESISTOR
JK3101 K1U511D00002 AV TERMINAL
JK3103 K1U204DA0001 TERMINAL
JK4700 K1FY119D0029 TERMINAL
JK4701 K1FY119D0029 TERMINAL
JK6753 K1ZZ00001557 AV TERMINAL
JK7101 K2AAYA000003 TERMINAL
JK8451 K1FY104B0092 TERMINAL
JS0053 D0GAR00J0005 CHIP RESISTOR
JS0068 D0GAR00J0005 CHIP RESISTOR
K10 K1KY07BA0483 CONNECTOR
LF7103 G0B243G00002 LINE FILTER
LF7104 G0B243G00002 LINE FILTER
P2 K1KY14BA0491 CONNECTOR
P3 K1KY03BA0385 CONNECTOR
PC7300 B3PAA0000629 PHOTO COUPLER
PC7301 B3PAA0000629 PHOTO COUPLER
RM2800 B3RBB0000018 PHOTO DETECTOR
SN2800 B3JB00000219 PHOTO DETECTOR
SW2851 EVQ11G05R SWITCH
SW2852 EVQ11G05R SWITCH
SW2853 EVQ11G05R SWITCH
SW2854 EVQ11G05R SWITCH
SW2855 EVQ11G05R SWITCH
SW2857 EVQ11G05R SWITCH
X6750 H0J240500067 CRYSTAL OSCILLATOR
X8300 H0J250500109 CRYSTAL RESONATOR
ZA7101 K4AD01A00004 RUG TERMINAL
ZA7102 K4AD01A00004 RUG TERMINAL
ZA7103 K4AD01A00004 RUG TERMINAL
Part No. Part Name & Description Q'ty Remarks

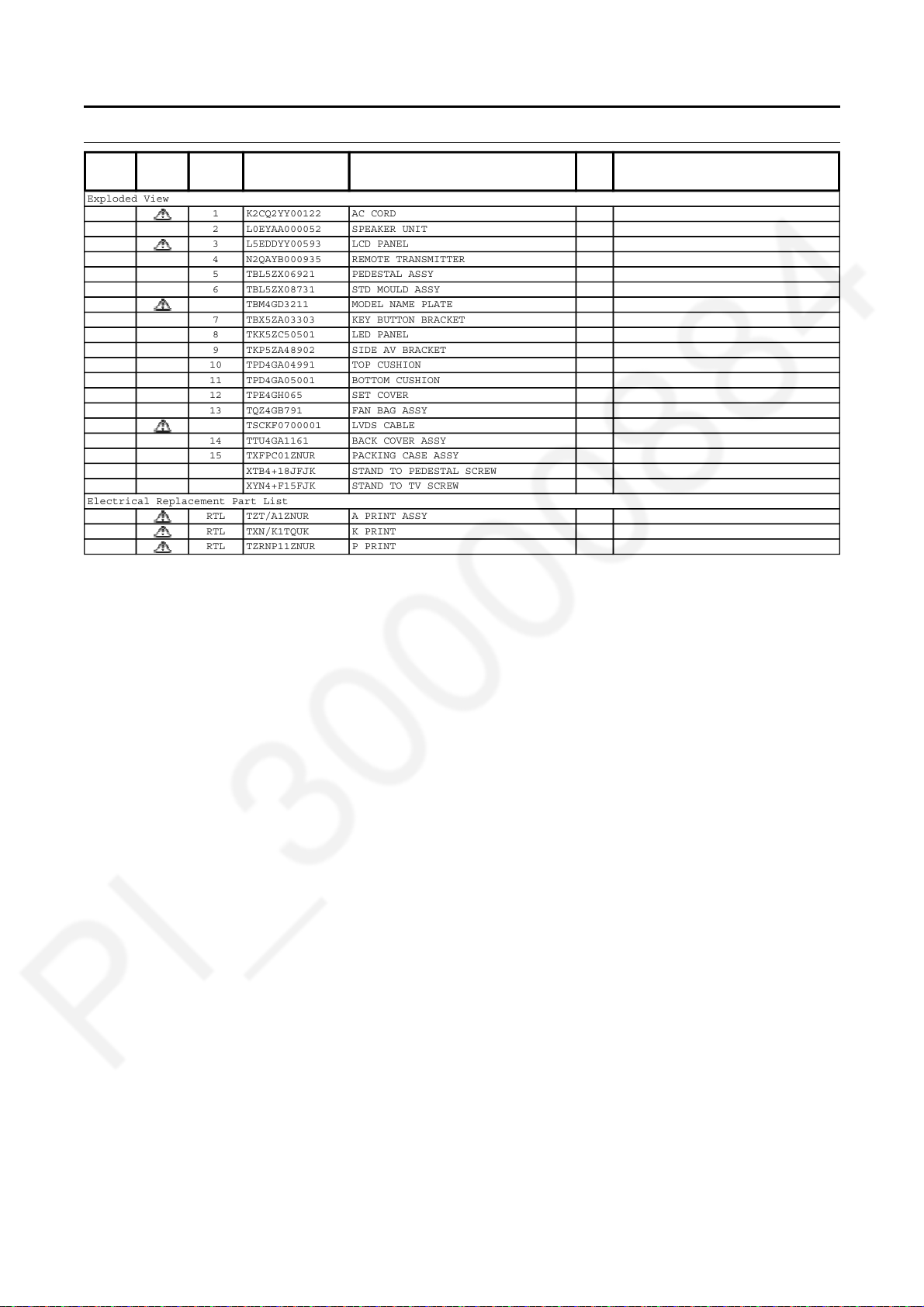

Page 69
Model No. : TH-32A410R Parts List
Change Safety
Exploded View
Electrical Replacement Part List
Ref.
No.
1 K2CQ2YY00122 AC CORD
2 L0EYAA000052 SPEAKER UNIT
3 L5EDDYY00593 LCD PANEL
4 N2QAYB000935 REMOTE TRANSMITTER
5 TBL5ZX06921 PEDESTAL ASSY
6 TBL5ZX08731 STD MOULD ASSY
7 TBX5ZA03303 KEY BUTTON BRACKET
8 TKK5ZC50501 LED PANEL
9 TKP5ZA48902 SIDE AV BRACKET
10 TPD4GA04991 TOP CUSHION
11 TPD4GA05001 BOTTOM CUSHION
12 TPE4GH065 SET COVER
13 TQZ4GB791 FAN BAG ASSY
14 TTU4GA1161 BACK COVER ASSY
15 TXFPC01ZNUR PACKING CASE ASSY
RTL TZT/A1ZNUR A PRINT ASSY
RTL TXN/K1TQUK K PRINT
RTL TZRNP11ZNUR P PRINT
Part No. Part Name & Description Q'ty Remarks
TBM4GD3211 MODEL NAME PLATE
TSCKF0700001 LVDS CABLE
XTB4+18JFJK STAND TO PEDESTAL SCREW
XYN4+F15FJK STAND TO TV SCREW
Loading...
