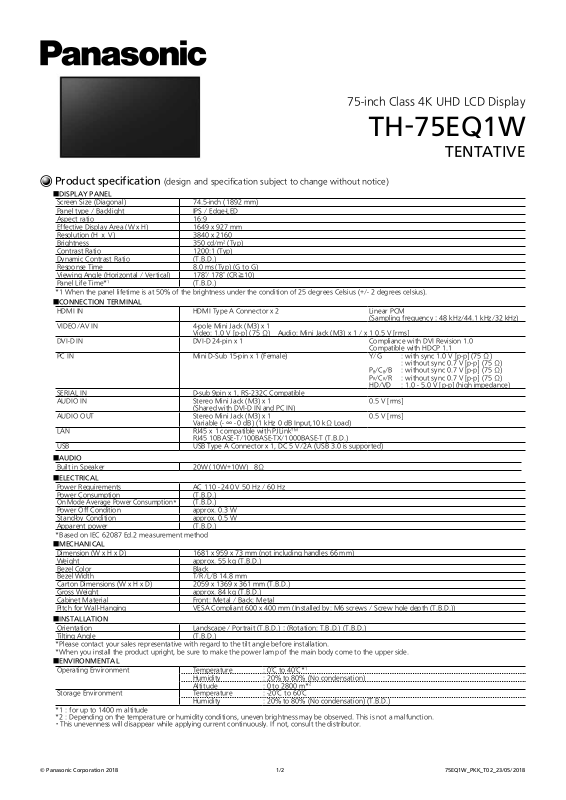

Panasonic TH-75EQ1W Product Data Sheet

75-inch Class 4K UHD LCD Display

TH-75EQ1W

TENTATIVE

Product specification

■DISPLAY PANEL

Screen Size (Diagonal) 74.5-inch (1892 mm) Panel type / Backlight IPS / Edge-LED Aspect ratio 16:9 Effective Display Area (W x H) 1649 x 927 mm Resolution (H ｘ V) 3840 x 2160 Brightness 350 cd/m Contrast Ratio 1200:1 (Typ) Dynamic Contrast Ratio (T.B.D.) Response Time 8.0 ms (Typ) (G to G)

Viewing Angle (Horizontal / Vertical) 178°/ 178° (CR≧10)

Panel Life Time

*1 When the panel lifetime is at 50% of the brightness under the condition of 25 degrees Celsius (+/- 2 degrees celsius).

■CONNECTION TERMINAL

HDMI IN HDMI Type A Connector x 2 Linear PCM

VIDEO/AV IN 4-pole Mini Jack (M3) x 1

DVI-D IN DVI-D 24-pin x 1 Compliance with DVI Revision 1.0

PC IN Mini D-Sub 15-pin x 1 (Female) Y/G

SERIAL IN D-sub 9pin x 1, RS-232C Compatible

AUDIO IN Stereo Mini Jack (M3) x 1　

AUDIO OUT Stereo Mini Jack (M3) x 1　

LAN RJ45 x 1 compatible with PJLink

USB USB Type A Connector x 1, DC 5 V/2A (USB 3.0 is supported)

■AUDIO

Built in Speaker 20W (10W+10W)　8Ω

■ELECTRICAL

Power Requirements AC 110 - 240 V 50 Hz / 60 Hz Power Consumption (T.B.D.)

On Mode Average Power Consumption*(T.B.D.) Power Off Condition approx. 0.3 W

Stand-by Condition approx. 0.5 W Apparent power (T.B.D.)

*Based on IEC 62087 Ed.2 measurement method

■MECHANICAL

Dimension (W x H x D) 1681 x 959 x 73 mm (not including handles 66 mm) Weight approx. 55 kg (T.B.D.) Bezel Color Black Bezel Width T/R/L/B 14.8 mm Carton Dimensions (W x H x D) 2059 x 1369 x 361 mm (T.B.D.) Gross Weight approx. 84 kg (T.B.D.) Cabinet Material Front: Metal / Back: Metal Pitch for Wall-Hanging VESA Compliant 600 x 400 mm (Installed by: M6 screws / Screw hole depth (T.B.D.))

■INSTALLATION

Orientation Landscape / Portrait (T.B.D.)：(Rotation: T.B.D.) (T.B.D.)

Tilting Angle (T.B.D.)

Please contact your sales representative with regard to the tilt angle before installation.

*When you install the product upright, be sure to make the power lamp of the main body come to the upper side.

■ENVIRONMENTAL

Operating Environment Temperature : 0℃ to 40℃

Storage Environment Temperature : -20℃ to 60℃

1 : for up to 1400 m altitude　

*2 : Depending on the temperature or humidity conditions, uneven brightness may be observed. This is not a malfunction.

・This unevenness will disappear while applying current continuously. If not, consult the distributor.

(design and specification subject to change without notice)

(Typ)

(T.B.D.)

(Sampling frequency：48 kHz/44.1 kHz/32 kHz)

Video: 1.0 V [p-p] (75 Ω) Audio: Mini Jack (M3) x 1 / x 1 0.5 V [rms]

Compatible with HDCP 1.1

B/CB

R/CR

HD/VD

(Shared with DVI-D IN and PC IN)

Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,10 kΩ Load)

RJ45 10BASE-T/100BASE-TX/1000BASE-T (T.B.D.)

Humidity : 20% to 80% (No condensation) Altitude : 0 to 2800 m

Humidity : 20% to 80% (No condensation) (T.B.D.)

0.5 V [rms]

: with sync 1.0 V [p-p] (75 Ω) : without sync 0.7 V [p-p] (75 Ω)

: without sync 0.7 V [p-p] (75 Ω)

: without sync 0.7 V [p-p] (75 Ω) : 1.0 - 5.0 V [p-p] (high impedance)

75-inch Class

4K UHD

LCD Display

TH-75EQ1W

MAIN FEATURE

USB Media Player Yes Failover/Failback Data Cloning Yes Digital Zoom Yes Power ON Screen Delay Yes 1:1 Pixel mode Yes Screen Saver Yes Power Management Yes (HDMI/PC/DVI-D) Power save Yes Button Lock Yes Remote-control User Level Yes Input Search Yes Picture mode Yes Dynamic contrast Yes Color enhancement Yes Refine enhancer Gradation smoother Set up timer Yes AMX D.D. Yes Crestron Connected WEB Browser control Yes PJLink Image settings Input Detection Yes HDMI CEC Compatible Yes Memory Viewer Yes Playlist Editing Function Yes

Operating Time

*1 In case of running for a long time, the moving image is recommended

to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying movie images.

Yes

Yes Yes

Yes

Yes Yes

24h / day

DIMENSIONS (TENTATIVE)

REMOTE CONTROL TRANSMITTER

Power Requirements DC 3 V (2 x AAA Size batteries) Operating distance approx. 7 m

Weight approx. 63 g including batteries Dimemsions (W x H x D) 48 x 134 x 20 mm

*When operated directly in front of receptor.

STANDARD (CERTIFICATIONS)

SAFETY REGULATIONS RADIATION REGULATIONS

INCLUDED ACCESSORIES

- Remote Control　- Batteries (AAA size) x 2　- AC cord (approx. 2.0 m)

- CD-ROM / User Manual　- Operating Instruction Book

COMPATIBLE SOFTWARE

Multi Monitoring ＆Control Software

CMS Content Management Software

Video Wall Manager

OPTIONAL ACCESSORIES

Pedestal TY - ST75PE9 Early Warning Software

Basic license / 3-year license

* Multi-Monitoring Control Software Ver 2.0 or later is required.

ET-SWA100series

(Depending on the license type, the symbol at the end of the part number is different.)

Cautions: This drawing is not a scale

Units : mm

14.8

226

SECTION A-A

14.8

959

14.8

Active Area 1649

CONNECTION TERMINAL

1681

14.8

927

Active Area

73 66 34

206

347

550 550

400

450

600

M6 Screw

hole depth

206

(T.B.D.)

* Specifications and appearance are subject to change without notice.
