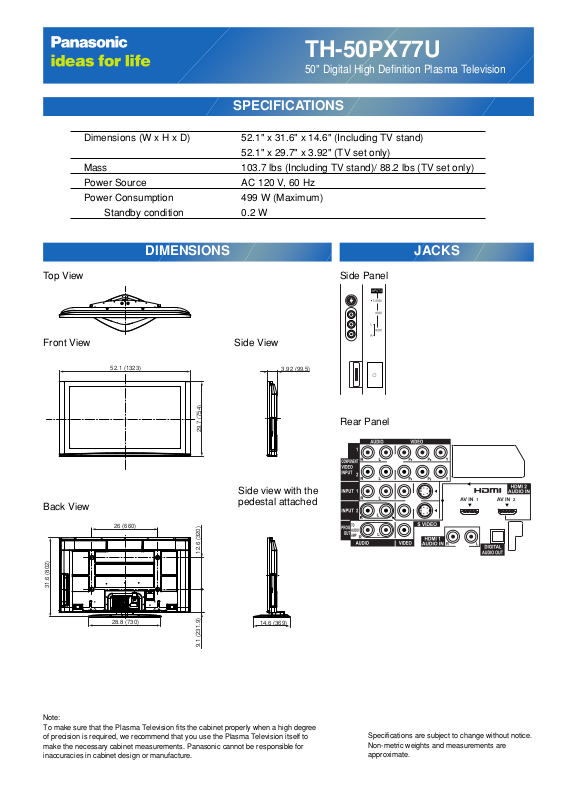

Panasonic th-50px77 cut sheet

TH-50PX77U

50" Digital High Definition Plasma Television

Dimensions (W x H x D) 52.1" x 31.6" x 14.6" (Including TV stand)

52.1" x 29.7" x 3.92" (TV set only)

Mass 103.7 lbs (Including TV stand)/ 88.2 lbs (TV set only)

Power Source AC 120 V, 60 Hz

Power Consumption 499 W (Maximum)

Standby condition 0.2 W

SPECIFICATIONS

DIMENSIONS JACKS

Top View

26 (660)

52.1 (1323)

3.92 (99.5)

14.6 (369)

29.7 (754)

31.6 (802)

9.1 (231.9) 12.6 (320)

28.8 (730)

Front View

Back View

Side view with the
pedestal attached

Note:
To make sure that the Plasma Television fits the cabinet properly when a high degree
of precision is required, we recommend that you use the Plasma Television itself to
make the necessary cabinet measurements. Panasonic cannot be responsible for
inaccuracies in cabinet design or manufacture.

Specifications are subject to change without notice.
Non-metric weights and measurements are
approximate.

Side View

Side Panel

Rear Panel
