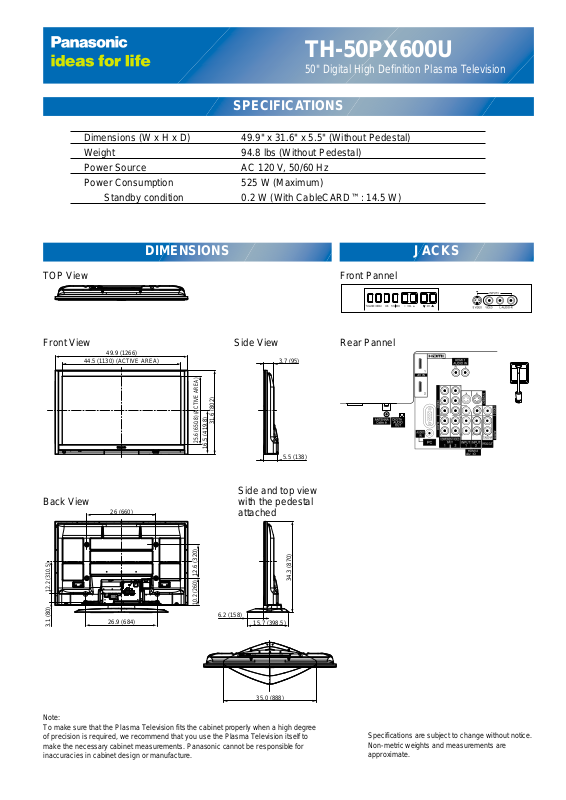

Panasonic th-50px600 cut sheet

TH-50PX600U

44.5 (1130) (ACTIVE AREA)

26 (660)

49.9 (1266)

3.7 (95)

5.5 (138)

35.0 (888)

6.2 (158)

15.7 (398.5)

25.6 (650.8) (ACTIVE AREA)

31.6 (802)

34.3 (870)

10.2 (260)

12.6 (320)

16.5 (419.8)

26.9 (684)

3.1 (80)

12.2 (310.5)

50" Digital High Definition Plasma Television

SPECIFICATIONS

Dimensions (W x H x D) 49.9" x 31.6" x 5.5" (Without Pedestal)
Weight 94.8 lbs (Without Pedestal)
Power Source AC 120 V, 50/60 Hz
Power Consumption 525 W (Maximum)

Standby condition 0.2 W (With CableCARD™: 14.5 W)

DIMENSIONS JACKS

TOP View

Front View

Back View

Front Pannel

Rear PannelSide View

Side and top view
with the pedestal
attached

Note:
To make sure that the Plasma Television fits the cabinet properly when a high degree
of precision is required, we recommend that you use the Plasma Television itself to
make the necessary cabinet measurements. Panasonic cannot be responsible for
inaccuracies in cabinet design or manufacture.

Specifications are subject to change without notice.
Non-metric weights and measurements are
approximate.
