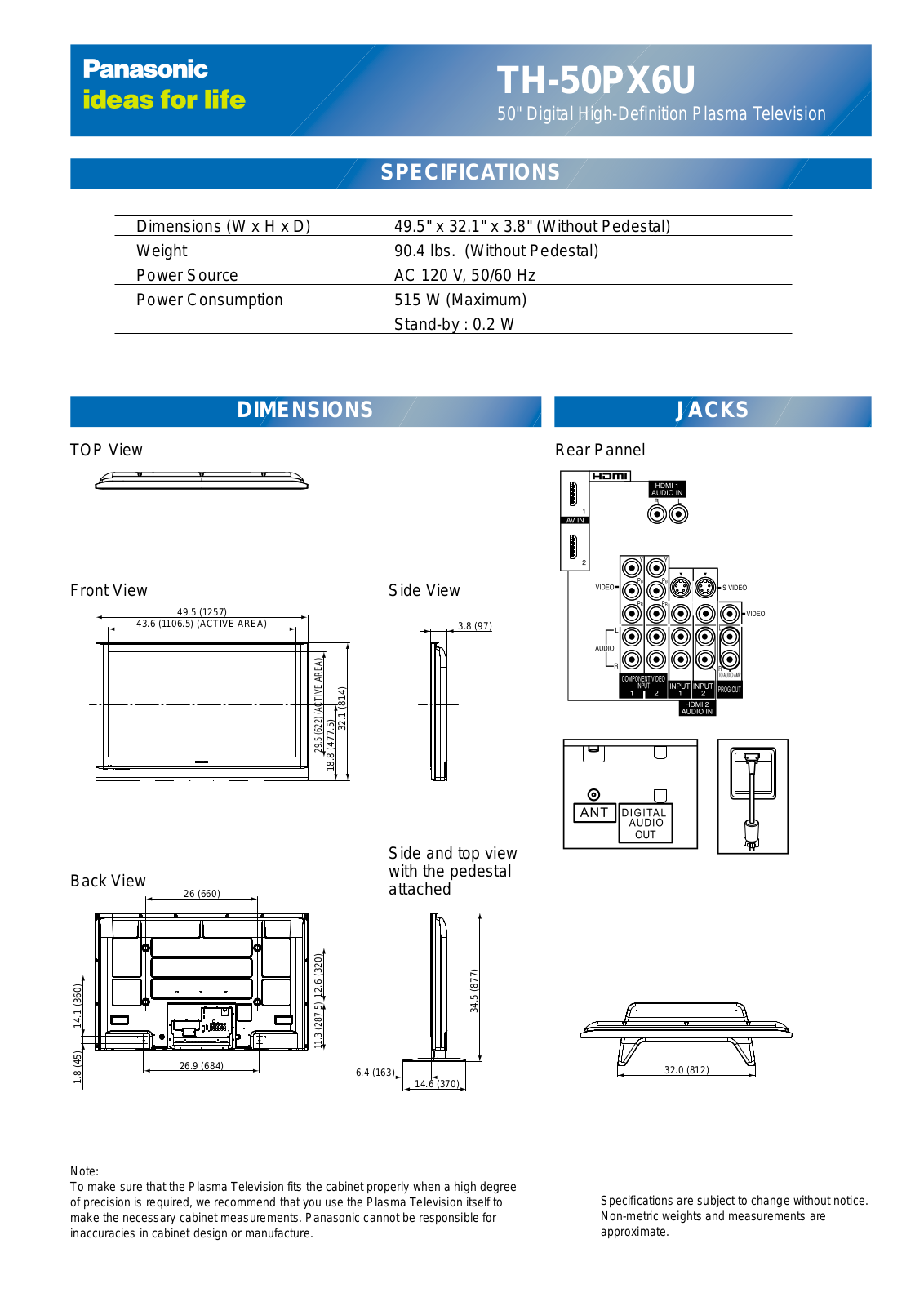

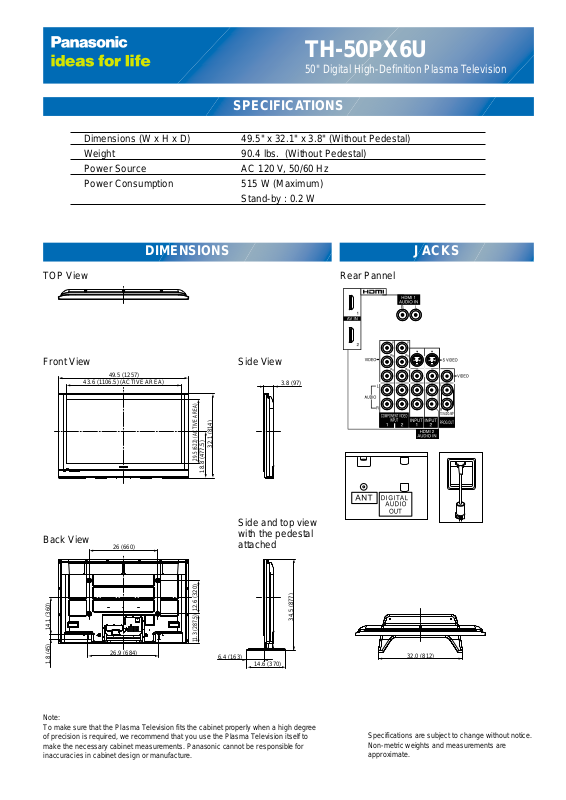

Panasonic th-50px6 cut sheet

TH-50PX6U

43.6 (1106.5) (ACTIVE AREA)

26 (660)

49.5 (1257)

3.8 (97)

32.0 (812)

26.9 (684)

6.4 (163)

14.6 (370)

29.5 (622) (ACTIVE AREA)

32.1 (814)

34.5 (877)

11.3 (287.5)

12.6 (320)

1.8 (45) 14.1 (360)

18.8 (477.5)

50" Digital High-Definition Plasma Television

SPECIFICATIONS

Dimensions (W x H x D) 49.5" x 32.1" x 3.8" (Without Pedestal)
Weight 90.4 lbs. (Without Pedestal)
Power Source AC 120 V, 50/60 Hz
Power Consumption 515 W (Maximum)

Stand-by : 0.2 W

DIMENSIONS JACKS

TOP View

Front View

Back View

Rear Pannel

Side View

Side and top view
with the pedestal
attached

Note:
To make sure that the Plasma Television fits the cabinet properly when a high degree
of precision is required, we recommend that you use the Plasma Television itself to
make the necessary cabinet measurements. Panasonic cannot be responsible for
inaccuracies in cabinet design or manufacture.

Specifications are subject to change without notice.
Non-metric weights and measurements are
approximate.
