Panasonic TH-40D400A, TH-40D400Z User Manual

Operating Instructions

LED TV

Model No.

Australia

New Zealand

TH-40D400A TH-40D400Z

English

Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating
this product and retain them for future reference.

The images shown in this manual are for illustrative
purposes only.
Some illustrations are presented as conceptual images
and may be different from the actual products.
Illustrations shown may be different between models
and countries.

Transport only in upright position

ECJ

TQB4GC1638

Manufactured under license
from Dolby Laboratories. Dolby
and the double-D symbol
are trademarks of Dolby
Laboratories.

HDMI, the HDMI Logo, and High-Definition Multimedia
Interface are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other
countries.

This product is licensed under the AVC patent portfolio
license for the personal and non-commercial use of a
consumer to (i) encode video in compliance with the
AVC Standard (“AVC Video”) and/or (ii) decode AVC
Video that was encoded by a consumer engaged in
a personal and non-commercial activity and/or was
obtained from a video provider licensed to provide AVC
Video. No license is granted or shall be implied for any
other use.
Additional information may be obtained from MPEG LA,
LLC.
See http://www.mpegla.com.

Panasonic does not guarantee operation and
performance of peripheral devices made by other
manufacturers; and we disclaim any liability or damage
arising from operation and/or performance from usage of
such other maker’s peripheral devices.

This mark shows that the construction of the product is
double-insulated.

Contents

Safety Precautions ··································3

Setting Up the TV ····································4

Connecting the TV ··································6

Initial Setup ············································8

Operating the TV ·····································8

Using TV Guide / Freeview Guide ············ 10

Watching External Inputs ······················· 10

Using Media Player ······························· 11

Using the Menu Functions ····················· 13

Additional Information ··························· 18

Troubleshooting ··································· 20

Maintenance ········································· 21

Specifications······································· 21

Warranty (Australia) ······························ 23

Warranty (New Zealand) ························· 24

This mark indicates the product operates under AC
voltage.

Even if no special notation has been made of company
or product trademarks, these trademarks have been fully
respected.

2

Safety Precautions

To help avoid risk of electrical shock, fire, damage or
injury, please follow the warnings and cautions below:

■ Mains plug and lead

Warning

If you detect anything
unusual, immediately
remove the mains plug.

●

Mains plug types vary
between countries.

●

This TV is designed to operate on AC 220 - 240 V,
50/60 Hz

●

Insert the mains plug fully into the mains socket.

●

To turn Off the apparatus completely, you must pull the
mains plug out of the mains socket.
Consequently, the mains plug should be easily
accessible at all times.

●

Disconnect the mains plug when cleaning the TV.

●

Do not touch the mains plug with wet hands.

●

Do not damage the mains lead.

• Do not place a heavy object
on the lead.

• Do not place the lead near a
high temperature object.

• Do not pull on the lead. Hold
onto the mains plug body
when disconnecting the plug.

• Do not move the TV with the lead plugged into a
mains socket.

• Do not twist the lead, bend it excessively or stretch it.

• Do not use a damaged mains plug or mains socket.

• Ensure the TV does not crush the mains lead.

●

Do not use any mains lead other than that provided
with this TV.

■ Take care

Warning

●

Do not remove covers and never
modify the TV yourself as live parts
are accessible and risk of electric
shock when they are removed.

●

Do not expose the TV to rain
or excessive moisture. This TV
must not be exposed to dripping
or splashing water and objects
filled with liquid, such as vases,
must not be placed on top of or
above the TV.

●

Do not insert foreign objects into the TV through the
air vents.

●

Do not use an unapproved pedestal / mounting
equipment. Be sure to ask your local Panasonic dealer
to perform the setup or installation of approved wall­hanging brackets.

●

Do not apply strong force or impact to the display
panel.

●

Ensure that children do not climb on the TV.

●

Do not place the TV on sloped
or unstable surfaces, and
ensure that the TV does not
hang over the edge of the base.

Warning

Never place a TV in an unstable location. A TV
may fall, causing serious personal injury or death.
Many injuries, particularly to children, can be avoided
by taking simple precautions such as:

●

Using cabinets or stands recommended by the
manufacturer of the TV.

●

Only using furniture that can safely support the TV.

●

Ensuring the TV is not overhanging the edge of the
supporting furniture.

●

Not placing the TV on tall furniture (for example,
cupboards or bookcases) without anchoring both
the furniture and the TV to a suitable support.

●

Not placing the TV on cloth or other materials
placed between the TV and supporting furniture.

●

Educating children about the dangers of climbing on

furniture to reach the TV or its controls.
If your existing TV is being retained and relocated,
the same considerations as above should be applied.

●

This TV is designed for table-top use.

●

Do not expose the TV to direct
sunlight and other sources of
heat.

To prevent the
spread of fire, keep
candles or other
open flames away
from this product at
all times

■ Suffocation / Choking Hazard

Warning

●

The packaging of this product may cause suffocation,
and some of the parts are small and may present a
choking hazard to young children. Keep these parts
out of reach of young children.

■ Pedestal

Warning

●

Do not disassemble or modify the pedestal.

Caution

●

Do not use any pedestal other than the one provided
with this TV.

●

Do not use the pedestal if it becomes warped or
physically damaged. If this occurs, contact your
nearest Panasonic dealer immediately.

●

During setup, make sure that all screws are securely
tightened.

●

Ensure that the TV does not suffer any impact during
installation of the pedestal.

●

Ensure that children do not climb onto the pedestal.

●

Install or remove the TV from the pedestal with at least
two people.

●

Install or remove the TV by the specified procedure.

Safety Precautions

3

■ Ventilation

Caution

Allow sufficient space (at least 10 cm) around the TV in
order to help prevent excessive heat, which could lead
to early failure of some electronic components.

10

10

●

Ventilation should not be
impeded by covering the
ventilation openings with
items such as newspapers,
tablecloths and curtains.

●

Whether you are using a pedestal or not, always
ensure the vents at the bottom of the TV are not

Safety Precautions | Setting Up the TV

blocked and there is sufficient space to enable
adequate ventilation.

10

10

■ Moving the TV

Caution

Before moving the TV, disconnect all cables.

●

At least two people are required to move the TV.

■ When not in use for a long time

Caution

This TV will still consume some power even in the Off
mode, as long as the mains plug is still connected to a
live mains socket.

●

Remove the mains plug from the wall socket when the
TV is not in use for a prolonged period of time.

■ Battery for the Remote Control

Caution

●

Incorrect installation may cause battery leakage,
corrosion and explosion.

●

Replace only with the same or equivalent type.

●

Do not mix old and new batteries.

●

Do not mix different battery types (such as alkaline and
manganese batteries).

●

Do not use rechargeable batteries (Ni-Cd, etc.).

●

Do not burn or break up batteries.

●

Do not expose batteries to excessive heat such as
sunshine, fire or the like.

●

Make sure you dispose of batteries correctly.

●

Remove the battery from the unit when not using for
a prolonged period of time to prevent battery leakage,
corrosion and explosion.

Setting Up the TV

Supplied accessories

Accessories may not be placed all together. Take care
not to throw them away unintentionally.

Operating Instructions with Warranty
statement

Remote Control

●

N2QAYB000976

(p. 10)

Batteries (R6) × 2

(p. 5)

Mains Lead

(p. 6)

Pedestal

(p. 4 - 5)

●

Assembly screws

(M5 × 15 mm) × 4

(M4 × 12 mm) × 4

●

Bracket

Fall-prevention parts

●

Screw

●

Wood screw

●

Band

(p. 5)

Attaching the pedestal

●

Base

1

4

Inserting remote’s batteries

Press the hook and
lift the cover

Note the correct
polarity (+ or -)

2

Wall mounting the TV (optional)

Choosing to wall mount the TV shall be done at the

3

owner’s risk and expense. Always use a qualified
installer to perform a TV wall bracket installation.
Incorrect installation may cause TV to fall, resulting in
personal injury and product damage that is not covered
by warranty.

Rear of the TV

a

b

(View from the side)

Depth of
screw

Setting Up the TV

Preventing the TV from falling over

It is recommended to secure the pedestal to a furniture
as shown to prevent the TV from falling over.

●

This information is designed to reduce the risk of
injuries caused by the TV falling over. However, no
measure can guarantee protection in all cases.

Optional position for installation

Screw

Band

Wood screw

Removing the pedestal from the TV

Be sure to remove the pedestal in the following way
when using the wall-hanging bracket or repacking the
TV.

1 Lay the TV on a foam mat or thick soft cloth on a

table.

2 Remove the assembly screws from the TV.
3 Pull out the pedestal from the TV.
4 Remove the assembly screws from the bracket.

Screw for fixing the TV onto the
wall-hanging bracket (not supplied)

■ Holes for wall-hanging bracket installation

a: 200 mm
b: 200 mm

■ Screw specification

Type: M6
Depth of screw:

Minimum: 9 mm
Maximum: 10 mm

Warning

●

When optional accessories such as wall brackets etc.
are used, always read and follow the manufacturer
installation and usage instructions.

●

Do not mount the unit directly below ceiling lights (such
as spotlights or halogen lights) which typically give
off high heat. Doing so may warp or damage plastic
cabinet parts.

●

When installing wall brackets you must ensure the wall
bracket is not electrically grounded to metal wall studs.
Always ensure that there are no electrical cables,
pipes etc. in the wall before you begin the wall bracket
installation.

●

To prevent fall and injury, remove the TV from its fixed
wall position when it is no longer in use.

5

Connecting the TV

●

Please ensure the TV is disconnected from the mains
socket / power point before attaching or disconnecting
any RF / AV leads.

●

External equipment and cables are for illustrative
purposes only and not supplied with this TV.

●

Check the type of terminals and cable plugs are
correct when connecting.

●

When using an HDMI cable, use the fully wired one.

●

Keep the TV away from electronic equipment (video
equipment, etc.) or equipment with an infrared sensor.
Otherwise, distortion of image / sound may occur or
operation of other equipment may be interfered.

●

Also read the manual of the equipment being
connected.

Connecting the TV

Terminals

Rear of the TV

1

2

HDMI 1 - 2

1
2 AV IN
3 Aerial terminal
4 DIGITAL AUDIO OUT
5 USB port

4

3

Connections

Aerial and mains lead

Aerial

RF cable

Mains lead
(supplied)

Insert the mains plug firmly into place.

●

When disconnecting the mains lead, be absolutely
sure to disconnect the mains plug at the socket outlet
first.

●

To minimise DTV impulse noise pickup, please ensure
there is separation between mains lead and RF cable.

●

Do not place the RF cable under the TV.

●

An aerial, corraect cable (75  coaxial) and correct
terminating plug are required to obtain optimum quality
picture and sound.

●

5

If a communal aerial system is used, you may require
the correct connection cable and plug between the wall
aerial socket and the TV.

●

Your local Television Service Centre or dealer may be
able to assist you in obtaining the correct aerial system
for your particular area and the accessories required.

●

Any matters regarding aerial installation, upgrading
of existing systems or accessories required, and
the costs incurred, are the responsibility of you, the
customer.

●

If the aerial is placed in the wrong location, interference
might happen.

6

DTV Recorder / PVR / VCR

TV

■ Using COMPOSITE terminals

TV

Equipment

RG6Q Fly Lead

RG6Q Fly Lead

ANT

DTV Recorder / PVR / VCR

●

To maintain optimum antenna signal quality, use an “F”
type TV signal splitter (as illustrated) when connecting
two or more devices to the same antenna socket.

“F” type Antenna Splitter

RG6Q Fly Lead

Out

In

Antenna Socket

Wall Plate

Set top box

Satellite dish

TV

HDMI cable

Set top box

AV / Game equipment

■ Using HDMI terminal

TV

HDMI cable

●

You can also make similar connection via HDMI 2.

Equipment

■ Using COMPONENT terminals

TV

Equipment

Video cable

Audio cable

Speaker system

Amplifier with

speaker system

TV

HDMI cable

●

Use HDMI 2 for connecting an amplifier that has ARC
(Audio Return Channel) function.
For an amplifier without ARC function, use DIGITAL
AUDIO OUT.

●

To enjoy the sound from the external equipment in
multi-channel sound (e.g. Dolby Digital 5.1ch), connect
the equipment to the amplifier. For the connections,
read the manuals of the equipment and amplifier.

Connecting the TV

Component
video cable

Audio cable

7

Using the Menu

S

t

p

Change

RETURN

n

Main

Menu


Sound

Timer

Setup

Mode

Bass

Menu

Treb

le

ce

n

S

eferred Audio

1

S

n

Music

Off

Off

Functions

1 Display the menu.

MENU

Example:

Menu Item Setting

Sound Menu

Sound

Main Menu

Mode


Bass
Treble

Sound

Balan

Balance
Surround

Timer

Auto Gain Control

Auto Gain Control
Volume Correction

Volume Correctio

Setup

Speaker Distance to Wall

peaker Distance to Wall

Preferred Audio 1

Pr
SPDIF Selection

PDIF Selectio

Select

elec

Change

Using the Menu Functions

2 Select the menu.

3 Select the item.

4 Change the setting.

Example:

●

Change the setting option

Surround

●

Adjust the intensity bar

Bass

●

Access the submenu

Child Lock Access

Note

●

Only available items can be selected.

8

RETURN

Operation guide

Select

OK

Access

Select

OK

Change / Adjust / Access / Reset

Off

On


[Viewing Mode]

Sets the picture mode for each input. [Dynamic] /
[Normal] / [Cinema] / [True Cinema]

[Dynamic]: Improves contrast and sharpness for

viewing in a bright room.

[Normal]: For viewing in a normal lighting condition.
[Cinema]: Improves the performance of contrast,

black and colour reproduction for watching movies in a
darkened room.
[True Cinema]: Reproduces the original image quality
precisely without any revision.

Music

Off
Off

Over 30cm
English
PCM

PCM

Page up

Page u

Page down

Page dow

Select

OK

Access

OK

Adjust

OK

Access

In each [Viewing Mode], the settings for [Backlight],
[Contrast], [Brightness], [Colour], [Sharpness], [Tint],
[Colour Balance], [Eco Mode], [P-NR] and [3D-COMB]
can be adjusted and stored for each input.

[Backlight], [Contrast], [Brightness],
[Colour], [Sharpness]

Increases or decreases the levels of these options
according to your personal preference.

[Tint]

Adjusts the picture hue to suit your taste.

●

For NTSC signal reception.

[Colour Balance]

Selects the colour temperature of the picture.

[Cool] / [Normal] / [Warm]

●

Not available when [Viewing Mode] is set to [True
Cinema].

[Channel Colour Set]

Adjusts the suitable colour density from 3 levels for each
channel.

●

Select the channel to adjust and set this function.

[Eco Mode]

Automatically adjusts picture settings depending on
ambient lighting conditions. [Off] / [On]

[P-NR]

Picture noise reduction function which reduces
unwanted picture noise and flicker noise in the
contoured parts of a picture. [Off] / [Min] / [Mid] / [Max]

[3D-COMB]

Makes still or slow moving pictures more vivid.

[Off] / [On]

●

Set to [On] to improve the colours if patterning is seen
while watching still or slow moving pictures.

●

For PAL / NTSC signal reception in TV mode or from
composite input.

[Colour Matrix]

Adjusts suitable colour parameters for [SD] (standard
definition) or [HD] (high definition).

[SD]: Input signal is a normal TV system.
[HD]: Input signal is a high definition system.

●

Available only with 480p or 576p input on video signals
in a natural colour from digital equipment connected to
COMPONENT or HDMI terminal.

[Colour System]

Selects optional colour system based on video signals
in AV mode. [Auto] / [PAL] / [SECAM] / [M.NTSC] /

[NTSC]

Initial Setup

When you first turn on the TV, a series of steps will pop­up to guide you to setup your TV.

●

These steps are not necessary if the setup has been
completed by your local dealer.

1 Plug the mains plug into the socket

outlet and turn on the TV.

It may take a few seconds before the screen is
displayed.

4 Select [Home].

Please select your viewing environment.

Home Shop

OK

Change
Confirm

●

[Shop] is for shop display.

●

To change the viewing environment later on, you
need to initialise all settings by accessing [Shipping
Condition] (p. 15).

Setup is now complete and your TV is ready for
viewing.

AC 220 - 240 V,
50/60 Hz

Proceed to steps 2, 3 and 4.

you turn on the TV (step 3). After scanning is
completed, proceed to step 4.

Scanning starts automatically when

2 Select your area.

Select State/Territory

New South Wales/Australian Capital Territory

OK

Select

Access

Victoria

Queensland

South Australia
Western Australia
Northern Territory

Tasmania

3 Scanning starts.

[Automatic Channel Search]

[Auto Tuning]

Example:

Automatic Channel Search

Status: Scanning...
Analogue : 0
Digital : 1

Scan

EXIT

RETURN

●

This function searches and stores TV channels.

●

The stored channels and sorted channel order vary
depending on the area, broadcasting system and
conditions of signal reception.

5%

Note

●

If tuning has failed, check the connection of the RF
cable, then follow the on-screen instructions.

Operating the TV

Using the TV controls

Indicators on the TV

56 7

1 Changes the input mode

Displays [Main Menu] when press and hold for
3 seconds

●

Press again and hold for 3 seconds to return to the
previous screen from submenus / exit from main
menu page.

2 Channel Up / Down

Cursor Up / Down

●

Makes selections in the menu system.

3 Volume Up / Down

Cursor Left / Right

●

Makes selections and / or adjustments when in the
menu system.

4 Mains power On / Off switch

●

Use to switch the mains power.

5 Remote control signal receiver
6 C.A.T.S. (Contrast Automatic Tracking System)

sensor

●

Senses brightness to adjust picture quality when
[Eco Mode] in the [Picture] menu is set to [On].

(p. 8)

7 Power LED

●

Red: Standby
Green: On

●

The LED blinks when the TV receives a command
from the remote control.

Initial Setup | Operating the TV

1

2

3

4

9

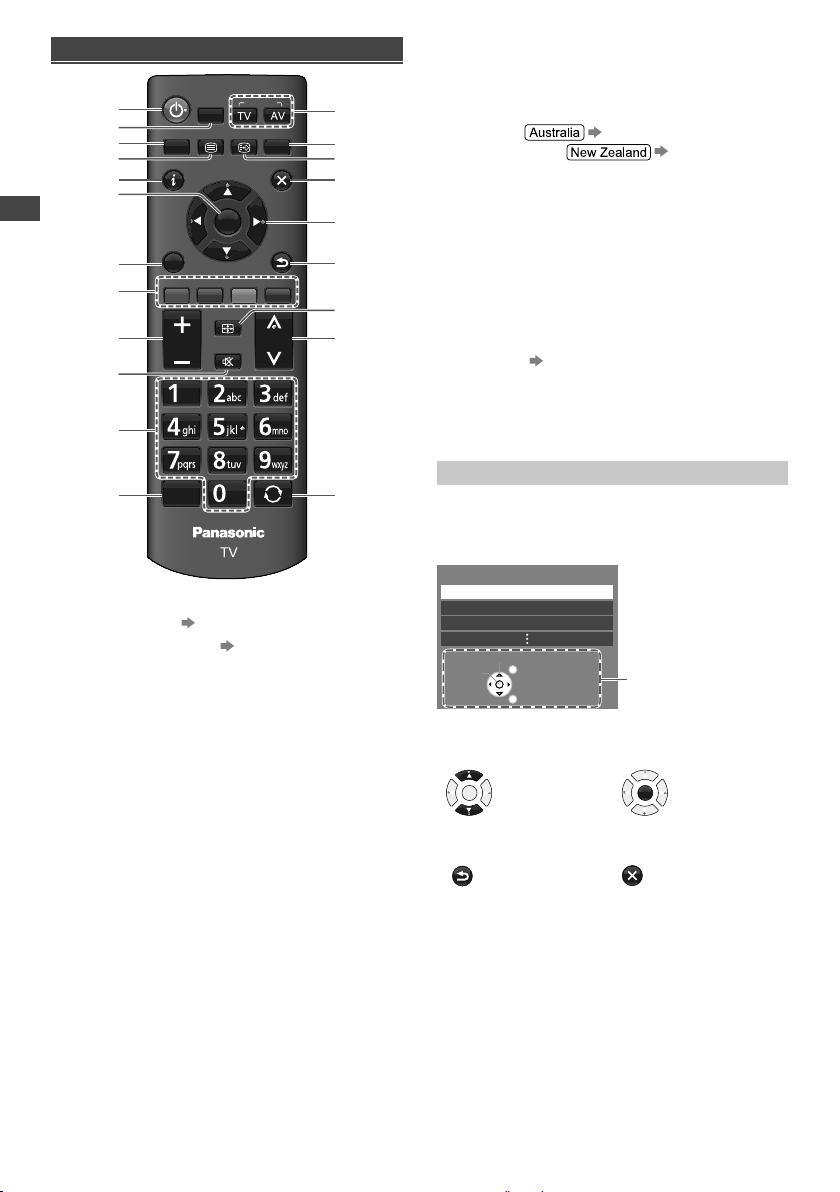

Using the remote control

POWER

MEDIA

1
2

3
4

5
6

7

8

Operating the TV

9

10

11

PLAYER

MENU

TEXT STTL

INFO

OPTION

RGY B

VOL

OK

ASPECT

MUTE

INPUT

GUIDE

EXIT

RETURN

CH

13

14
15

16

17

18

19

20

13 Input mode selection

●

TV - switches to TV input mode (Digital TV or

Analogue TV).

●

AV - displays [Input Selection] screen (p. 11) or

press repeatedly to select the input mode.

14 TV Guide (p. 11)

Freeview Guide

(p. 11)

15 Displays subtitles / audio description

Displays favourite page in teletext mode

16 Exits to the TV viewing screen
17 Cursor buttons

●

Makes selections or adjustments.

18 Returns to the previous menu / page
19 ASPECT

●

Displays the [Aspect Selection] screen. Follow the
operation guide to select the mode. [16:9] / [14:9] /

[Just] / [4:3] / [4:3 Full] / [Zoom1] / [Zoom2] /
[Zoom3]

●

You can also press the button repeatedly to select

(p. 18)

the mode.

20 Channel Up / Down
21 Returns to the last viewed channel

12

STILL

LAST VIEW

1 Switches the TV On / Standby
2 MEDIA PLAYER (p. 12)
3 Displays [Main Menu] (p. 8)
4 Switches to Teletext mode
5 Displays Information banner
6 OK

●

Confirms selections.

●

Press after selecting channel positions to quickly
change channel.

●

Displays the [Channel List].

7 Displays [Option Menu]

●

Shortcut to subtitle language / sound settings.

●

Follow the operation guide to select / change the
settings.

8 Coloured buttons

●

Performs multiple operations which correspond to
the operation guide displayed on the menu screen.

9 Volume Up / Down
10 Sound Mute On / Off
11 Numeric buttons

●

Changes channel / teletext pages.

●

Sets characters.

●

When in Standby mode, switches TV On.

12 Freezes / unfreezes picture

21

About operation guide

When operating the TV with the remote control, follow
the operation guide available at the bottom of the screen
to perform the operation you want.

Example: [Aspect Selection]

Aspect Selection

16:9

14:9
Just

Select

Change

Referring to the operation guide:

●

To select the mode

●

To return to the previous
menu

RETURN EXIT

EXIT

RETURN

Operation guide

●

To change to the selected
mode

OK OK

●

To exit from the menu

10

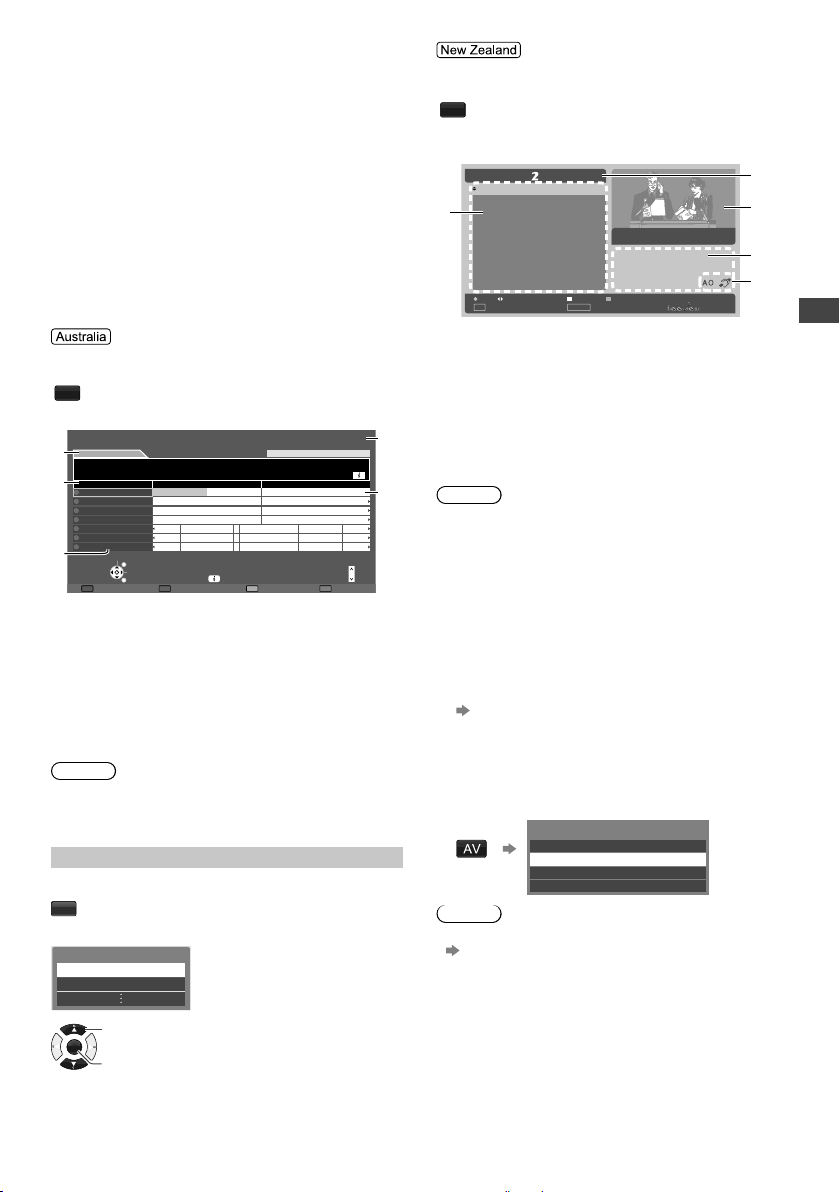

Using TV Guide /
Freeview Guide

The TV Guide / Freeview Guide - Electronic Programme
Guide (EPG), shows a list of broadcasts for several days
(depending on the broadcasters).

●

When this TV is turned on for the first time, or switched

off for more than a week, it may take some time before

the TV Guide / Freeview Guide is completely shown.

●

This function varies depending on the area you select

(p. 9).

●

Digital and Analogue channels are displayed on the

same TV Guide screen. There will be no programme

listings for Analogue channels.

●

TV mode only.

Display the TV Guide.

GUIDE

Example:

TV Guide Tuesday, 6-December-2015 13:10:28

06/12/2015

2

NDR FS NDS
8:00 - 8:30 Schleswig-Holstein Magazin

Time:

3

A

117 NDR FS NDS

A

118 NDR FS HH

A

119 NDR FS SH

A

120 NDR FS MV

A

122 MDR Sachsen

A

123 MDR S-Anhalt

A

124 MDR Thüringen

Select

5

1

EXIT
Programme
RETURN

Current date and time

8:00 9:00

Schleswig-Holst...

buten un binnen... Hallo Niedersac... Das Beste aus E...

Schleswig-Holst...

buten un binnen...

Schleswig-Holst...

buten un binnen...

Schleswig-Holst...

buten un binnen...

Haral... Rucksack artour Leben für 4... MDR...

Haral... Rucksack artour Leben für 4... MDR...

Haral... Rucksack artour Leben für 4... MDR...

Information

Next day Type filter

NEWS

Hallo Niedersac... Das Beste aus E...

Hallo Niedersac... Das Beste aus E...

Hallo Niedersac... Das Beste aus E...

Page down

2 TV Guide date

3 TV Guide time

4 Programme

5 Channel position and name

Follow the operation guide to operate the TV
Guide.

Note

●

It may be slow to response when pressing the UP/

DOWN cursor button for TV program guide. This is due

to program data downloading.

[Type filter]

Lets you view a channel list of the selected type filter.

B

(Press again to return to TV Guide.)

(Type list)

Type

MOVIE

NEWS

Select [Type]

OK

Add/Remove

1

4

Page up

Display the Freeview Guide.

GUIDE

(Each press will toggle the screen between the
Freeview Guide Listing and What’s on Now /
Next.)

Example: Freeview Guide Listing

5

20:30 Lost

21:30 Dirty Sexy Money

22:30 The Knights Of

Prosperity

22:55 Entourage

23:30 Reality Bites:

Bodyshock - Half Ton...

Prog

OK

Watch TV

Wed 6 Apr

Next WeekChnl Next Day

EPG/Guide

Now/Next

TV ONE, 20:00

Sayid confronts Ben's spy on the
freighter, and Ben urges daughter
Alex to flee Locke's camp in order
to survive an impending attack.

Parental Rating captioning Information

1

2

3

4

1 Current day and date
2 Current programme
3 Programme description
4 Parental rating and captioning information
5 Current channel’s programme listing

Follow the operation guide to operate the
Freeview Guide.

Note

●

The Freeview Guide screen and operations are subject
to change without notice.

Watching External
Inputs

1 Connect the external equipment.

(p. 7)

2 Display the [Input Selection] menu,

then select the input of the connected
equipment.

Example:

Input Selection

TV

AV

HDMI 1
HDMI 2

Note

●

You can label or skip each input mode.

[Input Labels] (p. 15)
Skipped inputs will not be displayed when the AV
button is pressed.

●

If the external equipment has an aspect adjustment
function, set it to “16:9”.

Using TV Guide / Freeview Guide | Watching External Inputs

11

Using Media Player

Media Player allows you to enjoy photo, music or video
recorded on a USB Flash Memory.

●

During the operation, audio signal is output from
DIGITAL AUDIO OUT or HDMI 2 (ARC function)
terminals. To use HDMI 2 with ARC function, connect
an amplifier that has ARC function and set to use
theatre speakers (p. 7).

●

The picture may not appear correctly on this TV
depending on the digital cameras used.

●

Display may take some time when there are many files
and folders in the USB Flash Memory.

●

Partly degraded files might be displayed at a reduced
resolution.

●

The folder and file names may be different depending
on the digital camera used.

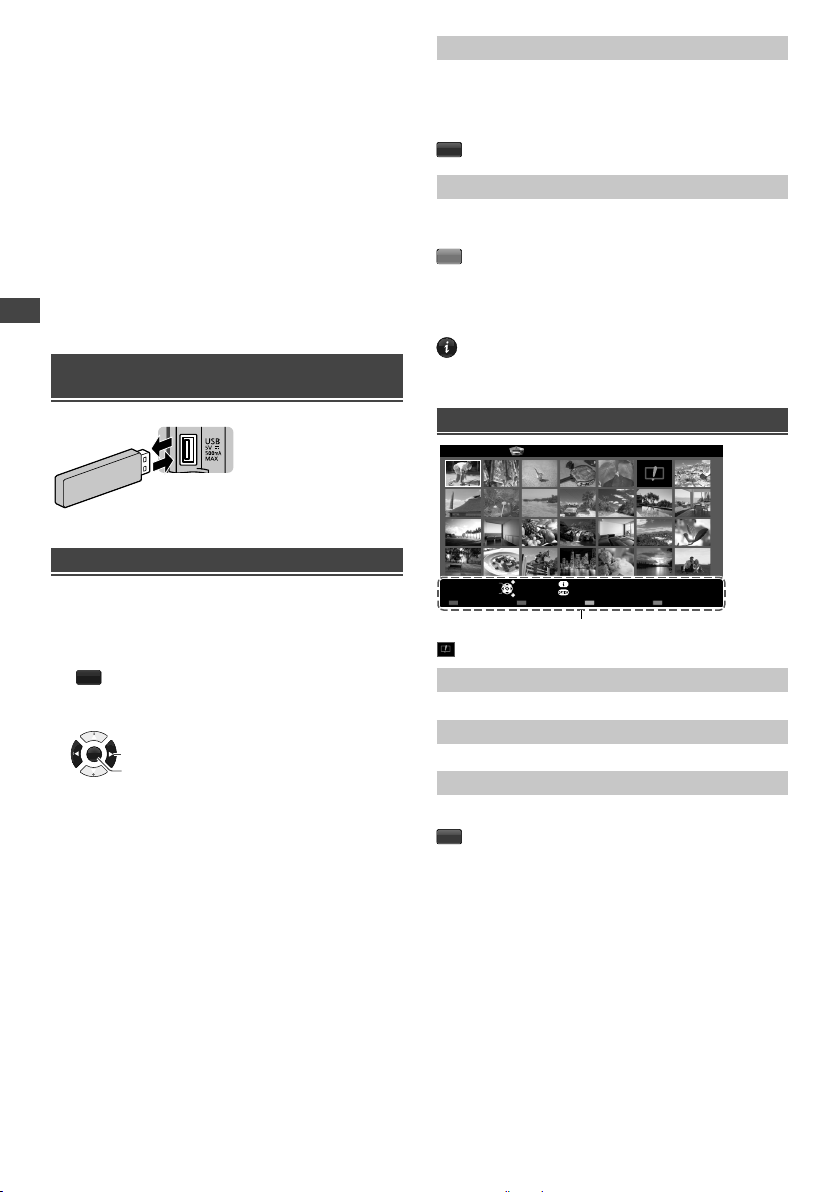

Inserting / Removing the USB Flash
Memory

TV

Using Media Player

●

Insert or remove
straight and
completely.

[Contents Select]

Switching between modes

When you are in the thumbnail view of any mode,
you can change to the other mode by accessing the
[Contents Select] screen.

B

[Drive Select]

For USB with partition, you can change to the other
partition directly in the same mode.

Y

Follow the operation guide to perform
available operations in each mode.

INFO

●

Displays the information of the highlighted
content.

●

Displays / hides the operation guide.

Photo mode

Media Player Photo All photos

Starting Media Player

1 Insert the USB Flash Memory.
2 Start Media Player.

MEDIA

PLAYER

3 Select the mode.

OK

Select
Access

[Photo]: Displays the thumbnail of all photos in the

[Music]: Displays the thumbnail of music folders in

[Movie]: Displays the thumbnail of video titles in the

USB Flash Memory.

the USB Flash Memory.

USB Flash Memory.

EXIT

View

Select

Slideshow View Select Drive Select Contents Select

: Error display

Info
Option Menu

RETURN

Operation guide

USB

[View]

Enters Single view mode to view photo one at a time.

[Slideshow]

Lets you view all photos in the slideshow mode.

[View Select]

Lets you toggle between all photos view and folder view.

G

[All photos]: Displays all photos.
[Folder view]: Displays the thumbnails grouped by

folder.

12

[Option Menu]

■ [Slideshow Settings]

– [Transition Effect]: Effect for photo switching during

slideshow. [None] / [Dissolve] / [Wipe right] / [Wipe
left] / [Wipe up] / [Wipe down] / [Box in] / [Box out] /
[Random]

– [Screen Mode]: Screen mode for Single view and

Slideshow. [Normal] / [Zoom]

• In [Normal] screen mode, depending on the photo
size, it may not be fully enlarged to fill the screen.
E.g.: portrait style picture.

– [Interval]: Slideshow interval. [5] / [10] / [15] / [30] /

[60] / [90] / [120] (seconds)

– [Repeat]: Slideshow repeat. [Off] / [On]

– [Back Ground Music]: Background music during

photo viewing. [Off] / [Type1] / [Type2] / [Type3]

Note

●

Picture quality may become lower depending on the
slideshow settings.

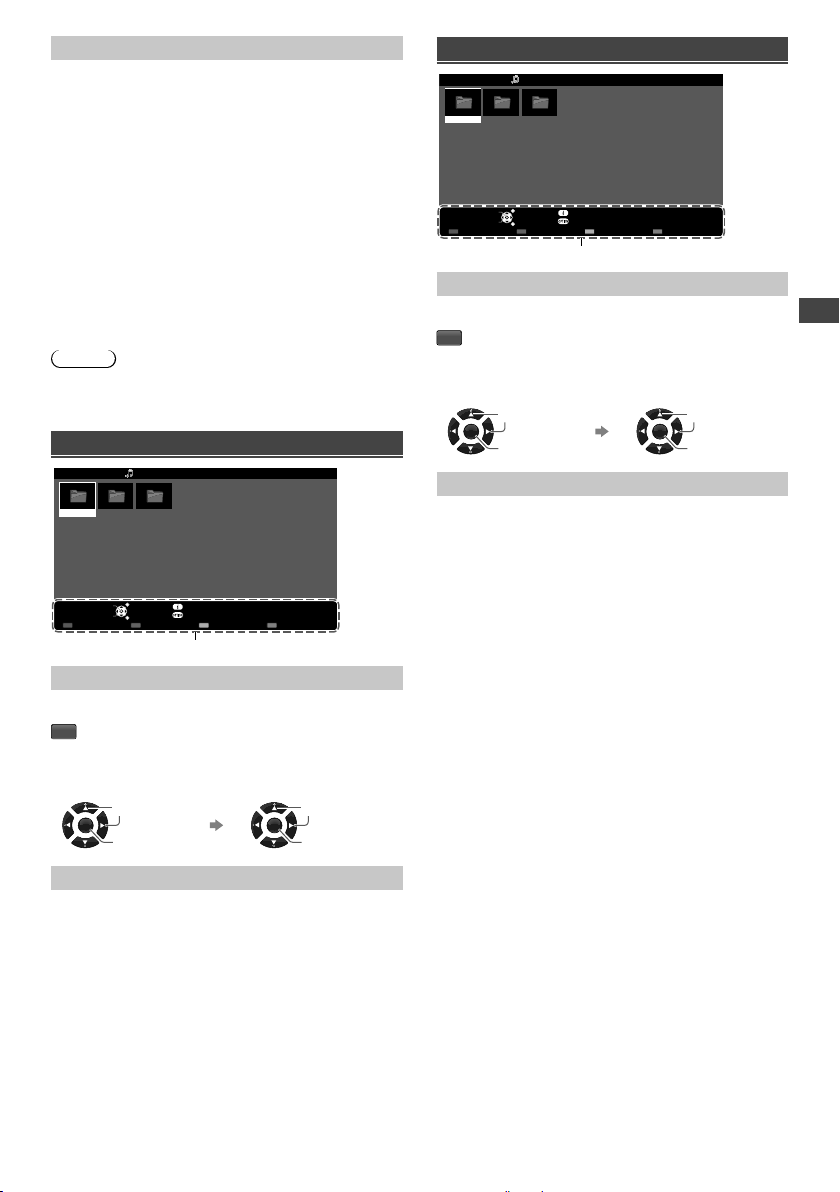

Music mode

Media Player Music Folder view

My Music_1

Play Folder Contents Select

[Play Folder]

Playbacks all music in the selected folder.

R

Access

Select

My Music_2

My Music_3

EXIT

Info
Option Menu

RETURN

Operation guide

Drive Select

USB

Movie mode

Media Player Movie Title view

My Movie_1

Play Folder Contents Select

Access

Select

My Movie_2

My Movie_3

EXIT
RETURN

Info
Option Menu

Drive Select

USB

Operation guide

[Play Folder]

Playbacks all movies in the selected folder.

R

■ To playback the selected file only

Select the folder. Select the file.

Select

OK

Access

Select

OK

Play

[Option Menu]

■ [Video Setup Menu]

– [Multi Audio]: Selects the sound tracks (if available)

during video playback.

– [Subtitle]: Selects the subtitle (if available) during

video playback.

– [Aspect Change]: Selects the aspect mode during

video playback. [16:9] / [14:9] / [Just] / [4:3] / [4:3
Full] / [Zoom1] / [Zoom2] / [Zoom3]

• You can also change the aspect by pressing the
ASPECT button repeatedly.

– [Repeat]: Playback repeat options. [Off] / [On]

Using Media Player

■ To playback the selected file only

Select the folder. Select the file.

Select

OK

Access

Select

OK

Play

[Option Menu]

■ [Music Setup Menu]

– [Repeat]

• [One]: Playback repeat on the selected one file.

• [Folder]: Playback repeat within the selected folder.

• [Off]: Playback repeat off.

13

[16:9 Overscan]

Selects the screen area displaying the image for 16:9
aspect. [Off] / [On]

[On]: Enlarges the image to hide the edge of the
image.
[Off]: Displays the image in the original size.

●

Set to [On] if noise is generated on the edge of the
screen.

●

This function can be memorised separately for SD
(Standard definition) and HD (High definition) signals.

[16:9 H size]

Adjusts the horizontal display range to reduce noise on
both side edges of an image for 16:9 aspect. [Size 1 /

Size 2]

●

When [16:9 Overscan] is set to [On],

– [Size 1]: displays the image at 95 % with horizontal

stretched.

– [Size 2]: displays the image 95 % with side mask.

●

When [16:9 Overscan] is set to [Off],

– [Size 1]: displays the image at 100 % with horizontal

stretched.

– [Size 2]: displays the image 100 % with side mask.

[Reset to Defaults]

Resets the current picture settings to defaults.

Sound

[Mode]

Sets your favourite sound mode. [Music] / [Speech] /
[User]

●

The selected mode affects all input signals.

Using the Menu Functions

[Music]: Improves sound quality for watching music

videos, etc.
[Speech]: Improves sound quality for watching news,
drama, etc.



In [Music] and [Speech] modes, you can adjust the
[Bass] and [Treble] settings, and those settings will be
stored for each mode.

[User]: Adjusts the sound manually by using the
equaliser.

– When you select [User] mode, [Equaliser] is active

instead of [Bass] and [Treble]. Select [Equaliser] and
adjust the frequency. (p. 14)

[Bass]

Adjusts level to enhance or minimise lower, deeper
sound output.

[Treble]

Adjusts level to enhance or minimise sharper, higher
sound output.

[Equaliser]

Adjusts the frequency level to suit your favourite sound
quality.

●

This function is available when [Mode] is set to [User].

●

Select the frequency and change the frequency level
by using the cursor buttons.

●

To enhance the bass sound, raise the level of the lower
frequency. To enhance the treble sound, raise the level
of the higher frequency.

●

To reset the levels of each frequency to the default
settings, select [Reset to Defaults] by using the cursor
button, and then press the OK button.

[Balance]

Adjusts volume level of right and left speakers.

[Surround]

Surround sound settings. [Off] / [On]

[Auto Gain Control]

Automatically regulates large sound level differences
between channels and inputs. [Off] / [On]

[Volume Correction]

Adjusts the volume of individual channel or input mode.

[Speaker Distance to Wall]

Compensates for the low frequency sound due to the
distance between the speakers and the wall.

[Over 30cm] / [Up to 30cm]

●

If the distance between the TV and wall is over 30 cm,
[Over 30cm] is recommended.

●

If the distance between the TV and wall is within
30 cm, [Up to 30cm] is recommended.

[Preferred Audio 1]

Selects the preferred language for Digital TV multi audio
(depending on the broadcaster).

[MPX]

Selects multiplex sound mode (if available).

[Stereo]: Use this normally.
[Mono]: When stereo signal cannot be received.
[M1] / [M2]: Available while mono signal is transmitted.

●

For Analogue TV only.

[SPDIF Selection]

SPDIF: A standard audio file transfer format.
Selects the initial setting for digital audio output signal
from DIGITAL AUDIO OUT and HDMI 2 (ARC function)
terminals. [Auto] / [PCM]

[Auto]: Dolby Digital is output as Dolby Digital
Bitstream. HE-AAC and MPEG are output as PCM.
[PCM]: Digital output signal is fixed to PCM.

●

For Digital TV or video contents of Media Player.

[MPEG Optical Level]

Adjusts the audio level output from DIGITAL AUDIO
OUT terminal as the initial setting.

[-12 / -10 / -8 / -6 / -4 / -2 / 0 dB]

●

Normally, PCM sound is higher comparing with the
other types of audio track.

[HDMI 1/2 Input(HDMI)]

Selects to fit the input signal (p. 19).

[Digital] / [Analogue]

[Digital]: When sound is carried via the HDMI cable

connection.
[Analogue]: When sound is not carried via the HDMI­DVI adaptor cable connection.

●

For HDMI input only

[SPDIF Delay]

Adjusts the time delay for the sound output from
DIGITAL AUDIO OUT or HDMI 2 (ARC function)
terminals if the sound does not synchronise with the
image. [0] / [10] / [20 to 200] (msec)

[Downmix Mode]

Selects the output mode for listening to compressed
music. [Surround] / [Stereo] / [Dual1] / [ Dual2]

14

[Type]

Narration settings for impaired users (only available
in some countries). [Normal] / [Hearing Impaired] /

[Visually Impaired]

[Hearing Impaired]: Provides aids in understanding

and enjoyment with Digital TV subtitles (depending on
the broadcaster).
[Visually Impaired]: Activates the narration sound
track when available on the broadcast.

●

For Digital TV only.



[Visually Impaired] (below) is available after you have
selected this option.

[Visually Impaired]

■ [Speaker]

Narration sound track is output to the TV speakers.

[Off] / [On]

■ [Volume]

Adjusts the volume of the narration sound track.

■ [Pan and Fade]

Sets the audio pan and fade effect. [Off] / [On]

[Off]: Main Audio program.
[On]: Controls the level of the Main Audio Program

and the pan of the Associated Audio Program.

[Reset to Defaults]

Resets the current sound settings to defaults.

Timer

[Off Timer]

Sets the duration until the TV automatically goes to
Standby mode.

[Off] / [15 / 30 / 45 / 60 / 75 / 90 minutes]

[Region Selection]

Selects the region where you live to adjust the standard
time. [NSW/ACT] / [Victoria] / [Queensland] /

[South Australia] / [Western Australia] / [Northern
Territory] / [Tasmania]

[Daylight Saving]

Selects the time offset from the standard time for
Summer. [Auto] / [Off] / [1/2 hour] / [1 hour]

[Auto Standby]

Enables the TV to turn into Standby mode automatically
if no operation is performed after the selected period.

[Off] / [2 hours] / [4 hours]

●

Automatic input switching with the connected
equipment affects this function and time-count will be
reset.

Setup

[Link Settings]

■ [CEC]

When set to [On], the TV will automatically switch
to the appropriate HDMI input whenever an HDMI
connected equipment is initially turned on and play
mode is selected. [Off] / [On]

■ [Power off Link]

When set to [On], all HDMI connected equipment will
be turned off automatically by turning off the TV.

[Off] / [On]

– A Panasonic DVD Recorder will not turn off if it is still

in the Rec mode.

– The TV remains on even if all the HDMI connected

equipment are turned off.

[Child Lock] (p. 17)

[Tuning Menu] (p. 16 - 17)

[Display Settings]

■ [Preferred Subtitles 1]

Selects the preferred subtitle language for digital
channels (depending on the broadcaster).

■ [Preferred Subtitle Type]

Selects the preferred subtitle type for digital channels
(depending on the broadcaster). [Normal] / [Hearing

Impaired]

■ [Input Labels]

Accesses the input labels list to select the label of
each input mode or set to skip unconnected one for
easier identification and selection in [Input Selection]
(p. 11) or banner.

– To skip the input mode, select [Skip].

■ [Banner Display Timeout]

Sets how long the Information banner stays on screen
(p. 10). [0 (No display)] / [1 second] /

[2 - 10 (seconds)]

■ [Radio Mode]

Sets the timer to turn off the screen automatically when
a radio channel is selected.

[Off] / [5 / 10 / 15 / 20 seconds]

– The sound is active even when the screen is off.

This function could reduce power consumption when
listening to a radio channel.

– Press any button except Standby, Volume Up / Down

and Sound Mute buttons to turn on the screen.

– Not available in Analogue TV mode.

[System Menu]

■ [Shipping Condition]

Resets all settings, including tuning data, to the original
condition.

– Access this function and follow the on-screen

instructions to complete the procedures.

– Initial Setup (p. 9) will automatically start after

[Shipping Condition] completes.

■ [System Update] (p. 18)

■ [Software Licence]

Displays the software licence information.

■ [System Information]

Displays the software version.

[Power Save]

Reduces brightness of picture to economise on power
consumption. [Off] / [On]

Using the Menu Functions

15

Using the [Tuning Menu]

Use the [Tuning Menu] to retune the TV automatically or
manually, add new channels, check signal conditions,
create your favourite channel lists, skip unwanted
channels, etc.

[Automatic Channel Search]

[Auto Tuning]

Scan up

5%

EXIT

RETURN

5%

Scan down

Select

(TV mode only)

Retunes the channels received in your area
automatically.

●

Automatically searches and adds available channels to
the memory.

●

After the scan is complete, all previously saved
channels will be erased.

Example:

Automatic Channel Search

Status: Scanning...
Analogue : 0
Digital : 1

Scan

●

When the operation is completed, the channel at the
lowest position will be displayed.

●

If tuning has not been done completely, perform
[Analogue Manual Tuning].

[Scan]

Using the Menu Functions

Adds new channels automatically to the channel list.
Example: Antenna

Scan

Status: Scanning...
Analogue : 0
Digital : 1

Scan

[Analogue Manual Tuning]

Sets analogue channel manually.
Example: Antenna

Analogue Manual Tuning

Searching Channels

Start Frequency (MHz) 48.00

1 Enter the frequency to start scanning.
2 Select the scanning method.

OK

• [Scan up]: Scans ascendingly from the entered
frequency to higher frequencies.

• [Scan down]: Scans descendingly from the entered
frequency to lower frequencies.

[DVB-T Signal Condition]

Shows the Digital TV signal condition.
Example:

DVB-T Signal Condition

Channel

Signal Level

Signal Condition

Bit Error Rate 0.00E-06

40

96

96

These bars show the maximum signal value of the
selected channel.

[DVB-T Manual Tuning]

Searches for the Digital TV channels manually.
All channels found will be added to the Channel List.

Select a channel position, then start tuning.

DVB-T Manual Tuning

Antenna

Scan

Channel 40

Signal Level

Signal Condition

OK

Change

0%

96

96

Access

[Favourites Edit]

Creates favourite channel lists from various
broadcasters.

Select a channel to add or remove from the list.

: Encrypted channel)

(

Favourites Edit

4

Digital

40

Digital
901
902

OK

Analogue

Analogue

Select

: Add
: Remove

Add / Remove

[Skip]

Skips or hides unwanted channels.

Select a channel, then reveal / hide.

Skip

4

Digital

40

Digital
901
902

OK

Analogue

Analogue

Select

Access

: Hide (skip)
: Reveal

16

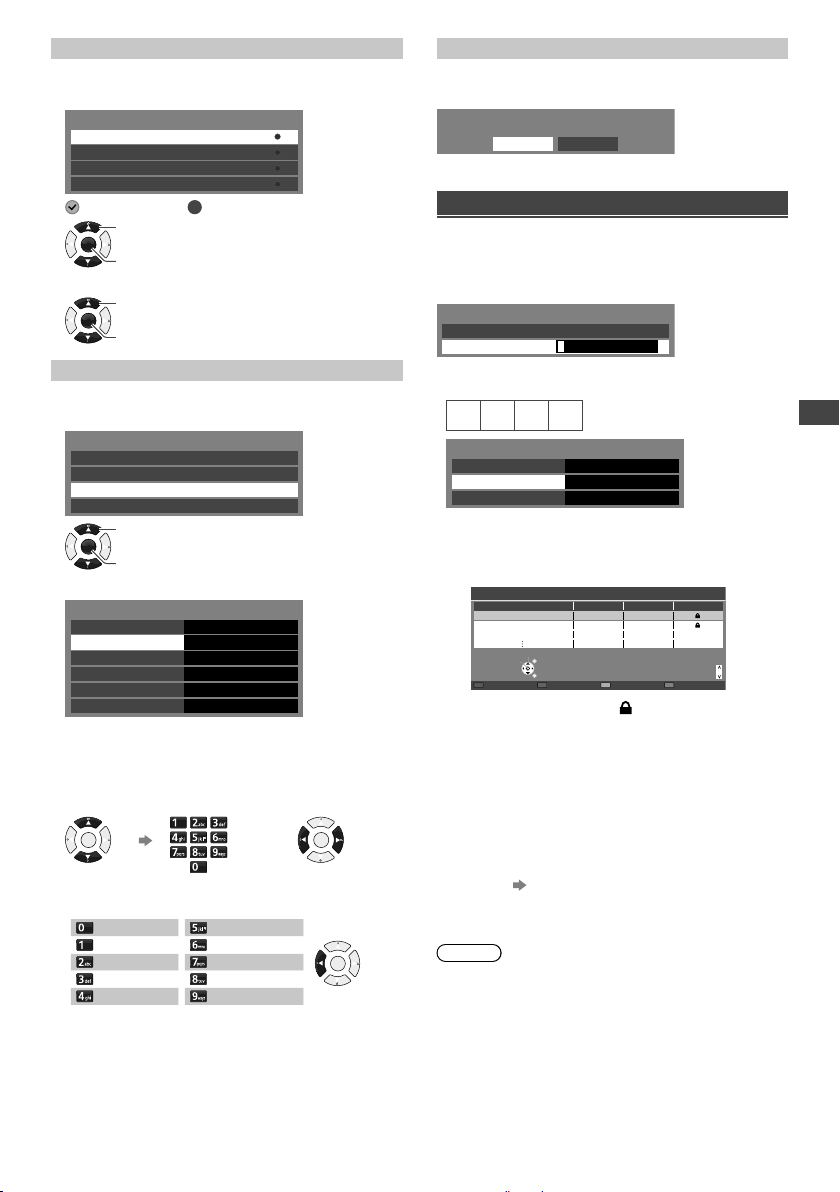

[Sort]

Sorts channels.

1 Select a channel

Sort

4

Digital

40

Digital

901

Analogue

902

Analogue

: Selected

Select

OK

: Unselected

Access

2 Swap the channel position (if available).

Select

OK

Access

[Channel List Edit]

Edits channel settings.

1 Select a channel.

Channel List Edit

4

Digital

40

Digital

901

Analogue

902

Analogue

Select

OK

Access

2 Edit the channel settings.

Channel List Edit

Network Name

Channel

Channel Name
Frequency (MHz)
Colour System
Sound System B/G

• You cannot change the [Network Name].

• [Frequency], [Colour System] and [Sound System]
edit are available for Analogue channels only.

Select an
item.

OK

Enter the new
settings.

• You can set the characters by using the numeric and
cursor buttons as follows:



0
. ! : # 1 M N O 6
A B C 2 P Q R S 7
D E F 3 T U V 8
G H I 4 W X Y Z 9

Auto

901

48.25

J K L 5

or

Change the
settings.

OK

OK

Backspace

[Clear block]

Clears the entire channel list.

Select [OK] to clear.

Are you sure?

OK Cancel

Setting [Child Lock]

You can lock specific channels / AV input terminals.
When the locked channel / input is selected, a message
appears. Enter the PIN number to watch.

Enter the PIN number (4 digits).

Child Lock-PIN Entry

Please enter new PIN

PIN

●

Enter the PIN number twice at first setting.

●

Write your PIN number here in case you forget it.

Child Lock

Change PIN

Child Lock List

Parental Rating

* * * *

Access

No Block

■ To lock channels or inputs

1 Select [Child Lock List].
2 Select a channel / input, then lock it.

Child Lock List - TV and AV

Name Input Type Lock

7 BBC 1 Wales

14 BBC THREE

101 E4C

Select

Lock

TV TV
TV TV
TV TV

EXIT

RETURN

Lock all Unlock all

Page up

Page down

( : Locked input / channel)

■ To change the PIN number

1 Select [Change PIN].
2 Enter a new PIN number twice.

■ To set parental rating

To watch the Digital TV programme that has rating
information over the selected age, enter the PIN
number (depending on the broadcaster).
The availability of this function depends on the area
you select

1 Select [Parental Rating].
2 Select the block setting.

Note

●

Setting [Shipping Condition] (p. 15) erases the PIN
number and all settings.

(p. 9).

Using the Menu Functions

17

Performing [System Update]

BBC

To update automatically

Set [Auto Download] and [Auto Install] to [Yes].

Setup

Manual OAD Download

Auto Download

Auto Install

●

Once you have set the option, the TV automatically
performs a search and download any available update.

●

The automatic update can also perform when the TV
is in Standby.

If [System Update] is performed, the software will
be updated (it may change TV functions).
If you do not want to do so, set [Auto Install] to
[No].

Yes

Yes

To update immediately

1 Select [Manual OAD Download].

Setup

Manual OAD Download

Auto Download

Auto Install

The TV searches for an update (several minutes) and
displays a corresponding message, if any.

Access

No

No

2 Download the update.

Note

●

Download may take more than 10 minutes.

●

During software download and update, DO NOT switch
off the TV.

●

The notification message might be a reminder. In this
case, the schedule information (the date that the new
version can be used) will appear. You can set the
reservation for update.

Using the Menu Functions | Additional Information

Additional
Information

Auto power standby function

The TV will automatically go into Standby mode in the
following conditions:

●

[Off Timer] is active in the [Timer] menu (p. 15).

●

No operation is performed for the period selected in
[Auto Standby] (p. 15).

Information banner

Example : Digital TV

4

BBC

1 Channel position and name
2 Programme details
3 Channel type ([Radio], [Data], etc.) /

Encrypted channel ( )

4 Programme
5 Programme Start / Finish time (Digital TV)

Channel number, etc. (Analogue TV)

6 Input signal
7 Current time

Icon / Message Meaning

[Encrypted] Scrambled programme
[Dolby Digital] Dolby Digital audio track

STTL

TTX

[ST], [Dual],
[Mono]

1 - 90 Off Timer remaining time

3214 756

Coronation Street
20:00-21:00

◄ Now ►

Sound mute On

Subtitle service available

Teletext service available

Audio mode

Exit info

1080i HD

Dolby Digital - 3/2, ST

■ To display extra information (Digital TV)

INFO

(Press again to hide the banner.)

Aspect

■ [16:9]

Directly displays the image at 16:9 without distortion
(anamorphic).

– For Digital Broadcast channels, image will be

displayed based on broadcasted channel aspect ratio.

■ [14:9]

Displays the image at the standard 14:9 without
distortion.

■ [Just]

Displays a 4:3 image full-screen. Stretching is only
noticeable at the left and right edges.

■ [4:3]

Displays the image at the standard 4:3 without
distortion.

■ [4:3 Full]

Displays a 4:3 image enlarged horizontally to fit the
screen.

– For HD (High definition) signals only

■ [Zoom1]

Displays a 16:9 letterbox or 4:3 image without
distortion.

■ [Zoom2]

Displays a 16:9 letterbox (anamorphic) image full­screen without distortion.

20:05

18

■ [Zoom3]

Displays a 2.35:1 letterbox (anamorphic) image full­screen without distortion. At 16:9, displays the image at
its maximum (with slight enlargement).

Input signal that can be displayed

Signal name COMPONENT HDMI

525 (480) / 60i, 60p

625 (576) / 50i, 50p

750 (720) / 60p, 50p

1,125 (1,080) / 60i, 50i

1,125 (1,080) / 60p, 50p, 24p

Mark : Applicable input signal

●

Signals other than above may not be displayed
properly.

●

The above signals are reformatted for optimal viewing
on your display.

Supported file format in Media Player

■ Photo

JPEG (.jpg, .jpeg)

– Supported resolution: 8 × 8 to 30,719 × 17,279
– DCF and EXIF standards
– Sub-sampling: 4:4:4, 4:2:2, 4:2:0
– Progressive JPEG is not supported.

■ Music

MP3 (.mp3) / AAC (.m4a)
LPCM (.wav) / FLAC (.flac)



/ WMA (.wma)



/

■ Video



AVI (.avi)
MP4 (.f4v, .m4v, .mp4) / FLV (.flv) / 3GPP (.3gp,
.3g2) / TS (.mts, .m2ts, .tp, .trp, .ts, .tts) / PS (.mod,
.mpg, .mpeg, .vob, .vro)



Copy-protected files cannot be played back.



WMA Pro and WMA Lossless are not supported.



Some subtitles or chapter functions may not be
available.



This TV supports this container recorded with
Panasonic products. For details, read the manual of
the products.

/ MKV (.mkv) / ASF (.asf, .wmv)



■ Subtitles

MicroDVD, SubRip, TMPlayer (.srt, .sub, .txt)

– The video file and subtitles text file are inside the

same folder, and the file names are the same except
for the file extensions.

– If there are more than one subtitles text file inside

the same folder, they are displayed in the following
order of priority: “.srt”, “.sub”, “.txt”.

Note

●

Even if these conditions are fulfilled, some files may
not play depending on how they are encoded.

●

Do not use two-byte characters or other special codes
for data.

●

Connected devices may become unusable with this TV
if the file or folder names are changed.

HDMI connection

This TV incorporates HDMI™ technology. HDMI
(high-definition multimedia interface) is the world’s first
complete digital consumer AV interface complying with
a non-compression standard.
HDMI allows you to enjoy high-definition digital images
and high-quality sound by connecting the TV and the
equipment.

■ Applicable HDMI features

●

Input audio signal:
2ch Linear PCM (sampling frequencies - 48 kHz,

44.1 kHz, 32 kHz)

●

Input video signal:

“Input signal that can be displayed” (p. 19)

Match the output setting of the digital equipment.

●

Audio Return Channel



(HDMI 2 terminal only)

■ DVI connection

If the external equipment has only a DVI output, connect
to the HDMI terminal via a DVI to HDMI adaptor cable.
When the DVI to HDMI adaptor cable is used, connect
the audio cable to the audio input terminal (use AV IN
AUDIO terminals).

Note

●

Audio settings can be made on [HDMI 1/2
Input(HDMI)] in the [Sound] menu.

●

These HDMI connectors are “type A”.

●

These HDMI connectors are compatible with HDCP
(High-Bandwidth Digital Content Protection) copyright
protection.

●

Equipment having no digital output terminal may be
connected to the input terminal of component or video
to receive analogue signals.



Audio Return Channel (ARC) is a function to send
digital sound signals via an HDMI cable.

/

USB Flash Memory

For playing back in Media Player
Format: FAT16, FAT32
Compliance:

Supports only USB1.1 or USB2.0 standard.
Maximum USB capacity supported is 16GB.
USB Hub or card adapter is not supported.

Note

●

Data modified with a PC may not be displayed.

●

Do not remove the device while the TV is accessing
data. Otherwise this can damage the device or TV.

●

Do not touch the pins on the device.

●

Insert the device in the correct direction. Otherwise this
can damage device or TV.

●

Electrical interference, static electricity, or erroneous
operation may damage the data or device. Panasonic
is not liable for any deterioration or damage of data or
device during operations with the TV.

●

It is recommended to connect the USB Flash Memory
directly to the TV’s USB port.

●

Some USB devices or USB HUB may not be used with
this TV.

●

You cannot connect any devices by using USB card
reader.

●

Additional information for USB devices may be on the
following website. (English only)
http://panasonic.net/viera/support

Additional Information

19

Troubleshooting

Before requesting service or assistance, please follow
these simple guides to resolve the problem.
If an error message appears, follow the message’s
instructions.
If the problem still persists, please contact your local
Panasonic dealer for assistance.

Screen

Red, blue, green or black spots on the
screen.



This is the characteristic of liquid crystal panels. The
liquid crystal panel is built with very high precision
technology. Occasionally, a few non-active pixels
may appear on the screen as points of red, green,
blue or black. This does not affect the performance
of your TV and it is not a quality problem.

Chaotic image, noisy.



Set [P-NR] in the [Picture] menu to remove noise
(p. 8).



Check nearby electrical products (car, motorcycle,
fluorescent lamp).

No image is displayed.



Check the settings of [Contrast], [Brightness] or
[Colour] in the [Picture] menu (p. 8).



Check the TV is in AV mode. If the TV is in AV mode,
check the selected input mode match the output of
the external equipment (p. 11).

Blurry or distorted image.

(No sound or low volume.)



Reset channels. (p. 16)

Unusual image is displayed.



Turn the TV off with Mains power On / Off switch
(p. 9), then turn it on again. If the problem
persists, initialise all settings. [Shipping

Condition] (p. 15)

Pictures from equipment connected via
HDMI are unusual.



Check the HDMI cable is connected properly.



Turn the TV and equipment off, then turn them on
again.



Check an input signal from the equipment (p. 19).



Use equipment compliant with EIA/CEA-861/861D.

Sound

No sound is produced.



Check the sound mute setting (p. 10) and volume.

Low level or distorted sound.



Sound signal reception may be deteriorated.

Sound output via HDMI connection is
unusual.



Set the sound setting of the connected equipment to
“2ch L.PCM”.



Check the [HDMI 1/2 Input(HDMI)] setting in the
[Sound] menu (p. 14).



If digital sound connection has a problem, select
analogue sound connection (p. 19).

General

The TV goes into Standby mode.



This TV is equipped with auto power standby
function (p. 18).

The remote control does not work or is
intermittent.



Replace the batteries (p. 5).



Point the remote control directly at the remote
control signal receiver of the TV (within about 7 m
and 30 degree angle).



Situate the TV away from sunshine or block sources
of bright light from shining on the remote control
signal receiver of the TV.

Parts of the TV become hot.



Even if the temperature of parts of the front, top and
rear panels has risen, these temperature rises do
not cause any problems in terms of performance or
quality.

The TV panel moves slightly when it is
pushed with a finger.

Clattered sound might be heard.



There is some flexibility around the panel to prevent
damage. This is not a malfunction.

Overcurrent error message appears.



The connected USB device might cause this error.
Remove the device and turn the TV off with Mains
power On / Off switch, then turn it on again.



Check foreign objects are not inside the USB port.

Troubleshooting

20

Maintenance

Specifications

First, remove the mains plug from the socket
outlet.

Regular care

●

Gently wipe the surface of the display panel, cabinet
and pedestal by using a soft cloth.

●

Wipe the mains plug with a dry cloth at regular
intervals. Moisture and dust may lead to fire or
electrical shock.

For stubborn dirt

First clean the dust on the surface. Dampen a soft cloth
with clean water or diluted neutral detergent (1 part
detergent to 100 parts water). Wring the cloth and wipe
the surface. Finally, wipe away all the moisture.

Caution

●

Do not use a hard cloth or rub the surface too hard as
this could scratch the surface.

●

Do not subject the TV’s surfaces to water or detergent.
Liquid inside the TV could lead to product failure.

●

Do not subject the surfaces to insect repellent, solvent,
thinner or other volatile substances. This may degrade
surface quality or cause peeling of the paint.

●

The surface of the display panel is specially treated
and may be easily damaged. Take care not to tap or
scratch the surface with your fingernail or other hard
objects.

●

Do not allow the cabinet and pedestal to make contact
with a rubber or PVC substance for a long time. This
may degrade surface quality.

Model no.

TH-40D400A

TH-40D400Z

Power

Rating

AC 220 - 240 V, 50/60 Hz 0.60 A

Normal (Home) mode

43.9 W

Standby power consumption

0.25 W

Display panel

Panel

LCD panel (LED backlight)

Visible screen size (diagonal)

100 cm

Display resolution

1,920 (W) × 1,080 (H)

Dimensions (W × H × D)

902 mm × 569 mm × 238 mm (With Pedestal)
902 mm × 522 mm × 88 mm (TV only)

Mass

8.5 (With Pedestal)
(TV only)

8.0

Connection terminals

AV IN (COMPONENT / VIDEO)

VIDEO

RCA PIN Type × 1, 1.0 V[p-p] (75 )

AUDIO L - R

RCA PIN Type × 2, 0.5 V[rms]

Y

1.0 V[p-p] (including synchronisation)

P

B/CB, PR/CR

±0.35 V[p-p]

HDMI 1 / 2 input

TYPE A Connectors

USB

USB 2.0 TYPE A Connectors

5 V, Max. 500 mA

DC

DIGITAL AUDIO OUT

PCM / Dolby Digital / Fibre optic

Maintenance | Specifications

21

Sound

Audio output

20 W (10 W + 10 W)

Receiving systems / Band name

Digital TV

7 MHz VHF / UHF (Australia) free-to-air

TV broadcast reception

8 MHz UHF (New Zealand) free-to-air

TV broadcast reception

PAL B / G

Reception of Off air broadcasts

PAL 60 Hz

Playback of NTSC tape from some PAL Video
recorders (VCR)

M.NTSC

Playback from M.NTSC Video recorders (VCR)

NTSC

Playback from NTSC Video recorders (VCR)

Aerial input

Standard Belling & Lee connector

VHF / UHF

Operating conditions

Temperature

0 °C - 35 °C

Humidity

20 % - 80 % RH (non-condensing)

Note

●

Design and Specifications are subject to change
without notice. Mass and Dimensions shown are
approximate.

This product incorporates the following software:
(1) the software licensed under the GNU General

Public License, Version 2.0 (GPL V2.0) and/or,

(2) open sourced software other than the software

licensed under the GPL.
The software categorized as (1) - (2) are distributed
in the hope that it will be useful, but WITHOUT
ANY WARRANTY, without even the implied
warranty of MERCHANTABILITY or FITNESS FOR
A PARTICULAR PURPOSE. Please refer to the
detailed terms and conditions thereof shown in the
“Software License” menu on this product.
At least three (3) years from delivery of this product,
Panasonic Corporation will give to any third party who
contacts us at the contact information provided below,
for a charge no more than our cost of physically
performing source code distribution, a complete
machine-readable copy of the corresponding source
code covered under GPL V2.0 or the other licenses
with the obligation to do so, as well as the respective
copyright notice thereof.

Contact Information: [e-mail]

The source code and the copyright notice are also
available for free in our website below.

http://www.unipf.jp/dl/DTV13ET/

Specifications

22

ytnarraW

1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty Panasonic or its
Authorised Service Centre will perform necessary service on the product without charge for parts or labour, if in the opinion of
Panasonic, the product is found to be faulty within the warranty period.

2.

This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or its Authorised Distributors or

Dealers and only where the products are used and serviced within Australia or it's territories. Warranty cover only applies to service carried
out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented when warranty service is requested.

3. This warranty only applies if the product has been installed and used in accordance with the manufacturer’s recommendations (as noted
in the operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty covers normal domestic
use only and does not cover damage, malfunction or failure resulting from use of incorrect voltages, incorrect installation, accident,
misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems, thunderstorm activity,
infestation by insects or vermin, tampering or repair by unauthorised persons (including unauthorised alterations), introduction of sand,
humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, exposure to abnormally
corrosive conditions or any foreign object or matter having entered the product.

4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:

(b) Video or Audio Tapes (f) Video / Audio Heads from wear and tear in normal use
(c) SD cards or USB devices (g) Information stored on Hard Disk Drive, USB stick or SD card
(d) User replaceable Batteries (h) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s)
etc

5. Some products may be supplied with Ethernet connection hardware. The warranty is limited on such products and will not cover

(a) Internet and or DLNA connection / setup related problems
(b) Access fees and or charges incurred for internet connection
(c) The use of incompatible software or software not specifically stipulated in the product operations manual; and

(d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its connection to the internet or

any other device.

6. To claim warranty service, when required, you should:

 Telephone Panasonic’s Customer Care Centre on 132600 or visit our website referred to below and use the Service Centre Locator

for the name/address of the nearest Authorised Service Centre.

 Send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase receipt as a proof of purchase

date. Please note that freight and insurance to and / or from your nearest Authorised Service Centre must be arranged by you.

 Note that home or pick-up/delivery service is available for the following products in the major metropolitan areas of Australia or the

normal operating areas of the nearest Authorised Service Centres:

- Plasma/LCD televisions / displays (screen size greater than 103 cm)

7. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-installation or
re-installation of a product, including costs related to the mounting, de-mounting or remounting of any screen, (and any other ancillary
activities), delivery, handling, freighting, transportation or insurance of the product or any part thereof or replacement of and do not
extend to, and exclude, any damage or loss occurring by reason of, during, associated with, or related to such installation,
de-installation, re-installation or transit.

Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia, however, coverage
will vary dependant on product. For advice on exact Authorised Service Centre locations for your product, please telephone our Customer
Care Centre on 132600 or visit our website and use the Service Centre Locator.

In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded under the
Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have a refund or to have the
product replaced or if you wish you may elect to keep the goods and be compensated for the drop in value of the goods. You are also entitled
to have the product repaired or replaced if the product fails to be of acceptable quality and the failure does not amount to a major failure.

If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by contacting
the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may choose to repair or replace the
product and will do so in a reasonable period of time from receiving notice from you.

scsiD elbadroceR ro ,yar-ulB ,DVD )e( )s(traP tenibaC )a(

THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)

SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES

If you require assistance regarding warranty conditions or any other enquiries, please visit the

Panasonic Australia website www.panasonic.com.au or contact by phone on 132 600

If phoning in, please ensure you have your operating instructions available.

Panasonic Australia Pty. Limited

ACN 001 592 187 ABN 83 001 592 187

PRO-031-F11 Issue: 4.0 01-01-2011

1 Innovation Road, Macquarie Park NSW 2113

23

WARRANTY - New Zealand only

NEW ZEALAND

Distributed in New Zealand by Panasonic New Zealand Limited

350 Te Irirangi Drive East Tamaki, Private Bag 14911, Panmure Auckland

Tel. [phone]

Customer Care Center

Email: [e-mail]

www.panasonic.co.nz

Information on Disposal in other Countries
outside the European Union

This symbol is only valid in the European
Union. If you wish to discard this product,
please contact your local authorities or
dealer and ask for the correct method of
disposal.

Web Site: http://www.panasonic.com

© Panasonic Corporation 2016

Customer’s Record

The model number and serial number of this product
may be found on its rear panel. You should note this
serial number in the space provided below and retain
this book, plus your purchase receipt, as a permanent
record of your purchase to aid in identification in
the event of theft or loss, and for Warranty Service
purposes.

Model Number

Serial Number

F0416-0

Printed in Malaysia
