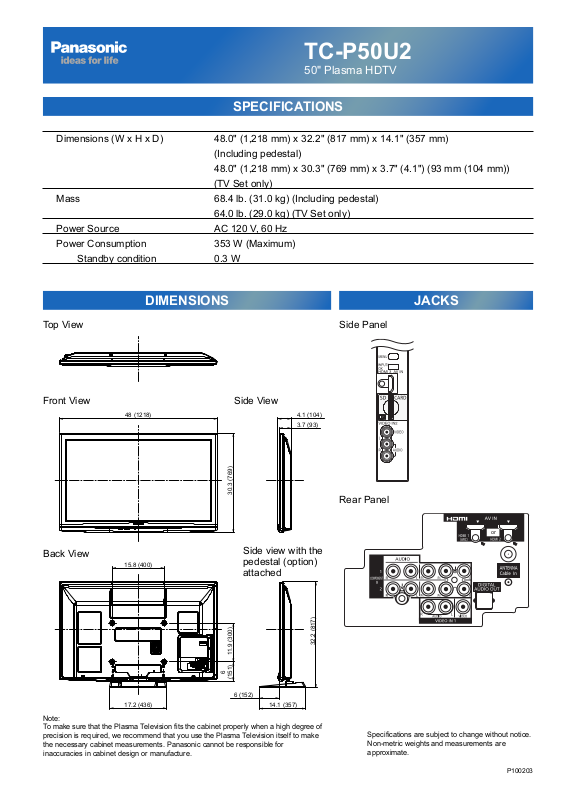

Panasonic tc-p50u2 cut sheet

TC-P50U2

50" Plasma HDTV

SPECIFICATIONS

Dimensions (W x H x D) 48.0" (1,218 mm) x 32.2" (817 mm) x 14.1" (357 mm)

(Including pedestal)

48.0" (1,218 mm) x 30.3" (769 mm) x 3.7" (4.1") (93 mm (104 mm))

(TV Set only)

Mass 68.4 lb. (31.0 kg) (Including pedestal)

64.0 lb. (29.0 kg) (TV Set only)

Power Source AC 120 V, 60 Hz

Power Consumption 353 W (Maximum)

Standby condition 0.3 W

DIMENSIONS JACKS

Top View

Front View

Back View

48 (1218)

15.8 (400)

Side Panel

Side View

4.1 (104)

3.7 (93)

30.3 (769)

Rear Panel

or

Side view with the
pedestal (option)
attached

32.2 (817)

11.9 (300)

6

(151)

6 (152)

17.2 (436)

Note:
To make sure that the Plasma Television fits the cabinet properly when a high degree of
precision is required, we recommend that you use the Plasma Television itself to make
the necessary cabinet measurements. Panasonic cannot be responsible for
inaccuracies in cabinet design or manufacture.

14.1 (357)

Specifications are subject to change without notice.
Non-metric weights and measurements are
approximate.

P100203
