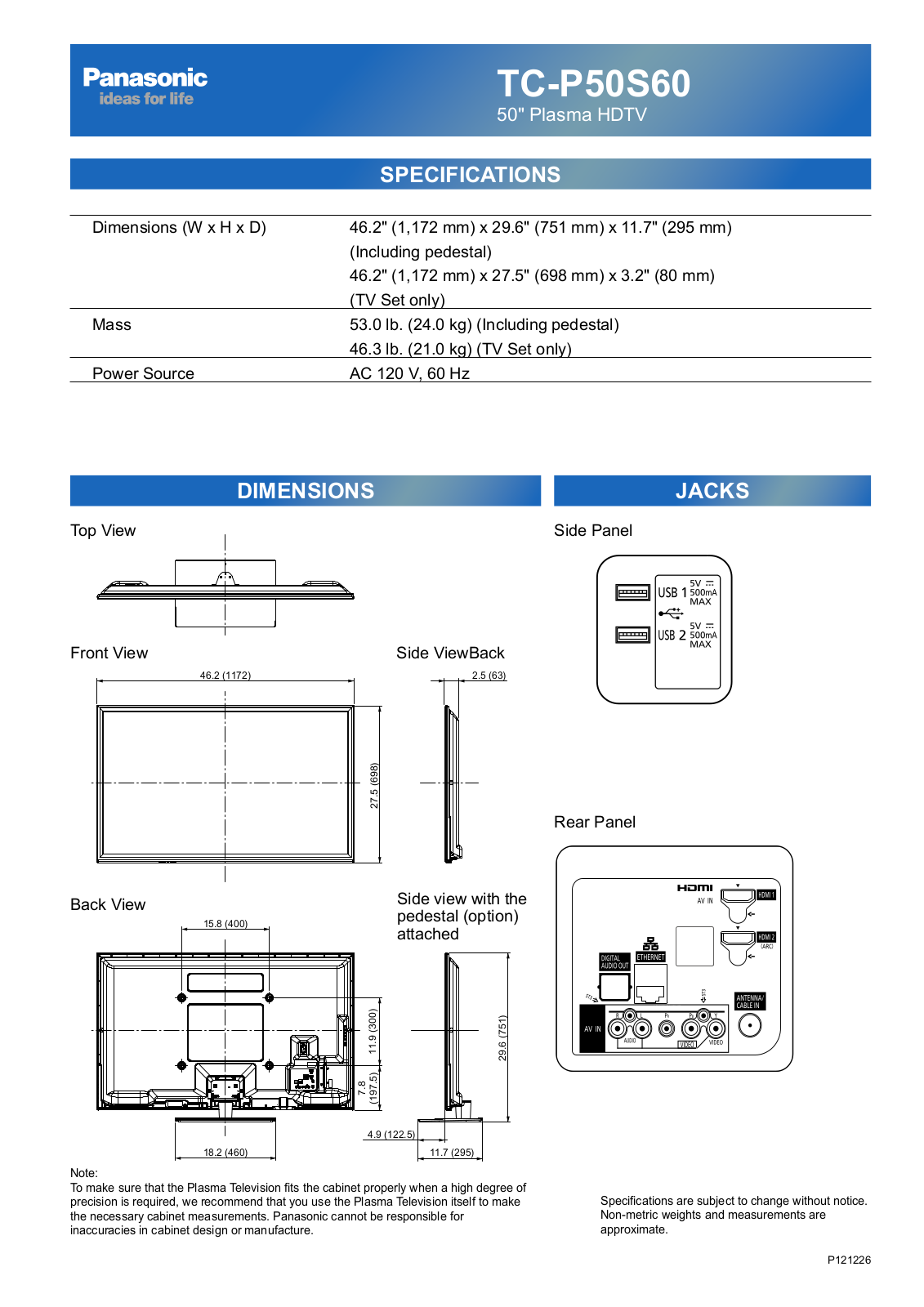

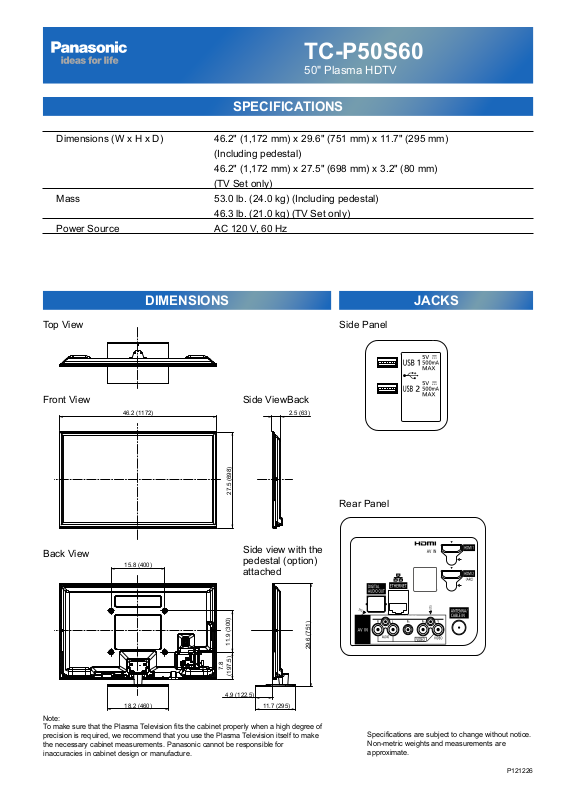

TC-P50S60
50" Plasma HDTV
SPECIFICATIONS
Dimensions (W x H x D) 46.2" (1,172 mm) x 29.6" (751 mm) x 11.7" (295 mm)
(Including pedestal)
46.2" (1,172 mm) x 27.5" (698 mm) x 3.2" (80 mm)
(TV Set only)
Mass 53.0 lb. (24.0 kg) (Including pedestal)
46.3 lb. (21.0 kg) (TV Set only)
Power Source AC 120 V, 60 Hz
DIMENSIONS JACKS
Top View
Front View
Back View
46.2 (1172)
15.8 (400)
Side Panel
Side ViewBack
2.5 (63)
27.5 (698)
Rear Panel
Side view with the
pedestal (option)
attached
11.9 (300)
7.8
(197.5)
4.9 (122.5)
18.2 (460)
Note:
To make sure that the Plasma Television fits the cabinet properly when a high degree of
precision is required, we recommend that you use the Plasma Television itself to make
the necessary cabinet measurements. Panasonic cannot be responsible for
inaccuracies in cabinet design or manufacture.
11.7 (295)
29.6 (751)
Specifications are subject to change without notice.
Non-metric weights and measurements are
approximate.
P121226
